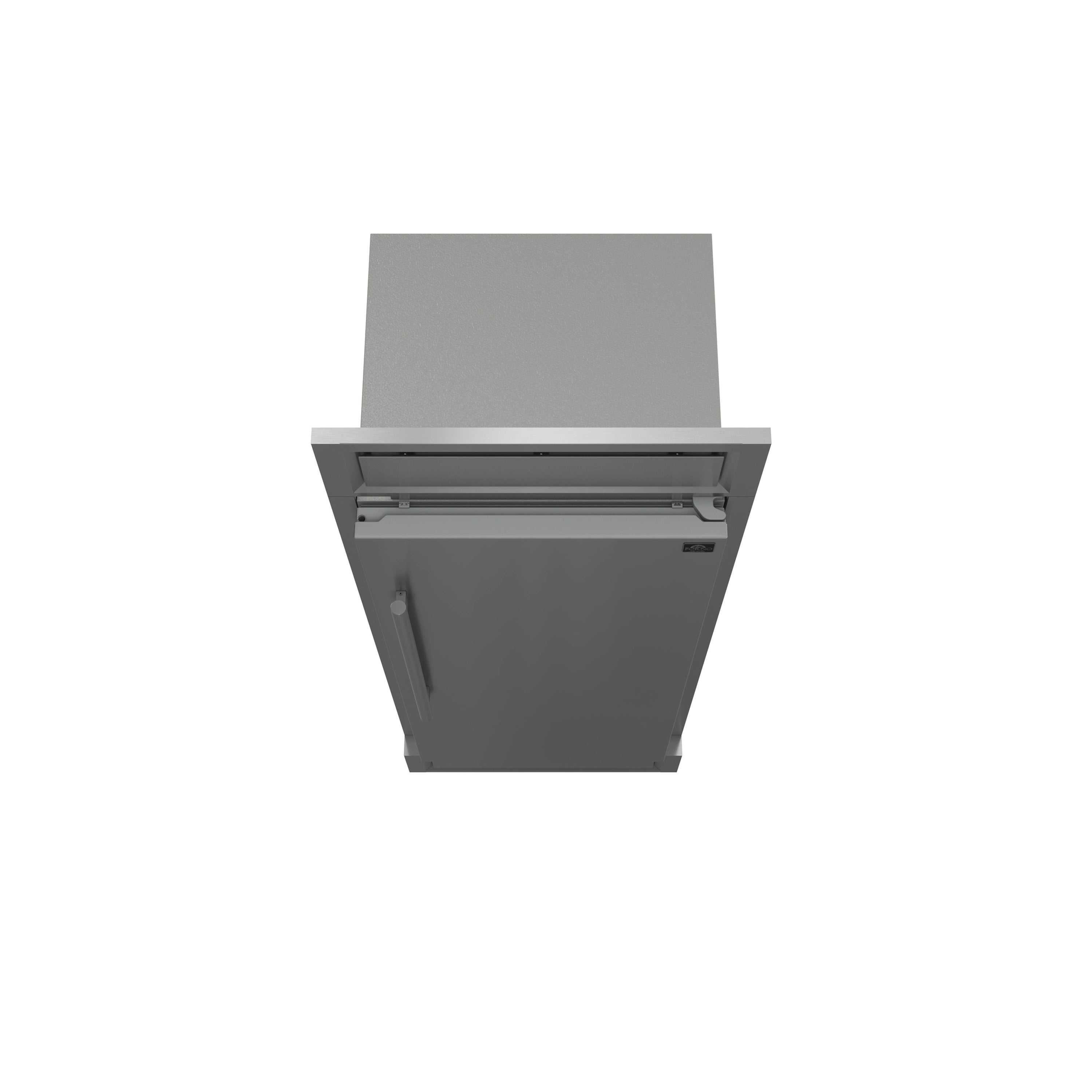

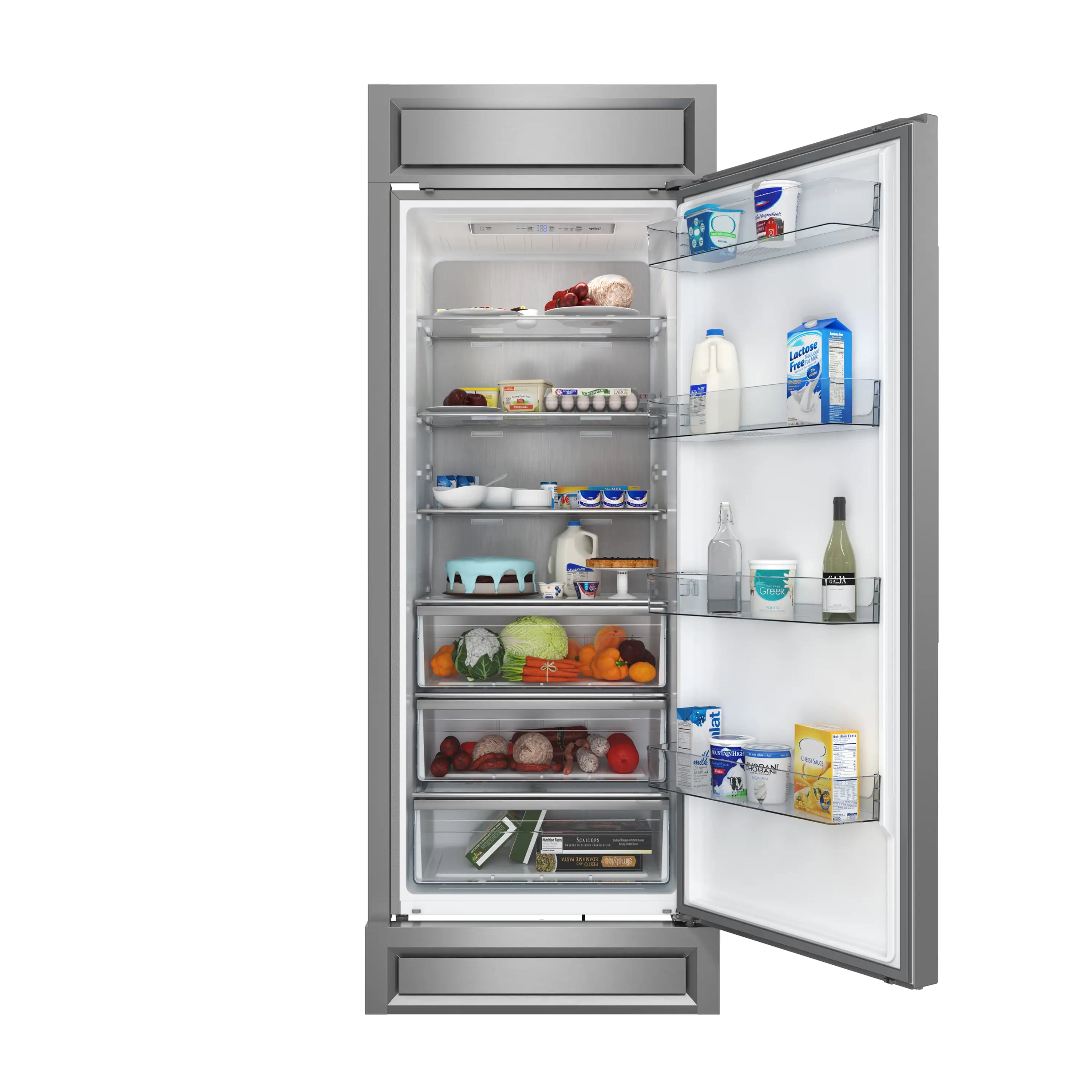

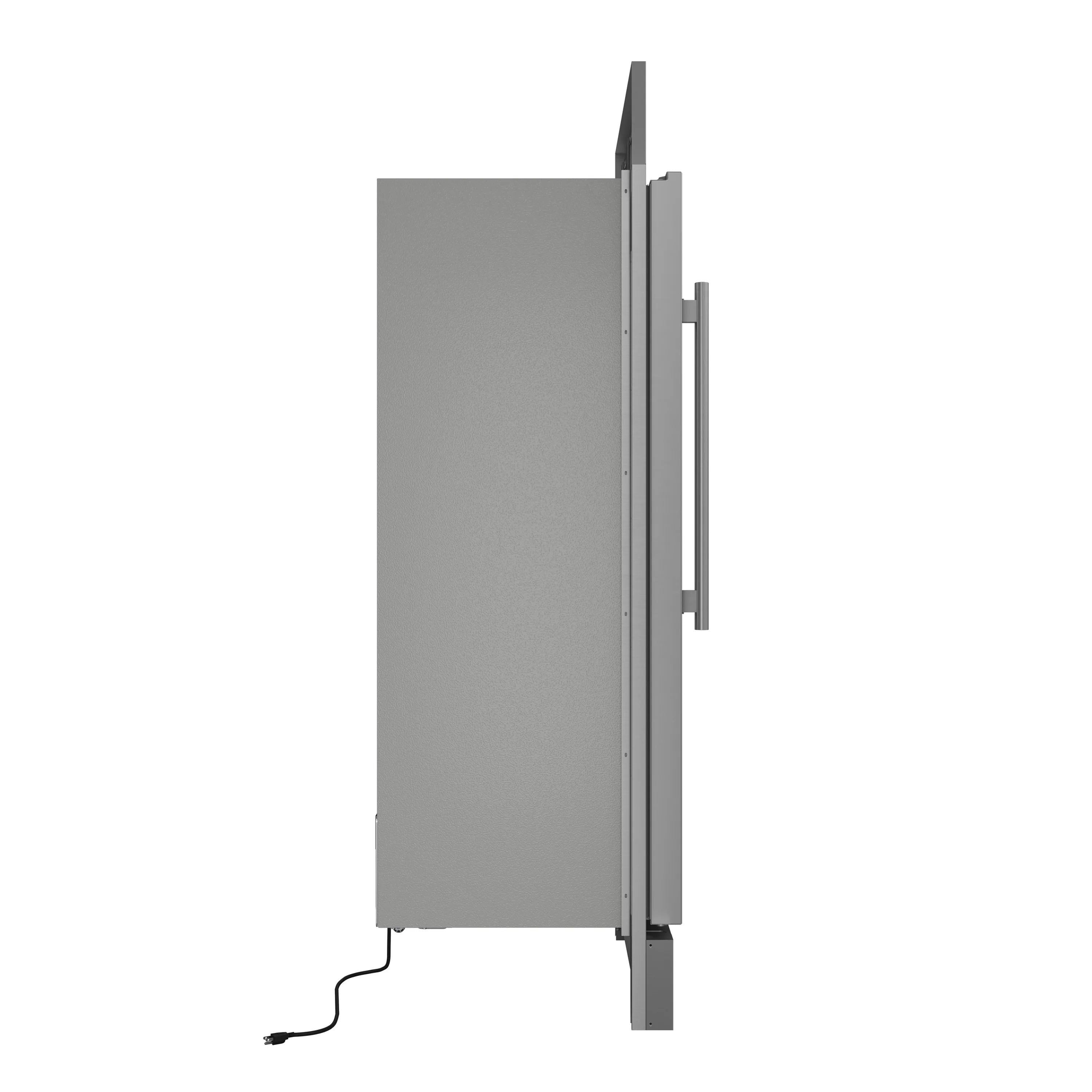

The Forno Maderno 28 Inch 13.6 cu.ft. convertible refrigerator, upgraded with a decorative grill to a 32 Inch width and a built-in appearance, harmoniously combines style with convenience. Enjoy customizable cooling with its convertible function and avoid defrosting thanks to total no frost technology. The metal multi airflow system ensures consistent freshness, while the swing door design integrates seamlessly into your kitchen. Elegant glass shelves with silver trim and practical plastic door balconies enhance appeal and storage.

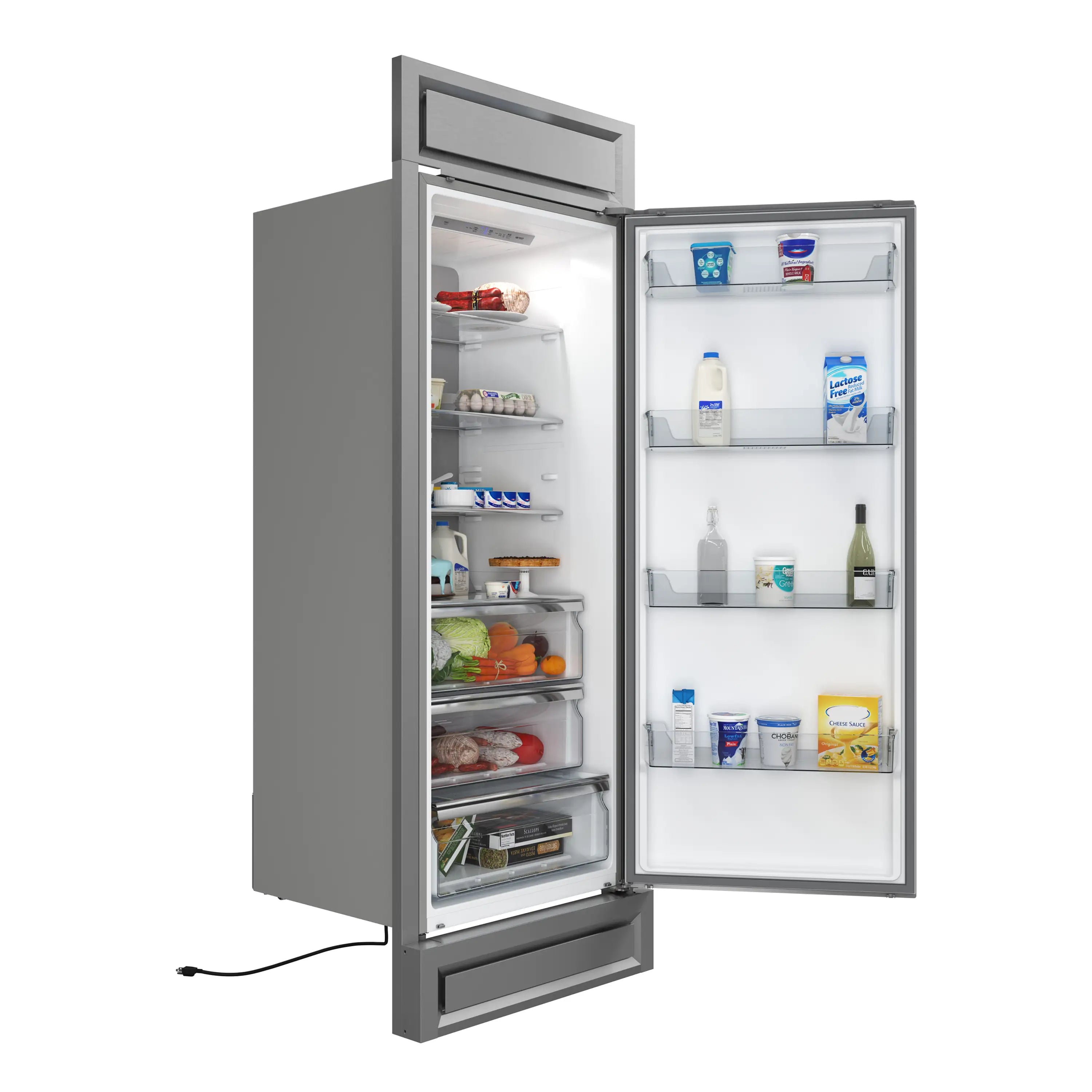

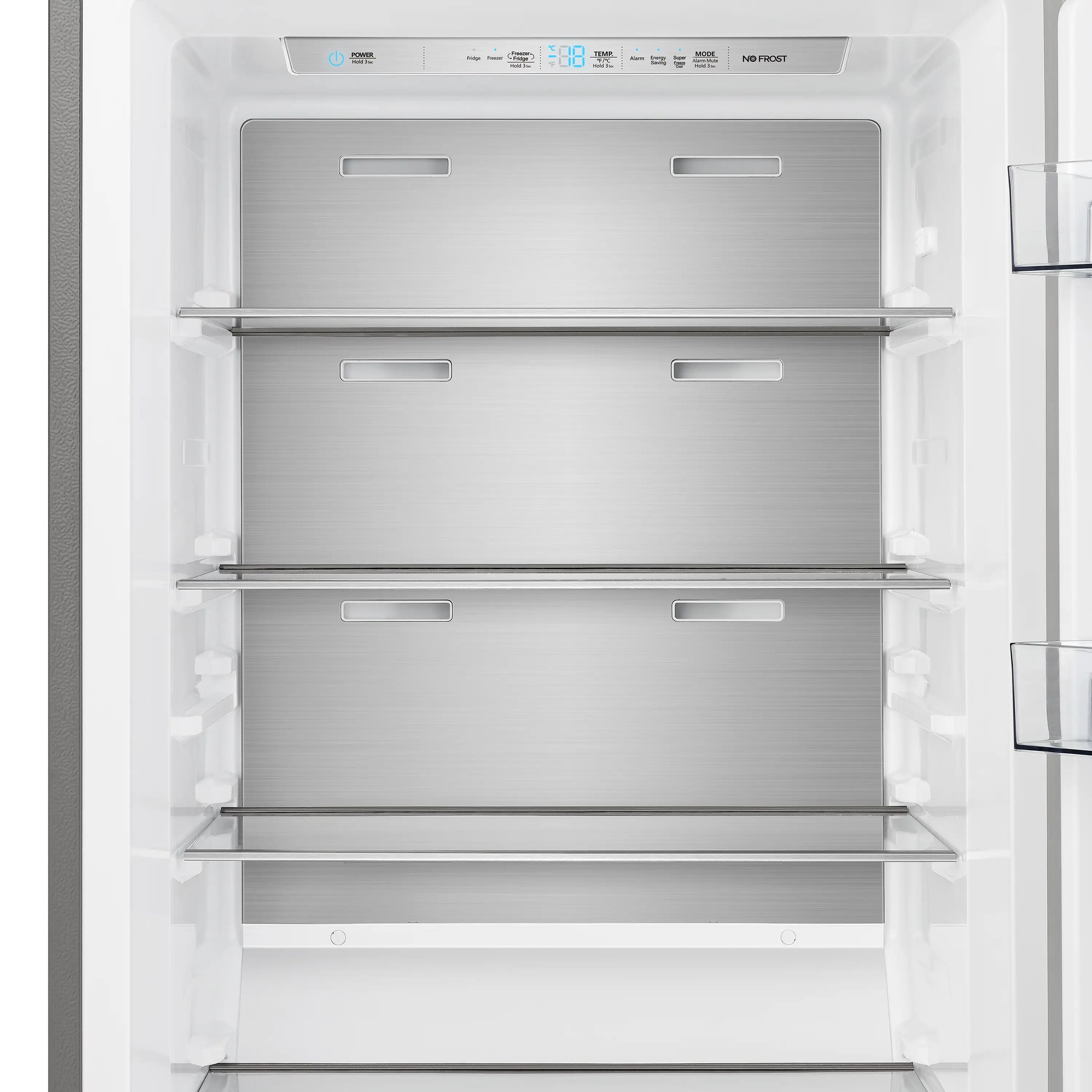

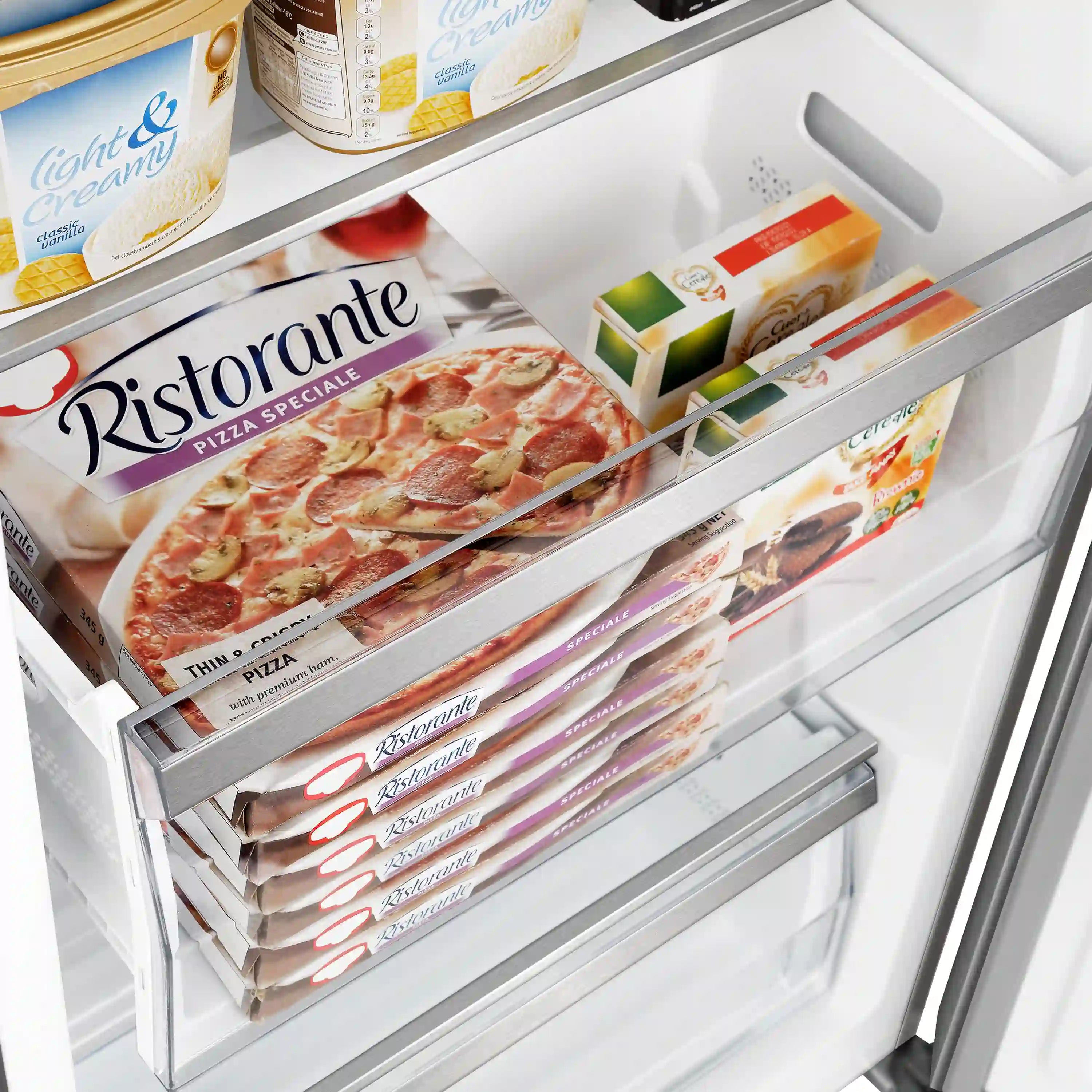

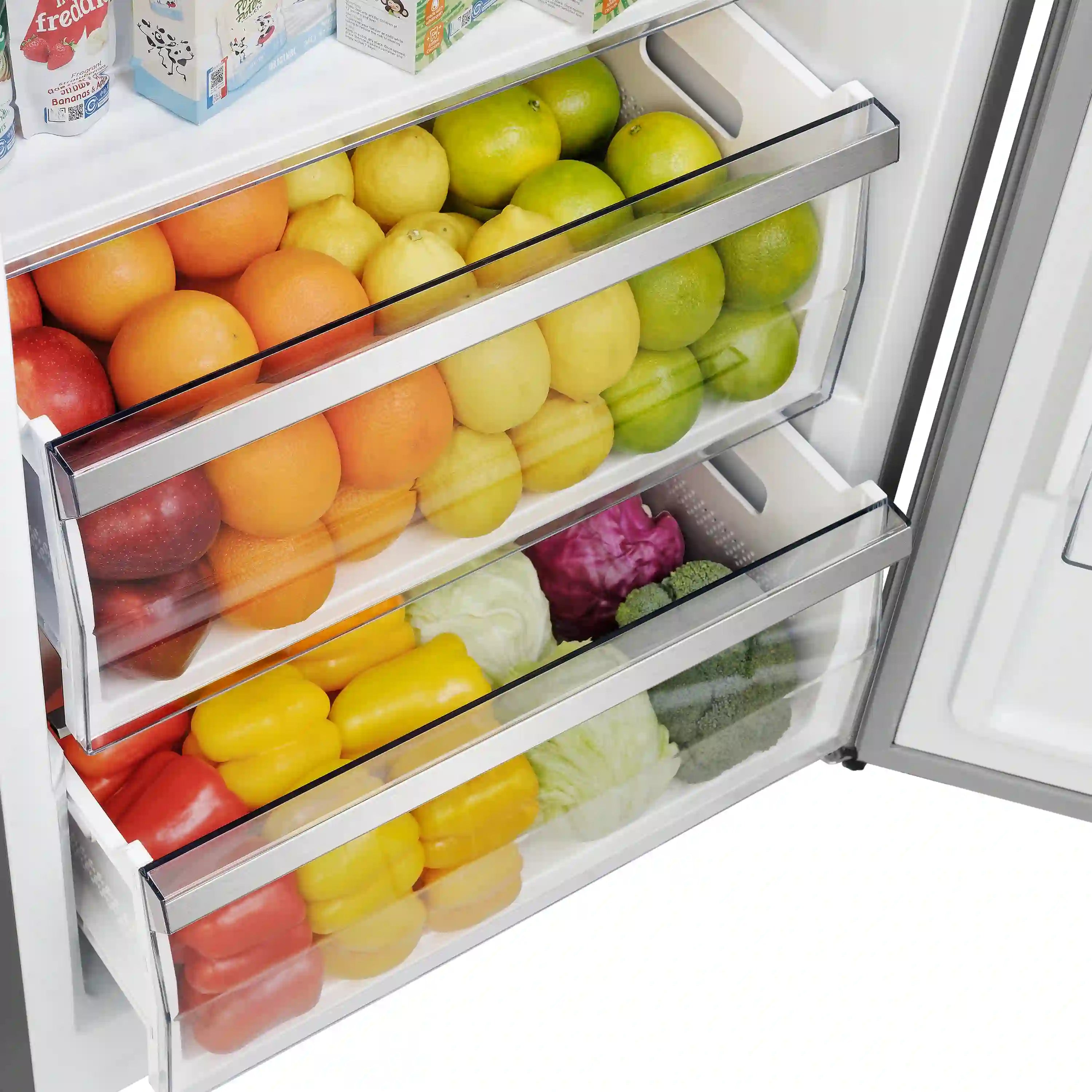

Effortlessly switch between Fahrenheit and Celsius with the temperature control feature. Brilliant LED lighting aids in locating items. Three glass shelves and three plastic drawers with silver trim offer flexible storage options. Manage temperature settings easily with the electronic touch control panel. The VCM door panel and metal back ensure durability, and the refrigerator is T Climate Class certified with an E-star energy rating for sustainability.

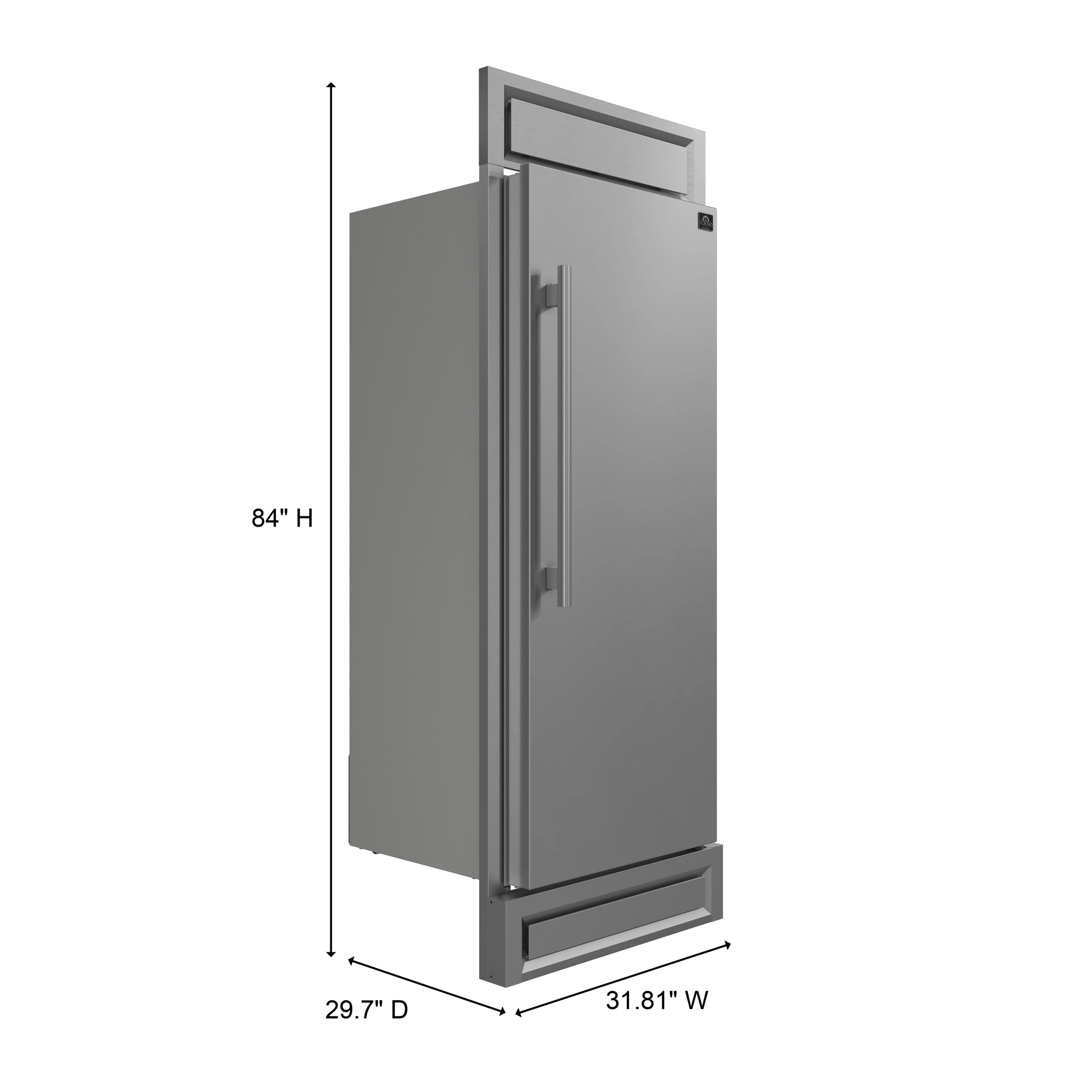

| Overall Dimensions (in) W X D X H |
31.81 X 29.7 X 84 |
| Product Width (In) | 31.81 |
| Product Depth (In) | 29.7 |
| Product Height (In) | 84.0 |
| Refrigerator Depth (no Door) | 23.6 |
| Refrigerator Depth (no Handle) | 27.0 |
| Door Open 90º | 52.64 |
| Sides Clearance (In) | 3.94 |
| Overall Weight (LBS) | 165 + Trim Kit |
| Minimum Back Clearance (In) | 1.96 |
| Minimum Top Clearance (In) | 3.94 |
| Cutout Dimensions (In) W X D X H |
28 X 28.94 X 69.1 |
| Electrical Specifications | |
| Amperage | 15A |
| Voltage | 120V |
| Frequency | 60Hz |
| Energy Consumption (kWh) | 391 |

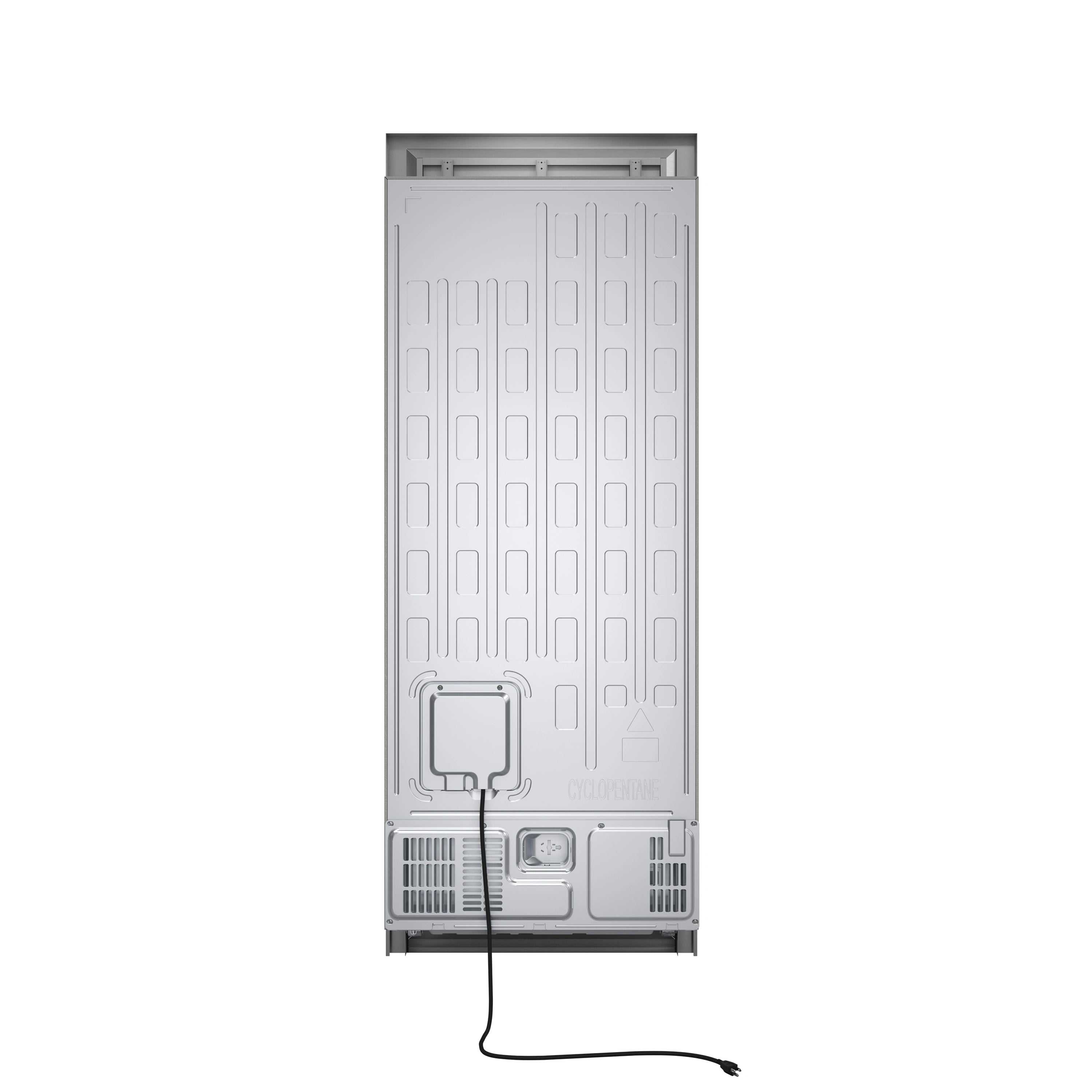

| Power Cord Length (plug excluded) | 5.6 Feet |
| Receptacle Type | "3-Prong Grounded NEMA 5-15" |
| Details | |
| Product Type | Upright |
| Color/Finish | Stainless Steel VCM |
| Installation Type | Built-In |
| Panel Ready | No |
| Overall Capacity Cu. Ft. | 13.6 |
| Door Orientation | Right Hand Open |
| Ice Maker | No |
| Water Dispenser | No |
| External Dispenser | No |
| Interior Light | Yes |
| Defrost Type | Automatic |

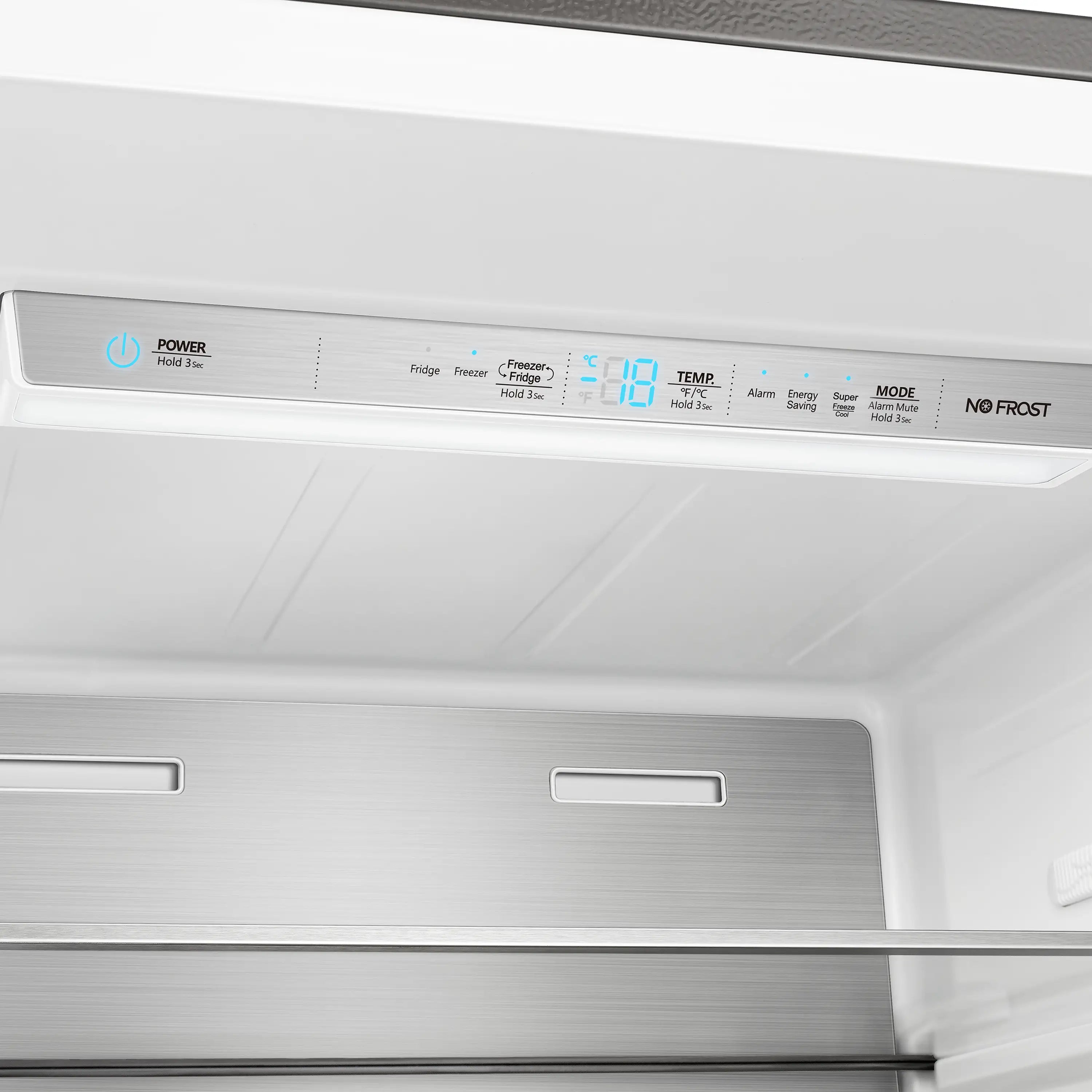

| Control Type | Touch Control |
| Control Location | Internal |
| Temperature Range Refrigerator (°F) | 36°F to 46°F |
| Temperature Range Freezer (°F) | - 11°F to 7°F |
| Temperature Range Refrigerator (°C) | 2°C to 8°C |
| Temperature Range Freezer (°C) | - 24°C to - 14°C |
| Adjustable Shelves | 1 |
| Spill-Proof Shelves | No |
| Auto Door Closer | No |
| Counter Depth | Yes |
| Leveling Legs | Yes |
| Primary Material | Steel |
| Cooling System | Multi Air Flow |
| Compressor Type | Inverter Compressor |
| Door Ajarm Alarm | Yes |
| Garage Ready | No |
| Smudge Resistant | No |
| Filtration System | No |
| Safety Lock | No |
| Display Screen | Yes |
| Sabbath Mode | No |
| Vacation Mode | No |
| Energy Saver Mode | Yes |
| Fast Freeze/Cool Mode | Yes |
| Quiet Operation | Yes |
| Extra Water Filter | Does Not Apply |
| Ice Maker Connector | Does Not Apply |
| Installation Kit | Does Not Apply |
| Power Cord | Yes |
| Supplier Intended and Approved Use | Residential |
| Fresh Food Capacity Cu. Ft. | 13.6 |
| Interior Fresh Food Dimensions | 21.58 X 19.96 X 59.84 |
| Fresh Food drawers | 3 |
| Fresh Food Door Type | Right Swing |
| Fresh Food Shelves | 4 |
| Gallon Door Bins | No |
| Door Bins | 4 |
| Energy Star | Yes |
| ISTA 6A Certified | Yes |
| UL Listed | Yes |
| Contain Gases | R600A |
| Warranty Type | Limited |
| Warranty Length | 2 |
| Warranty on Parts | 2 |
| Warranty on Labor | 2 |
