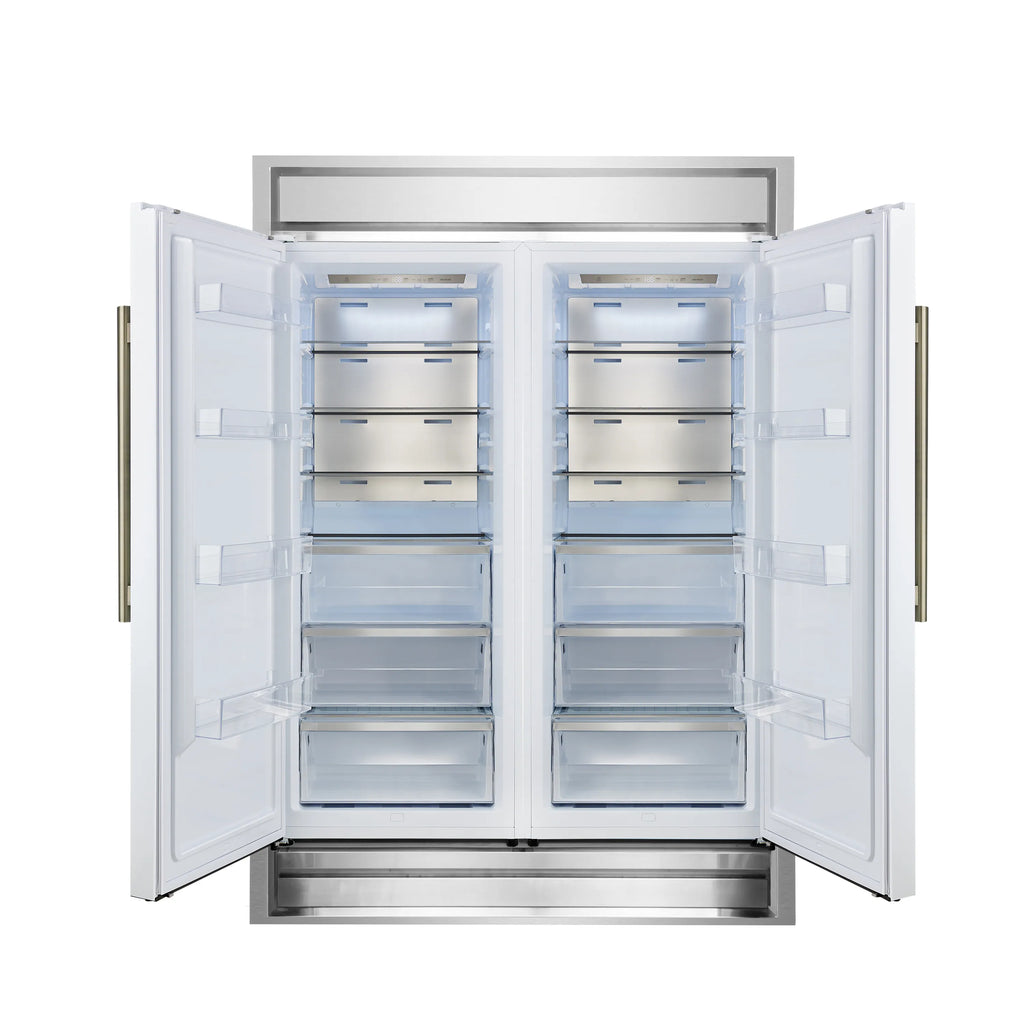

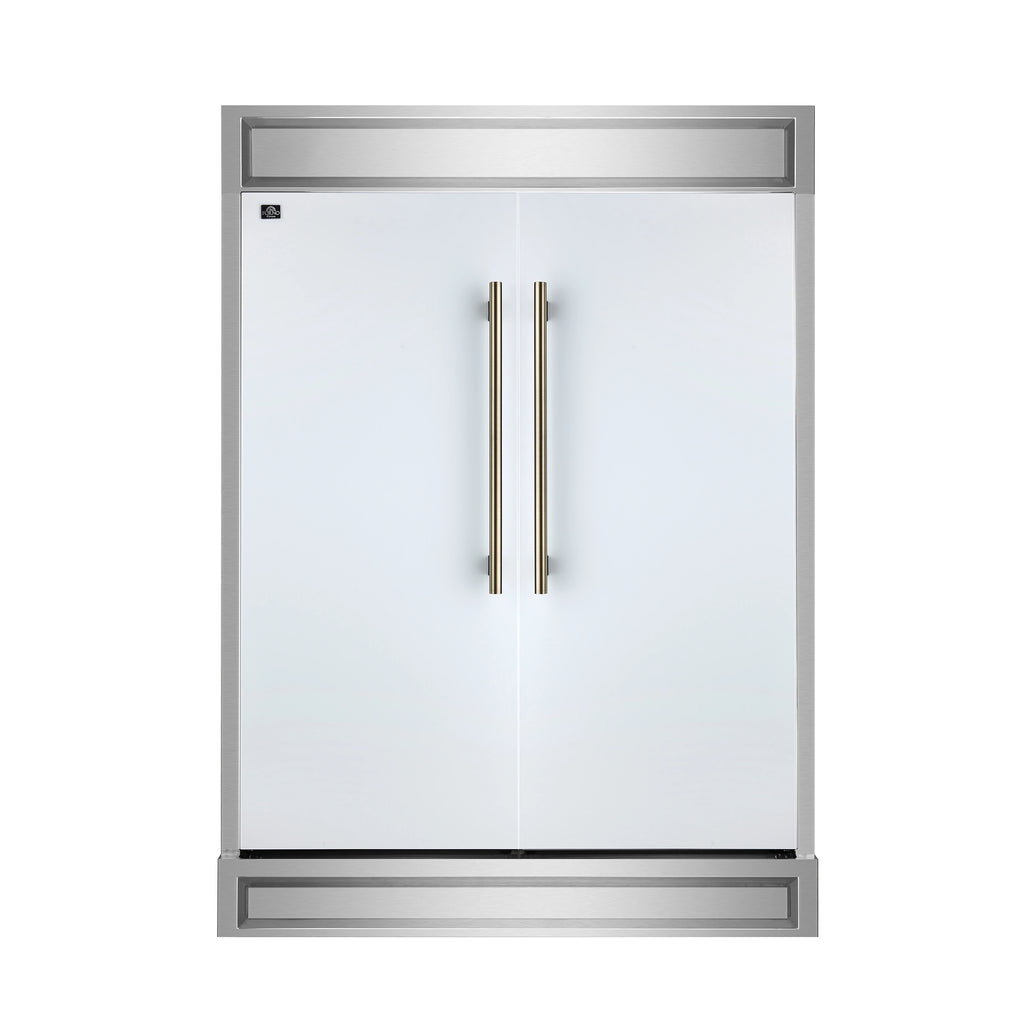

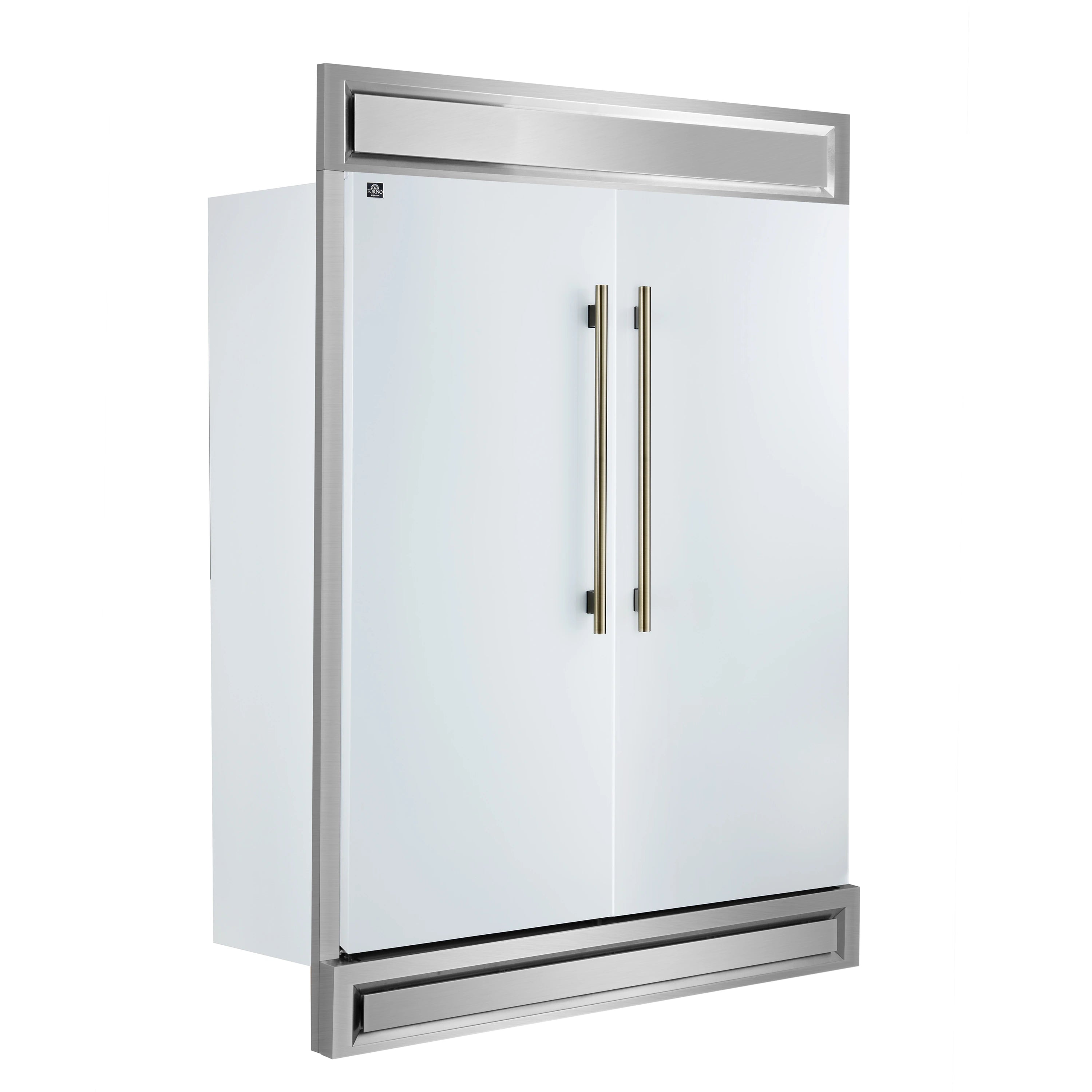

The Forno Maderno offers a premium 60-inch built-in refrigerator look by combining two 28-inch refrigerators with a trim kit for seamless integration. Available in white and featuring antique brass handles, it’s part of our elegant Espresso line. With 27.2 cu.ft. of total capacity, it delivers generous storage and features Convertible Cooling Zones, Total No-Frost Technology, and a refined control panel. Six glass shelves with silver trims, 6 drawers, and LED lighting enhance both organization and visibility. The VCM doors and metal back panel ensure long-lasting durability, while the Energy Star Certification guarantees sustainability.
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 55.2 x 29.7 x 67.7 |
| Cutout dimensions W x D x H (inch) | 55.9 x 28.94 x 69.06 |
| Depth Without Handle(s) (INCH) | 27.70 |
| Product Overall Weight (lbs) | 330 |
| Height Top of Door Hinge (inches) | 75.9 |
| Height Top of the Cabinet/Case (inches) | 75.3 |
| Height Top of the Door (inches) | 75.9 |
| Overall Capacity Cu. Ft. | 27.20 |
| GENERAL INFORMATION | |
| Number of pallet | 2 |
| Estimated Annual Operating Cost (USD) | 110 |
| CEE Tier Qualified | Not Rated |
| Adjustable Door Storage | No |
| Door Storage | Yes |
| Cooling Type | Multi Air Flow |
| Fast Cool Function | Yes |
| Energy Saver Mode | Yes |
| Door Texture | Smooth |
| Flat back design | Yes |
| DESIGN & FINISH | |
| Control Location | Internal |
| Primary Material | Steel |
| Interior Light | Yes |
| Clock | No |
| Interior Light(s) Type | LED |
| Door Bins Material | Plastic |
| Fresh Food Shelves Material | Glass With Silver Trim |
| Door Liner Color | White |
| Toe Grille Color | Stainless Steel |
| Cabinet Material | Embossed Galvanized Steel |
| Door Liner Material | High Impact Polystyrene |
| Door Style | Contoured |
| Handle Color/Finish | Stainless Steel |
| Number of Lights | 2 |
| TECHNICAL DETAILS | |
| Number of Power Cord | 2 |
| Power Cord Location | Lower Back |
| Energy Consumption (kWh/yr) | 647 |
| Dual Evaporator Cooling System | Yes |
| REFRIGERATOR FEATURES | |
| Temperature Range Refrigerator (°C) | 2°C to 8°C |
| Fresh Food Door Type | Swing Door |
| Number of Adjustable Shelves | 3 |
| Temperature Controlled Drawer(s) | No |
| Interior Fresh Food Dimensions Height | 59.84 |
| Interior Fresh Food Dimensions Width | 21.58 |
| Temperature Range Refrigerator (°F) | 36°F to 46°F |
| Door Bins Color | Transparent |
| Number of Standard Door Bins | 4 |
| Adjustable Fresh Food Shelves | Yes |
| Number of Fresh Food Shelves | 4 |
| Humidity Controlled Drawer(s) | Yes |
| Number of Fresh Food drawers | 3 |
| Fresh Food Capacity Cu. Ft. | 13.6 |
| Cabinet Color | White |
| Interior Fresh Food Dimensions Depth | 19.96 |
| Interior Fresh Food Dimensions W x D x H (inches) | 21.58x19.96x59.84 |
| Electronic Temperature Control | Yes |
| Temperature Memory Function | Yes |
| FREEZER FEATURES | |
| Interior Freezer Dimensions W x D x H (in) | 21.58 X 19.96 X 59.84 |
| Number of Freezer Door Bins | 4 |
| Temperature Range Freezer (°F) | 11°F to 7°F |
| Freezer Shelf Material | Glass With Silver Trim |
| Adjustable Freezer Shelves | Yes |
| Number of Freezer Shelves | 4 |
| Number of Freezer Drawers | 3 |
| Interior Freezer Dimensions Depth | 19.96 |
| Freezer Door Style | Swing Door |
| Freezer Door Storage | Yes |
| Number of Freezer Adjustable Shelves | 3 |
| Freezer Section Layout | Adjustable Racks, In-Door Storage, Freezer Drawers, Full Width |
| Interior Freezer Dimensions Height | 59.84 |
| Interior Freezer Dimensions Width | 21.58 |
| Freezer Light | Yes |
| Freezer Capacity | 13.6 |
| WARRANTY & CERTIFICATIONS | |
| Energy Star Most Efficient | No |
| Warranty Type | Limited |
| Warranty On Parts | 2 Years |
| Warranty on Labor | 2 Years |
