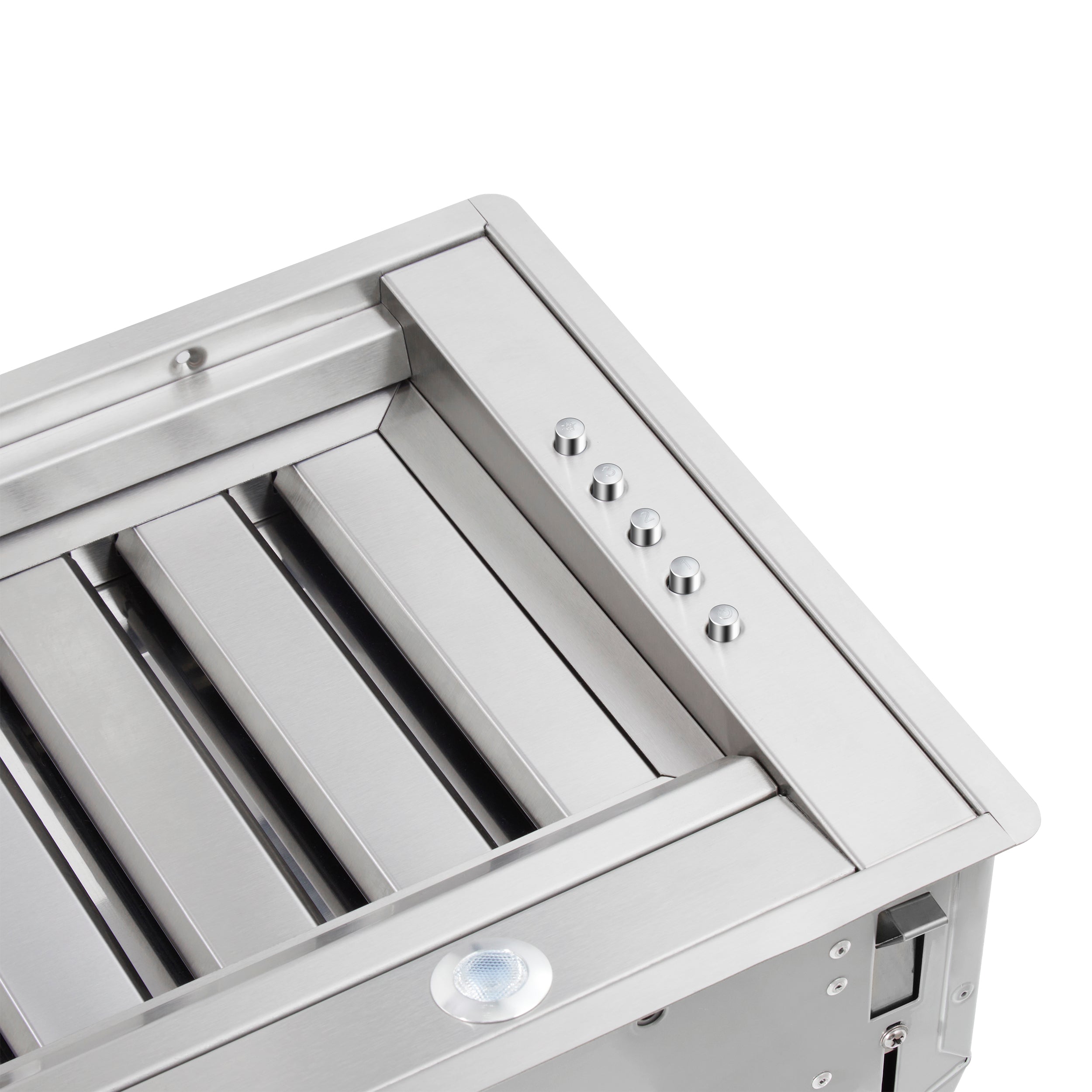

The Forno Frassanito 60” Recessed Range Hood is made of stainless steel for a clean sleek look. Boasting an impressive 900 CFM airflow capture, this range hood will quickly trap cooking smoke, odors, and grease particles in the air. With 3 surface lights seeing the cooktop while in use . An intuitive 3-speed push button control panel allows you to quickly adjust the hood’s settings according to your specific needs. With its modern design and efficient performance, this range hood is sure to be a stylish yet practical addition to your kitchen.
Weight and Dimensions | |
Overall Weight |
67.68 lbs |
Overall Dimensions |
58.94" W X 11.10" D X 11.85" H |
Product Dimensions | 58.94" W x 11.10" D x 11.85" H |
Minimum Height from Cooktop |
25" for Electric Range 30" for Gas Range |
Maximum Height from Cooktop |
30" |
Cutout Dimensions |
58.27" W X 10.51" D X 0.79" H |
Electrical Specs | |
Amperage |
3.8A |
Volts |
120 |
Wattage |
460 |
Power Source |
AC |
Lighting Type |
LED Lamp |
Bulb Type |
LED GU11 |
Bulb Wattage |
1.5W |
Power Cord Included |
Yes |
Plug Type |
NEMA 5-16 |
Details | |
Mount Type
|
Built-in / Insert |
Color/Finish
|
Stainless Steel / Grey Metal |
Duct Shape |
6" Round |
Blower Type |
PVC |
Air Discharge Direction |
Vertically Upward |
Exhaust Vent Location |
Top |
Filter Type |
Baffle |
Filter Material |
Stainless Steel |
Washable Filter |
Yes |
Damper |
Yes |
Speed Control |
3 Speeds |
Speed Control Type |
Push Button Control |
Hardware Finish |
Stainless Steel |
Primary Material |
Stainless Steel |
Rangehood Chimney |
No |
Chimney Short Kit |
No |
Glass Component |
No |
Crown Molding |
No |
Reversible Blower |
No |
Smudge Resistant |
No |
Heat Sensors |
No |
Heat Sensors |
No |
Delay Shut Off |
No |
Remote Control |
No |
Timer |
No |
Clean Filter Alert |
No |
Supplier Intended and Approved Use |
Residential Use |
CFM | |
Maximum CFM |
900 |
Minimum CFM |
450 |
CFM speed 1 |
450 |
CFM speed 2 |
650 |
CFM speed 3 |
900 |
Air Flow per Speed Level (m3/hour) |
|
Air Flow Speed 1 (m3/hour) |
765 |
Air Flow Speed 2 (m3/hour) |
1105 |
Air Flow Speed 3 (m3/hour) |
1530 |
RPM Speed Level | |
RPM Speed 1 |
1130 |
RPM Speed 2 |
1590 |
RPM Speed 3 |
1820 |
Sones per Speed Level |
|
Maximum Sones |
13 |
Minimum Sones |
3.3 |
Sones Speed 1 |
3.3 |
Sones Speed 2 |
6.5 |
Sones Speed 3 |
13 |
Decibels per Speed Level (dB) |
|
Maximum Decibel (dB) |
65 |
Minimum Decibel (dB) |
45 |
Decibel Speed 1 (dB) |
45 |
Decibel Speed 2 (dB) |
55 |
Decibel Speed 3 (dB) |
65 |
Warranty and Certification | |
ETL Listed |
Yes |
Commercial Warranty |
No |
Warranty Type |
Limited |
Warranty Length |
2 Years |
Warranty on Parts |
2 Years |
Warranty on Labor |
2 Years |
