Description
DIMENSIONS
- Product Dimensions
- 14.96" W x 18.7" D x 32.28" H
- Product Weight
- 60 lbs
- Carton Dimensions
- 17.17" W x 18.66" D x 36.22" H
- Shipping Weight
- 68 lbs
GENERAL INFORMATION
- Type
- Ice Maker
- Series
- Cristallo
- Collection
- Alta Qualita
- Installation Type
- Freestanding/Undercounter
- Ice Type

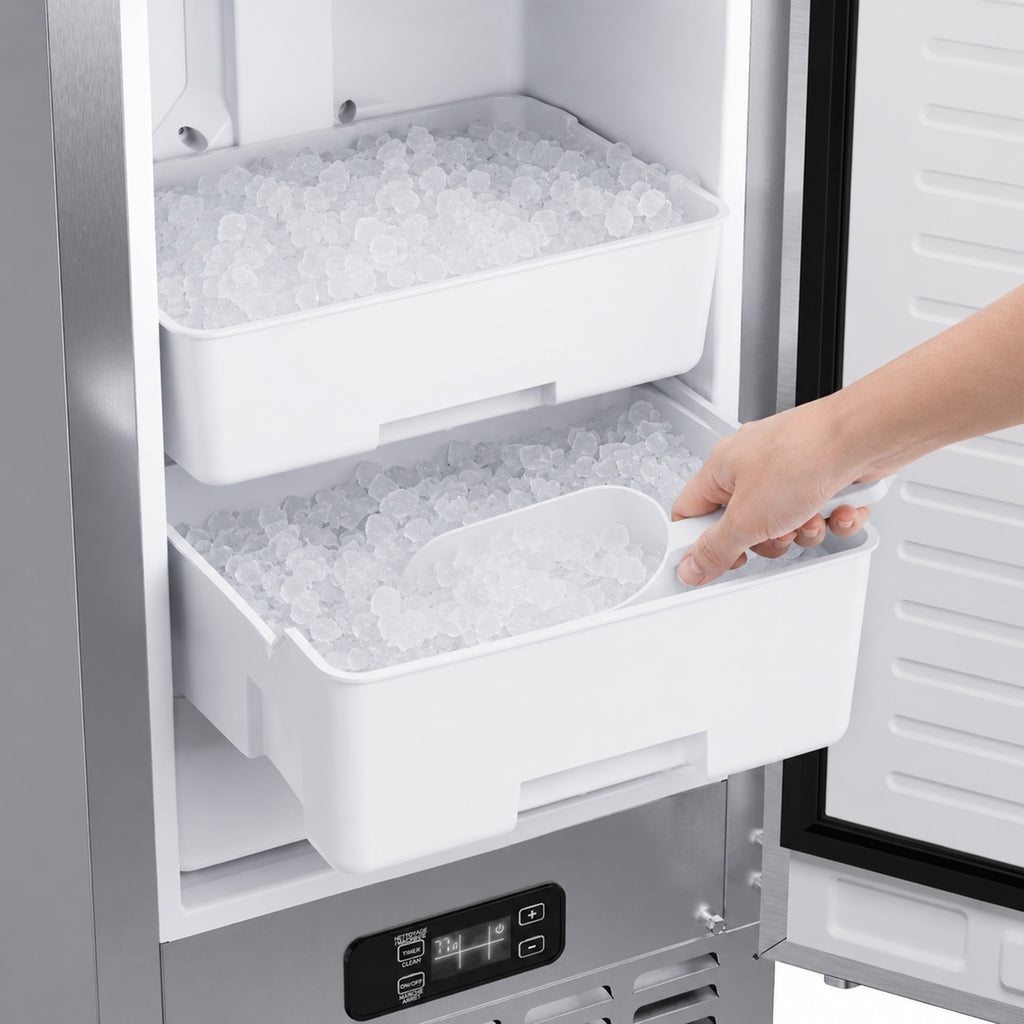

- Nugget
- Cooling System
- Compressor
- Water Source
- Tap water (1/4" fitting and water pipe included)
DESIGN & FINISH
- Color/Finish
- Stainless Steel
- Material
- Stainless steel

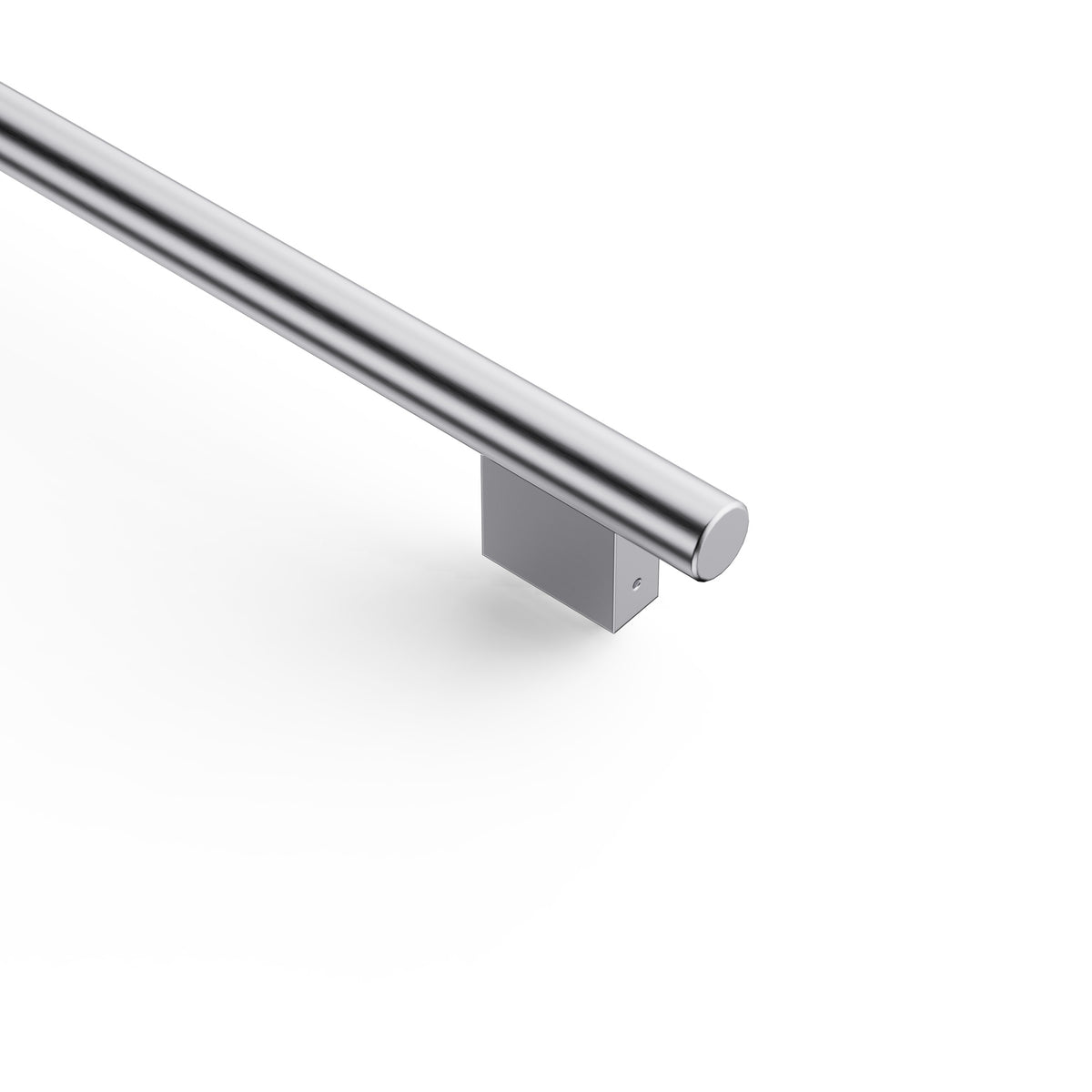

- Handle
- Stainless Steel
- Door
- Right hinge, handle on the left

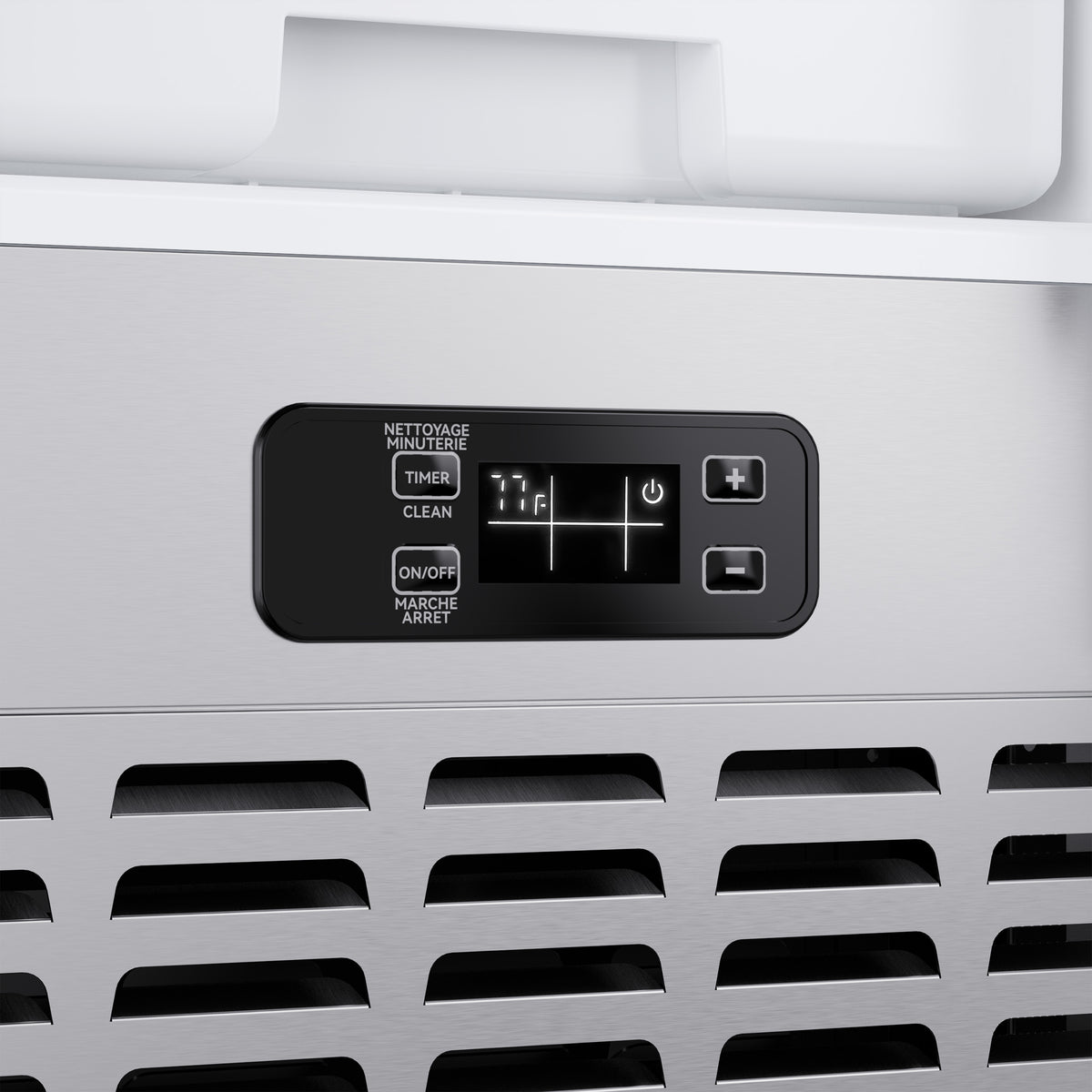

- Control Type
- Electronic controls with LED digital display
- Ice Full Indicator
- Yes
TECHNICAL DETAILS
- Electrical
- 115 V / 60 Hz / 15 A (standard 120 V outlet)
- Plug Type
- NEMA 5-15P (plug and cord included)
- Power Consumption
- 226 W
- Refrigerant
- R290
- Noise Level
- 55 dBA
- Drain Type

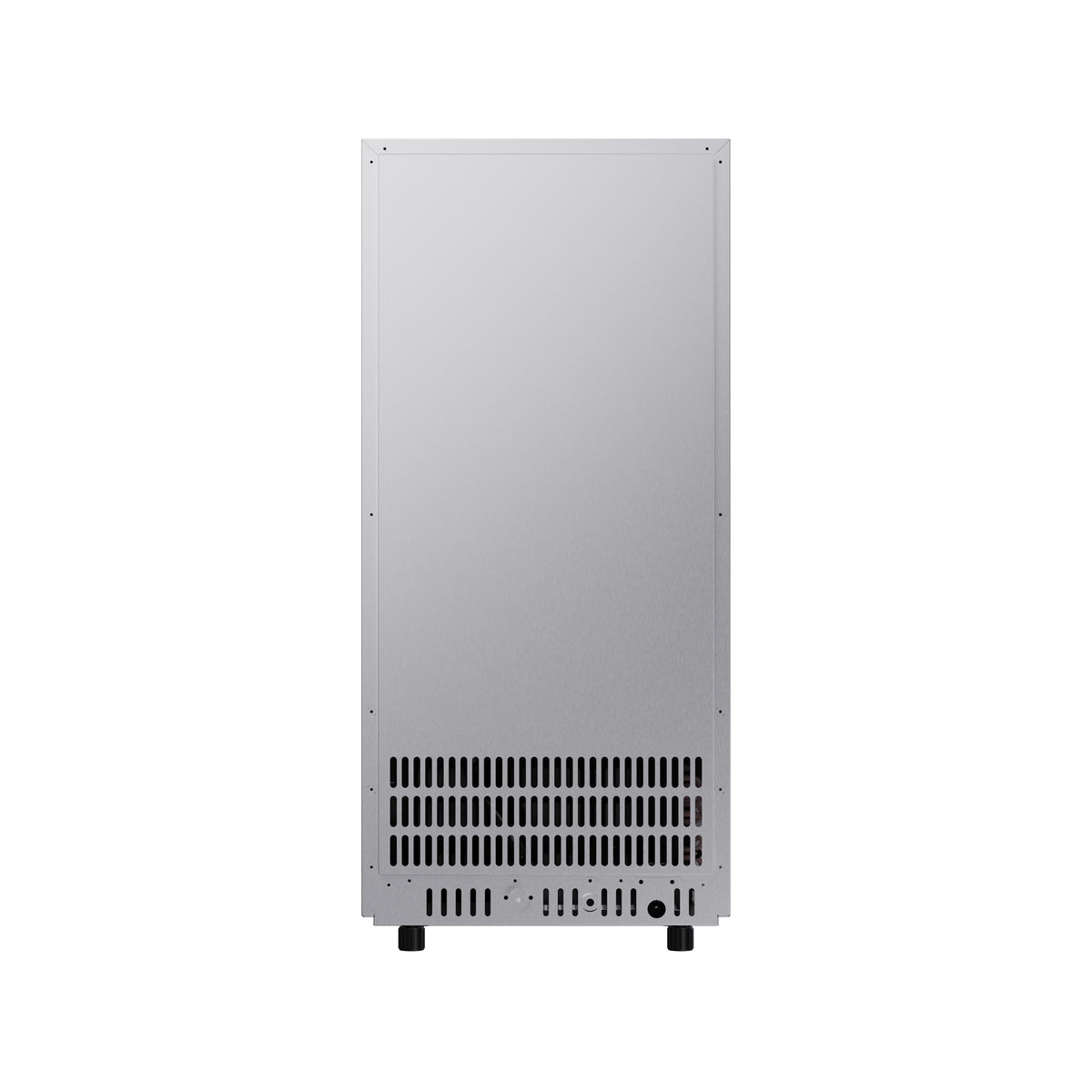

- Automatic gravity drain (rear connection); automatic drain during cleaning cycle
- Cycle Time
- Continuous ice making
ICE MAKER FEATURES
- Daily Ice Production
- 66.1 lbs
- Ice Storage Capacity

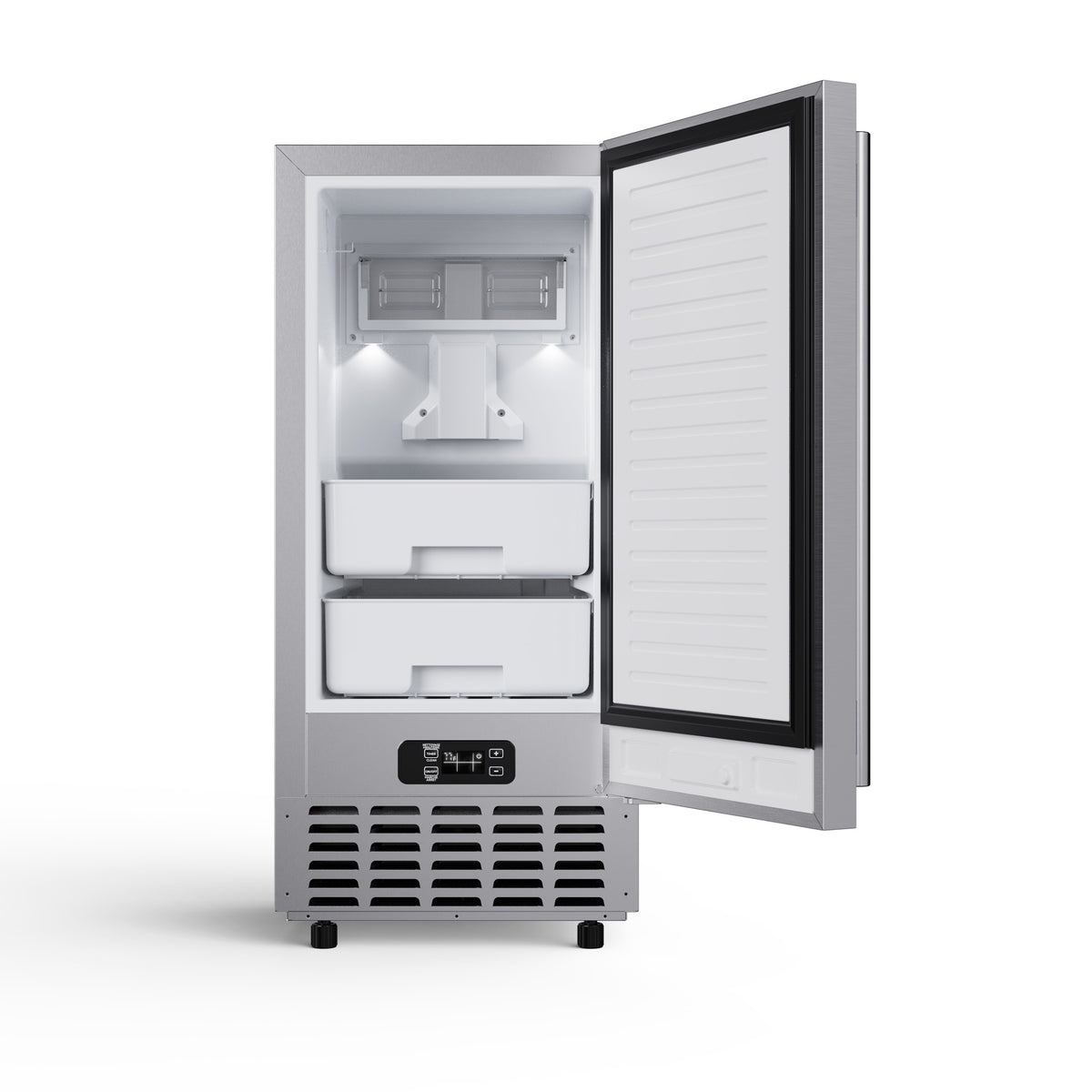

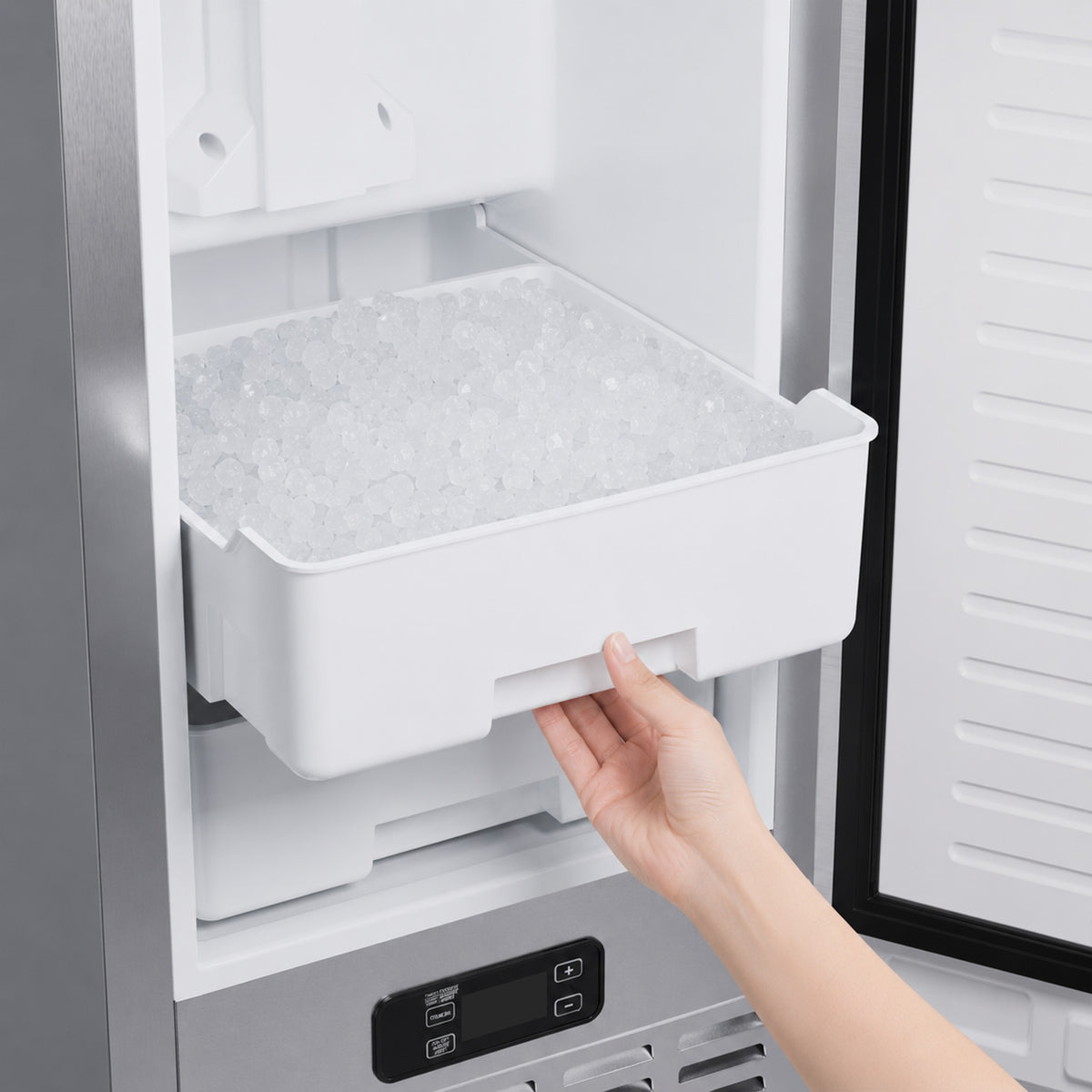

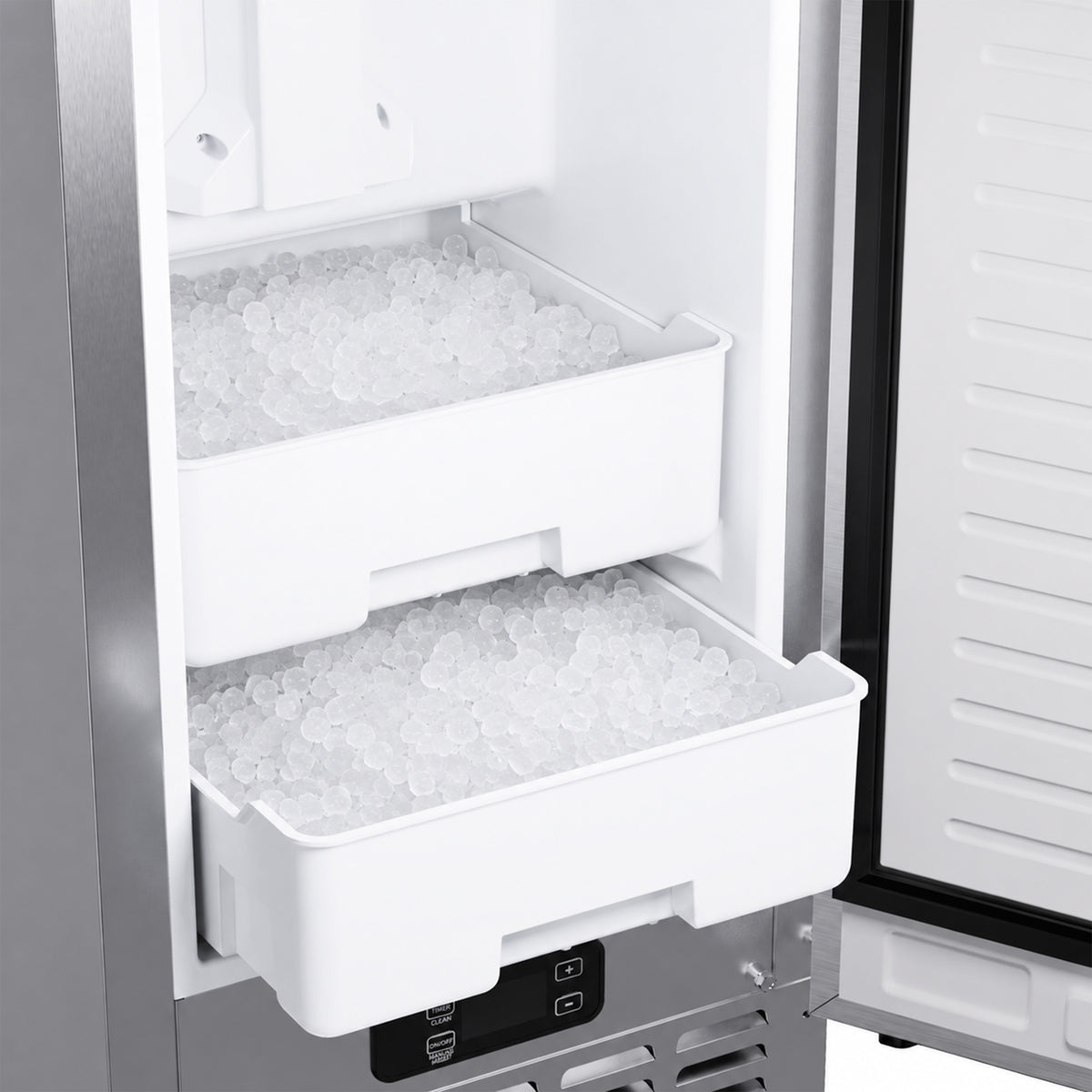

- 17.6 lbs (8 kg), dual storage drawers
- Filtered Ice
- Yes
- Self-Clean Mode
- Yes
- Removable Water Tank
- No
- Removable Ice Bucket
- No
WARRANTY & CERTIFICATIONS
- Warranty
- 2 Years Parts and Labor
- Safety Listing
- ETL safety listing
- Certification File Number
- 3149457
