Description
DIMENSIONS
- Popular Width
- 60-in
- Overall Capacity (cu. ft.)
- 9.30
- Main Oven Capacity (cu. ft.)
- 4.65
- Second Oven Capacity (cu. ft.)
- 4.65
- Adjustable Height
- Yes
- Frying Basket Dimensions (W x D x H)
- N/A
- Product Dimensions (W x D x H)
- 60 x 31.5 x 60
- Product Height (in)
- 60
- Product Depth (in)
- 31.5
- Depth with Door Open 90 Degrees (in)
- 43.7
- Product Overall Weight (lbs)
- 617.30
- Carton Dimensions Box 1 (W x D x H)
- 63 x 36.6 x 43.7
- Carton Width Box 1 (in)
- 63
- Carton Depth Box 1 (in)
- 36.6
- Carton Height Box 1 (in)
- 43.7
- Carton Weight Box 1 (lbs)
- 749.50
- Shipping Height Box 1 (Carton Height + 6 in)
- 49.7
GENERAL INFORMATION
- Product Type
- Commercial
- Installation Type
- Freestanding
- Country of Origin
- China
- Plug-In
- No
- Gas Type
- Natural Gas
- LP Gas Convertible
- Yes
- LP Kit Included
- Yes
- Natural Gas Conversion Kit Included
- Yes
- Main Oven Usable Interior (W x D x H)
- 25.8 x 22.4 x 13.8
- Second Oven Usable Interior (W x D x H)
- 25.8 x 22.4 x 13.8
- Number of Racks
- 4
- Number of Rack Positions
- 6
- Convection Oven
- No
- Reversible Griddle
- N/A
- Included Accessories
- LP Kit
- Export Pallet Included
- Yes
DESIGN & FINISH
- Color/Finish
- Stainless Steel
- Primary Material
- SS430 Front
- Galvanized Sides and Back
- Knobs Color/Finish
- Stainless Steel & Black
- Burner Material
- Cast Iron
- Door Material
- Solid Metal
TECHNICAL DETAILS
- Power Cord Plug Type
- N/A
- Heating Type
- Gas
- Ignition Type
- Pilot
- Total BTU Rating
- 366000
- Total Cooktop BTU Output
- 300000
- Front Left BTU
- 30000
- Front Left Center BTU
- 30000
- Front Center BTU
- 30000
- Front Right Center BTU
- 30000
- Front Right BTU
- 30000
- Rear Left BTU
- 30000
- Rear Left Center BTU
- 30000
- Rear Center BTU
- 30000
- Rear Right Center BTU
- 30000
- Rear Right BTU
- 30000
- Main Oven Bake BTU
- 33000
- Main Oven Broil BTU
- 0
- Second Oven Bake BTU
- 33000
- Second Oven Broil BTU
- 0
- Temperature Range
- 200F to 500F
FEATURES

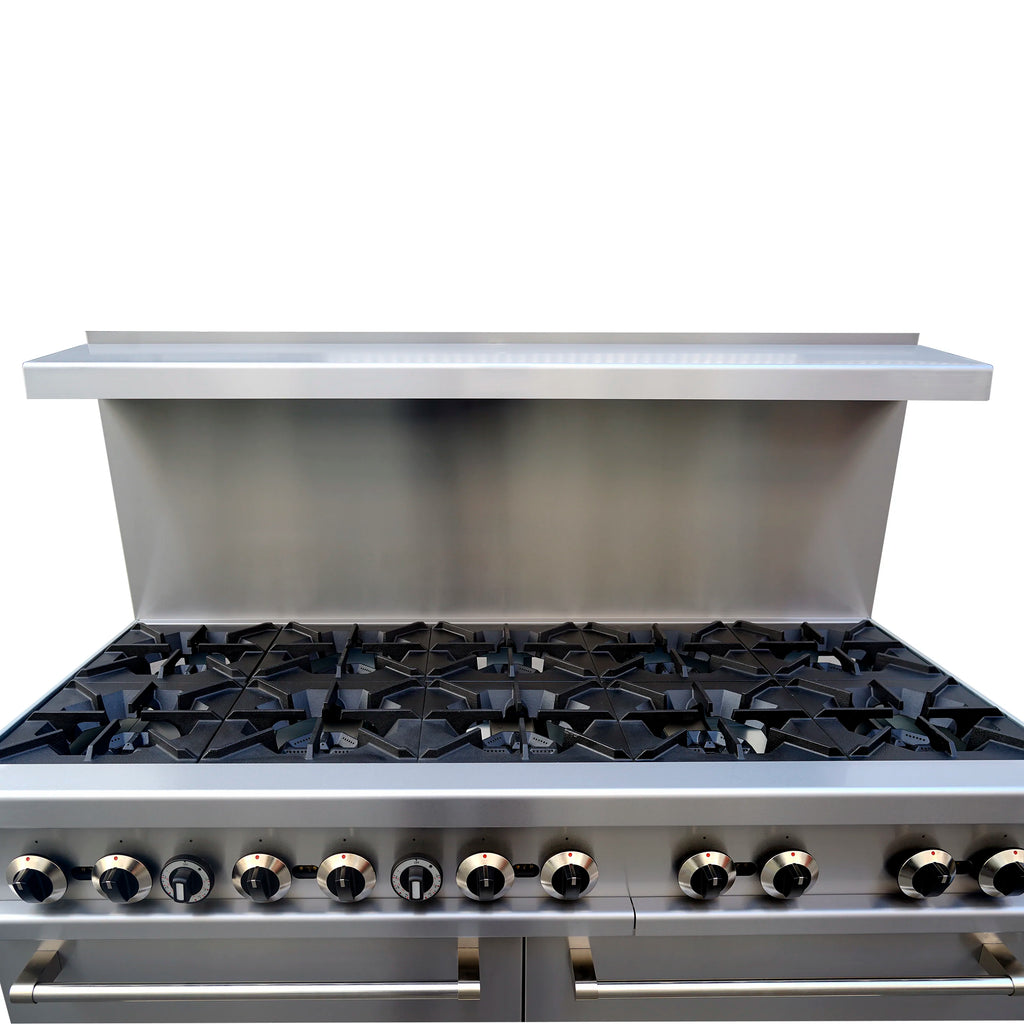

- Backsplash Included
- Yes
- Number of Burners
- 10
- Broiler
- No
- Automatic Temperature Control
- No
- Temperature Gauge
- No
- Automatic Shut-Off
- No
- Timer
- No
- Grease Disposal System
- No
- Number of Frying Baskets
- 0
- Number of Boxes
- 1
WARRANTY & CERTIFICATIONS
- Safety Listing
- CSA
- File/Certification Number
- 607696
- Commercial Warranty
- Yes
- Warranty Length
- 1 Year
- Warranty Type
- Limited to Manufacturing Defects. Void if Used for Residential Purposes
- Warranty on Parts
- 1 Year
- Warranty on Labor
- 1 Year
