Description
DIMENSIONS
- Product Dimensions W x D x H (inches)
- 23.2 x 23.4 x 37.8
- Cutout dimensions W x D x H (inch)
- 23.2 x 23.4 x 36
- Main Oven Usable Interior (W x D x H)
- 18 x 15.5 x 9
- Range Size
- 24
- Oven Overall Interior Dimensions
- 18" x 15.5" x 9"(WxHxD)
- Power Cord Length
- 5 (FT
GENERAL INFORMATION
- Appliance type
- Gas Range
- Pressure Required (Inch WC)
- NG: max 5"
- LP: max 10"
DESIGN & FINISH
- Color
- White
- Finish
- White
- Handle Color
- Antique Brass

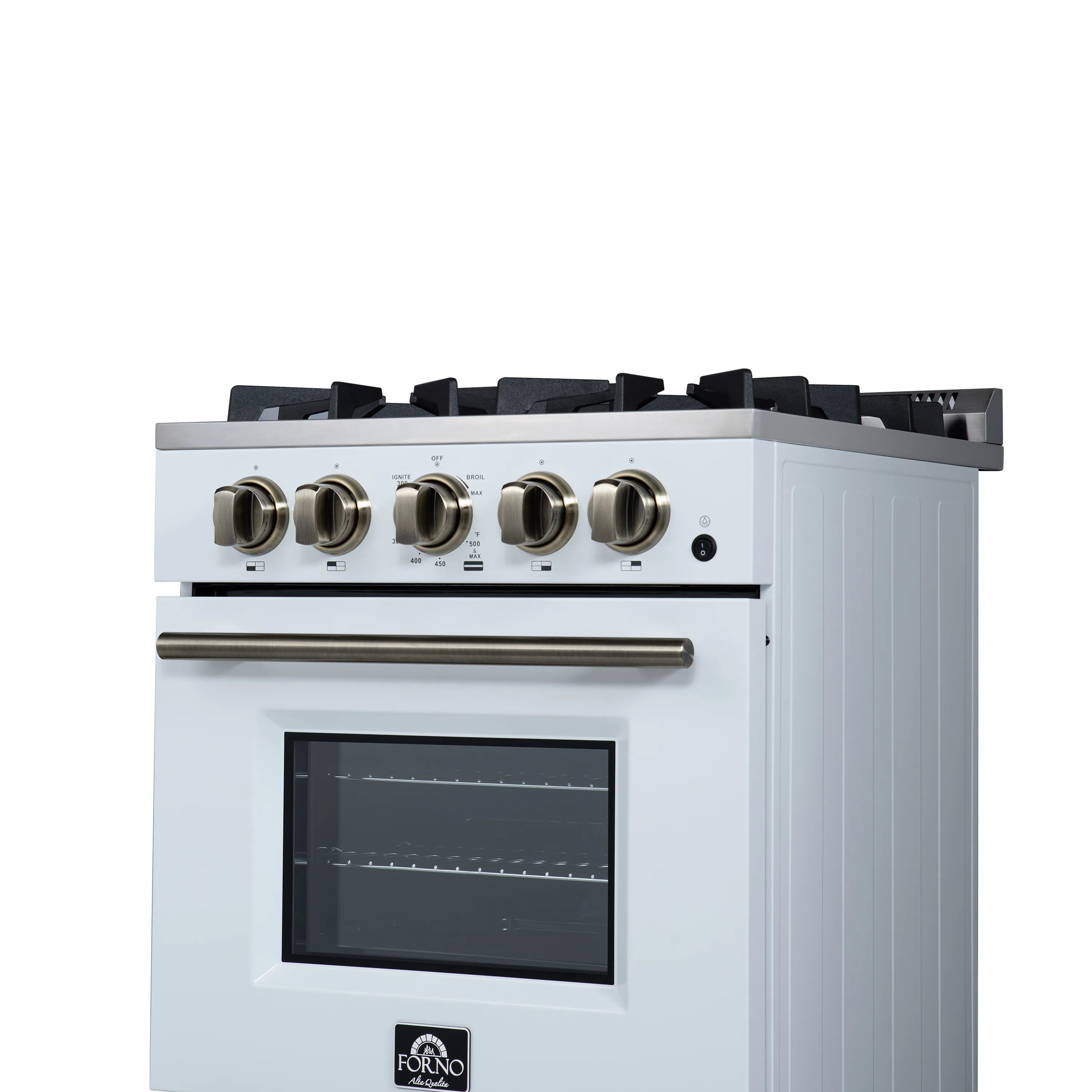

- Knobs Color
- Antique Brass
- Number of Knobs
- 5
- Case material
- Stainless Steel
TECHNICAL DETAILS
- Electrical supply
- 120 V
- 60 HZ
- Dedicated Circuit Breaker
- 15 Amps
- Regulator Inlet Size
- 12"
- Pre-installed Regulator
- Yes
- Power cord Included
- Yes
- Power Cord Type
- NEMA 5-15P

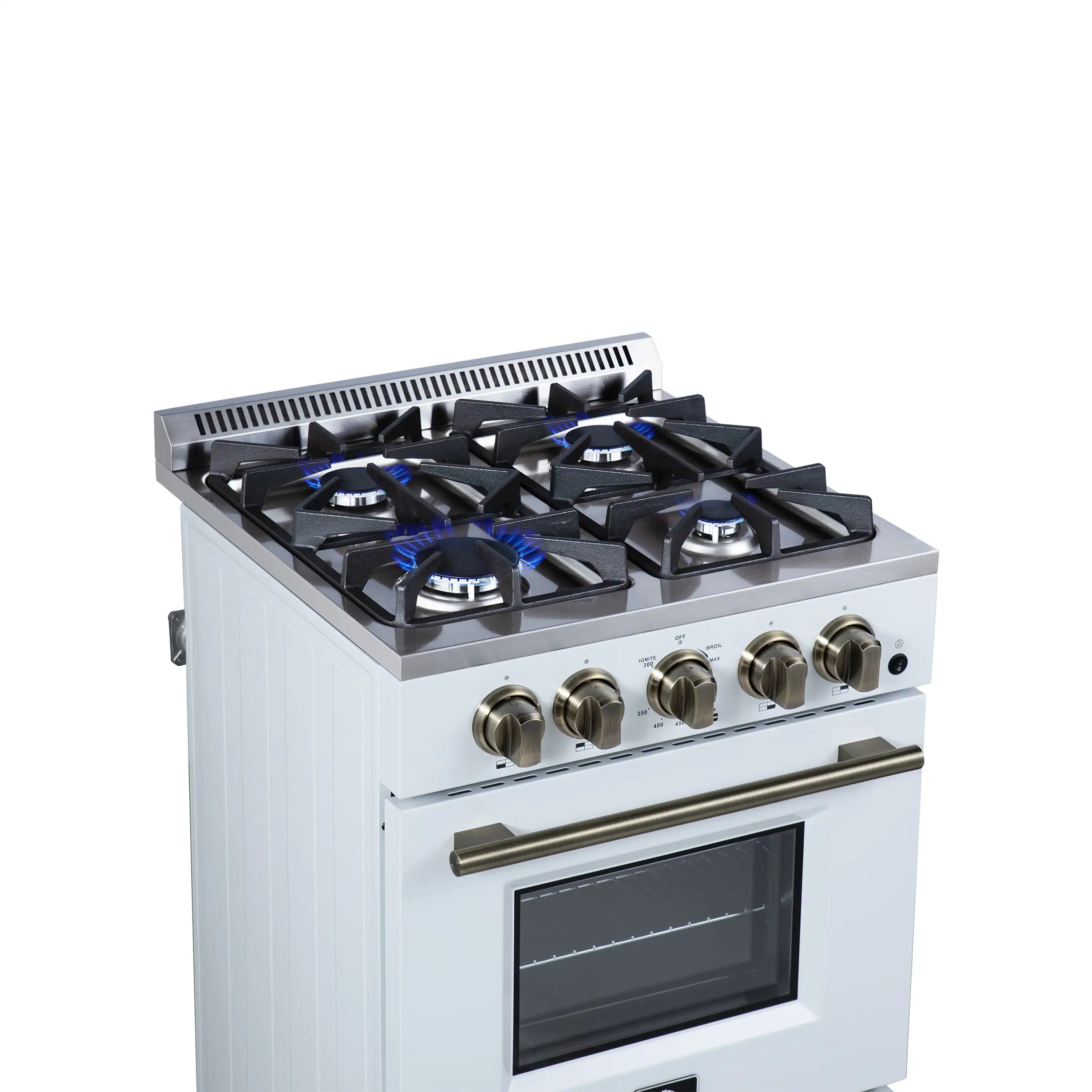

COOKTOP FEATURES
- Cooktop surface type
- Continuous Cast Iron Grates
- Number of Burners
- 4
- Left Front Burner
- 14000 BTU
- Left Rear Burner
- 9000 BTU
- Right Front Burner
- 6000 BTU
- Right Rear Burner
- 9000 BTU

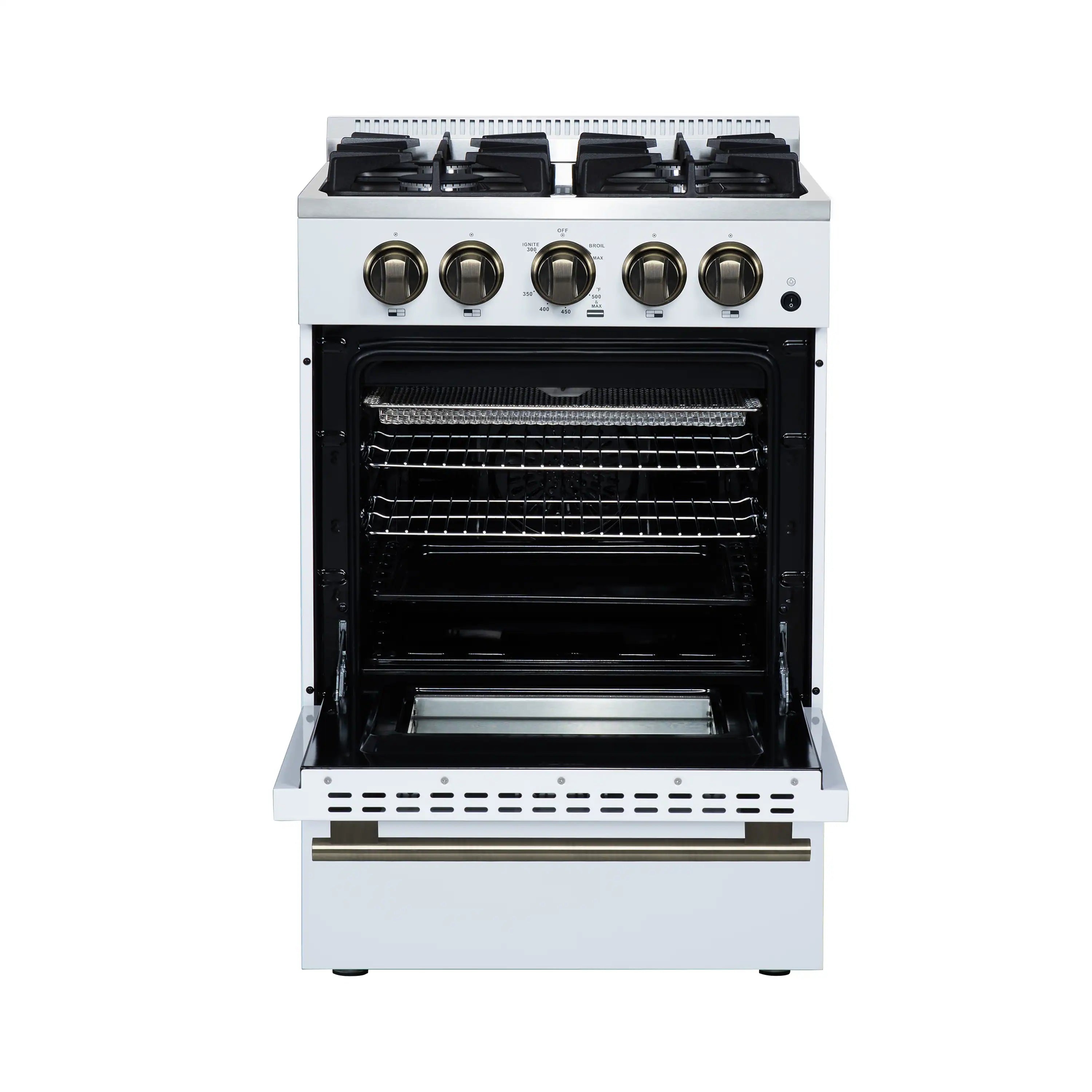

OVEN FEATURES
- Door Color
- White

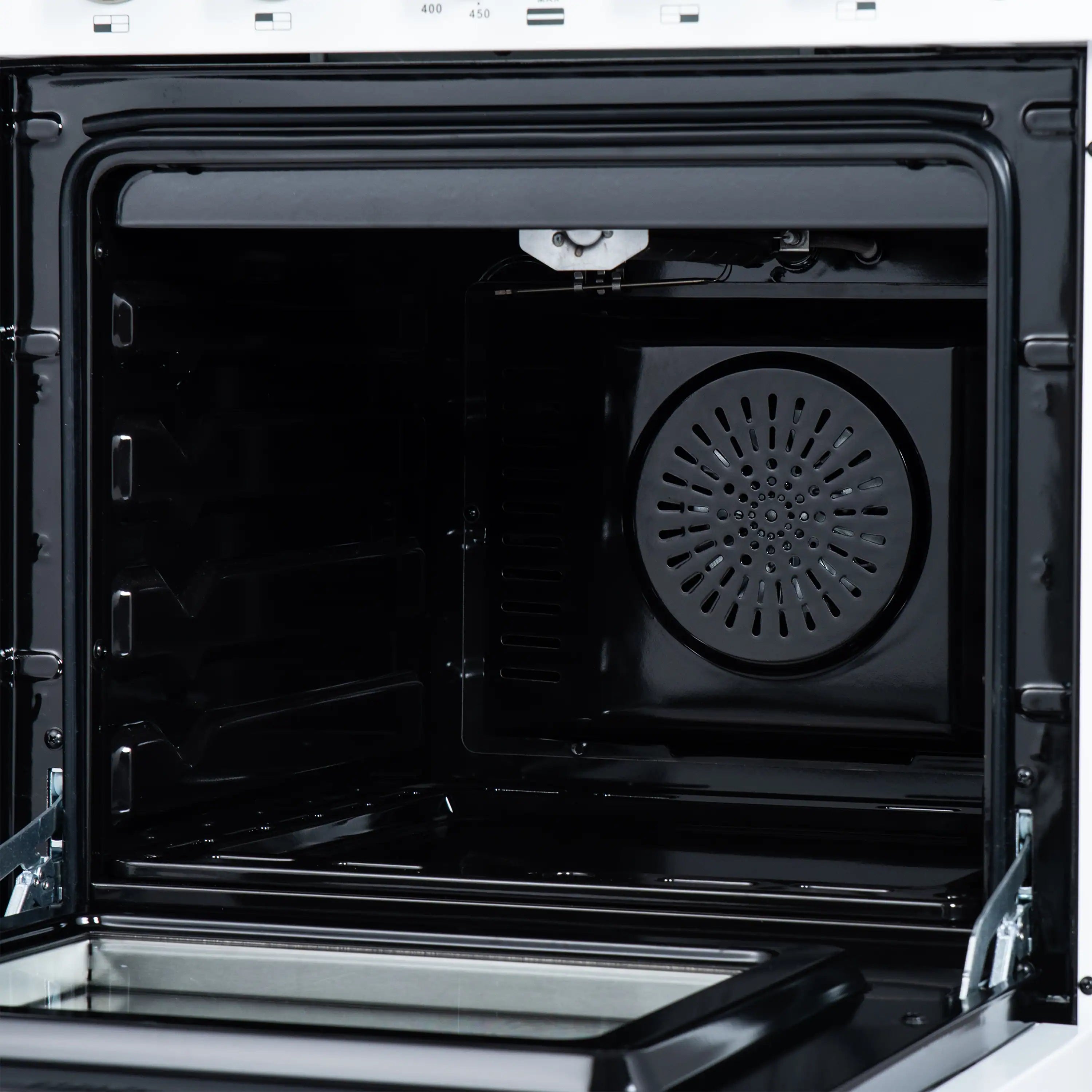

- Oven interior color
- Black enamel
- Oven capacity
- 2.3cu.ft.
- Bake BTU
- 6500

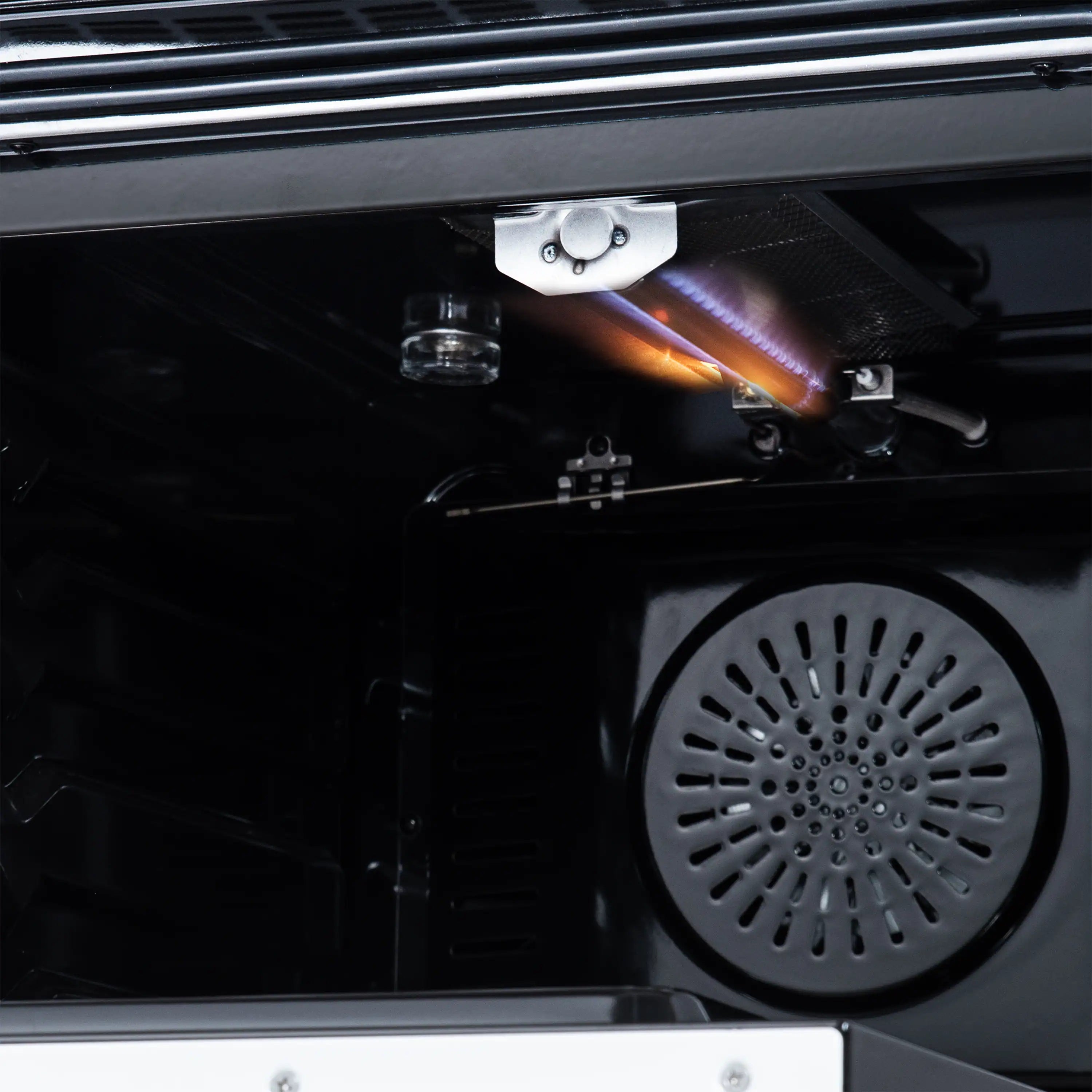

- Broiler BTU
- 6500
WARRANTY & CERTIFICATIONS
- Certification
- cETLus
- Warranty
- 2 Yrs
