Description

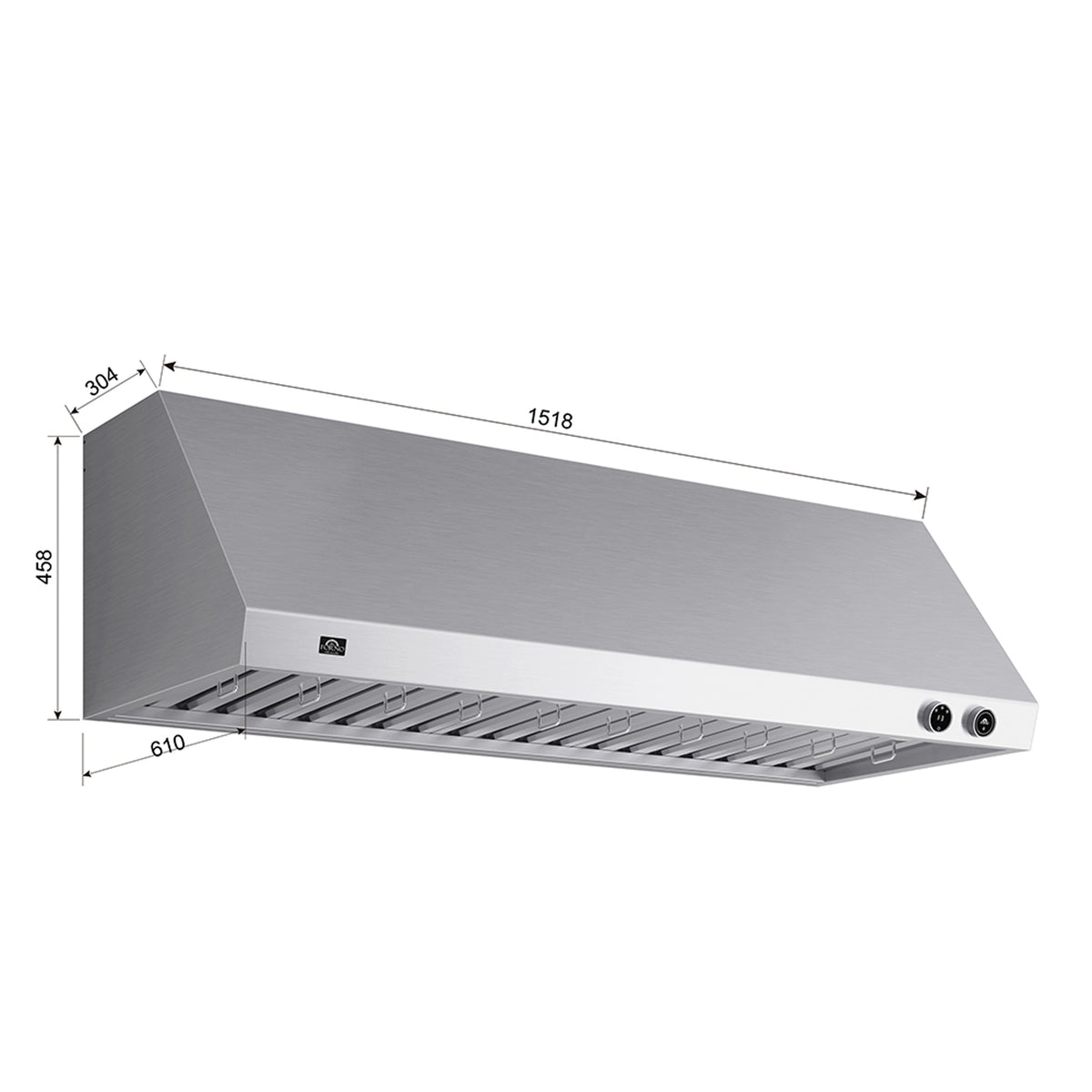

DIMENSIONS
- Product Dimensions W x D x H (inches)
- 59.8” x 24” x 18”
- Net Weight (lbs & kg)
- 60lbs | 27 kg
GENERAL INFORMATION
- Ventilation Type
- Ducted
- Receptacle Type
- Nema 5-15P
DESIGN & FINISH
- Unit Color
- Stainless steel

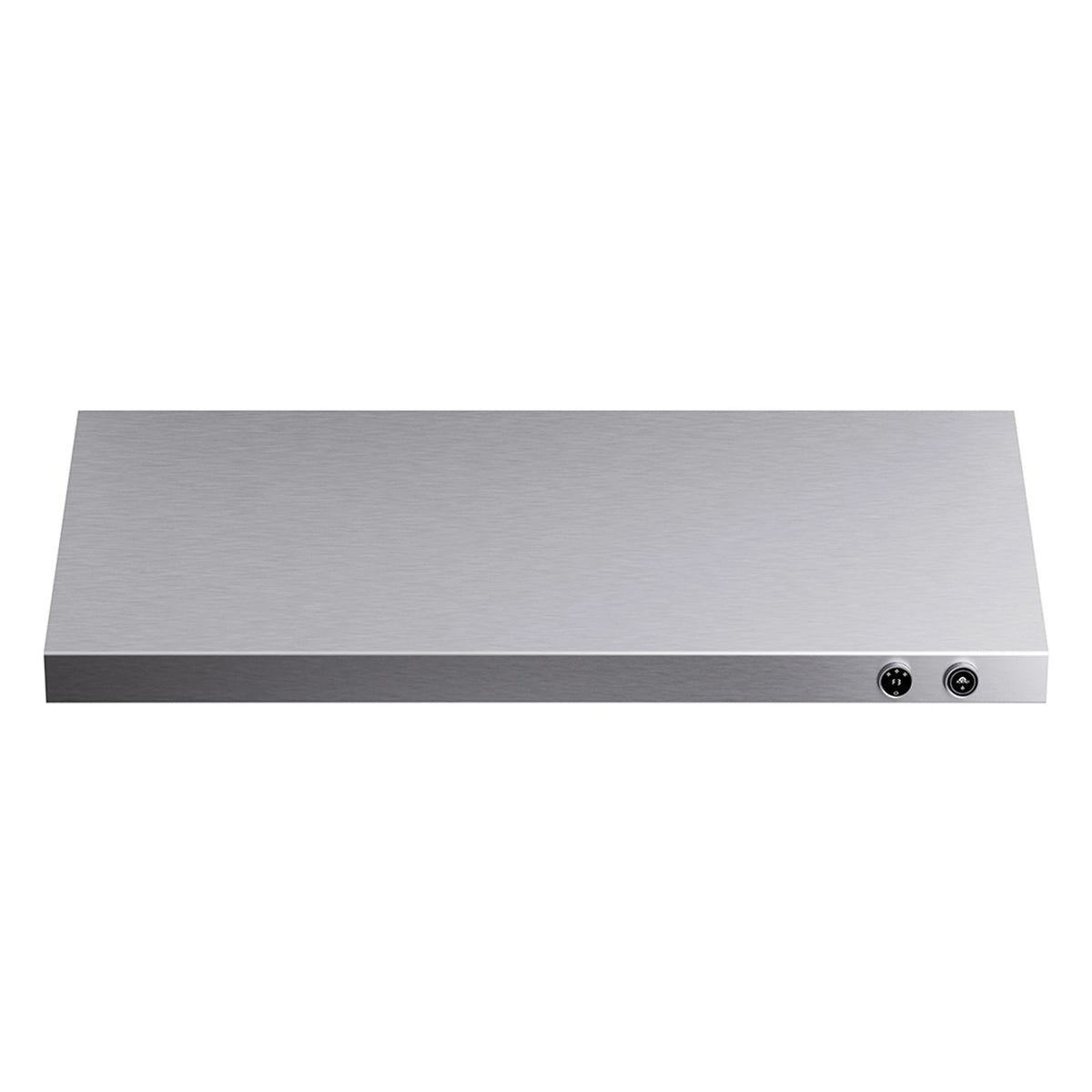

- Control type
- Knob Control
TECHNICAL DETAILS
- # Speed levels
- 3
- CFM (cubic feet per minute)
- Level 1 700 CFM Level 2 900 CFM Level 3 1,200CFM
- Noise Level at each speed
- Level 1 56 dB Level 2 61 dB Level 3 67 dB
- Running Amperage
- 4 Amps
- Circuit Breaker Amperage
- 15 Amps
- Volts
- 120V
- Motor Power
- 80 Watts
- Frequency
- 60
- Power Cord Length (ft)
- 4
- Number of Motors
- 2

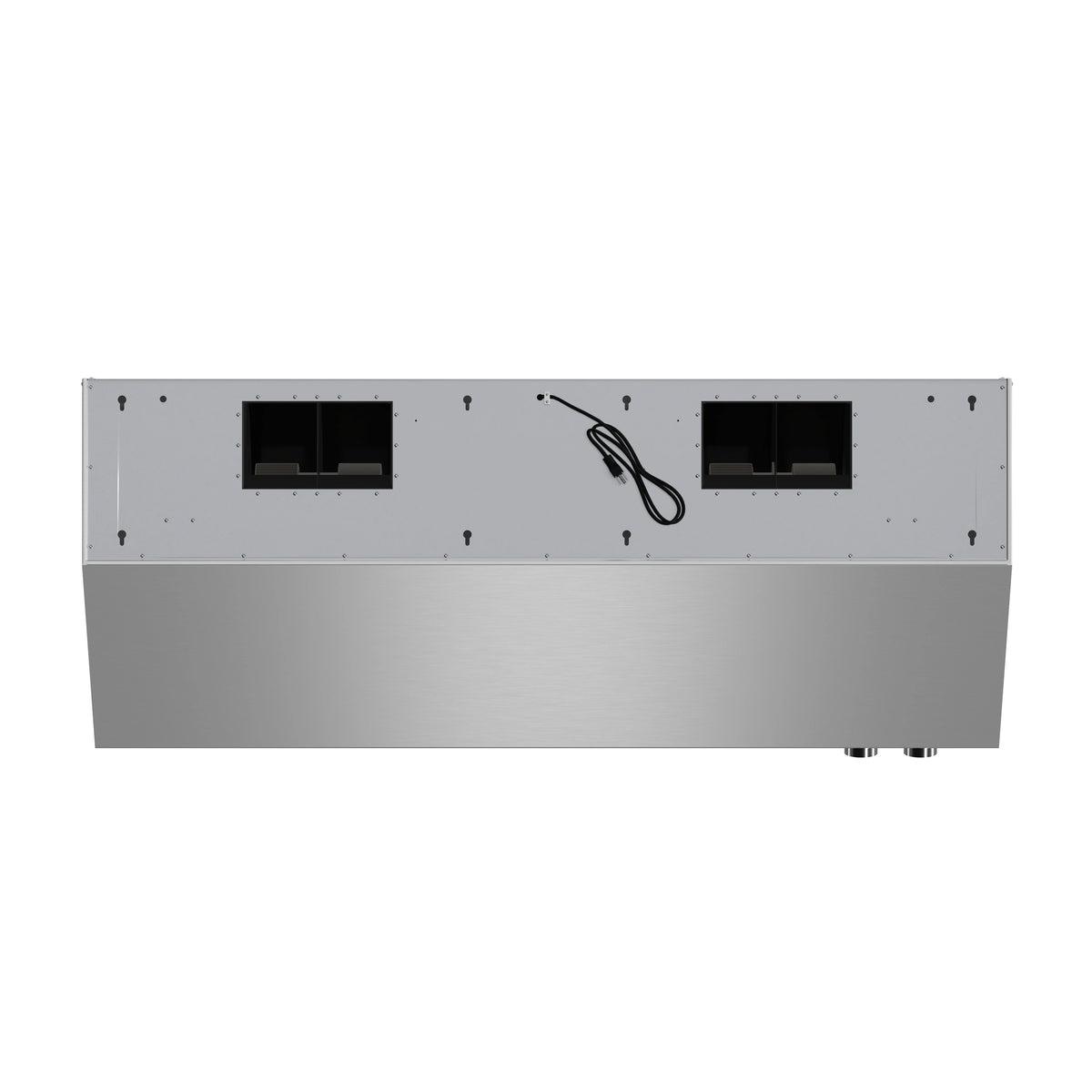

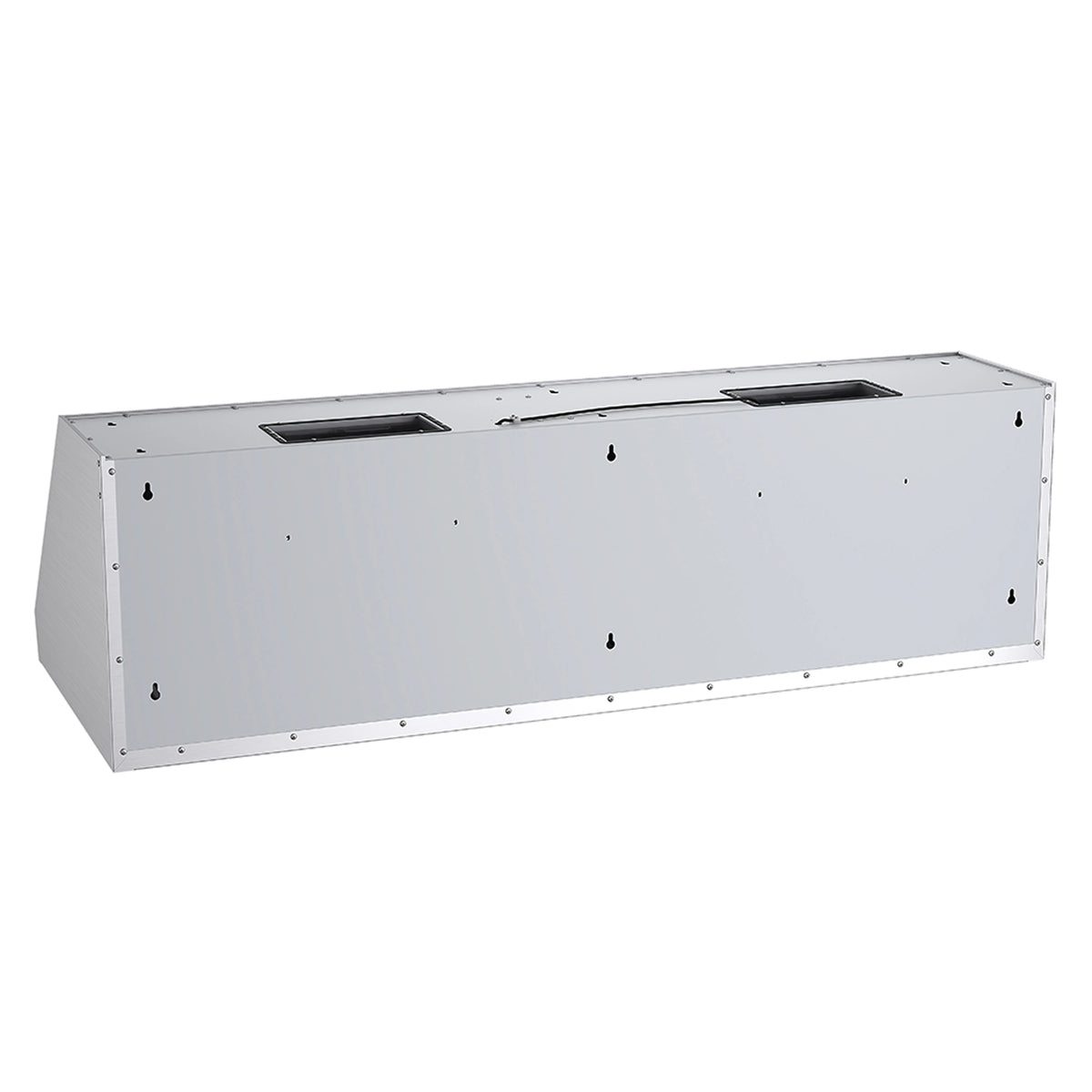

- Duct Shape
- Circular
- Number of Ducts
- 2
- Duct Size
- 8"
FEATURES
- Air flow
- Level 1 1,190 m3/hr Level 2 1,530 m3/hr Level 3 2,040 m3/hr
- RPM (Revolutions Per Minute
- Level 1 500 Level 2 630 Level 3 800
- Size
- 60"

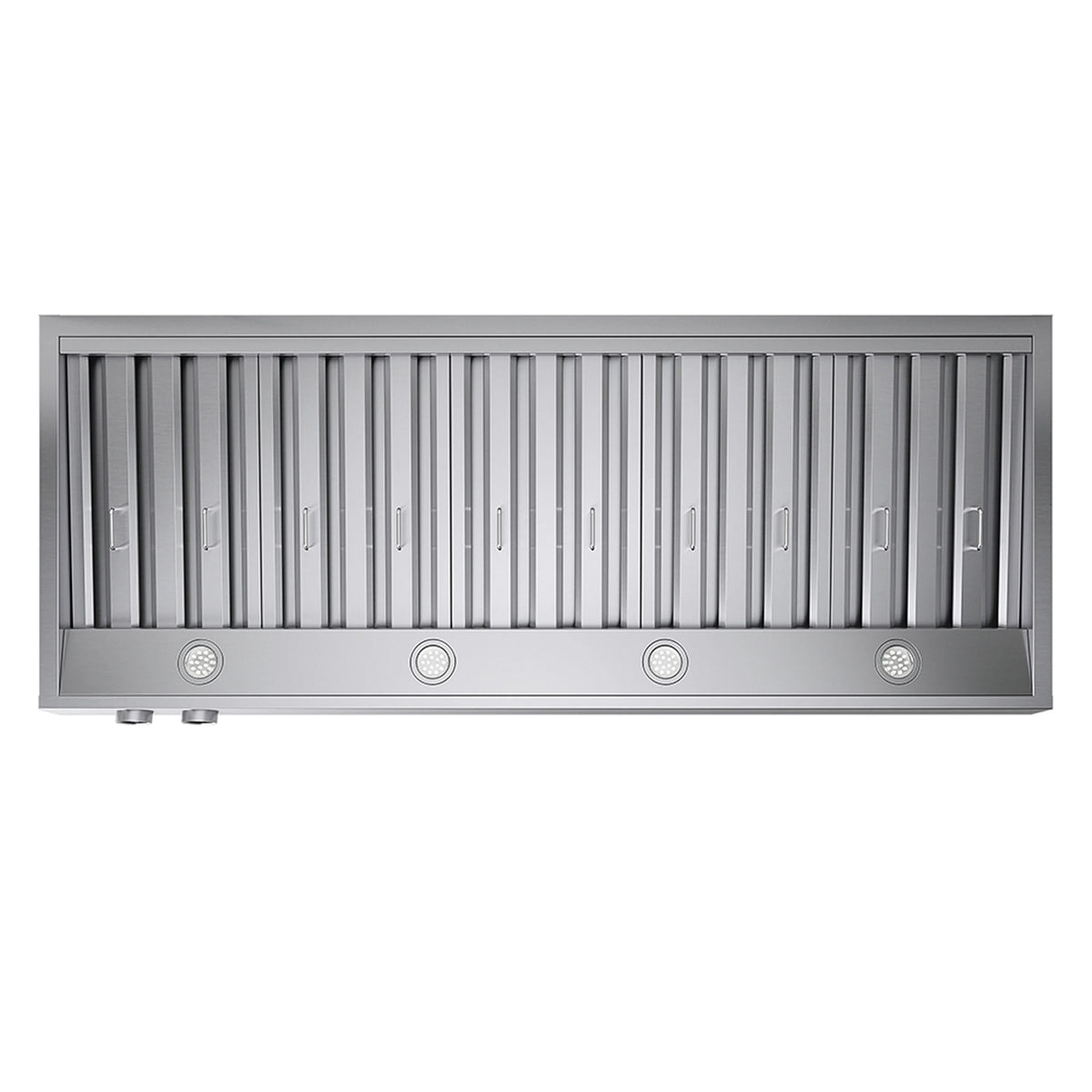

- Number of Hood filters
- 5
- Hood Filter Type
- Baffle
- Light Type
- LED Bulb (gu10)
- Number of Lights
- 4
- Dimmable Lighting
- Yes
- Automatic Shut-Off Timer
- Yes
- Auto. Shut-off Timer Duration
- 5 min.
WARRANTY & CERTIFICATIONS
- Commercial Warranty
- No
- Warranty on Parts
- 2 Years
- Warranty Type
- Limited
- Warranty on Labor
- 2 Years
