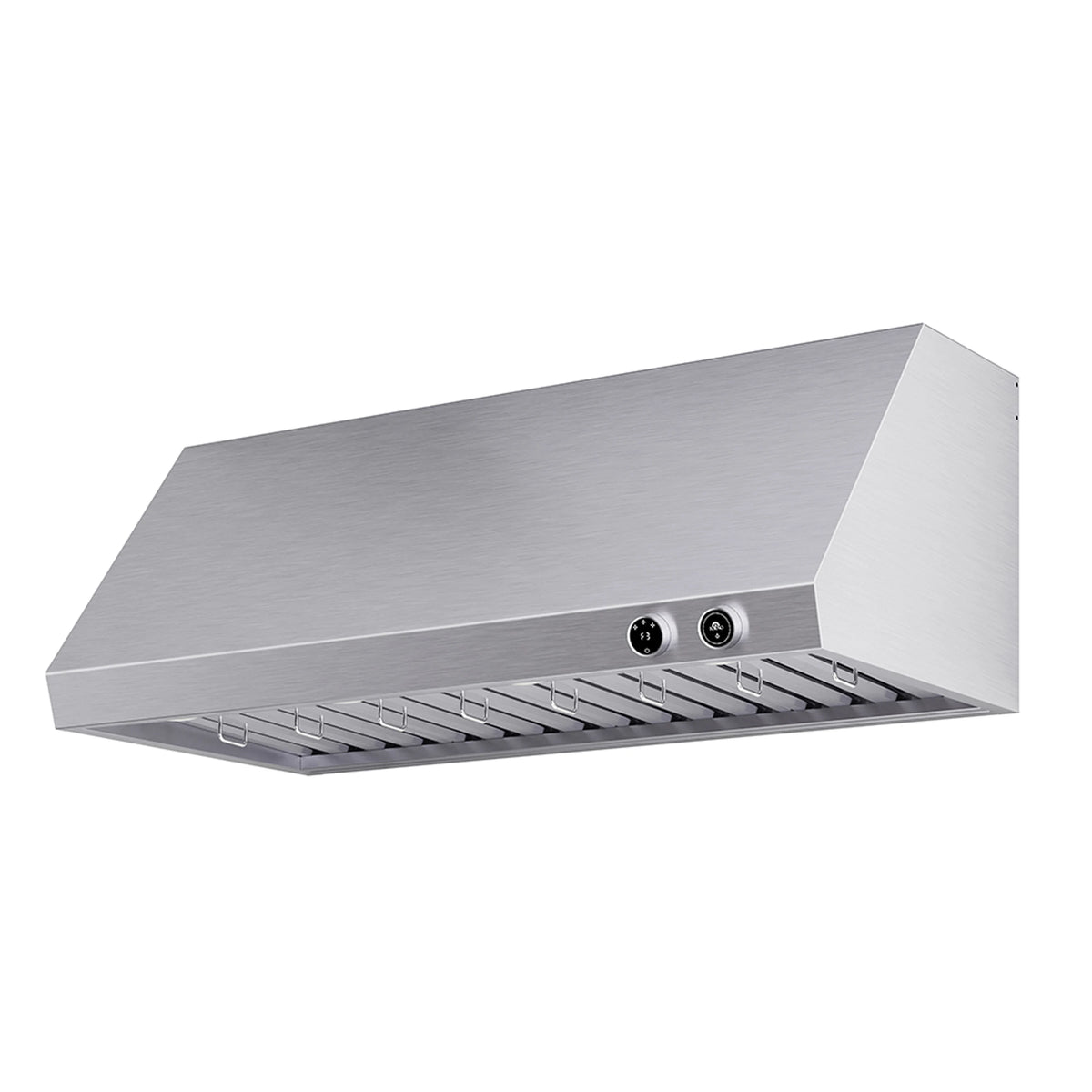

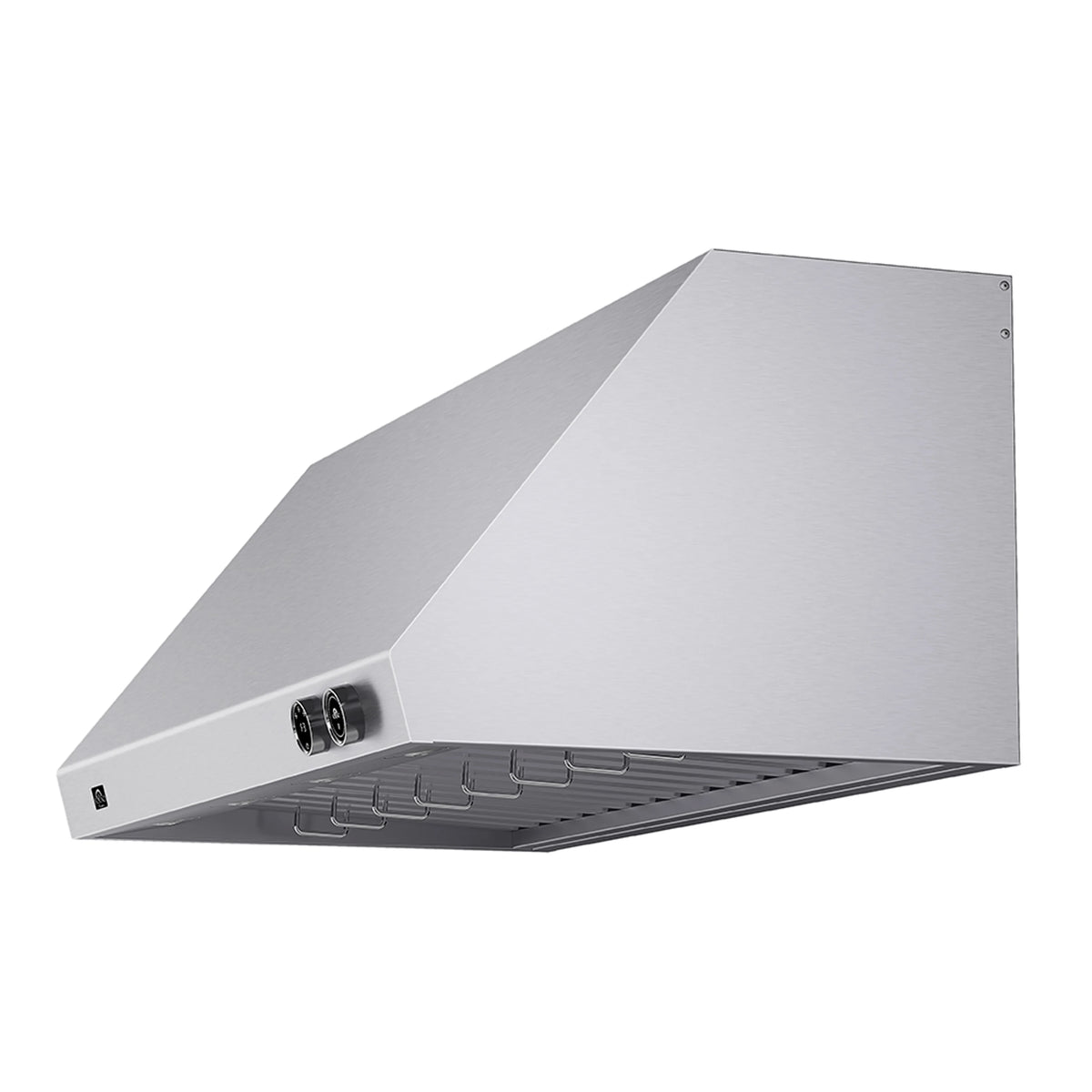

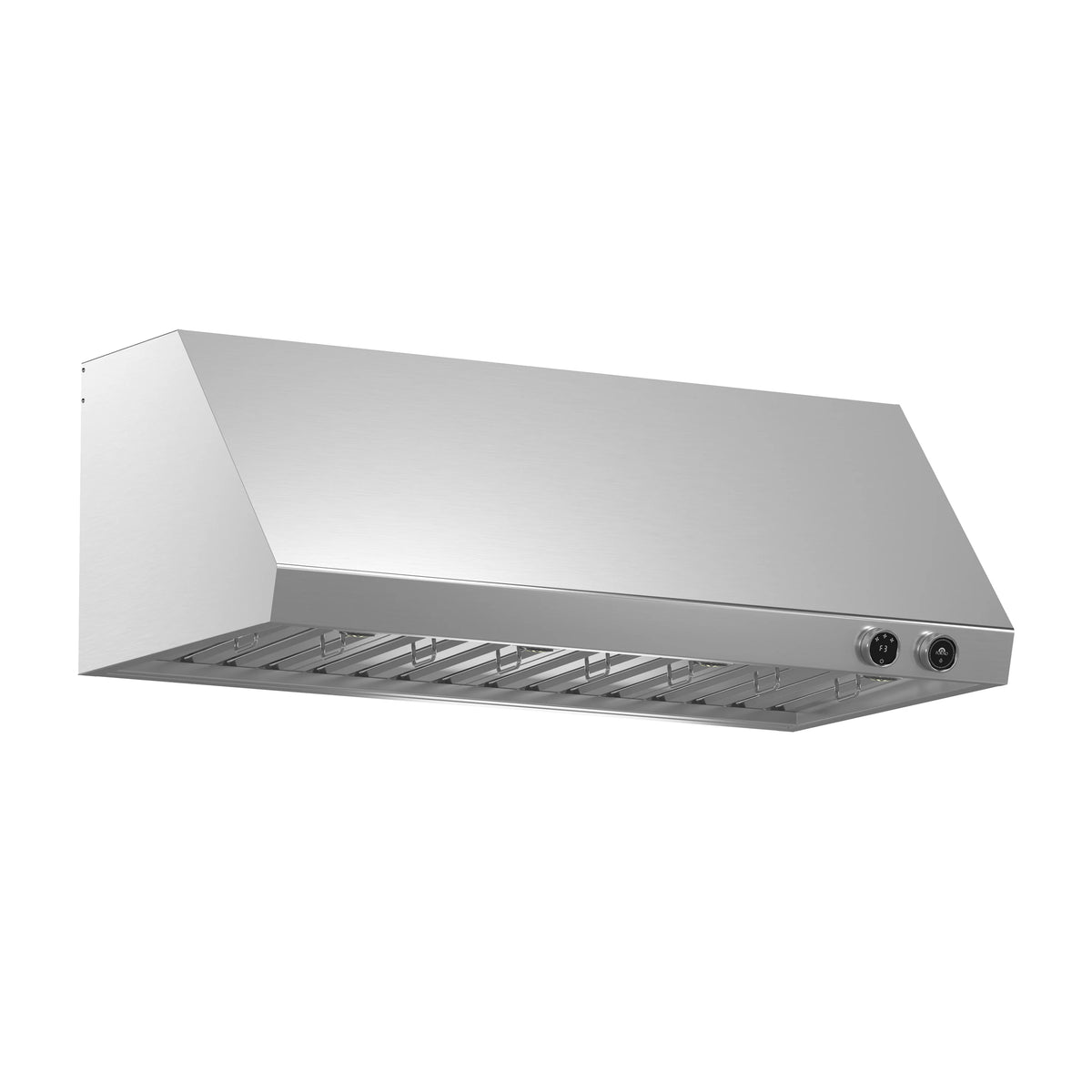

Upgrade your kitchen with the Forno Biagio 48" Wall Mounted Range Hood, boasting a powerful 1200 CFM motor for superior ventilation. Crafted from durable Stainless Steel and equipped with simple knob controls, this range hood also features a baffle filter that efficiently traps grease and is easy to clean, making it ideal for larger cooking areas and serious chefs.

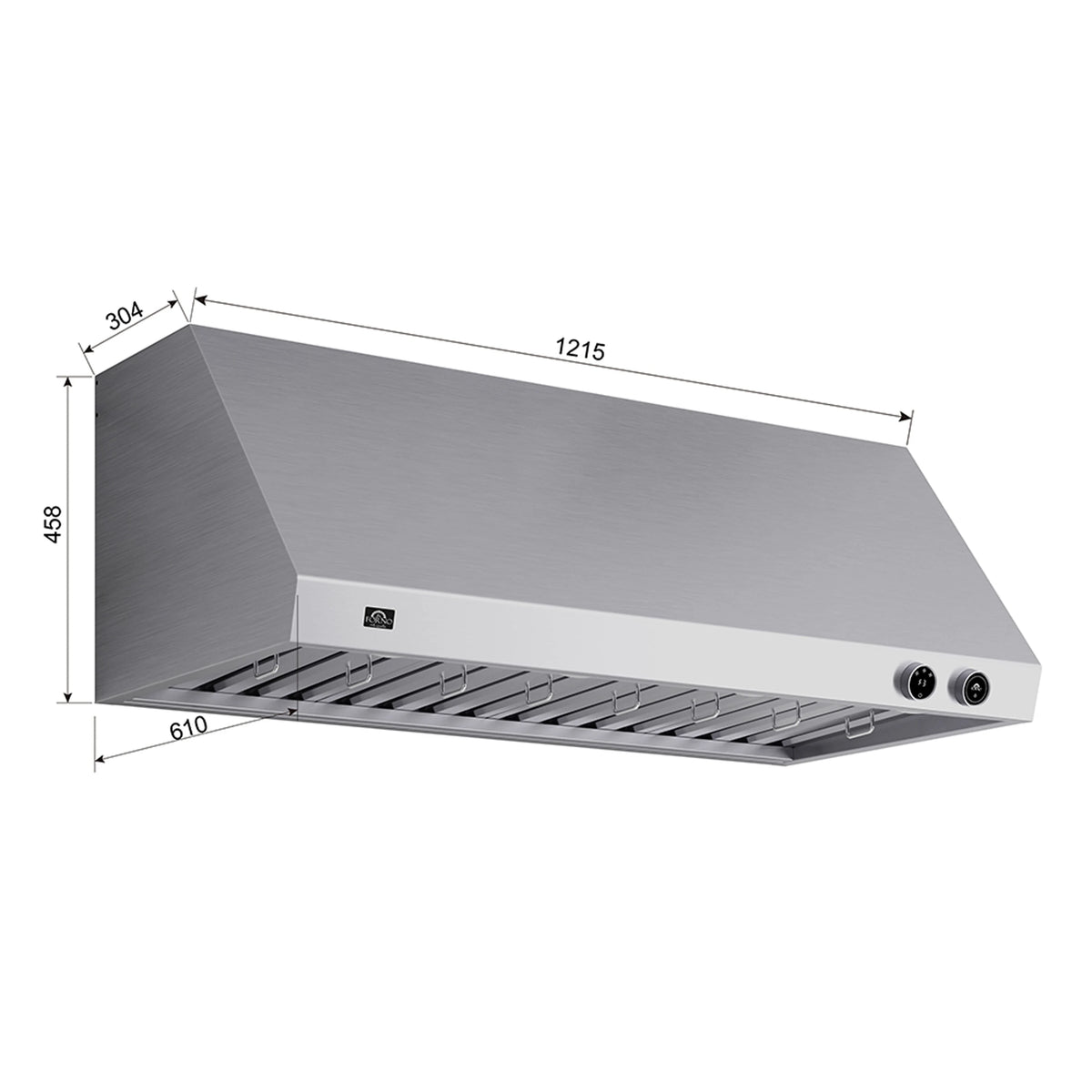

Weight and Dimensions |
|
Product Dimensions W x D x H (inches) |
47.8x24x18 |
Cutout dimensions W x D x H (inch) |
48 x 11.97 x 18 |
Overall Net Weight (LBS) | 99 |
Capacity
|
|
# Speed levels
|
3 |
CFM
(cubic feet per minute) |
Level 1 700 CFM Level 2 900 CFM Level 3 1,200CFM |
Air flow
|
Level 1 1,190 m3/hr Level 2 1,530 m3/hr Level 3 2,040 m3/hr |
RPM
(Revolutions Per Minute |
Level 1 500 Level 2 630 Level 3 800 |
Noise Level at each speed
|
Level 1 56 dB Level 2 61 dB Level 3 67 dB |
Appearance
|
|
Size
|
48" |
Unit Color
|
Stainless steel |
Ventilation Type
|
Ducted |
Technical Specifications
|
|
Running Amperage
|
4 Amps |
Circuit Breaker Amperage
|
15 Amps |
Volts
|
120V |
Motor Power
|
80 Watts |
Frequency
|
60 |
Receptacle Type
|
Nema 5-15P |
Power Cord Length (ft)
|
4 |
Features
|
|

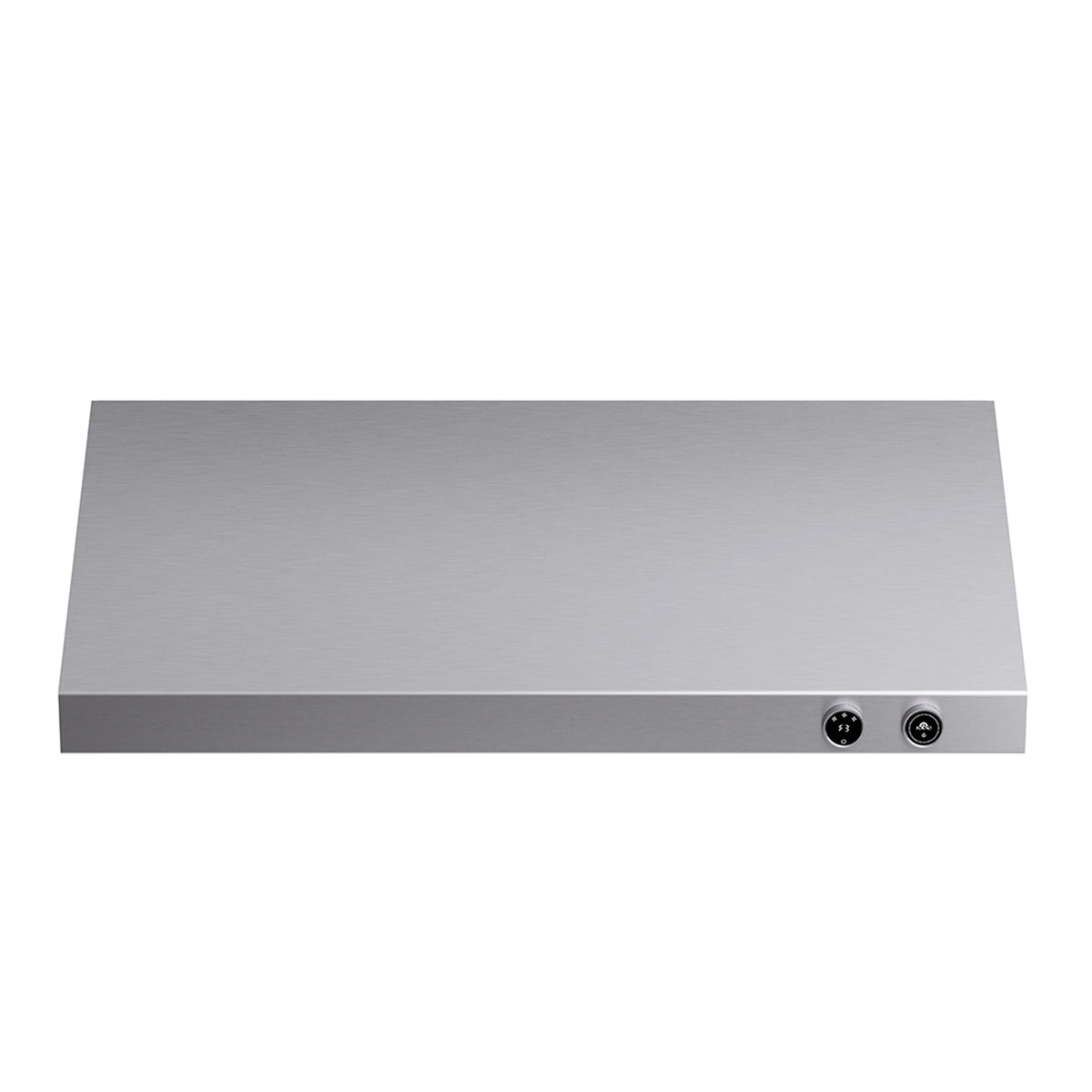

Control type
|
Knob Control |
Number of Hood filters
|
4 |

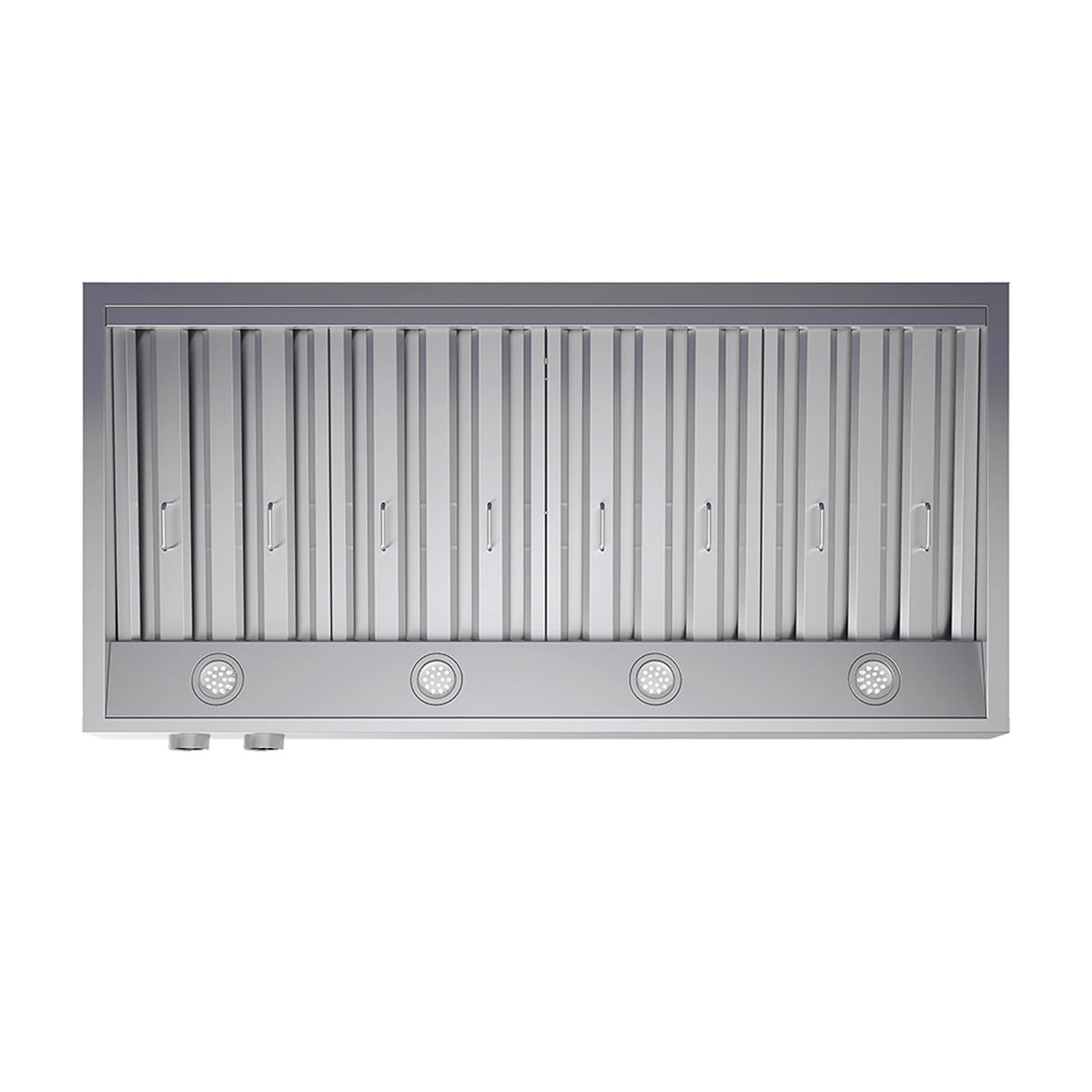

Hood Filter Type
|
Baffle |
Light Type
|
LED Bulb (gu10) |
Number of Lights
|
4 |
Dimmable Lighting
|
Yes |
Automatic Shut-Off Timer
|
Yes |
Auto. Shut-off Timer Duration
|
5 min. |
Number of Motors
|
2 |

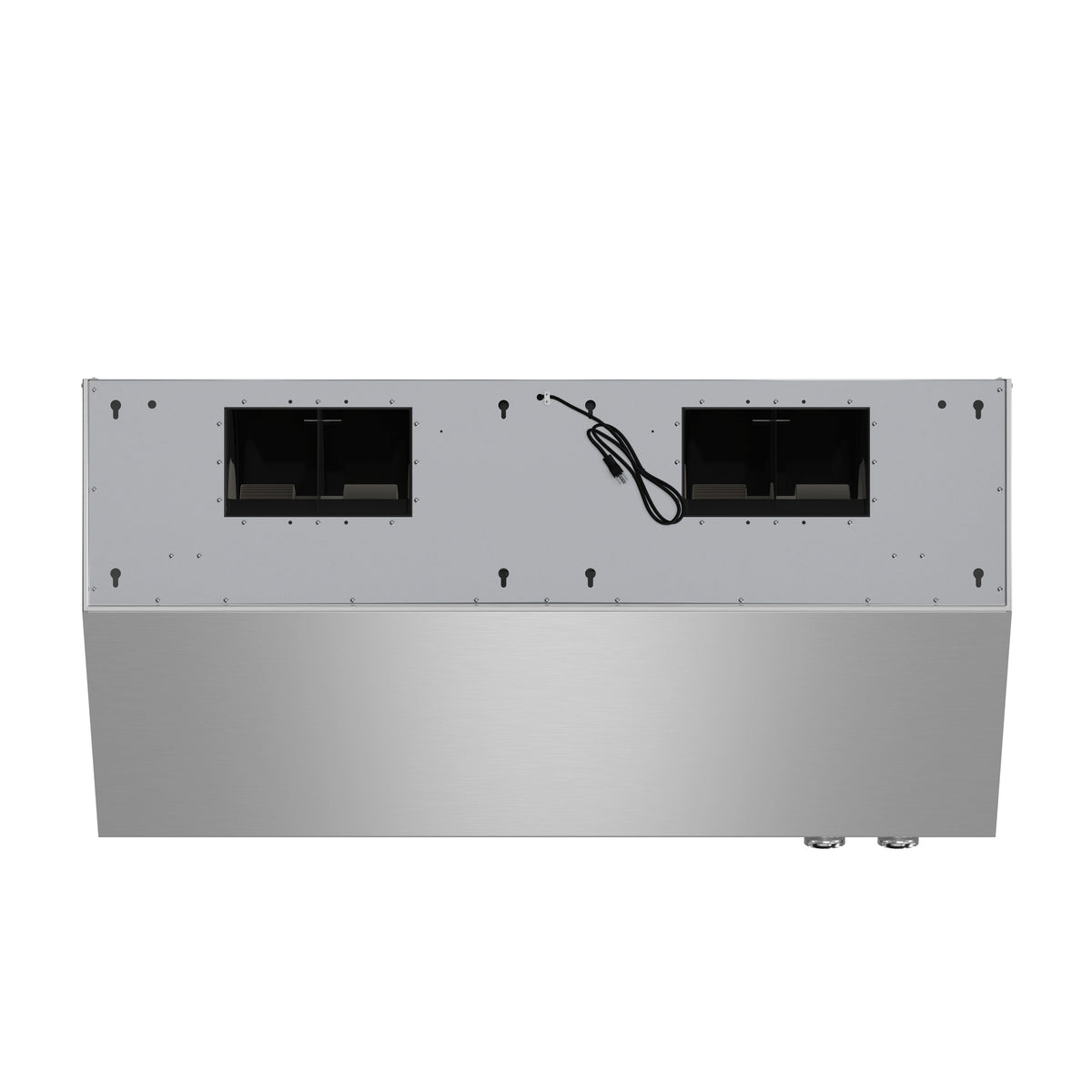

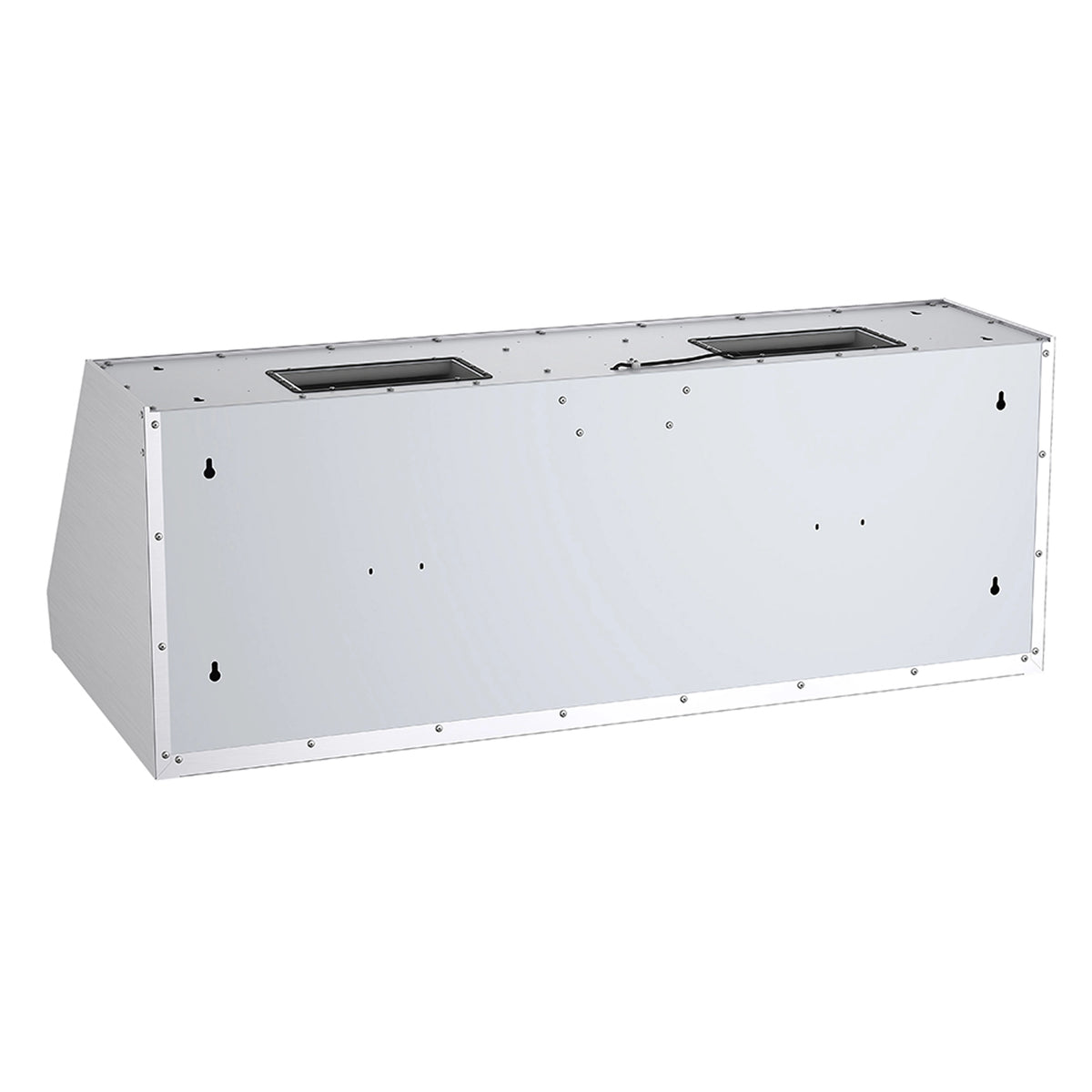

Duct Shape
|
Circular |
Number of Ducts
|
2 |
Duct Size
|
8" |
Warranty
|
|
Commercial Warranty
|
No |
Warranty on Parts
|
2 Years |
Warranty Type
|
Limited |
Warranty on Labor
|
2 Years |
