The Altilia 48" Stainless Steel Built-In Range Hood features a powerful 1200 CFM motor and 4 speed touch control to allow you to easily adjust the fan speed as needed. Its stylish make it an ideal choice for any modern kitchen, while its durable stainless steel construction ensures it can stand up to even the toughest cooking elements. The range hood also includes two surface lights that provide helpful illumination while you cook. Baffle filters capture heat, odors, gases and are dishwasher-safe making cleanup a breeze. This range hood is sure to be an asset in any kitchen. With its sleek design and efficient operation, it is the perfect way to add modern convenience and style to your kitchen.
This insert rangehood is equipped with a powerful energy-efficient 1200 CFM, designed to capture smoke, gases, steam and grease to keep your cooking area free of unwanted odors.
Filters are made of washable Stainless-Steel with a baffle design and designed to capture grease, smoke, odors and grease from the air.

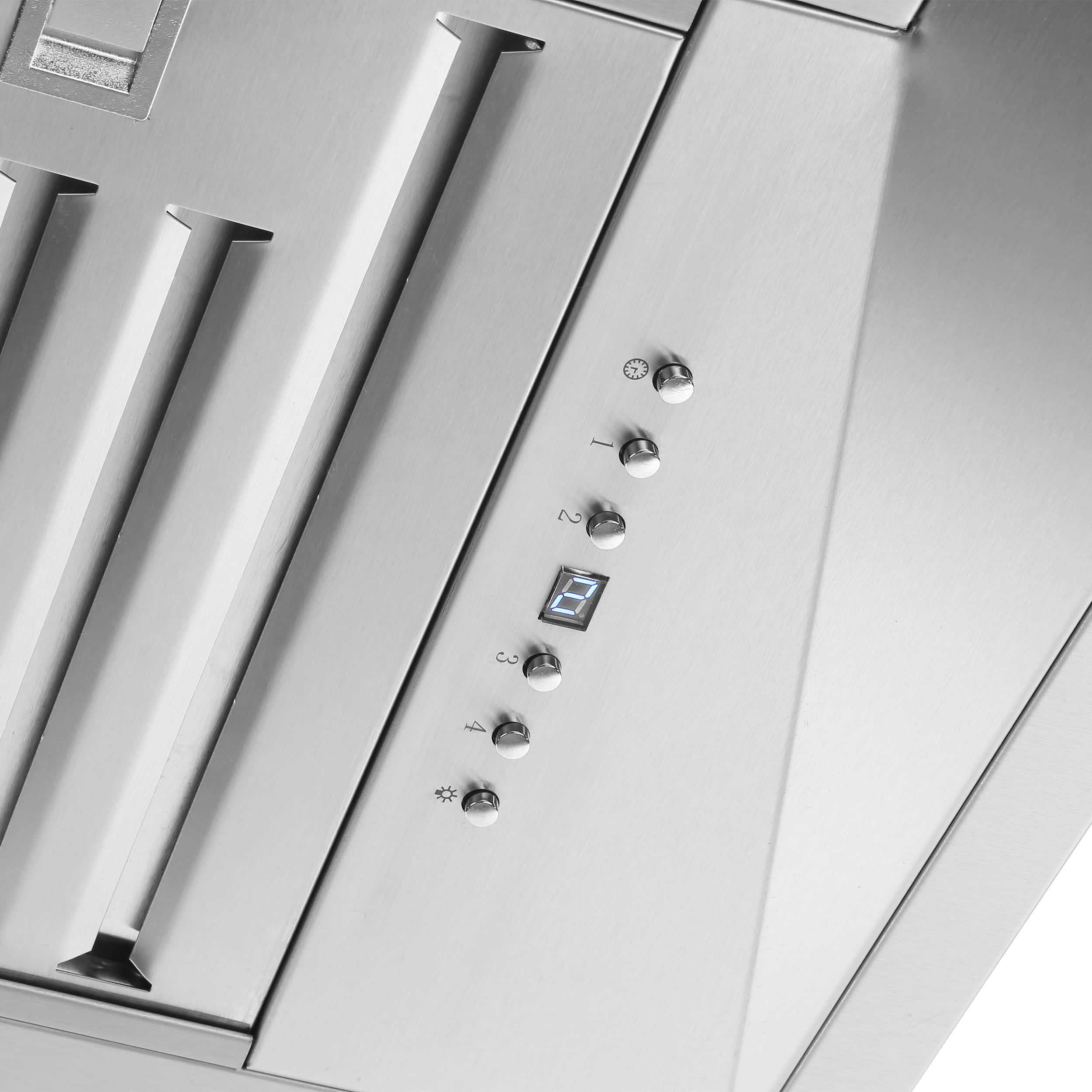

4 speed touch control for easy operation makes it simple to adjust the fan speed settings for air flow and ventilation levels according to your needs.

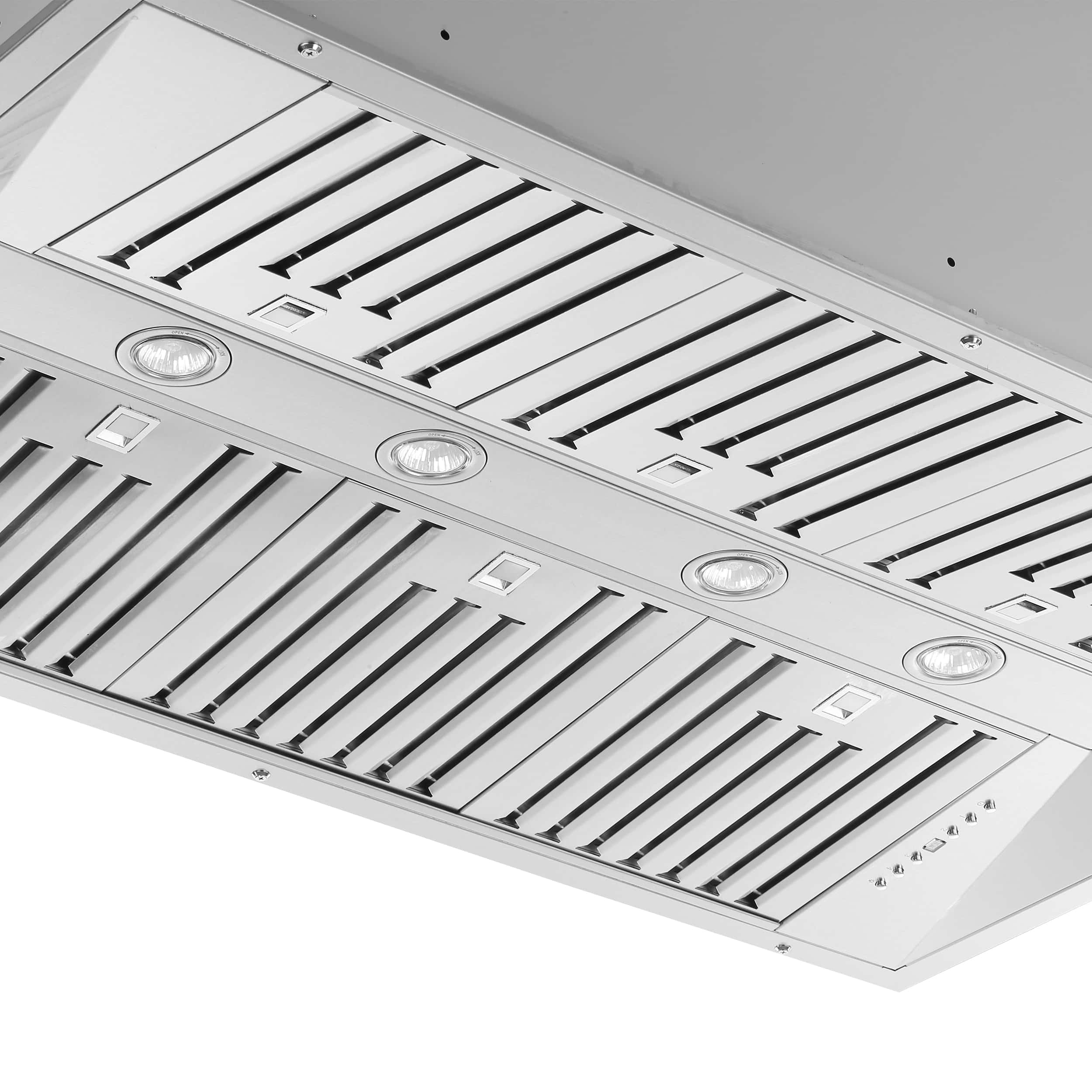

Four Surface lights offer bright illumination for cooktop surface.

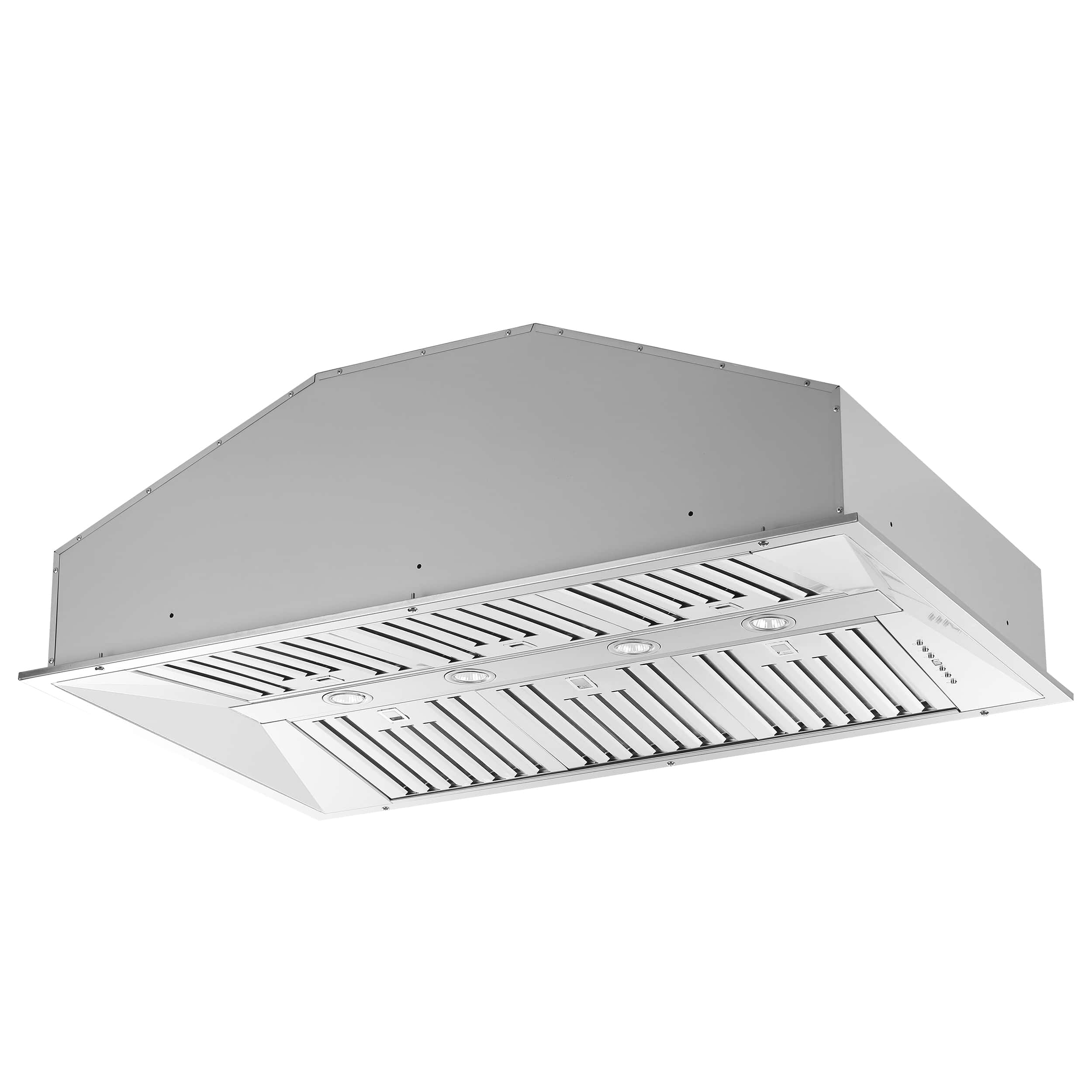

This insert range hood is designed to fit seamlessly into surface custom cabinetry installation or hood enclosure.
Maximum power ventilation at a low noise level of 68dB allows you to enjoy an effective ventilation system without obtrusive noise disruption. Low setting delivers sound level of 25dB.
| DIMENSIONS | |
|---|---|
| Overall Dimensions | 46" W X 24" D X 14.59" H |
| Minimum Height from Cooktop | 25" for Electric Range 30" for Gas Range |
| Cutout Dimensions | 46.6" W X 22.6" D |
| Maximum Height from Cooktop | 30" |
| GENERAL INFORMATION | |
| Bulb Type | GU10 |
| Mount Type | Built-in / Insert |
| Exhaust Vent Location | Top |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Filter Material | Stainless Steel |
| Speed Control | 4 speed |
| Speed Control Type | Touch Control |
| Hardware Finish | Stainless Steel |
| Primary Material | Stainless Steel |
| Remote Control | No |
| TECHNICAL DETAILS | |
| Maximum CFM | 1200 CFM |
| Maximum Sones | 16 sones |
| Minimum Sones | 2 |
| Noise Level | 68dB(A) |
| Amperage | 3.7A |
| Volts | 120 |
| Wattage | 440 |
| Power Source | AC |
| Duct Shape | 10" Round |
| Blower Type | Metal |
| Damper | Yes |
| Reversible Blower | No |
| FEATURES | |
| Lighting Type | Halogen |
| Air Discharge Direction | Vertically Upward |
| Filter Type | Baffle |
| Washable Filter | Yes |
| Rangehood Chimney | Yes |
| Chimney Short Kit | No |
| Glass Component | No |
| Crown Molding | Yes |
| Smudge Resistant | No |
| Heat Sensors | No |
| Delay Shut Off | 3 Minutes |
| Timer | No |
| Clean Filter Alert | No |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| WARRANTY & CERTIFICATIONS | |
| ETL Listed | Yes |
| Warranty Type | Limited |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |
