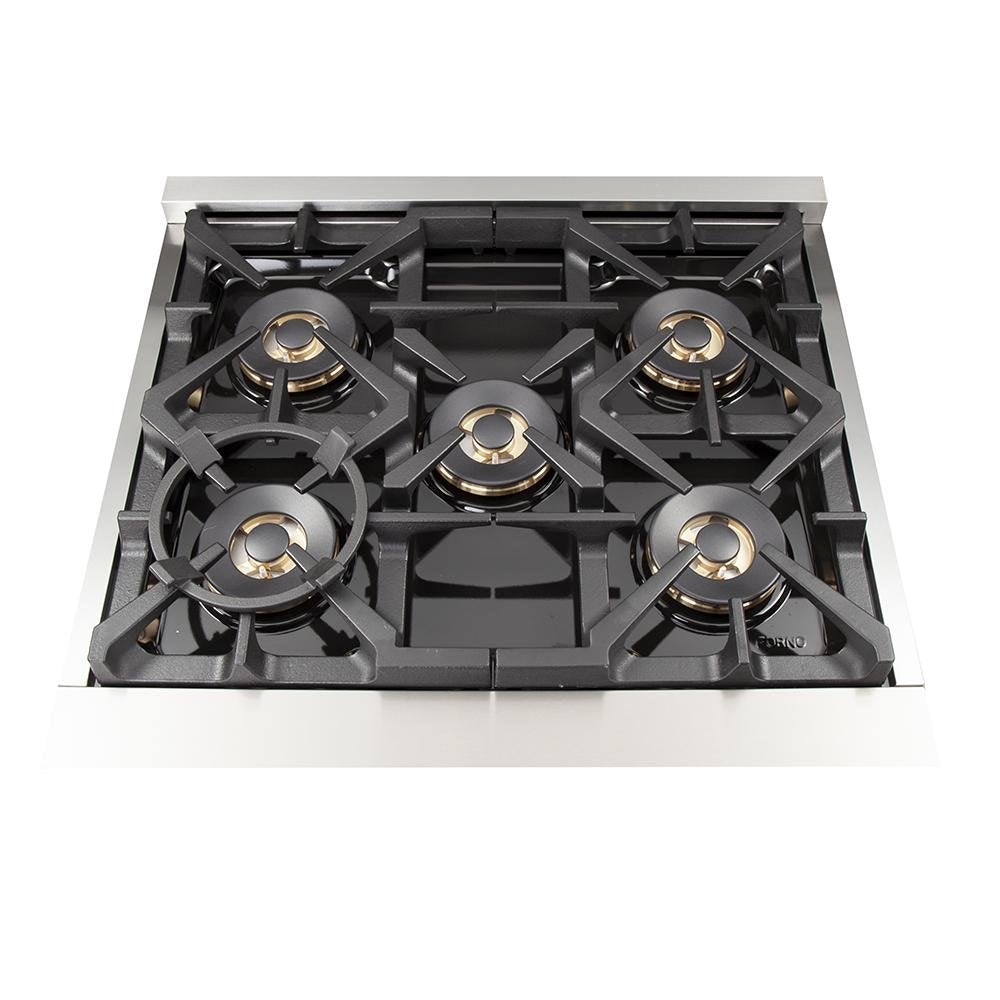

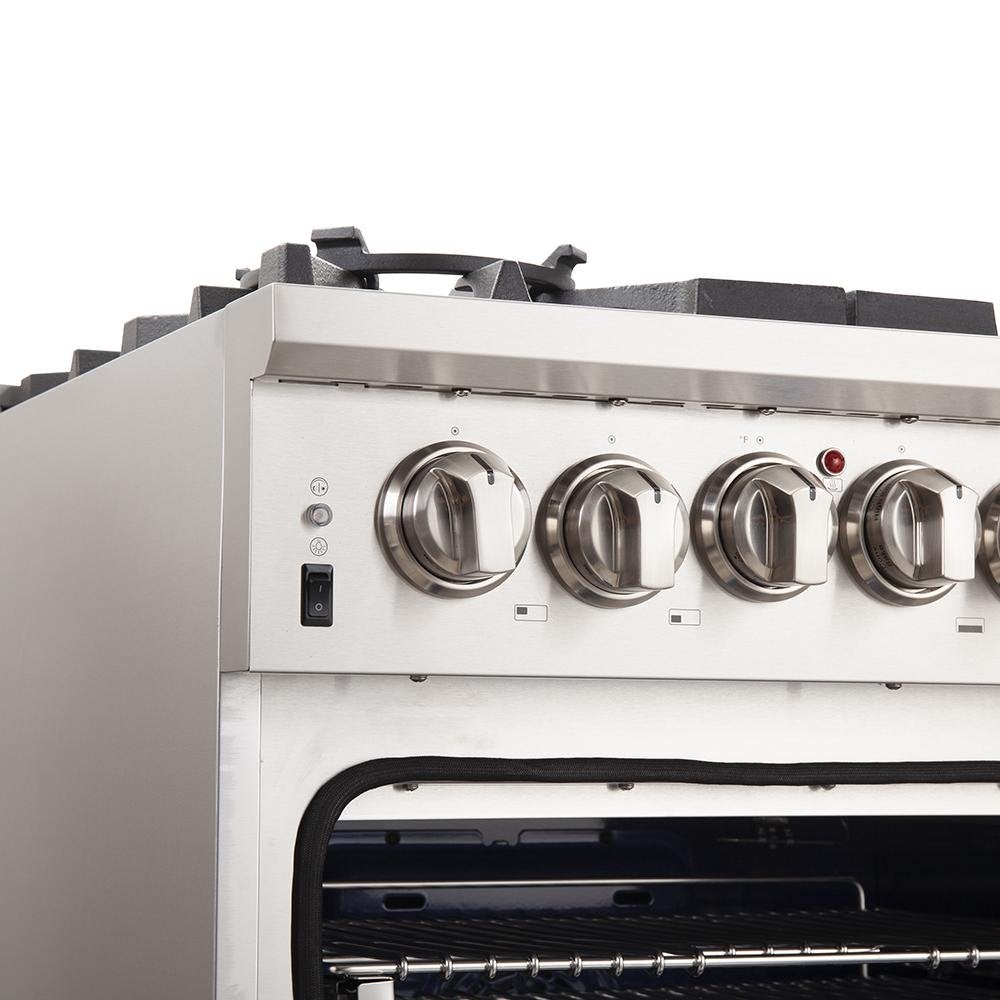

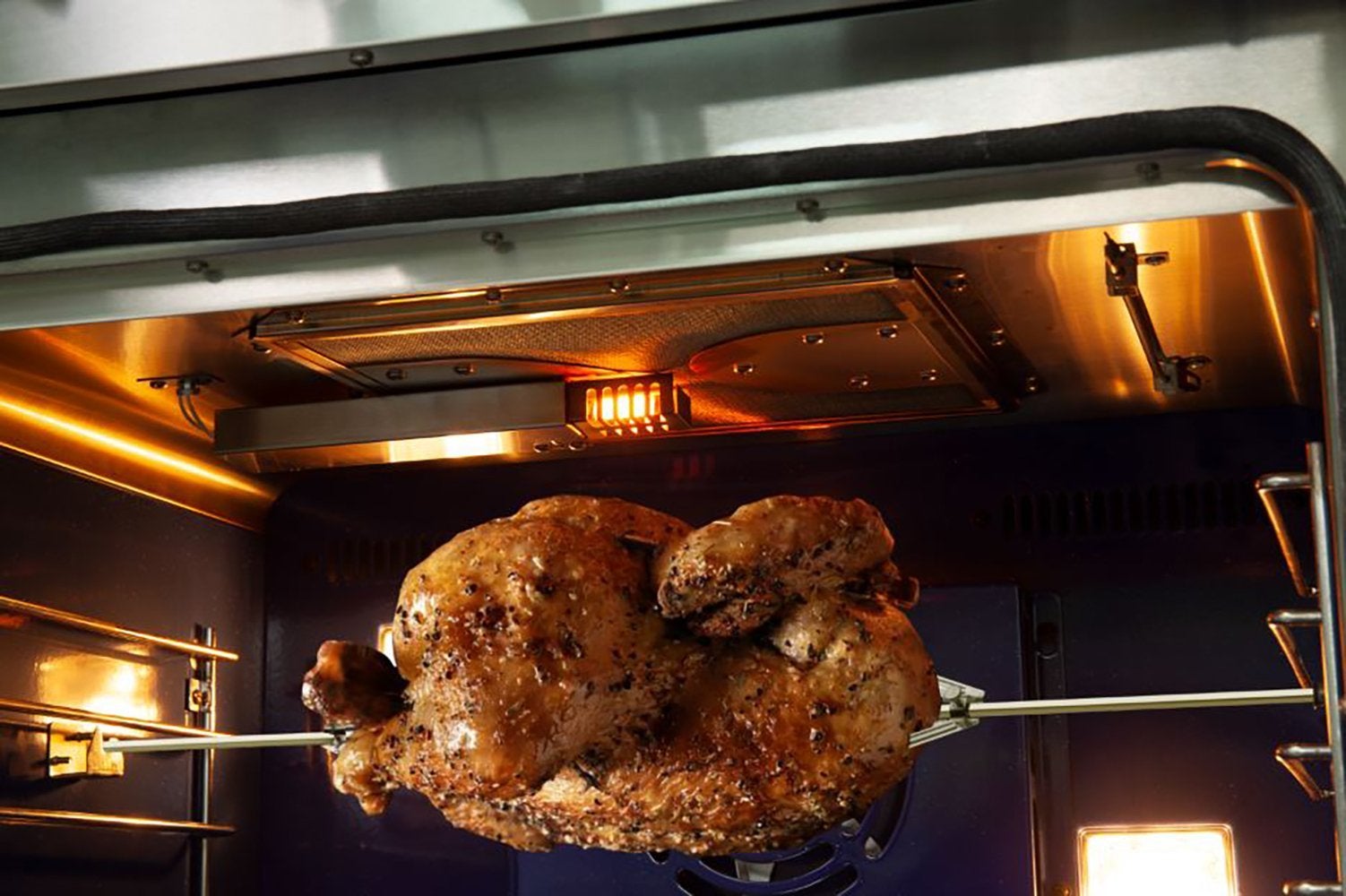

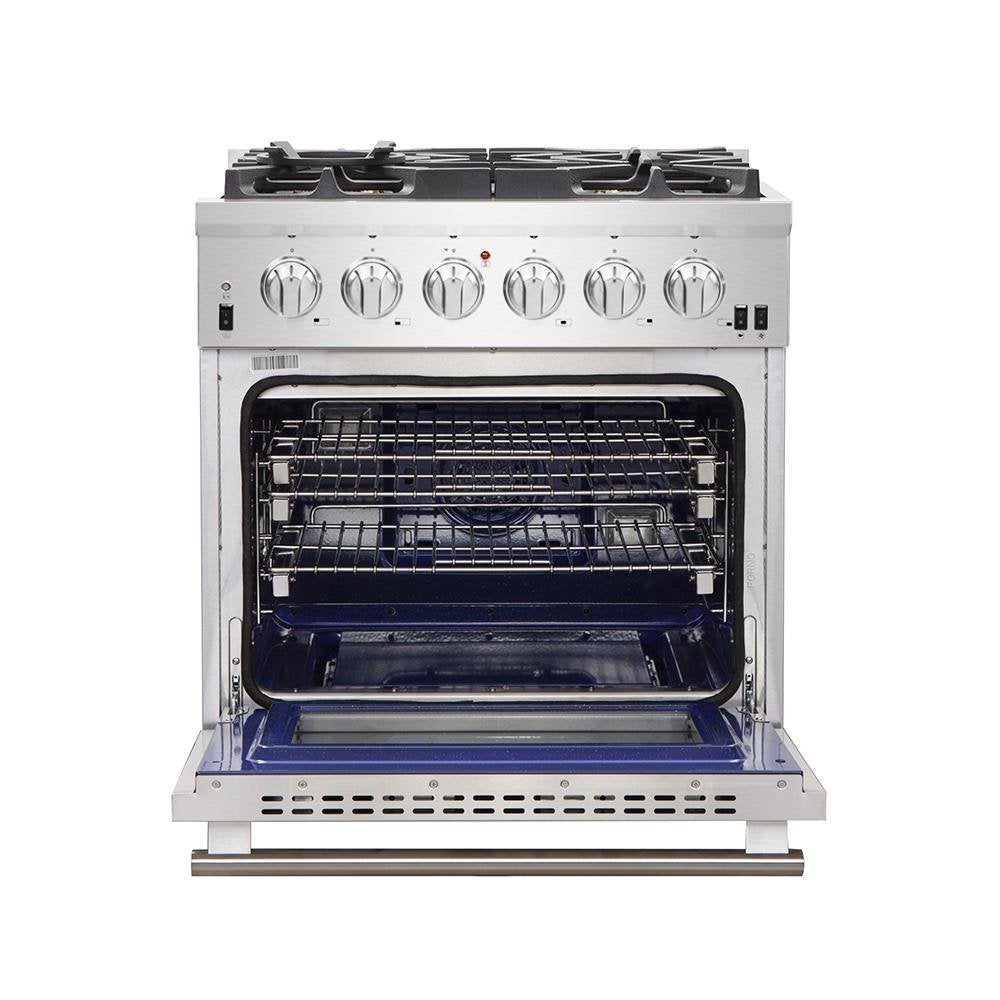

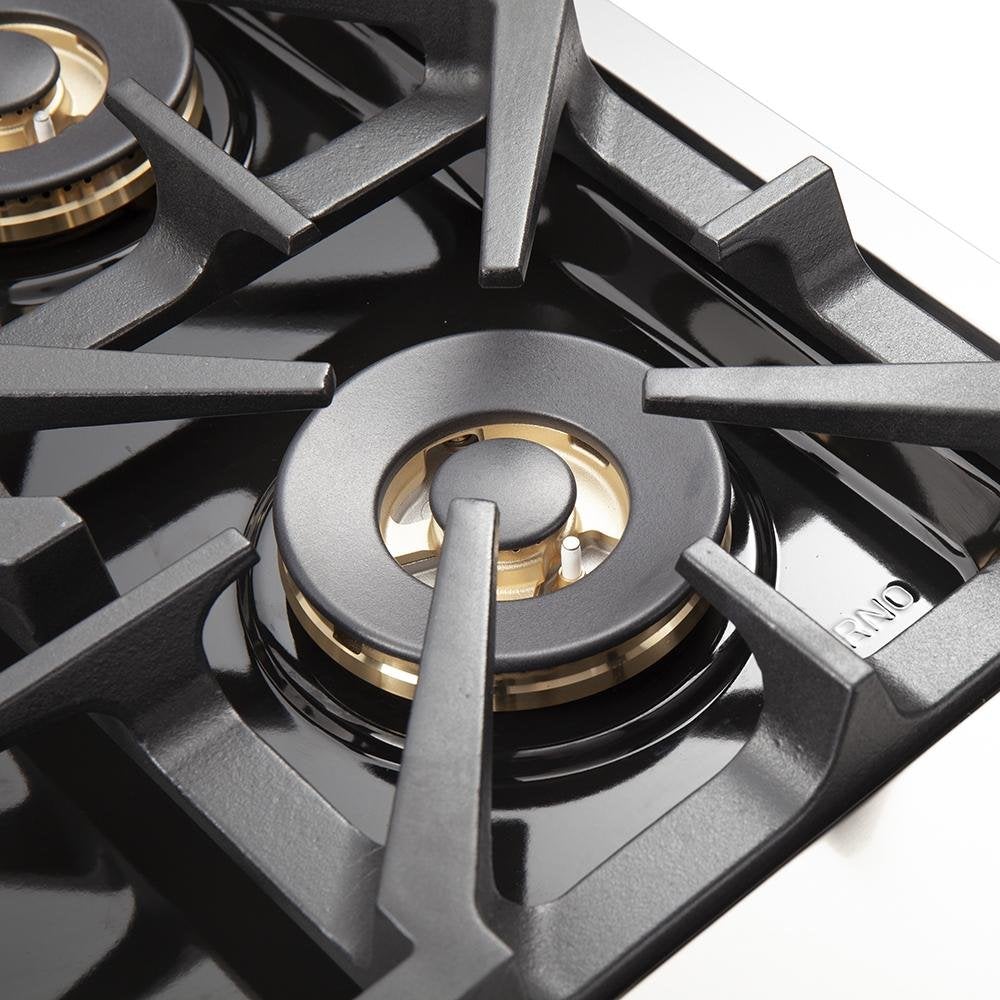

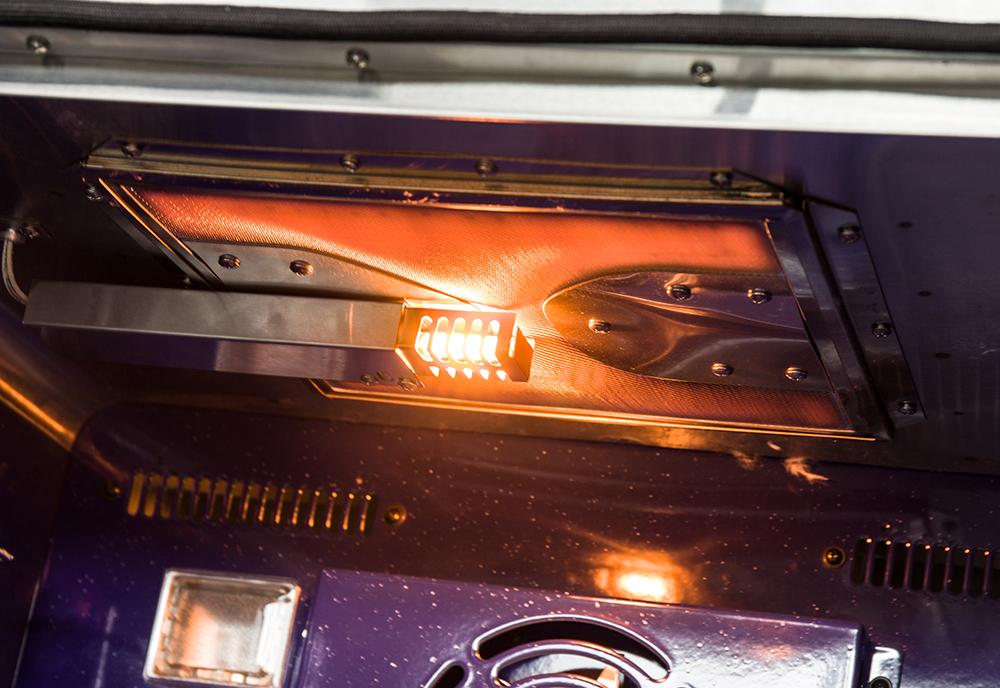

The Forno Capriasca 30 Inch Gas Range enhances your home kitchen with professional styling and performance through its durable and beautiful 304-grade stainless-steel design. The cooking surface features 5 sealed dual-ring brass burners, totaling 100,000 BTU. All burners, each at 20,000 BTU, can simmer precisely at 1,000 BTU. Continuous heavy-duty cast-iron grates facilitate easy sliding of pots or pans off heat over the enamel cooktop cavity, simplifying spill cleanup. The 4.32 cu. ft. gas oven, with a 30,000 BTU output and infrared red mesh broiler, enclosed in a blue enamel interior, offers optional convection for precise, and consistent cooking on multiple levels. For convenient viewing, a 3-layer glass oven door window is included. The package includes 3 telescopic stainless-steel oven racks, wok support, and an LP conversion kit. Additionally, zinc-coated illuminated metal knobs with bezel rings ensure enduring beauty.
Features:
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 30 x 28 x 38 |
| Cutout dimensions W x D x H (inch) | 30 x 25 x 36 |
| Product Overall Weight (lbs) | 227.07 |
| Main Oven Usable Interior (W x D x H) | 24 X 14 X 10.38 |
| Cabinet Color | Stainless Steel |
| Cabinet Material | Stainless Steel |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Color/Finish | Stainless Steel |
| Number of Knobs | 6 |
| Primary Material | Metal |
| Interior Light(s) Type | Halogen |
| Knobs Color/Finish | Zinc Coated |
| TECHNICAL DETAILS | |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
| LP gas convertible | Yes |
| COOKTOP FEATURES | |
| Burner Fuel | Gas |
| Gas Heat Configuration (cooktop) | Sealed Burner |
| Total Cooktop BTU Output | 100,000 |
| Number of Burners/Cooking Zones | 5 |
| Cooking Surface Control Type | Push & Turn/Knobs |
| Cooking Surface Ignition Type | Electronic |
| Simmer Burner | Yes |
| Number of Simmer Burner | 5 |
| Oval Burner | No |
| Cooktop Surface Structure |
|
| Grate Type | Heavy-Duty Continuous Cast Iron Grates |
| Auto Re-Ignition | Yes |
| Oven Ignition Type | Automatic Ignition |
| Dual-Ring Burner | Yes |
| OVEN FEATURES | |
| Number of Ovens | 1 |
| Overall Oven BTU | 30000 |
| Overall Oven Capacity (Cubic Feet) | 4.32 |
| Oven Control Type | Manual/Knob |
| Glide/Rollout Racks | Yes |
| Racks Material | Stainless Steel |
| Number of Racks | 3 |
| Overall Bake Element BTU | 20000 |
| Overall Broil BTU | 10000 |
| Door Panel Material | 304 Stainless Steel |
| Oven Fuel | Gas |
| Overall Capacity Cu. Ft. | 4.32 |

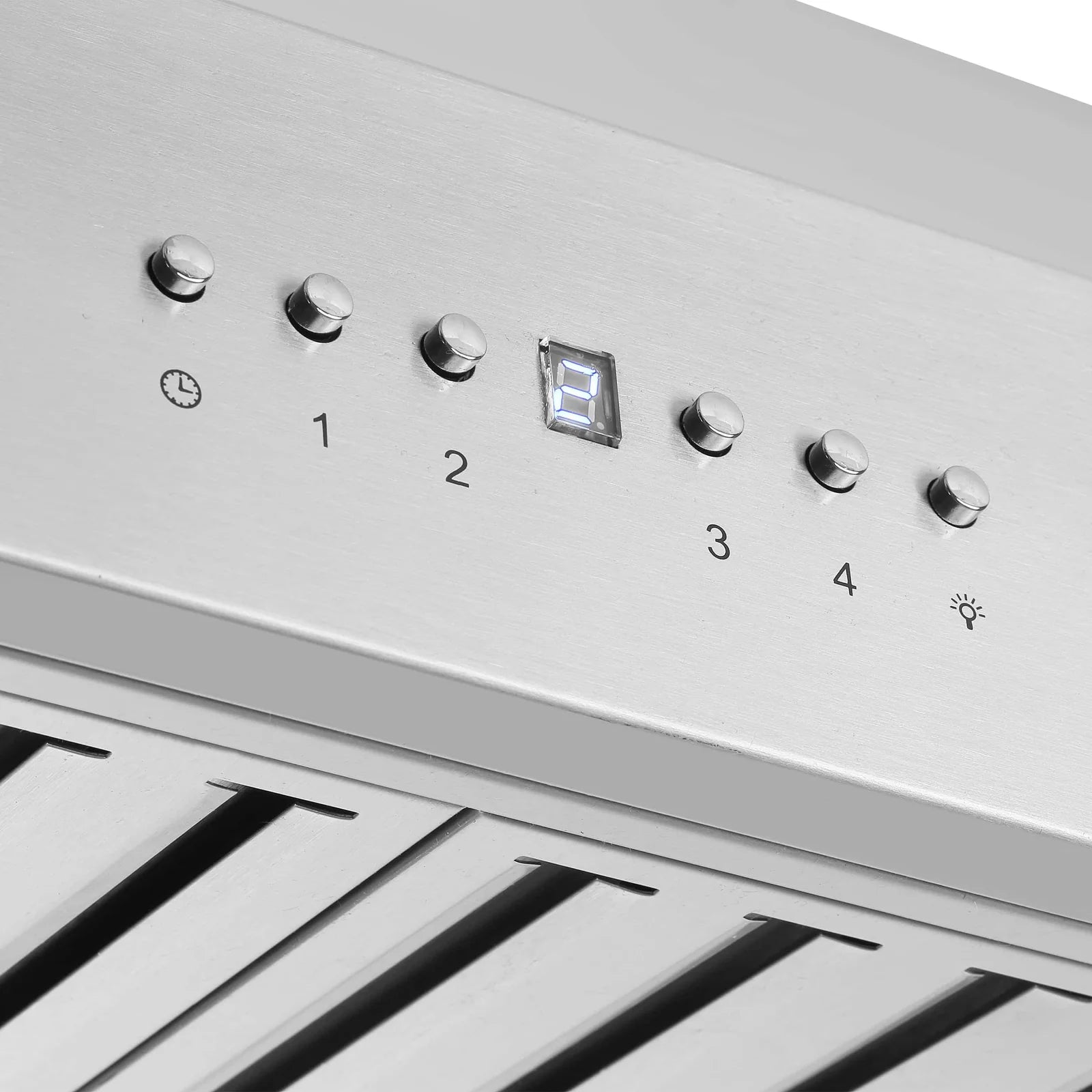

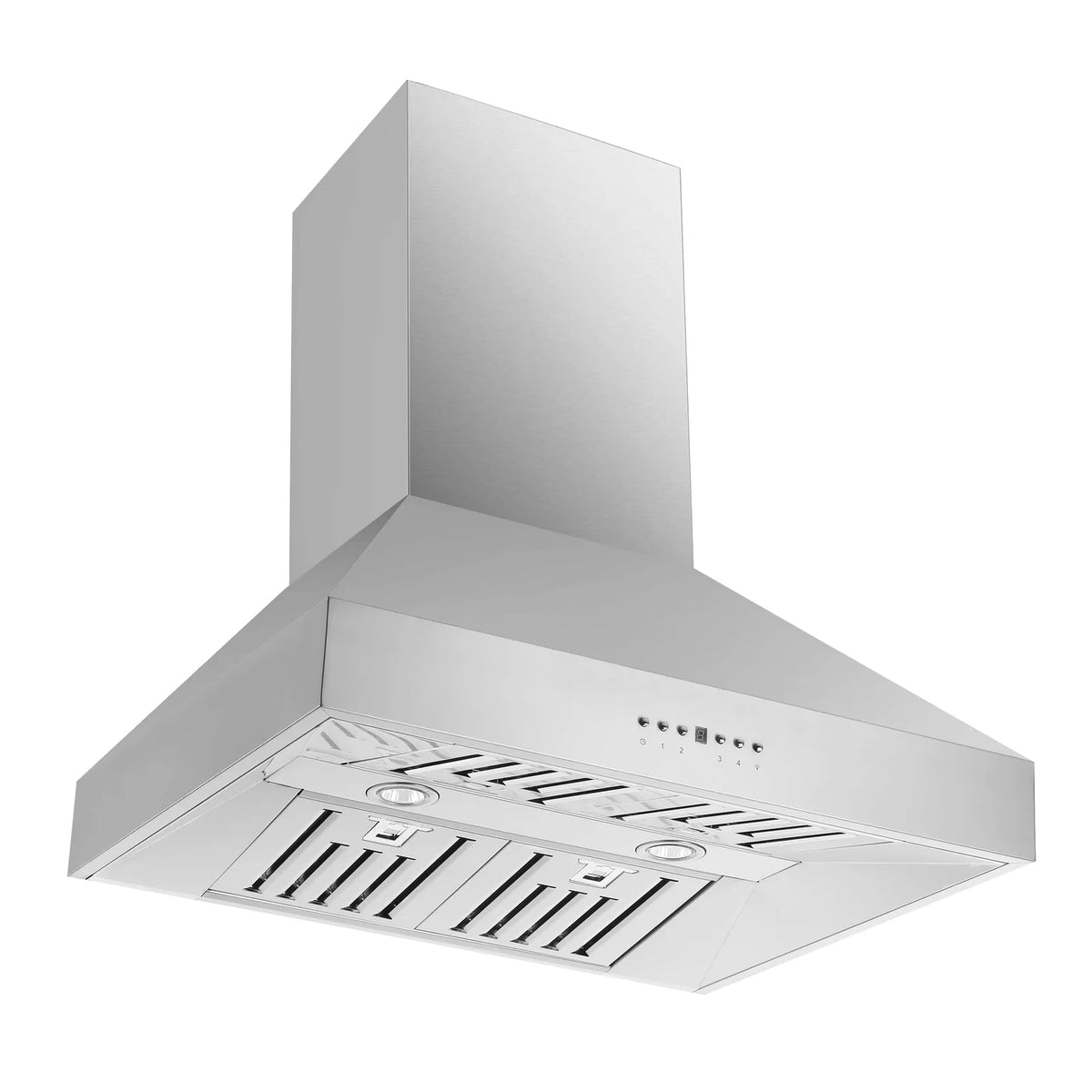

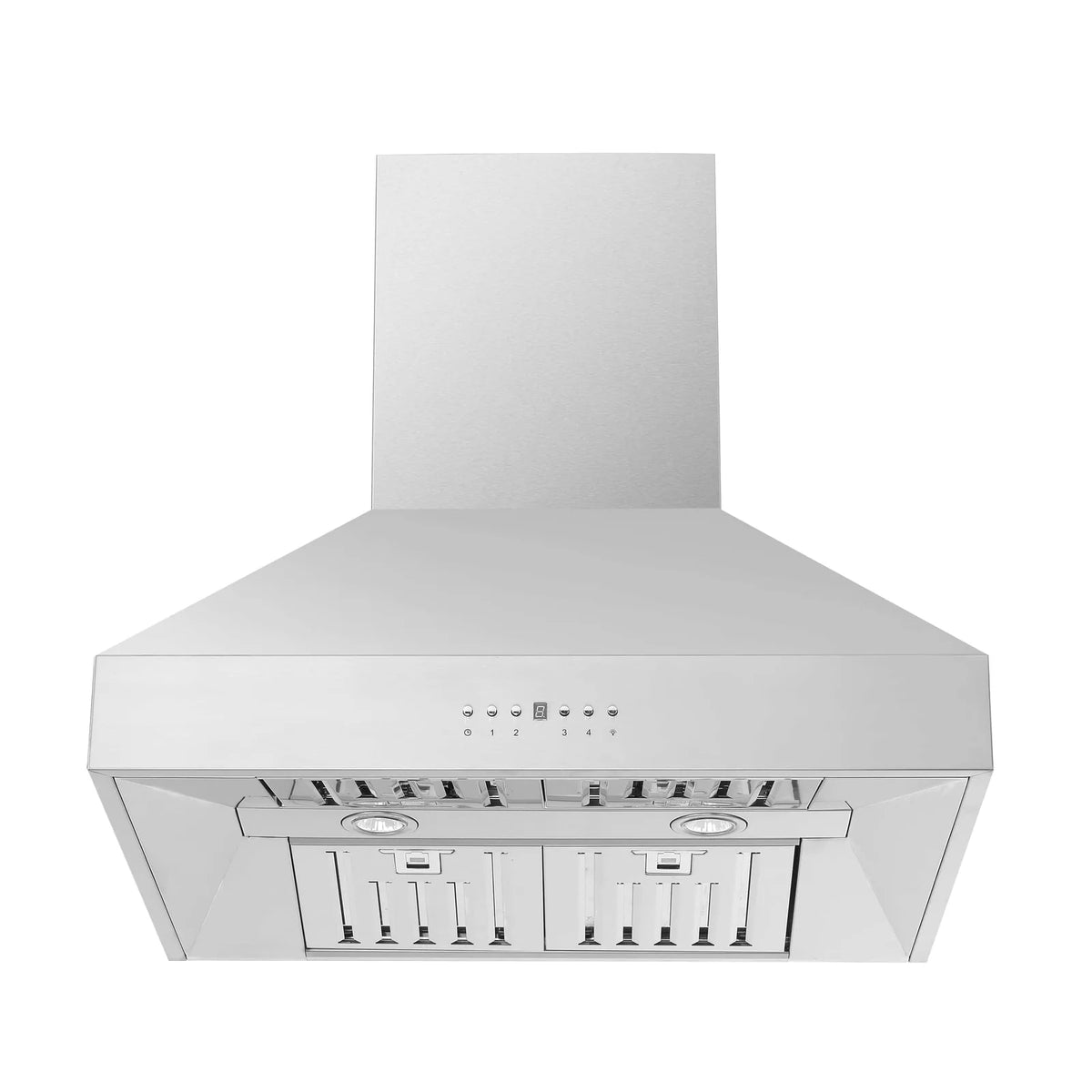

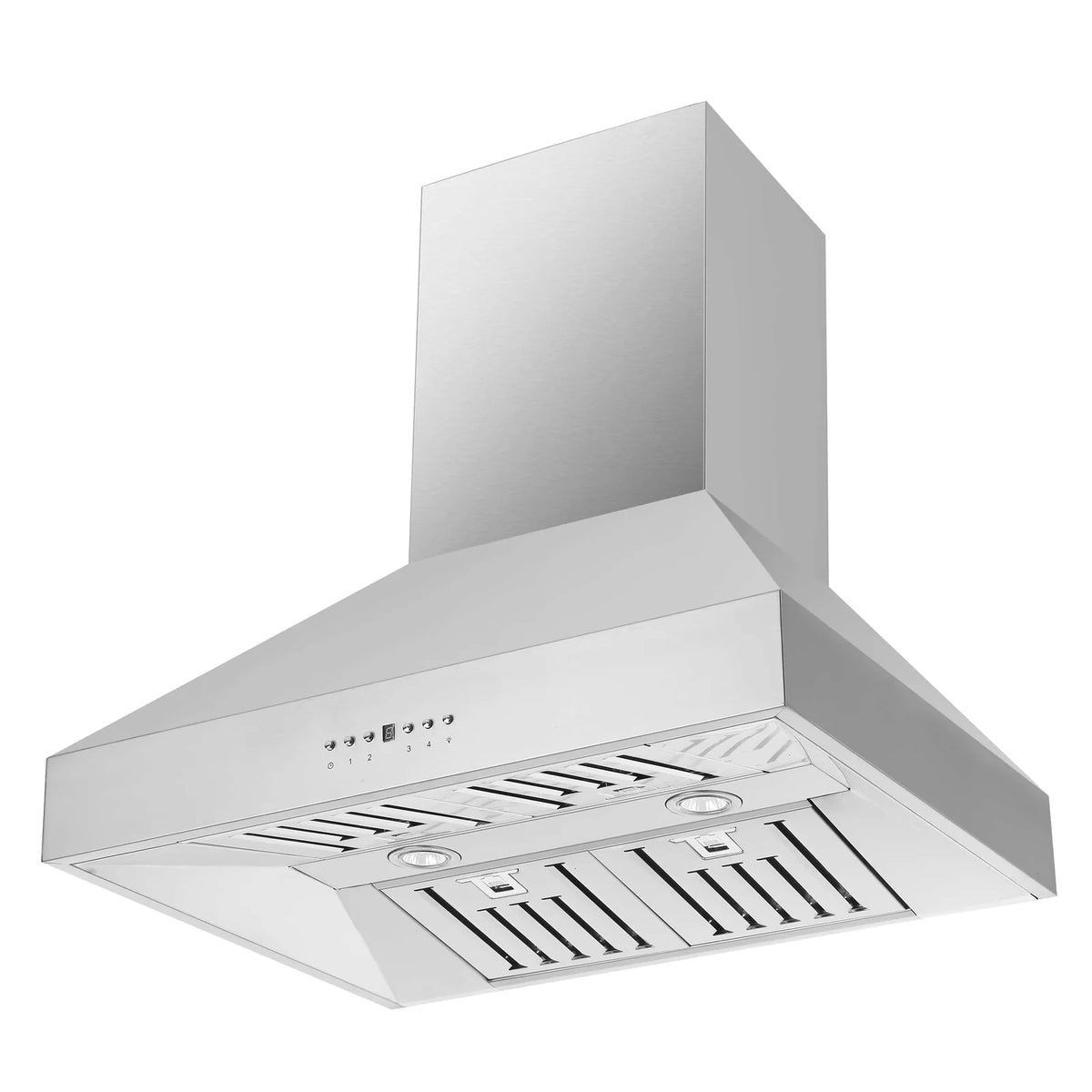

The Orvieto 30-Inch STAINLESS STEEL Wall Mount RANGE HOOD helps create superior air quality with its powerful 600 CFM motor and four-speed push-button control. The decorative stainless-steel crown molding adds an attractive finish to your kitchen design. The hood is made from high-grade stainless steel for durability, and boasts noise reduction technology for a quieter sound while in use. The included surface lights provide superior illumination and energy efficiency. Baffle filters capture heat, odors, gases and are dishwasher-safe making cleanup a breeze. This range hood is sure to be an asset in any kitchen.
| DIMENSIONS | |
|---|---|
| Product Dimensions (WxDxH)(in) | 29.53" W X 23.62" D X 29.14" to 44.29" H |
| Net Weight (lbs) | 44lbs |
| GENERAL INFORMATION | |
| Style design | Wall Mount |
| Ventilation Type | Ducted |
| DESIGN & FINISH | |
| Unit Color | Stainless Steel |
| Control type | Push Button |
| TECHNICAL DETAILS | |
| Number of Motors | 1 |
| Duct Shape | Round |
| Number of Ducts | 2 |
| Duct Size | 6” |
| Running Amperage (A) | 1.8 |
| Circuit Breaker Amperage (A) | 15 |
| Volts (V) | 120 |
| Motor Power (WATTS) | 60 |
| Frequency | 60Hz |
| Power cord plug type | NEMA 5-15P |
| Power Cord Length (ft) | 4 |
| # Speed levels | 4 |
| FEATURES | |
| Size | 30" |
| Number of Hood filters | 4 |
| Hood Filter type | Baffle |
| Light Type | LED GU10 |
| Dimmable Lighting | No |
| Automatic Shut-Off Timer | Yes |
| Auto. Shut-off Timer Duration | 3 Min |

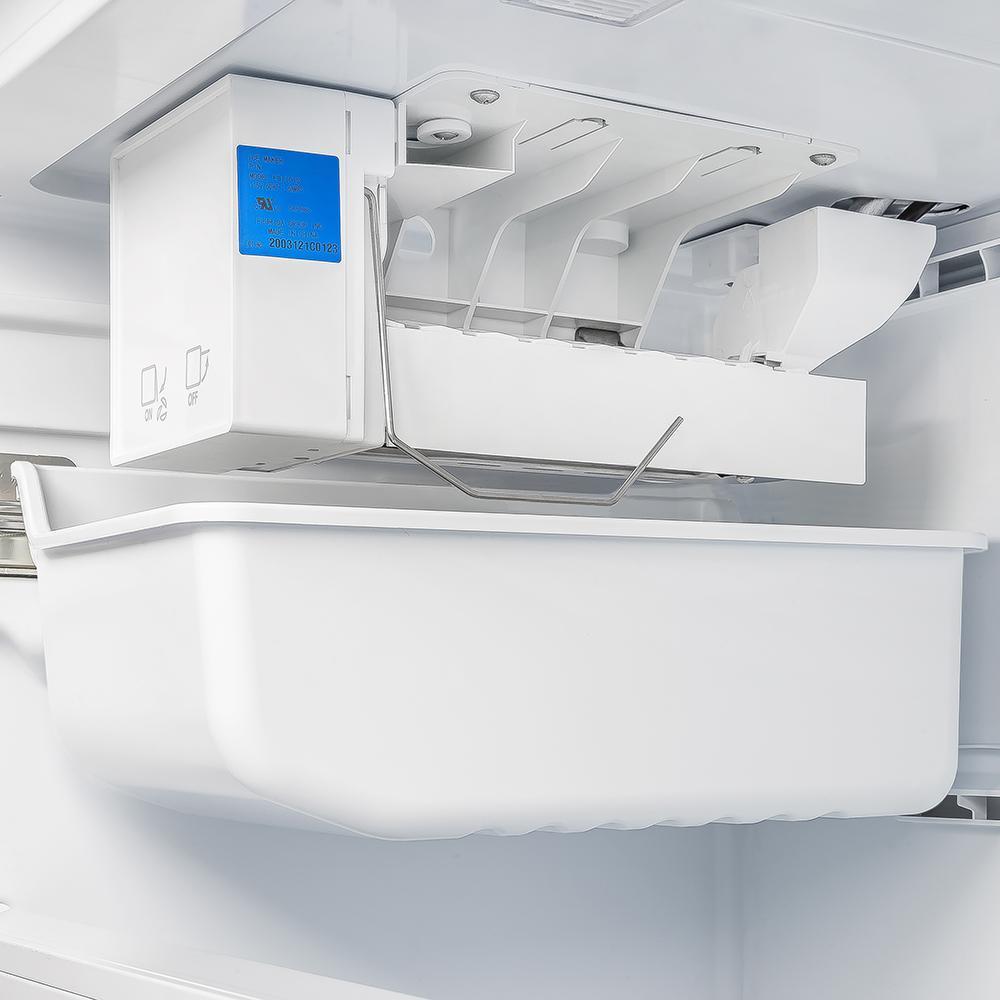

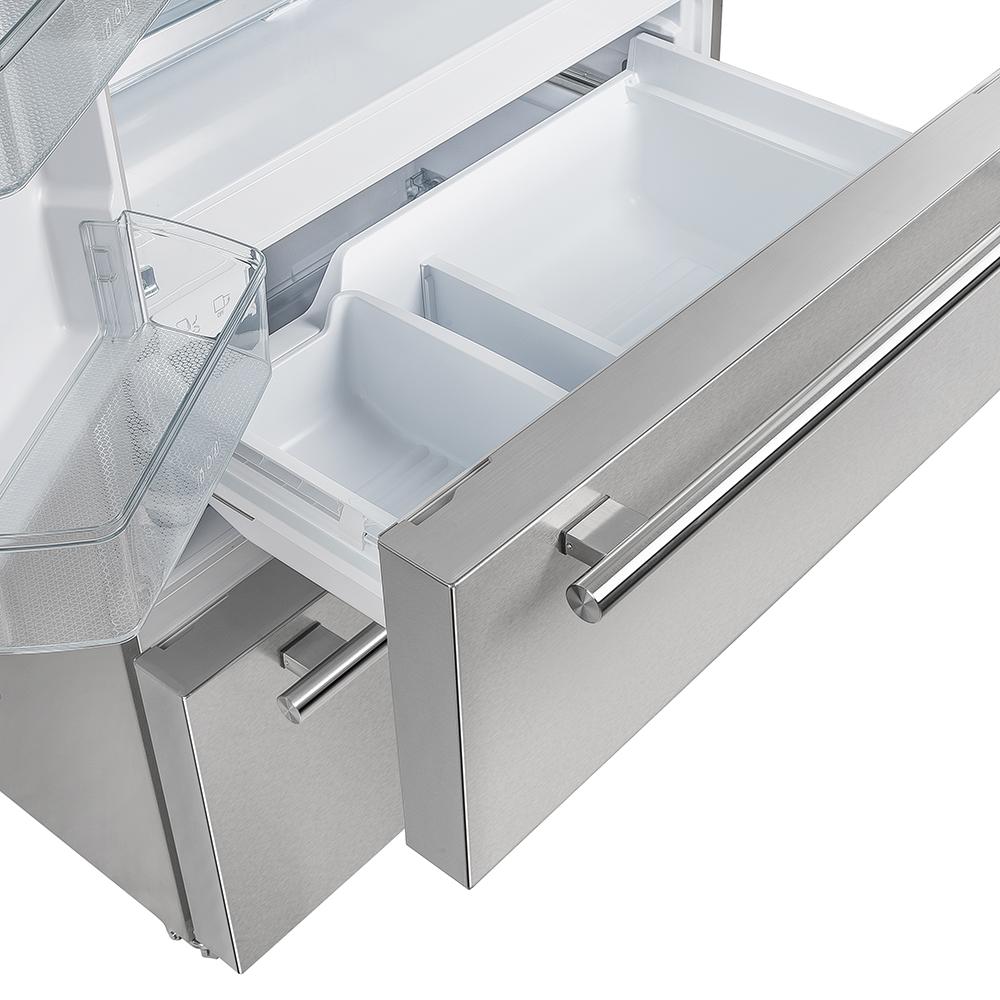

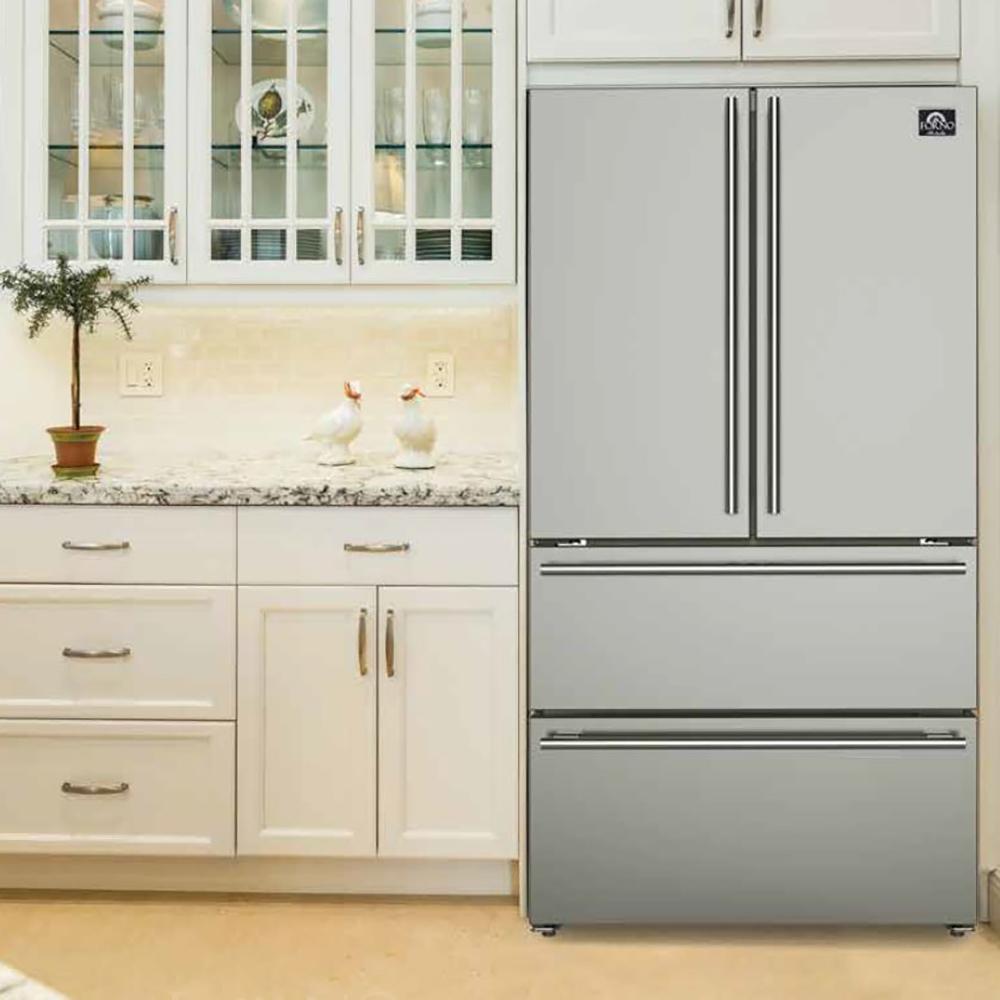

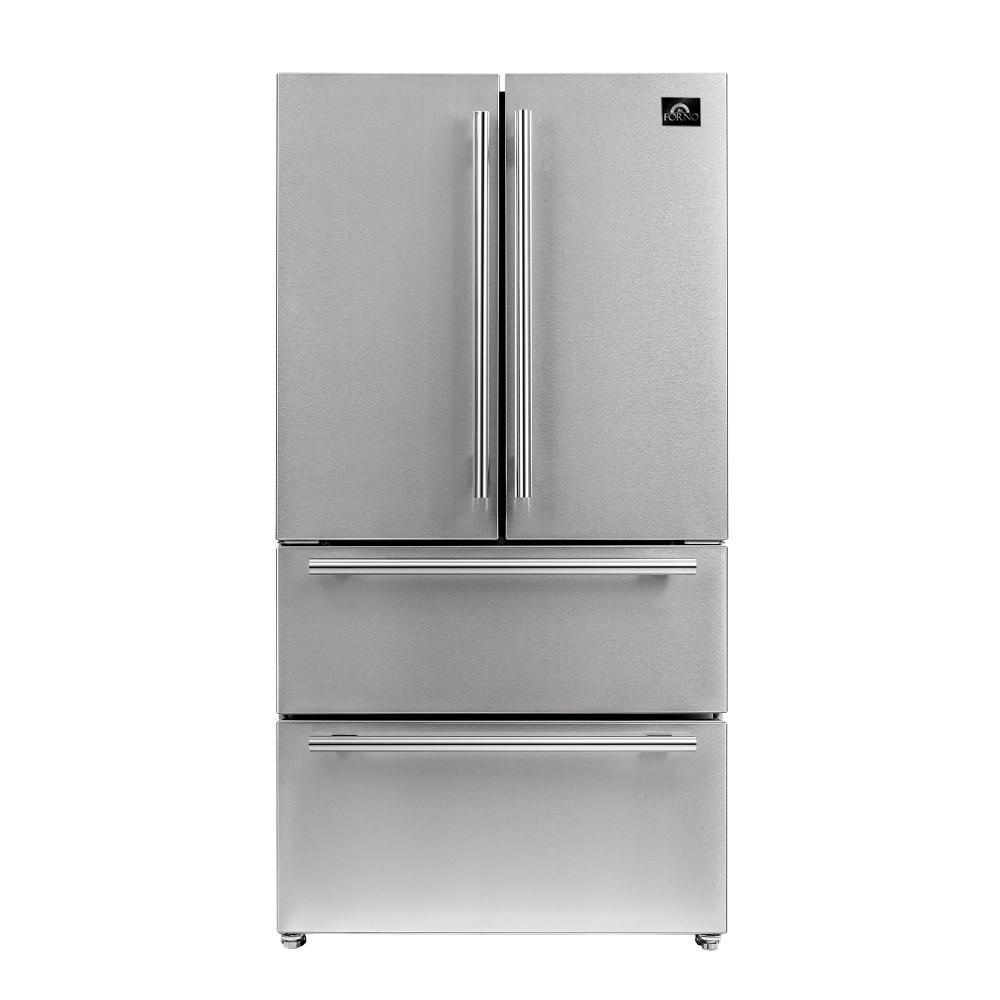

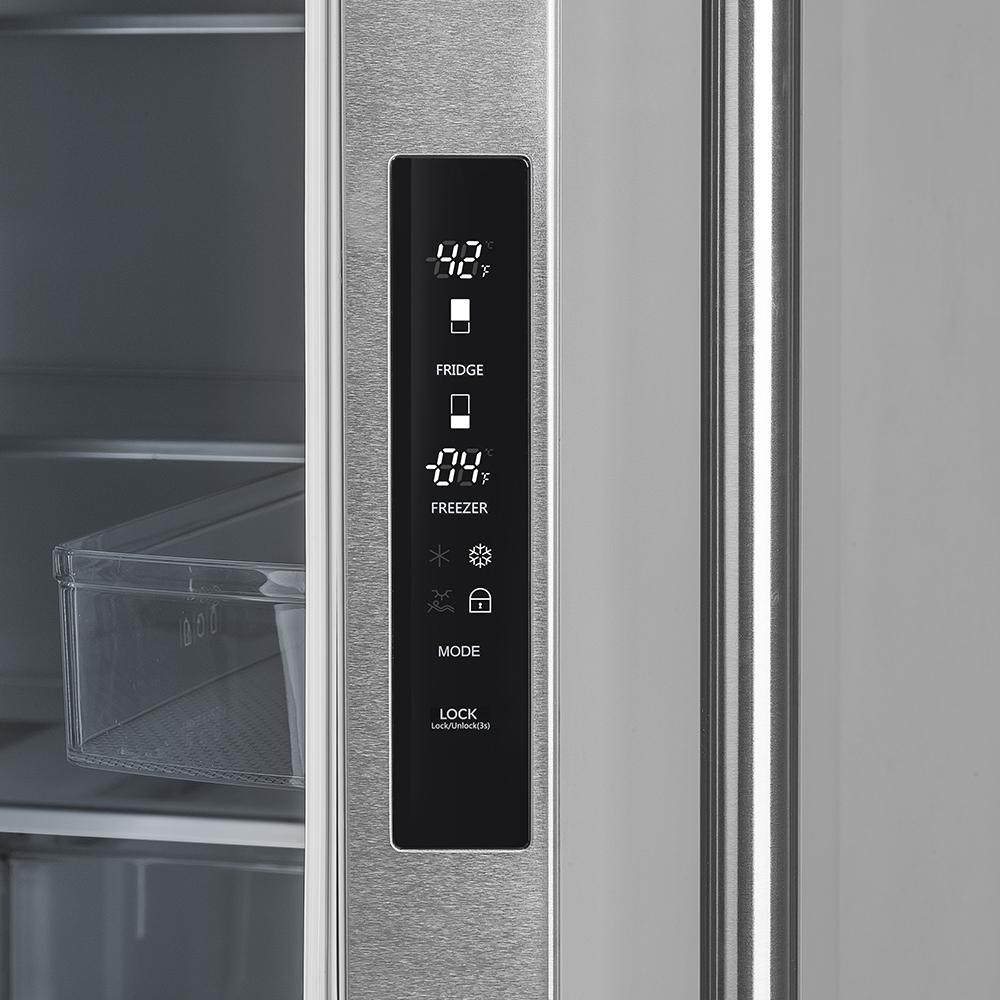

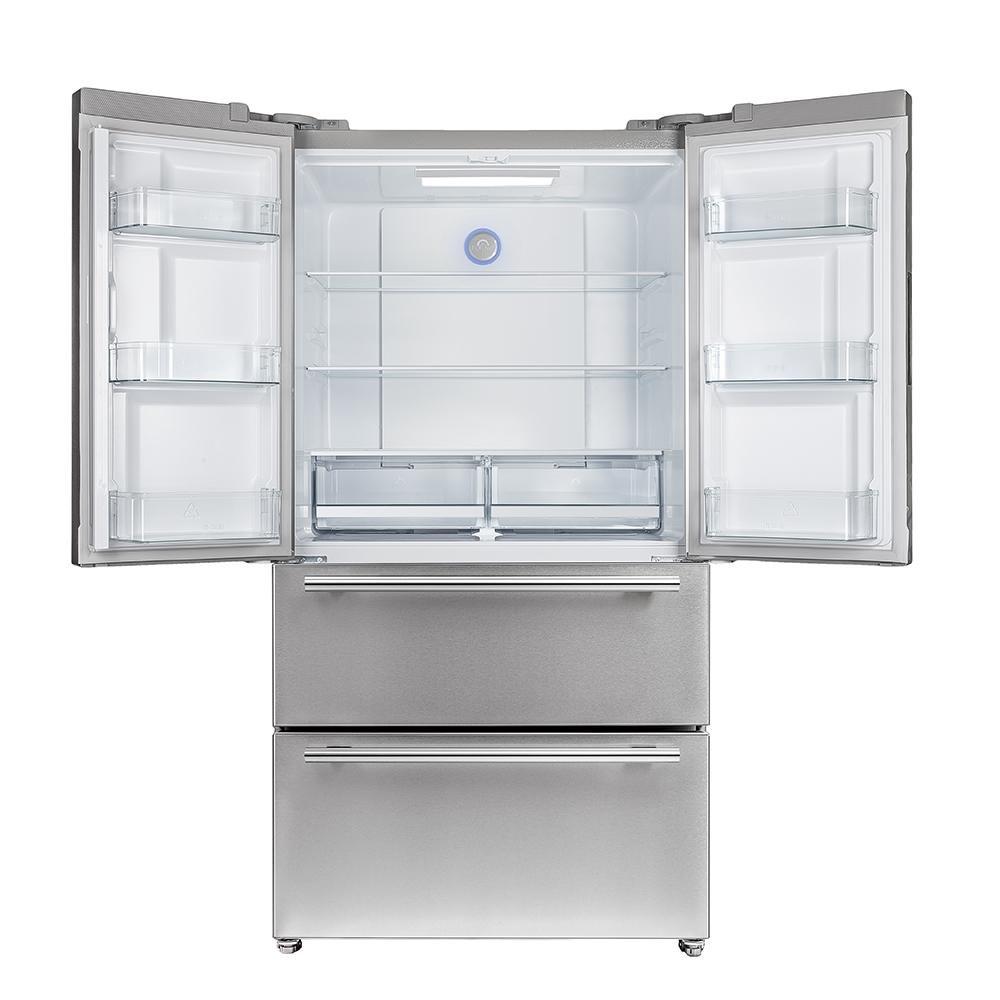

Upgrade your kitchen with the Forno Moena 36" French Door Refrigerator, designed for seamless integration and premium performance. Powered by a high-efficiency inverter compressor, it ensures energy savings, quiet operation, and precise temperature control to keep your food fresher for longer. The frost-free multi-airflow cooling system maintains consistent temperatures throughout its 19.2 cu. ft. capacity, providing optimal food preservation with adjustable shelving for versatile storage. The 12.1 cu. ft. fresh food section includes three glass shelves (two adjustable), two drawers, and generous door storage to keep groceries organized. The 7.2 cu. ft. freezer offers two pull-out drawers, a slide-out tray, and an automatic ice maker producing up to 4 pounds of ice daily, ensuring convenience for every occasion. With an intuitive LED touch panel, you can effortlessly control temperature settings and functions. Energy Star Certified, this built-in French door refrigerator operates efficiently while minimizing food spoilage with bright, high-efficiency LED lighting for superior visibility.
| DIMENSIONS | |
|---|---|

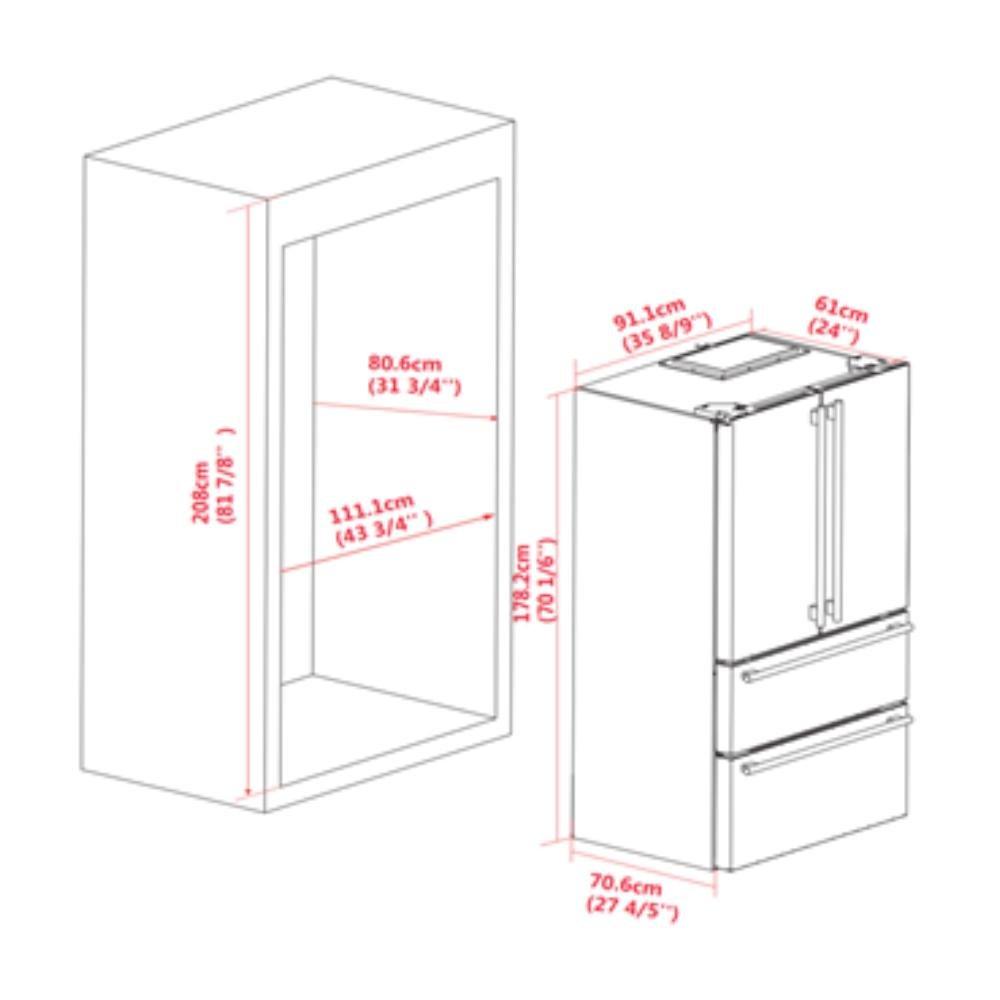

| Product Dimensions W x D x H (inches) | 36 x 30.41 x 70.1 |
| Cutout dimensions W x D x H (inch) | 37x27x71.08 |
| Product Overall Weight (Lbs) | 242.5 |
| Minimum Top Clearance (IN) | 1 |
| Sides Clearance - On Each Sides (IN) | 0.5 |
| Height Top of Door Hinge (inches) | 70.1 |
| GENERAL INFORMATION | |
| Estimated Annual Operating Cost (USD) | 76 |
| Cooling Type | Multi Air Cooling |
| Fast Cool Function | Yes |
| Energy Saver Mode | No |
| Door Texture | Smooth |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel VCM |
| Control Location | On Door |
| Primary Material | Steel |
| Door Bins Material | Plastic |
| Fresh Food Shelves Material | Glass |
| Door Liner Color | White |
| TECHNICAL DETAILS | |
| Number of Power Cord | 1 |
| Power Consumption Defrost Wattage (W) | 240 |
| Noise Level (dBA) | 38 |
| REFRIGERATOR FEATURES | |
| Interior Fresh Food Dimensions W x D x H (inches) | 31.5x21x31.5 |
| Ice Bin Size WxDxH | 12x7.5x4 |
| Temperature Range Refrigerator (°C) | 0°C to 6°C |
| Standard Door Bins Size WxDxH | 13.5X6.25x3 |
| Gallon (4 Liters) Door Bin(s) Size WxDxH | 13.5x6.25x3.75 |
| Fresh Food Door Type | French Door |
| Number of Adjustable Shelves | 2 |
| Fresh Food drawer(s) Size WxDxH | 13 x 6.5 x 12 |
| Temperature Controlled Drawer(s) | No |
| Interior Fresh Food Dimensions Height | 31.5 |
| Interior Fresh Food Dimensions Width | 31.5 |
| Fresh Food Capacity Cu. Ft. | 12.1 |
| Water Pipe Length (Feet) | 8.69 |
| Cabinet Color | Gray |
| Electronic Temperature Control | Yes |
| FREEZER FEATURES | |
| Interior Freezer Dimensions W x D x H (in) | 30x15.5x27.5 |
| Temperature Range Freezer (°C) | -23°C to 15°C |
| Freezer tray Dimensions WxDxH | 27x13x3 |
| Upper Freezer Drawer(s)/Basket Size WxDxH | 26x14x8 |
| Freezer Door Style | Pull-Out Drawer |

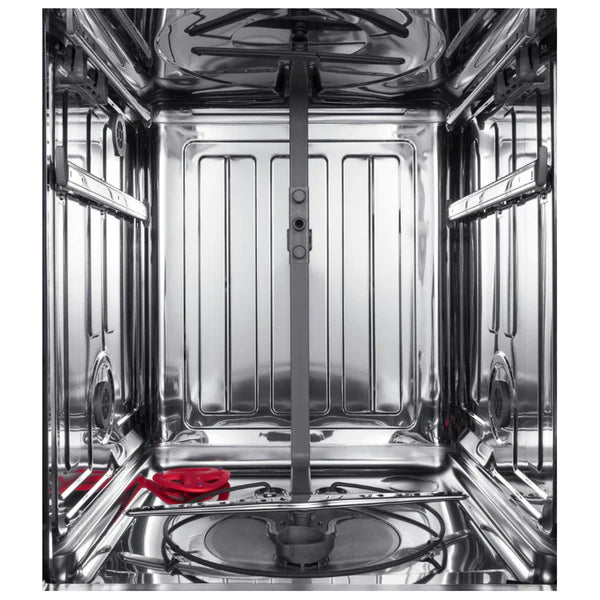

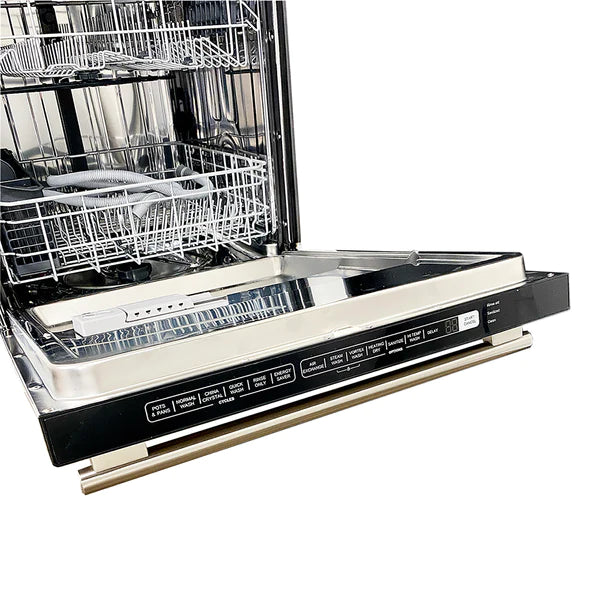

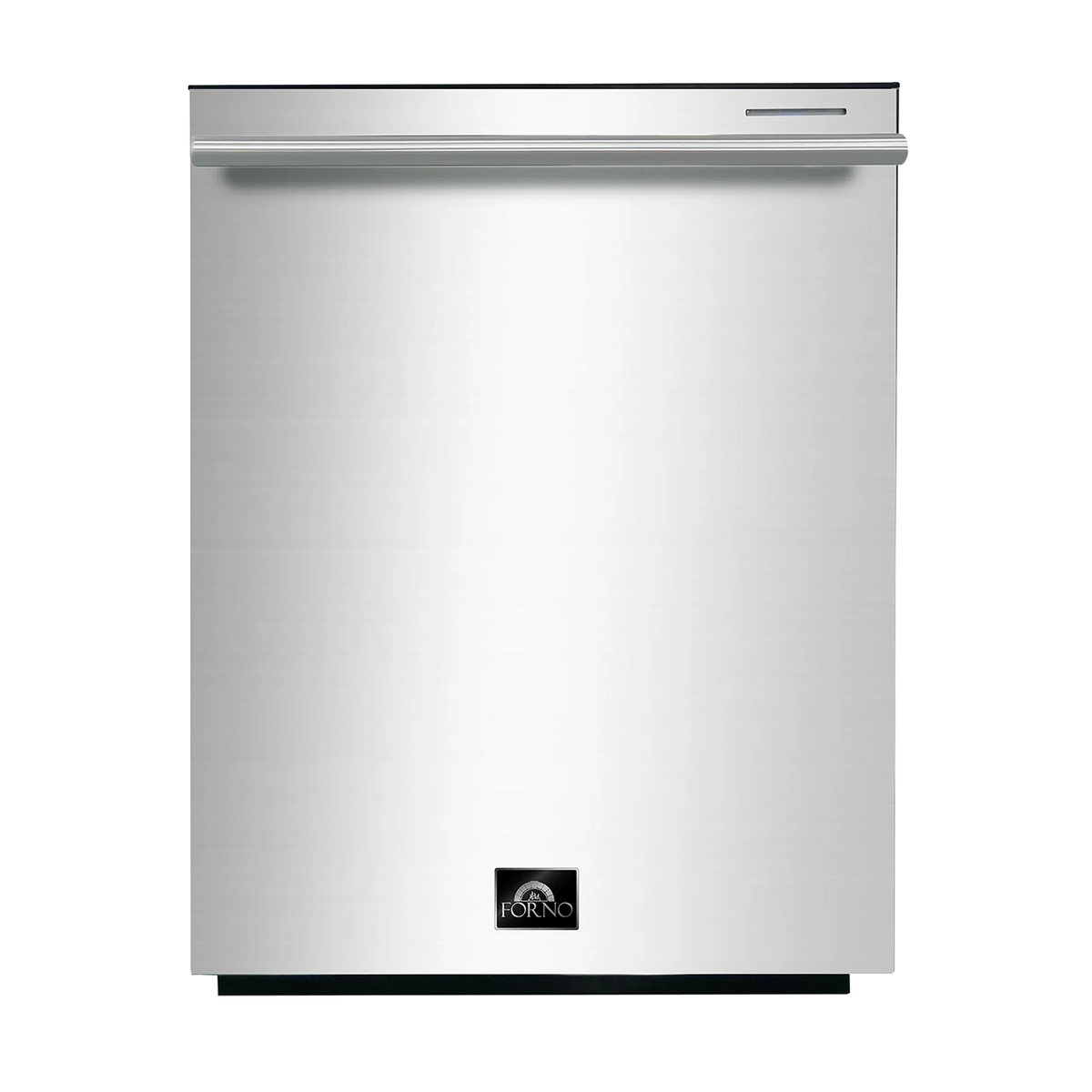

The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its stainless-steel front and pro-style handle offer durability and style. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additionnal silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 23.85x26.54x33.74 |
| Cutout dimensions W x D x H (inch) | 24 x 24 x 34 |
| Product Overall Weight (lbs) | 93.20 |
| Minimum Product Height (IN) | 33.74 |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Racks Material | Nylon Coated Steel |
| Control Location | Top |
| Primary Material | Steel |
| Filter Material | Stainless Steel |
| TECHNICAL DETAILS | |
| Plug-in | No |
| FEATURES | |
| Number of Racks | 3 |
| Interior Light | No |
| Estimated Annual Operating Cost (USD) | 24 |
| Fingerprint-Resistant | No |
| WARRANTY & CERTIFICATIONS | |
| CEE Tier Qualified | Not Rated |
| Energy Star Most Efficient | No |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |
