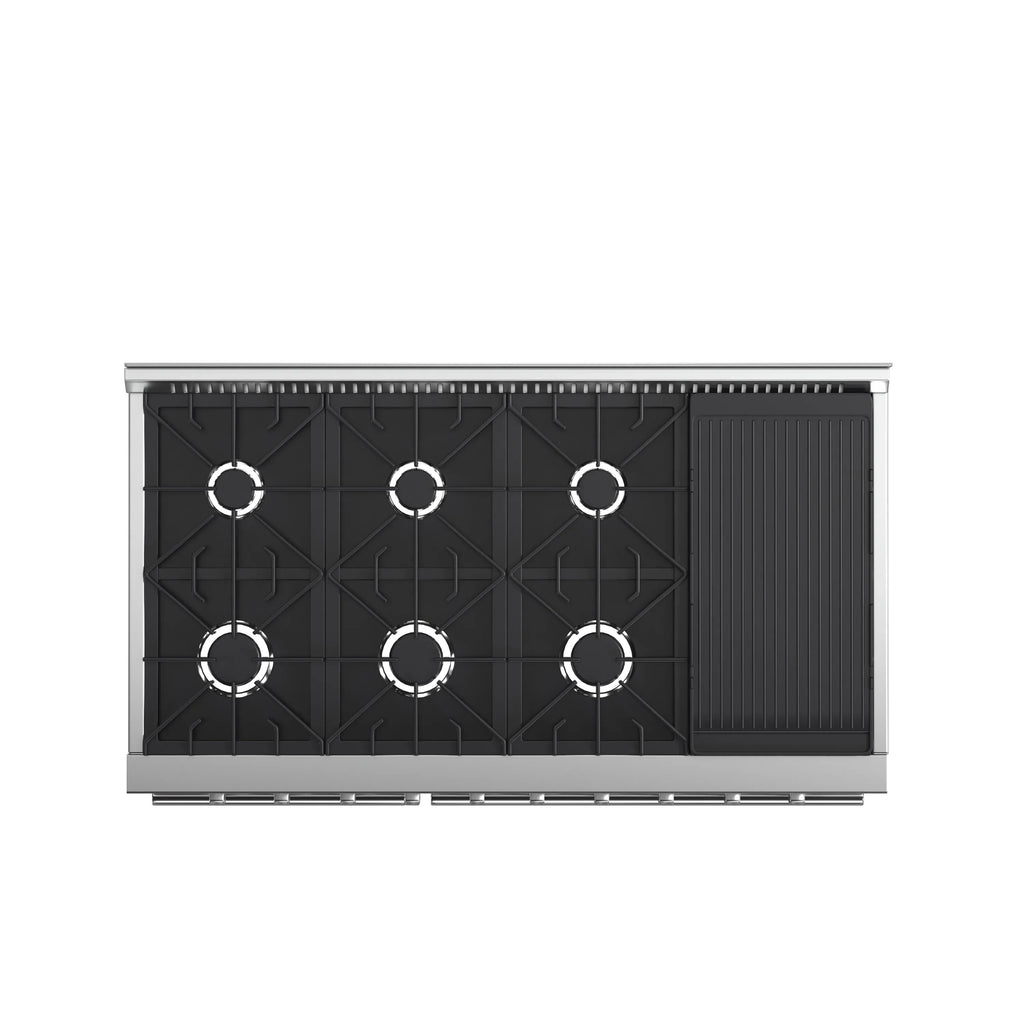

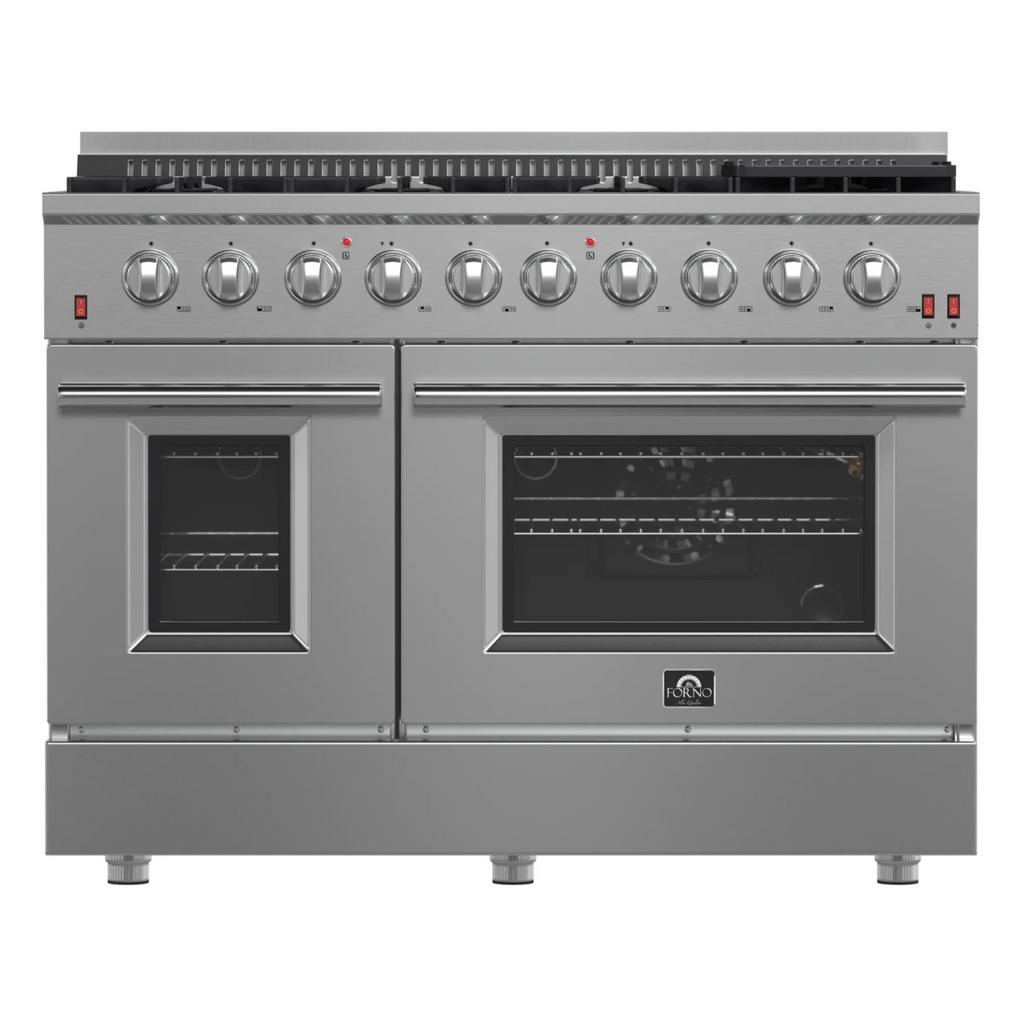

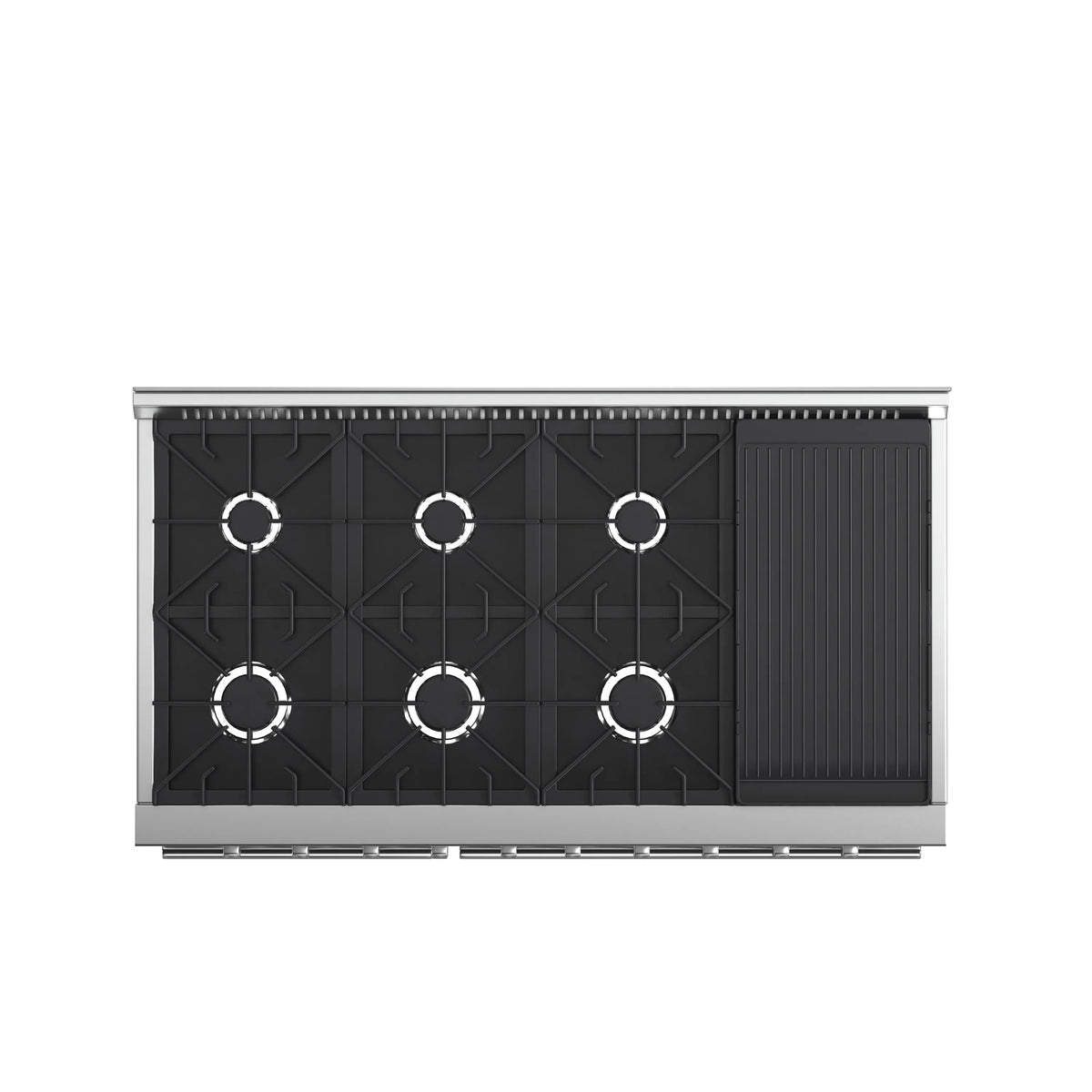

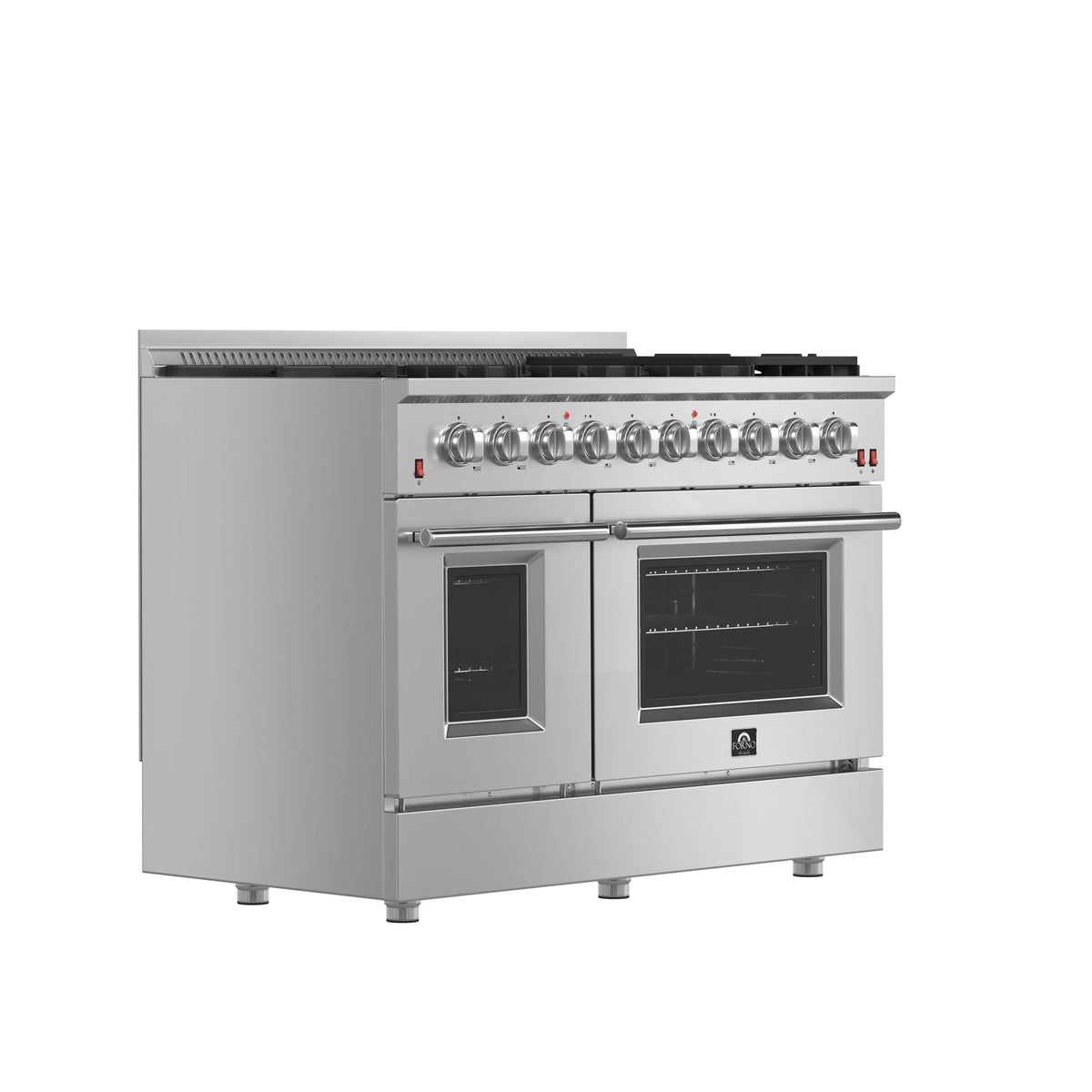

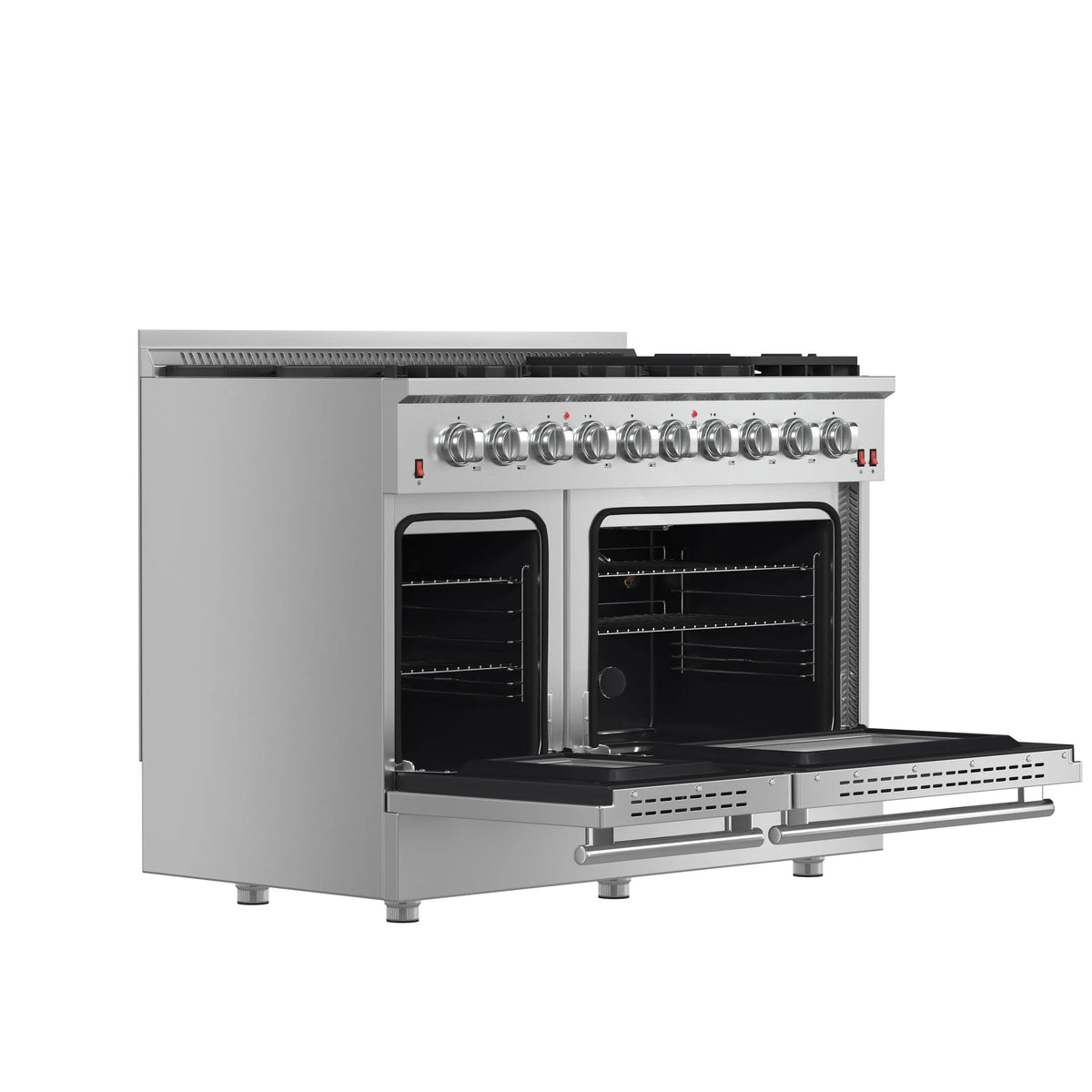

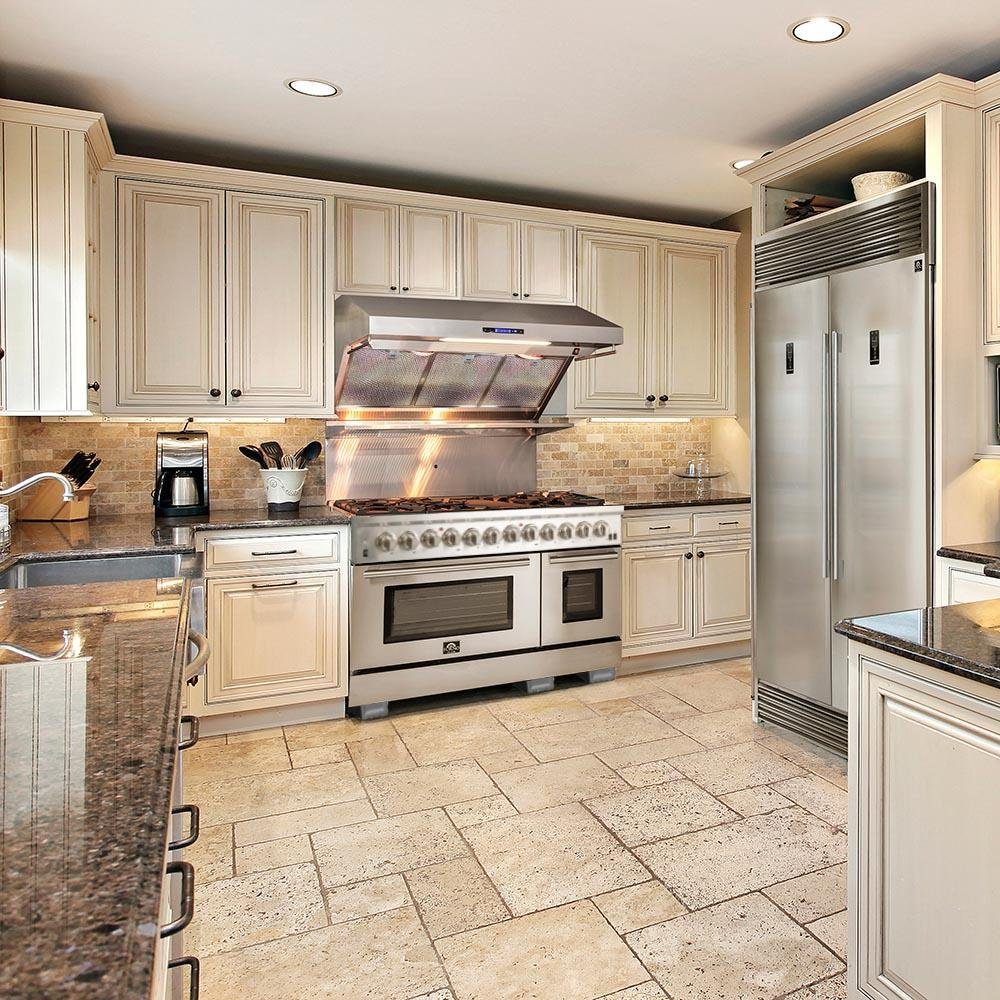

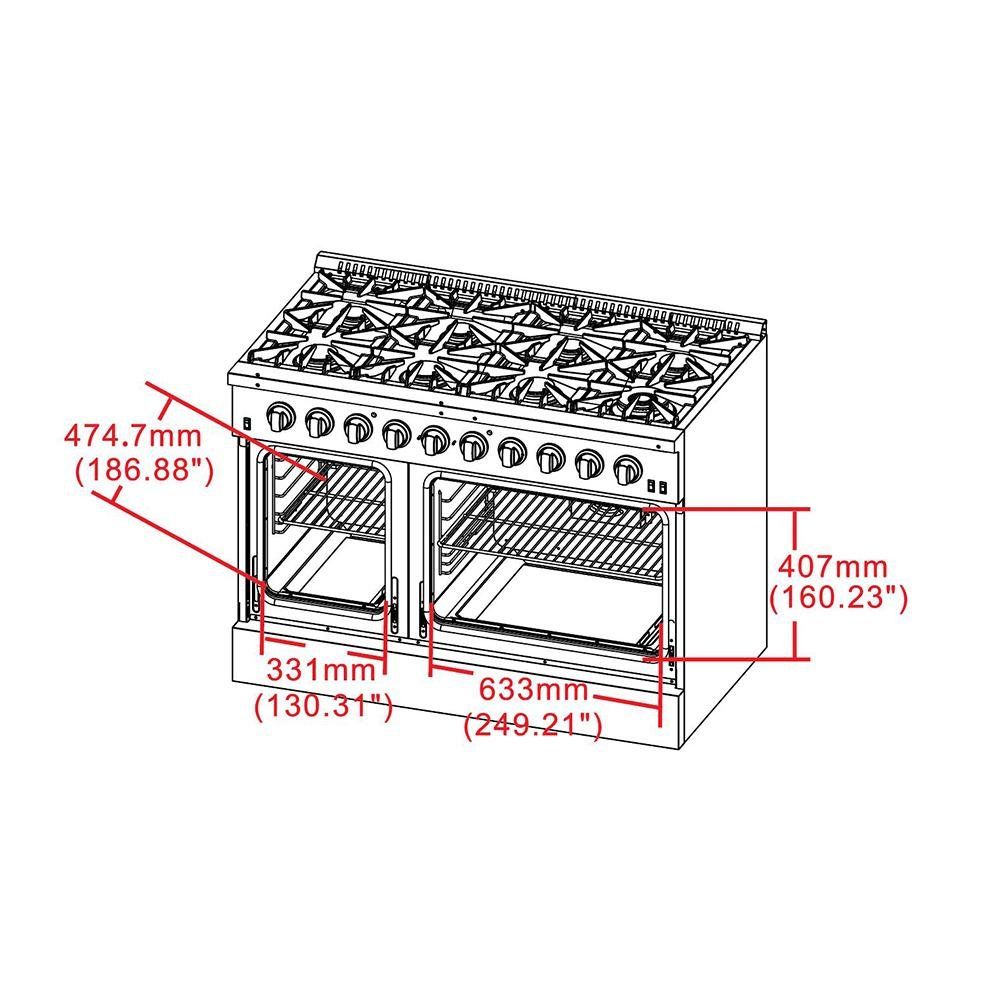

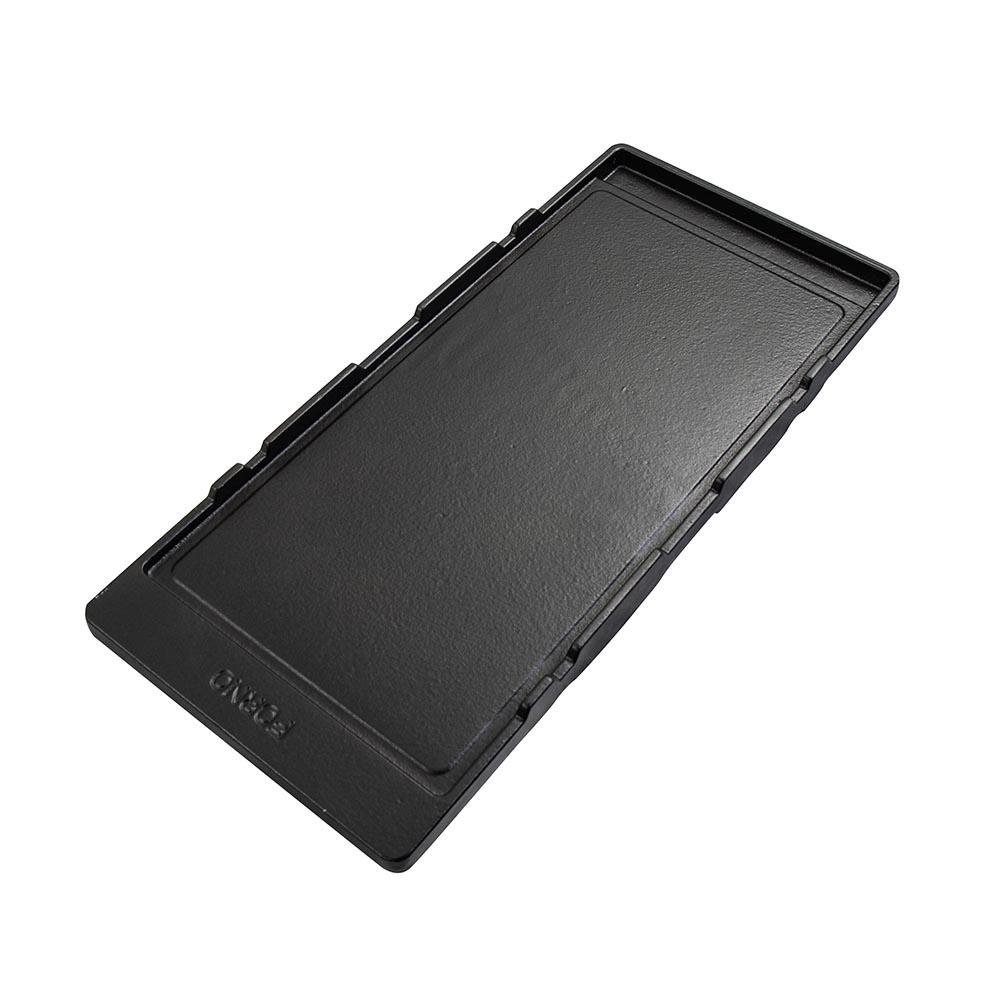

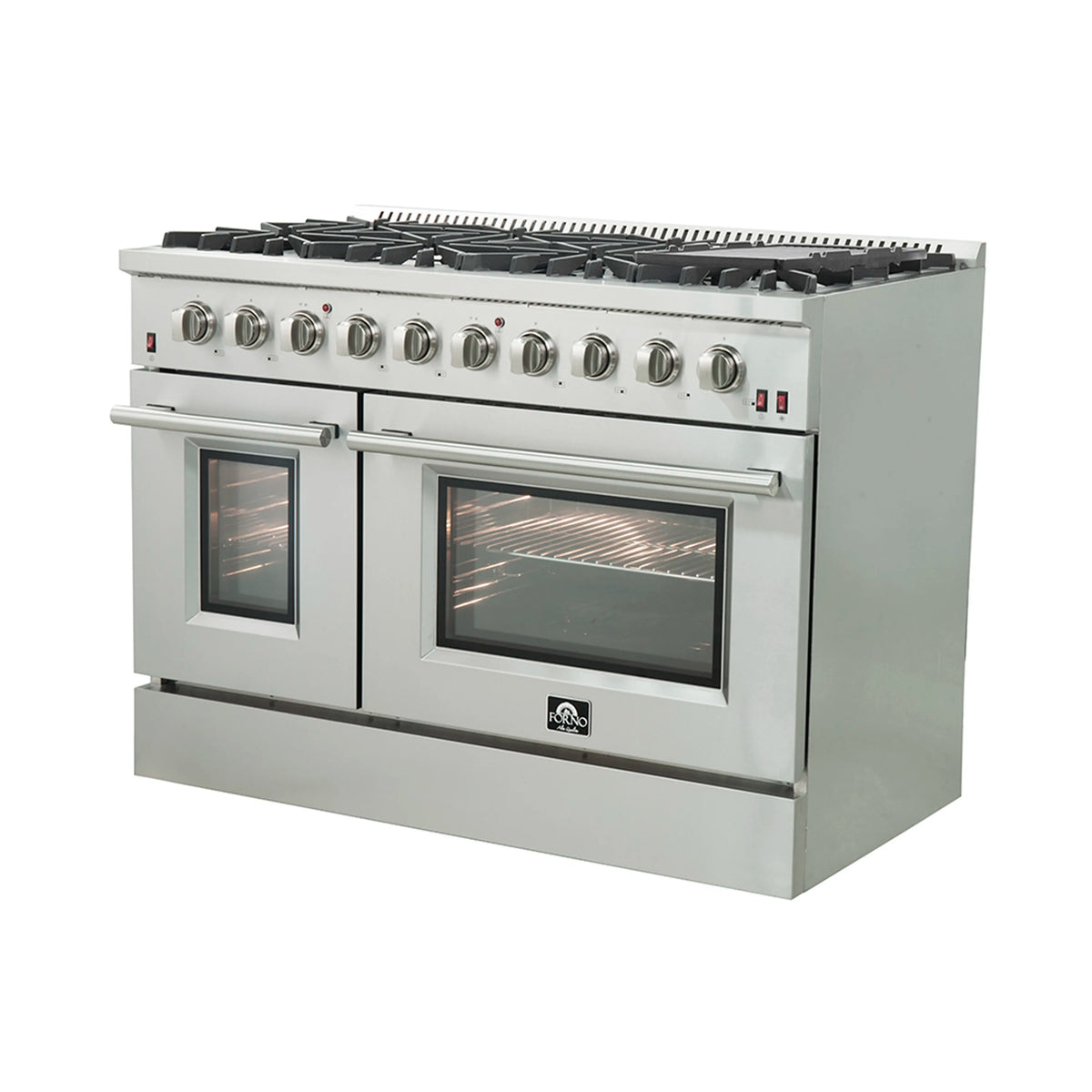

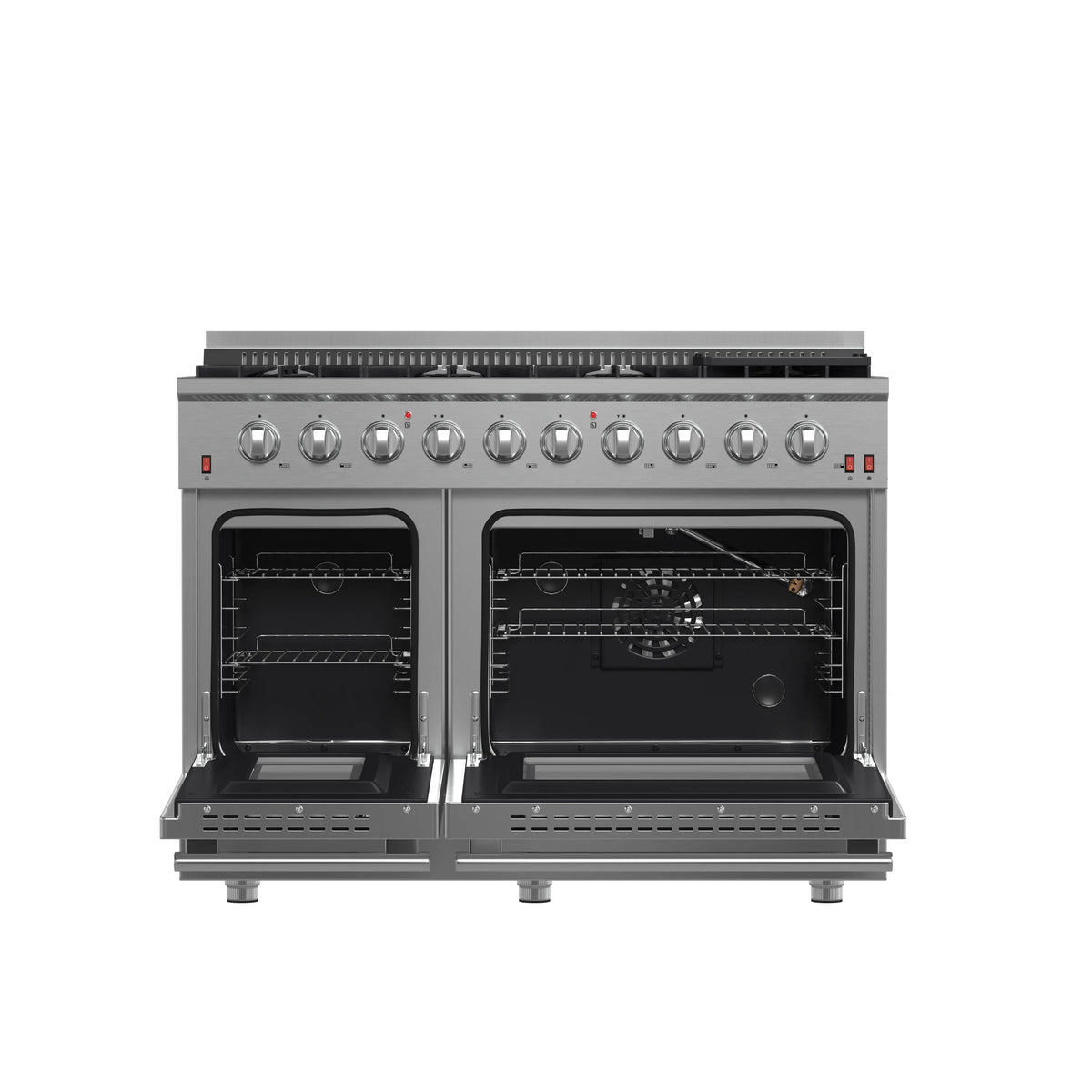

The 48 Inch Forno Galiano Gas Range brings professional styling and performance into your home kitchen with its durable stainless-steel design. The cooking surface has 8 sealed burners with a total output of 107,000 BTU, which one is a 20,000 BTU dual-ring burner that can simmer at 1,000 BTU. Continuous cast iron grates ensure stability on the enamel surface. The main oven of 4.32 Cu.Ft has a convection fan with 30,000 BTU Total Broil and Bake output. The secondary oven has a capacity of 2.26 Cu.Ft. with a 14,000 BTU Bake output. Both ovens have an impressive enamel interiors allowing for easy cleaning and 3-layer glass oven door window provides both heat retention and an unobstructed view. It features 2 racks per oven, reversible griddle, an LP conversion kit, and durable zinc-coated metal knobs. Elevate your kitchen with performance, convenience, and enduring elegance.
ย
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 48โ W x 28โ D x 38โ to 39" H |

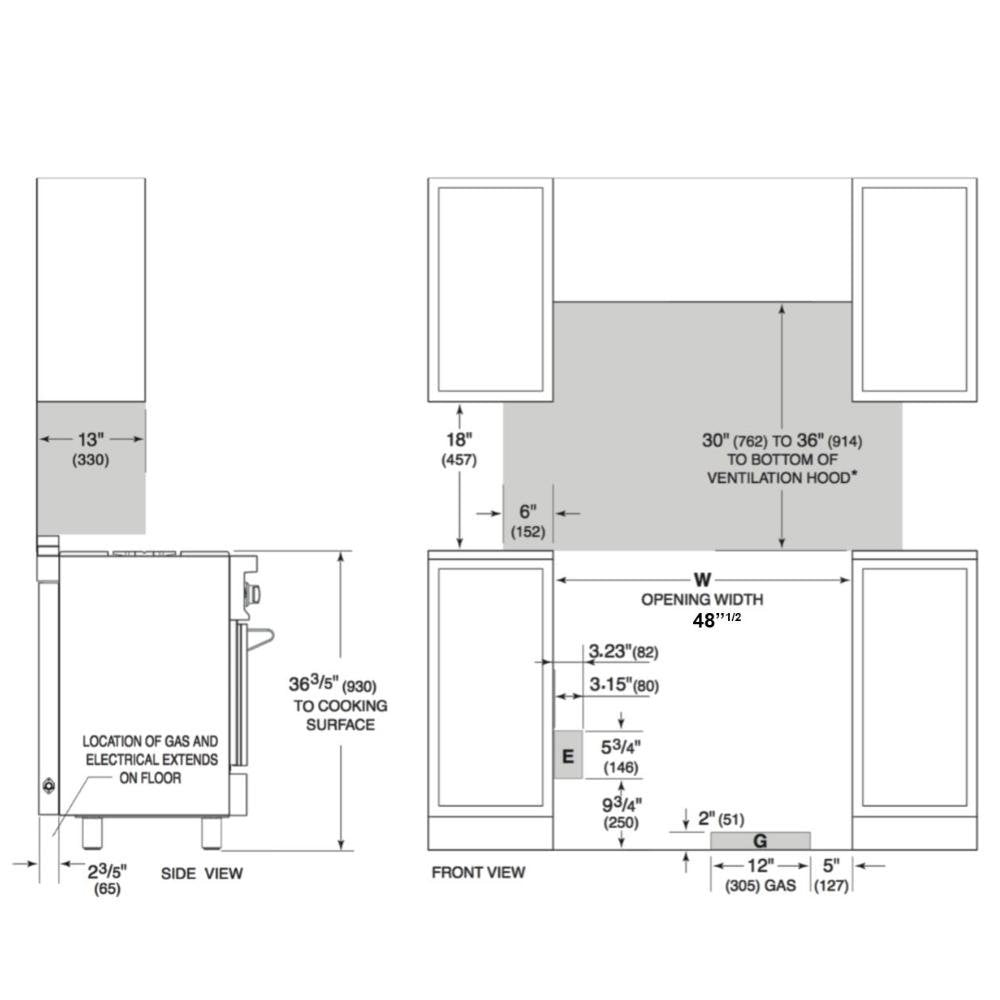

| Cutout dimensions W x D x H (inch) | 48 x 25 x 36 |
| Product Overall Weight (lbs) | 339.51 |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Color/Finish | Stainless Steel |
| Number of Knobs | 10 |
| Control Location | Front |
| Interior Light | Yes |
| Primary Material | Metal |
| Control Panel Material | Stainless Steel |
| Interior Light(s) Type | Halogen |
| Bulb Type | G9 |
| Number of Lights | 3 |
| Fingerprint-Resistant | No |
| TECHNICAL DETAILS | |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
| LP gas convertible | Yes |
| Automatic Shut-Off | No |
| Power Cord Location | Back |
| COOKTOP FEATURES | |
| Burner Fuel | Gas |
| Gas Heat Configuration (cooktop) | Sealed Burner |
| Cooking Surface Control Type | Push & Turn/Knobs |
| Cooking Surface Ignition Type | Electronic |
| Simmer Burner | Yes |
| Number of Simmer Burner | 1 |
| Cooktop Surface Structure | Grate; Deep Recessed |
| Grate Type | Continuous Cast Iron Grates |
| Diswasher-Safe Grates | No |
| Auto Re-Ignition | Yes |
| Oven Ignition Type | Automatic Ignition |
| Bake Element | Yes |
| OVEN FEATURES | |
| Number of Ovens | 2 |
| Overall Oven BTU | 44000 |
| Overall Oven Capacity (Cubic Feet) | 6.58 |
| Oven Control Type | Manual/Knob |
| Racks Material | Electroplated |
| Number of Racks | 4 |
| Number of Rack Positions | 6 |
| Broiler Location | Oven |
| Broiler | Gas |
| Overall Broil BTU | 10000 |
| Overall Bake Element BTU | 34000 |
| Door Panel Material | Stainless Steel |
| Oven Fuel | Gas |

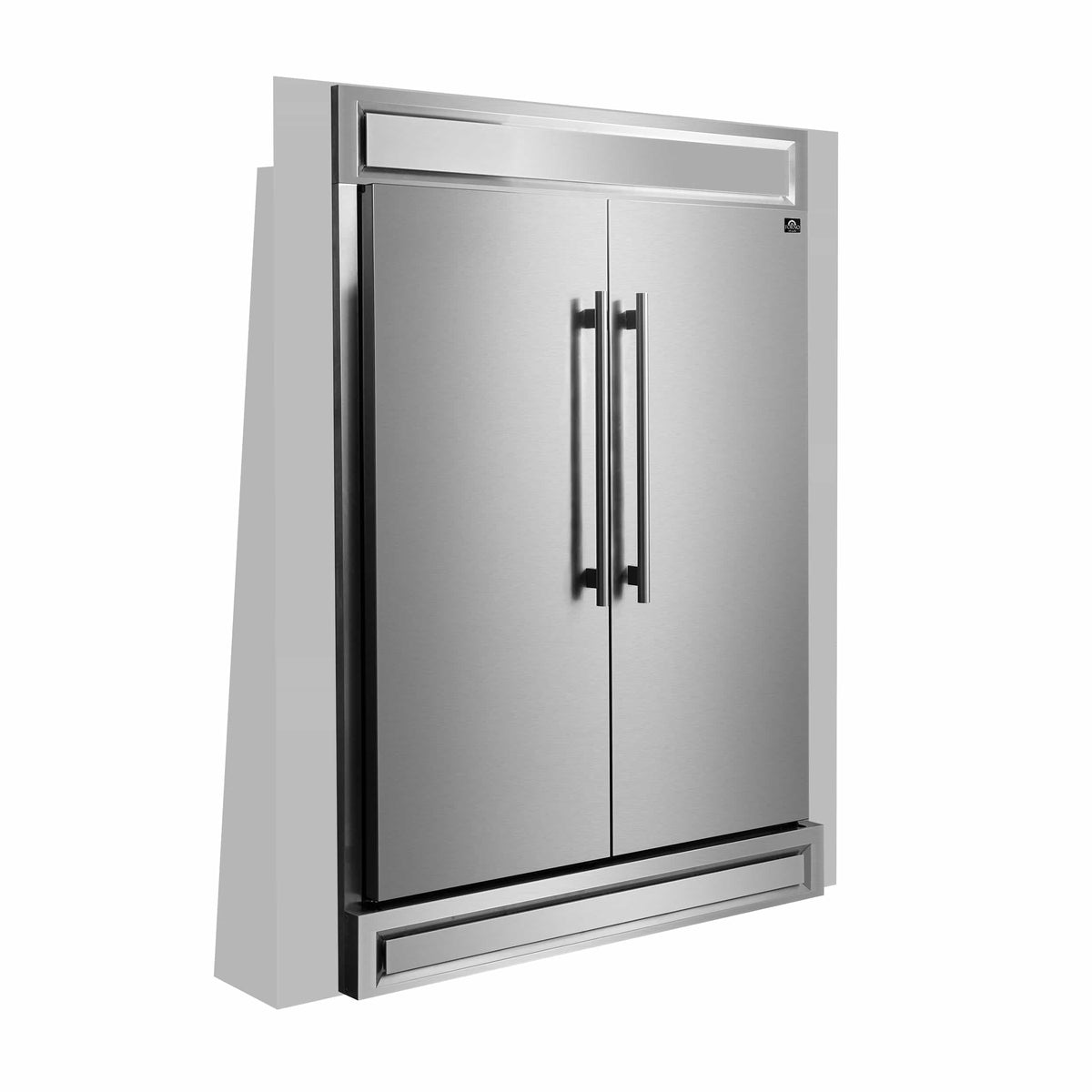

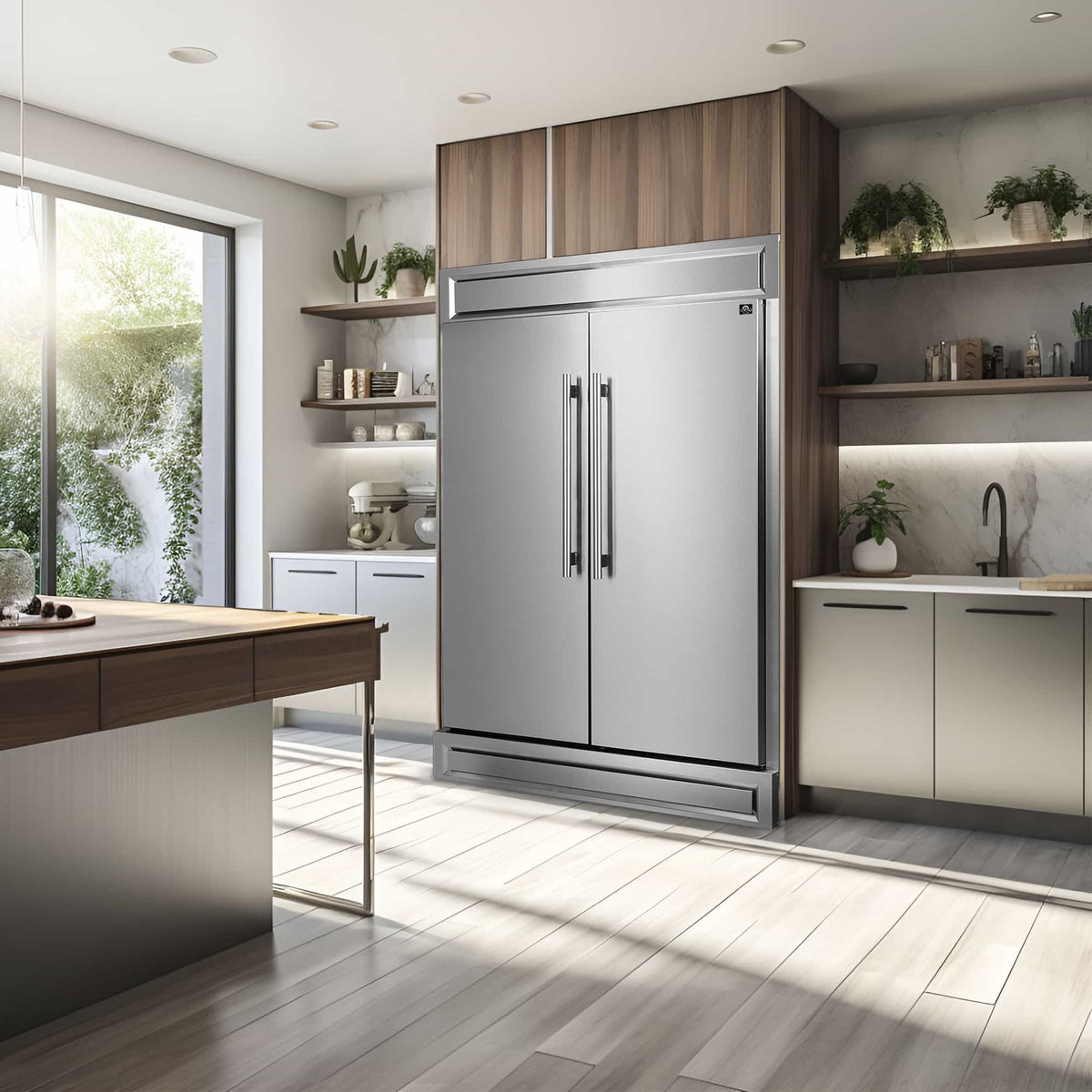

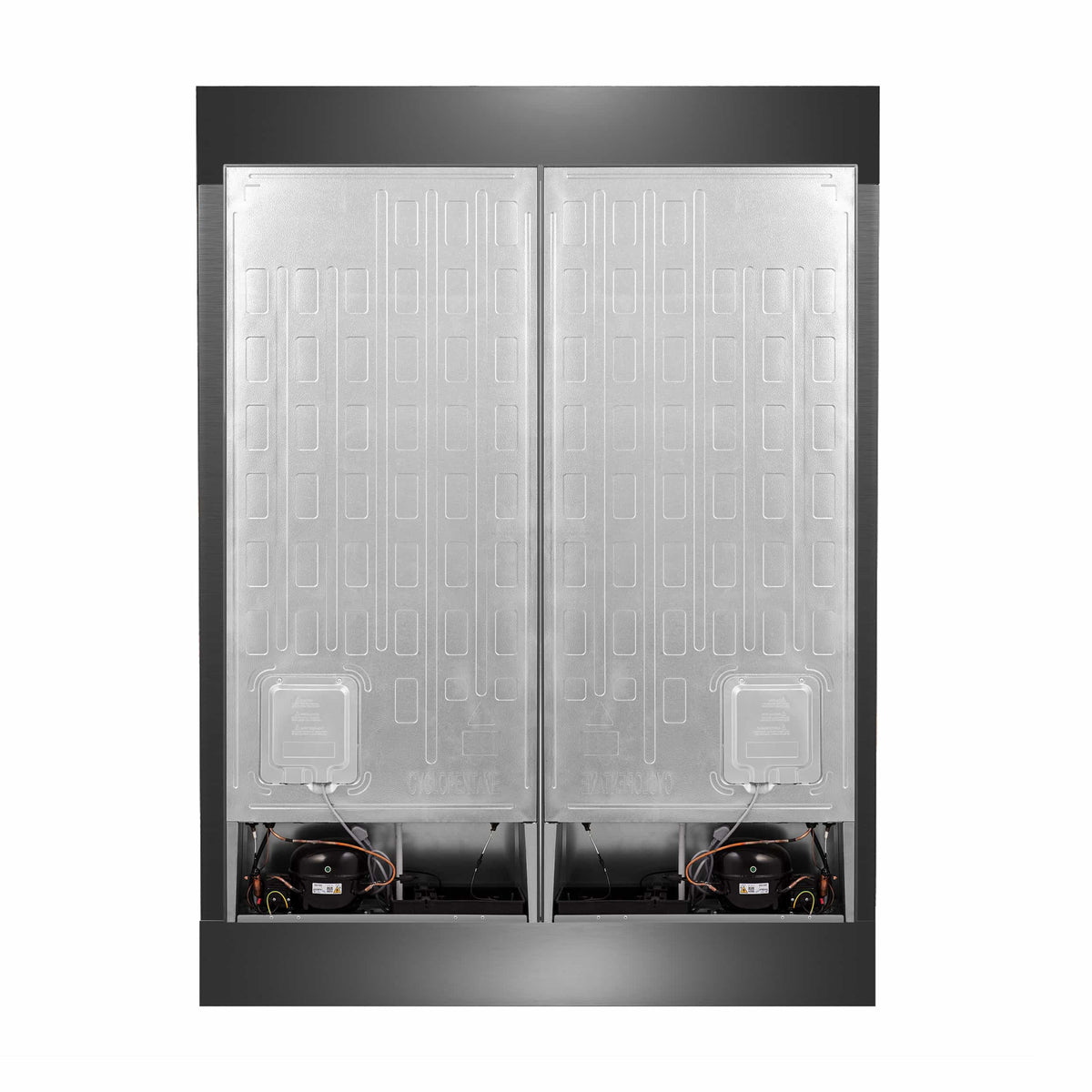

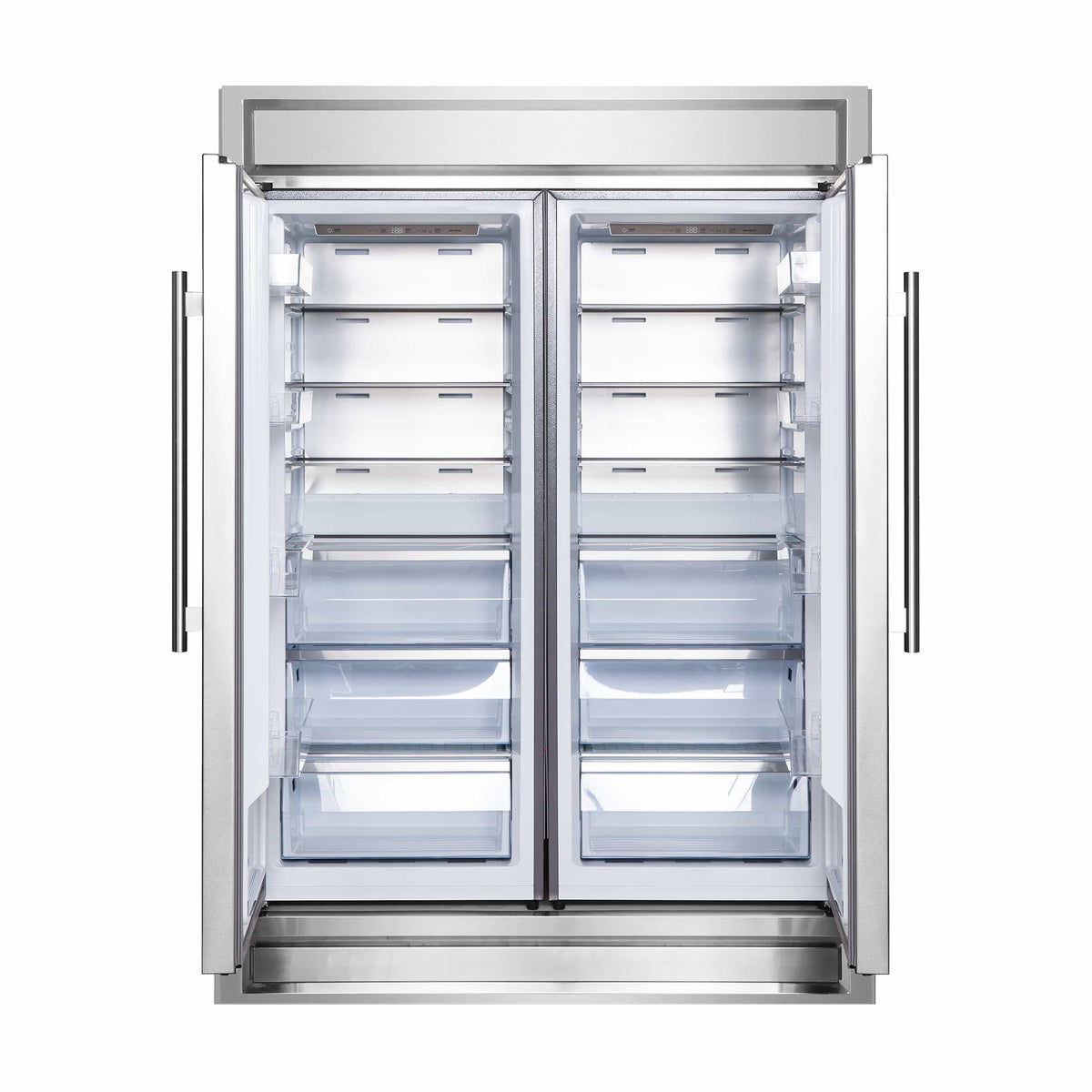

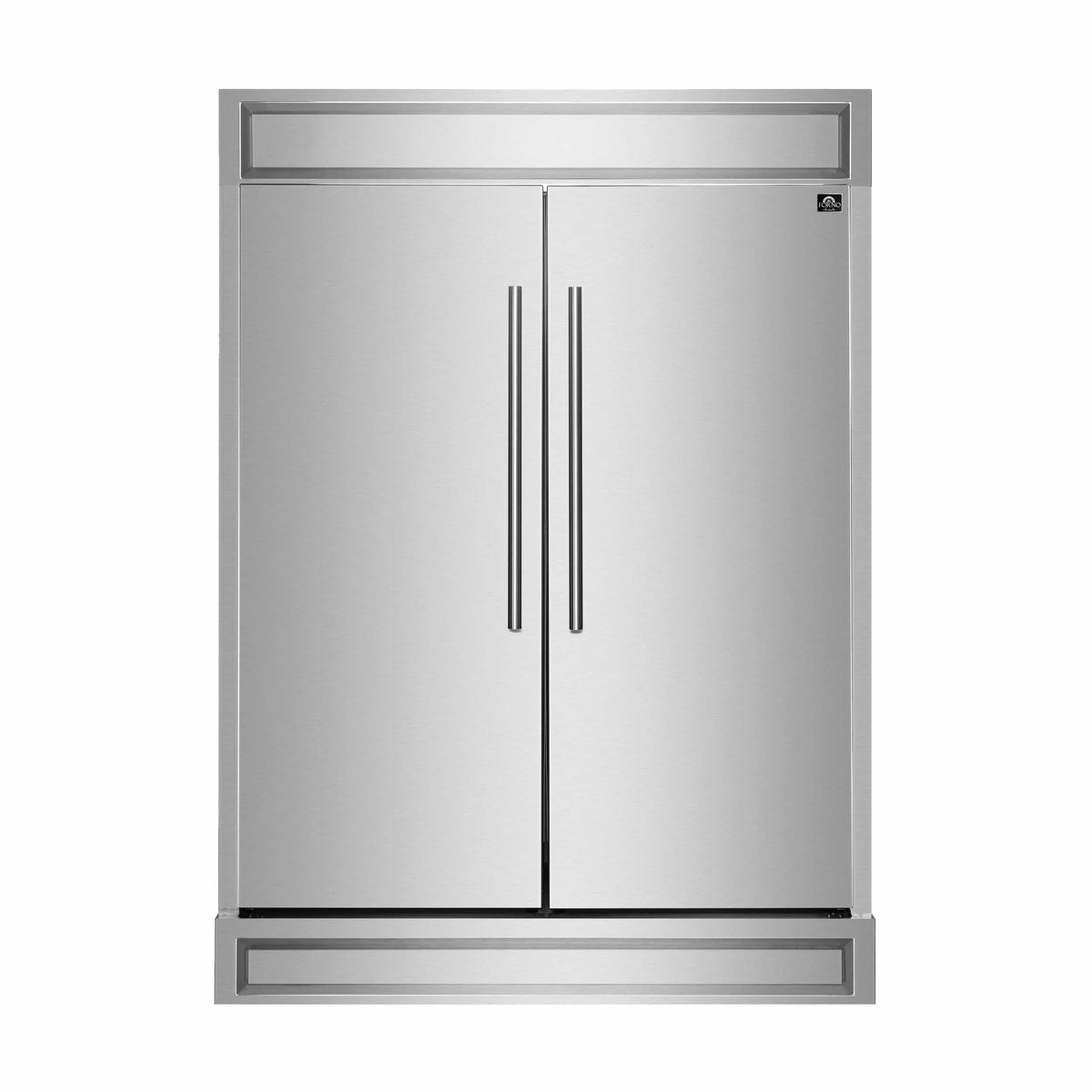

The Forno Maderno combines two 28 Inch refrigerators with decorative trim grille, extending to a 60 Inch width for a built-in appearance, harmoniously blending style with convenience. This combo offers ample storage space totaling 27.2 cu.ft. They feature customizable cooling with convertible function and total no frost technology, eliminating tedious defrosting.

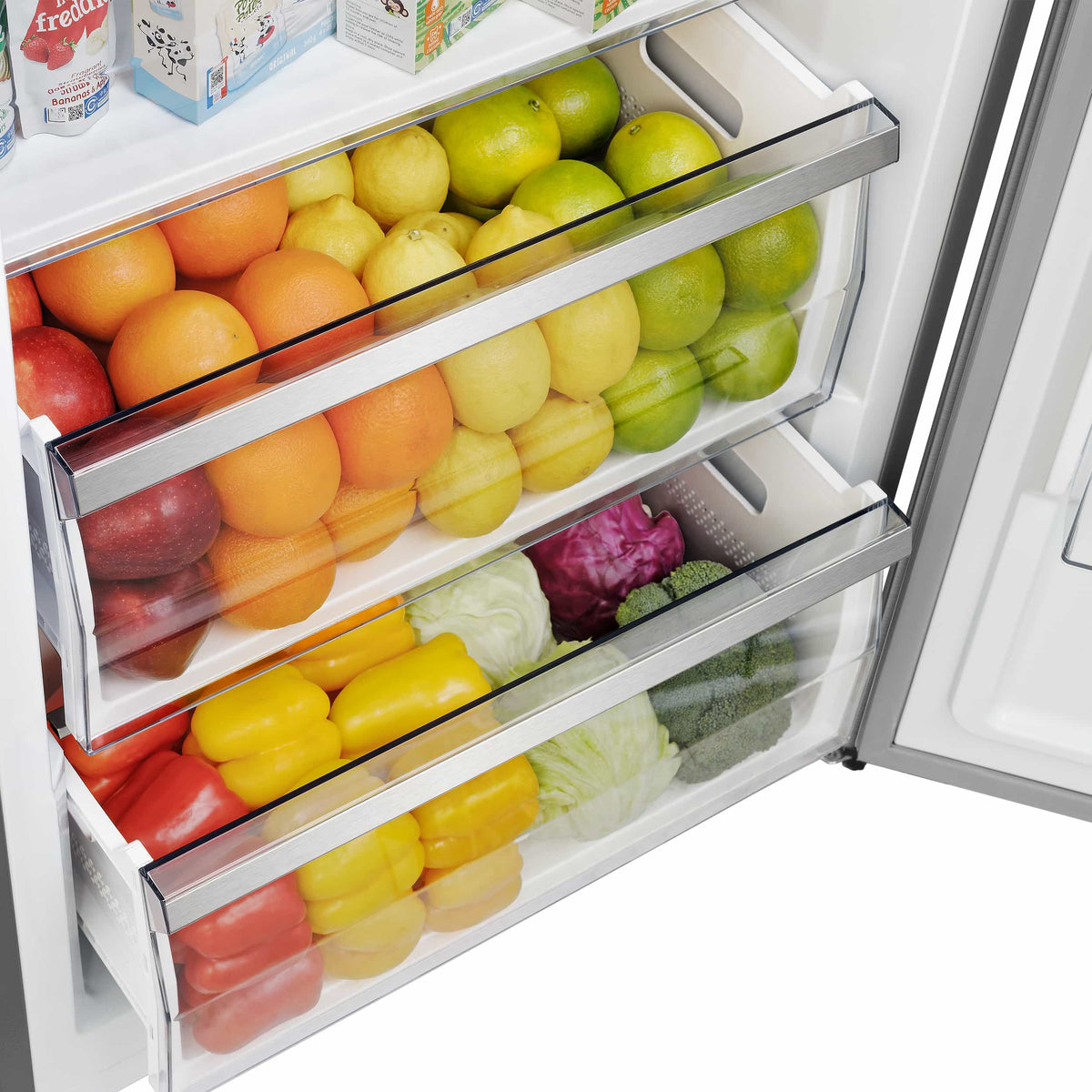

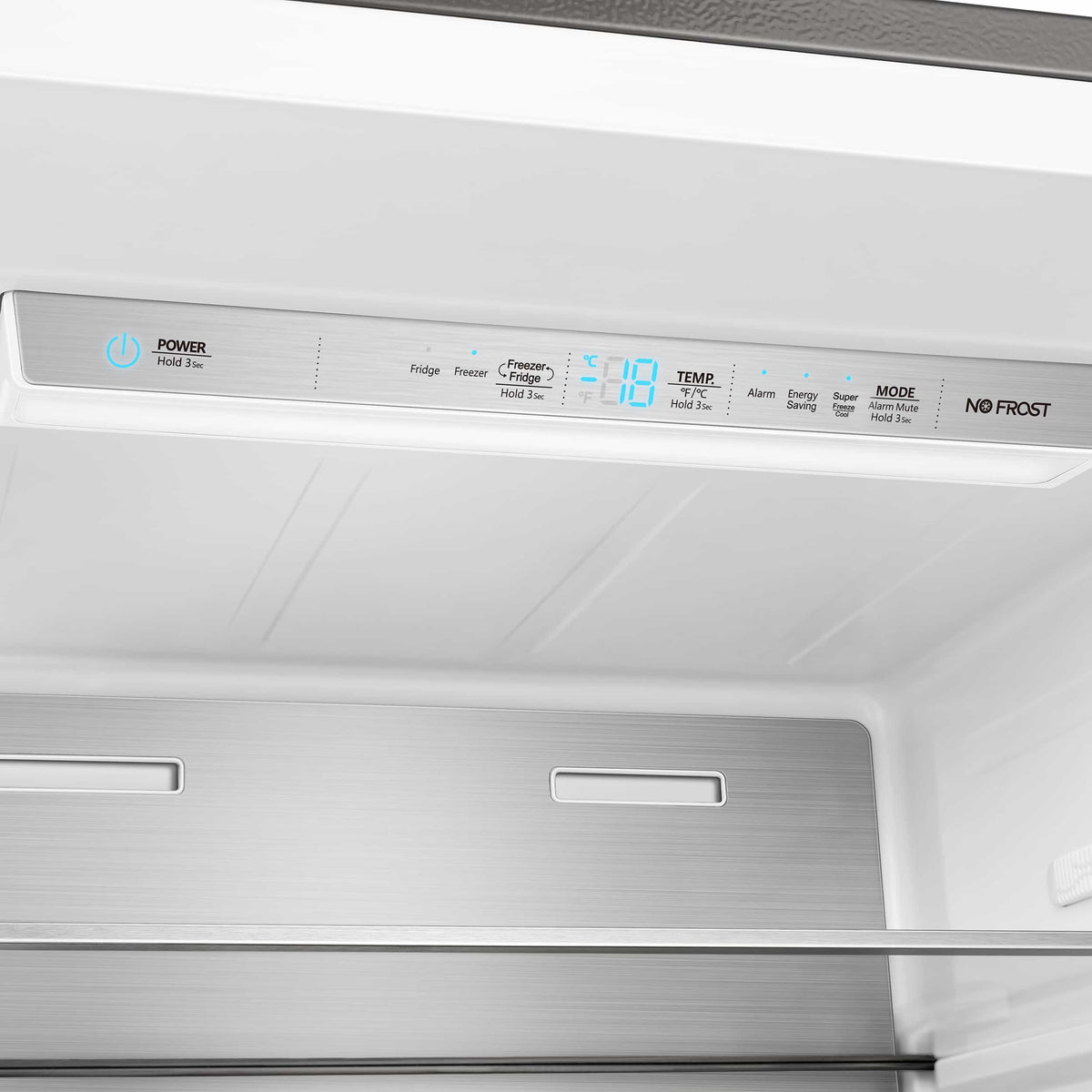

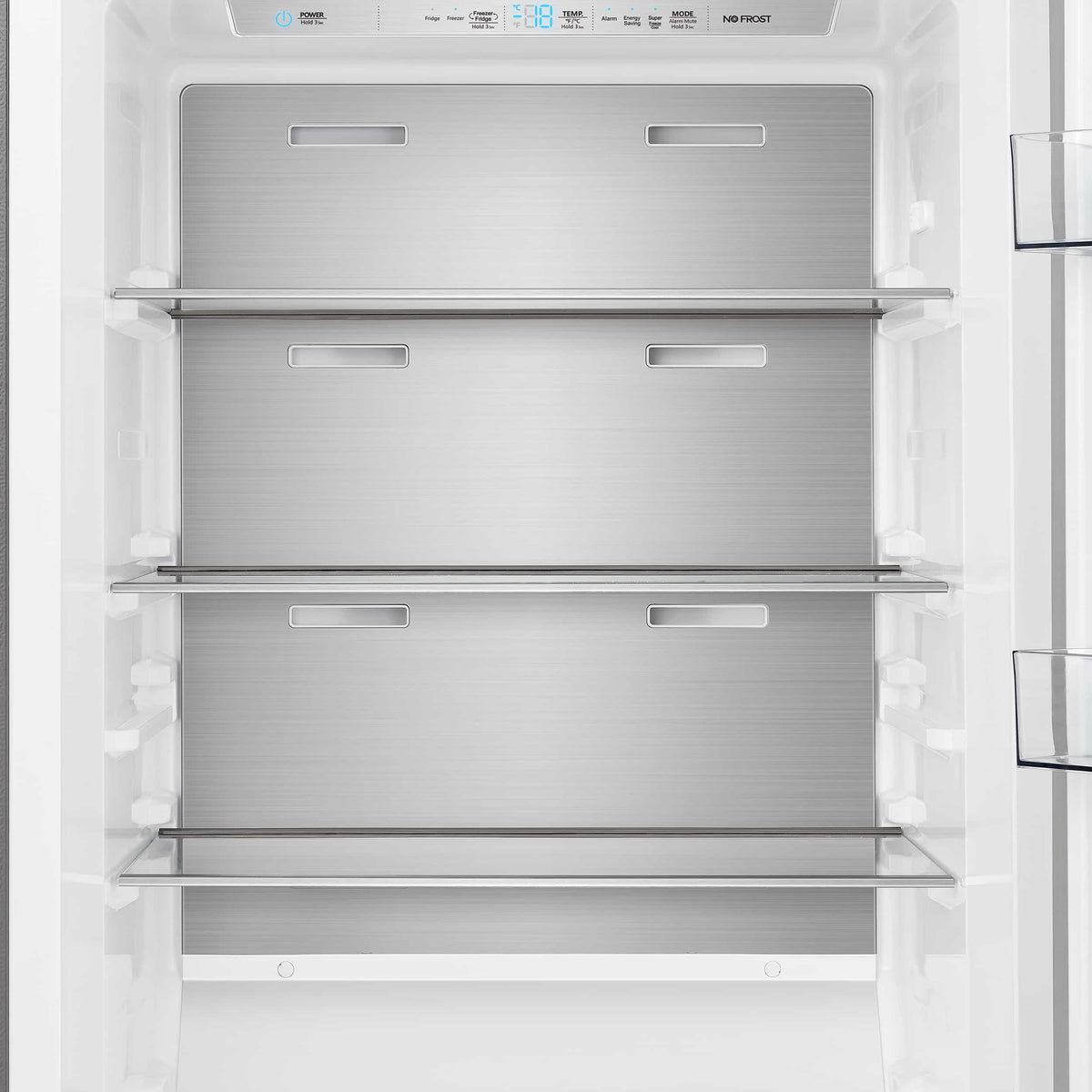

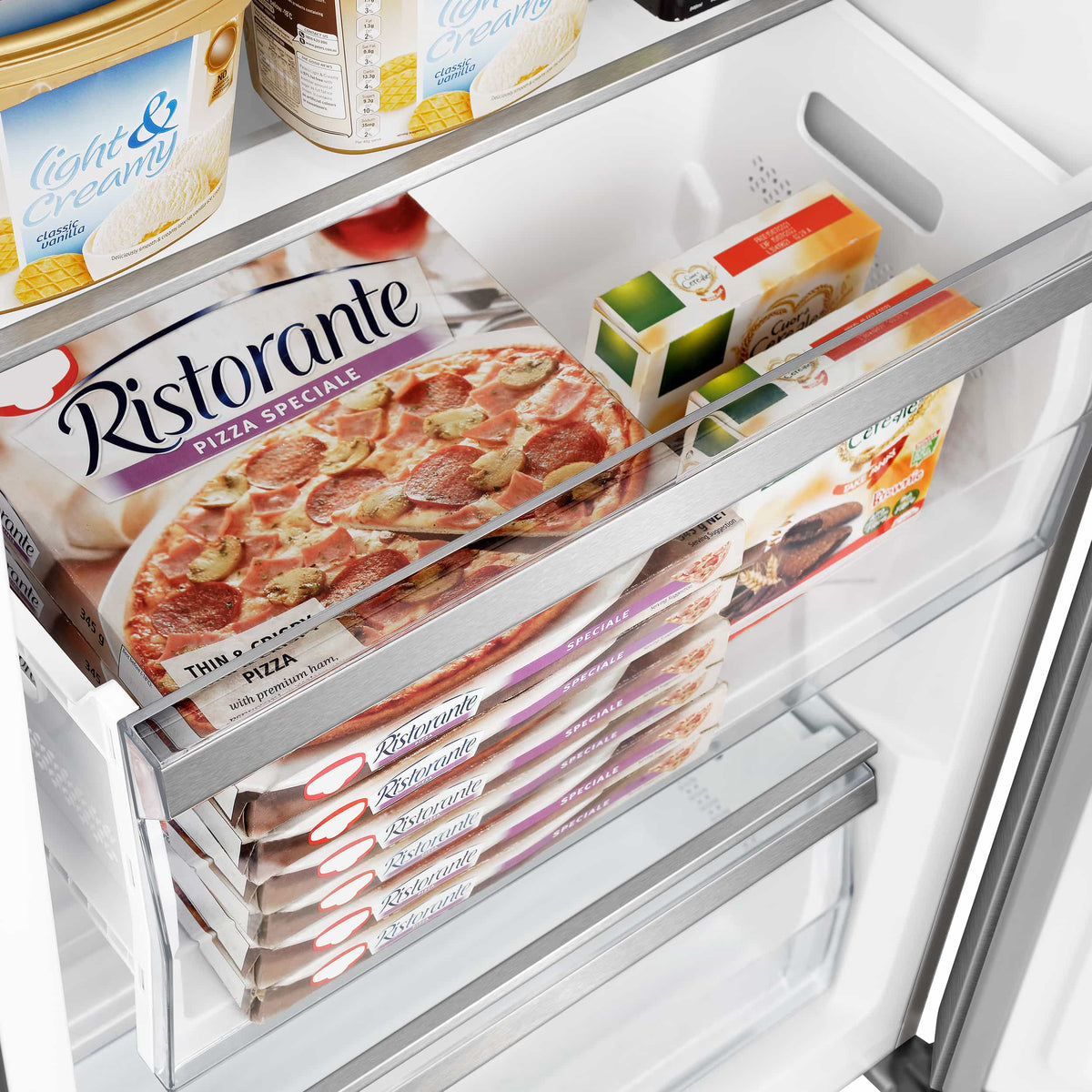

The side-by-side door design integrates seamlessly, while elegant glass shelves with silver trim and practical plastic door balconies enhance appeal and storage. Effortlessly switch between Fahrenheit and Celsius, aided by LED lighting for easy item location. Six glass shelves and six plastic drawers with silver trim provide flexible storage, and temperature settings are easily managed with the electronic touch control panel. The VCM door panel and metal back ensure durability, and the combo is T Climate Class certified with an E-star energy rating for sustainability.
This refrigerator comes in three pieces:

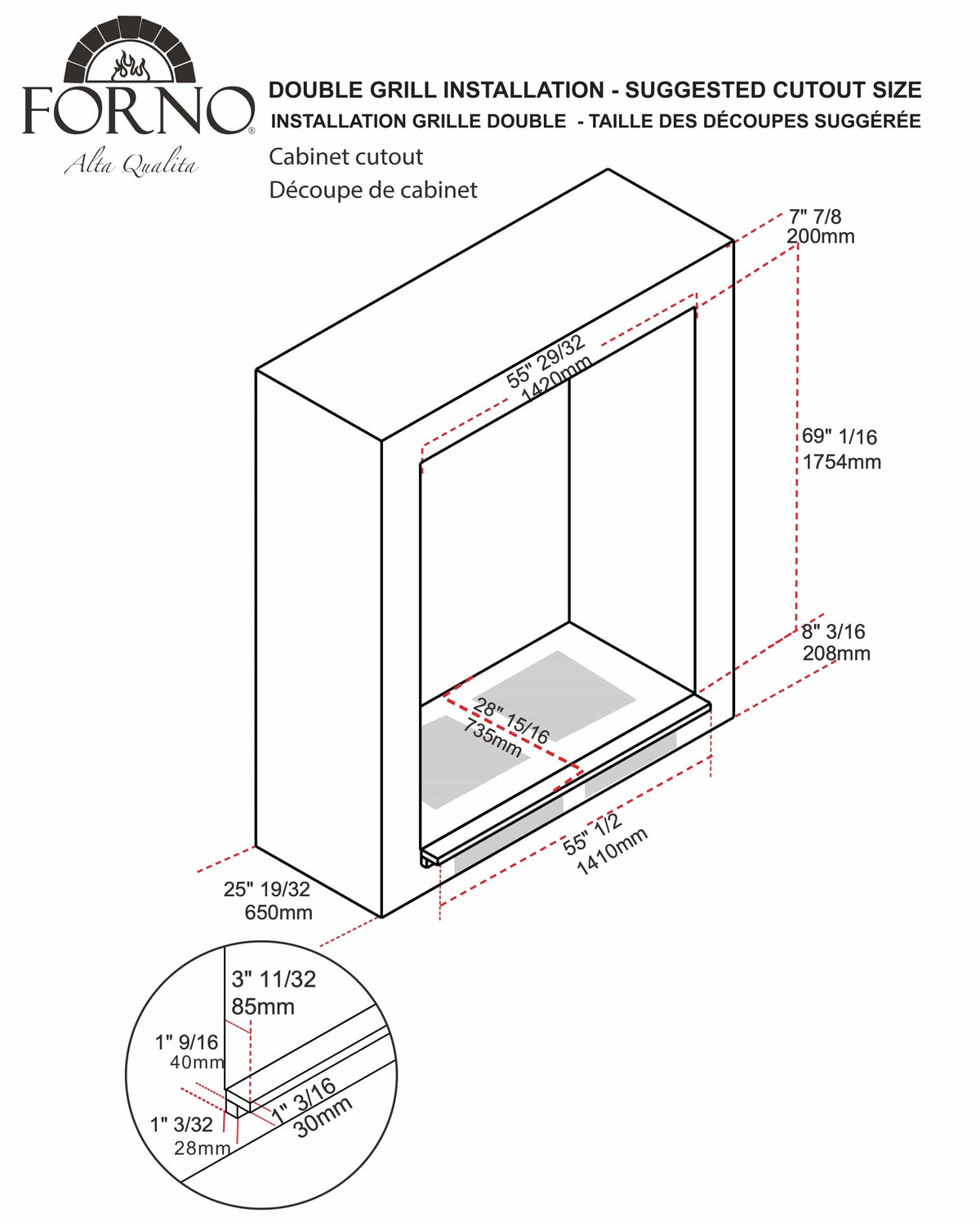

*Installation requires a base to be built for the refrigerator - please see cut-out sheet for more details

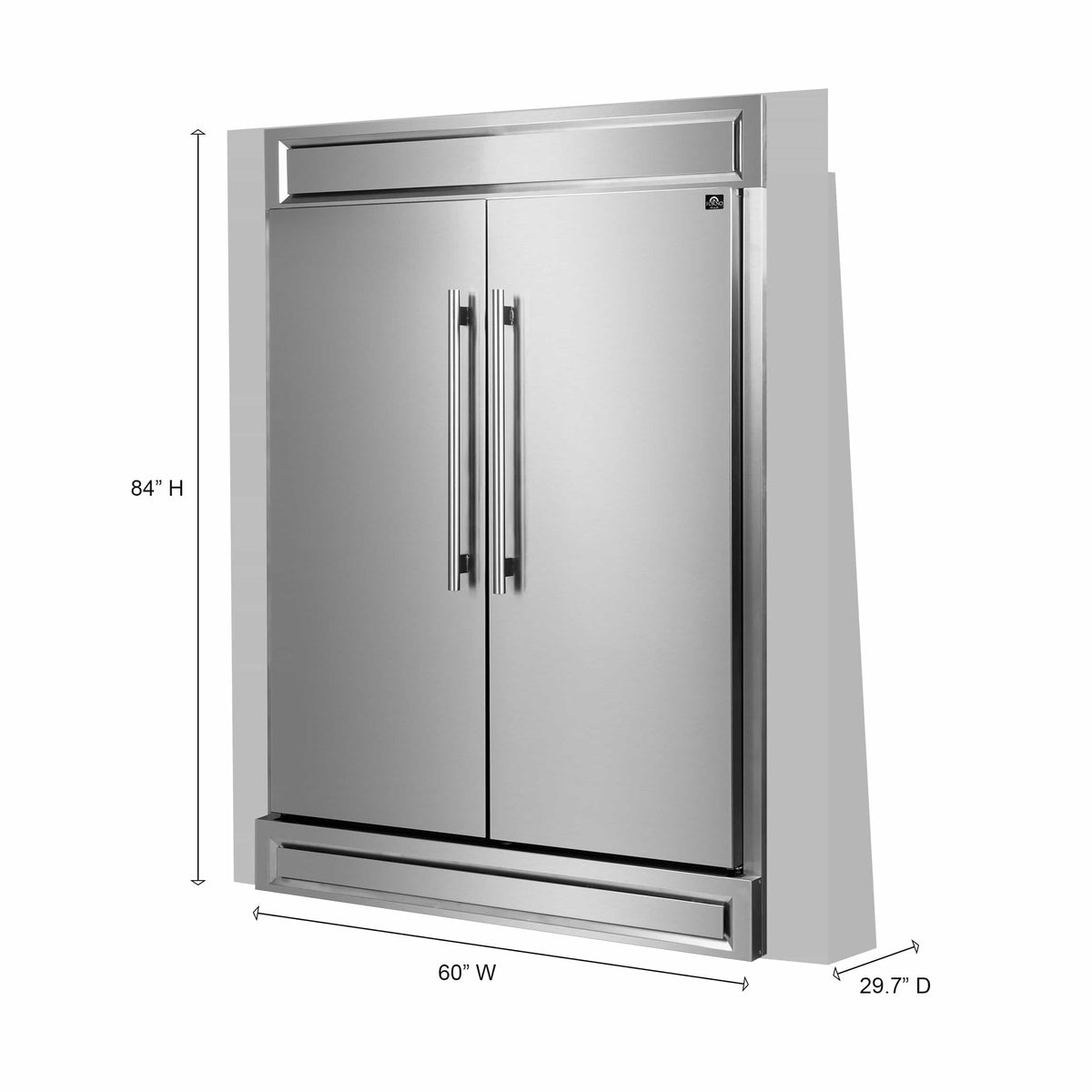

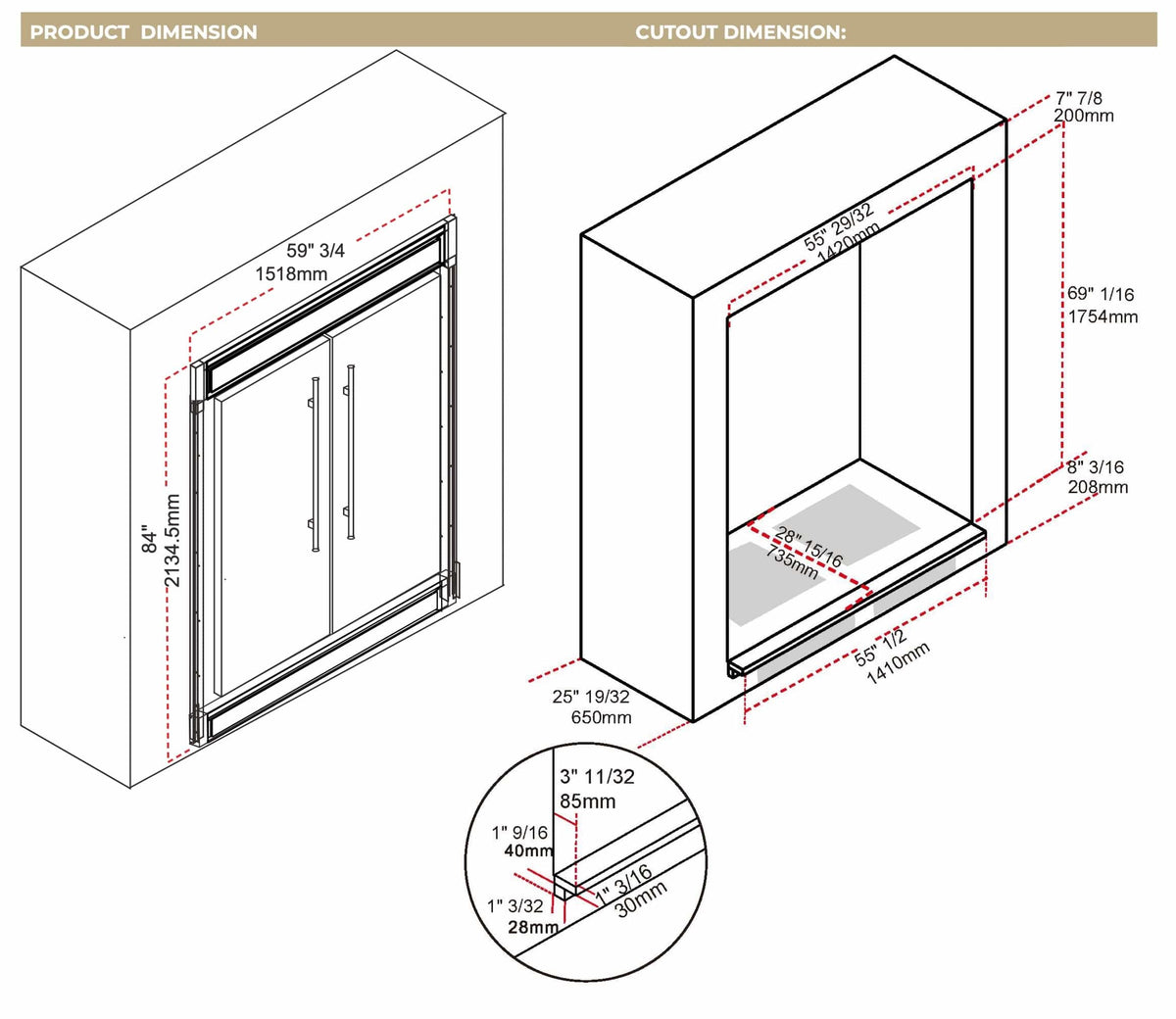

| DIMENSIONS | |
|---|---|
| Overall Dimensions | 59.76" W X 29.7" D X 84" H |
| Cutout Dimensions | 55.9" W X 28.94" D X 69.06" H |
| Product Overall Weight (lbs) | 330.00 |
| Advertised Unit Width | 60โ |
| Counter-Depth | Yes |
| GENERAL INFORMATION | |
| Build Type | Built-In |
| Finger Print Resistant | Yes |
| Air Flow | Multi Air Flow |
| Vacation Mode / E-Saver | Yes |
| Super Cool | Yes |
| Super Freeze | Yes |
| Leveling Legs | Yes |
| DESIGN & FINISH | |
| Unit Style | Side-By-Side |
| Door Color | Stainless-Steel |
| Door Material | VCM Door Panel |
| Reversible Doors | No |
| Handle Color | Stainless steel |
| Case Material | Metal |
| Case Color | Light Gray |
| Primary Material | White HIPS |
| Control Type | Internal Touch Control |
| Lighting Type | LED |
| Shelf Material | Glass with Silver Trim |
| Drawers Material | Plastic with Silver Trim |
| Door Bins Material | Plastic |
| TECHNICAL DETAILS | |
| Defrost Type | Automatic |
| REFRIGERATOR FEATURES | |
| Sabbath Mode | No |
| Door Alarm | No |
| Leak Proof Shelves | No |
| Door Bins Color | Clear |
| Ice Maker | No |
| FREEZER FEATURES | |
| Converting Fridge/Freezer | Yes |

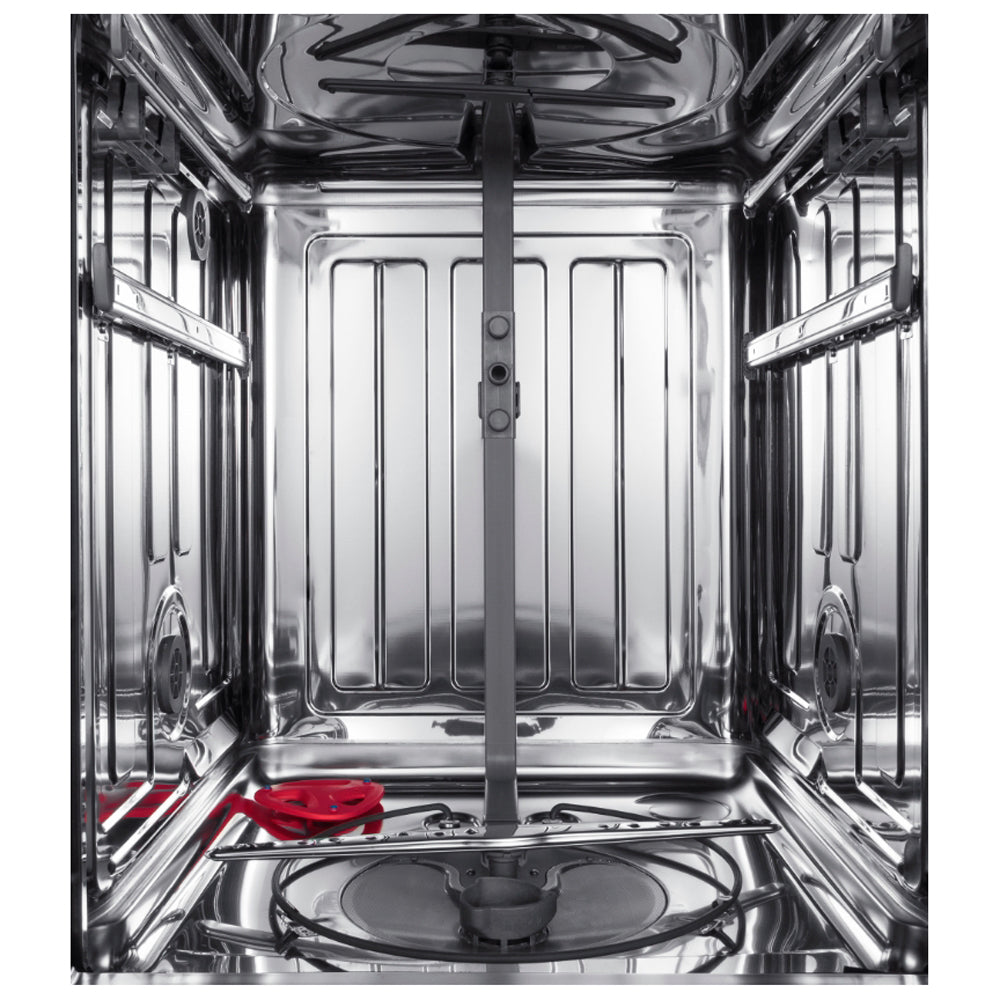

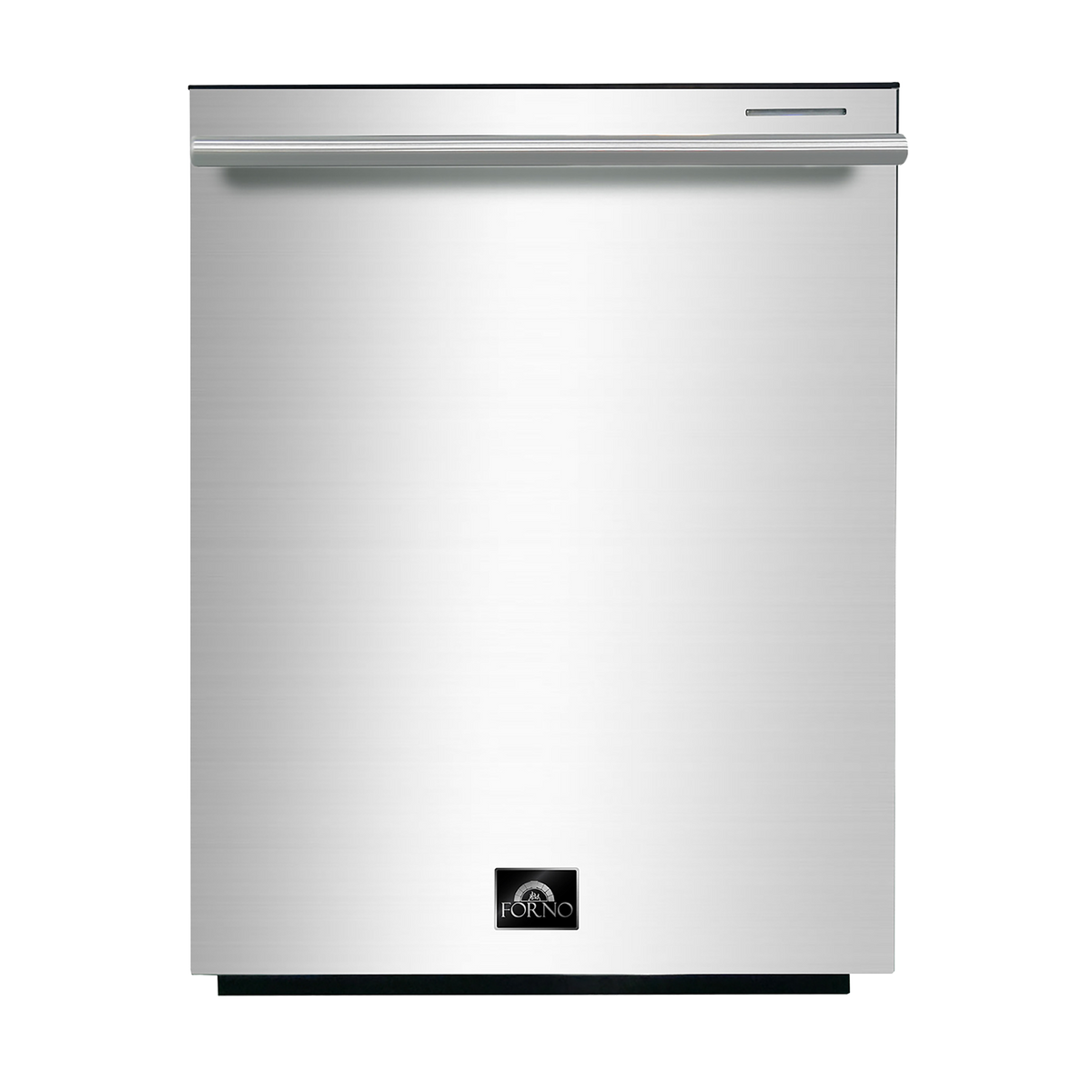

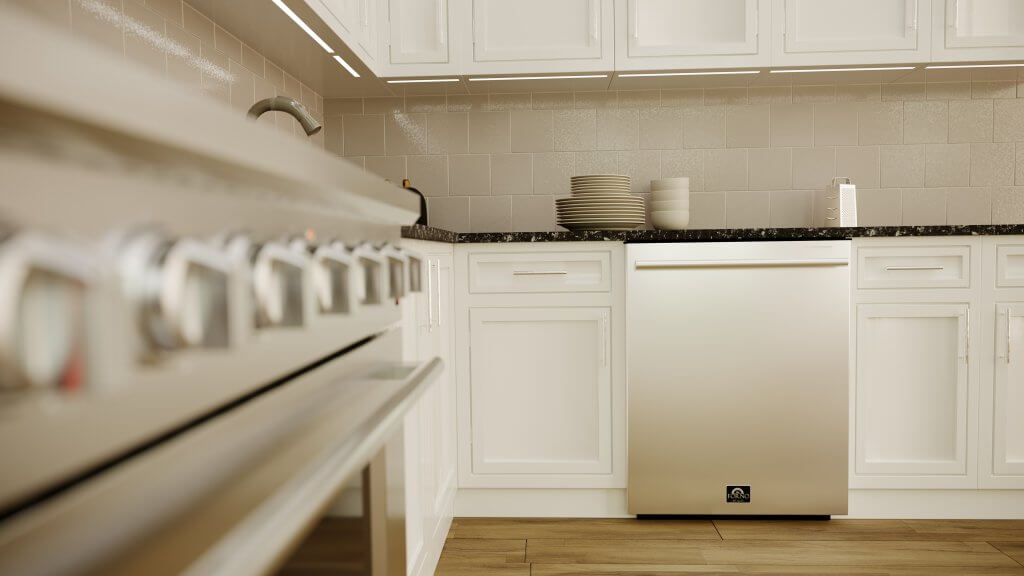

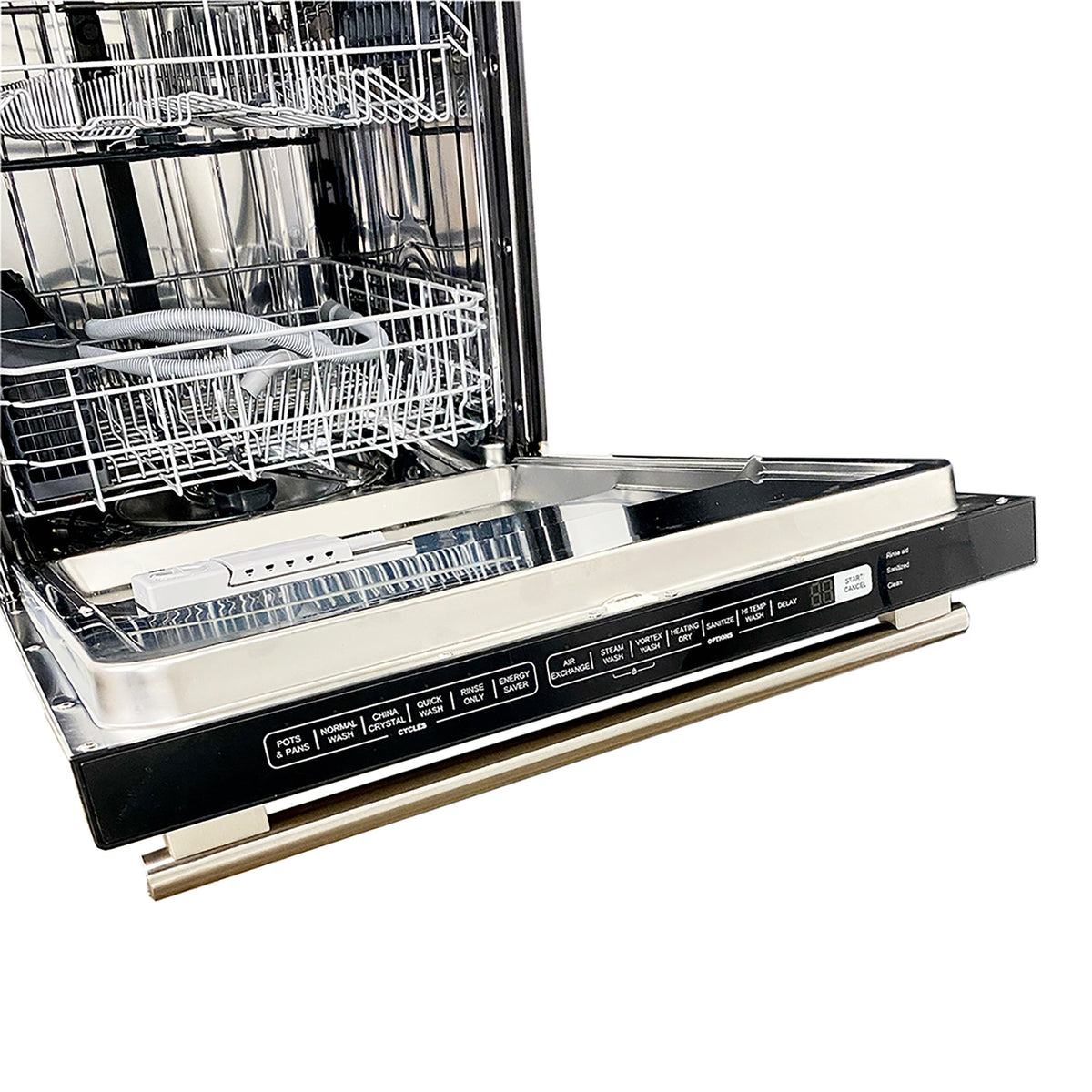

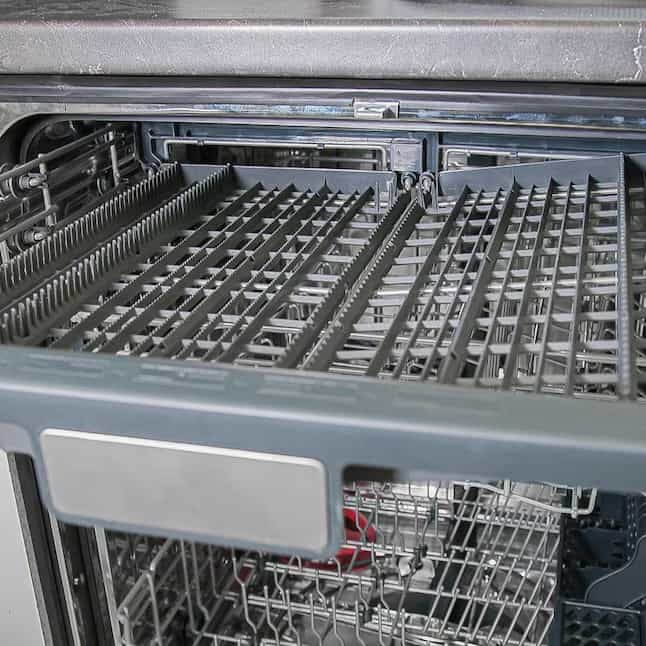

The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its stainless-steel front and pro-style handle offer durability and style. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additionnal silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
ย
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 23.85x26.54x33.74 |
| Cutout dimensions W x D x H (inch) | 24 x 24 x 34 |
| Product Overall Weight (lbs) | 93.20 |
| Minimum Product Height (IN) | 33.74 |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Racks Material | Nylon Coated Steel |
| Control Location | Top |
| Primary Material | Steel |
| Filter Material | Stainless Steel |
| TECHNICAL DETAILS | |
| Plug-in | No |
| FEATURES | |
| Number of Racks | 3 |
| Interior Light | No |
| Estimated Annual Operating Cost (USD) | 24 |
| Fingerprint-Resistant | No |
| WARRANTY & CERTIFICATIONS | |
| CEE Tier Qualified | Not Rated |
| Energy Star Most Efficient | No |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |

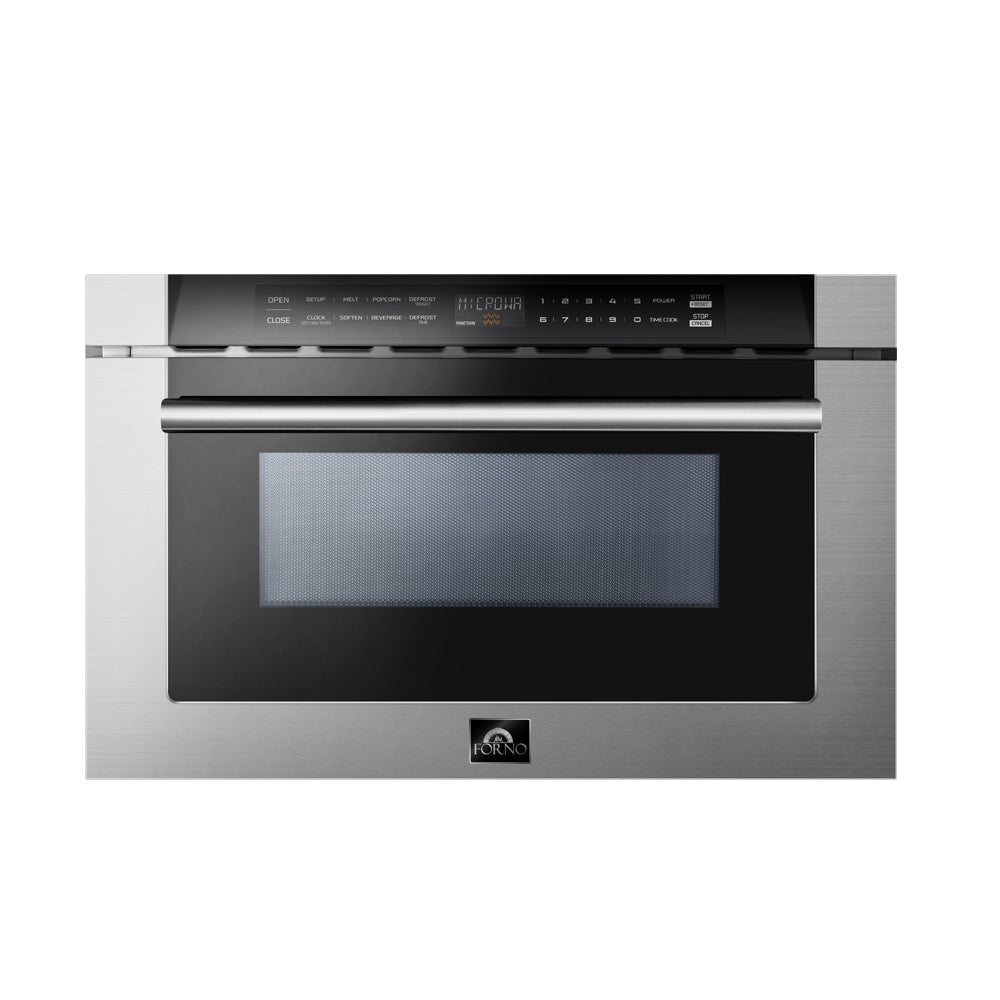

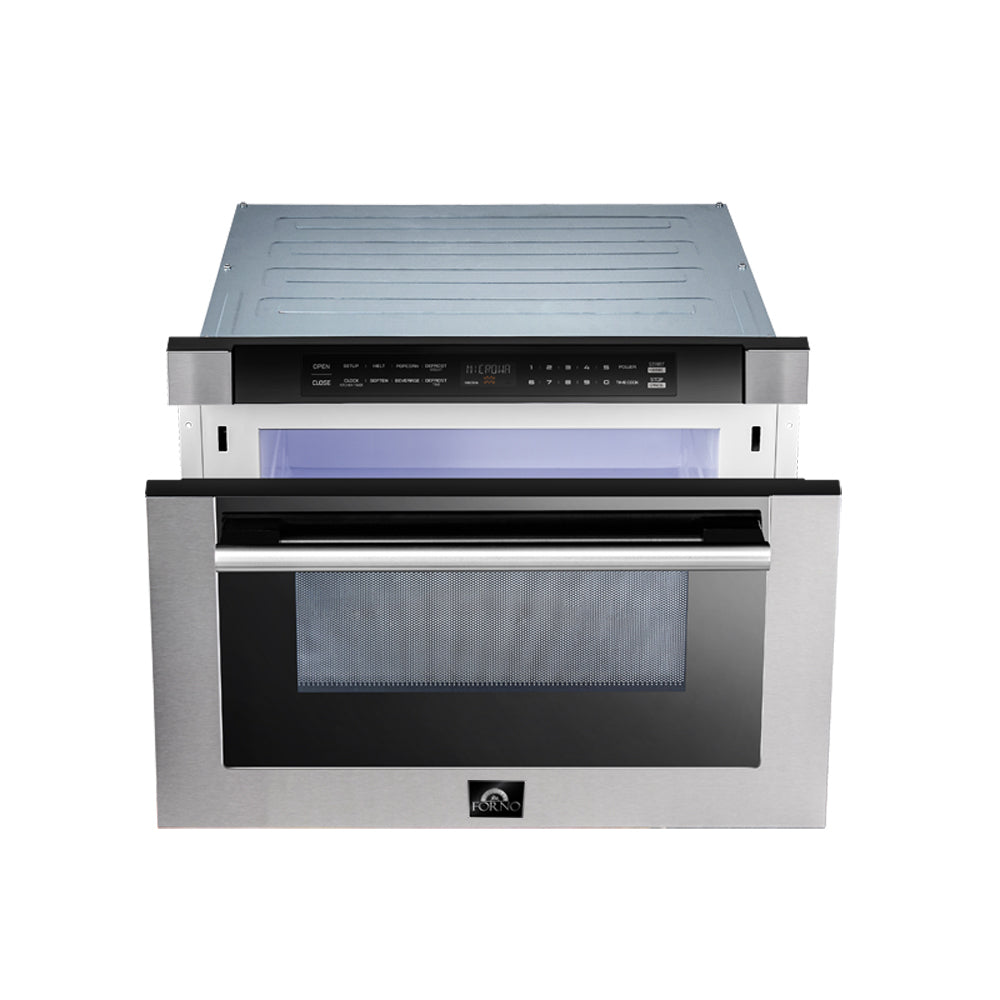

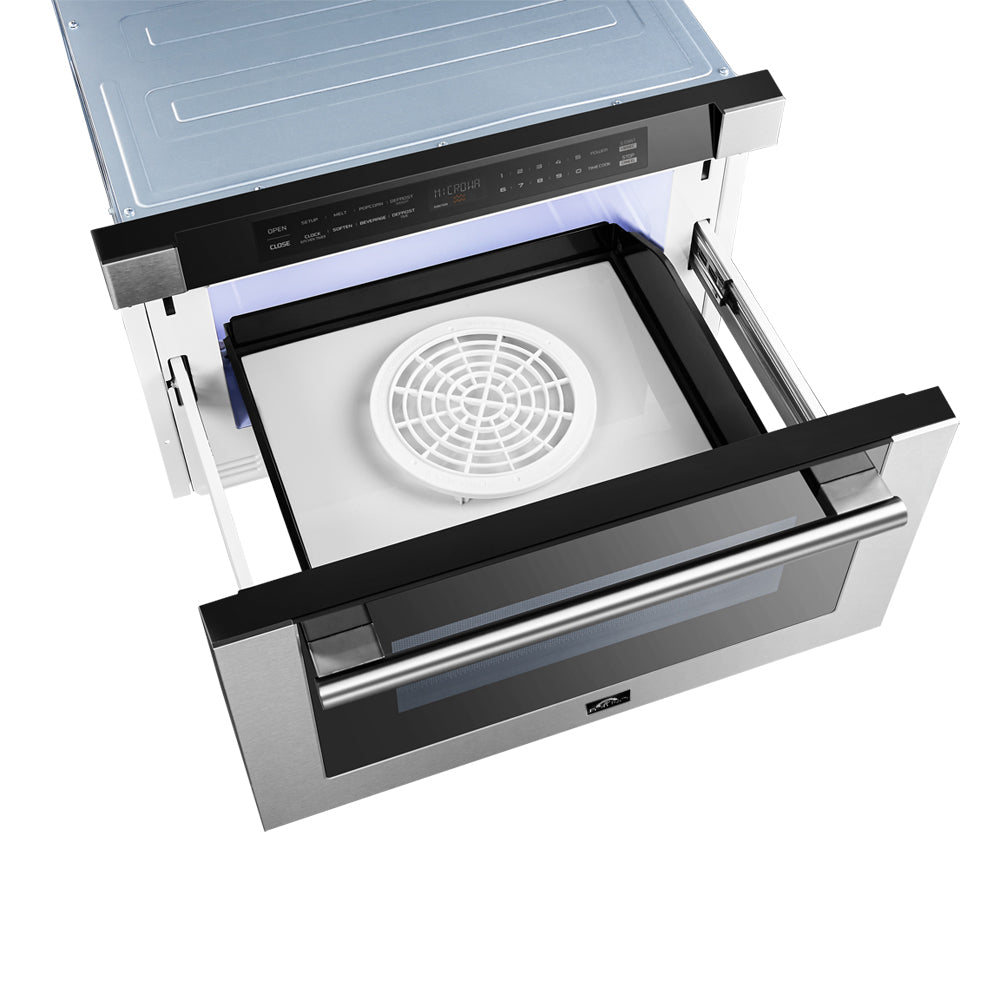

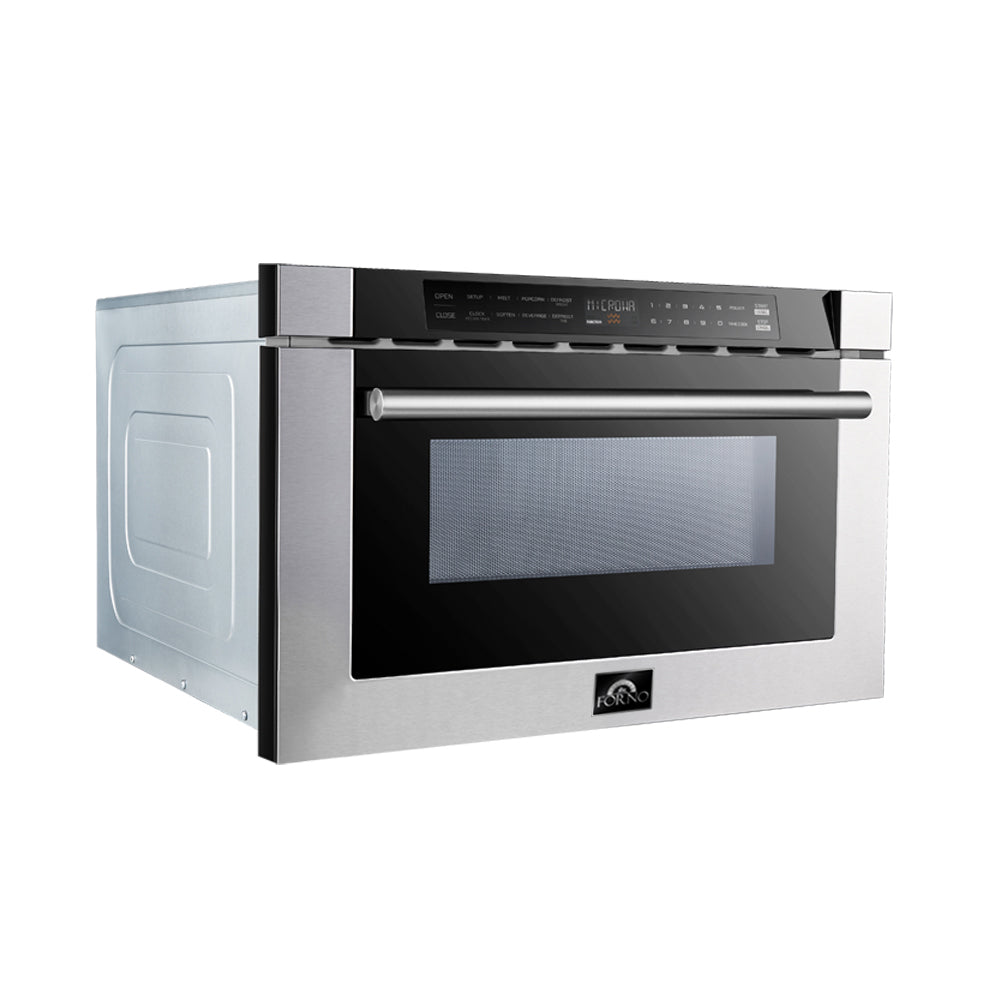

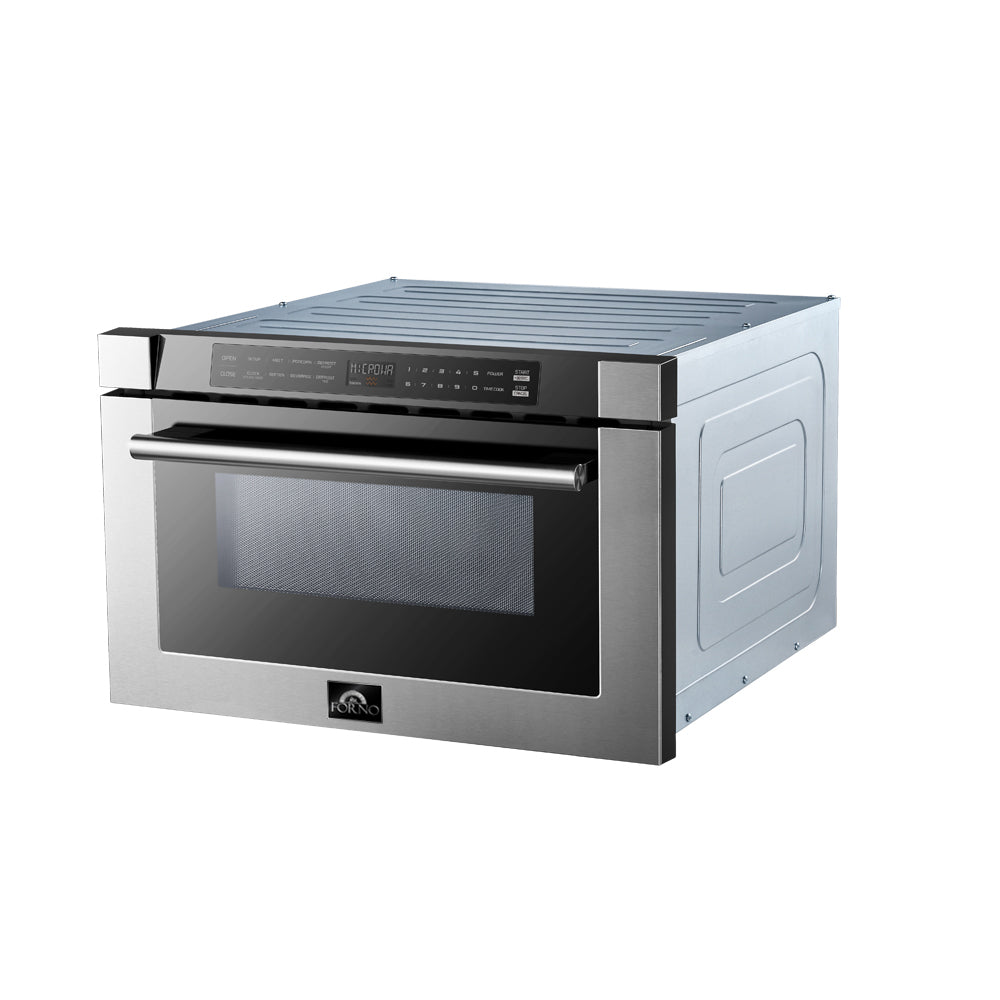

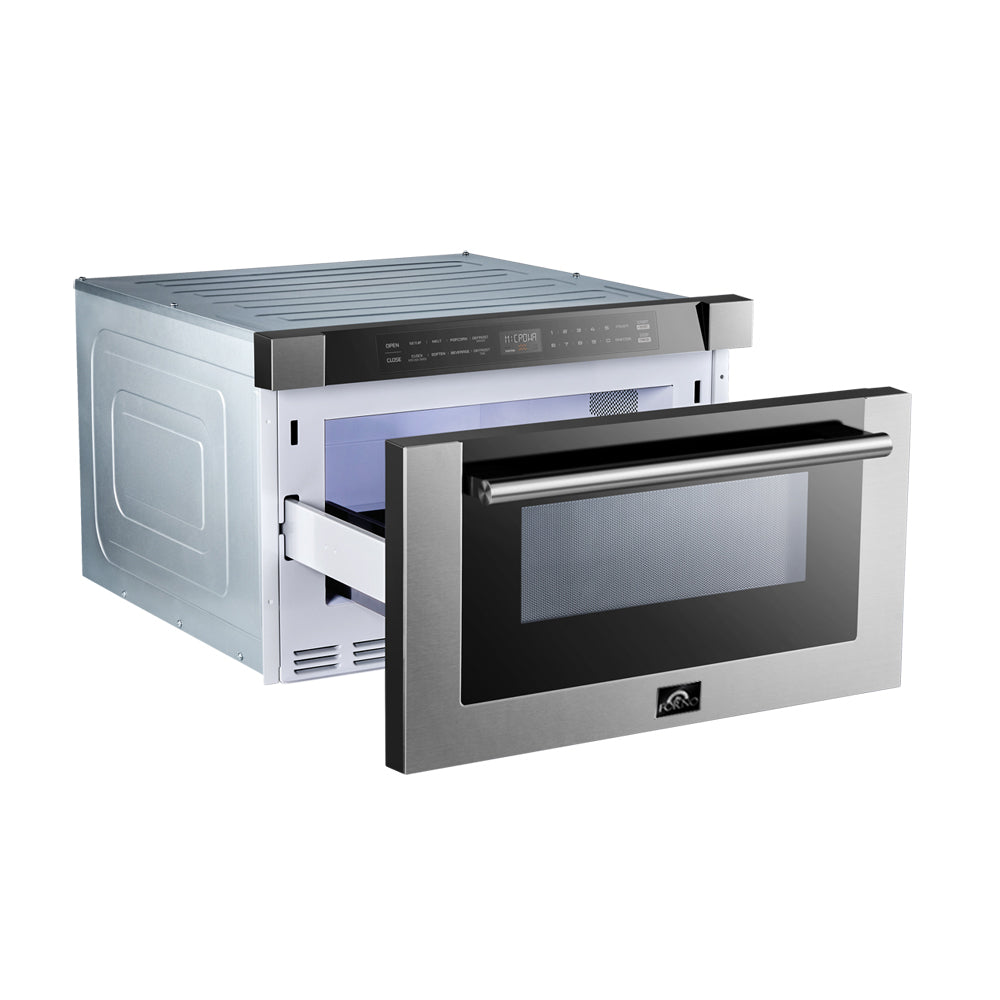

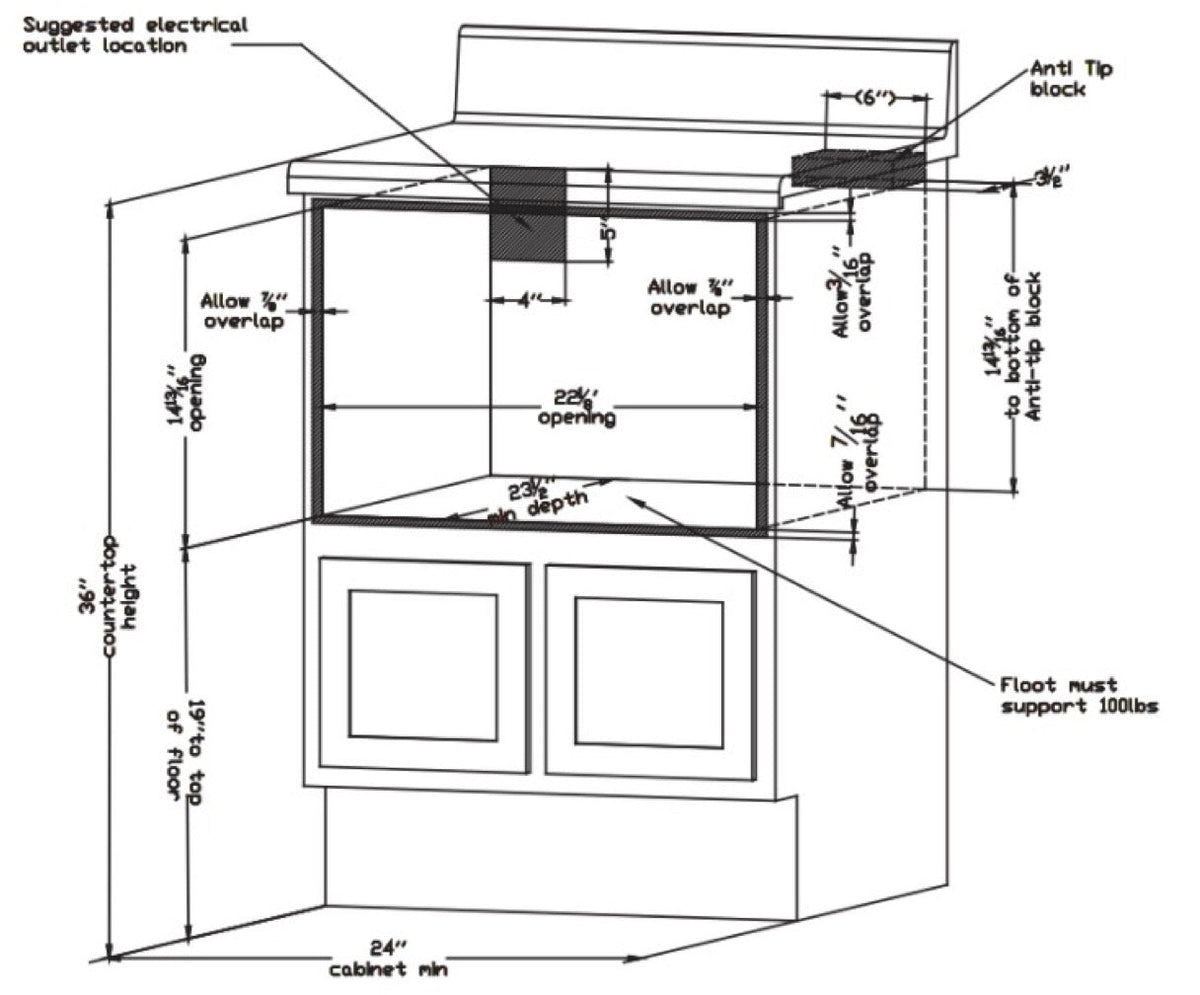

Experience premium cooking performance with the Forno 24-Inch Microwave Drawer. Its 1.2 cu. ft. capacity lets you cook large meals with ease, while its stainless steel finish adds modern style to any kitchen. Boasting precise temperature control, you can enjoy perfectly cooked meals, making it an ideal choice for your kitchen.
| DIMENSIONS | |
|---|---|
| Dimension | 23.62" W x 25.2" D x 14.96" H |
| Capacity | 1.2 cu. ft. |
| Product Weight | 81.8 lbs |
| GENERAL INFORMATION | |
| Mount Type | Drawer |
| DESIGN & FINISH | |
| Control Type | 8 Power Levels |
| TECHNICAL DETAILS | |
| Voltage | 120V/60HZ/15A |
| FEATURES | |
| Motor | 1,000W |
