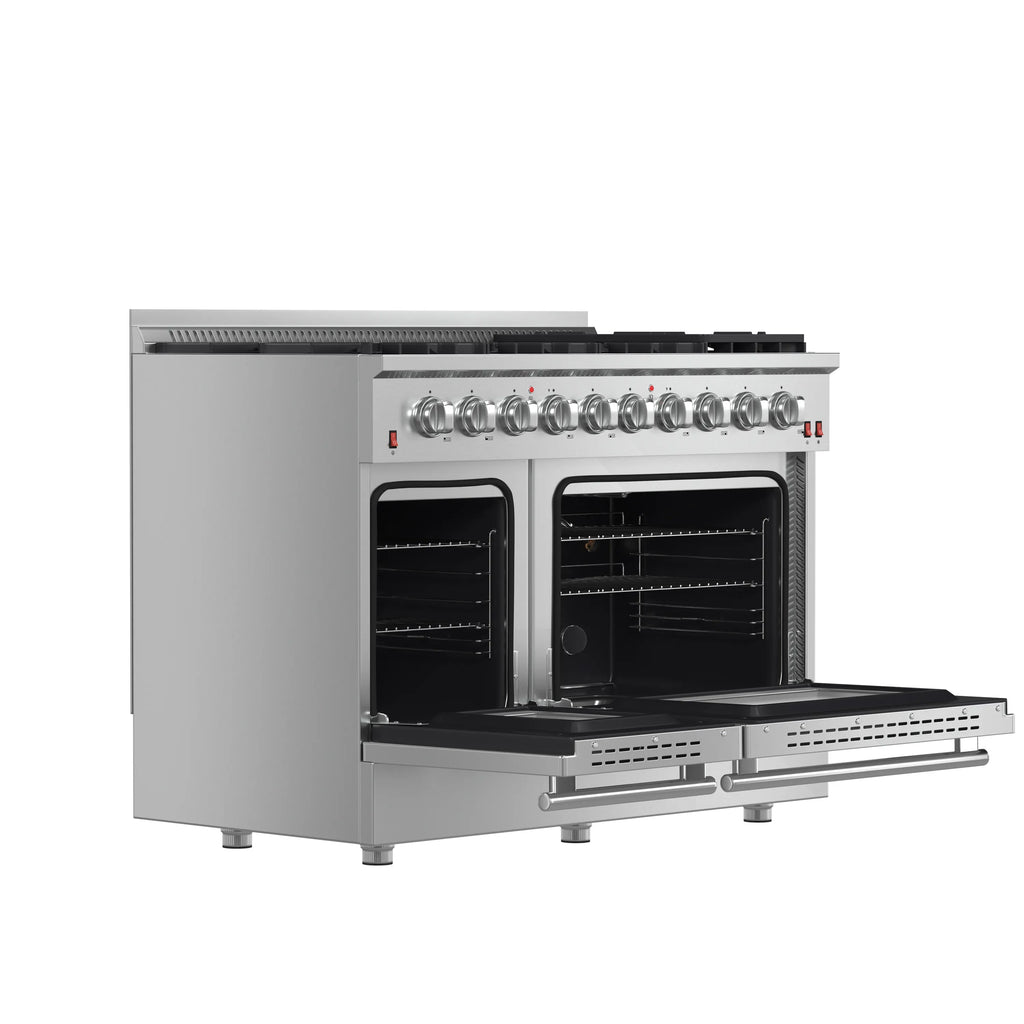

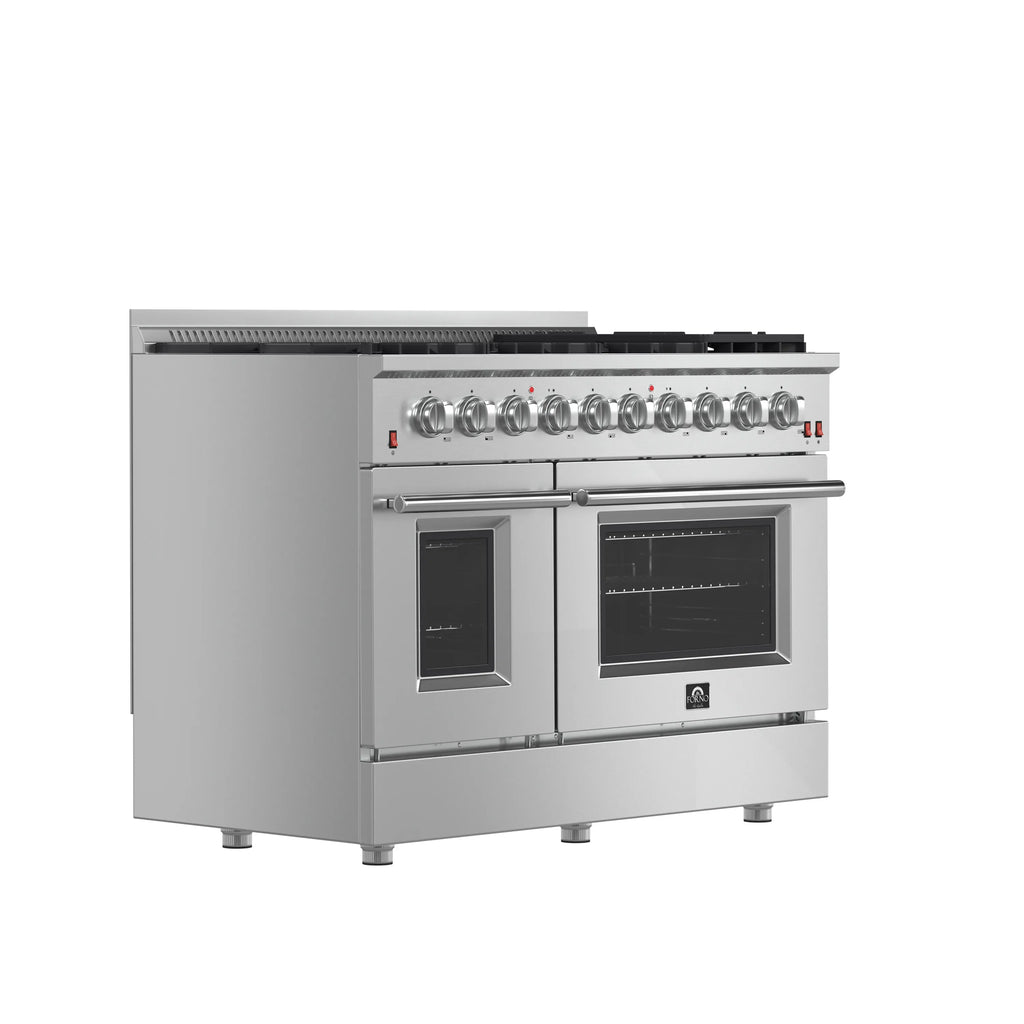

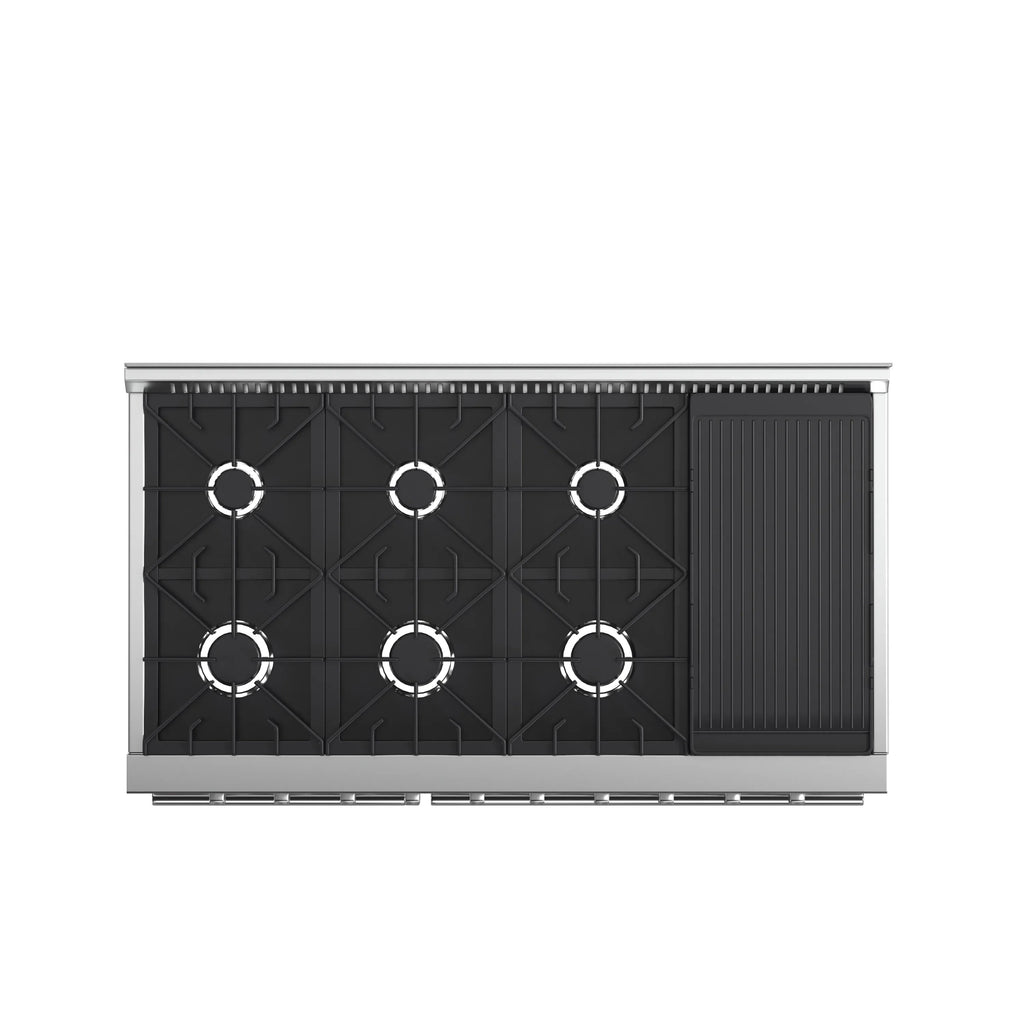

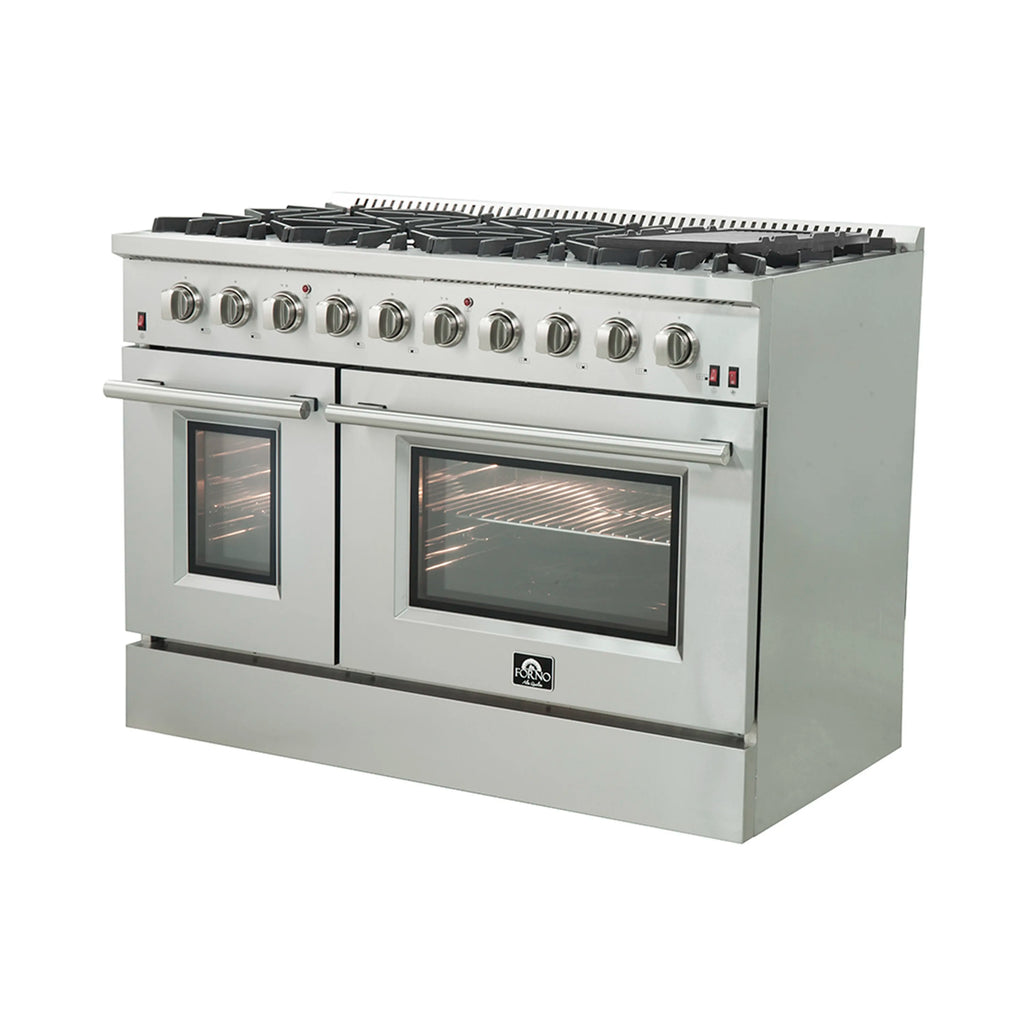

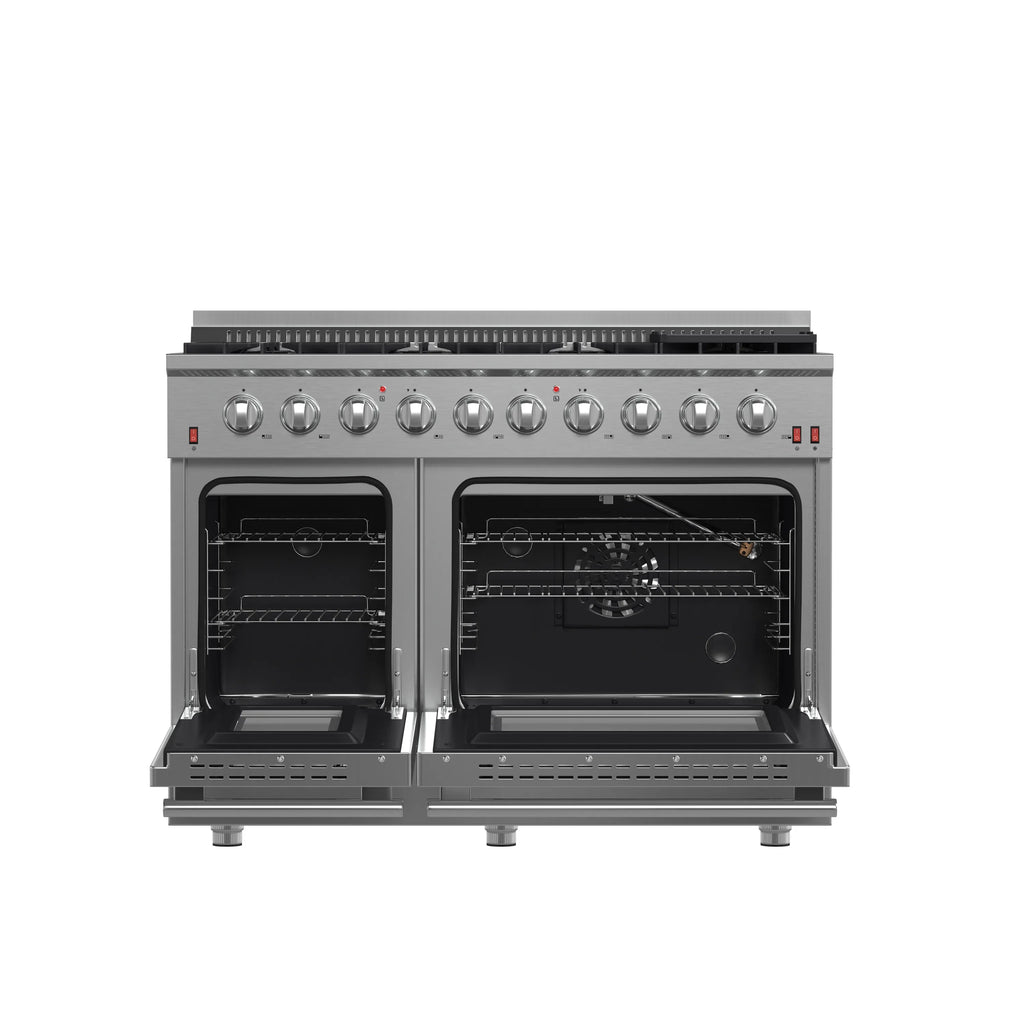

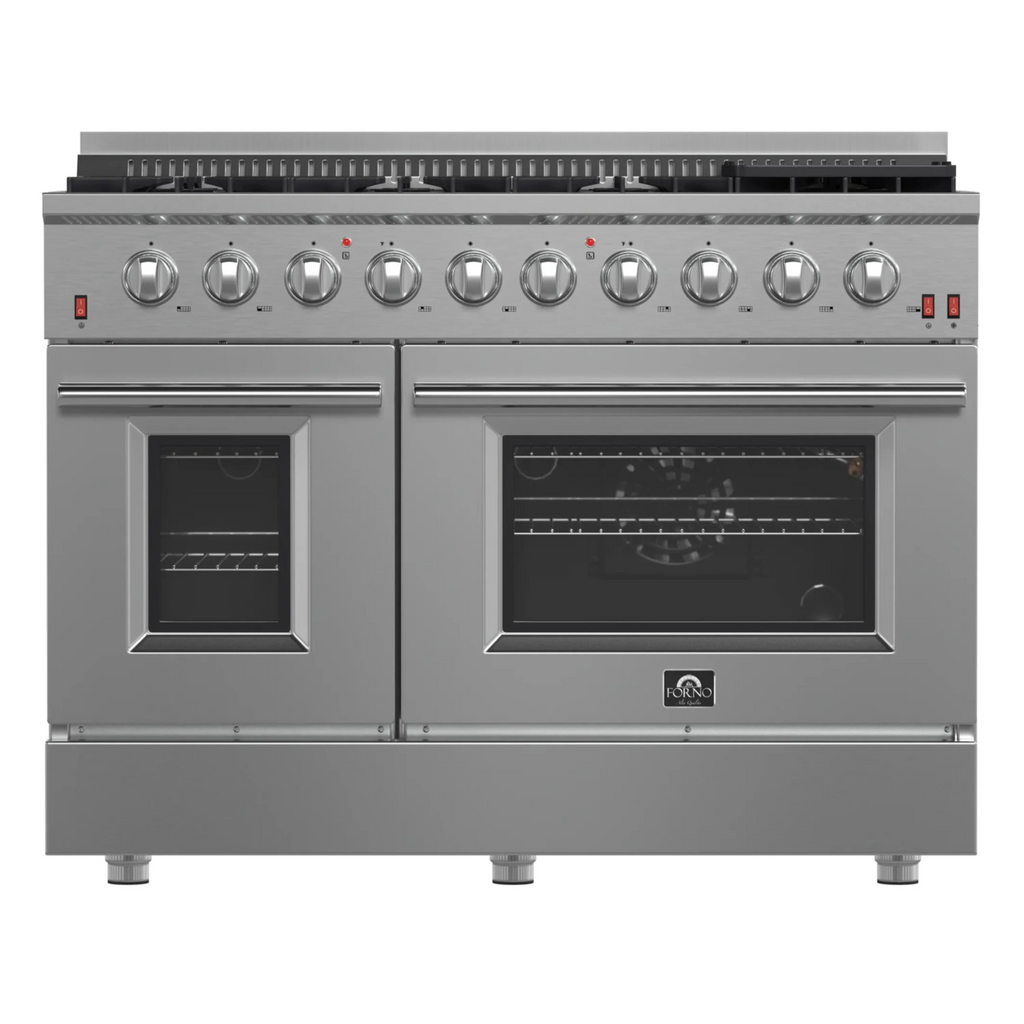

The 48 Inch Forno Galiano Gas Range brings professional styling and performance into your home kitchen with its durable stainless-steel design. The cooking surface has 8 sealed burners with a total output of 107,000 BTU, which one is a 20,000 BTU dual-ring burner that can simmer at 1,000 BTU. Continuous cast iron grates ensure stability on the enamel surface. The main oven of 4.32 Cu.Ft has a convection fan with 30,000 BTU Total Broil and Bake output. The secondary oven has a capacity of 2.26 Cu.Ft. with a 14,000 BTU Bake output. Both ovens have an impressive enamel interiors allowing for easy cleaning and 3-layer glass oven door window provides both heat retention and an unobstructed view. It features 2 racks per oven, reversible griddle, an LP conversion kit, and durable zinc-coated metal knobs. Elevate your kitchen with performance, convenience, and enduring elegance.
ย
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 48โ W x 28โ D x 38โ to 39" H |
| Cutout dimensions W x D x H (inch) | 48 x 25 x 36 |
| Product Overall Weight (lbs) | 339.51 |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Color/Finish | Stainless Steel |
| Number of Knobs | 10 |
| Control Location | Front |
| Interior Light | Yes |
| Primary Material | Metal |
| Control Panel Material | Stainless Steel |
| Interior Light(s) Type | Halogen |
| Bulb Type | G9 |
| Number of Lights | 3 |
| Fingerprint-Resistant | No |
| TECHNICAL DETAILS | |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
| LP gas convertible | Yes |
| Automatic Shut-Off | No |
| Power Cord Location | Back |
| COOKTOP FEATURES | |
| Burner Fuel | Gas |
| Gas Heat Configuration (cooktop) | Sealed Burner |
| Cooking Surface Control Type | Push & Turn/Knobs |
| Cooking Surface Ignition Type | Electronic |
| Simmer Burner | Yes |
| Number of Simmer Burner | 1 |
| Cooktop Surface Structure | Grate; Deep Recessed |
| Grate Type | Continuous Cast Iron Grates |
| Diswasher-Safe Grates | No |
| Auto Re-Ignition | Yes |
| Oven Ignition Type | Automatic Ignition |
| Bake Element | Yes |
| OVEN FEATURES | |
| Number of Ovens | 2 |
| Overall Oven BTU | 44000 |
| Overall Oven Capacity (Cubic Feet) | 6.58 |
| Oven Control Type | Manual/Knob |
| Racks Material | Electroplated |
| Number of Racks | 4 |
| Number of Rack Positions | 6 |
| Broiler Location | Oven |
| Broiler | Gas |
| Overall Broil BTU | 10000 |
| Overall Bake Element BTU | 34000 |
| Door Panel Material | Stainless Steel |
| Oven Fuel | Gas |

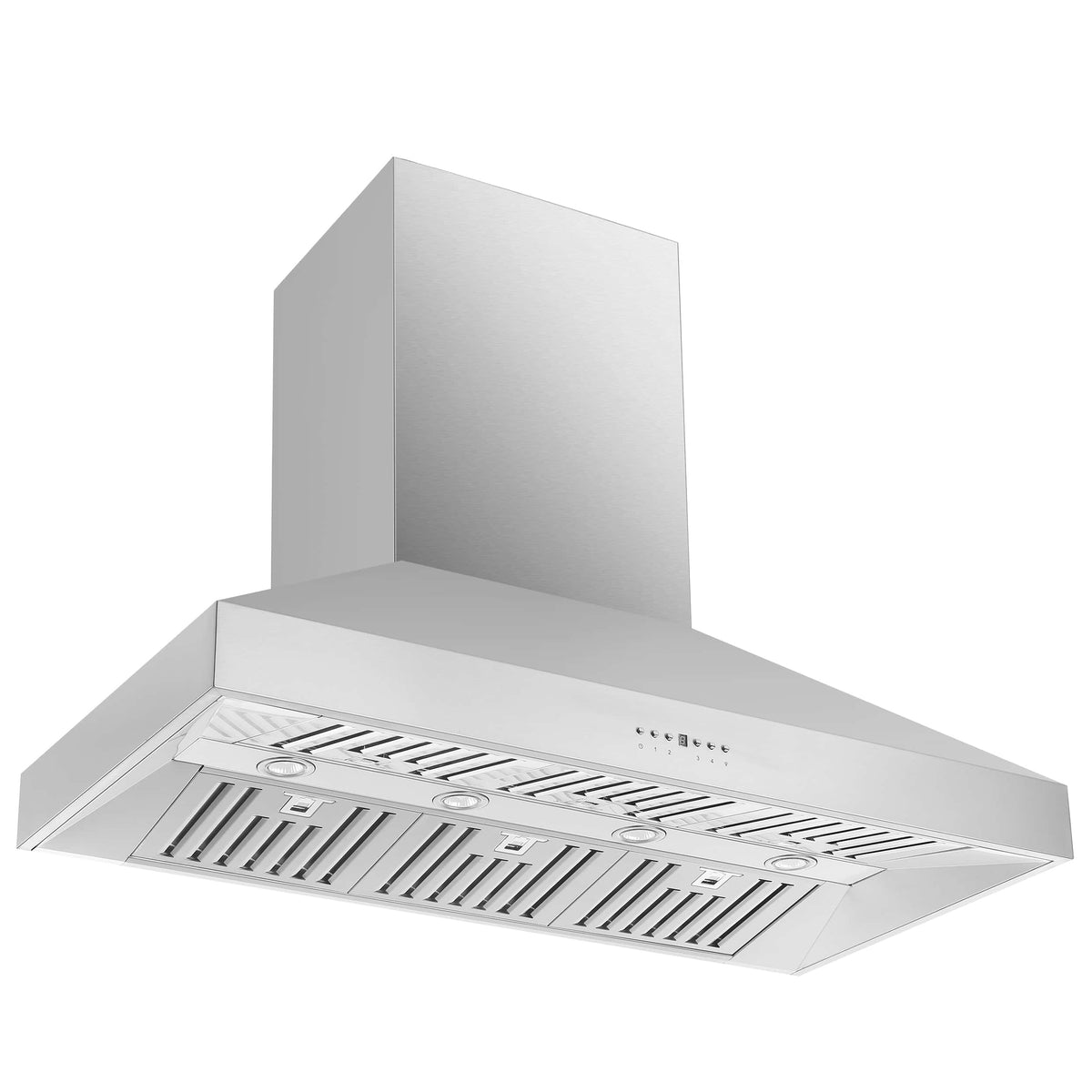

The Orvieto 48" STAINLESS STEEL Wall Mount RANGE HOOD helps create superior air quality with its powerful 1200 CFM motor and four-speed touch control. The decorative stainless-steel crown molding adds an attractive finish to your kitchen design. The hood is made from high-grade stainless steel for durability, and boasts noise reduction technology for a quieter sound while in use. The included surface lights provide superior illumination and energy efficiency. Baffle filters capture heat, odors, gases and are dishwasher-safe making cleanup a breeze. This range hood is sure to be an asset in any kitchen.
This wall mount rangehood is equipped with a powerful energy-efficient 1200 CFM, designed to capture smoke, gases, steam and grease to keep your cooking area free of unwanted odors.
Filters are made of washable Stainless-Steel with a baffle design and designed to capture grease, smoke, odors and grease from the air.
4 speed touch control for easy operation makes it simple to adjust the fan speed settings for air flow and ventilation levels according to your needs.

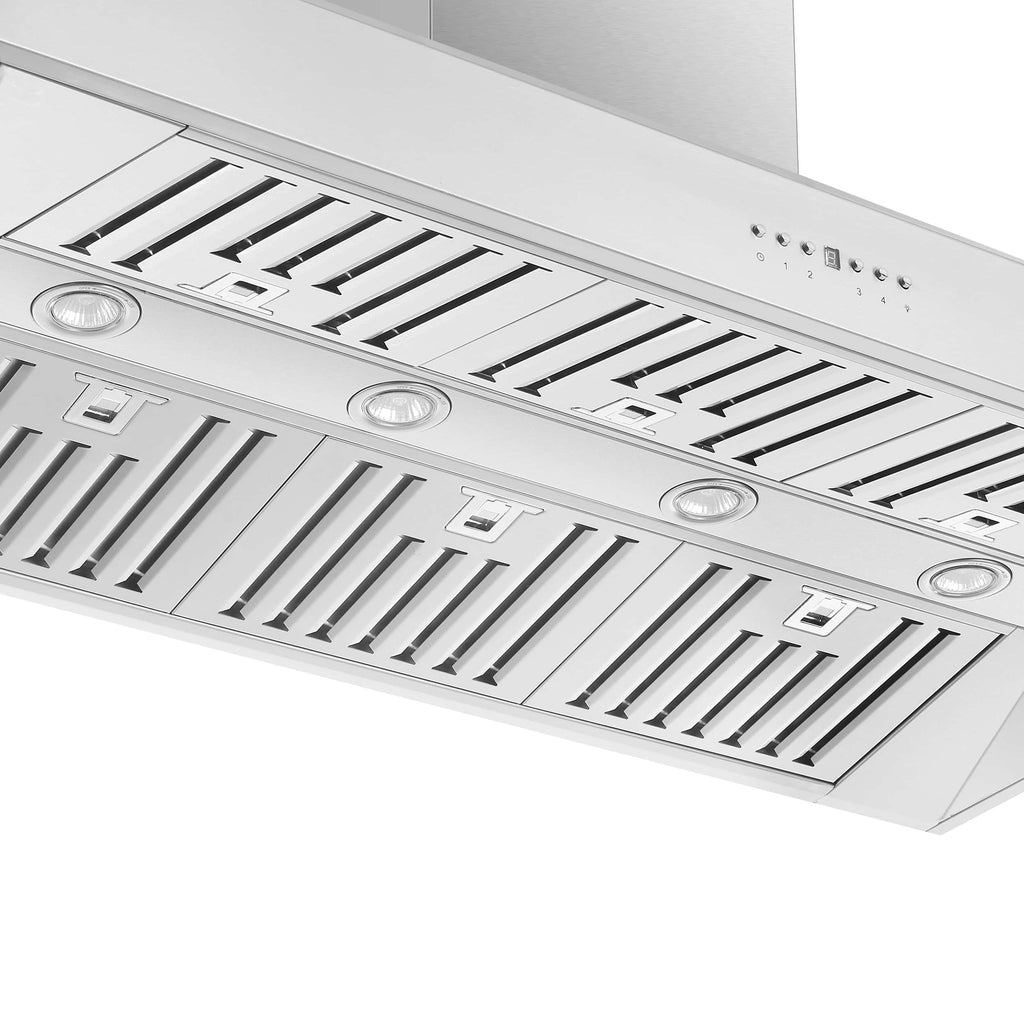

Four Surface lights offer bright illumination for cooktop surface.
The chimney includes a stainless steel decorative molding trim which adds an elegant, modern feel and a beautiful finishing touch.
Maximum power ventilation at a low noise level of 68dB allows you to enjoy an effective ventilation system without obtrusive noise disruption. Low setting delivers sound level of 25dB.
| DIMENSIONS | |
|---|---|
| Overall Dimensions | 47.24" W X 23.62" D X 29.14" to 44.29" H |
| Minimum Height from Cooktop | 25" for Electric Range 30" for Gas Range |
| Maximum Height from Cooktop | 30" |
| Adjustable Height | 29.14" H to 44.29" H |
| GENERAL INFORMATION | |
| Bulb Type | GU10 |
| Mount Type | Wall Mount |
| Exhaust Vent Location | Roof / Wall |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Filter Material | Stainless Steel |
| Speed Control | 4 speed |
| Speed Control Type | Touch Control |
| Hardware Finish | Stainless Steel |
| Primary Material | Stainless Steel |
| Remote Control | No |
| TECHNICAL DETAILS | |
| Maximum CFM | 1200 CFM |
| Maximum Sones | 16 sones |
| Minimum Sones | 2 |
| Noise Level | 68dB(A) |
| Amperage | 3.7A |
| Volts | 120 |
| Wattage | 440 |
| Power Source | AC |
| Duct Shape | 10" Round |
| Blower Type | Metal |
| Damper | Yes |
| Reversible Blower | No |
| FEATURES | |
| Lighting Type | Halogen |
| Air Discharge Direction | Vertically Upward |
| Filter Type | Baffle |
| Washable Filter | Yes |
| Rangehood Chimney | Yes |
| Chimney Short Kit | No |
| Glass Component | No |
| Crown Molding | Yes |
| Smudge Resistant | No |
| Heat Sensors | No |
| Delay Shut Off | 3 Minutes |
| Timer | No |
| Clean Filter Alert | No |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| WARRANTY & CERTIFICATIONS | |
| ETL Listed | Yes |
| Warranty Type | Limited |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |

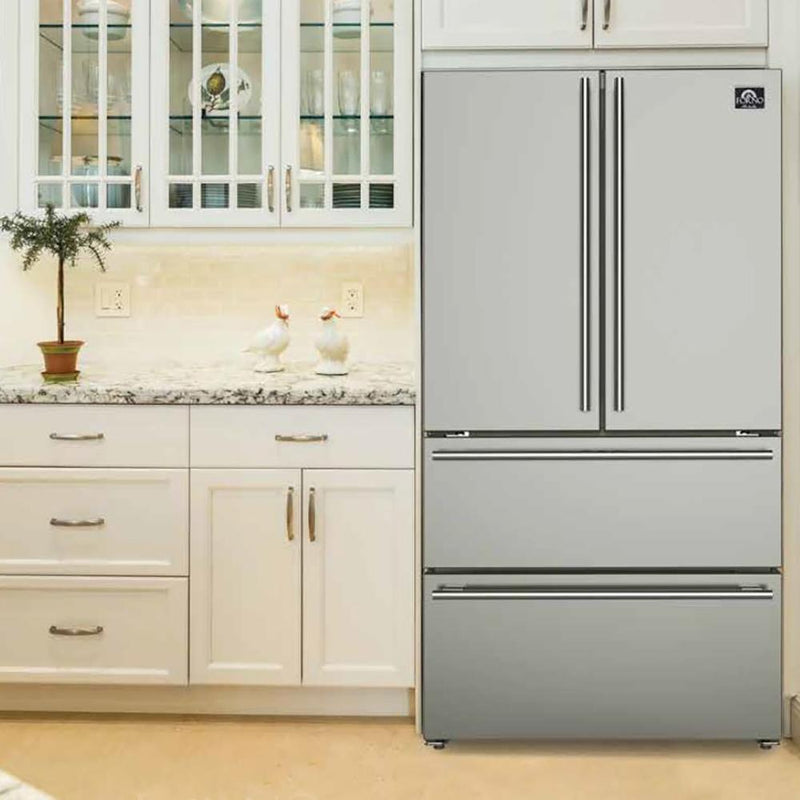

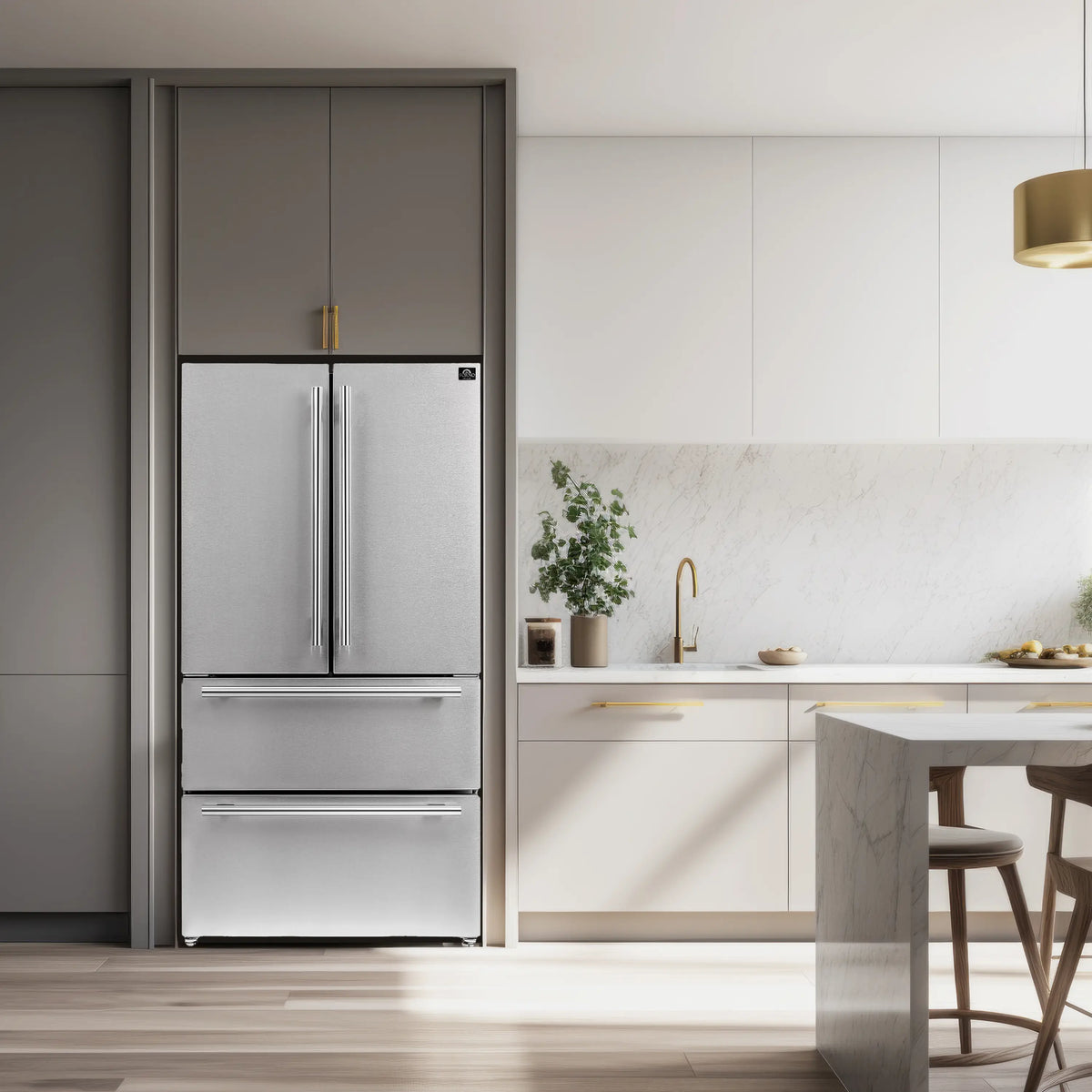

Upgrade your kitchen with the Forno Moena 36" French Door Refrigerator, designed for seamless integration and premium performance. Powered by a high-efficiency inverter compressor, it ensures energy savings, quiet operation, and precise temperature control to keep your food fresher for longer. The frost-free multi-airflow cooling system maintains consistent temperatures throughout its 19.2 cu. ft. capacity, providing optimal food preservation with adjustable shelving for versatile storage. The 12.1 cu. ft. fresh food section includes three glass shelves (two adjustable), two drawers, and generous door storage to keep groceries organized. The 7.2 cu. ft. freezer offers two pull-out drawers, a slide-out tray, and an automatic ice maker producing up to 4 pounds of ice daily, ensuring convenience for every occasion. With an intuitive LED touch panel, you can effortlessly control temperature settings and functions. Energy Star Certified, this built-in French door refrigerator operates efficiently while minimizing food spoilage with bright, high-efficiency LED lighting for superior visibility.
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 36 x 30.41 x 70.1 |
| Cutout dimensions W x D x H (inch) | 37x27x71.08 |
| Product Overall Weight (Lbs) | 242.5 |
| Minimum Top Clearance (IN) | 1 |
| Sides Clearance - On Each Sides (IN) | 0.5 |
| Height Top of Door Hinge (inches) | 70.1 |
| GENERAL INFORMATION | |
| Estimated Annual Operating Cost (USD) | 76 |
| Cooling Type | Multi Air Cooling |
| Fast Cool Function | Yes |
| Energy Saver Mode | No |
| Door Texture | Smooth |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel VCM |
| Control Location | On Door |
| Primary Material | Steel |
| Door Bins Material | Plastic |
| Fresh Food Shelves Material | Glass |
| Door Liner Color | White |
| TECHNICAL DETAILS | |
| Number of Power Cord | 1 |
| Power Consumption Defrost Wattage (W) | 240 |
| Noise Level (dBA) | 38 |
| REFRIGERATOR FEATURES | |
| Interior Fresh Food Dimensions W x D x H (inches) | 31.5x21x31.5 |
| Ice Bin Size WxDxH | 12x7.5x4 |
| Temperature Range Refrigerator (ยฐC) | 0ยฐC to 6ยฐC |
| Standard Door Bins Size WxDxH | 13.5X6.25x3 |
| Gallon (4 Liters) Door Bin(s) Size WxDxH | 13.5x6.25x3.75 |
| Fresh Food Door Type | French Door |
| Number of Adjustable Shelves | 2 |
| Fresh Food drawer(s) Size WxDxH | 13 x 6.5 x 12 |
| Temperature Controlled Drawer(s) | No |
| Interior Fresh Food Dimensions Height | 31.5 |
| Interior Fresh Food Dimensions Width | 31.5 |
| Fresh Food Capacity Cu. Ft. | 12.1 |
| Water Pipe Length (Feet) | 8.69 |
| Cabinet Color | Gray |
| Electronic Temperature Control | Yes |
| FREEZER FEATURES | |
| Interior Freezer Dimensions W x D x H (in) | 30x15.5x27.5 |
| Temperature Range Freezer (ยฐC) | -23ยฐC to 15ยฐC |
| Freezer tray Dimensions WxDxH | 27x13x3 |
| Upper Freezer Drawer(s)/Basket Size WxDxH | 26x14x8 |
| Freezer Door Style | Pull-Out Drawer |
The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its stainless-steel front and pro-style handle offer durability and style. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additionnal silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
ย
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 23.85x26.54x33.74 |
| Cutout dimensions W x D x H (inch) | 24 x 24 x 34 |
| Product Overall Weight (lbs) | 93.20 |
| Minimum Product Height (IN) | 33.74 |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Racks Material | Nylon Coated Steel |
| Control Location | Top |
| Primary Material | Steel |
| Filter Material | Stainless Steel |
| TECHNICAL DETAILS | |
| Plug-in | No |
| FEATURES | |
| Number of Racks | 3 |
| Interior Light | No |
| Estimated Annual Operating Cost (USD) | 24 |
| Fingerprint-Resistant | No |
| WARRANTY & CERTIFICATIONS | |
| CEE Tier Qualified | Not Rated |
| Energy Star Most Efficient | No |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |
