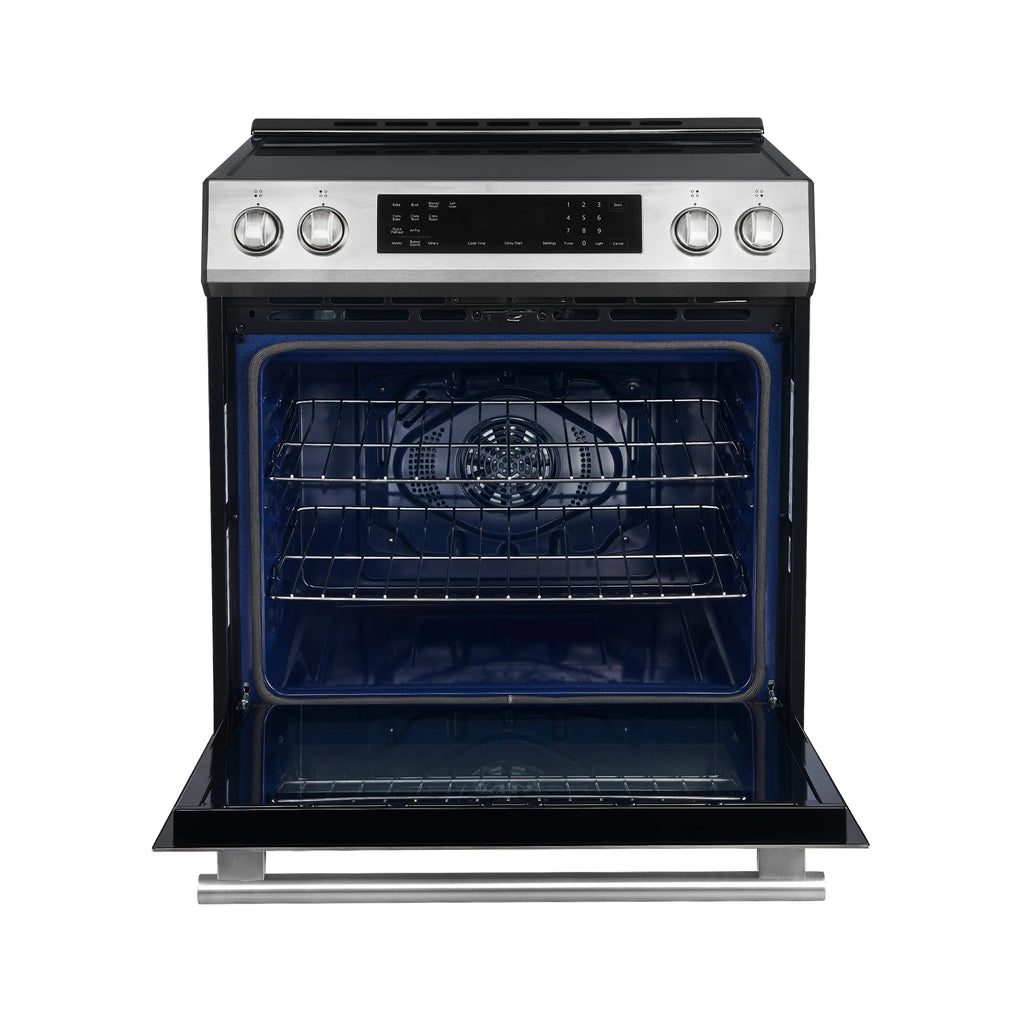

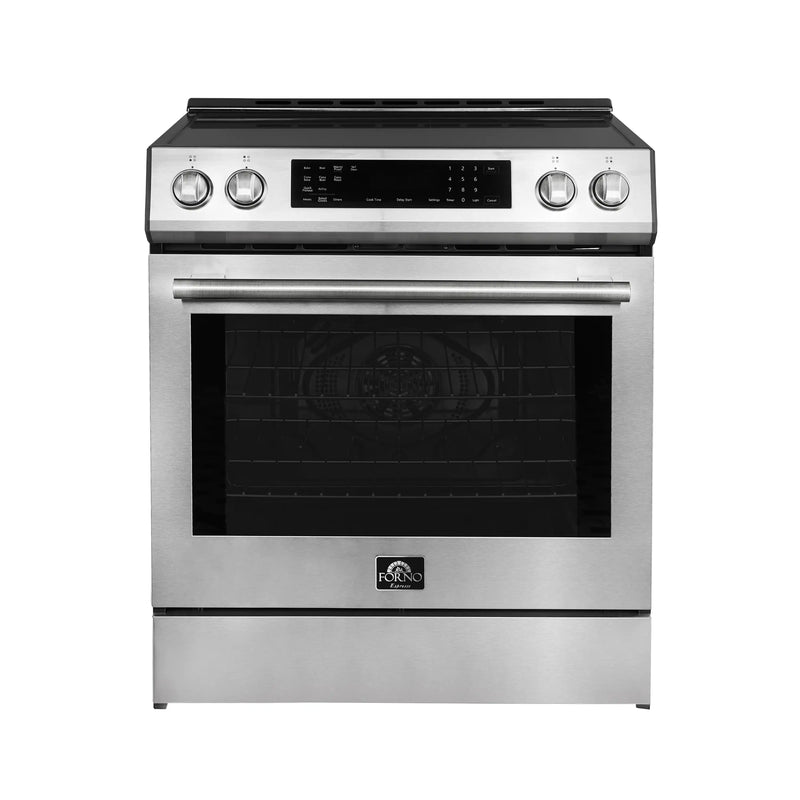

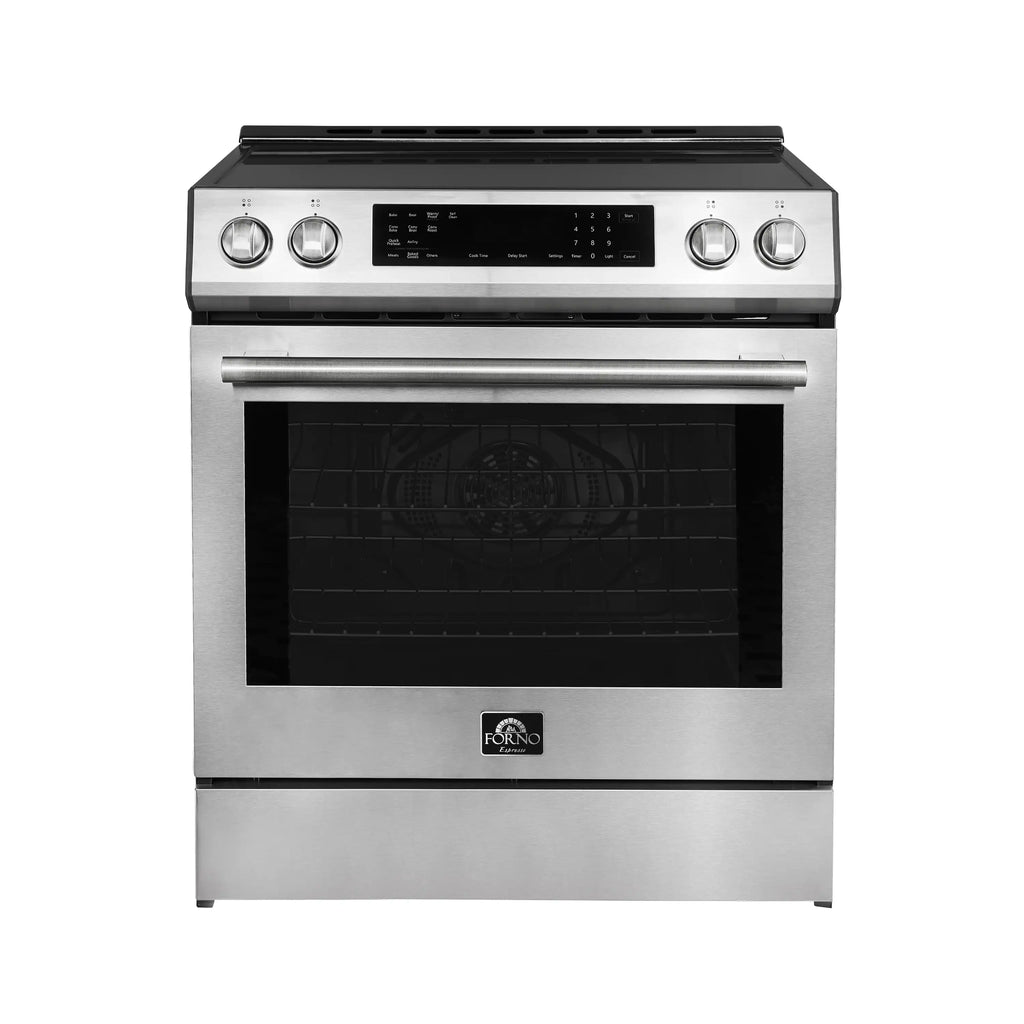

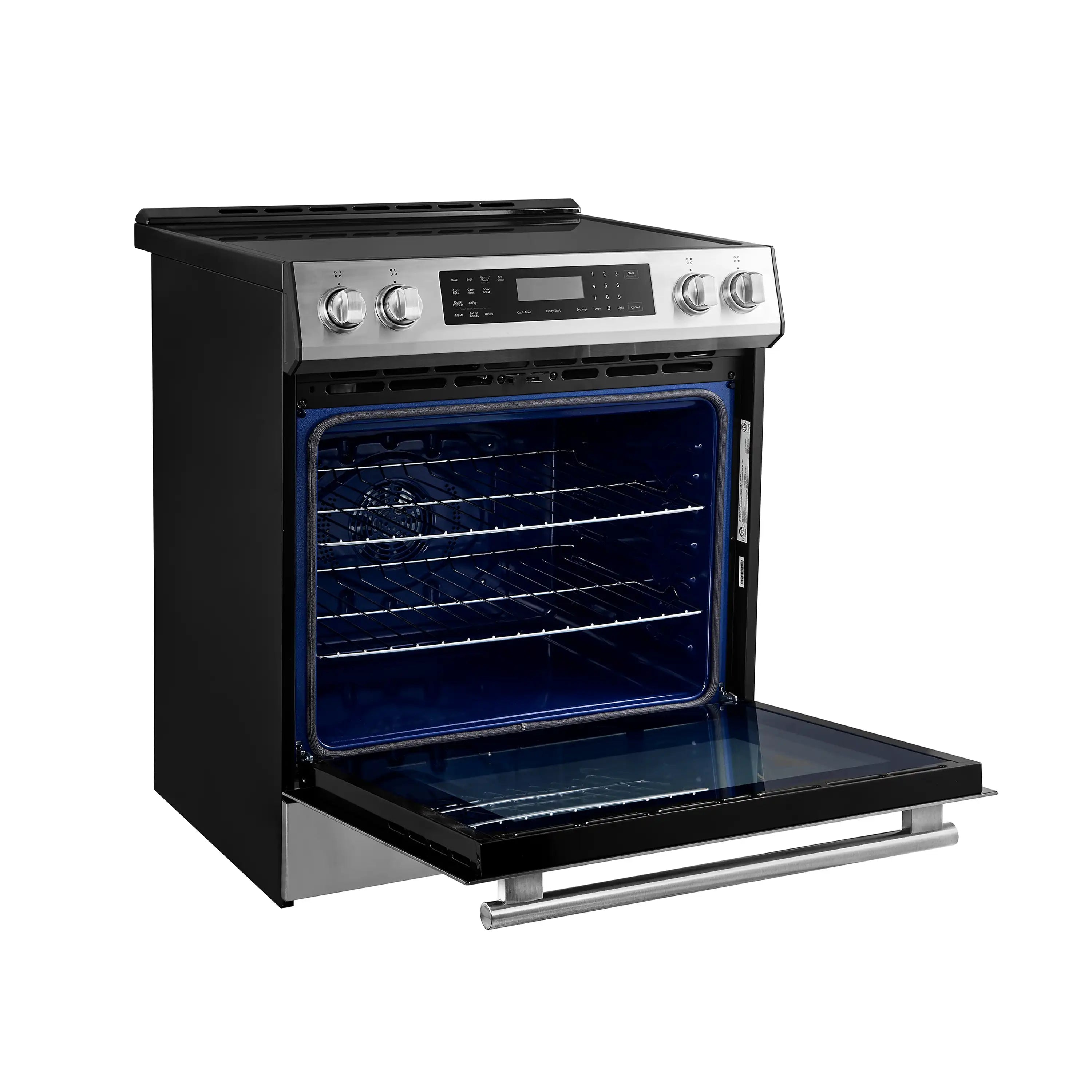

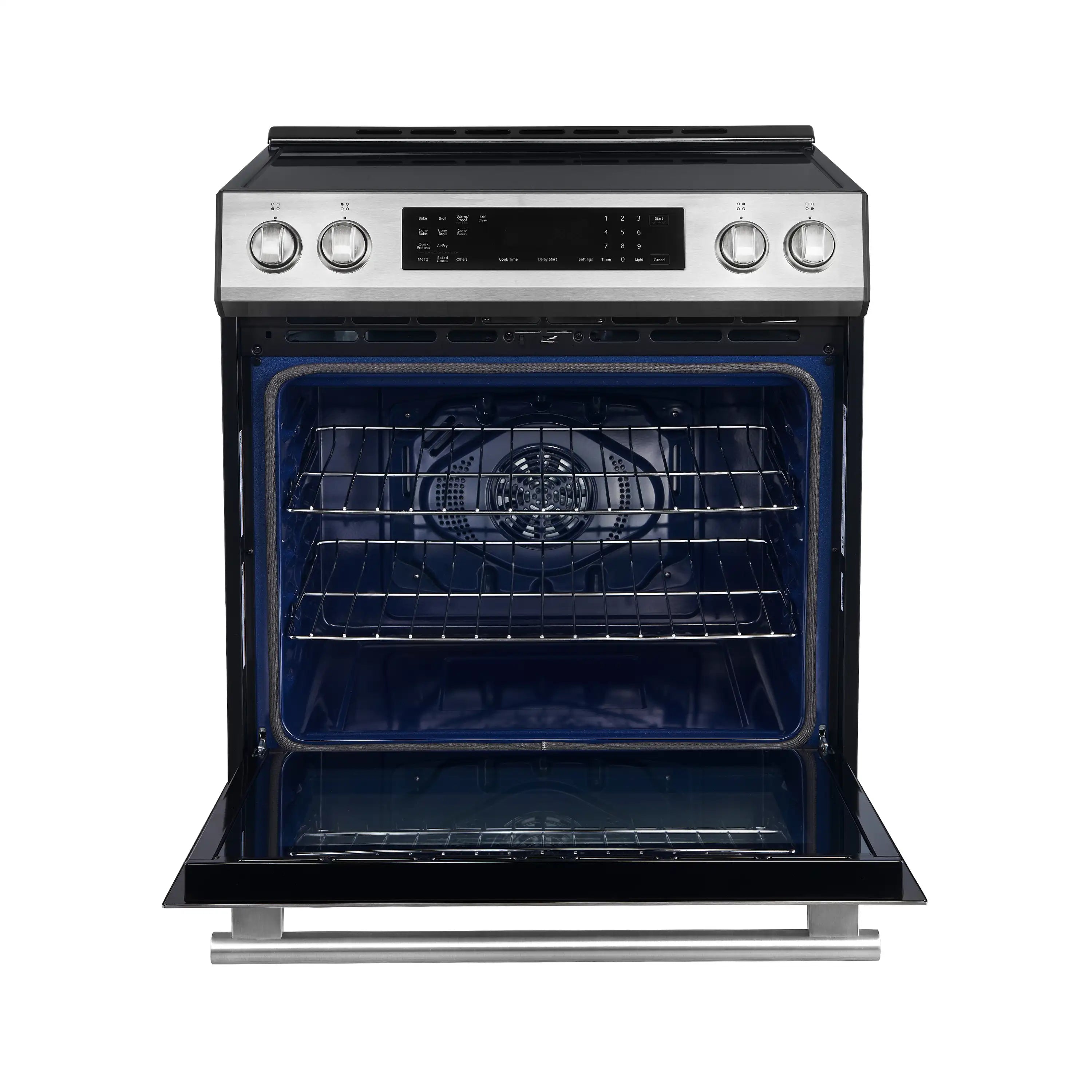

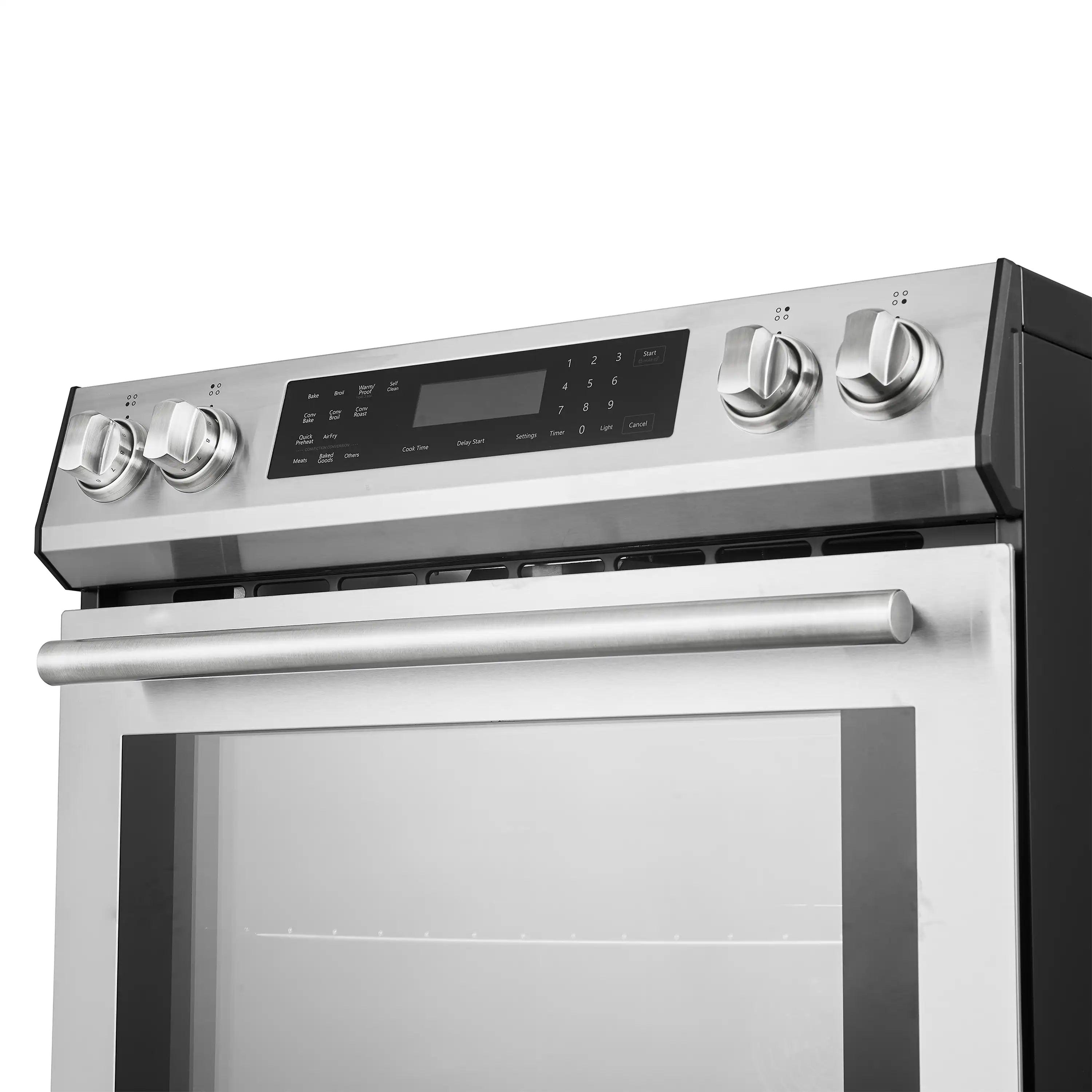

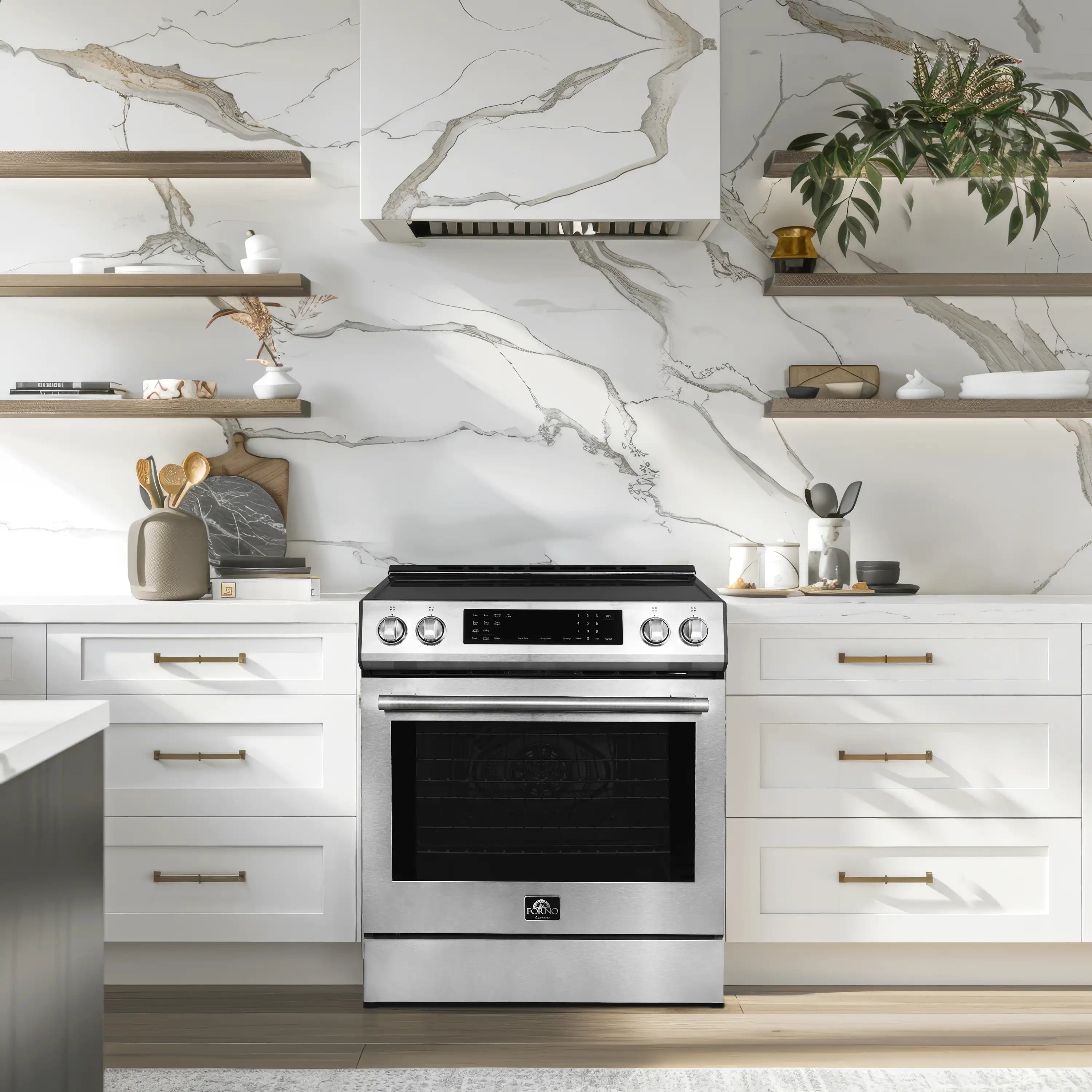

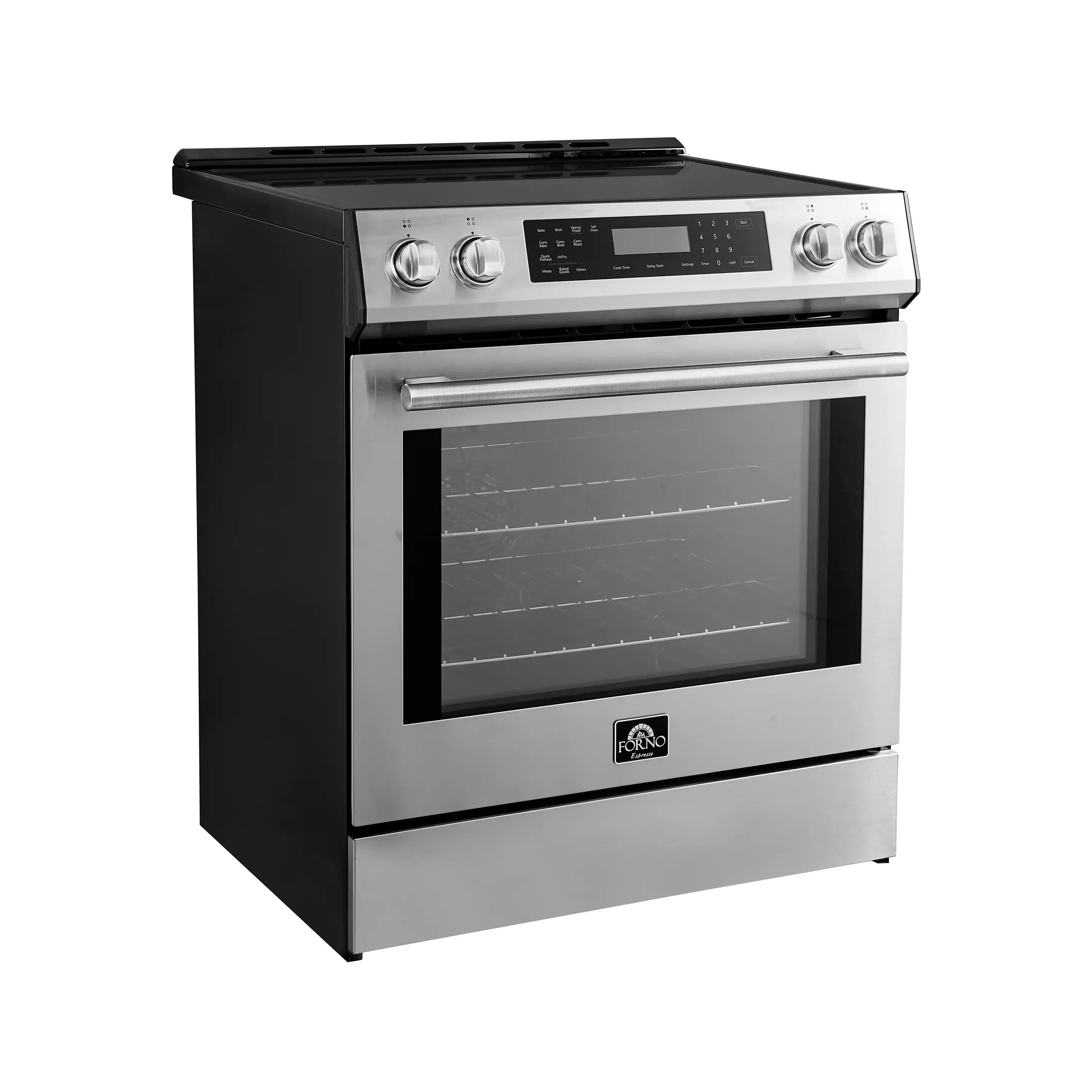

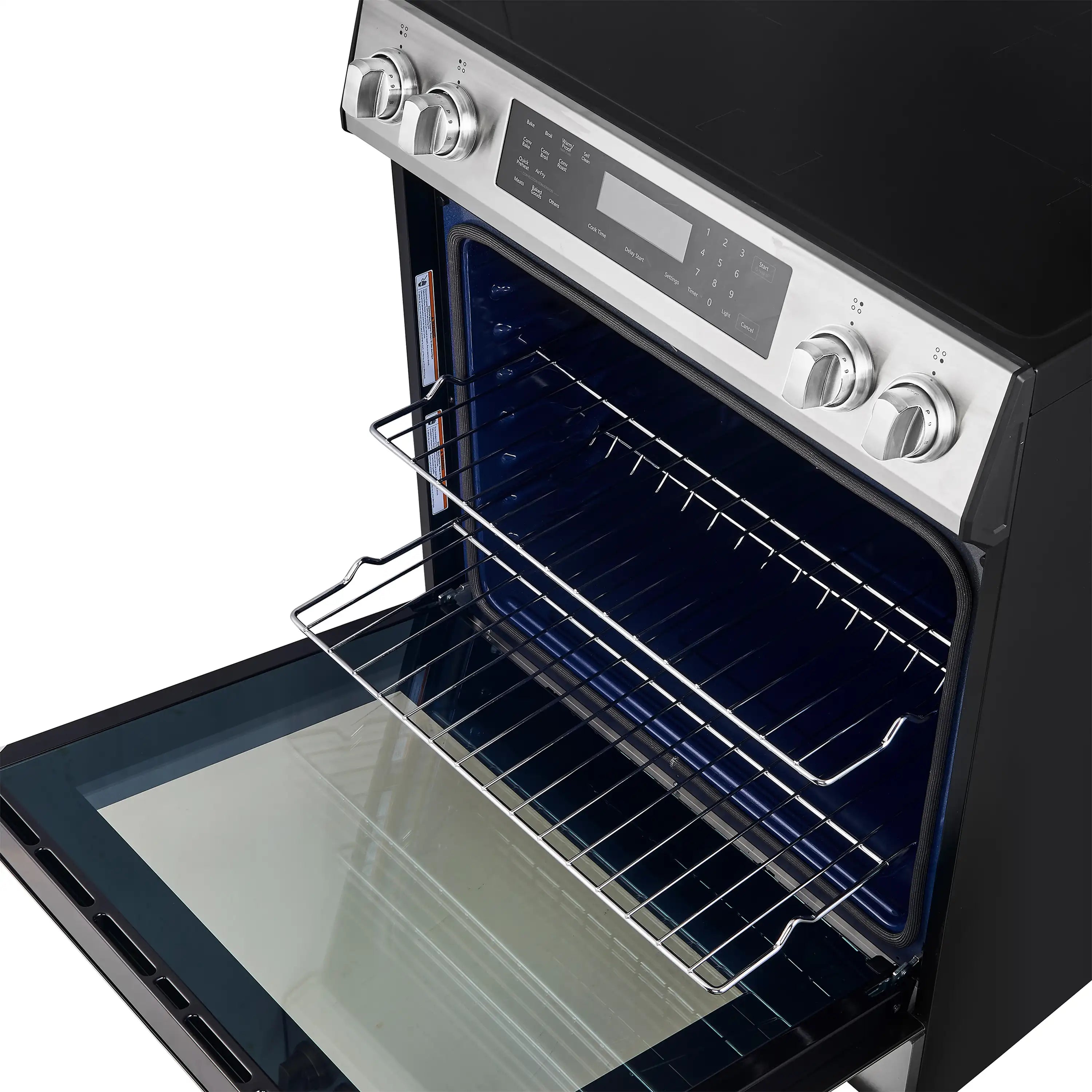

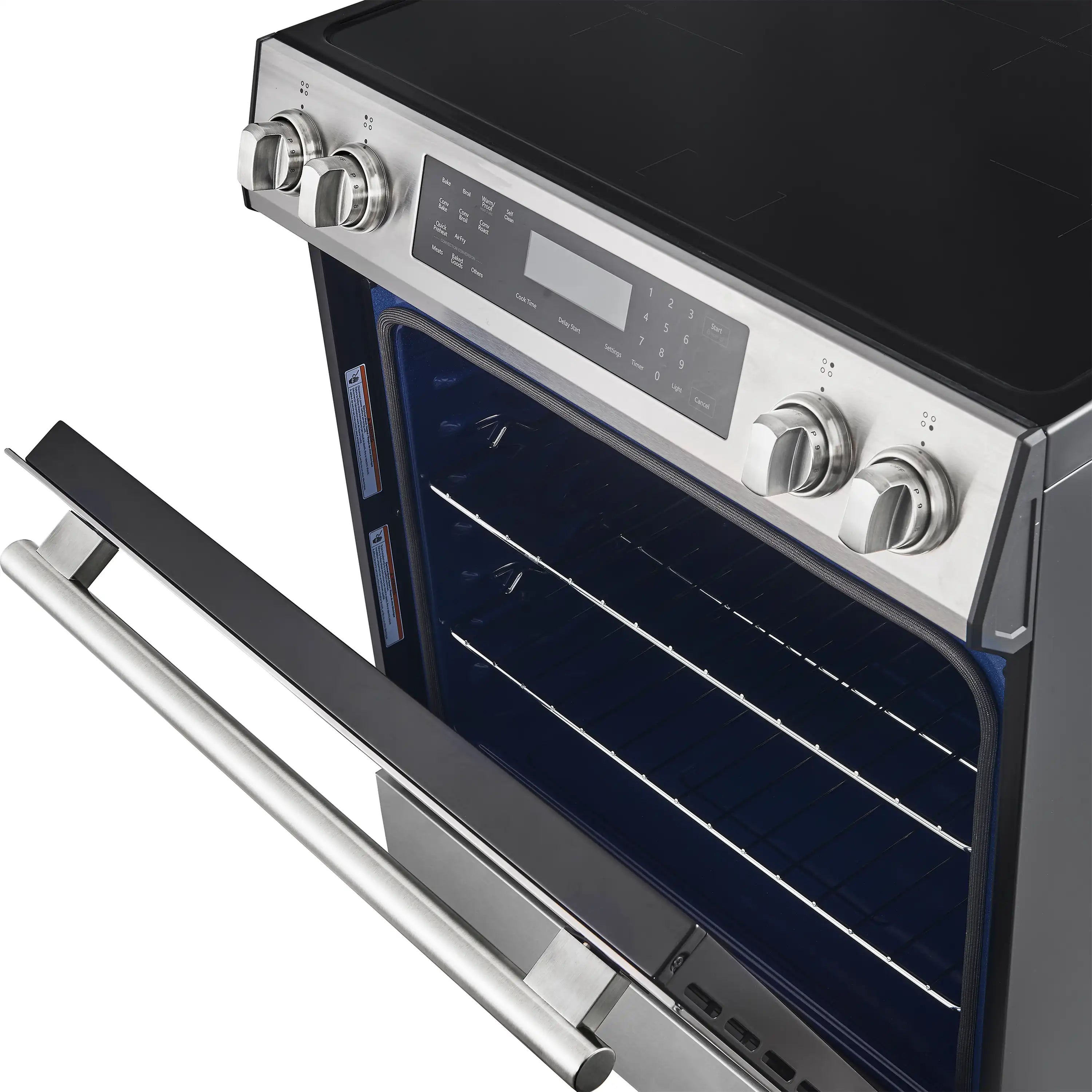

The Forno Donatello 30-inch stainless-steel induction range harmonizes functionality with the precision of induction cooking. The cooktop boasts four powerful induction elements totaling 8,100 watts, ensuring fast and precise cooking. The 5.0 cu.ft. speckled blue enamel oven features two racks with six adjustable levels, enabling versatile cooking for multiple dishes simultaneously. With Air Fry functionality, achieve crispy and delicious results effortlessly for healthier cooking options. This range caters to all cooking needs with its powerful cooktop and versatile oven, delivering quality and performance without the high price tags. Lower your cost of living with Forno.
| Weight and Dimensions | |
| Overall WxDxH (IN) Biggest Dims Possible (with Handle, Backsplash, etc) |
29.92"W x 27.56"D x 37.13"H |
| Cutout Dimensions W x D x H (inches) |
30''W x 25''D x 36''H |
| Depth with Oven Door Open 90º (IN) |
46.25" |
| Depth without Oven Door Handle (IN) |
26.25" |
| Overall Weight (LBS) |
166.45 lbs |
| Electrical | |
| Dedicated Circuit Breaker Amperage |
50 Amp |
| Total Amps Use |
49.58 Amp |
| Volts |
240 V |
| Stand By Power (AMP) |
1.94 AMP |
| Rated Power (W) |
11,900 Watts |
| Cooktop Max Power (W) |
7,200 Watts |
| Oven Max Power |
4,700 Watts |
| Power Cord Included |
Yes |
| Power Cord Length Without Plug (FT) |
5.55 ft |
| Power Cord Length With Plug (FT) |
5.87 ft |
| Plug Type |
NEMA 14-50P |
| Details | |
| Product Type |
Slide-In |
| Color/Finish |
Stainless Steel |
| Handle Finish |
Stainless Steel |
| Fuel Type |
Electric |
| Burner Fuel |
Electric |
| Oven Fuel |
Electric |
| Electric Heat Configuration (Cooktop) |
Induction |
| Total cooktop Wattage output |
8,100 Watts |
| Number of Burners |
4 |
| Double Ring Burner |
No |
| Warmer Burner |
No |
| Bridge Element/Flex Zone |
No |
| Cooktop Surface Color |
Black |
| Cooktop Surface Materiel |
Ceramic Glass |
| Cooktop Surface Structure |
Smoothtop |
| Number of Ovens |
1 |
| Oven Interior Finish |
Speckled Blue |
| Telescopic Racks |
No |
| Oven Racks Type |
Standard |
| Number of Racks |
2 |
| Racks Material |
Chrome-Plated |
| Number of Rack Positions |
6 |
| Cooking Surface Control Type |
Knobs |
| Broiler |
Yes |
| Broiler Element Type |
Single Element |
| Overall Broiler Element Wattage |
3,600 Watts |
| Broiler Location |
Oven |
| Bake Element |
Yes |
| Overall Bake Element Wattage |
2,200 Watts |
| Hidden Bake Element |
Hidden |
| Convection Oven |
Yes |
| Convection Type |
True Convection |
| Automatic Convection Conversion |
Yes |
| Cook time Option |
Yes |
| Delay Start |
Yes |
| Temperature Gauge |
No |
| Timer |
Yes |
| Clock |
Yes |
| Sabbath Mode |
Yes |
| Cleaning type |
Self Clean; Steam Clean |
| Interior Light |
Yes |
| Number Of Lights |
2 |
| Control Type |
4 |
| Number of Knobs |
4 |
| Knobs Color/Finish |
Stainless Steel |
| Control Location |
Front |
| Control Lock |
Yes |
| Oven Preheating Indicator |
Yes |
| Cooktop Hot Surface Indicator |
Yes |
| Door Lock Option |
Yes |
| Storage Drawer |
No |
| Plug-In |
Yes |
| Primary Material |
Steel |
| Door Panel Material |
Steel |
| Control Panel Material |
Steel |
| Kick Plate Material |
Steel |
| Metal | Metal |
| Supplier Intended and Approved Use |
Residential Use |
| Air Fryer Kit (Basket + Support & Drip Pan) |
Yes |
| Power Cord |
Yes |
| Griddle |
No |
| Rotisserie Kit |
No |
| Front Right Burner Watts |
1,500 Watts |
| Front Right Burner Size (IN) |
7 |
| Front Left Burner Watts |
2,100 Watts |
| Front Left Burner Size (IN) |
9 |
| Rear Right Burner Watts |
3,000 Watts |
| Rear Right Burner Size (IN) |
9 |
| Rear Left Burner Watts |
1,500 Watts |
| Rear Left Burner Size (IN) |
7 |
| Main Oven Capacity (cubic feet) |
5 cu.ft. |
| Main Oven Function |
Bake; Broil; Warm; Proof; Convection Bake; Convection Broil; Convection Roast; Quick Preheat; Air Fry; Convection Conversion |
| Main Oven Interior Width (IN) |
24.6"W |
| Main Oven Interior Depth (IN) |
19"D |
| Main Oven Interior Height (IN) |
18.5"H |
| Usable Main Oven Interior Dimensions W x D x H (inches) |
24"W x 15.75"D x 16"H |
| Main Oven Rack Size | 24"W x 15.75"D |
| Air Fry Basket Dimensions W x D x H (inches) |
16.14"W x 13.98"D x 1.34"H |
| Main Oven Total Broil Wattage |
3,600 Watts |
| Main Oven Bake Wattage |
2,200 Watts |
| Main Convection Fan |
Yes |
| Main Oven Convection Fan Wattage |
50 Watts |
| Main Oven True Convection Wattage |
2,500 Watts |
| Certification | |
| Safety Listing |
cETLus |
| File/Certification Number |
3100243 |
| ISTA 6A |
Yes |
| ADA Compliant |
No |
| Star-K Certified |
Not Certified |
| Warranty | |
| Commercial Warranty |
No |
| Warranty Type |
Limited |
| Warranty Length |
2 Years |
| Warranty on Parts |
2 Years |
| Warranty on Labor |
2 Years |

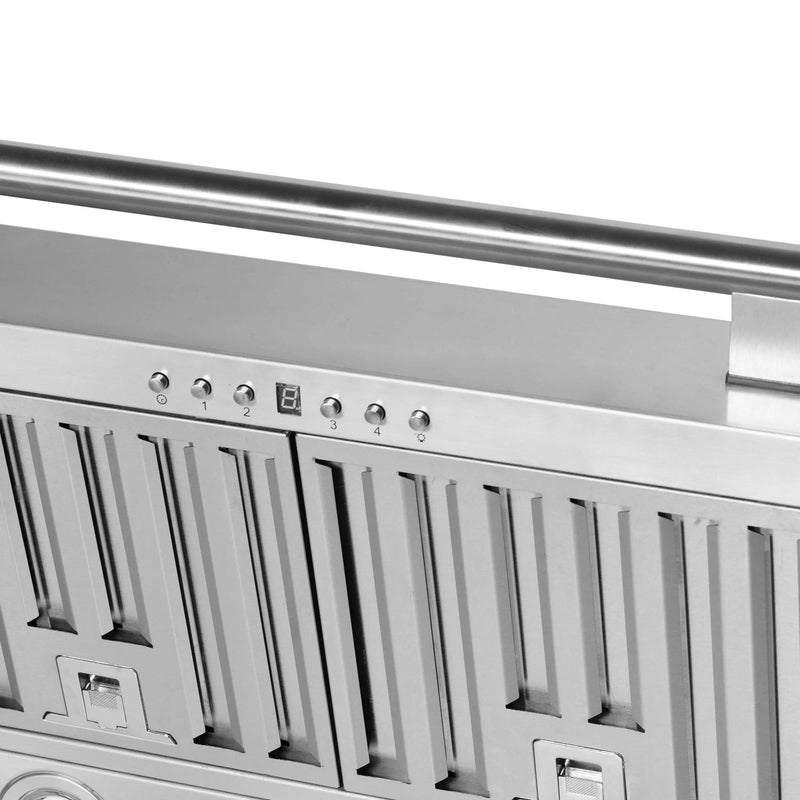

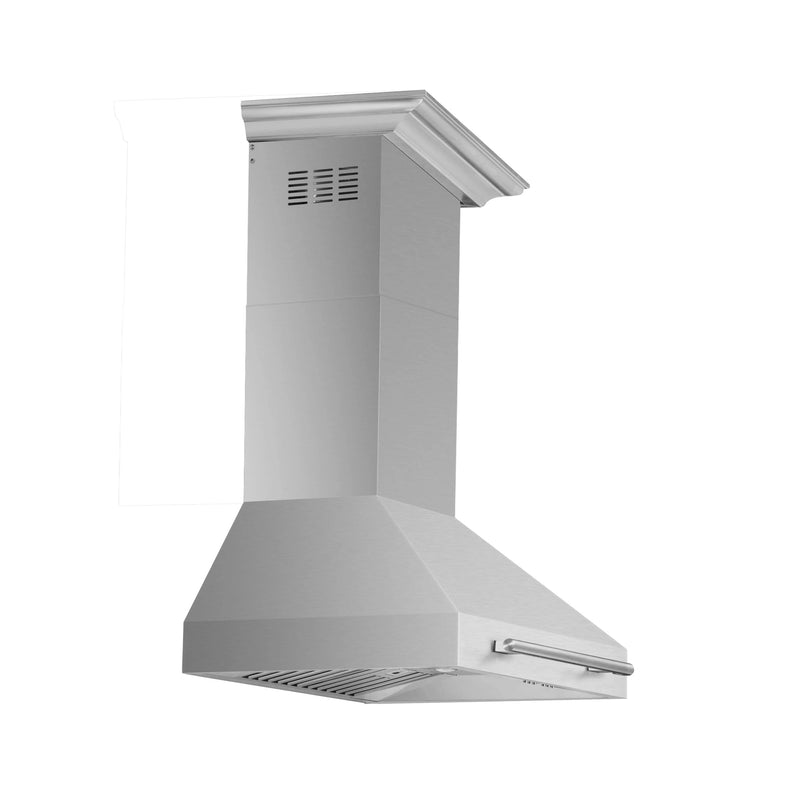

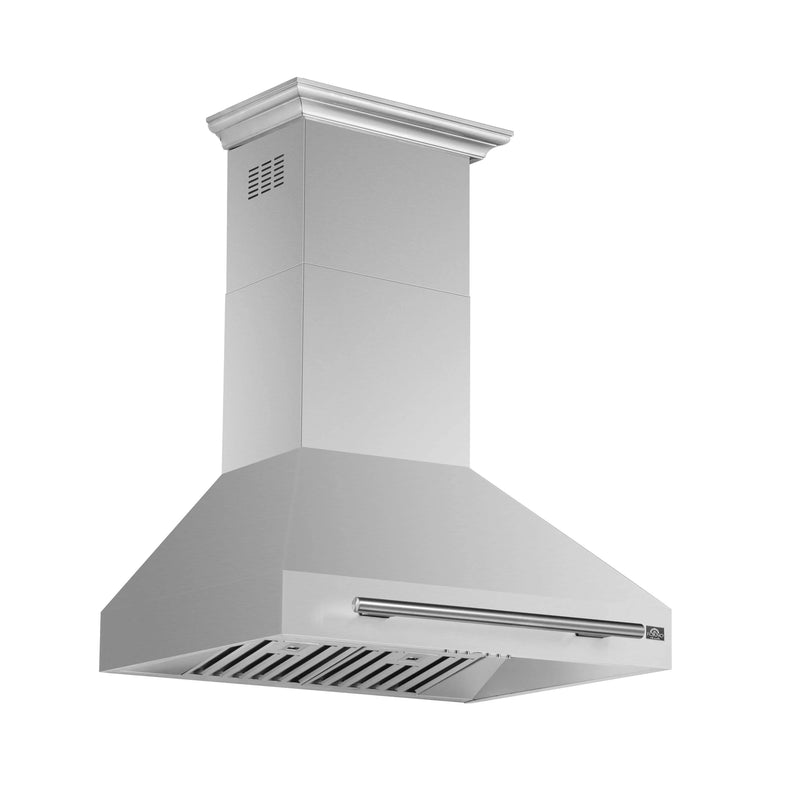

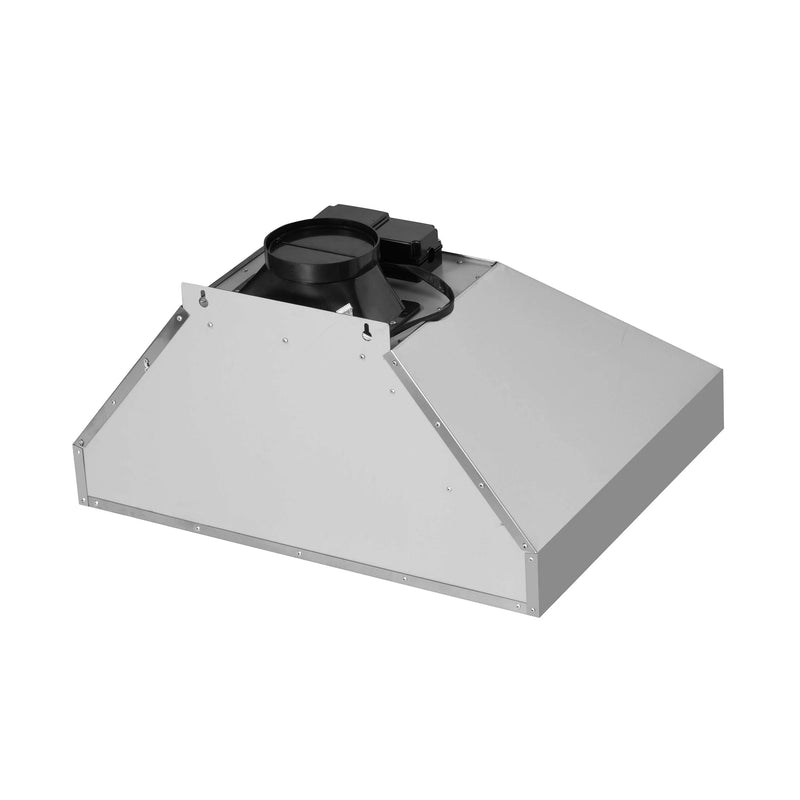

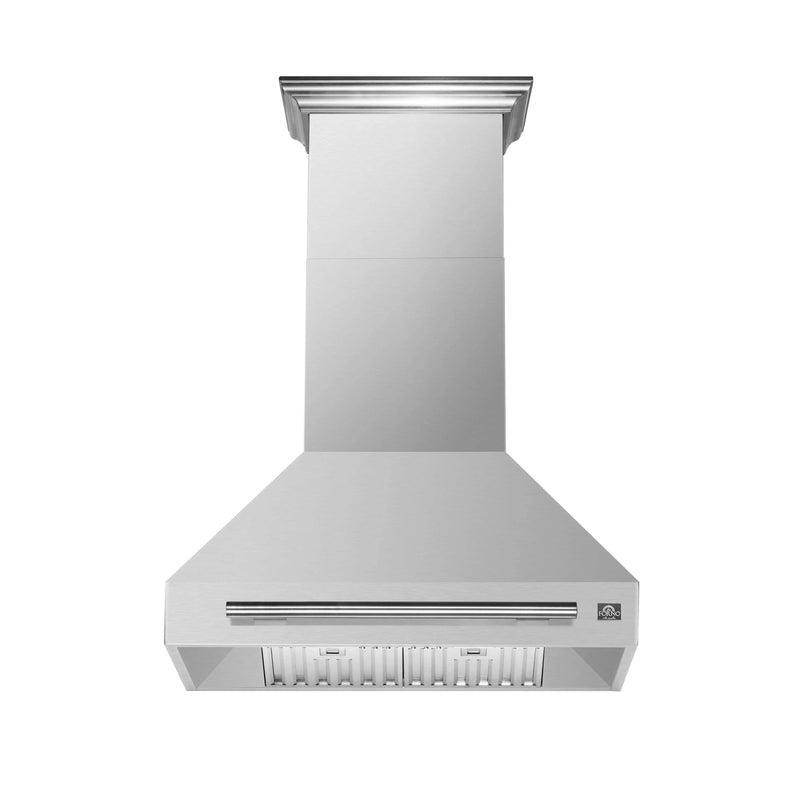

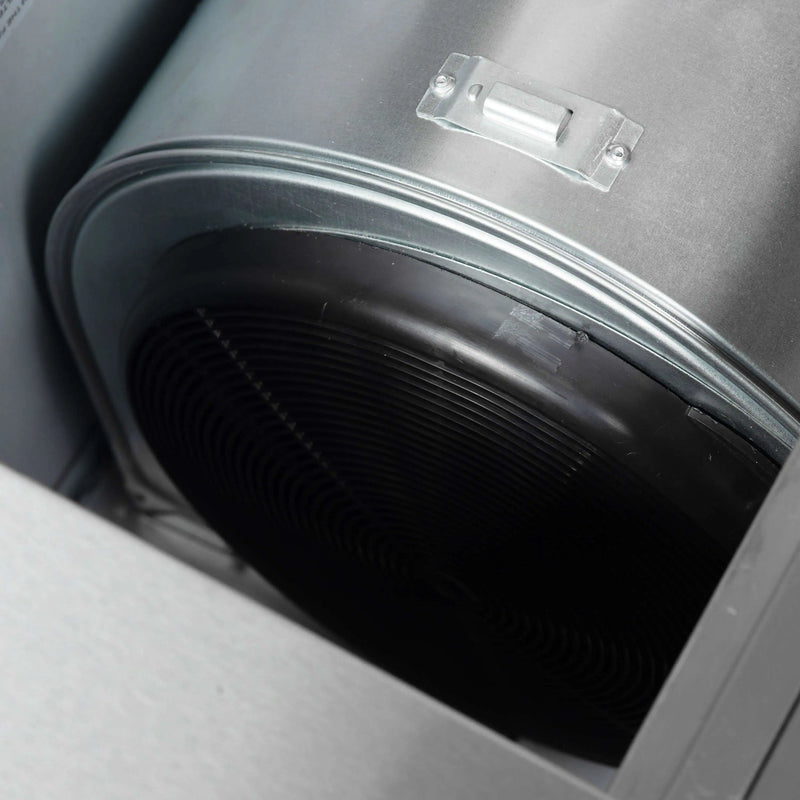

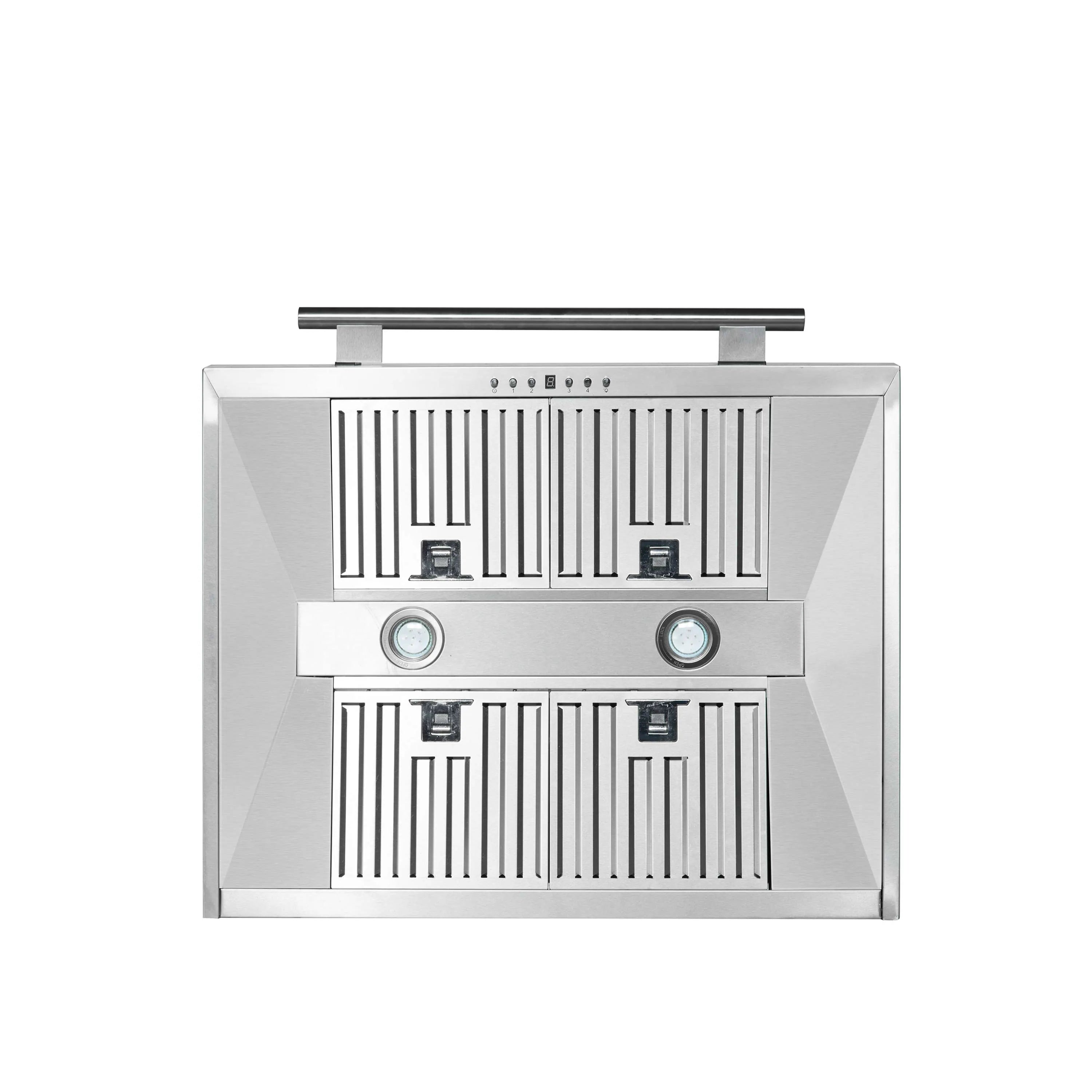

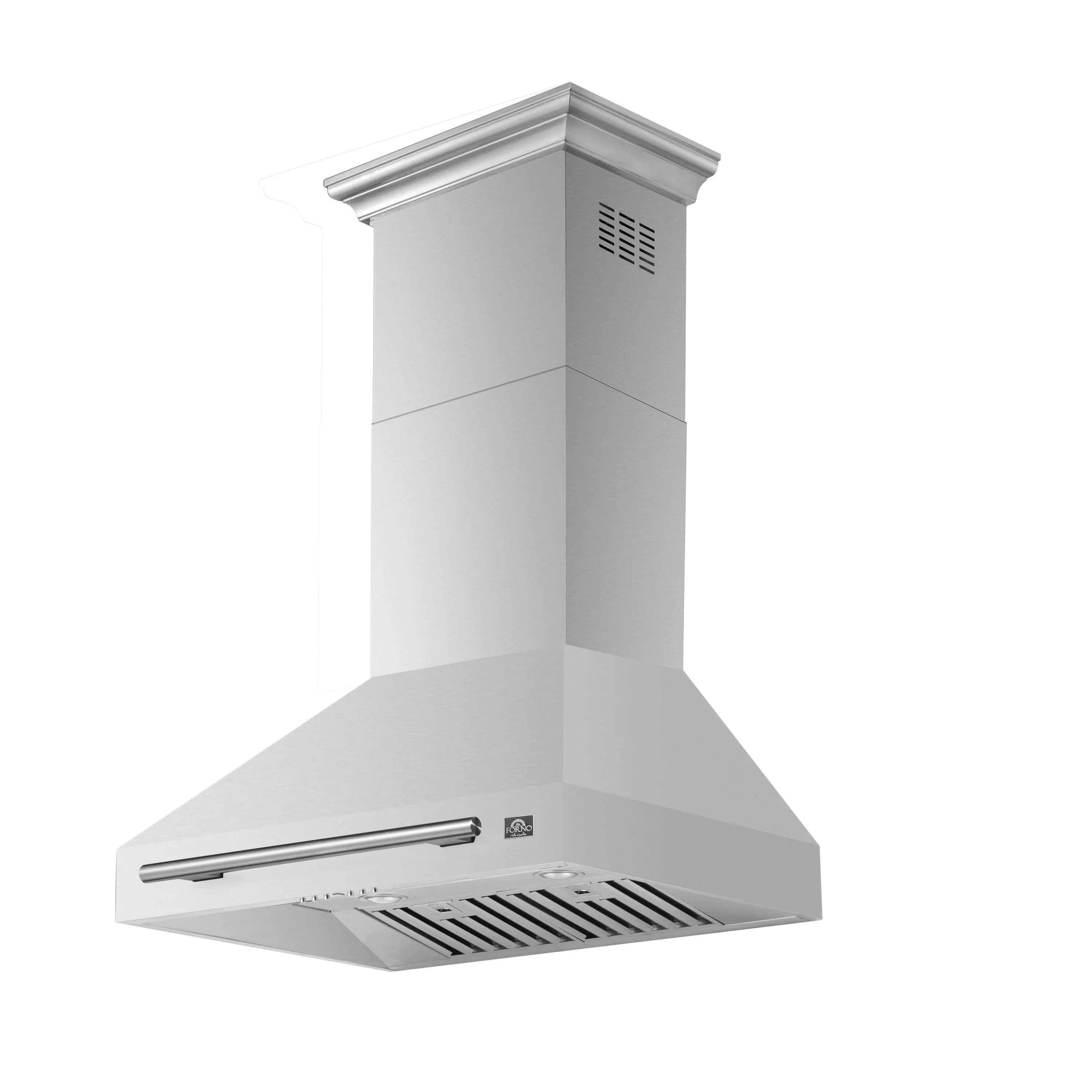

This 30 Inch Wall-Mounted Range Hood is designed for high-performance kitchen ventilation. With a powerful 600 CFM motor and 4-speed fan control, it removes smoke, grease, and cooking odors. Choose between external venting or ductless recirculating installation to suit your kitchen layout. The vertical upward air discharge ensures efficient airflow, while features like automatic shut-off, a built-in timer, and removable charcoal filters make it convenient to use and maintain. The included chimney extension kit and decorative crown molding allow for a custom, built-in look. Quiet operation at just 65 dB with built-in lighting for better visibility while cooking.
| Size | 30" |
| Dimensions | 29.5" W x 23.6" D x 44.5" |
| Weight | 57.3 lbs |
| Mount Type | Wall-Mount Hoods |
| Unit Color | Stainless Steel |
| Ventilation Type | Ducted |
| Electrical supply | 120V/60Hz |
| Circuit Breaker | 15 |

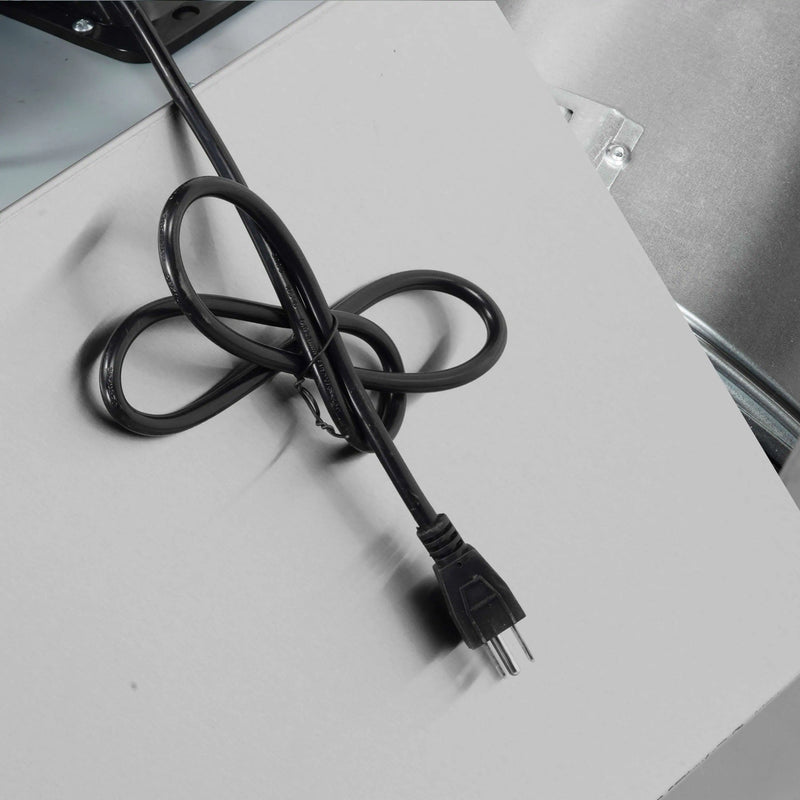

| Power connection | NEMA 5-15P Power Cord |
| Power Cord Length (in) | 47.24" |
| Power Cord Location | Top Right |
| Running Amp | 2.5 Amps |
| Certification | ETL Listed |
| Number of Blower(s) | 1 |
| Blower Material | Metal |
| Filter Type | Baffle |
| Filter Material | Stainless Steel |
| Number of Filters | 4 |
| Dishwasher Safe Filters | Yes |
| Control Type | Push Button |
| Number of Speed Levels | 4 |
| Warming selve | No |
| Heat Lamp | No |
| Handle | Yes 1x |
| Backsplash | No |

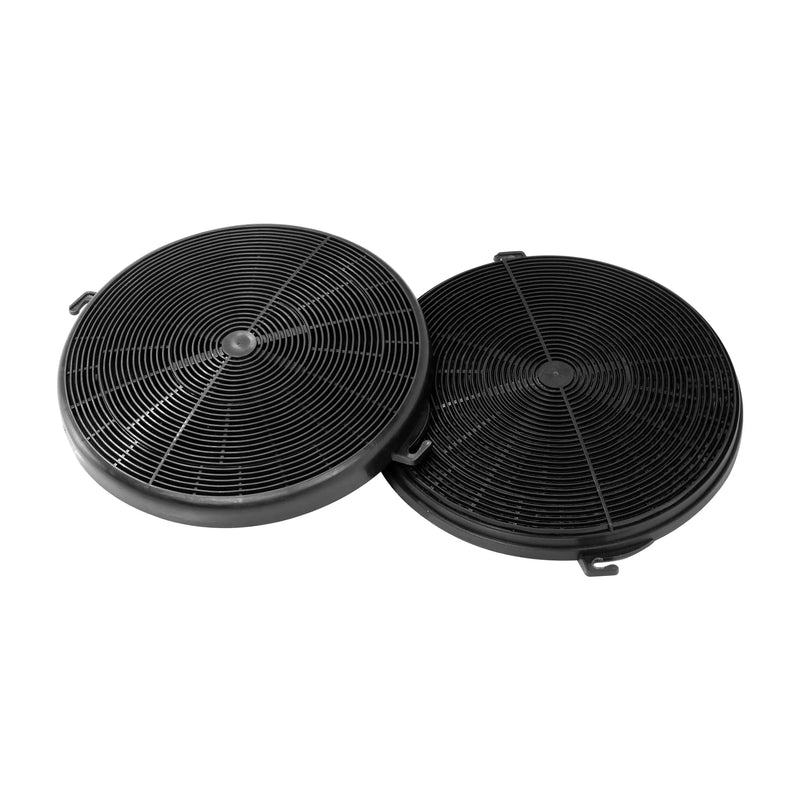

| Charcoal Filters | Yes |
| Light Type | LED GU10 |
| Rangehood Chimney | Yes |
| Chimney Extension Kit /Chimney Short Kit | Yes |
| Finger print Resistant | No |
| Heat Sensors | No |
| Automatic shut-off | Yes |
| Remote Control | No. |
| Delay Shut-Off | No |
| Auto Shut-Off Timer | Yes |
| Clock | No |
|
CFM (cutbic feet per minute ) |
Level 1 275 CFM Level 2 375 CFM Level 3 475 CFM Level 4 600 CFM |
|
Air flow |
Level 1 467 m3/hr Level 2 637 m3/hr Level 3 807 m3/hr Level 4 1020 m3/hr |
|
RPM (Revolutions Per Minute on one motor only) |
Level 1 880 RMP Level 2 1050 RMP Level 3 1350 RMP Level 4 1510 RMP |
|
Noise Level at each speed |
Level 1 44 dB Level 2 51 dB Level 3 58 dB Level 4 65 dB |
| Duct Shape | Round |
| Duct Size | 6" |
| Air Discharge Direction | Vertically Upward |
| Number of exhaust Vent | 1 |

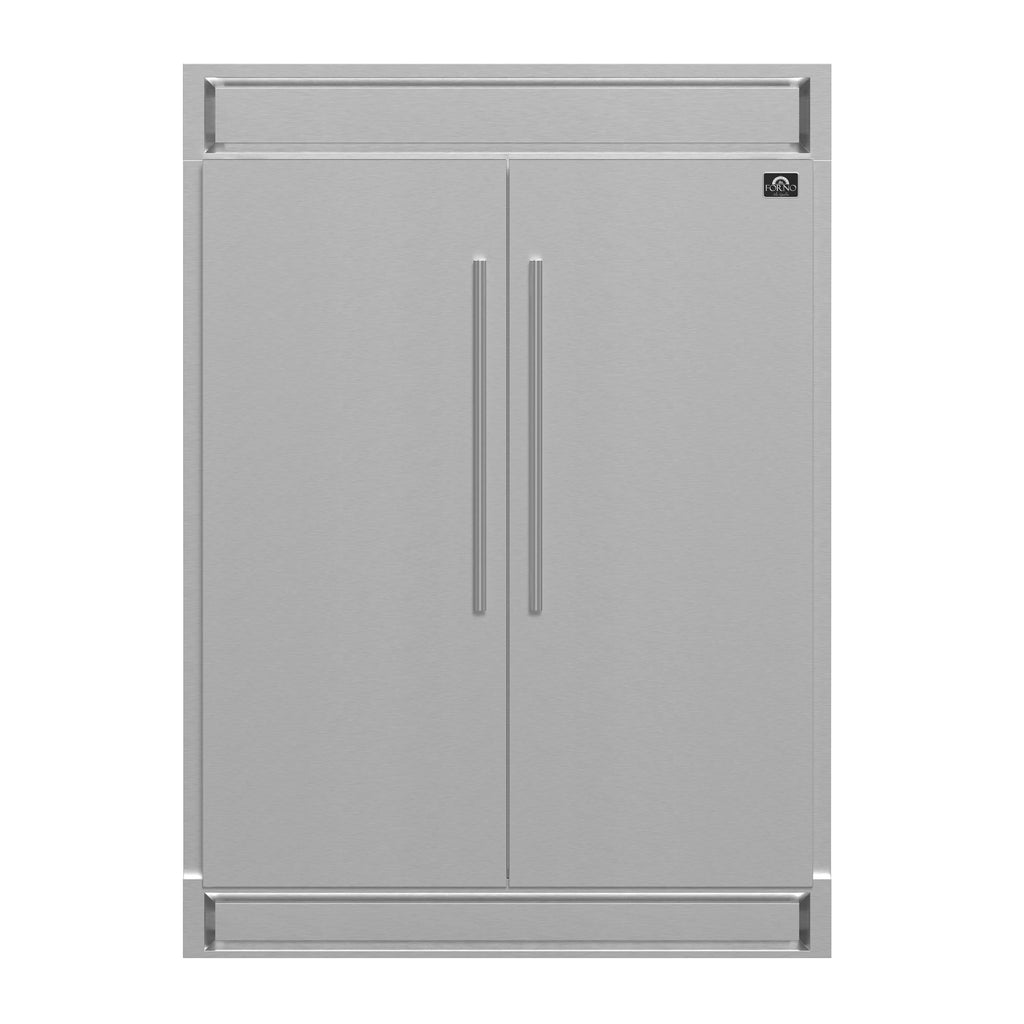

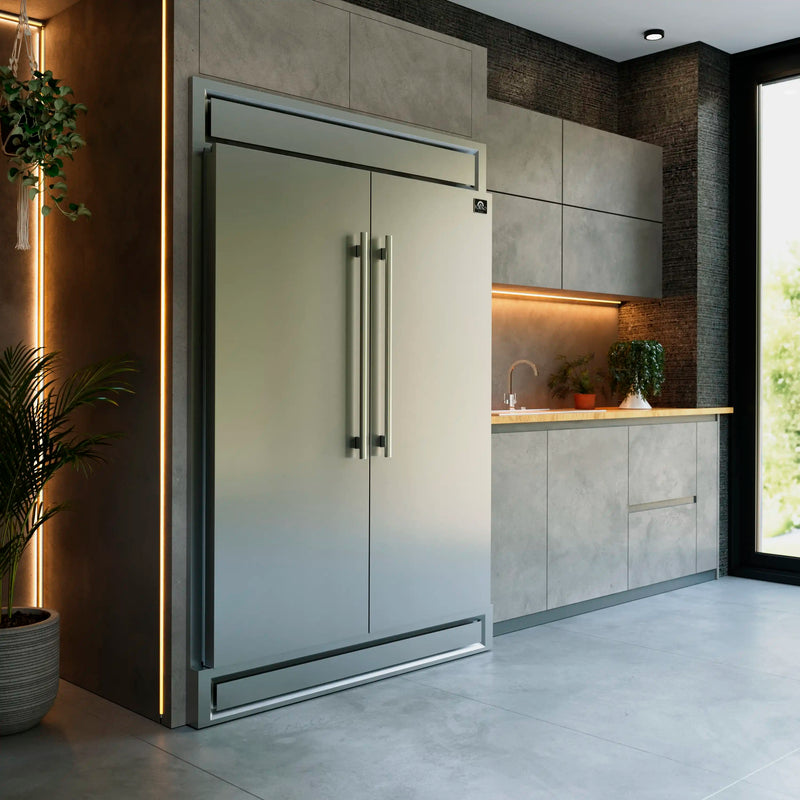

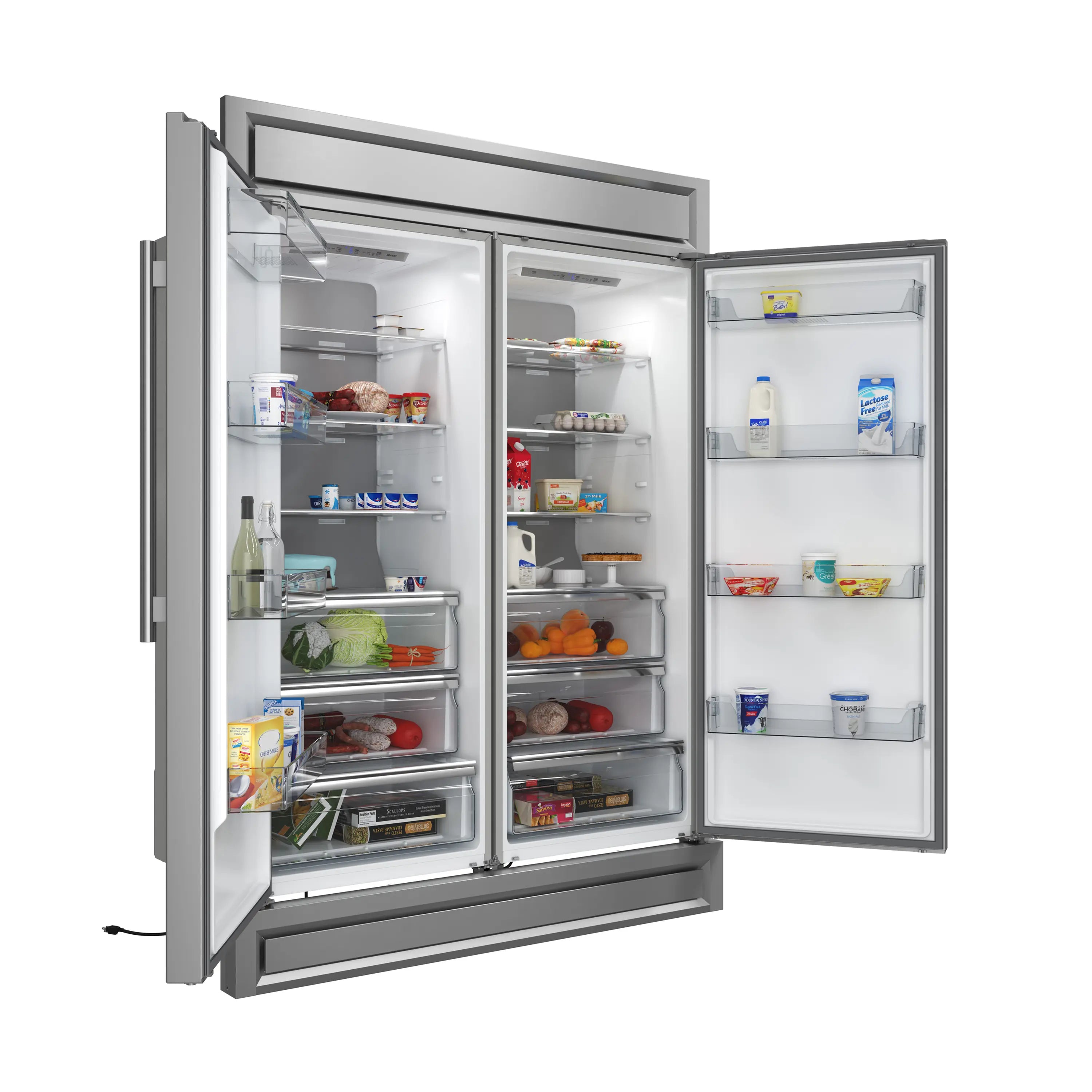

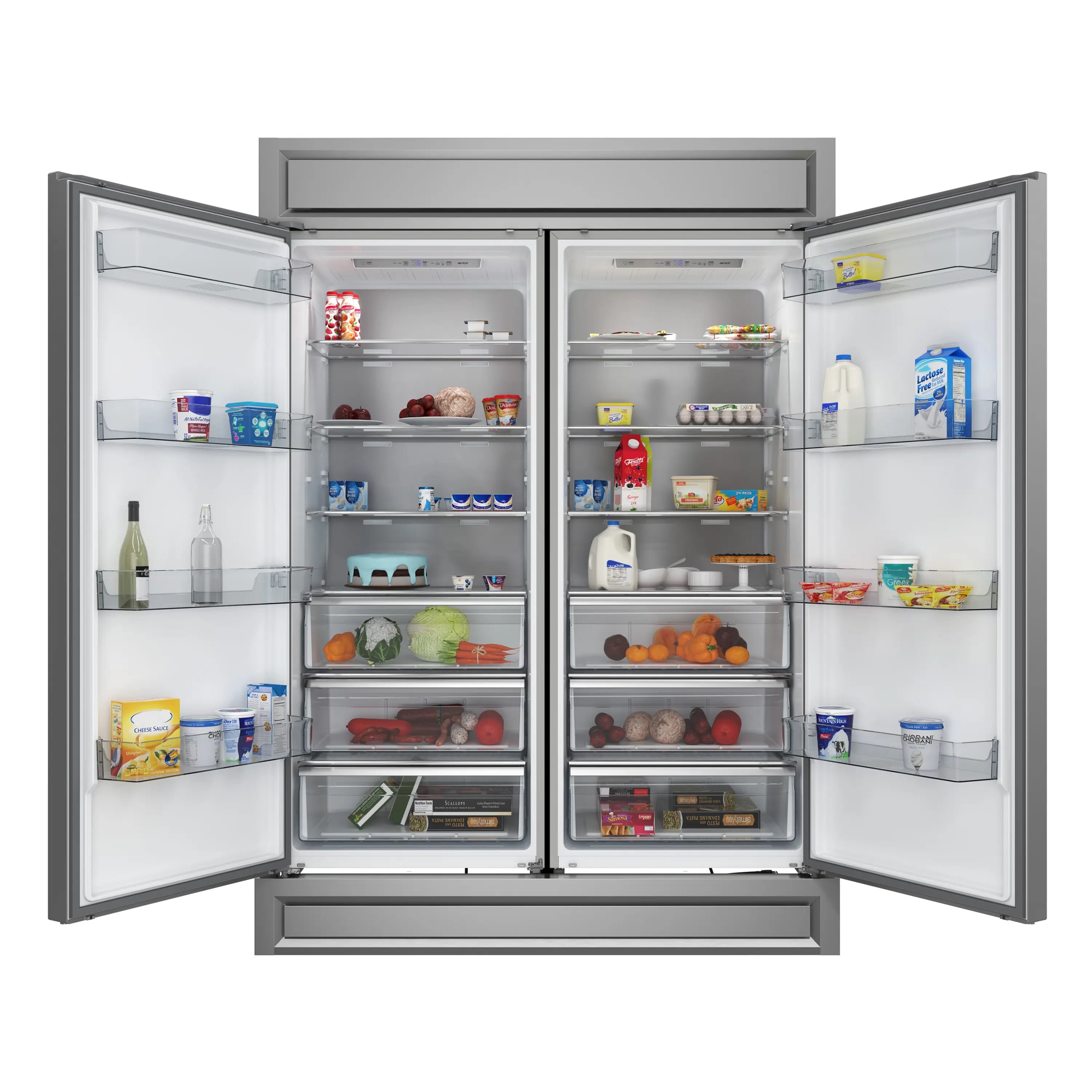

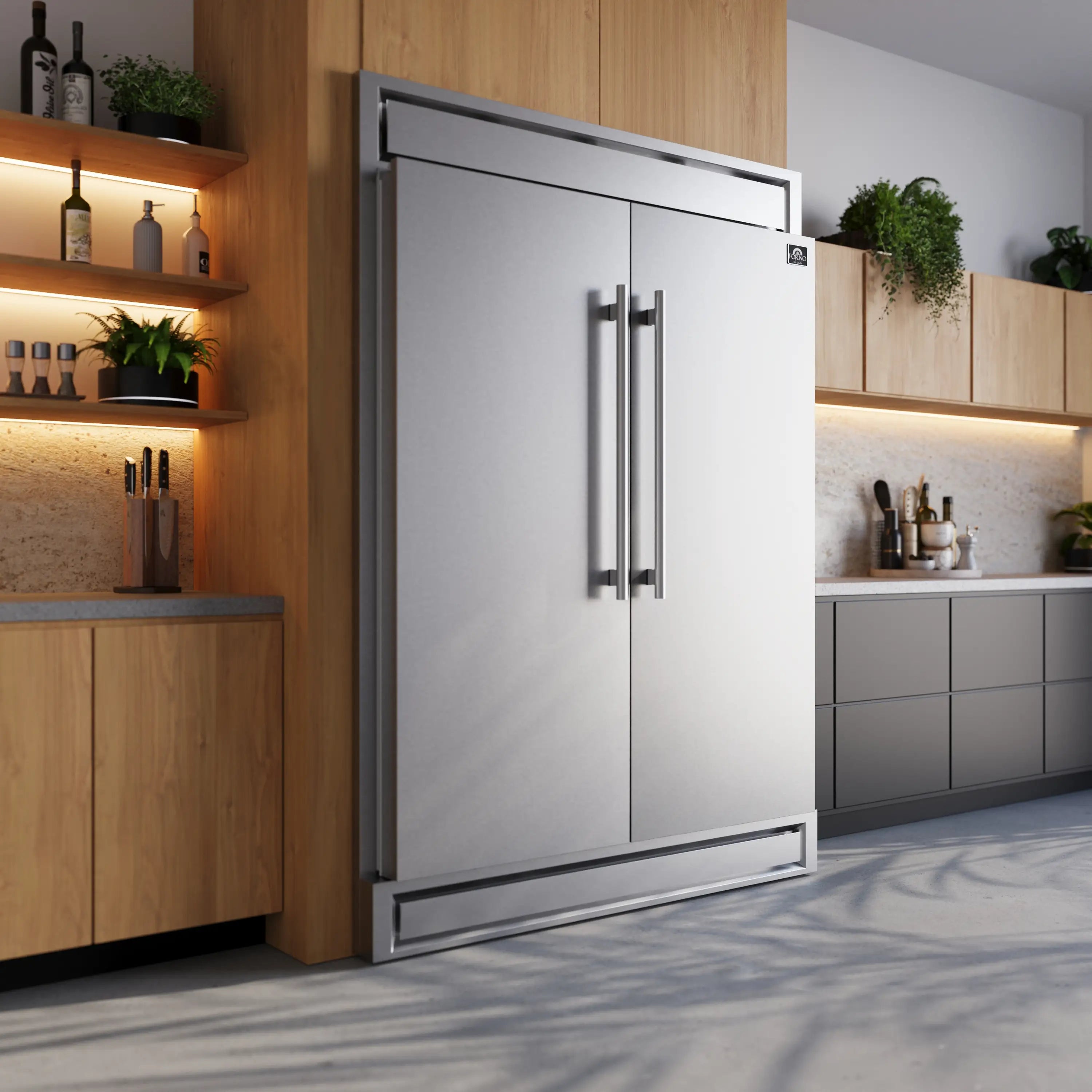

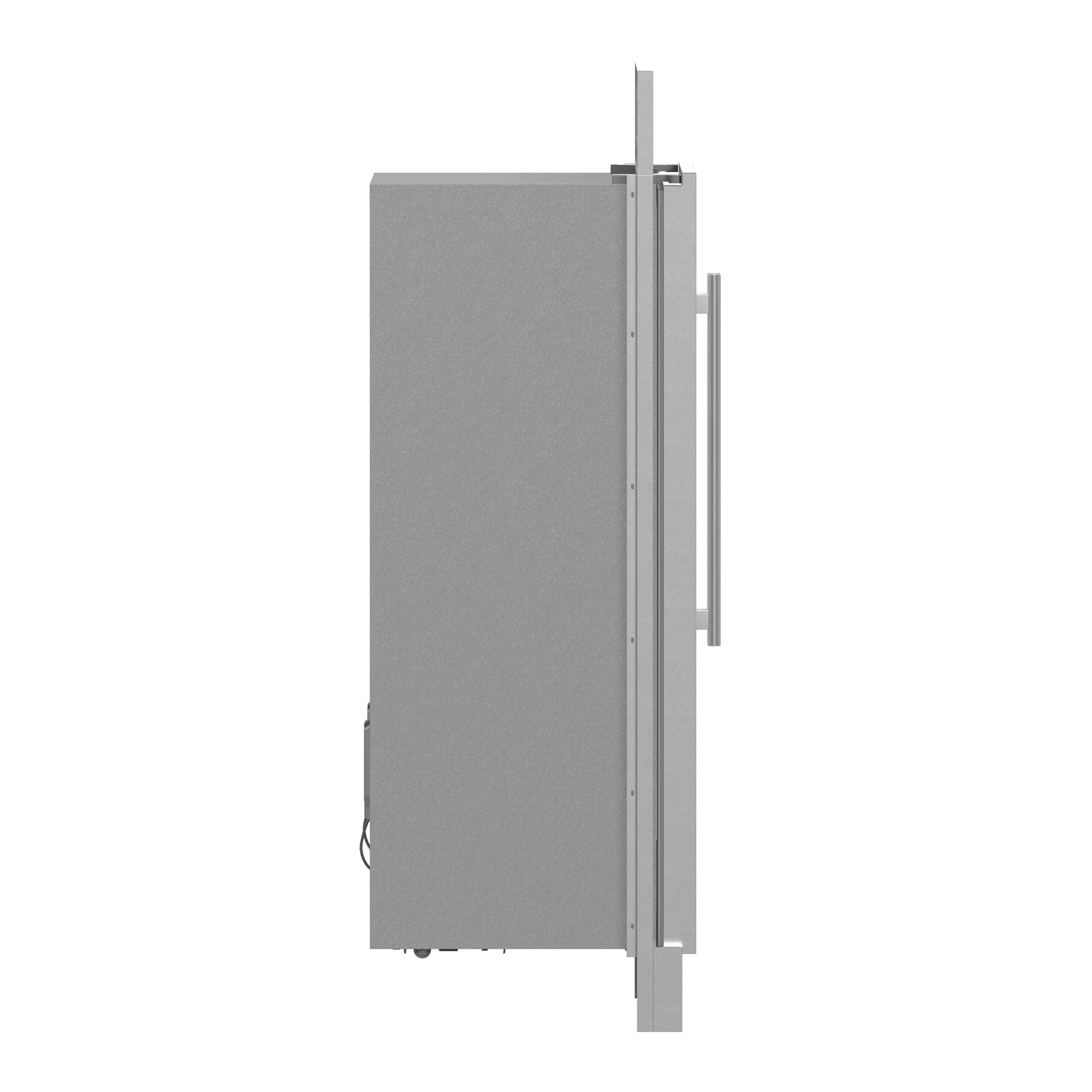

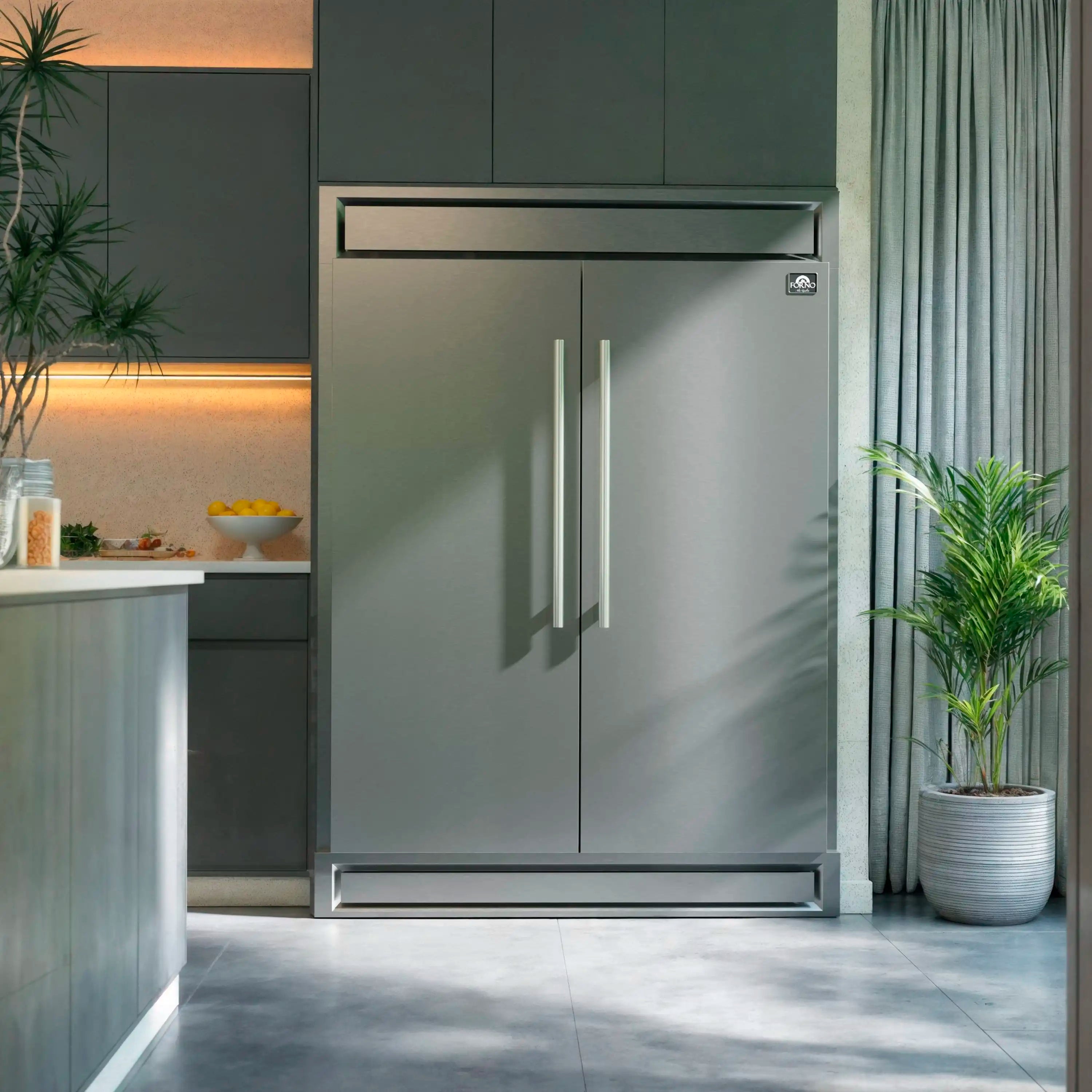

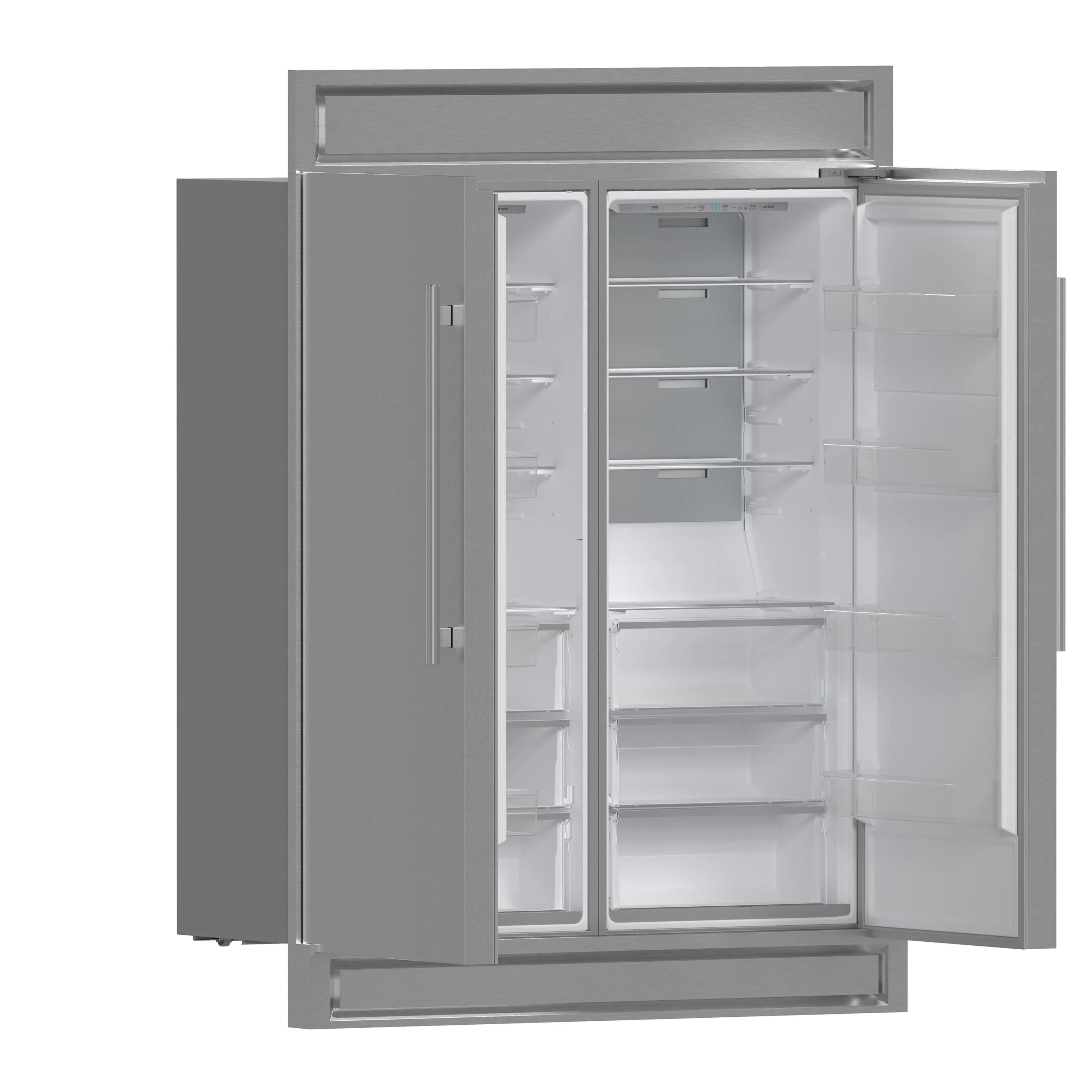

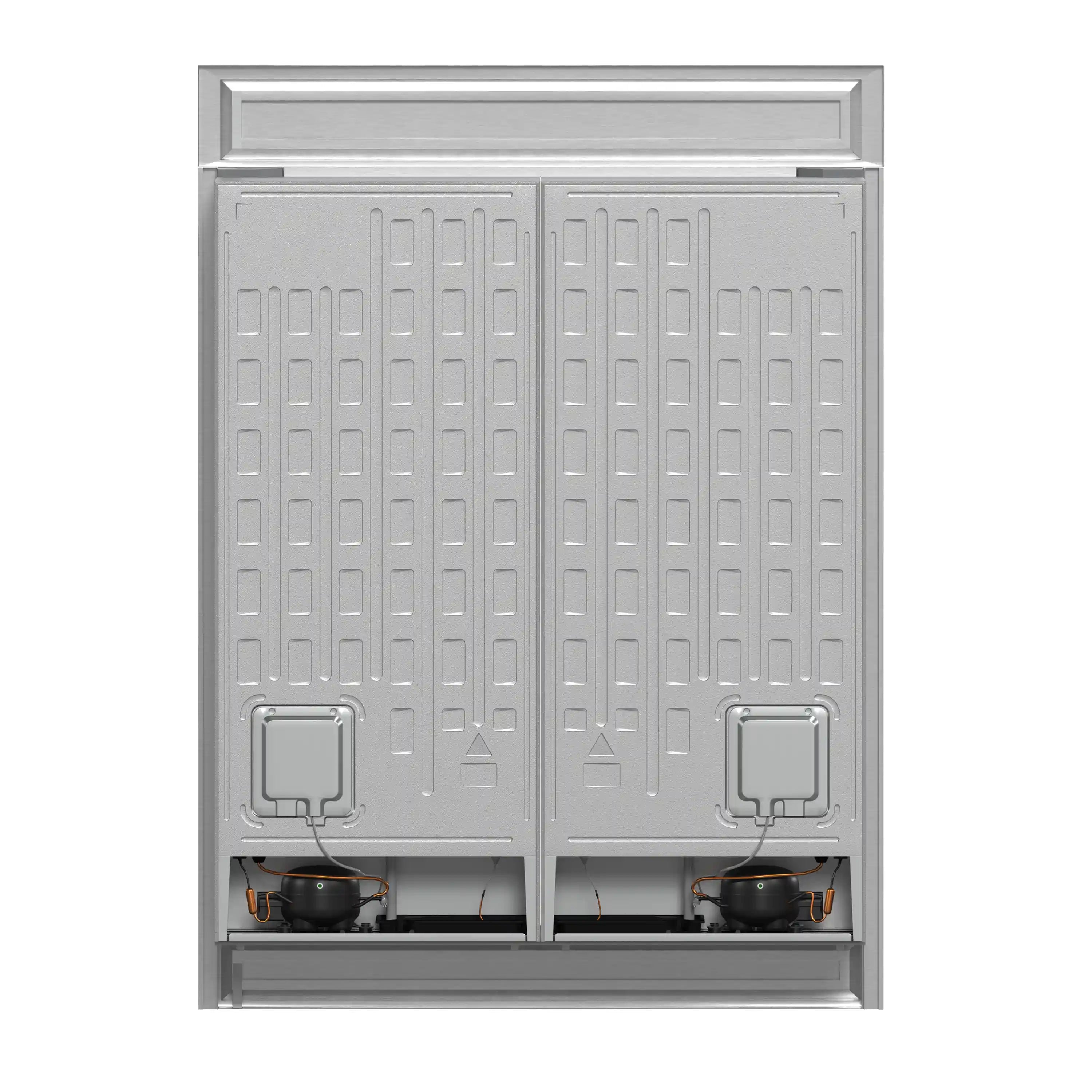

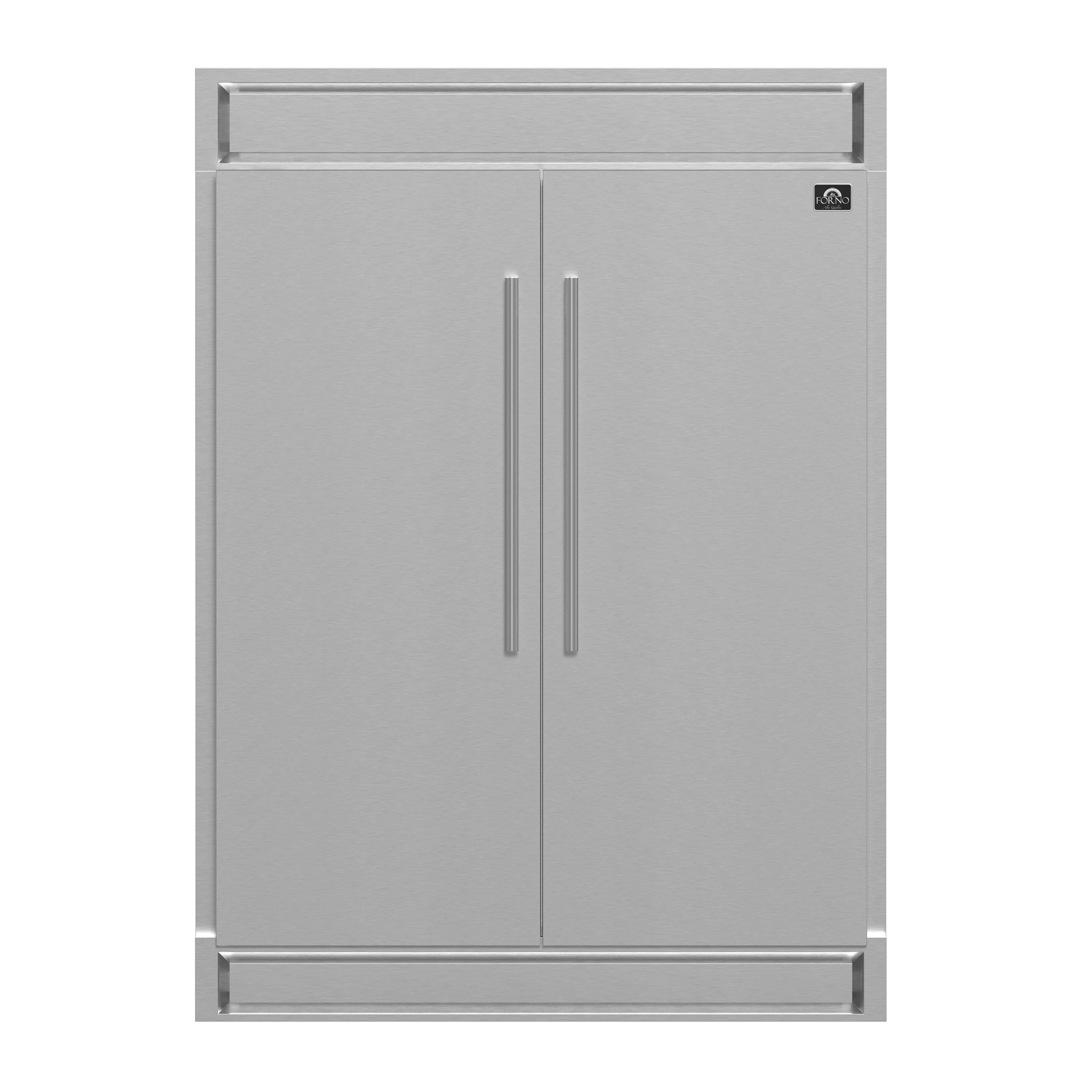

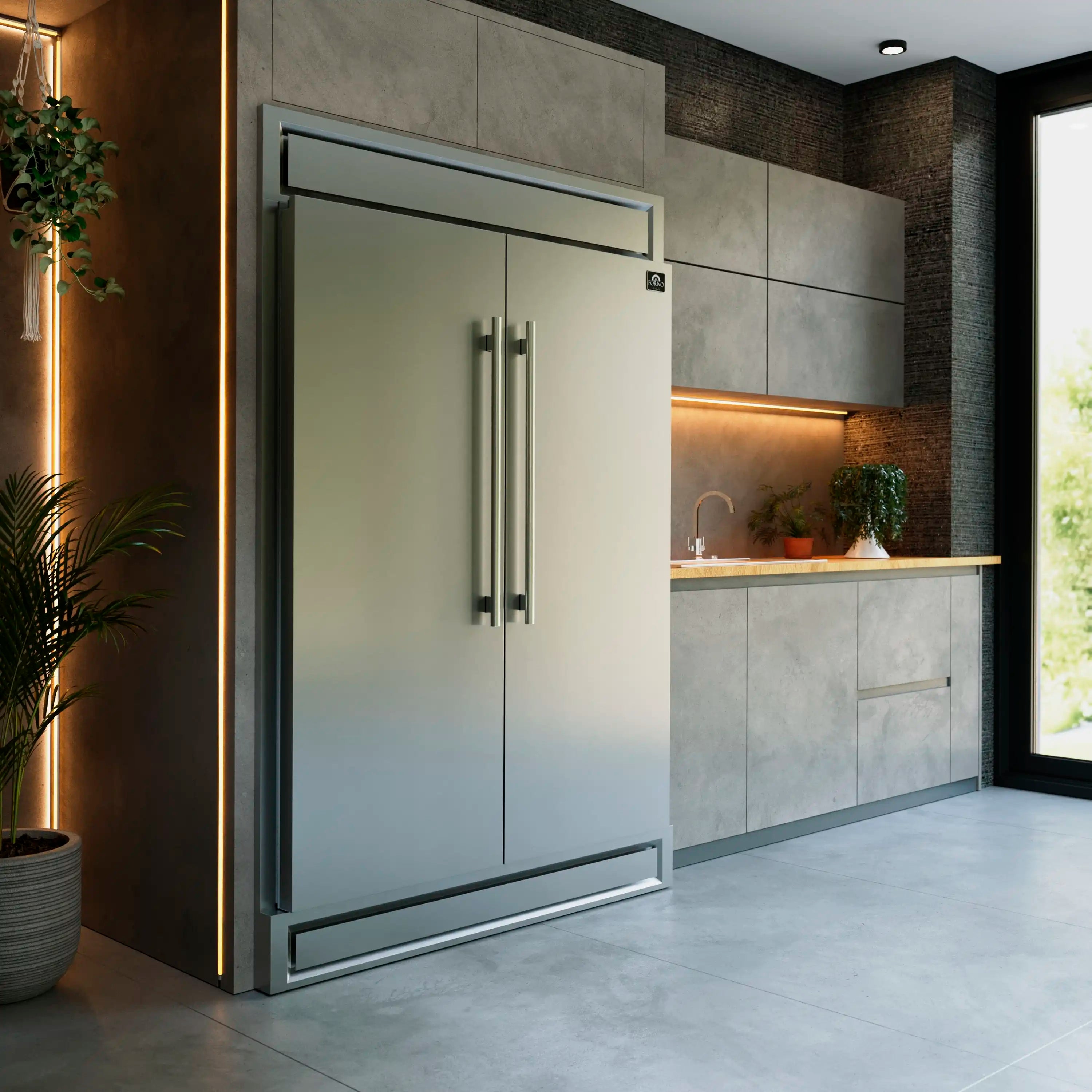

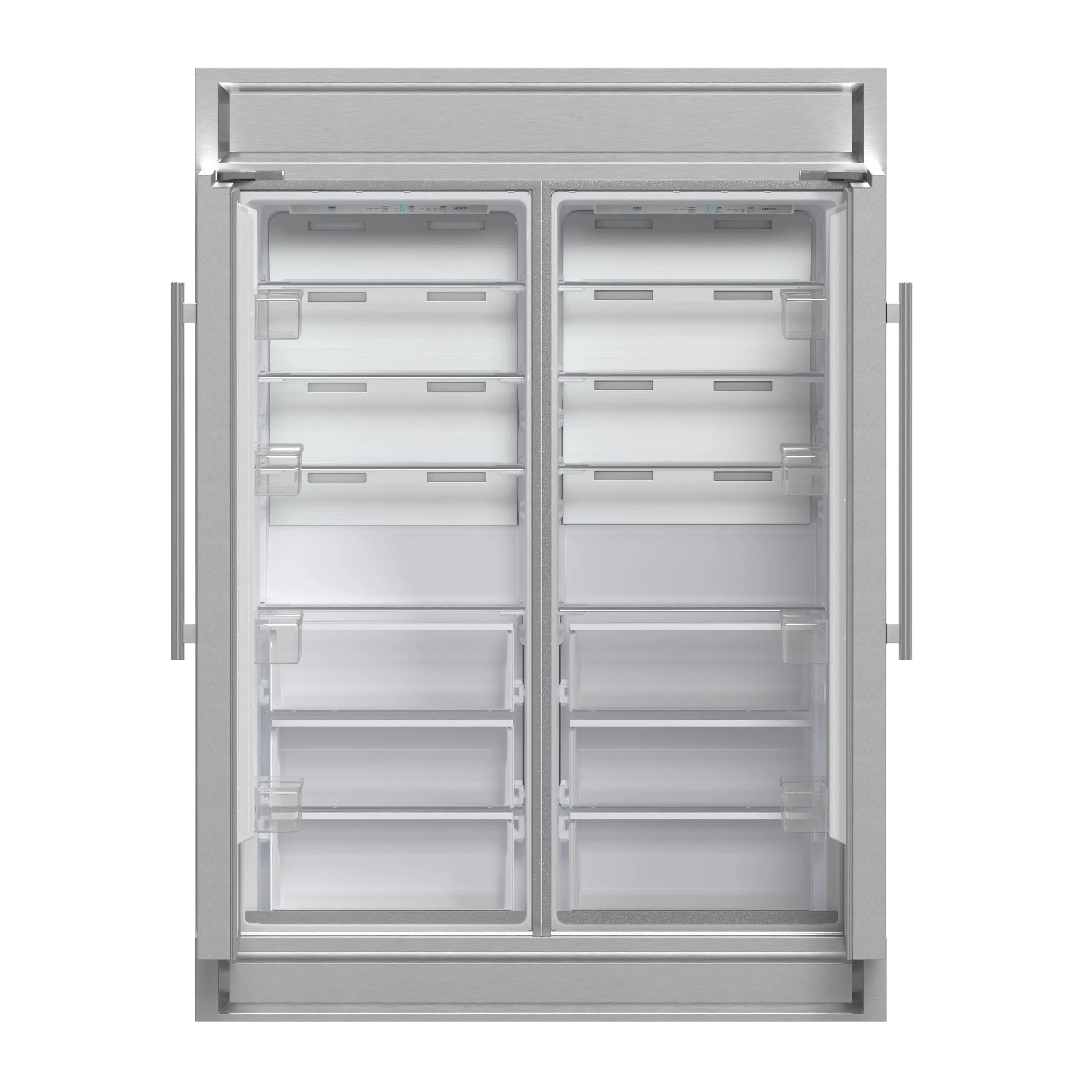

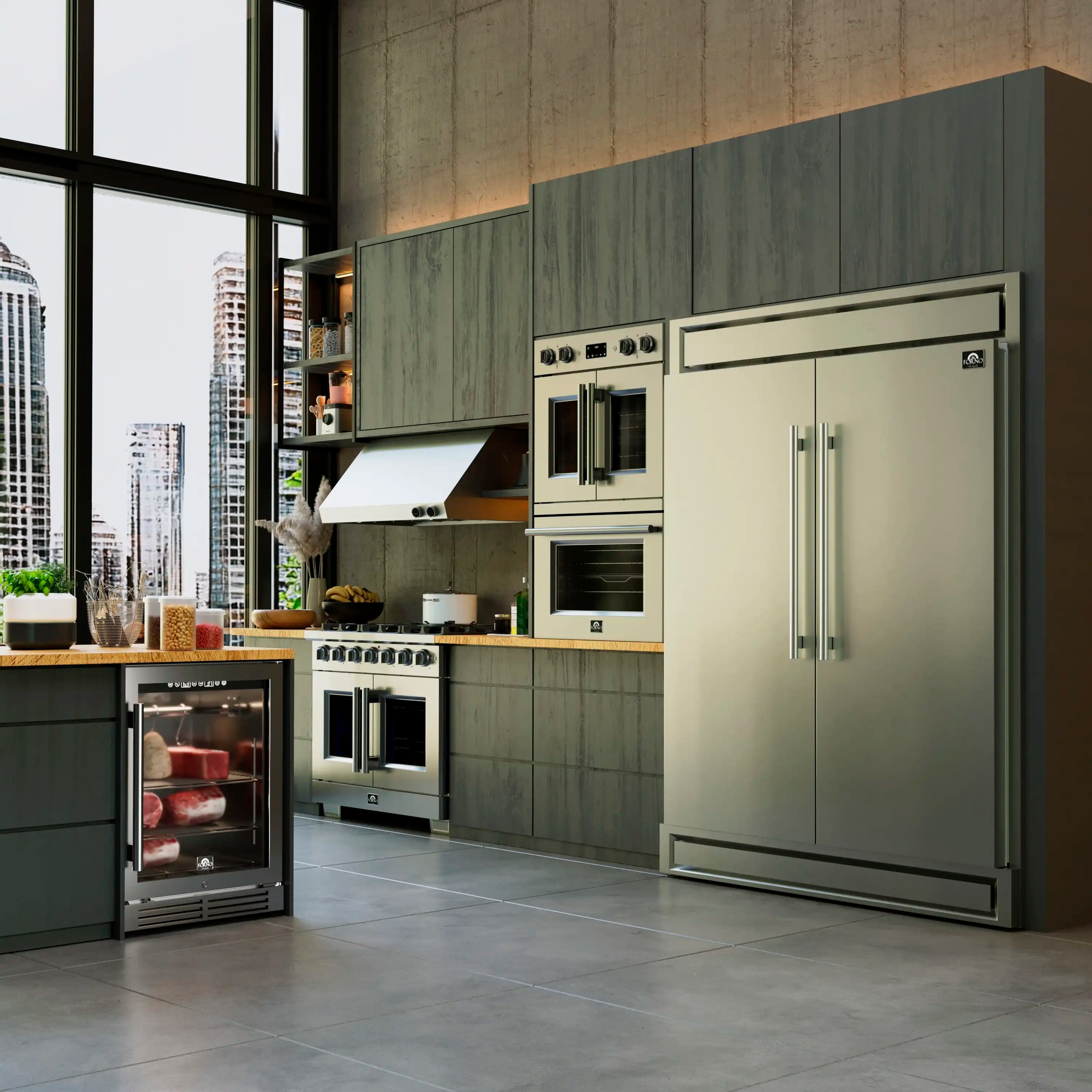

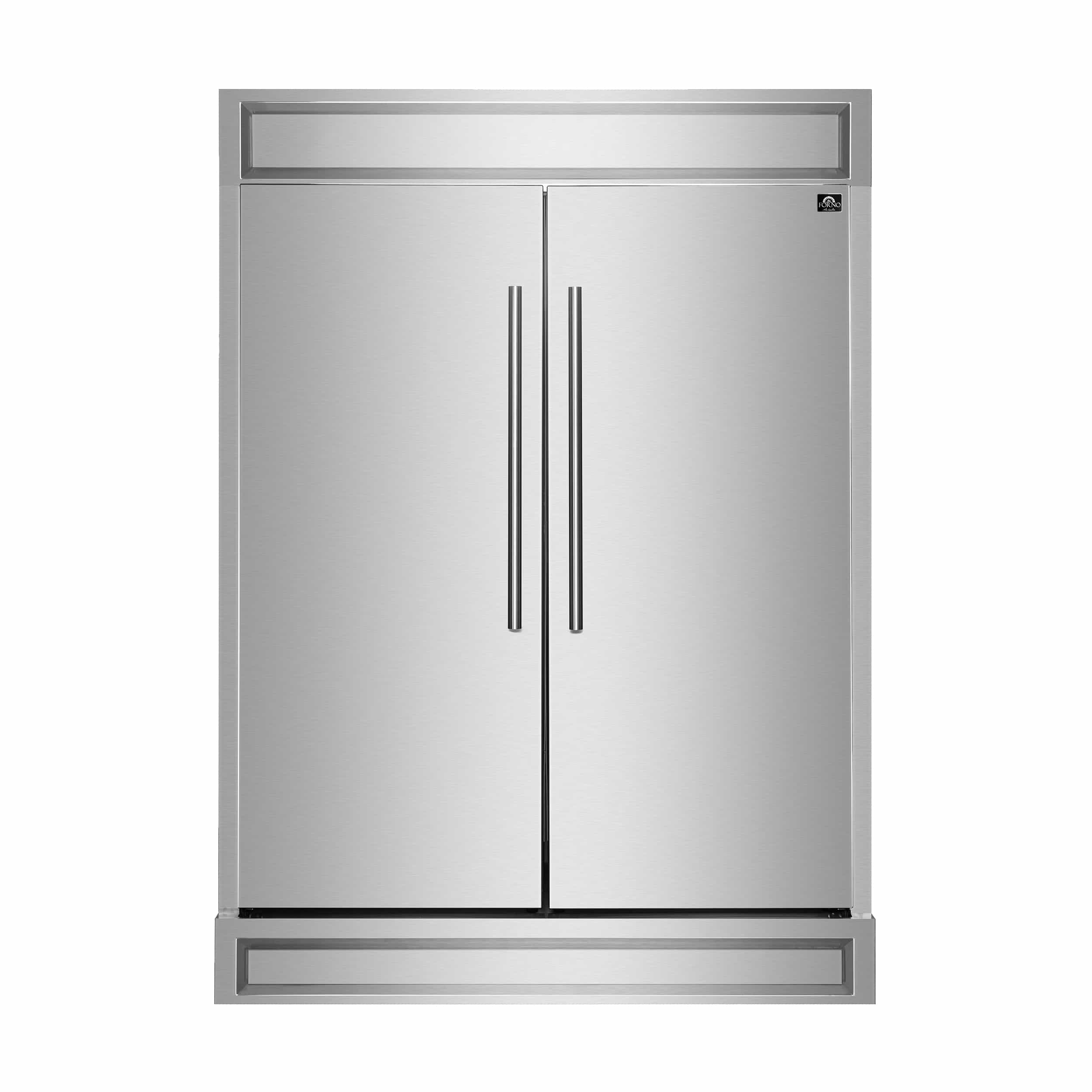

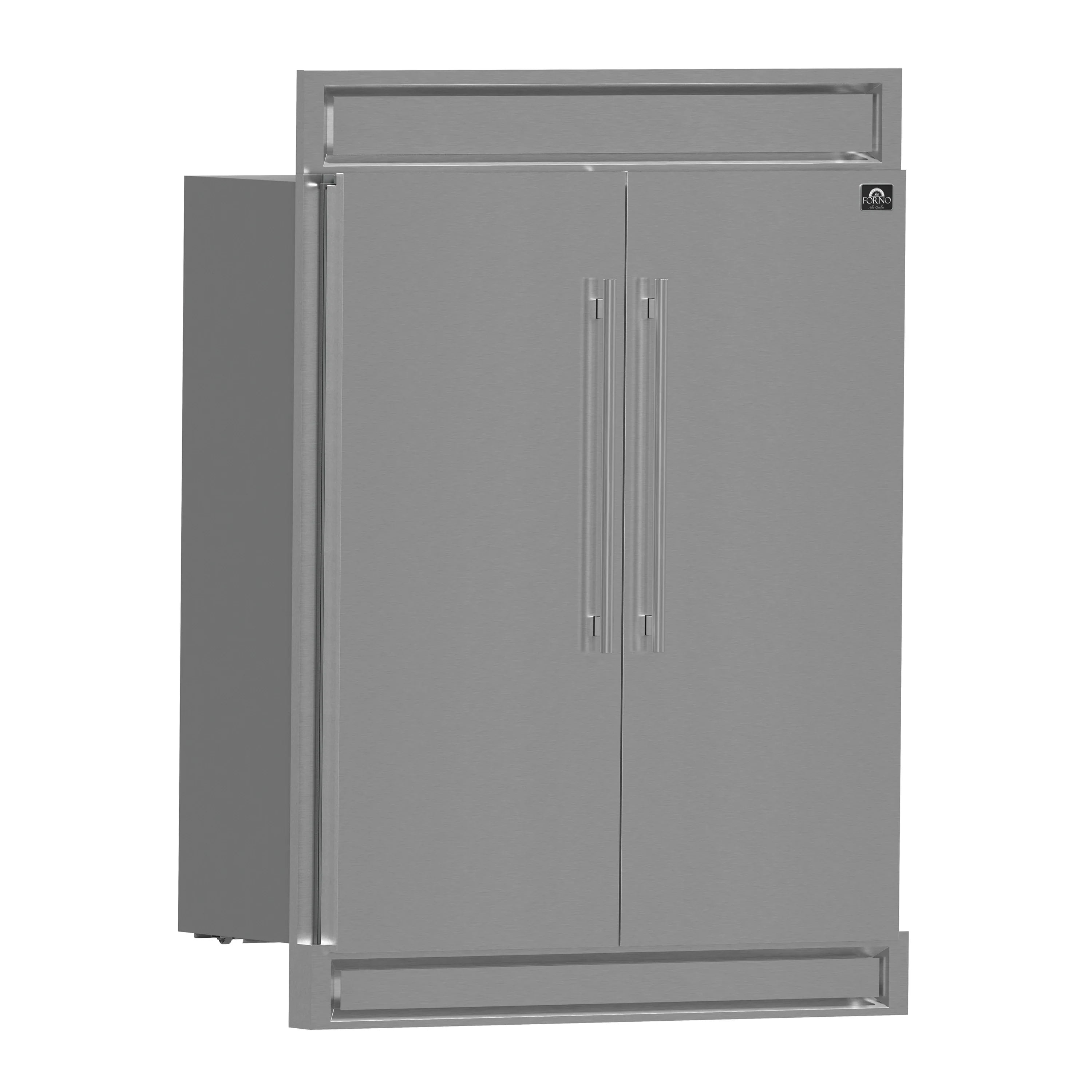

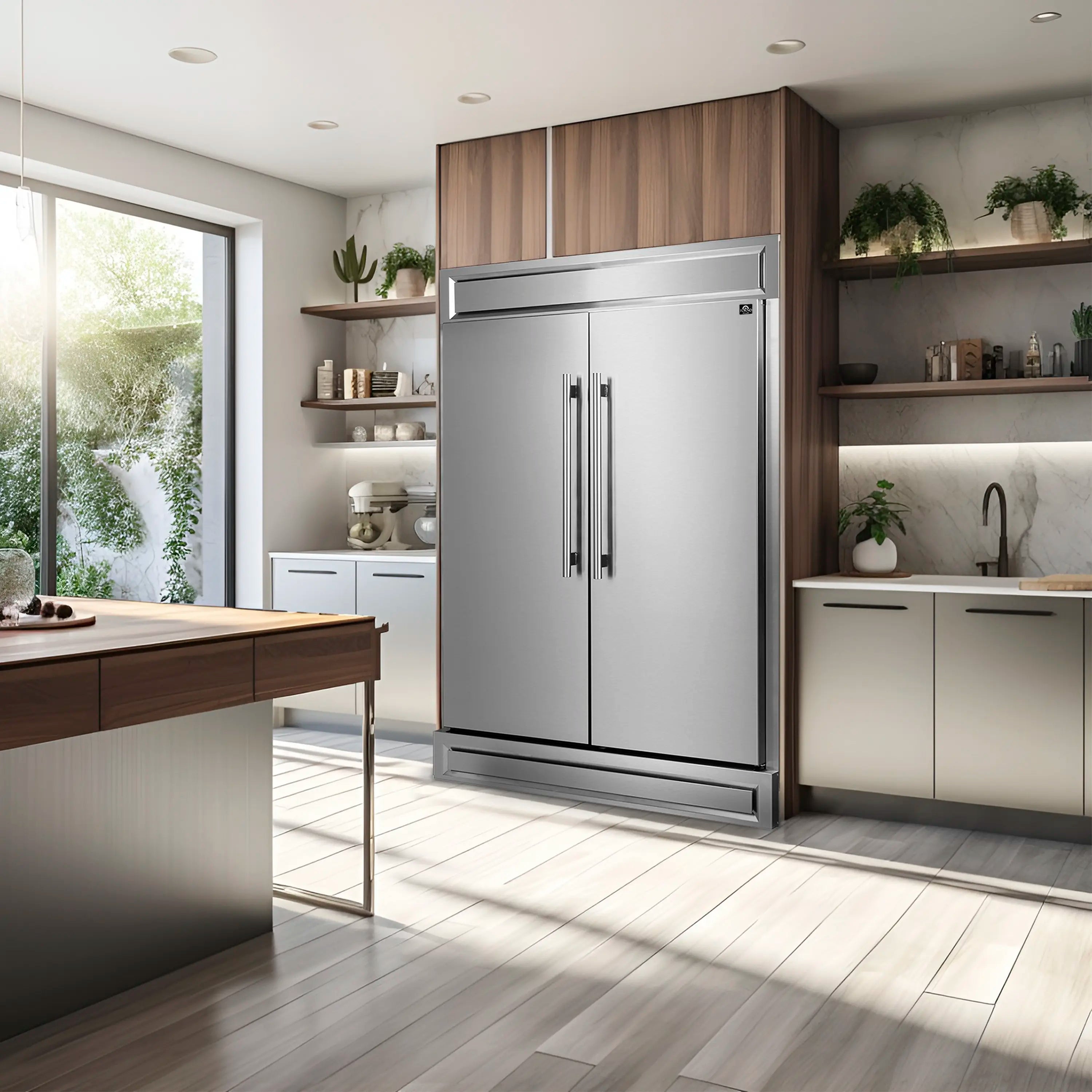

The Forno Maderno combines two 28 Inch refrigerators with decorative trim grill, extending to a 60 Inch width for a built-in appearance, harmoniously blending style with convenience. This combo offers ample storage space totaling 27.2 cu.ft. They feature customizable cooling with convertible function and total no frost technology, eliminating tedious defrosting.

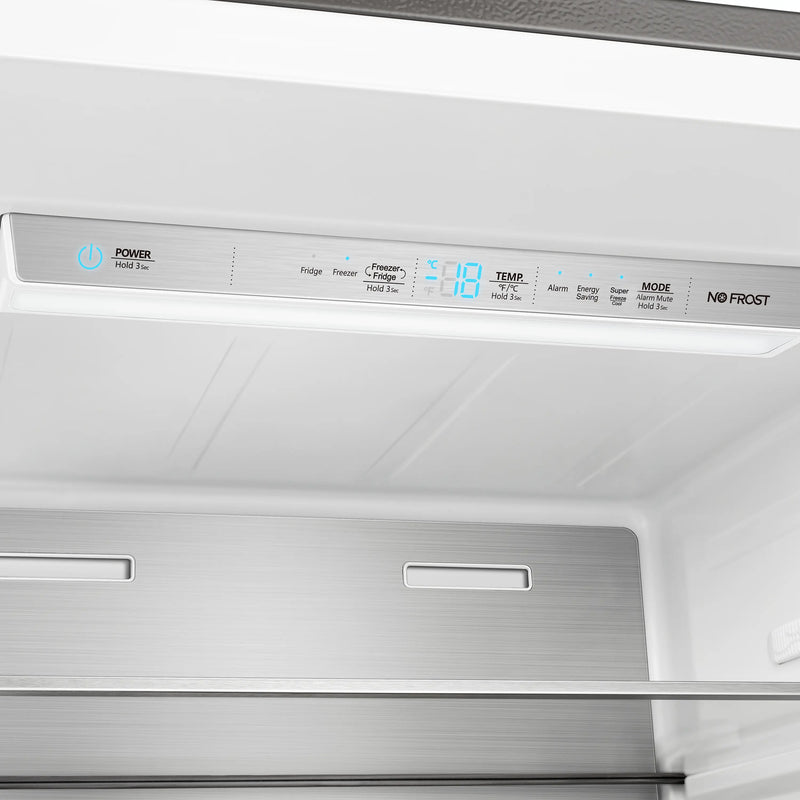

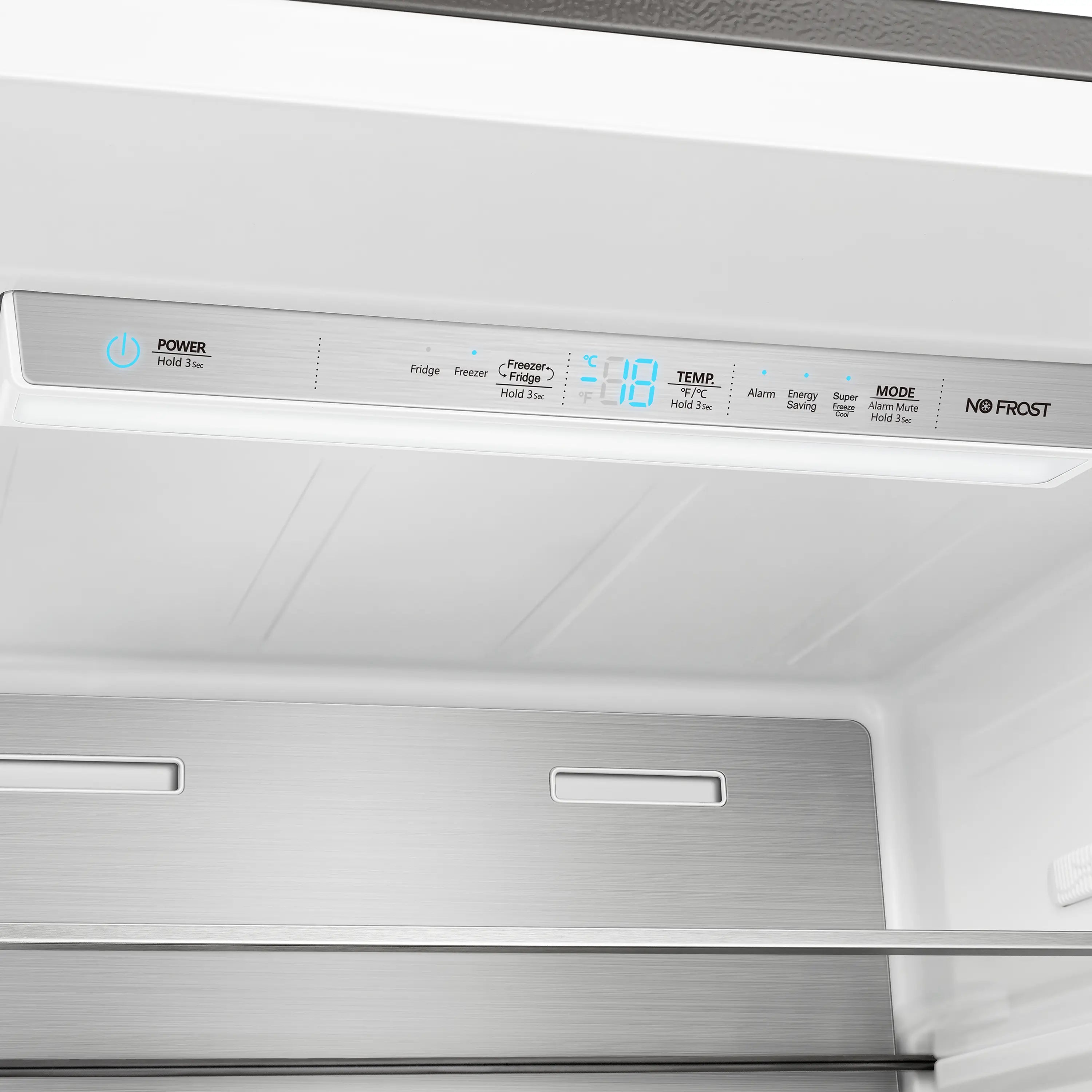

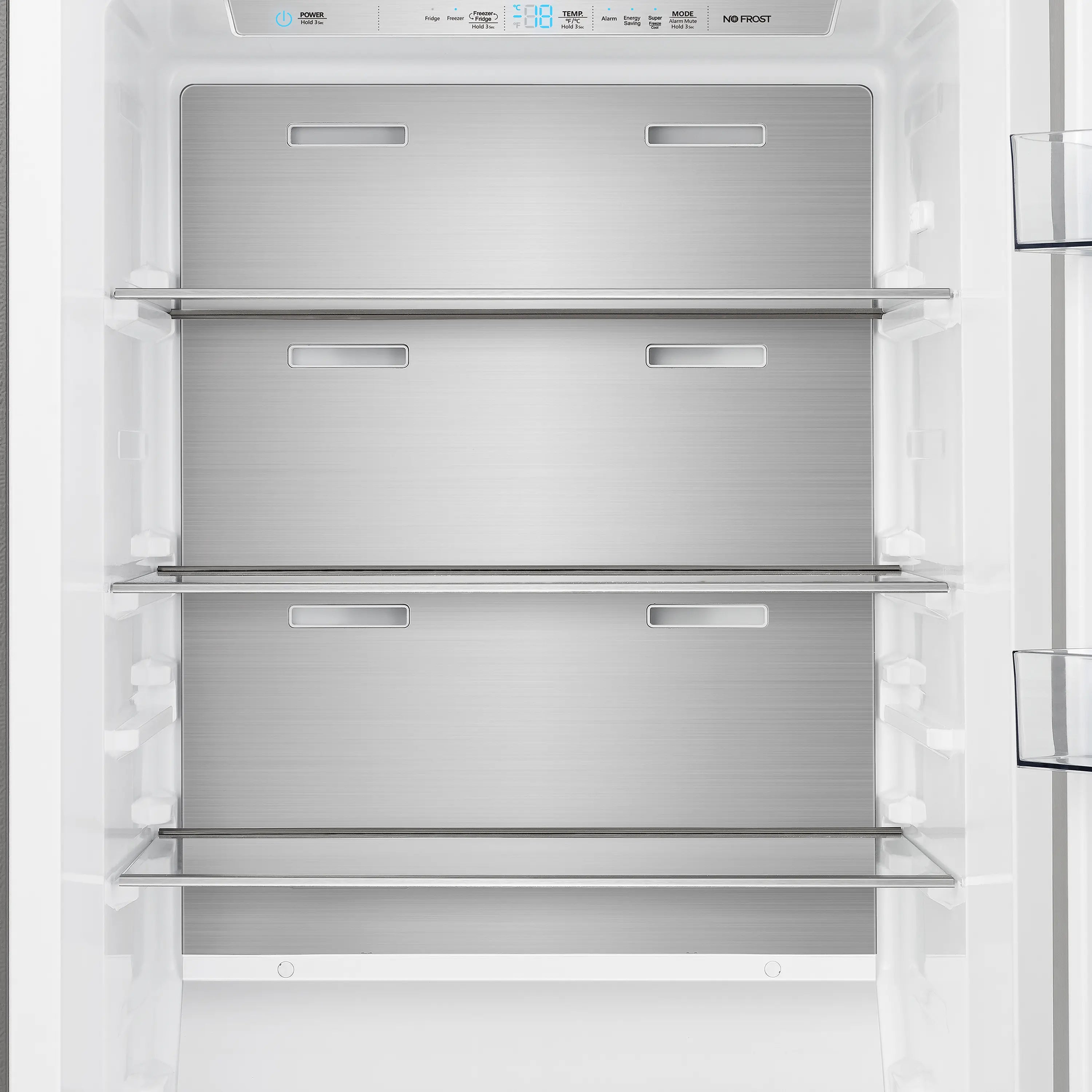

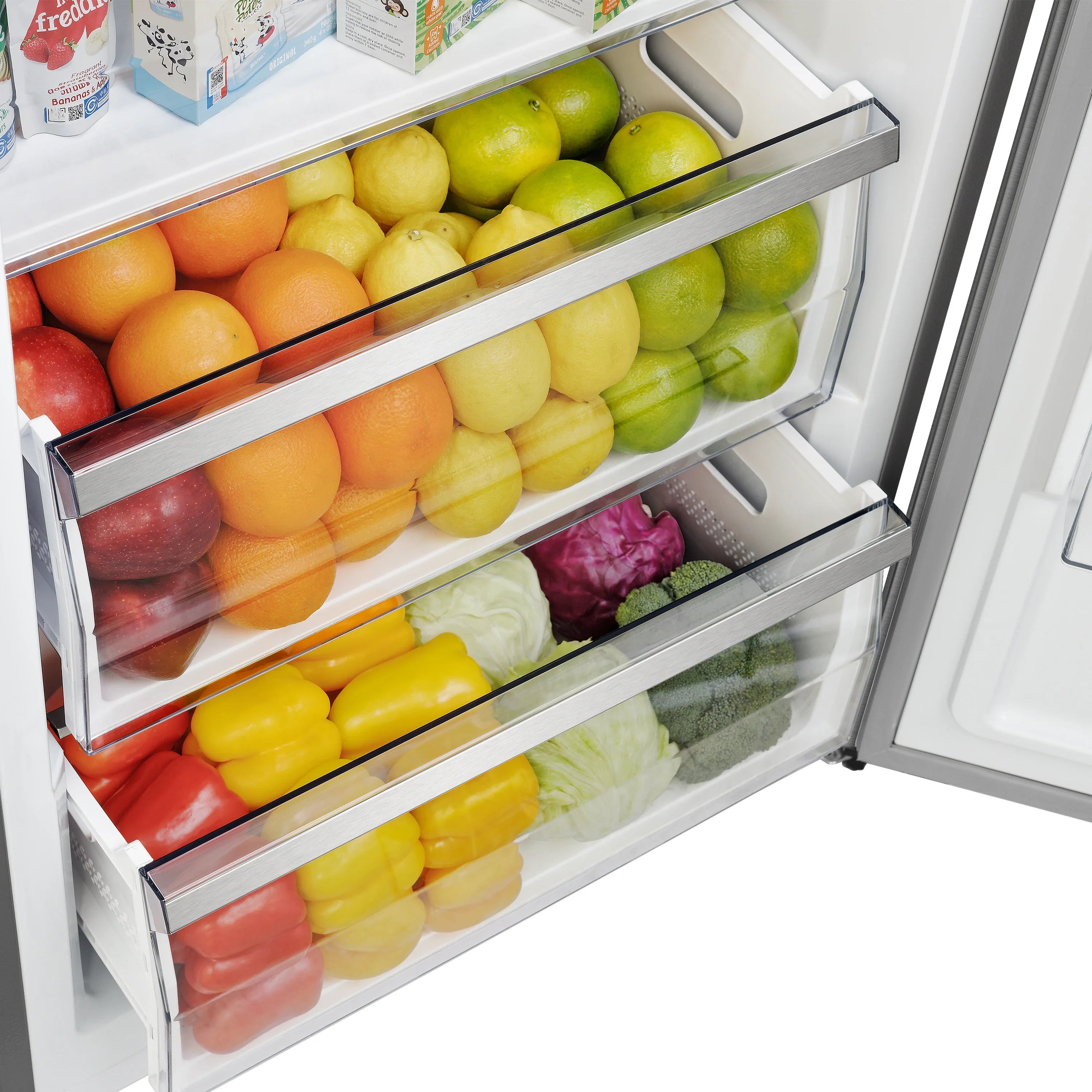

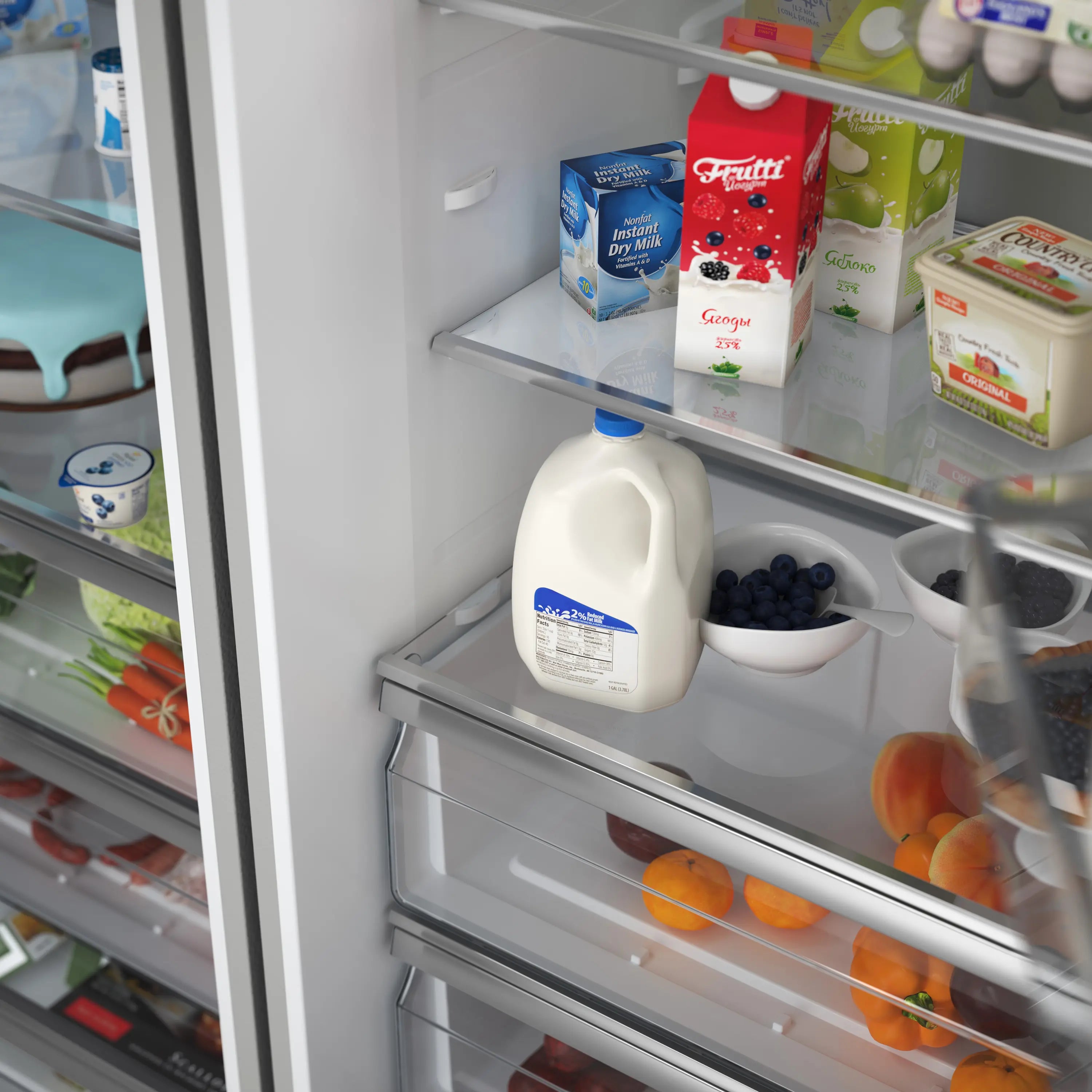

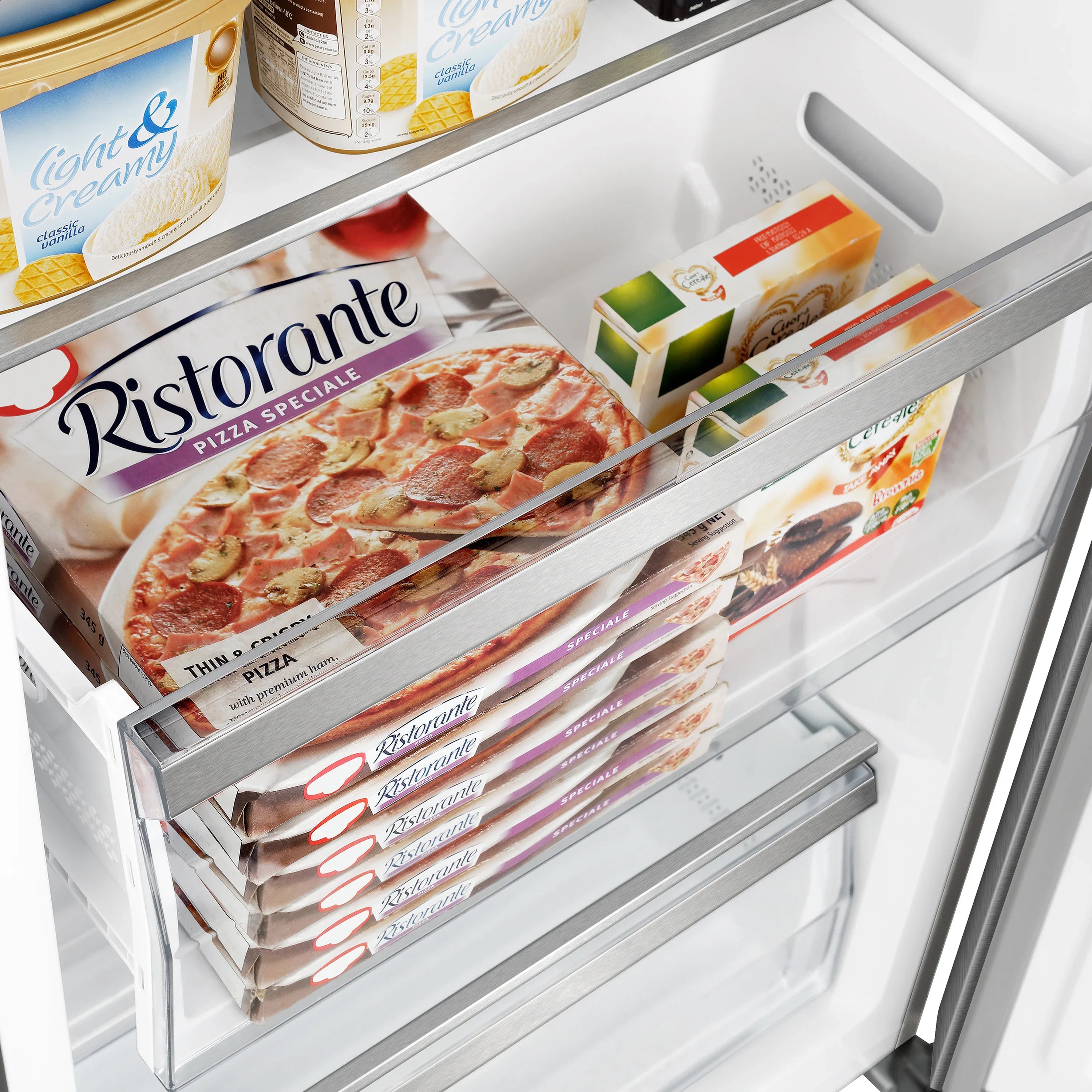

The side-by-side door design integrates seamlessly, while elegant glass shelves with silver trim and practical plastic door balconies enhance appeal and storage. Effortlessly switch between Fahrenheit and Celsius, aided by LED lighting for easy item location. Six glass shelves and six plastic drawers with silver trim provide flexible storage, and temperature settings are easily managed with the electronic touch control panel. The VCM door panel and metal back ensure durability, and the combo is T Climate Class certified with an E-star energy rating for sustainability.
This refrigerator comes in three pieces:
*Installation requires a base to be built for the refrigerator - please see cut-out sheet for more details
|

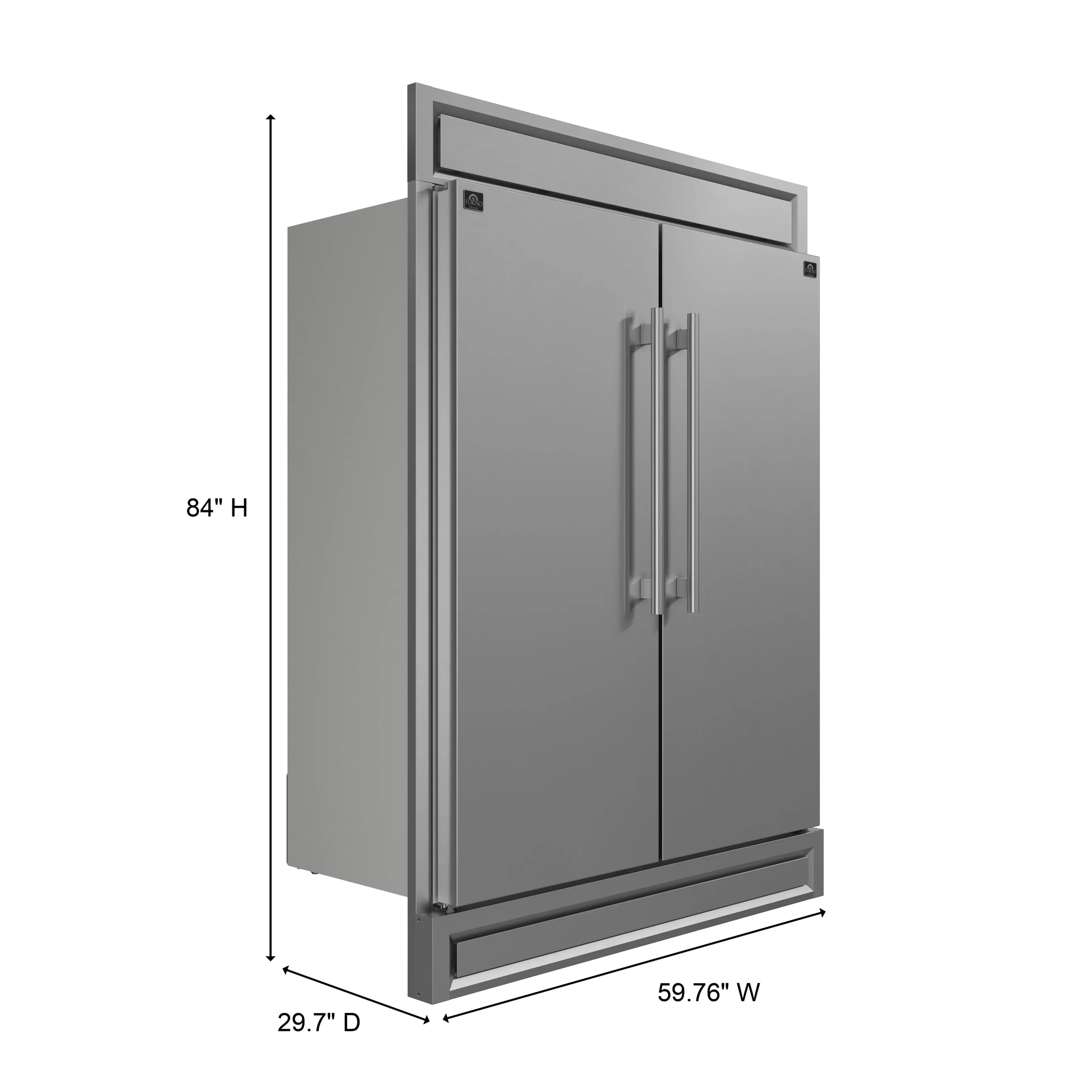

Overall Dimensions |
59.76" W X 29.7" D X 84" H |
| Cutout Dimensions | 55.9" W X 28.94" D X 69.06" H |
|
Product Overall Weight (lbs) |
330.00
|
|
Advertised Unit Width |
60” |
|
Unit Style |
Side-By-Side |
|
Counter-Depth |
Yes |
|
Converting Fridge/Freezer |
Yes |
|
Build Type |
Built-In |
|
Door Color |
Stainless-Steel |
|
Door Material |
VCM Door Panel |
|
Finger Print Resistant |
Yes |
|
Reversible Doors |
No |
|
Handle Color |
Stainless steel |
|
Case Material |
Metal |
|
Case Color |
Light Gray |
|
Primary Material |
White HIPS |
|
Control Type |
Internal Touch Control |
|
Air Flow |
Multi Air Flow |
|
Defrost Type |
Automatic |
|
Sabbath Mode |
No |
|
Vacation Mode / E-Saver |
Yes |
|
Super Cool |
Yes |
|
Super Freeze |
Yes |
|
Door Alarm |
No |
|
Leak Proof Shelves |
No |
|
Lighting Type |
LED |
|
Shelf Material |
Glass with Silver Trim |
|
Drawers Material |
Plastic with Silver Trim |
|
Door Bins Material |
Plastic |
|
Door Bins Color |
Clear |
|
Leveling Legs |
Yes |
|
Ice Maker |
No |

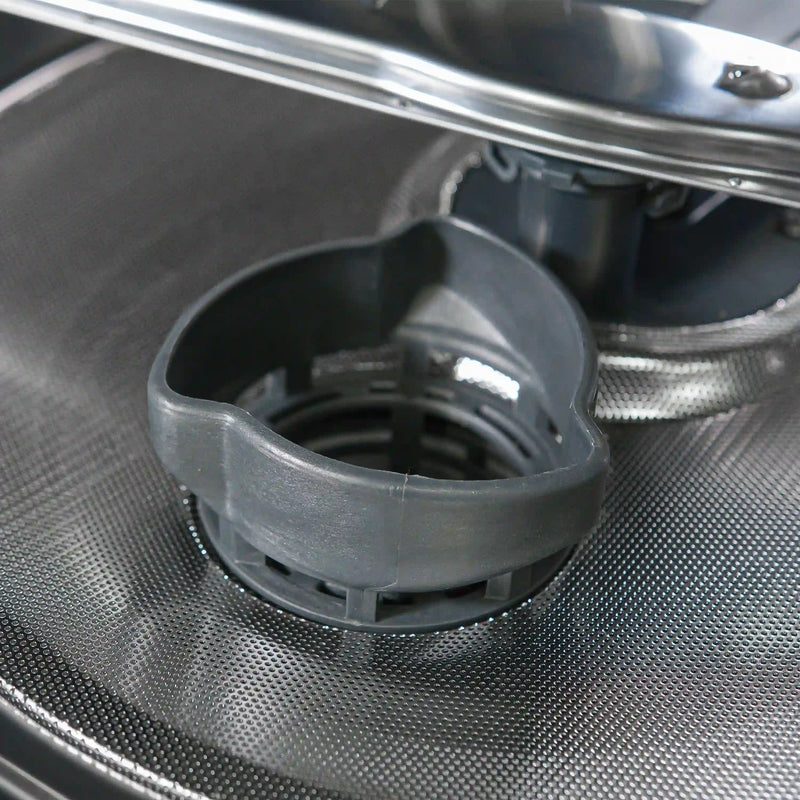

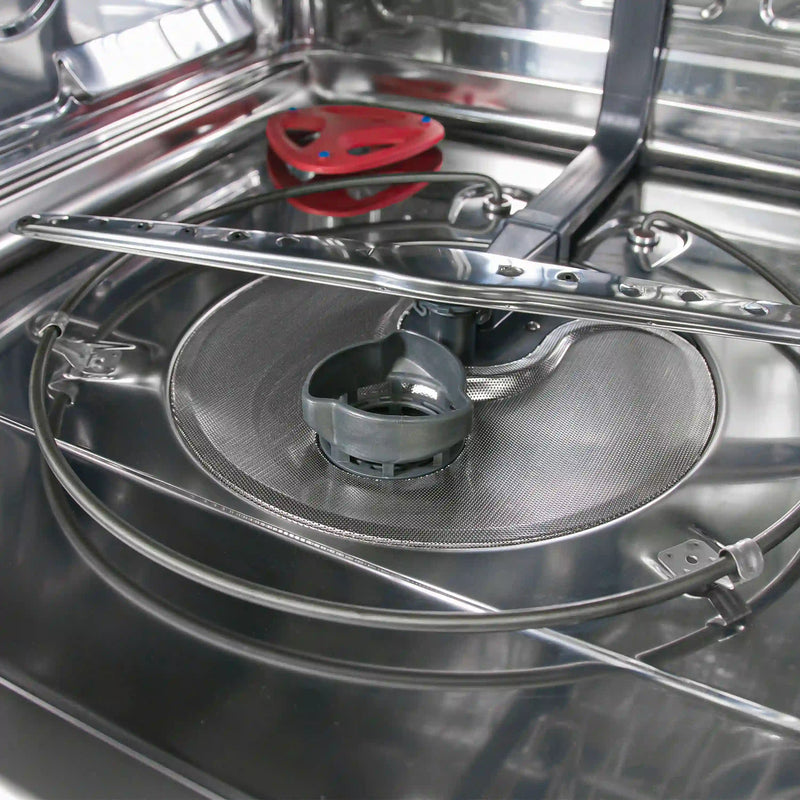

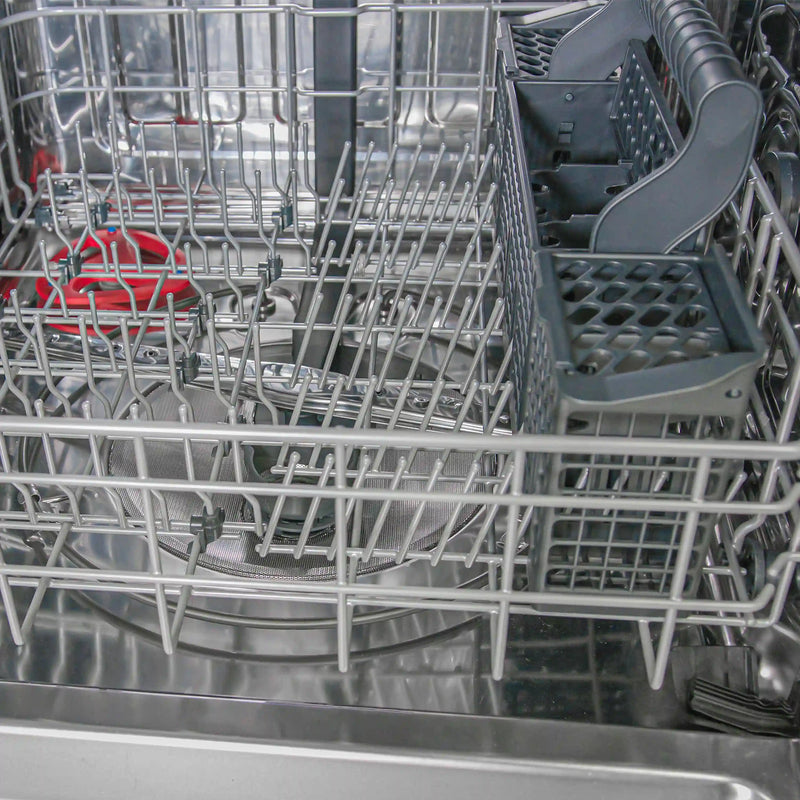

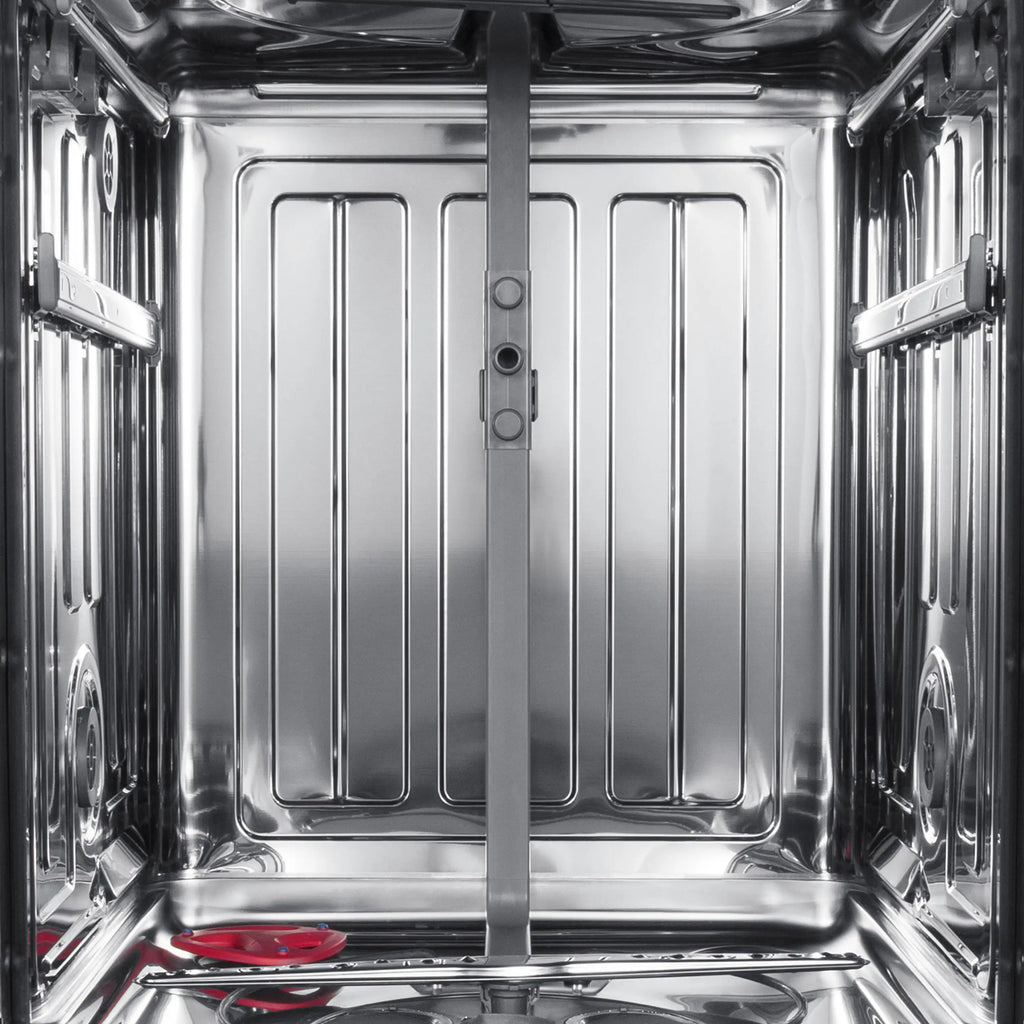

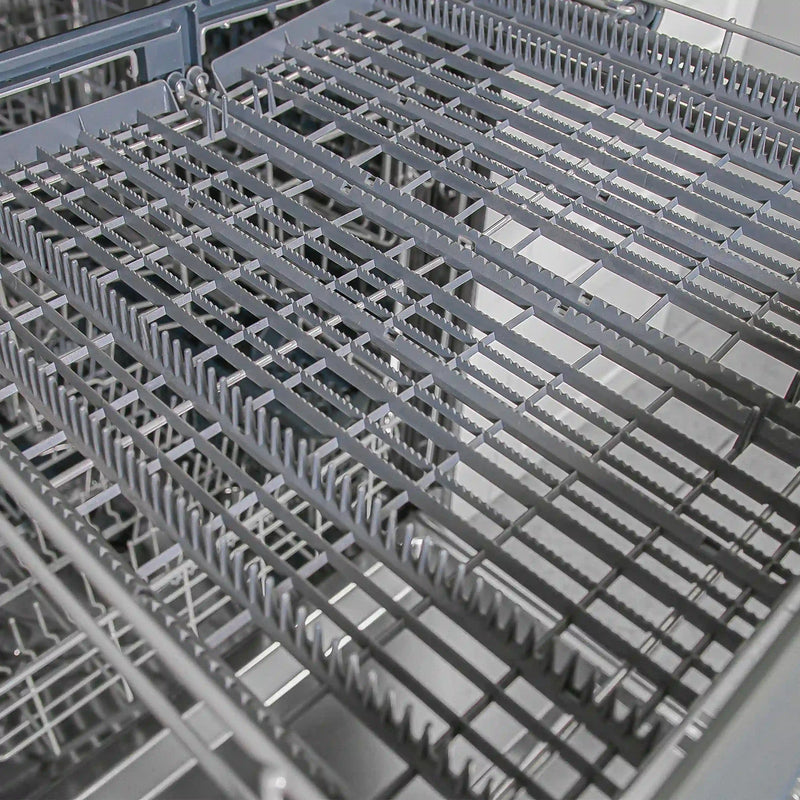

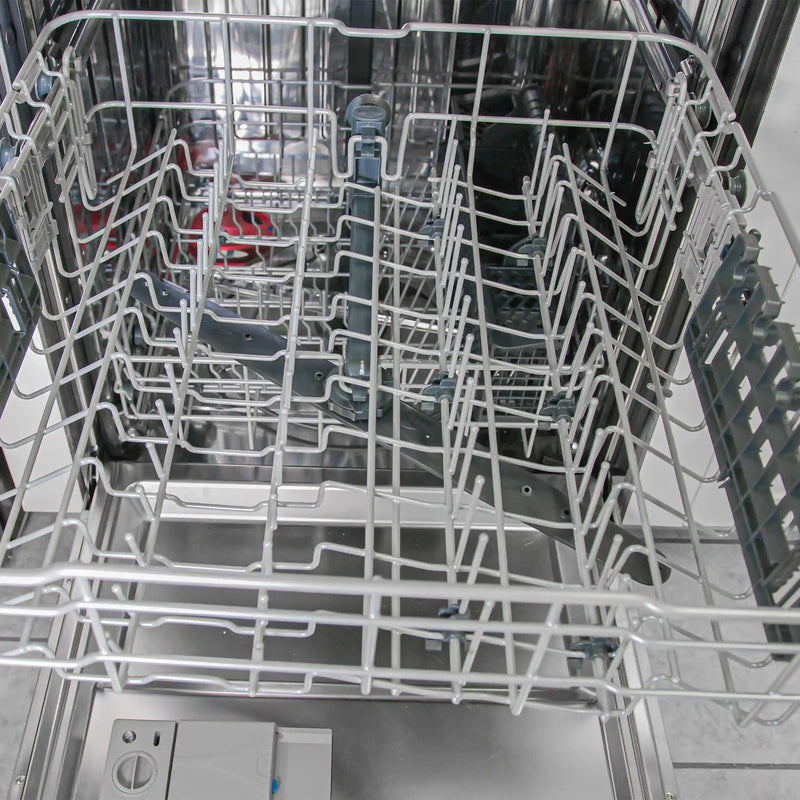

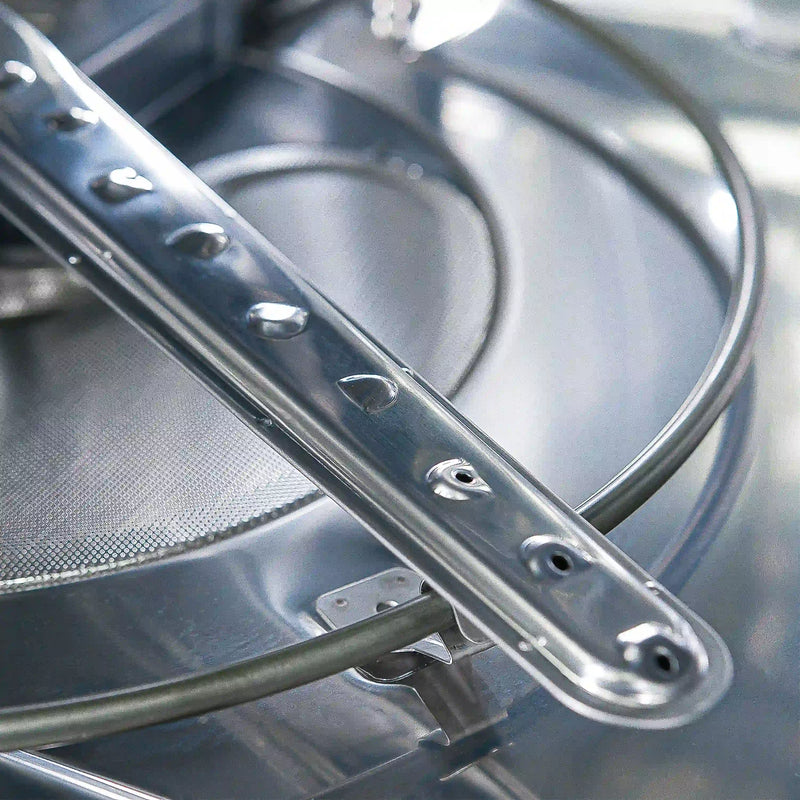

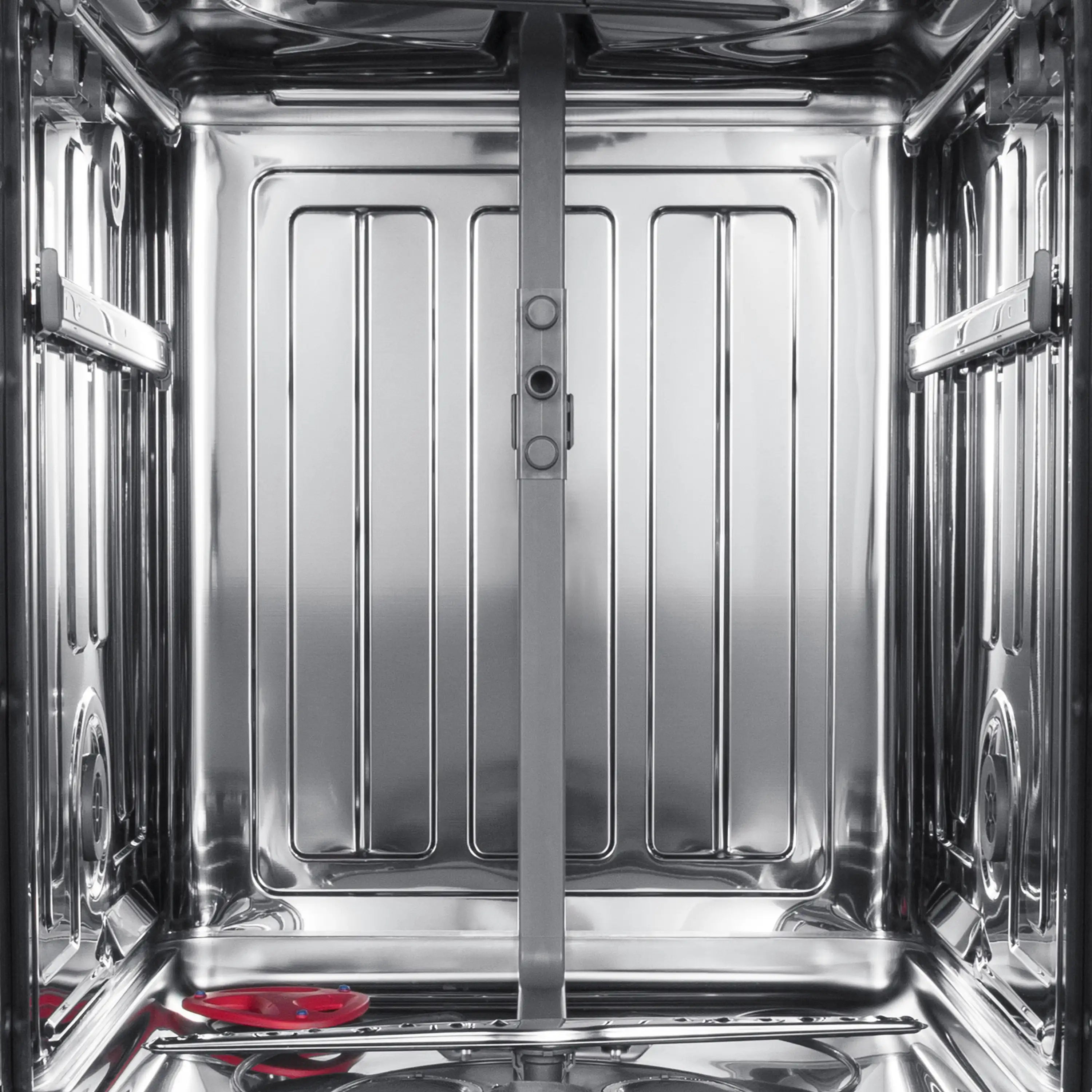

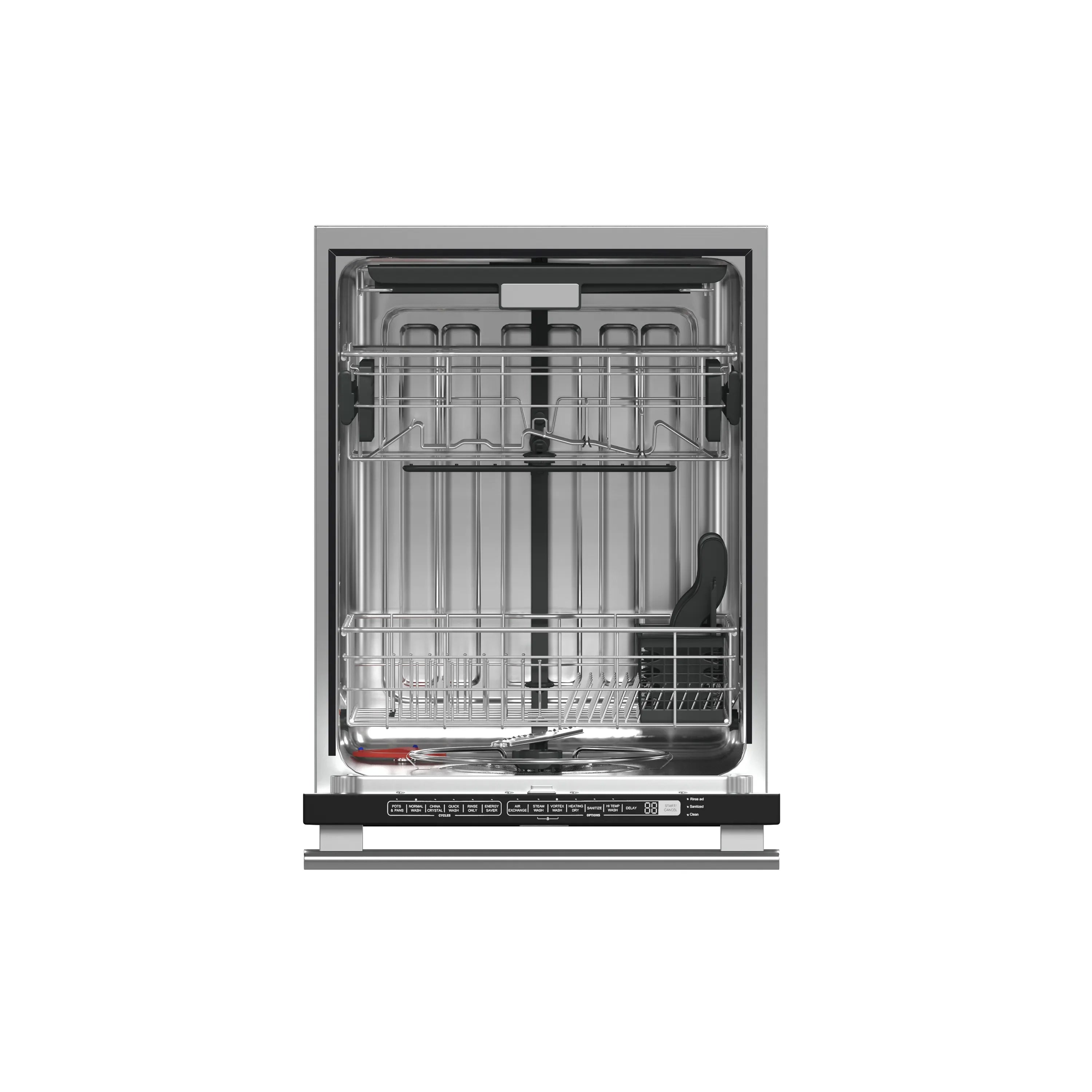

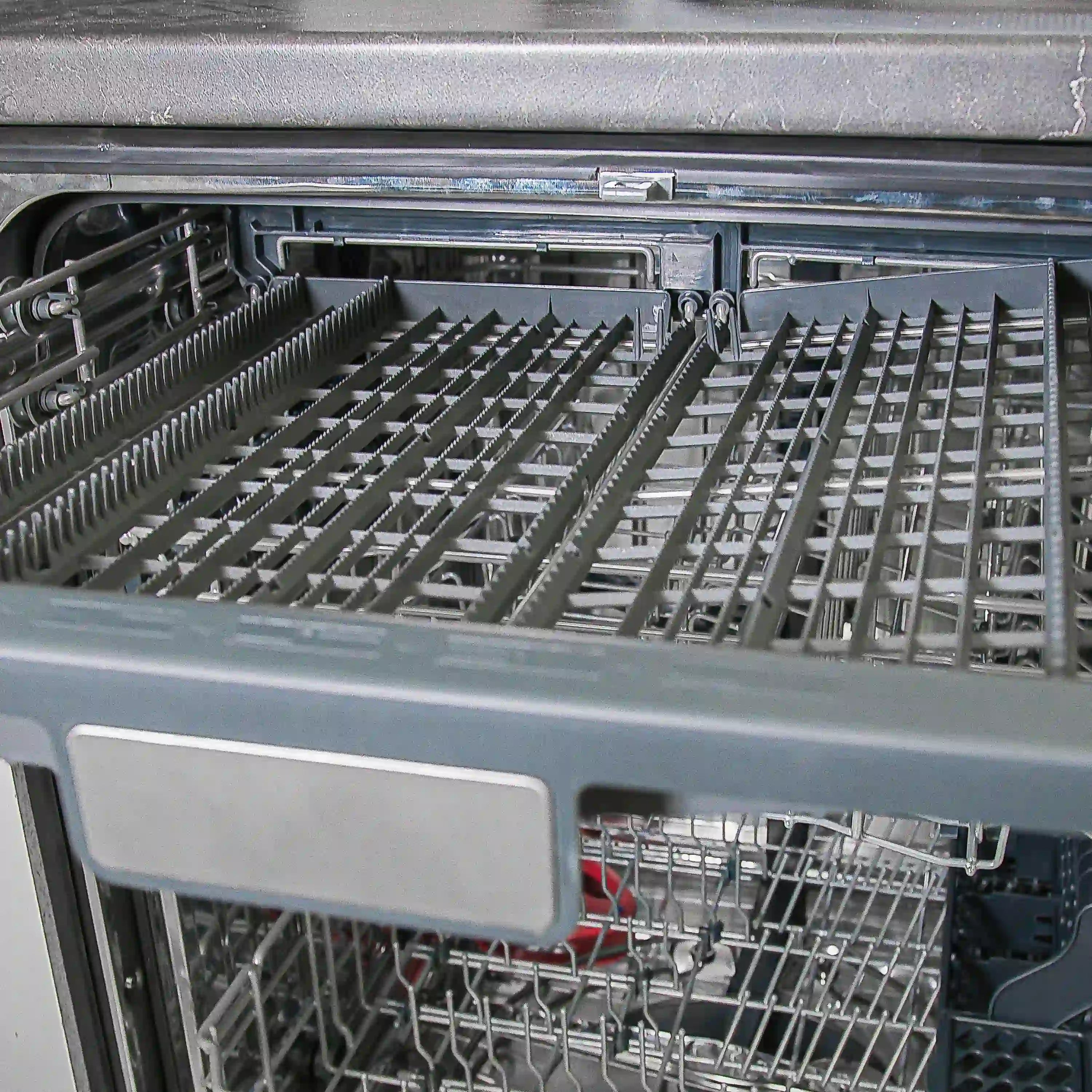

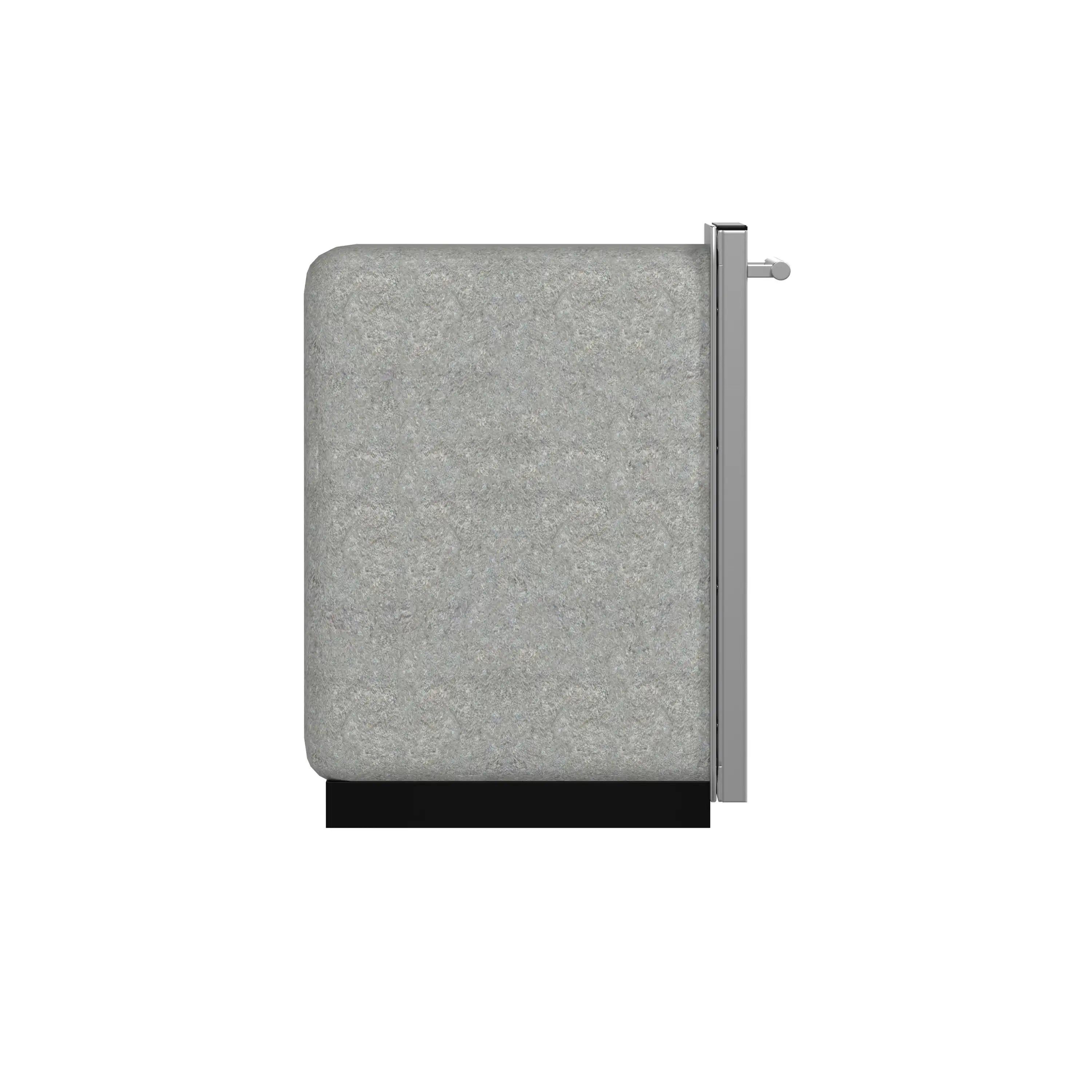

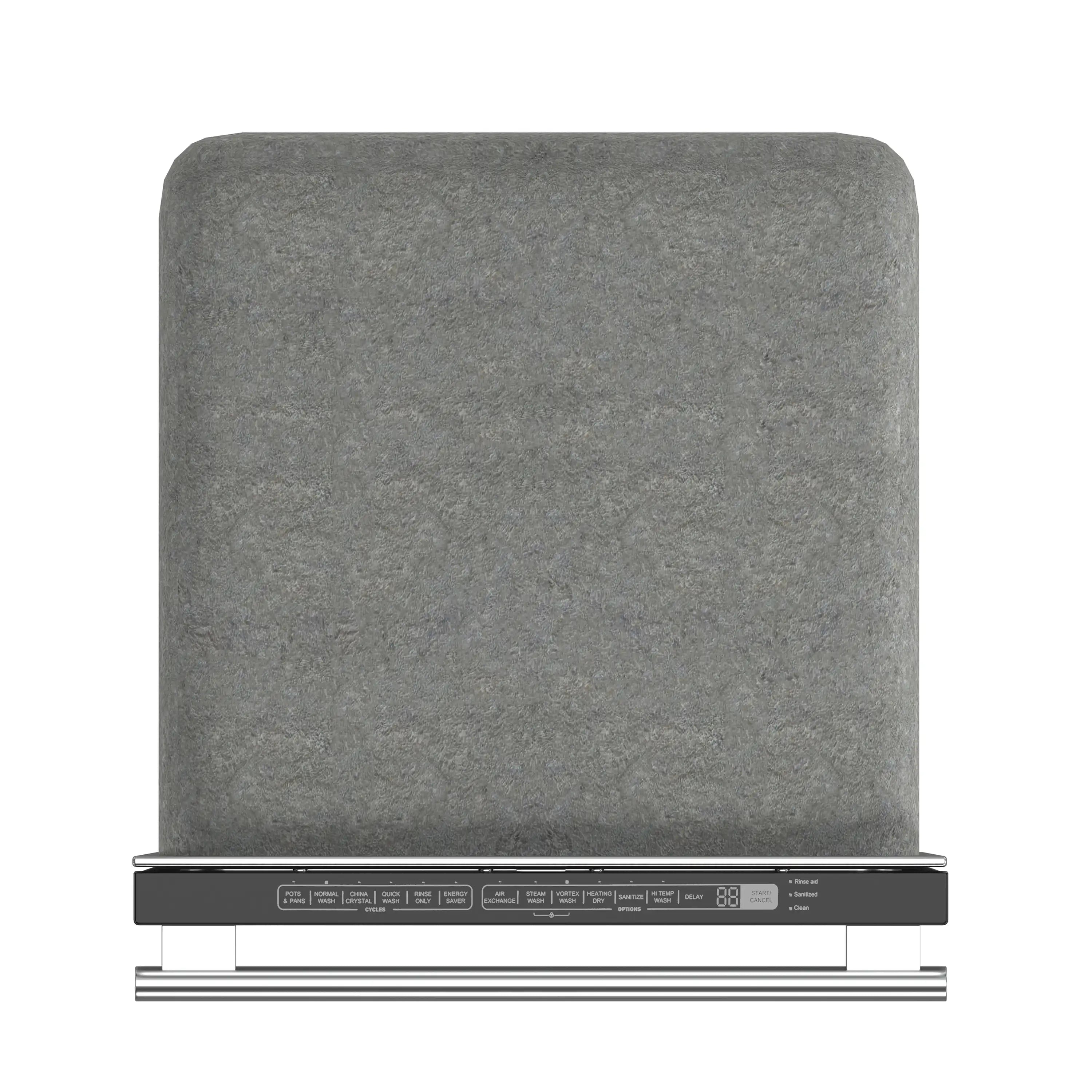

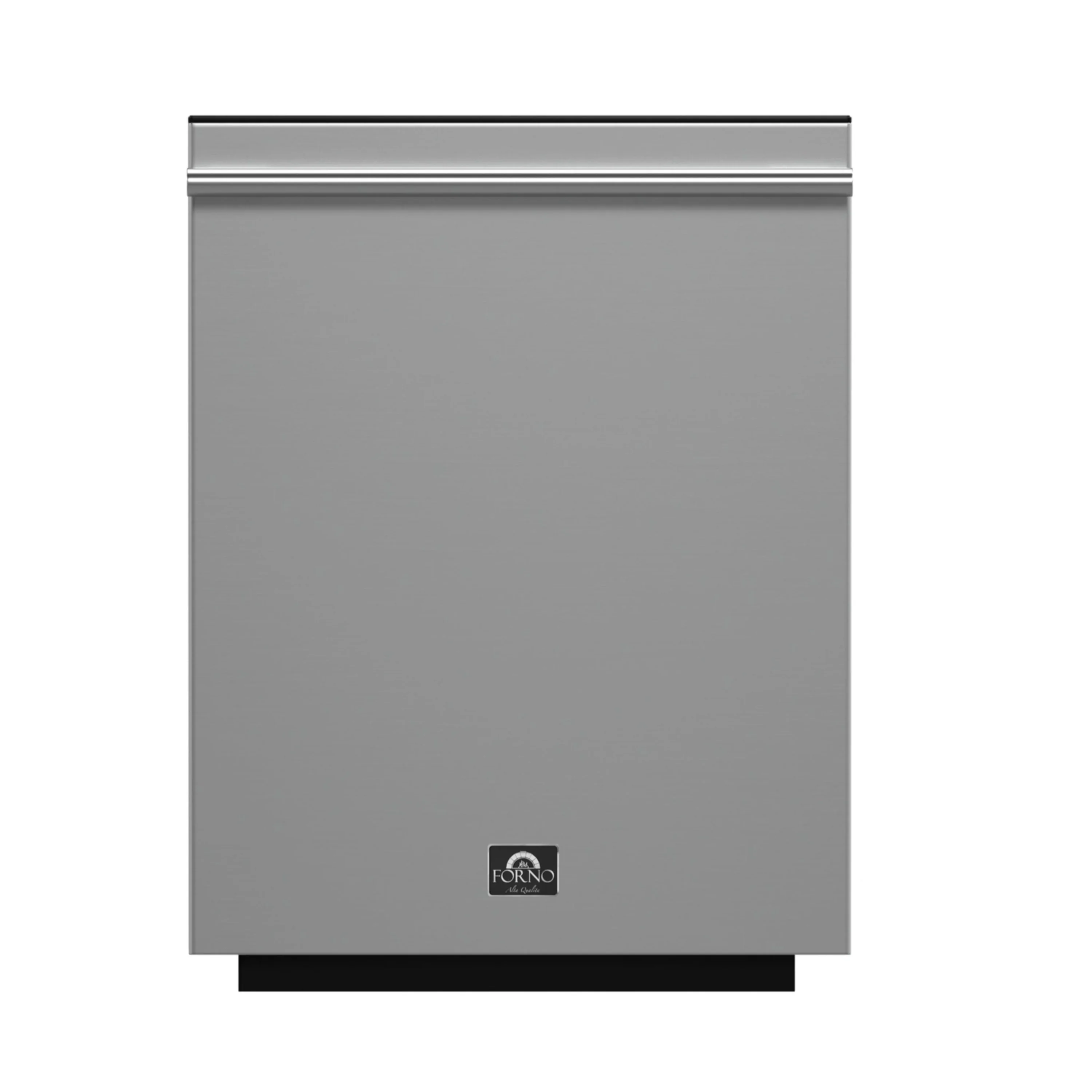

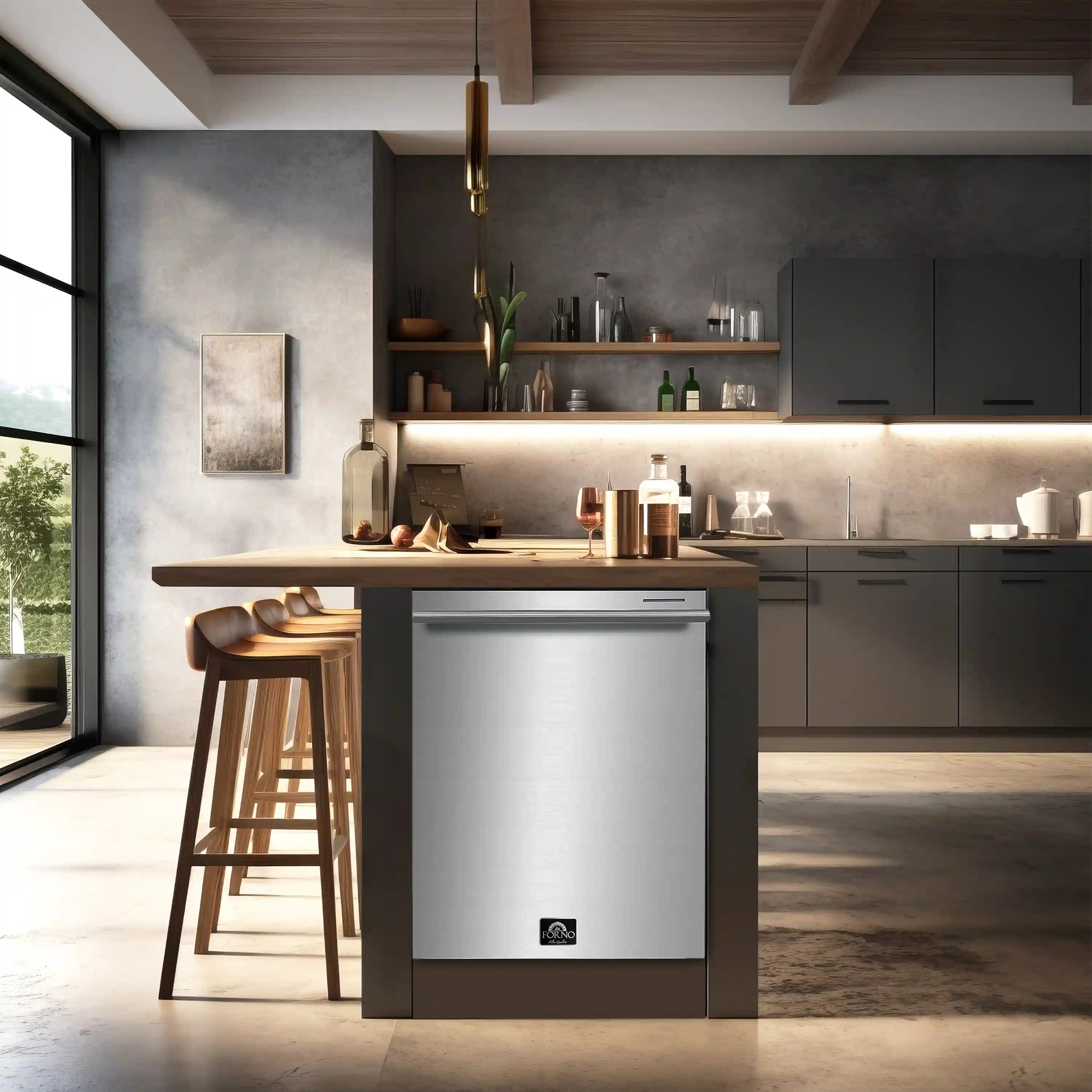

The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its stainless-steel front and pro-style handle offer durability and style. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additionnal silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
| Product Dimensions W x D x H (inches) | 23.85x26.54x33.74 |
| Cutout dimensions W x D x H (inch) | 24 x 24 x 34 |
| Product Overall Weight (lbs) | 93.20 |
| Color/Finish | Stainless Steel |

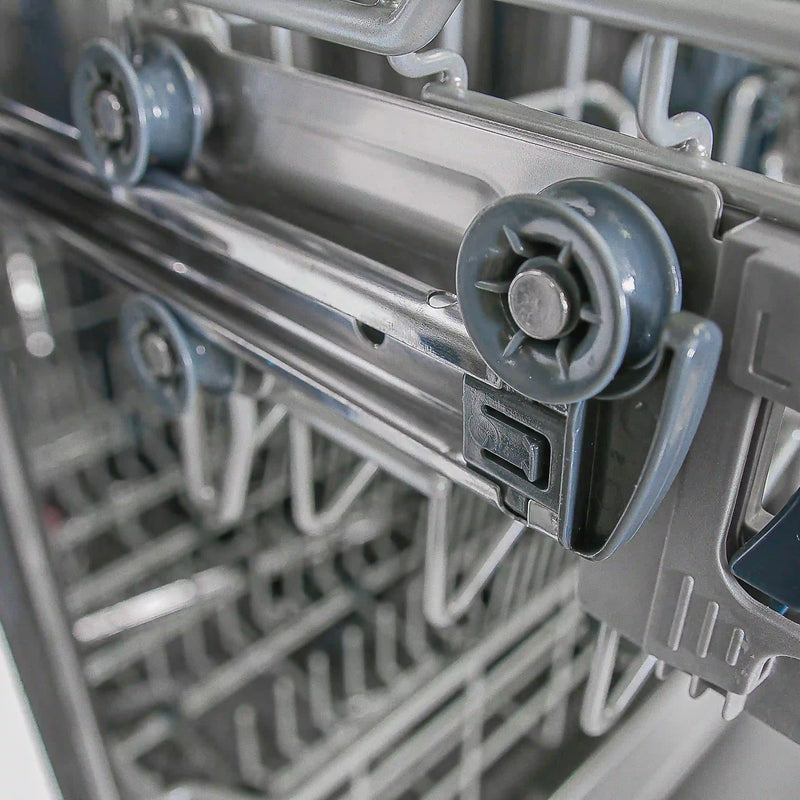

| Number of Racks | 3 |
| Racks Material | Nylon Coated Steel |
| Interior Light | No |
| Control Location | Top |
| Primary Material | Steel |
| Plug-in | No |
| CEE Tier Qualified | Not Rated |
| Energy Star Most Efficient | No |
| Estimated Annual Operating Cost (USD) | 24 |
| Filter Material | Stainless Steel |
| Minimum Product Height (IN) | 33.74 |
| Fingerprint-Resistant | No |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |
