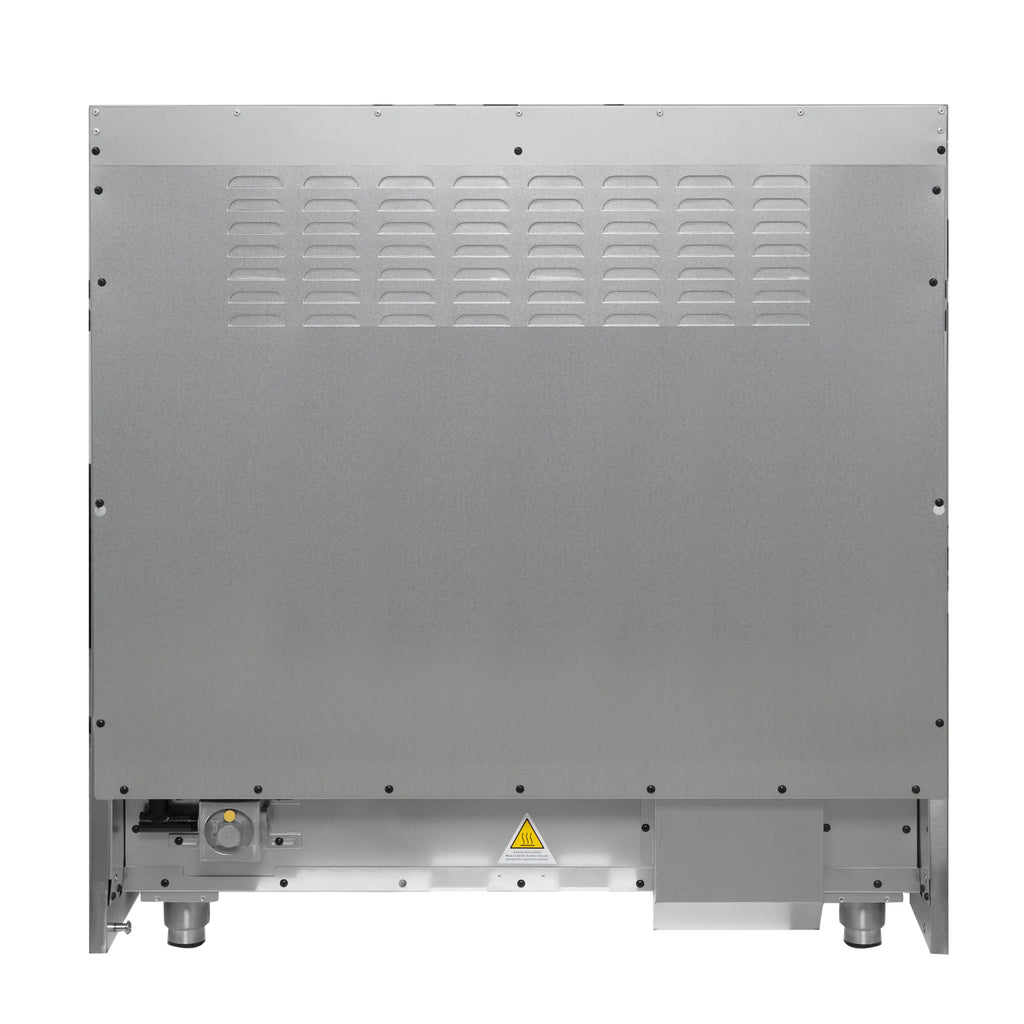

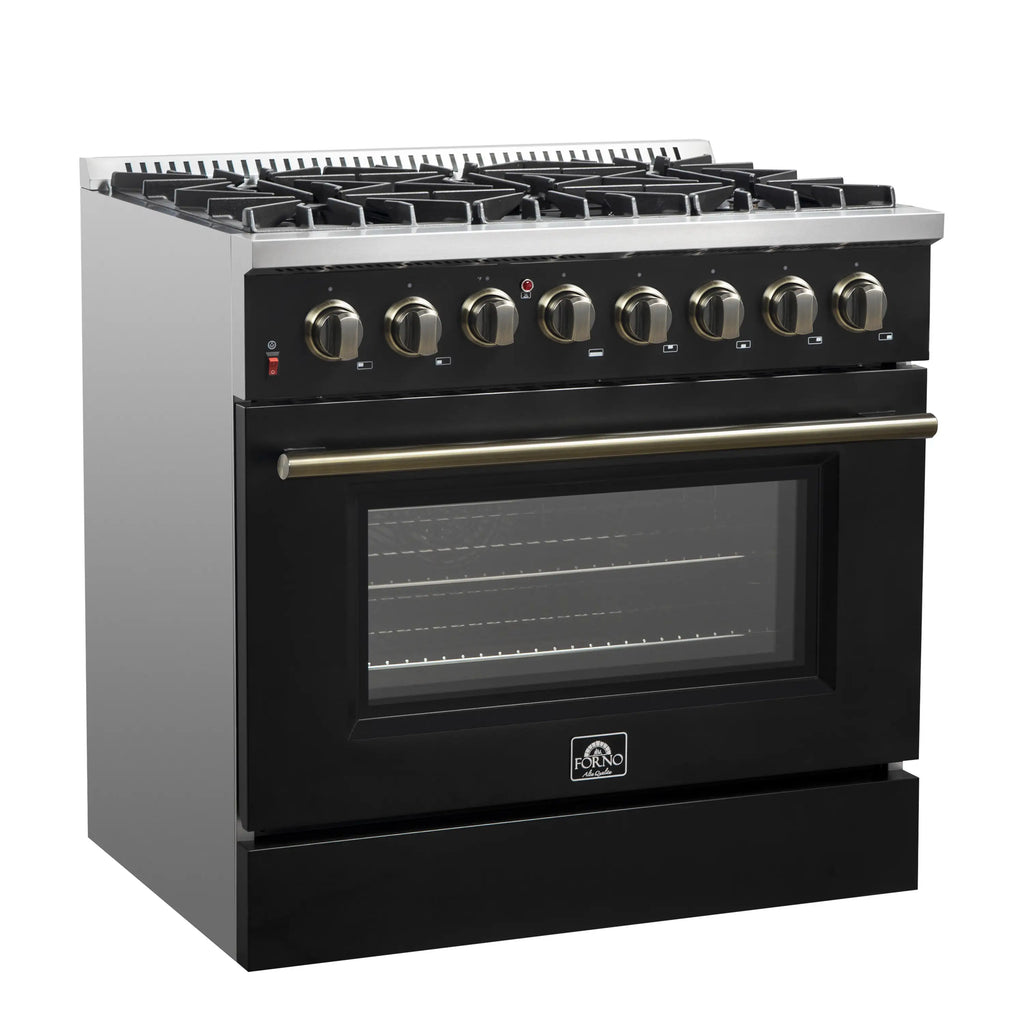

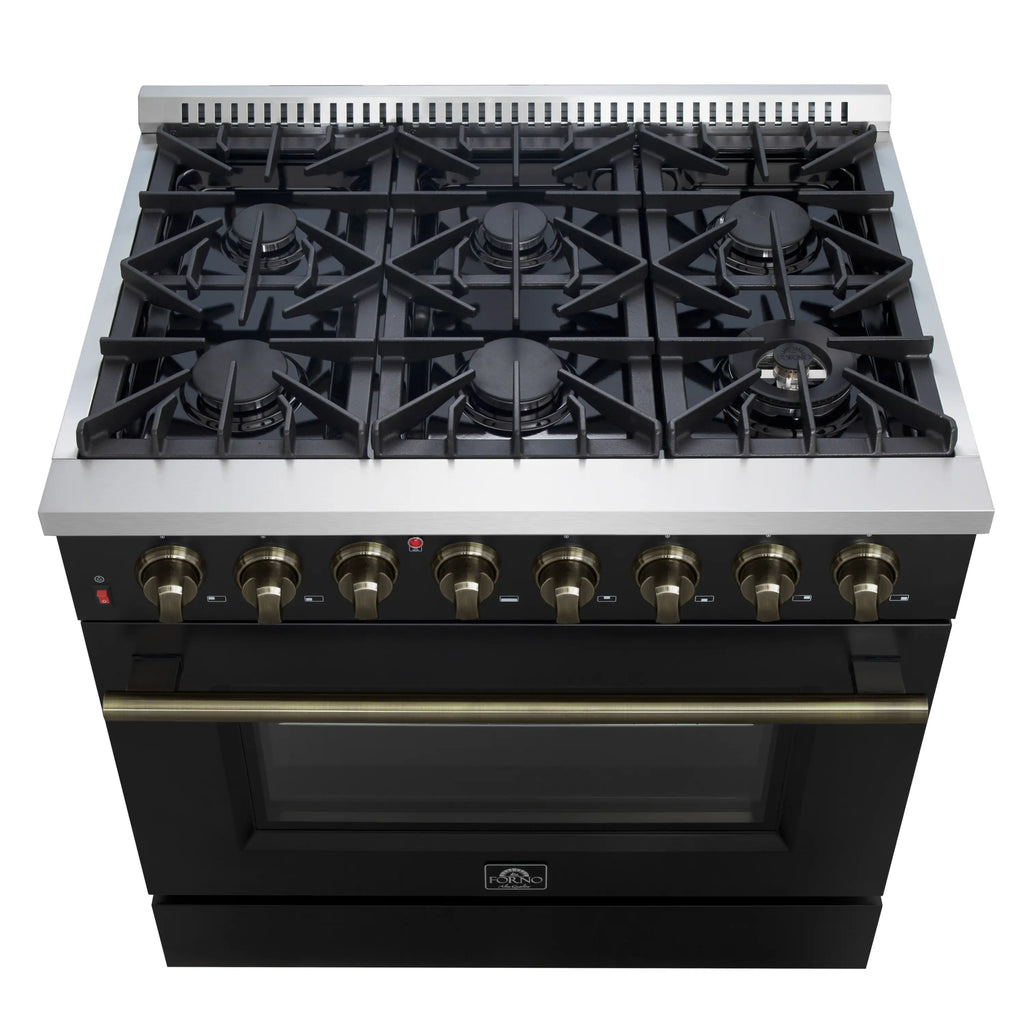

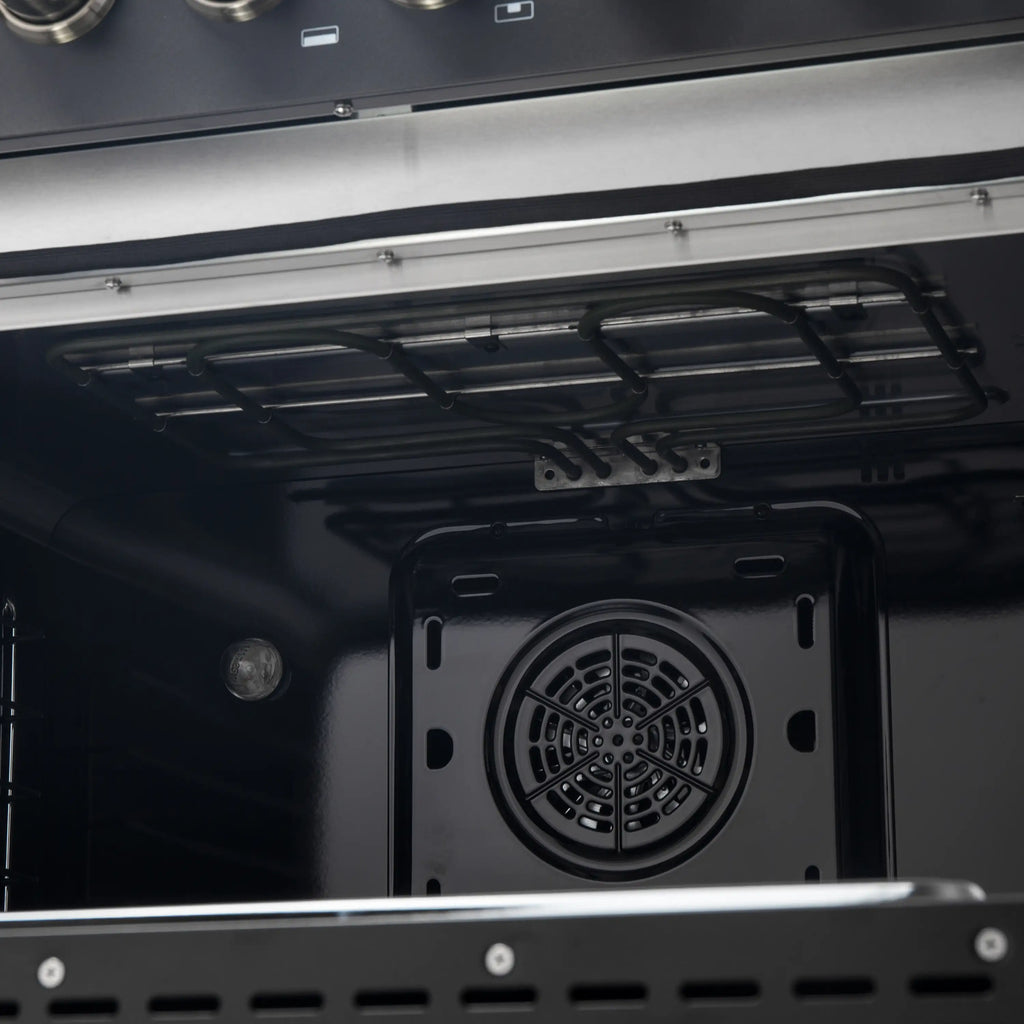

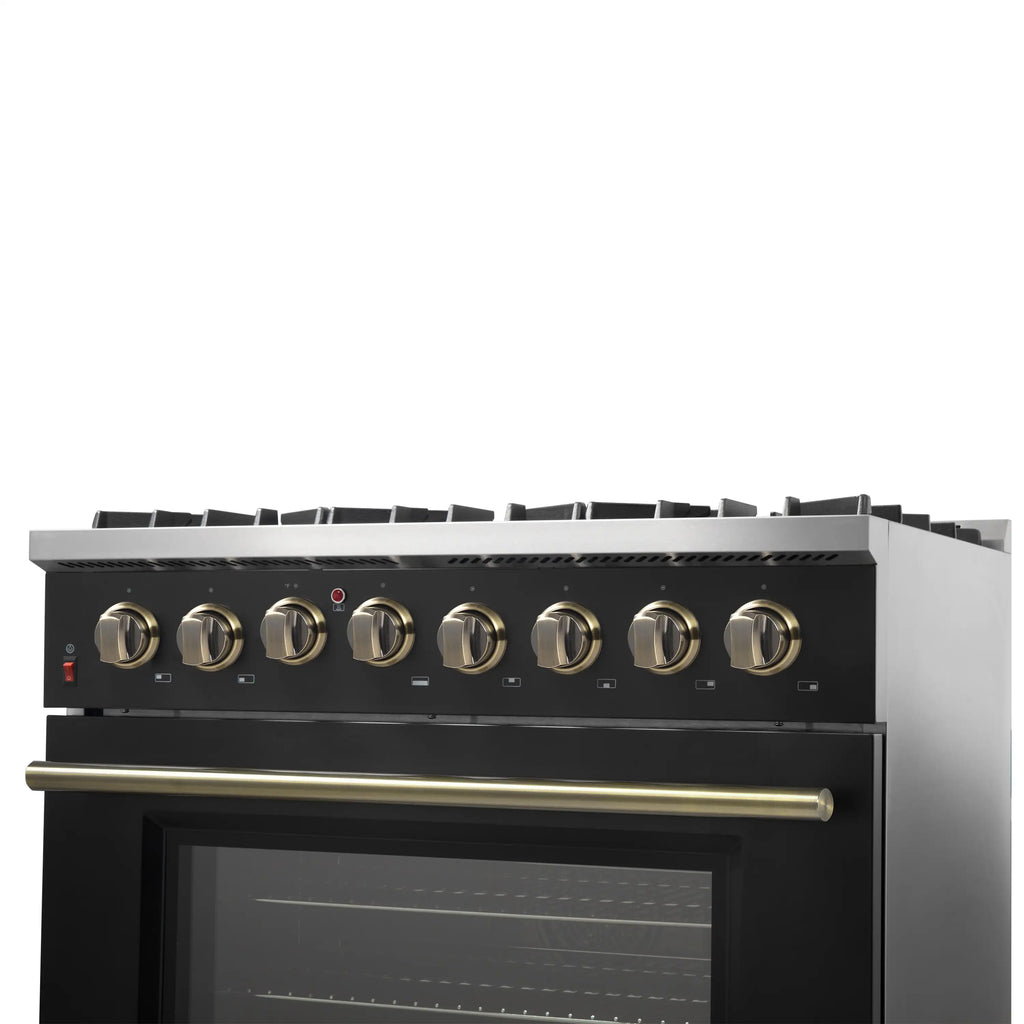

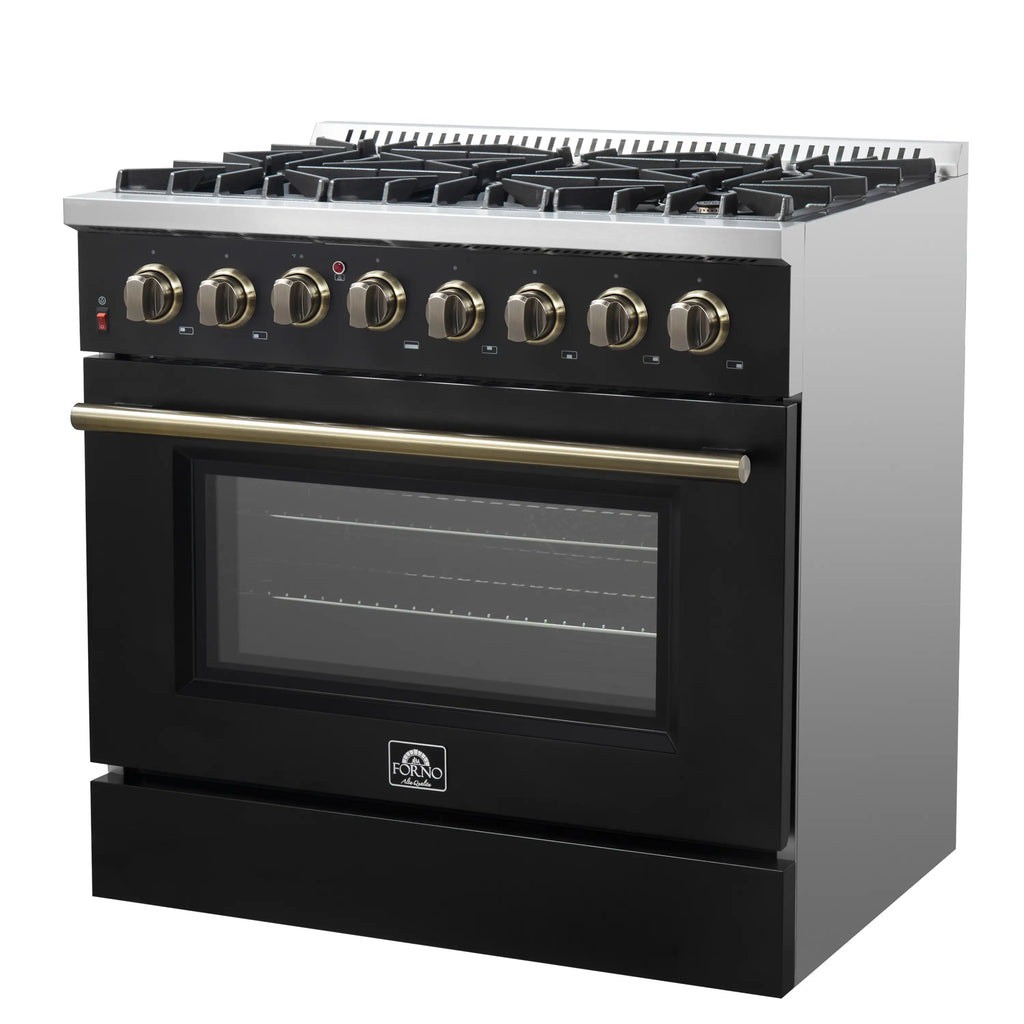

The Forno Galiano 36" Dual Fuel Range in sleek black with antique brass knobs and handles combines timeless style with high performance. Six sealed burners deliver 83,000 BTU total output, including a 20,000 BTU dual-ring burner for precise simmering at 1,000 BTU. The 5.36 cu.ft. true convection fan oven ensures even baking with a powerful 6,300-watt output. Black enamel interiors enhance heat distribution and are easy to clean, while smooth friction hinges and a 3-layer glass door ensure safety and durability. Adjustable stainless steel legs fit counters from 36" to 37". Includes 2 heavy-duty racks, a NEMA 14-50P power cord, and LP conversion kit. Backed by Forno’s 2-year in-house warranty for lasting peace of mind.
| DIMENSIONS | |
|---|---|
| Product Dimensions | 36" W x 28" D x 38" H |
| Cutout dimensions | 36" W x 25" D x 36" H |
| Product Overall Weight (lbs) | 222.66 |
| GENERAL INFORMATION | |
| CEE Tier Qualified | Not Rated |
| DESIGN & FINISH | |
| Color | Black |
| Finish | Black |
| Color/Finish | Black |
| Number of Knobs | 8 |
| Control Location | Front |
| Interior Light | Yes |
| Clock | No |
| Primary Material | Metal |
| Interior Light(s) Type | Halogen |
| Knobs Color/Finish | Antique Brass |
| Illuminated knob | No |
| Handle Color/Finish | Antique Brass |
| Bulb Type | G9 |
| Number of Lights | 2 |
| Fingerprint-Resistant | No |
| TECHNICAL DETAILS | |
| Fuel Type | Dual Fuel |
| Gas Type | Natural Gas |
| LP gas convertible | Yes |
| Power Cord Location | Back |
| COOKTOP FEATURES | |
| Burner Fuel | Gas |
| Gas Heat Configuration (cooktop) | Sealed Burners |
| Total Cooktop BTU Output | 83,000 |
| Number of Burners/Cooking Zones | 6 |
| Cooking Surface Control Type | Push & Turn/Knobs |
| Cooking Surface Ignition Type | Electronic |
| Oval Burner | No |
| Cooktop Surface Structure |
|
| Auto Re-Ignition | Yes |
| Oven Ignition Type | Automatic Ignition |
| Bake Element | Yes |
| Cooktop Hot Surface Indicator | No |
| Number of Dual-Ring Burner | 1 |
| Dual-Ring Burner | Yes |
| Hidden Bake Element | Yes |
| OVEN FEATURES | |
| Number of Ovens | 1 |
| Overall Oven Capacity (Cubic Feet) | 5.36 |
| Racks Material | Electroplated |
| Number of Racks | 2 |
| Number of Rack Positions | 6 |
| Broiler Location | Oven |
| Broiler | Yes |
| Automatic Convection Conversion | No |
| Oven Preheating Indicator | Yes |
| Temperature Gauge | No |
| Storage Drawer | No |
| Timer | No |
| Oven Fuel | Electric |
| Oven Racks Type | Standard |
| Overall Bake Wattage | 2000 |
| Overall Broil Wattage | 2800 |
| Convection Oven | Yes |
| Overall True Convection Wattage | 1500 |
| Convection Type | True Convection |
| Delay Start | No |
| Cook time Option | No |

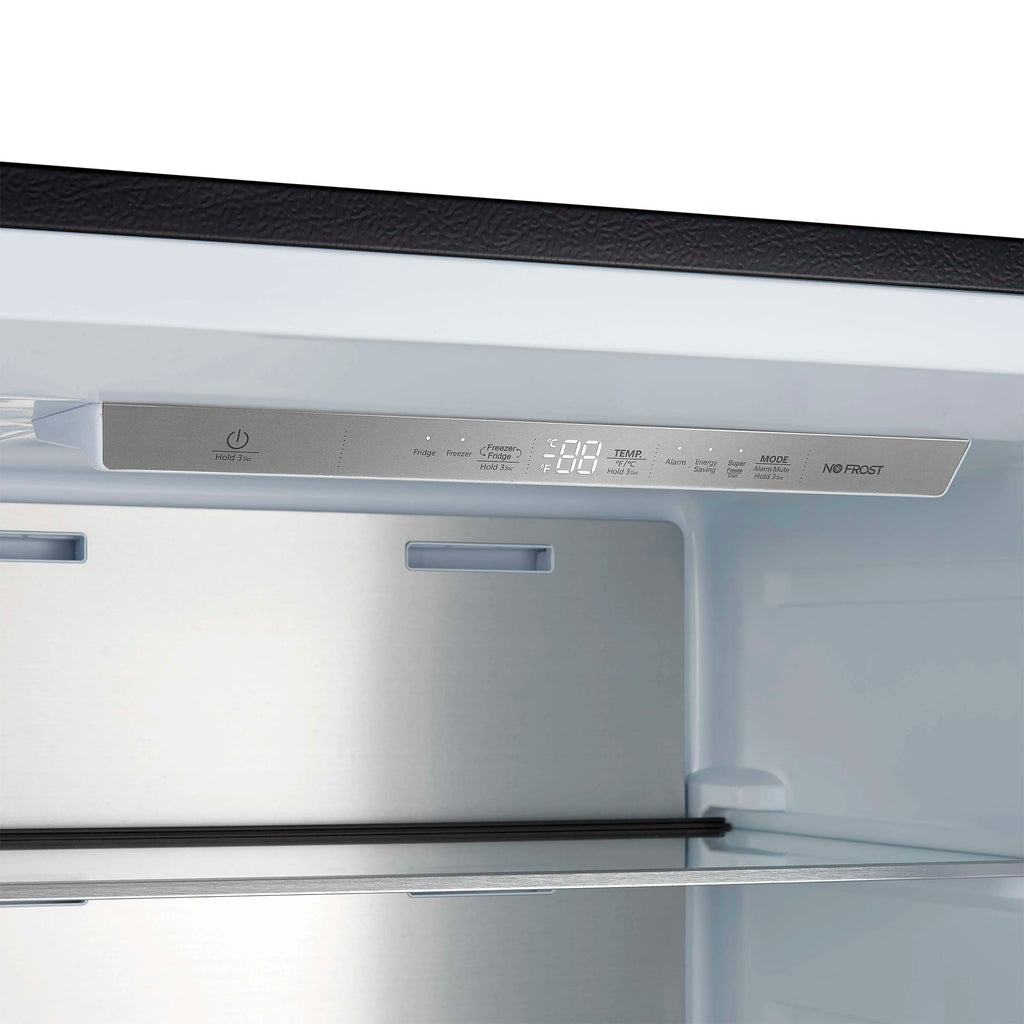

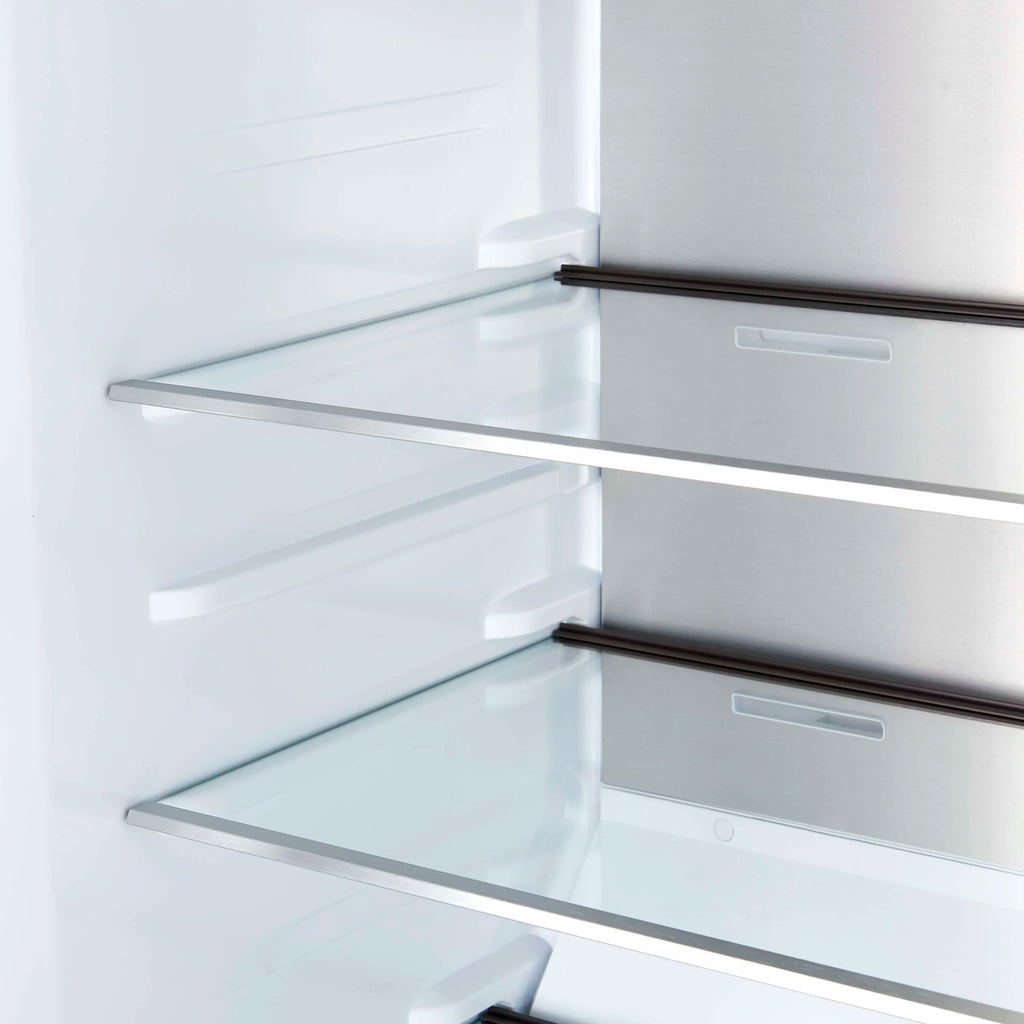

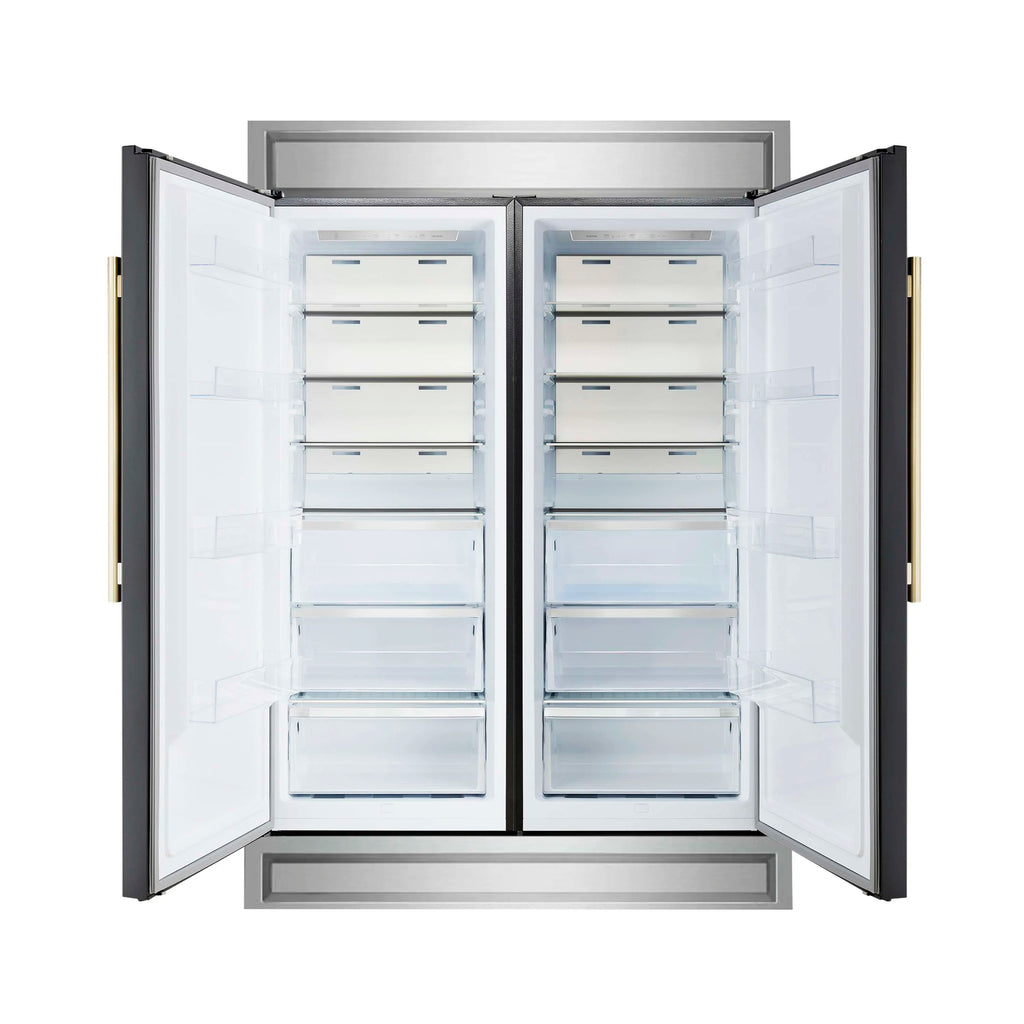

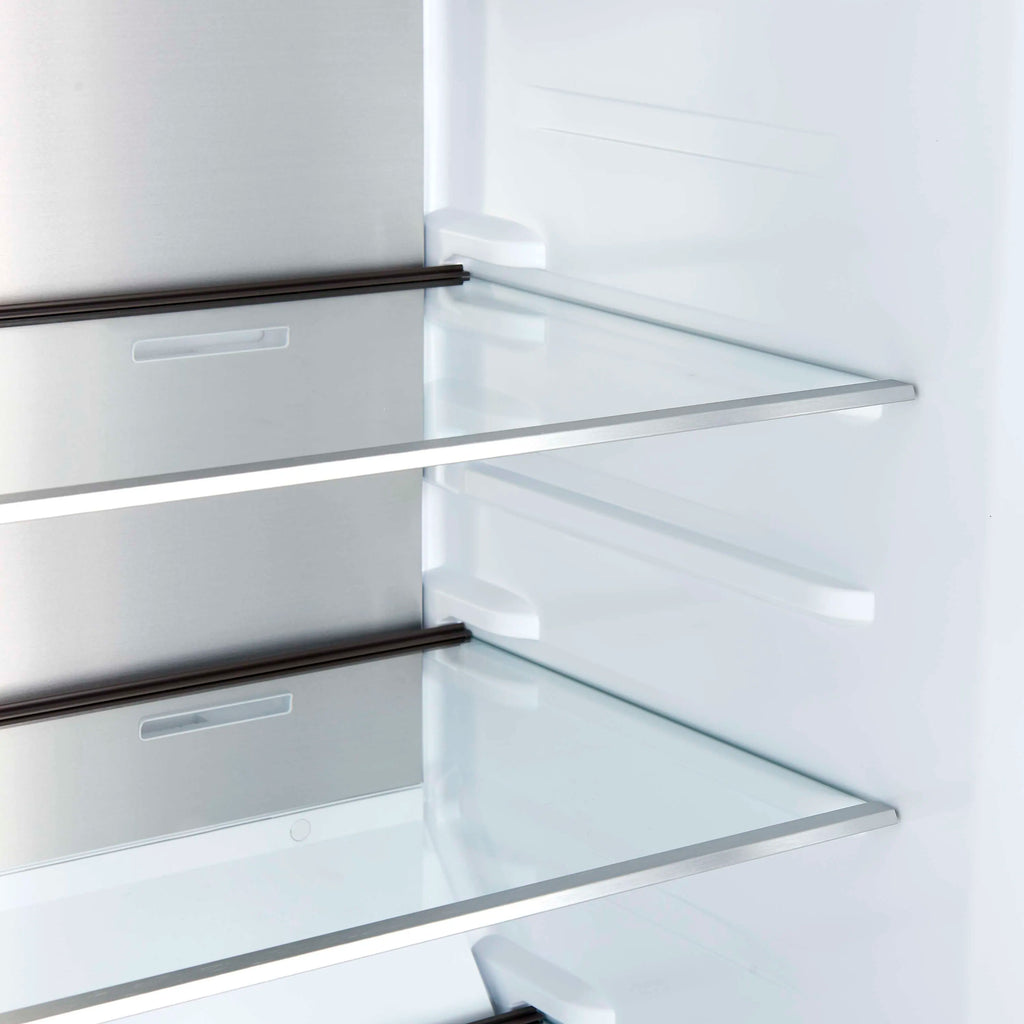

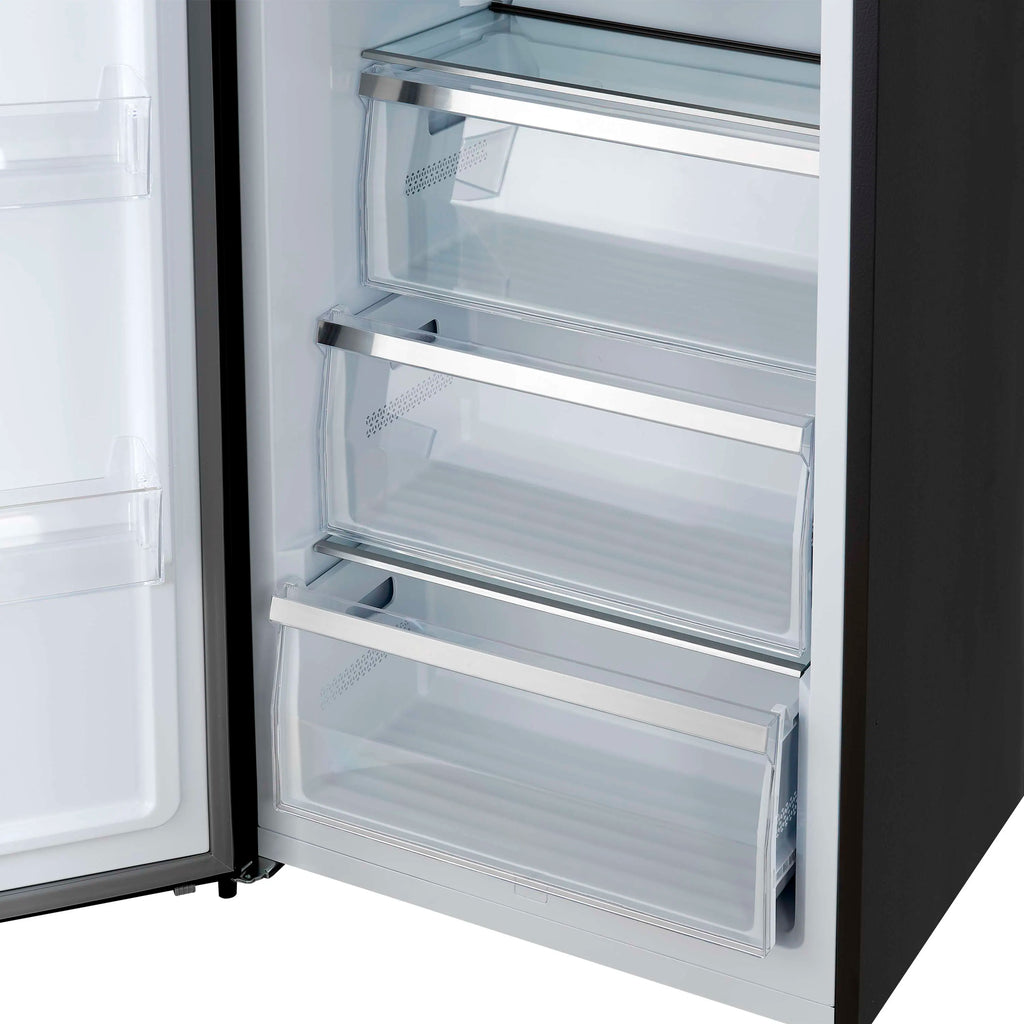

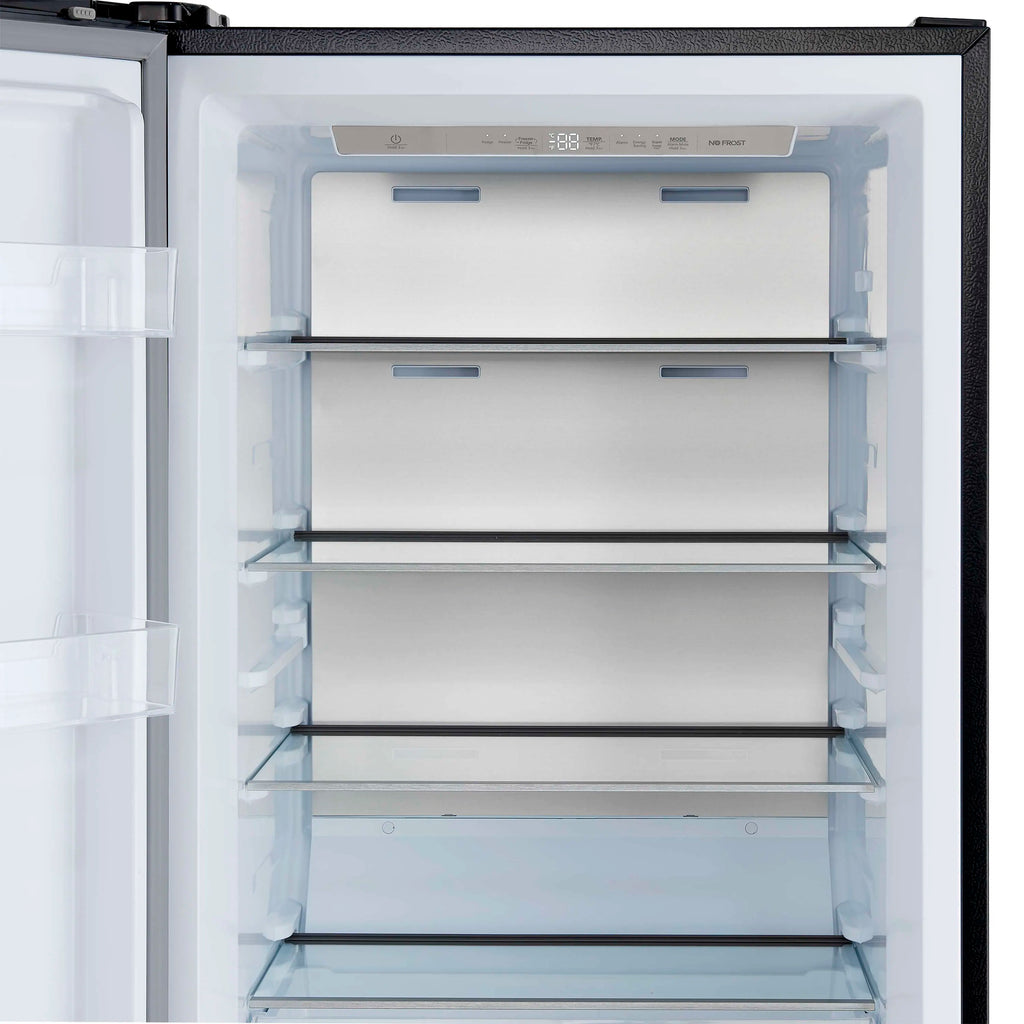

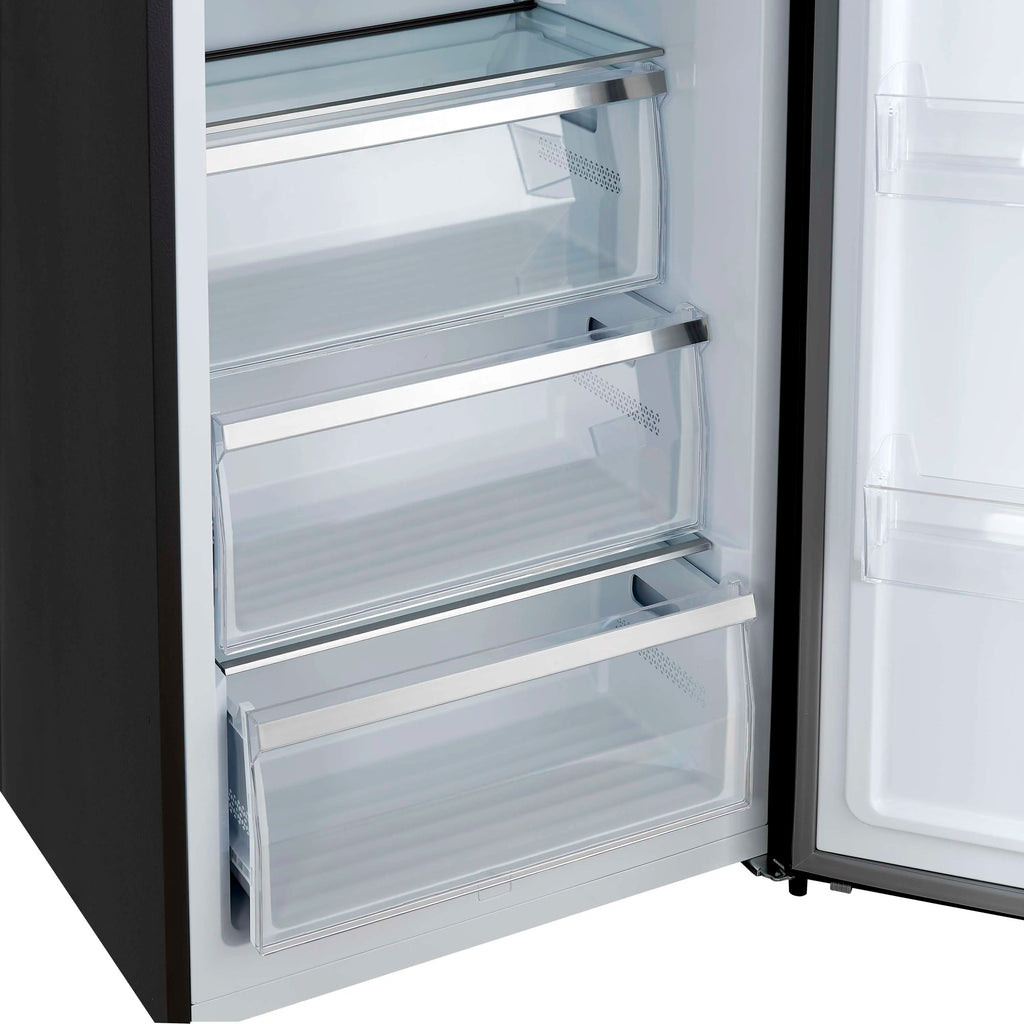

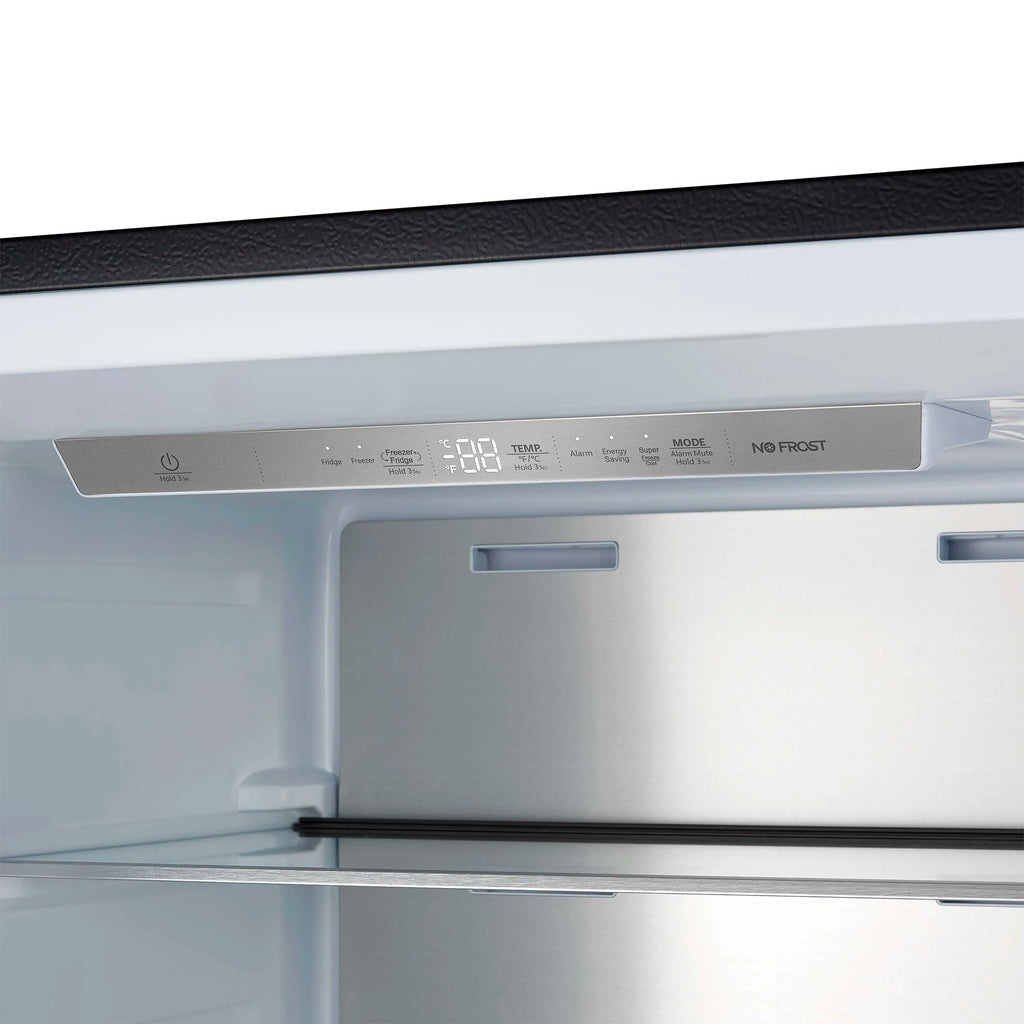

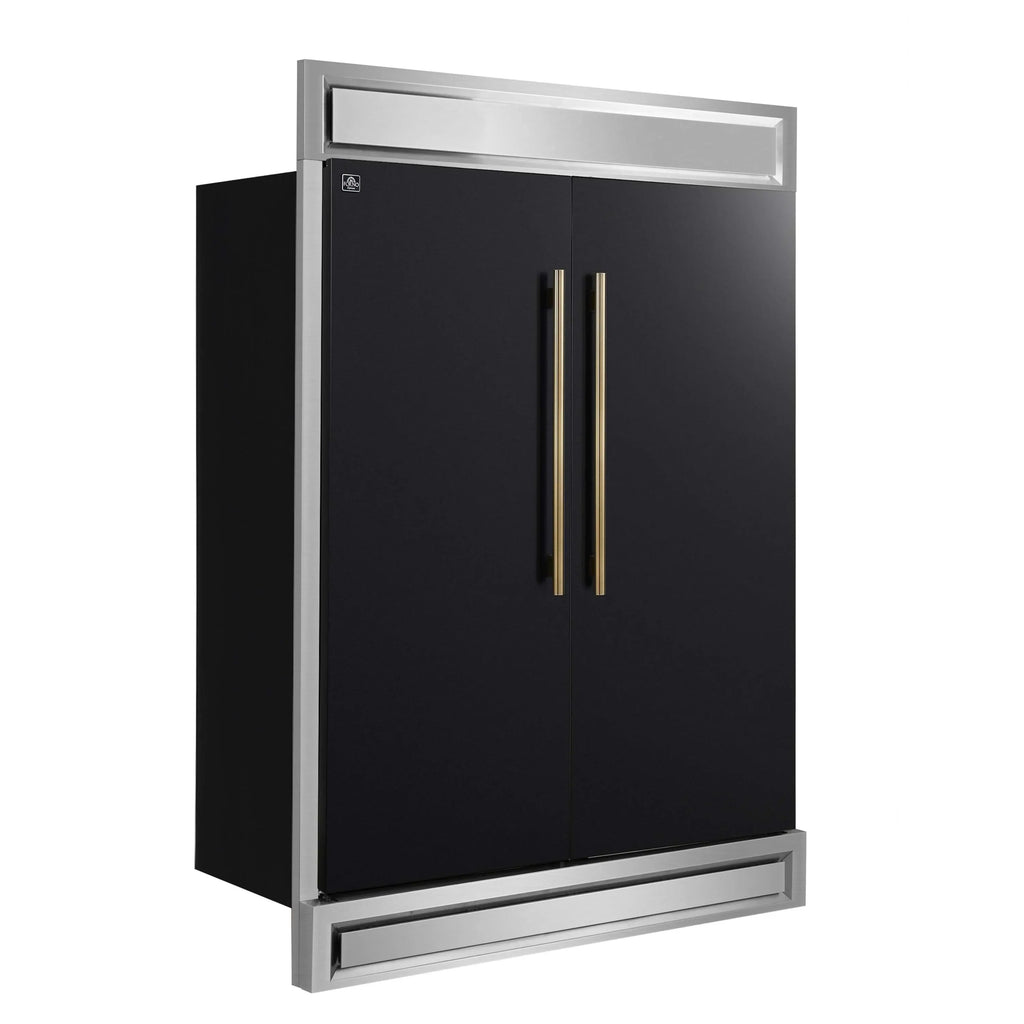

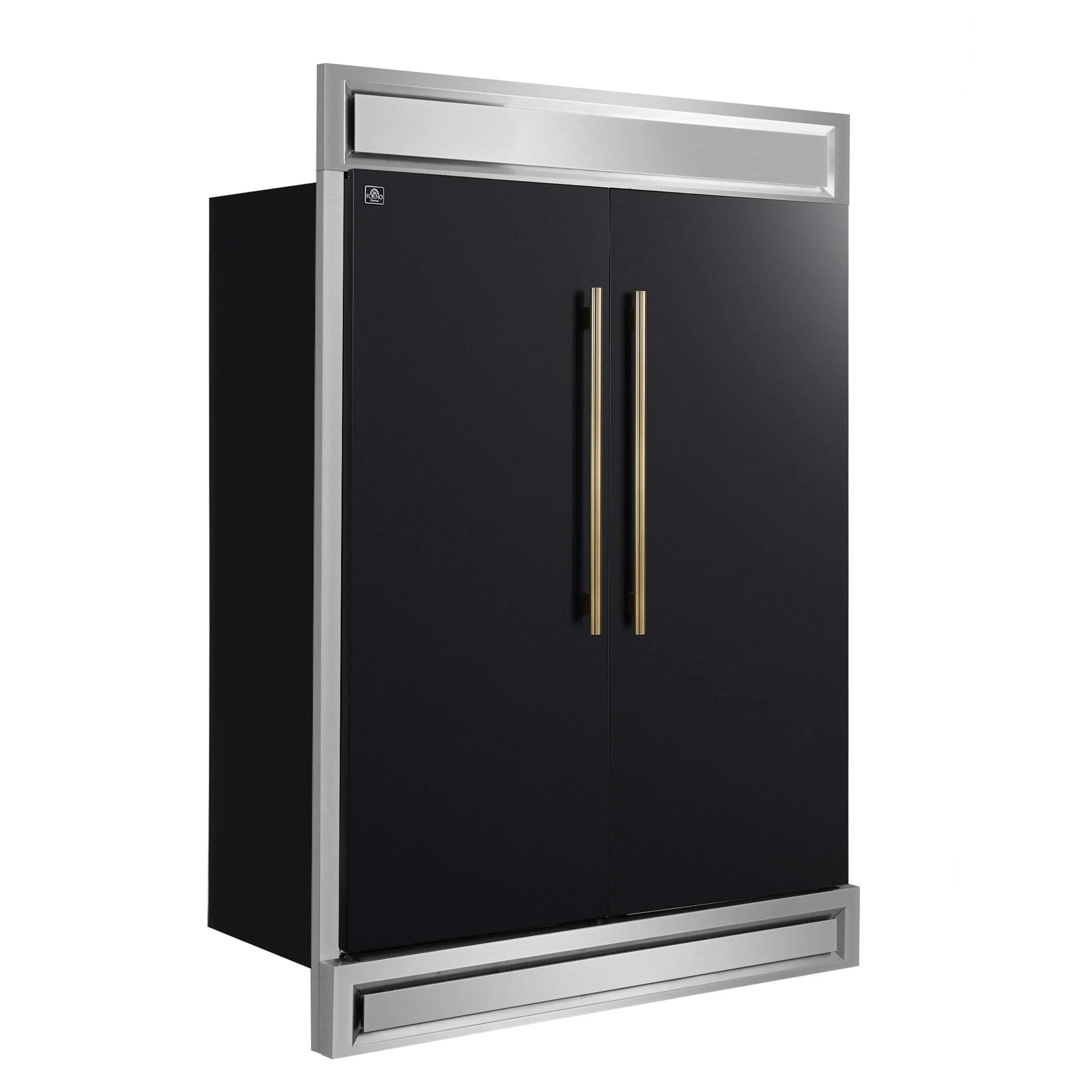

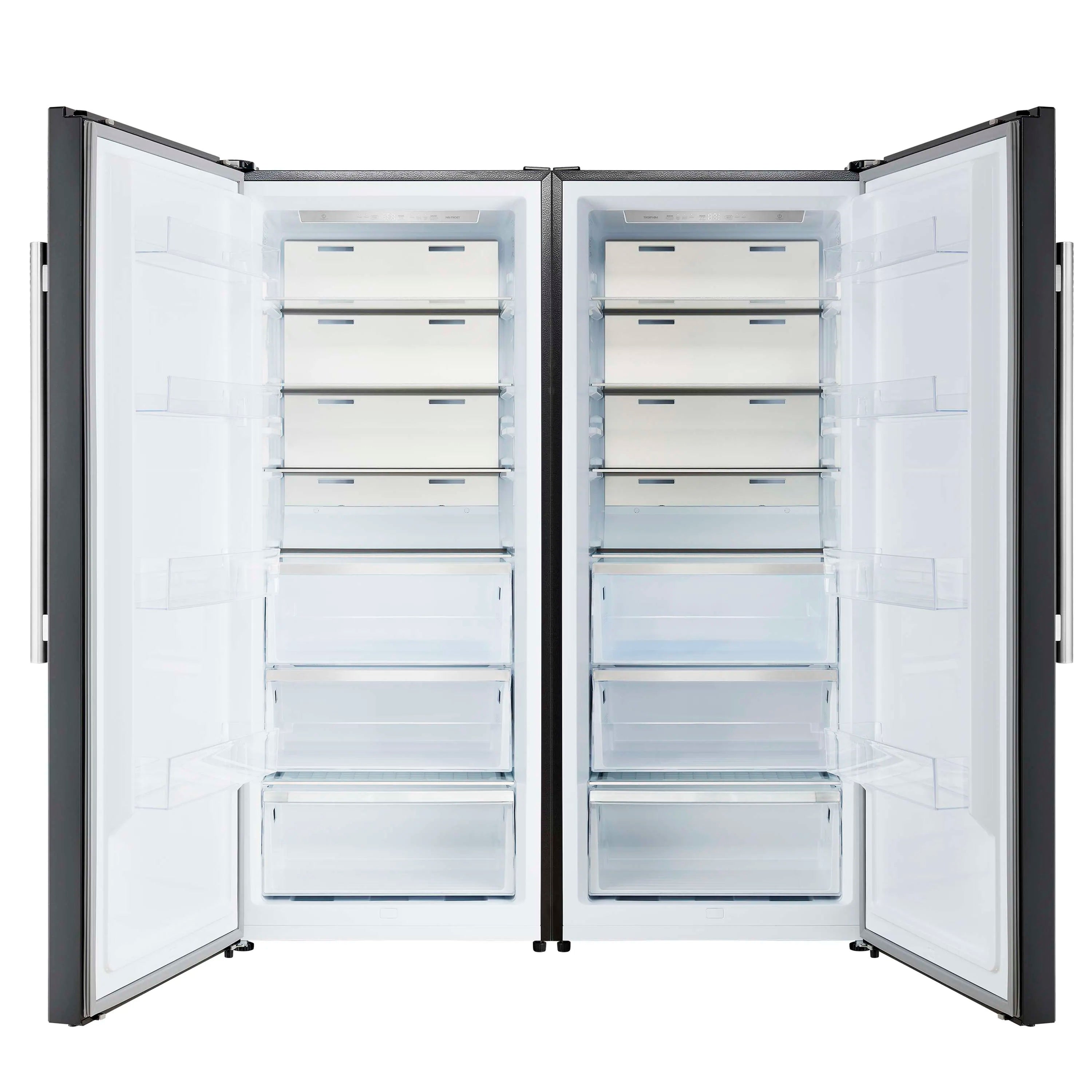

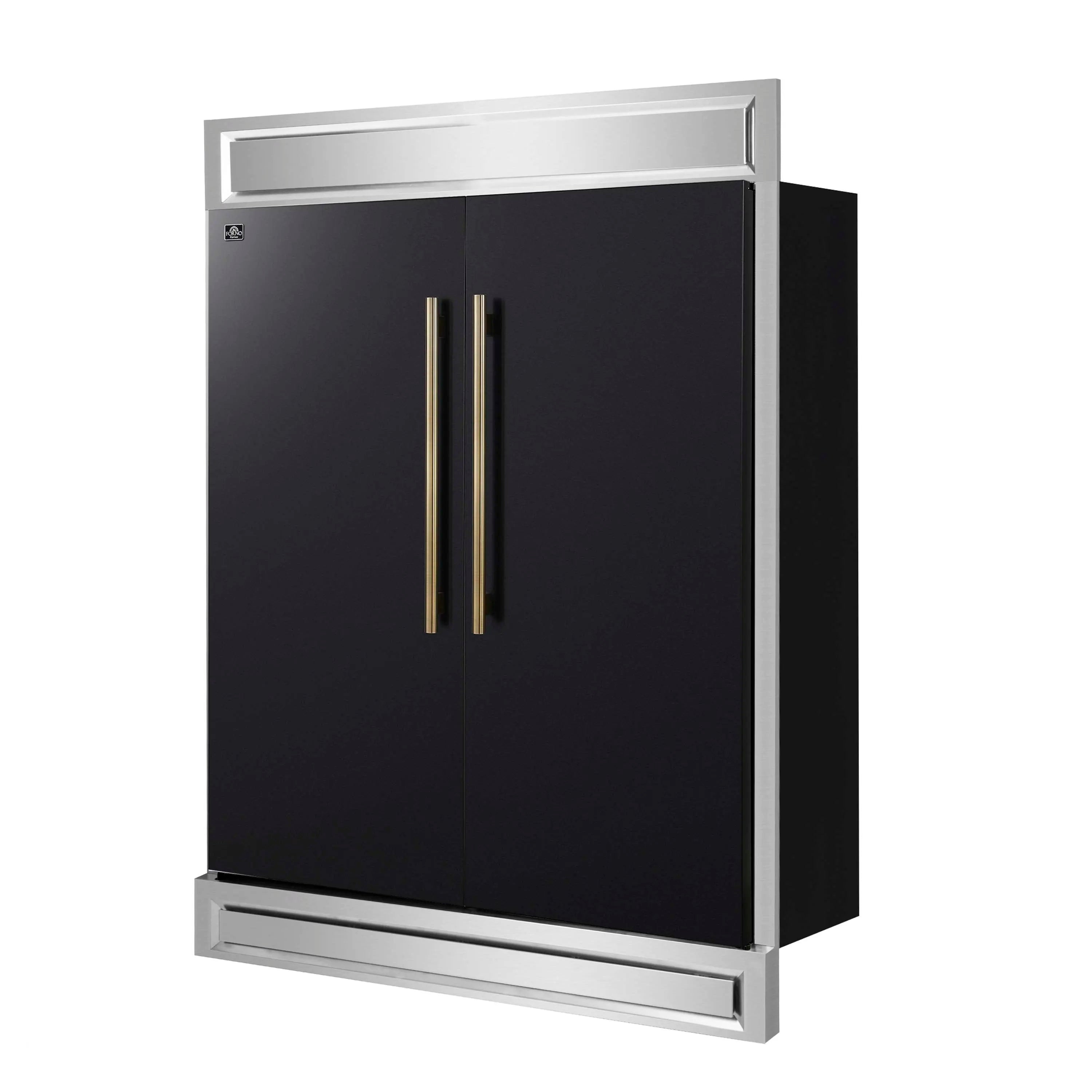

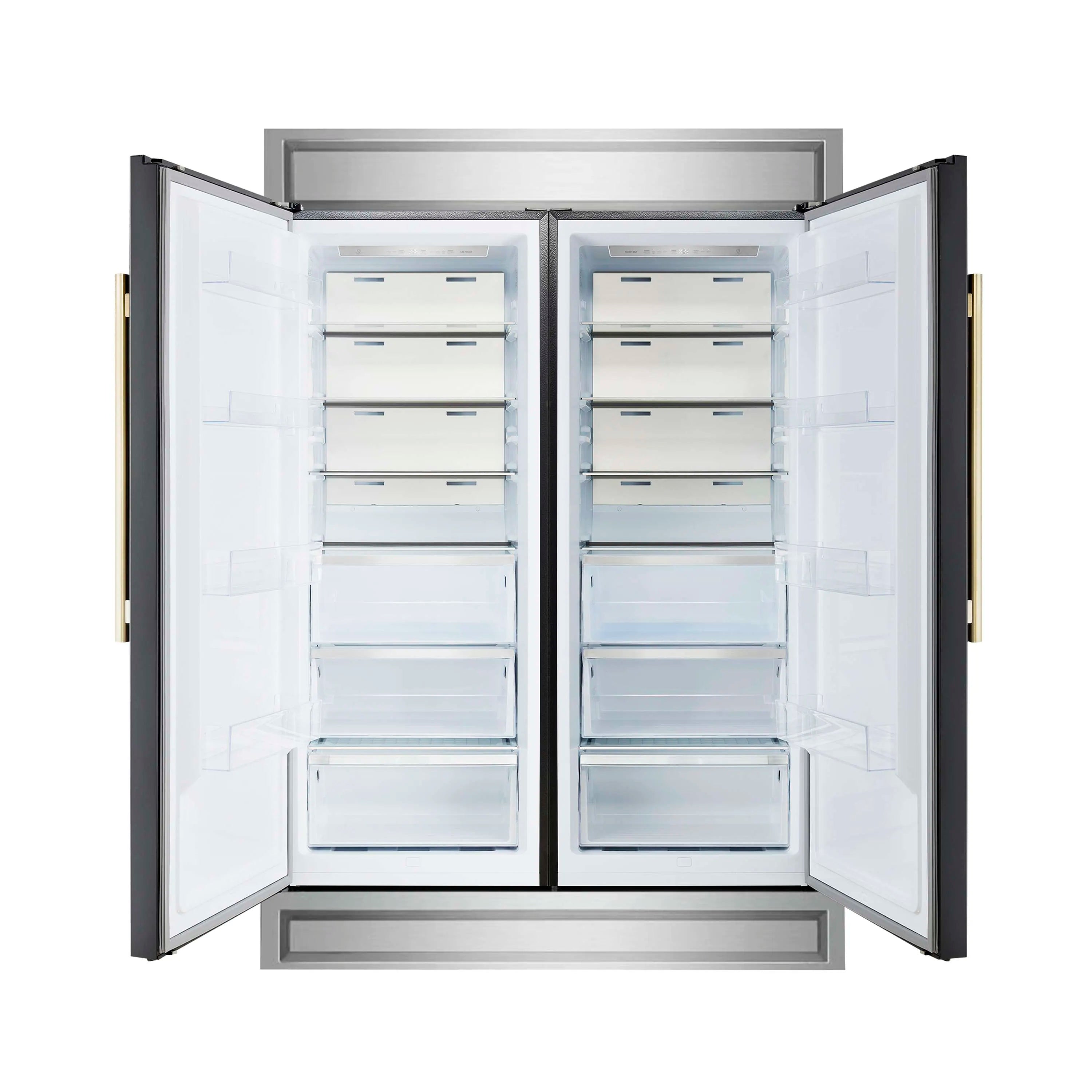

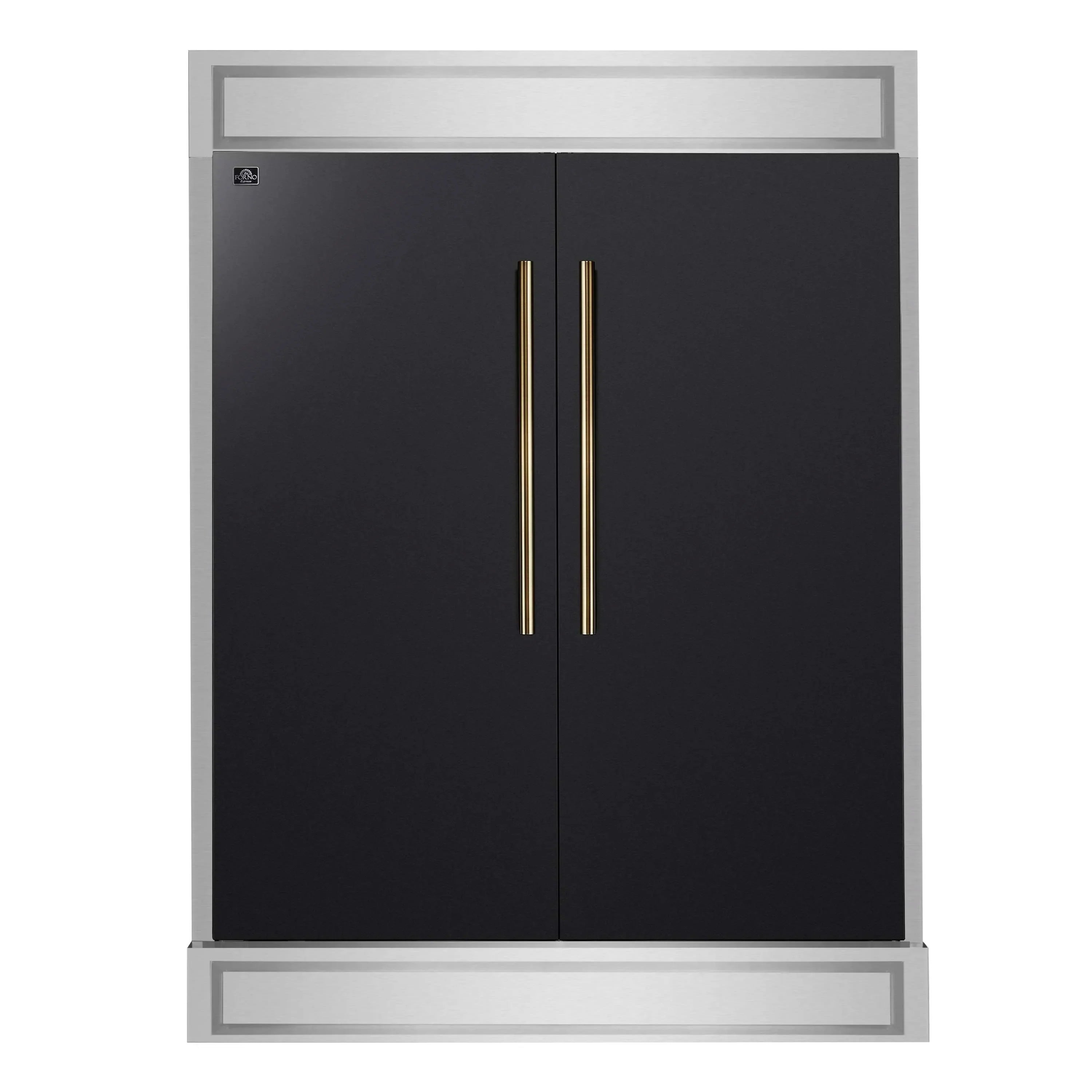

The Forno Maderno provides a premium 60 inch built-in refrigerator look by combining two 28 inch units with a trim kit for seamless side-by-side installation. This fridge freezer combo comes in a black finish with antique brass handles as part of our Espresso line, adding a boldness to any modern kitchen. With a total capacity of 27.2 cu.ft., it's ideal for large households or serious entertainers. Inside, you’ll find Convertible Cooling Zones that let you switch between refrigerator and freezer mode, Total No-Frost technology to prevent icy build-up, and a sleek digital control panel for easy adjustments. The Maderno includes six tempered glass shelves with silver trim, six storage drawers, and bright LED lighting to help keep everything organized and easy to find. VCM-coated doors and a durable metal back panel add strength and a fingerprint-resistant finish. Energy Star certification ensures this side-by-side built-in refrigerator is energy efficient.
| DIMENSIONS | |
|---|---|
| Product Dimensions | 55.9 in. W x 28.94 in. D x 69.06 in. H |
| Dimensions with Trim Kit | 59.7 in. W x 28.94 in. D x 84 in. H |
| Product Weight | 330 lbs. |
| Refrigerator Interior Dimensions | 21.58 in. W x 19.96 in. D x 59.84 in. H |
| Freezer Interior Dimensions | 21.58 in. W x 19.96 in. D x 59.84 in. H |
| Packing Box 1 | 181.5 lbs. — 29.7 in. W x 31.3 in. D x 71.1 in. H |
| Packing Box 2 | 181.5 lbs. — 29.7 in. W x 31.3 in. D x 71.1 in. H |
| Packing Box 3 | 40 lbs. — 17.7 in. W x 7 in. D x 81 in. H |
| GENERAL INFORMATION | |
| Brand | Forno |
| Series | Maderno |
| Model | FFFFD1722-60MG-BLK |
| Advertised Unit Width | 60" |
| Unit Style | Side-By-Side |
| Build Type | Built-In |
| Counter-Depth | Yes |
| Convertible Fridge/Freezer | Yes |
| Total Capacity | 27.2 cu.ft. |
| Sabbath Mode | No |
| Energy Saver Mode | Yes |
| Fast Cool | Yes |
| Fast Freeze | Yes |
| Display Screen | Yes |
| Ice Maker | No |
| Features and Benefits |
|
| DESIGN & FINISH | |
| Door Color | Black |
| Door Material | VCM |
| Handle Color | Stainless Steel + Antique Brass |
| Cabinet Material | Embossed Galvanized Steel |
| Cabinet Color | White |
| Primary Material | Steel |
| Shelf Material | Glass with Silver Trim |
| Drawers Material | Plastic |
| Door Bins Material | Plastic |
| Door Bins Color | Transparent |
| Lighting Type | LED |
| Finger Print Resistant | No |
| Leak Proof Shelves | No |
| Leveling Legs | Yes |
| Reversible Doors | No |
| TECHNICAL DETAILS | |
| Control Type | Touch Control |
| Compressor Type | Inverter Compressor |
| Defrost Type | Automatic/Frost free |
| Amperage | 15 |
| Volts | 120V |
| Frequency | 60Hz |
| Power Cord Length | 5.8 Feet |
| Receptacle Type | 2 x NEMA 5-15P |
| Refrigerant Type | R600a |
| REFRIGERATOR FEATURES | |
| Refrigerator Capacity | 13.6 cu.ft. |
| Temperature Range | 36°F to 46°F |
| Fresh Food Shelves | 4 |
| Adjustable Shelves | 3 |
| Crisper Drawers | 3 |
| Standard Door Bins | 4 |
| Half Gallon Bins | No |
| Gallon Bins | No |
| FREEZER FEATURES | |
| Freezer Capacity | 13.6 cu.ft. |
| Temperature Range | -11°F to 7°F |
| Freezer Shelves | 4 |
| Adjustable Shelves | 3 |
| Freezer Drawers | 3 |
| Standard Door Bins | 4 |
| Half Gallon Bins | No |
| Gallon Bins | No |
| WARRANTY & CERTIFICATIONS | |
| Energy Efficiency Class | E-Star |
| Certification | cULus |

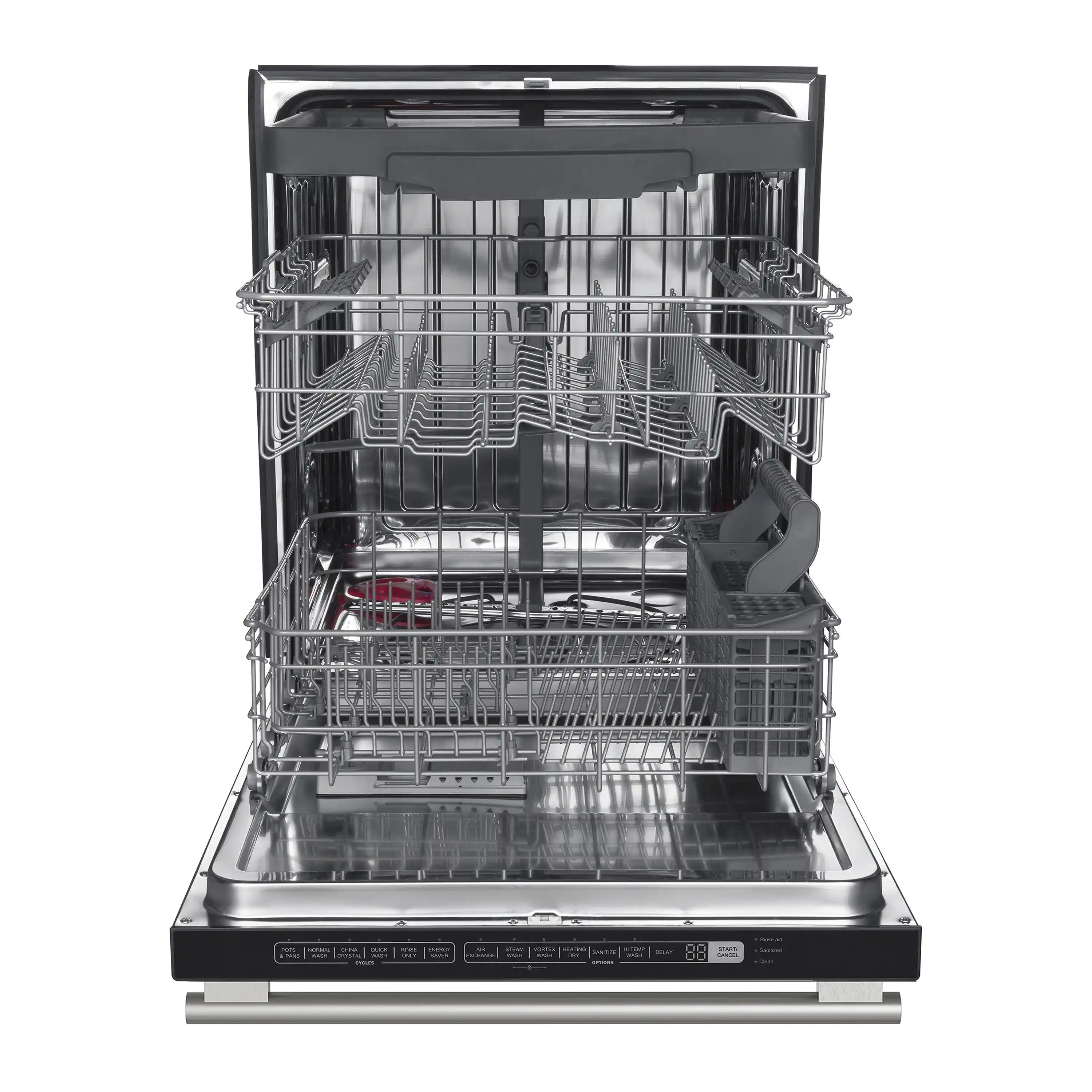

Pozzo 24 in. Built-In Tall Tub, Top Control, Dishwasher, 49 dBA, Soil-Sensing Capable, ENERGY STAR Certified

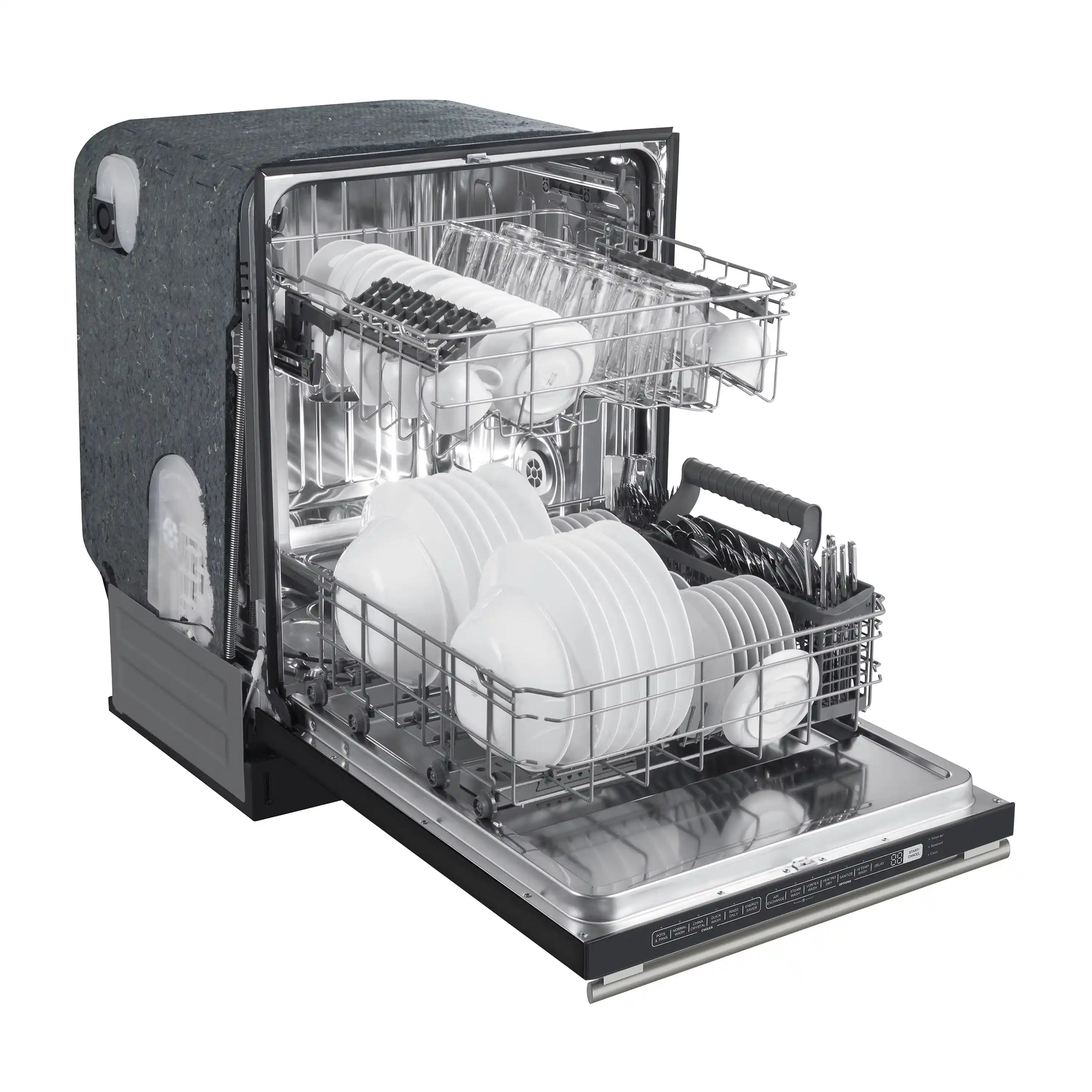

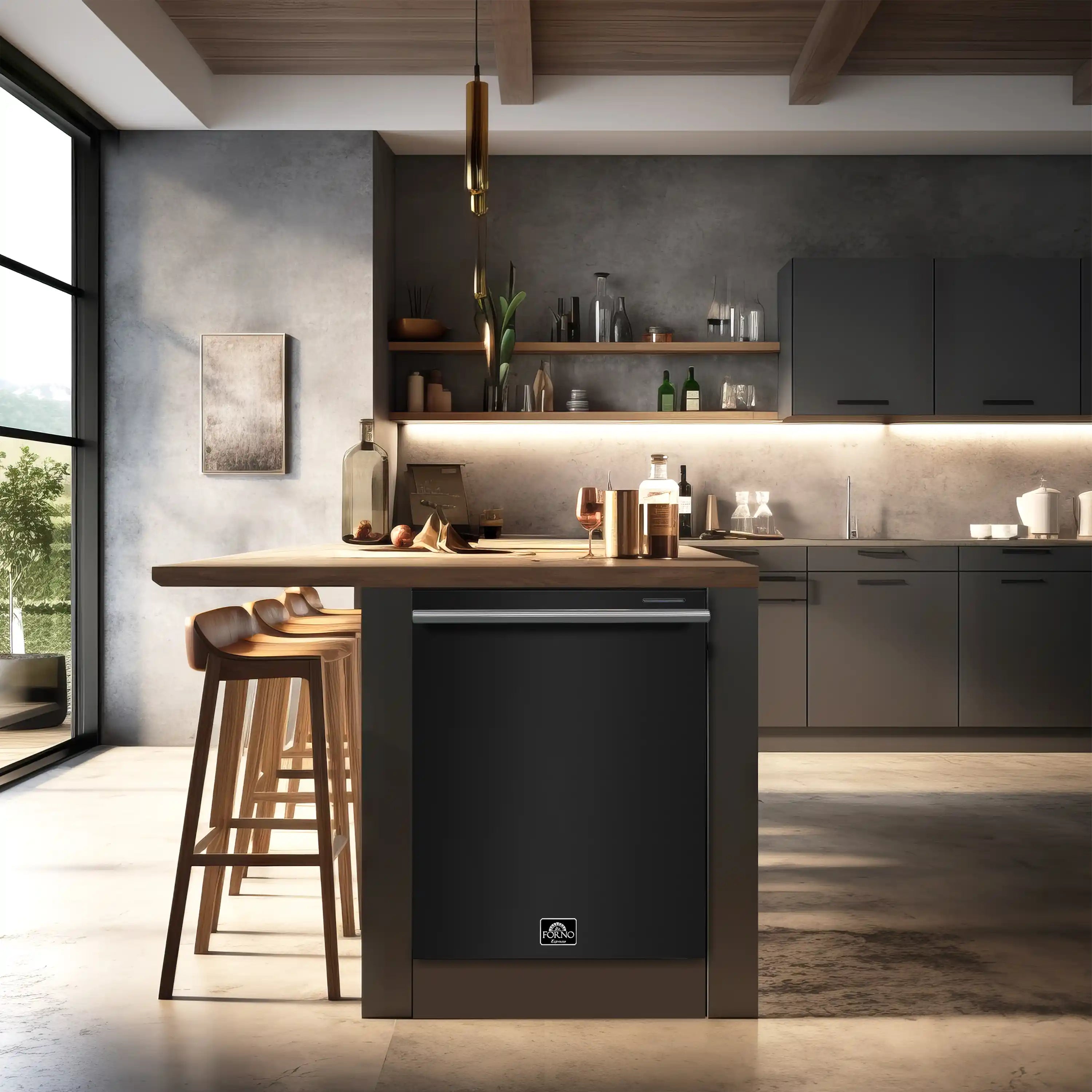

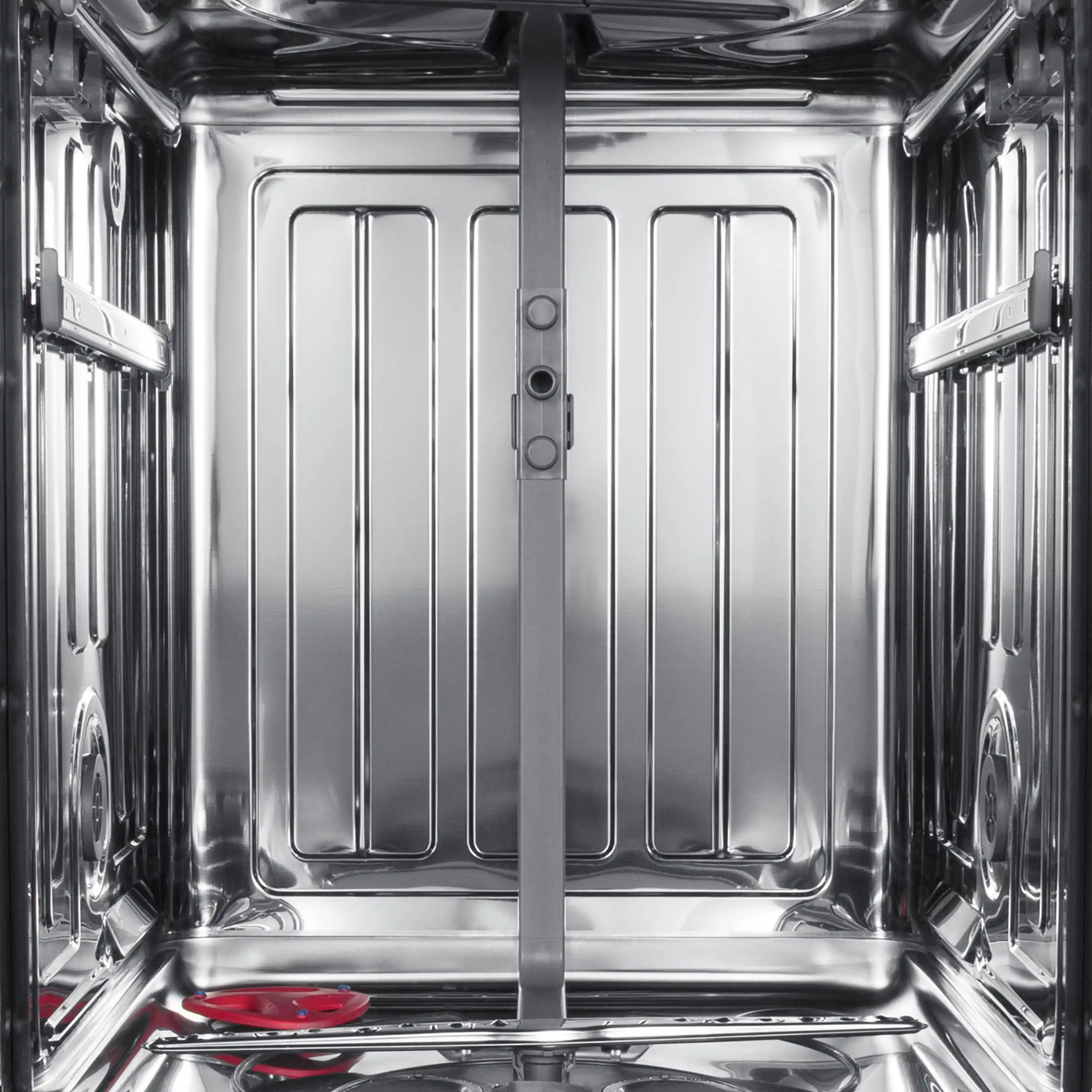

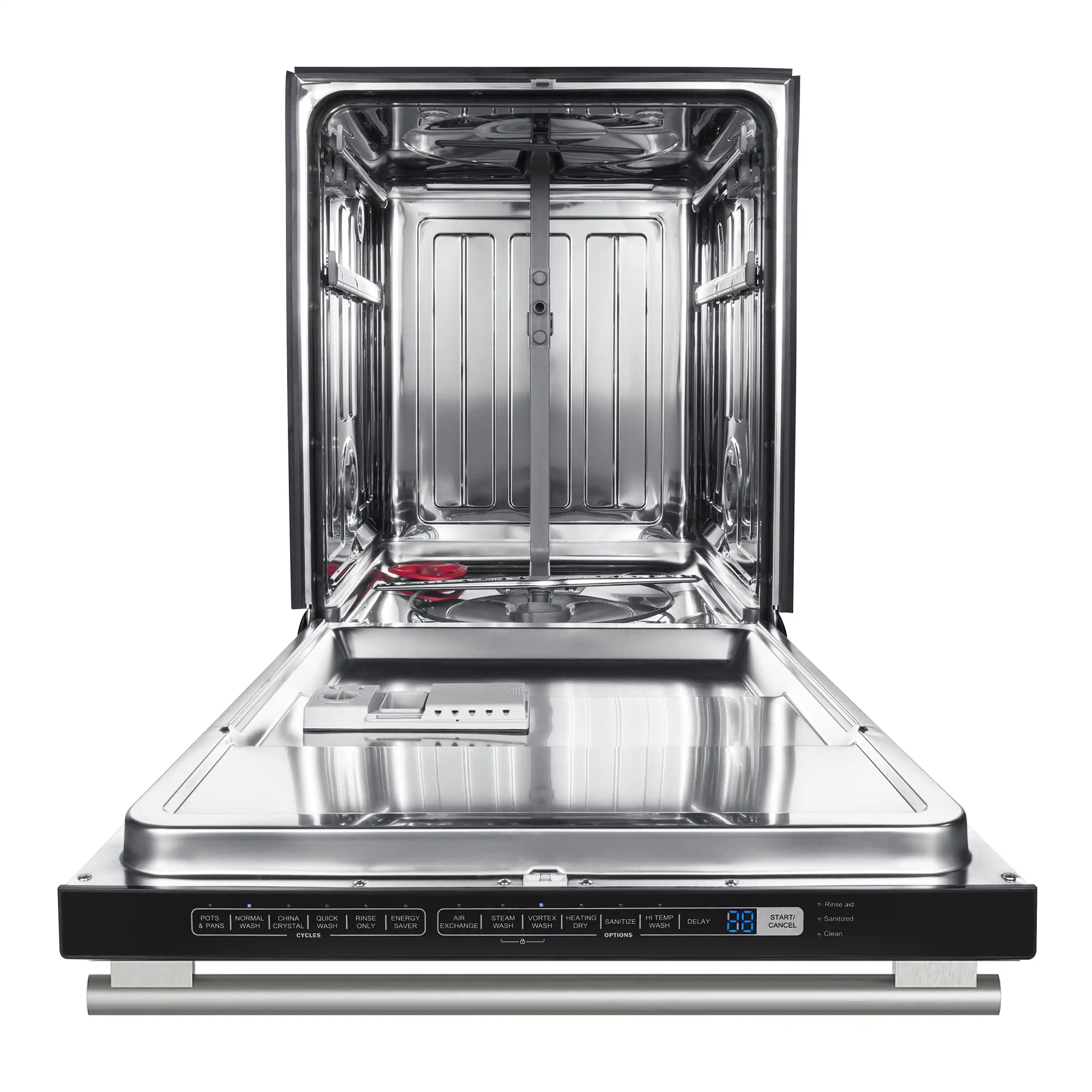

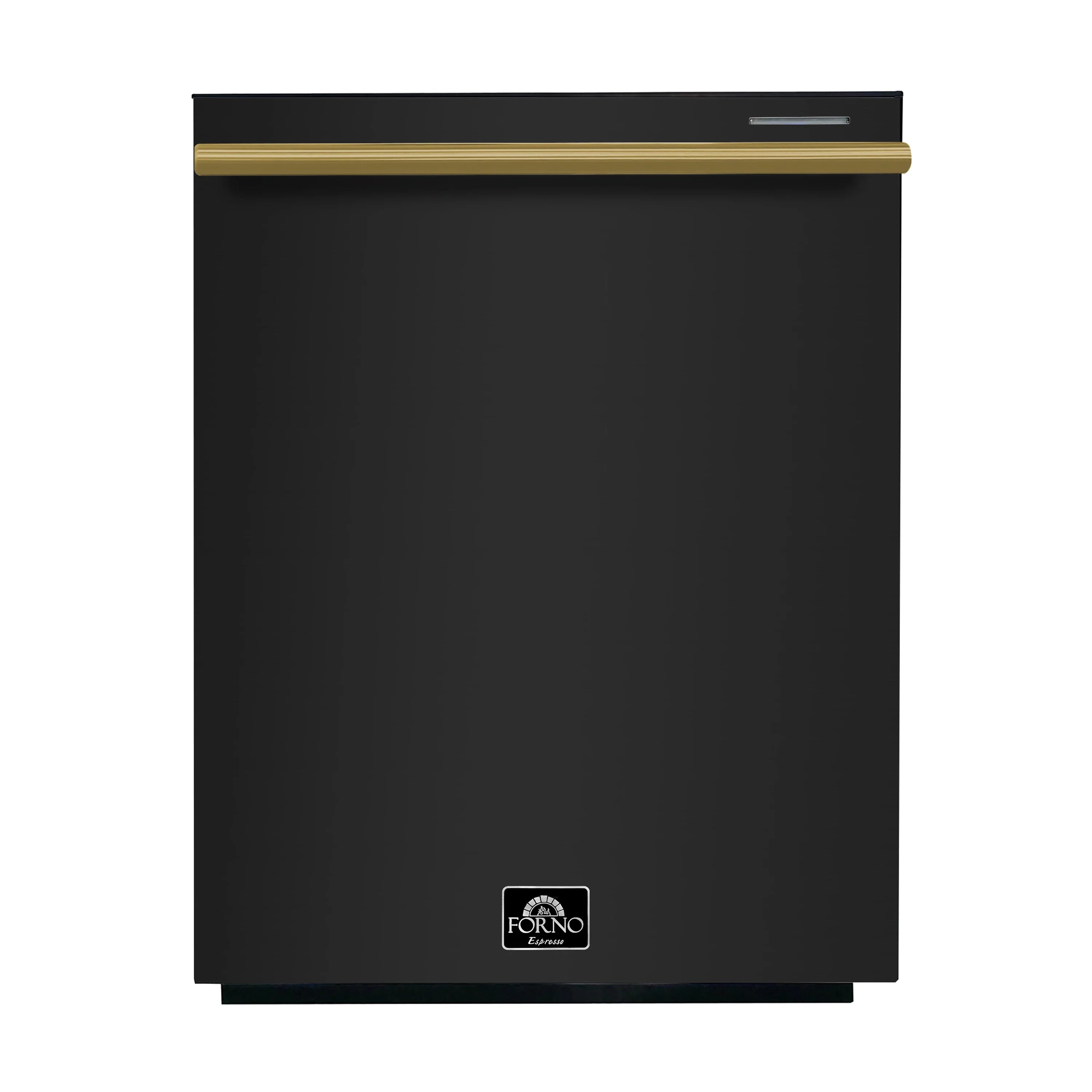

The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its black front and pro-style handle offer durability and style. Customize your look effortlessly with two sets of interchangeable handles, switching between antique brass for a traditional touch or stainless steel for modern flair. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additional silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
Please Note: This appliance includes both brass and stainless steel handles. Some assembly is required to install your desired finish.
| DIMENSIONS | |
|---|---|
| Product Dimensions | 23.85" W x 26" D x 33.74" H |
| Depth Excluding Handle (in) | 24" |
| Depth Including Handle (in) | 26" |
| Product Height Maximum | 35" |
| Depth Door Open 90º (back to front door open) | 50" |
| Cutout W x D X H | 24''W x 24''D x 34''H to 35''H |
| Overall Weight | 93.2 lbs |
| GENERAL INFORMATION | |
| Water Inlet Connection Size (inches) | 8-Mar |
| DESIGN & FINISH | |
| File/Control Number Number | E219644 |
| TECHNICAL DETAILS | |
| Water Pressure (PSI) | 20 - 120 |
| FEATURES | |
| Sound Rating (dB) | 49 |
| Water Inlet Location | Left Bottom Front |
| Water use (gallons/cycle) | 3.2 |
| WARRANTY & CERTIFICATIONS | |
| Safety Listing | cULus |
| Energy Star Certified | Yes |
| ENERGY STAR Unique ID | 2485657 |
| Energy Policy Act 1992 Compliant | Yes |
| ADA Compliant | No |
| ISTA 1A Certified | Yes |
| ISTA 6A Certified | Yes |

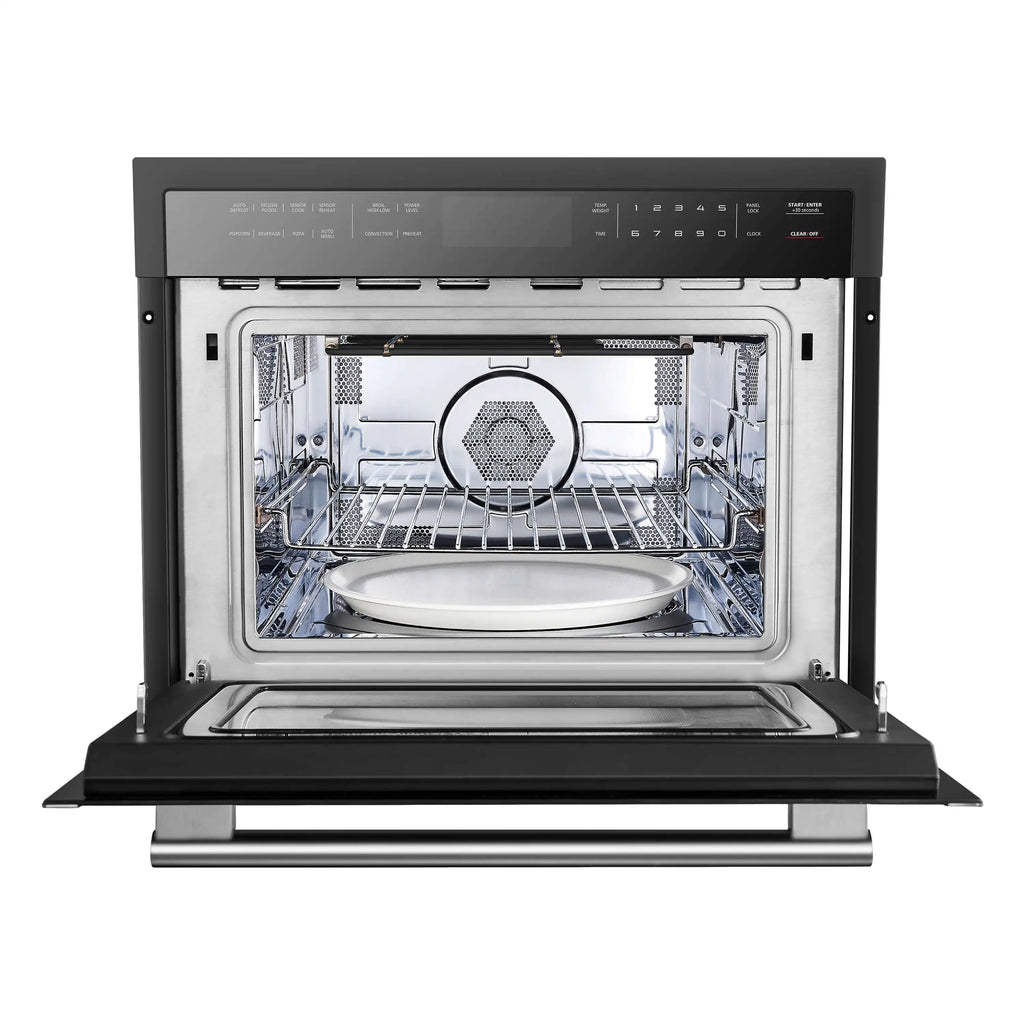

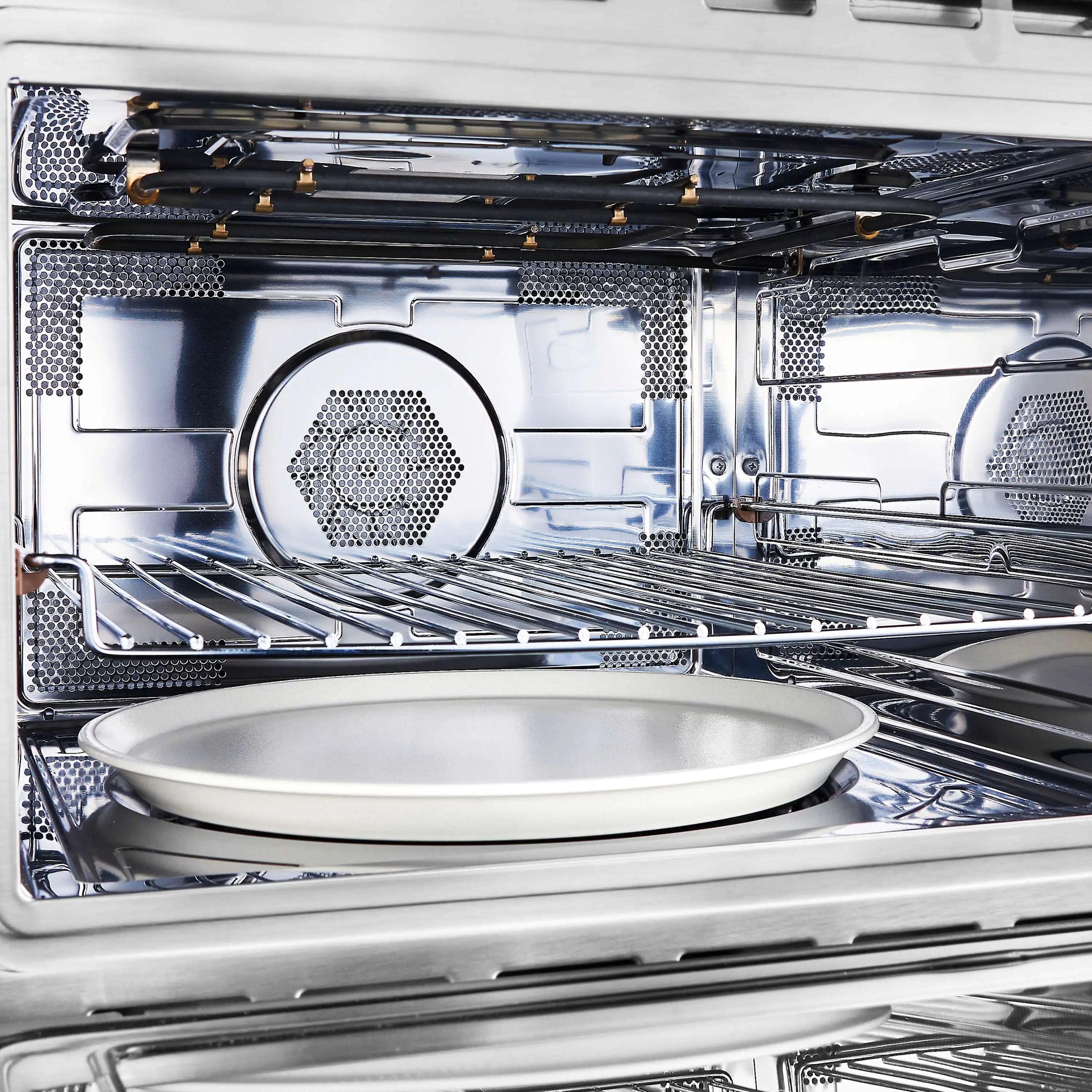

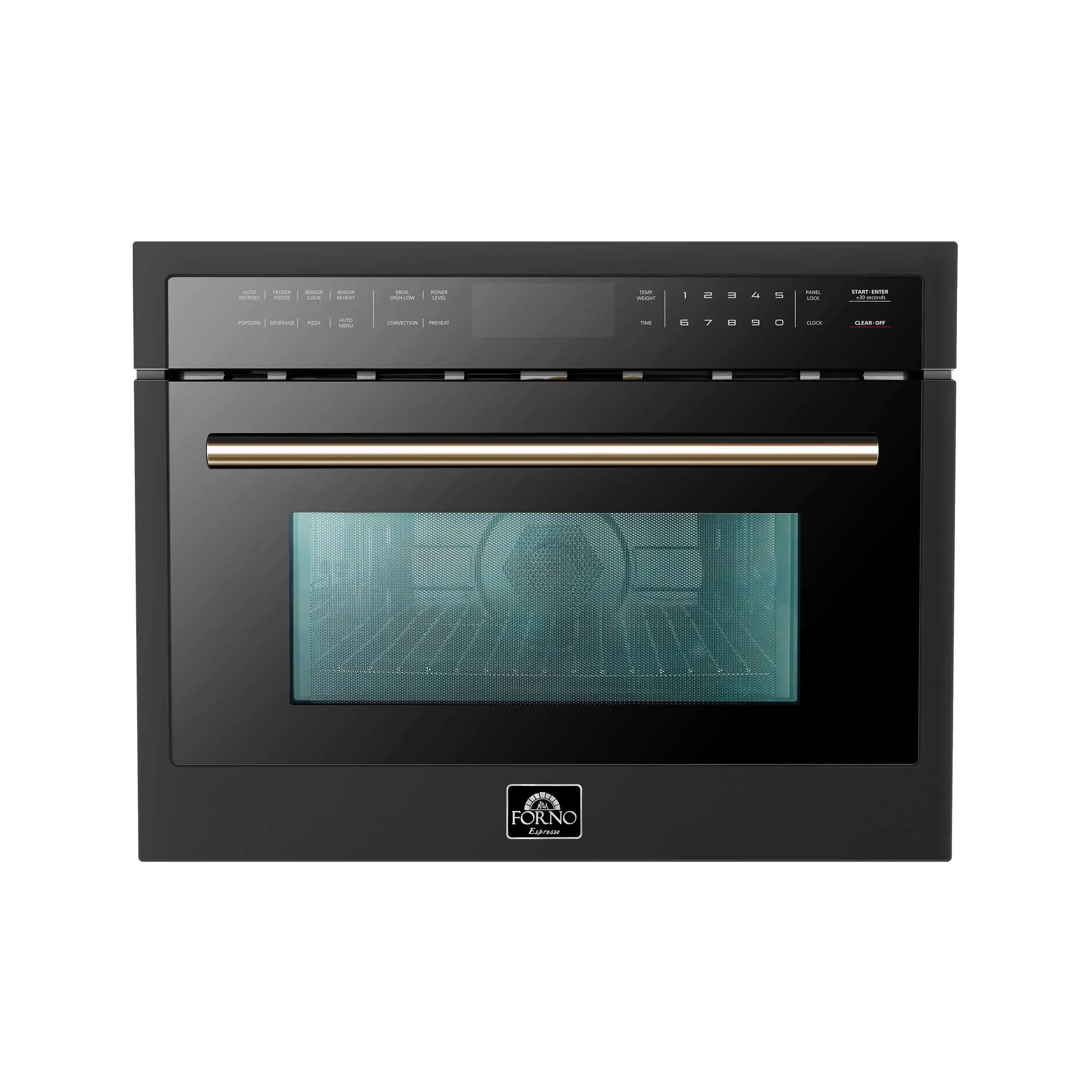

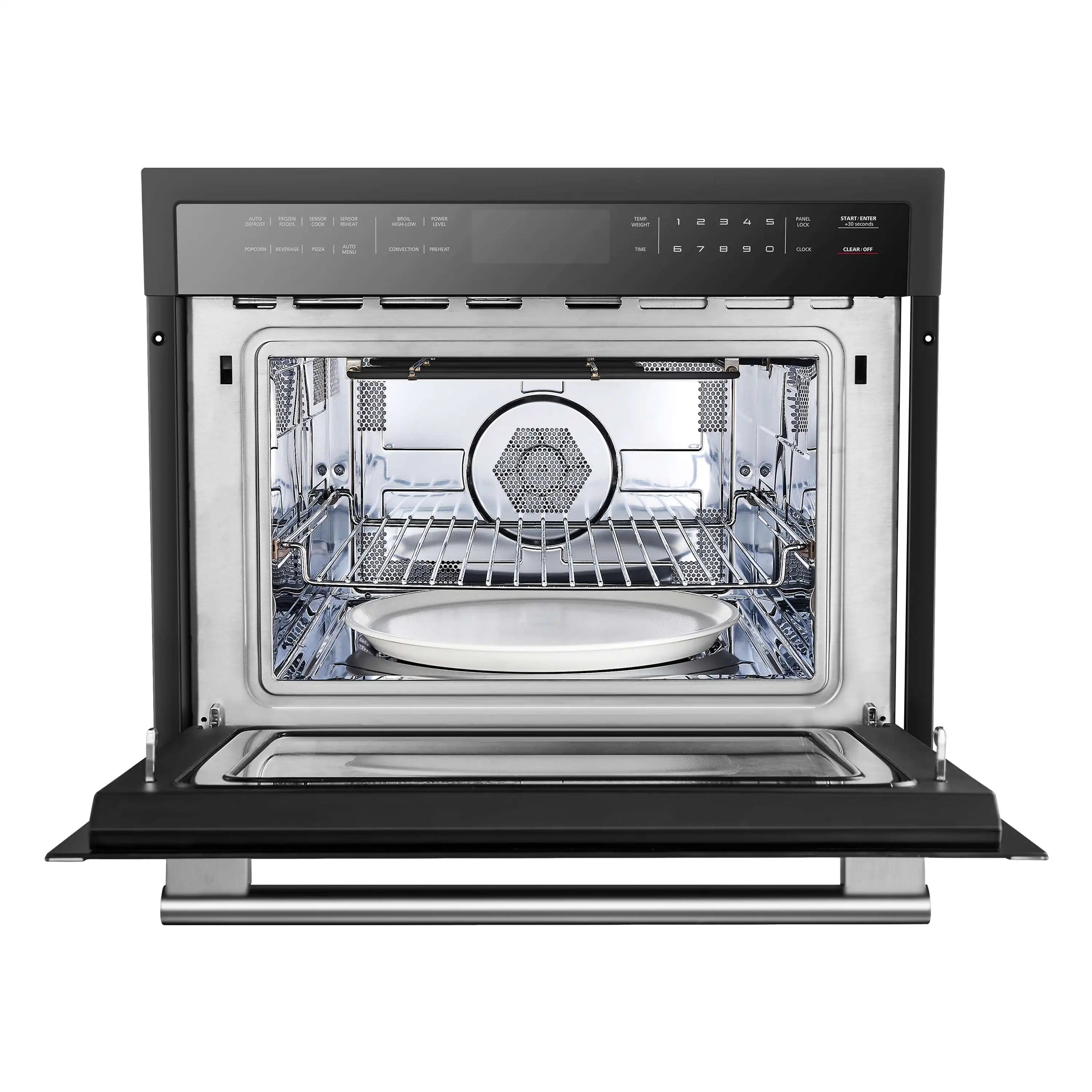

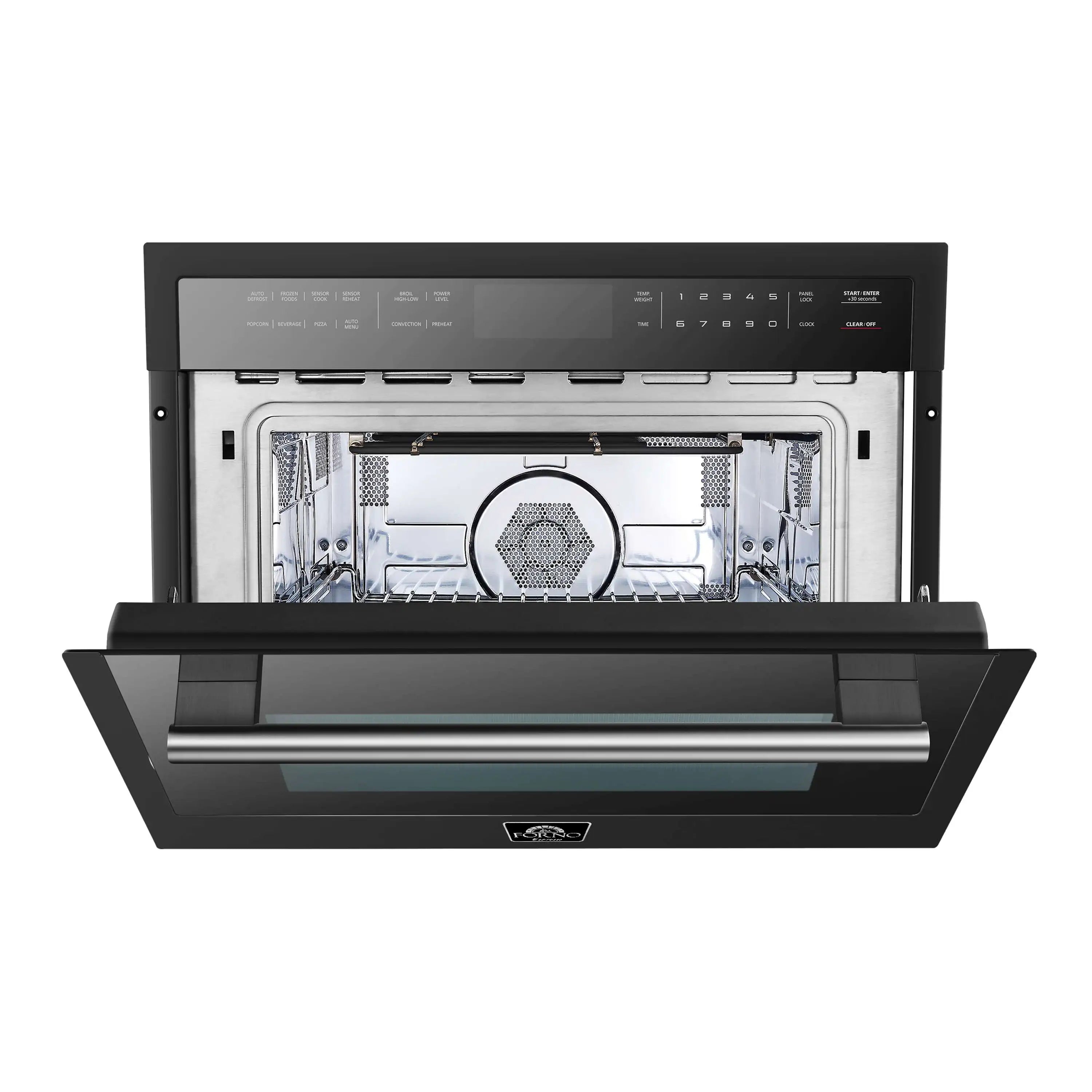

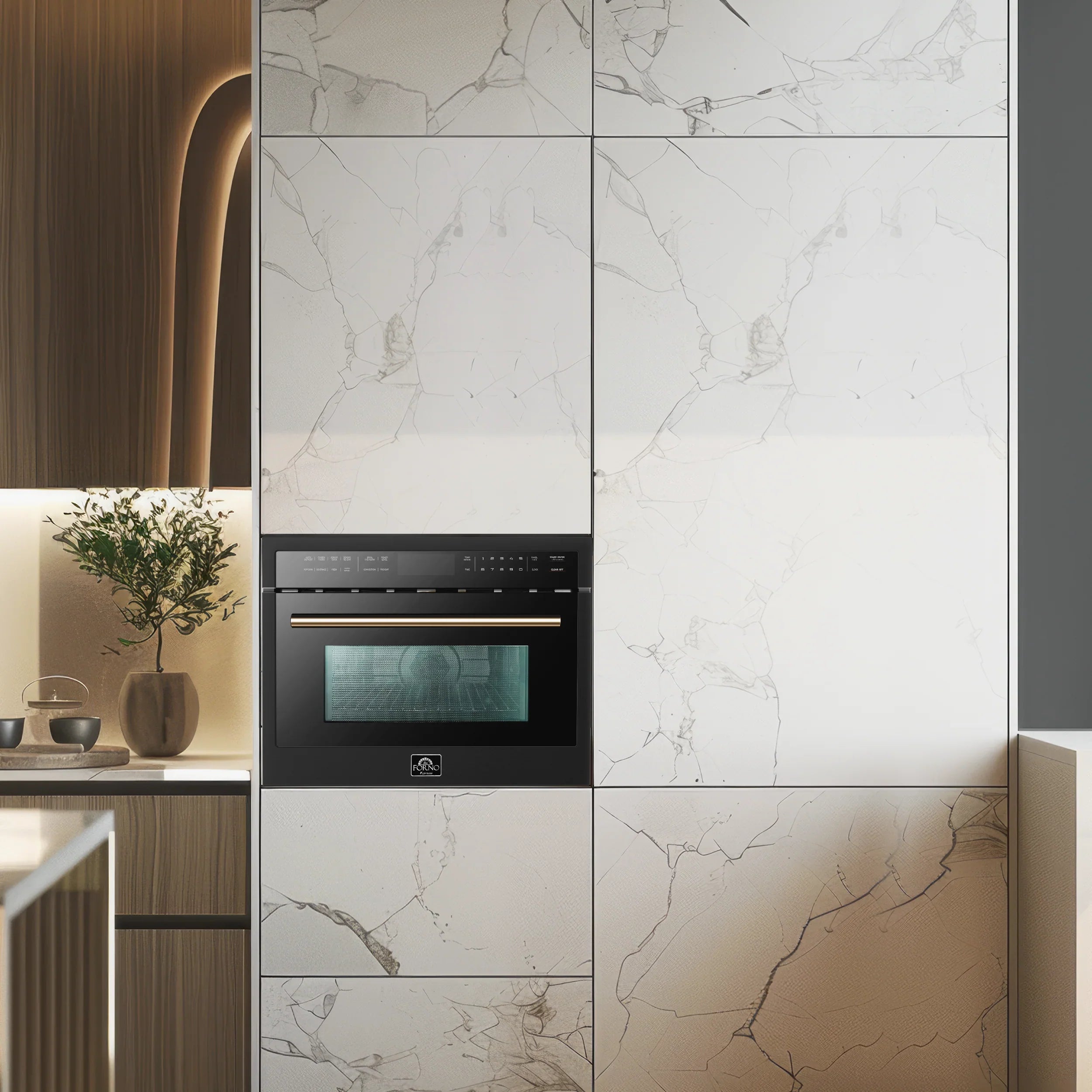

The Forno Oliena 24-Inch 1.6 cu.ft. Microwave & Convection Oven combines style and practicality for any modern kitchen. Its stainless-steel interior ensures easy cleaning, while intuitive controls allow seamless switching between microwave and oven functions. With 1,000 watts of cooking power, you can boil water in just 1 minute and 50 seconds using standard microwave settings. The glass touch controls and LCD display simplify navigation through various microwave modes such as defrost, popcorn, beverage, sensor cooking, and auto menu. In oven mode, enjoy the versatility of true convection at 1,700 watts, along with a broil function of 1,750 watts and a bake element of 600 watts, perfect for cooking individual dishes without needing the main oven. Rapid Preheat mode reduces waiting times, ensuring your meals are ready faster.
This unit features a sophisticated black finish and comes with two handle options—stainless steel and antique brass—allowing you to customize the look to match your kitchen decor. Experience convenience and efficiency with our multi-functional microwave and convection oven combo.
Please Note: This appliance includes both brass and stainless steel handles. Some assembly is required to install your desired finish.
| DIMENSIONS | |
|---|---|
| Overall Dimensions | 23.4" W x 24.2" D x 17.9" H |
| Cutout Dimensions | 22.32" W x 23.25" D x 17.75" H |
| Overall Product Weight (lbs) | 81.8 lbs |
| Overall Capacity Cu. Ft. | 1.60 |
| GENERAL INFORMATION | |
| Series Name | Oliena |
| DESIGN & FINISH | |
| Color/Finish | Black |
| Control Location | Top |
| Primary Material | Steel |
| Handle Color/Finish |
|
| TECHNICAL DETAILS | |
| Overall Broil Wattage | 1750 |
| Overall Bake Wattage | 600 |
| Overall True Convection Wattage | 1700 |
| Power Cord Location | Back |
| Bulb Wattage | 1.50 |
| FEATURES | |
| Collection | Espresso |
| Number of Racks | 1 |
| Bake Element | Yes |
| Interior Light | Yes |
| Temperature Gauge | No |
| Timer | Yes |
| Clock | Yes |
| Interior Light(s) Type | LED |
| Convection Oven | Yes |
| Delay Start | No |
| CEE Tier Qualified | Not Rated |
| Bulb Type | LED |
| Number of Lights | 1 |
| LTL or Parcel | Parcel |
| Vent Type | Does not apply |
| Fingerprint-Resistant | Yes |
| Safety Standards | ▯ CAN/CSA C22.2 No. 61 - Household Cooking Ranges ▯ UL 858 - Household Electric Ranges ▯ CAN/CSA C22.2 No. 150 - Microwave Ovens ▯ UL 923 - Microwave Cooking Appliances ▯ UL 507 - Electric Fans ▯ CAN/CSA C22.2 No. 113 - Fans and Ventilators ▯ CSA C22.2 No. 64 - Household Cooking and LiquidHeating Appliances ▯ UL 1026 |
| Title 20 - California Regulation | Yes |
| ISTA 6A | Yes |
| ADA Compliant | Yes |
| TAA Compliant | No |
| UPLR Compliant | Yes |
| WARRANTY & CERTIFICATIONS | |
| Safety Listing | cULus safety listing |
| File/Certification Number | E214180 |
| Star-K Certified | Not Rated |
| Certificate of Conformity (GCC) | No |
| Commercial Warranty | No |
| Warranty on Parts | 2 Years |
| Warranty Type | Limited |
| Warranty on Labor | 2 Years |
| Warranty Length (Years) | 2 Years |
