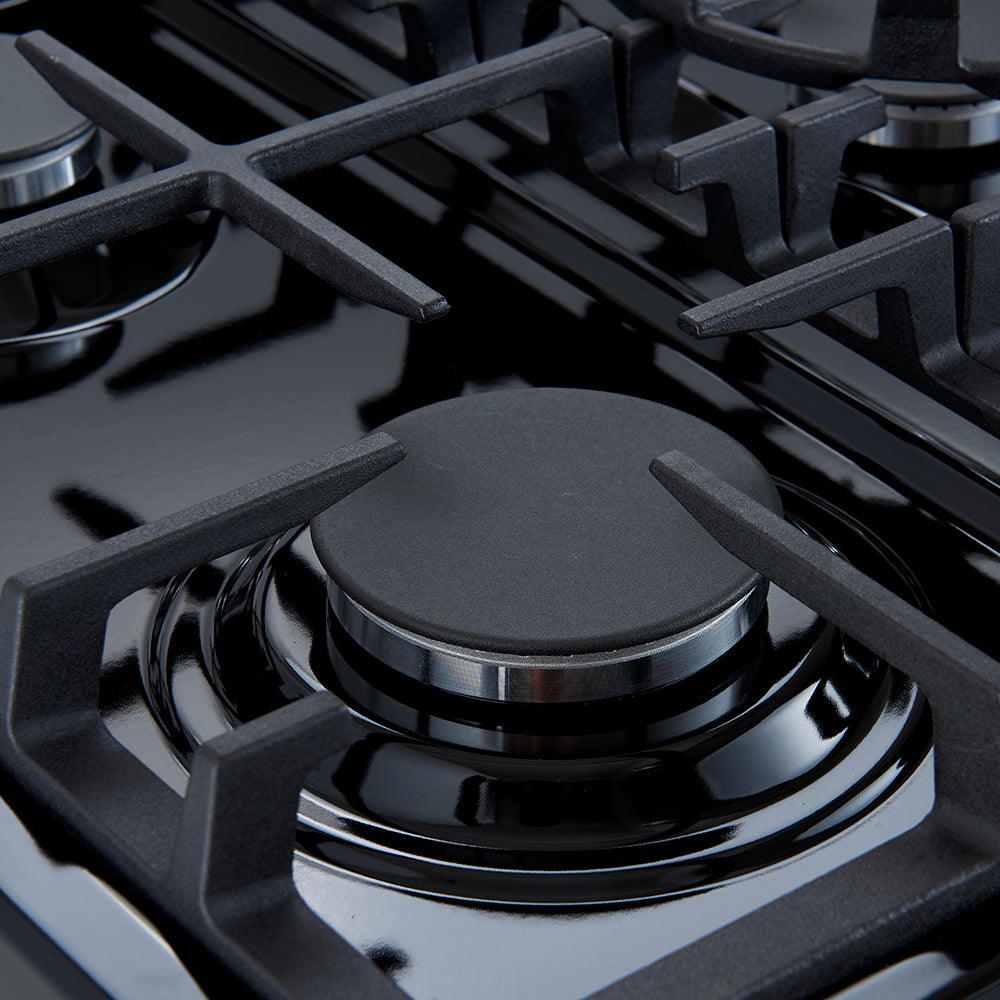

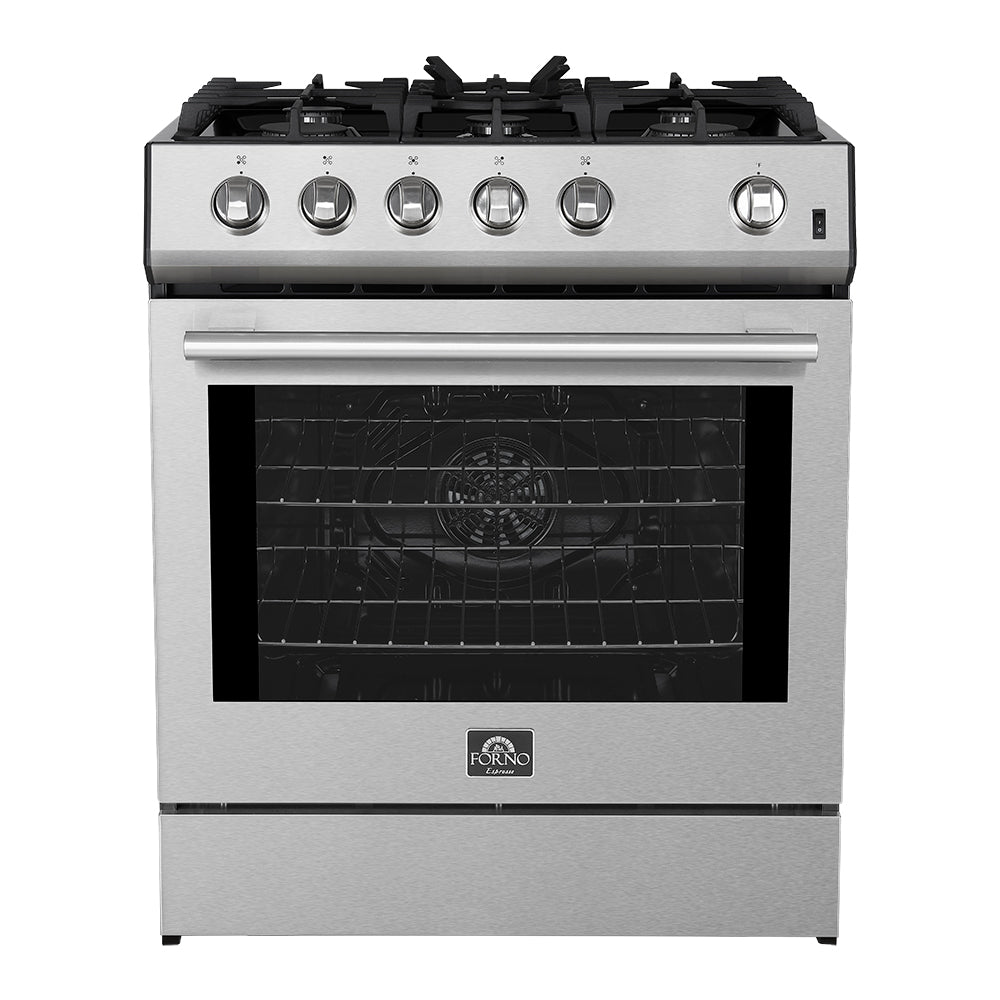

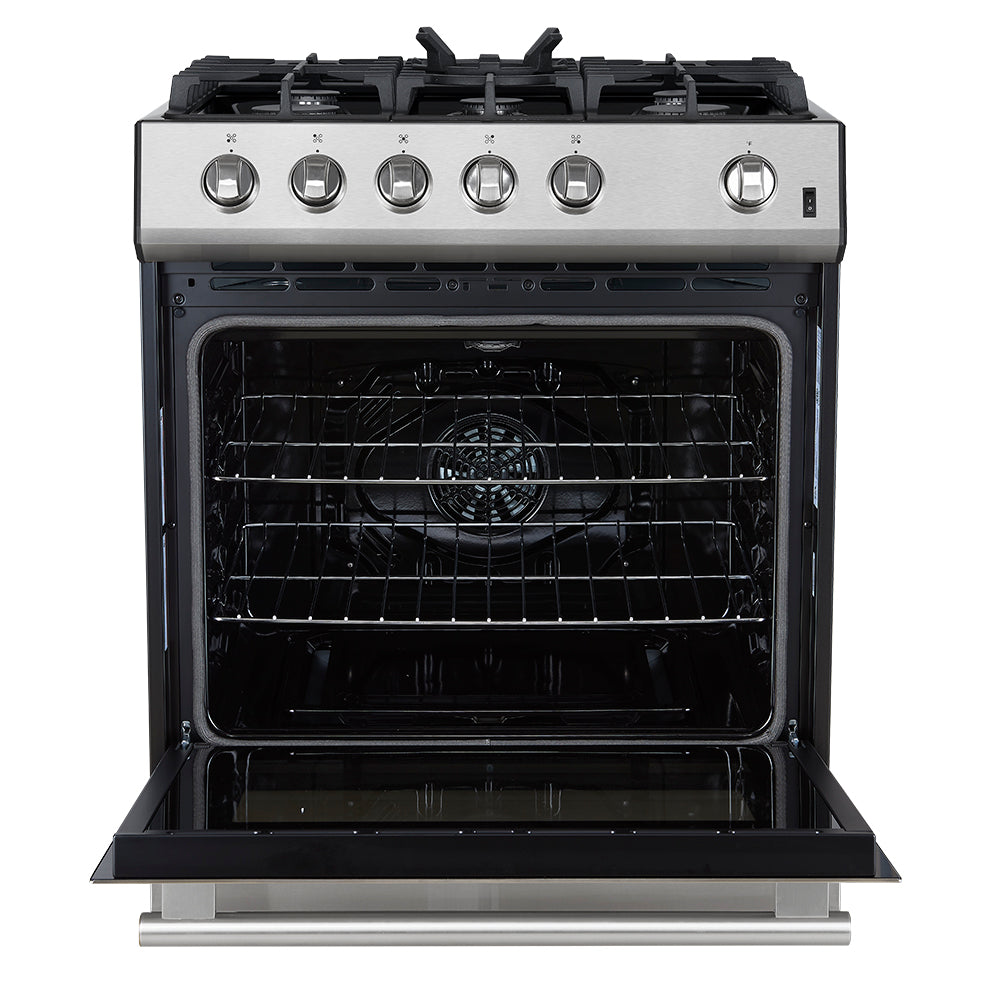

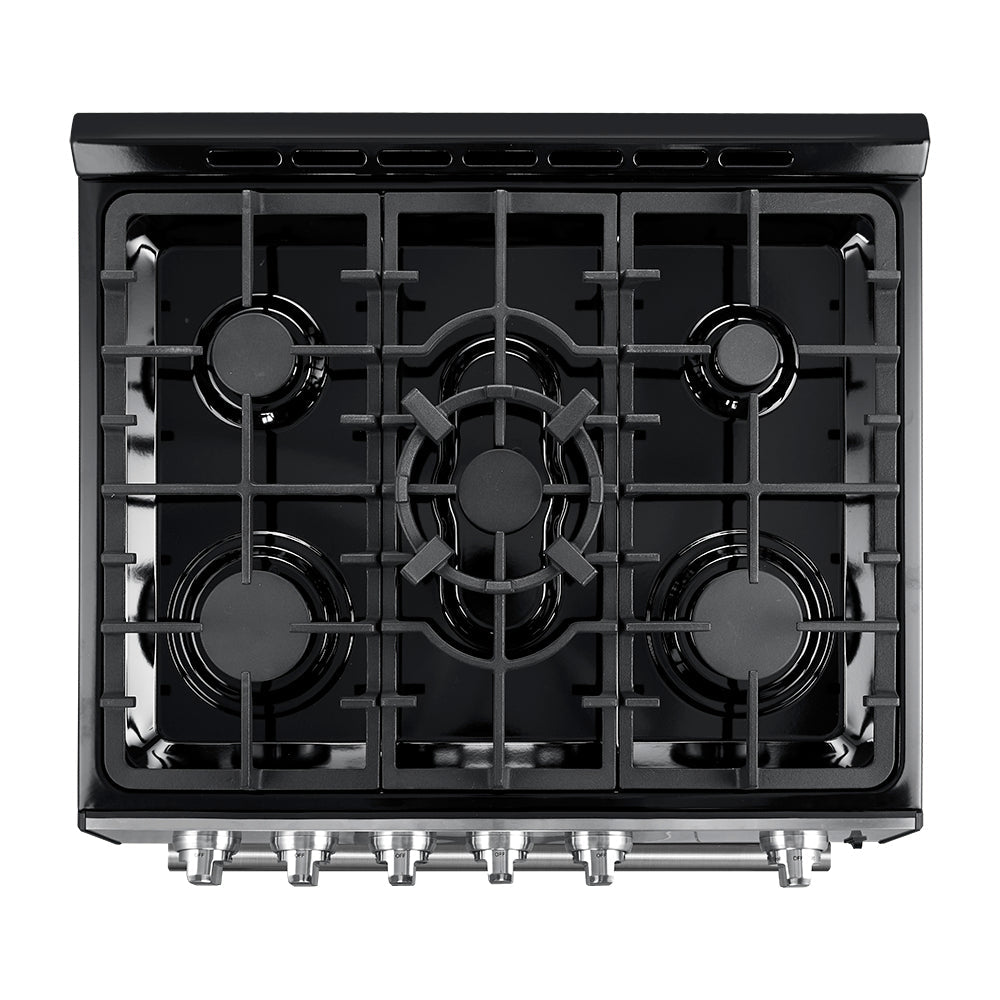

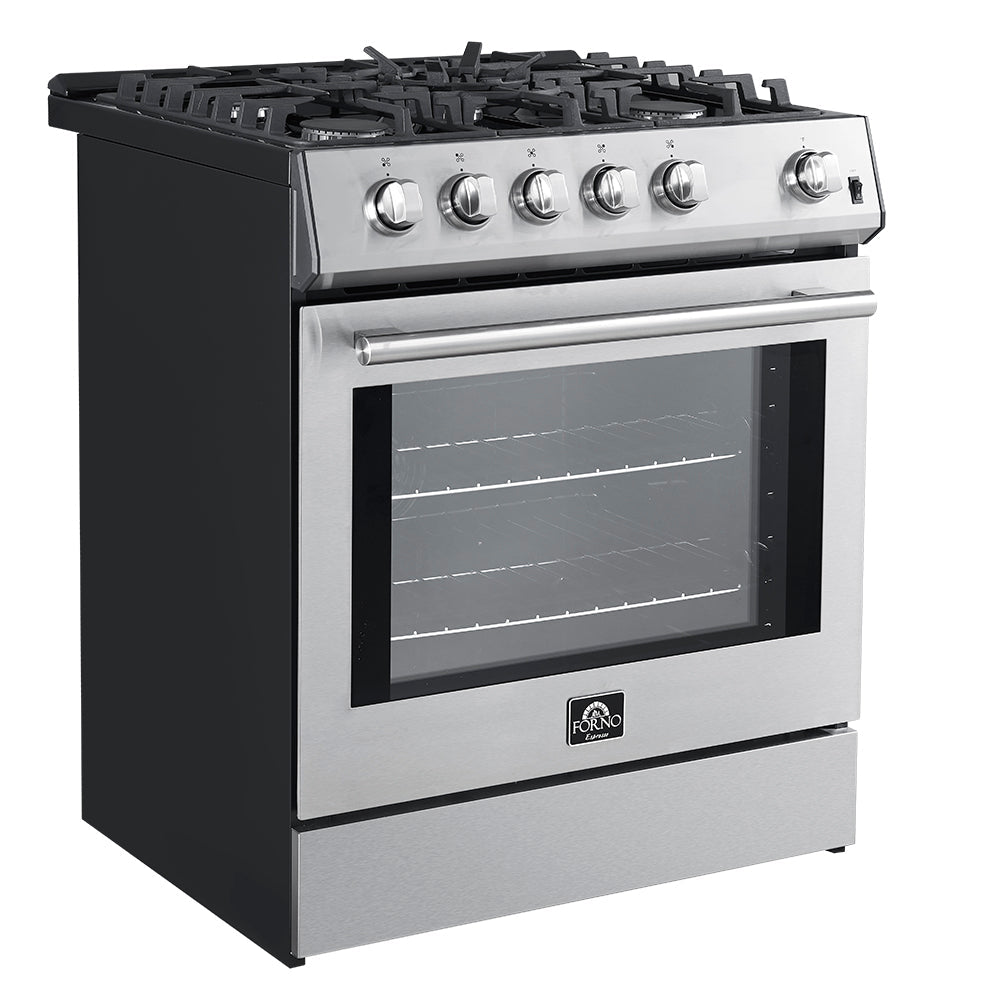

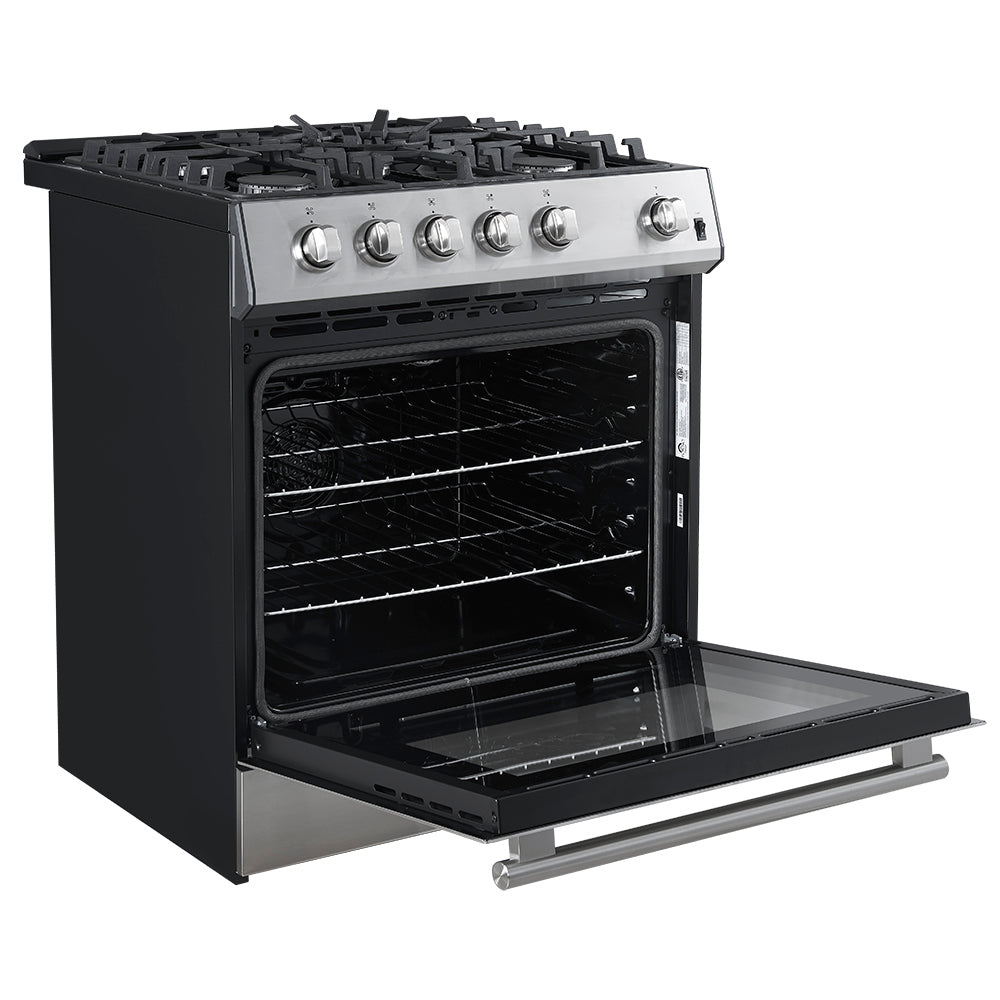

The Forno Leonardo Espresso 30 Inch 5.0 cu.ft. stainless-steel gas range seamlessly blends style and functionality with the precision of gas power. Its high-performance range top delivers an impressive total output of 39,500 BTU, complemented by continuous cast iron grates that ensure unmatched stability and mobility for your cookware. Thanks to the deep recessed cavity of the black enamel range top, cleaning up spills is effortless. In the 5 cu.ft. convection oven, a combined broil and bake power of 22,500 BTU ensures precision cooking.
With two adjustable rack heights and a robust convection fan, achieve consistent heat distribution for uniform cooking across multiple levels, meeting all your culinary needs with perfection. Safety is our priority, with the auto re-ignition feature ensuring reliable performance every time. Plus, with natural gas compatibility and an included conversion kit for propane, adaptability is at your fingertips, offering flexibility to suit your needs. This range caters to all cooking needs with its powerful cooktop and versatile oven, delivering quality and performance without the high price tags. Lower your cost of living with Forno.
| Oven Dimensions (WxHxD) | 30” x 37 1⁄16” x 27” |
|
Depth with Oven Door Open 90º (back of unit to front of the door open 90°) (IN) |
46 7/32” |
| Depth without Oven Door Handle (IN) | 25 |
| Depth without Oven Door (IN) | 24 |
|

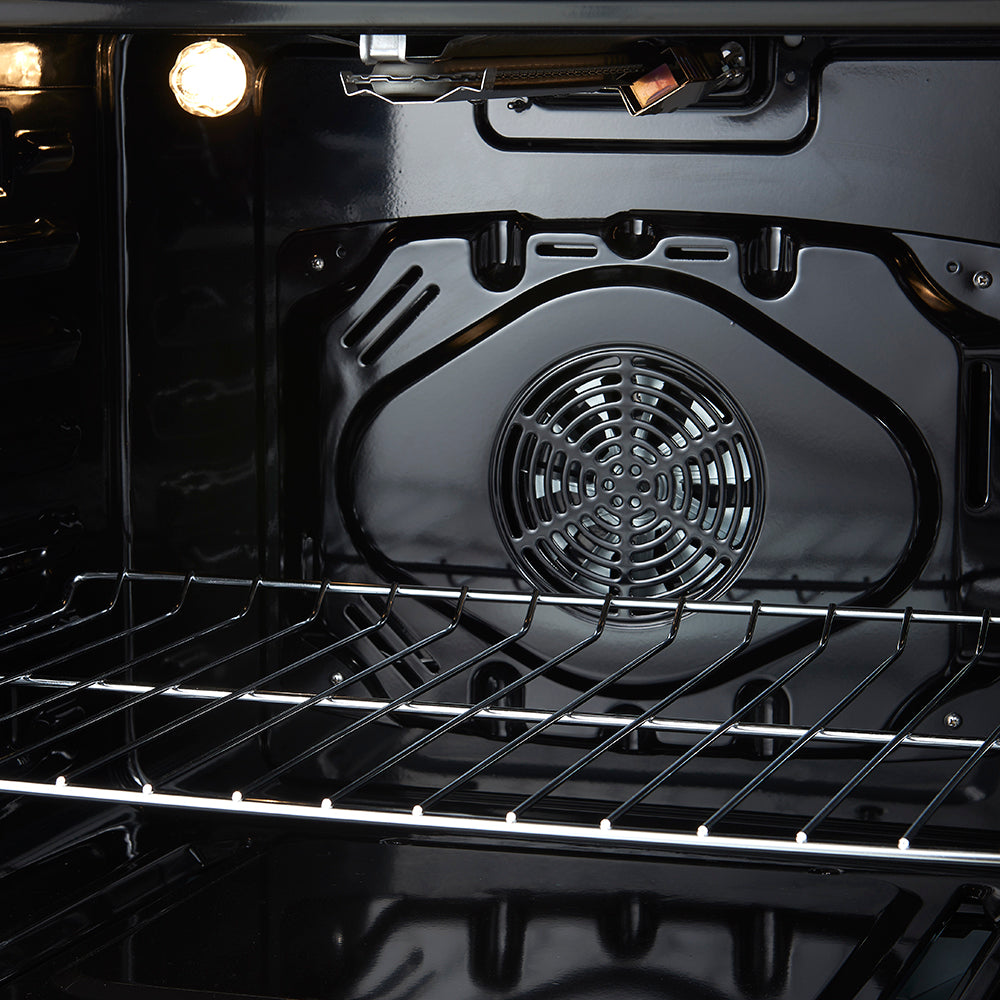

Convection Type |
Single Fan |
|
LP Convertible |
Yes |
|
LP Kit Provided |
Yes |
|
Oven Cleaning Type |
Standard Clean |
|
Simmer Burner |
Yes |
|
Oven Lights |
2 |
|
Oven lights control switch activated |
Yes |
|
Temperature Range |
140 0F - 500 0F |
|
Work Support |
Yes |
|
Leveling Leg Max: |
1” - Min: 25⁄64 |
| Appliance type | Gas Range |
|
Range Size |
30" |
|
Door Color |
Stainless Steel |
|
Handle Color |
Stainless Steel |
|
Knobs Color |
Stainless Steel |
|
Cooktop surface type |
Cast Iron Grates/Black enamel |
|
Oven interior color |
Black |
|

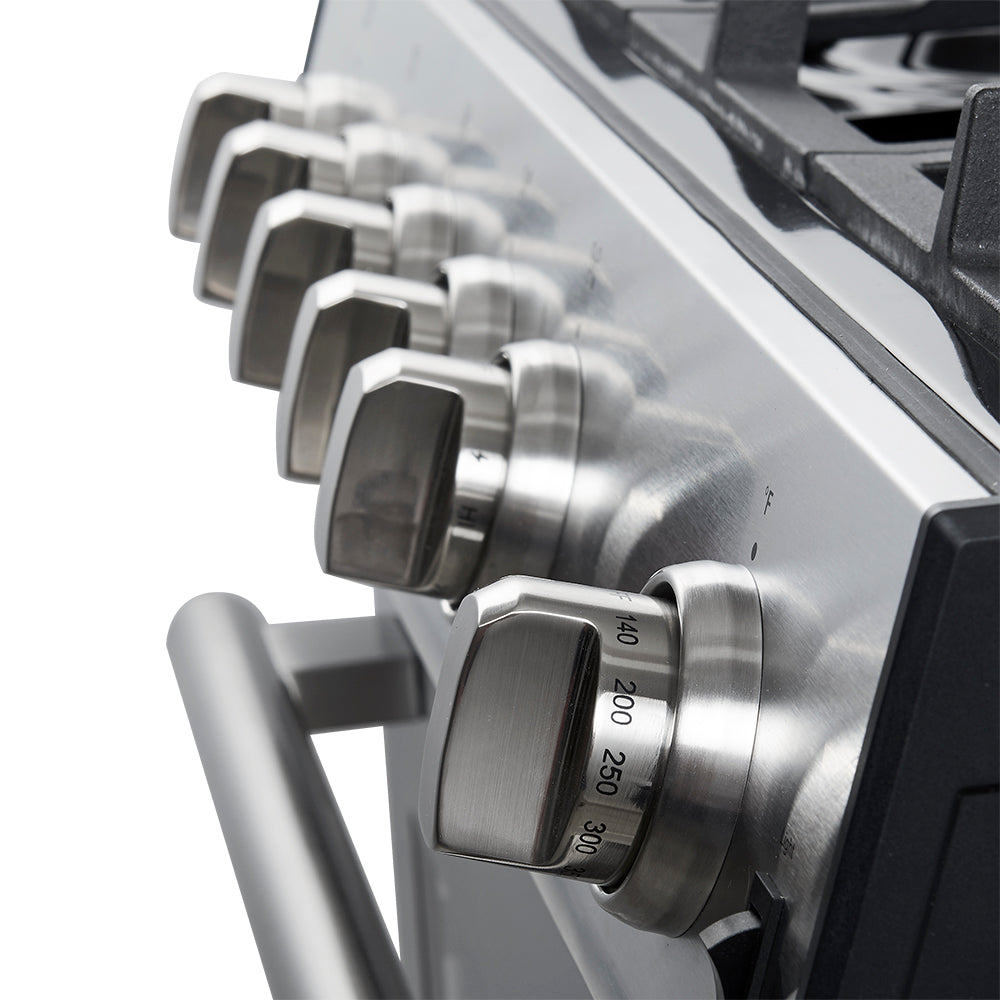

Number of Knobs |
6 |
|
Case material |
Steel |
|
Case color |
Black Steel |
| Electrical supply | 120 V 60 HZ |
|
Dedicated Circuit Breaker |
15 Amps |
|
Regulator Included |
Yes |
|
Pre-installed Regulator |
No |
|
Power cord Included |
Yes |
|
Power Cord Length |
4.27 (FT) |
| Power Cord Type: | NEMA 5-15P |
|
Certification |
cETLus |
|
Warranty |
2 yrs |
|
Weight |
150lbs |
|
Pressure Required (Inch WC) |
NG: Min. -4 / Max. 7 LP: Min. -10 / Max. 11 |

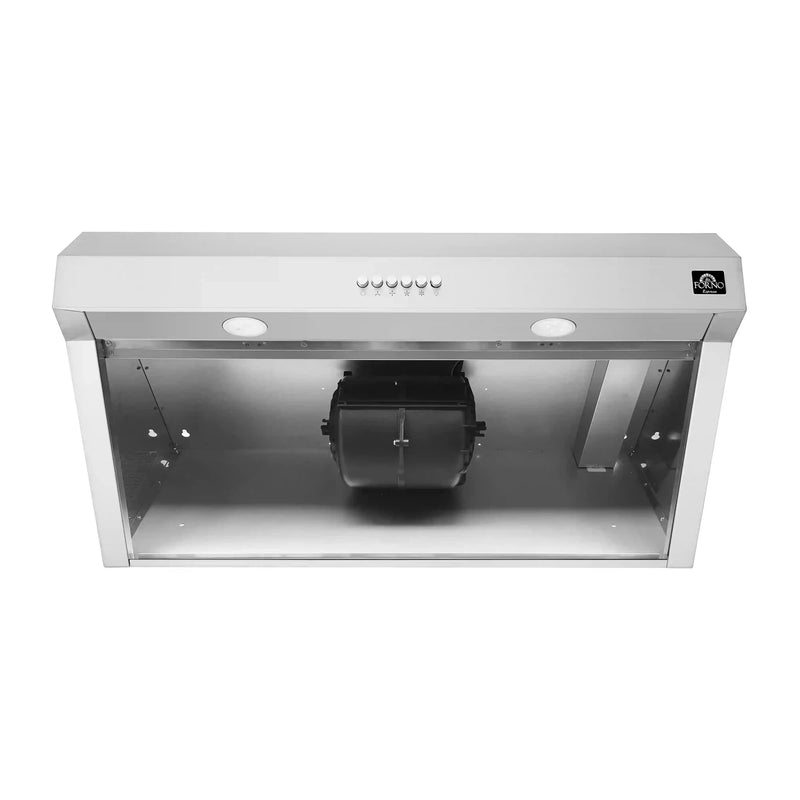

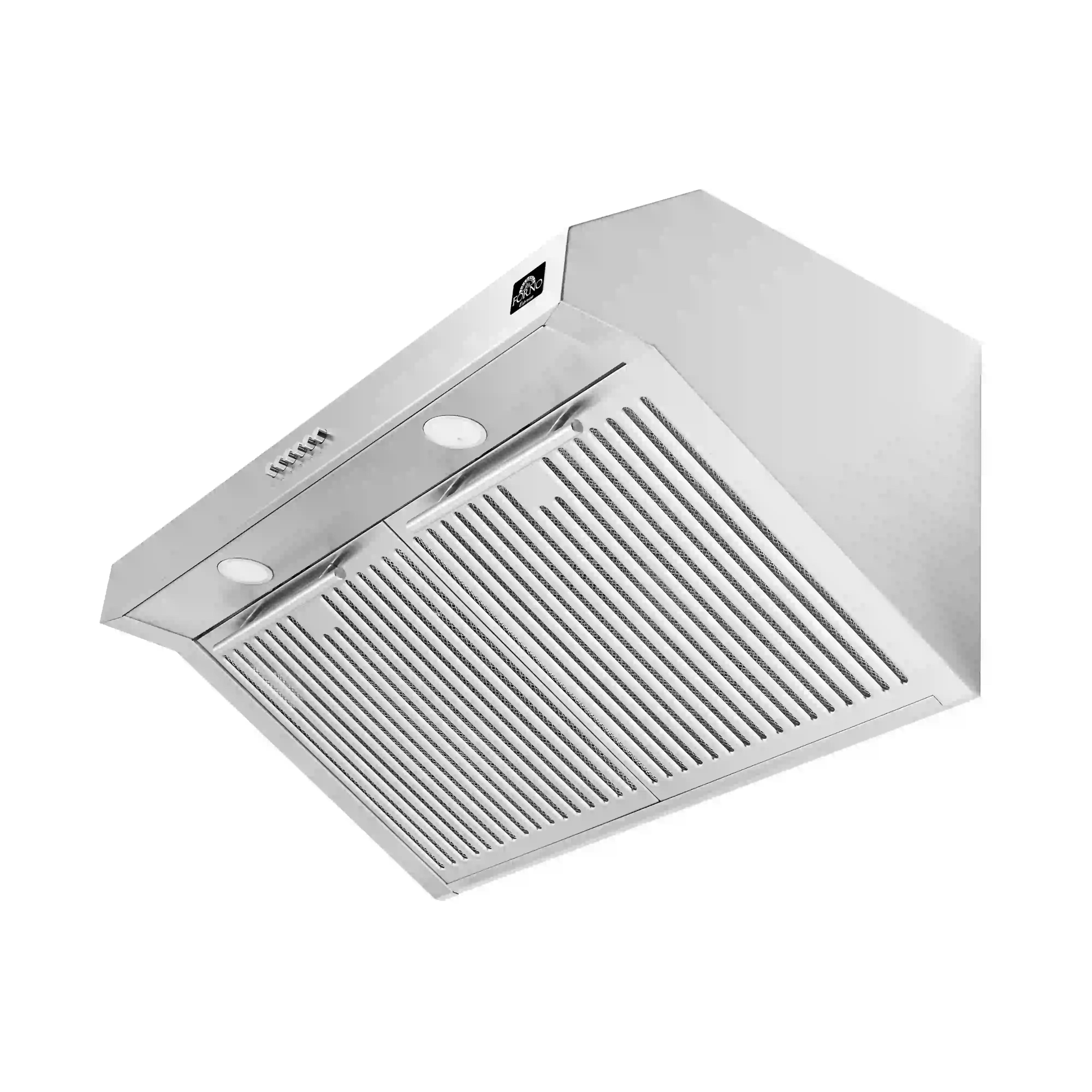

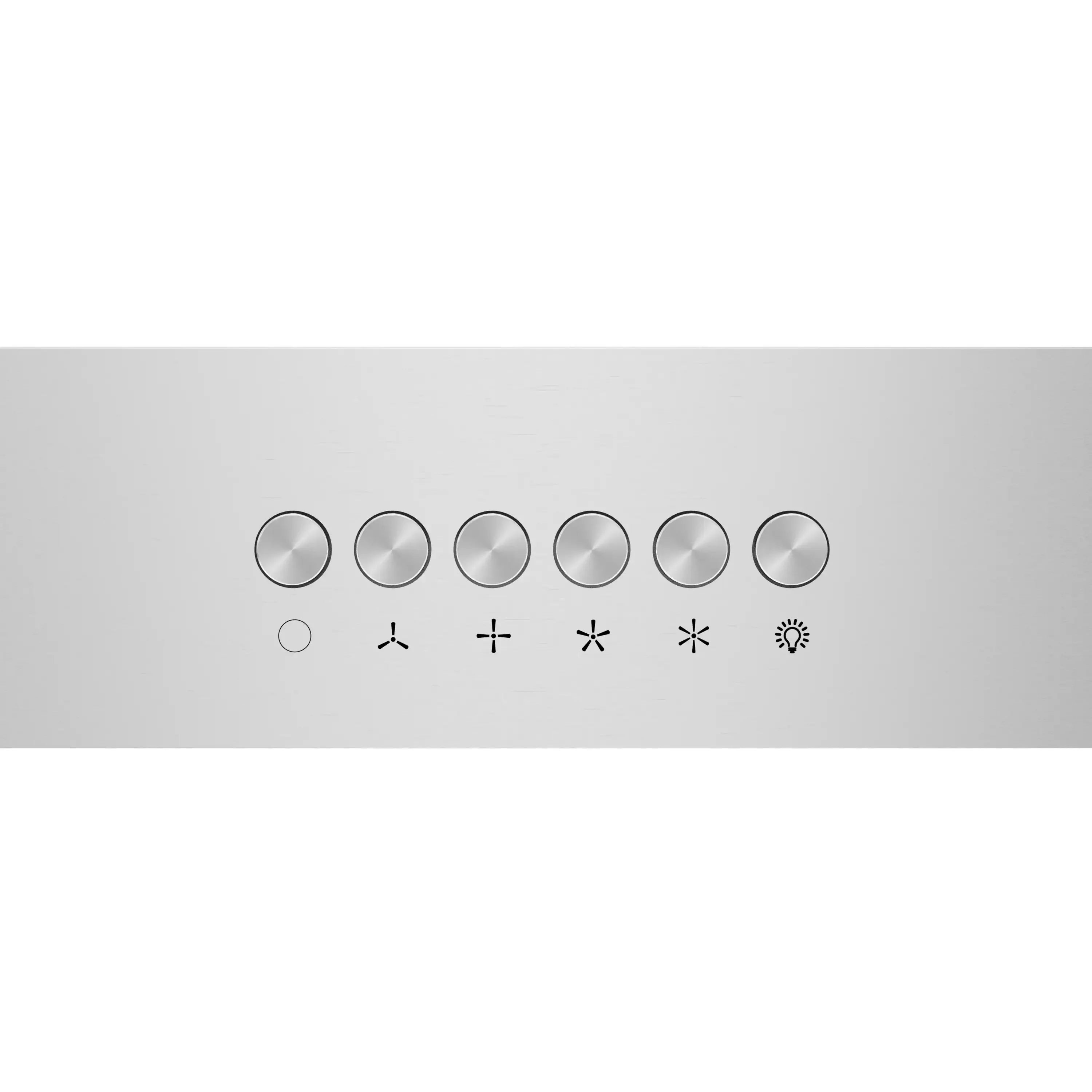

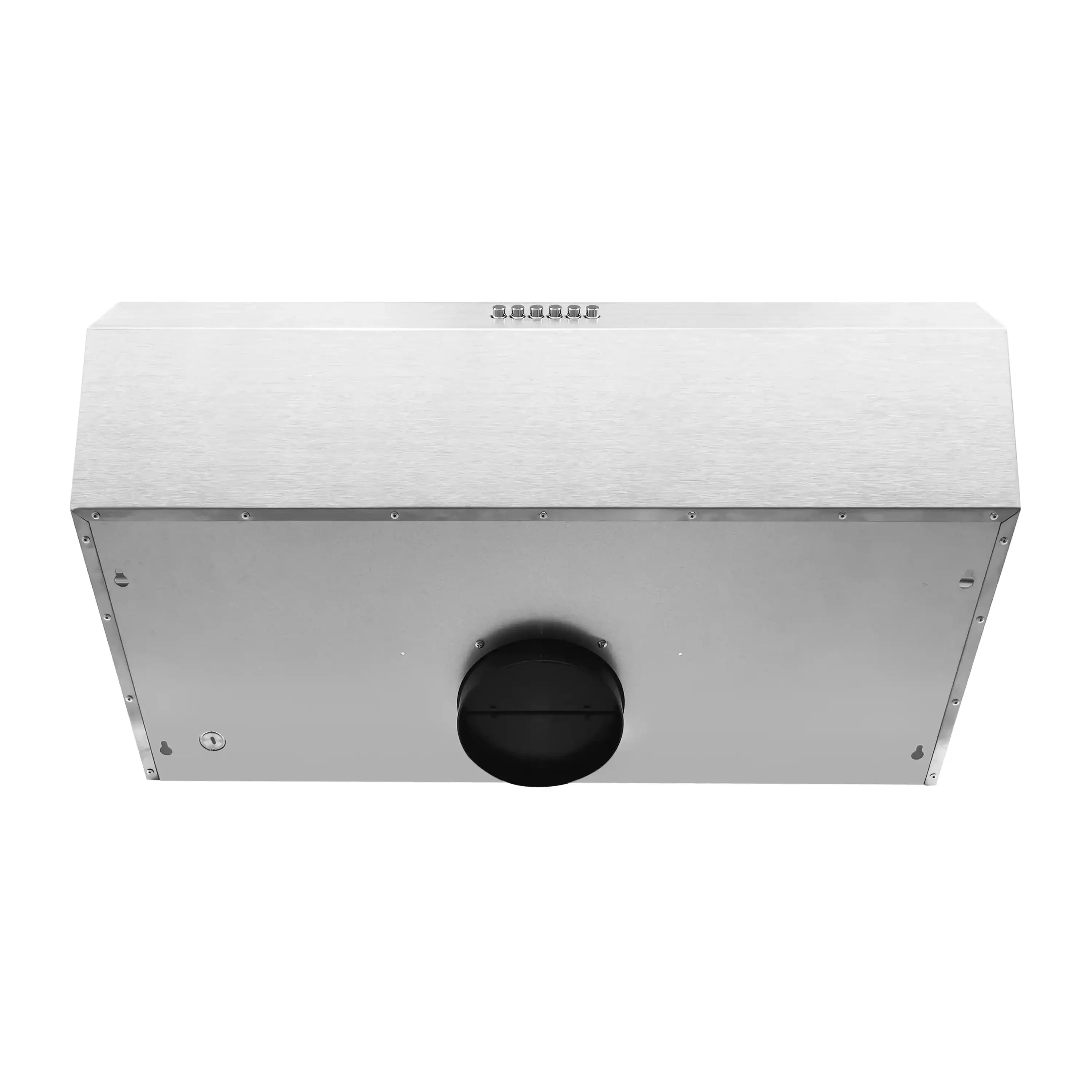

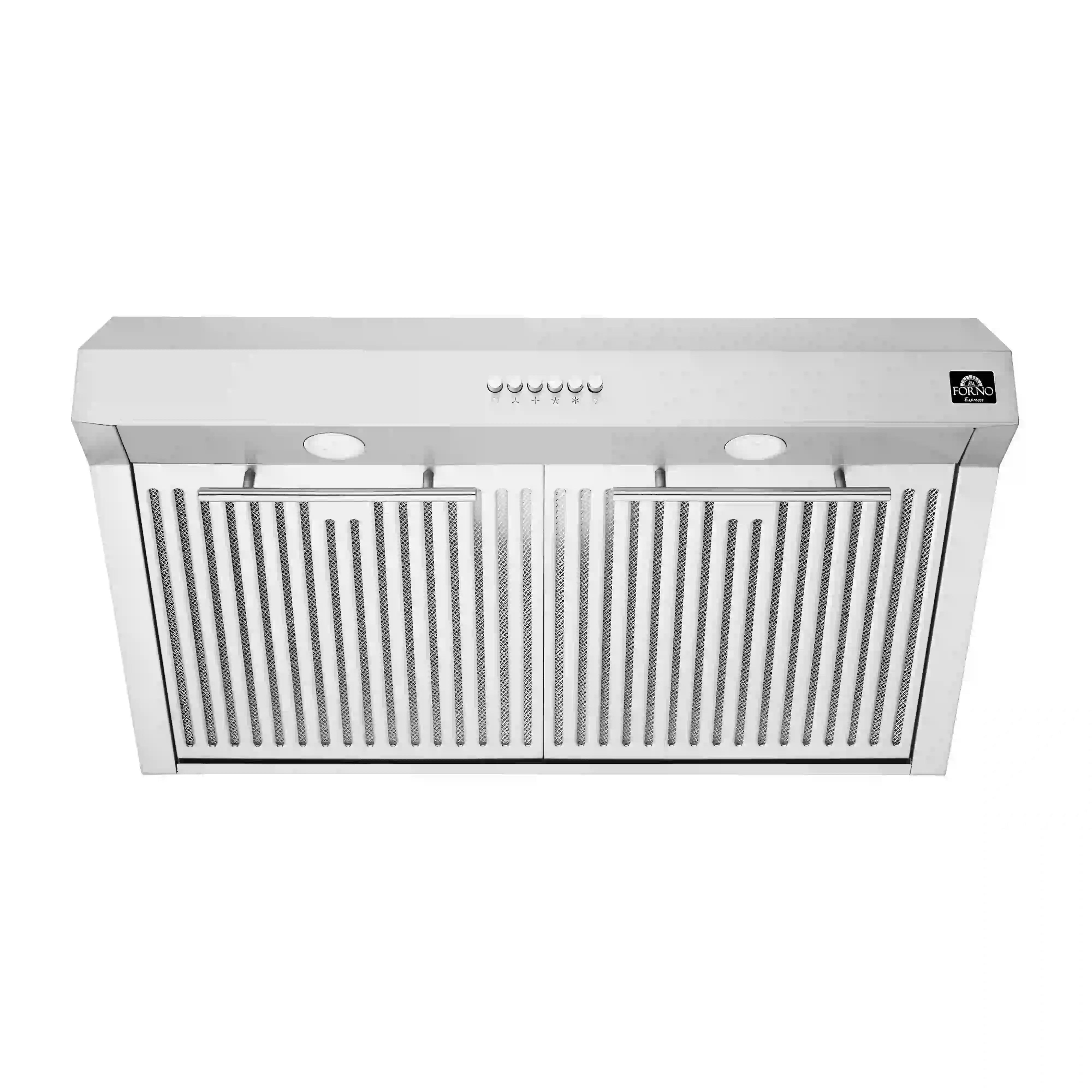

Forno presents the Bari 30” Espresso Range Hood, an exceptional under cabinet range hood that boasts an elegant stainless steel finish, adding a touch of sophistication to your kitchen space. With its powerful 400 CFM airflow, this range hood efficiently eliminates cooking odours, smoke, and airborne grease, ensuring a fresh and clean environment. The user-friendly 4 speed push button control allows you to adjust the ventilation settings effortlessly, providing optimal performance tailored to your needs. Illuminate your cooking area with two built-in LED surface lights, offering bright and even lighting for a delightful culinary experience. Equipped with a durable baffle and mesh filter, this range hood effectively traps grease and debris, ensuring easy maintenance and prolonging the lifespan of the appliance. Upgrade your kitchen with the versatile and high-performing under cabinet range hood from Forno, where style meets functionality.

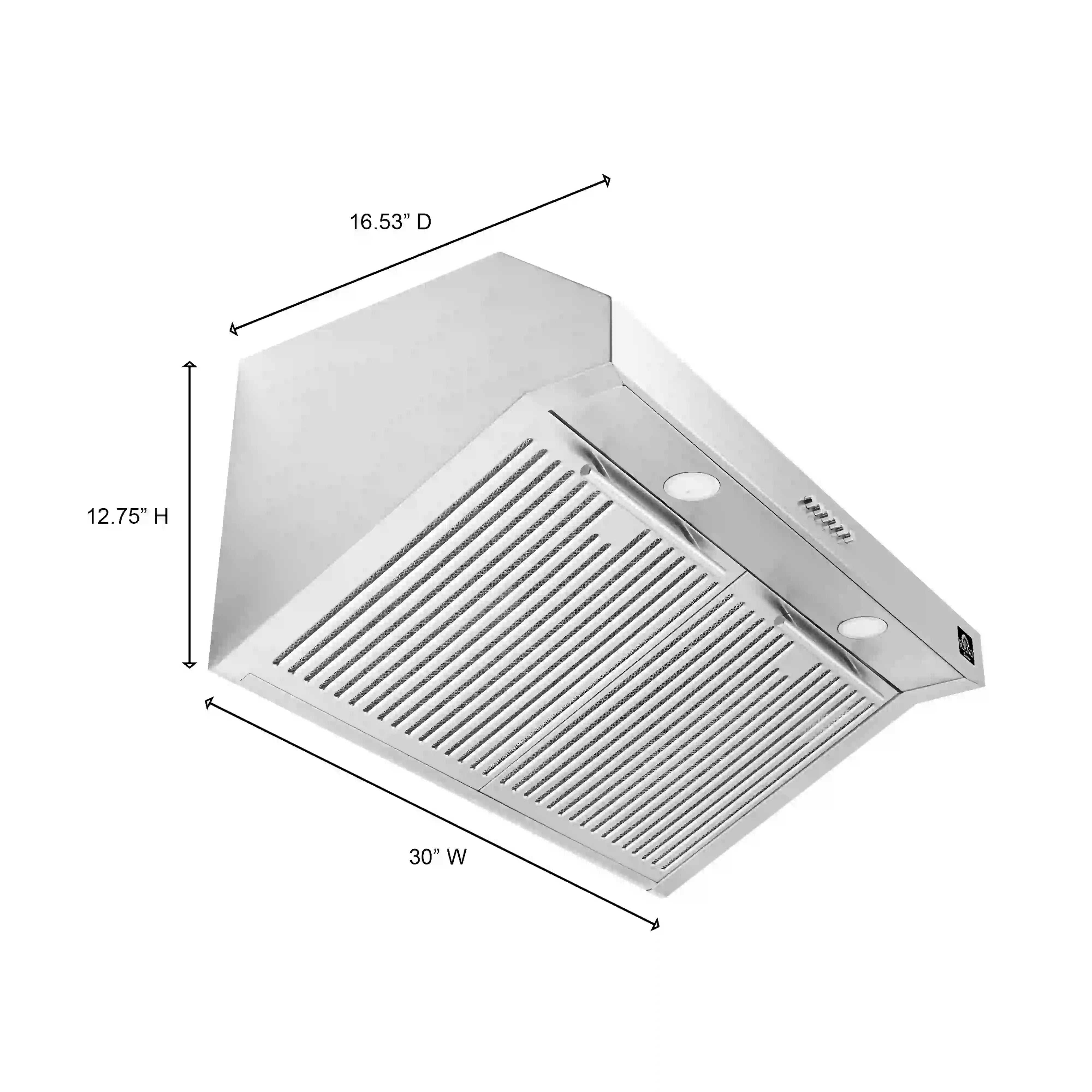

| Dimensions | 30" W x 16.5" D x 12.75" H |
| # Speed levels | 4 |
| Duct Shape | Circular |
| Duct Size | 6” |
| Size | 30" |
|
Style design |
Under cabinet hoods |
|
Unit Color |
Stainless steel |
|
Ventilation Type |
Roof vent |
|
Electrical supply |
110~120V/60Hz |
|
Power connection |
no plug |
|
Power rating |
310 W |
|
Certification |
ETL |
|
Warranty |
2 Year Limited |
|
Weight (lbs) |
24.4/31.2 |
|
Control type |
Push buttons |
|
Number of Hood filters |
2 |
|

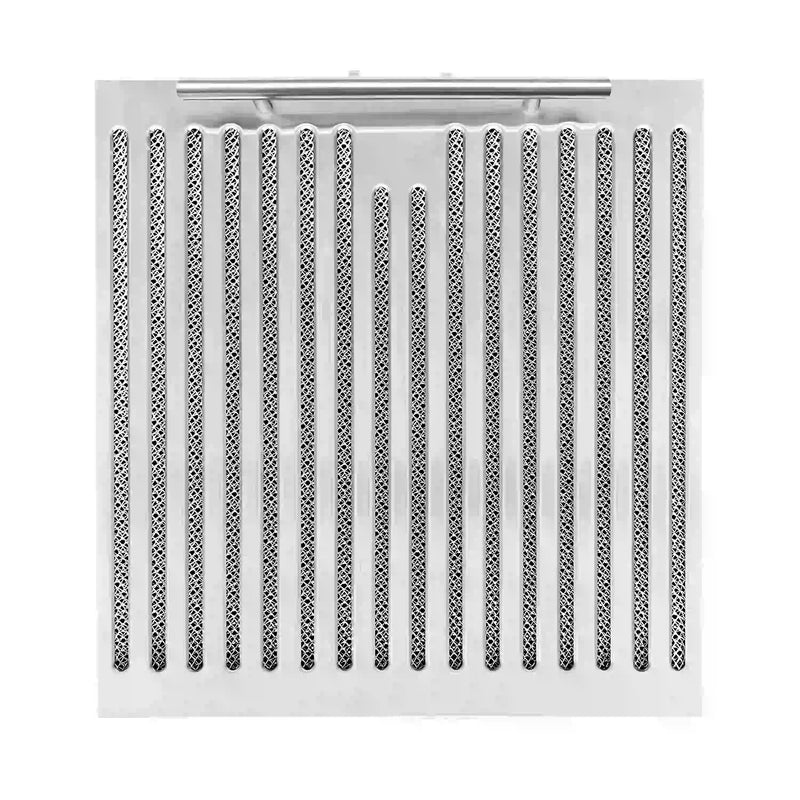

Hood Filter type |
Commercial hybrid filter (Baffle & Mesh filter)) |
|
Light Type |
LED Bulb (gu10) |
|
Number of Lights |
2 |
|
Damper |
1 |
|
Number of Ducts |
1 |
|
Handles |
Yes |
|
Handle Color |
Choice of Stainless steel or Antique Brass |

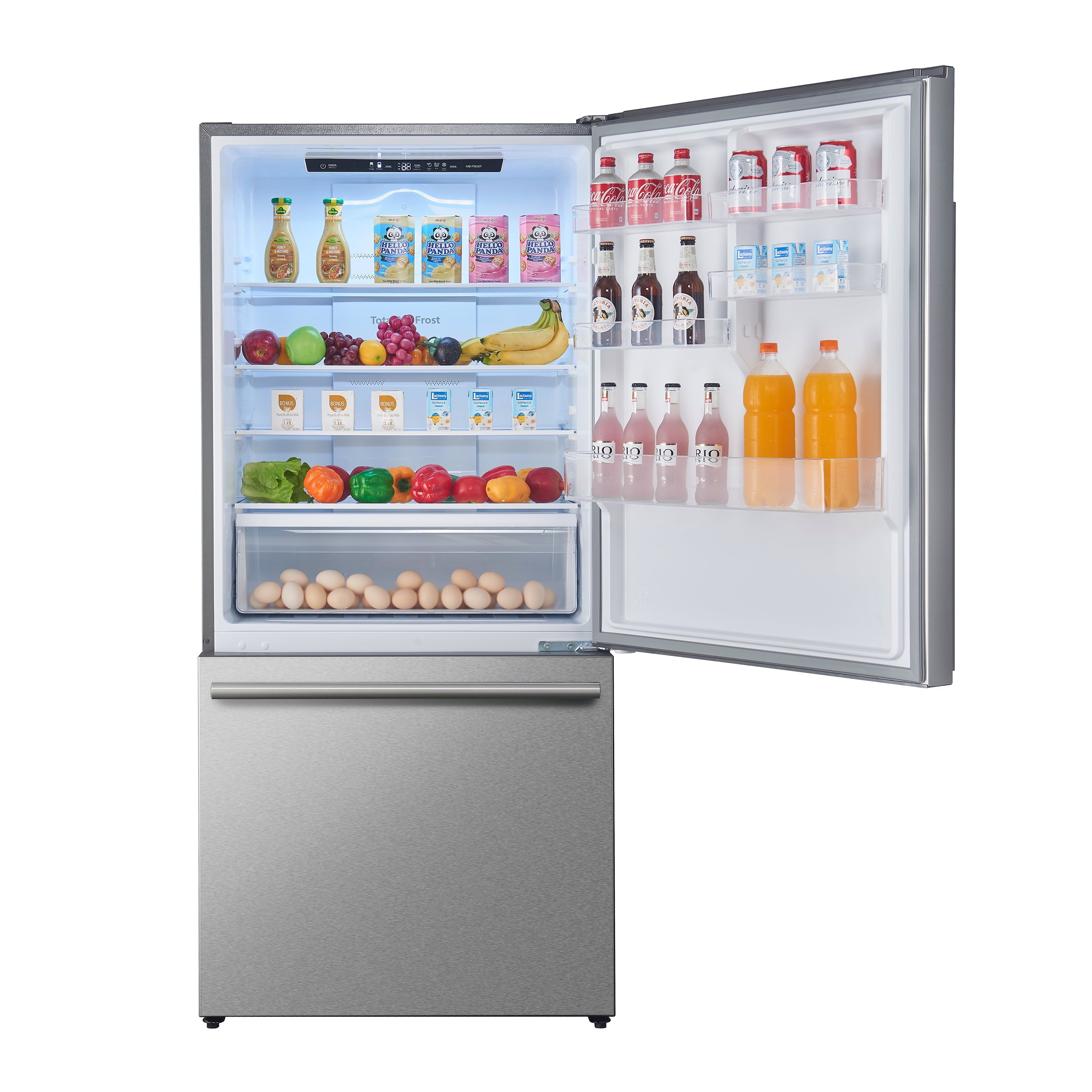

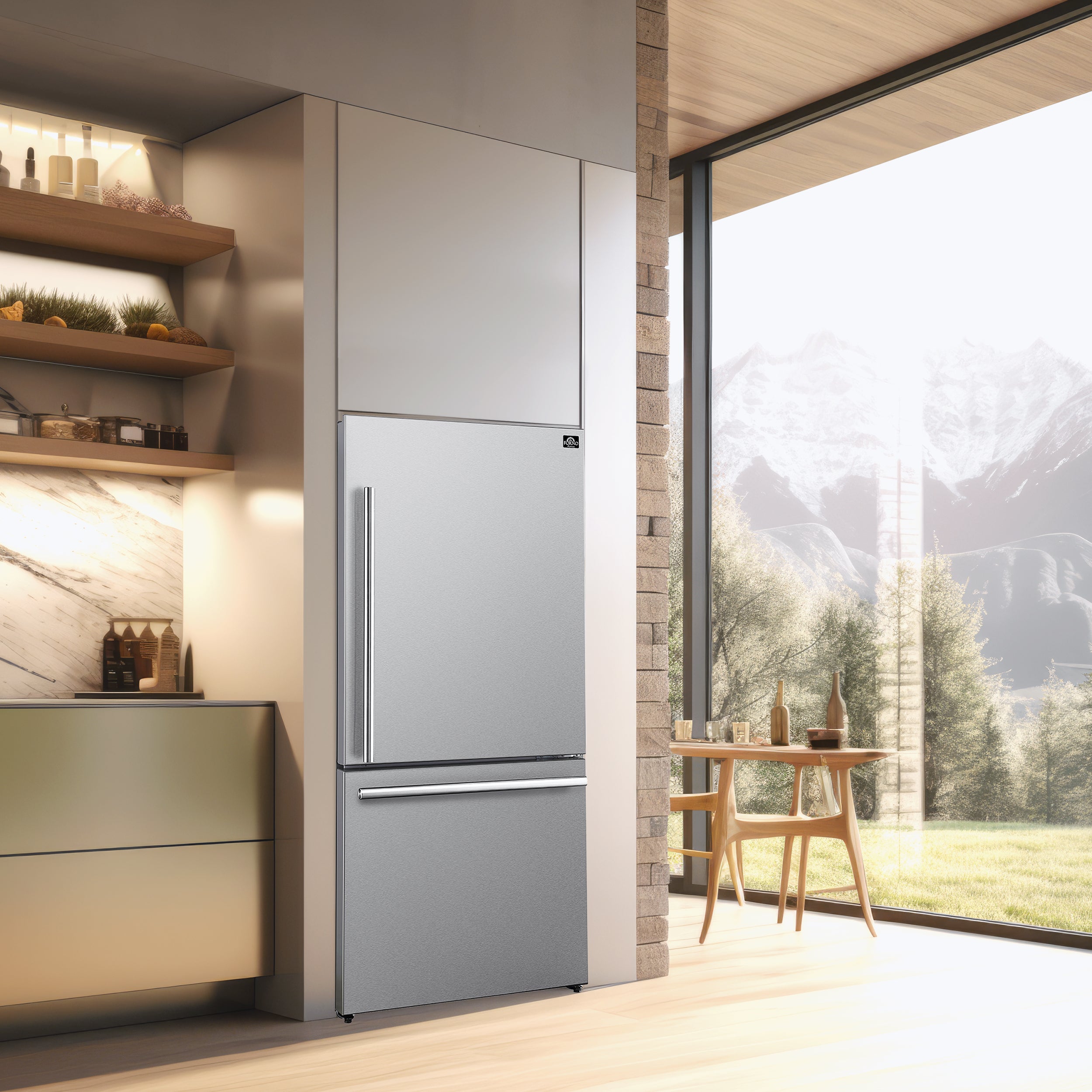

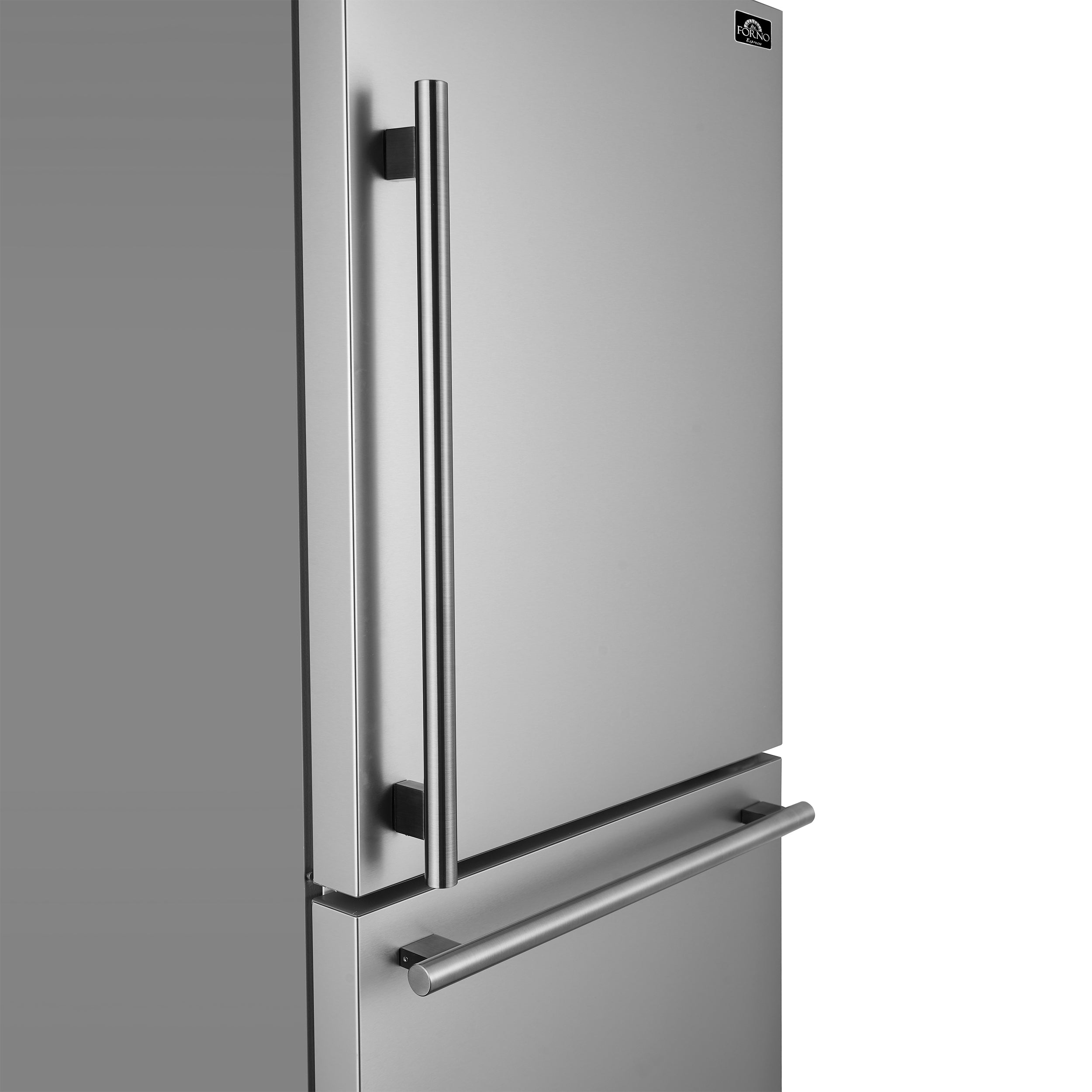

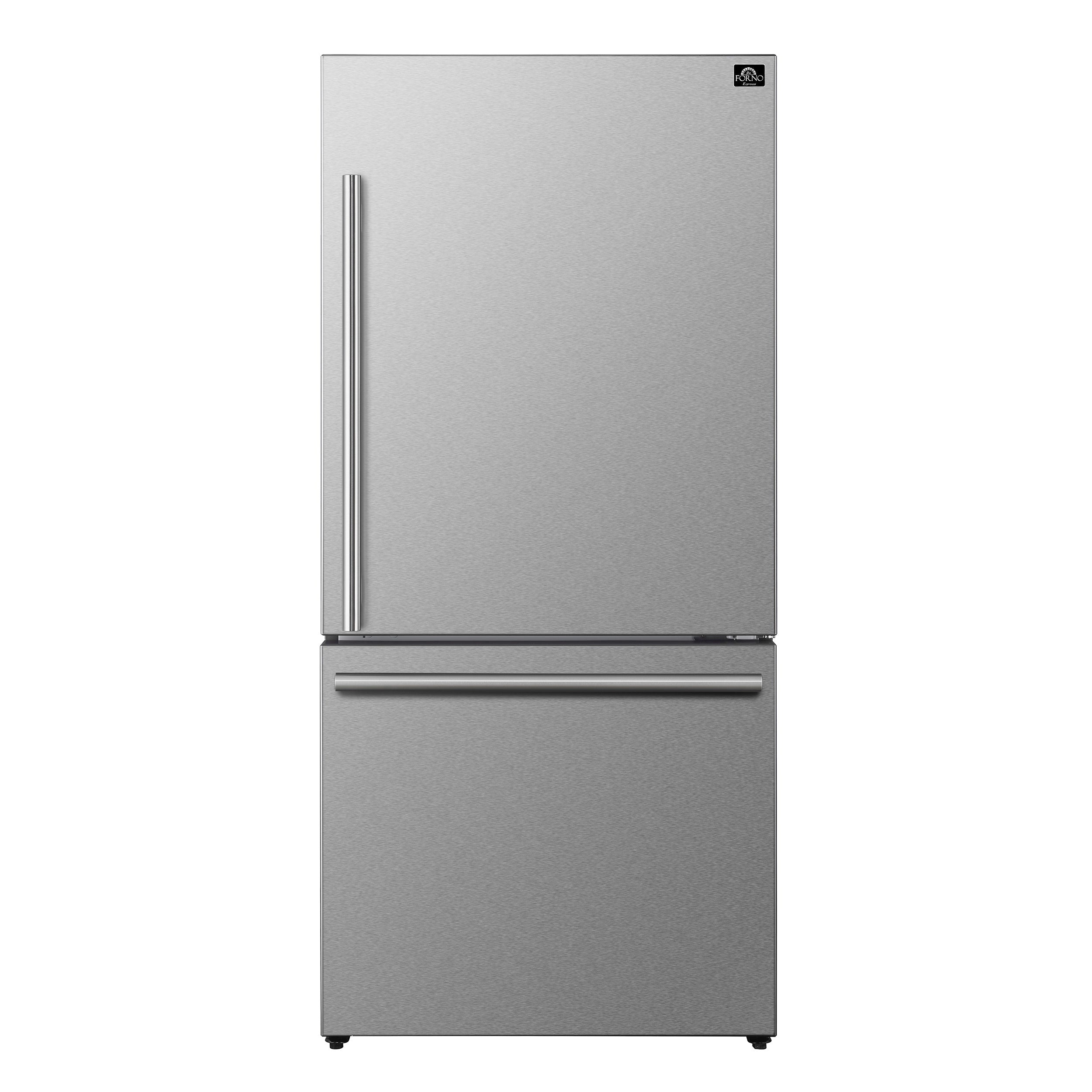

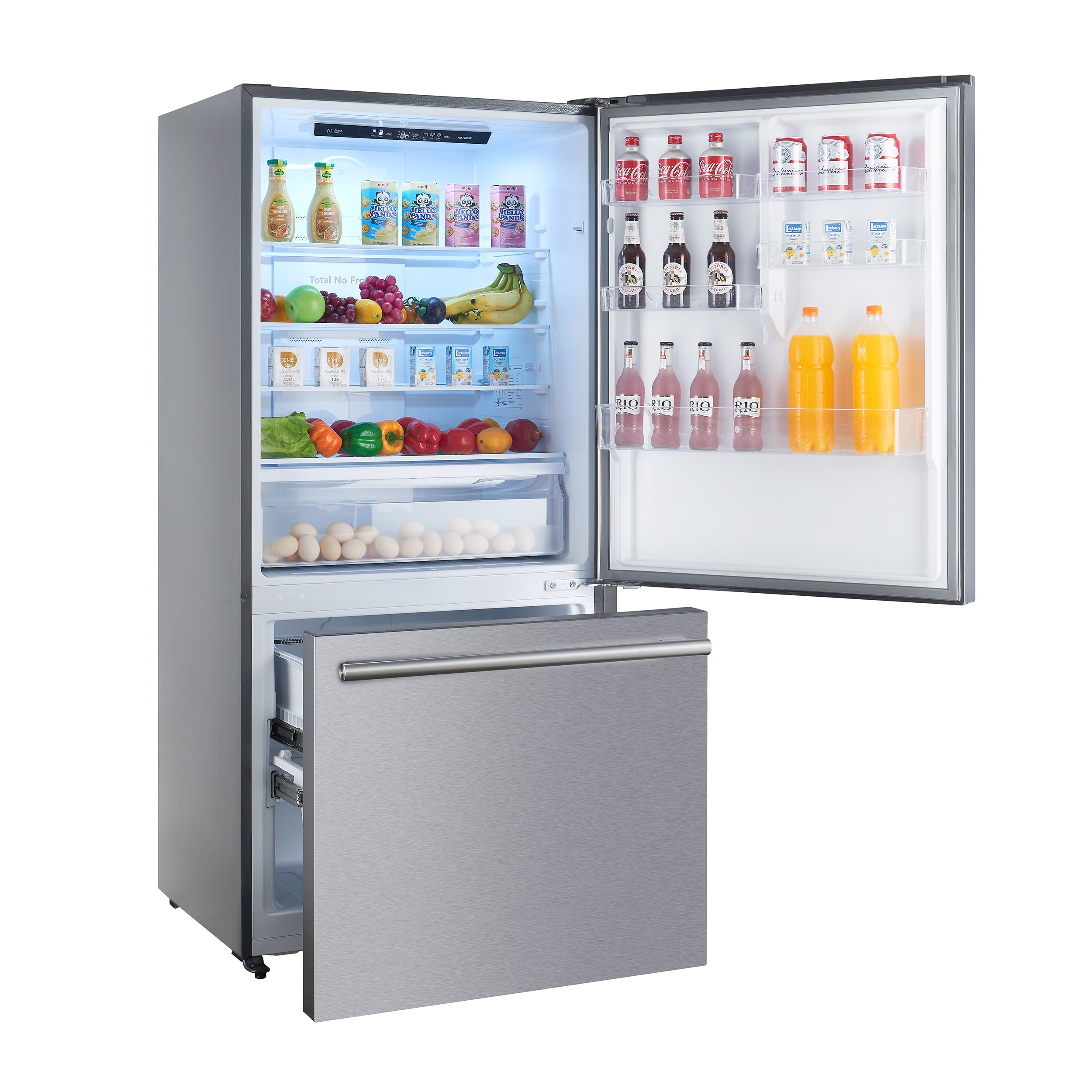

Introducing the FORNO 31" Milano Espresso Bottom Freezer Refrigerator that blends style and functionality seamlessly. Its compact 31" size and 17.2 cu ft capacity offer ample storage without compromising aesthetics. Two full-width freezer drawers optimize organization, while digital touch control ensures precise temperature settings and real-time monitoring. The fingerprint-resistant VCM door maintains a modern look effortlessly. Swift temperature adjustment with Super Cool and Super Freeze safeguards your groceries' quality. ENERGY STAR Certified for efficiency, and high-efficiency LED lighting reduces food spoilage. Adjustable features, including shelves, door bins, and a full-width crisper drawer, enhance user-friendliness. Upgrade your kitchen with style, convenience, and freshness!
|

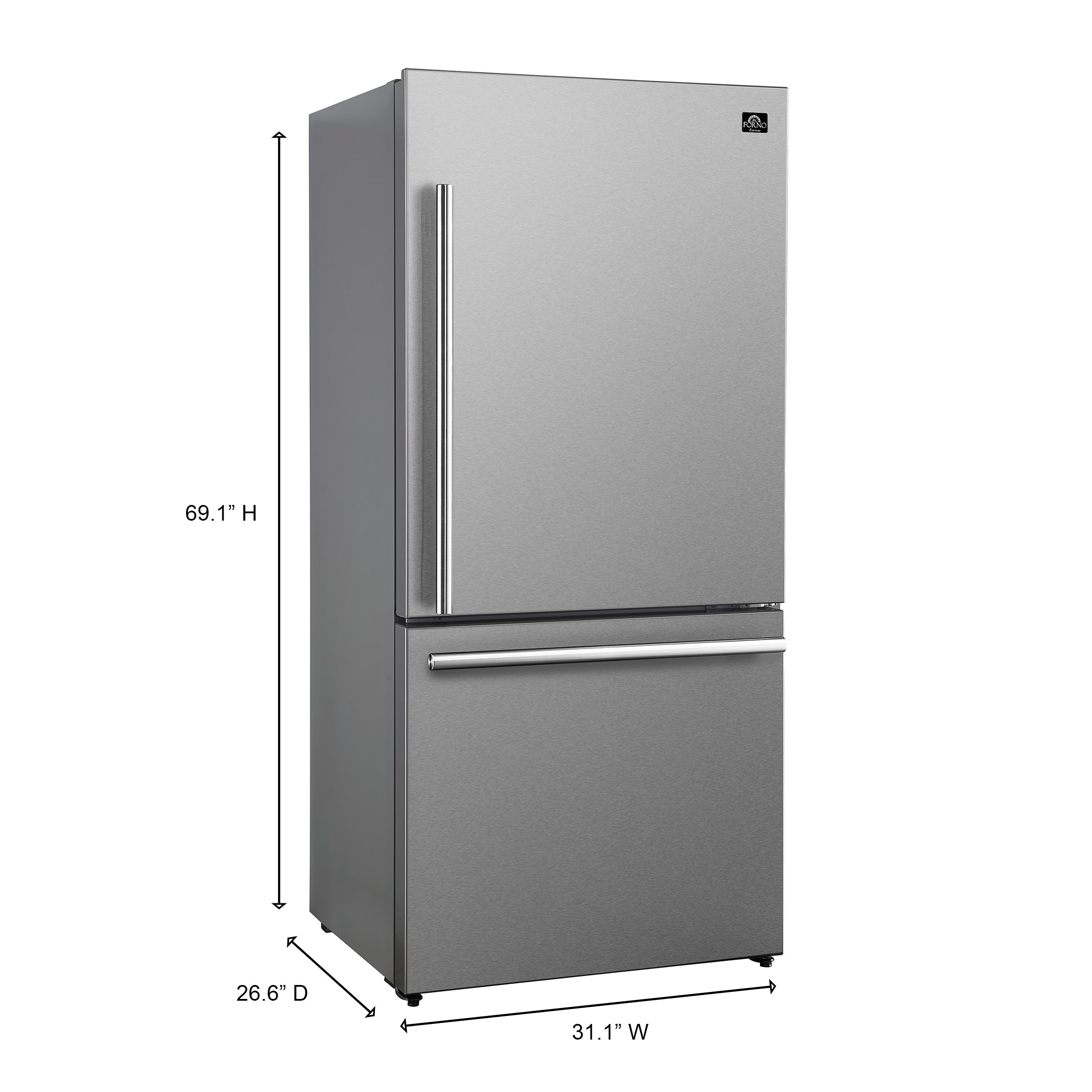

Overall Dimensions (IN) W X D X H |
31.1 X 29.2 X 69.1 |
|
Width Door(s) Open 130° (inches) |
52 |
|
Cabinet Depth (no Door) |
23.6 |
|
Depth without Handle (IN) |
26.6 |
|
Depth Door(s) Open 90° (inches) |
56.3 |
|
Depth Drawer(s) Open (inches) |
43.4 |
|
Height Top of the Cabinet (inches) |
68.5 |
|
Sides Clearance (IN) |
1" on the left 1.6" on the right for door opening if next to fixed wall |
|
Minimum Back Clearance (IN) |
2 |
|
Minimum Top Clearance (IN) |
1 |
|
Cutout Dimensions (IN) W X D X H |
33.7 x 31.2 x 70.1 |
|
Energy Star |
Yes |
|
ISTA 6A Certified |
Yes |
| UL Listed | Yes |
| Contain Gases | R600A |
|
Commercial Warranty |
No |
|
Warranty Type |
Limited |
|
Warranty Length |
2 |
|
Warranty on Parts |
2 |
|
Warranty on Labor |
2 |
|
Overall Weight (LBS) |
196 |
|
Product Type |
Bottom Freezer |
|
Color/Finish |
Stainless Steel VCM |
|
Installation Type |
Freestanding |
|
Panel Ready |
No |
|
Overall Capacity Cu. Ft. |
17.2 |
|
Door Orientation |
Right Swing |
|
Reversible Door |
No |
|
Ice Maker |
No |
|
Water Dispenser |
No |
|
External Dispenser |
No |
|
Interior Light |
Yes |
|
Interior Light Type |
LED |
|
Defrost Type |
Automatic |
|

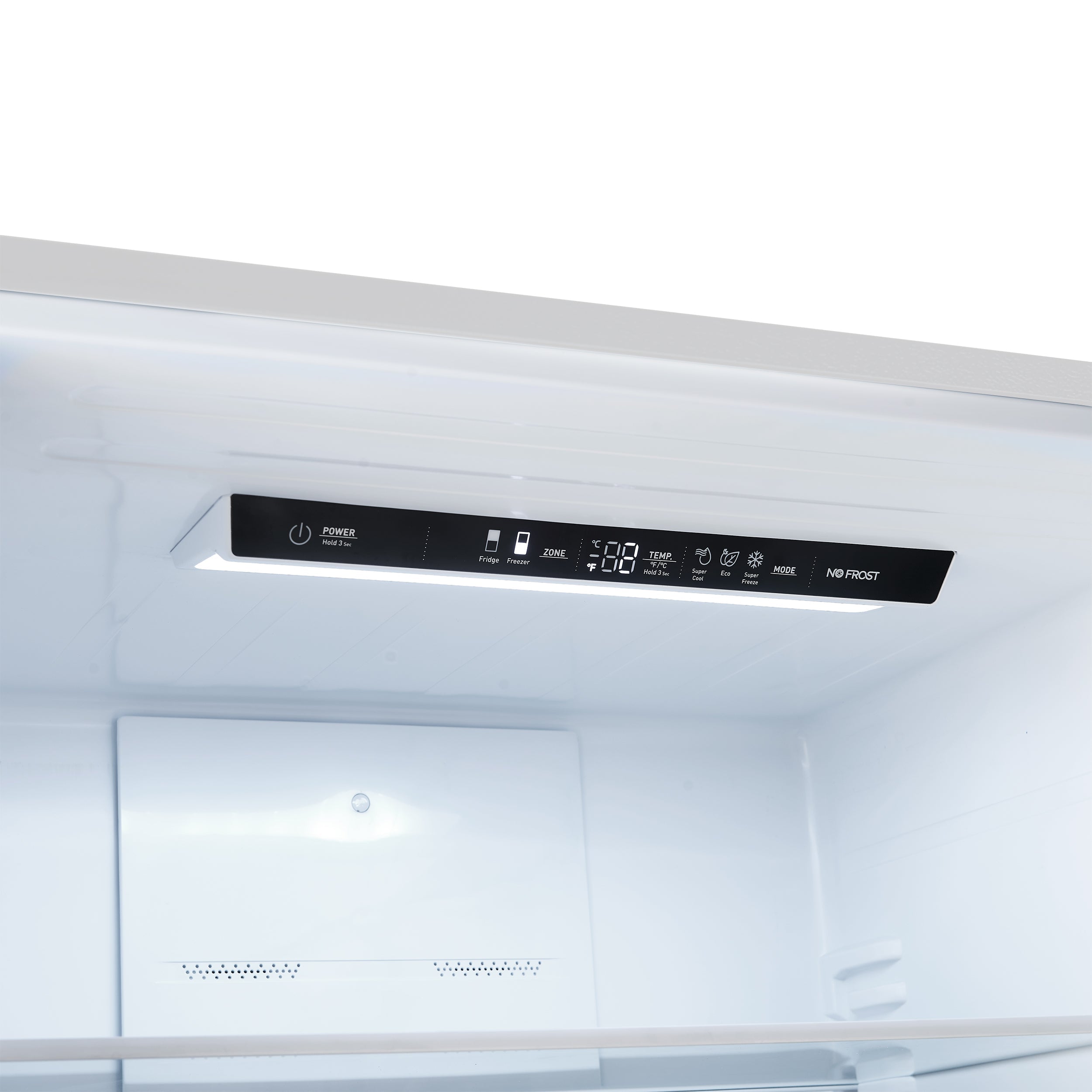

Control Type |
Touch Control |
|
Control Location |
Internal |
|
Temperature Range Refrigerator (°F) |
34°F to 44°F |
|
Temperature Range Freezer (°F) |
-11°F to 7°F |
|
Temperature Range Refrigerator (°C) |
1°C to 7°C |
|
Temperature Range Freezer (°C) |
-24°C to-14°C |
|
Adjustable Shelves |
3 |
|
Spill-Proof Shelves |
No |
|
Auto Door Closer |
No |
|
Counter Depth |
Yes |
|
Leveling Legs |
Yes |
|
Primary Material |
Metal |
|
Cooling System |
Multi Air Flow |
|
Compressor Type |
Constant Frequency Compressor |
|
Door Ajarm Alarm |
Yes |
|
Garage Ready |
No |
|
Finger Print Resistant |
Yes |
|
Smudge Resistant |
No |
|
Filtration System |
No |
|
Safety Lock |
No |
|
Display Screen |
Yes |
|
Sabbath Mode |
No |
|
Vacation Mode |
No |
|
Energy Saver Mode |
Yes |
|
Fast Freeze/Cool Mode |
Yes |
|
Quiet Operation |
Yes |
|
Noise Level (dBA) |
43 |
|
Power Cord |
3-Prong NEMA 5-15 |
|
Supplier Intended and Approved Use |
Residential |
|
Fresh Food Capacity Cu. Ft. |
12.09 |
|
Interior Fresh Food Dimensions W x D x H |
W:26.81” x D:21.08” x H:35.91” |
|

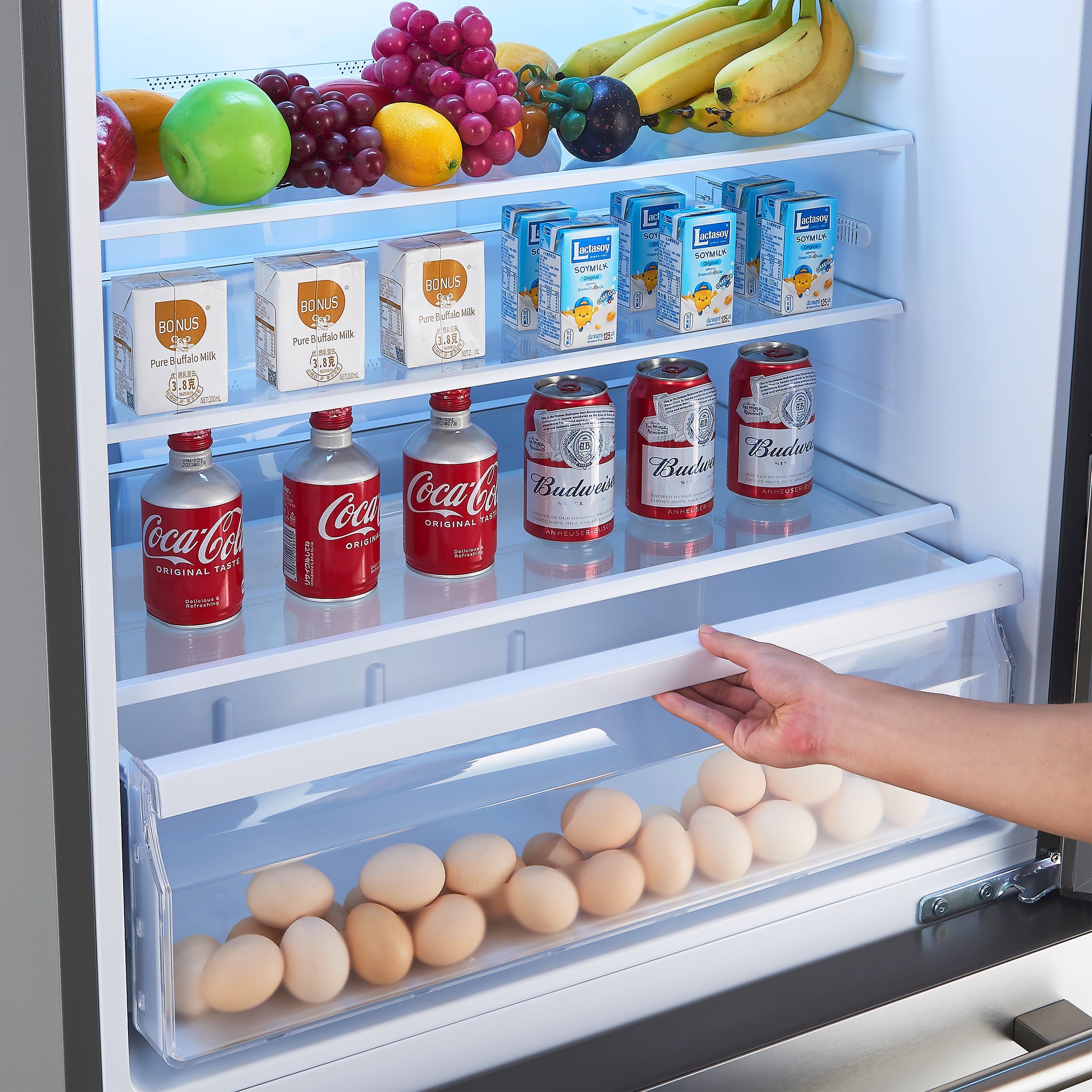

Fresh Food drawers |
1 |
|
Fresh Food Drawer(s) Size W x D x H (inches) |
26.6 x 15.7 x 7.8 |
|
Fresh Food Door Type |
Right Swing |
|
Fresh Food Shelves |
4 |
|
Fresh Food Shelve(s) Size W x D x H (inches) |
26.7 x 14.3 x 0.37 |
|

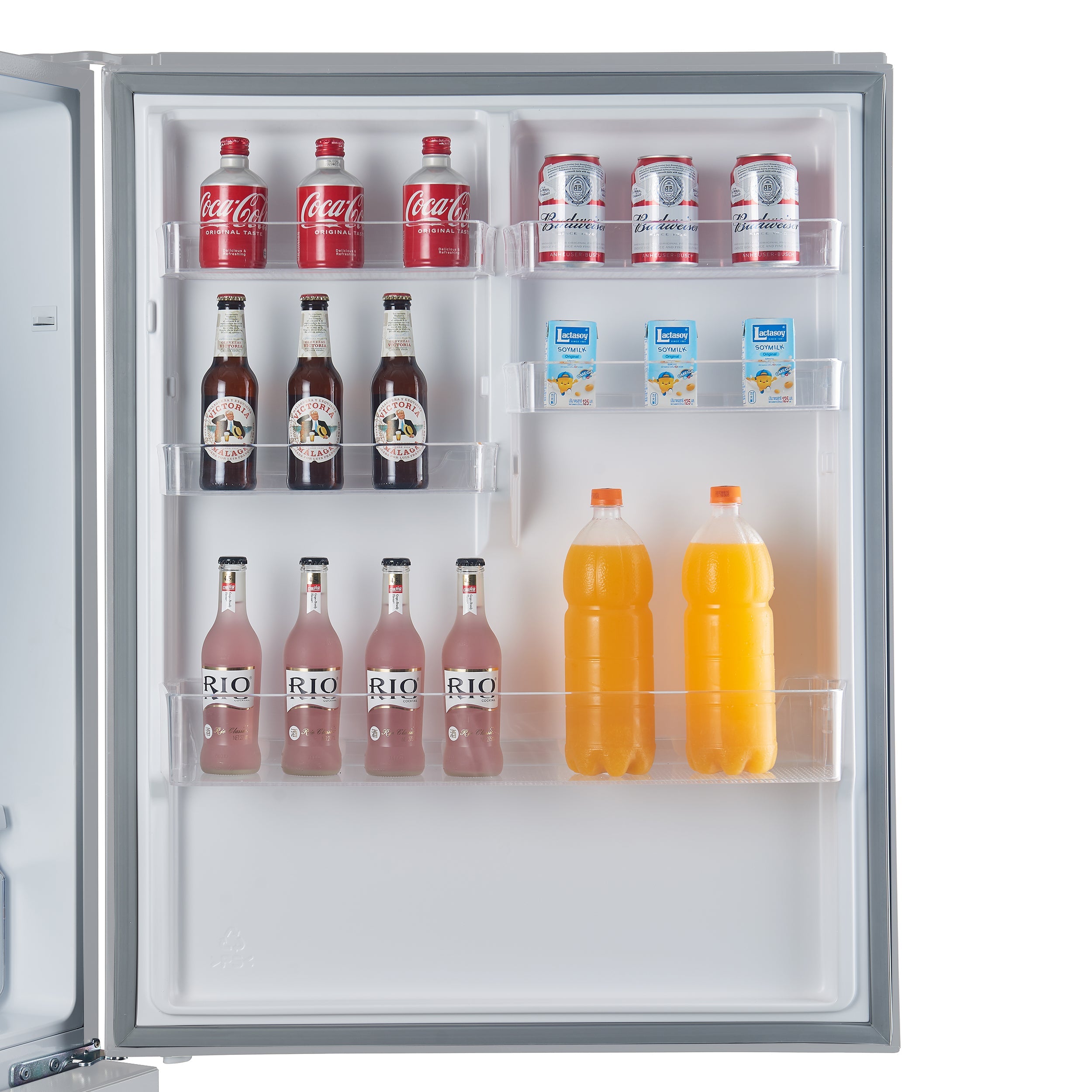

Gallon Door Bins |
1 |
|
Gallon (4 Liters) Door Bin(s) Size W x D x H (inches) |
26.8 x 5.6 x 3.5 |
|
Half (2 Liters) Gallon Door Bins |
4 |
|
Half (2 Liters) Gallon Door Bins Size W x D x H (inches) |
13.3 x 5.59 x 1.97 |
|
Standard Door Bins |
No |
|
Door Bins Color |
Transparent |
|
Freezer Capacity |
5.14 |
|
Interior Freezer Dimensions |
24.45” x D:16.00” x H:22.68” |
|

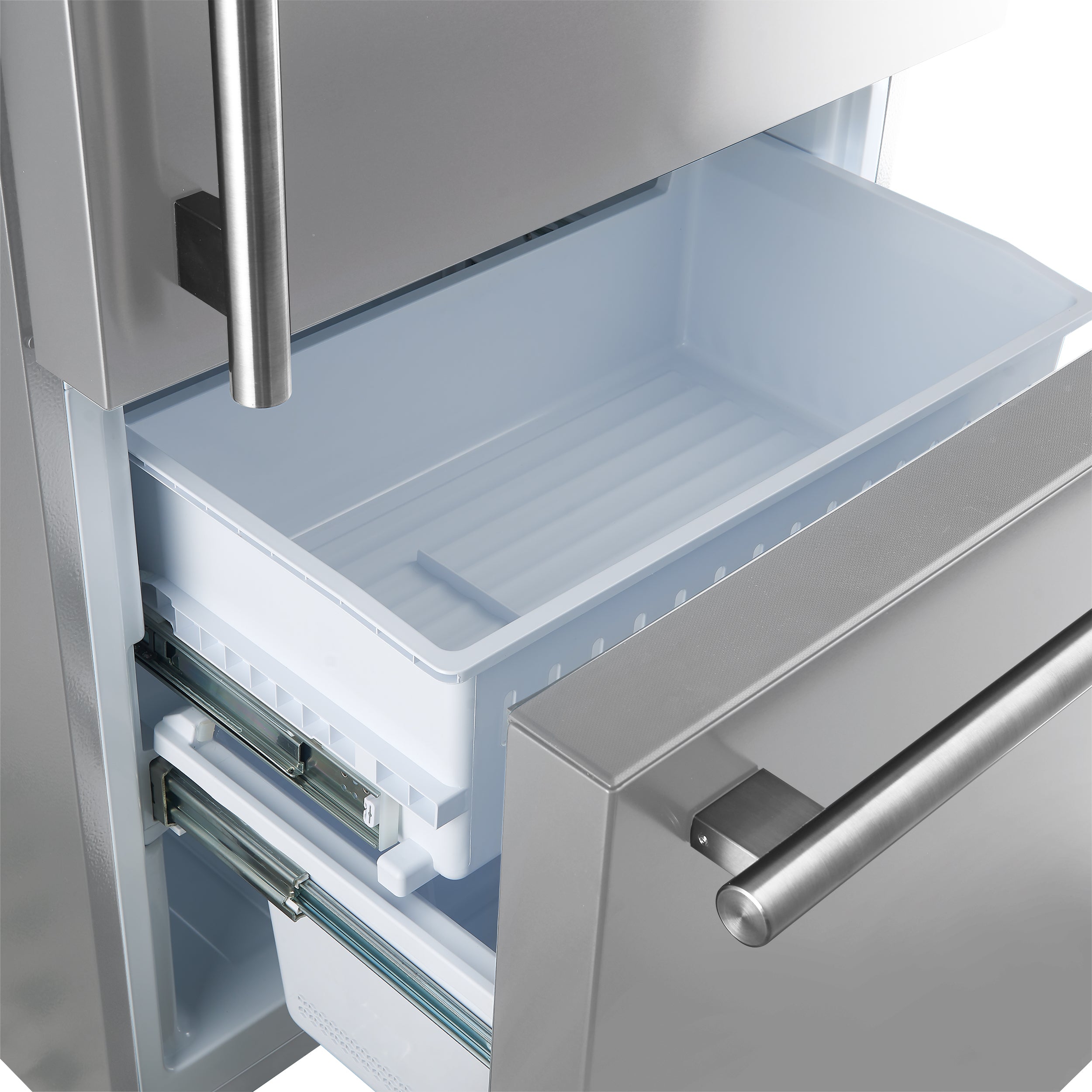

Freezer drawers |
2 |
|
Freezer Drawer(s) Size W x D x H (inches) |
25.7 x 14.78 x 11.38 |
|
Freezer Door Style |
Pull Out Drawer |
|
Freezer Shelves |
No |
|
Amperage (AMP) |
15 |
|
Running Amperage (AMP) |
1.25 |
|
Volts (V) |
120 |
|
Frequency (Hz) |
60 |
|
Power Consumption Cooling Wattage (W) |
80 |
|
Power Consumption Defrost Wattage (W) |
220 |
|
Energy Consumption (kWh/yr) |
453 |
|
Estimated Annual Operating Cost (USD) |
63 USD |
|
Power Cord Length without Plug |
5.58 Feet |
|
Power Cord Length with Plug |
5.8 Feet |
|
Receptacle Type |
3-Prong Grounded NEMA 5-15 |
