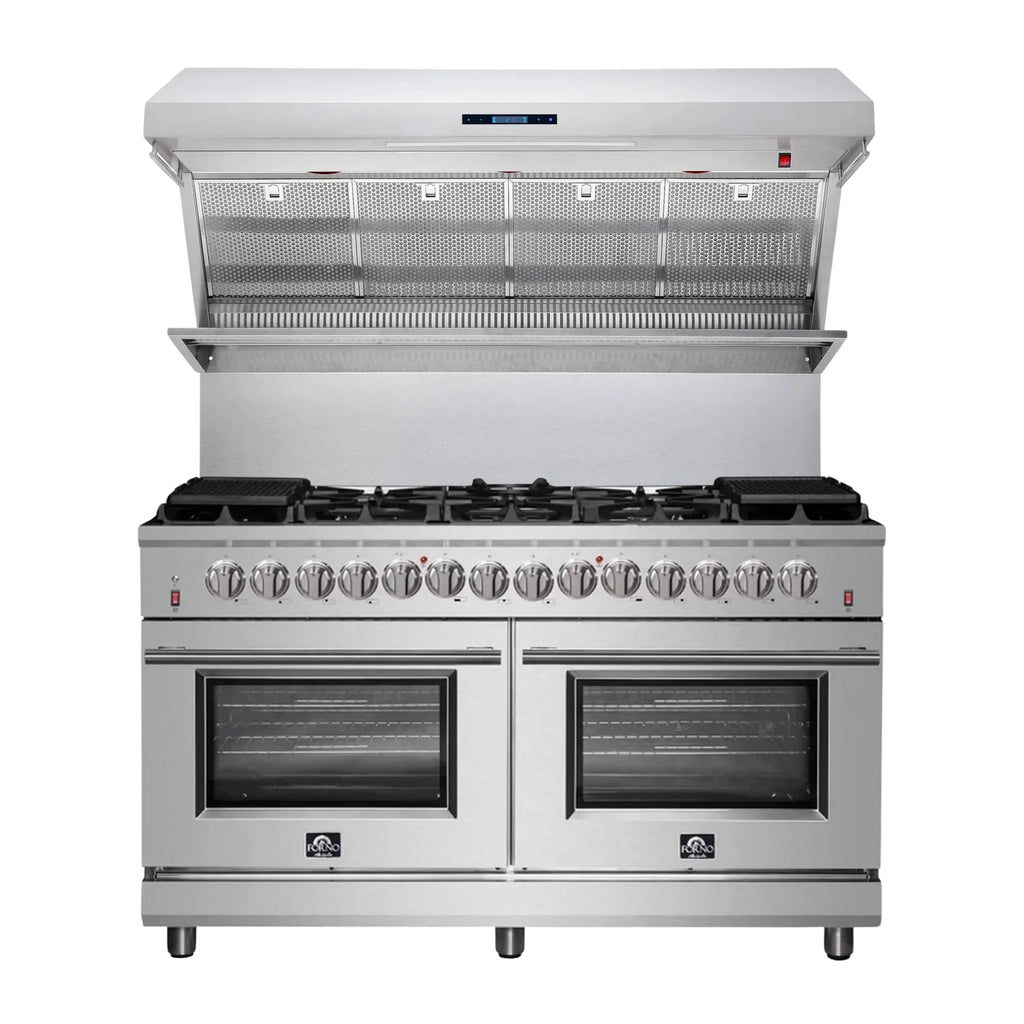

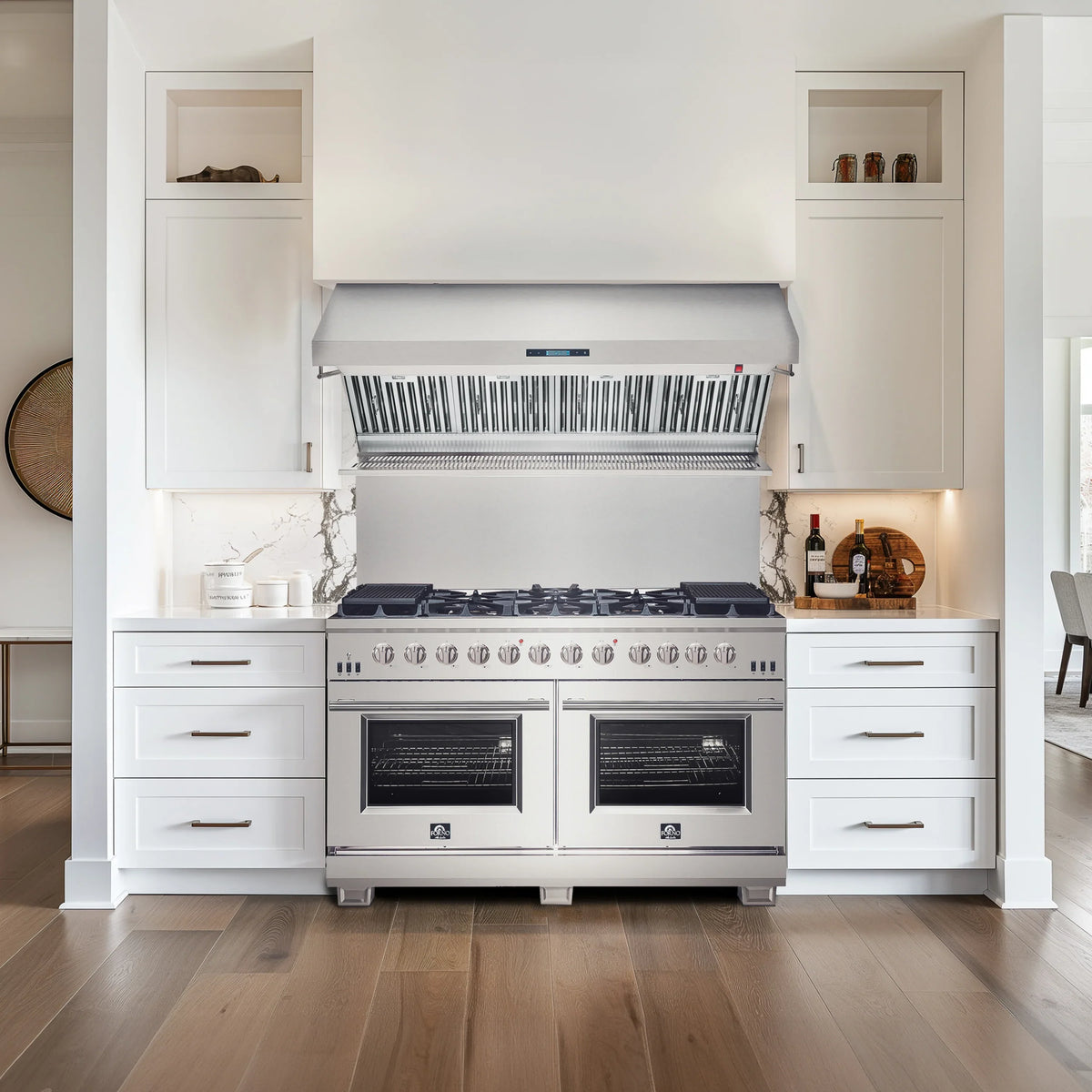

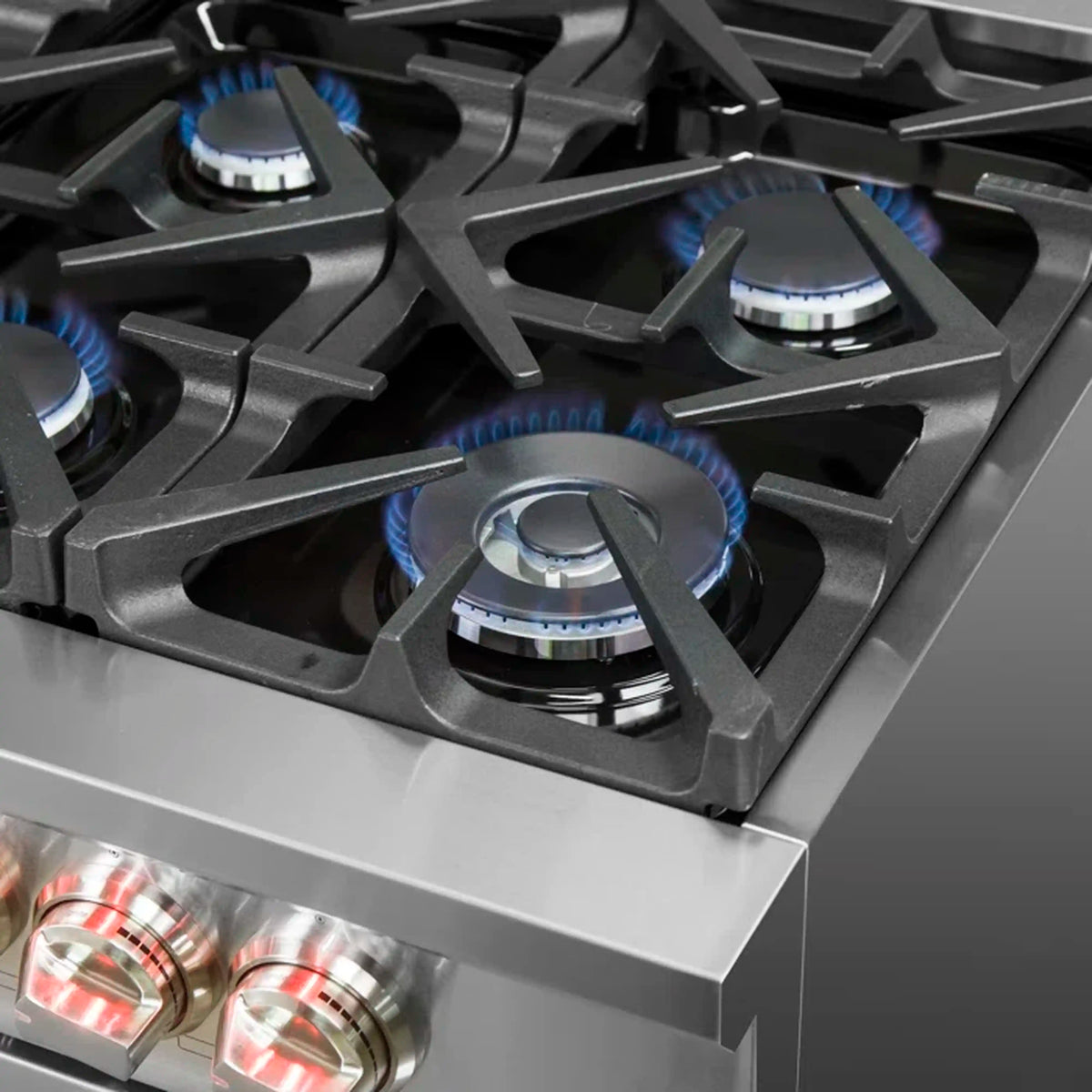

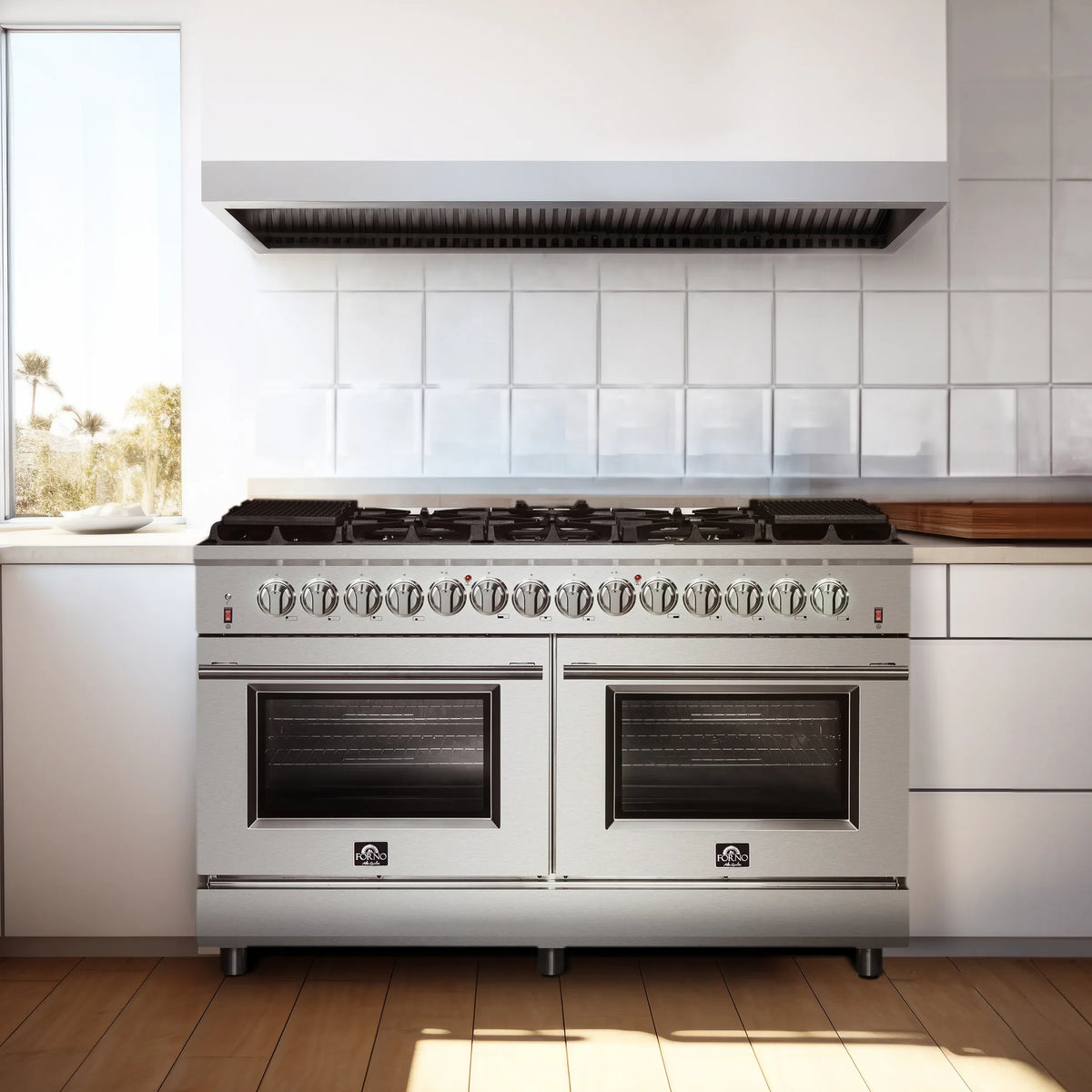

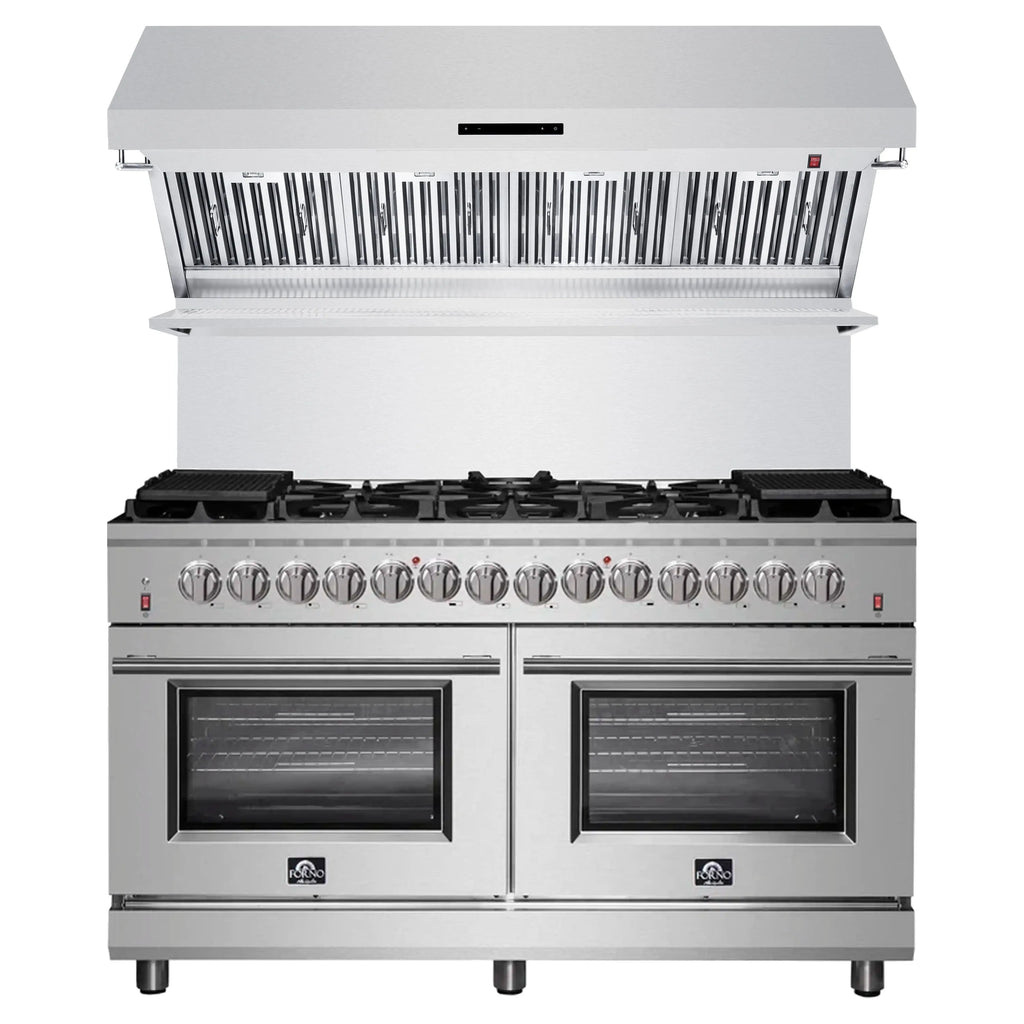

The Forno 60” Massimo Dual Fuel Range brings professional styling and quality into your home kitchen with its durable stainless-steel design. Cooktop has 10 sealed burners with a total stove top output of 142,000 BTU including 2 sealed dual-ring burner for simmering delicate tasks like melting chocolate or cooking sauces, giving you the ability to cook up whatever delicious meals you desire.

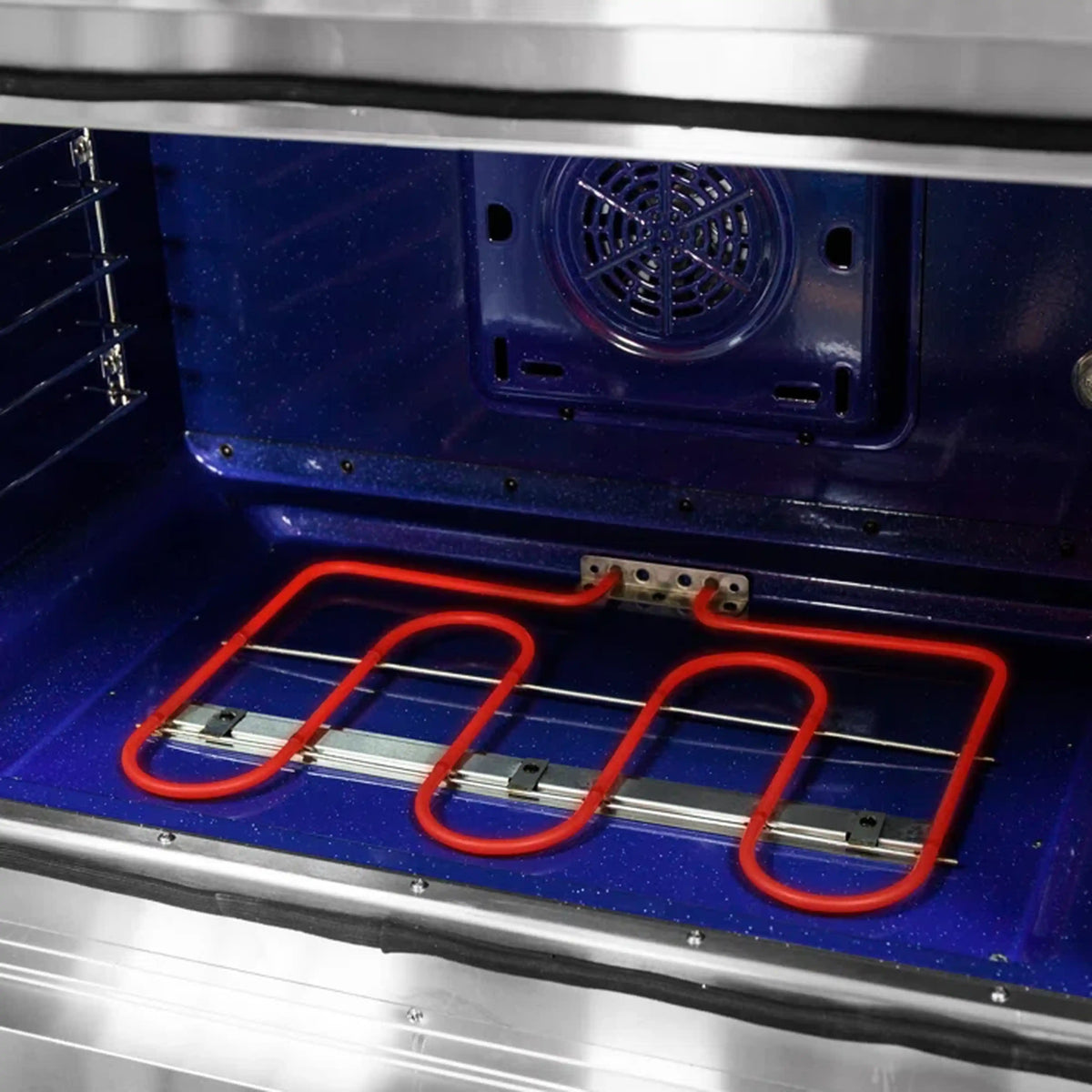

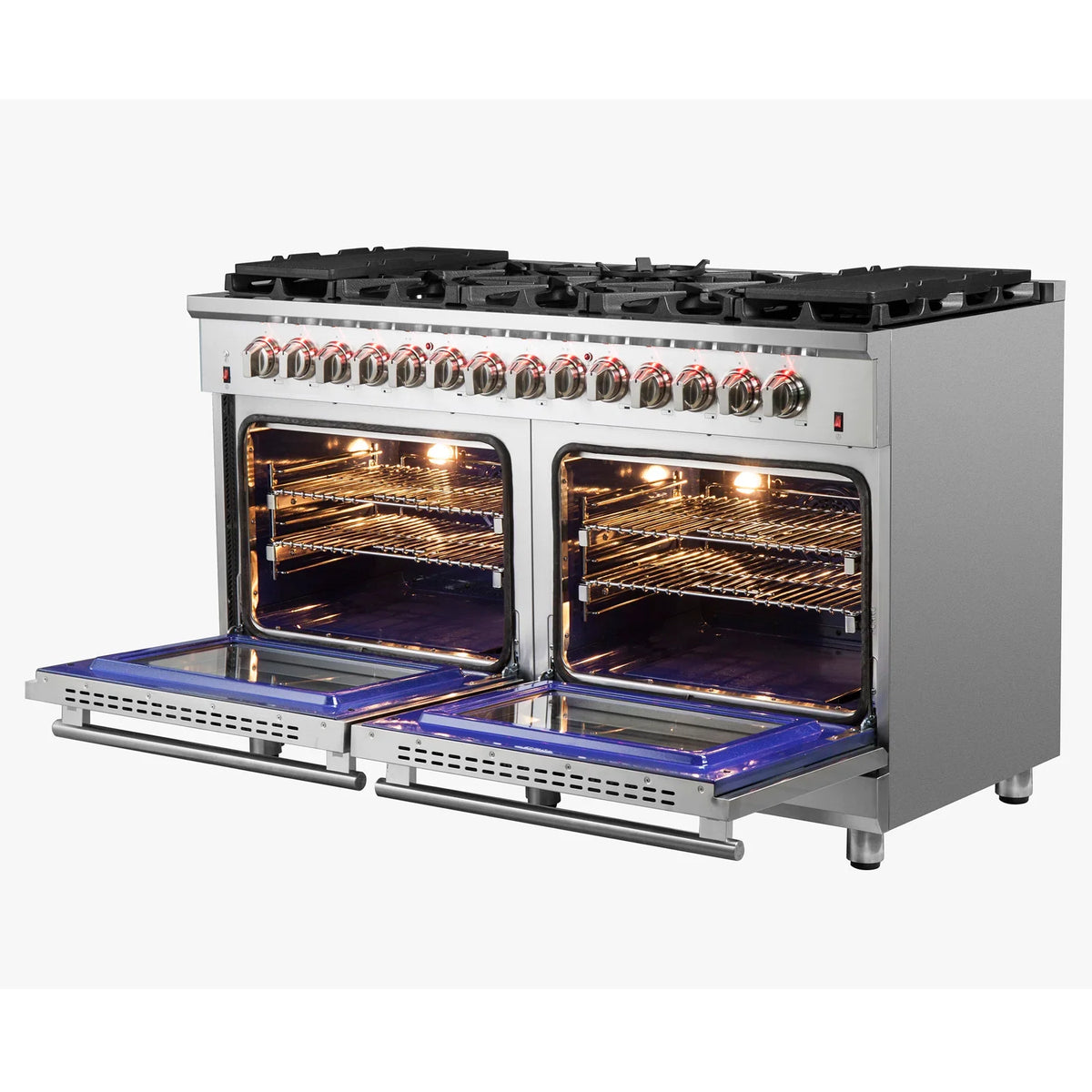

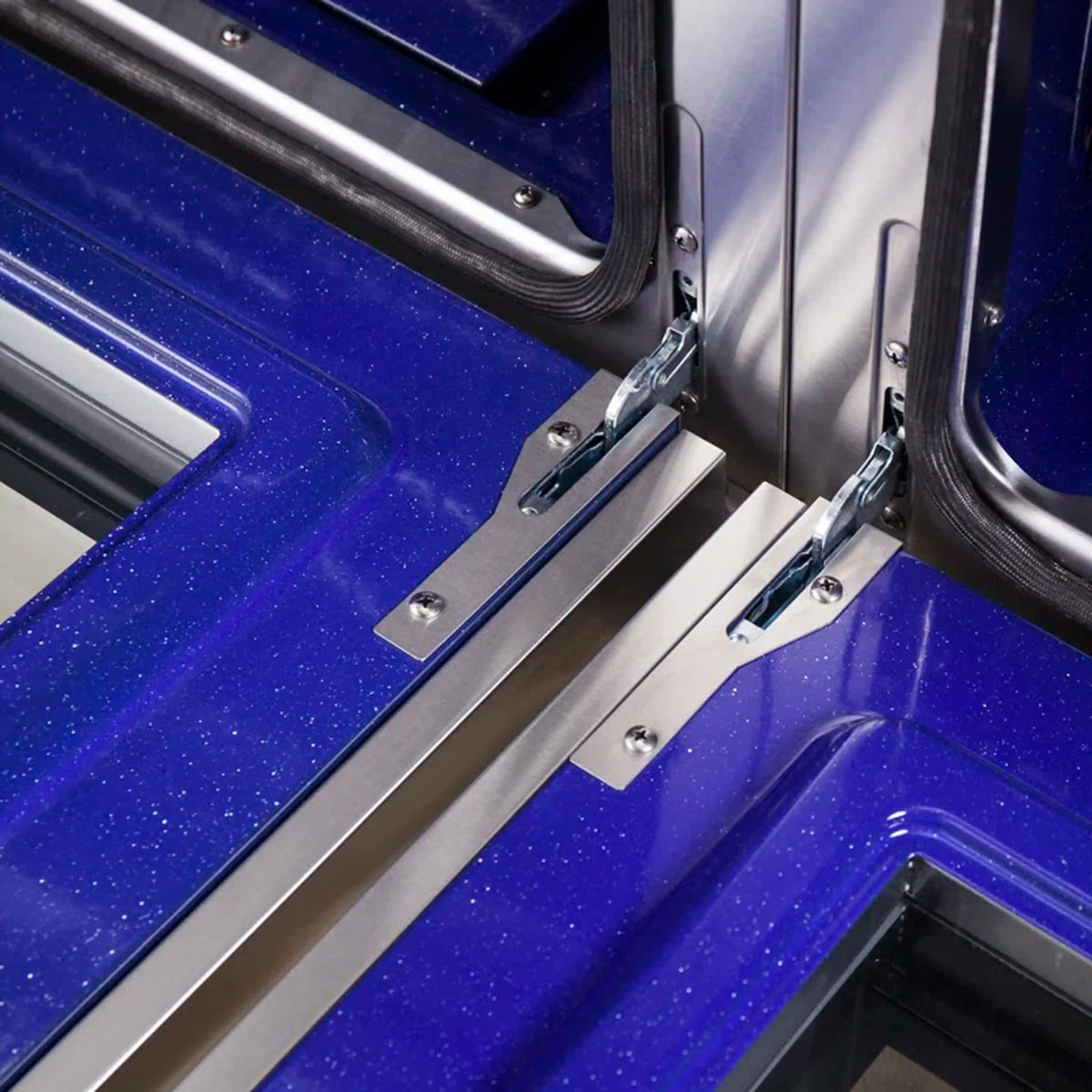

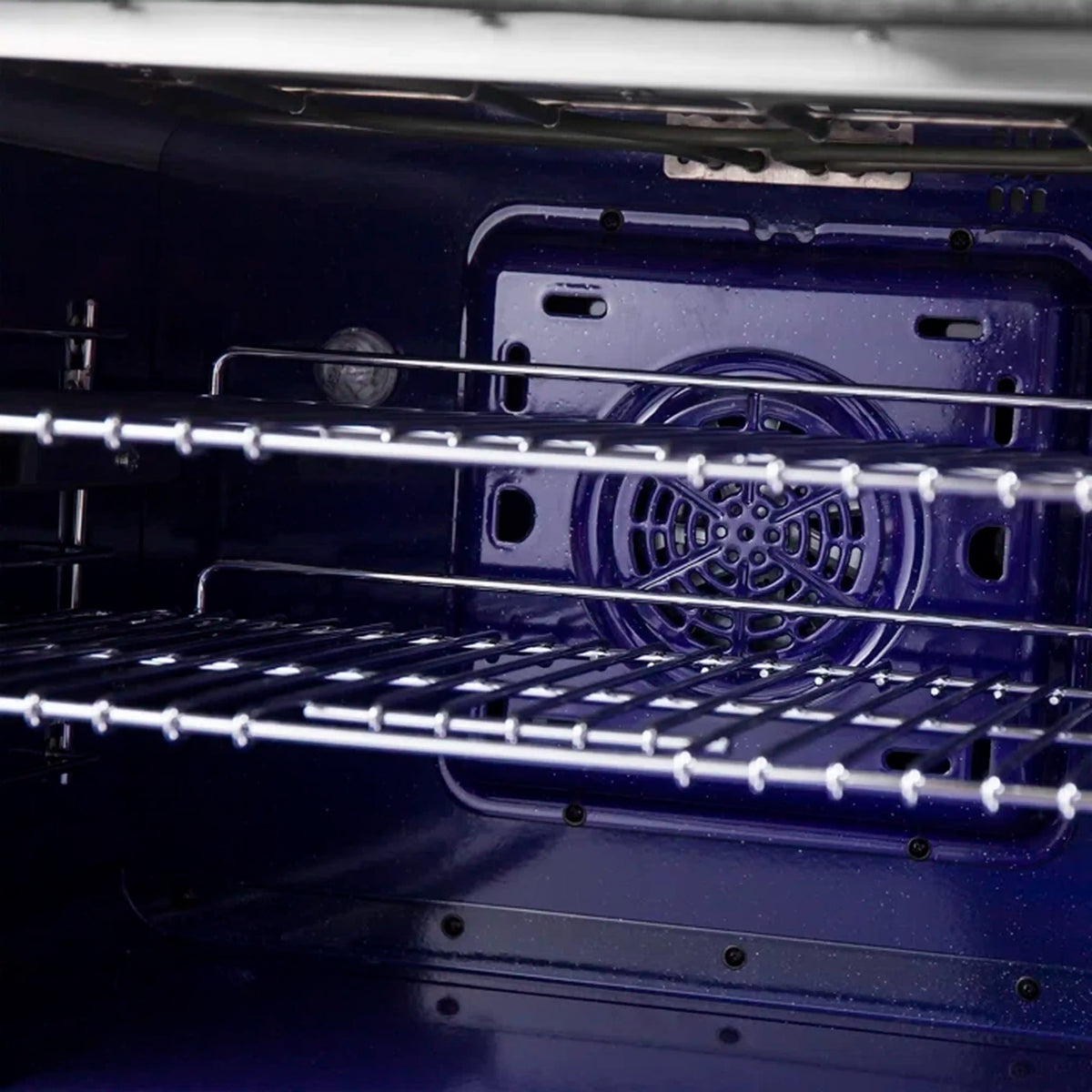

The heavy-duty continuous cast iron grates allow for even heat distribution and maximum stability of cookware mobility over a recessed enamel cooktop cavity which keeps spills and splashes contained and easy to clean. Double electric ovens have a combined 8.64 cu.ft. capacity with a total broil and bake output of 12,600 Watts, encased in blue enamel interiors and sealed with insulated oven doors and tempered 3-layer glass windows. True convection ovens ensure to achieve fast, precision and consistent oven cooking. Included are 2 telescopic oven racks, concave Wok Ring, 2 reversible grill/griddle, Air Fryer basket, rack & drip pan, LP conversion kit and 4-prong power cord. Housed in a high-grade stainless steel body and zinc coated metal knobs with bezels.
This unit sports a stylish look that is built to last. All Forno products are backed by an iron clad 2-year warranty for your satisfaction. Skip the high price tags without sacrificing quality and performance. Lower the cost of living with Forno.
| DIMENSIONS | |
|---|---|
| Product (W x D x H) (In) | 60 x 28 x 38 |
| Minimum Counter Height (In) | 36 |
| Maximum Counter Height (In) | 37 |
| Depth with Oven Door Open 90º (In) | 44.25 |
| Oven Interior (W x D x H) (In) | 24.92 x 18.7 x 16 |
| Left Oven Interior (W x D x H) (In) | 24.92 x 18.7 x 16 |
| Overall Weight (lbs) | 492.73 |
| Power Cord Length | 3.1 feet |
| GENERAL INFORMATION | |
| Overall WxDxH (In) | 60 x 28 x 38 |
| Product Type | Freestanding |
| Supplier Intended and Approved Use | Residential Use |
| LP Kit Included | Yes |
| Total Stovetop | 142,000 BTU |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Color/Finish | Stainless Steel |
| Gas Heat Configuration | Sealed Burner |
| Control Type | Manual |
| Interior Light | 4 |
| Control Type (2) | Knob |
| Control Location | Front |
| Clock | No |
| Primary Material | Metal |
| Control Panel Material | Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| Brass Handle & Knobs | No |
| Number of Knob | 14 |
| TECHNICAL DETAILS | |
| Amperage | 40A |
| Volts | 240V |
| Wattage | 12,600 |
| Receptacle Type | 4-Prong Grounded |
| Fuel Type | Gas and Electric |
| Gas Type | Natural Gas / LP |
| LP Gas Convertible | Yes |
| COOKTOP FEATURES | |
| Number of Burners | 10 |
| Cooktop Surface | Heavy-Duty Continuous Cast Iron Grates |
| Cooktop Cavity | Recessed Enamel |
| Ignition Type | Push & Turn |
| Reversible Grill/Griddle | Yes |
| Front Right | 1000 BTU to 20,000 BTU |
| Front Right Center | 15,000 BTU |
| Front Center | 15,000 BTU |
| Front Left Center | 15,000 BTU |
| Front Left | 1000 BTU to 20,000 BTU |
| Rear Right | 15,000 BTU |
| Rear Right Center | 9,000 BTU |
| Rear Center | 9,000 BTU |
| Rear Left Center | 9,000 BTU |
| Rear Left | 15,000 BTU |
| OVEN FEATURES | |
| Oven 1 inside Broil Wattage | 1000 |
| Oven 1 Outside Broil Wattage | 1800 |
| Oven 1 Bake Wattage | 2000 |
| Oven 1 True Convection Wattage | 1500 |
| Oven 2 Inside Broil Wattage | 1000 |
| Oven 2 Outside Broil Wattage | 1800 |
| Oven 2 Bake Wattage | 2000 |
| Oven 2 Convection Heater Wattage | 1500 |
| Number of Ovens | 2 |
| Oven Interior Finish | Blue Enamel |
| Oven Rack Type | Telescopic |
| Number of Racks | 4 |
| Oven Rack Material | Stainless Steel |
| Number of Rack Positions | 2 x 5 |
| Broiler | Electric |
| Bake | Electric |
| Cooking Process | True Convection |
| Cleaning Type | Steam |
| Temperature Gauge | No |
| Timer | No |
| Door Panel Material | Stainless Steel |
| Air Fryer Kit | Yes |
| Rotisserie Kit | No |
| Overall Oven Capacity | 8.64 Cubic Feet |
| Right Oven Capacity | 4.32 Cubic Feet |
| Left Oven Capacity | 2.26 Cubic Feet |
| Convection Fan | Yes |
| WARRANTY & CERTIFICATIONS | |
| ETL Listed | Yes |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty Length | 2 |
| Warranty on Parts | 2 |
| Warranty on Labor | 2 |

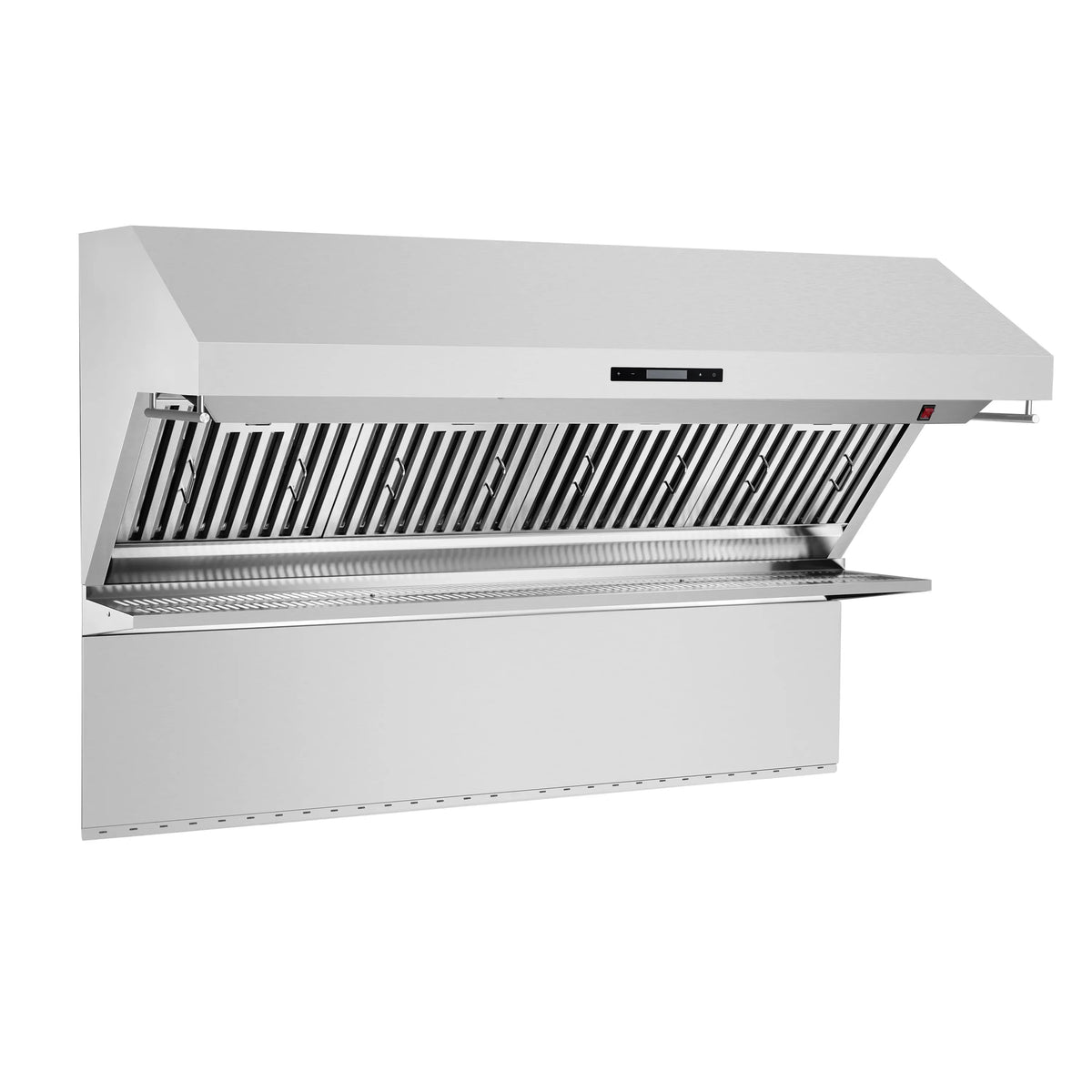

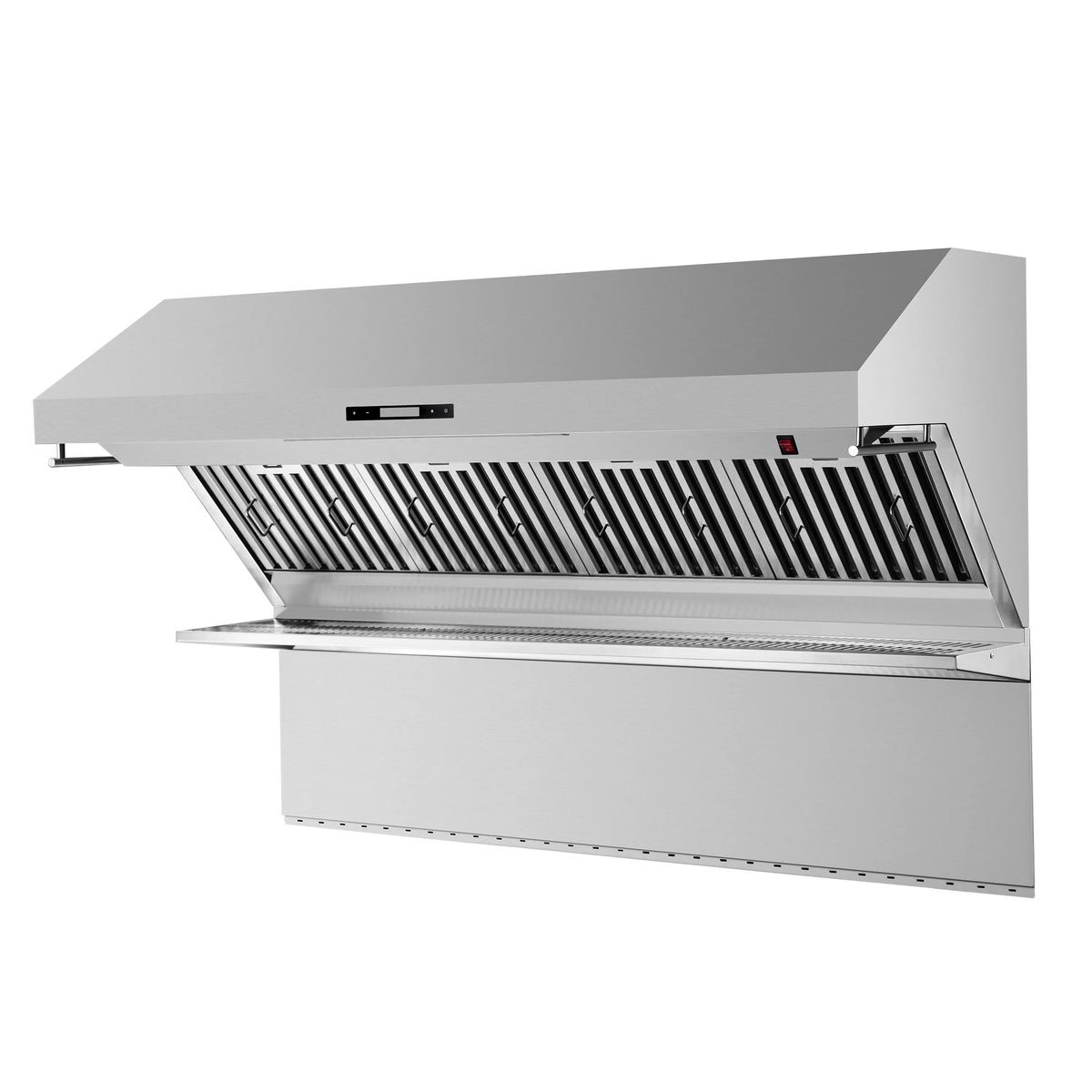

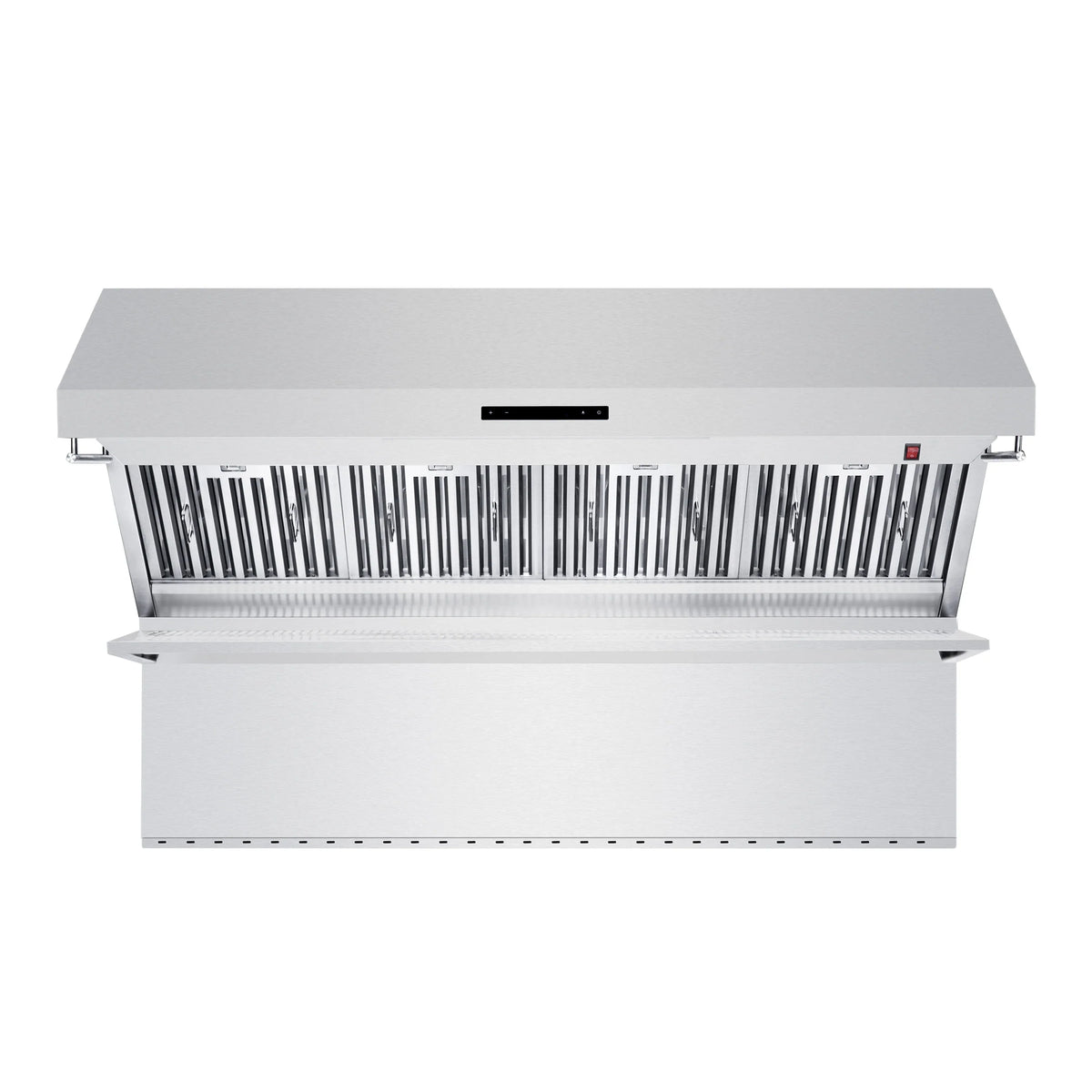

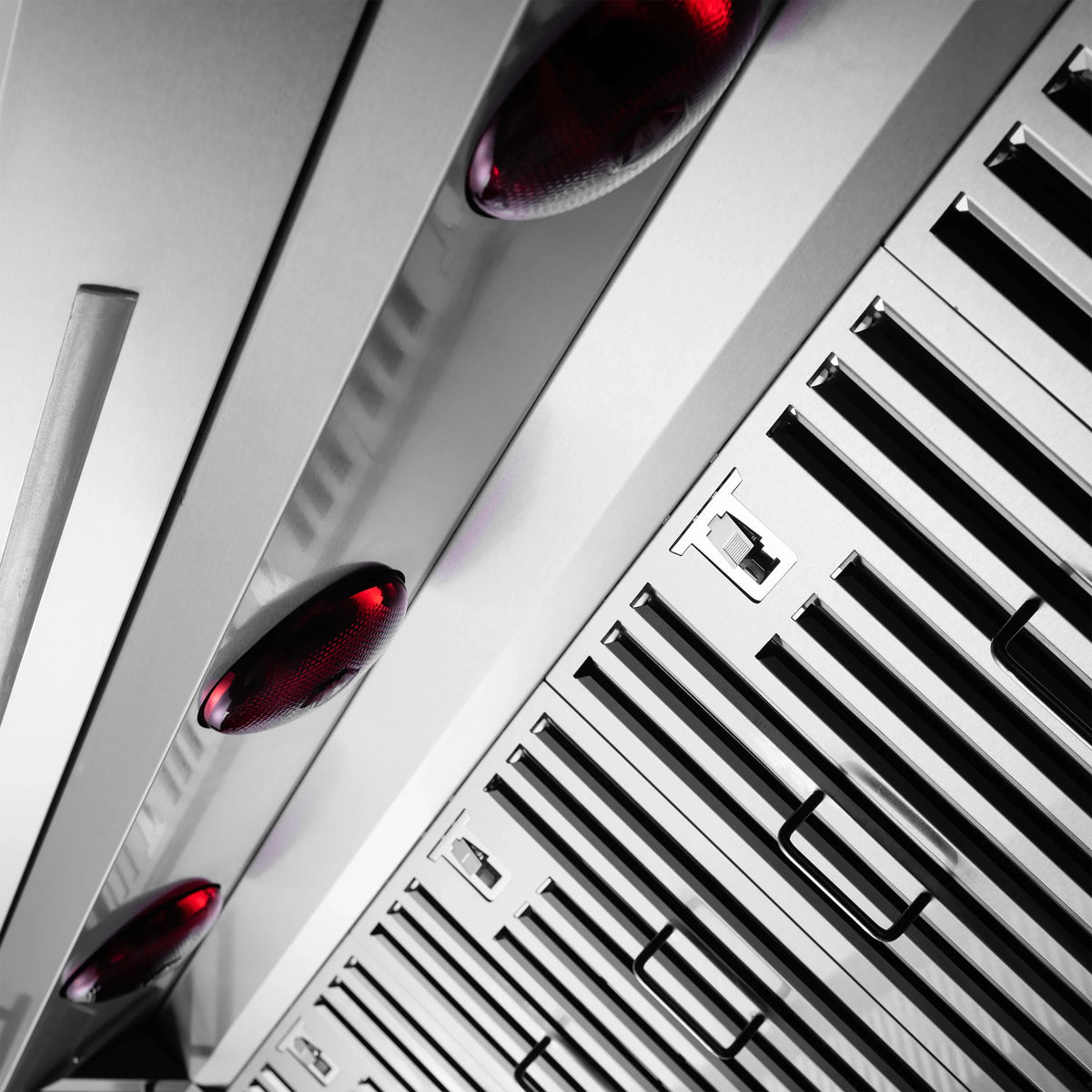

The Forno Savona 60" Wall Mount Range Hood delivers powerful ventilation with dual 600 CFM motors, offering a combined 1200 CFM airflow to eliminate smoke, grease, and odors efficiently. Constructed from premium stainless steel, it ensures long-lasting durability and a professional appearance. Baffle filters efficiently capture grease while ensuring excellent airflow. They are removable and dishwasher-safe for easy cleaning and maintenance. Multiple fan speed settings allow precise airflow control based on your cooking needs. The integrated upper warming shelf, heated by three warming lights, keeps dishes ready to serve. A sleek stainless steel backsplash adds both elegance and wall protection, while dual utensil hangers offer convenient storage or a stylish way to display cookware.
| DIMENSIONS | |
|---|---|
| Product Dimensions (W x D x H) | 59.06" x 25" x 39.49" |
| Product Width (in) | 59.06" |
| Product Depth (in) | 25" |
| Product Height (in) | 39.49" |
| Cutout Dimensions (W x D x H) | 60" x 25" x 39" |
| Cutout Width (in) | 60" |
| Cutout Depth (in) | 12" |
| Cutout Height (in) | 39" |
| Backsplash Dimensions (W x H) | 59.06" x 12.6" |
| Warming Shelf Dimensions (W x D x H) | 59.06" x 12.01" x 3.46" |
| Minimum Height from Cooktop (in) | 30" |
| Product Overall Weight (lbs) | 144.10 |
| DESIGN & FINISH | |
| Control Location | Front |
| Speed Control Type | Touch |
| Speed Control | 4 |
| Remote Control | No |
| TECHNICAL DETAILS | |
| Color/Finish | Stainless Steel |
| Primary Material | Stainless Steel |
| Hardware Finish | Stainless Steel |
| Range Hood Shape | Square |
| Display Type | LCD |
| Fingerprint-Resistant | No |
| Vent Type | Ducted |
| Vent Style | External |
| Air Discharge Direction | Vertically Upward |
| Exhaust Vent Location | Top |
| Number of Exhaust Vents | 2 |

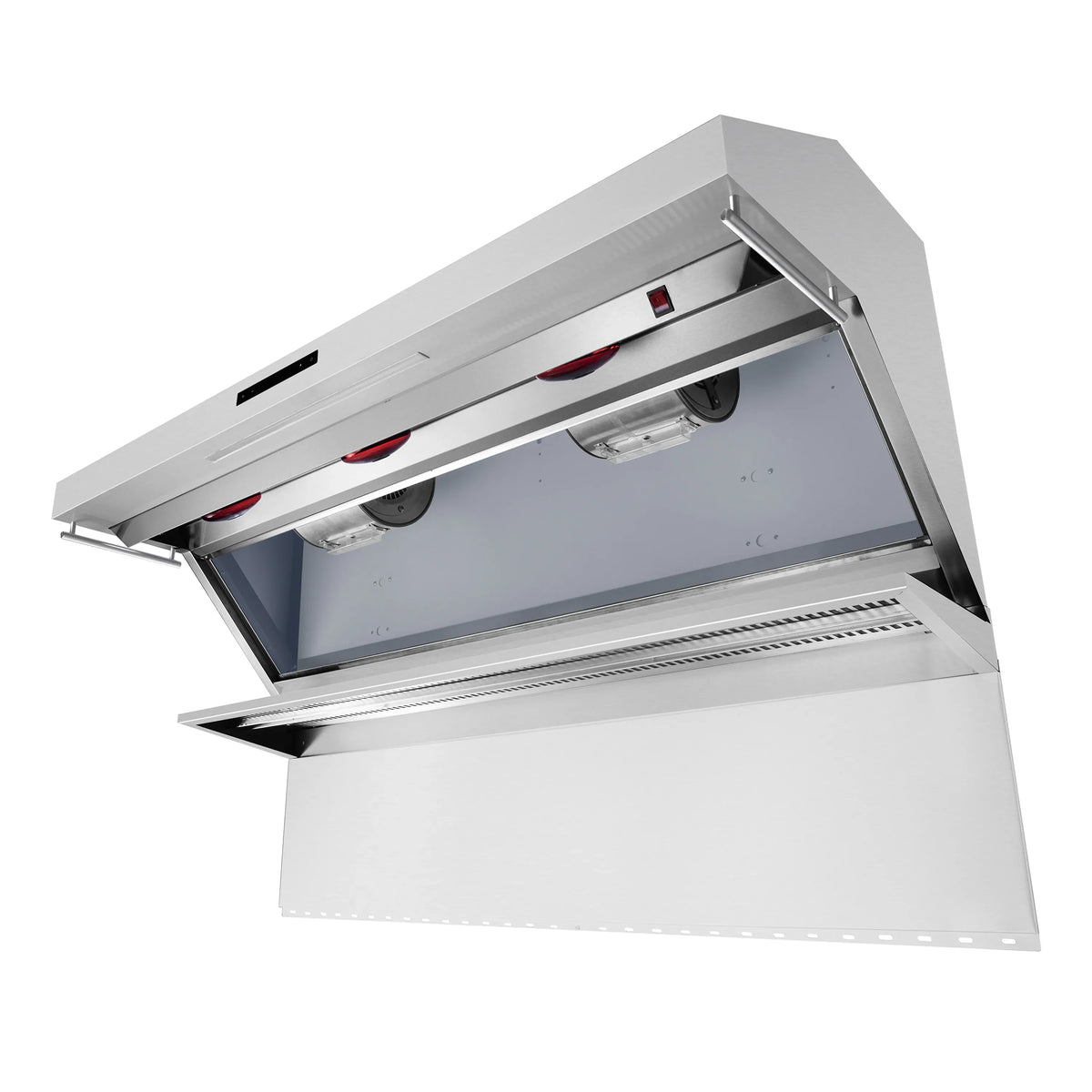

| Number of Blowers | 2 |
| Blower Material | Metal |
| Reversible Blower | No |
| Duct Type | 6-in Round |

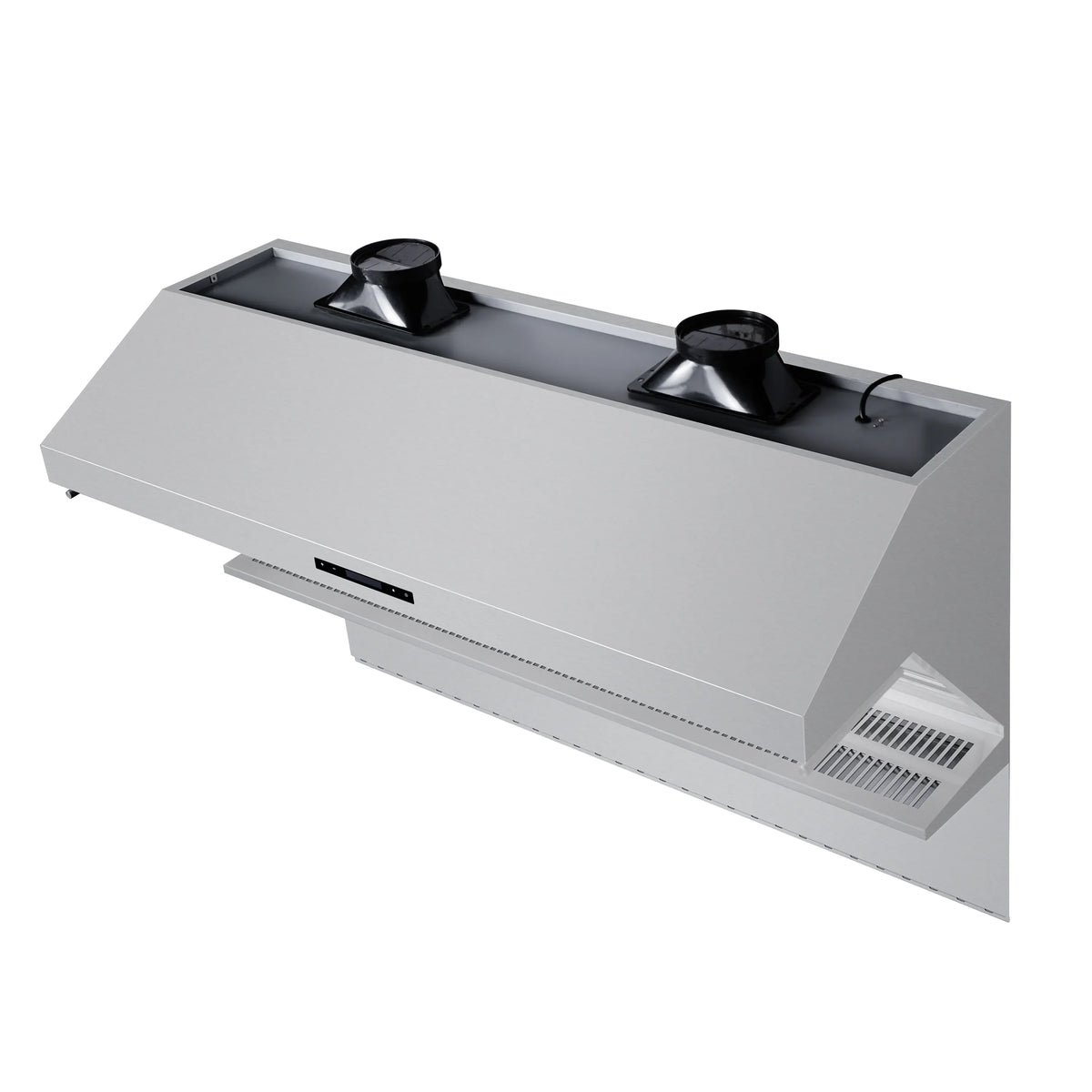

| Damper | Yes |
| Damper Type | 6-in Round |
| Motor Power (Watts) | 120W |
| Maximum CFM | 1200 |
| Minimum CFM | 550 |
| CFM Speed 1 | 550 |
| CFM Speed 2 | 750 |
| CFM Speed 3 | 950 |
| CFM Speed 4 | 1200 |
| Air Flow Speed 1 | 935 |
| Air Flow Speed 2 | 1274 |
| Air Flow Speed 3 | 1614 |
| Air Flow Speed 4 | 2039 |
| RPM Speed 1 | 880 |
| RPM Speed 2 | 1050 |
| RPM Speed 3 | 1350 |
| RPM Speed 4 | 1510 |
| Minimum Decibel (dB) | 48 |
| Maximum Decibel (dB) | 68 |
| Decibel Speed 1 (dB) | 48 |
| Decibel Speed 2 (dB) | 53 |
| Decibel Speed 3 (dB) | 60 |
| Decibel Speed 4 (dB) | 68 |
| Minimum Sones | 2.00 |
| Maximum Sones | 16.00 |
| Sones Speed 1 | 2.00 |
| Sones Speed 2 | 6.00 |
| Sones Speed 3 | 11.00 |
| Sones Speed 4 | 16.00 |
| Number of Light Settings | 1 |
| Clock | Yes |
| Power Off Function | Yes |
| Power Off Timer | 15 Minutes |
| Clean Filter Alert | No |
| Heat Sensors | No |
| Filter Type | Baffle |
| Filter Material | Stainless Steel |
| Removable Grease Filter | Yes |
| Dishwasher Safe Filters | Yes |
| Charcoal Filters | No |
| Number of Lights | 1 |
| Bulb Type | LED Light Strip |
| Bulb Wattage | 10W |
| Number of Heating Lamps | 3 |
| Heating Lamp Type | Tungsten-Halogen E26 |
| Heating Lamp Wattage | 175W |
| Heating Lamp Maximum Wattage | 220W |
| Heating Lamp Included | Yes |
| Backsplash Included | Yes |
| Warming Shelf Included | Yes |
| Crown Molding | No |
| Chimney Short Kit | No |
| Chimney Extension Kit | No |
| Rangehood Chimney | No |
| Power Cord Location | Top |
| Duct Length (in) | 59" |
| FEATURES | |
| ISTA 6A | Yes |
| UPLR Compliant | Yes |
| Title 20 California Regulation | Yes |
| TAA Compliant | No |
| WARRANTY & CERTIFICATIONS | |
| Safety Listing | cETLus |
| File/Certification Number | 5014042 |
| Energy Star Certified | No |
| ADA Compliant | No |
| Star-K Certified | No |
| Certificate of Conformity (GCC) | No |
| Commercial Warranty | No |
| Warranty Length | 2 Years |
| Warranty Type | Limited |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |
| Warranty Script (English) | Experience peace of mind with FORNO products, each backed by a 2-year warranty covering labor and parts, ensuring satisfaction and confidence in the reliability of our high-quality appliances. |
