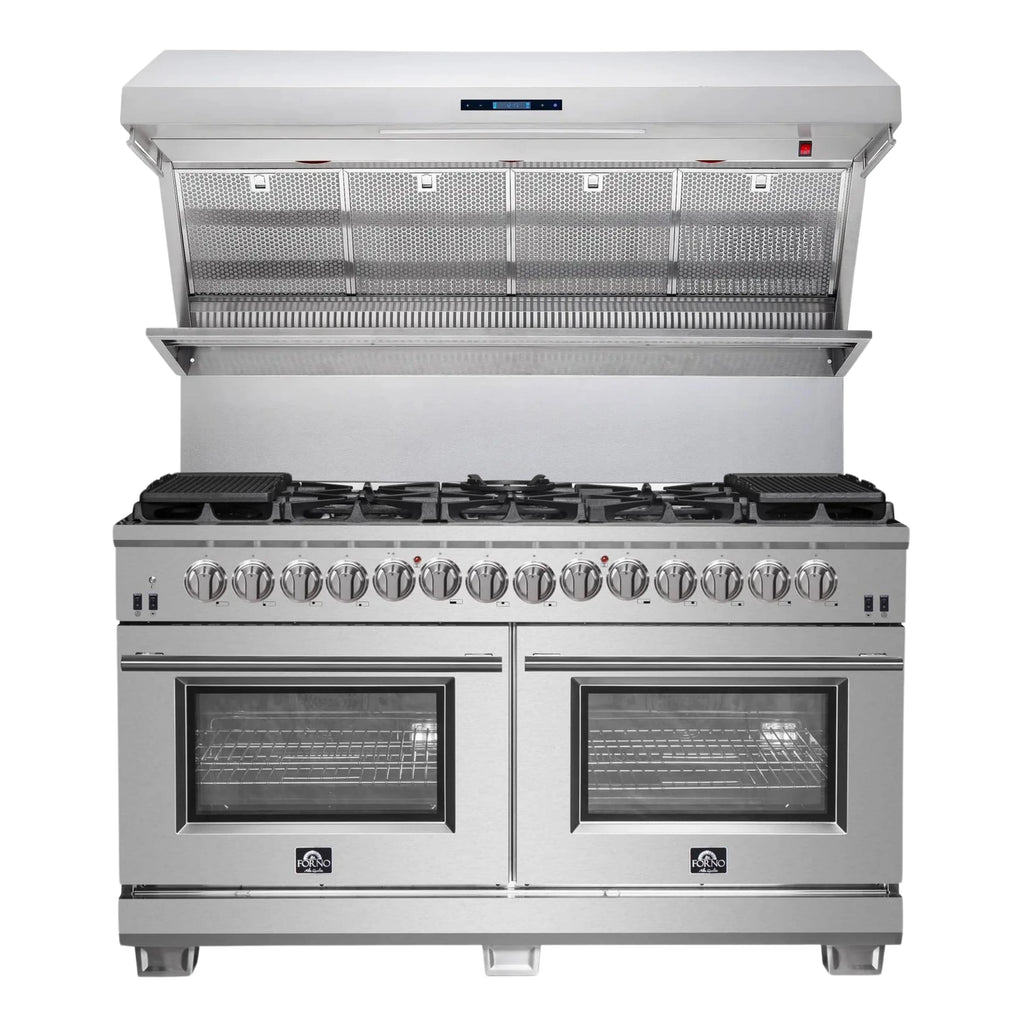

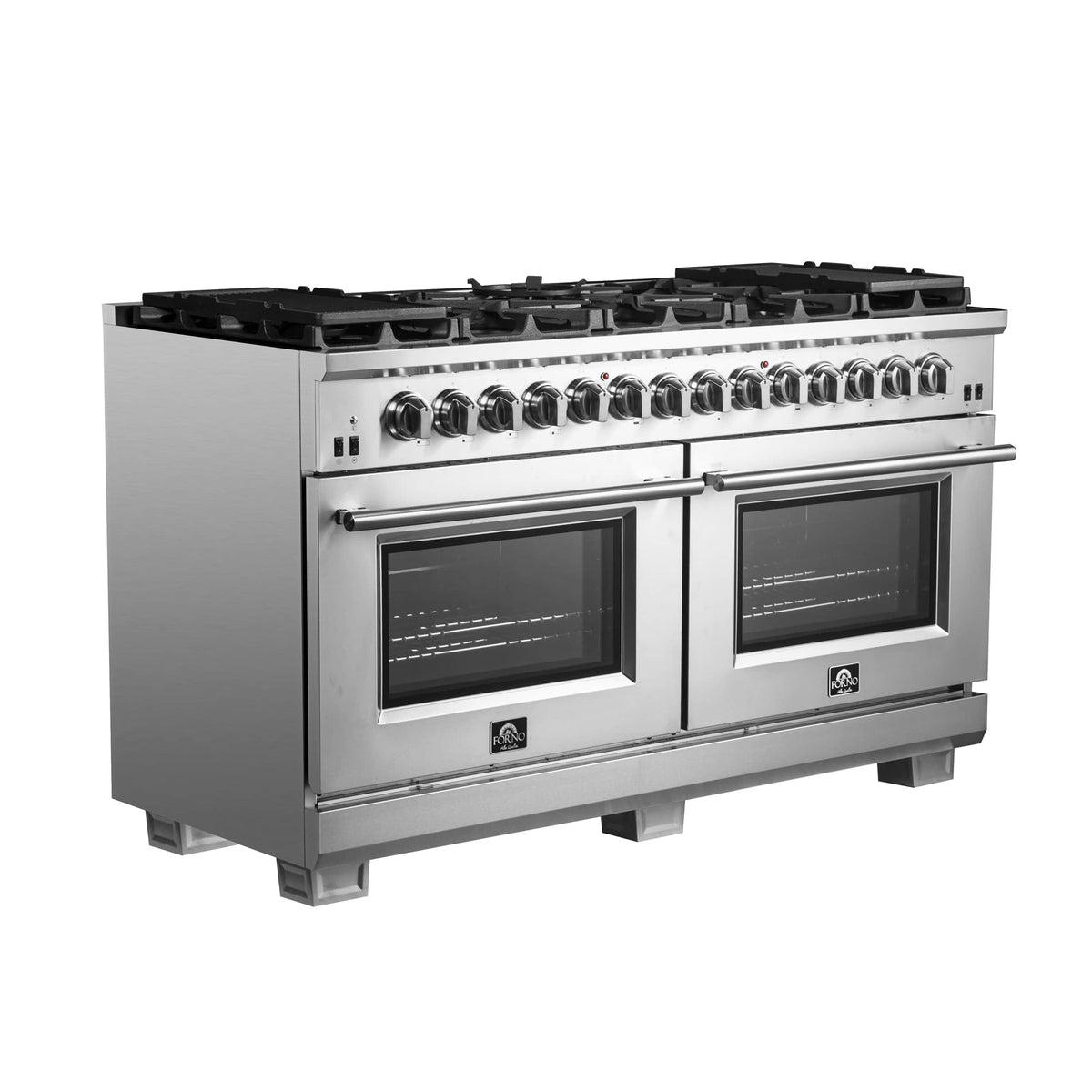

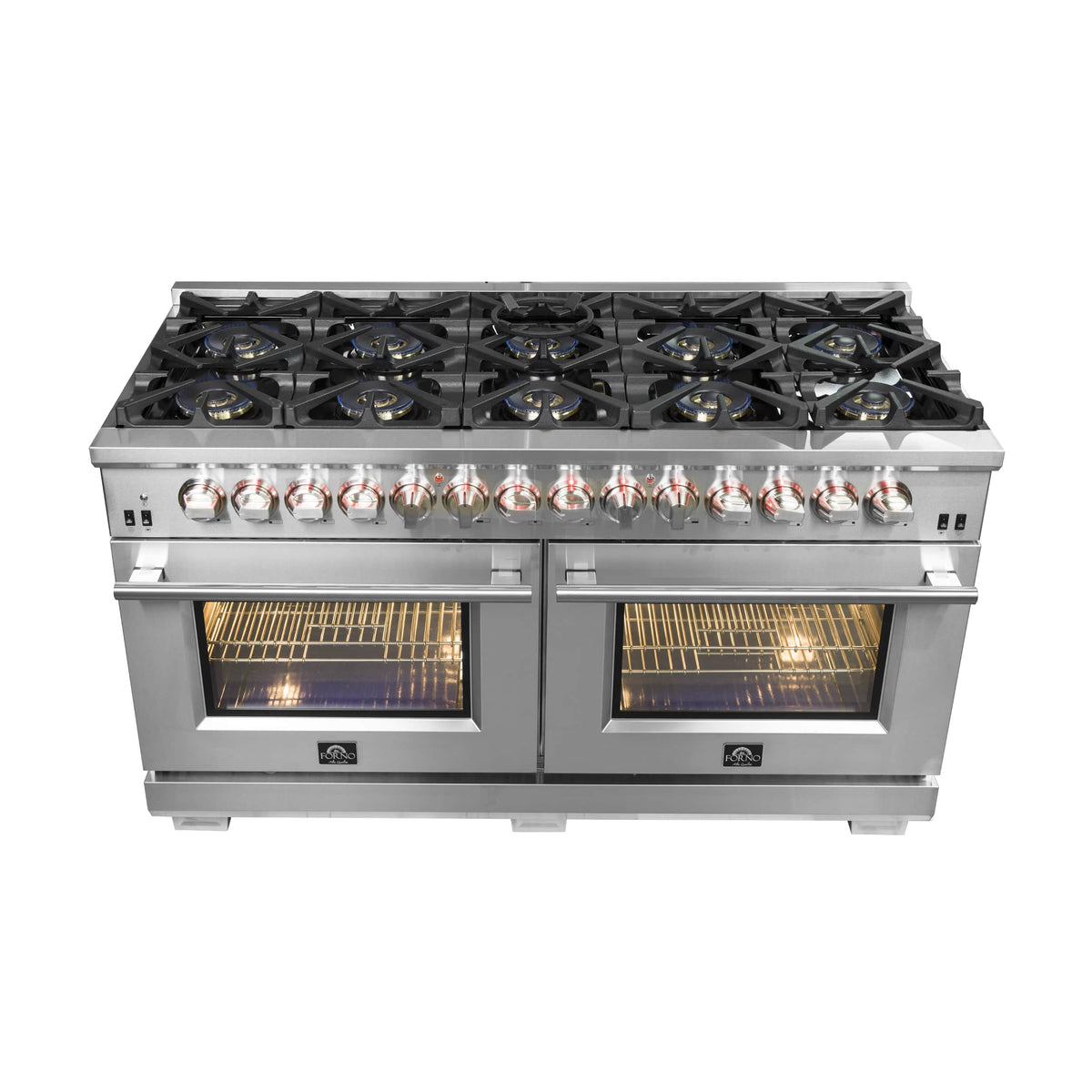

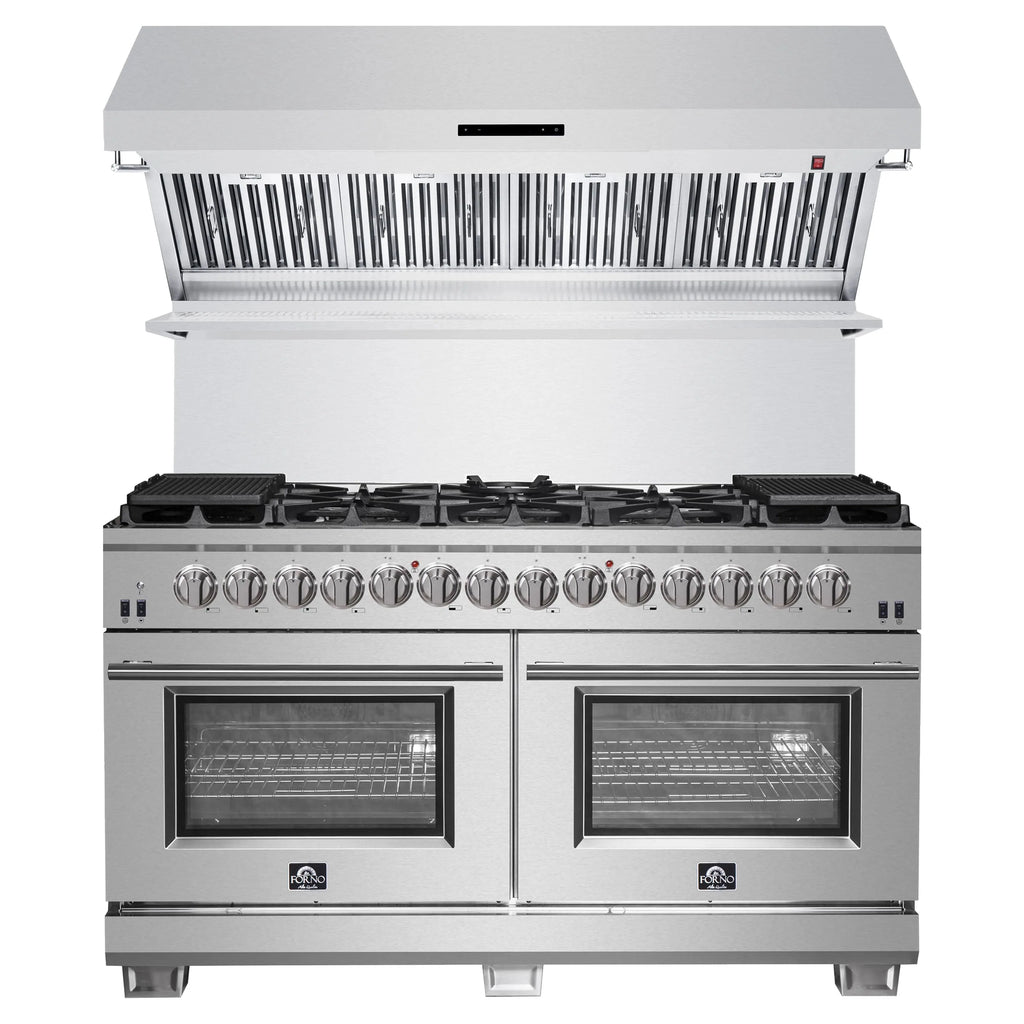

ALTA QUALITA 60" Pro-Style Dual Fuel Range with Convection Ovens and 10 Italian Dual Sealed Brass Burners Totaling 200,000 BTU

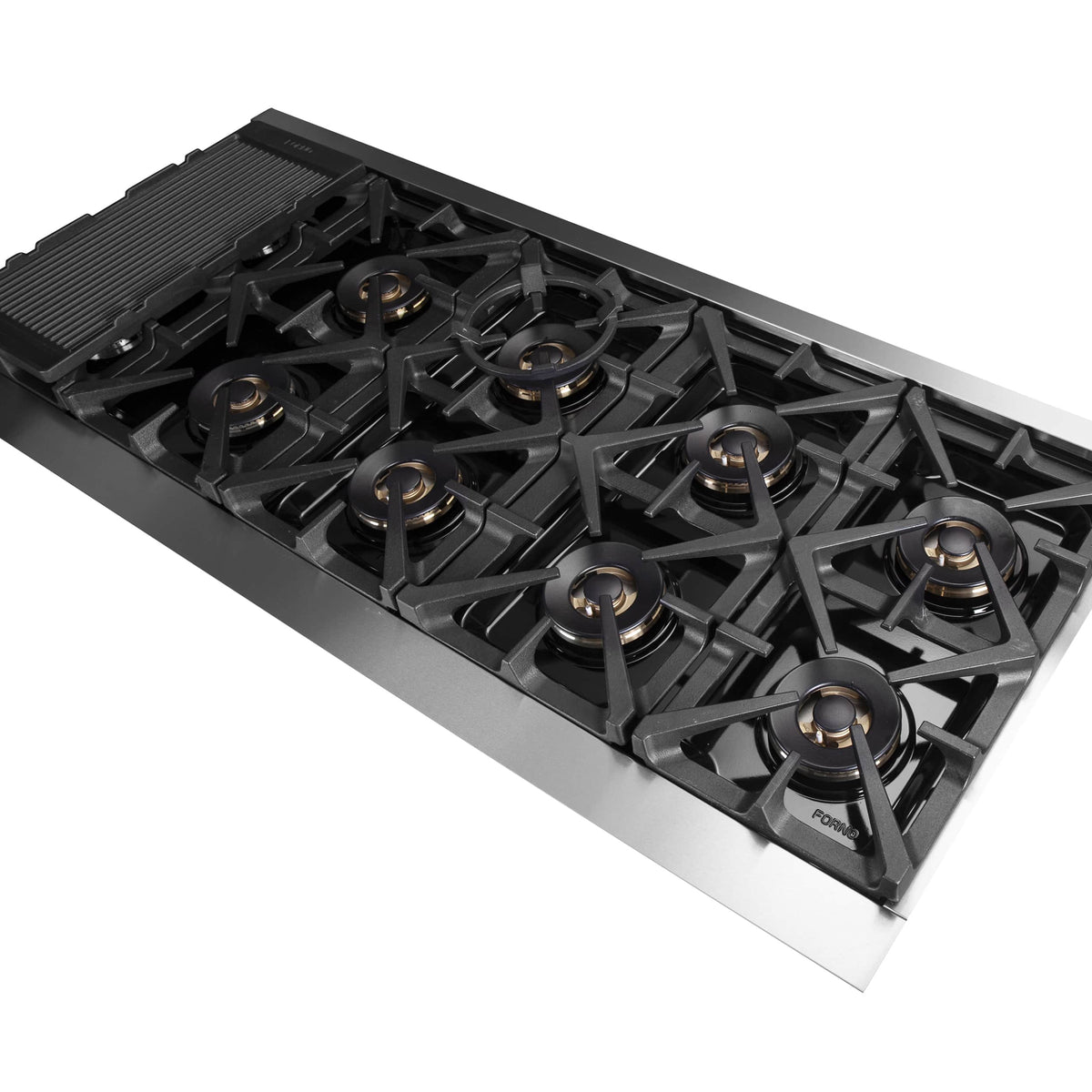

COOKTOP

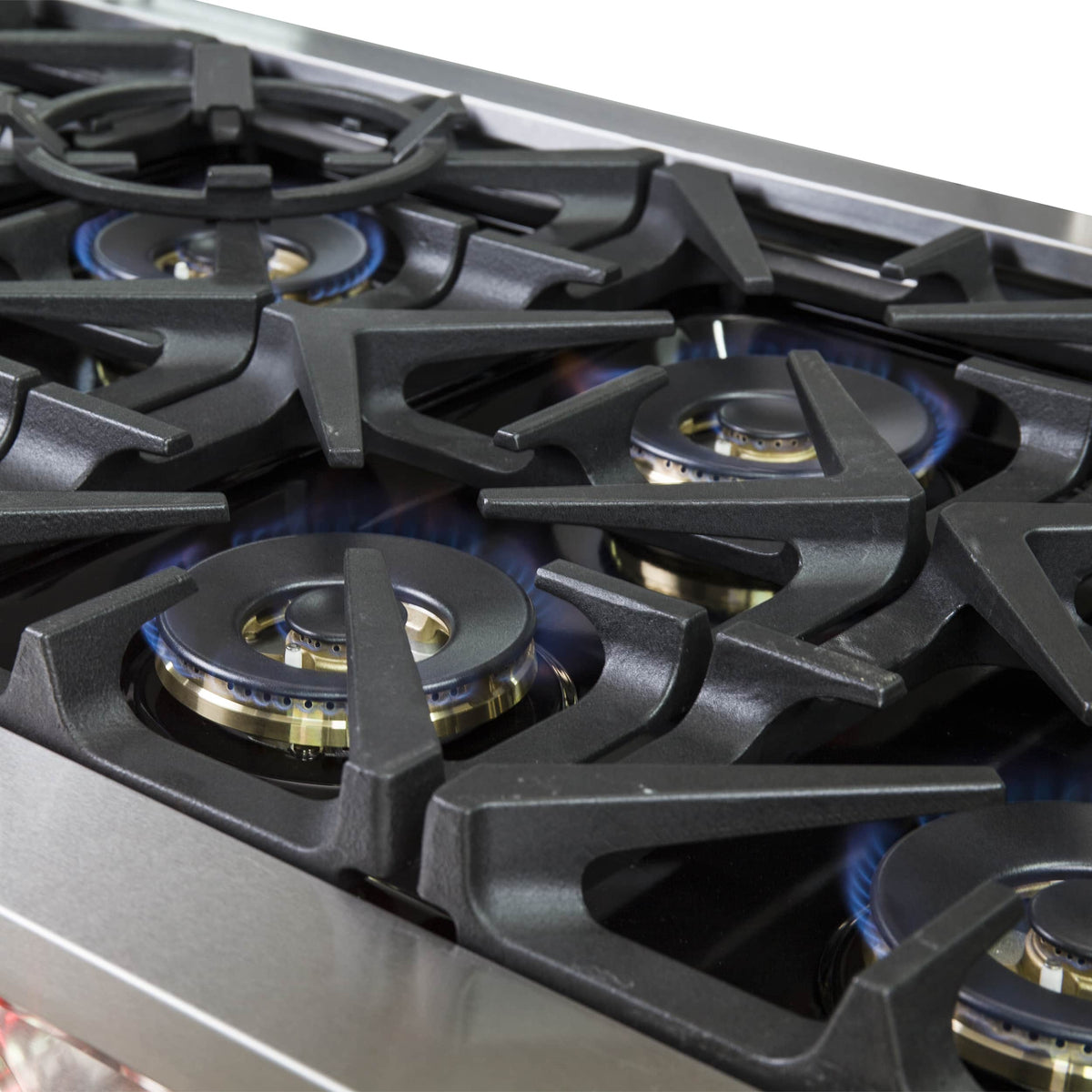

10 Dual Sealed Brass Burners
200,000 BTU Total Stove-Top Output
Deep Recessed Enamel
Heavy-Duty Continuous Cast Iron Grates

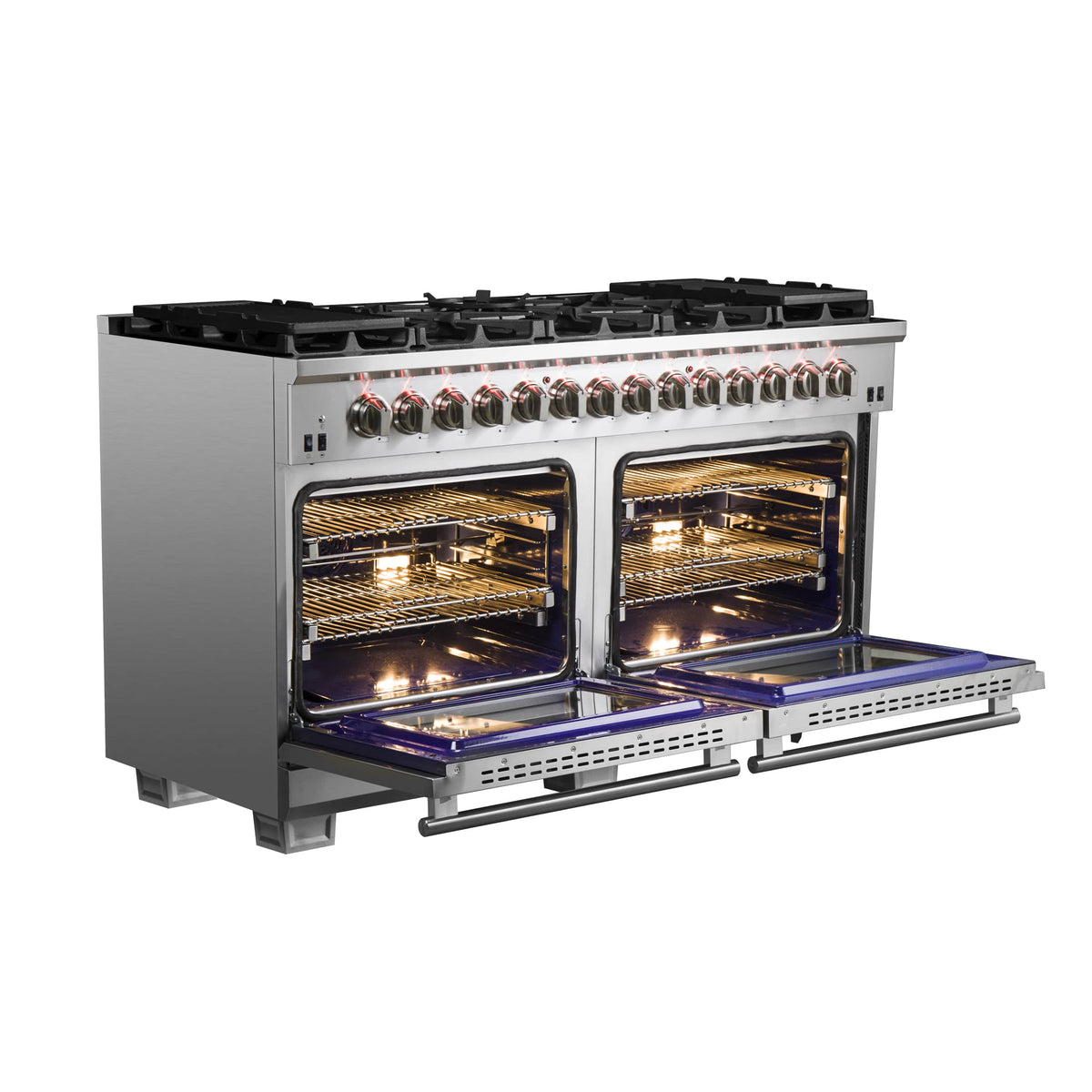

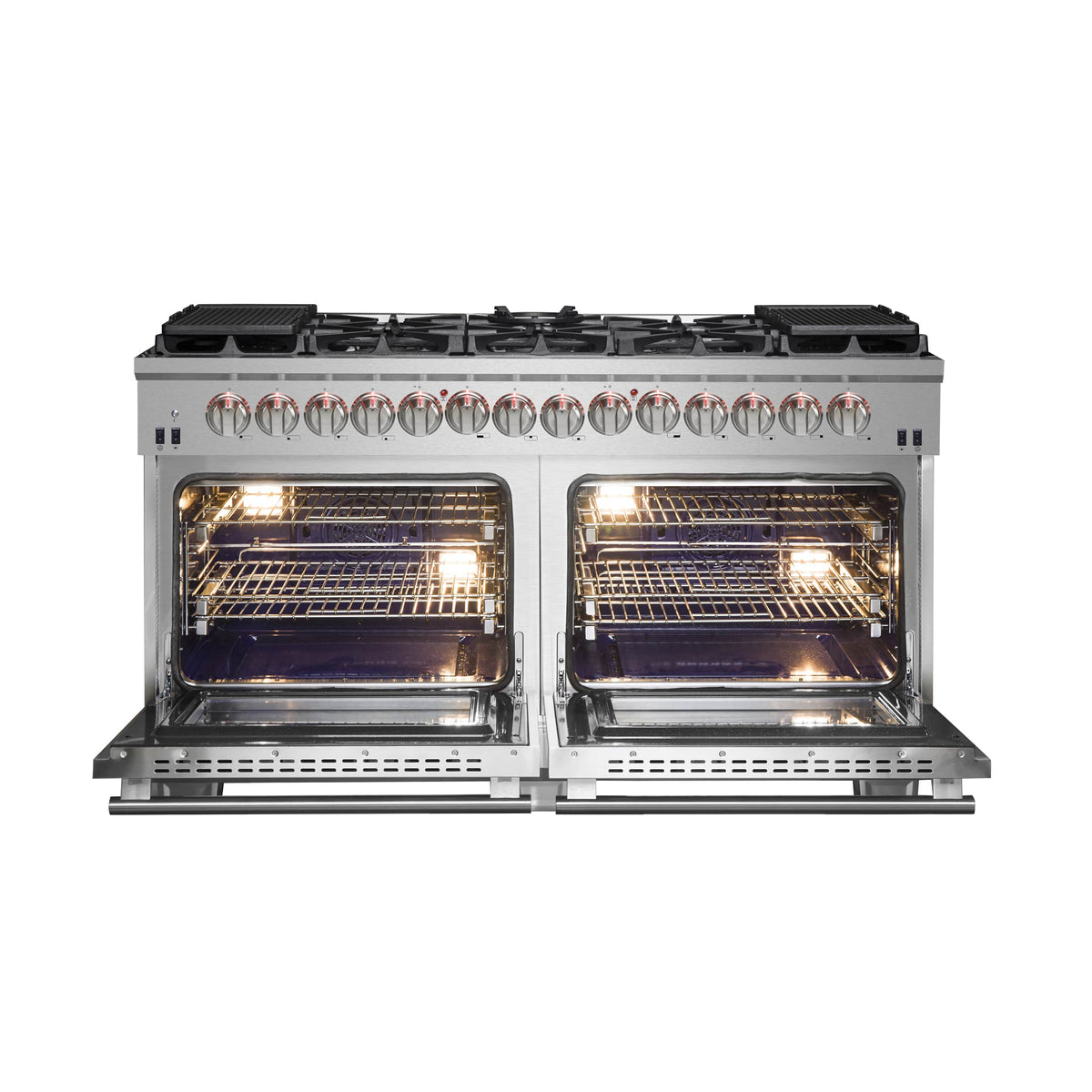

OVEN
8.64 cubic feet Overall Double Oven Capacity

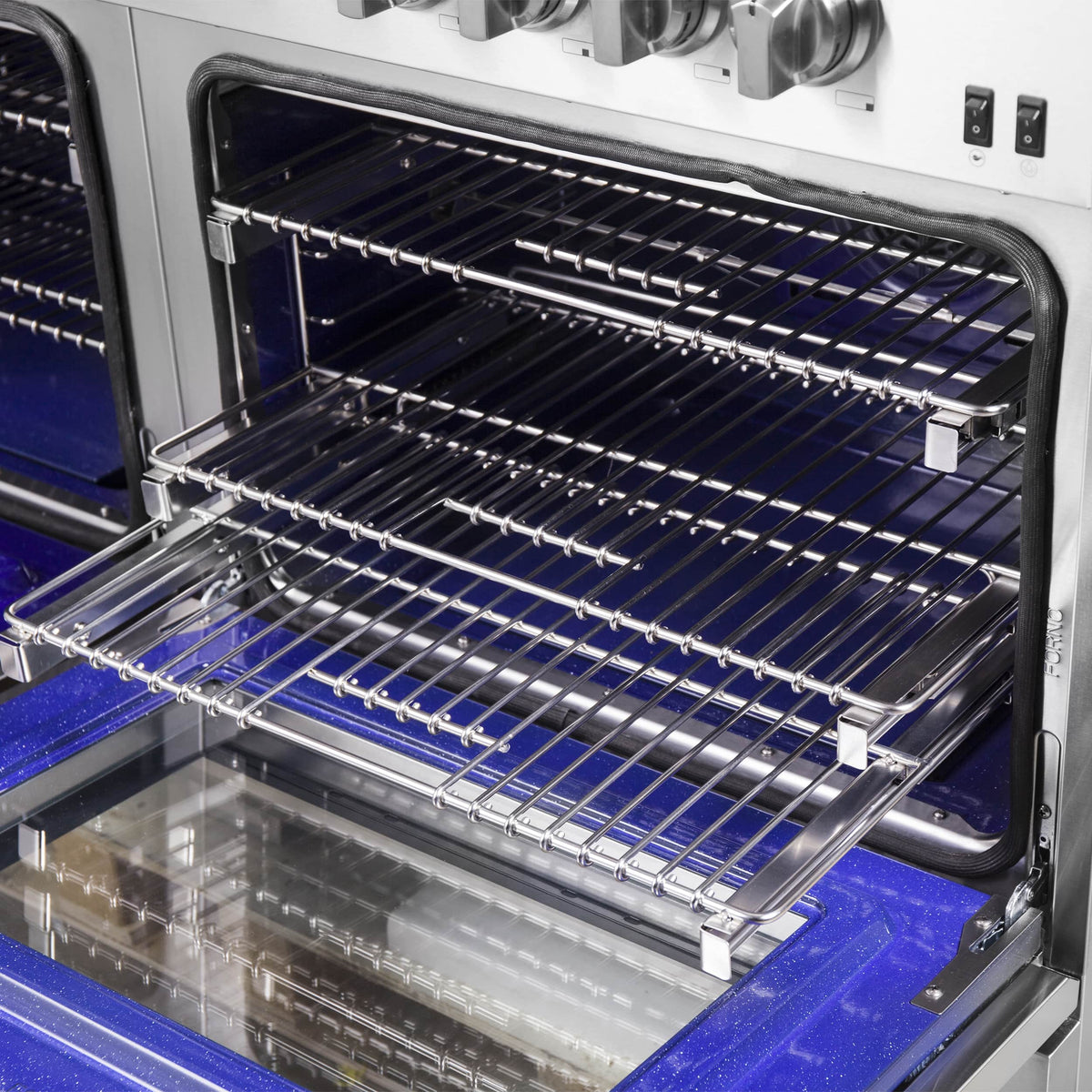

6 Telescopic Stainless-Steel Oven Racks

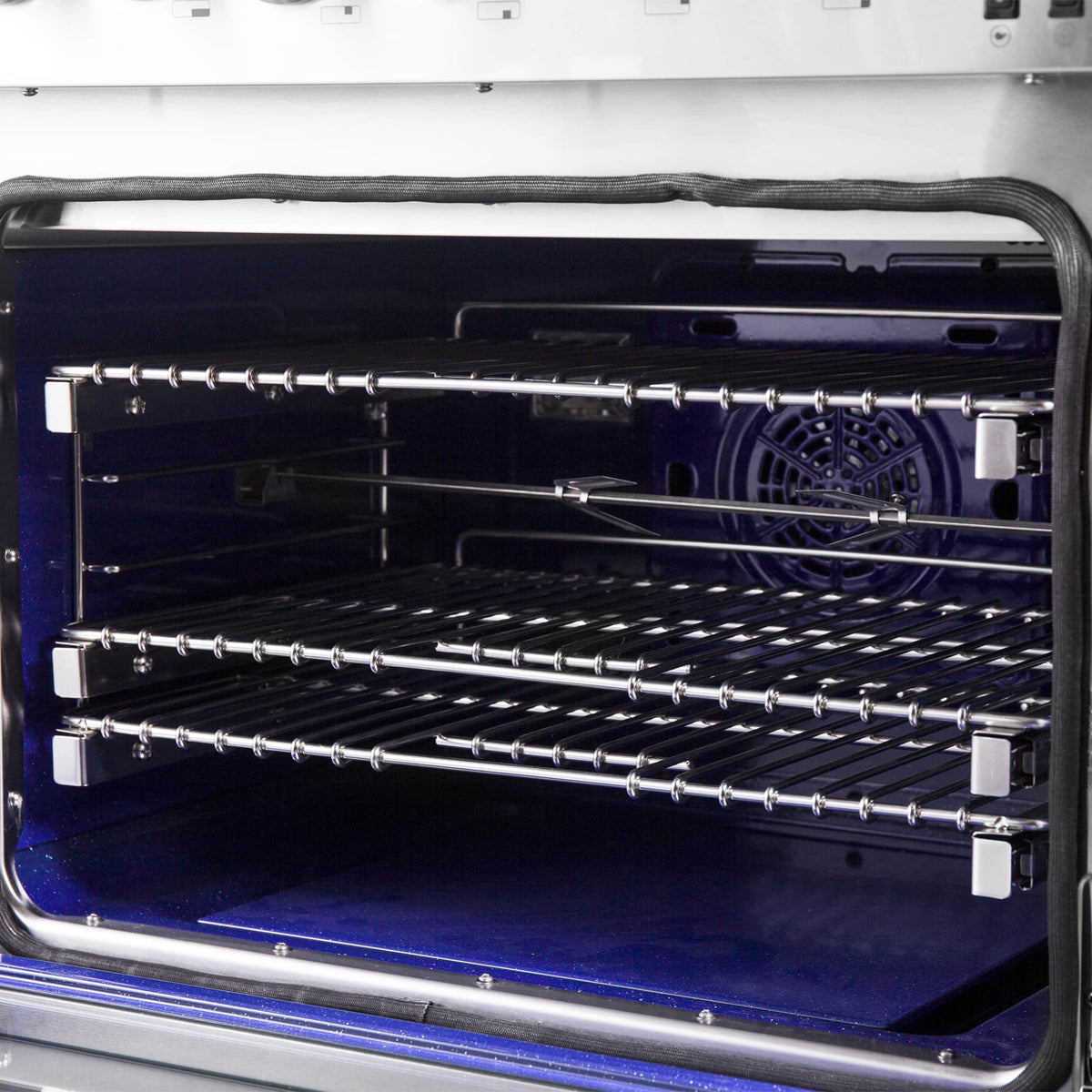

Blue Enamel Oven Interior
3-Layer Oven Door Glass
Halogen Oven Lights
U Tube Auto-Ignition
Convection Fan Hot Air Circulation
FEATURES
Heavy-duty Food Grade 430 Stainless-Steel
Zinc Control Knobs
Red LED “Magic Eyes” Control Knob Illumination
Square Leg Covers
INCLUDES
Complete Rotisserie Kit with Skewer & Forks
Air-Fryer
Reversible Grill / Griddle
Concave Wok Ring
LP Conversion Kit
Power Cord
| DIMENSIONS | |
|---|---|
| Overall Dimensions | 60”W x 37.4”H x 28”D |
| Cutout Dimensions | 60.25”W x 28”D |
| Right Oven Interior Dimensions | 24.92”W x 16″H x 18.7”D |
| Left Oven Interior Dimensions | 24.92”W x 16″H x 18.7”D |
| Power Cord Length | 3.9' |
| Adjustable Legs | Yes |
| GENERAL INFORMATION | |
| Title 20 – California Regulation | Yes |
| Product Type | Freestanding Range |
| Stainless Steel Square Leg Covers | Yes |
| Smudge Resistant | Yes |
| Food Grade 430 Stainless Steel | Yes |
| Back Splash Guard Included | Yes |
| Safety valves | No |
| Supplier Intended and Approved Use | Residential Use Only |
| Country of Origin | China |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Color/Finish | Stainless Steel |
| Gas Heat Configuration | Sealed Burners |
| Interior Light | 3 |
| Control Type | Knob |
| Control Location | Front |
| Pro-Style Handle | Yes |
| Illuminated Zinc Knobs | Yes |
| Clock | No |
| Primary Material | 304 Stainless Steel |
| TECHNICAL DETAILS | |
| Amperage | 40A |
| Volts | 240V |
| Wattage | 11100W |
| Receptacle Type | 4-prong grounding-type |
| Fuel Type | Gas & Electric |
| Gas Type | Natural Gas |
| LP Gas Convertible | Yes |
| LP Conversion Kit Included | Yes |
| Regulator | Yes |
| COOKTOP FEATURES | |
| Overall Burners BTU | 200,000 |
| Front Right Burner BTU | 20,000 |
| Front Right Center Burner BTU | 20,000 |
| Front Left Center Burner BTU | 20,000 |
| Front Left Burner BTU | 20,000 |
| Rear Right Burner BTU | 20,000 |
| Rear Right Center Burner BTU | 20,000 |
| Rear Left Center Burner BTU | 20,000 |
| Rear Left Burner BTU | 20,000 |
| Number of Burners | 10 |
| Cooktop Surface | Deep Recessed Enamel |
| Bake Element | Electric |
| Sealed Brass Burners | Yes |
| Continuous Cast Iron Grate | Yes |
| Griddle Include | Yes |
| OVEN FEATURES | |
| Oven Door Open 90º | + 28” |
| Right Oven Broil Wattage inside | 1000W |
| Right Oven Bake Wattage | 2000W |
| Right Oven Outside Wattage | 1800W |
| Left Oven Broil Wattage inside | 1000W |
| Left Oven Bake Wattage | 2000W |
| Left Oven Outside Wattage | 1800W |
| Convection Fan Wattage | 1500W |
| Overall Oven Capacity | 8.64 |
| Overall Broil Top BTU | N/A |
| Overall Bottom BTU | N/A |
| Right Oven Capacity | 4.32 |
| Right Broil Top BTU | N/A |
| Right Bottom BTU | N/A |
| Left Oven Capacity | 2.26 |
| Left Broil Top BTU | N/A |
| Left Bottom BTU | N/A |
| Convection Fan | Yes |
| Number of Ovens | 2 |
| Number of Racks | 6 |
| Broiler | Electric |
| Cleaning Type | Normal |
| Convection Oven | Yes |
| Halogen Oven Lights | Yes |
| Soft Door Close | Yes |
| Blue Enamel Oven Interior | Yes |
| Thermostat | Yes |
| Temperature Gauge | No |
| Timer | No |
| WARRANTY & CERTIFICATIONS | |
| ETL Listed | Yes |

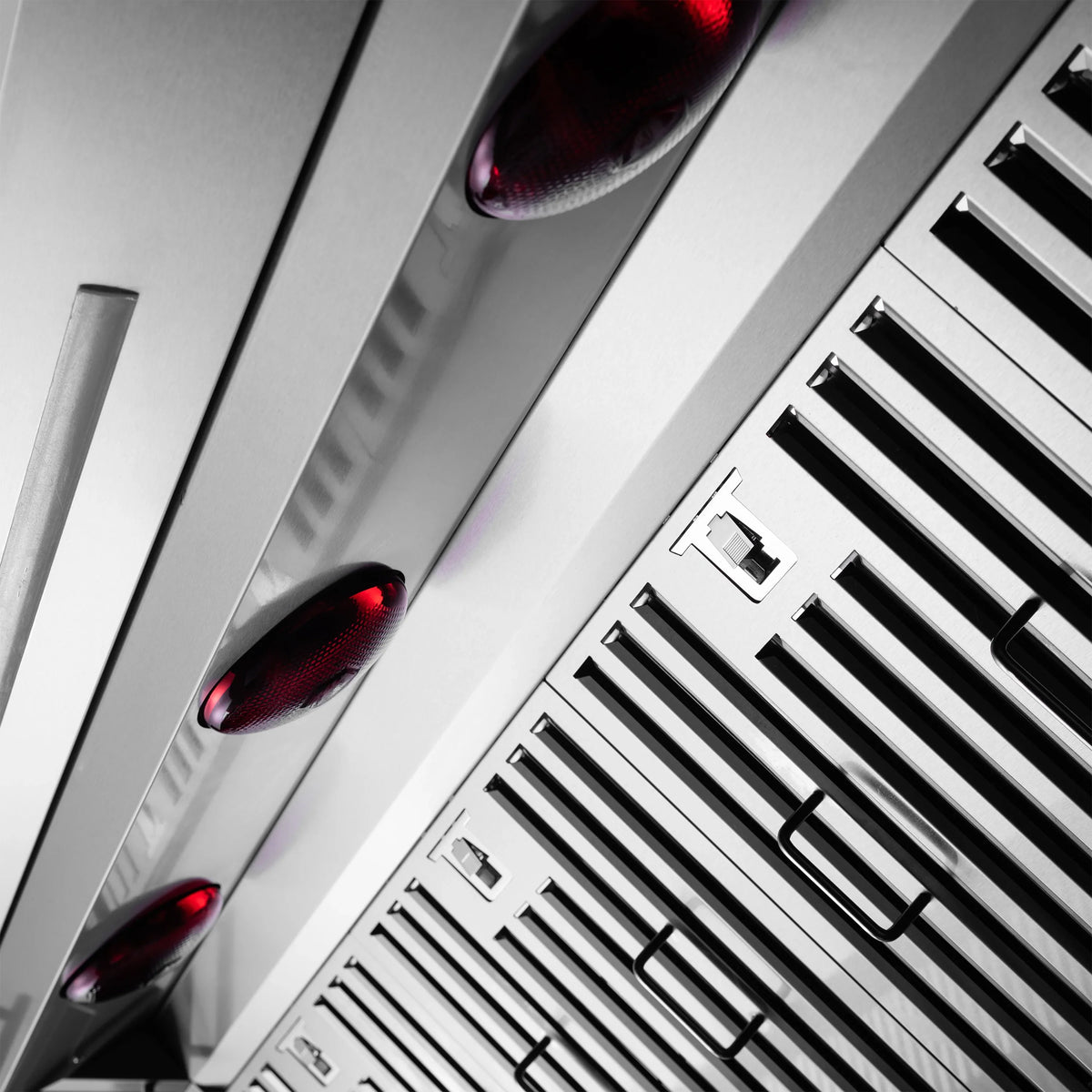

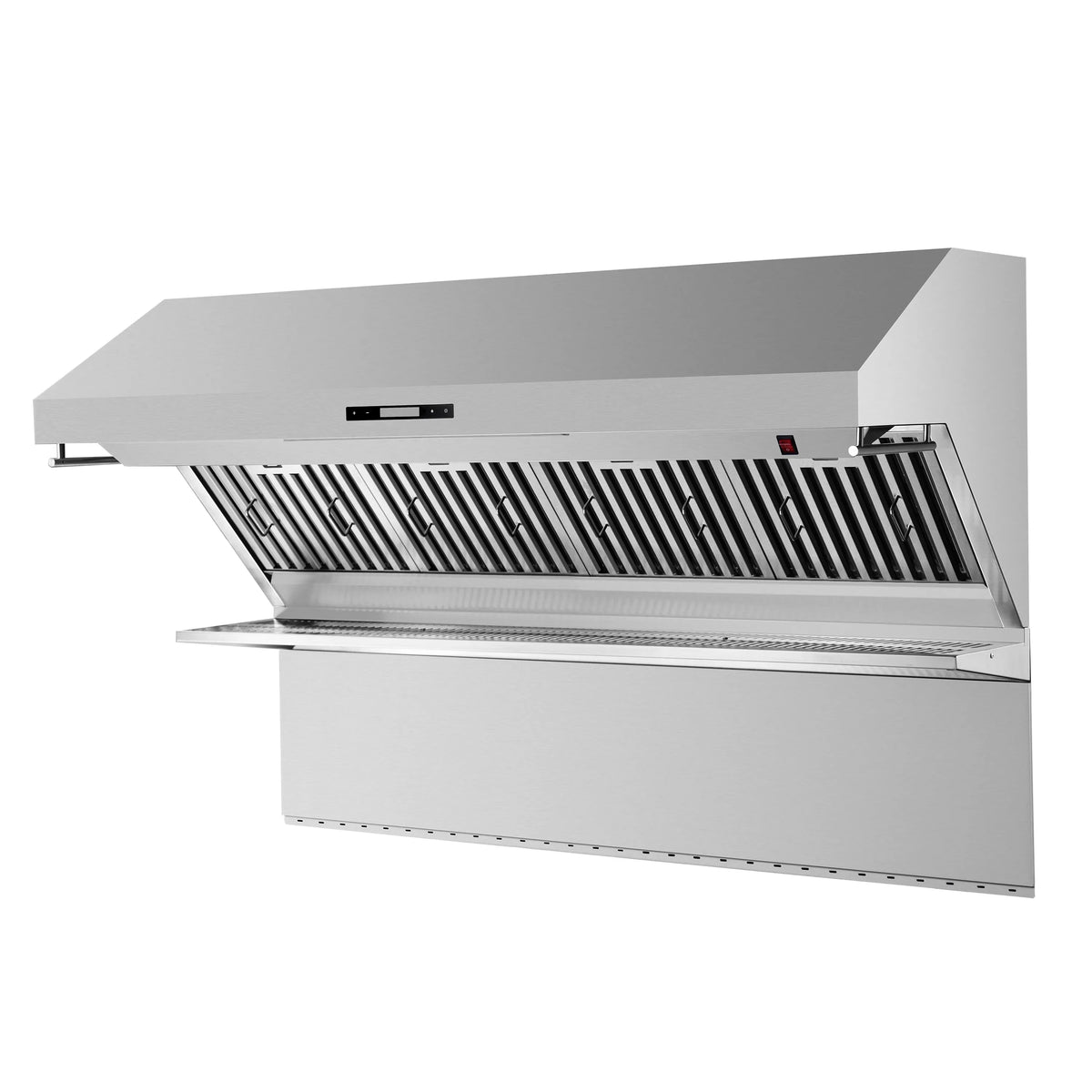

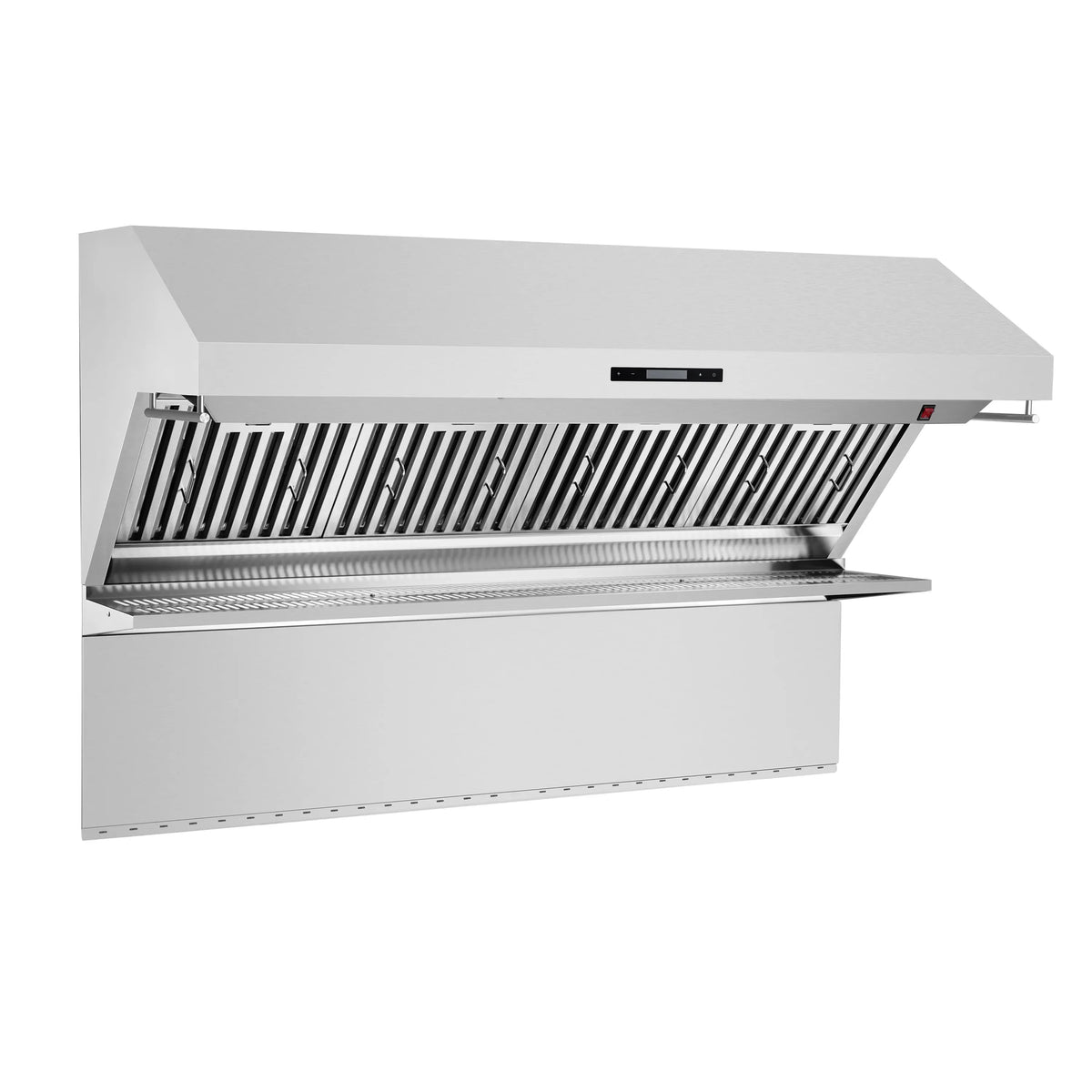

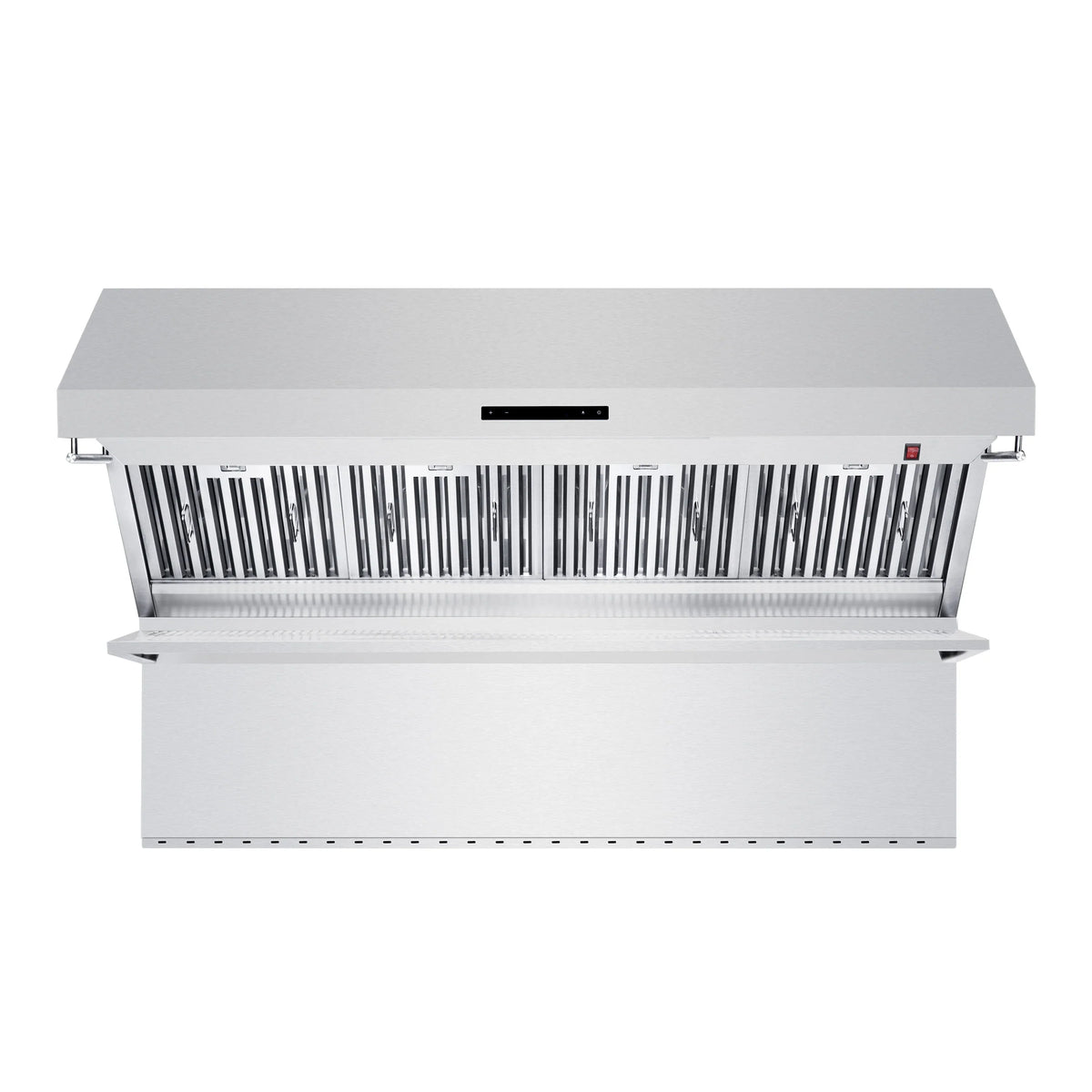

The Forno Savona 60" Wall Mount Range Hood delivers powerful ventilation with dual 600 CFM motors, offering a combined 1200 CFM airflow to eliminate smoke, grease, and odors efficiently. Constructed from premium stainless steel, it ensures long-lasting durability and a professional appearance. Baffle filters efficiently capture grease while ensuring excellent airflow. They are removable and dishwasher-safe for easy cleaning and maintenance. Multiple fan speed settings allow precise airflow control based on your cooking needs. The integrated upper warming shelf, heated by three warming lights, keeps dishes ready to serve. A sleek stainless steel backsplash adds both elegance and wall protection, while dual utensil hangers offer convenient storage or a stylish way to display cookware.
| DIMENSIONS | |
|---|---|
| Product Dimensions (W x D x H) | 59.06" x 25" x 39.49" |
| Product Width (in) | 59.06" |
| Product Depth (in) | 25" |
| Product Height (in) | 39.49" |
| Cutout Dimensions (W x D x H) | 60" x 25" x 39" |
| Cutout Width (in) | 60" |
| Cutout Depth (in) | 12" |
| Cutout Height (in) | 39" |
| Backsplash Dimensions (W x H) | 59.06" x 12.6" |
| Warming Shelf Dimensions (W x D x H) | 59.06" x 12.01" x 3.46" |
| Minimum Height from Cooktop (in) | 30" |
| Product Overall Weight (lbs) | 144.10 |
| DESIGN & FINISH | |
| Control Location | Front |
| Speed Control Type | Touch |
| Speed Control | 4 |
| Remote Control | No |
| TECHNICAL DETAILS | |
| Color/Finish | Stainless Steel |
| Primary Material | Stainless Steel |
| Hardware Finish | Stainless Steel |
| Range Hood Shape | Square |
| Display Type | LCD |
| Fingerprint-Resistant | No |
| Vent Type | Ducted |
| Vent Style | External |
| Air Discharge Direction | Vertically Upward |
| Exhaust Vent Location | Top |

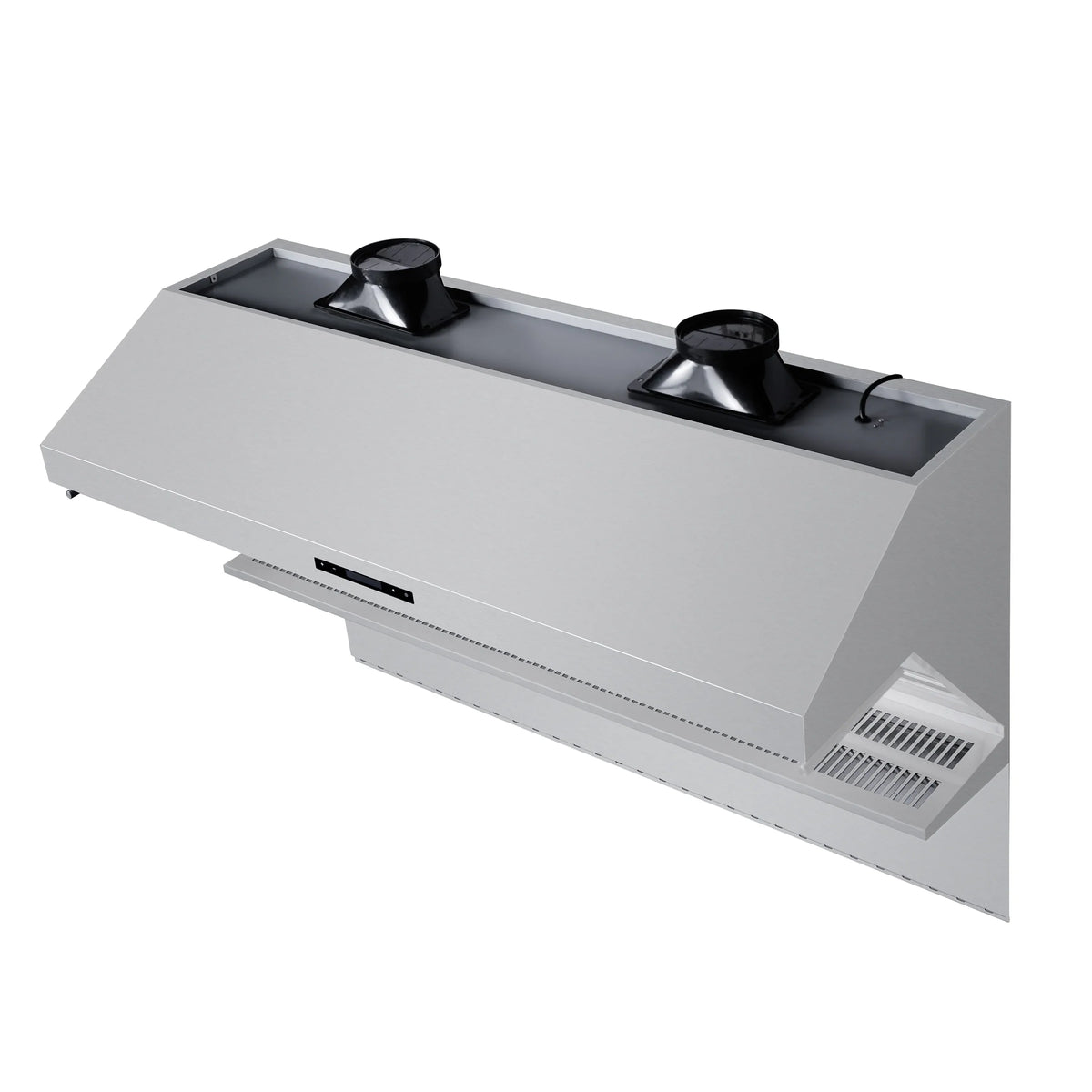

| Number of Exhaust Vents | 2 |

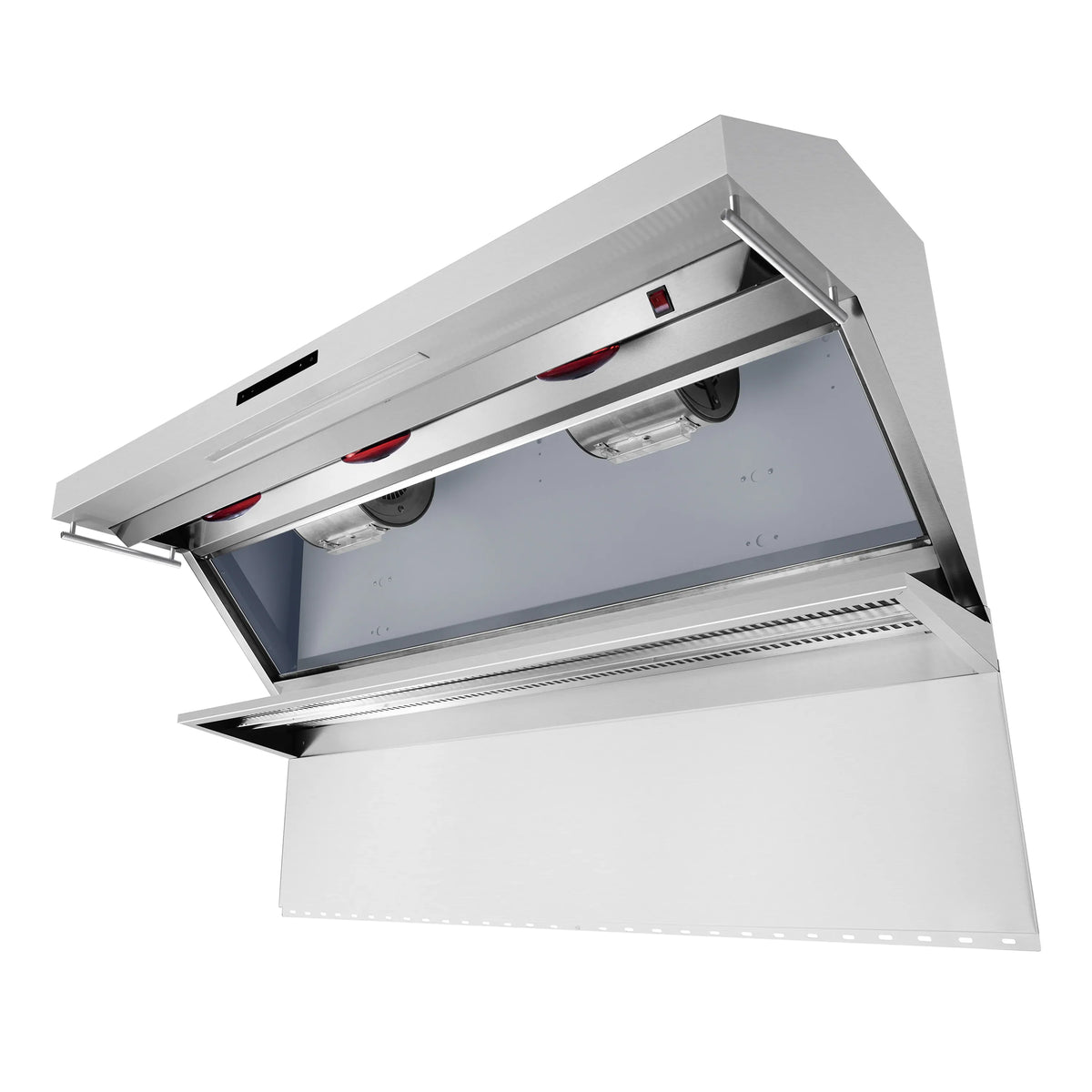

| Number of Blowers | 2 |
| Blower Material | Metal |
| Reversible Blower | No |
| Duct Type | 6-in Round |
| Damper | Yes |
| Damper Type | 6-in Round |
| Motor Power (Watts) | 120W |
| Maximum CFM | 1200 |
| Minimum CFM | 550 |
| CFM Speed 1 | 550 |
| CFM Speed 2 | 750 |
| CFM Speed 3 | 950 |
| CFM Speed 4 | 1200 |
| Air Flow Speed 1 | 935 |
| Air Flow Speed 2 | 1274 |
| Air Flow Speed 3 | 1614 |
| Air Flow Speed 4 | 2039 |
| RPM Speed 1 | 880 |
| RPM Speed 2 | 1050 |
| RPM Speed 3 | 1350 |
| RPM Speed 4 | 1510 |
| Minimum Decibel (dB) | 48 |
| Maximum Decibel (dB) | 68 |
| Decibel Speed 1 (dB) | 48 |
| Decibel Speed 2 (dB) | 53 |
| Decibel Speed 3 (dB) | 60 |
| Decibel Speed 4 (dB) | 68 |
| Minimum Sones | 2.00 |
| Maximum Sones | 16.00 |
| Sones Speed 1 | 2.00 |
| Sones Speed 2 | 6.00 |
| Sones Speed 3 | 11.00 |
| Sones Speed 4 | 16.00 |
| Number of Light Settings | 1 |
| Clock | Yes |
| Power Off Function | Yes |
| Power Off Timer | 15 Minutes |
| Clean Filter Alert | No |
| Heat Sensors | No |
| Filter Type | Baffle |
| Filter Material | Stainless Steel |
| Removable Grease Filter | Yes |
| Dishwasher Safe Filters | Yes |
| Charcoal Filters | No |
| Number of Lights | 1 |
| Bulb Type | LED Light Strip |
| Bulb Wattage | 10W |
| Number of Heating Lamps | 3 |
| Heating Lamp Type | Tungsten-Halogen E26 |
| Heating Lamp Wattage | 175W |
| Heating Lamp Maximum Wattage | 220W |
| Heating Lamp Included | Yes |
| Backsplash Included | Yes |
| Warming Shelf Included | Yes |
| Crown Molding | No |
| Chimney Short Kit | No |
| Chimney Extension Kit | No |
| Rangehood Chimney | No |
| Power Cord Location | Top |
| Duct Length (in) | 59" |
| FEATURES | |
| ISTA 6A | Yes |
| UPLR Compliant | Yes |
| Title 20 California Regulation | Yes |
| TAA Compliant | No |
| WARRANTY & CERTIFICATIONS | |
| Safety Listing | cETLus |
| File/Certification Number | 5014042 |
| Energy Star Certified | No |
| ADA Compliant | No |
| Star-K Certified | No |
| Certificate of Conformity (GCC) | No |
| Commercial Warranty | No |
| Warranty Length | 2 Years |
| Warranty Type | Limited |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |
| Warranty Script (English) | Experience peace of mind with FORNO products, each backed by a 2-year warranty covering labor and parts, ensuring satisfaction and confidence in the reliability of our high-quality appliances. |
