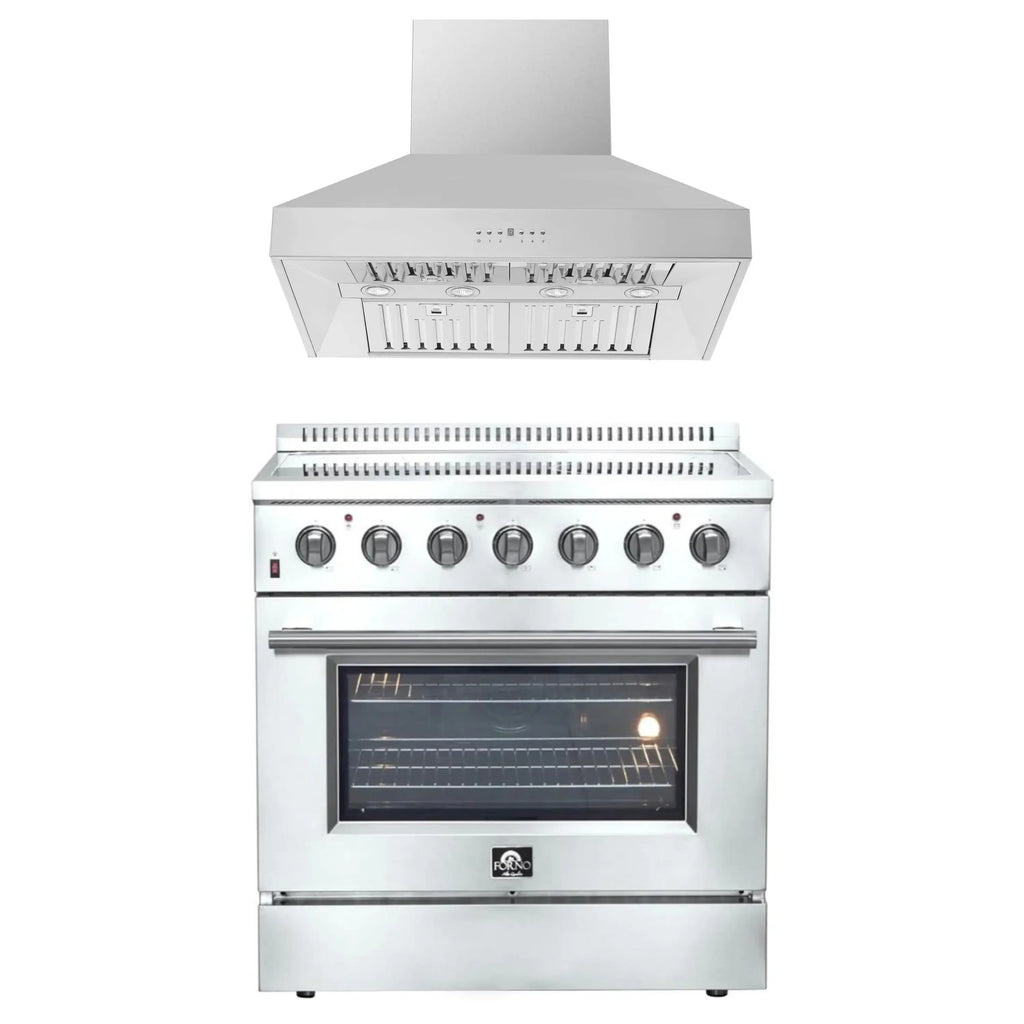

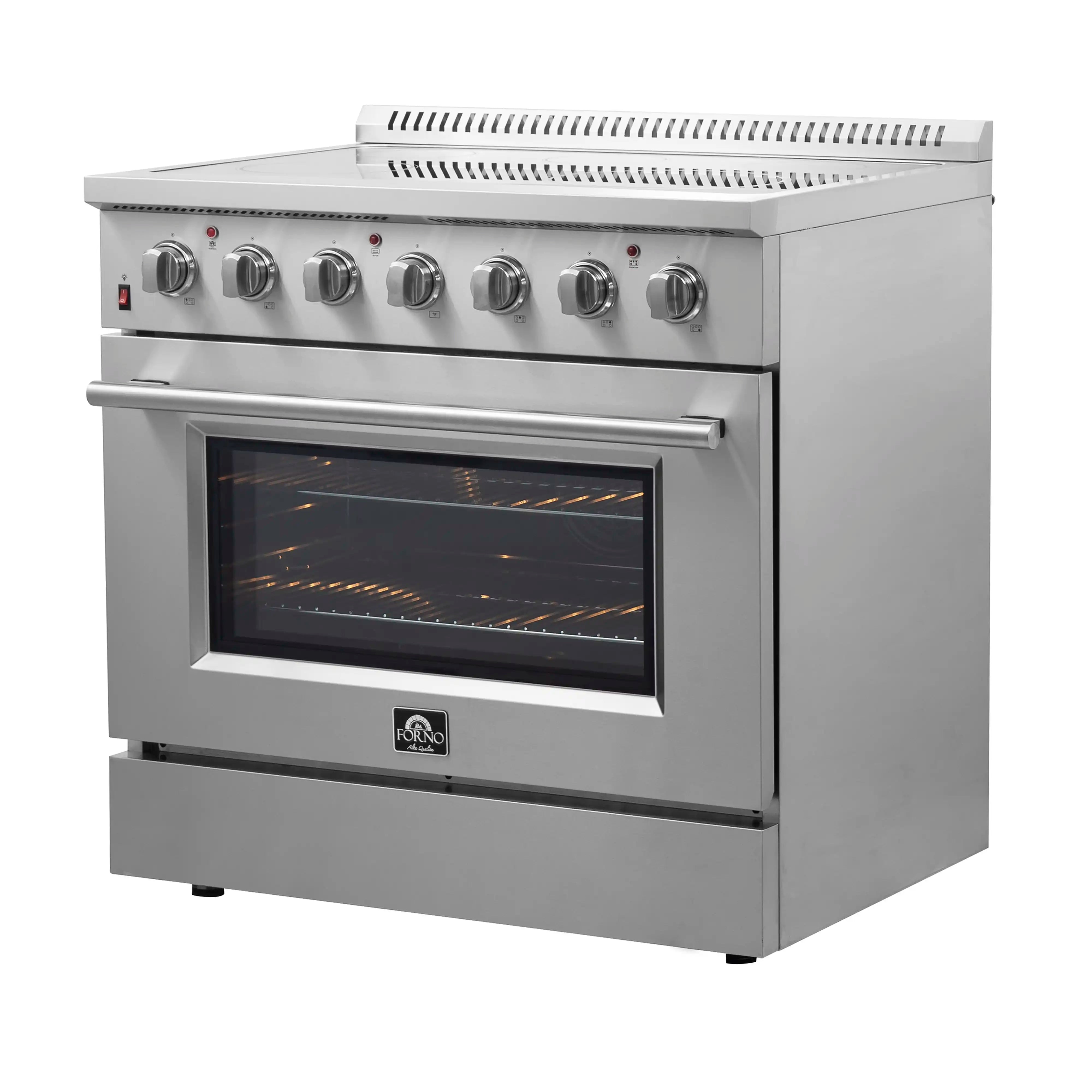

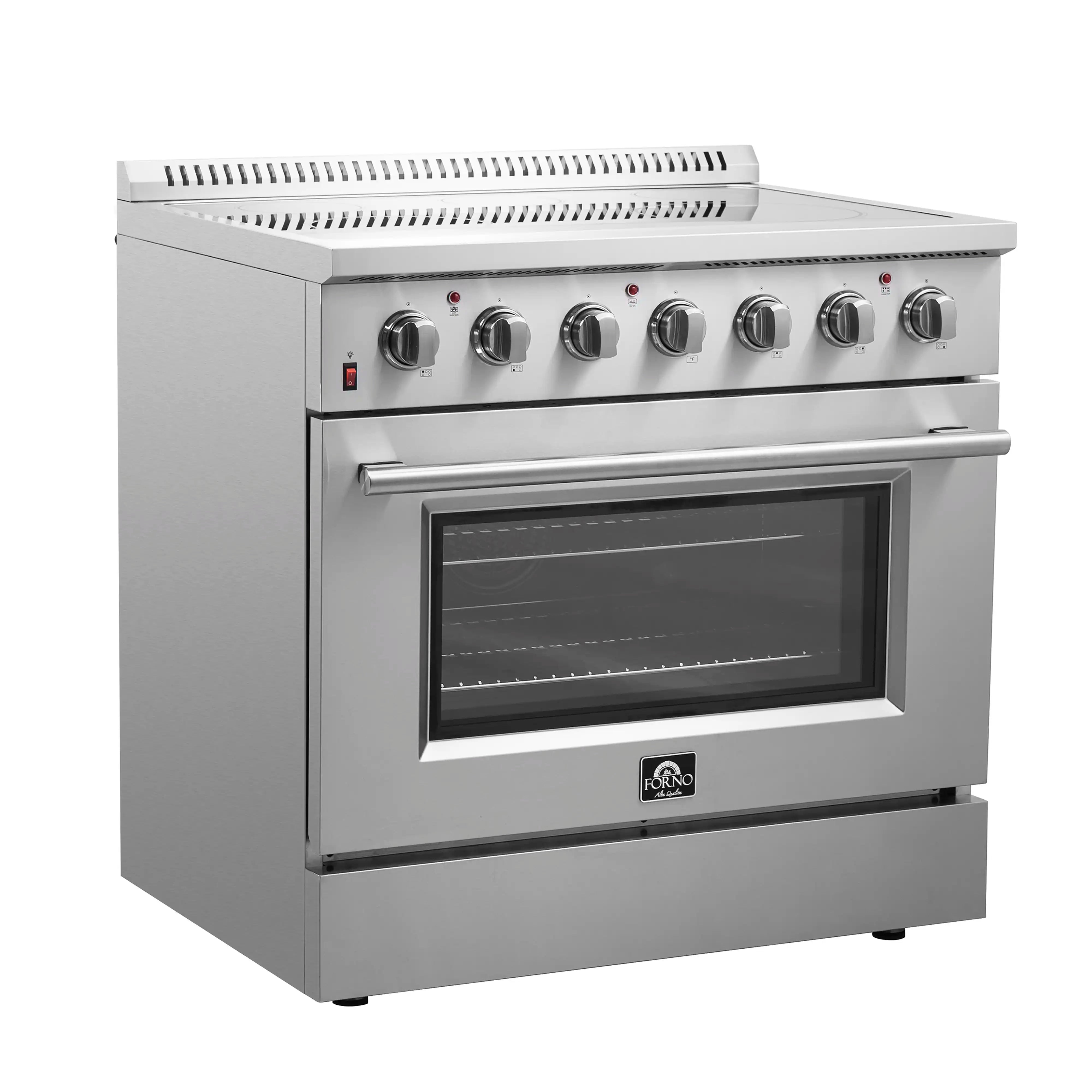

Experience the ultimate in kitchen appliance design with a Pro-Style Handle and Zinc Coated Metal Control Knobs adorned with elegant bezels. This appliance boasts a sleek and durable aesthetic, featuring stainless-steel panels that not only look stunning but also stand up to the test of time. The Adjustable Stainless Steel Legs provide versatility, accommodating various counter heights within the range of 35.5” to 36.5”
Features:
| DIMENSIONS | |
|---|---|
| Overall Dimensions | 36” W x 27.30” D x 38” H |
| Adjustable Counter Height | 35.5” to 36.5" H |
| Oven Interior Dimensions | 30.92'' W x 18.7'' D x 16'' H |
| Overall Weight | 297.62 lbs |
| Power Cord Length | 5' |
| GENERAL INFORMATION | |
| Switches | 1 + 0 |
| Product Type | Freestanding |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Number of Knob | 7 |
| Color/Finish | Stainless Steel |
| Gas Heat Configuration | Radiant |
| Interior Light | 2 |
| Control Type | Knob |
| Control Location | Front |
| Primary Material | Metal |
| Control Panel Material | Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| TECHNICAL DETAILS | |
| Amperage | 50 A |
| Volts | 240 V |
| Wattage | 6,300 W |
| Receptacle Type | 4-Prong Grounded |
| Fuel Type | Electric |
| Gas Type | Electric |

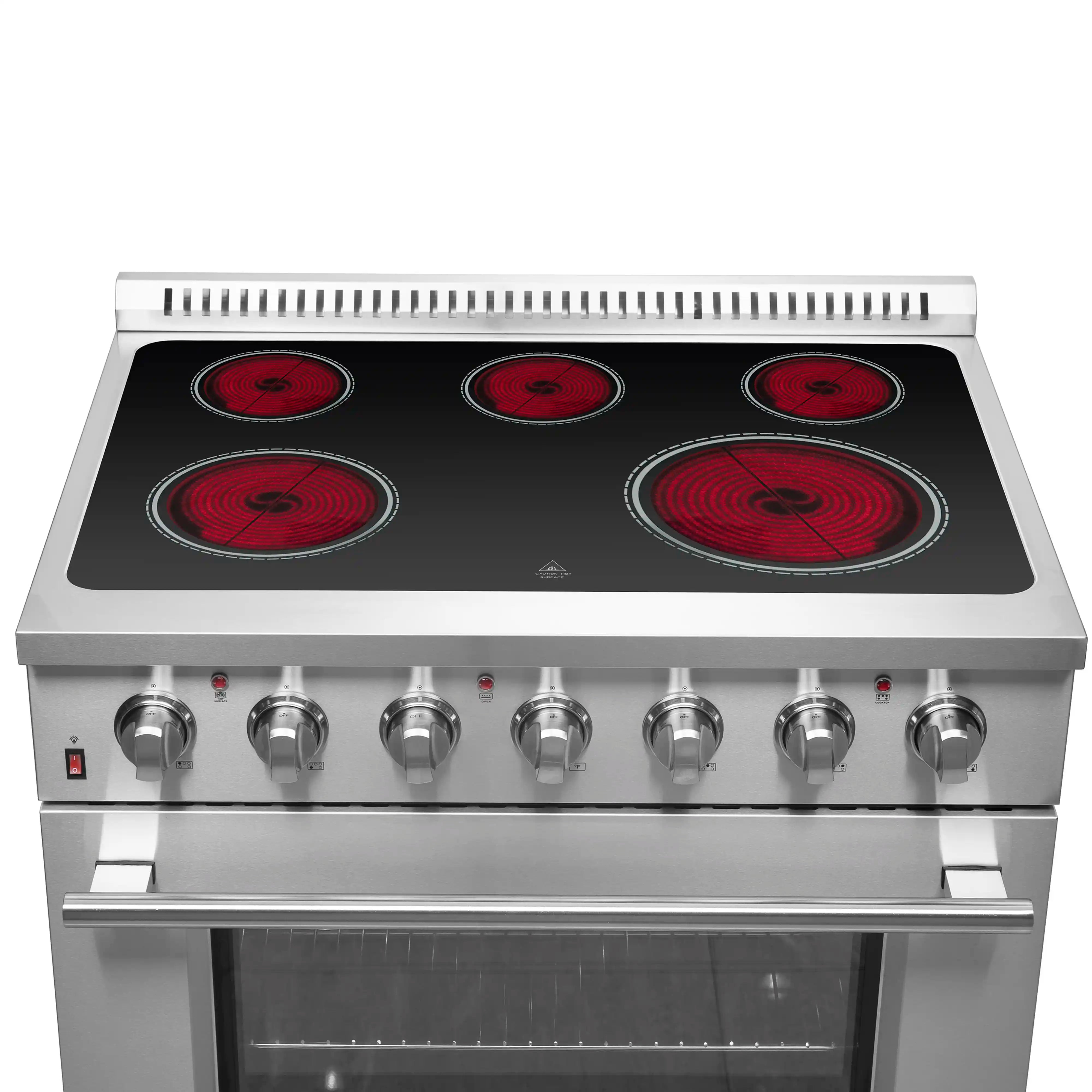

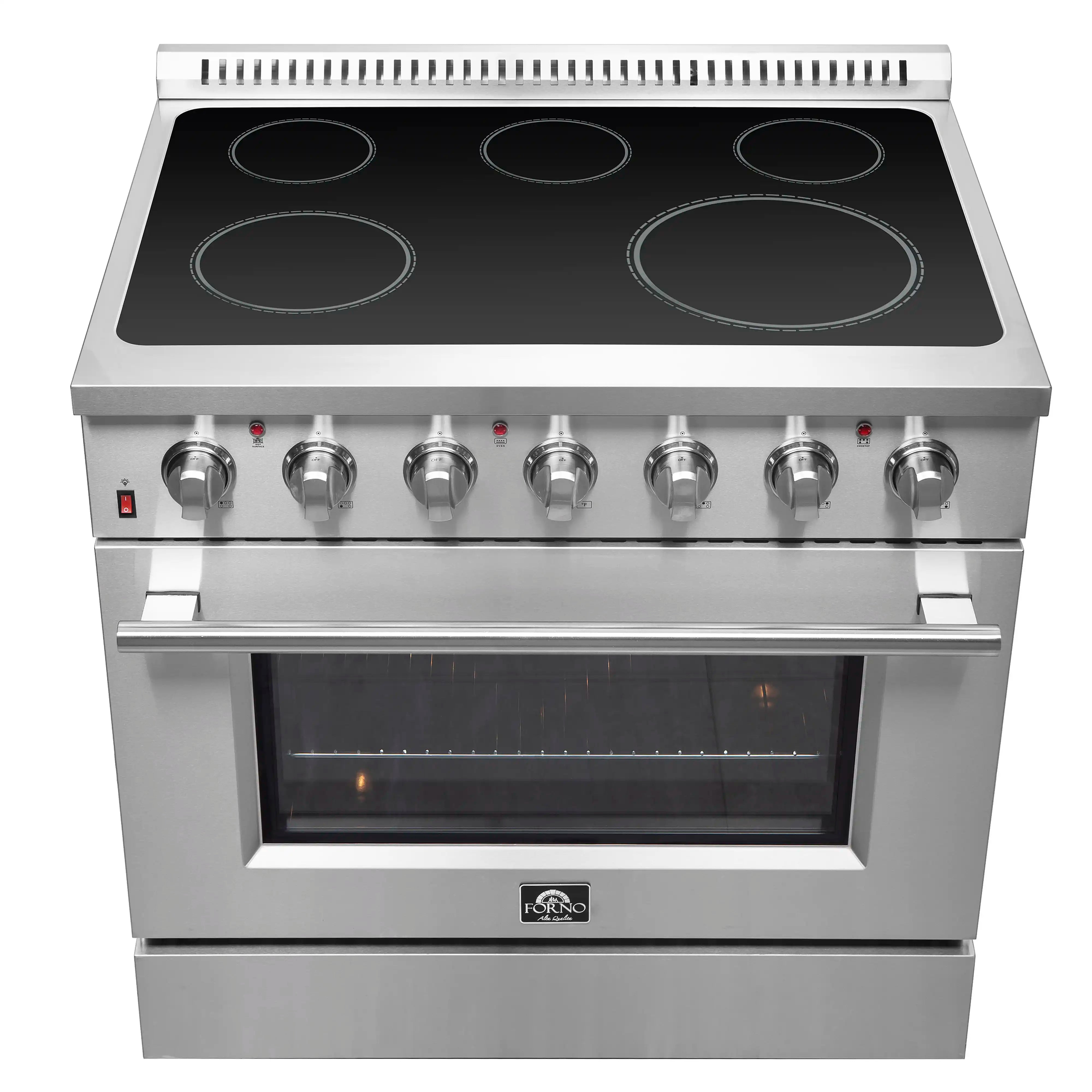

| COOKTOP FEATURES | |
| Total Stovetop BTU / Watts | 7700 W |
| Front Right | 12" Round Element 3,000 Watts |
| Front Left | 9" Round Element 2,200 Watts |
| Rear Right | 6" Round Element 1,200 Watts |
| Rear Center | 6" Round Element 100 Watts |
| Rear Left | 6" Round Element 1200 Watts |
| Number of Burners | 5 |
| Cooktop Surface | Ceramic Glass |
| Cooktop Gravity | Top Plate |
| Bake Element | Electric |
| Wok-Ring | No |
| Reversible Grill/Griddle | No |

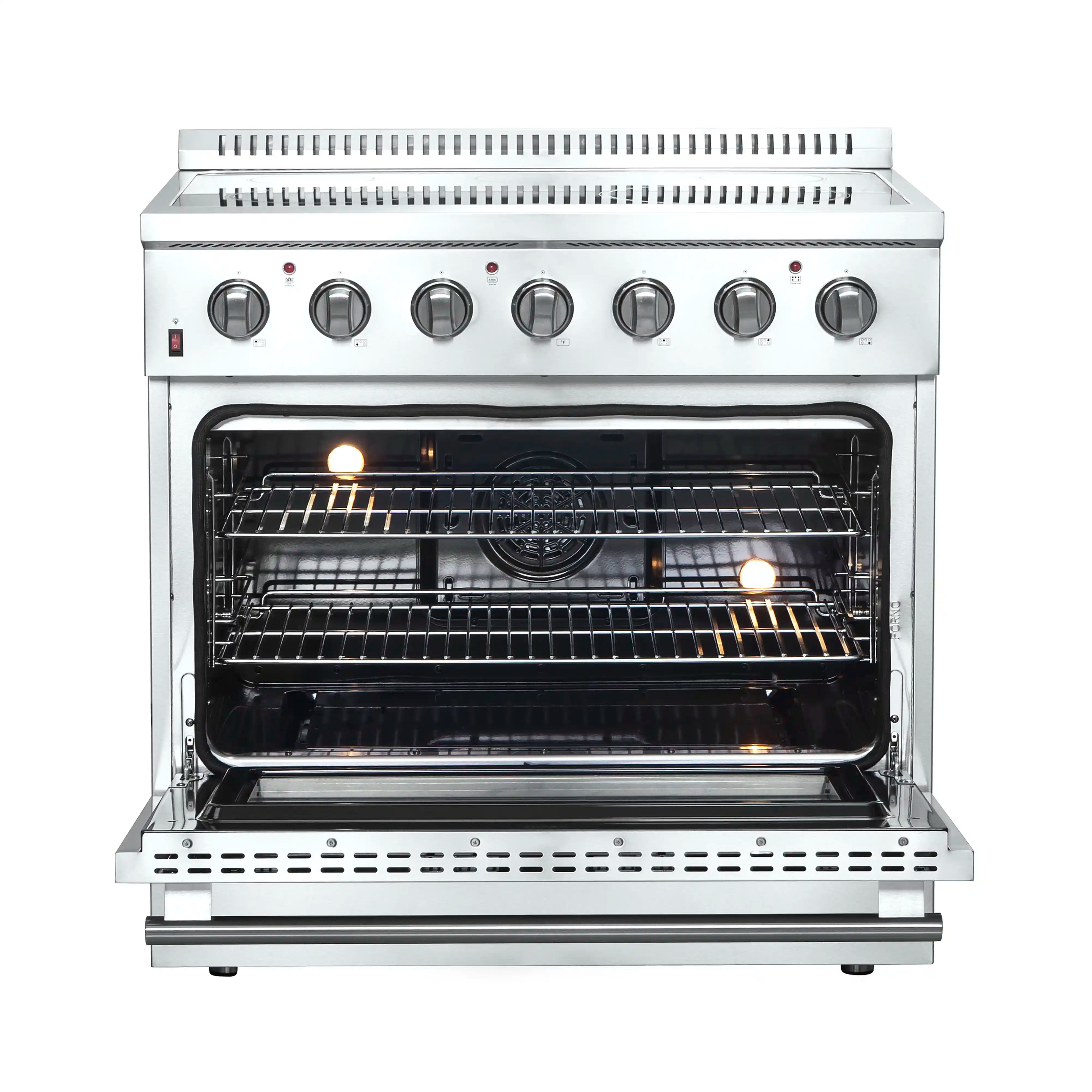

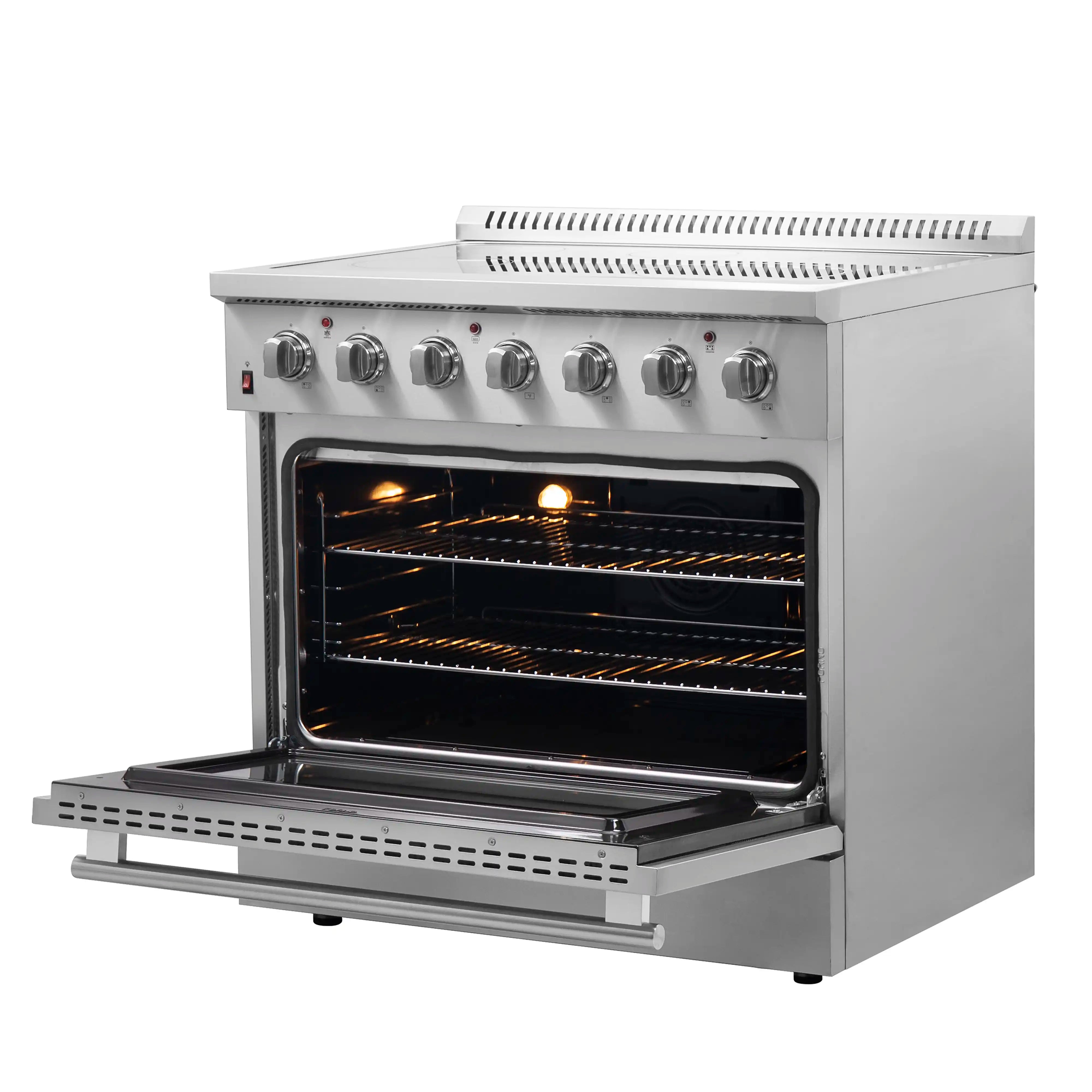

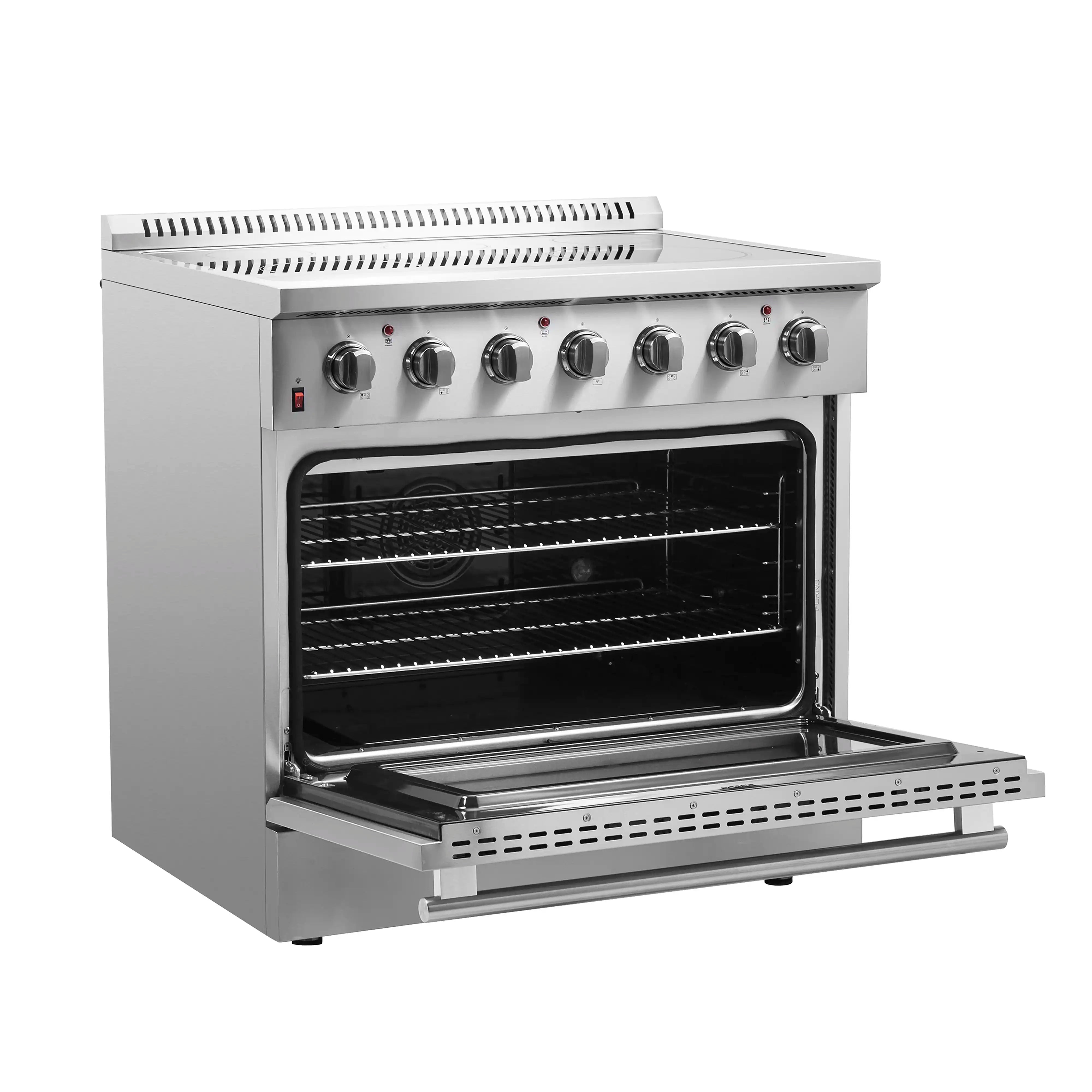

| OVEN FEATURES | |

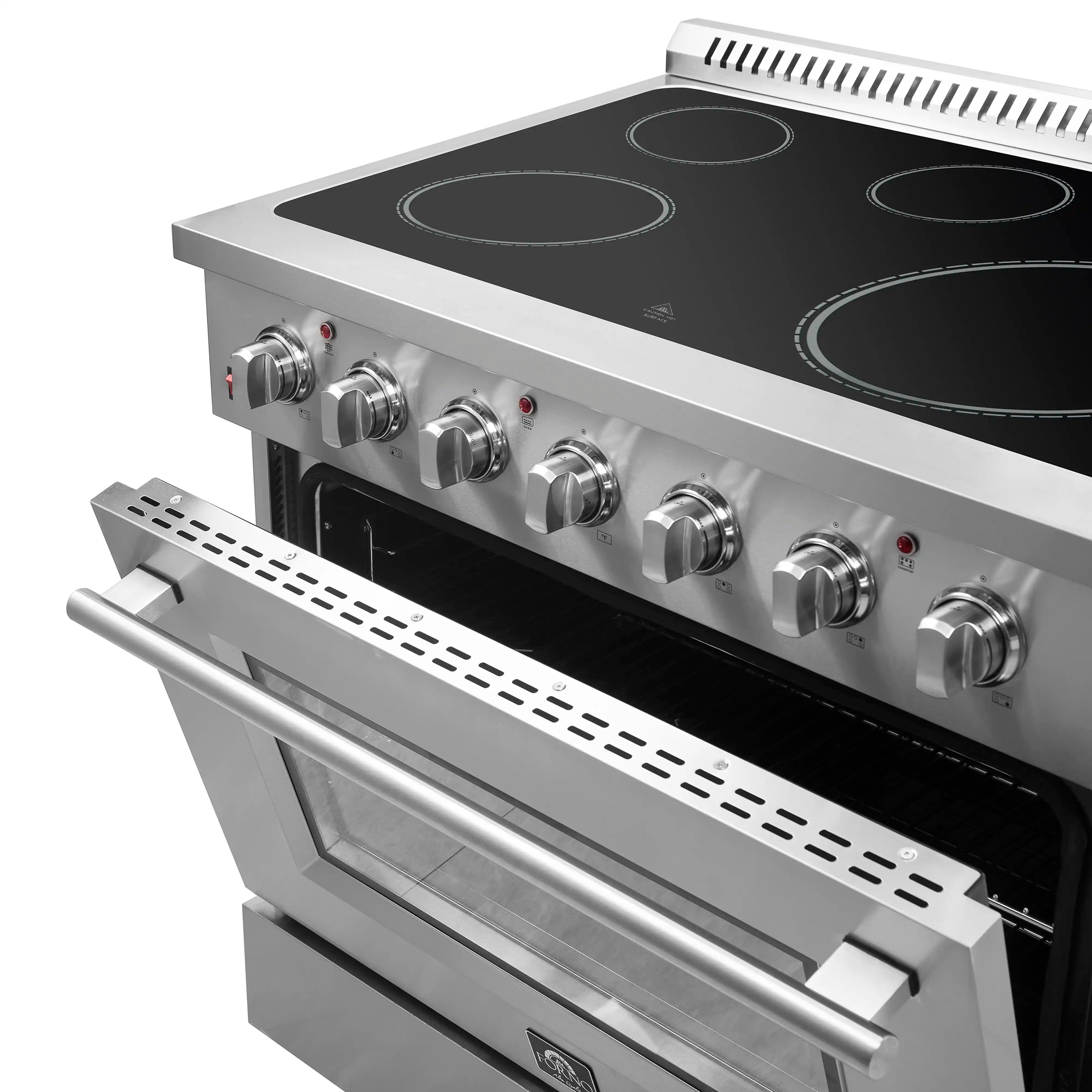

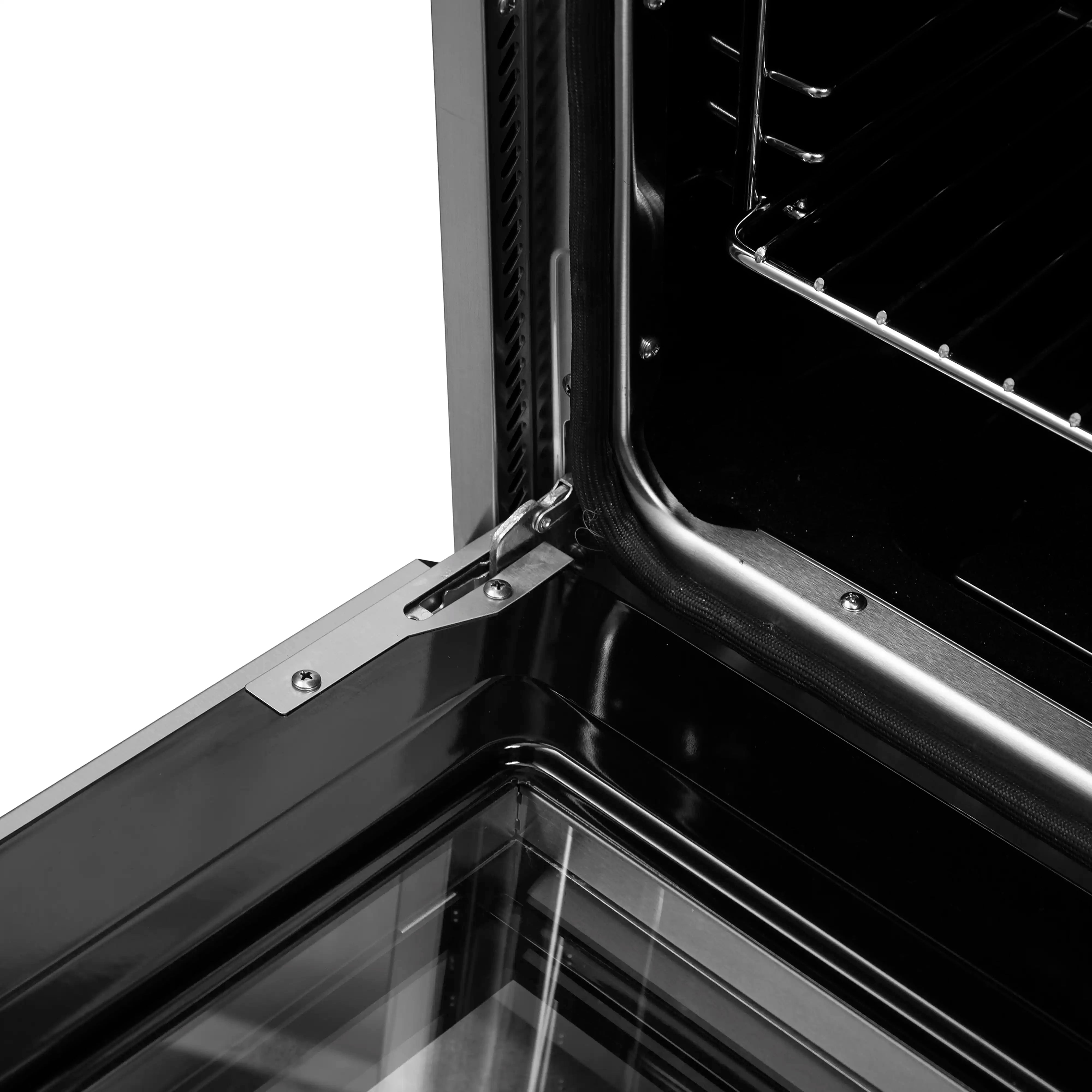

| Oven Door Open 90º | 44.25" |

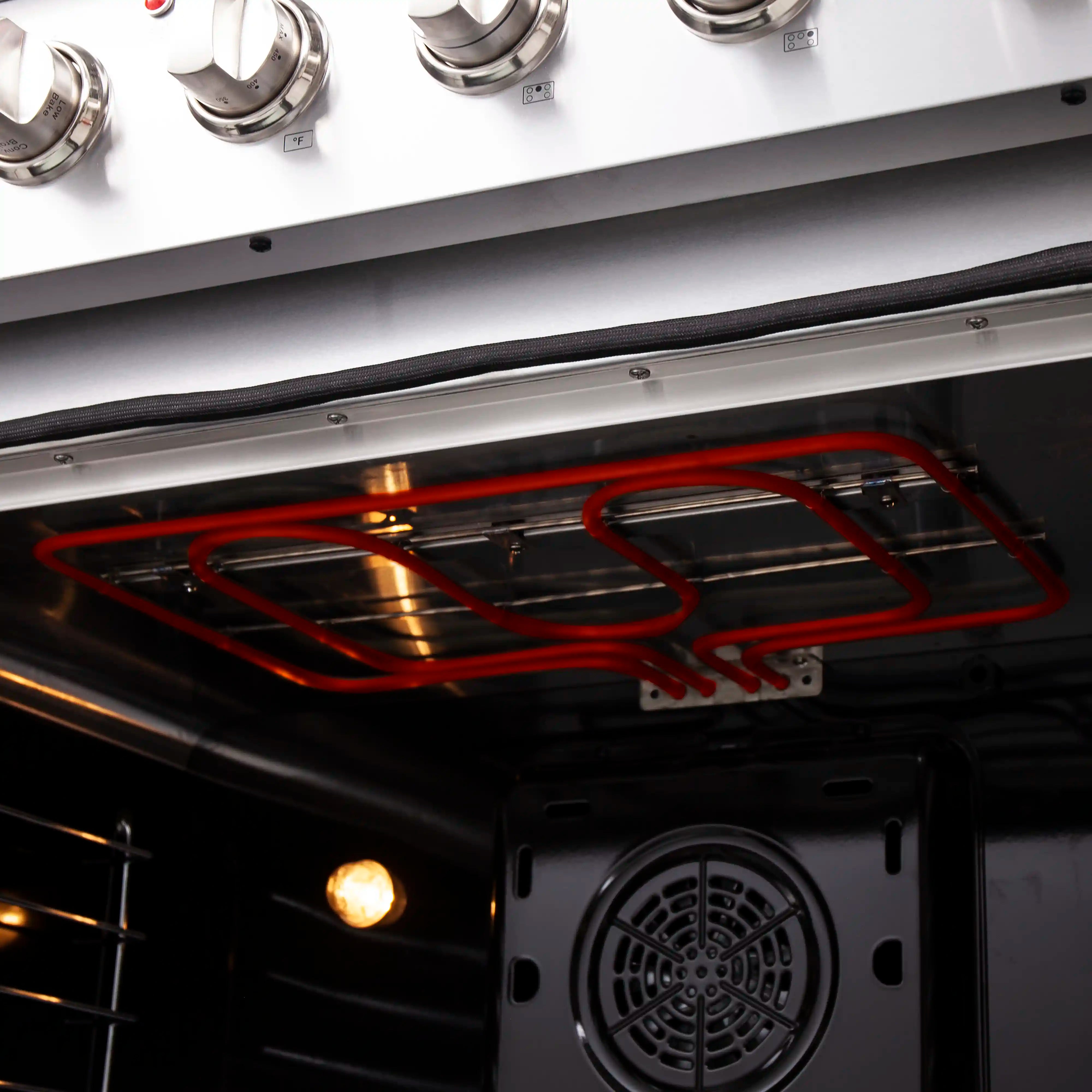

| Oven 1 inside Broil Wattage | 1000 |
| Oven 1 Outside Broil Wattage | 1800 |
| Oven 1 Bake Wattage | 2000 |
| Oven 1 True Convection Wattage | 1500 |
| Overall Oven Capacity | 5.36 Cubic Feet |
| Convection Fan | Yes |
| Number of Ovens | 1 |

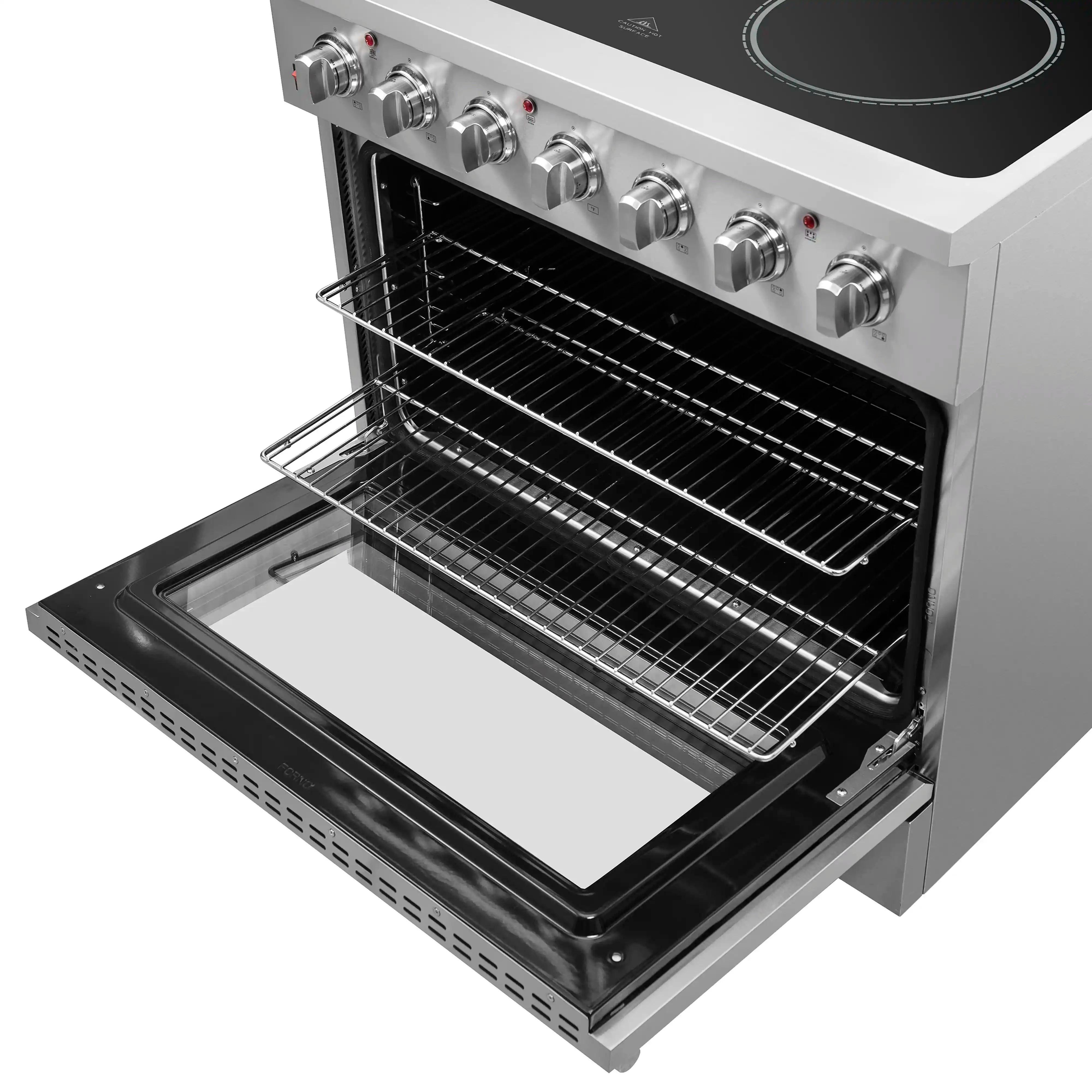

| Number of Racks | 2 |
| Number of Rack Positions | 4 |
| Broiler | Electric |
| Cleaning Type | Manual |
| Cooking Process | Radiant Heat |
| Black Enamel Oven Interior | Yes |
| Door Panel Material | Stainless Steel |
| Air Fryer Kit | No |
| Rotisserie Kit | No |
| WARRANTY & CERTIFICATIONS | |
| ETL Listed | Yes |
| Warranty Type | Limited |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |

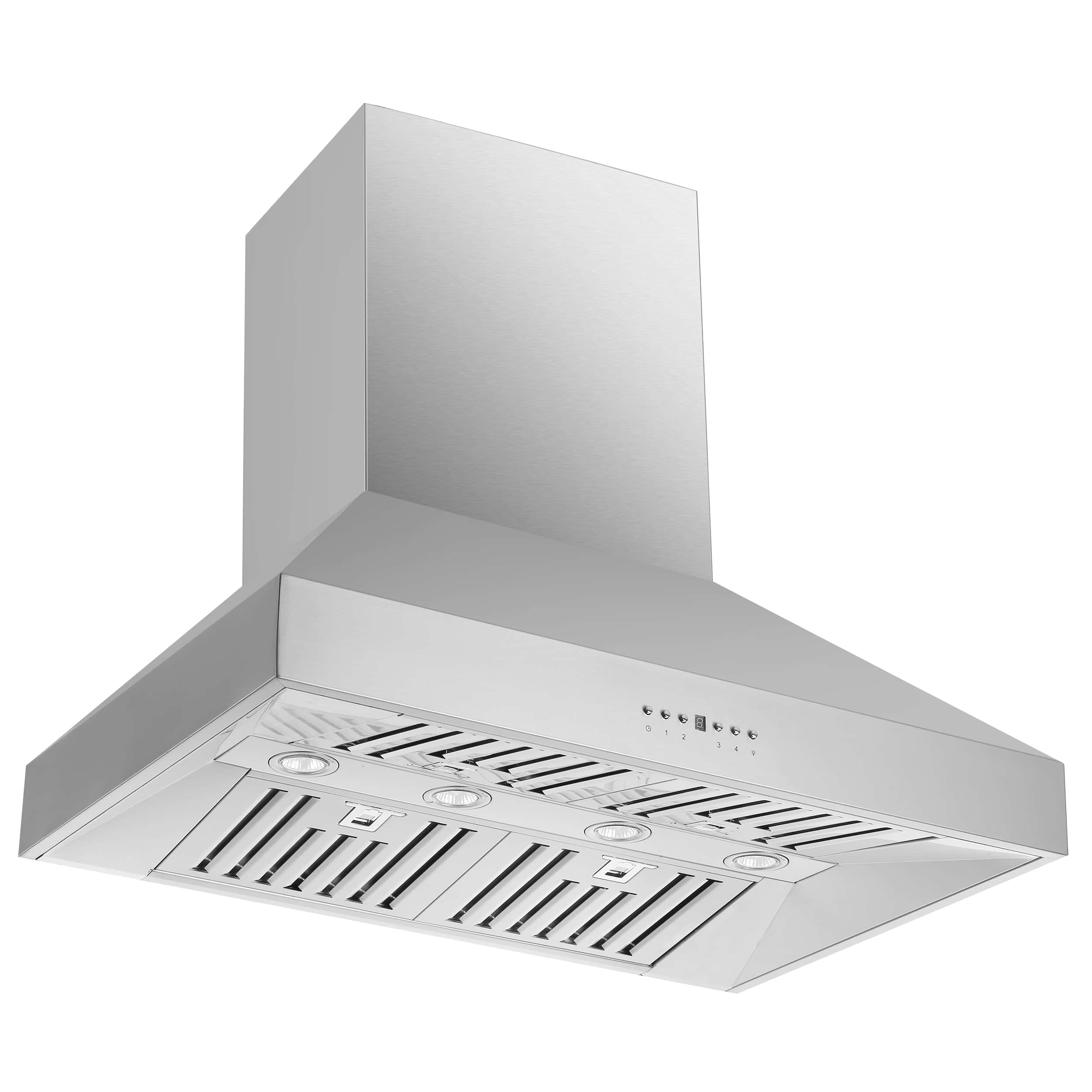

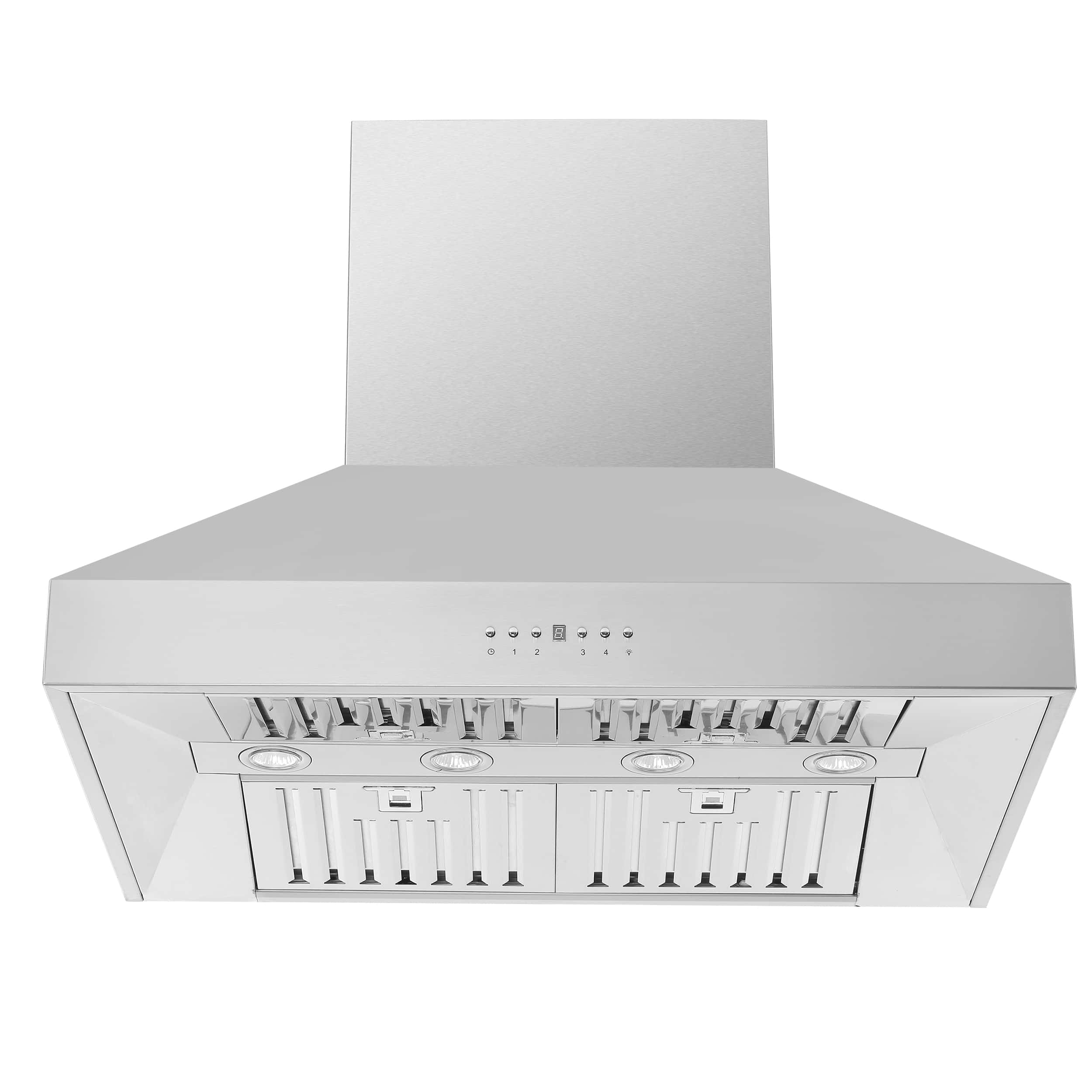

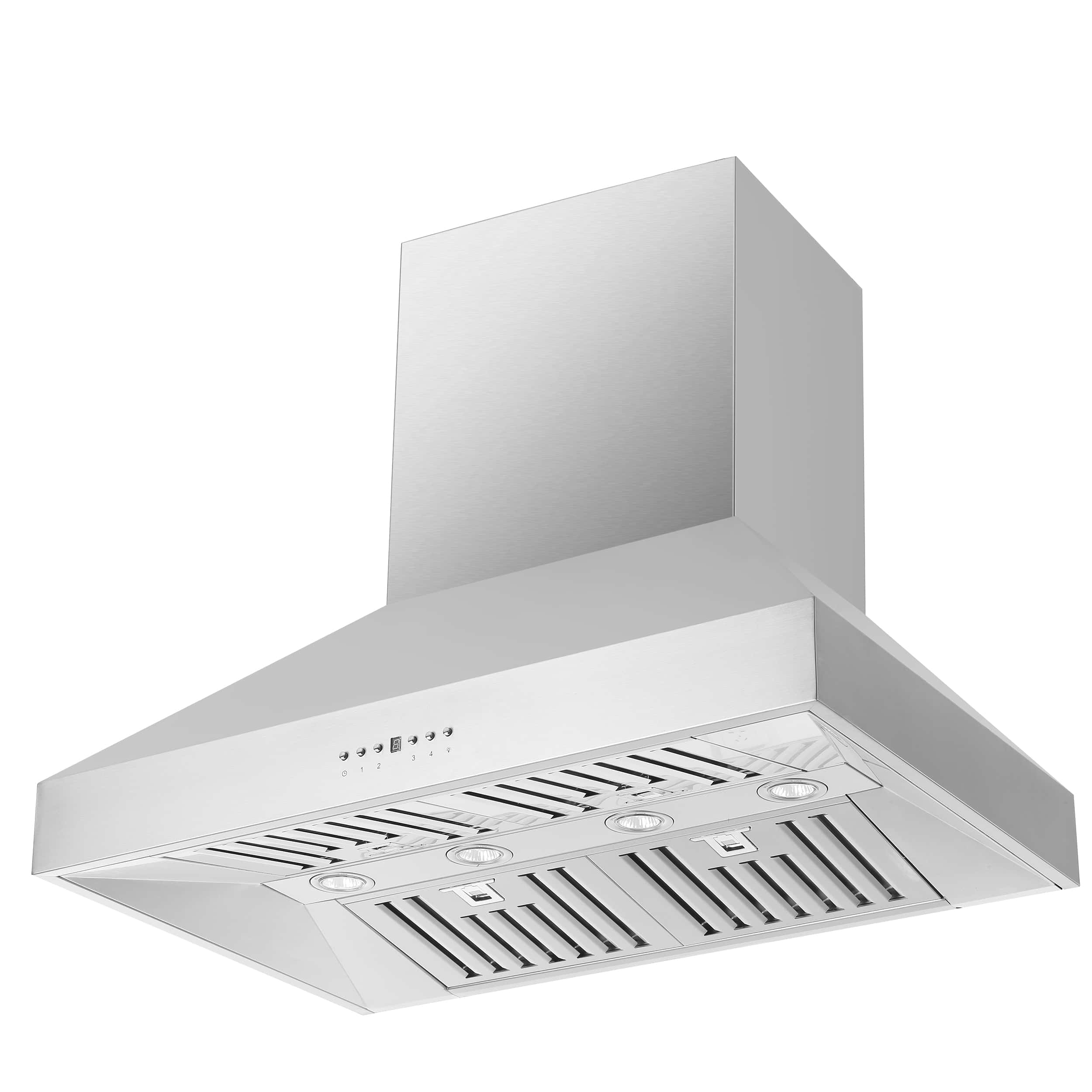

The Orvieto 36" Stainless Steel Wall Mount Range Hood delivers powerful ventilation with a 1200 CFM motor and four-speed push-button control for optimal air purification. High-grade stainless steel construction ensures long-lasting durability, while integrated noise reduction technology keeps operation quiet. Decorative crown molding adds a refined touch to any kitchen aesthetic. Bright, energy-efficient surface lights enhance visibility over your cooktop, and dishwasher-safe stainless steel baffle filters efficiently capture grease, smoke, and odors for easy cleanup and improved indoor air quality.
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 35.43" W X 23.62" D X 44.29" H |
| Product Overall Weight (lbs) | 71.70 |
| GENERAL INFORMATION | |
| Vent Style | External |
| Vent Type | Ducted |
| Exhaust Vent Location | Roof/Wall |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Primary Material | Stainless Steel |
| Hardware Finish | Stainless Steel |
| Filter Material | Stainless Steel |

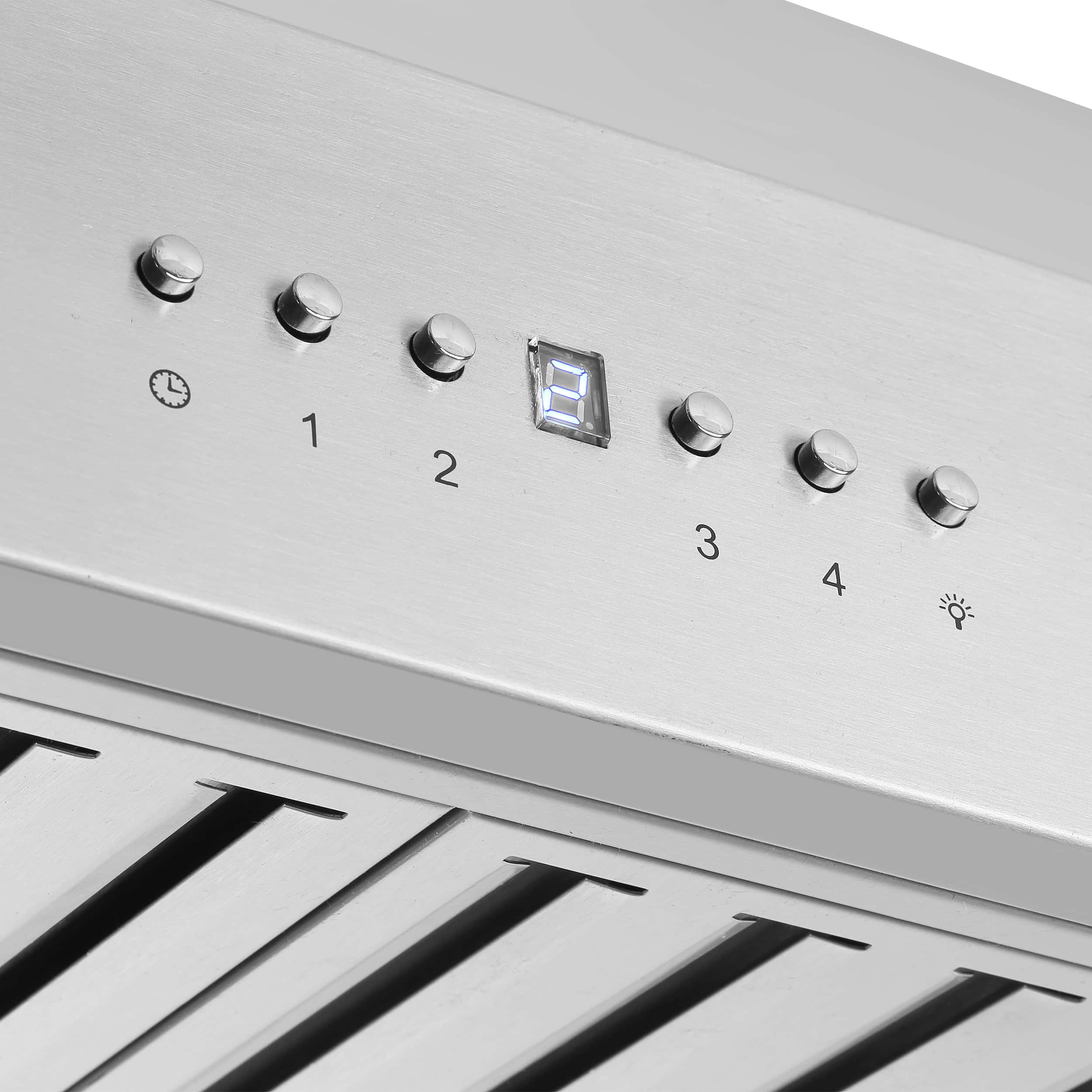

| Speed Control | 4 |
| TECHNICAL DETAILS | |
| Motor(s) Power (Watts) | 120 |
| Minimum CFM | 550 |
| Maximum CFM | 1200 |
| Power off Information | 3 Minutes |
| Power off Function | Yes |
| Damper Type | 10-in Round |
| FEATURES | |
| Dishwasher Safe Filters | Yes |
| Range Hood Shape | Pyramid |

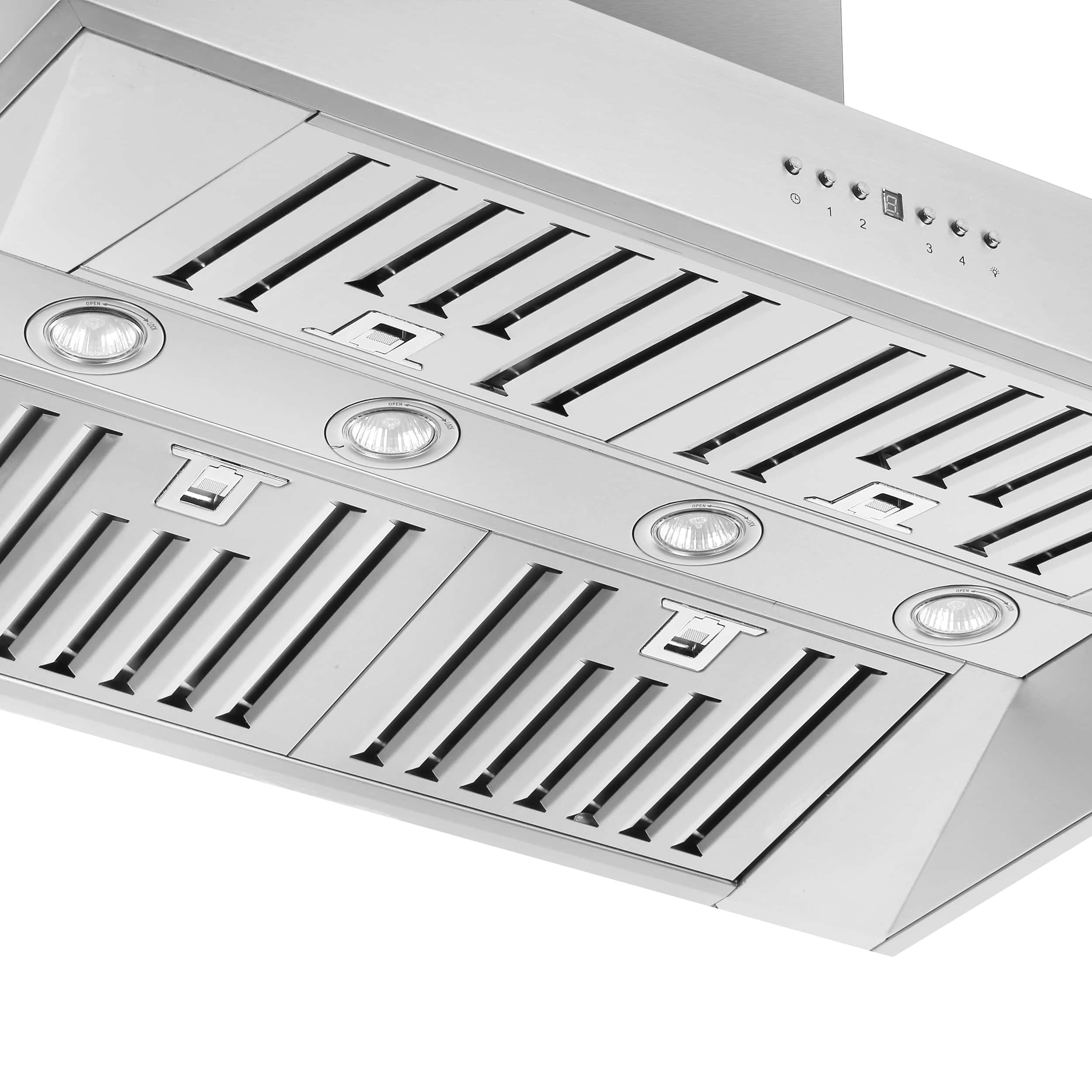

| Number of Lights | 4 |
| Chimney Short Kit | Yes |
| Chimney Extension Kit | Yes |
| Removable Grease Filter | Yes |
| Filter Type | Baffle |
