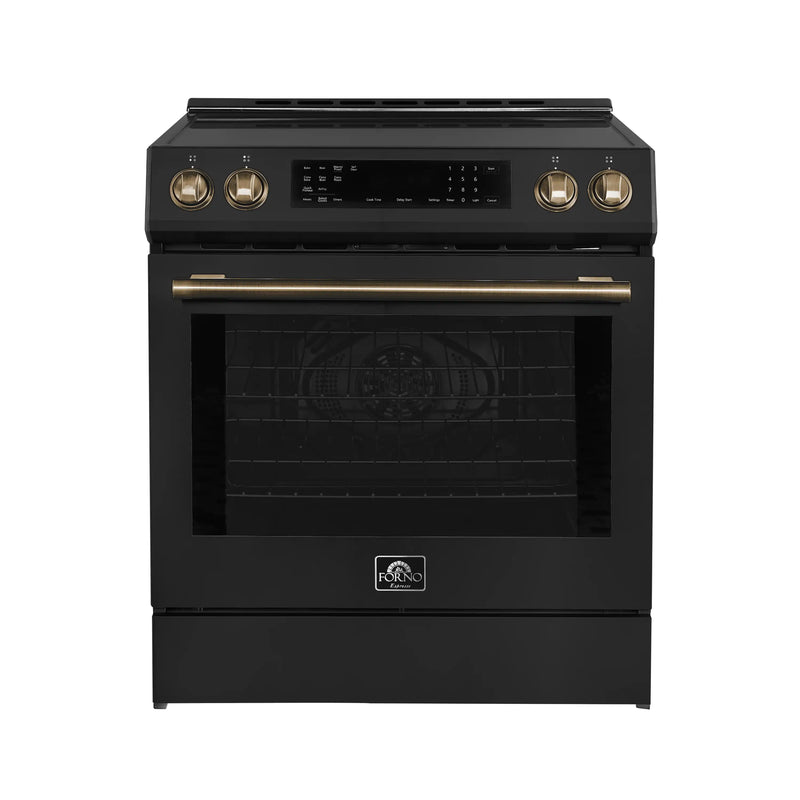

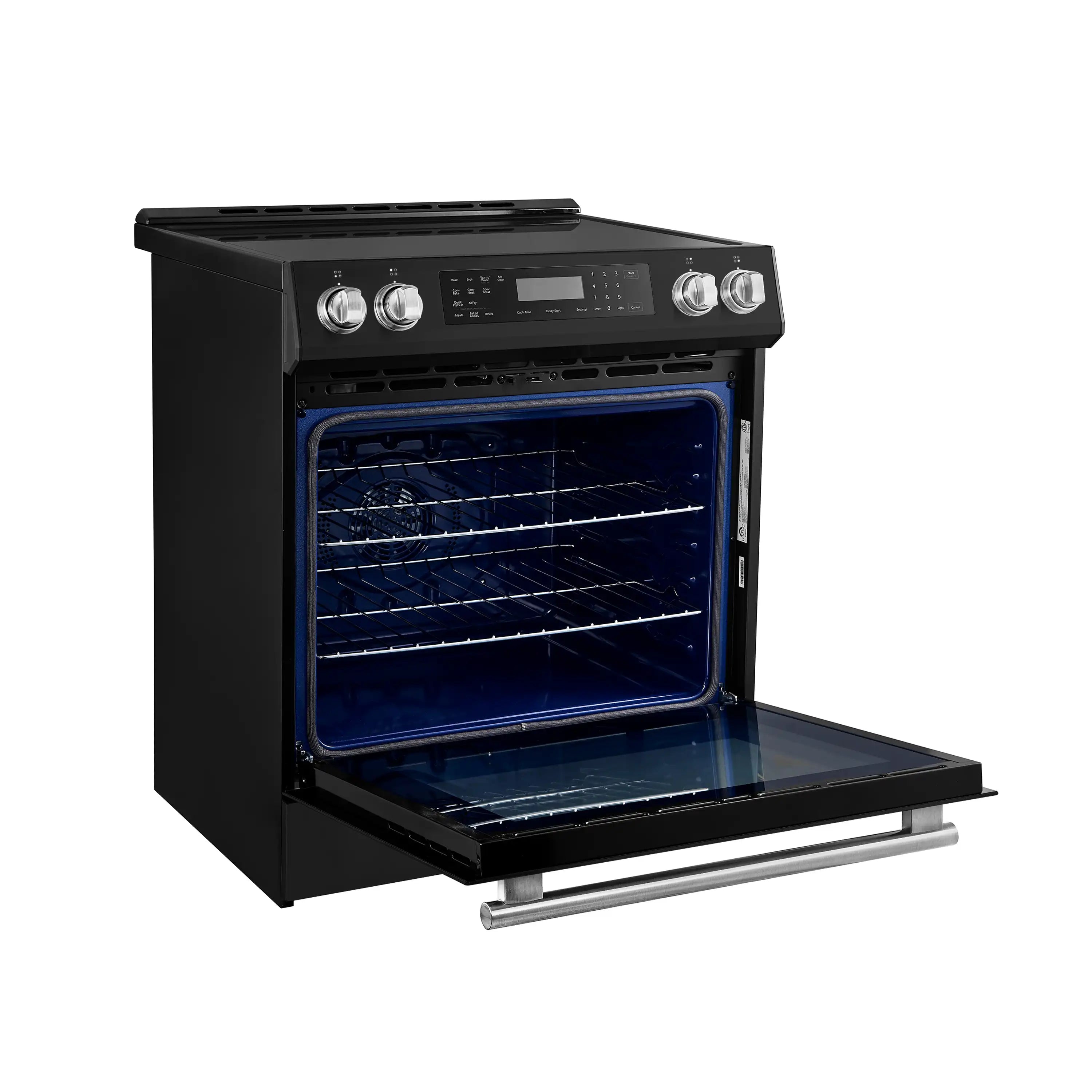

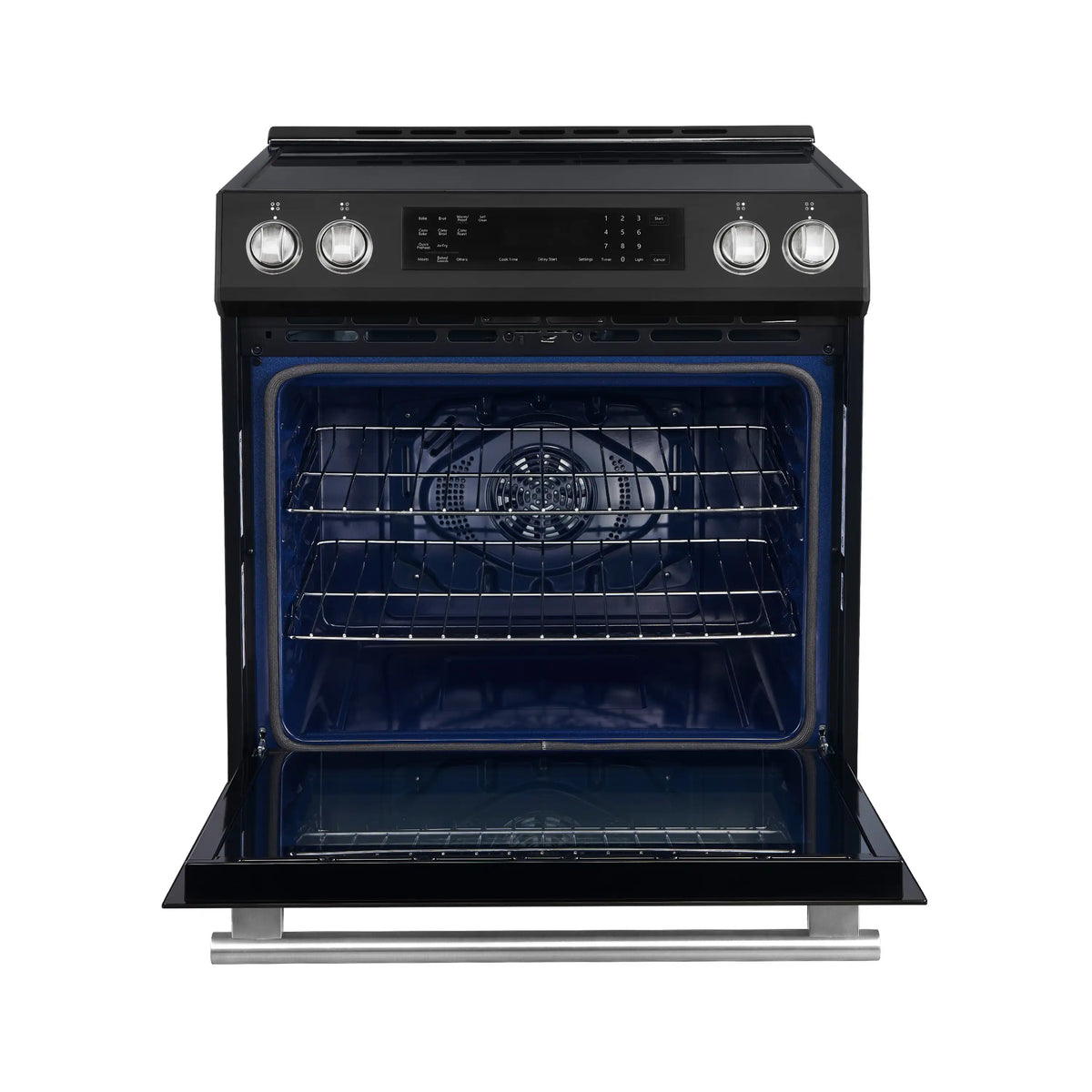

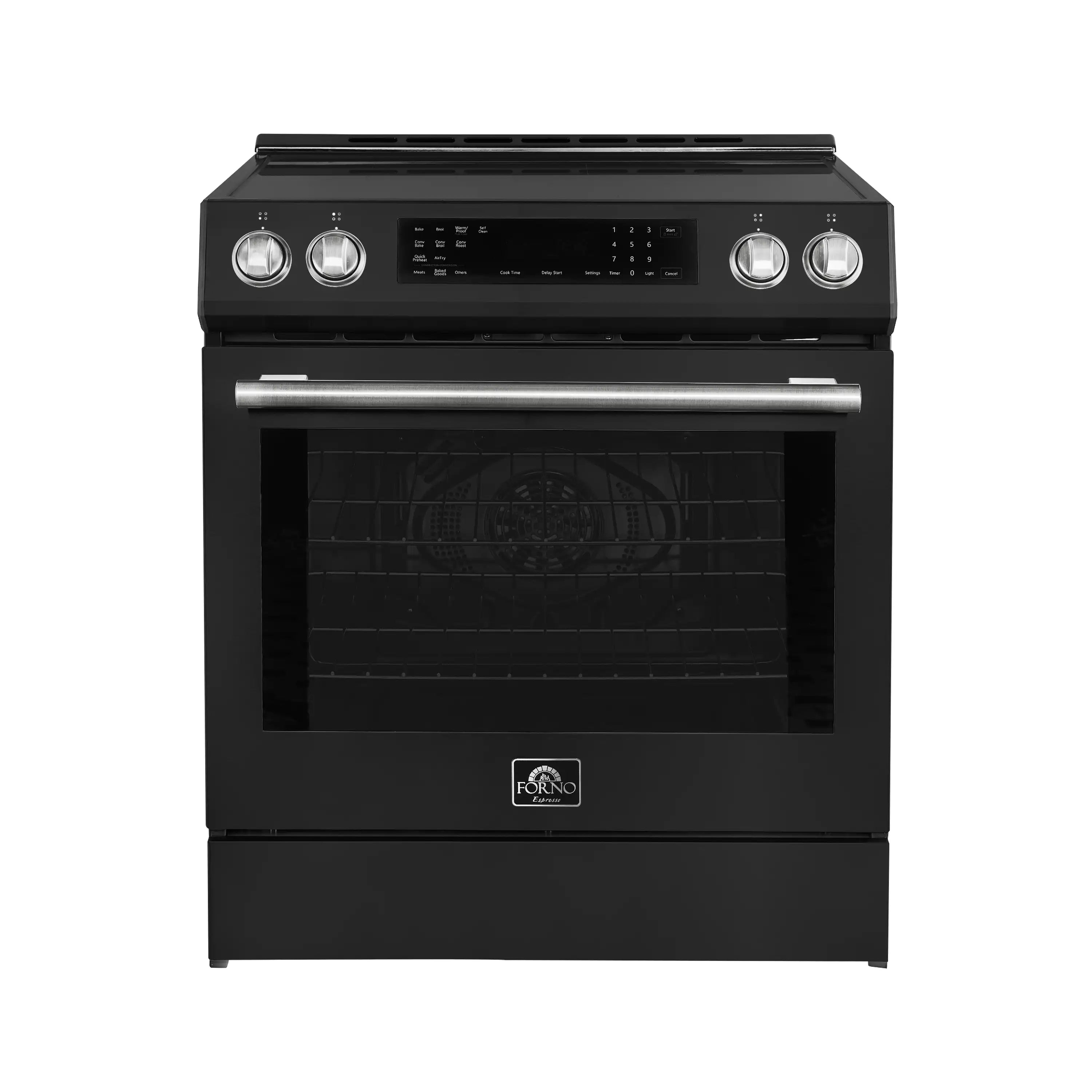

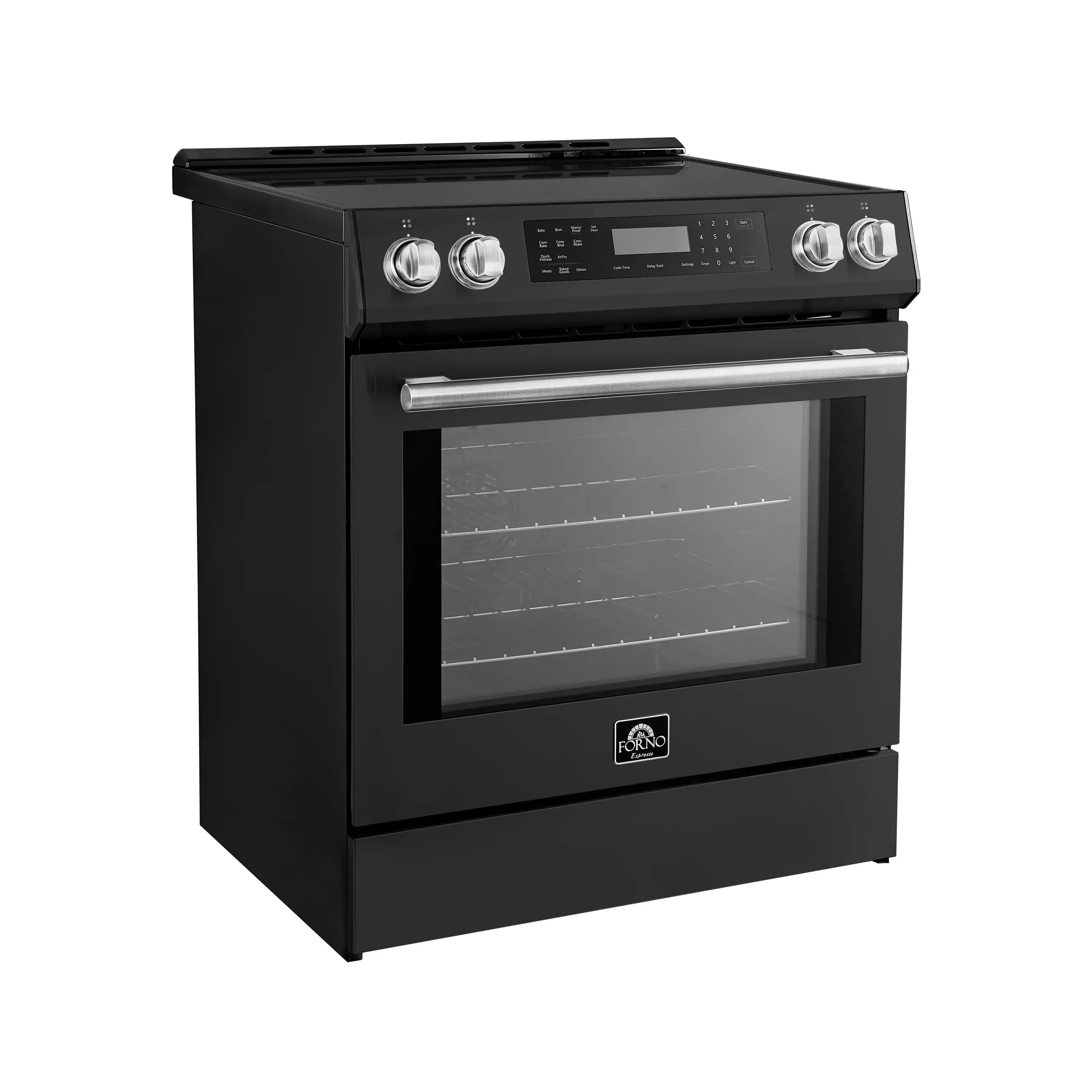

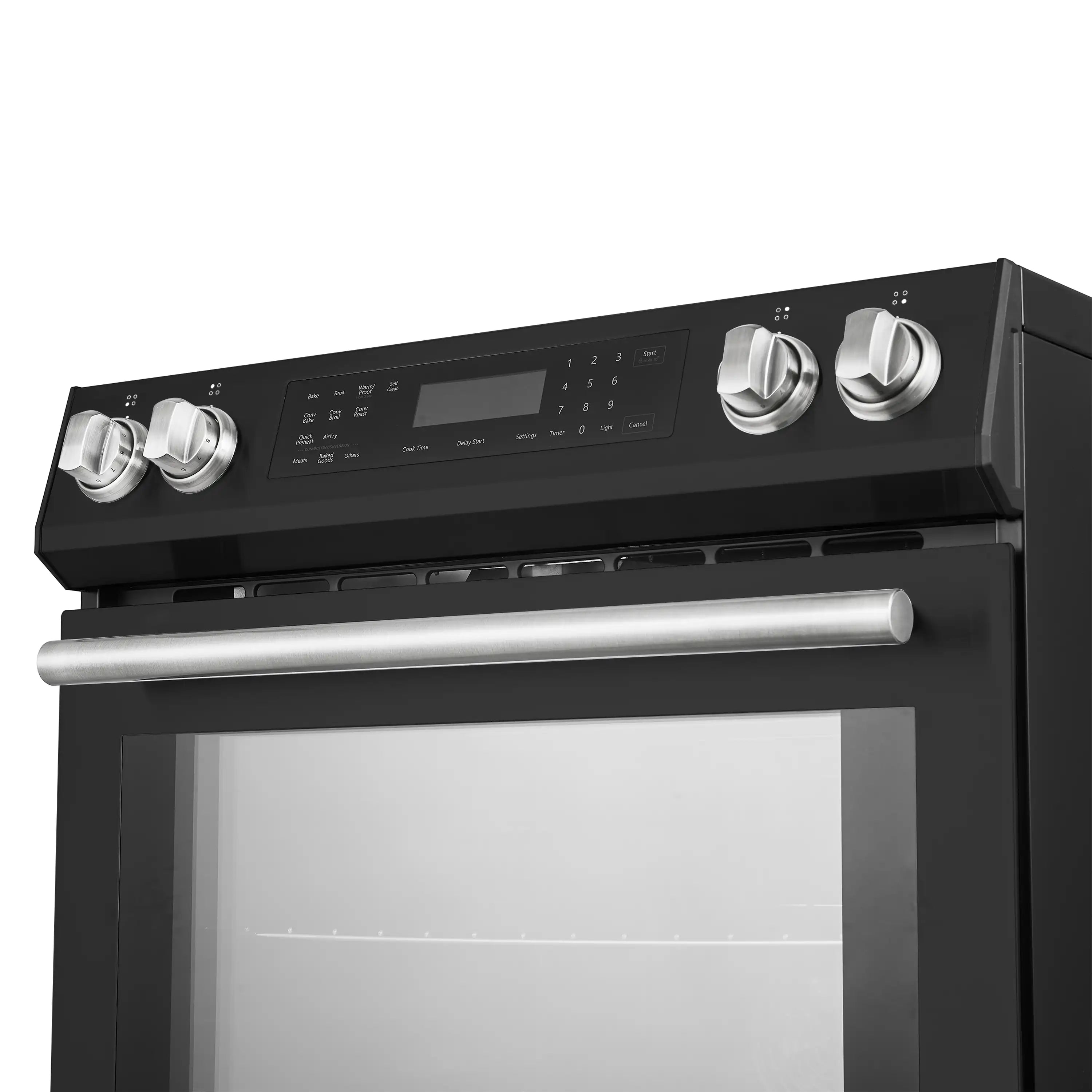

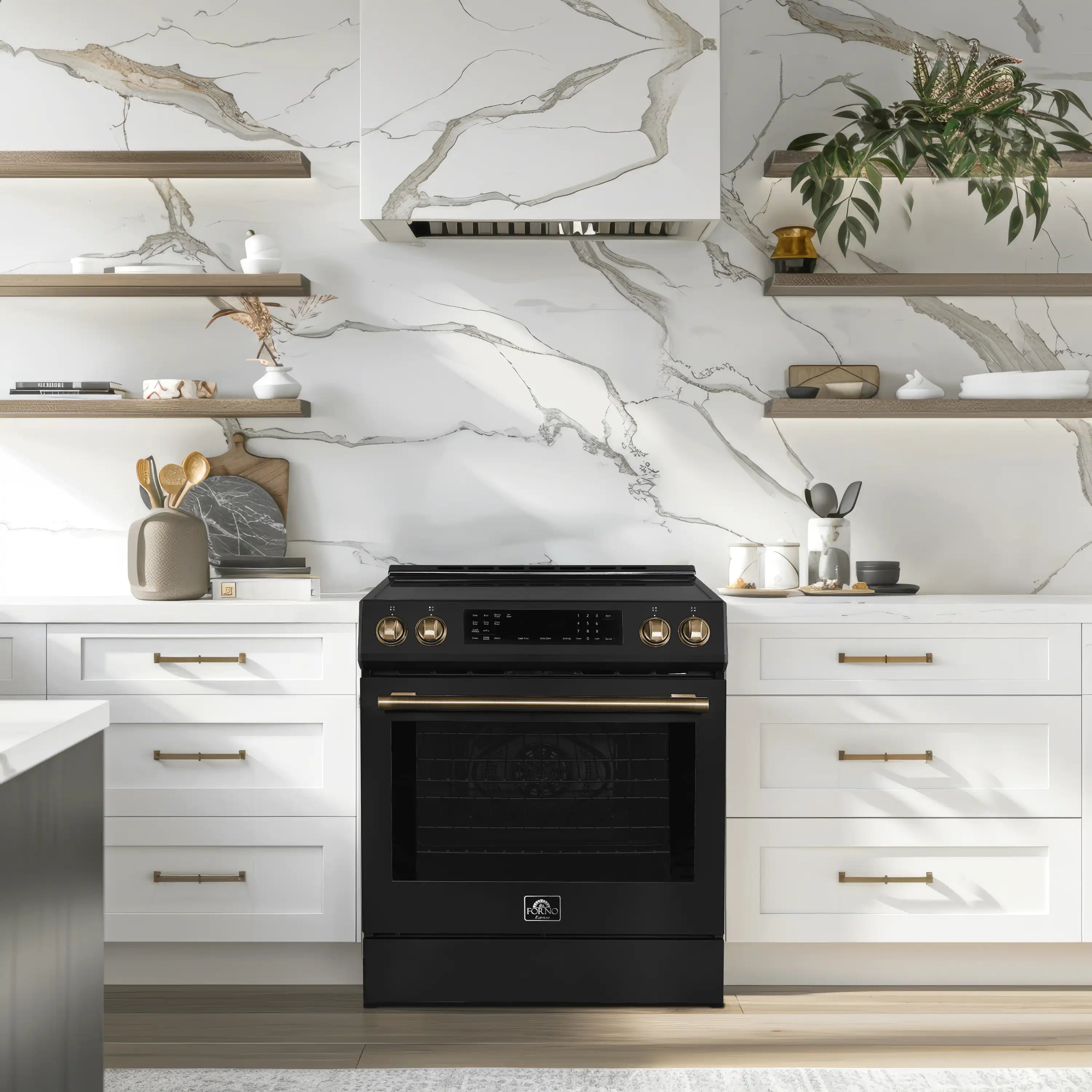

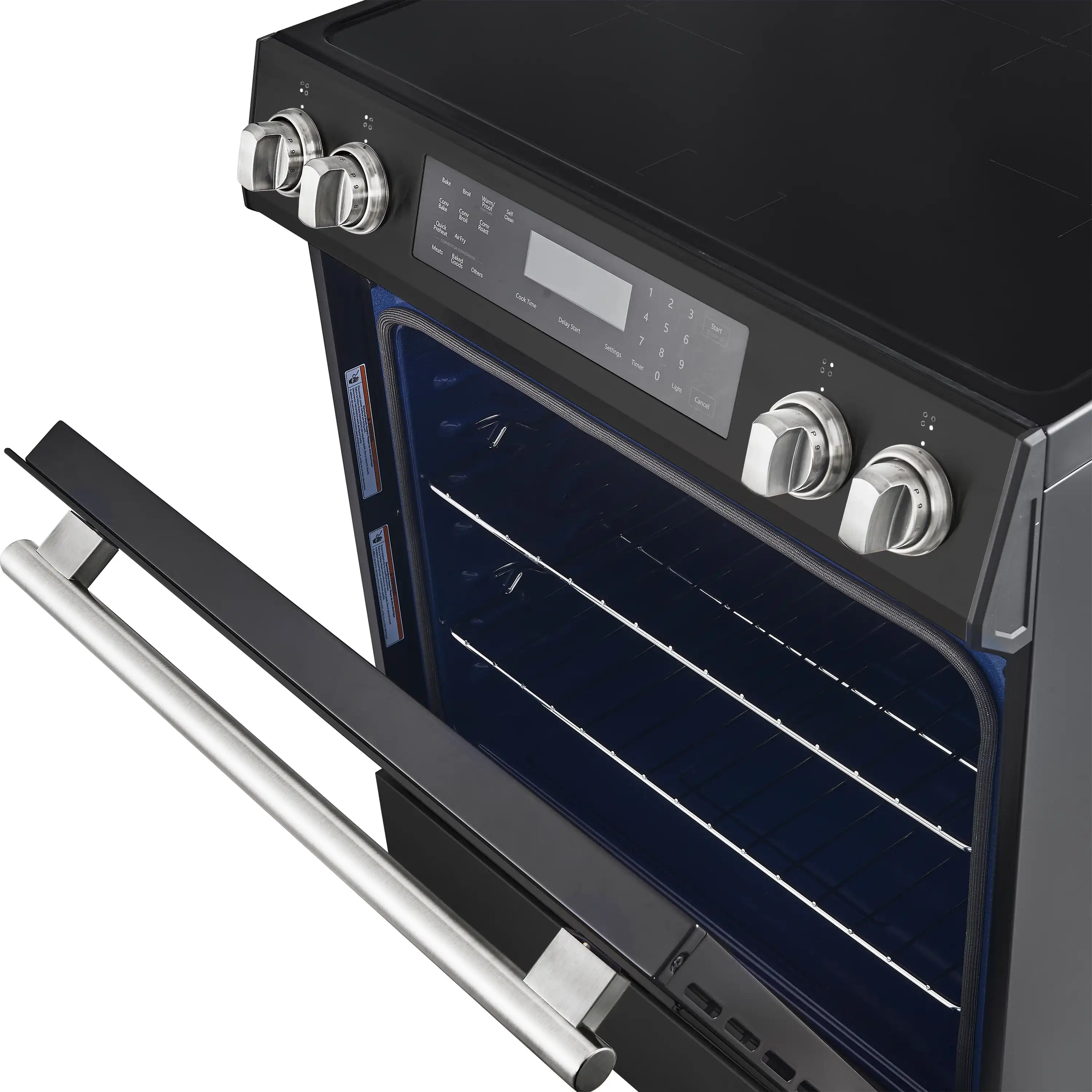

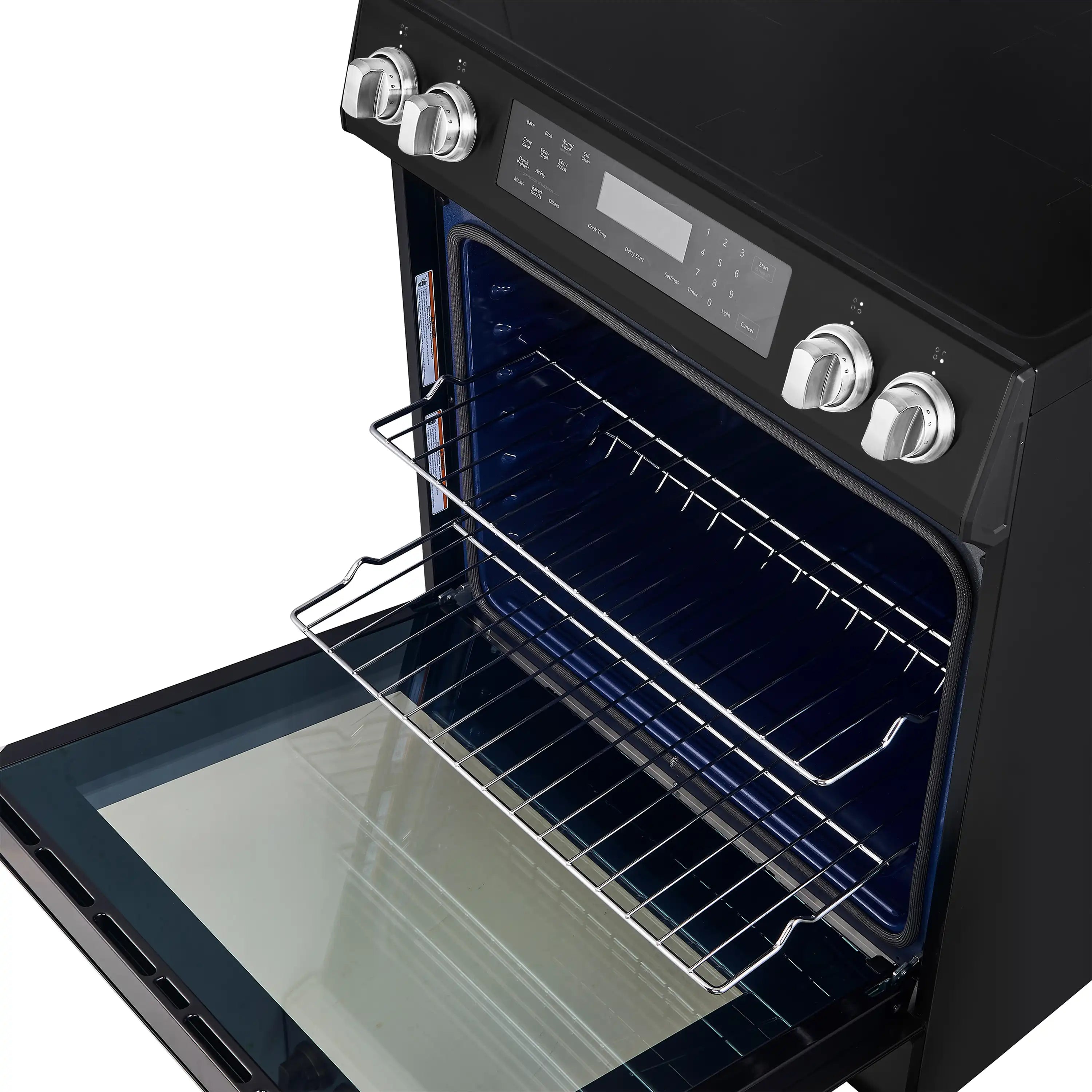

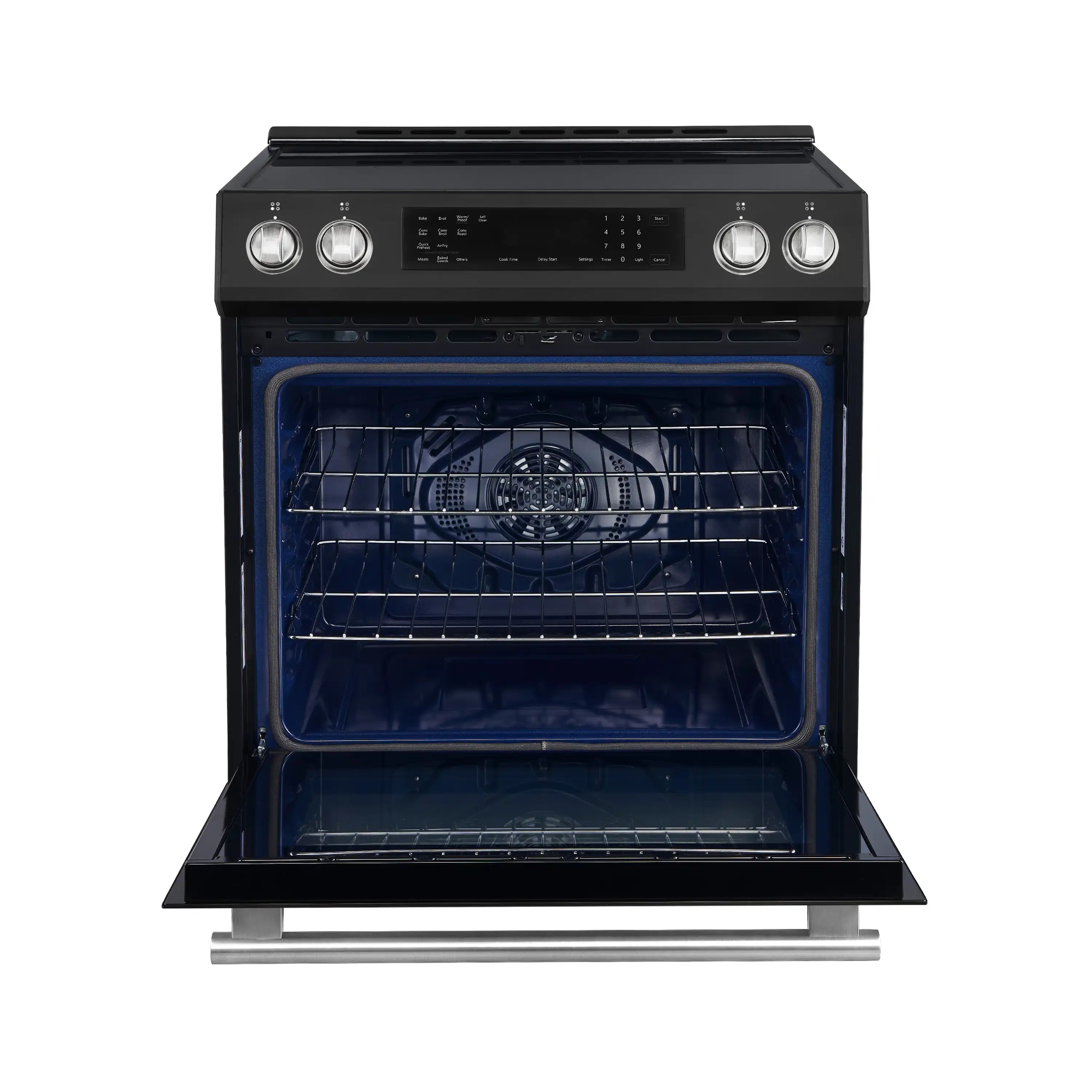

The Forno Donatello 30-inch black induction range harmonizes functionality with the precision of induction cooking. Customize your look effortlessly with two sets of interchangeable handles and knobs, switching between antique brass for a traditional touch or stainless steel for modern flair. The cooktop boasts four powerful induction elements totaling 8,100 watts, ensuring fast and precise cooking. The 5.0 cu.ft. speckled blue enamel oven features two racks with six adjustable levels, enabling versatile cooking for multiple dishes simultaneously. With Air Fry functionality, achieve crispy and delicious results effortlessly for healthier cooking options. This range caters to all cooking needs with its powerful cooktop and versatile oven, delivering quality and performance without the high price tags. Lower your cost of living with Forno.
Please Note: This appliance includes both brass and stainless steel handles. Some assembly is required to install your desired finish.
| DIMENSIONS | |
|---|---|
| Cutout Dimensions W x D x H (inches) | 30''W x 25''D x 36''H |
| Depth with Oven Door Open 90º (IN) | 46.25" |
| Depth without Oven Door Handle (IN) | 26.25" |
| Overall Weight (LBS) | 166.45 lbs |
| Power Cord Length Without Plug (FT) | 5.55 ft |
| Power Cord Length With Plug (FT) | 5.87 ft |
| Main Oven Interior (W x D x H) (IN) | 24.6"W x 19"D x 18.5"H |
| Usable Main Oven Interior Dimensions W x D x H (inches) | 24"W x 15.75"D x 16"H |
| Air Fry Basket Dimensions W x D x H (inches) | 16.14"W x 13.98"D x 1.34"H |
| GENERAL INFORMATION | |
| Product Type | Slide-In |
| Metal | Metal |
| Supplier Intended and Approved Use | Residential Use |
| ISTA 6A | Yes |
| DESIGN & FINISH | |
| Color | Black |
| Finish | Black |
| Overall WxDxH (IN) Biggest Dims Possible (with Handle, Backsplash, etc) | 29.92"W x 27.56"D x 37.13"H |
| Color/Finish | Black |
| Handle Finish | Antique Brass |
| Clock | Yes |
| Interior Light | Yes |
| Number Of Lights | 2 |
| Control Type | 4 |
| Number of Knobs | 4 |
| Knobs Color/Finish | Antique Brass |
| Control Location | Front |
| Control Lock | Yes |
| Primary Material | Steel |
| Control Panel Material | Steel |
| Kick Plate Material | Steel |
| Antique Brass Kit (Handle+Knobs+Knob Rings) | Yes |
| TECHNICAL DETAILS | |
| Dedicated Circuit Breaker Amperage | 50 Amp |
| Total Amps Use | 49.58 Amp |
| Volts | 240 V |
| Stand By Power (AMP) | 1.94 AMP |
| Rated Power (W) | 11,900 Watts |
| Power Cord Included | Yes |
| Plug Type | NEMA 14-50P |
| Fuel Type | Electric |
| Plug-In | Yes |
| Power Cord | Yes |
| COOKTOP FEATURES | |
| Cooktop Max Power (W) | 7,200 Watts |
| Burner Fuel | Electric |
| Electric Heat Configuration (Cooktop) | Induction |
| Total cooktop Wattage output | 8,100 Watts |
| Number of Burners | 4 |
| Double Ring Burner | No |
| Warmer Burner | No |
| Bridge Element/Flex Zone | No |
| Cooktop Surface Color | Black |
| Cooktop Surface Materiel | Ceramic Glass |
| Cooktop Surface Structure | Smoothtop |
| Cooking Surface Control Type | Knobs |
| Broiler Element Type | Single Element |
| Overall Broiler Element Wattage | 3,600 Watts |
| Bake Element | Yes |
| Overall Bake Element Wattage | 2,200 Watts |
| Hidden Bake Element | Hidden |
| Cooktop Hot Surface Indicator | Yes |
| Griddle | No |
| Front Right Burner Watts | 1,500 Watts |
| Front Right Burner Size (IN) | 7 |
| Front Left Burner Watts | 2,100 Watts |
| Front Left Burner Size (IN) | 9 |
| Rear Right Burner Watts | 3,000 Watts |
| Rear Right Burner Size (IN) | 9 |
| Rear Left Burner Watts | 1,500 Watts |
| Rear Left Burner Size (IN) | 7 |
| OVEN FEATURES | |
| Oven Max Power | 4,700 Watts |
| Oven Fuel | Electric |
| Number of Ovens | 1 |
| Oven Interior Finish | Speckled Blue |
| Telescopic Racks | No |
| Oven Racks Type | Standard |
| Number of Racks | 2 |
| Racks Material | Chrome-Plated |
| Number of Rack Positions | 6 |
| Broiler | Yes |
| Broiler Location | Oven |
| Convection Oven | Yes |
| Convection Type | True Convection |
| Automatic Convection Conversion | Yes |
| Cook time Option | Yes |
| Delay Start | Yes |
| Temperature Gauge | No |
| Timer | Yes |
| Sabbath Mode | Yes |
| Cleaning type |
|
| Oven Preheating Indicator | Yes |
| Door Lock Option | Yes |
| Storage Drawer | No |
| Door Panel Material | Steel |
| Air Fryer Kit (Basket + Support & Drip Pan) | Yes |
| Rotisserie Kit | No |
| Main Oven Capacity (cubic feet) | 5 cu.ft. |
| Main Oven Function |
|
| Main Oven Rack Size | 24"W x 15.75"D |
| Main Oven Total Broil Wattage | 3,600 Watts |
| Main Oven Bake Wattage | 2,200 Watts |
| Main Convection Fan | Yes |
| Main Oven Convection Fan Wattage | 50 Watts |
| Main Oven True Convection Wattage | 2,500 Watts |
| WARRANTY & CERTIFICATIONS | |
| Safety Listing | cETLus |
| File/Certification Number | 3100243 |
| ADA Compliant | No |
| Star-K Certified | Not Certified |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |

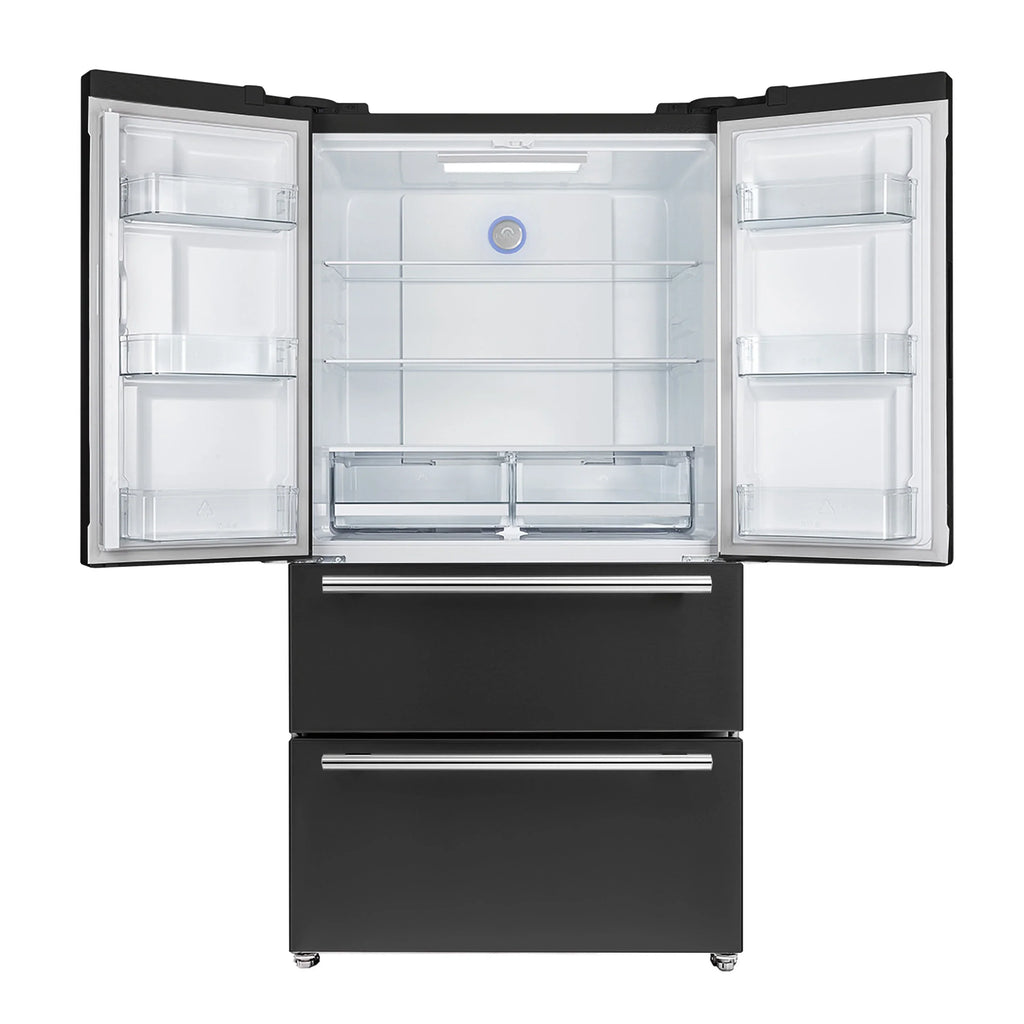

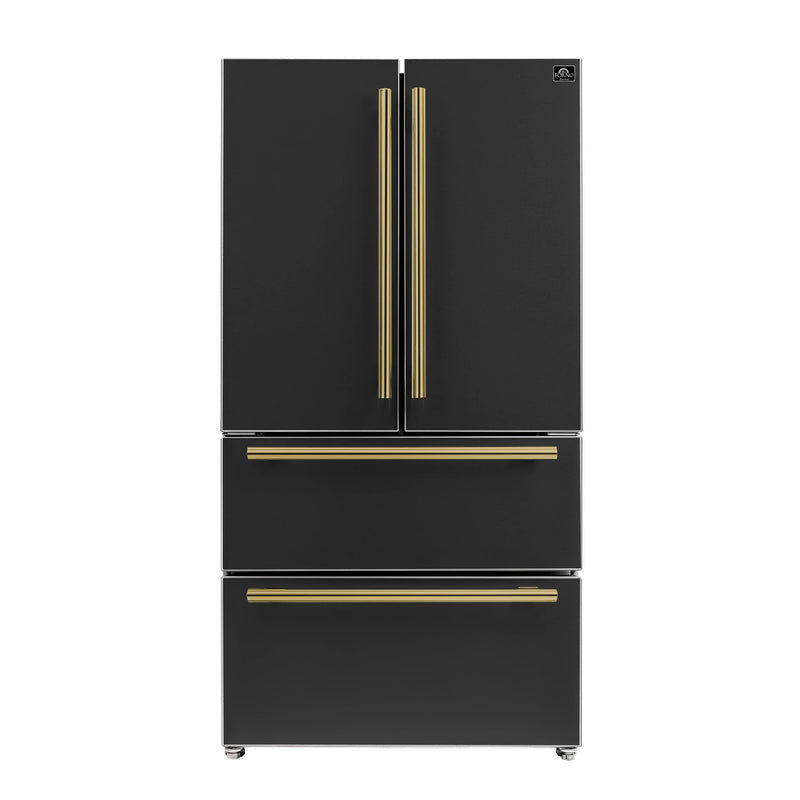

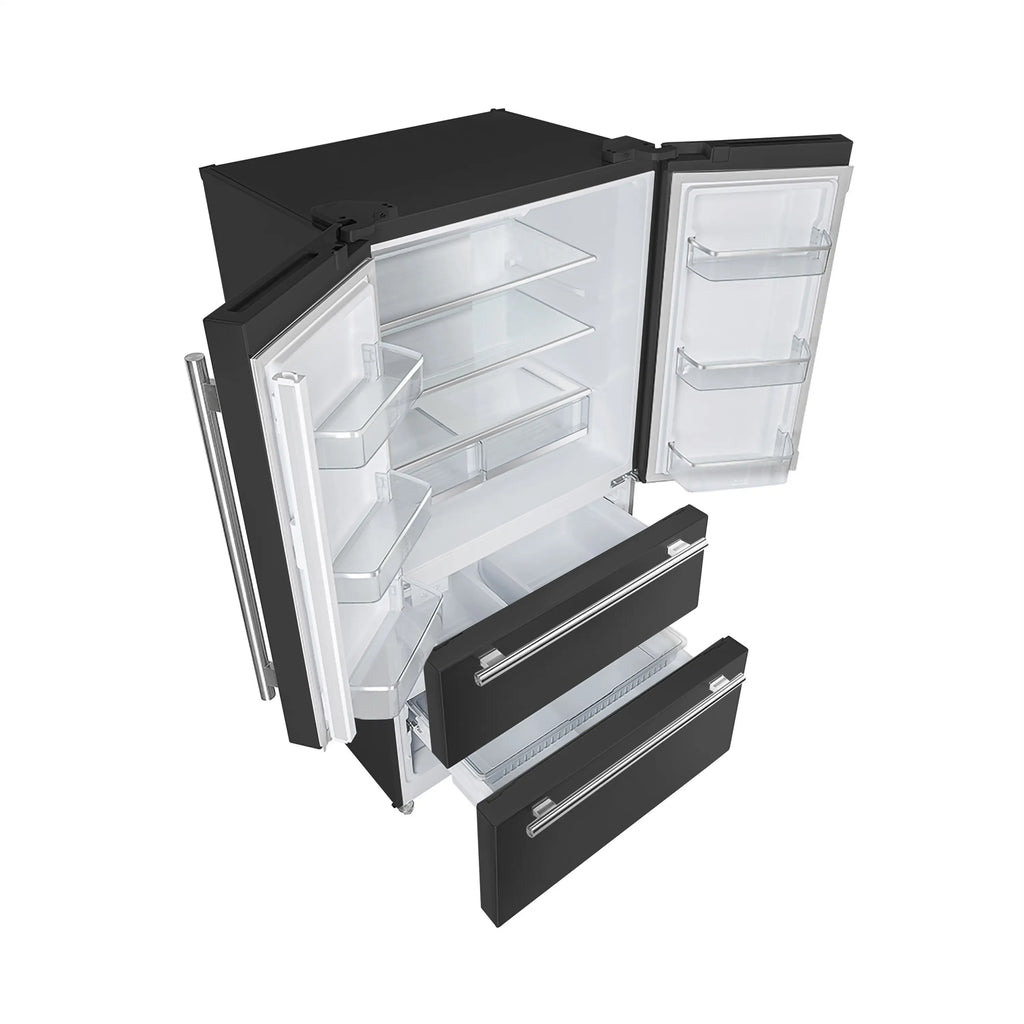

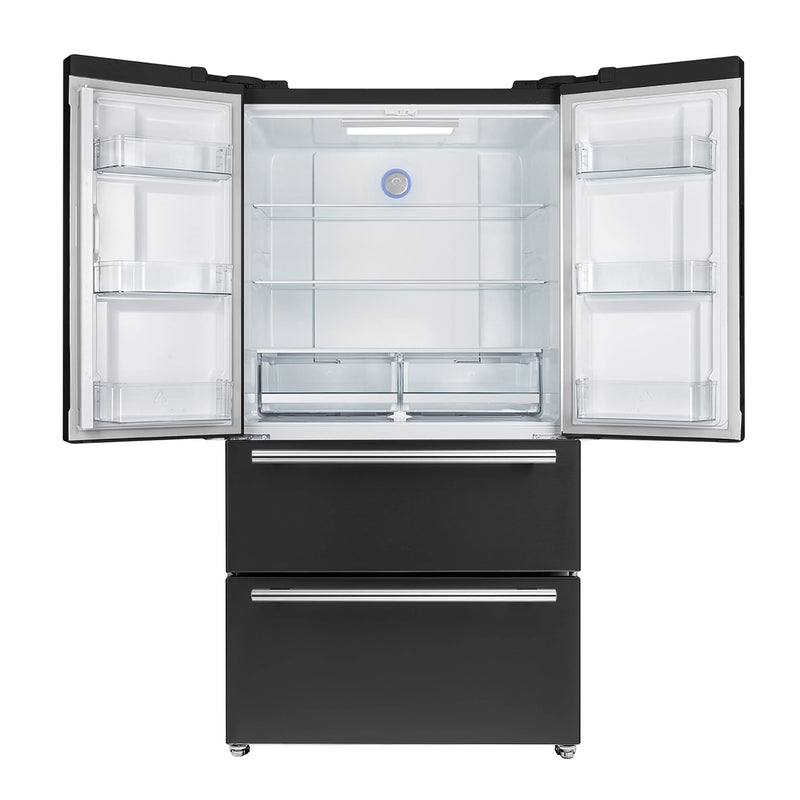

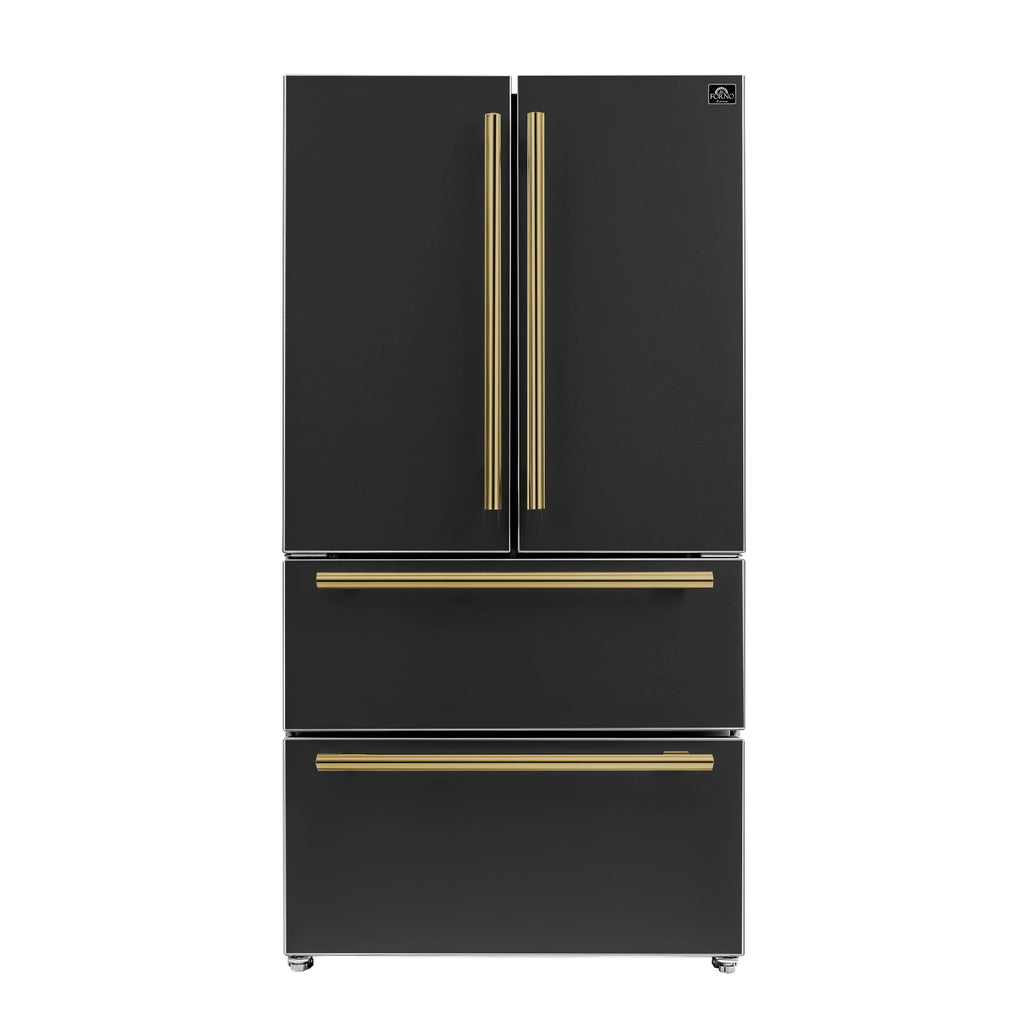

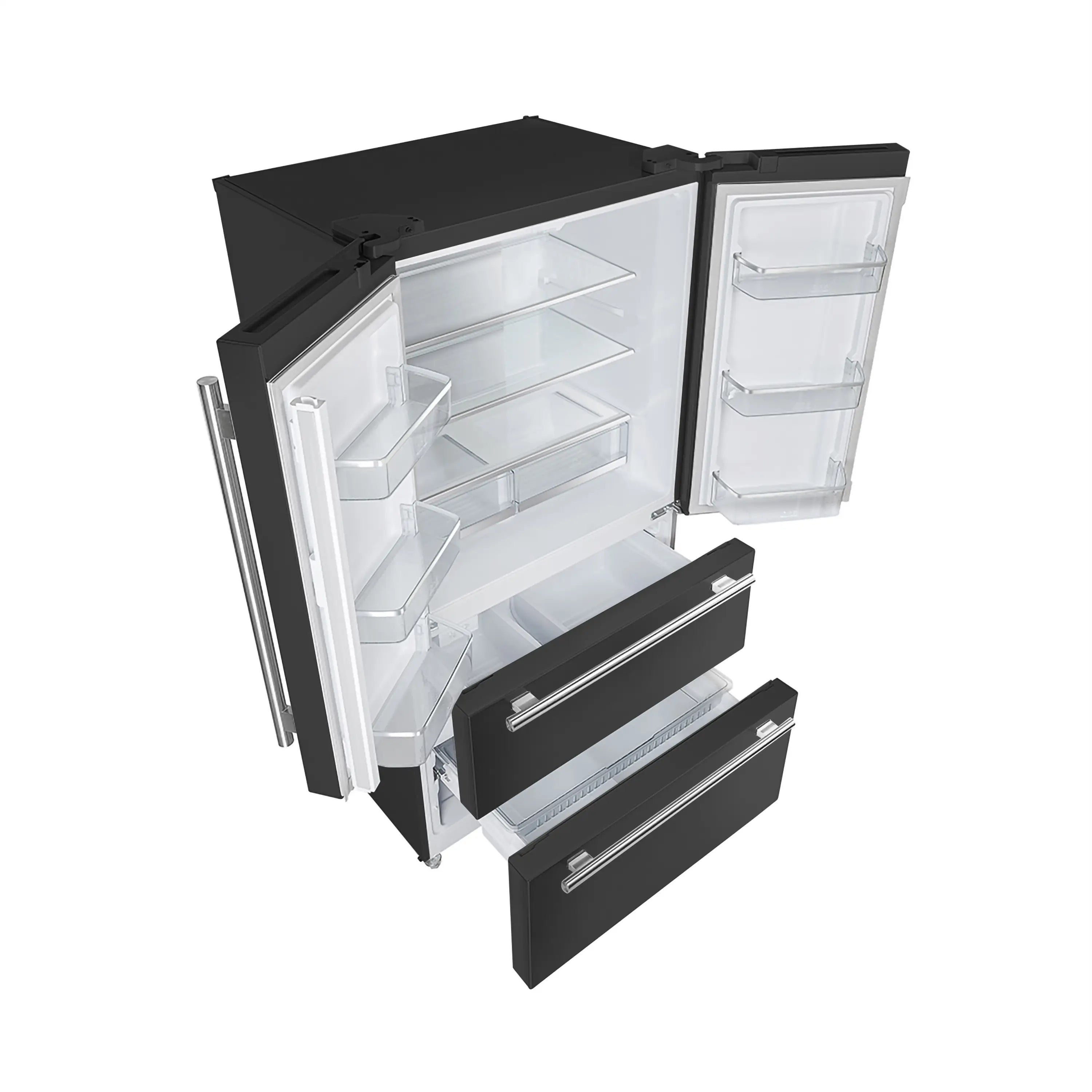

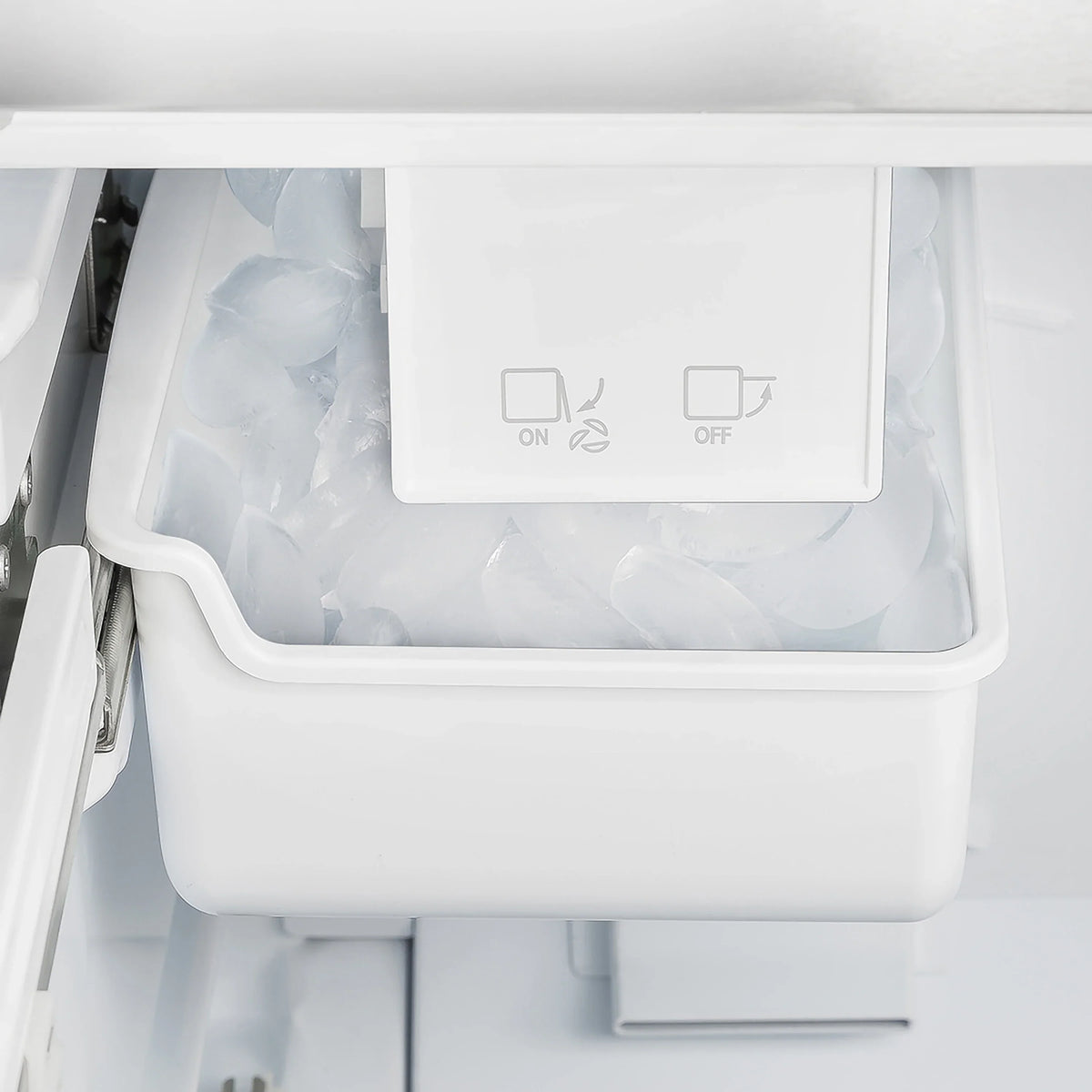

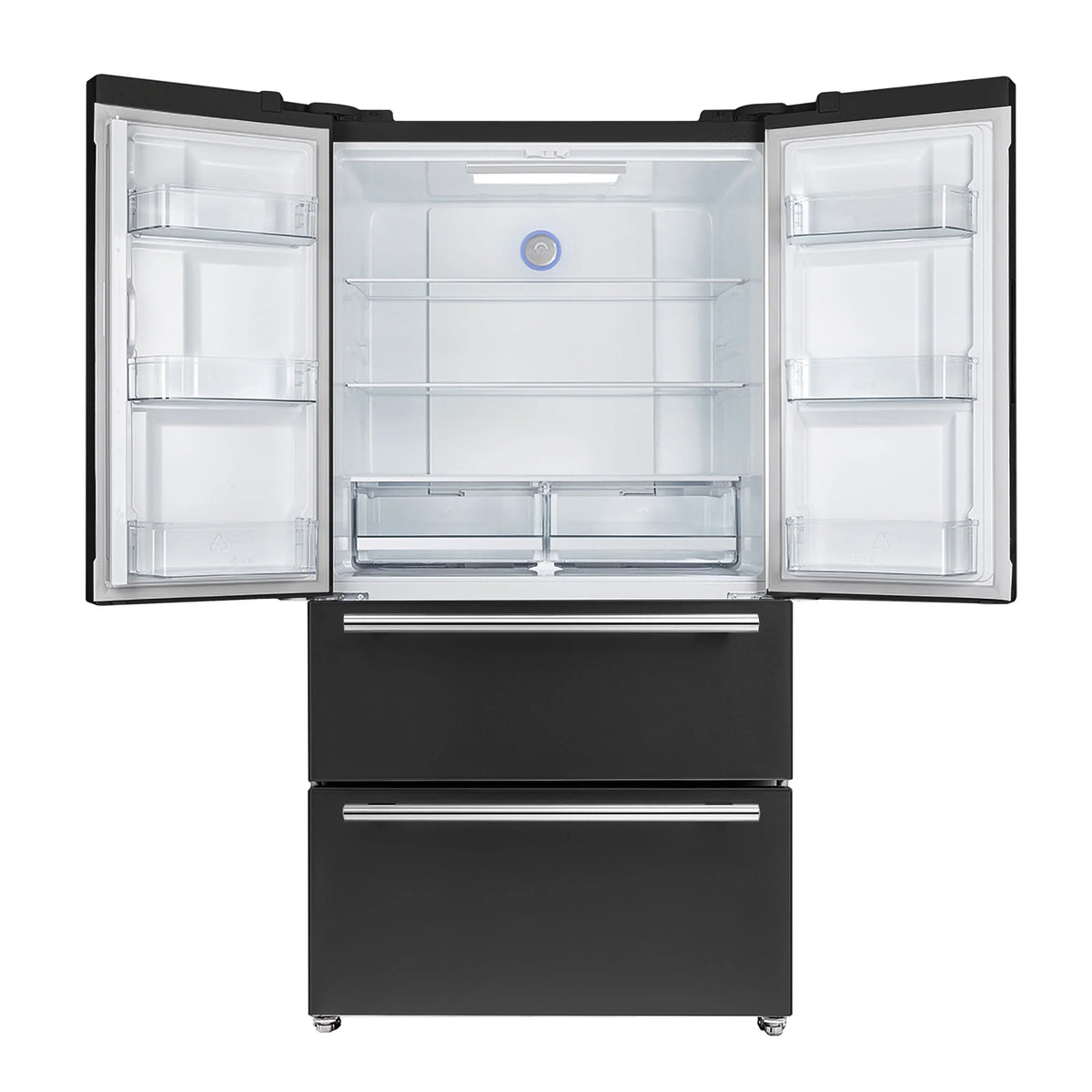

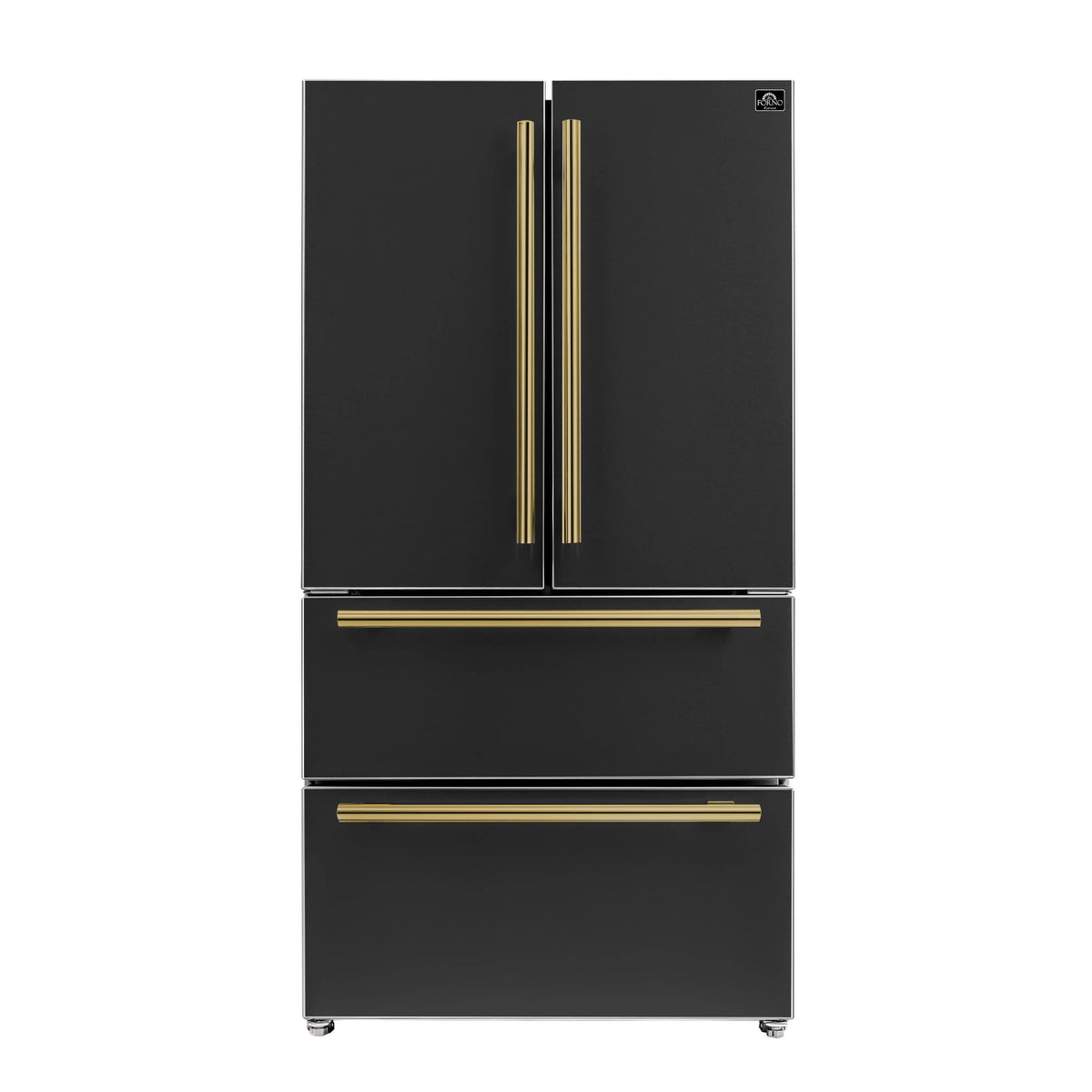

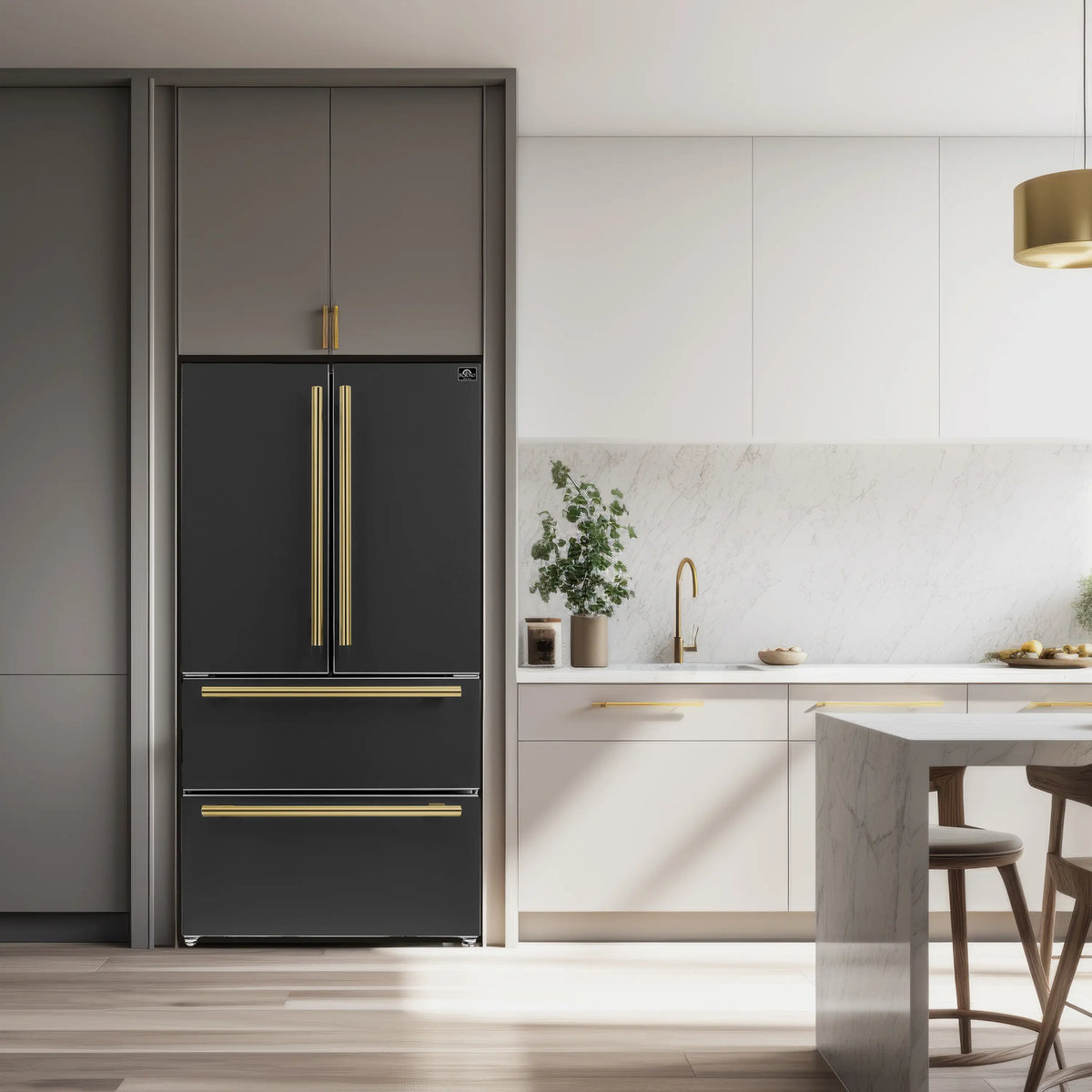

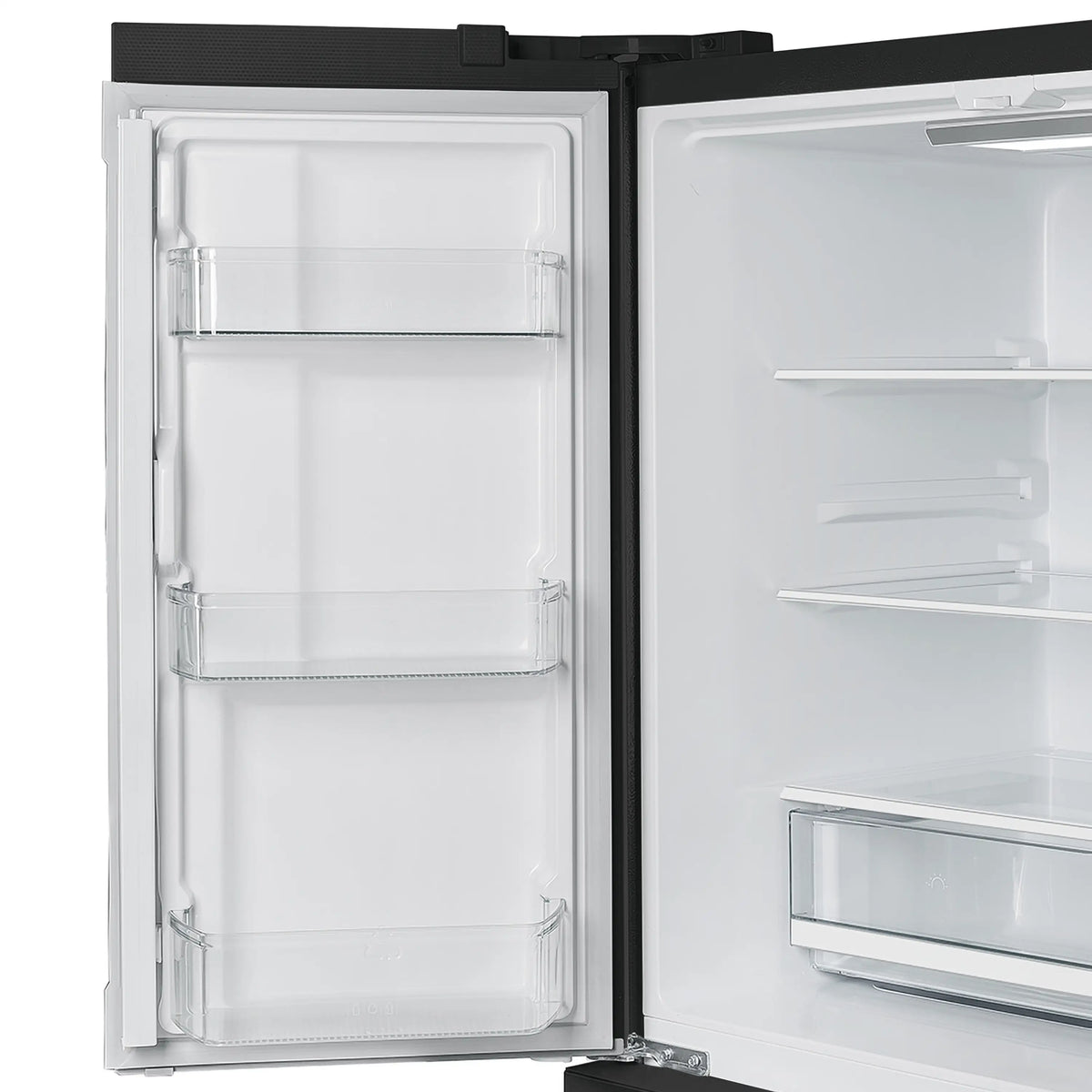

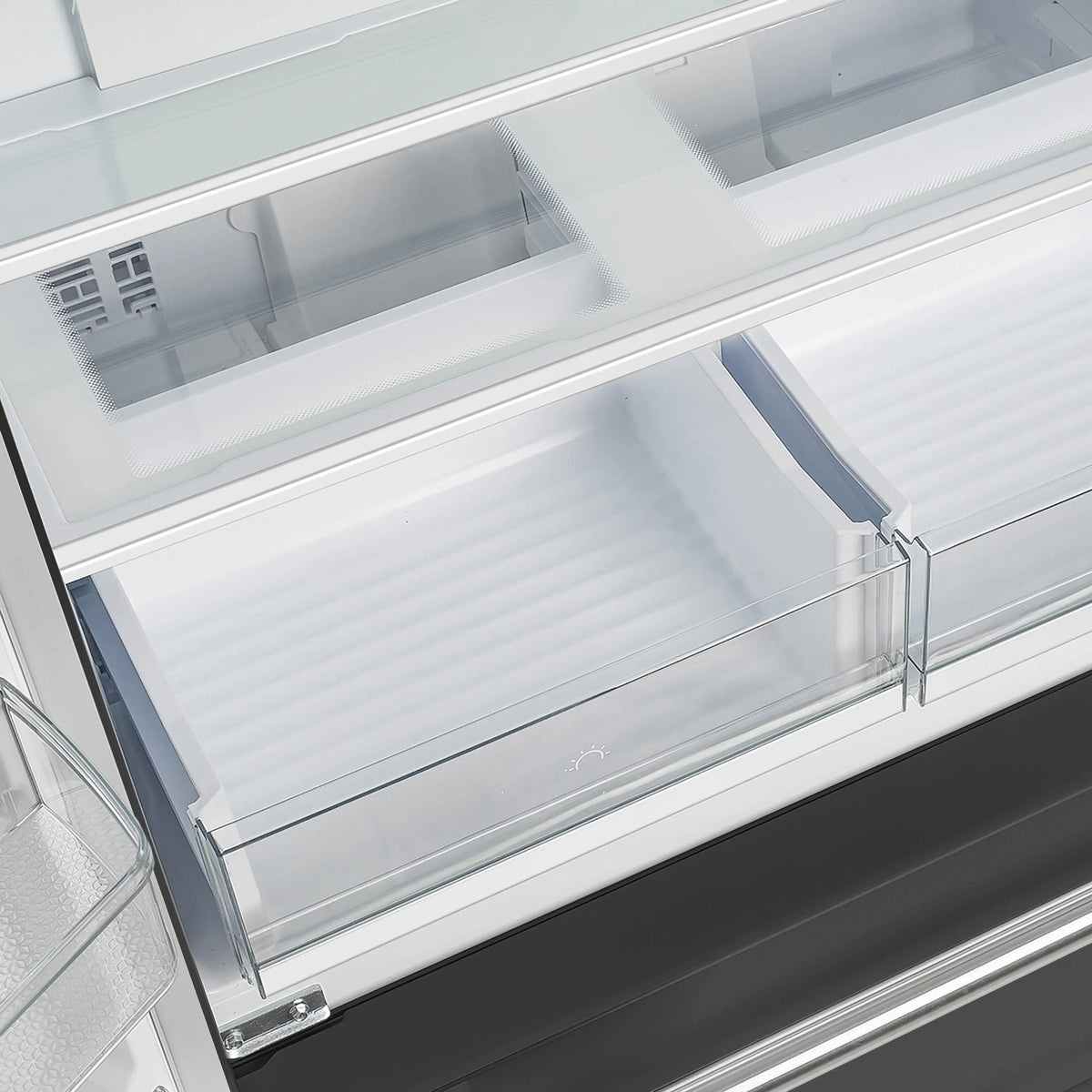

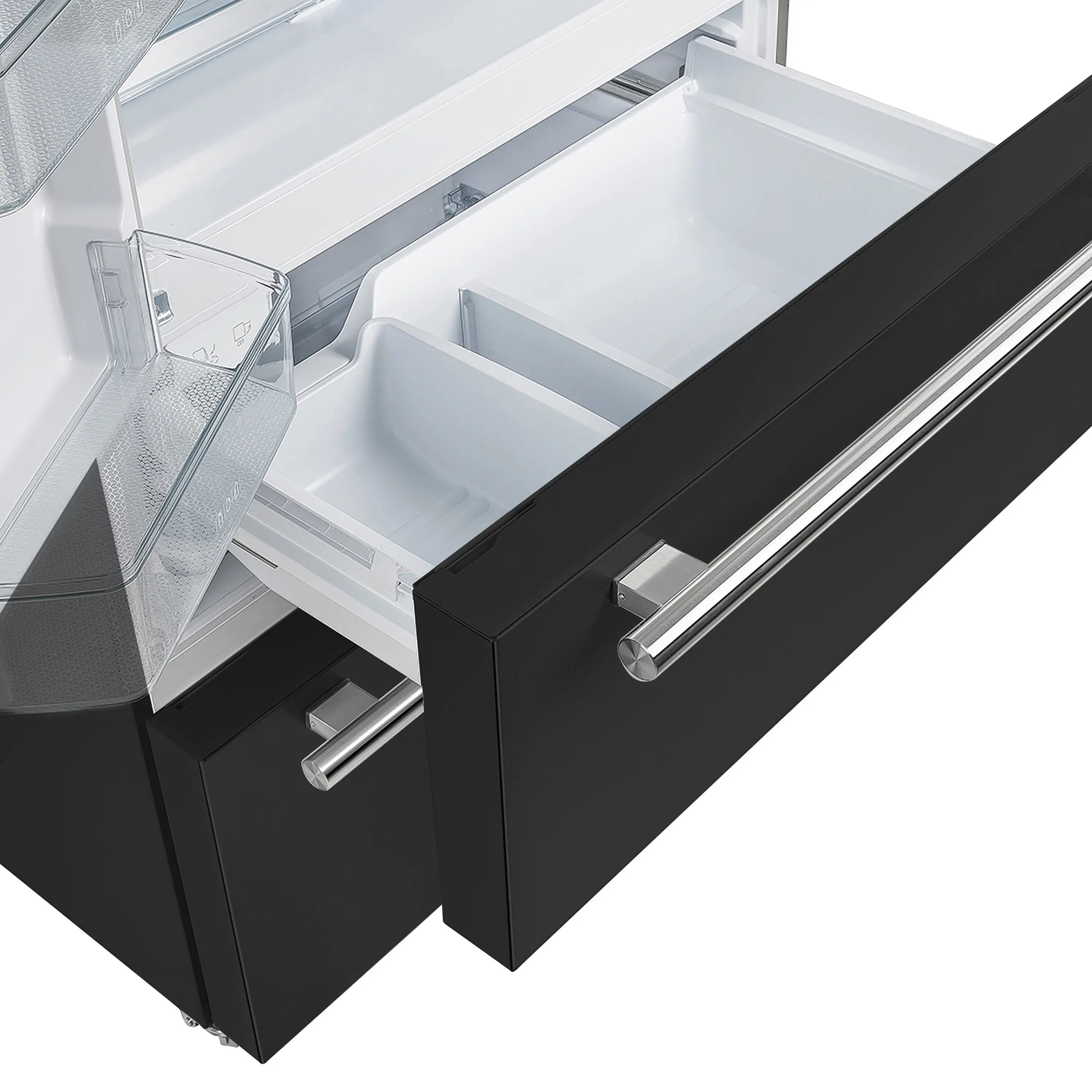

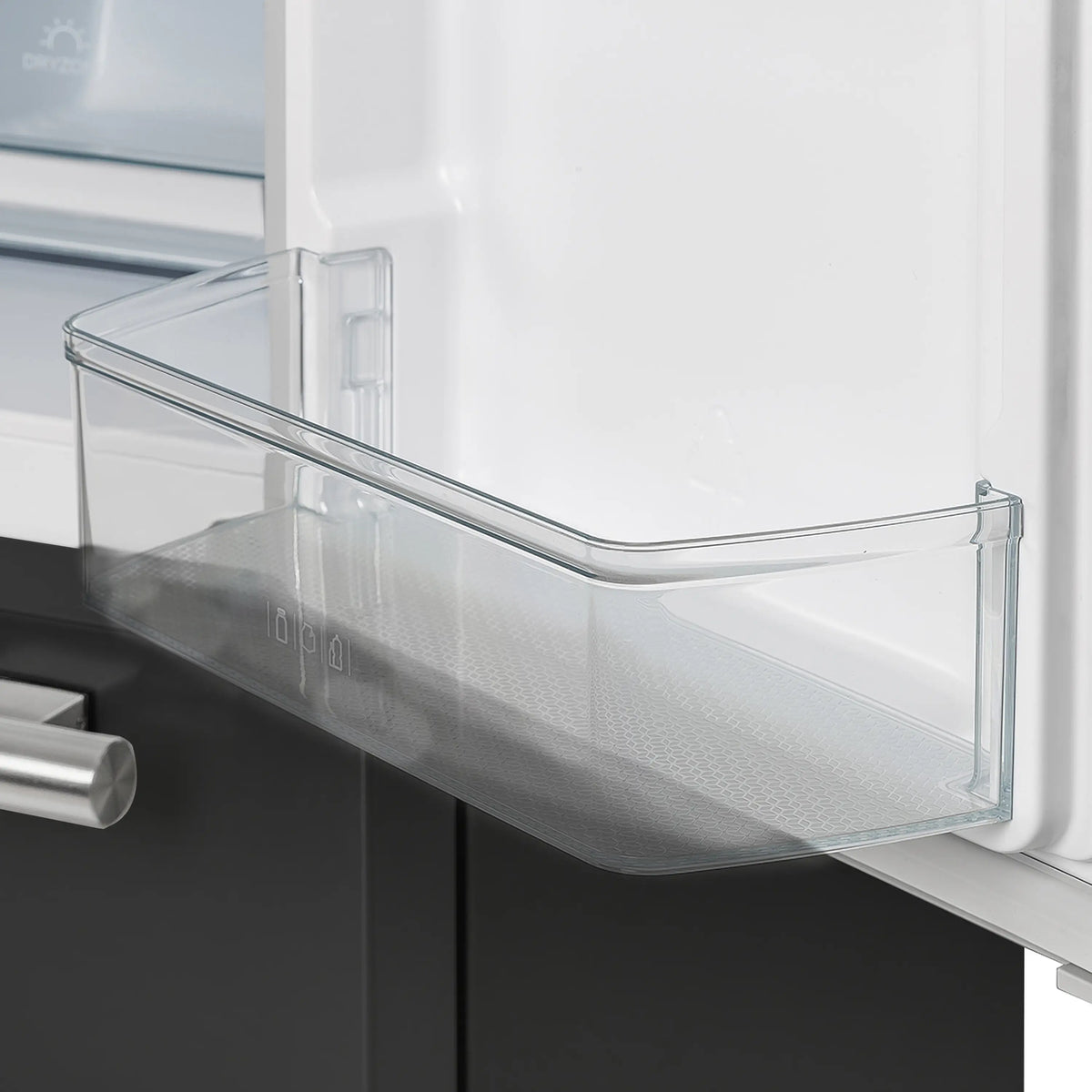

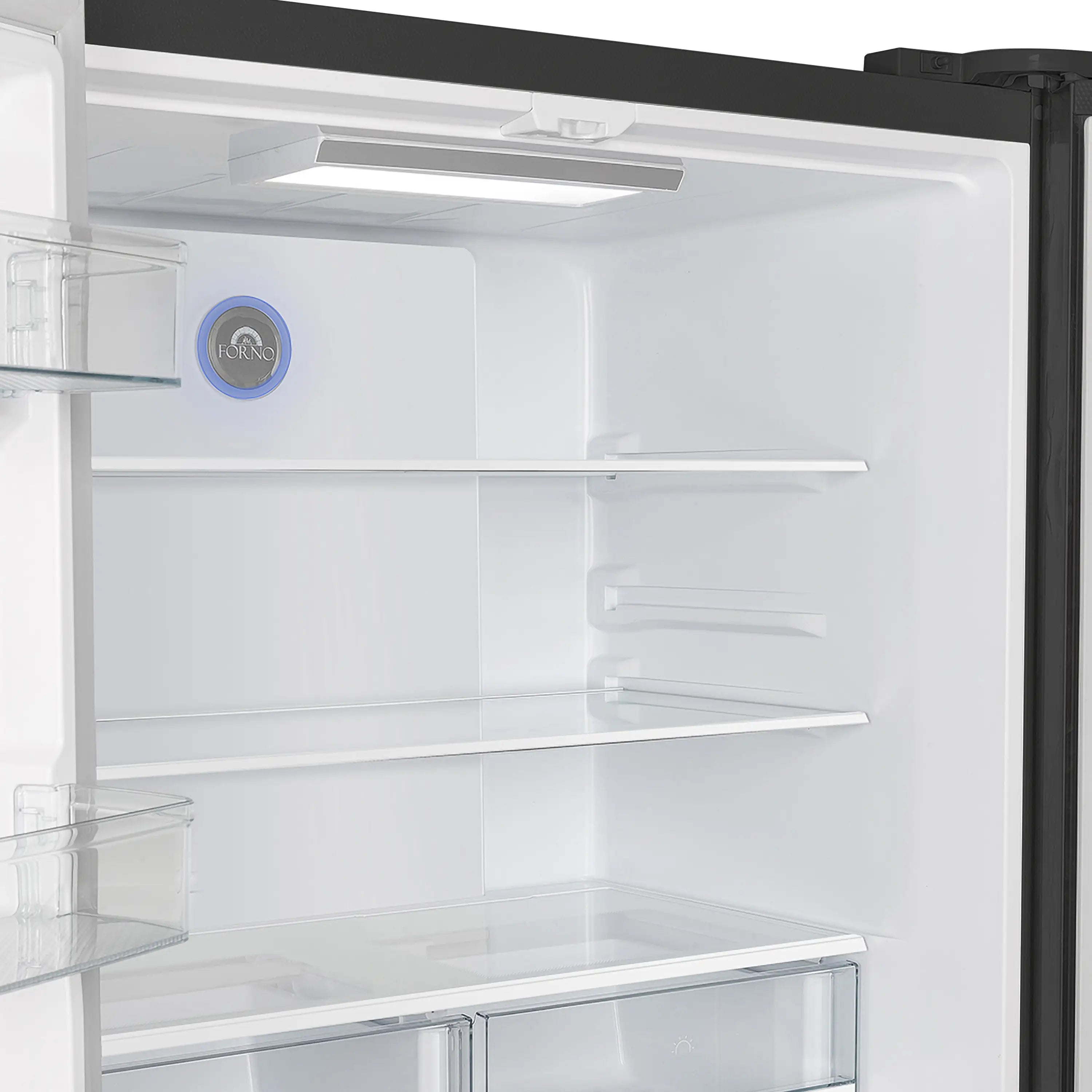

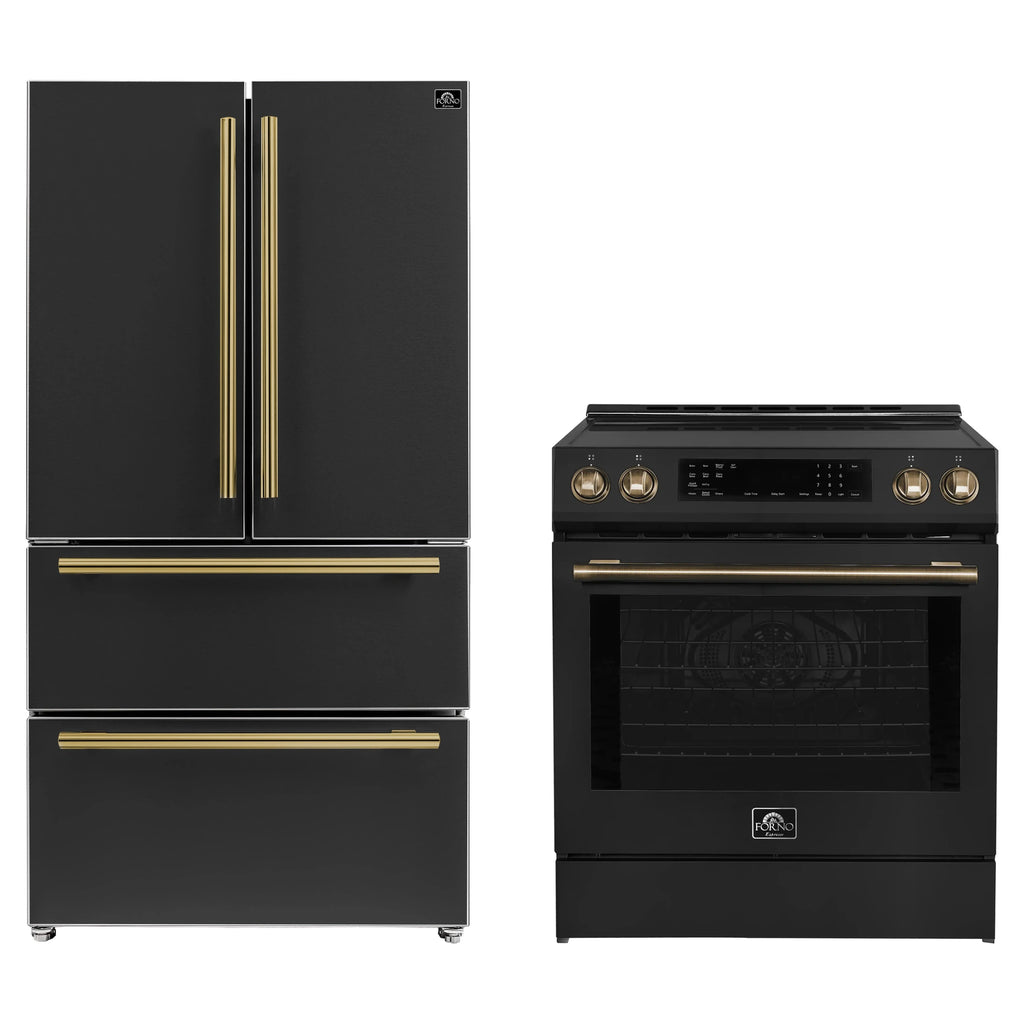

Upgrade your kitchen with the Forno Moena 36" Built-In French Door Refrigerator in black with antique brass handles, designed for seamless integration and premium performance. Powered by a high-efficiency inverter compressor, it ensures energy savings, quiet operation, and precise temperature control to keep your food fresher for longer. The frost-free multi-airflow cooling system maintains consistent temperatures throughout its 19.2 cu. ft. capacity, providing optimal food preservation with adjustable shelving for versatile storage. The 12.1 cu. ft. fresh food section includes three glass shelves (two adjustable), two drawers, and generous door storage to keep groceries organized. The 7.2 cu. ft. freezer offers two pull-out drawers, a slide-out tray, and an automatic ice maker producing up to 4 pounds of ice daily, ensuring convenience for every occasion. With an intuitive LED touch panel, you can effortlessly control temperature settings and functions. Energy Star Certified, this built-in French door refrigerator operates efficiently while minimizing food spoilage with bright, high-efficiency LED lighting for superior visibility.
Please Note: This appliance includes both brass and stainless steel handles. Some assembly is required to install your desired finish.
| Product Weight & Dimensions | |
|
|
36 x 30.41 x 70.1
|
|
|
37x27x71.08
|
|
|
30x15.5x27.5
|
|
|
31.5x21x31.5
|
| Product Overall Weight (Lbs) | 242.5 |
| Technical Information | |
|
|
Black
|
|
|
On Door
|
|
|
Steel
|
|
|
1 |
|
|
0.5
|
|
|
70.1
|
|
|
1 |
|
|
76
|
|
|
240
|
|
|
-23°C to 15°C
|
|
|
27x13x3
|
|
|
12x7.5x4
|
|
|
26x14x8
|
|
|
30x15.5x27.5
|
|
|
Pull-Out Drawer
|
|
|
0°C to 6°C
|
|
|
Plastic
|
|
|
13.5X6.25x3
|
|
|
13.5x6.25x3.75
|
|
|
French Door
|
|
|
2 |
|
|
Glass
|
|
|
13 x 6.5 x 12
|
|
|
No
|
|
|
32
|
|
|
31.5
|
|
|
12.1
|
|
|
Multi Air Cooling
|
|
|
8.69
|
|
|
40.76
|
|
|
Yes
|
|
|
No
|
|
|
Black
|
|
|
White
|
|
|
Smooth
|
|
|
Yes
|
|
|
No
|
|
|
No Water/Ice Dispenser
|
|
|
4 |
|
|
Yes
|
|
|
Cubed
|
|
|
Yes
|
|
|
Stainless Steel; Antique Brass |
|
Interior Light
|
Yes
|
|
|
No
|
|
|
LED
|
|
|
Yes
|
|
|
Top |
|
|
539
|
|
|
90
|
|
|
-10°F to 5°F
|
|
|
Freezer Drawers,Removable Ice Bin,Full Width
|
|
|
Yes |
|
|
26x13x10
|
|
|
2
|
|
|
27.5
|
|
|
30
|
|
|
Yes
|
|
|
7.1
|
|
|
32°F to 43°F
|
|
|
Transparent
|
|
|
4 |
|
|
2 |
|
|
Yes |
|
|
31.5x14x0.375
|
|
|
Yes
|
|
|
3
|
|
|
No
|
|
|
2 |
|
|
21 |
|
|
31.5x21x32
|
|
|
No Toe Grille
|
|
|
Yes
|
|
|
No
|
|
|
No
|
|
|
Yes
|
|
|
No
|
|
|
Embossed Galvanized Steel
|
|
|
High Impact Polystyrene
|
|
|
Contoured
|
|
|
No
|
|
|
Yes
|
|
|
No
|
|
|
No
|
|
|
Yes
|
|
|
Single
|
|
|
Yes |
|
|
19.2
|
|
|
No |
| Warranty | x |
|
|
No
|
|
|
2 Years |
|
|
Limited
|
|
|
2 Years |
