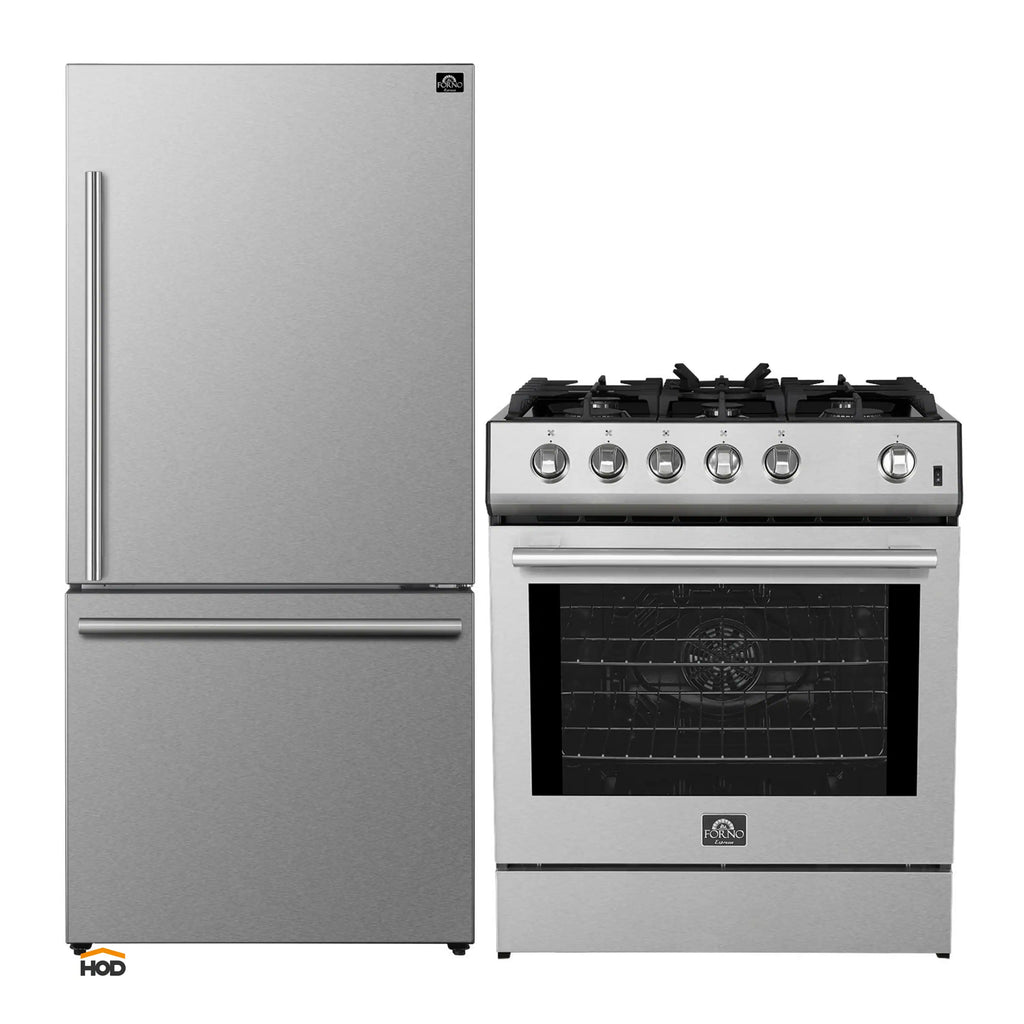

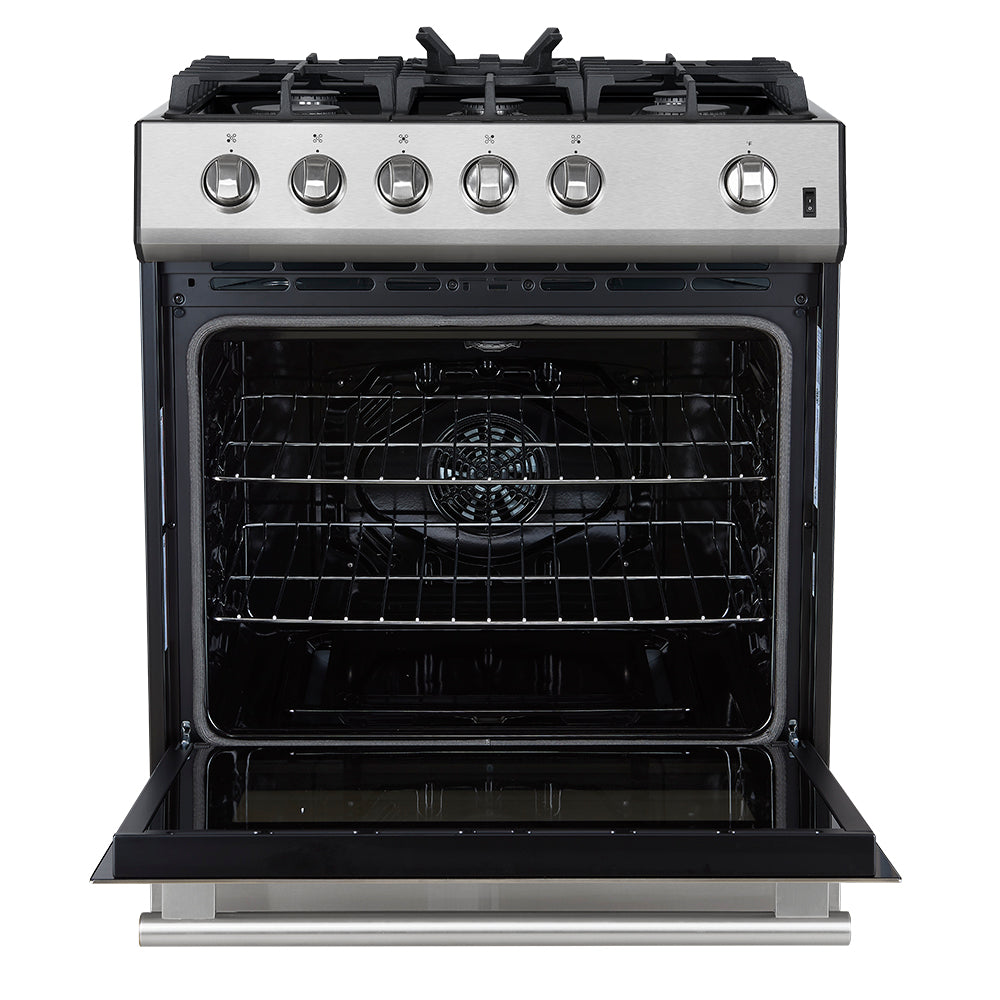

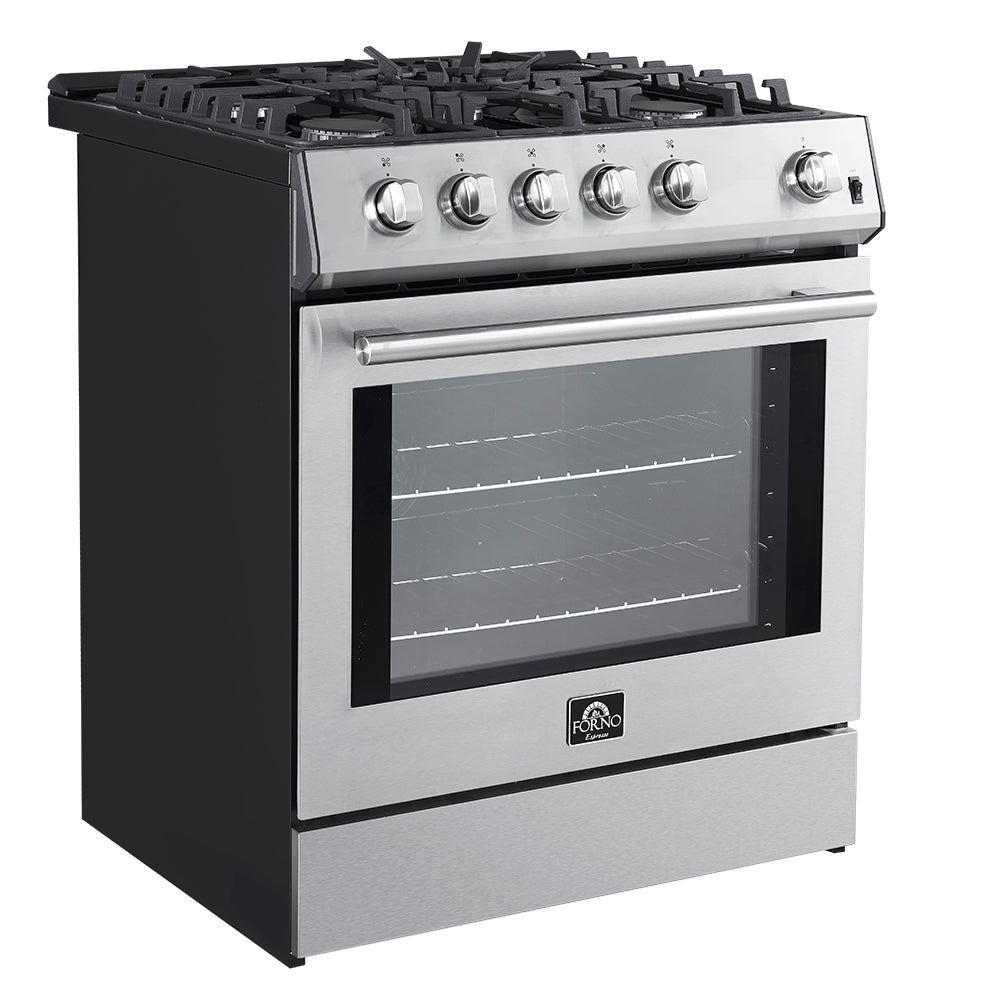

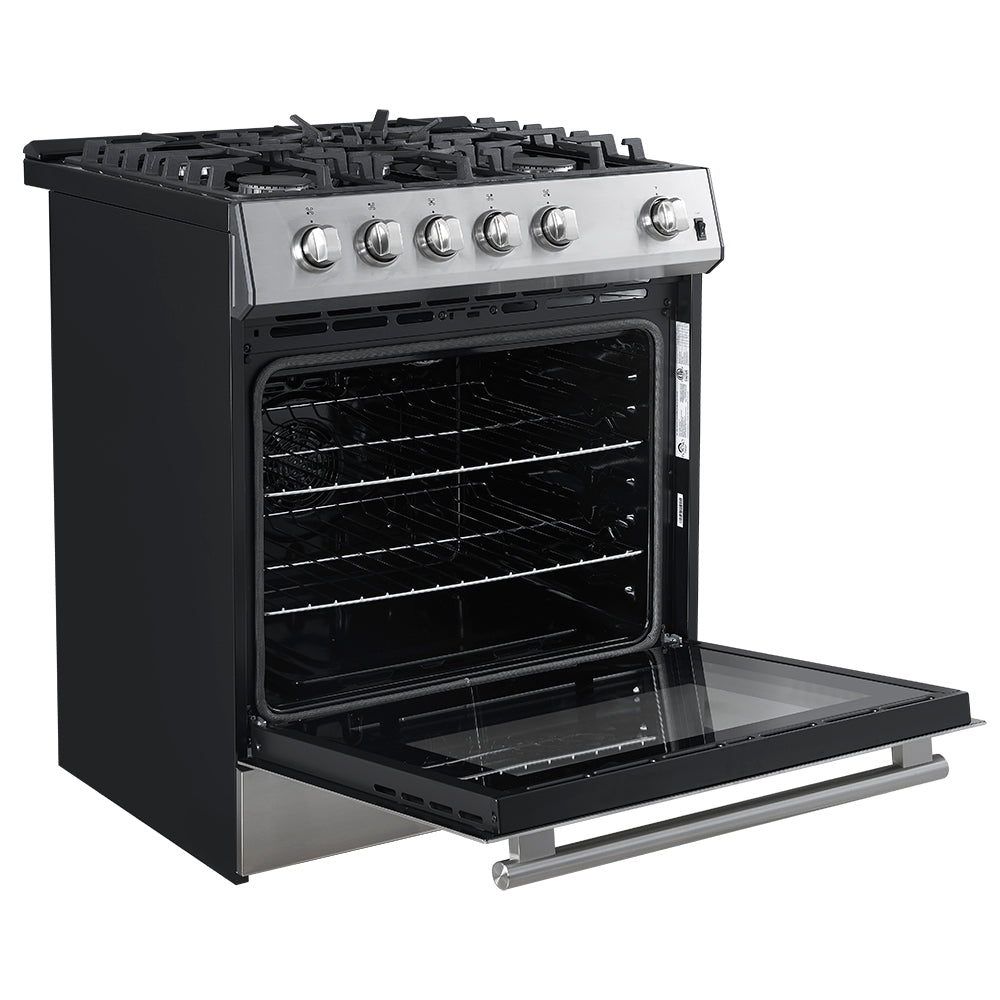

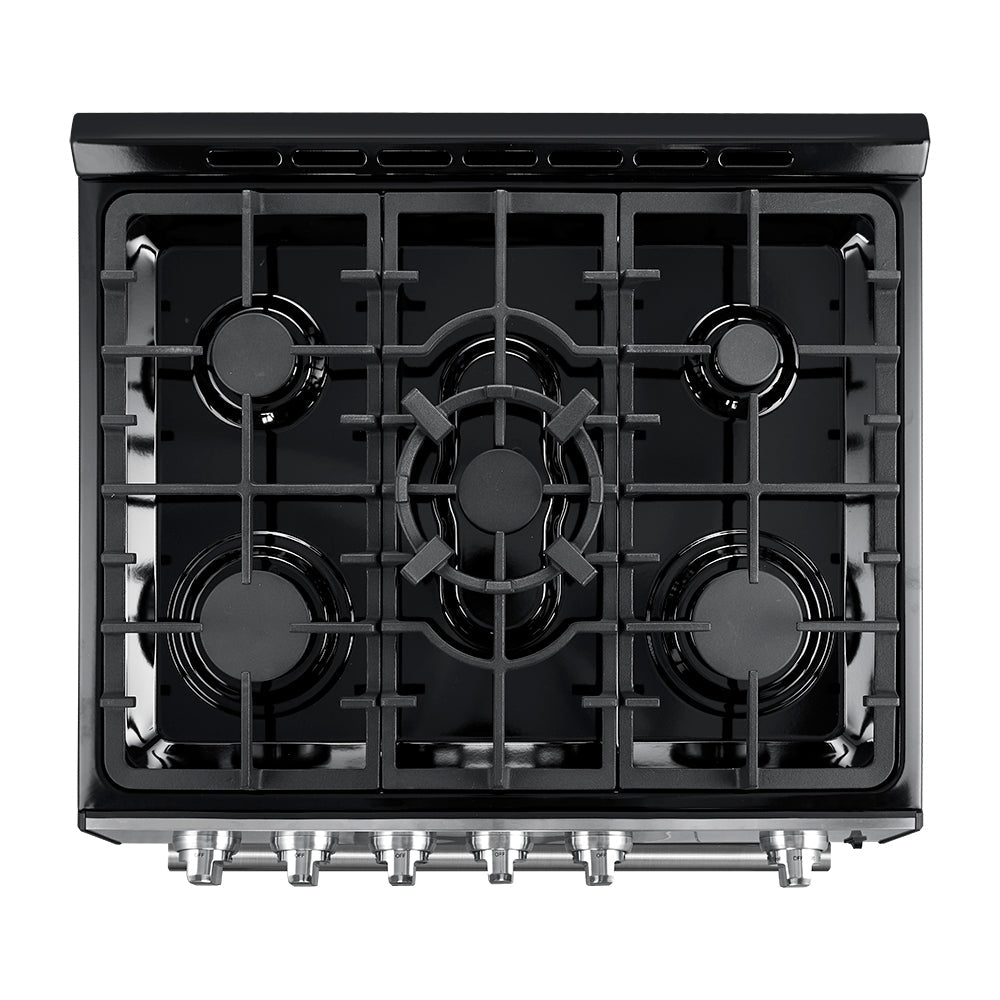

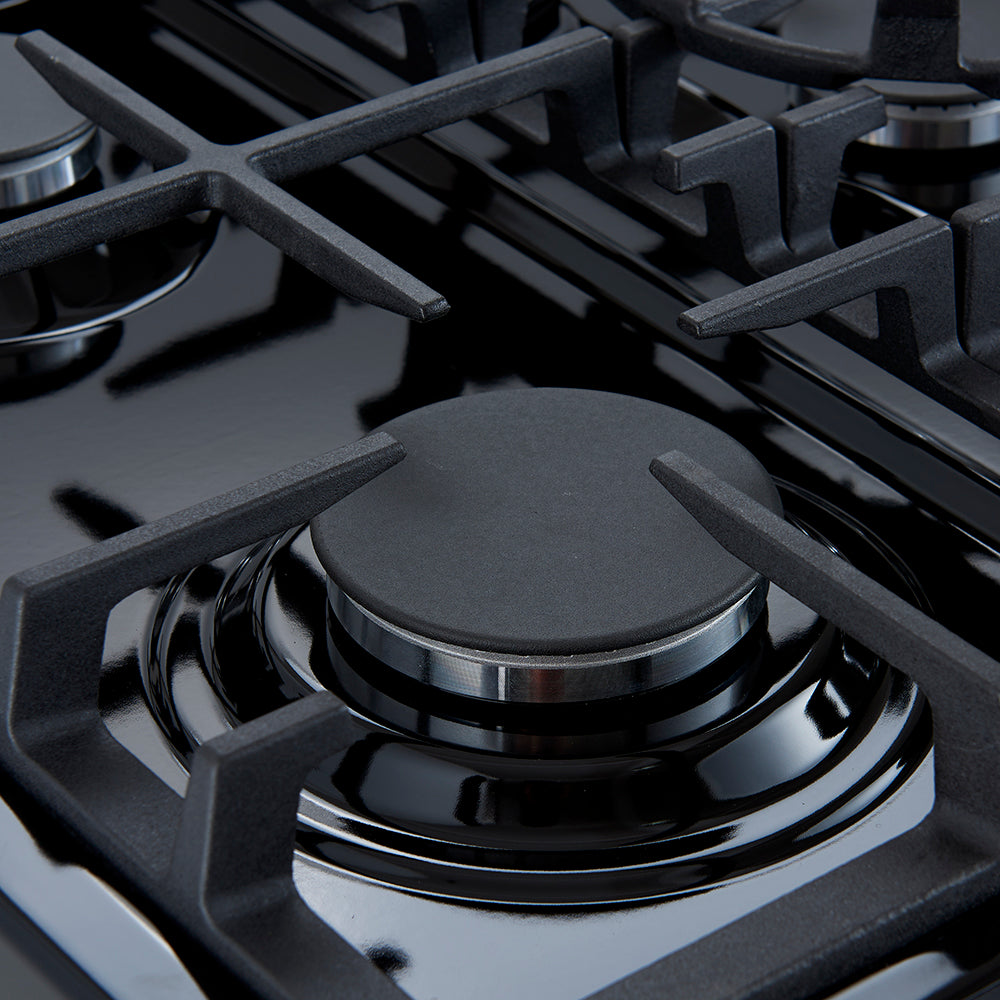

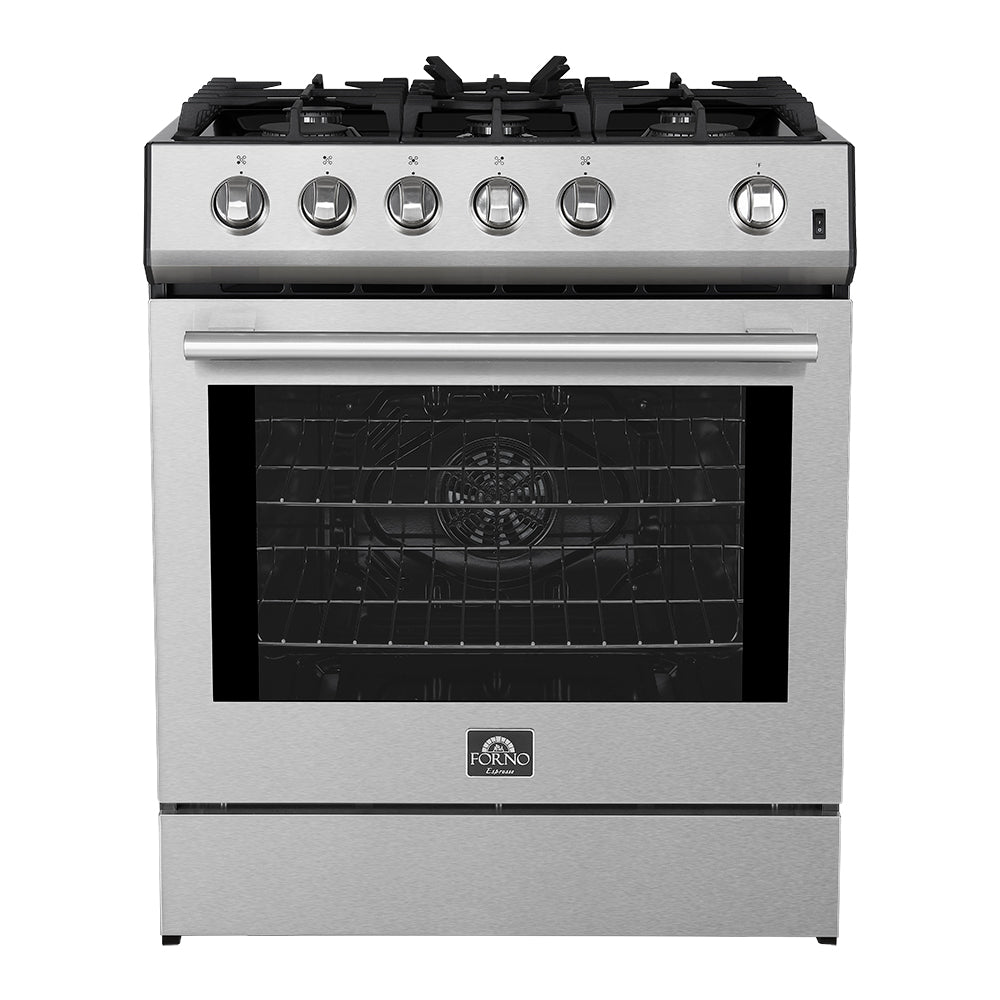

The Forno Leonardo Espresso 30 Inch 5.0 cu.ft. stainless-steel gas range seamlessly blends style and functionality with the precision of gas power. Its high-performance range top delivers an impressive total output of 39,500 BTU, complemented by continuous cast iron grates that ensure unmatched stability and mobility for your cookware. Thanks to the deep recessed cavity of the black enamel range top, cleaning up spills is effortless. In the 5 cu.ft. convection oven, a combined broil and bake power of 22,500 BTU ensures precision cooking.
With two adjustable rack heights and a robust convection fan, achieve consistent heat distribution for uniform cooking across multiple levels, meeting all your culinary needs with perfection. Safety is our priority, with the auto re-ignition feature ensuring reliable performance every time. Plus, with natural gas compatibility and an included conversion kit for propane, adaptability is at your fingertips, offering flexibility to suit your needs. This range caters to all cooking needs with its powerful cooktop and versatile oven, delivering quality and performance without the high price tags. Lower your cost of living with Forno.
| DIMENSIONS | |
|---|---|
| Oven Dimensions (WxHxD) | 30” x 37 1⁄16” x 27” |
| Depth with Oven Door Open 90º (back of unit to front of the door open 90°) (IN) | 46 7/32” |
| Depth without Oven Door Handle (IN) | 25 |
| Depth without Oven Door (IN) | 24 |
| Range Size | 30" |
| Power Cord Length | 4.27 (FT) |
| Weight | 150lbs |
| GENERAL INFORMATION | |
| LP Kit Provided | Yes |
| Work Support | Yes |
| Leveling Leg Max | 1” - Min: 25⁄64 |
| Appliance type | Gas Range |
| Pressure Required (Inch WC) |
|
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Handle Color | Stainless Steel |
| Knobs Color | Stainless Steel |

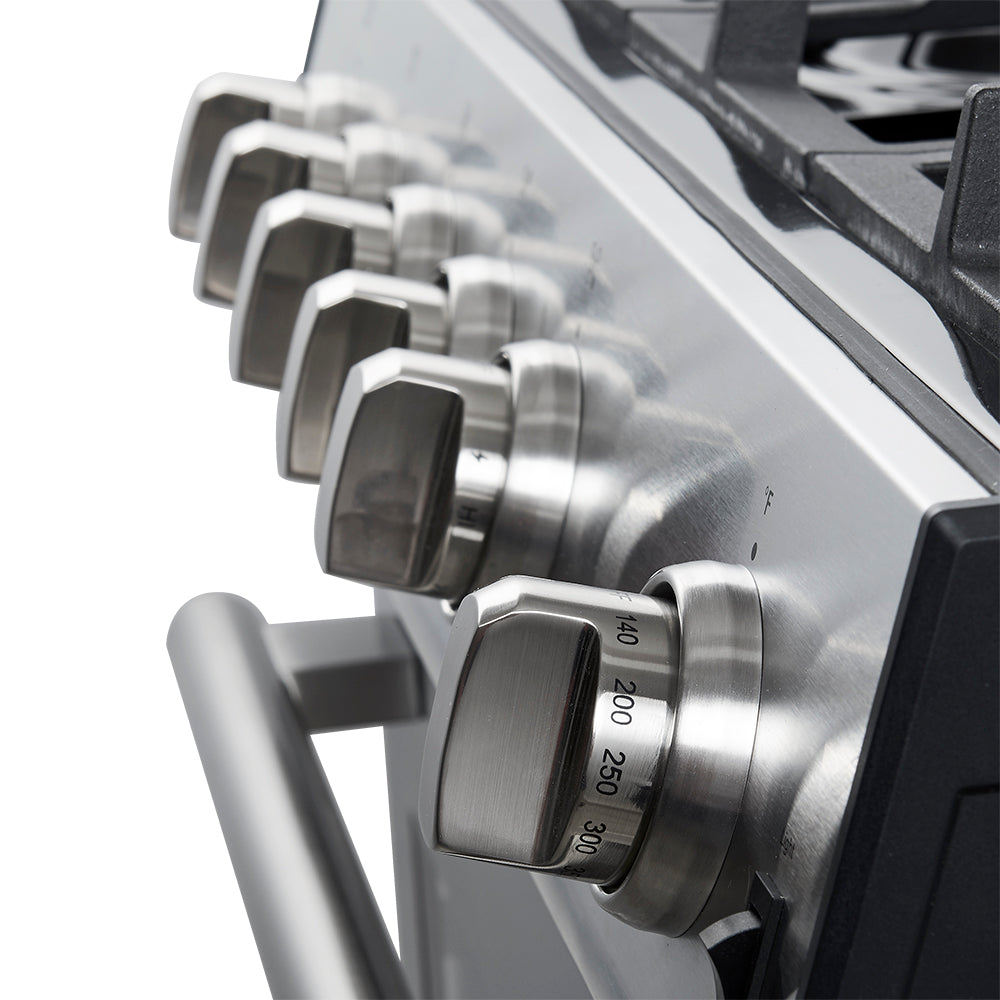

| Number of Knobs | 6 |
| Case material | Steel |
| Case color | Black Steel |
| TECHNICAL DETAILS | |
| LP Convertible | Yes |
| Electrical supply |
|
| Dedicated Circuit Breaker | 15 Amps |
| Regulator Included | Yes |
| Pre-installed Regulator | No |
| Power cord Included | Yes |
| Power Cord Type | NEMA 5-15P |
| COOKTOP FEATURES | |
| Simmer Burner | Yes |
| Cooktop surface type | Cast Iron Grates/Black enamel |
| OVEN FEATURES | |

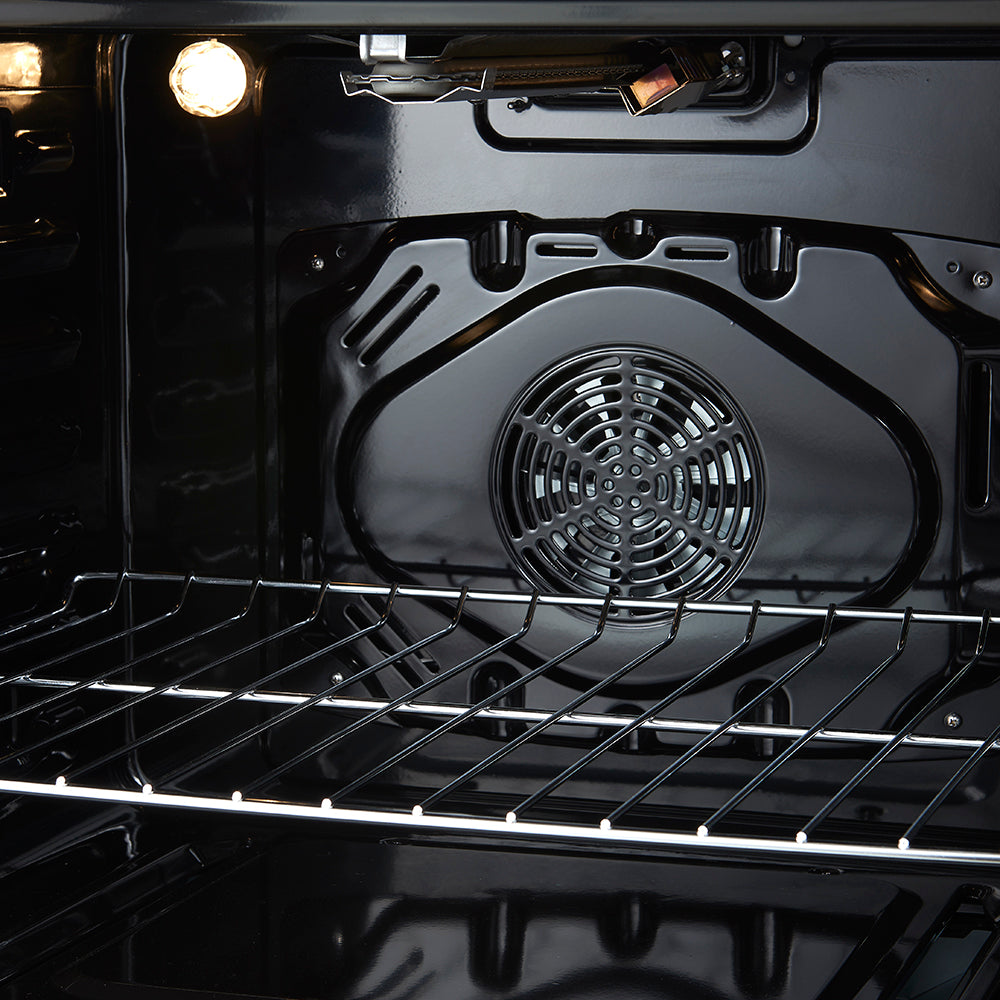

| Convection Type | Single Fan |
| Oven Cleaning Type | Standard Clean |
| Oven Lights | 2 |
| Oven lights control switch activated | Yes |
| Temperature Range | 140 0F - 500 0F |
| Door Color | Stainless Steel |
| Oven interior color | Black |
| WARRANTY & CERTIFICATIONS | |
| Certification | cETLus |
| Warranty | 2 yrs |

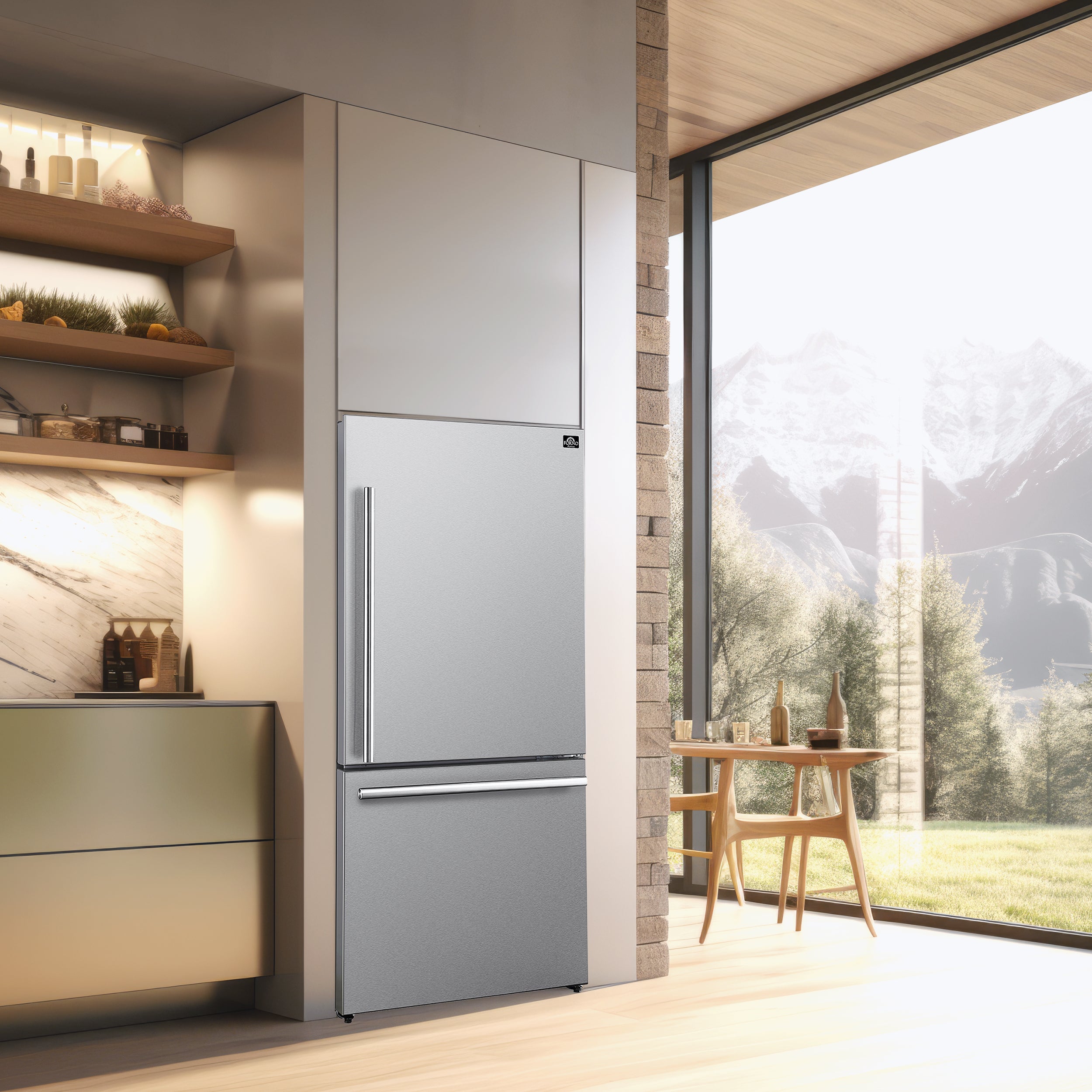

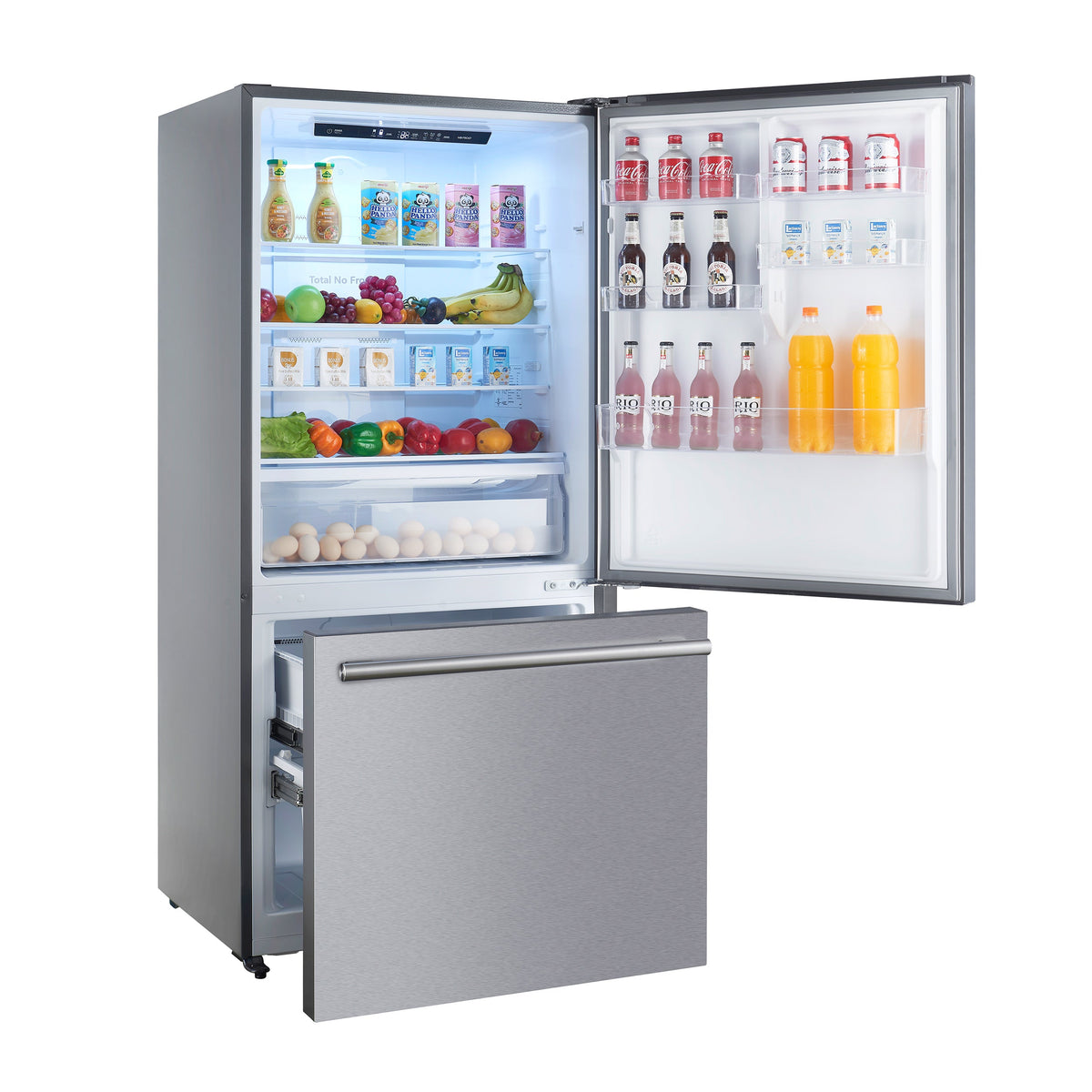

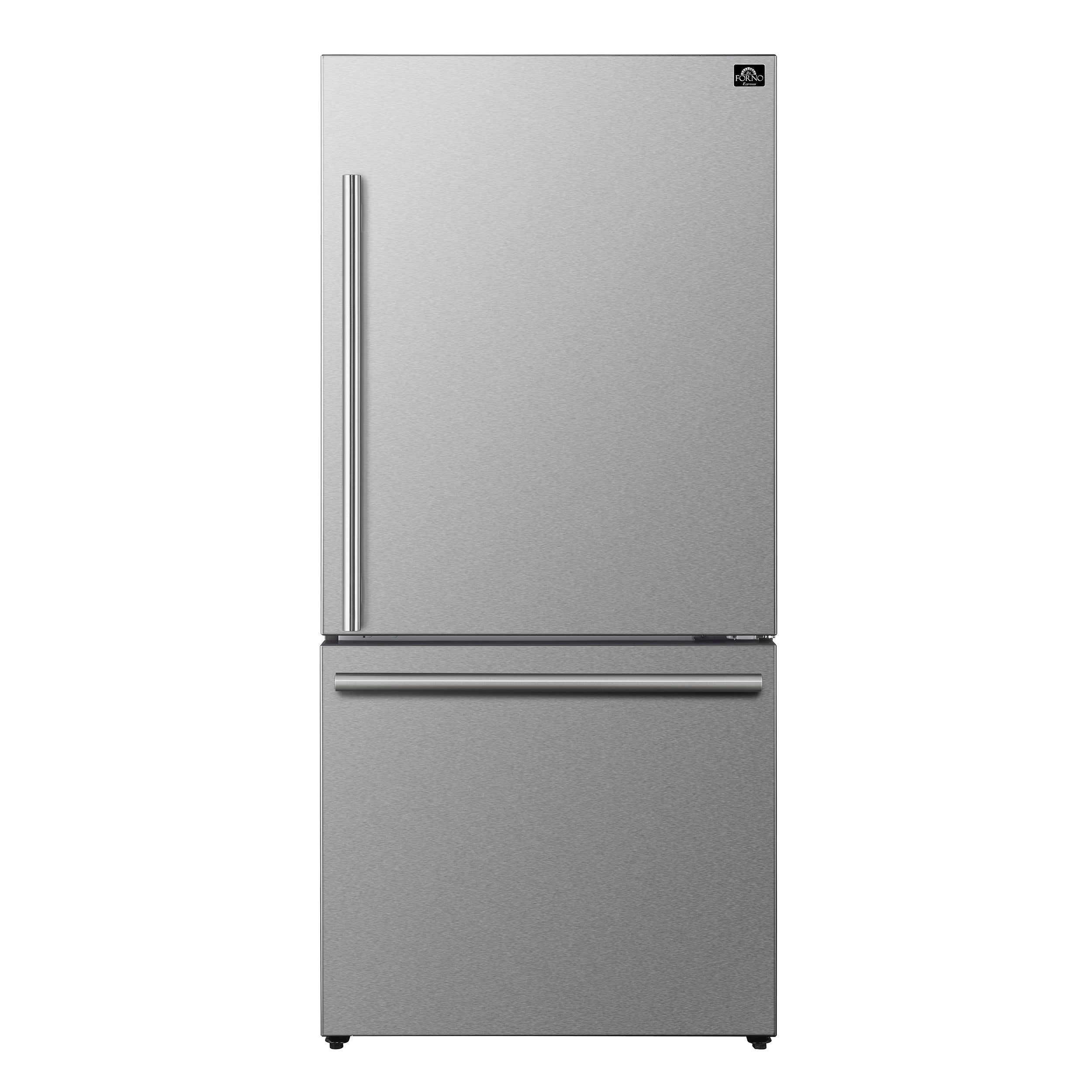

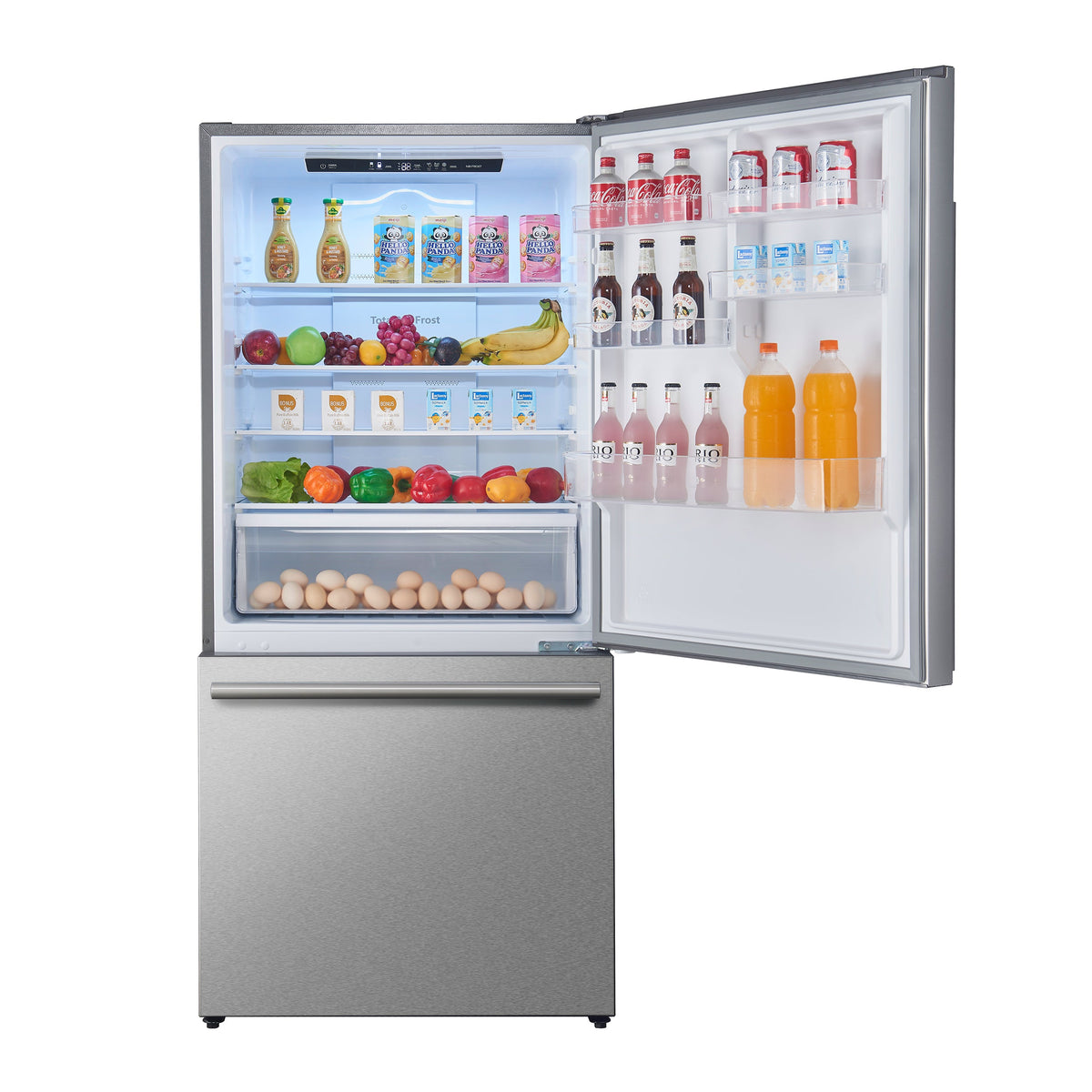

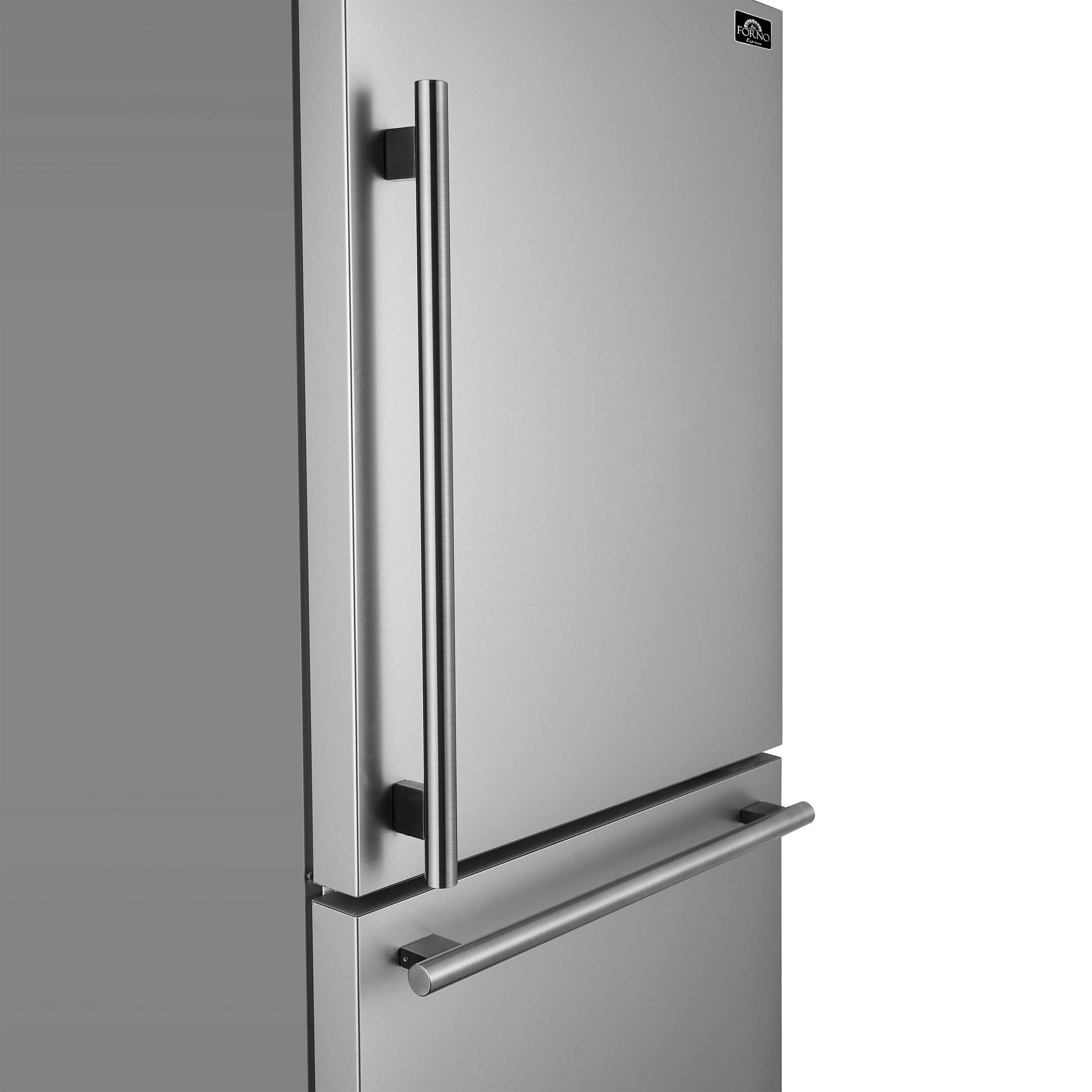

Introducing the FORNO 31" Milano Espresso Bottom Freezer Refrigerator that blends style and functionality seamlessly. Its compact 31" size and 17.2 cu ft capacity offer ample storage without compromising aesthetics. Two full-width freezer drawers optimize organization, while digital touch control ensures precise temperature settings and real-time monitoring. The fingerprint-resistant VCM door maintains a modern look effortlessly. Swift temperature adjustment with Super Cool and Super Freeze safeguards your groceries' quality. ENERGY STAR Certified for efficiency, and high-efficiency LED lighting reduces food spoilage. Adjustable features, including shelves, door bins, and a full-width crisper drawer, enhance user-friendliness. Upgrade your kitchen with style, convenience, and freshness!
| DIMENSIONS | |
|---|---|

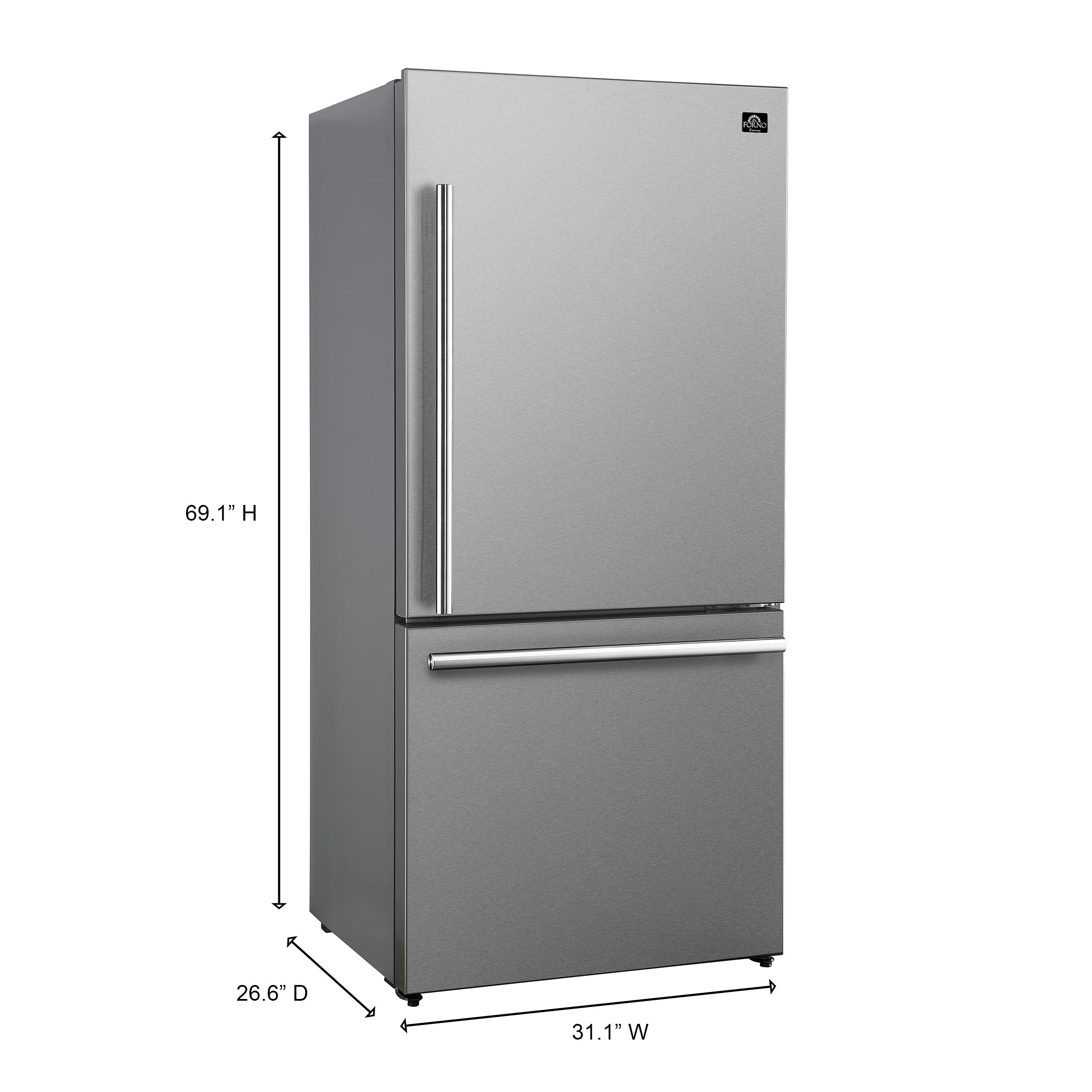

| Overall Dimensions (IN) W X D X H | 31.1 X 29.2 X 69.1 |
| Width Door(s) Open 130° (inches) | 52 |
| Cabinet Depth (no Door) | 23.6 |
| Depth without Handle (IN) | 26.6 |
| Depth Door(s) Open 90° (inches) | 56.3 |
| Depth Drawer(s) Open (inches) | 43.4 |
| Height Top of the Cabinet (inches) | 68.5 |
| Sides Clearance (IN) | 1" on the left 1.6" on the right for door opening if next to fixed wall |
| Minimum Back Clearance (IN) | 2 |
| Minimum Top Clearance (IN) | 1 |
| Cutout Dimensions (IN) W X D X H | 33.7 x 31.2 x 70.1 |
| Overall Weight (LBS) | 196 |
| Overall Capacity Cu. Ft. | 17.2 |
| Counter Depth | Yes |
| GENERAL INFORMATION | |
| UL Listed | Yes |
| Contain Gases | R600A |
| Product Type | Bottom Freezer |
| Installation Type | Freestanding |
| Door Orientation | Right Swing |
| Auto Door Closer | No |
| Leveling Legs | Yes |
| Door Ajarm Alarm | Yes |
| Garage Ready | No |
| Finger Print Resistant | Yes |
| Smudge Resistant | No |
| Filtration System | No |
| Vacation Mode | No |
| Energy Saver Mode | Yes |
| Fast Freeze/Cool Mode | Yes |
| Quiet Operation | Yes |
| Supplier Intended and Approved Use | Residential |
| Estimated Annual Operating Cost (USD) | 63 USD |
| Receptacle Type | 3-Prong Grounded NEMA 5-15 |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel VCM |
| Panel Ready | No |
| Reversible Door | No |
| Interior Light | Yes |
| Interior Light Type | LED |

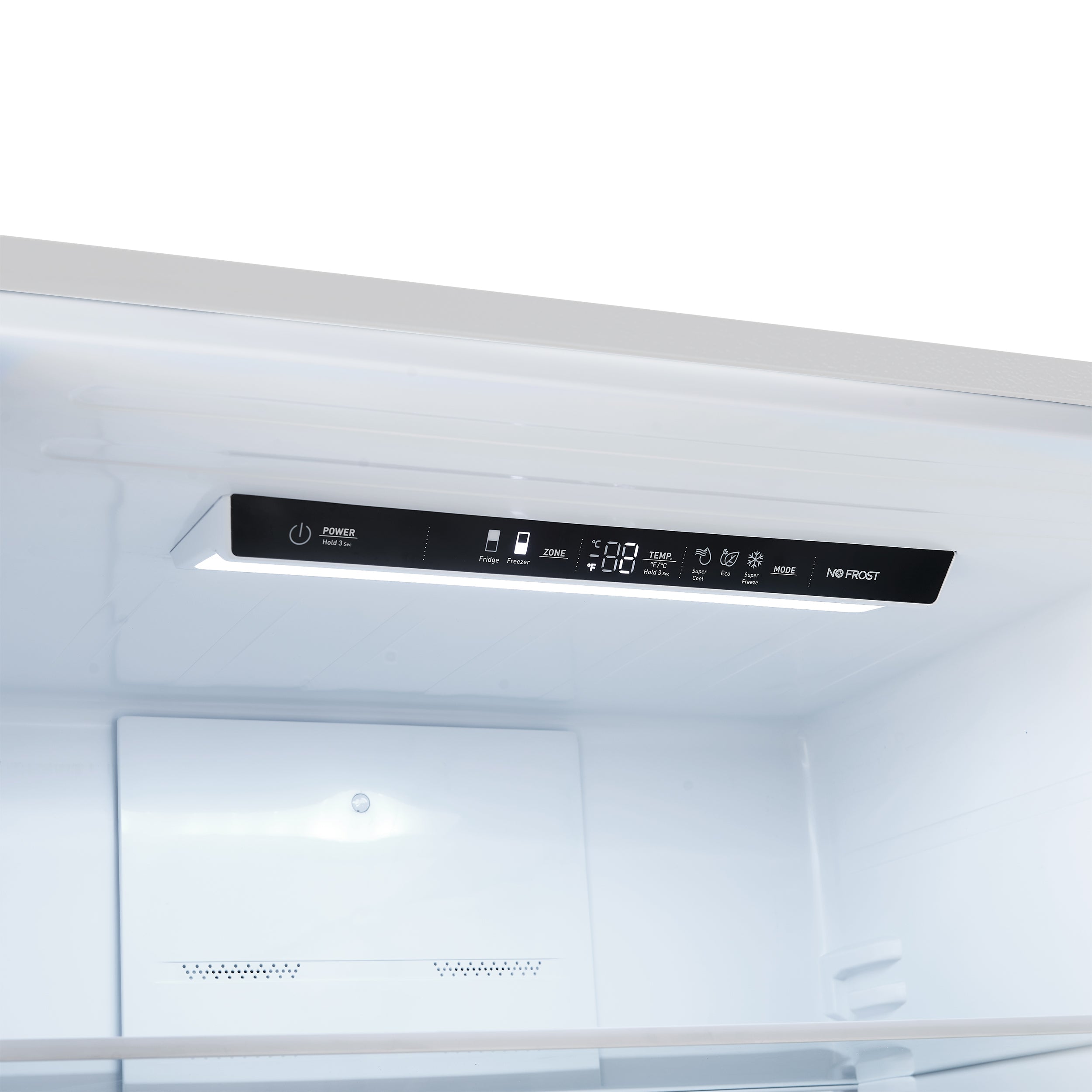

| Control Type | Touch Control |
| Control Location | Internal |
| Primary Material | Metal |
| Safety Lock | No |
| Display Screen | Yes |
| TECHNICAL DETAILS | |
| Defrost Type | Automatic |
| Cooling System | Multi Air Flow |
| Compressor Type | Constant Frequency Compressor |
| Noise Level (dBA) | 43 |
| Power Cord | 3-Prong NEMA 5-15 |
| Amperage (AMP) | 15 |
| Running Amperage (AMP) | 1.25 |
| Volts (V) | 120 |
| Frequency (Hz) | 60 |
| Power Consumption Cooling Wattage (W) | 80 |
| Power Consumption Defrost Wattage (W) | 220 |
| Energy Consumption (kWh/yr) | 453 |
| Power Cord Length without Plug | 5.58 Feet |
| Power Cord Length with Plug | 5.8 Feet |
| REFRIGERATOR FEATURES | |
| Ice Maker | No |
| Water Dispenser | No |
| External Dispenser | No |
| Temperature Range Refrigerator (°F) | 34°F to 44°F |
| Temperature Range Refrigerator (°C) | 1°C to 7°C |
| Adjustable Shelves | 3 |
| Spill-Proof Shelves | No |
| Sabbath Mode | No |
| Fresh Food Capacity Cu. Ft. | 12.09 |
| Interior Fresh Food Dimensions W x D x H | W:26.81” x D:21.08” x H:35.91” |

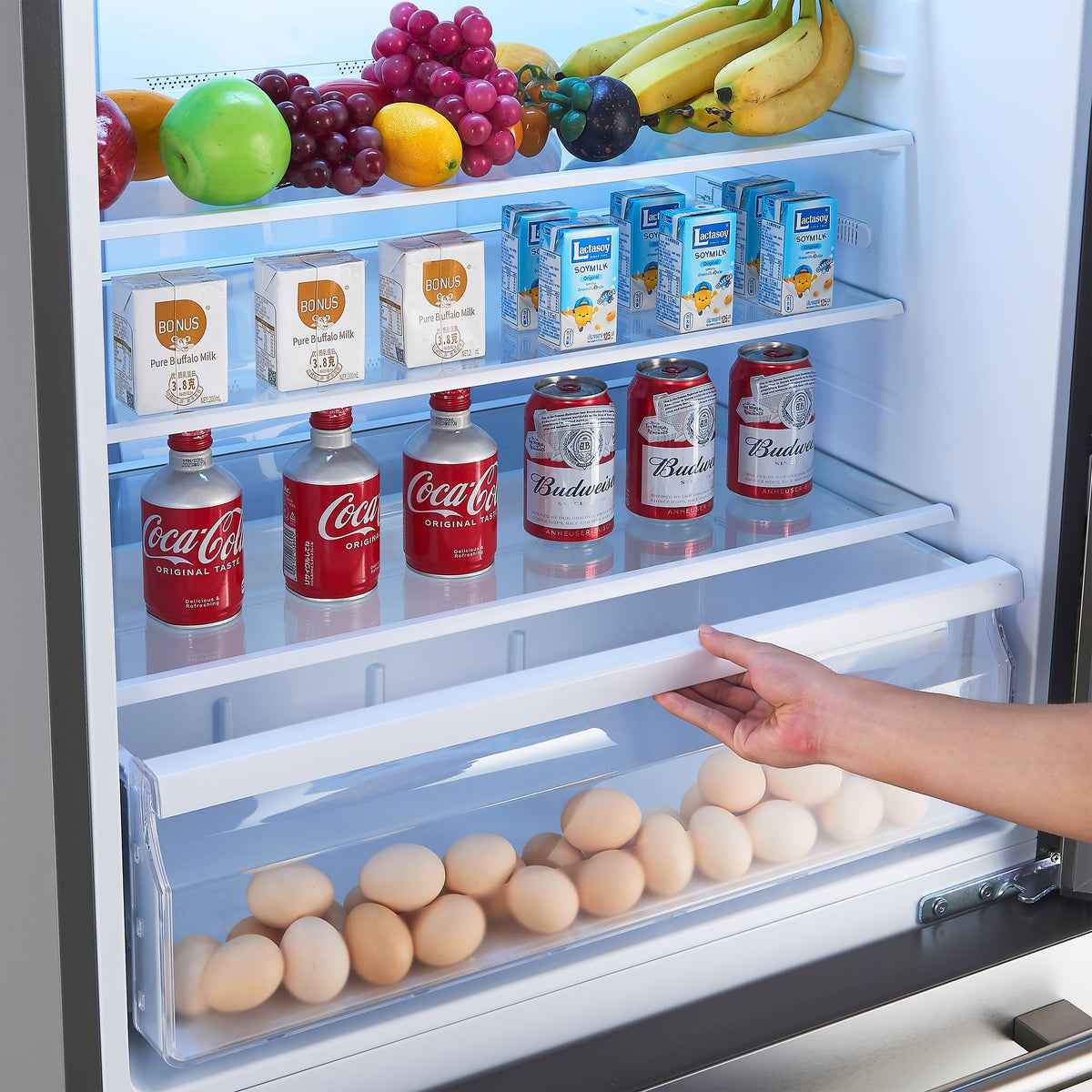

| Fresh Food drawers | 1 |
| Fresh Food Drawer(s) Size W x D x H (inches) | 26.6 x 15.7 x 7.8 |
| Fresh Food Door Type | Right Swing |
| Fresh Food Shelves | 4 |
| Fresh Food Shelve(s) Size W x D x H (inches) | 26.7 x 14.3 x 0.37 |

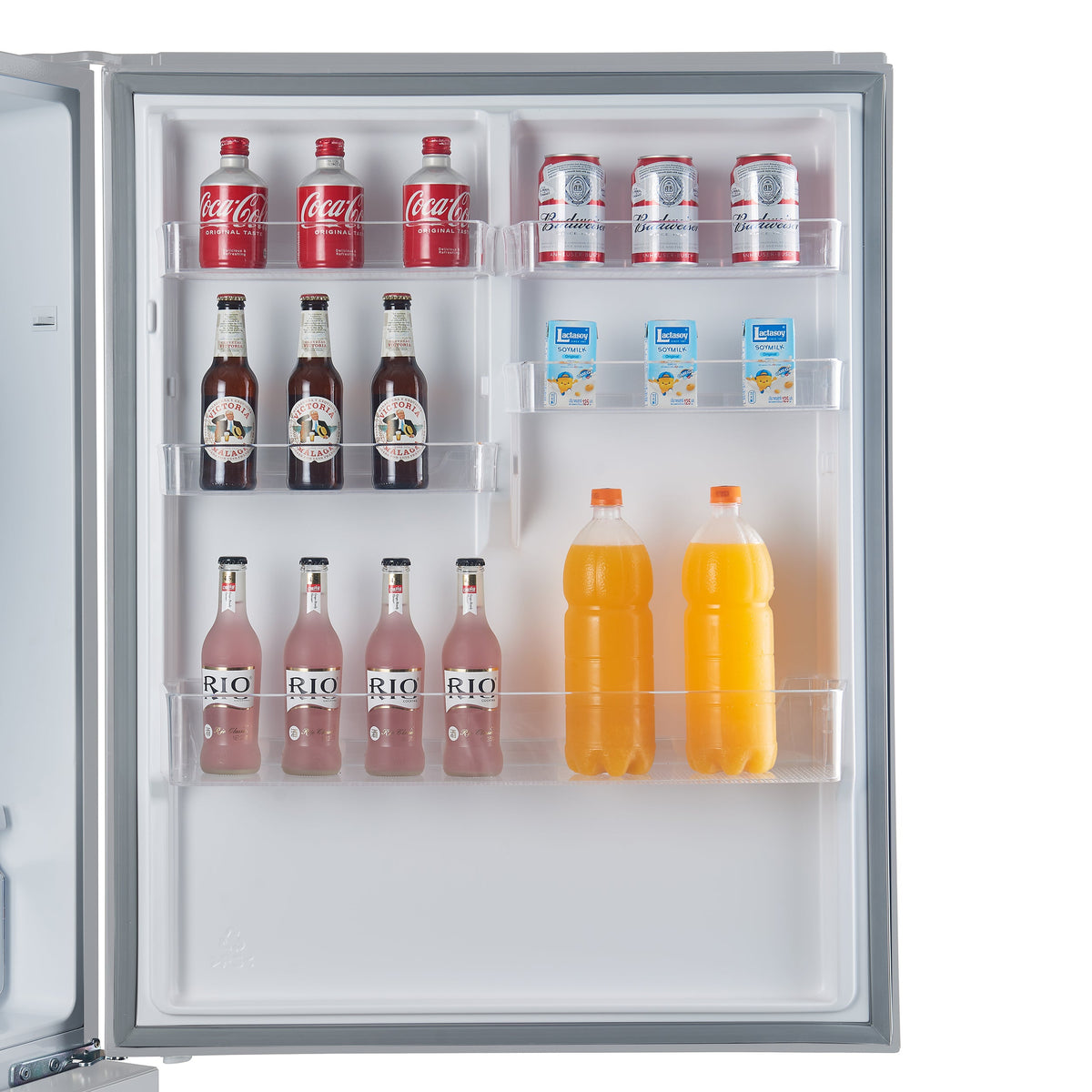

| Gallon Door Bins | 1 |
| Gallon (4 Liters) Door Bin(s) Size W x D x H (inches) | 26.8 x 5.6 x 3.5 |
| Half (2 Liters) Gallon Door Bins | 4 |
| Half (2 Liters) Gallon Door Bins Size W x D x H (inches) | 13.3 x 5.59 x 1.97 |
| Standard Door Bins | No |
| Door Bins Color | Transparent |
| FREEZER FEATURES | |
| Temperature Range Freezer (°F) | -11°F to 7°F |
| Temperature Range Freezer (°C) | -24°C to-14°C |
| Freezer Capacity | 5.14 |
| Interior Freezer Dimensions | 24.45” x D:16.00” x H:22.68” |

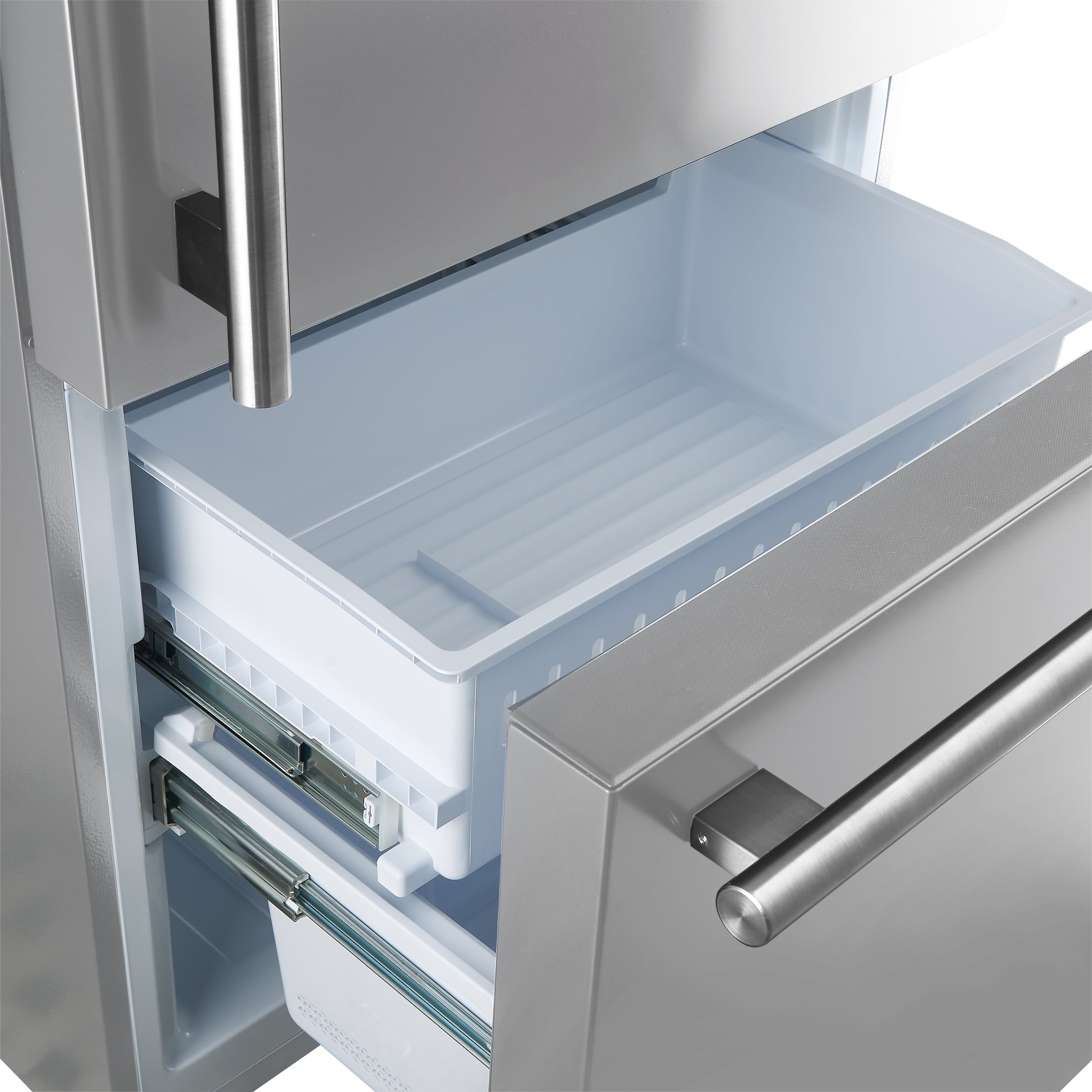

| Freezer drawers | 2 |
| Freezer Drawer(s) Size W x D x H (inches) | 25.7 x 14.78 x 11.38 |
| Freezer Door Style | Pull Out Drawer |
| Freezer Shelves | No |
| WARRANTY & CERTIFICATIONS | |
| Energy Star | Yes |
| ISTA 6A Certified | Yes |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty Length | 2 |
| Warranty on Parts | 2 |
| Warranty on Labor | 2 |
