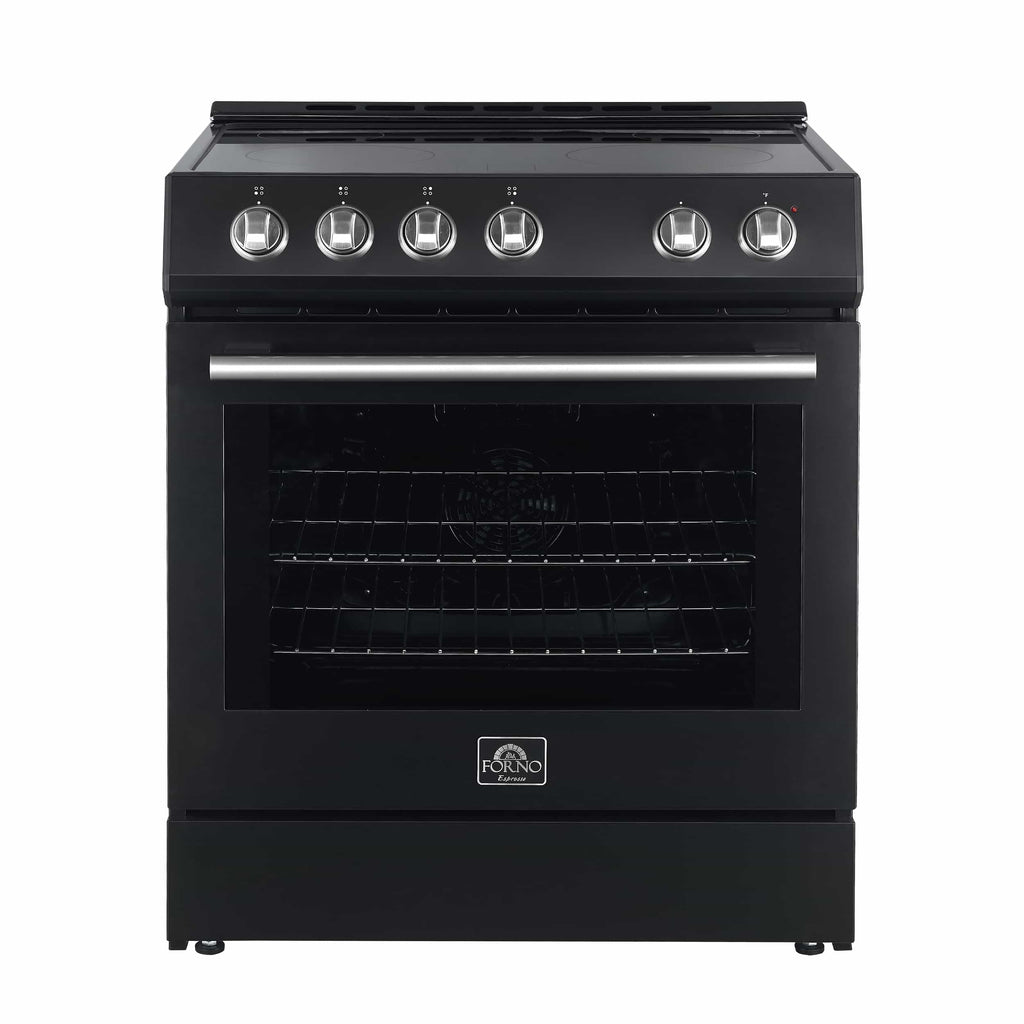

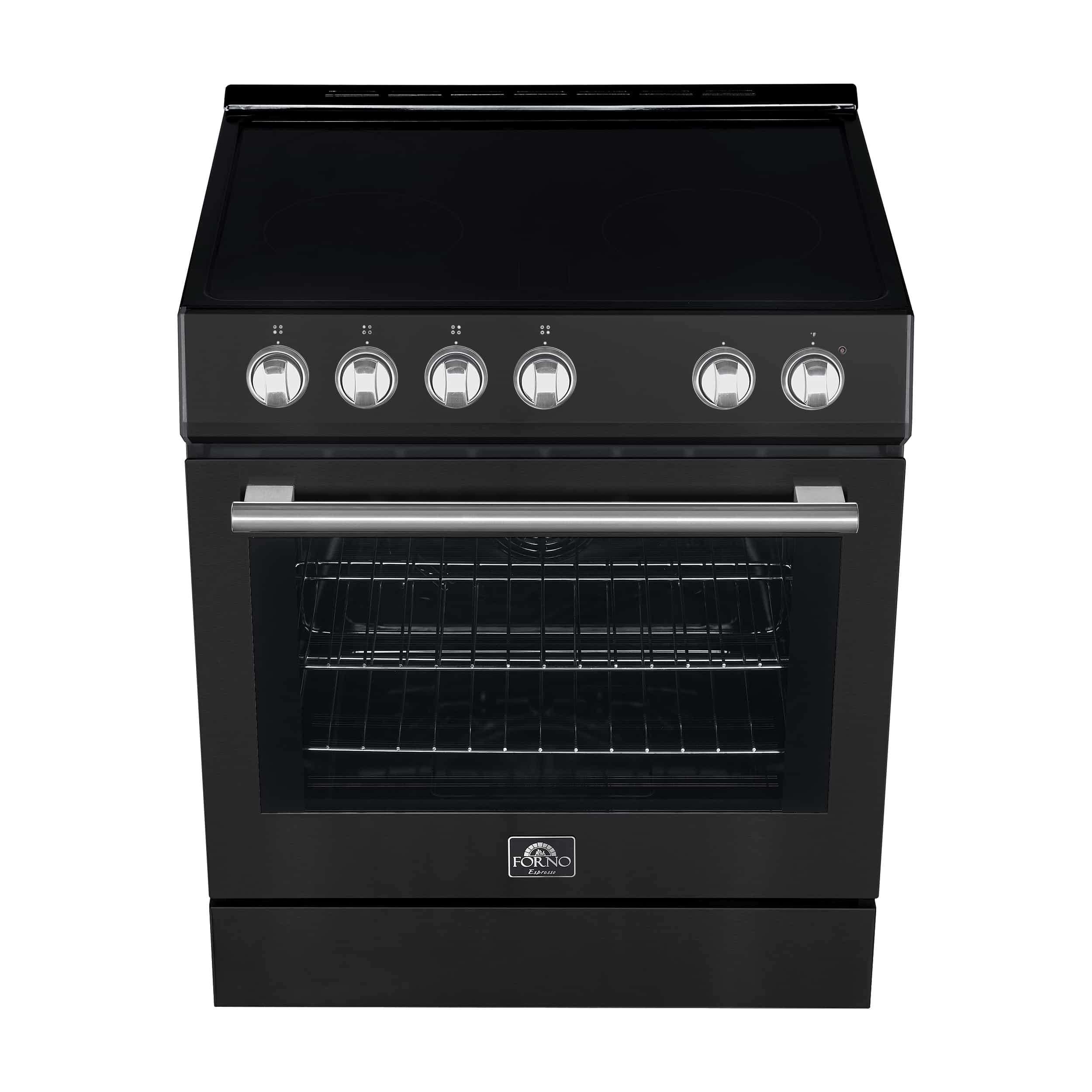

Introducing the Forno Leonardo Espresso 30" 5.0 cu. Ft. Stainless-Steel Electric Range, a kitchen game-changer. With Antique Brass accents, 4 Radiant Elements, and a 5,500-watt Convection Oven, it combines style with top-notch performance. Antique Brass Knobs and Handles add a touch of elegance, while Ceramic Glass ensures even heat distribution. The Mechanical Timer makes cooking a breeze. The Hidden Bake Element simplifies maintenance by preventing spills and odors. Elevate your kitchen with this timeless, user-friendly range, marrying durability with sophistication. Cook with confidence, and embrace efficiency and style with every use.
Note: This range includes brass and stainless steel knobs/handle in the box. Some assembly is required to switch to your desired trim finish.

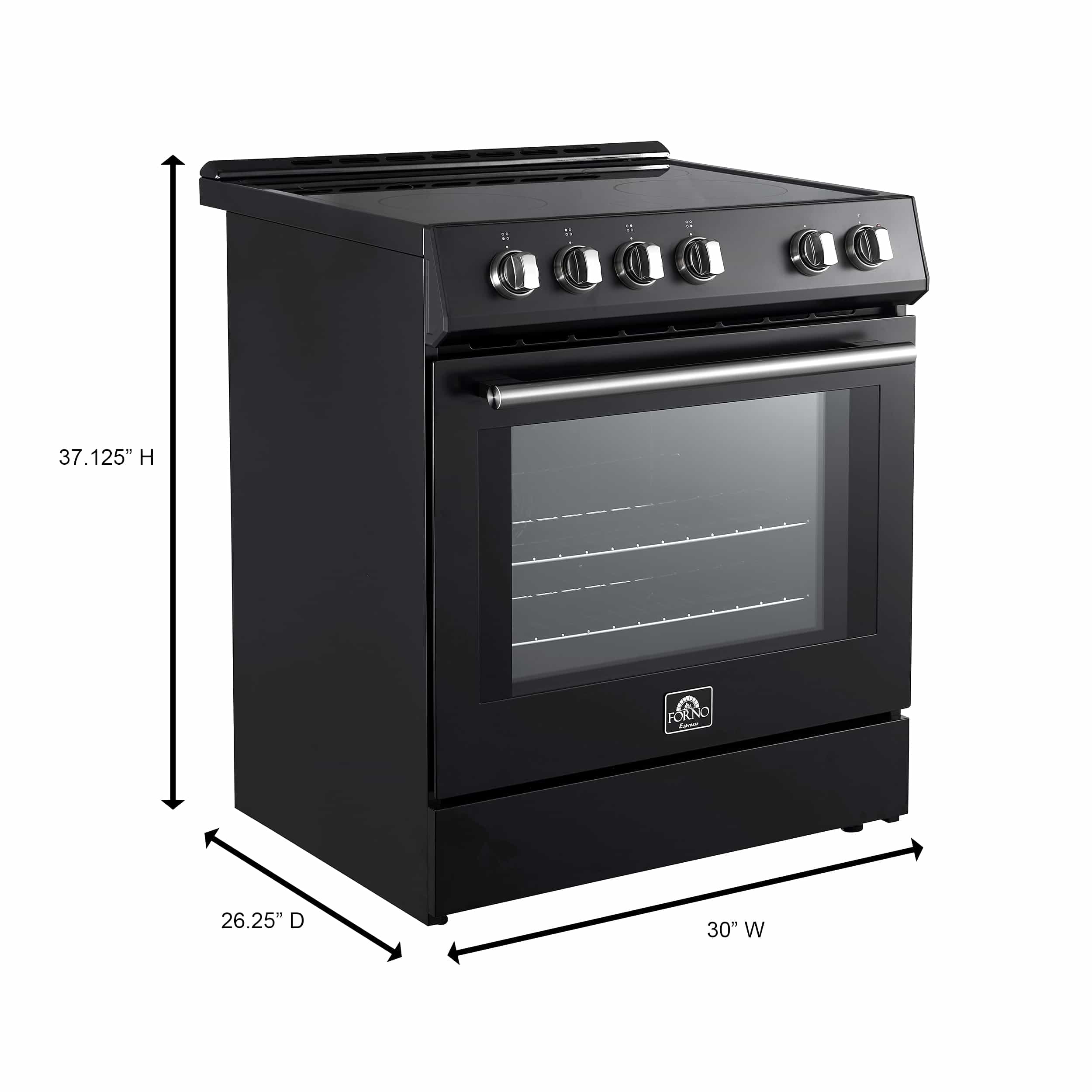

| DIMENSIONS | |
|---|---|
| Minimum Counter Height | 36" |
| Maximum Counter Height | 38" |

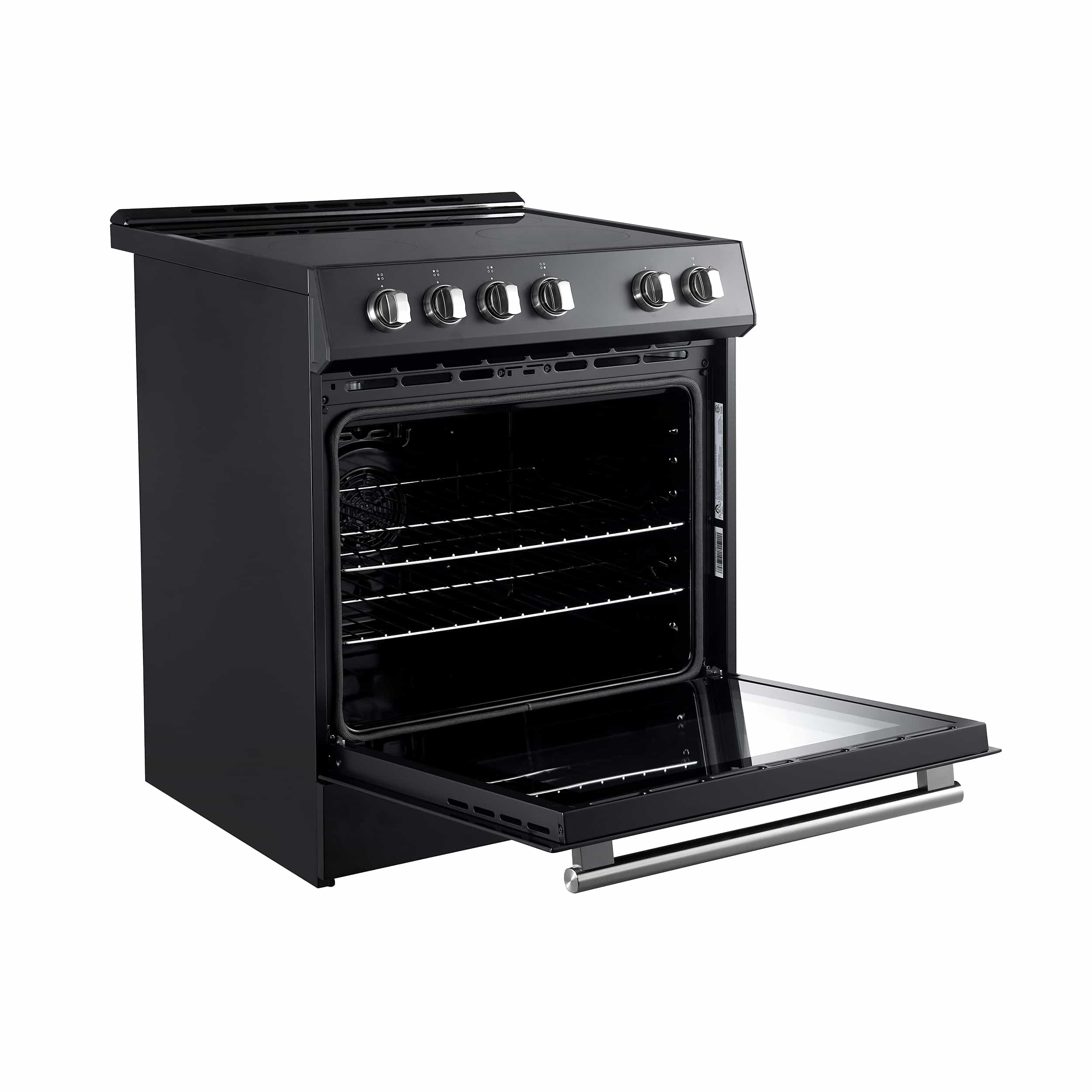

| Depth with Oven Door Open 90º | 46.25" |
| Depth without Oven Door Handle | 27.8" |
| Overall Weight | 145.5 lbs |
| Main Oven Interior | 24.6" W x 17.7" D x 19.6" H |
| GENERAL INFORMATION | |
| Product Type | Slide-In |
| Safety Lock | No |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| Included | Antique Brass Kit (Handle+Knobs+Knob Rings) |
| DESIGN & FINISH | |
| Color | Black |
| Finish | Stainless Steel |
| Overall - Biggest Dims Possible (with Handle, Backsplash, etc) | 30" W X 27.95" D X 38" H |
| Color/Finish | Black |
| Handle Finish | Stainless Steel |

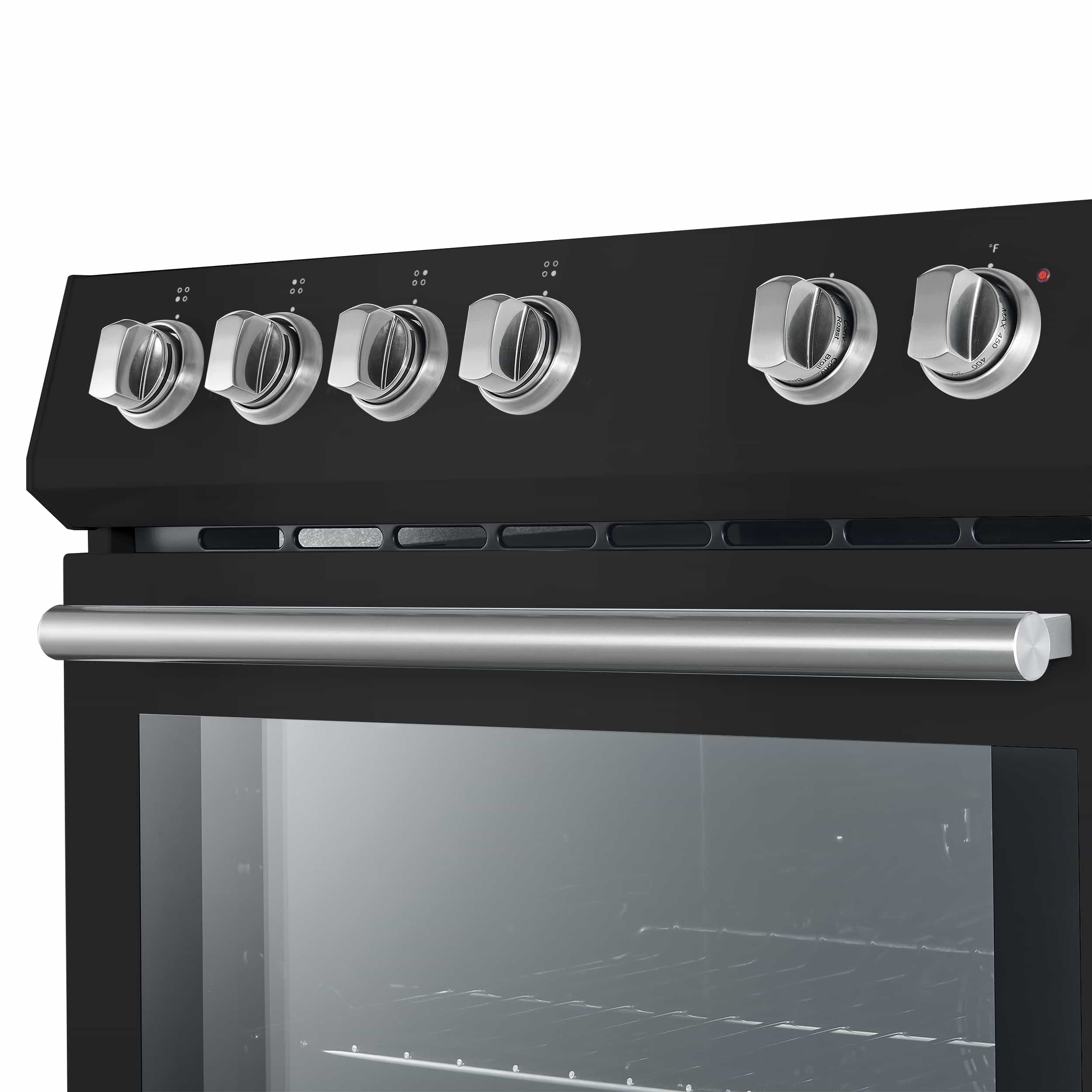

| Control Type | Knob |
| Number of Knobs | 6 |
| Knobs Color/Finish | Stainless Steel |
| Control Location | Front |
| Clock | No |
| Primary Material | Steel |
| Control Panel Material | Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| TECHNICAL DETAILS | |
| Fuel Type | Electric |
| Plug-In | No |
| Dedicated Circuit Breaker Amperage | 50 |
| Total Amps Use | 44.25 |
| Volts | 240 |
| Overall Max Power (W) | 10650 |
| Power Cord Included | No |
| COOKTOP FEATURES | |
| Burner Fuel | Electric |

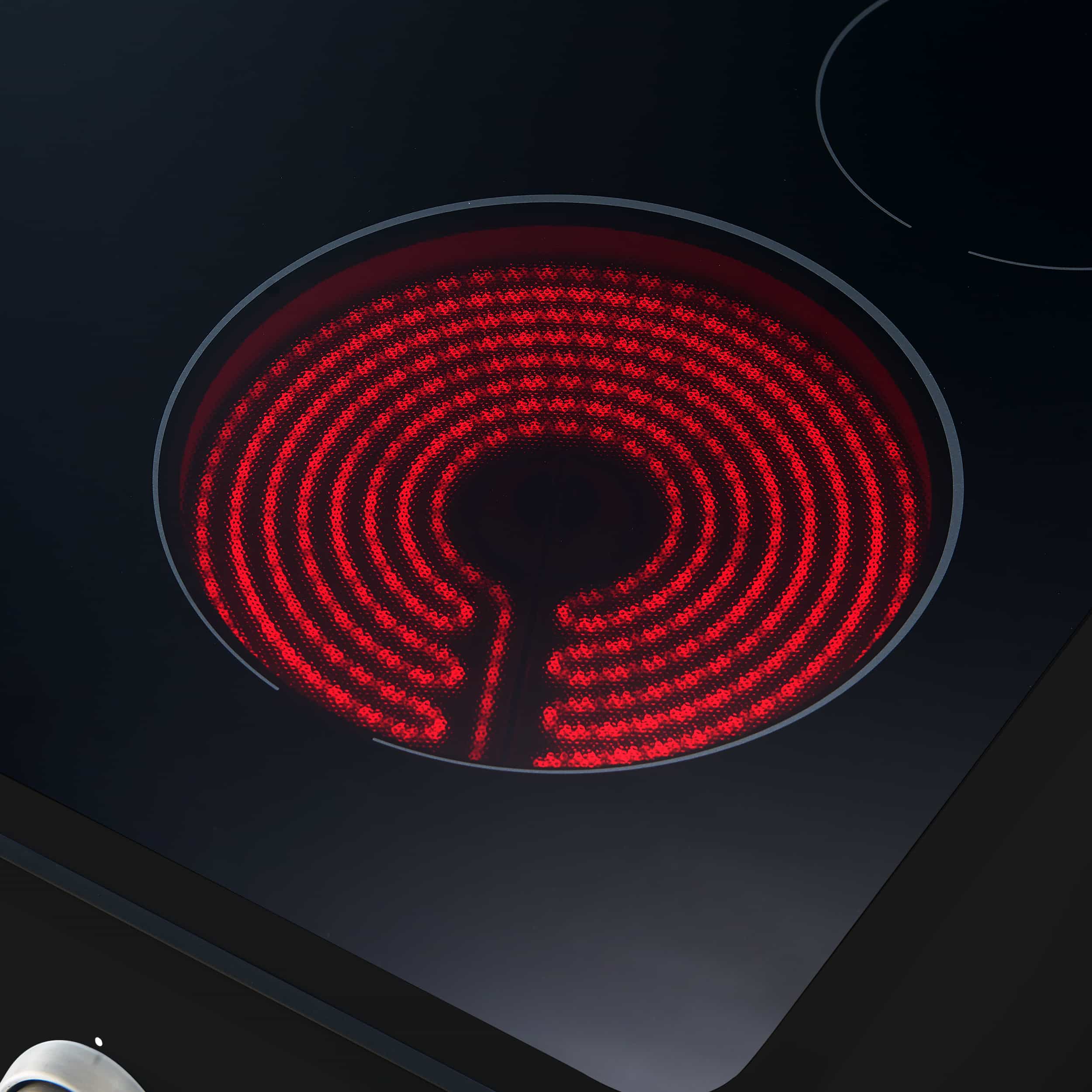

| Electric Heat Configuration (Cooktop) | Radiant |
| Total cooktop Wattage output | 7100 |
| Number of Burners | 4 |
| Double Ring Burner | No |
| Warmer Burner | No |
| Bridge Element | No |
| Cooktop Surface Color | Black |
| Cooktop Surface Materiel | Ceramic Glass |
| Cooktop Surface Structure | Smoothtop |
| Cooking Surface Control Type | Push & Turn |
| Broiler Element Type | Single Element |
| Bake Element | Yes |
| Hidden Bake Element | Hidden |
| Cooktop Hot Surface Indicator | Yes |
| Front Right Burner Watts | 2500 |
| Front Left Burner Watts | 2200 |
| Rear Right Burner Watts | 1200 |
| Rear Left Burner Watts | 1200 |
| Cooktop Max Power (W) | 7100 |

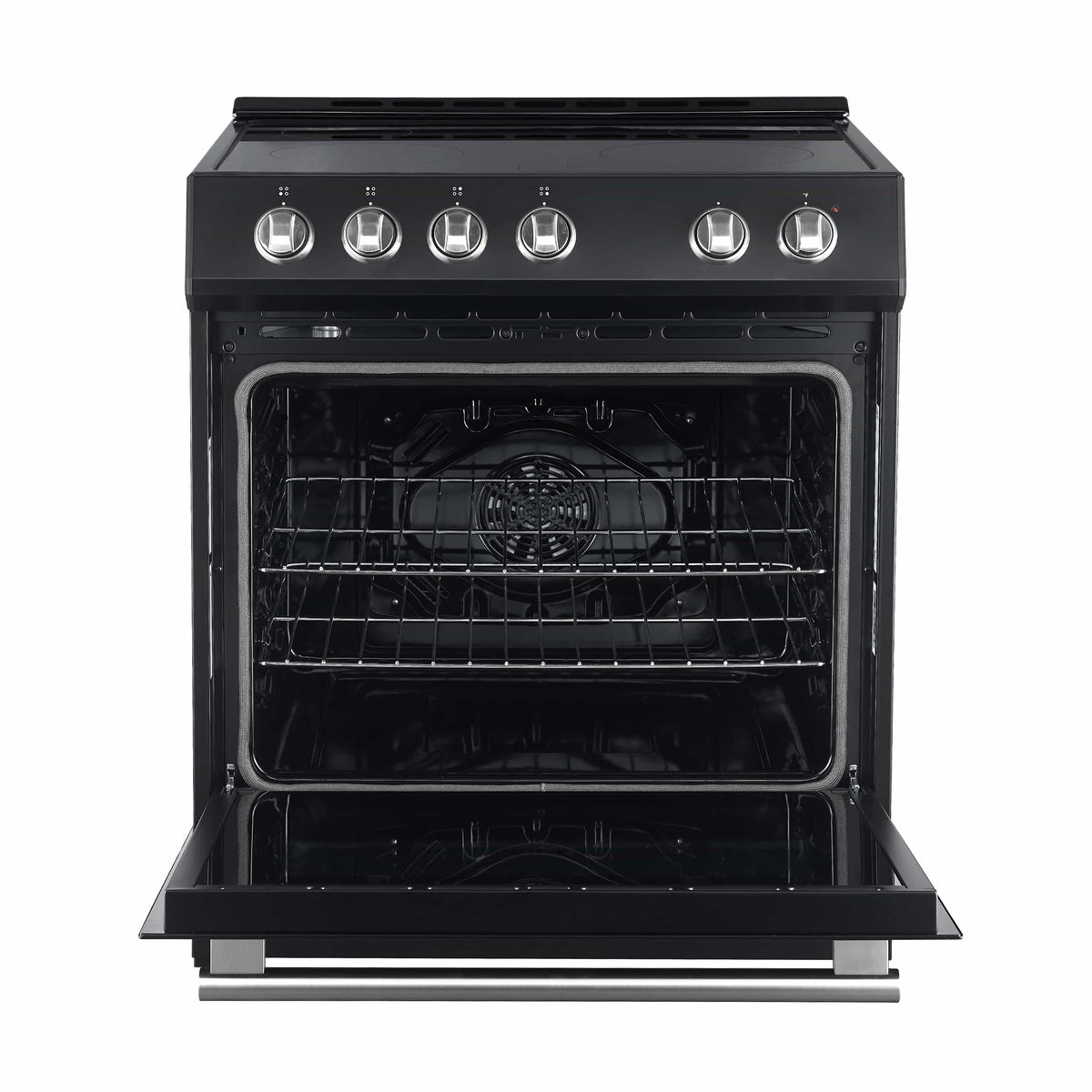

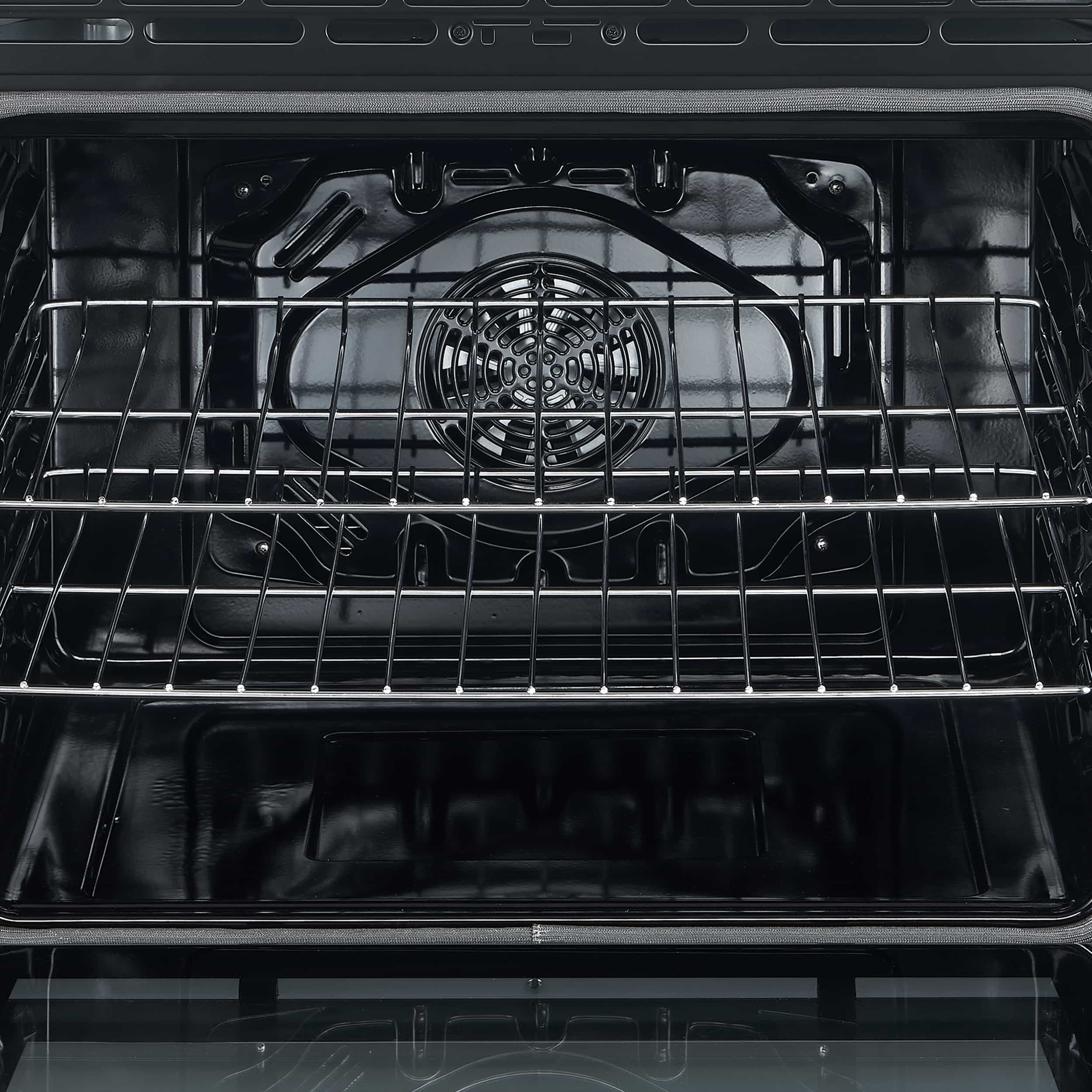

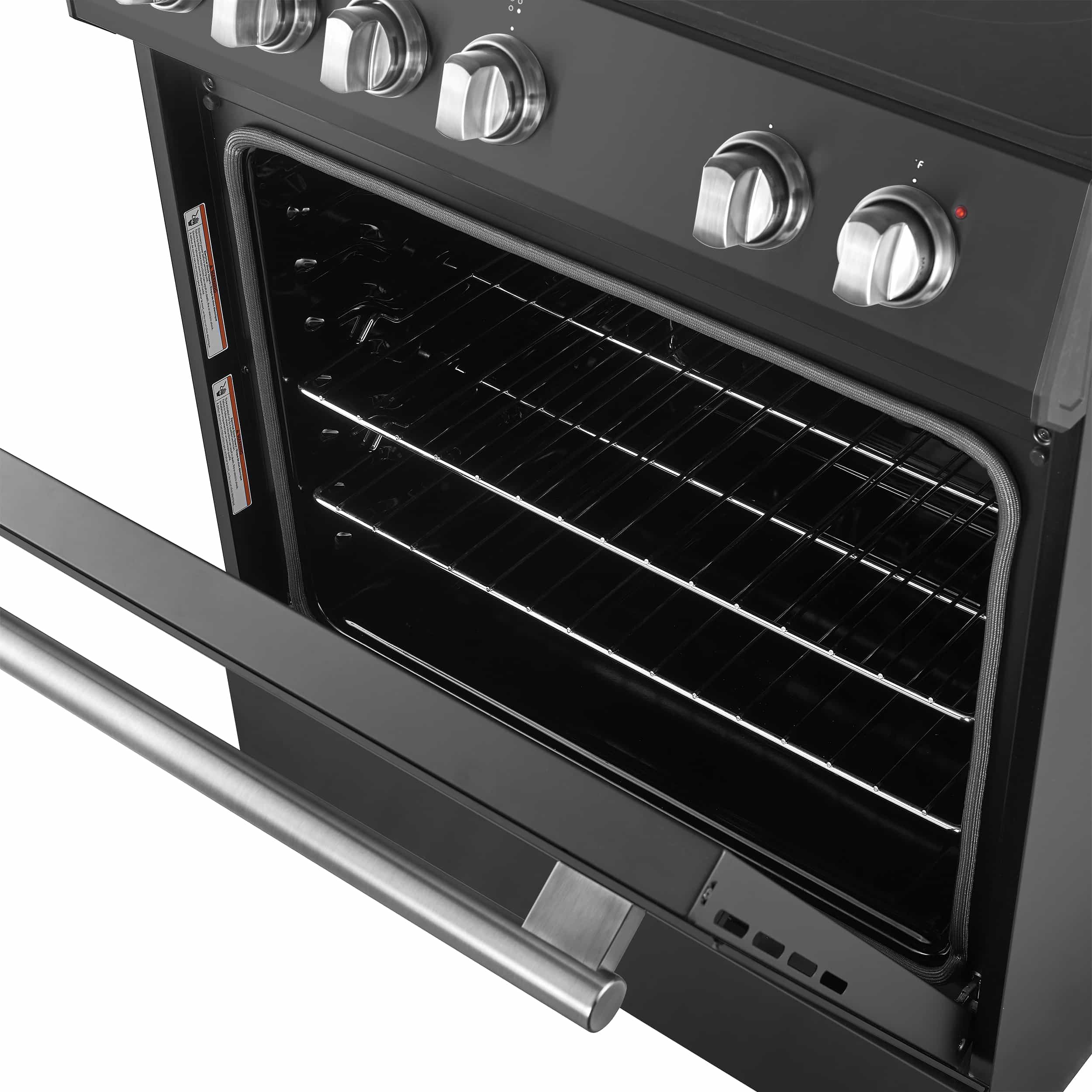

| OVEN FEATURES | |
| Oven Fuel | Electric |
| Number of Ovens | 1 |
| Overall Oven Capacity (cubic feet) | 5 |
| Oven Interior Finish | Black Enamel |
| Oven Racks Type | Standard |
| Number of Racks | 2 |
| Racks Material | Chrome-Plated |
| Number of Rack Positions | 6 |
| Broiler | Yes |
| Overall Broiler Wattage | 2000 |
| Broiler Location | Oven |
| Overall Bake Wattage | 1500 |
| Convection Oven | Yes |
| Convection Type | Standard Convection |
| Cooking Process |
|
| Cleaning Type | Standard |
| Rack position | Yes |
| Oven Preheating Indicator | Yes |
| Temperature Gauge | No |
| Timer | No |
| Storage Drawer | No |
| Door Panel Material | Stainless Steel |
| Main Oven Capacity (cubic feet) | 5 |
| Main Oven Rack Size W x D (in) | 24.6 x 15.9 |
| Main Oven Broil Wattage | 2000 |
| Main Oven Bake Wattage | 1500 |
| Main Convection Fan | Yes |
| Main Oven Convection Fan Wattage | 50 |
| Oven Max Power | 3550 |
| WARRANTY & CERTIFICATIONS | |
| Certification | ETL Listed |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |

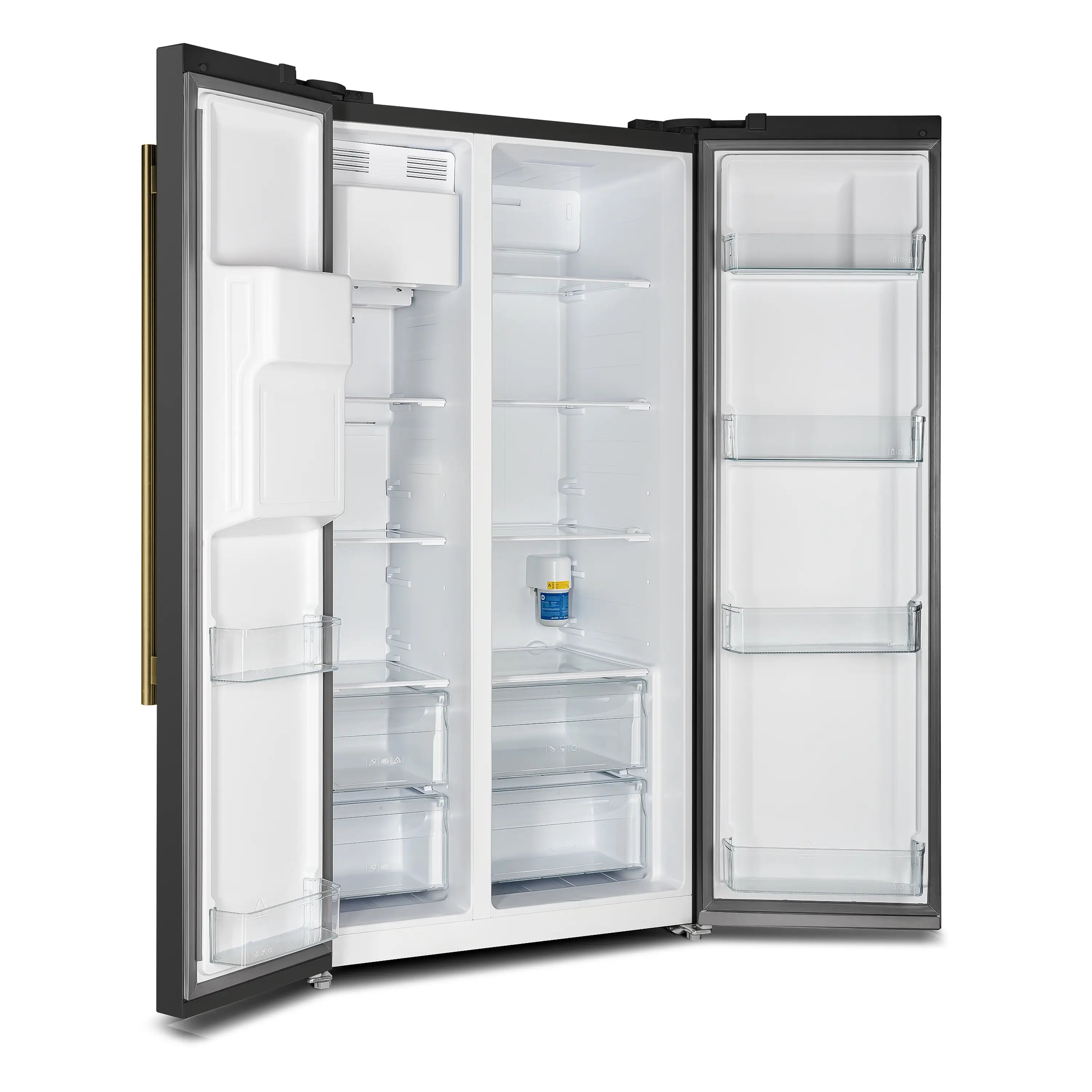

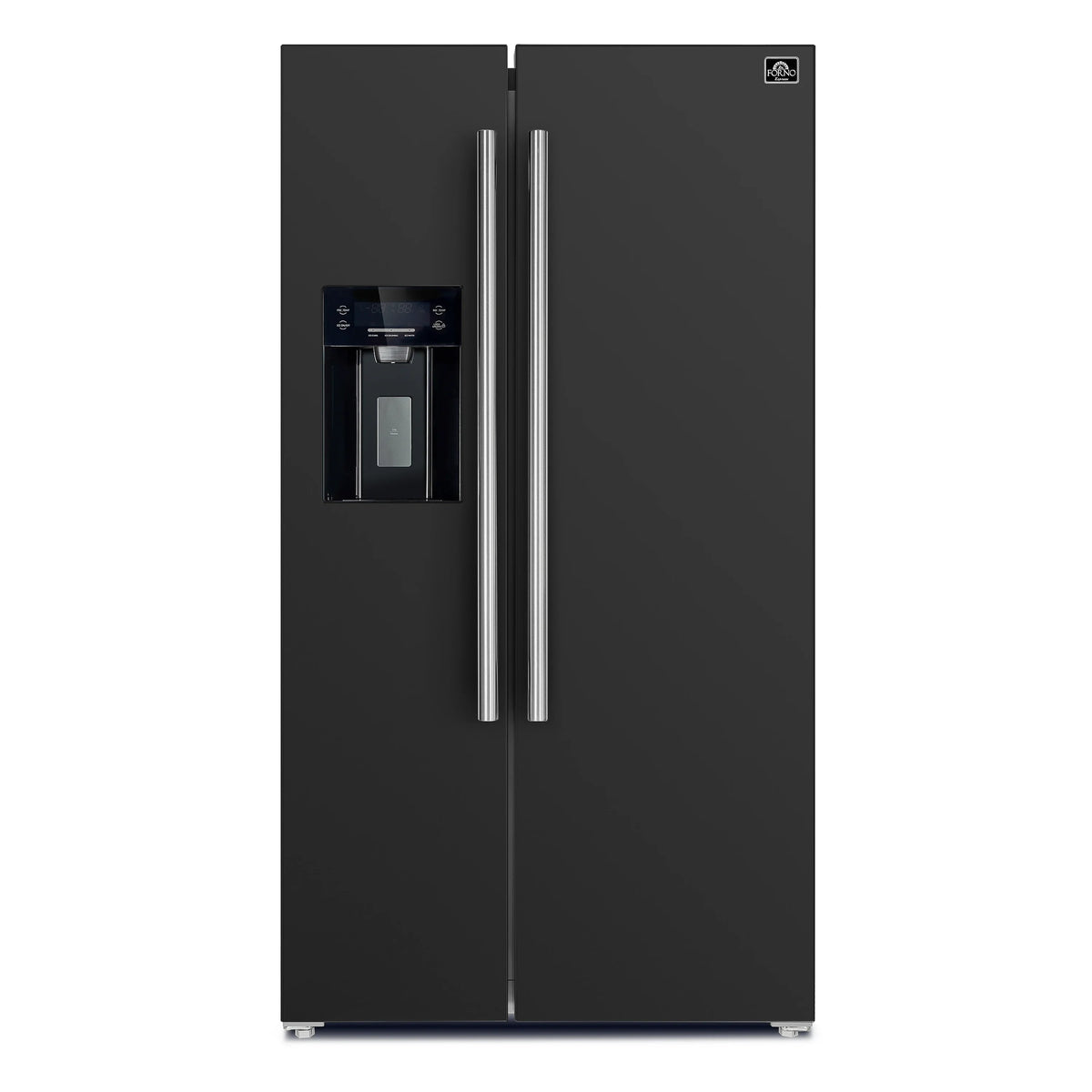

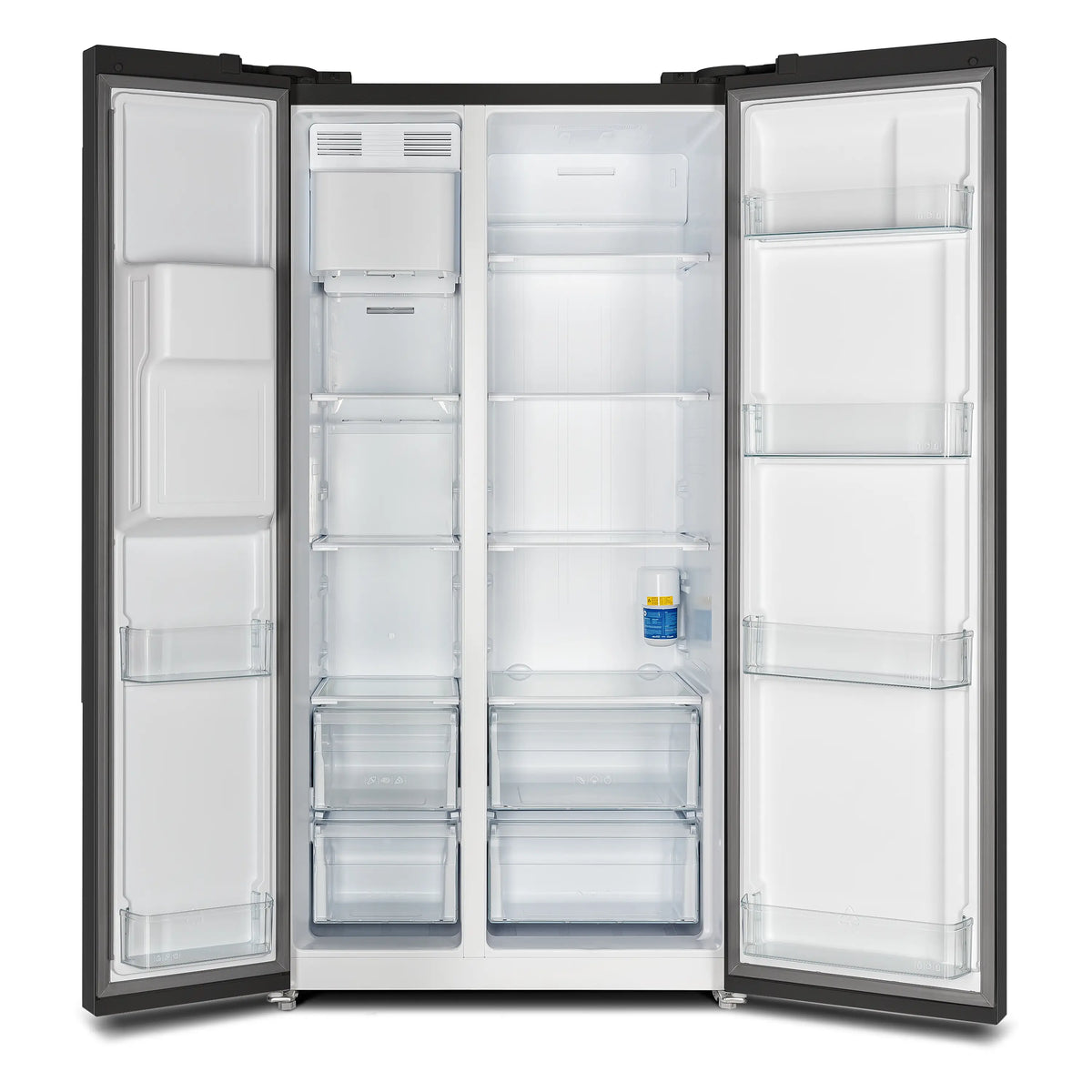

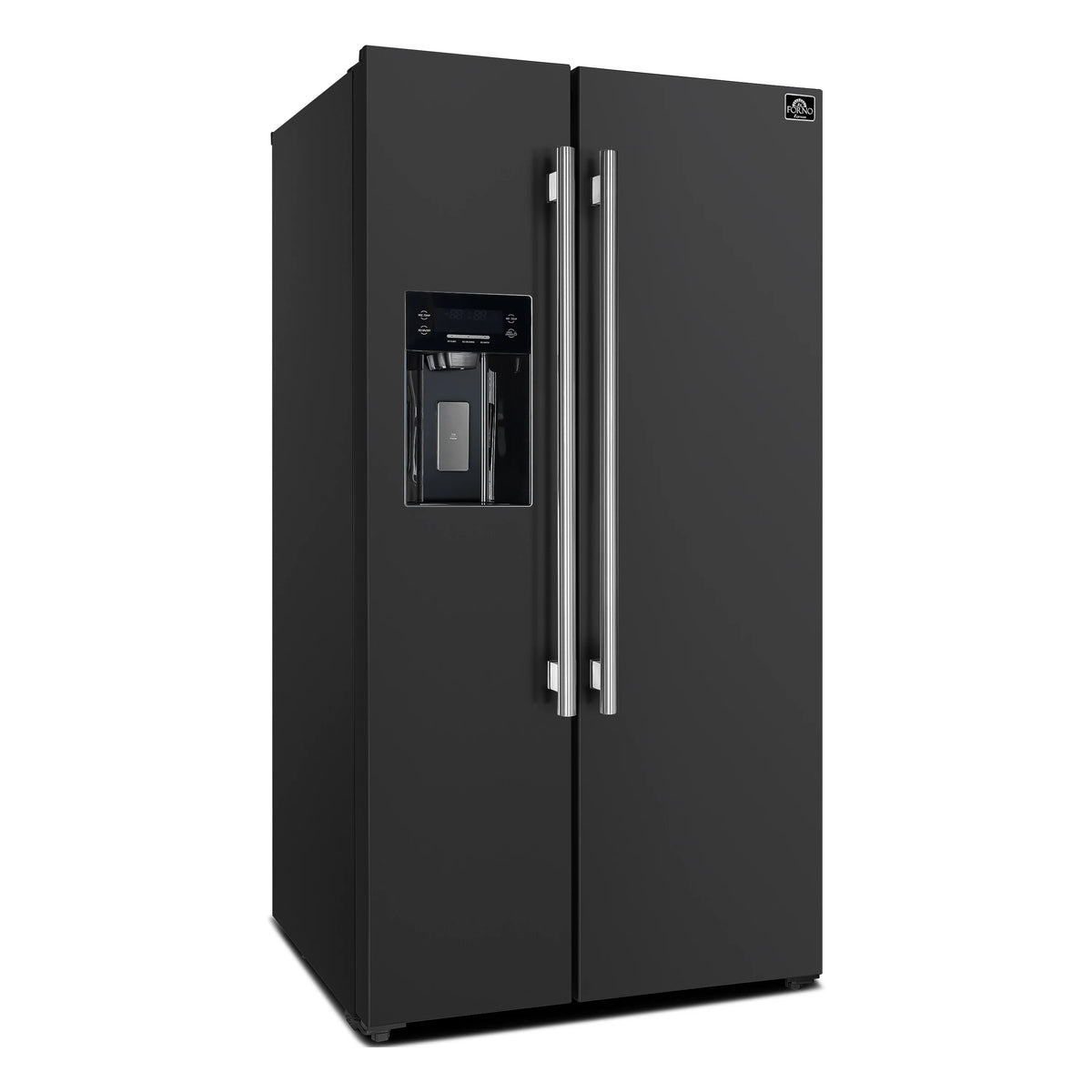

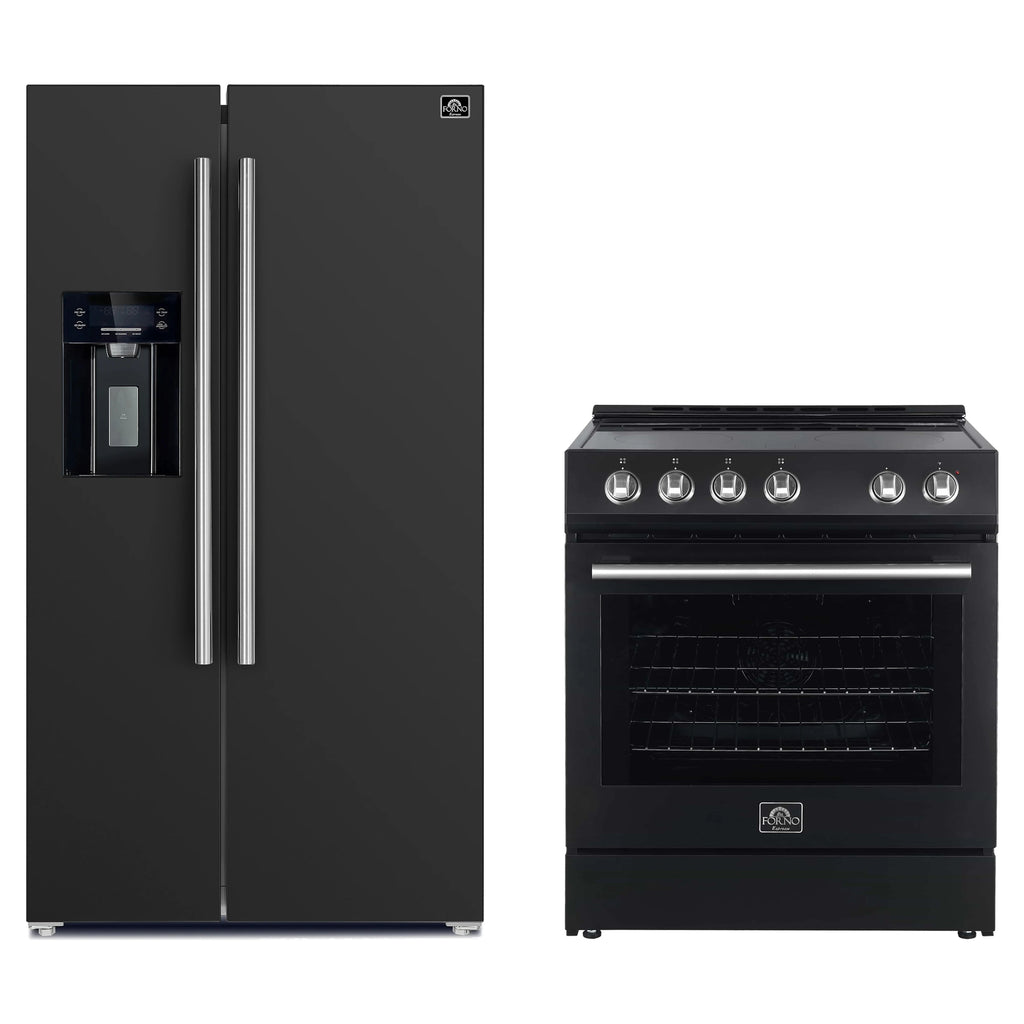

The Forno Salerno 36-inch side-by-side black refrigerator delivers optimal performance and maximizes storage efficiency. The compressor inverter guarantees energy efficiency, quiet operation, and precise temperature control for optimal freshness. With a frost-free multi air flow cooling system, this appliance boasts a 20 cu.ft. capacity and adjustable shelving for versatile grocery storage. Experience convenience with the water and ice dispenser, featuring a touch screen control for intuitive access to ice options and temperature controls. The Fresh Food storage capacity of 13.48 cu.ft. includes 4 spill-proof shelves, 3 door bins, 1 gallon bin, and 2 crisper drawers. The 6.53 cu.ft. Freezer storage offers 3 spill-proof shelves, 2 door bins, and 2 storage drawers, ensuring optimal organization. This refrigerator is ENERGY STAR Certified for efficiency, and high-efficiency LED lighting minimizes food spoilage. Antique brass handles add an elegant finishing touch to this high-performing and stylish appliance.
Please Note: This appliance includes both brass and stainless steel handles. Some assembly is required to install your desired finish.
| Weight and Dimensions | |
| Overall Dimensions (IN) | 35.9 X 29.76 X 70.08 |
| Cabinet Depth (no Door) |
24.01 |
| Depth without Handle (IN) |
27.64 |
| Depth Door(s) Open 90° (inches) |
45.74 |
| Height Top of the Door (inches) |
70.1 |
| Height Top of Door Hinge (inches) |
70.1 |
| Height Top of the Cabinet/Case (inches) |
69.12 |
| Sides Clearance - On Each Sides (IN) |
2 |
| Minimum Back Clearance (IN) |
2 |
| Minimum Top Clearance (IN) |
4 |
| Cutout Dimensions (IN) | 39.9 X 31.76 X 73.12 |
| Overall Weight (LBS) |
213 |
| Electrical | |
| Circuit Breaker Amperage (A) |
15 |
| Maximum Start Amperage Current (A) |
4 |
| Running Amperage (A) |
2.8 |
| Volts (V) |
115 |
| Frequency (Hz) |
60 |
| Power Consumption Cooling Wattage (W) |
75 |
| Power Consumption Defrost Wattage (W) |
190 |
| Energy Consumption (kWh/yr) |
560 |
| Estimated Annual Operating Cost (USD) |
USD 79.00 |
| Power Cord Length with Plug (feet) |
7.9 |
| Number of Power Cord |
1 |
| Receptacle Type |
3-Prong Grounded (NEMA 5-15P) |
| Details | |
| Product Type |
Side by Side |
| Color/Finish |
Black |
| Handle Finish |
Stainless Steel |
| Freestanding | Freestanding |
| Panel Ready |
No |
| Overall Capacity Cu. Ft. |
20 |
| Flat back design |
Yes |
| Hidden Hinges |
No |
| Ice Maker |
Yes |
| Ice Type |
Cubed/Crushed |
| Ice Maker Type |
Single |
| Automatic Ice Level Control |
Yes |
| Removable Ice Bucket |
Yes |
| Daily Ice Production (lbs) |
3.31 |
| Filtered Ice |
Yes |

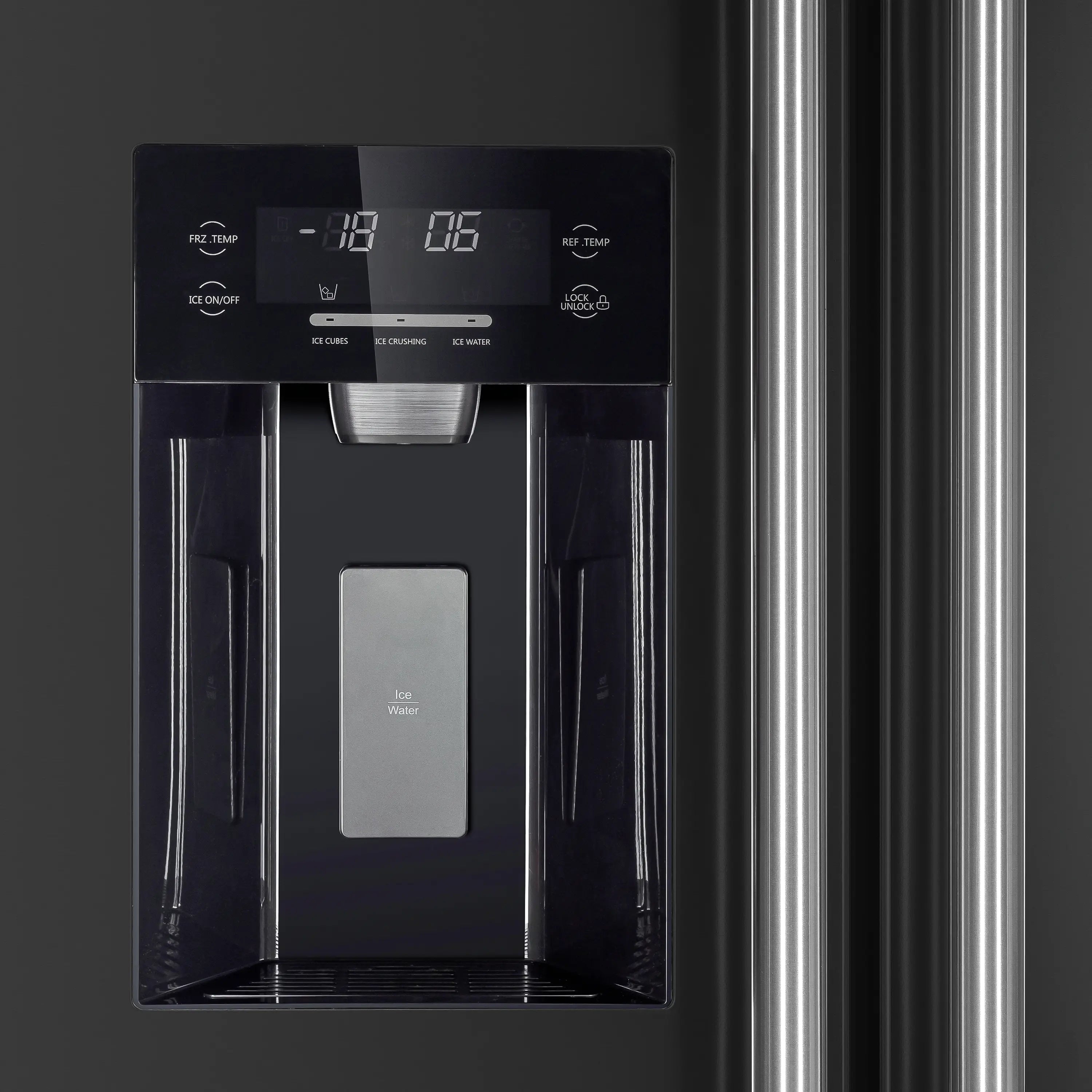

| Dispenser Type |
External Water and Ice Dispenser |
| Water Dispenser |
Yes |
| External Dispenser |
Yes |
| Interior Light |
Yes |
| Interior Light Type |
LED |
| Defrost Type |
Automatic |
| Temperature Memory Function |
Yes |
| Electronic Temperature Control |
Yes |
| Control Location |
External |
| Spill-Proof Shelves |
Yes |
| Pantry Drawer |
No |
| Auto Door Closer |
No |
| Counter Depth |
Yes |
| Leveling Legs |
Yes |
| Primary Material |
Steel |
| Door Style |
Contoured |
| Door Texture |
Smooth |
| Door Liner Material |
High Impact Polystyrene |
| Door Liner Color |
White |
| Cabinet Material |
Embossed Galvanized Steel |
| Cabinet Color |
Black |
| Door Ajarm Alarm |
Yes |
| Garage Ready |
No |
| Finger Print Resistant |
No |
| Smudge Resistant |
No |
| Air Filtration |
No |
| Safety Lock |
No |
| Display Screen |
LED |
| Sabbath Mode |
Yes |
| Vacation Mode |
No |
| Energy Saver/ECO Mode |
No |
| Fast Freeze/Cool Mode |
No |
| See-Thru Door |
No |
| Quiet Operation |
Yes |
| Noise Level (dBA) |
41 |
| Extra Water Filter |
No |
| Matching Replacement Water Filter Model |
MFCMG14211FR |
| Water Pipe Included |
Yes |
| Matching Replacement Water Filter Model |
MFCMG14211FR |
| Water Pipe Length (Feet) |
8.69 |
| Installation Kit |
Yes |
| Power Cord |
Yes |
| Toe Grille Color |
No Toe Grille |
| Cooling Type |
Multi air cooling |
| Dual Evaporator Cooling System |
No |
| Cooling System |
Compressor Based |
| Compressor Type |
Compressor Inverter |
| Contain Gases |
R600A |
| Quantity of gas in Compressor (oz) |
3.17 |
| Supplier Intended and Approved Use |
Residential Use Only |
| Fresh Food Capacity Cu. Ft. |
13.48 |
| Interior Fresh Food Dimensions W x D x H (inches) |
17.5''W x 22''D x 62.5''H |
| Interior Fresh Food Dimensions | 17.5 |
| Interior Fresh Food Dimensions Depth (in) |
22 |
| Interior Fresh Food Dimensions Height (in) |
62.5 |

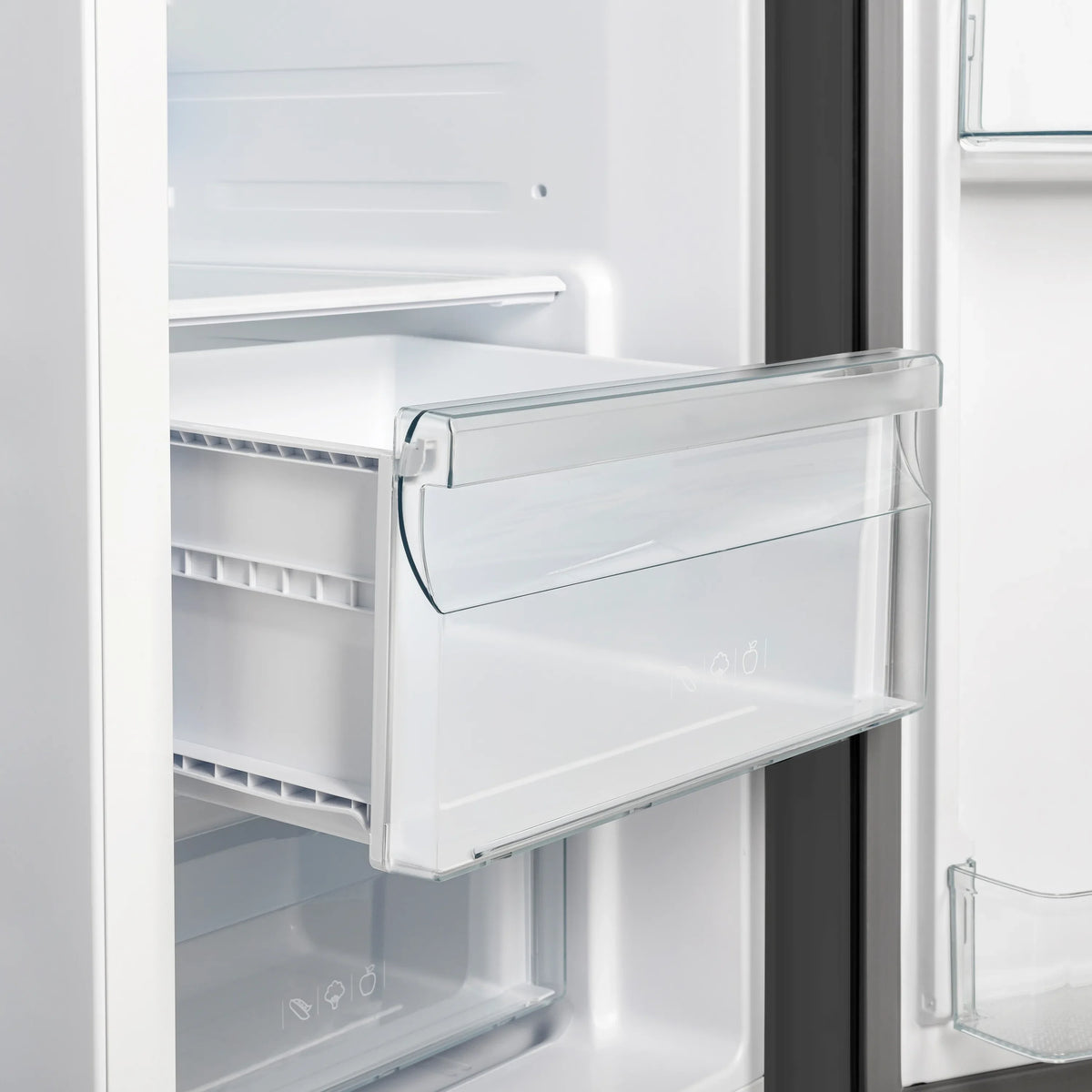

| Number of Fresh Food drawers |
2 |
| Temperature Controlled Drawer(s) |
No |

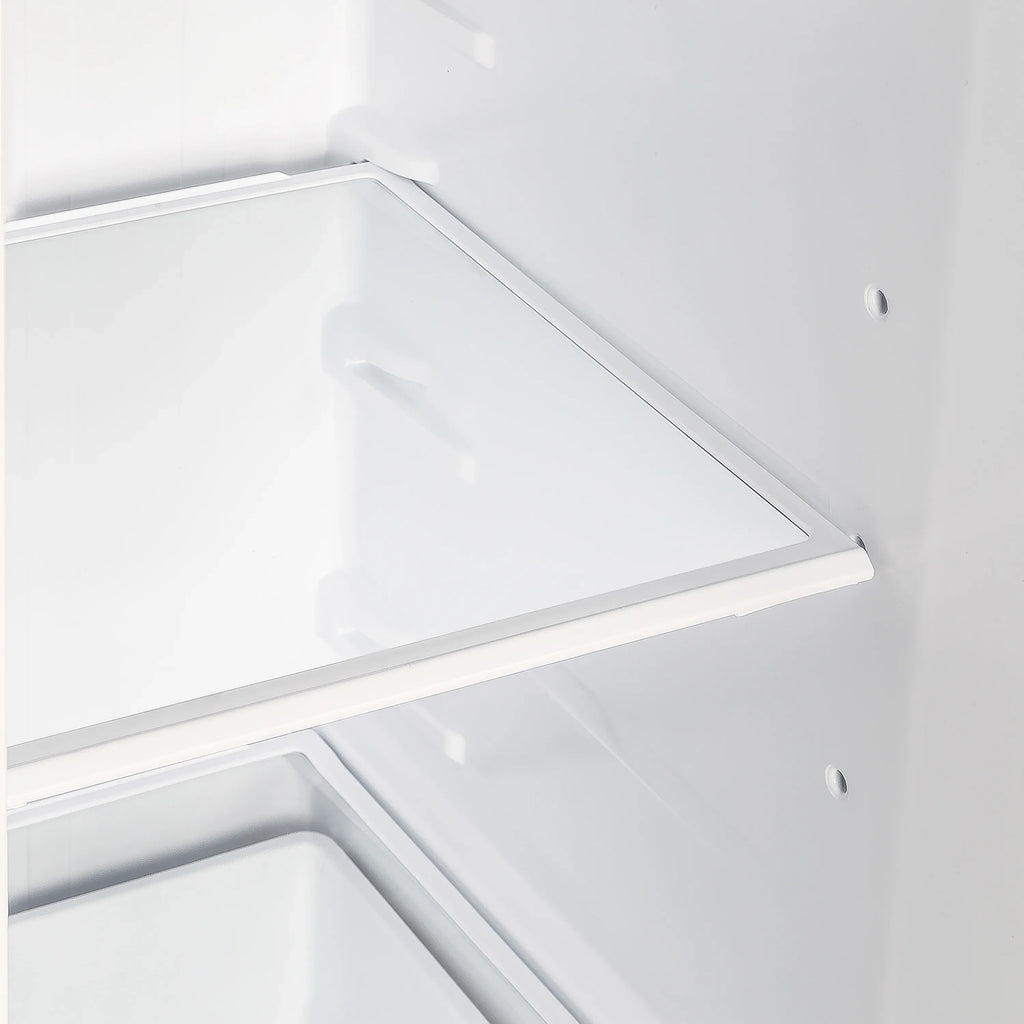

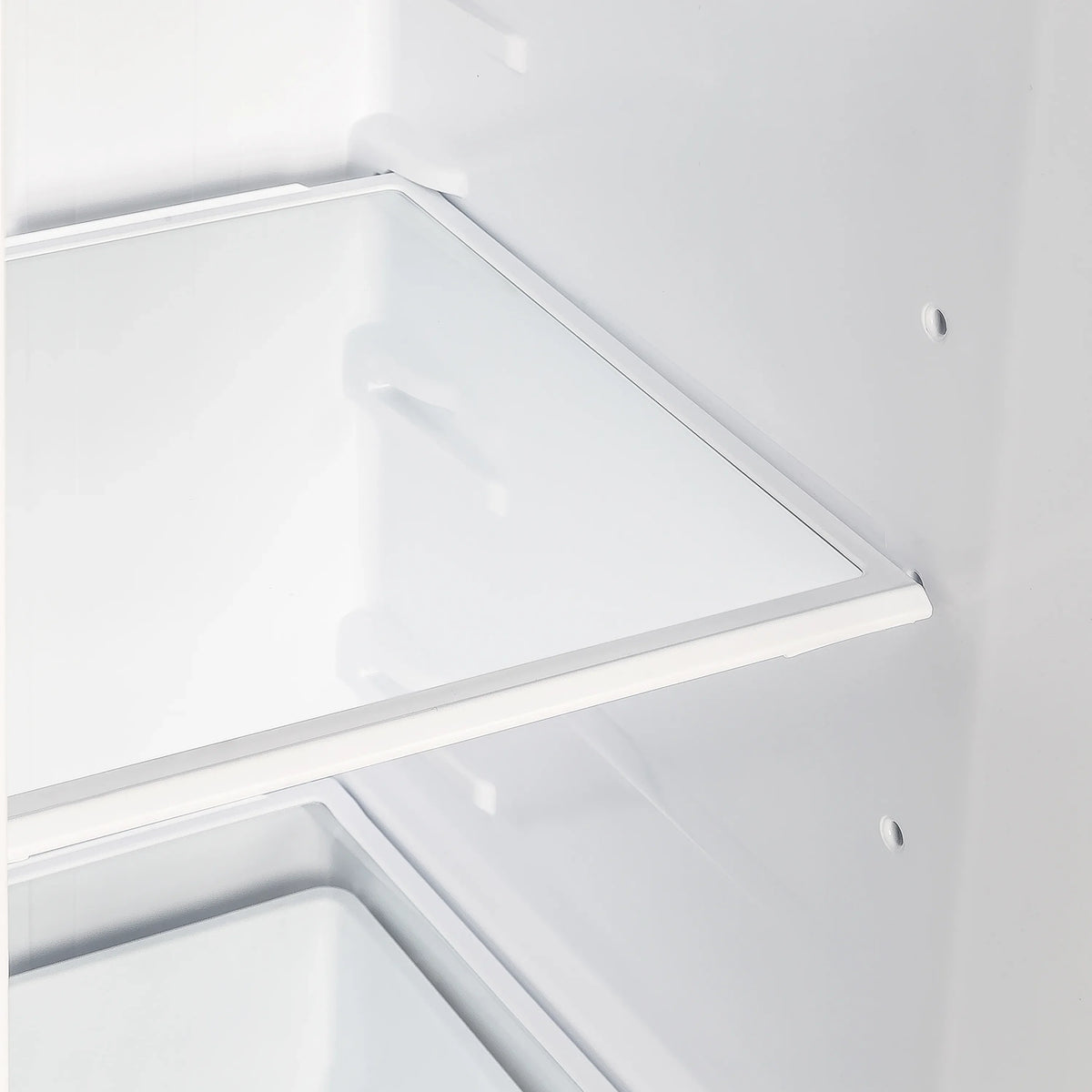

| Number of Fresh Food Shelves |
4 |
| Fresh Food Shelves Material |
Glass |
| Adjustable Fresh Food Shelves |
Yes |
| Number of Adjustable Shelves |
3 |
| Fresh Food Door Type |
Swing Door |
| Door Storage |
Yes |
| Fridge Door Bin(s)/Shelves |
4 |
| Adjustable Door Storage |
No |
| Number of Gallon (4 Liters) Door Bins |
1 |
| Gallon (4 Liters) Door Bin(s) Size | |
| Number of Standard Door Bins |
3 |
| Door Bins Color |
Transparent |
| Door Bins Material |
Plastic |
| Temperature Range Refrigerator (°F) |
32°F to 43°F |
| Temperature Range Refrigerator (°C) |
-23℃ to 5℃ |
| Freezer Capacity |
6.53 |
| Freezer Door Style |
Swing Door |
| Freezer Light |
Yes |
| Interior Freezer Dimensions W x D x H (in) |
11.75"W x 18"D x 50.75"H |
| Interior Freezer Dimensions Width (in) |
11.75 |
| Interior Freezer Dimensions Depth (in) |
18 |
| Interior Freezer Dimensions Height (in) |
50.75 |
| Number of Freezer Drawers |
2 |
| Number of Freezer Basket |
0 |
| Freezer Section Layout |
Adjustable Racks, Freezer Drawers, In-Door Storage, Removable Ice Bin |
| Number of Freezer Shelves |
3 |
| Adjustable Freezer Shelves |
Yes |
| Number of Freezer Adjustable Shelves |
2 |
| Freezer Shelf Material |
Glass |
| Freezer door storage |
Yes |
| Number of Freezer Door Bins |
2 |
| Temperature Range Freezer (°F) |
-10°F to 5°F |
| Certifications | |
| Safety Listing |
cULus |
| File/Control Number |
SA45430 |
| Energy Star Certified |
Yes |
| ENERGY STAR Unique ID |
2380527 |
| Energy Star Most Efficient |
No |
| ISTA 6A Certified |
Yes |
| ISTA 6A Report Number |
SHAH01547522 |
| California “lead-free” certification requirements (NSF/ANSI 61) |
Yes |
| Certified to NSF/ANSI/CAN 372 Drinking Water System Components ‑ Lead Content |
Yes |
| NSF/ANSI 61 & NSF/ANSI/CAN 372 File Number |
274353 |
| Title 20 - California Regulation |
Yes |
| CEE Tier Qualified |
Not Rated |
| ADA Compliant |
No |
| TAA Compliant |
No |
| UPLR Compliant |
No |
| Energy Policy Act 1992 Compliant |
Yes |
| Warranty | |
| Commercial Warranty |
No |
| Warranty Type |
Limited |
| Warranty Length |
2 years |
| Warranty on Parts |
2 years |
| Warranty on Labor |
2 years |
