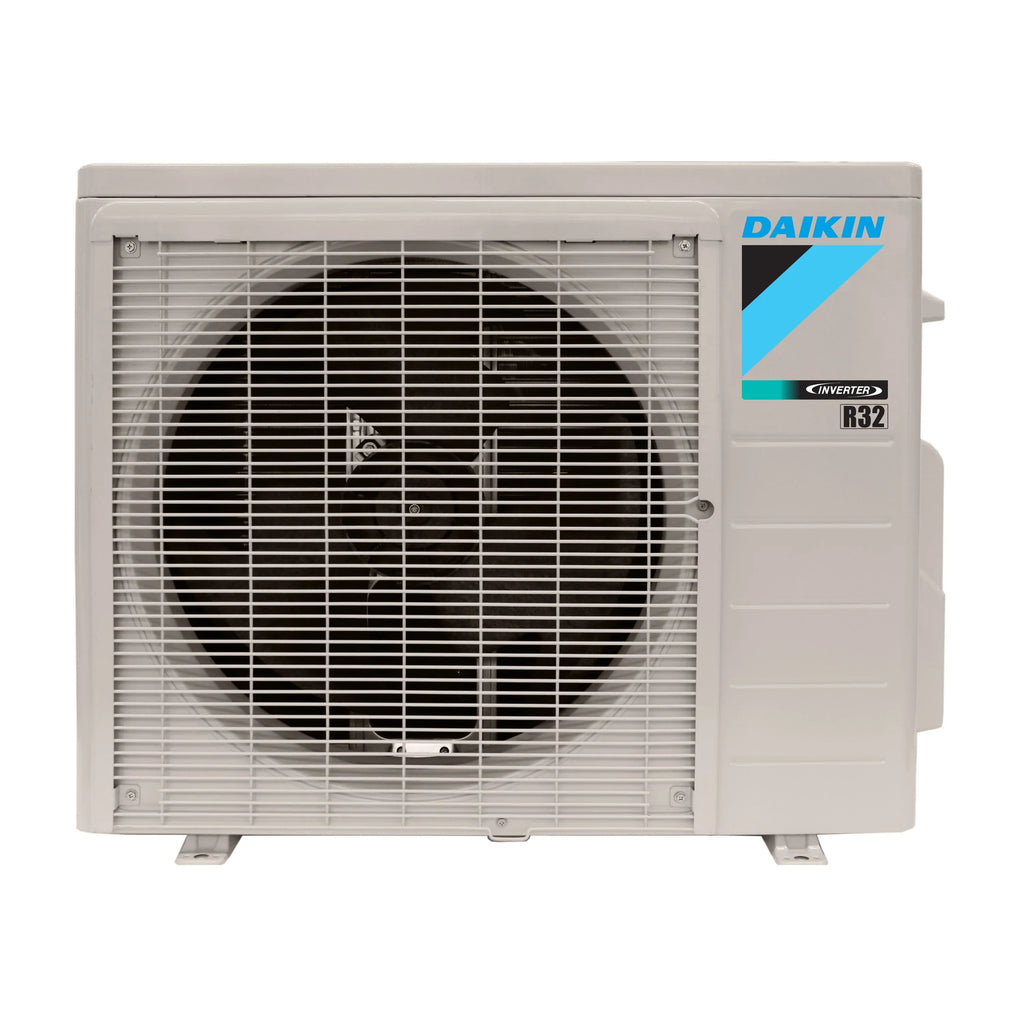

The Daikin Entra Series is an energy-efficient 0.75 ton single-zone ductless mini split heat pump engineered for affordable year-round comfort. Featuring inverter technology, a quiet wall-mount design, and reliable cold-weather operation, the Entra outdoor condenser pairs with a matched FTXC wall-mount air handler for a complete factory-paired system.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 26-1/2 W" x 11-3/16 D" x 21-11/16 H" |
| Unit Weight | 60 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | RXC_AXVJU |
| Family Description | 0.75 - 2 Ton 18 Series Heat Pump Up to 18 SEER2 / 9 HSPF2 |
| Unit Type | Outdoor |
| Product Class | Mini-Split Heat Pump |
| Tonnage | 0.75 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 8 |
| Product Benefits | 10 Year Limited Parts Warranty with Online Registration |
| Standard Features | Operating Range - Cooling (50° - 115°) |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 9,000 Btu/H |
| Heating Capacity (Rated) | 9,400 Btu/H |
| Airflow Rate High (Cooling) | 1,051 ft³/min |
| Airflow Rate High (Heating) | 1,051 ft³/min |
| Energy Star Certified | Yes |
| Compressor | |
| Compressor Type | Swing |
| Compressor Stages | Inverter |
| Electrical Requirements | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Min. Circuit Amps | 9.3 |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 3/8 in |
| Pipe Size Liquid | 1/4 in |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 10 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 10 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |

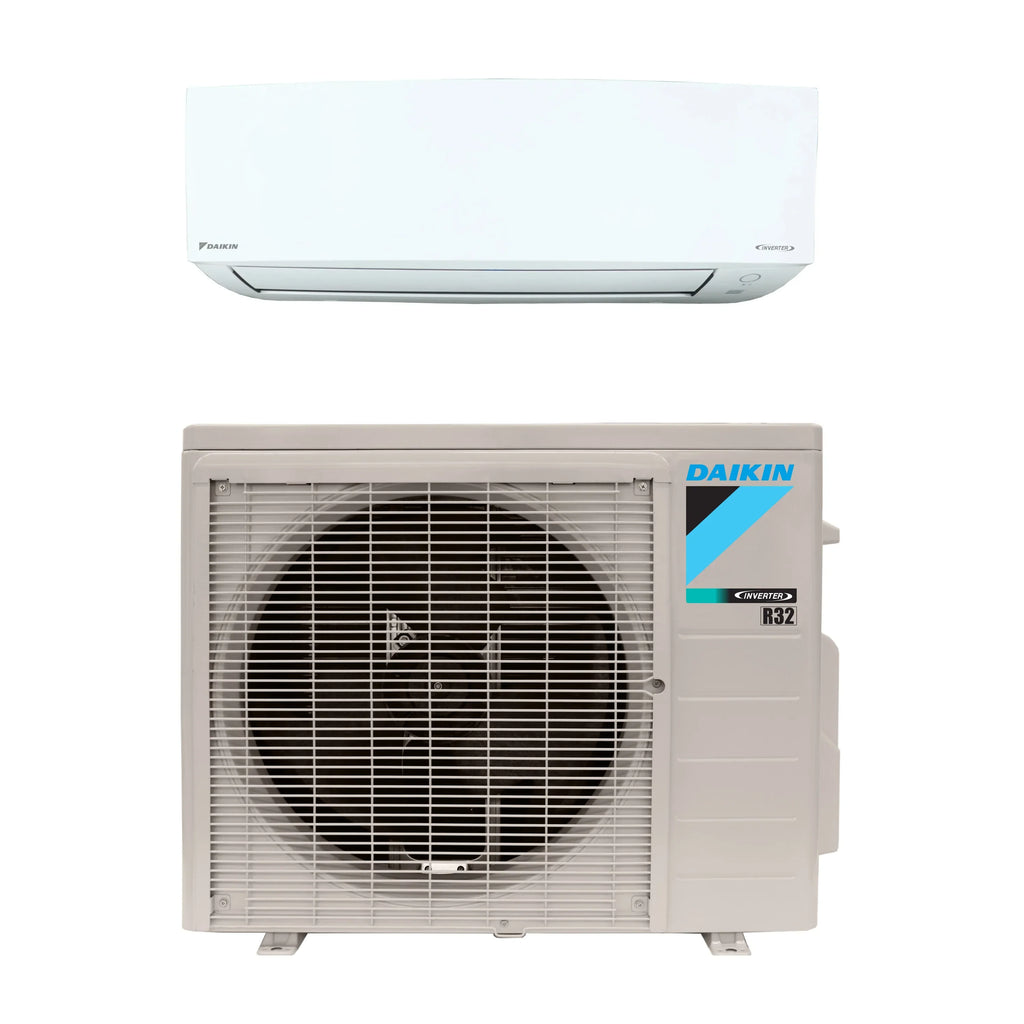

The Daikin Entra FTXC9 wall-mount indoor air handler delivers efficient cooling and heating with a streamlined wall design. Features a washable Titanium Apatite Photocatalytic air-purifying filter, multi-speed fan operation, and quiet sound levels for everyday residential comfort. Pairs with a matching Entra RXC outdoor condenser.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 30-5/16 W" x 9-11/16 D" x 11-5/16 H" |
| Unit Weight | 20.3 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | FTXC_AXVJU |
| Family Description | 0.75 - 2 Ton 18 Series Wall Mount Air Handler |
| Unit Type | Indoor |
| Product Class | Mini-Split Wall Mount Air Handler |
| Tonnage | 0.75 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 16 |
| Product Benefits | 10 Year Limited Parts Warranty with Online Registration |
| Standard Features | Sound Pressure as low as 19 dB(A) |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 9,000 Btu/H |
| Heating Capacity (Rated) | 9,400 Btu/H |
| Airflow Rate High (Cooling) | 431 ft³/min |
| Airflow Rate High (Heating) | 431 ft³/min |
| Sound Pressure (High) | 43 dB(A) |
| Sound Pressure (Silent) | 19 dB(A) |
| Electrical Requirements | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 3/8 in |
| Pipe Size Liquid | 1/4 in |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 10 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 10 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
