Description

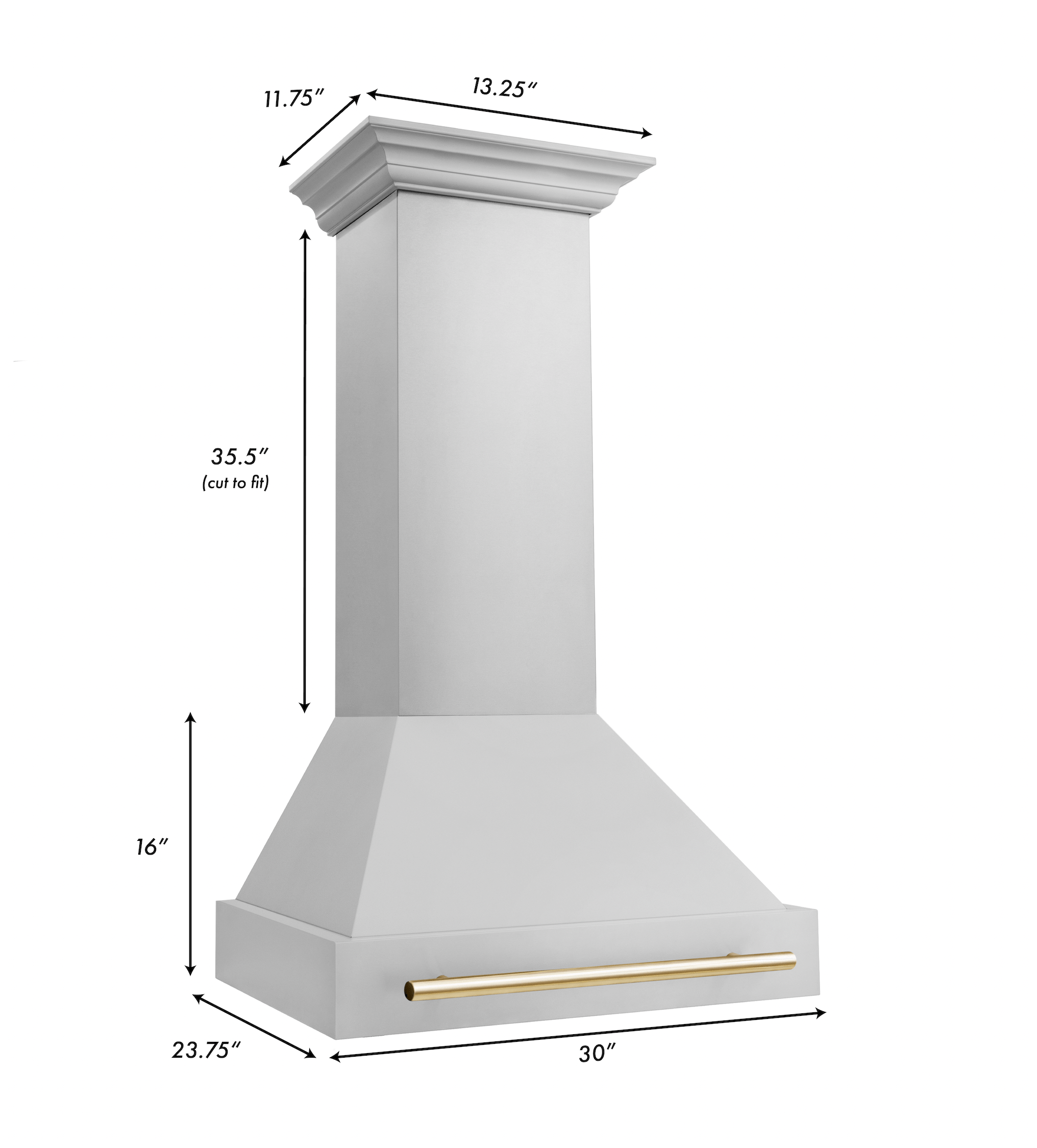

DIMENSIONS
- Dimensions
- 30" W x 23.75" D x 16" H
- Chimney Dimensions
- 13.25" W x 11.75" D x 35.5" H
- Handle Dimensions
- 23.1" W x 0.8" D x 2.4" H
- Min Ceiling Height
- 7.7
- Max Ceiling Height
- 9.5
- Weight
- 79
GENERAL INFORMATION
- Brand
- ZLINE Kitchen and Bath
- Outdoor Use
- Yes
- Recirculating
- No
DESIGN & FINISH
- Material
- Stainless Steel
- Handle Finish
- Gold

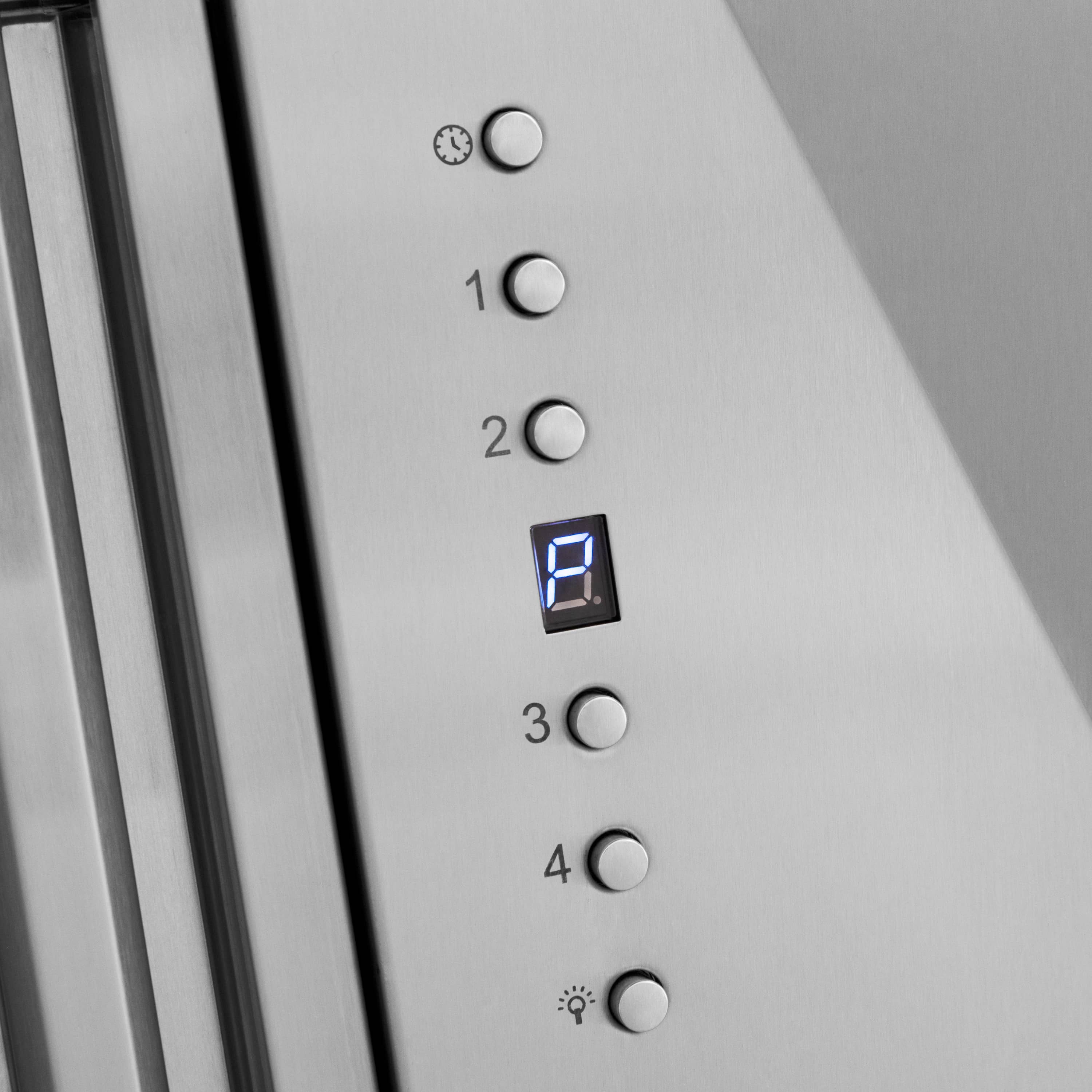

- Button Panel
- Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
TECHNICAL DETAILS
- Duct size
- 8"
- Voltage
- 110
- Watts
- 550
- Amps
- 5
- Motor
- High Performance 400 CFM/4-Speed Motor
- Airflow (Q/L/M/H)
- 120/240/320/400
- Decibels
- 51/55/58/61
- Sones
- 0.6/1.1/1.5/2.5
- Max CFM
- 400
- # of Speeds
- 4
FEATURES

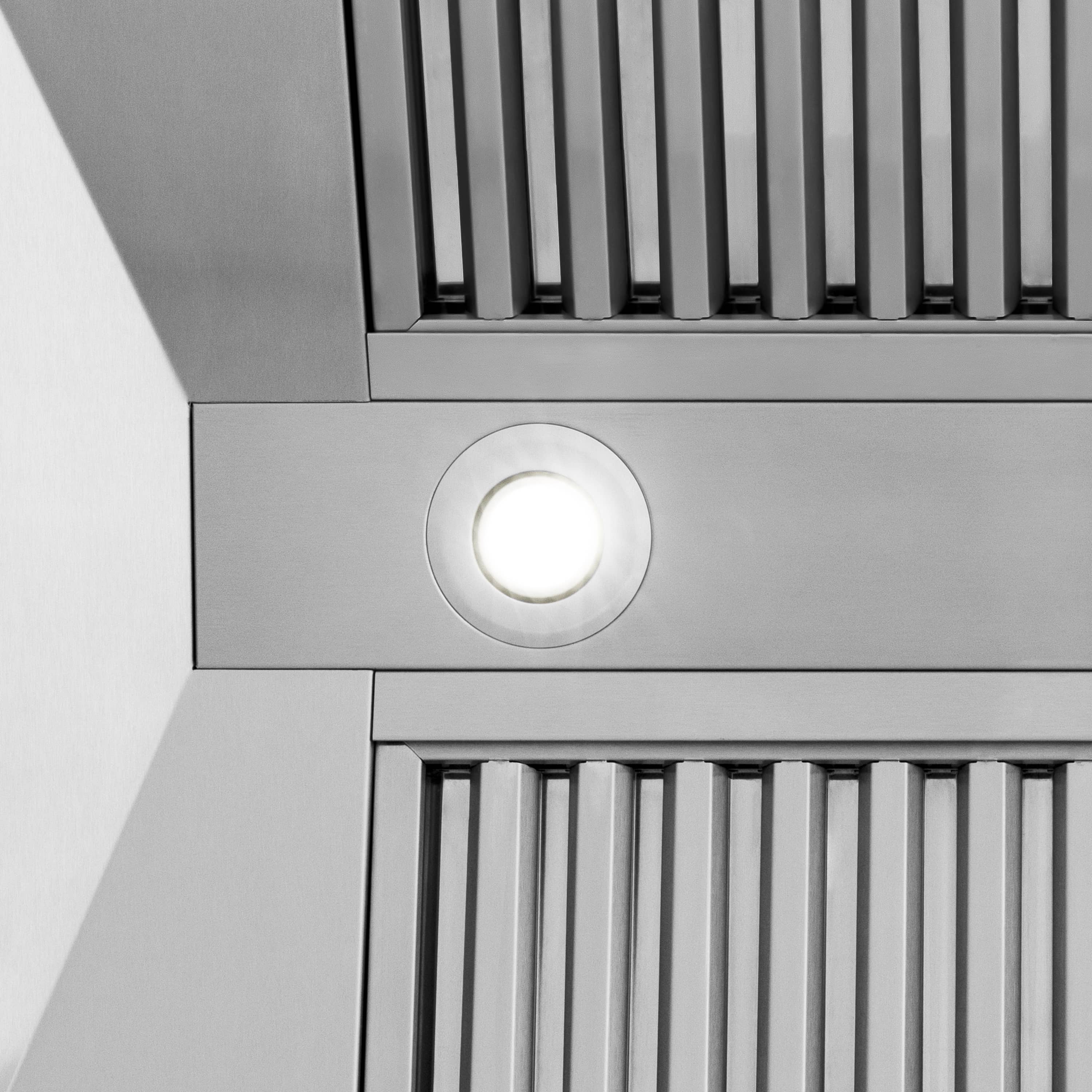

- Number of lights
- 2
- Filters
- Stainless Steel Baffle Filters (Dishwasher-safe)
