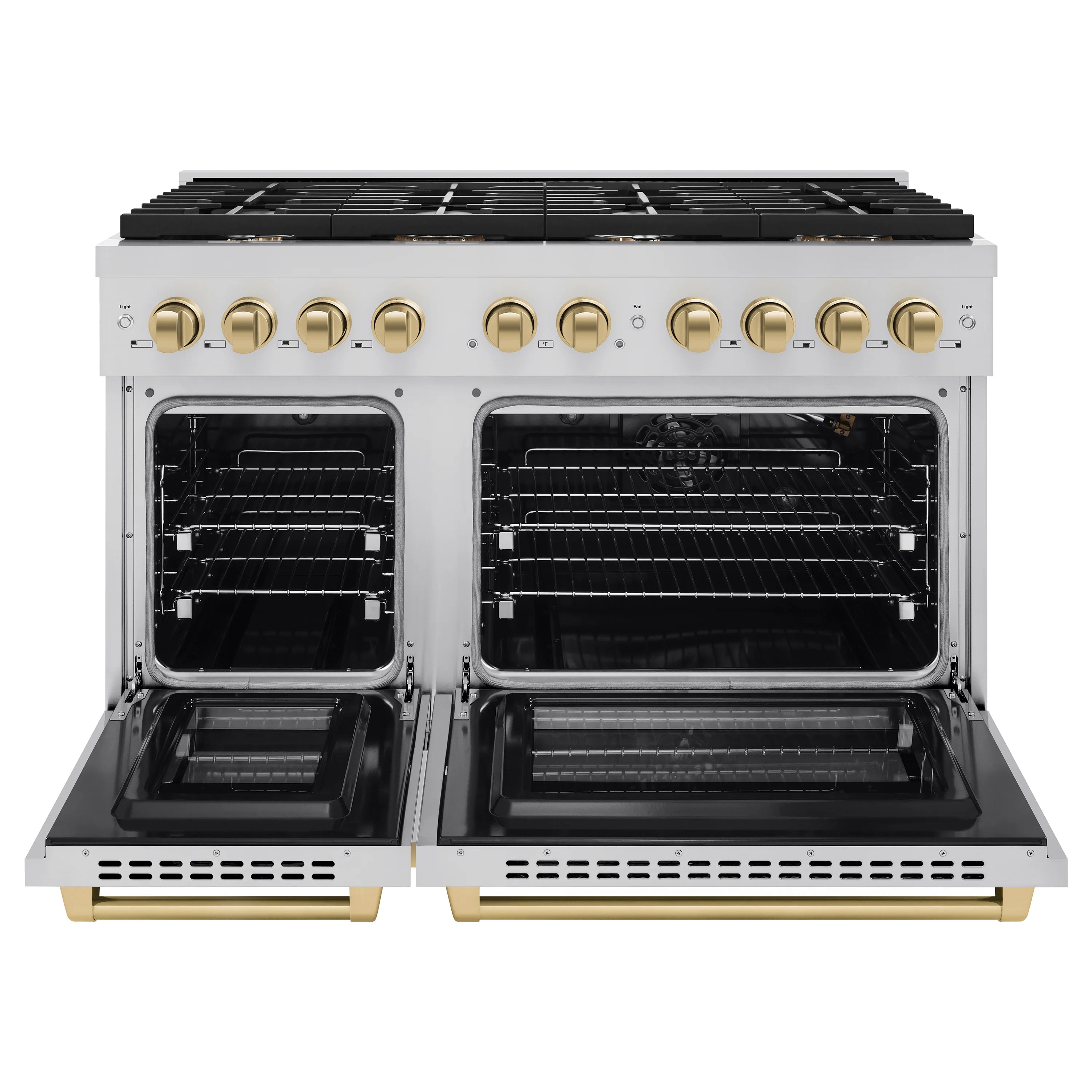

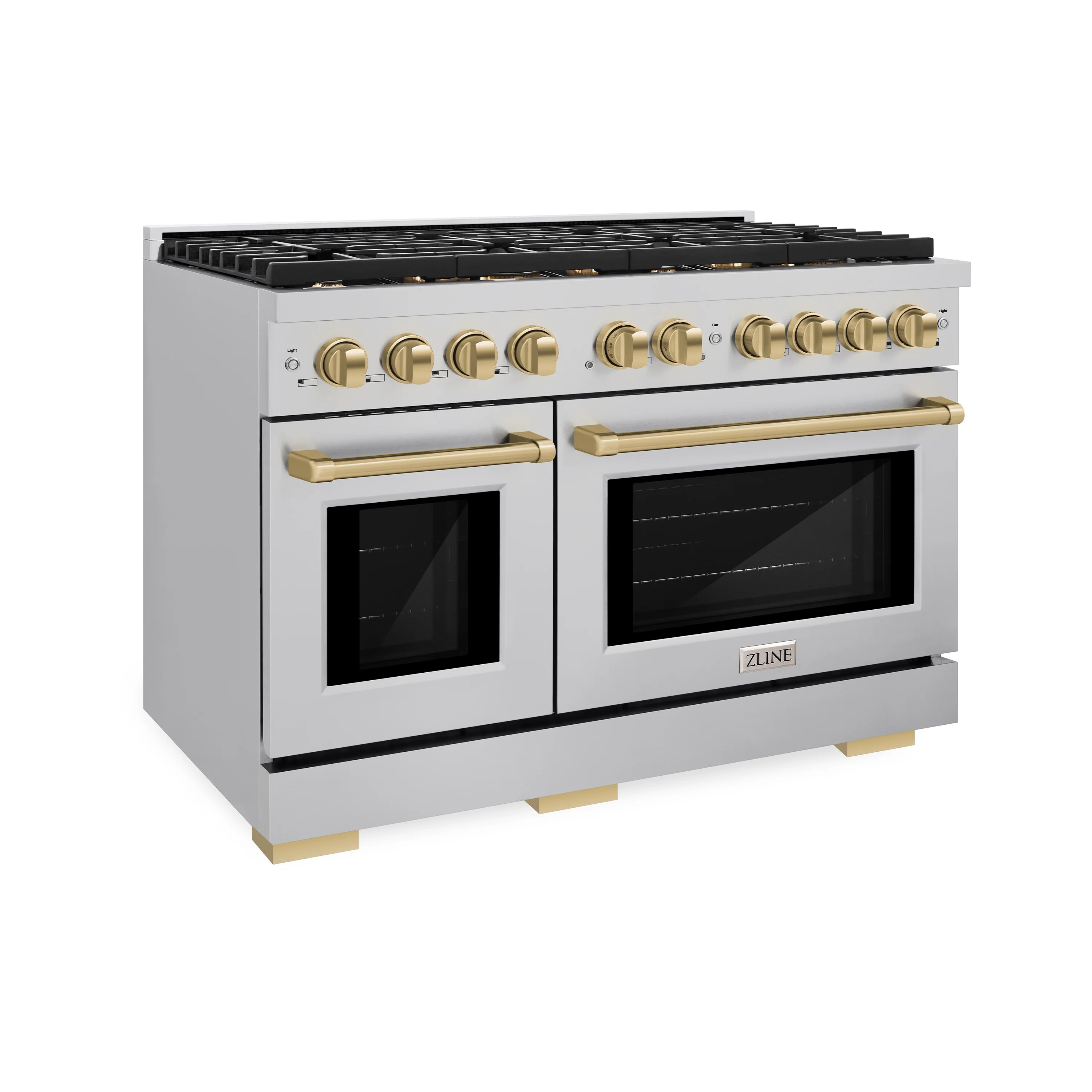

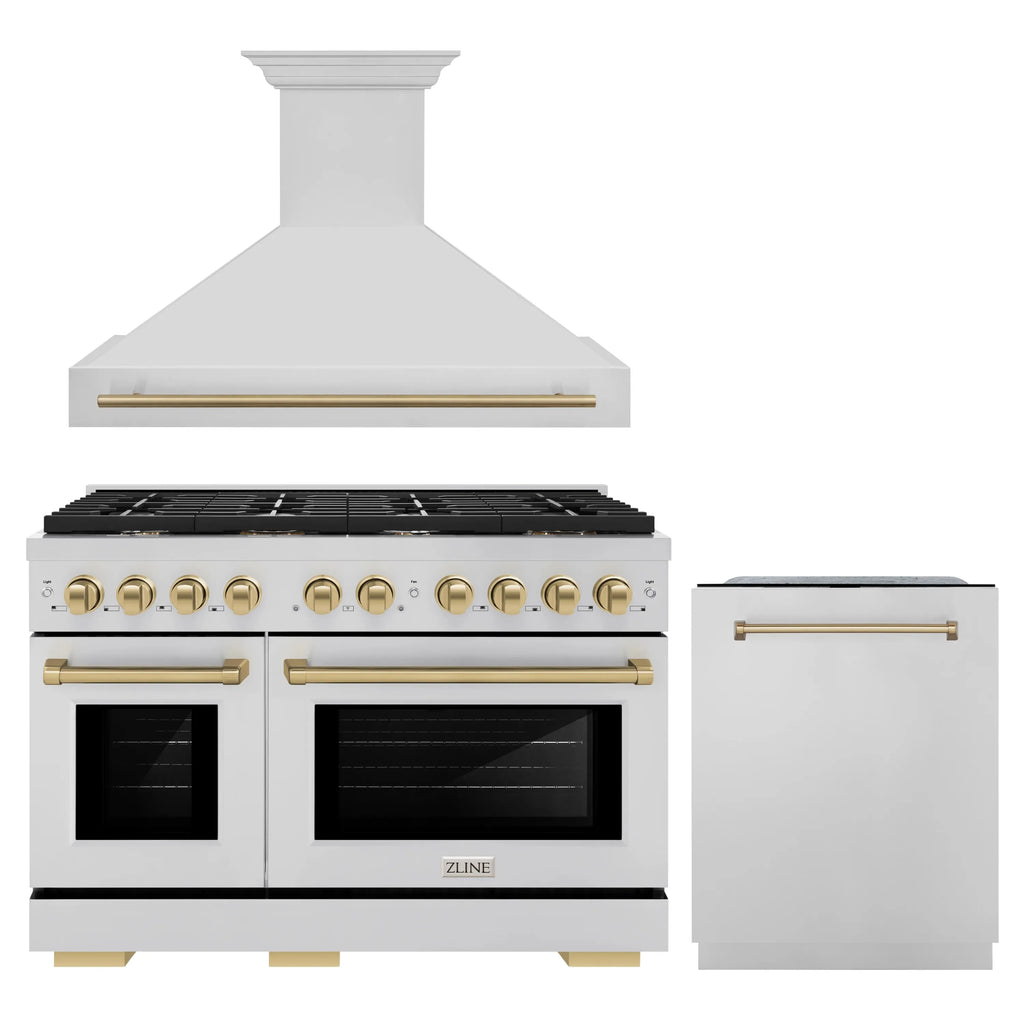

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 48 in. 6.7 cu. ft. 8 Burner Double Oven Gas Range in Stainless Steel and Champagne Bronze Accents (SGRZ-48-CB) features a versatile gas cooktop with 8 Italian-made burners, a large high-performing gas convection oven, and a small baking oven with elegant champagne bronze knobs and handles allowing you to master every meal. With a modern, timeless style and refined functionality, ZLINE Professional Gas Ranges are masterfully crafted to deliver an elevated culinary experience.
| Specs & Dimensions | |
|---|---|

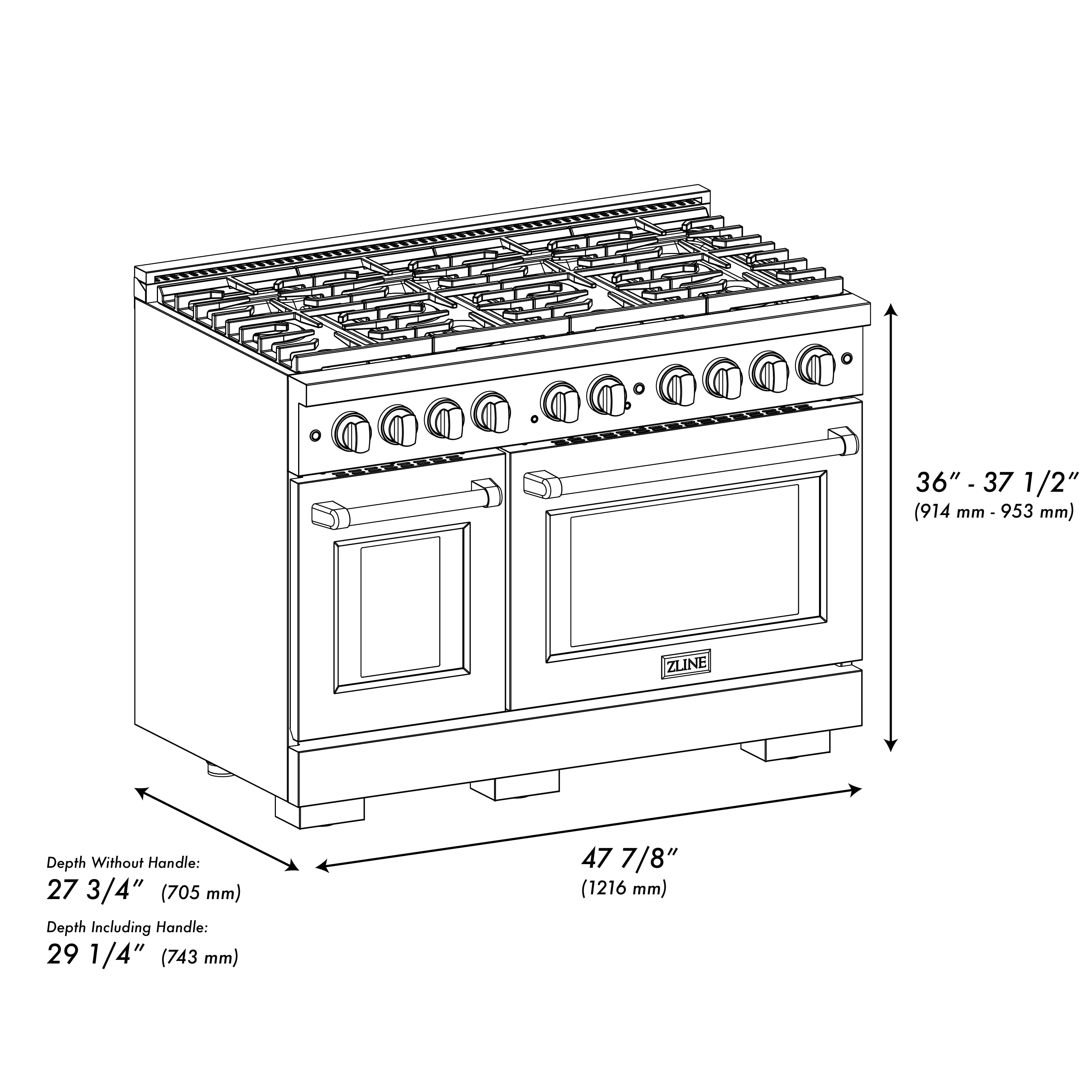

| Product Dimensions | 47.88 in. W x 27.75 in. D (29.25 with handle) x 36 in. H |
| Cut-Out Dimensions | 48.13 in. W x 24.75 in. D x 36 in. H |
| Adjustable Height | 36 in. - 37.5 in. H |
| Product Depth with Handle | 29.25 in. D |
| Open Door Depth | 45.1 in. D |
| Burner Fuel | Natural Gas and Liquid Propane Convertible |
| Oven Fuel | Natural Gas and Liquid Propane Convertible |
| Electrical Requirements | 120V/60 Hz/15A Dedicated Circuit |
| Oven Capacity (cu.ft) | 6.7 cu. ft. (4.2 cu. ft. + 2.5 cu. ft) |
| Number of Burners | 8 |

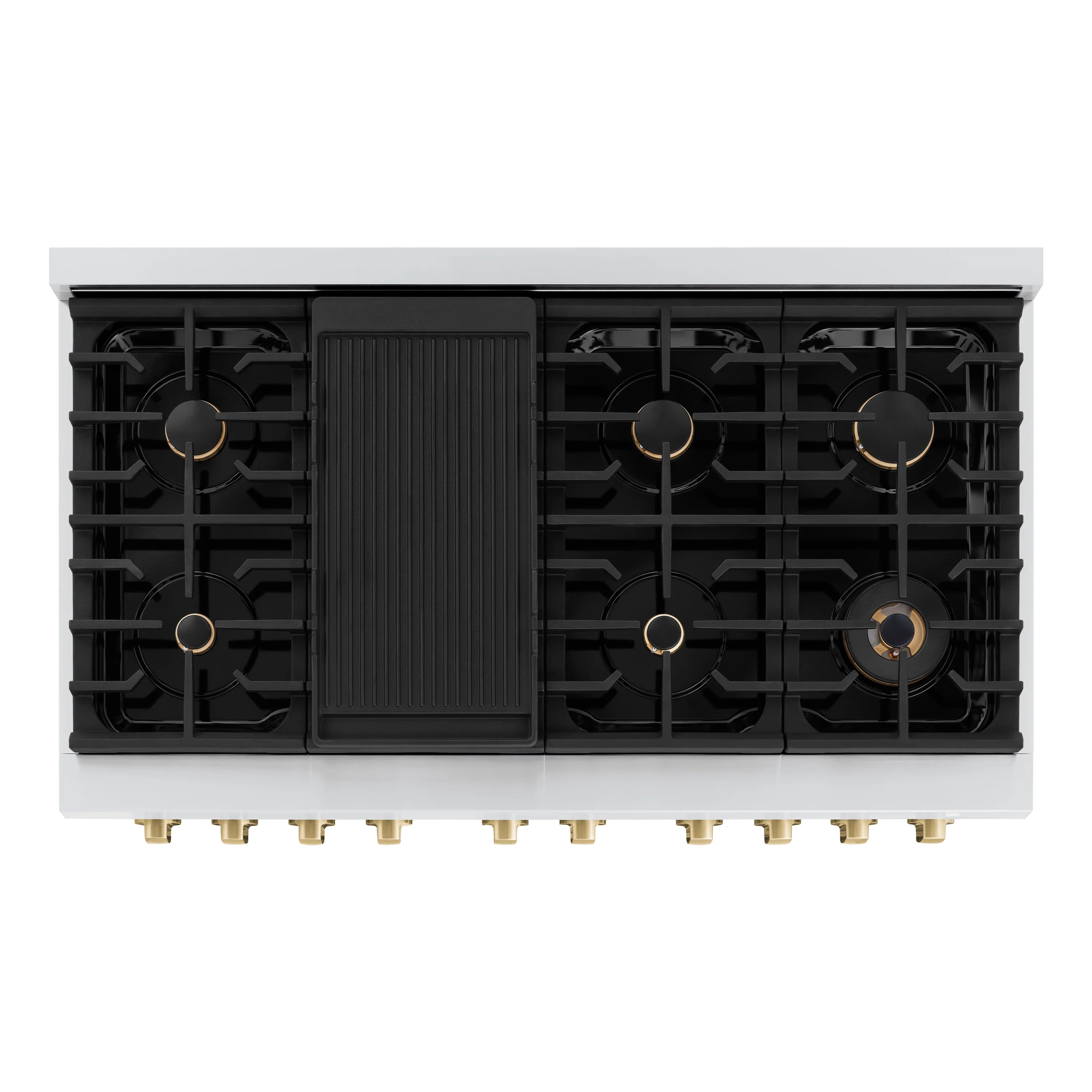

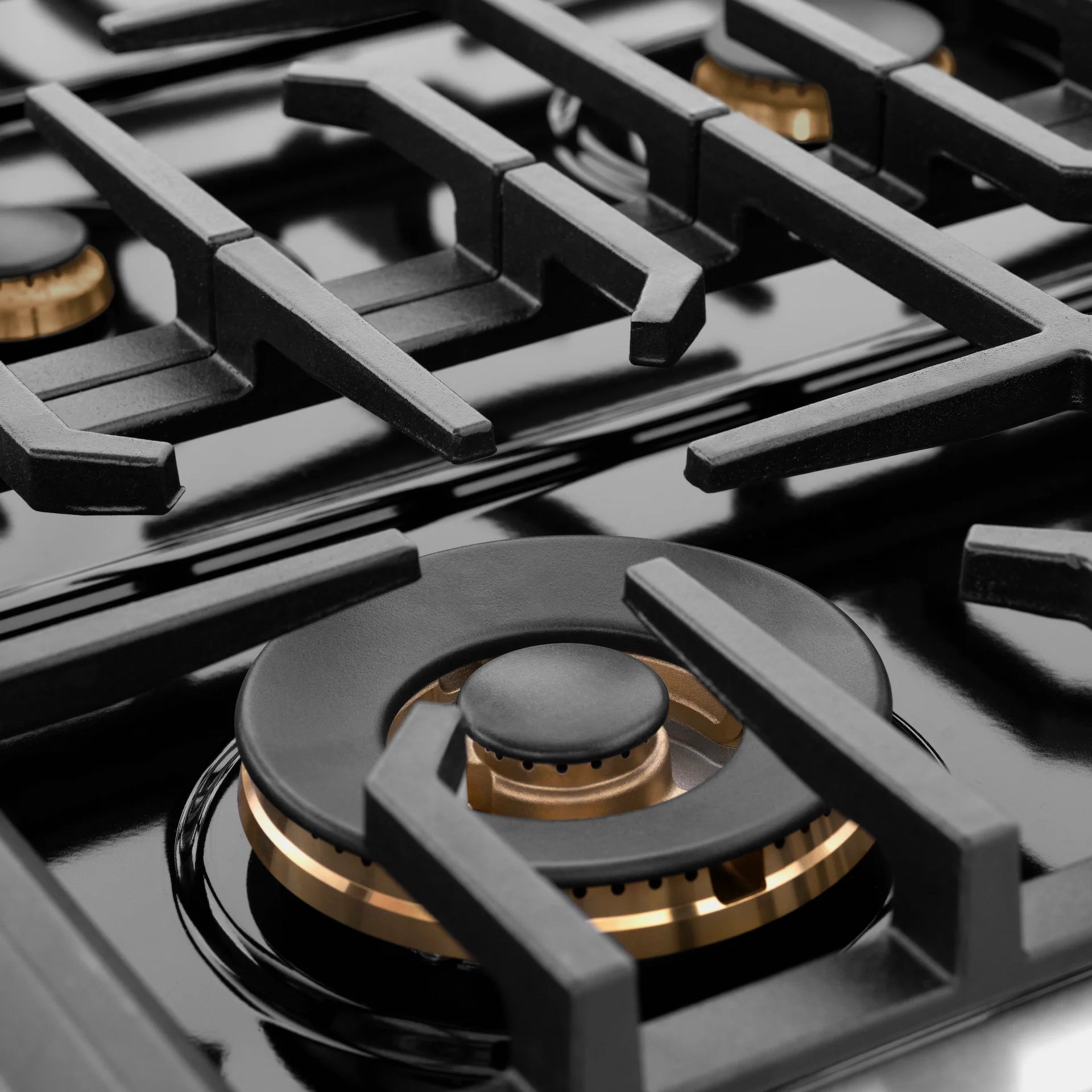

| Cooktop BTUs | Electronic Ignition and Auto-Reignition Back Left: Semi-Rapid 9,000 BTU Front Left: Auxiliary 6,000 BTU Back Right: Rapid 12,000 BTU Front Right: Dual 20,000 BTU Back Left Middle: Rapid 12,000 BTU Front Left Middle: Dual 20,000 Back Right Middle: Semi-Rapid 9,000 BTU Front Right Middle: Auxiliary 6,000 BTU |
| Oven BTUs | Large Oven Broil BTU Output: 10,000 BTU Large Oven Bake BTU Output: 22,000 BTU Small Oven Bake BTU Output: 14,000 BTU |
| Oven Features | Bake, Broil, Convection Bake |
| Material | Stainless Steel |
| Accent Finish | Champagne Bronze |
| Control Type | Manual Front Control |

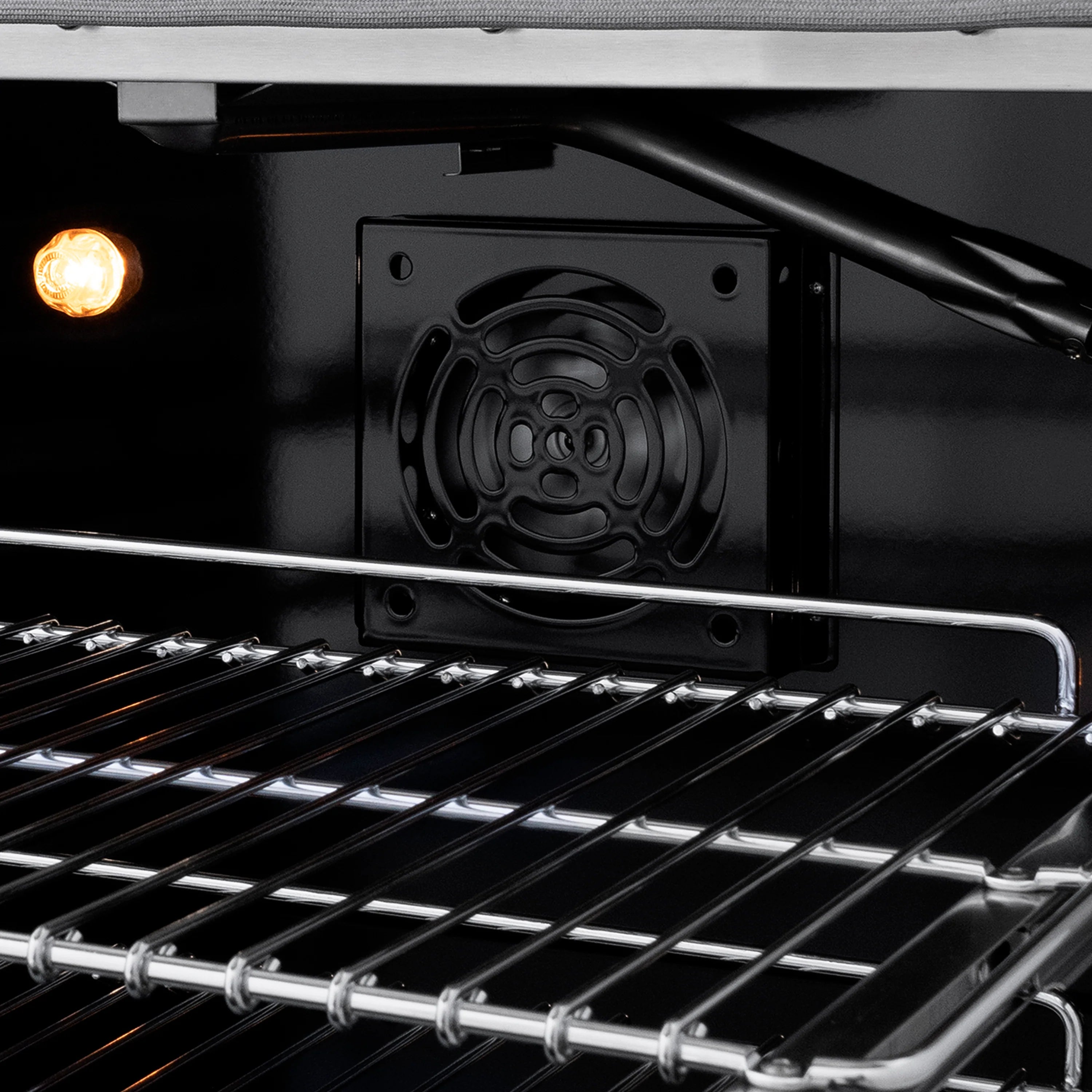

| Convection Fan | Yes |
| Certifications | ETL Listed |
| Self Clean (Y/N) | No |
| Timer (Y/N) | No |
| Lighting | 3 Halogen Lights |
| Number of Racks | 2 |

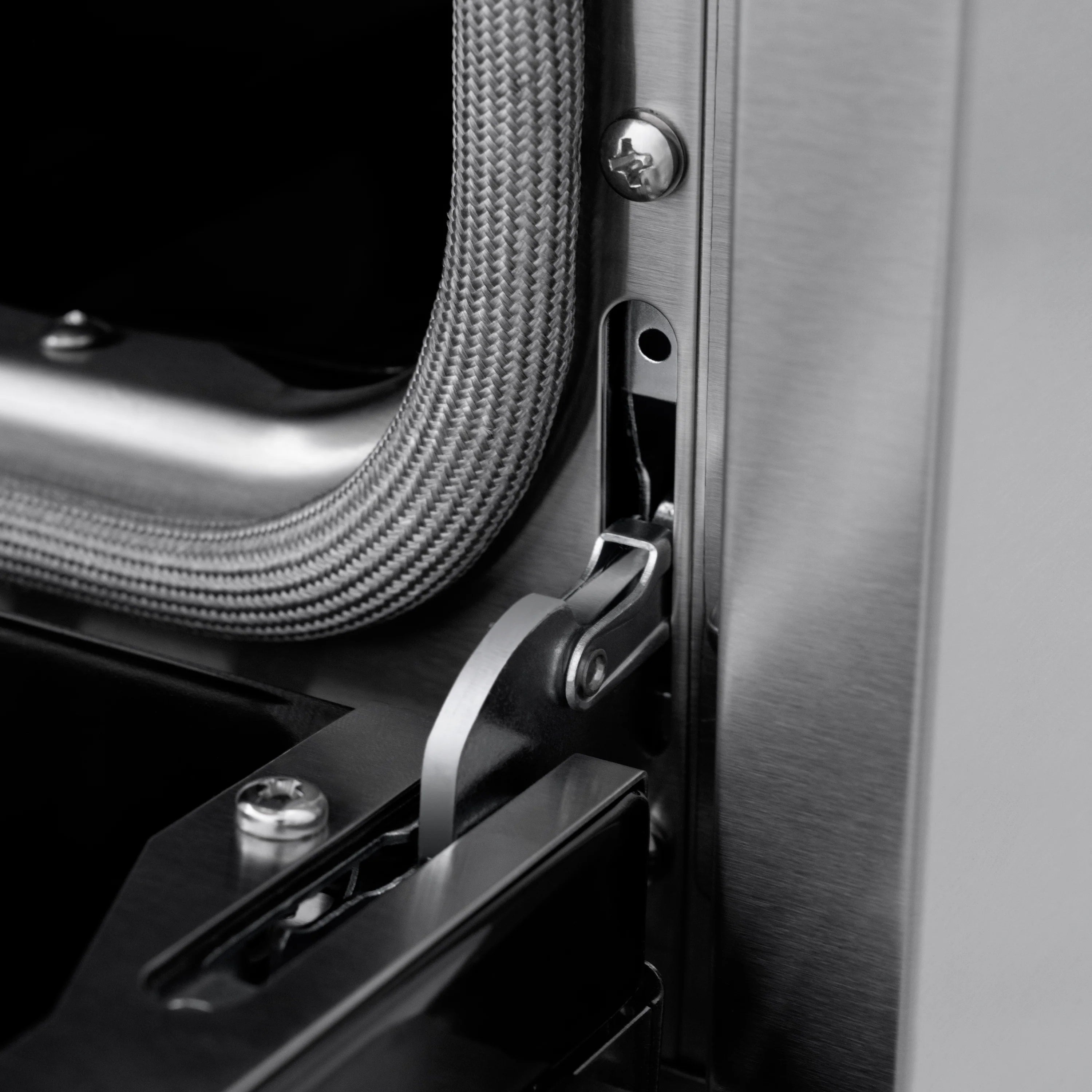

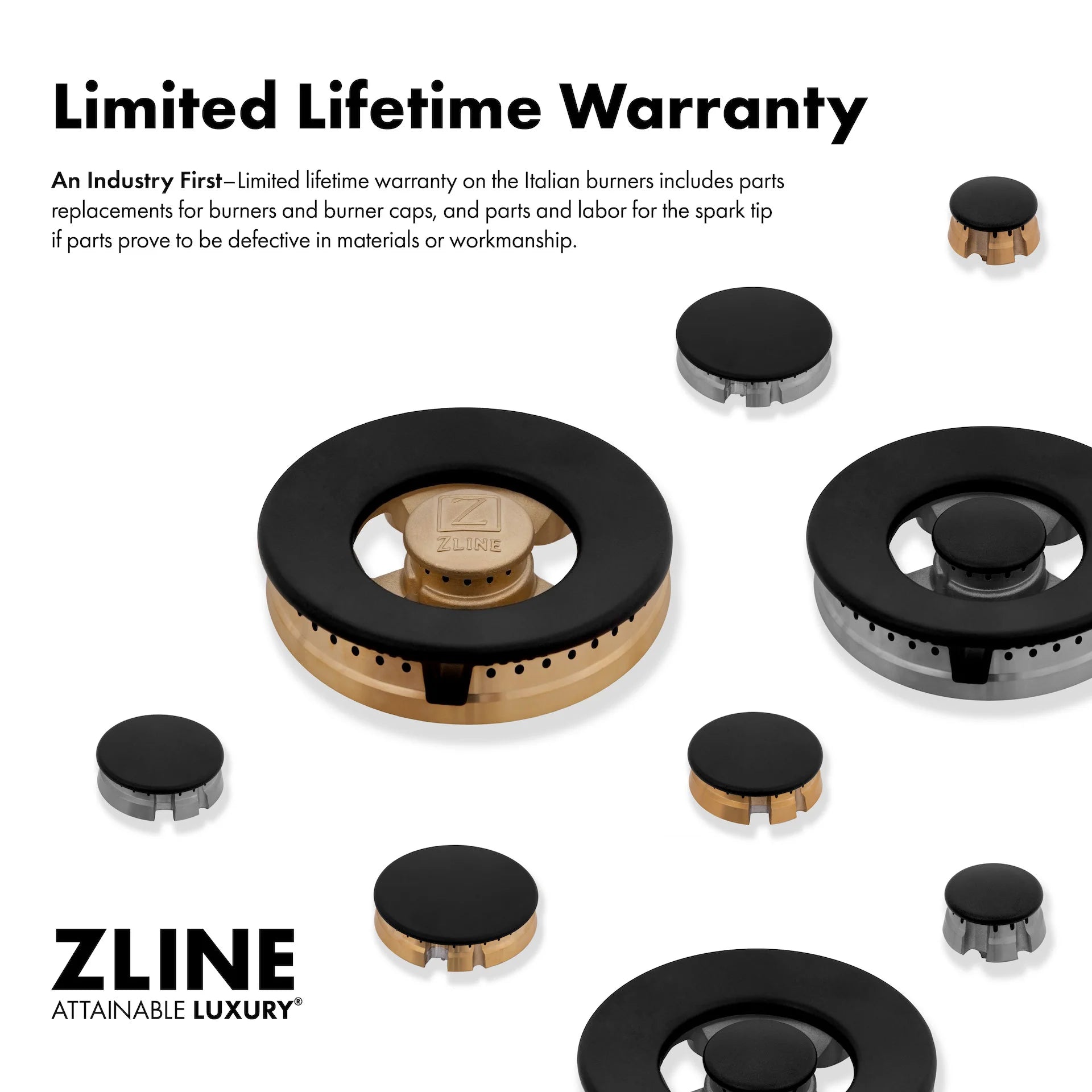

| Additional Features | Italian Burners: Lifetime Burner Warranty Electronic Ignition and Auto-Reignition Stay-Put Hinges Full Extension Telescoping Glide Racks LED Accent Lighting 3-Layered Glass on Oven Door |
| Warranty | 1-Year Parts and Service Lifetime Burner Warranty |
| Weight | 256 lbs |

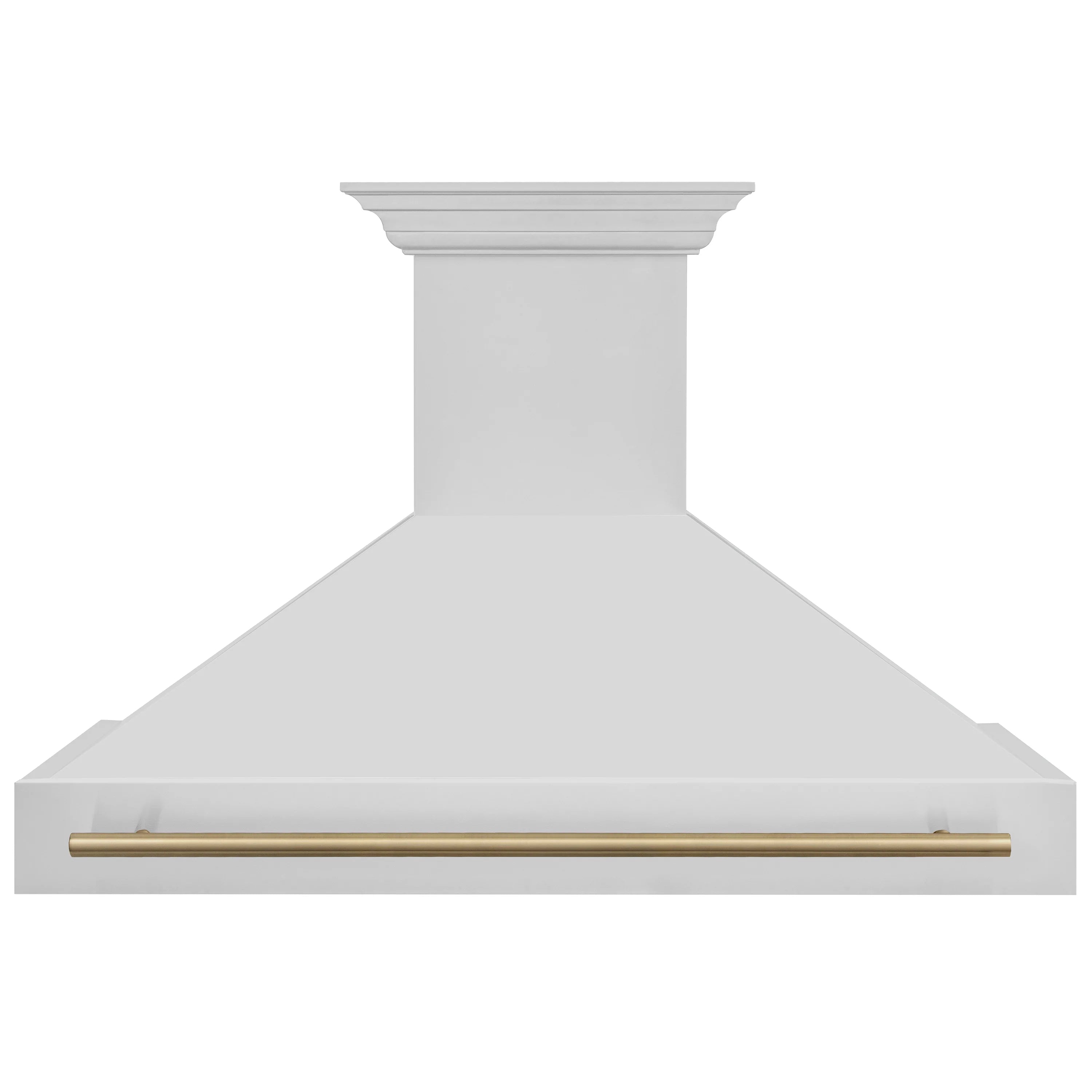

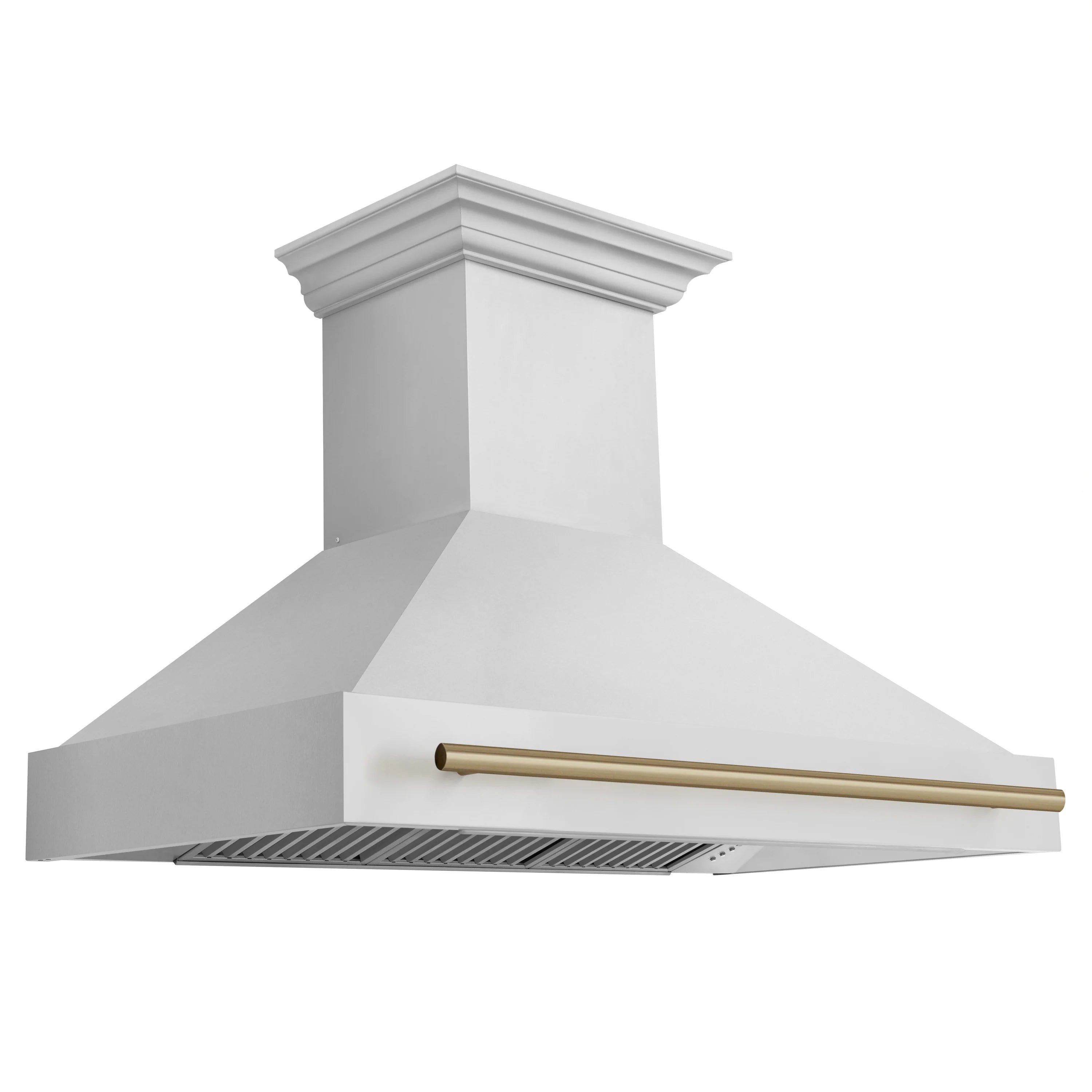

Experience Attainable Luxury with the ZLINE Autograph Edition Wall Mount Range Hood. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience. Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes. Combining the professional power and functionality of a ZLINE range hood with stunning accents, this sophisticated line of professional appliances brings a new meaning of elegance. Create an unforgettable kitchen unique to your style with an accent handle. Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze, Matte Black and Polished Gold. The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes. From our home to yours, enjoy a luxurious experience with every Autograph Edition Range Hood assembled to order in the US.
| Specs & Dimensions | |
|---|---|
| Dimensions | 48 in. W x 23.75 in. D x 16 in. H |
| Chimney | 13.25" W x 11.75" D x 35.5" H (cut to fit) |
| Airflow (Q/L/M/H) | 280/420/560/700 |
| Lighting | LED Lights |
| Voltage | 110V/60HZ |
| Motor | High Performance 4-Speed Motor |
| Mount Type | Wall Mount |
| Speeds | 4 Speeds |
| Filters | Stainless Steel Baffle Filters (Dishwasher Safe) |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Warranty | 3 Year Parts Warranty |
| Certifications | ETL Listed |

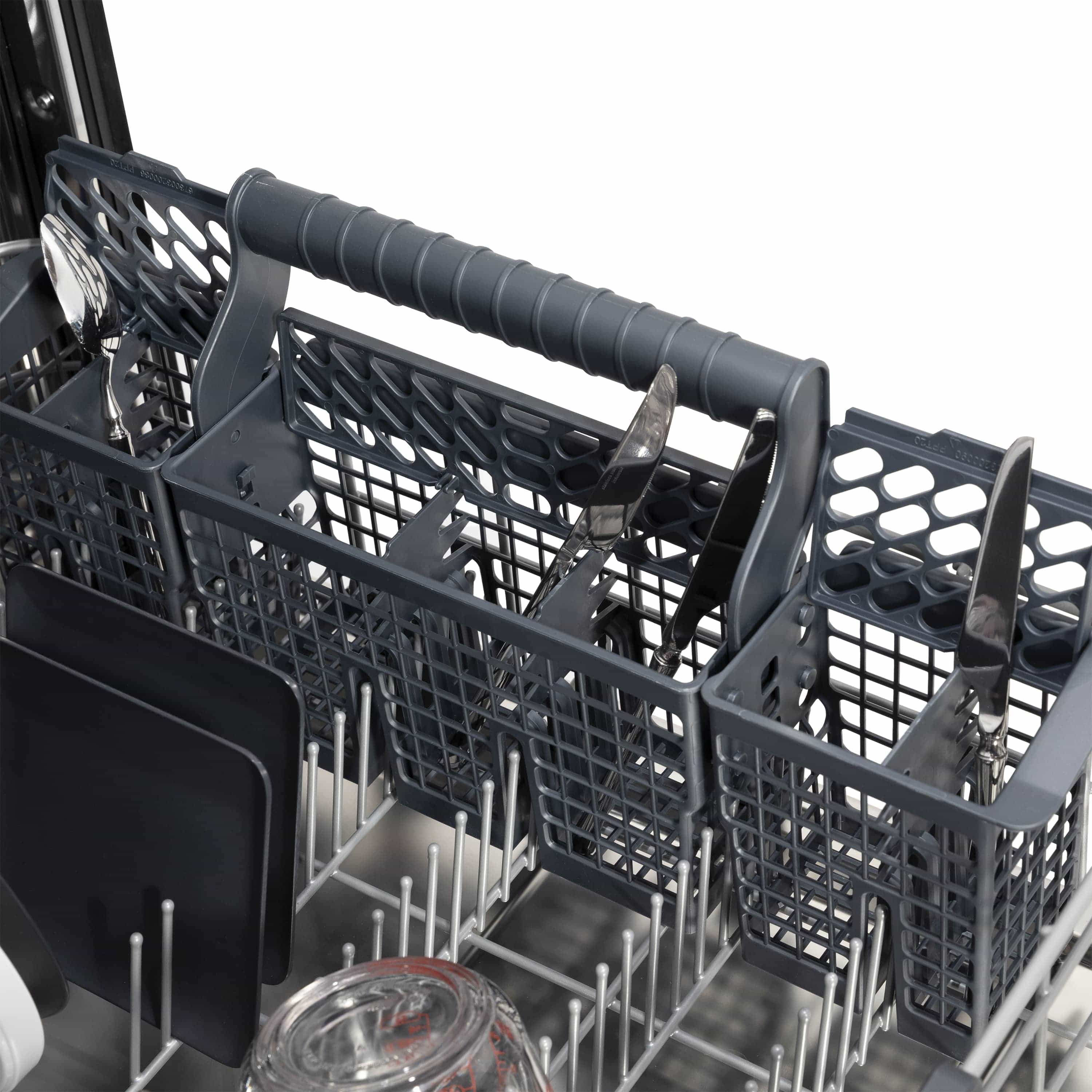

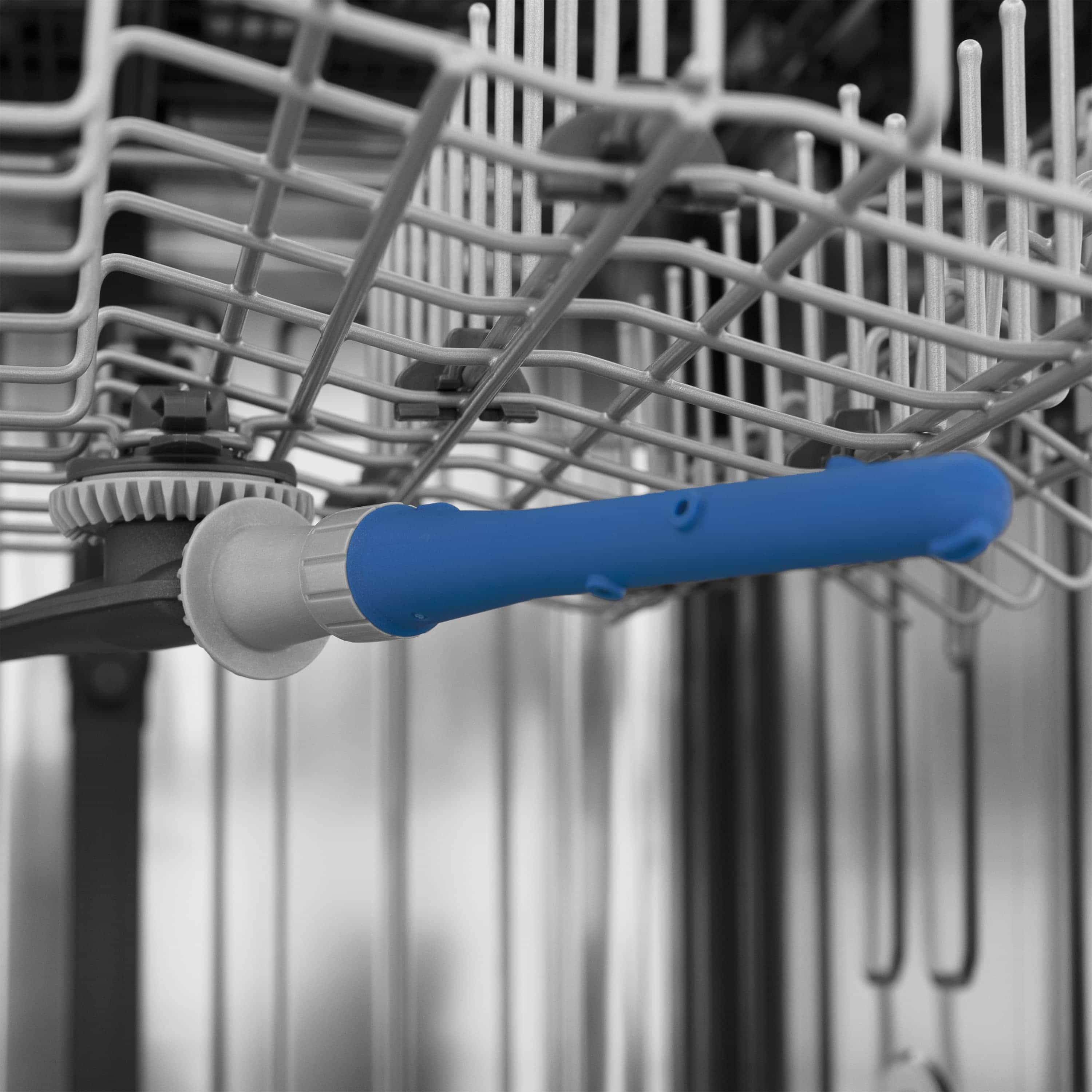

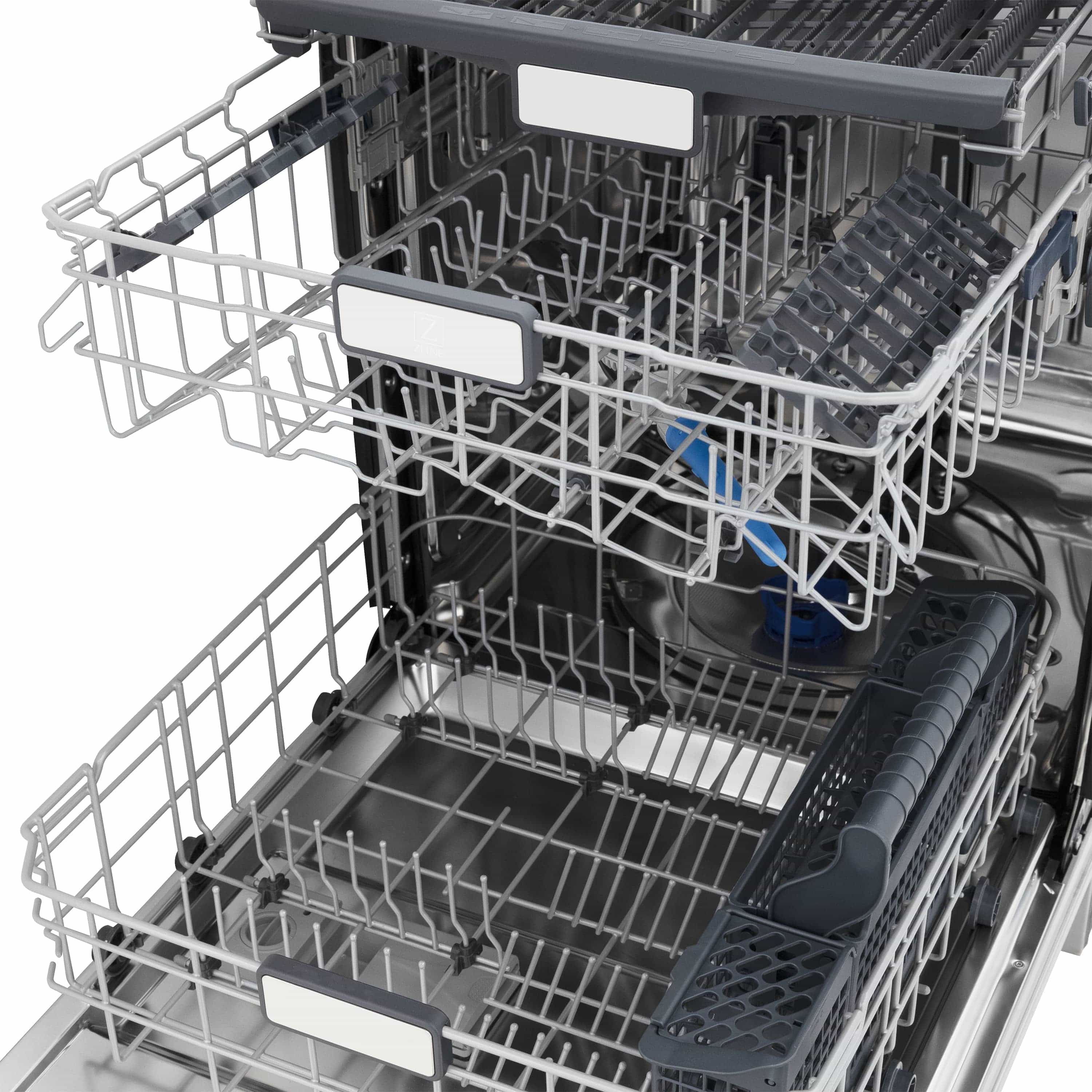

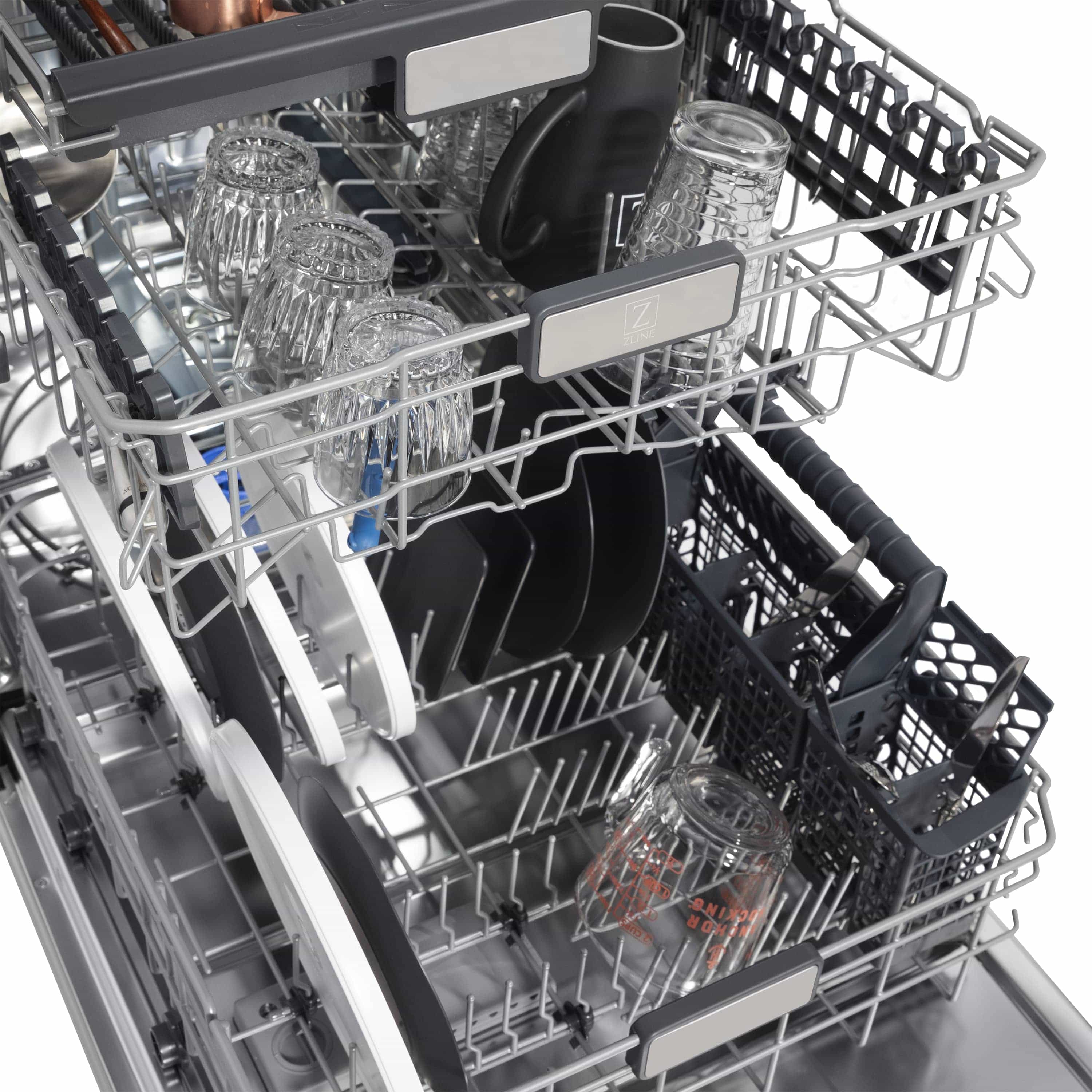

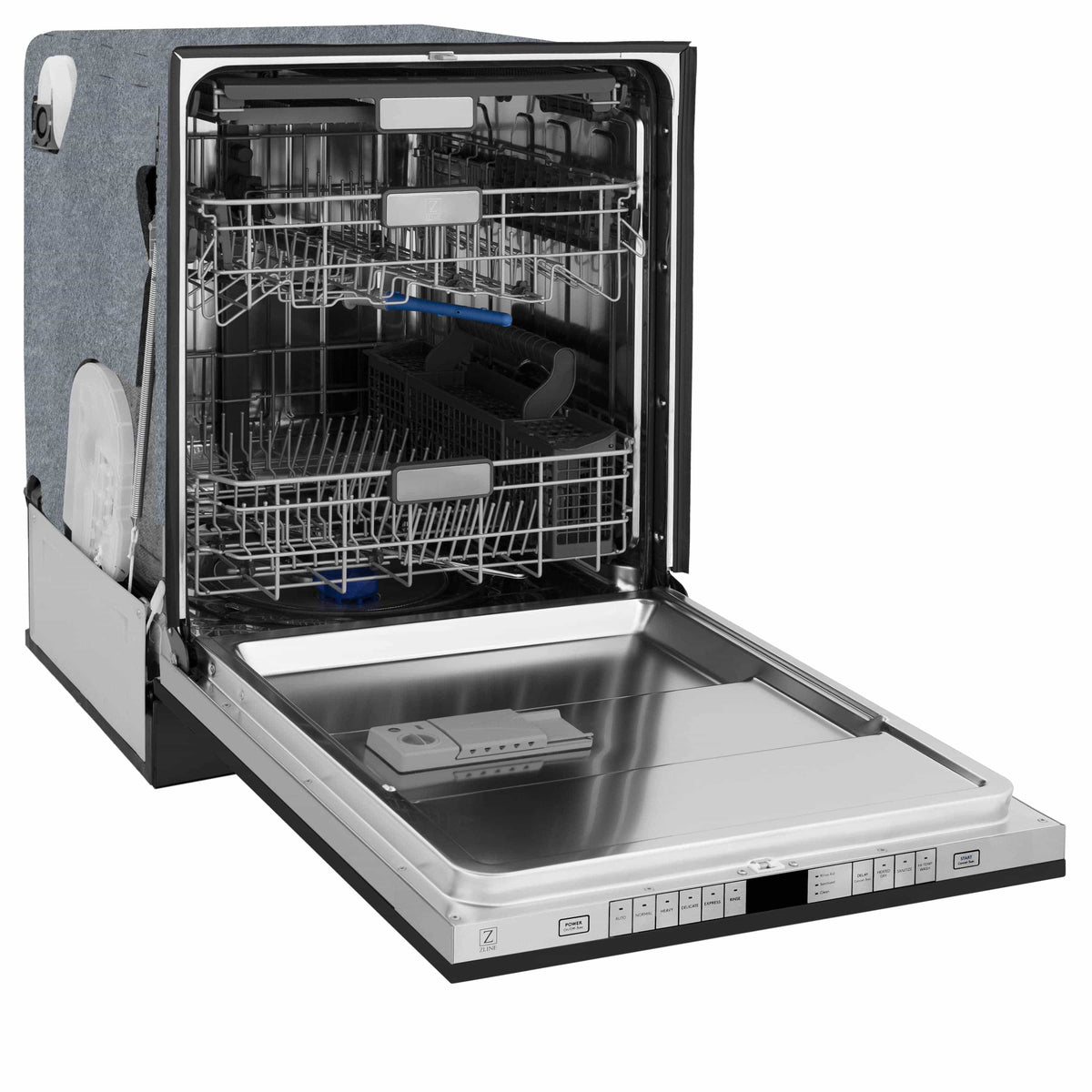

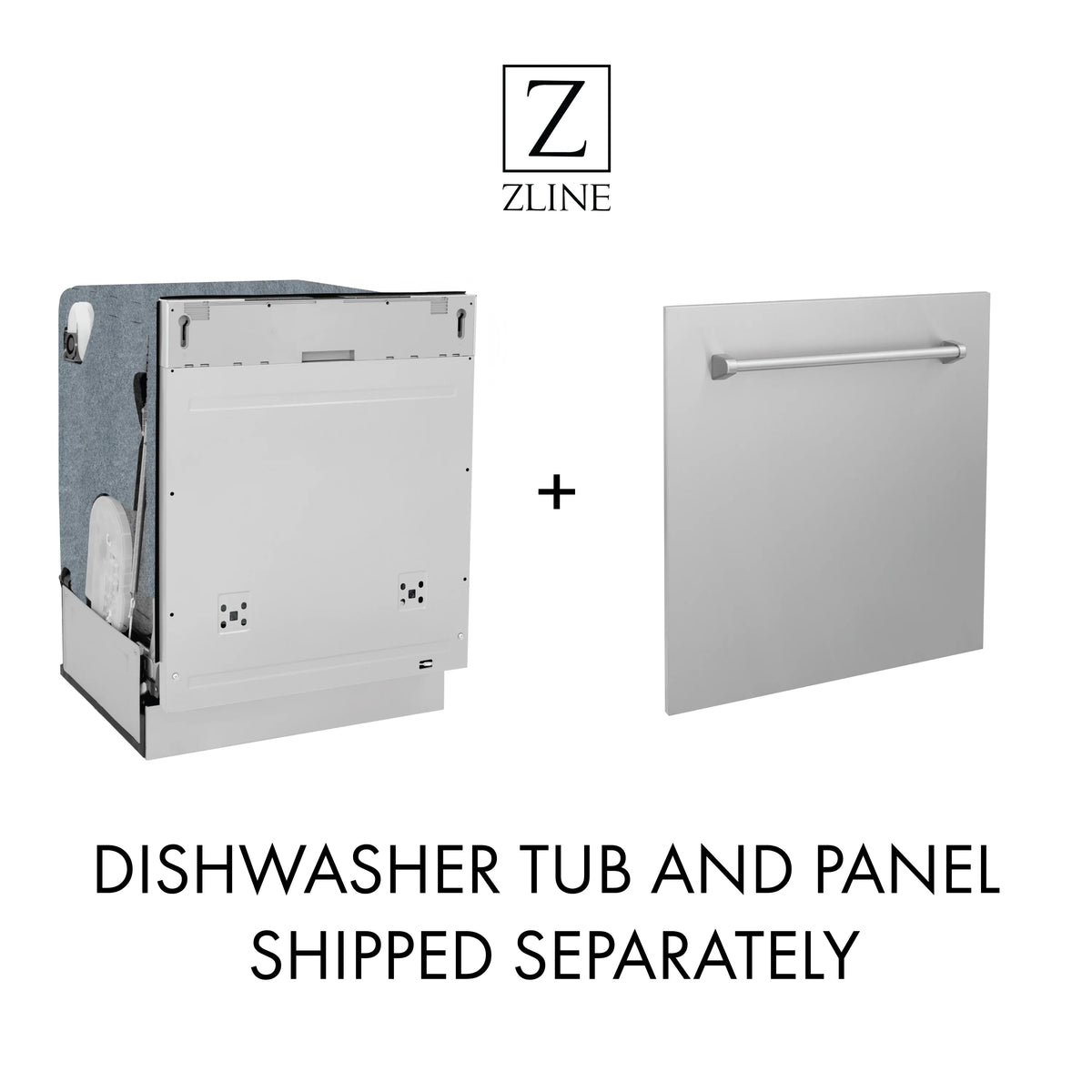

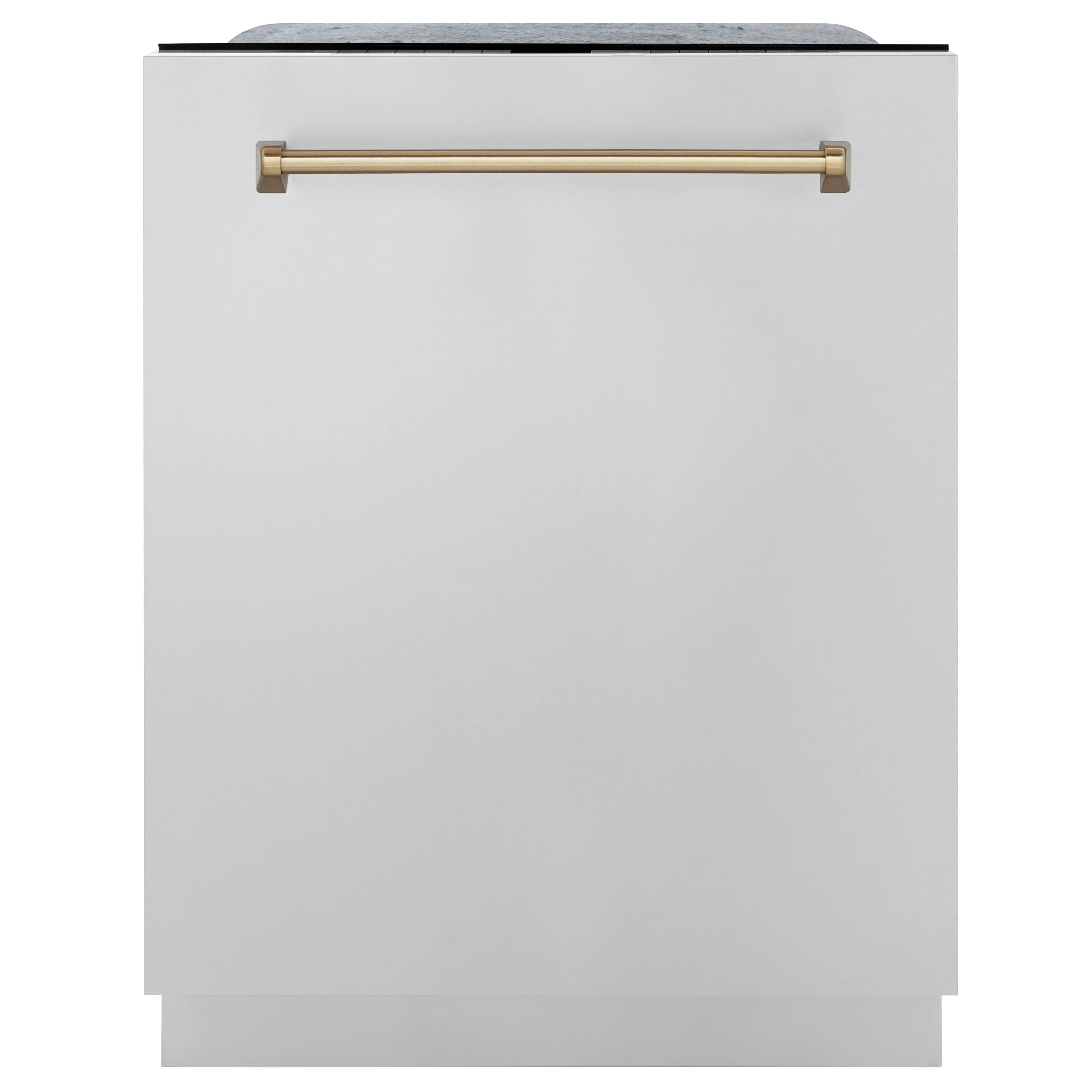

The ZLINE Autograph Edition 24 in. Monument Series 3rd Rack Dishwasher with Auto Door Open Drying, 44dBa, Stainless Steel Panel with Champagne Bronze Handle (DWMTZ-304-24-CB) pairs a powerful heated dry cycle with advanced Auto Door Open technology, ensuring efficient drying for plastics and complex dishware. Engineered to eliminate common kitchen frustrations through smarter performance, this next-generation model features specialized high-pressure bottle wash jets, a discreet floor timer display, and a sophisticated aesthetic purposefully designed to be the centerpiece of any custom luxury kitchen.
| Dimensions | |
|---|---|
| Overall Dimensions | 23.9" W x 24.07" D x 33.9" H |
| Width (in.) | 23.875 |
| Depth (in.) | 25.188 |
| Height (in.) | 34 |
| Weight (lbs) | 100 |
| Cut-Out Height (in.) | 34.13 |
| Cut-Out Width (in.) | 24 |
| Interior Dimensions | 21 5/8 in. W x 19 7/8 in. D x 26 7/16 in. H |
| Extended Hose Length (in.) | 56 |
| General Information | |
| Brand | ZLINE |
| Size | 24 in. |
| Electrical | |
| Voltage | 120vac |
| Frequency (Hz) | 60Hz |
| Performance | |
| Energy Consumption Per Year (kWh) | 240 |
| Water Consumption (Liters/Cycle) | 10.98 |
| Water Consumption (Gallons) | 3.2 |
| Noise Level (dBA) | 44 |
| Features | |
| Drying System | Heated Dry + Auto Open Dry |
| Control Location | Top Control |
| Control Type | Touch Control |
| Installation Type | Direct Wired |
| Steam Function | Without Steam |
| Certifications | |
| Certifications | Energy Star, CEC, UL, NSF Certified |
