What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

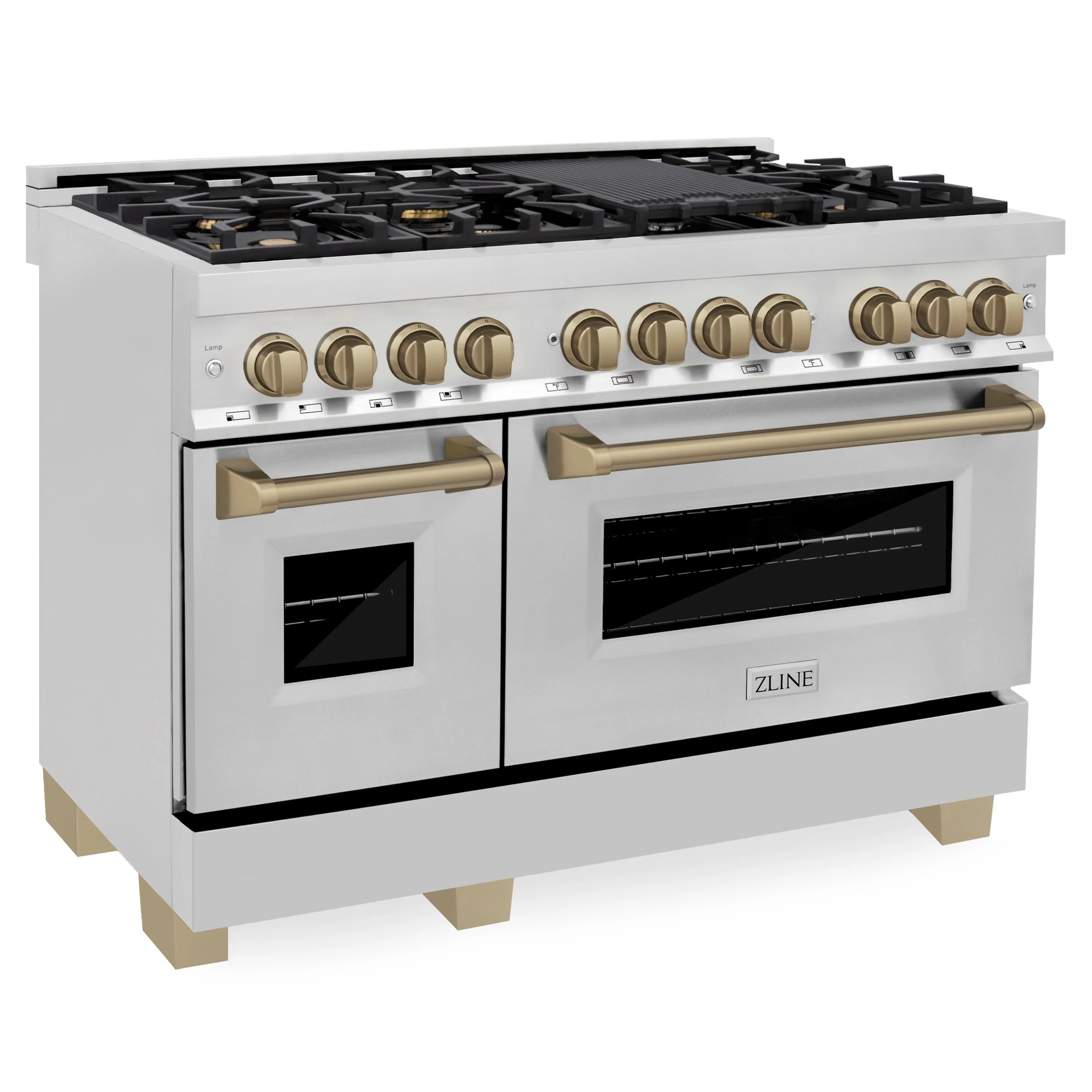

The ZLINE Autograph Edition 48 in. 6.0 cu. ft. Legacy Dual Fuel Range with 7 Burner Gas Cooktop and 2 Electric Ovens in Stainless Steel and Champagne Bronze Accents (RAZ-48-CB) pairs a powerful gas cooktop with 7 Italian-crafted burners, a large electric convection oven, a small bake and broil oven, Landscape oven door window designs, and elegant champagne bronze knobs and handles. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.
Features
- ZLINE Legacy Series - The Legacy Professional Range Series represents the foundation for ZLINE’s family-focused mission of attainable luxury

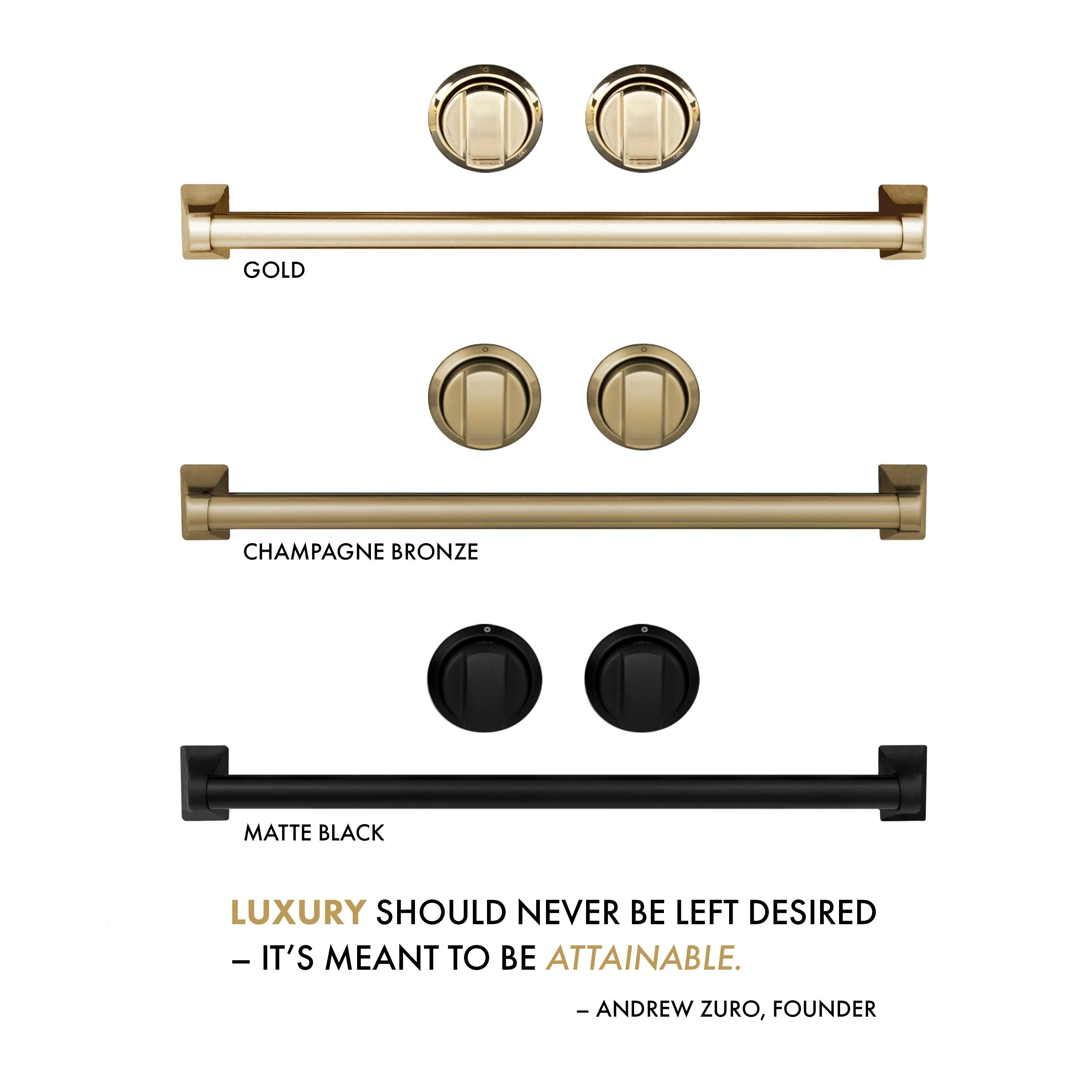

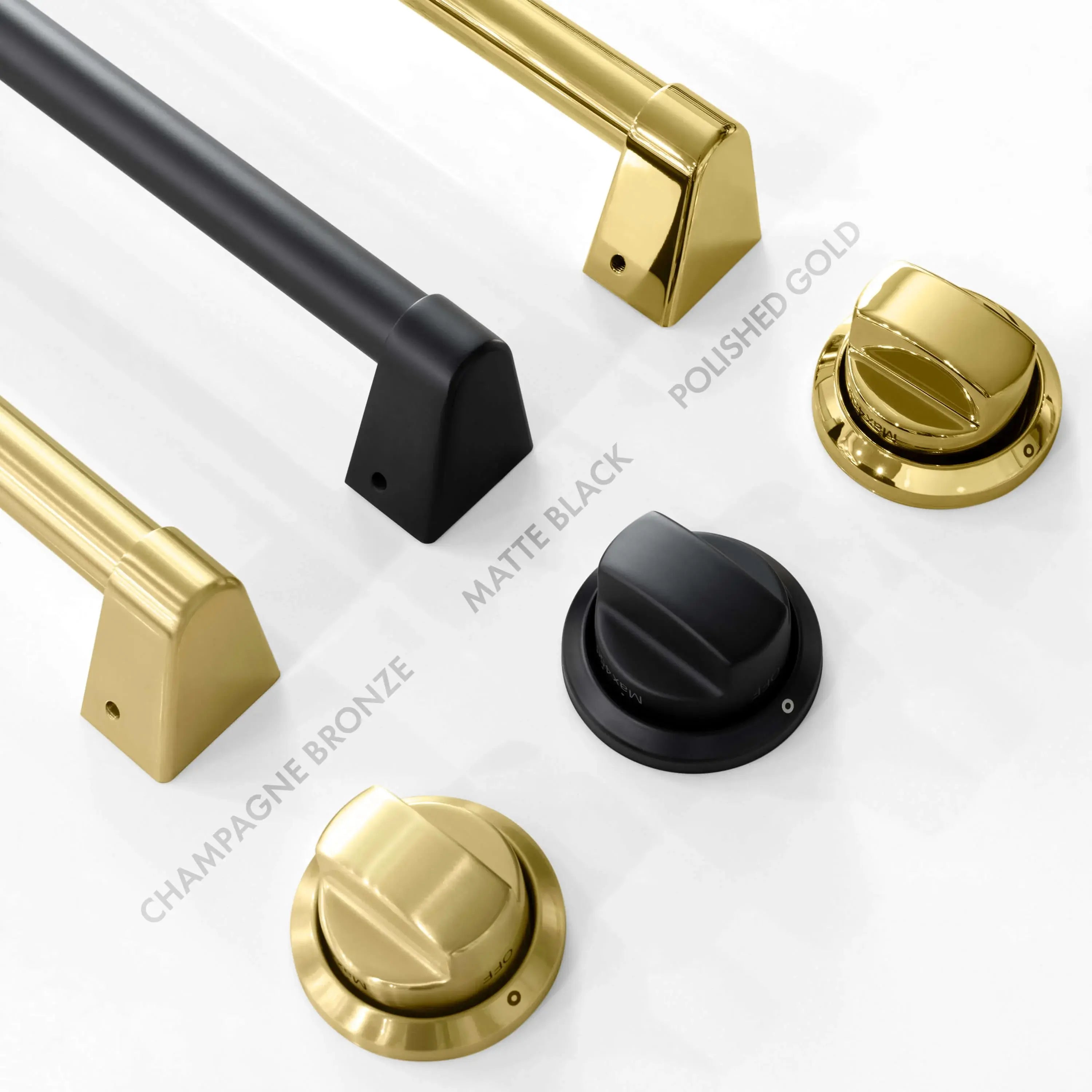

- Exclusive Knobs and Handle - Customize your ZLINE Autograph Edition Dual Fuel Range with elegant Champagne Bronze knob and handle accents
- Professional Dual Fuel Cooking - Optimize every meal with even heat distribution thanks to high-performance technology of a gas cooktop and a large electric convection oven

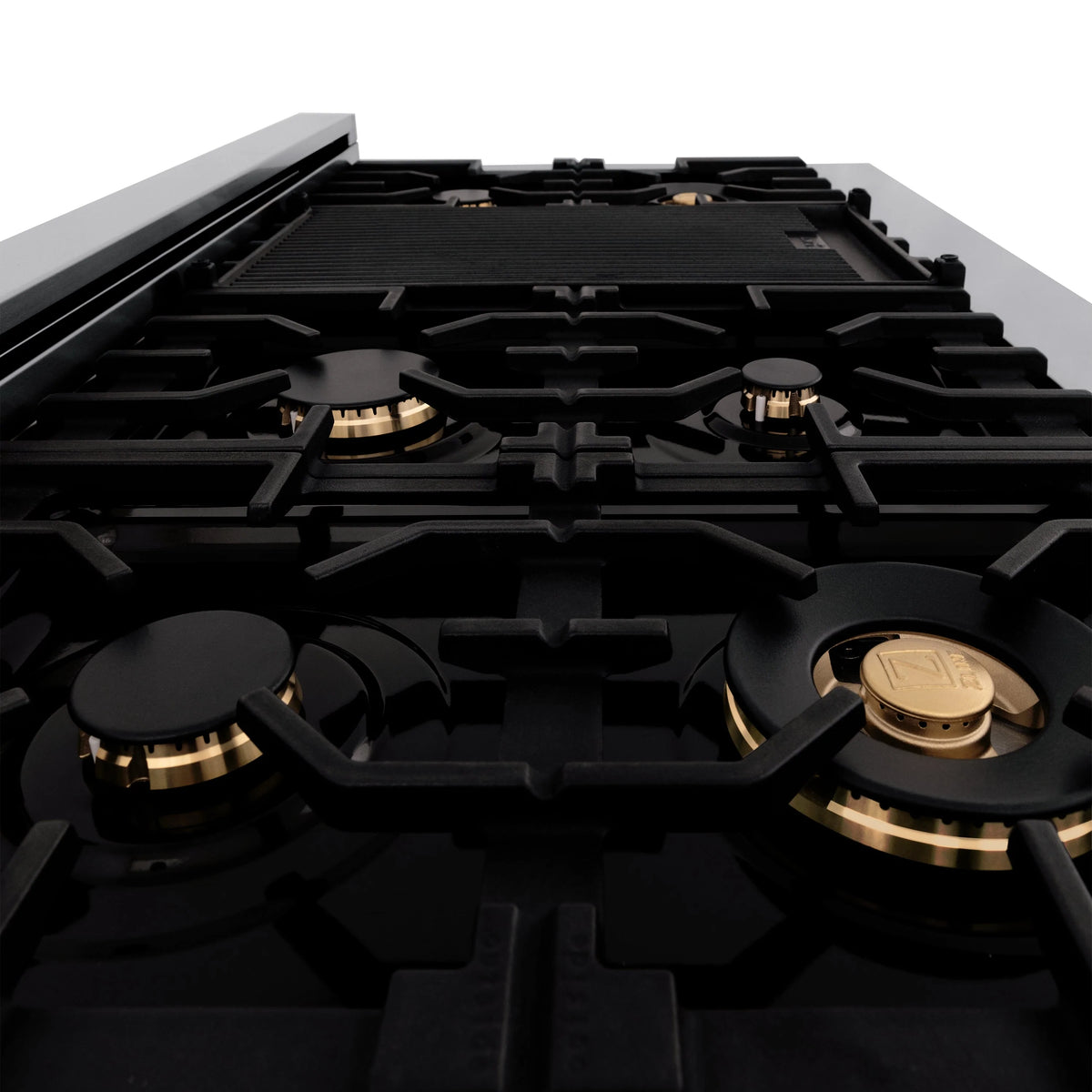

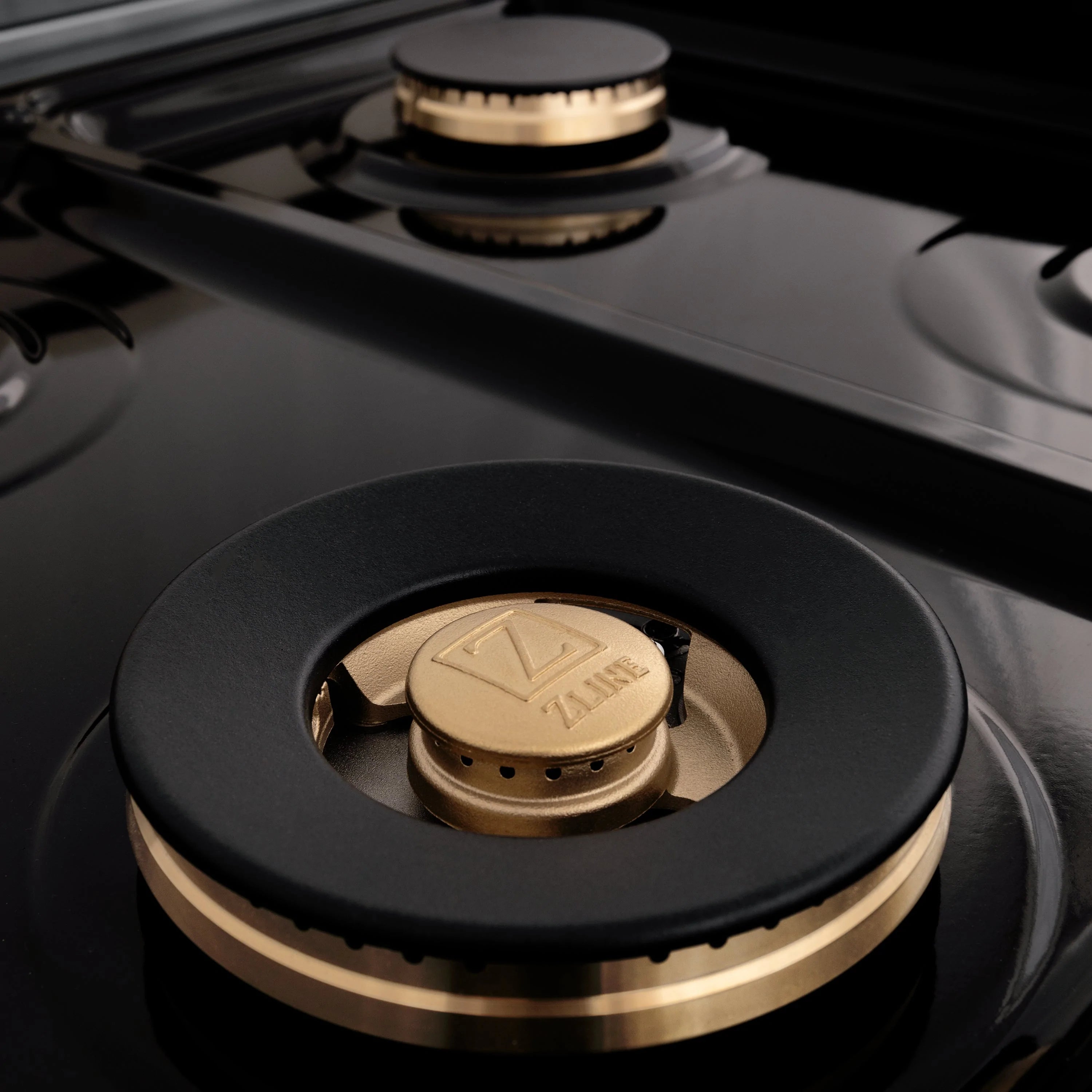

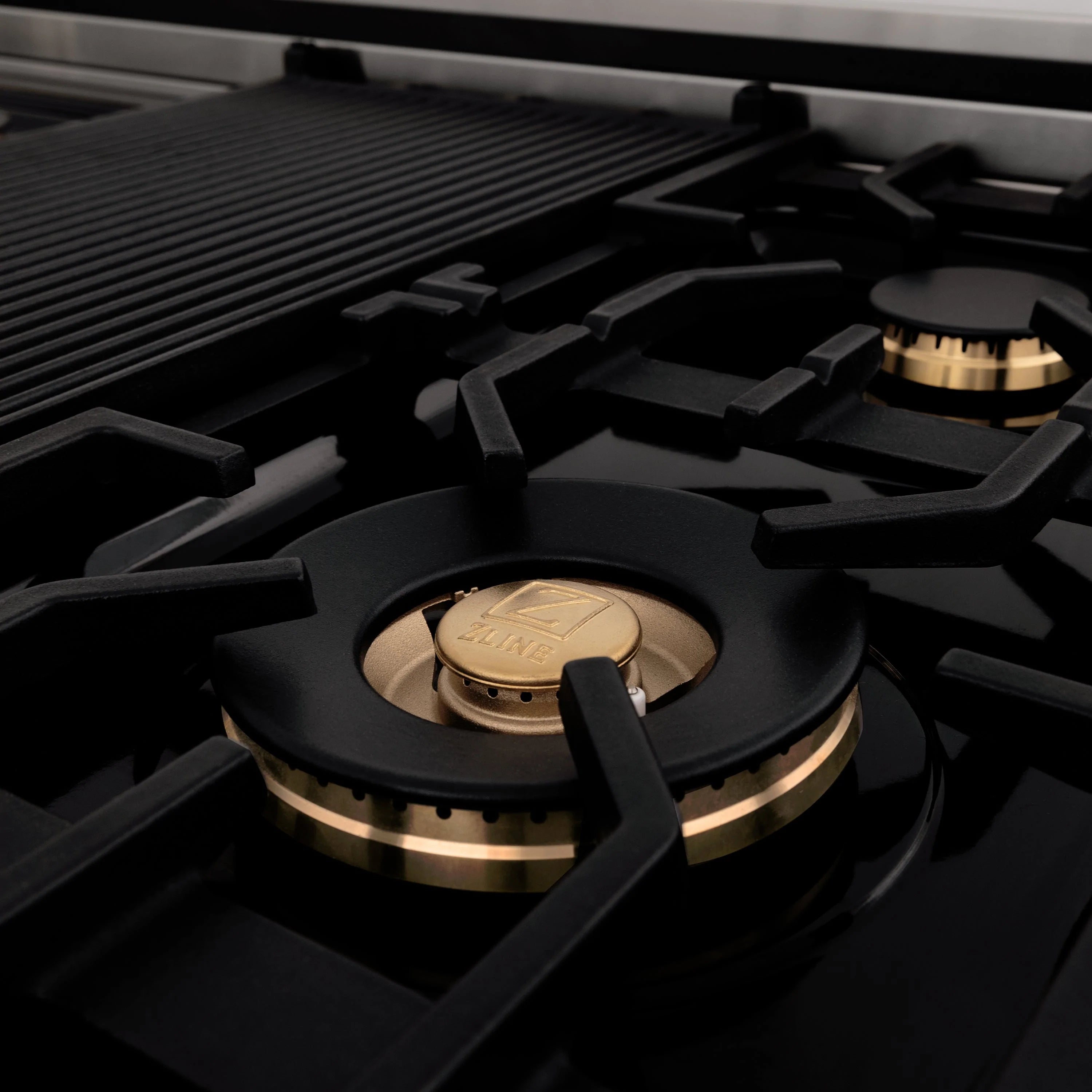

- Italian-Made Sealed Burners - Industry-leading gas cooktop includes 7 hand-cast burners, including an expansive fish burner, with 1,000 - 18,000 BTUs of cooking power
- Landscape Oven Window - ZLINE Legacy Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked
- Large Oven Capacity - A dual oven capacity of 6.0 cu. ft fits pans up to 23 in. or 9 in. wide for maximum space and convenience with everyday cooking
- Cast-Iron Griddle - Perfectly sear meats and veggies with a pre-seasoned cast iron griddle that features superior heat retention and even heat distribution
- Stunning Stainless Steel - Featuring high-grade 304 grade stainless steel with durable cast iron grates that exceed industry standards
- Premium Oven Insulation - Triple layered glass and an aluminum mesh seal on both doors offers superior heat retention and consistent temperatures
- Electrical Requirements - Requires a dedicated 240V, 60Hz, 30-amp circuit with a NEMA 14-50 4-wire plug system
- Adjustable Range Height - Easy adjustable legs let you modify the total range height anywhere from 36 inches to 38.5 inches
- StayPut Oven Door Hinges - Designed to support the full weight of both oven doors, offering additional convenience and safety

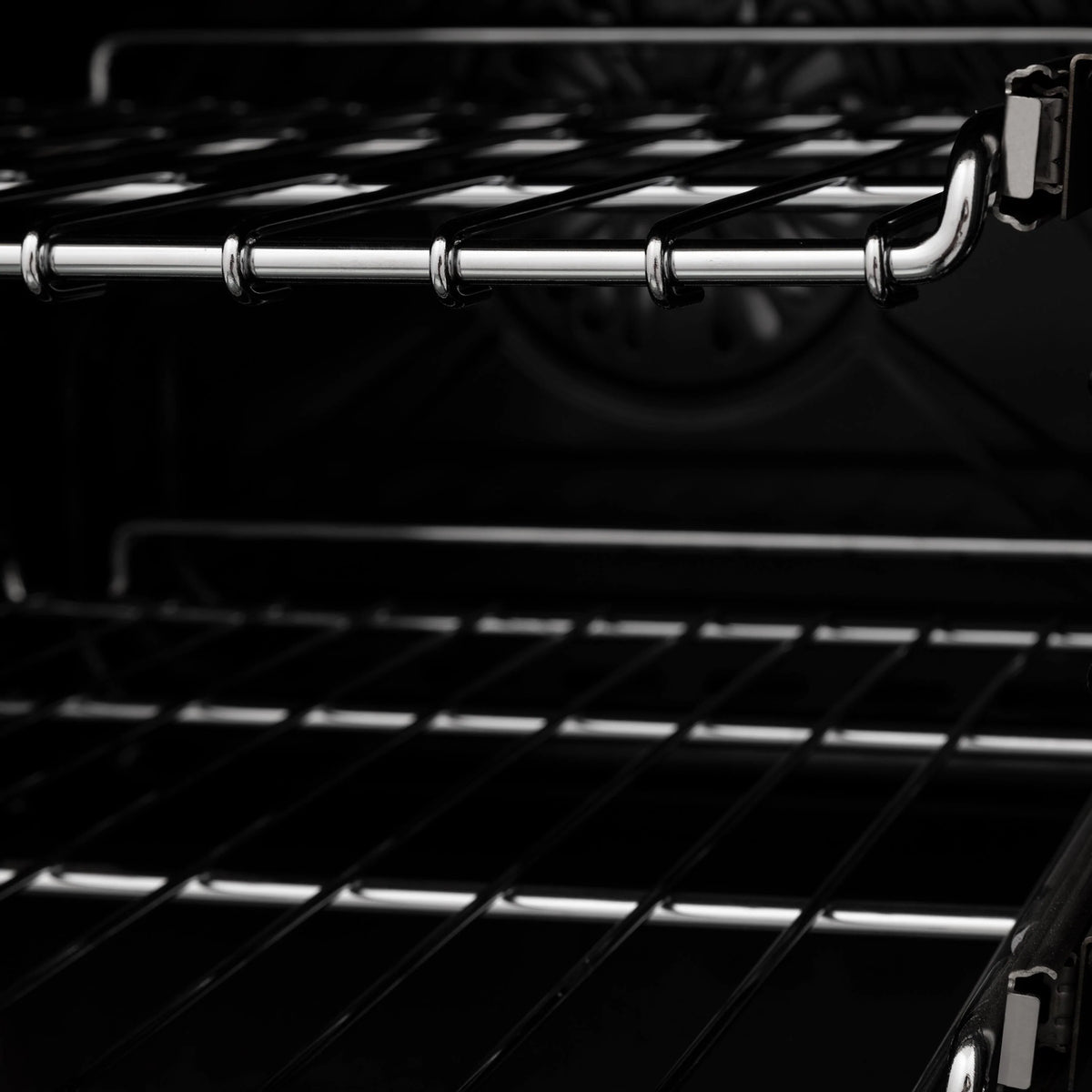

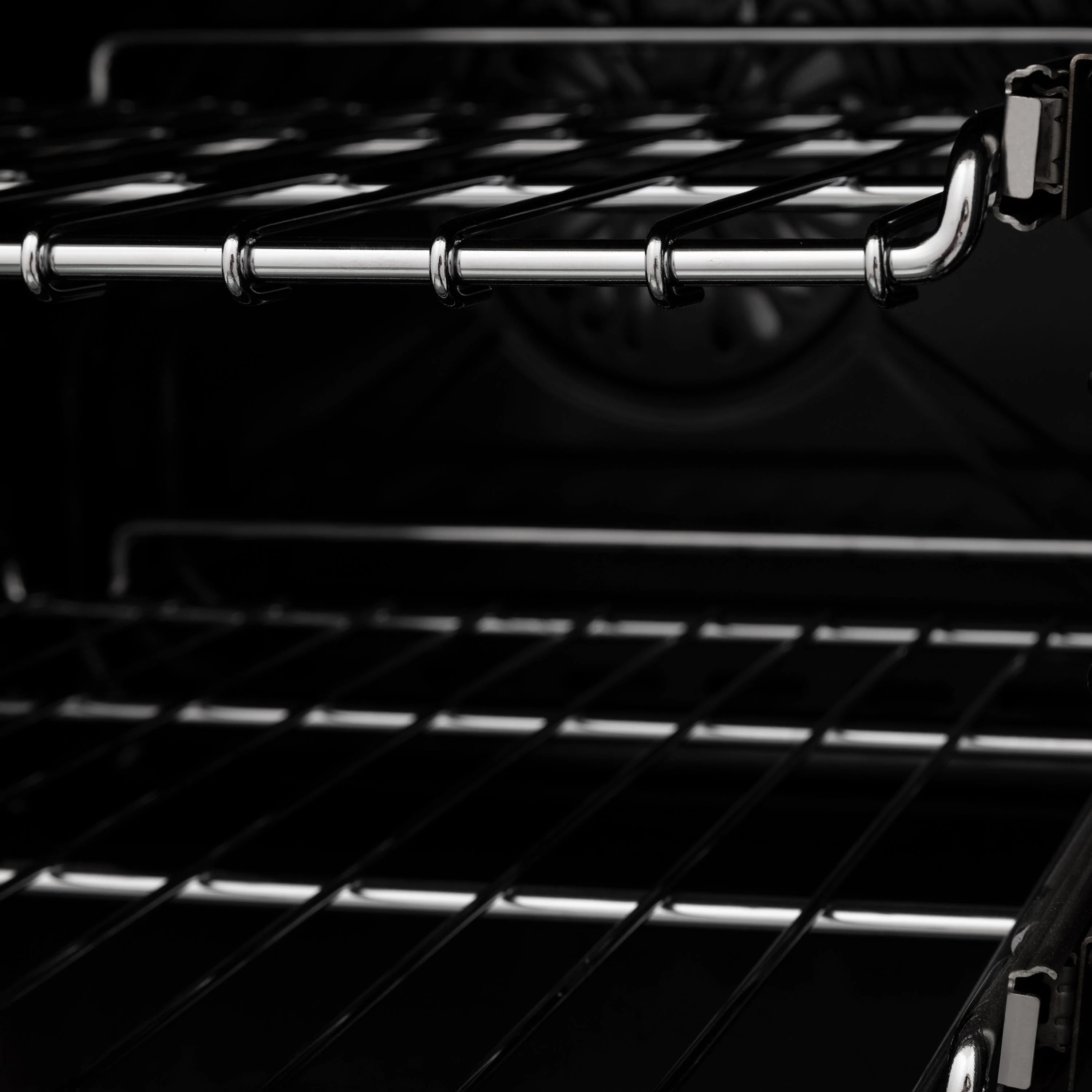

- Smooth Glide Ball-Bearing Oven Racks - 4 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
- Halogen Oven Lights - Illuminate both oven spaces with 3 halogen lights, controlled by a switch located on the front control panel
- Minimal Cleaning - Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
- LP Conversion Kit - Comes equipped with an LP conversion kit to convert the cooktop from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference
- Industry First Lifetime Burner Warranty - Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship
- Manufacturer Warranty - 1-year parts and service warranty
- Additional Assembly Required - This product ships in multiple boxes and will require minimal assembly upon arrival
- Dimensions
- 47.75 in. W x 27.50 in. D x 36.13 in. H
- Cut-Out Dimensions
- 48 in. W x 24 in. D x 36 in. H
- Adjustable Height
- 36.13 - 38.63 in. H
- Product Depth with Handle
- 29.63 in. D
- Open Door Depth
- 41.8 in. D
- Interior Oven Dimensions
- 24.88 in. W x 17.75 in. D x 16 in. H
- Weight
- 256 lbs
- Brand
- ZLINE Kitchen and Bath
- Number of Burners
- 7
- Number of Racks
- 4
- Material
- Stainless Steel
- Accent Finish
- Champagne Bronze
- Burner Material
- Brass Burners
- Lighting
- Halogen Lights
- Burner Fuel
- Natural Gas and Liquid Propane Convertible
- Oven Fuel
- Electric
- Electrical Requirements
- Dedicated 240V, 60Hz, 30-amp circuit with a NEMA 14-50 4-wire plug system
- Cooktop BTUs
- Back Left Burner: 10,000 BTU, Front Left Burner: 18,000 BTU, Back Right Burner: 10,000 BTU, Front Right Burner: 18,000 BTU, Back Middle Burner: 12,500 BTU, Front Middle Burner: 4,500 BTU, Griddle Burner: 12,500 BTU
- Oven BTUs
- Total BTUs: 85,500 BTU
- Oven Capacity (cu.ft)
- Larger Oven: 4 cu. ft., Smaller Oven: 2 cu. ft.
- Oven Features
- Bake, Broil, Convection Bake
- Convection Fan
- Yes
- Self Clean (Y/N)
- No
- Timer (Y/N)
- No
- Additional Features
- Italian Burners: Lifetime Burner Warranty, Stay-Put Hinges, Full Extension Telescoping Glide Racks, LED Accent Lighting, 3-Layered Glass on Oven Door
- Certifications
- CSA Listed
- Warranty
- 1-Year Parts and Service, Lifetime Burner Warranty

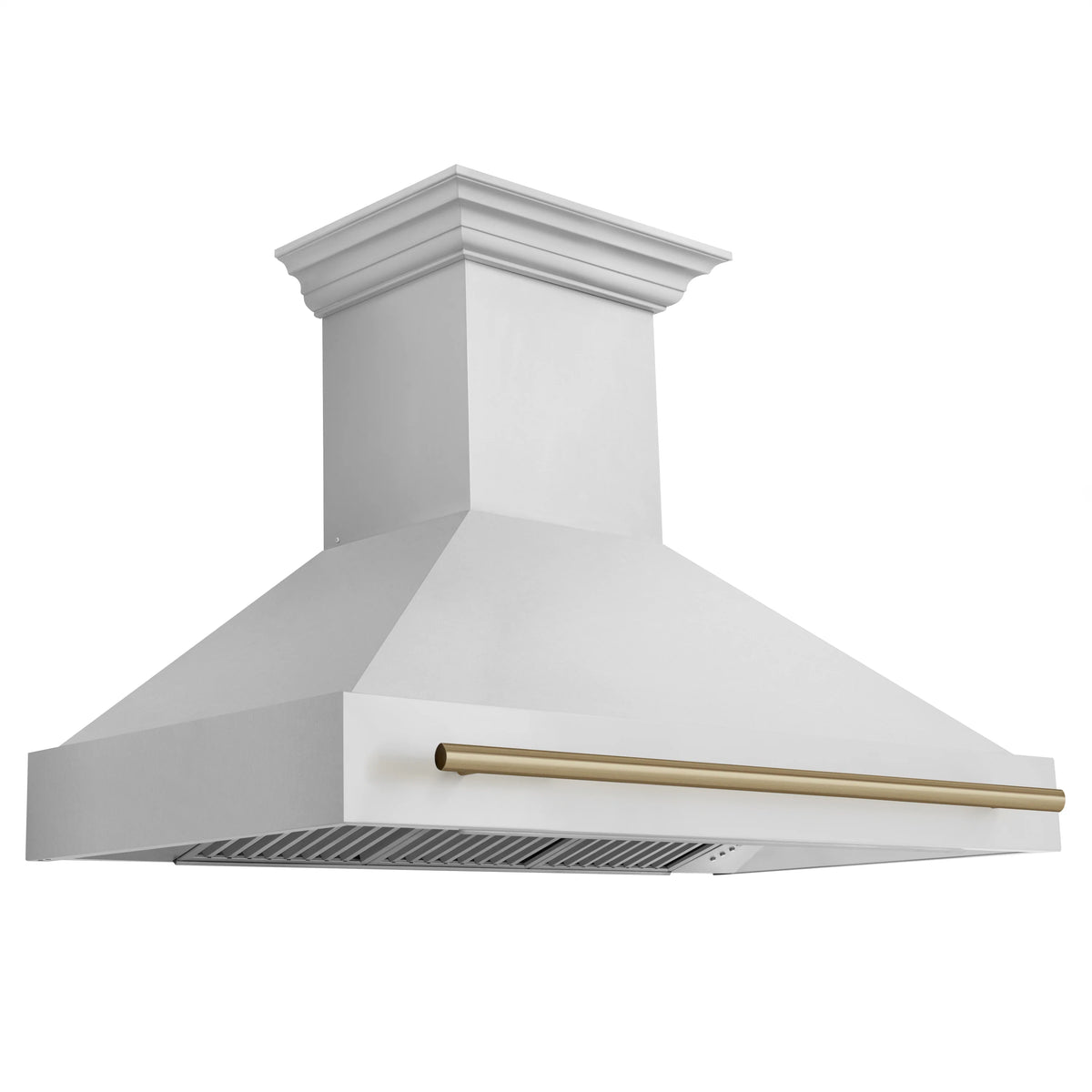

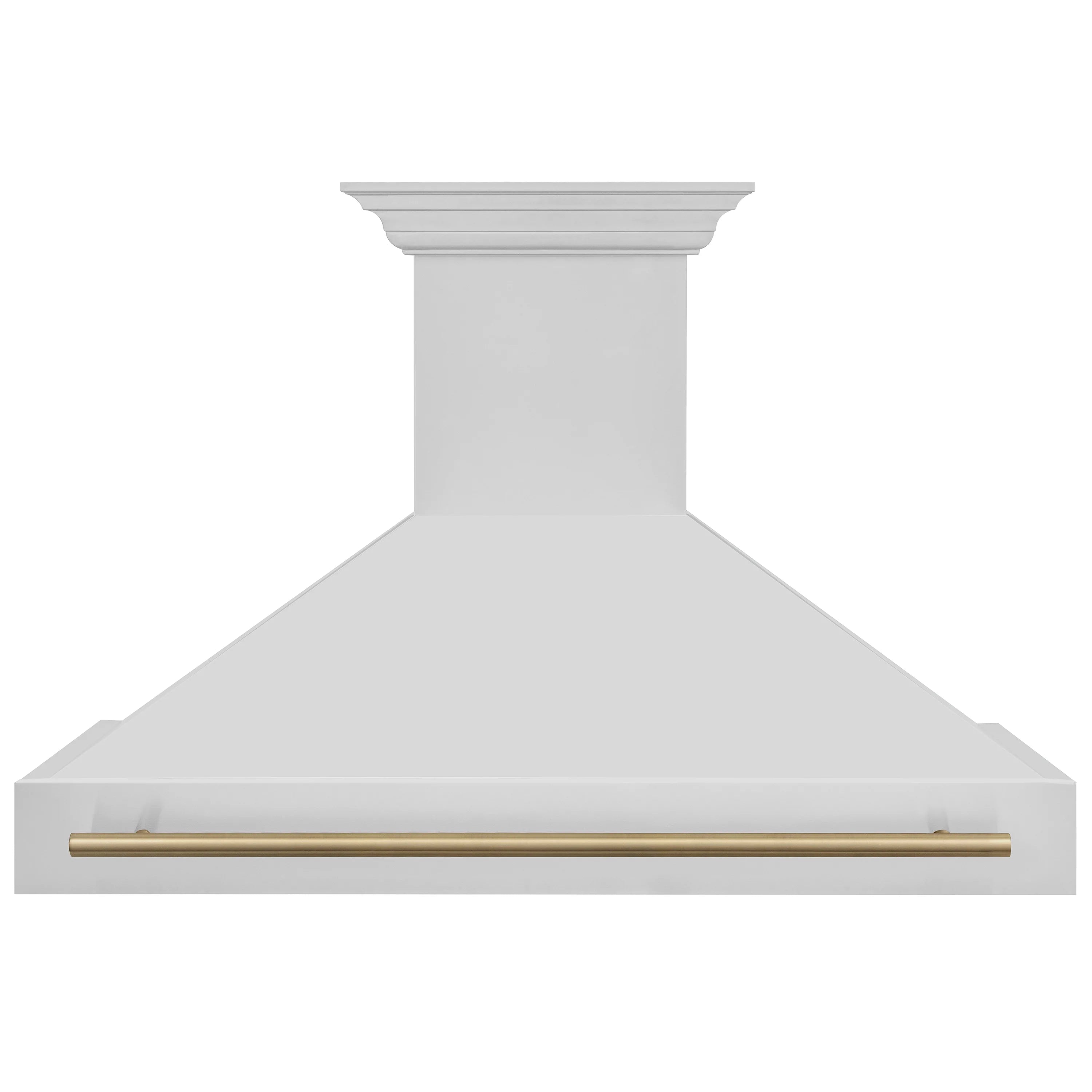

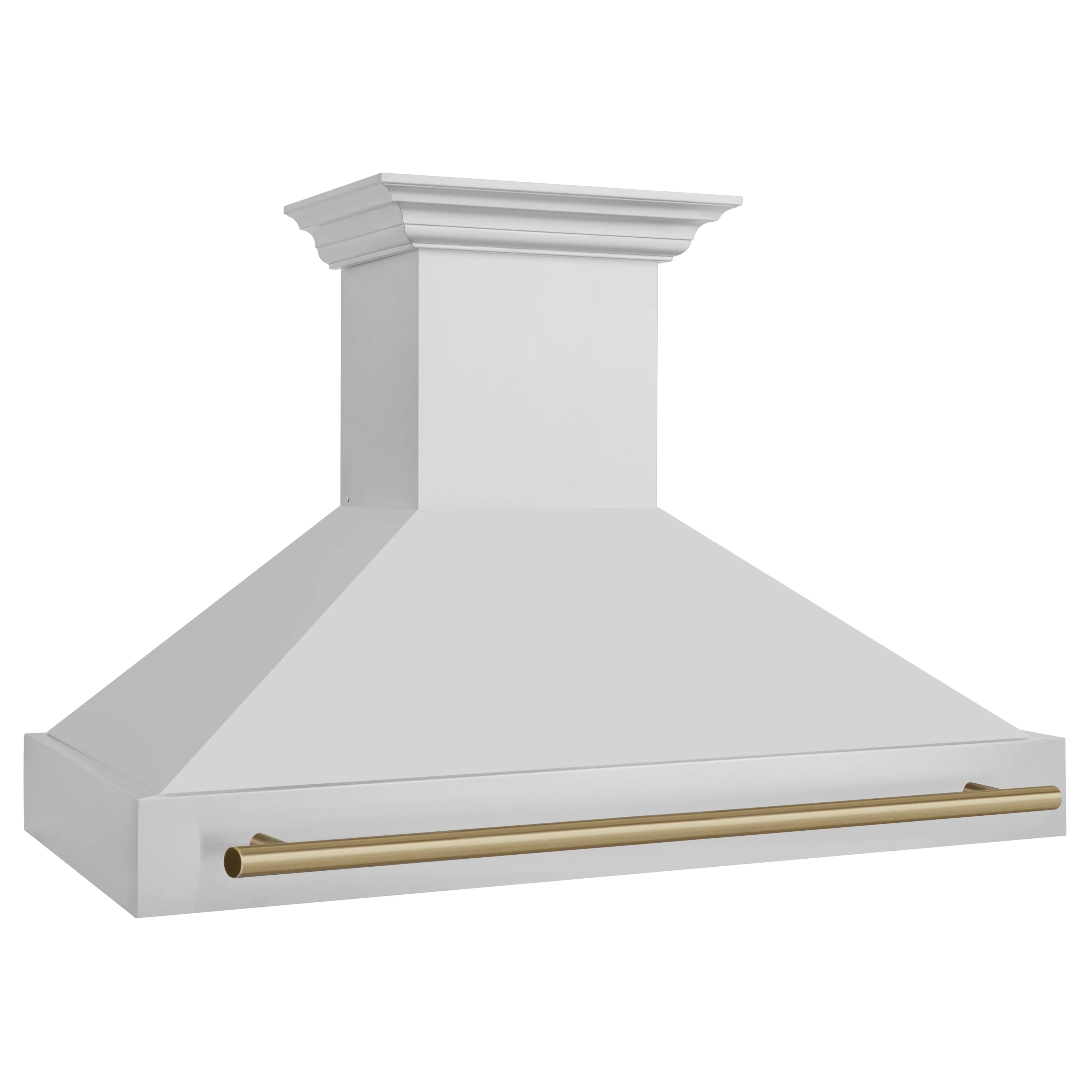

Experience Attainable Luxury with the ZLINE Autograph Edition Wall Mount Range Hood. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience. Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes. Combining the professional power and functionality of a ZLINE range hood with stunning accents, this sophisticated line of professional appliances brings a new meaning of elegance. Create an unforgettable kitchen unique to your style with an accent handle. Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze, Matte Black and Polished Gold. The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes. From our home to yours, enjoy a luxurious experience with every Autograph Edition Range Hood assembled to order in the US.
Features
- Accent handle matches ZLINE Autograph Edition Range or Rangetop with Accents
- Easy-to-use push button controls let you easily control fan speed and lighting
- 4-speed fan control (280/420/580/700 CFM) lets you choose the appropriate air flow for your cooking situation
- 700 CFM air flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
- Dishwasher-safe stainless steel baffle filters
- LED lighting illuminates the cooktop beneath the hood
- Handle is for cosmetic purposes only and should not be used for hanging items
- 3 year parts warranty, life-time motor warranty
- Brushed 430 grade stainless steel
- This product ships in multiple boxes and will require minimal assembly upon arrival
- Dimensions (W x D x H)
- 48 in. W x 23.75 in. D x 16 in. H
- Chimney Dimensions
- 13.25 in. W x 11.75 in. D x 35.5 in. H
- Product Weight
- 90 lb.
- Brand
- ZLINE
- Model No.
- 8654STZ-48-CB
- Appliance Category
- Wall Mount Range Hood
- Mount Type
- Wall Mount
- Collection
- Autograph Edition
- Color/Finish
- Stainless Steel
- Hardware Color/Finish
- Champagne Bronze
- Control Type
- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
- Button Panel
- Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
- Venting
- Ducted
- Duct Size
- 8 in.
- Airflow (Q/L/M/H)
- 280/420/560/700
- Motor
- High Performance 700 CFM/4-Speed Motor
- Number of Speeds
- 4
- Decibels
- 30/41/49/52
- Voltage
- 110V
- Amps
- 5A
- Number of Lights
- 2
- Filters
- Stainless Steel Baffle Filters (Dishwasher-safe)
- Certifications
- ETL Listed
- Warranty
- 3 Year Parts, Lifetime Motor Warranty

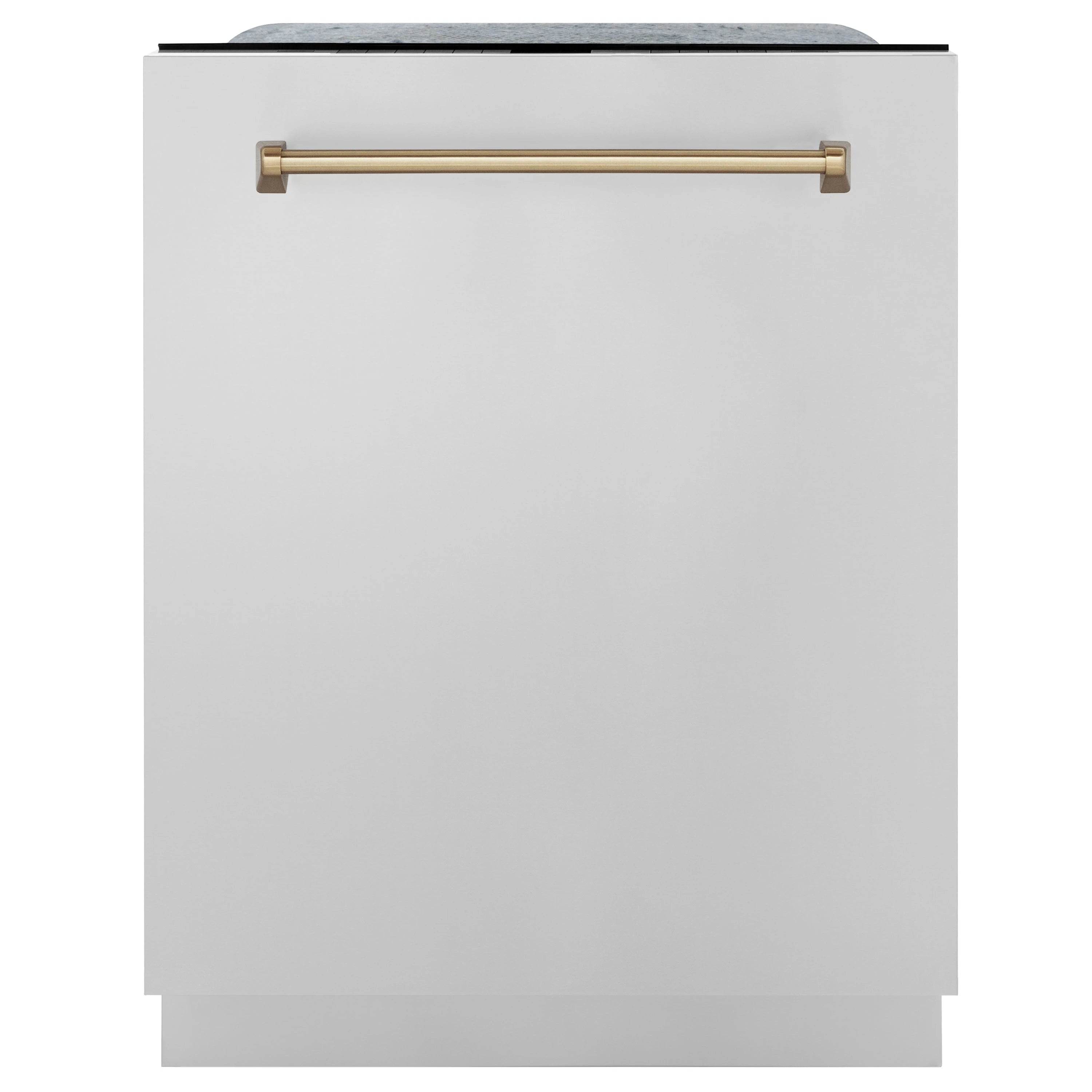

The ZLINE Autograph Edition 24 in. Monument Series 3rd Rack Dishwasher with Auto Door Open Drying, 44dBa, Stainless Steel Panel with Champagne Bronze Handle (DWMTZ-304-24-CB) pairs a powerful heated dry cycle with advanced Auto Door Open technology, ensuring efficient drying for plastics and complex dishware. Engineered to eliminate common kitchen frustrations through smarter performance, this next-generation model features specialized high-pressure bottle wash jets, a discreet floor timer display, and a sophisticated aesthetic purposefully designed to be the centerpiece of any custom luxury kitchen.
Features
- Exclusive Autograph Edition Handle - Customize your ZLINE Autograph Edition Monument Series Dishwasher with an elegant Champagne Bronze handle paired with a beautiful 304-grade stainless steel door panel
- Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
- 4 Bottle Wash Jets - Wash reusable water bottles, carafes, and narrow glassware with specialized high-pressure jets designed to thoroughly clean hard-to-access areas
- Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
- Floor Timer Display - A soft blue LED timer projects the remaining wash time onto your floor, bringing visibility to concealed controls so you always know when dishes are ready
- UV LED Technology - A built-in UV LED light reduces the buildup of moisture-related impurities, minimizes odors, and supports a cleaner interior environment between cycles
- Heated Dry - A professional Heated Dry Mode utilizes high-grade heating elements for more effective drying that leaves dishes spotless
- Wine Glass Holders - 2 dedicated holders in the upper rack keep wine glasses, champagne flutes, and delicate stemware stable during each cycle
- Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while reconfigured rows of collapsible prongs on both main levels maximize spacing for bulkier items
- Ultra-Quiet Performance - Experience a more peaceful kitchen environment with an insulated 44 dBA operation that allows you to run cycles at any time without disruption
- Top Touch Controls - Select wash cycles and other functions with a gentle touch via a concealed, sleekly designed top control digital panel
- 6 Wash Cycles - Choose from 6 different cycles, including Delicate Mode that uses lower temperatures for fragile items and a convenient 20-minute Rinse Mode
- Flexible Modes - Sanitize + Hi Temp Wash, Auto Open, and Delay settings offer elevated performance capabilities and added flexibility
- Triple-Filter Cleaning - A multiple-stage filter system removes food debris during the wash cycle, helping keep water clean while reducing the frequency of manual filter cleaning
- NSF Certified - Ensure exceptional levels of hygiene and sanitation via a high-heat final rinse to eliminate 99.9% of common household bacteria
- ENERGY STAR Certified - Optimize your home’s efficiency with ENERGY STAR certification that delivers top-tier cleaning power while utilizing significantly less water and energy
- Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 16 place settings
- Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments
- Product Dimensions (W x D x H)
- 23.875" x 25.1875" x 34"
- Dishwasher Size (Width)
- 24"
- Max Plate Size
- 13 7/8"
- Product Weight
- 100 lbs
- Brand
- ZLINE
- Series
- Autograph Edition (Monument)
- Model
- DWMTZ-304-24-CB
- Type
- Tall Tub Built-In Dishwasher
- Size
- 24"
- Place Settings
- 16
- Color/Finish
- Stainless Steel (304 Grade)
- Hardware Color/Finish
- Champagne Bronze
- Tub Material
- Stainless Steel
- Control Type
- Top Touch Control (Concealed)
- Wine Glass Holders
- 2
- 3rd Rack
- Adjustable Sliding Utensil Rack
- Number of Wash Cycles
- 6
- Noise Level
- 44 dBA
- Drying Process
- Heated Dry + Auto Door Open
- Wash Features
- Sanitize, Hi-Temp Wash, Delicate, 20-Min Rinse, Delay Start
- Bottle Wash Jets
- 4
- Filtration
- Triple-Filter
- Voltage
- 120V
- Frequency
- 60Hz
- Amperage
- 8.4A
- Power Connection
- Hardwired (Junction Box Included)
- Warranty
- 1 Year Parts and Labor
- Certifications
- ENERGY STAR, CEC, UL, NSF Certified
