What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

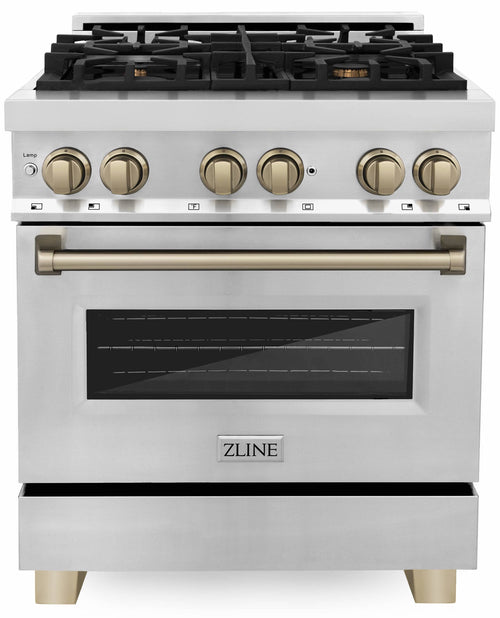

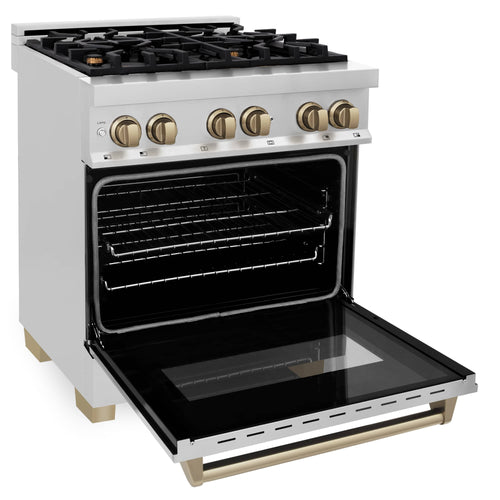

The ZLINE Autograph Edition 30 in. 4.0 cu. ft. Legacy Dual Fuel Range with 4 Burner Gas Cooktop and Electric Convection Oven in Stainless Steel and Champagne Bronze Accents (RAZ-30-CB) pairs a powerful gas cooktop with 4 Italian-crafted burners, an electric convection oven with a Landscape oven door window design, and elegant champagne bronze knobs and handle. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.
Features
- ZLINE Legacy Series - The Legacy Professional Range Series represents the foundation for ZLINE’s family-focused mission of attainable luxury
- Exclusive Knobs and Handle - Customize your ZLINE Autograph Edition Dual Fuel Range with elegant Champagne Bronze knob and handle accents
- Professional Dual Fuel Cooking - Optimize every meal with even heat distribution thanks to high-performance technology of a gas cooktop and an electric convection oven

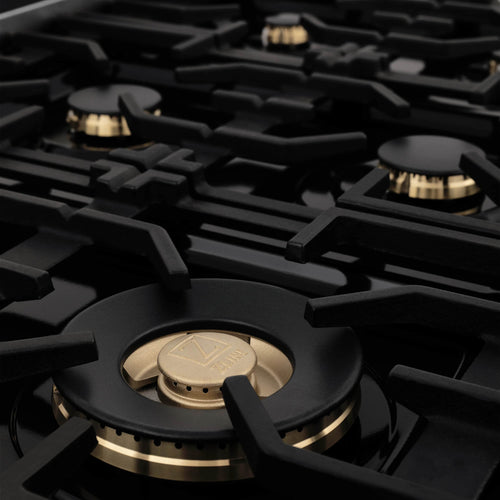

- Italian-Made Sealed Burners - Industry-leading gas cooktop includes 4 hand-cast burners with 1,000 - 18,000 BTUs of cooking power
- Landscape Oven Window - ZLINE Legacy Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked
- Large Oven Capacity - A 4.0 cu. ft oven fits pans up to 23 in. wide for maximum space and convenience with everyday cooking
- Premium Oven Insulation - Triple layered glass and an aluminum mesh seal offers superior heat retention and consistent temperatures
- Stunning Stainless Steel - Featuring high-grade 304 grade stainless steel with durable cast iron grates that exceed industry standards
- Adjustable Range Height - Easy adjustable legs let you modify the total range height anywhere from 36 inches to 38.5 inches
- Electrical Requirements - Requires a dedicated 240V, 60Hz, 15-amp circuit with a NEMA 14-50 4-wire plug system
- StayPut Oven Door Hinges - Designed to support the full weight of the oven door, offering additional convenience and safety

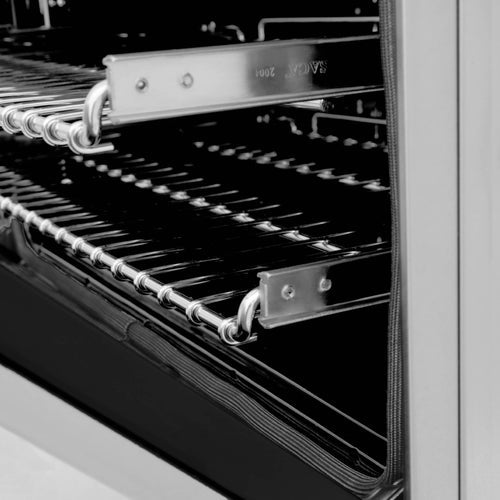

- Smooth Glide Ball-Bearing Oven Racks - 2 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
- Dual Oven Lights - Illuminate your oven space with dual halogen lighting, controlled by a switch located on the front control panel
- Minimal Cleaning - Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
- LP Conversion Kit - Comes equipped with an LP conversion kit to convert the cooktop from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference
- Industry First Lifetime Burner Warranty - Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship
- Manufacturer Warranty - 1-year parts and service warranty
- Additional Assembly Required - This product ships in multiple boxes and will require minimal assembly upon arrival

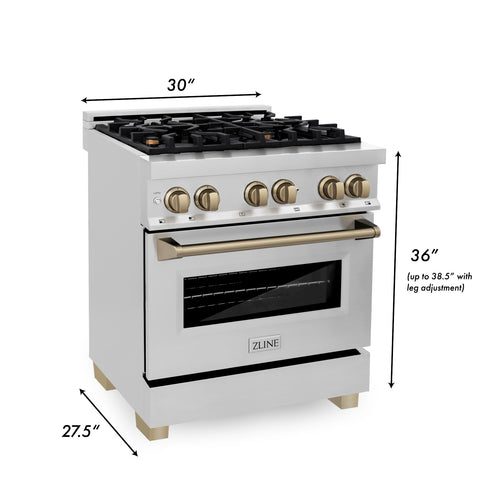

- Dimension
- 29.75" W x 27.5" D x 36.13" H
- Dimensions with Handle
- 29.75" W x 29.63 " D x 36.13" H
- Open Door Depth
- 41.8"
- Interior Oven Dimensions
- 24.875" W x 17.75" D x 16" H
- Brand
- ZLINE Kitchen and Bath
- Color
- Silver
- Finish
- Stainless Steel
- Lighting
- Dual Lighting, controlled by light switch on front control panel
- Material
- Stainless Steel frame with 1 Piece Enamel Top
- Italian-made burners
- Voltage
- 220V-240V/60HZ/50A
- Gas Type
- Natural Gas or Liquid Propane via conversion kit
- Liquid Propane
- LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional
- Fuel Type
- Convection Oven
- Gas Cooktop
- Cooktop

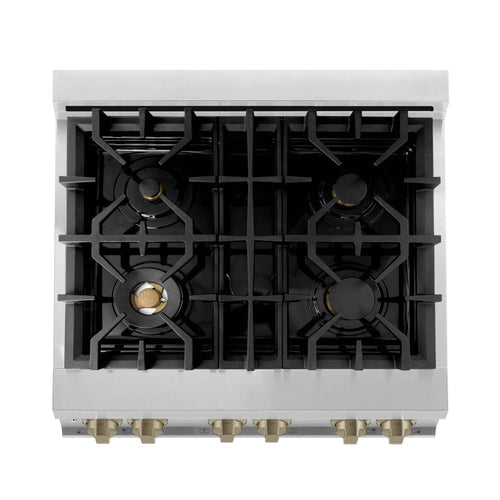

- (4) Burners with Enamel Cook Top with electronic spark ignition for all burners
- Oven
- Manual Clean
- Convection Electric
- 4.0 cu.ft. deep oven
- Triple Glass Window
- Dual Lighting
- Professional Aluminum Mesh Seal

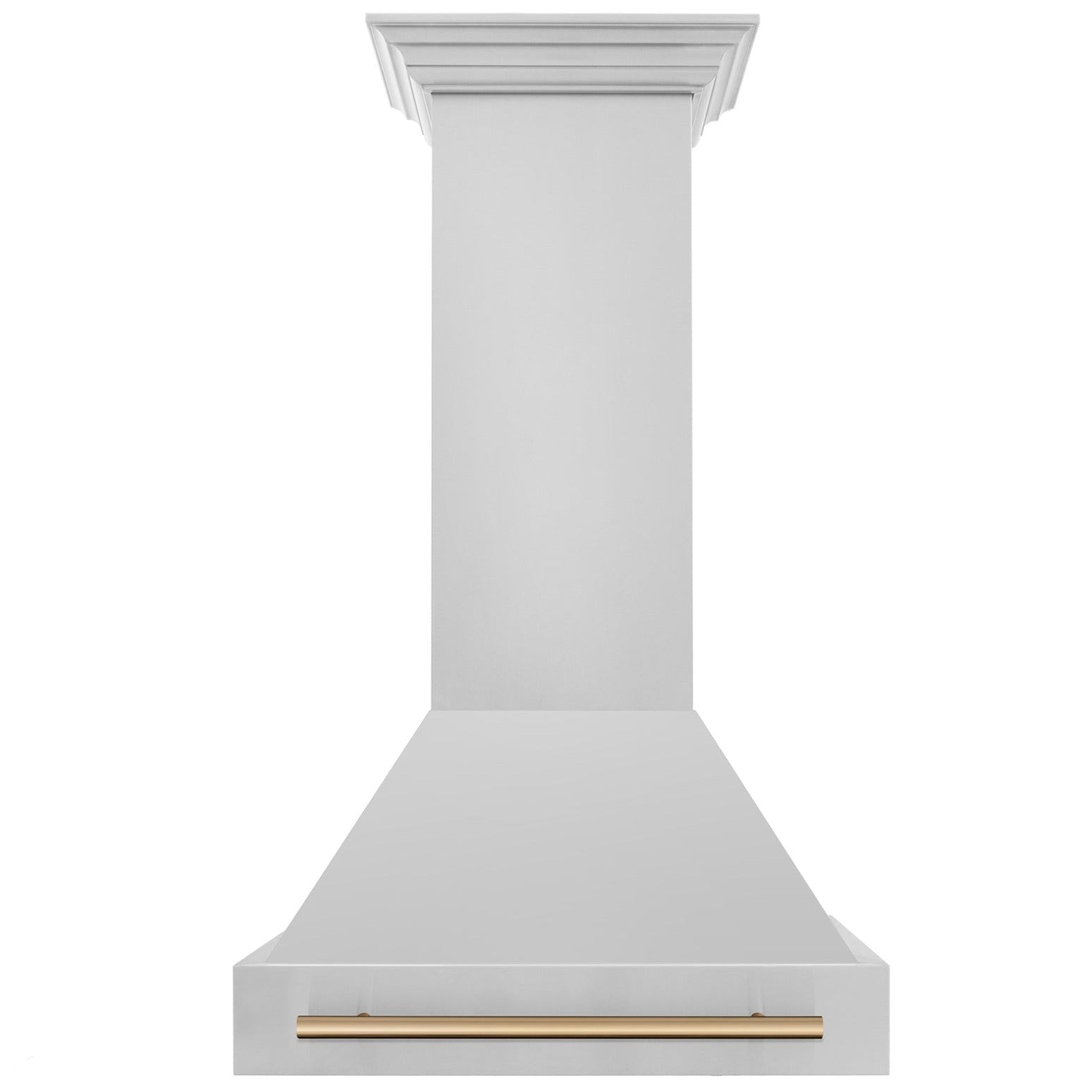

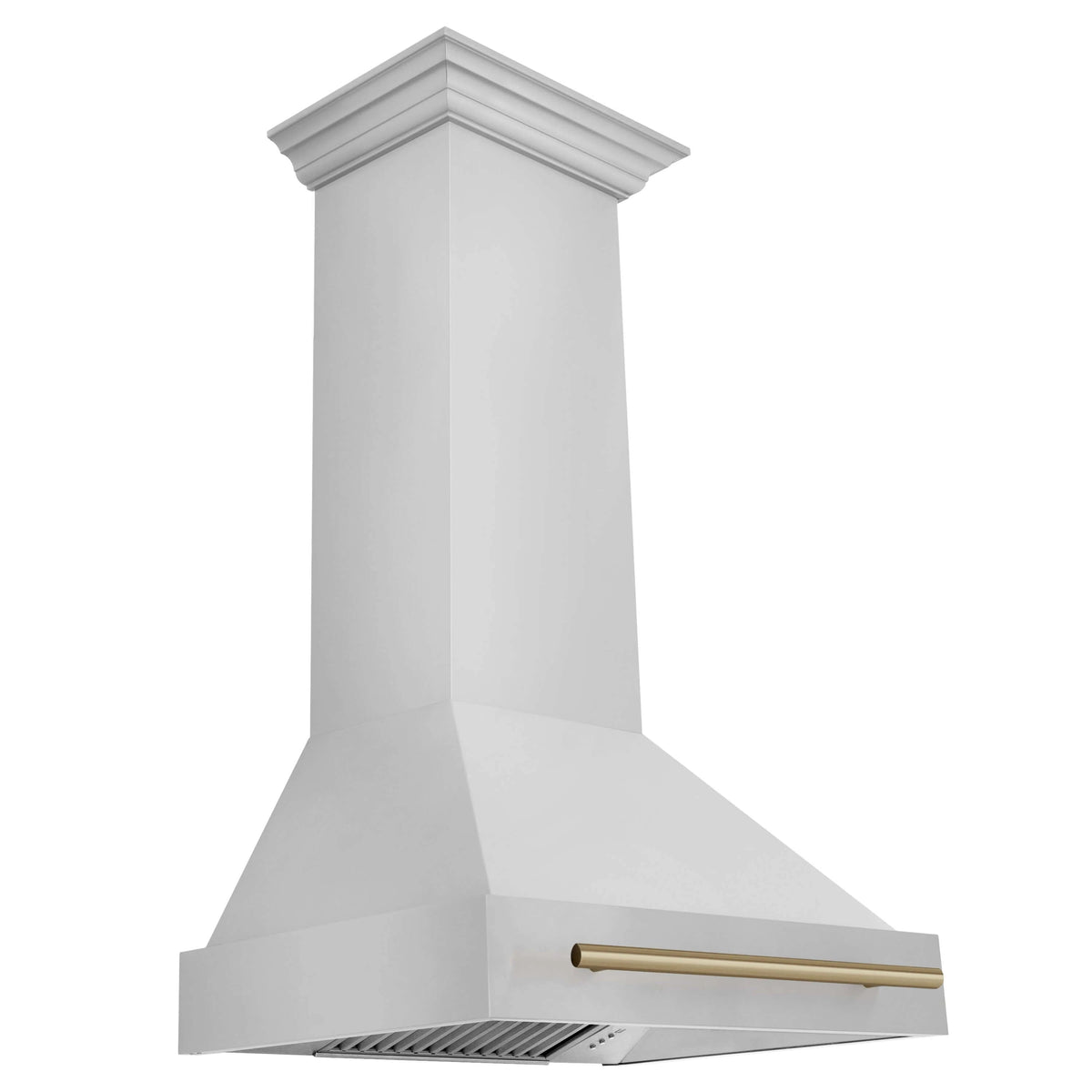

Experience Attainable Luxury with the ZLINE Autograph Edition Wall Mount Range Hood. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience. Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes.
Combining the professional power and functionality of a ZLINE range hood with stunning champagne bronze accents, this sophisticated line of professional appliances brings a new meaning of elegance.

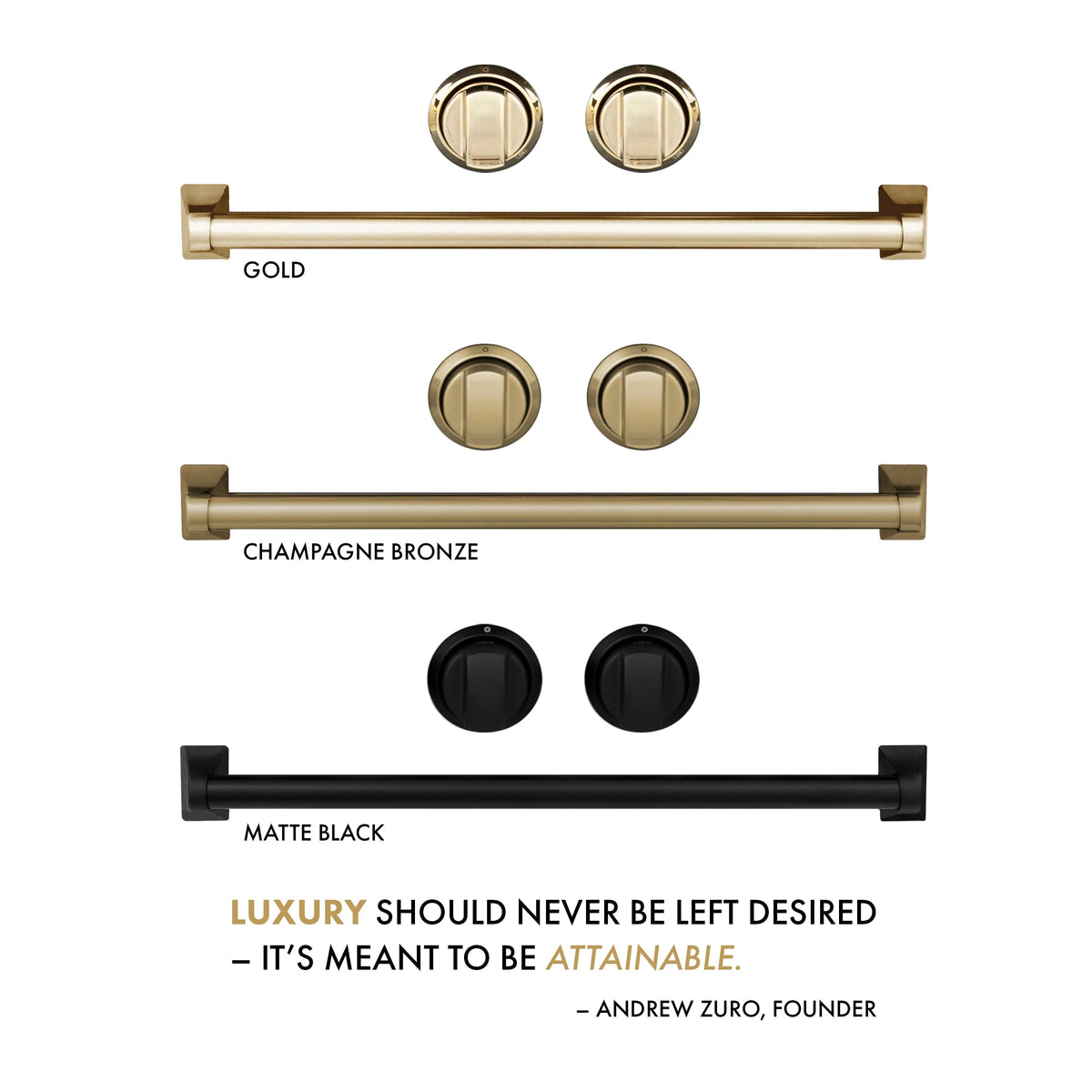

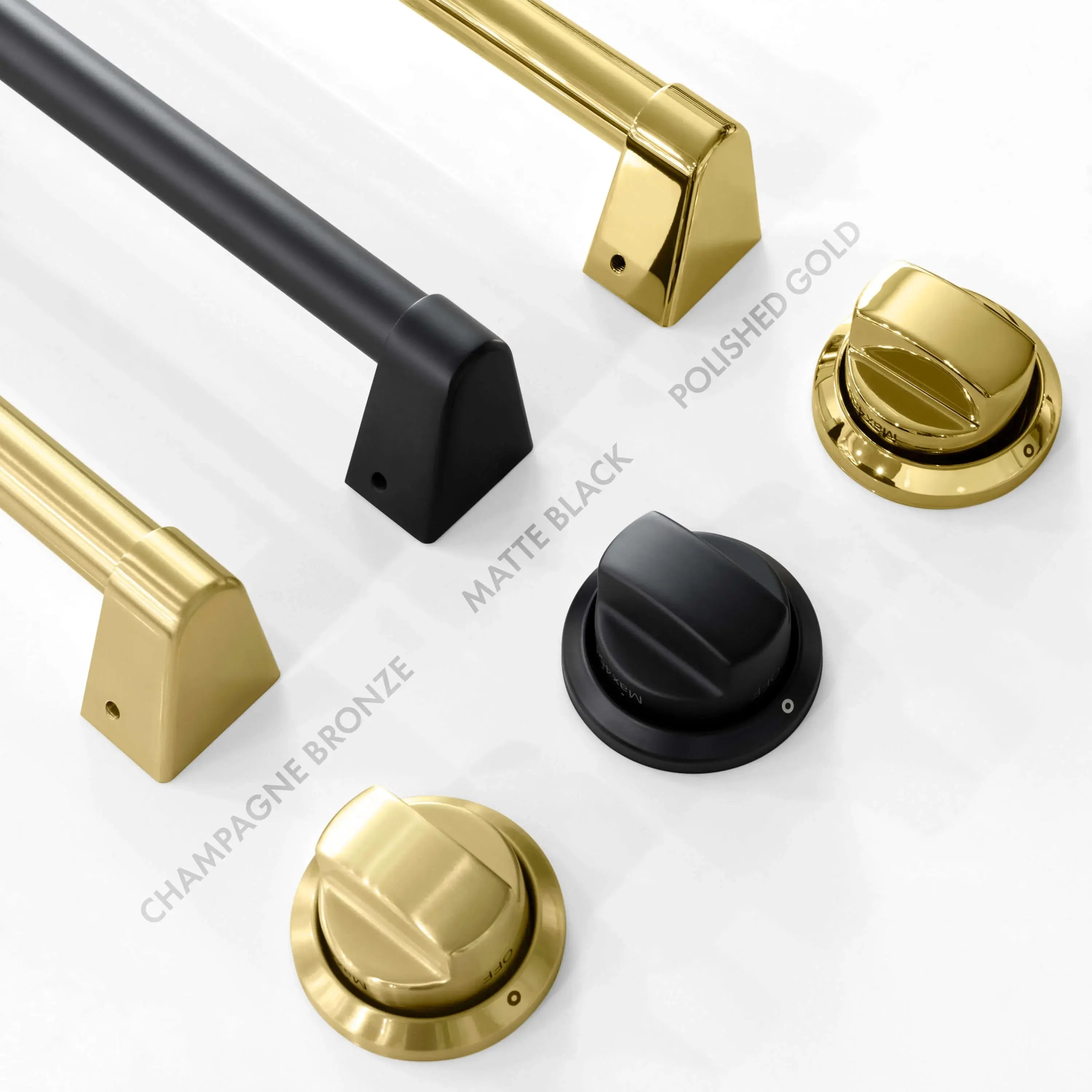

Create an unforgettable kitchen unique to your style with a champagne bronze handle. Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze, Matte Black and Gold. The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes.
From our home to yours, enjoy a luxurious experience with every Autograph Edition Range Hood assembled to order in the US.
Features
- Champagne Bronze handle matches ZLINE Autograph Edition Range or Rangetop with Champagne Bronze Accents
- Easy-to-use push button controls let's you easily control fan speed and lighting
- 4-speed fan control (120/240/320/400 CFM) let's you choose the appropriate air flow for your cooking situation
- 400 CFM air flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
- Fixed vent with ductwork that easily connects to the top of the range hood for external venting
- Dishwasher-safe stainless steel baffle filters
- LED lighting illuminates the cooktop beneath the hood
- Designed to fit standard (circular) ductwork for simple installation
- Handle is for cosmetic purposes only and should not be used for hanging items
- 3 year parts warranty, life-time motor warranty
- Brushed 430 grade stainless steel
- This product ships in multiple boxes and will require minimal assembly upon arrival.
- Dimensions (W x D x H)
- 30 in. W x 23.75 in. D x 16 in. H
- Chimney Dimensions
- 13.25 in. W x 11.75 in. D x 35.5 in. H
- Product Weight
- 79 lb.
- Brand
- ZLINE
- Model No.
- 8654STZ-30-CB
- Appliance Category
- Wall Mount Range Hood
- Mount Type
- Wall Mount
- Collection
- Autograph Edition
- Color/Finish
- Stainless Steel
- Hardware Color/Finish
- Champagne Bronze
- Control Type
- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
- Button Panel
- Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
- Venting
- Ducted
- Duct Size
- 6 in.
- Airflow (Q/L/M/H)
- 120/240/320/400
- Motor
- High Performance 400 CFM/4-Speed Motor
- Number of Speeds
- 4
- Decibels
- 51/55/58/61
- Voltage
- 110V
- Amps
- 5A
- Number of Lights
- 2
- Filters
- Stainless Steel Baffle Filters (Dishwasher-safe)
- Certifications
- ETL Listed
- Warranty
- 3 Year Parts, Lifetime Motor Warranty
