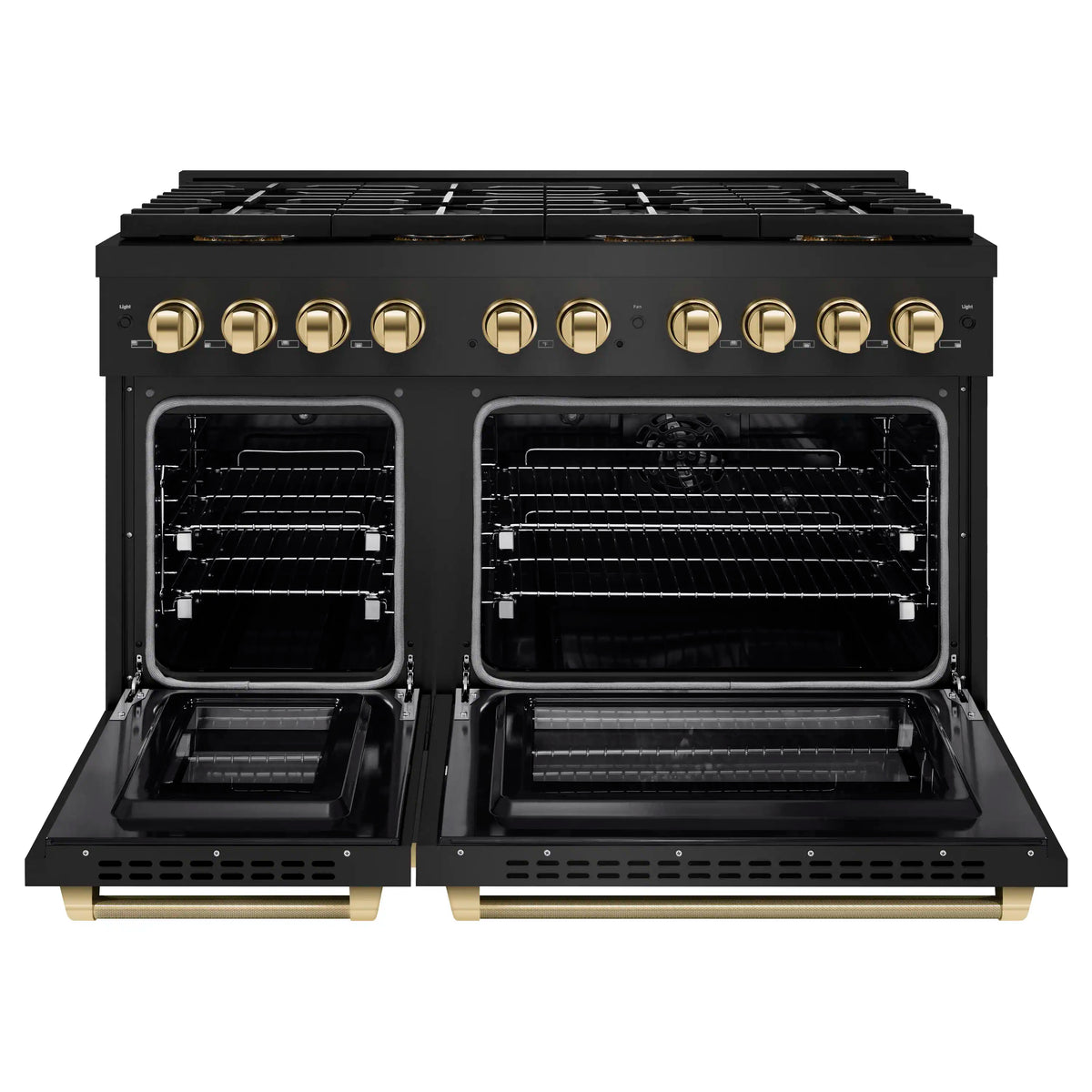

Description
DIMENSIONS

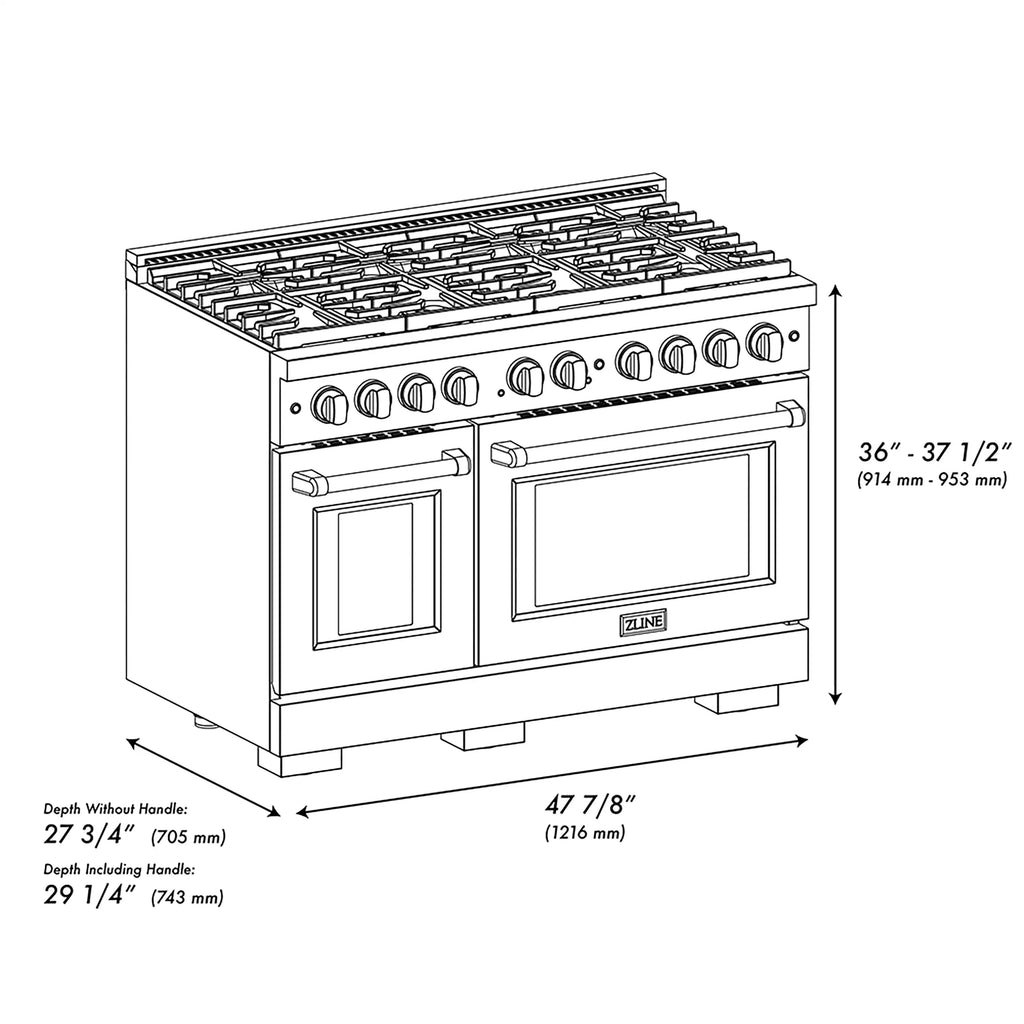

- Dimensions
- 47.875 in. W x 27.75 in. D x 36 in. H
- Depth with Door Open
- 45.1
- Interior Oven Dimensions
- 31.375 in. W x 17.75 in. D x 16.375 in. H
- Product Weight (lb.)
- 432
- Range Size (Width)
- 48 in.
GENERAL INFORMATION
- Appliance Category
- Dual Fuel Range
DESIGN & FINISH
- Color/Finish Family
- Black Stainless Steel

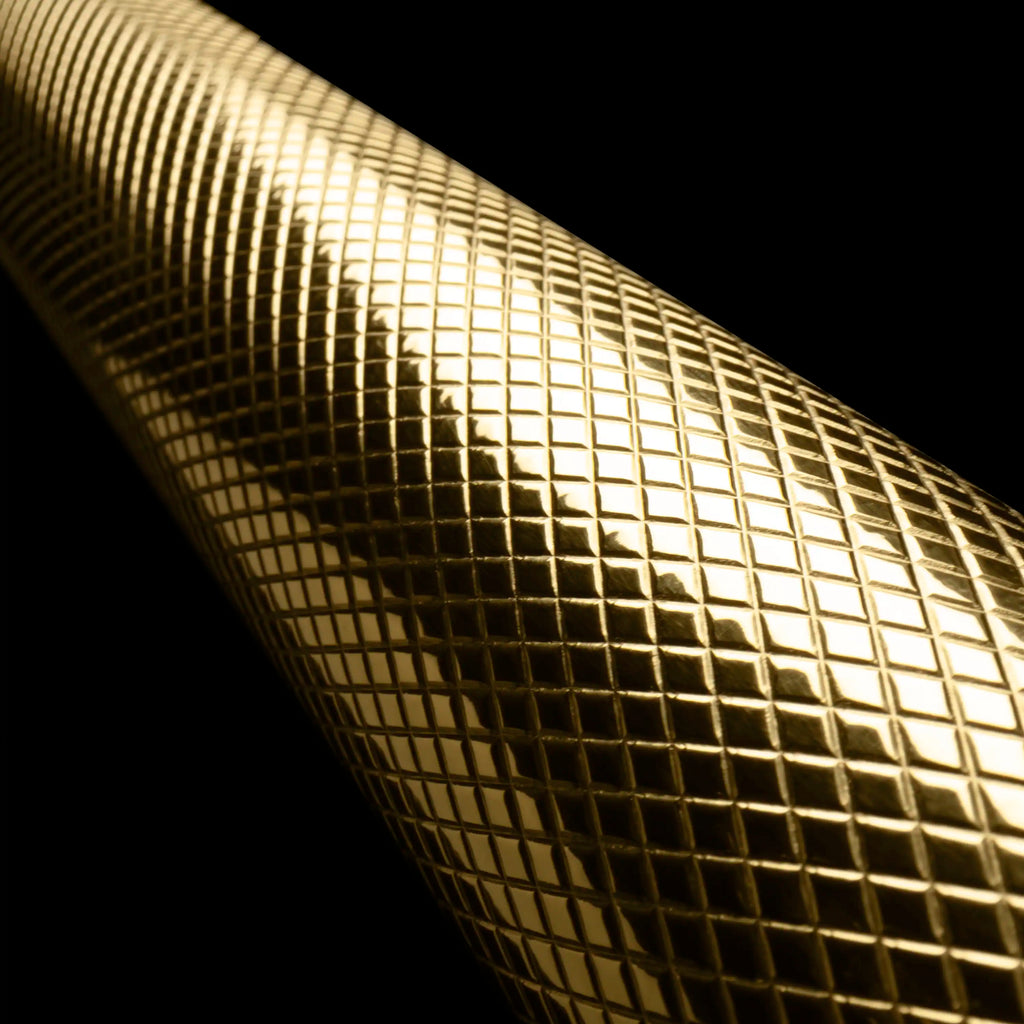

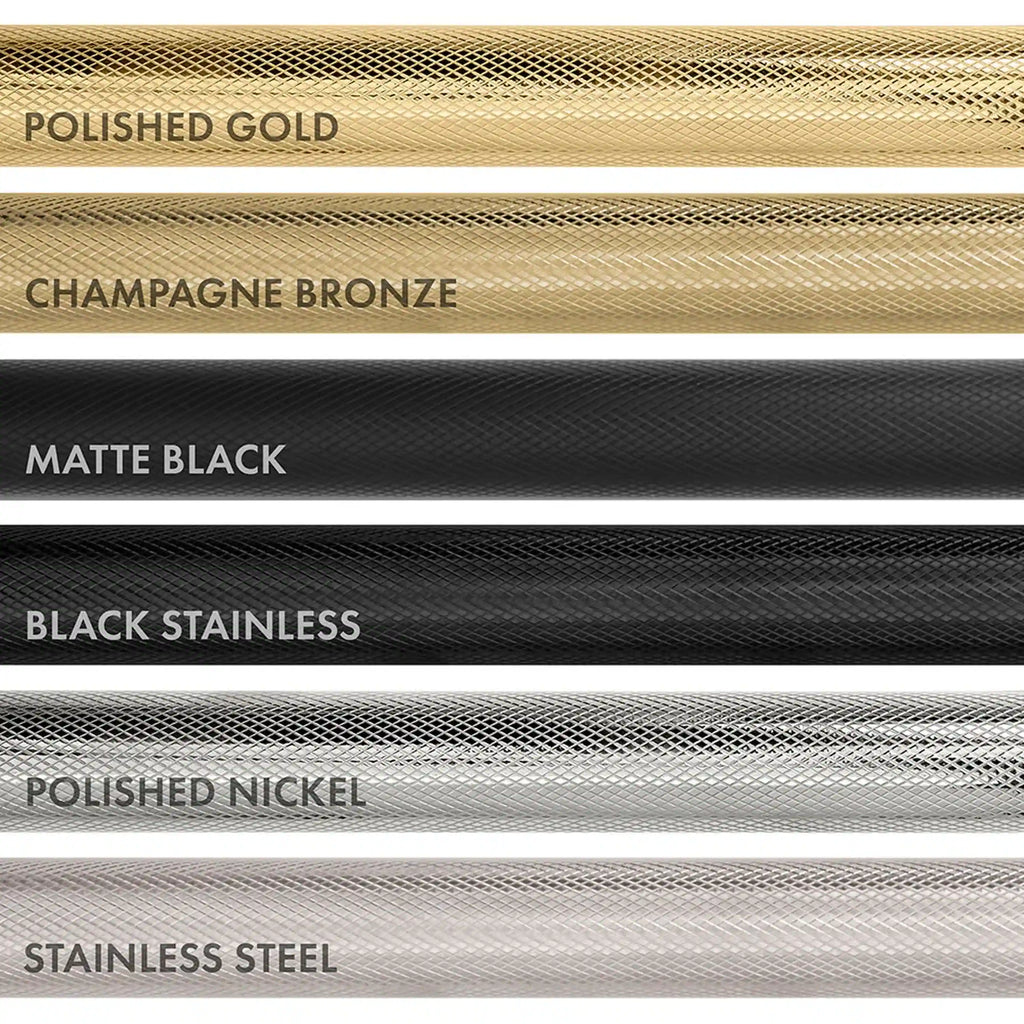

- Hardware Color/Finish
- Polished Gold
- Material
- Black Stainless Steel
- Accent Finish
- Polished Gold

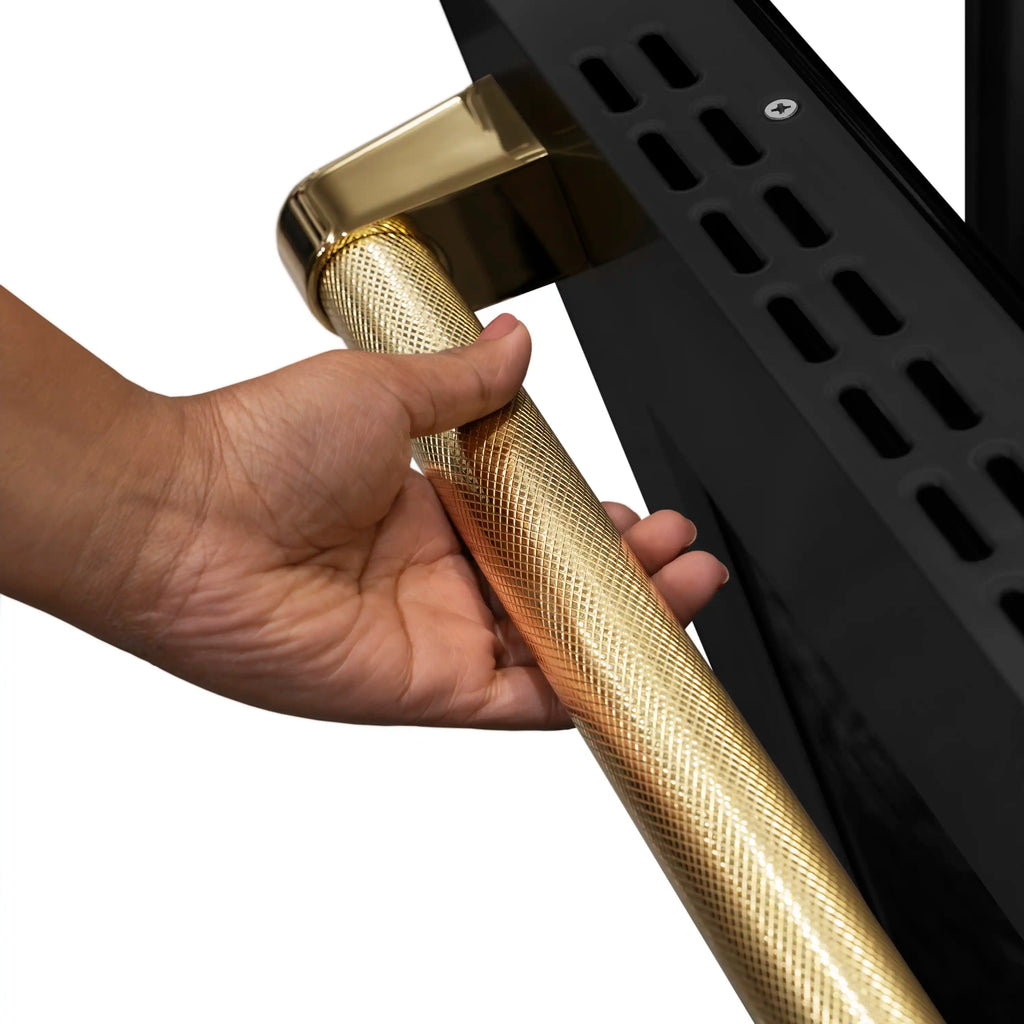

- Handle Style
- Helix
- Display
- Halogen

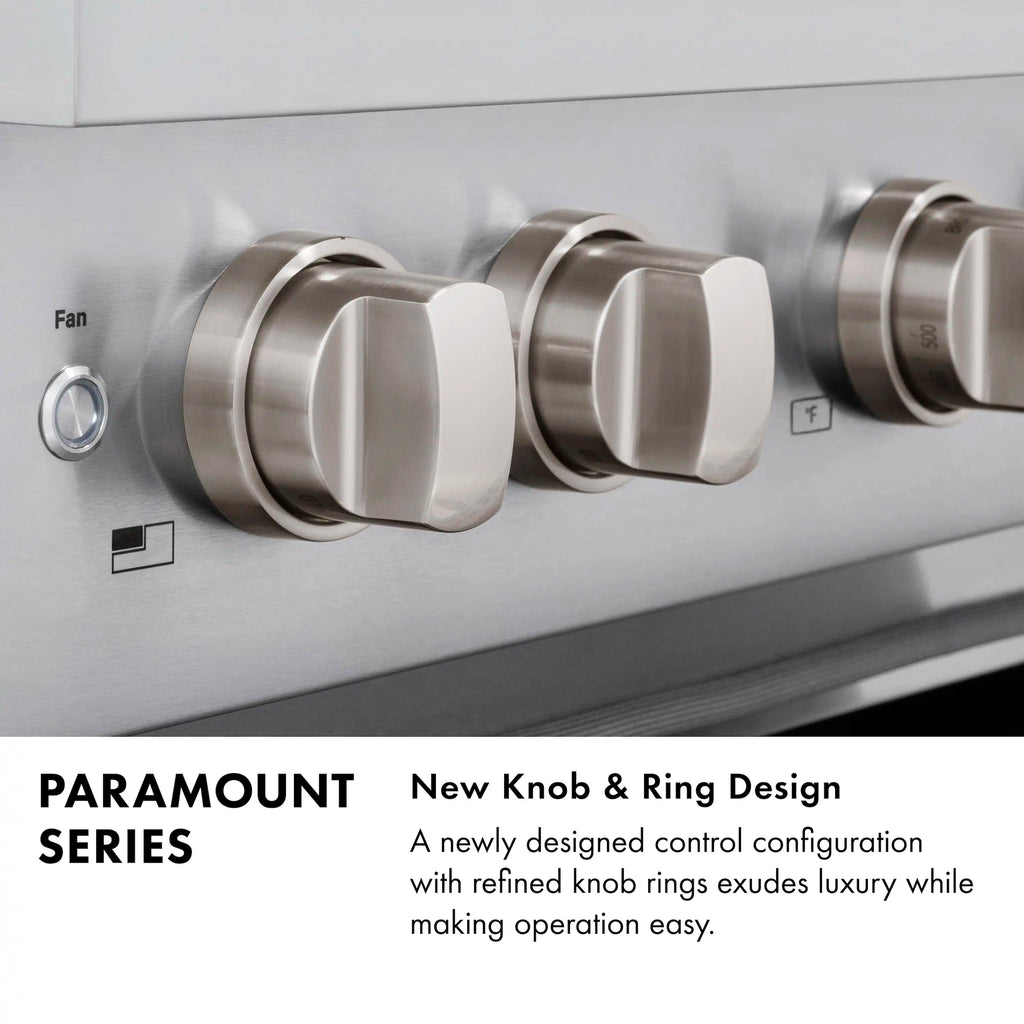

- Control Type
- Manual Front Control
TECHNICAL DETAILS
- Fuel Type
- Convection Electric Oven - Gas Cooktop
- Mount Type
- Free Standing
- Voltage
- 240V
- Frequency
- 60 Hz
- Amps
- 35A
- Electrical Requirements
- 240V/60 Hz/35A

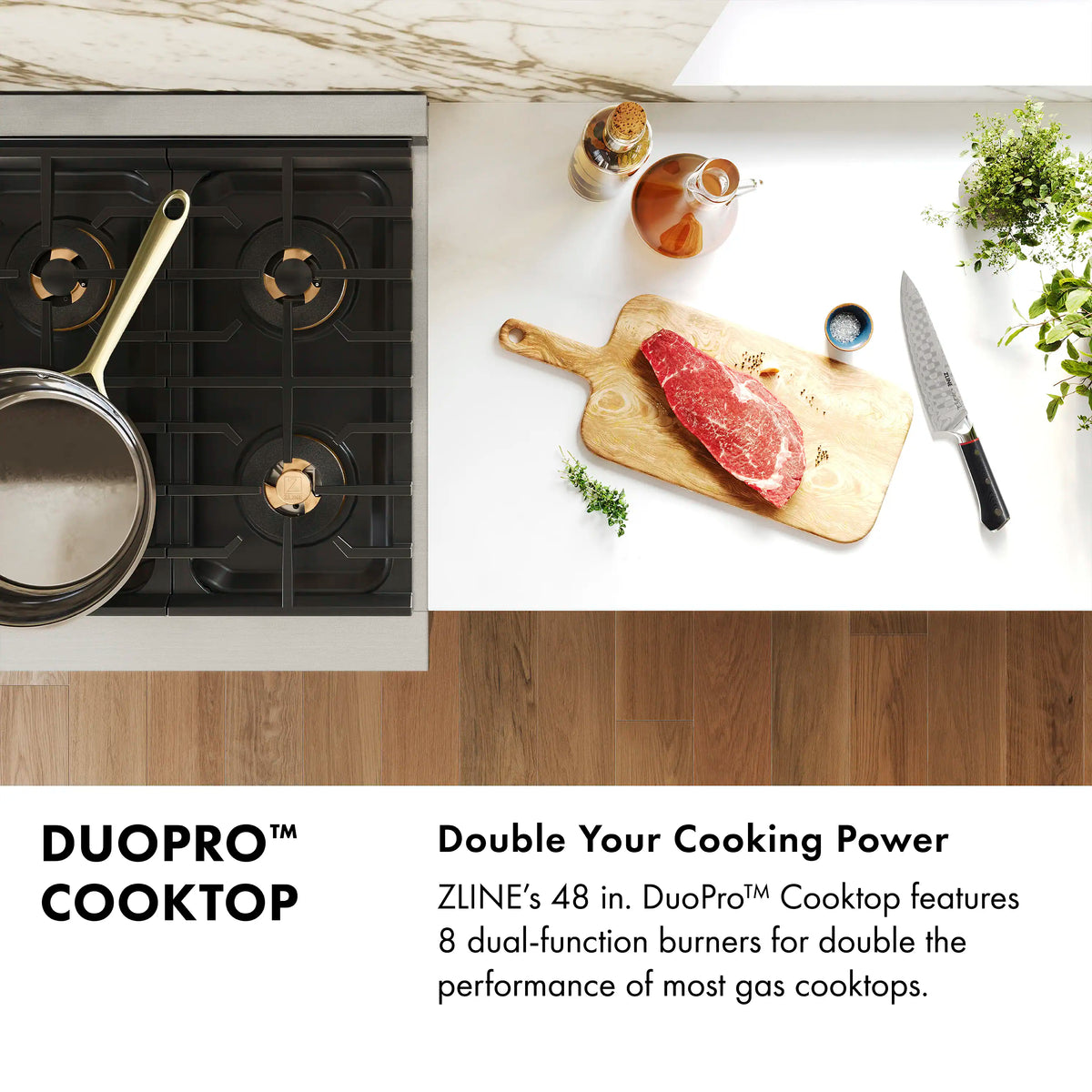

COOKTOP FEATURES
- Cooktop Features

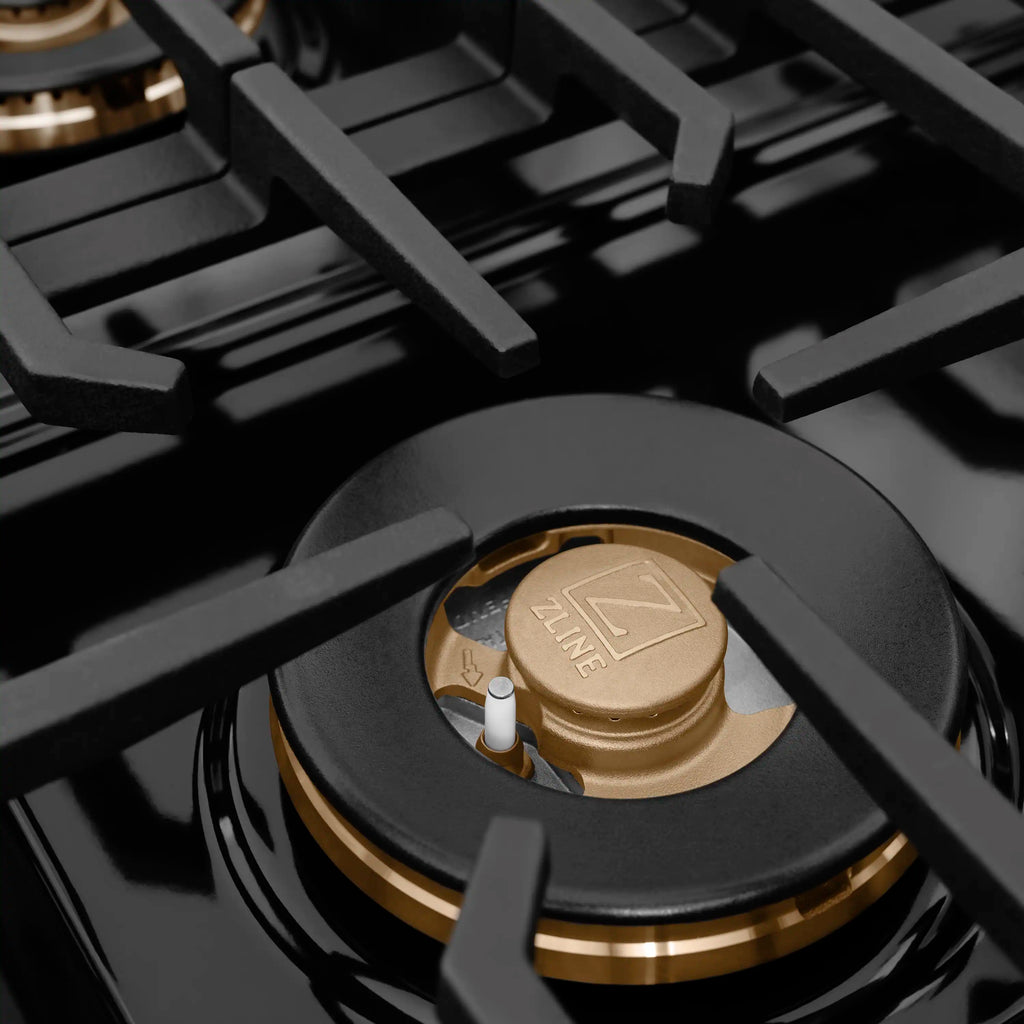

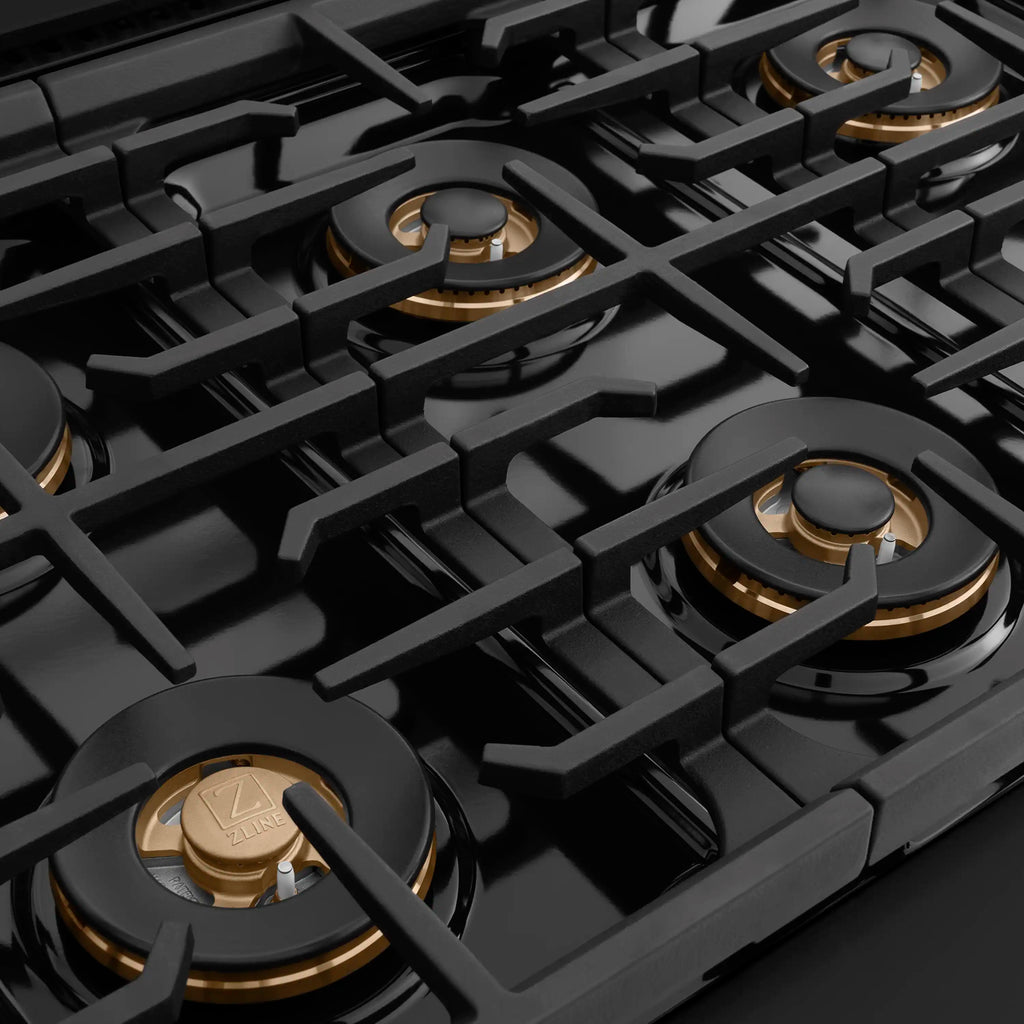

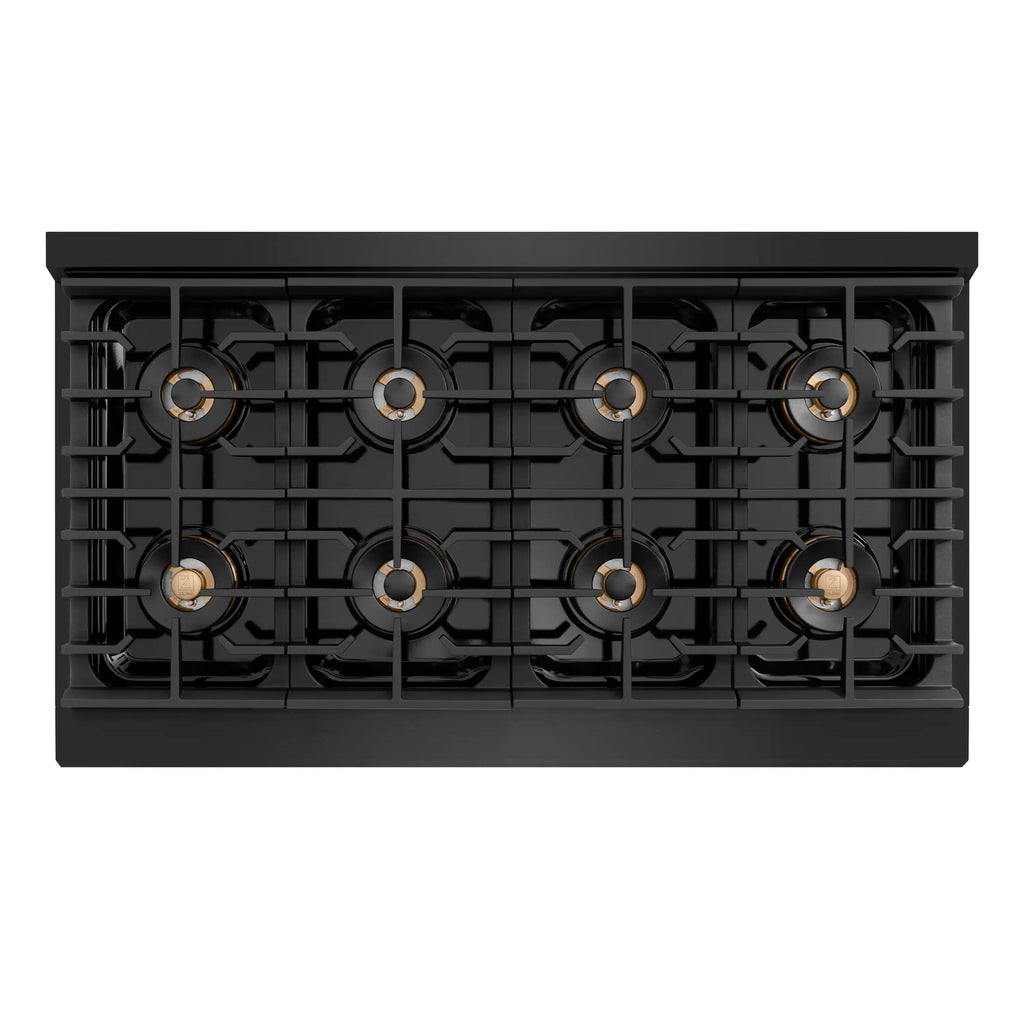

- (8) Brass Burner with Porcelain Cook Top with electronic spark ignition for all burners

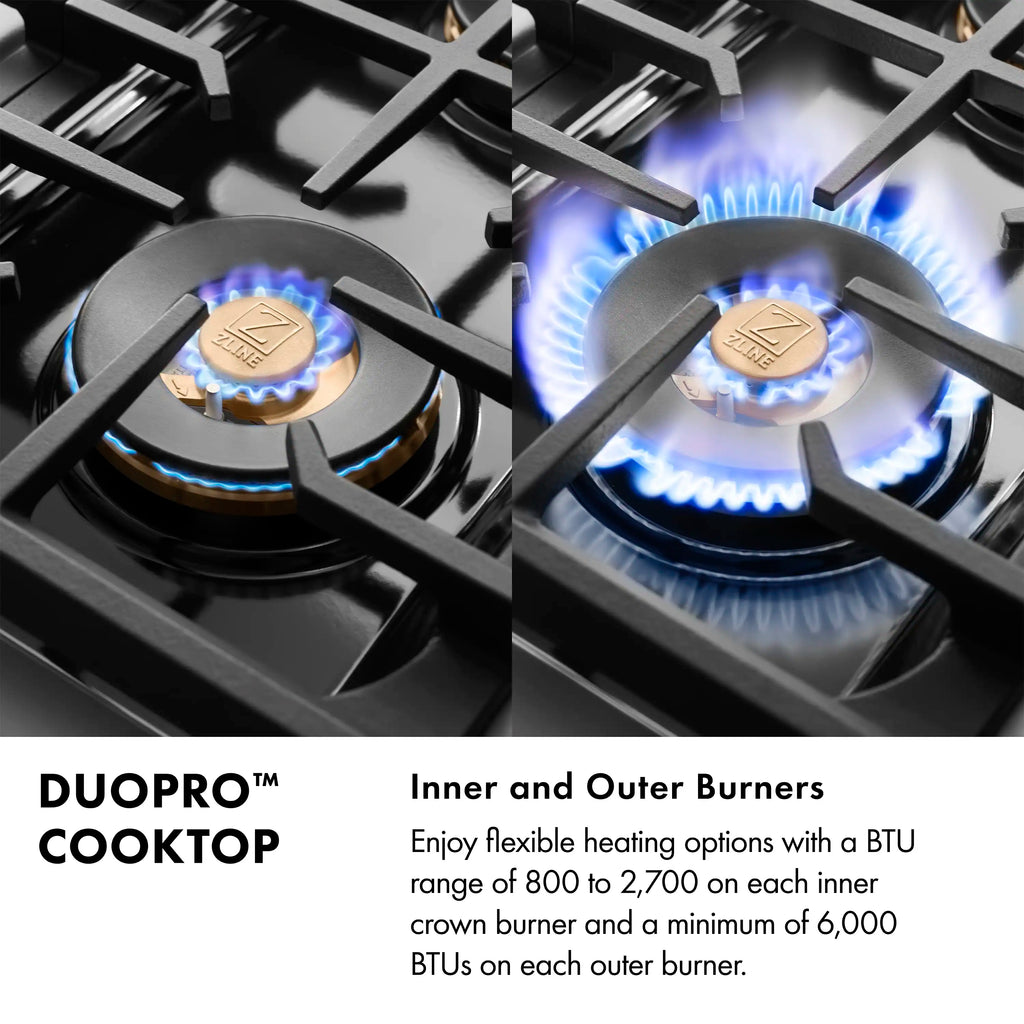

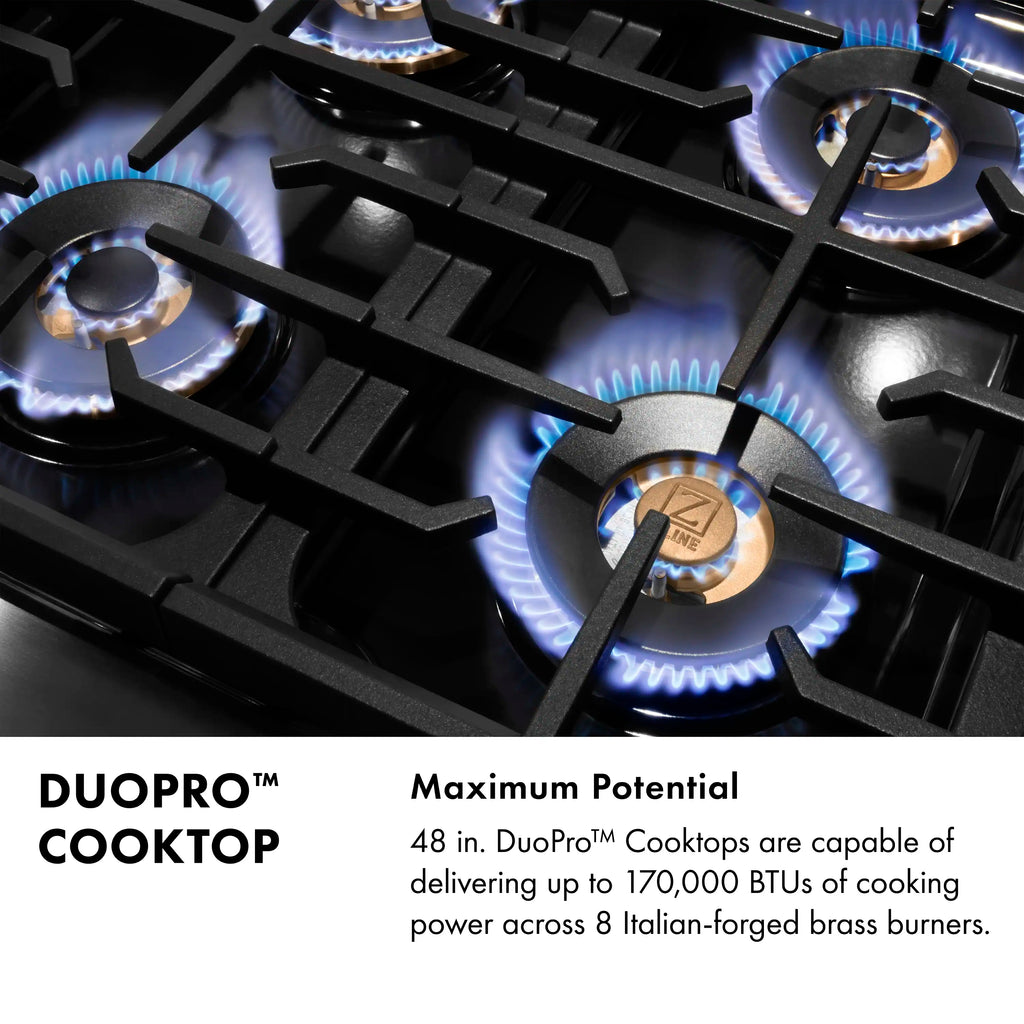

- Total BTUs
- 170,000
- Back Left Burner BTU
- 20,000
- Back Left Middle Burner BTU
- 20,000
- Back Right Middle Burner BTU
- 20,000
- Back Right Burner BTU
- 20,000
- Front Left Burner BTU
- 25,000
- Front Left Middle Burner BTU
- 20,000
- Front Right Middle Burner BTU
- 20,000
- Front Right Burner BTU
- 25,000
- Element Wattage
- Large Oven Bake 3000W/Broil 4200W Small Oven Bake 1600W/Broil 2000W
OVEN FEATURES
- Capacity of Oven (cu. ft.)
- 6.7 (4.2 + 2.5)
- Oven Features
- Manual Clean - Convection Electric Oven - 6.7 cu. ft. deep oven

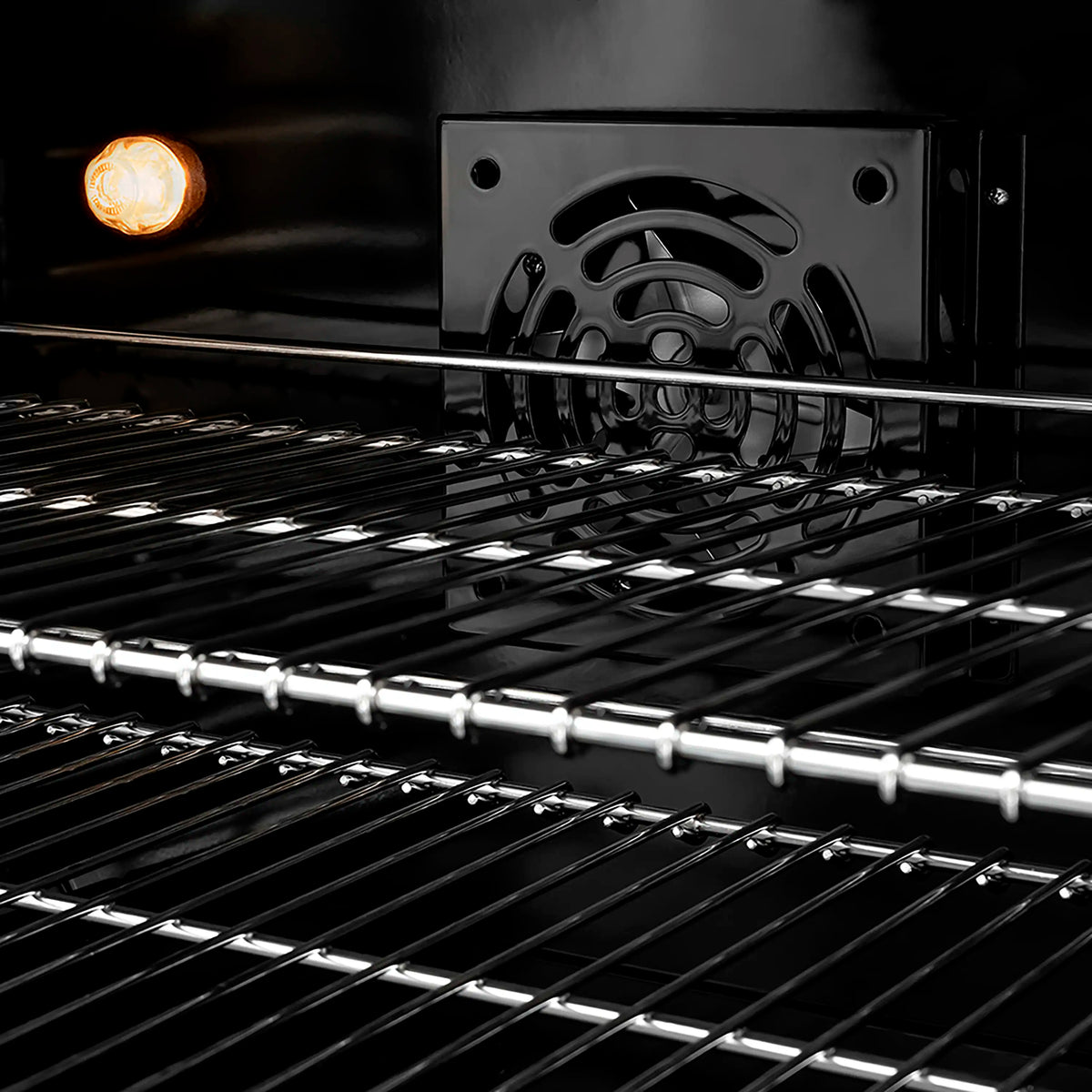

- Convection Fan
- Yes
- Convection
- Yes
- Self Clean
- No

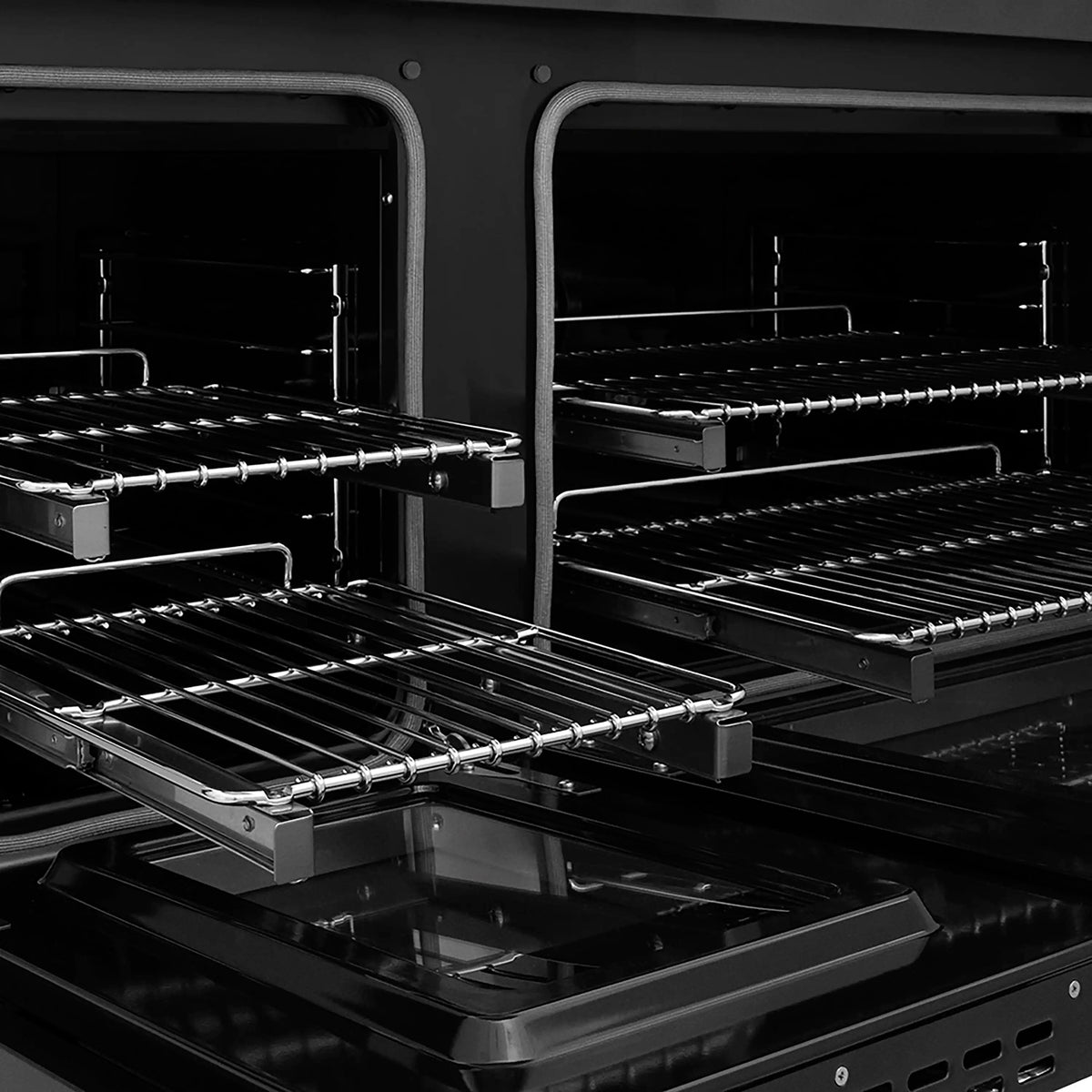

- Number of Racks
- 4
WARRANTY & CERTIFICATIONS
- Certifications and Listings
- ETL Listed
- Manufacturer Warranty

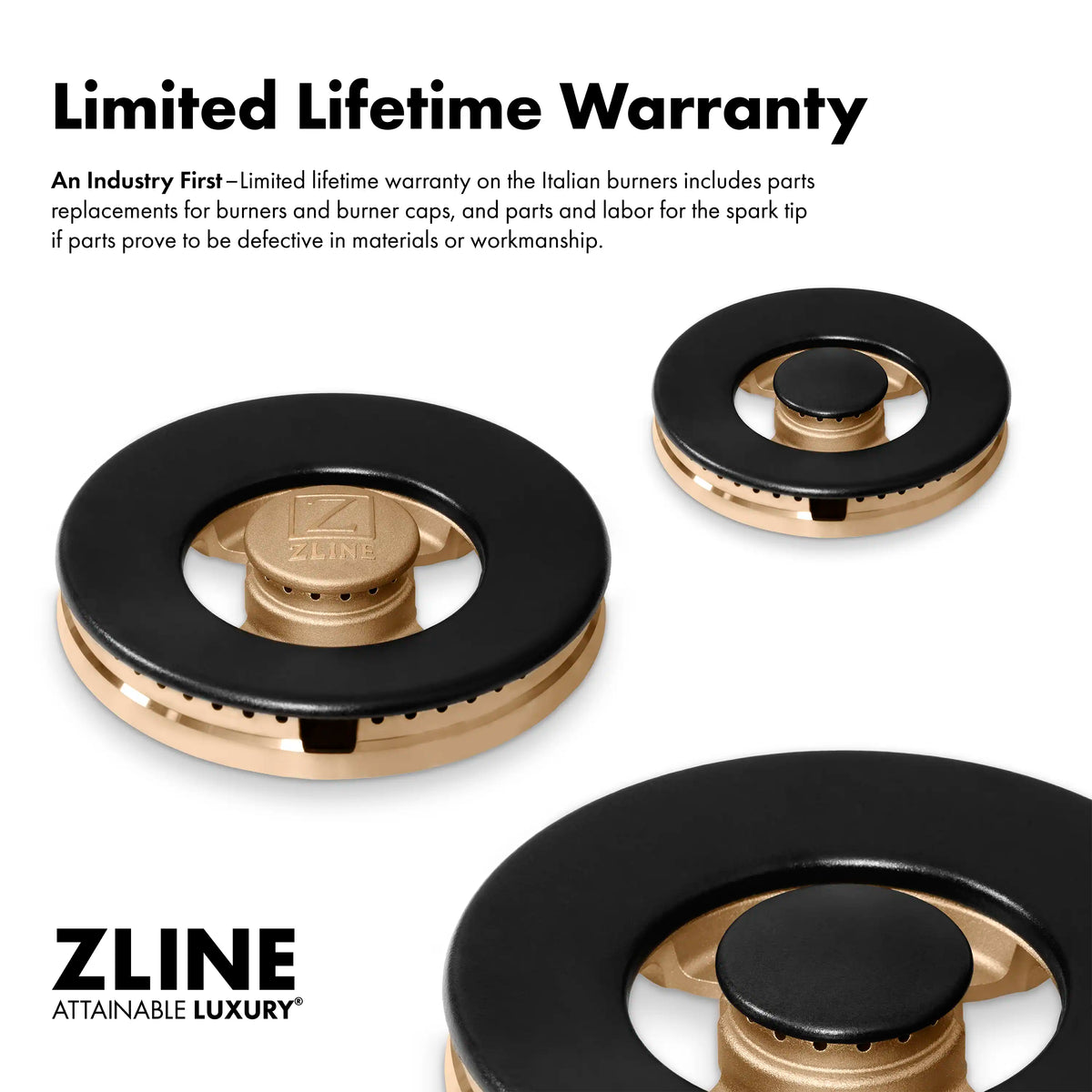

- 1 year parts and service, limited lifetime warranty on burners
