Description
DIMENSIONS
- Dimension
- 59.88" W x 27.5" D x 36.13" H
- Dimensions with Handle
- 59.88" W x 29.63 " D x 36.13" H
- Open Door Depth
- 41.8"
- Oven Dimensions
- Left Oven: 18.5” W x 18.5" D x 14" H Right Oven: 30.5” W x 18.5" D x 14" H
- Product Weight
- 455 lbs.
GENERAL INFORMATION
- Brand
- ZLINE Kitchen and Bath
- Features

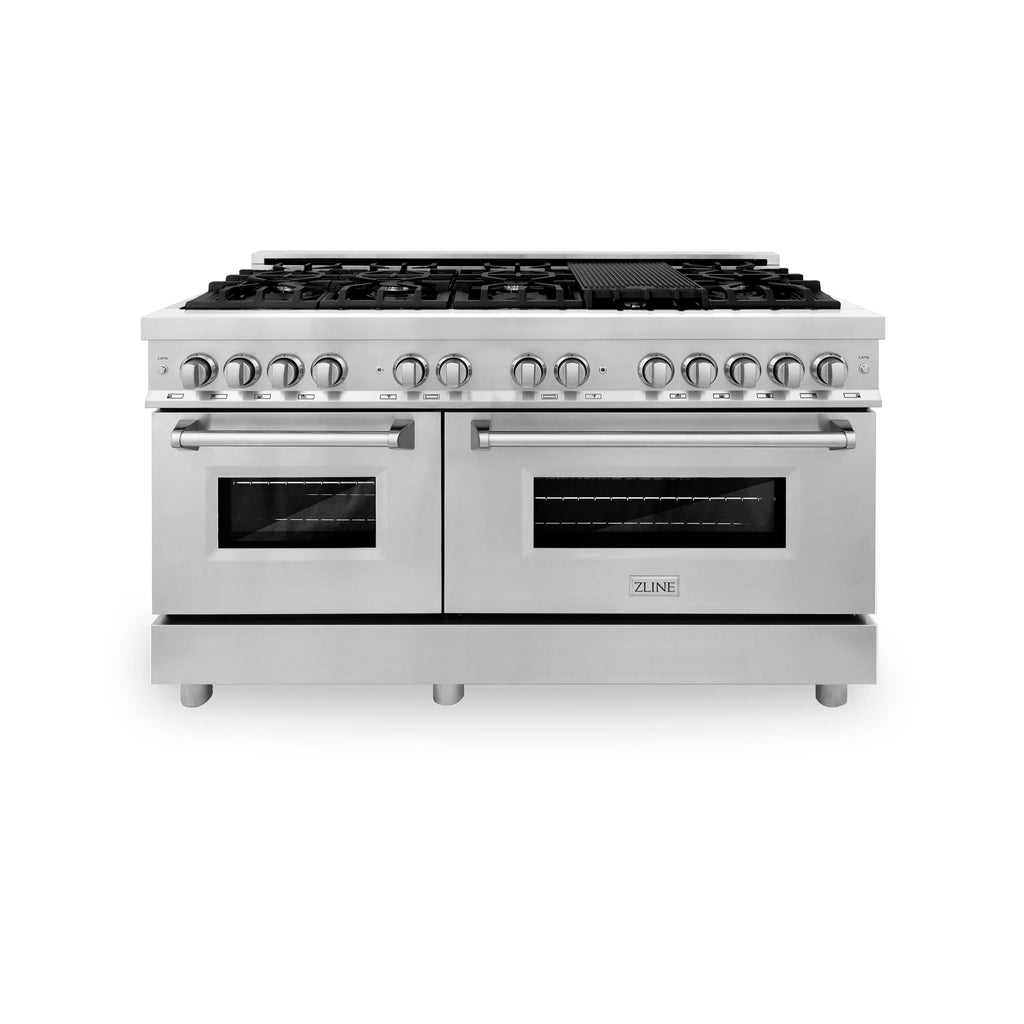

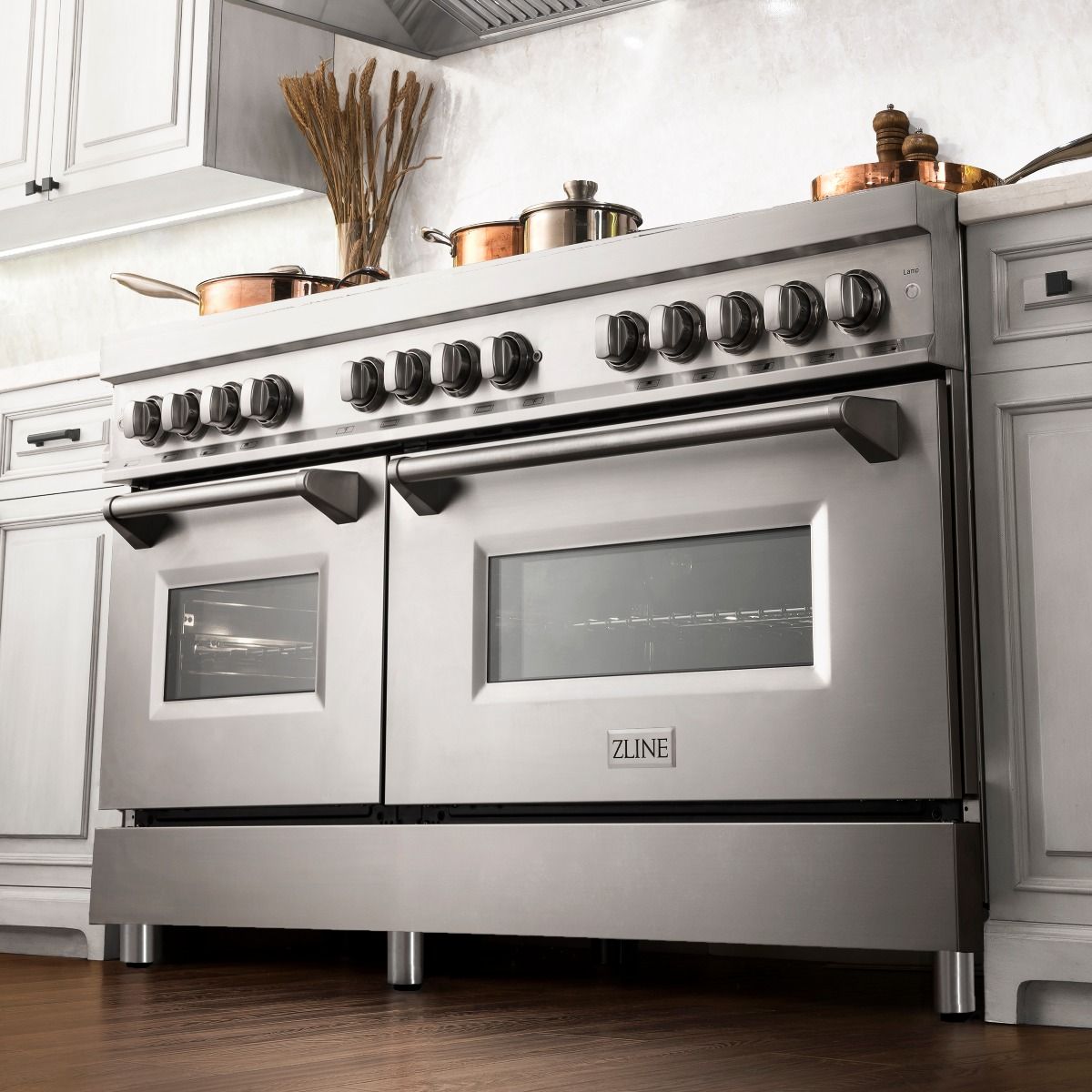

- Manufactured by ZLINE Kitchen and Bath Model No. RA60
DESIGN & FINISH
- Color
- Silver
- Finish
- Stainless Steel
- Lighting
- Dual Lighting, controlled by light switch on front control panel

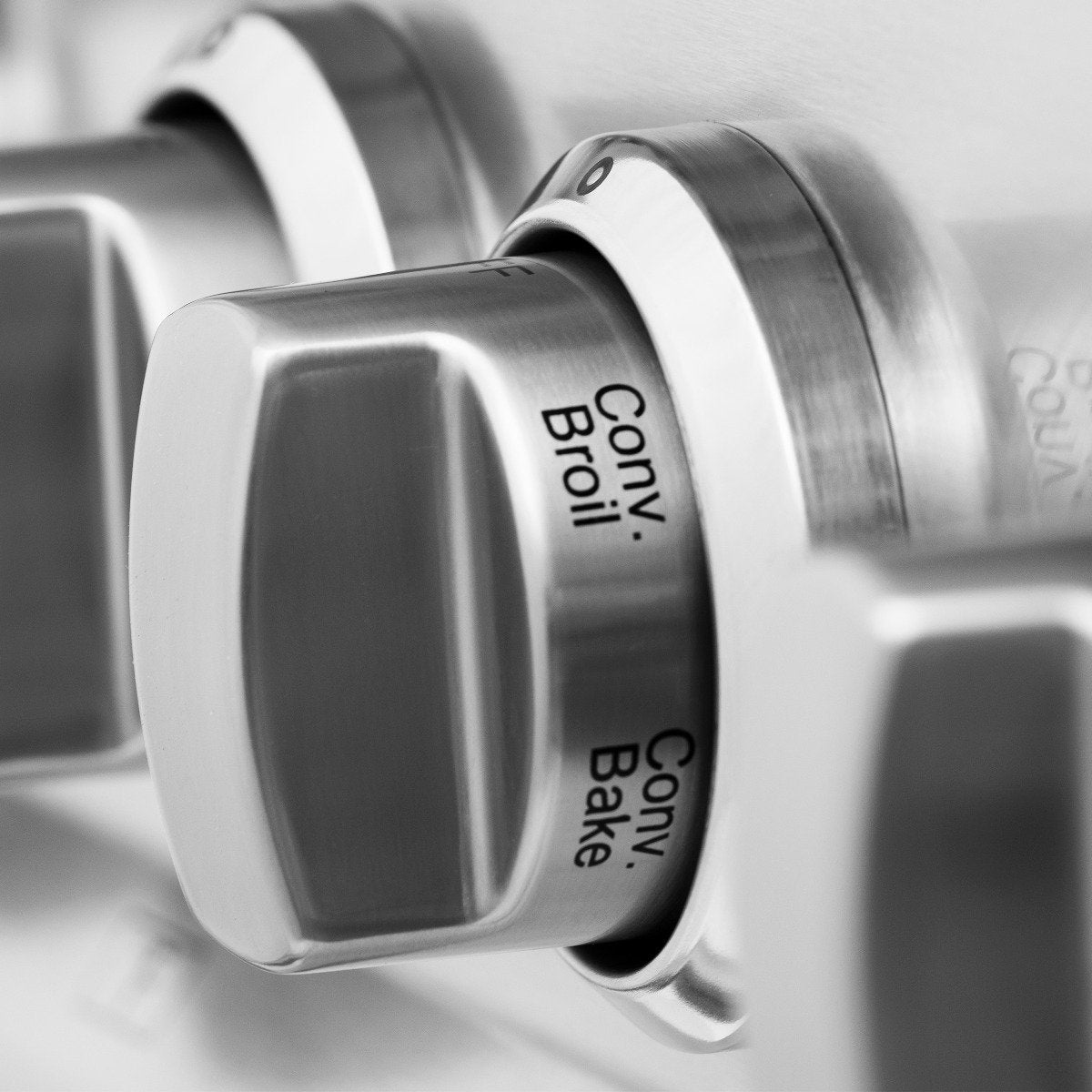

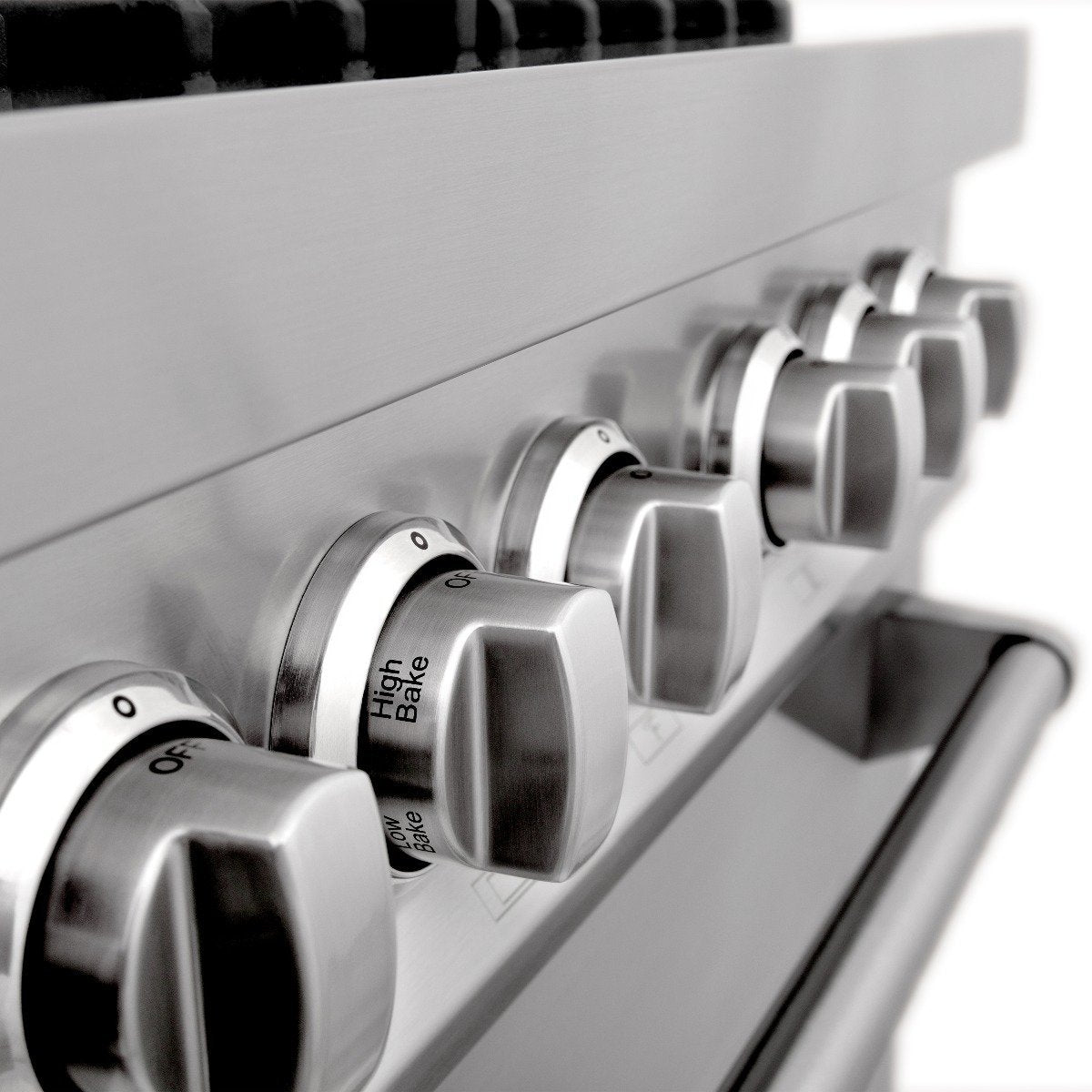

- Control Type
- Front Control
- Light Indicator
- Red indicator light shuts off to let you know when oven has gotten to temperature
- Material
- Stainless Steel frame with 1 Piece Porcelain Top
- Italian made hinges and burners-Manual Clean
TECHNICAL DETAILS
- Voltage
- Requires a minimum of 220V-240V/60HZ/50A
- Mount Type
- Free Standing
- Gas Type
- Natural Gas or Liquid Propane via conversion kit
- Liquid Propane
- LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional
- Fuel
- All ZLINE Ranges come set to work with natural gas by default. All Ranges can also work with propane. A propane adapter is included in the box and will require an extra step to convert.
- Fuel Type
- Electric Oven - Gas Cooktop
COOKTOP FEATURES
- Cooktop

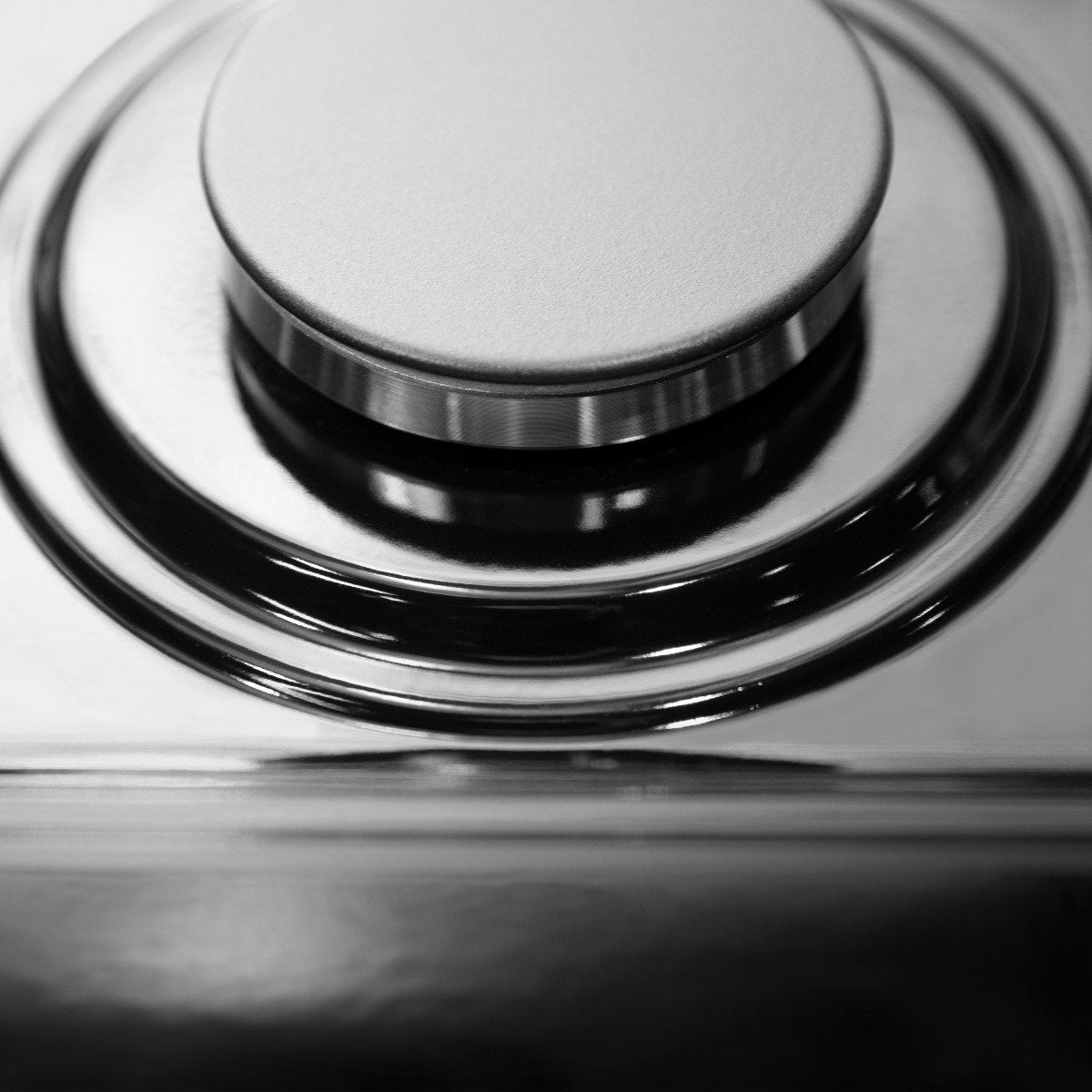

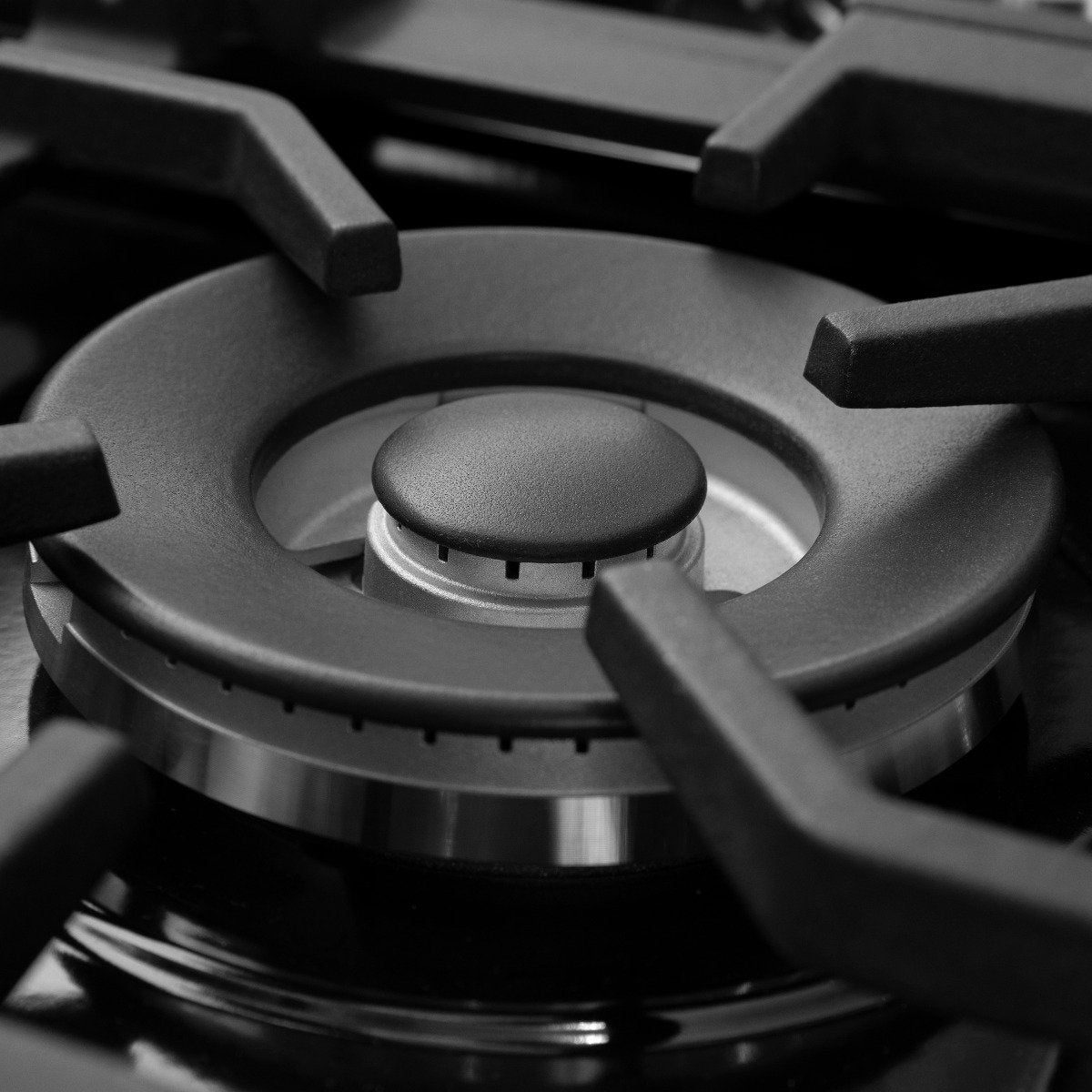

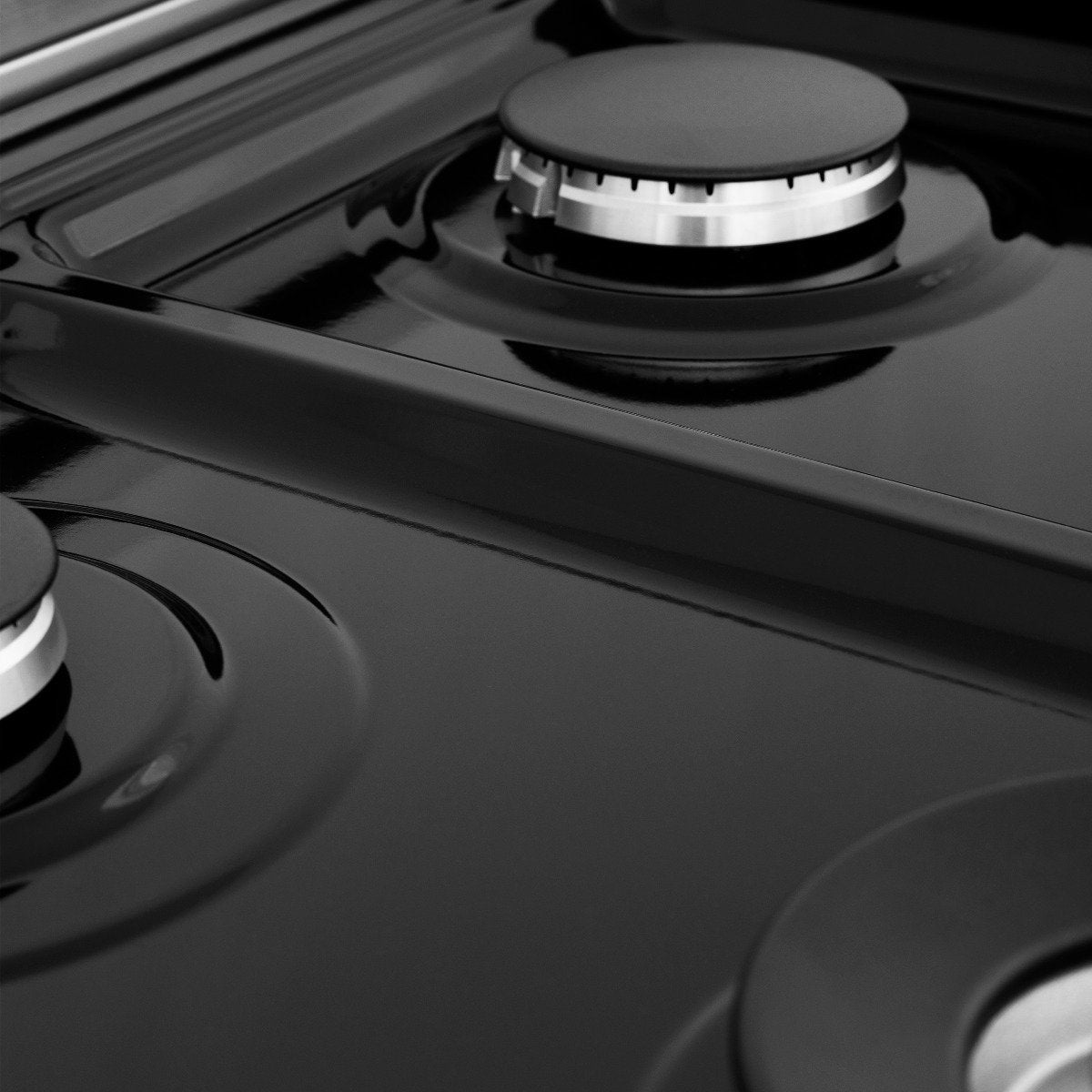

- (8) Burners (1) Fish Burner with hand-finished stainless steel One piece cook top and electronic spark ignition for all burners
- BTU Rating
- Dual Burner(x2) - 18,000 BTU Griddle Burner - 13,000 Rapid Burner - 13,000 BTU Semi-Rapid Burner (x2) - 8,500 BTU Auxiliary Burner - 4,200 BTU
OVEN FEATURES
- Oven

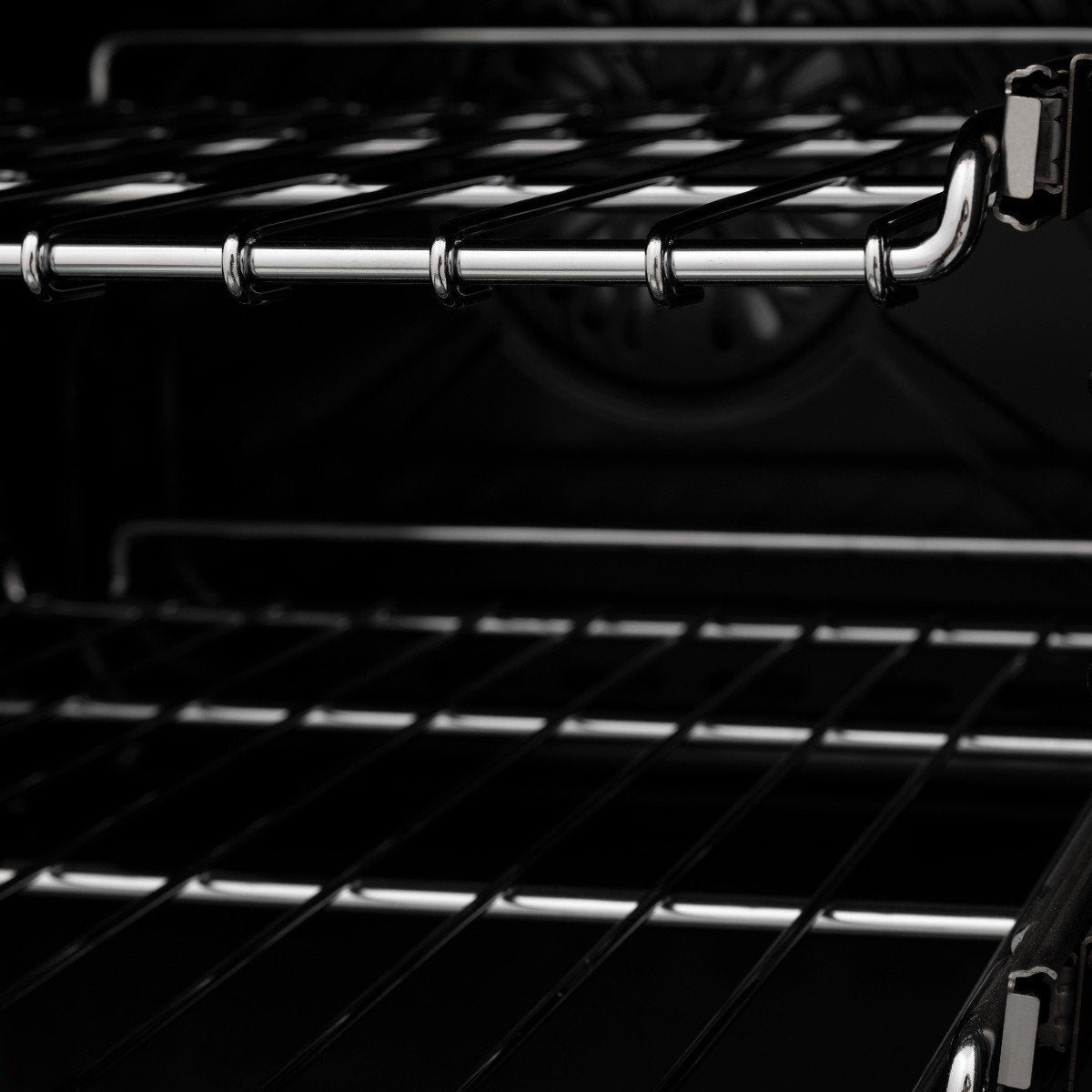

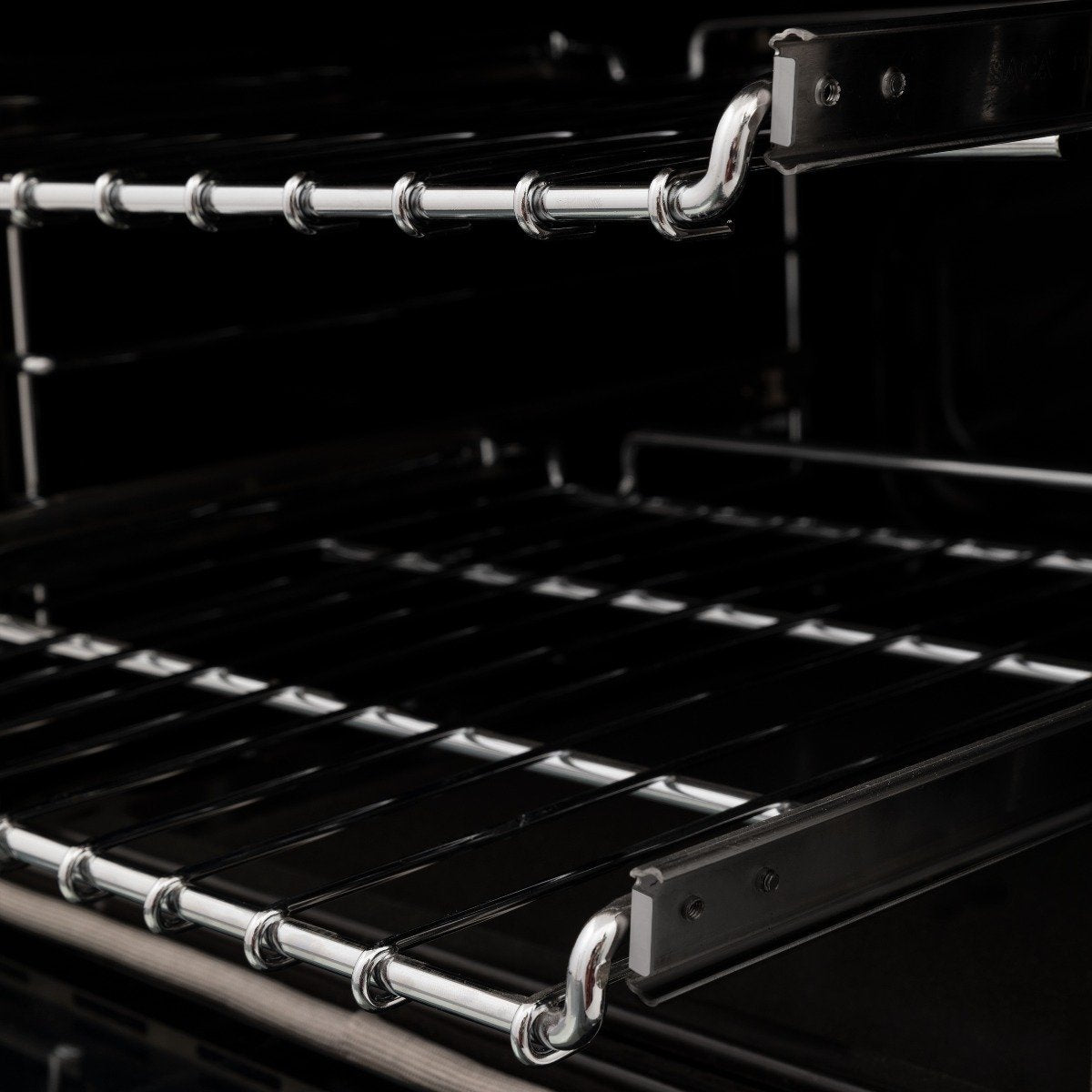

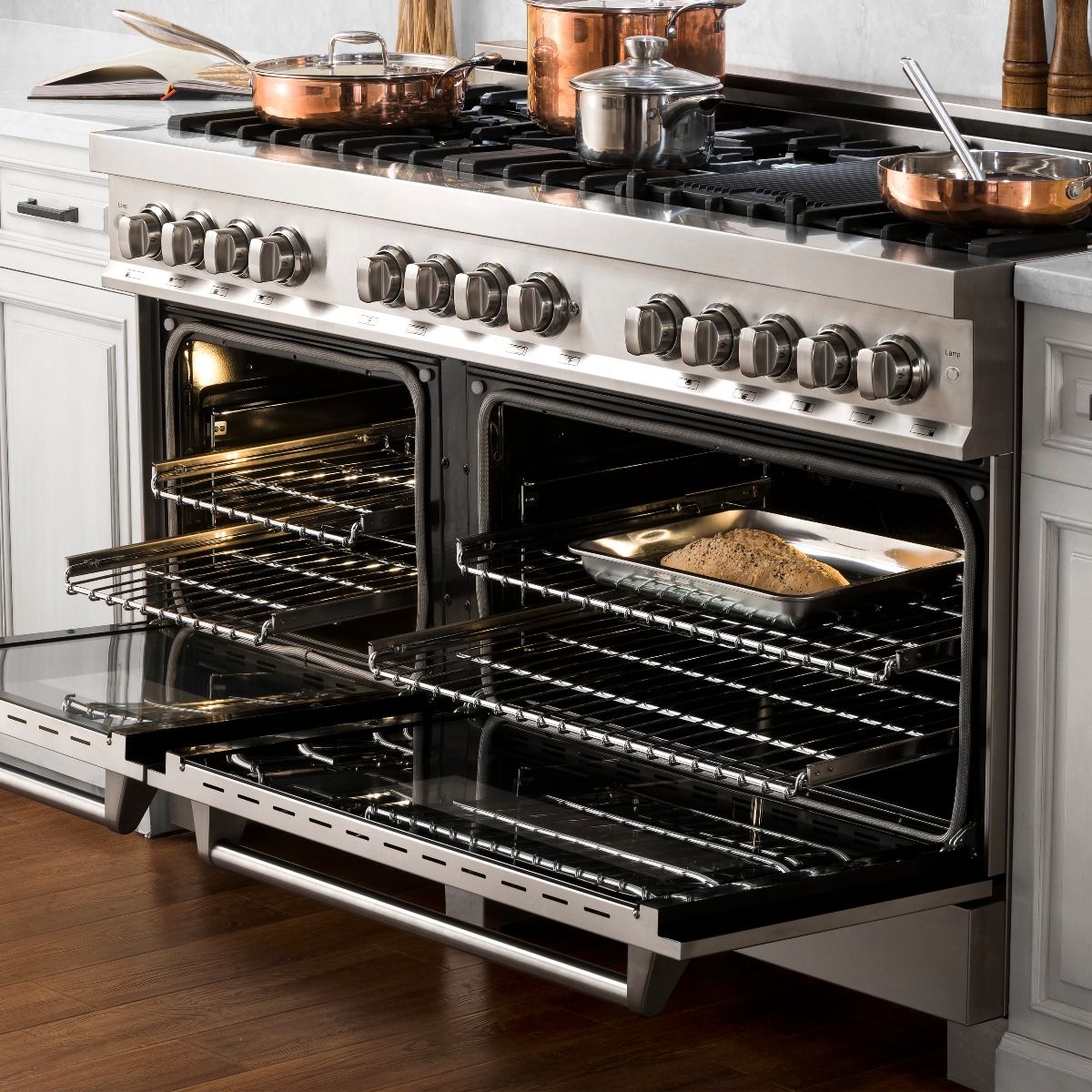

- Convection Electric 4.6 cu. ft./ 2.8 cu. ft Triple Glass Window Dual Lighting Professional Aluminum Mesh Seal
- Self-Clean
- No
WARRANTY & CERTIFICATIONS
- Warranty
- 1 Year Warranty
- Certifications
- ETL Certified
