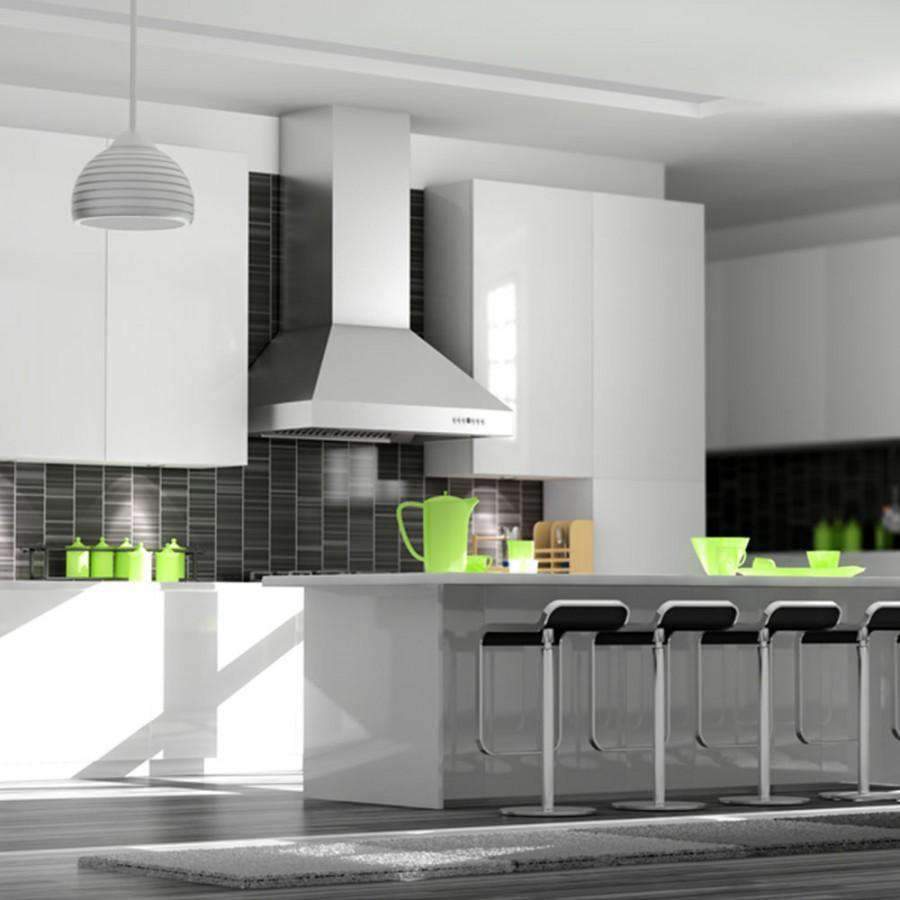

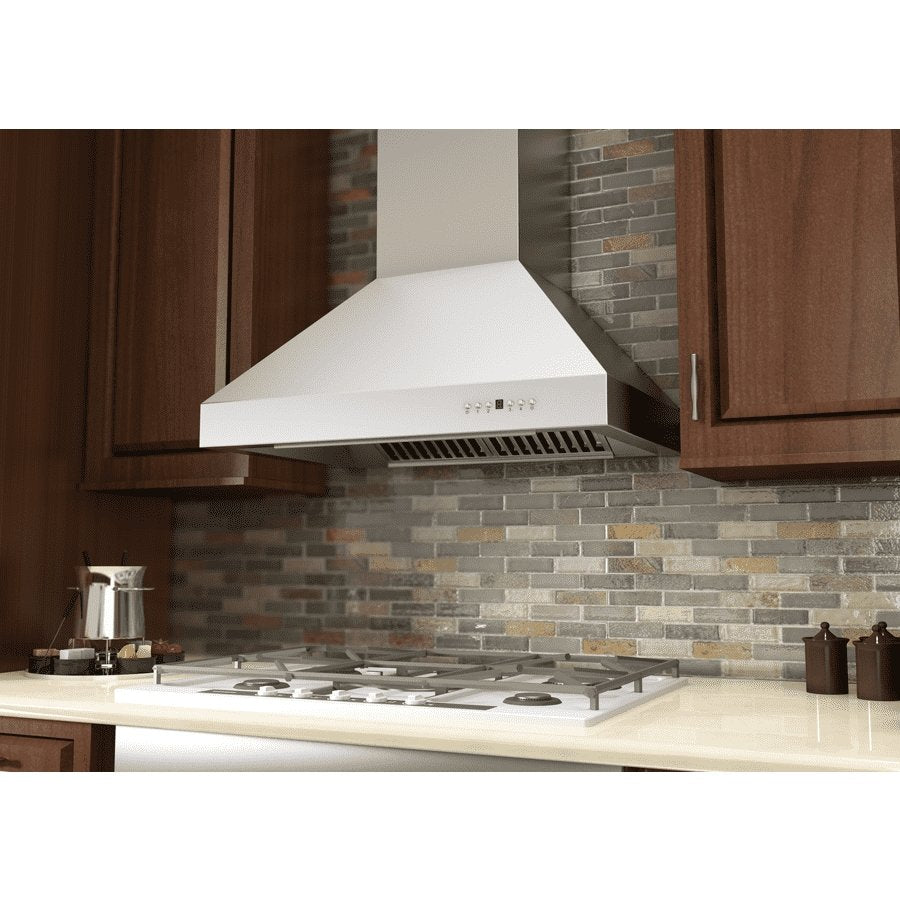

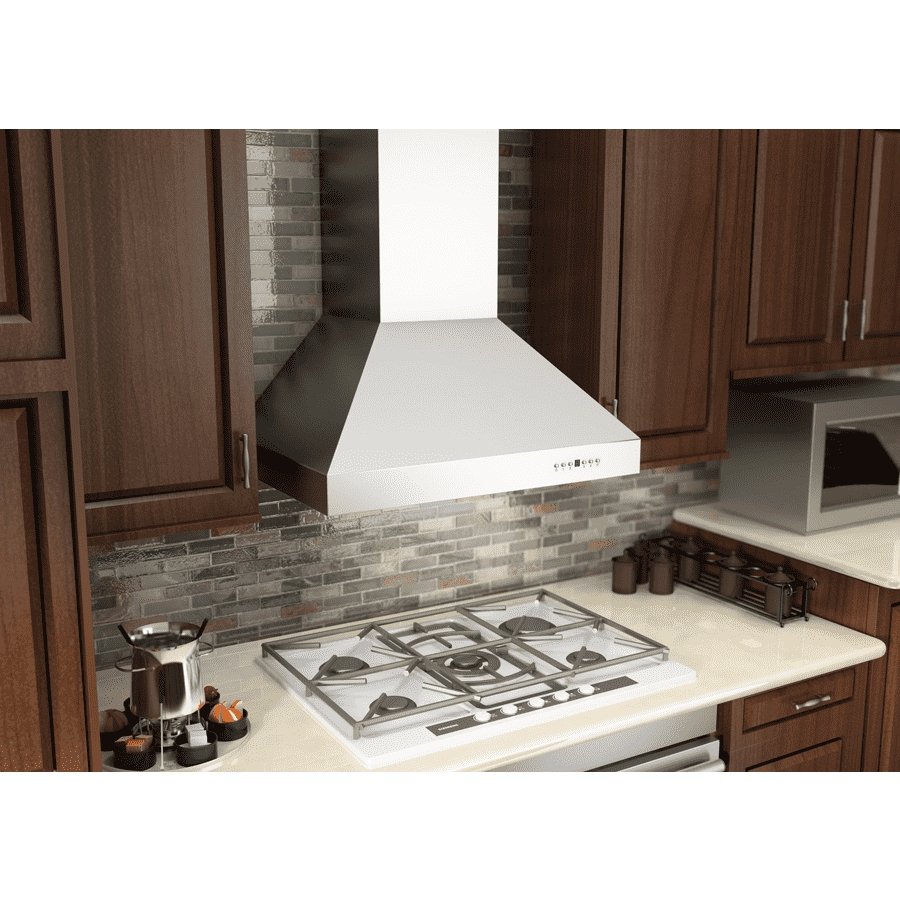

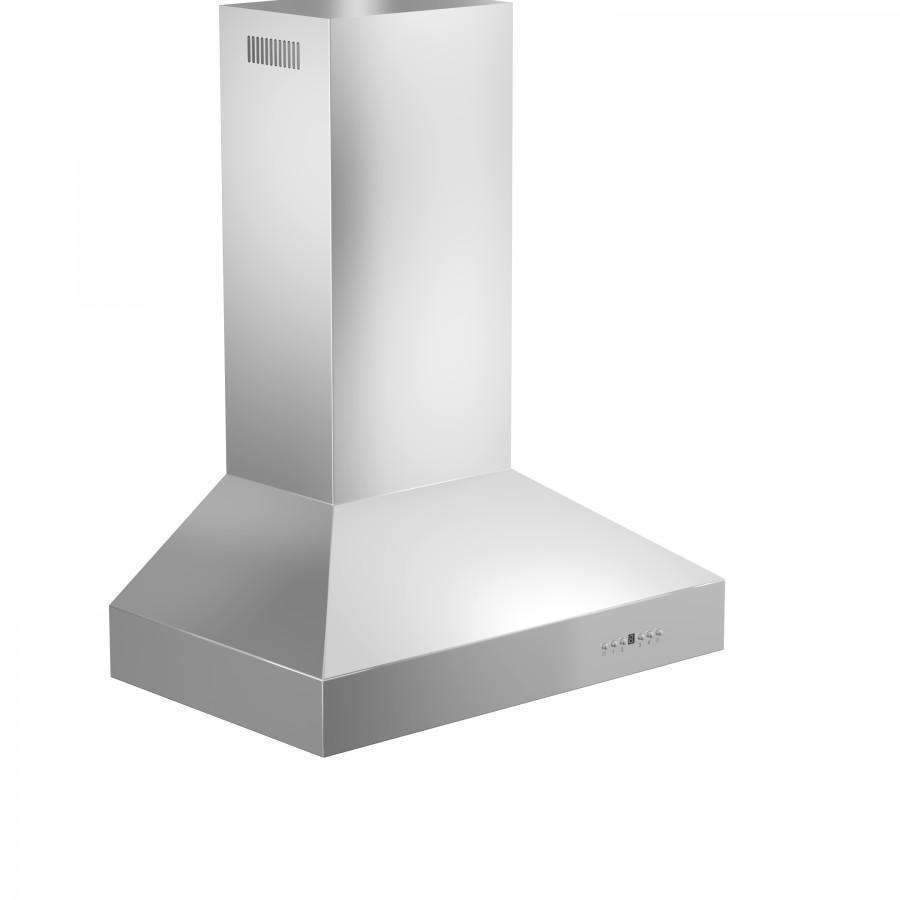

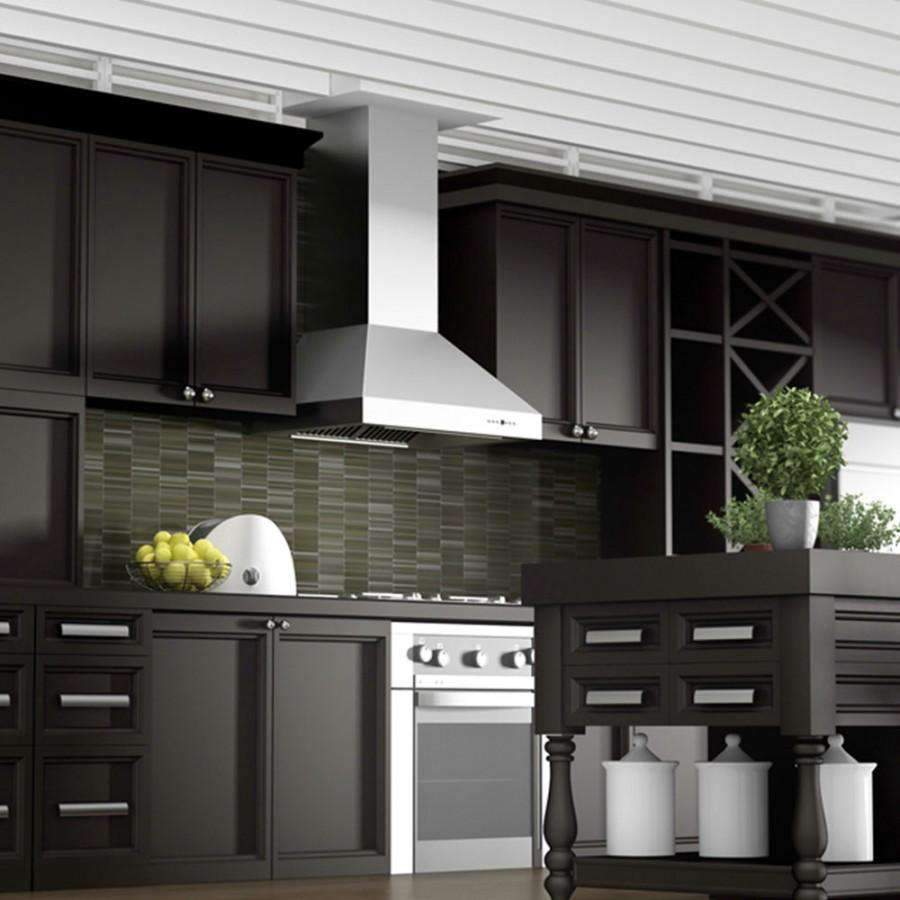

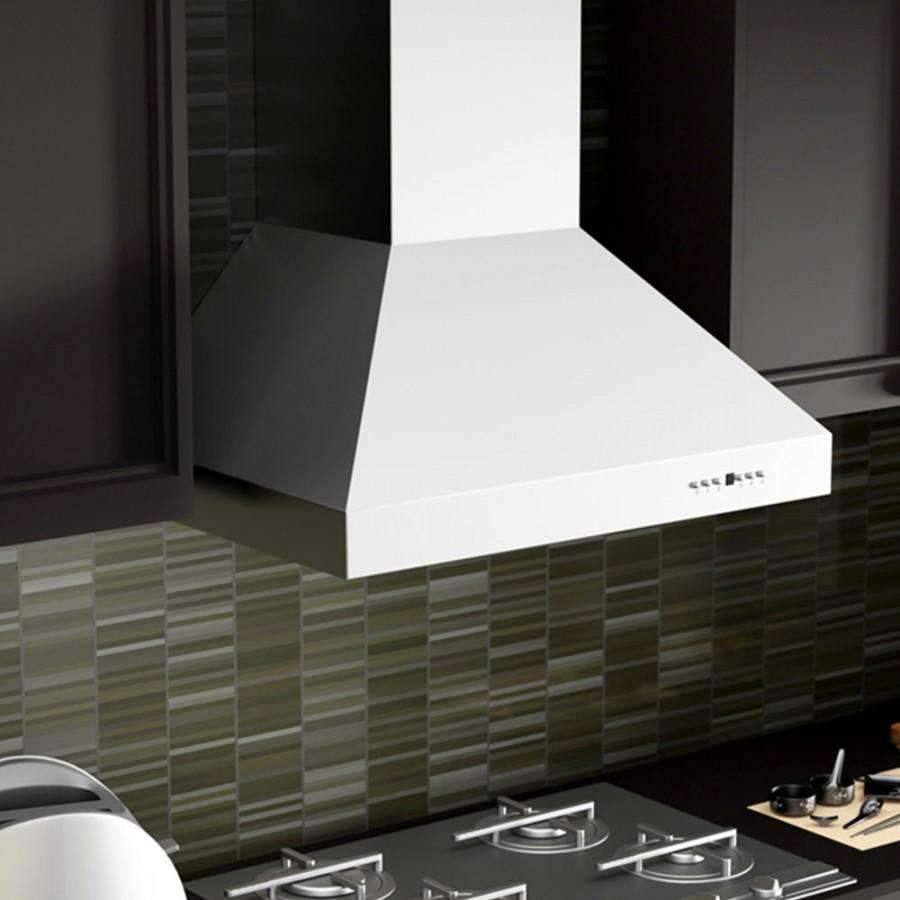

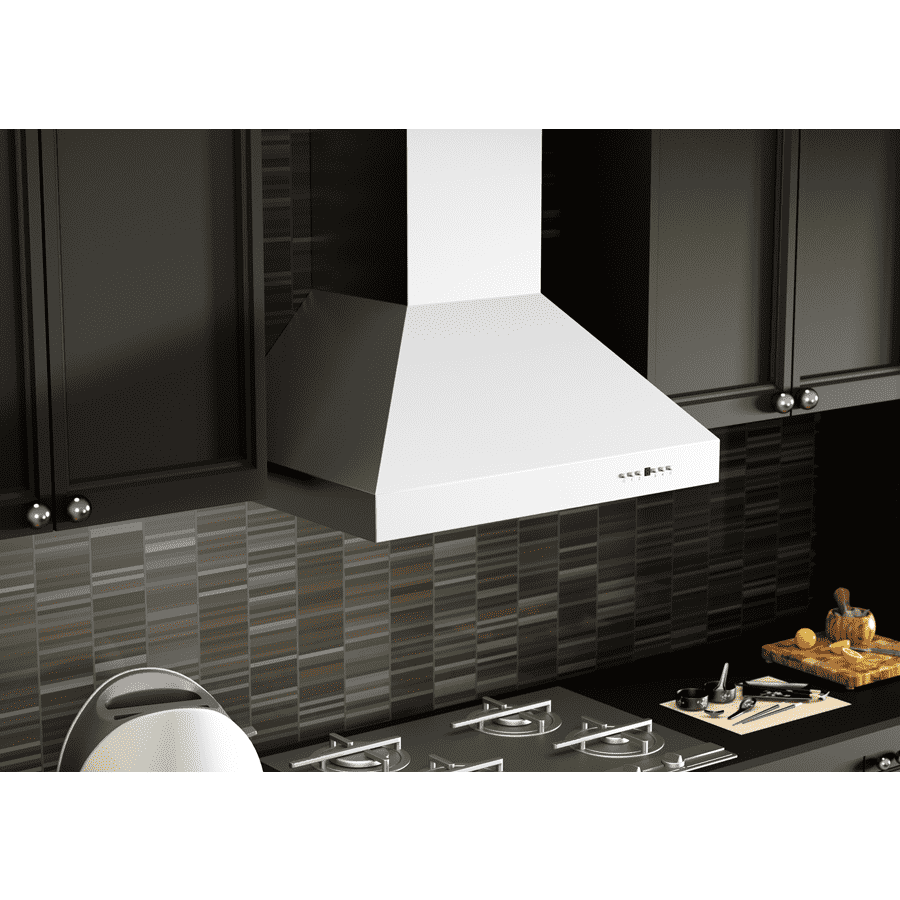

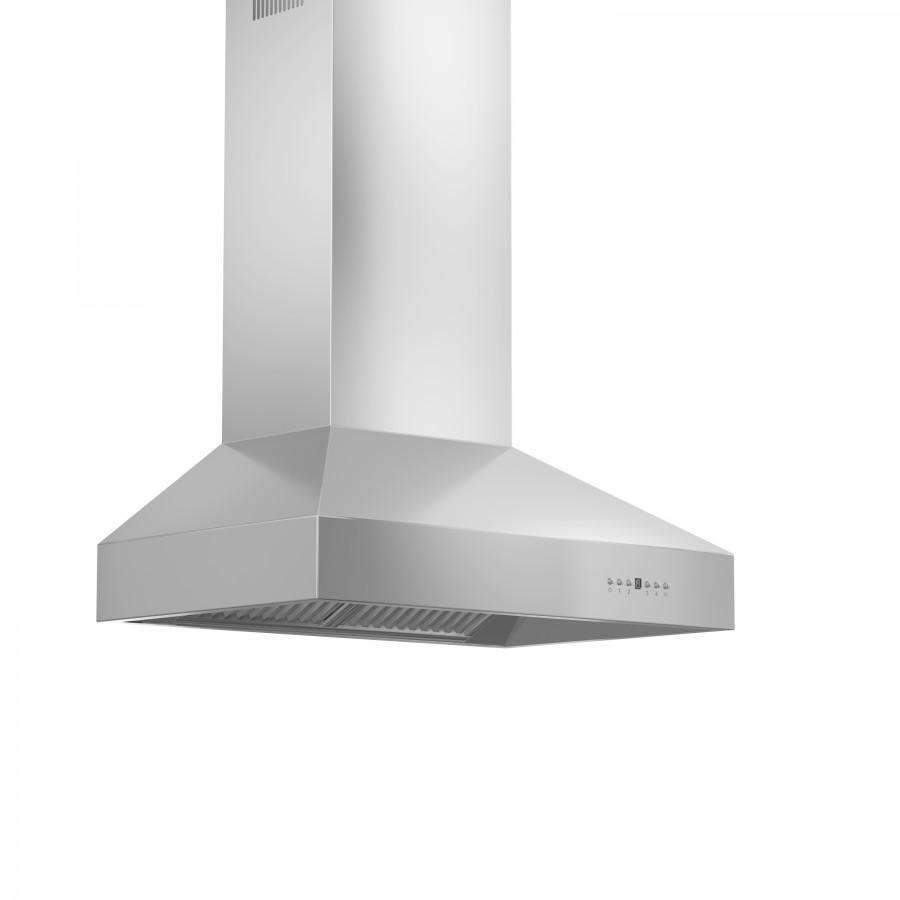

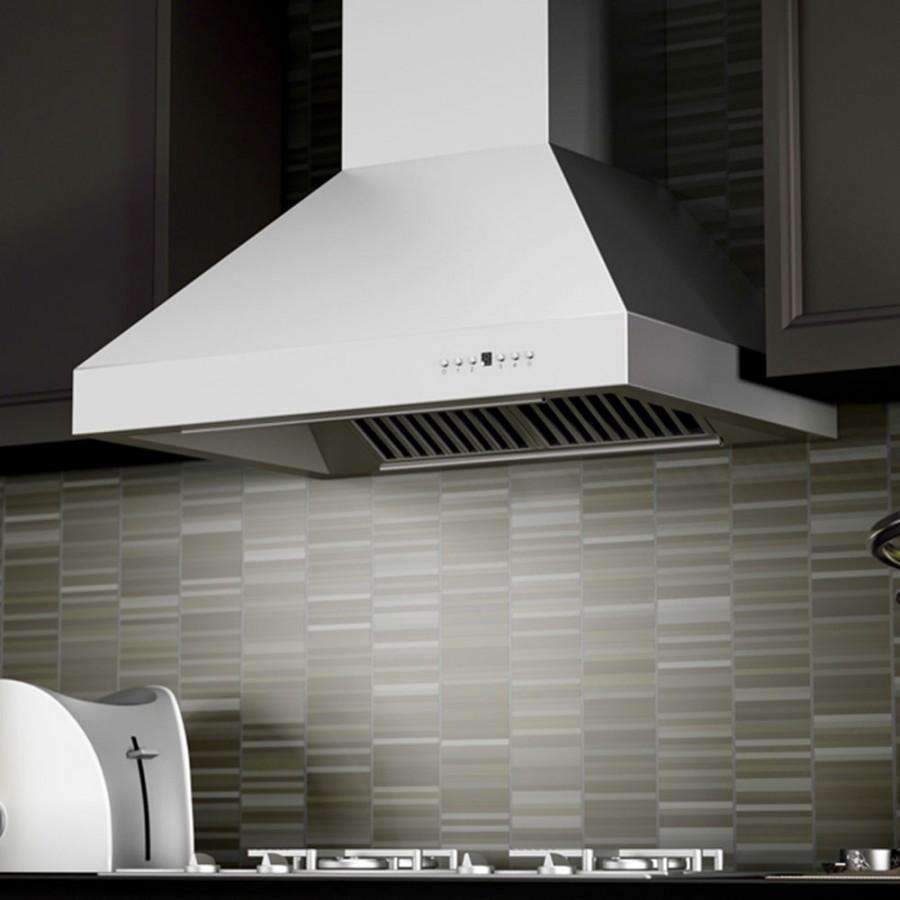

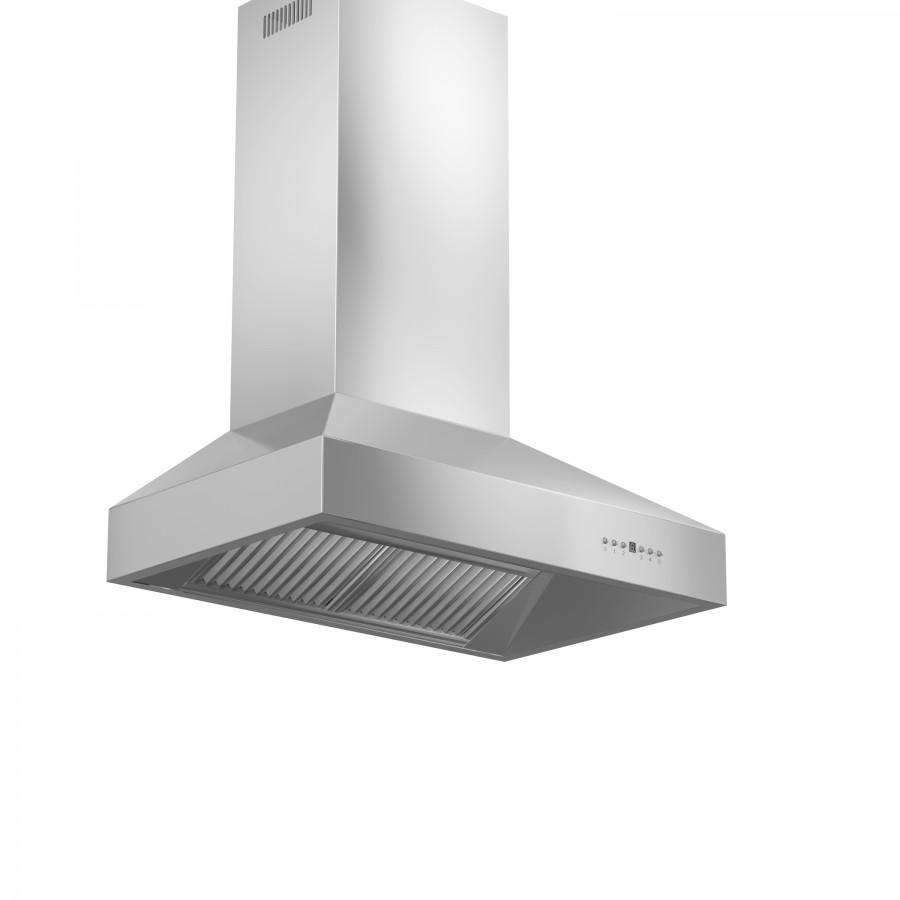

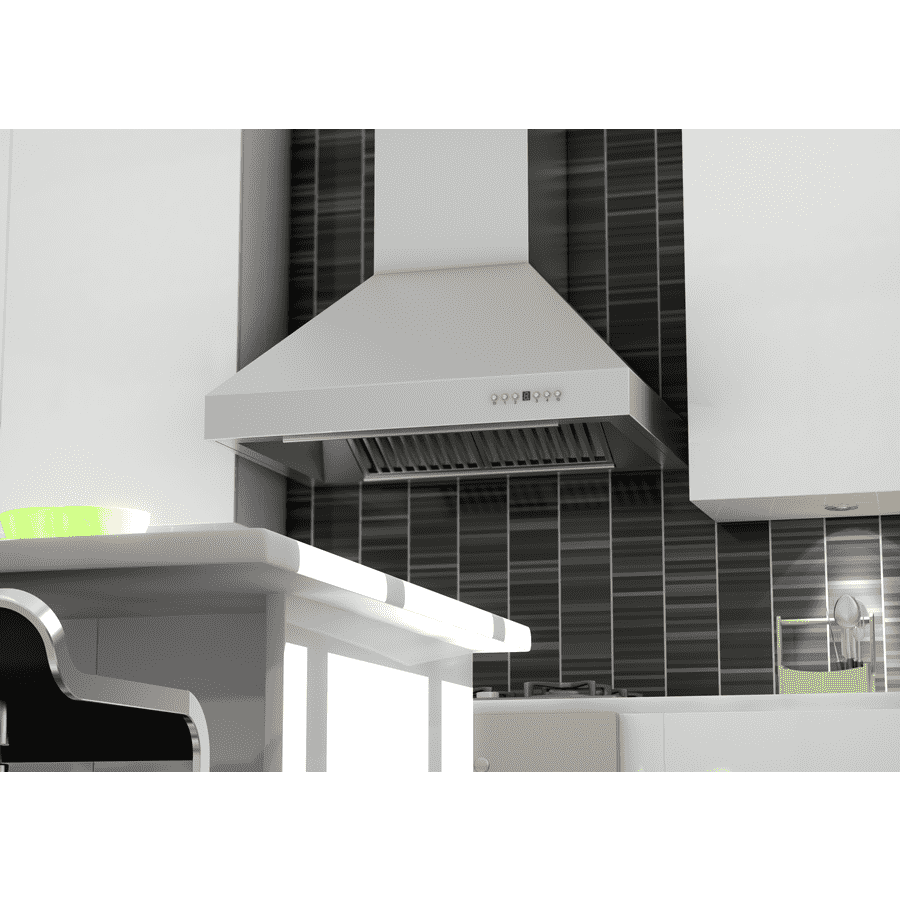

The ZLINE 697-304 professional wall mount stainless steel hood is designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 304-grade stainless steel, making it approved for outdoor use. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimney pieces, allowing a fit for most ceilings between 8 and 9 feet. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.
ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods.
| Specs & Dimensions | |
|---|---|
| Brand | ZLINE Kitchen and Bath |

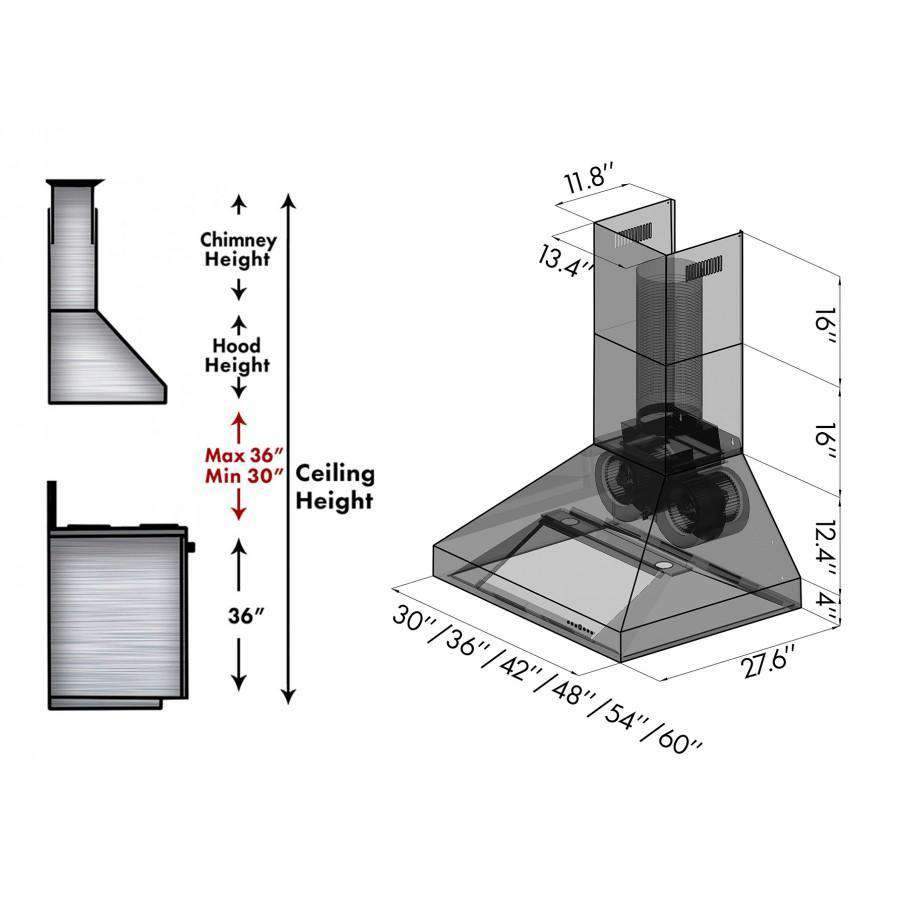

| Dimension | 54.125 in. W x 28 in. D x 16.4 in. H |
| Chimney (Dimension) | 13.5" W x 11.75" D x 16" H (x2) (Telescoping) Chimney Short Kit and Extension(s) Available: Short Kit (2-12") ~7-8 ft. Ceilings 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings 2 PC Extension (2-36") ~10-12 ft. Ceilings |
| Venting Size | 8" Outlet (Transition piece to round ducting included) |
| Airflow (Q/L/M/H) | 280/420/560/700 (CFM) |
| Lighting | 4 Directional LED Lights (3-Watt) |
| Noise Level | 30/41/49/52 (Decibels) |
| Voltage | 110V/60HZ |
| Motor | High Performance 700 CFM/4-Speed Motor |
| Mount Type | Wall Mount - RECOMMENDED INSTALLATION 36"-40" ABOVE GRILL |
| Speeds | 4 Speeds |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Filters | Stainless Steel Baffle Filters (Dishwasher Safe) |
| Material | 19g #304 Stainless Steel |
| Warranty | 3 Year Parts Warranty |
| Features | Model No. 697-304-54 (ETL Listed) |
| UPC | 855187005849 |
| Certifications | ETL Certified |
