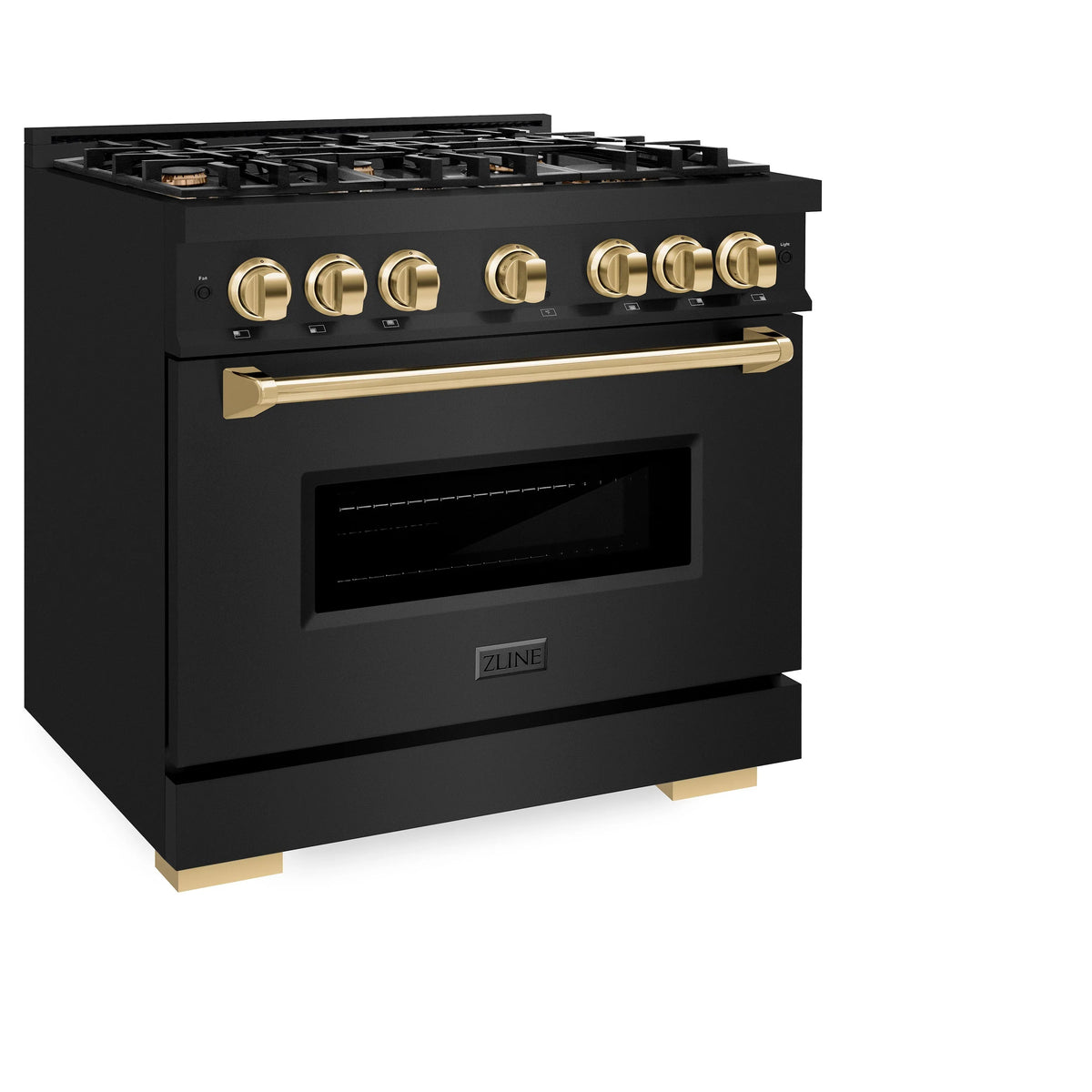

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 36 in. 5.2 cu. ft. Classic Dual Fuel Range with 6 Burner Gas Cooktop and Electric Convection Oven in Black Stainless Steel with Polished Gold Accents (CDRBZ-36-G) combines the elegance of a hand-finished porcelain gas cooktop with 6 Italian-made auto-reignition burners, an electric convection oven with an energy-efficient cooling fan to ensure quiet operation, a Landscape oven door window design, and stunning polished gold knobs and handle allowing you to master every meal. With a modern, timeless style and refined functionality, ZLINE Classic Dual Fuel Ranges are masterfully crafted to deliver an elevated culinary experience.
| DIMENSIONS | |
|---|---|
| Dimensions | 36 in. W x 27.75 in. D x 36 in. H |
| Interior Oven Dimensions | 31.38 in. W x 17.75 in. D x 16.38 in. H |
| Cutout Dimensions | 36.25 in. W x 24.75 in. D x 36 in. H |
| Open Door Depth | 45.1 in. |
| DESIGN & FINISH | |
| Color | Black |
| Finish | Black Stainless Steel |
| Material | Black Stainless Steel with Brass Burners |
| Accent Finish | Polished Gold |
| TECHNICAL DETAILS | |
| Installation Type | Freestanding |
| Electrical Requirement | 240V/60Hz/25A |
| COOKTOP FEATURES | |
| Burner Fuel | Natural Gas (Includes Liquid Propane Conversion Kit) |
| Number of Burners | 6 |
| OVEN FEATURES | |
| Oven Capacity | 5.2 cu. ft. |
| Number of Racks | 2 |
| Timer (Y/N) | No |
| Self Cleaning (Y/N) | No |
| Broil (Y/N) | Yes |
| Oven Fuel | Electric |
| Convection Fan | Yes |
| WARRANTY & CERTIFICATIONS | |
| Outdoor Approved (Y/N) | No |
| Warranty | 1 Year Parts and Service Warranty Limited Lifetime Warranty on Burners |
| Certifications | ETL Listed |

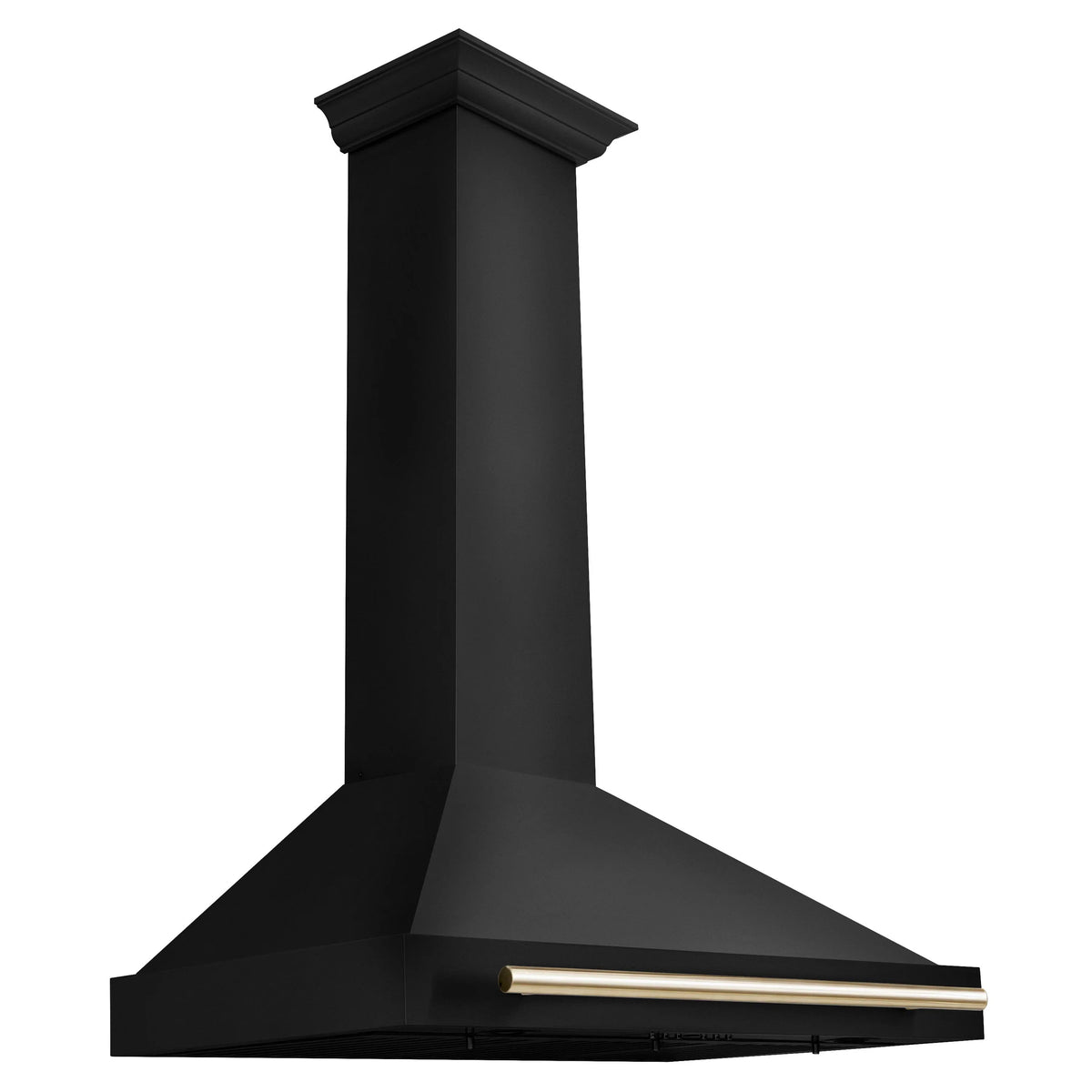

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 36 in. Autograph Edition Black Stainless Steel Wall Mount Range Hood With Accent Handle (BSKB4Z-36) provides a professional culinary experience by pairing unmatched performance with personalized touches. Encompassing limitless beauty, precision, and quality, the Autograph Edition Series creates a luxury look that will transform your space. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability.
| Specs & Dimensions | |
|---|---|
| Dimensions | 36 in. W x 17.75 in. D x 12 in. H |
| Chimney Dimensions | 9.2 in. W x 8 in. D x 16 in. H (x2) (Telescoping) |
| Min/Max Chimney Height | 16 in. - 32 in. H |
| Compatible Accessories | CF1 (charcoal filters) |
| Max CFM | 400 CFM |
| Duct Size | 6 in. Round Duct |
| Airflow (Q/L/M/H) | 120/240/320/400 |
| Outdoor Approved (Y/N) | No |
| Convertible from Ducted to Recirculating (Y/N) | Yes (with charcoal filters) |
| Remote Blower (Y/N) | No |
| Electrical Requirements (Voltage, Amps, Watts) | 110V/5a/550W |
| Decibels/Sones | 30/41/49/52 dB |
| Lighting (# of Lights) | 2 |
| Mount Type | Wall Mount |
| Motor | High Performance 400 CFM/4-Speed Motor |
| Material | Black Stainless Steel with Accent Handle |
| Accent Finishes | Champagne Bronze Polished Gold |
| Speeds | 4 |
| Filters | Baffle Filters |
| Control Type | Push Button Panel |
| Warranty | 3 Year Parts Warranty Lifetime Motor Warranty |
| Certifications | ETL Listed |

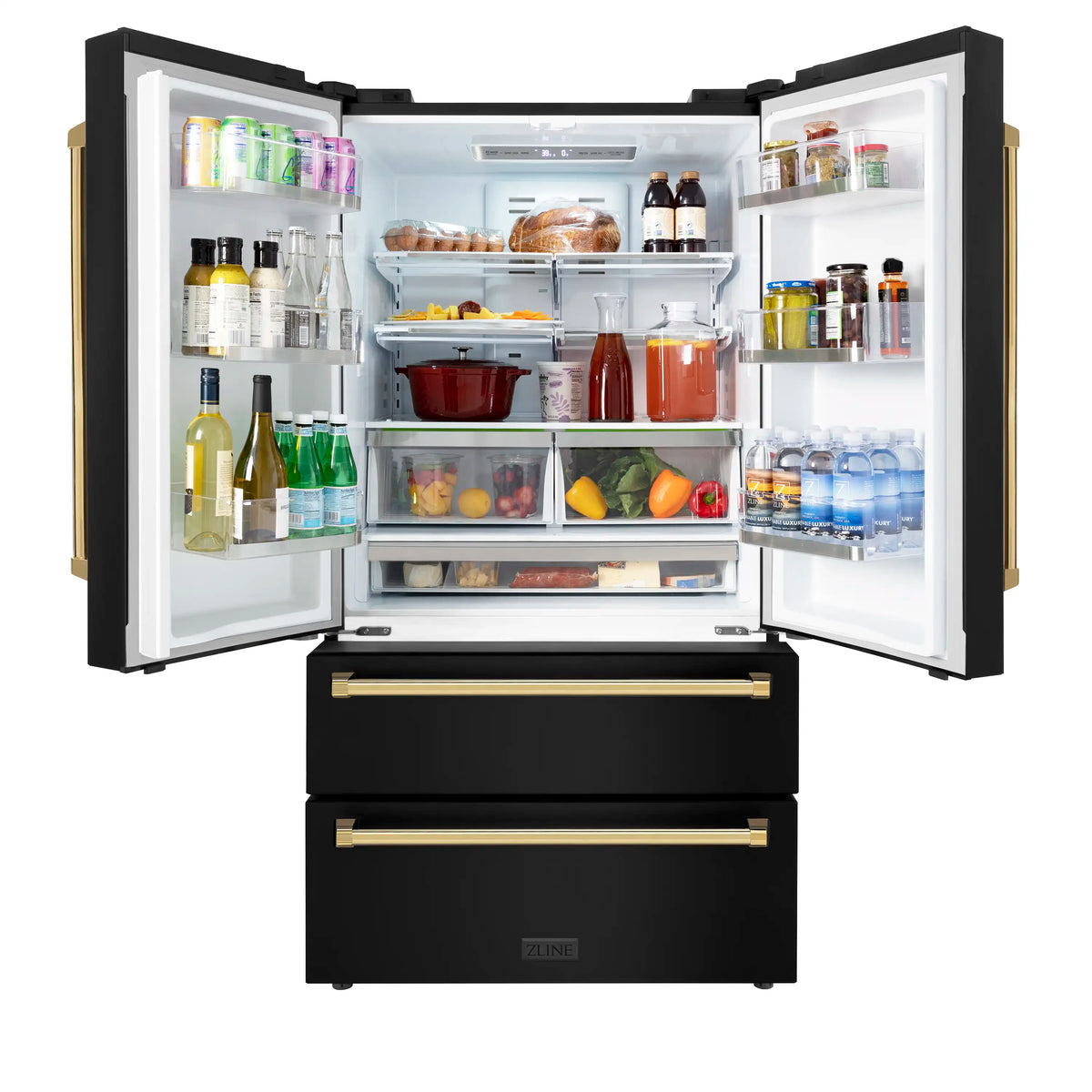

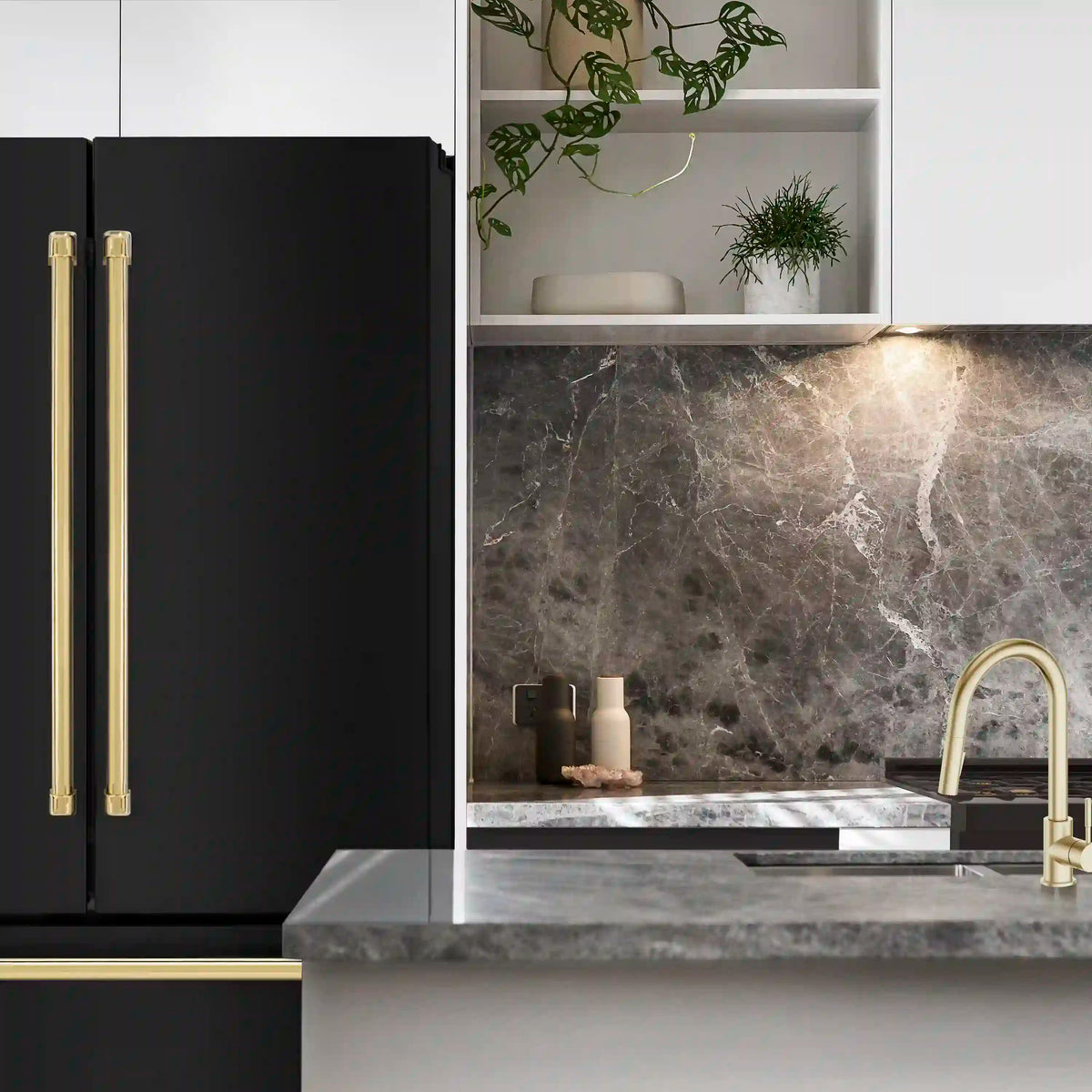

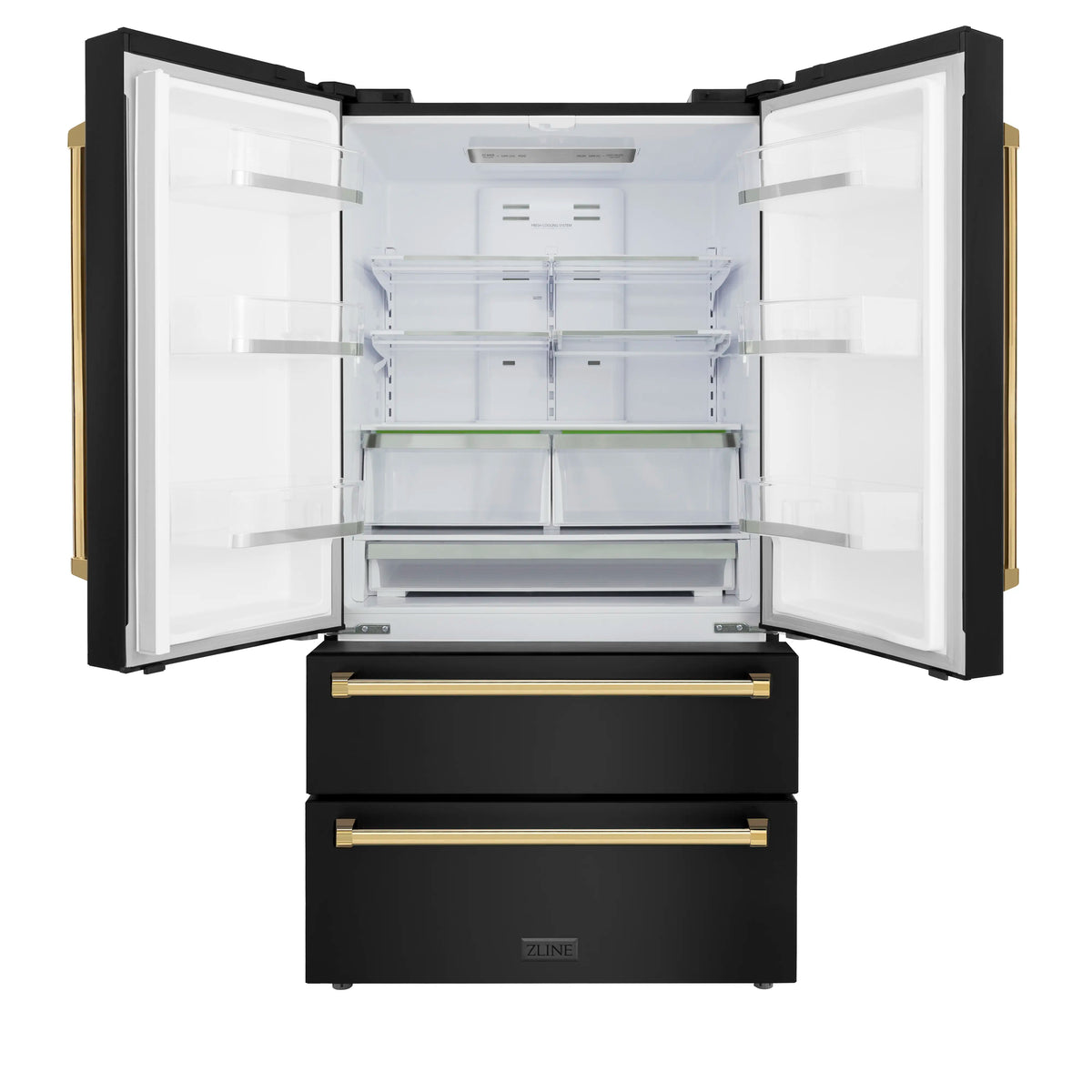

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 36 in. 22.5 cu. ft. Counter-Depth French Door Refrigerator with Ice Maker in Fingerprint-Resistant Black Stainless Steel with Polished Gold Traditional Handles (RFMZ-36-BS-G) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and a high-capacity built-in ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
| Specs & Dimensions | |
|---|---|
| Dimensions | 35.75 in. W x 29.125 in. D x 69.6875 in. H |
| Total Capacity | 22.5 cu. ft |
| Fridge Capacity | 15.9 cu. ft |
| Freezer Capacity | 6.61 cu. ft |
| Flex Drawer Capacity | N/A |
| Flex Drawer Temp Controls | N/A |
| Installation Depth | 29 in. D |
| Depth with Door Open | 43.5 in. |
| Ice Maker | Yes |
| Ice Maker Types | Single Ice Maker |
| Ice Amount Per Day | 4.85 lbs |
| Ice Tray Storage | 1.75 lbs |
| Water Dispenser | No |
| Flowrate for Water Dispenser | N/A |
| Fridge Lights | 3 |
| Energy Star | Yes |
| Energy Consumption (kWh/year) | 588 |
| Voltage | 120V/60Hz |
| Amps | 3 |
| Noise Level | 45 Decibels |
| Humidity-Controlled Crispers | 2 |
| Freezer Drawer Bins | 2- Pull Out Drawers |
| Door Shelves | 6 |
| Number of Fridge Shelves | 4 |
| Mount Type | Freestanding |
| Certifications | ETL Listed, ENERGY STAR certified |
| Material | Black Stainless Steel with Gold Accents |
| Warranty | 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System |
| Weight | 284.4 lbs |

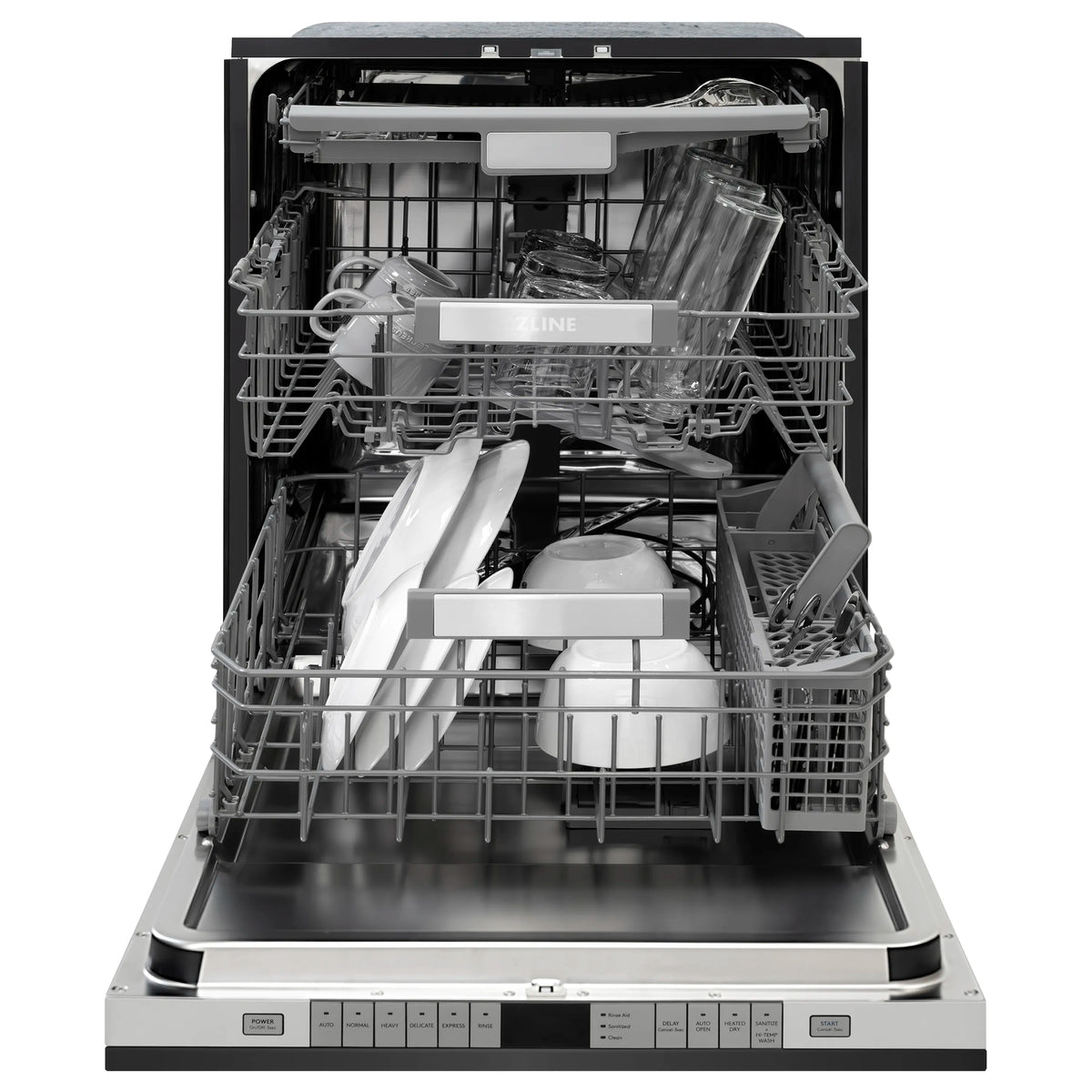

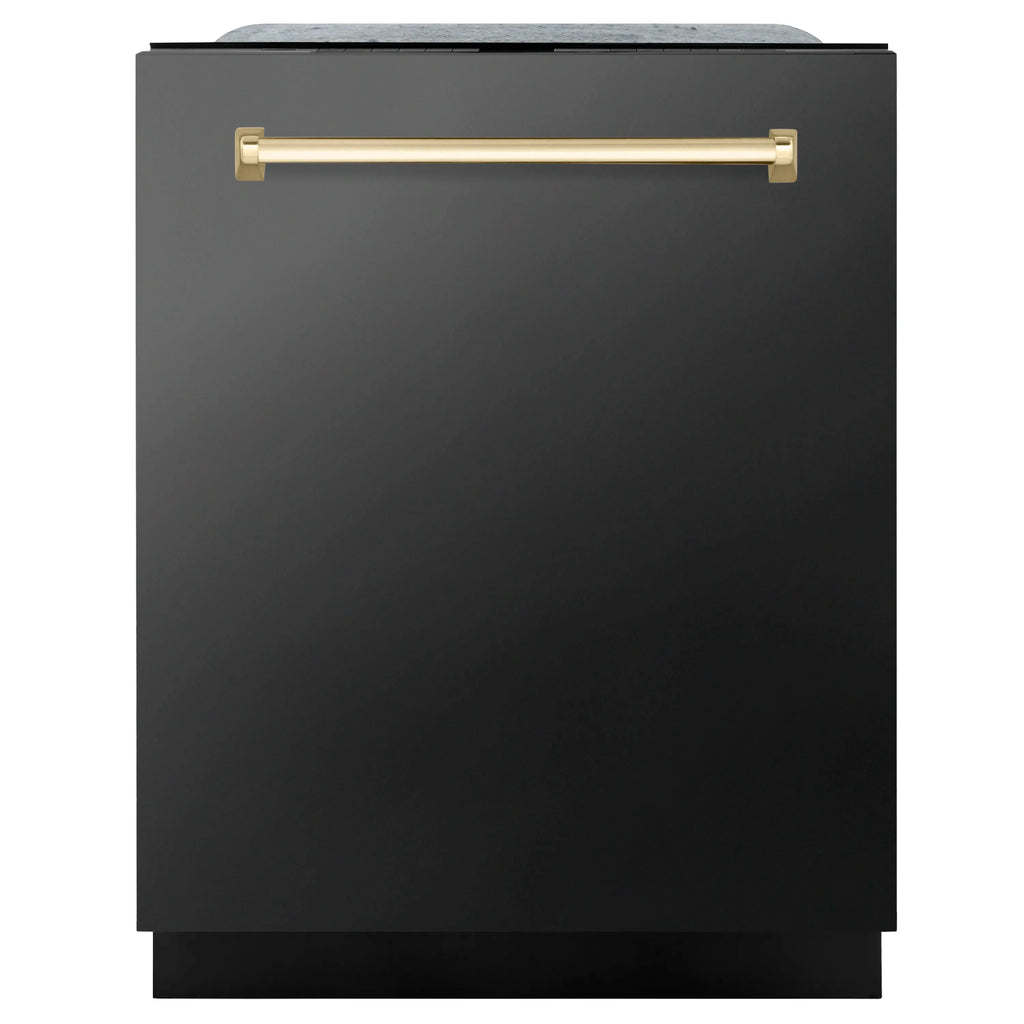

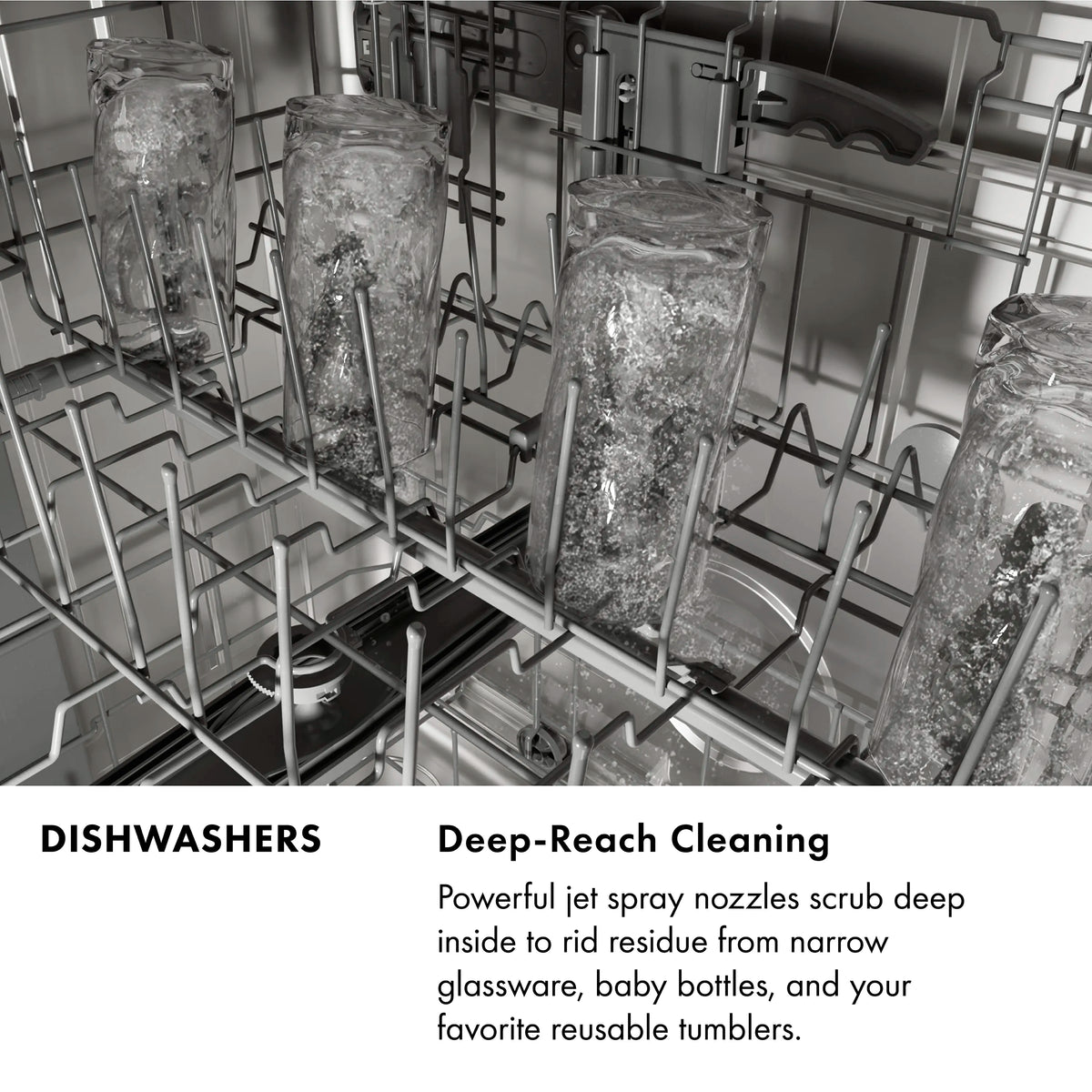

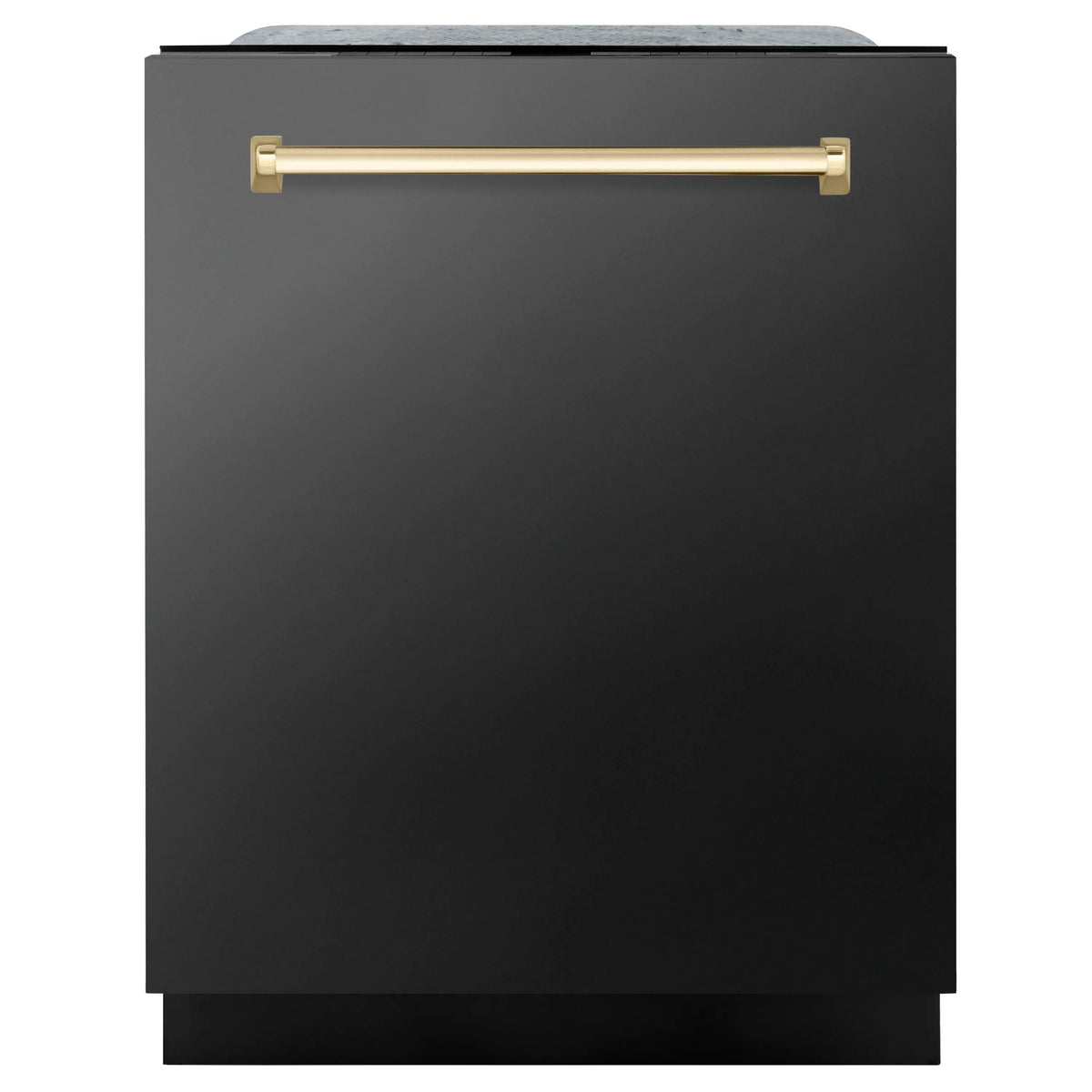

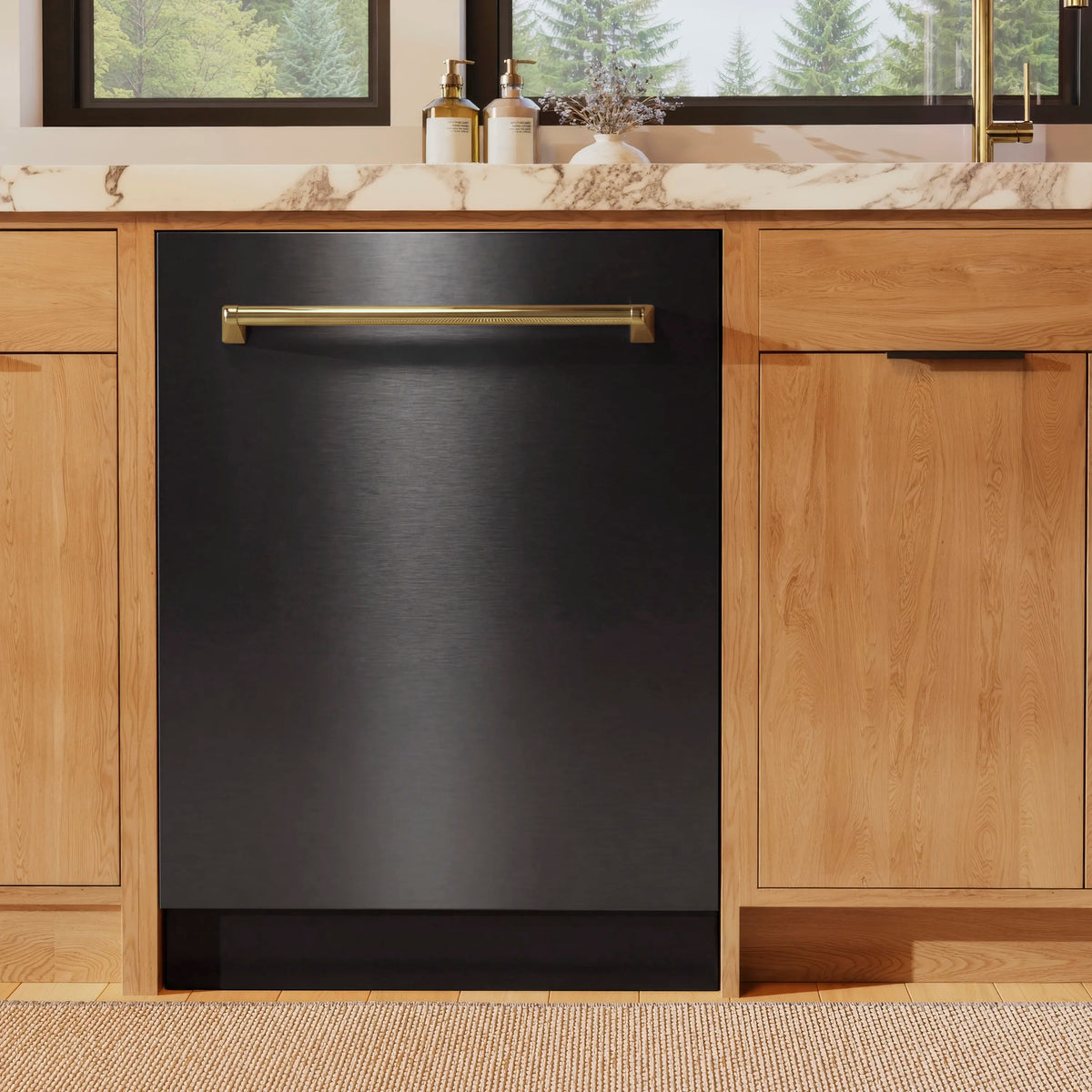

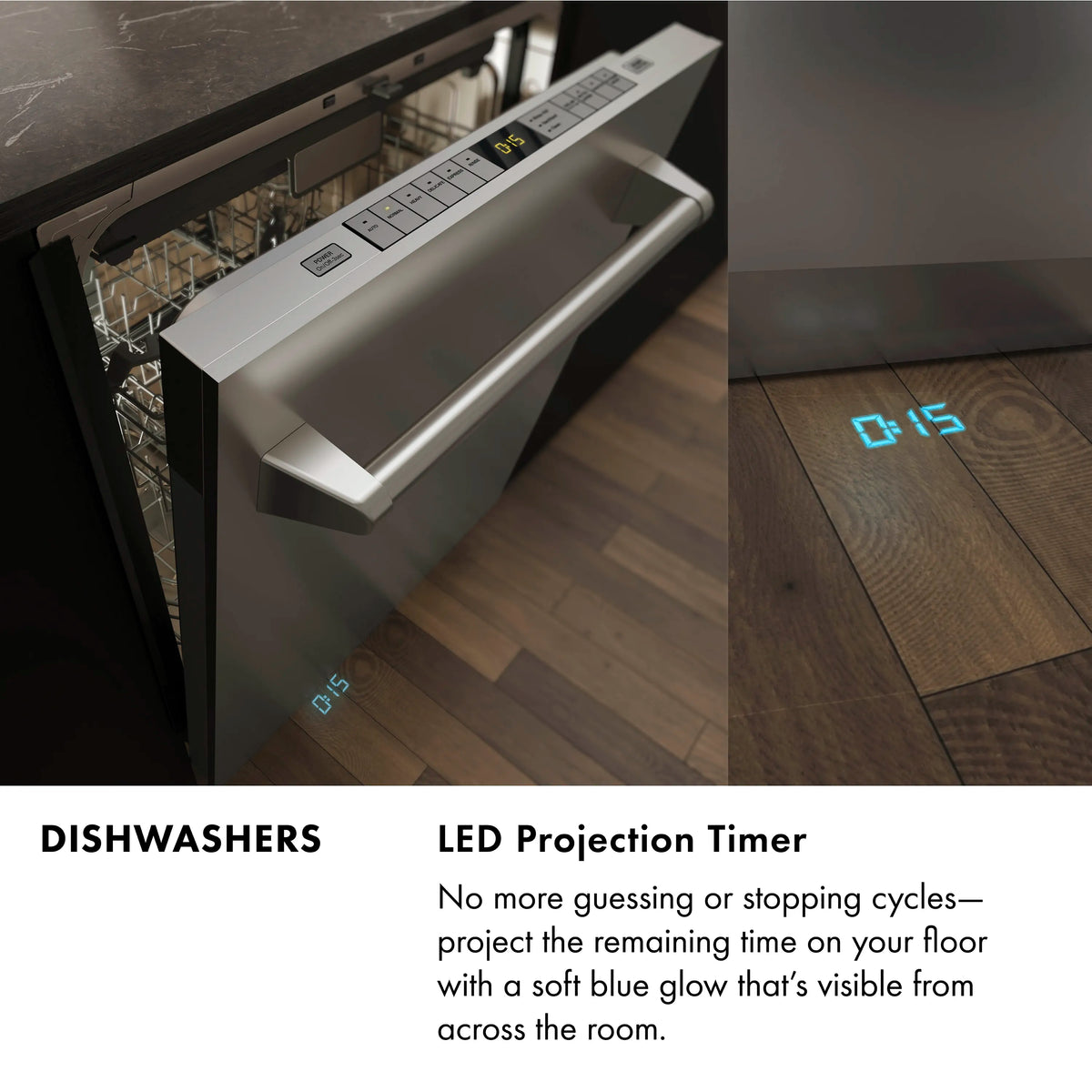

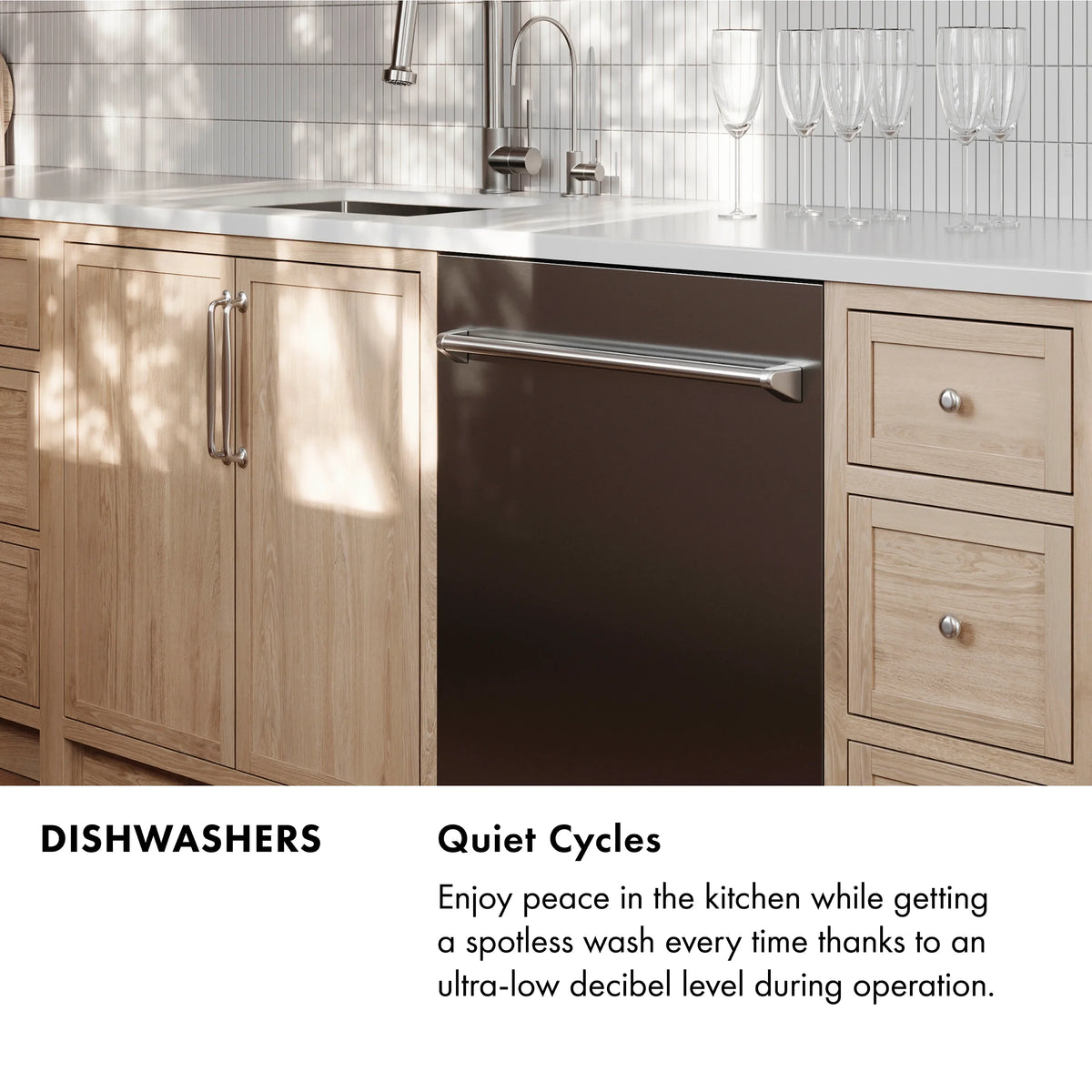

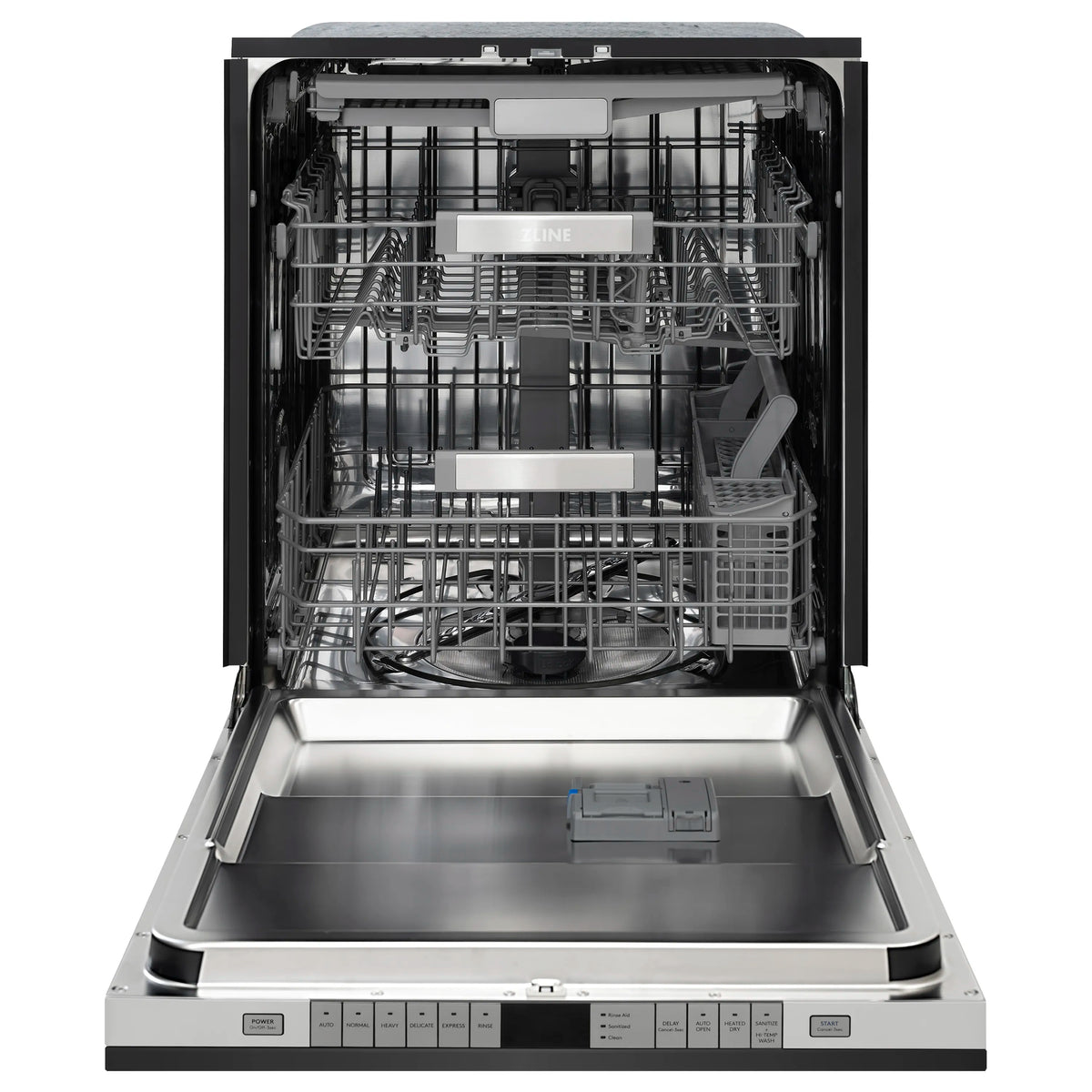

The ZLINE Autograph Edition 24 in. Monument Series 3rd Rack Dishwasher with Auto Door Open Drying, 44dBa, Black Stainless Steel Panel with Polished Gold Handle (DWMTZ-BS-24-G) pairs a powerful heated dry cycle with advanced Auto Door Open technology, ensuring efficient drying for plastics and complex dishware. Engineered to eliminate common kitchen frustrations through smarter performance, this next-generation model features specialized high-pressure bottle wash jets, a discreet floor timer display, and a sophisticated aesthetic purposefully designed to be the centerpiece of any custom luxury kitchen.
| Dimensions | |
|---|---|
| Overall Dimensions | 23.9" W x 24.07" D x 33.9" H |
| Width (in.) | 23.875 |
| Depth (in.) | 25.188 |
| Height (in.) | 34 |
| Weight (lbs) | 100 |
| Cut-Out Height (in.) | 34.13 |
| Cut-Out Width (in.) | 24 |
| Interior Dimensions | 21 5/8 in. W x 19 7/8 in. D x 26 7/16 in. H |
| Extended Hose Length (in.) | 56 |
| General Information | |
| Brand | ZLINE |
| Size | 24 in. |
| Electrical | |
| Voltage | 120vac |
| Frequency (Hz) | 60Hz |
| Performance | |
| Energy Consumption Per Year (kWh) | 240 |
| Water Consumption (Liters/Cycle) | 10.98 |
| Water Consumption (Gallons) | 3.2 |
| Noise Level (dBA) | 44 |
| Features | |

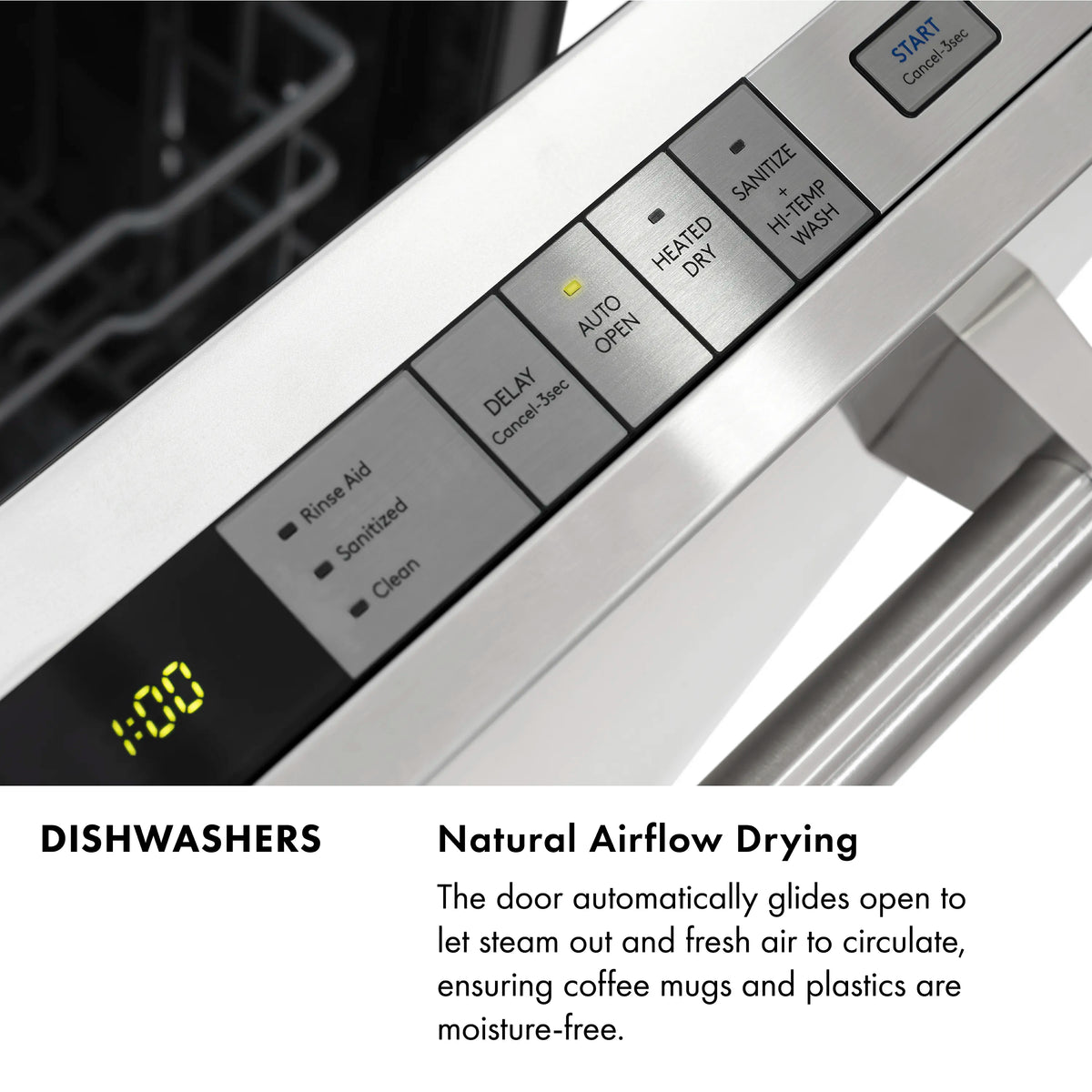

| Drying System | Heated Dry + Auto Open Dry |
| Control Location | Top Control |
| Control Type | Touch Control |
| Installation Type | Direct Wired |
| Steam Function | Without Steam |
| Certifications | |
| Certifications | Energy Star, CEC, UL, NSF Certified |

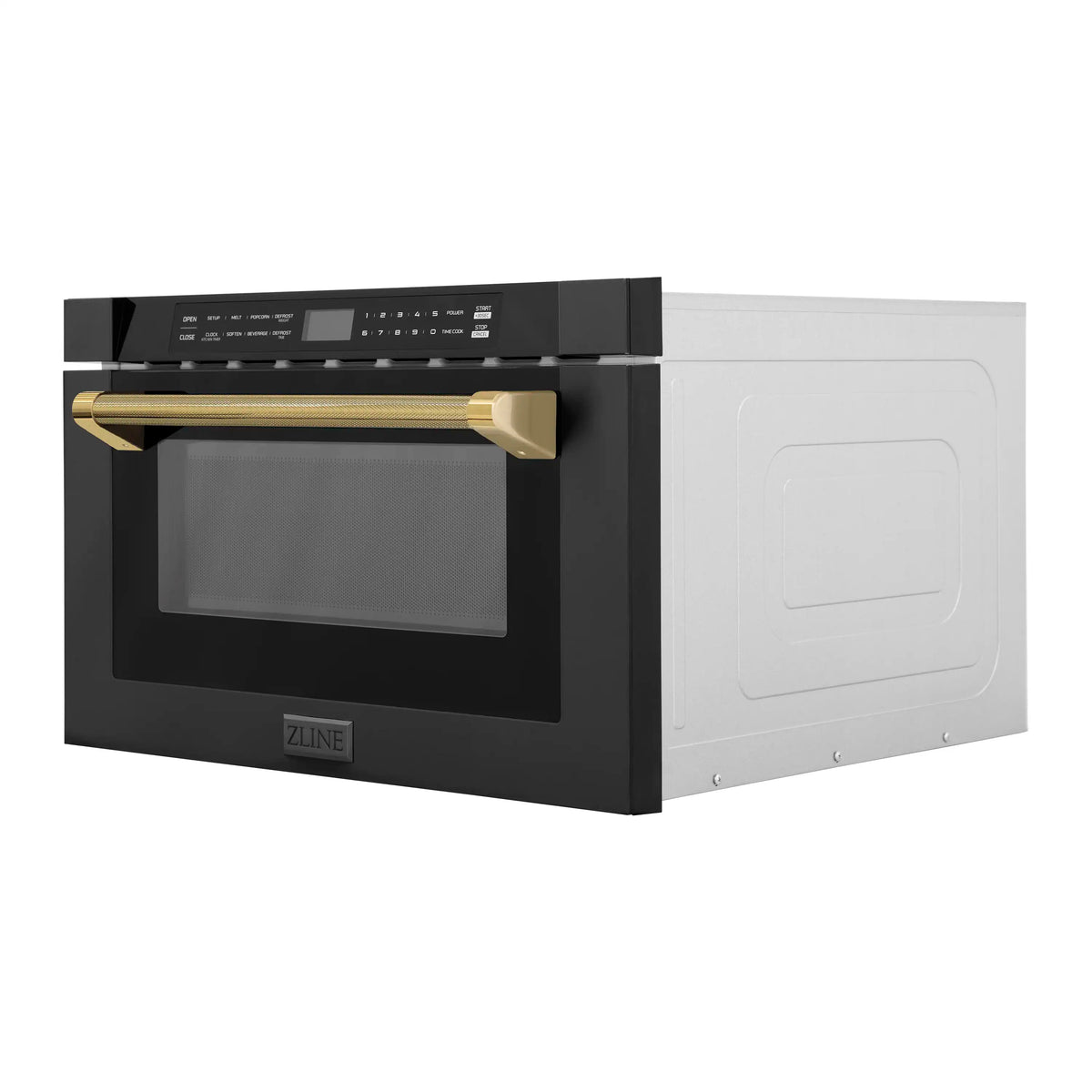

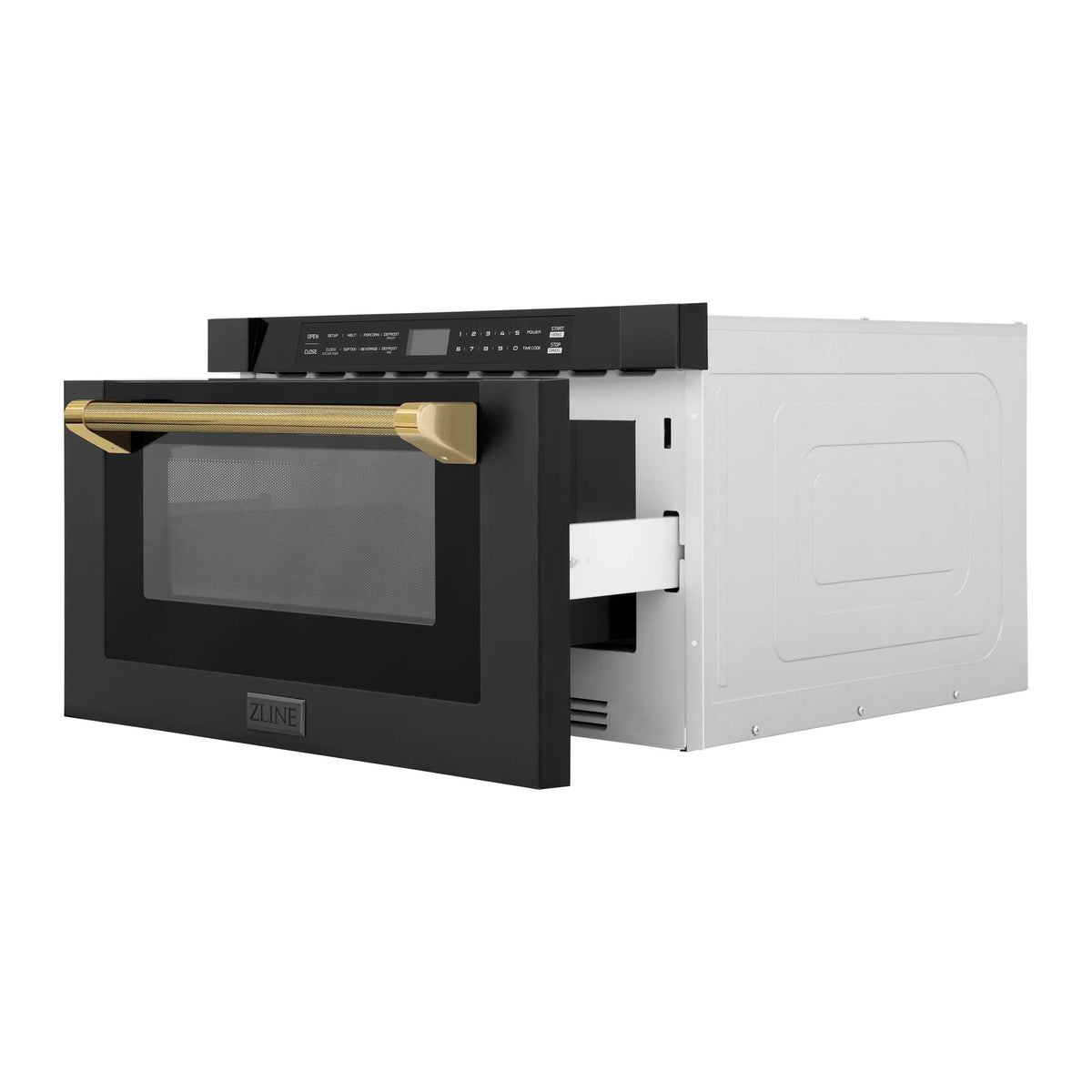

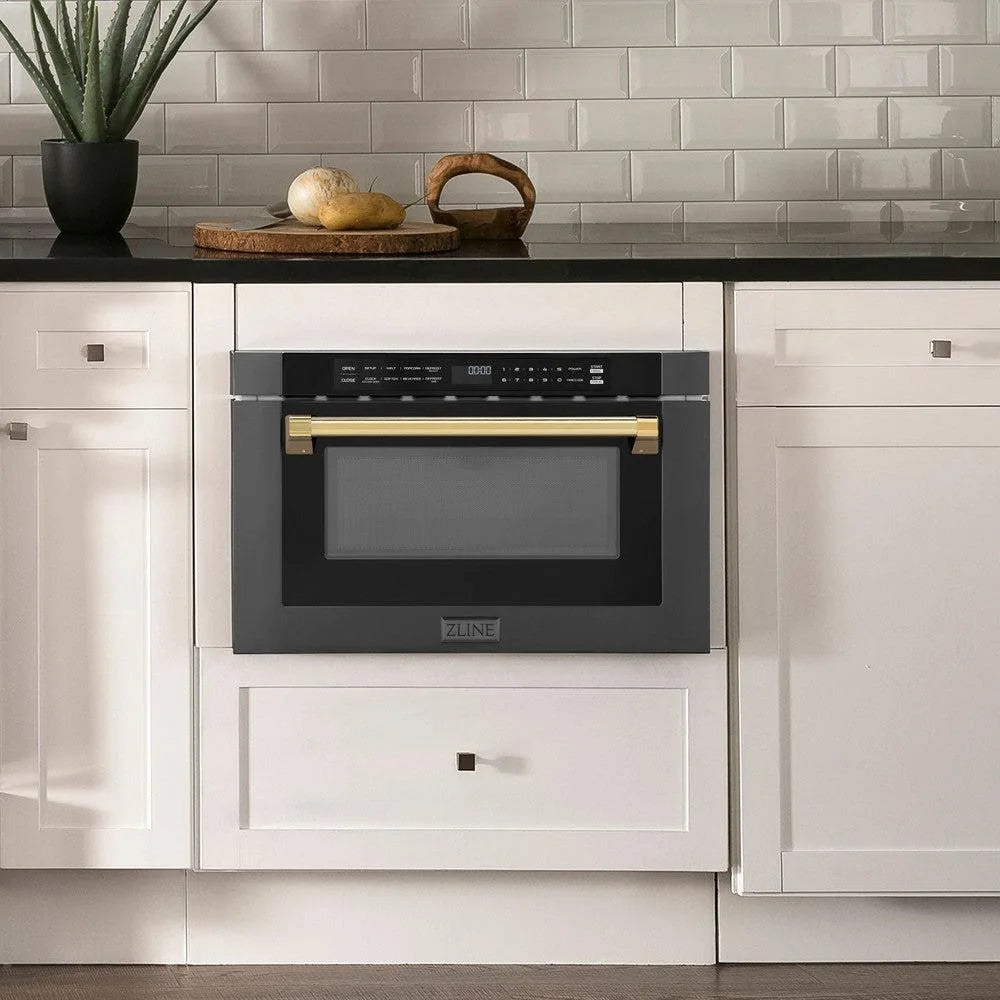

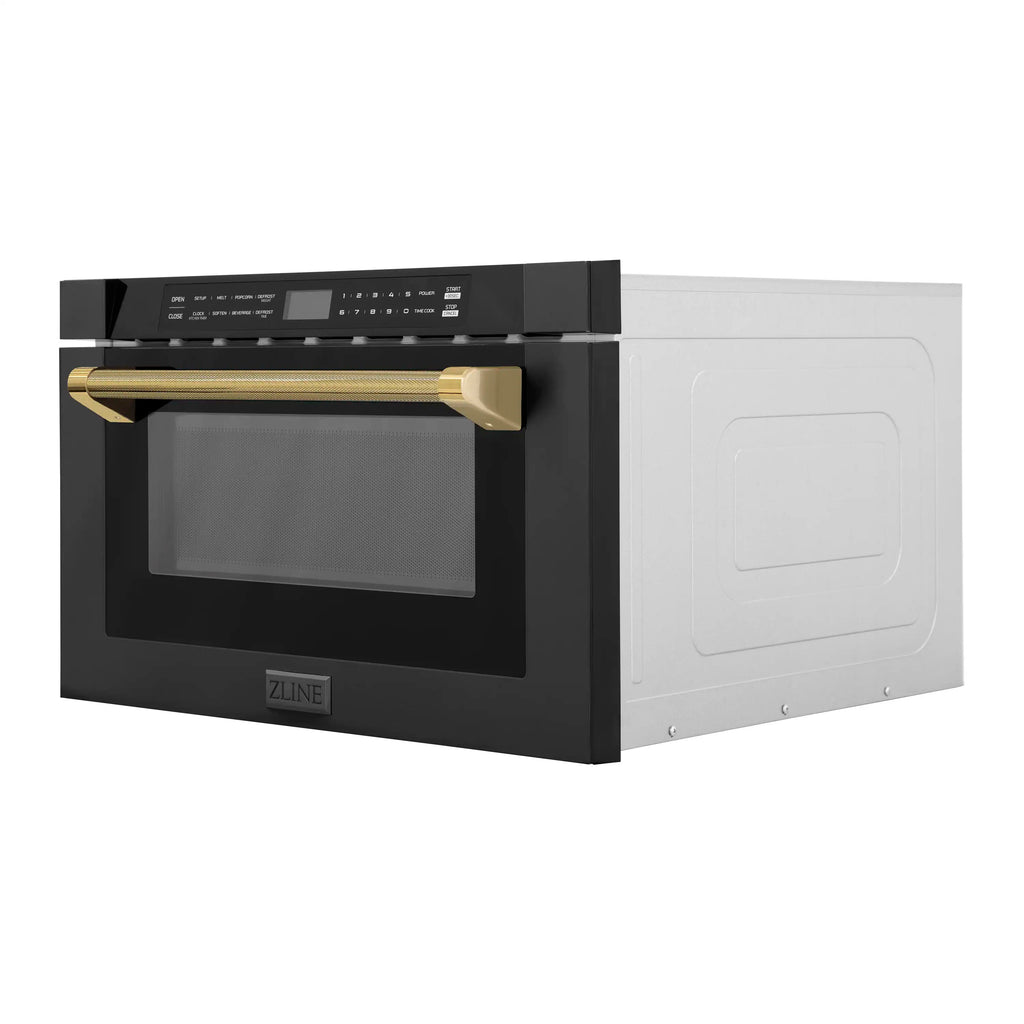

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 24” 1.2 cu. ft. Built-in Microwave Drawer with a Traditional Handle in Black Stainless Steel provides a professional culinary experience by pairing everyday convenience with a timeless style. Achieve ZLINE Attainable Luxury excellence with unrivaled performance designed to enhance your kitchen’s capability.
Space-Saving - Free up your countertop space with an under-counter modern design with installation location flexibility to best fit your lifestyle
Top Access Design - Easily transport hot dishes and prevent spills with an accessible top-loading design
Convenient Microwave Modes - Achieve optimal results for every dish with sensor cooking, defrost, popcorn, and beverage settings
Auto-touch Open and Close - Effortlessly open and close the microwave drawer with just the touch of a button
Intuitive Control Panel - Enjoy an easy-to-use control panel that provides maximum convenience with a 45-degree angled design
High-Powered Performance - Get the results you need with 11 different power levels and a powerful 1000-watt cooking power
1.2 cu. ft. Capacity - A large cooking area will easily fit your items, such as coffee mugs up to 7 in. tall and dishes up to 16 x 16 in.
Reheat and Defrost - Minimize cooking time with convenient reheat and defrost functions
Black Stainless Finish - Bring a modern look into your kitchen with ZLINE’s black stainless steel finish
Autograph Edition Series - Enjoy a timeless look in your kitchen with a Black Stainless Steel finish paired with accented handles, giving your kitchen an elegant, unmatched style
Manufacturer Warranty - 2-year parts warranty
ADA Compliant - Easy-to-use front touch controls with a 45-degree angle design provides ADA compliance
This product ships in multiple boxes and will require minimal assembly upon arrival.
| Specs & Dimensions | |
|---|---|
| Dimensions | 23.5 in W x 23.31 in D x 14.88 in H |
| Cut Out Dimensions | 22.13 in W x 23.5 in D x 15 in H |
| Depth with Door Open | 37.5 in. |
| Oven Capacity | 1.2 Cu. Ft. |
| Voltage | 120V/60HZ/13A |
| Input Power | 1500W |
| Output Power | 1000W |
| Control Type | Touch Screen |
| Mount Type | Drawer |
| Certifications | ETL Listed |
| Material | Black Stainless Steel with Color Options |
| Convection Fan | No |
| Warranty | 2 Year on Parts |
| Weight | 69.9 lbs |
