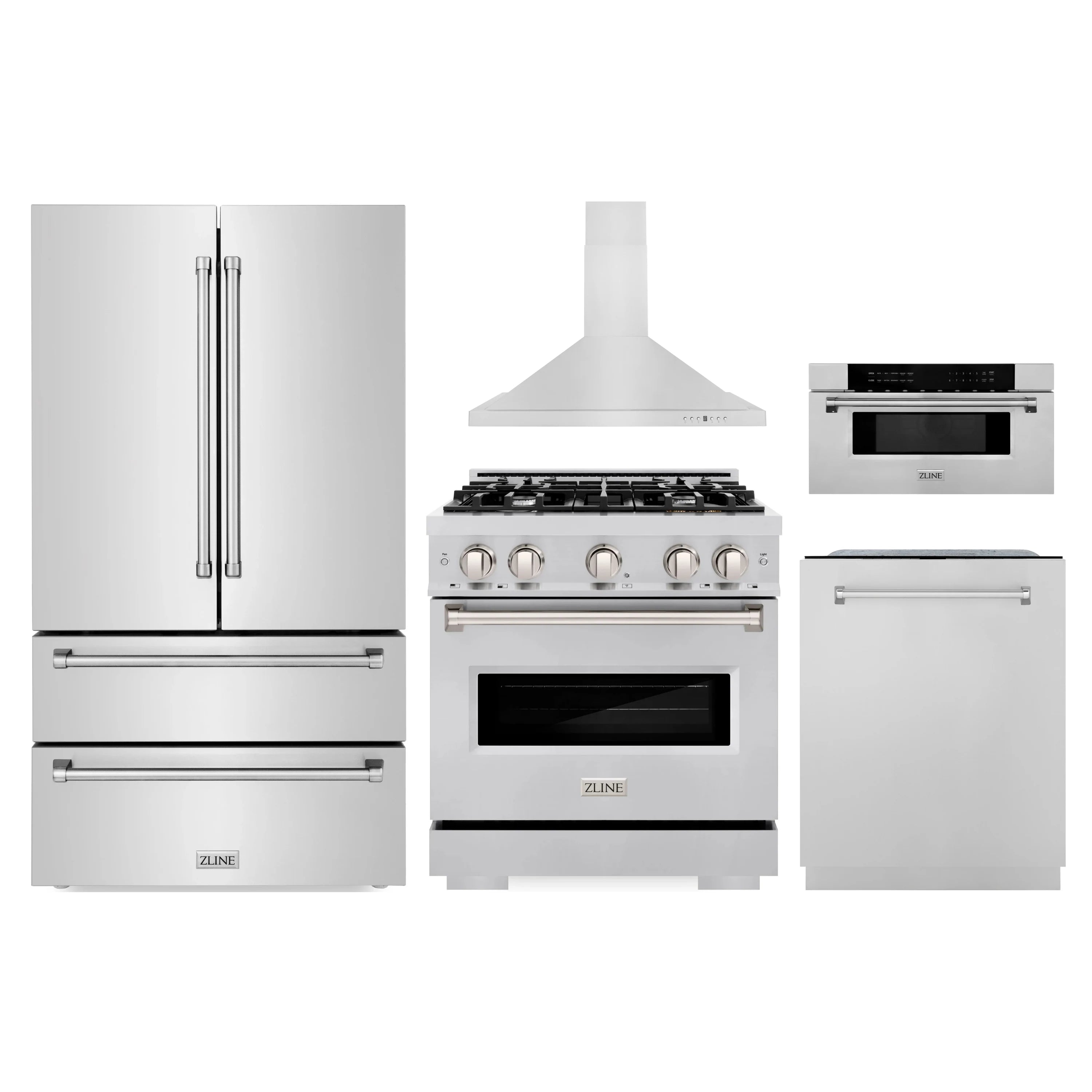

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

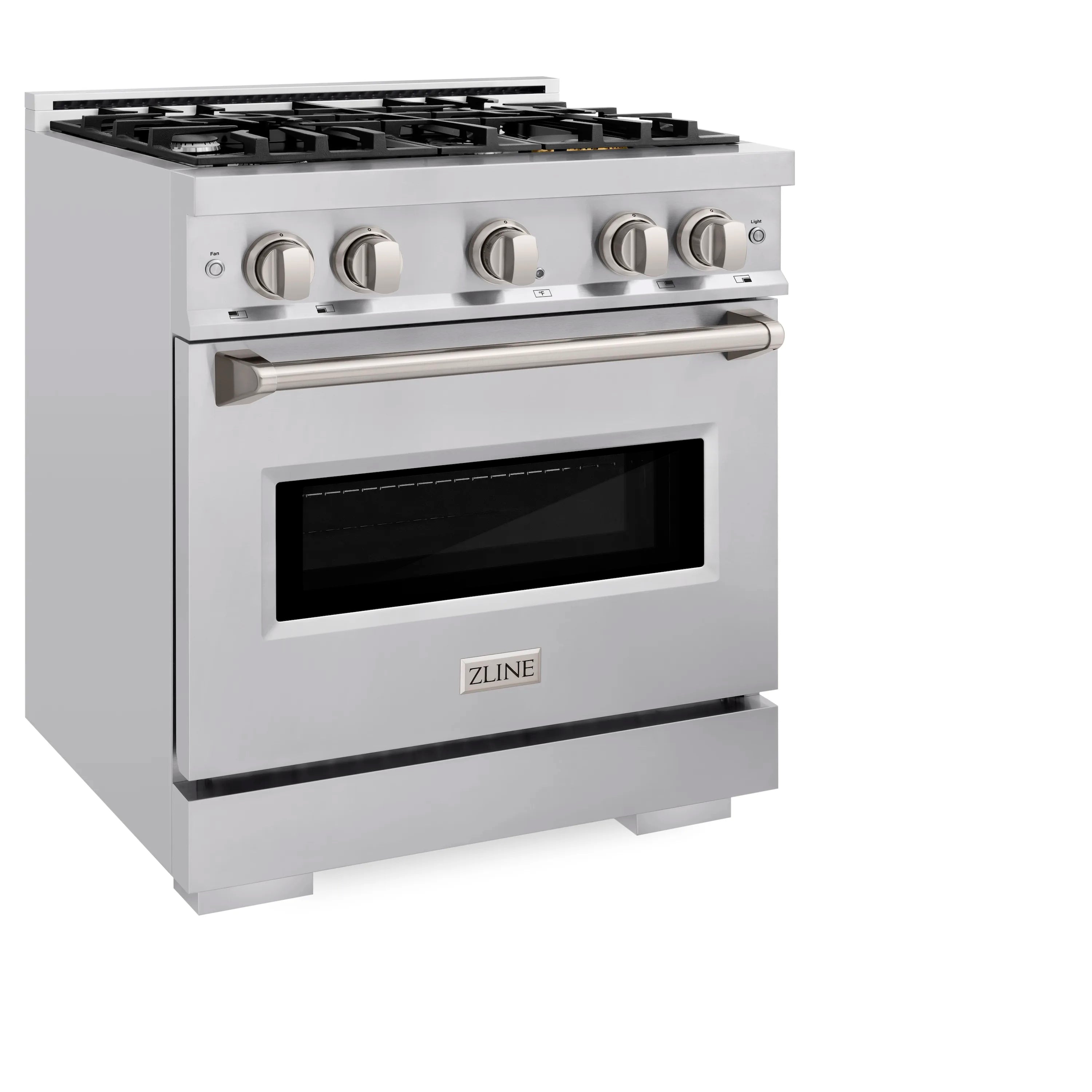

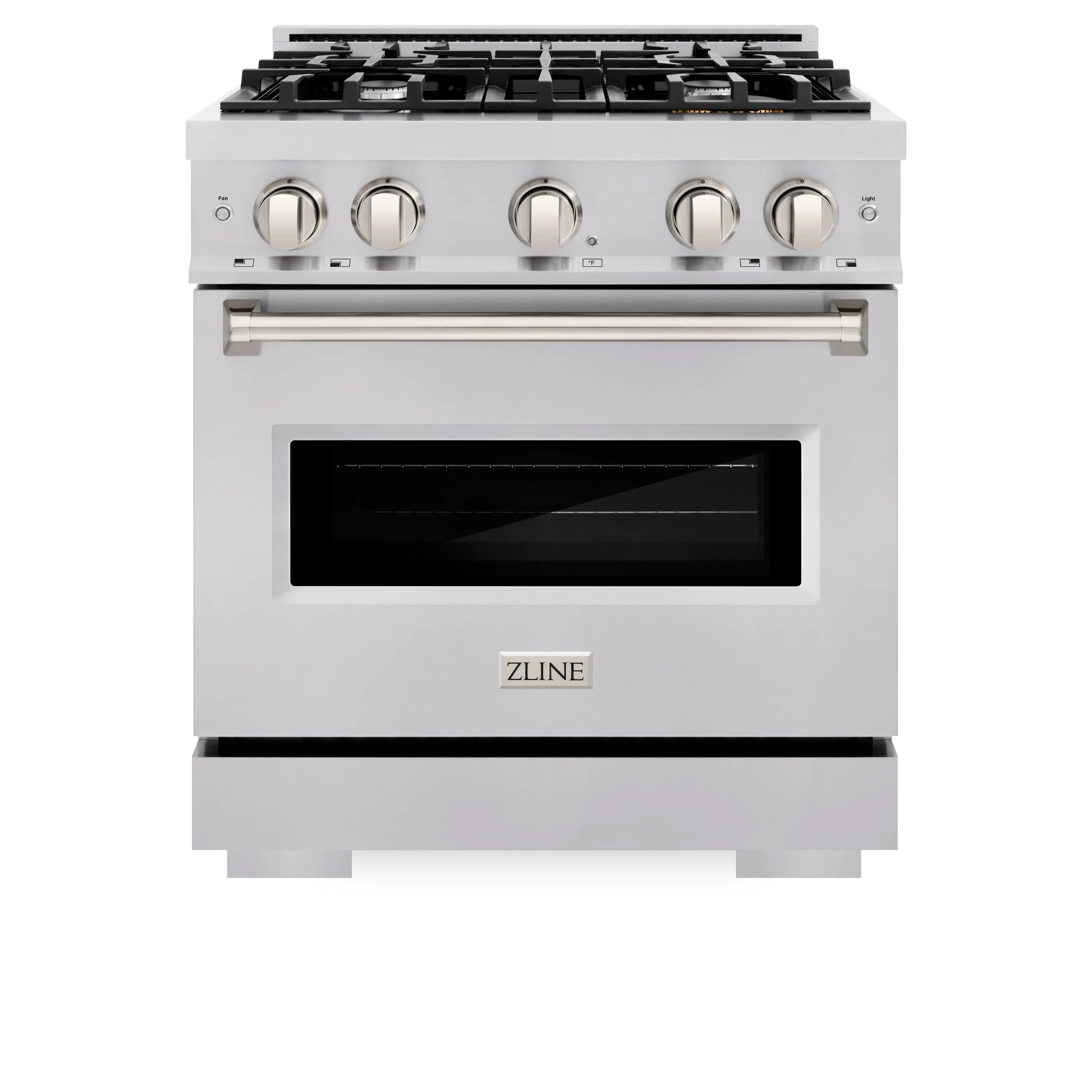

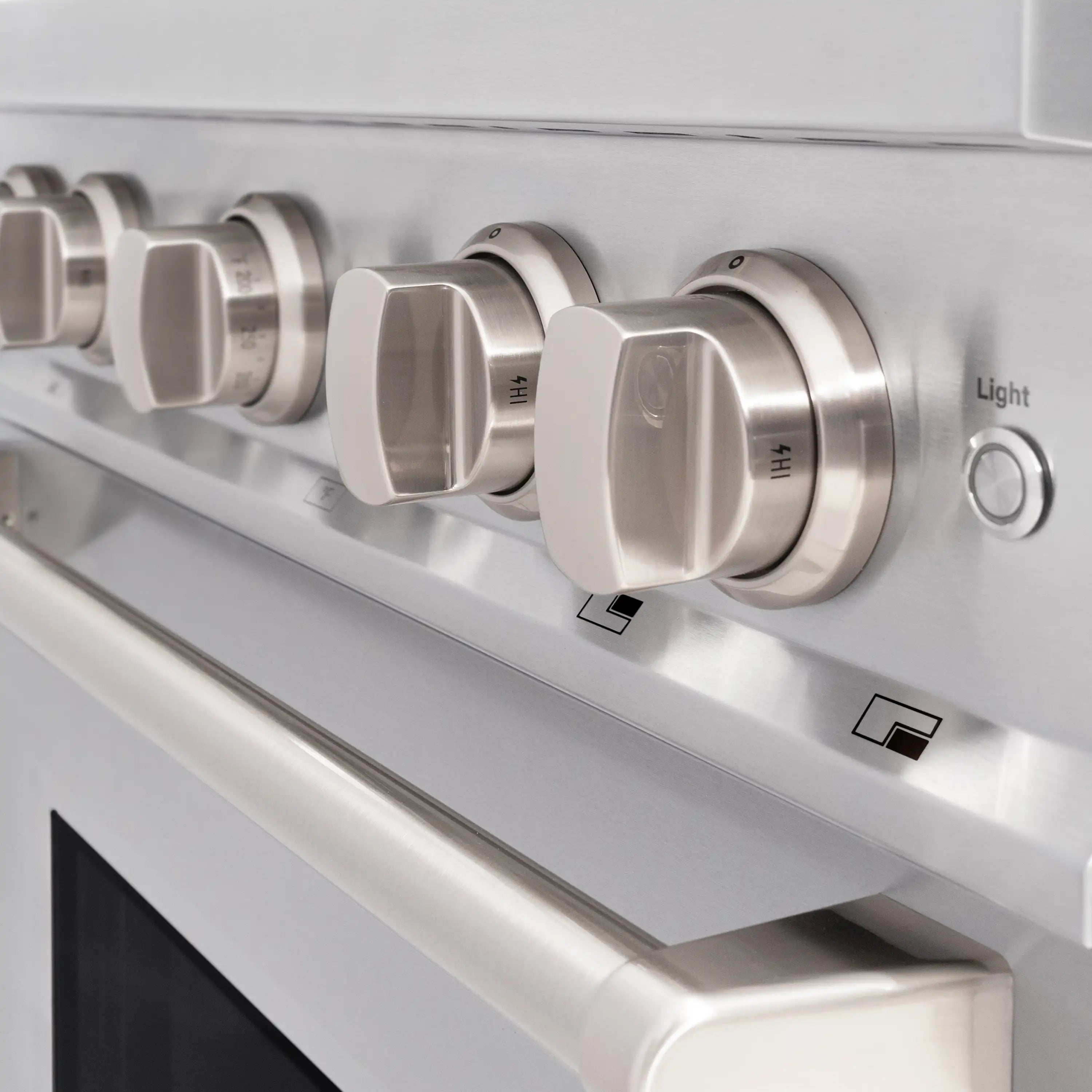

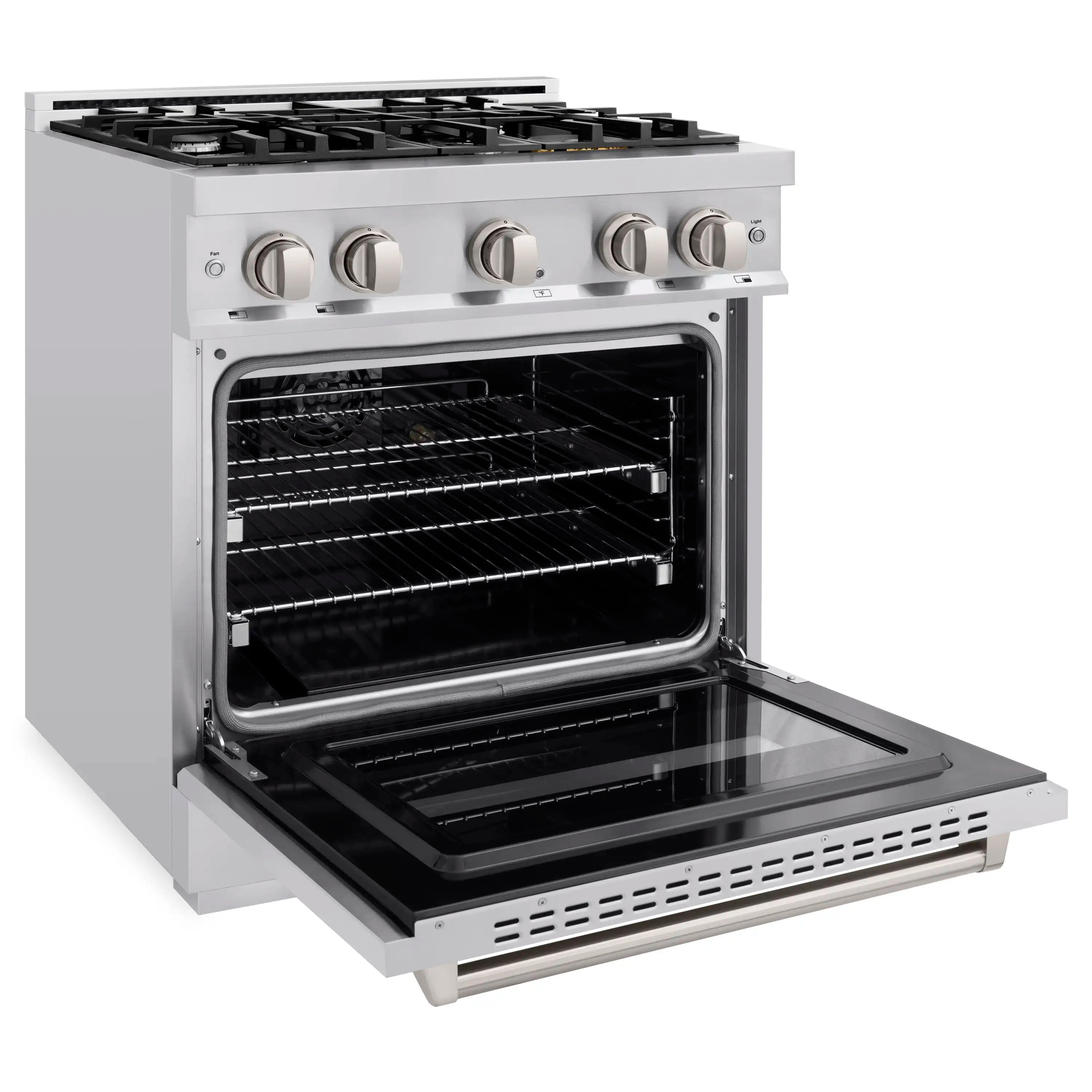

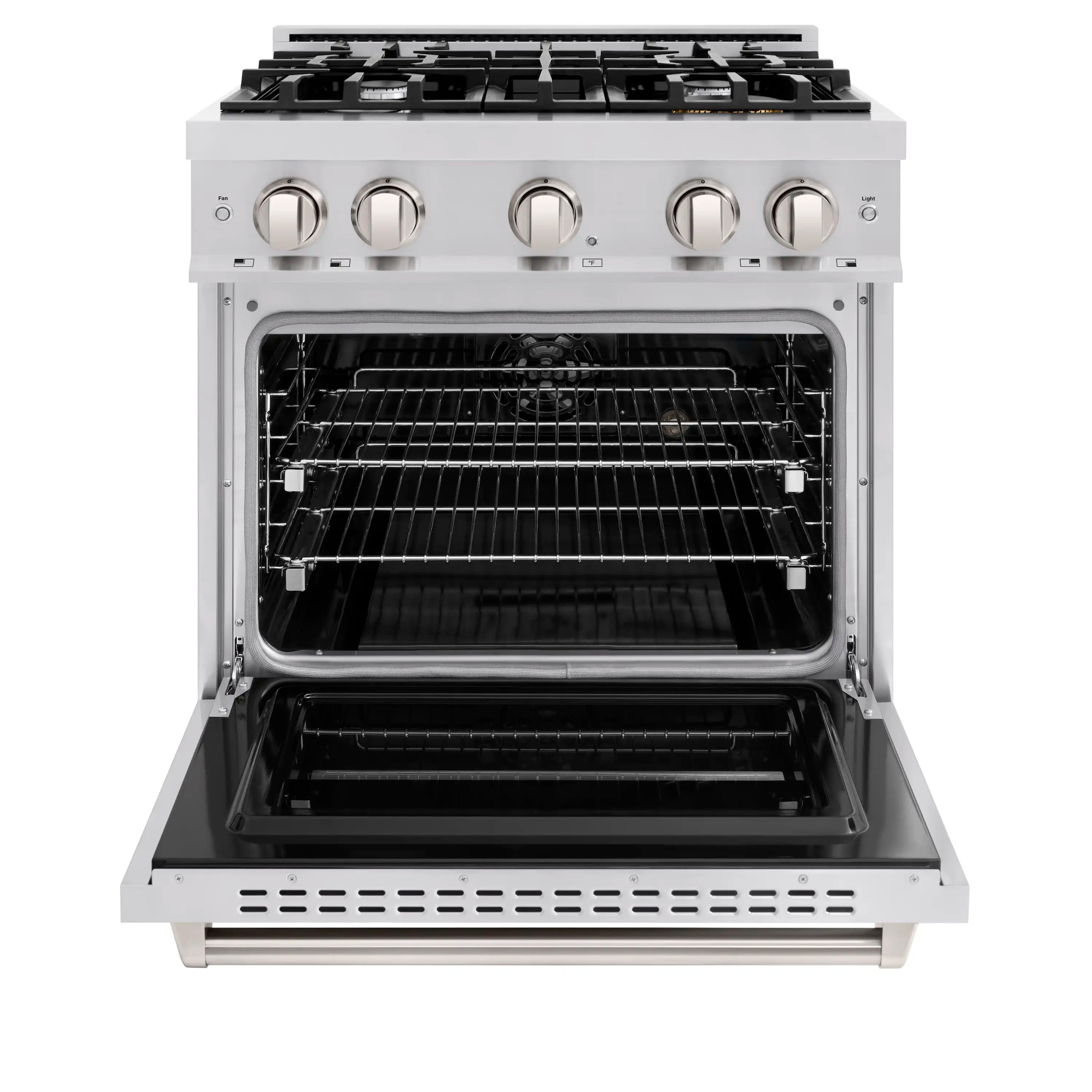

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 30 in. 4.2 cu. ft. Classic Dual Fuel Range with 4 Burner Gas Cooktop and Electric Convection Oven in Stainless Steel (CDR30) combines the elegance of a hand-finished porcelain gas cooktop with 4 Italian-made auto-reignition burners, an electric convection oven with an energy-efficient cooling fan to ensure quiet operation, and a Landscape oven door window design allowing you to master every meal. With a modern, timeless style and refined functionality, ZLINE Classic Dual Fuel Ranges are masterfully crafted to deliver an elevated culinary experience.
Features
- ZLINE Classic Series - The ZLINE Classic Professional Range Series features timeless design sensibilities and innovative features engineered with luxury and affordability in mind
- Dual Fuel Flexibility - Savor the benefits of dual fuel cooking with a high-powered gas cooktop and an electric oven with high-grade heating elements that ensure consistent temperature ranges

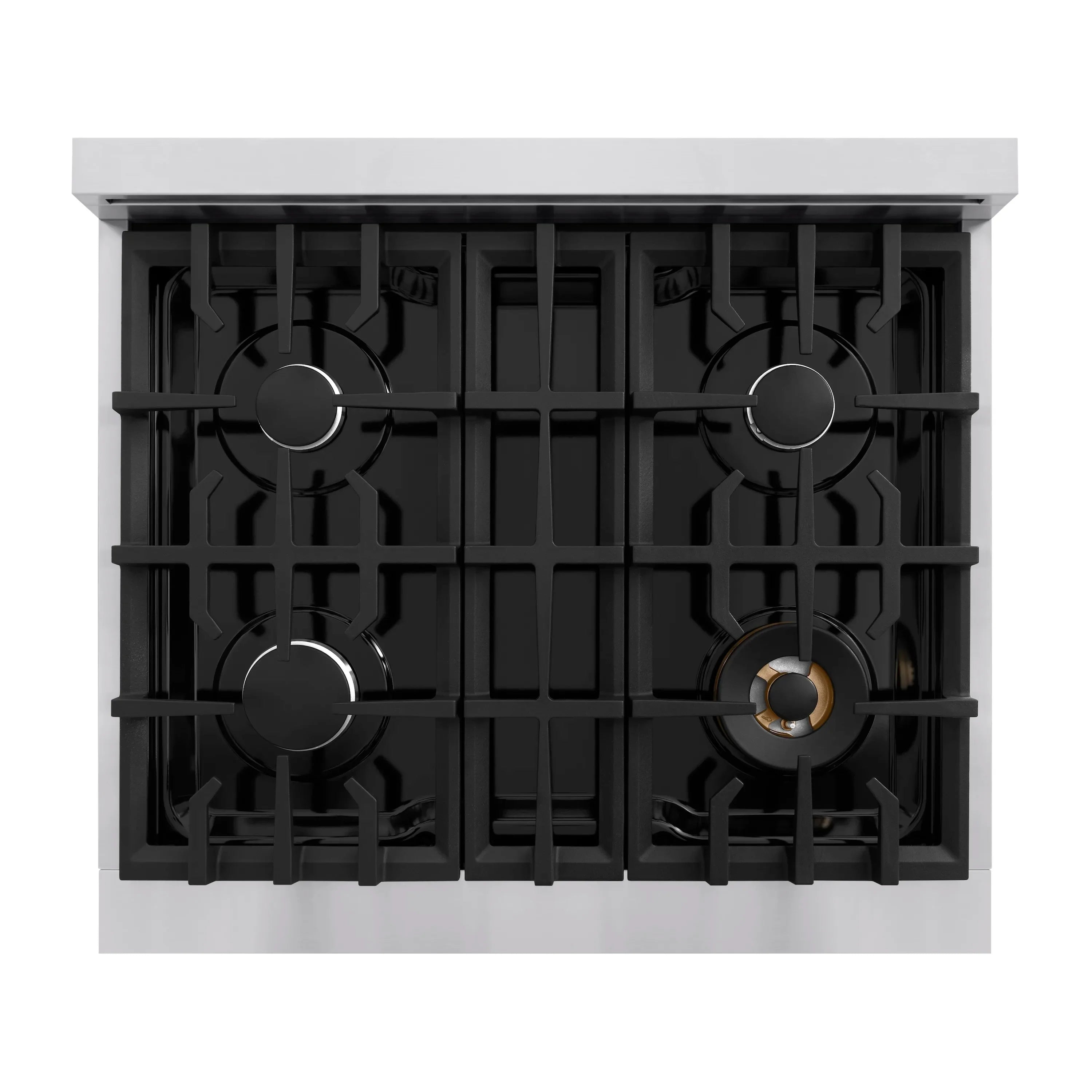

- Italian-Made Auto-Reignition Burners - 4 Italian-made gas burners utilize automatic reignition innovation for improved temperature control and cooktop safety

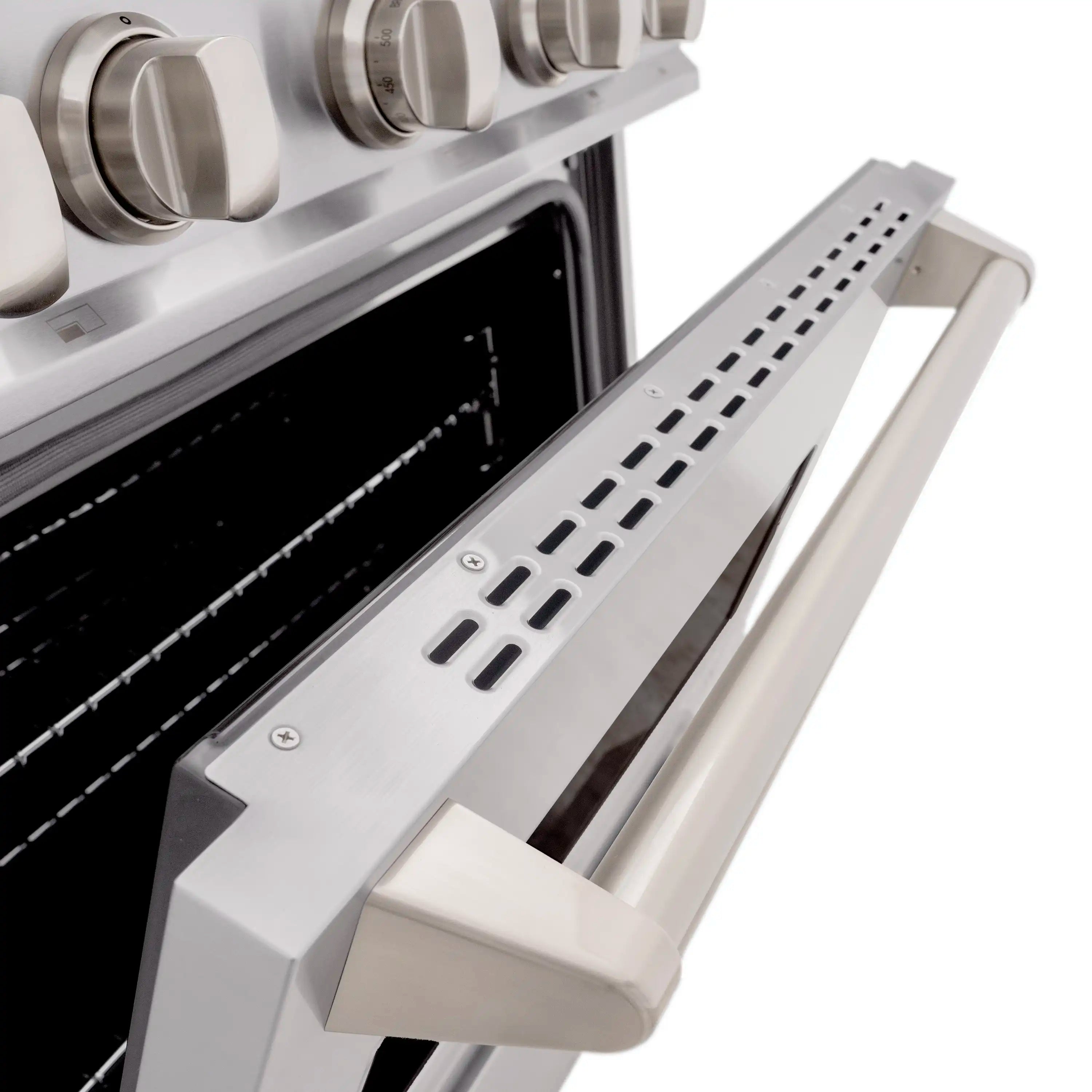

- Landscape Oven Window - ZLINE Classic Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked
- Fast Preheating - Enjoy faster preheating times than industry standards and consistent convection cooking thanks to digital thermostat technology
- Dual Function Burner - Expand your cooking capabilities with a brass Dual Function Burner that lets you simmer at just 800 BTUs or perfectly sear at up to 20,000 BTUs
- Ultra Quiet Operation - Enjoy peace in the kitchen while ensuring temperatures are at safe levels via a built-in cooling fan that operates with minimal sound

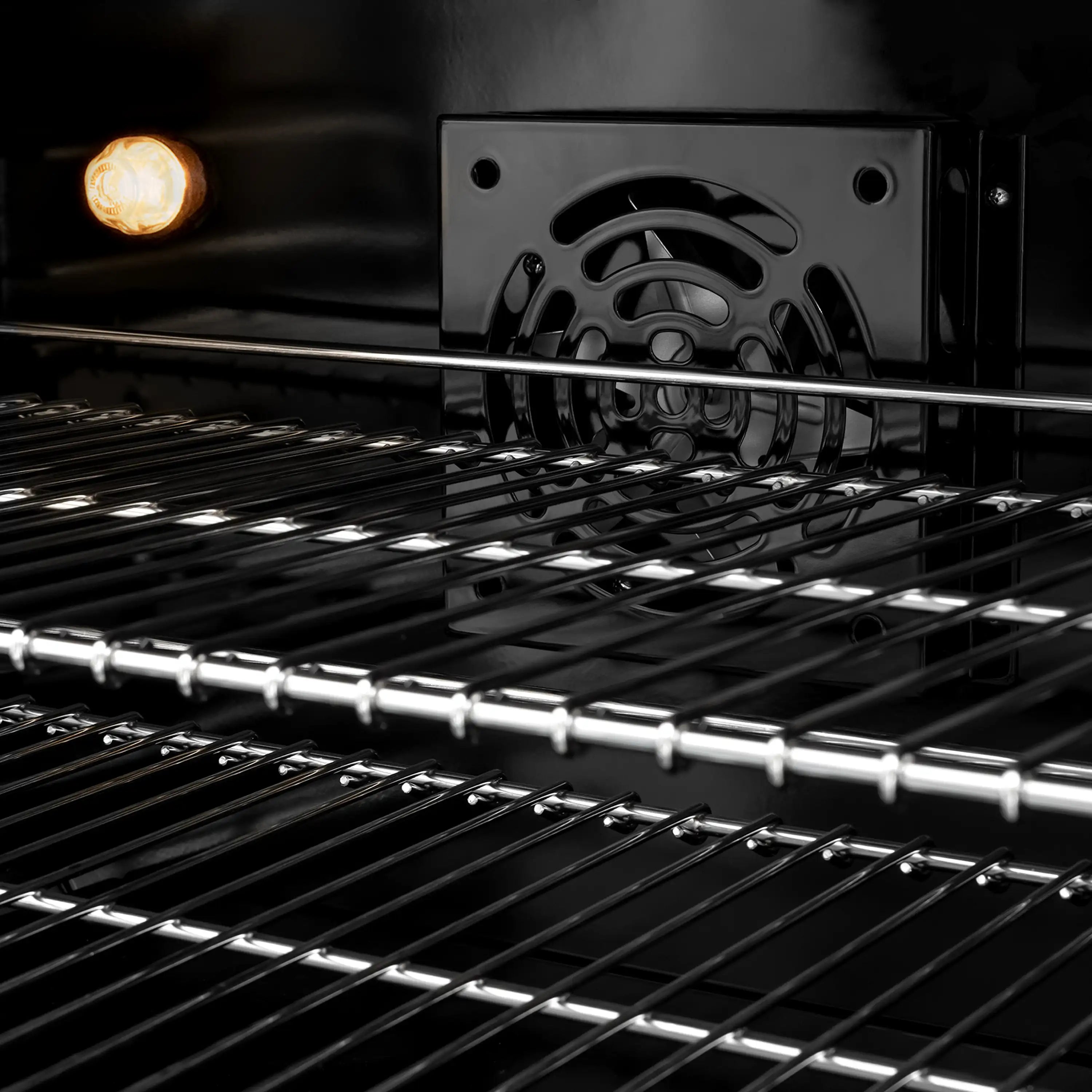

- Powerful Convection Cooking - Handle multiple bakes with ease with a high-speed and high-wattage convection fan that maintains precise heat distribution inside the oven

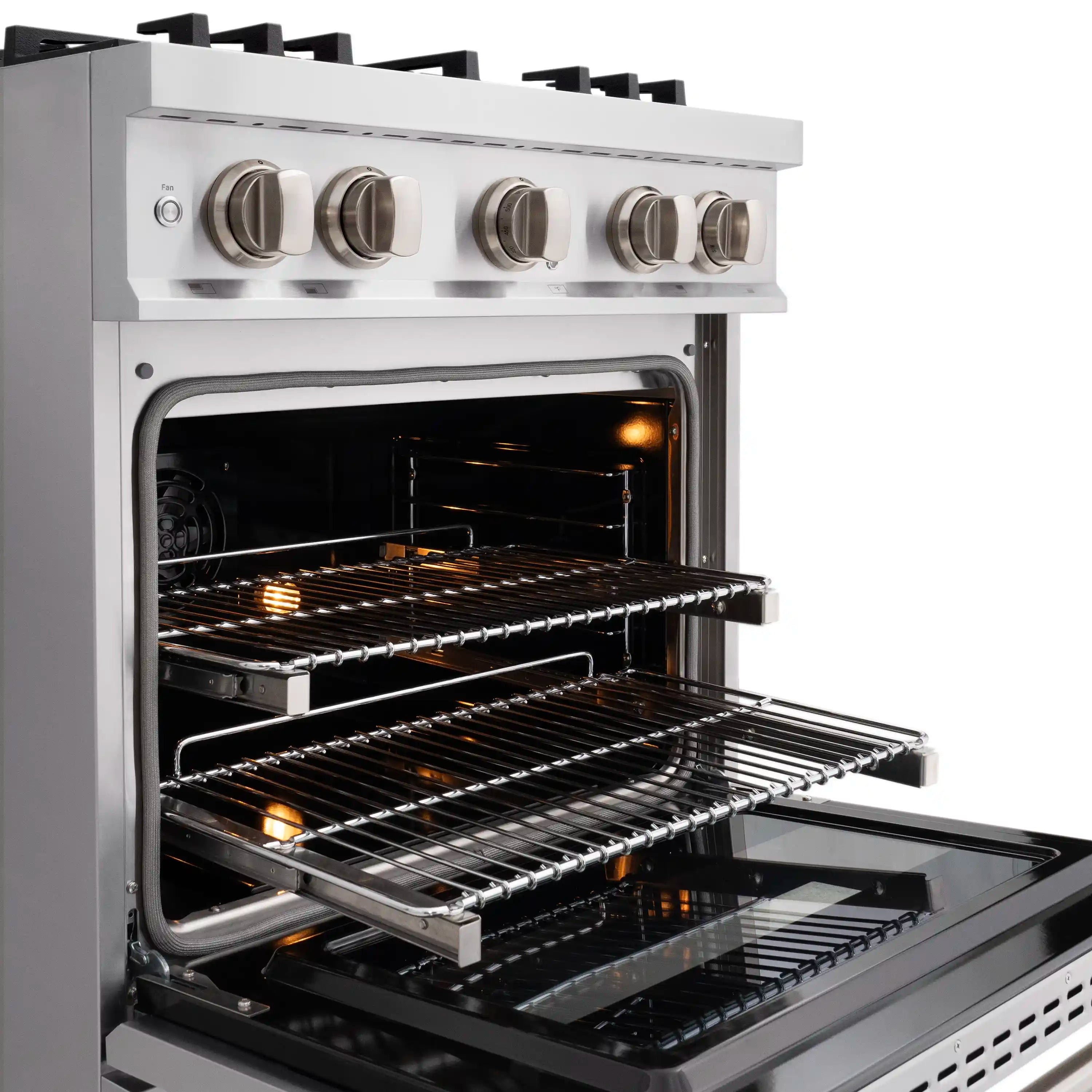

- Large Oven Capacity - An expansive oven capacity of 4.2 cu. ft. fits pans up to 20 in. wide for maximum space and convenience with everyday cooking

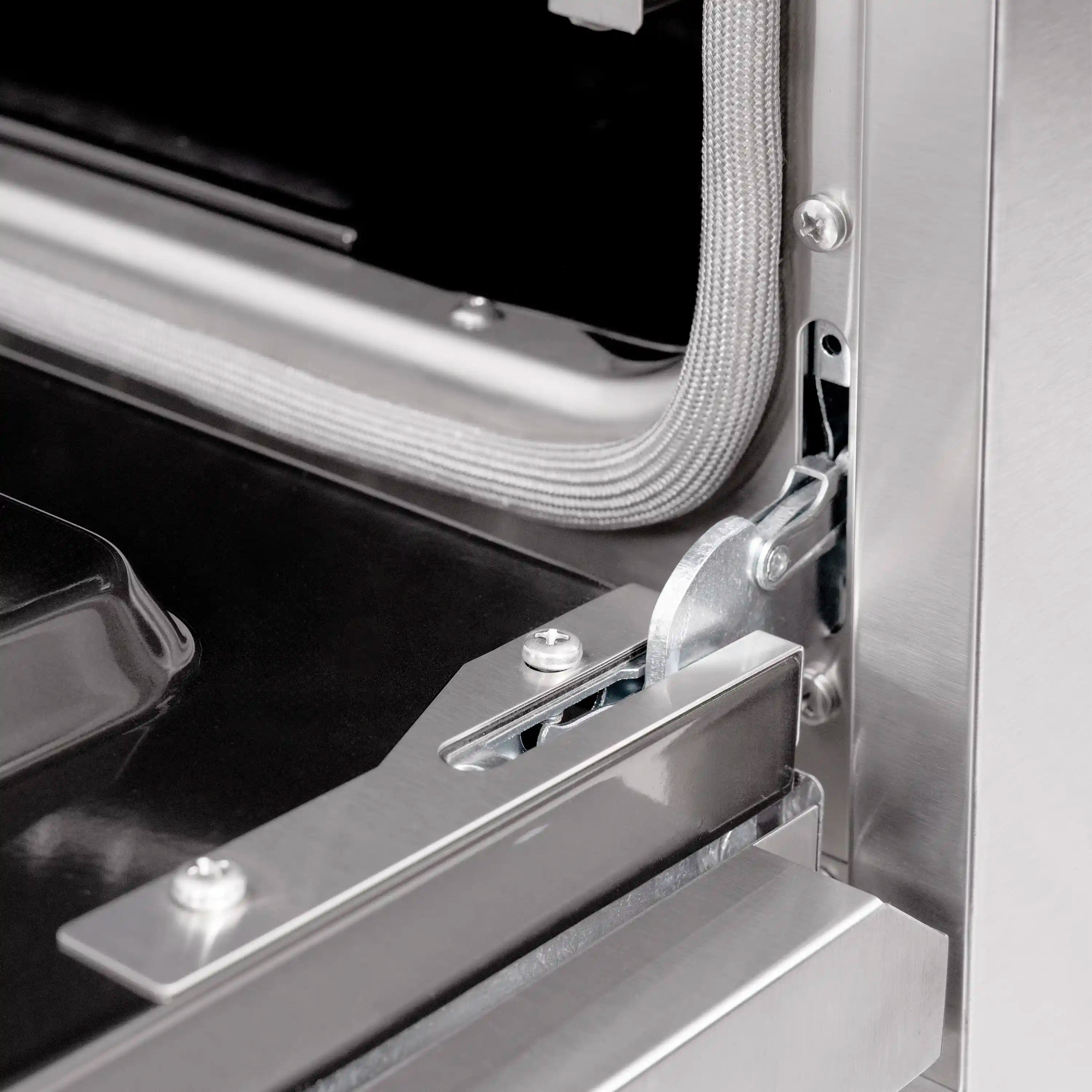

- StayPut Oven Door Hinges - Designed to support the full weight of the oven door, offering additional convenience and safety
- Dimensions

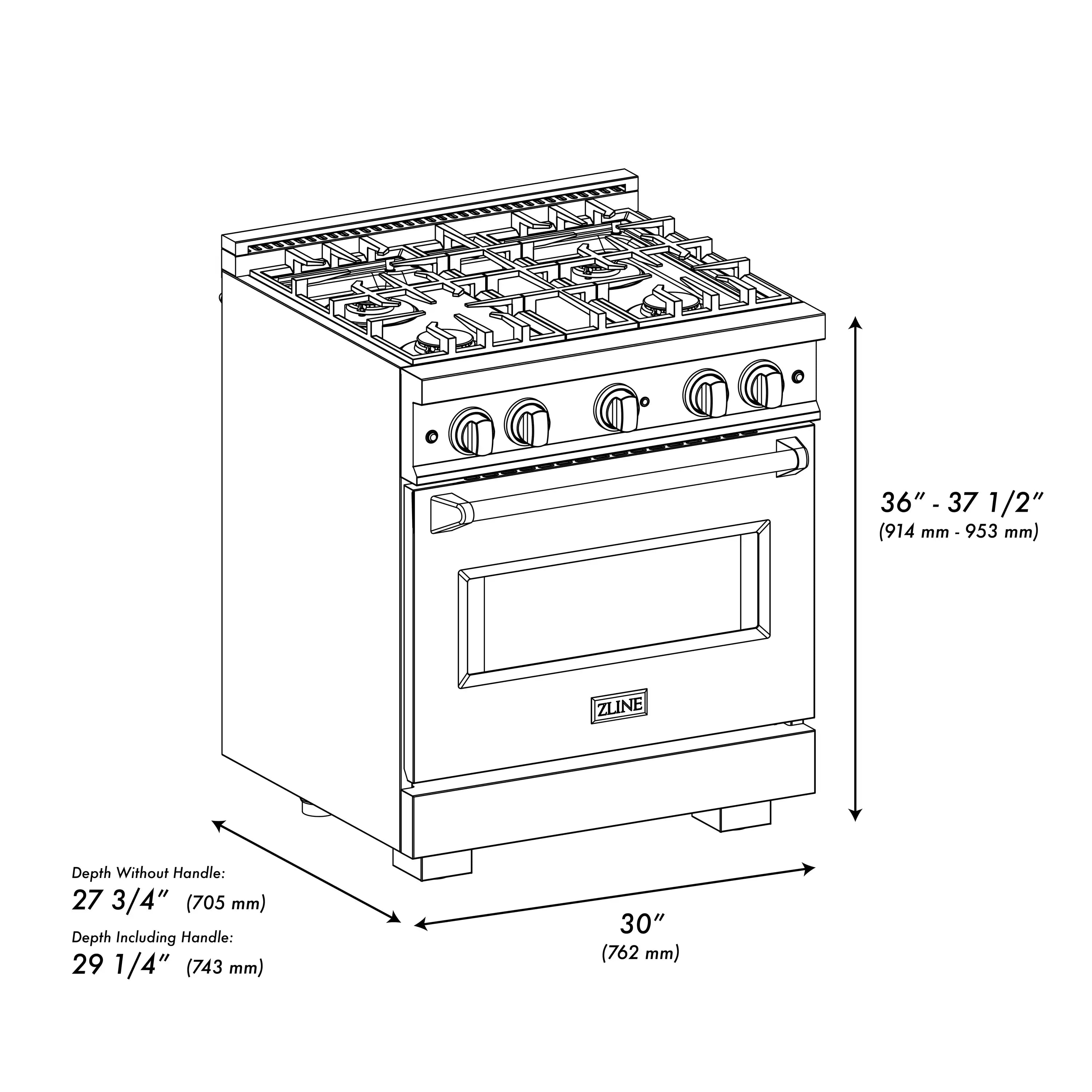

- 30" W x 27.75" D x 36" H
- Weight
- 229 lbs
- Color
- Silver
- Finish
- Stainless Steel
- Voltage
- 240V
- Amps
- 25A
- Electrical Requirements
- 240V / 60 Hz / 25A
- Burner Fuel
- Natural Gas and Liquid Propane Convertible
- Number of Burners
- 4
- Oven Fuel
- Electric Convection Oven
- Oven Capacity
- 4.2 cu. ft.
- Convection Fan
- Yes

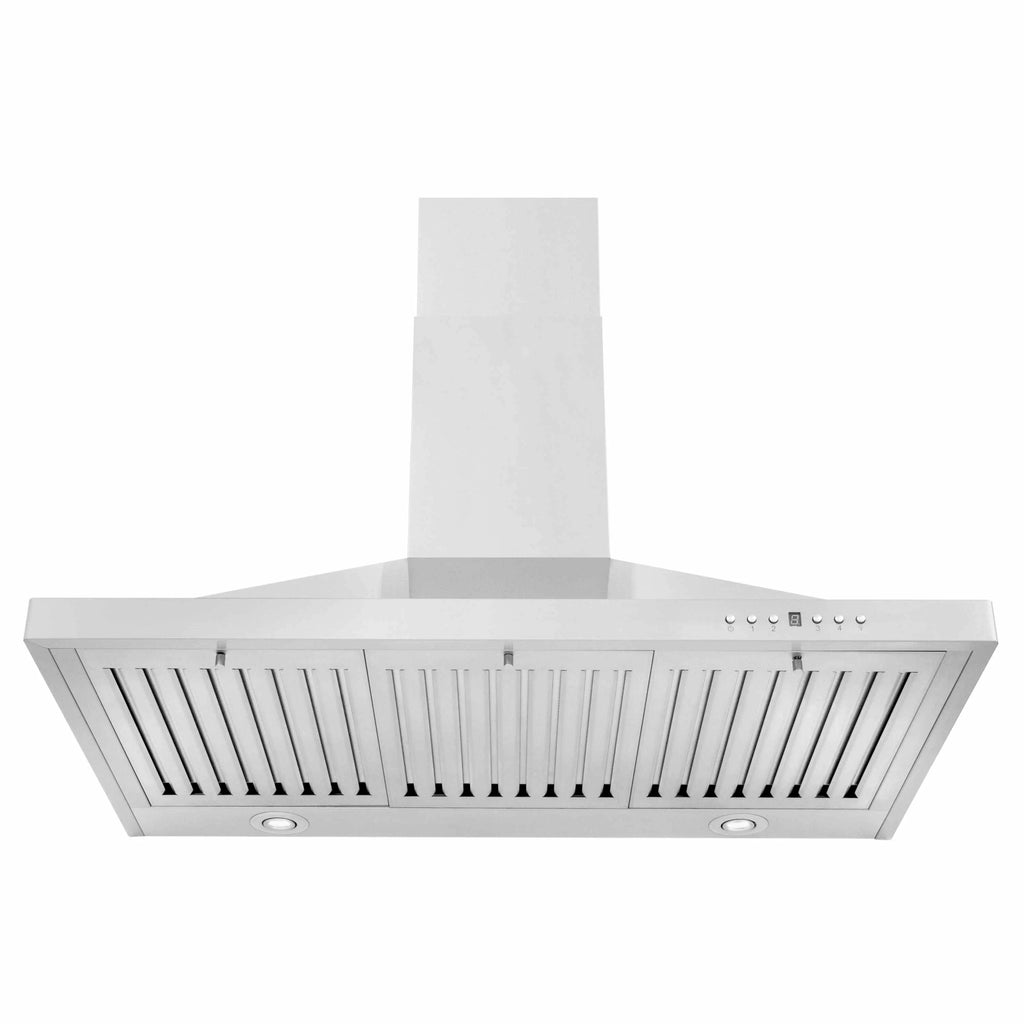

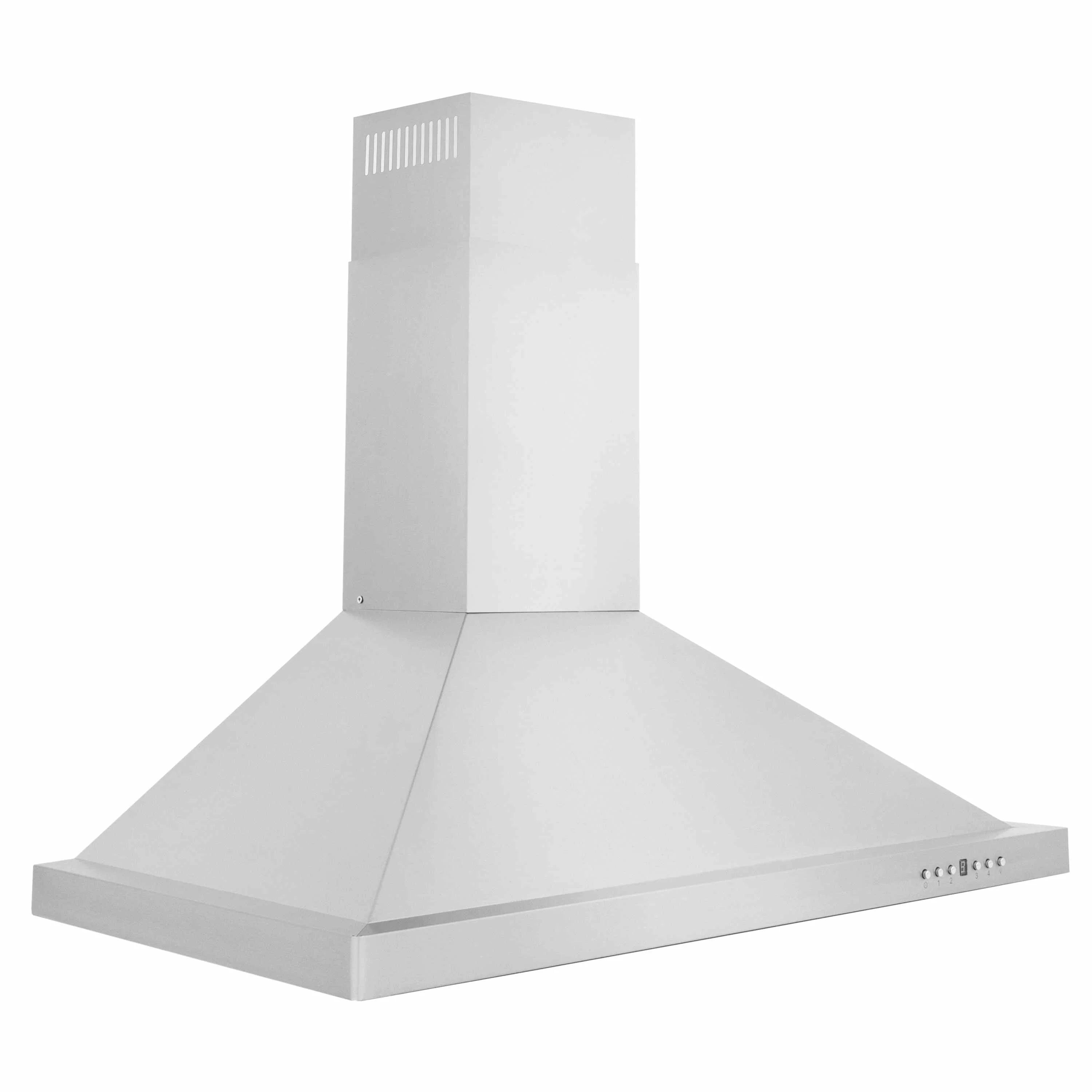

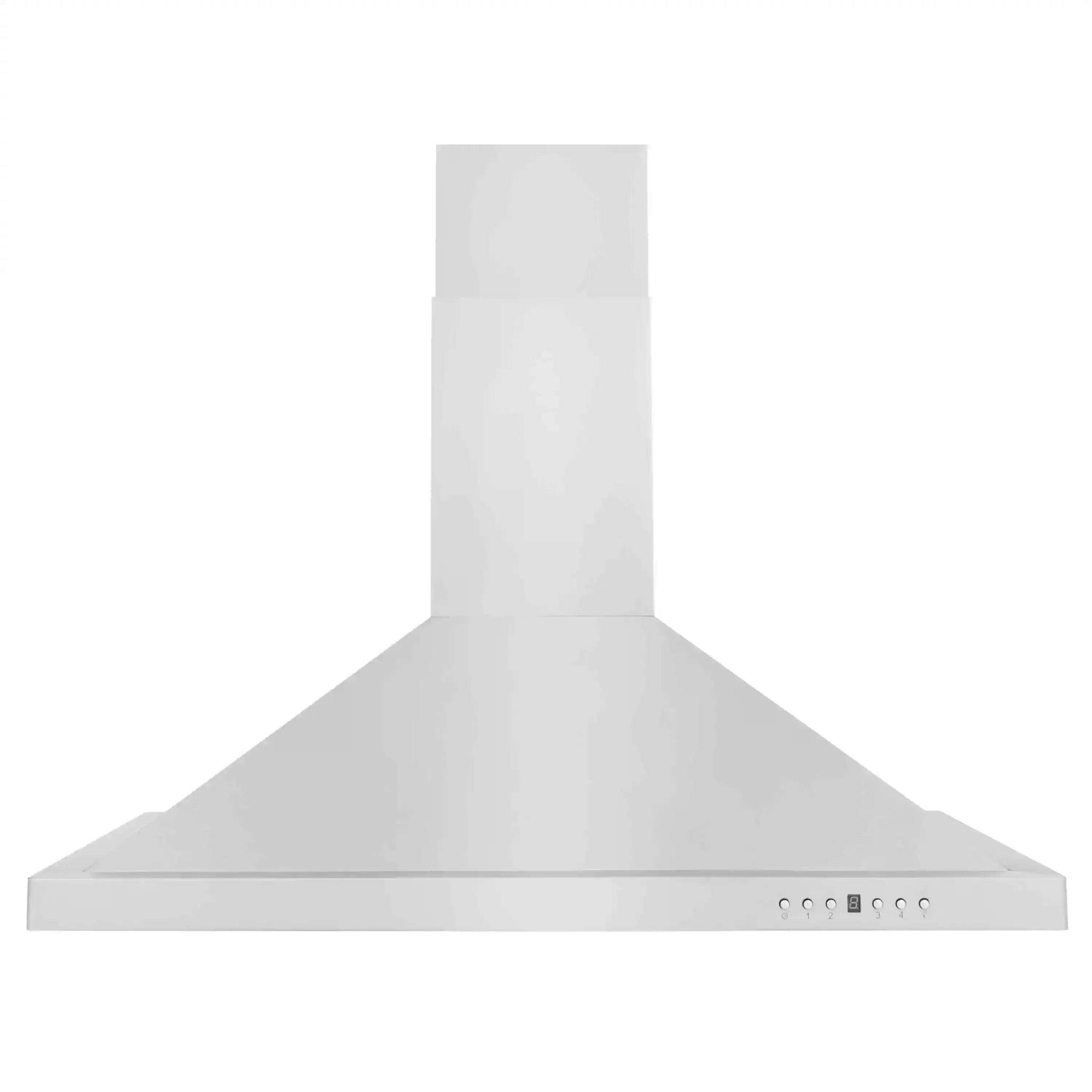

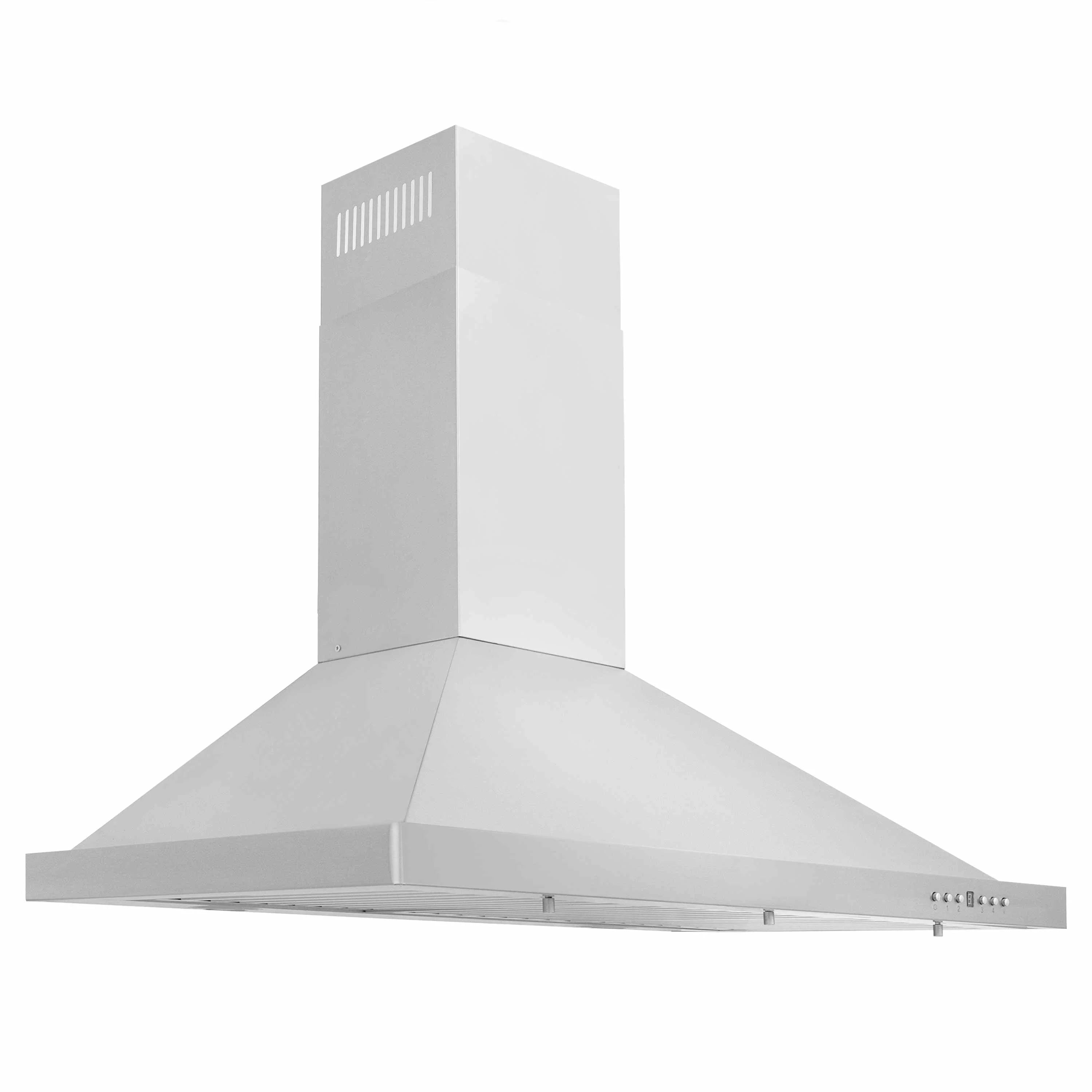

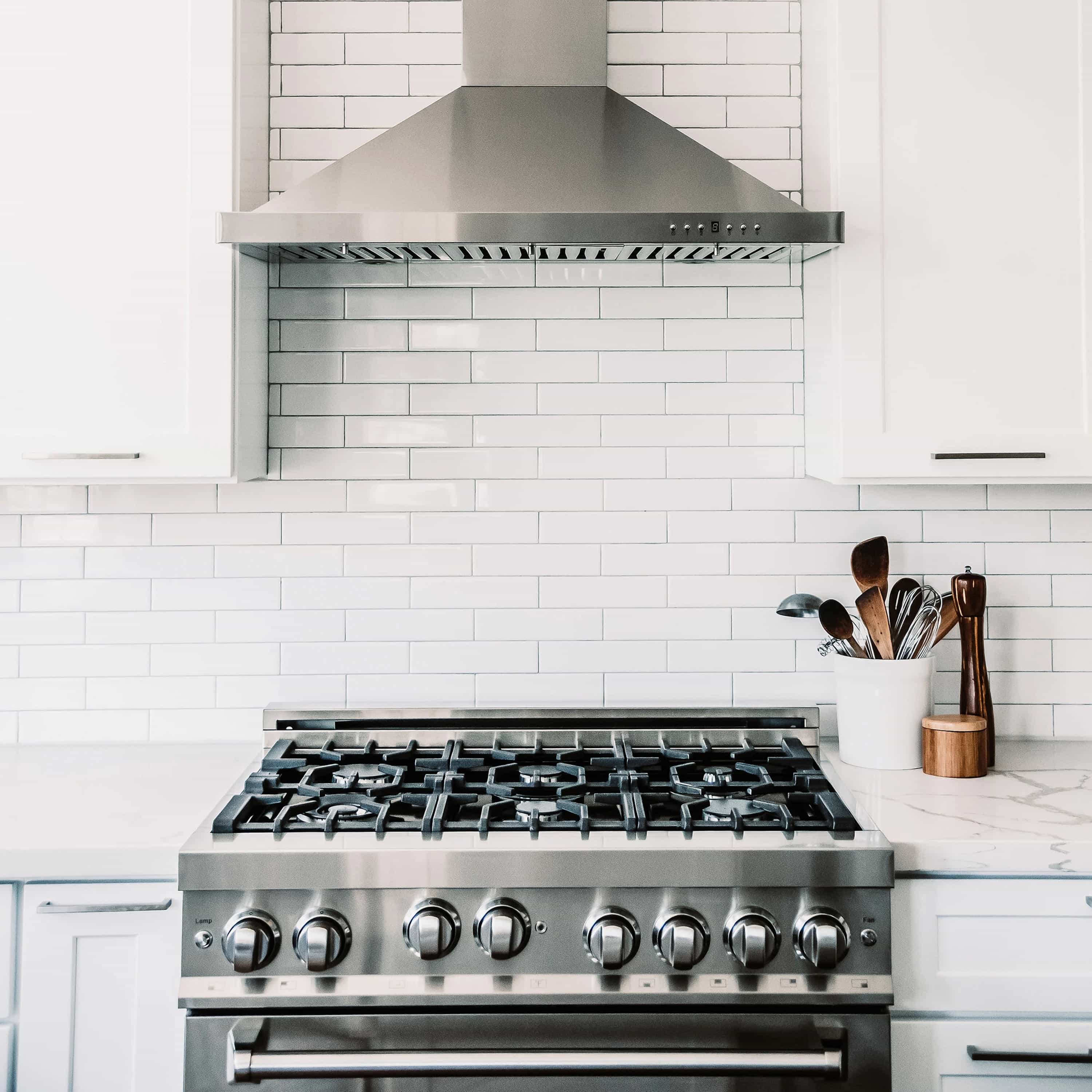

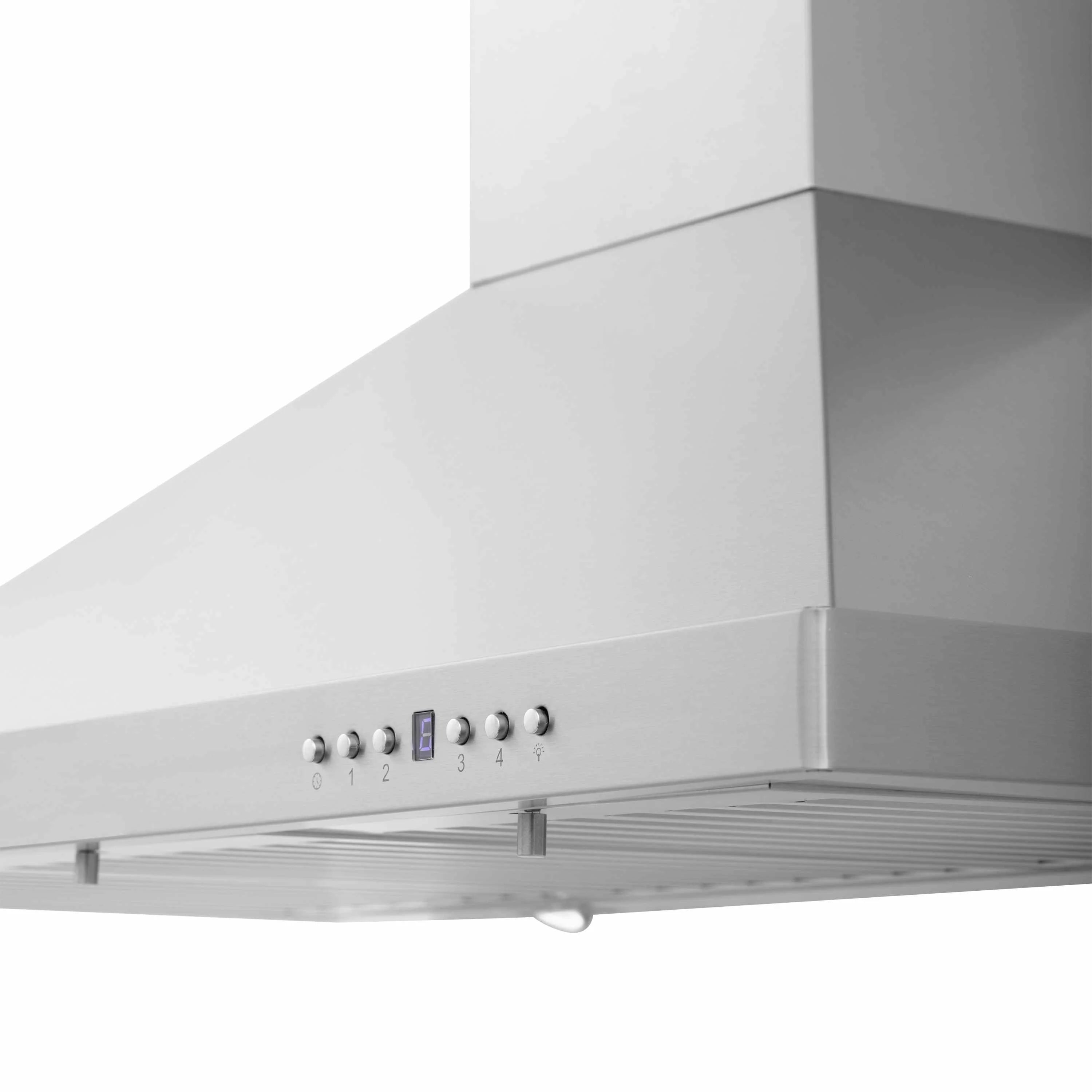

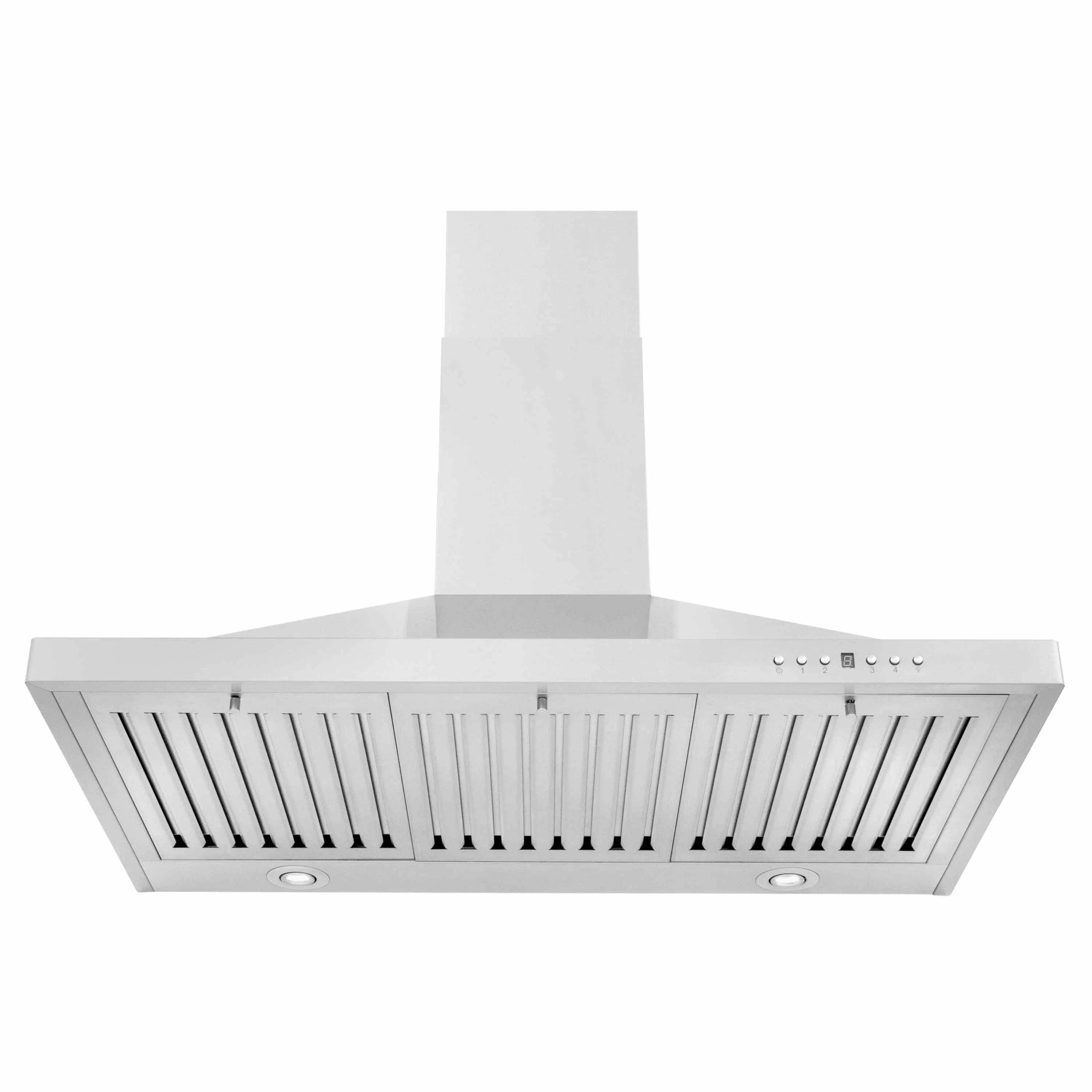

The ZLINE KB-30 is a 30-inch professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made of 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
This hood contains many unique features, such as:
- Dishwasher-safe stainless steel baffle filters
- Built-in LED lighting
- High performance 4-speed motor with speeds up to 400 CFM
All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimneypieces, allowing a fit for most ceilings between 8 and 9 feet. For ceilings shorter than 8 feet, or taller than 9 feet, see table below for detailed options.
ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The KB-30 ships next business day when in stock.

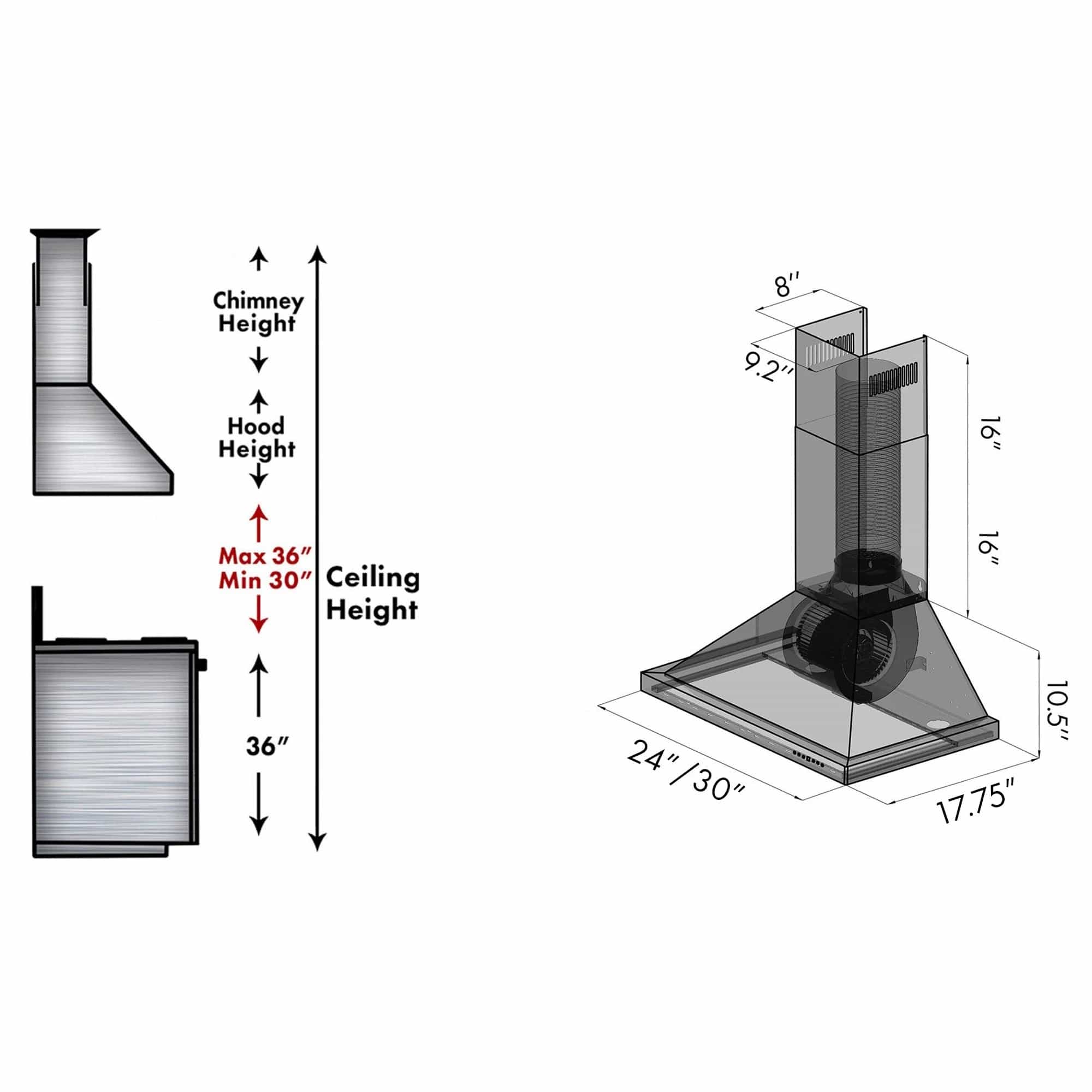

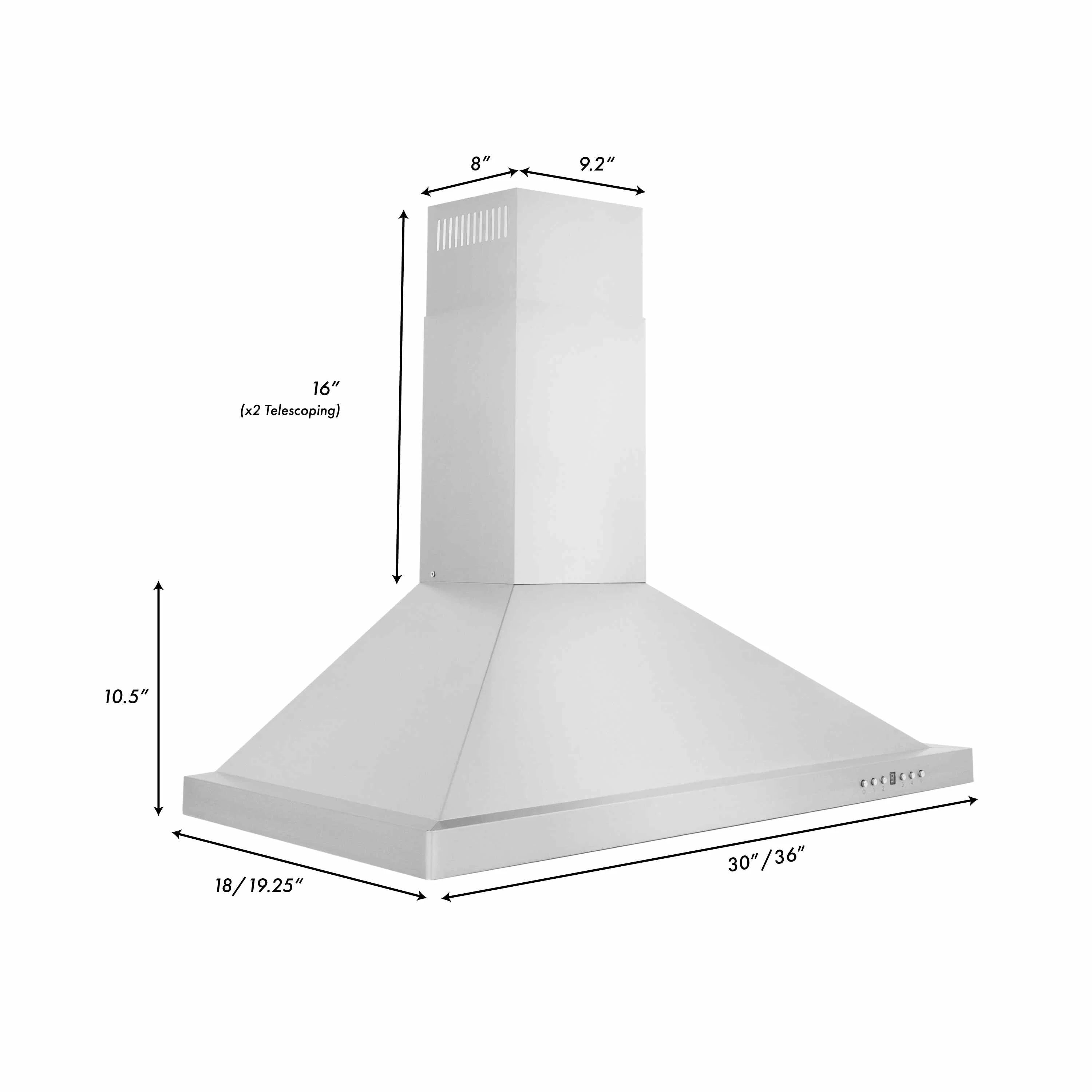

- Dimension
- 30" W x 17.7" D x 10.5" H
- Chimney (Dimension)
- 9.2" W x 8" D x 16" H (x2) (Telescoping) Chimney Short Kit and Extension(s) Available: Short Kit (2-12") ~8 ft. Ceilings 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings 2 PC Extension (2-36") ~10-12 ft. Ceilings
- Mount Type
- Wall Mounted

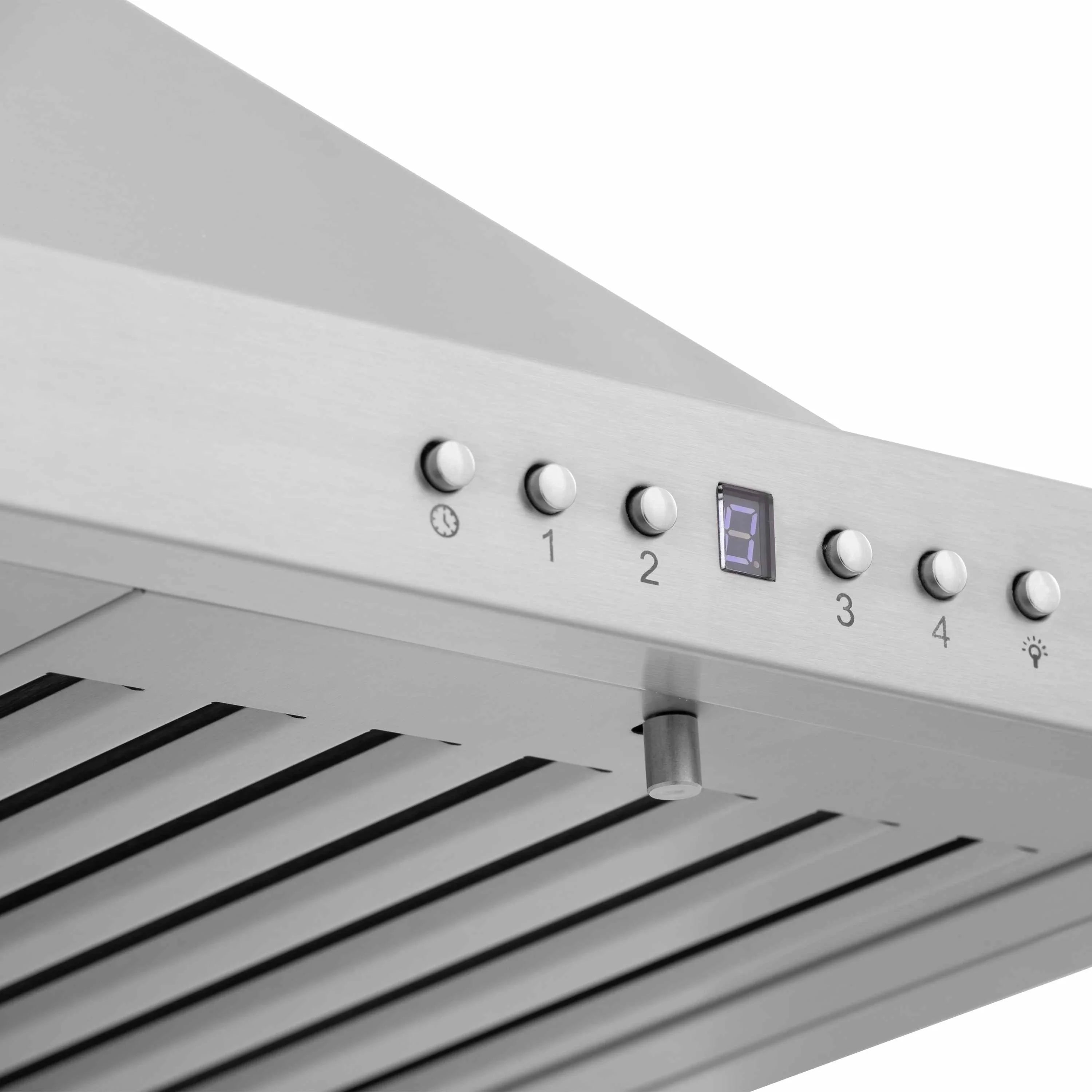

- Control Type
- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
- Material
- 21g #430 Stainless Steel
- Venting Size
- 6" Outlet (Transition piece with backdraft damper to round ducting included) Charcoal Filters (not included) available for ductless/recirculating option.
- Airflow (Q/L/M/H)
- 120/240/320/400
- Noise Level
- 20/29/34/41
- Voltage
- 110V/60HZ
- Motor
- High Performance 400 CFM/4-Speed Motor
- Speeds
- 4 Speeds
- Lighting

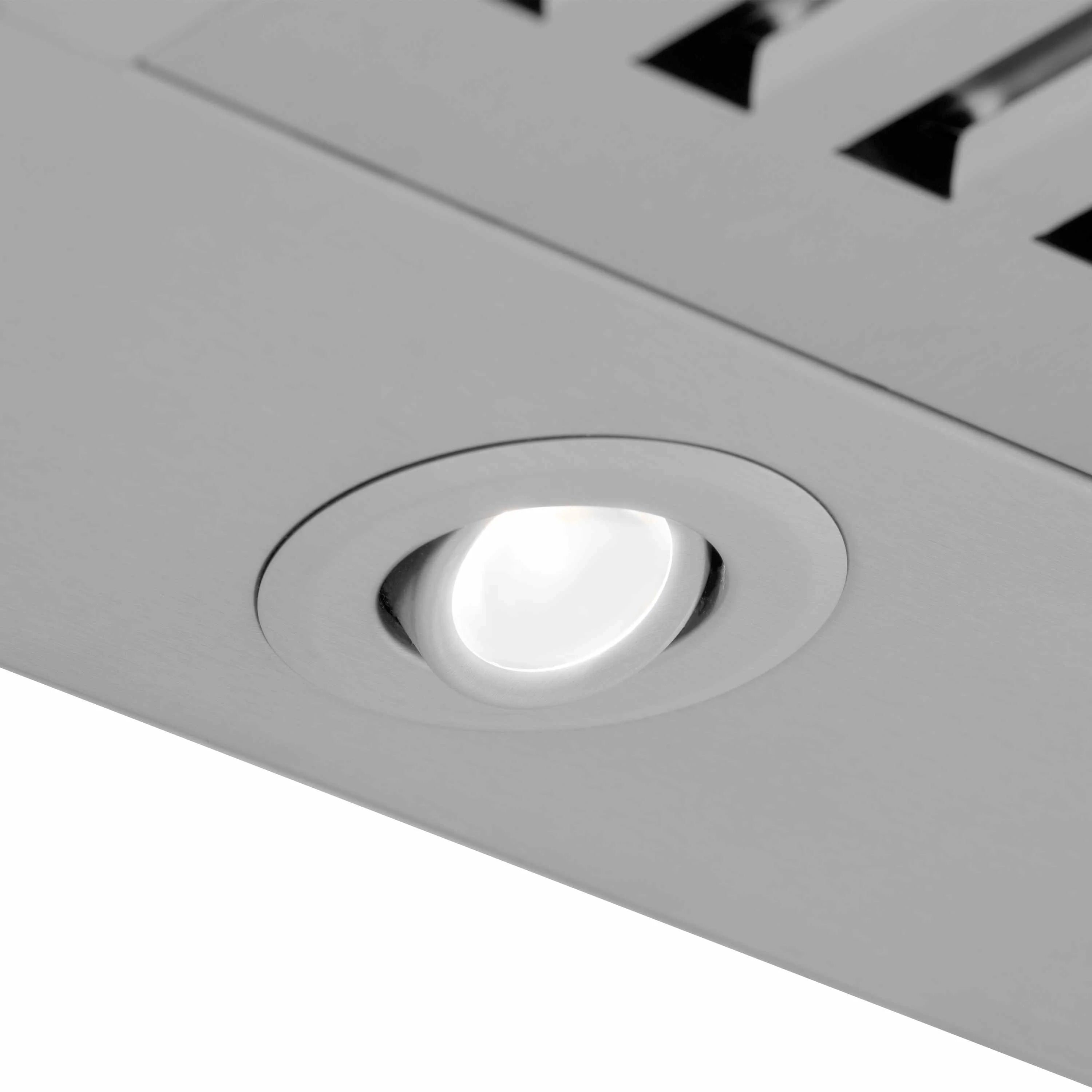

- 2 Directional LED Lights (3-Watt)
- Filters
- Stainless Steel Baffle Filters (Dishwasher Safe)
- Features
- Model No. KB-30 (ETL Listed)
- Warranty
- 3 Year Parts Warranty
- Certifications
- ETL Certified

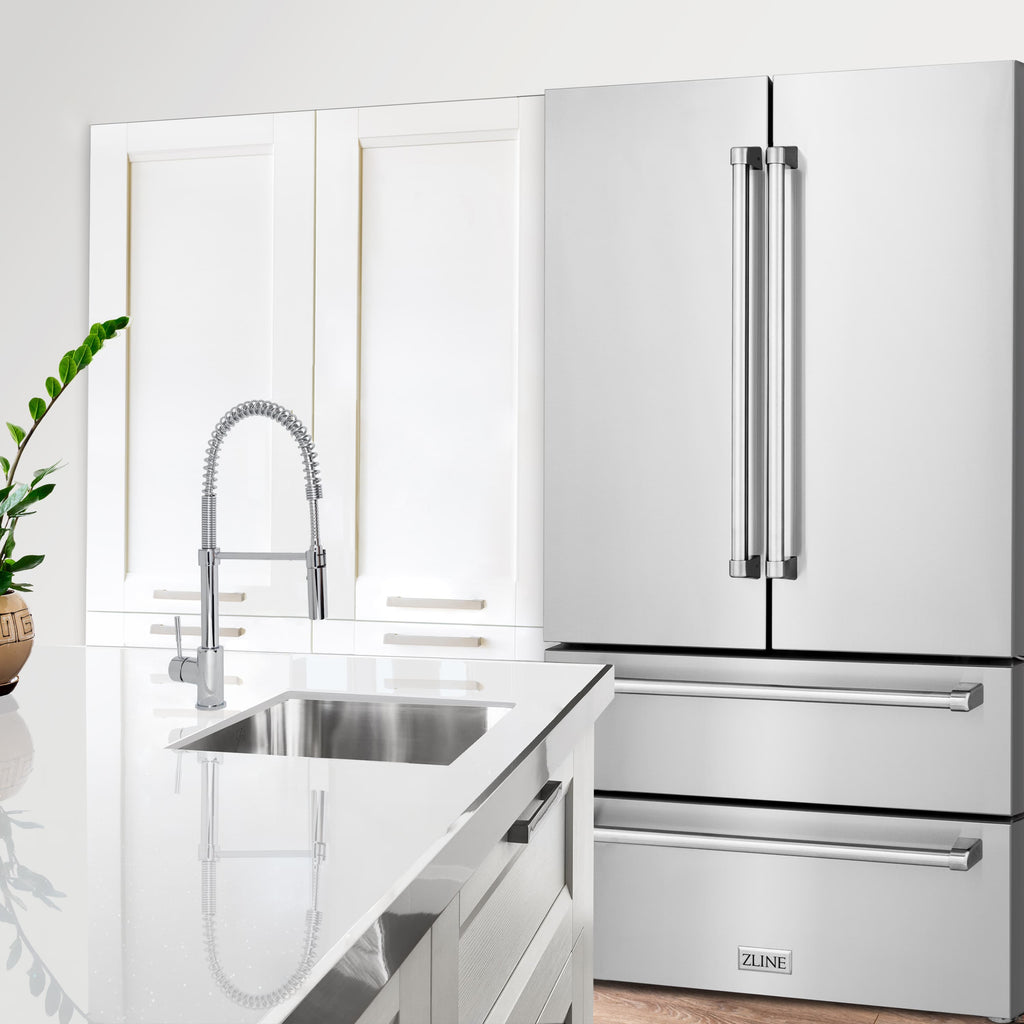

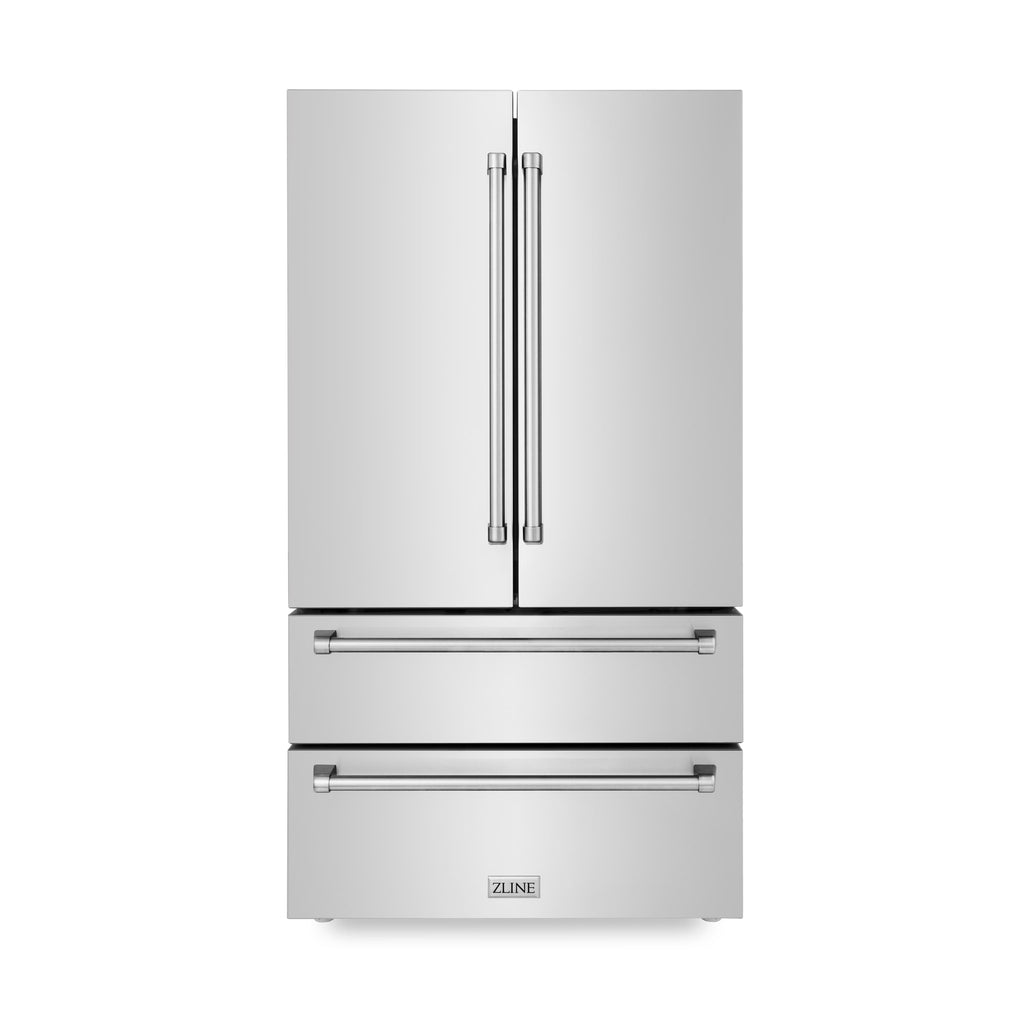

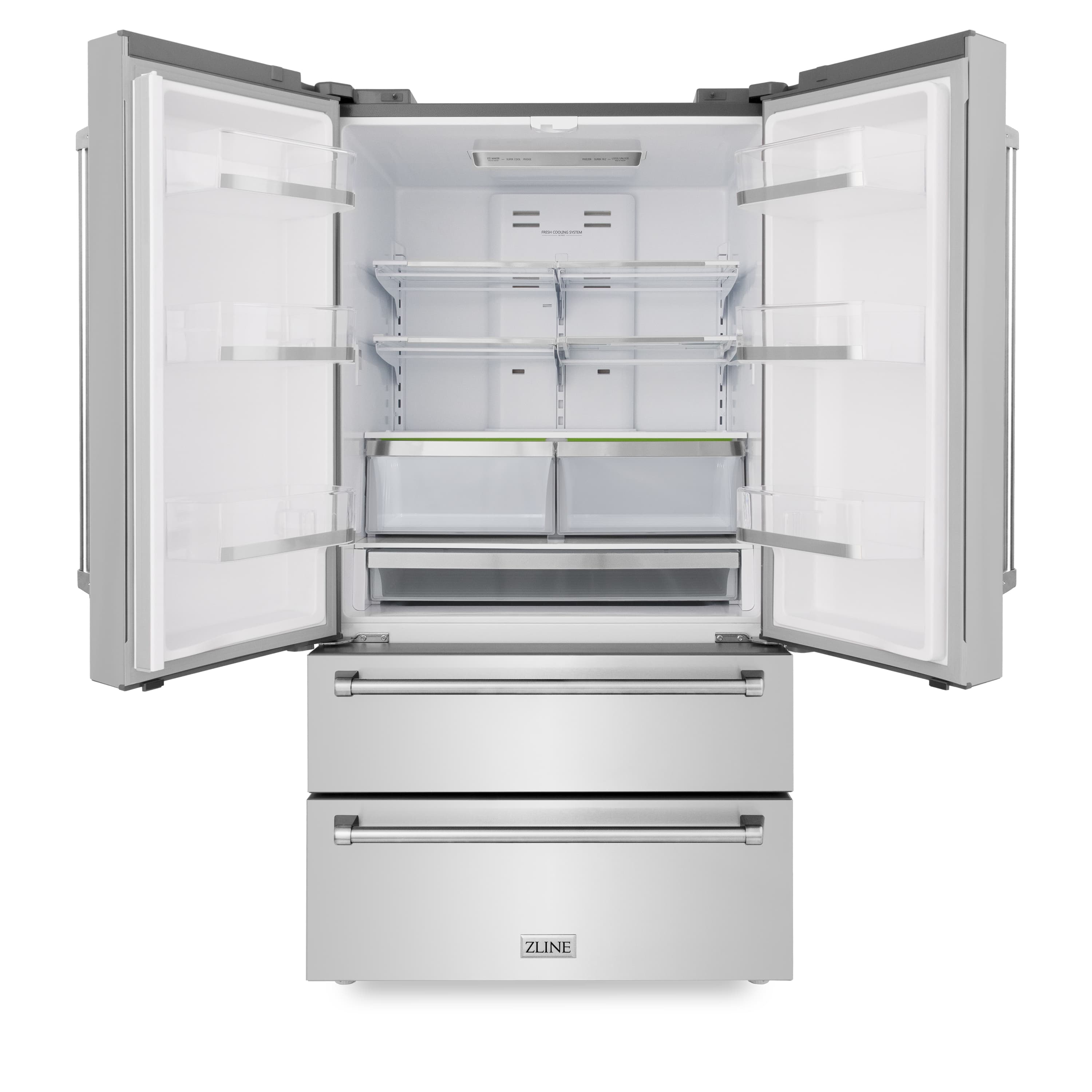

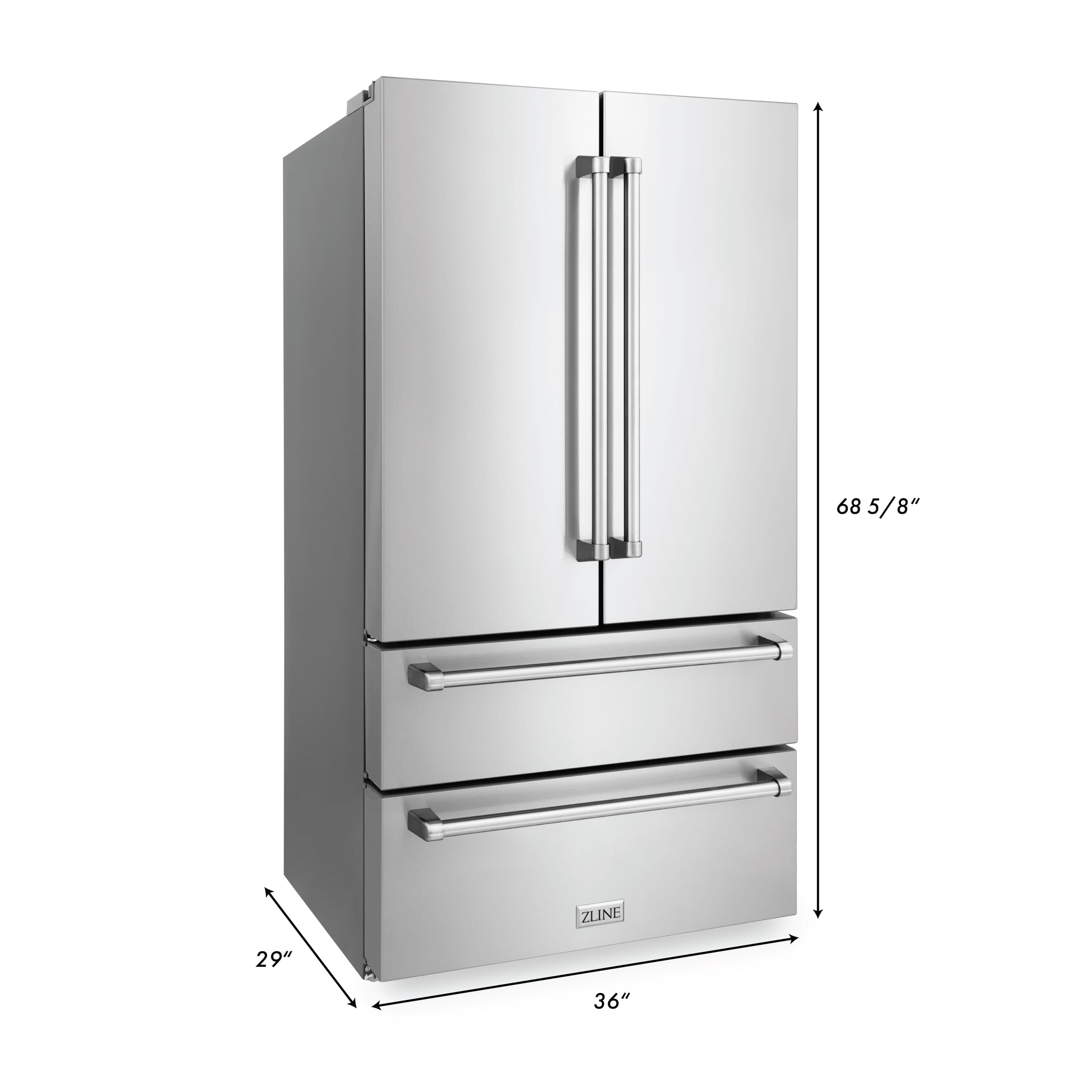

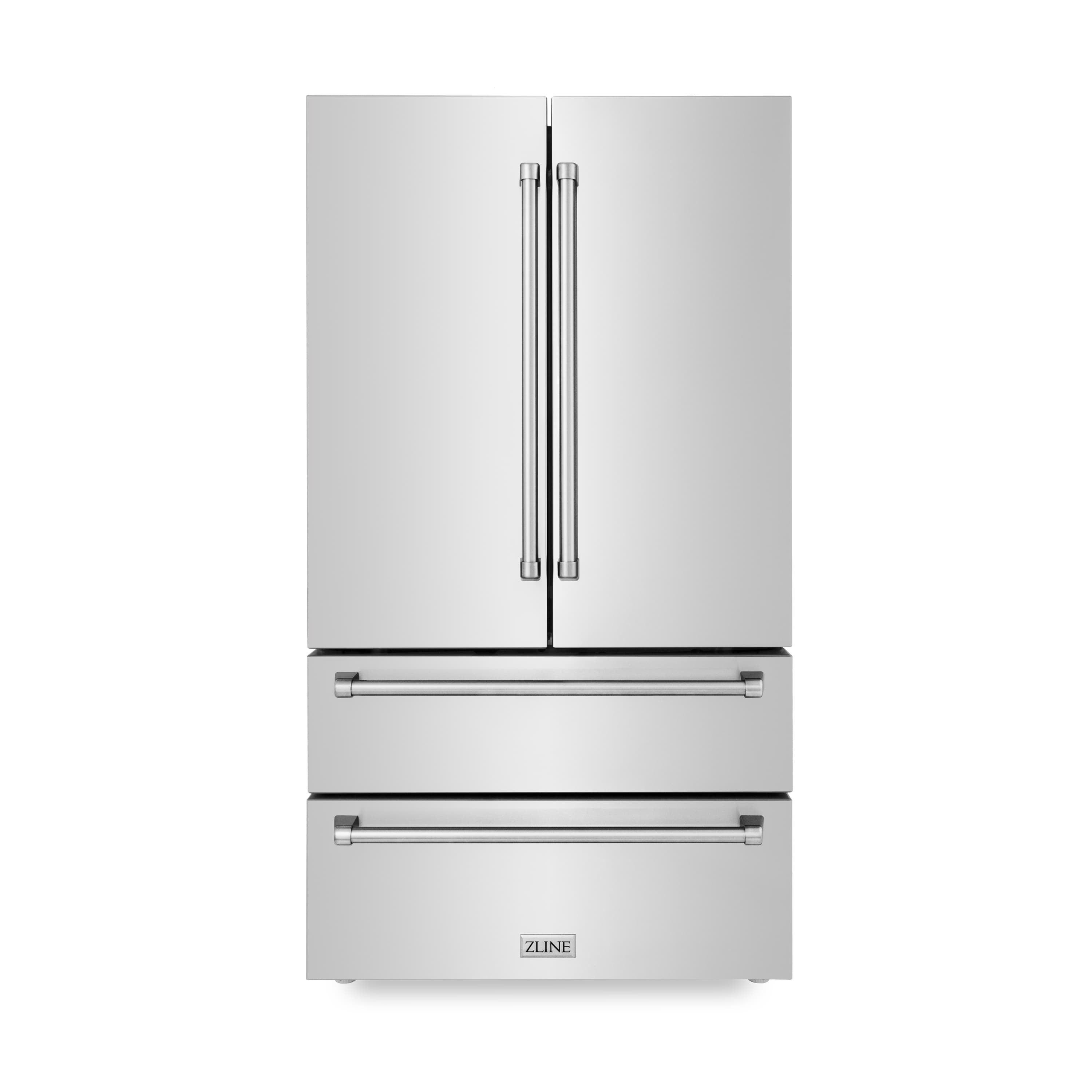

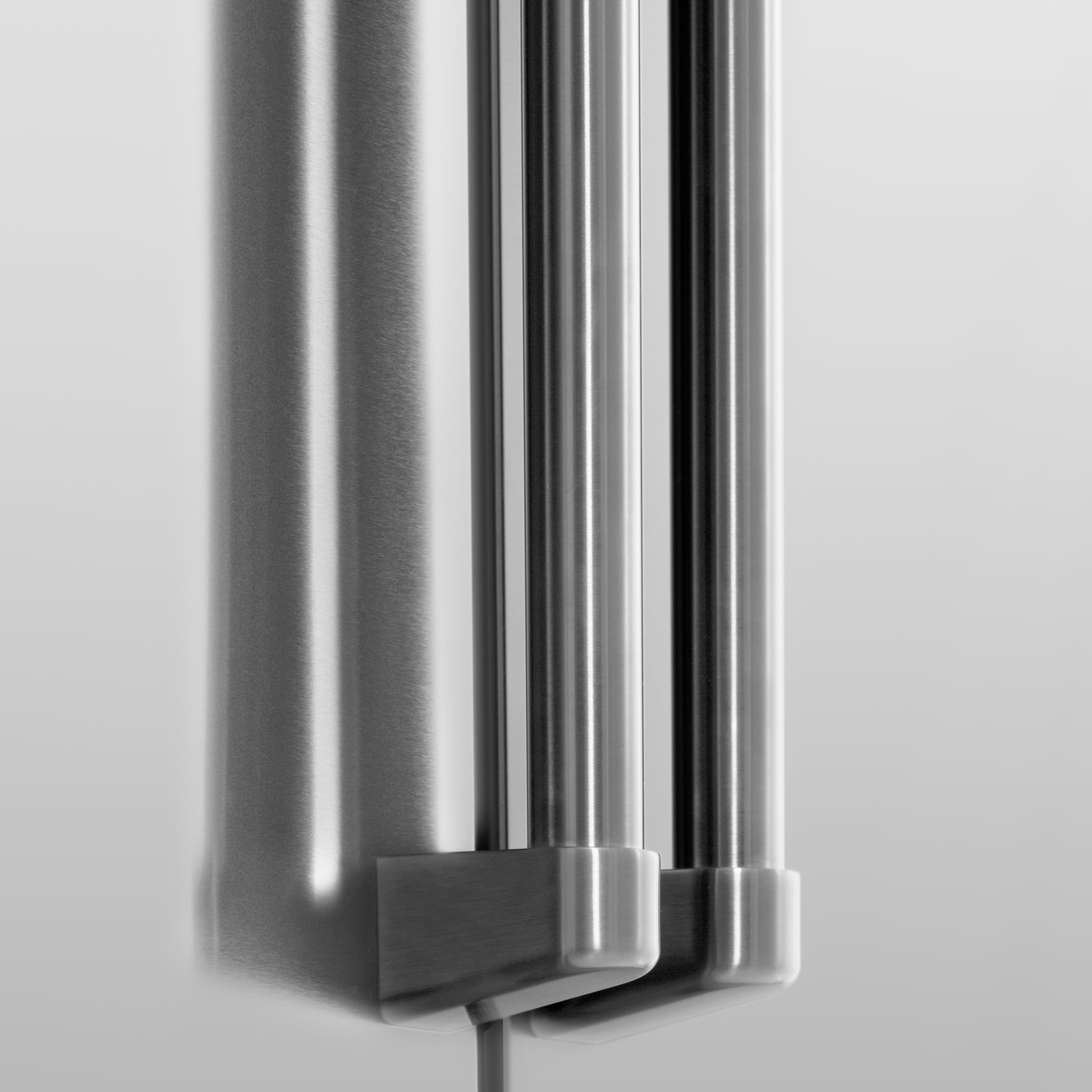

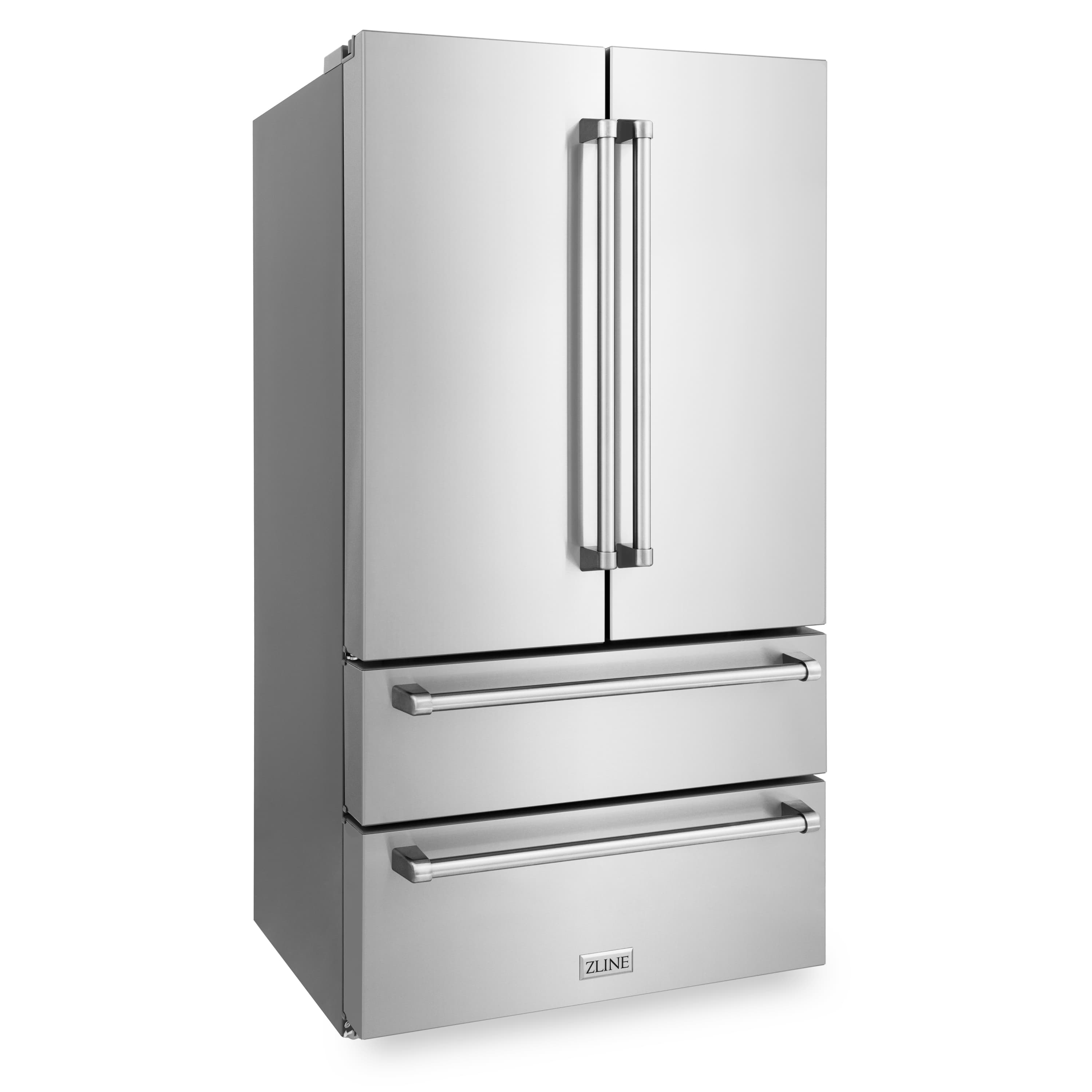

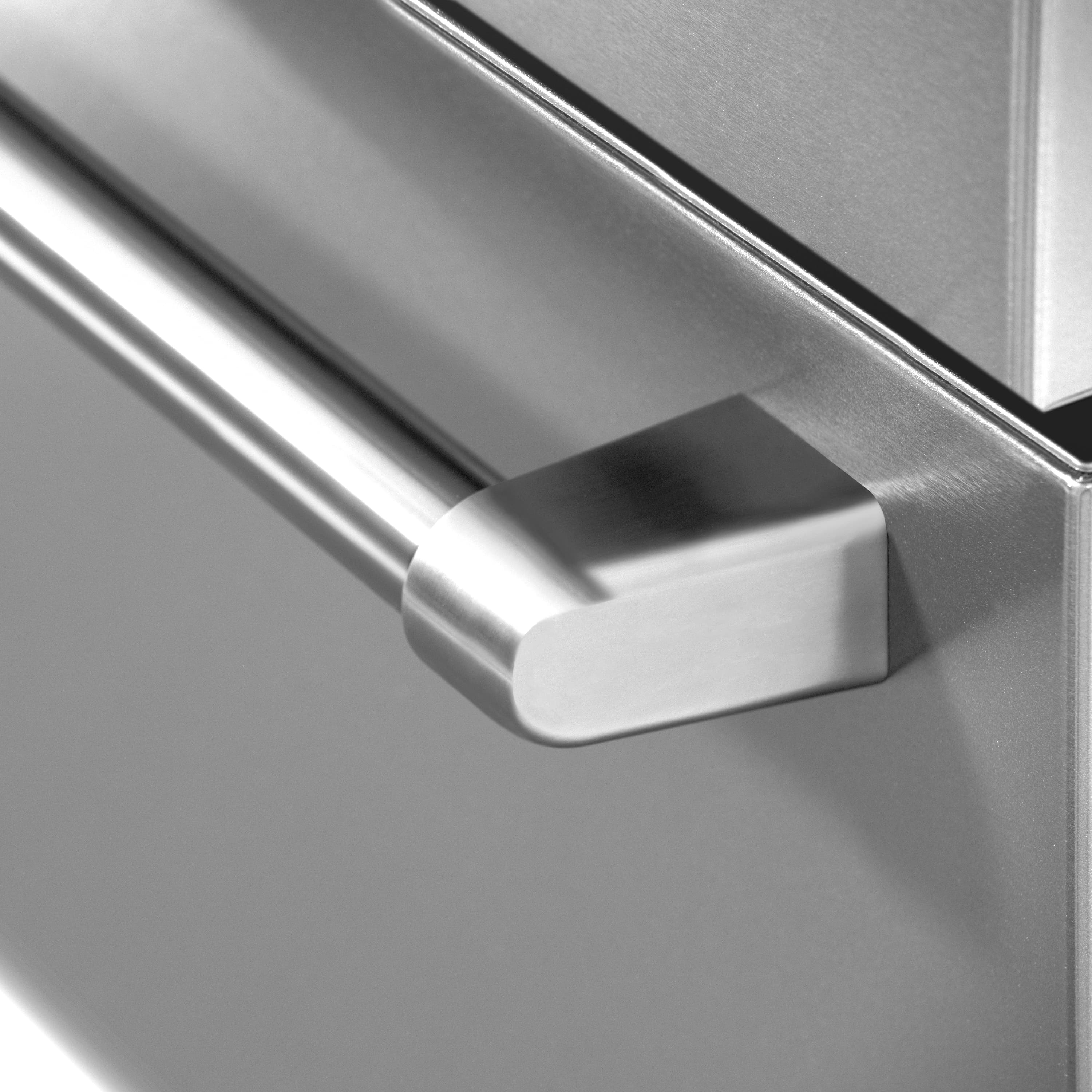

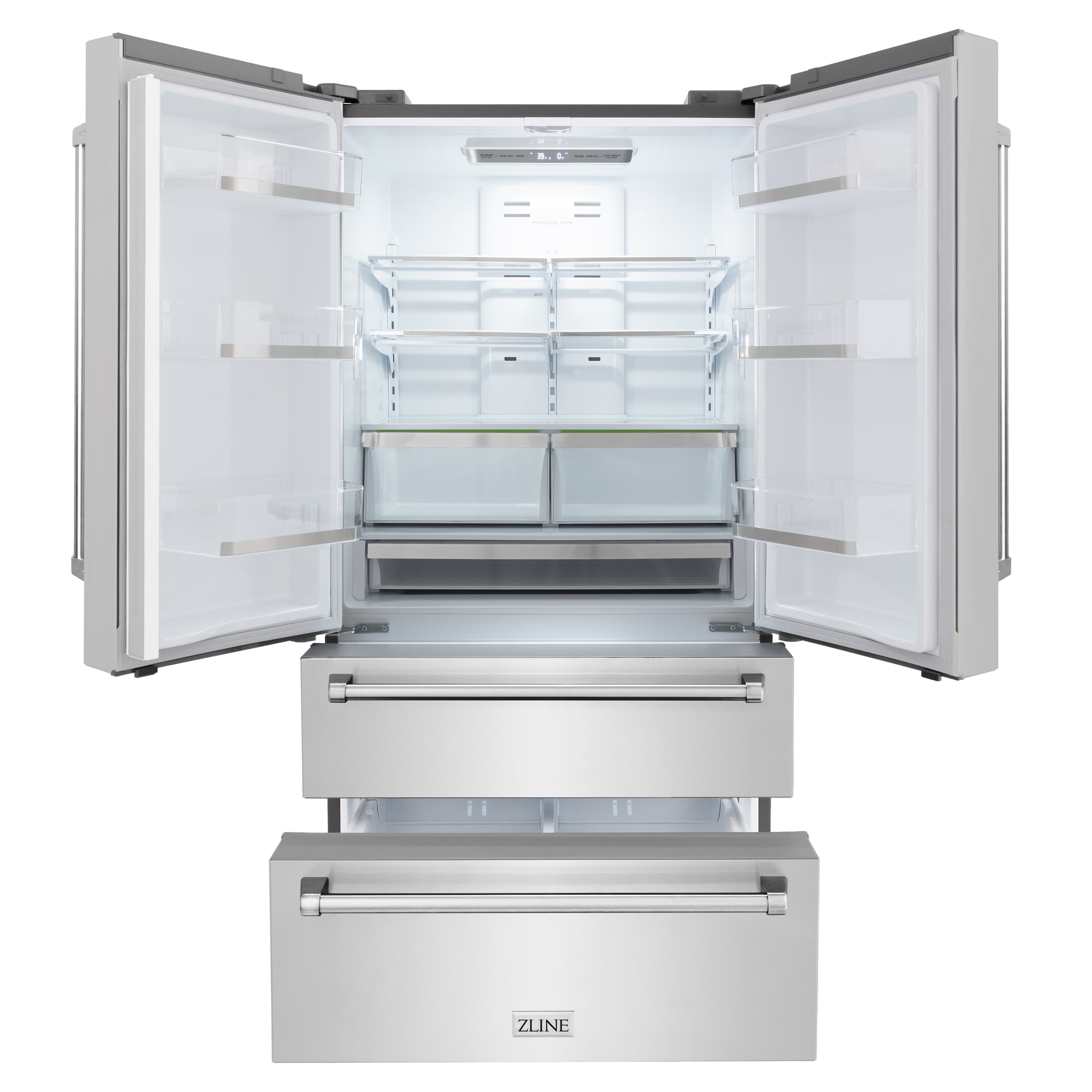

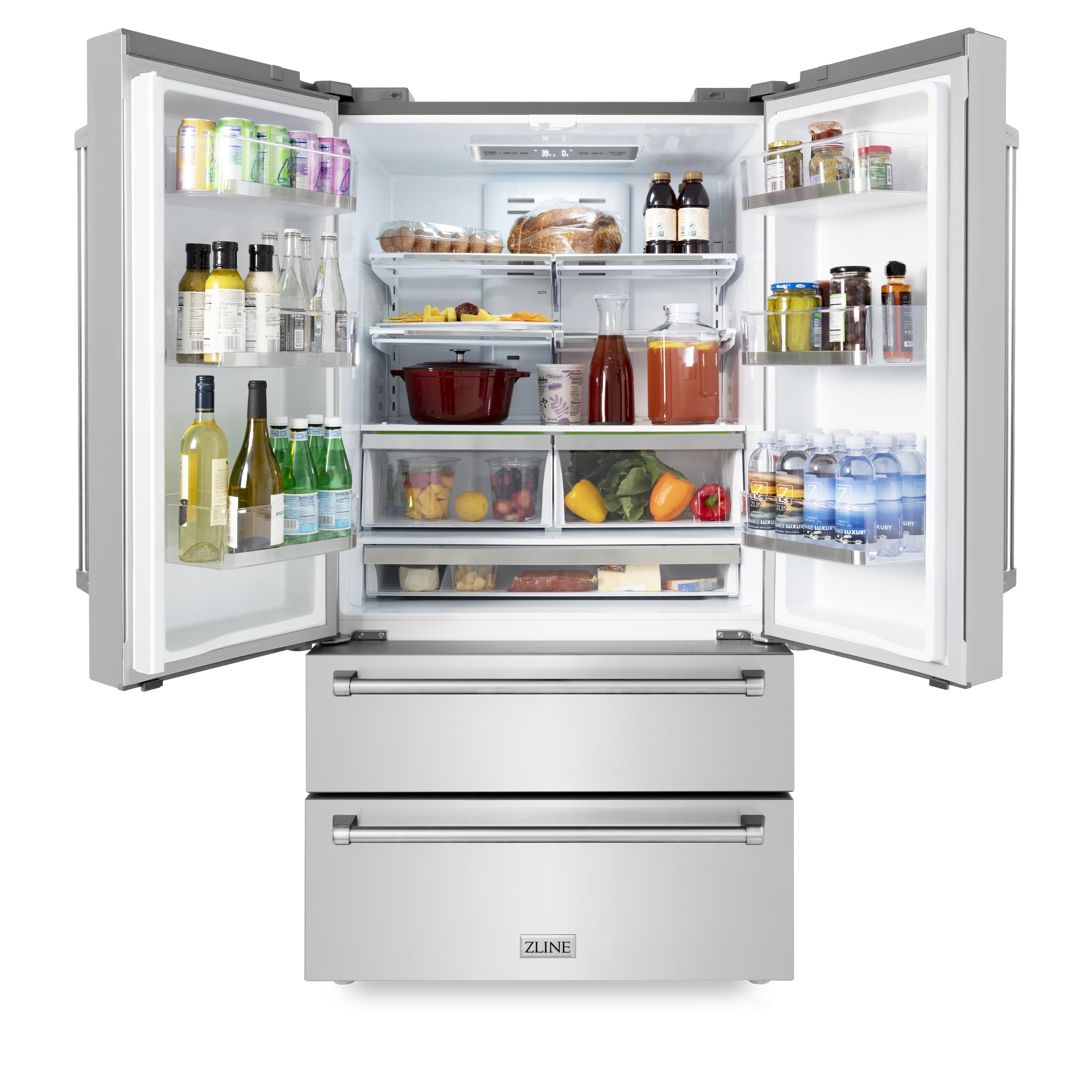

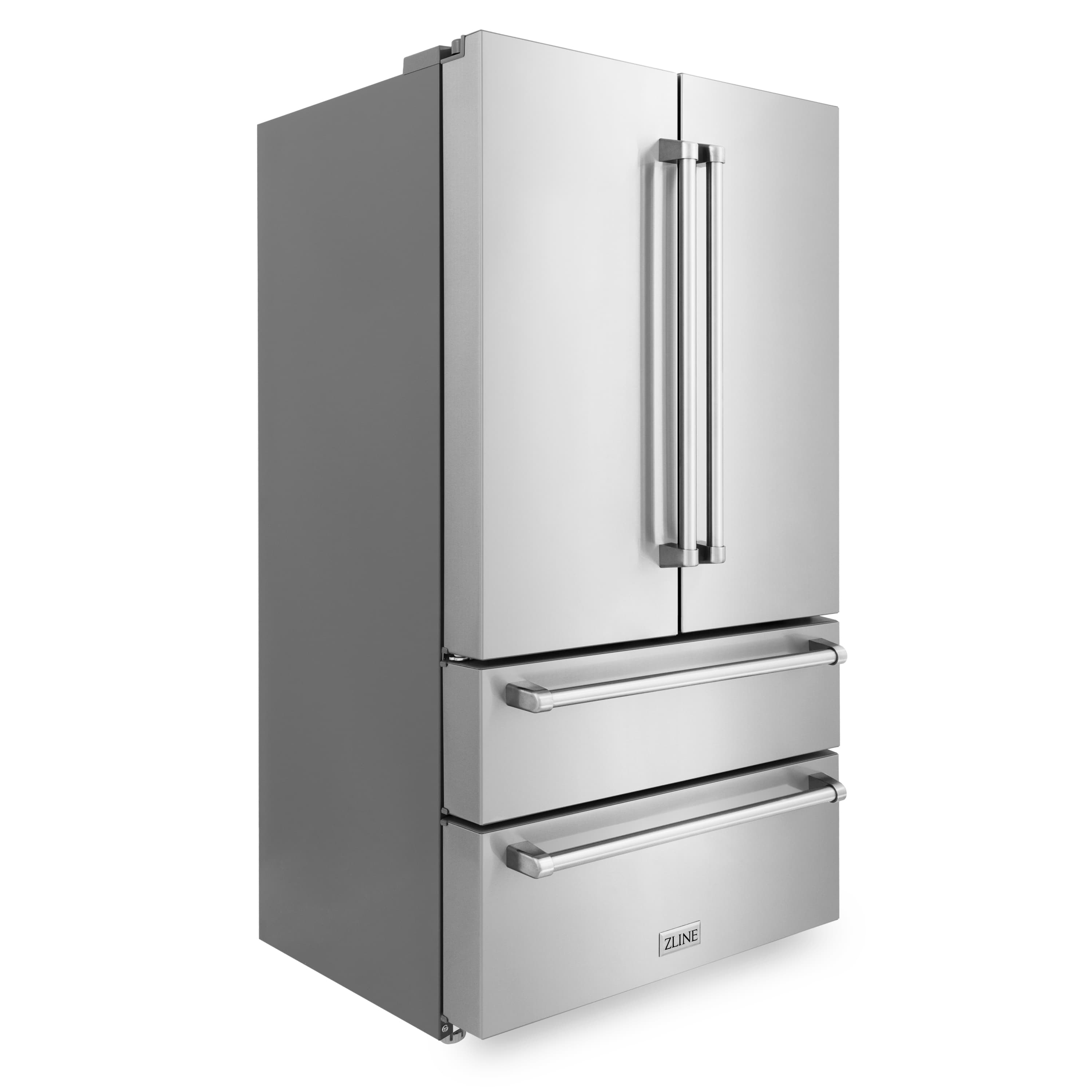

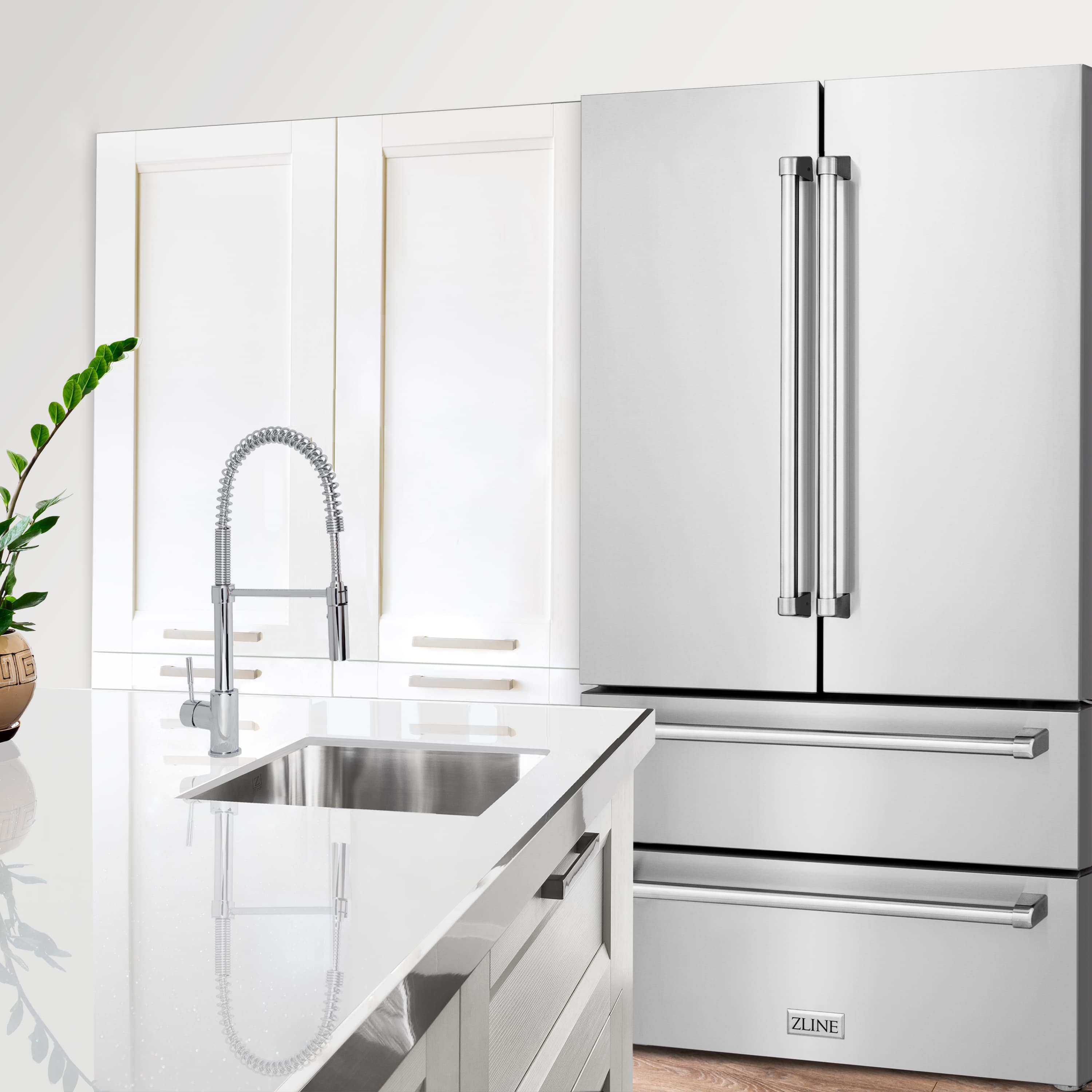

The ZLINE 36 in. 22.5 cu. ft. Counter-Depth French Door Refrigerator with Ice Maker in Fingerprint-Resistant Stainless Steel (RFM-36) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and a high-capacity built-in ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
Features
- Counter-Depth Design - Create a modern look in your kitchen with a professional counter-depth refrigerator designed to be flush with your countertops
- Large Capacity - Easily organize items with a 15.9 cu. ft. refrigeration compartment and 6.6 cu. ft. freezer compartment—totaling 22.5 cu. ft. of storage capability
- Adjustable Temperatures - Create the perfect cooling environment with fridge temperatures ranging from 34°F to 44°F and freezer temperatures ranging from -7°F to 7°F
- Super Cool and Super Freeze Modes - Save time and quickly chill food with unique functions that automatically set the fridge temperature to 34°F and freezer to -7°F
- Bright White Interior - Achieve ZLINE Attainable Luxury® excellence by pairing best-in-class freshness with Bright White interior counter-depth units
- Dual Freezer Compartments - Store frozen items of multiple sizes and shapes inside two separate freezer compartments, each with full-extension drawers

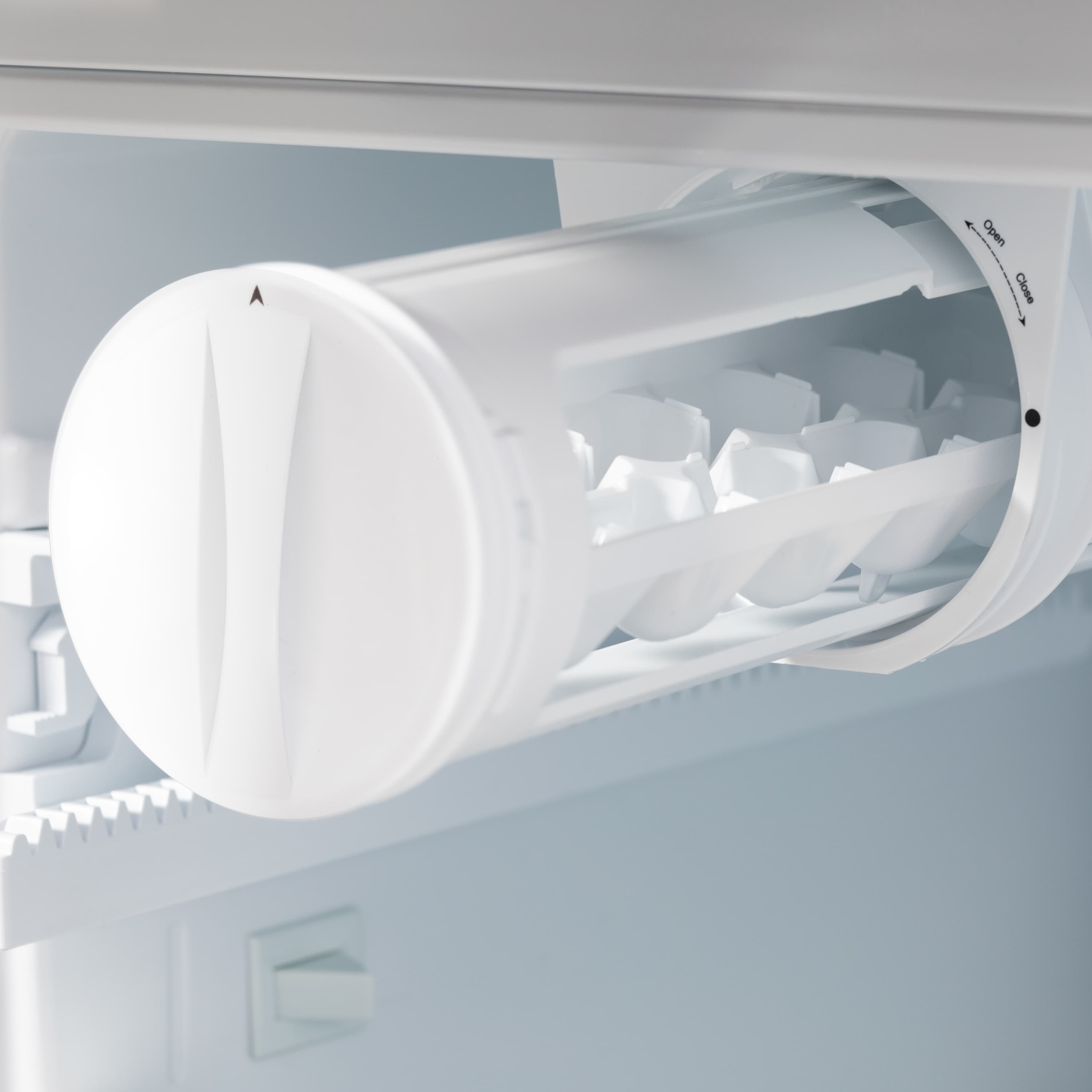

- Built-in Ice Maker - Easily access the automatic ice maker in the freezer, which stores up to 1.75 pounds of ice and creates up to 4.85 pounds of ice daily

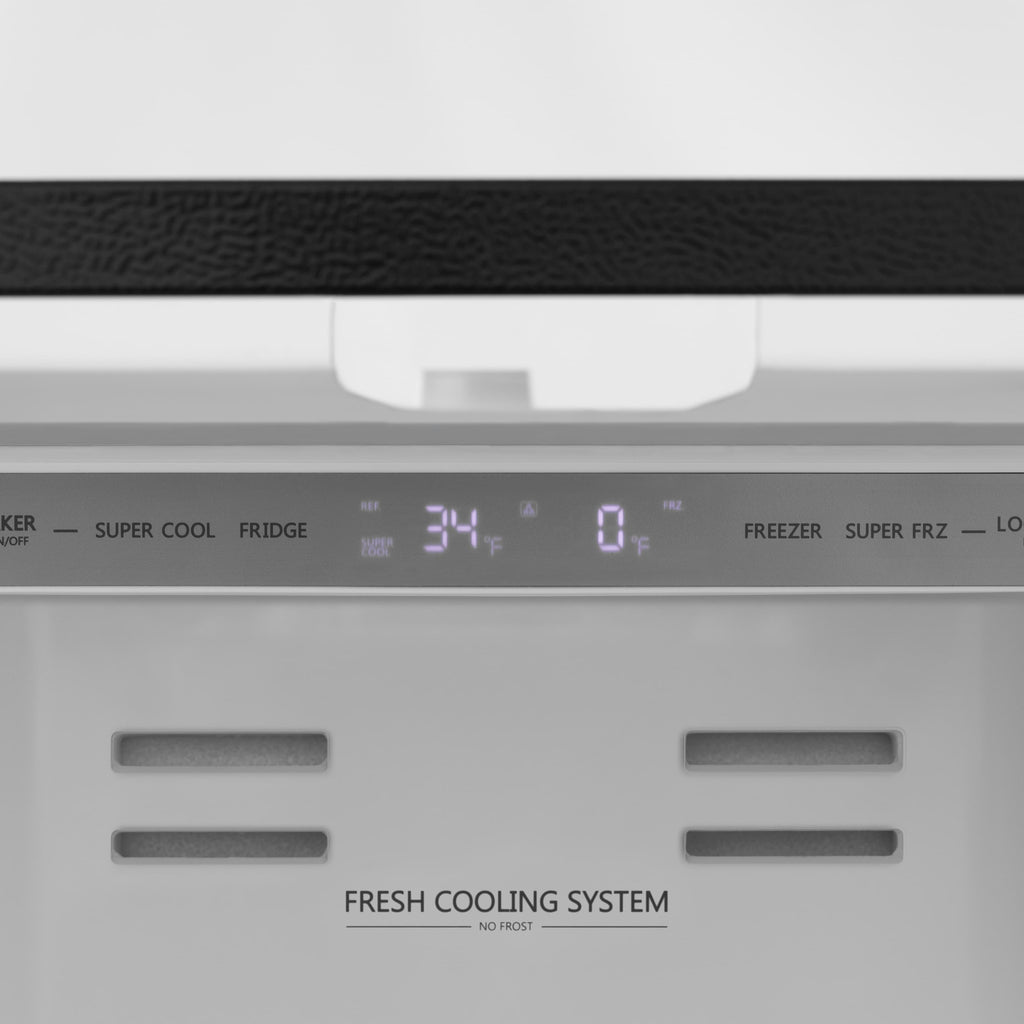

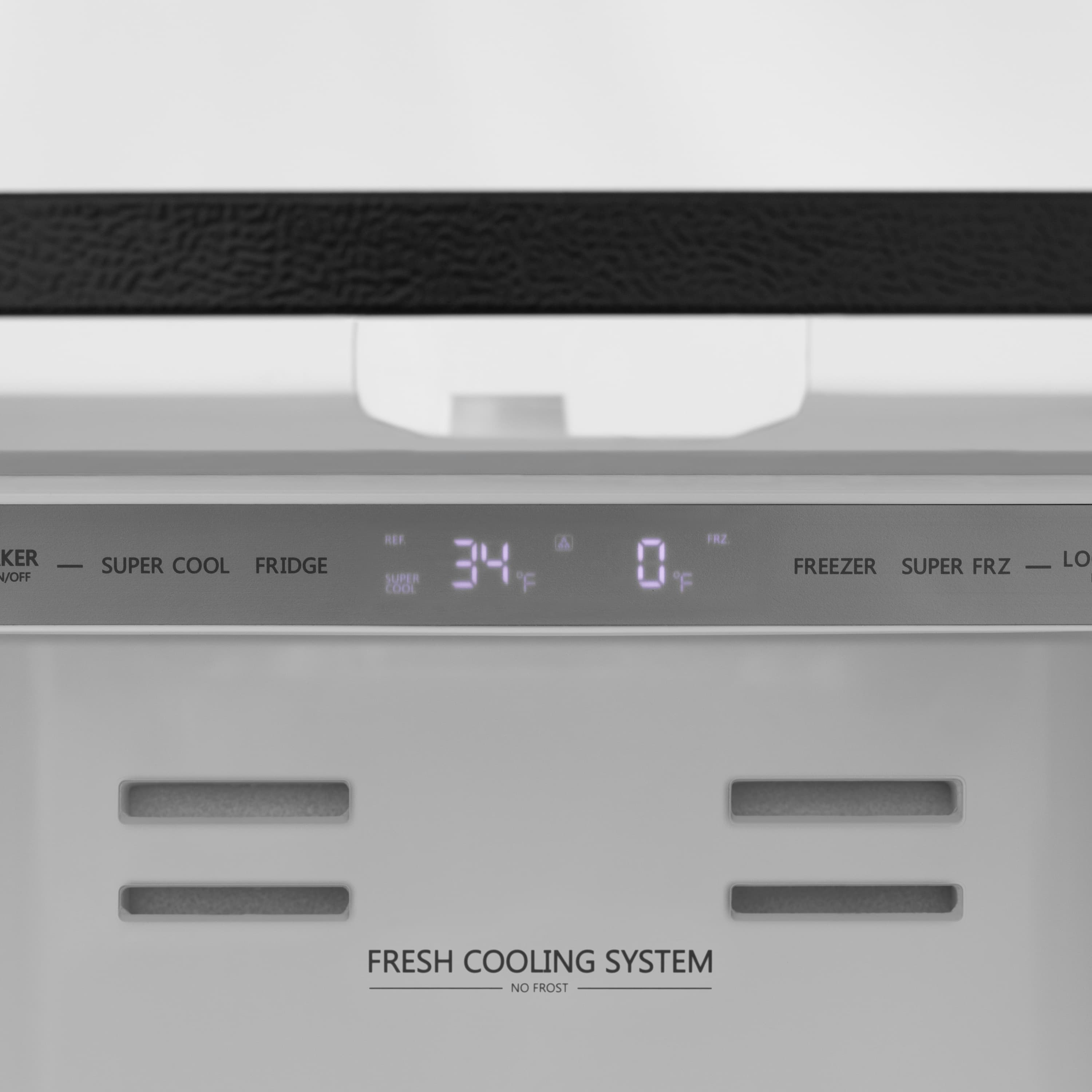

- Digital ChillControl - An ergonomic LED display allows you to quickly set temperatures, change from Fahrenheit to Celsius, and navigate menu options
- Fingerprint-Resistant Stainless Steel - Minimize cleaning with ZLINE’s smudge-proof and fingerprint-resistant 430-grade stainless steel finish
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system

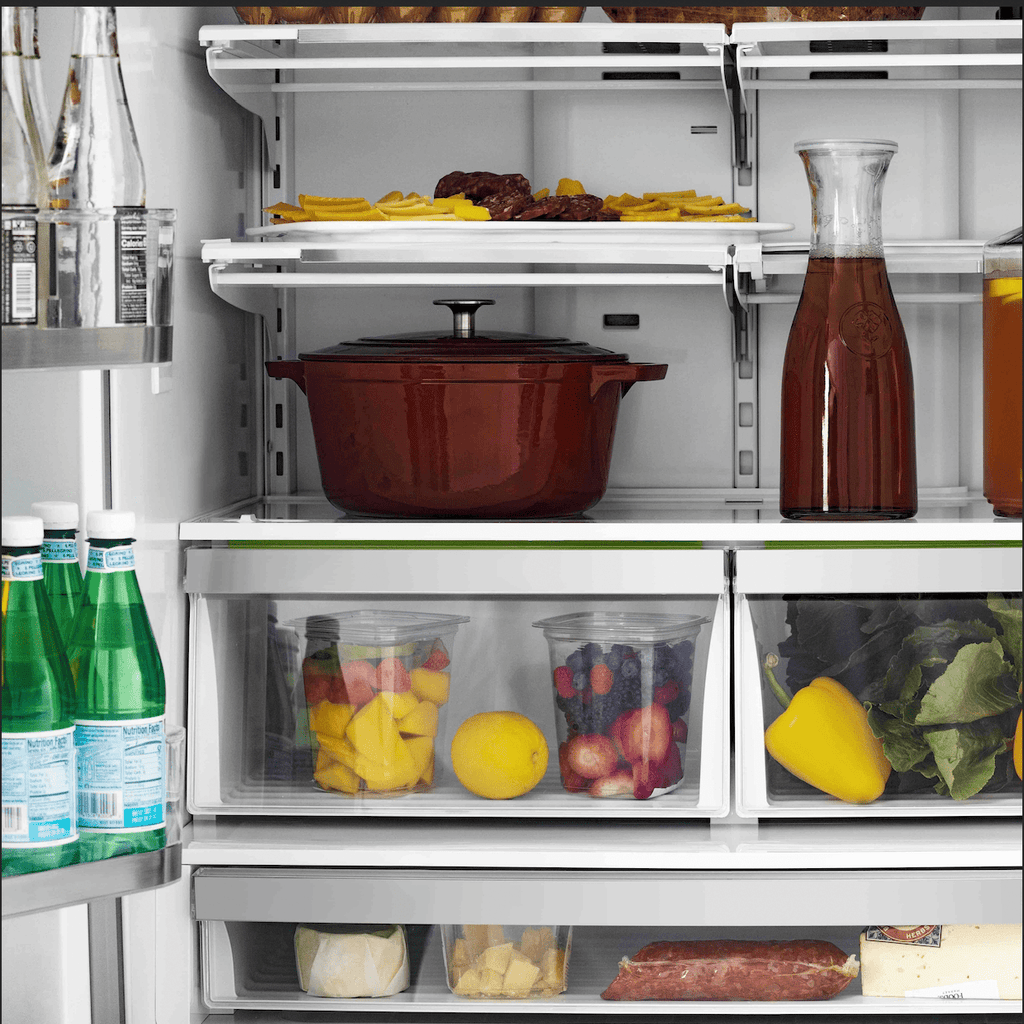

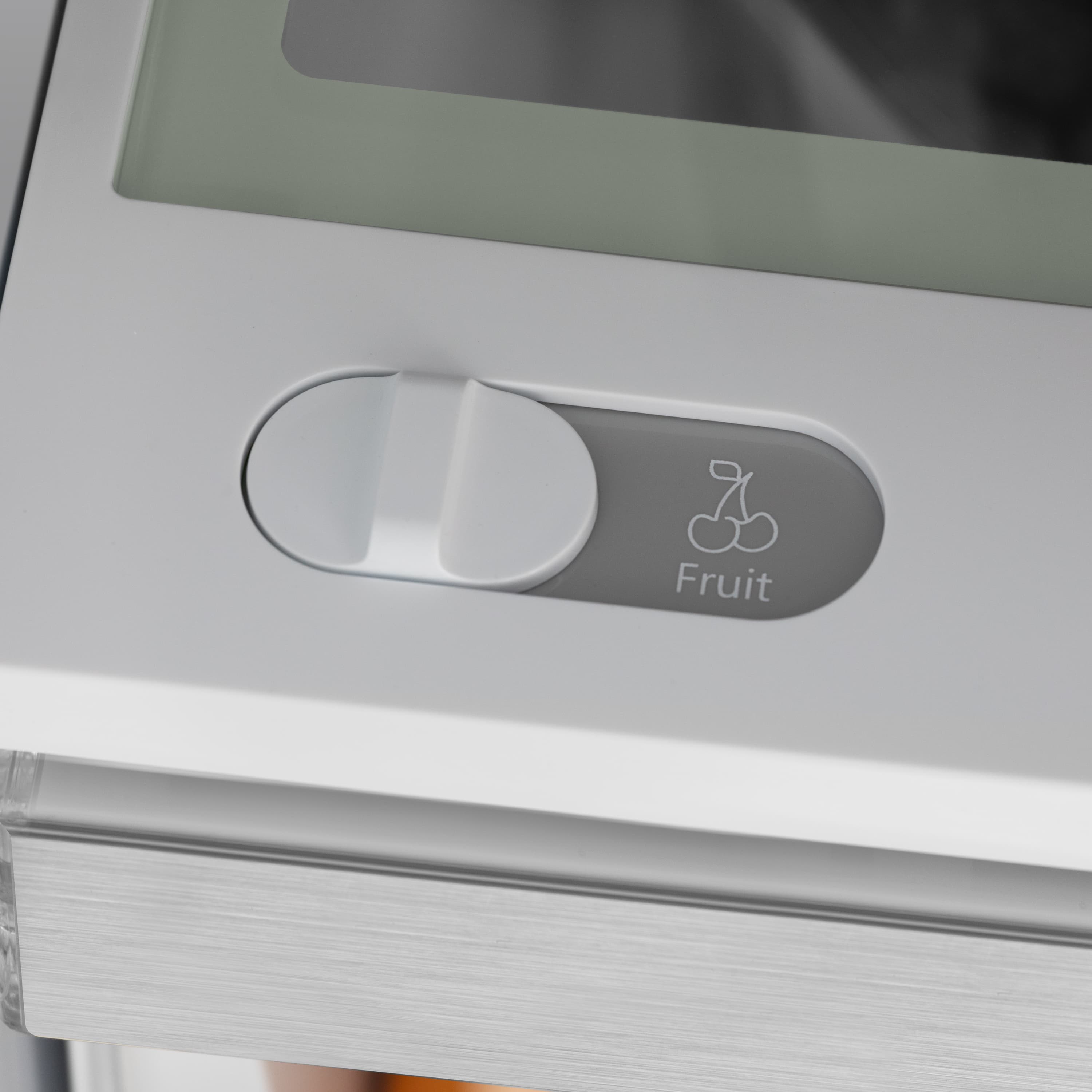

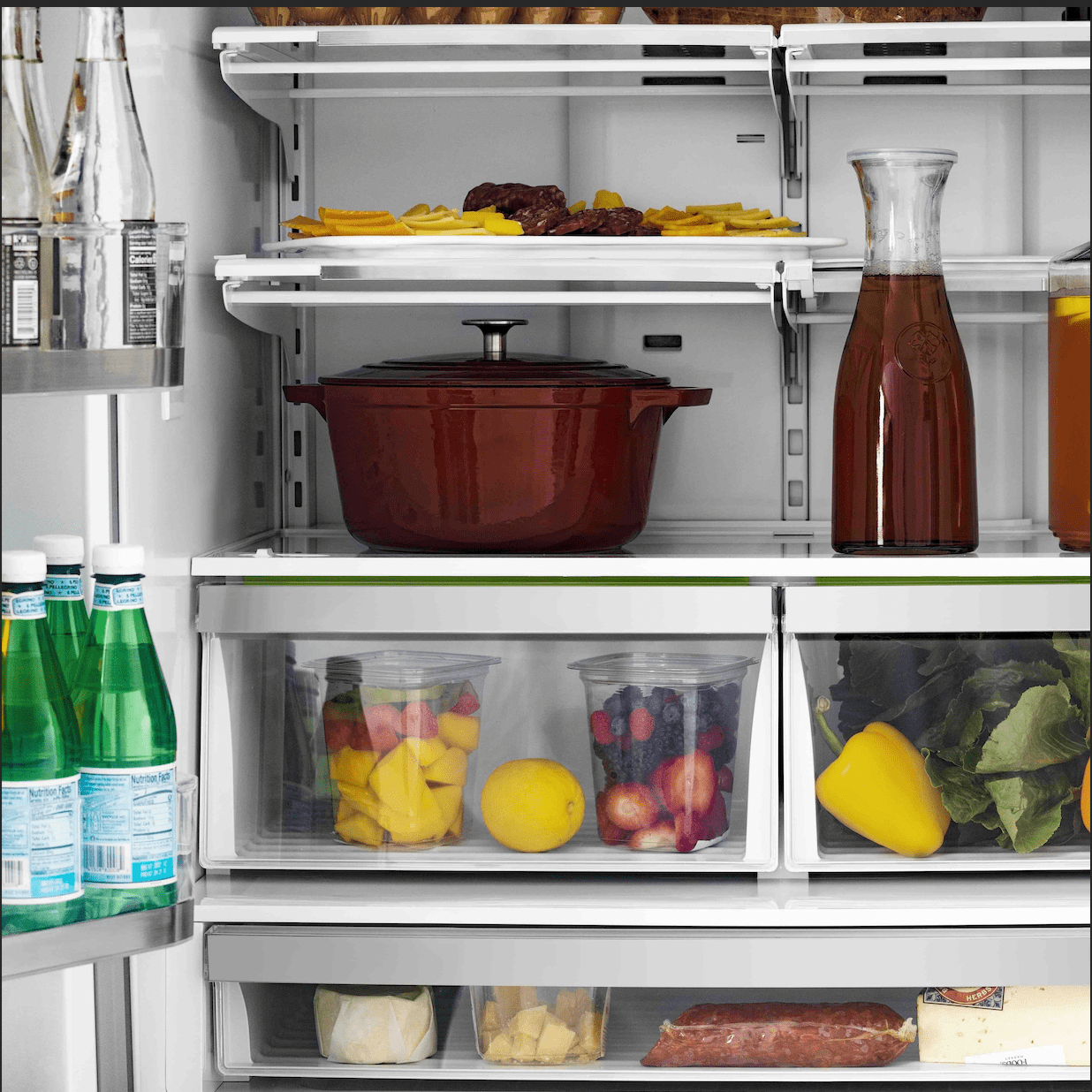

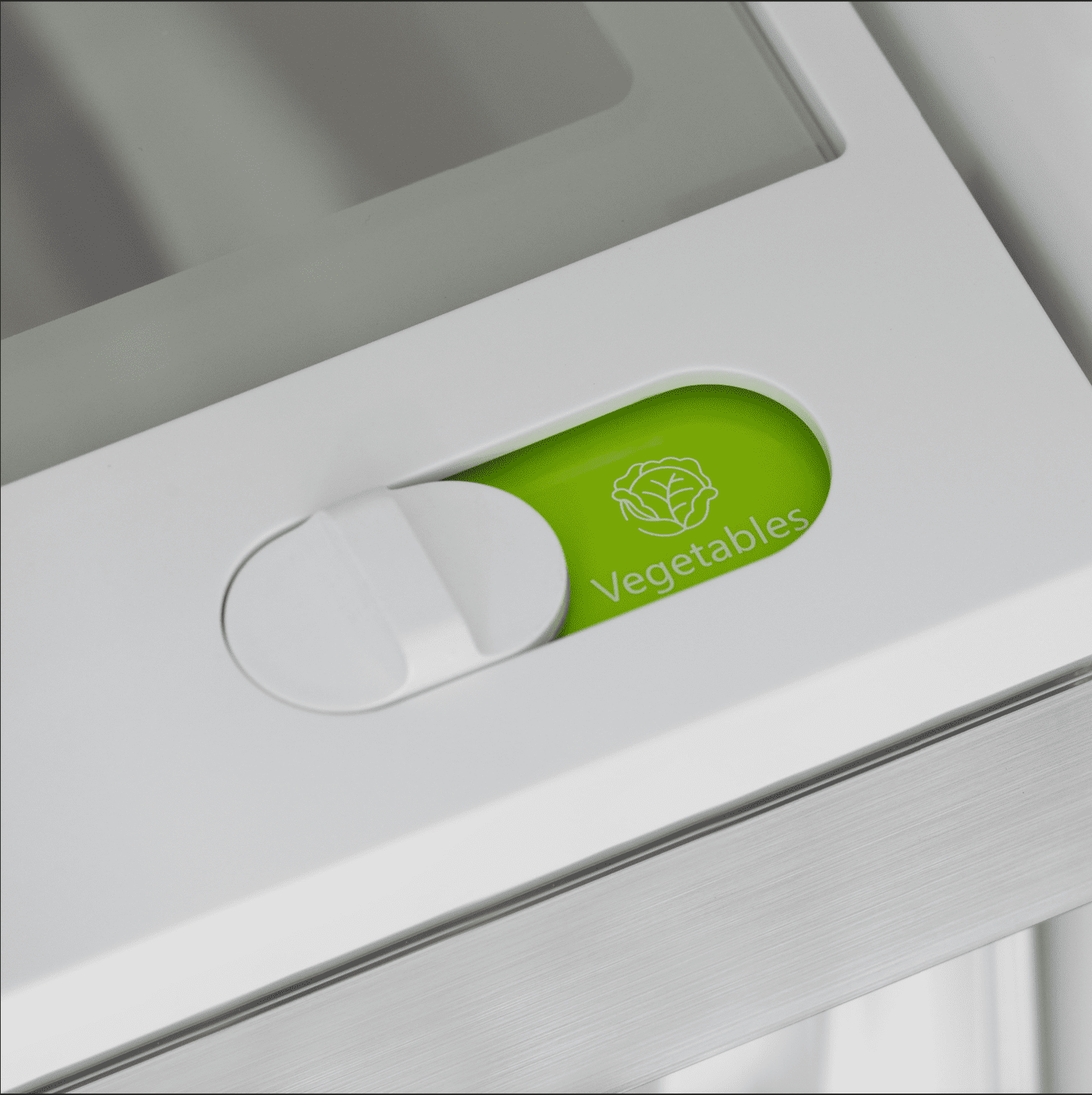

- Dual Crisper Drawers - Enjoy best-in-class freshness for fruits and vegetables with a pair of half-width humidity-controlled crisper drawers
- Full-Width Pantry Drawer - A full-width pantry drawer provides additional space for deli meats, cheeses, and other food items for optimal storage
- Spacious Door Bins - Store condiments, beverages, and other taller items inside 6 durable plastic bins, with 3 on each door
- Dual Cooling - Separate refrigerator and freezer cooling systems ensure air and odors are not mixed between compartments and provide fast and efficient cooling
- 4 LED Lights - Fully illuminate your appliance with 3 bright built-in LED lights in the fridge compartment and 1 in the freezer

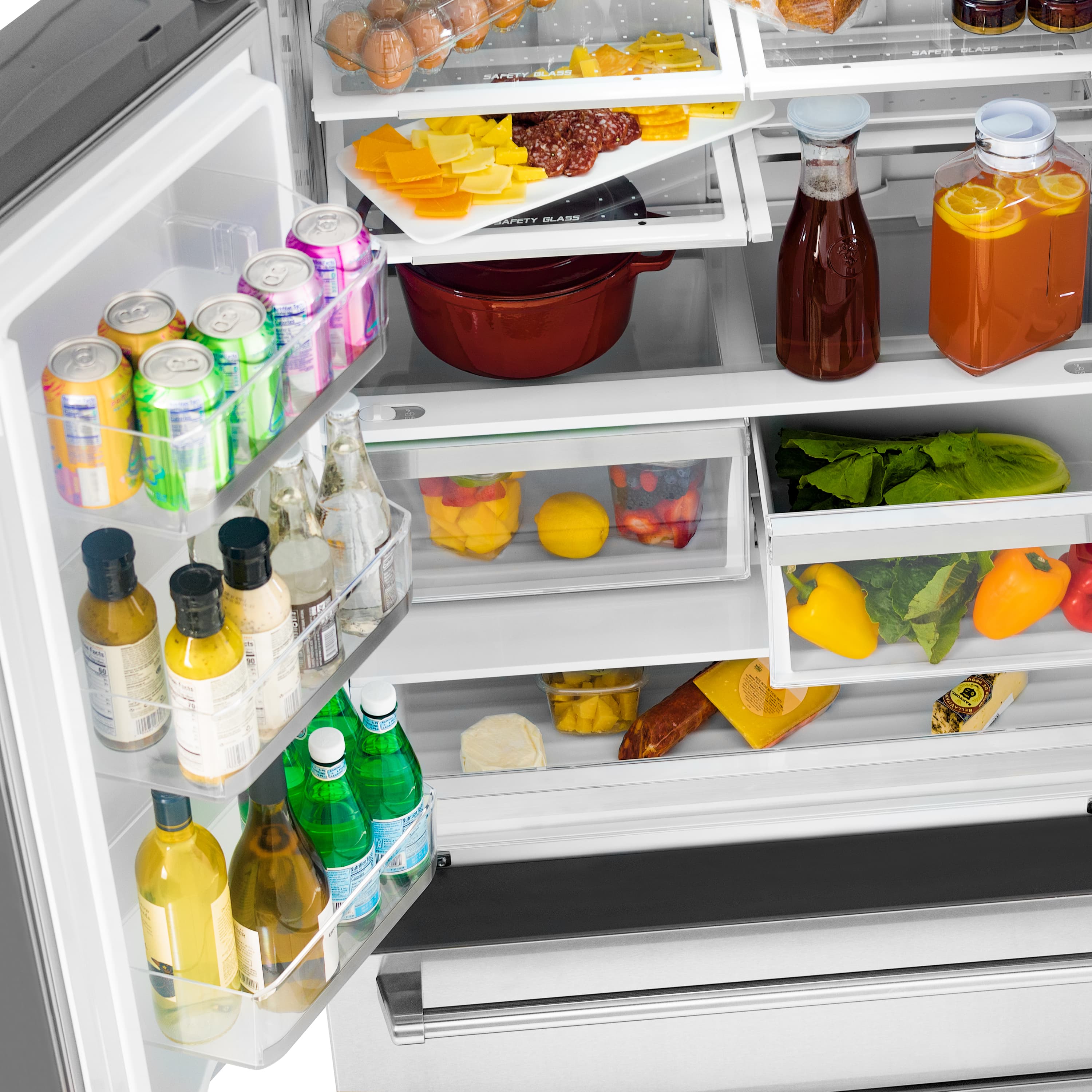

- Spill-Resistant Glass Shelves - Comfortably organize items in the fridge on 4 spill-resistant adjustable glass shelves, 1 of which is foldable for more flexibility
- Quiet Noise Level - Enjoy peace of mind day or night with an ultra-low average noise rating of 45 decibels
- ENERGY STAR® Rated - Enjoy energy savings while maintaining professional power with superior insulation and an energy-reducing cooling system
- Manufacturer Warranty - 1-year parts and labor, and a 5-year parts-only warranty on the sealed cooling system, including compressor, evaporator coil, condenser coil, and filter drier
- Additional Assembly Required - This refrigerator and its door handles will ship in multiple boxes, requiring assembly upon installation
- Dimensions
- 35.75 in. W x 29.125 in. D x 69.6875 in. H
- Total Capacity
- 22.5 cu. ft
- Installation Depth
- 29 in. D
- Depth with Door Open
- 43.5 in.

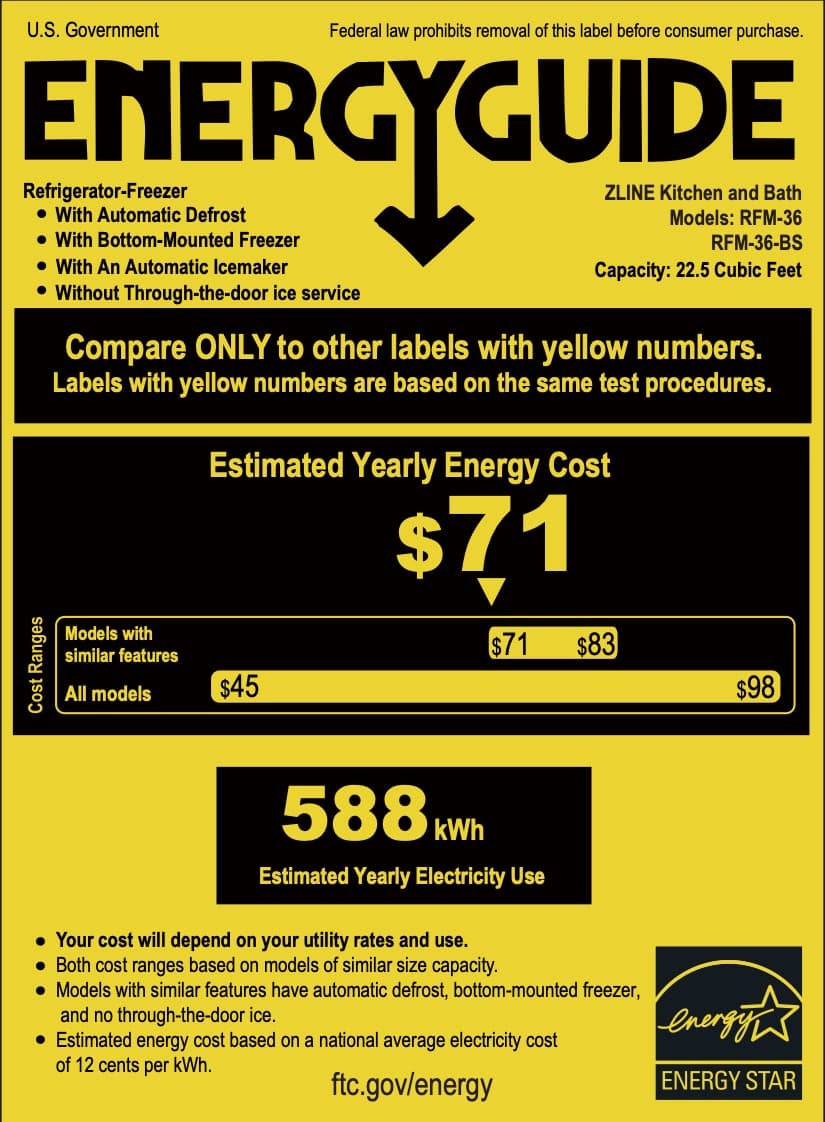

- Energy Consumption (kWh/year)
- 588
- Voltage
- 120V/60Hz
- Amps
- 3
- Noise Level
- 45 Decibels
- Fridge Capacity
- 15.9 cu. ft
- Flex Drawer Capacity
- N/A
- Flex Drawer Temp Controls
- N/A
- Ice Maker
- Yes
- Ice Maker Types
- Single Ice Maker
- Ice Amount Per Day
- 4.85 lbs
- Ice Tray Storage
- 1.75 lbs
- Water Dispenser
- No
- Flowrate for Water Dispenser
- N/A
- Fridge Lights
- 3
- Humidity-Controlled Crispers
- 2
- Freezer Capacity
- 6.6 cu. ft
- Freezer Drawer Bins
- 2- Pull Out Drawers
- Energy Star
- Yes
- Warranty
- 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System

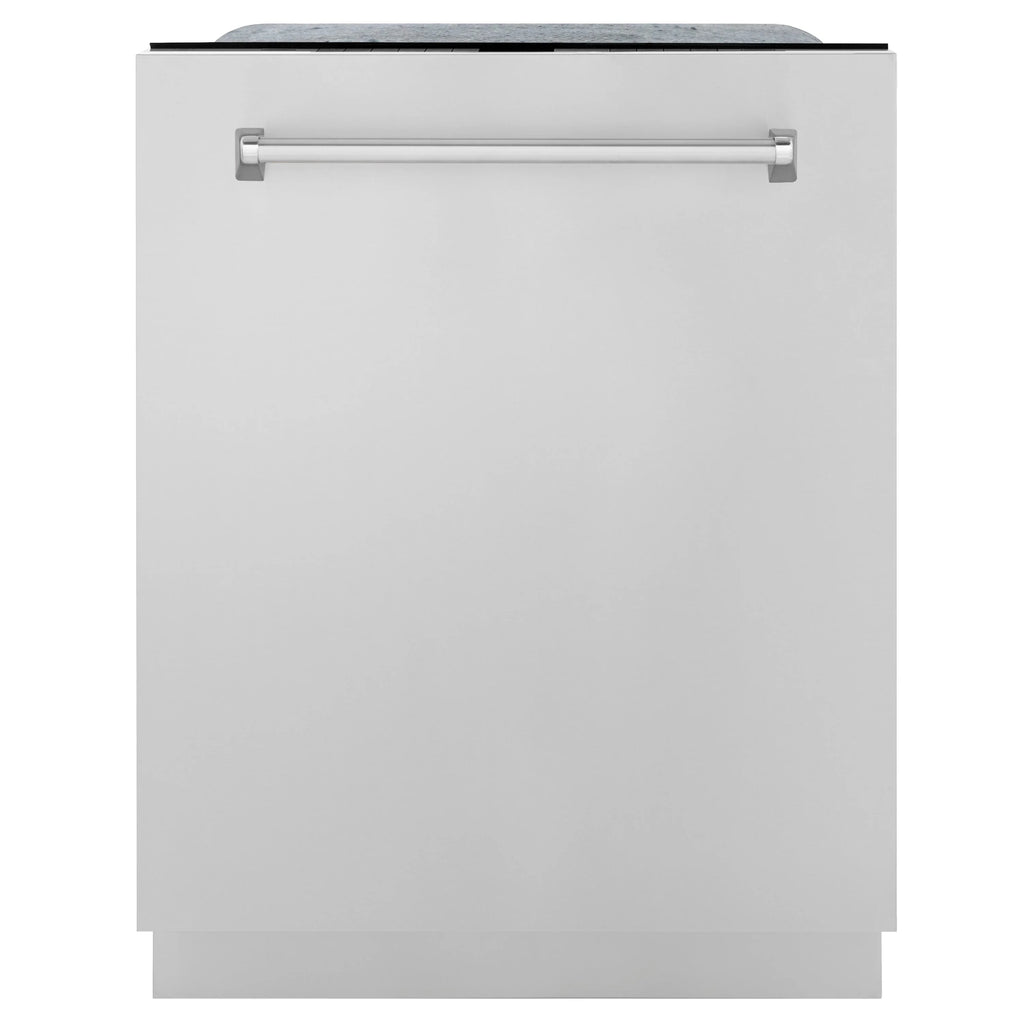

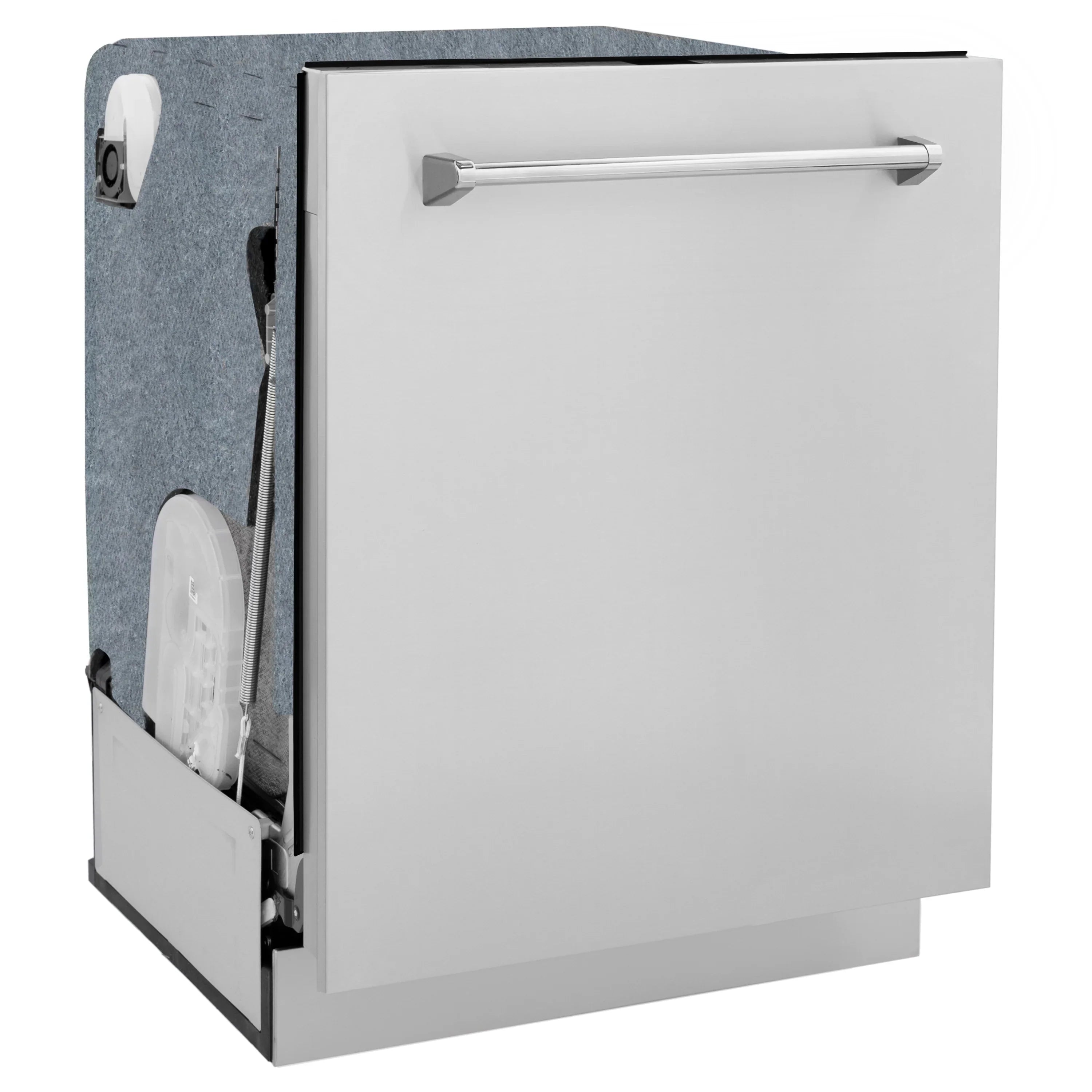

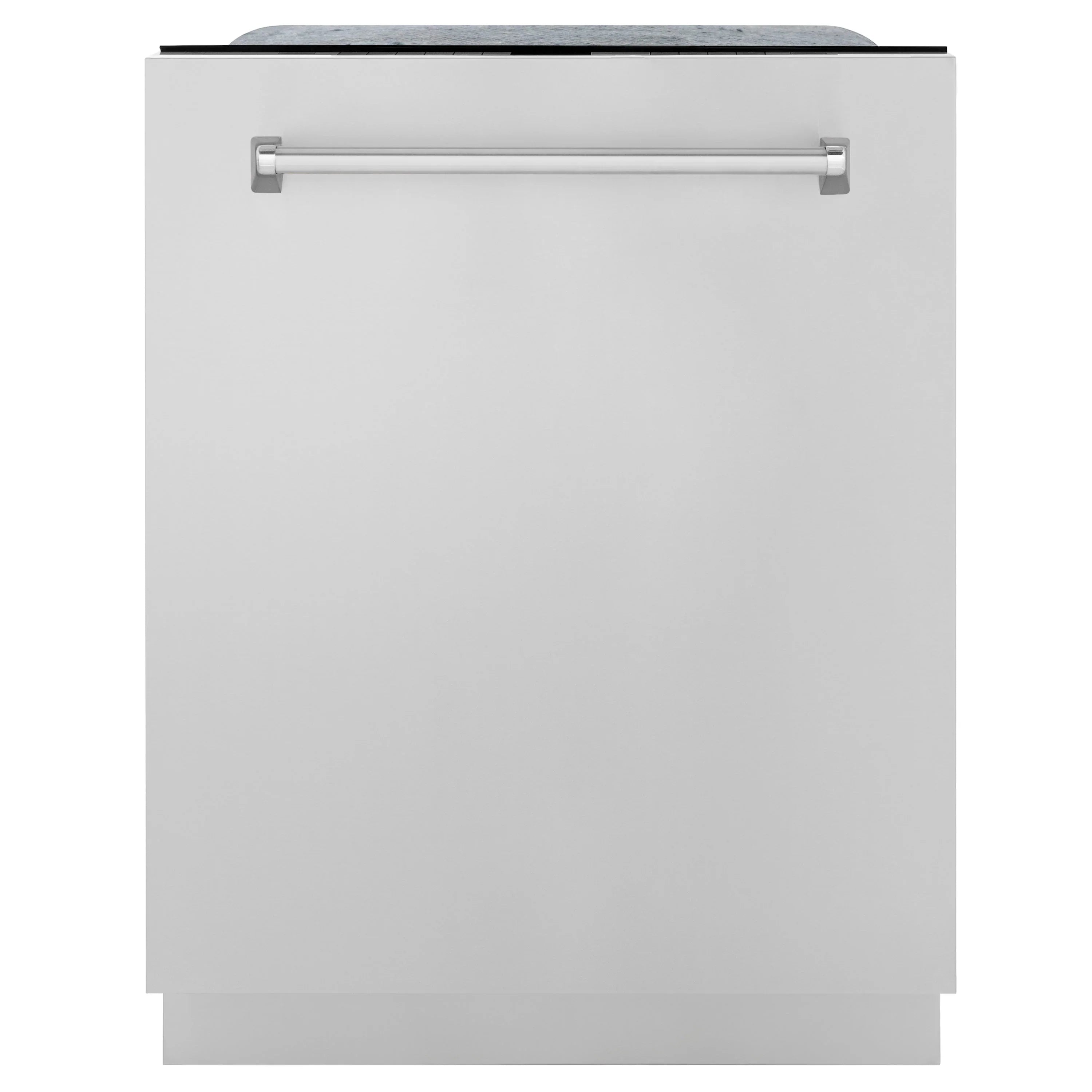

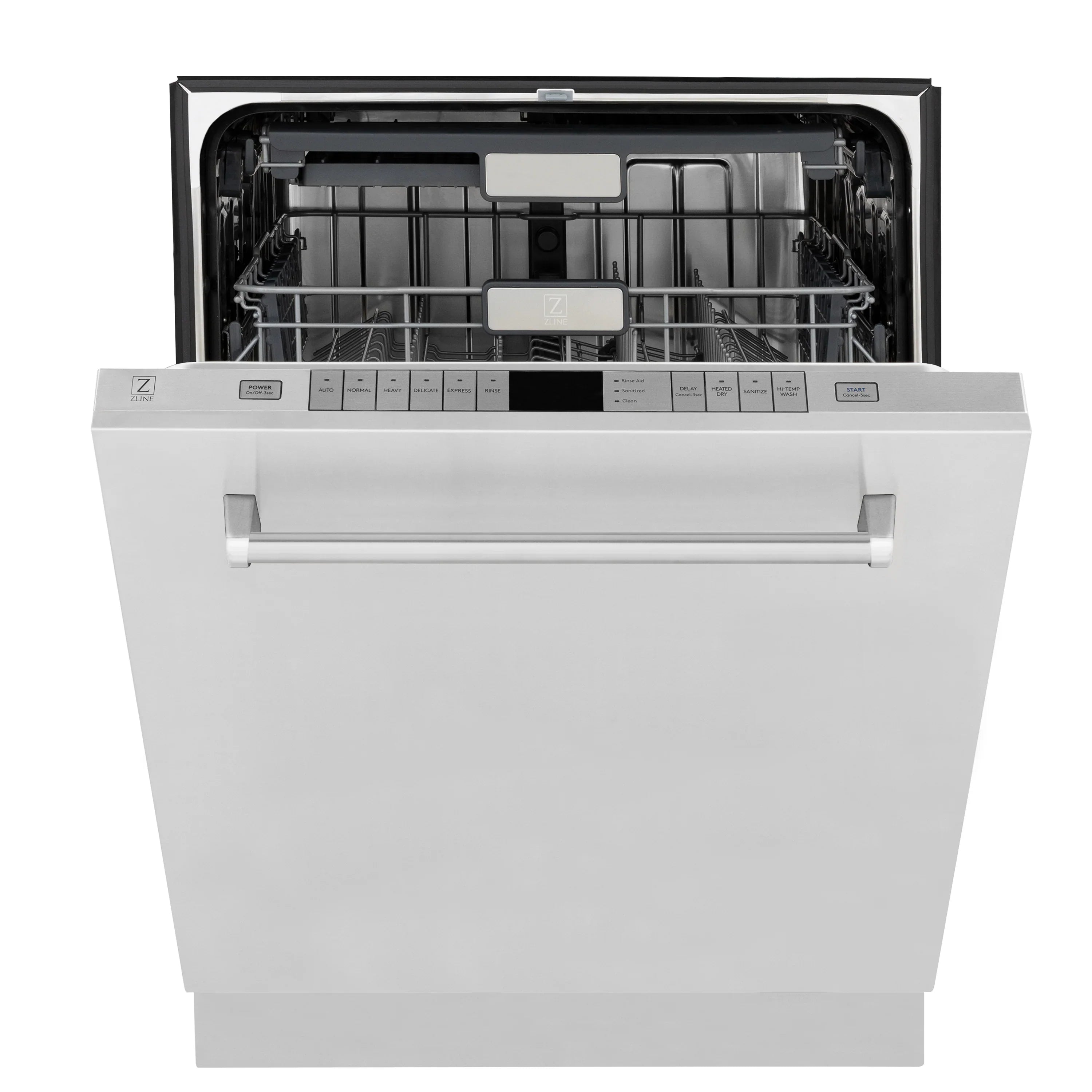

The ZLINE 24 in. Monument Series 3rd Rack Dishwasher with Auto Door Open Drying, 44dBa, Stainless Steel Panel (DWMT-304-24) pairs a powerful heated dry cycle with advanced Auto Door Open technology, ensuring efficient drying for plastics and complex dishware. Engineered to eliminate common kitchen frustrations through smarter performance, this next-generation model features specialized high-pressure bottle wash jets, a discreet floor timer display, and a sophisticated aesthetic purposefully designed to be the centerpiece of any custom luxury kitchen.
Features
- Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air

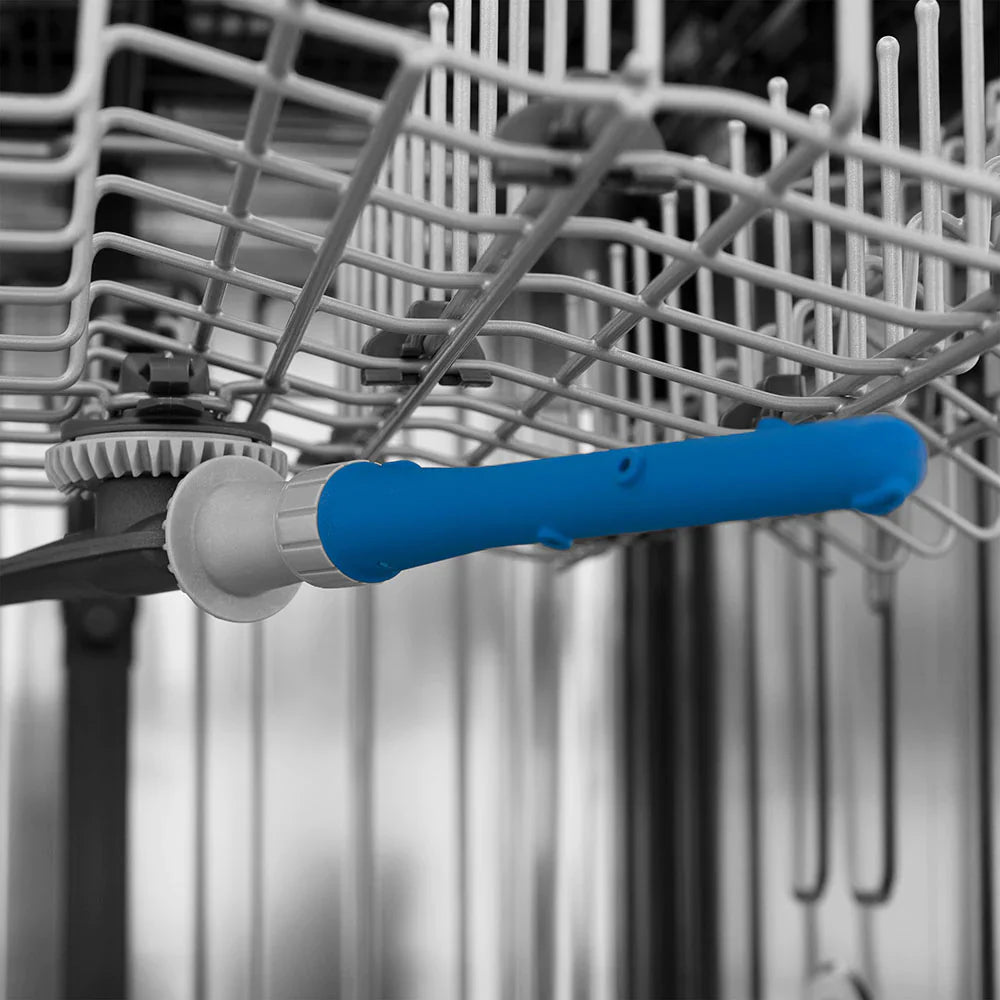

- 4 Bottle Wash Jets - Wash reusable water bottles, carafes, and narrow glassware with specialized high-pressure jets designed to thoroughly clean hard-to-access areas

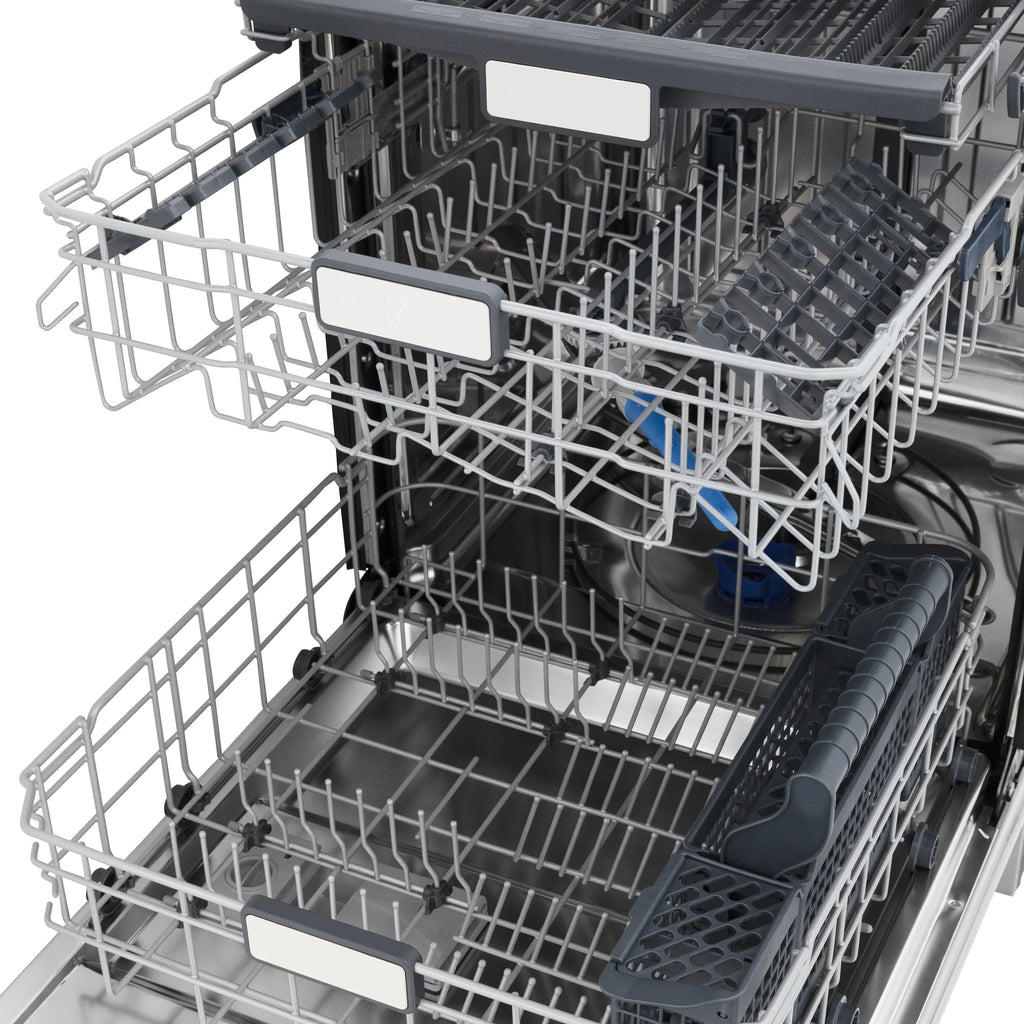

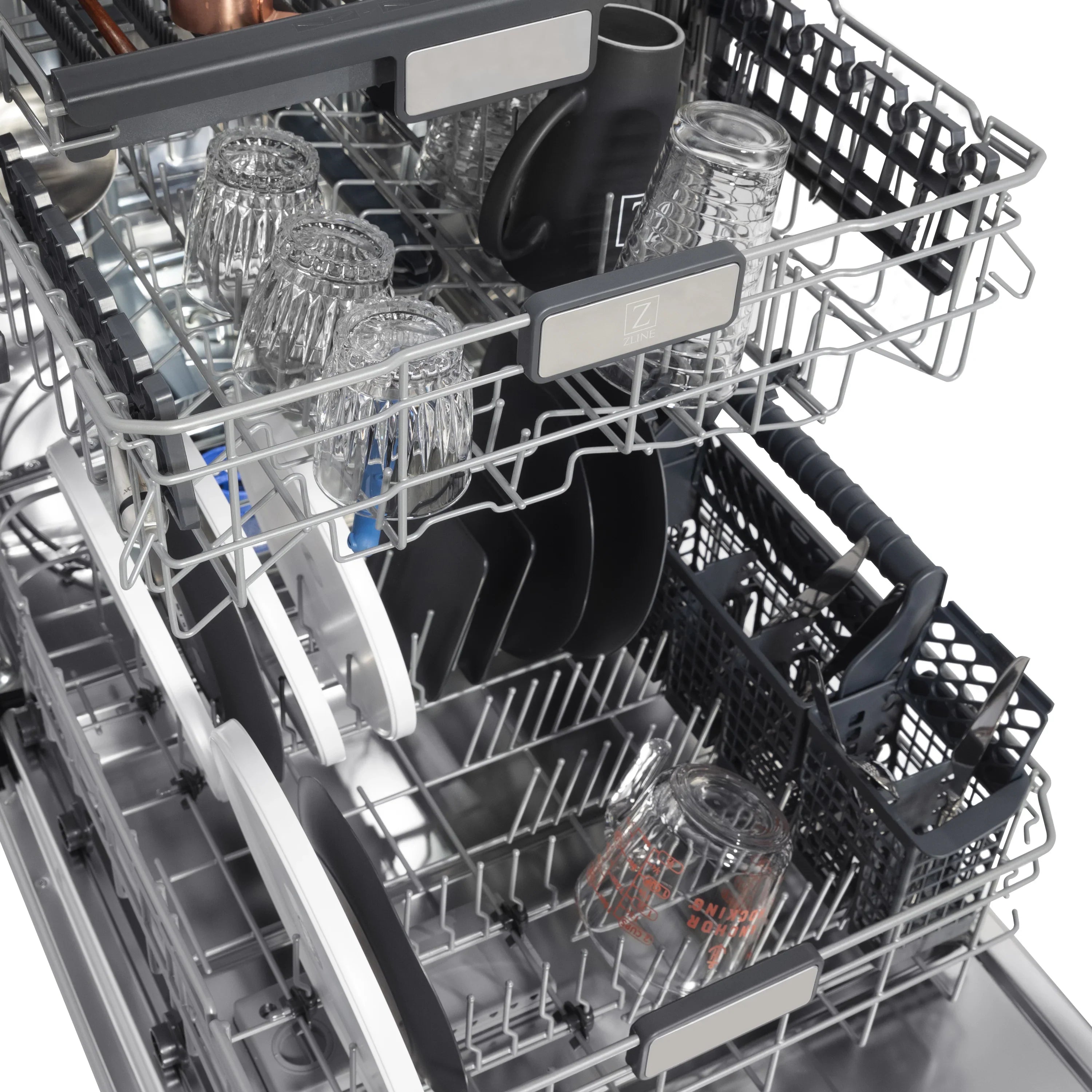

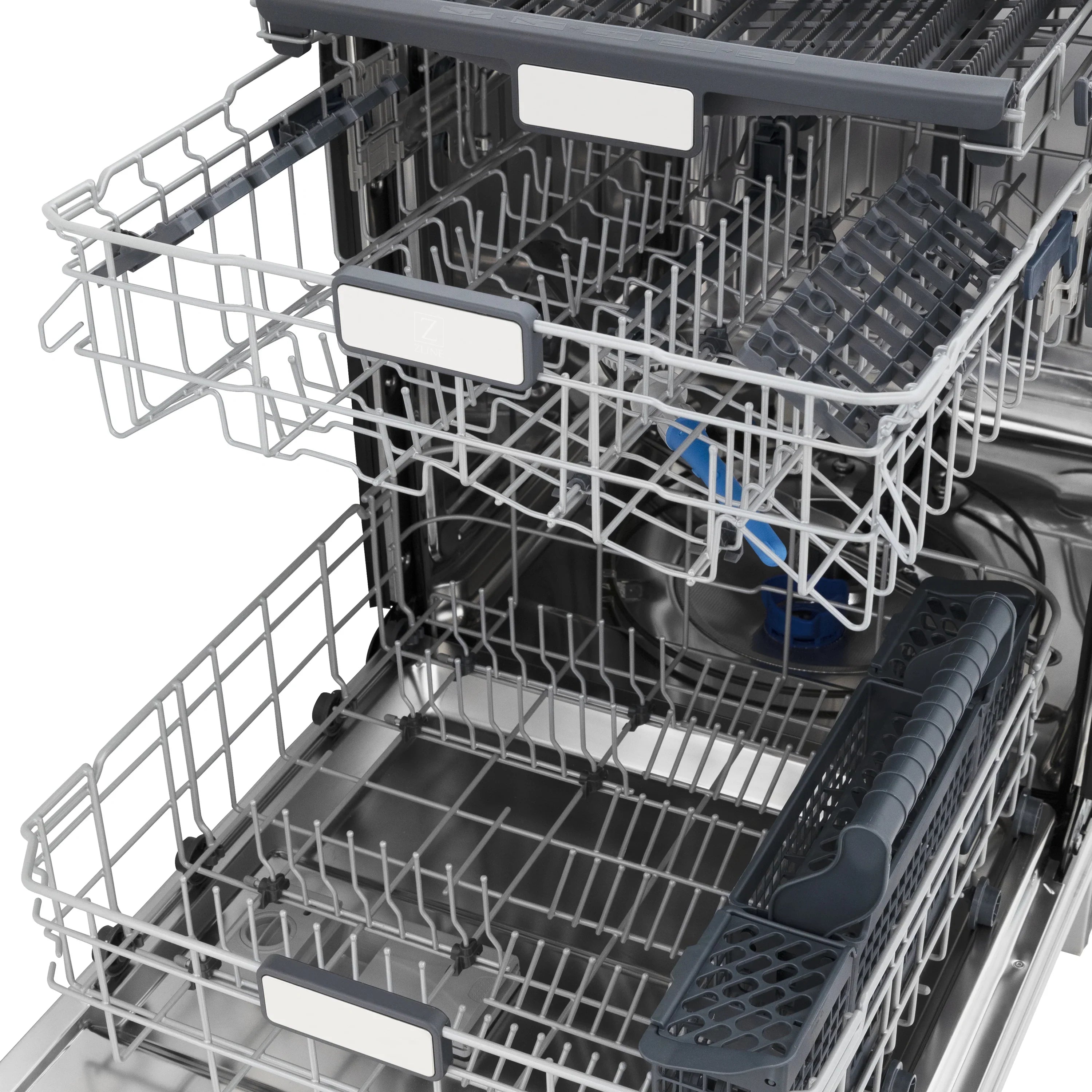

- Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
- Floor Timer Display - A soft blue LED timer projects the remaining wash time onto your floor, bringing visibility to concealed controls so you always know when dishes are ready

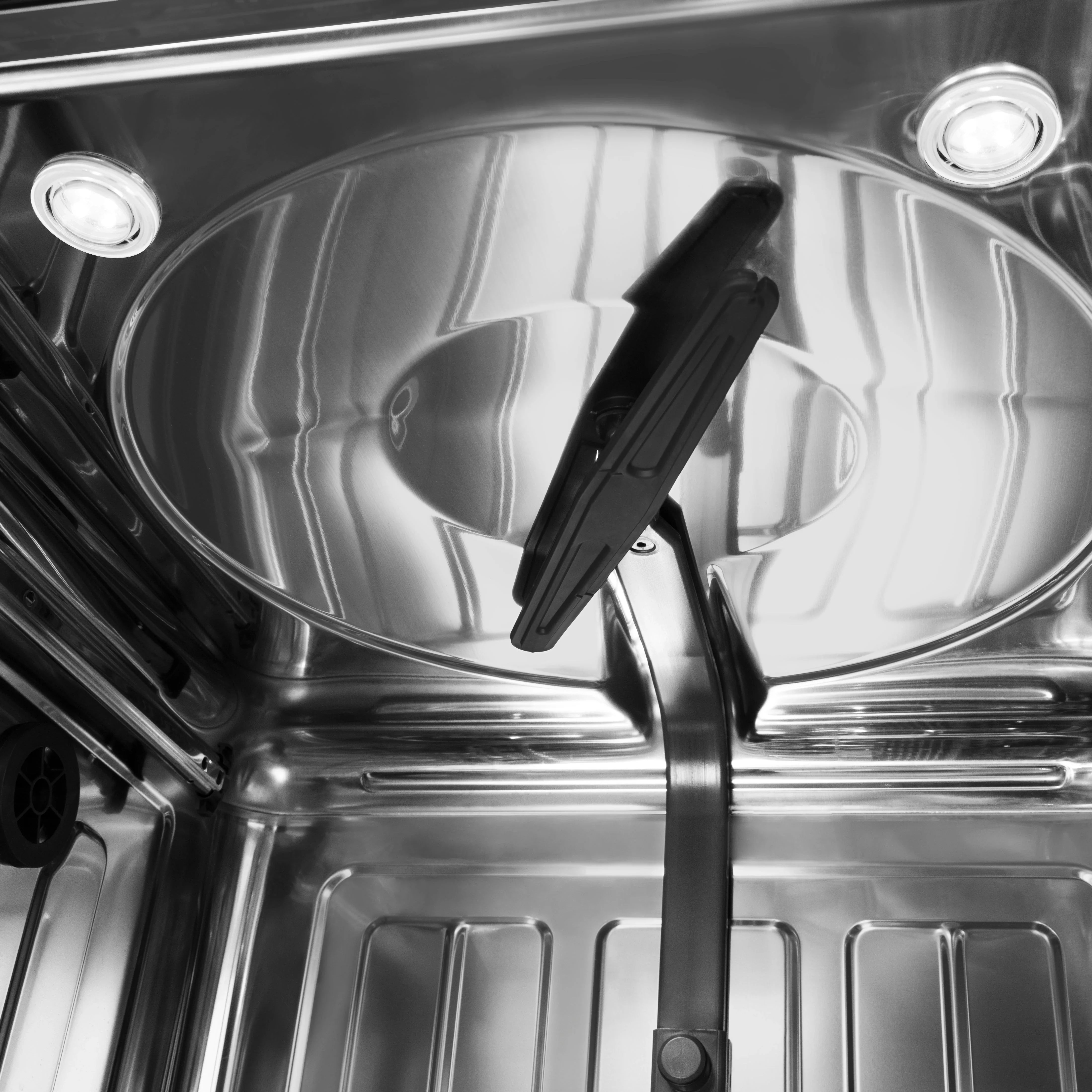

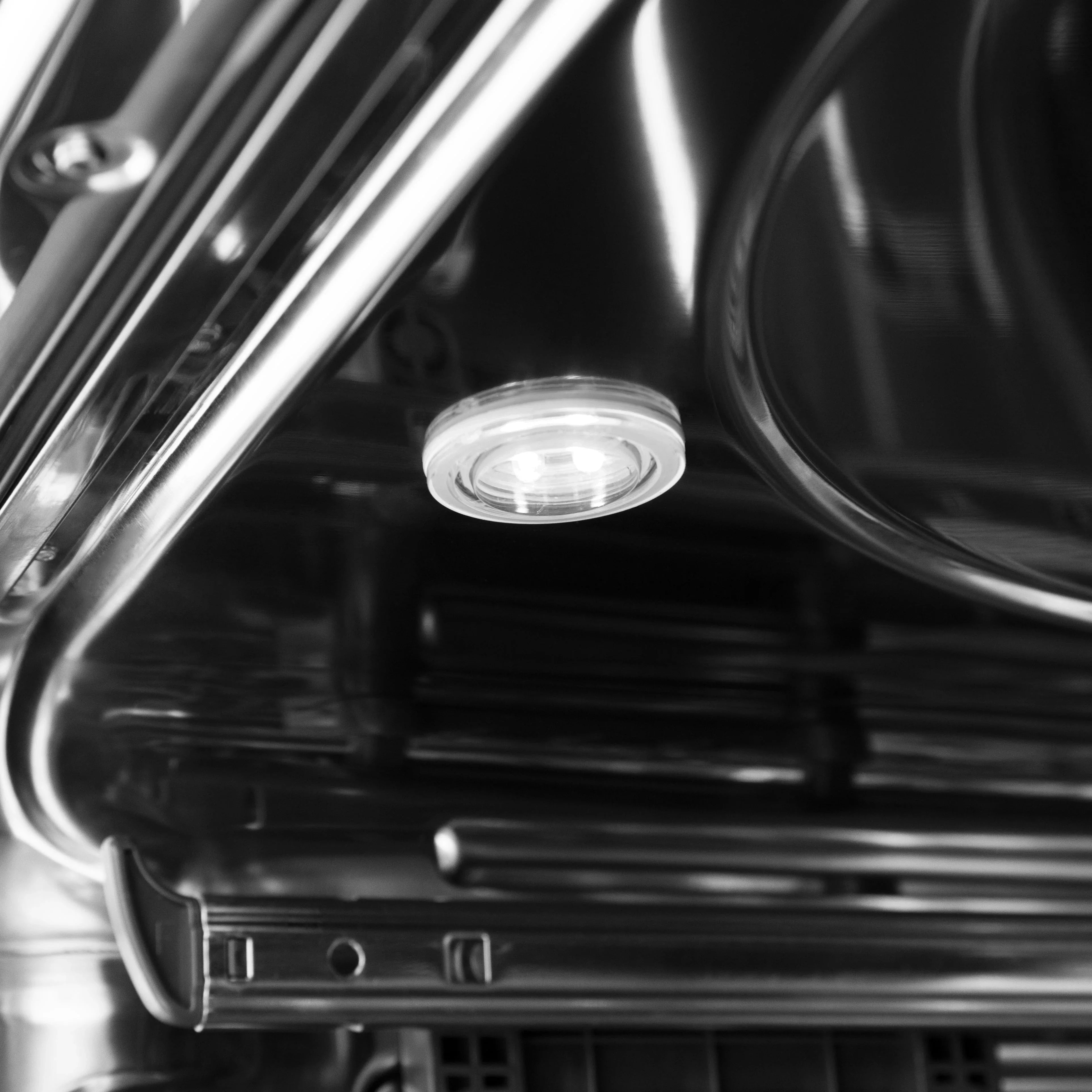

- UV LED Technology - A built-in UV LED light reduces the buildup of moisture-related impurities, minimizes odors, and supports a cleaner interior environment between cycles
- Heated Dry - A professional Heated Dry Mode utilizes high-grade heating elements for more effective drying that leaves dishes spotless
- Wine Glass Holders - 2 dedicated holders in the upper rack keep wine glasses, champagne flutes, and delicate stemware stable during each cycle
- Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while reconfigured rows of collapsible prongs on both main levels maximize spacing for bulkier items
- Ultra-Quiet Performance - Experience a more peaceful kitchen environment with an insulated 44 dBA operation that allows you to run cycles at any time without disruption
- Top Touch Controls - Select wash cycles and other functions with a gentle touch via a concealed, sleekly designed top control digital panel
- 6 Wash Cycles - Choose from 6 different cycles, including Delicate Mode that uses lower temperatures for fragile items and a convenient 20-minute Rinse Mode
- Flexible Modes - Sanitize + Hi Temp Wash, Auto Open, and Delay settings offer elevated performance capabilities and added flexibility
- Triple-Filter Cleaning - A multiple-stage filter system removes food debris during the wash cycle, helping keep water clean while reducing the frequency of manual filter cleaning
- NSF Certified - Ensure exceptional levels of hygiene and sanitation via a high-heat final rinse to eliminate 99.9% of common household bacteria
- ENERGY STAR Certified - Optimize your home’s efficiency with ENERGY STAR certification that delivers top-tier cleaning power while utilizing significantly less water and energy

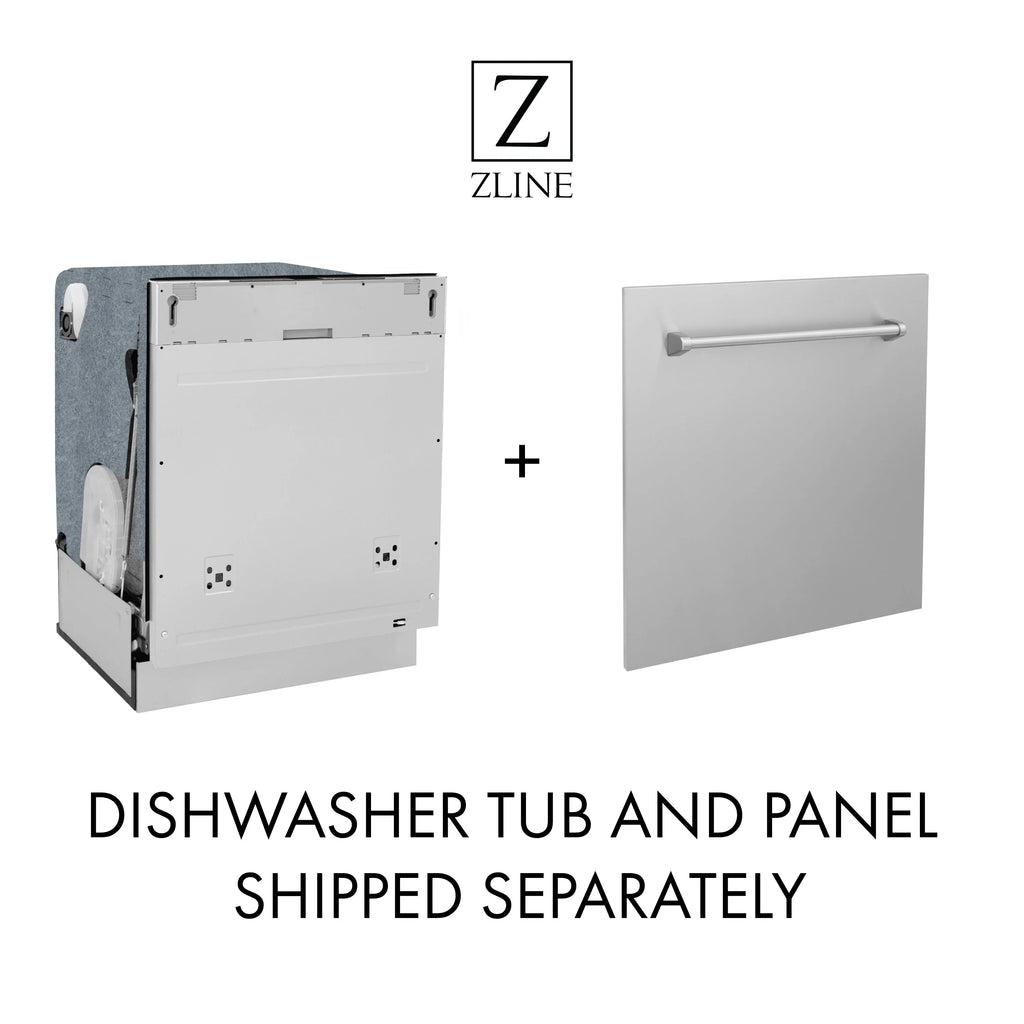

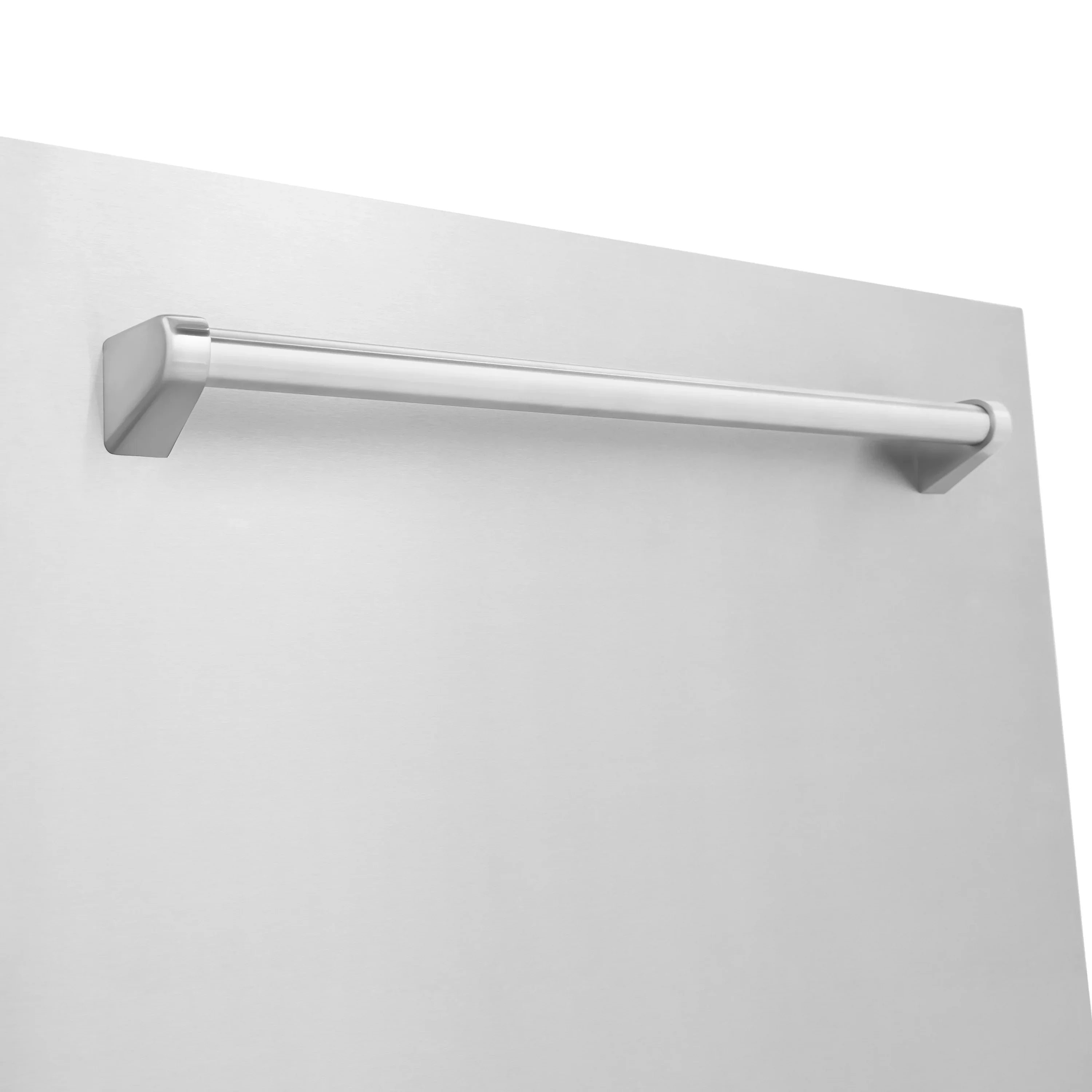

- Custom Panel Finish - Customize your Monument Series dishwasher with a beautiful 304-grade stainless steel door panel and stainless steel handle
- Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 16 place settings

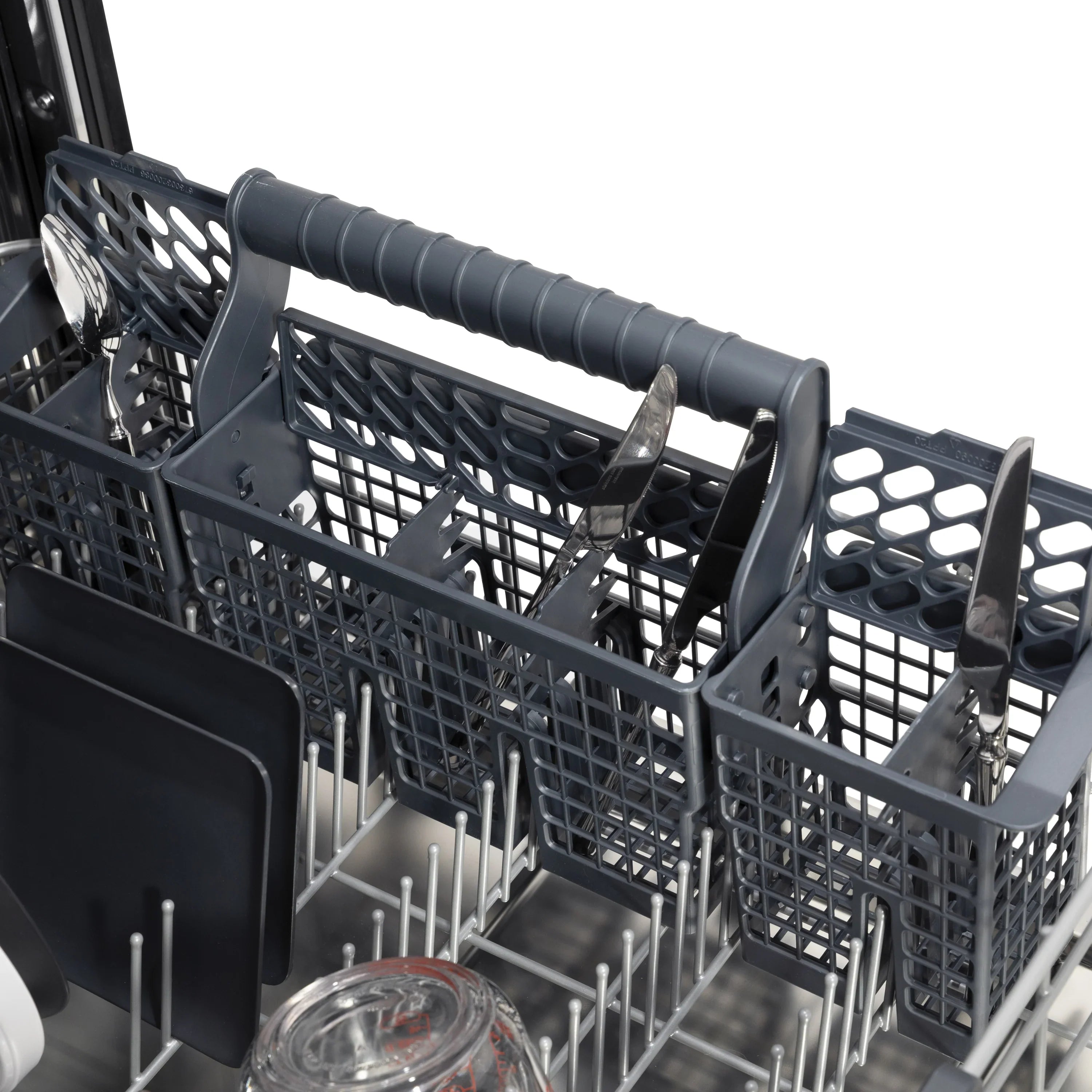

- Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments

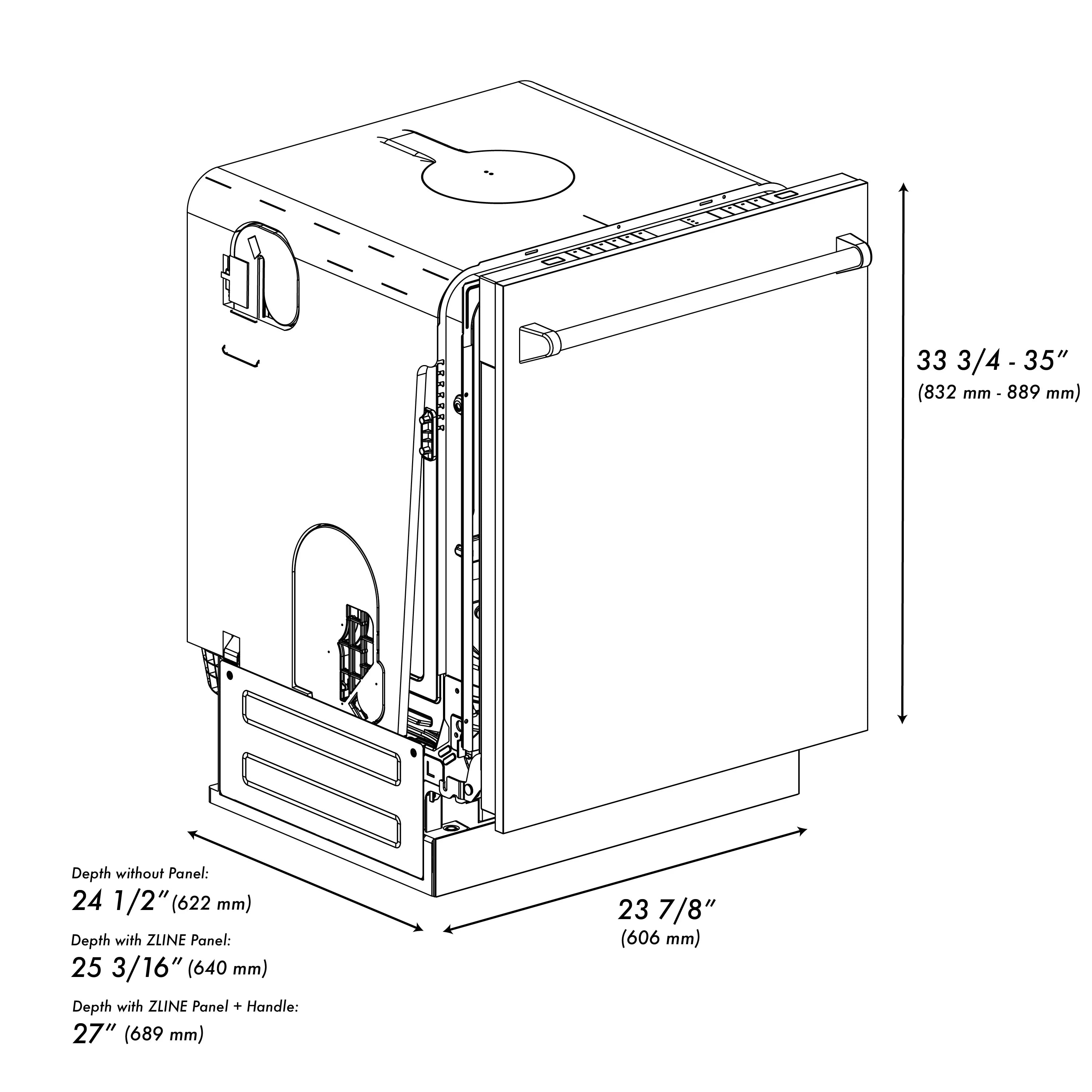

- Overall Dimensions
- 23.9" W x 24.07" D x 33.9" H
- Width (in.)
- 23.875
- Depth (in.)
- 25.188
- Height (in.)
- 34
- Weight (lbs)
- 100
- Cut-Out Height (in.)
- 34.13
- Cut-Out Width (in.)
- 24
- Interior Dimensions
- 21 5/8 in. W x 19 7/8 in. D x 26 7/16 in. H
- Brand
- ZLINE
- Size
- 24 in.
- Extended Hose Length (in.)
- 56
- Voltage
- 120vac
- Frequency (Hz)
- 60Hz

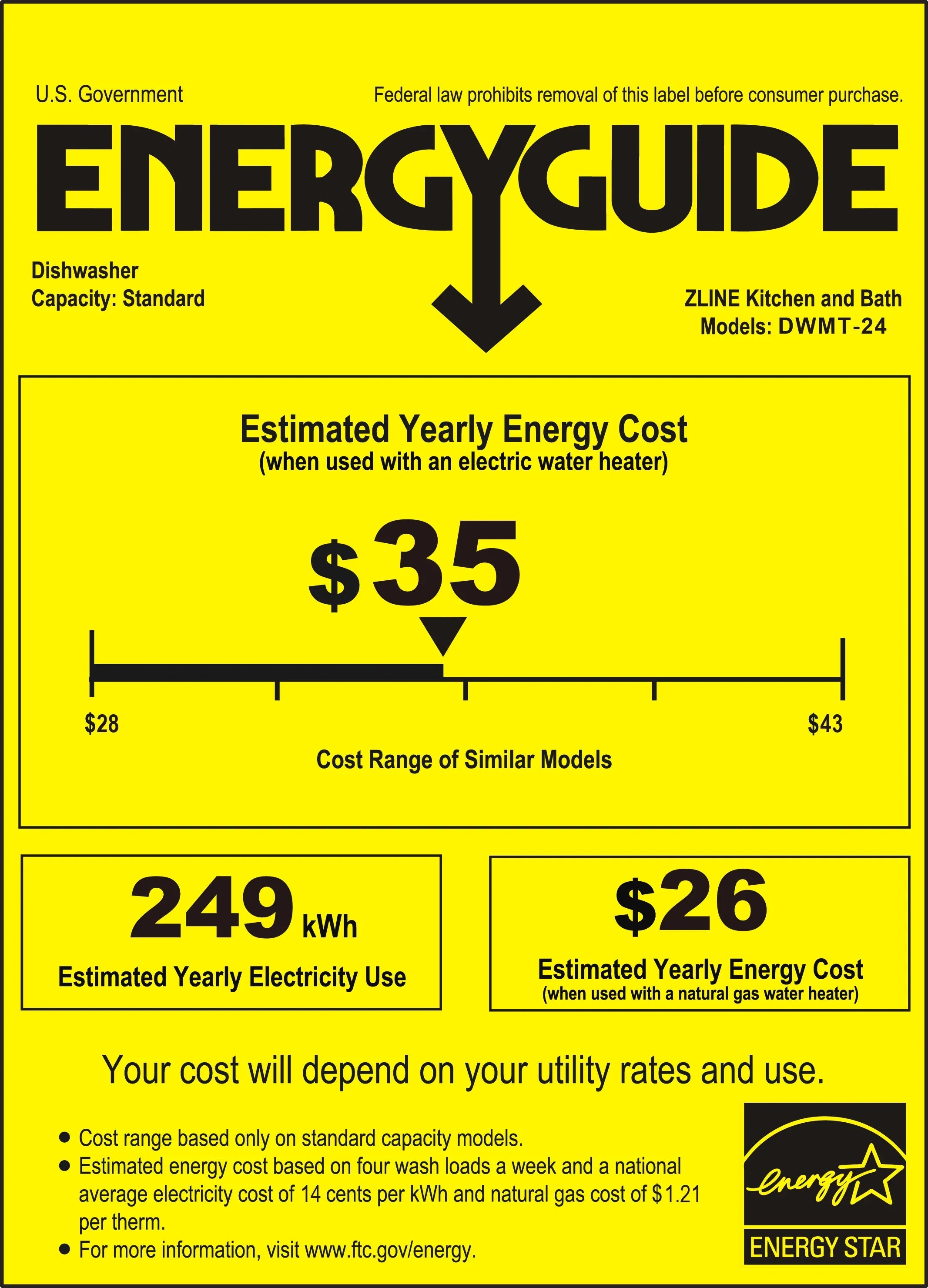

- Energy Consumption Per Year (kWh)
- 240
- Water Consumption (Liters/Cycle)
- 10.98
- Water Consumption (Gallons)
- 3.2
- Noise Level (dBA)
- 44
- Drying System
- Heated Dry + Auto Open Dry
- Control Location
- Top Control
- Control Type
- Touch Control
- Installation Type
- Direct Wired
- Steam Function
- Without Steam
- Certifications
- Energy Star, CEC, UL, NSF Certified

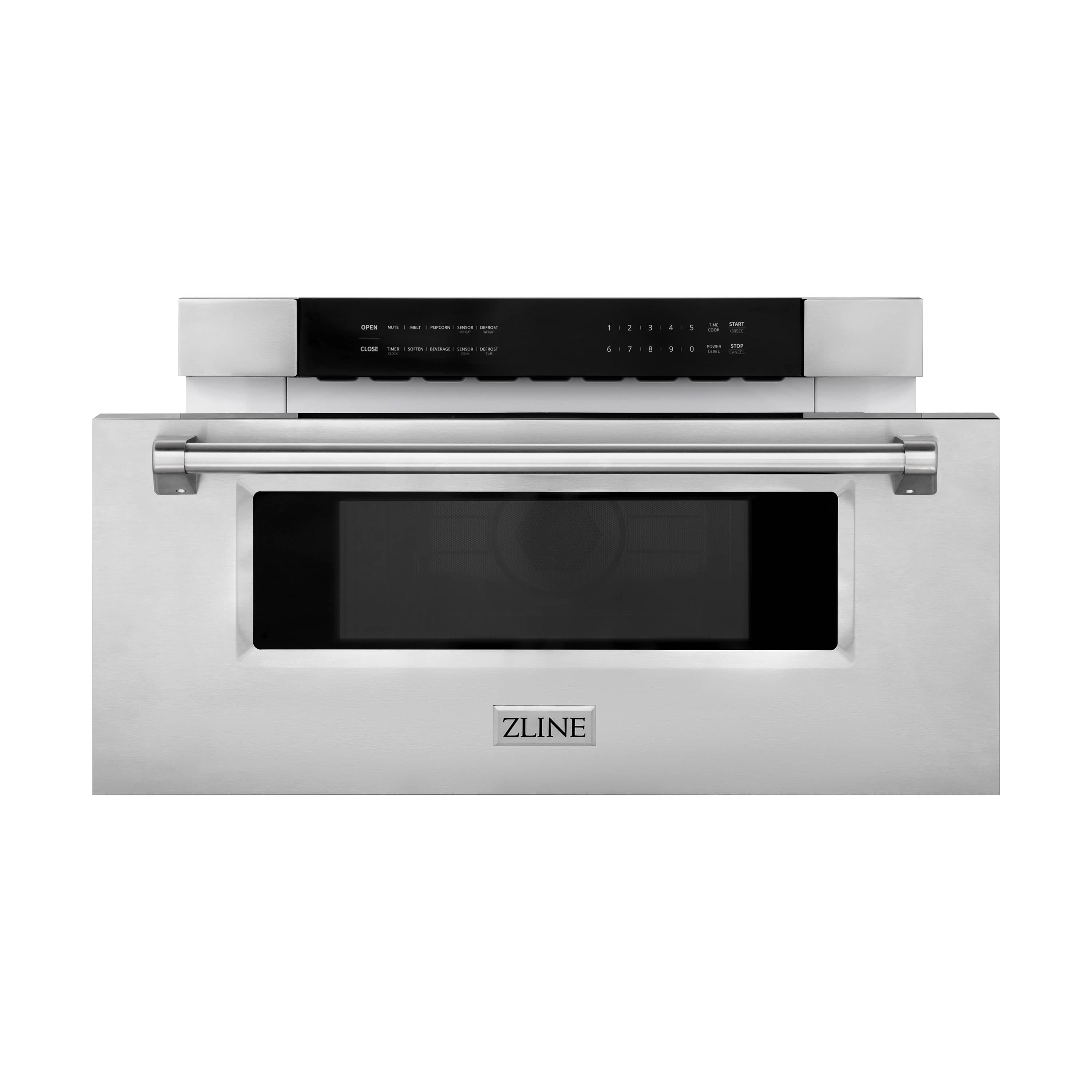

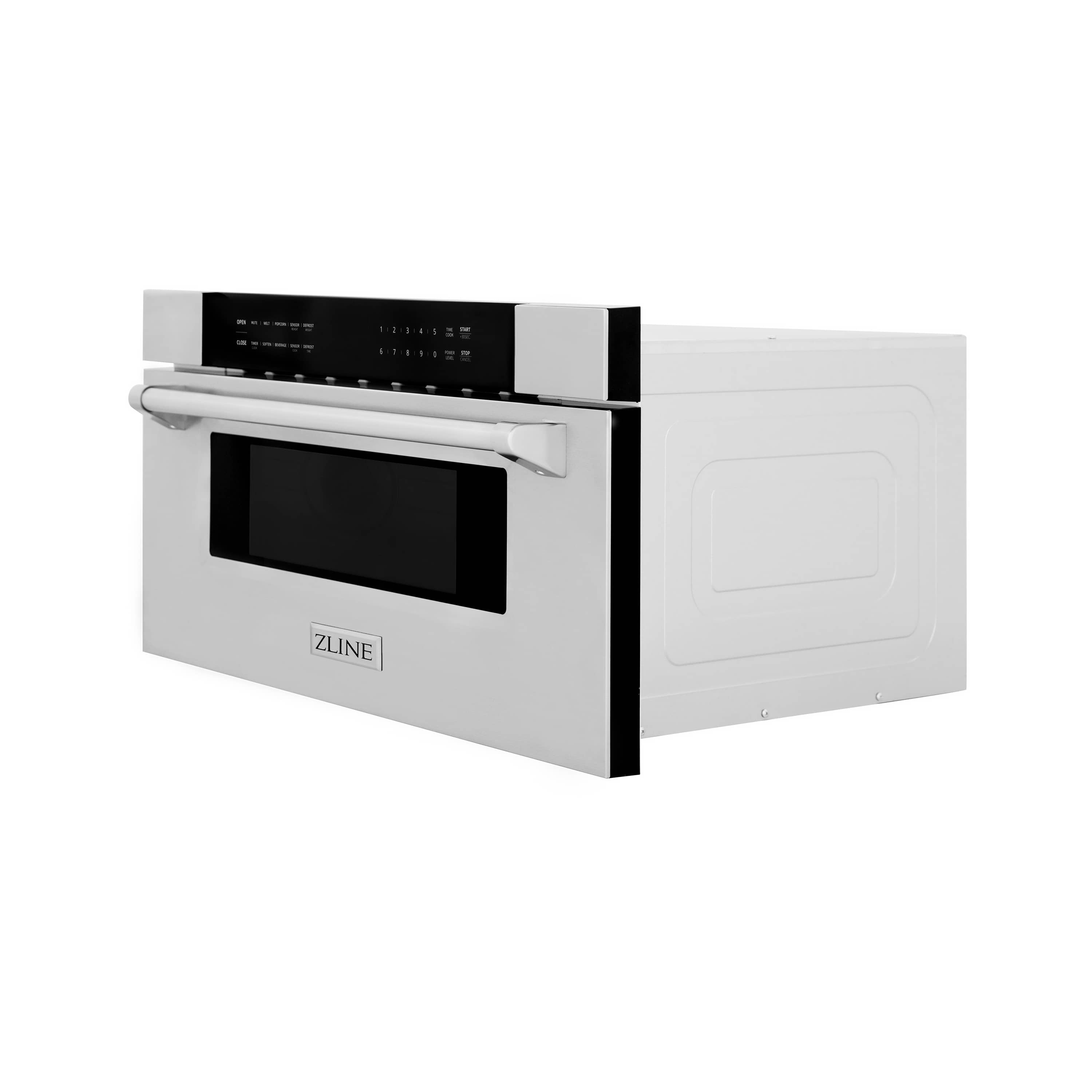

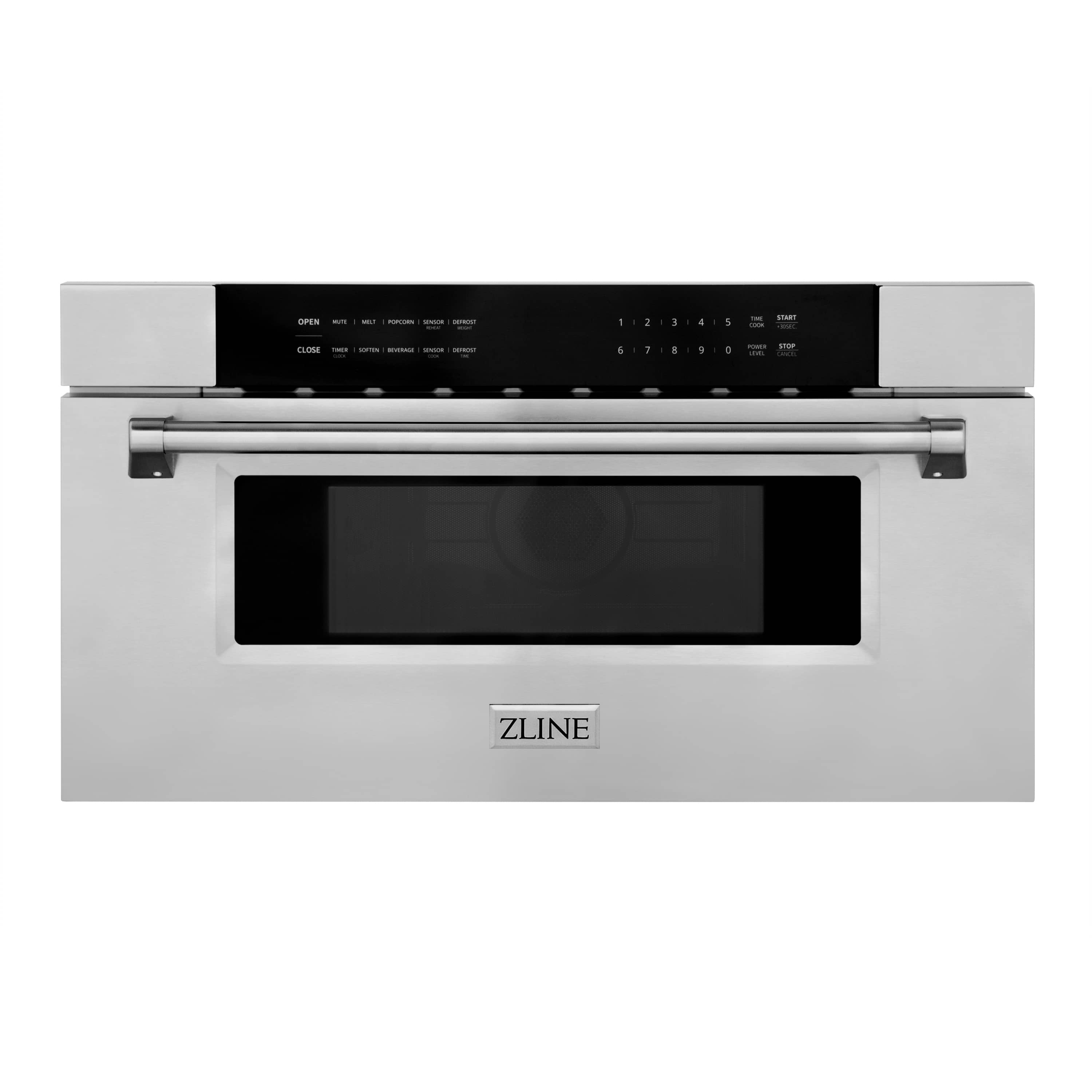

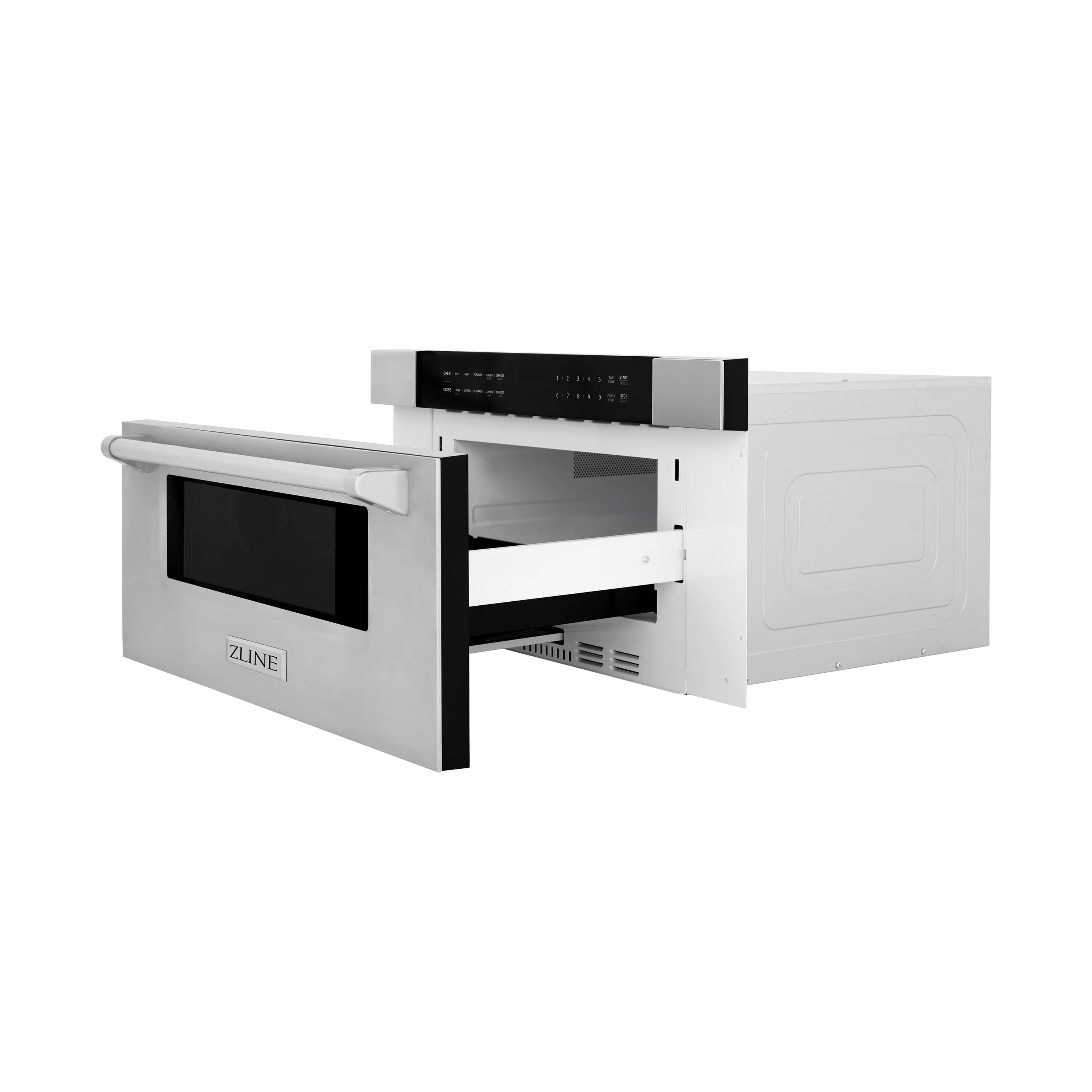

Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 30" 1.2 cu. ft. Built-In Microwave Drawer in Stainless Steel (MWD-30) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen's capability.
Features:
- Space-Saving - Free up your countertop space with an undercounter modern design with installation location flexibility to best fit your lifestyle
- Top Access Design - Easily transport hot dishes and prevent spills with an accessible top-loading design
- Convenient Microwave Modes - Achieve optimal results for every dish with sensor cooking, defrost, popcorn, and beverage settings

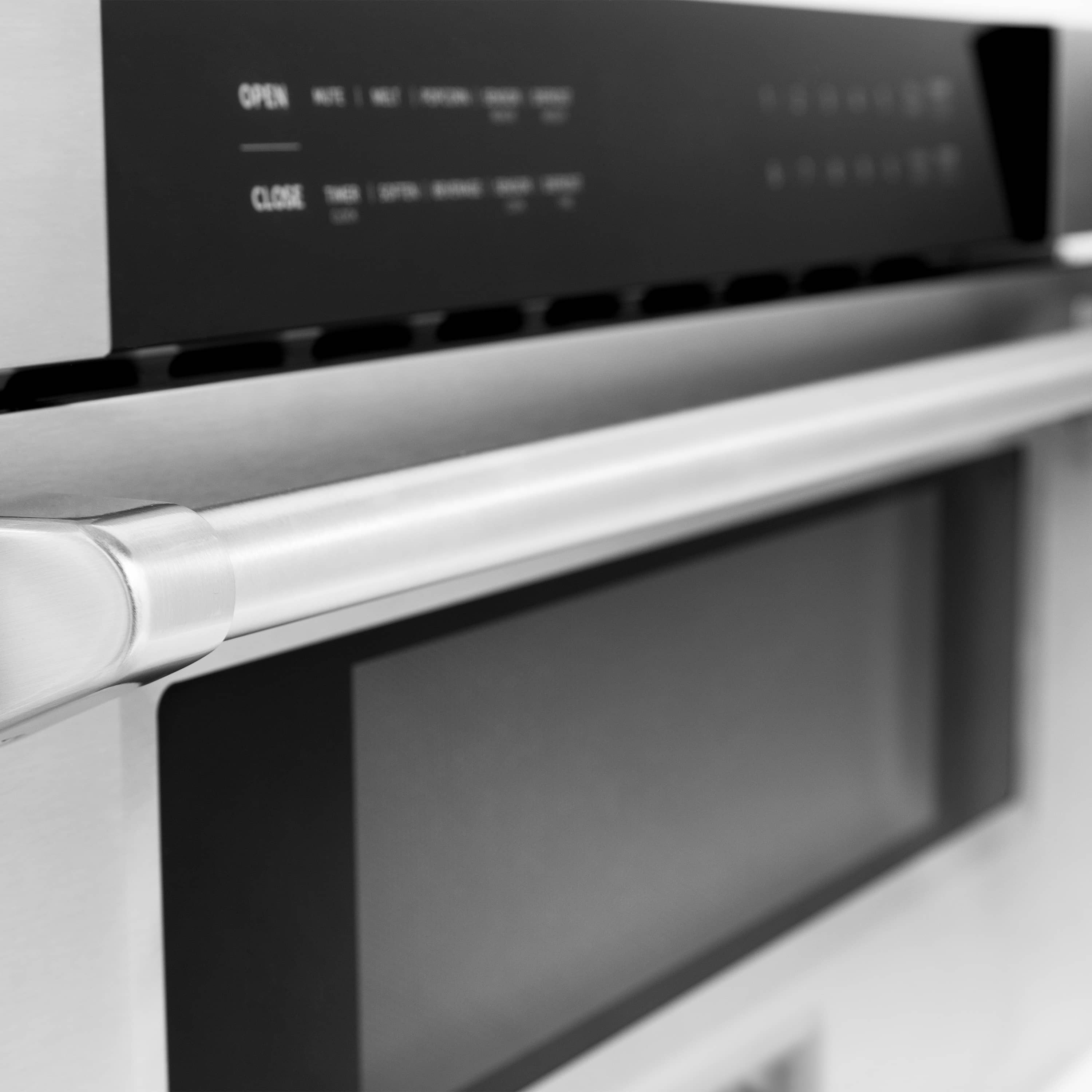

- Auto-touch Open and Close - Effortlessly open and close the microwave drawer with just the touch of a button
- Intuitive Control Panel - Enjoy an easy-to-use control panel that provides maximum convenience with a 45 degree angled design
- High-Powered Performance - Get the results you need with 10 different power levels and a powerful 1000 watt cooking power
- 1.2 cu. ft. Capacity - A large cooking area will easily fit your items, such as coffee mugs up to 7 in. tall and dishes up to 16 x 16 in.
- Reheat and Defrost - Minimize cooking time with convenient reheat and defrost functions
- Stainless Steel Finish - Brushed 430 grade stainless steel exterior provides an easy clean up and a timeless look in your kitchen
- Manufacturer Warranty - 2 year parts warranty
- ADA Compliant - Easy-to-use front touch controls with a 45 degree angle design provides ADA compliance

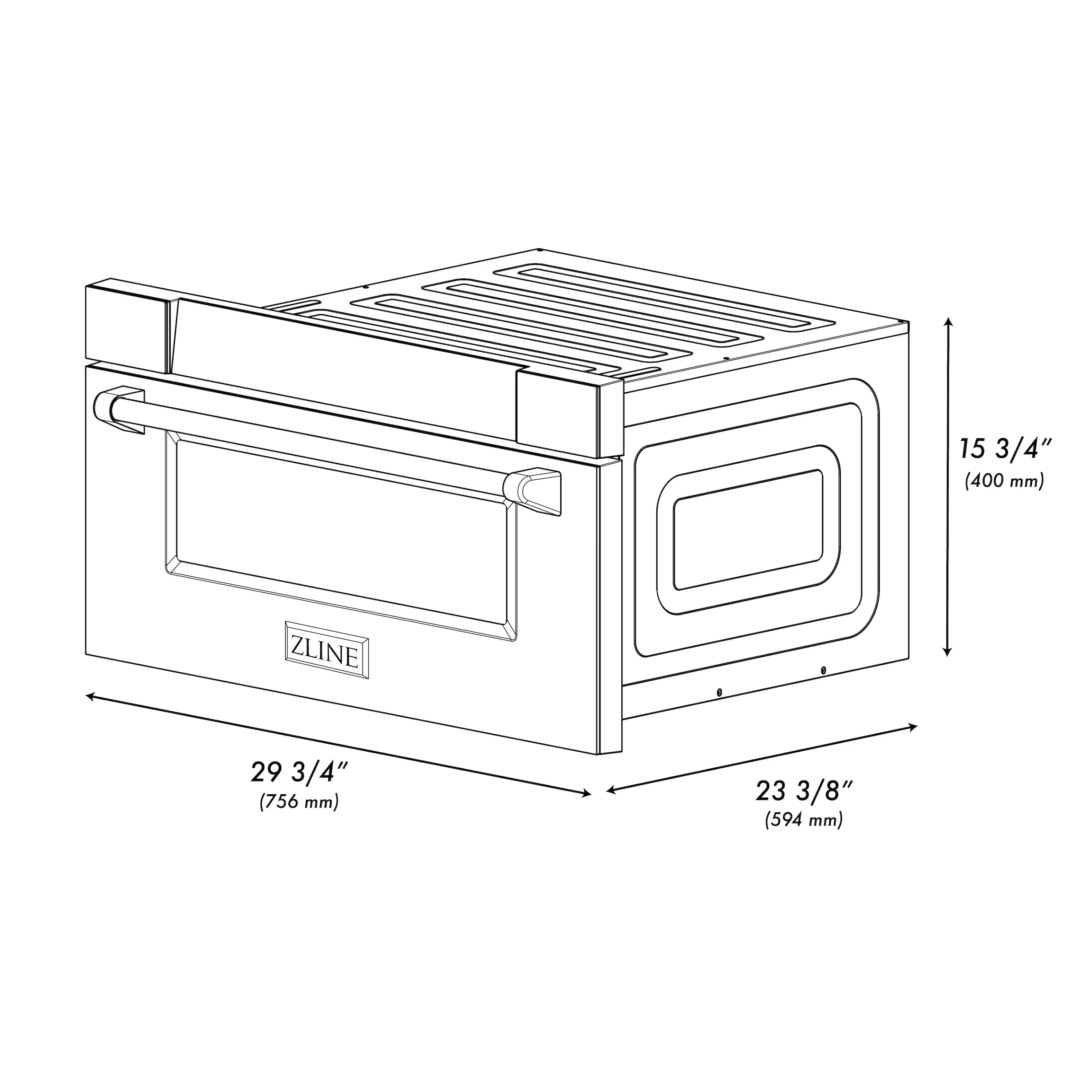

- Dimensions
- 29.75 in W x 23.38 in D x 15.75 in H
- Cut Out Dimensions
- 22.38 in W x 23.5 in D x 15 in H
- Depth with Door Open
- 38.75" without handle/ 40" with handle
- Weight
- 76.2 lbs
- Mount Type
- Drawer
- Cavity Material
- Painted
- Control Type
- Touch Screen
- Color
- Stainless Steel, Satin Stainless Steel®
- Voltage
- 120vac
- Frequency
- 60 Hz
- Amps
- 13A
- Plug Type
- 5-15 Nema
- Oven Capacity
- 1.2 Cu. Ft.
- Input Power
- 1500W
- Output Power
- 1000W
- Noise Level
- 45 Decibels
- Display
- LED
- Packaging Standard
- ISTA 3A
- Certifications
- UL, DOE, Title 20 Compliant, NRCan
- Warranty
- 2 Year Parts
