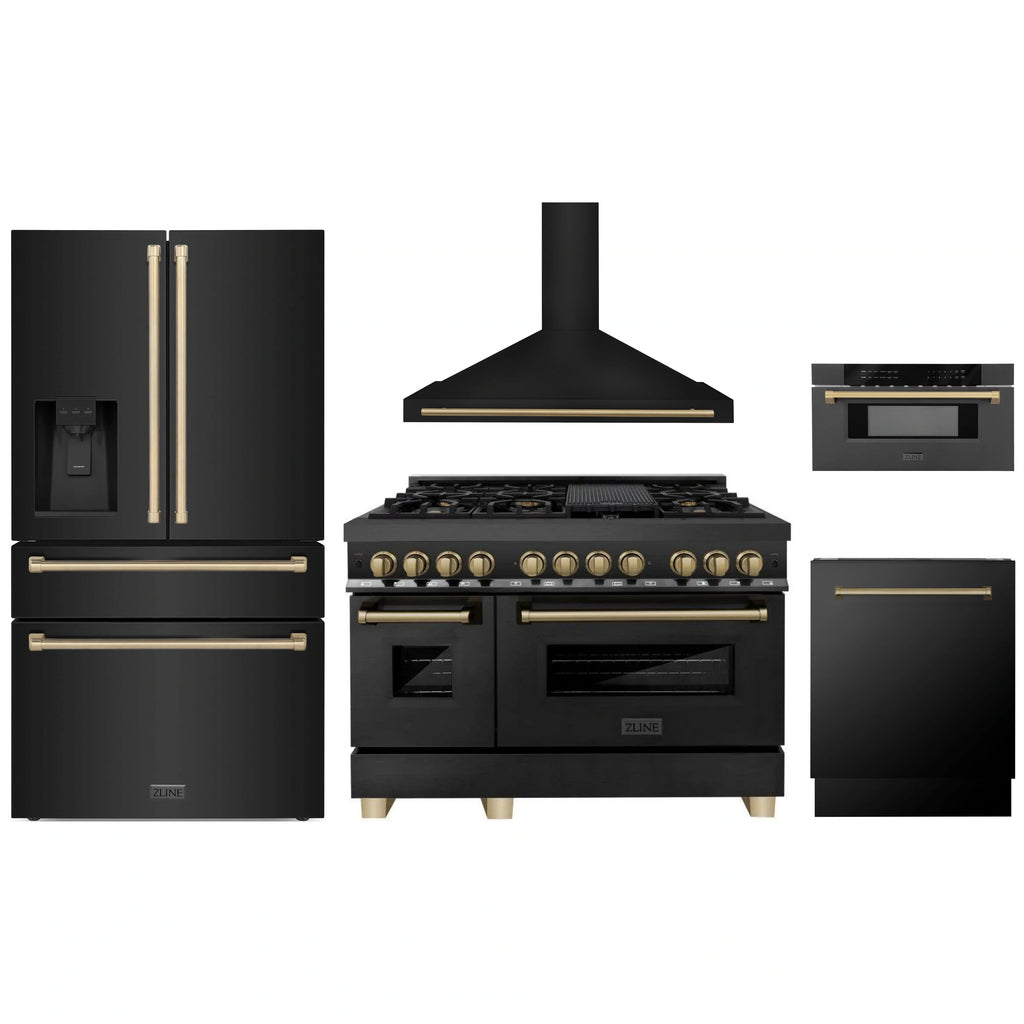

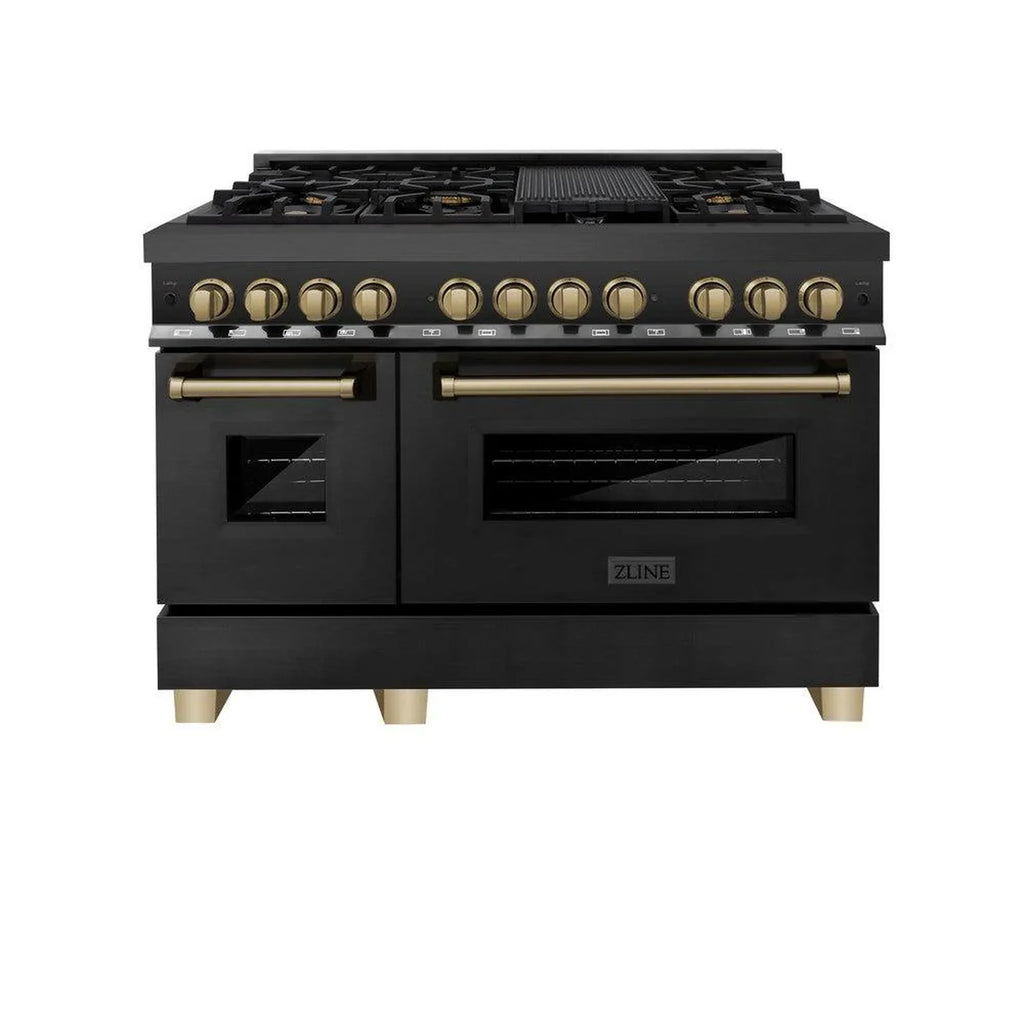

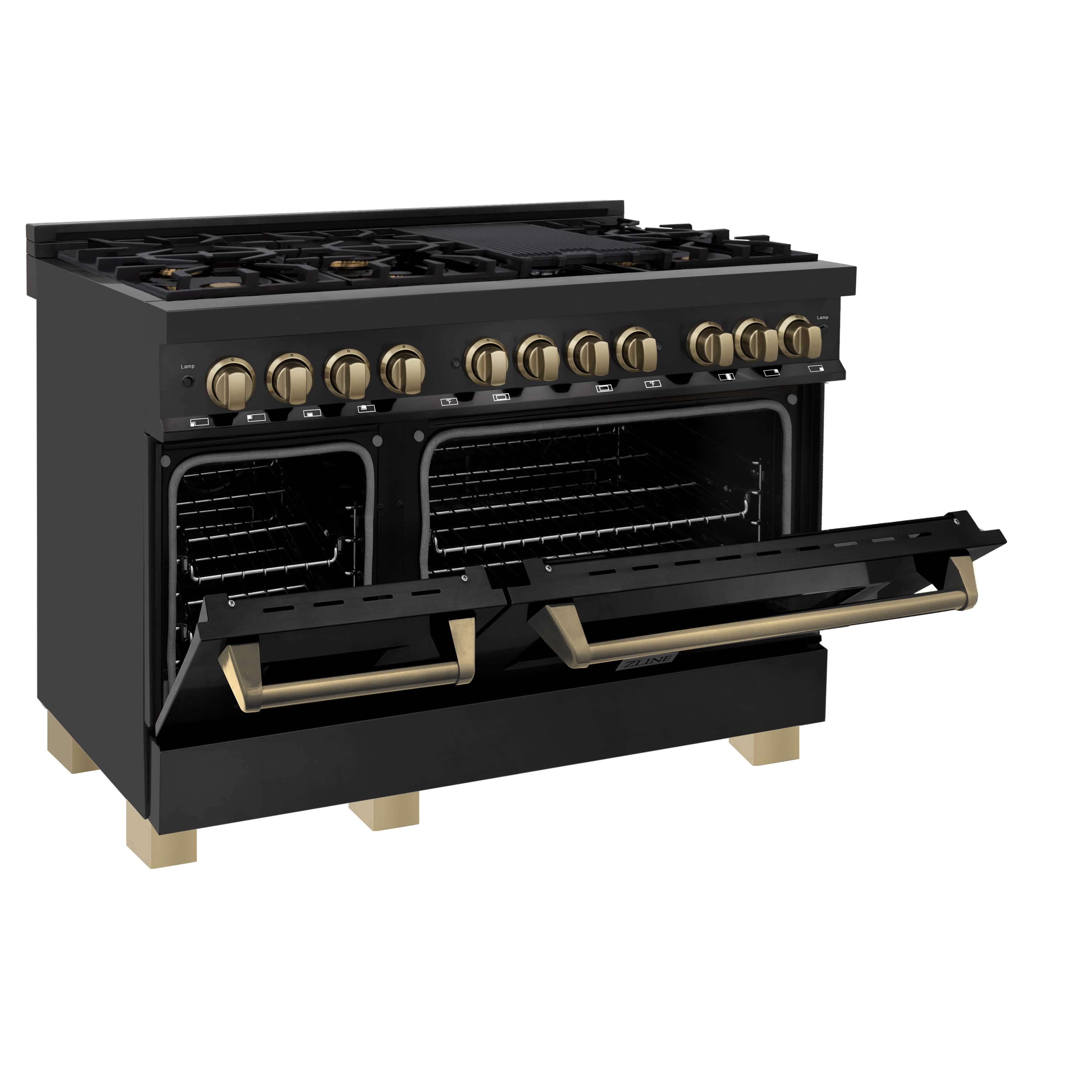

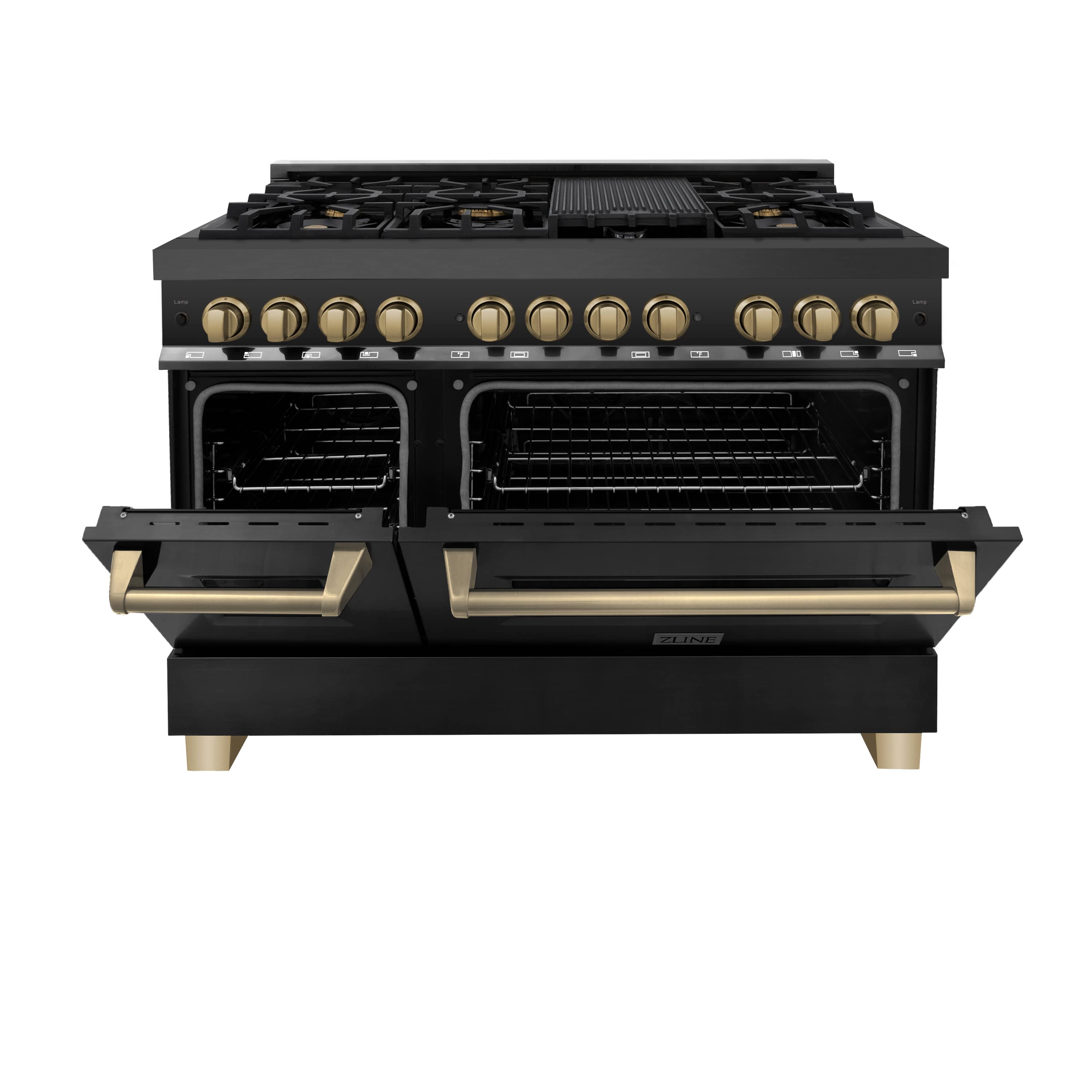

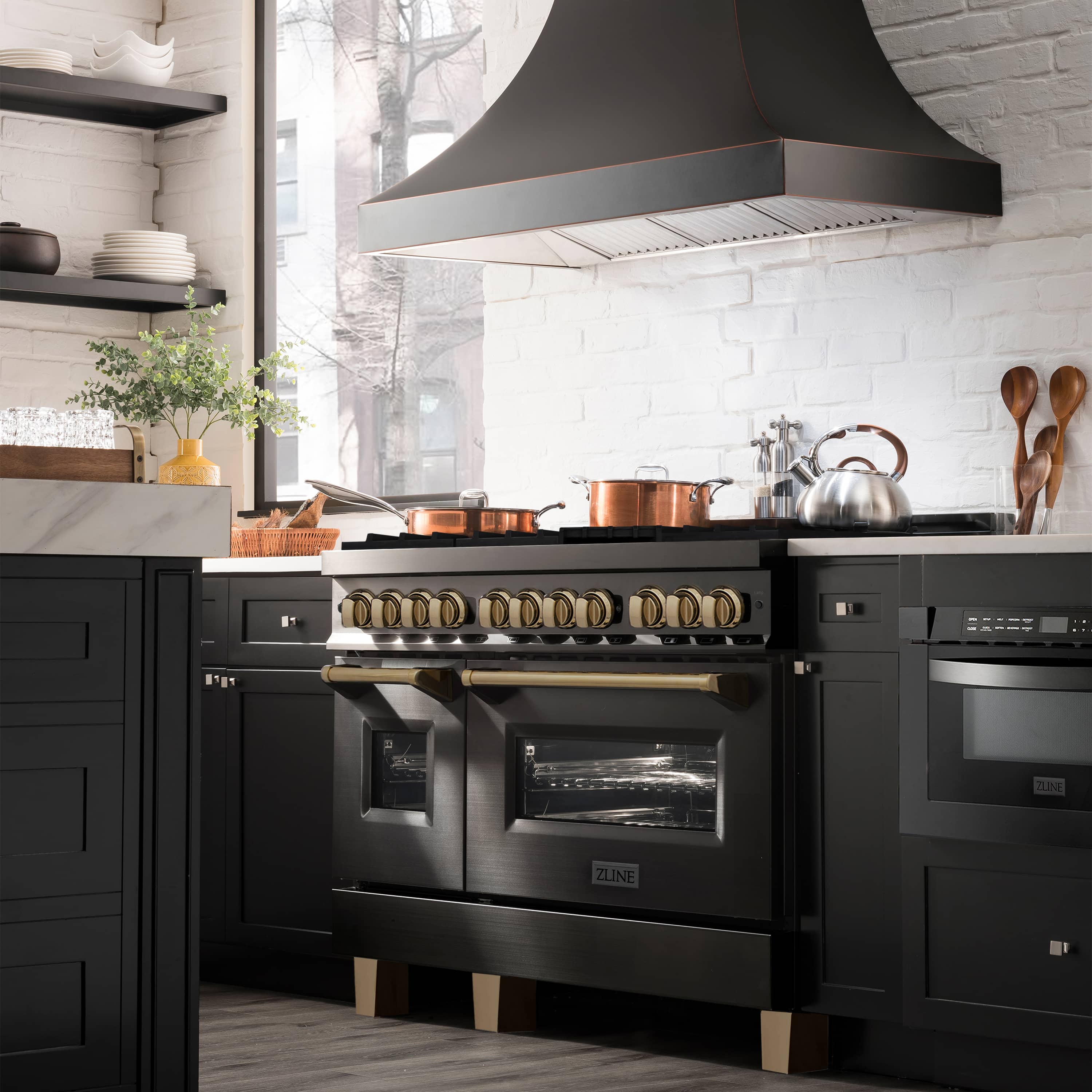

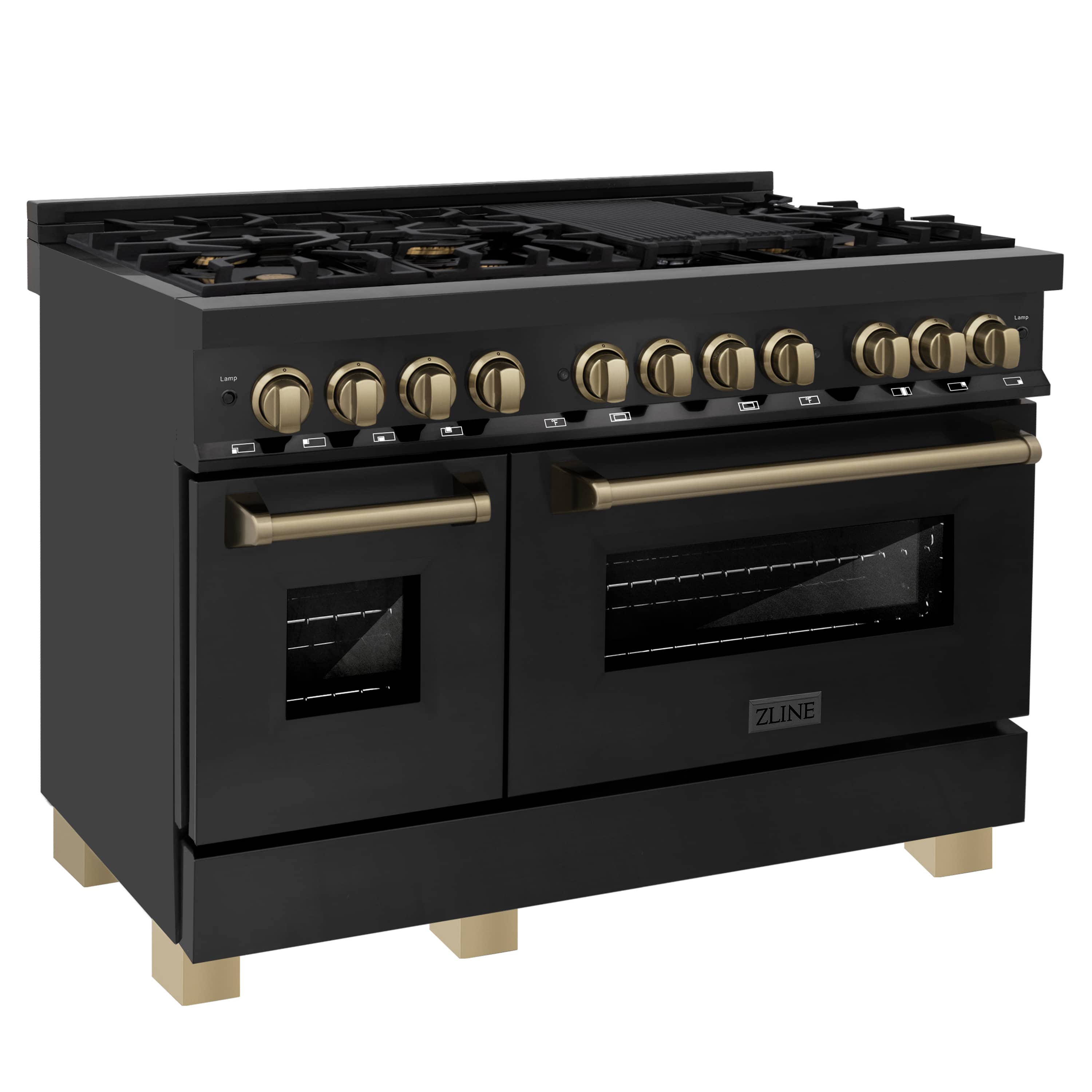

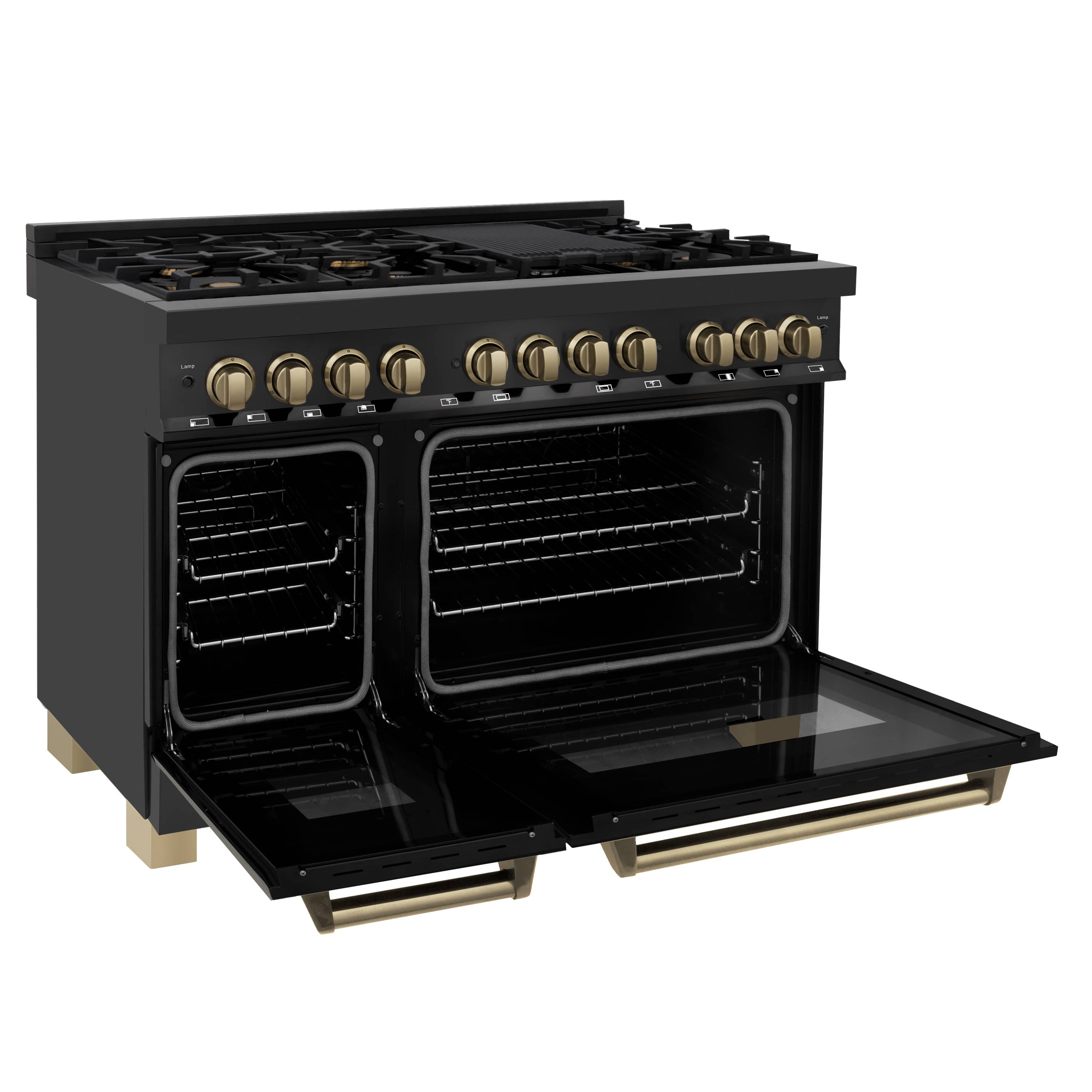

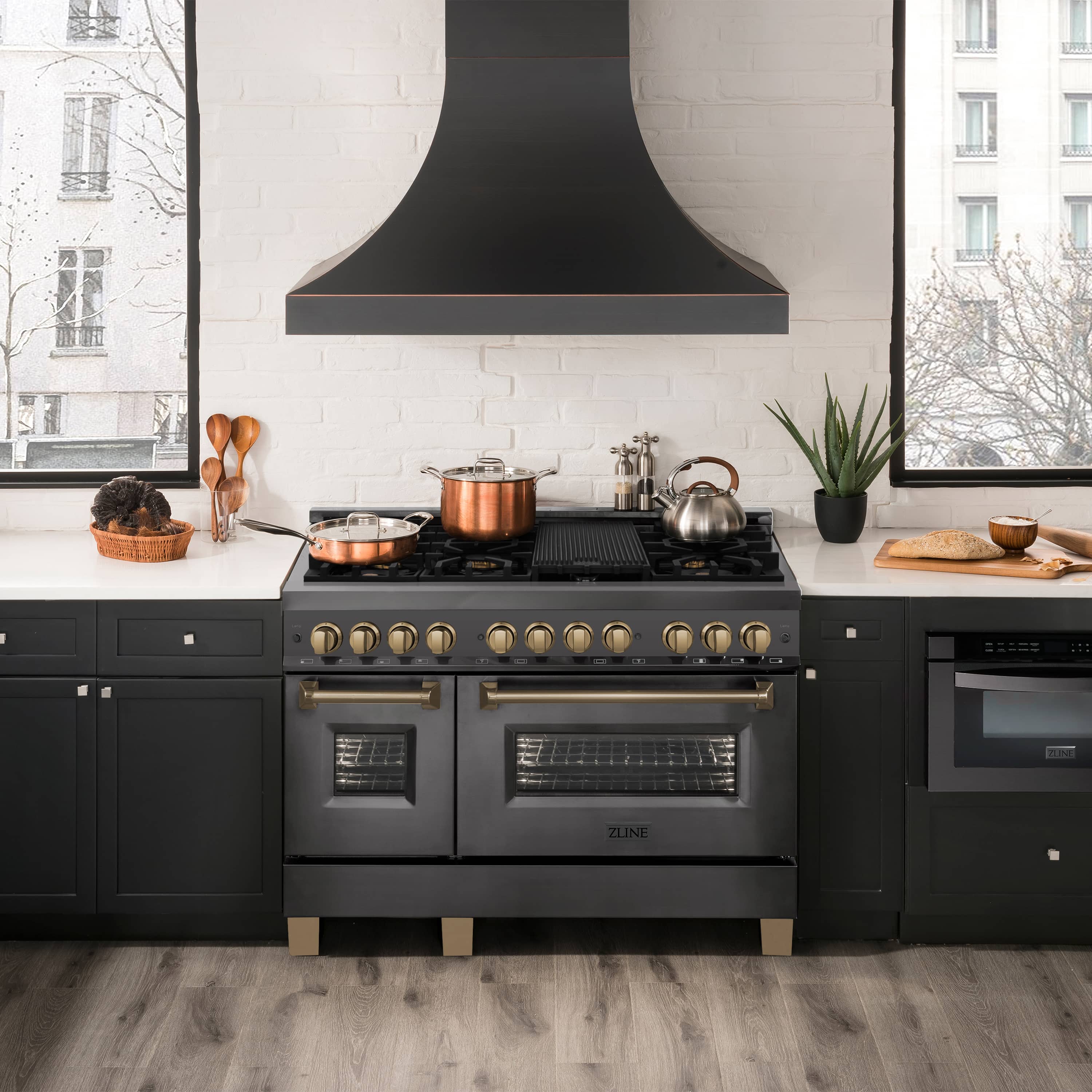

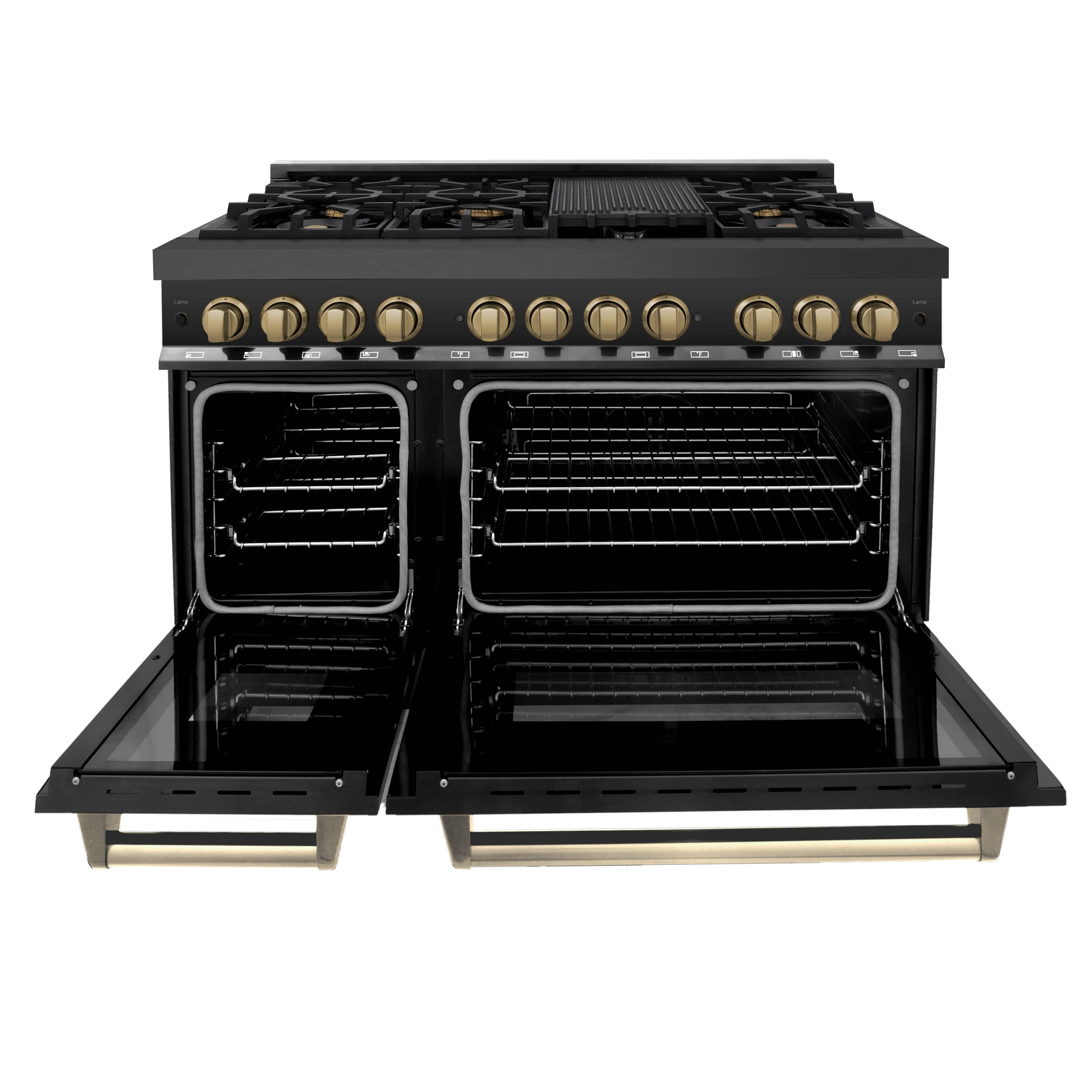

Experience Attainable Luxury® with the ZLINE Autograph Edition Dual Fuel Range in Black Stainless Steel. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience. Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes.

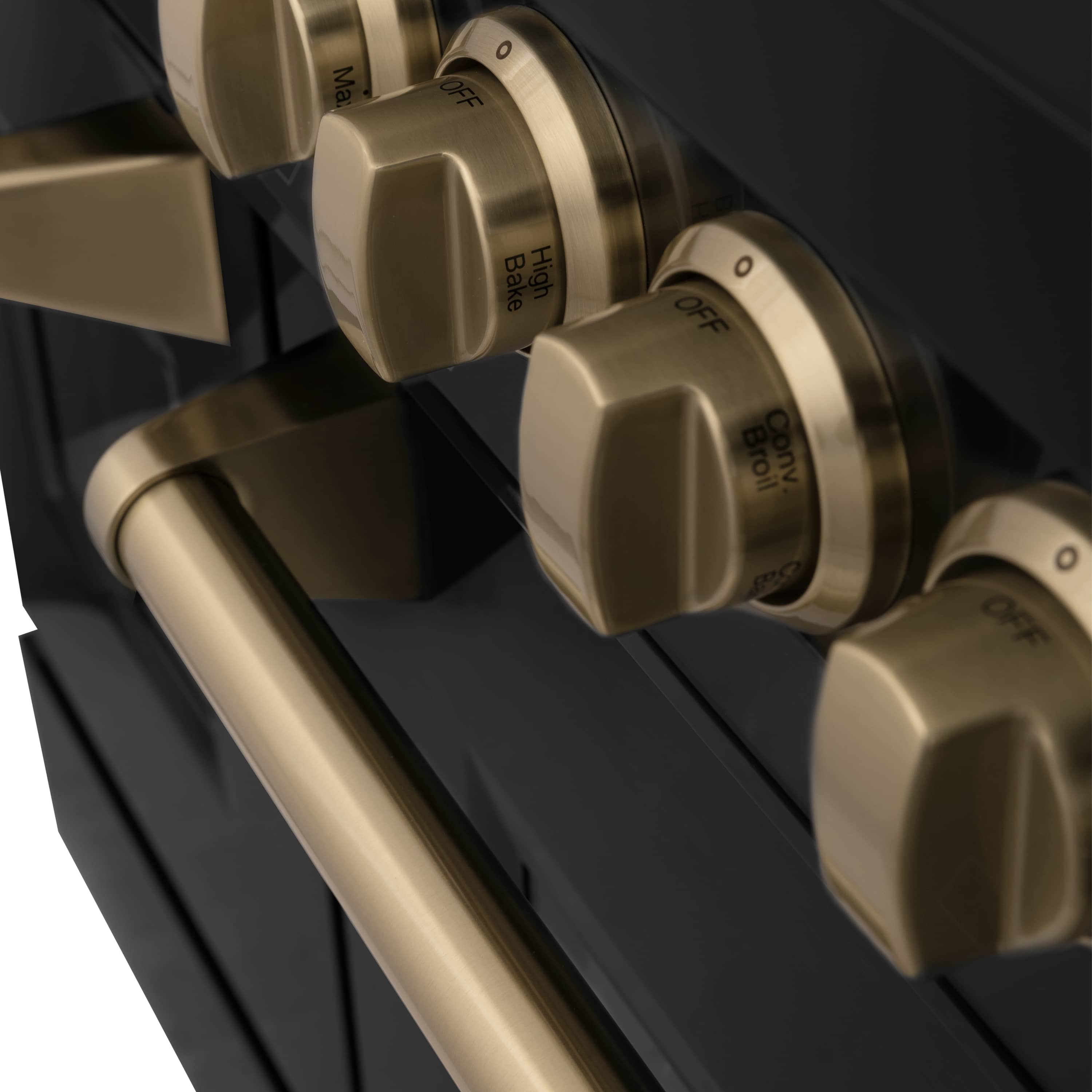

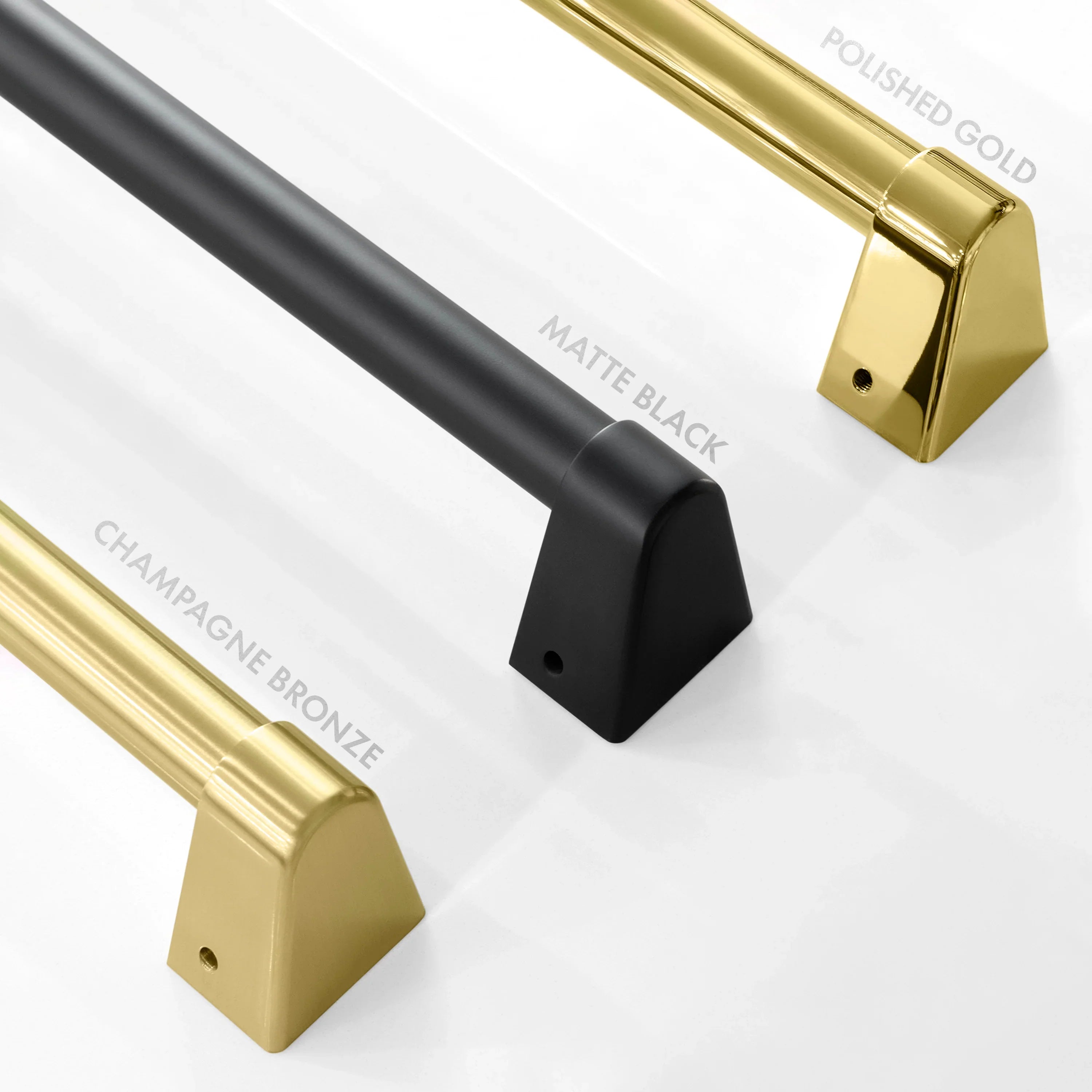

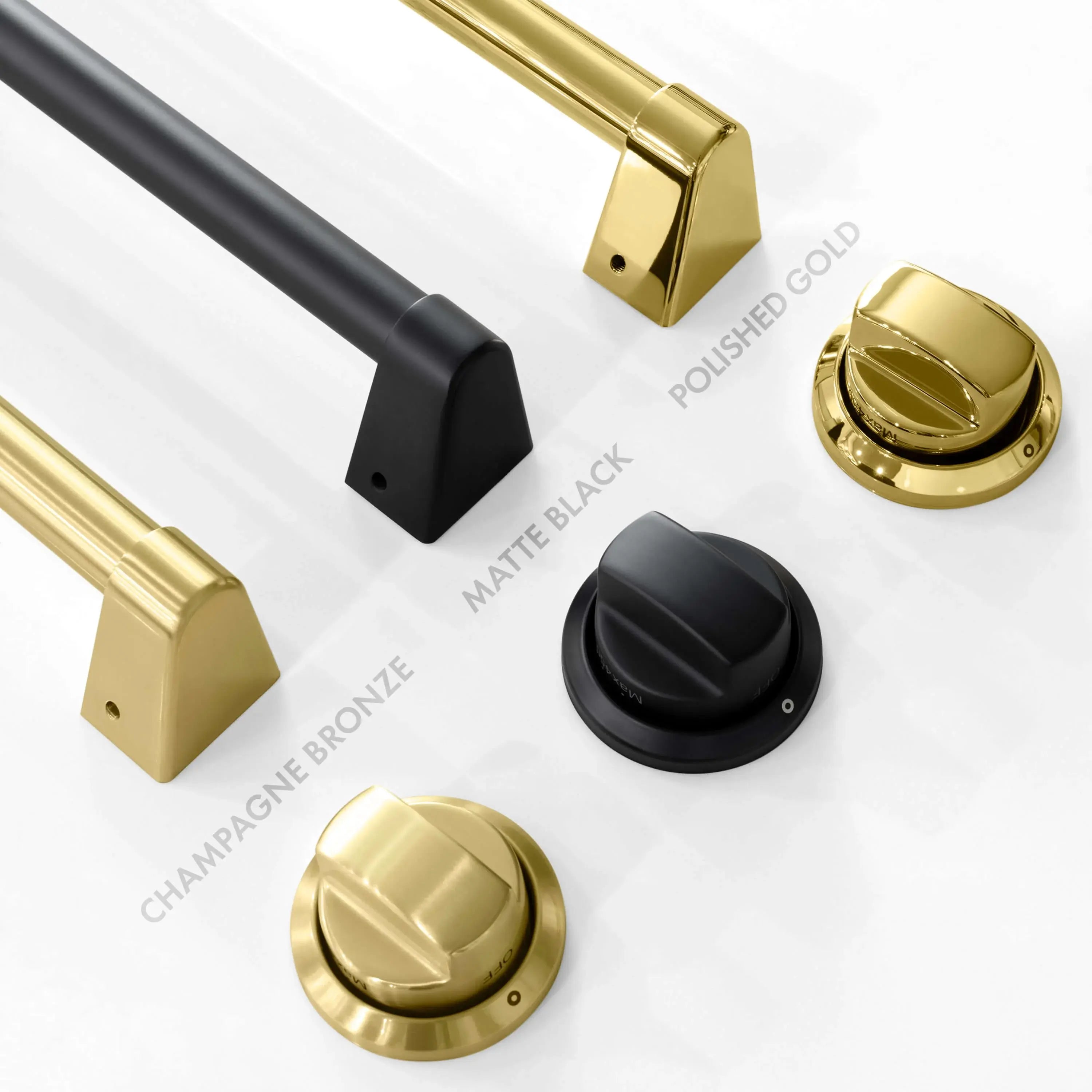

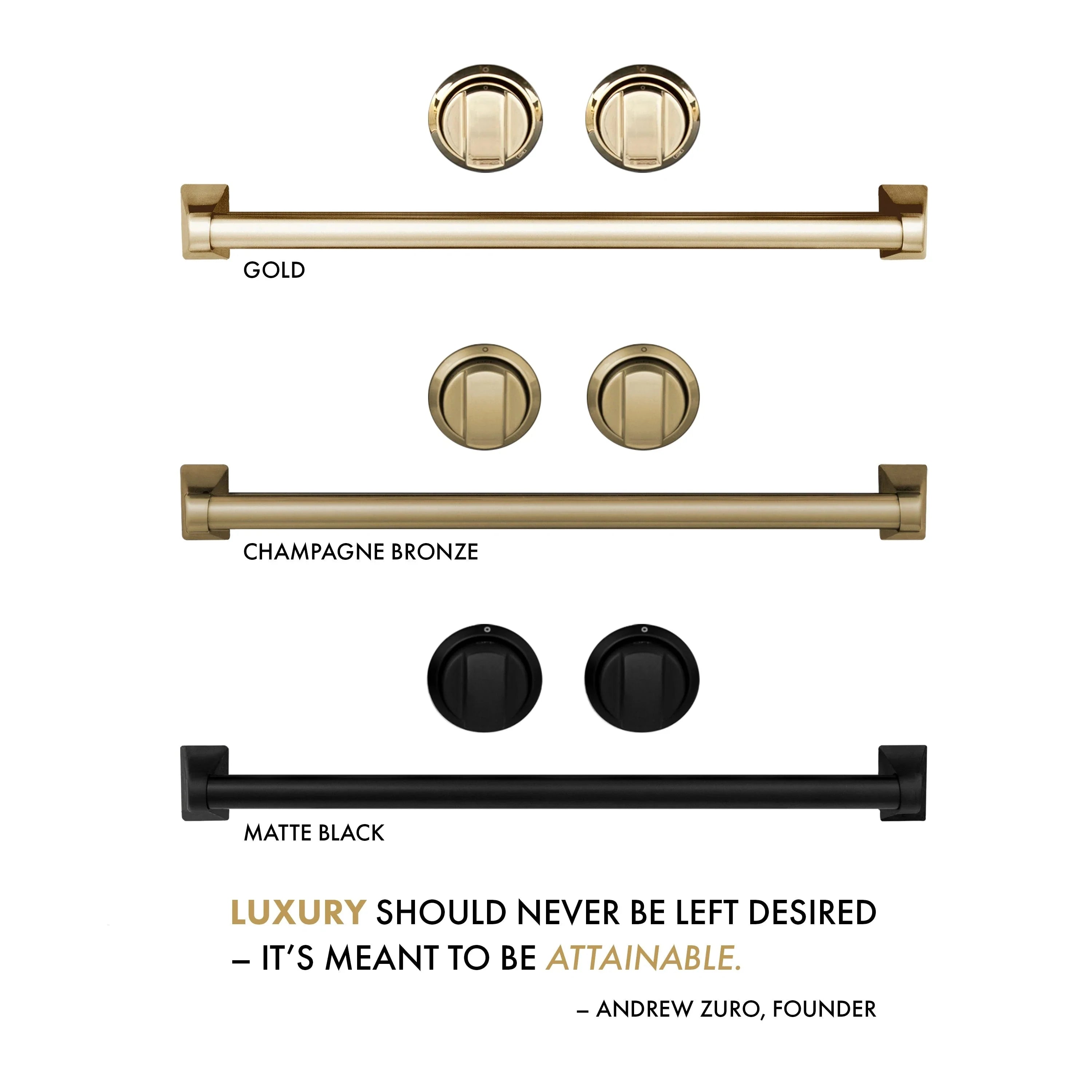

Combining the professional power and functionality of a ZLINE Range with stunning gold accents, this sophisticated line of professional ranges brings a new meaning of elegance. Create an unforgettable kitchen unique to your style with gold knobs, handles, legs, and brass burners. Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze, Matte Black and Gold.
The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes. From our home to yours, enjoy a luxurious experience with the Autograph Edition Dual Fuel Range.
Want to learn more about ZLINE? Read more here:

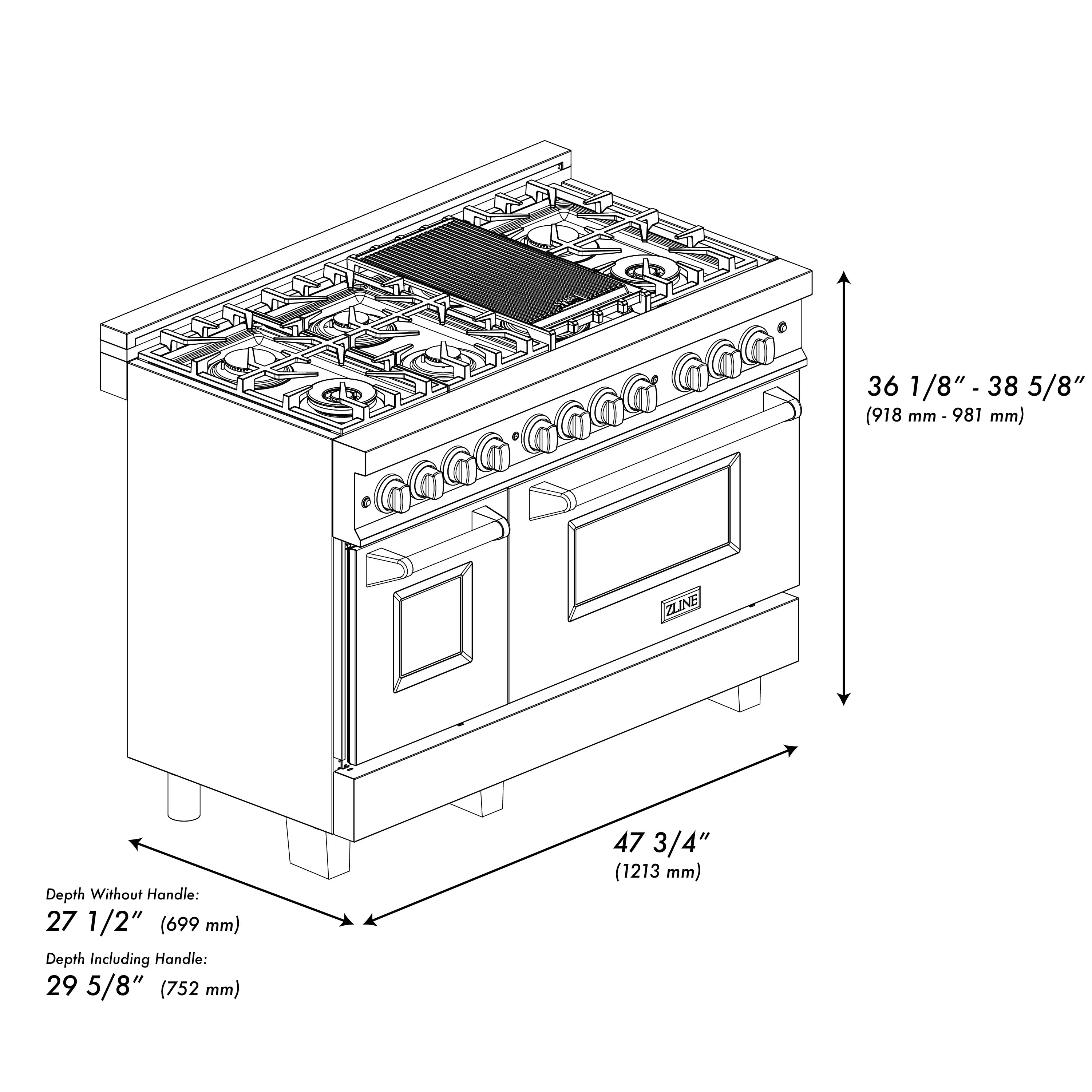

| DIMENSIONS | |
|---|---|

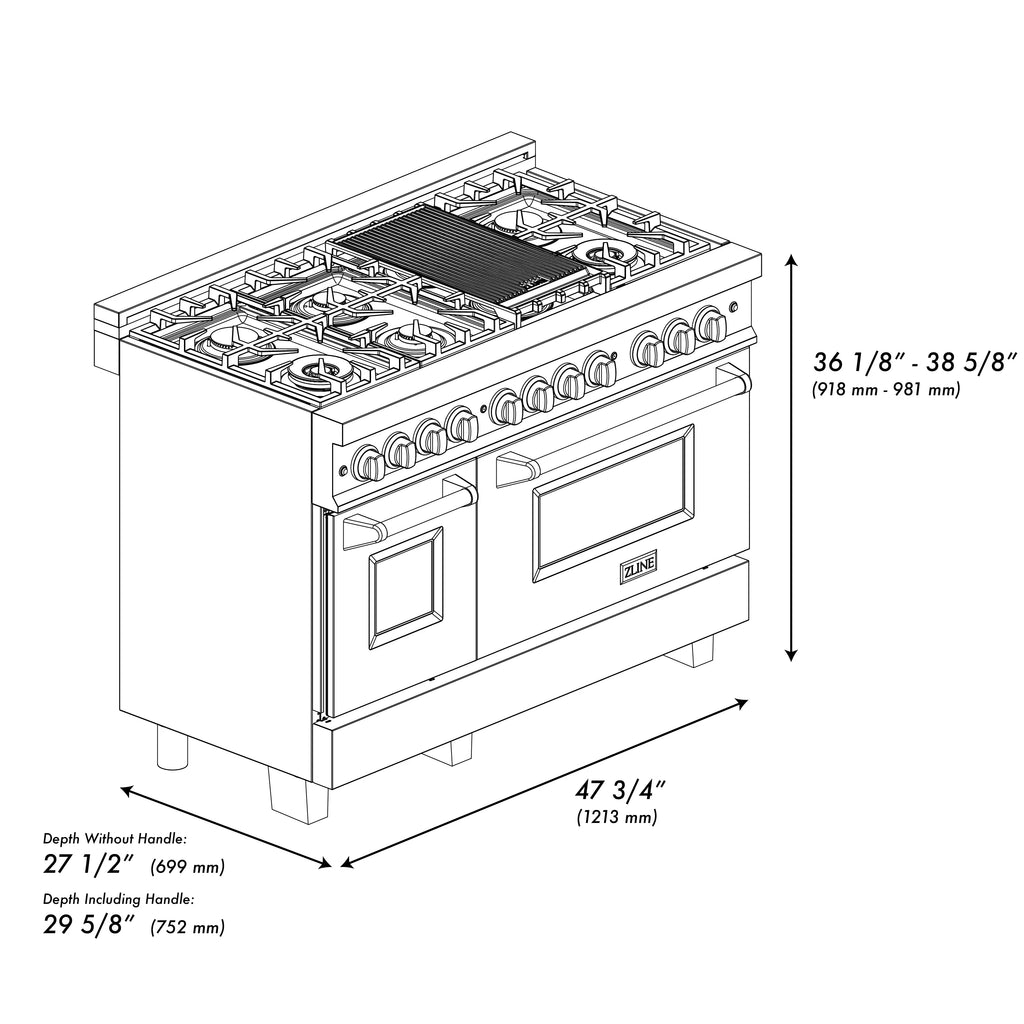

| Dimension | 47.75" W x 27.5" D x 36.13" H |
| Dimensions with Handle | 47.75" W x 29.63" D x 36.13" H |
| Open Door Depth | 41.8" |
| Oven Dimensions | 24.875" W x 17.75" D x 16" H |
| Weight | 270 lbs |
| Interior Oven Dimensions | 26.5" W x 18.5" D x 14"H 12.5" W x 18.5" D x 14"H |
| Open Door Depth (in.) | 39.5 |
| GENERAL INFORMATION | |
| Brand | ZLINE Kitchen and Bath |
| Features | ETL Listed |
| DESIGN & FINISH | |
| Color | Black |
| Finish | Black Stainless Steel |
| Lighting | Dual Lighting, controlled by light switch on front control panel |
| Material |
|
| Control Type | Durable Front Control |
| Range Finish | Black Stainless Steel |
| Trim | Champagne Bronze |
| TECHNICAL DETAILS | |
| Voltage | 240V/60Hz/40A |
| Gas Type | Natural Gas or Liquid Propane via conversion kit |
| Liquid Propane | LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional |
| Fuel Type |
|
| Mount Type | Free Standing |
| COOKTOP FEATURES | |

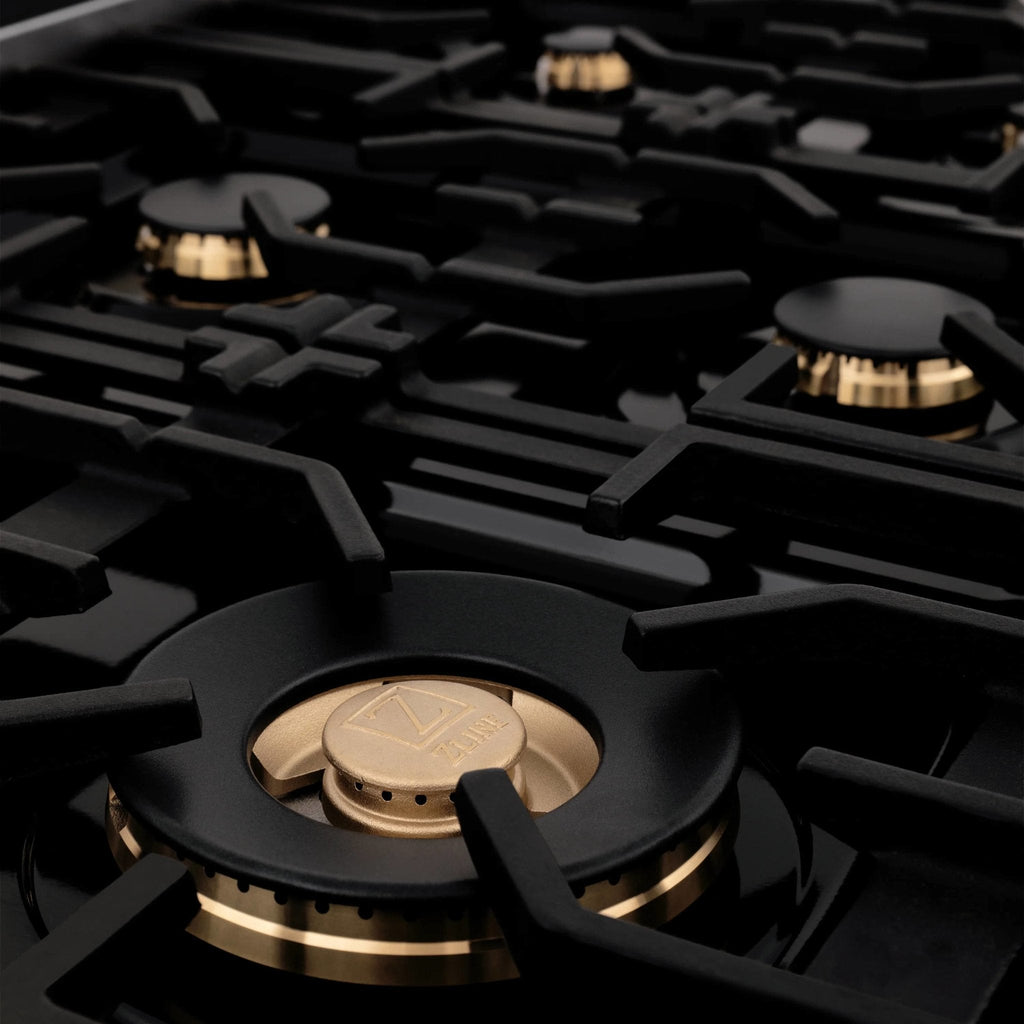

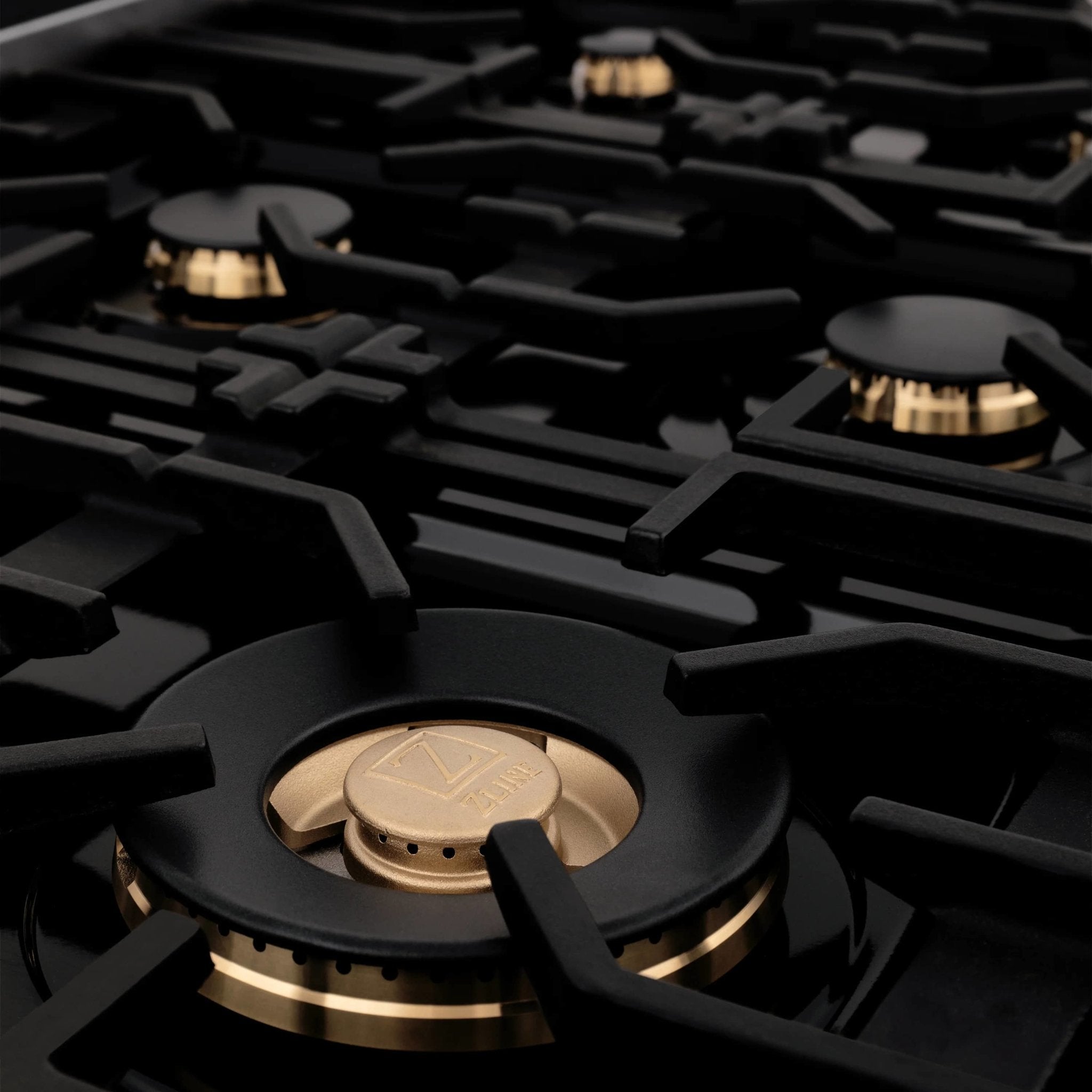

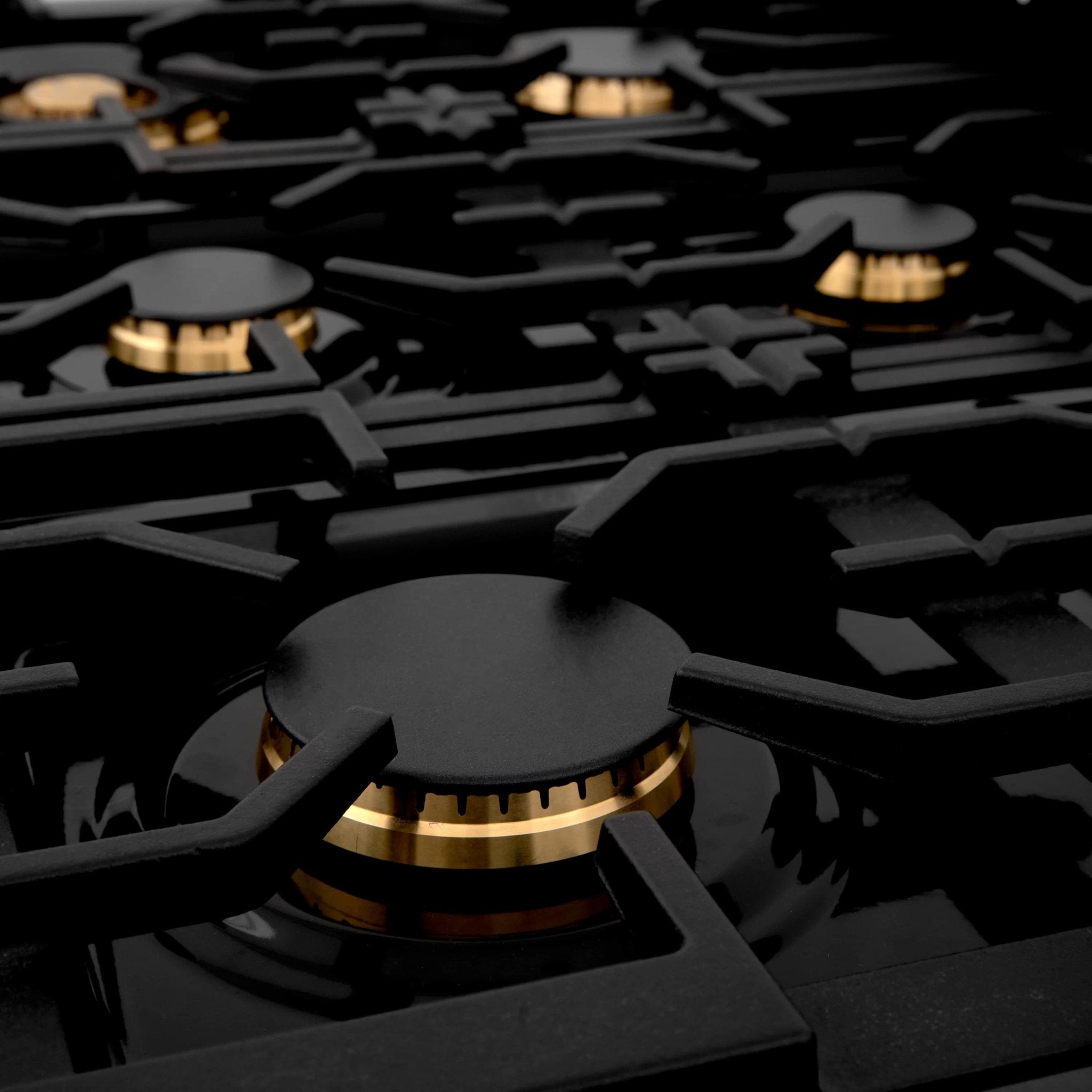

| Cooktop | (7) Burners with Porcelain Cook Top with electronic spark ignition for all burners |
| Burners | Burner 1: 13,000 Burner 2: 18,000 Burner 3: 4,200 Burner 4: 13,000 Burner 5: 8,500 Burner 6: 8,500 Burner 7: 18,000 |

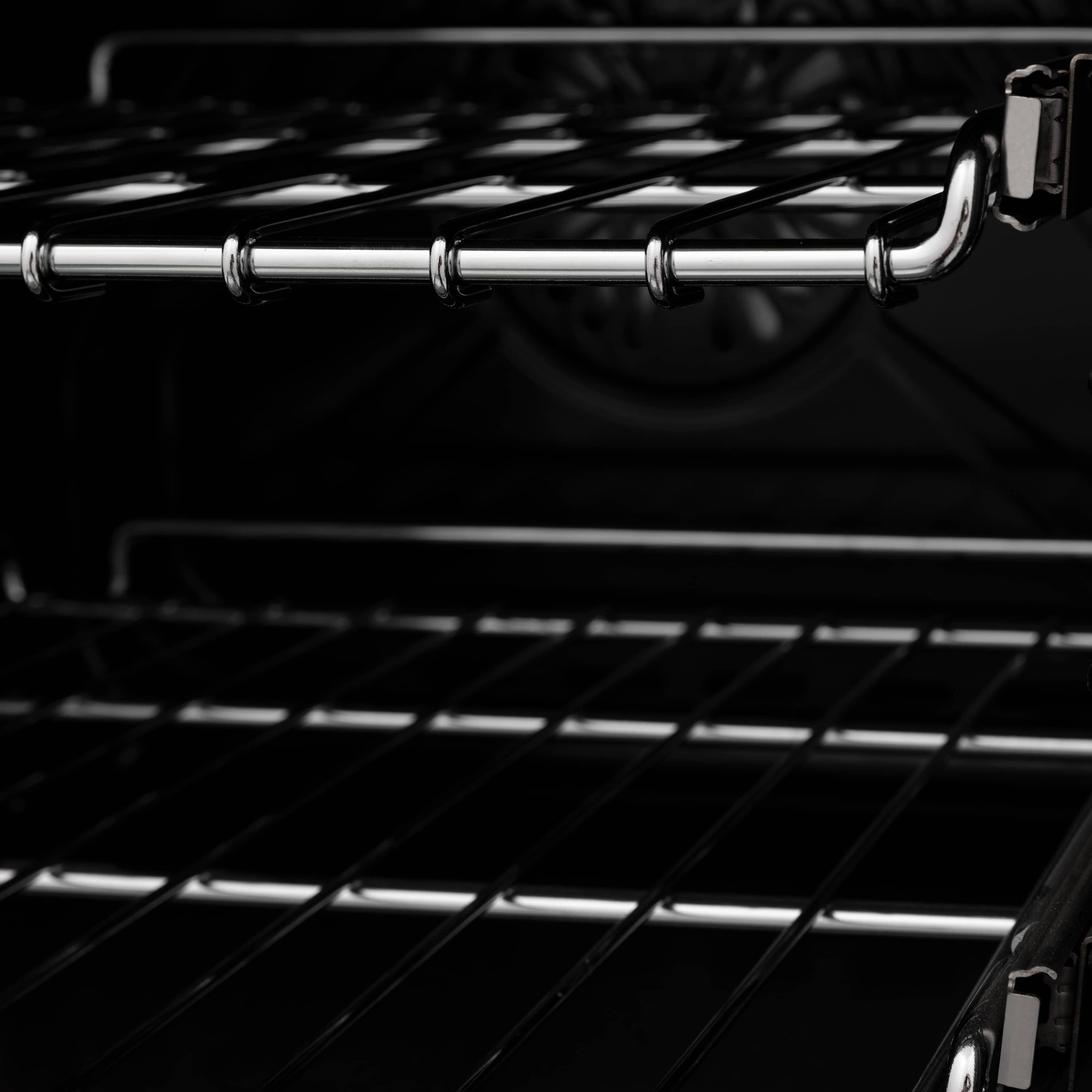

| OVEN FEATURES | |
| Oven Capacity | 4.2 cu. ft. 1.8 cu. ft. |
| Timer | No |
| Self-Clean | No |
| WARRANTY & CERTIFICATIONS | |
| Warranty | 1 Year |

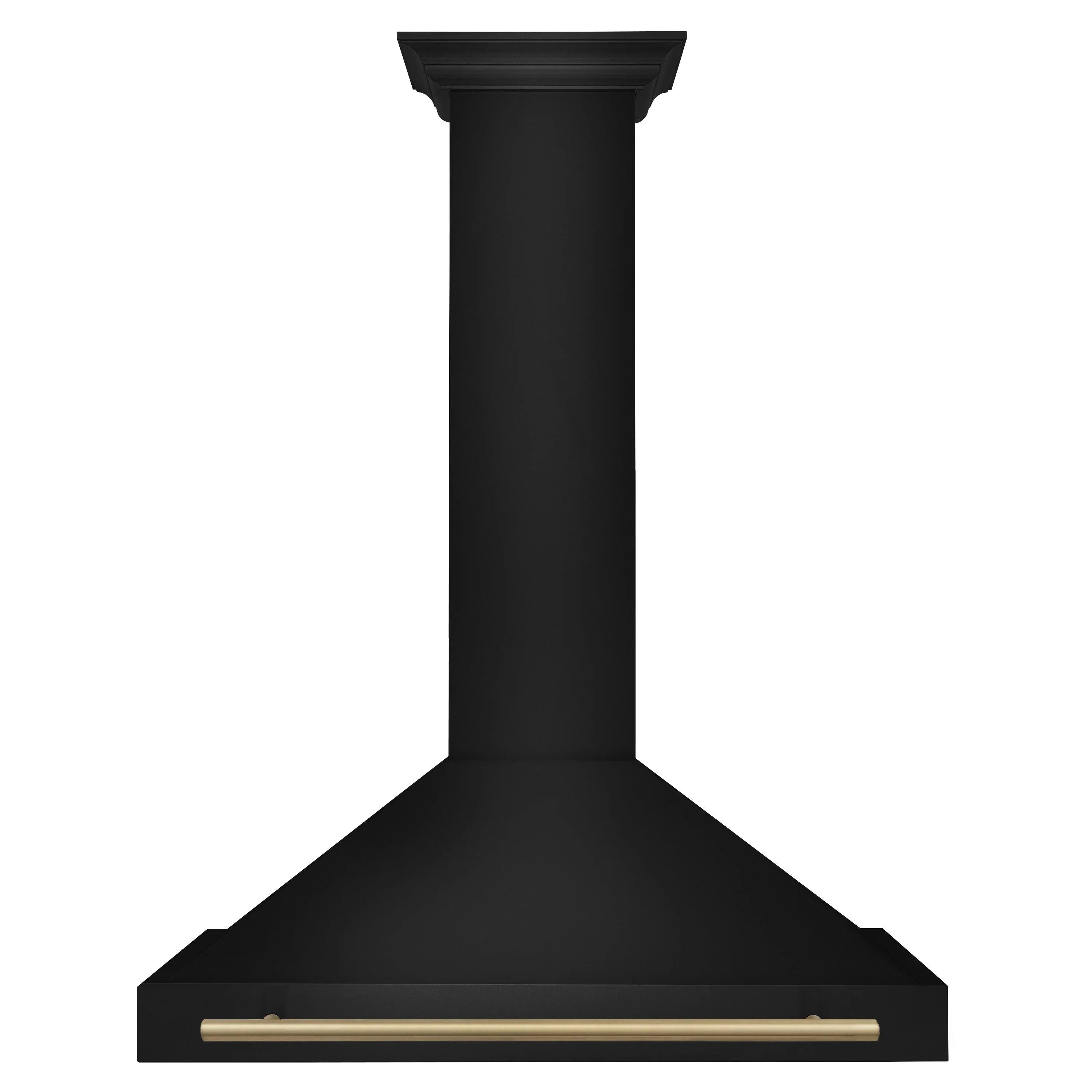

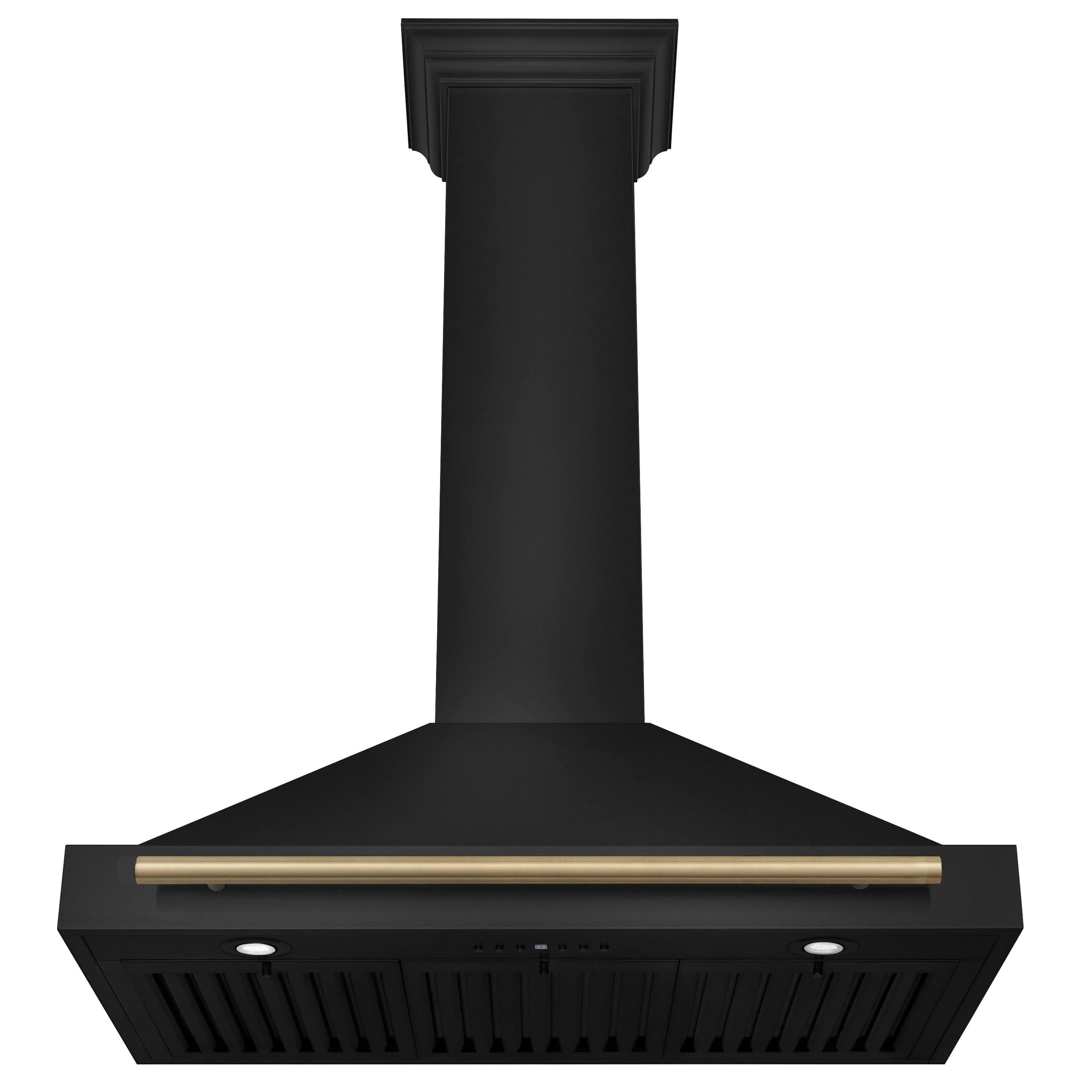

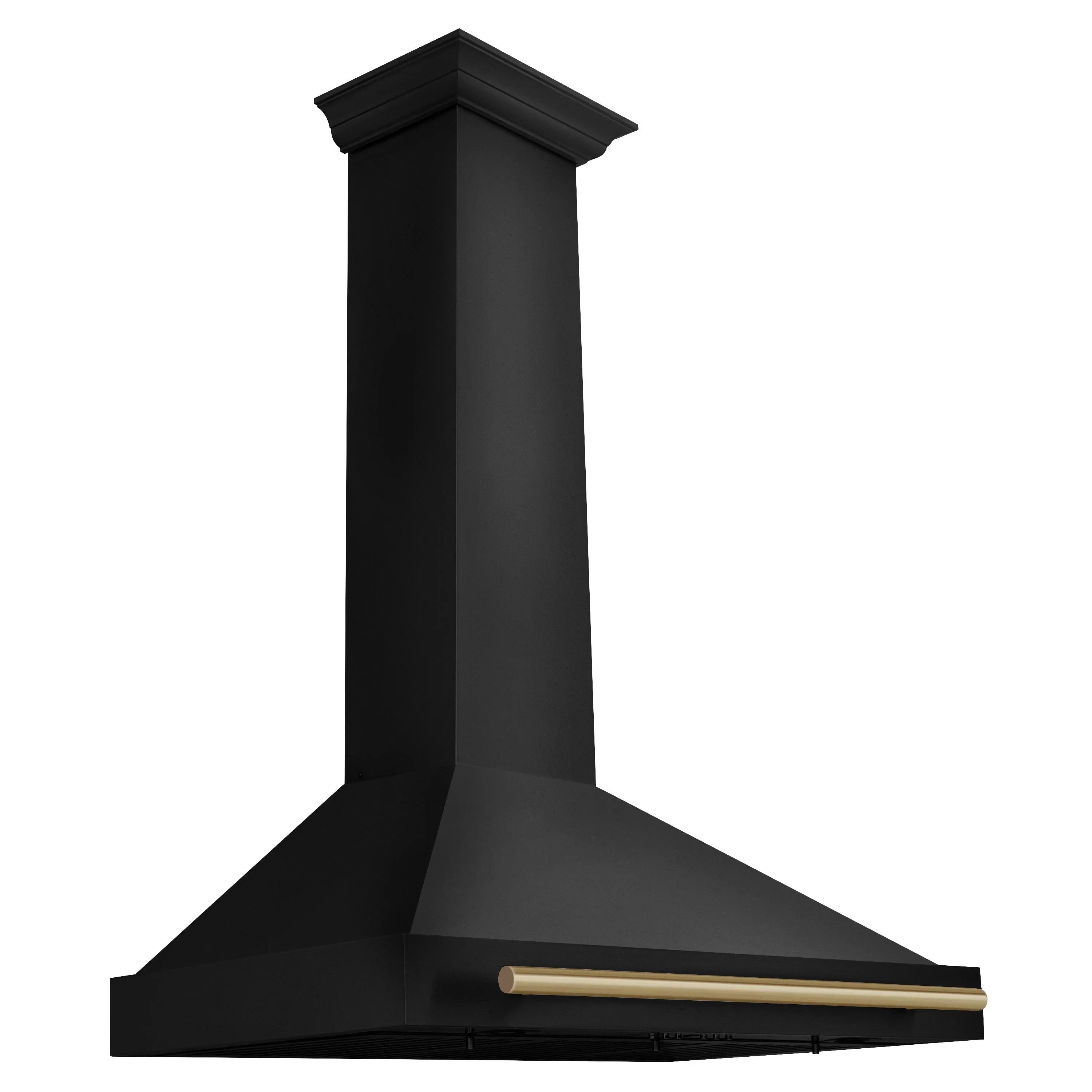

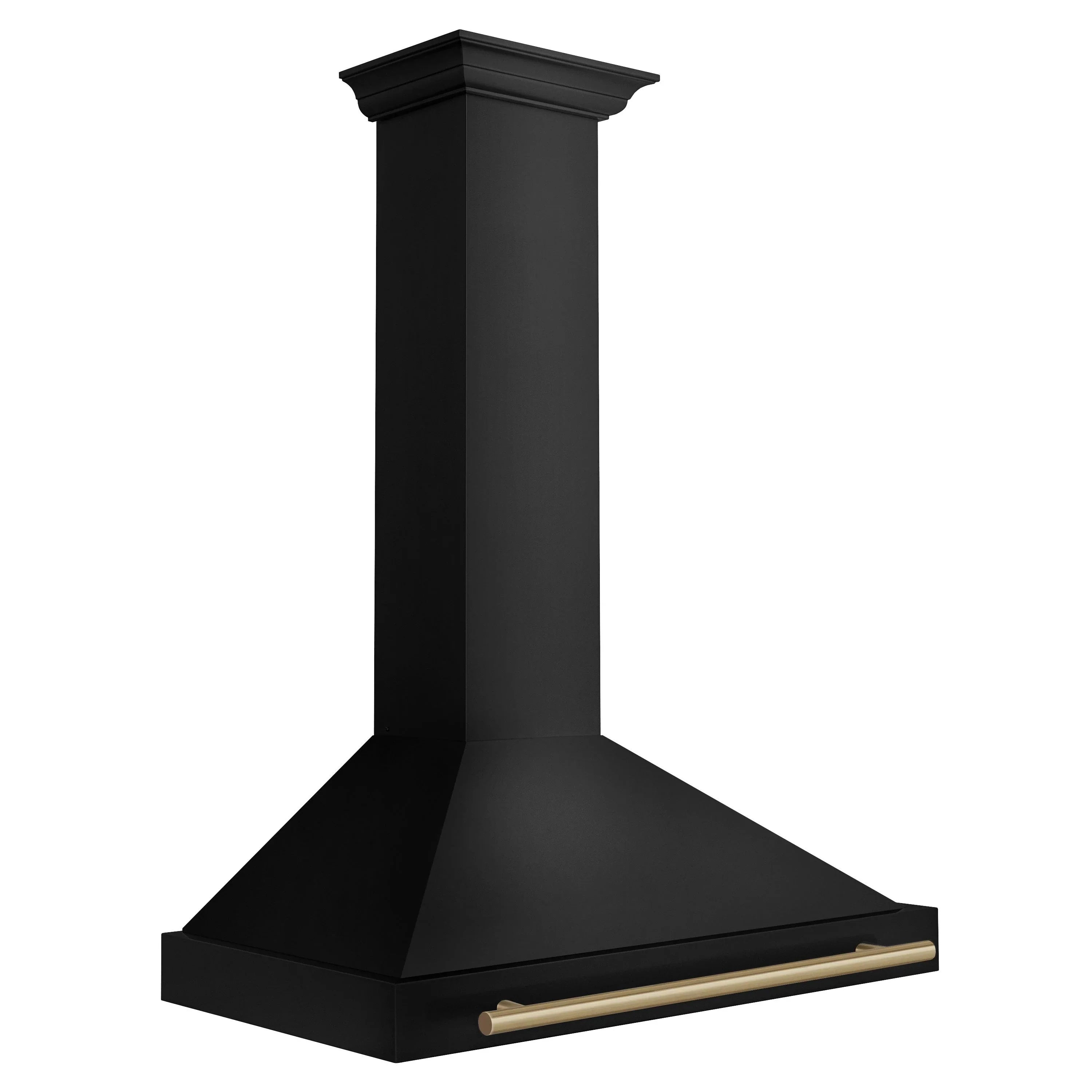

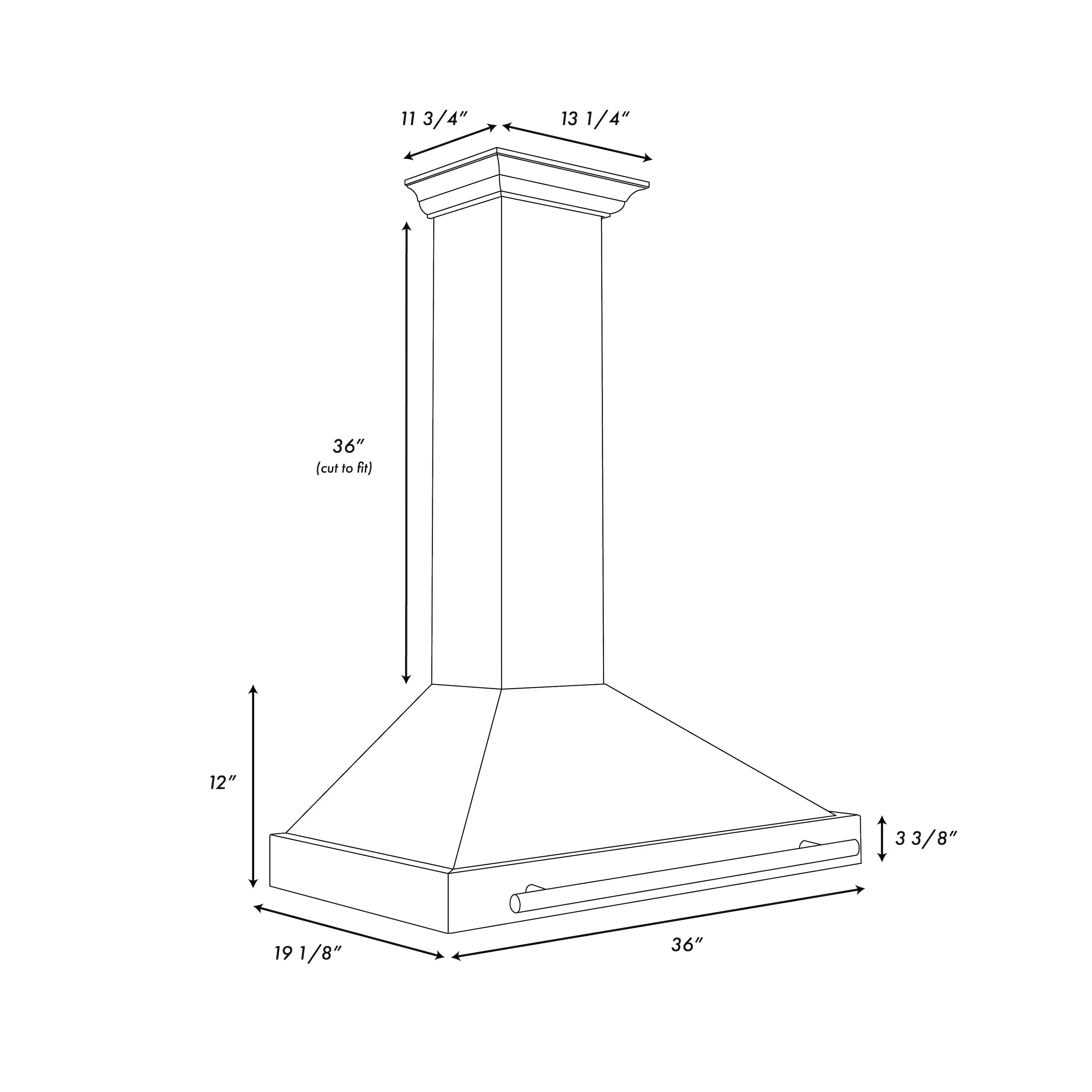

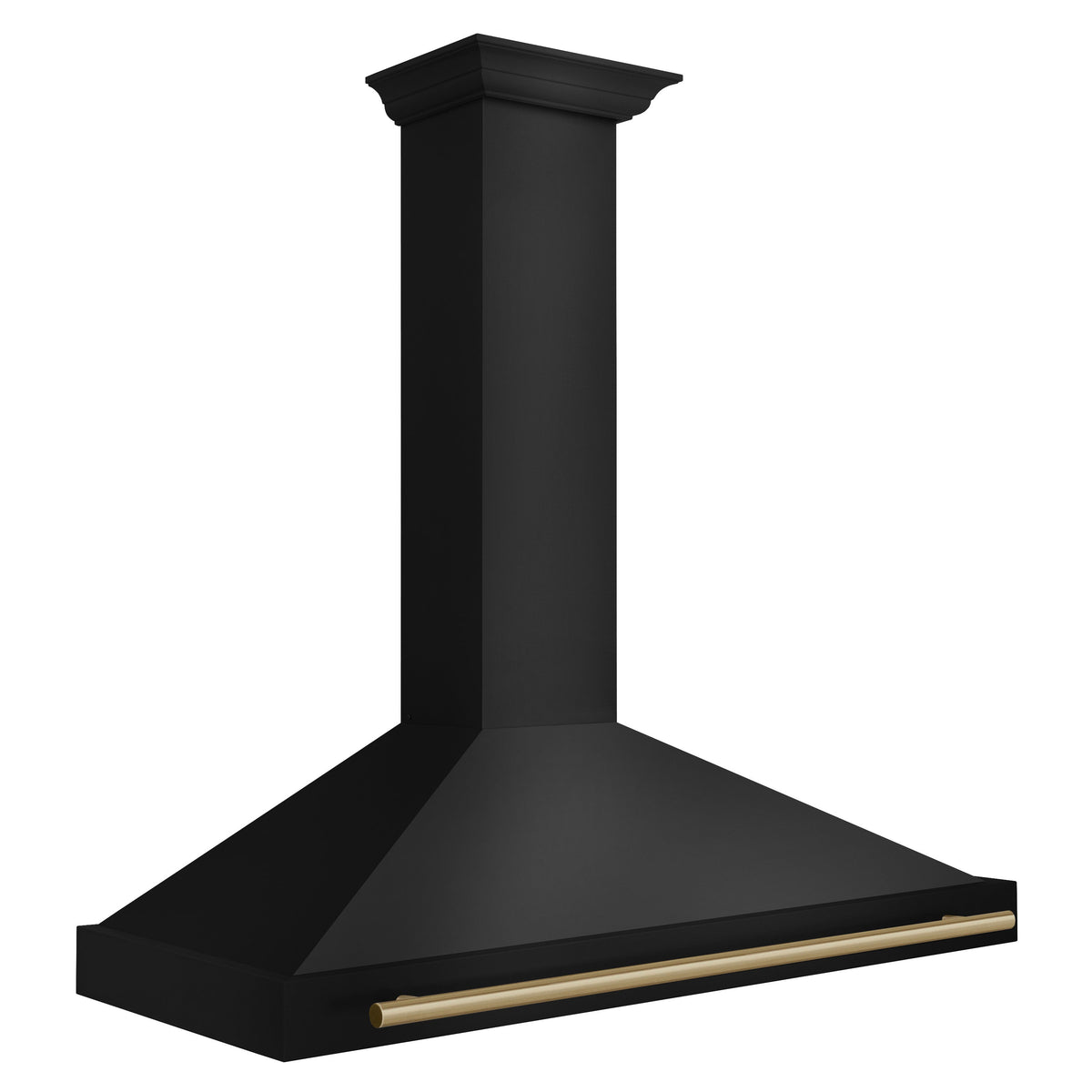

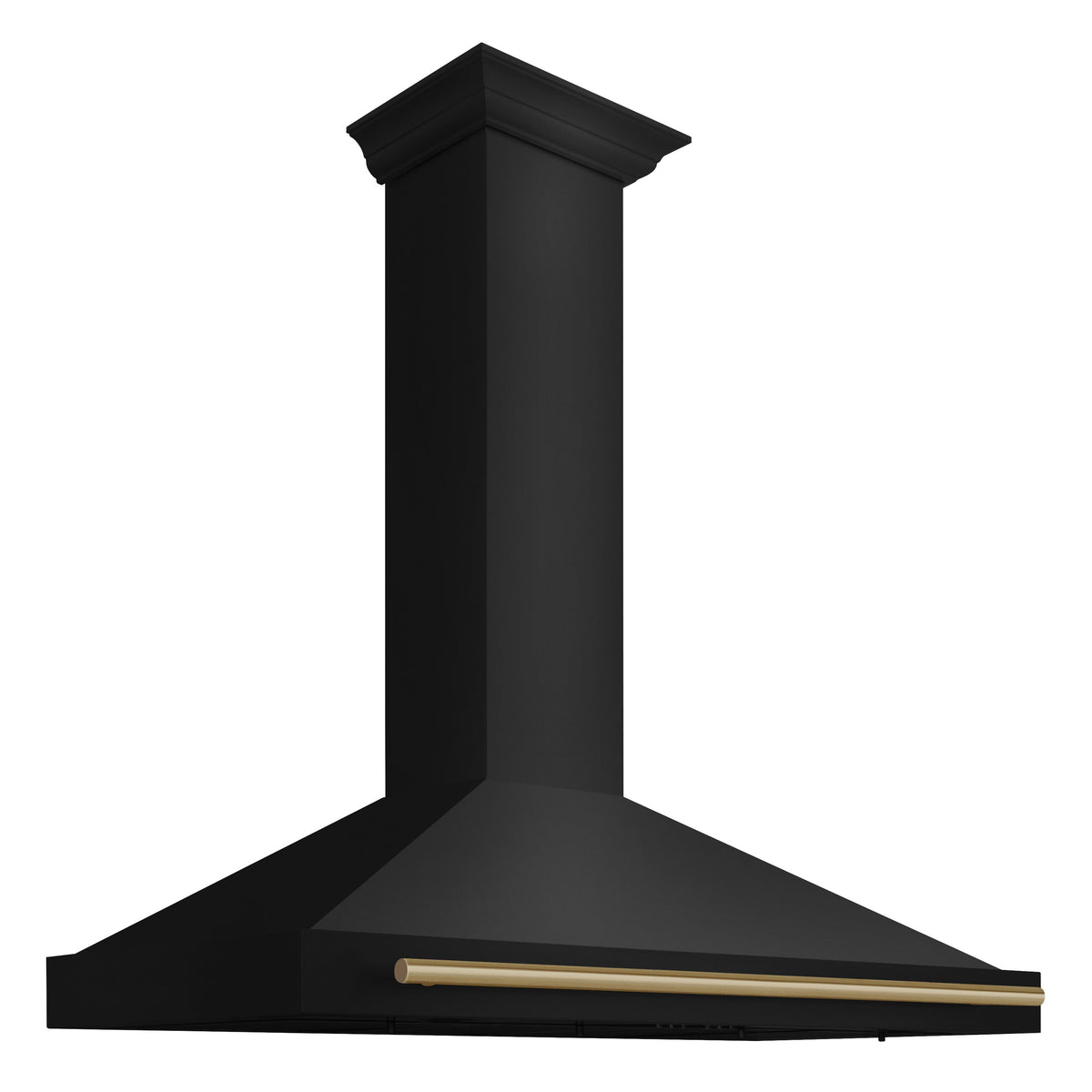

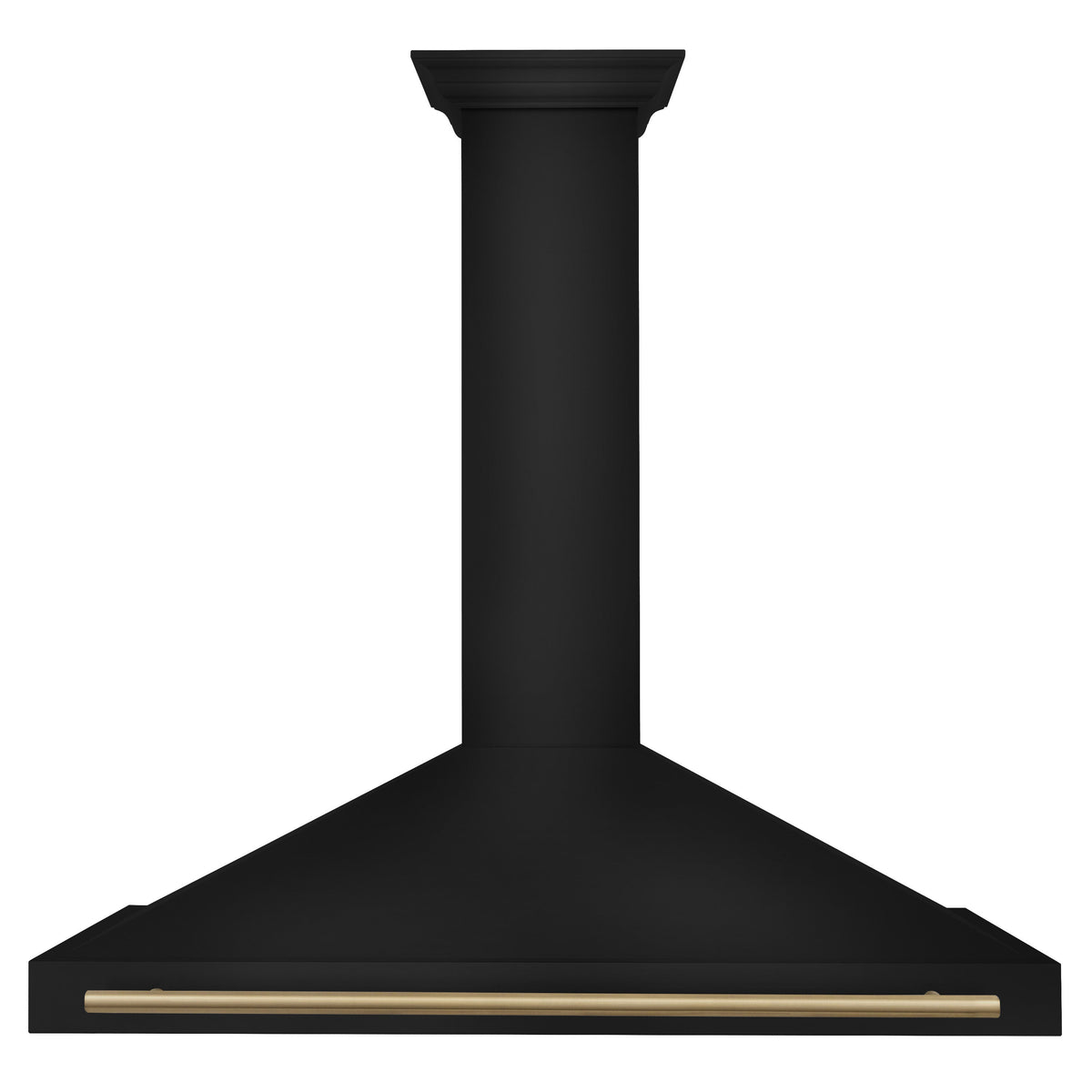

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 48 in. Autograph Edition Black Stainless Steel Wall Mount Range Hood With Accent Handle (BSKB4Z-48) provides a professional culinary experience by pairing unmatched performance with personalized touches. Encompassing limitless beauty, precision, and quality, the Autograph Edition Series creates a luxury look that will transform your space. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability.
| DIMENSIONS | |
|---|---|
| Dimensions | 48 in. W x 17.75 in. D x 12 in. H |
| Chimney Dimensions | 9.2 in. W x 8 in. D x 16 in. H (x2) (Telescoping) |
| Min/Max Chimney Height | 16 in. - 32 in. H |
| GENERAL INFORMATION | |
| Outdoor Approved (Y/N) | No |
| Mount Type | Wall Mount |
| DESIGN & FINISH | |
| Material | Black Stainless Steel with Accent Handle |
| Accent Finishes | Champagne Bronze Polished Gold |
| Control Type | Push Button Panel |
| TECHNICAL DETAILS | |
| Max CFM | 400 CFM |
| Duct Size | 6 in. Round Duct |
| Airflow (Q/L/M/H) | 120/240/320/400 |
| Convertible from Ducted to Recirculating (Y/N) | Yes (with charcoal filters) |
| Remote Blower (Y/N) | No |
| Electrical Requirements (Voltage, Amps, Watts) | 110V/5a/550W |
| Decibels/Sones | 30/41/49/52 dB |
| Motor | High Performance 400 CFM/4-Speed Motor |
| Speeds | 4 |
| FEATURES | |
| Compatible Accessories | CF1 (charcoal filters) |
| Lighting (# of Lights) | 2 |
| Filters | Baffle Filters |
| WARRANTY & CERTIFICATIONS | |
| Warranty | 3 Year Parts Warranty Lifetime Motor Warranty |
| Certifications | ETL Listed |

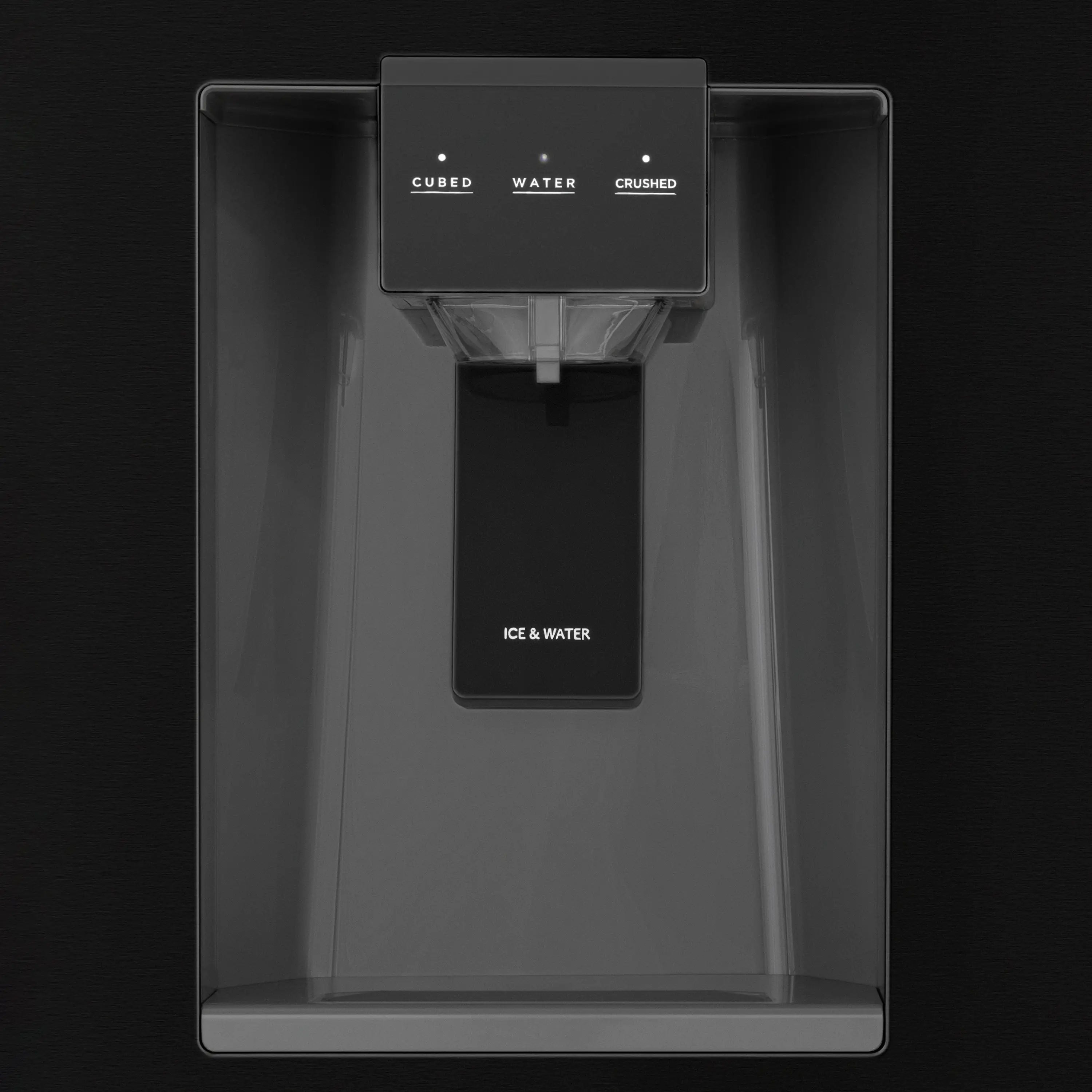

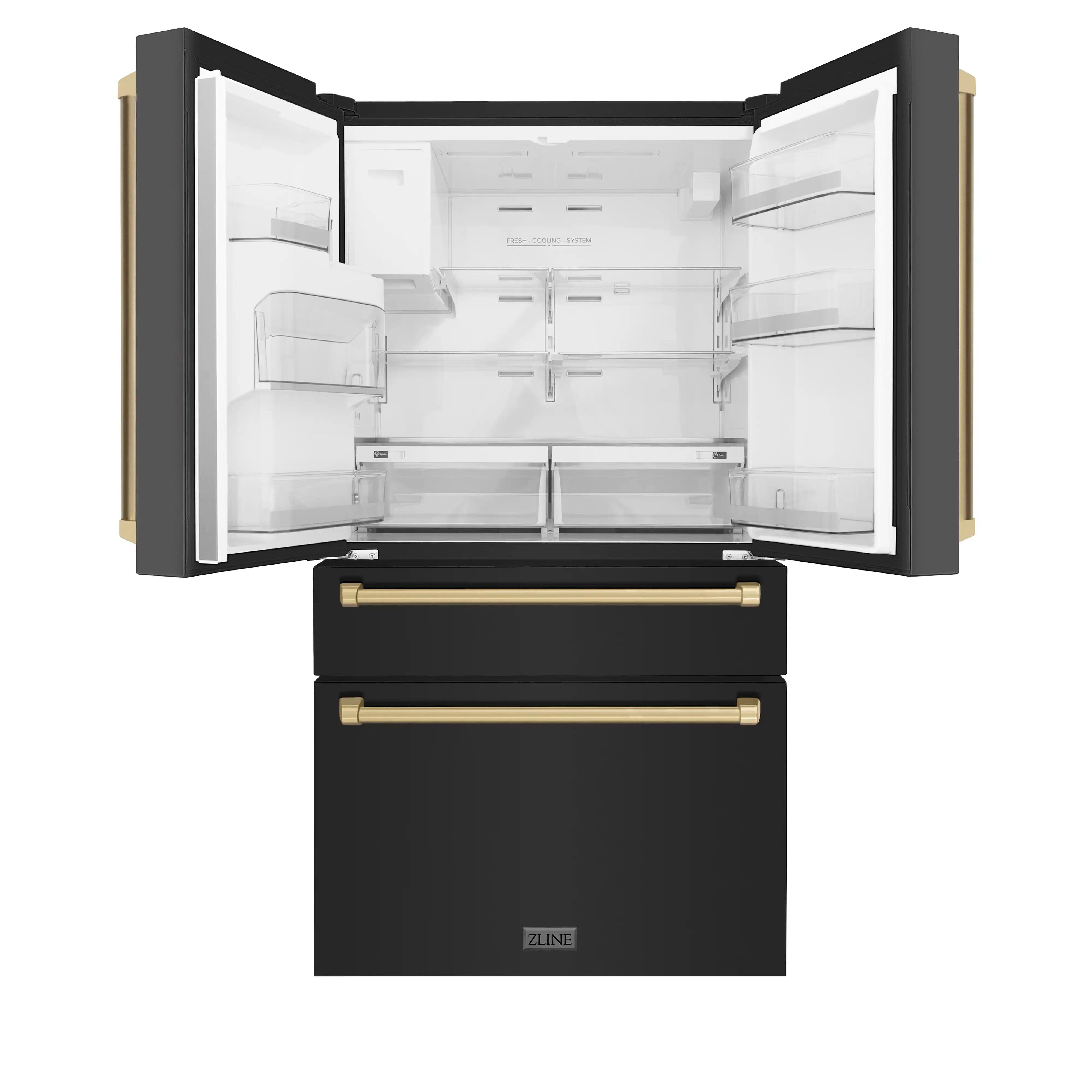

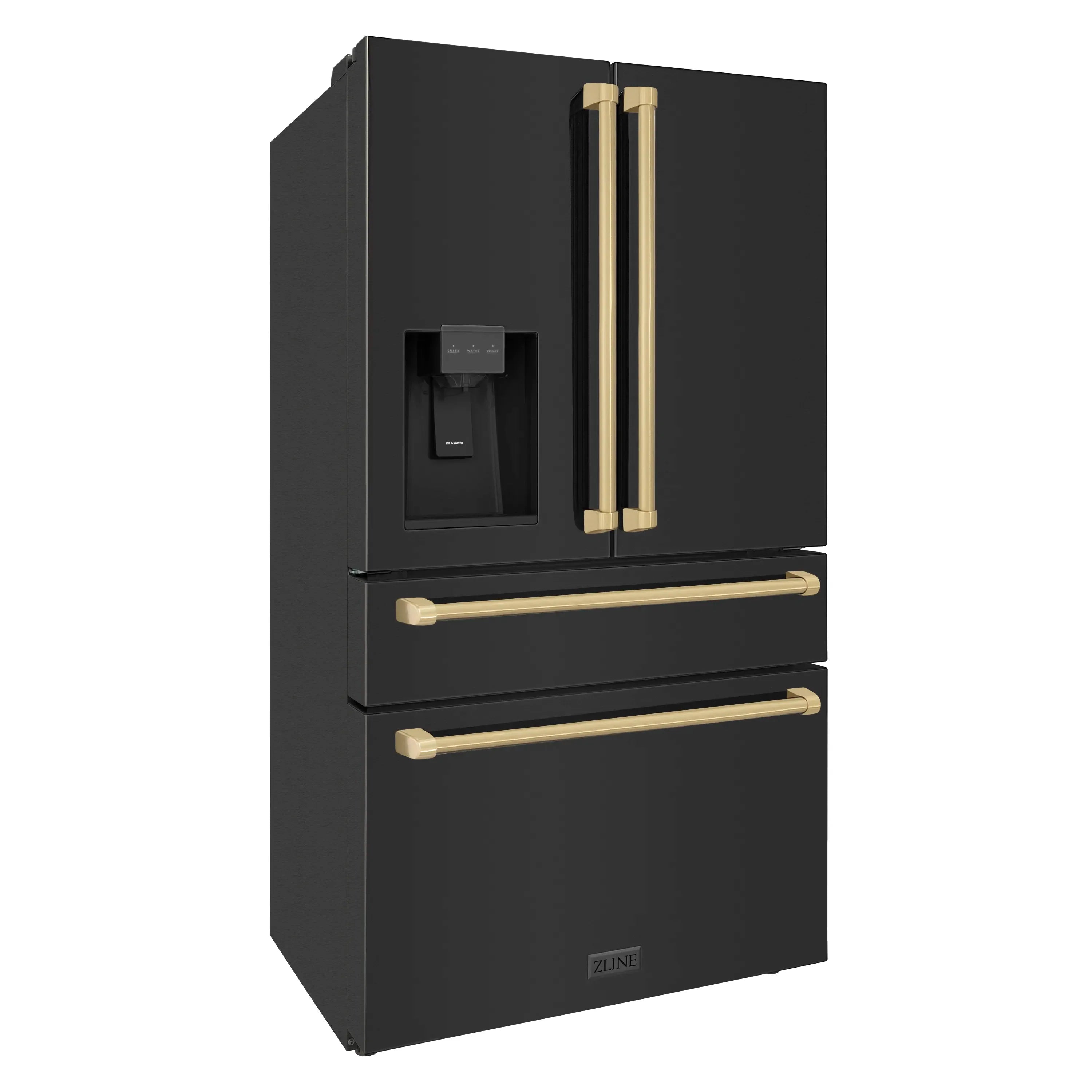

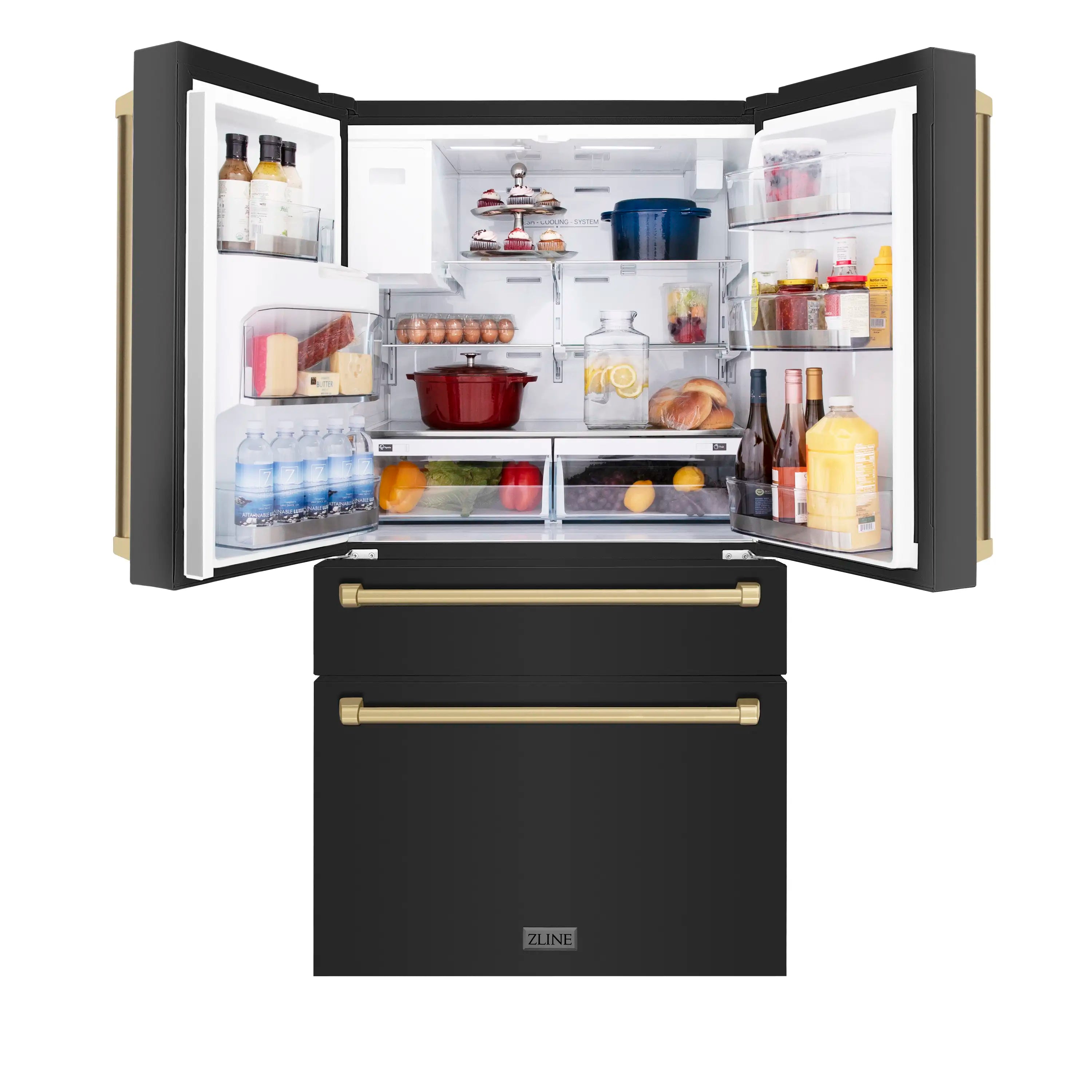

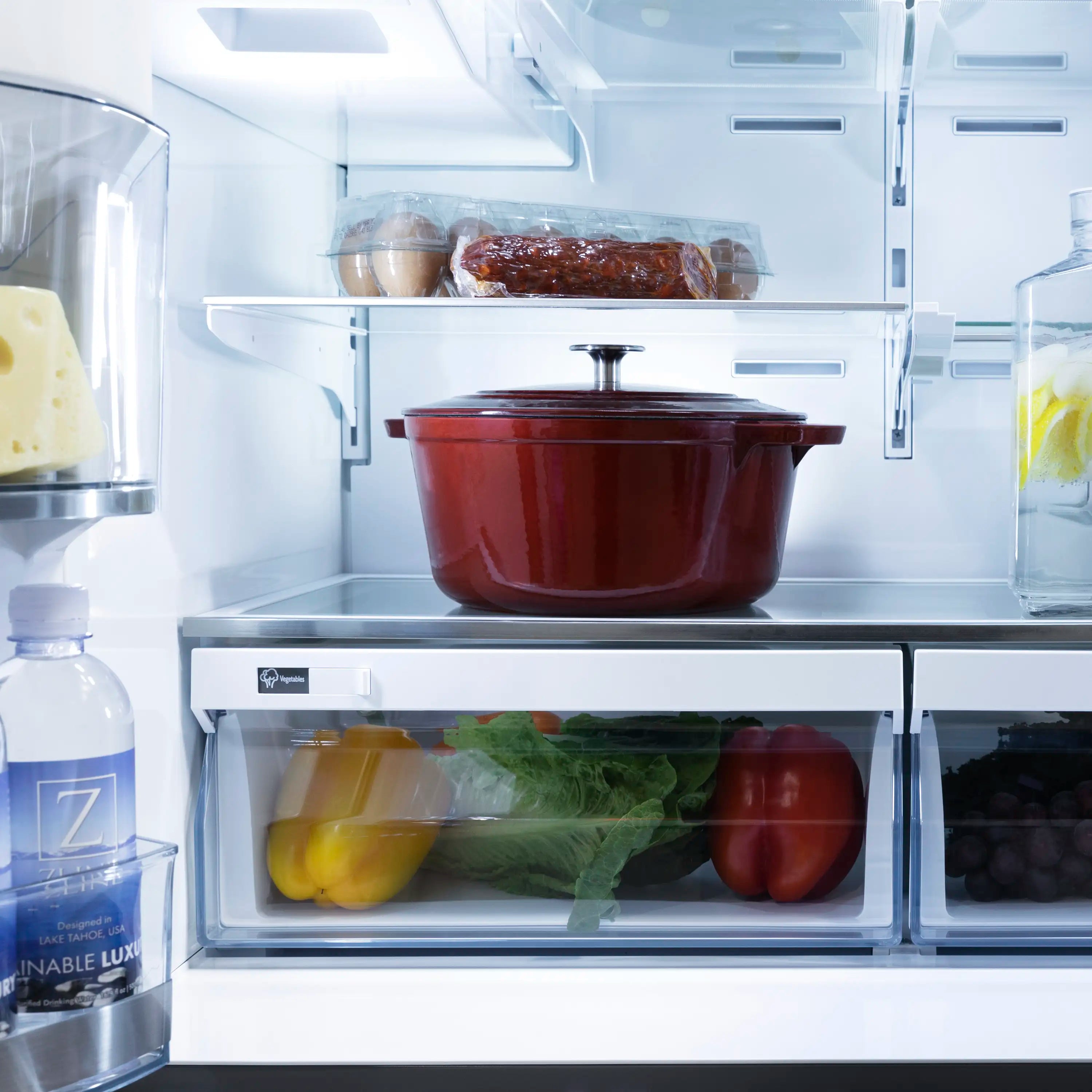

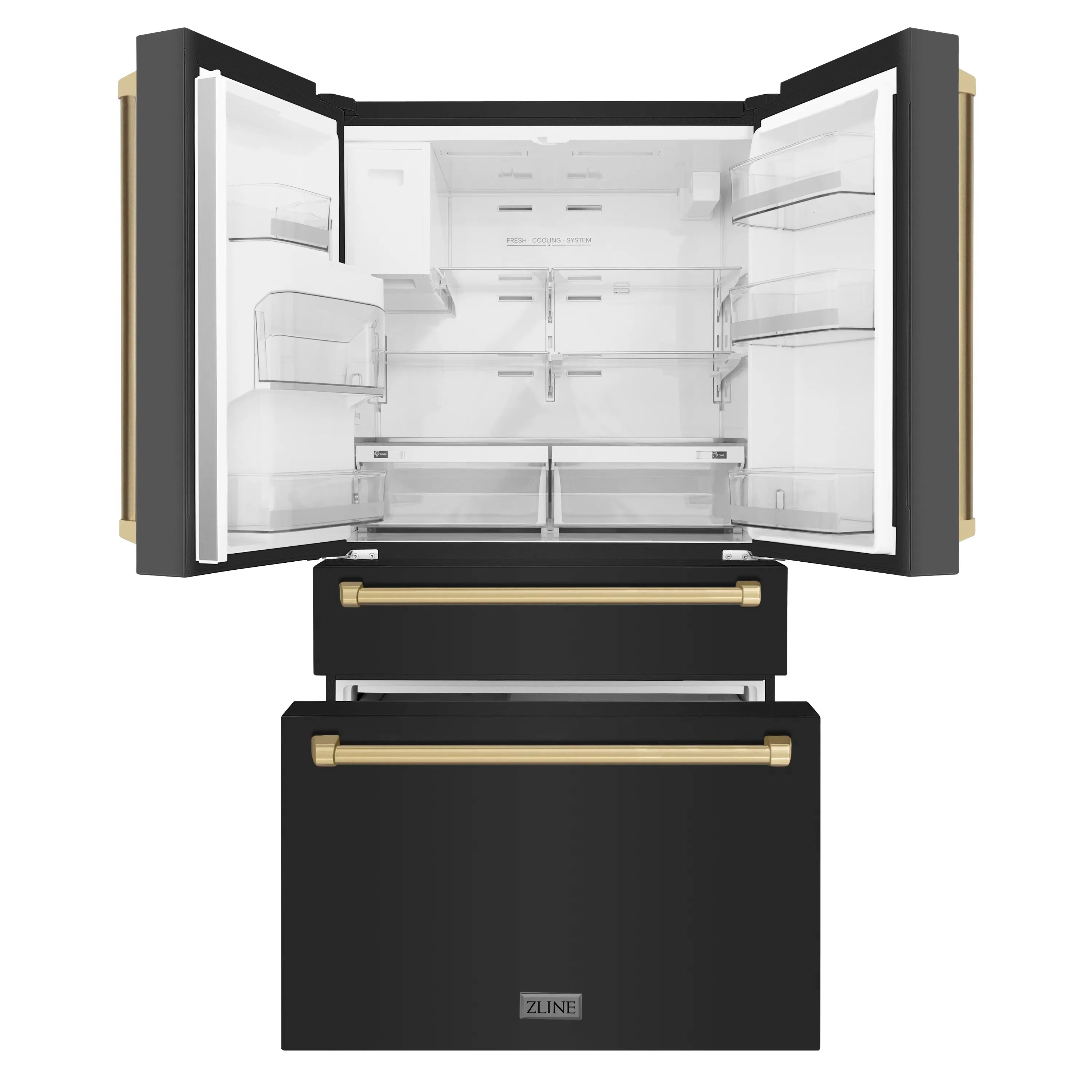

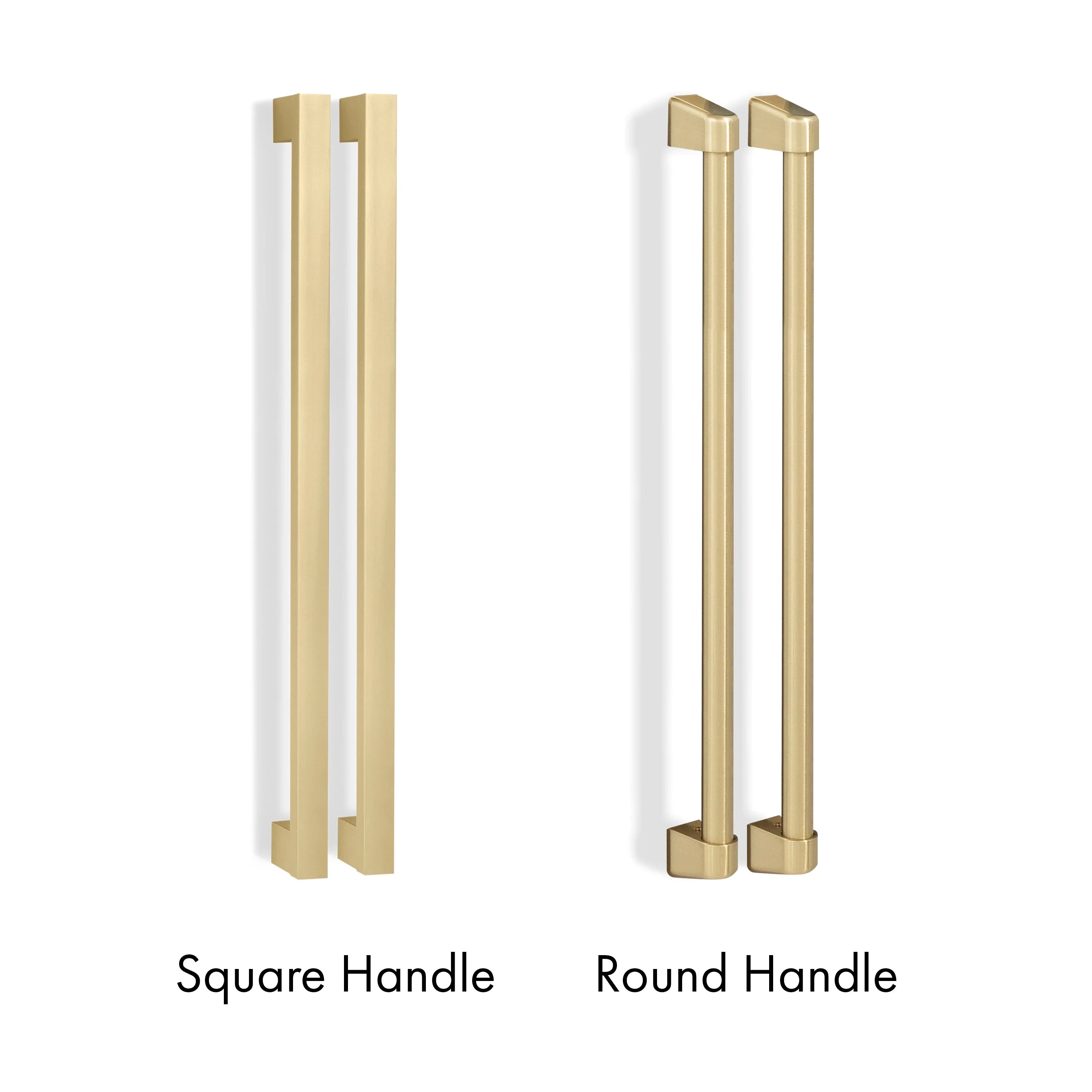

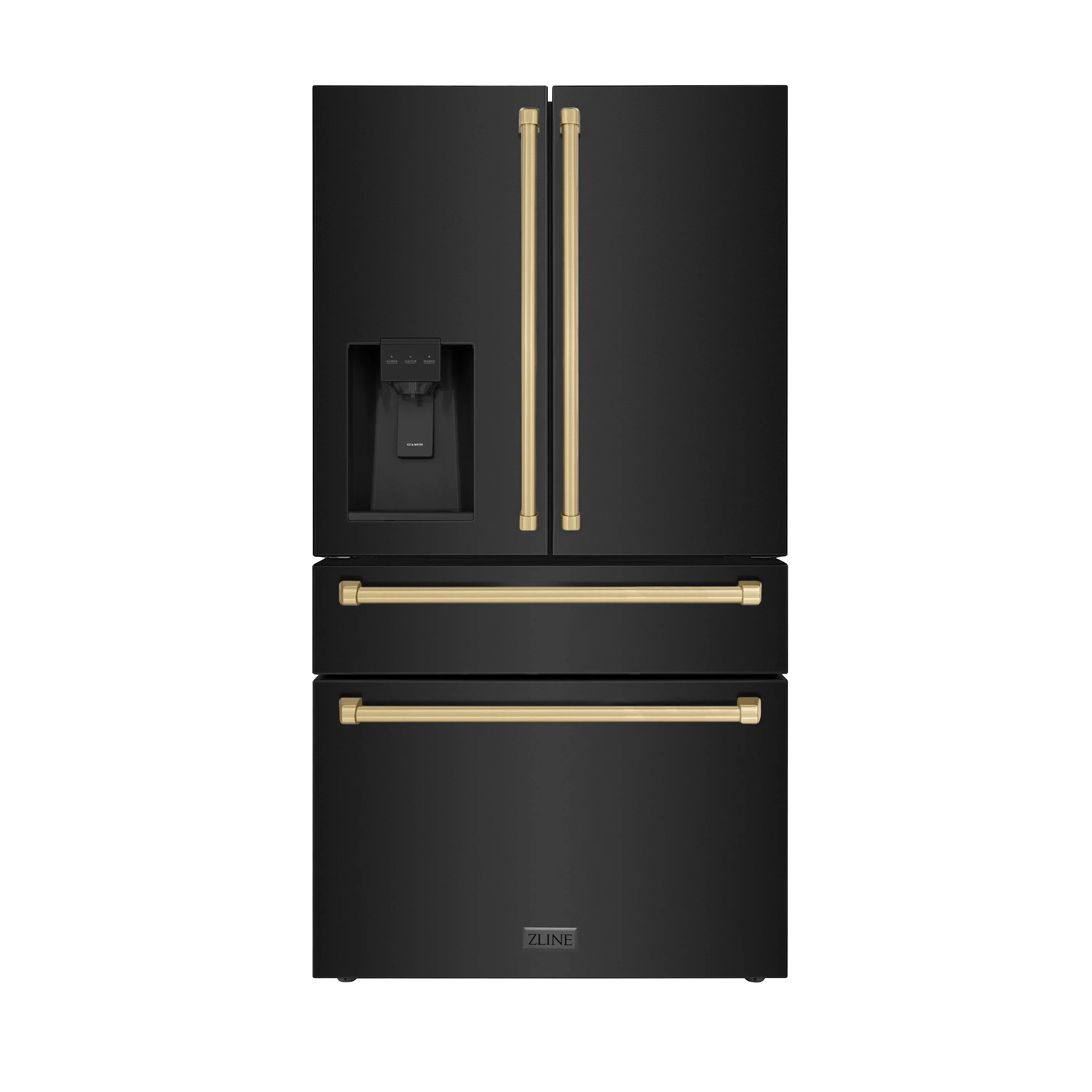

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 36 in. 21.6 cu. ft Counter-Depth French Door Refrigerator with Water and Ice Dispenser in Fingerprint-Resistant Black Stainless Steel with Champagne Bronze Traditional Handles (RFMZ-W-36-BS-CB) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and an external water dispenser and ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
| DIMENSIONS | |
|---|---|

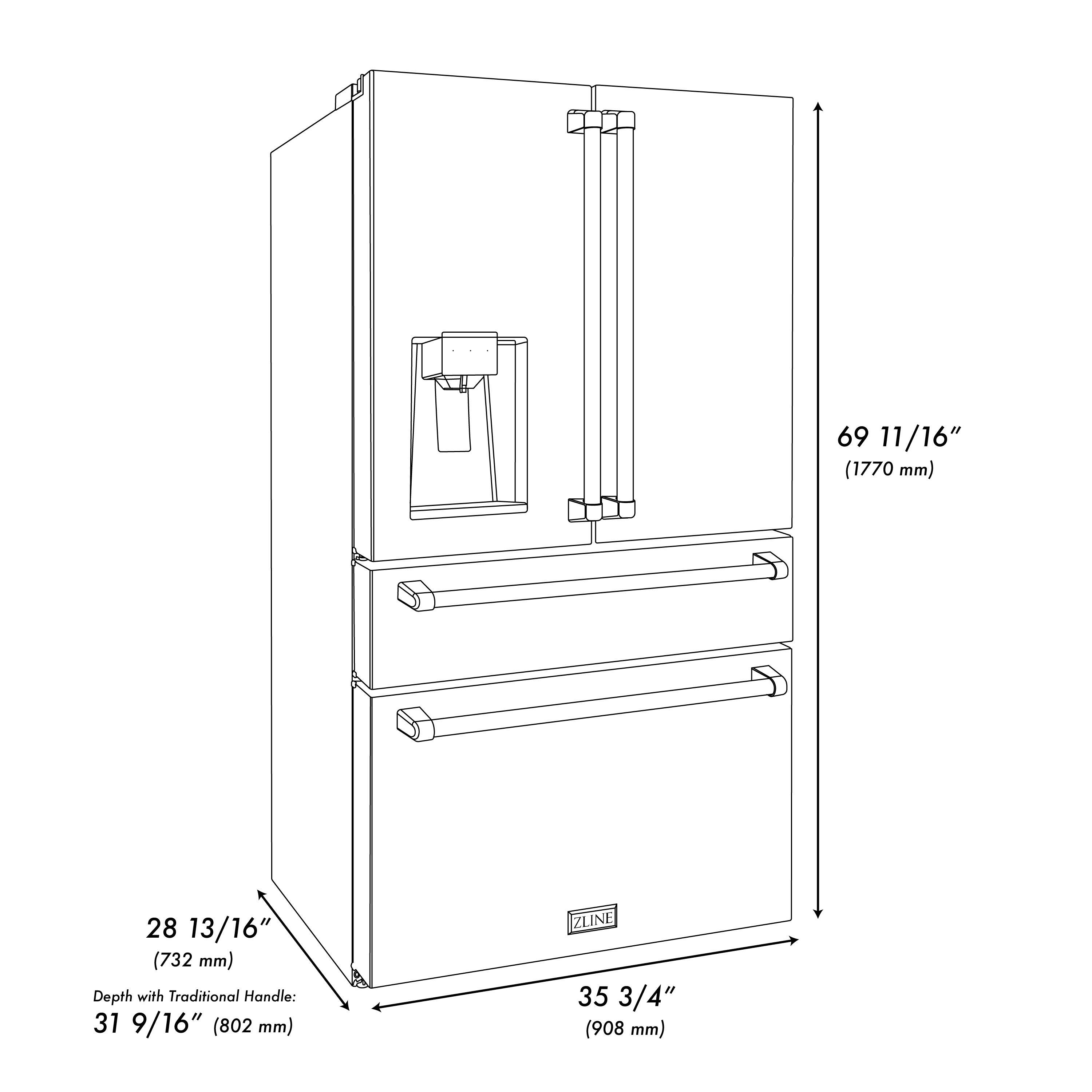

| Dimensions | 35.75 in. W x 29.13 in. D x 69.69 in. H |
| Total Capacity | 21.6 cu. ft |
| Installation Depth | 29 in. D |
| Depth with Door Open | 43 in. |
| Weight | 284.4 lbs |
| GENERAL INFORMATION | |
| Mount Type | Freestanding |
| DESIGN & FINISH | |
| Material | Black Stainless Steel with Champagne Bronze Accents |
| TECHNICAL DETAILS | |

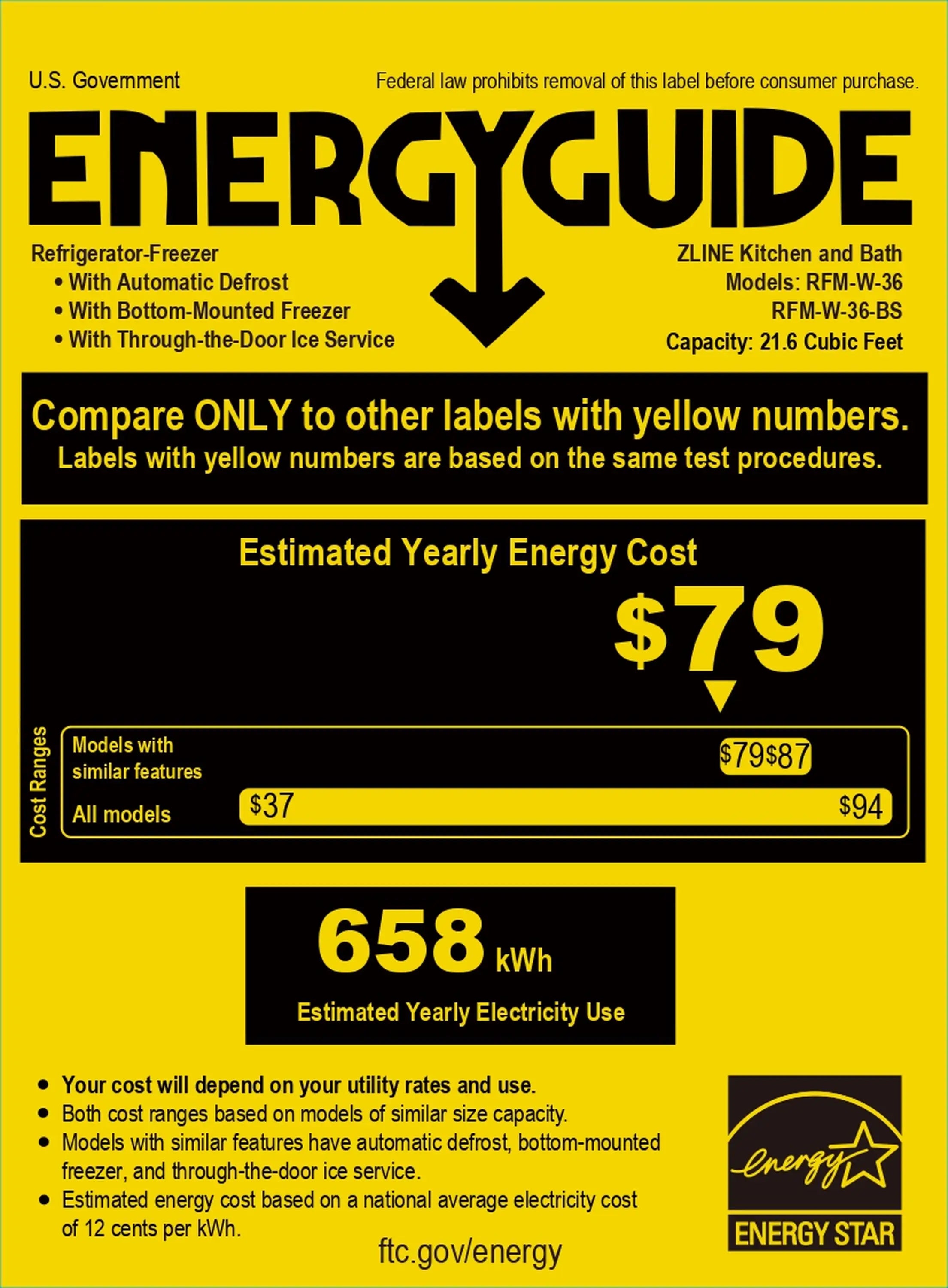

| Energy Consumption (kWh/year) | 658 |
| Voltage | 120V/60Hz |
| Amps | 3 |
| Noise Level | 43 Decibels |

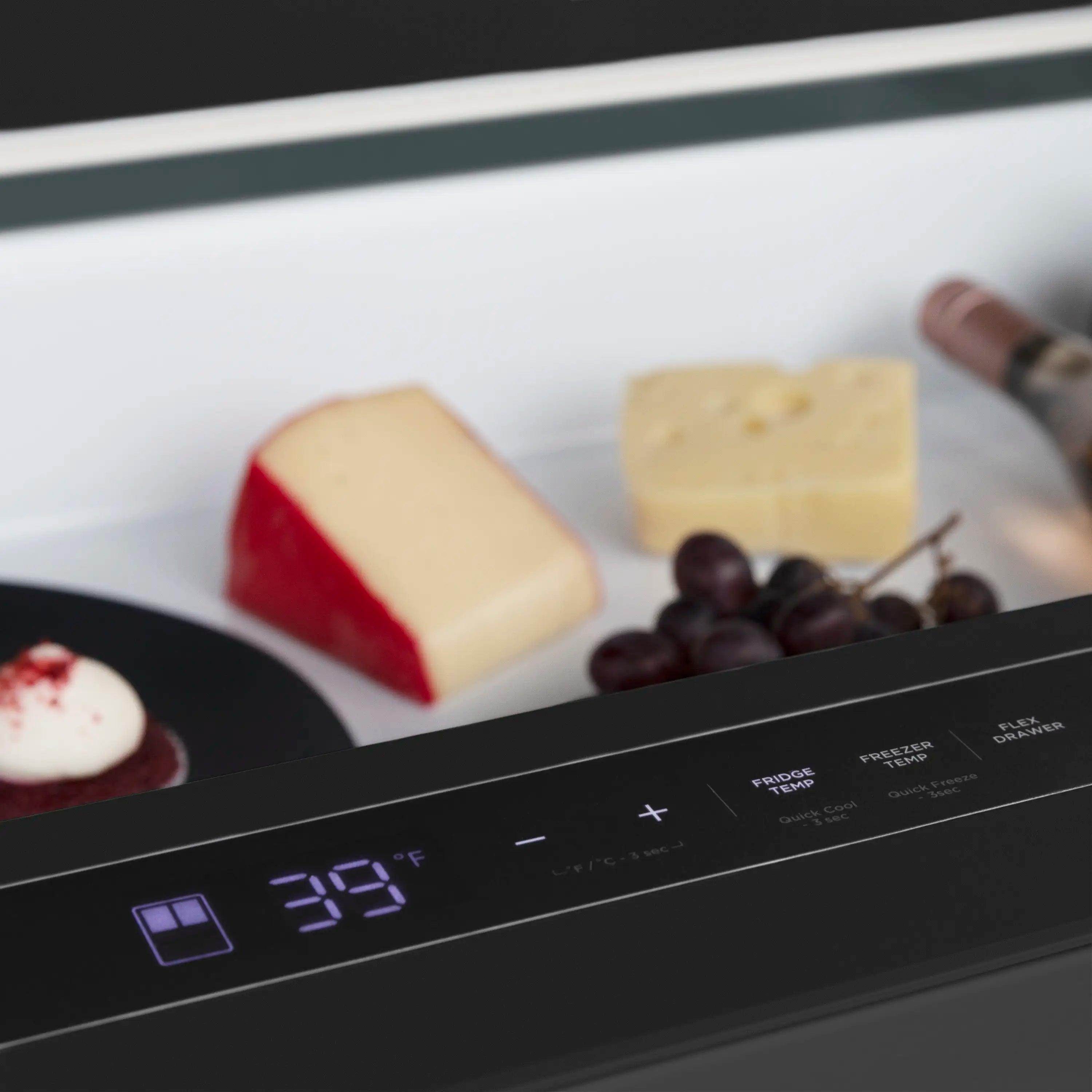

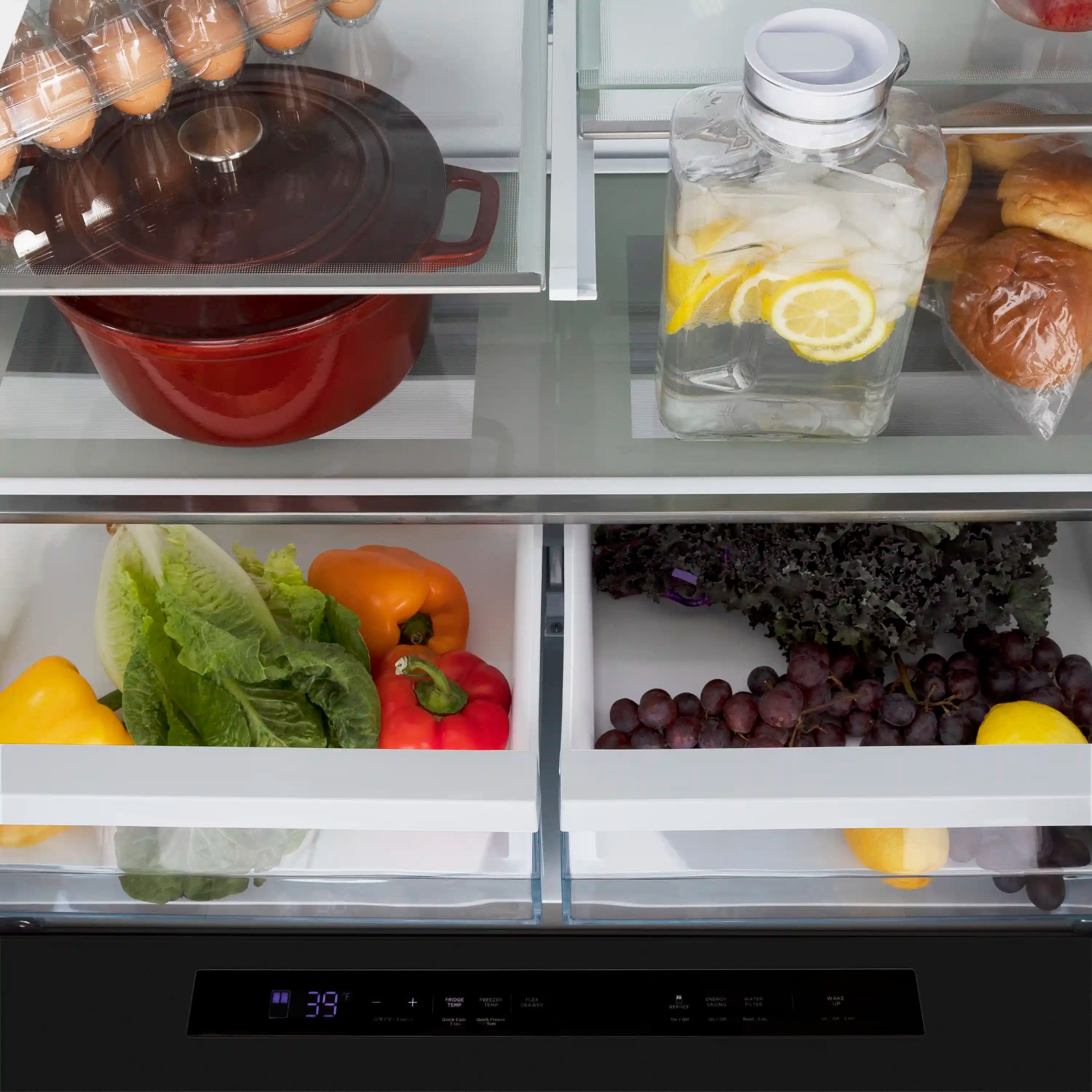

| REFRIGERATOR FEATURES | |
| Fridge Capacity | 15 cu. ft |
| Flex Drawer Capacity | 2.6 |
| Flex Drawer Temp Controls | Meat (30 degrees), Beverage (34 degrees), Deli (37 degrees), and Wine (41 degrees) |
| Ice Maker | Yes |
| Ice Maker Types | Single Ice Maker |
| Ice Amount Per Day | 4.85 lbs |
| Ice Tray Storage | N/A |

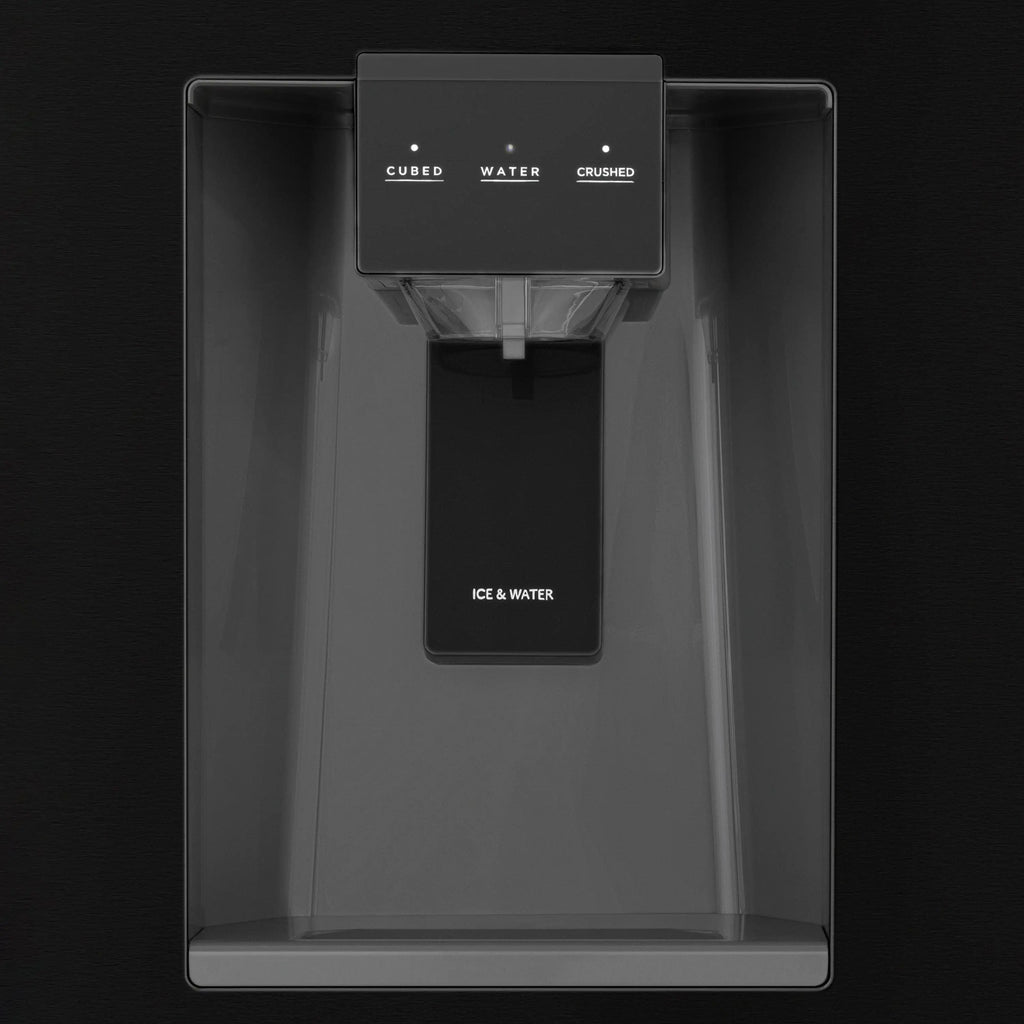

| Water Dispenser | Yes |
| Flow rate for Water Dispenser | .5 GPM |
| Fridge Lights | 4 |
| Humidity-Controlled Crispers | 2 |
| Door Shelves | 4 |
| Number of Fridge Shelves | 4 |
| FREEZER FEATURES | |
| Freezer Capacity | 6.6 cu. ft |
| Freezer Drawer Bins | 2- Pull Out Drawers |
| WARRANTY & CERTIFICATIONS | |
| Energy Star | Yes |
| Certifications | UL Listed, ENERGY STAR Certified |
| Warranty | 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System |

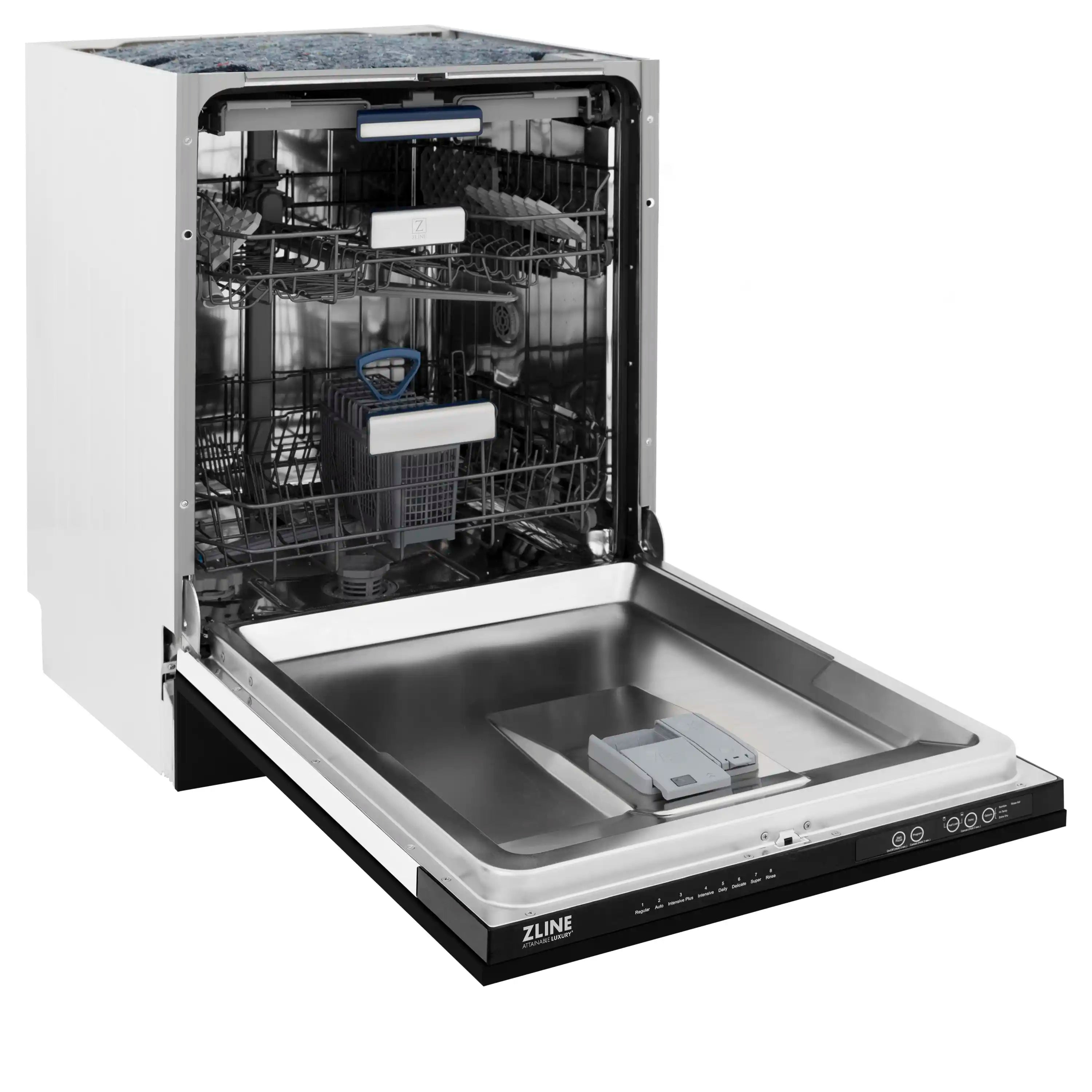

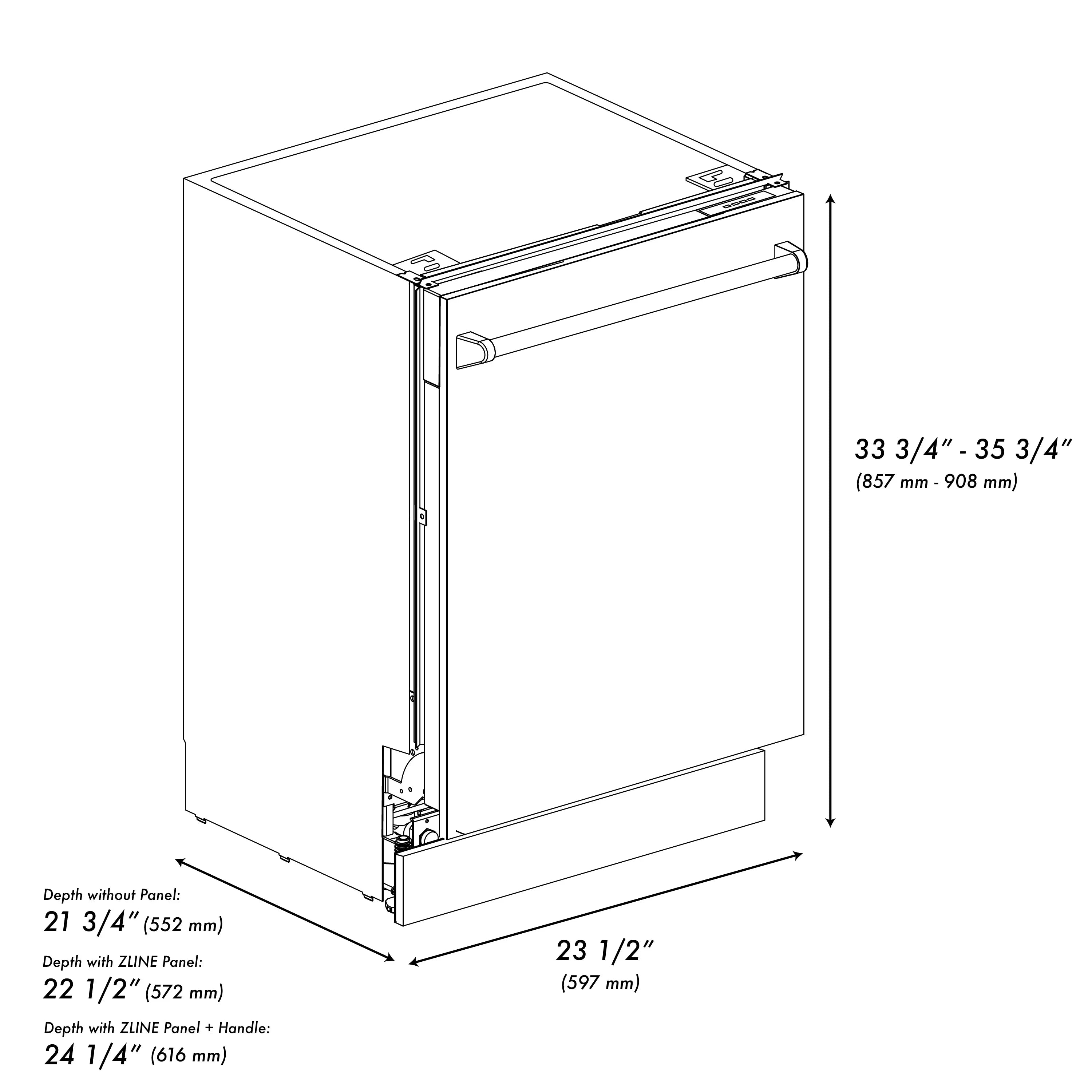

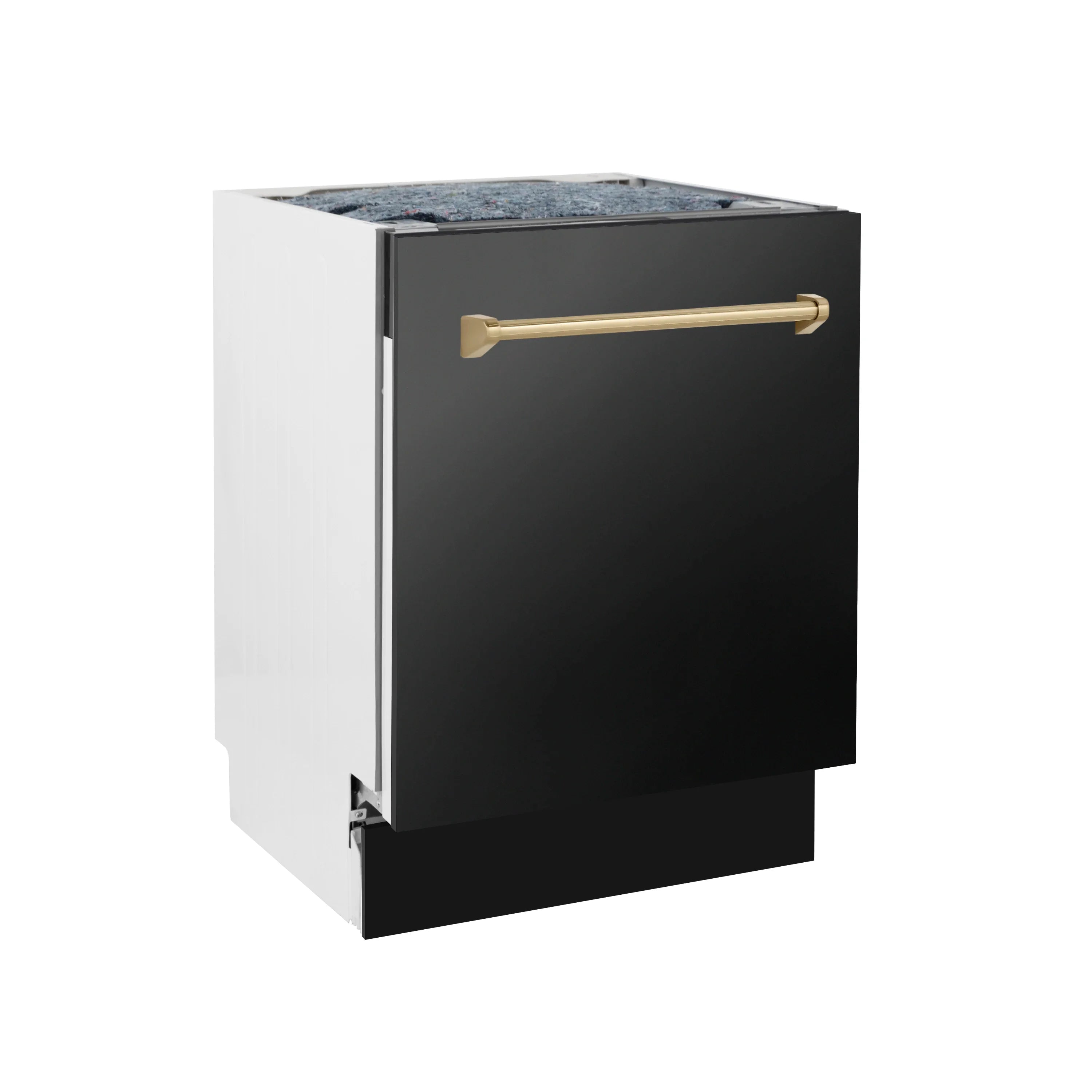

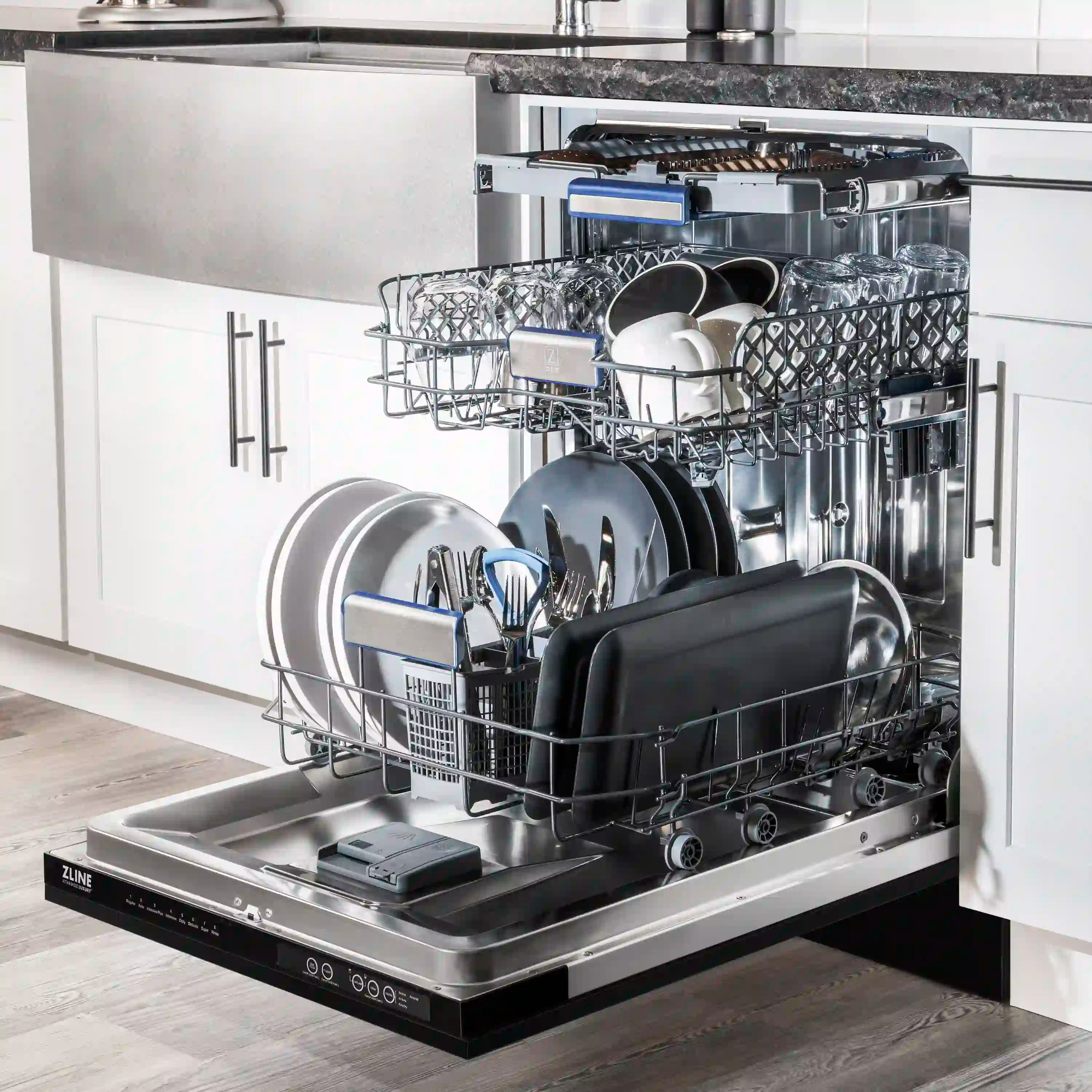

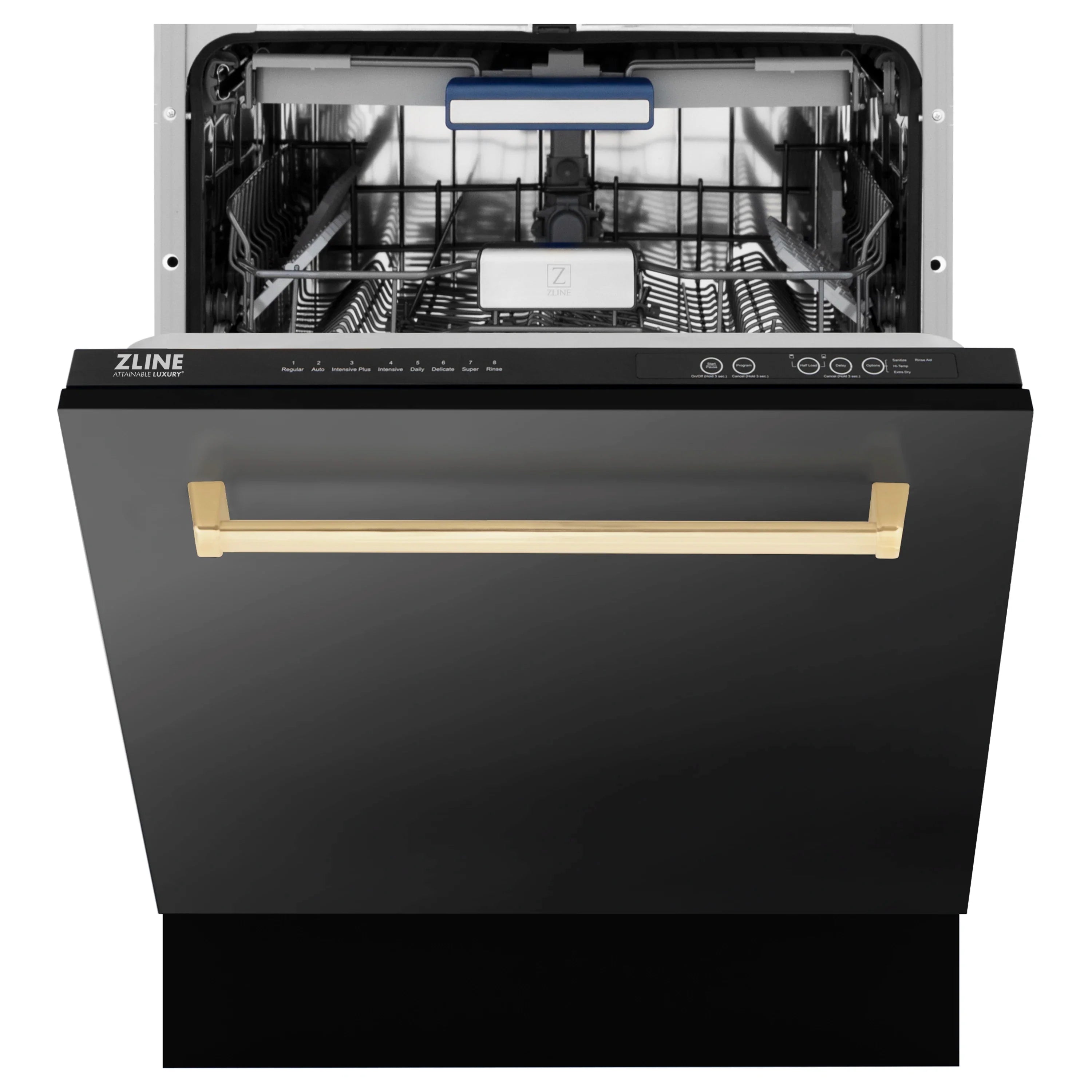

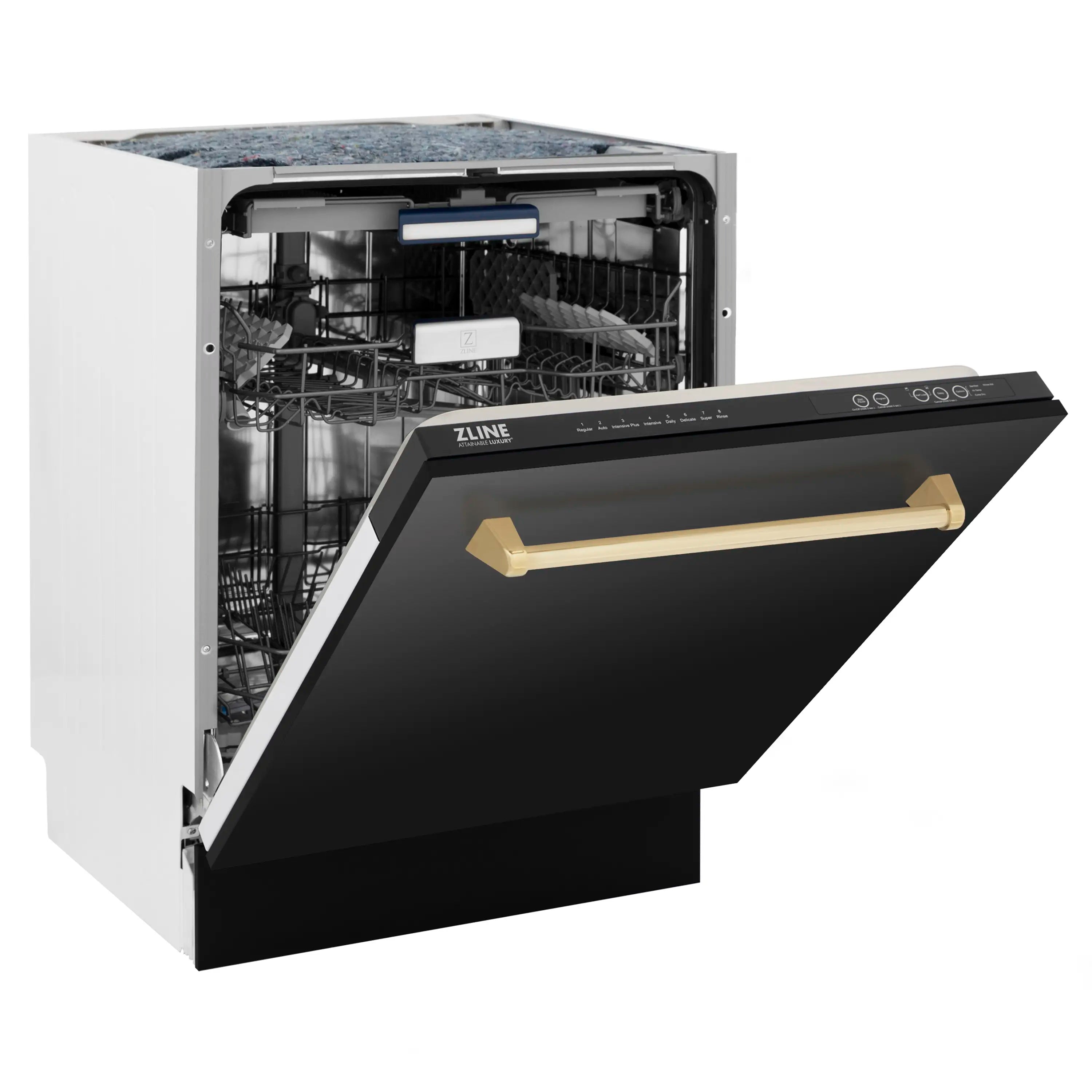

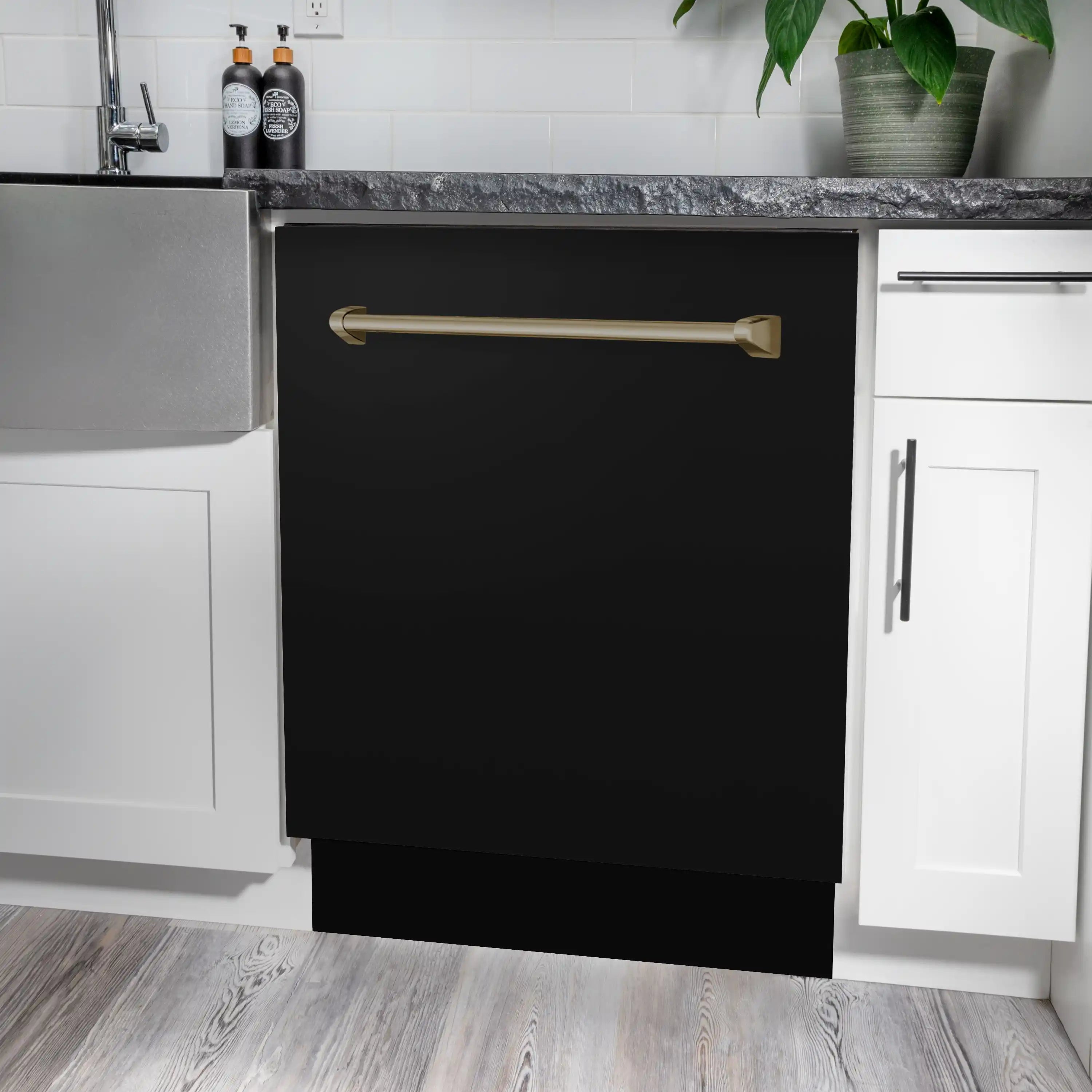

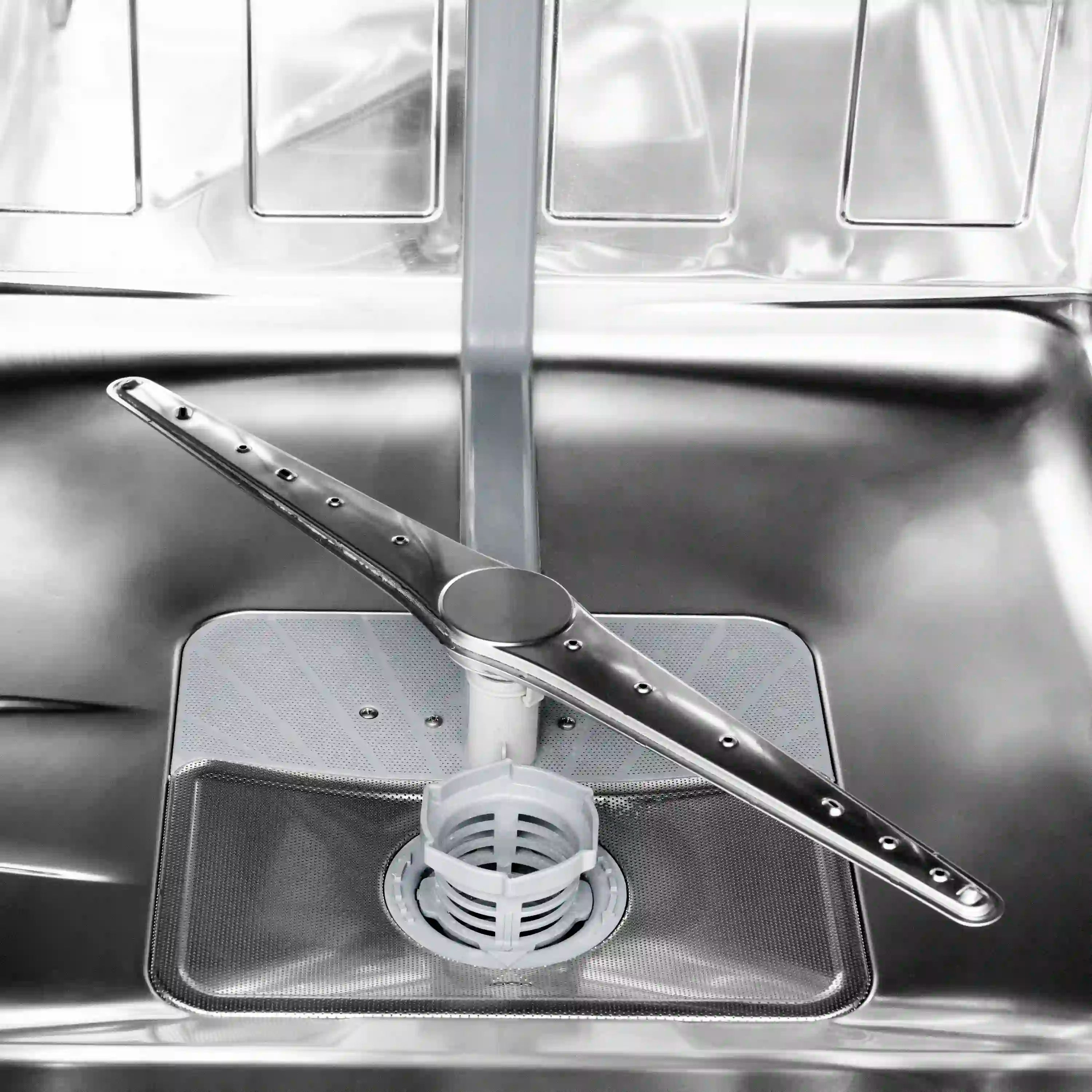

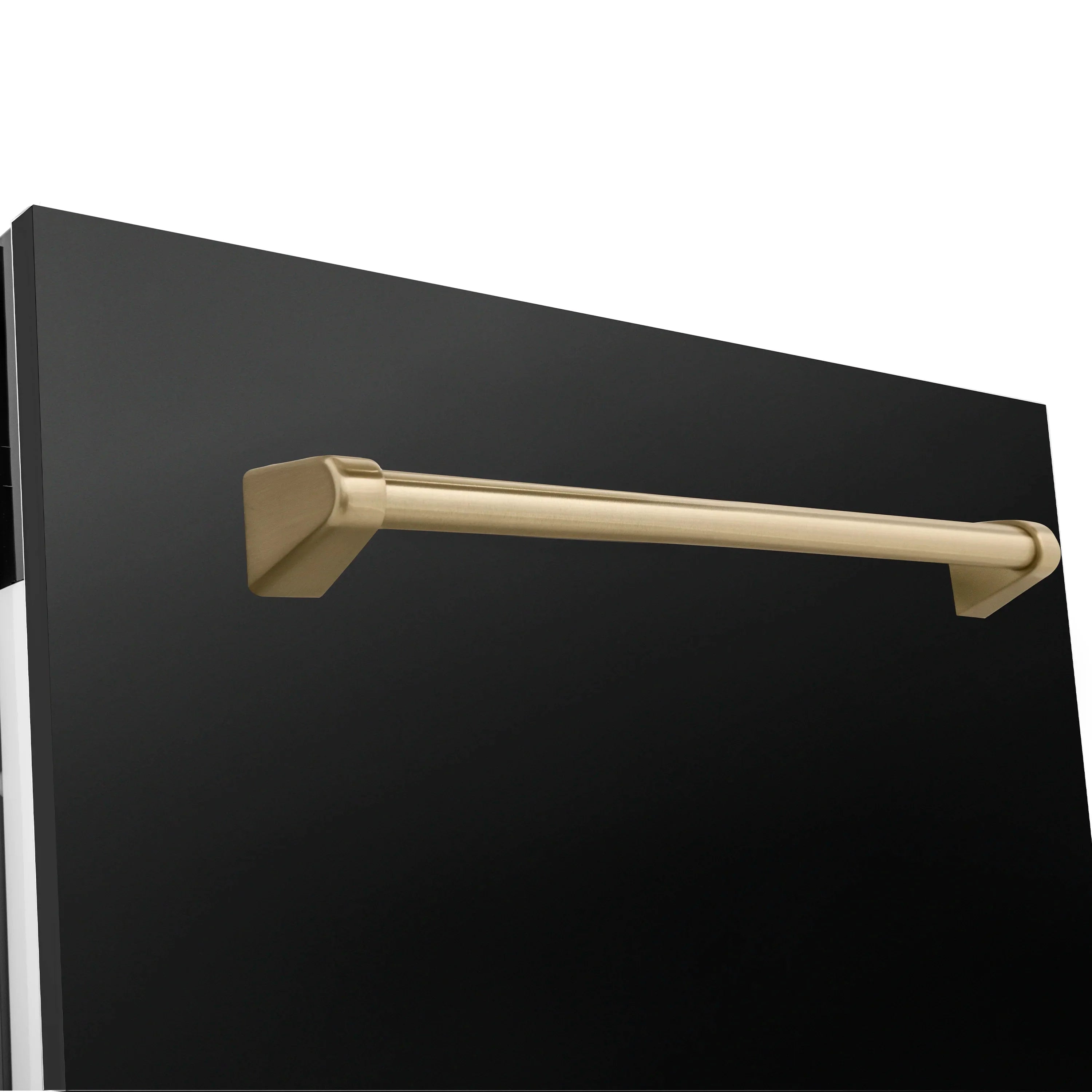

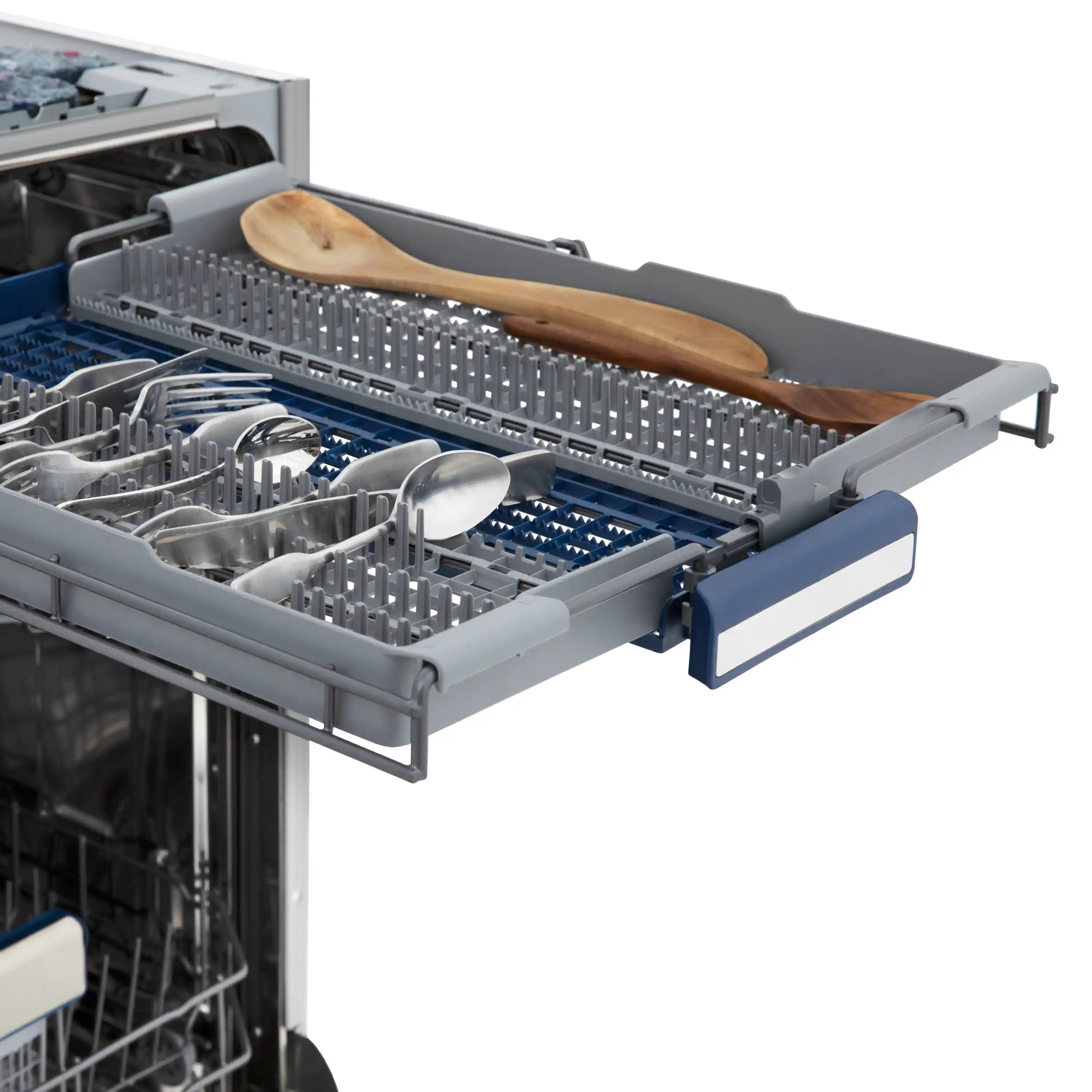

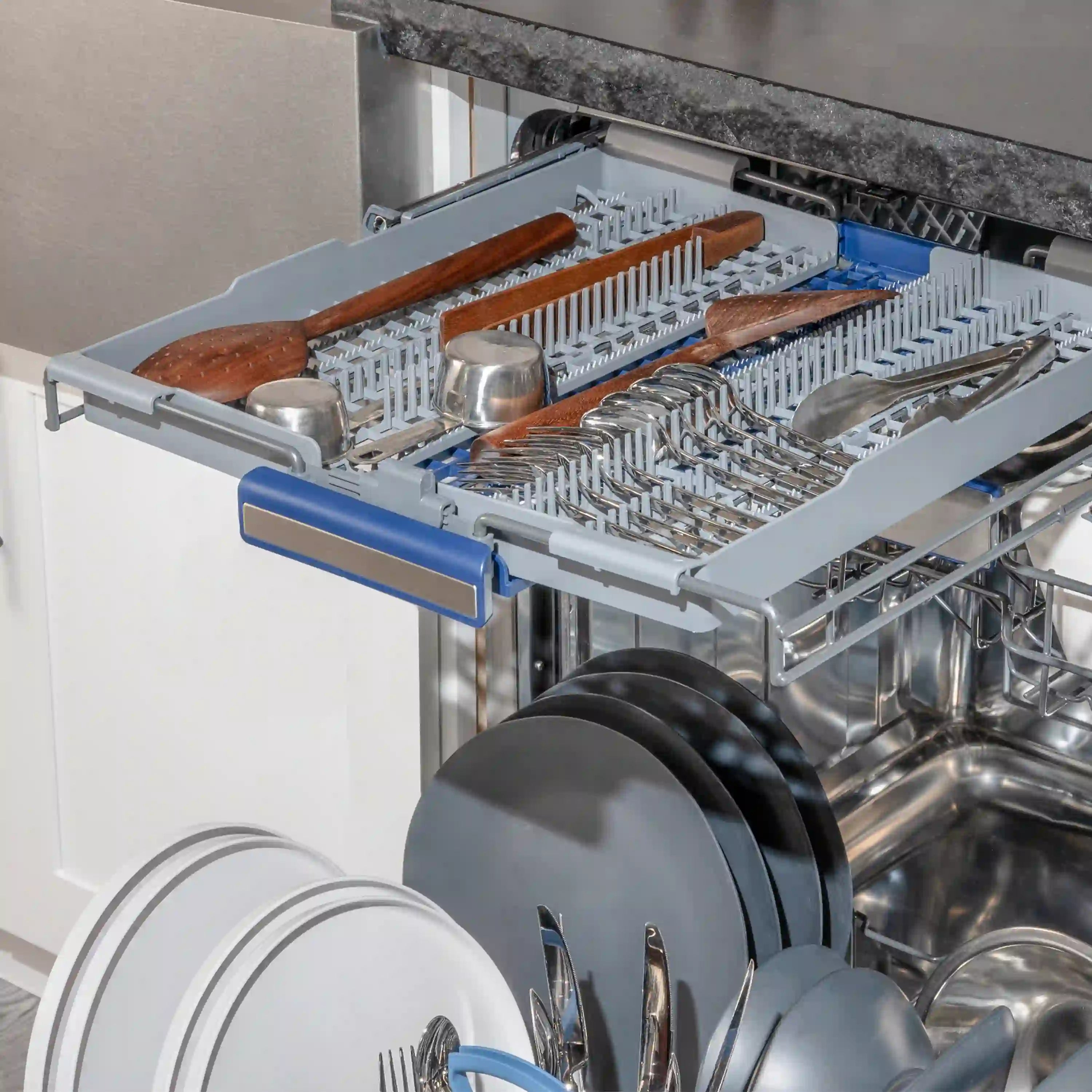

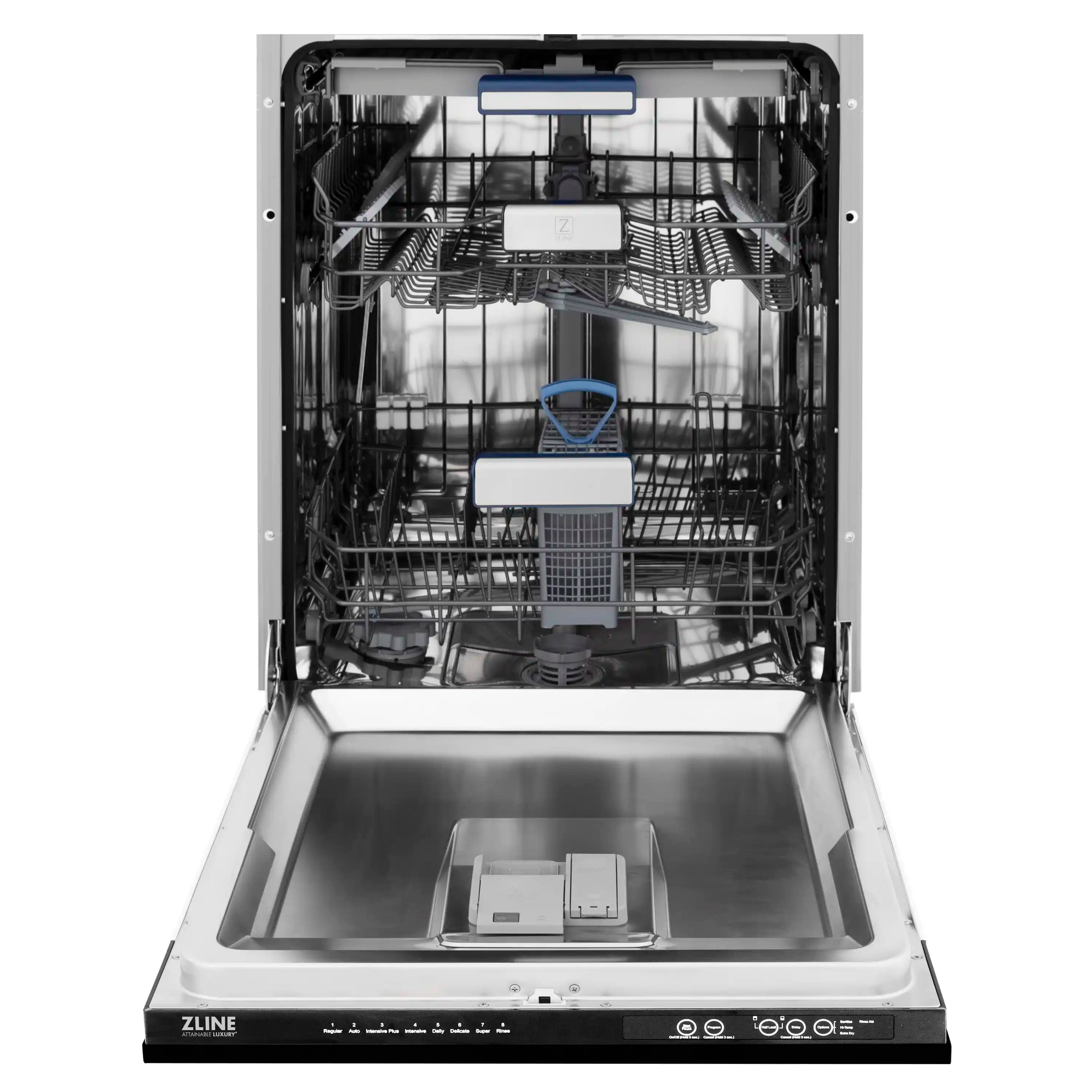

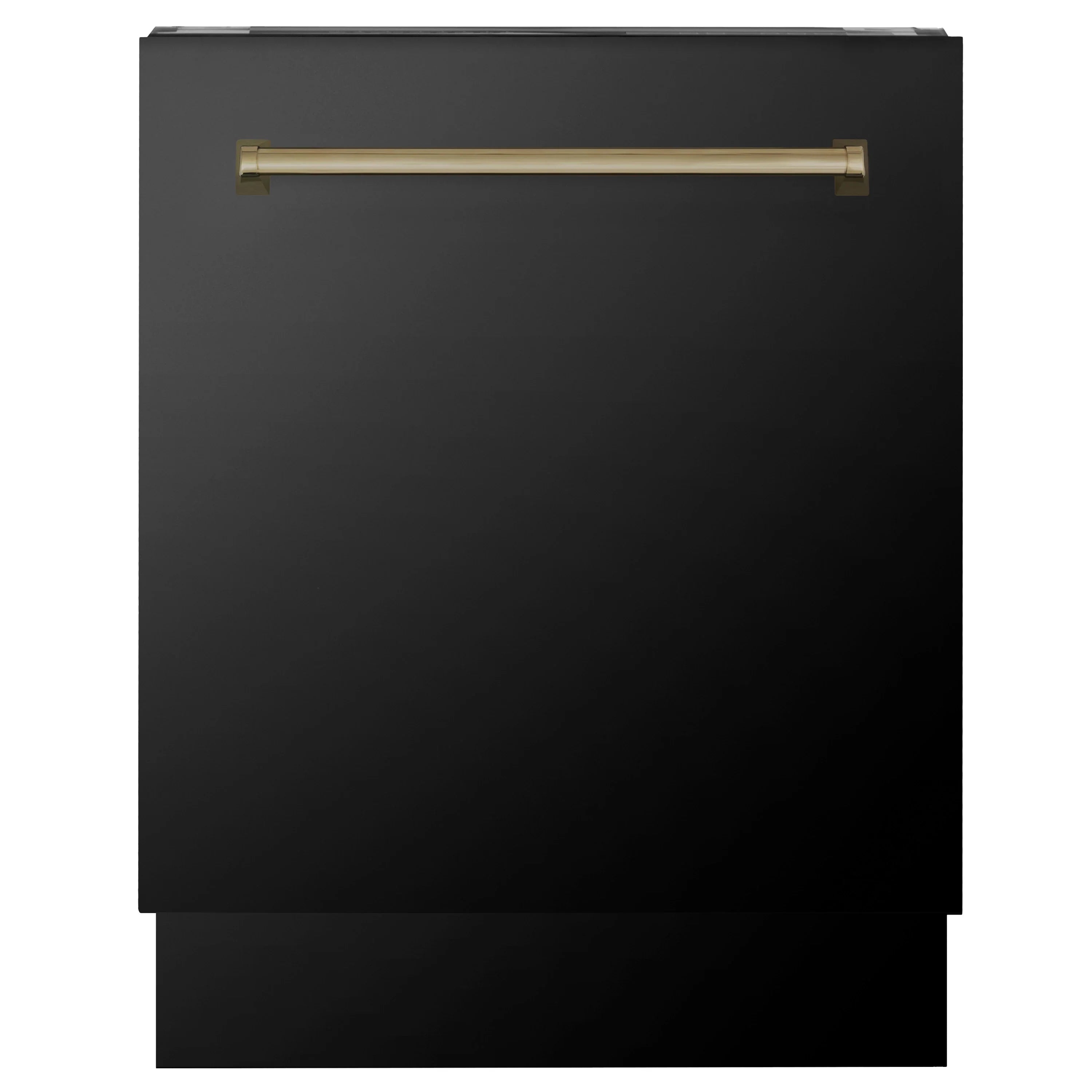

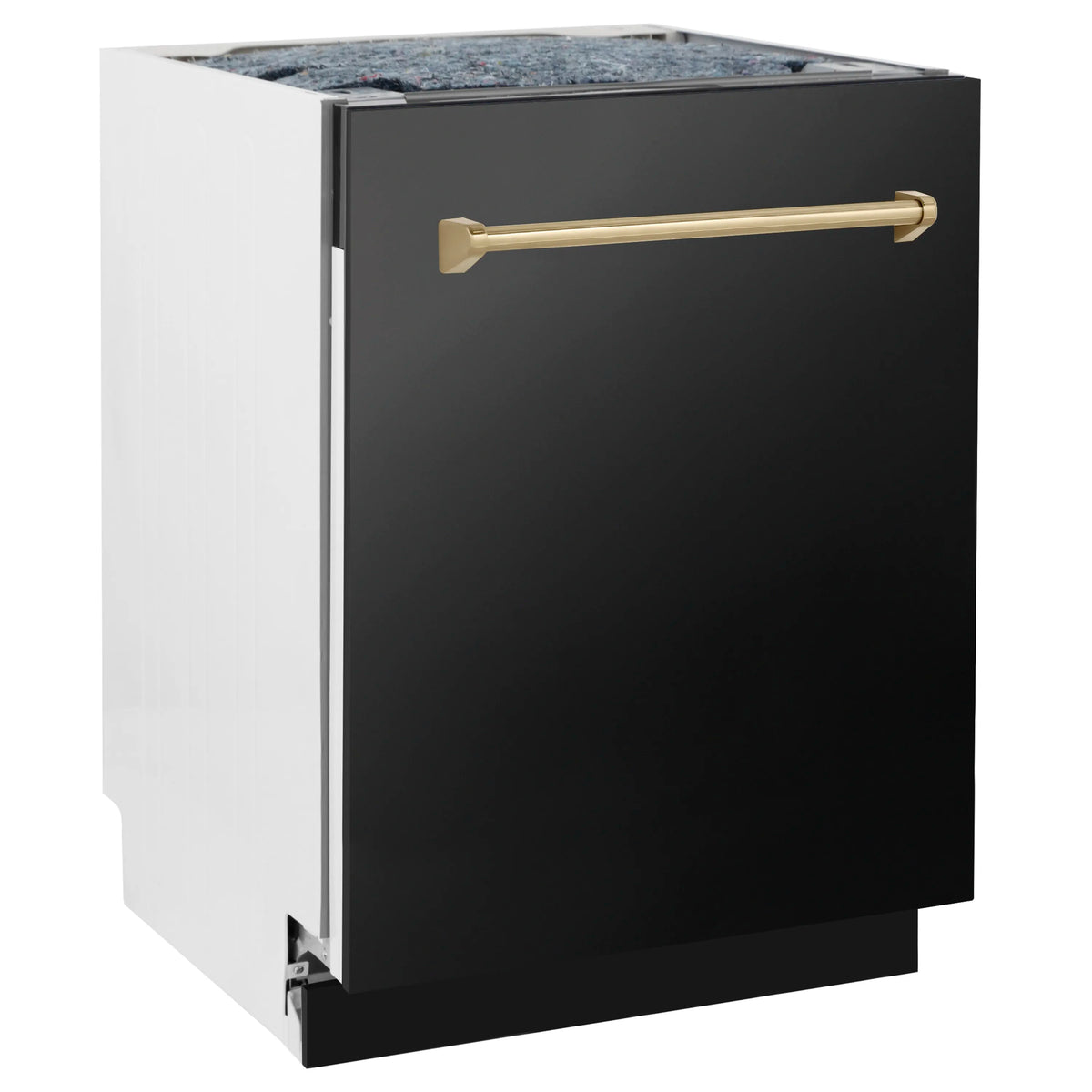

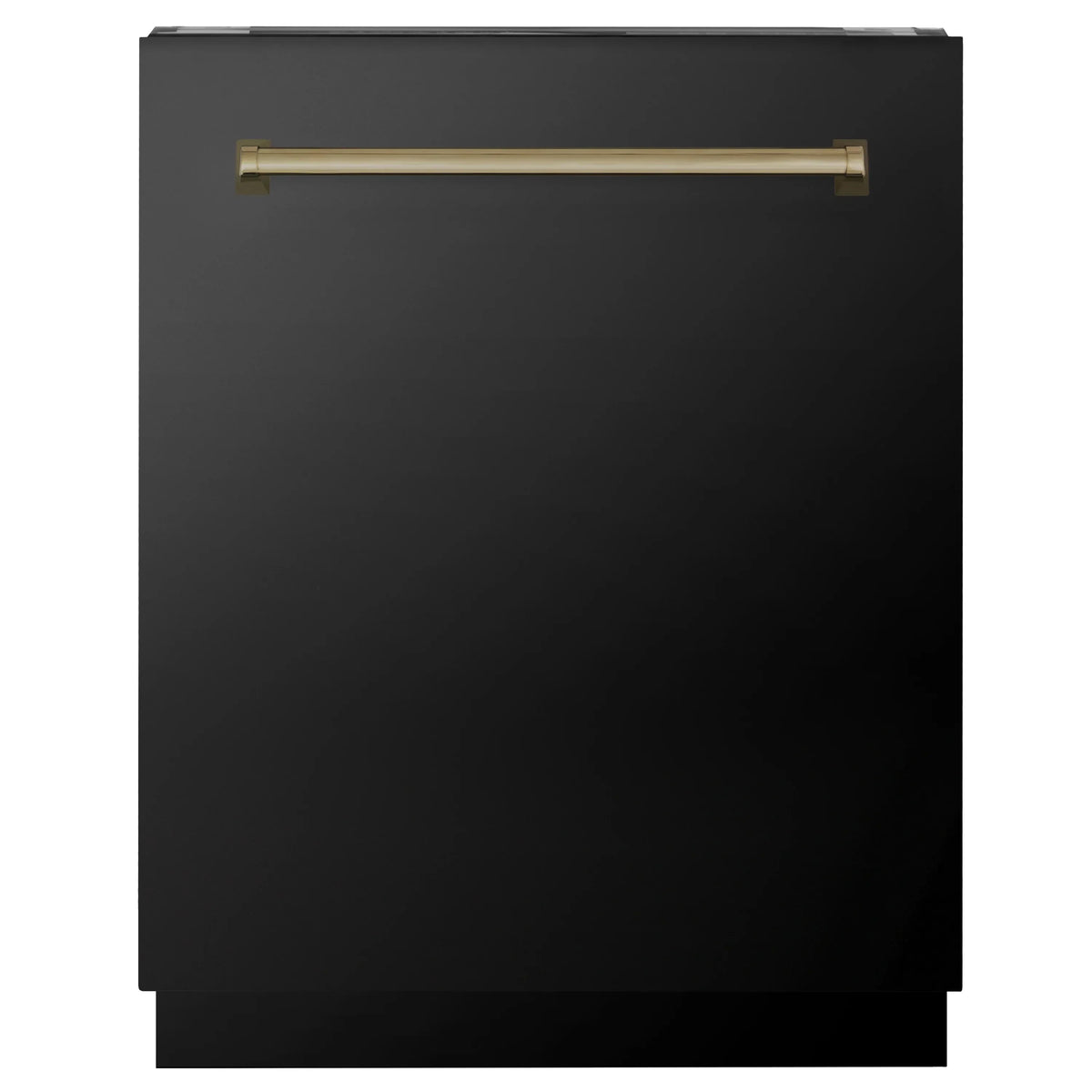

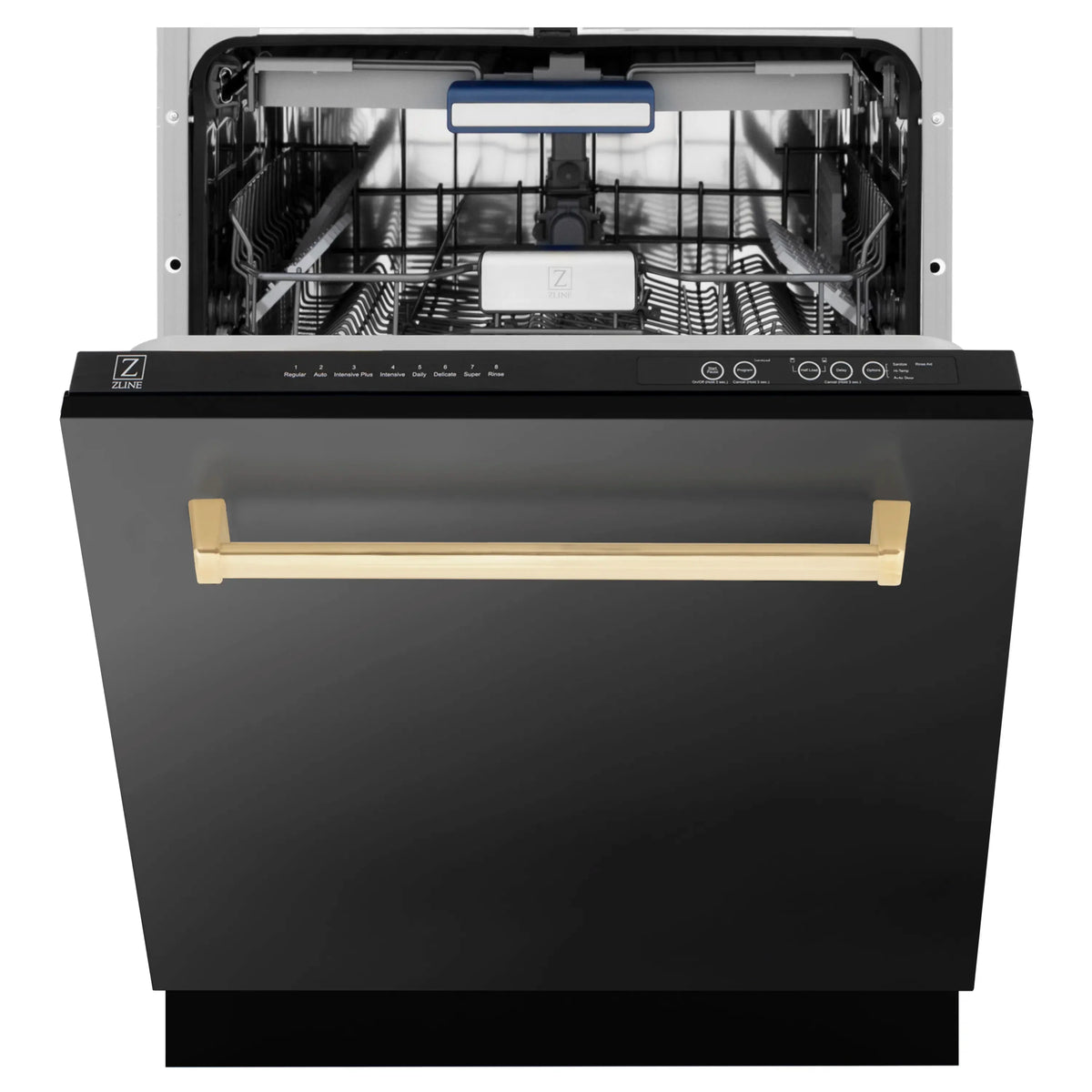

The ZLINE Autograph Edition 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Black Stainless Steel Panel with Champagne Bronze Handle (DWVZ-BS-24-CB) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.
| DIMENSIONS | |
|---|---|
| Size | 24 in. |

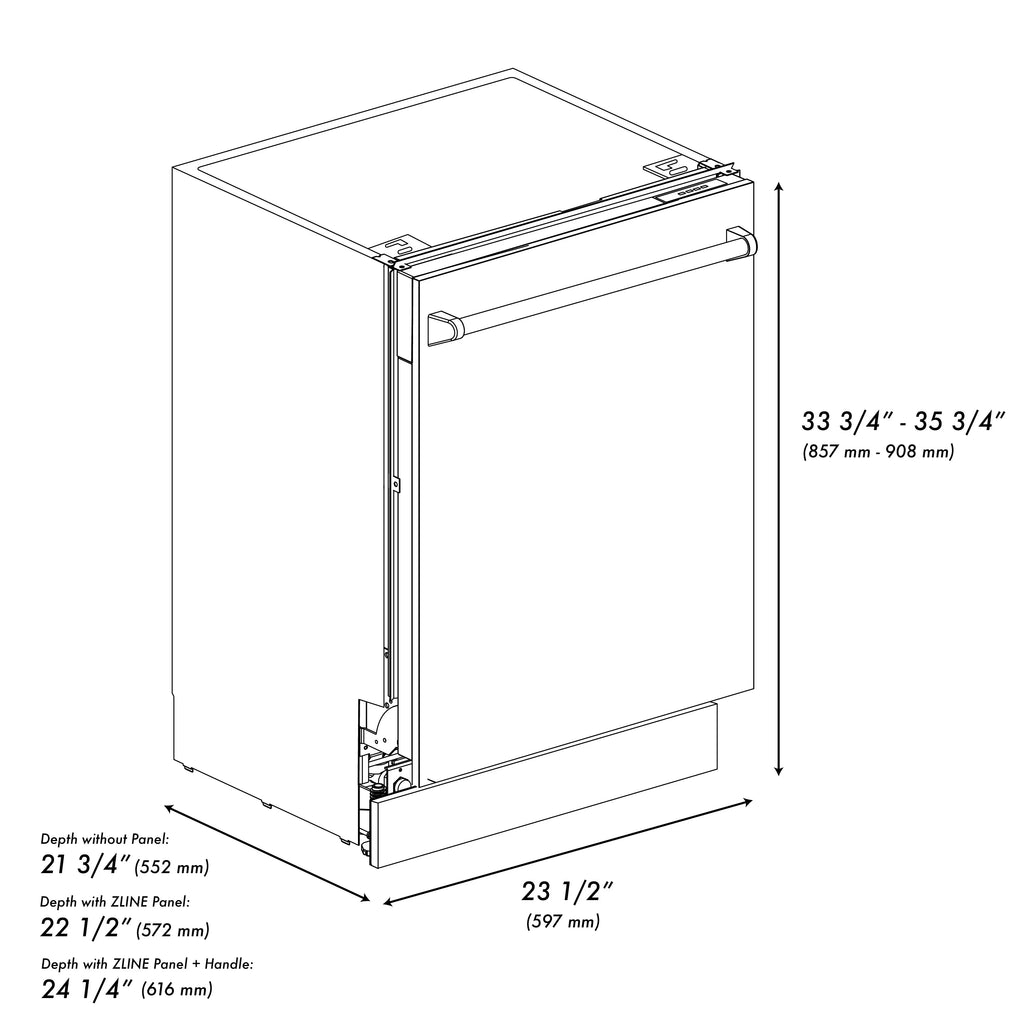

| Dimensions | 23.6" W x 22.4" D x 33.9" H |
| Product Weight | 106.8 lbs |
| Cut-Out Height | 34.13 in. |
| Cut-Out Width | 24 in. |
| Interior Dimensions | 20.95" W x 20.5" D x 24.17"H |
| Max Plate Height | 13 in. |
| GENERAL INFORMATION | |
| Installation Type | Plug In - Nema 5-15 |
| Panel Ready | N |
| DESIGN & FINISH | |
| Panel Finish | Black Stainless Steel |
| Handle Finish | Champagne Bronze |
| Handle Type | Traditional Style |
| Control Location | Top Control |
| Control Type | Button Control |

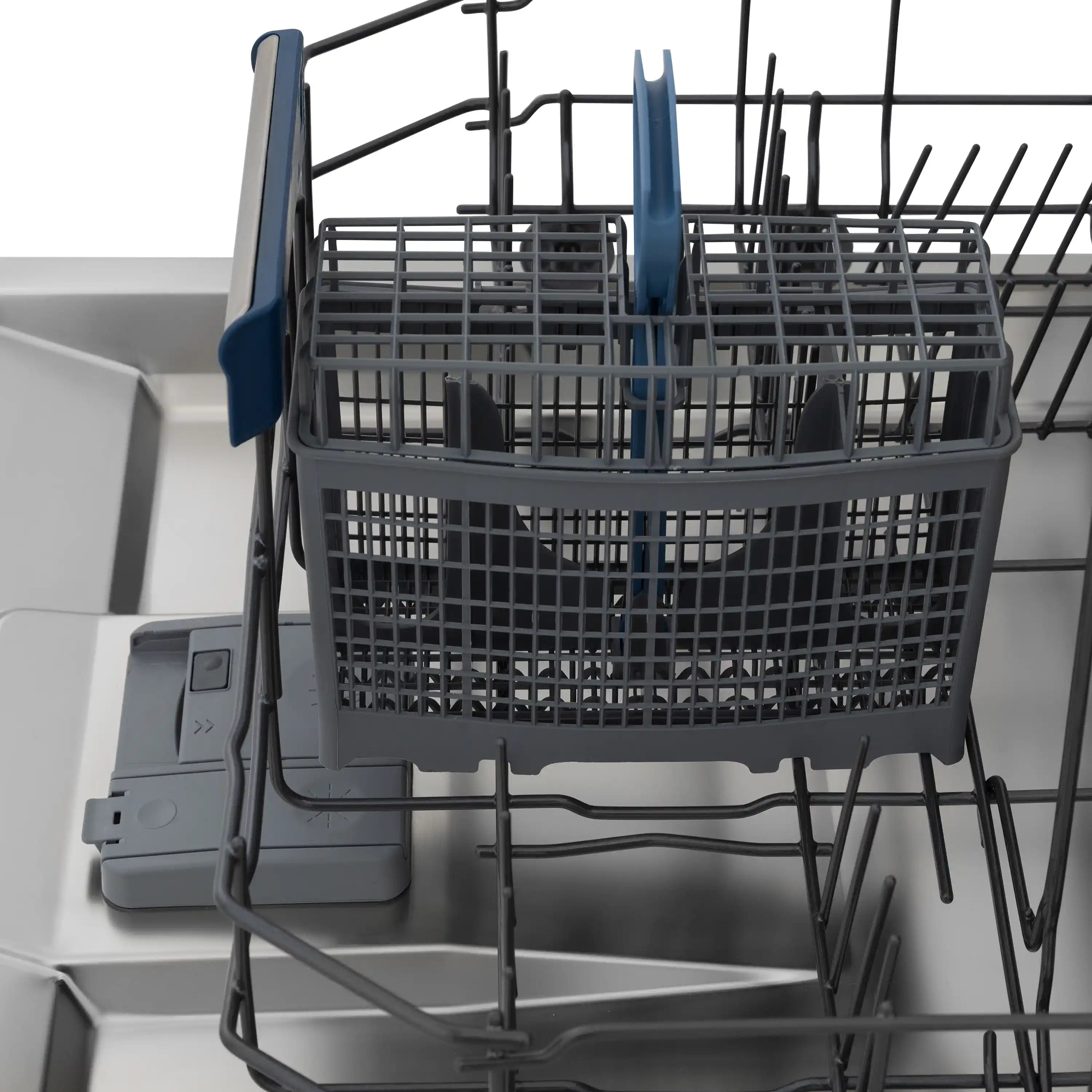

| Silverware Basket Location | Bottom Rack Center |
| TECHNICAL DETAILS | |
| Voltage | 120vac |
| Frequency | 60Hz |
| Dedicated Circuit | 15A |
| Rated Current | 12A |
| Motor Wattage | 100W |
| Heater Wattage | 1100W |
| Motor Amperage | 0.84A |
| Heater Amperage | 10A |

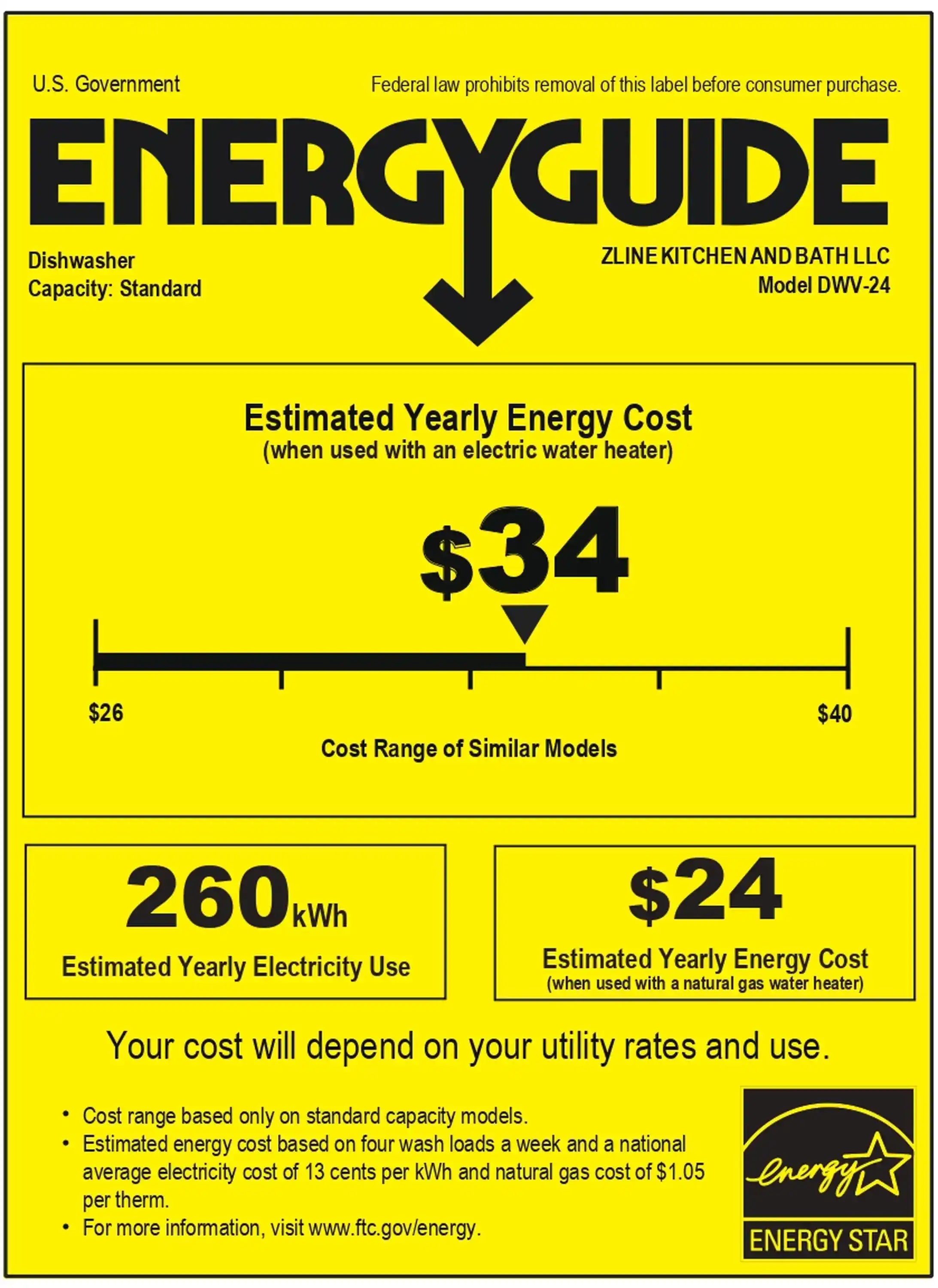

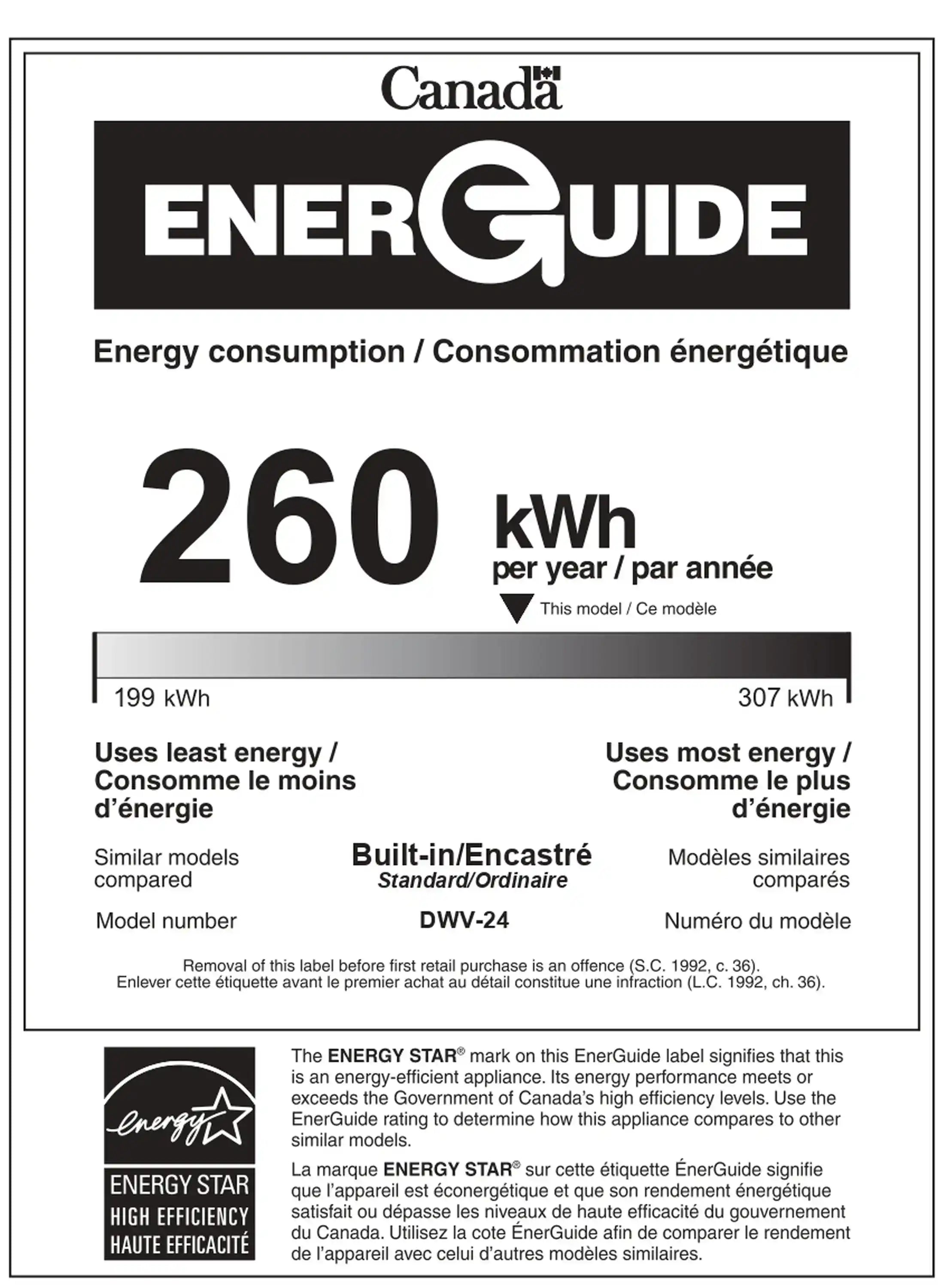

| Energy Consumption Per Year | 239 kWh |
| Water Consumption Per Cycle (Liters) | 11.73 L |
| Water Consumption Per Cycle (Gallons) | 3.1 gal |
| Decibels | 51 dBa |
| Extended Hose Length | 56 in. |
| FEATURES | |
| Drying System | Turbo Fan Drying + Auto Door |
| Steam Function | Without Steam |
| Features |
|
| WARRANTY & CERTIFICATIONS | |
| Certifications | Energy Star, CEC, UL |

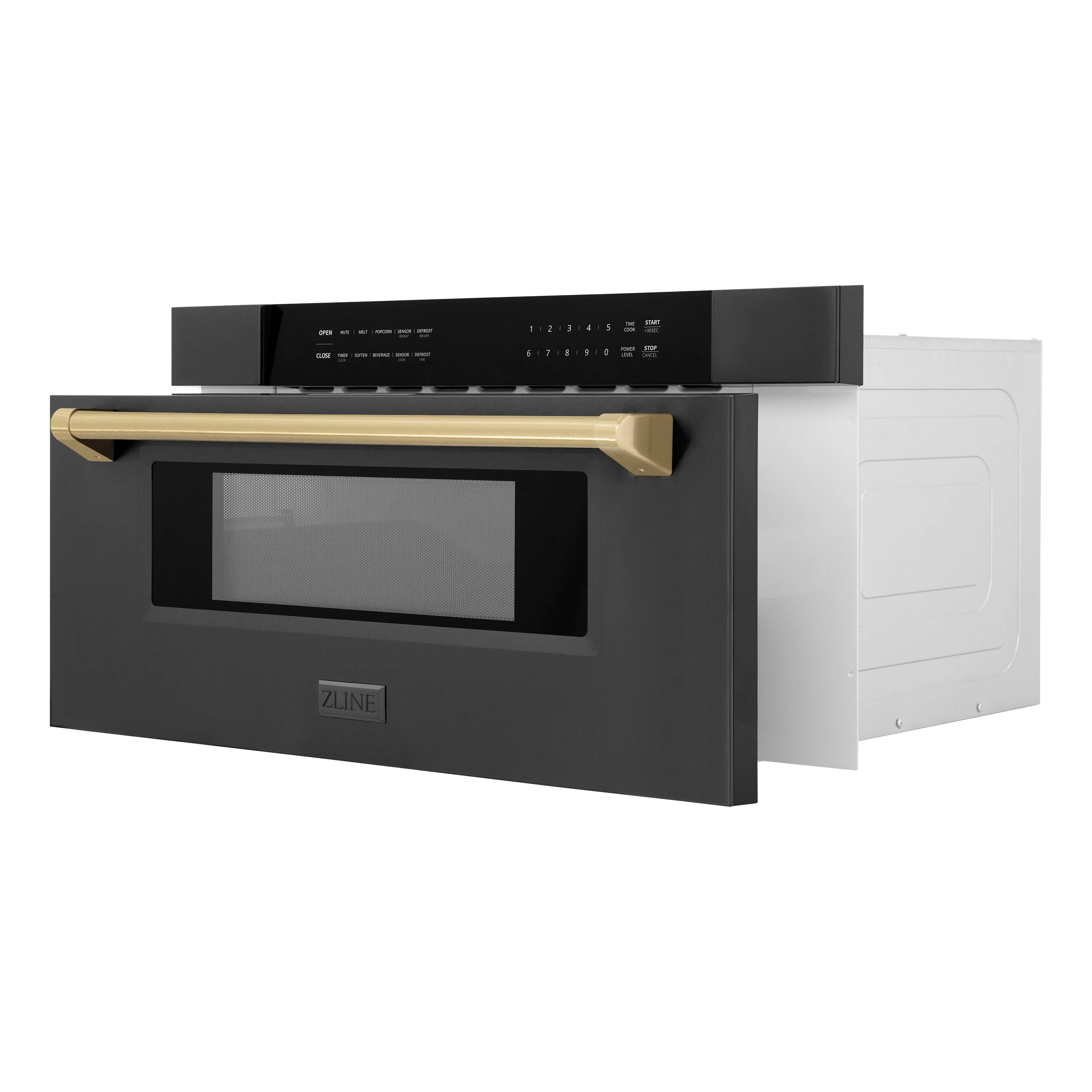

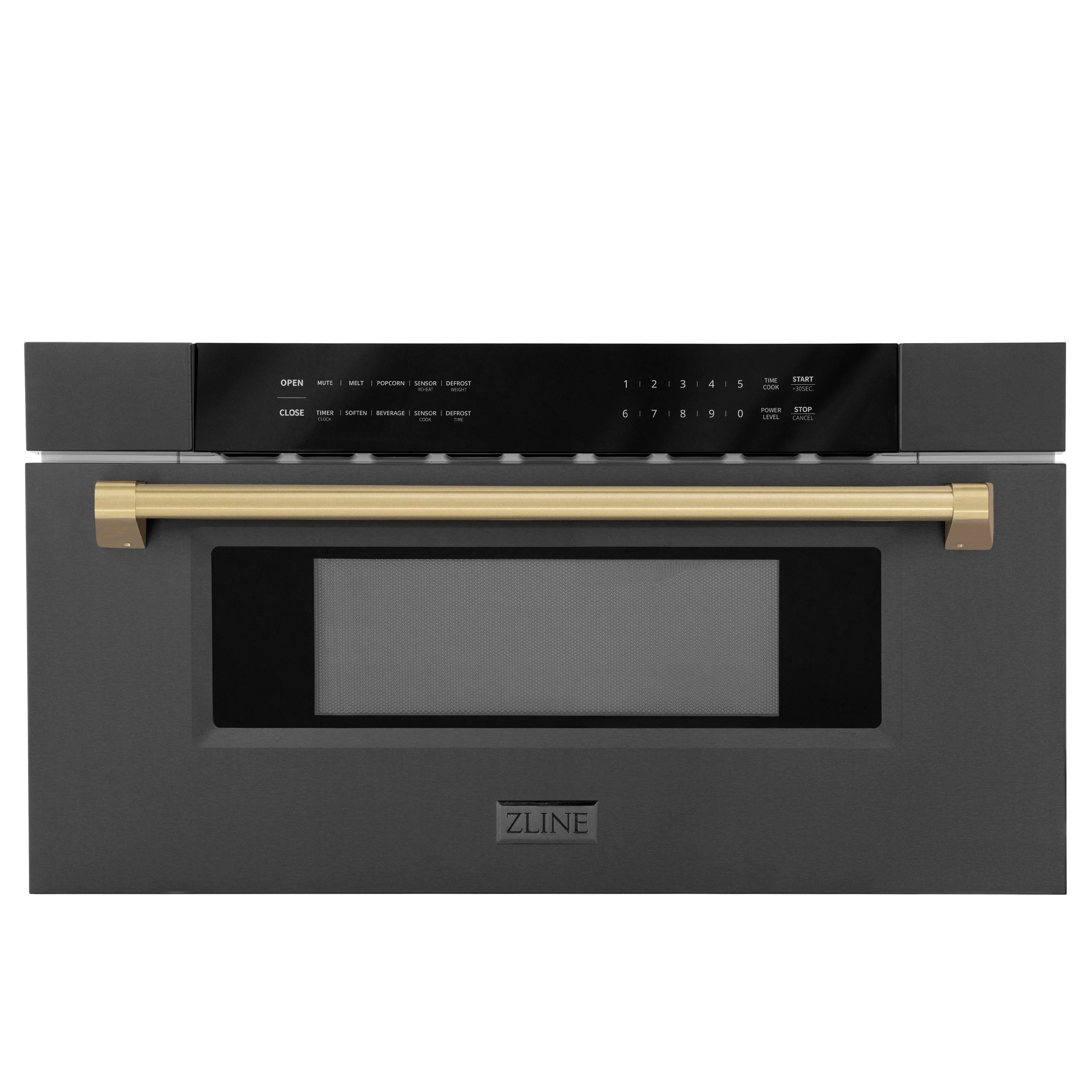

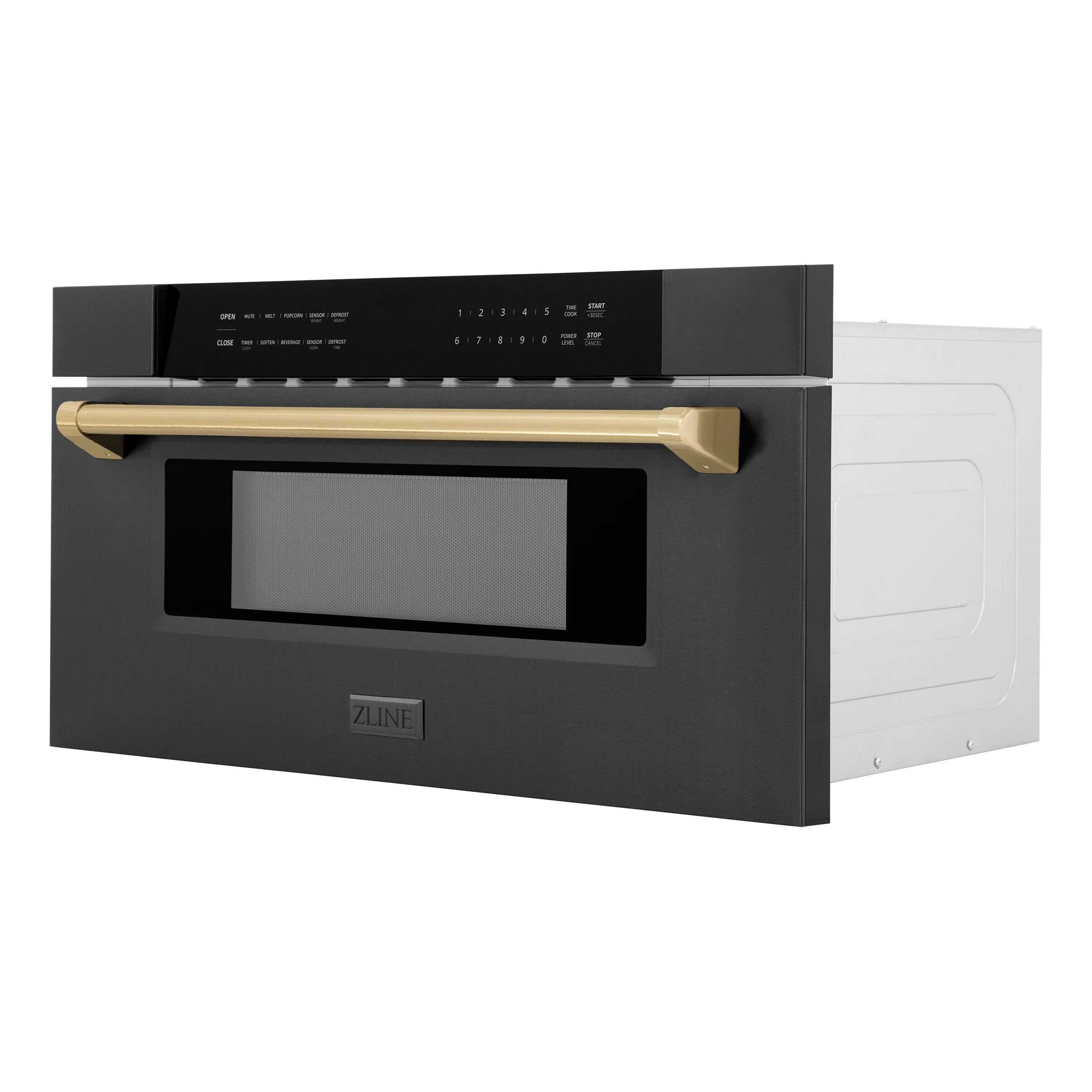

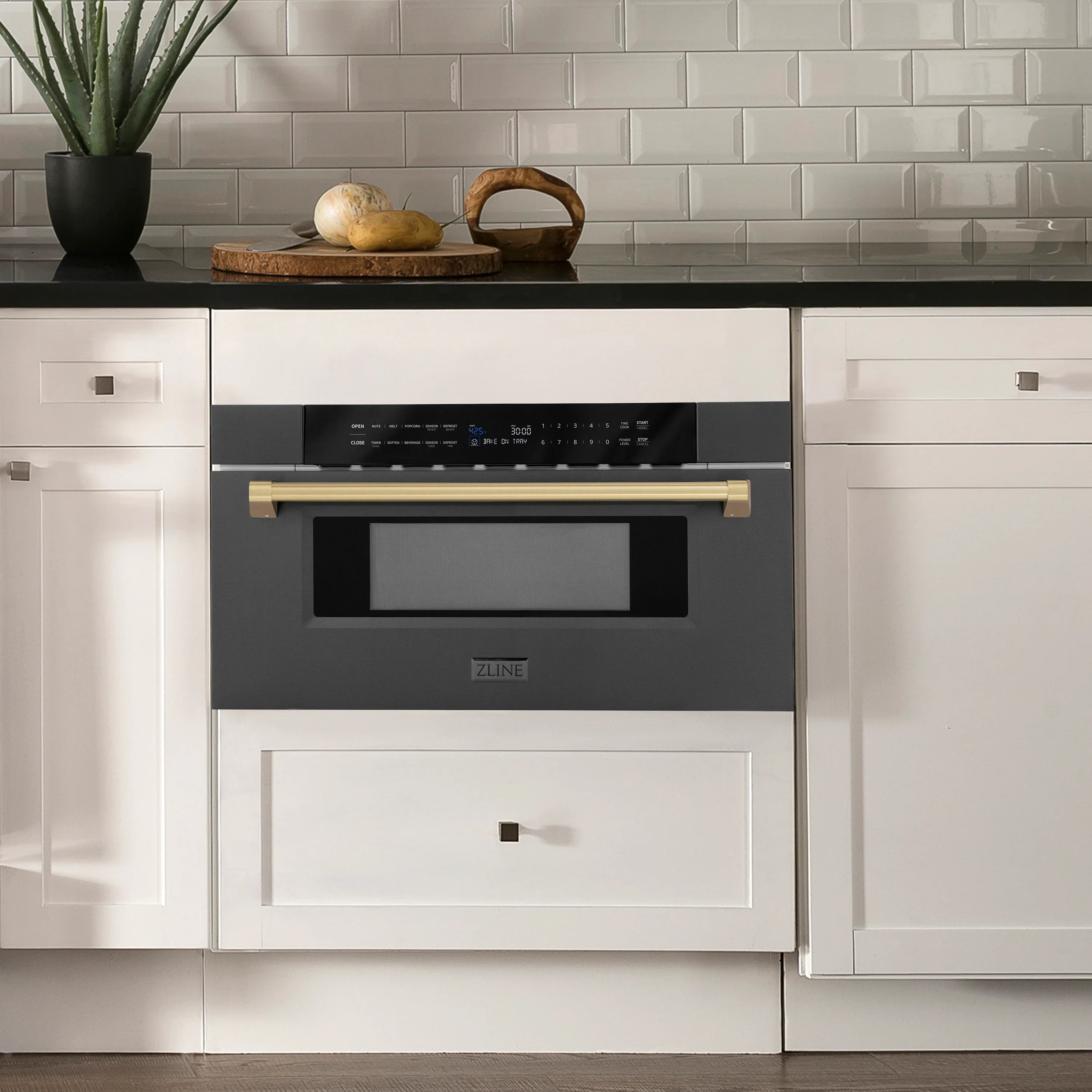

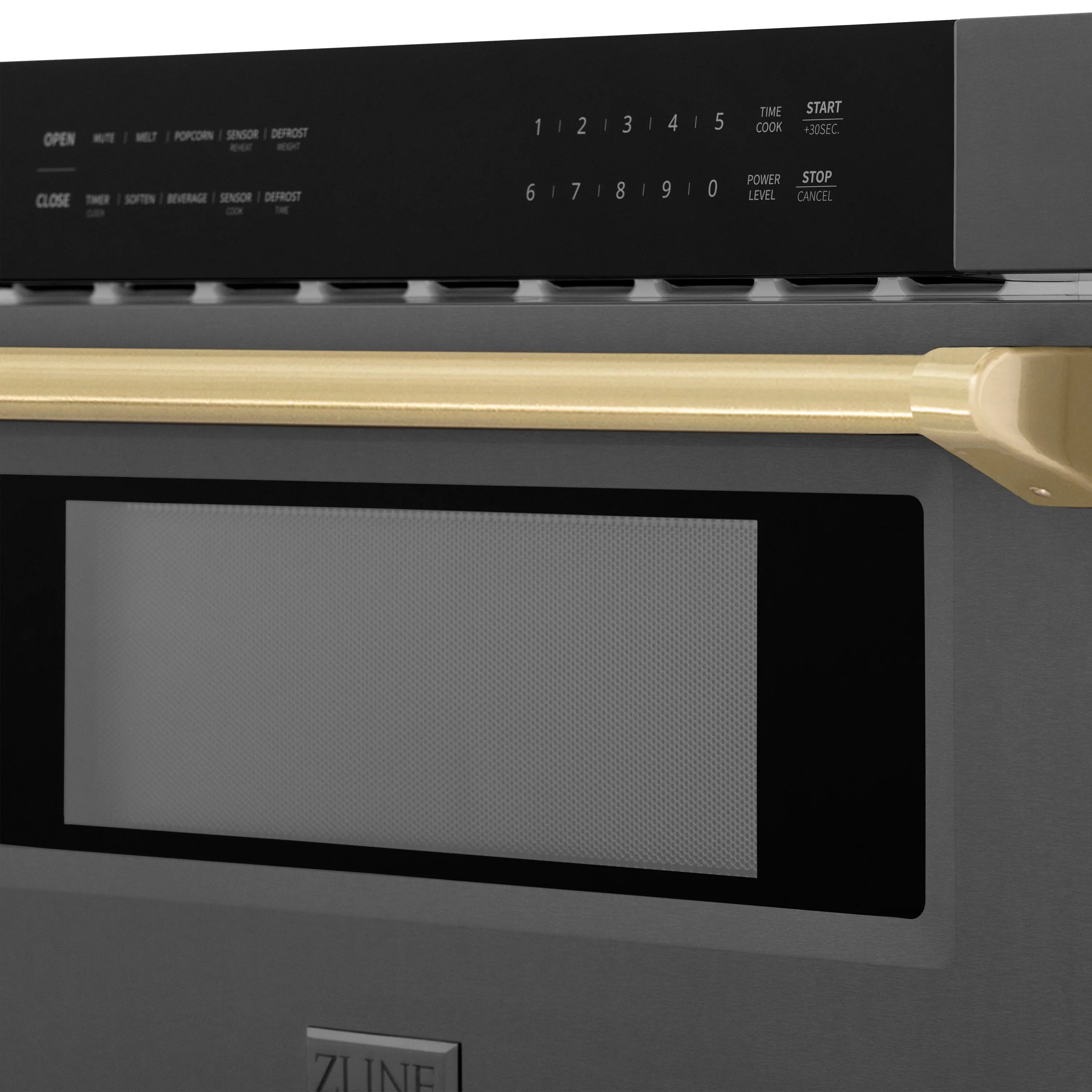

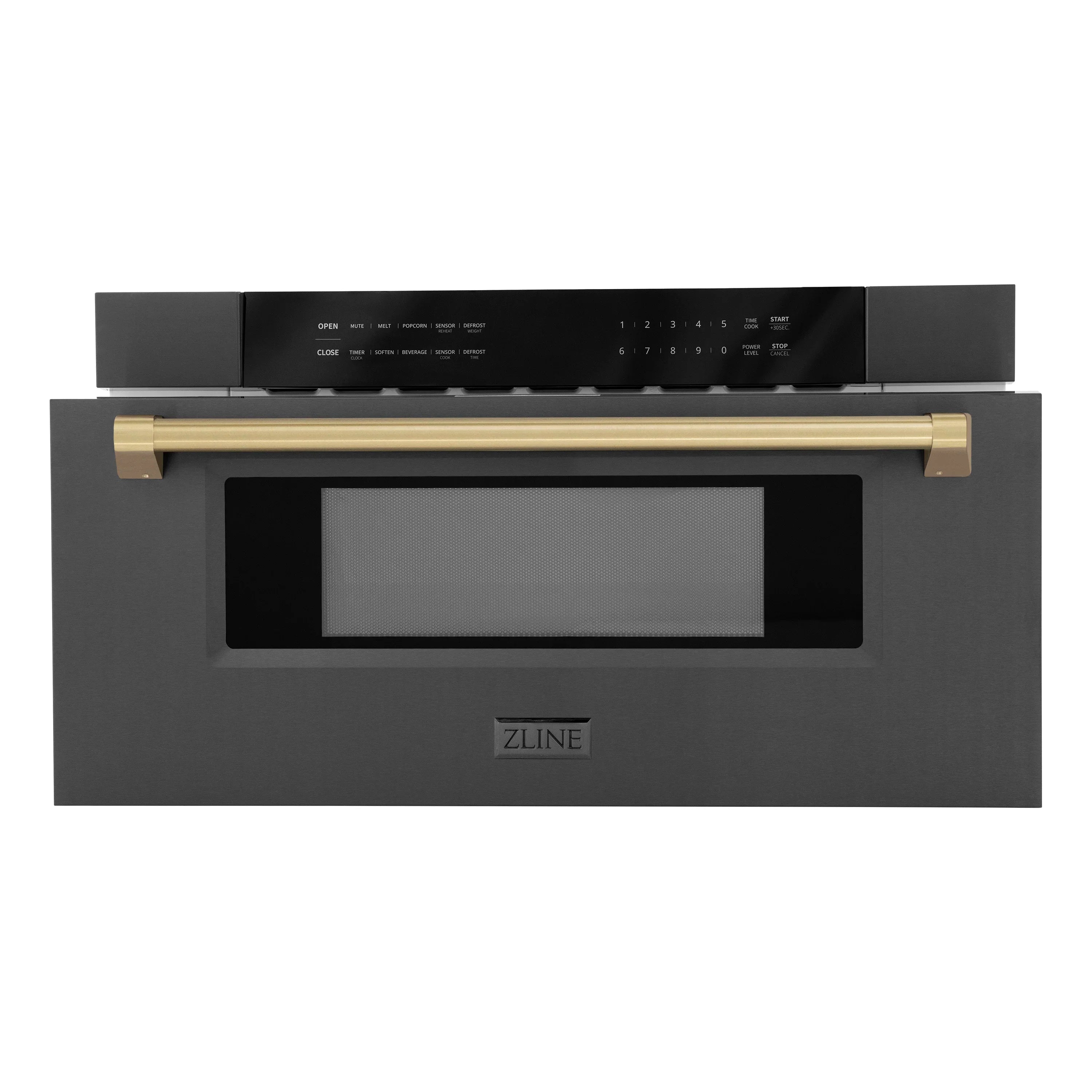

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE Autograph Edition 30" 1.2 cu. ft. Built-in Microwave Drawer in Black Stainless Steel with Accents provides a professional culinary experience by pairing everyday convenience with a timeless style. Achieve ZLINE Attainable Luxury excellence with unrivaled performance designed to enhance your kitchen’s capability.
Space-Saving - Free up your countertop space with an under-counter modern design with installation location flexibility to best fit your lifestyle
Top Access Design - Easily transport hot dishes and prevent spills with an accessible top-loading design
Convenient Microwave Modes - Achieve optimal results for every dish with sensor cooking, defrost, popcorn, and beverage settings
Auto-touch Open and Close - Effortlessly open and close the microwave drawer with just the touch of a button
Intuitive Control Panel - Enjoy an easy-to-use control panel that provides maximum convenience with a 45-degree angled design
High-Powered Performance - Get the results you need with 10 different power levels and a powerful 1000-watt cooking power
1.2 cu. ft. Capacity - A large cooking area will easily fit your items, such as coffee mugs up to 7 in. tall and dishes up to 16 x 16 in.
Reheat and Defrost - Minimize cooking time with convenient reheat and defrost functions
Autograph Edition Series - Enjoy a timeless look in your kitchen with a Black Stainless Steel finish paired with accent handles, giving your kitchen an elegant, unmatched style
Black Stainless Finish - Bring a modern look into your kitchen with ZLINE’s black stainless steel, achieved through PVD (physical vaper deposition) coating which utilizes a vaporization process to create an atom-bonded, strong ceramic layer
Manufacturer Warranty - 2 year parts warranty
ADA Compliant - Easy-to-use front touch controls with a 45-degree angle design provide ADA compliance
This product ships in multiple boxes and will require minimal assembly upon arrival.
| DIMENSIONS | |
|---|---|

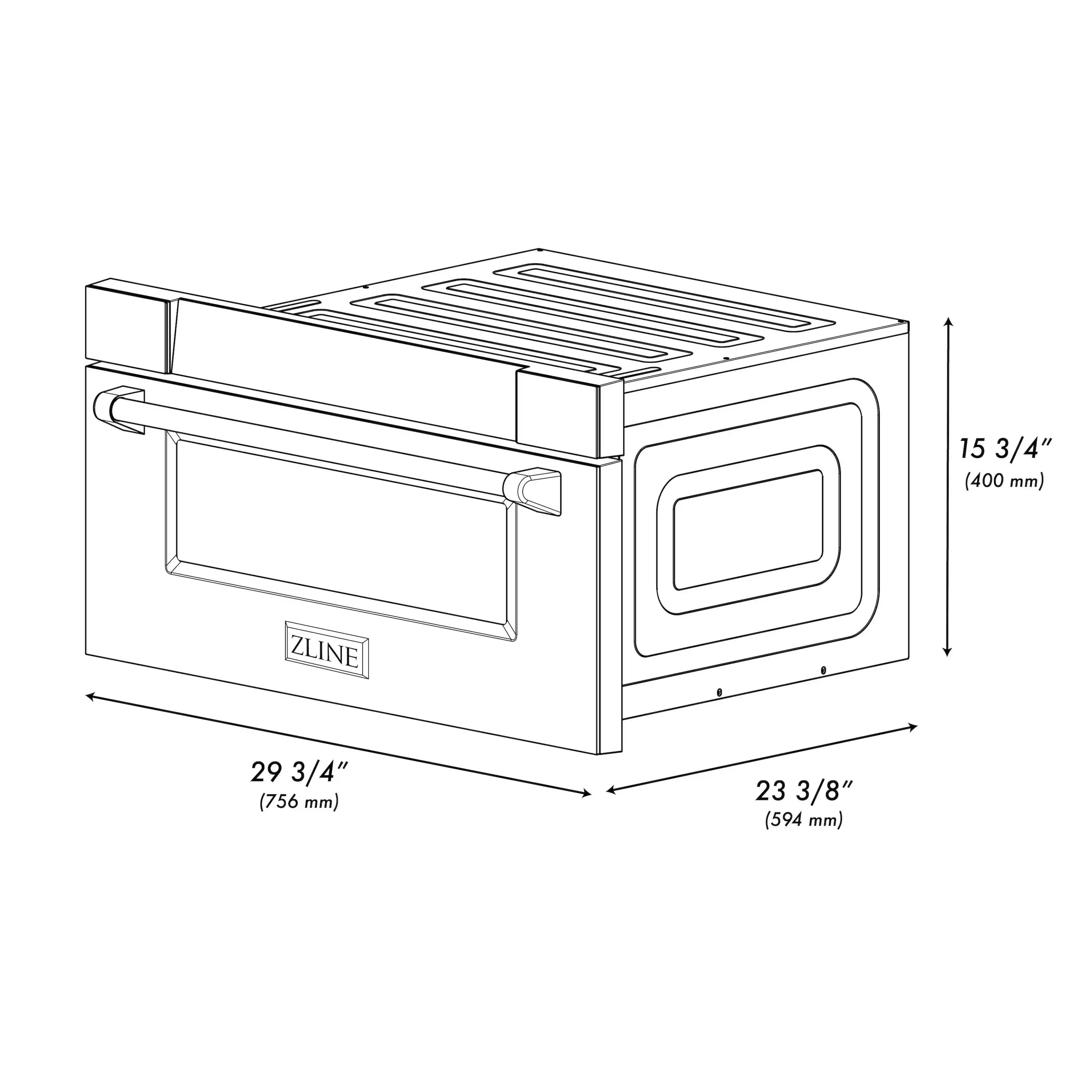

| Dimensions | 29.75 in W x 23.38 in D x 15.75 in H |
| Cutout Dimensions | 22.38 in W x 23.5 in D x 15 in H |
| Cut Out Dimensions | 22.88 in W x 23.5 in. D x 14.81 in H |
| Depth with Door Open | 38.75" without handle/ 40" with handle |
| Weight | 76.2 lbs |
| GENERAL INFORMATION | |
| Mount Type | Built-In Drawer |
| DESIGN & FINISH | |
| Control Type | Touch Screen |
| Material | Black Stainless Steel with Accents |
| TECHNICAL DETAILS | |
| Voltage | 120vac/60 Hz/13A Plug type: 5-15 Nema |
| FEATURES | |
| Interior Oven Dimensions | 16 in. W x 16 in. D x 7 in. H |
| Oven Capacity | 1.2 Cu. Ft. |
| Input Power | 1500W |
| Output Power | 1000W |
| Noise Level | 45 Decibels |
| Display | LED |
| Convection Fan | No |
| WARRANTY & CERTIFICATIONS | |
| Certifications | UL, DOE, Title 20 Compliant, NRCan |
| Warranty | 2 Year Parts |
