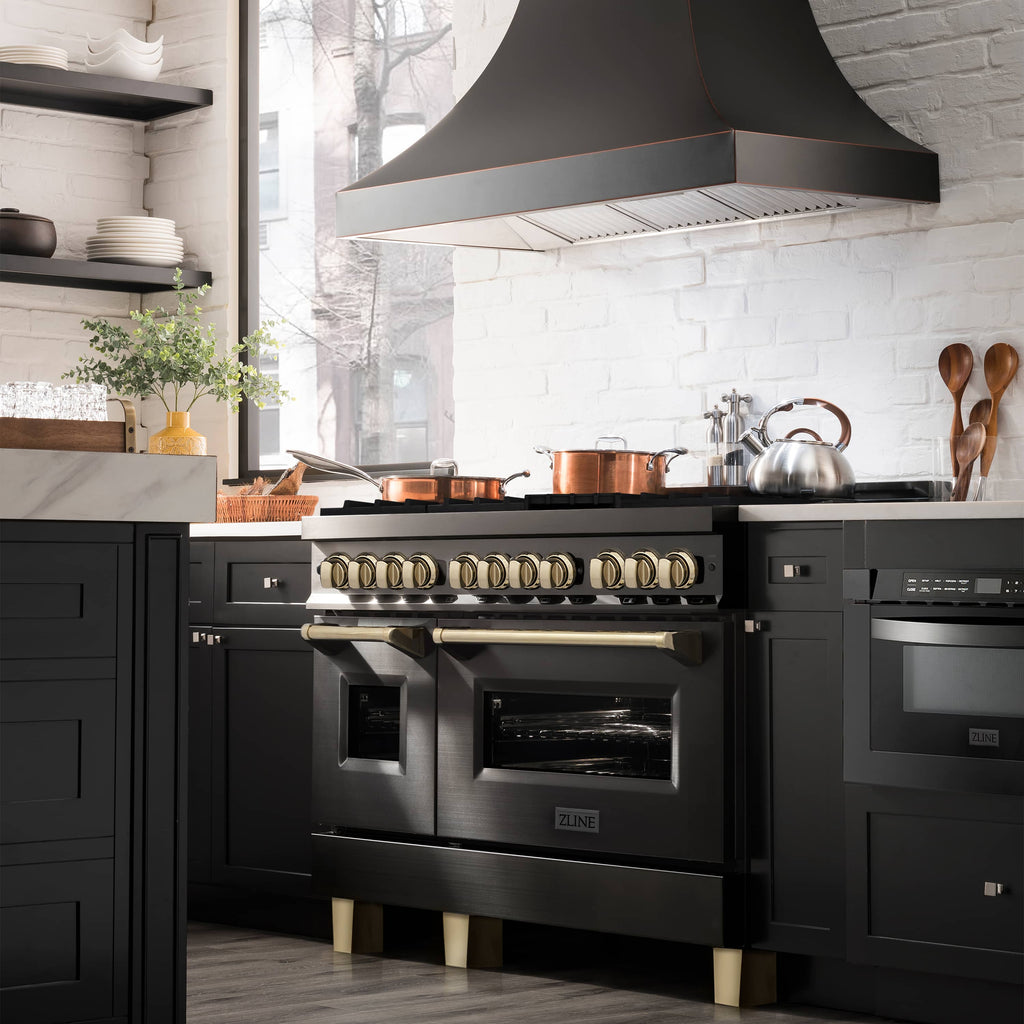

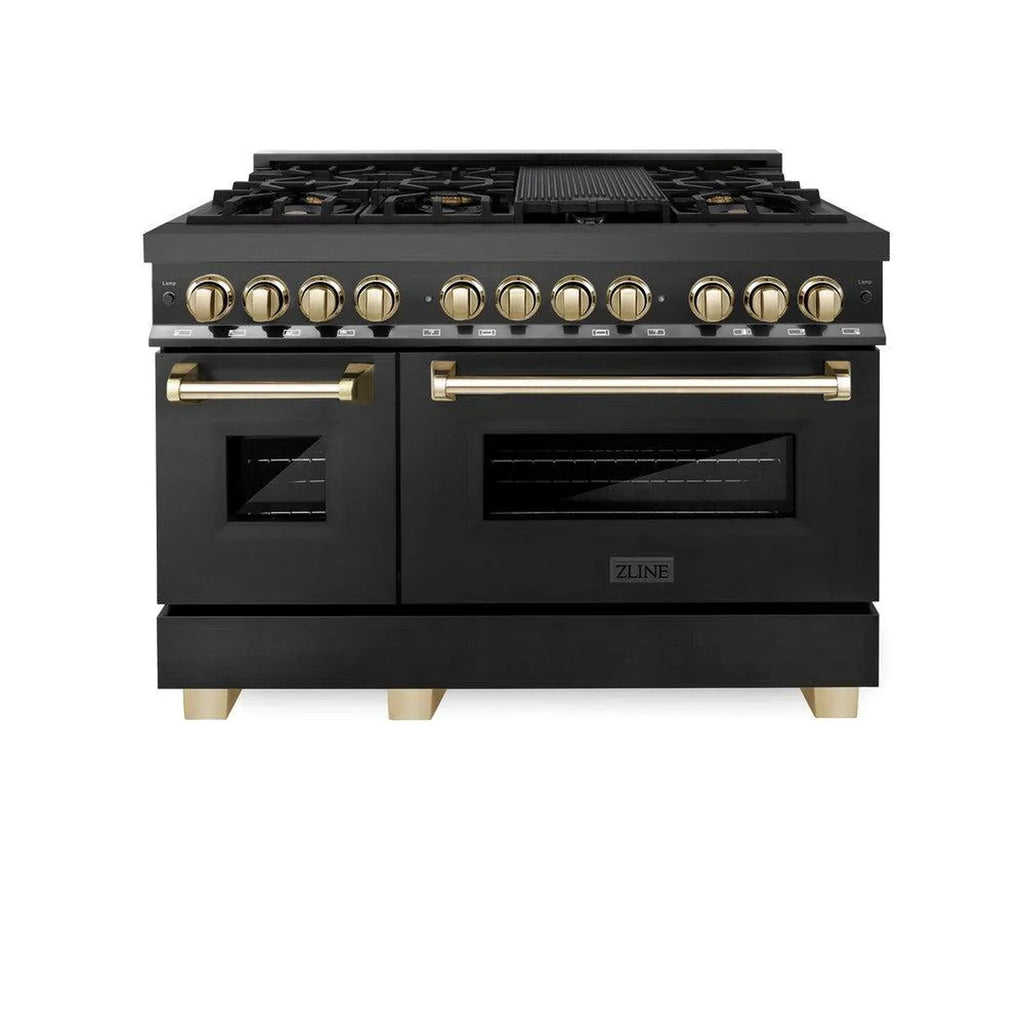

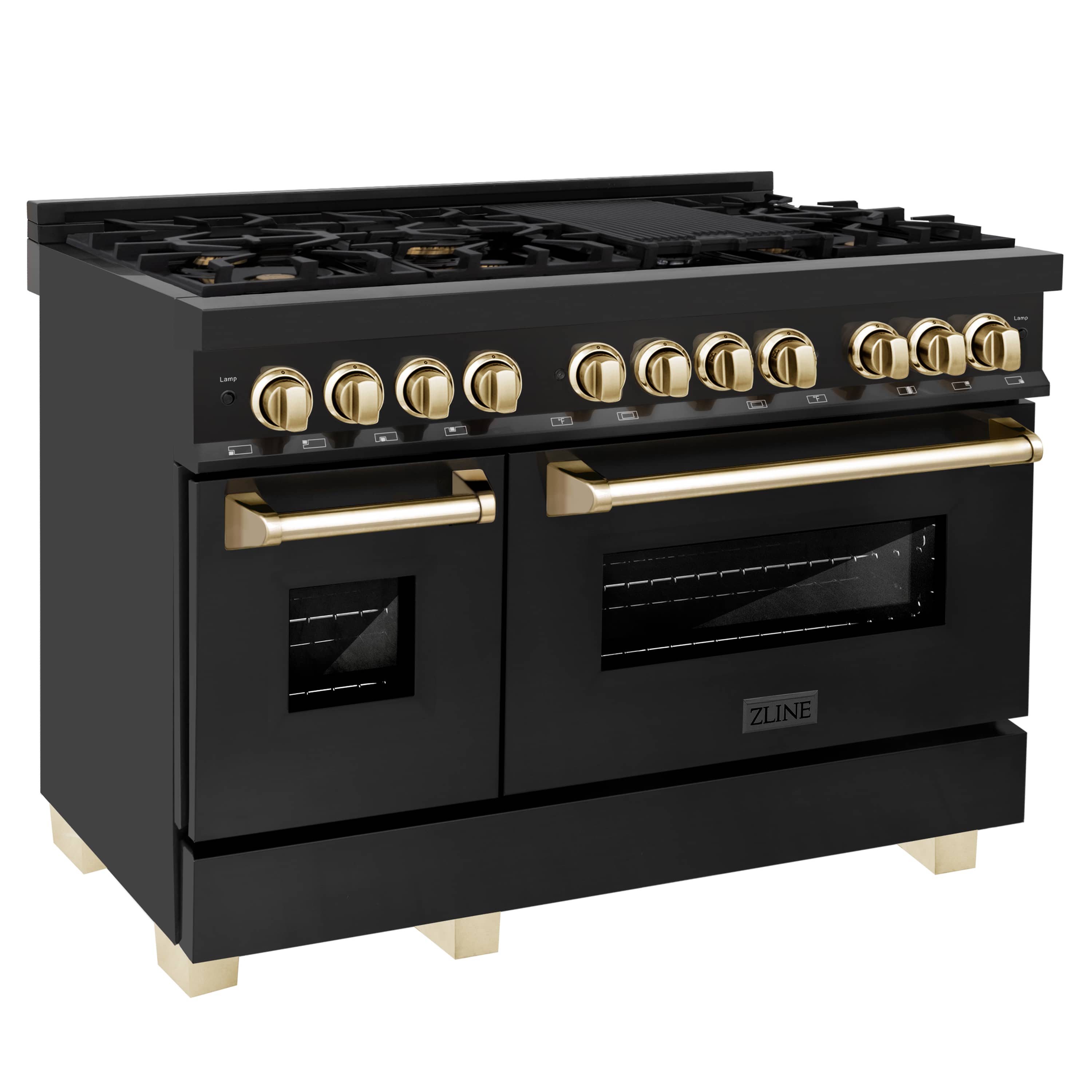

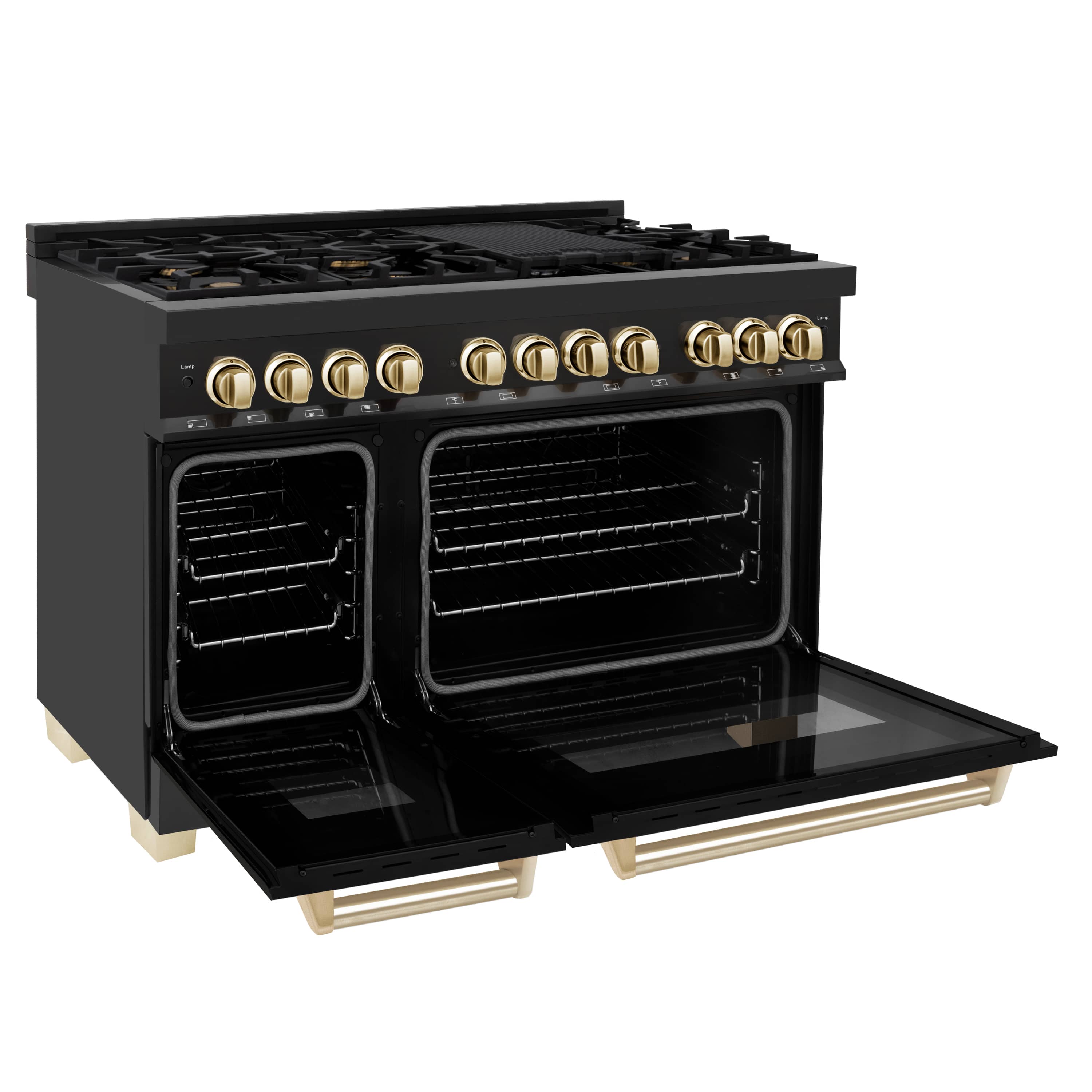

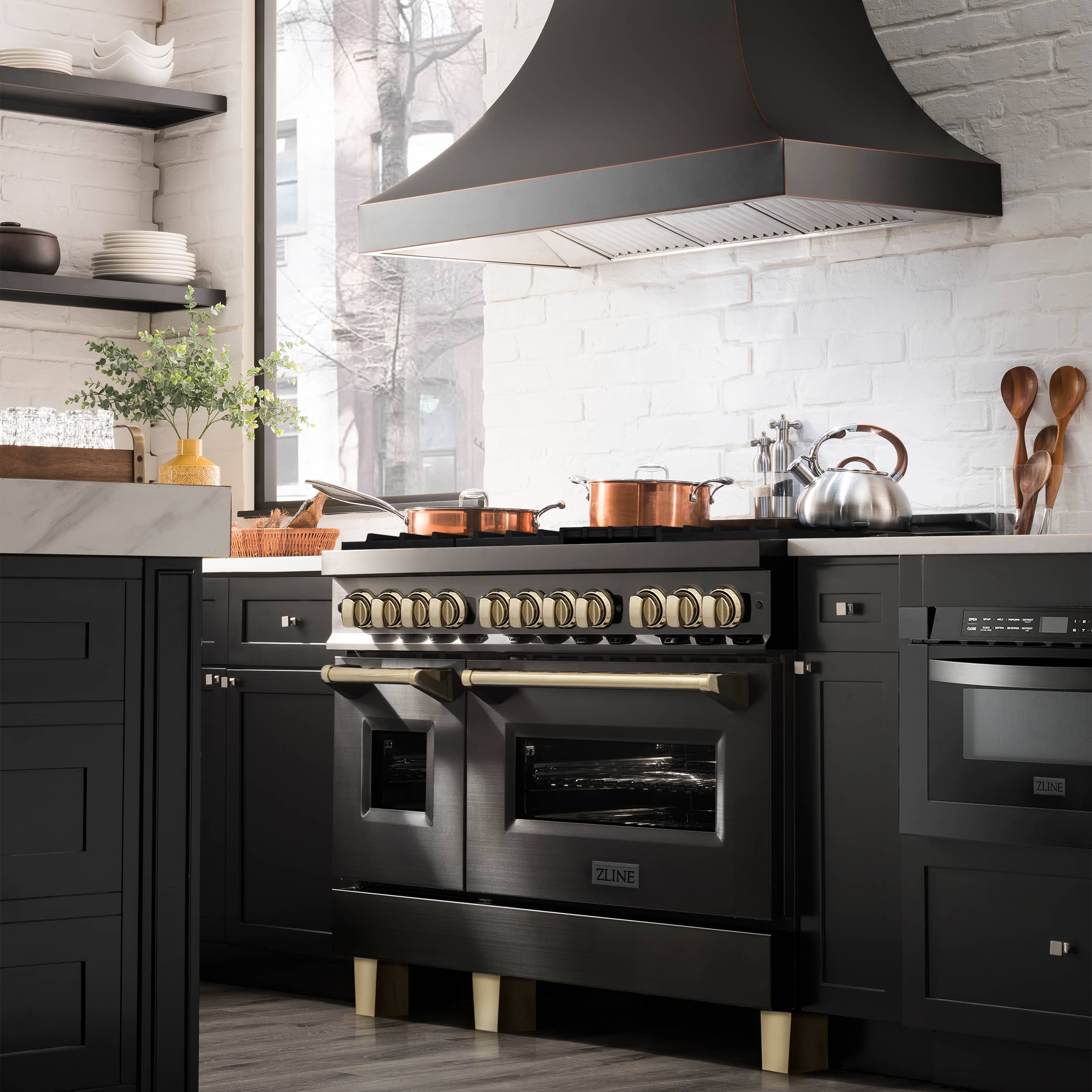

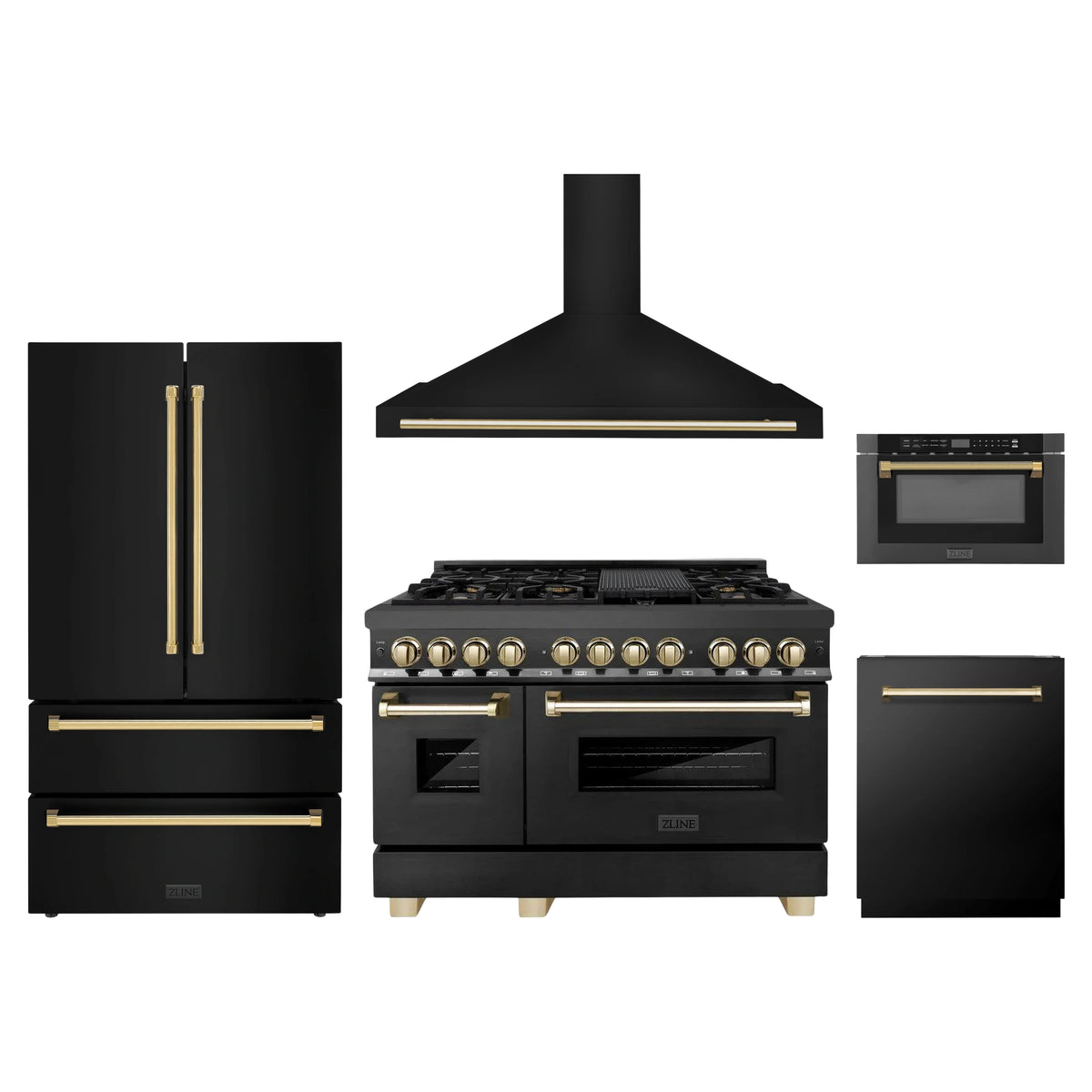

Experience Attainable Luxury® with the ZLINE Autograph Edition Dual Fuel Range in Black Stainless Steel. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience. Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes.

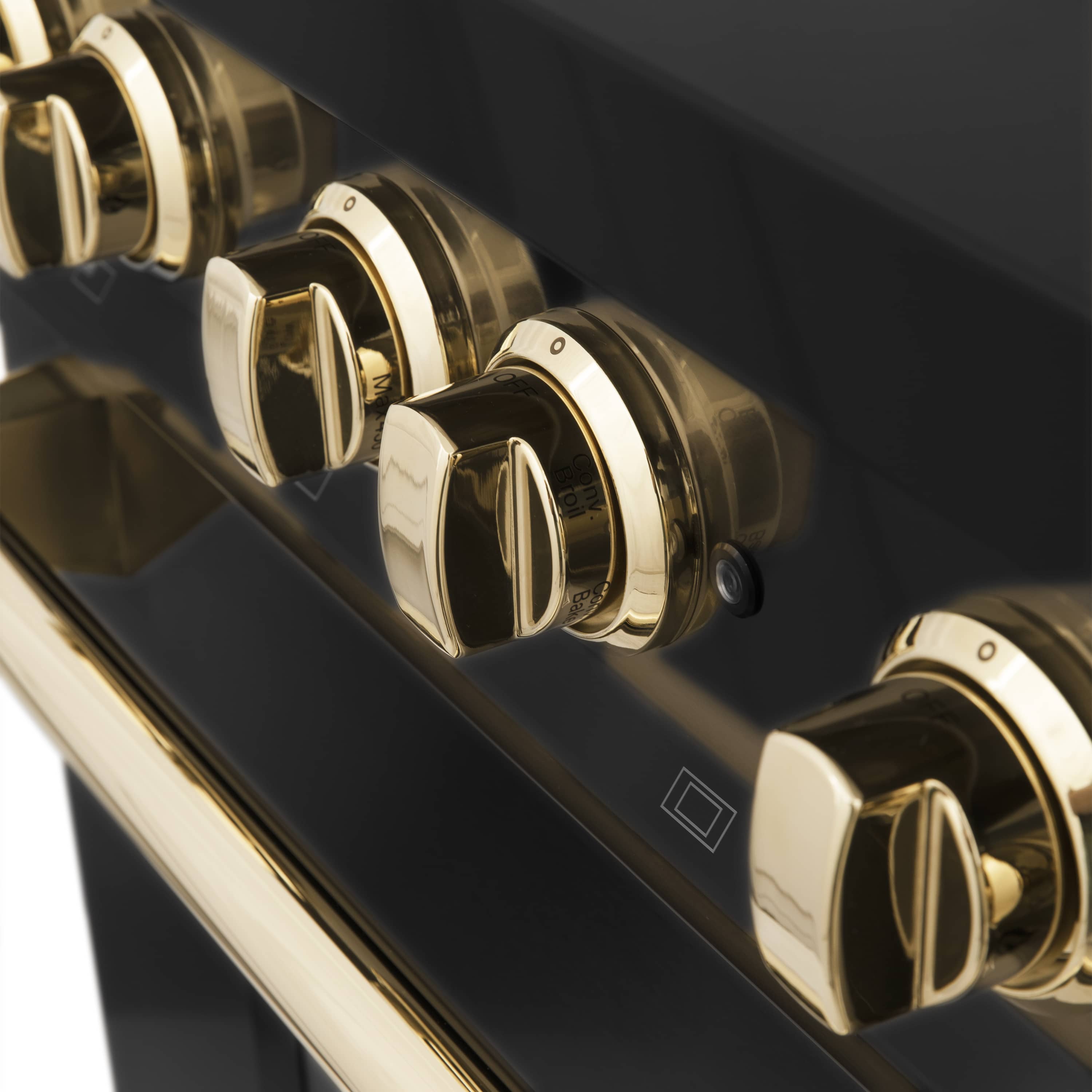

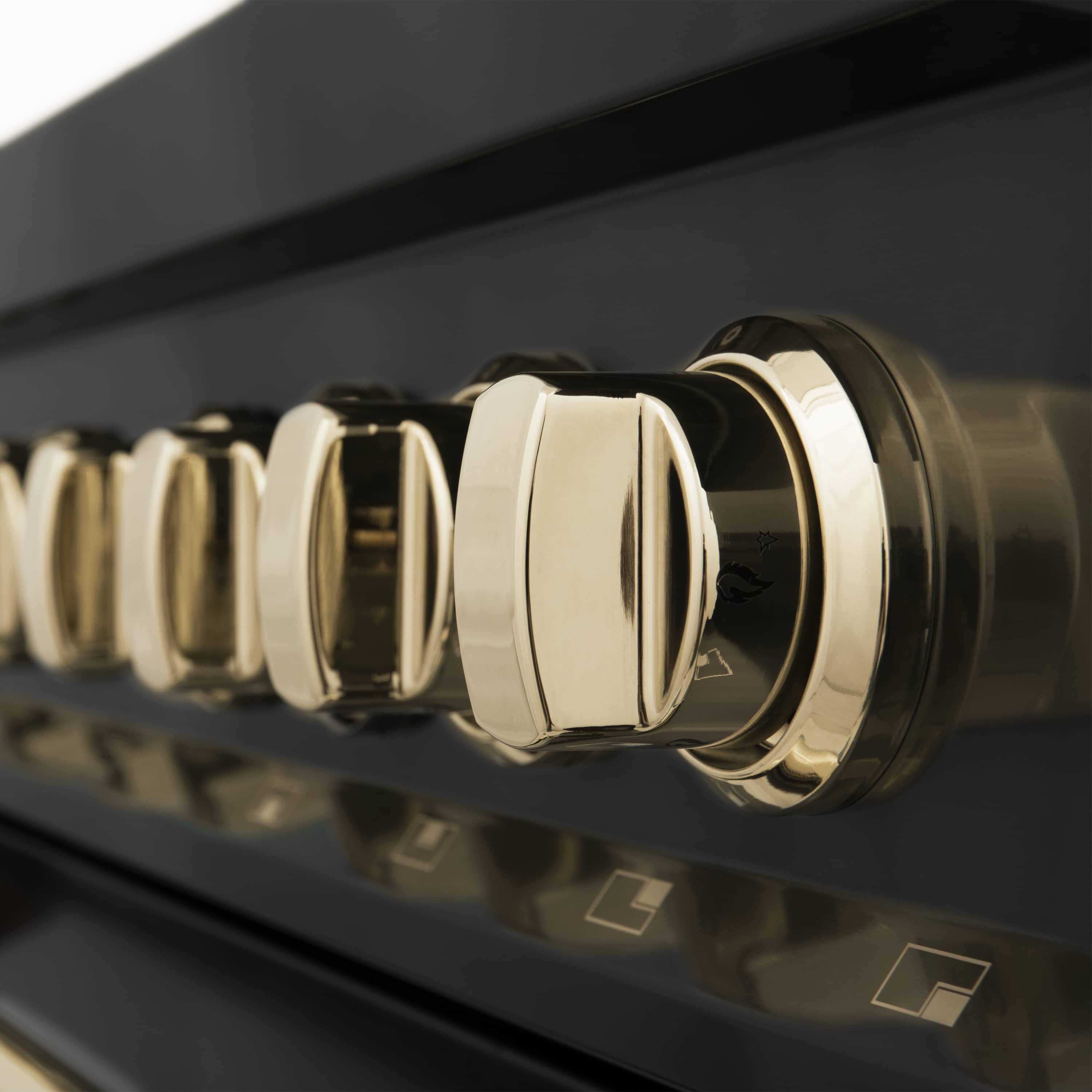

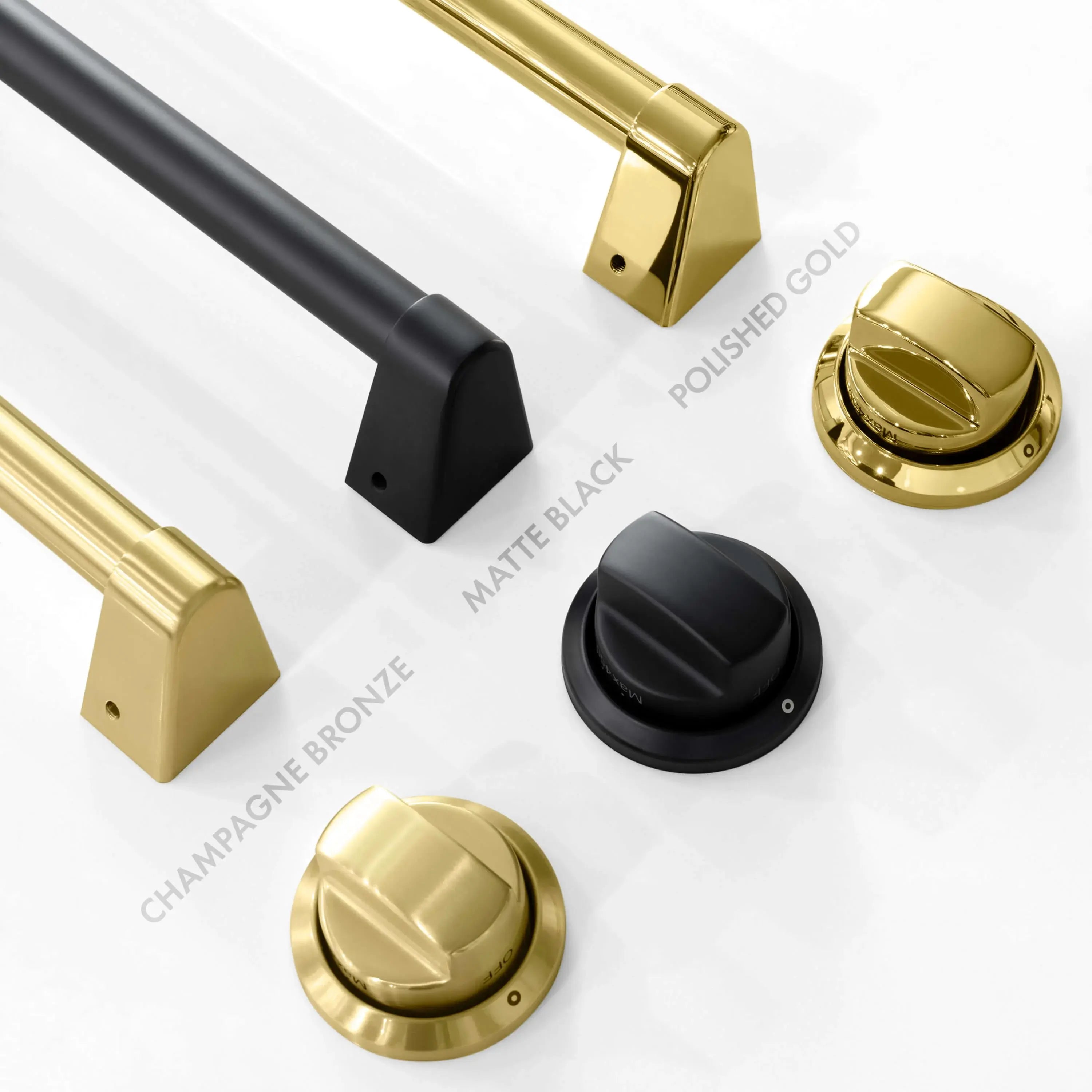

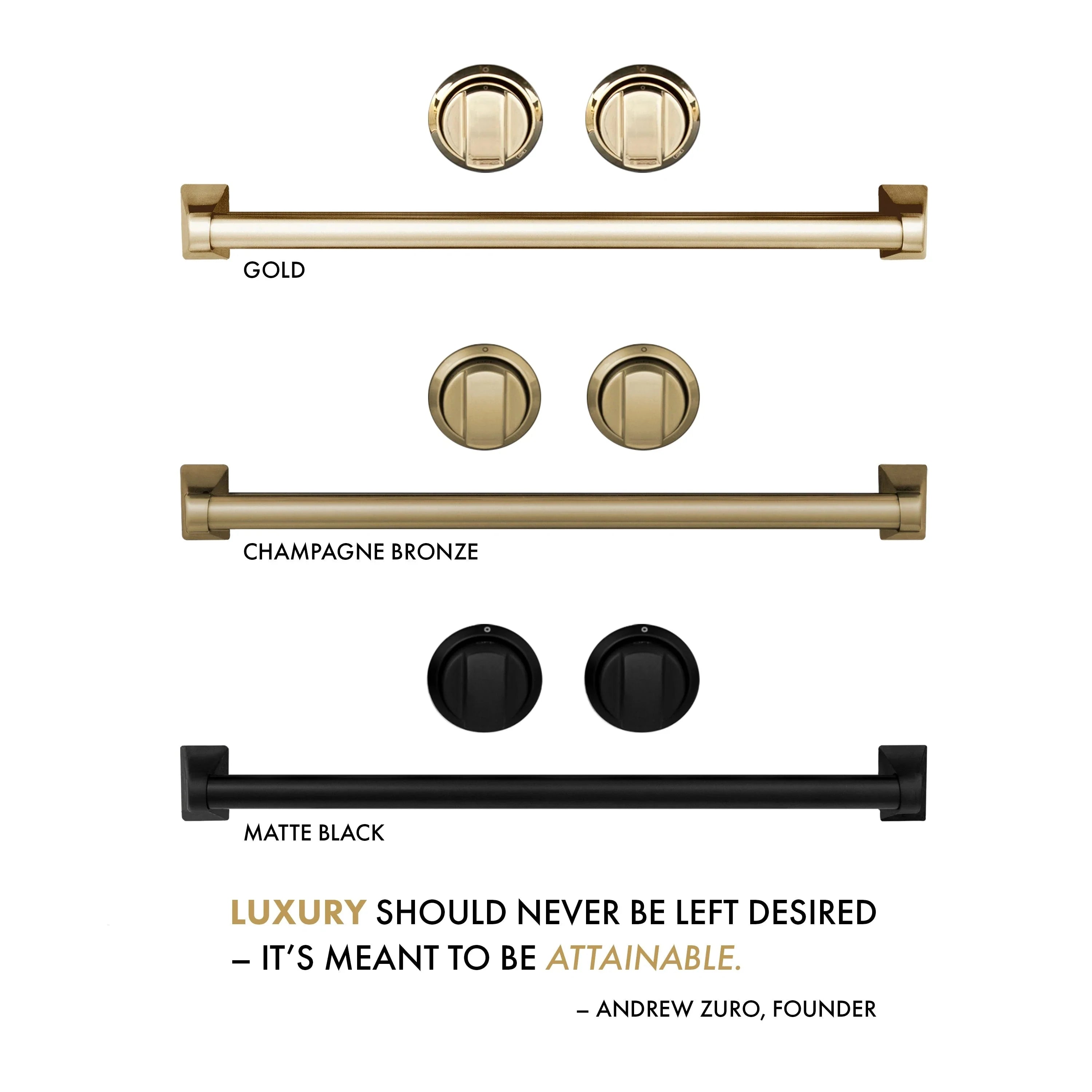

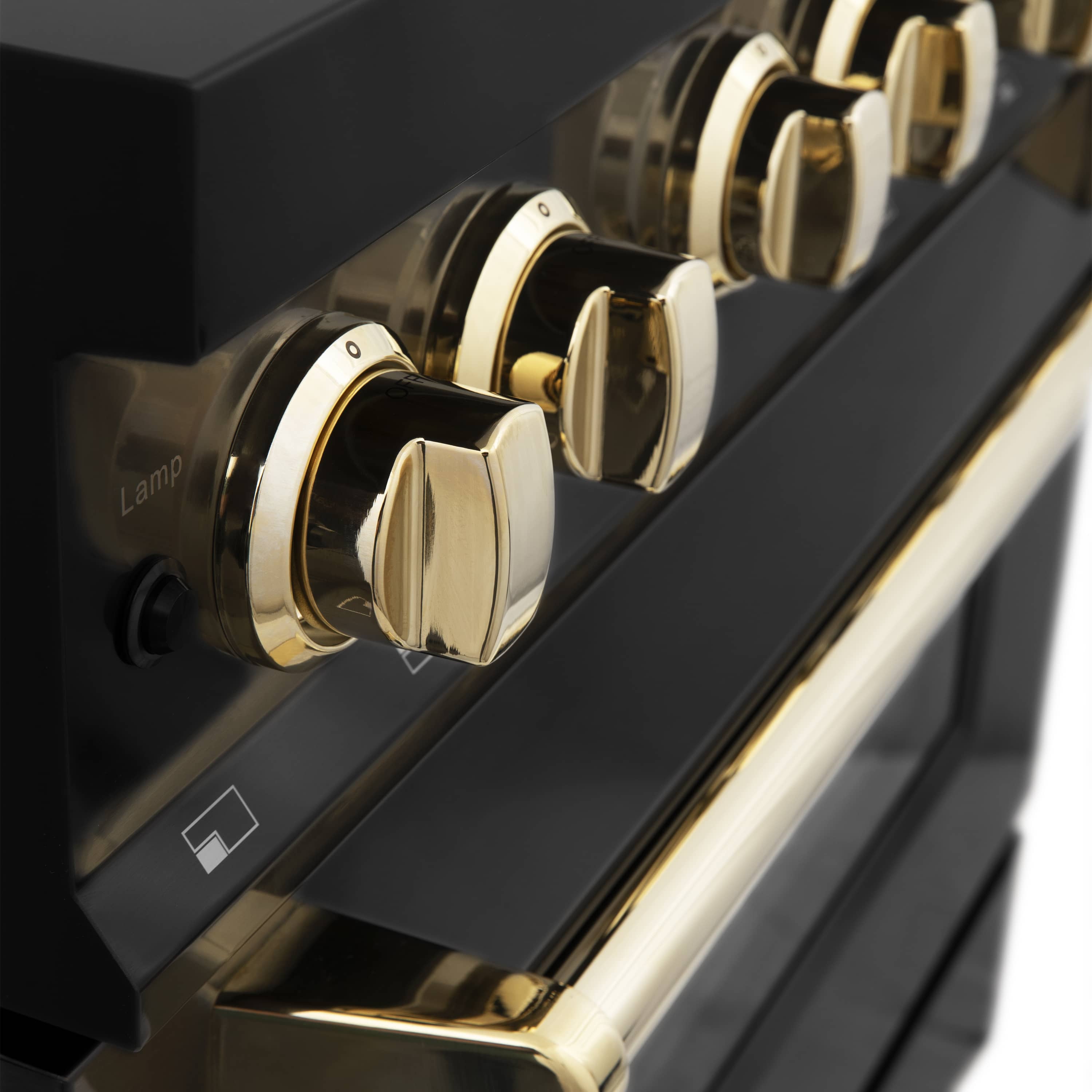

Combining the professional power and functionality of a ZLINE Range with stunning gold accents, this sophisticated line of professional ranges brings a new meaning of elegance. Create an unforgettable kitchen unique to your style with gold knobs, handles, legs, and brass burners. Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze, Matte Black and Gold.
The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes. From our home to yours, enjoy a luxurious experience with the Autograph Edition Dual Fuel Range.
| Specs & Dimensions | |
|---|---|
| Brand | ZLINE Kitchen and Bath |

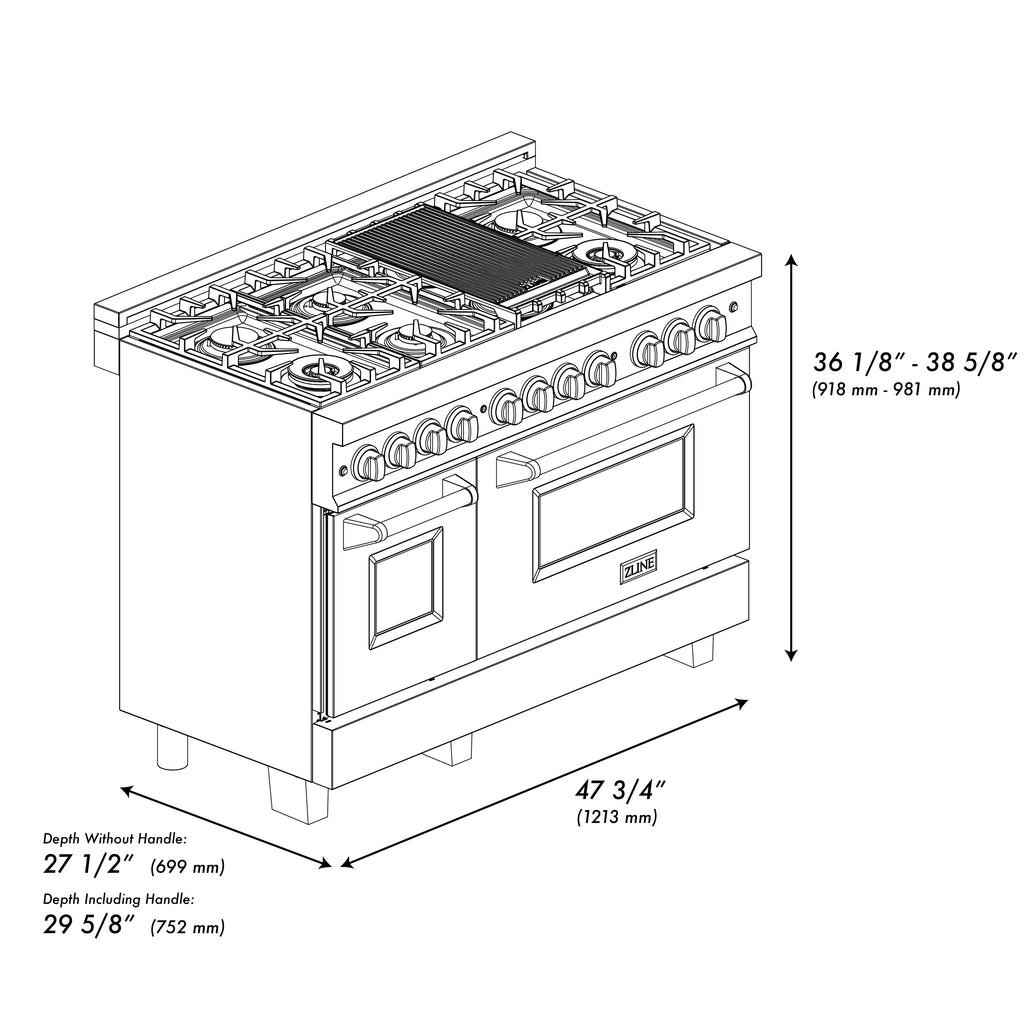

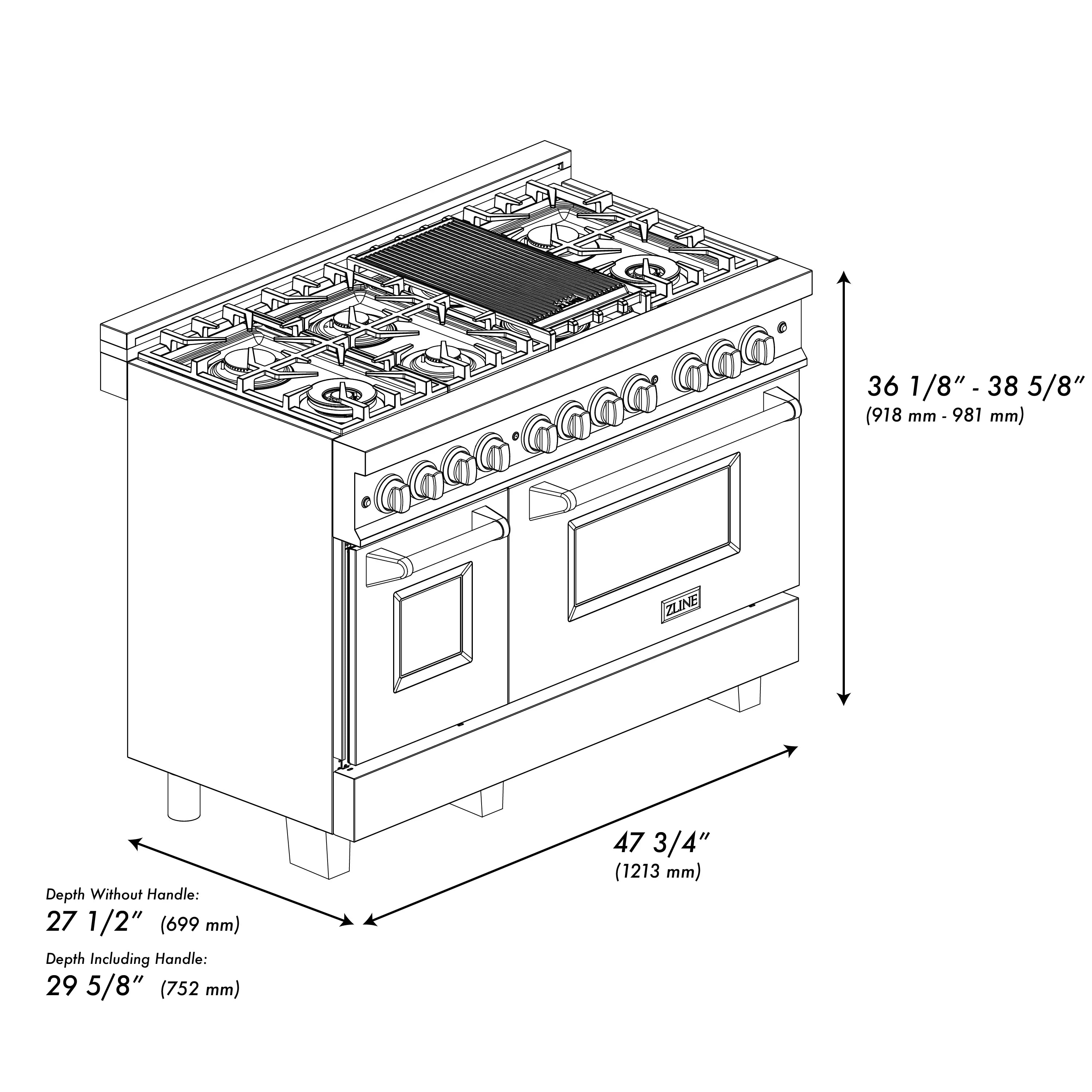

| Dimension | 47.75" W x 27.5" D x 36.13" |
| Dimensions with Handle | 47.75" W x 29.63" D x 36.13" |
| Open Door Depth | 41.8" |

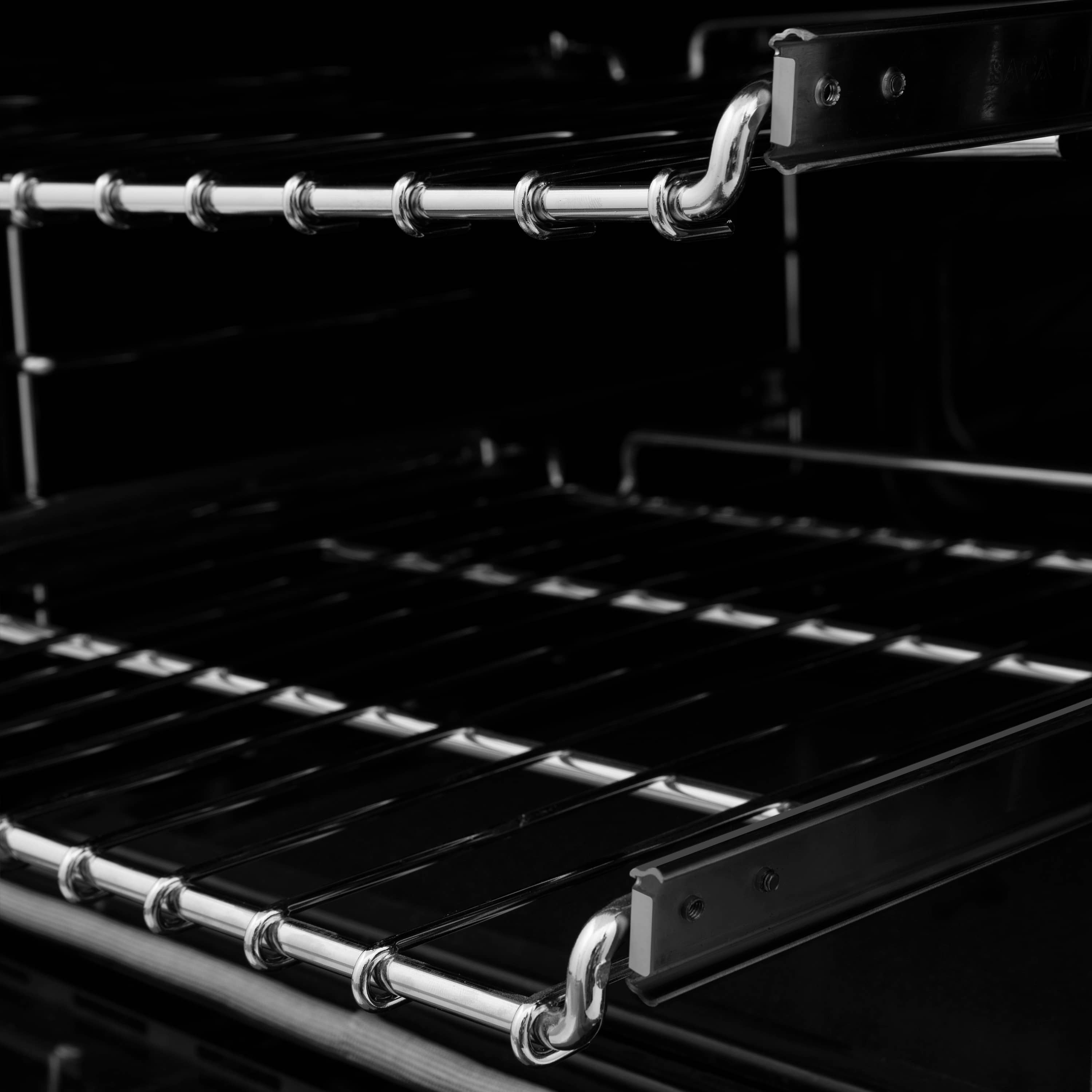

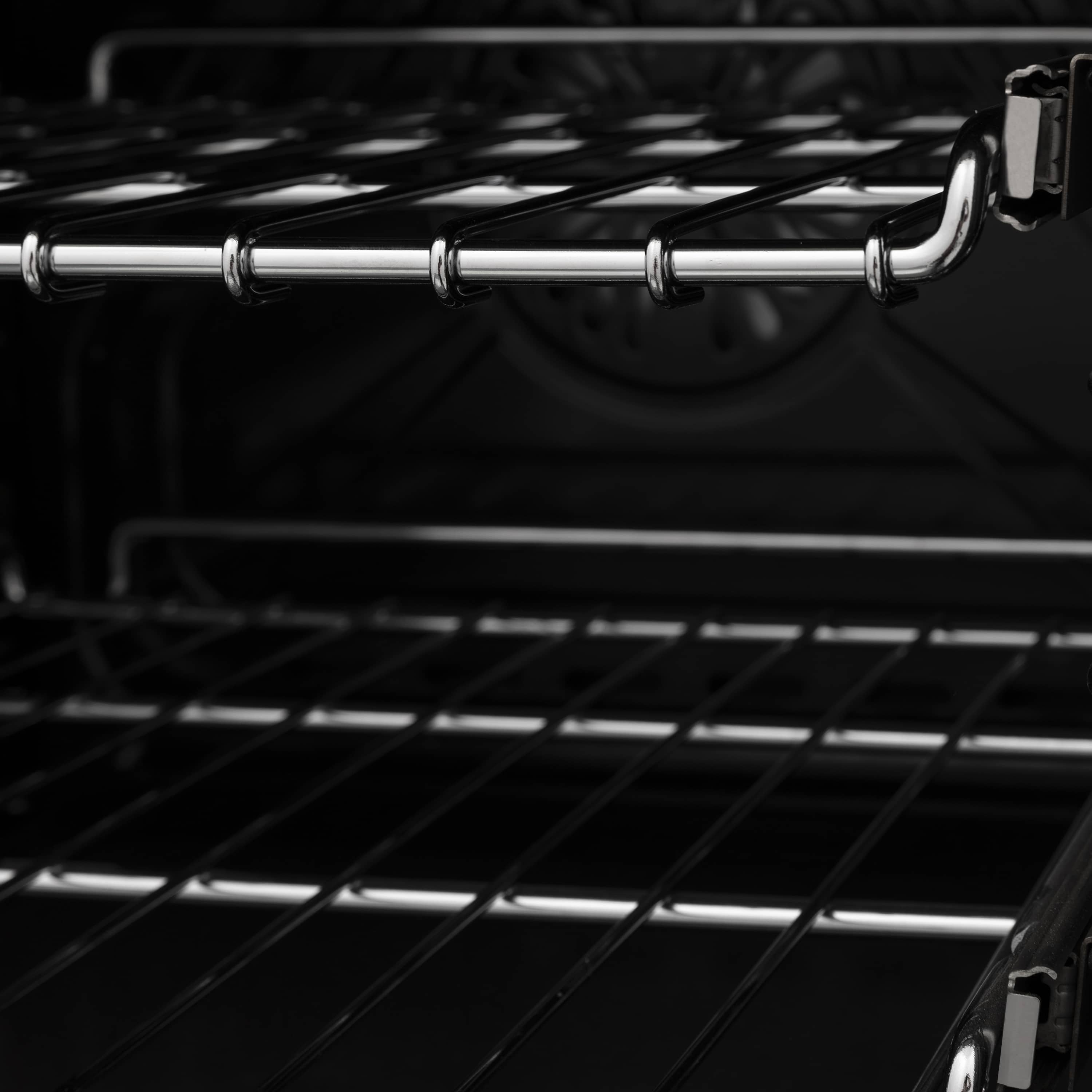

| Interior Oven Dimensions | 24.875" W x 17.75" D x 16" H |
| Voltage | 240V/60Hz/40A |
| Lighting | Dual Lighting, controlled by light switch on front control panel |
| Material | Black Stainless Steel frame with 1 Piece Porcelain Top- Italian made hinges and burners |
| Finish | Black Stainless Steel |

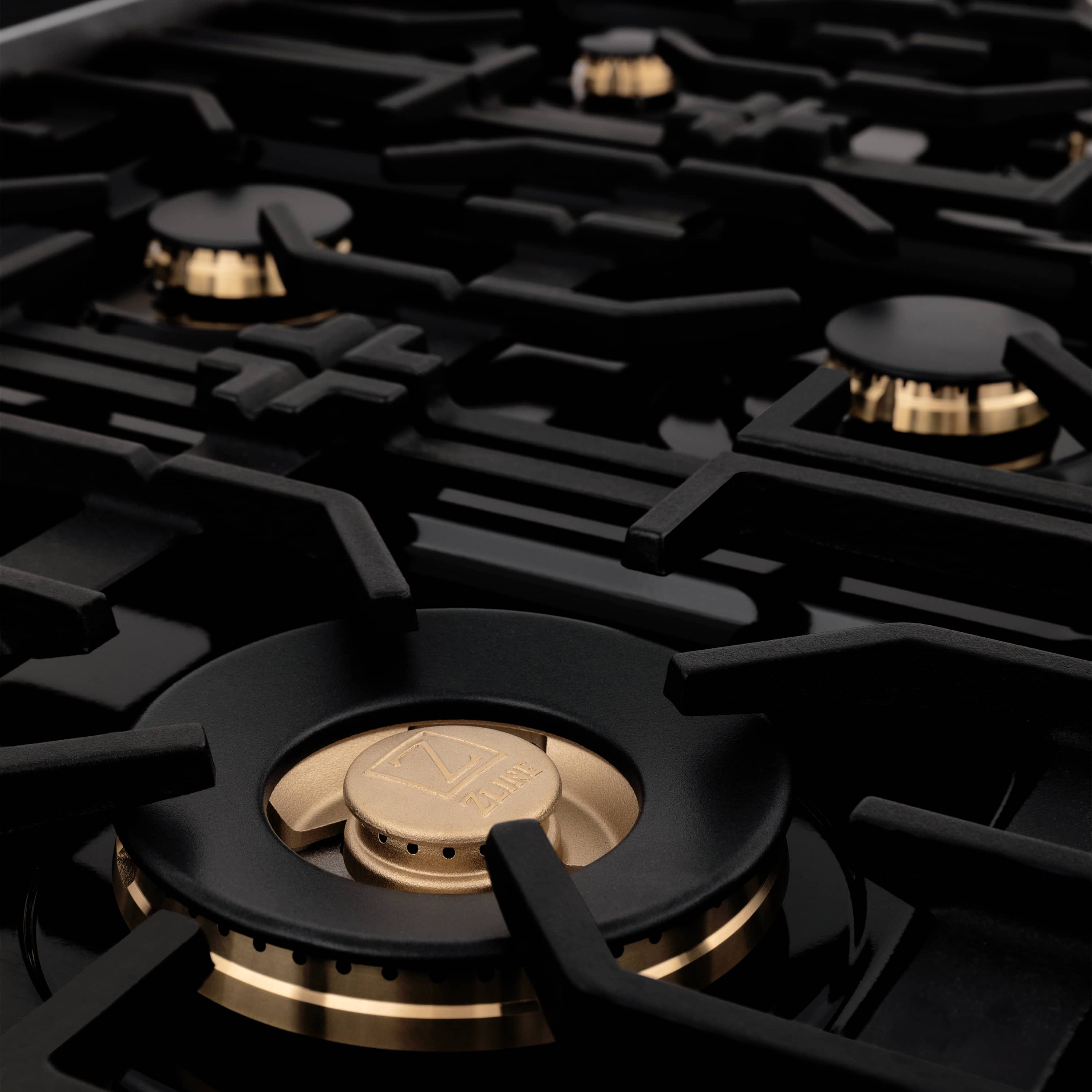

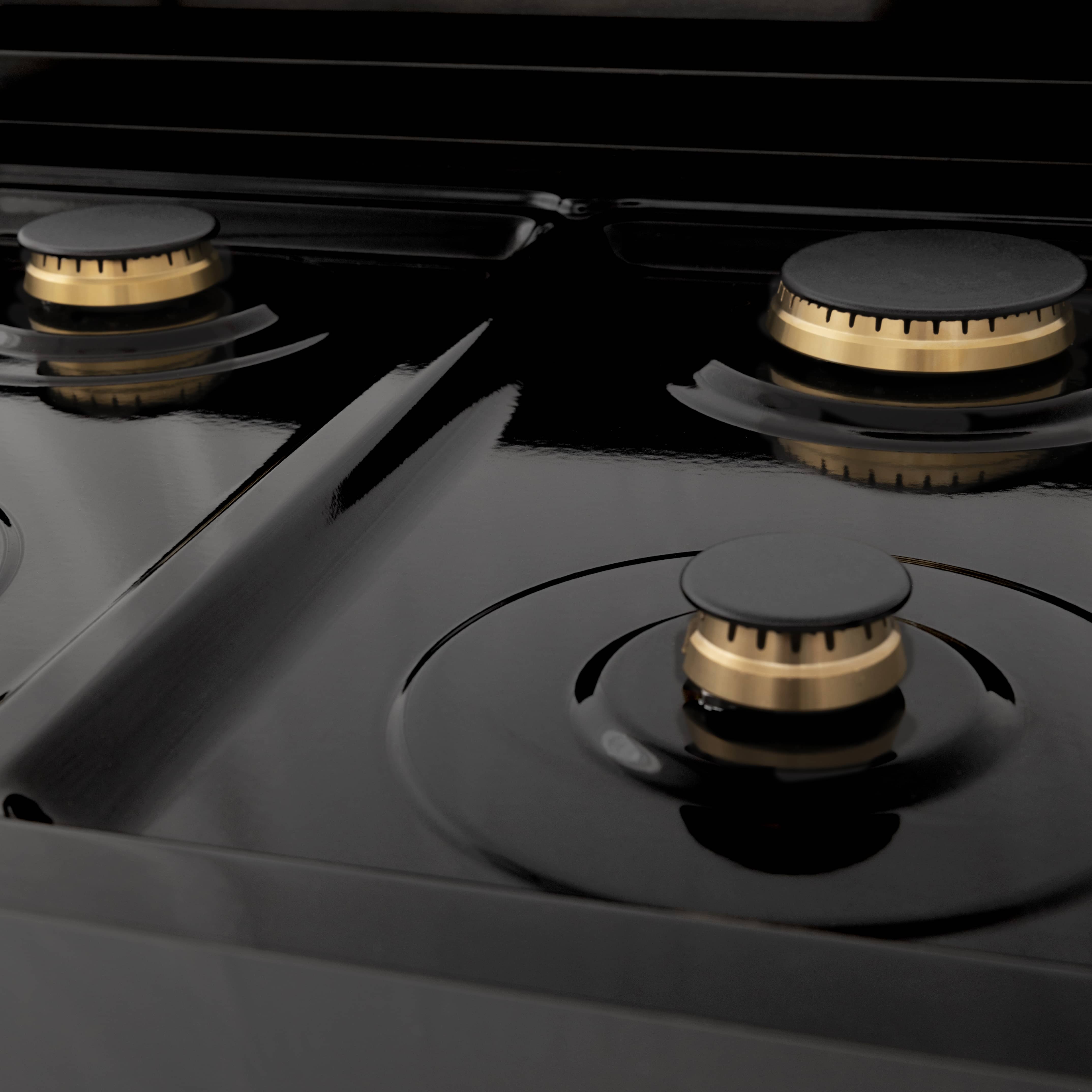

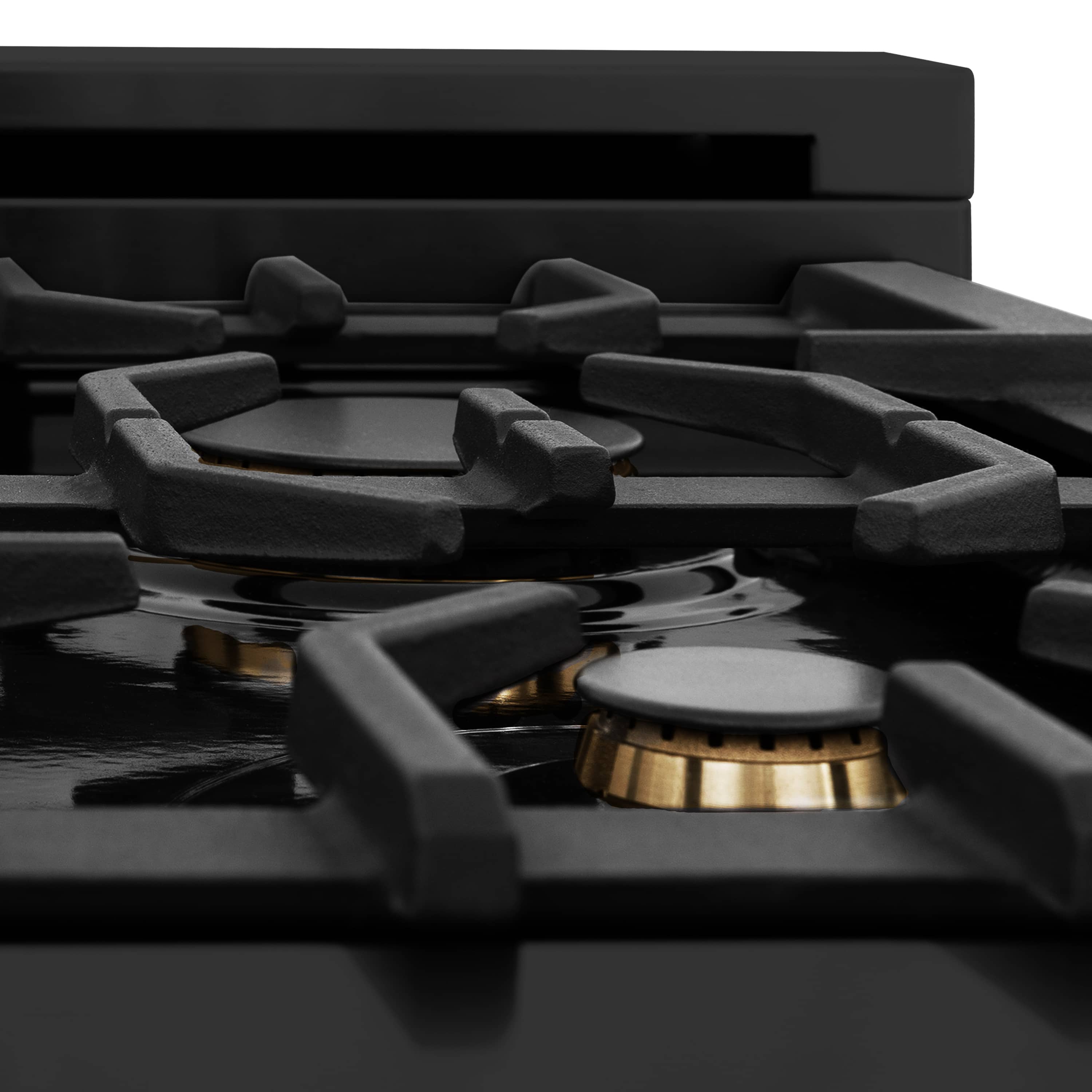

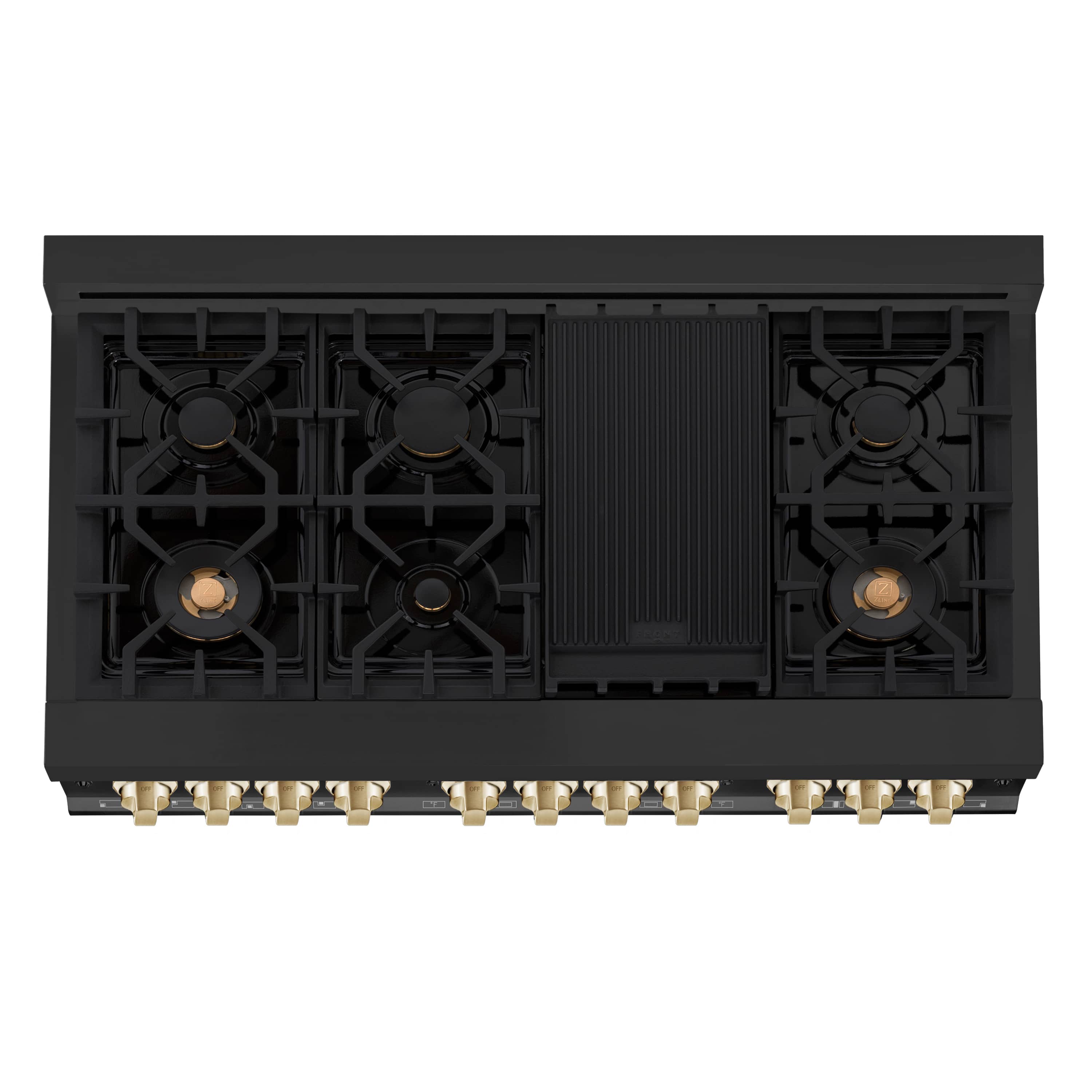

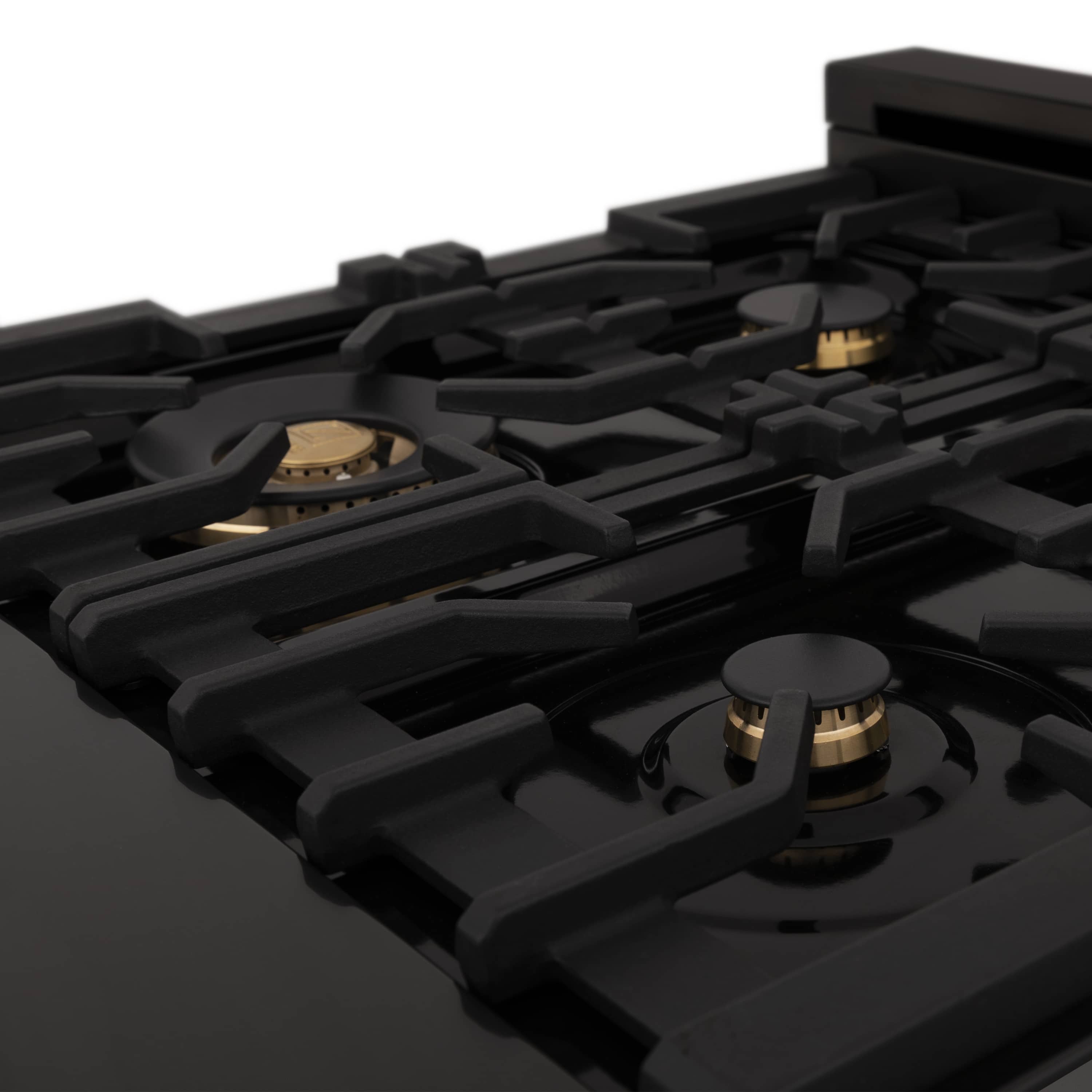

| Cooktop | (7) Burners with Porcelain Cook Top with electronic spark ignition for all burners |
| Gas Type | Natural Gas or Liquid Propane via conversion kit |
| Liquid Propane | LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional |
| Fuel Type | Convection Oven- Gas Cooktop |
| Weight | 270 lbs |
| Oven Capacity | 4.2 cu. ft. 1.8 cu. ft. |
| Burners | Burner 1: 13,000 Burner 2: 18,000 Burner 3: 4,200 Burner 4: 13,000 Burner 5: 8,500 Burner 6: 8,500 Burner 7: 18,000 |
| Mount Type | Free Standing |
| Control Type | Durable Front Control |
| Warranty | 1 Year |
| Features | ETL Listed |
| Timer | No |
| Self-Clean | No |
| Range Finish | Black Stainless Steel |
| Trim | Gold |

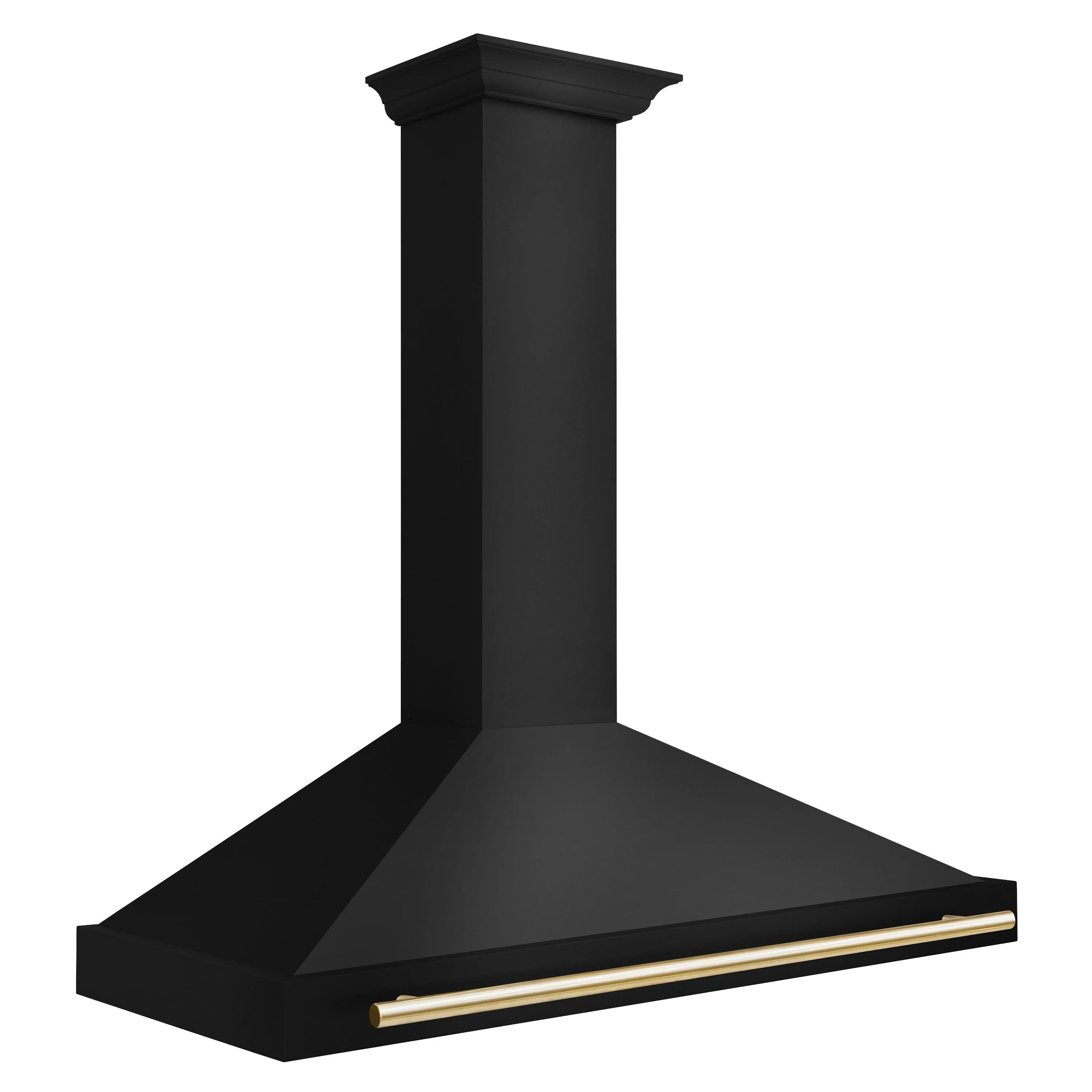

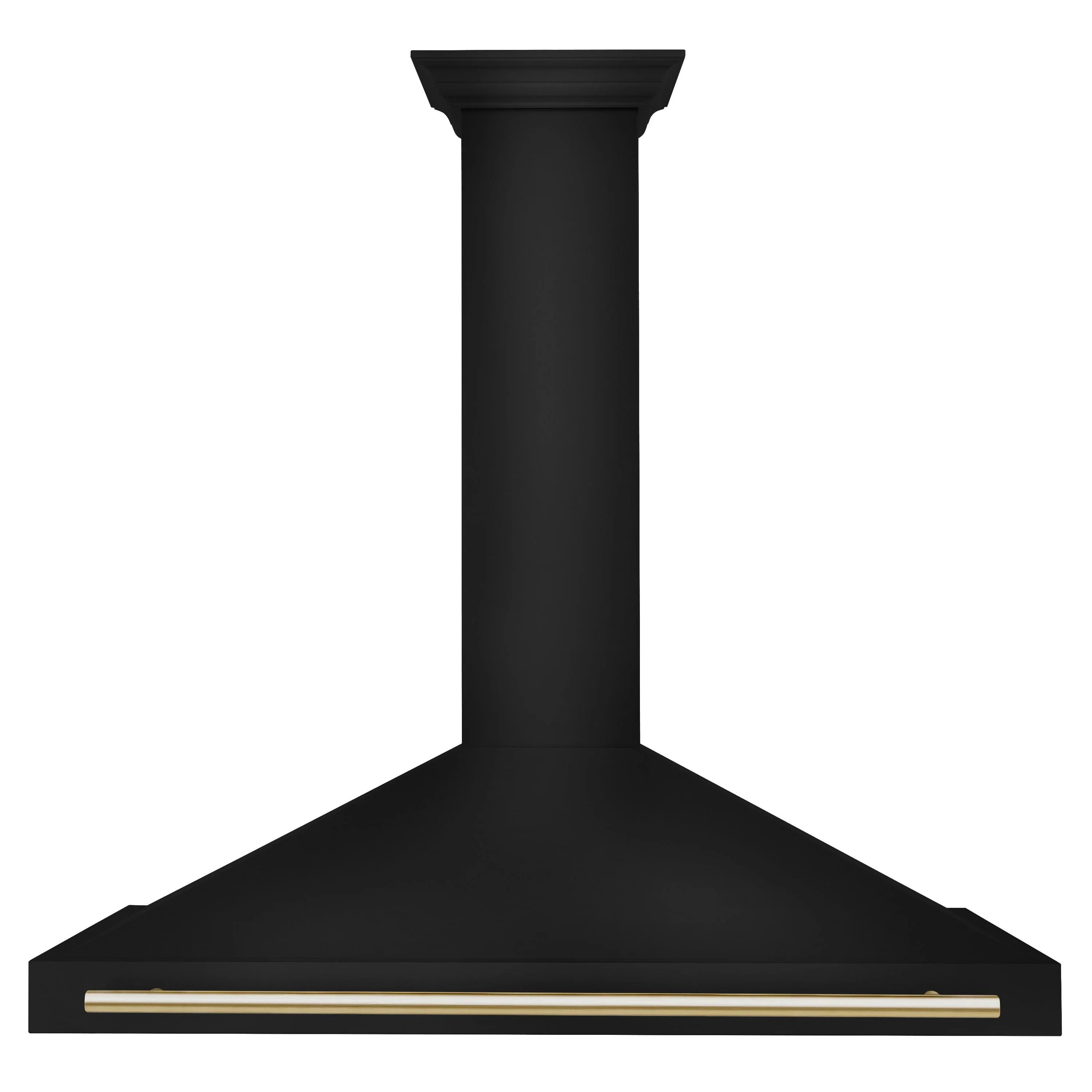

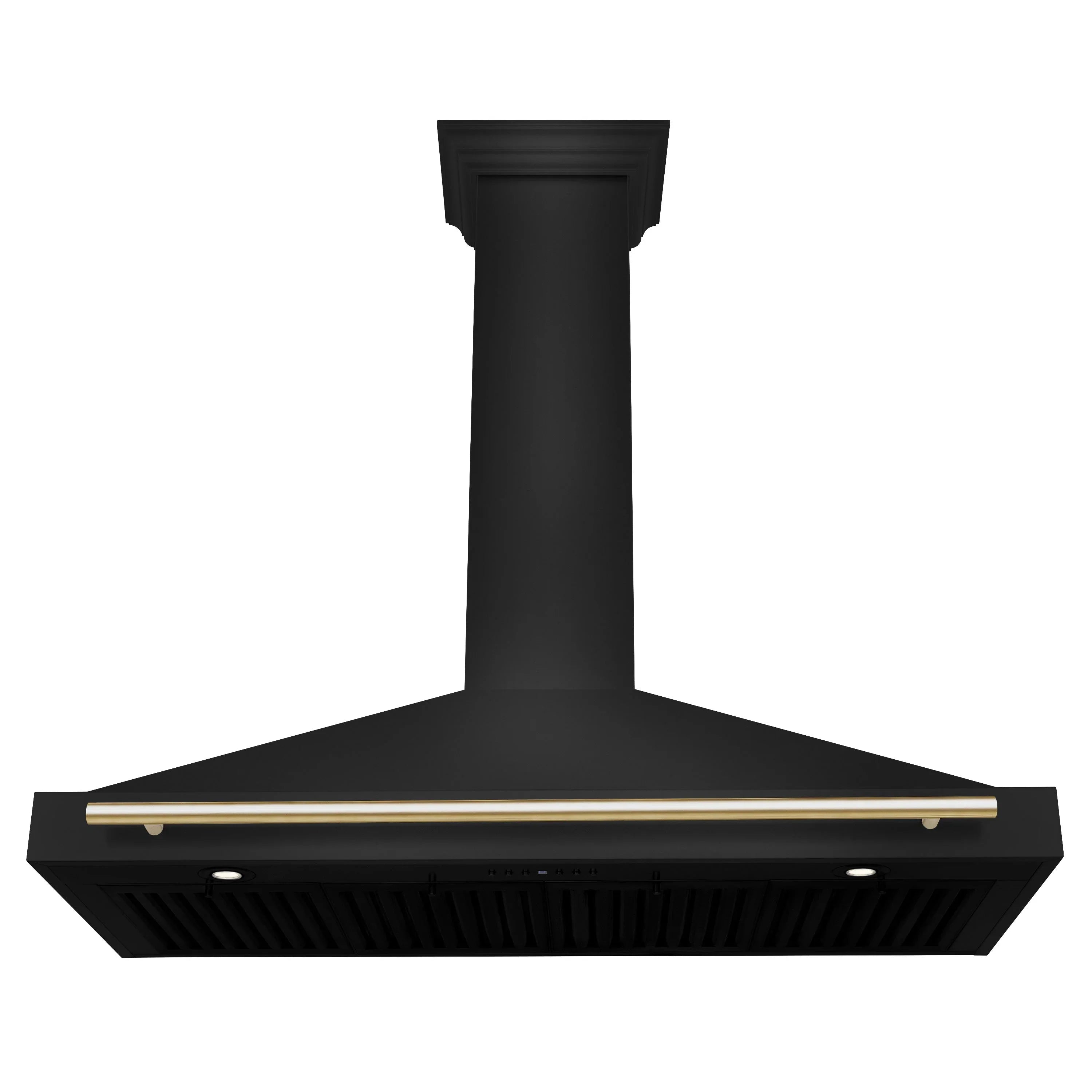

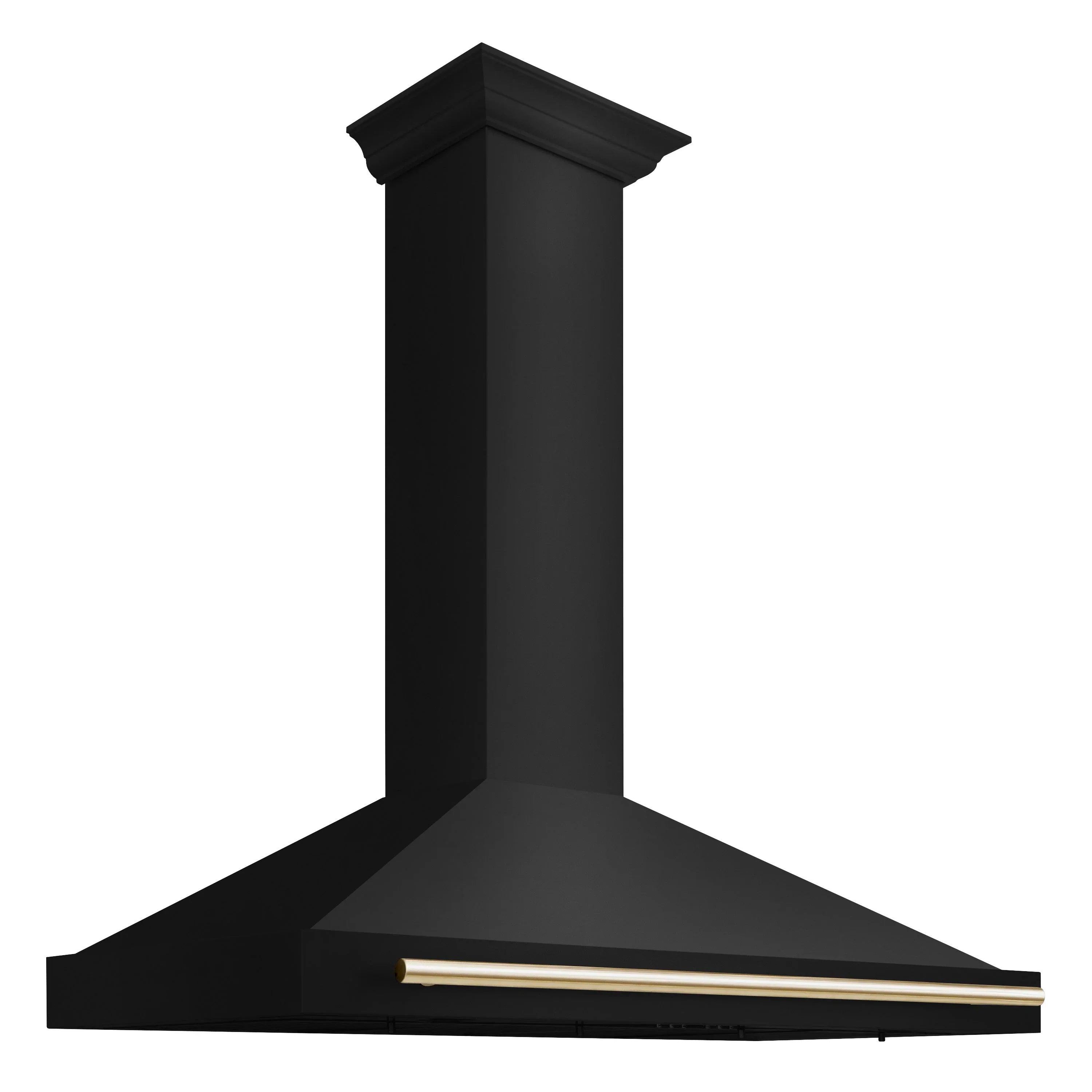

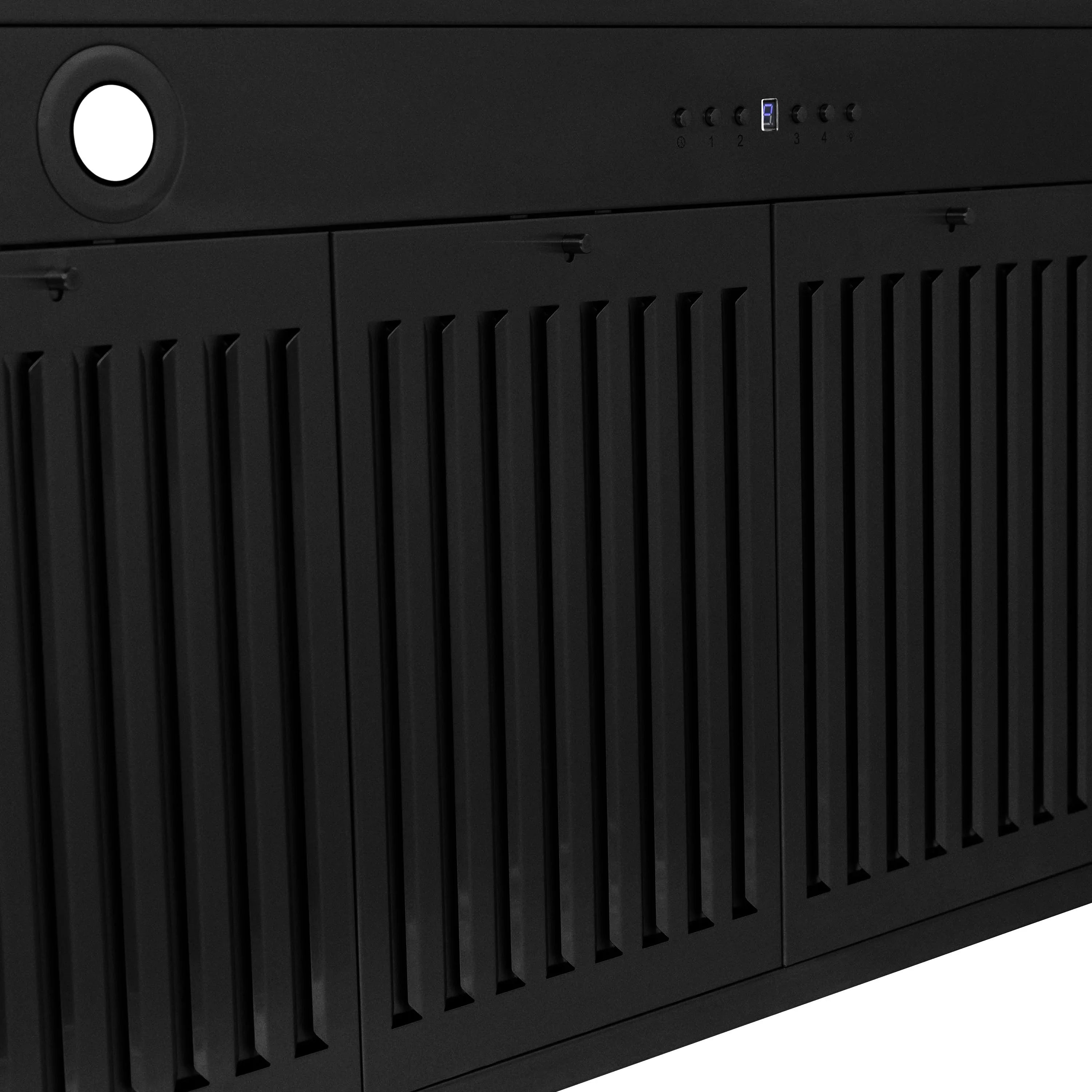

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 48 in. Autograph Edition Black Stainless Steel Wall Mount Range Hood With Accent Handle (BSKB4Z-48) provides a professional culinary experience by pairing unmatched performance with personalized touches. Encompassing limitless beauty, precision, and quality, the Autograph Edition Series creates a luxury look that will transform your space. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability.
| Specs & Dimensions | |
|---|---|
| Dimensions | 48 in. W x 17.75 in. D x 12 in. H |
| Chimney Dimensions | 9.2 in. W x 8 in. D x 16 in. H (x2) (Telescoping) |
| Min/Max Chimney Height | 16 in. - 32 in. H |
| Compatible Accessories | CF1 (charcoal filters) |
| Max CFM | 400 CFM |
| Duct Size | 6 in. Round Duct |
| Airflow (Q/L/M/H) | 120/240/320/400 |
| Outdoor Approved (Y/N) | No |
| Convertible from Ducted to Recirculating (Y/N) | Yes (with charcoal filters) |
| Remote Blower (Y/N) | No |
| Electrical Requirements (Voltage, Amps, Watts) | 110V/5a/550W |
| Decibels/Sones | 30/41/49/52 dB |
| Lighting (# of Lights) | 2 |
| Mount Type | Wall Mount |
| Motor | High Performance 400 CFM/4-Speed Motor |
| Material | Black Stainless Steel with Accent Handle |

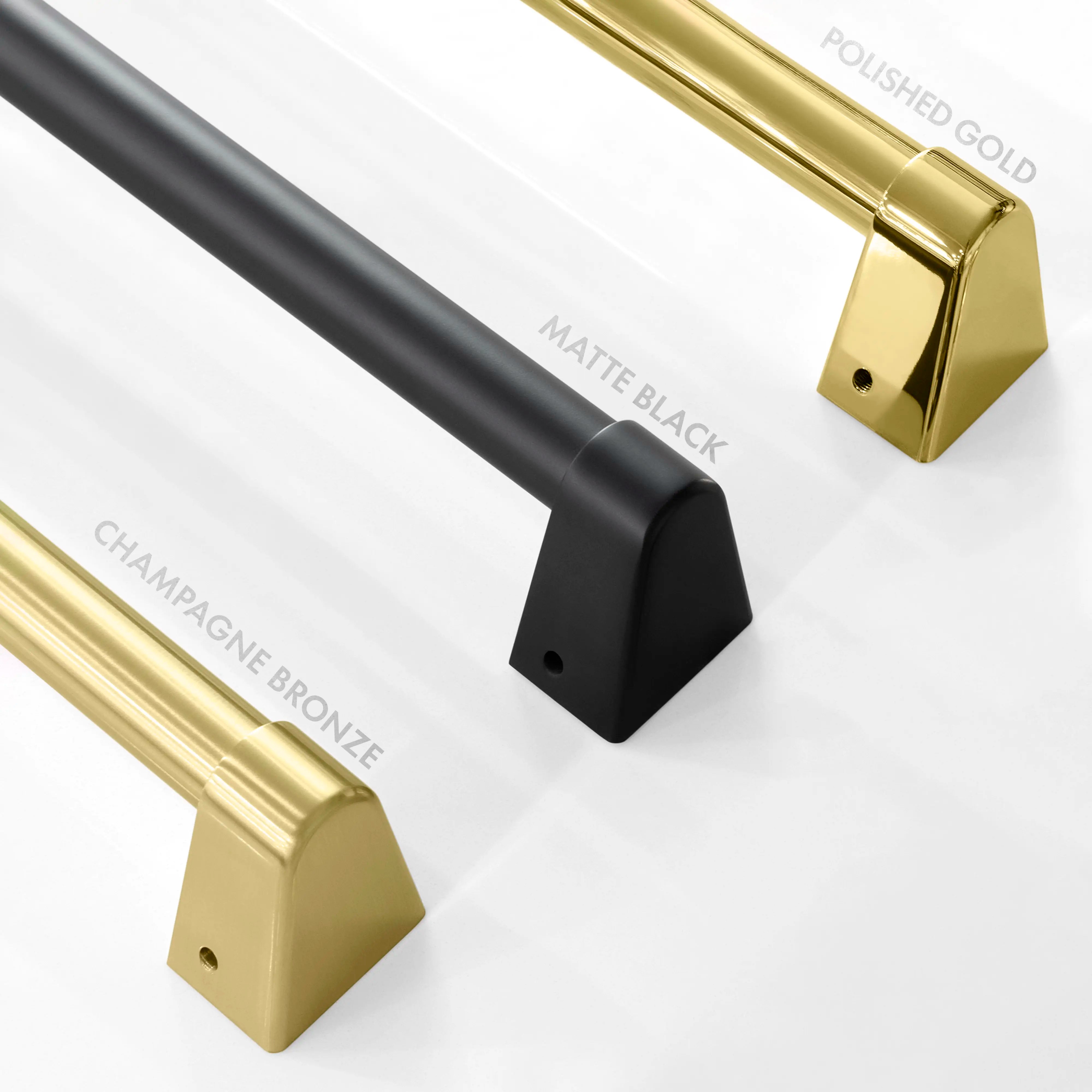

| Accent Finishes | Champagne Bronze Polished Gold |
| Speeds | 4 |
| Filters | Baffle Filters |
| Control Type | Push Button Panel |
| Warranty | 3 Year Parts Warranty Lifetime Motor Warranty |
| Certifications | ETL Listed |

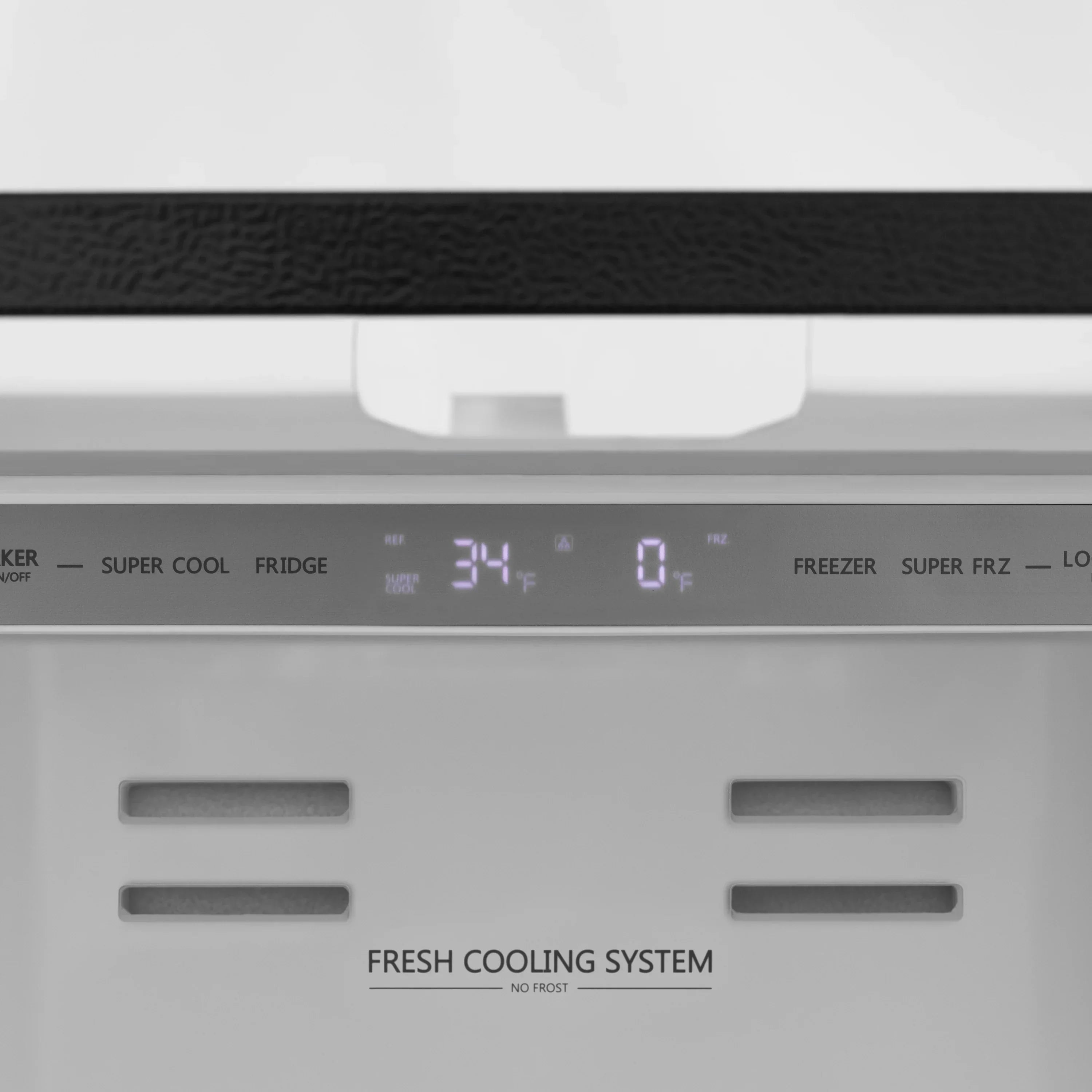

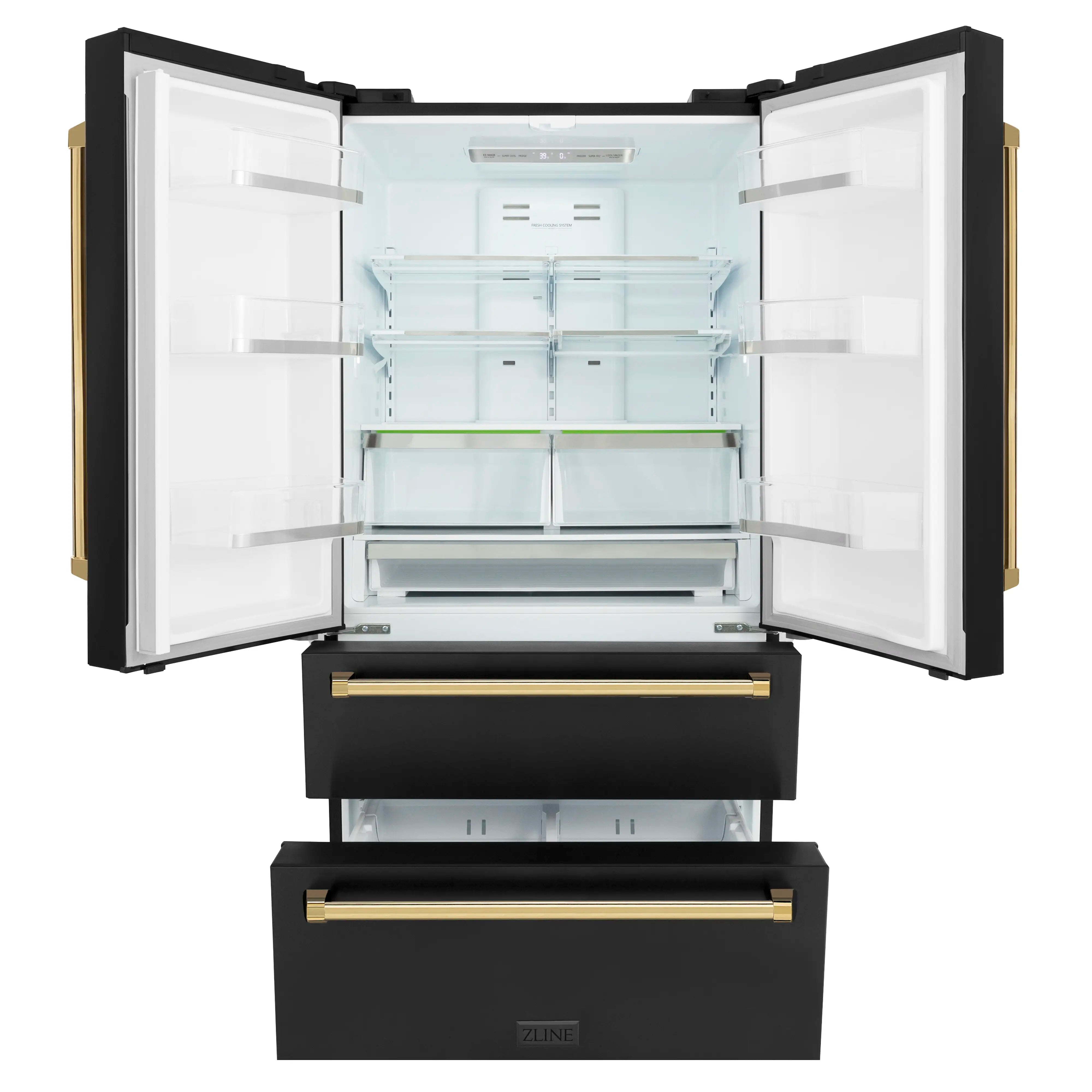

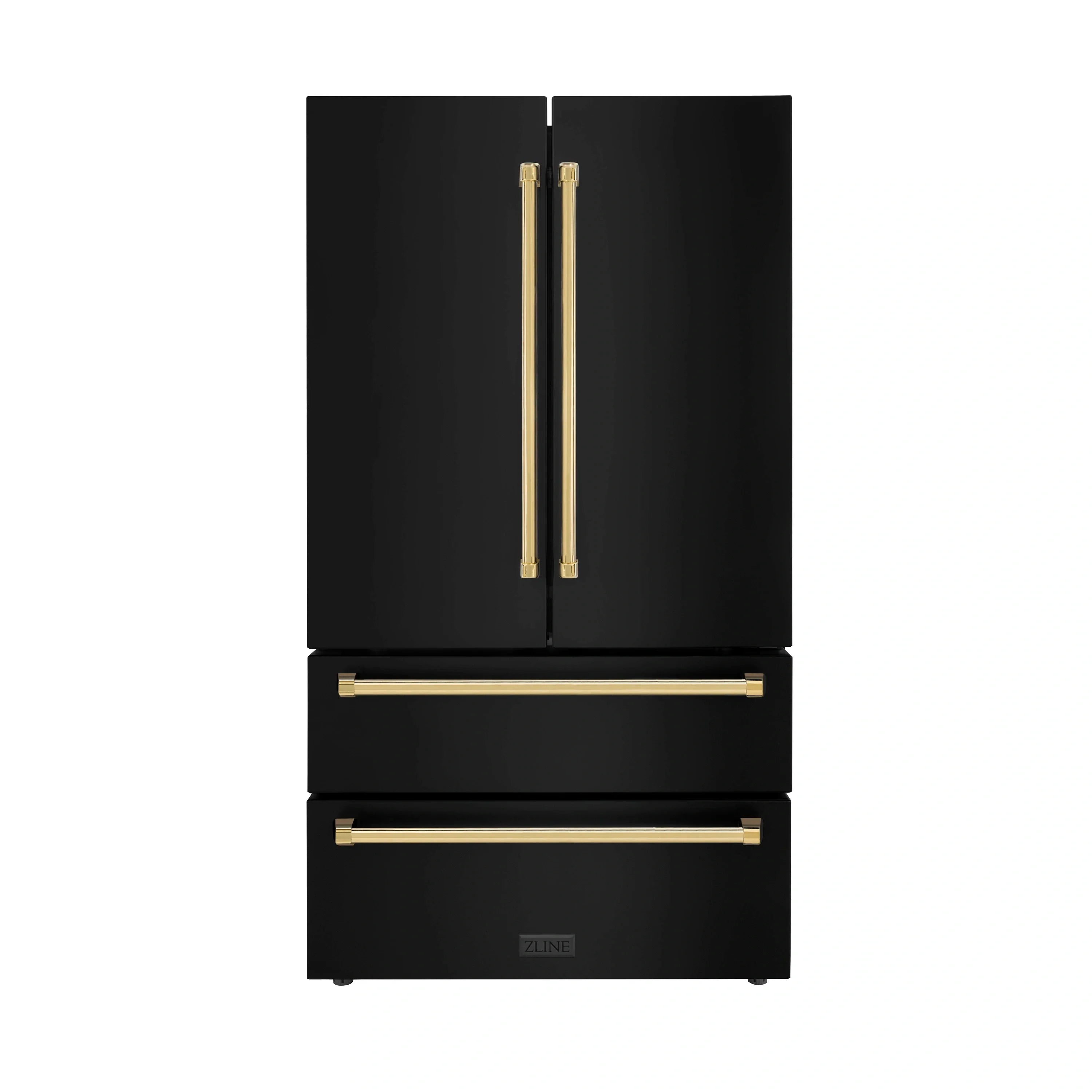

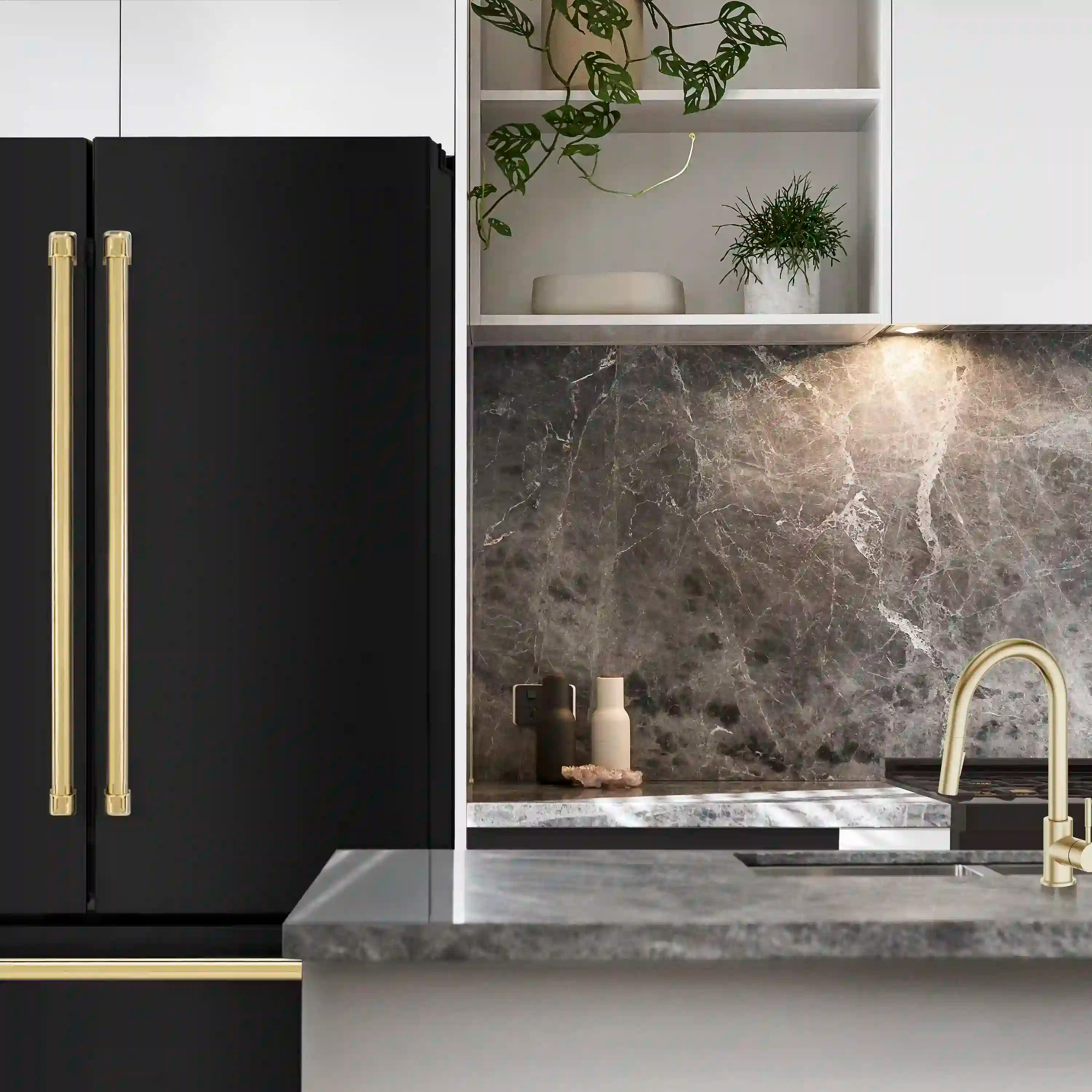

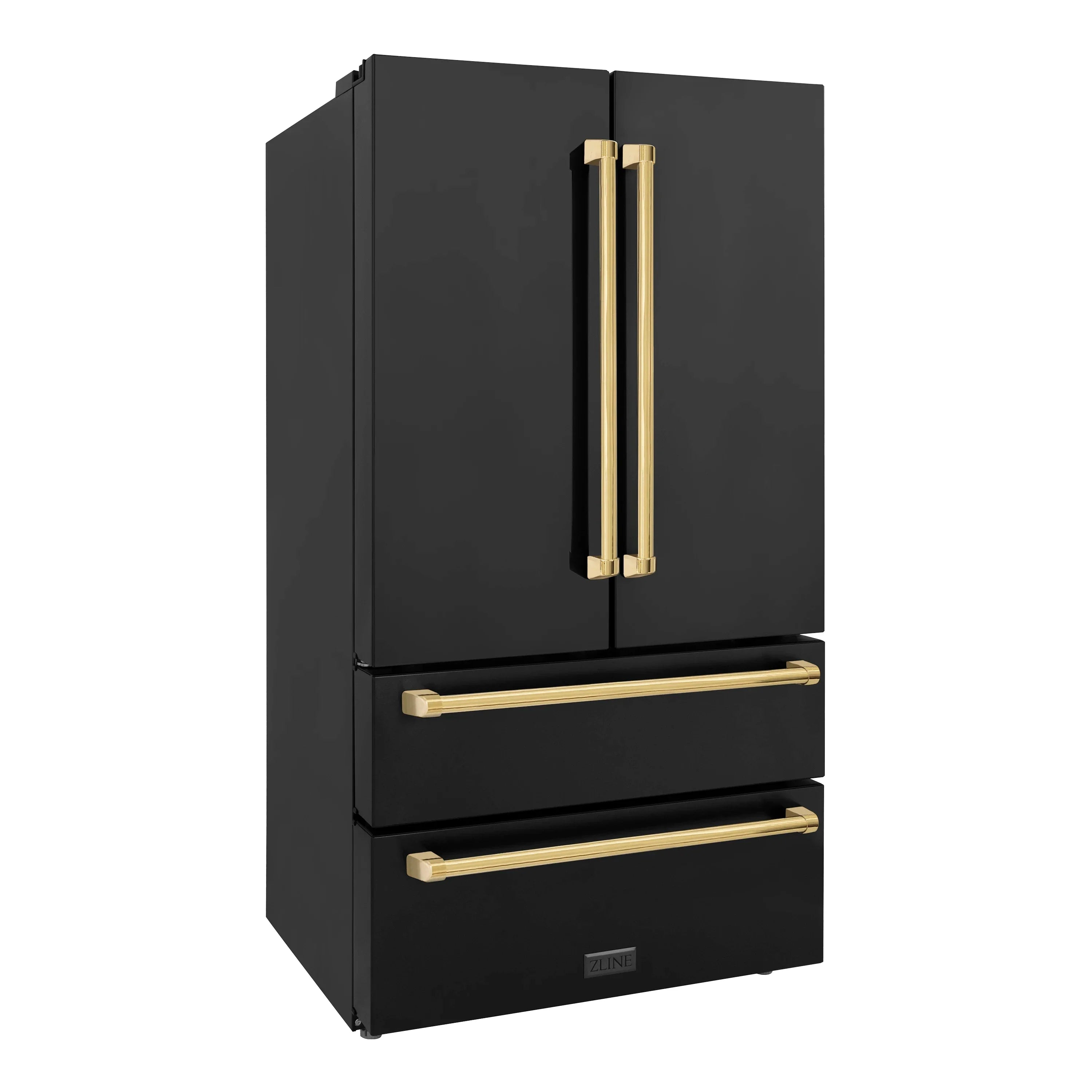

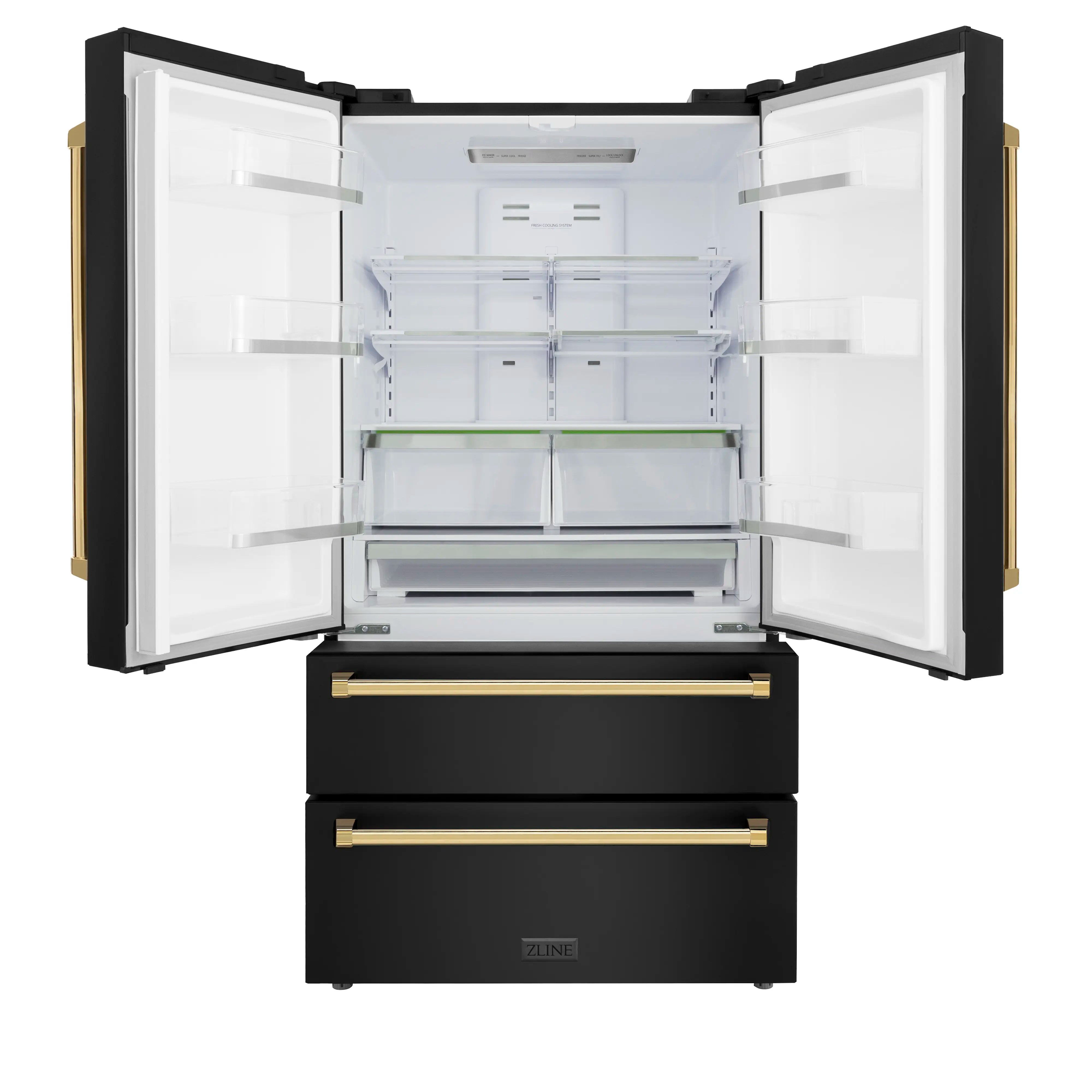

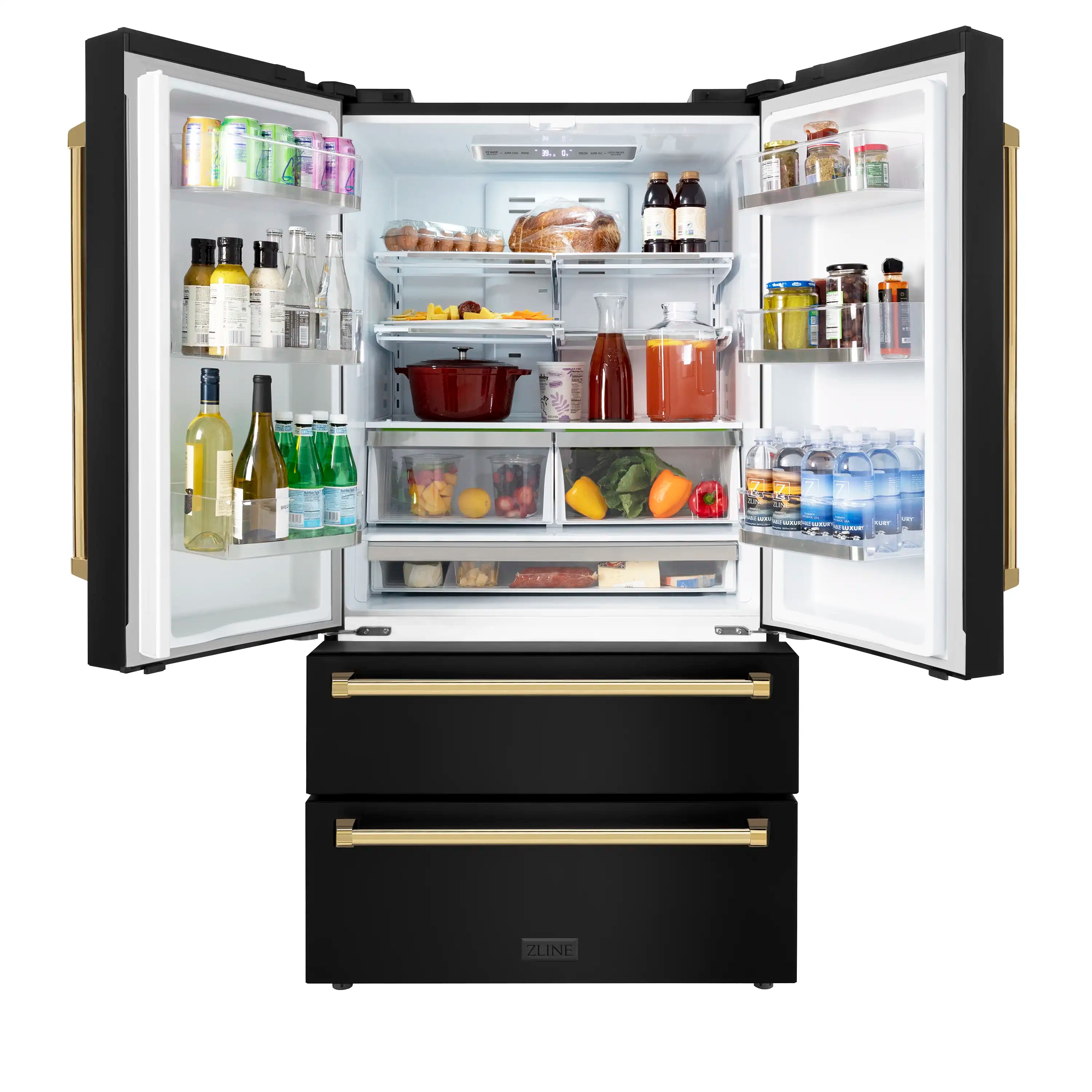

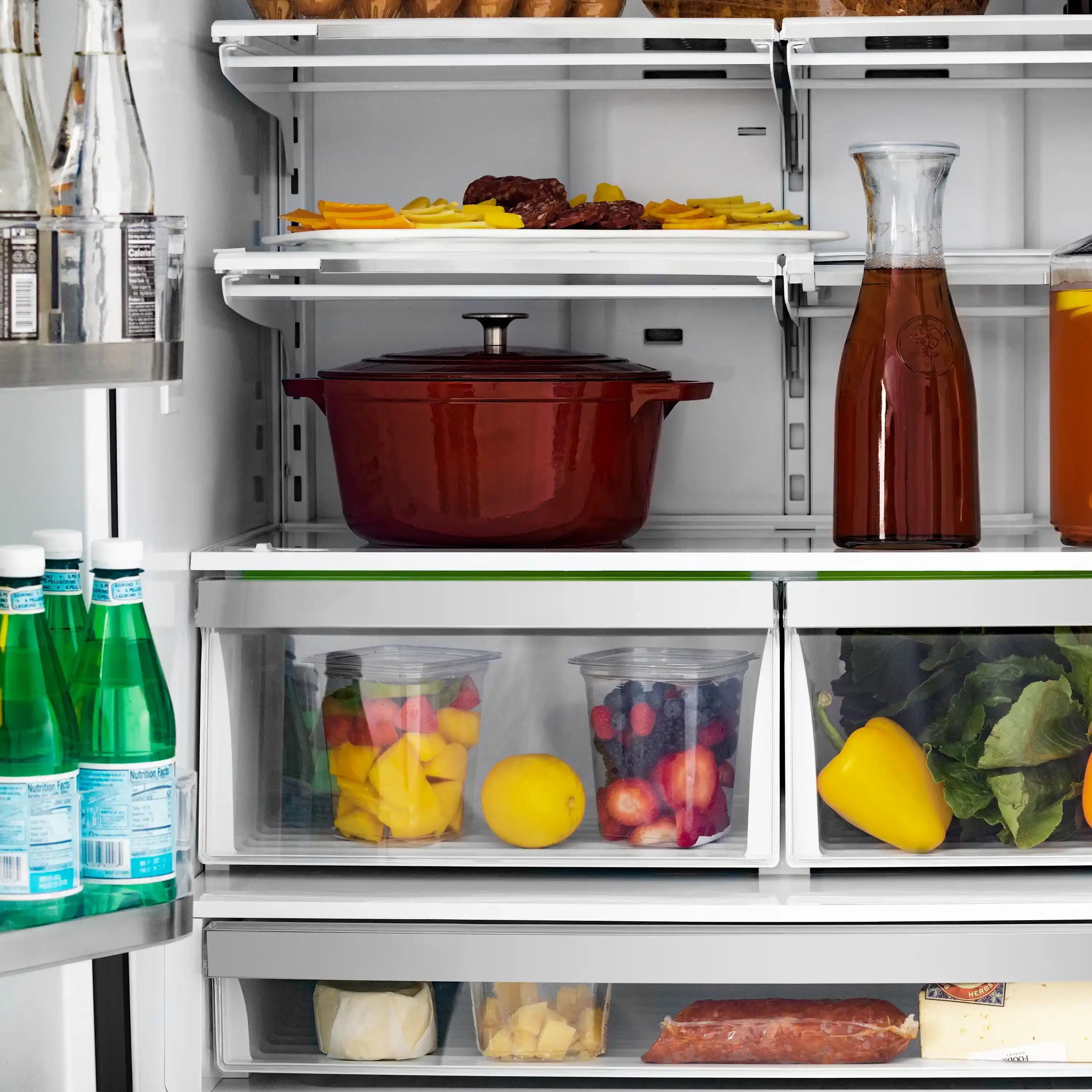

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 36 in. 22.5 cu. ft. Counter-Depth French Door Refrigerator with Ice Maker in Fingerprint-Resistant Black Stainless Steel with Polished Gold Traditional Handles (RFMZ-36-BS-G) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and a high-capacity built-in ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
| Specs & Dimensions | |
|---|---|

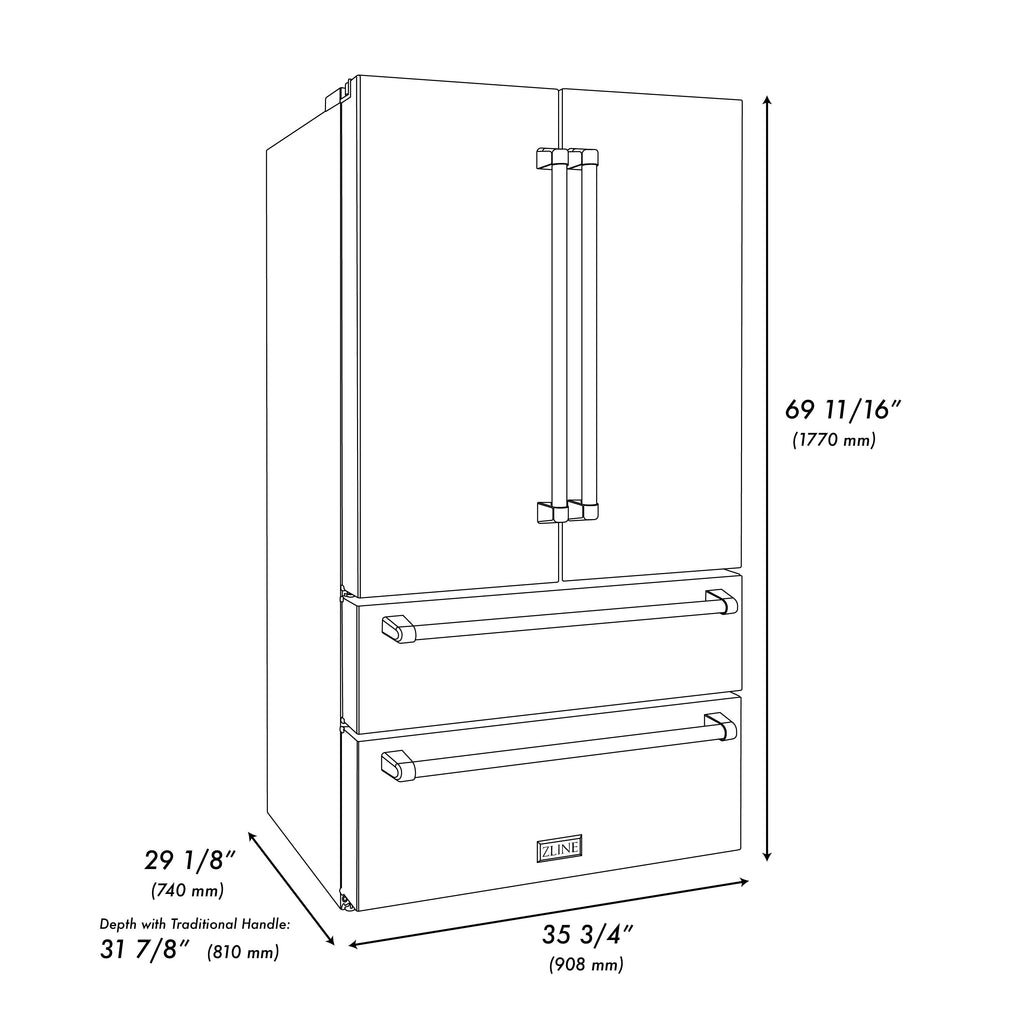

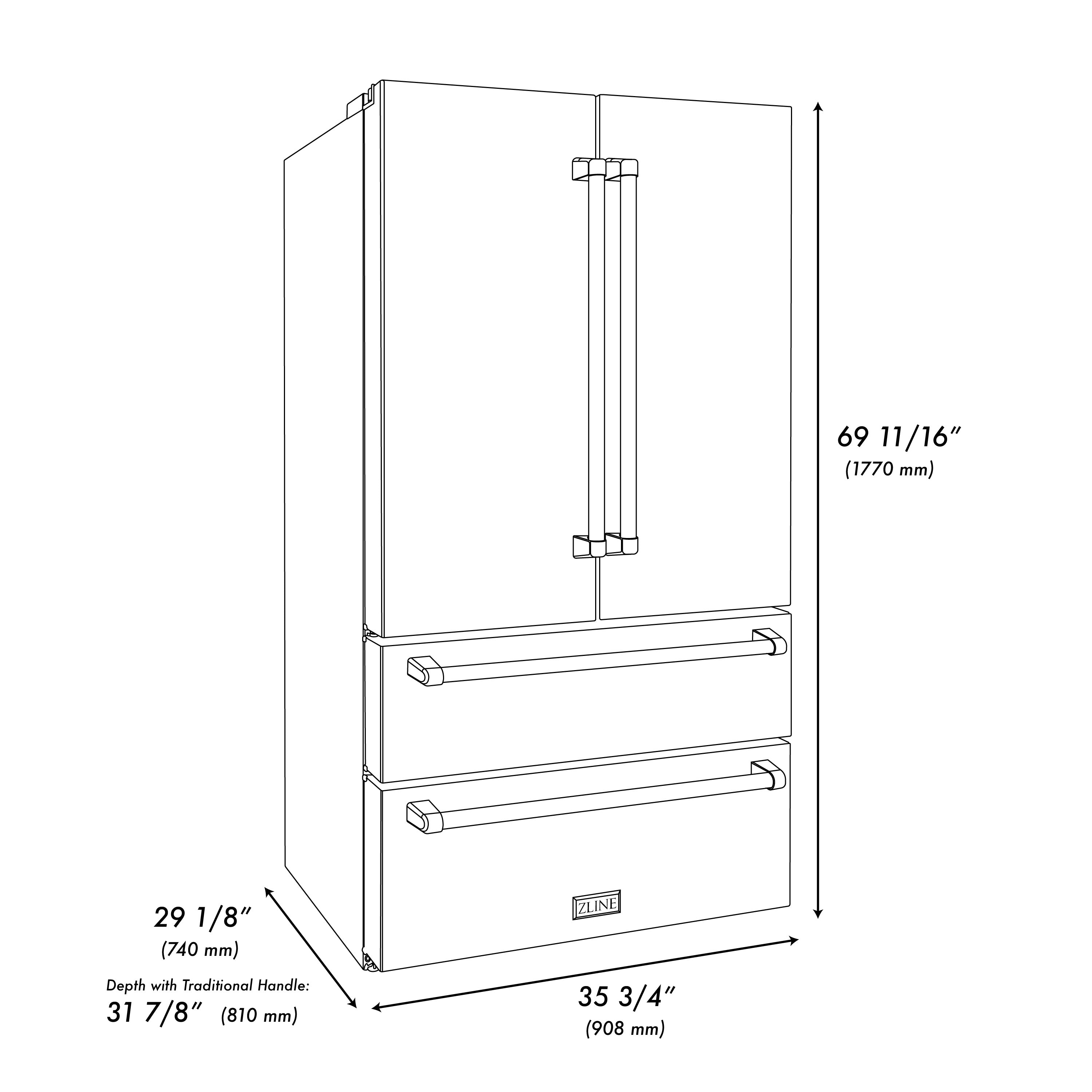

| Dimensions | 35.75 in. W x 29.125 in. D x 69.6875 in. H |
| Total Capacity | 22.5 cu. ft |
| Fridge Capacity | 15.9 cu. ft |
| Freezer Capacity | 6.61 cu. ft |
| Flex Drawer Capacity | N/A |
| Flex Drawer Temp Controls | N/A |
| Installation Depth | 29 in. D |
| Depth with Door Open | 43.5 in. |

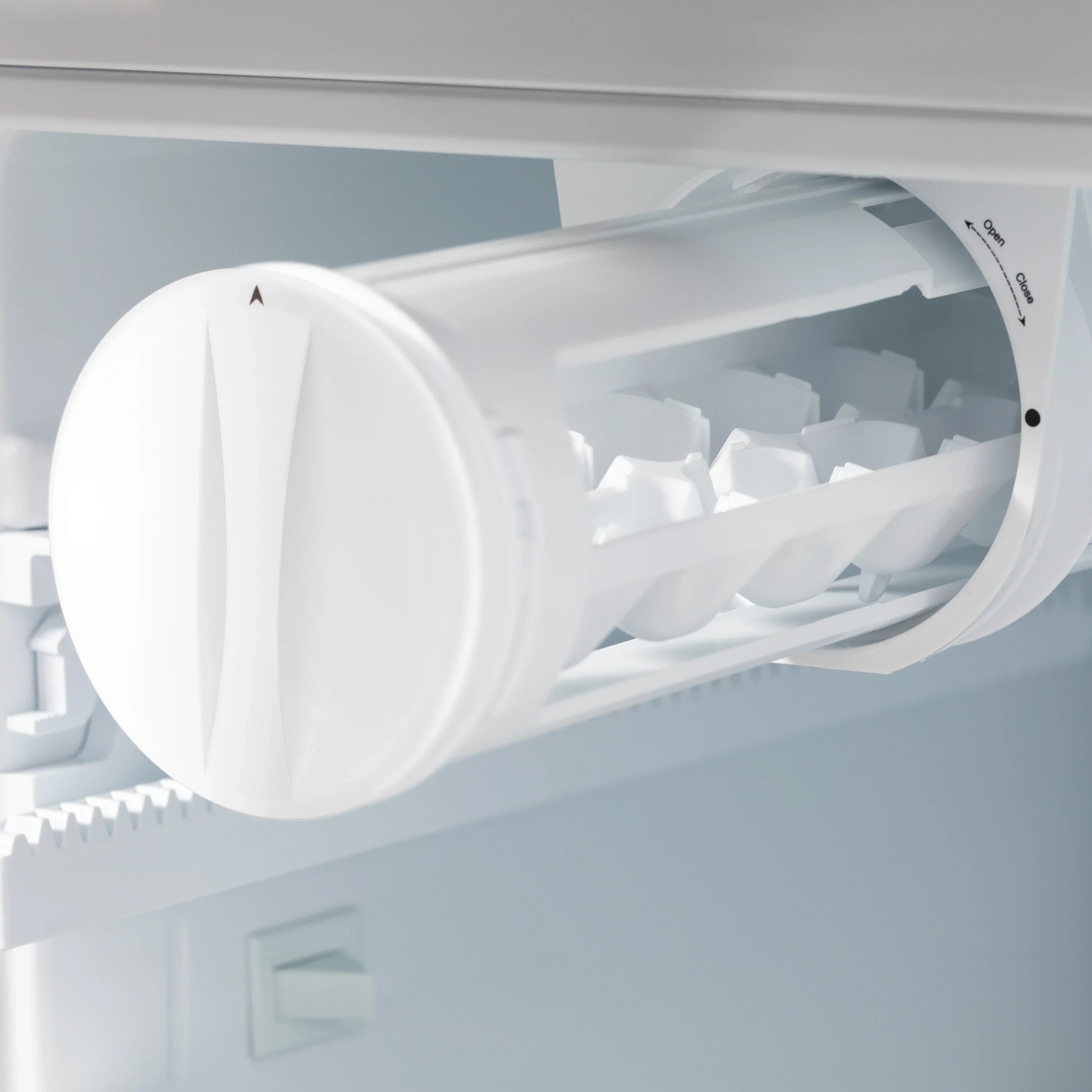

| Ice Maker | Yes |
| Ice Maker Types | Single Ice Maker |
| Ice Amount Per Day | 4.85 lbs |
| Ice Tray Storage | 1.75 lbs |
| Water Dispenser | No |
| Flowrate for Water Dispenser | N/A |
| Fridge Lights | 3 |
| Energy Star | Yes |

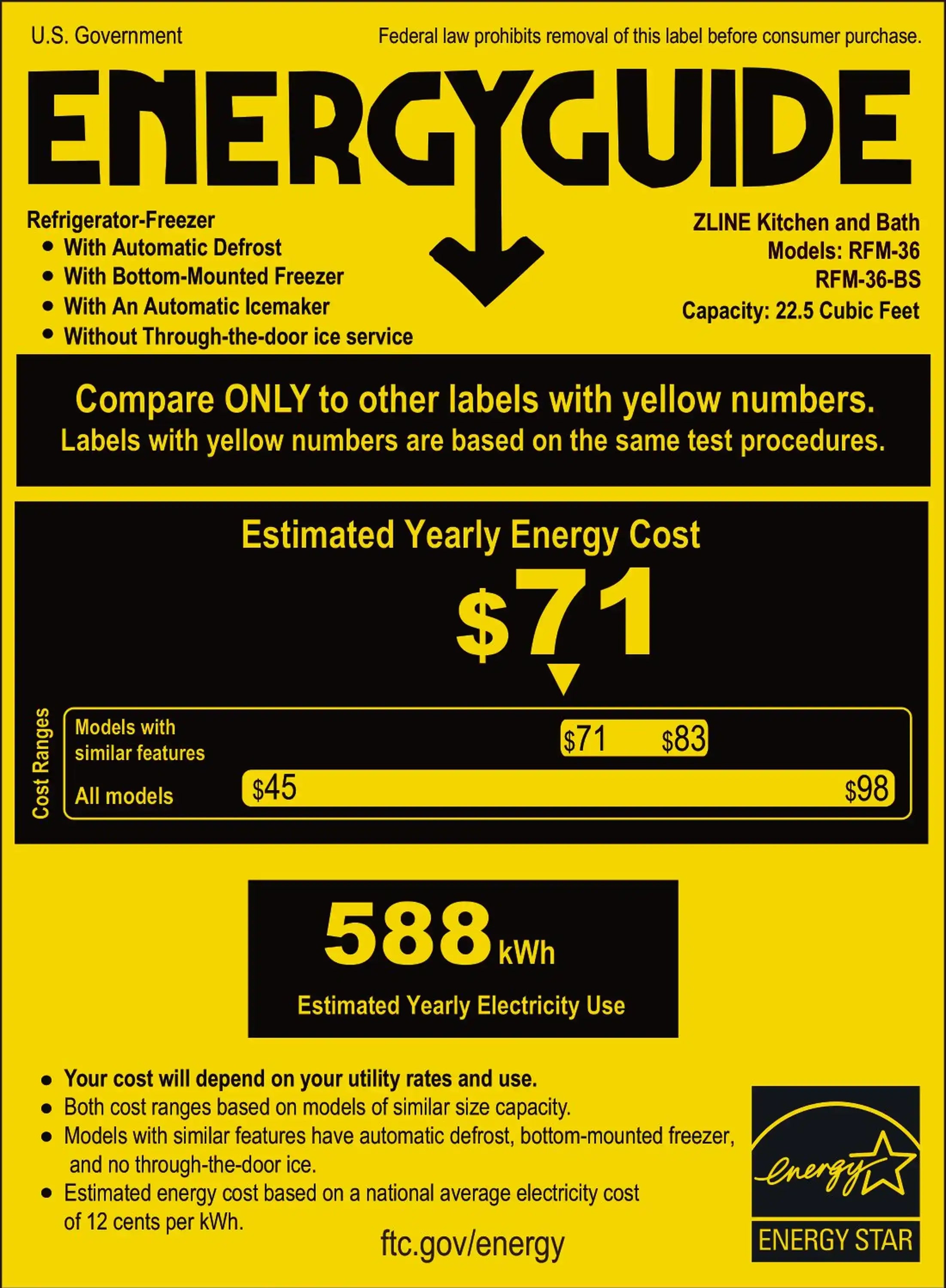

| Energy Consumption (kWh/year) | 588 |
| Voltage | 120V/60Hz |
| Amps | 3 |
| Noise Level | 45 Decibels |

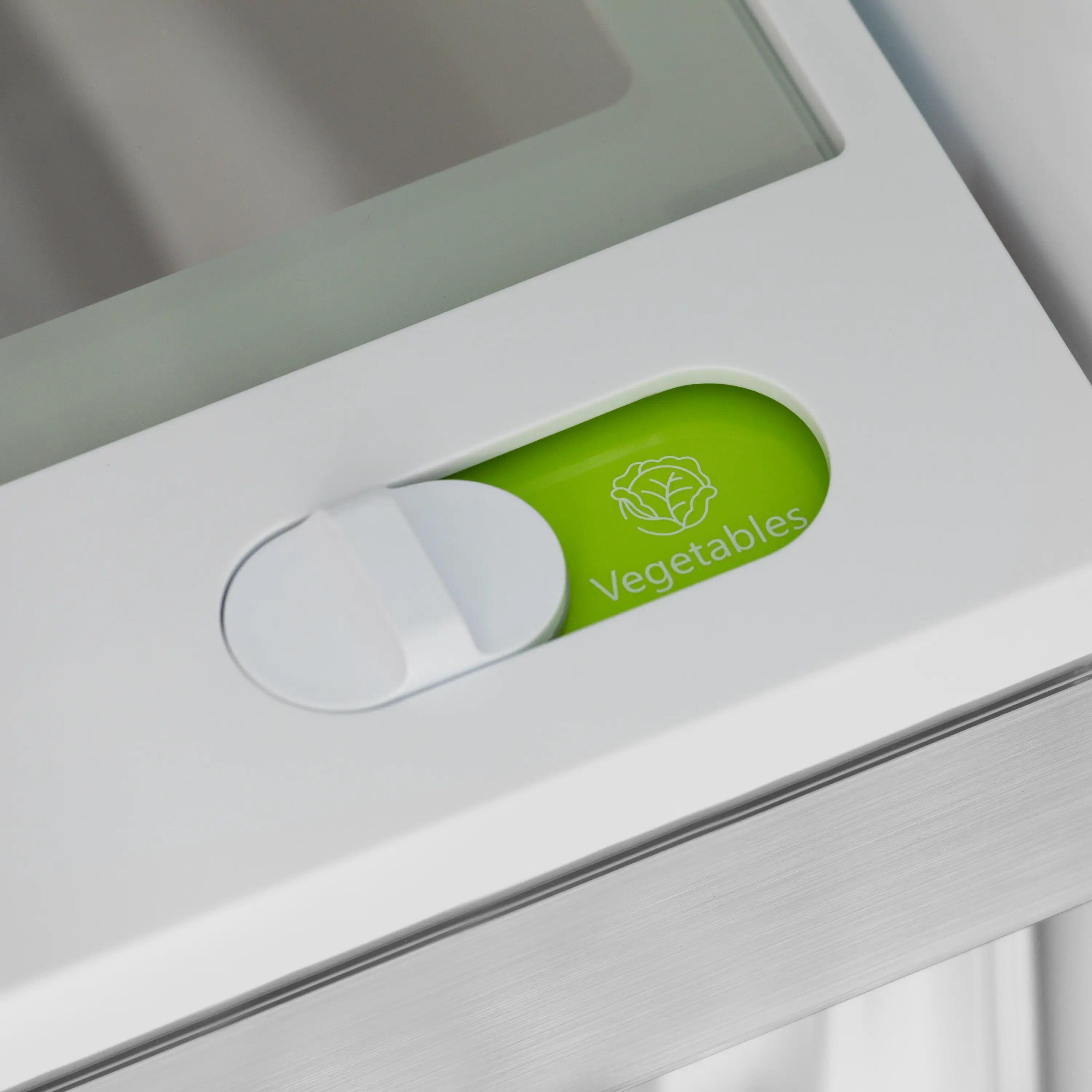

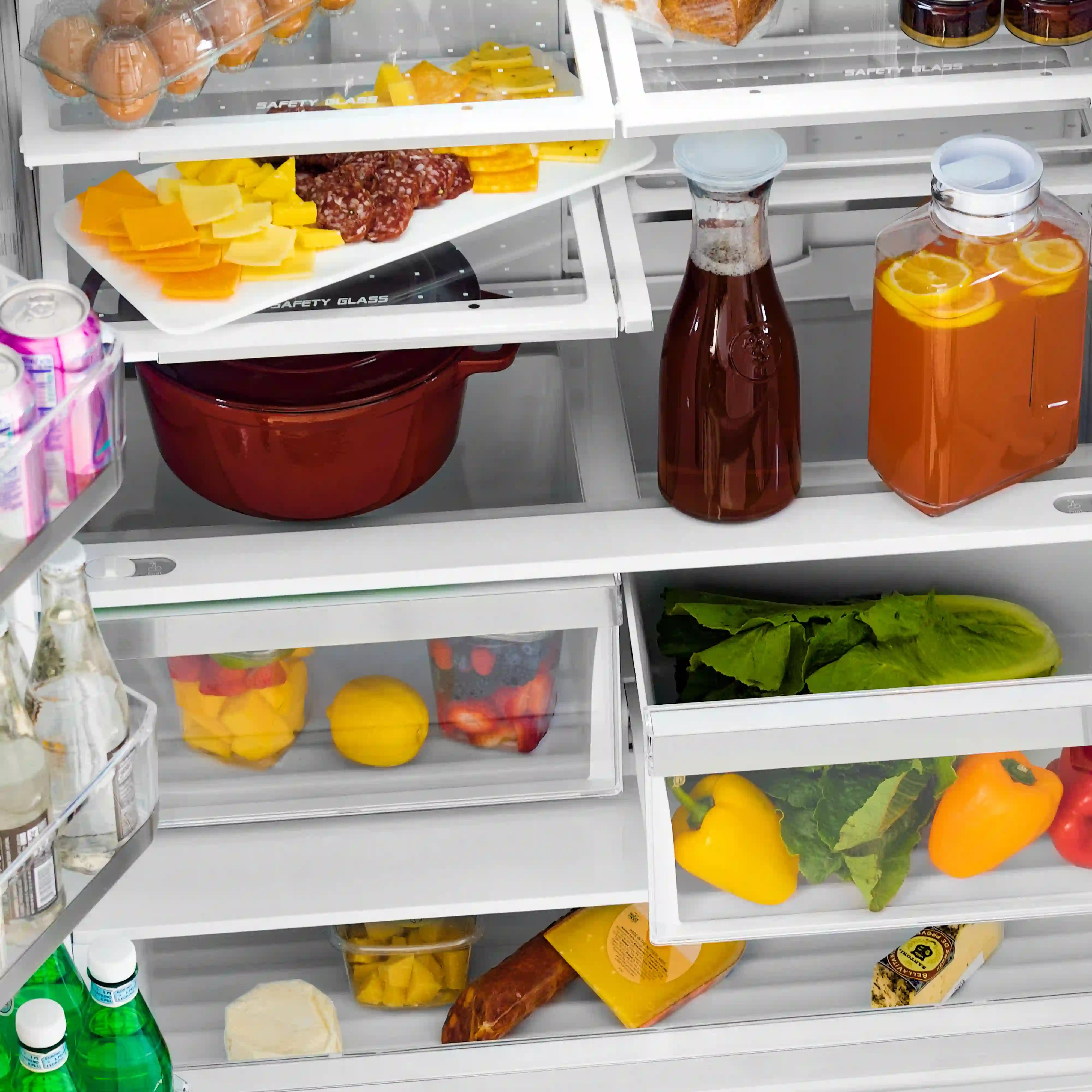

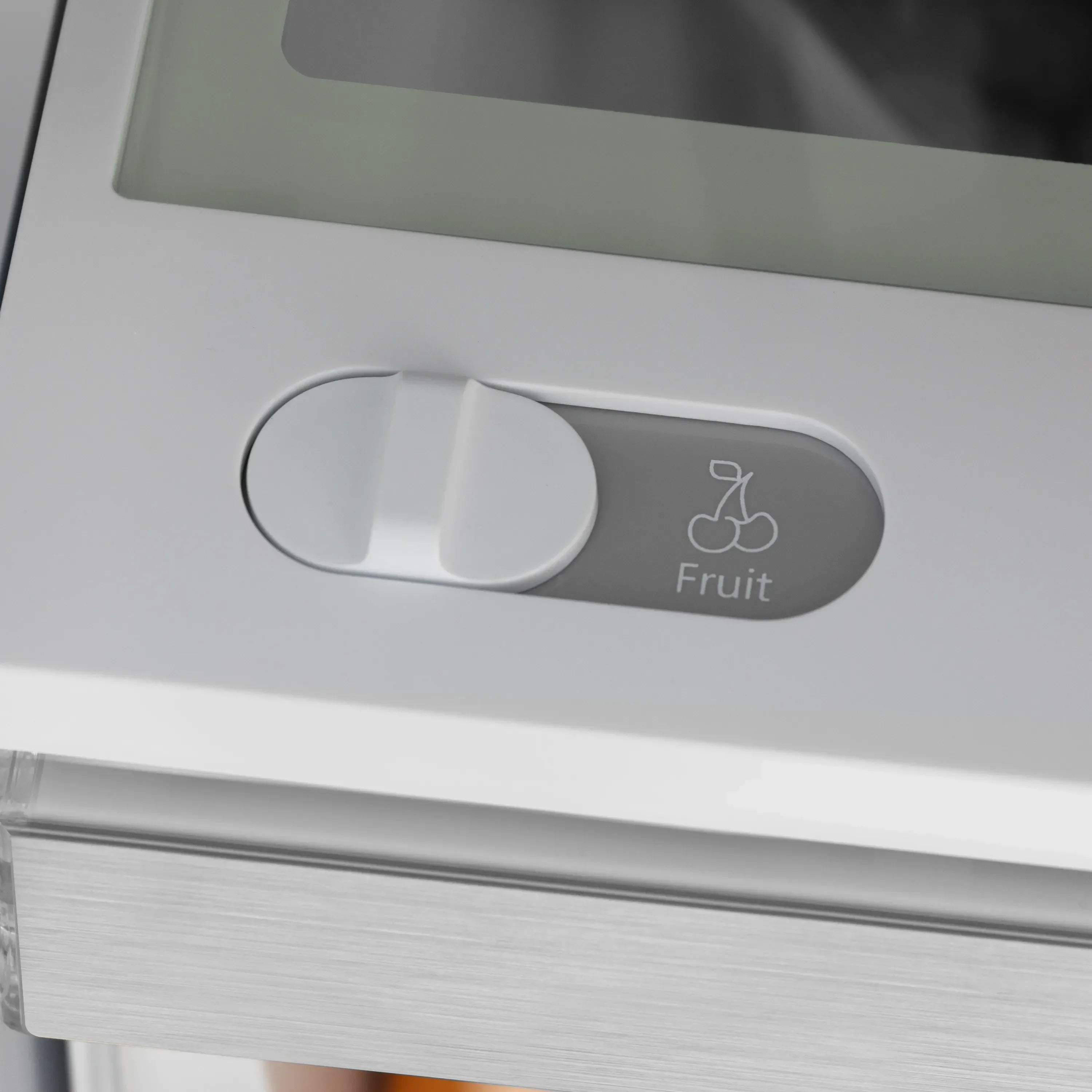

| Humidity-Controlled Crispers | 2 |
| Freezer Drawer Bins | 2- Pull Out Drawers |
| Door Shelves | 6 |
| Number of Fridge Shelves | 4 |
| Mount Type | Freestanding |
| Certifications | ETL Listed, ENERGY STAR certified |
| Material | Black Stainless Steel with Gold Accents |
| Warranty | 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System |
| Weight | 284.4 lbs |

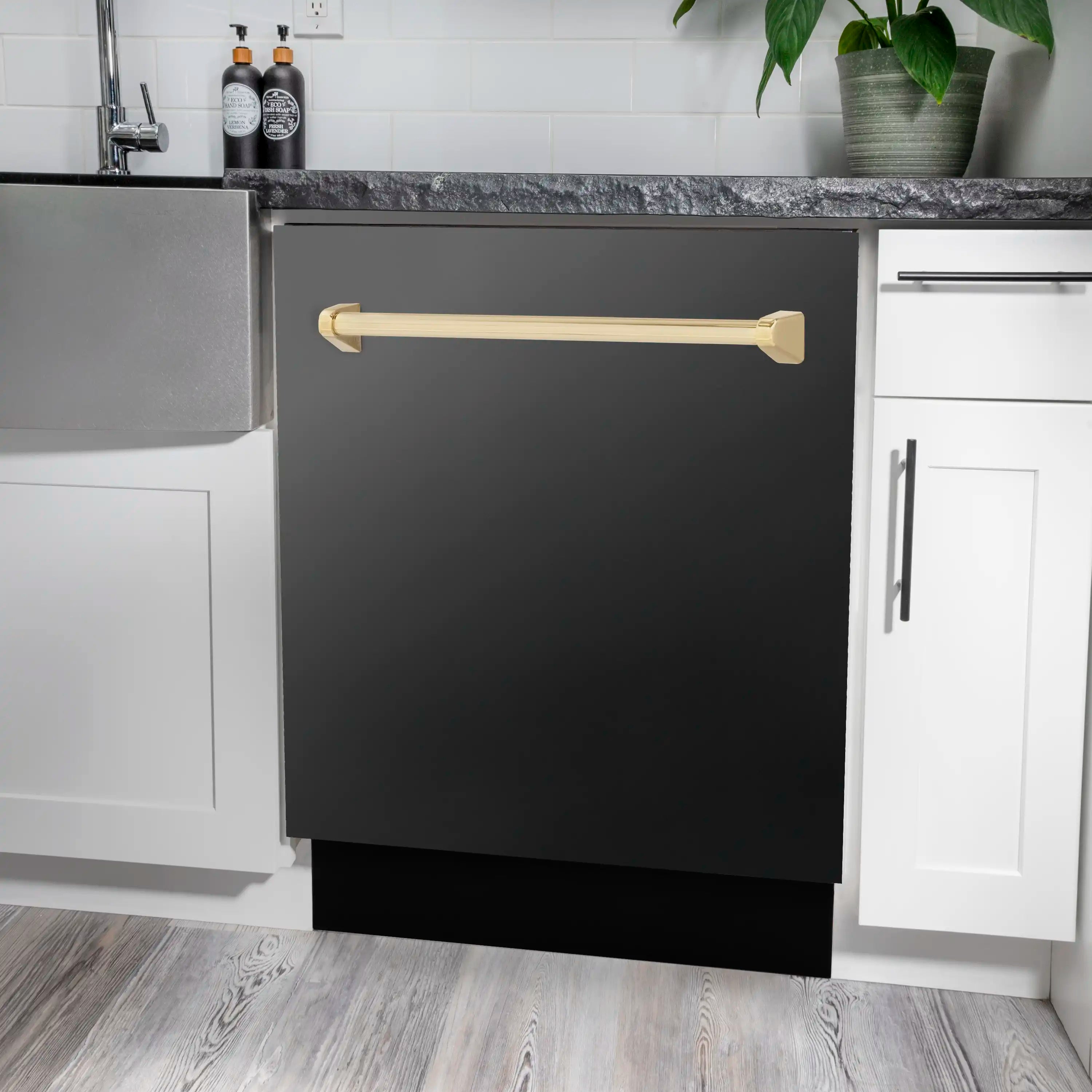

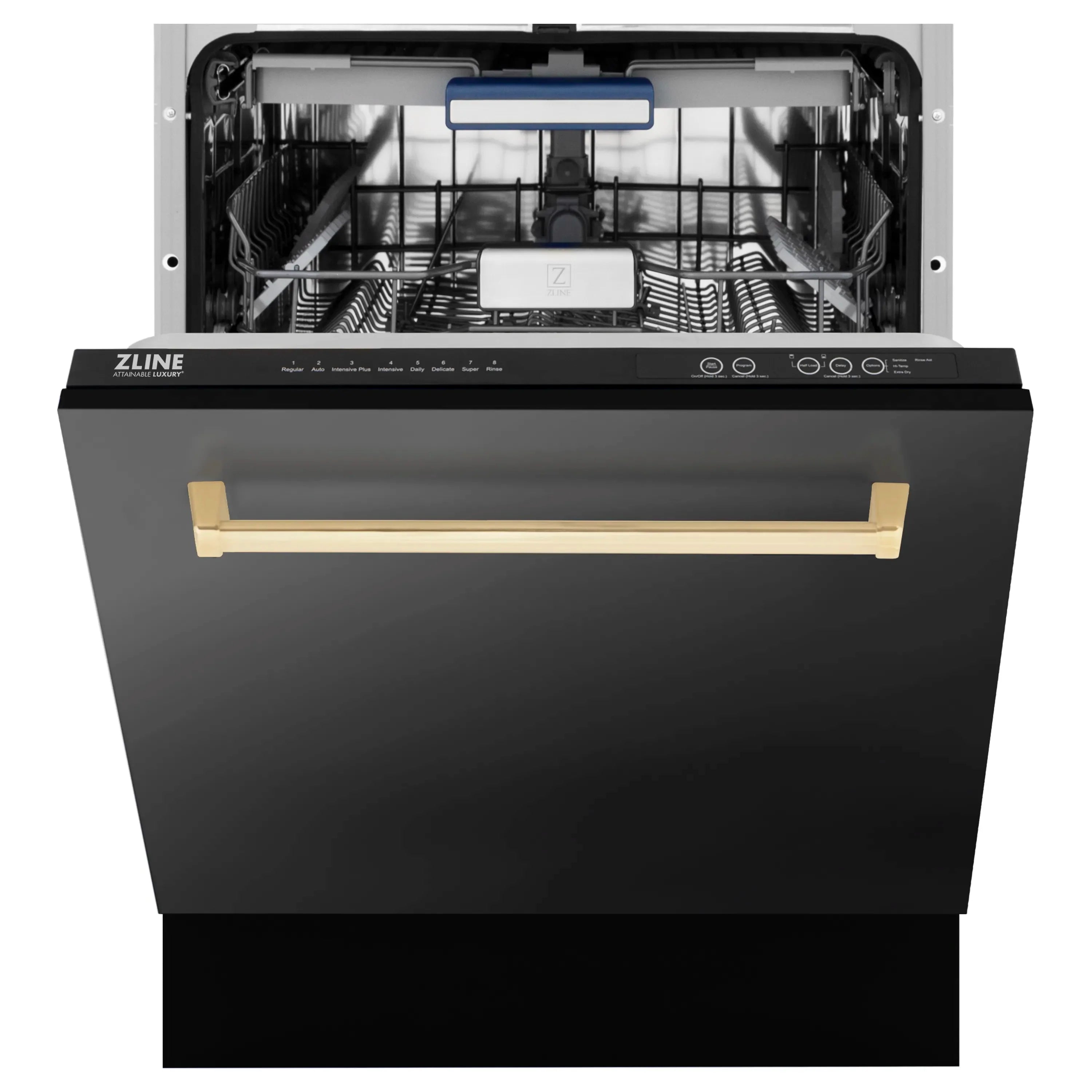

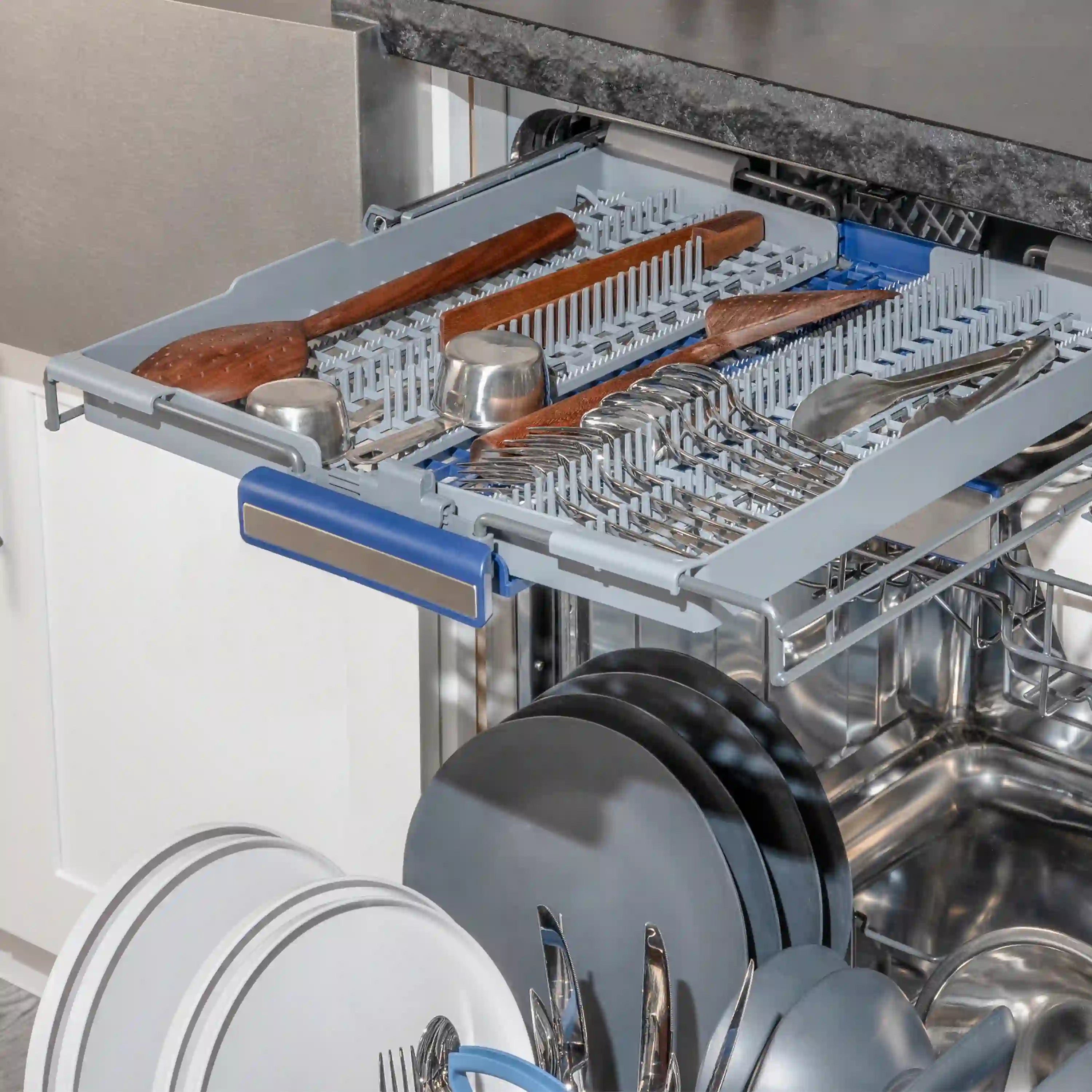

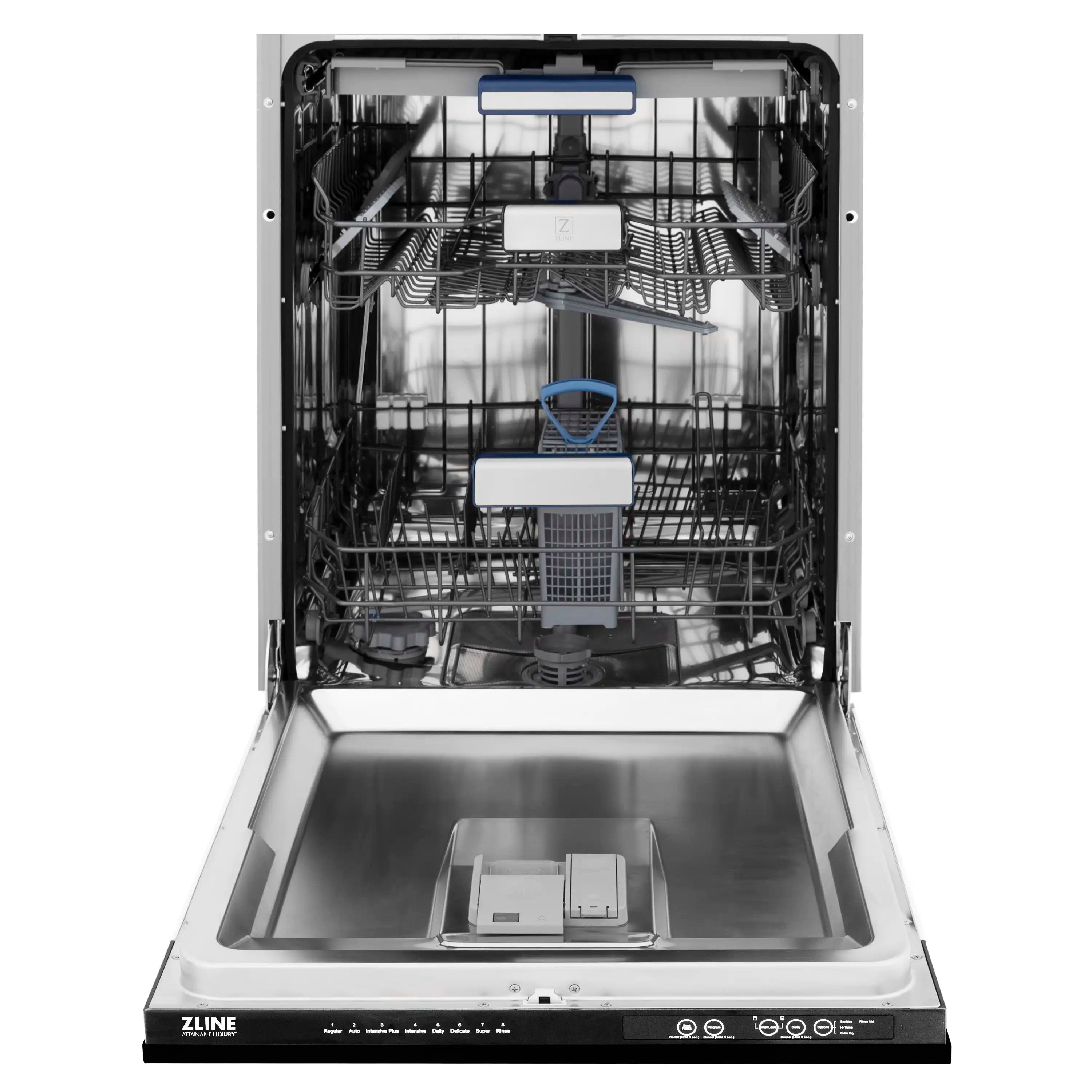

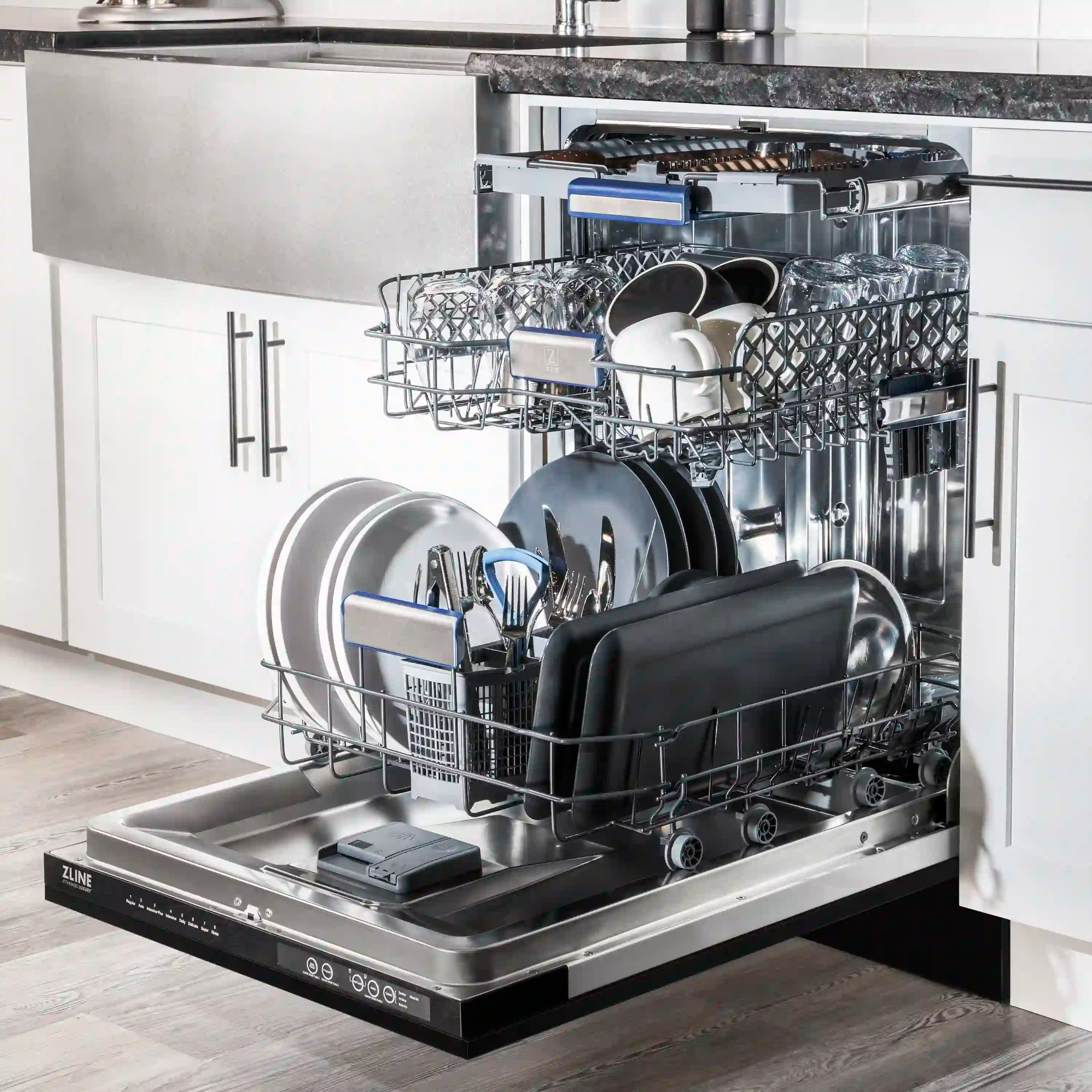

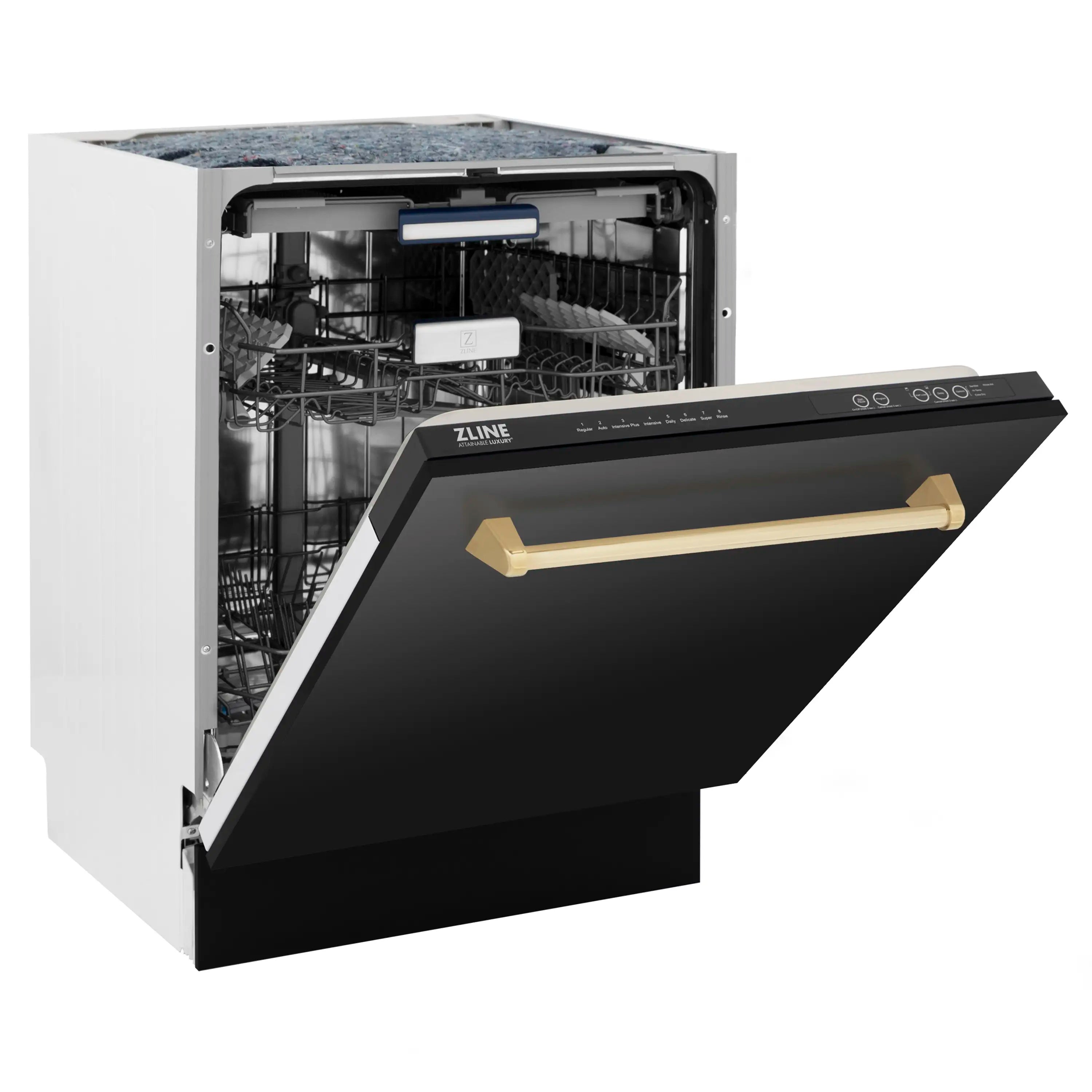

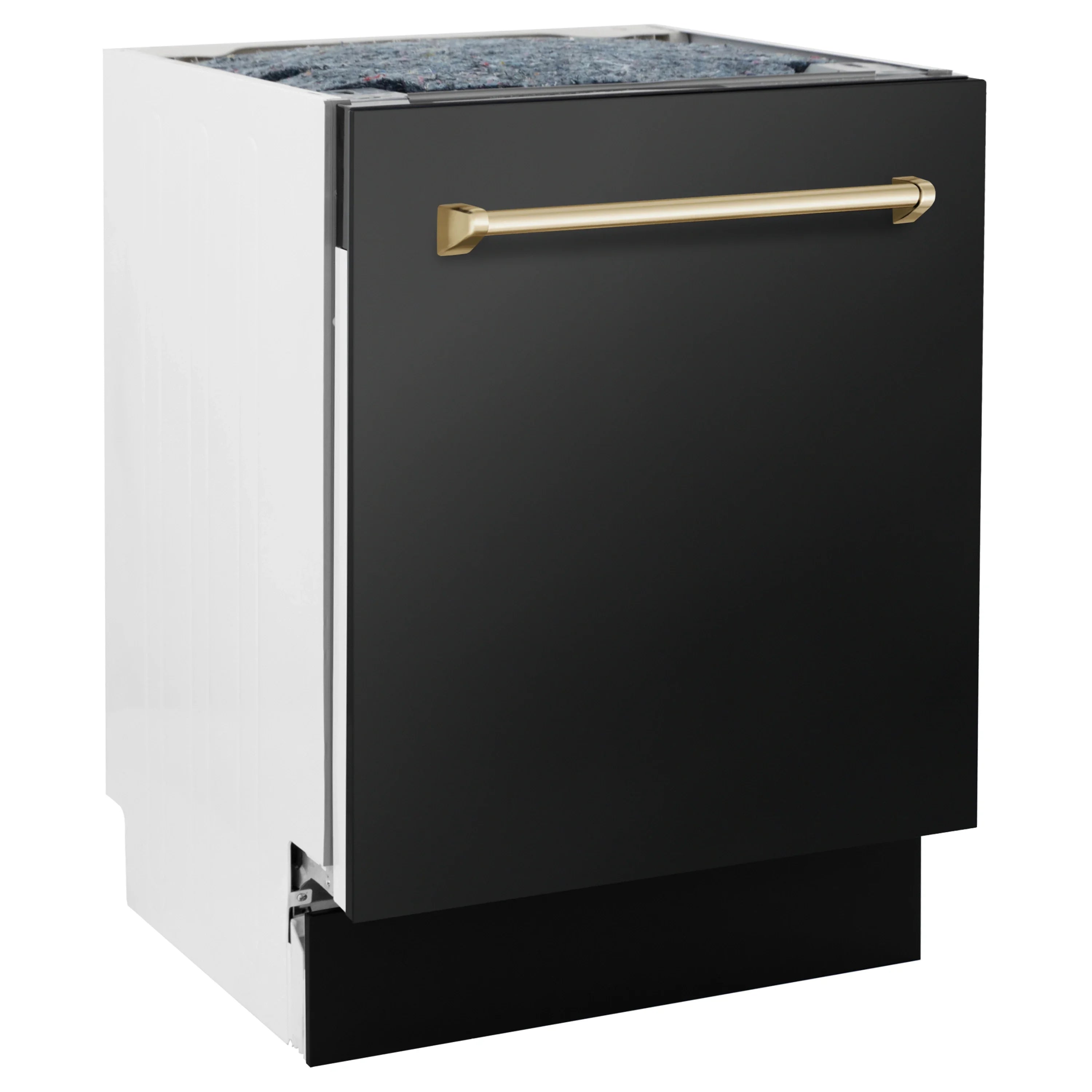

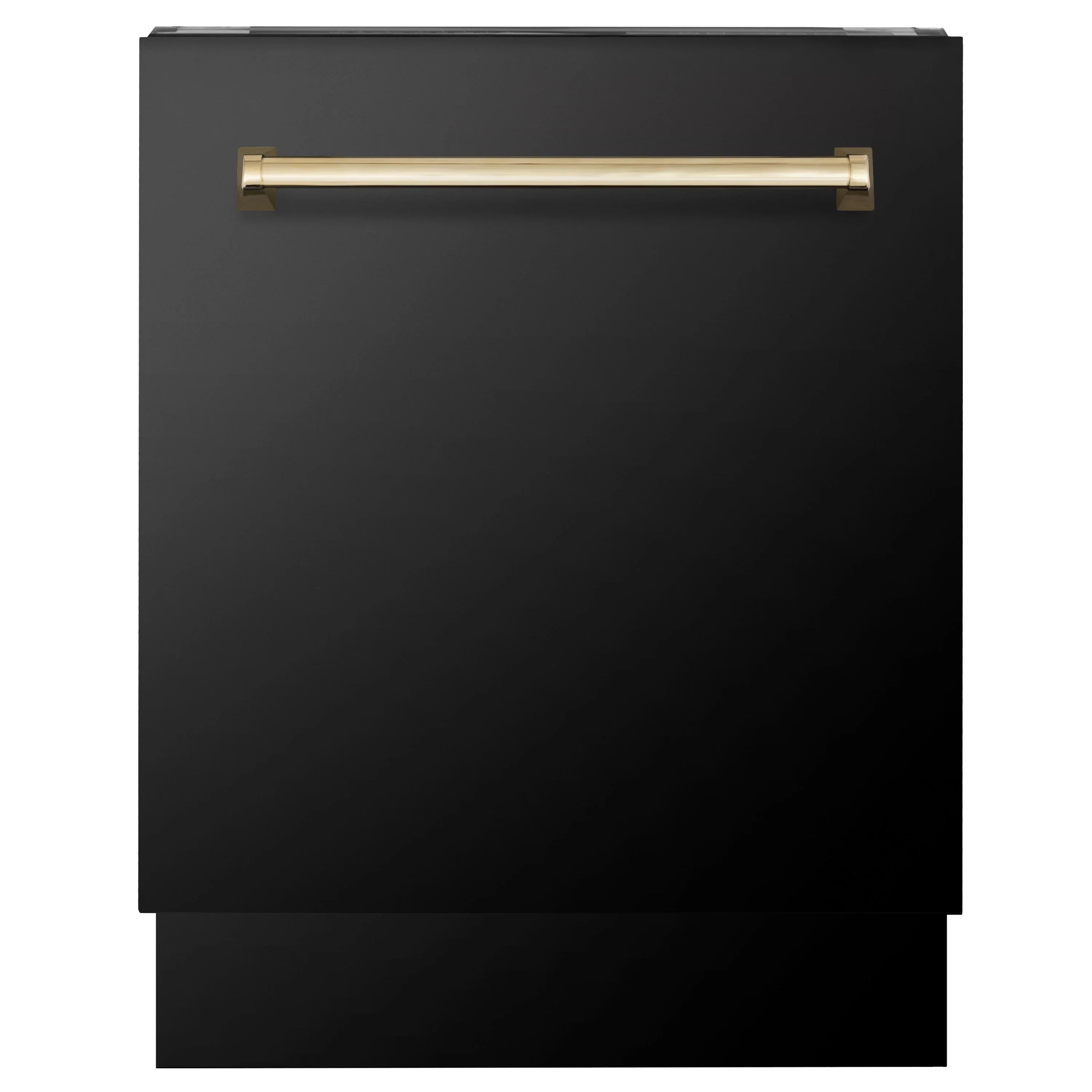

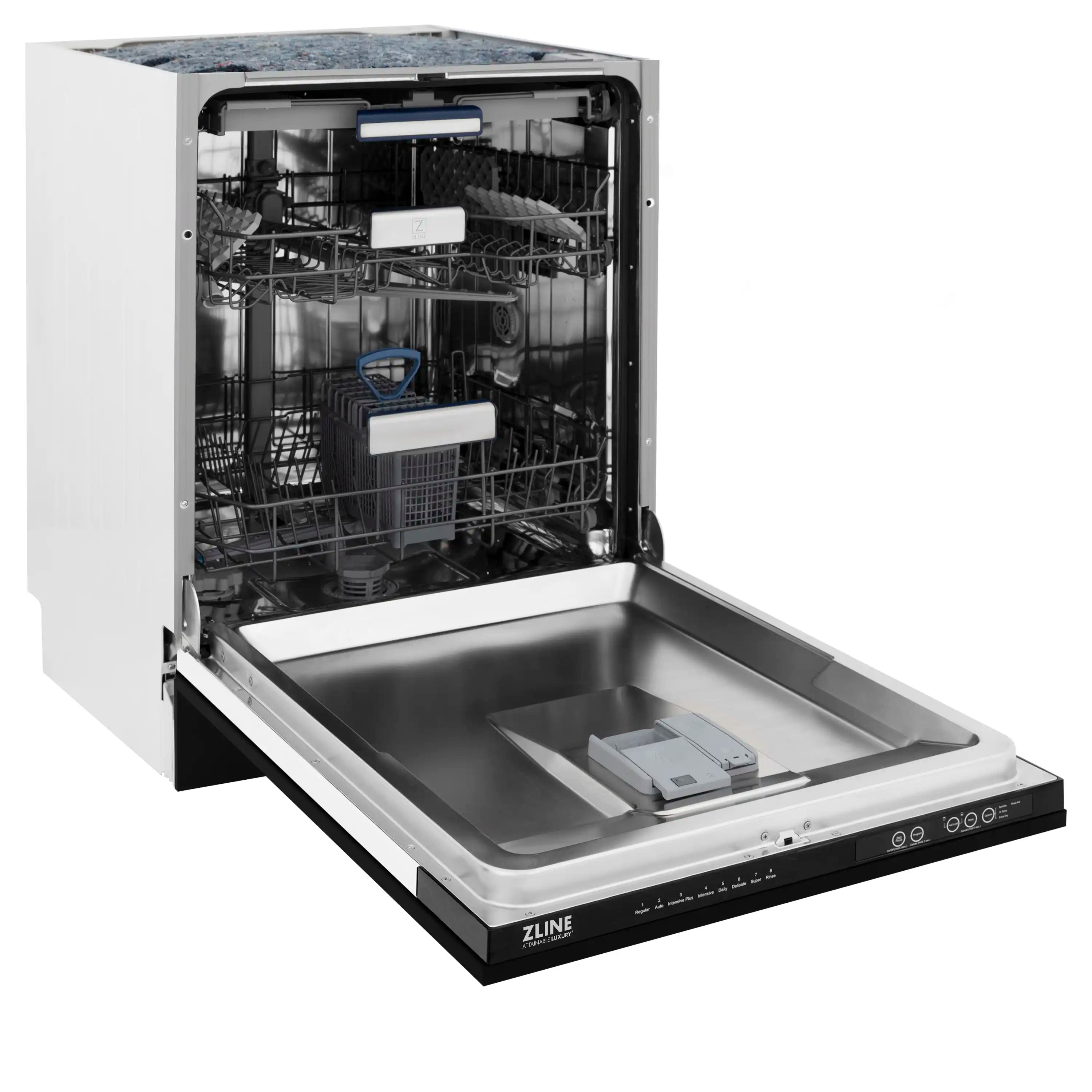

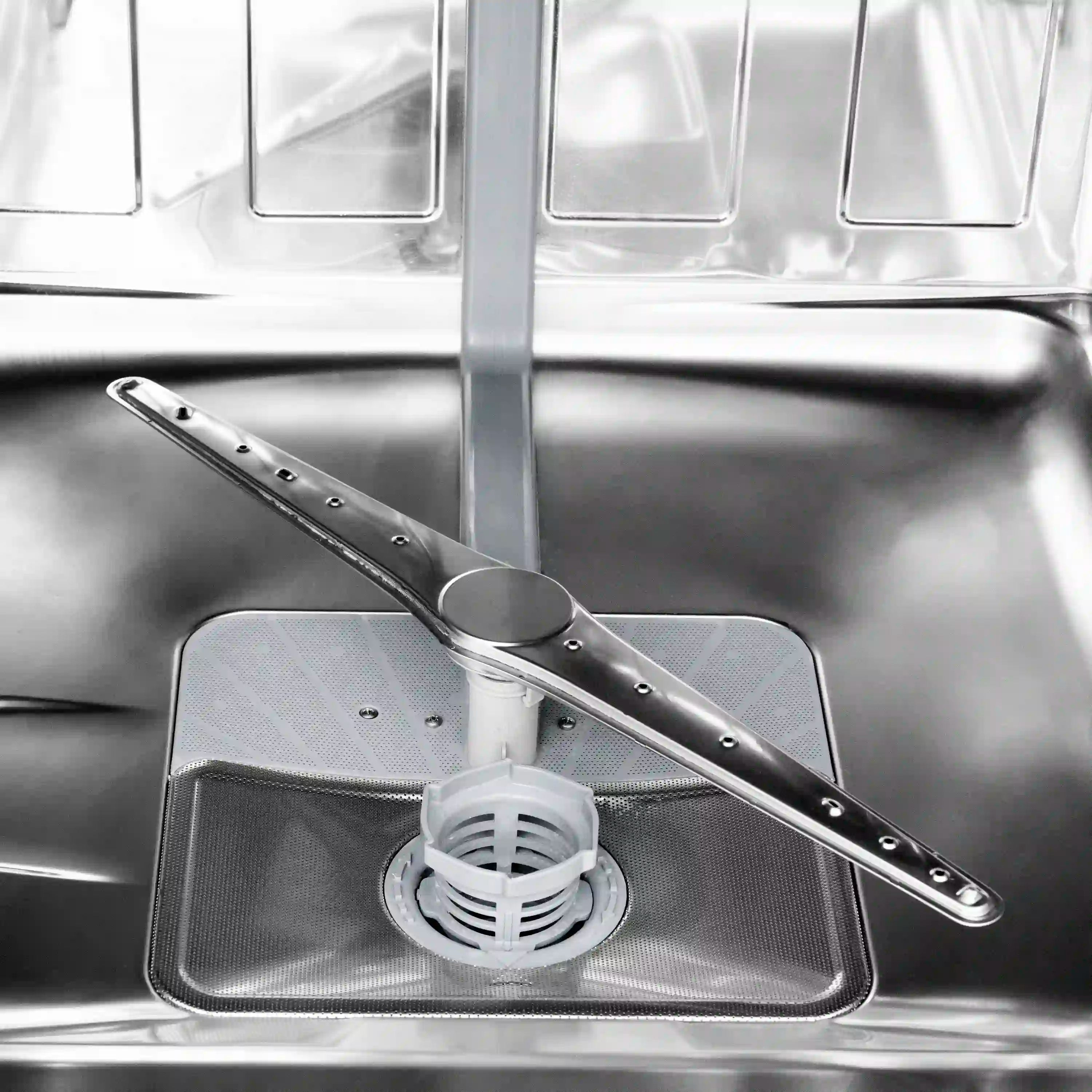

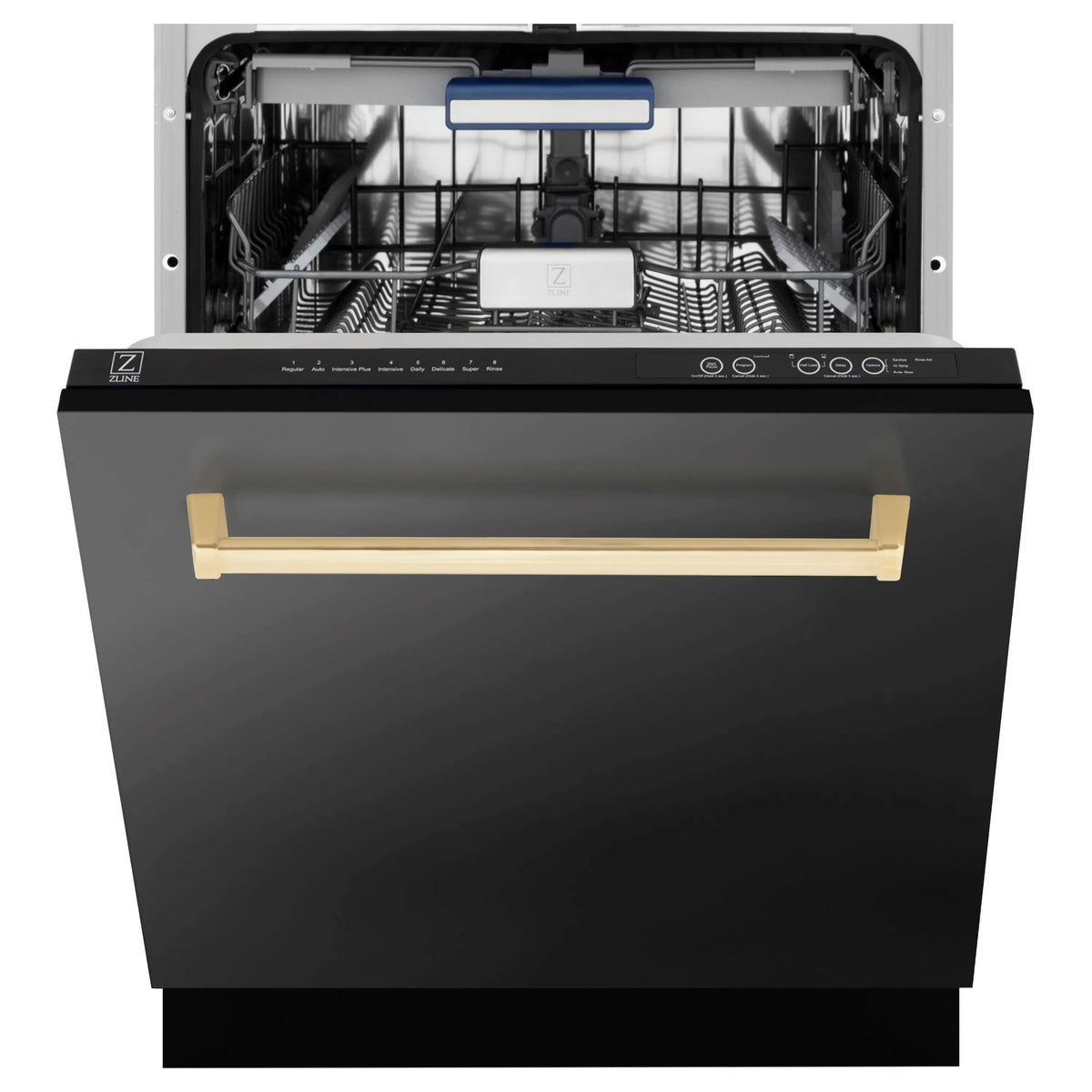

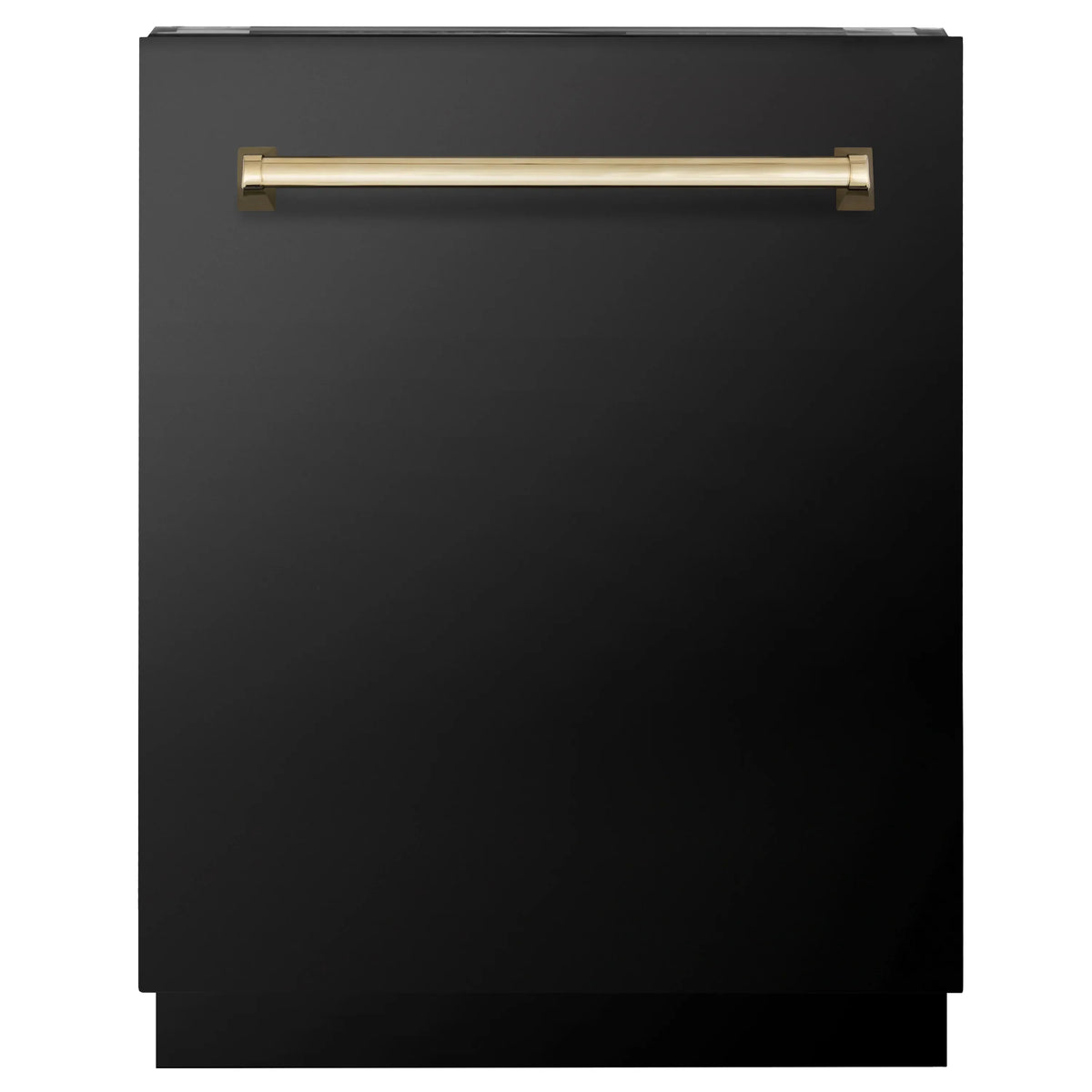

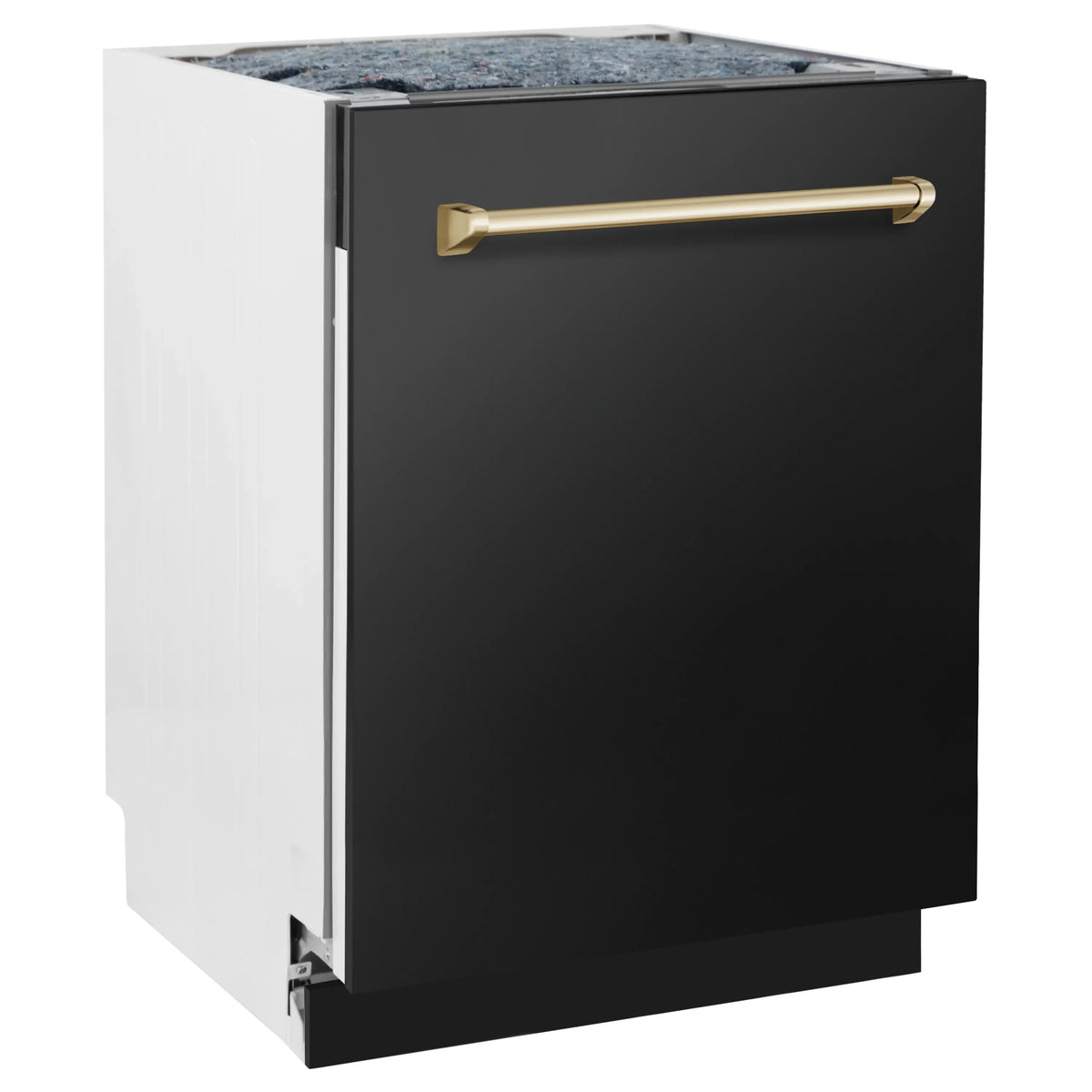

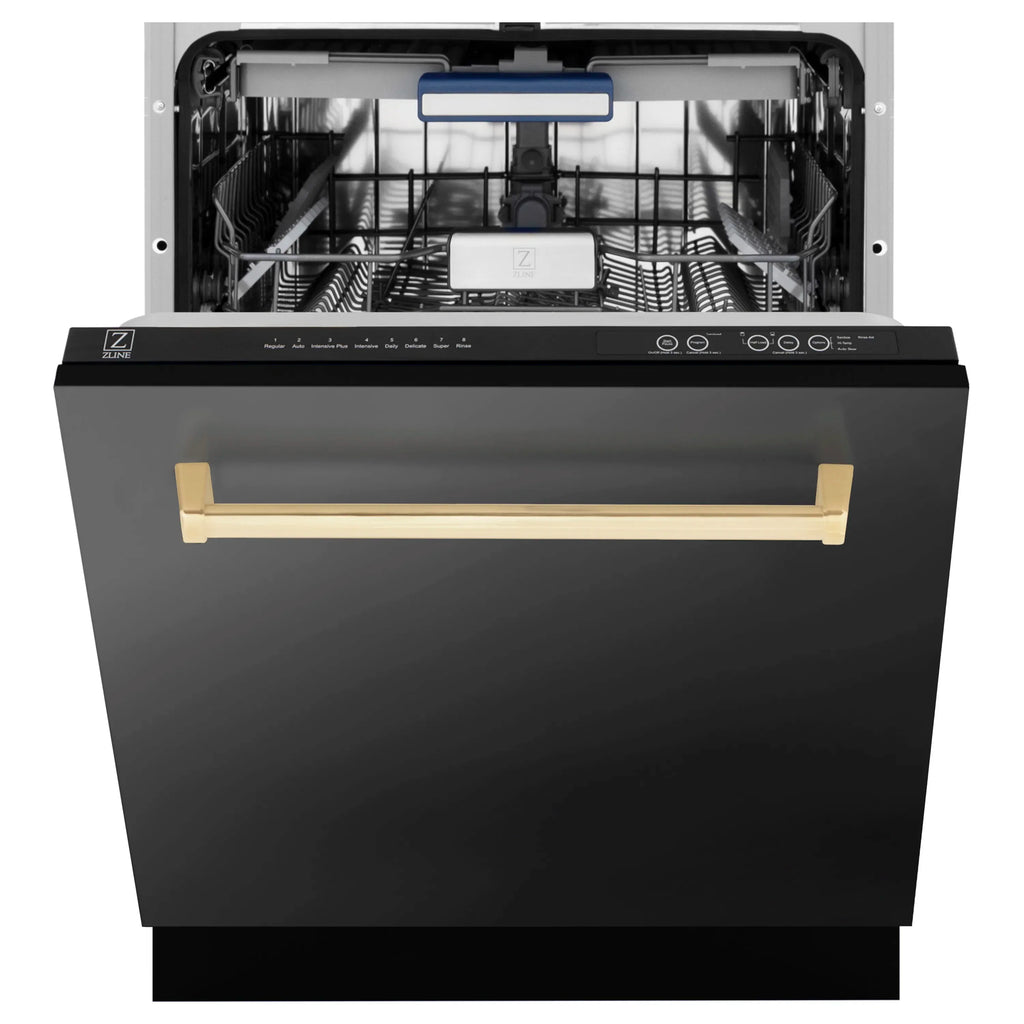

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE Autograph Edition 24" 3rd Rack Top Control Tall Tub Dishwasher in Black Stainless Steel with Gold Handle, 51dBa (DWVZ-BS-24-G) provides a professional culinary experience by pairing unmatched performance with personalized touches.
Encompassing limitless beauty, precision, and quality, the Autograph Edition Series creates a luxury look that will transform your space.
Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability.
| Specs & Dimensions | |
|---|---|
| Brand | ZLINE Kitchen and Bath |

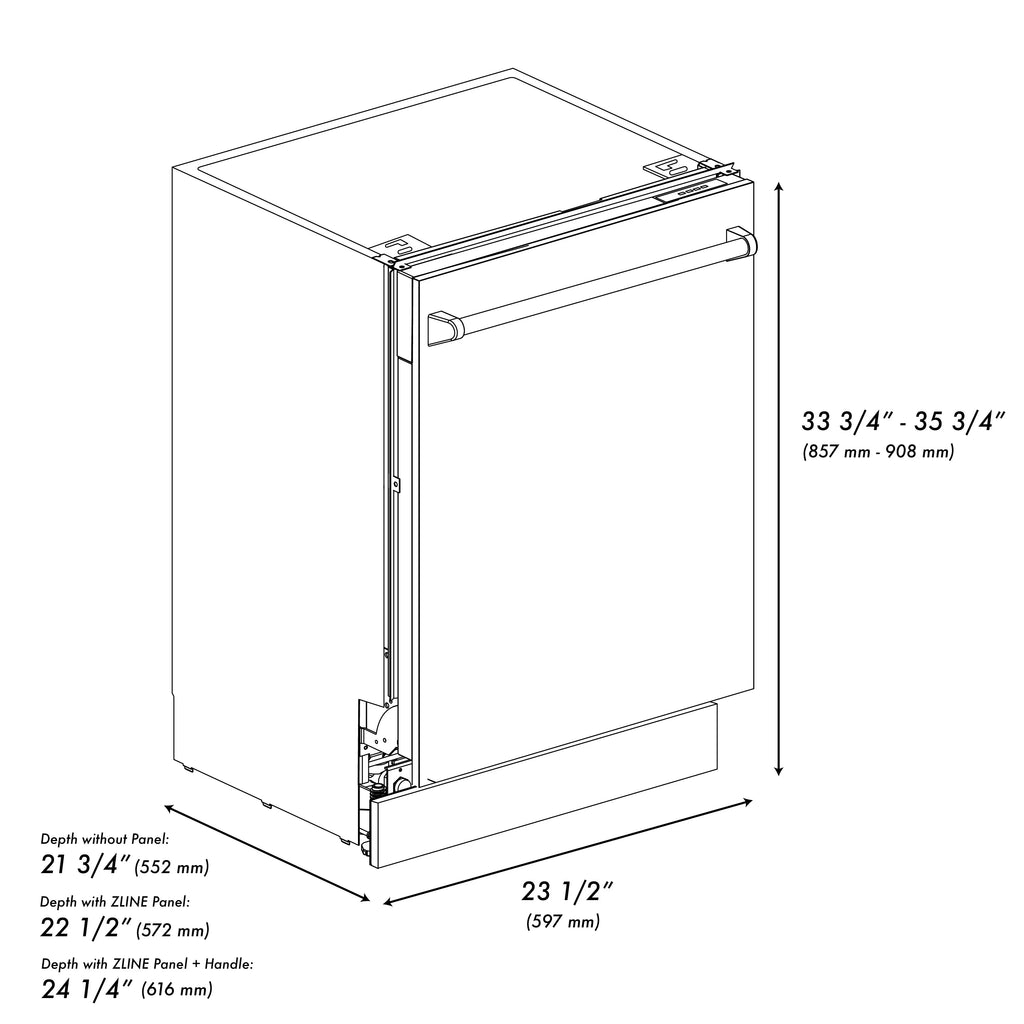

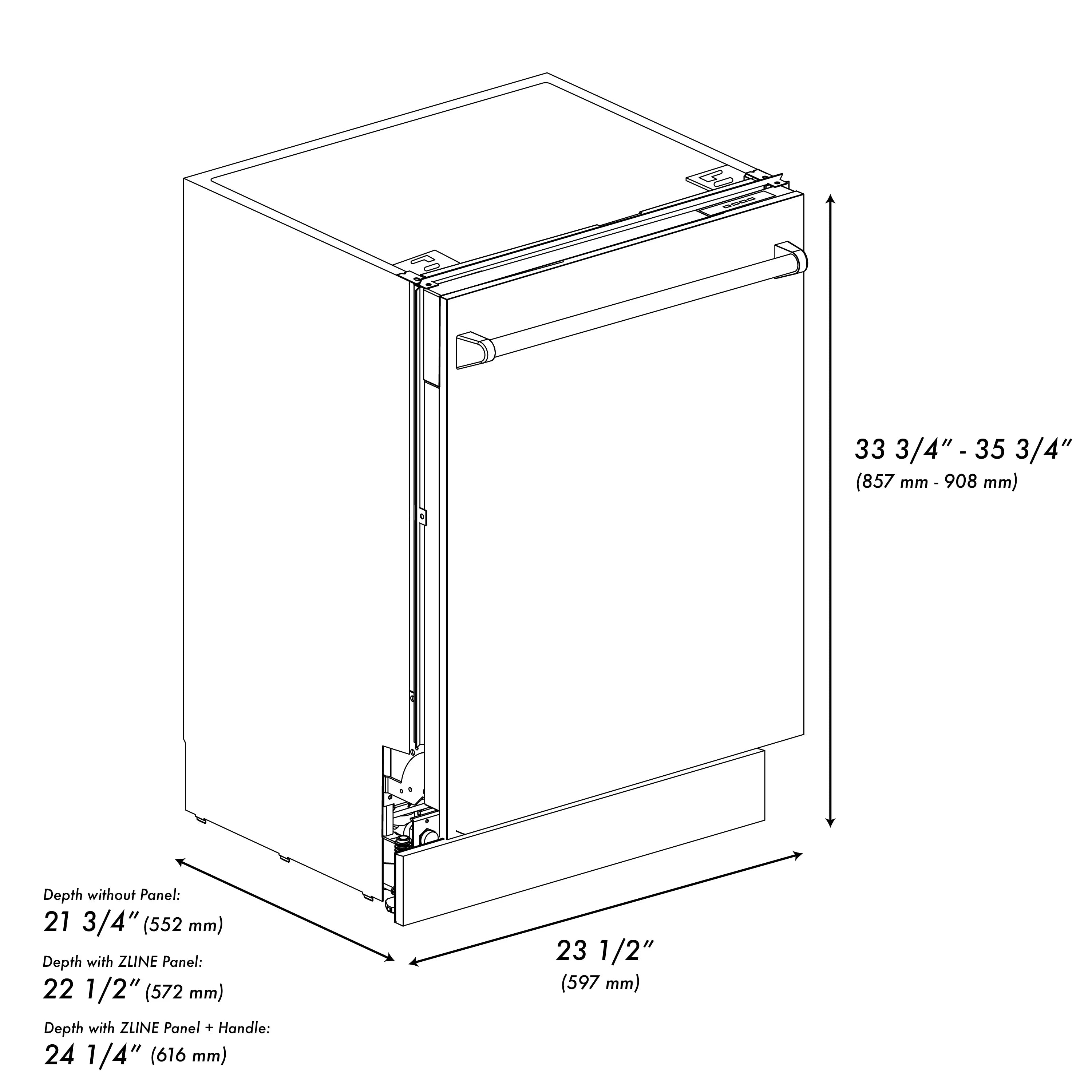

| Product Dimensions Minimum Height | 23.5 in. W x 24.25 in. D x 33.75 in. H |
| Product Dimensions Maximum Height | 23.5 in. W x 24.25 in. D x 35.75 in. H |
| Cut Out Dimensions | 23.63 in. W x 24 in. D x 34 in. H |
| Weight | 116.4 lbs |
| Voltage | 120vac |
| Frequency (Hz) | 60Hz |
| Dedicated Circuit | 15A |
| Rated Current (Amps) | 12A |
| Motor Wattage | 108 |
| Heater Wattage | 1200 |
| Motor Amperage | 0.9A |
| Heater Amperage | 10A |

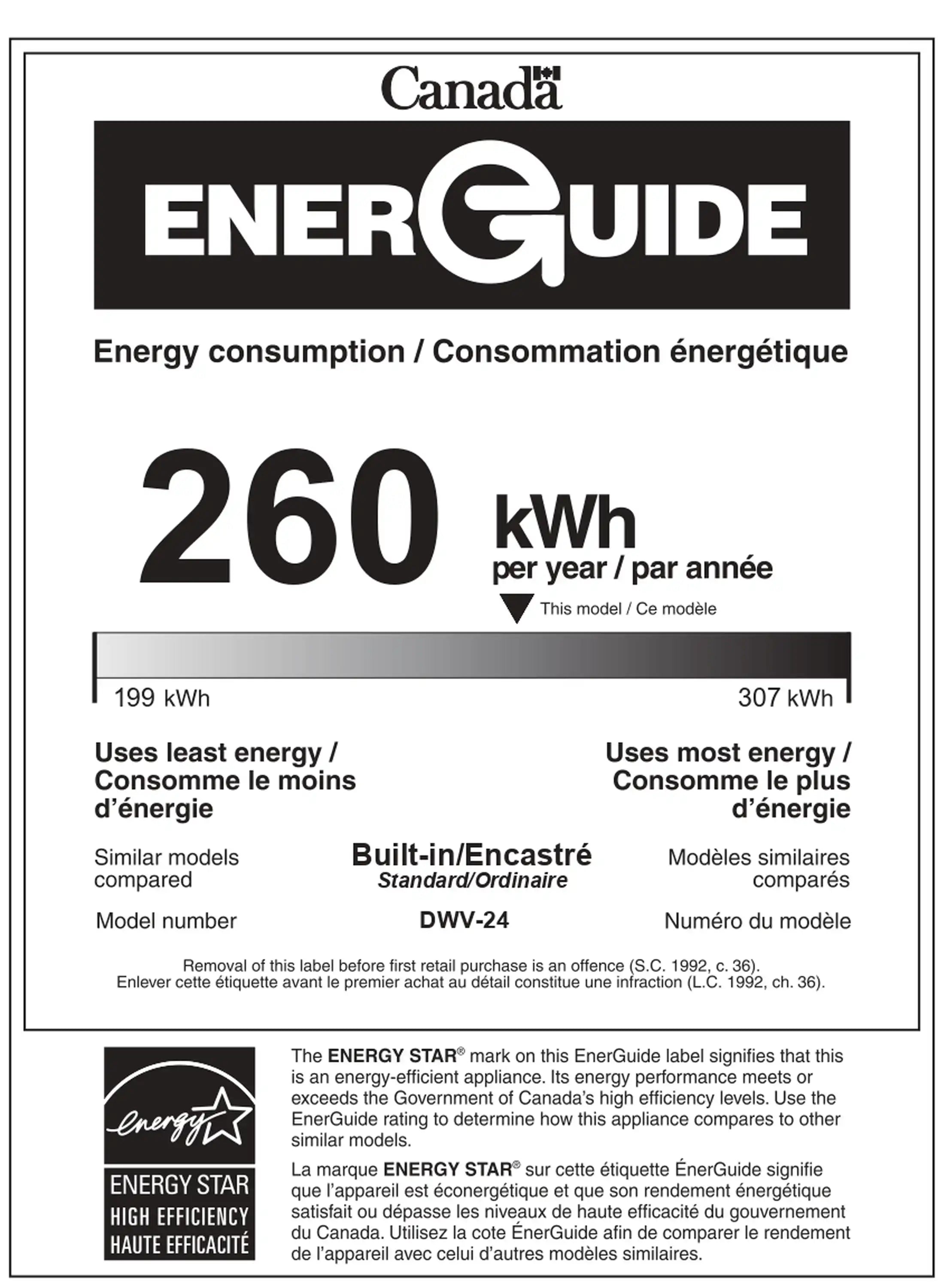

| Energy Consumption Per Year (kWh) | 260 |
| Water Consumption Per Cycle (Liters/Cycle) | 12.9 |
| Water Consumption Per Cycle (Gallons) | 3.4 |
| Hose Length (in.) | 56 |
| Panel Ready? Y/N | N |
| Panel Finish | Black Stainless Steel |

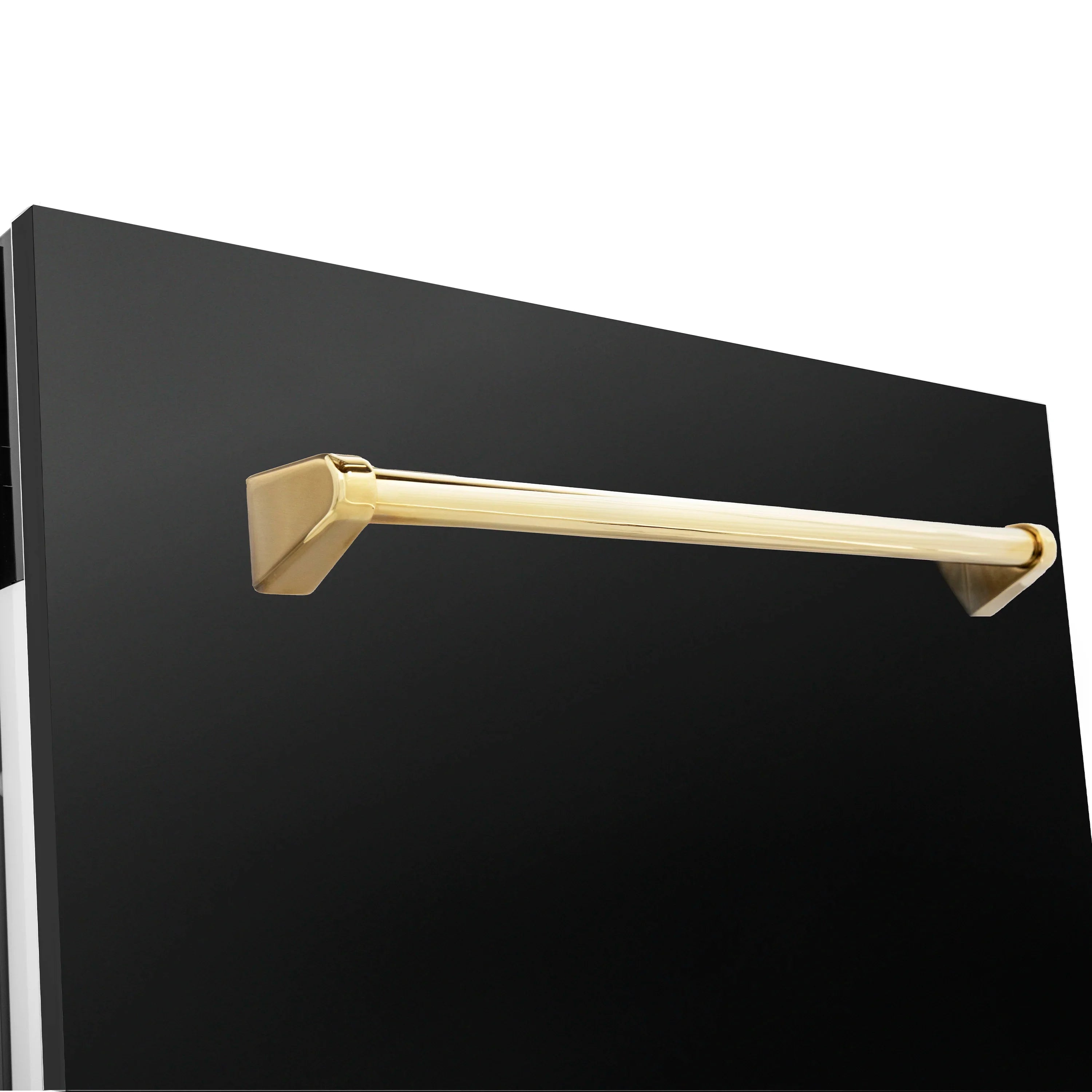

| Handle Finish | Gold |
| Drying System | Turbo Fan Drying |
| Control Location | Top Control |
| Control Type | Button Control |
| Decibels | 51 |
| Power Cord | Power Cord Included |
| Installation Type | Plug In - 3 Prong - Nema5-15 |
| Handle Type | Bar Handle- Traditional Style |
| Number of Cycles | 8 |
| Number of Place Settings | 10 |
| Max Plate Height (in.) | 12 |
| Rack Material | Nylon |

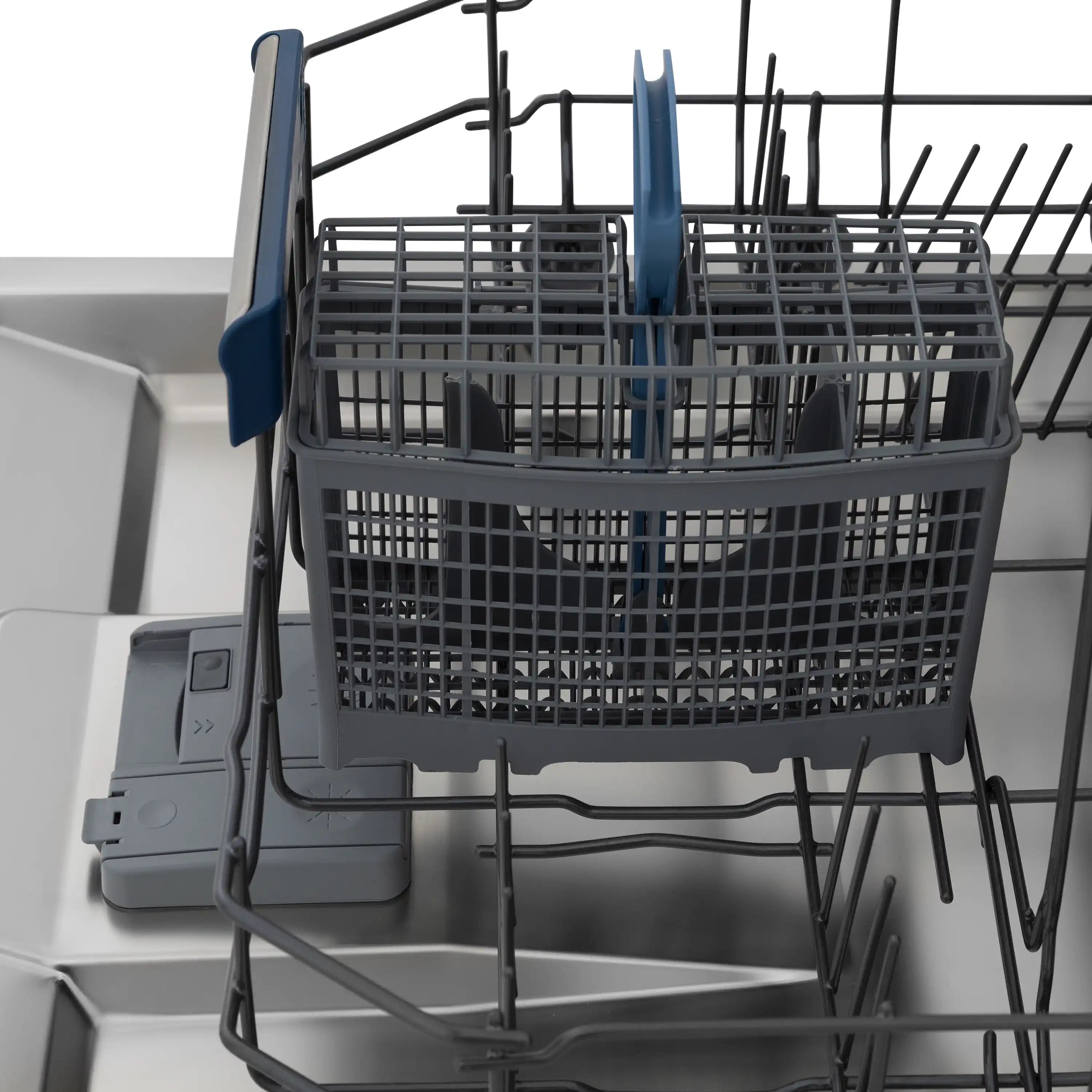

| Silverware Basket Location | Bottom Rack Center |
| Steam Function | Without Steam |
| Tub Material | Stainless Steel Tub |
| Certifications | Energy Star, CEC, UL |

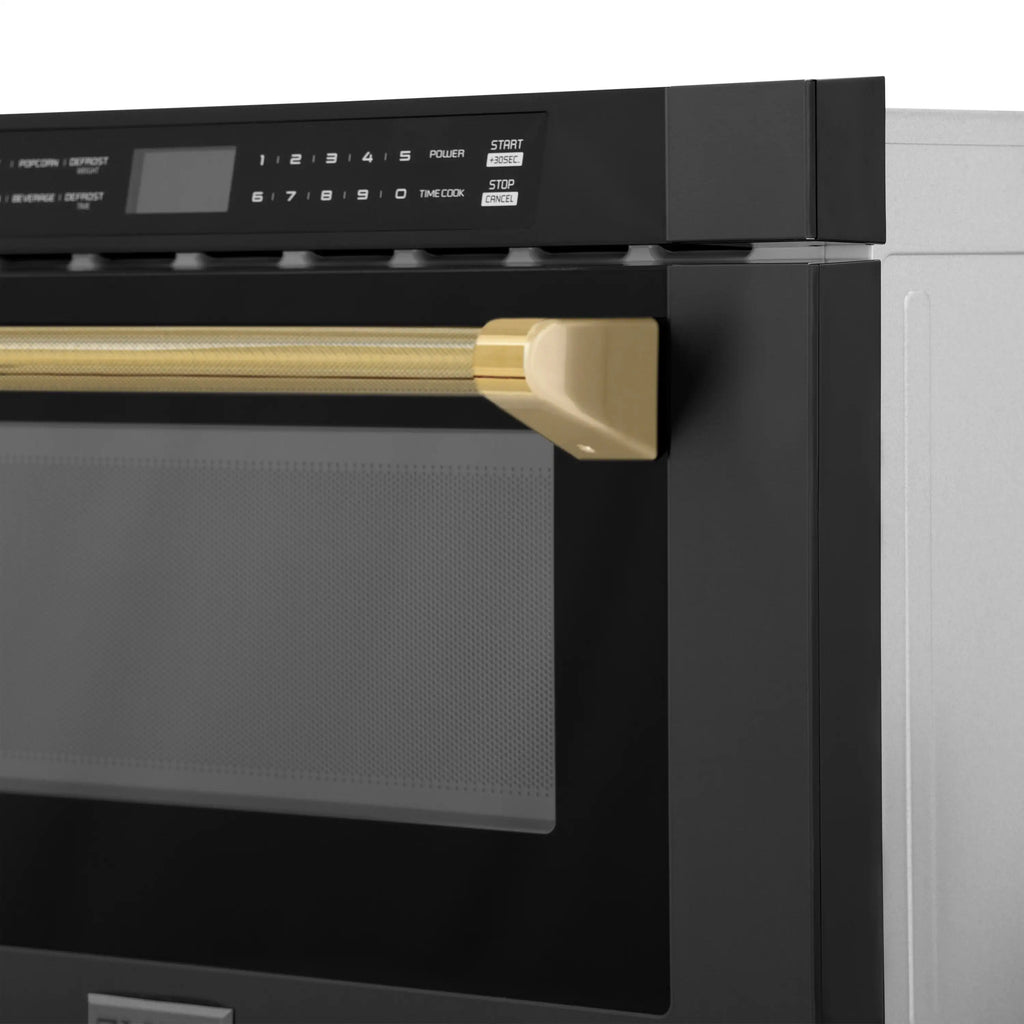

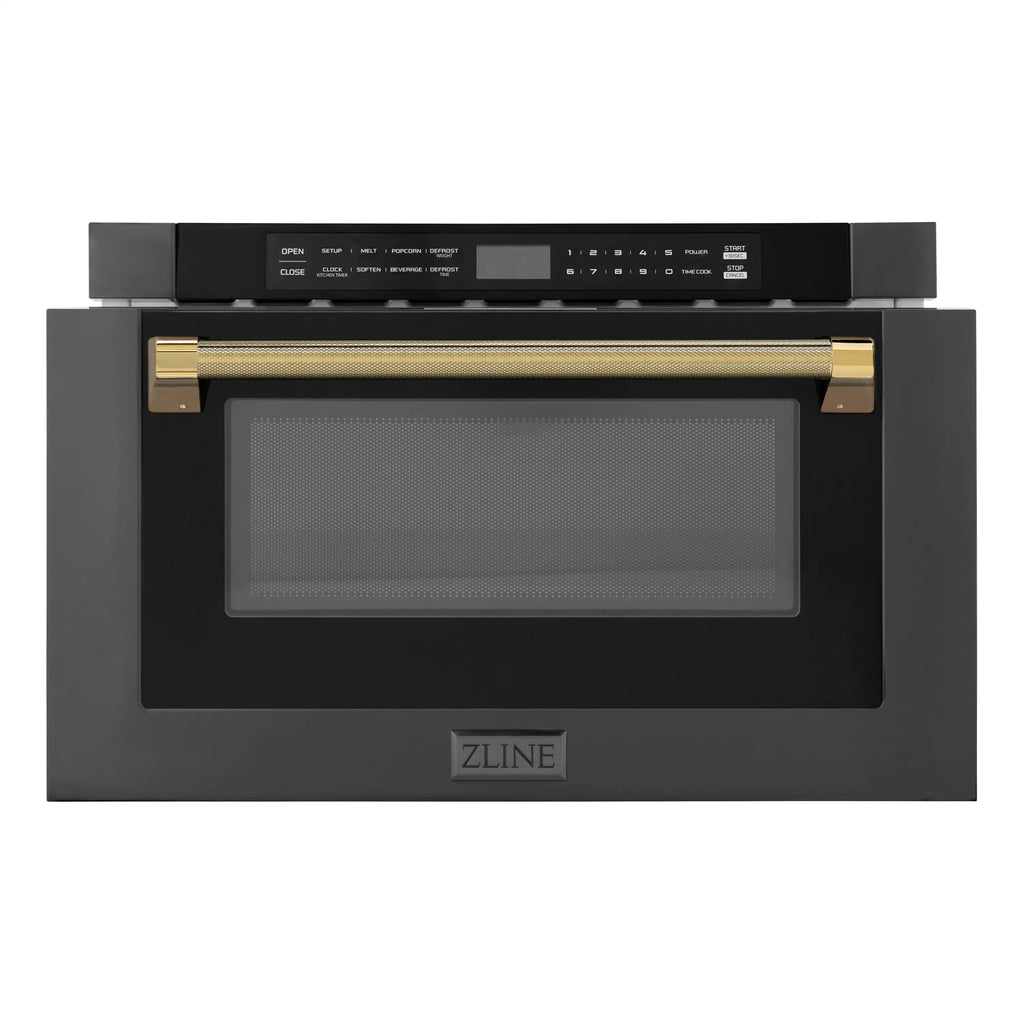

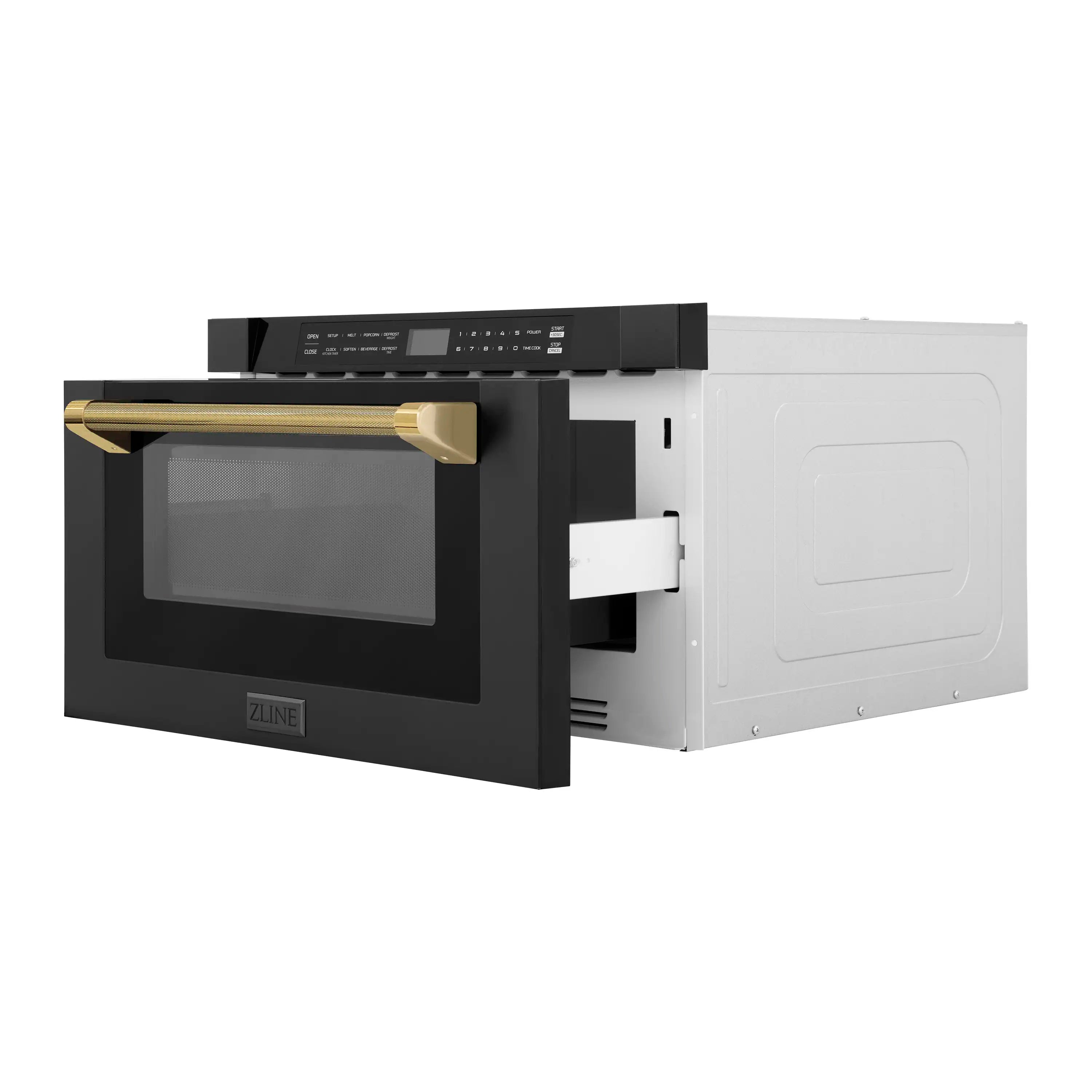

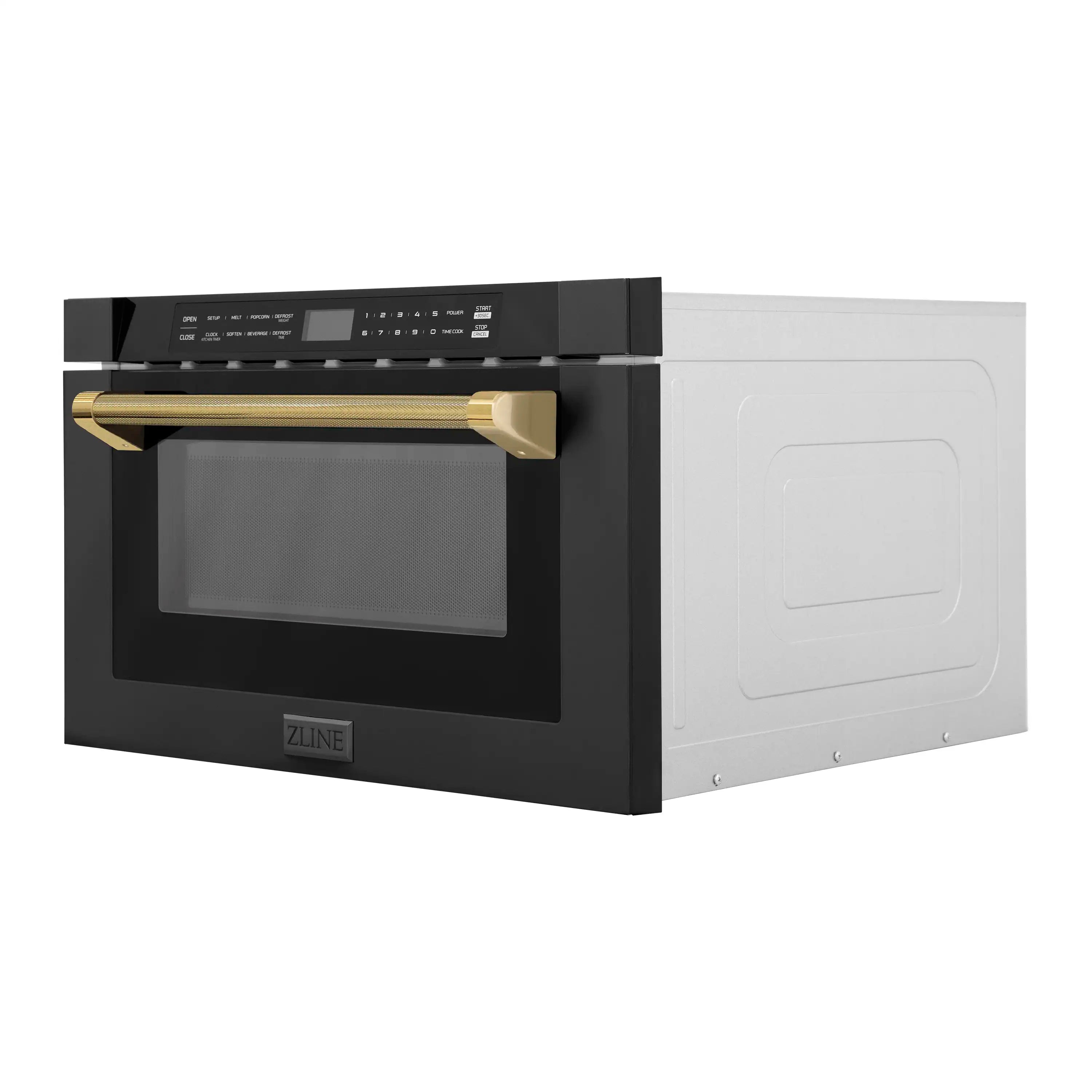

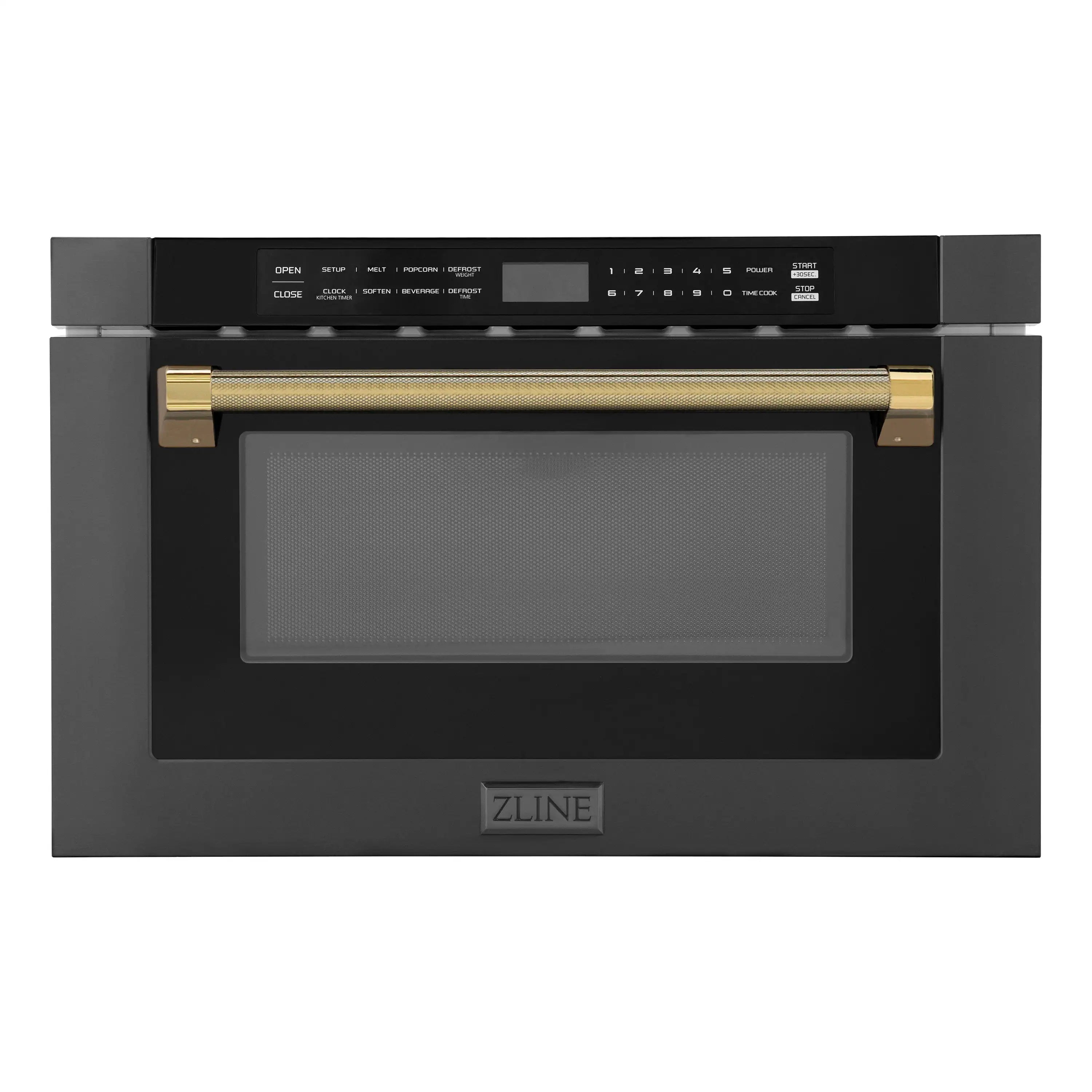

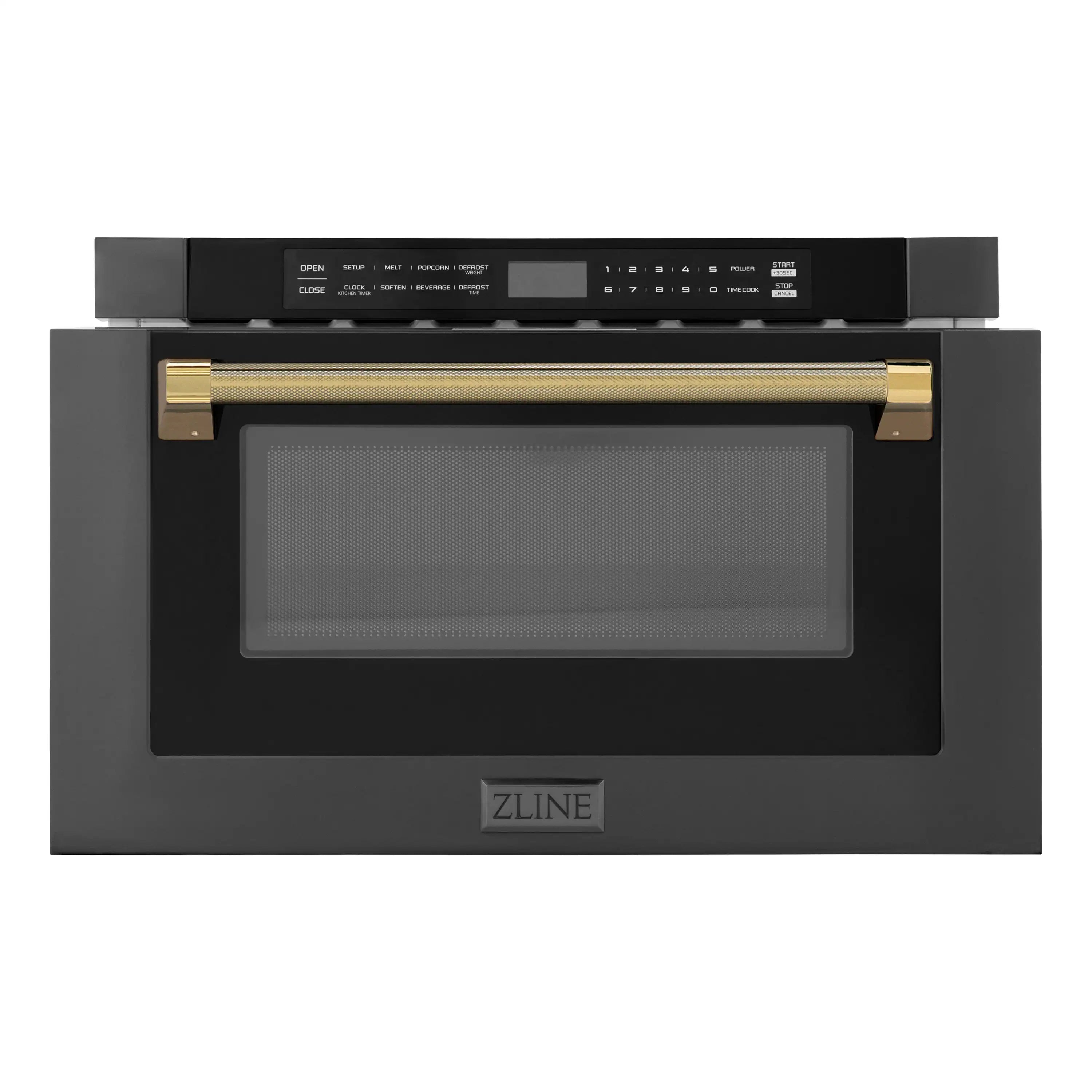

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 24” 1.2 cu. ft. Built-in Microwave Drawer with a Traditional Handle in Black Stainless Steel provides a professional culinary experience by pairing everyday convenience with a timeless style. Achieve ZLINE Attainable Luxury excellence with unrivaled performance designed to enhance your kitchen’s capability.
Space-Saving - Free up your countertop space with an under-counter modern design with installation location flexibility to best fit your lifestyle
Top Access Design - Easily transport hot dishes and prevent spills with an accessible top-loading design
Convenient Microwave Modes - Achieve optimal results for every dish with sensor cooking, defrost, popcorn, and beverage settings
Auto-touch Open and Close - Effortlessly open and close the microwave drawer with just the touch of a button

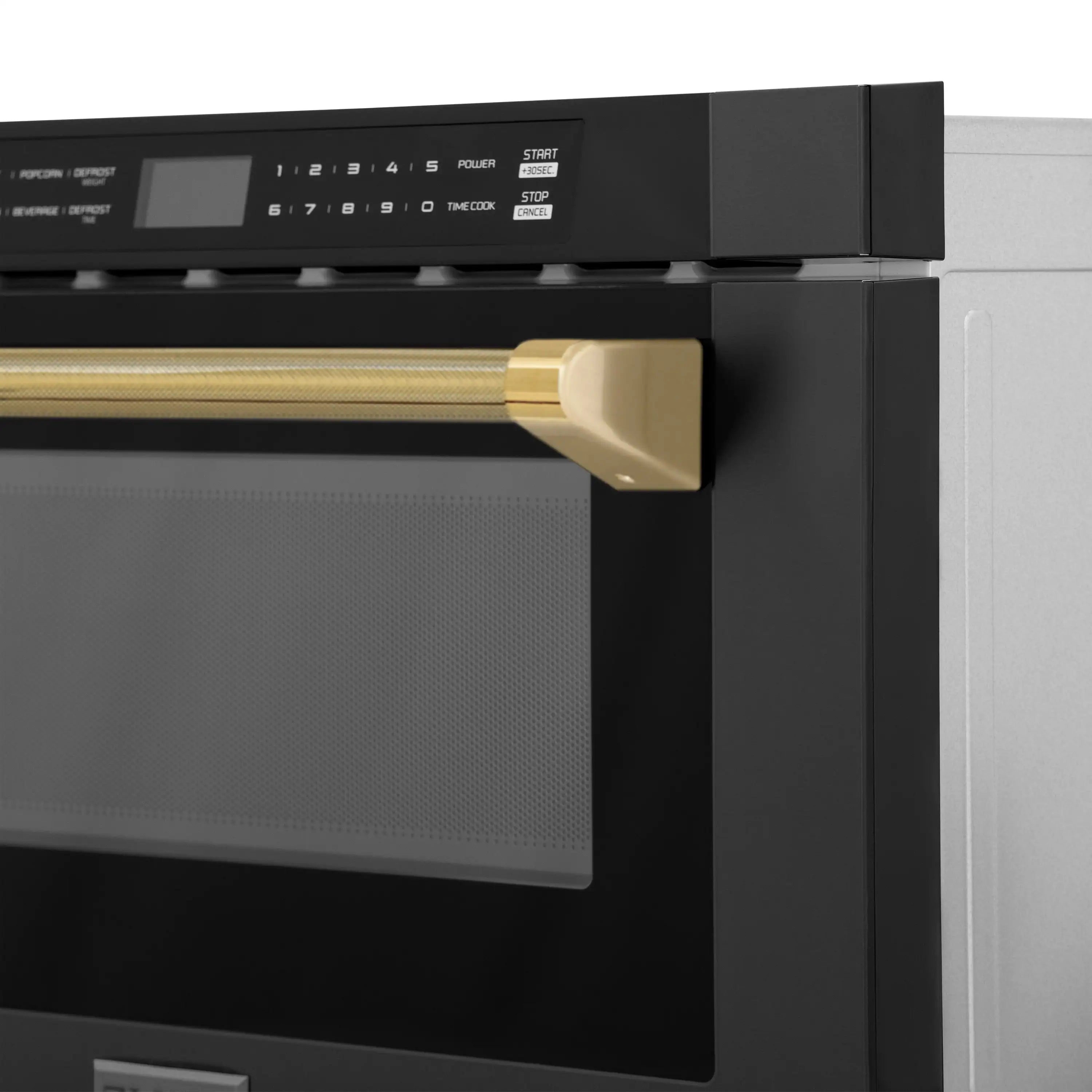

Intuitive Control Panel - Enjoy an easy-to-use control panel that provides maximum convenience with a 45-degree angled design
High-Powered Performance - Get the results you need with 11 different power levels and a powerful 1000-watt cooking power
1.2 cu. ft. Capacity - A large cooking area will easily fit your items, such as coffee mugs up to 7 in. tall and dishes up to 16 x 16 in.
Reheat and Defrost - Minimize cooking time with convenient reheat and defrost functions
Black Stainless Finish - Bring a modern look into your kitchen with ZLINE’s black stainless steel finish
Autograph Edition Series - Enjoy a timeless look in your kitchen with a Black Stainless Steel finish paired with accented handles, giving your kitchen an elegant, unmatched style
Manufacturer Warranty - 2-year parts warranty
ADA Compliant - Easy-to-use front touch controls with a 45-degree angle design provides ADA compliance
This product ships in multiple boxes and will require minimal assembly upon arrival.
| Specs & Dimensions | |
|---|---|

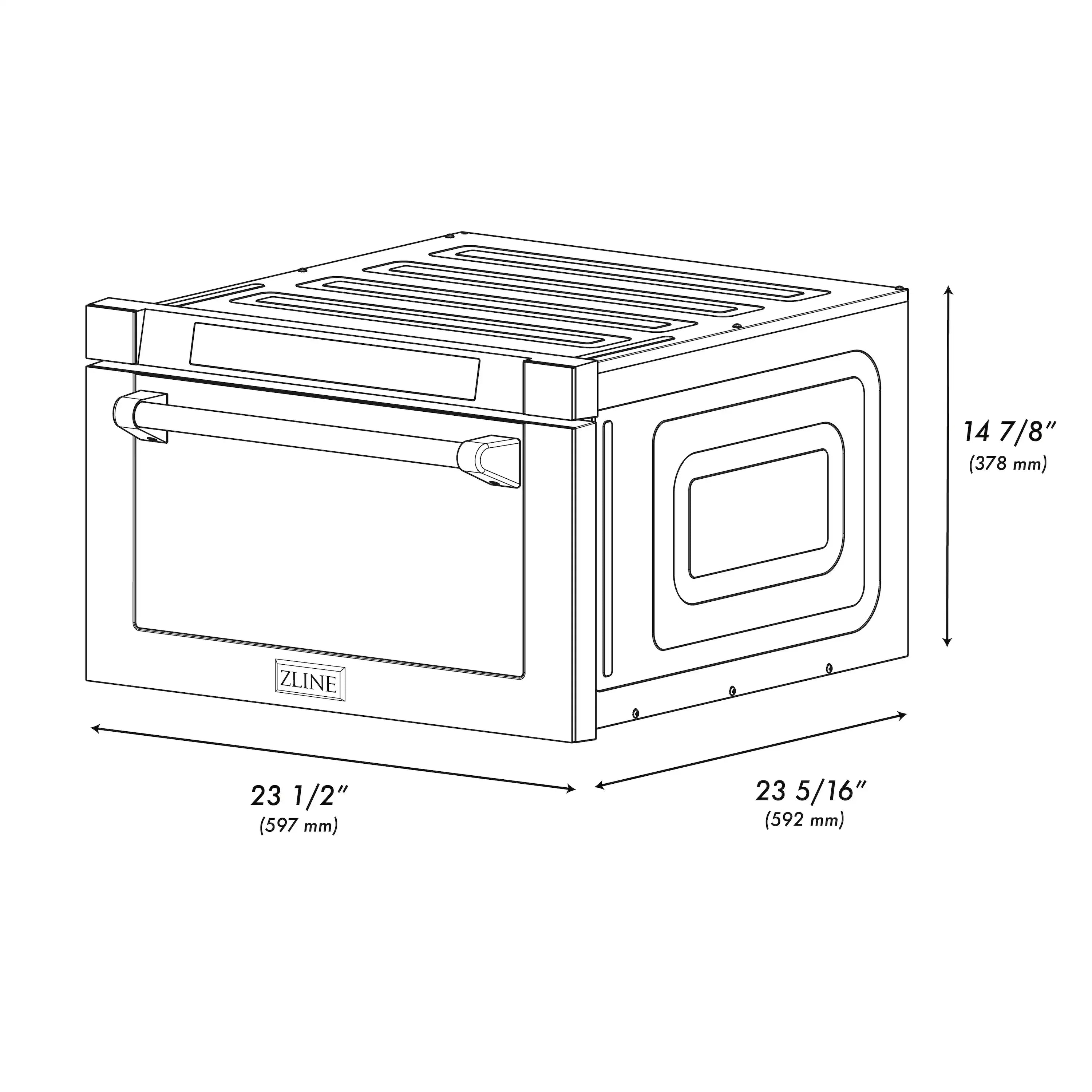

| Dimensions | 23.5 in W x 23.31 in D x 14.88 in H |
| Cut Out Dimensions | 22.13 in W x 23.5 in D x 15 in H |
| Depth with Door Open | 37.5 in. |
| Oven Capacity | 1.2 Cu. Ft. |
| Voltage | 120V/60HZ/13A |
| Input Power | 1500W |
| Output Power | 1000W |
| Control Type | Touch Screen |
| Mount Type | Drawer |
| Certifications | ETL Listed |
| Material | Black Stainless Steel with Color Options |
| Convection Fan | No |
| Warranty | 2 Year on Parts |
| Weight | 69.9 lbs |
