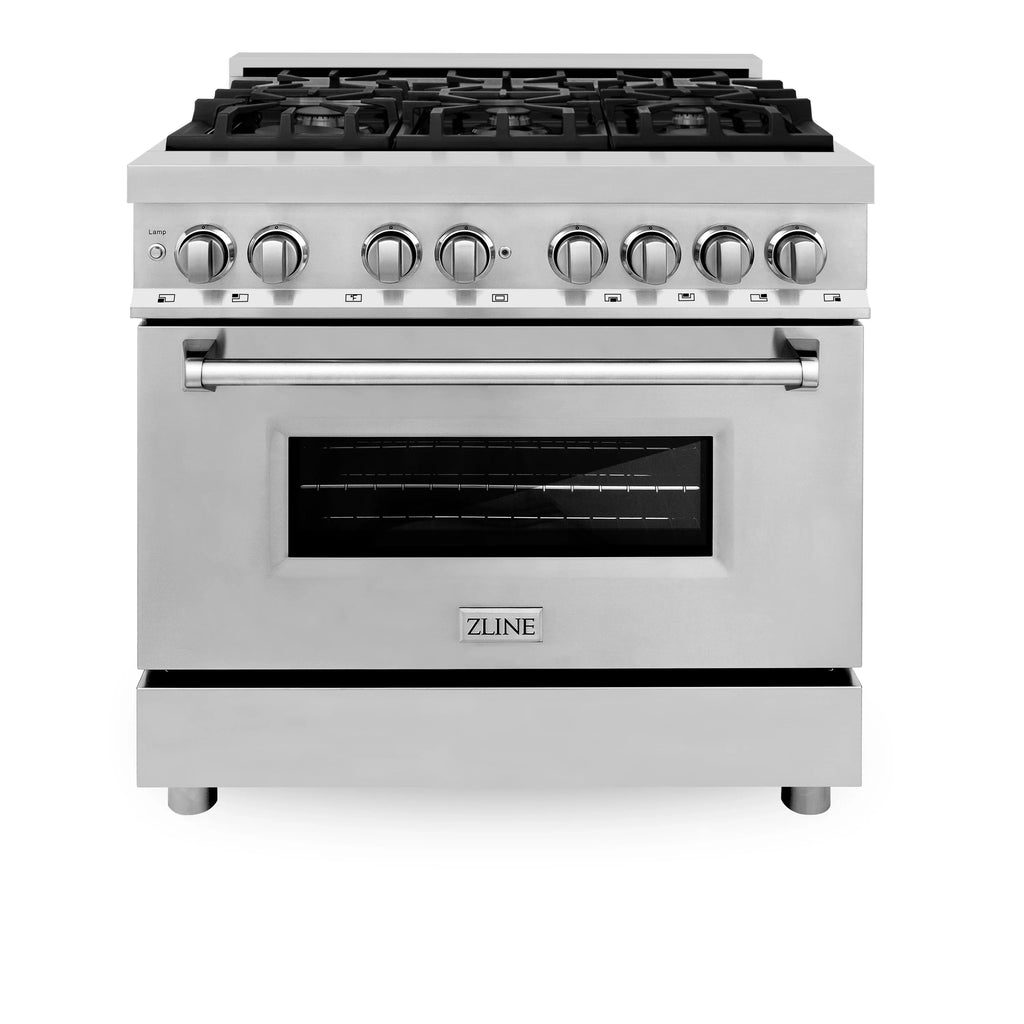

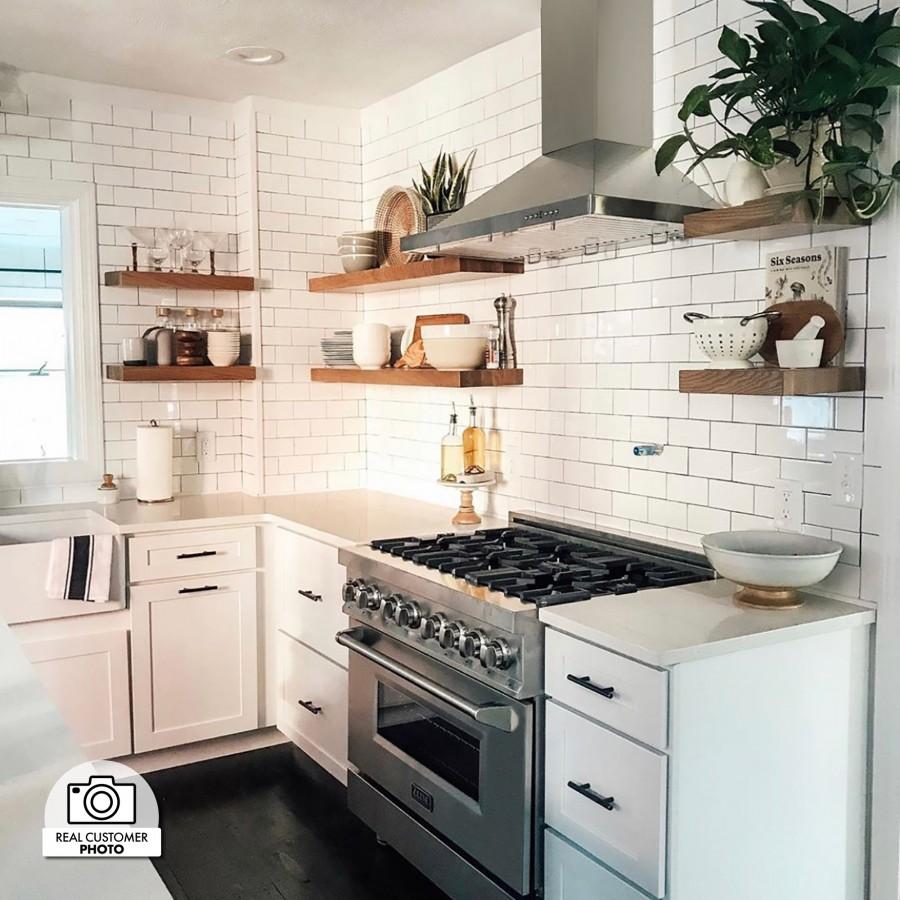

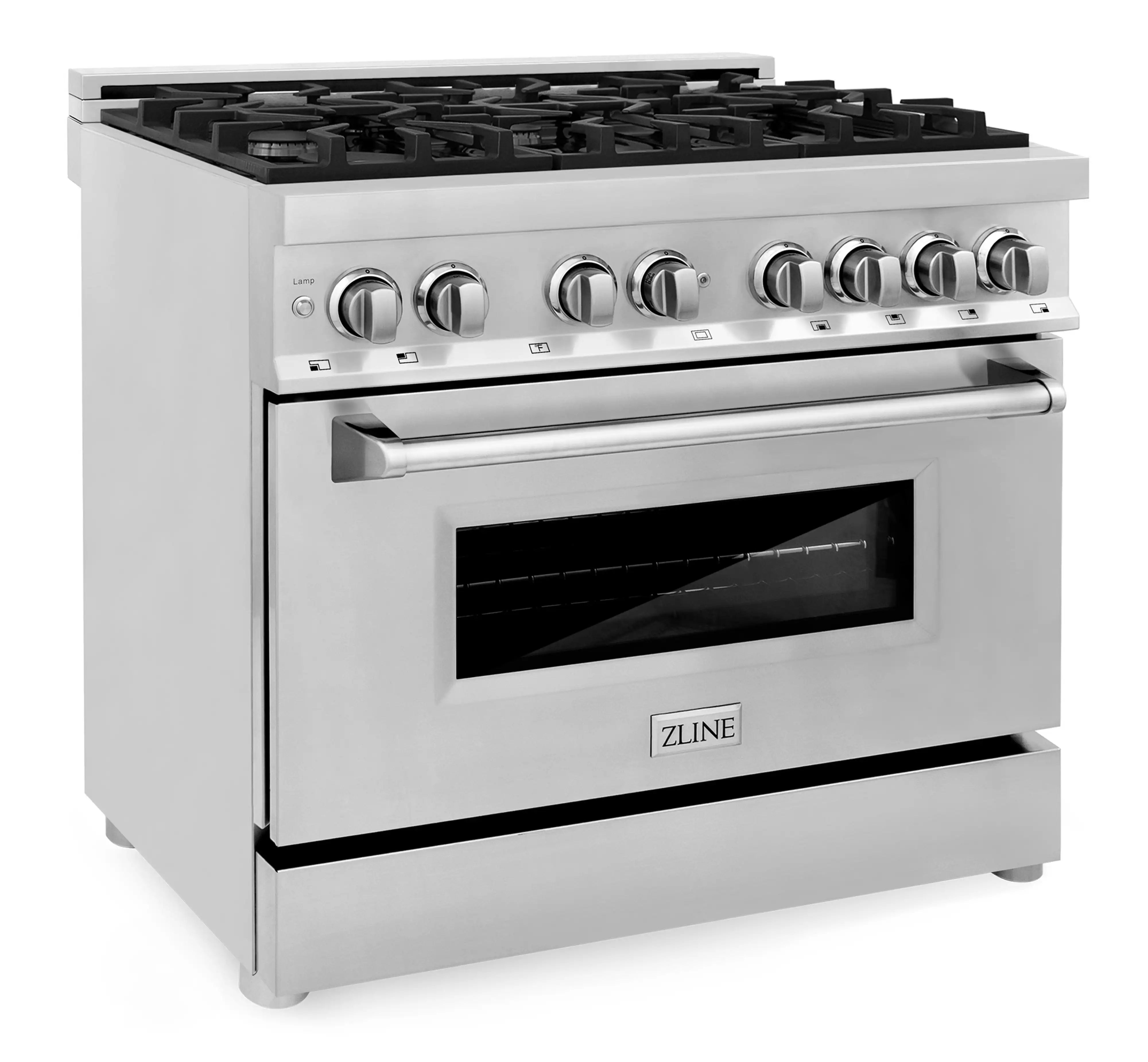

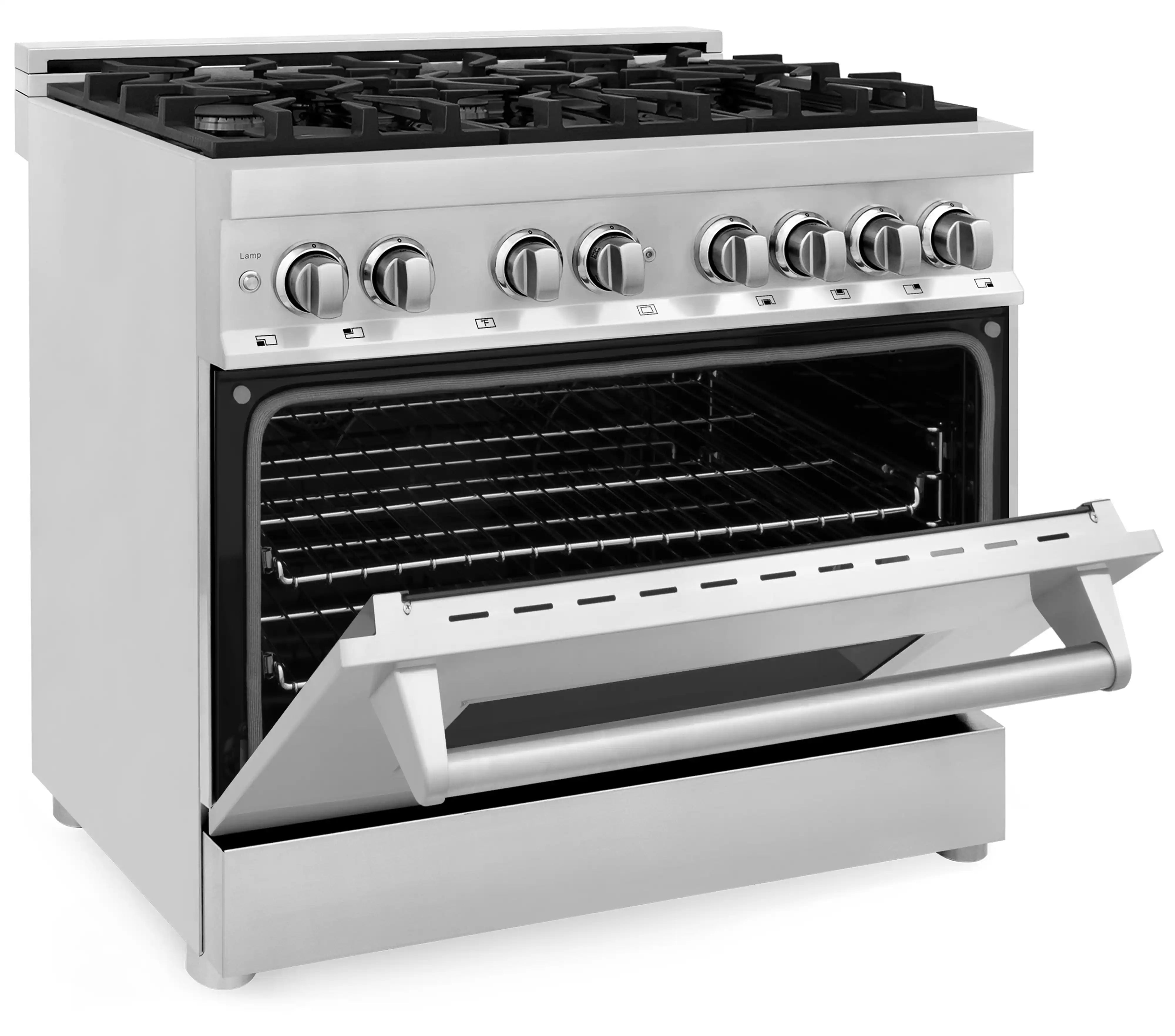

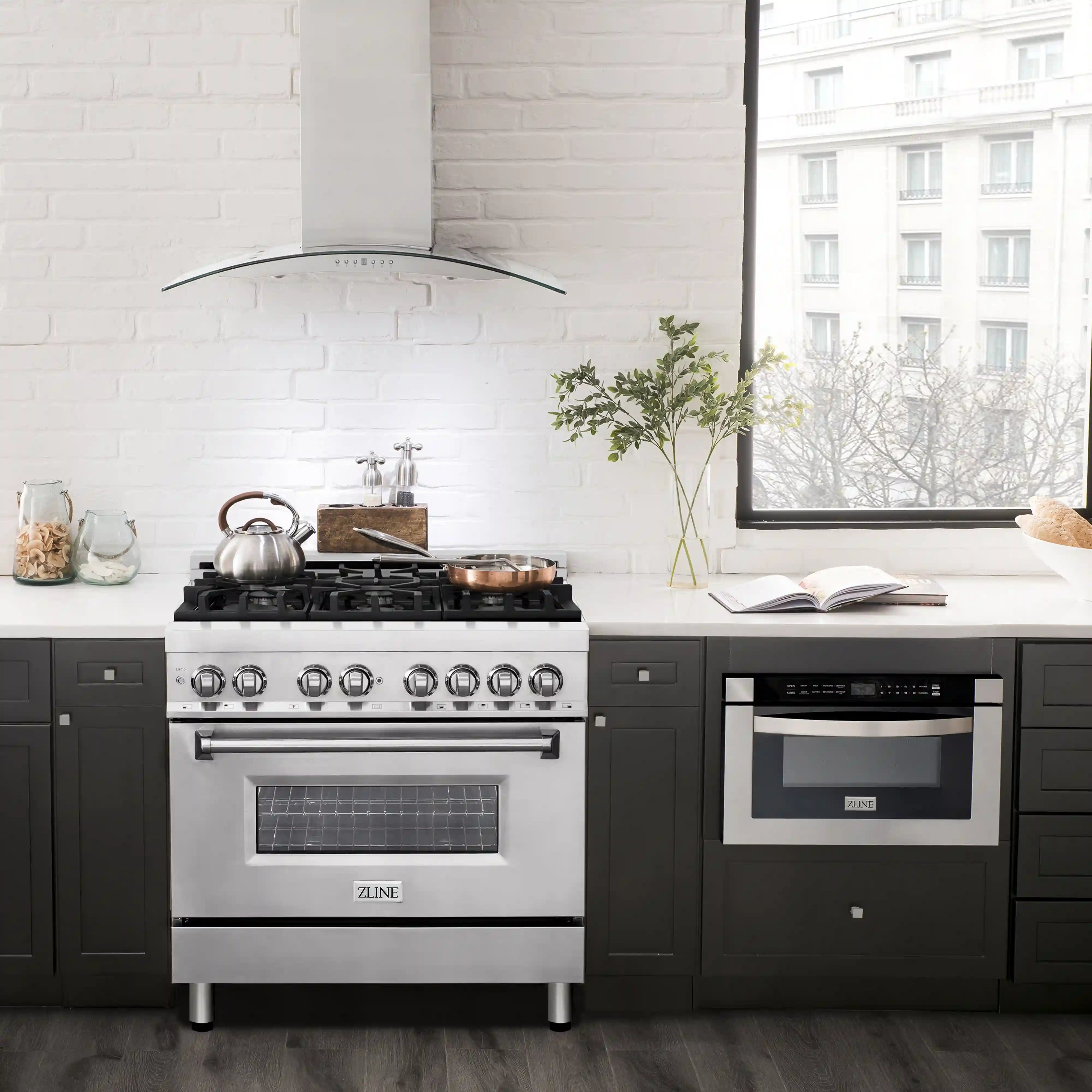

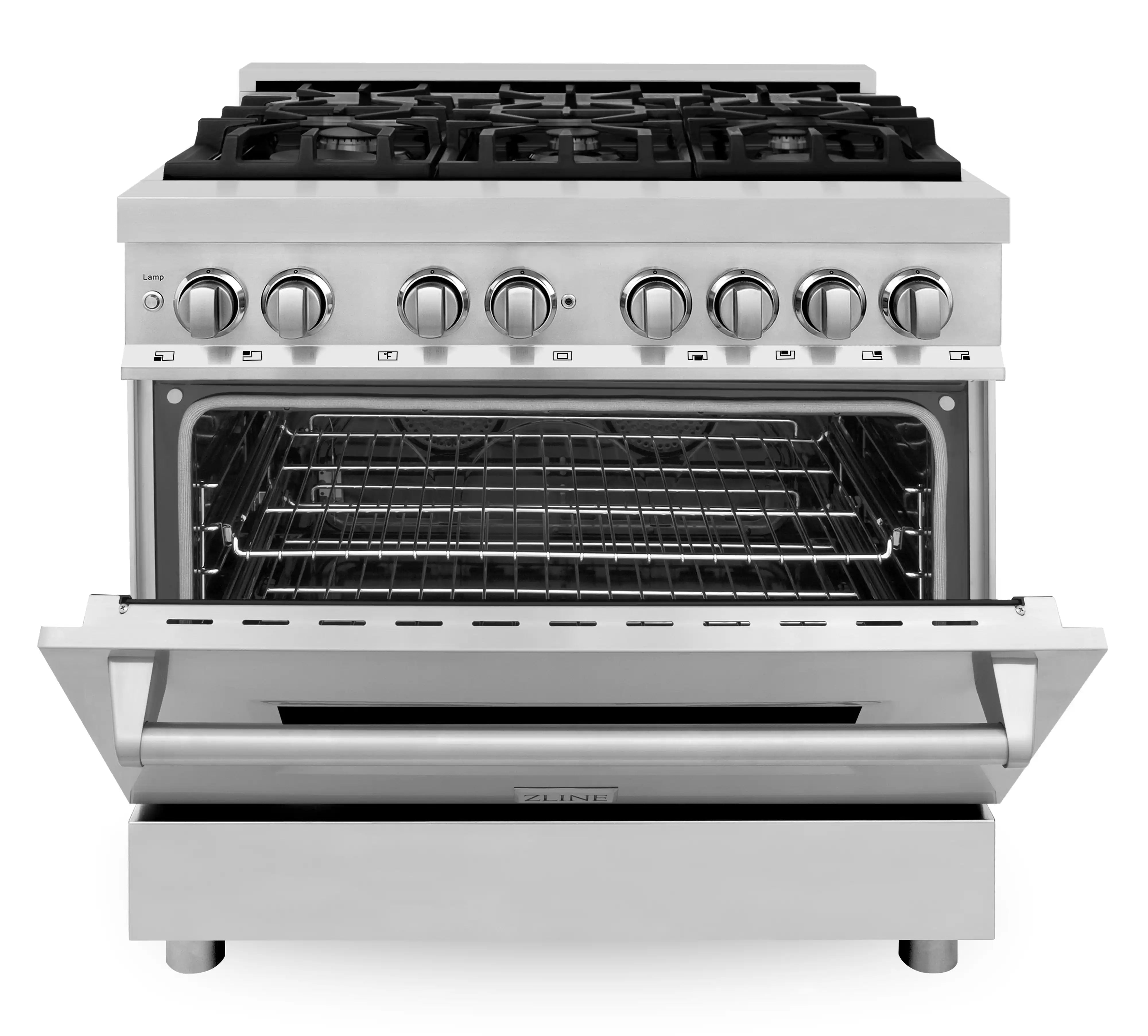

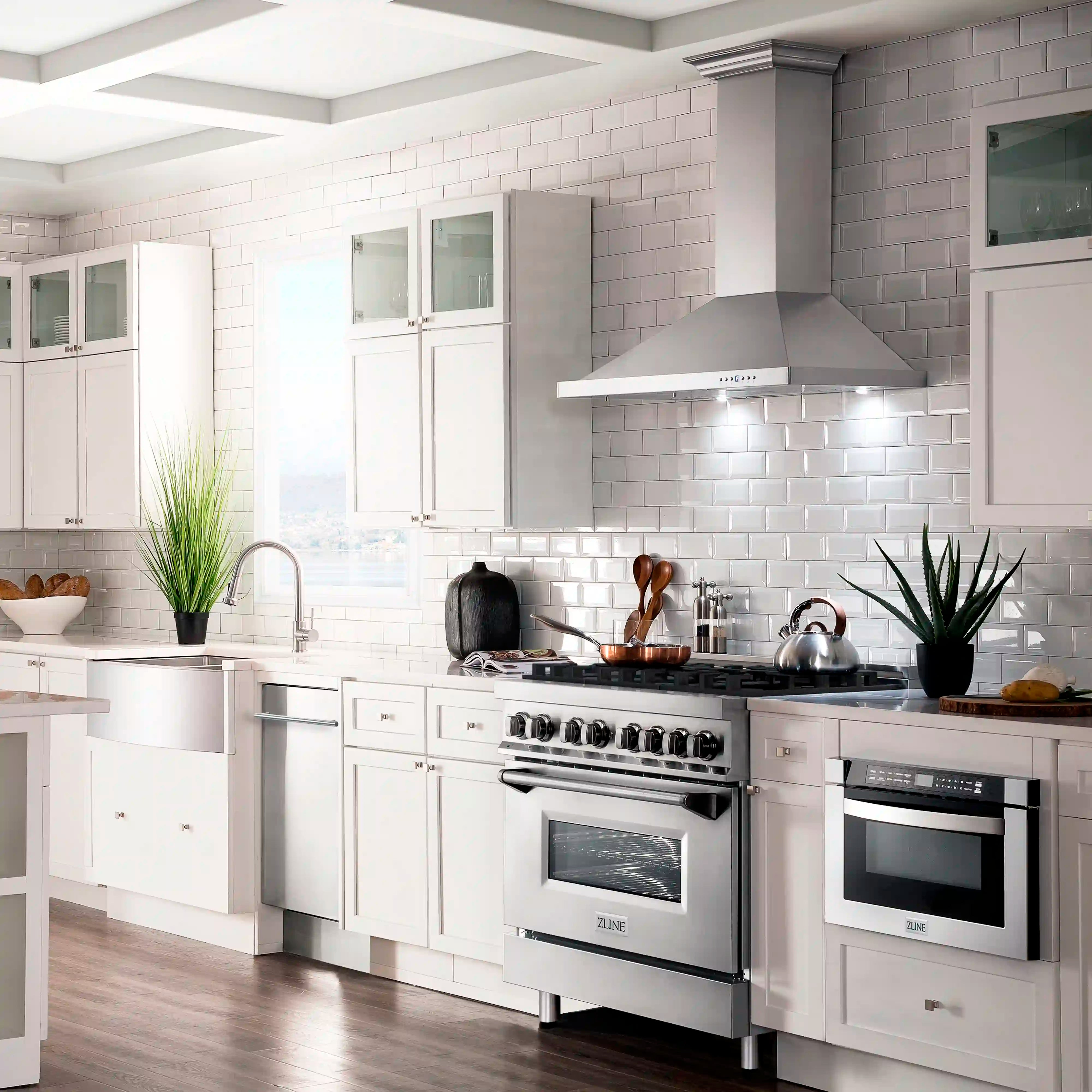

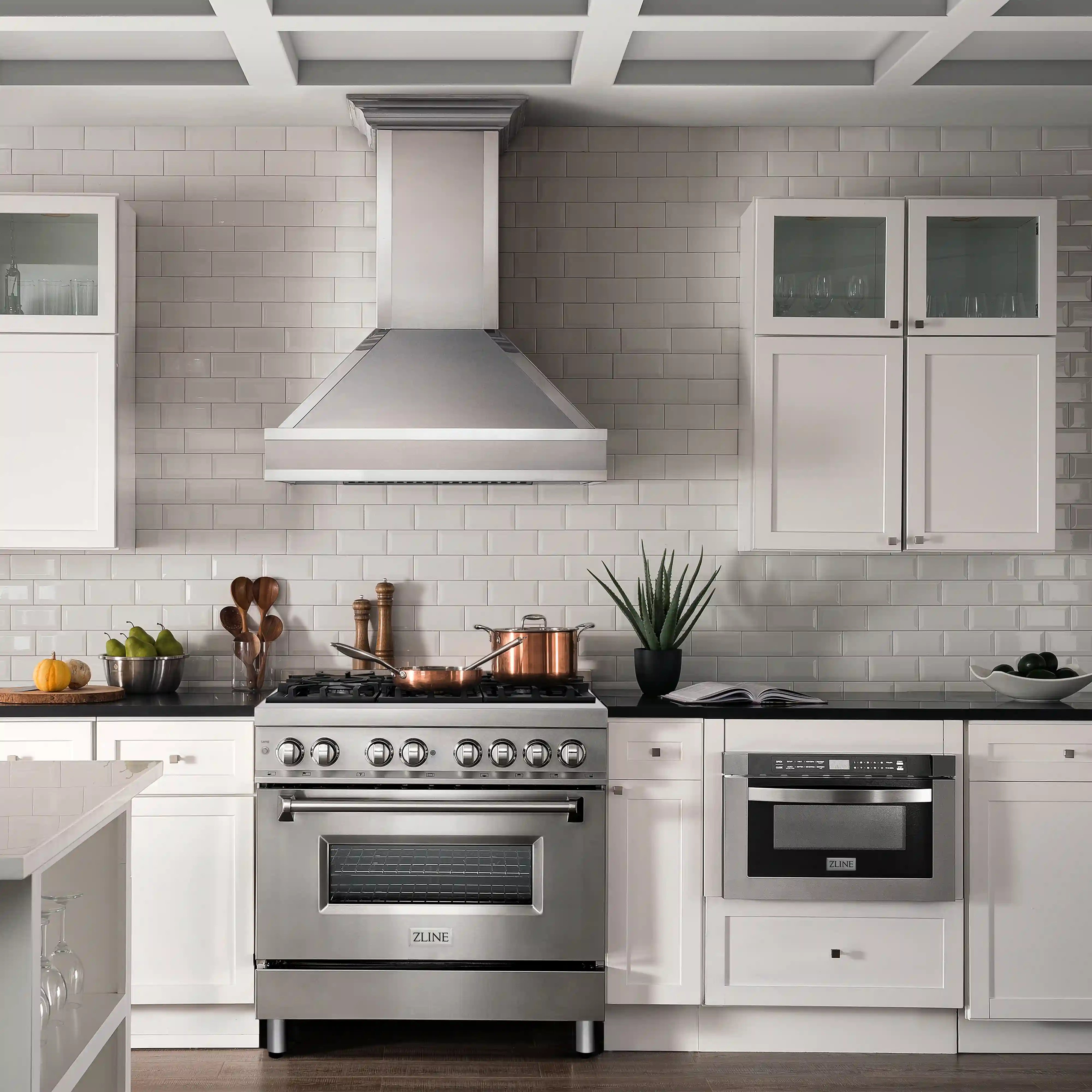

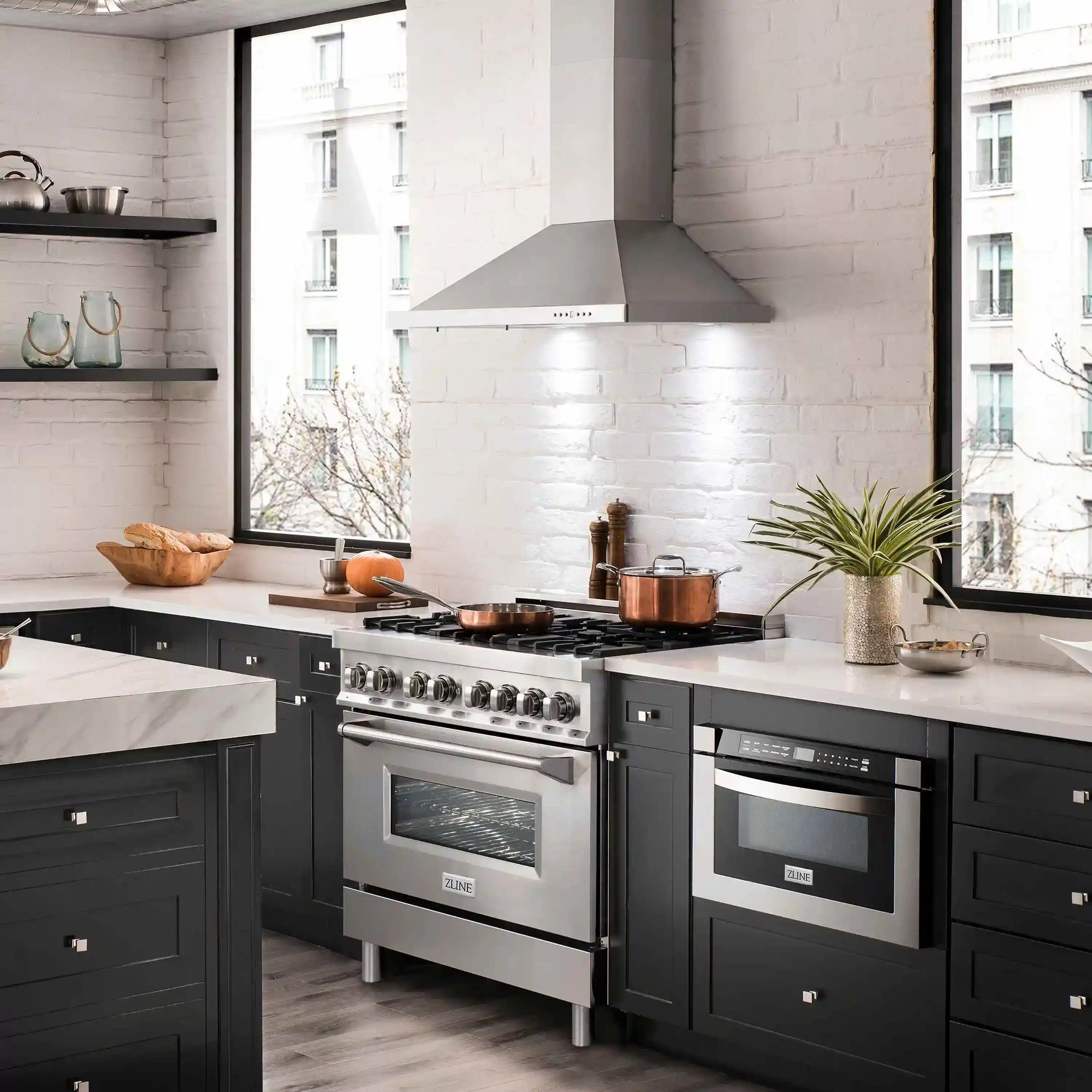

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 36-Inch 4.6 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Stainless Steel (RA36) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability.

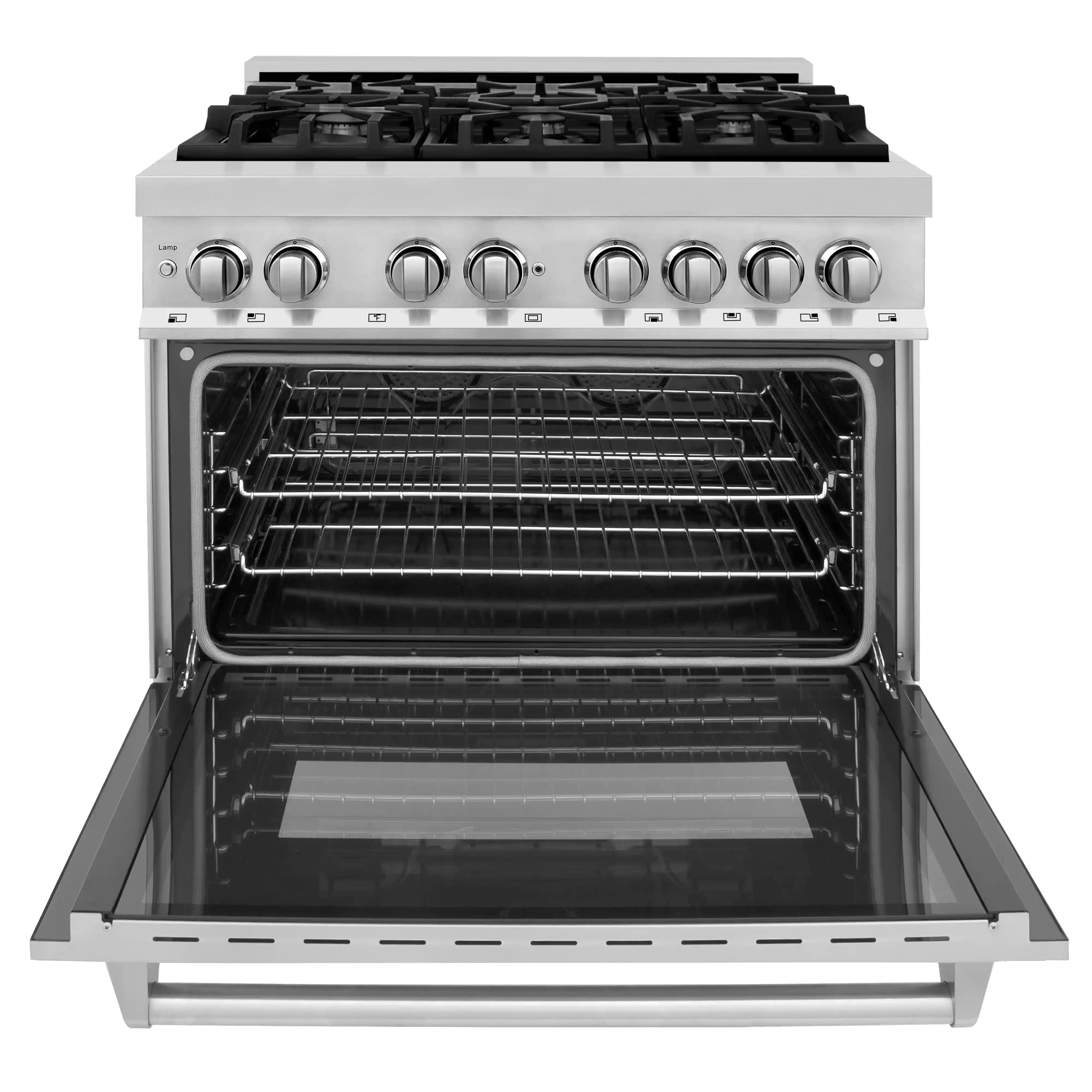

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 36" 4.6 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Stainless Steel (RA36) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability. Build your dream kitchen with the ZLINE Dual Fuel Range

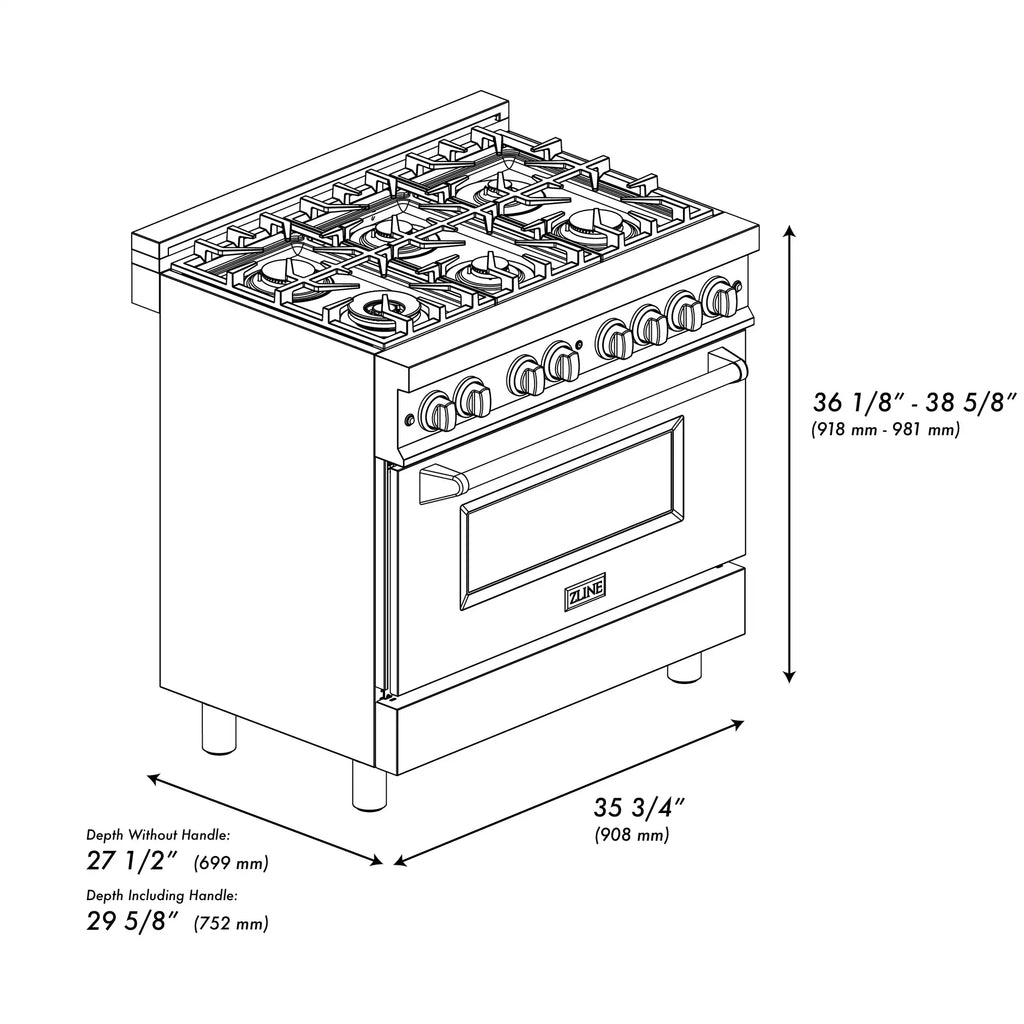

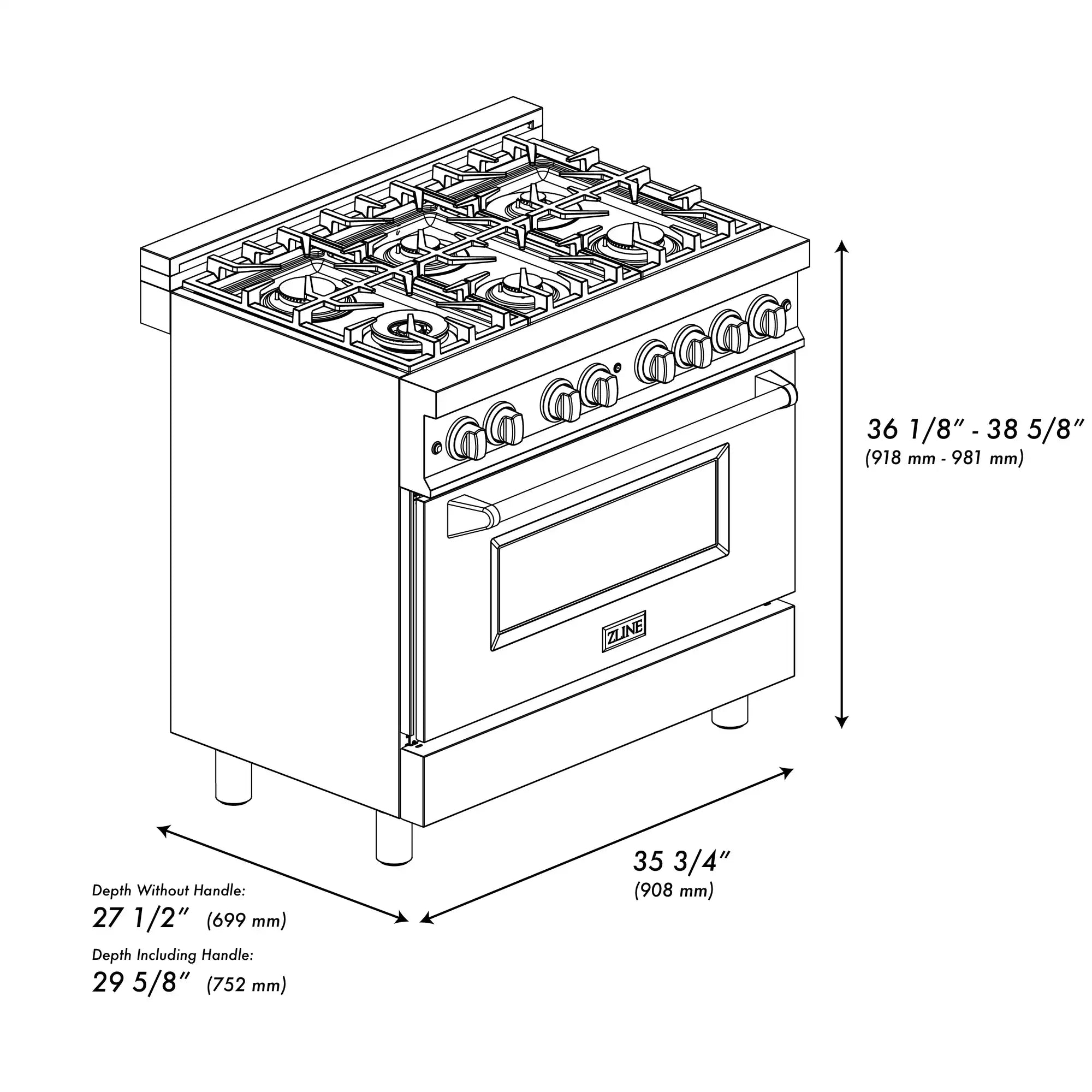

| DIMENSIONS | |
|---|---|
| Dimension | 35.75" W x 27.5" D x 36.13" H |
| Dimensions with Handle | 35.75" W x 29.63 " D x 36.13" H |
| Open Door Depth | 41.8" |
| Oven Dimensions | Oven Dimensions: 30.5 in. W x 18.5 in. D x 14 in. H |
| Product Weight | 253lbs |
| GENERAL INFORMATION | |
| Features | Manufactured by ZLINE Kitchen and Bath |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Lighting | Dual Lighting, controlled by light switch on front control panel |

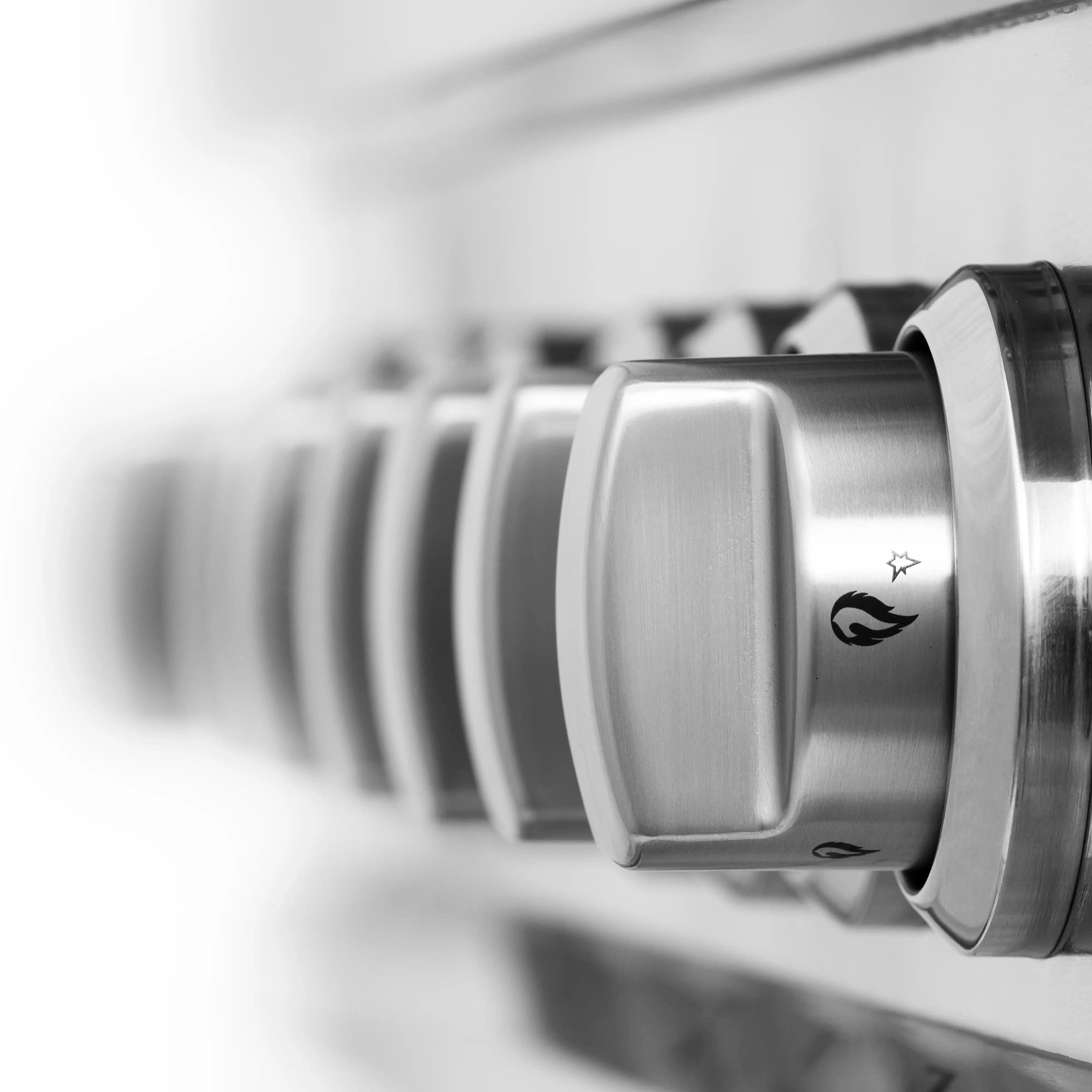

| Control Type | Durable Front Control |

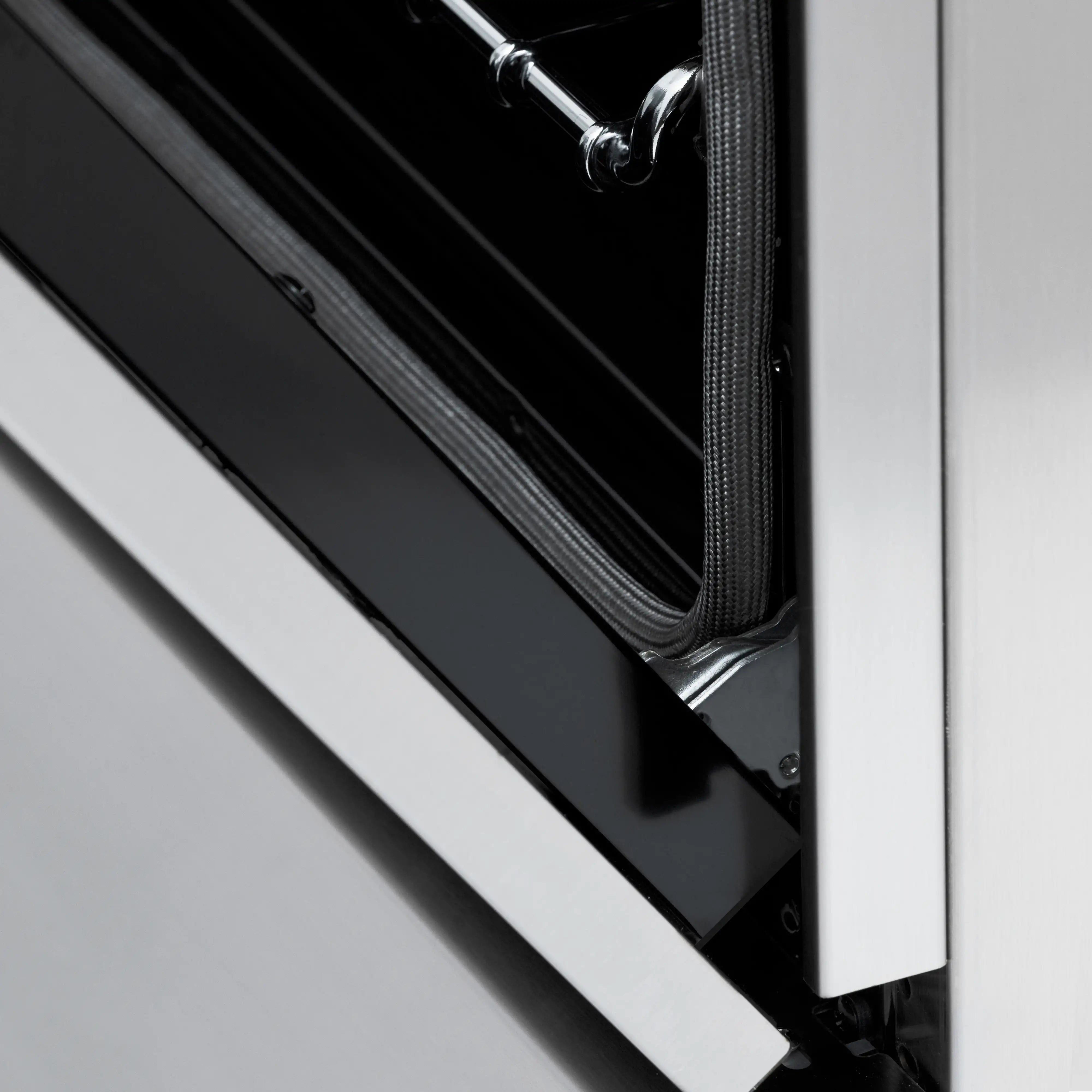

| Material | - Stainless Steel frame with Porcelain Top - Italian-made hinges and burners |
| TECHNICAL DETAILS | |
| Voltage | Requires a minimum of 220V-240V/60HZ/50A |
| Liquid Propane | LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. An LP conversion kit is included - this conversion process must be done by a professional |
| Gas Type | Natural Gas or Liquid Propane via conversion kit |
| Fuel Type | Electric Convection Oven - Gas Cooktop |
| COOKTOP FEATURES | |

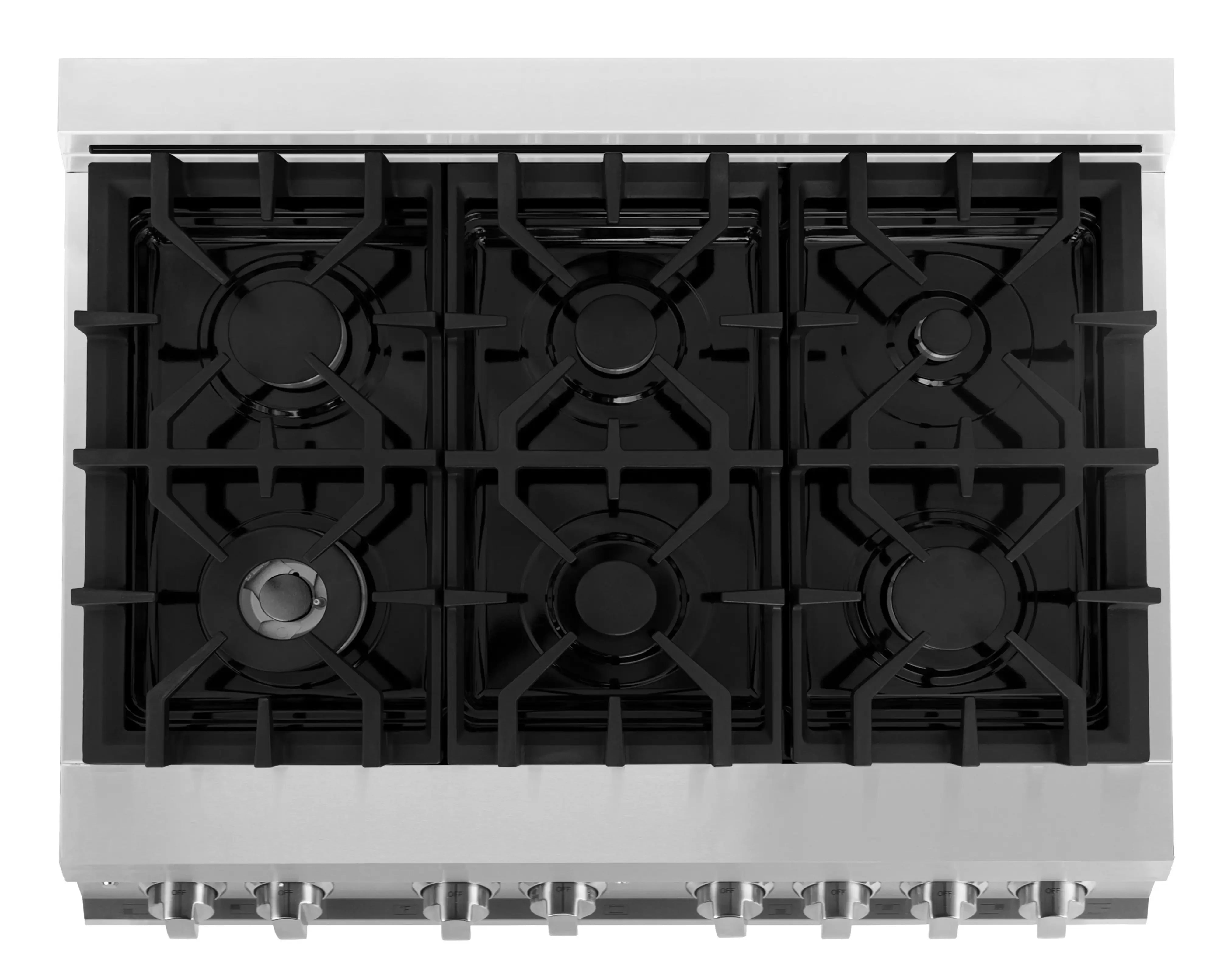

| Cooktop | (6) Burners with Porcelain Cook Top with electronic spark ignition for all burners |
| BTU Rating |
|
| OVEN FEATURES | |

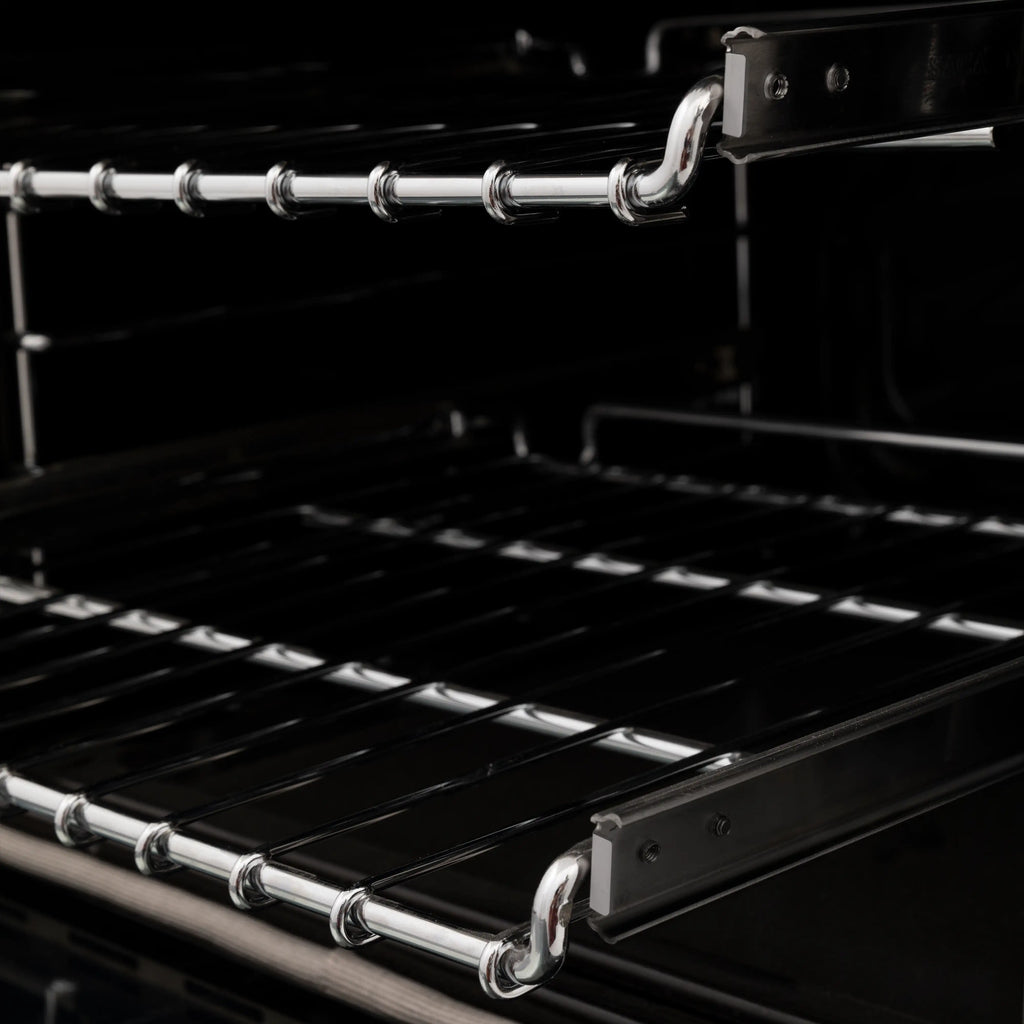

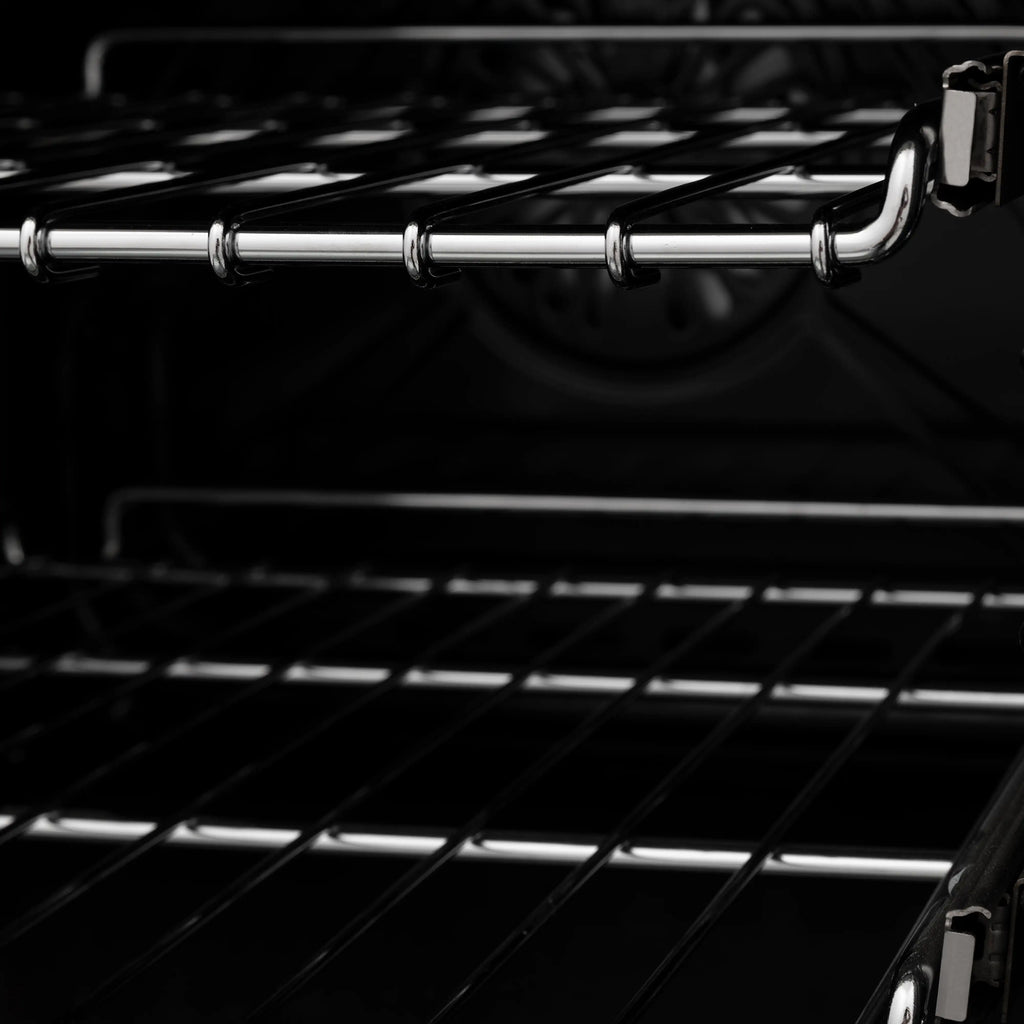

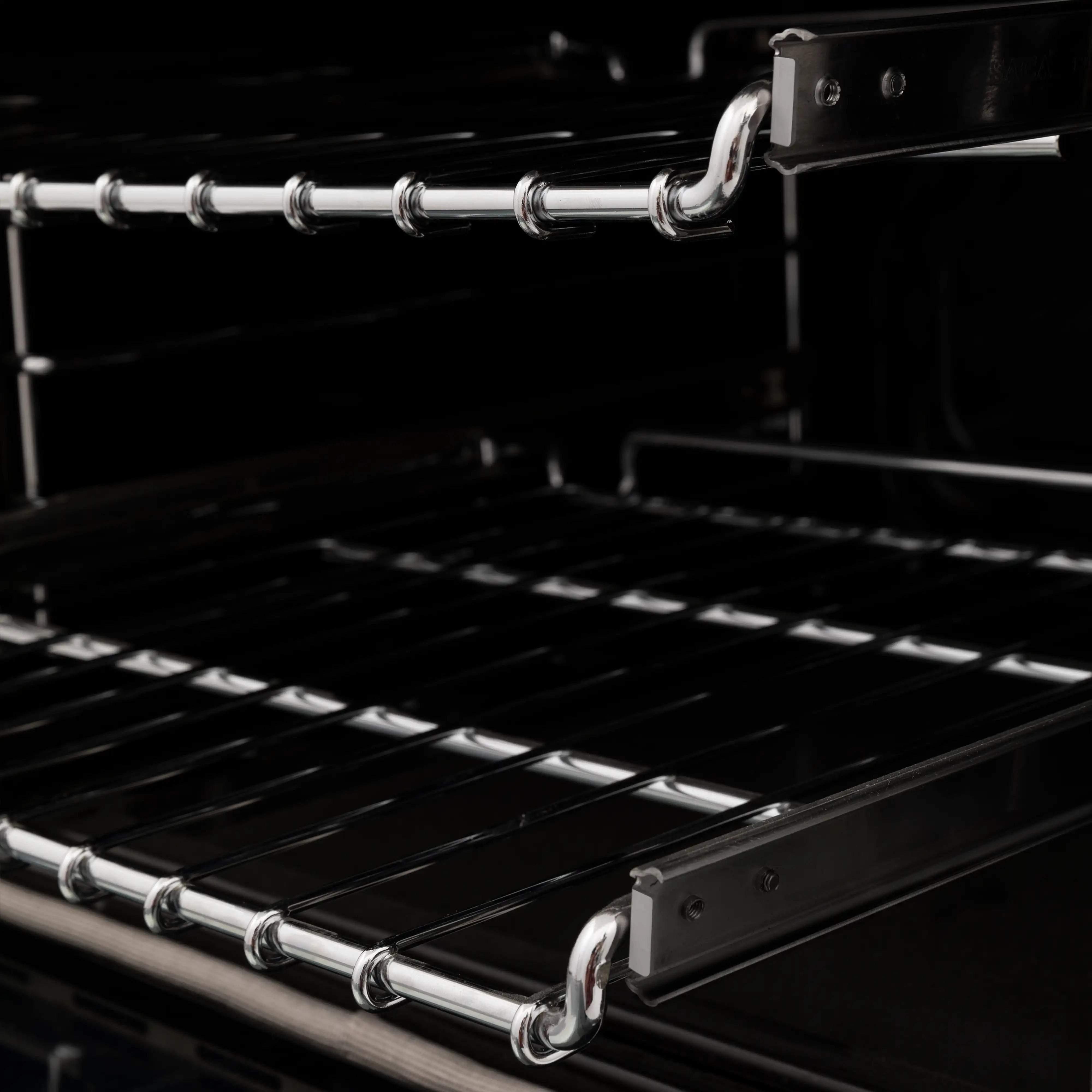

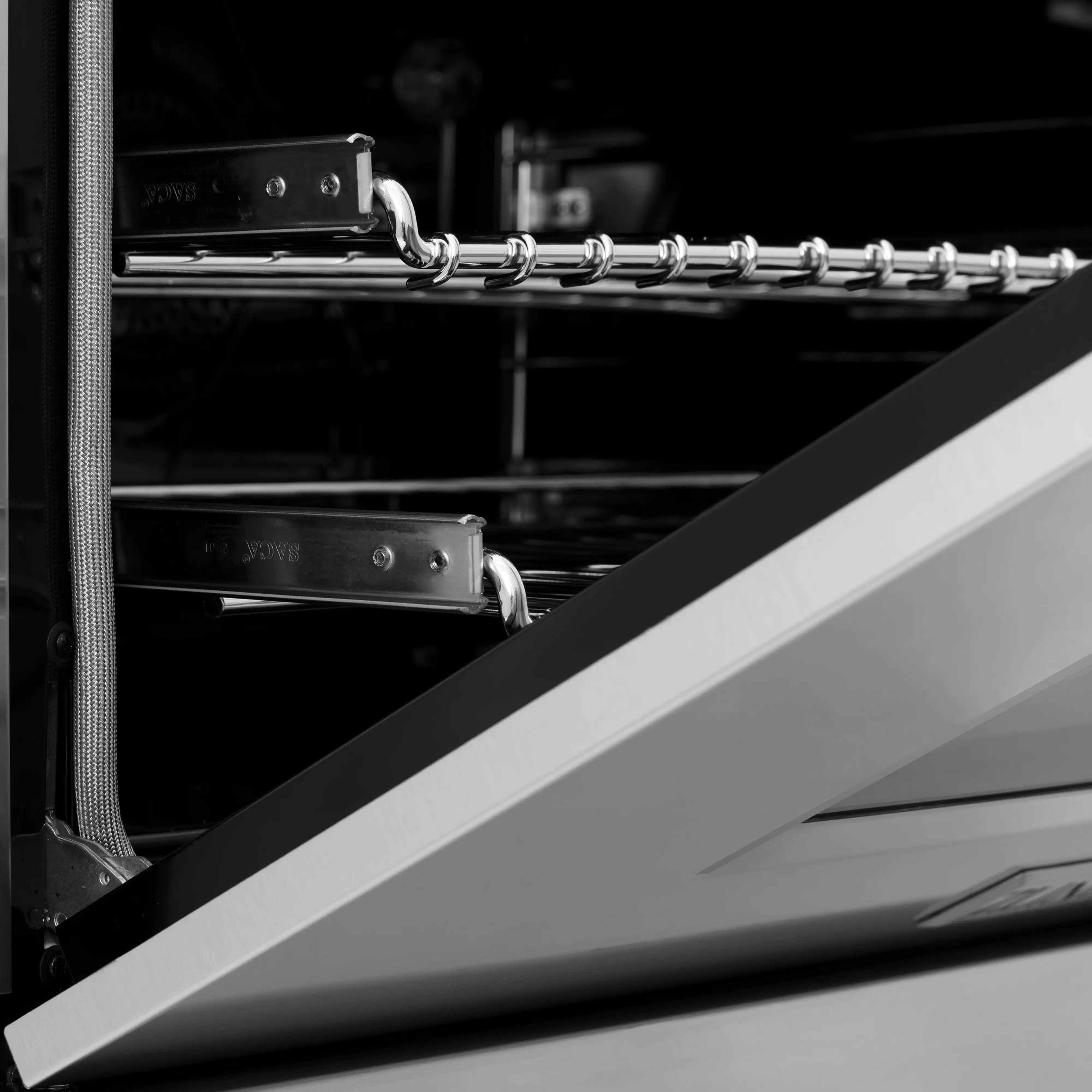

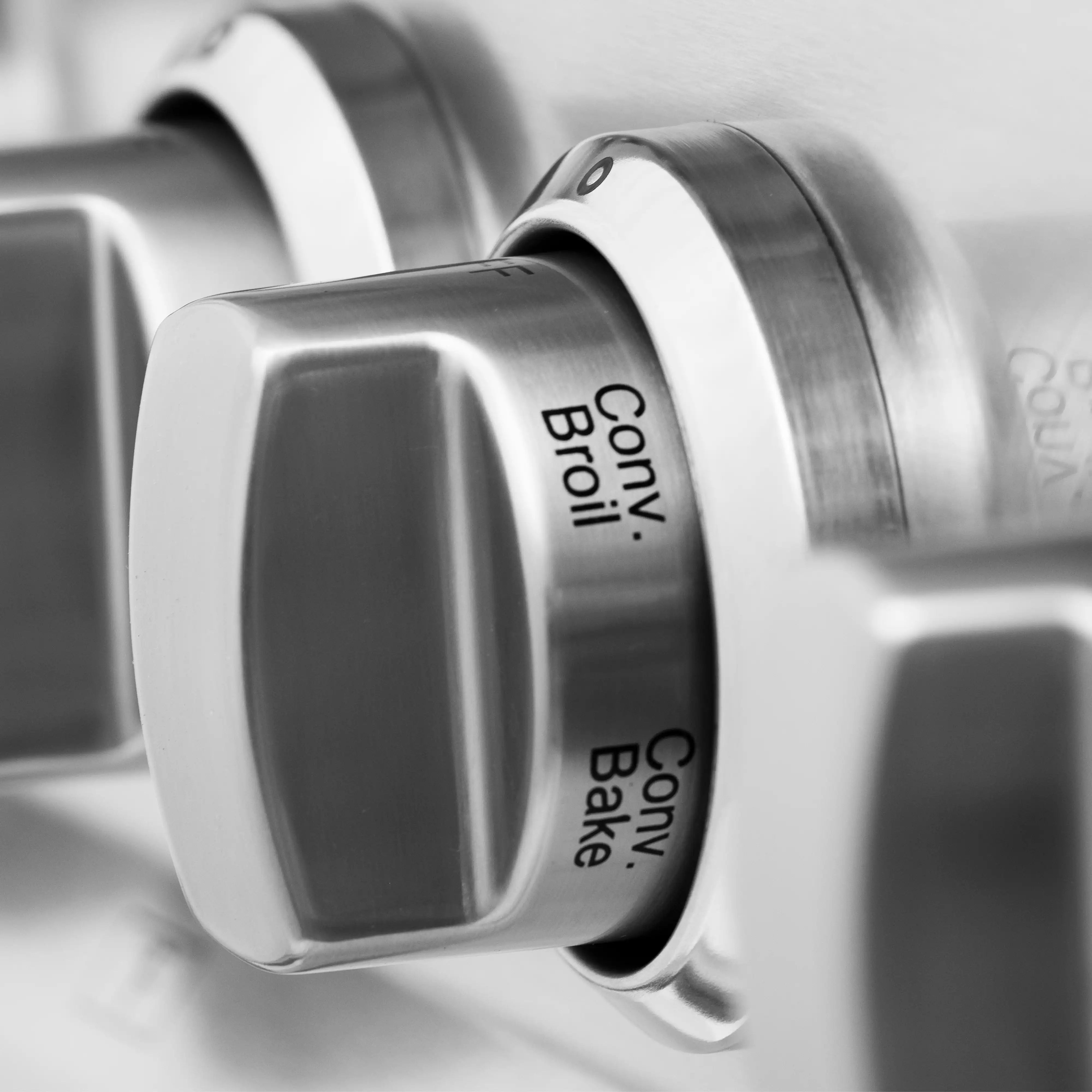

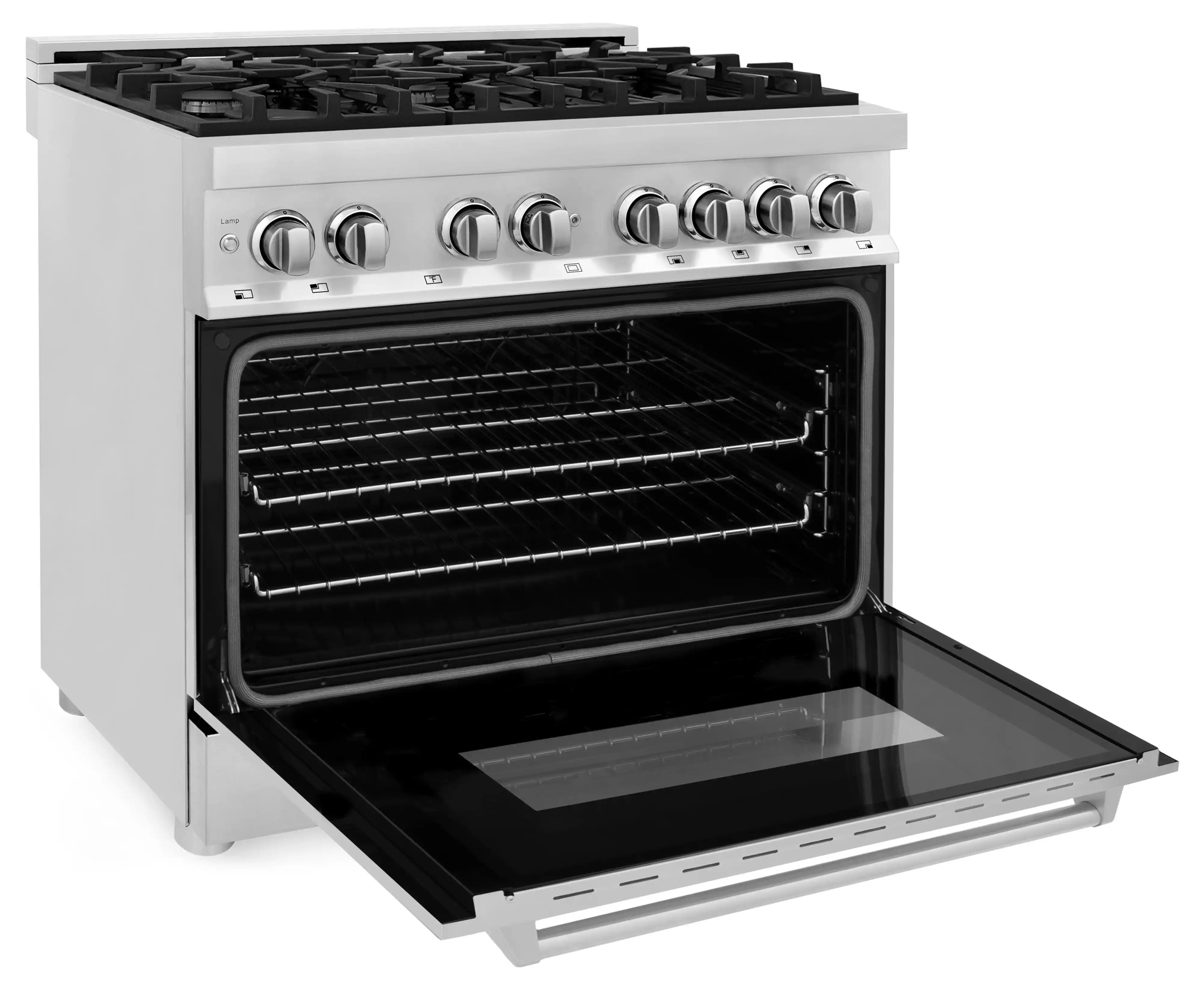

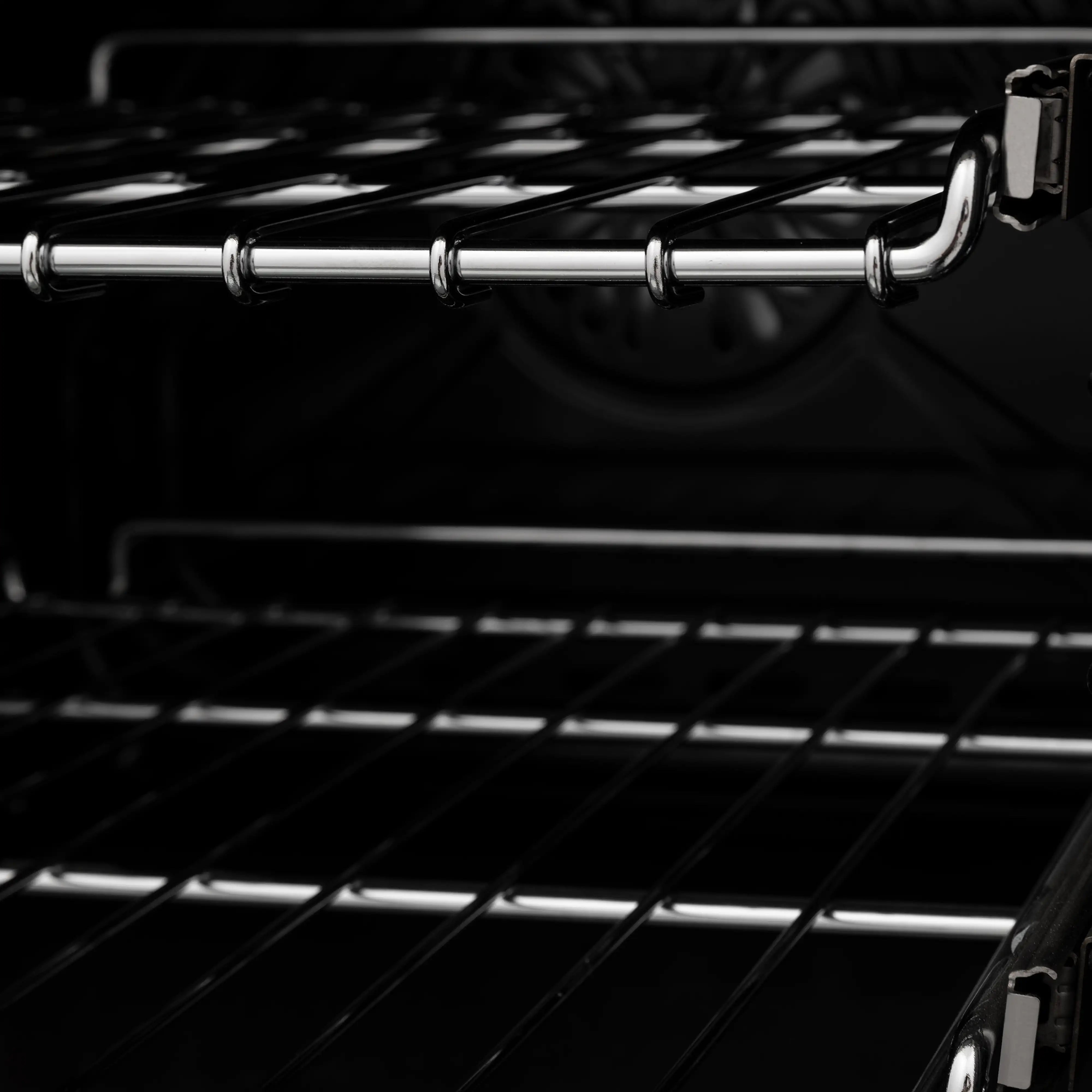

| Oven | Manual Clean Convection Electric 4.6 cu. ft. deep oven Triple Glass Window Dual Lighting Professional Aluminum Mesh Seal |
| WARRANTY & CERTIFICATIONS | |
| Warranty | 1 Year Warranty |
| Certifications | ETL Certified |

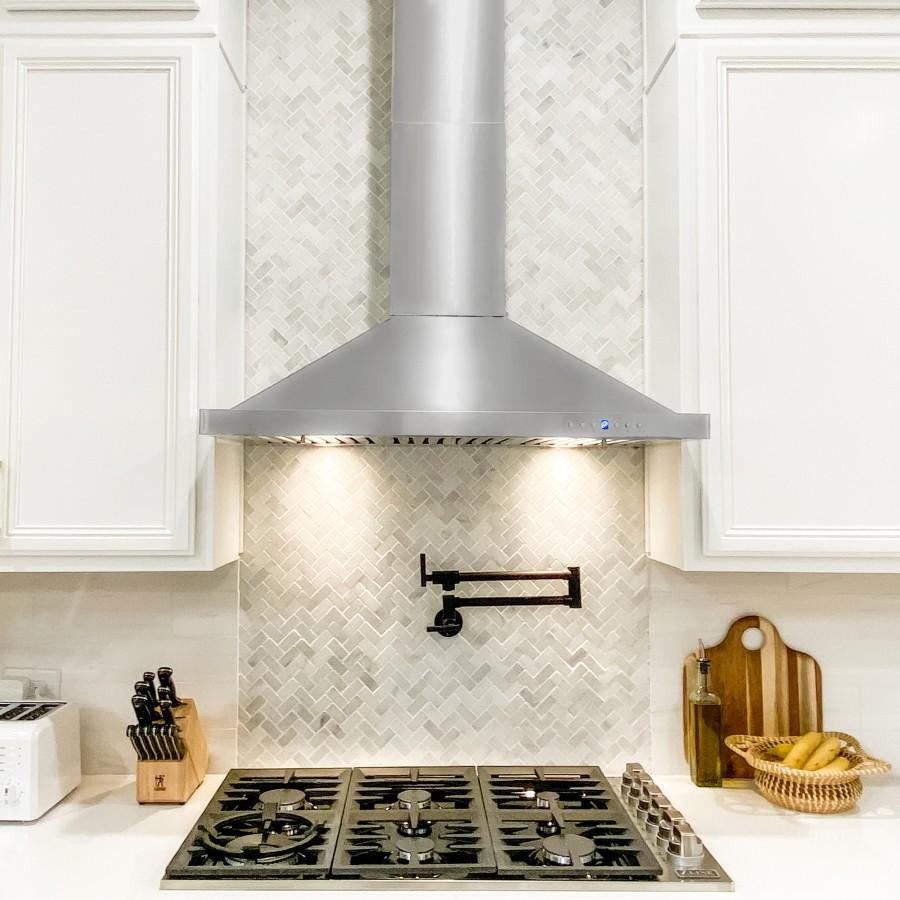

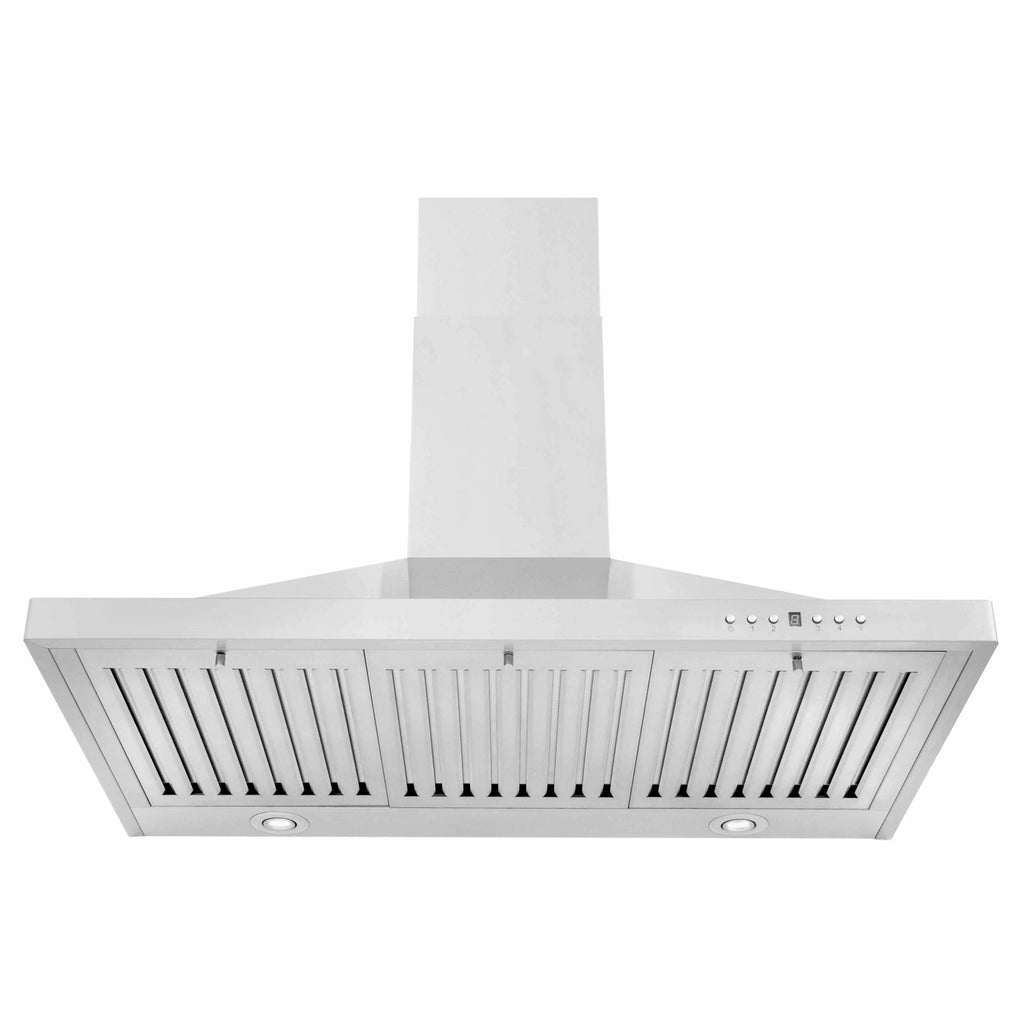

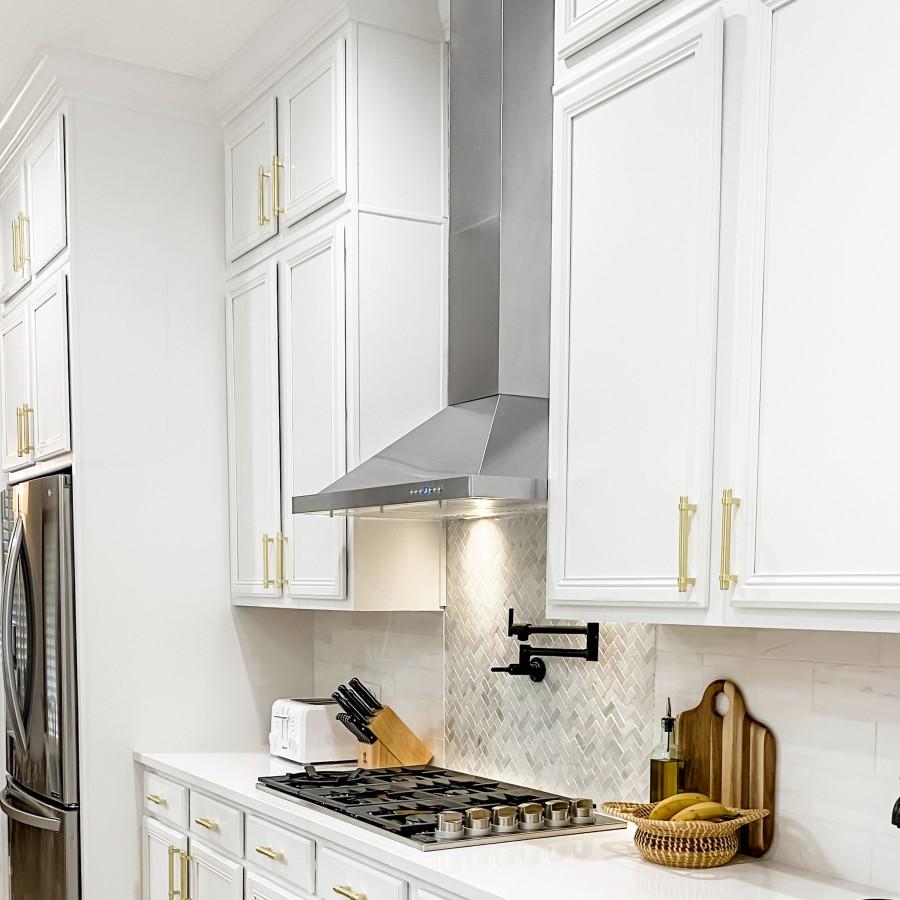

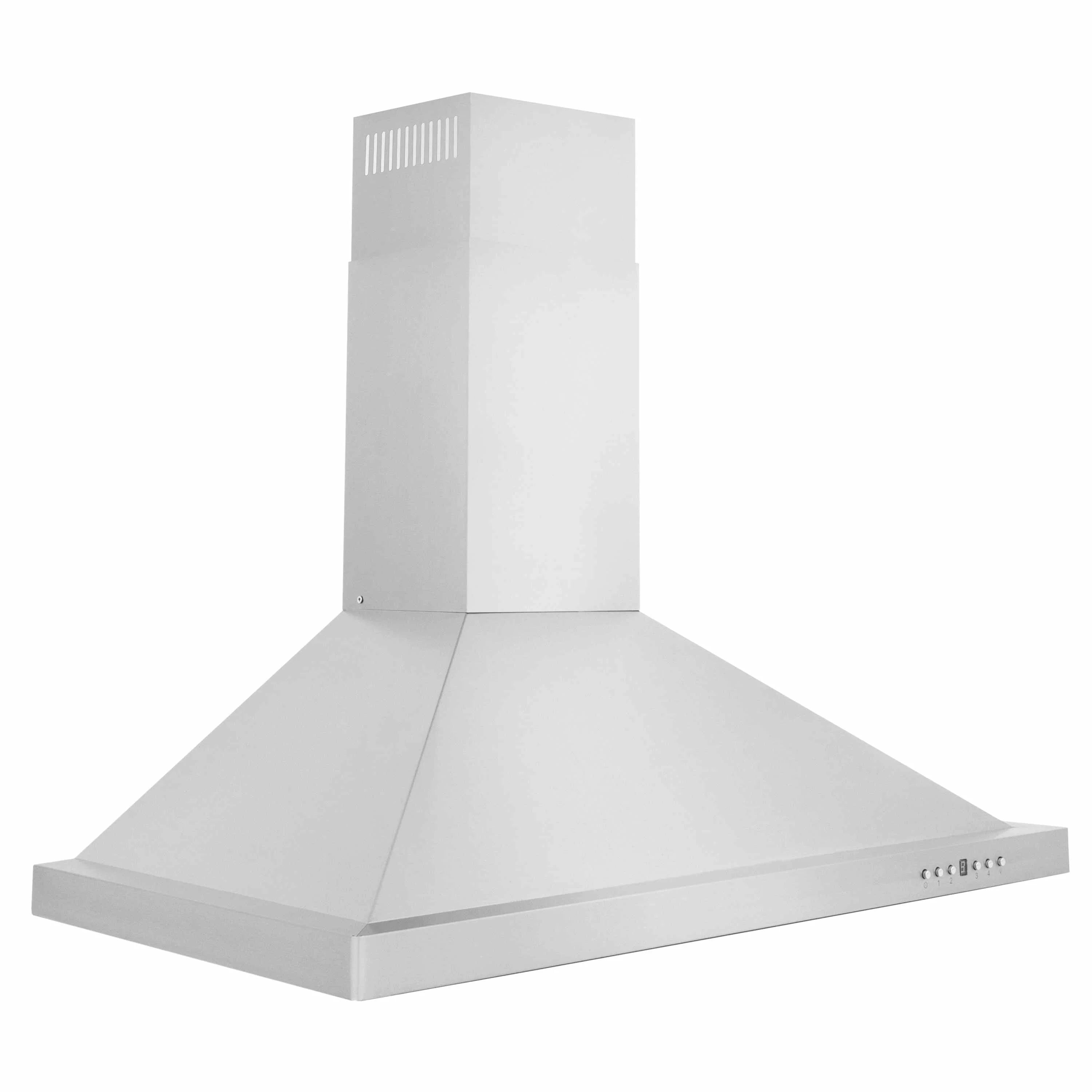

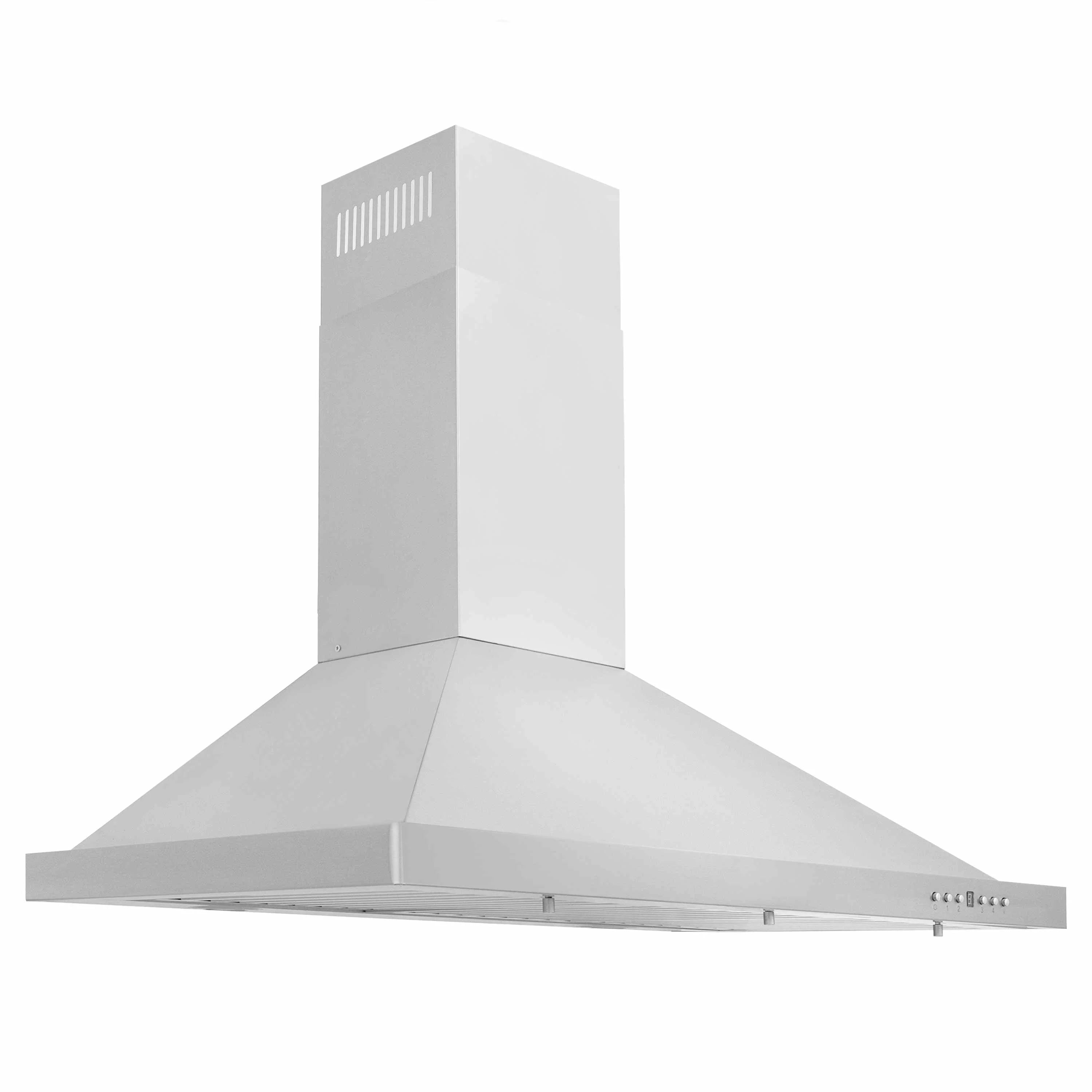

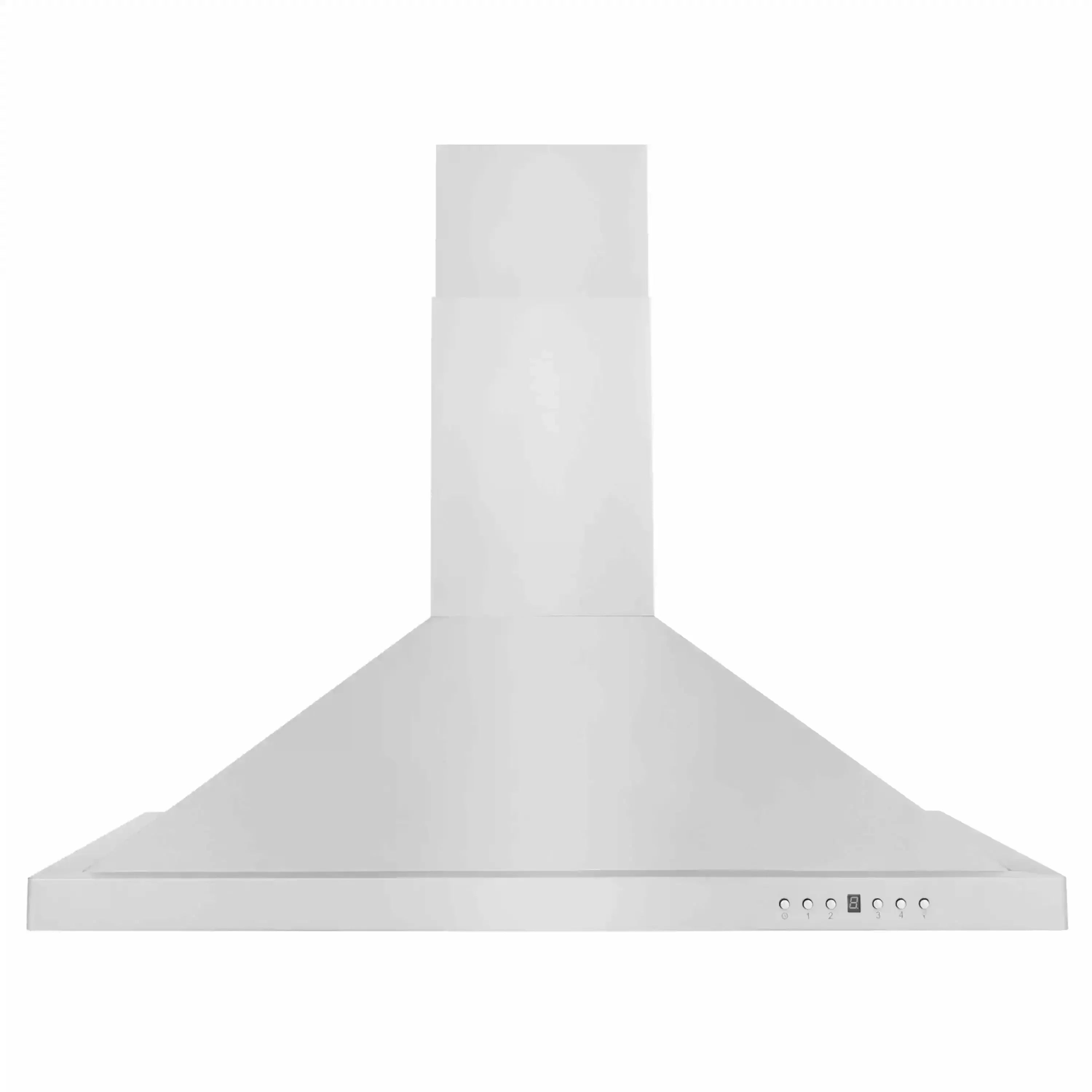

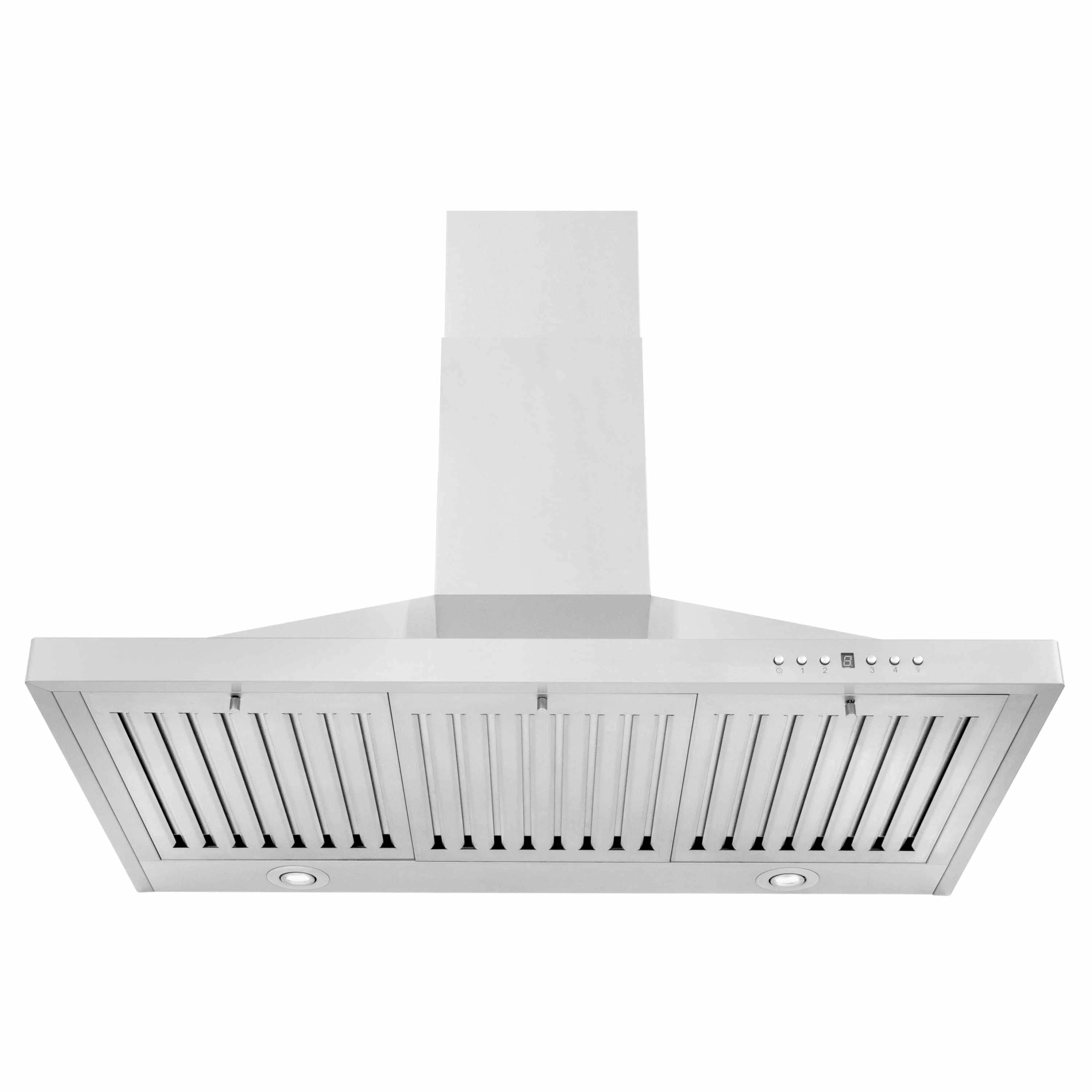

The ZLINE KB-36 is a 36-inch professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made of 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
This hood contains many unique features, such as:
All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimneypieces, allowing a fit for most ceilings between 8 and 9 feet. For ceilings shorter than 8 feet, or taller than 9 feet, see table below for detailed options.
ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The KB-36 ships next business day when in stock.

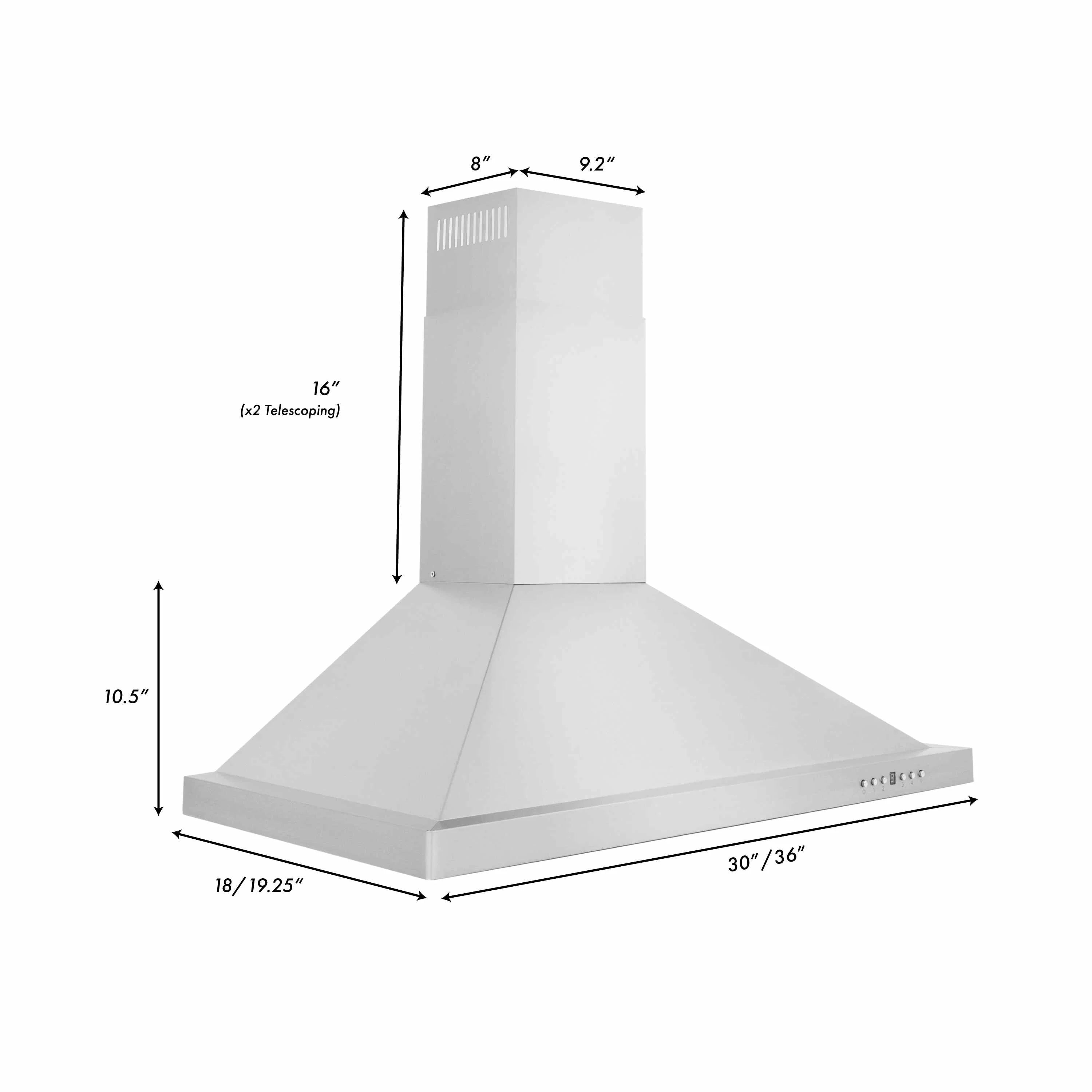

| DIMENSIONS | |
|---|---|
| Dimension | 36" W x 19.7" D x 10.5" H |
| Chimney (Dimension) | 9.2" W x 8" D x 16" H (x2) (Telescoping) Chimney Short Kit and Extension(s) Available: Short Kit (2-12") ~8 ft. Ceilings 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings 2 PC Extension (2-36") ~10-12 ft. Ceilings |
| GENERAL INFORMATION | |
| Mount Type | Wall Mounted |
| DESIGN & FINISH | |

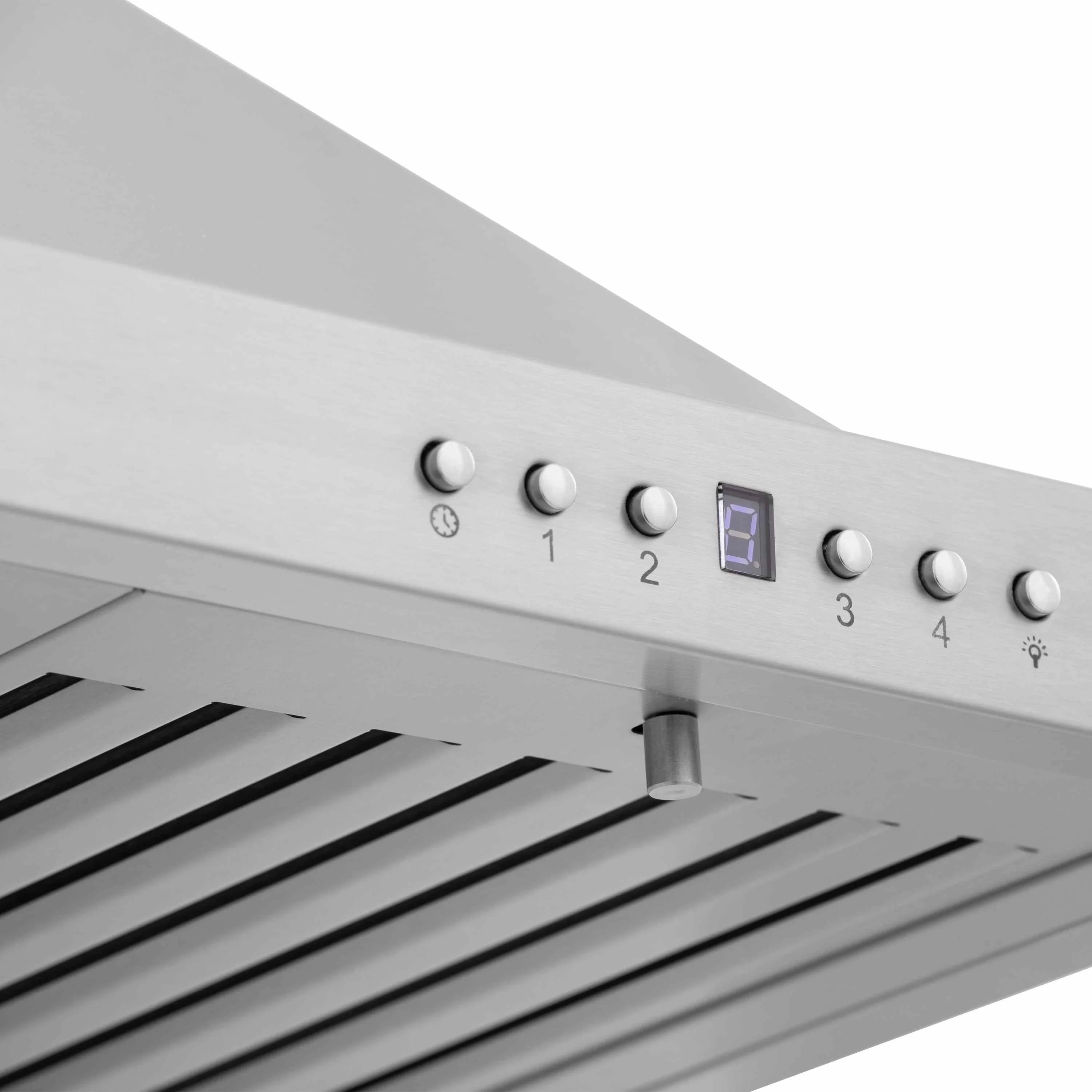

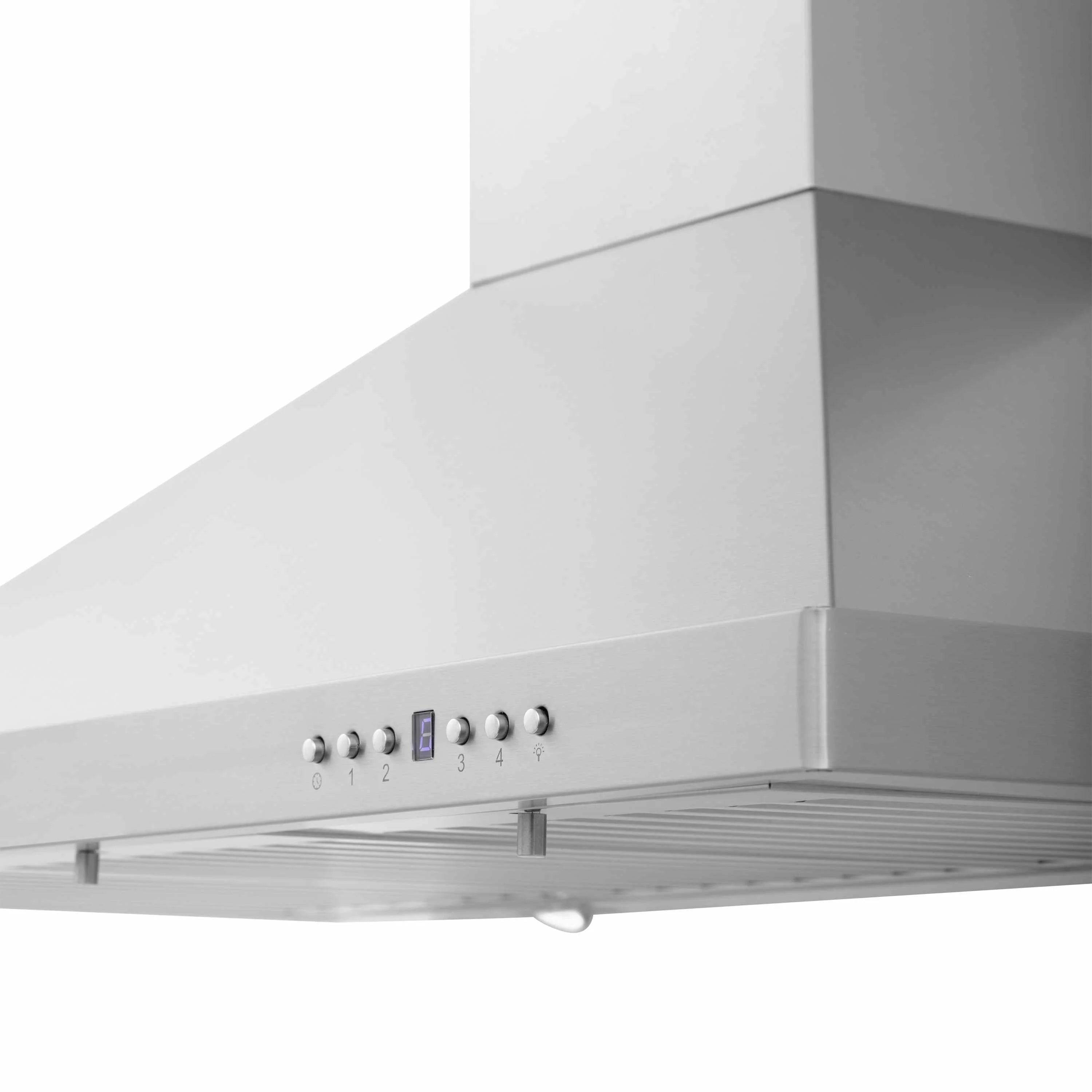

| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Material | 21g #430 Stainless Steel |
| TECHNICAL DETAILS | |
| Venting Size | 6" Outlet (Transition piece with backdraft damper to round ducting included) Charcoal Filters (not included) available for ductless/recirculating option. |
| Airflow (Q/L/M/H) | 120/240/320/400 |
| Noise Level | 20/29/34/41 |
| Voltage | 110V/60HZ |
| Motor | High Performance 400 CFM/4-Speed Motor |
| Speeds | 4 Speeds |
| FEATURES | |

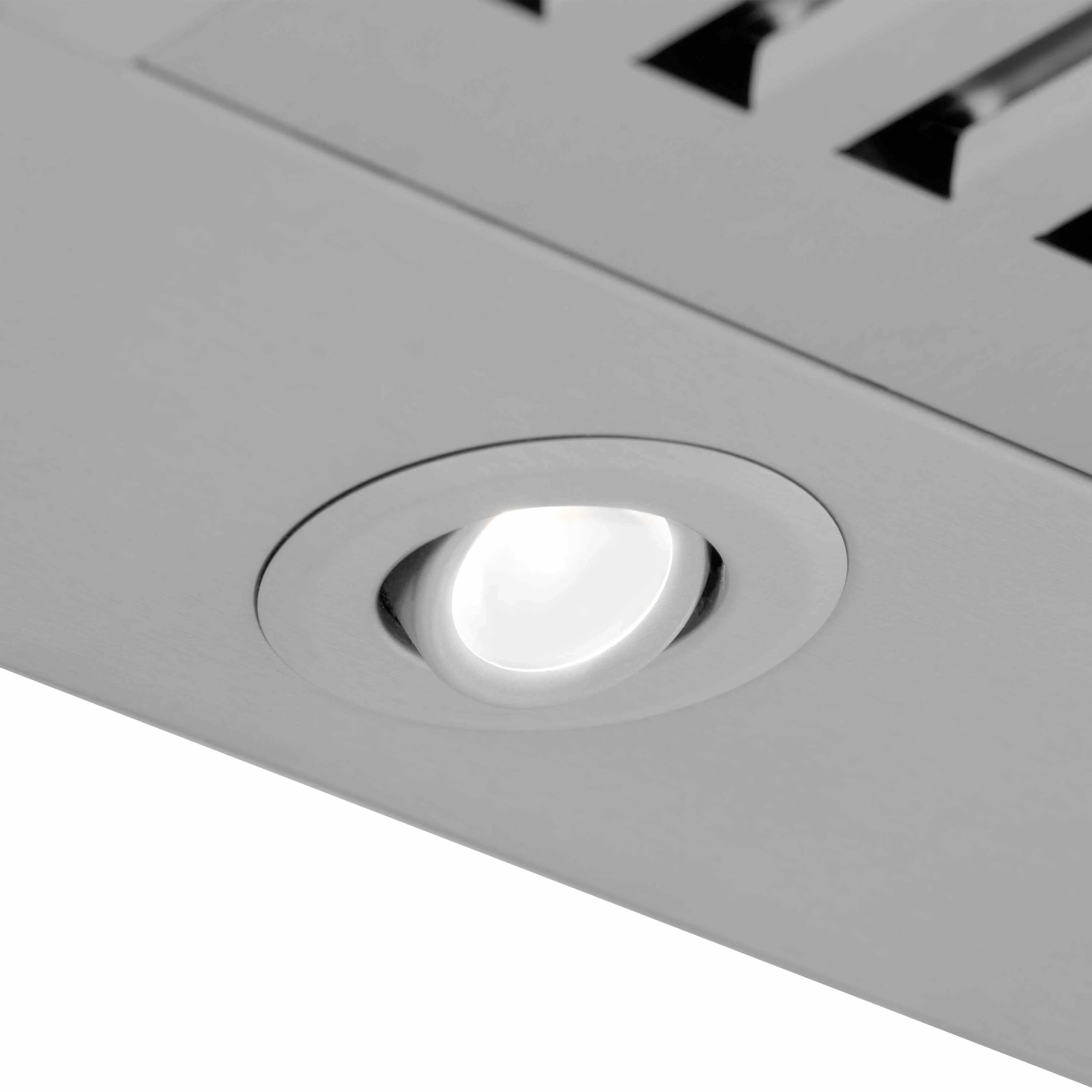

| Lighting | 2 Directional LED Lights (3-Watt) |
| Filters | Stainless Steel Baffle Filters (Dishwasher Safe) |
| Features | Model No. KB-36 (ETL Listed) ***CROWN MOLDING AVAILABLE FOR THIS MODEL*** |
| WARRANTY & CERTIFICATIONS | |
| Warranty | 3 Year Parts Warranty |
| Certifications | ETL Certified |

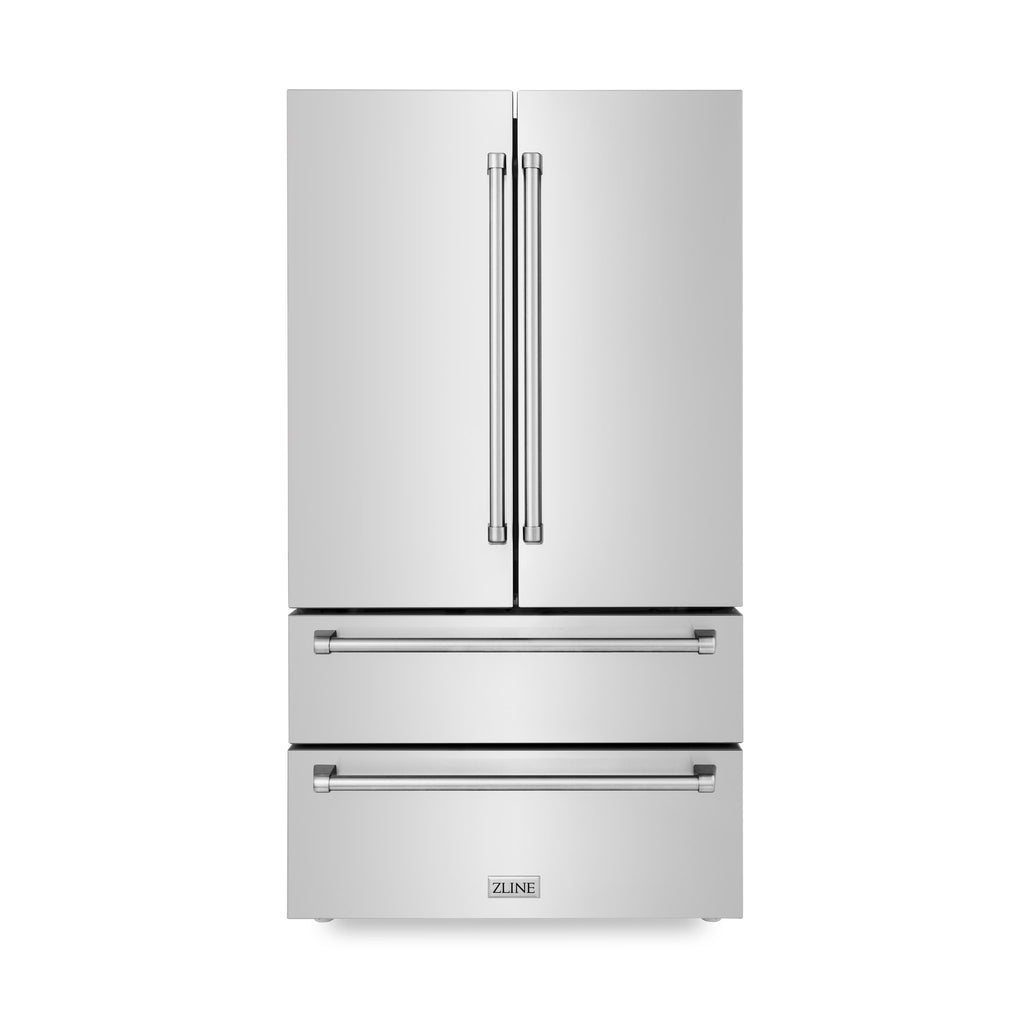

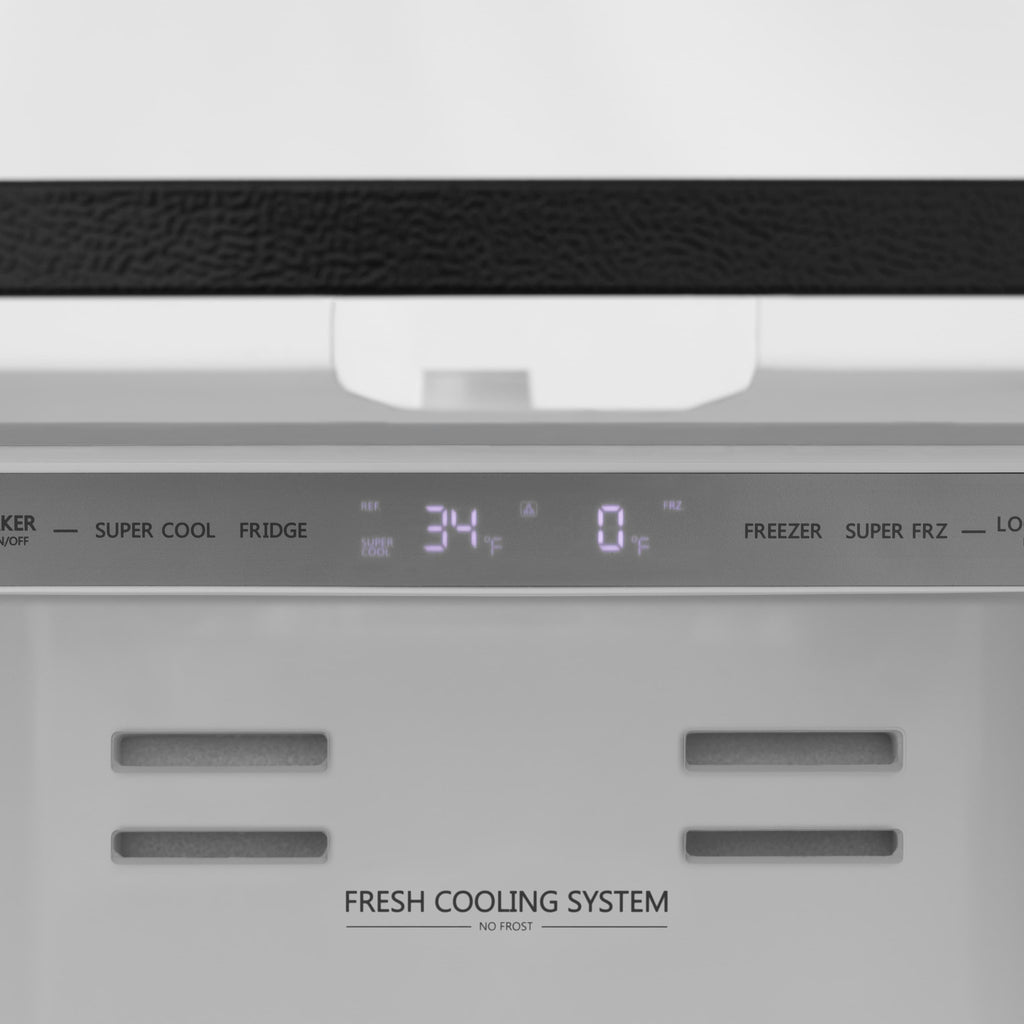

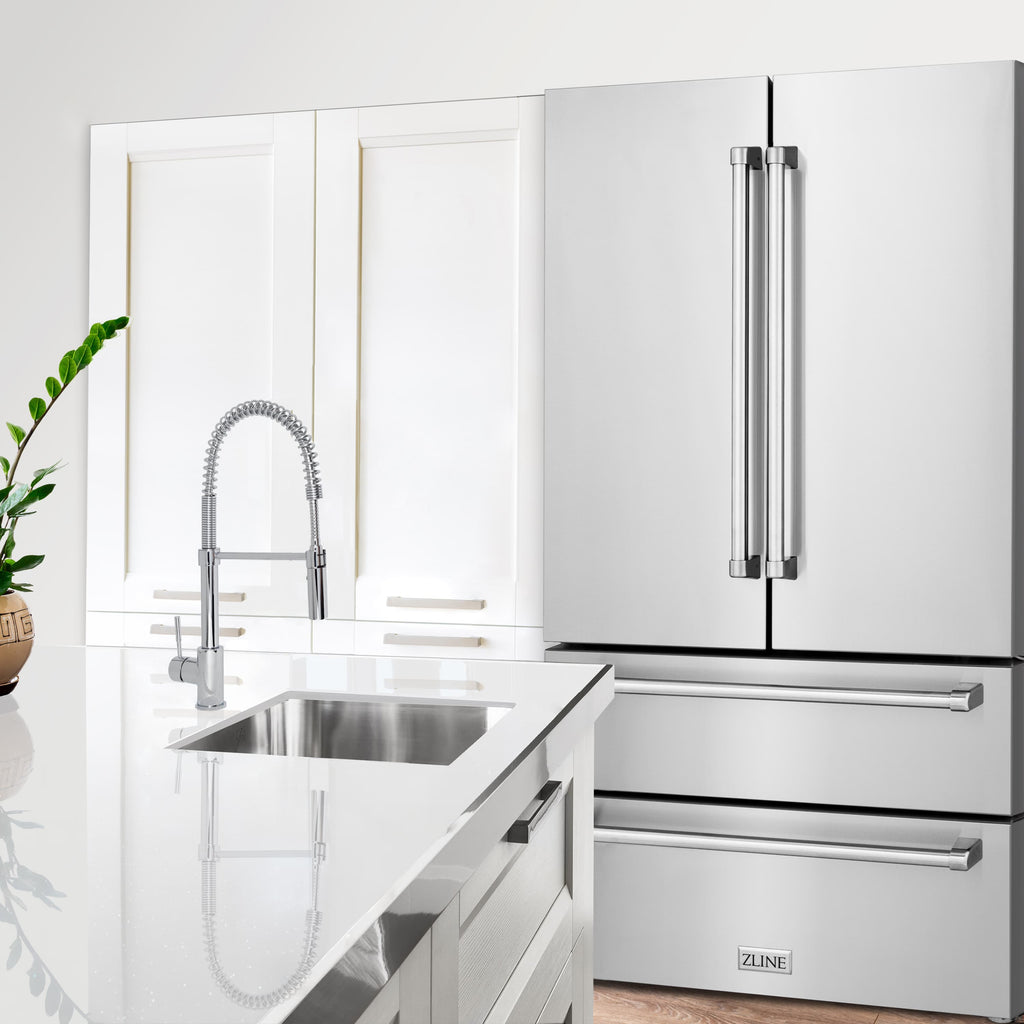

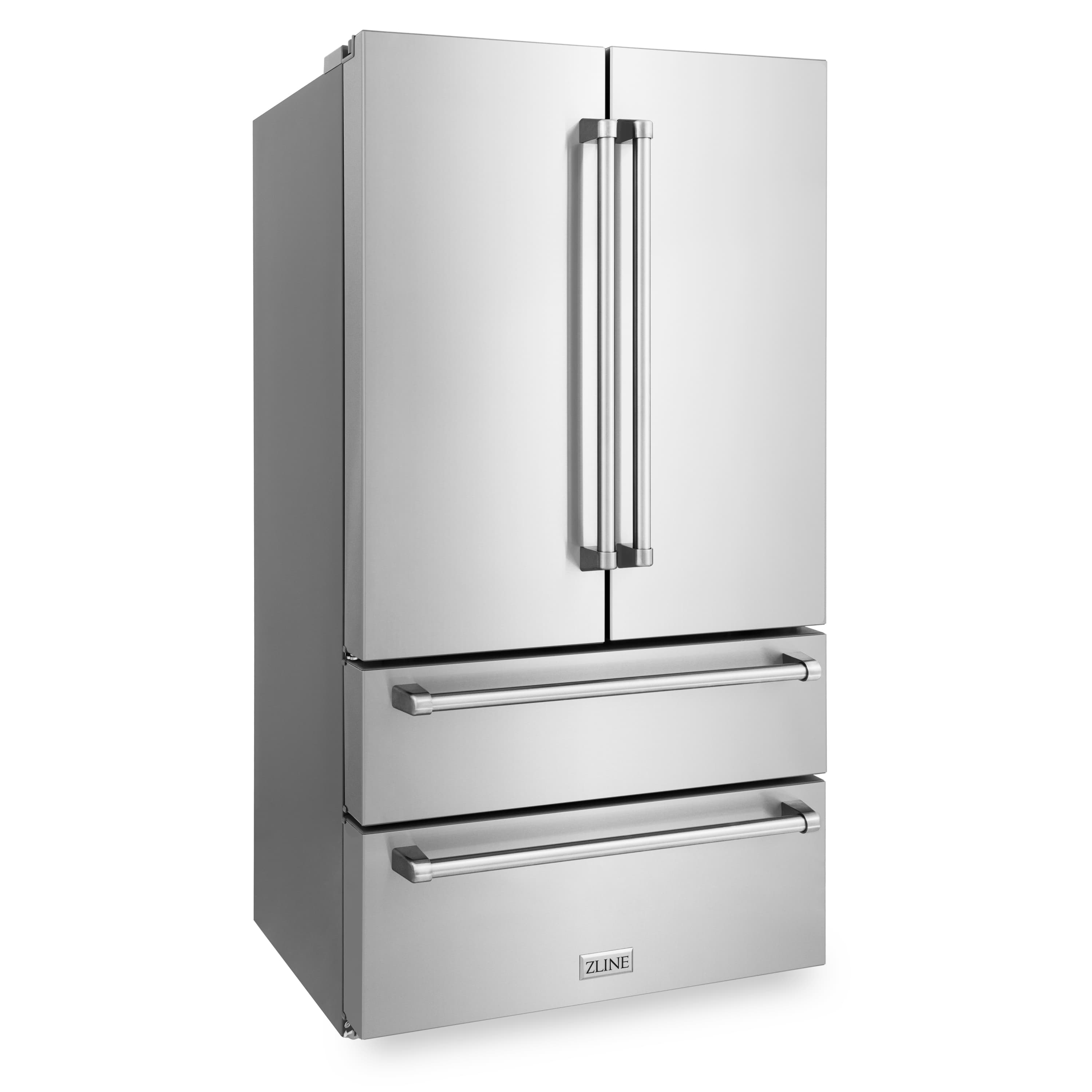

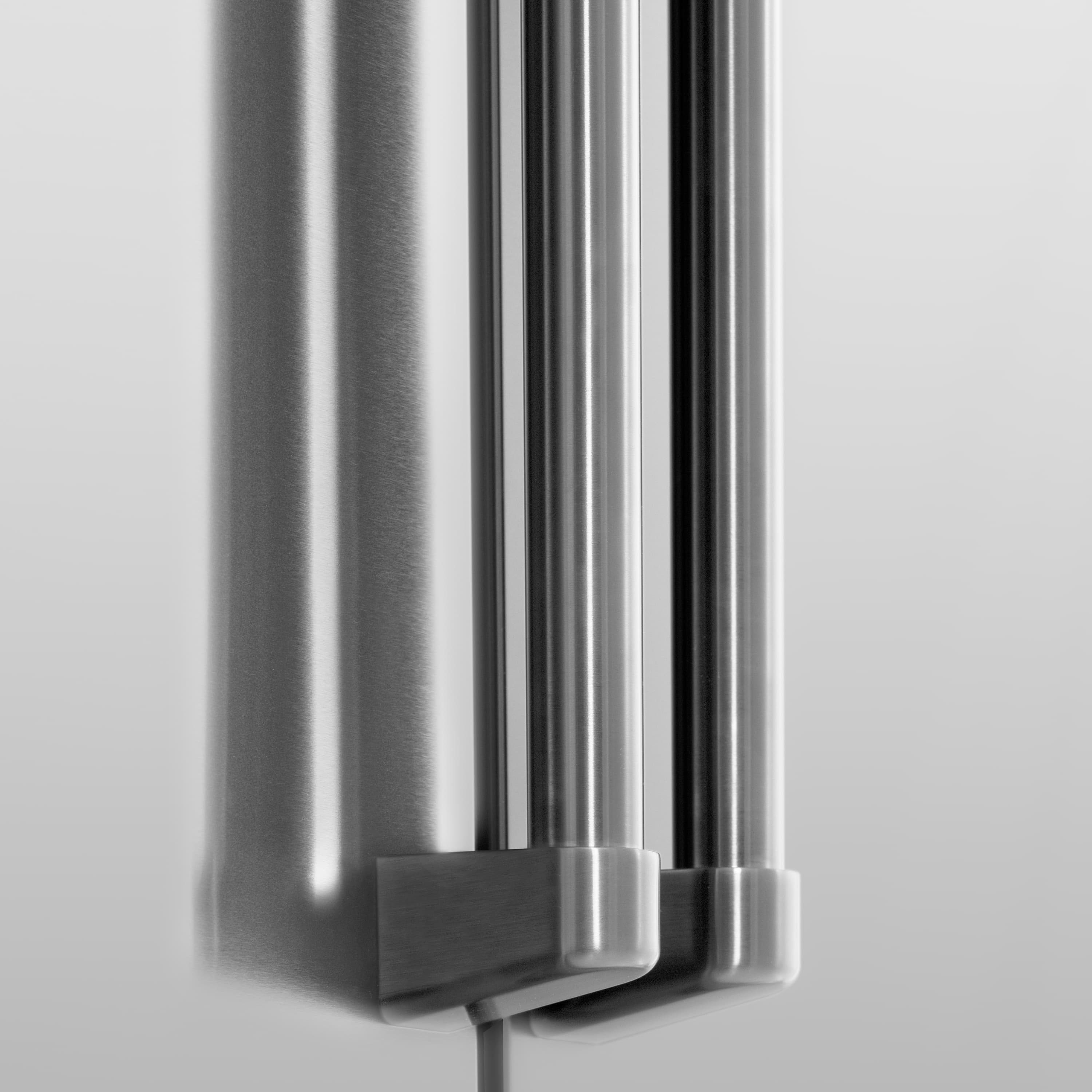

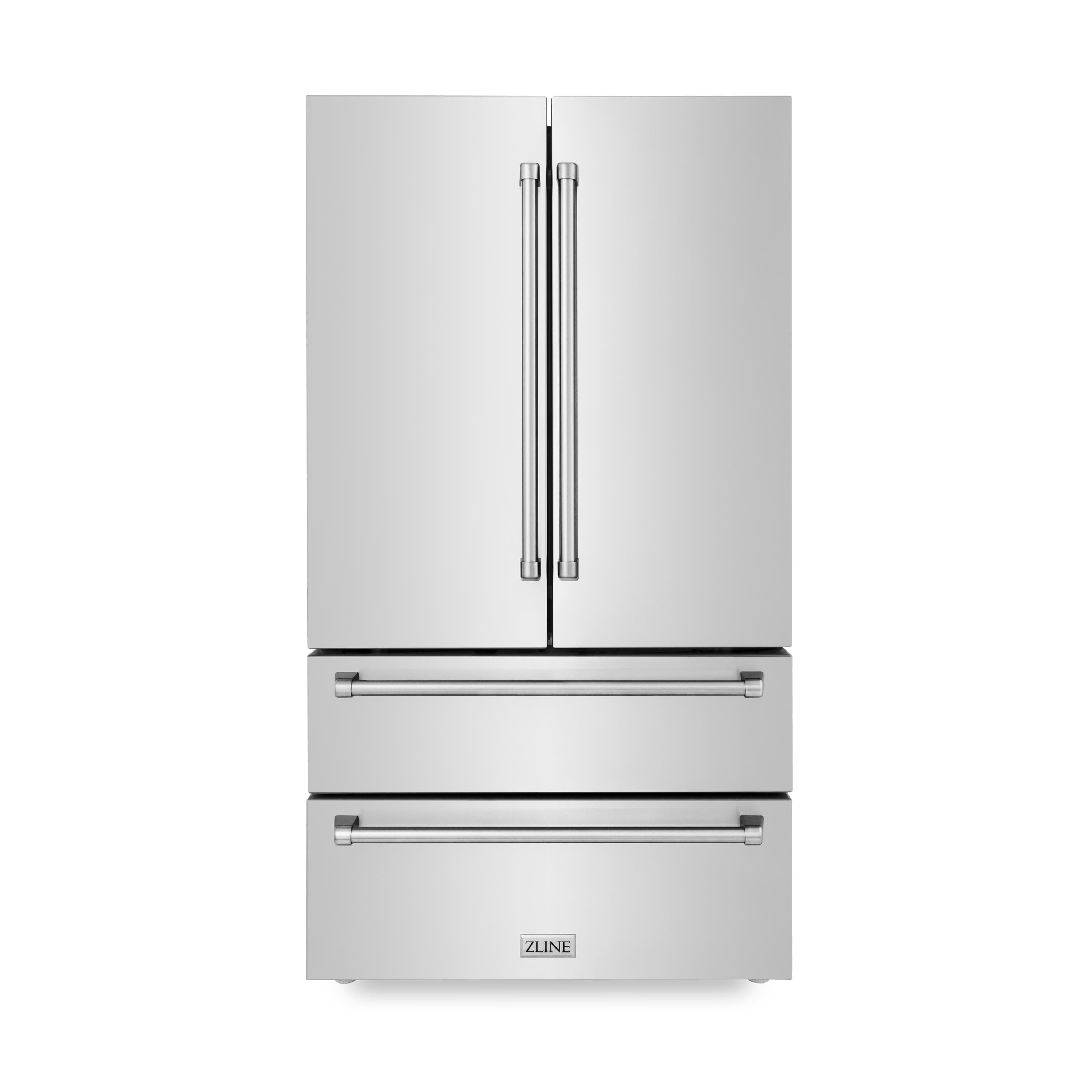

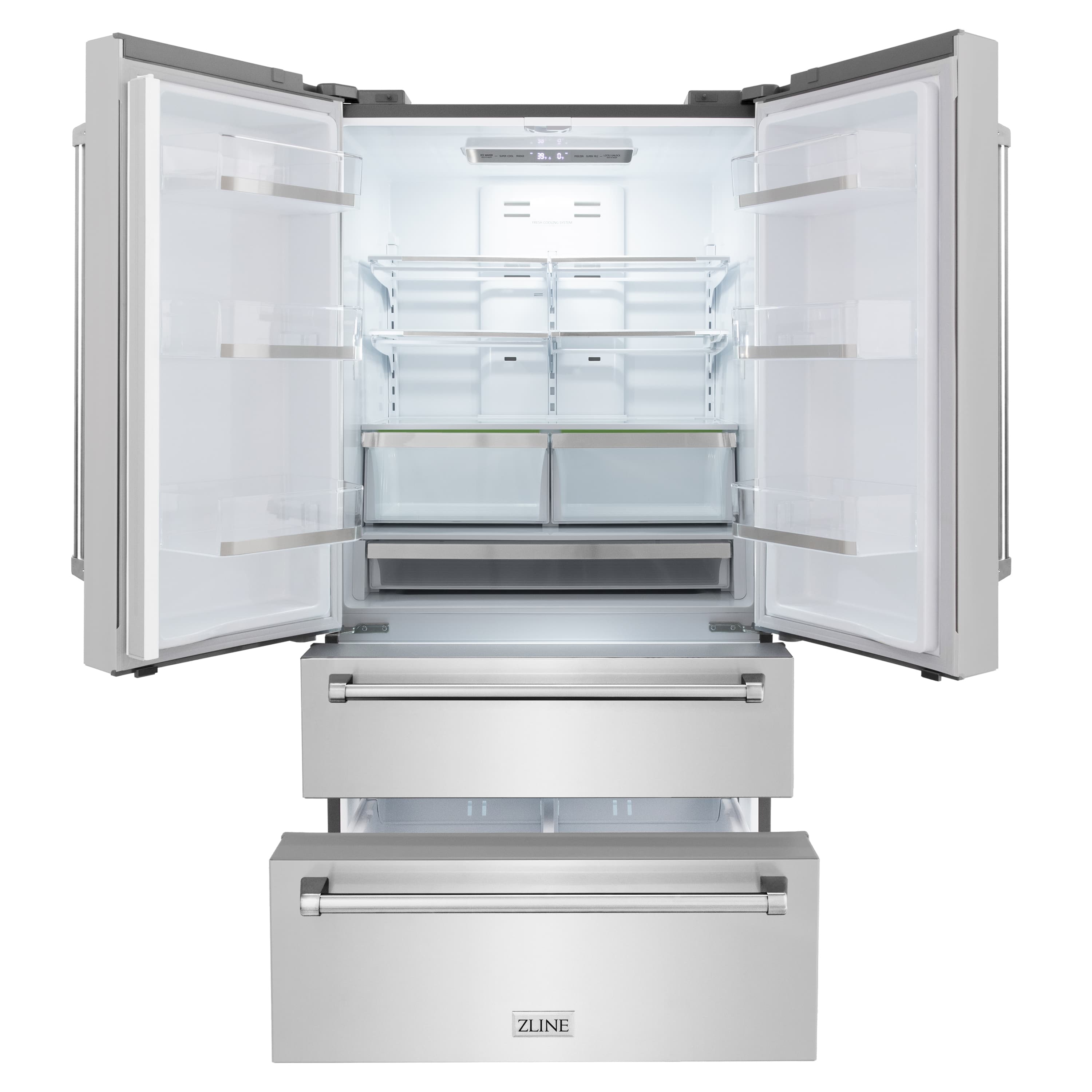

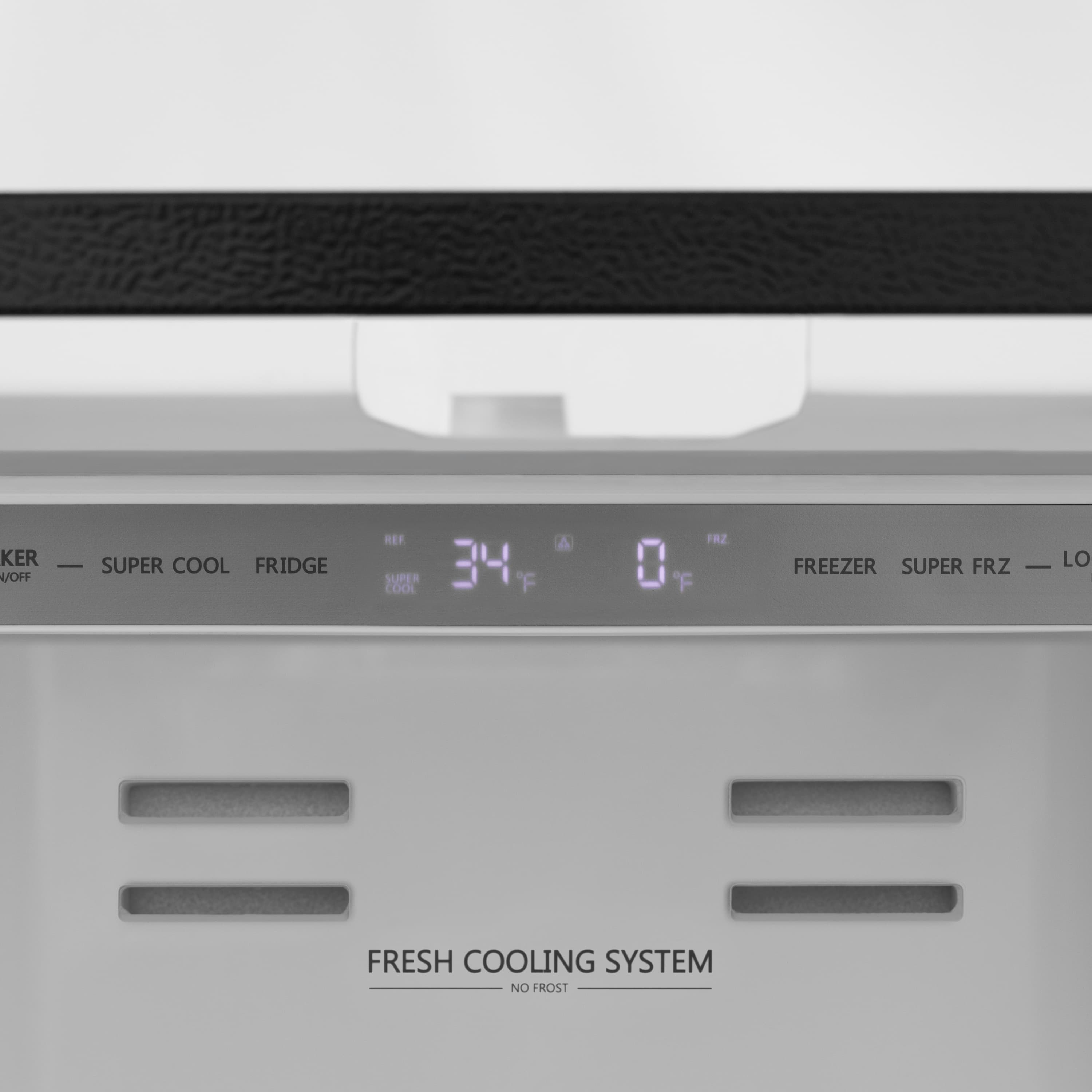

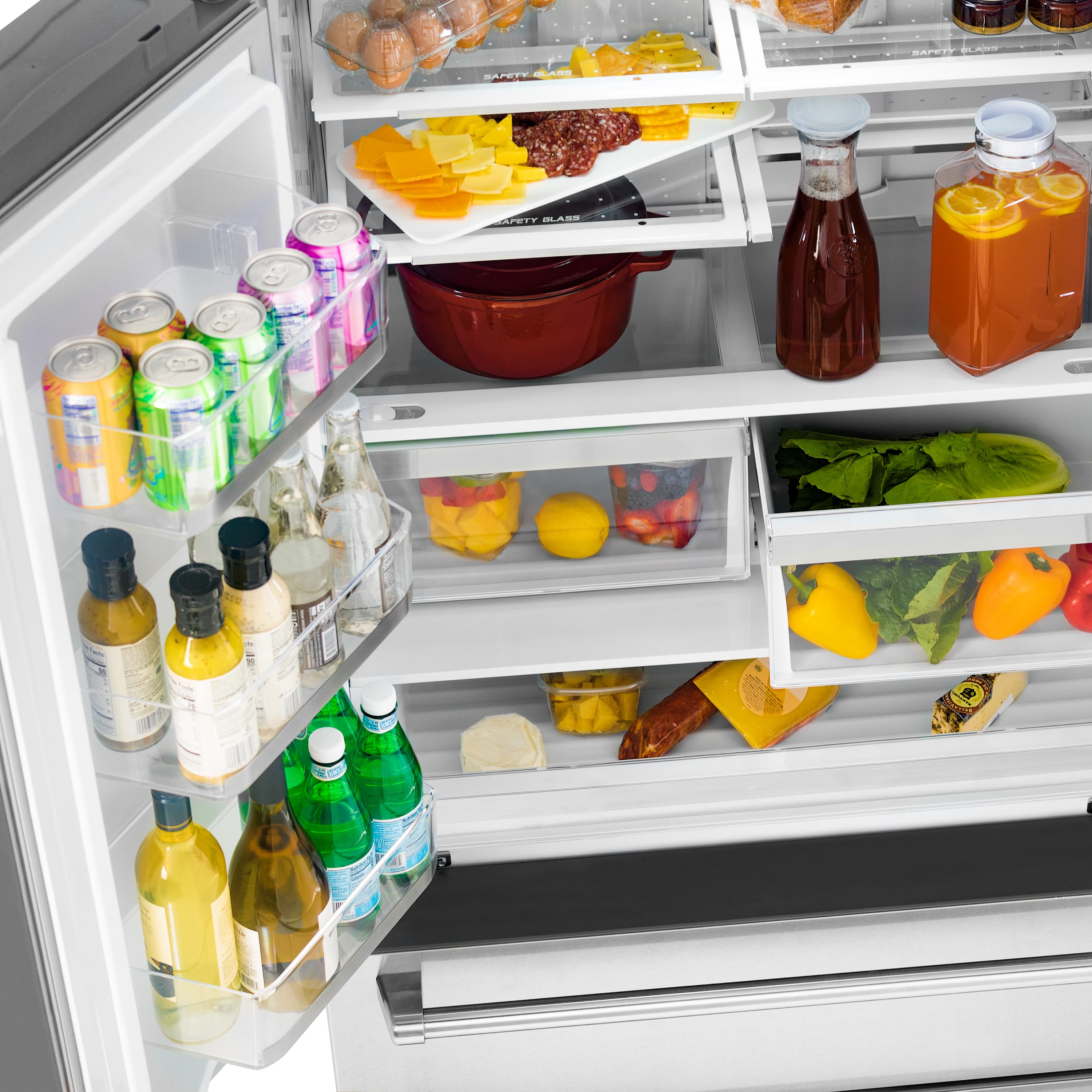

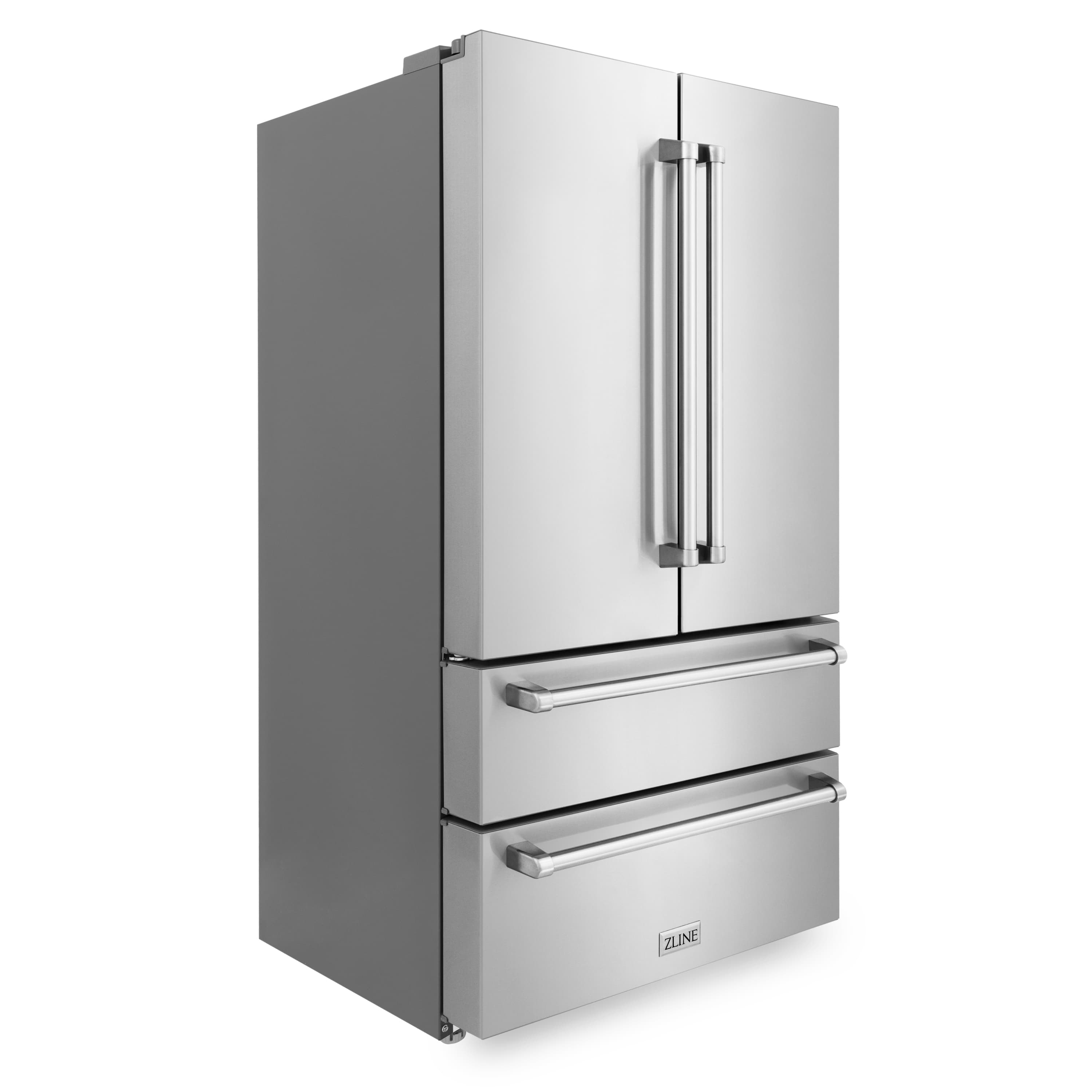

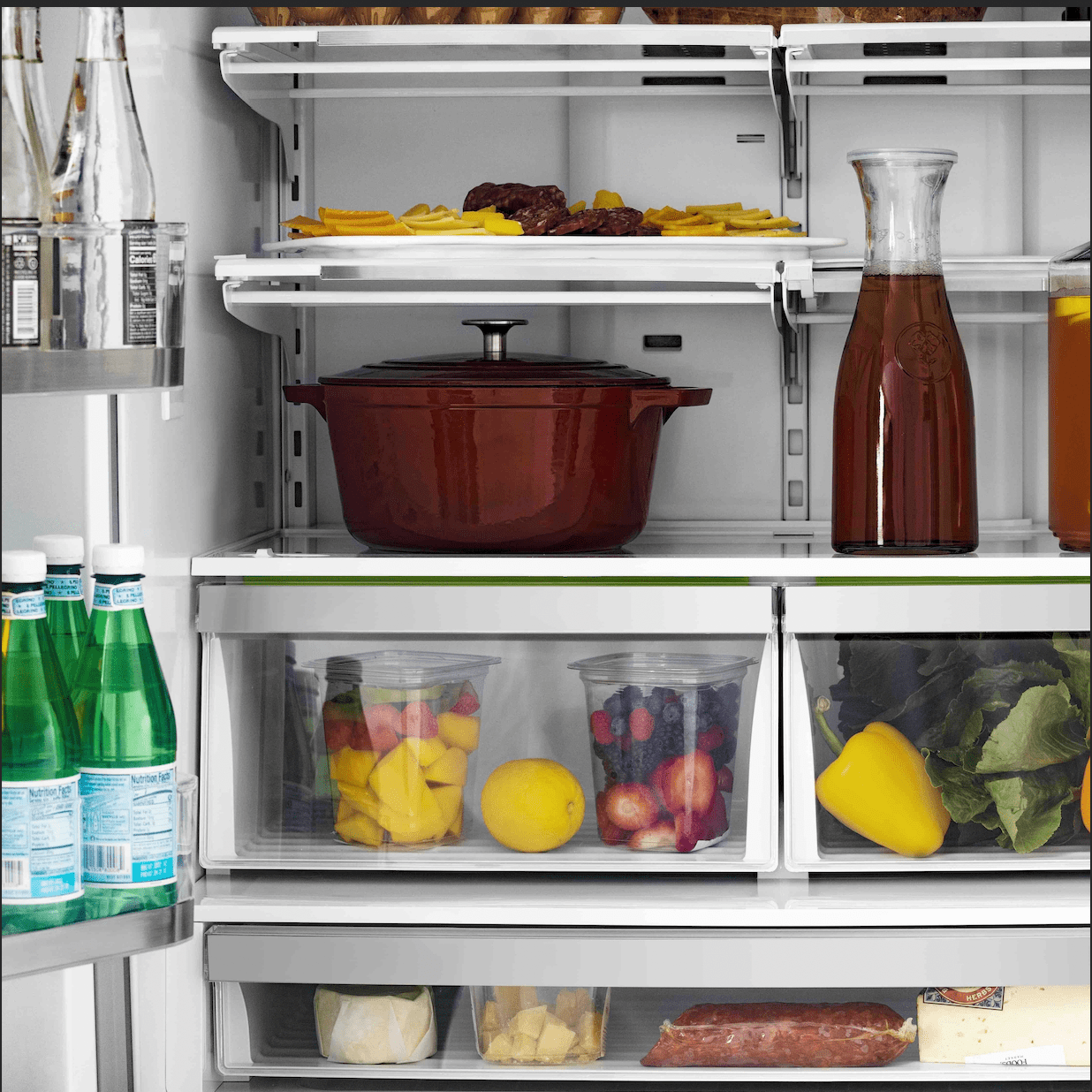

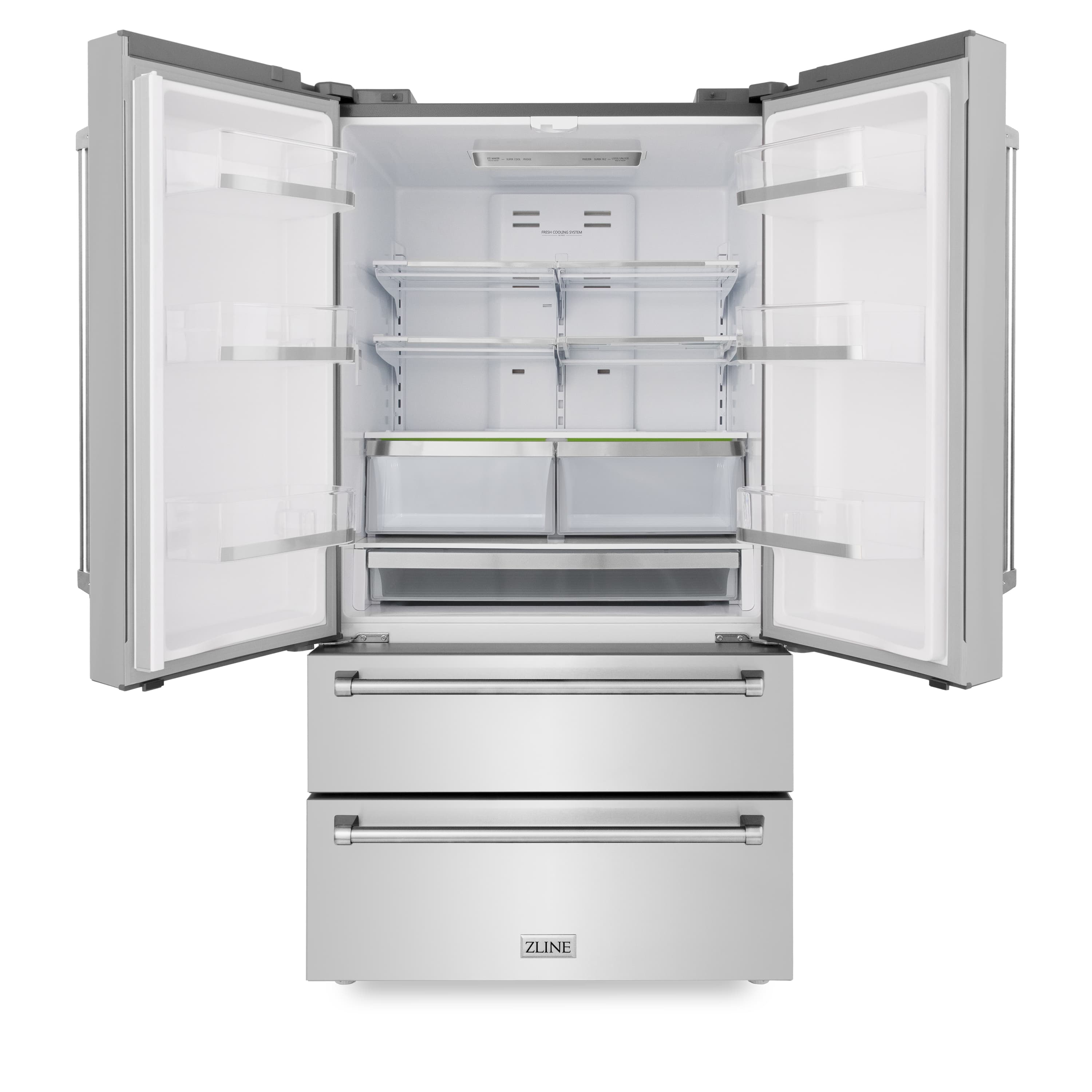

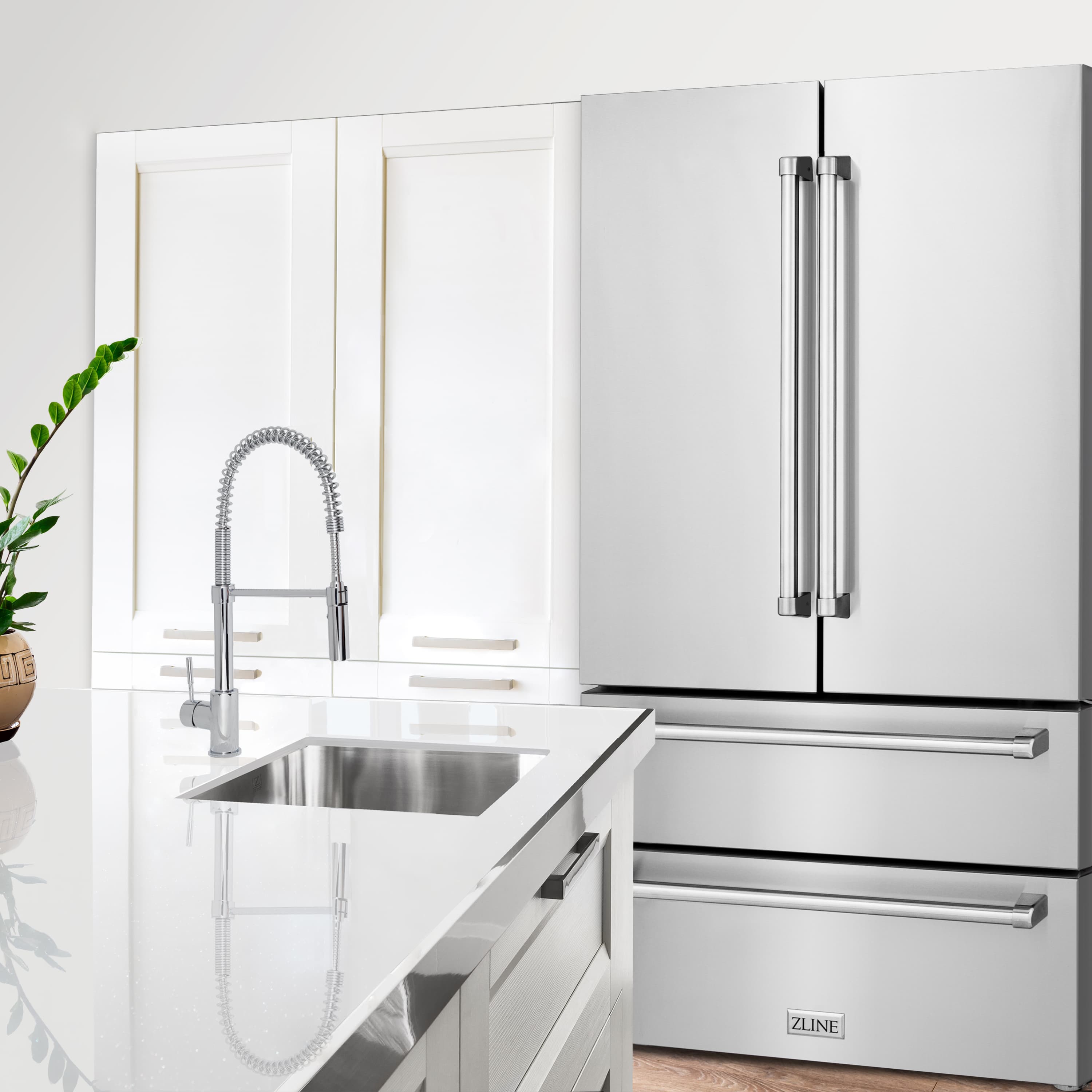

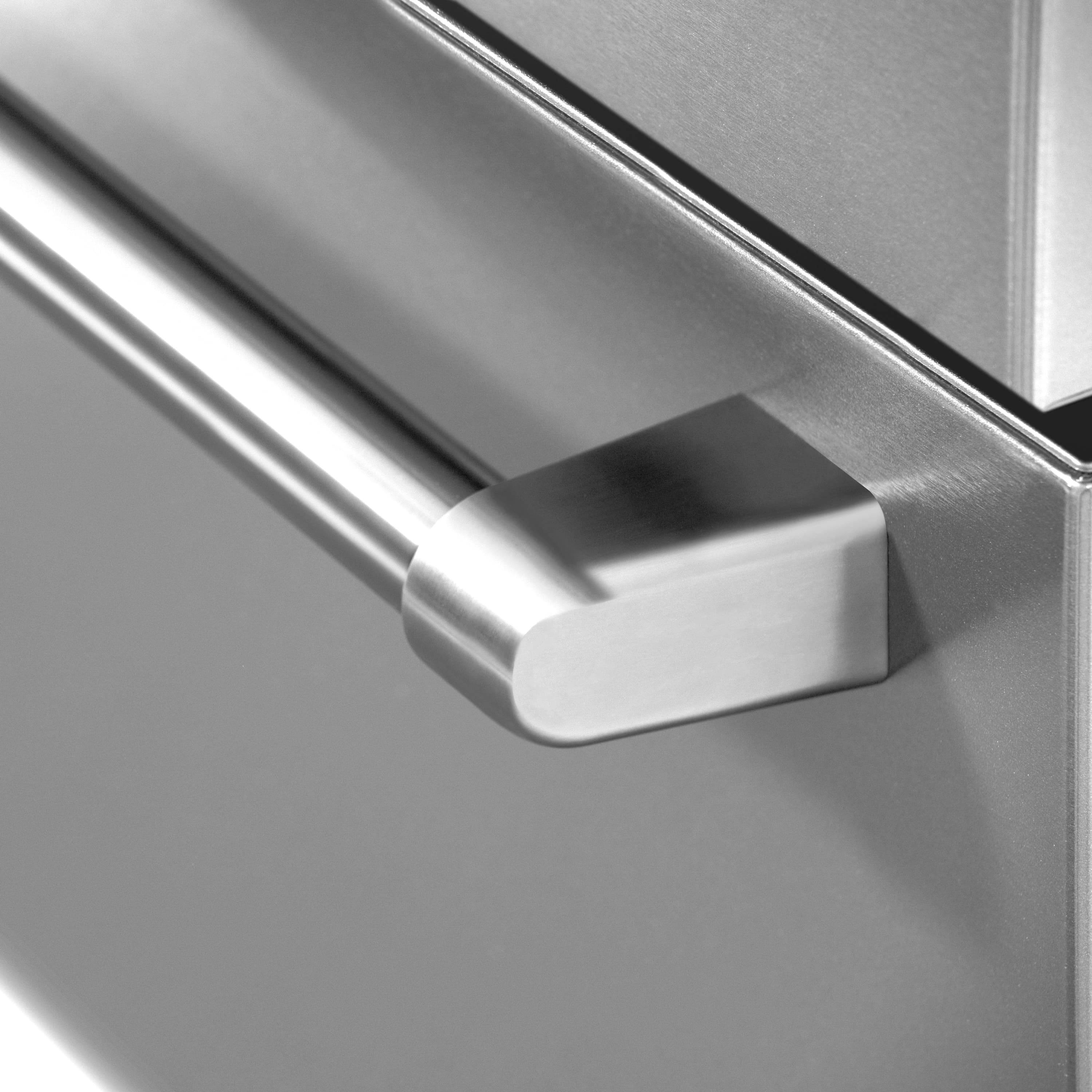

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 36 in. 22.5 cu. ft. Counter-Depth French Door Refrigerator with Ice Maker in Fingerprint-Resistant Stainless Steel (RFM-36) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and a high-capacity built-in ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
| DIMENSIONS | |
|---|---|

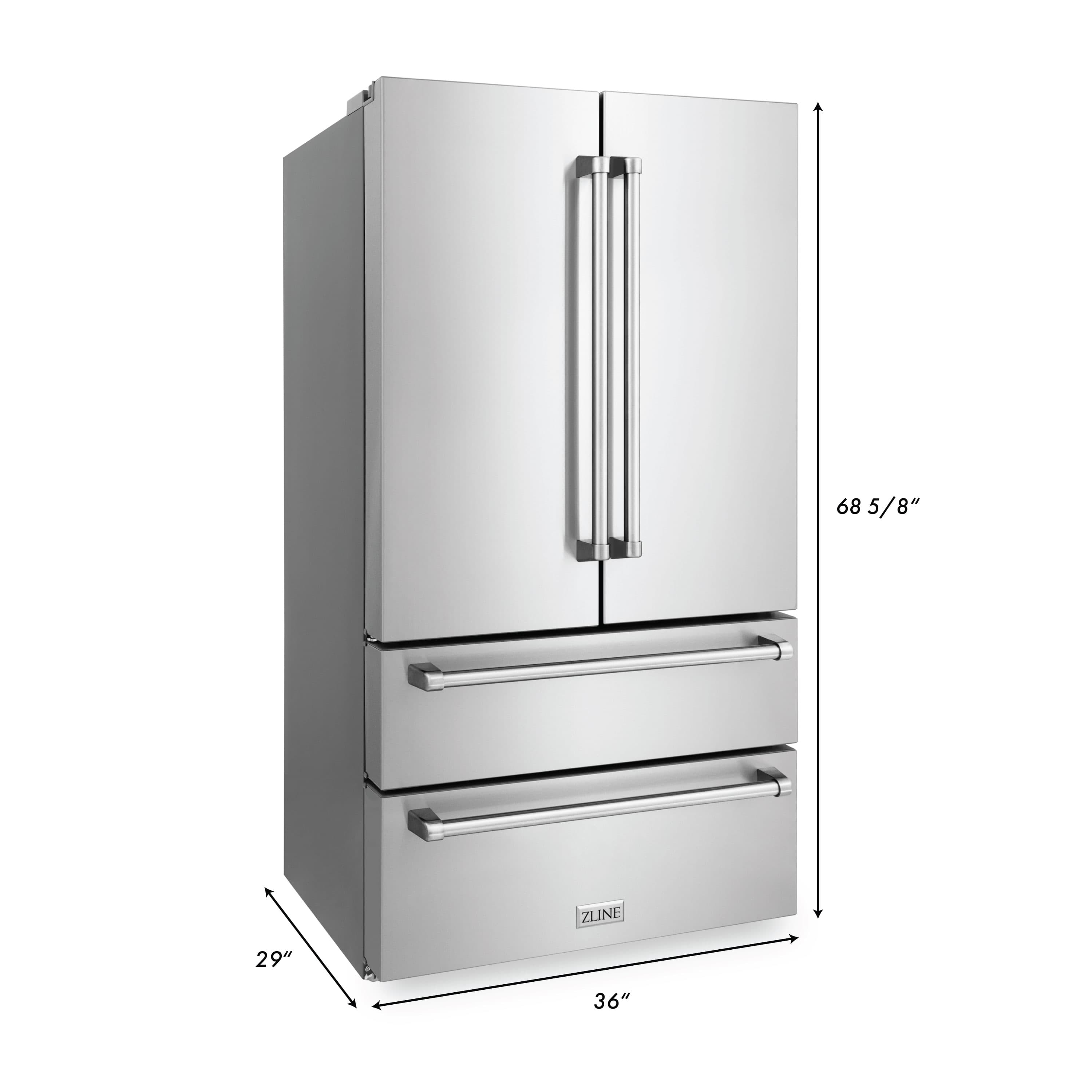

| Dimensions | 35.75 in. W x 29.125 in. D x 69.6875 in. H |
| Total Capacity | 22.5 cu. ft |
| Installation Depth | 29 in. D |
| Depth with Door Open | 43.5 in. |
| TECHNICAL DETAILS | |

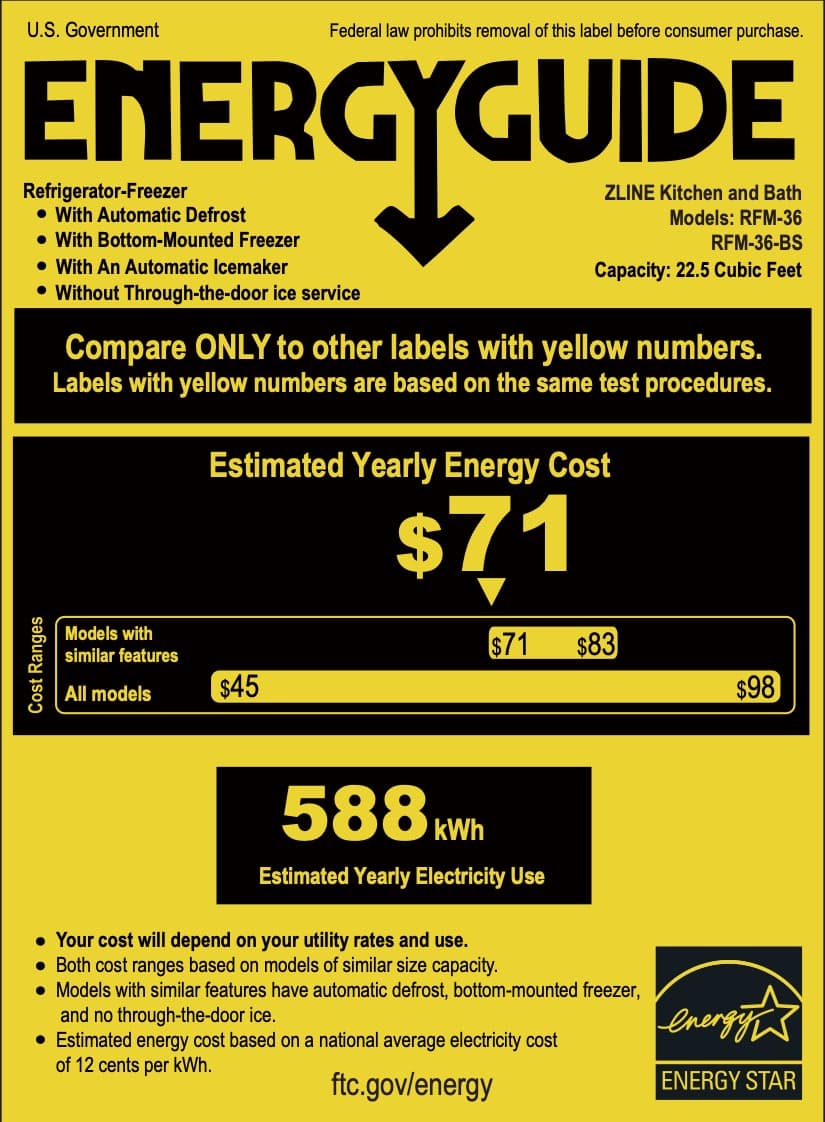

| Energy Consumption (kWh/year) | 588 |
| Voltage | 120V/60Hz |
| Amps | 3 |
| Noise Level | 45 Decibels |

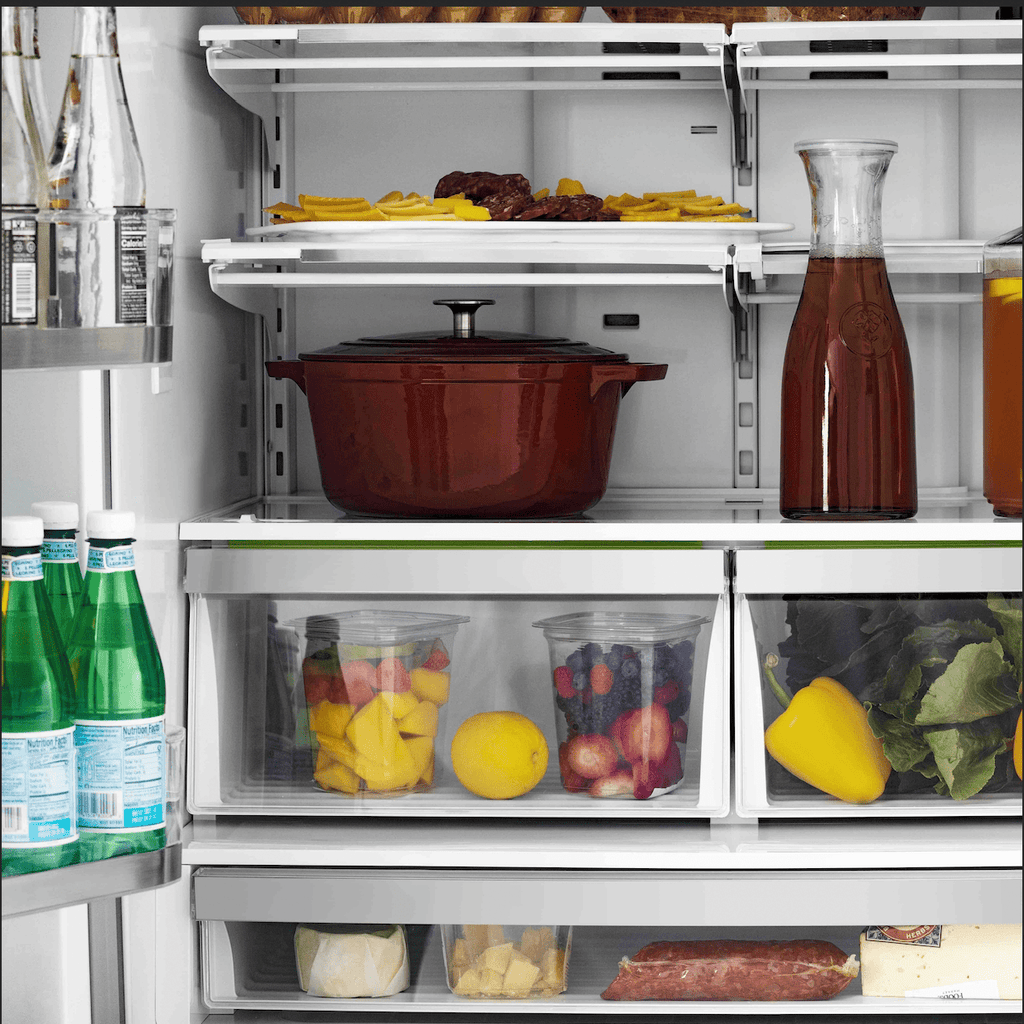

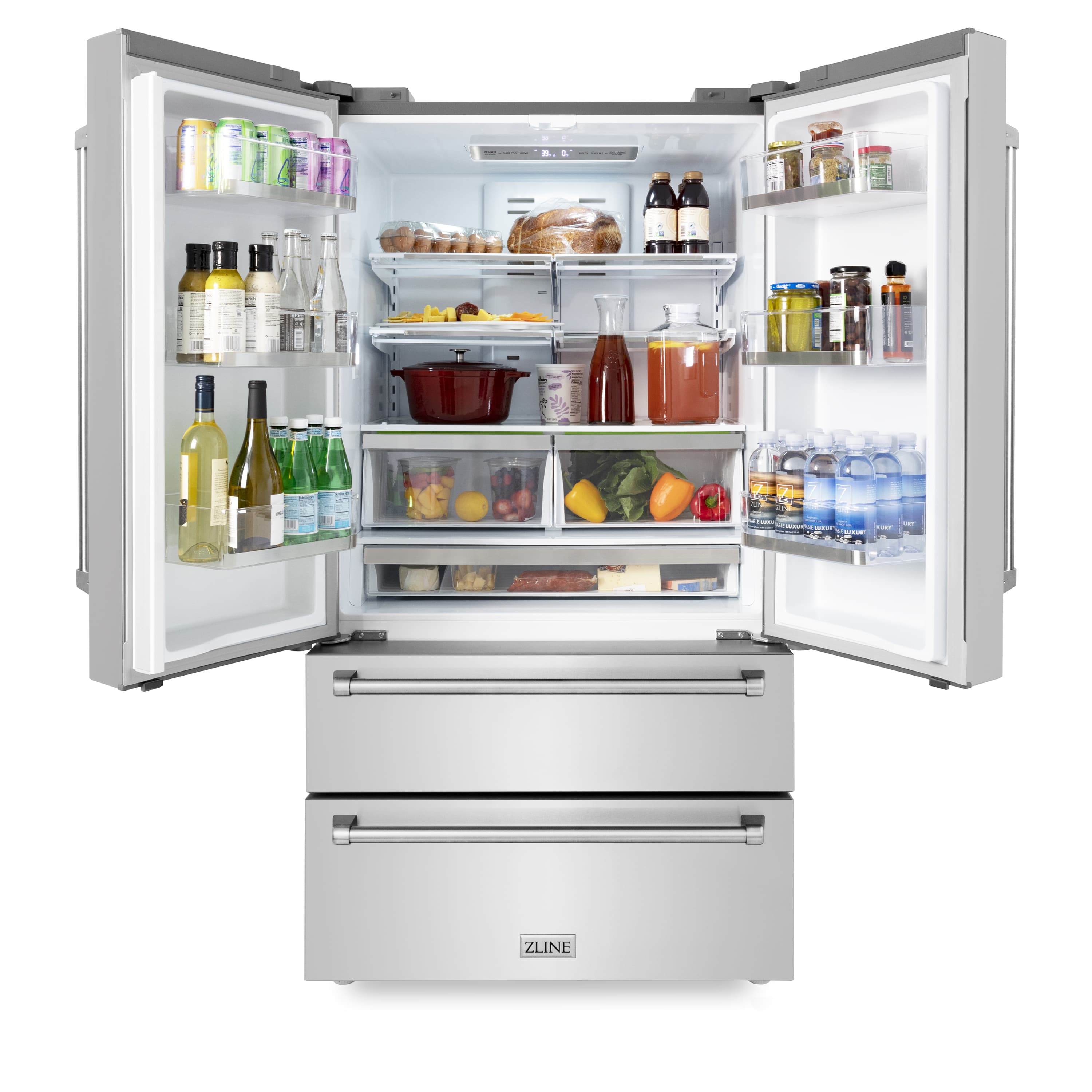

| REFRIGERATOR FEATURES | |
| Fridge Capacity | 15.9 cu. ft |
| Flex Drawer Capacity | N/A |
| Flex Drawer Temp Controls | N/A |

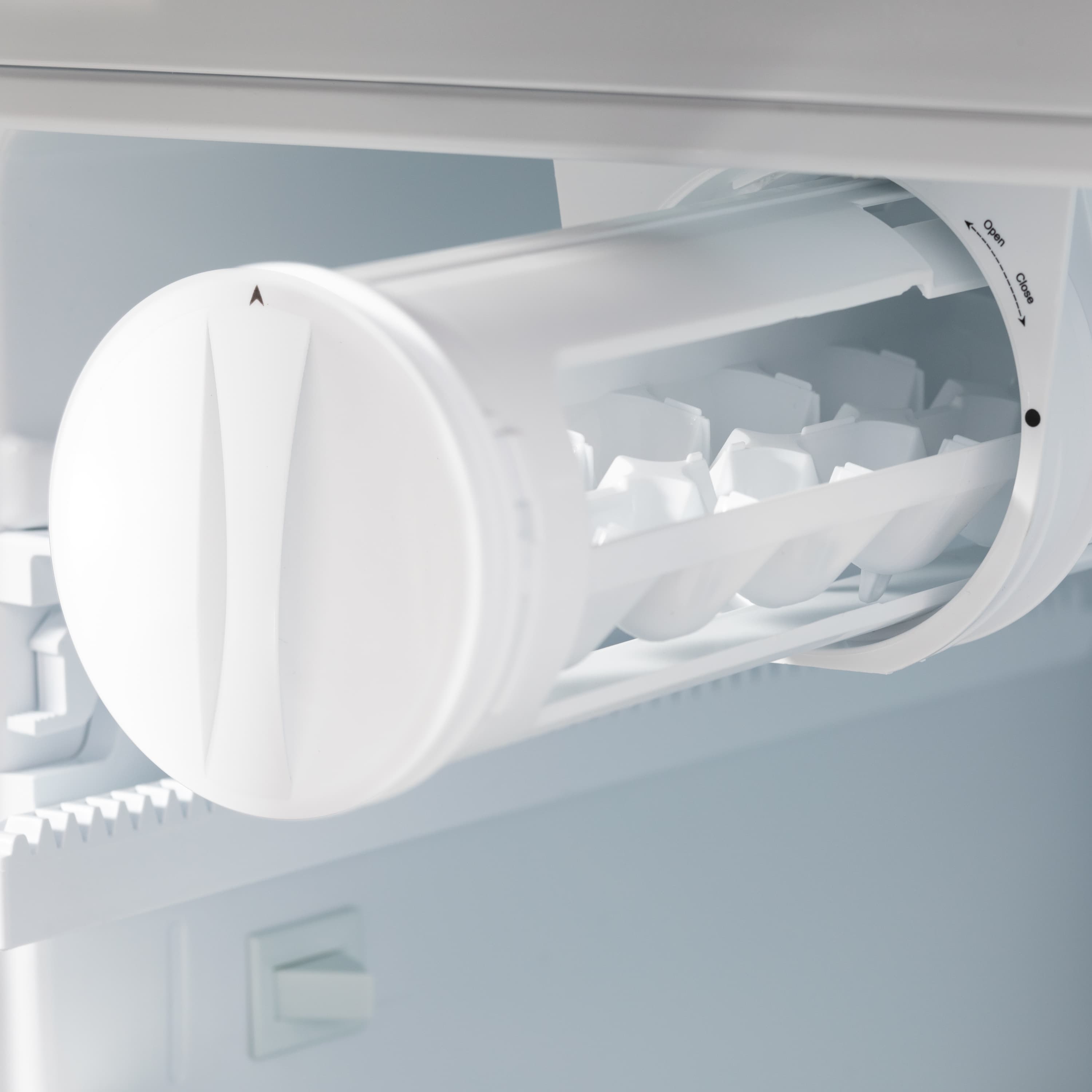

| Ice Maker | Yes |
| Ice Maker Types | Single Ice Maker |
| Ice Amount Per Day | 4.85 lbs |
| Ice Tray Storage | 1.75 lbs |
| Water Dispenser | No |
| Flowrate for Water Dispenser | N/A |
| Fridge Lights | 3 |

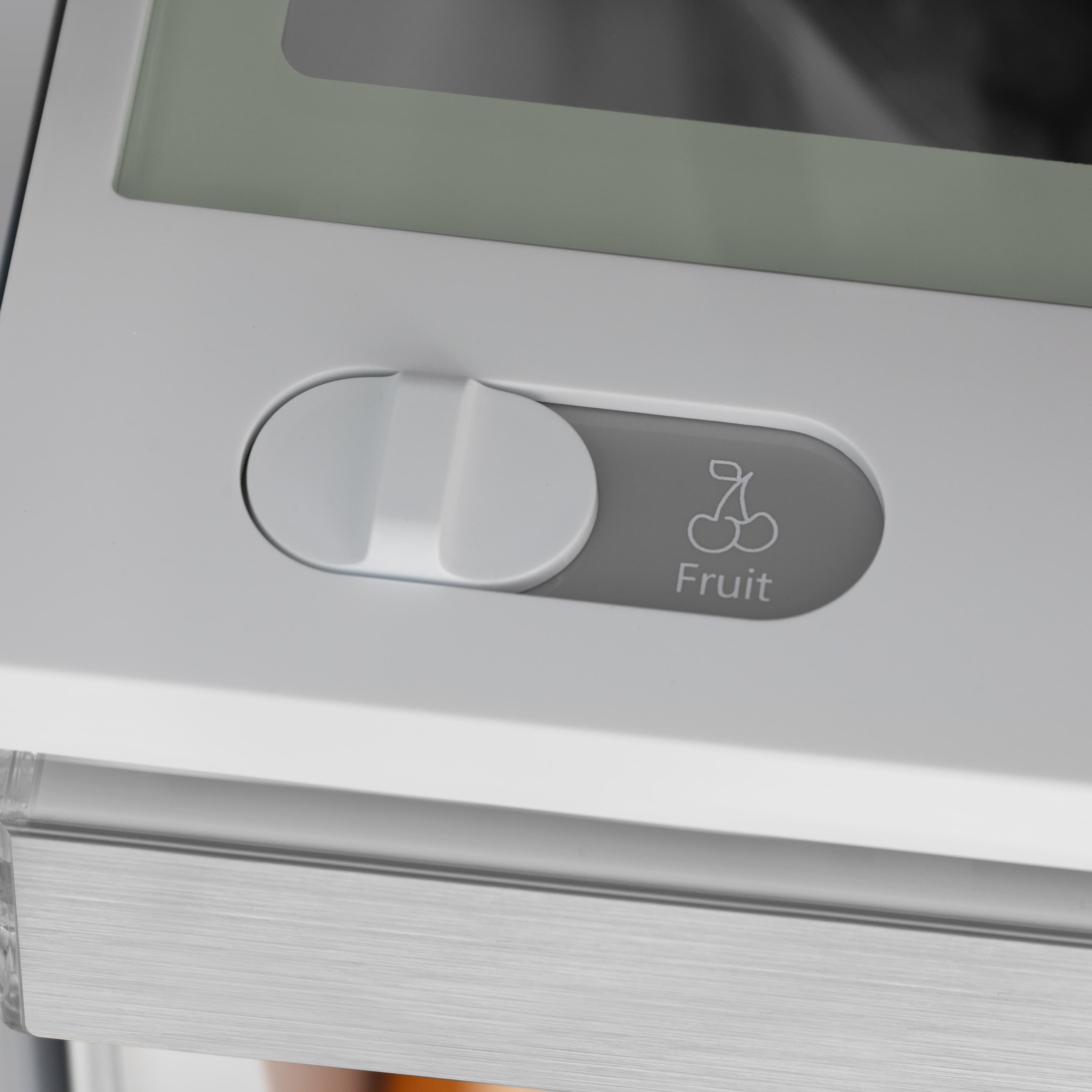

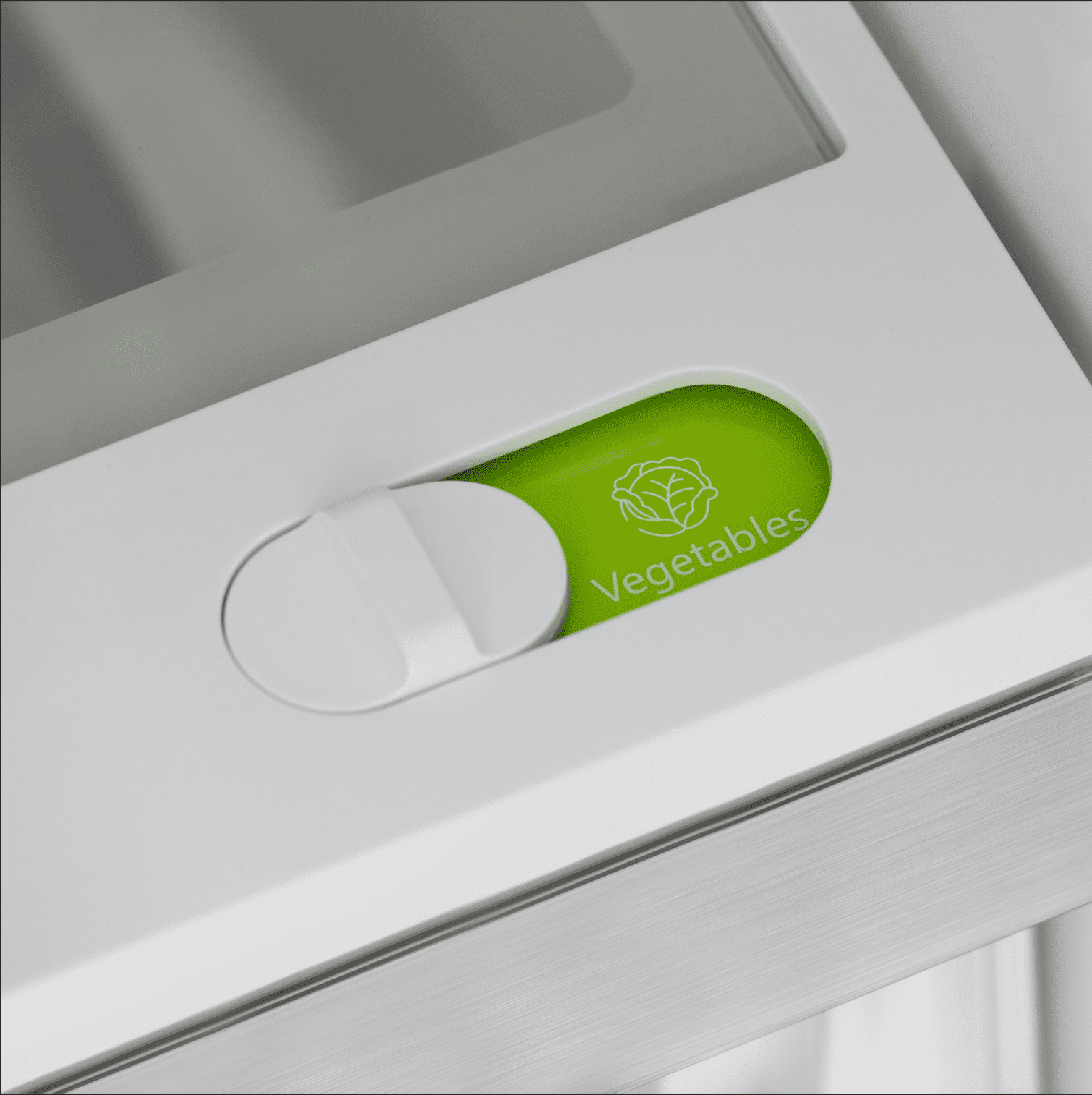

| Humidity-Controlled Crispers | 2 |
| FREEZER FEATURES | |
| Freezer Capacity | 6.6 cu. ft |
| Freezer Drawer Bins | 2- Pull Out Drawers |
| WARRANTY & CERTIFICATIONS | |
| Energy Star | Yes |
| Warranty | 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System |

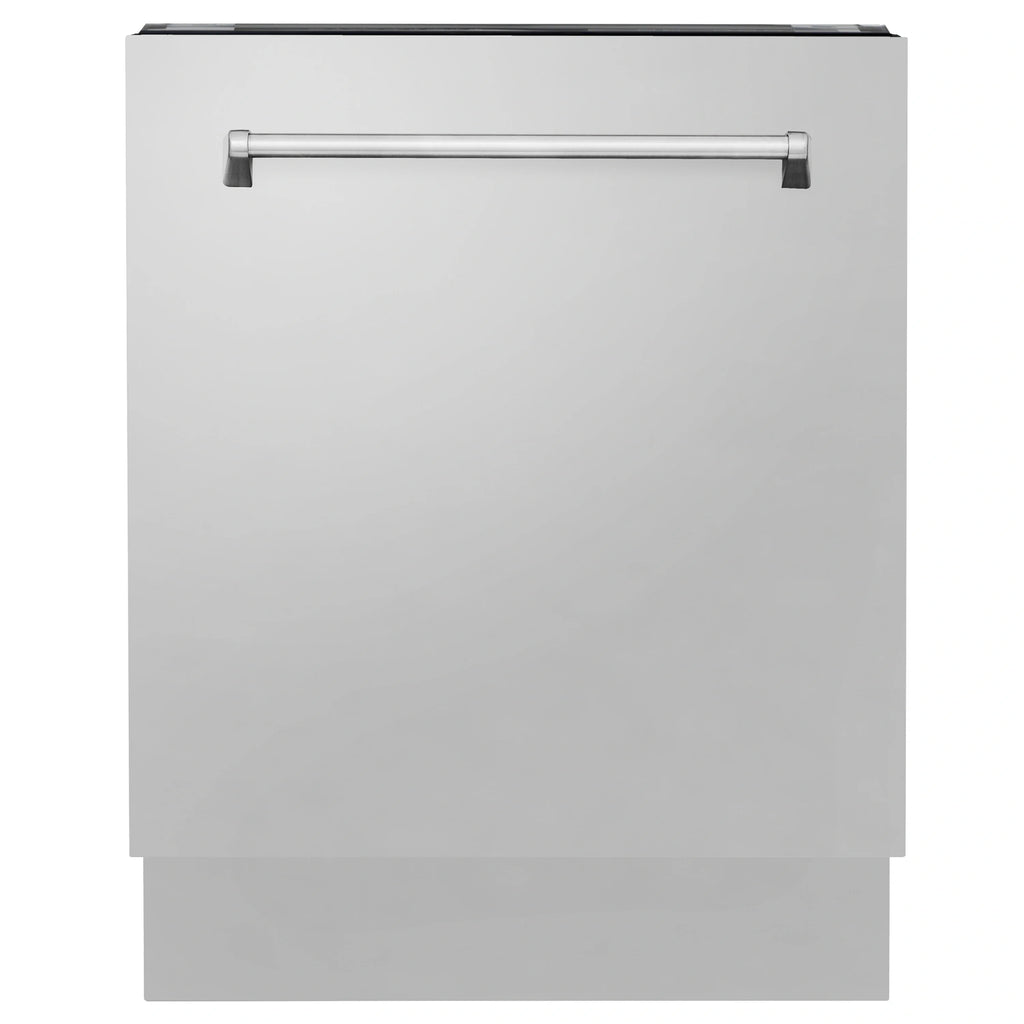

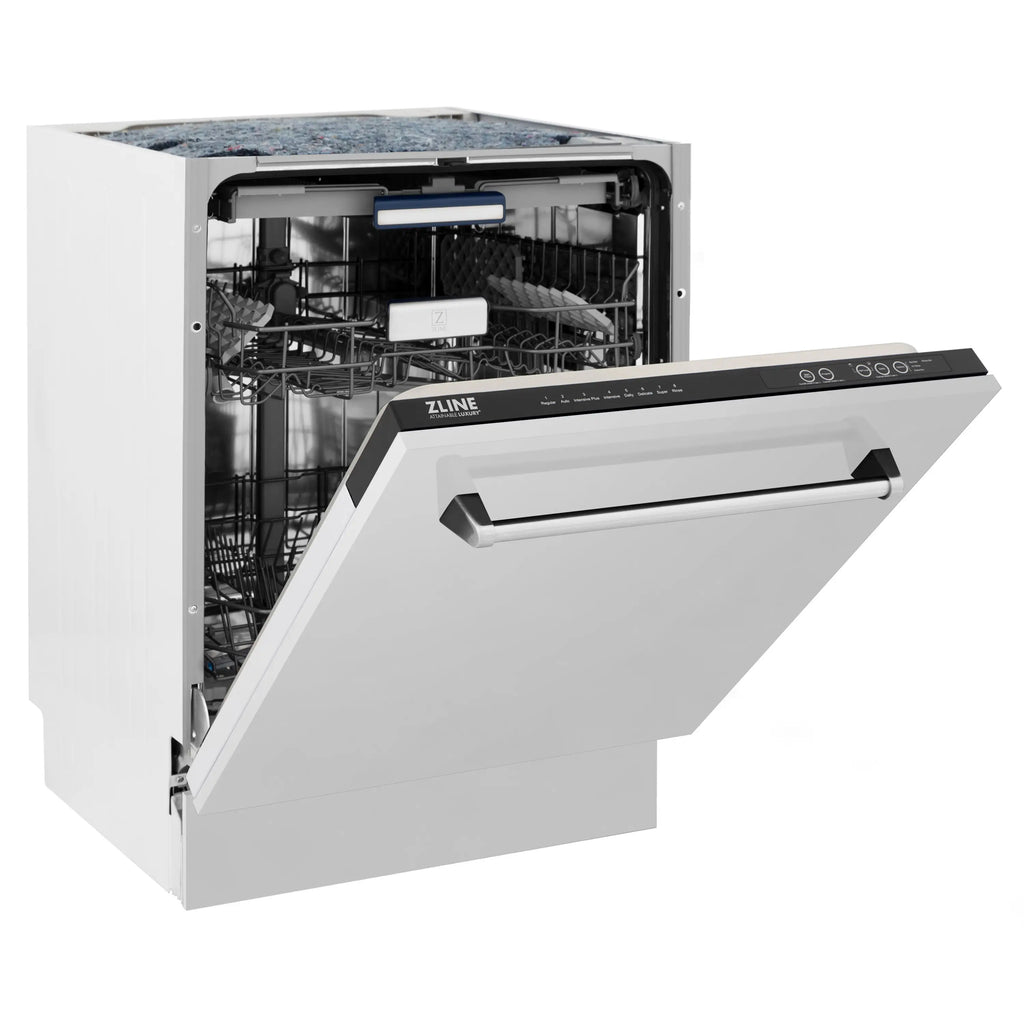

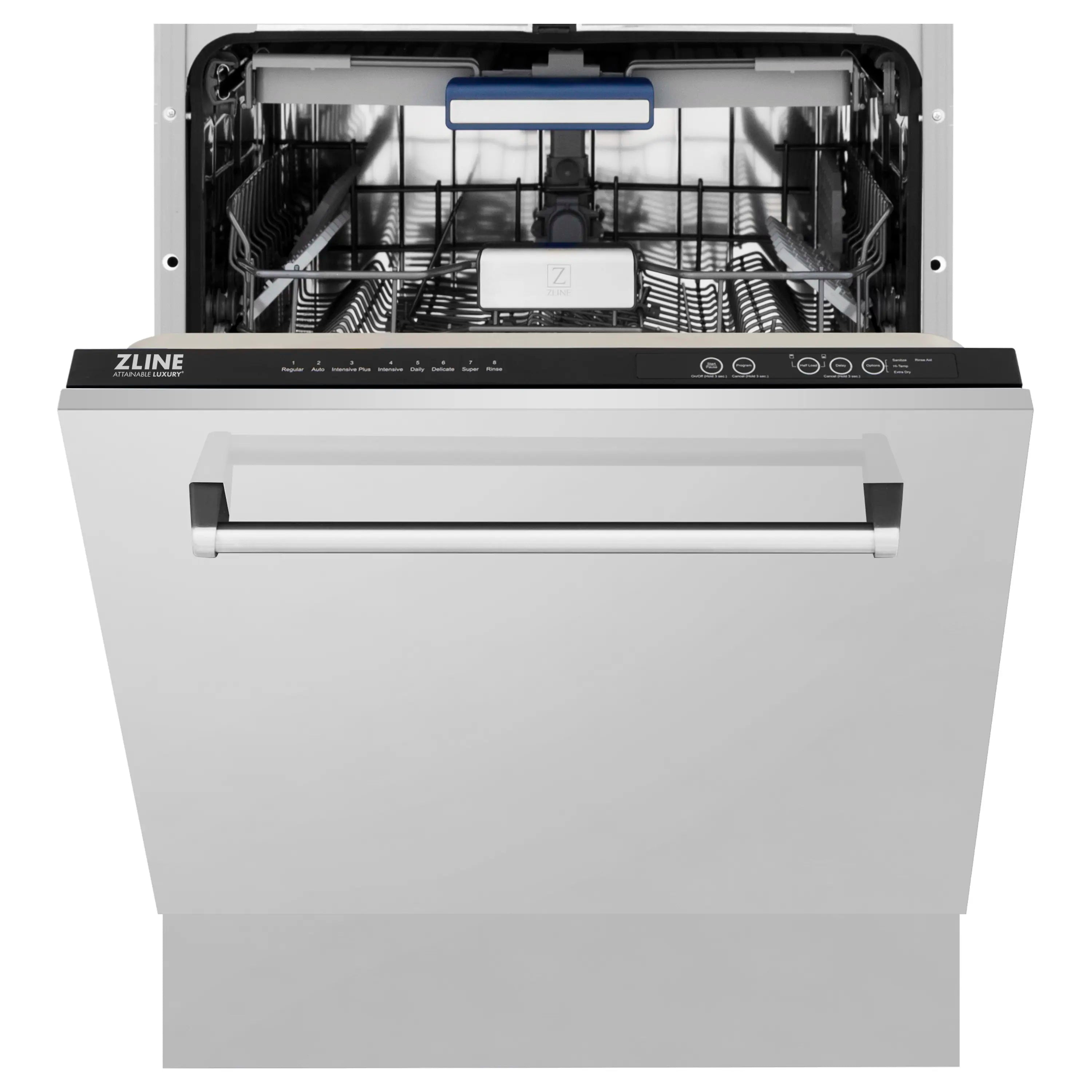

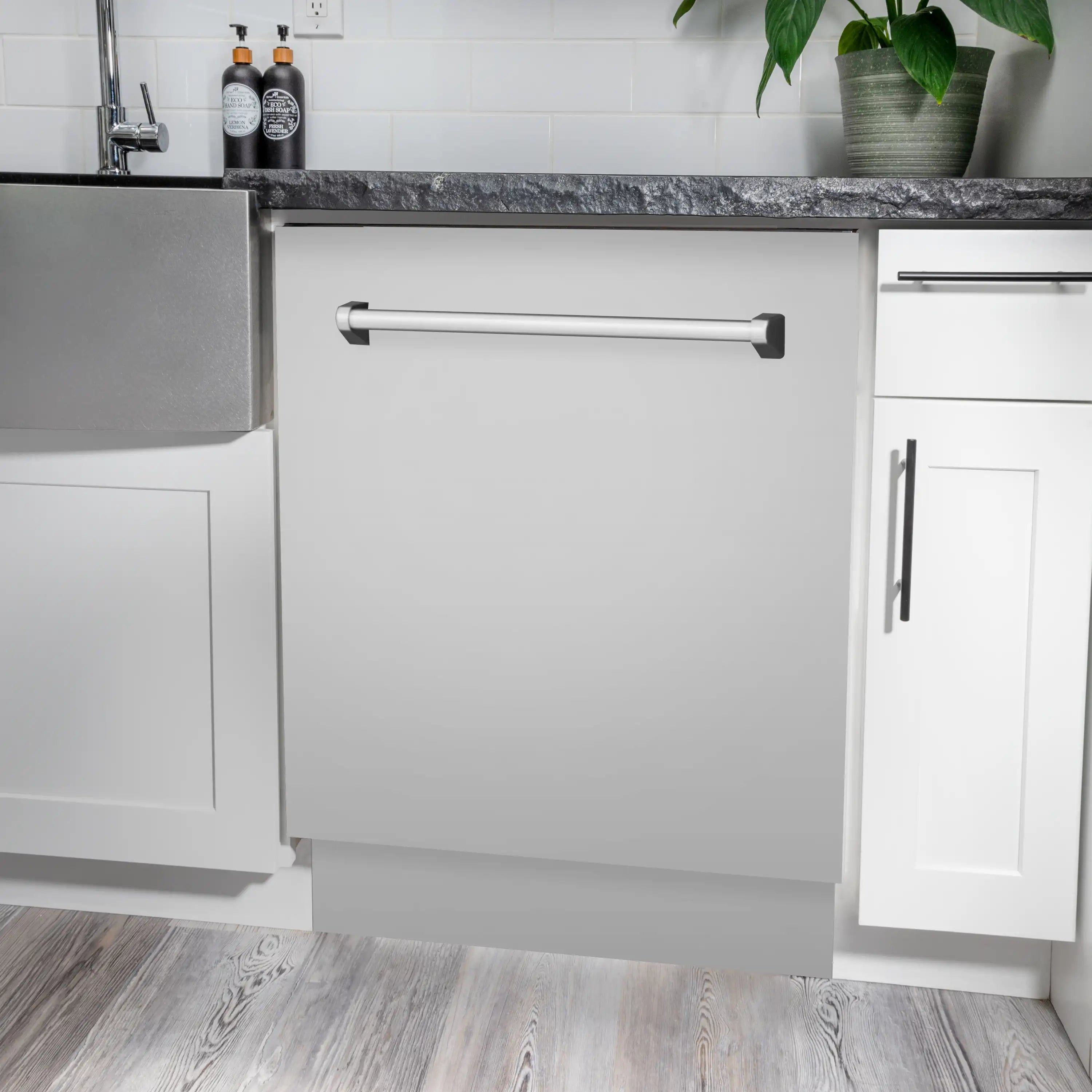

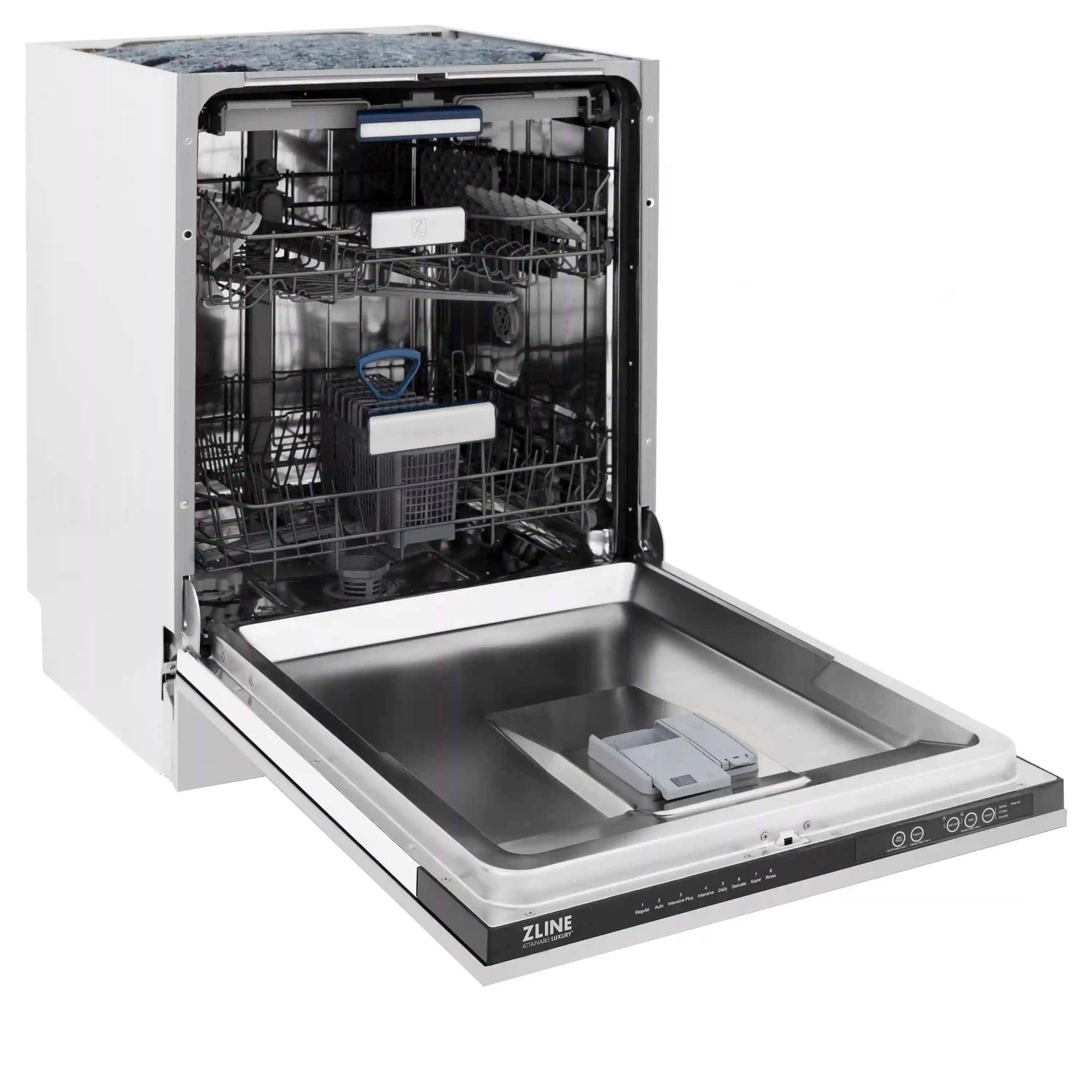

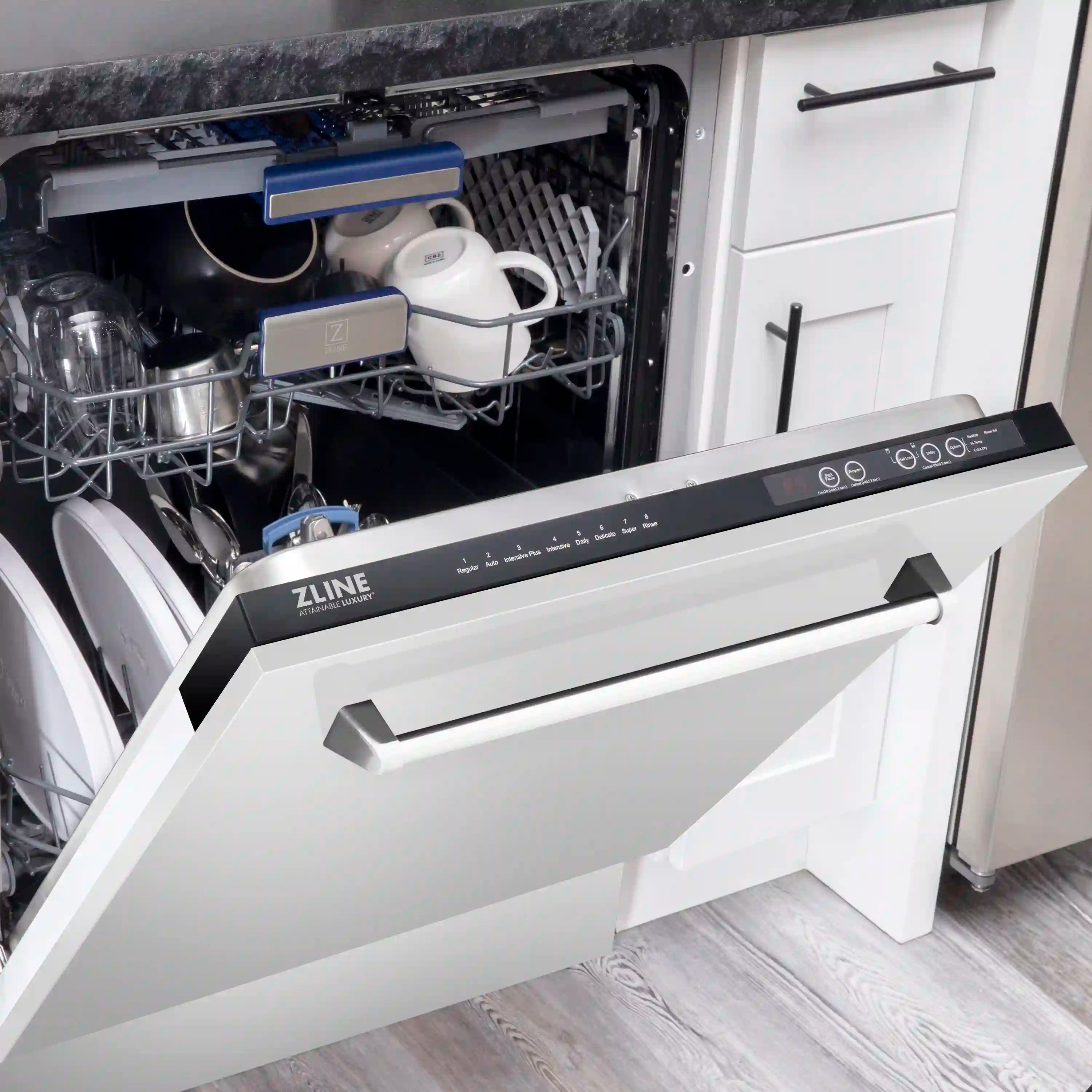

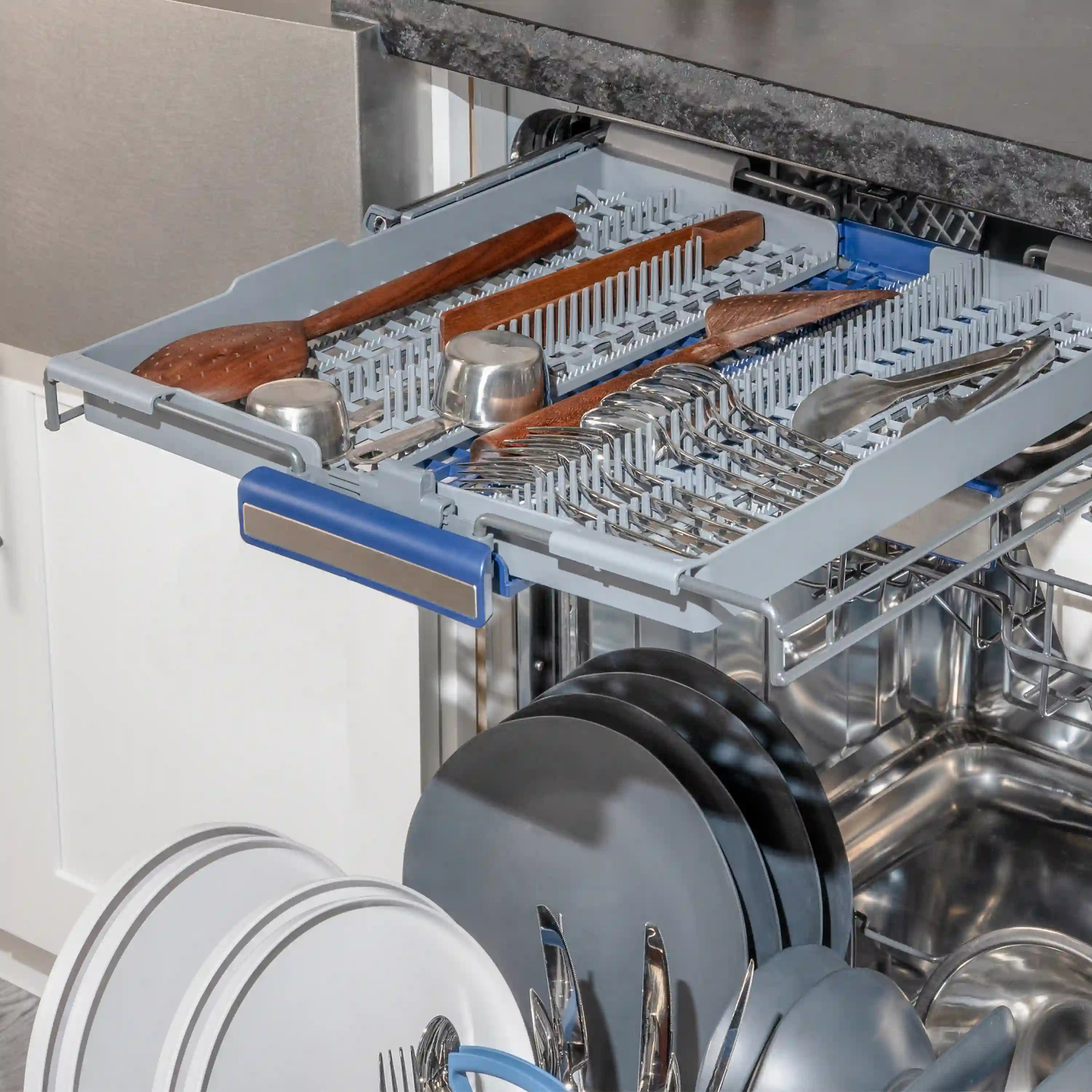

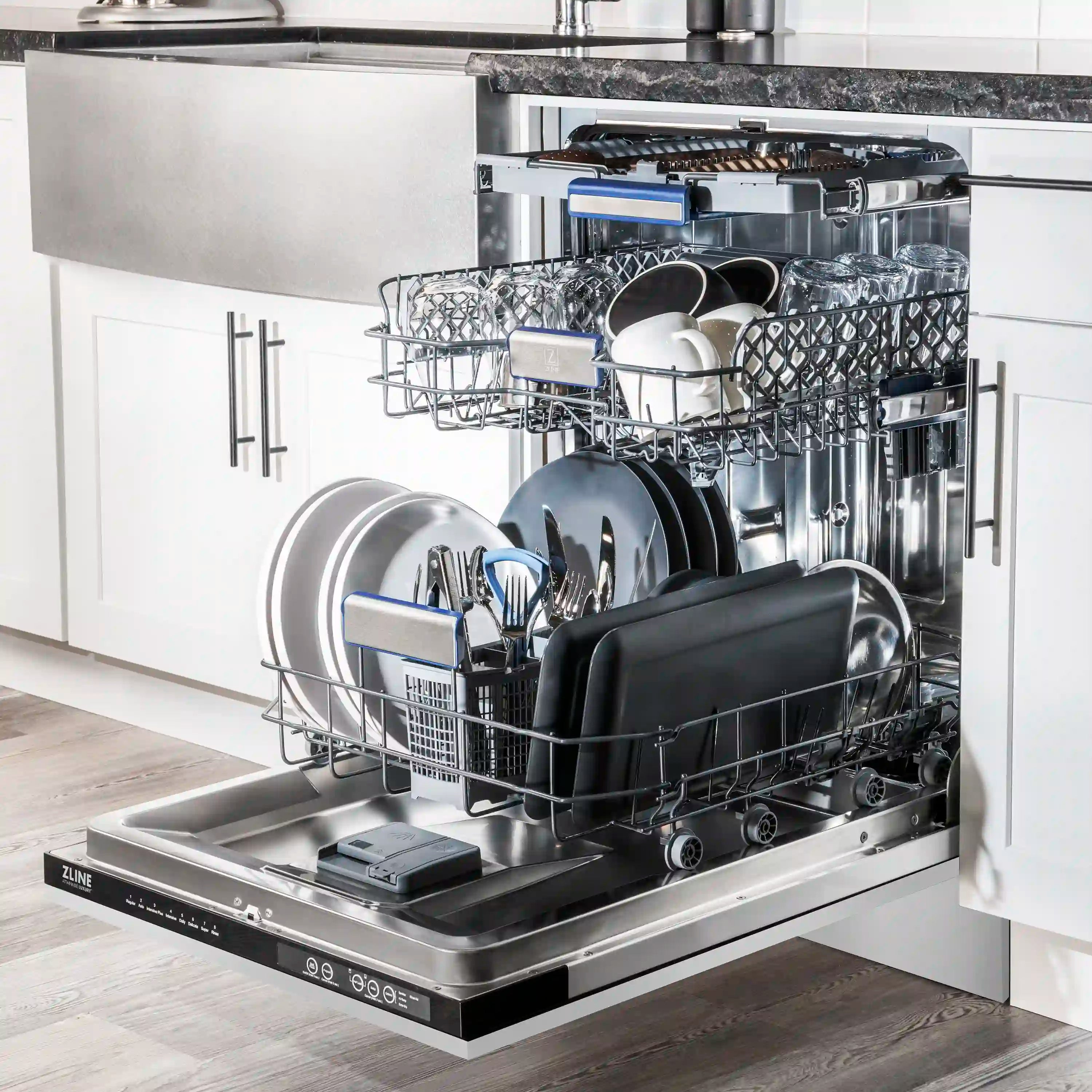

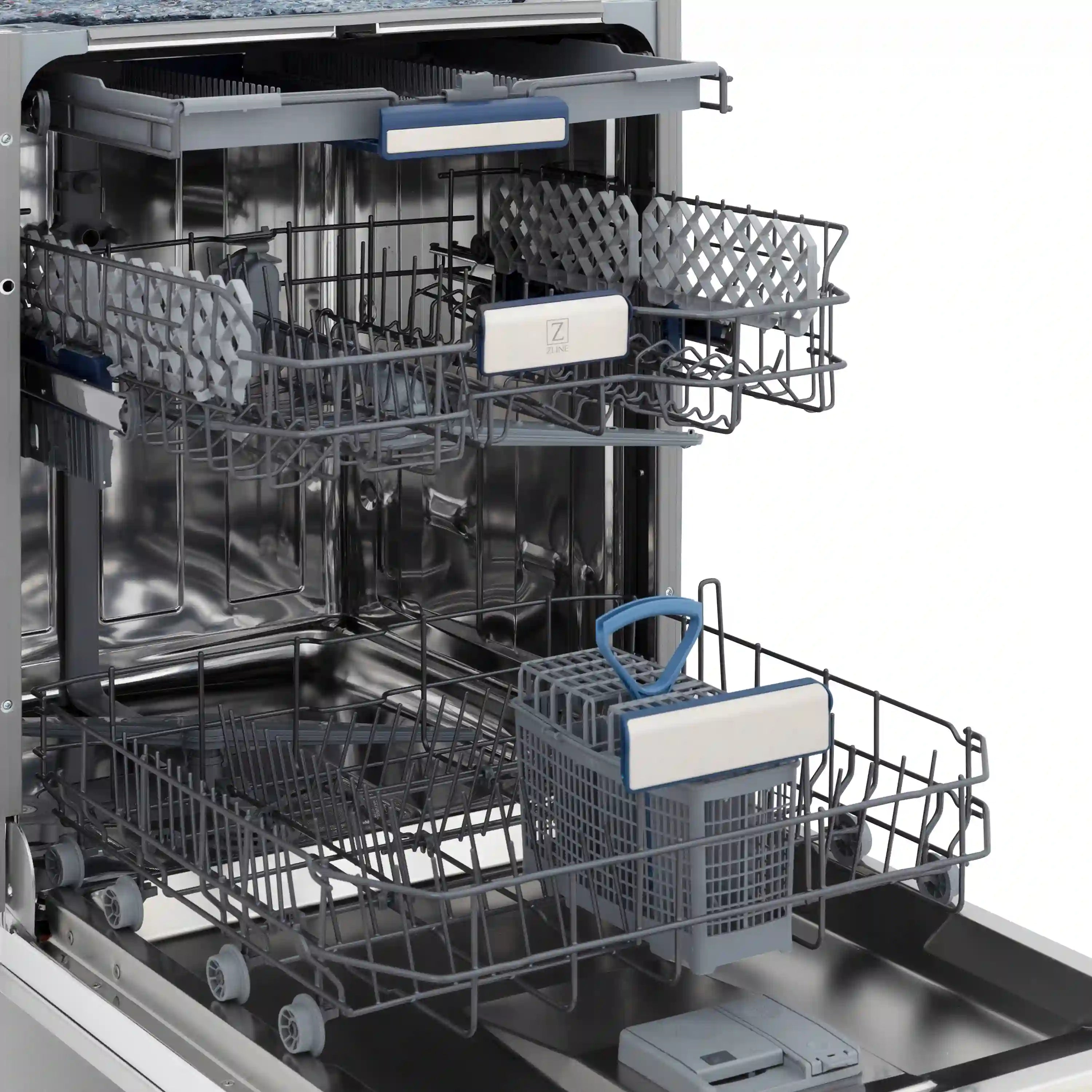

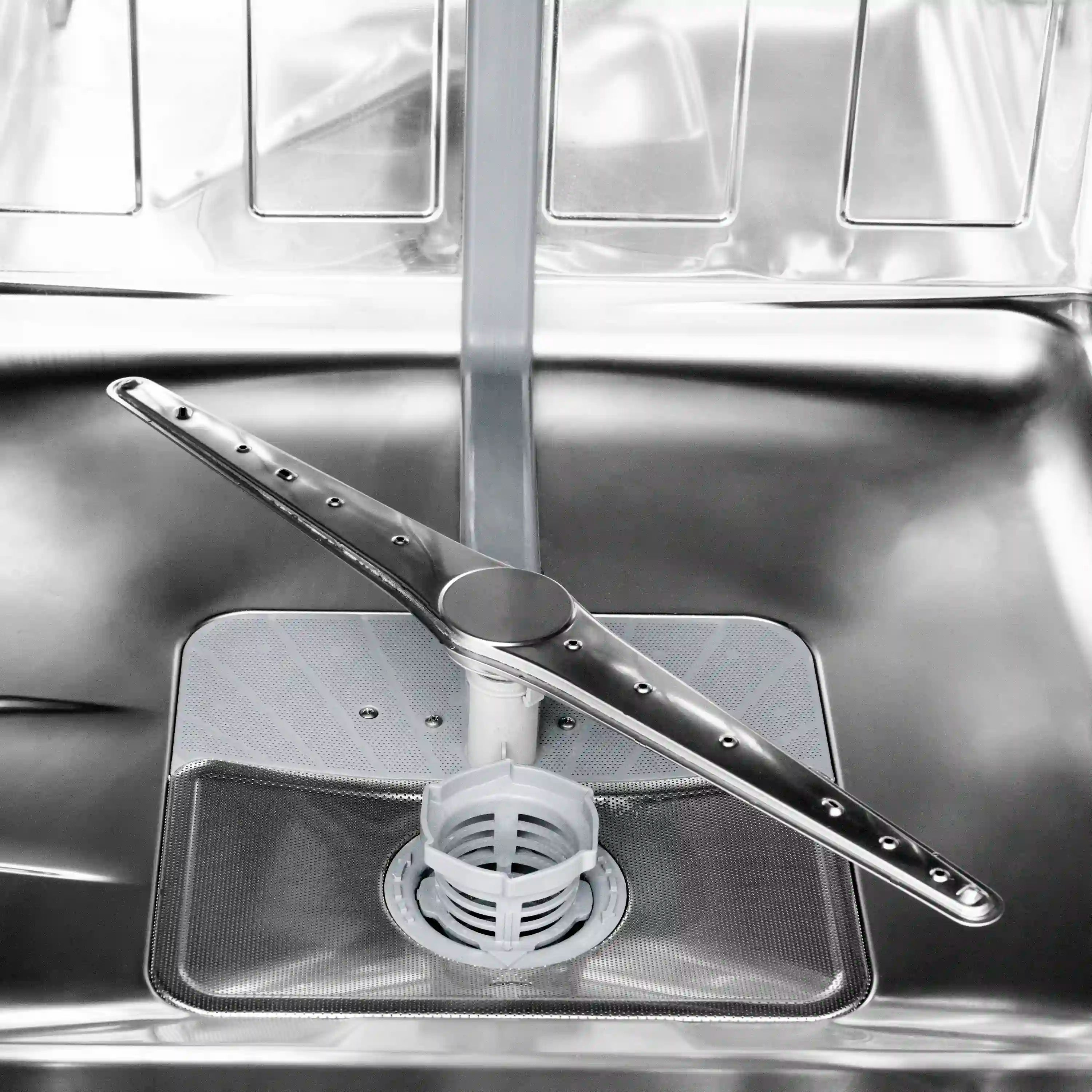

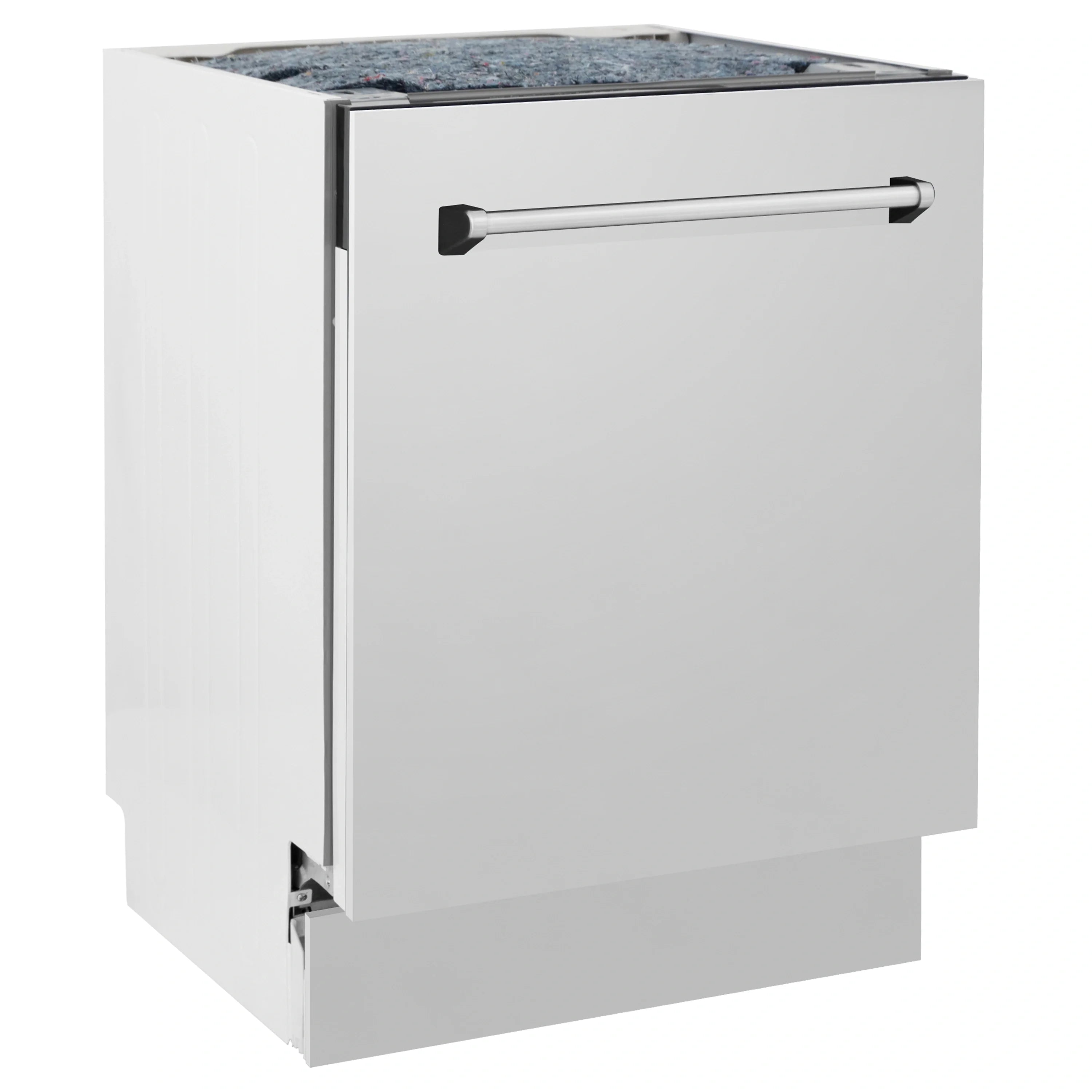

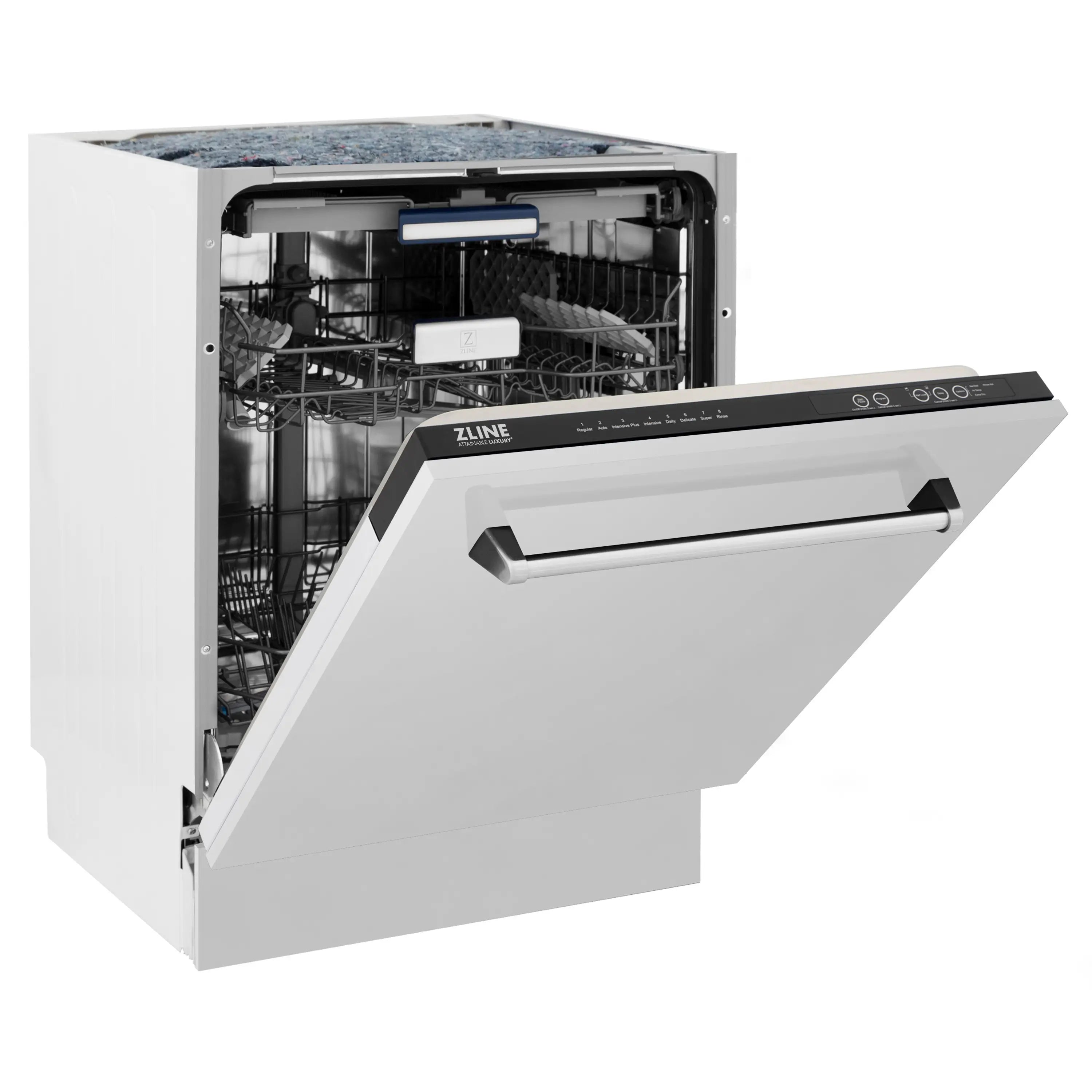

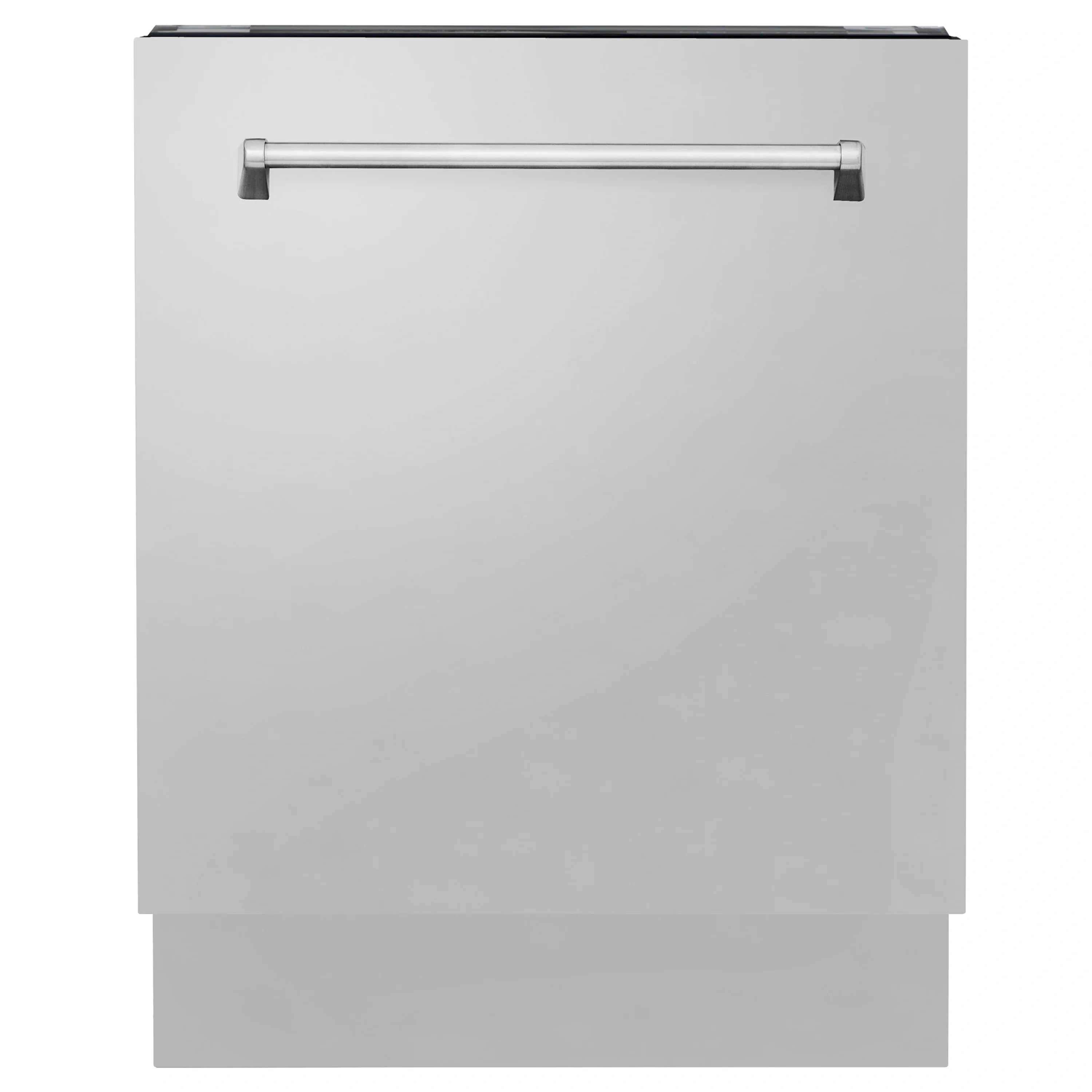

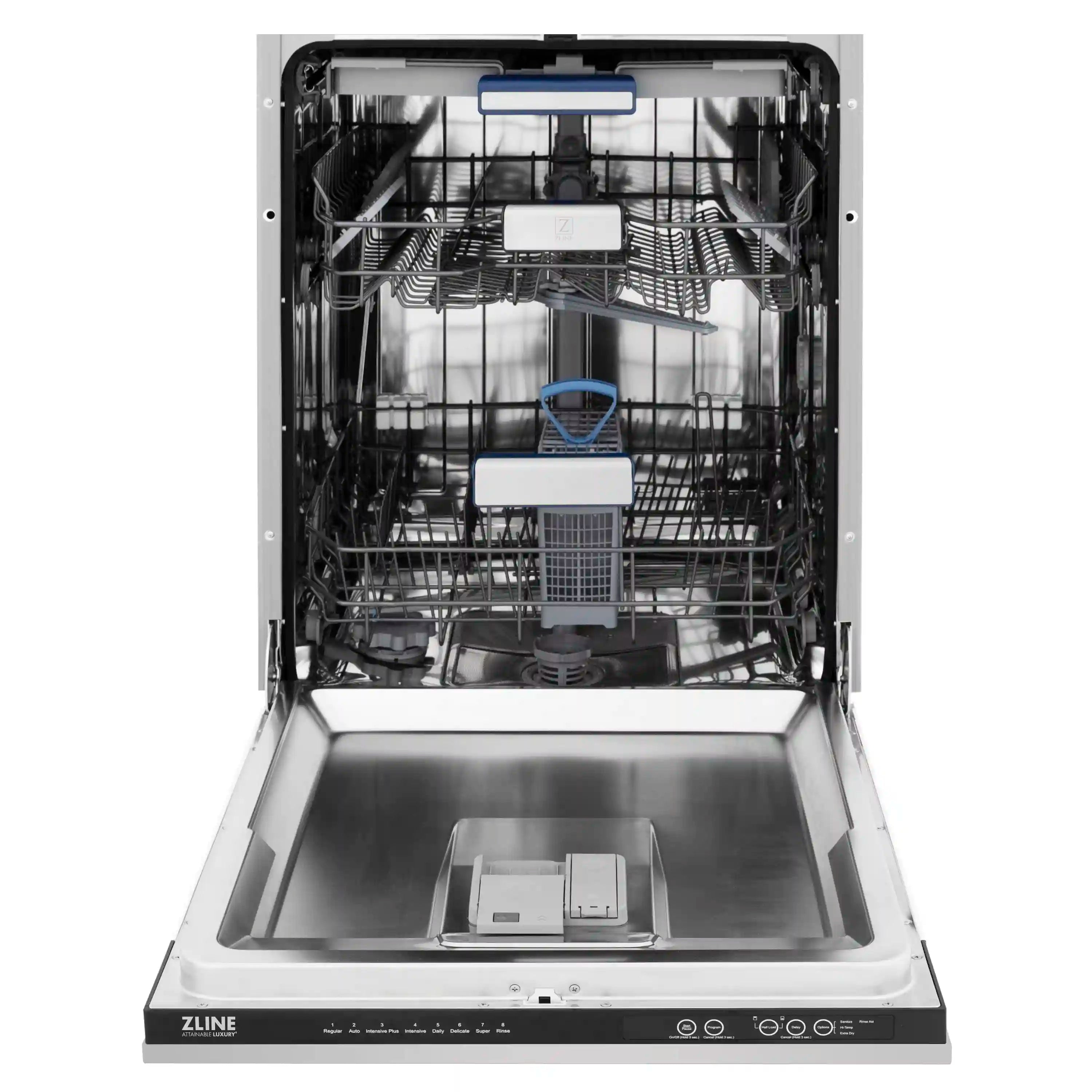

The ZLINE 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Stainless Steel Panel (DWV-304-24) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.
| DIMENSIONS | |
|---|---|
| Size | 24 in. |
| Dimensions | 23.6" W x 22.4" D x 33.9" H |
| Product Weight | 106.8 lbs |
| Cut-Out Height | 34.13 in. |
| Cut-Out Width | 24 in. |
| Interior Dimensions | 20.95" W x 20.5" D x 24.17"H |
| Max Plate Height | 13 in. |
| GENERAL INFORMATION | |
| Installation Type | Plug In - Nema 5-15 |
| Panel Ready | N |
| DESIGN & FINISH | |

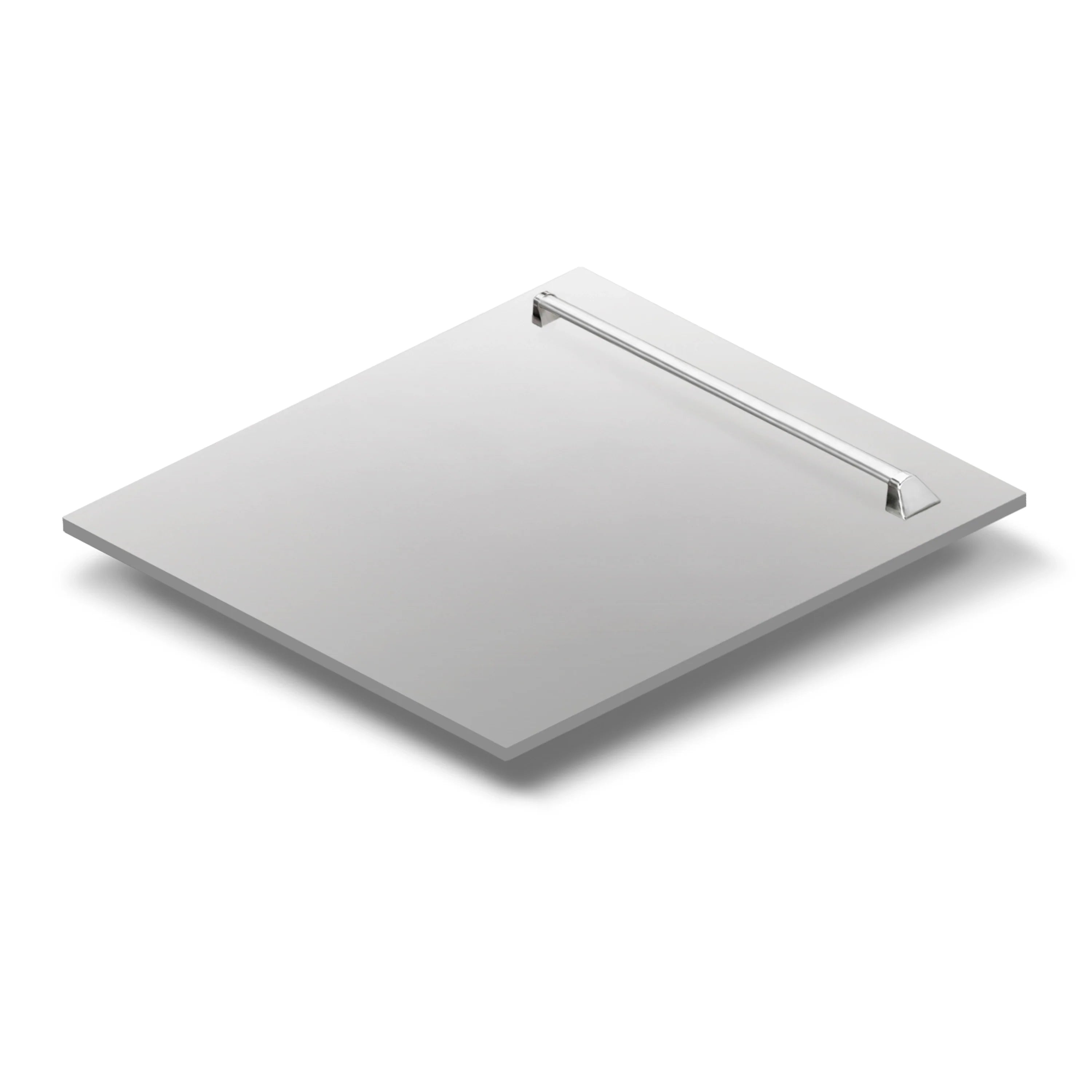

| Panel Finish | 304 Grade Stainless Steel |
| Handle Finish | Stainless Steel |

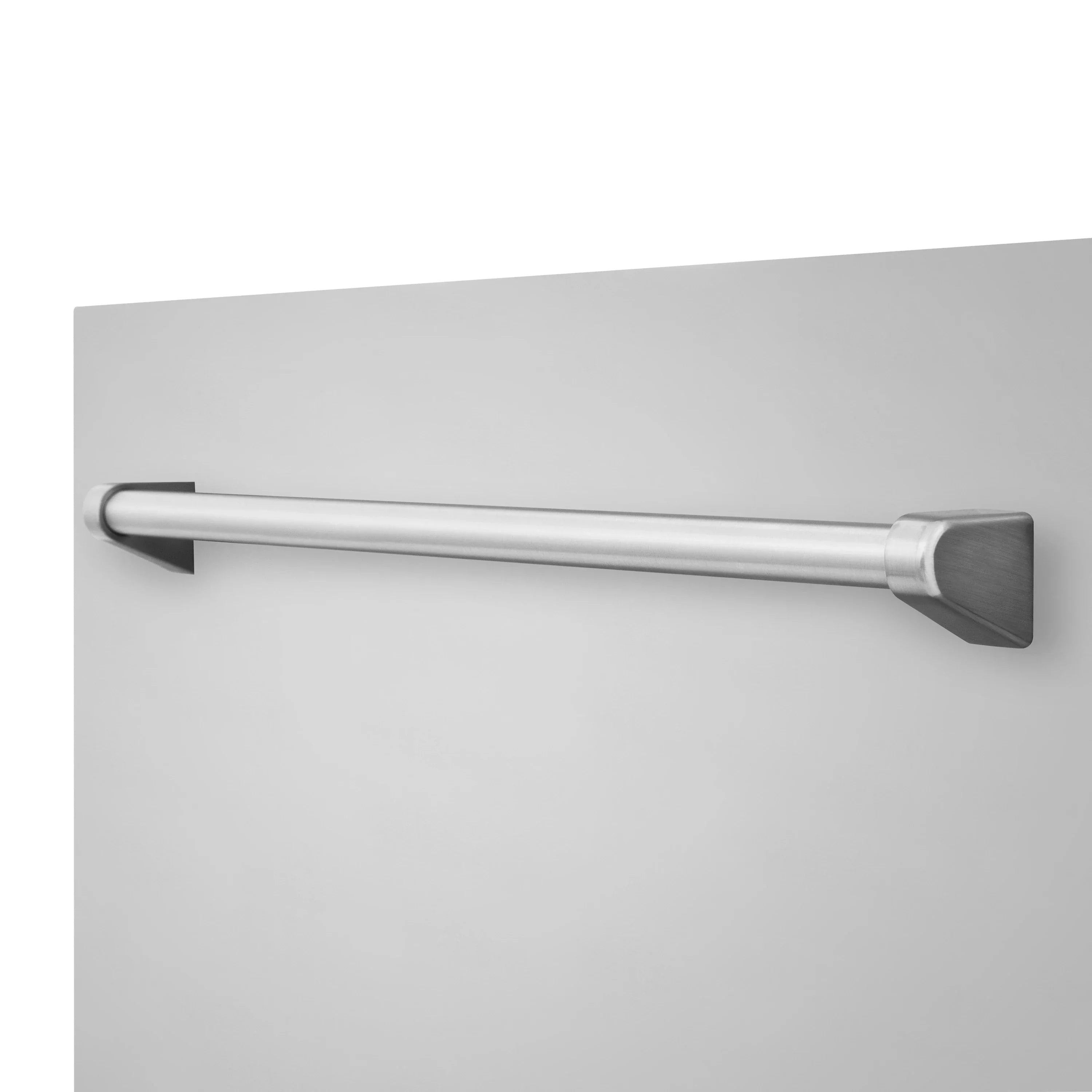

| Handle Type | Traditional Style |
| Control Location | Top Control |
| Control Type | Button Control |

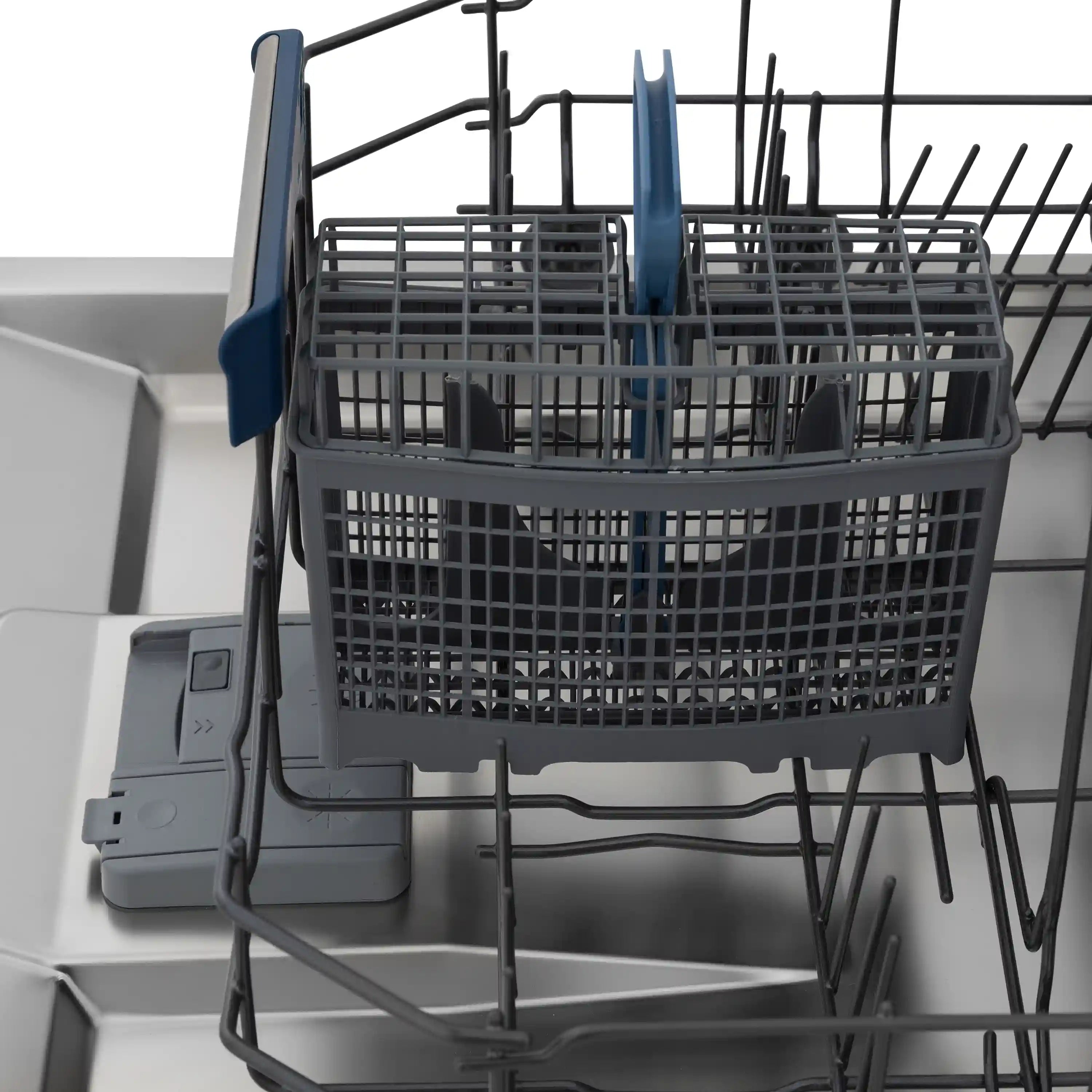

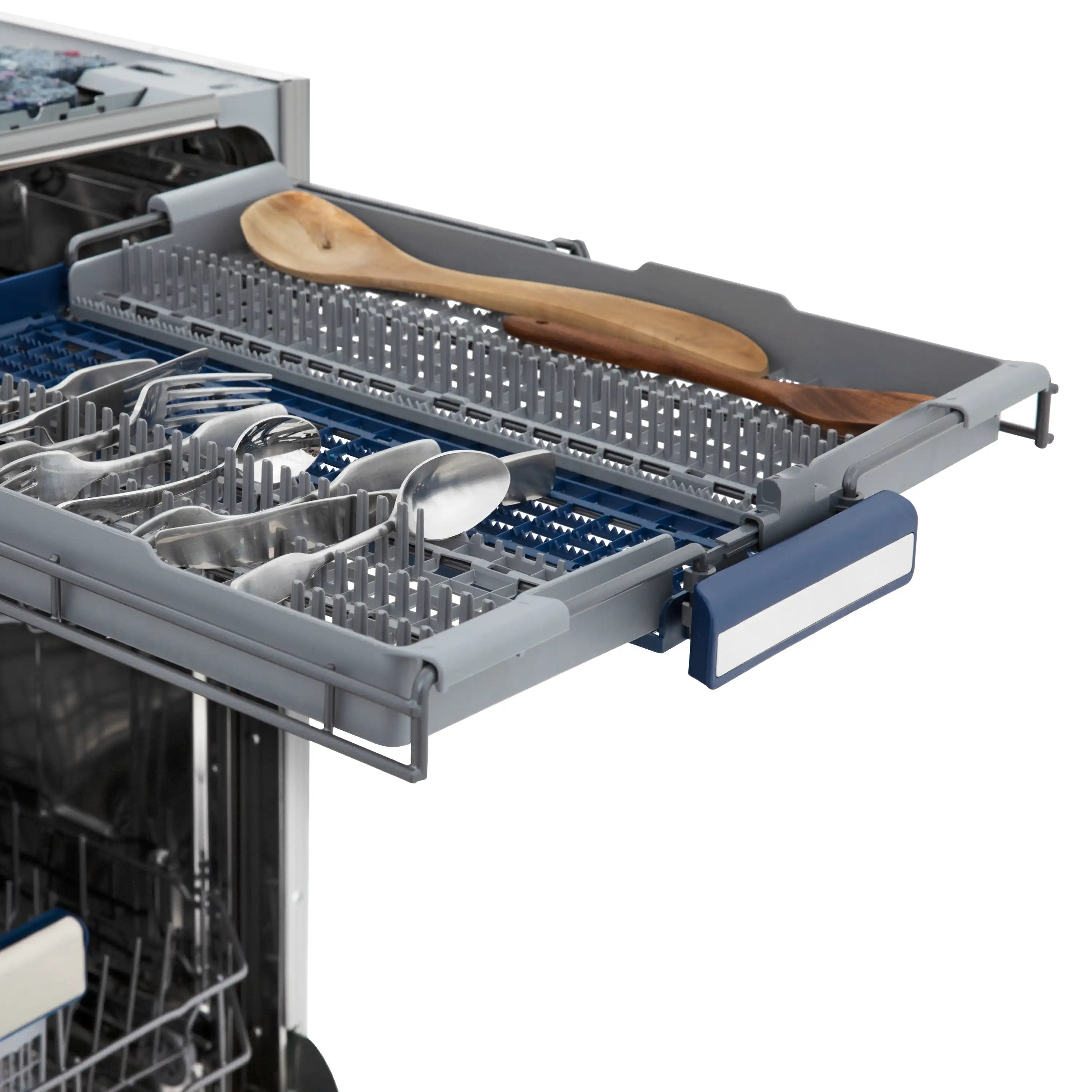

| Silverware Basket Location | Bottom Rack Center |
| TECHNICAL DETAILS | |
| Voltage | 120vac |
| Frequency | 60Hz |
| Dedicated Circuit | 15A |
| Rated Current | 12A |
| Motor Wattage | 100W |
| Heater Wattage | 1100W |
| Motor Amperage | 0.84A |
| Heater Amperage | 10A |
| Energy Consumption Per Year | 239 kWh |
| Water Consumption Per Cycle (Liters) | 11.73 L |
| Water Consumption Per Cycle (Gallons) | 3.1 gal |
| Decibels | 51 dBa |
| Extended Hose Length | 56 in. |
| FEATURES | |
| Drying System | Turbo Fan Drying + Auto Door |
| Steam Function | Without Steam |
| Features |
|
| WARRANTY & CERTIFICATIONS | |
| Certifications | Energy Star, CEC, UL |

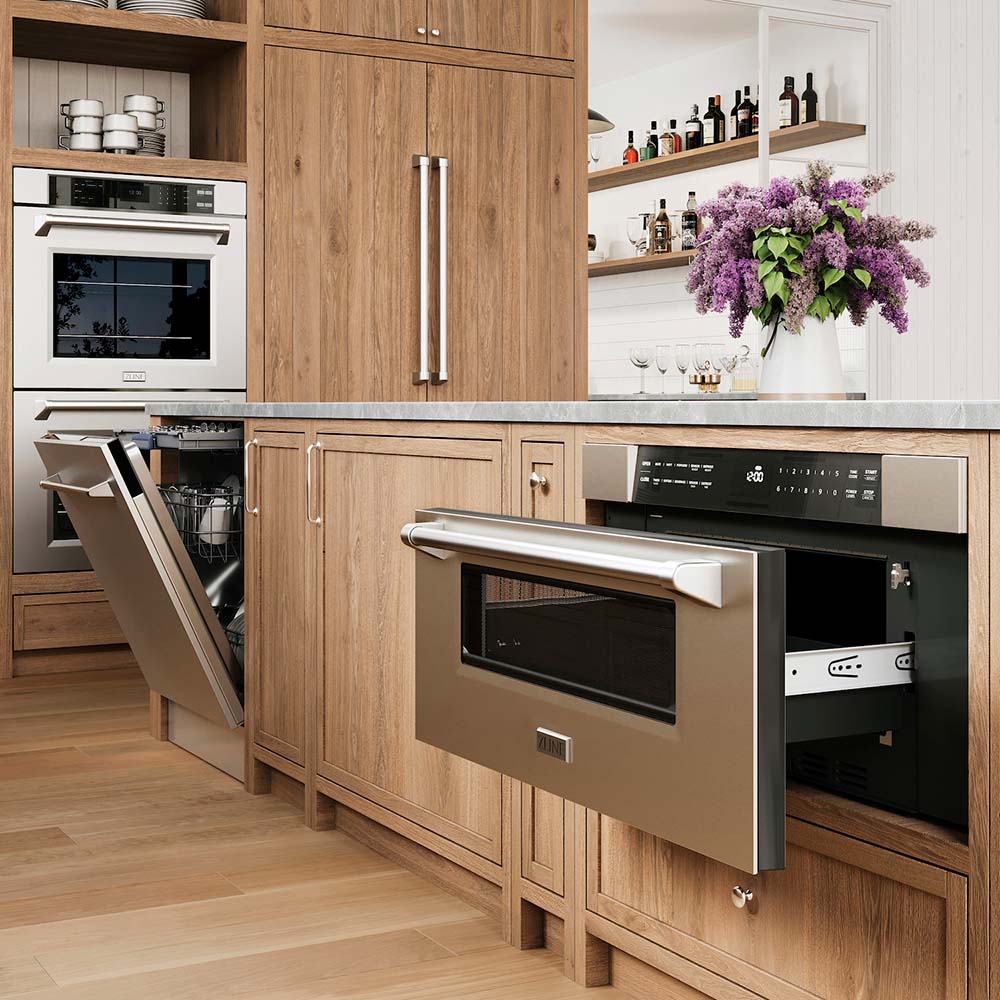

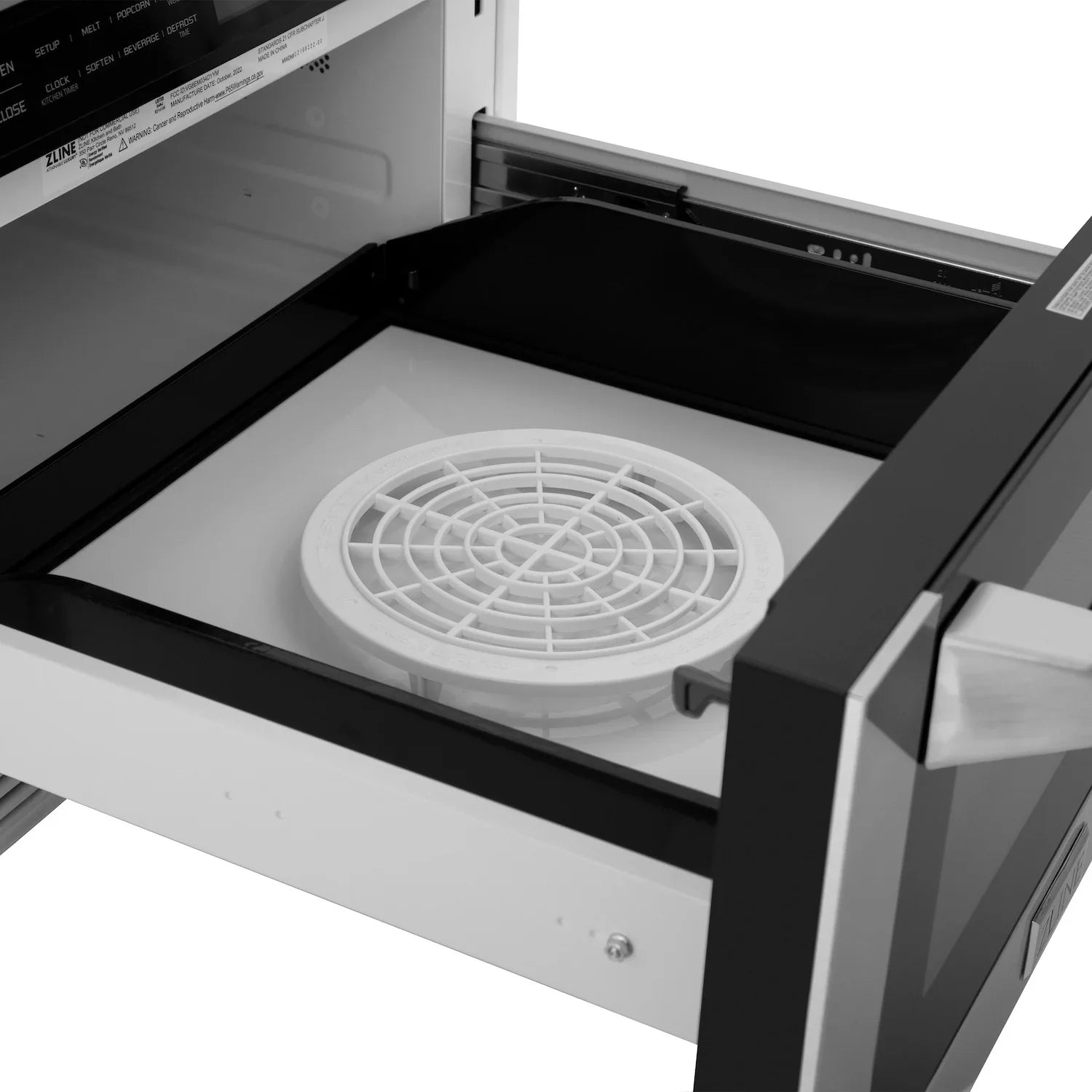

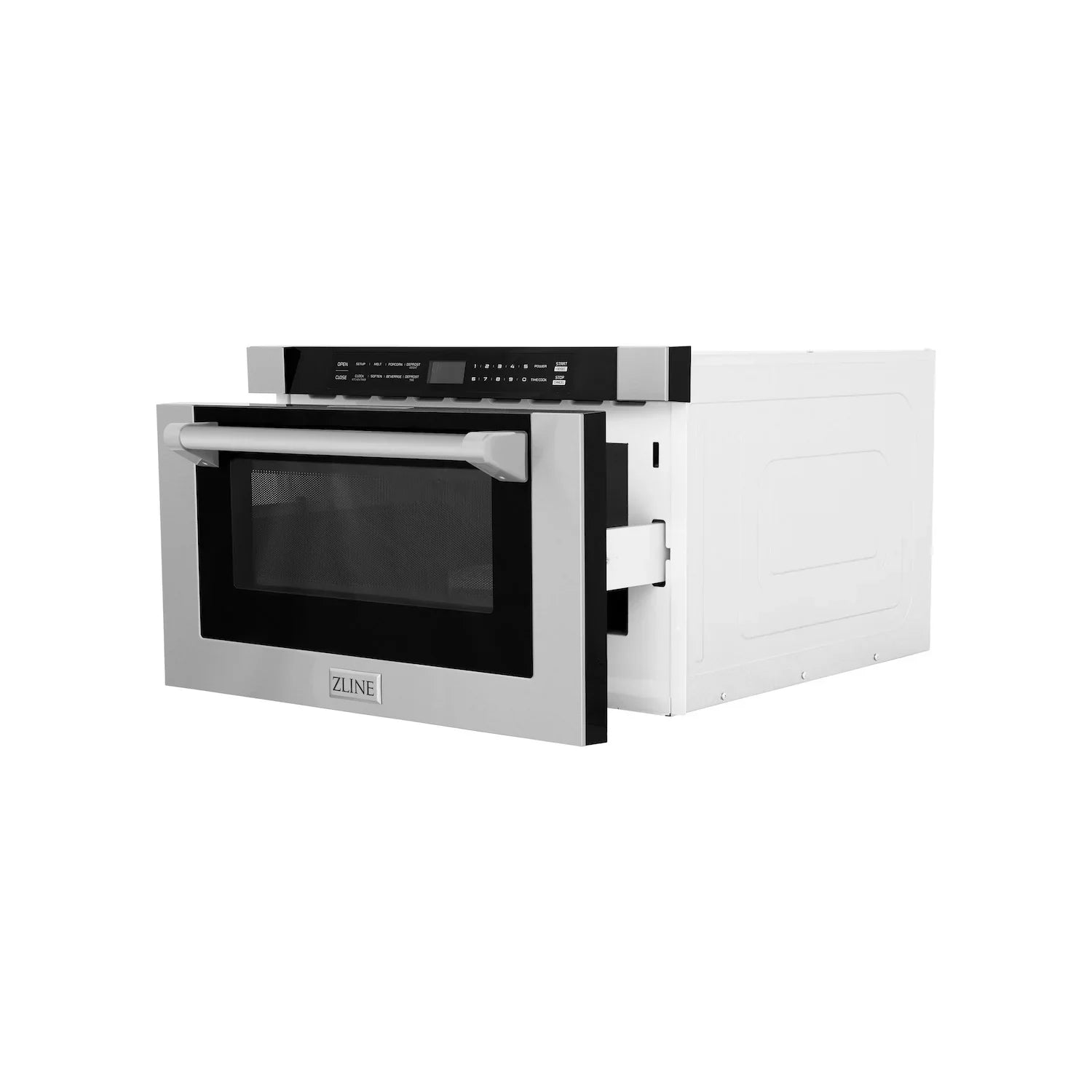

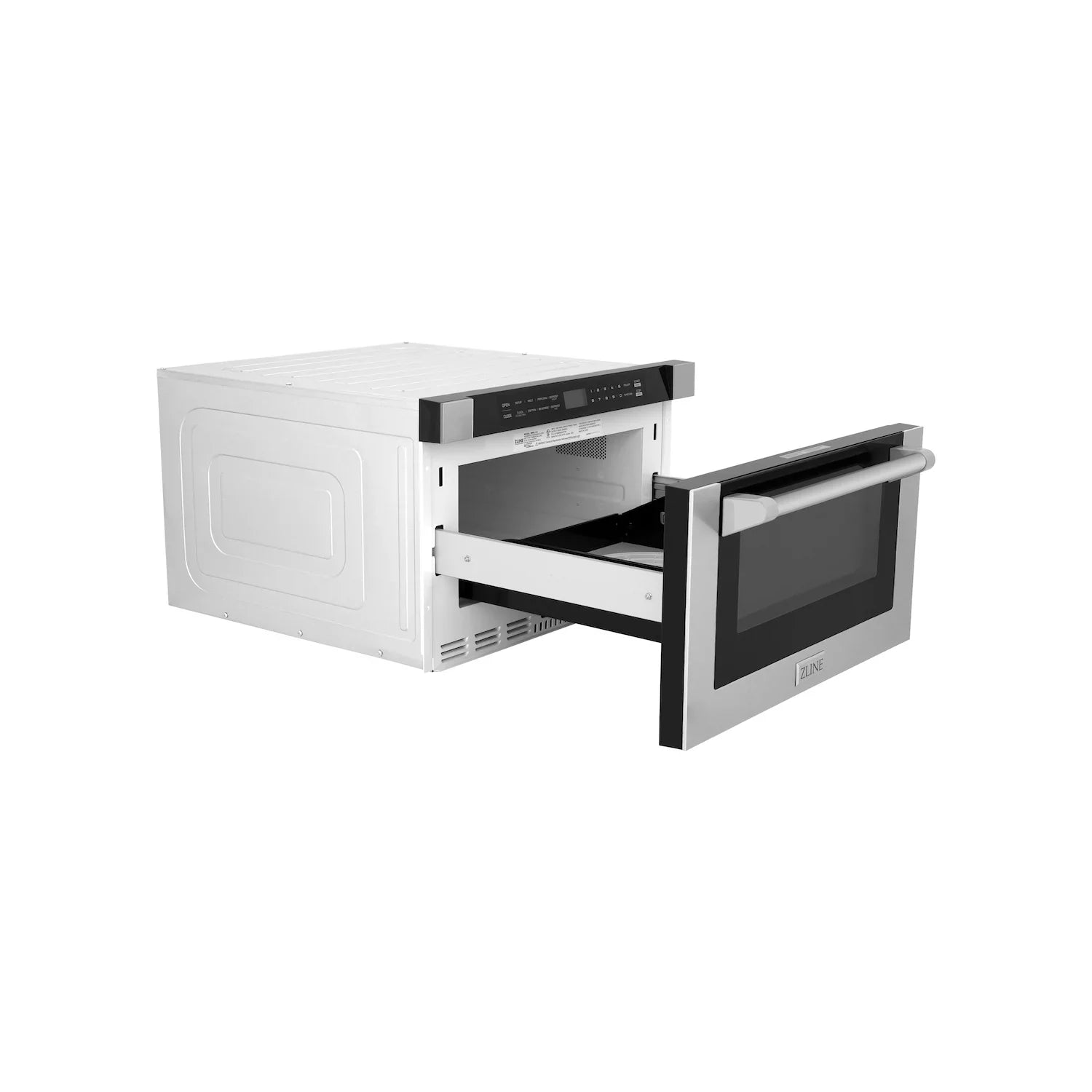

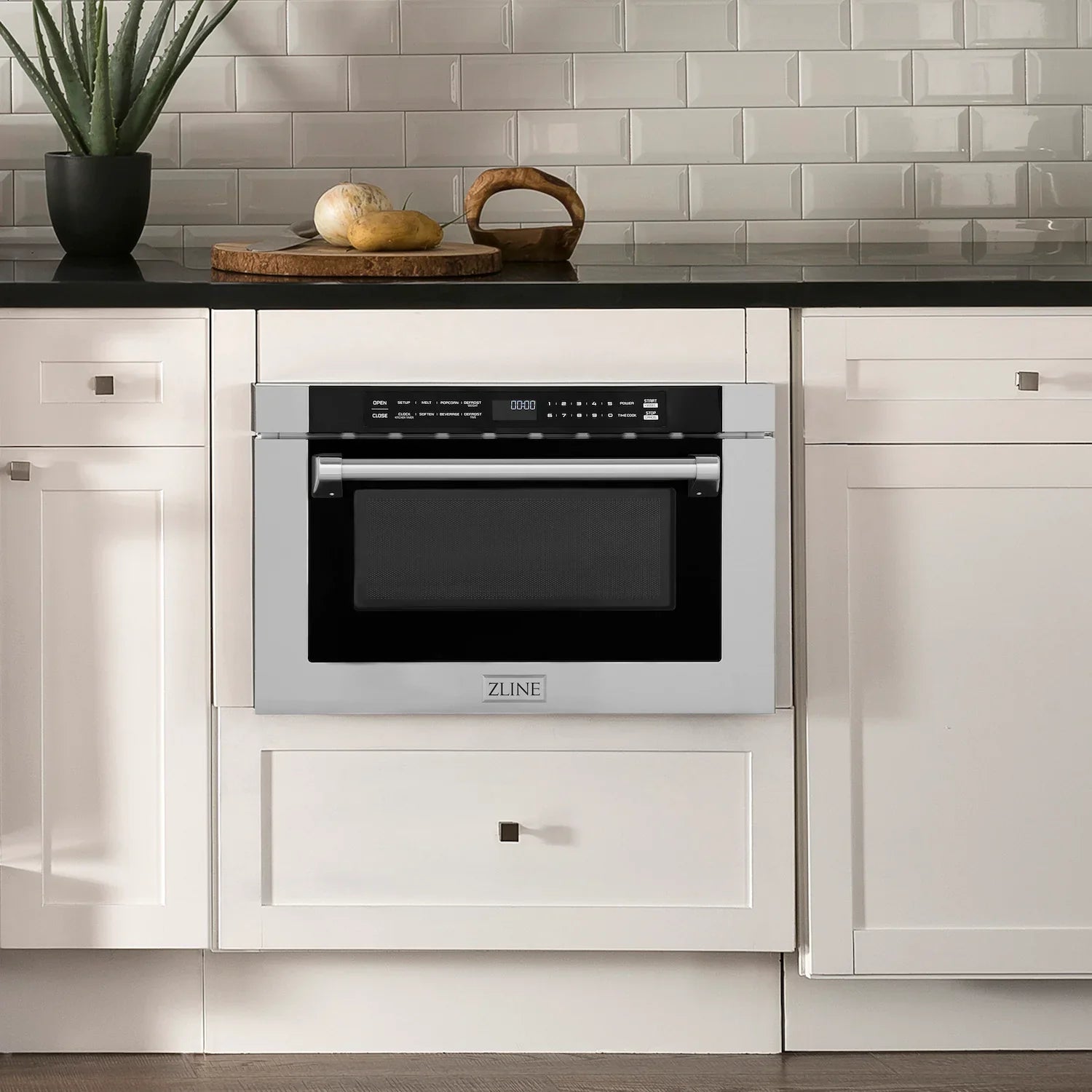

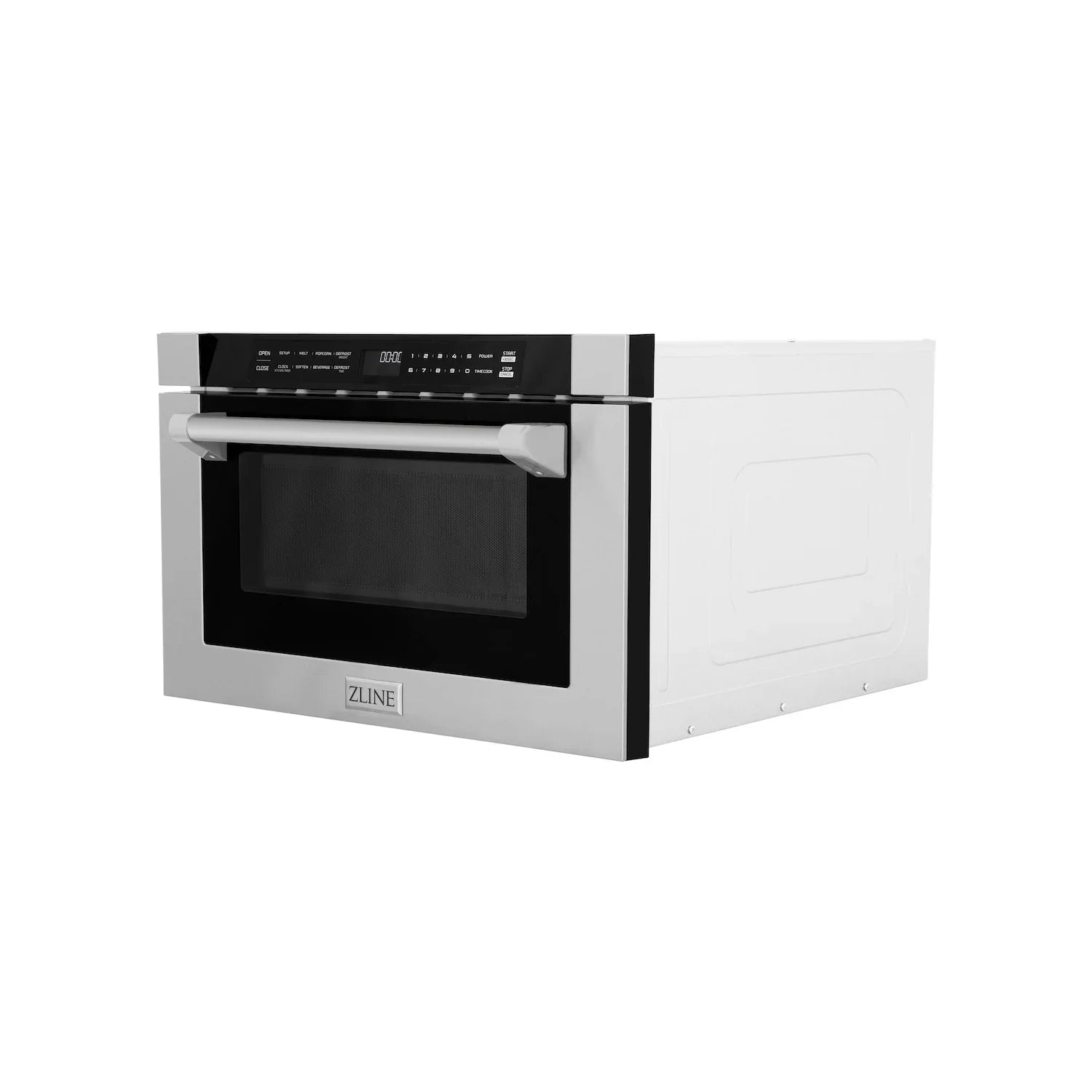

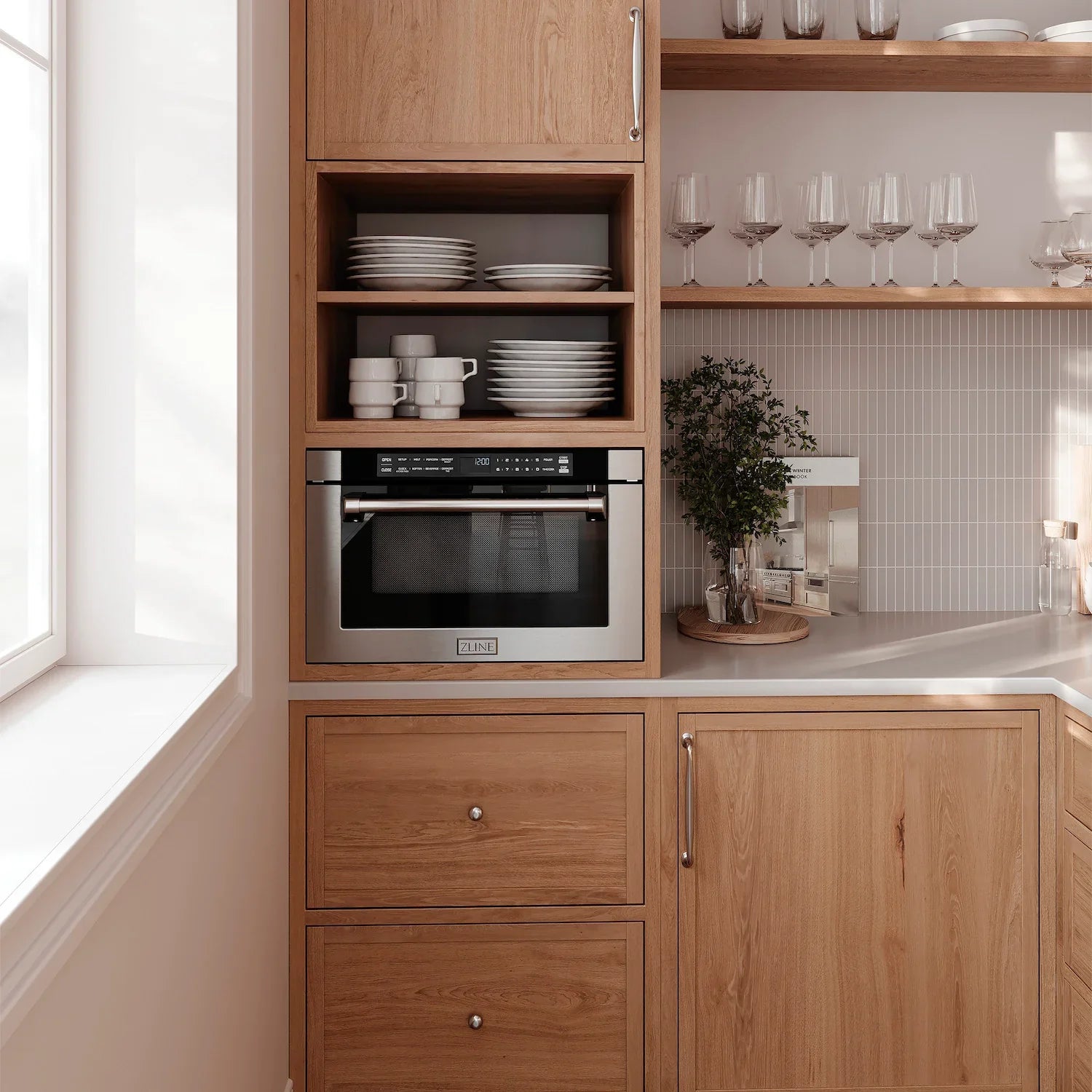

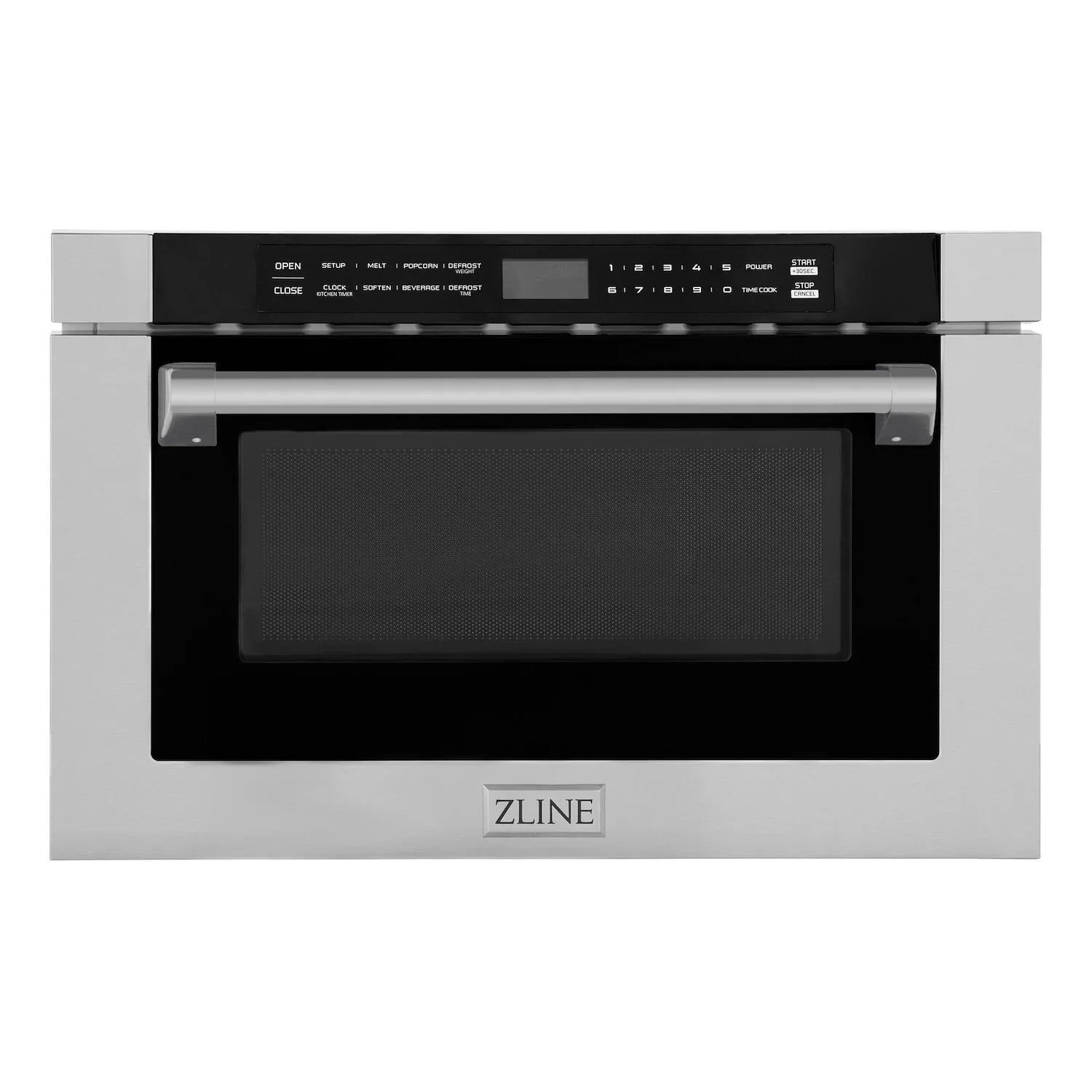

Luxury isn't meant to be left desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 24" 1.2 cu. ft. Built-in Microwave Drawer with a Traditional Handle in Stainless Steel provides a professional culinary experience by pairing everyday convenience with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen's capability.
Space-Saving - Free up your countertop space with an undercounter modern design with installation location flexibility to best fit your lifestyle
Top Access Design - Easily transport hot dishes and prevent spills with an accessible top-loading design
Convenient Microwave Modes - Achieve optimal results for every dish with sensor cooking, defrost, popcorn, and beverage settings
Auto-touch Open and Close - Effortlessly open and close the microwave drawer with just the touch of a button
Intuitive Control Panel - Enjoy an easy-to-use control panel that provides maximum convenience with a 45 degree angled design
High-Powered Performance - Get the results you need with 11 different power levels and a powerful 1000 watt cooking power

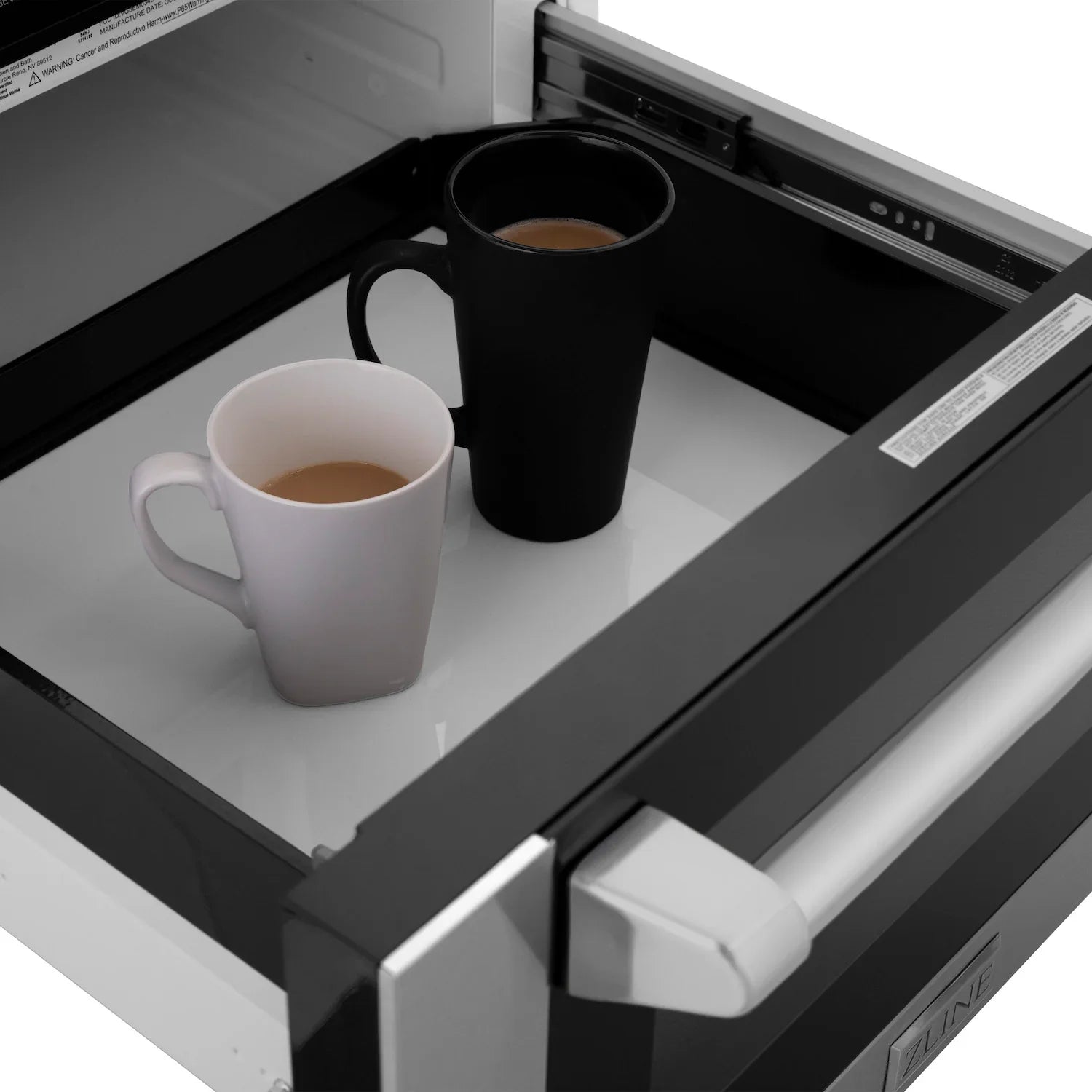

1.2 cu. ft. Capacity - A large cooking area will easily fit your items, such as coffee mugs up to 7 in. tall and dishes up to 16 x 16 in.
Reheat and Defrost - Minimize cooking time with convenient reheat and defrost functions
Stainless Steel Finish - Brushed 430 grade stainless steel exterior provides an easy clean up and a timeless look in your kitchen
Manufacturer Warranty - 2 year parts warranty
ADA Compliant - Easy-to-use front touch controls with a 45 degree angle design provides ADA compliance
| DIMENSIONS | |
|---|---|

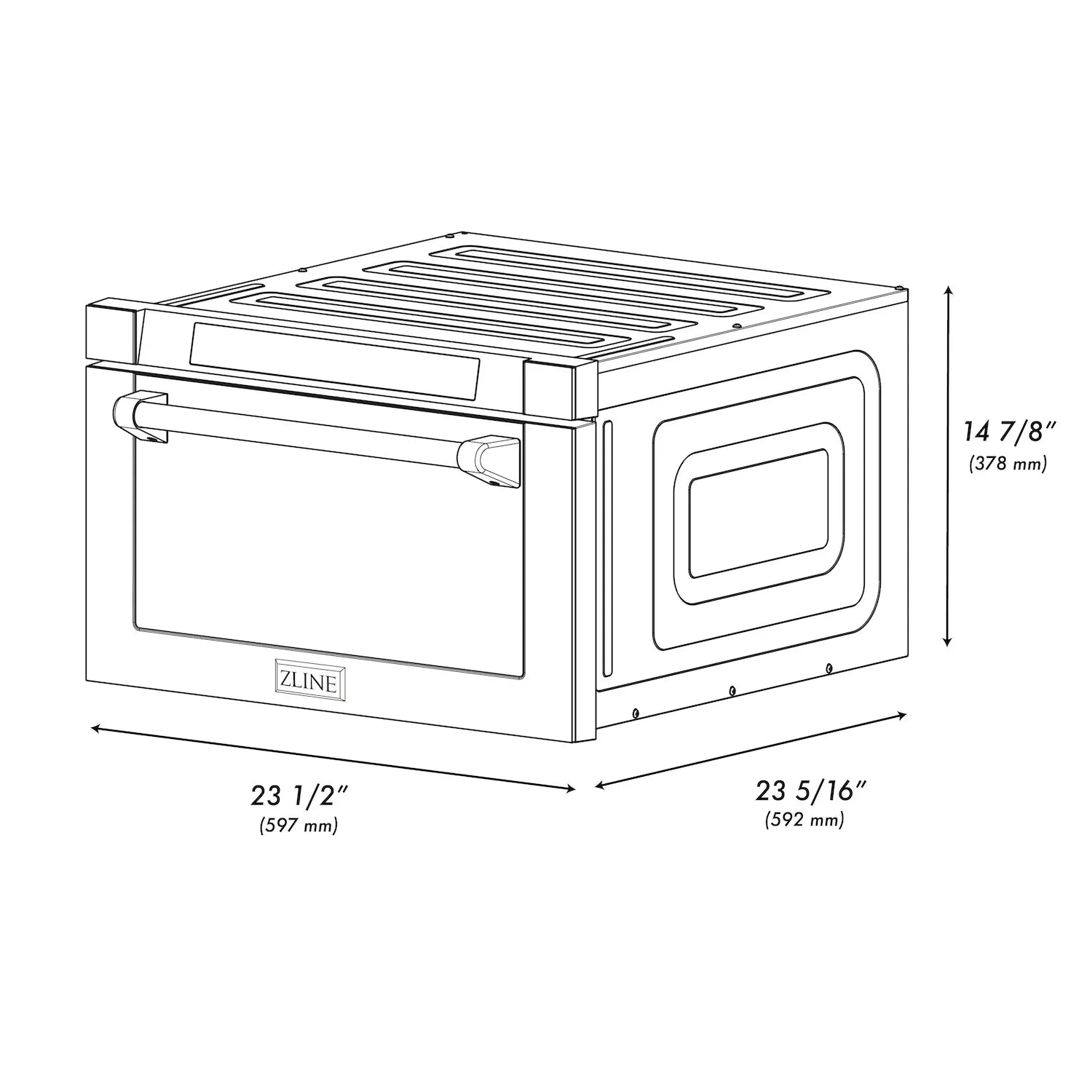

| Product Dimensions | 23.5 in W x 23.31 in D x 14.88 in H |
| Cutout Dimensions | 22.13 in W x 23.5 in D x 15 in H |
| Interior Dimensions | 16" W x 16" D x 7" H |
| Depth with Door Open | 38.75" without handle/ 40" with handle |
| Weight | 69.9 lbs |
| GENERAL INFORMATION | |
| Mount Type | Drawer |
| DESIGN & FINISH | |
| Cavity Material | Painted |
| Control Type | Touch Screen |
| TECHNICAL DETAILS | |
| Voltage | 120vac |
| Frequency | 60 Hz |
| Rated Current (Amps) | 13A |
| Dedicated Circuit | 15A |
| Plug Type | 5-15 Nema |
| FEATURES | |
| Input Power | 1500W |
| Output Power | 1000W |
| Oven Capacity | 1.2 Cu. Ft. |
| Noise Level | 45 Decibels |
| Display | LED |
| Packaging Standard | ISTA 3A |
| WARRANTY & CERTIFICATIONS | |
| Certifications | UL, DOE, CEC, NRCan |
| Warranty | 2 Year Parts |
