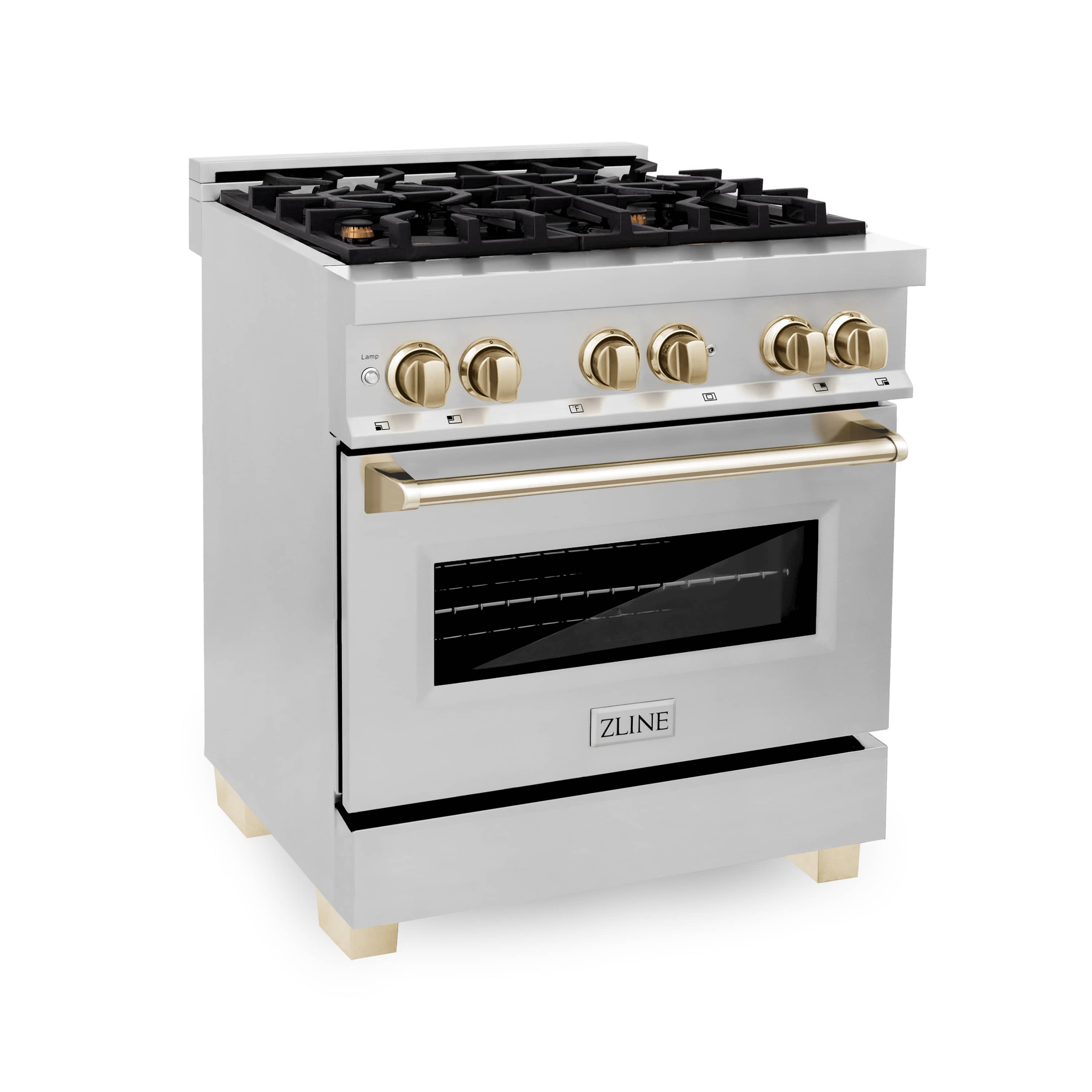

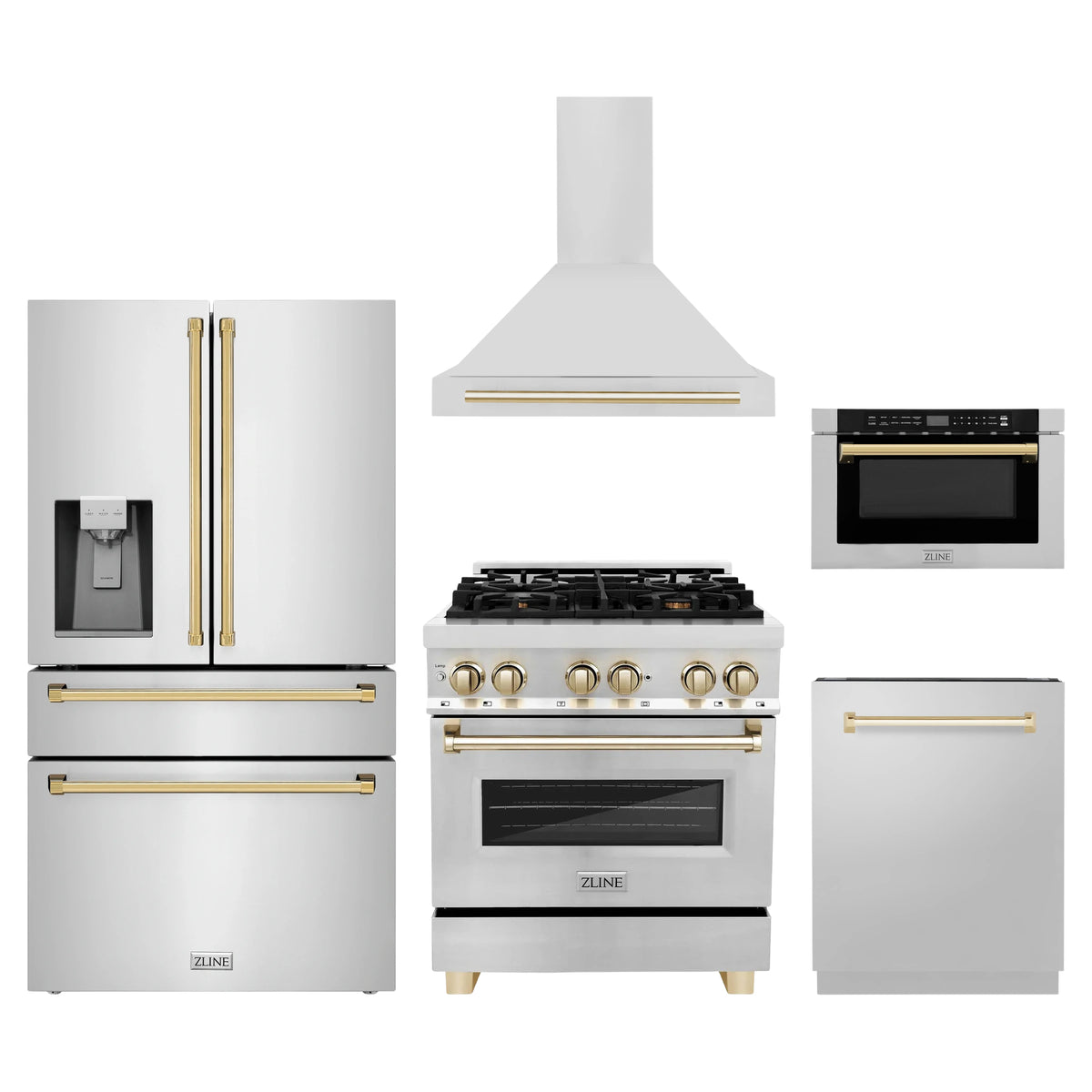

ZLINE 5-Piece Appliance Package - 30-Inch Legacy Autograph Dual Fuel Range, Wall Mount Range Hood, 36-Inch French Door Refrigerator with Water Dispenser, Dishwasher, and 24-Inch Microwave Drawer in Stainless Steel with Gold Accents

ZLINE 5-Piece Appliance Package - 30-Inch Legacy Autograph Dual Fuel Range, Wall Mount Range Hood, 36-Inch French Door Refrigerator with Water Dispenser, Dishwasher, and 24-Inch Microwave Drawer in Stainless Steel with Gold Accents

SKU: AWR5-RAZ-30-G

Sale price$10,415.95 Regular price$12,439.95



Out of Stock Estimated Restock 7/20
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Package Overview

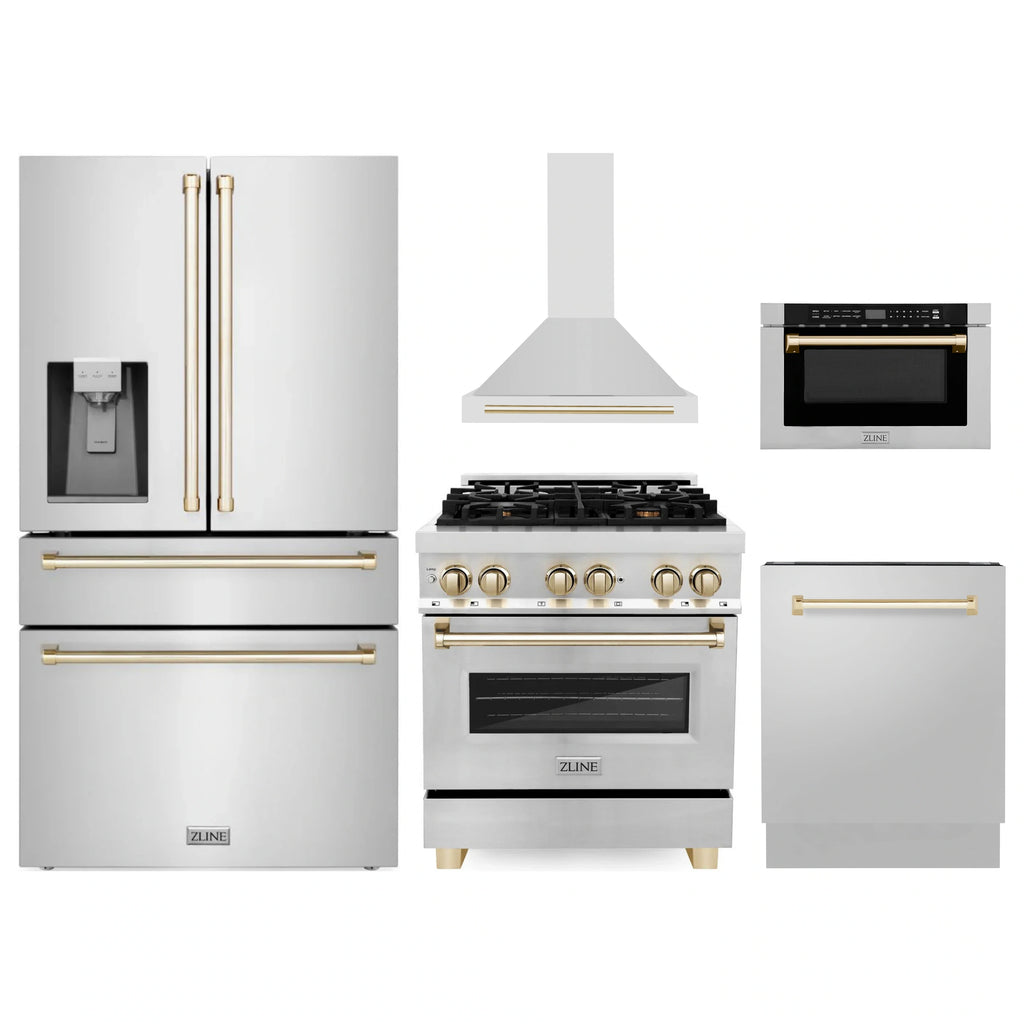

Home Outlet Direct brings together the most popular ZLINE kitchen appliances in one perfectly matched package.

Package Includes:

Description
Product Specs
Manuals & Guides

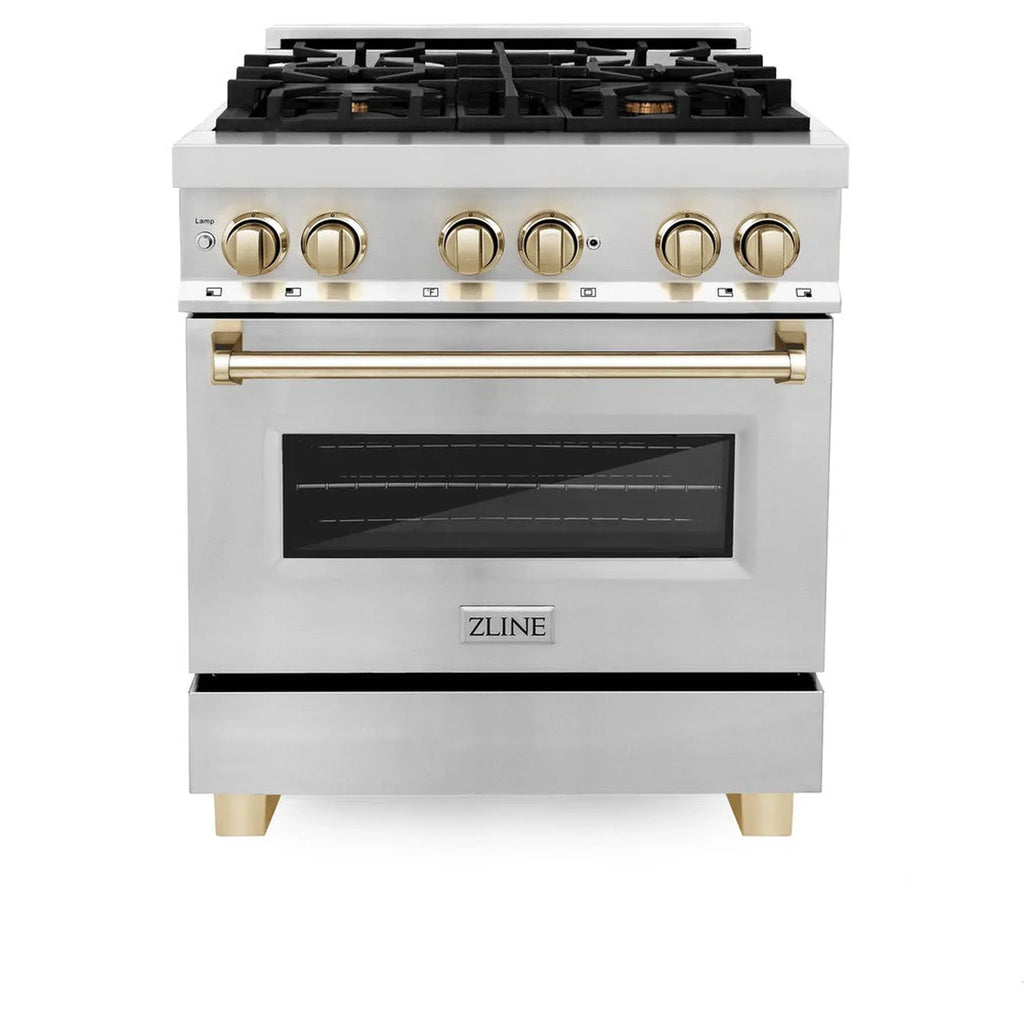

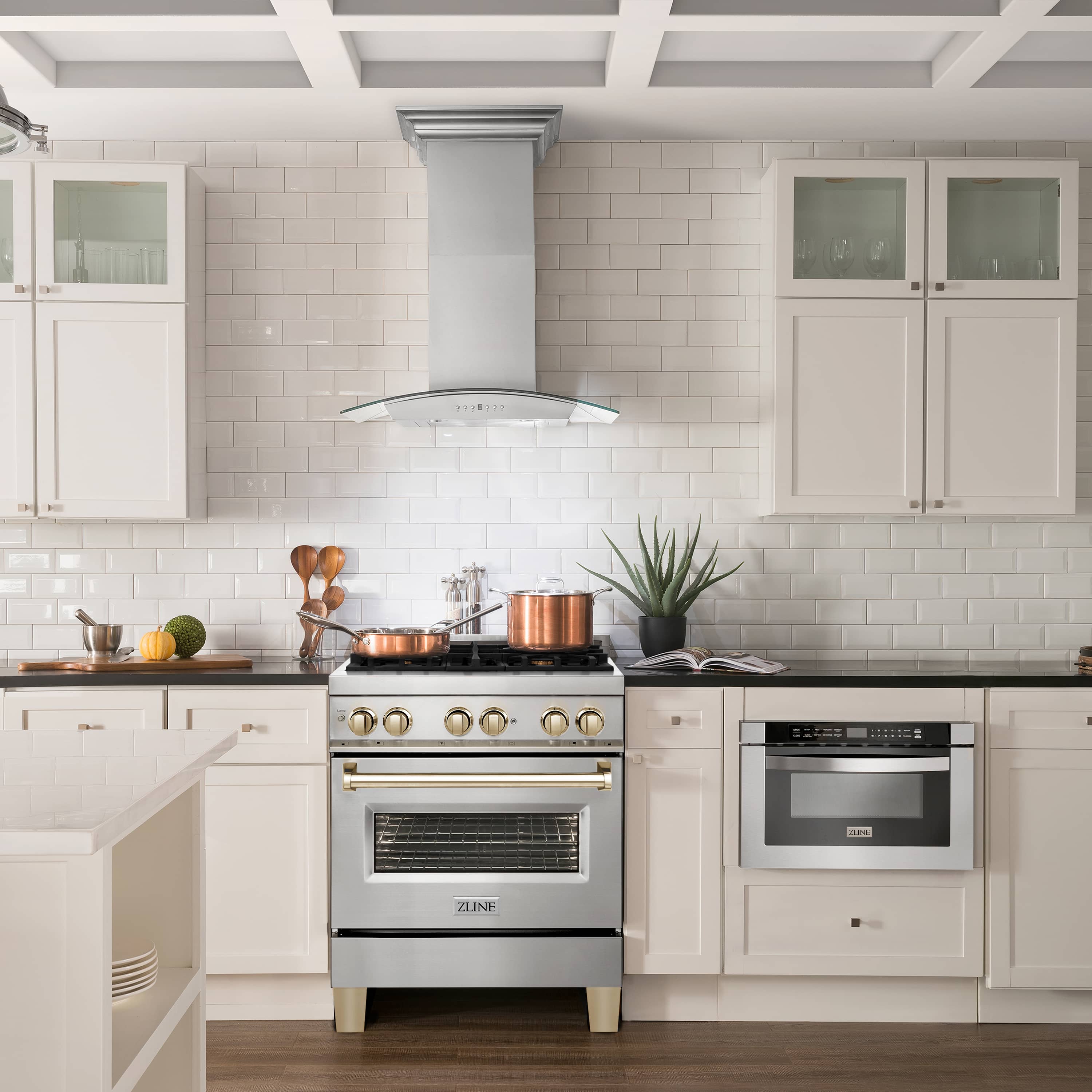

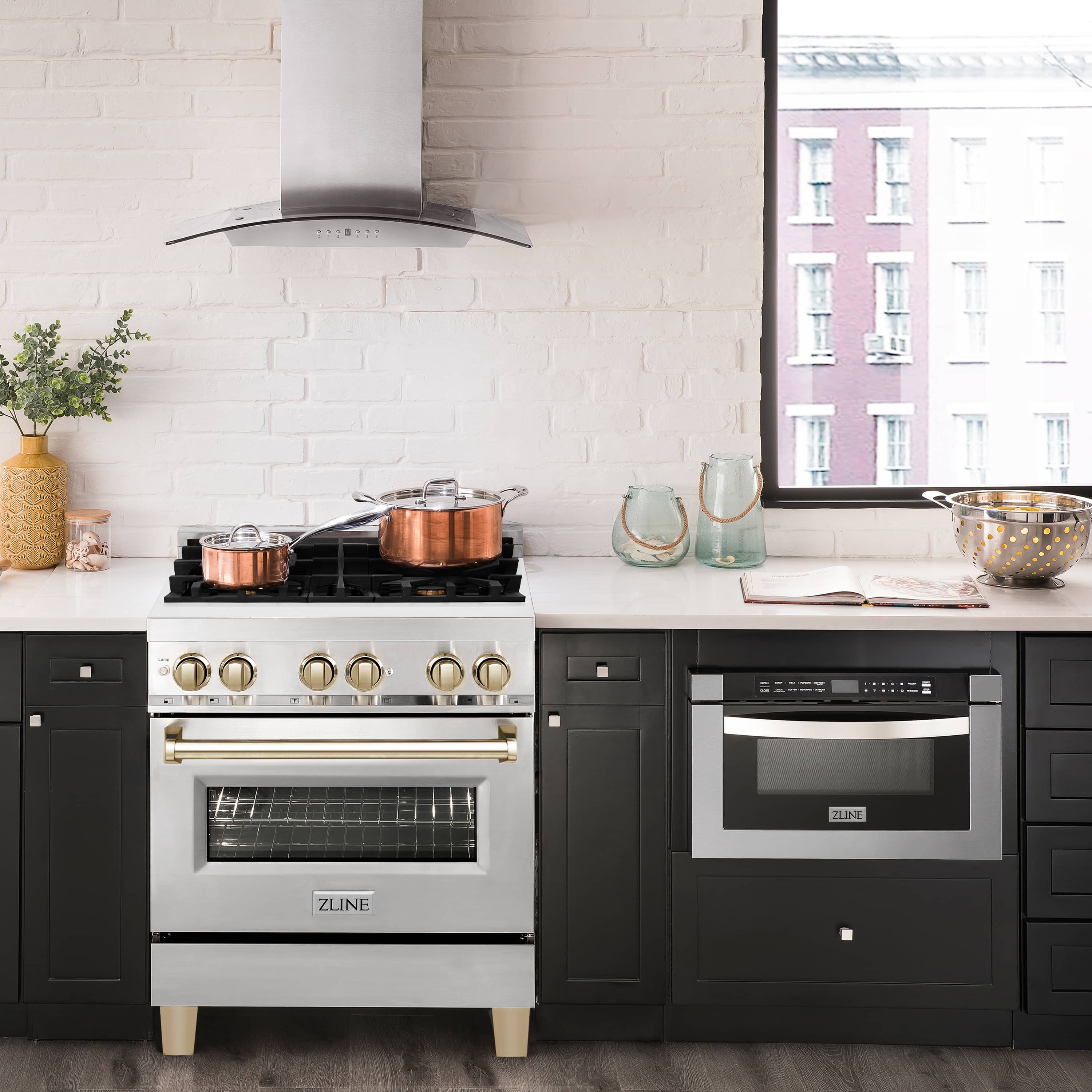

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 30 in. 4.0 cu. ft. Legacy Dual Fuel Range with 4 Burner Gas Cooktop and Electric Convection Oven in Stainless Steel and Polished Gold Accents (RAZ-30-G) pairs a powerful gas cooktop with 4 Italian-crafted burners, an electric convection oven with a Landscape oven door window design, and elegant polished gold knobs and handle. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.

Features

  • Rely on precise and even cooking for every homemade dish with a gas stove and electric convection oven

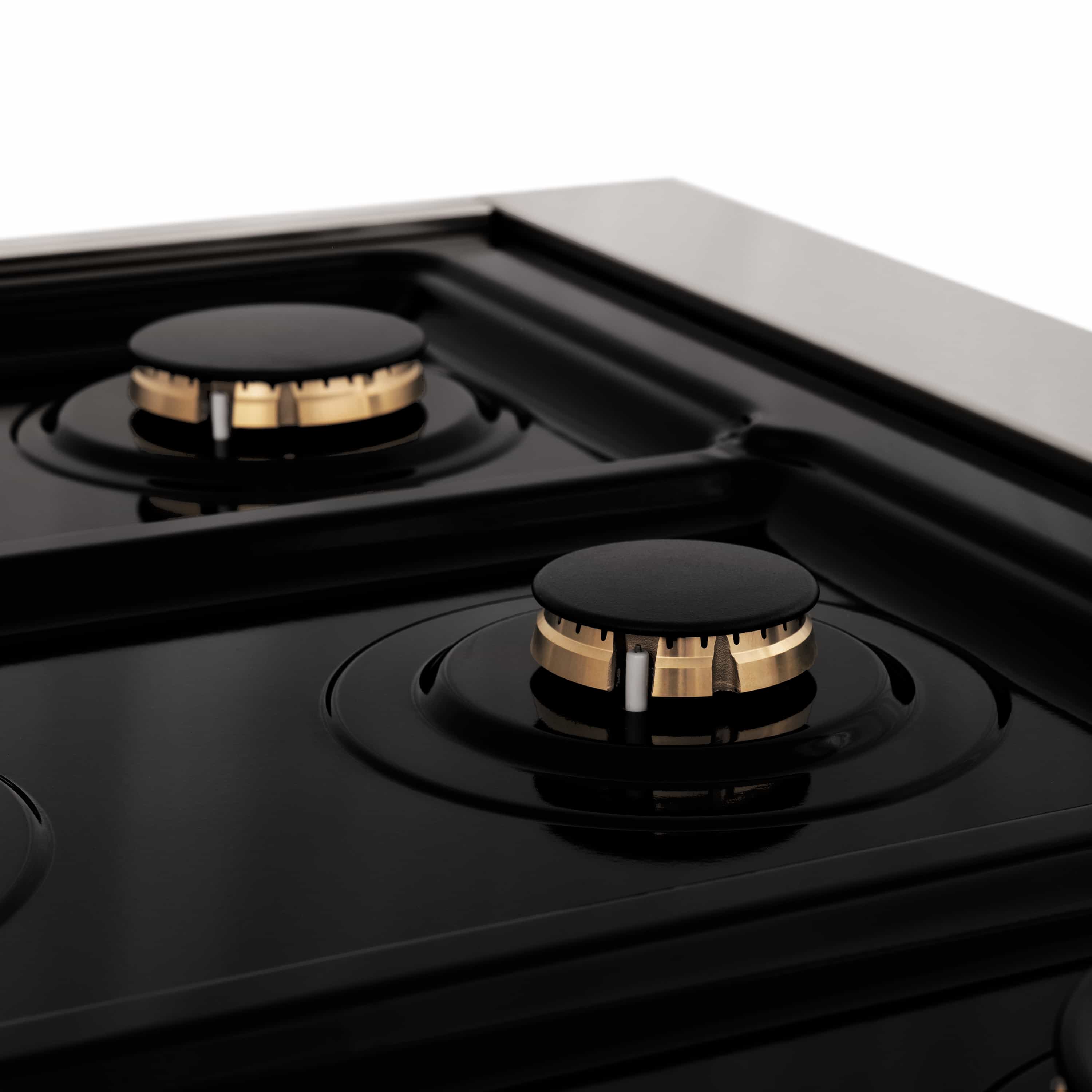

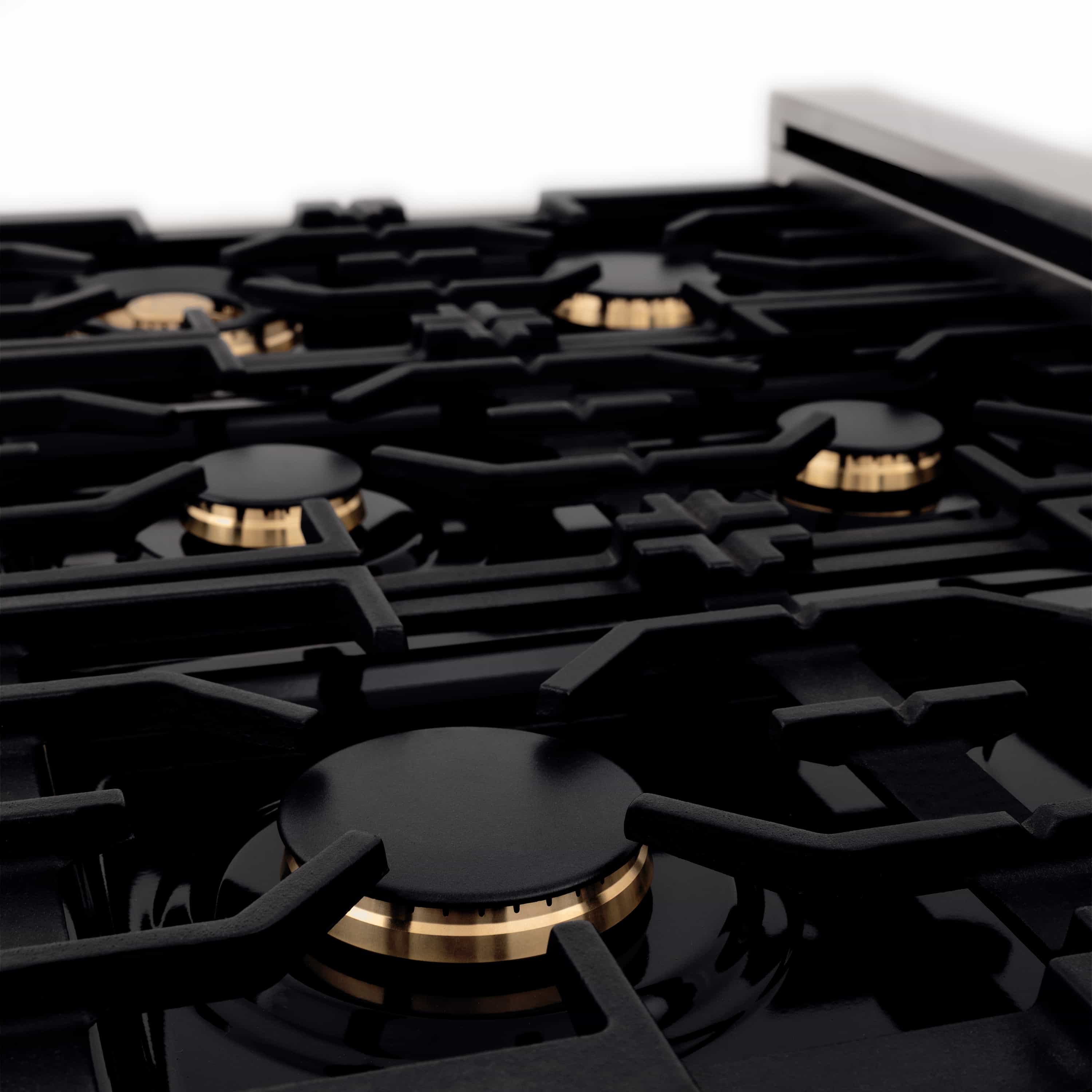

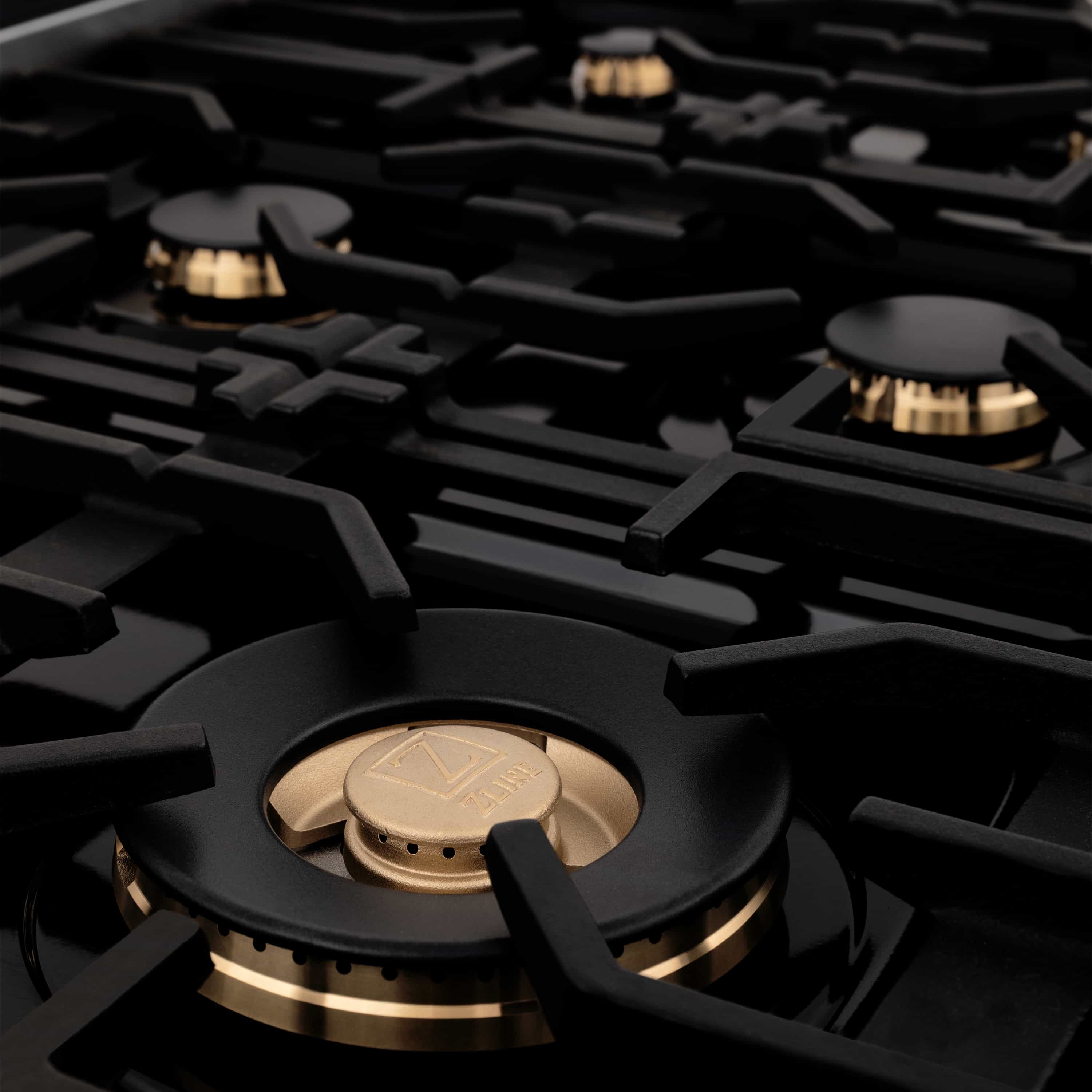

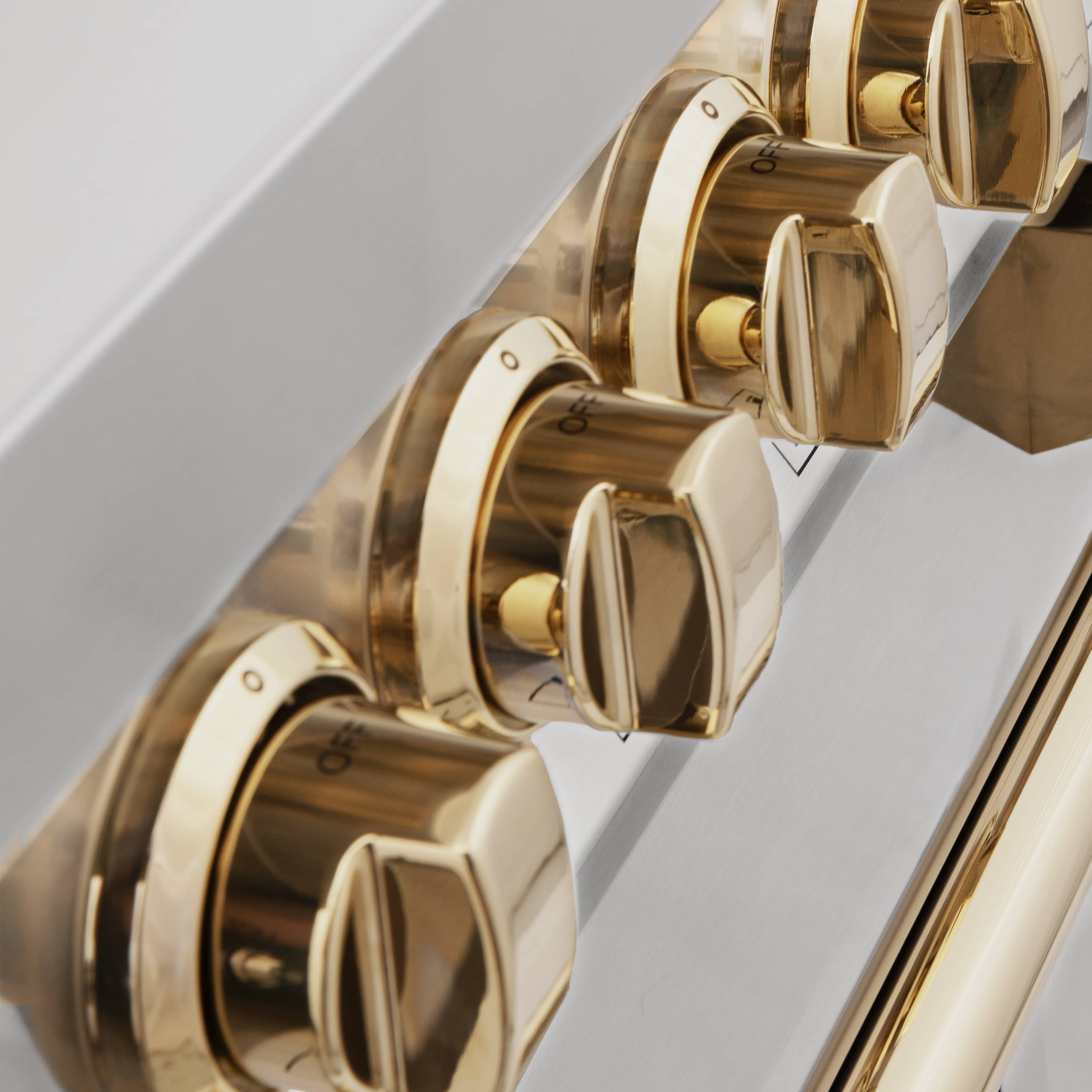

  • ZLINE's Italian brass burners give this range an elevated, timeless pop of color while providing enhanced cooking benefits such as superior heat retention and even flame distribution.
  • Achieve optimal results from our sealed burners with cooking power from 4,200 up to 18,000 BTUs.

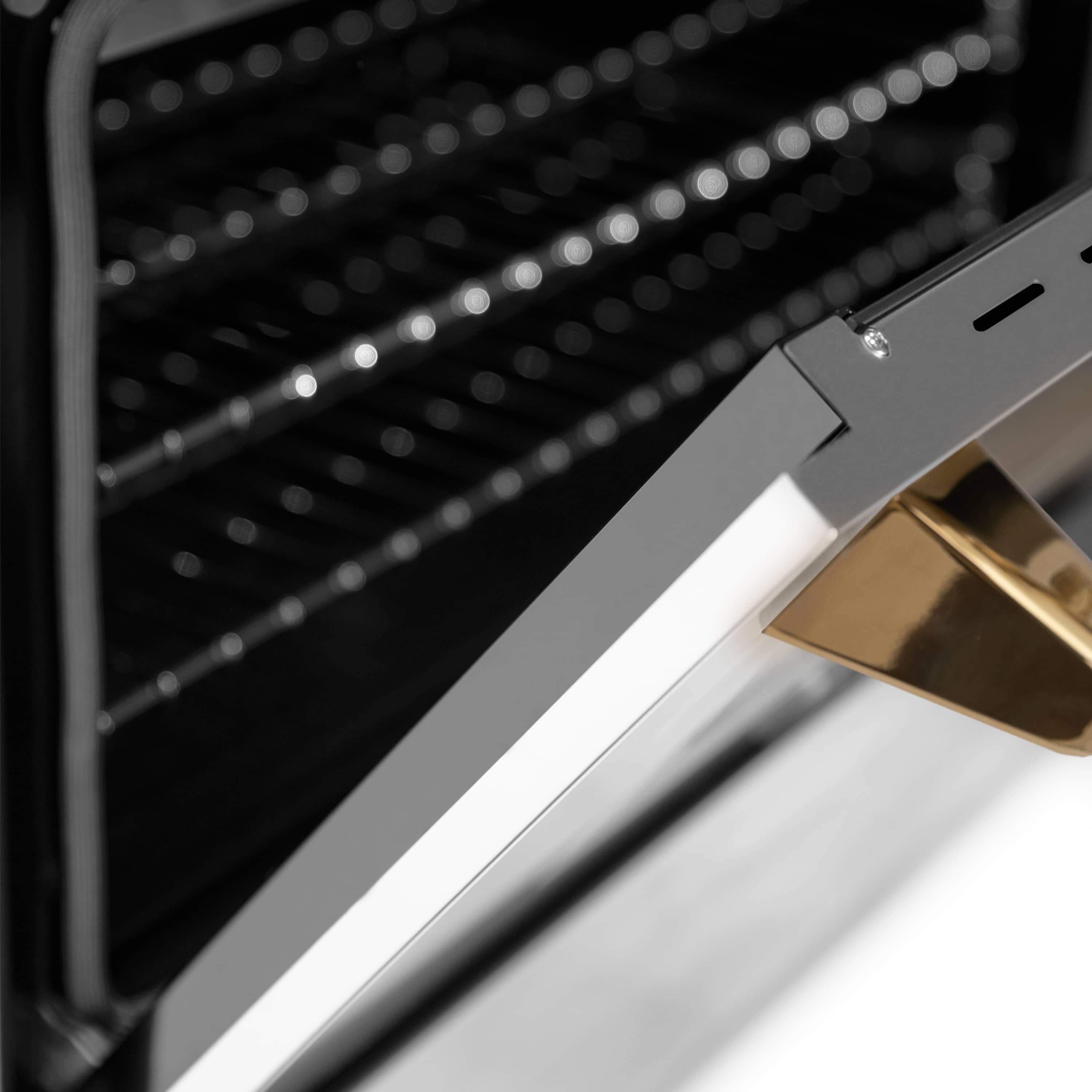

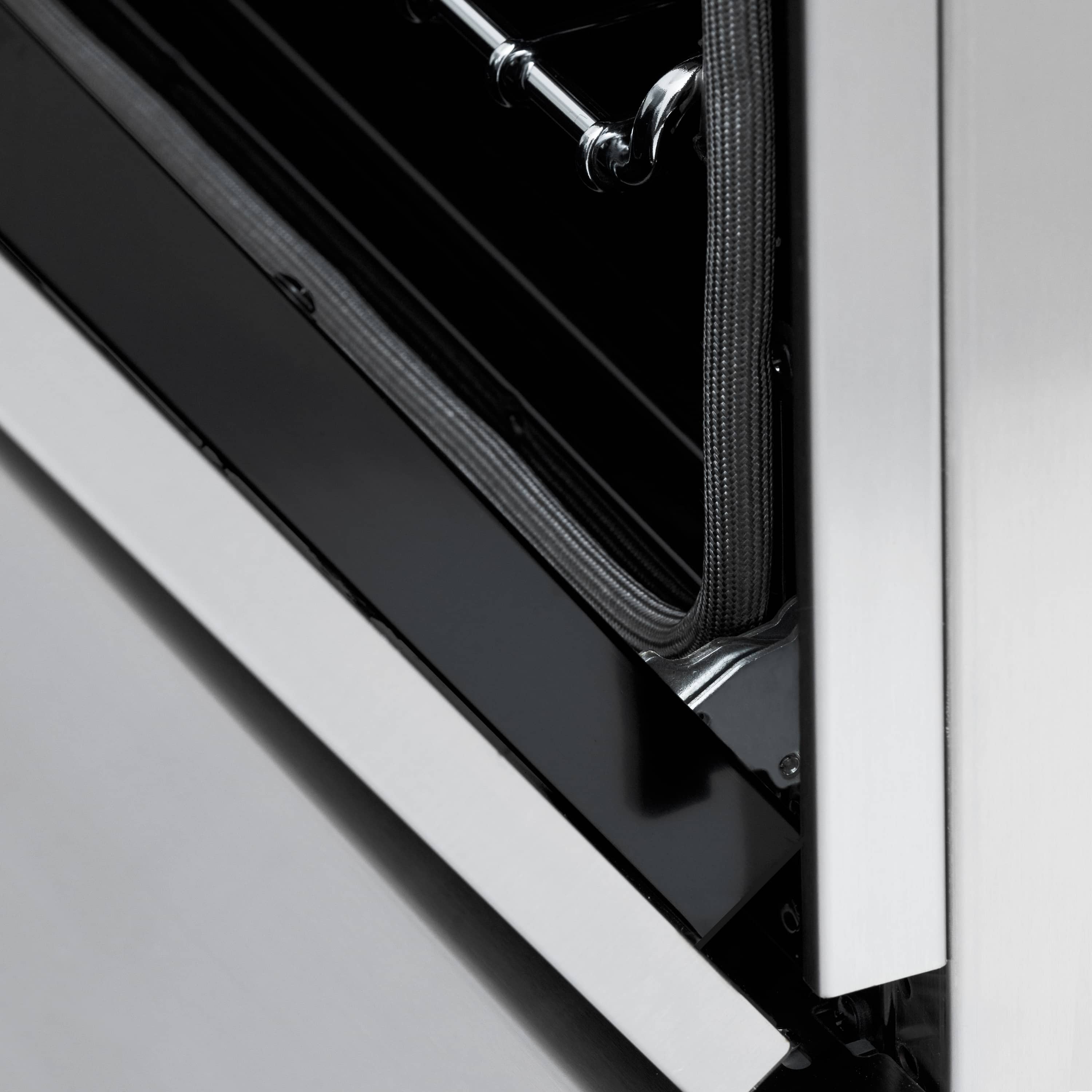

  • ZLINE's proprietary stay-put hinges are designed to support the full weight of the oven door and hold at any place.

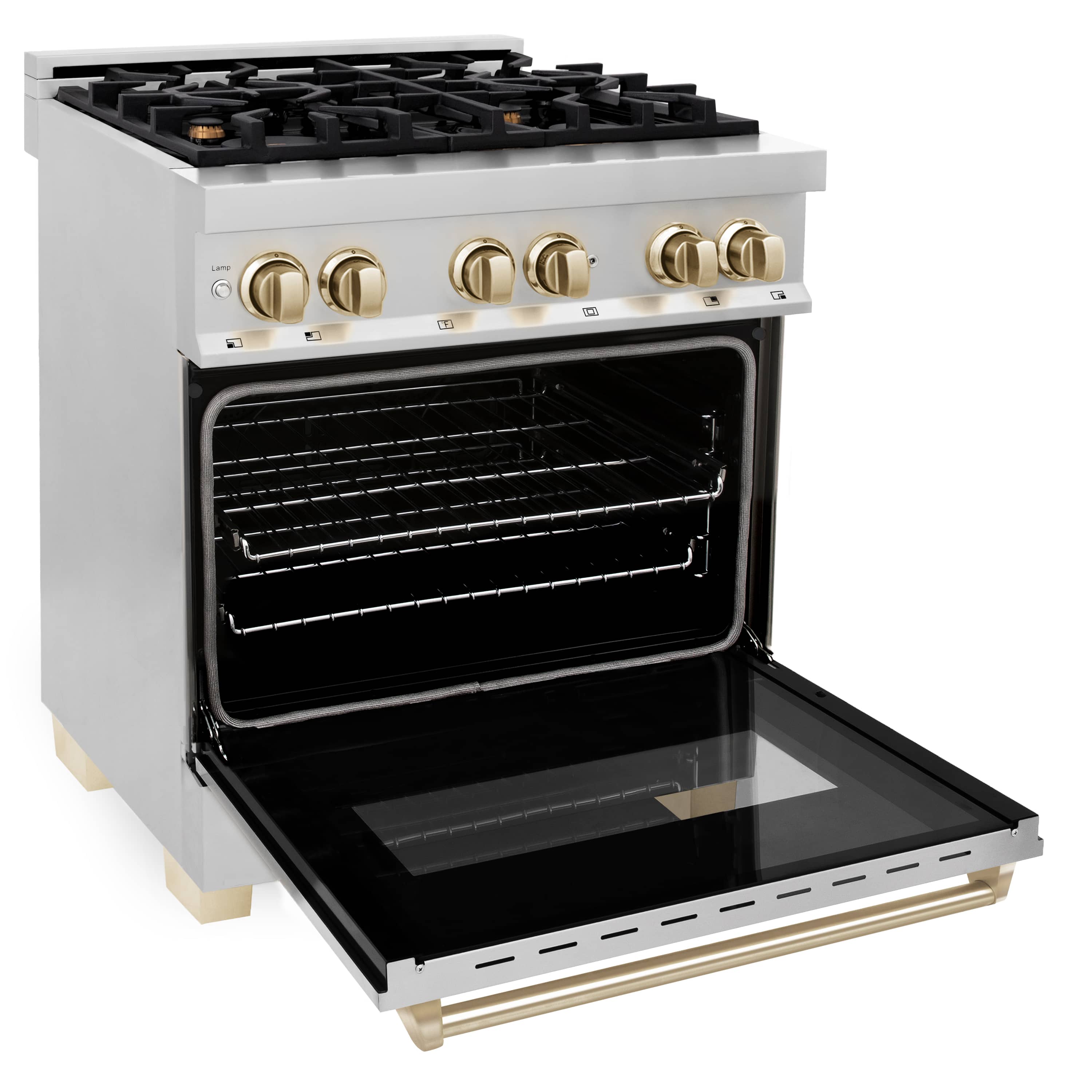

  • An ultra-deep 4.0 cu. ft. oven capacity with three layers of glass and dual lighting for crystal-clear visibility.
  • Assembled with the highest quality materials, this range offers a durable, scratch resistant one-piece porcelain cooktop and durable cast iron grates.

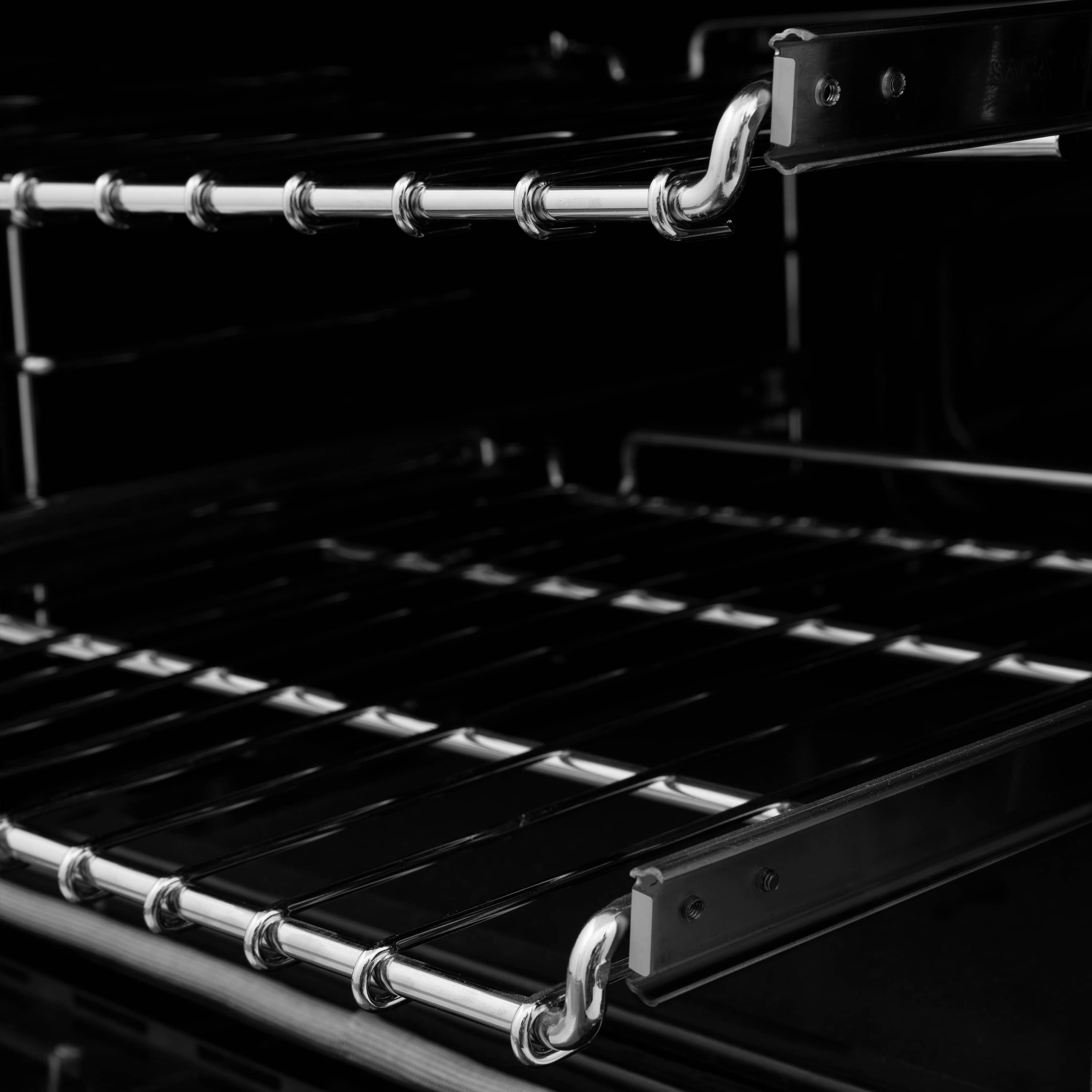

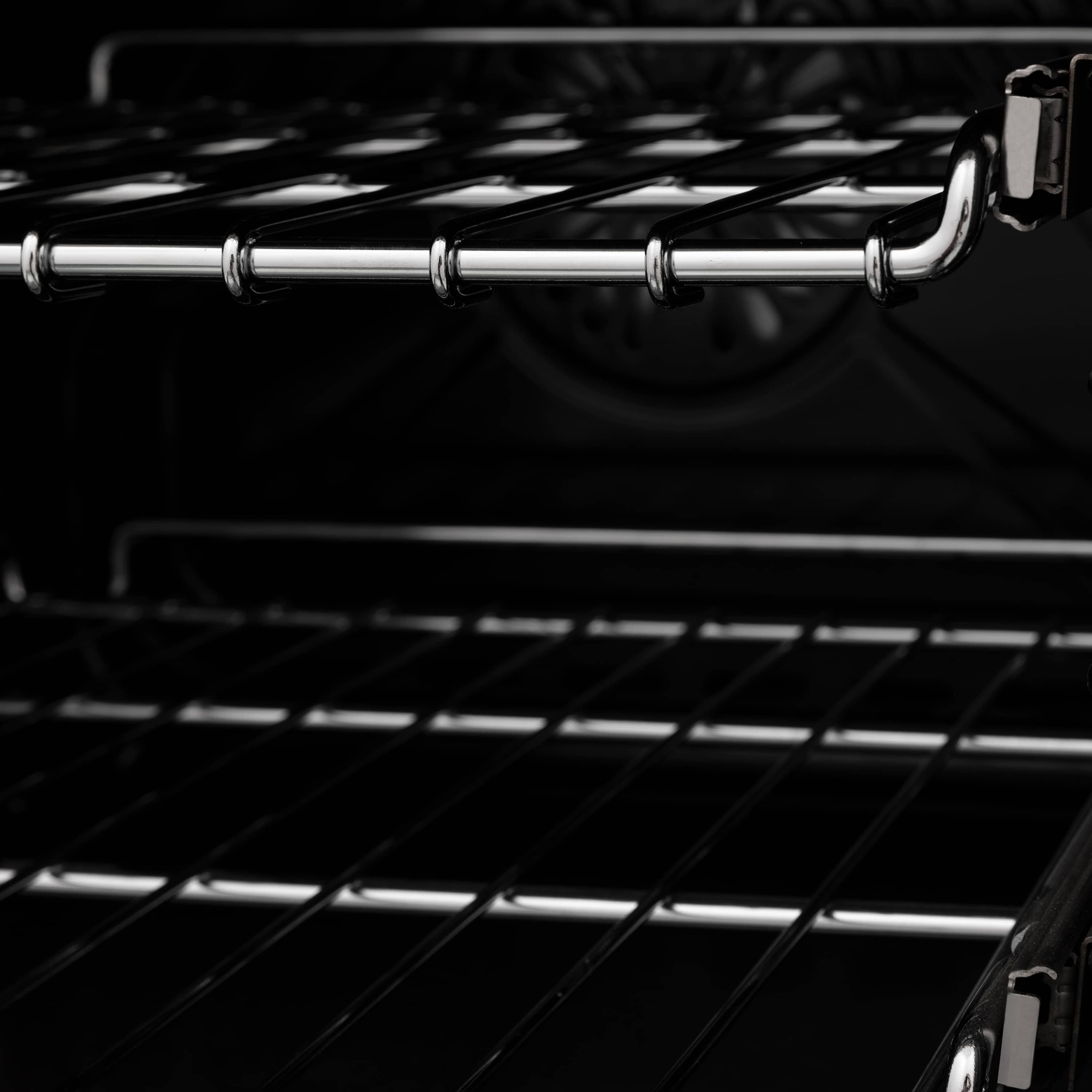

  • SmoothGlide ball-bearing racks make it easier to work with larger, heavier dishes.
  • Twist legs to adjust total range height anywhere from 36 inches to 38.5 inches.
  • Every range comes equipped with an LP conversion kit to convert from natural gas to propane; this conversion process must be performed by a professional.
  • Brass burners naturally form a patina and deeper brass hue to protect the burners from corrosion. This expected oxidation process ensures our brass burners will withstand the highest temperatures and is not cause for a return.
  • Create a custom kitchen with easy installation - this Autograph Edition range is pre-assembled and shipped out complete with gold knobs, handles, legs and brass burners.
  • 1 Year Warranty.
  • An Industry First - Limited lifetime warranty on the Italian burners includes parts replacements for burners and burner caps, and parts and labor for the spark tip if parts prove to be defective in materials or workmanship.




Want to learn more about ZLINE? Read more here:

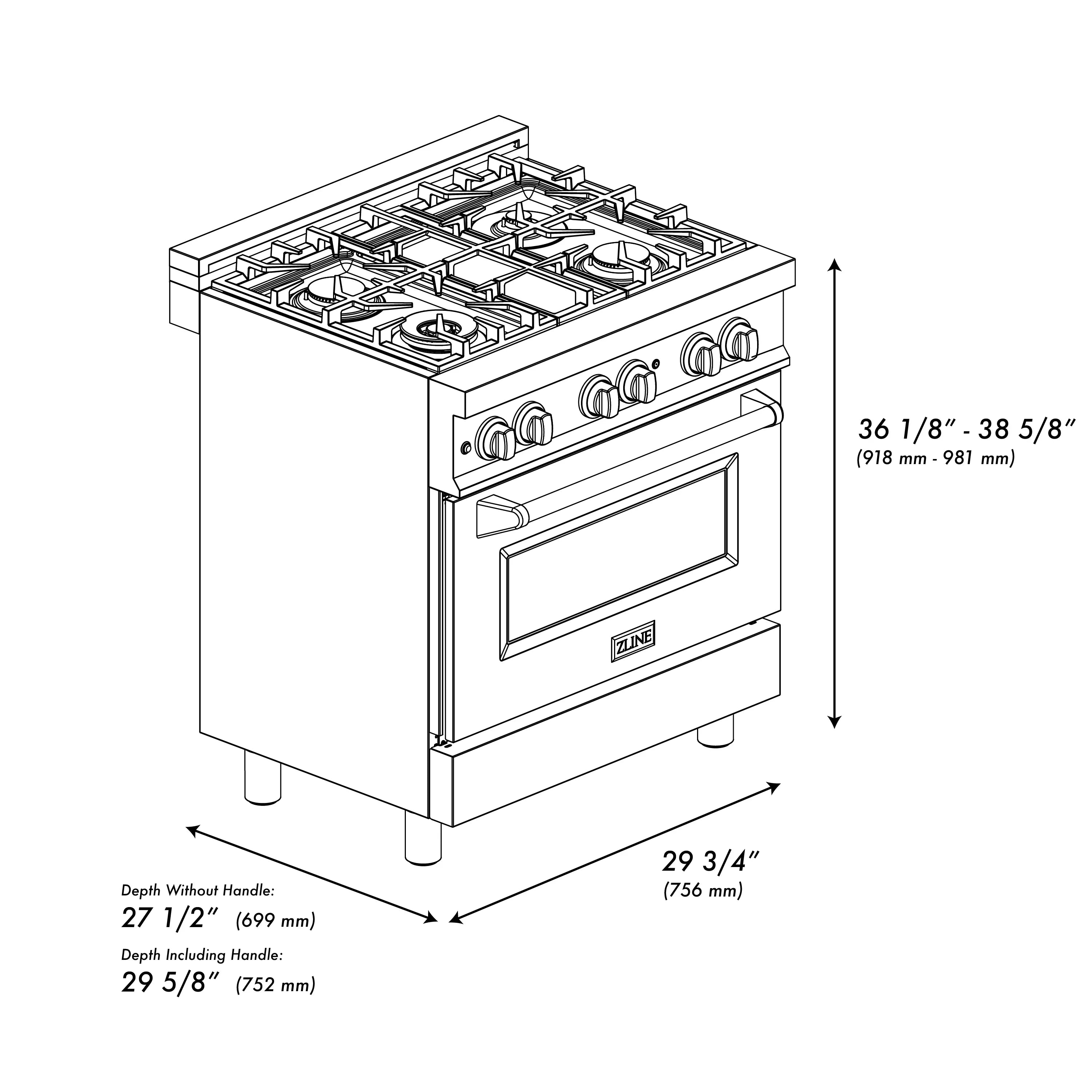

DIMENSIONS

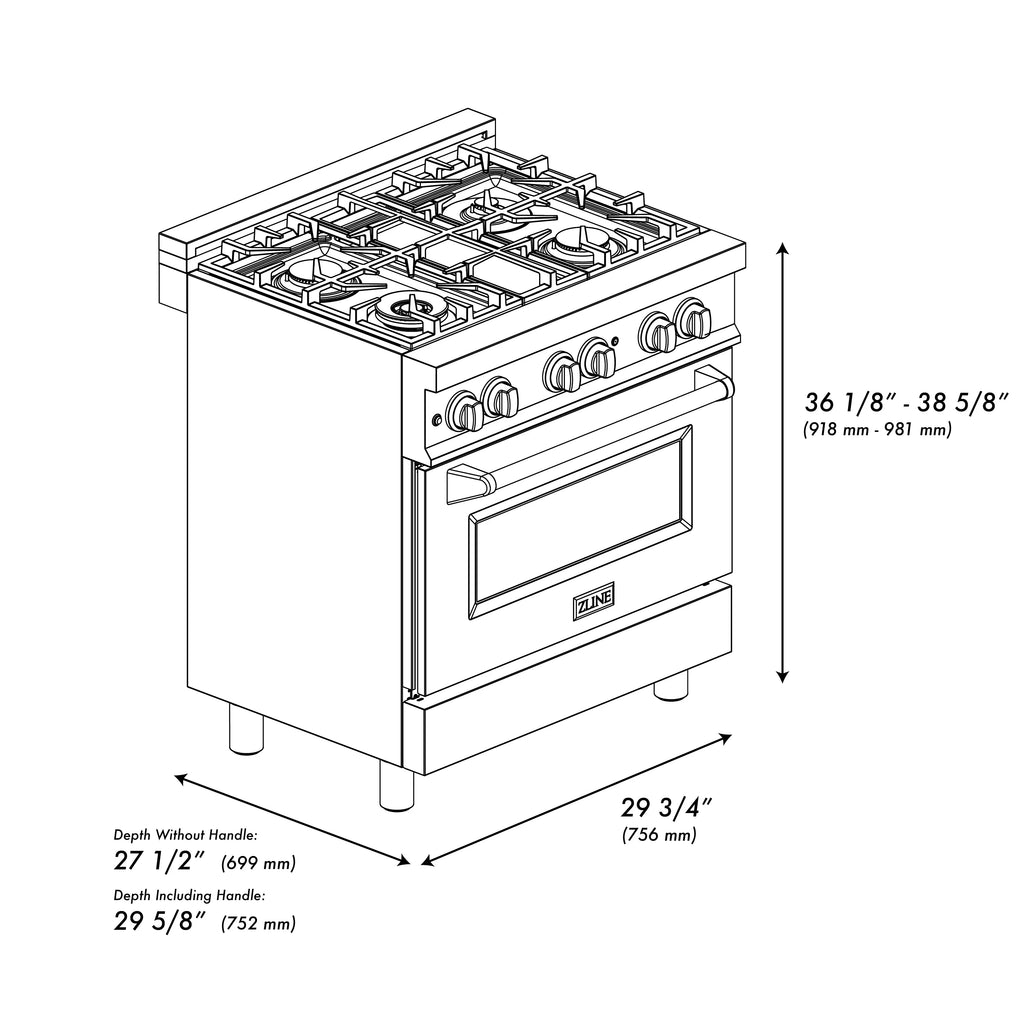

Dimension 29.75" W x 27.5" D x 36.13" H
Dimensions with Handle 29.75" W x 29.63 " D x 36.13" H
Open Door Depth 41.8"
Interior Oven Dimensions 24.875" W x 17.75 in. D x 16 in. H
Weight 230 lbs
GENERAL INFORMATION
Brand ZLINE Kitchen and Bath
Features ETL Listed
DESIGN & FINISH
Color Silver
Finish Stainless Steel
Lighting Dual Lighting, controlled by light switch on front control panel
Material
  • Stainless Steel frame with 1 Piece Enamel Top
  • Italian made hinges and burners

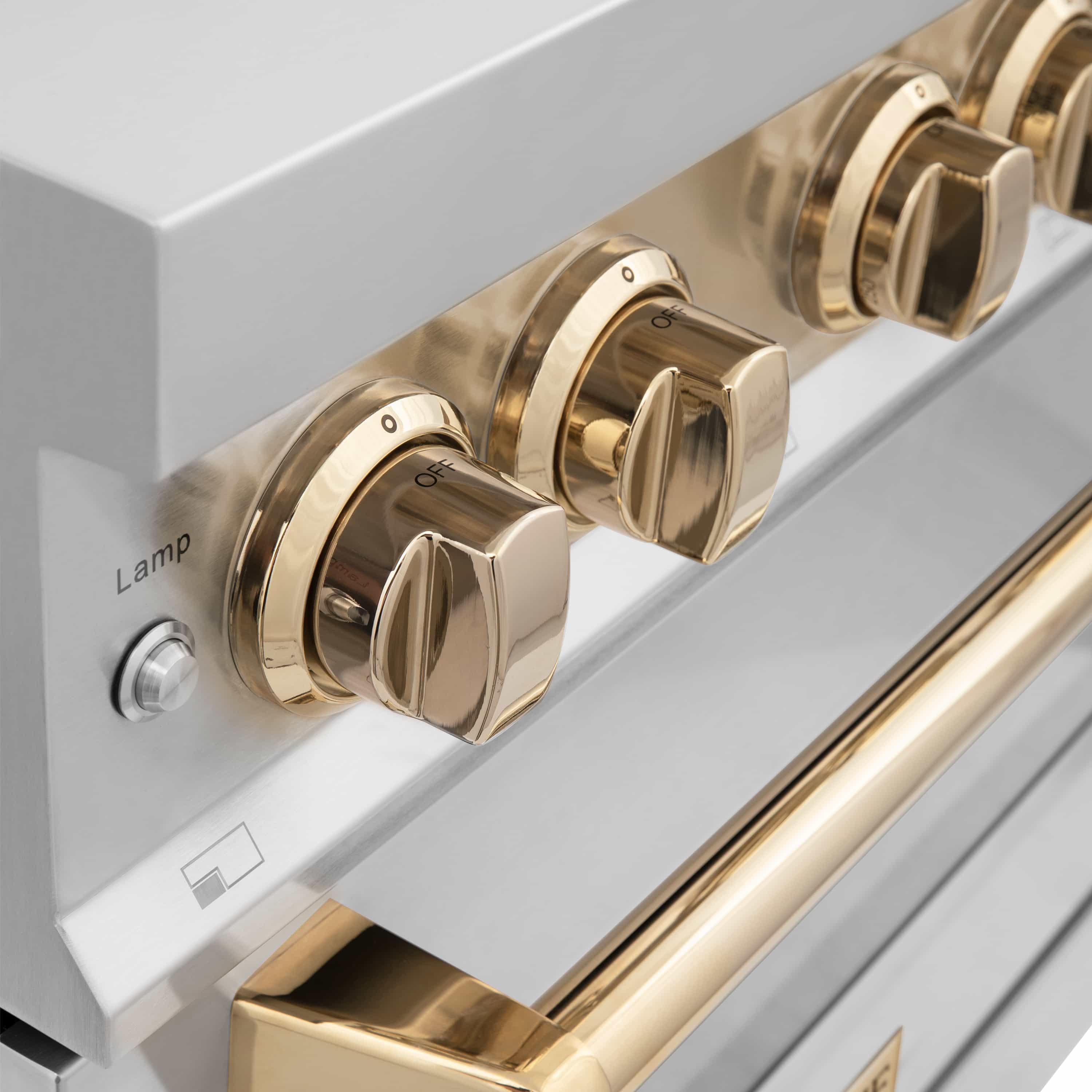

Control Type Durable Front Control
Range Finish Stainless Steel

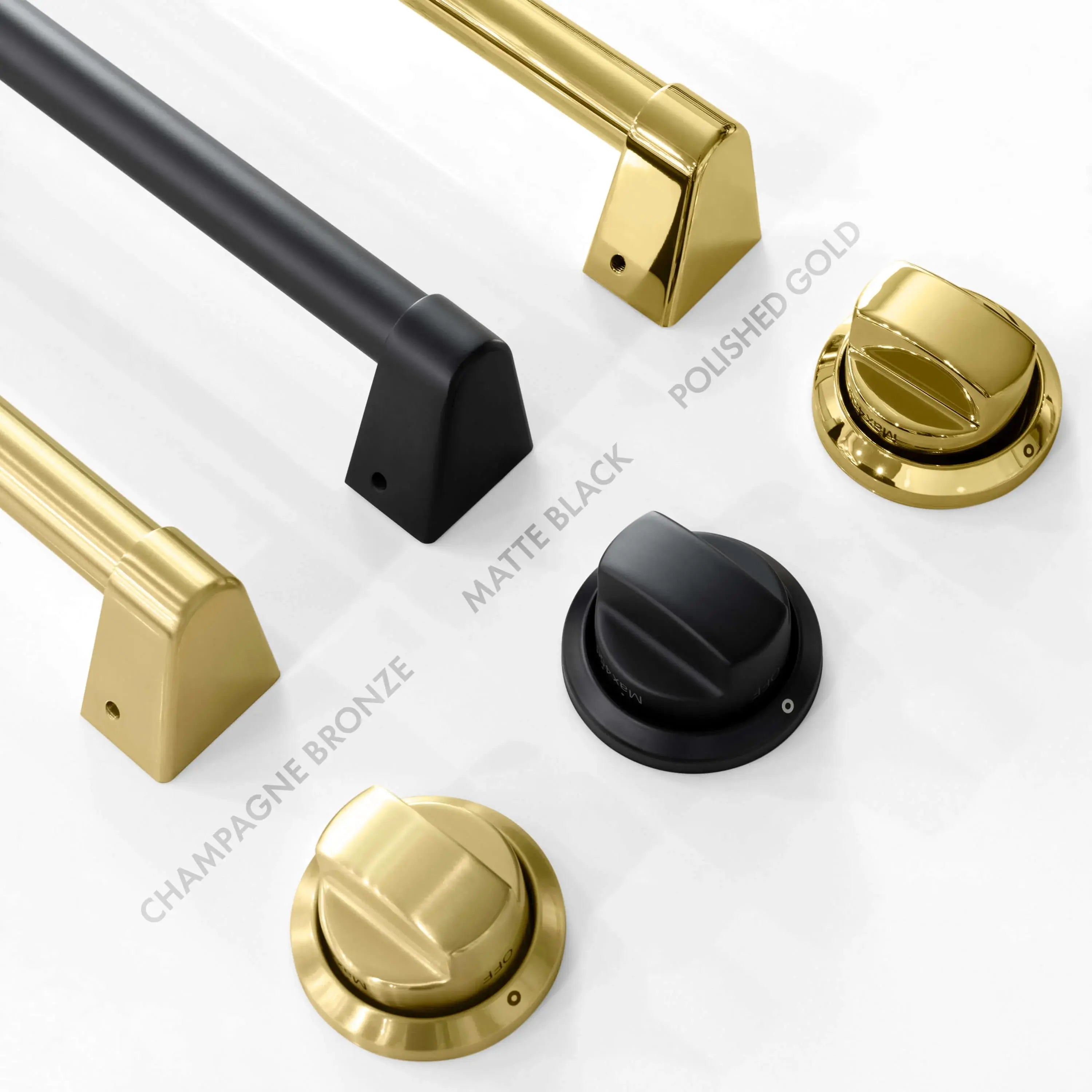

Parts Finish (Handle, Legs, Knobs) Gold
TECHNICAL DETAILS
Voltage 220V-240V/60HZ/50A
Gas Type Natural Gas or Liquid Propane via conversion kit
Liquid Propane LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional
Fuel Type
  • Convection Oven
  • Gas Cooktop
Mount Type Free Standing
COOKTOP FEATURES

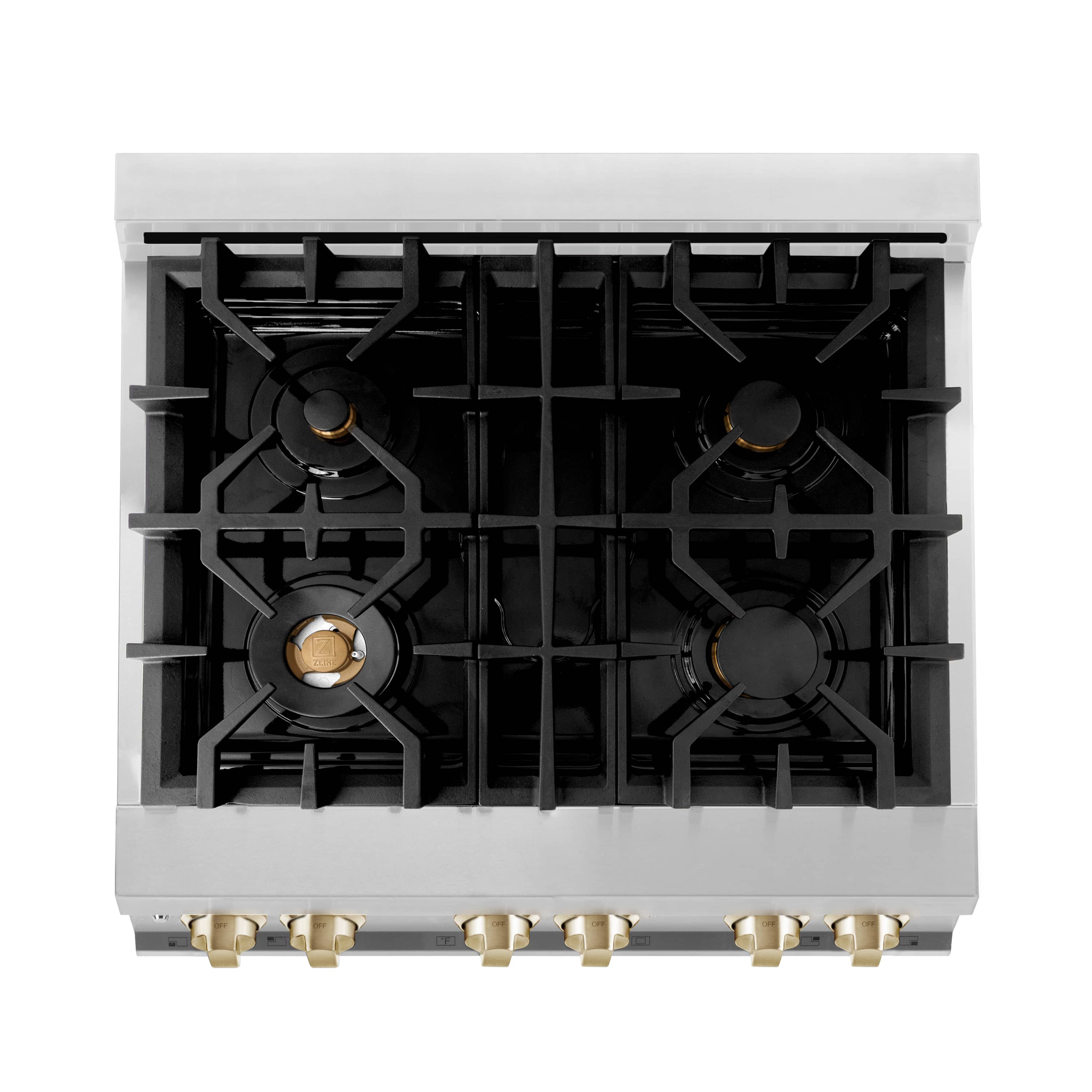

Burners Burner 1 (Back Left): 13,000 Burner 2 (Front Left): 18,000 Burner 3 (Back Right): 4,200 Burner 4 (Front Right): 13,000
Cooktop (4) Burners with Enamel Cook Top with electronic spark ignition for all burners
OVEN FEATURES
Oven Capacity 4.0 cu. ft.
Oven
  • Manual Clean
  • Convection Electric
  • 4.0 cu.ft. deep oven
  • Triple Glass Window
  • Dual Lighting
  • Professional Aluminum Mesh Seal
Convection Yes
Timer No
Self-Clean No
WARRANTY & CERTIFICATIONS
Warranty 1 Year
Description
Product Specs
Manuals & Guides

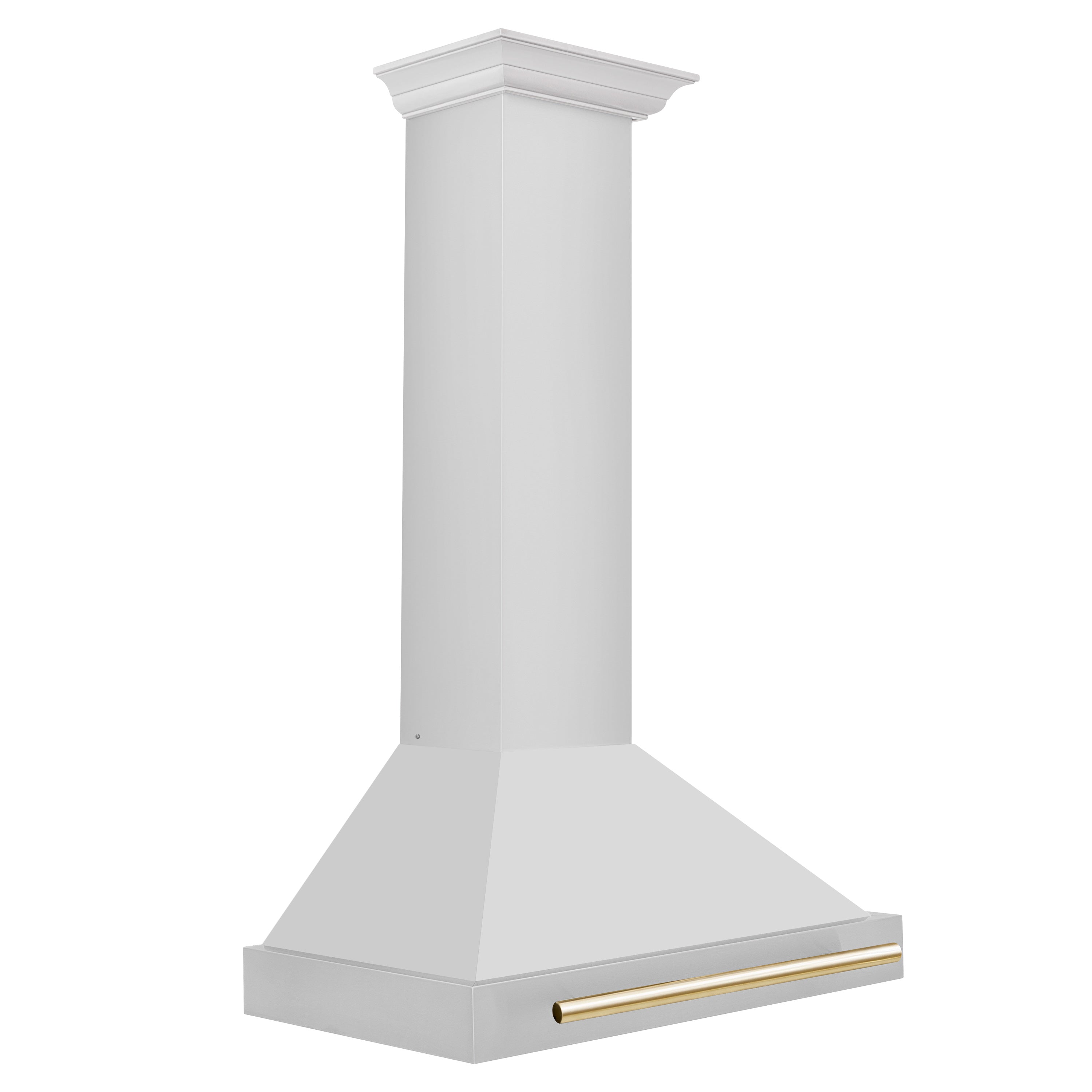

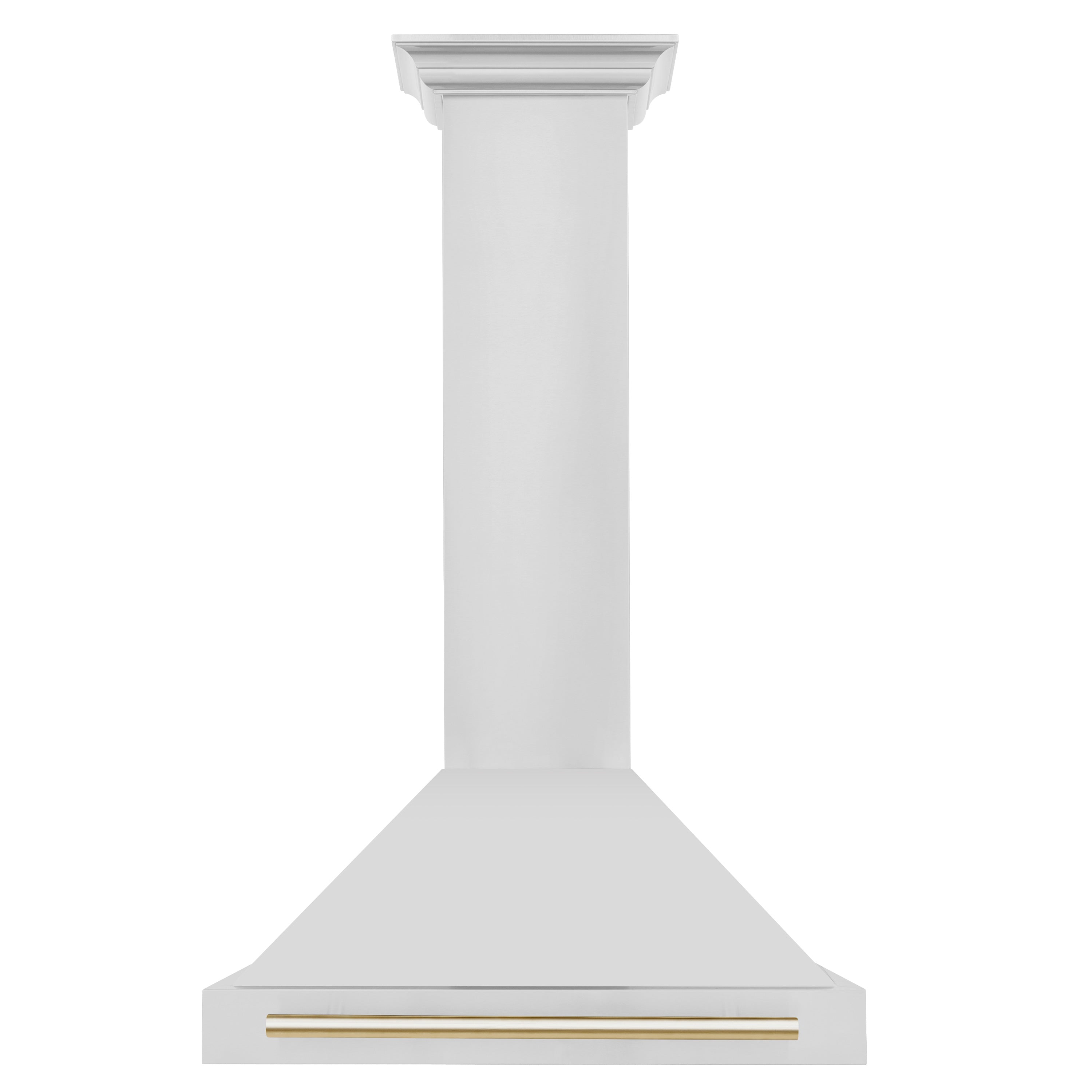

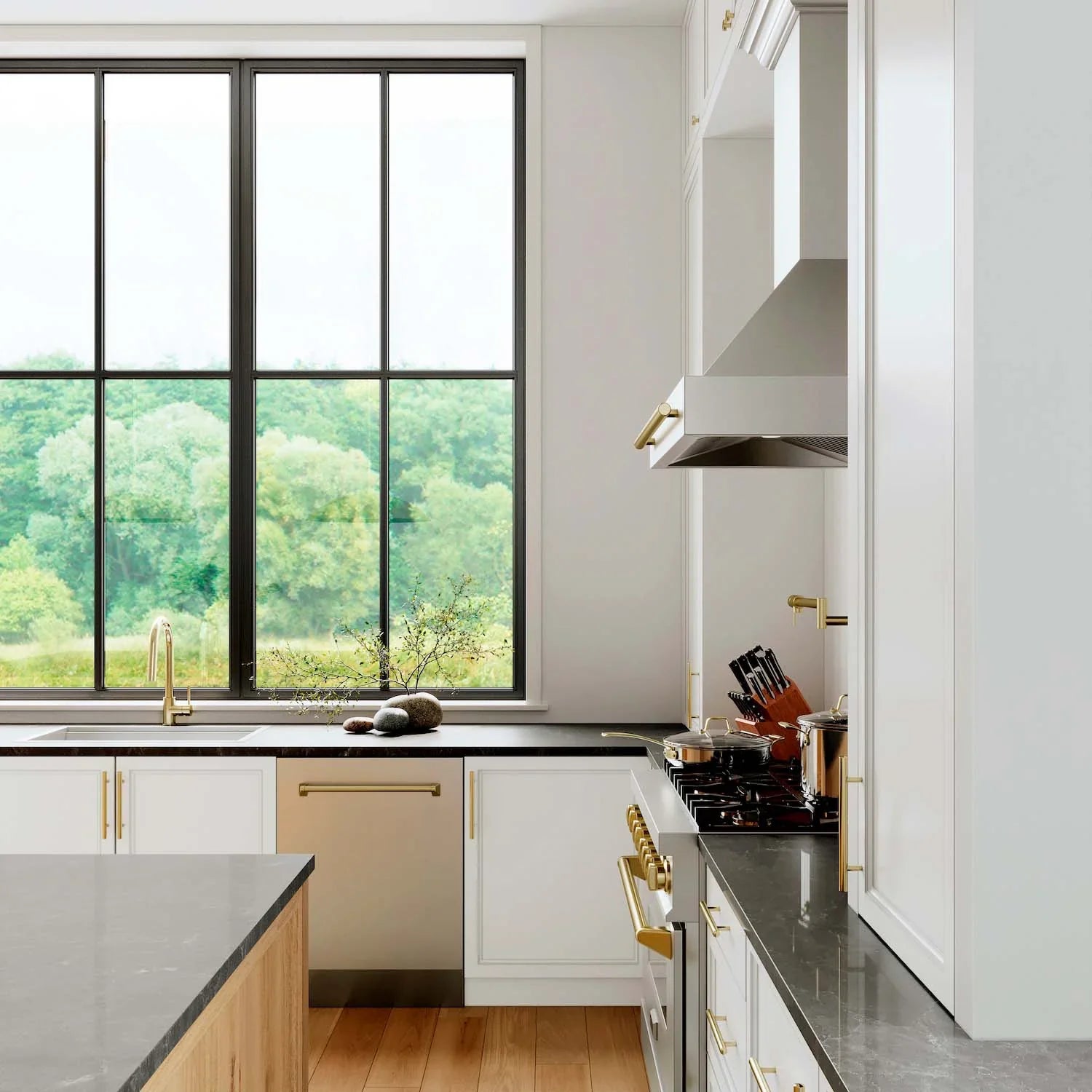

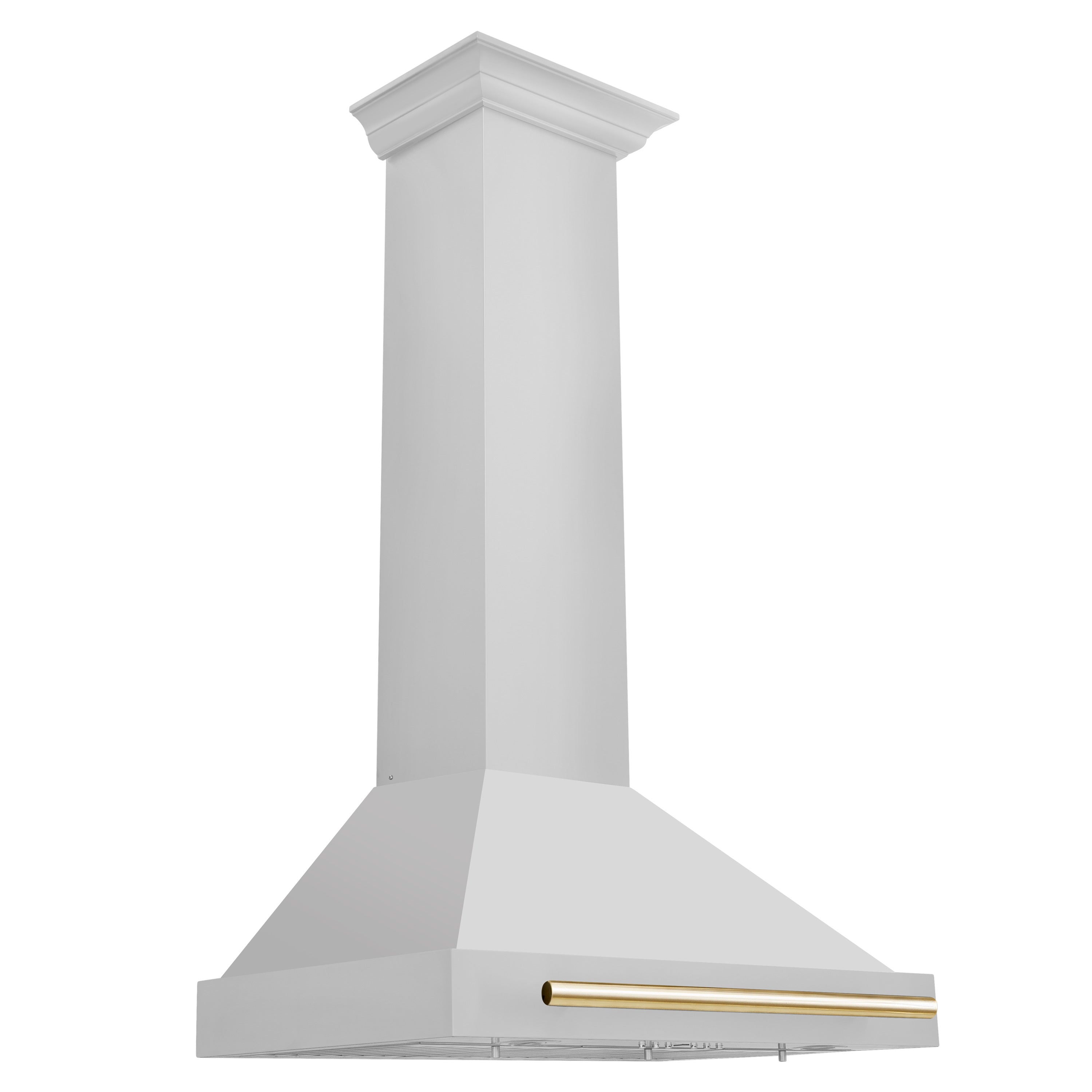

Experience Attainable Luxury with the ZLINE Autograph Edition Wall Mount Range Hood. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience.

Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes. Combining the professional power and functionality of a ZLINE range hood with gold accents, this sophisticated line of professional appliances brings a new meaning of elegance.

Create an unforgettable kitchen unique to your style with a gold handle. Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze, Matte Black and Gold.

The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes. From our home to yours, enjoy a luxurious experience with every Autograph Edition Range Hood assembled to order in the US.



Features

  • Gold handle matches ZLINE Autograph Edition Ranges, Rangetops and Dishwashers with Gold Accents
  • Easy-to-use push button controls let's you easily control fan speed and lighting
  • 4-speed fan control (120/240/320/400 CFM) let's you choose the appropriate air flow for your cooking situation
  • 400 CFM air flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
  • Fixed vent with ductwork that easily connects to the top of the range hood for external venting
  • Dishwasher-safe stainless steel baffle filters

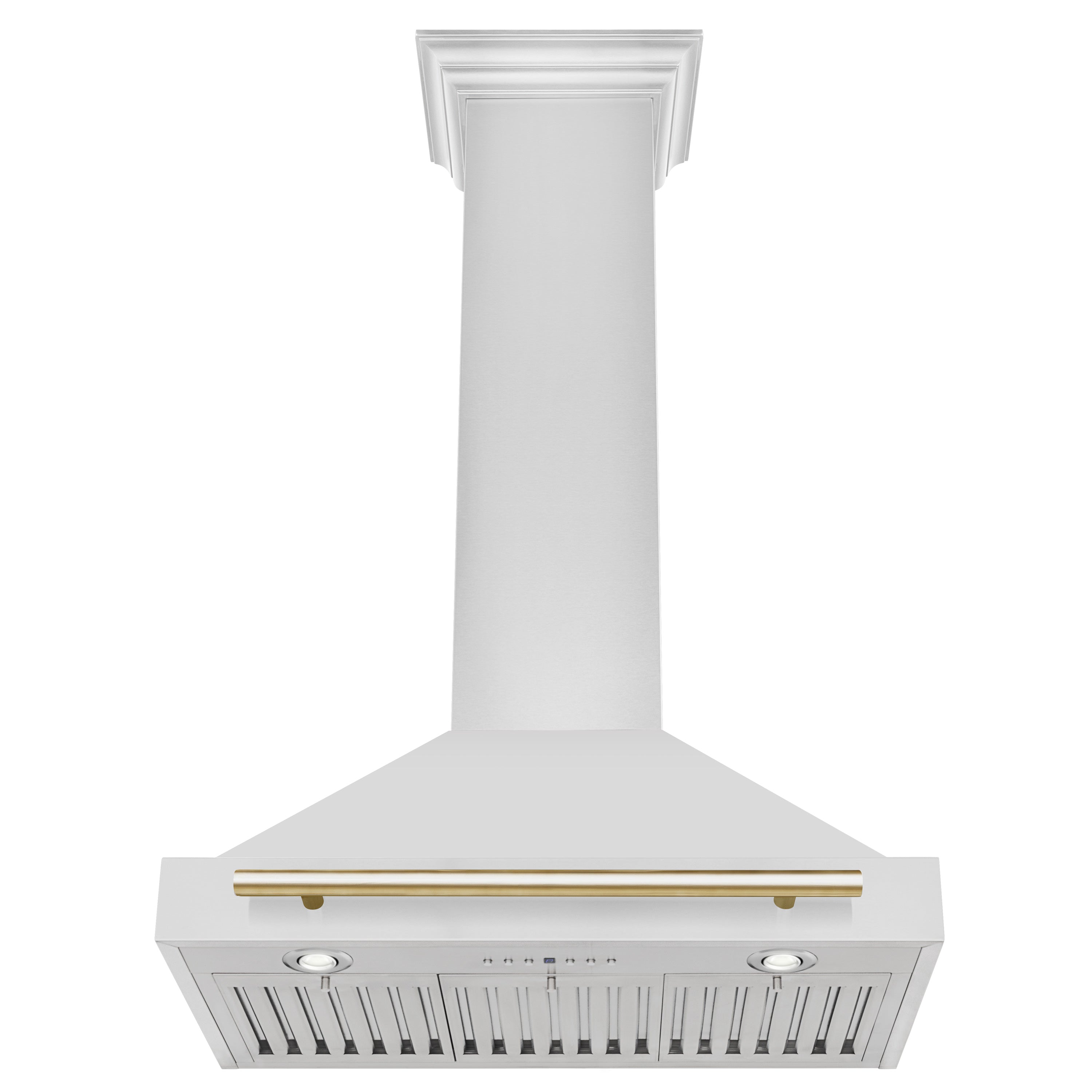

  • LED lighting illuminates the cooktop beneath the hood
  • Designed to fit standard (circular) ductwork for simple installation
  • Handle is for cosmetic purposes only and should not be used for hanging items
  • 3 year parts warranty, life-time motor warranty
  • This product ships in multiple boxes and will require minimal assembly upon arrival.

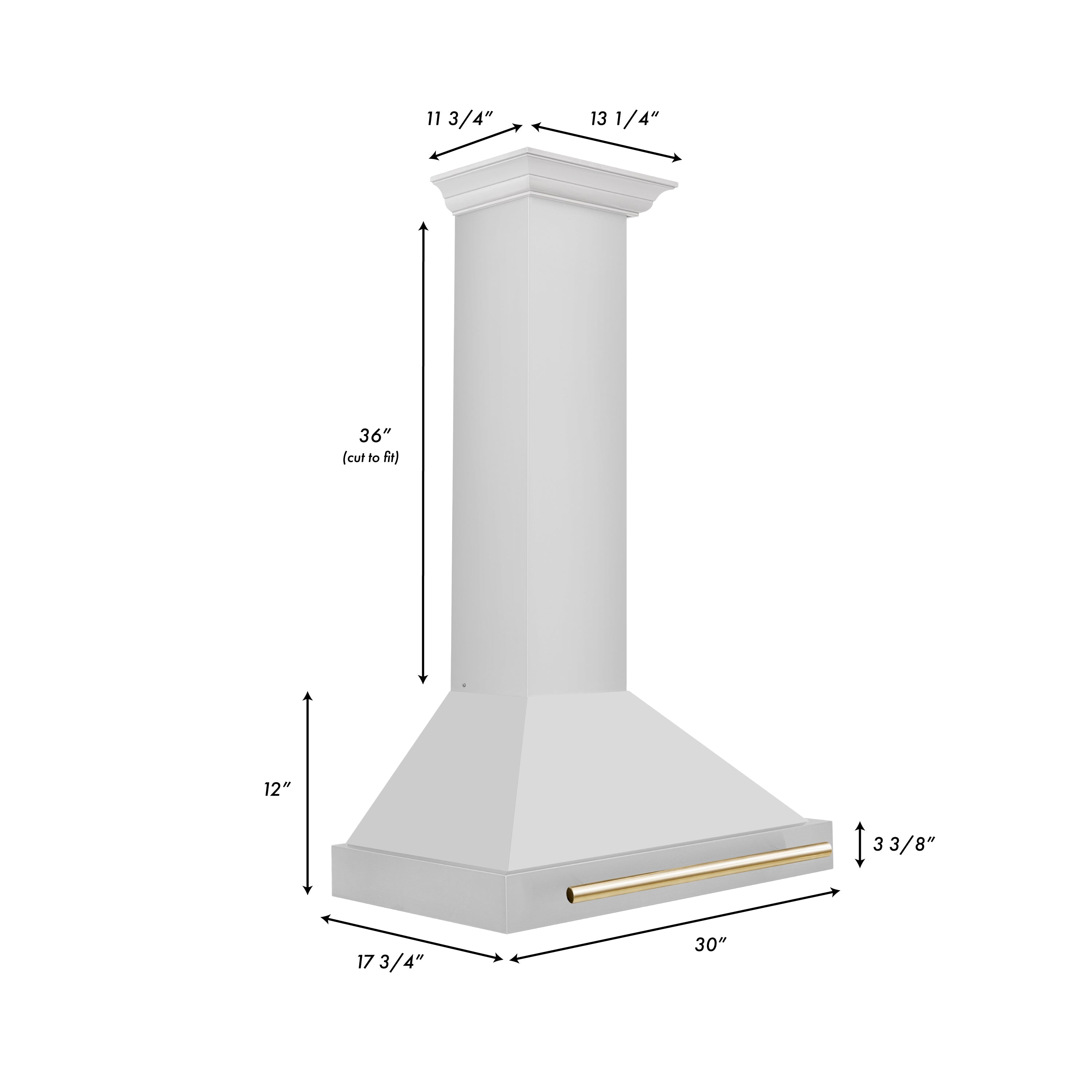

    DIMENSIONS

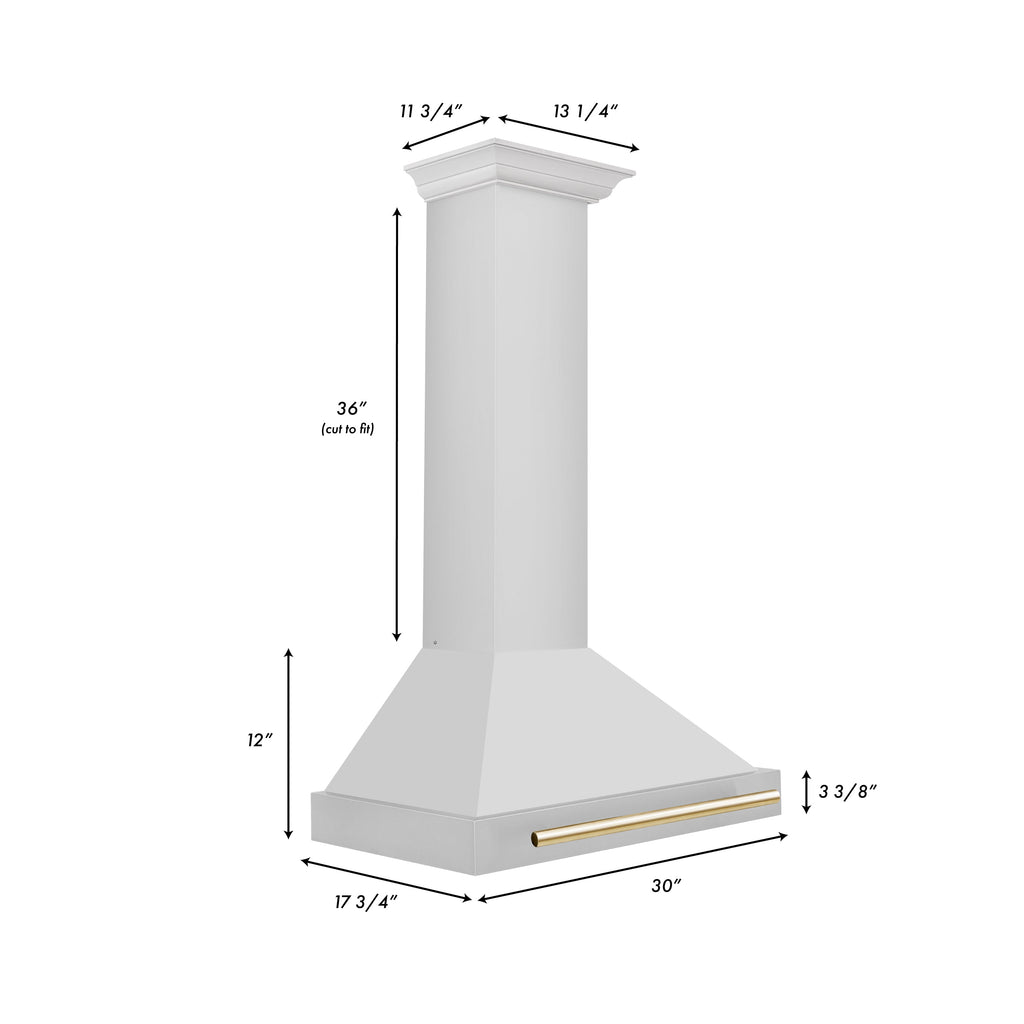

    Dimensions 30 in. W x 23.75 in. D x 16 in. H
    Chimney Dimensions 13.25" W x 11.75" D x 35.5" H
    Min. Ceiling Height 7.7 ft.
    Max Ceiling Height 9.5 ft.
    Handle Dimensions 23.1" W x 0.8" D x 2.4" H
    Weight 79
    GENERAL INFORMATION
    Outdoor Use Yes
    DESIGN & FINISH
    Button Panel Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
    Range Hood Material Stainless Steel
    Handle Finish Gold
    TECHNICAL DETAILS
    Ducting Size 6"
    Watts 550
    Voltage 110
    Amps 5
    Motor High Performance 400 CFM/4-Speed Motor
    # of Speeds 120/240/320/400
    Max CFM 400
    Decibels 30/41/49/52
    Sones 0.6/1.1/1.5/2.5
    Remote Blower No
    Recirculating / Ductless No
    FEATURES
    # of lights 2
    Filters Stainless Steel Baffle Filters (Dishwasher-safe)
    Description
    Product Specs
    Manuals & Guides

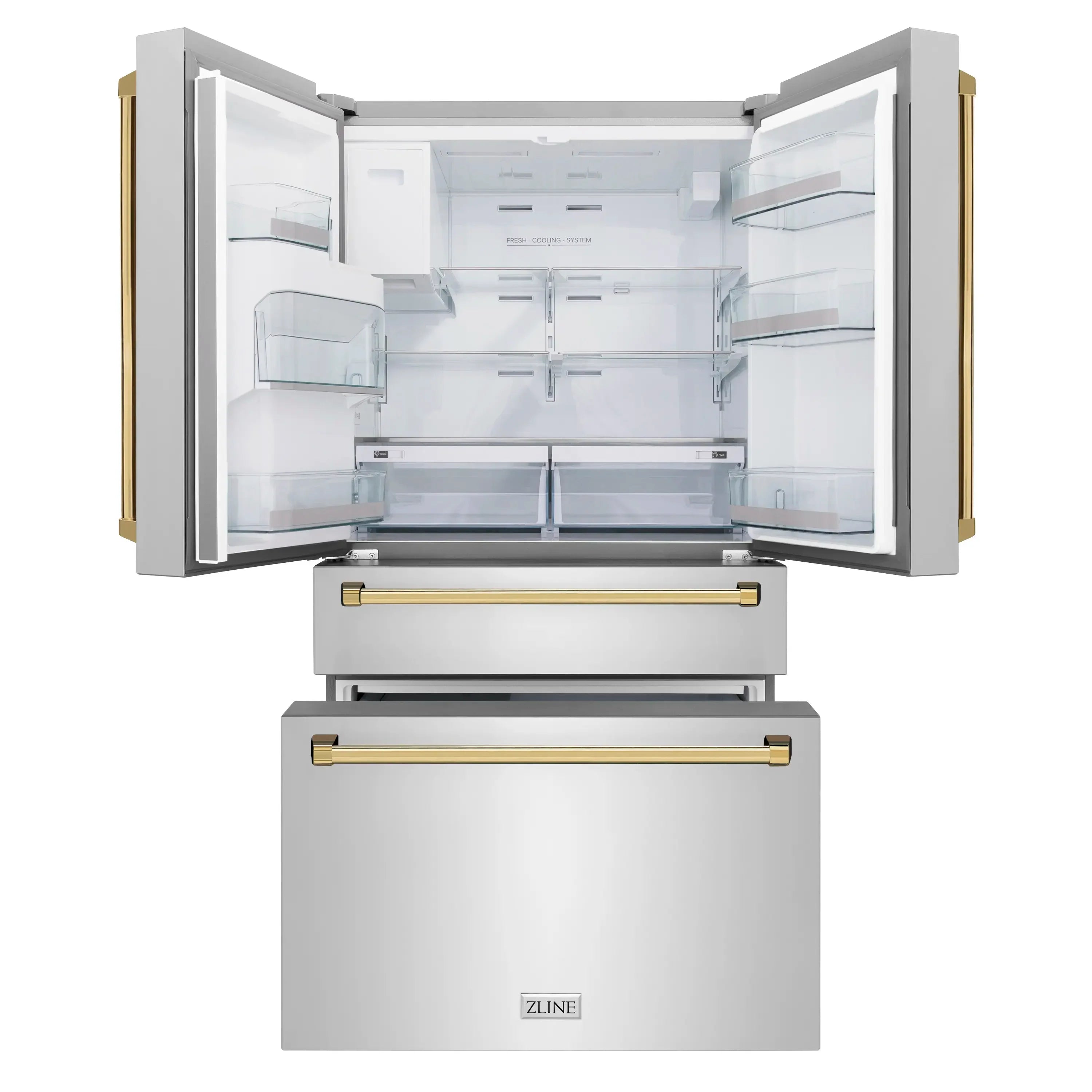

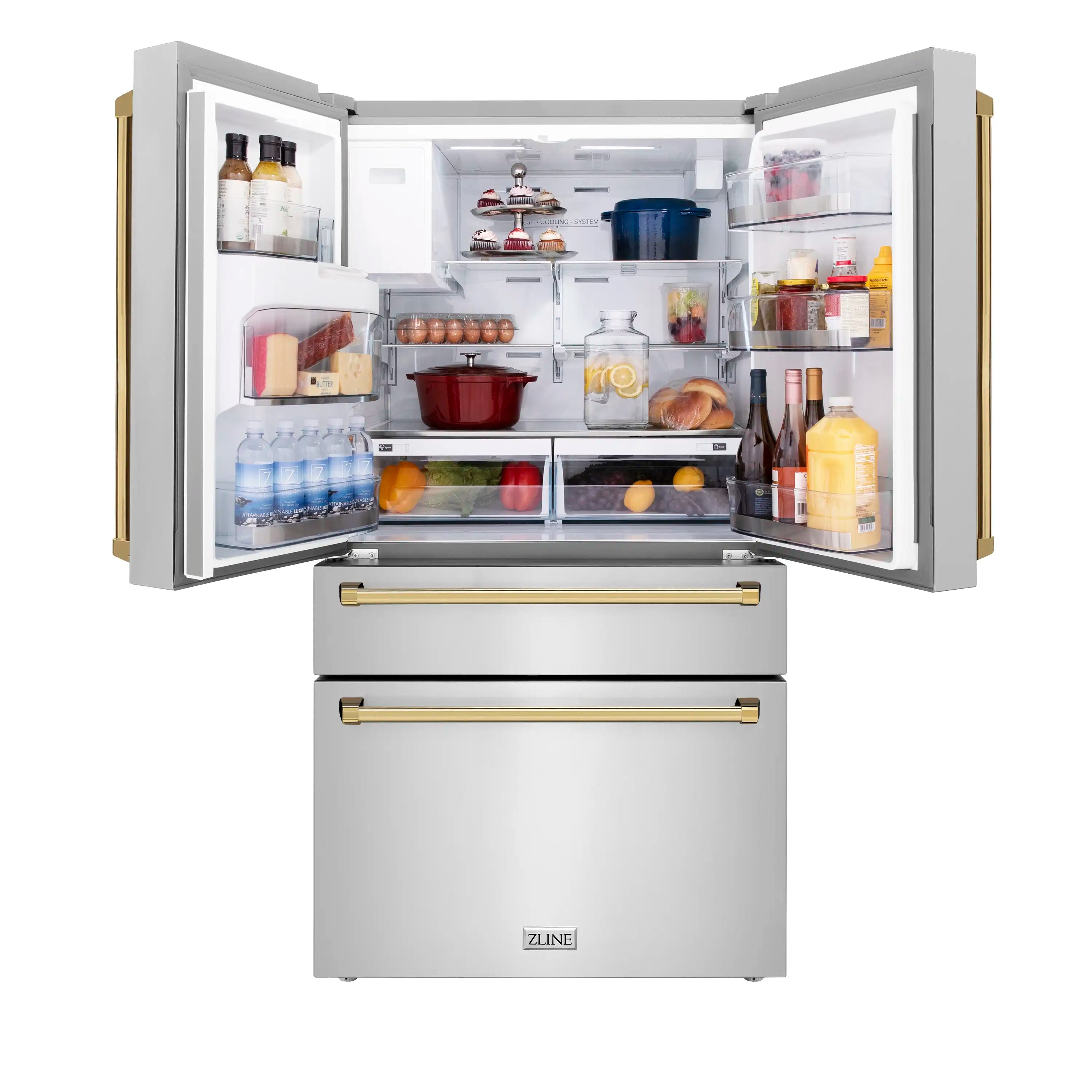

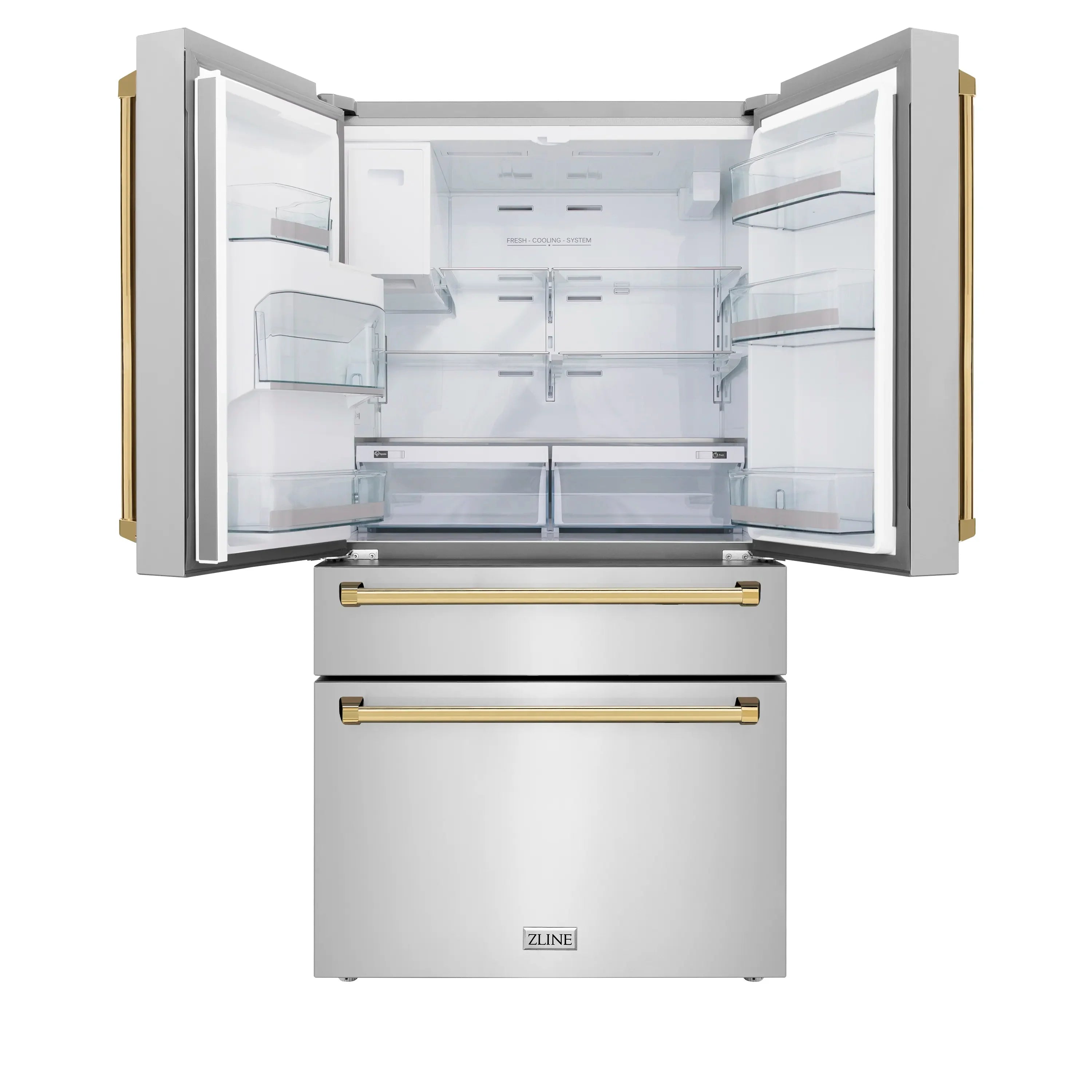

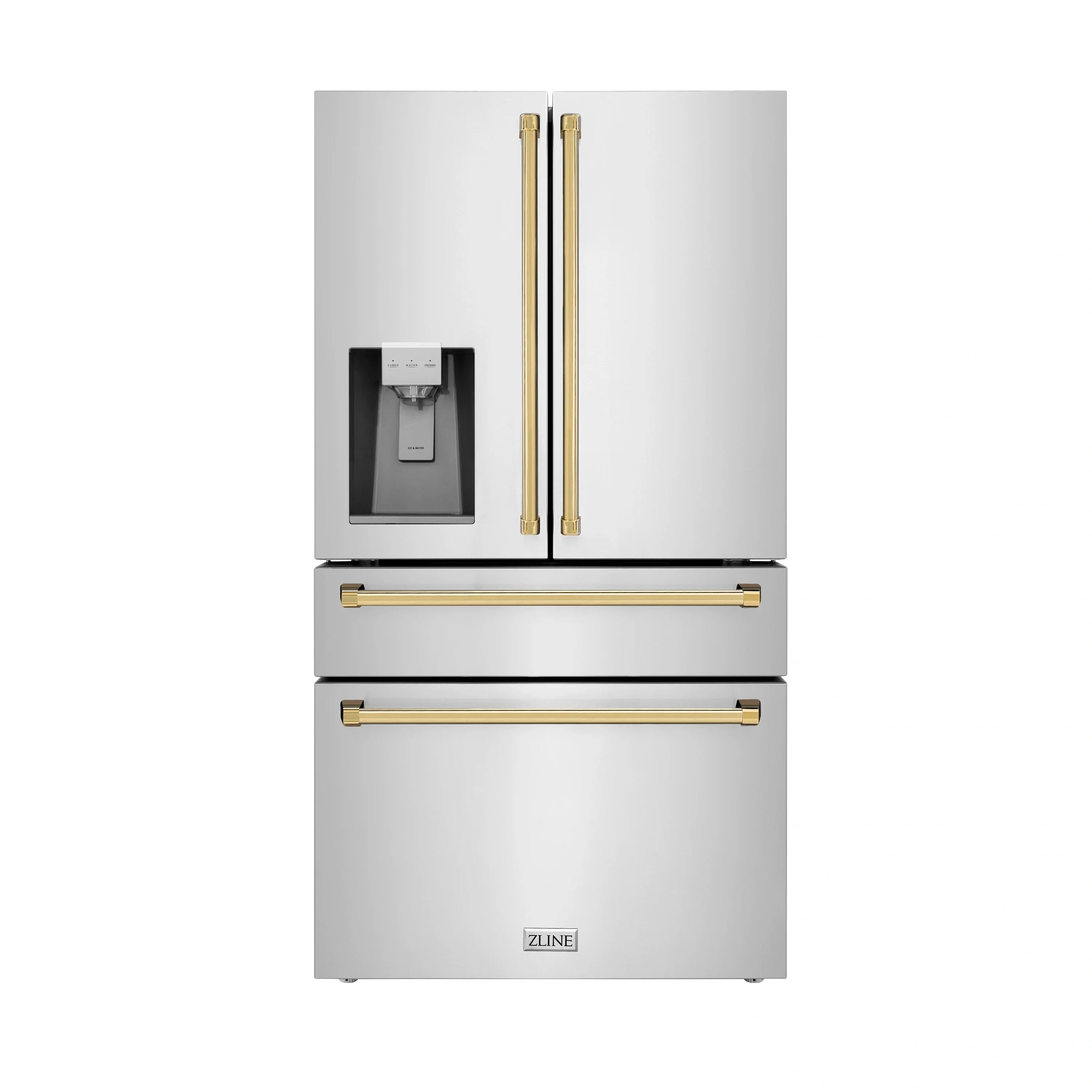

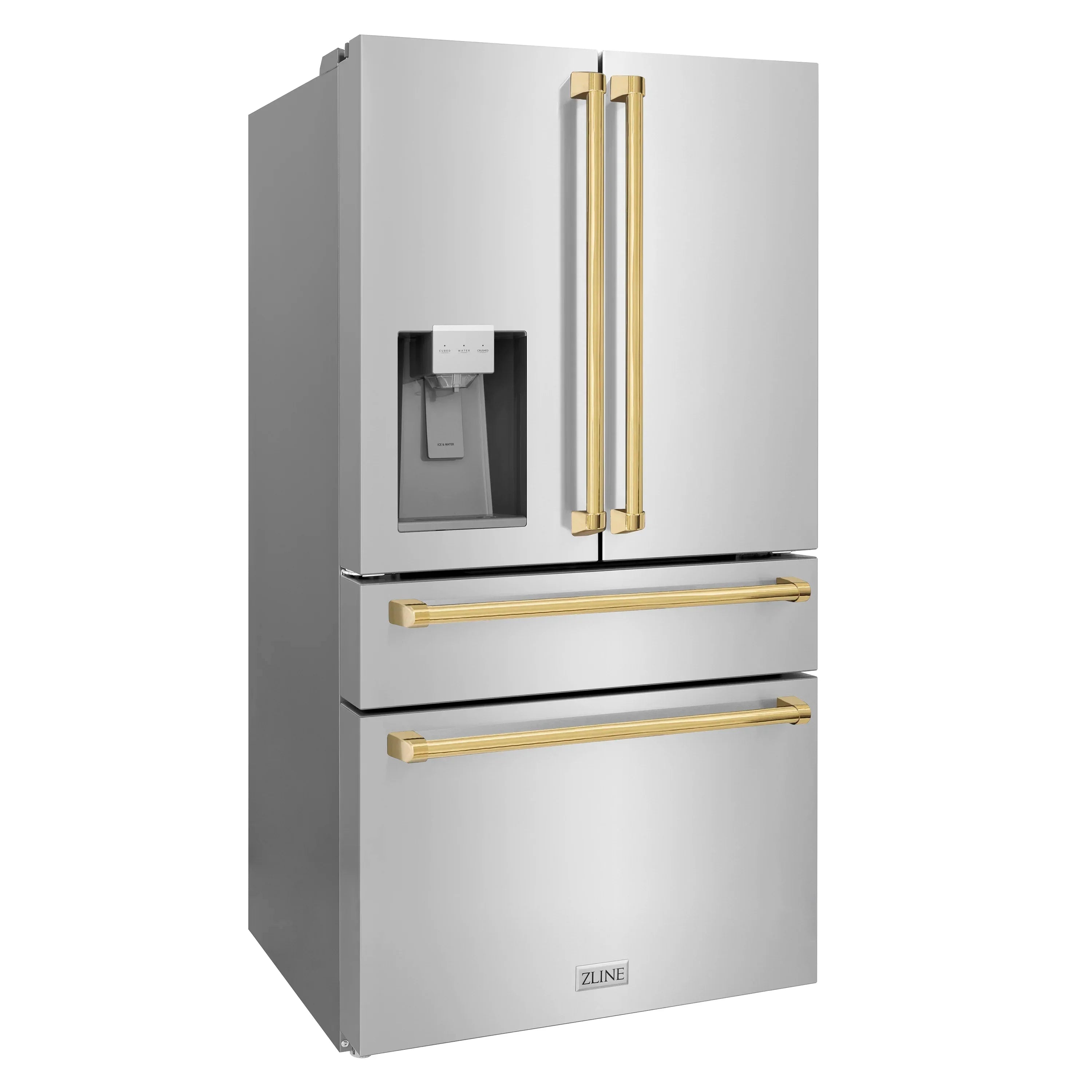

    Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 36 in. 21.6 cu. ft. Counter-Depth French Door Refrigerator with Water and Ice Dispenser in Fingerprint-Resistant Stainless Steel with Polished Gold Traditional Handles (RFMZ-W-36-G) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and an external water dispenser and ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.

    Features

    • Autograph Edition Series - Enjoy a timeless look in your kitchen with 4 luxurious Polished Gold traditional handles, giving your counter-depth refrigerator an elegant, unmatched style
    • Counter-Depth Design - Create a modern look in your kitchen with a professional counter-depth refrigerator designed to be flush with your countertops
    • Large Capacity - Easily organize items with a 15.0 cu. ft. refrigeration compartment, a 4.0 cu. ft. freezer compartment and a 2.6 cu. ft. flex drawer — totaling 21.6 cu. ft. of storage capability
    • Flex Drawer - A specialty full-width flex drawer features 4 set temperature options between 30°F and 41°F, perfect for chilling wines, specialty meats, and other items for any occasion
    • Adjustable Temperatures - Create the perfect cooling environment with fridge temperatures ranging from 34°F to 44°F and freezer temperatures ranging from -7°F to 7°F
    • Super Cool and Super Freeze Modes - Save time and quickly chill food with unique functions that automatically set the fridge temperature to 34°F and freezer to -7°F
    • Bright White Interior - Achieve ZLINE Attainable Luxury® excellence by pairing best-in-class freshness with Bright White interior standard-depth units
    • Fingerprint-Resistant Black Stainless Finish - Minimize cleaning with ZLINE’s sleek and stunning fingerprint-resistant black stainless steel finish

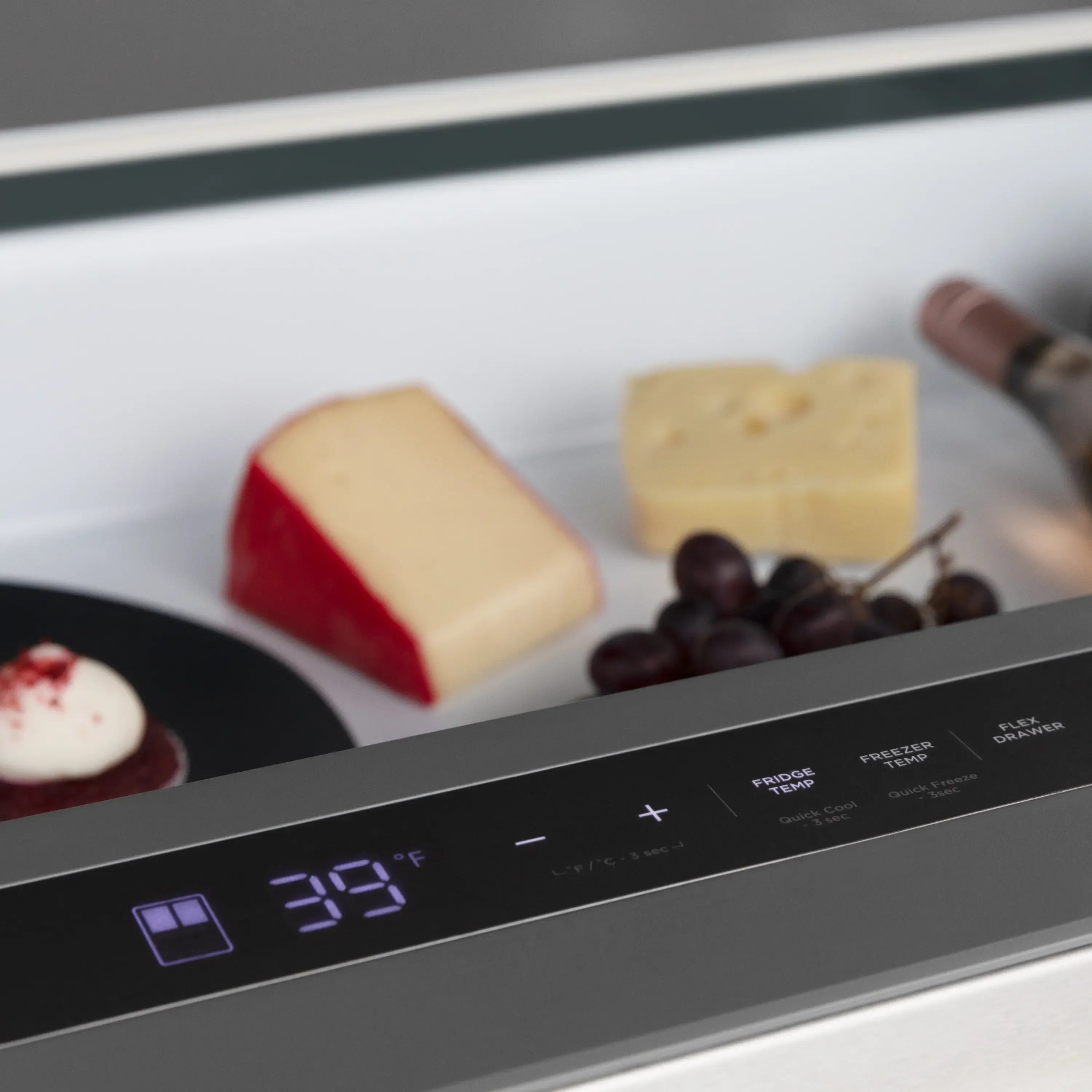

    • Digital LED Display - Set temperatures and navigate menu options to change the appliance to vacation, sabbath, or eco modes with an ADA-accessible LED control panel on the fridge door
    • Spill-Resistant Glass Shelves - Effortlessly store items in the refrigerator on 4 spill-resistant adjustable glass shelves, 1 of which is foldable to allow more flexibility

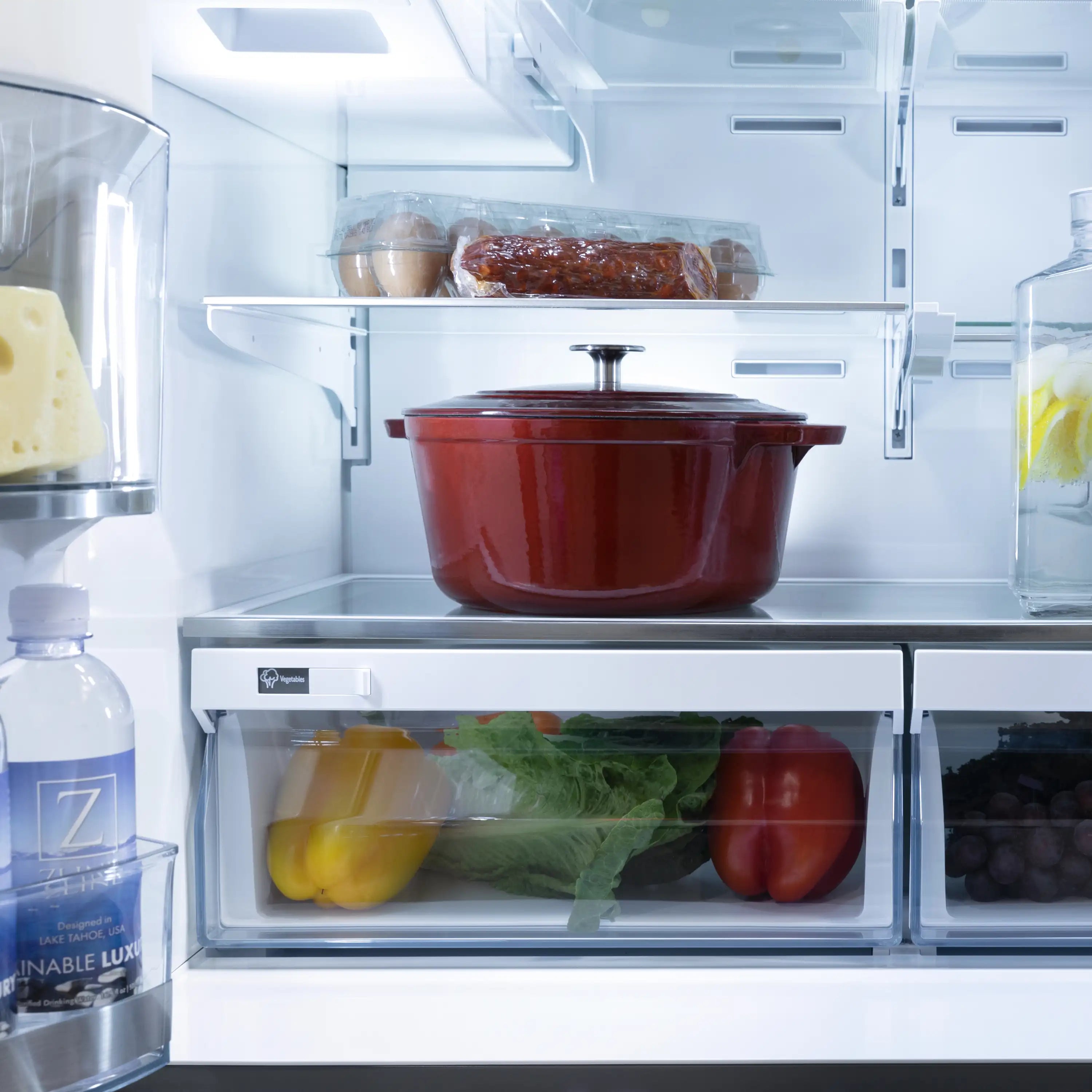

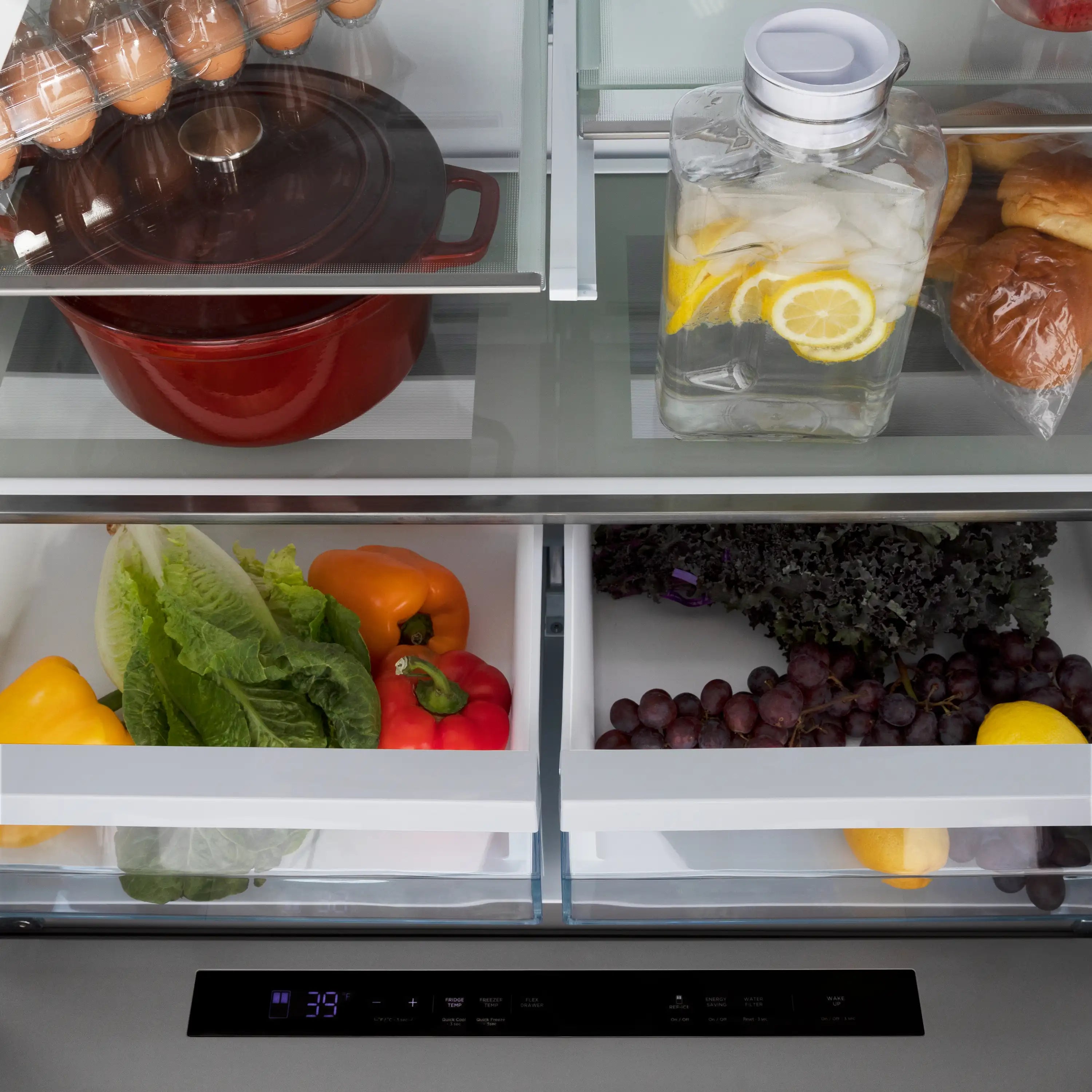

    • Dual Crisper Drawers - Enjoy best-in-class freshness for fruits and vegetables with a pair of half-width humidity-controlled crisper drawers
    • Full-Width Pantry Drawer - A full-width pantry drawer provides substantial storage for produce, meats, and other food items you want to keep fresher longer
    • 8 LED Lights - Fully illuminate your appliance with 5 bright built-in LED lights in the refrigerator, 1 in the freezer, and 2 more in the water and ice dispenser
    • Full-Extension Freezer - Enjoy expansive storage capacity with a spacious freezer featuring 2 full-extension bins, including an ice tray that can store up to 4 pounds of ice
    • 6 LED Lights - Fully illuminate your appliance with 4 bright built-in LED lights in the fridge compartment, 1 in the freezer, and 1 in the water and ice dispenser
    • Spill-Resistant Glass Shelves - Comfortably organize items in the fridge on 4 spill-resistant adjustable glass shelves, 1 of which is foldable for more flexibility
    • Quiet Noise Level - Enjoy peace of mind day or night with an ultra-low average noise rating of 43 decibels
    • ENERGY STAR® Rated - Enjoy energy savings while maintaining professional power with superior insulation and an energy-reducing cooling system
    • Assembly Required - This refrigerator and its door handles will ship in multiple boxes and requires assembly upon installation

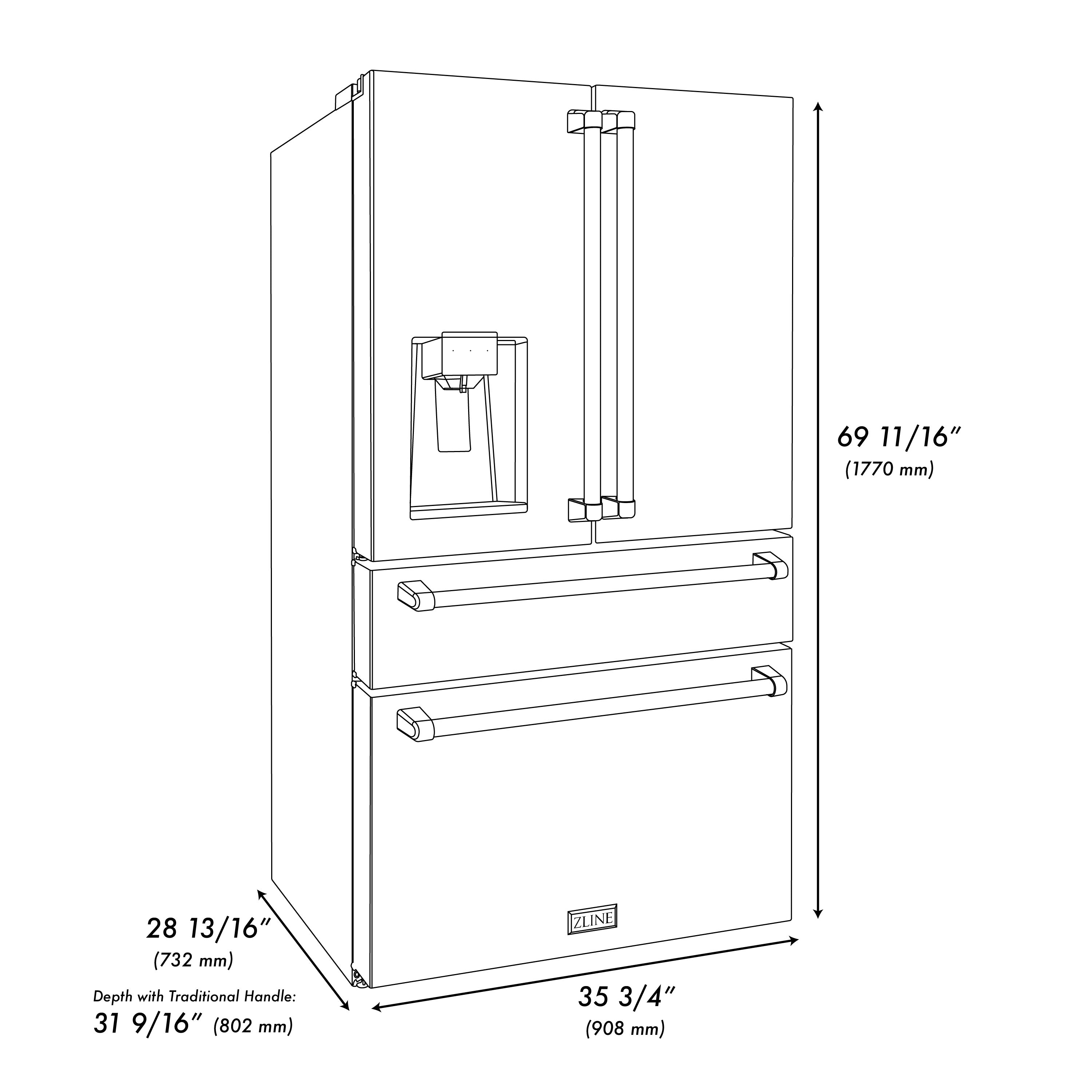

    DIMENSIONS
    Dimensions 35.75 in. W x 28.81 in. D x 69.69 in. H
    Total Capacity 21.6 cu. ft
    Installation Depth 29 in. D
    Depth with Door Open 43 in.
    Weight 284.4 lbs
    GENERAL INFORMATION
    Mount Type Freestanding
    DESIGN & FINISH
    Material Stainless Steel with Gold Accents
    TECHNICAL DETAILS

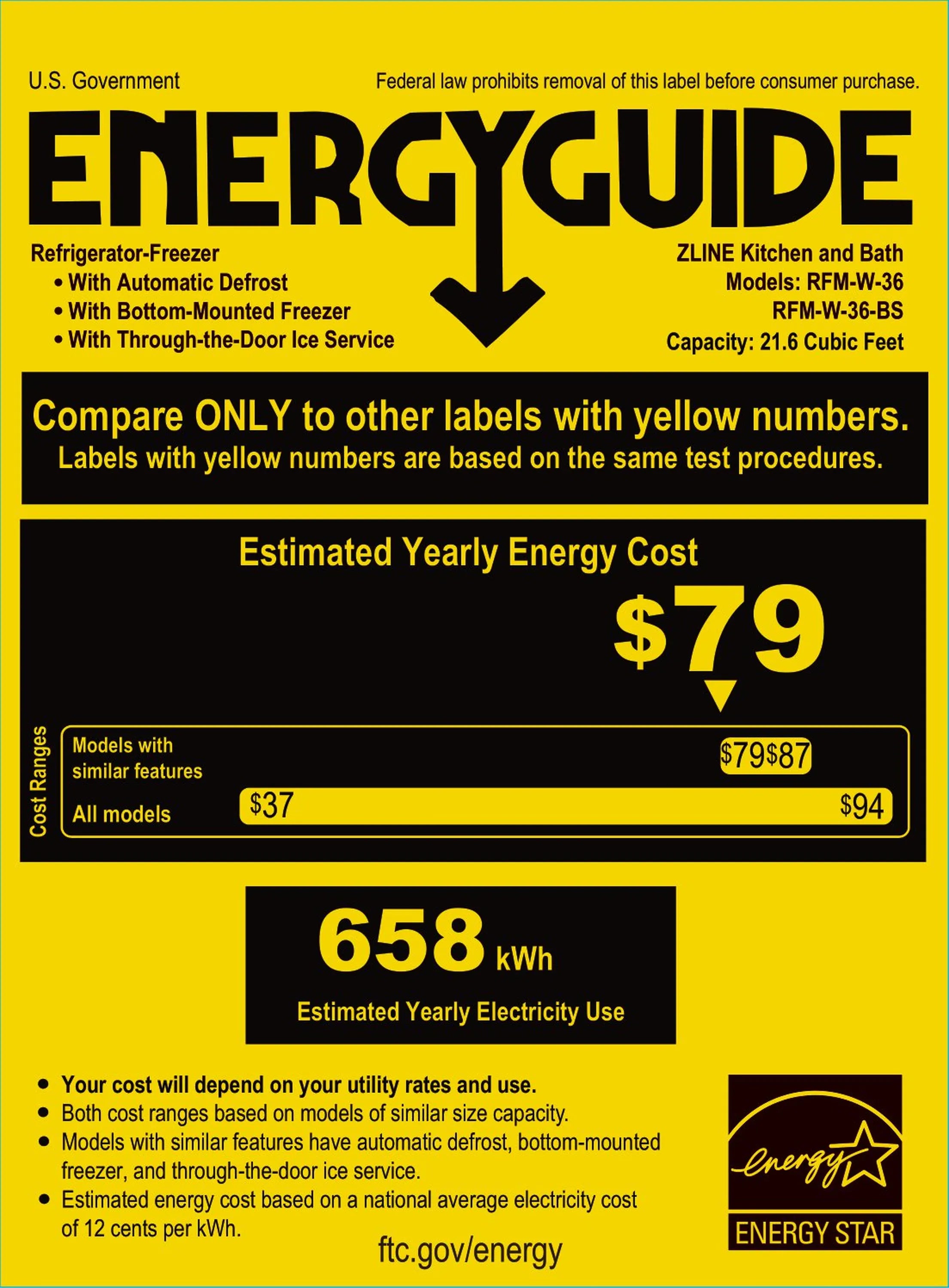

    Energy Consumption (kWh/year) 658
    Voltage 120V/60Hz
    Amps 3
    Noise Level 43 Decibels
    REFRIGERATOR FEATURES
    Fridge Capacity 15 cu. ft
    Flex Drawer Capacity 2.6
    Flex Drawer Temp Controls Meat (30 degrees), Beverage (34 degrees), Deli (37 degrees), and Wine (41 degrees)
    Ice Maker Yes
    Ice Maker Types Single Ice Maker
    Ice Amount Per Day 4.85 lbs
    Ice Tray Storage N/A

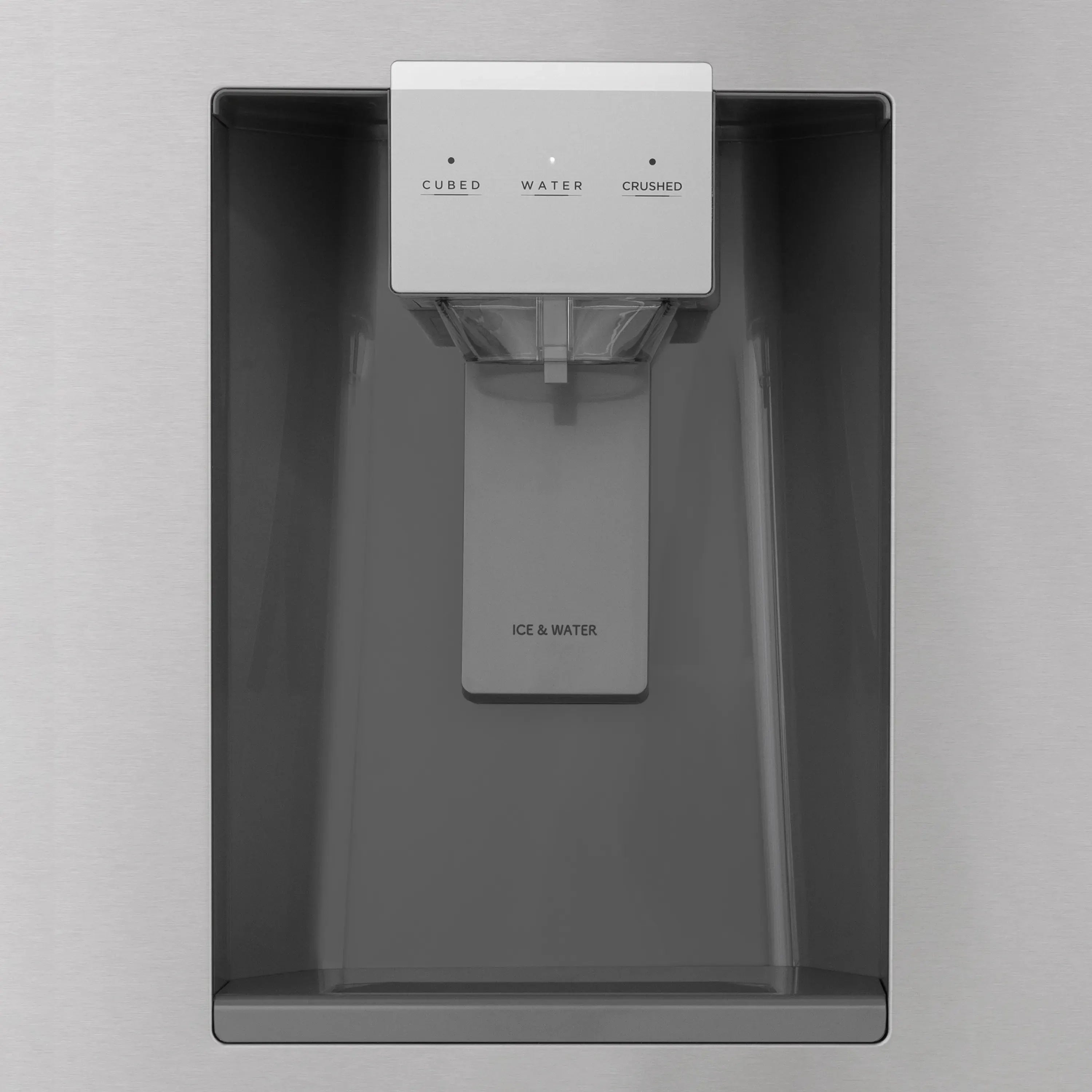

    Water Dispenser Yes
    Flowrate for Water Dispenser .5 GPM
    Fridge Lights 4
    Humidity-Controlled Crispers 2
    Door Shelves 4
    Number of Fridge Shelves 4
    FREEZER FEATURES
    Freezer Capacity 6.6 cu. ft
    Freezer Drawer Bins 2- Pull Out Drawers
    WARRANTY & CERTIFICATIONS
    Energy Star Yes
    Certifications ETL Listed, ENERGY STAR certified
    Warranty 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System
    Description
    Product Specs
    Manuals & Guides

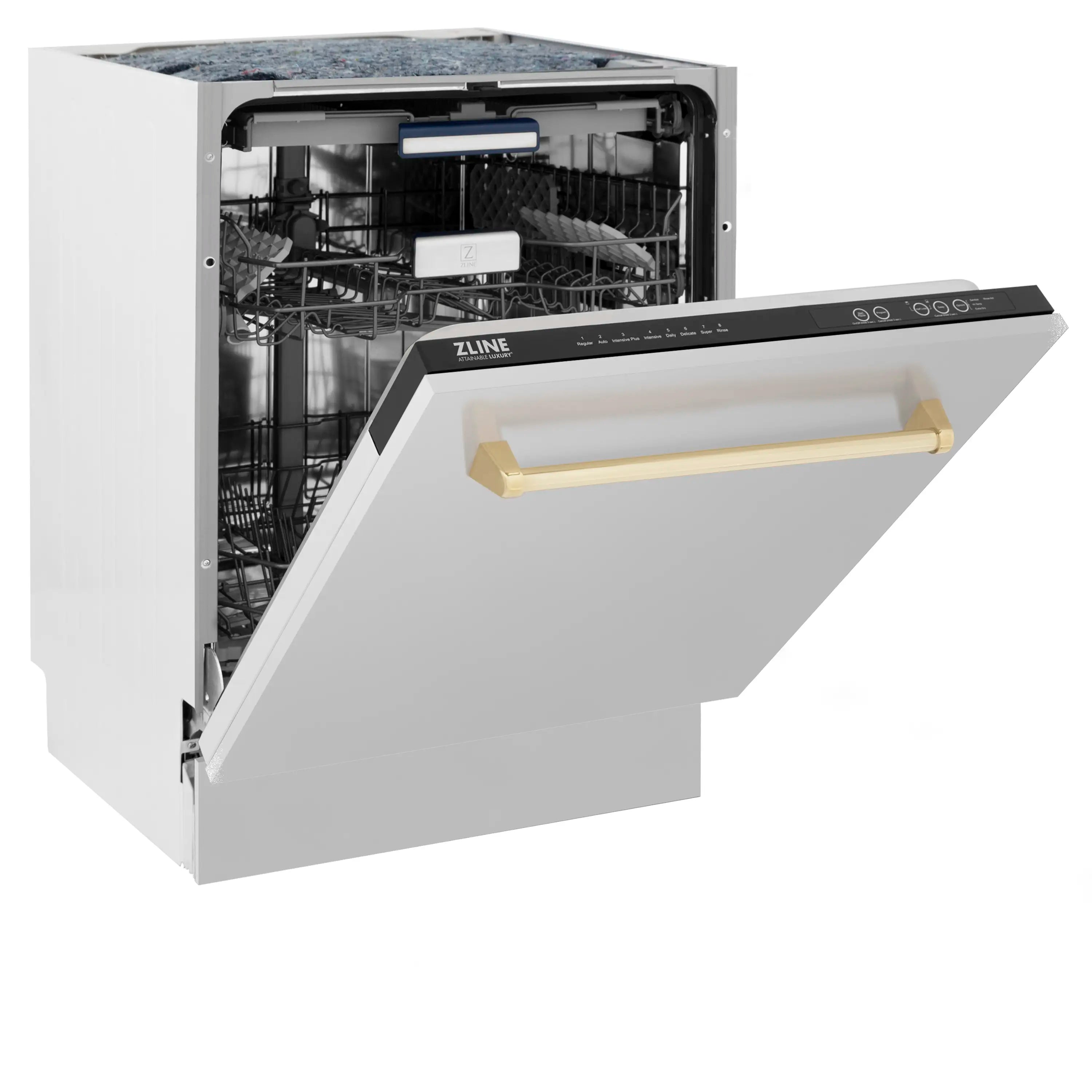

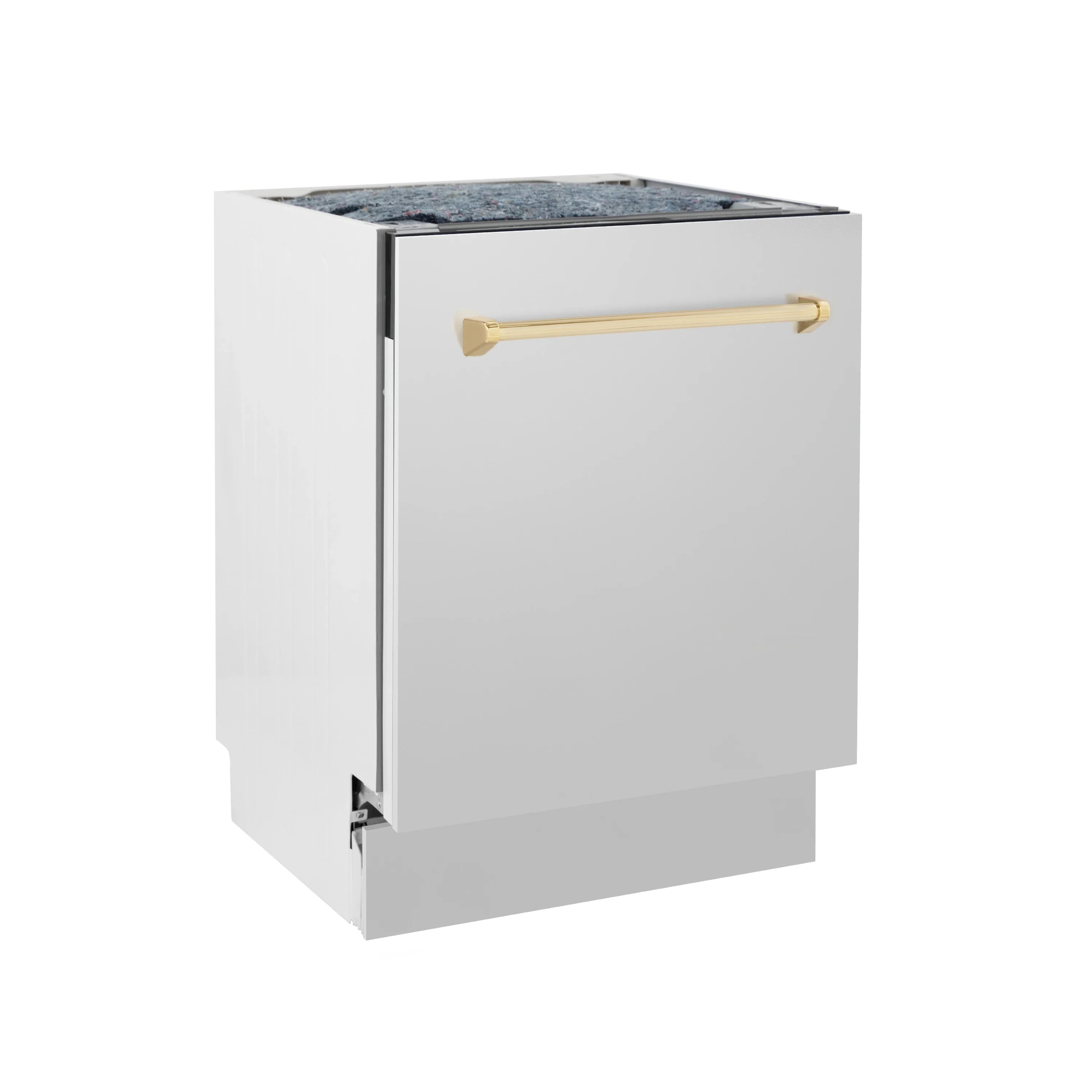

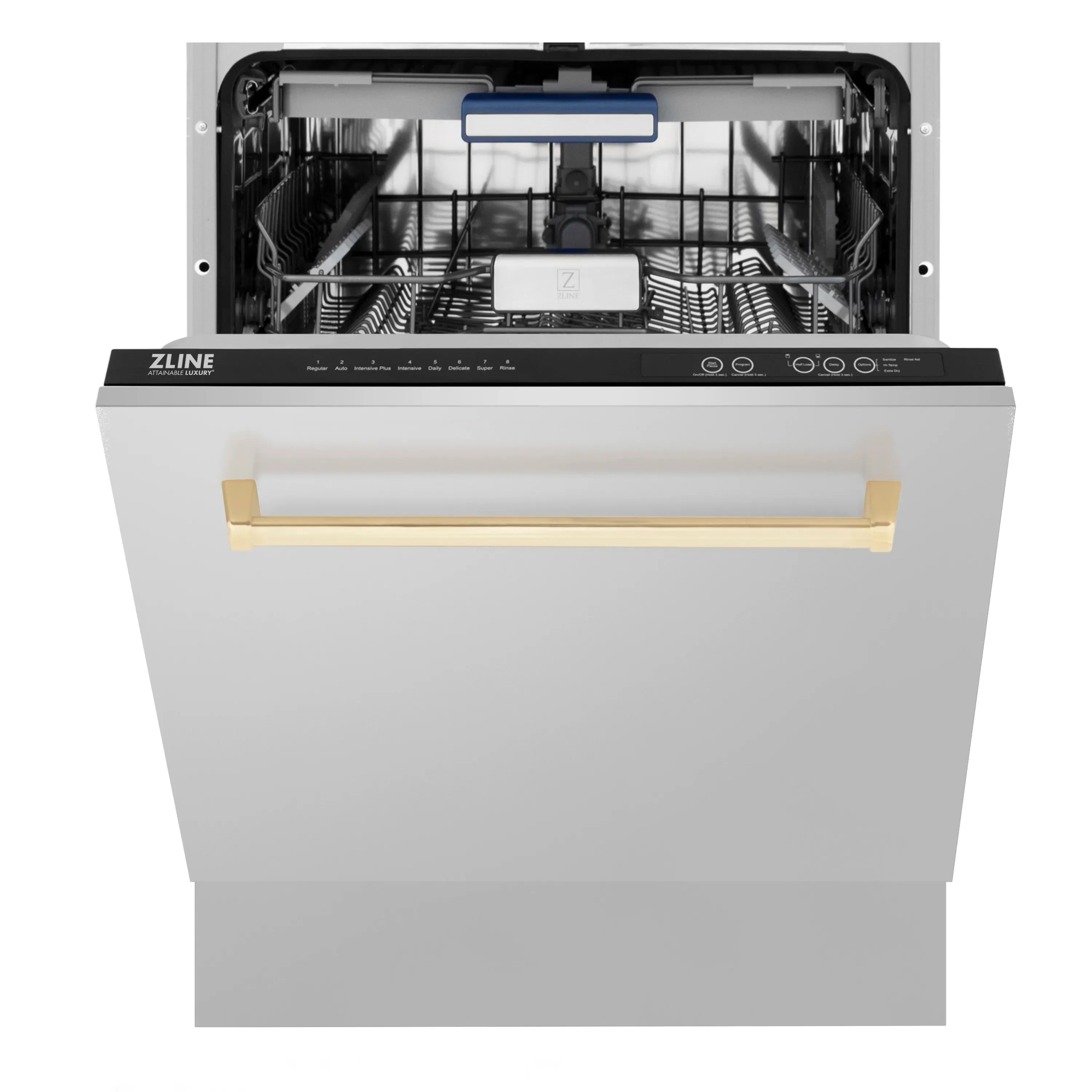

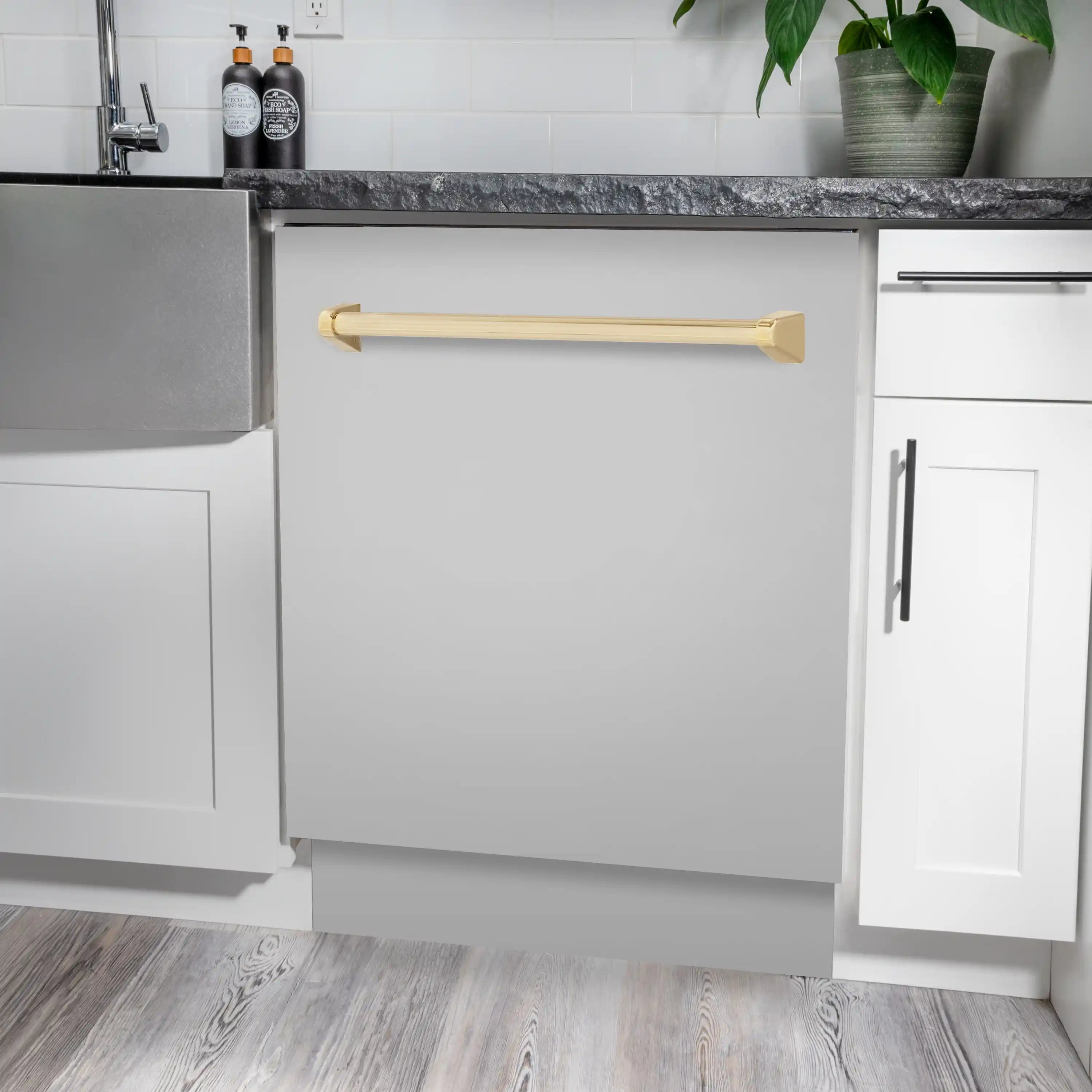

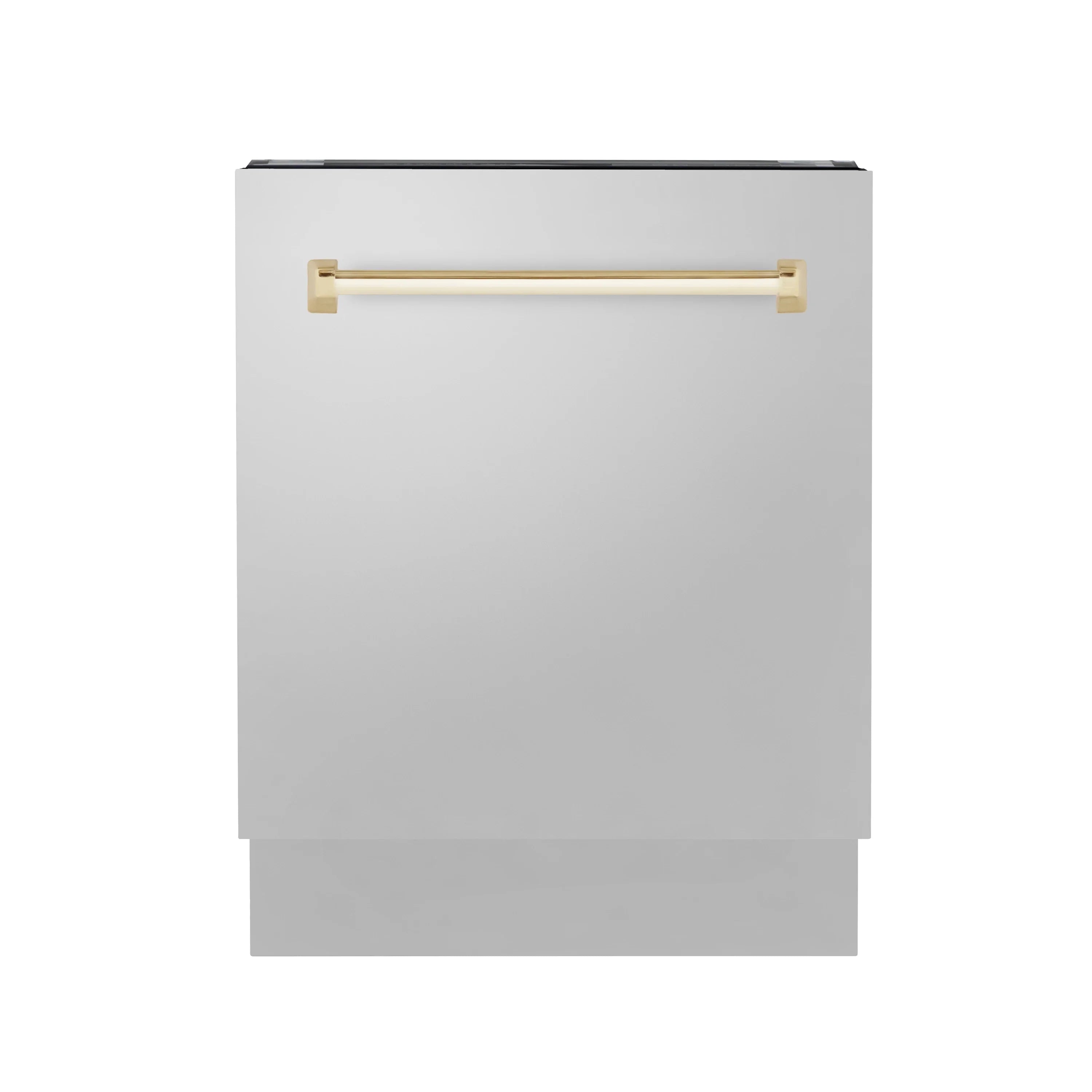

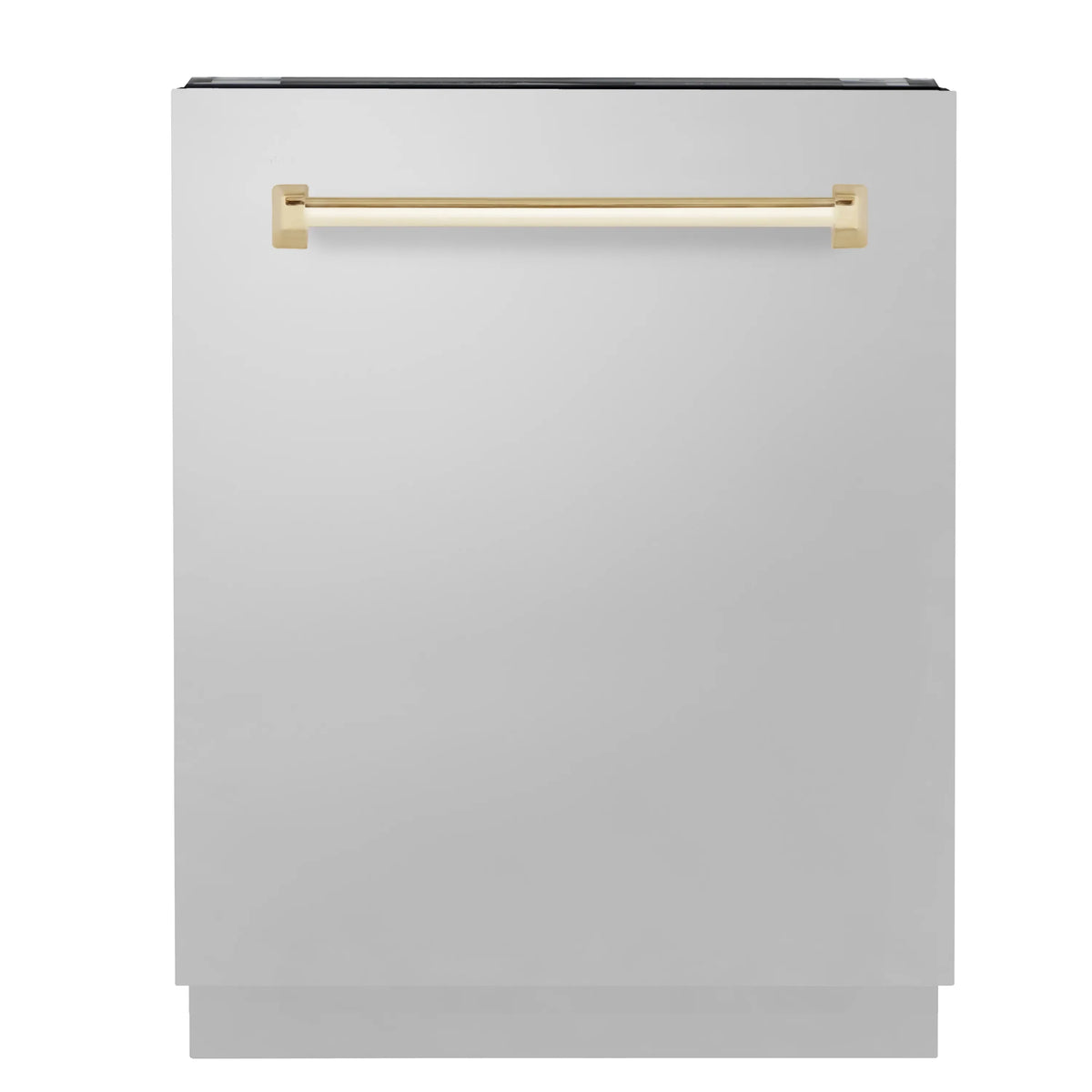

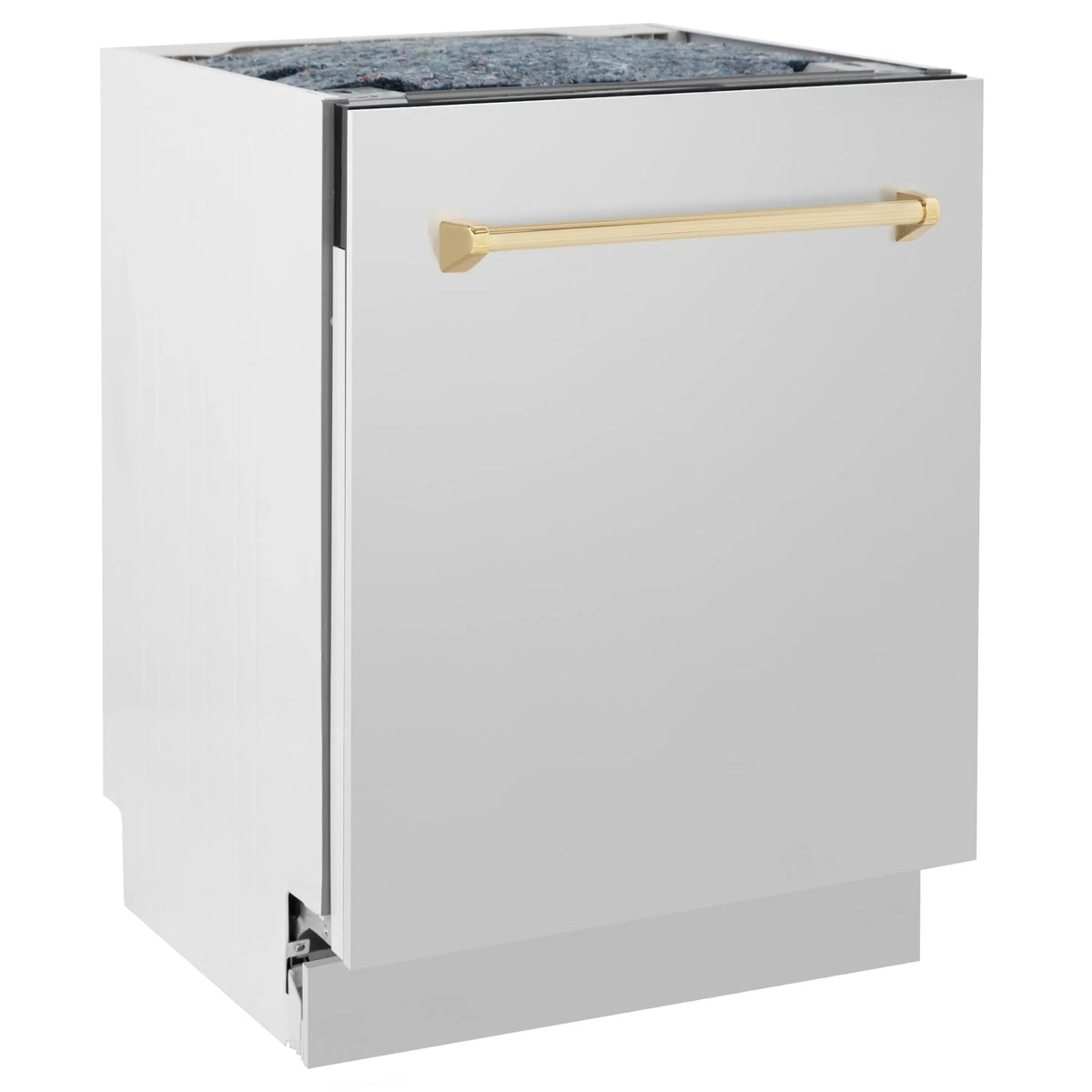

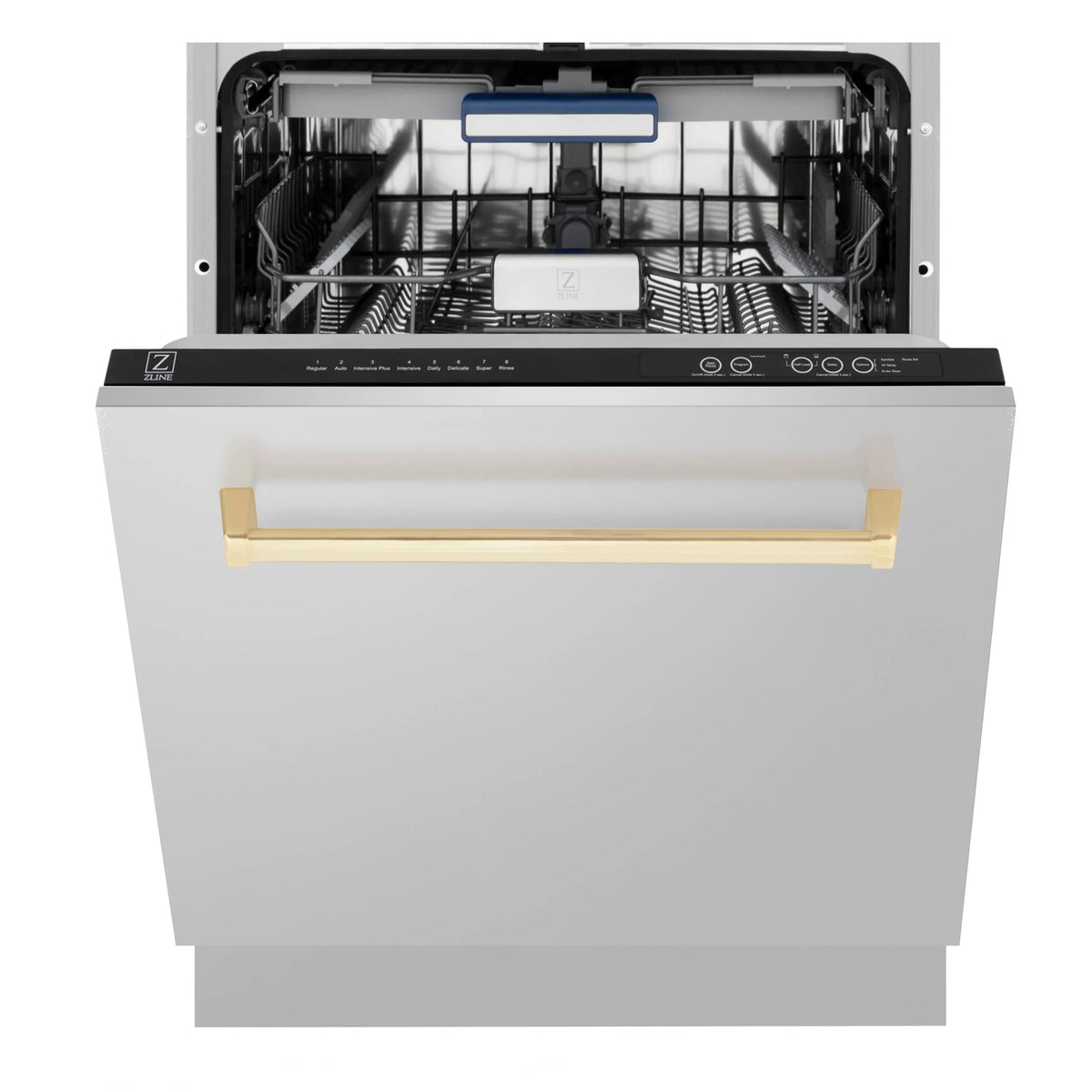

    The ZLINE Autograph Edition 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Stainless Steel Panel with Polished Gold Handle (DWVZ-304-24-G) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.

    Features

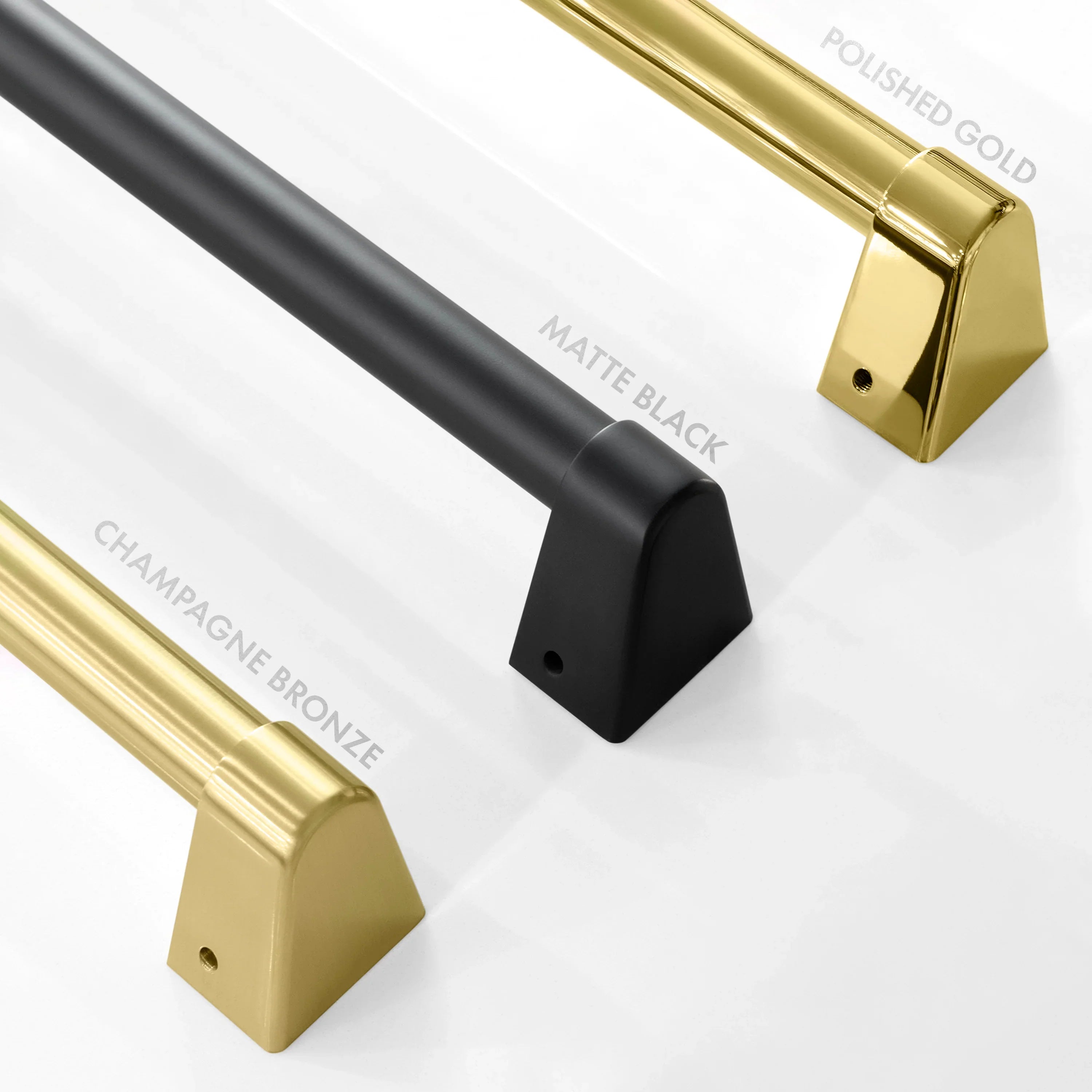

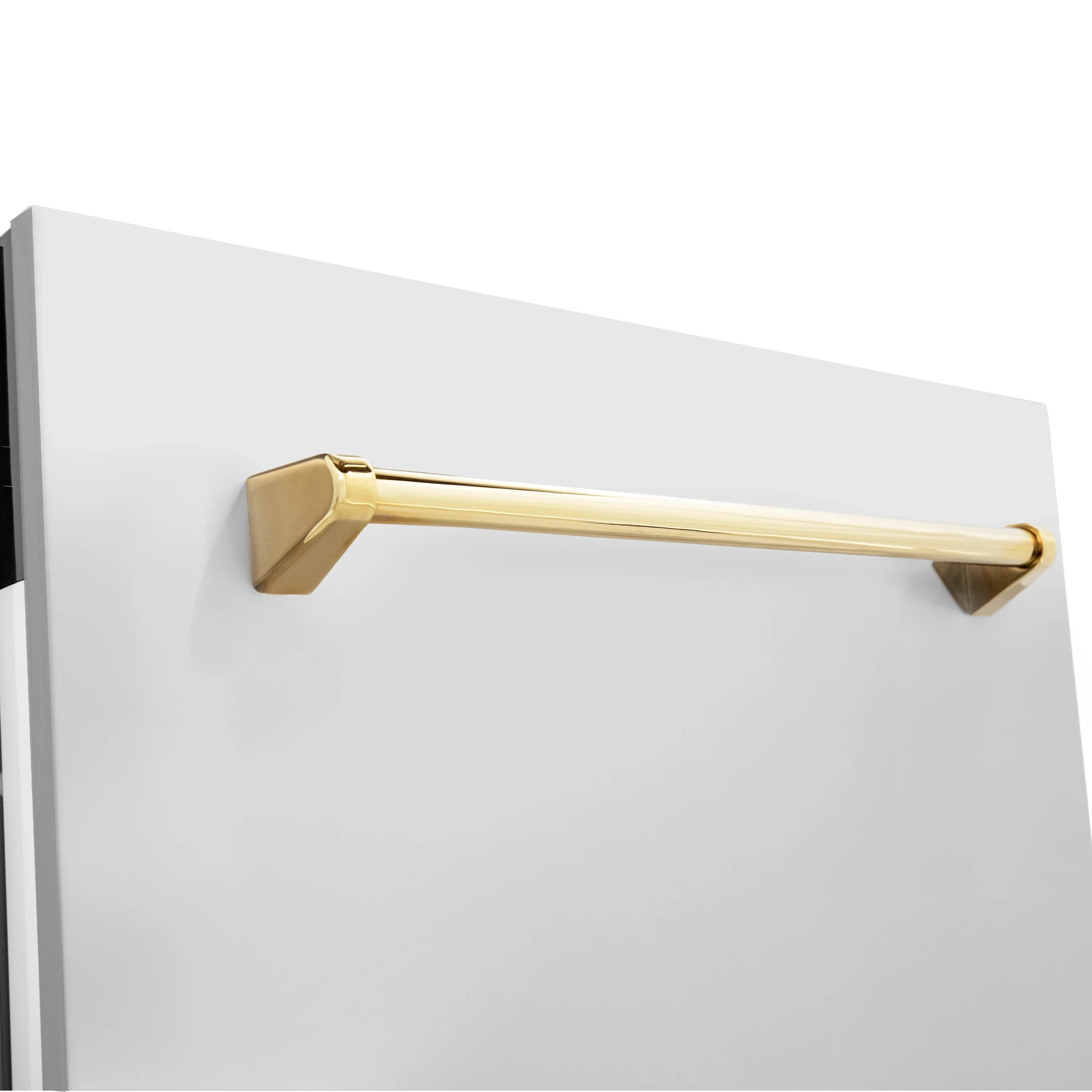

    • Exclusive Autograph Edition Handle - Customize your ZLINE Autograph Edition Tallac Series Dishwasher with an elegant Polished Gold handle paired with a beautiful 304-grade stainless steel door panel
    • Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
    • Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
    • Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient

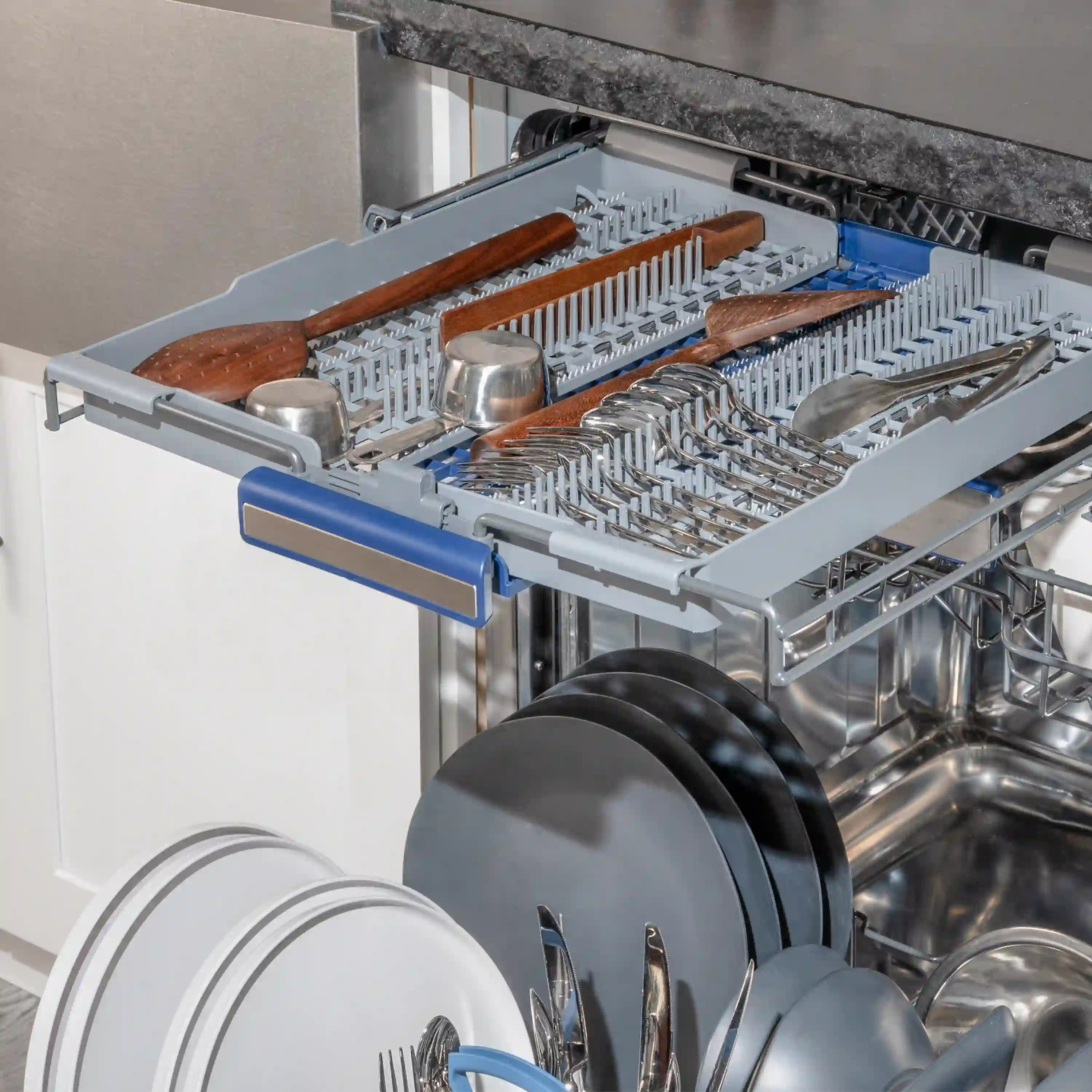

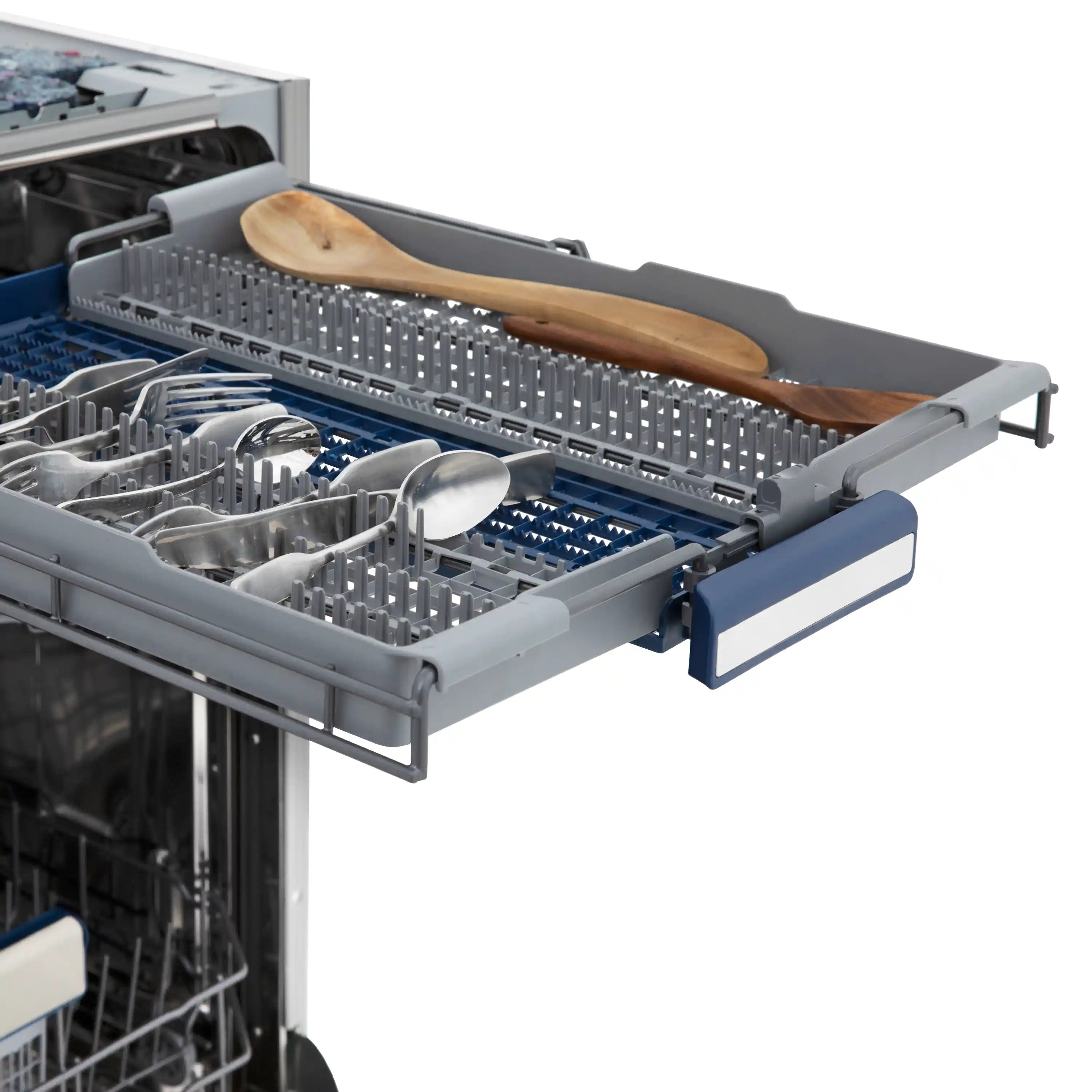

    • Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
    • Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
    • Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.4 gallons per load
    • Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
    • Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation
    • Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items
    • Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 15 place settings

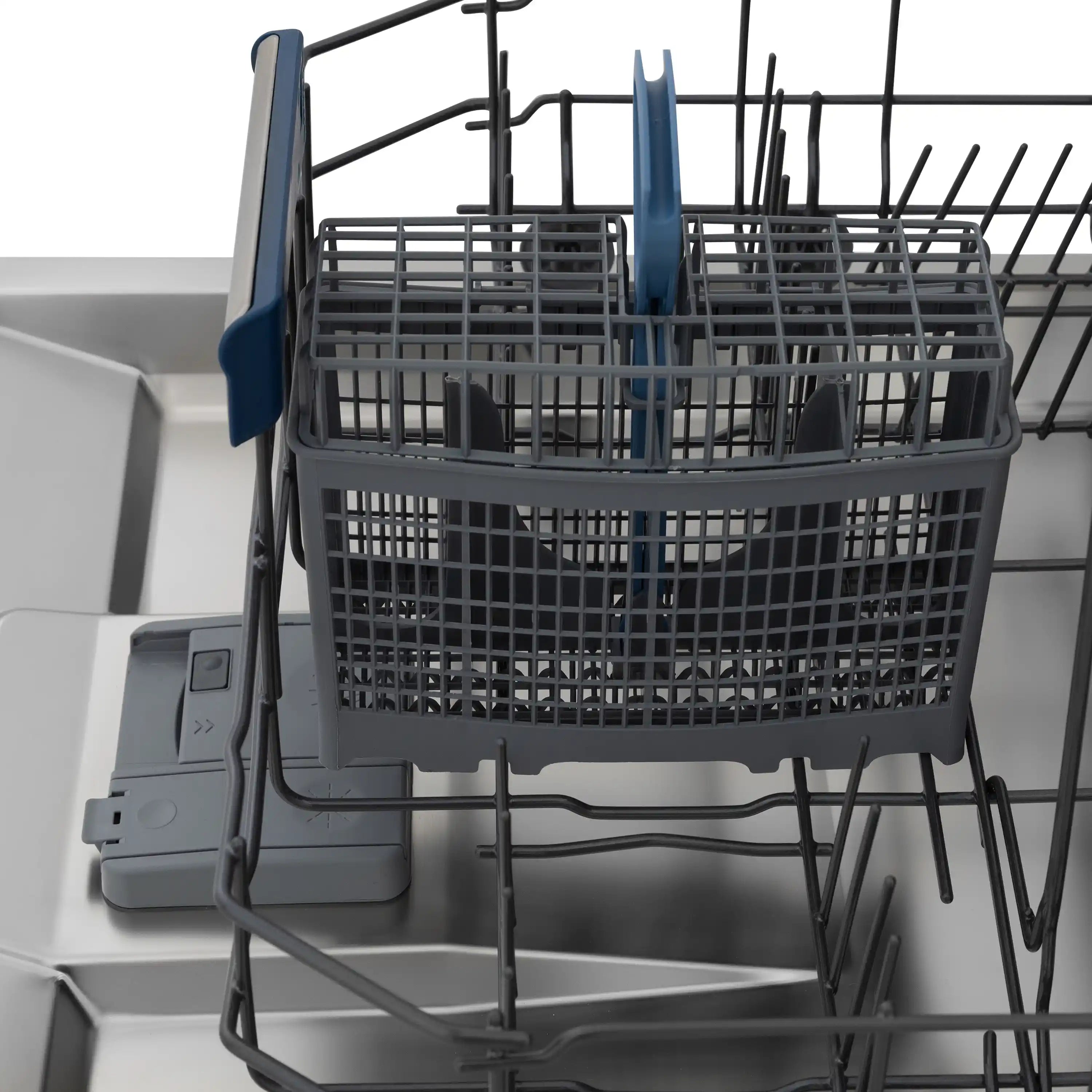

    • Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
    • Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
    • Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel

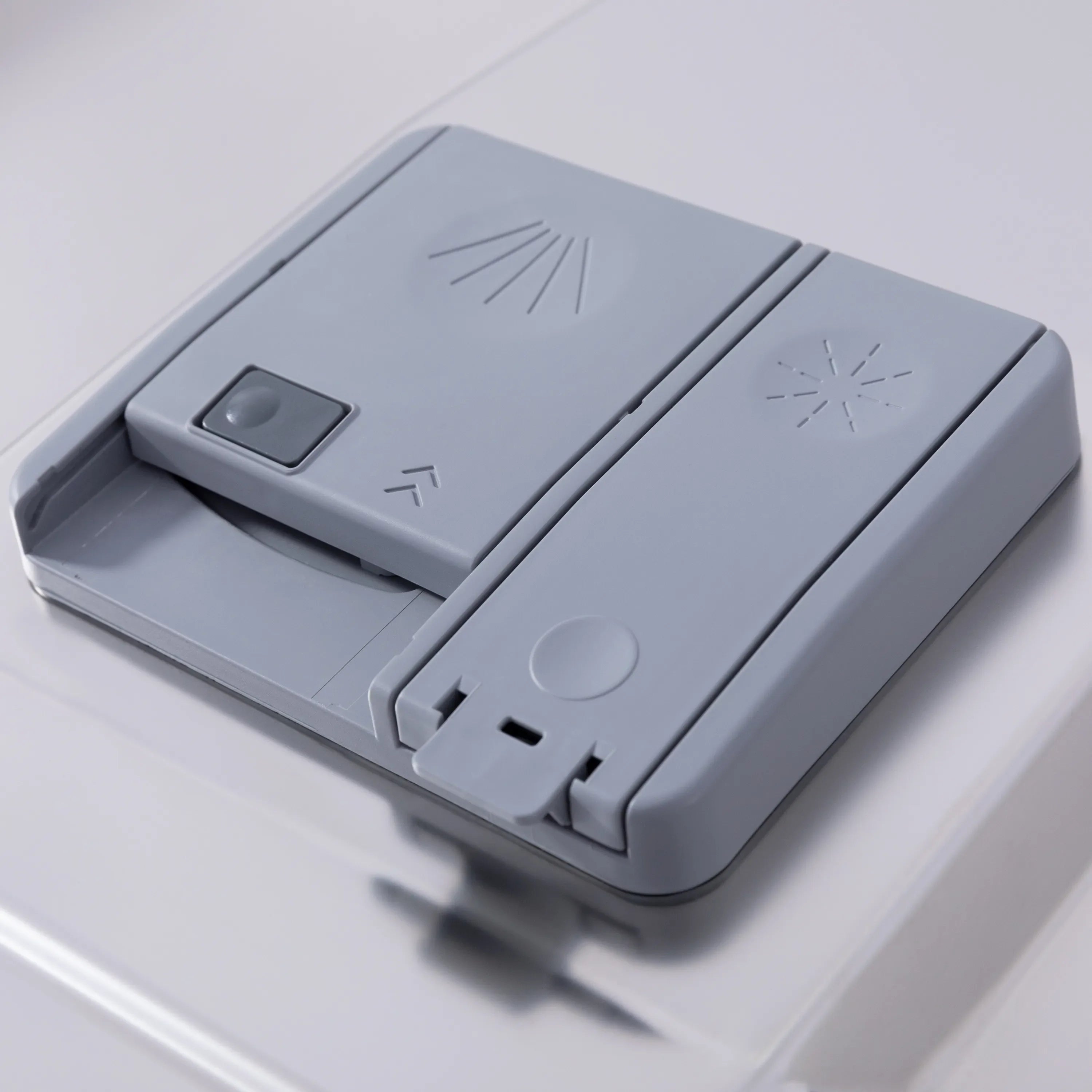

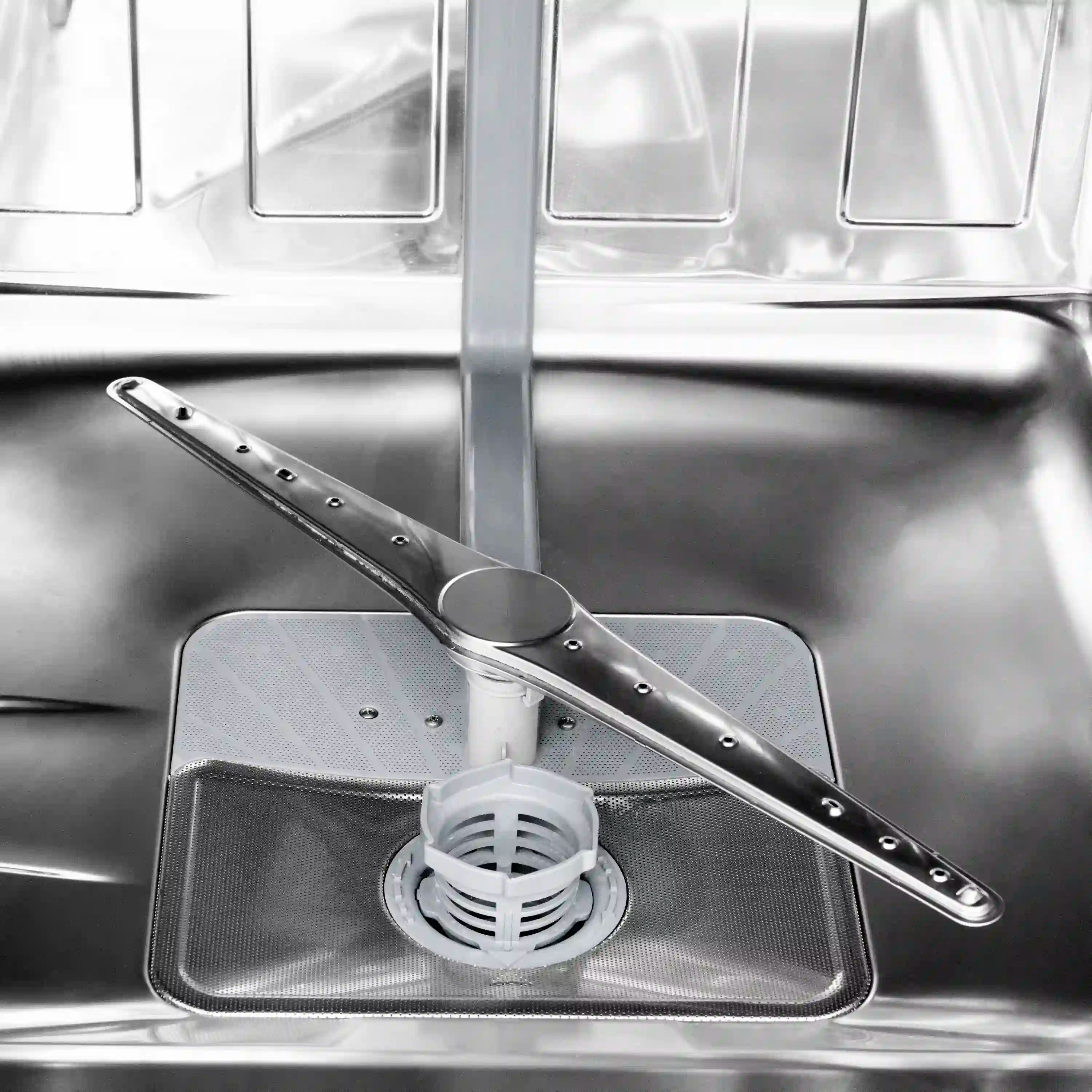

    • Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance
    • Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
    • Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system

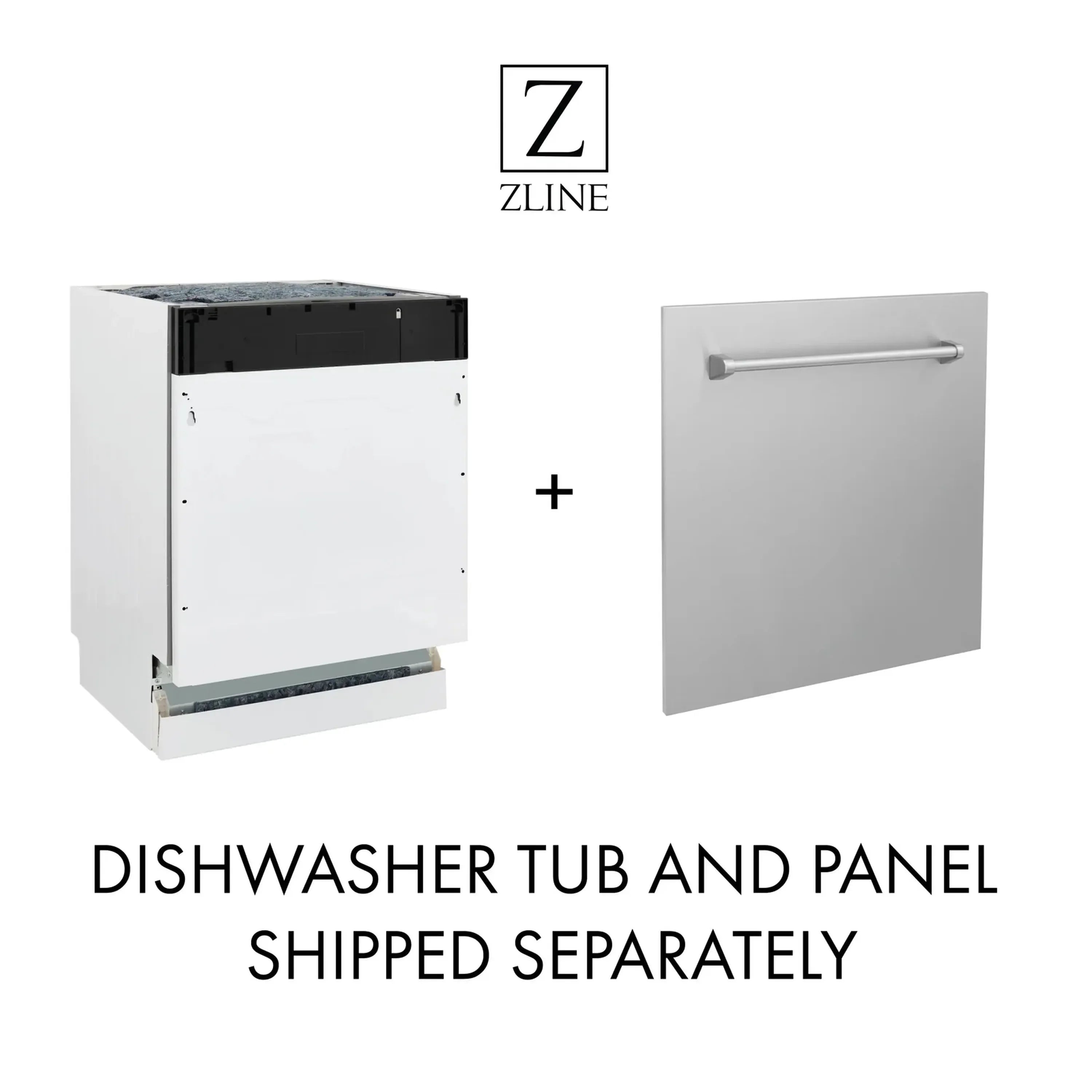

    • Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look

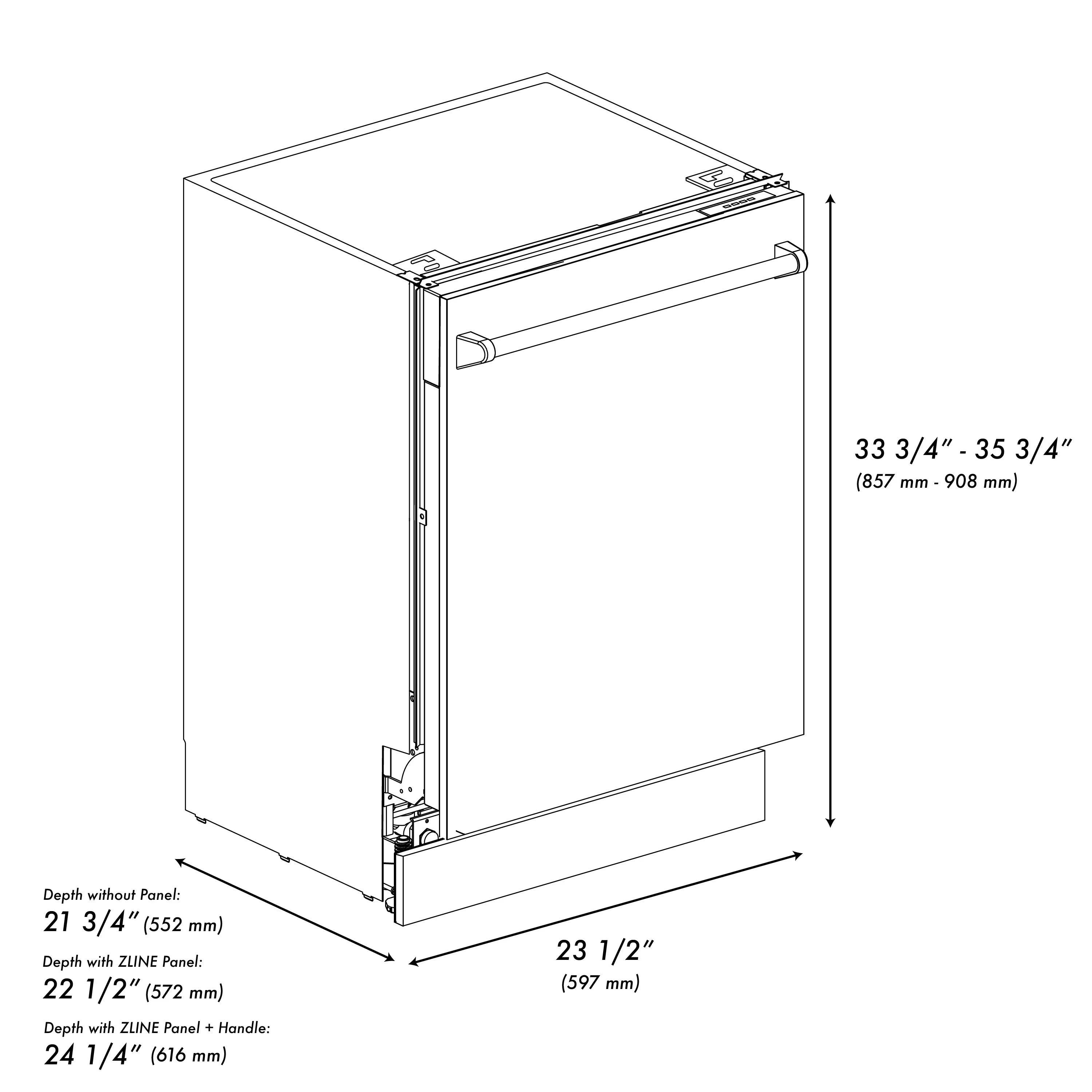

    DIMENSIONS
    Size 24 in.

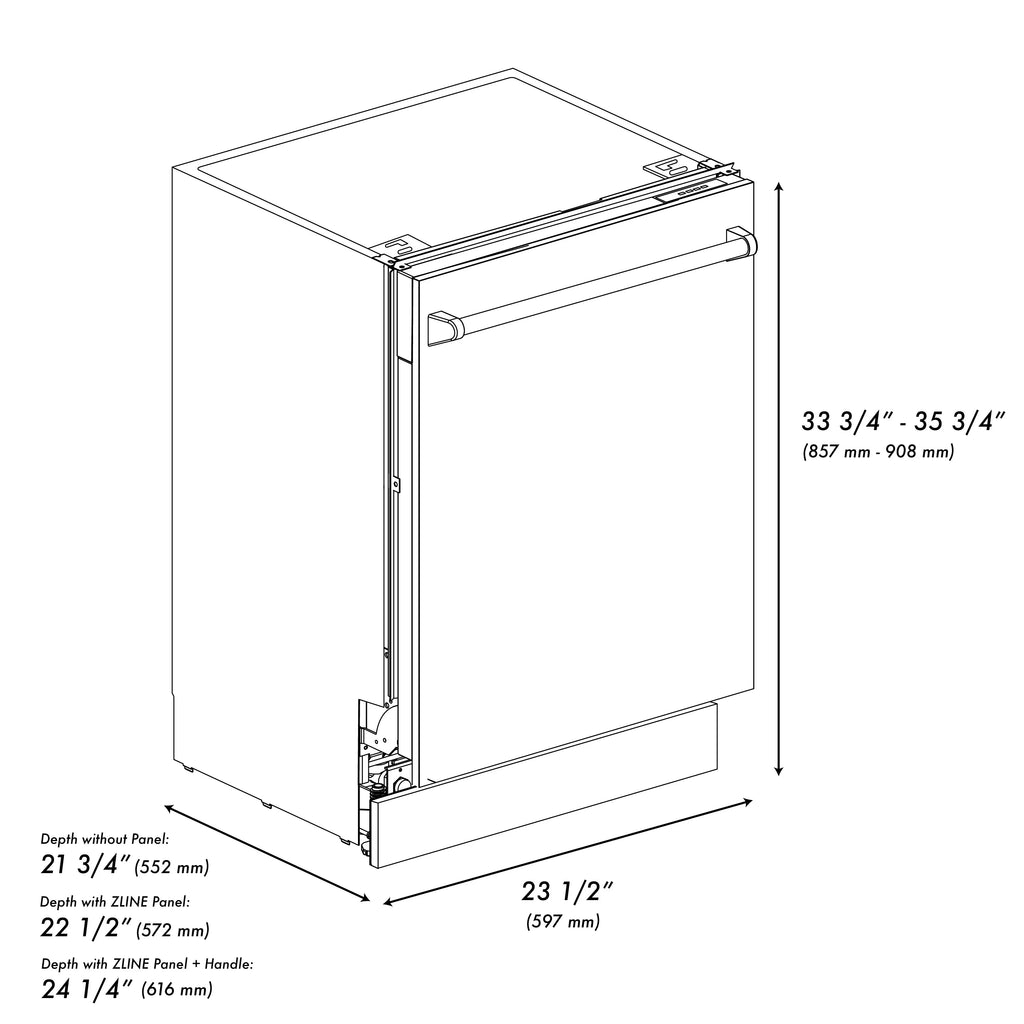

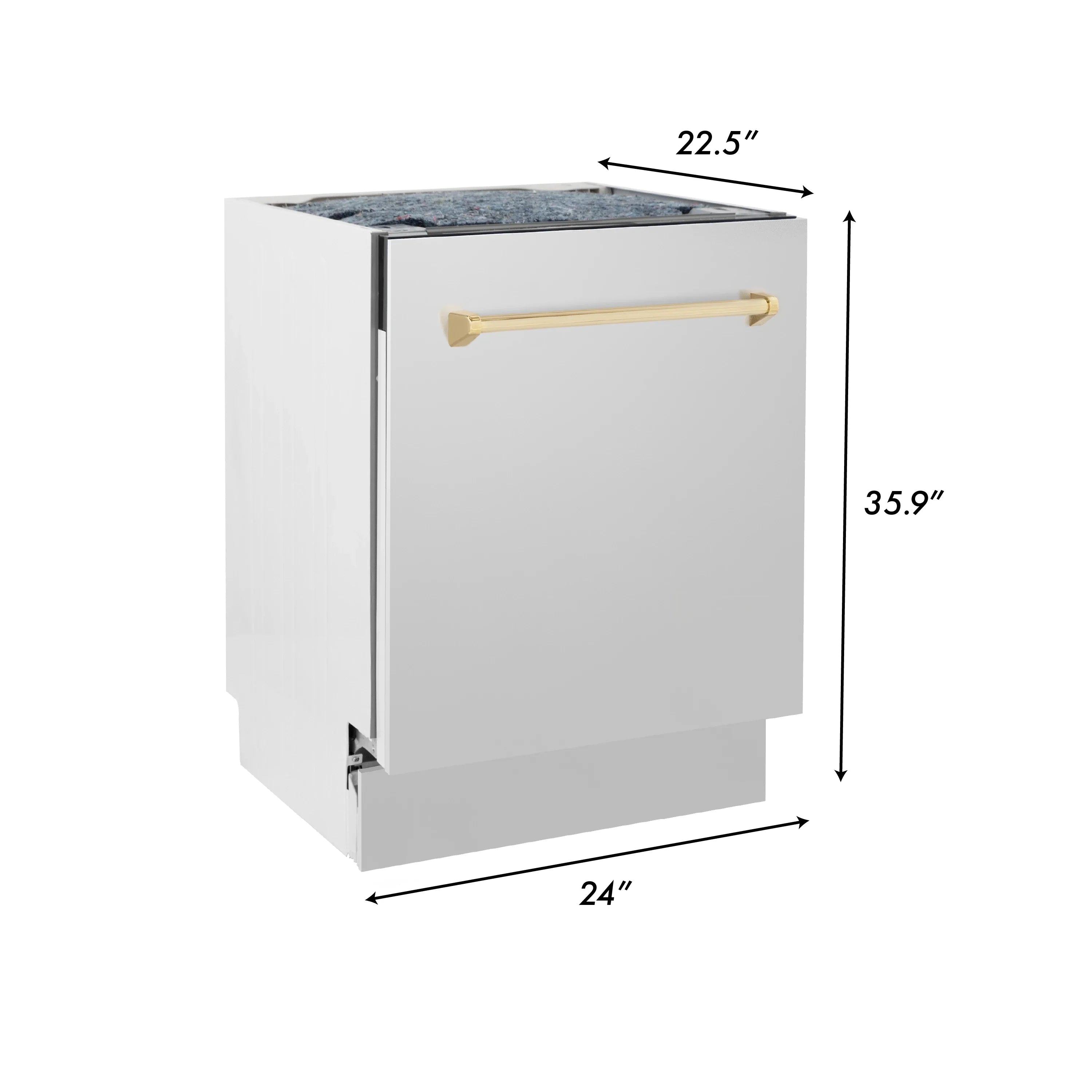

    Dimensions 23.6" W x 22.4" D x 33.9" H
    Product Weight 106.8 lbs
    Cut-Out Height 34.13 in.
    Cut-Out Width 24 in.
    Interior Dimensions 20.95" W x 20.5" D x 24.17"H
    Max Plate Height 13 in.
    GENERAL INFORMATION
    Installation Type Plug In - Nema 5-15
    Panel Ready N
    DESIGN & FINISH
    Panel Finish 304 Grade Stainless Steel
    Handle Finish Polished Gold
    Handle Type Traditional Style
    Control Location Top Control
    Control Type Button Control
    Silverware Basket Location Bottom Rack Center
    TECHNICAL DETAILS
    Voltage 120vac
    Frequency 60Hz
    Dedicated Circuit 15A
    Rated Current 12A
    Motor Wattage 100W
    Heater Wattage 1100W
    Motor Amperage 0.84A
    Heater Amperage 10A

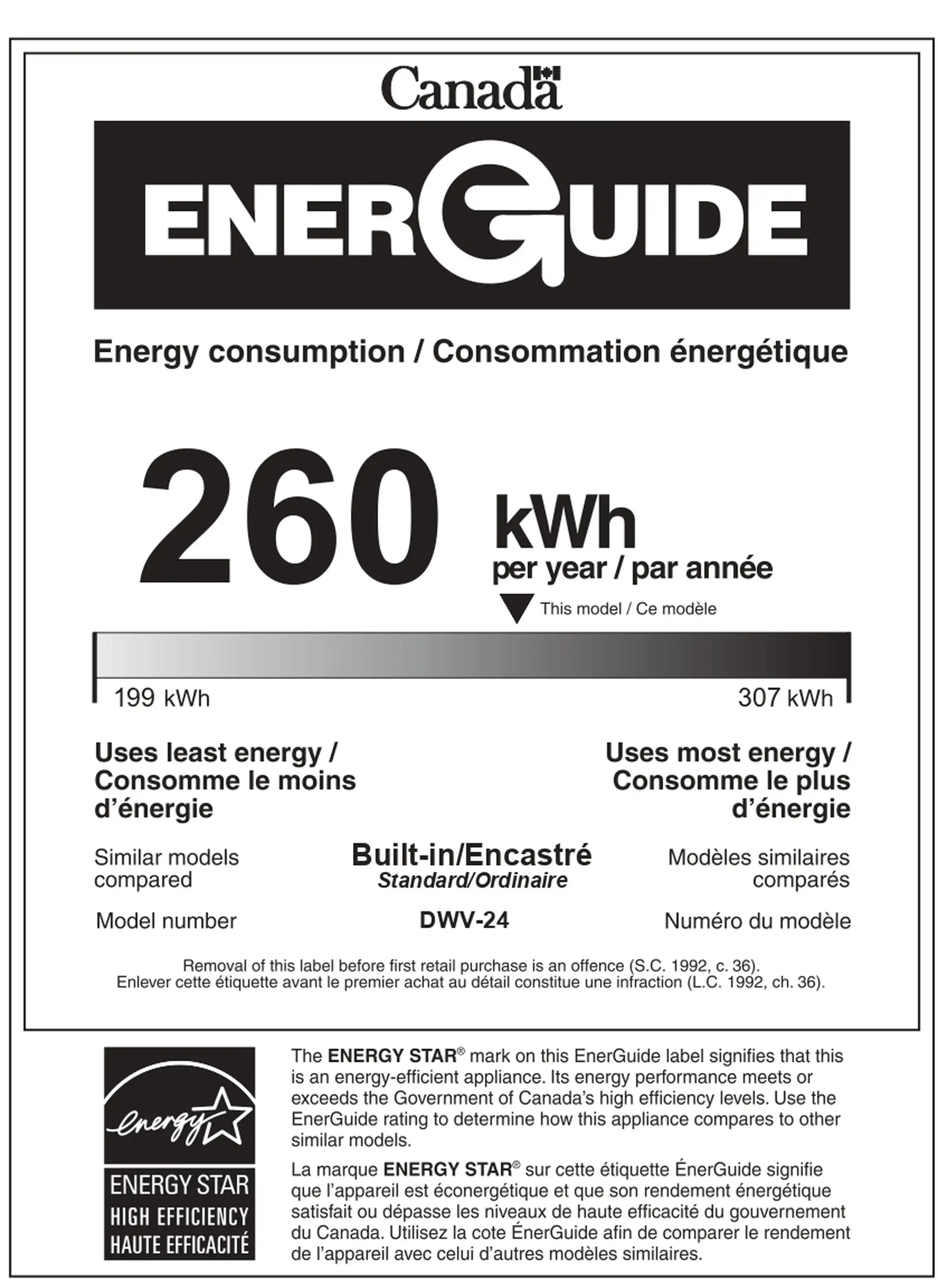

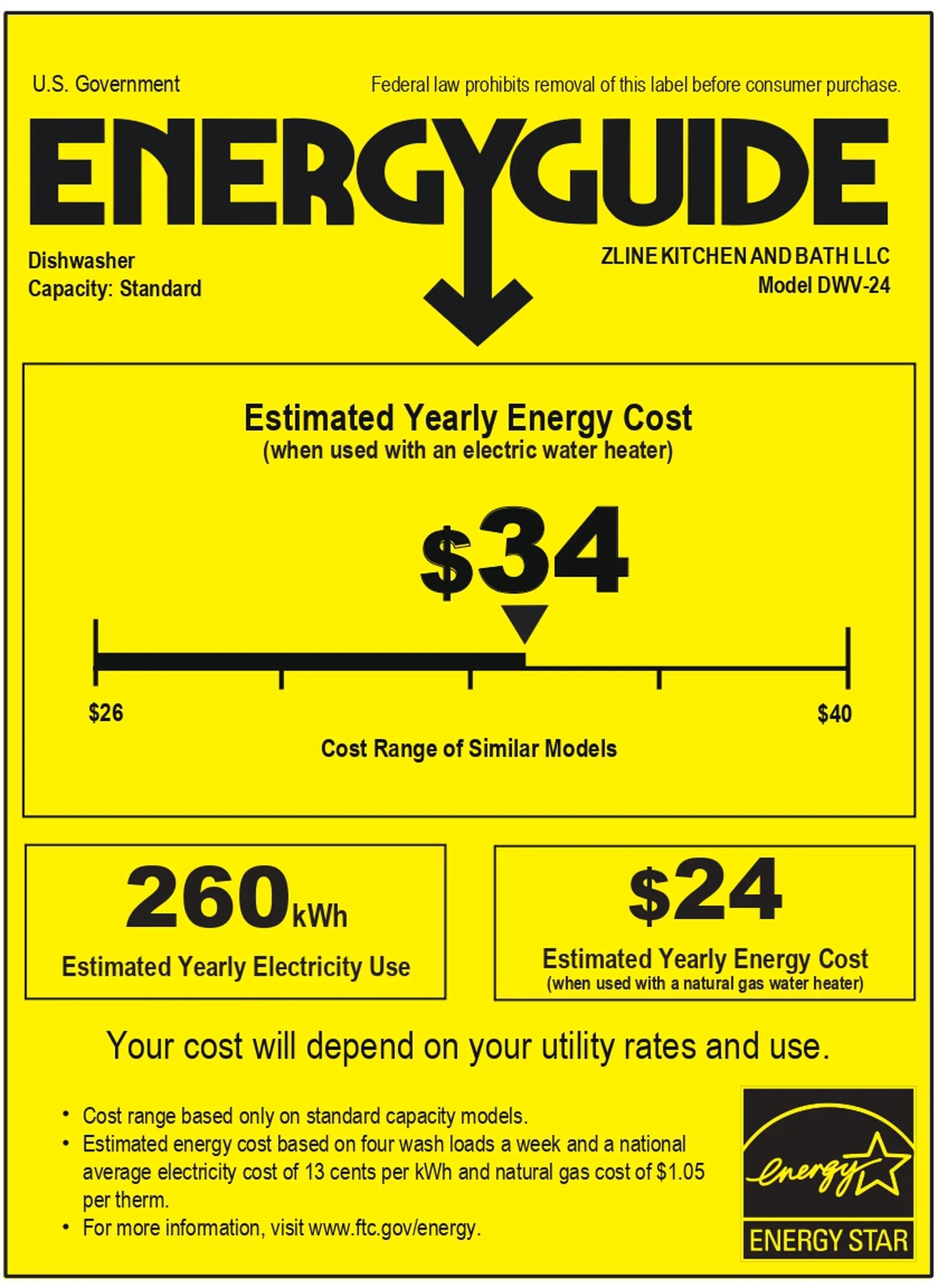

    Energy Consumption Per Year 239 kWh
    Water Consumption Per Cycle (Liters) 11.73 L
    Water Consumption Per Cycle (Gallons) 3.1 gal
    Decibels 51 dBa
    Extended Hose Length 56 in.
    FEATURES
    Drying System Turbo Fan Drying + Auto Door
    Steam Function Without Steam
    Features
    • Exclusive Autograph Edition Handle - Customize your ZLINE Autograph Edition Tallac Series Dishwasher with an elegant Polished Gold handle paired with a beautiful 304-grade stainless steel door panel
    • Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
    • Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
    • Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient
    • Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
    • Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
    • Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.4 gallons per load
    • Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
    • Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation
    • Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items
    • Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 15 place settings
    • Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
    • Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
    • Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel
    • Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance
    • Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
    • Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
    • Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look
    WARRANTY & CERTIFICATIONS
    Certifications Energy Star, CEC, UL
    Description
    Product Specs
    Manuals & Guides

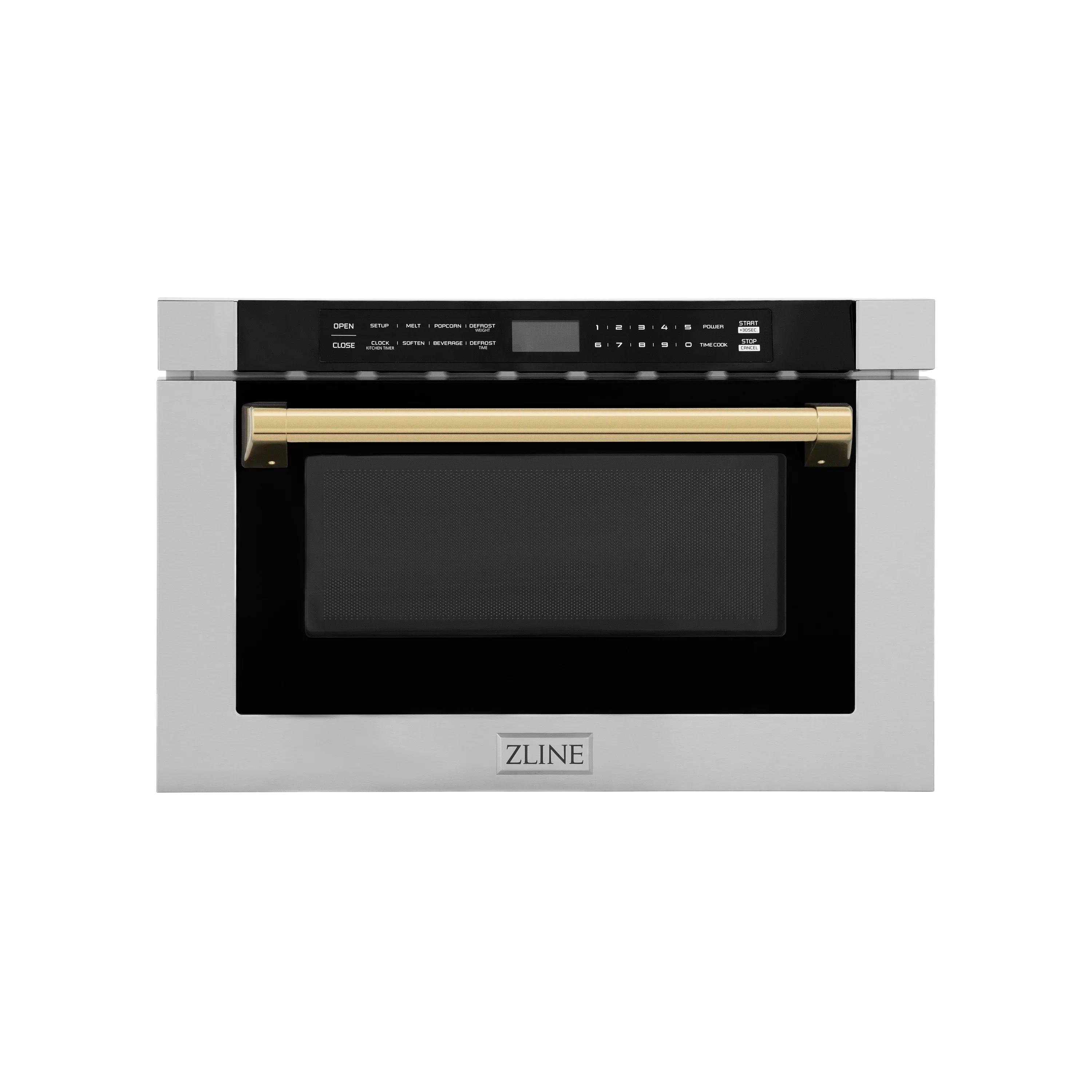

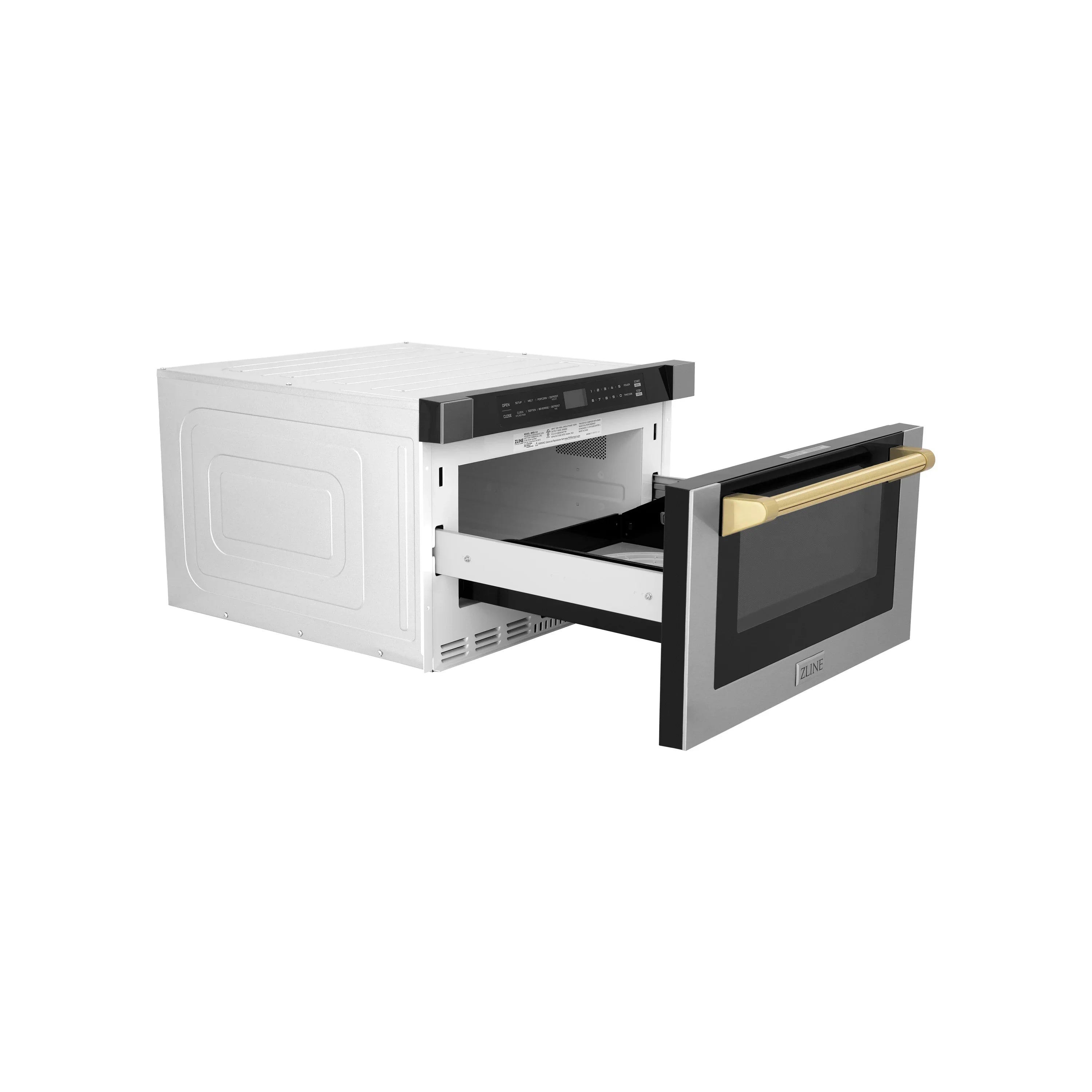

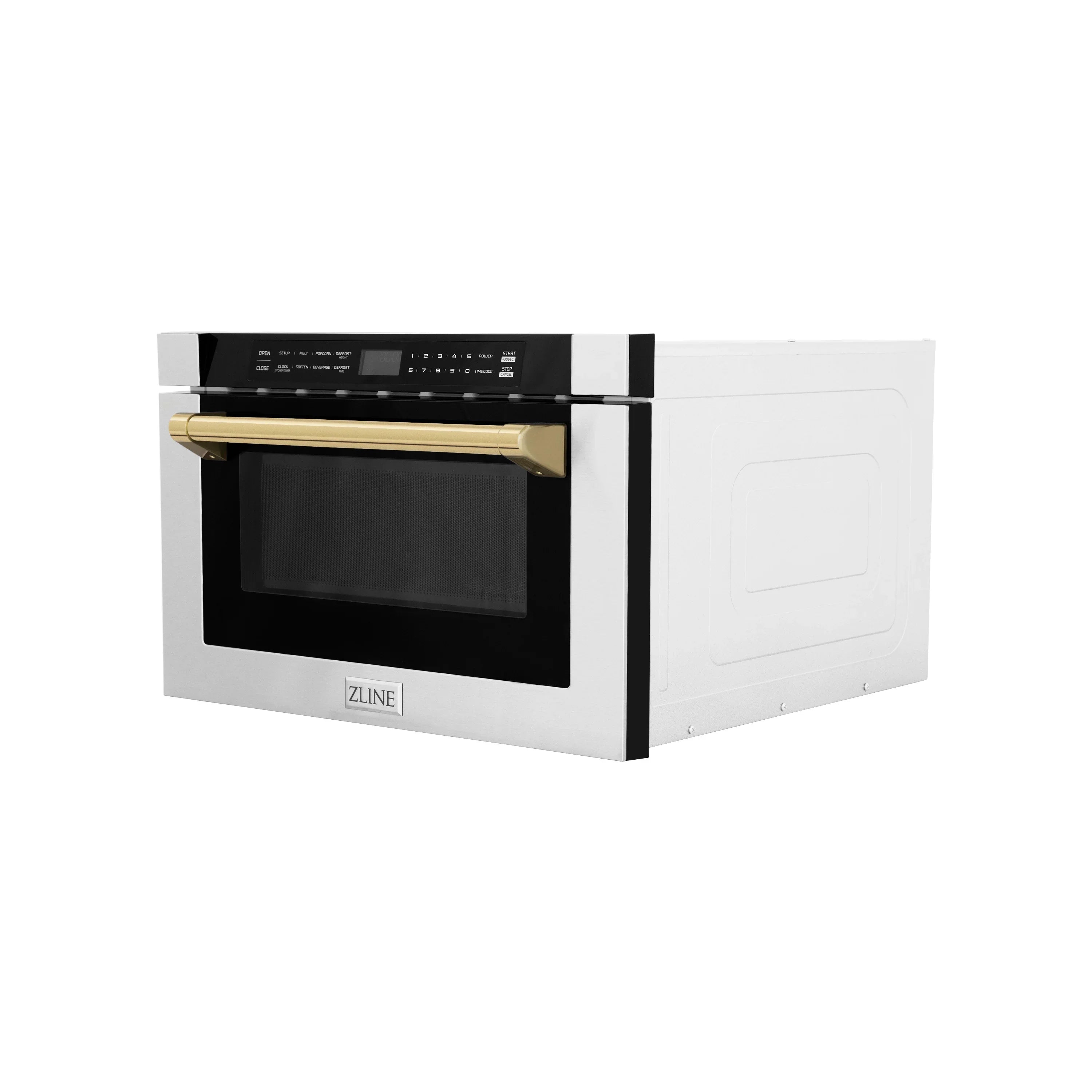

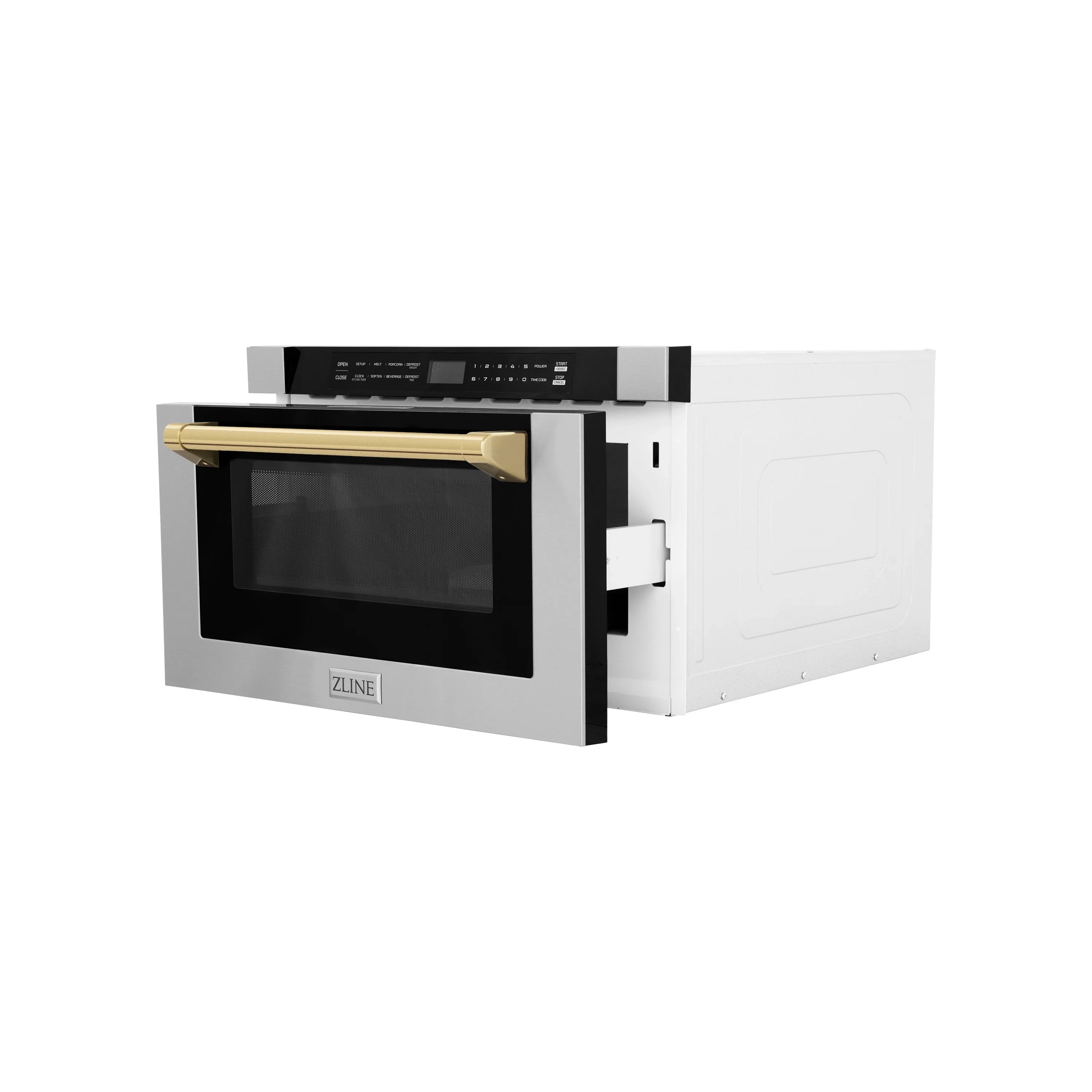

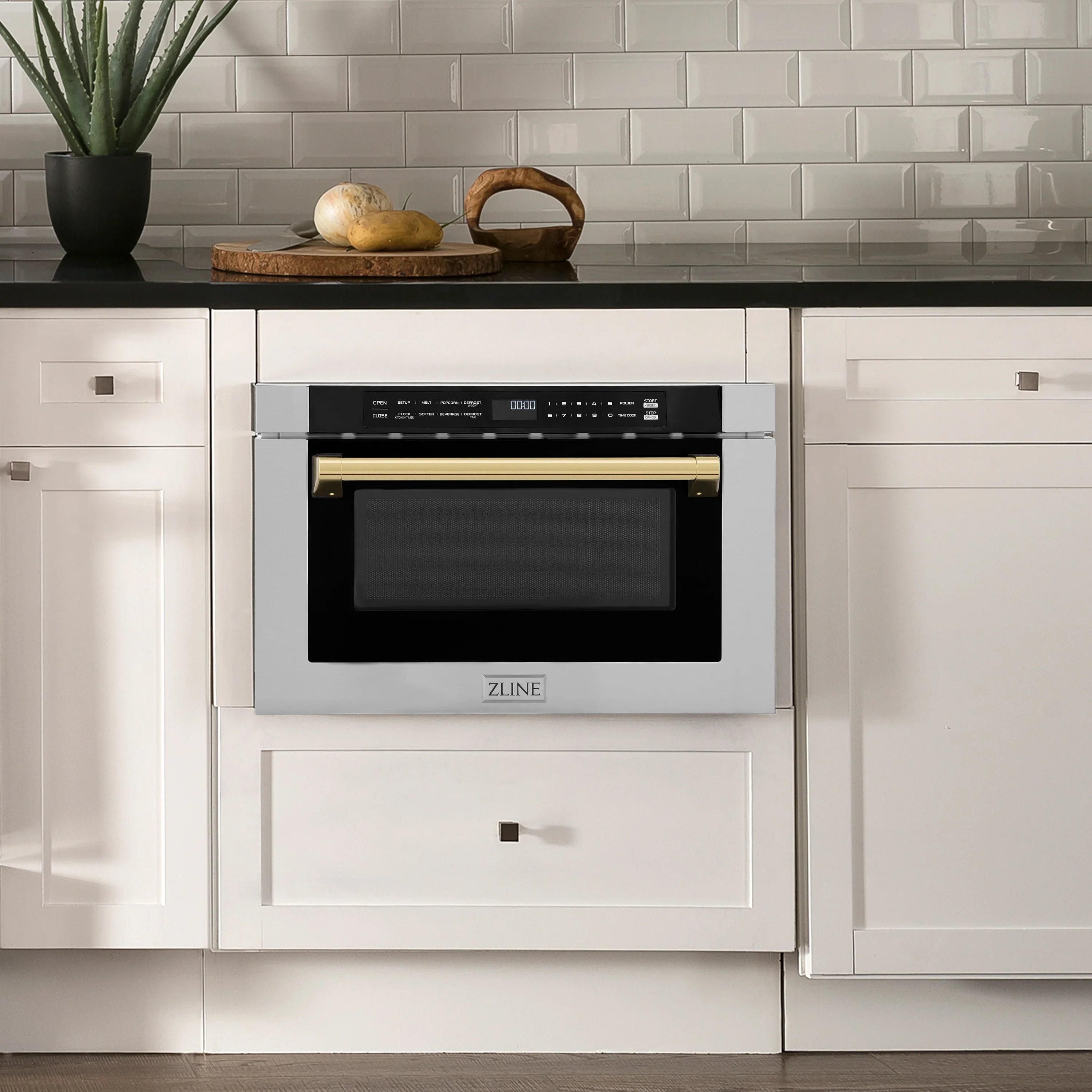

    Luxury isn't meant to be left desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE Autograph Edition 24" 1.2 cu. ft. Built-in Microwave Drawer with a Traditional Handle in Stainless Steel and Gold Accents provides a professional culinary experience by pairing everyday convenience with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen's capability.

    Features

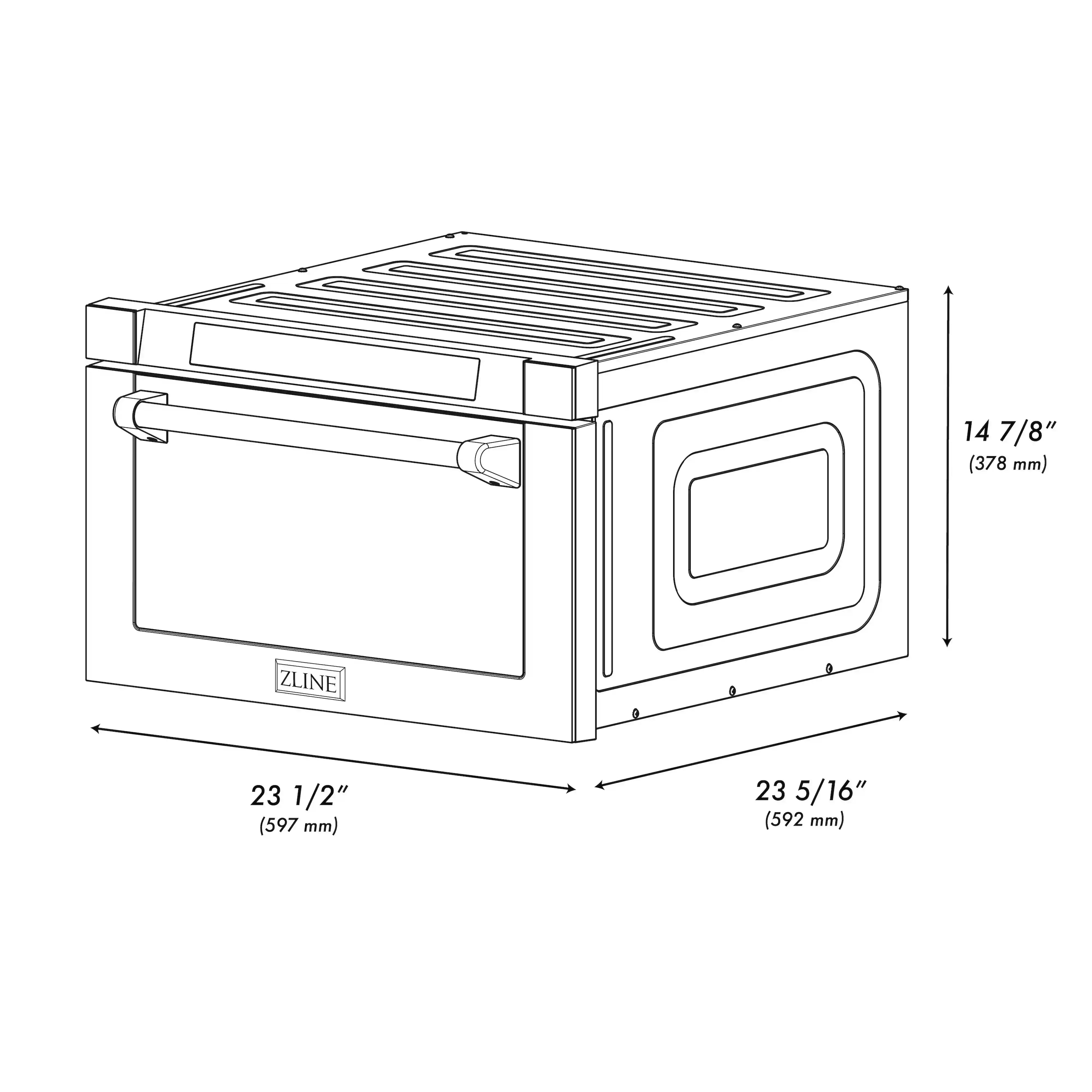

    • Space-Saving - Free up your countertop space with an undercounter modern design with installation location flexibility to best fit your lifestyle

    • Top Access Design - Easily transport hot dishes and prevent spills with an accessible top-loading design

    • Convenient Microwave Modes - Achieve optimal results for every dish with sensor cooking, defrost, popcorn, and beverage settings

    • Auto-touch Open and Close - Effortlessly open and close the microwave drawer with just the touch of a button

    • Intuitive Control Panel - Enjoy an easy-to-use control panel that provides maximum convenience with a 45 degree angled design

    • High-Powered Performance - Get the results you need with 11 different power levels and a powerful 1000 watt cooking power

    • 1.2 cu. ft. Capacity - A large cooking area will easily fit your items, such as coffee mugs up to 7 in. tall and dishes up to 16 x 16 in.

    • Reheat and Defrost - Minimize cooking time with convenient reheat and defrost functions

    • Autograph Edition Series - Enjoy a timeless look in your kitchen with a Stainless Steel finish paired with Gold accent handles, giving your kitchen an elegant, unmatched style

    • ADA Compliant - Easy-to-use front touch controls with a 45 degree angle design provides ADA compliance

    • This product ships in multiple boxes and will require minimal assembly upon arrival.

      DIMENSIONS
      Product Dimensions 23.5 in W x 23.31 in D x 14.88 in H
      Cutout Dimensions 22.13 in W x 23.5 in D x 15 in H
      Interior Dimensions 16" W x 16" D x 7" H
      Depth with Door Open 38.75" without handle/ 40" with handle
      Weight 69.9 lbs
      GENERAL INFORMATION
      Mount Type Drawer
      DESIGN & FINISH
      Cavity Material Painted
      Control Type Touch Screen
      TECHNICAL DETAILS
      Voltage 120vac
      Frequency 60 Hz
      Rated Current (Amps) 13A
      Dedicated Circuit 15A
      Plug Type 5-15 Nema
      FEATURES
      Input Power 1500W
      Output Power 1000W
      Oven Capacity 1.2 Cu. Ft.
      Noise Level 45 Decibels
      Display LED
      Packaging Standard ISTA 3A
      WARRANTY & CERTIFICATIONS
      Certifications UL, DOE, CEC, NRCan
      Warranty 2 Year Parts

      ZLINE Shipping & Returns

      Email Quote

      Recently viewed

      You may also like
