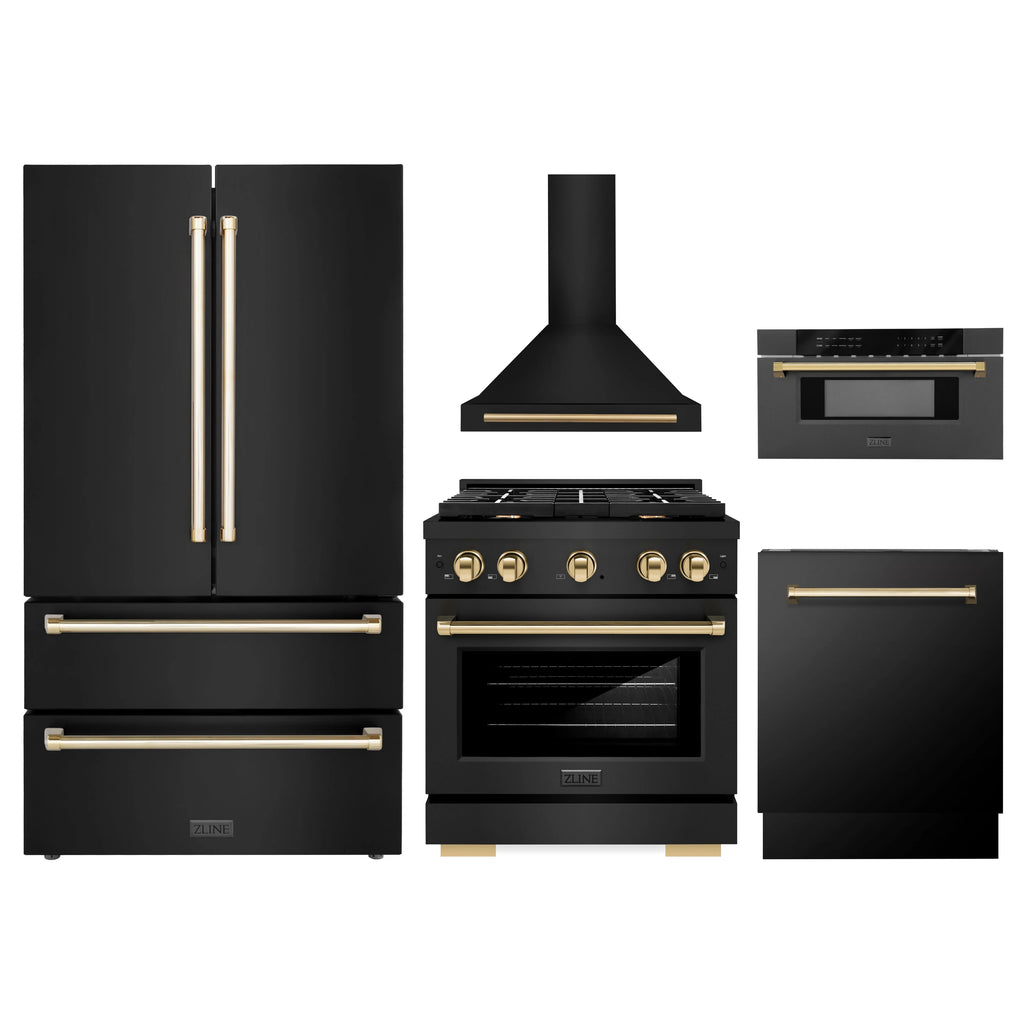

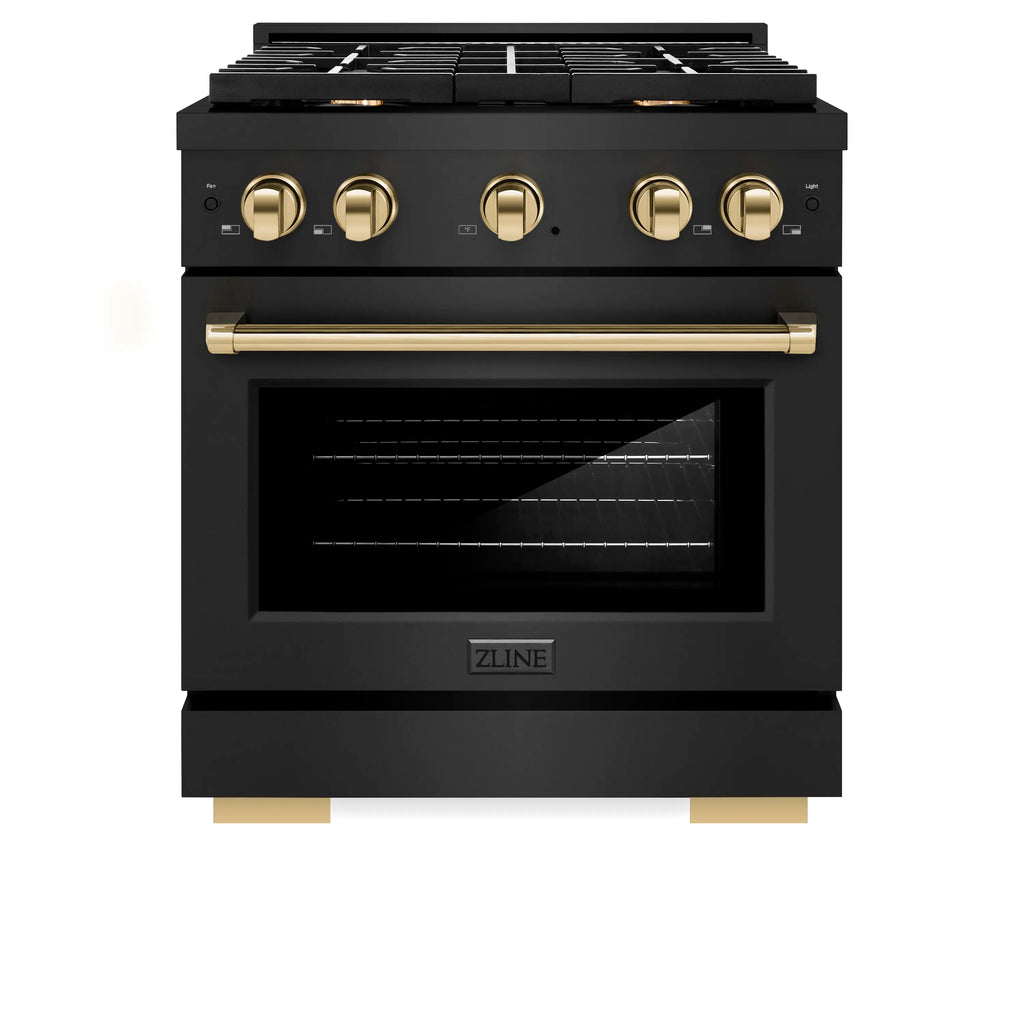

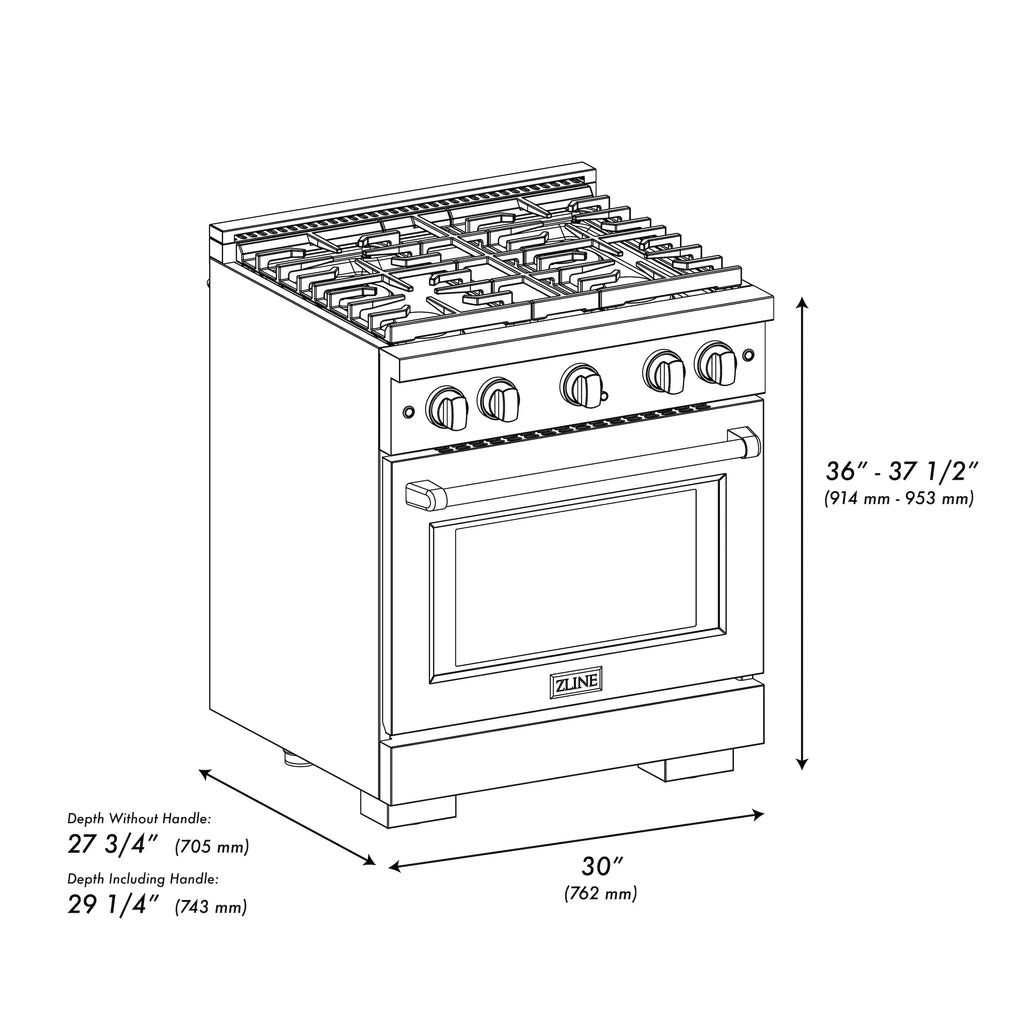

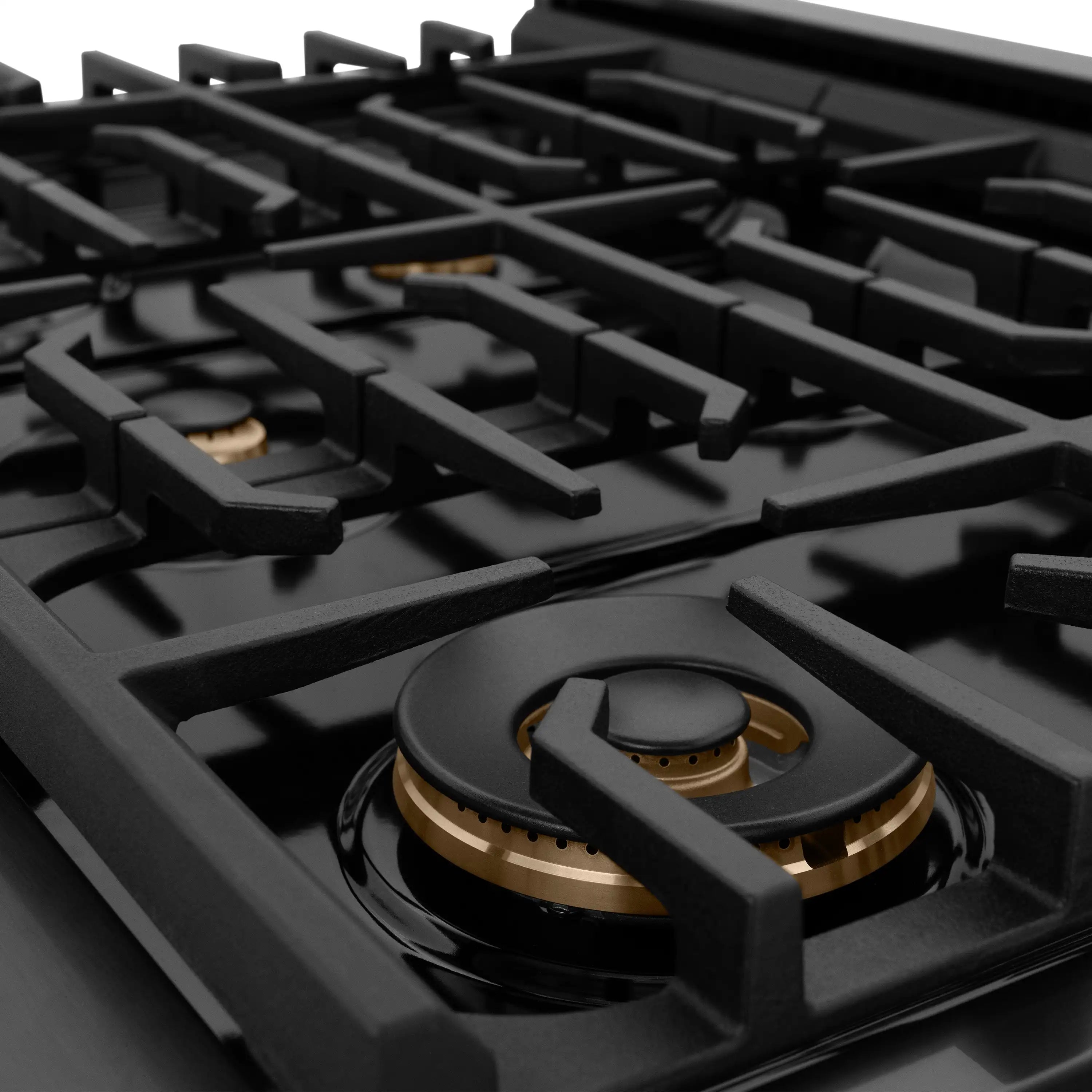

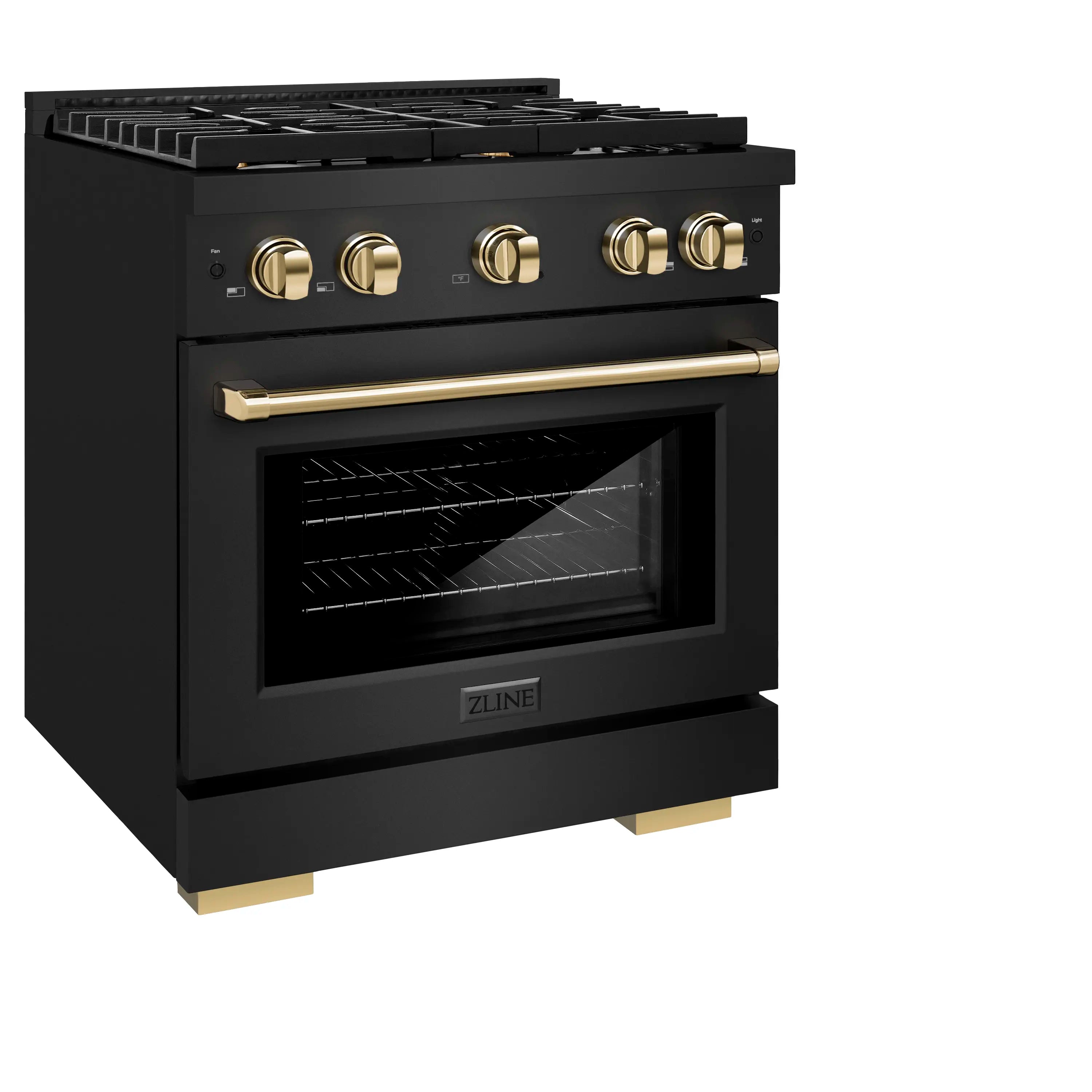

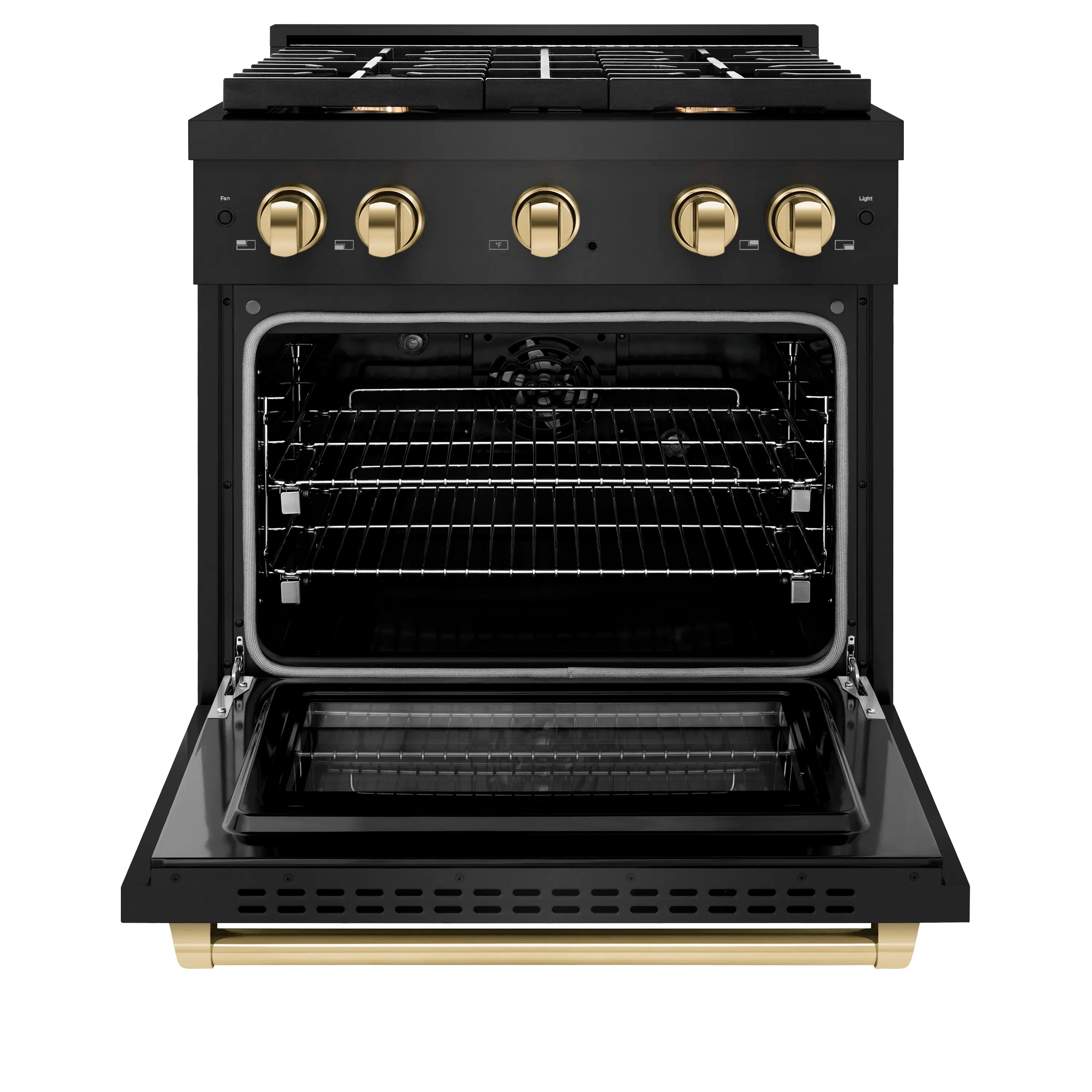

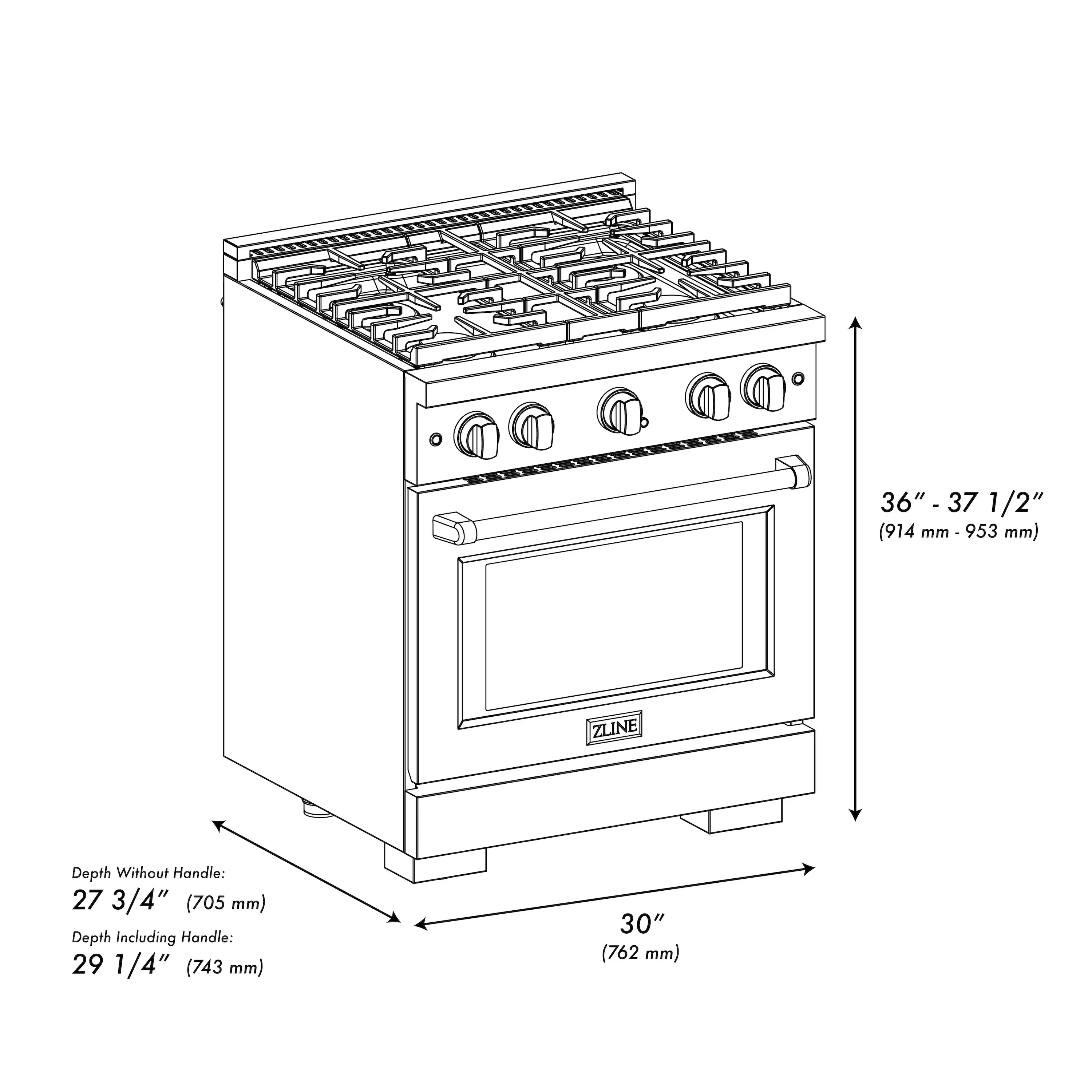

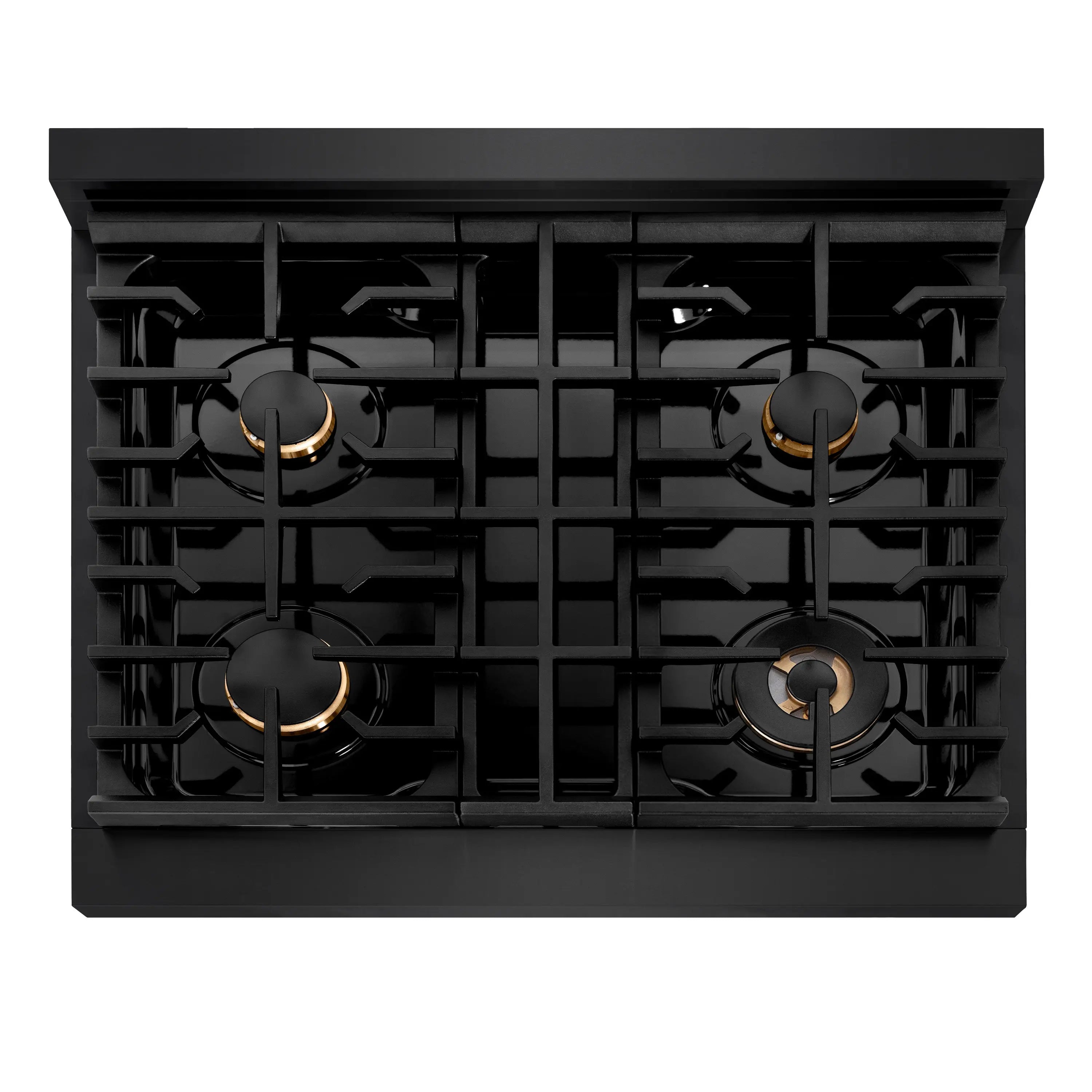

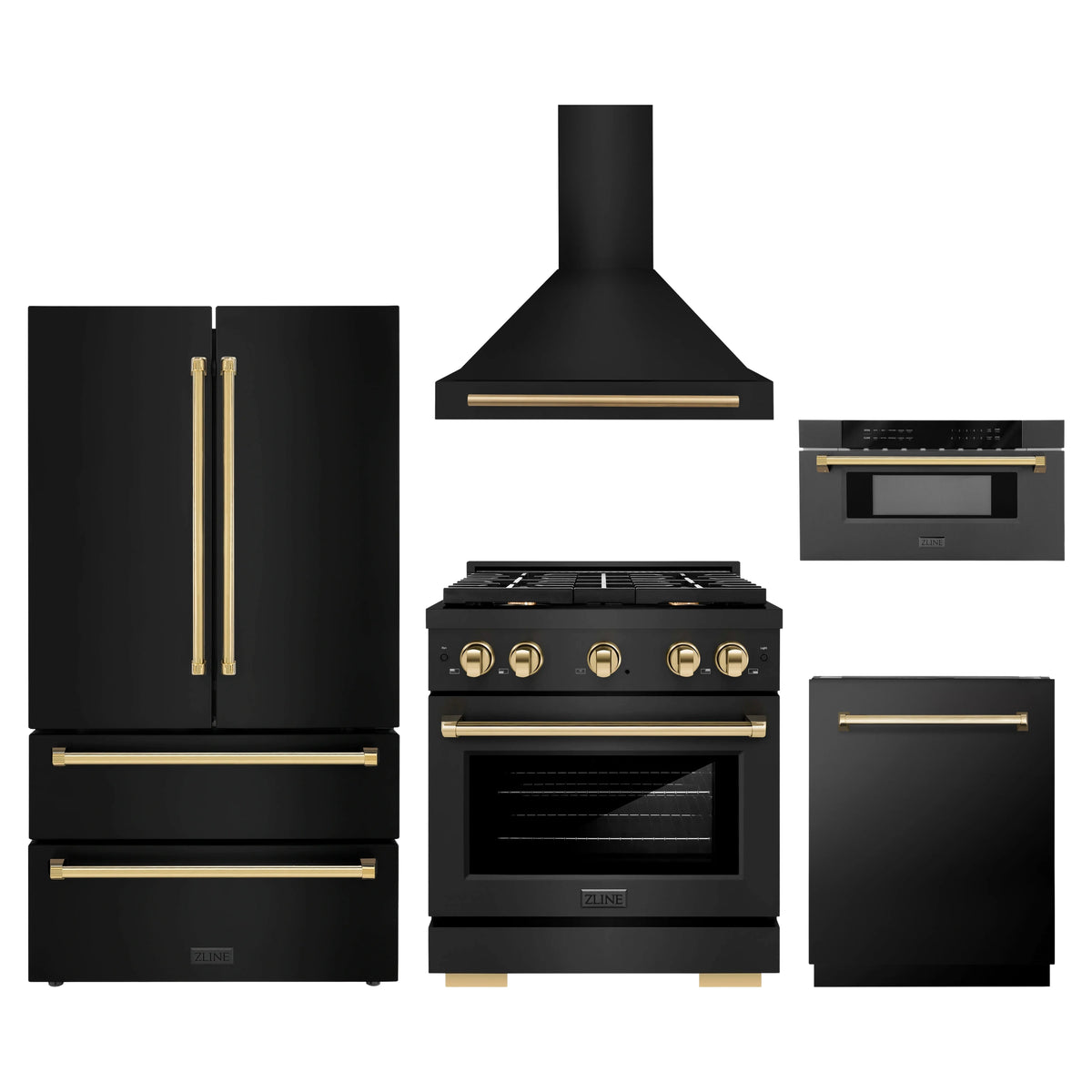

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 30 in. 4.2 cu. ft. Paramount Dual Fuel Range with 4 Burner Gas Cooktop and Electric Convection Oven in Black Stainless Steel with Polished Gold Accents (SDRBZ-30-G) combines the versatility of a gas cooktop with 4 Italian-made auto-reignition burners, an electric convection oven with digital thermostat technology, enhanced cast iron grates, a Horizon oven door window design, and elegant polished gold knobs and handle allowing you to master every meal. With a modern, timeless style and refined functionality, ZLINE Paramount Dual Fuel Ranges are masterfully crafted to deliver an elevated culinary experience.
| DIMENSIONS | |
|---|---|
| Dimensions | 30 in. W x 27.75 in. D x 36 in. H |
| Cutout Dimensions | 30.25 in. W x 24.75 in. D x 36 in. H |
| Open Door Depth | 45.1 in. |
| DESIGN & FINISH | |
| Color | Black |
| Finish | Black Stainless Steel |
| Material | Black Stainless Steel with Polished Gold Accents |
| TECHNICAL DETAILS | |
| Installation Type | Freestanding |
| Electrical Requirement | 240V/60 Hz/25A |
| COOKTOP FEATURES | |
| Burner Fuel | Natural Gas |
| Number of Burners | 4 |
| OVEN FEATURES | |
| Oven Capacity | 4.2 cu. ft. |
| Timer (Y/N) | No |
| Self Cleaning (Y/N) | No |
| Sabbath Mode (Y/N) | No |
| Broil (Y/N) | Yes |
| Oven Fuel | Electric |

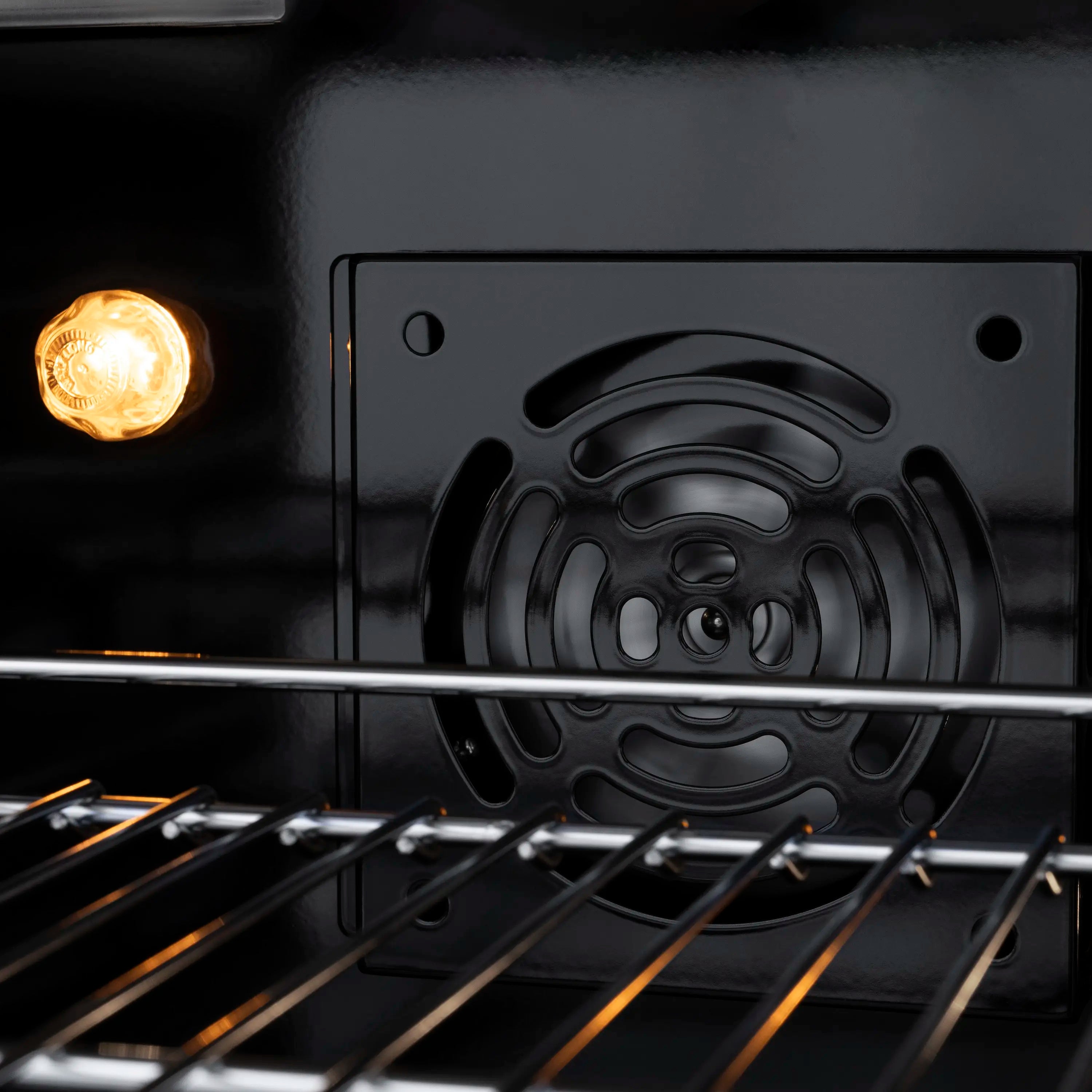

| Convection Fan | Yes |
| WARRANTY & CERTIFICATIONS | |
| Outdoor Approved (Y/N) | No |
| Warranty | 1 Year Parts and Service |

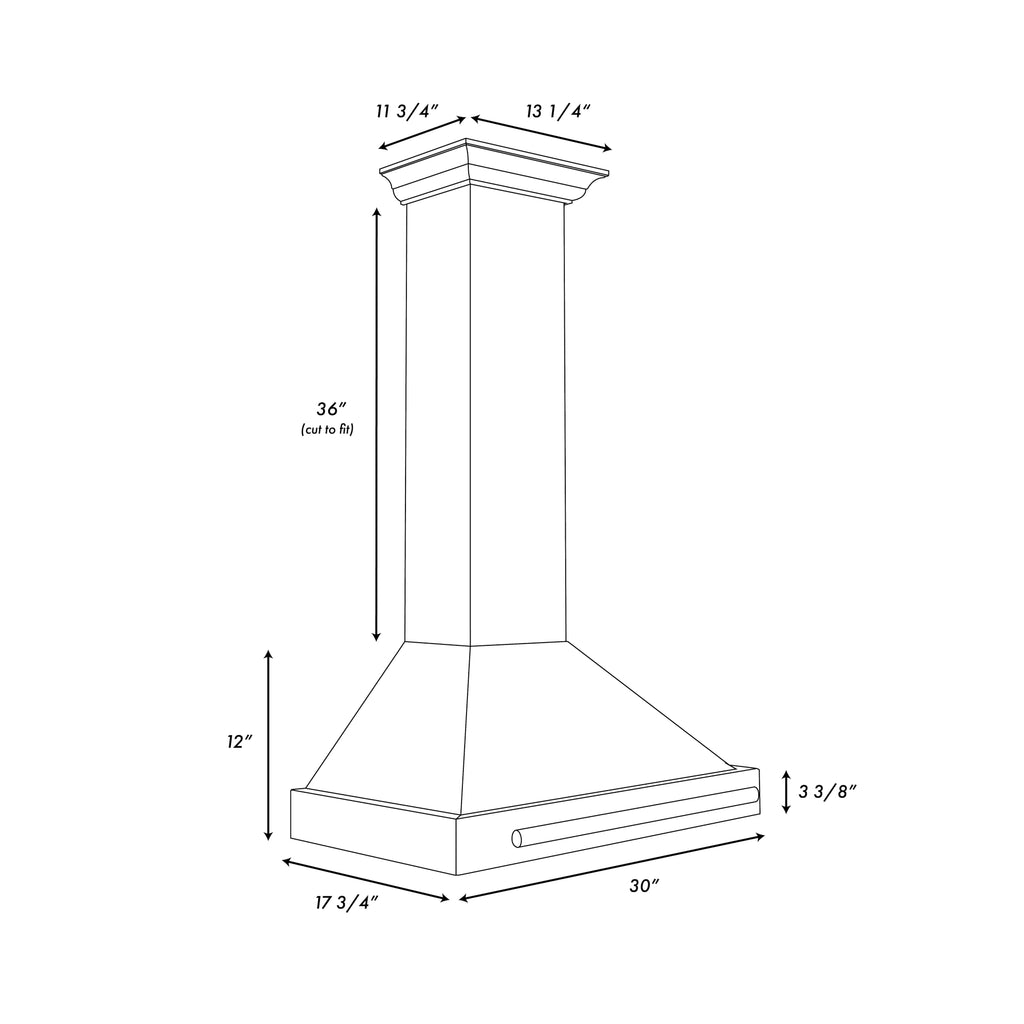

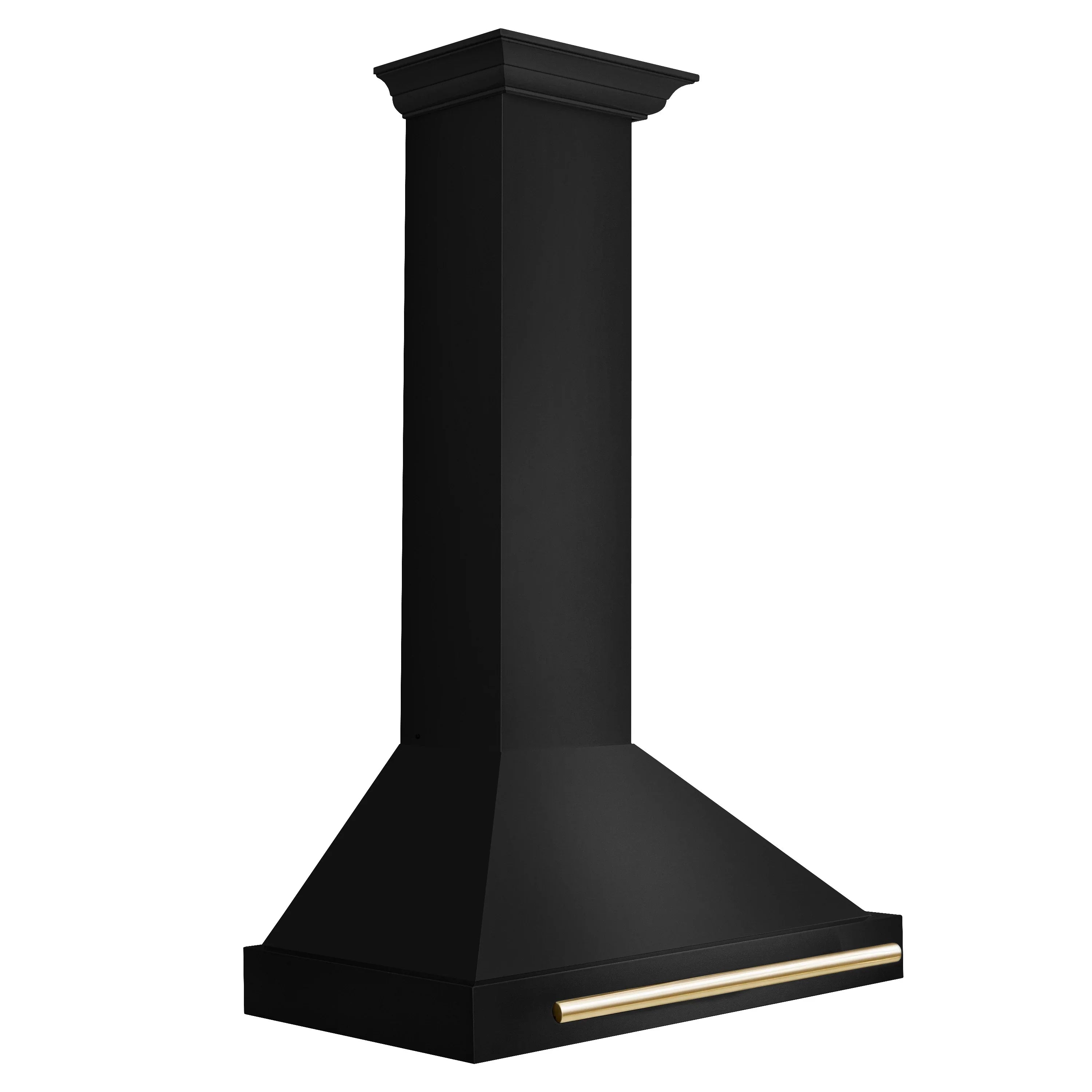

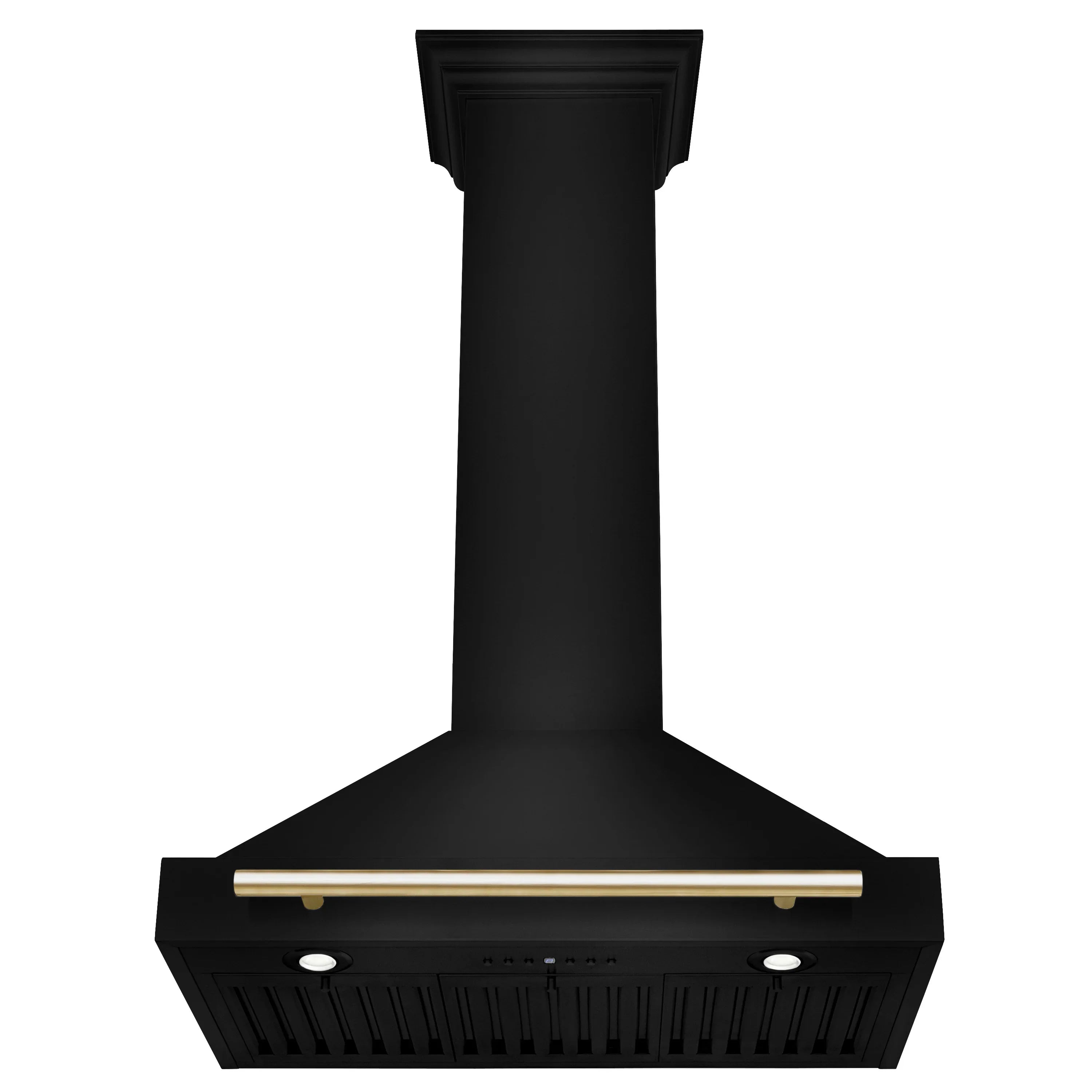

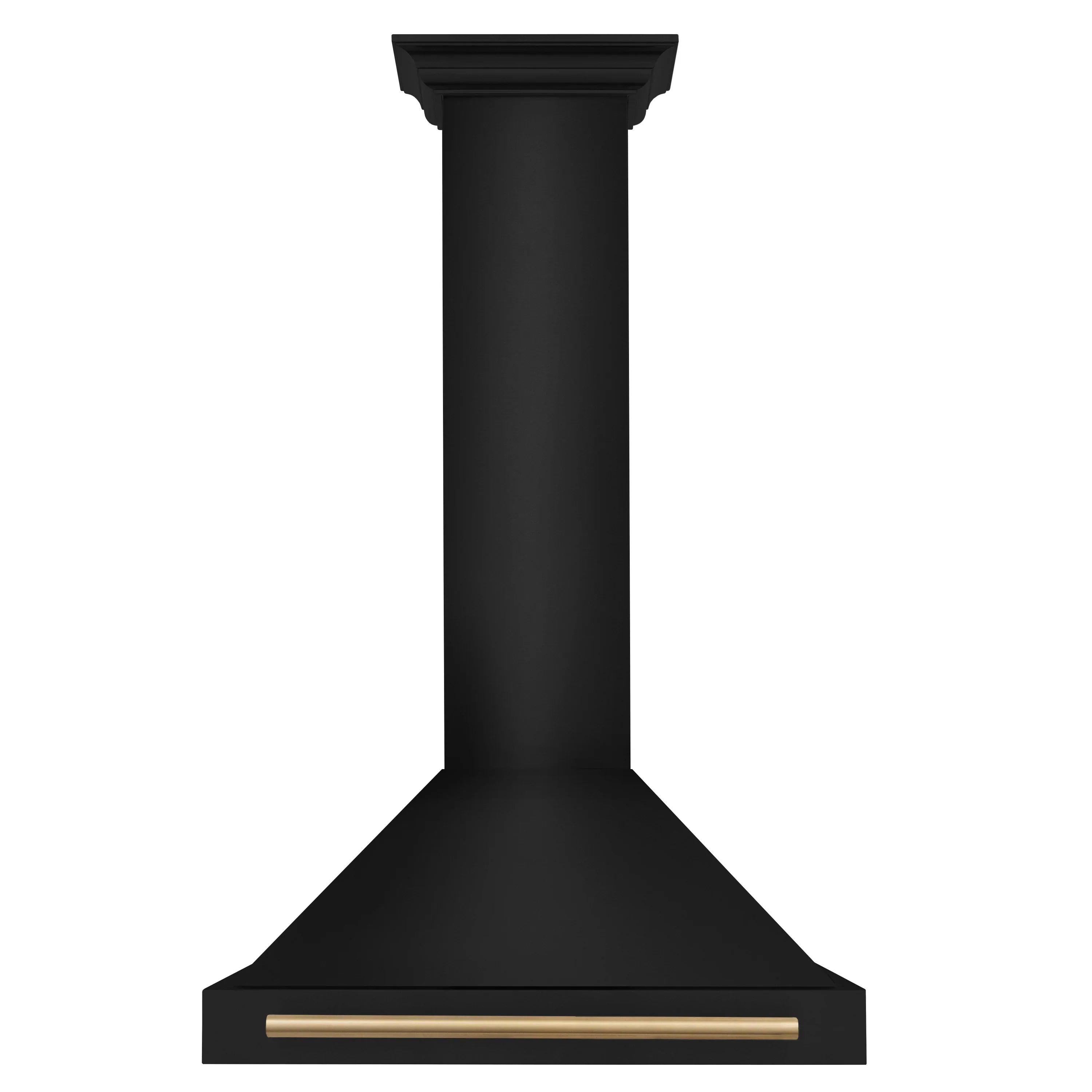

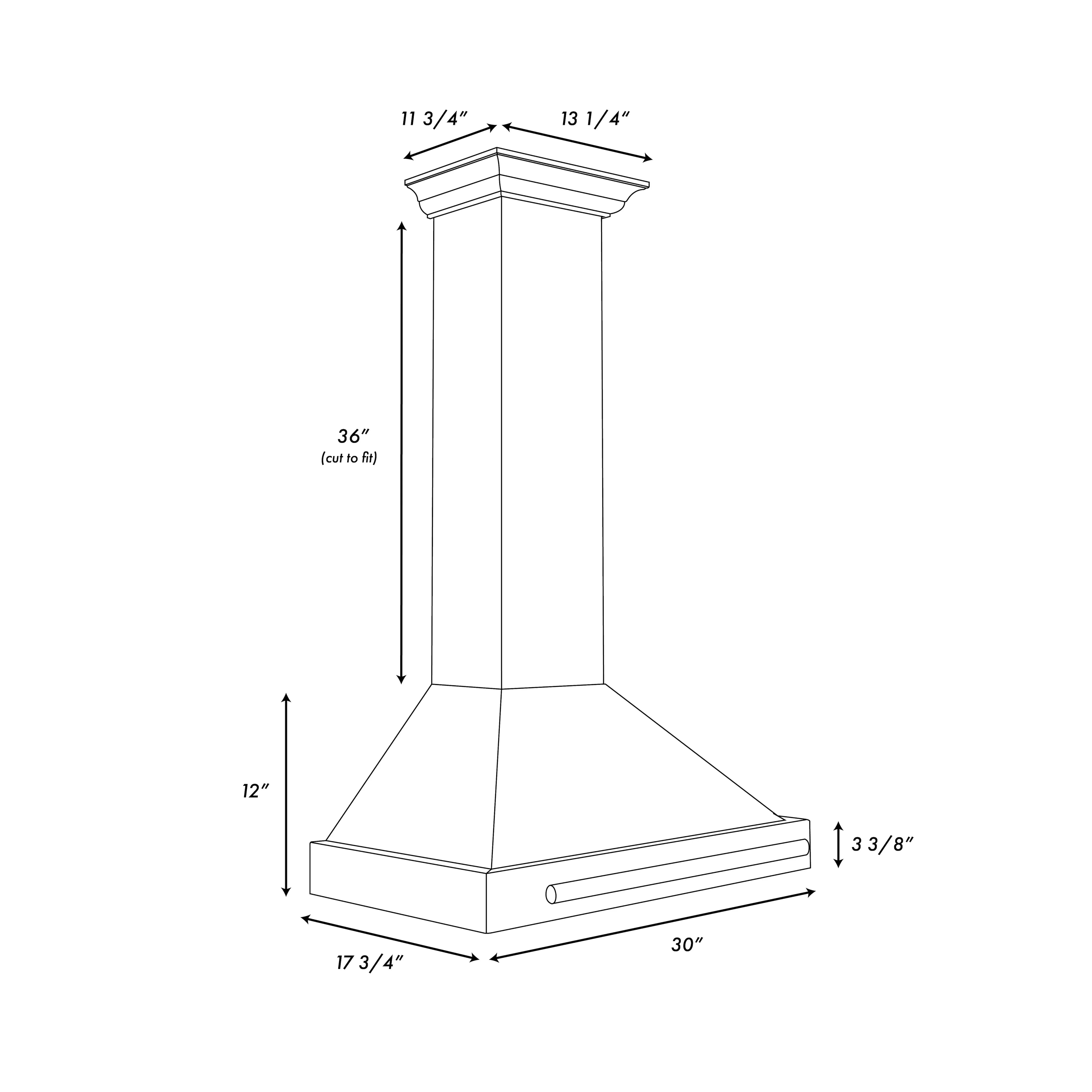

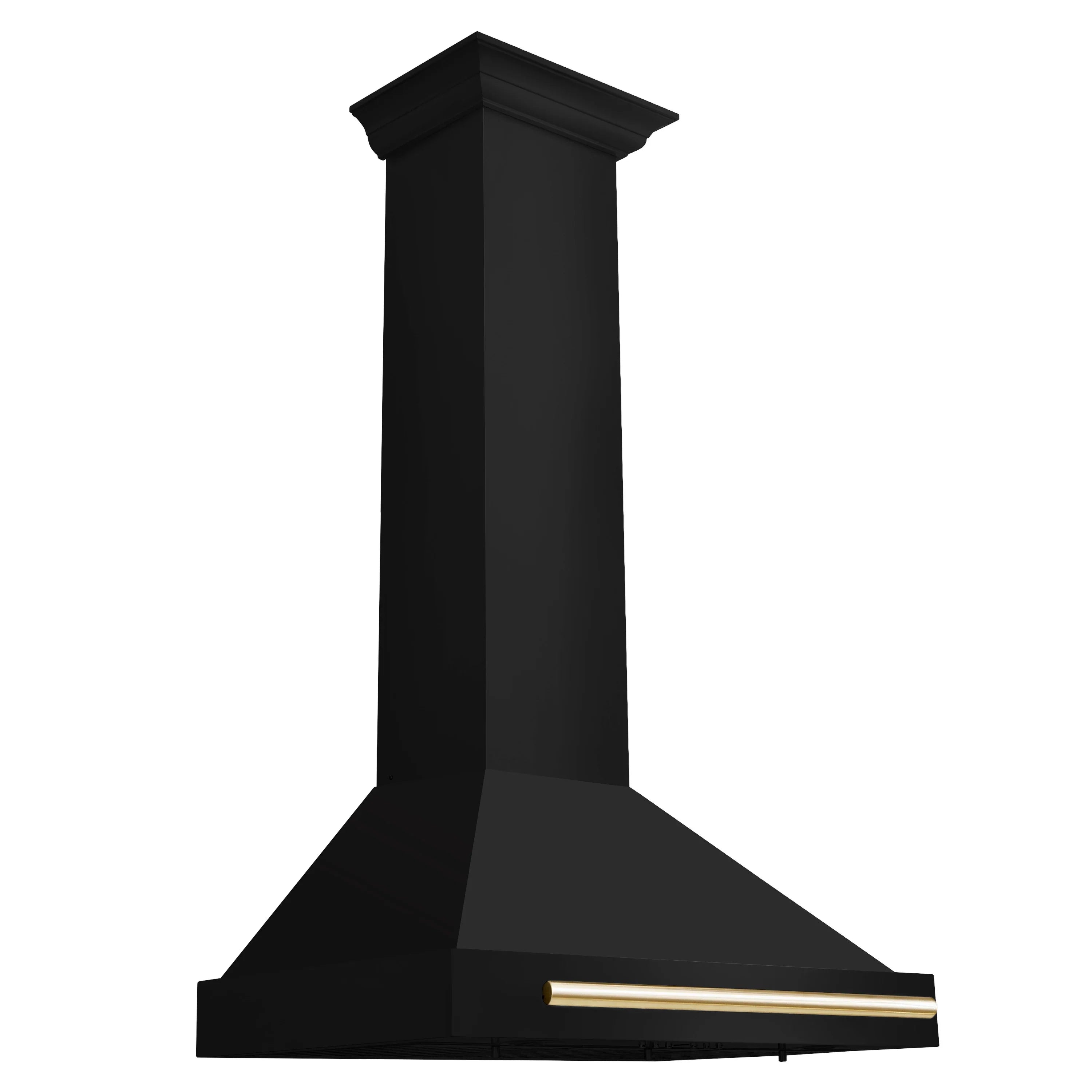

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 30 in. Autograph Edition Black Stainless Steel Wall Mount Range Hood With Accent Handle (BSKB4Z-30) provides a professional culinary experience by pairing unmatched performance with personalized touches. Encompassing limitless beauty, precision, and quality, the Autograph Edition Series creates a luxury look that will transform your space. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability.
| DIMENSIONS | |
|---|---|
| Dimensions | 30 in. W x 17.75 in. D x 12 in. |
| Chimney Dimensions | 9.2 in. W x 8 in. D x 16 in. H (x2) (Telescoping) |
| Min/Max Chimney Height | 16 in. - 32 in. |
| GENERAL INFORMATION | |
| Outdoor Approved (Y/N) | No |
| Mount Type | Wall Mount |
| DESIGN & FINISH | |
| Material | Black Stainless Steel |
| Accent Finishes | Champagne Bronze Polished Gold |
| Control Type | Push Button Control Panel |
| TECHNICAL DETAILS | |
| Max CFM | 400 CFM |
| Duct Size | 6 in. |
| Airflow (Q/L/M/H) | 120/240/320/400 |
| Remote Blower (Y/N) | No |
| Electrical Requirements (Voltage, Amps, Watts) | 100V/5A/550W |
| Decibels | 30/41/49/52 |
| Motor | High Performance 400 CFM/4-Speed Motor |
| Speeds | 4 |
| FEATURES | |
| Lighting (# of Lights) | 2 |
| Filters | Baffle Filters |
| WARRANTY & CERTIFICATIONS | |
| Certifications | ETL Listed |
| Warranty | 3 Year Parts Warranty and a Lifetime Warranty on Motor |

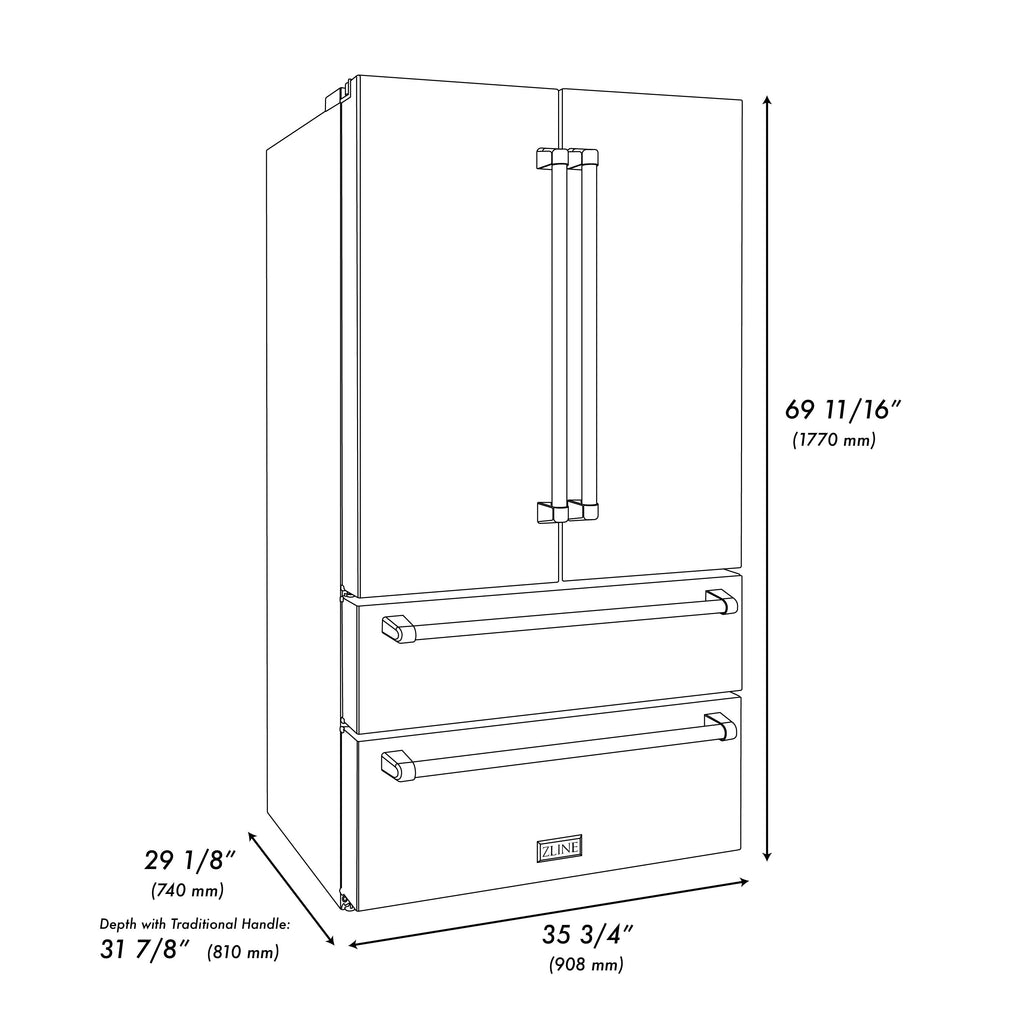

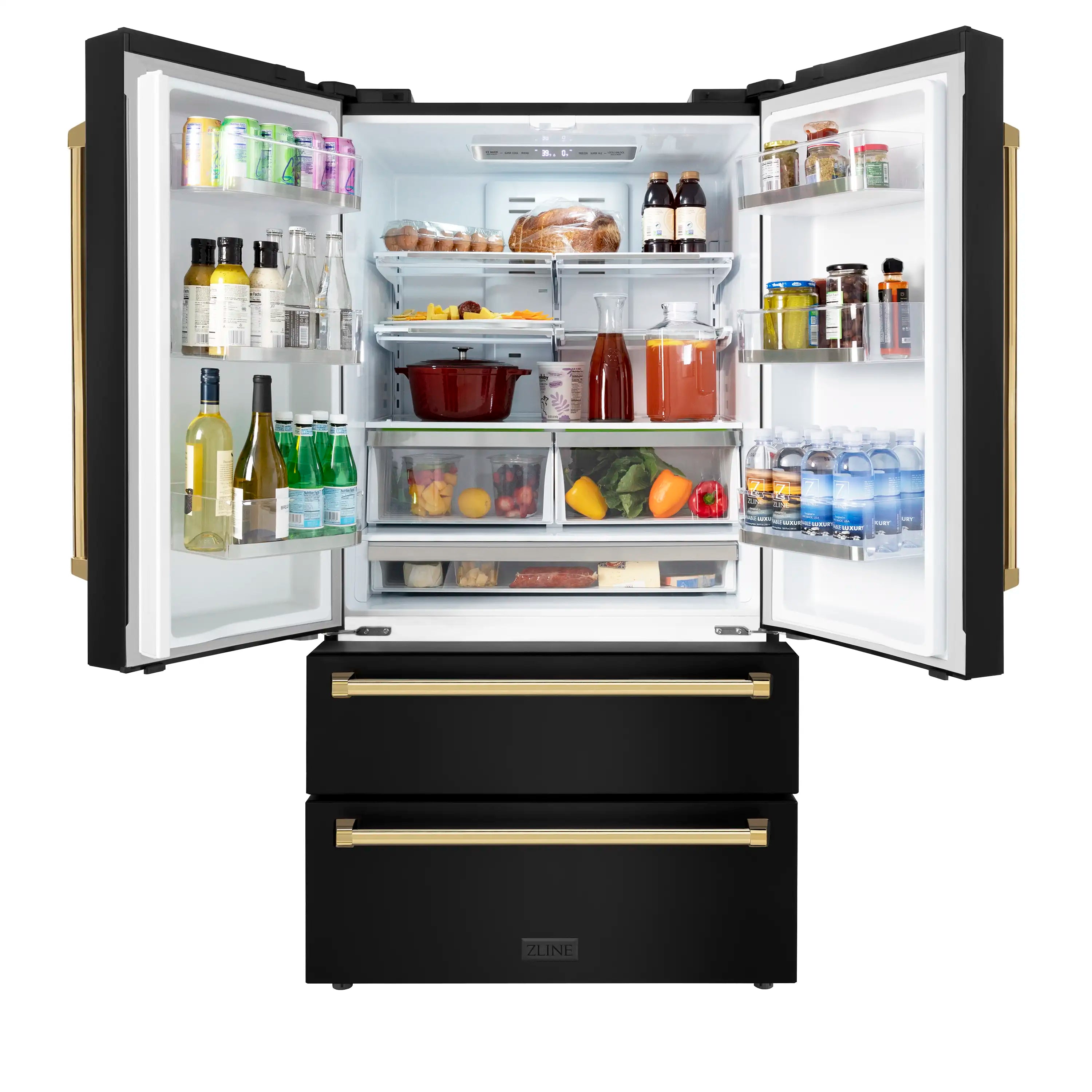

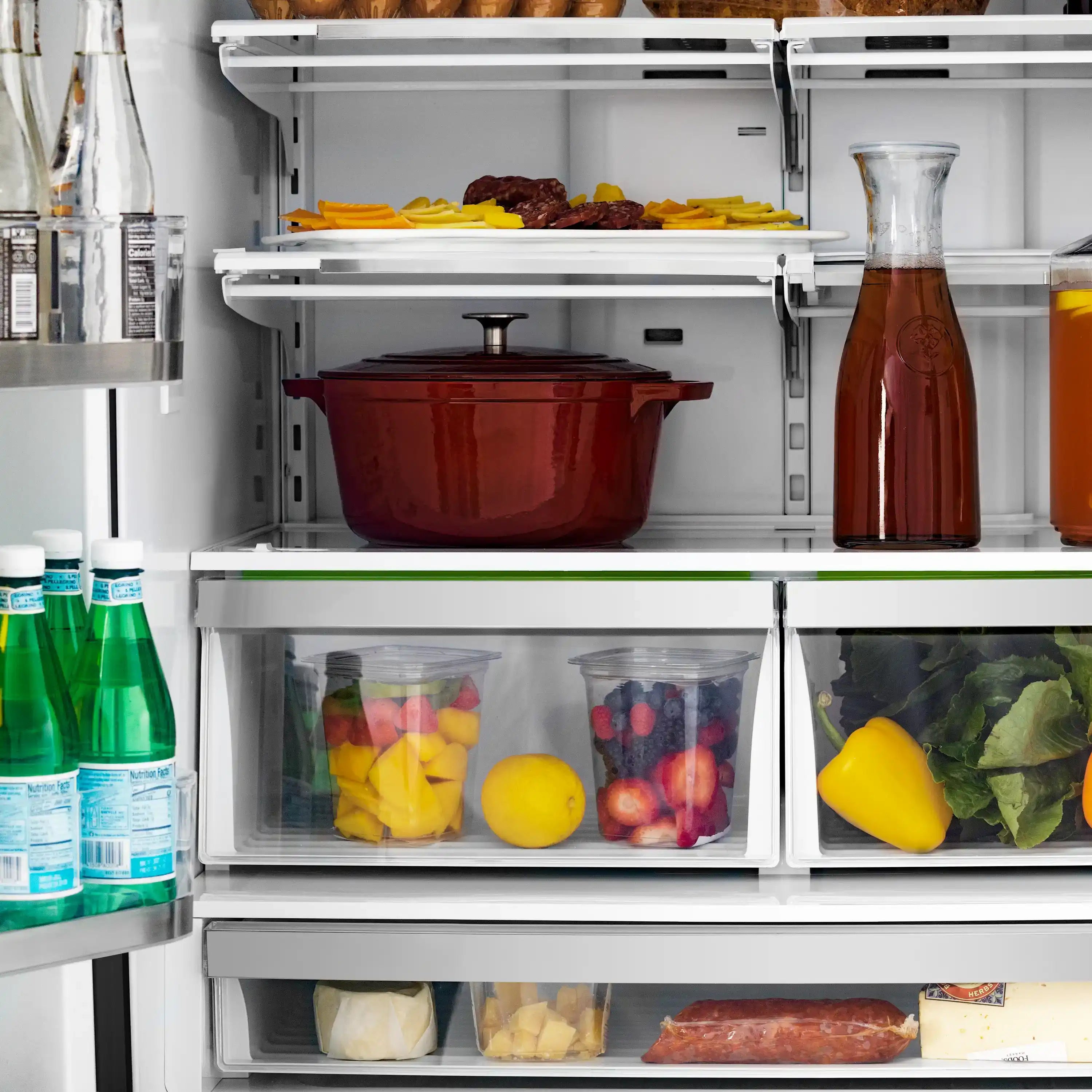

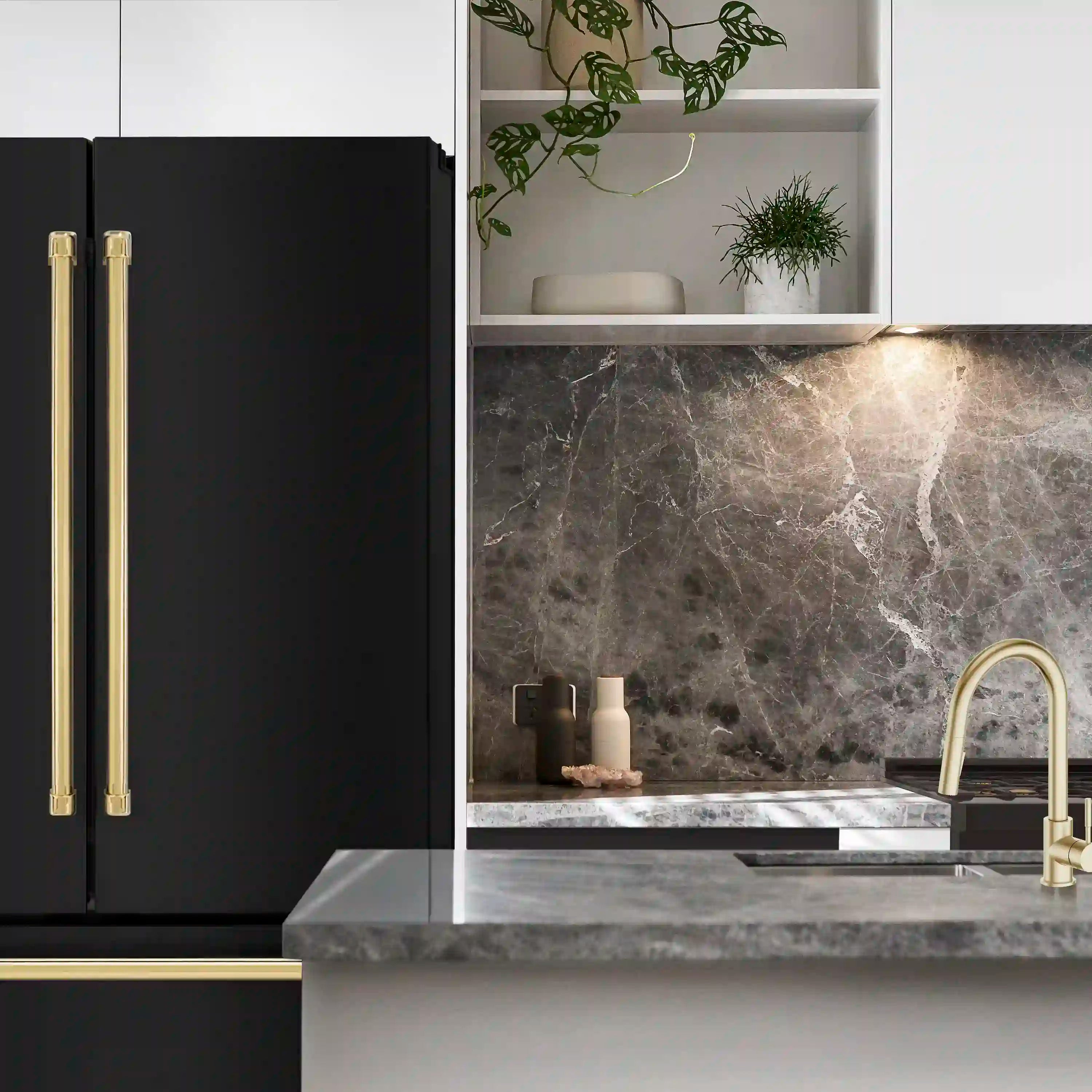

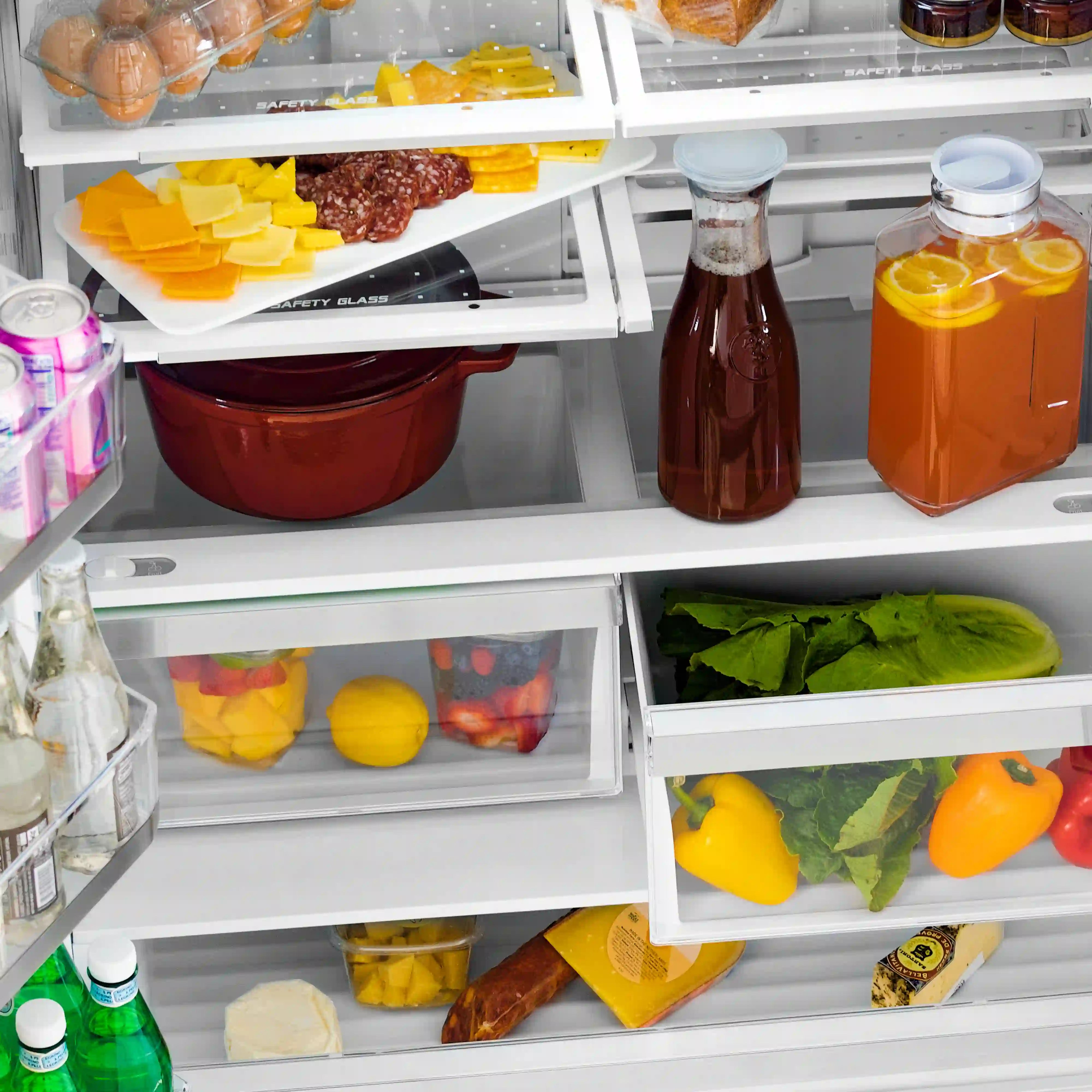

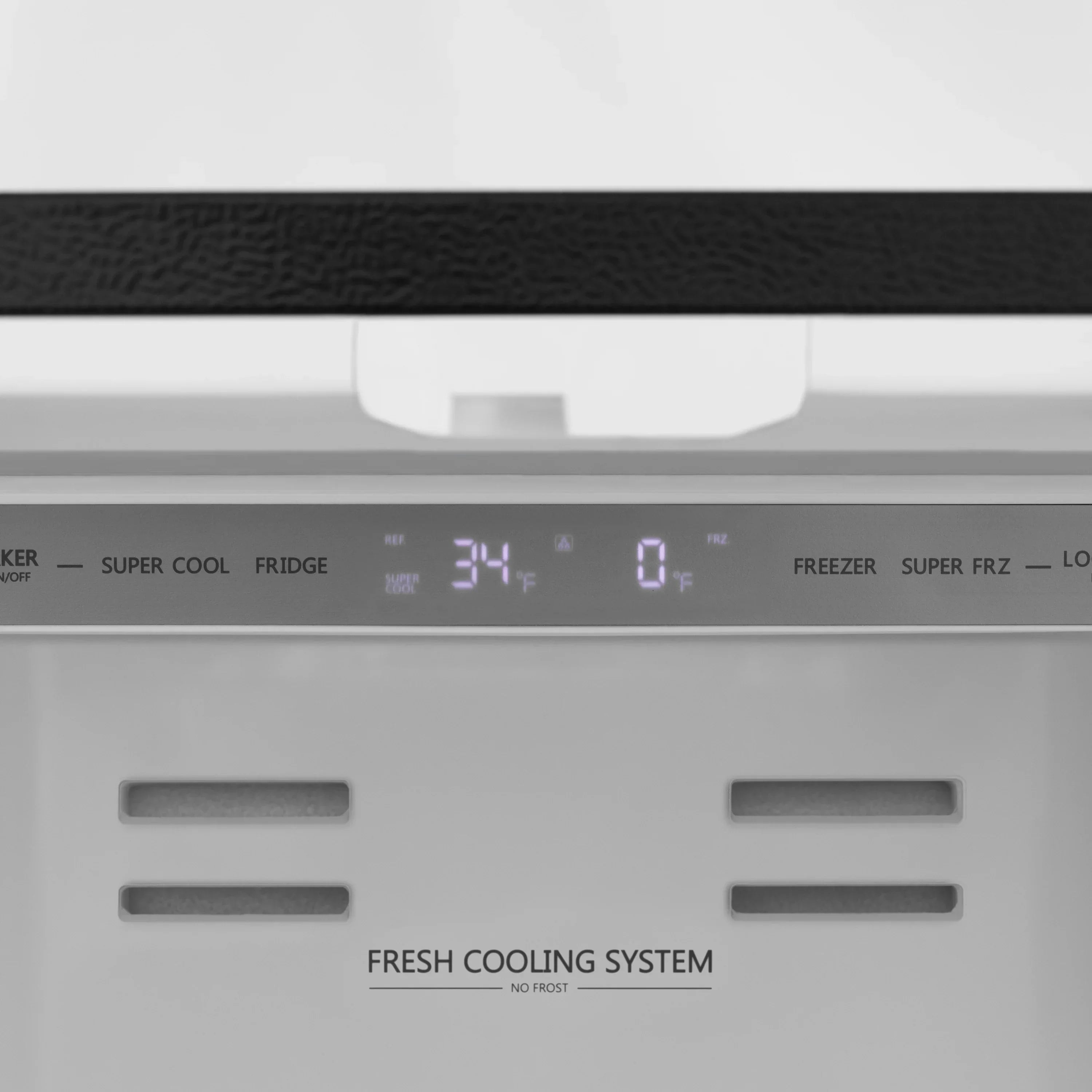

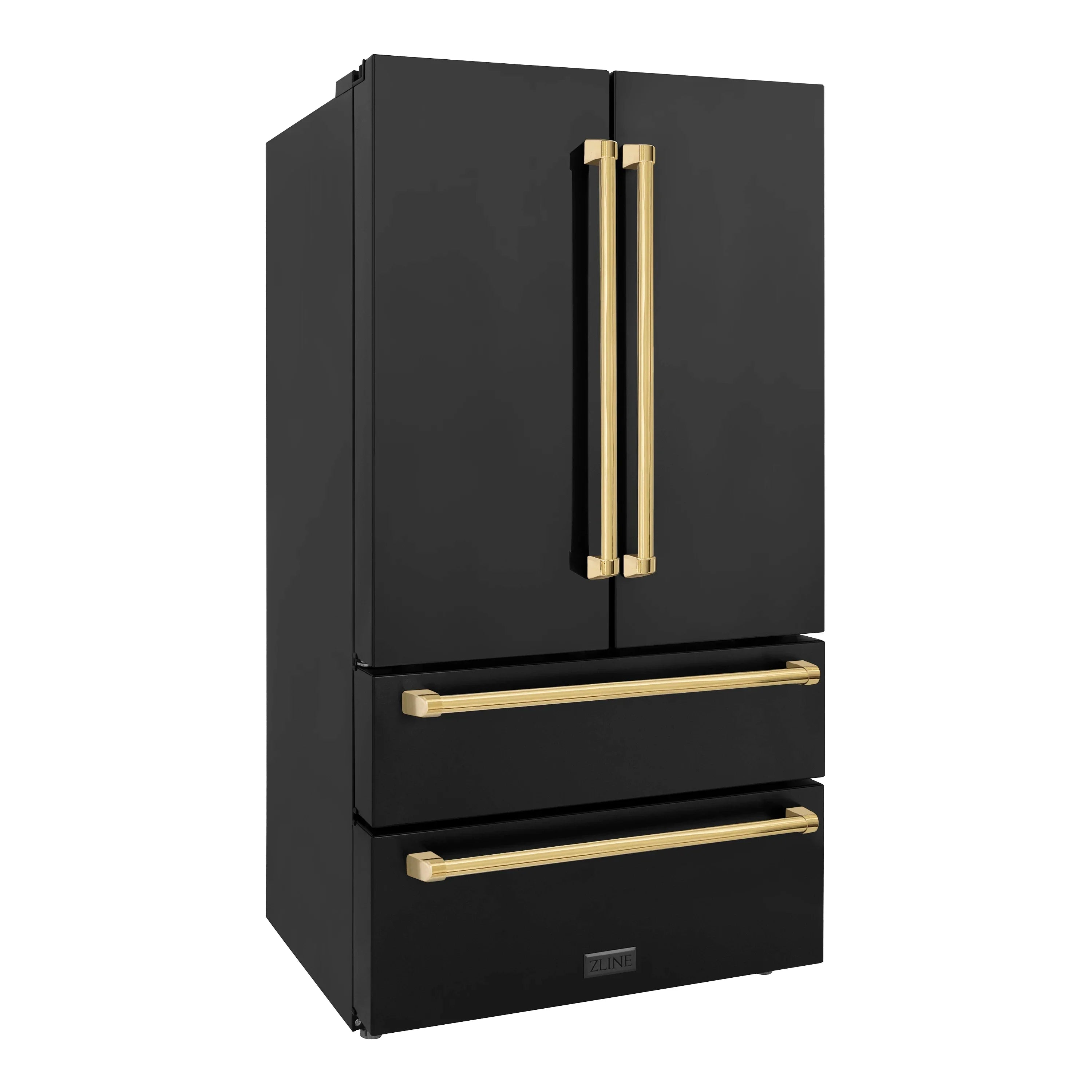

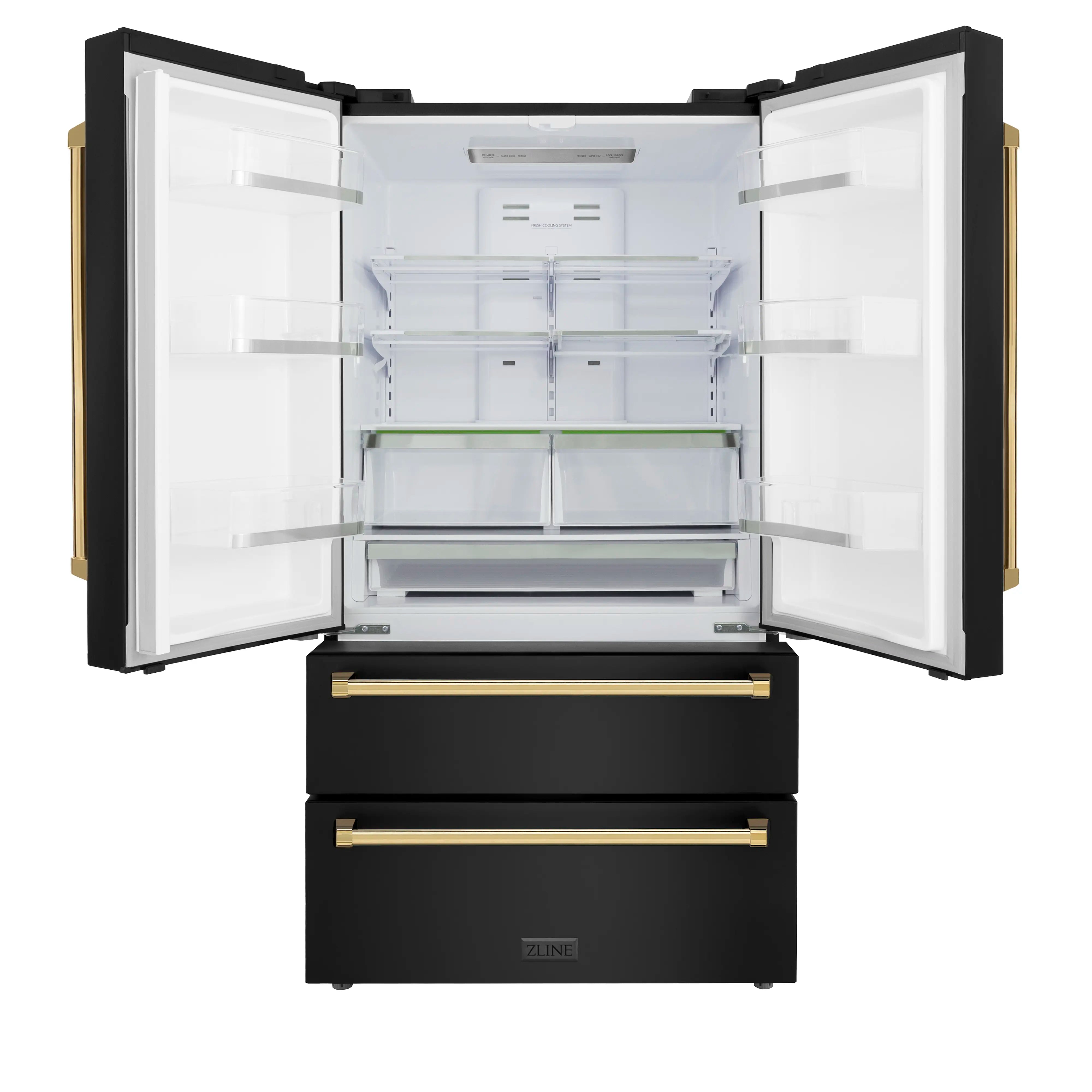

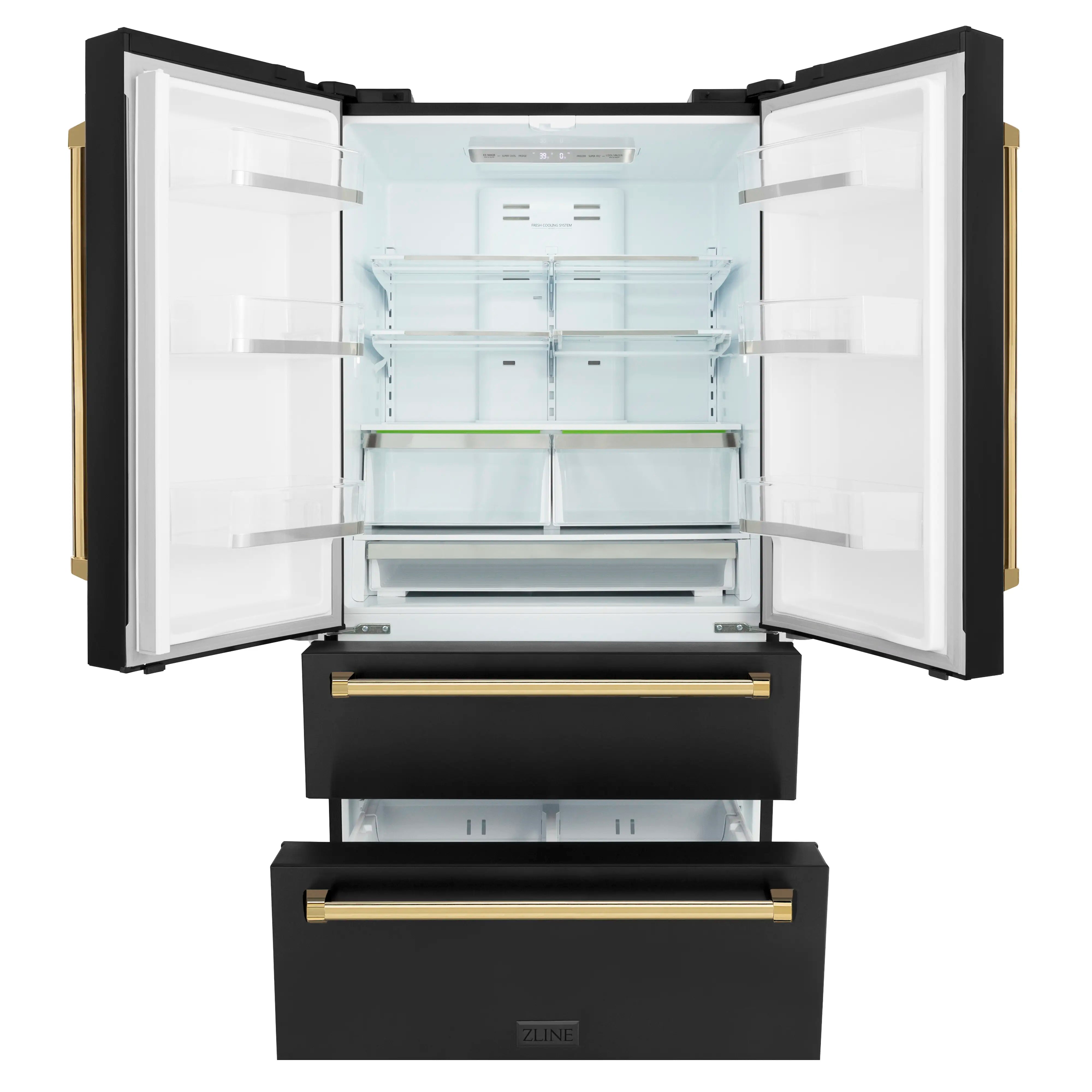

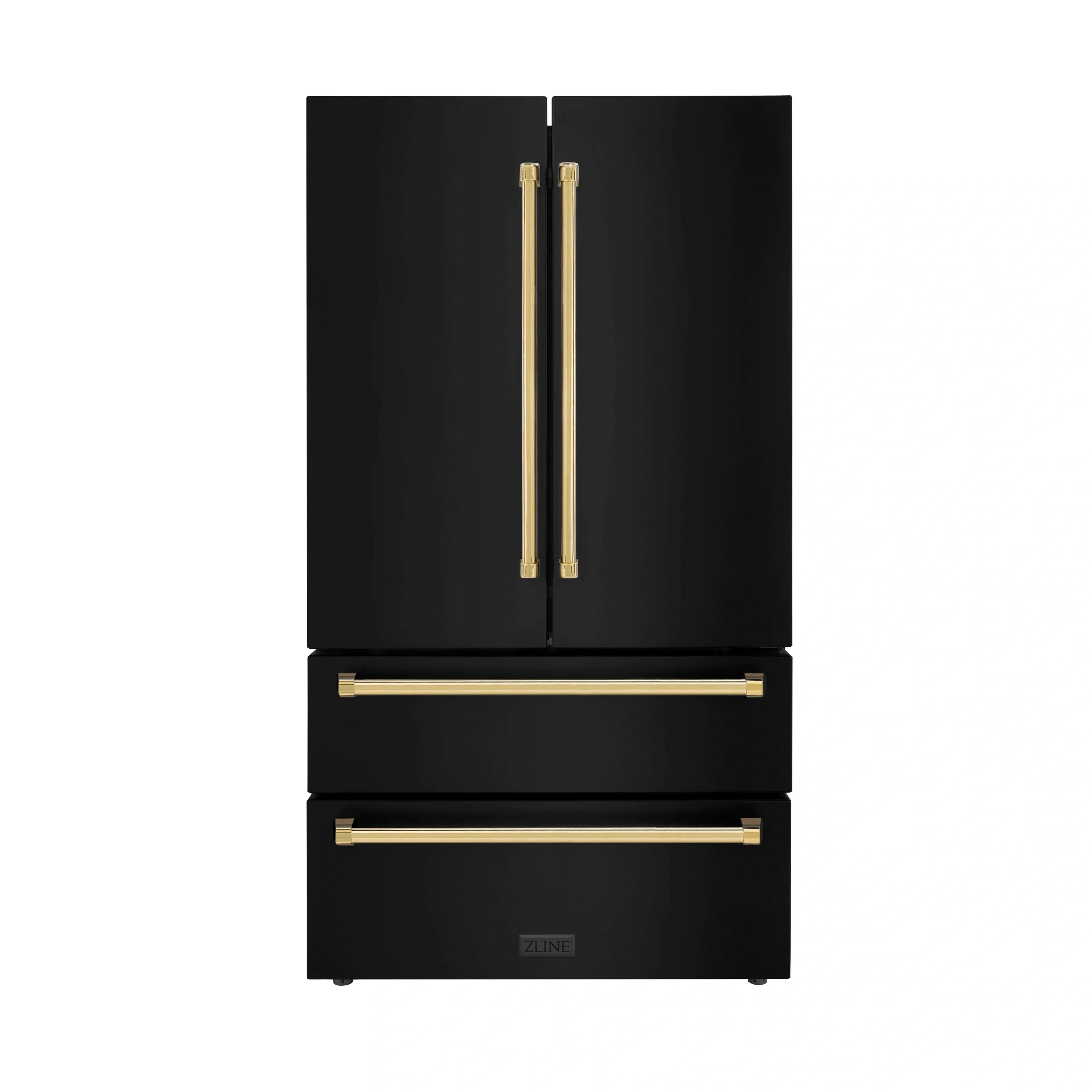

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 36 in. 22.5 cu. ft. Counter-Depth French Door Refrigerator with Ice Maker in Fingerprint-Resistant Black Stainless Steel with Polished Gold Traditional Handles (RFMZ-36-BS-G) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and a high-capacity built-in ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
| DIMENSIONS | |
|---|---|

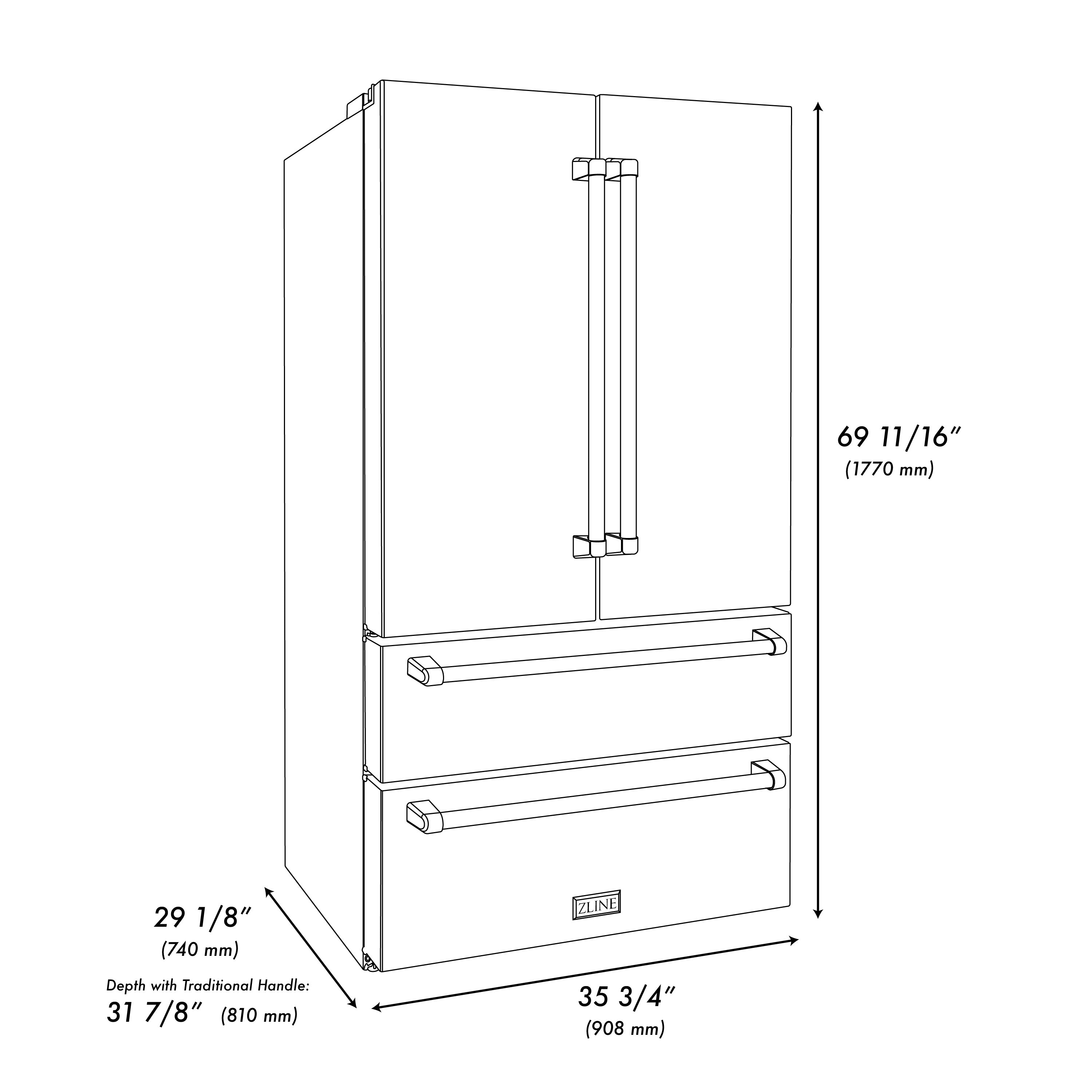

| Dimensions | 35.75 in. W x 29.125 in. D x 69.6875 in. H |
| Total Capacity | 22.5 cu. ft |
| Installation Depth | 29 in. D |
| Depth with Door Open | 43.5 in. |
| Weight | 284.4 lbs |
| GENERAL INFORMATION | |
| Mount Type | Freestanding |
| DESIGN & FINISH | |
| Material | Black Stainless Steel with Gold Accents |
| TECHNICAL DETAILS | |

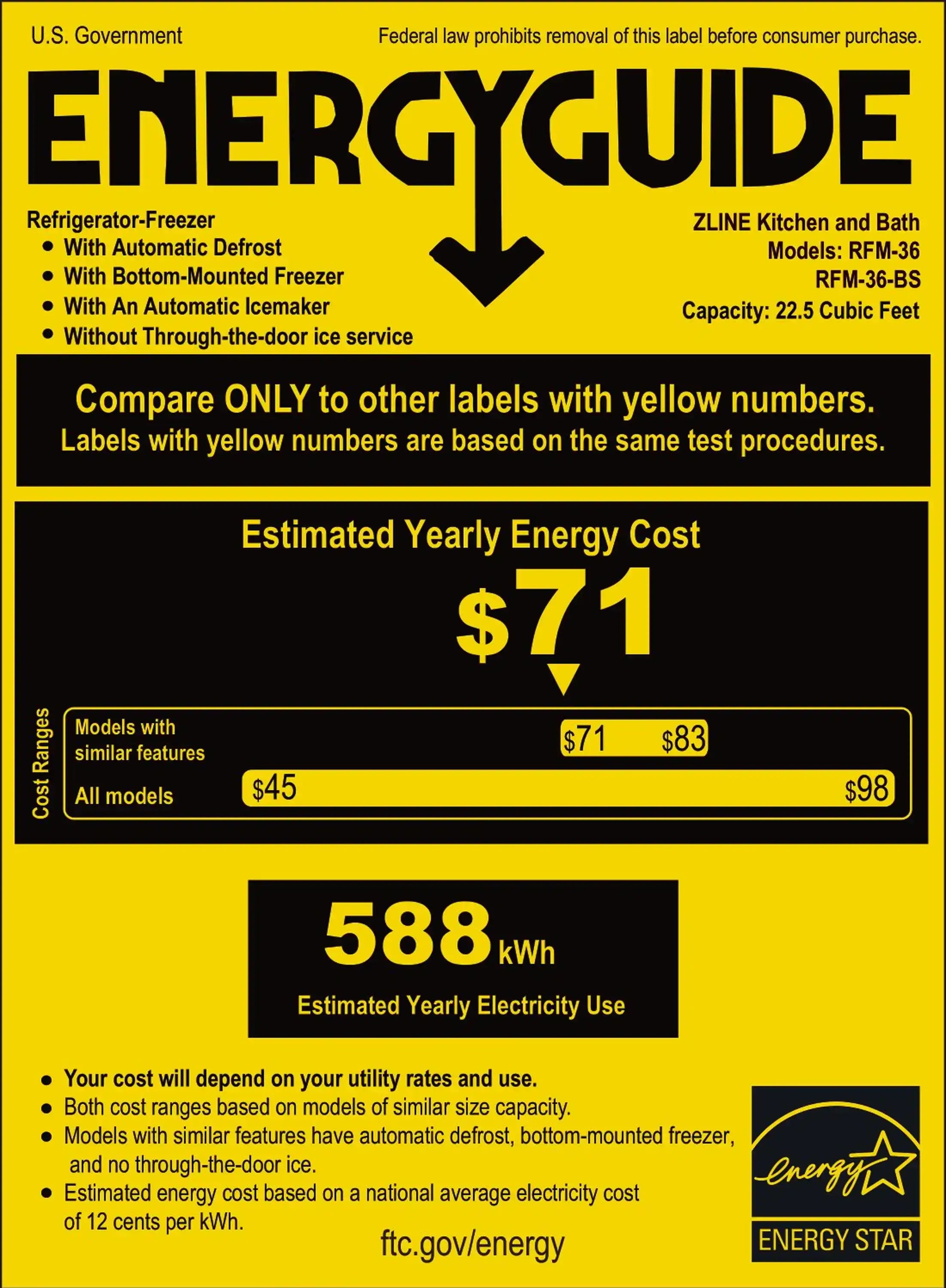

| Energy Consumption (kWh/year) | 588 |
| Voltage | 120V/60Hz |
| Amps | 3 |
| Noise Level | 45 Decibels |
| REFRIGERATOR FEATURES | |
| Fridge Capacity | 15.9 cu. ft |
| Flex Drawer Capacity | N/A |
| Flex Drawer Temp Controls | N/A |

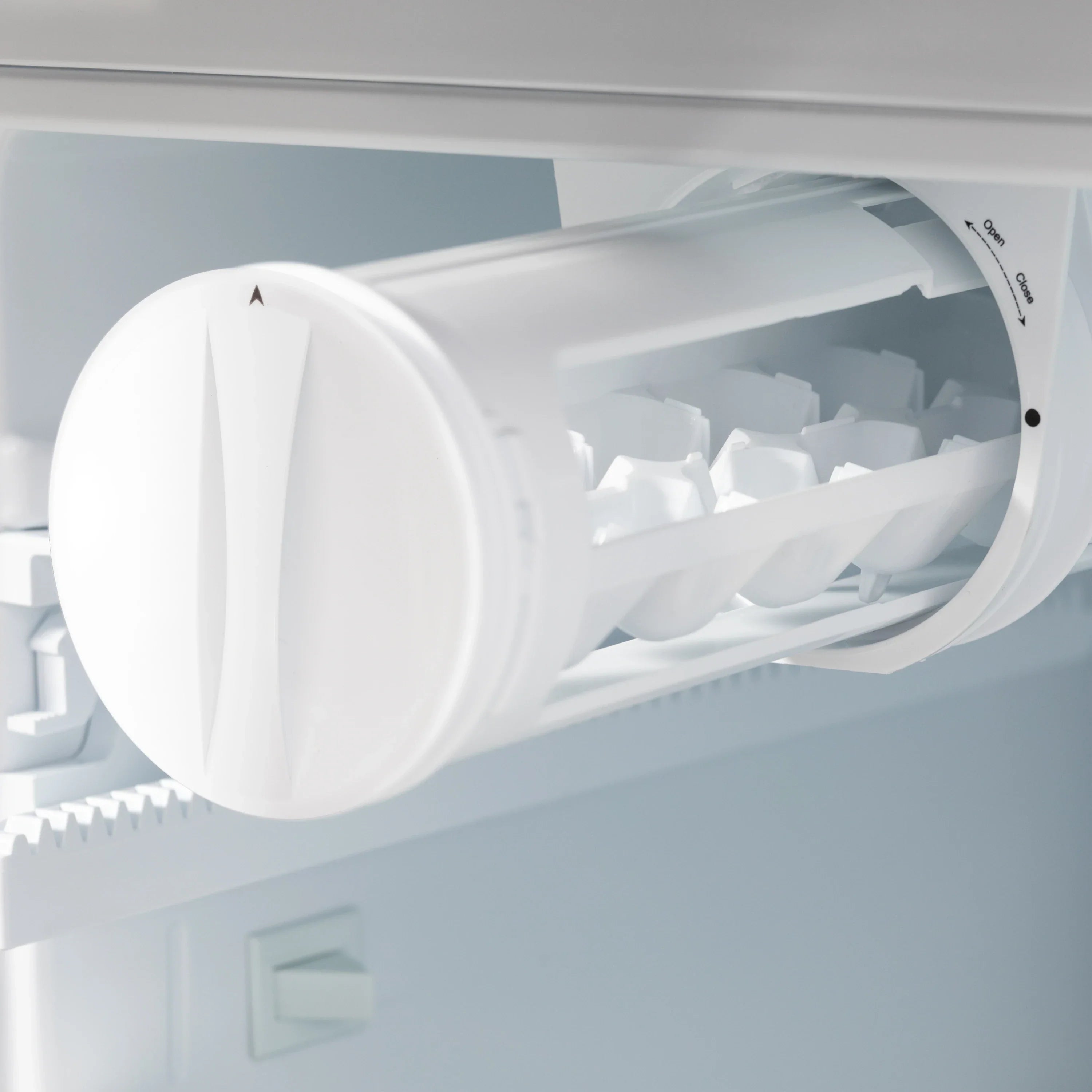

| Ice Maker | Yes |
| Ice Maker Types | Single Ice Maker |
| Ice Amount Per Day | 4.85 lbs |
| Ice Tray Storage | 1.75 lbs |
| Water Dispenser | No |
| Flowrate for Water Dispenser | N/A |
| Fridge Lights | 3 |

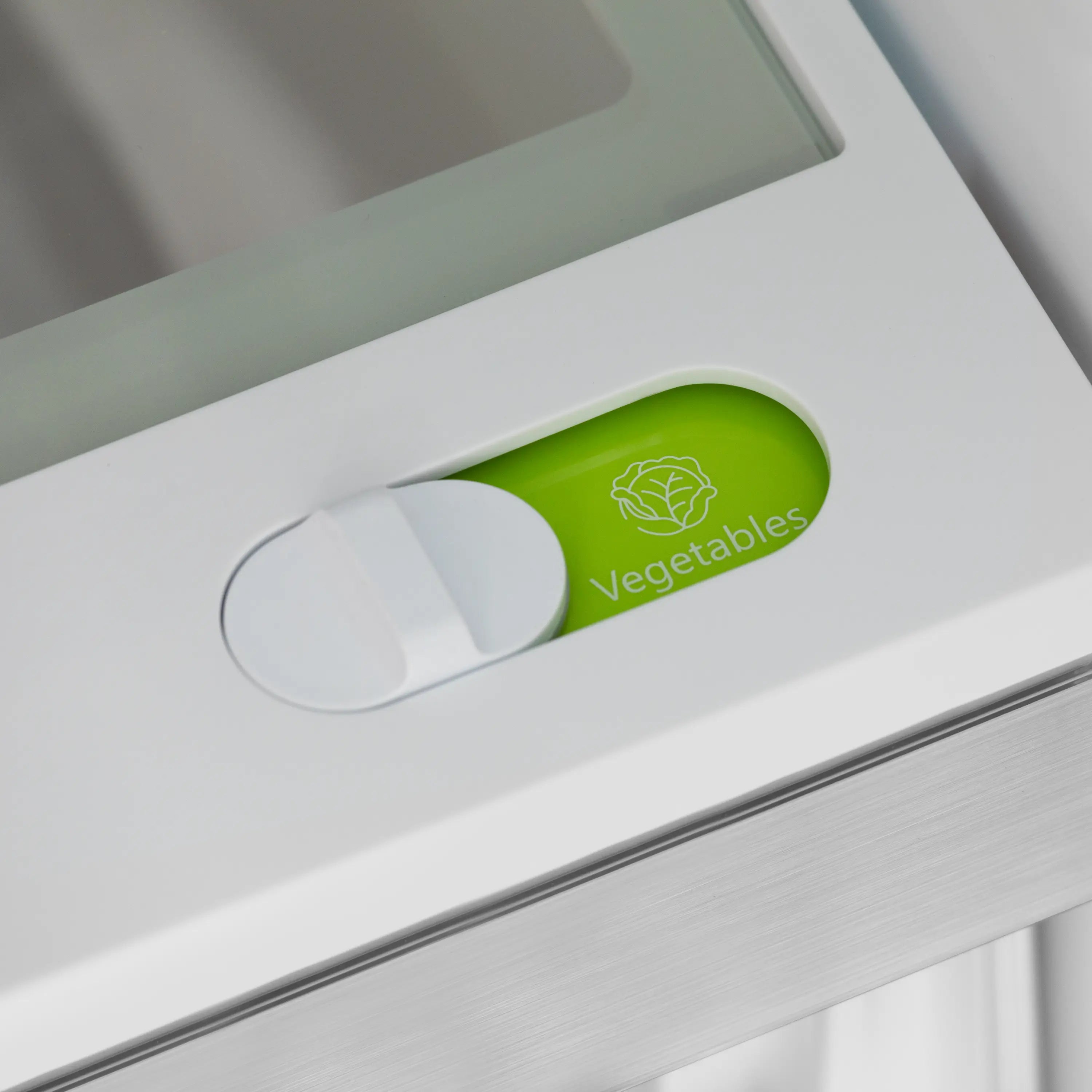

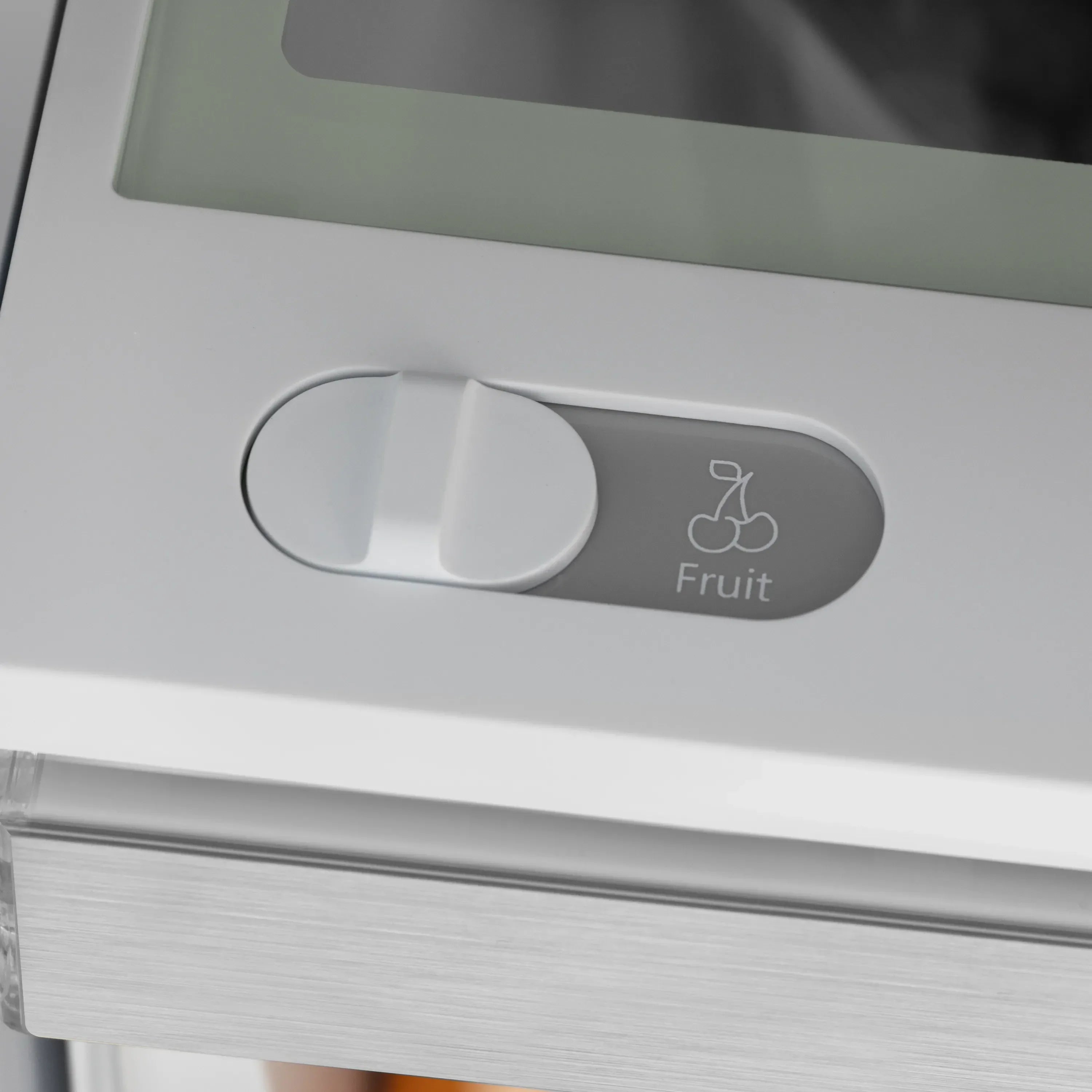

| Humidity-Controlled Crispers | 2 |
| Door Shelves | 6 |
| Number of Fridge Shelves | 4 |
| FREEZER FEATURES | |
| Freezer Capacity | 6.61 cu. ft |
| Freezer Drawer Bins | 2- Pull Out Drawers |
| WARRANTY & CERTIFICATIONS | |
| Energy Star | Yes |
| Certifications | ETL Listed, ENERGY STAR certified |
| Warranty | 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System |

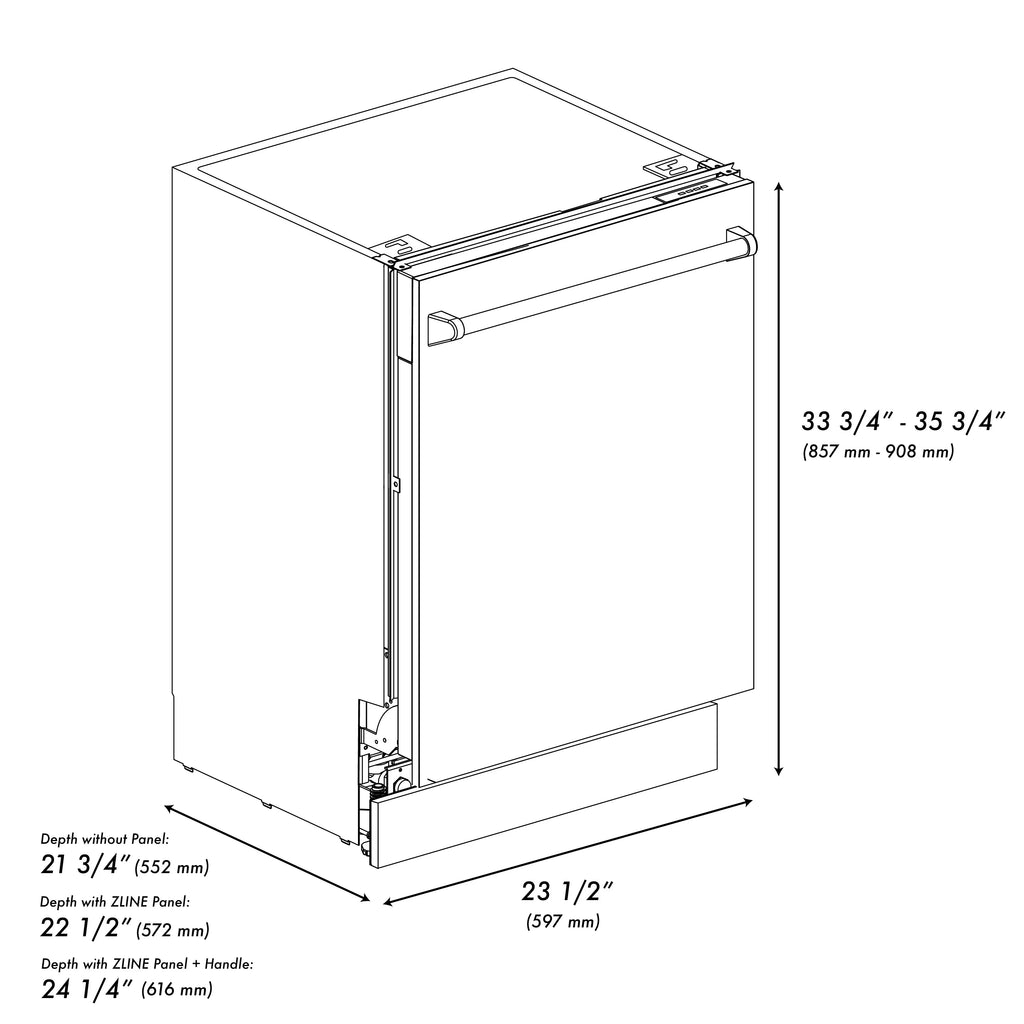

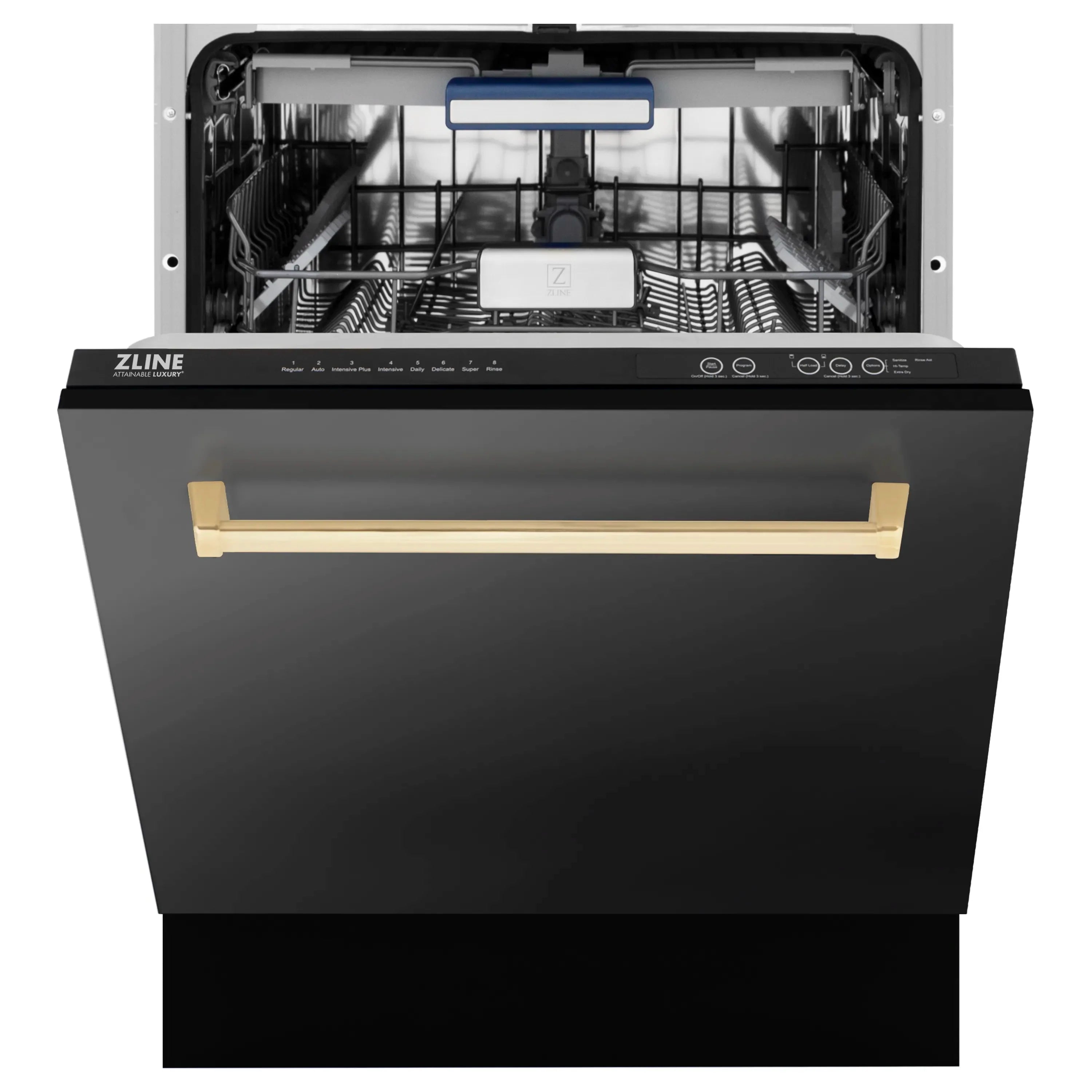

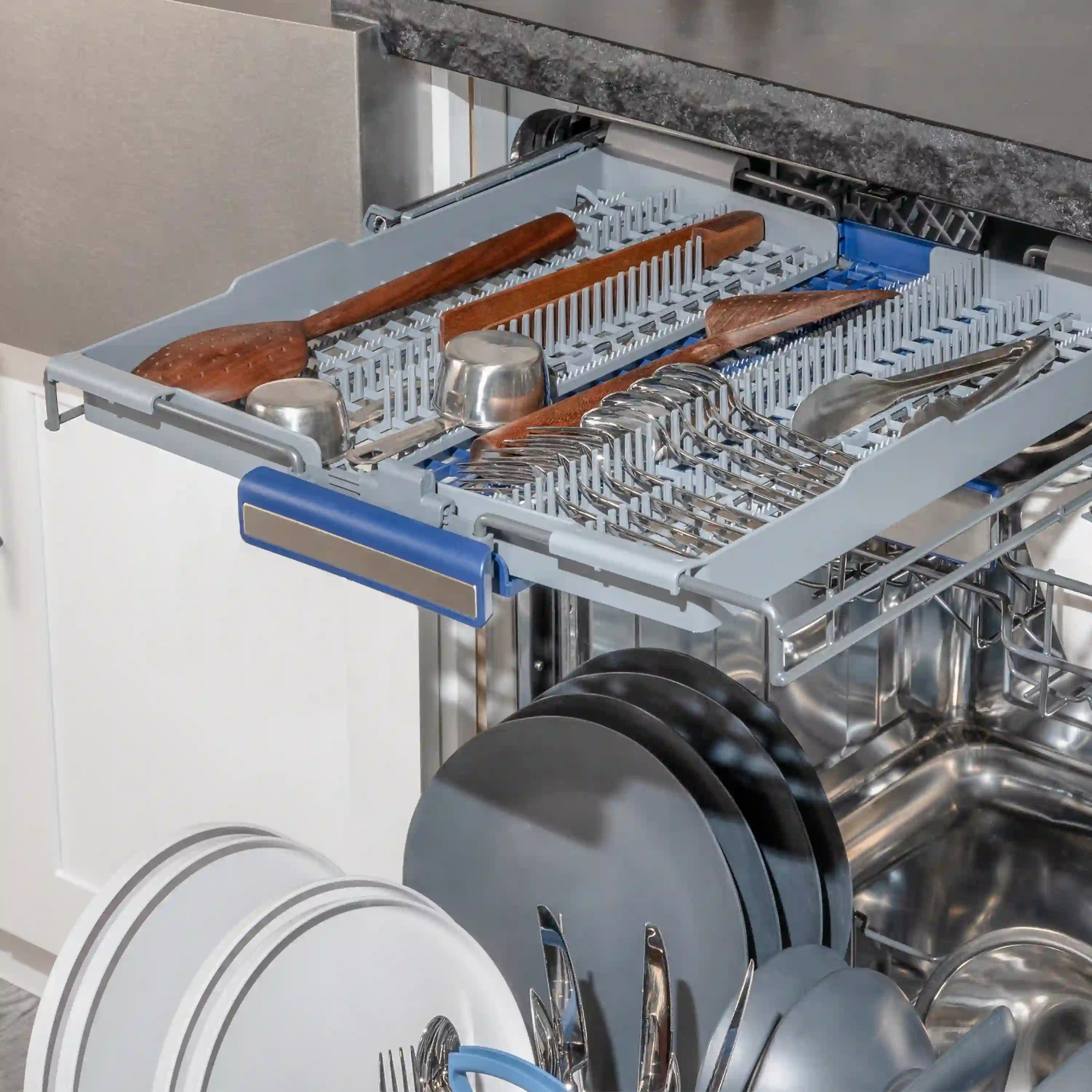

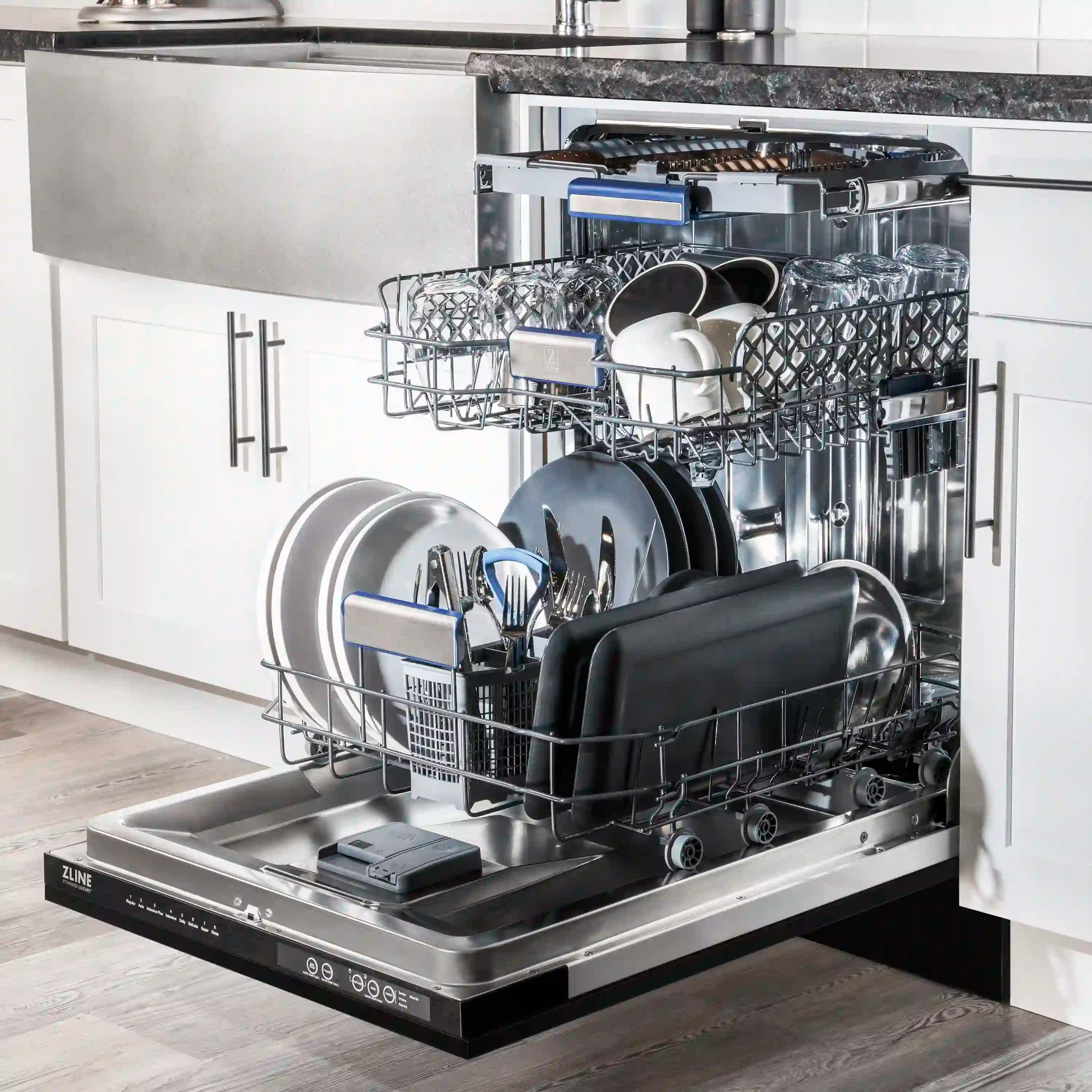

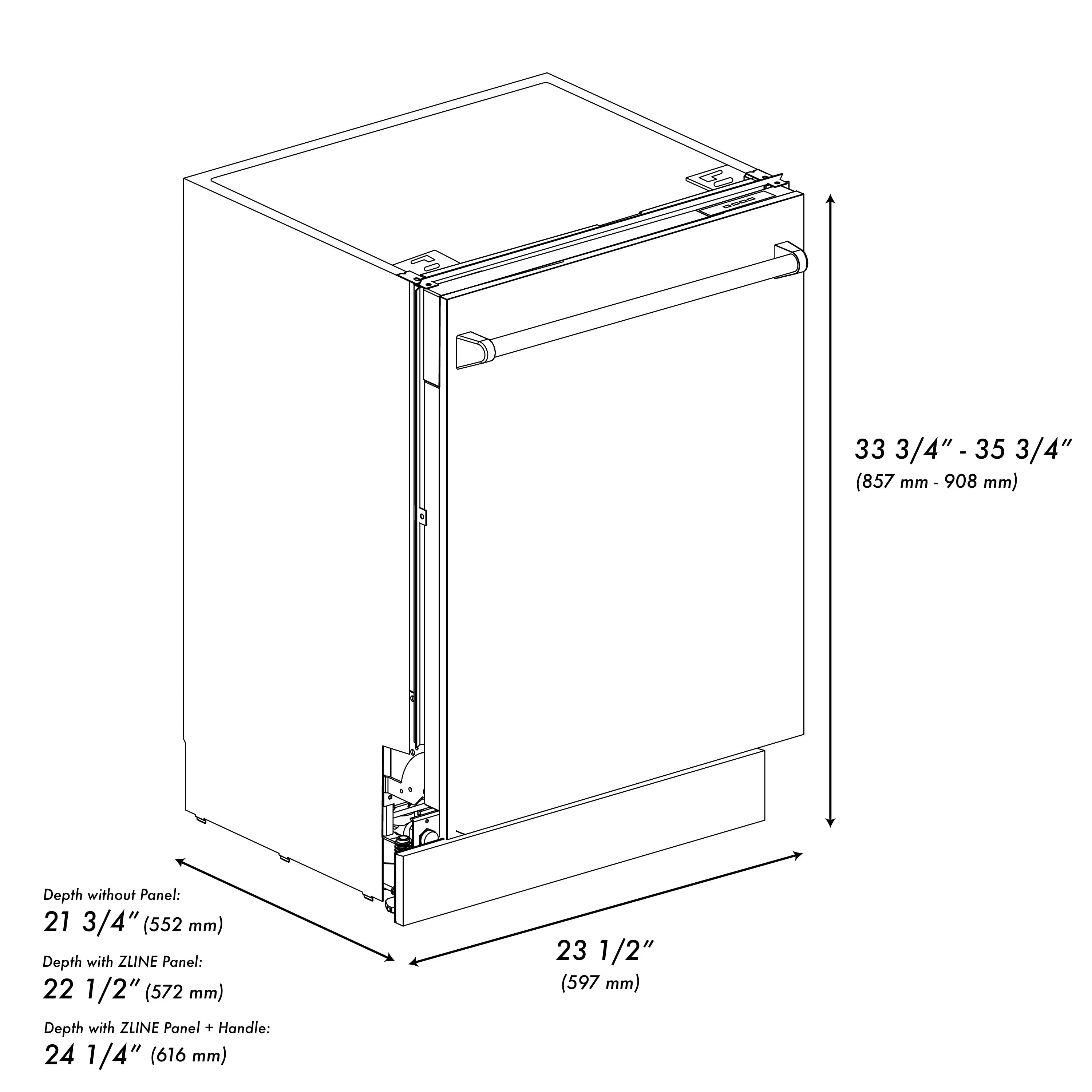

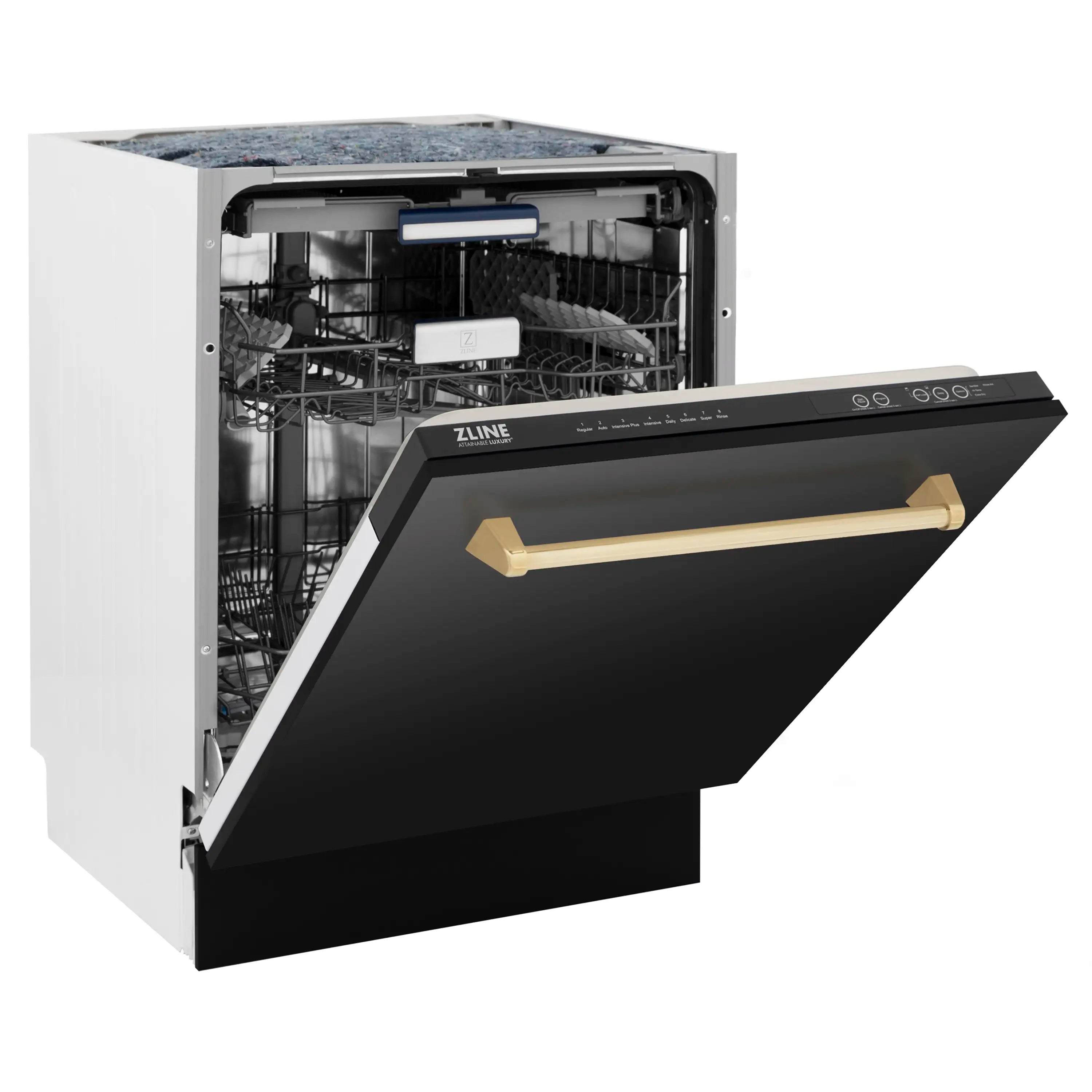

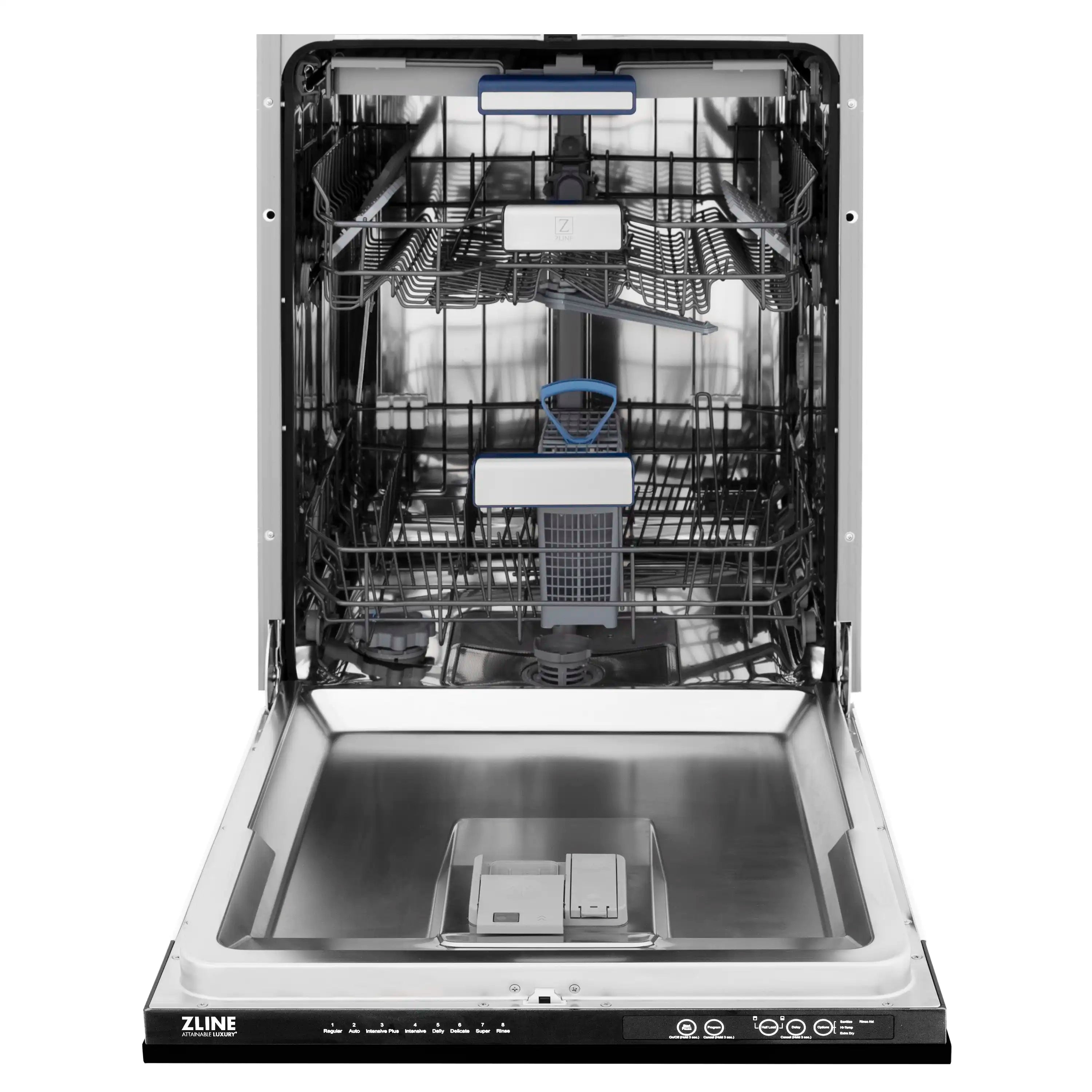

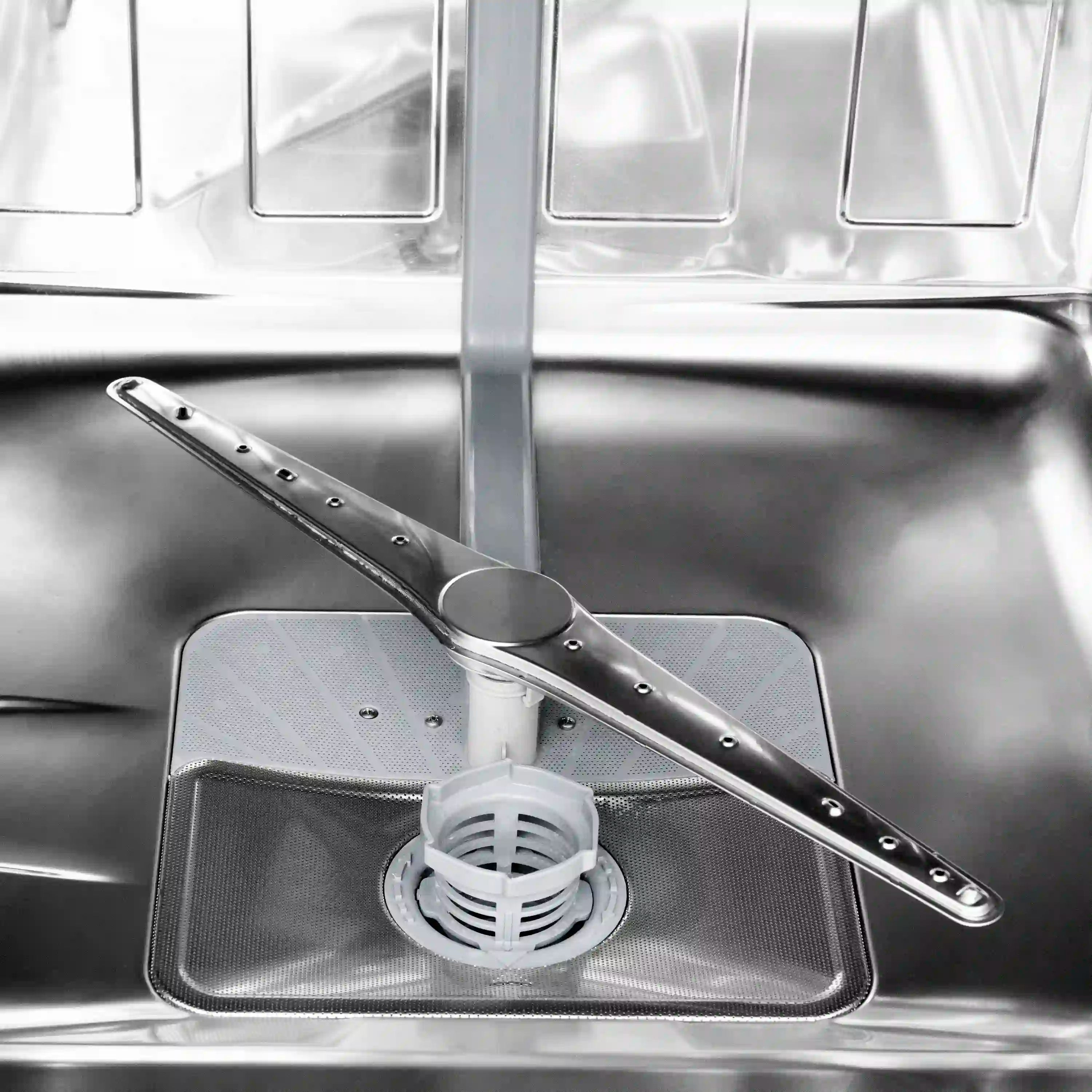

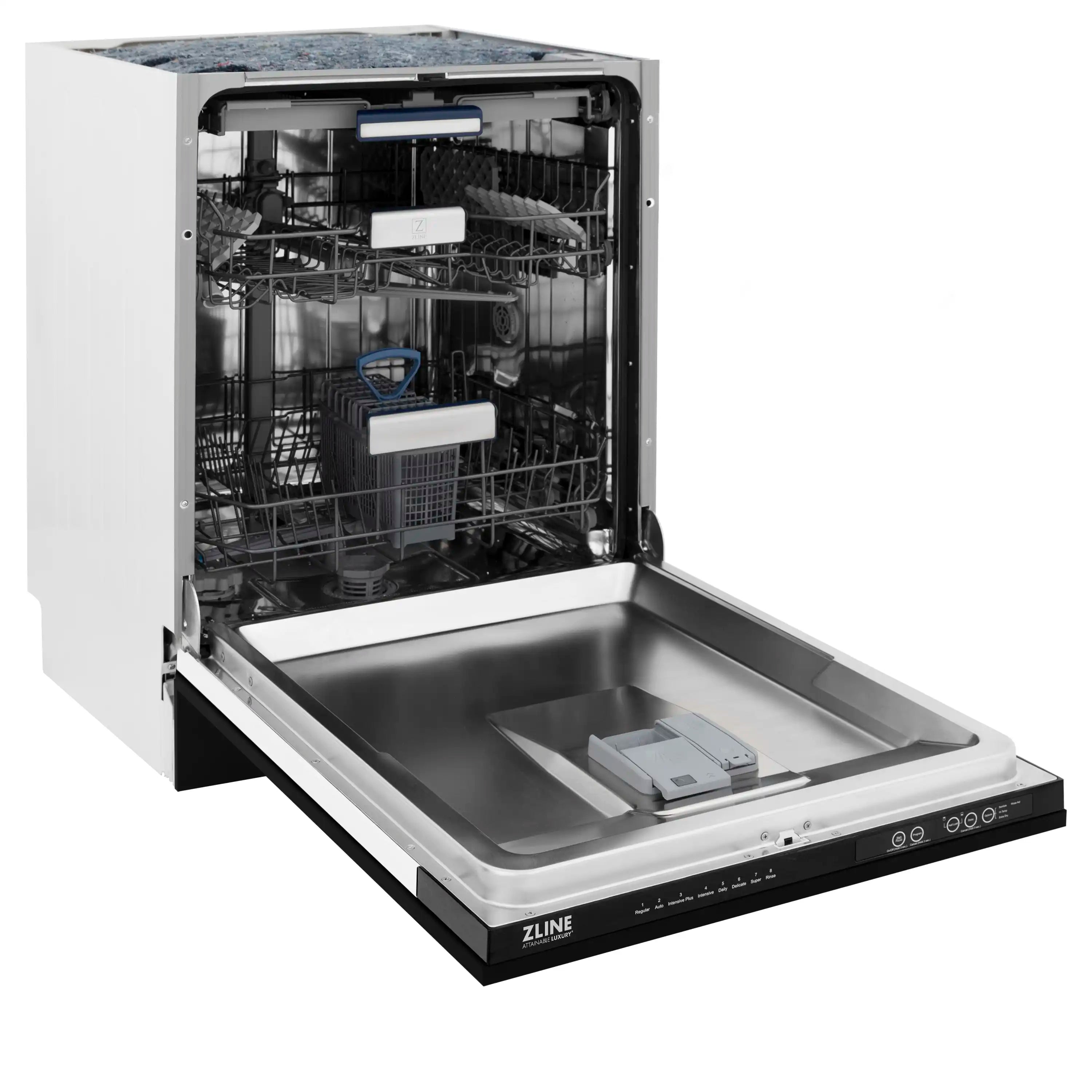

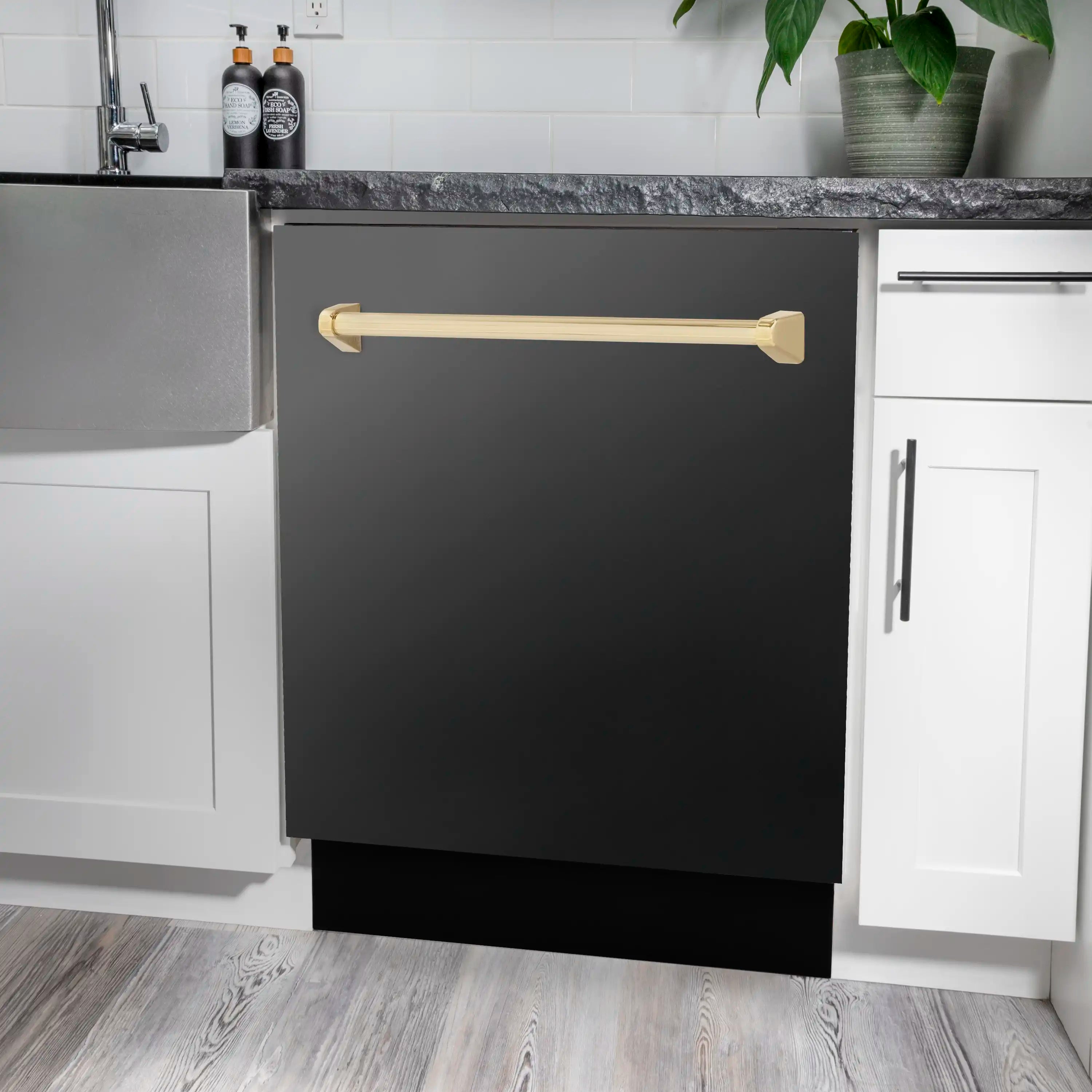

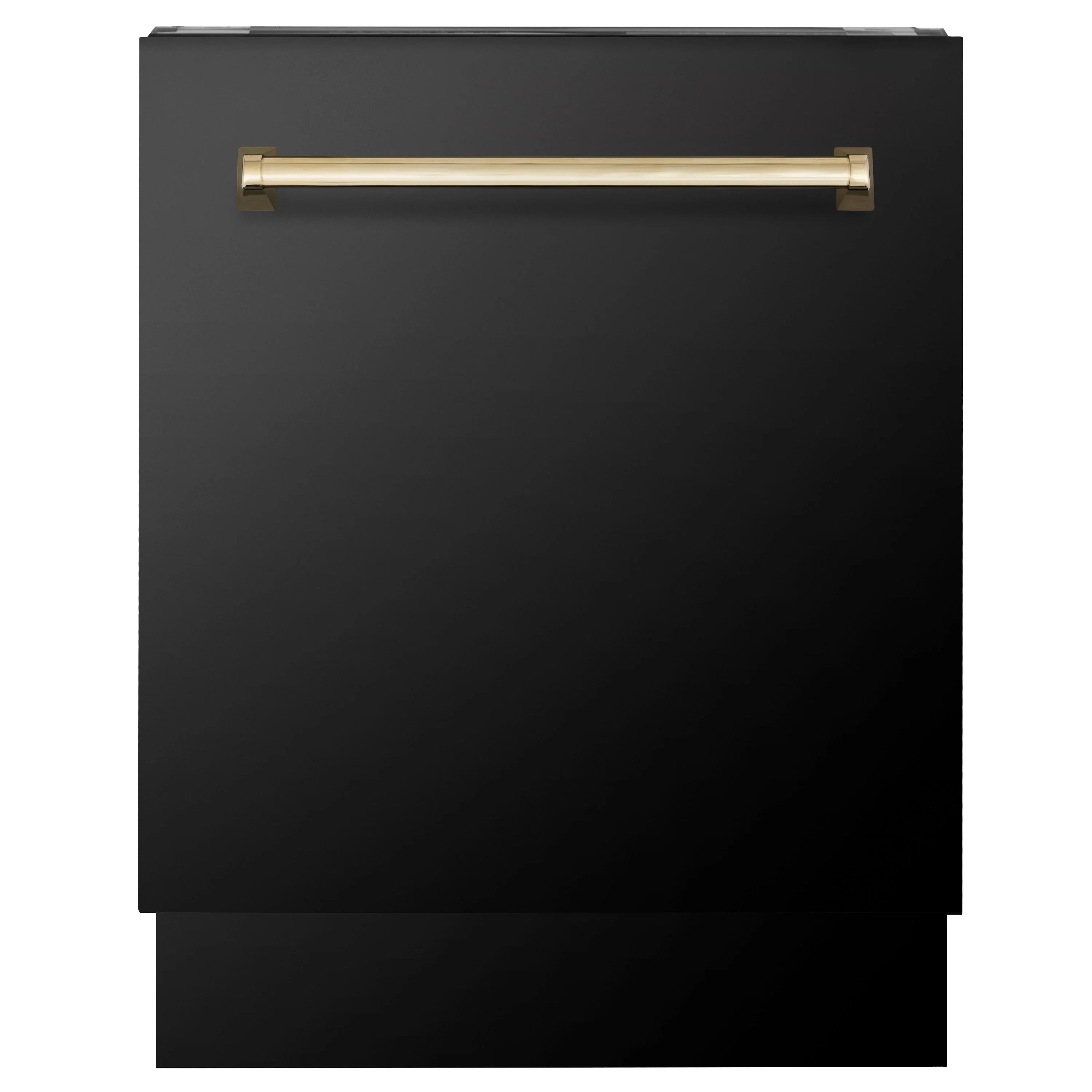

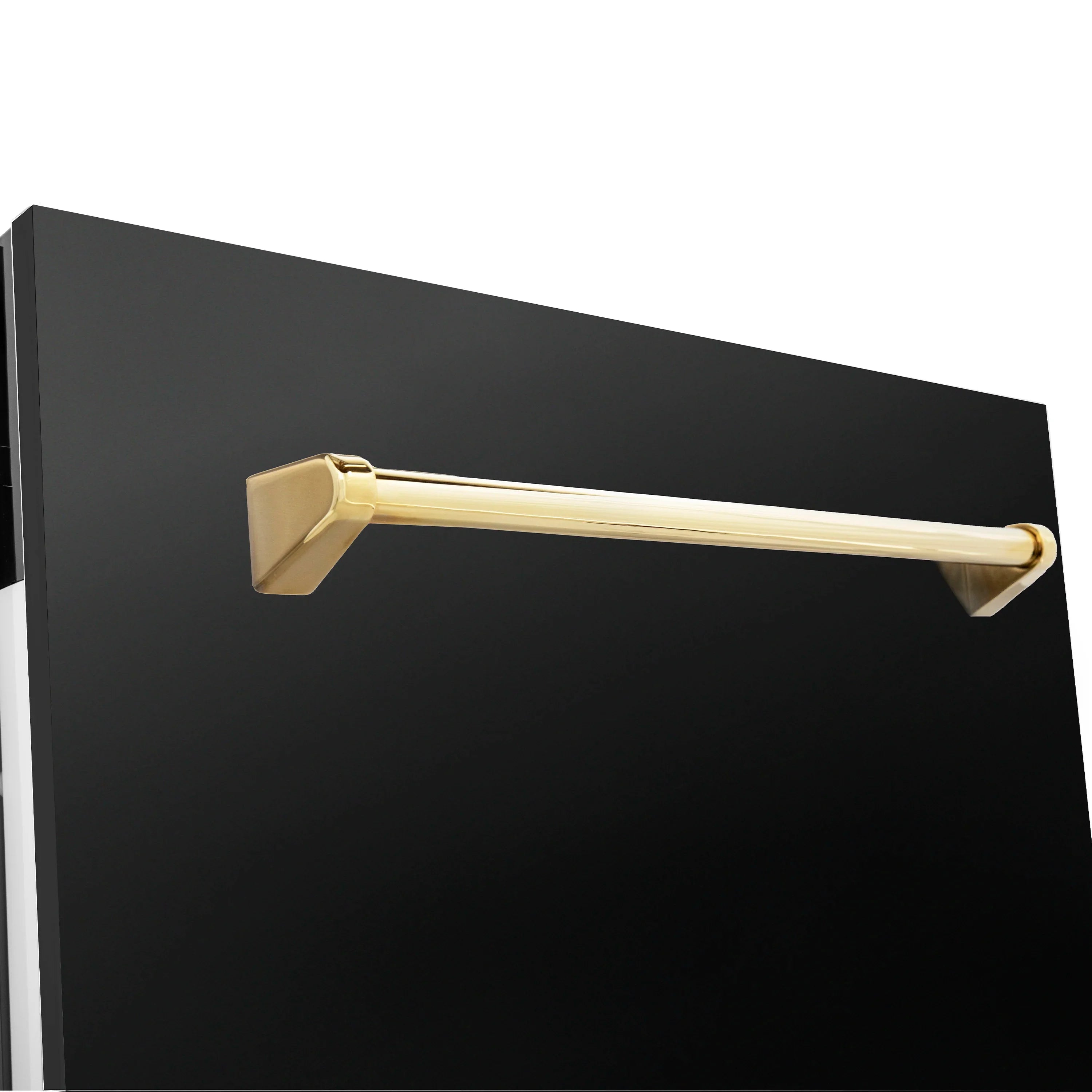

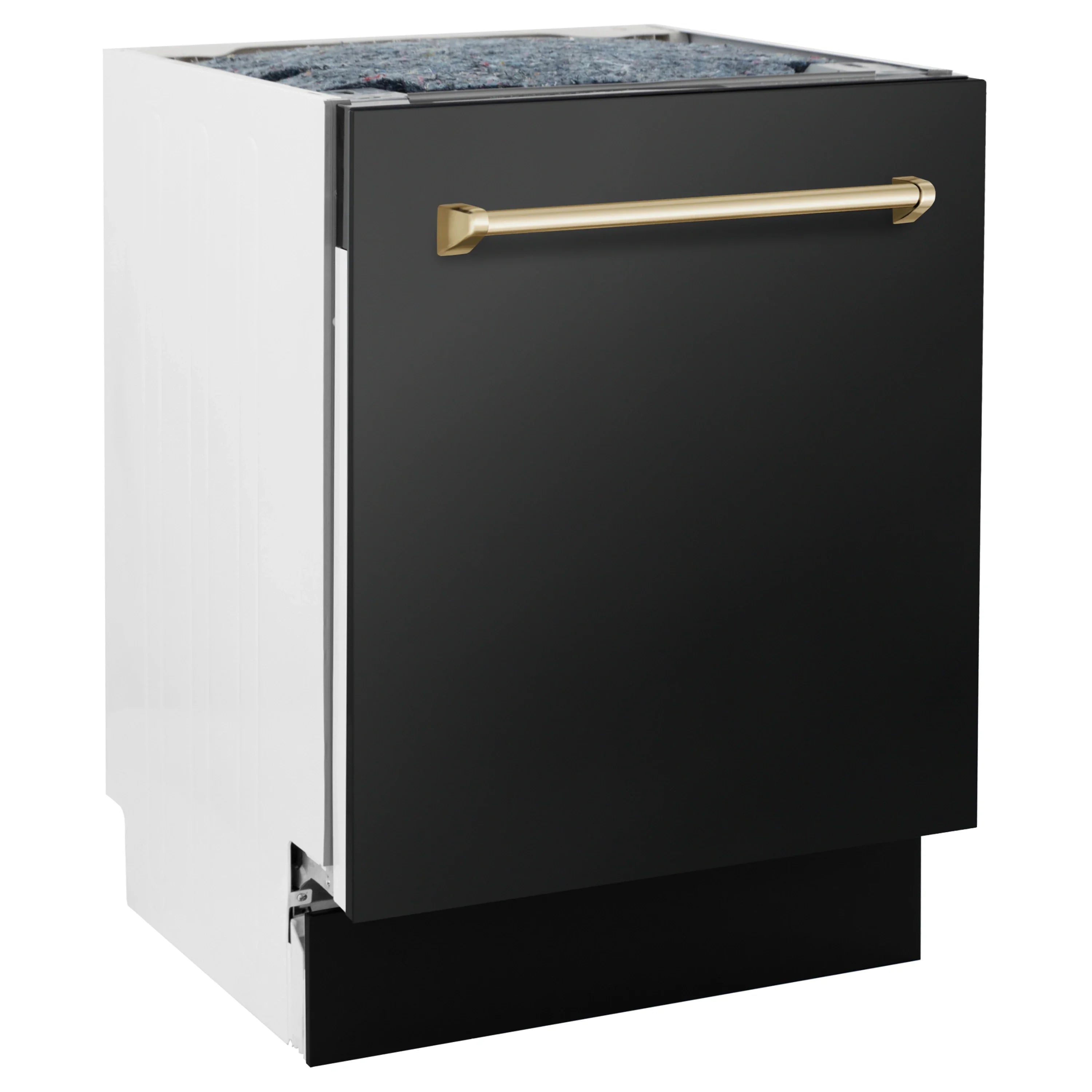

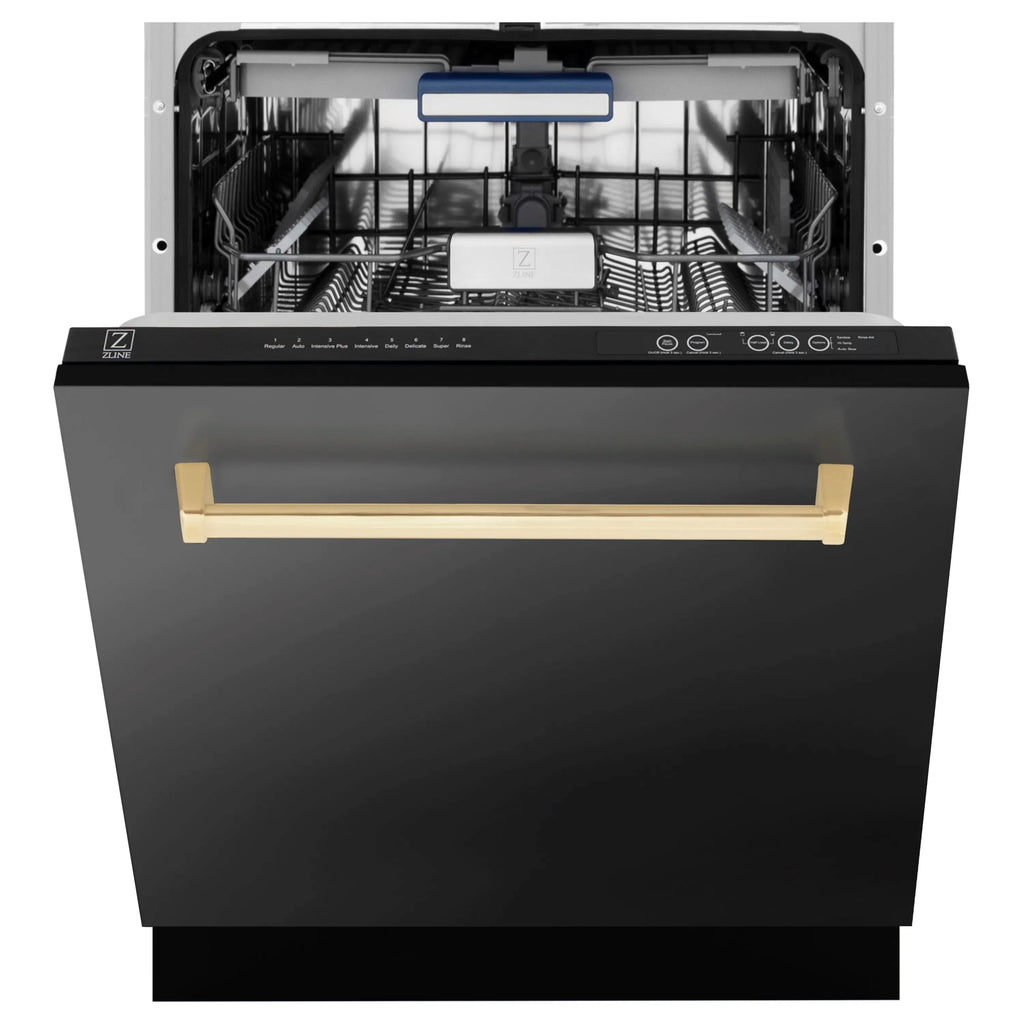

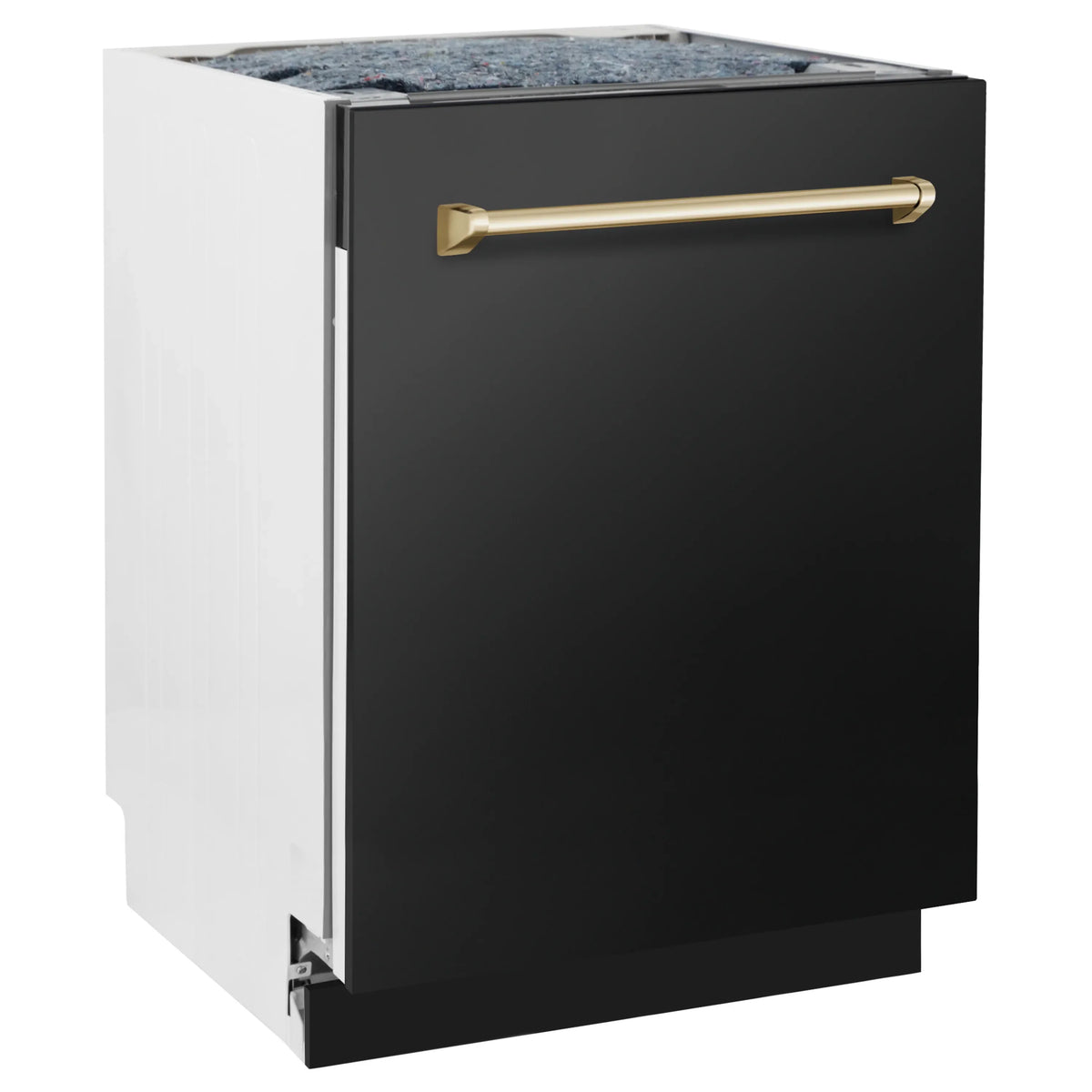

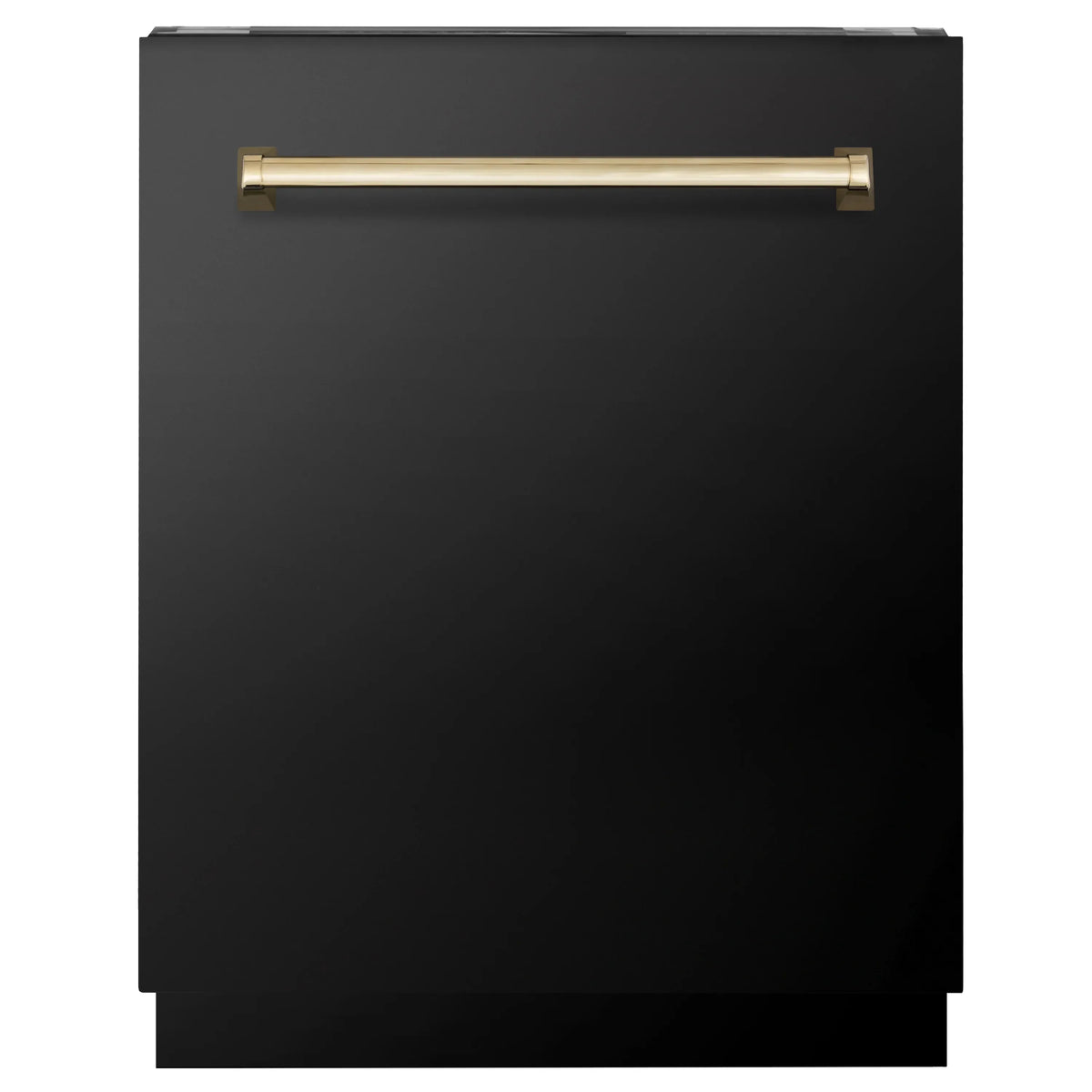

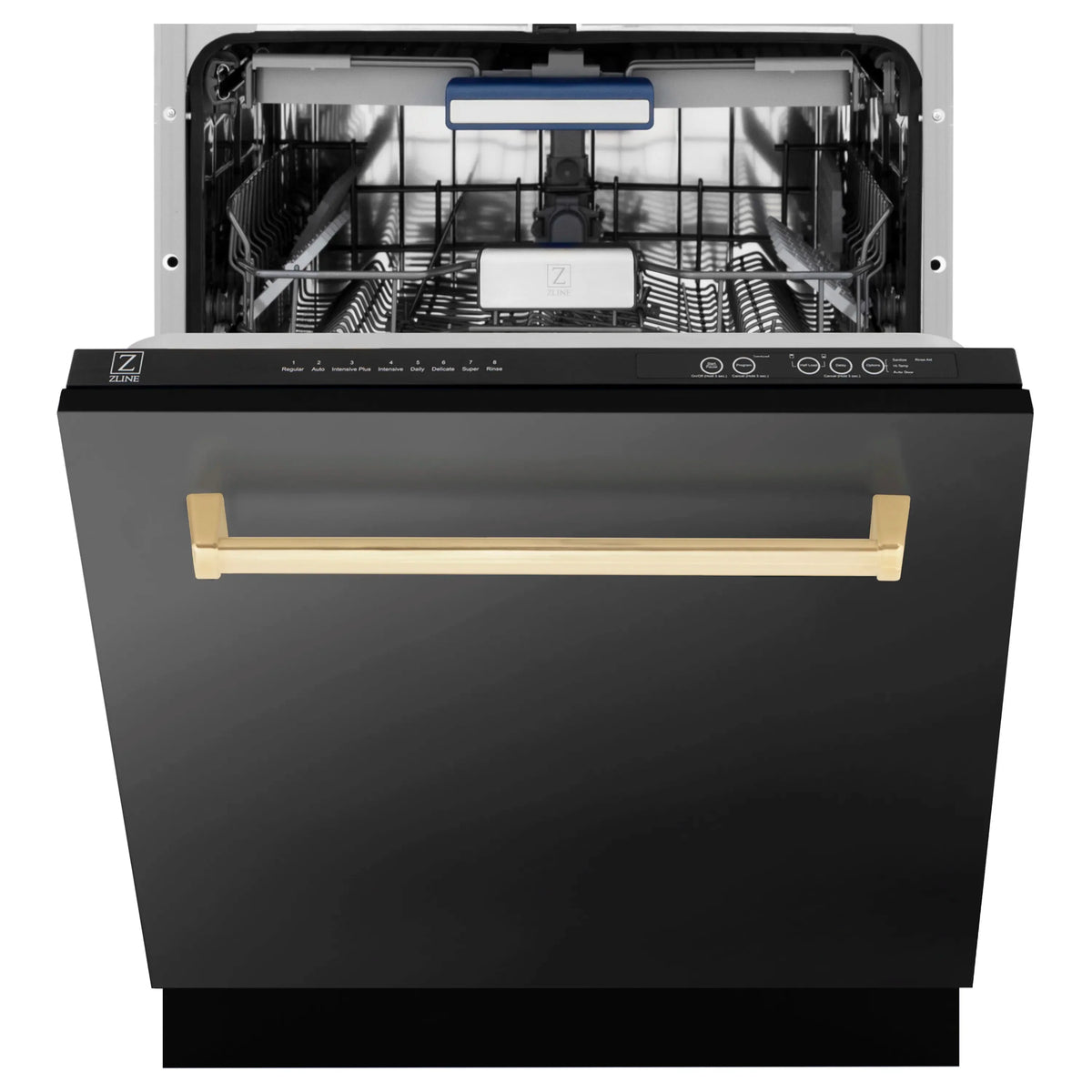

The ZLINE Autograph Edition 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Black Stainless Steel Panel with Polished Gold Handle (DWVZ-BS-24-G) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.
| DIMENSIONS | |
|---|---|
| Size | 24 in. |
| Dimensions | 23.6" W x 22.4" D x 33.9" H |
| Product Weight | 106.8 lbs |
| Cut-Out Height | 34.13 in. |
| Cut-Out Width | 24 in. |
| Interior Dimensions | 20.95" W x 20.5" D x 24.17"H |
| Max Plate Height | 13 in. |
| GENERAL INFORMATION | |
| Installation Type | Plug In - Nema 5-15 |
| Panel Ready | N |
| DESIGN & FINISH | |
| Panel Finish | Black Stainless Steel |
| Handle Finish | Polished Gold |
| Handle Type | Traditional Style |
| Control Location | Top Control |
| Control Type | Button Control |

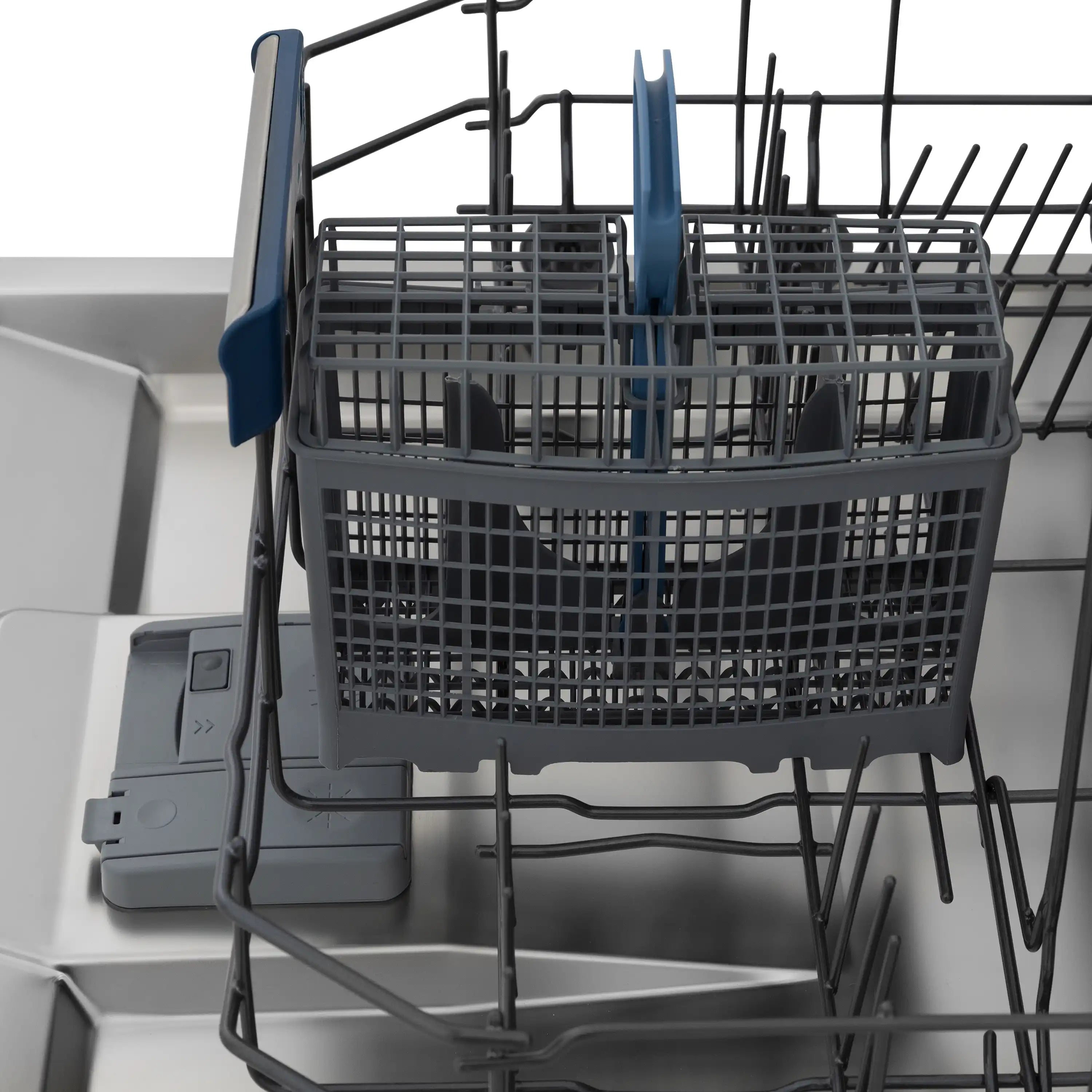

| Silverware Basket Location | Bottom Rack Center |
| TECHNICAL DETAILS | |
| Voltage | 120vac |
| Frequency | 60Hz |
| Dedicated Circuit | 15A |
| Rated Current | 12A |
| Motor Wattage | 100W |
| Heater Wattage | 1100W |
| Motor Amperage | 0.84A |
| Heater Amperage | 10A |
| Energy Consumption Per Year | 239 kWh |
| Water Consumption Per Cycle (Liters) | 11.73 L |
| Water Consumption Per Cycle (Gallons) | 3.1 gal |
| Decibels | 51 dBa |
| Extended Hose Length | 56 in. |
| FEATURES | |
| Drying System | Turbo Fan Drying + Auto Door |
| Steam Function | Without Steam |
| Features |
|
| WARRANTY & CERTIFICATIONS | |
| Certifications | Energy Star, CEC, UL |

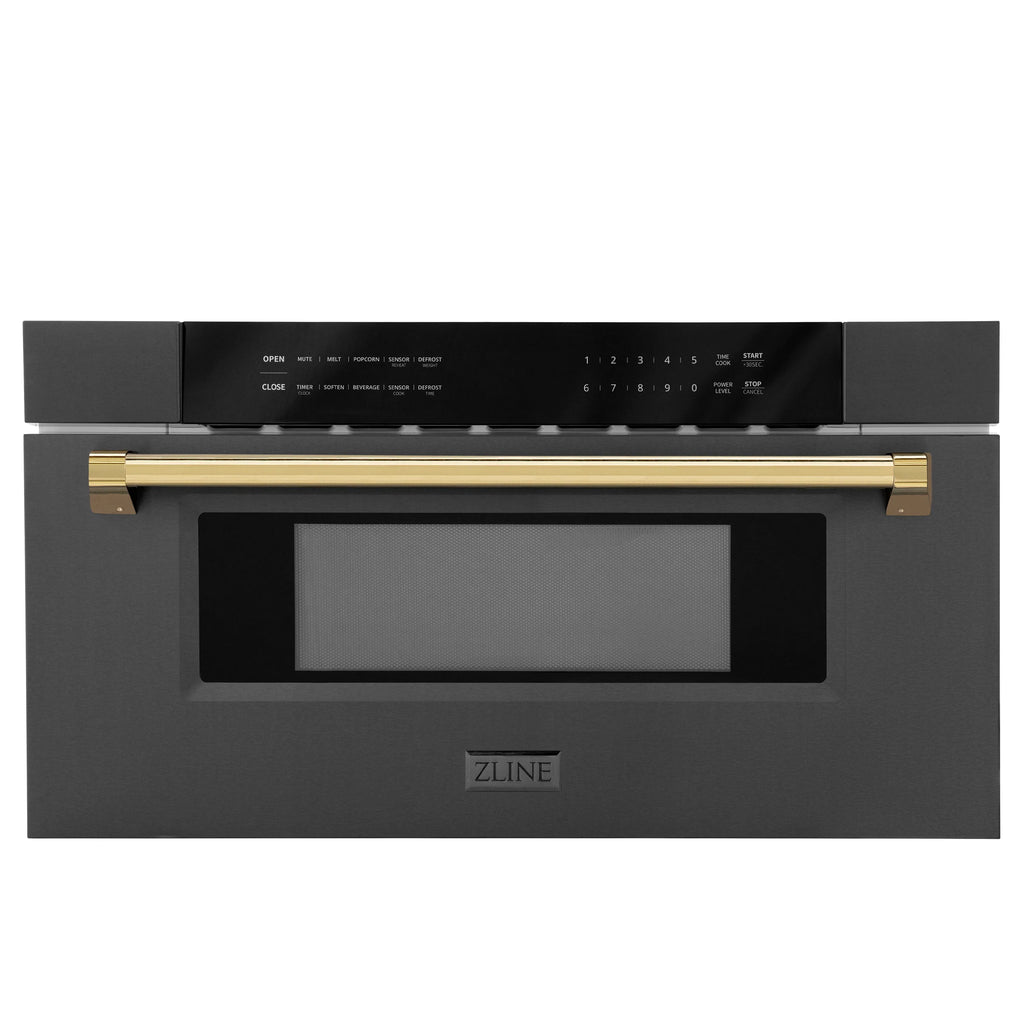

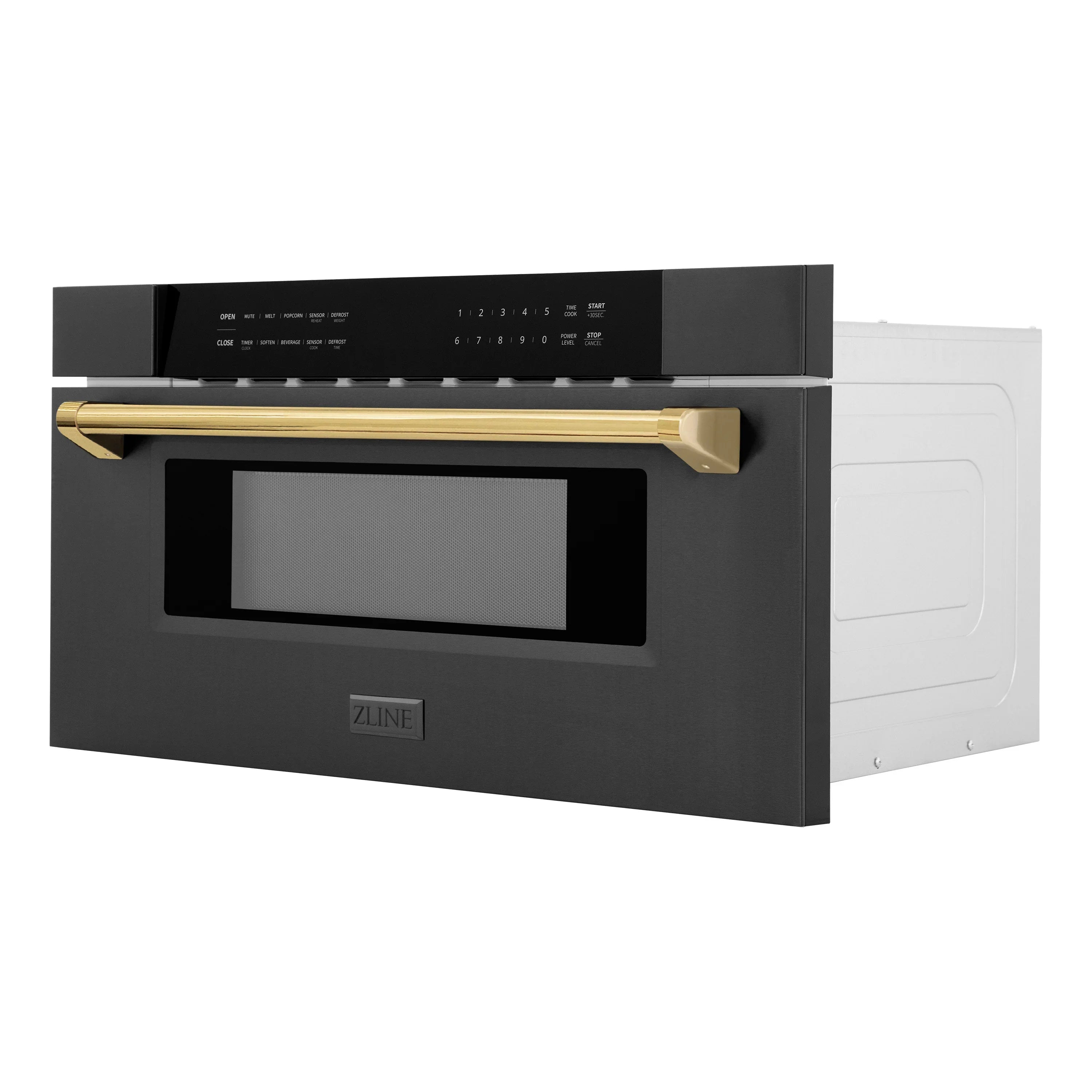

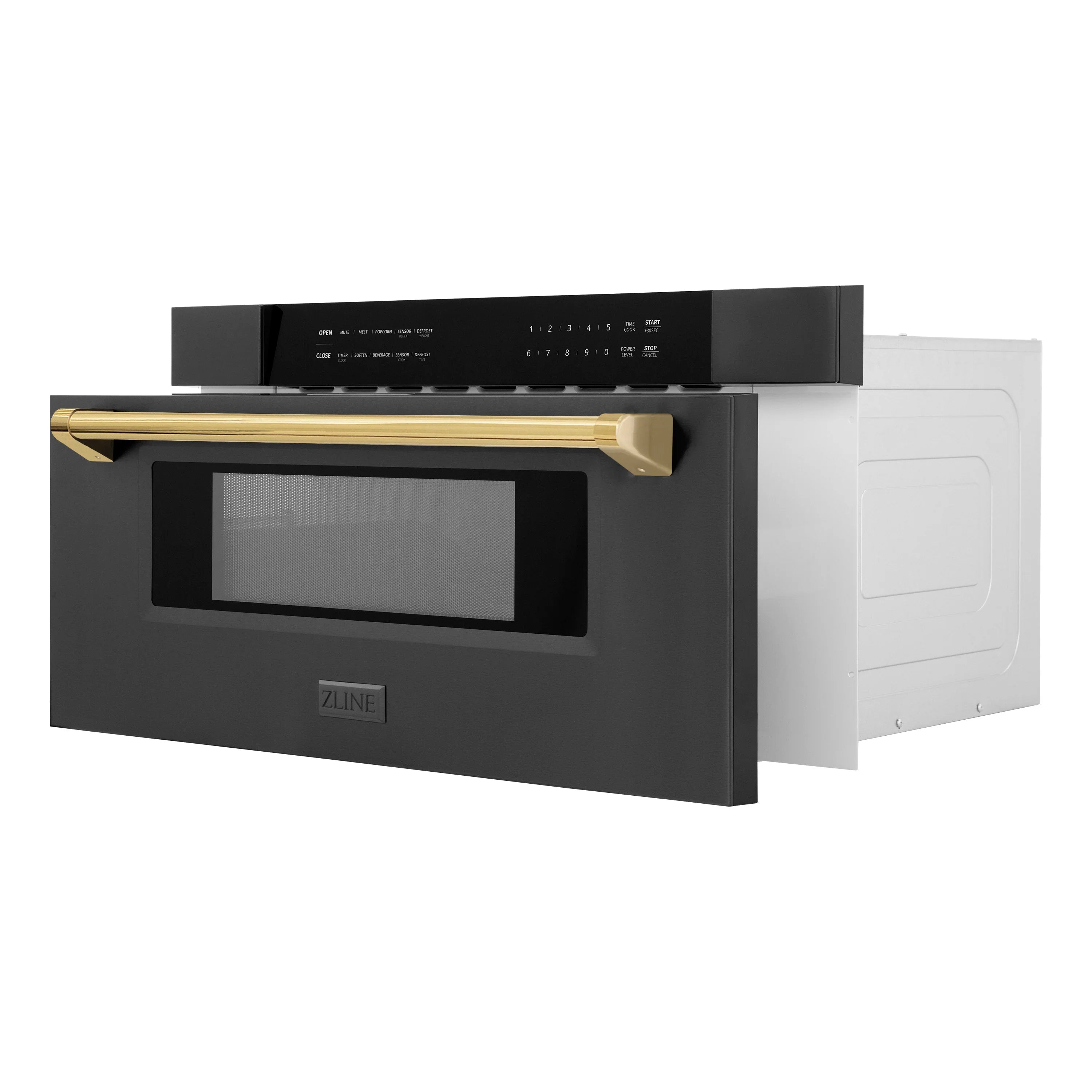

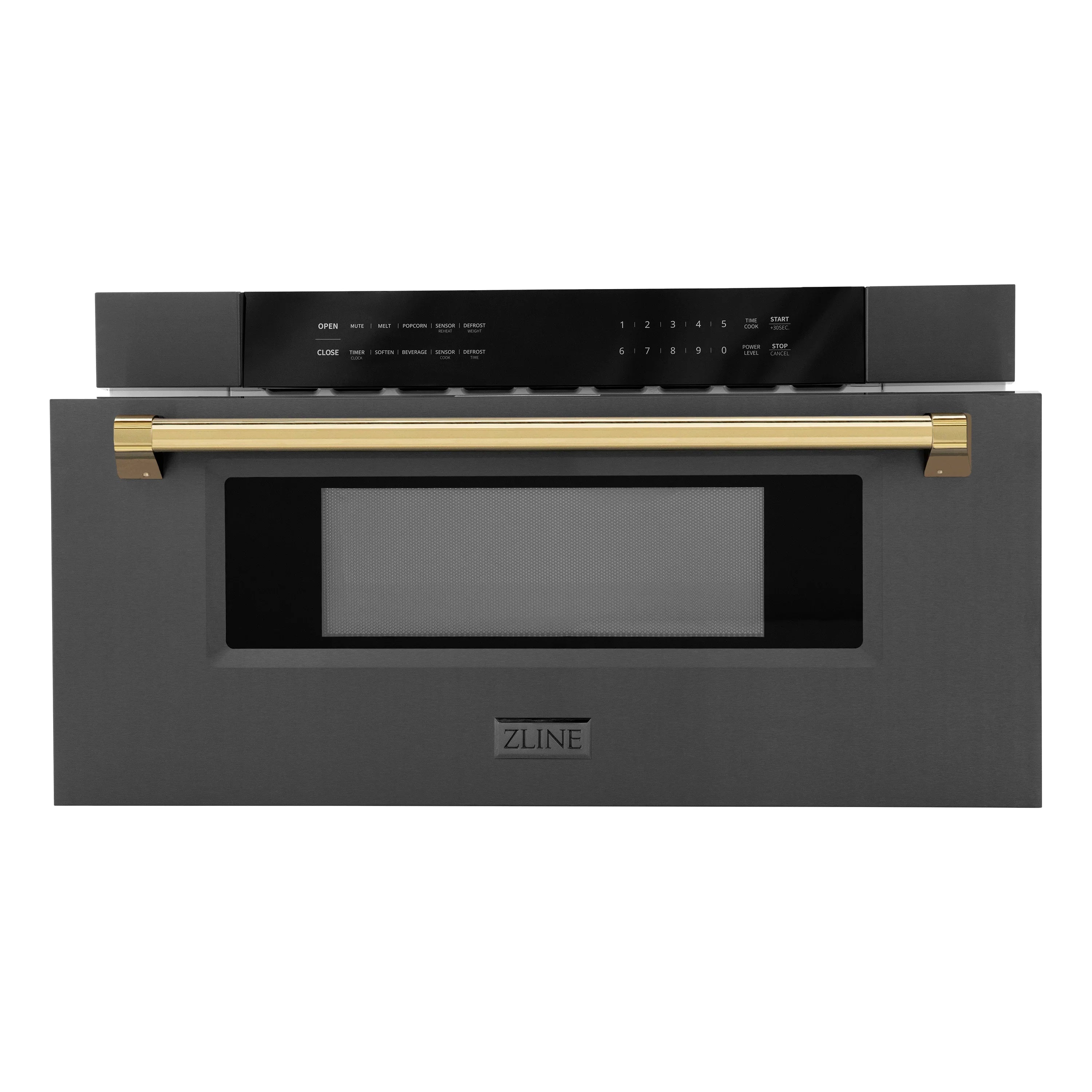

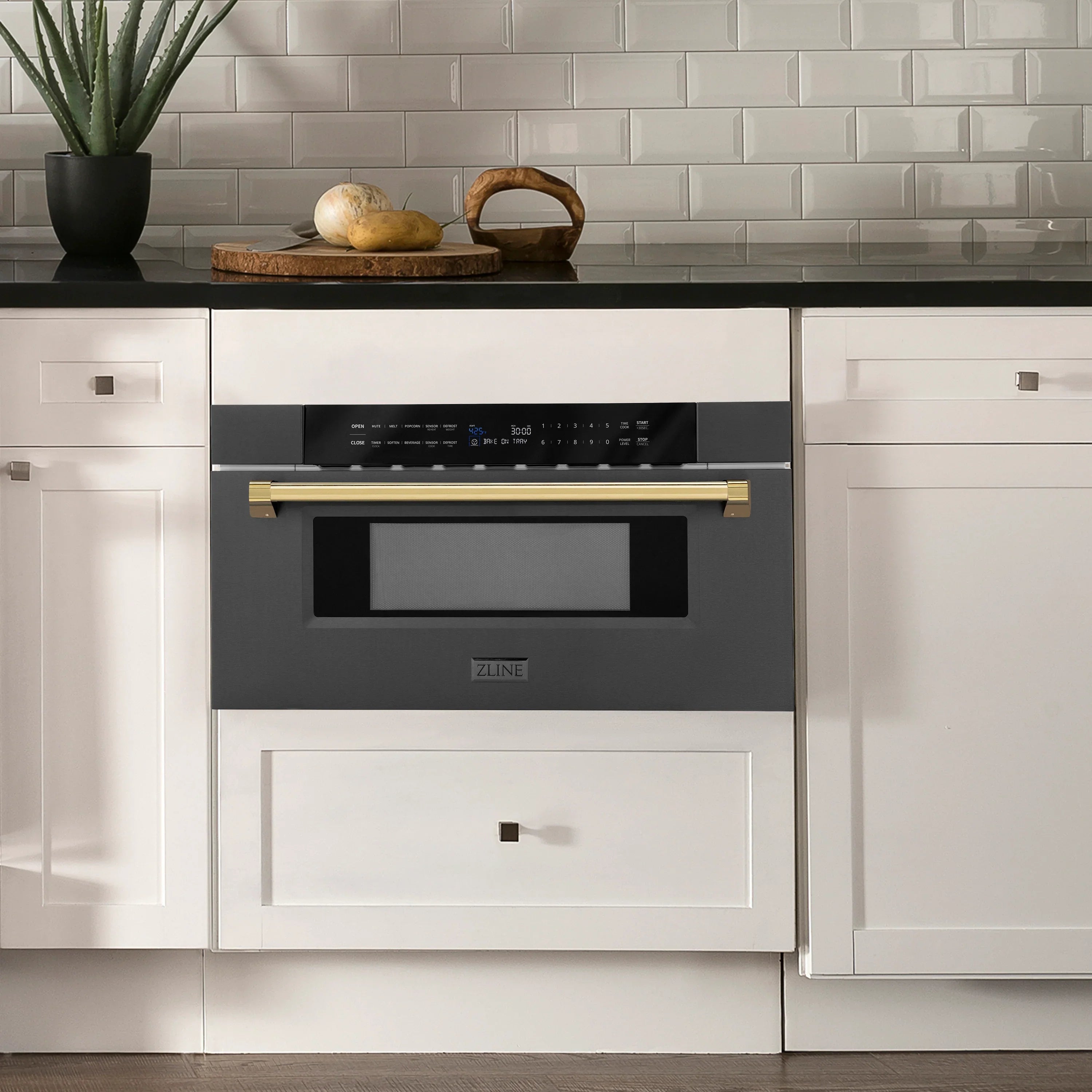

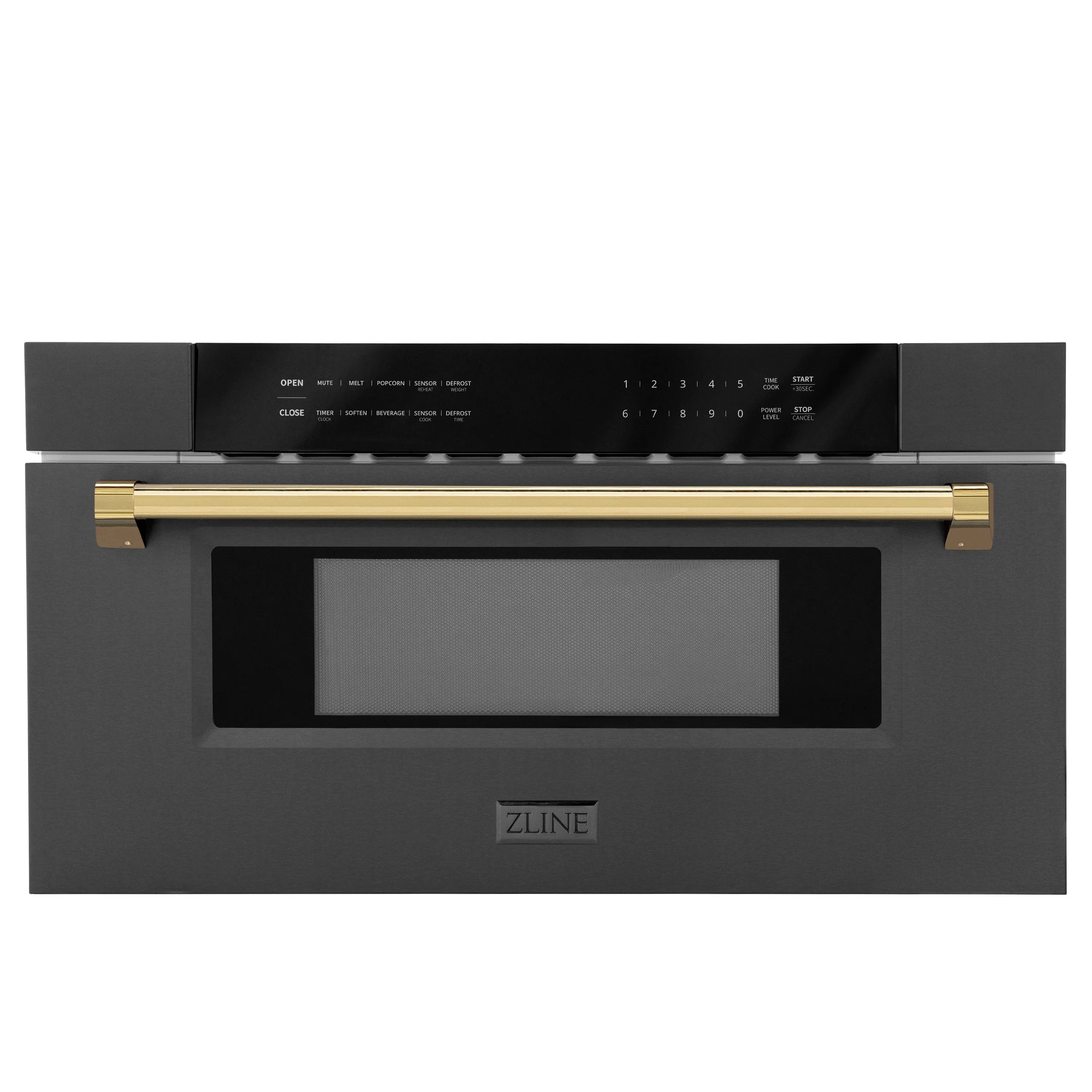

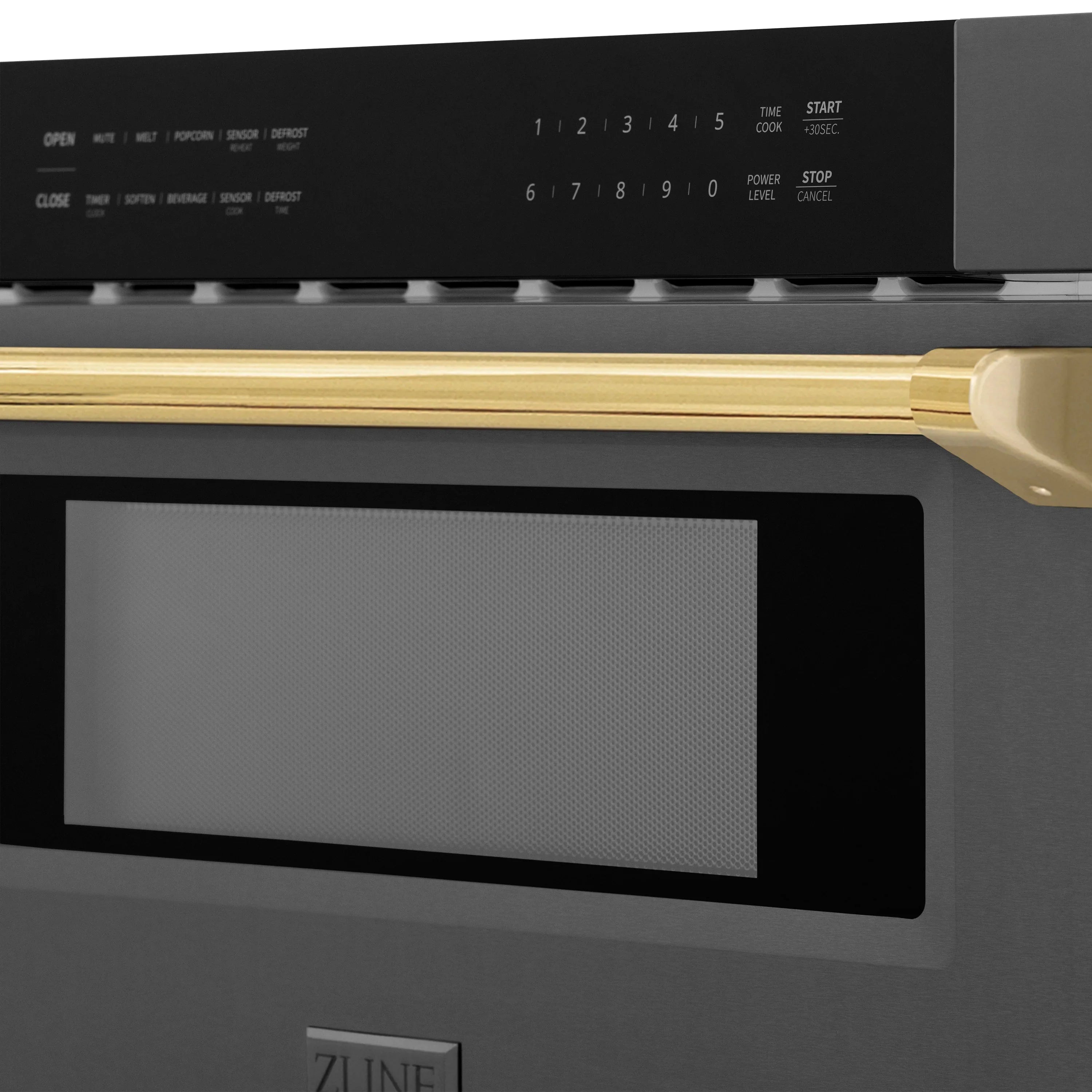

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE Autograph Edition 30" 1.2 cu. ft. Built-in Microwave Drawer in Black Stainless Steel with Accents provides a professional culinary experience by pairing everyday convenience with a timeless style. Achieve ZLINE Attainable Luxury excellence with unrivaled performance designed to enhance your kitchen’s capability.
This product ships in multiple boxes and will require minimal assembly upon arrival.
| DIMENSIONS | |
|---|---|

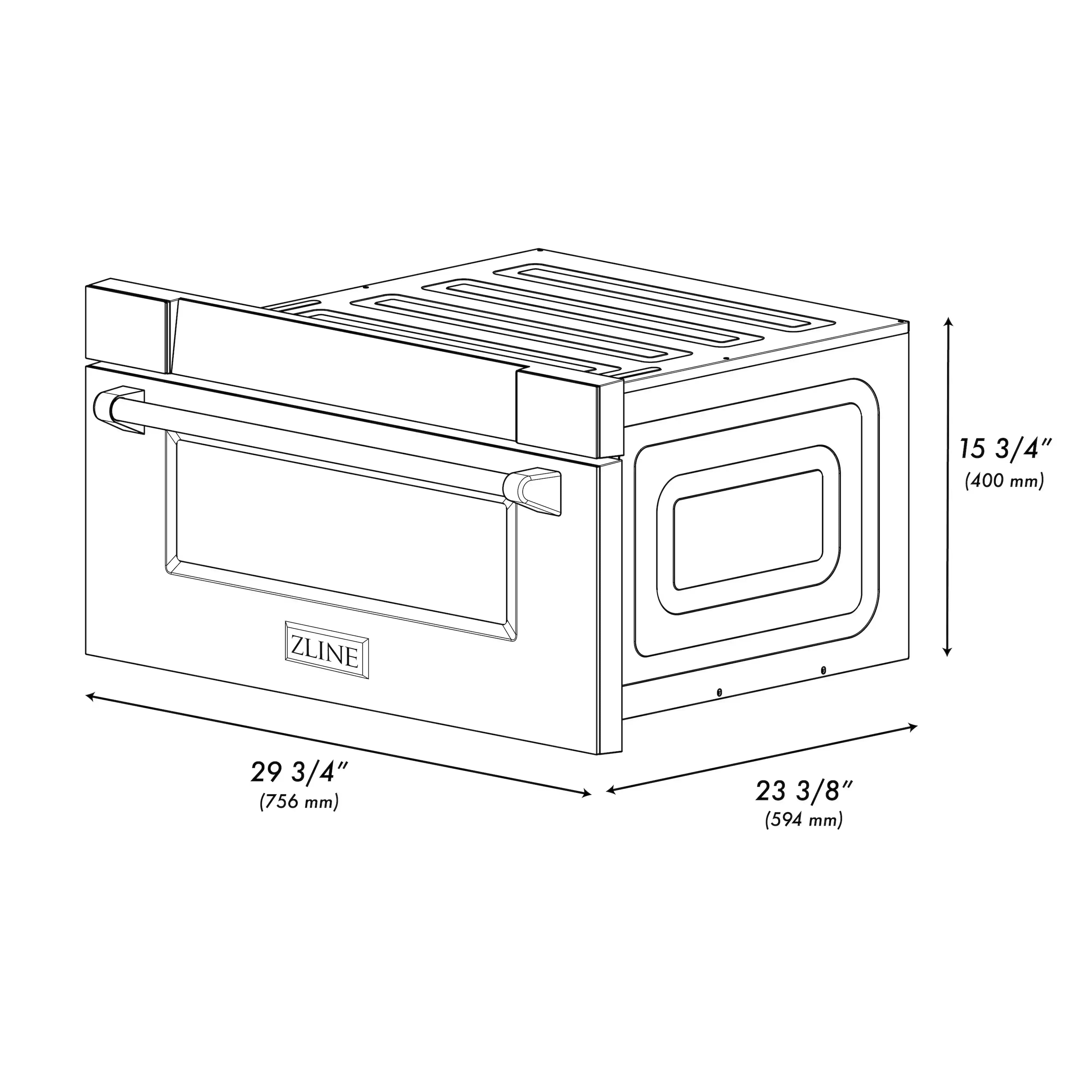

| Dimensions | 29.75 in W x 23.38 in D x 15.75 in H |
| Cut Out Dimensions | 22.38 in W x 23.5 in D x 15 in H |
| Depth with Door Open | 38.75" without handle/ 40" with handle |
| Weight | 76.2 lbs |
| GENERAL INFORMATION | |
| Mount Type | Built-In Drawer |
| DESIGN & FINISH | |
| Control Type | Touch Screen |
| Material | Black Stainless Steel with Accents |
| TECHNICAL DETAILS | |
| Voltage | 120vac/60 Hz/13A Plug type: 5-15 Nema |
| FEATURES | |
| Interior Oven Dimensions | 16 in. W x 16 in. D x 7 in. H |
| Oven Capacity | 1.2 Cu. Ft. |
| Input Power | 1500W |
| Output Power | 1000W |
| Noise Level | 45 Decibels |
| Convection Fan | No |
| WARRANTY & CERTIFICATIONS | |
| Certifications | UL, DOE, Title 20 Compliant, NRCan |
| Warranty | 2 Year on Parts |
