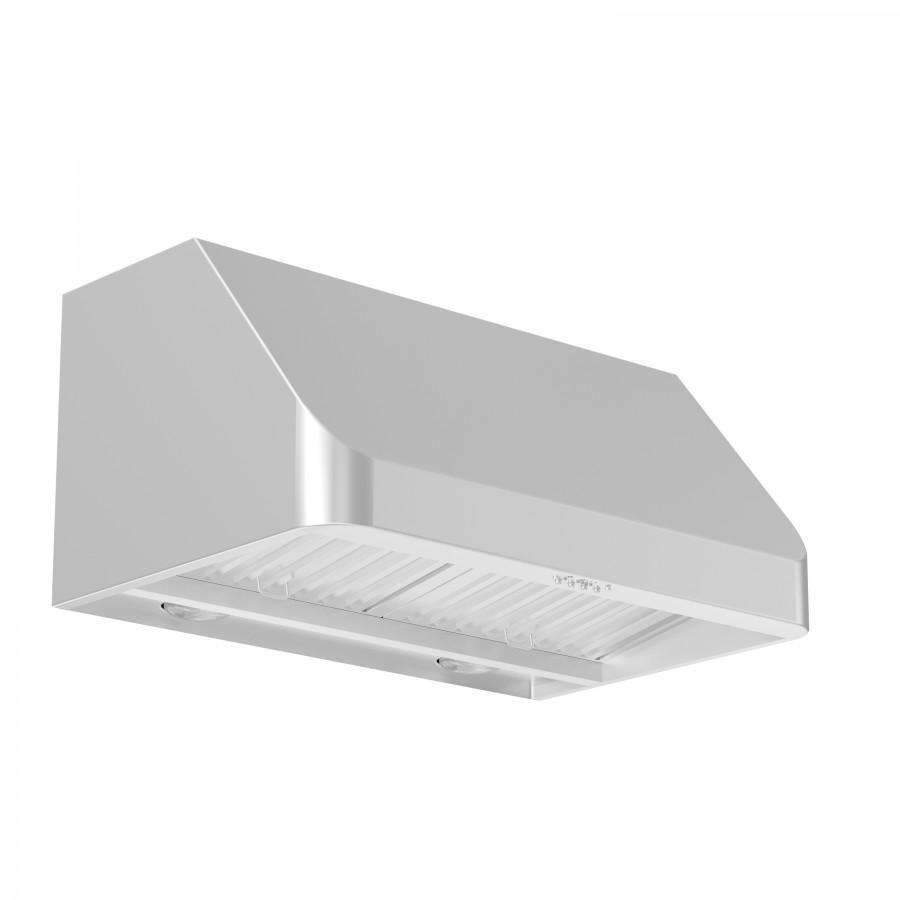

Under-cabinet stainless steel range hood underside with baffle and vent opening

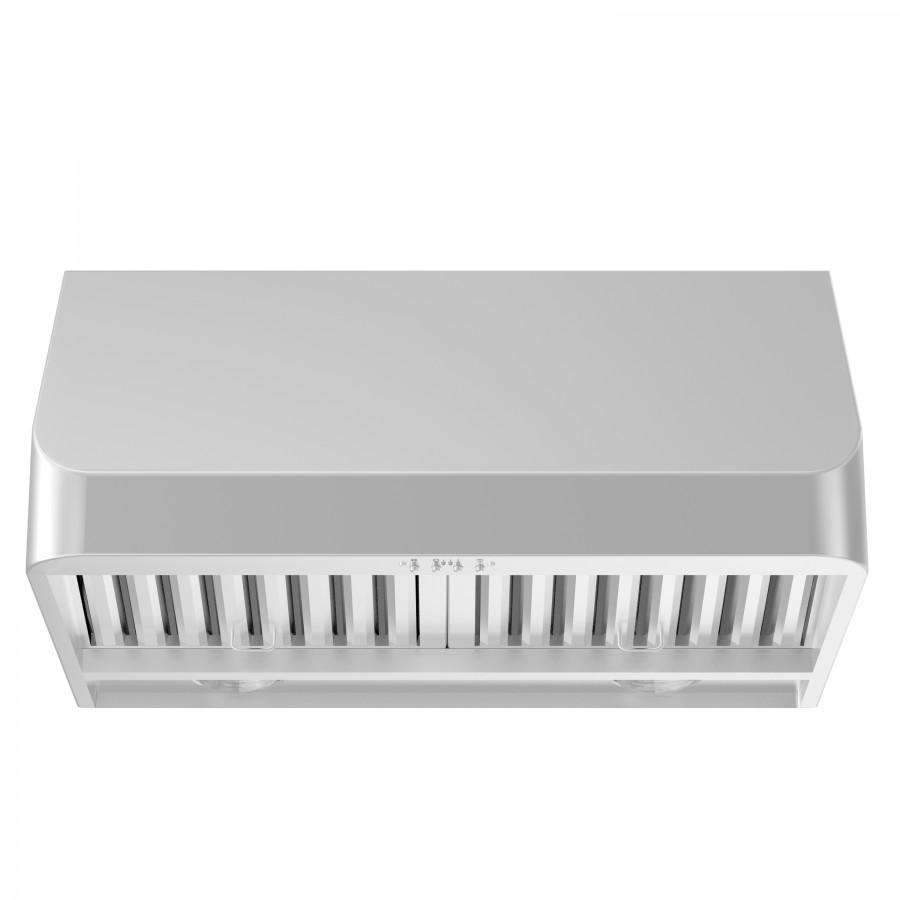

Under-cabinet stainless steel range hood front with long vent grille slots

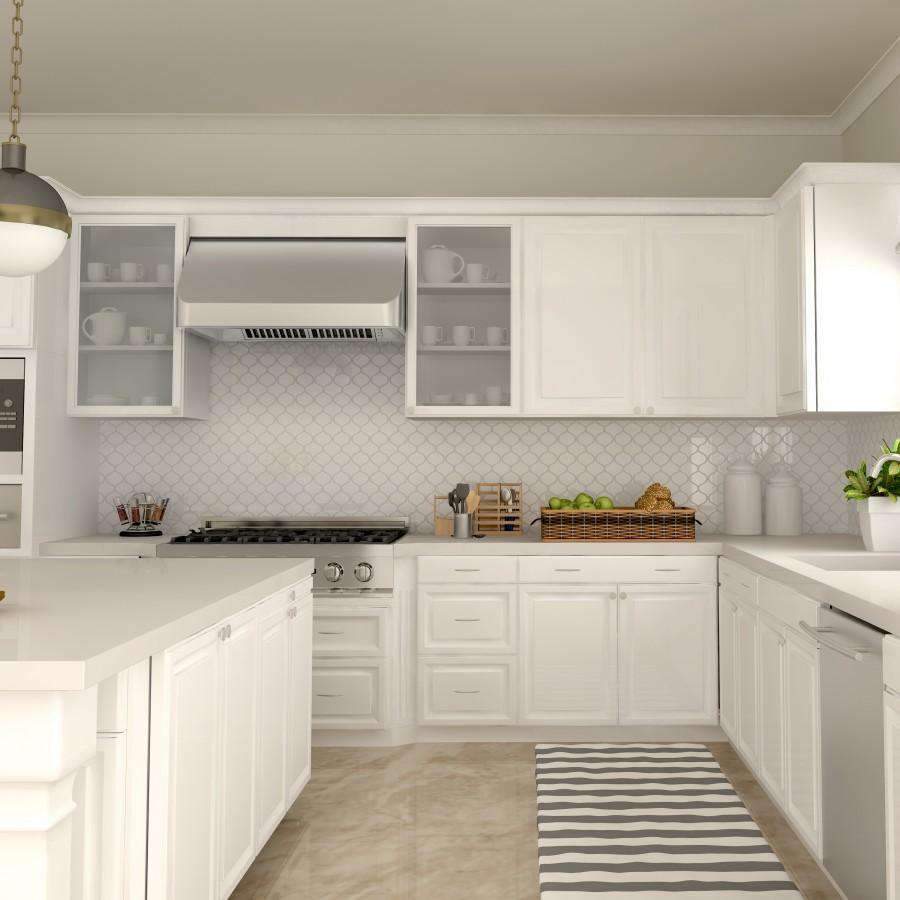

ZLINE under-cabinet stainless steel range hood installed under cabinet

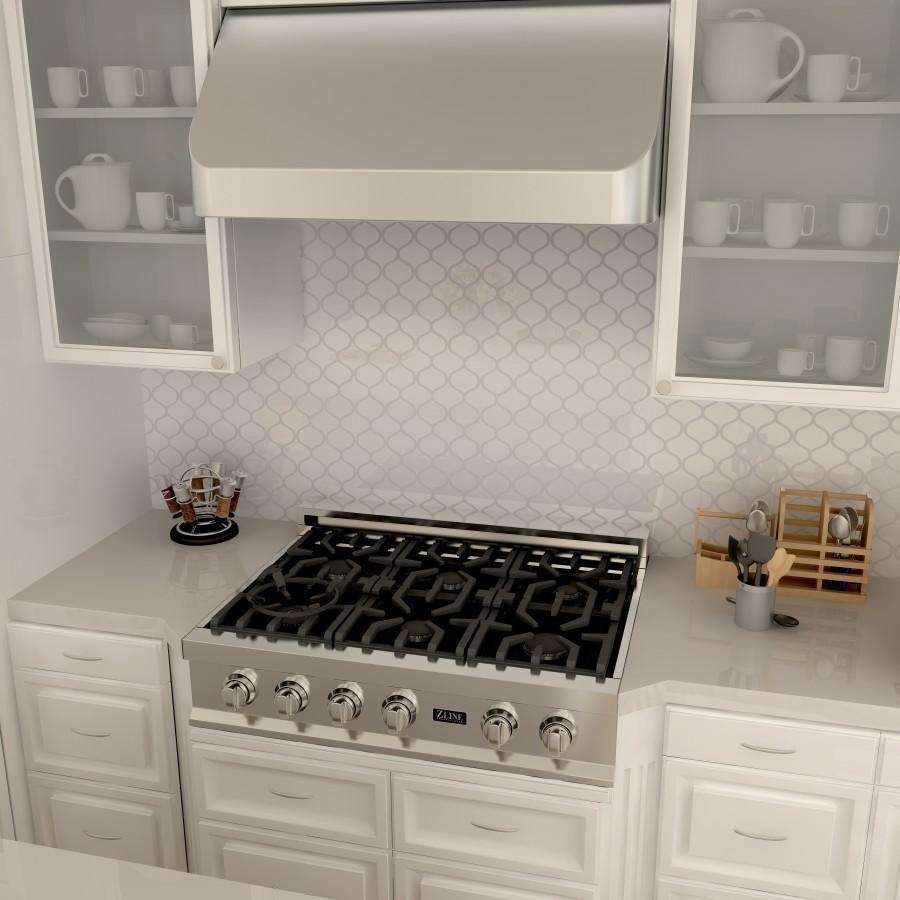

ZLINE under-cabinet stainless steel range hood canopy with built-in vent

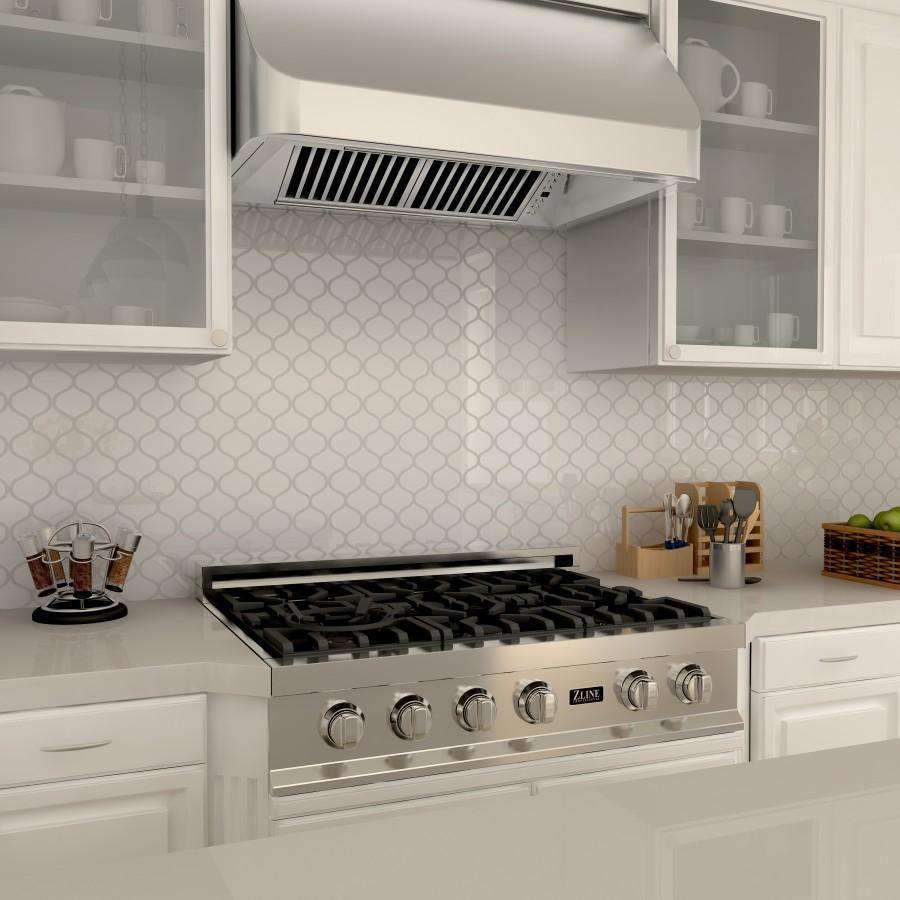

ZLINE under-cabinet stainless steel range hood with vent grille and curved canopy

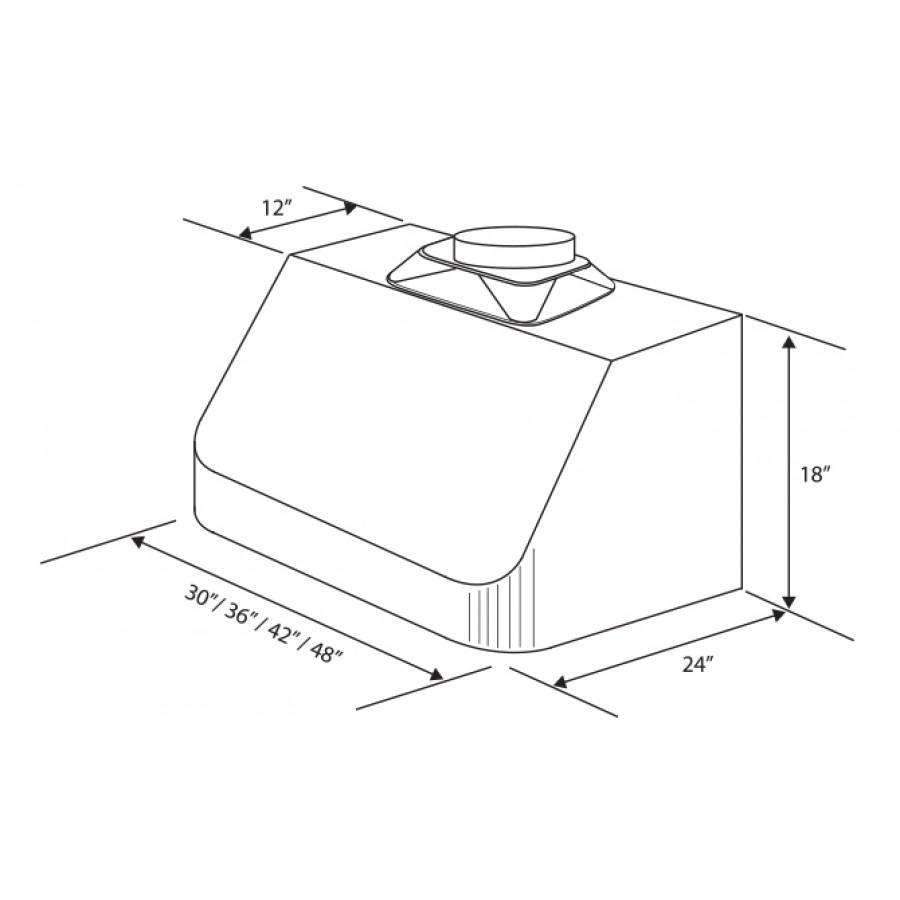

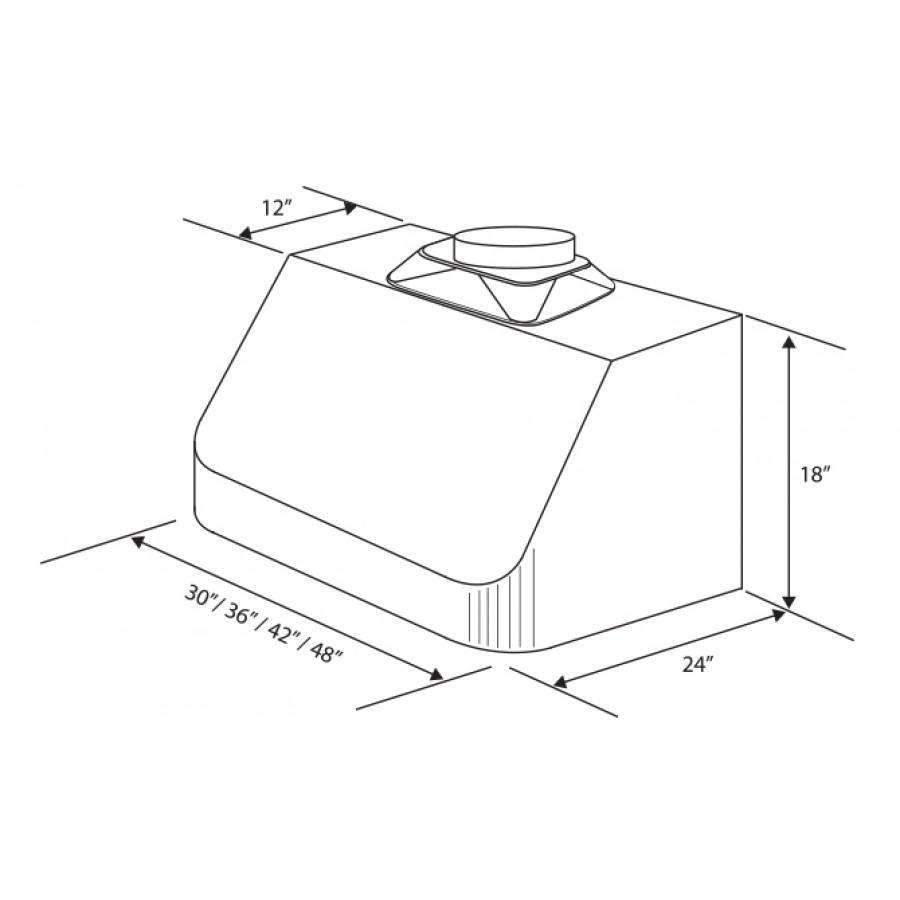

Under-cabinet range hood diagram with dimensions and outlet collar

Roll over image to zoom in Click on image to zoom

Click on image to zoom

ZLINE 48-Inch Under Cabinet Stainless Steel Range Hood with 700 CFM Motor (520-48)

Name: ZLINE 48-Inch Under Cabinet Stainless Steel Range Hood with 700 CFM Motor (520-48)
Brand: ZLINE
SKU: 520-48
Price: 1399.95 USD
Availability: OutOfStock
Rating: 4.87 (298 reviews)

ZLINESKU: 520-48

298 reviews

Price:

$1,399.95 $1,889.95SAVE 25%

Size:

36" 36"
48" 48"
60" 60"

Out of Stock

No restock estimate

Free Curbside Delivery — carrier calls to schedule

In-Home Protection Plan

No plan 3-Year $79.99 5-Year $149.99

The 30-second rundown

700 CFMMax airflow

Under CabinetMount type

DuctedVenting

4 Speeds

48" Width

24" Depth

Stainless SteelFinish

Baffle FiltersFeature

The ZLINE 520-48 is a 48 inch professional under cabinet stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.

This hood contains many unique features, such as:

Dishwasher-safe stainless steel baffle filters
Built-in LED lighting
High performance 4-speed motor with speeds up to 700 CFM
4-Speed fan control (480/560/650/700 CFM) to choose the appropriate air flow for your cooking situation
700 CFM air flow (highest speed setting) efficiently exhausts large amounts of air away from your cooking area

All ZLINE range hoods are ETL Listed and come equipped with everything needed to easily install and use.

ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The 520-48 ships next business day when in stock.

DIMENSIONS

Dimension: 48" W x 24" D x 18" H

GENERAL INFORMATION

Mount Type: Under Cabinet Mounted

DESIGN & FINISH

Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Material: 21g #430 Stainless Steel

TECHNICAL DETAILS

Venting Size: 8" Outlet (Transition piece to round ducting included)
Airflow (Q/L/M/H): 480/560/650/700
Noise Level: 48/55/63/65
Min Decibels: 20
Max Decibels: 41
Voltage: 110V/60HZ
Motor: High Performance 700 CFM/4-Speed Motor
Speeds: 4 Speeds

FEATURES

Lighting: 3 Lights (1.5W LED)
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Features: Model No. 520-48 (ETL Listed)

WARRANTY & CERTIFICATIONS

Warranty: 3 Year Parts Warranty
Certifications: ETL Certified

Shipping

Free Shipping on all orders.
Large Appliances: Ship via Curbside Delivery — the carrier delivers to the edge of your property (not inside your home). The carrier will call ahead to schedule a delivery date.
Small Items: Ship via standard ground delivery (FedEx or similar), such as small appliances, range hoods, sinks, faucets, and accessories.

Full shipping policy

Returns

30-Day Return Policy: Returns must be requested within 30 days of delivery. Items must be unused, uninstalled, and in original packaging (including box and pallet).
Non-Returnable Items: ZLINE accessories are final sale and cannot be returned, such as griddles, handles, extension kits, crown moldings, brass burners, charcoal filters, and similar items.
Restocking Fee: A 15% restocking fee applies to all approved ZLINE returns.

Full returns policy

Authorized ZLINE Dealer

Full manufacturer warranty on every ZLINE product we sell.
