Description
DIMENSIONS
- Dimension

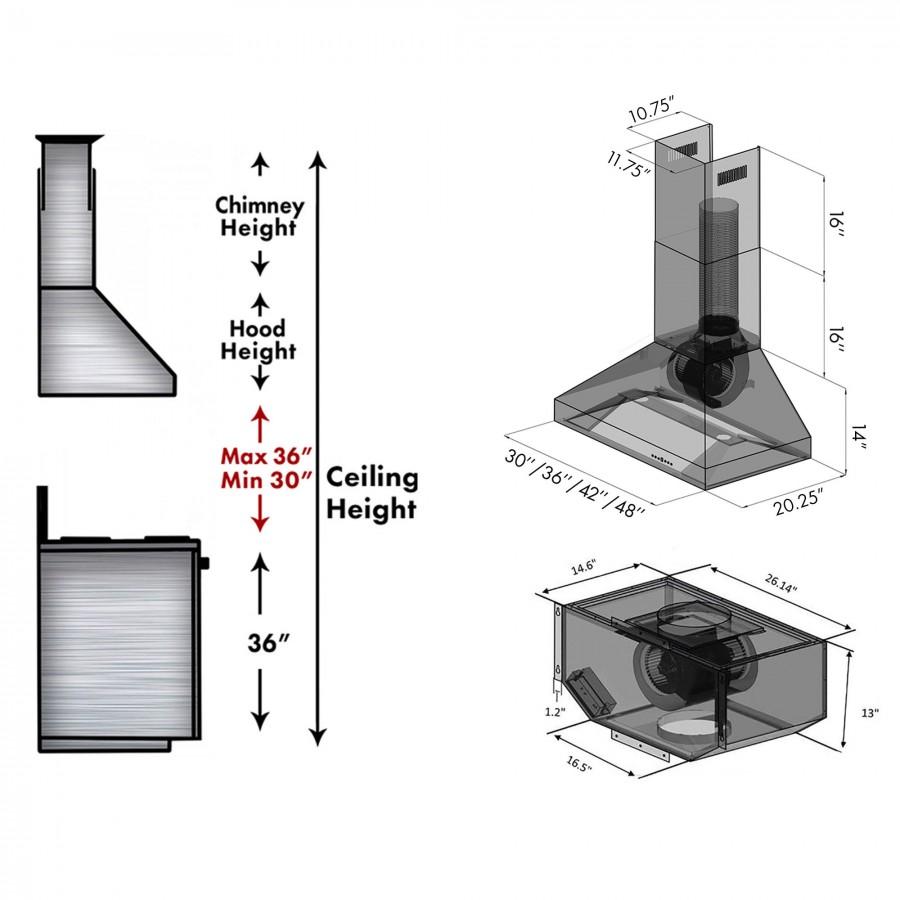

- 48" W x 20.25 " D x 14" H
- Chimney (Dimension)
- 11.75" W x 10.75" D x 16" H (x2) (Telescoping) Chimney Short Kit and Extension(s) Available: Short Kit (2-12") ~7-8 ft. Ceilings 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings 2 PC Extension (2-36") ~10-12 ft. Ceilings
GENERAL INFORMATION
- Brand
- ZLINE Kitchen and Bath
- Mount Type

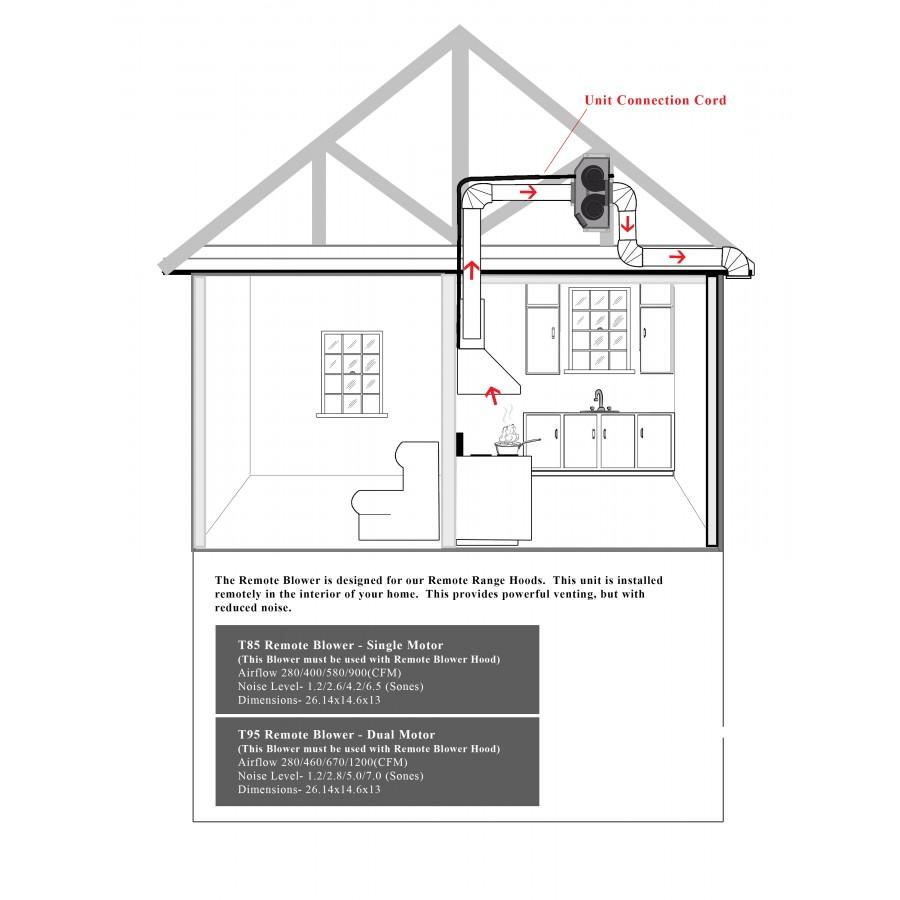

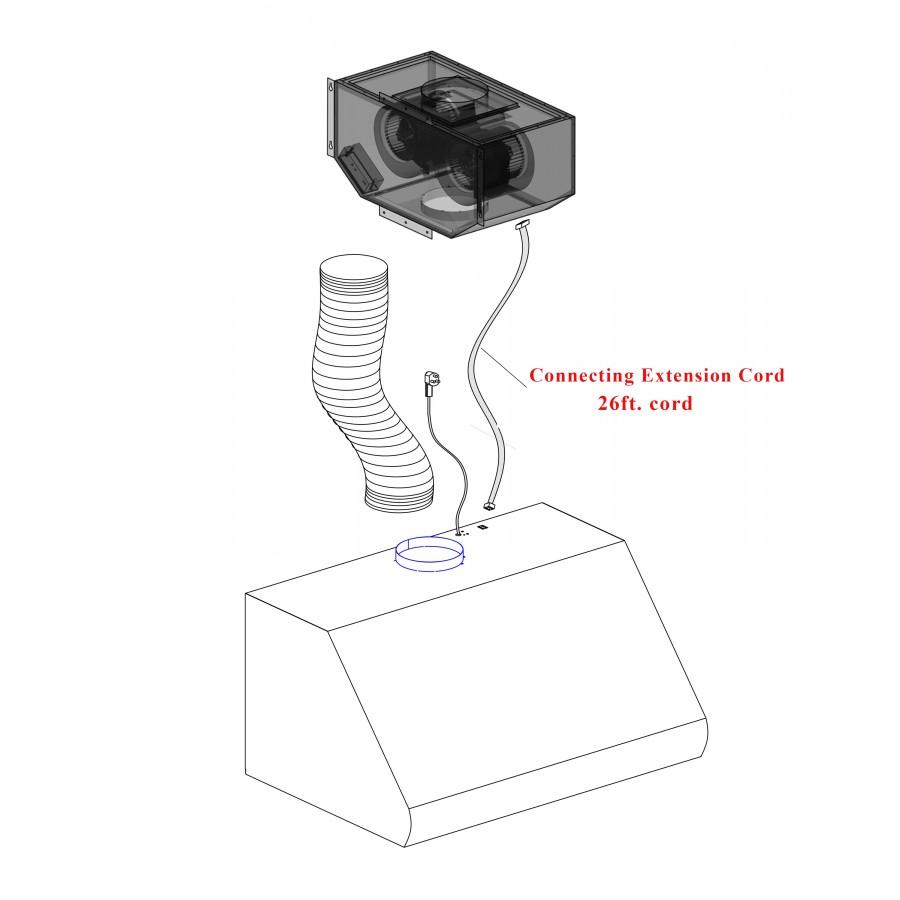

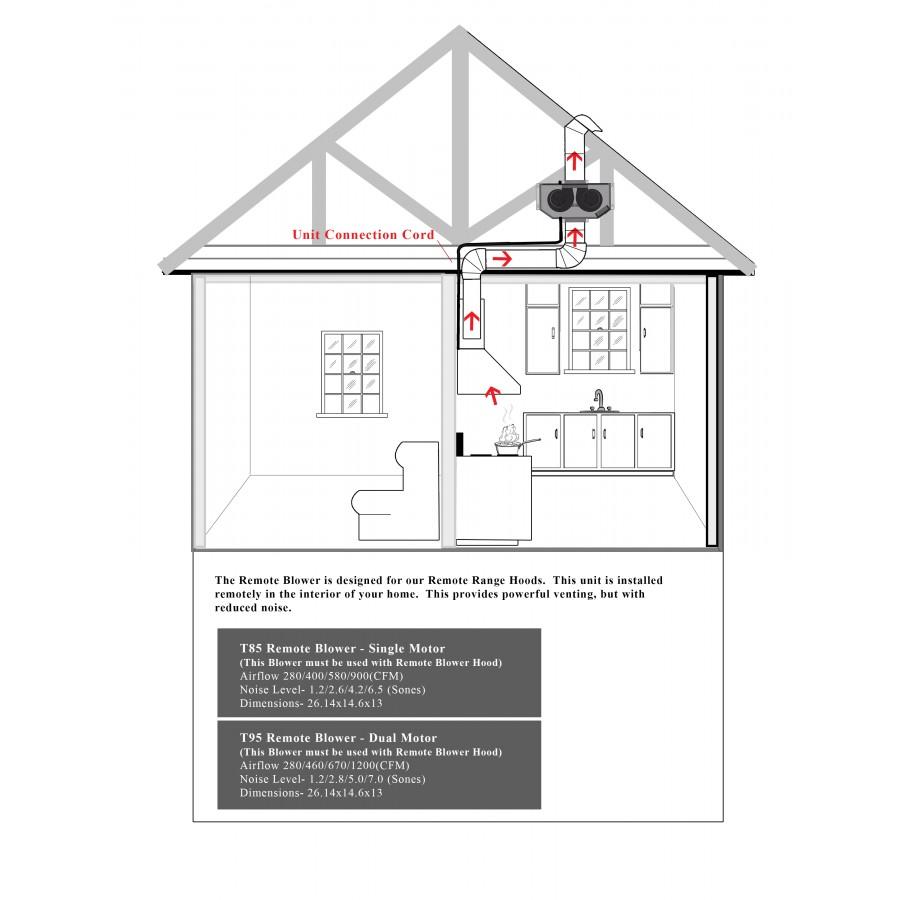

- Wall Mounted / Remotely Installed Blower
DESIGN & FINISH
- Control Type
- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
- Material
- 21g #430 Stainless Steel
TECHNICAL DETAILS
- Venting Size
- 8" Outlet (Transition piece with round ducting included)
- Airflow (Q/L/M/H)
- T95 Dual Remote Blower 280/420/560/700 (CFM)
- Noise Level
- 30/41/49/52 (Decibels)
- Voltage
- 110V/60HZ
- Motor
- High Performance 700 CFM/4-Speed Motor
- Speeds
- 4 Speeds
FEATURES
- Lighting
- 4 Directional LED Lights (3-Watt)
- Filters
- Stainless Steel Baffle Filters (Dishwasher Safe)
- Features
- Model No. 597-RD-48 (ETL Listed) ***CROWN MOLDING AVAILABLE FOR THIS MODEL***
WARRANTY & CERTIFICATIONS
- Warranty
- 3 Year Parts Warranty
- Certifications
- ETL Certified
