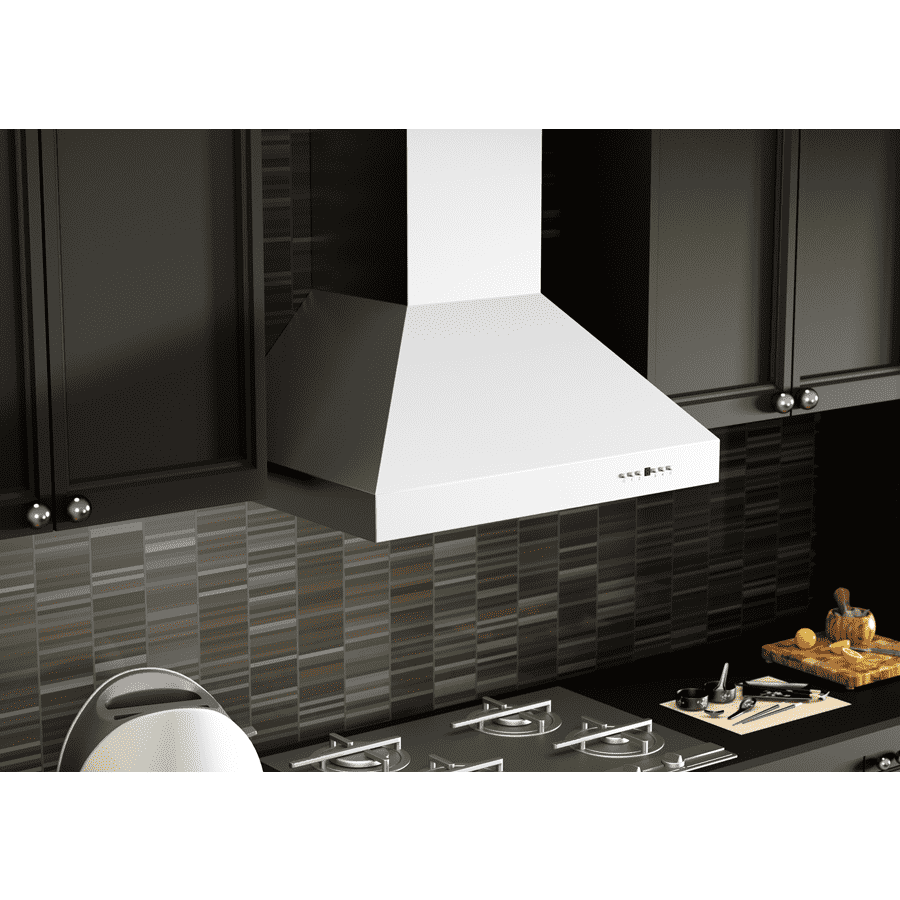

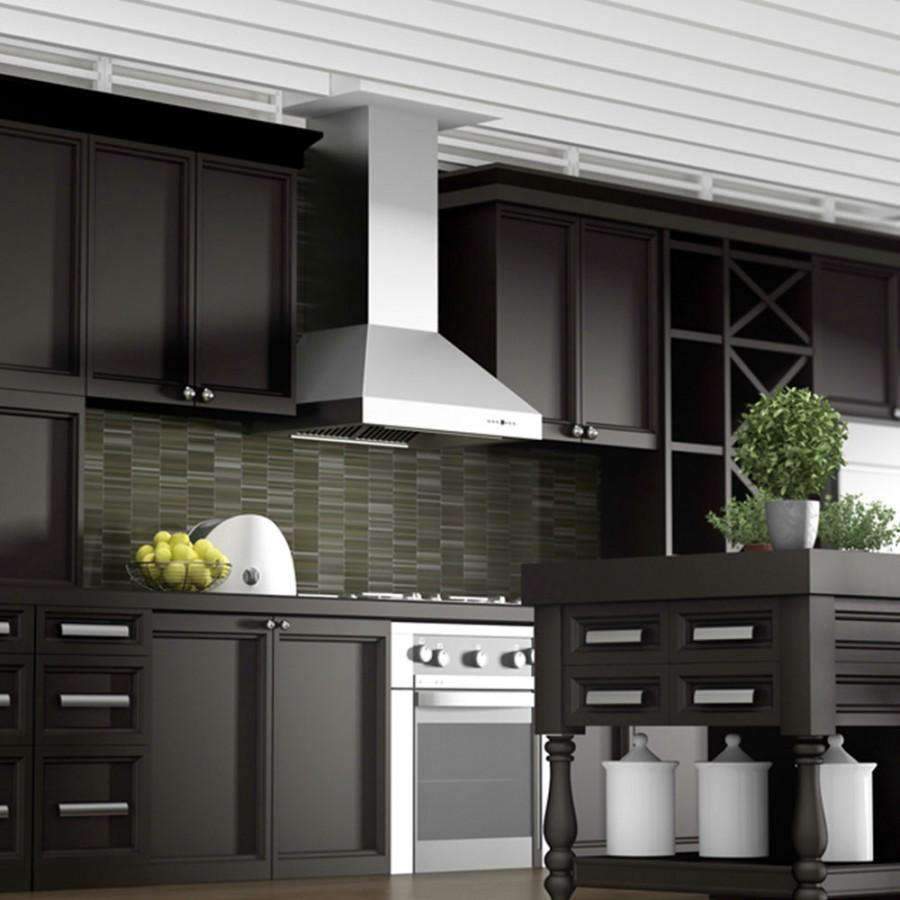

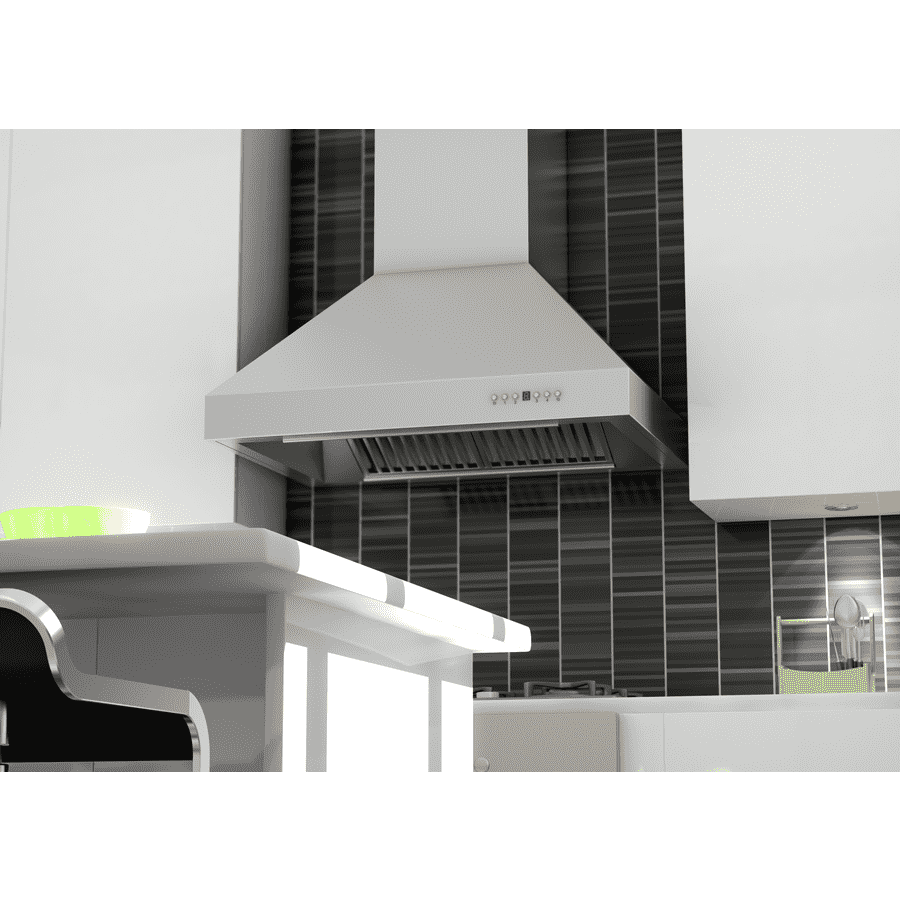

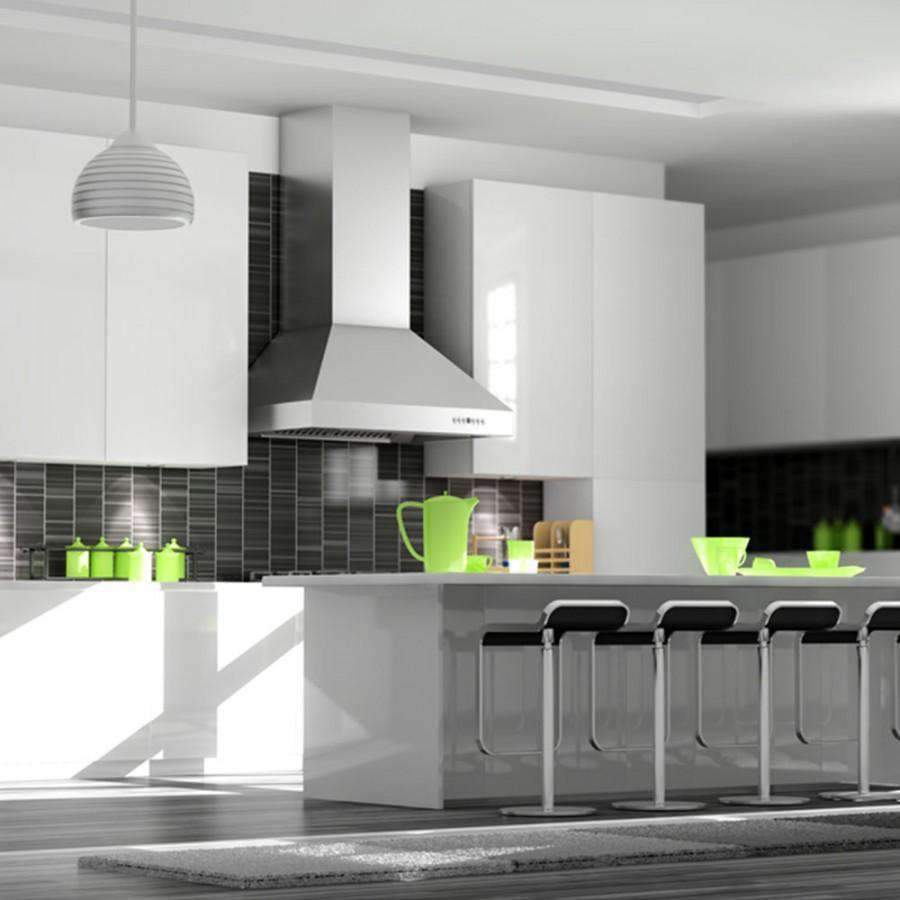

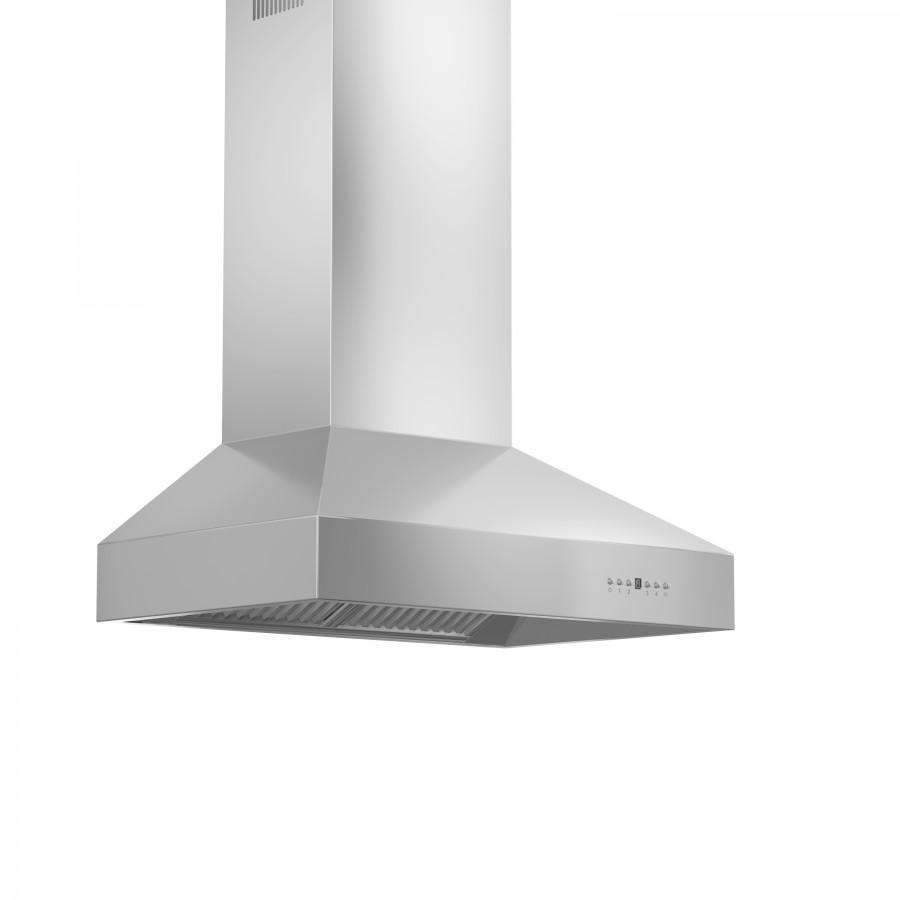

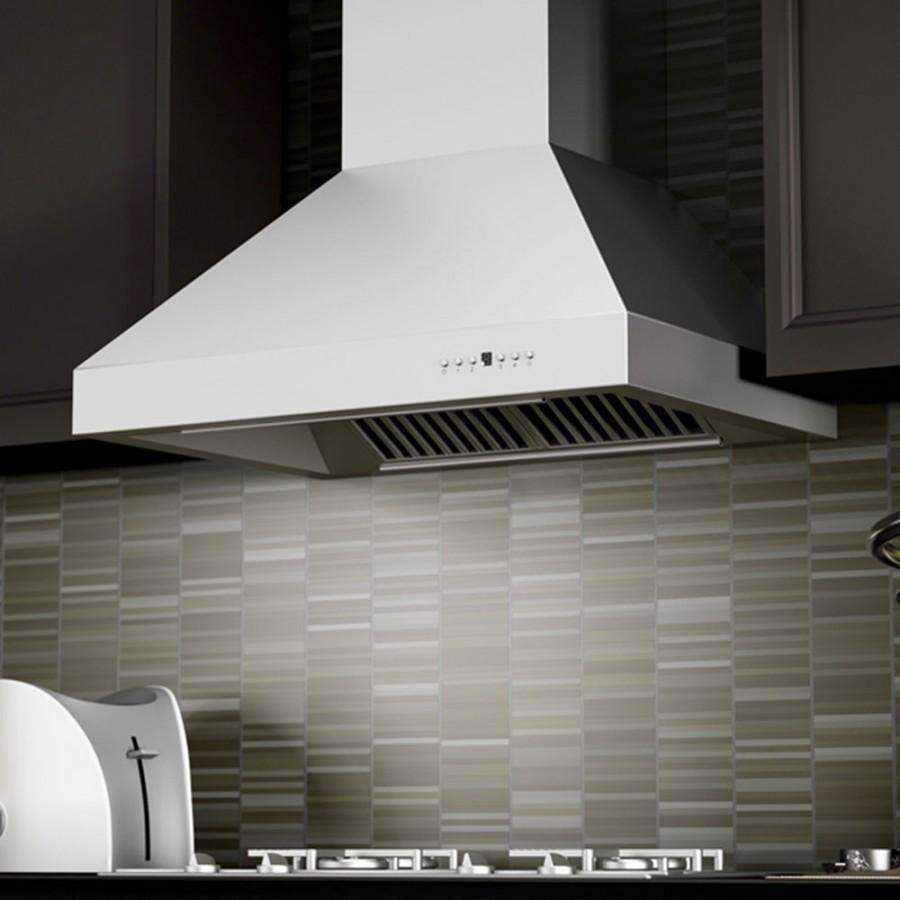

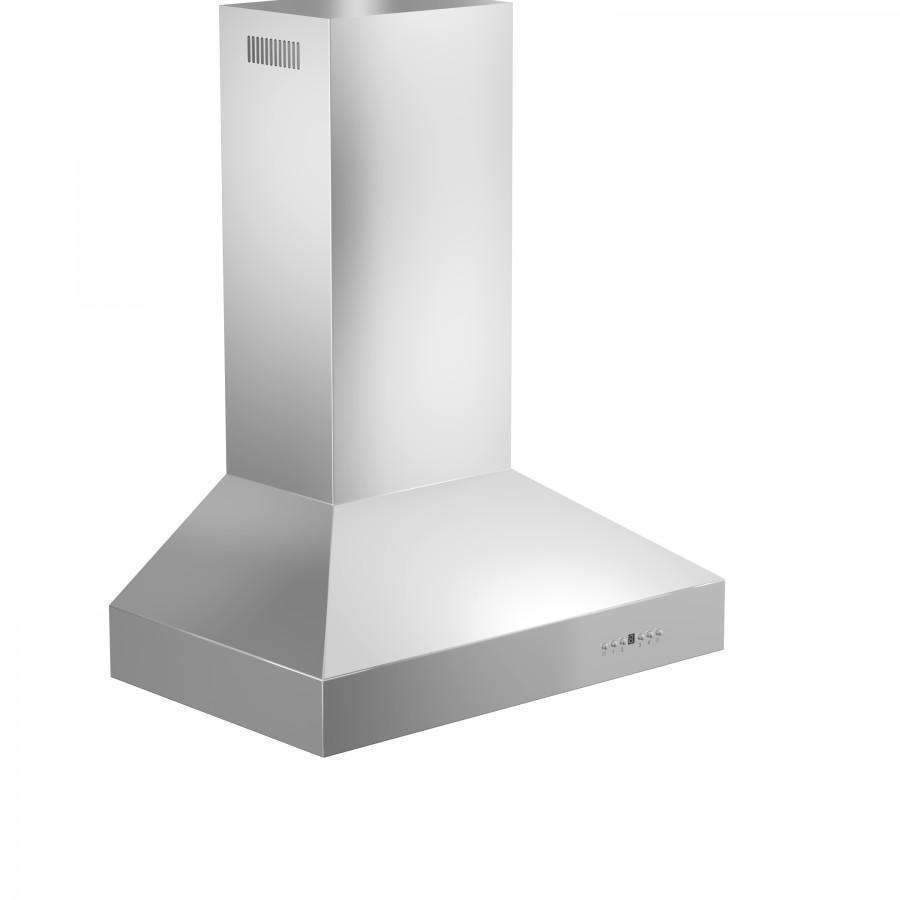

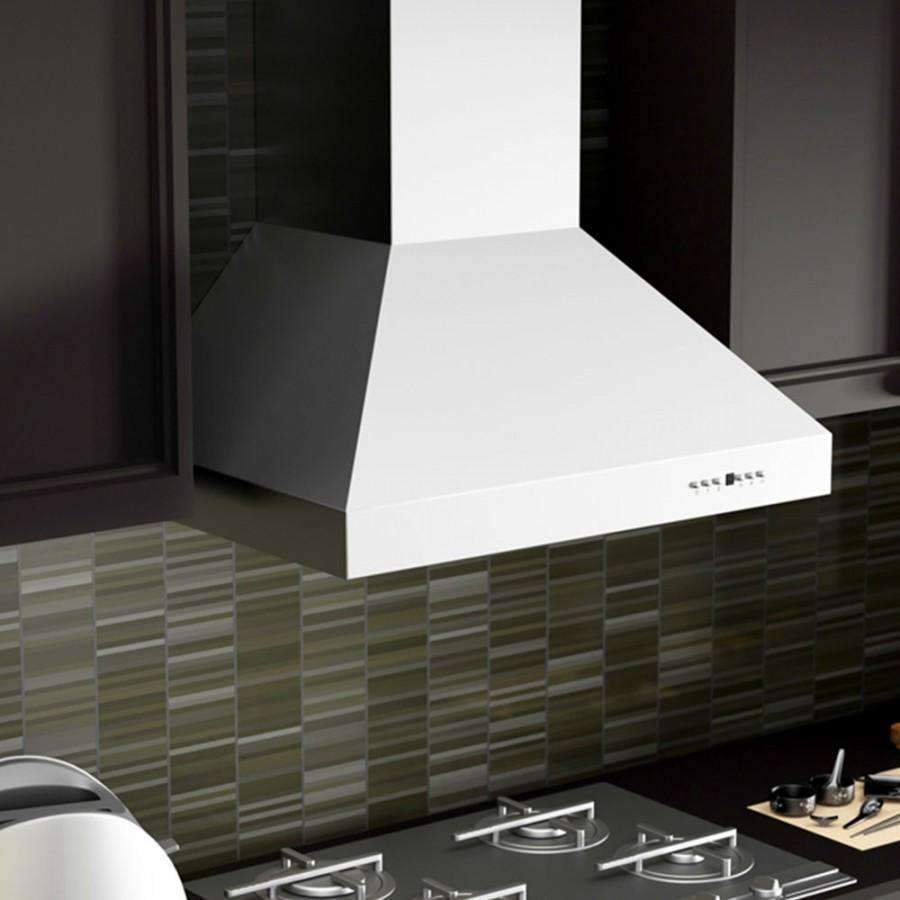

ZLINE 48" Outdoor/Indoor Stainless Wall Range Hood, 697-304-48
The ZLINE 697-304-48 is a 48-inch outdoor professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 304 grade, outdoor approved stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
This hood contains many unique features, such as:
- Easy-to-use push button controls let's you easily control fan speed and lighting
- 4-Speed fan control (280/400/580/1200 CFM) to choose the appropriate air flow for your cooking situation
- 1200 CFM air flow (highest speed setting) efficiently exhausts large amounts of air away from your cooking area
- Dishwasher-safe stainless steel baffle filters
- LED lighting illuminates the cooktop beneath the hood
- Designed to fit standard (circular) ductwork for simple installation
- 3 year parts warranty, life-time motor warrantyc
All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimneypieces, allowing a fit for most ceilings between 8 and 9 feet. For ceilings shorter than 8 feet, or taller than 9 feet, see the table below for detailed options.
ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The 697-304-48 ships the next business day when in stock.
Purchasing an outdoor range hood comes with a different set of recommendations than indoor range hoods:
- Always install your outdoor range hood at least 36 above your outdoor range or grill
- If purchasing a 760 CFM range hood, your hood should be at least 2 sizes larger than your grill
- If purchasing a 900 or 1200 CFM range hood, your hood should be at least 1 size larger than your grill
- It is not recommended to use a recirculating range hood, you should always duct away from your cooking area
OPTIONS & ACCESSORIES
- Ductless/Recirculate Option - No
- Ceiling Heights Options:
- Less 8’ - Require Short Kit SK-667/697-304
- 8’ to 9' - No Ext or Short Kit required
- 9' to 10’ - Require Ext 1PCEXT-667/697-304
- 10' to 12’ - Require Ext 2PCEXT-667/697-304
- Crown Molding(s) - NA
- Certified Outdoor Use - Yes
- Also available in - 30" (697-304-30), 36" (697-304-36), 42” (697-304-42). 54"(697-304-54), 60" (697-304-60)
ZLINE Kitchen and Bath
48" W x 27.5" D x 16.5" H
13.5" W x 11.75" D x 16" H (x2) (Telescoping)
8" Outlet (Transition piece to round ducting included)
4 Directional LED Lights (3-Watt)
High Performance 1200 CFM/4-Speed Motor
Wall Mount - RECOMMENDED INSTALLATION 36"-40" ABOVE GRILL
Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Stainless Steel Baffle Filters (Dishwasher Safe)
19g #304 Stainless Steel
3 Year Parts Warranty
Model No. 697-304-48 (ETL Listed)
Range Hood Decibel Levels
ZLINE Range Hoods are supposed to be seen, not heard. That's why even at the highest speed our range hoods only reach 56 decibels, which is quieter than your average conversation. Rest assured that your new range hood will not be interrupting your dinner party or when you're helping with homework.
ZLINE Range Hoods are designed to fit the majority of kitchens right out of the box. Some kitchens with shorter ceilings do need a shortening kit or an extension kit depending on ceiling height. All our stainless steel hoods come with two telescoping chimneys to ensure the perfect fit. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size. Watch the video to learn more about sizing your chimney.
