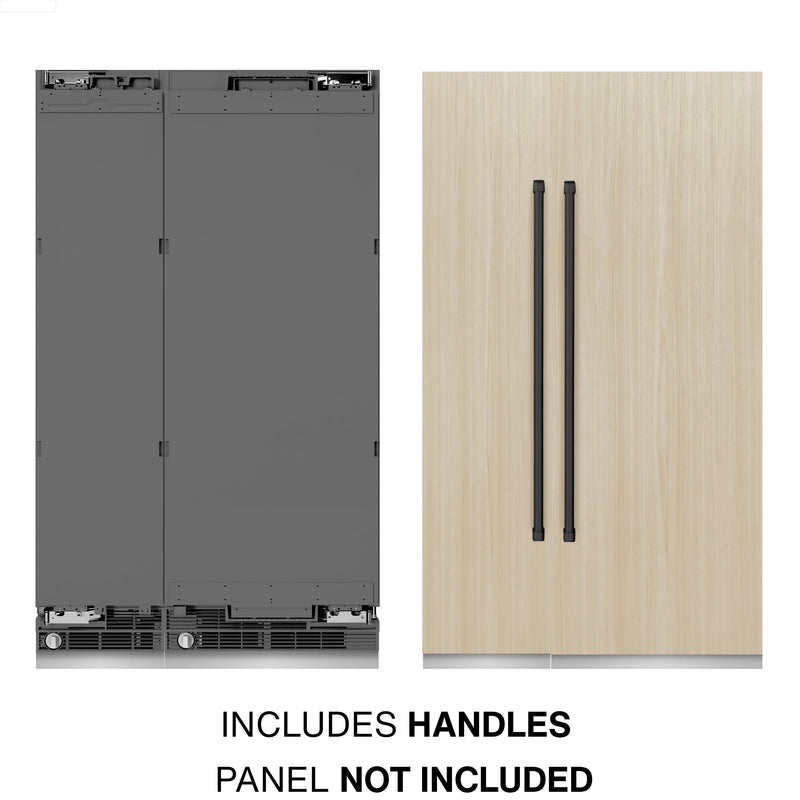

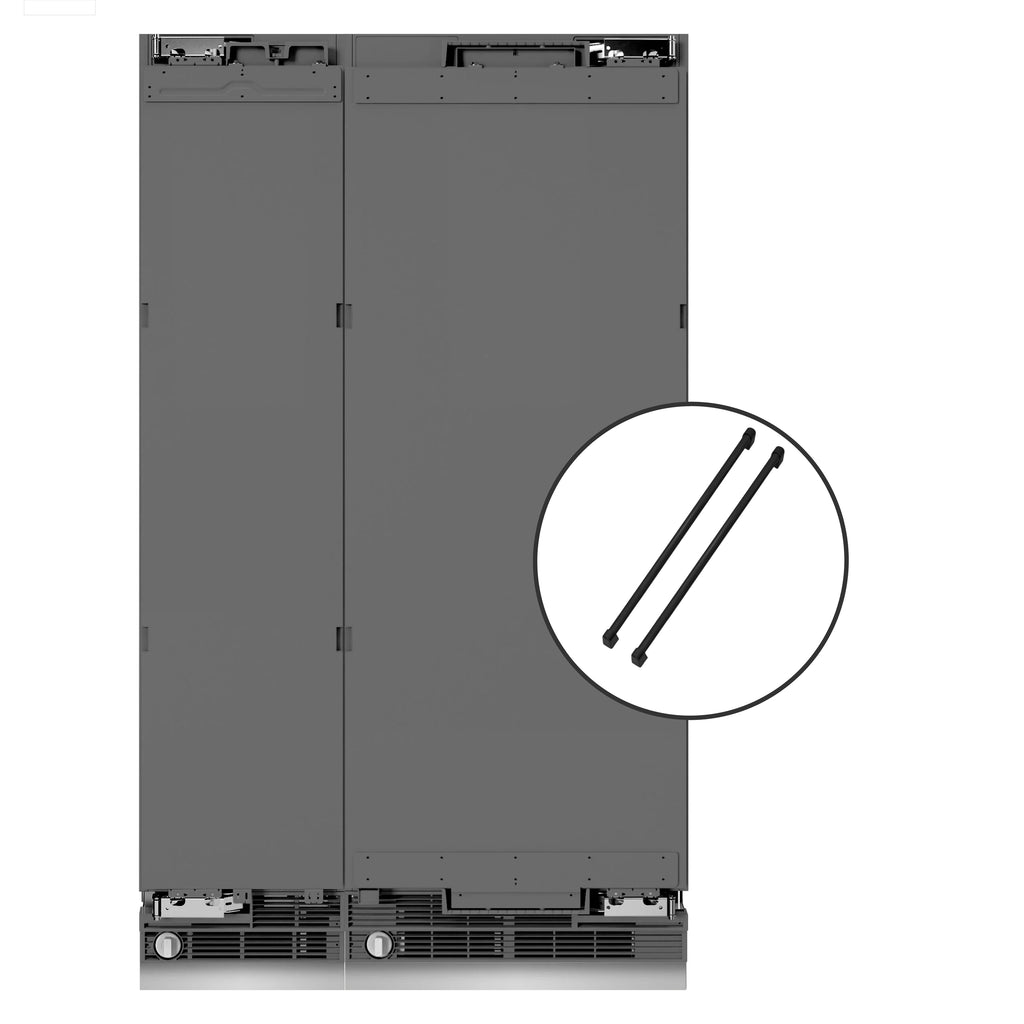

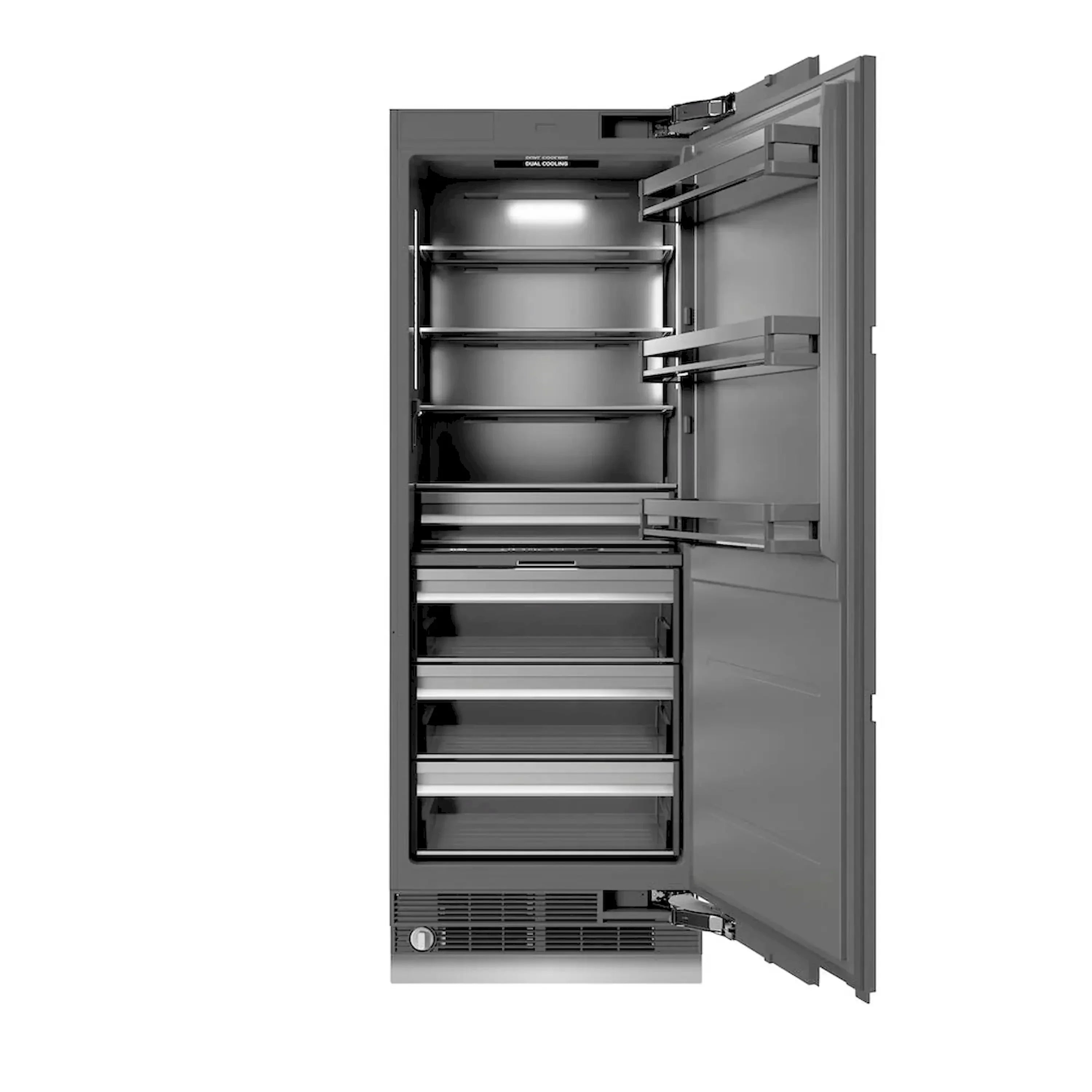

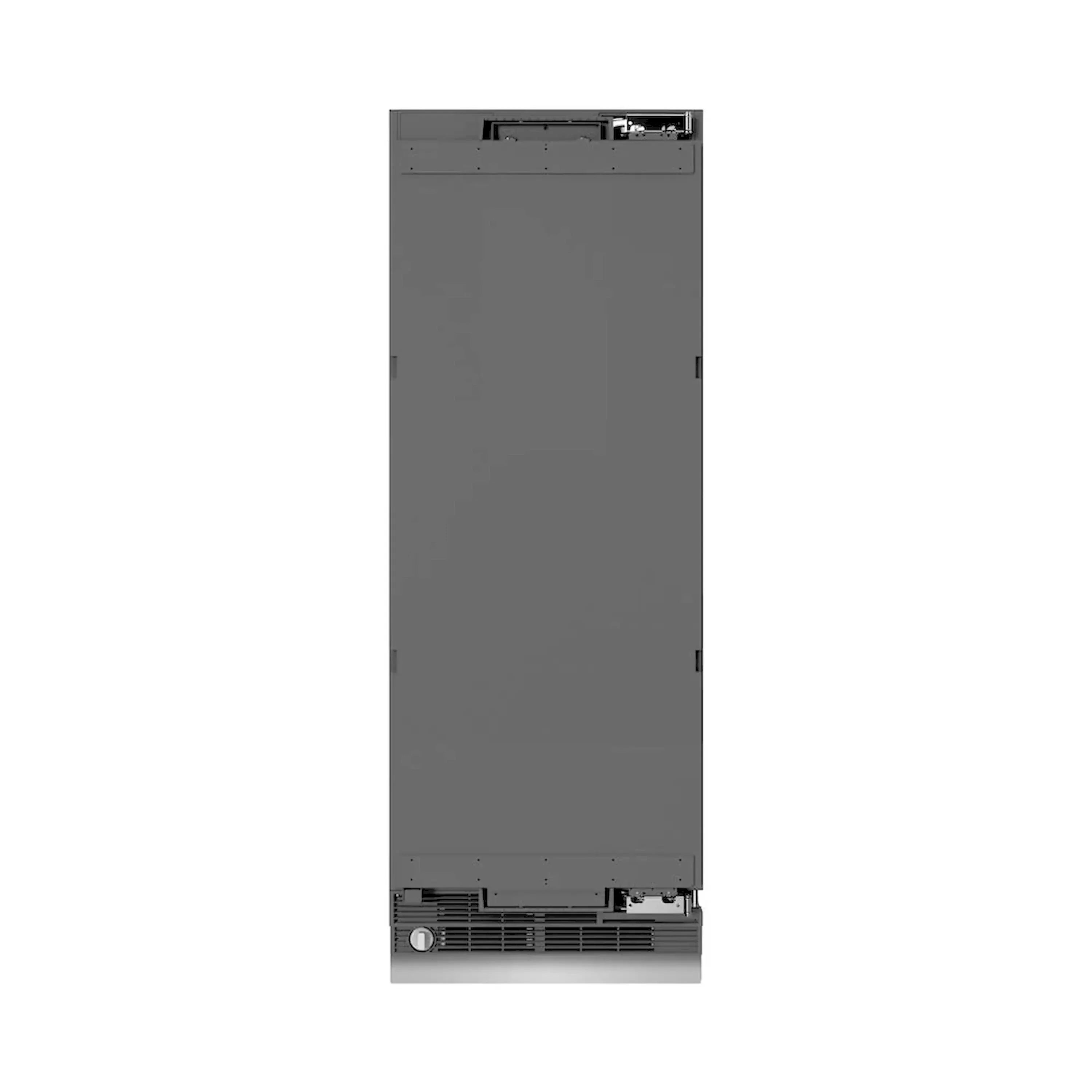

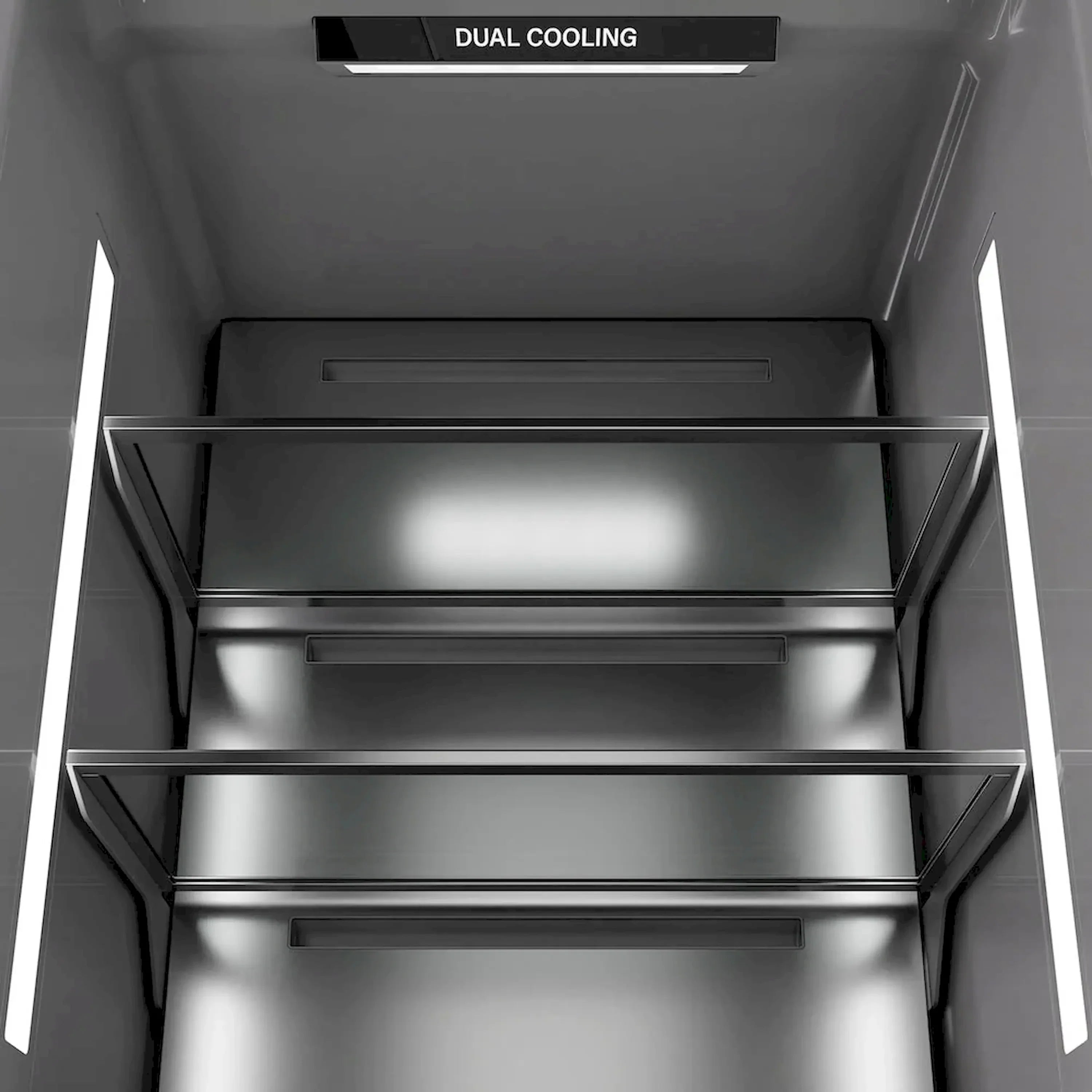

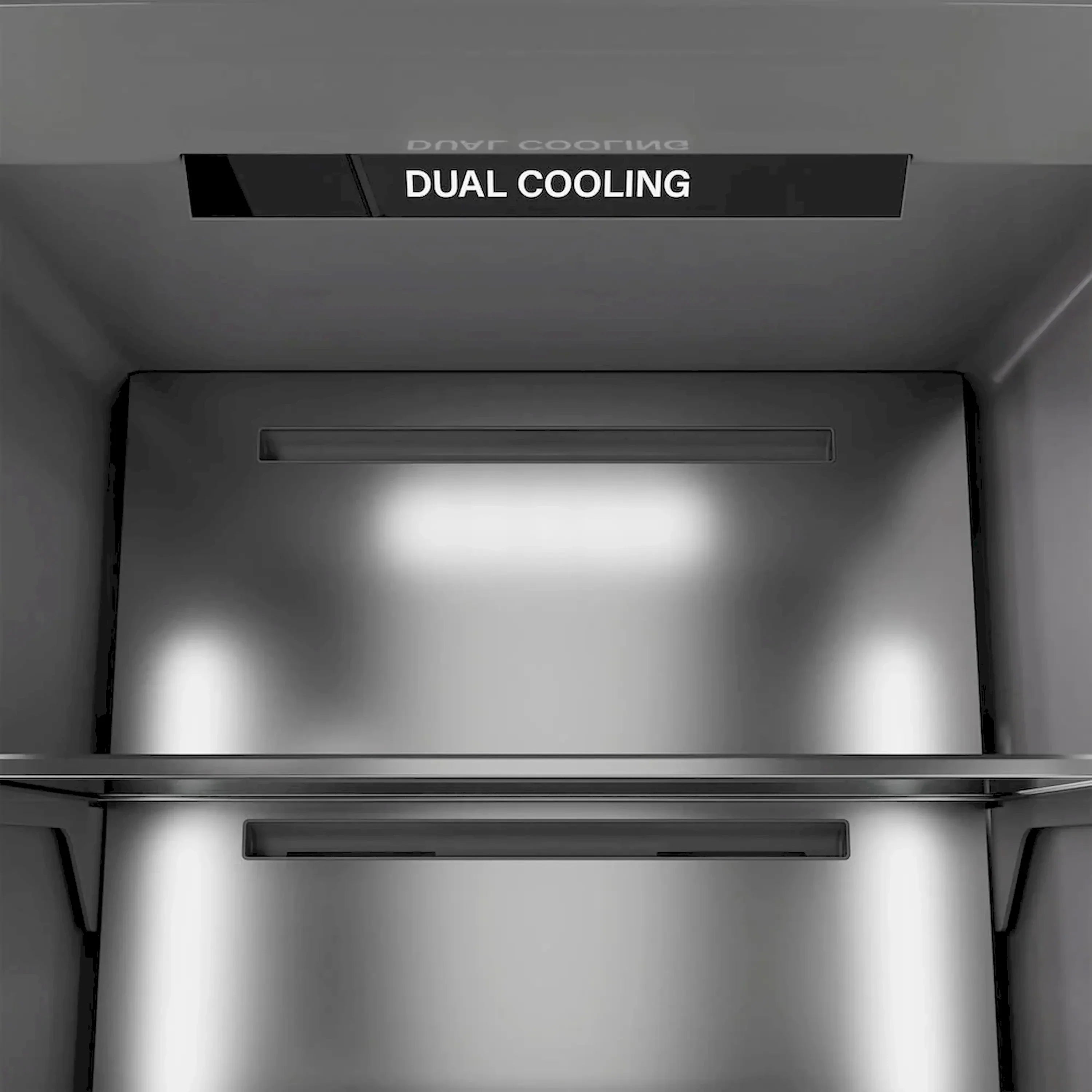

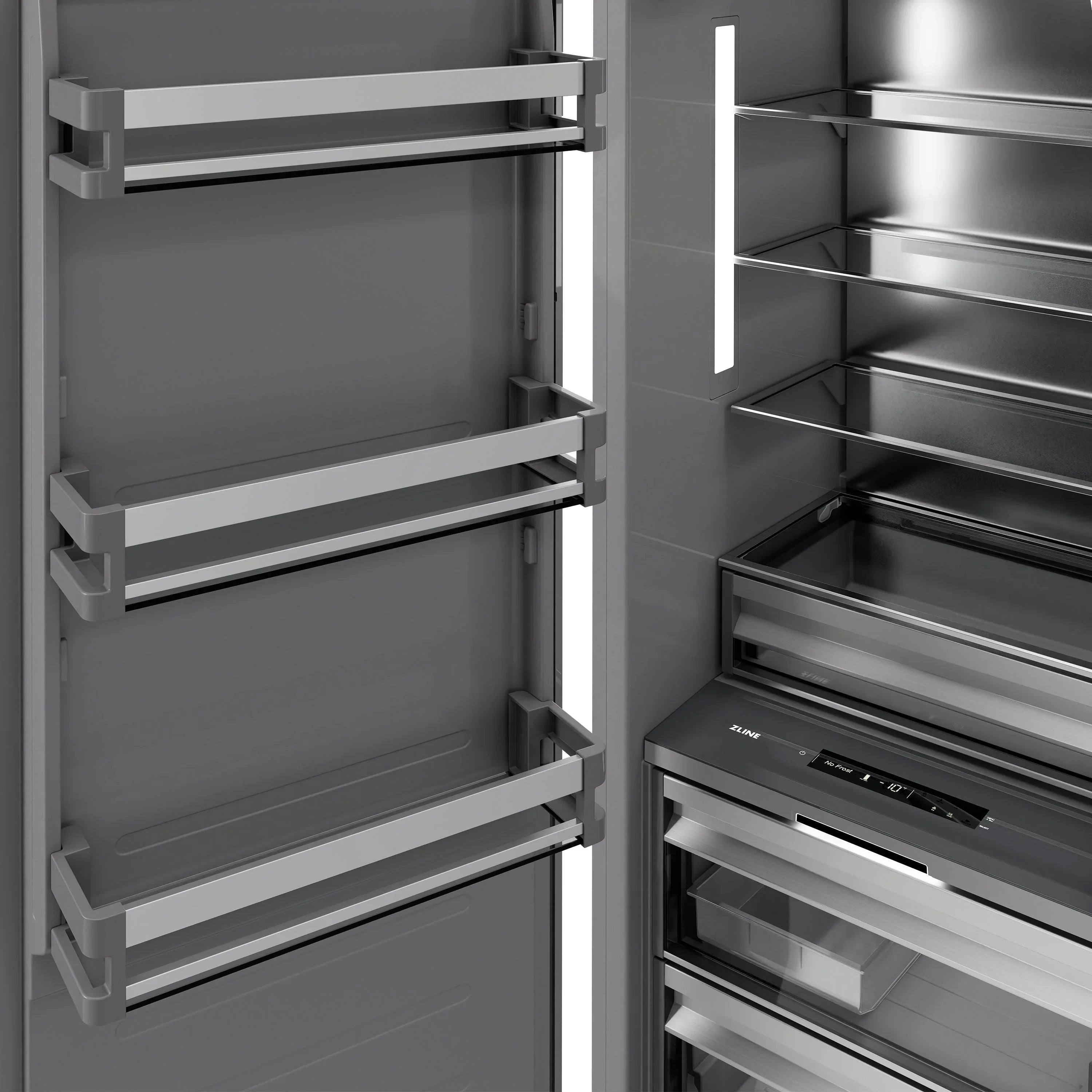

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 30 in. 16.7 cu. ft. Panel Ready Column Refrigerator with Graphite Gray Interior and Matte Black Accents (RBCRVZ-30-MB) combines the convenience of a sleek integrated tall column built-in design with dual cooling technology and spacious storage capacity for multiple grocery items. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s cooling capability.

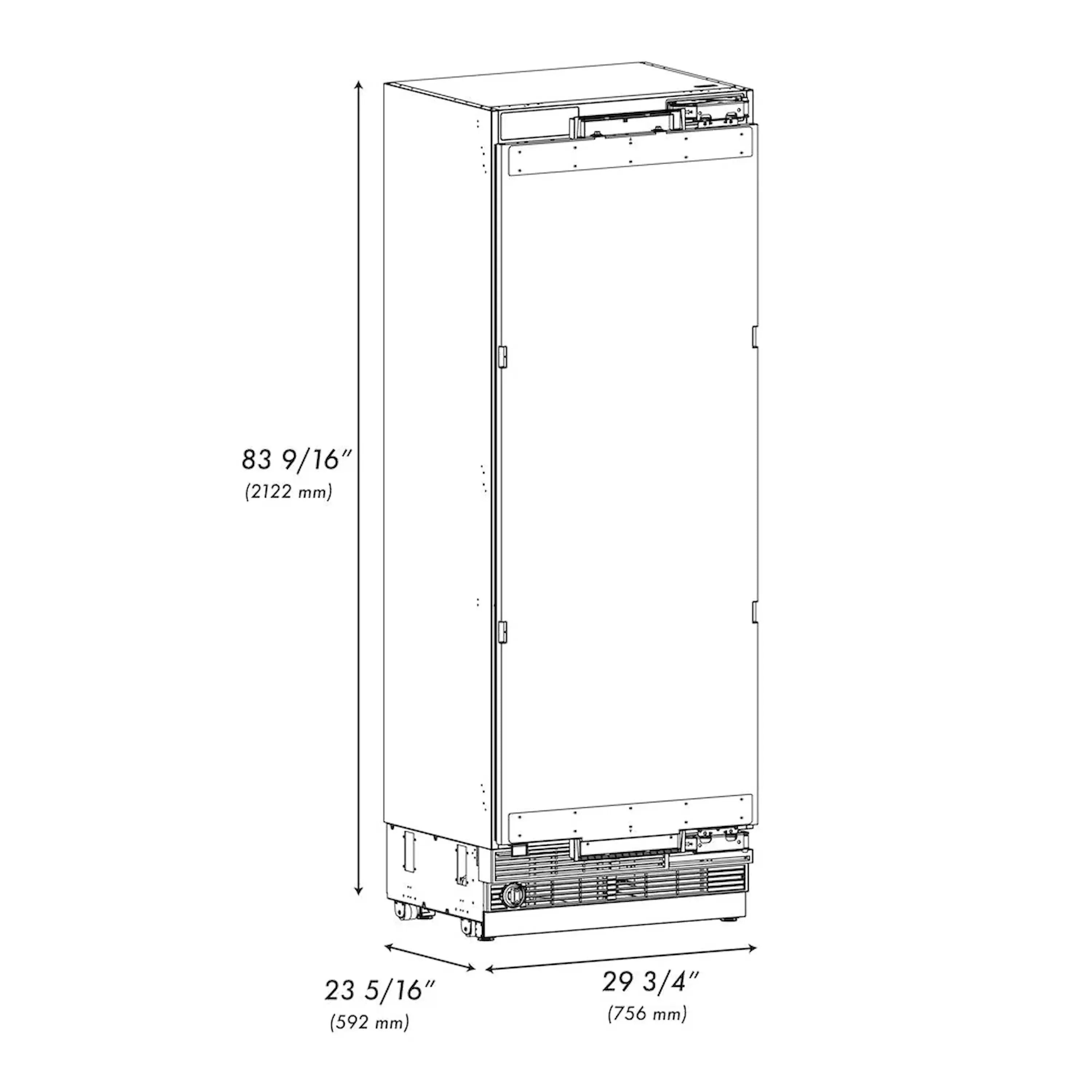

| Dimensions | 29.75 in. W x 23.31 in. D x 83.56 in. H |
| Depth with Door Open | 55.5 in. |
| Cutout Dimensions | 30.19 in. W x 25 in. D x 84 in. H |
| Total Capacity | 16.7 cu. ft. |
| Fridge Capacity | 16.7 cu. ft. |

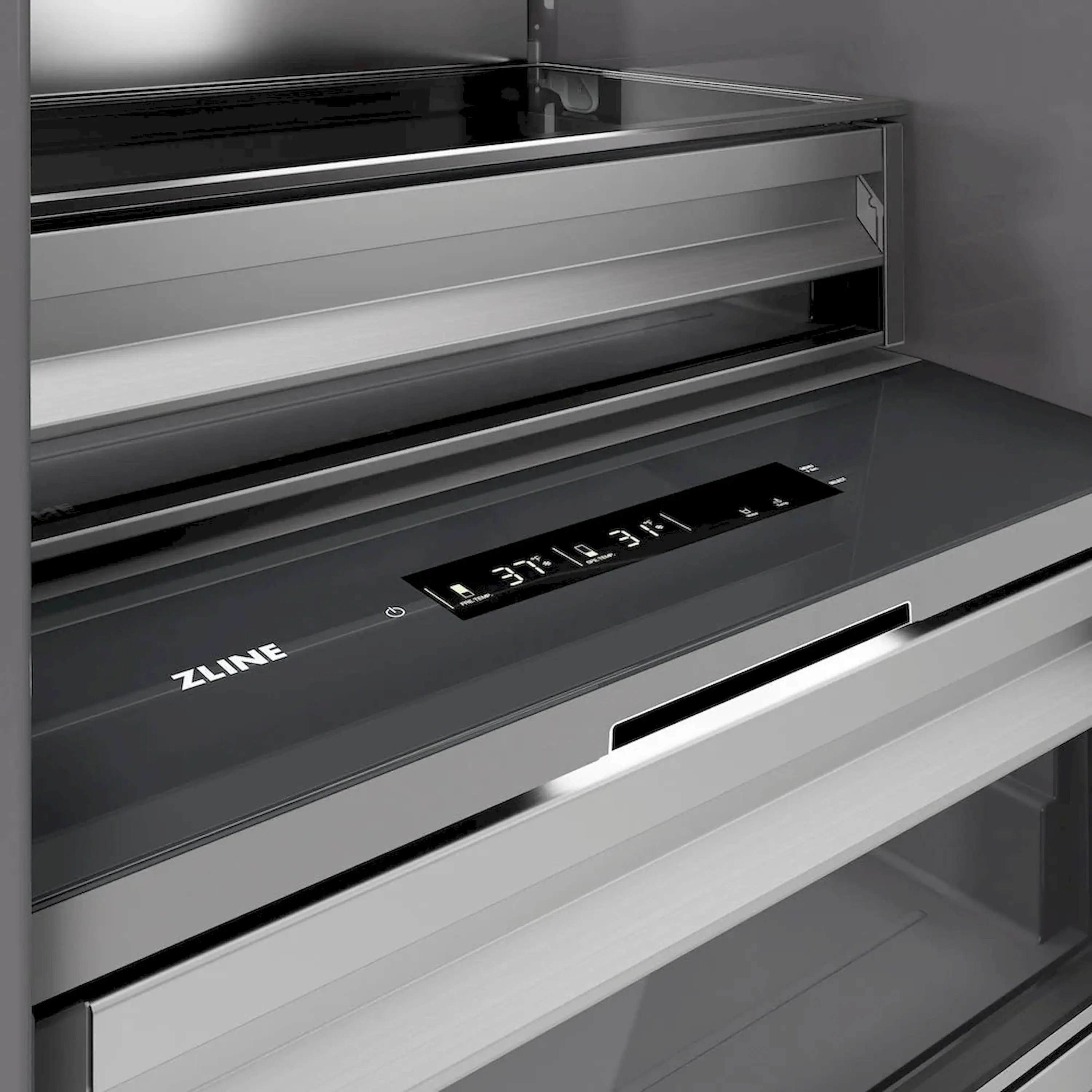

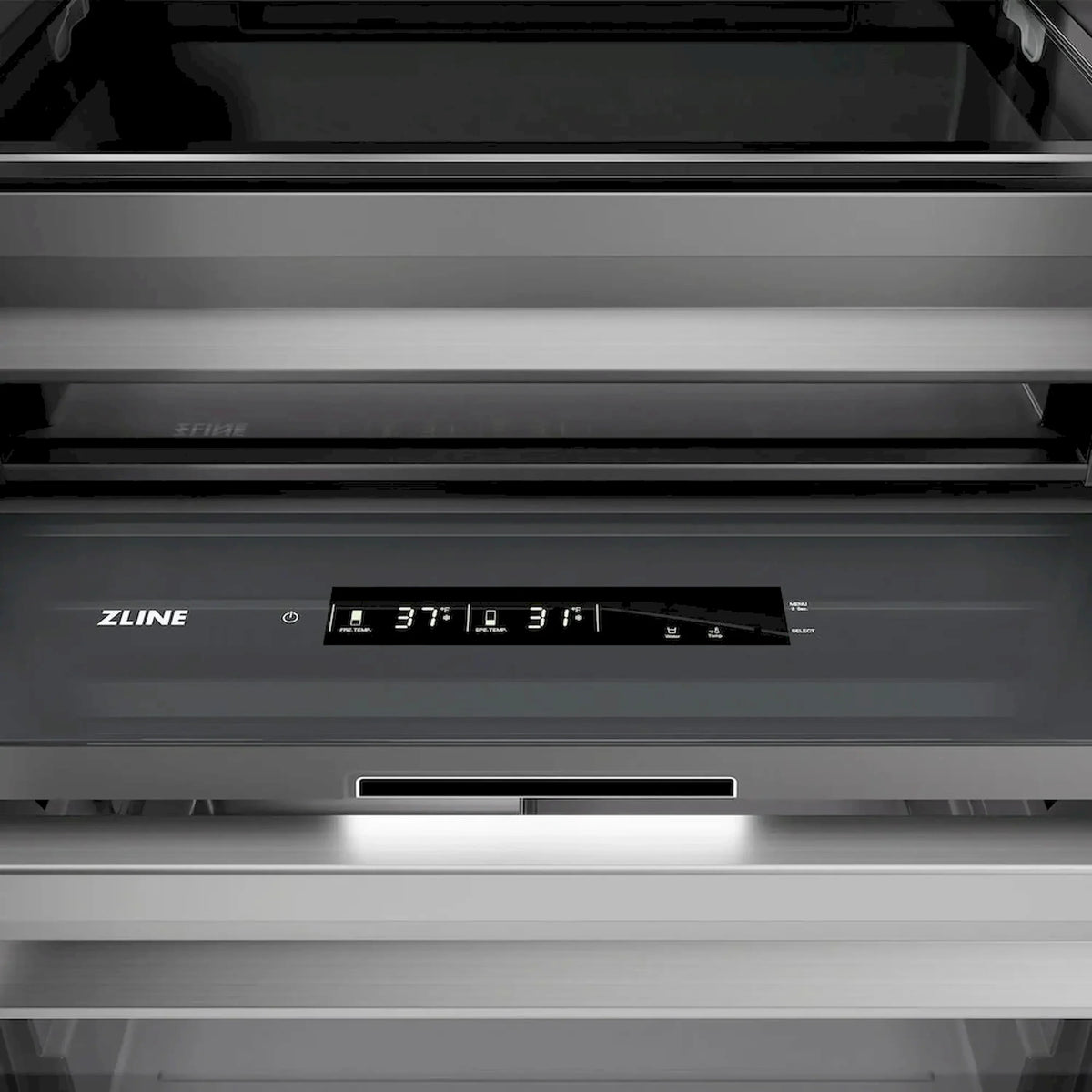

| Flex Drawer Temp Controls | 30°F - 41°F |
| Depth Type | Counter Depth |
| Mount Type | Full Size Built-In |

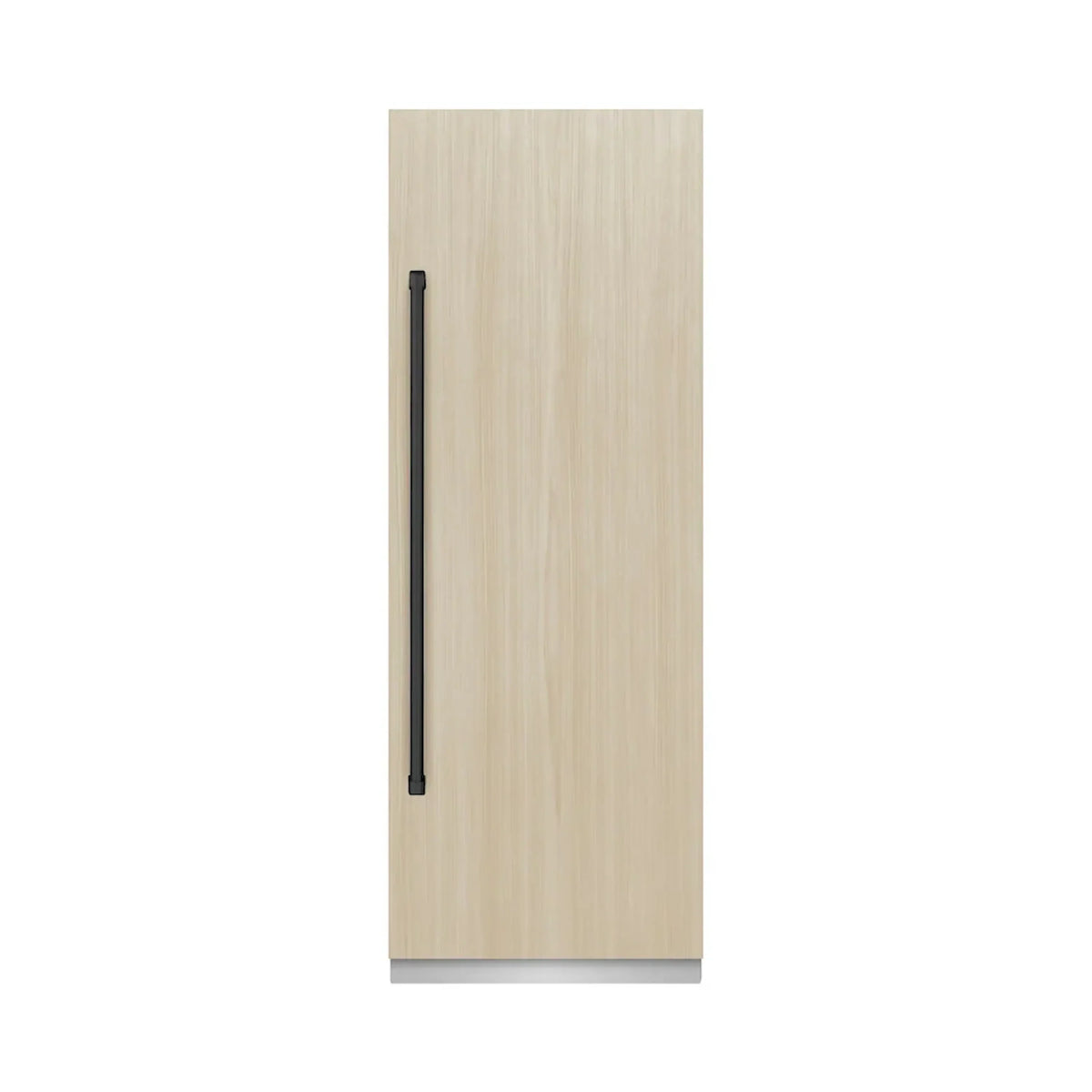

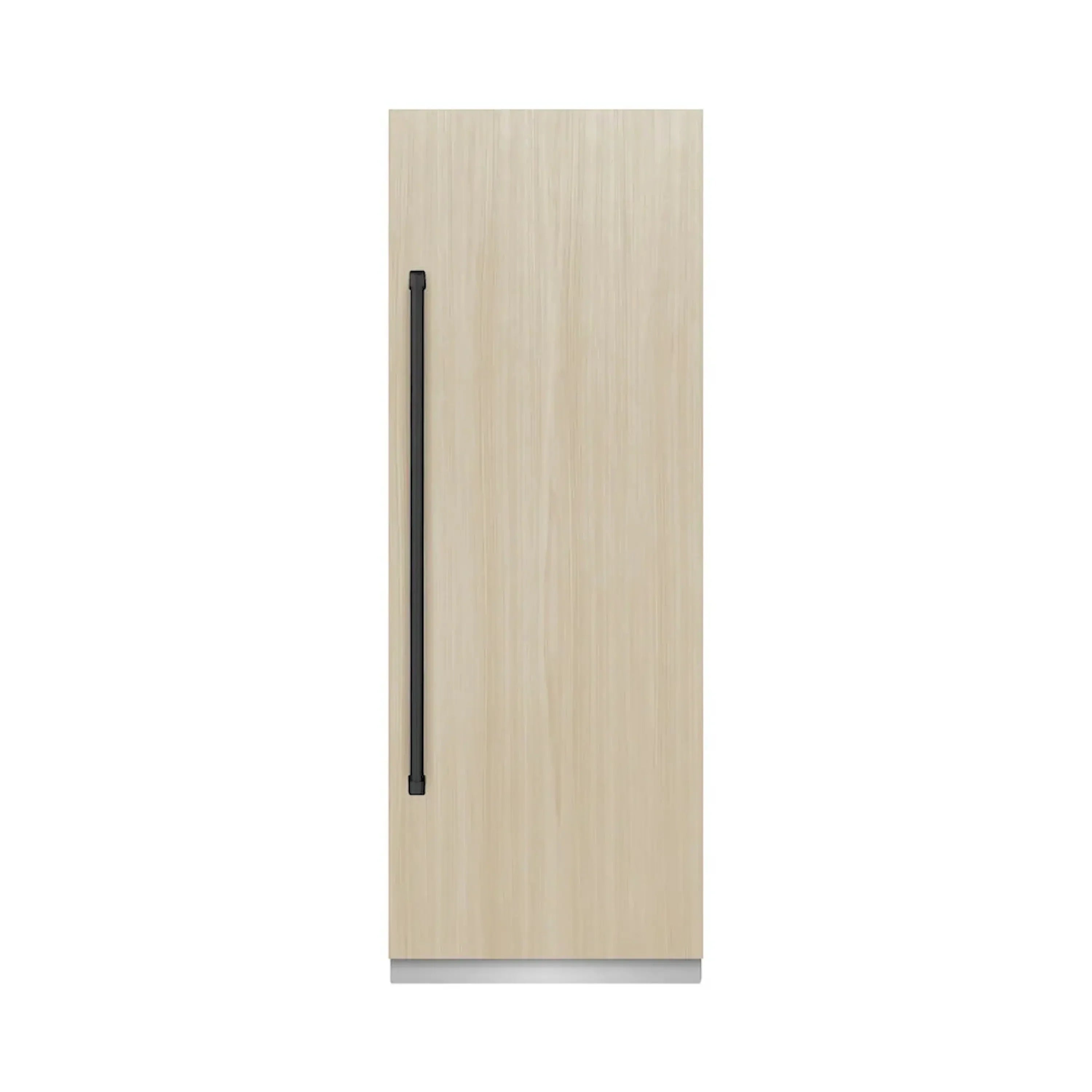

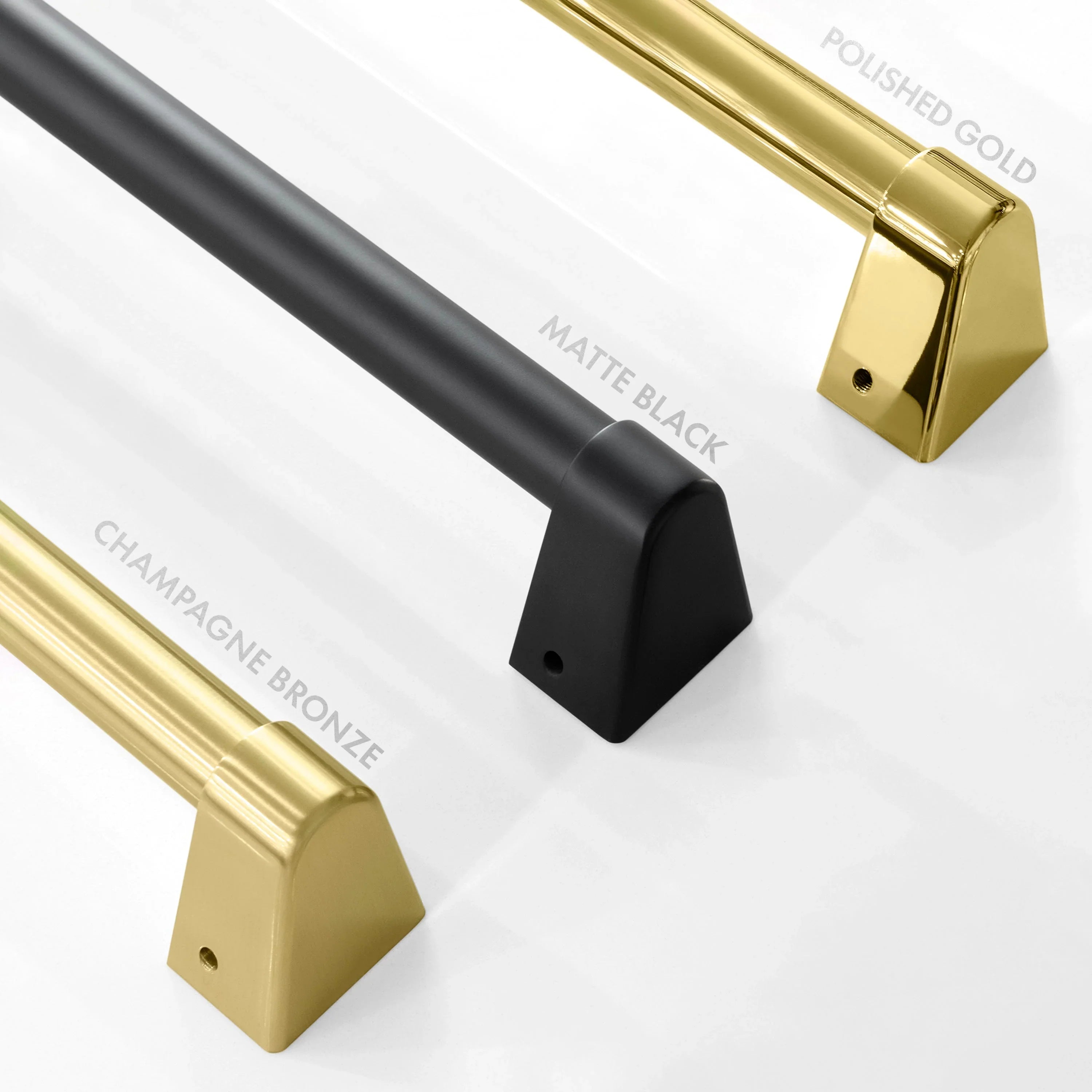

| Finish | Panel Ready with Matte Black Accents |
| Interior | Graphite Gray Interior |
| Door Style | Single Door (Reversible Hinge) |
| Electrical Requirements | 115V/60Hz/15A |
| Ice Maker (Y/N) | No |
| Water Dispenser | Yes |
| Flowrate for Water Dispenser | 0.5 GPM |
| Fridge Lights | 4 |
| Energy Consumption (kWh/year) | 325 kWh/year |
| Noise Level | 41 dBA |
| Door Shelves | 4 |
| Door Alarm | Yes |
| Number and Material of Shelves | 4 |
| Certifications | ETL Listed, Energy Star Certified, AB100, NSF, ANSI 61 |
| Warranty |
2-Year Parts and Service 5-Year Parts Only for Sealed System |

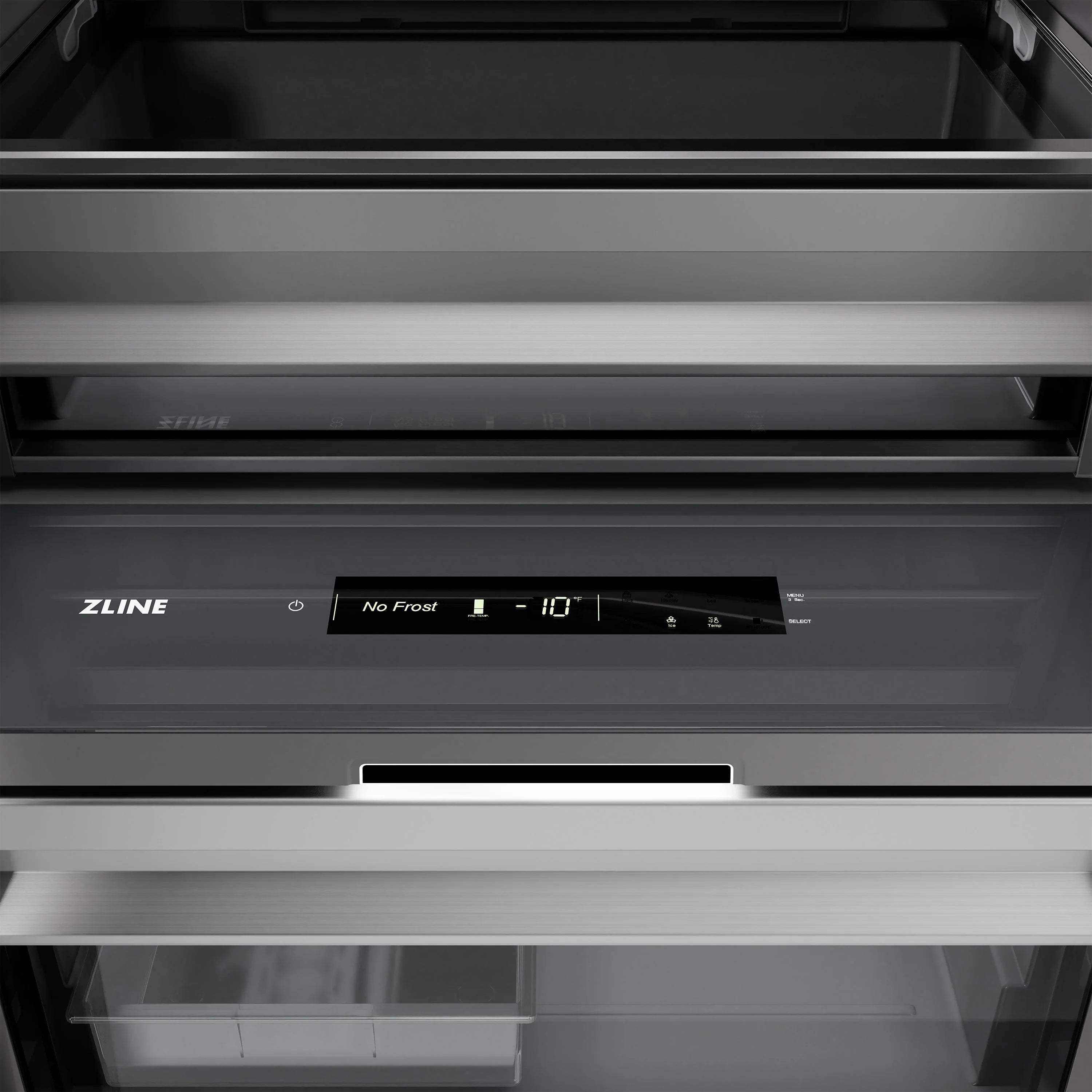

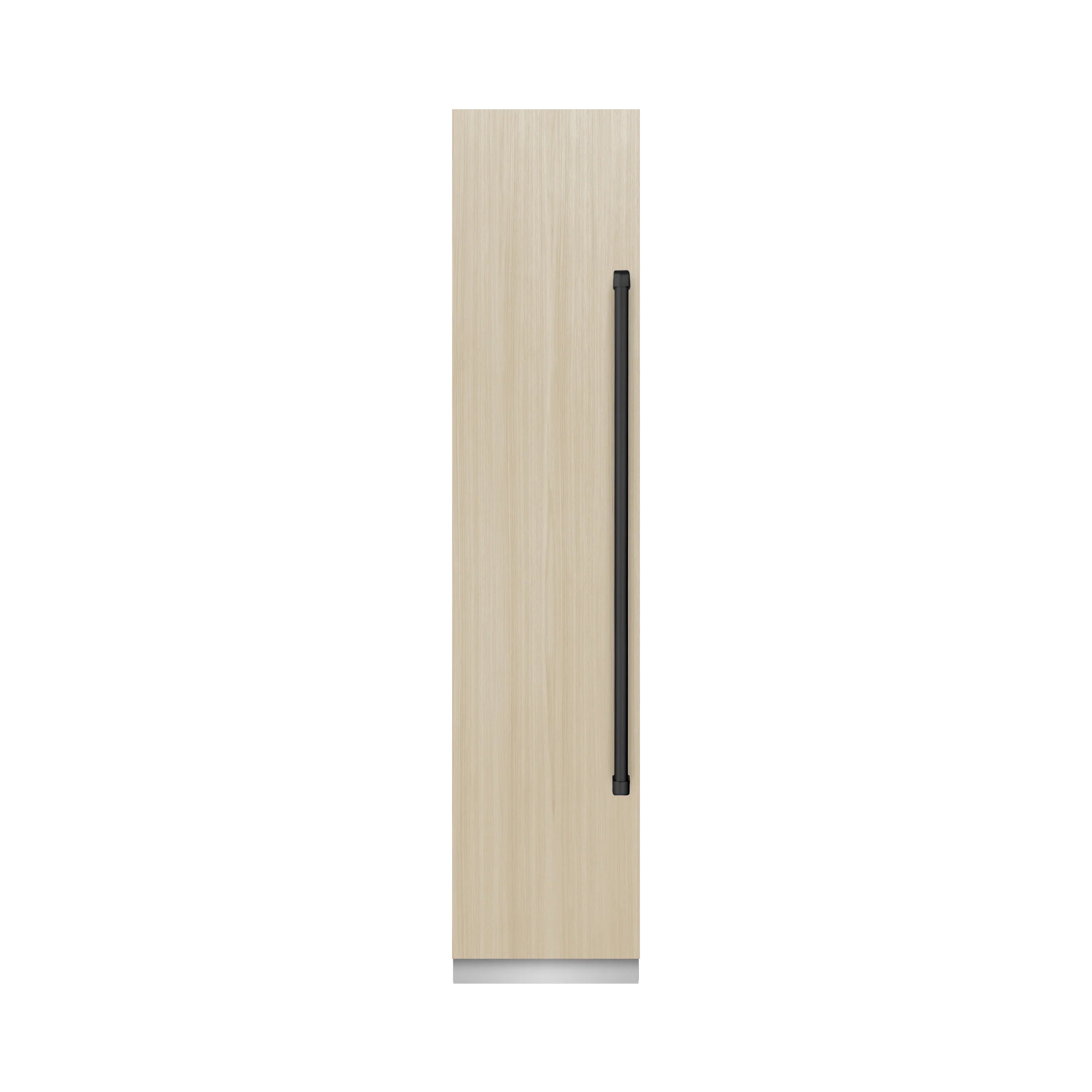

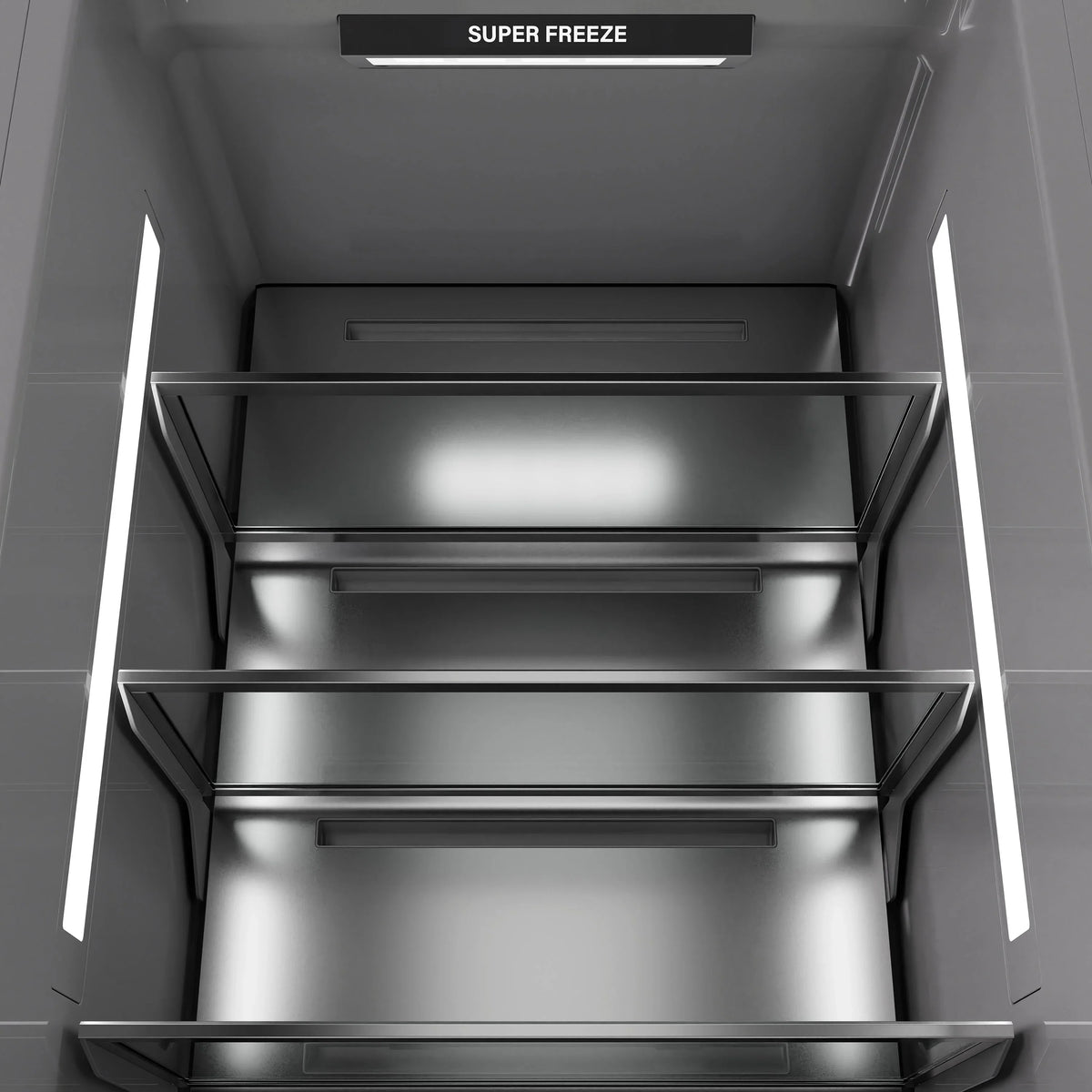

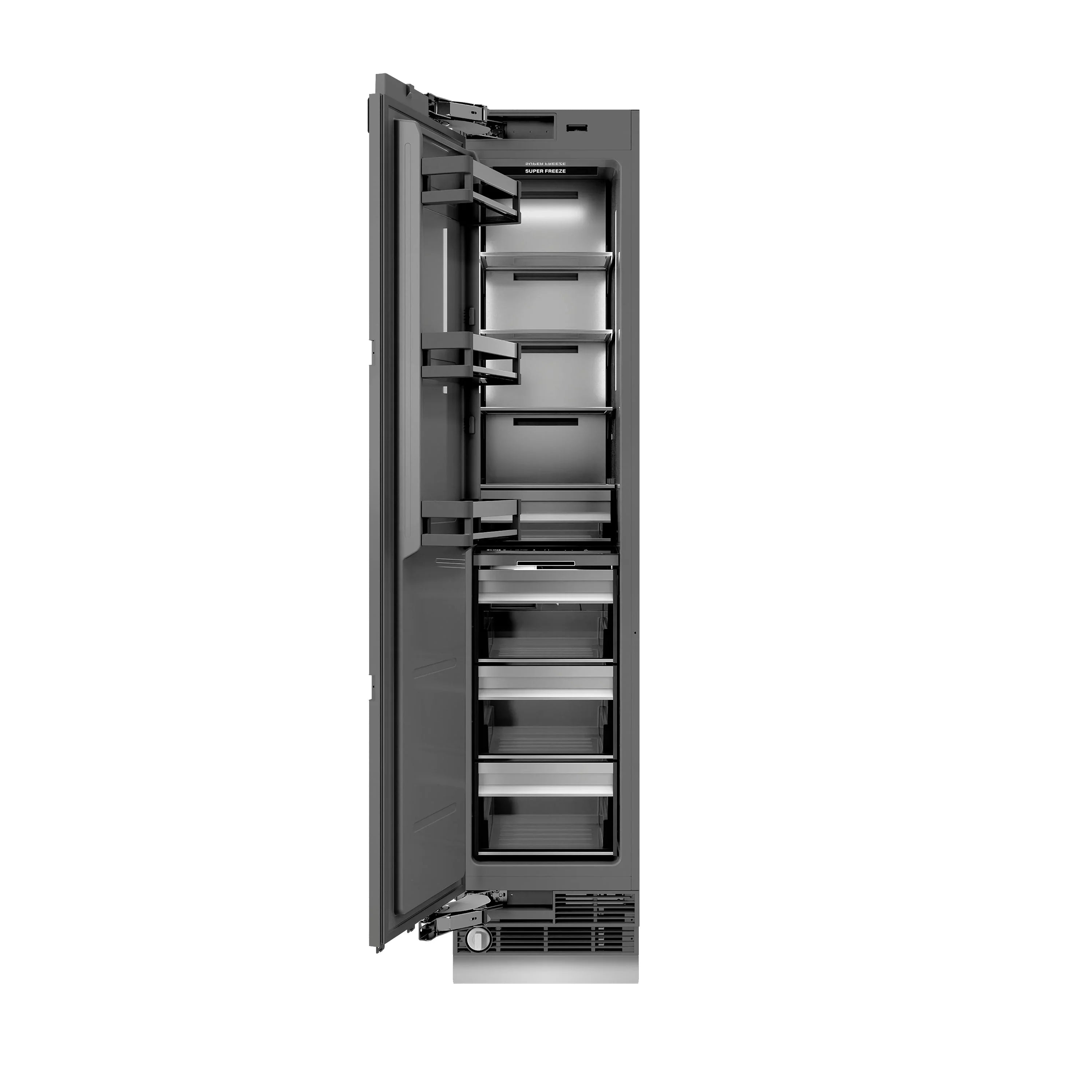

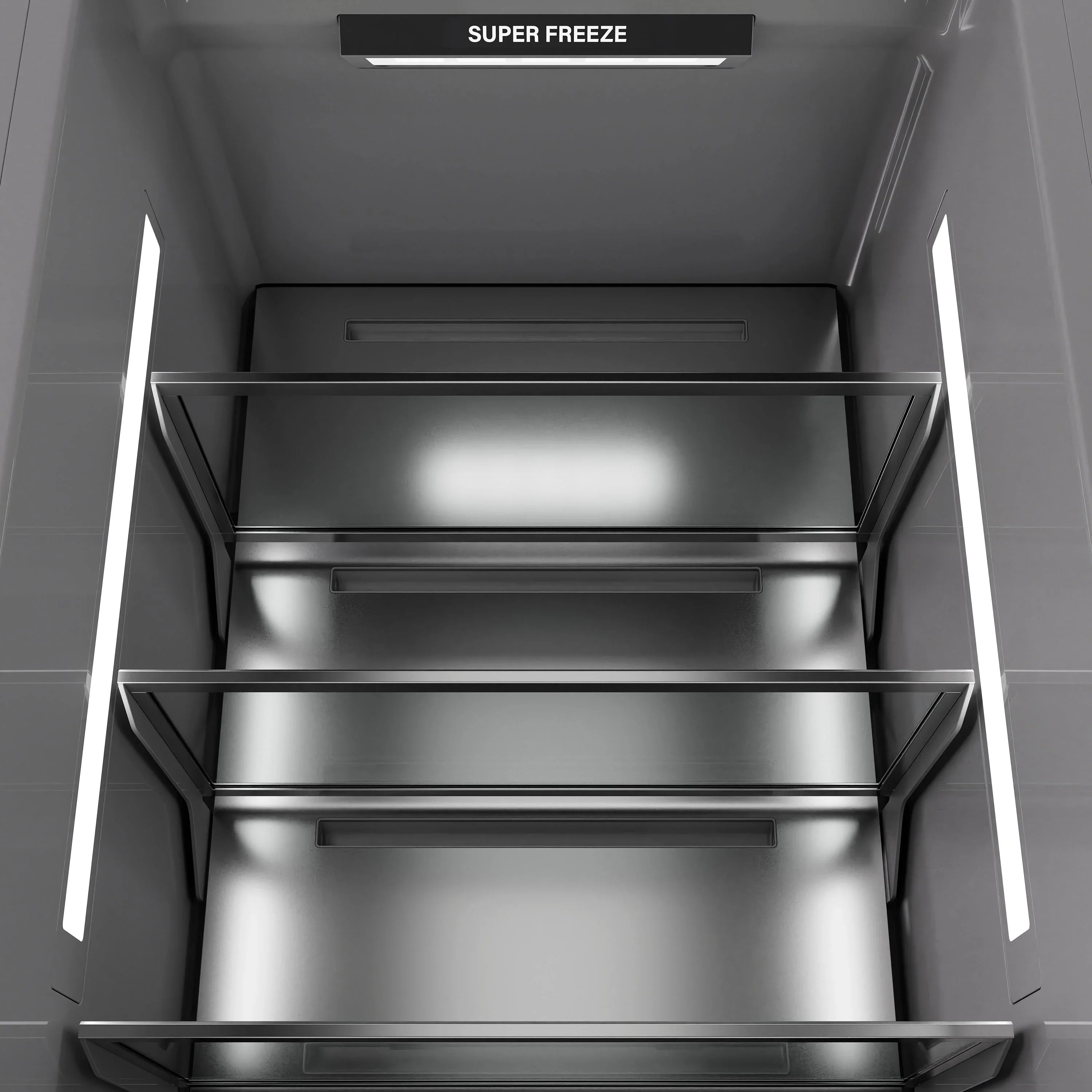

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 18 in. 8.6 cu. ft. Panel Ready Left Hinge Column Freezer with Graphite Gray Interior and Matte Black Accents (RBCFVLZ-18-MB) combines the convenience of a sleek integrated tall column built-in design with efficient freezing technology and spacious storage capacity for multiple grocery items. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s freezing capability.

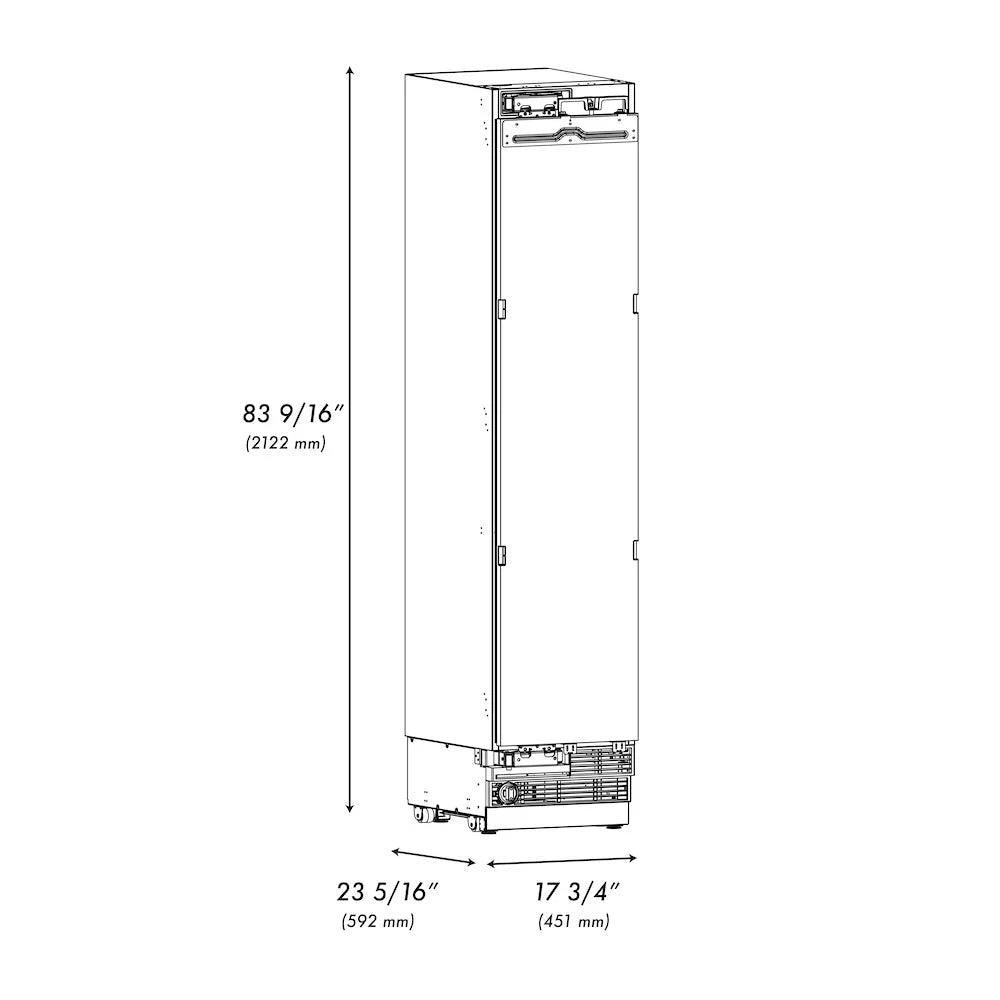

| Dimensions | 17.75 in. W x 23.31 in. D x 83.56 in. H |
| Depth with Door Open | 43.44 in. |
| Cutout Dimensions | 18.19 in. W x 25 in. D x 84 in. H |
| Total Capacity | 8.6 cu. ft. |
| Depth Type | Counter Depth |
| Mount Type | Full Size Built-In |
| Finish | Panel Ready with Matte Black Accents |
| Interior | Graphite Gray Interior |
| Door Style | Single Door (Left Hinge) |
| Electrical Requirements | 115V/60Hz/15A |

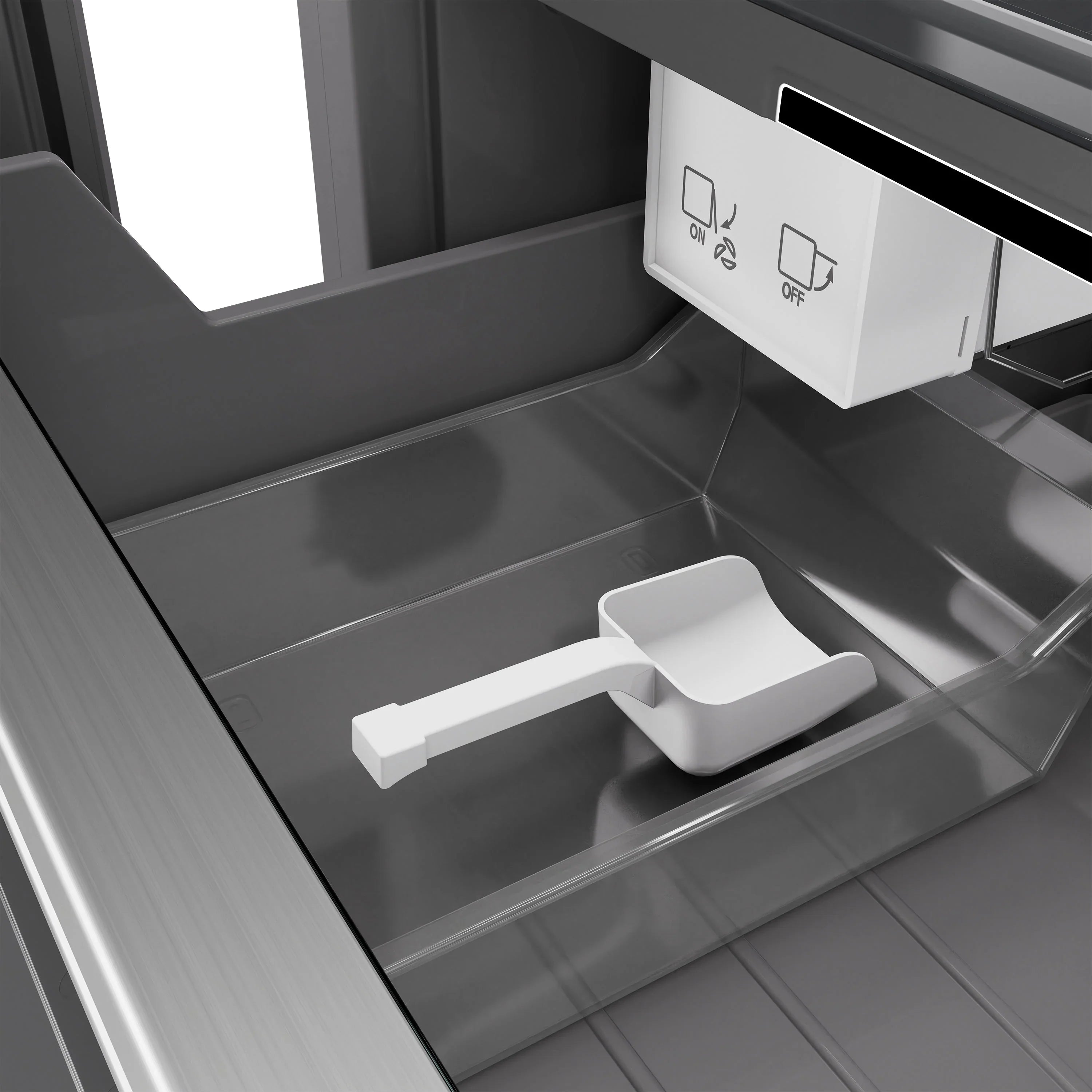

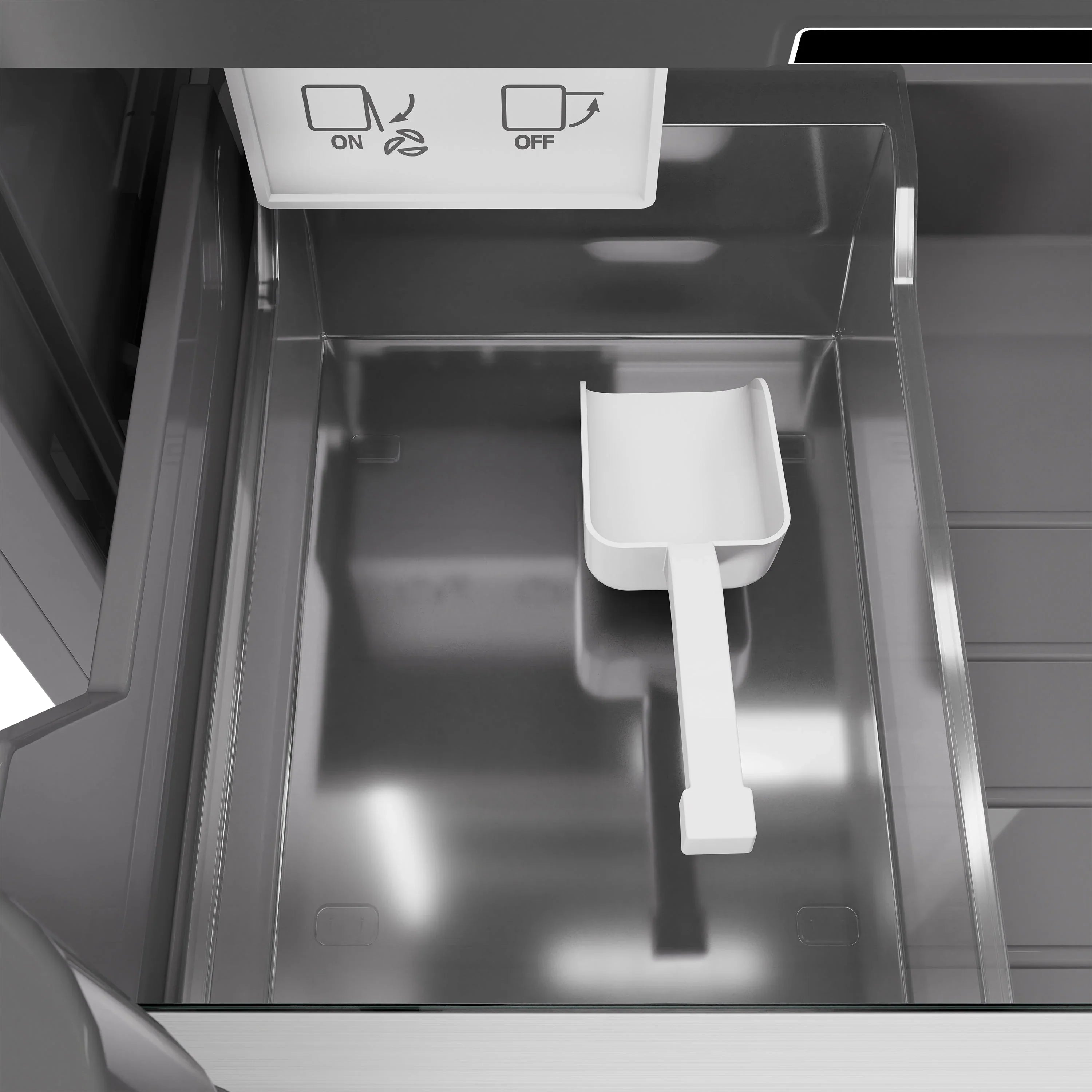

| Ice Maker (Y/N) | Yes |
| Ice Maker Types | Automatic |
| Ice Amount Per Day (lbs.) | 3.9 lbs |
| Freezer Lights | 4 |
| Energy Consumption (kWh/year) | 452 kWh/year |
| Noise Level | 41 dBA |

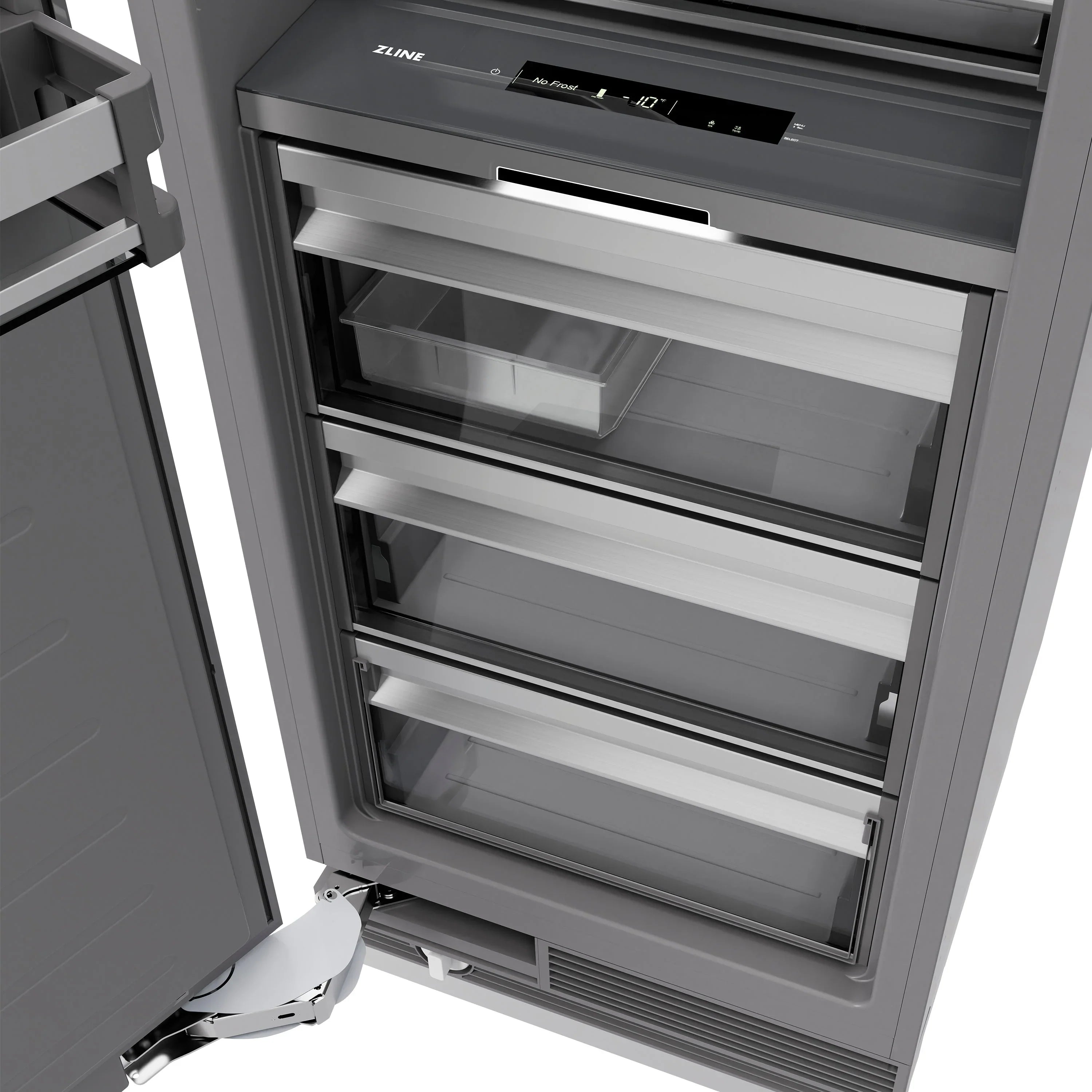

| Freezer Drawer Bins | 3 |
| Door Shelves | 3 |
| Door Alarm | Yes |
| Number of Shelves | 4 |
| Certifications | ETL Listed, Energy Star Certified, AB100, NSF, ANSI 61 |
| Warranty |
2-Year Parts and Service 5-Year Parts Only for Sealed System |
