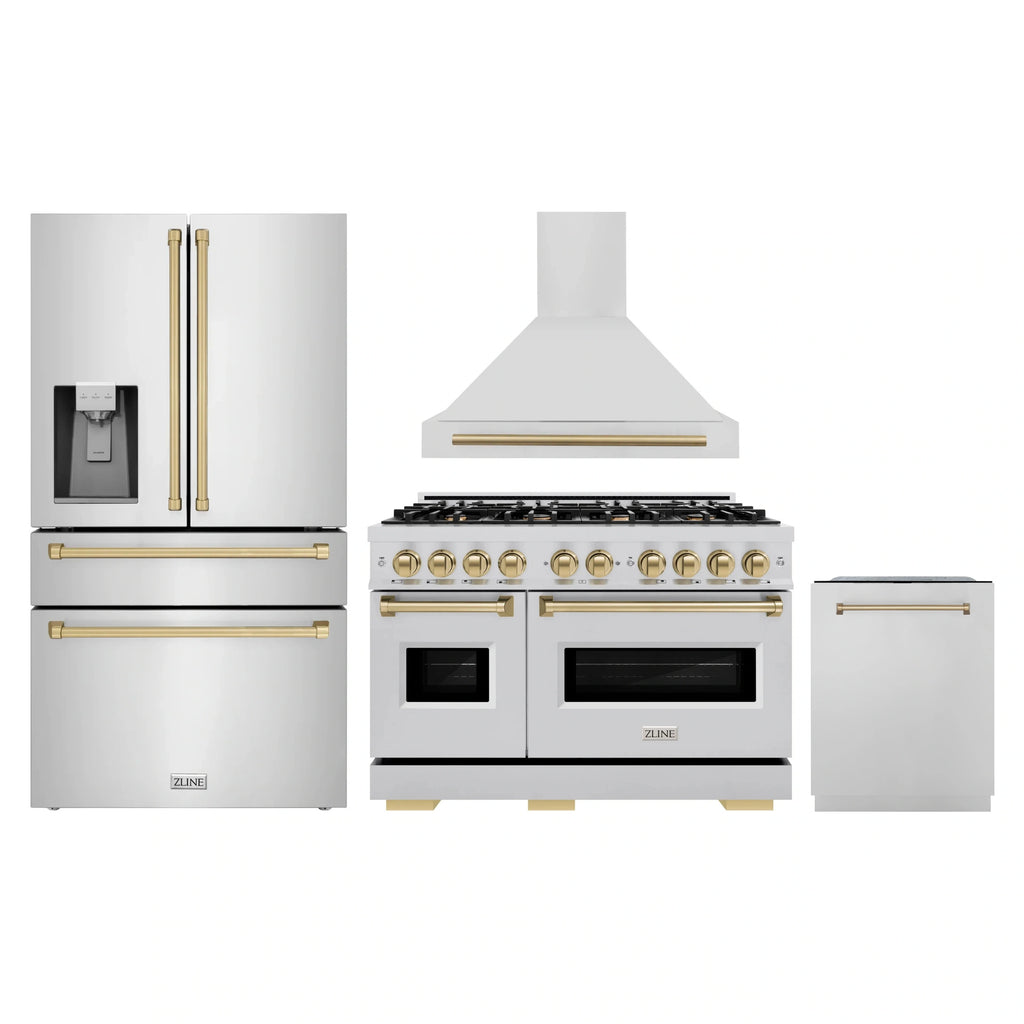

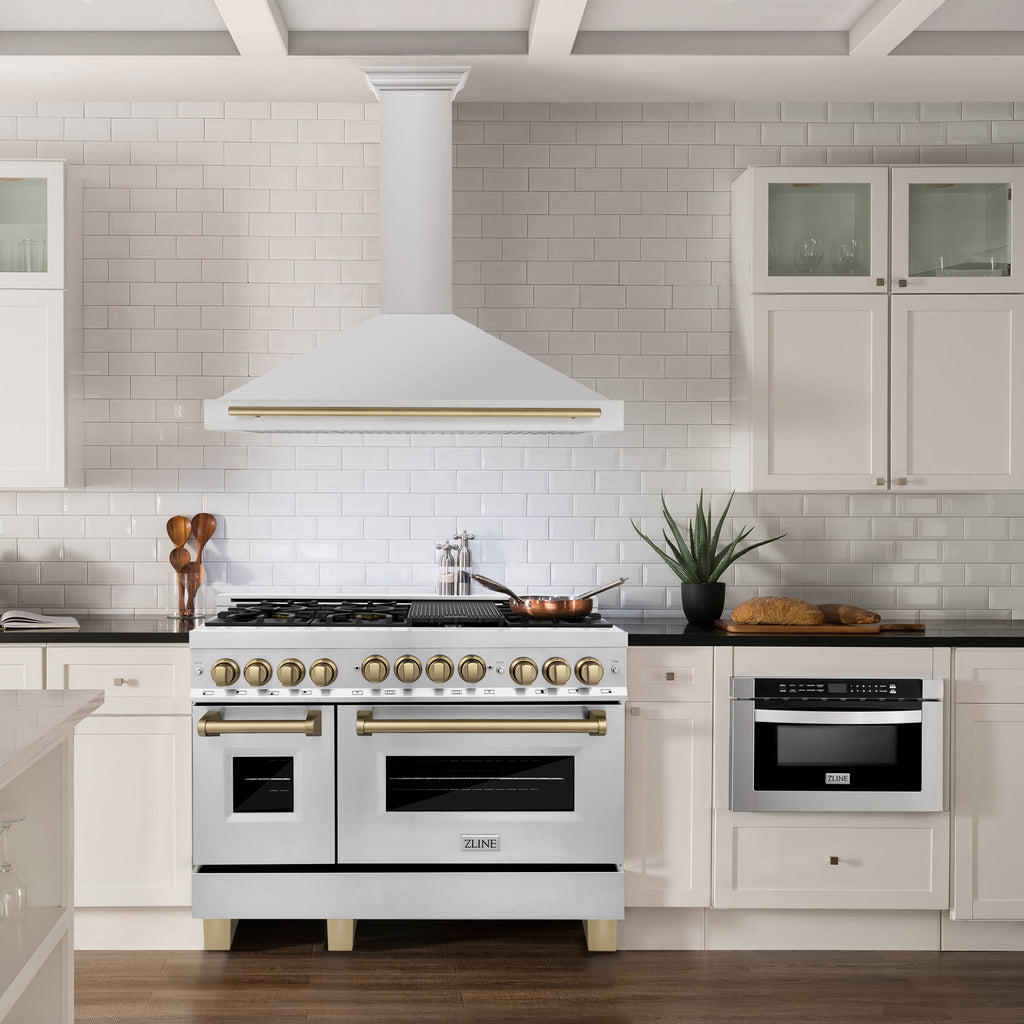

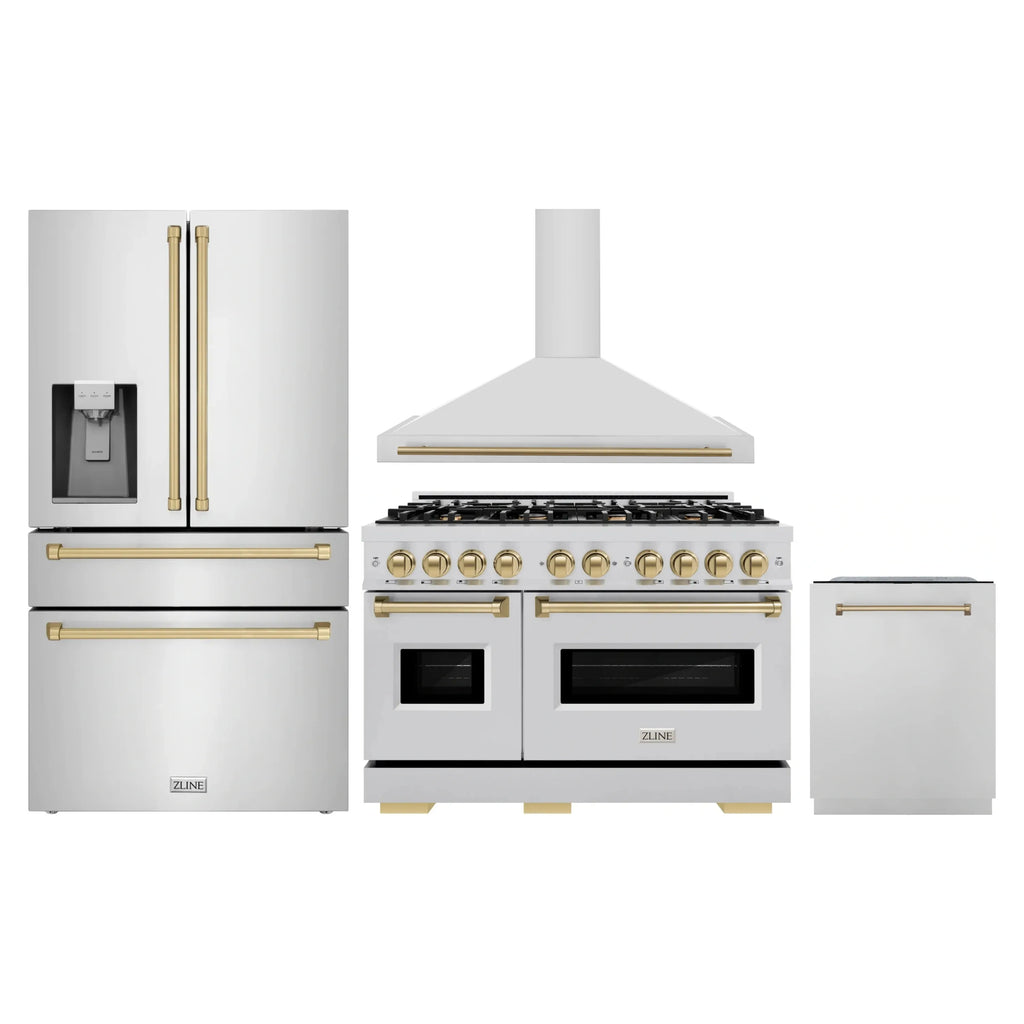

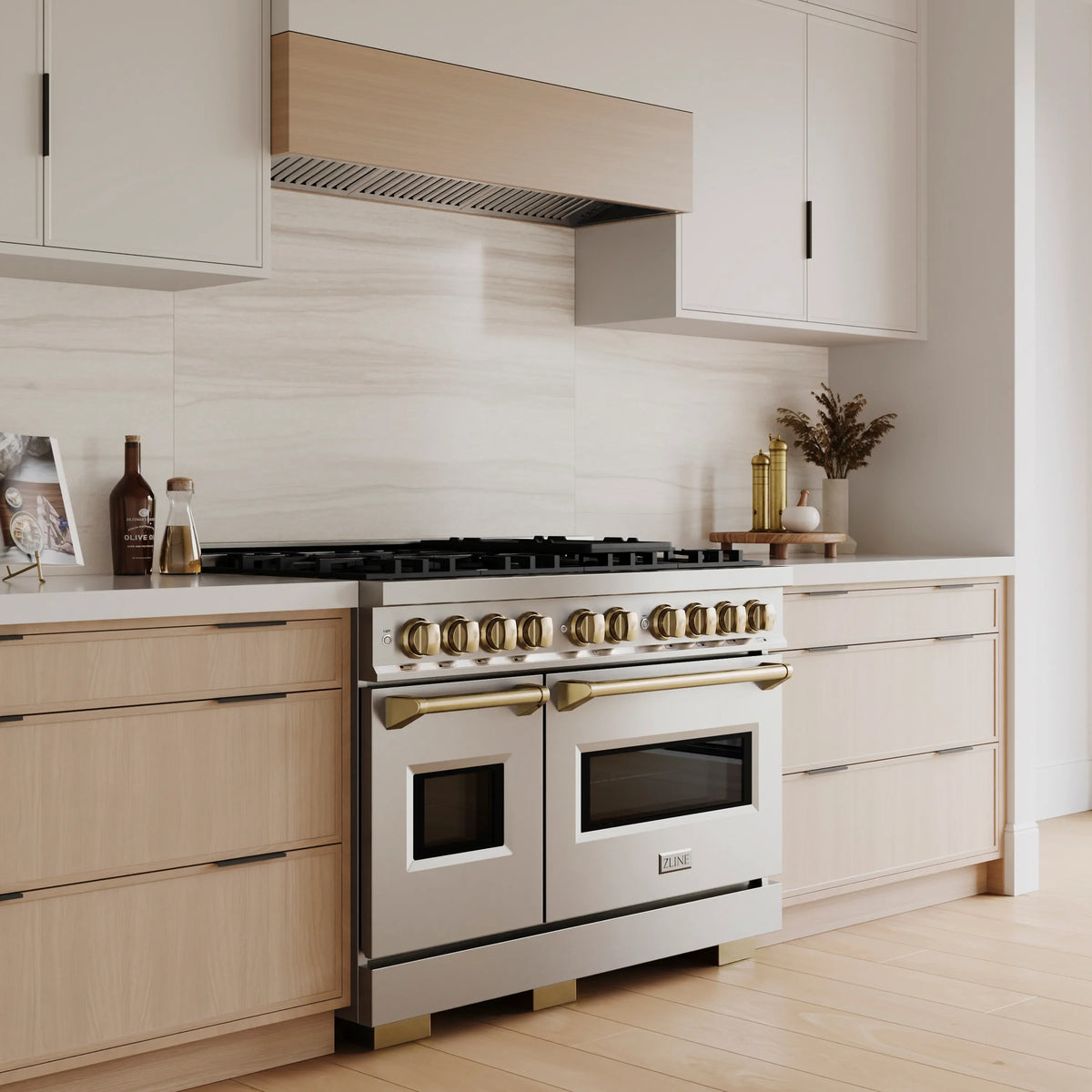

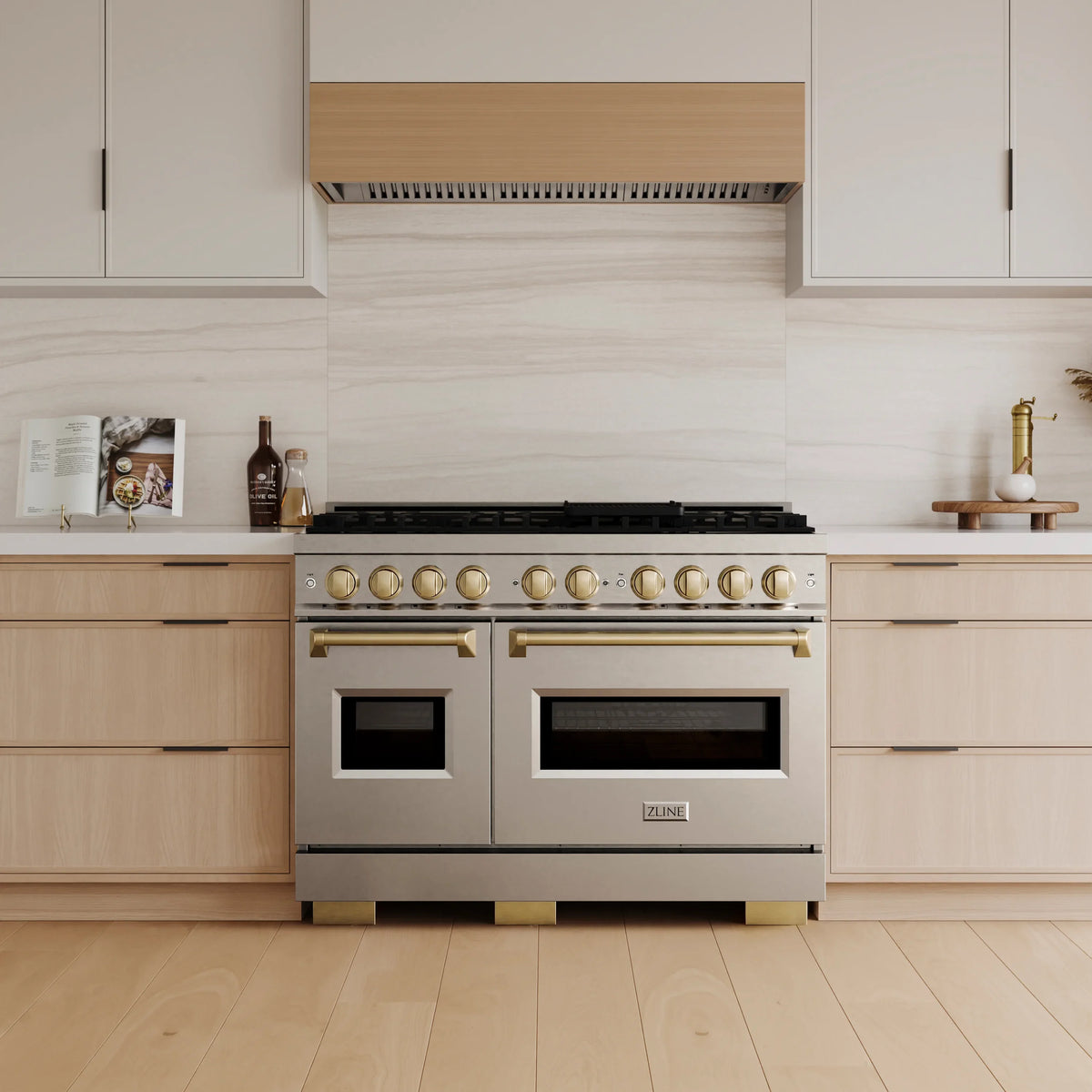

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 48 in. 6.7 cu. ft. Classic Double Oven Dual Fuel Range with 8 Burner Gas Cooktop in Stainless Steel and Champagne Bronze Accents (CDRZ-48-CB) combines the elegance of a hand-finished porcelain gas cooktop with 8 Italian-made auto-reignition burners, a large electric convection oven with an energy-efficient cooling fan to ensure quiet operation, a small bake-and-broil oven, Landscape oven door window designs, and stunning champagne bronze knobs and handles allowing you to master every meal. With a modern, timeless style and refined functionality, ZLINE Classic Dual Fuel Ranges are masterfully crafted to deliver an elevated culinary experience.
Dimensions: | 47.88 in. W x 27.75 in. D x 36 in. H |
Interior Oven Dimensions | 13.38 in. (left) / 24.88 (right) in. W x 17.75 in. D x 16 in. H |
Cutout Dimensions | 48.13 in. W x 24.75 in. D x 36 in. H |
Open Door Depth | 45.1 in. |
Oven Capacity (cu. ft.) | Overall: 6.7 cu. ft. Left: 2.5 cu. ft. Right: 4.2 cu. ft. |
Number of Racks | 4 |
Installation Type | Freestanding |
Accessories | Includes Cast Iron Griddle |
Timer (Y/N) | No |
Self Cleaning (Y/N) | No |
Outdoor Approved (Y/N) | No |
Broil (Y/N) | Yes |
Burner Fuel | Natural Gas (Includes Liquid Propane Conversion Kit) |
Oven Fuel | Electric |
Number of Burners | 8 |
Electrical Requirement | 240V/60Hz/35A |
Material | Stainless Steel with Brass Burners |
Accent Finish | Champagne Bronze |

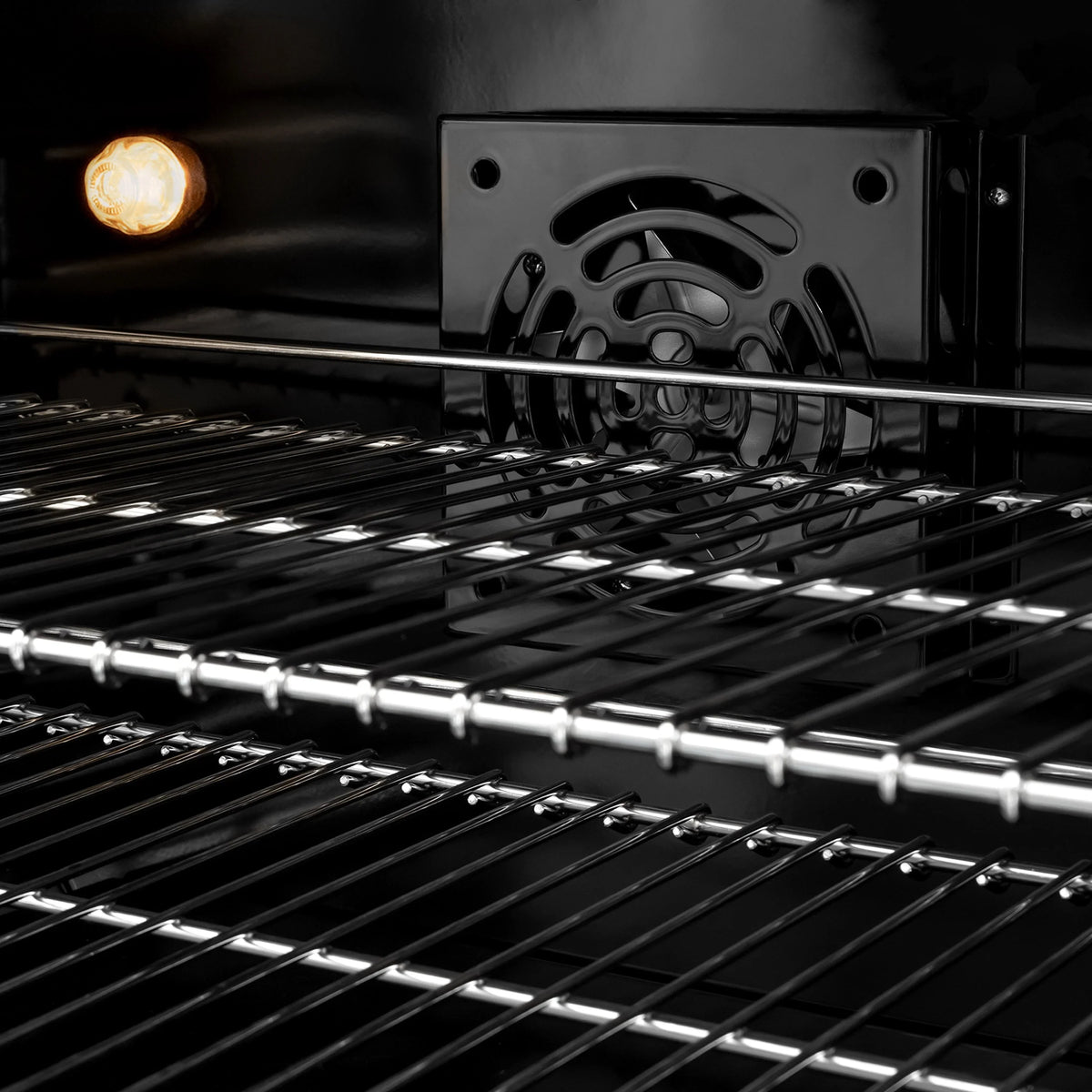

Convection Fan | Yes |
Warranty |
1 Year Parts and Serive Limited Lifetime Warranty on Burners |
Certifications | ETL Listed |

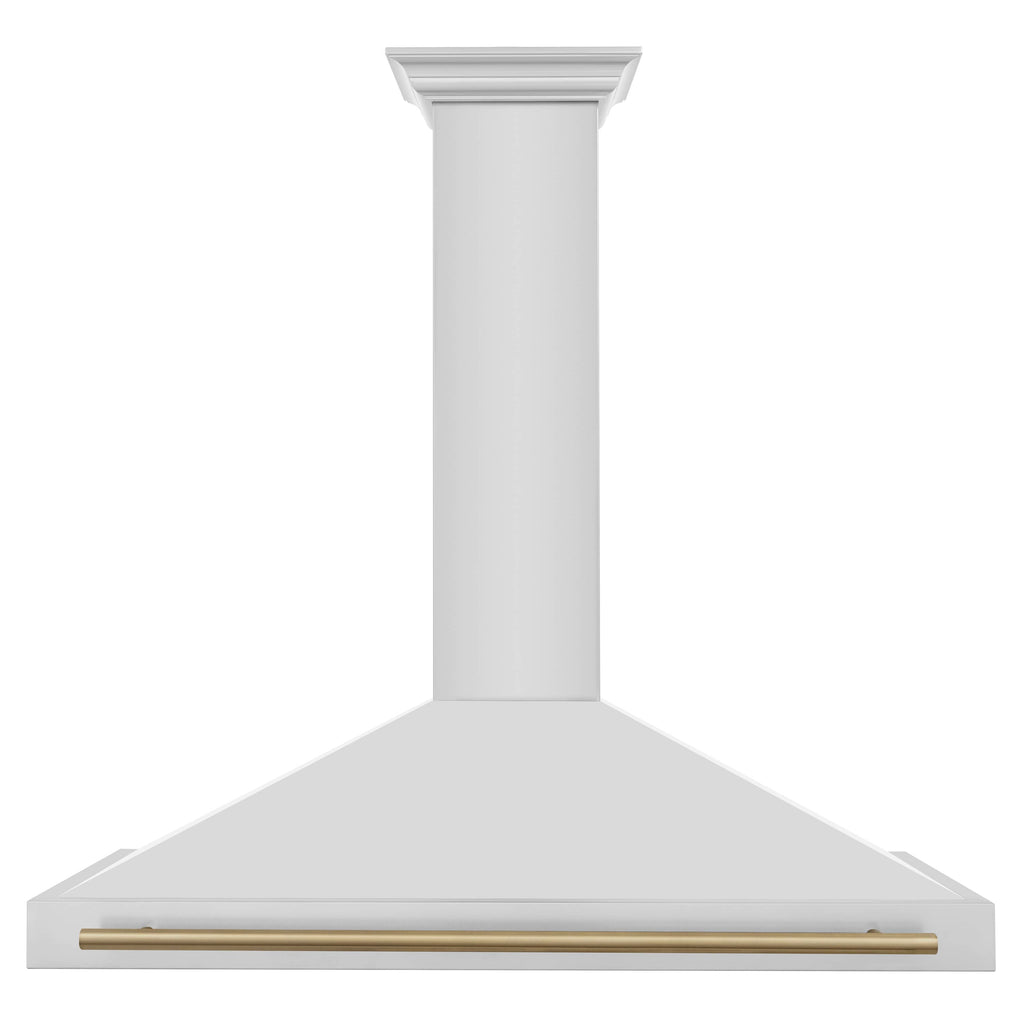

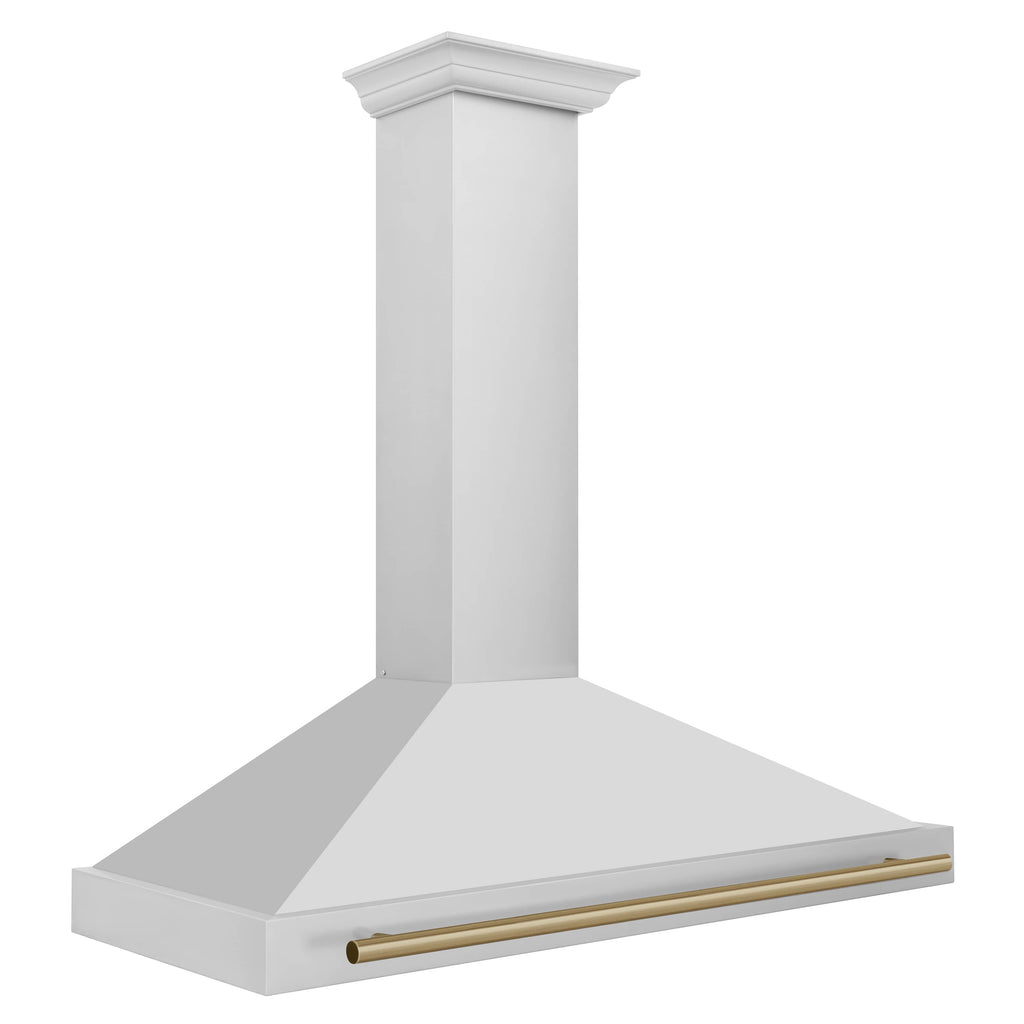

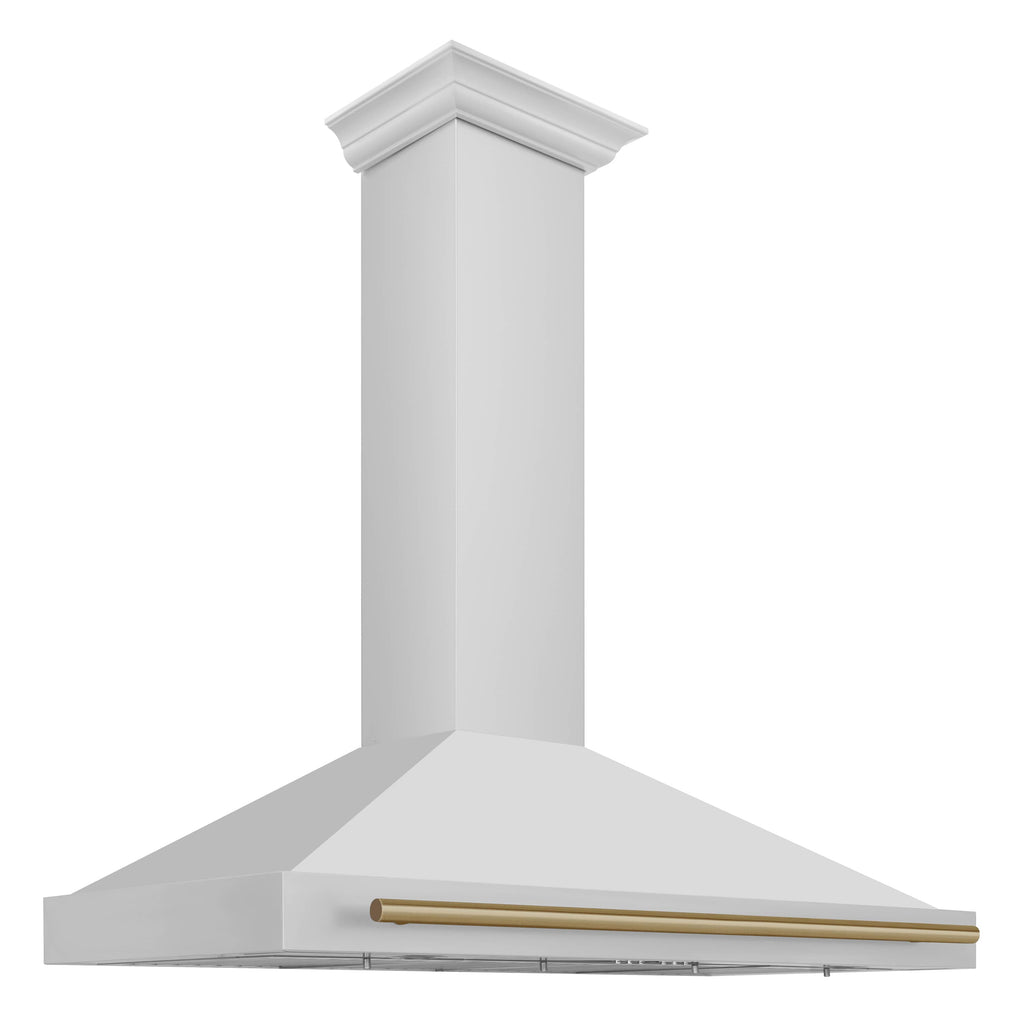

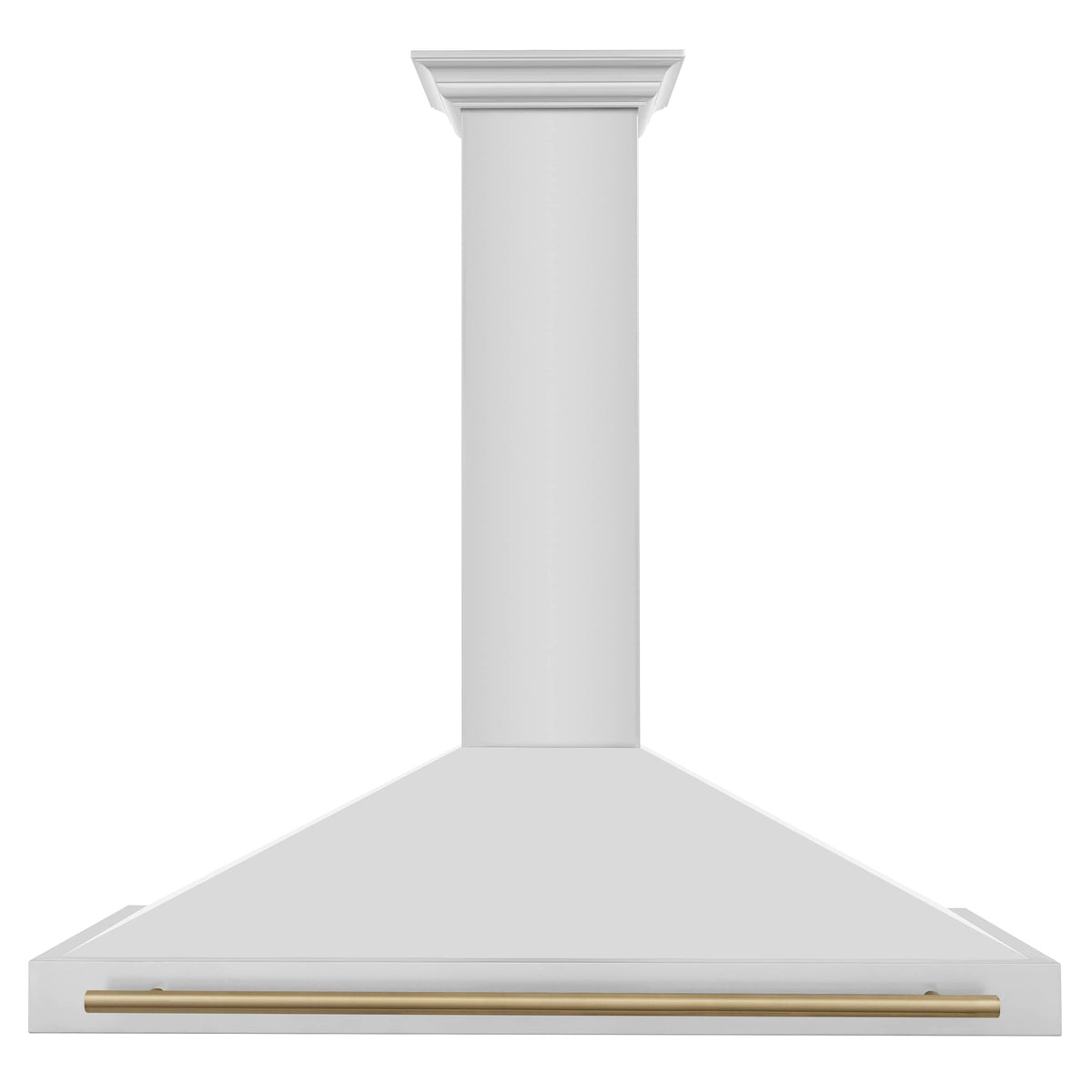

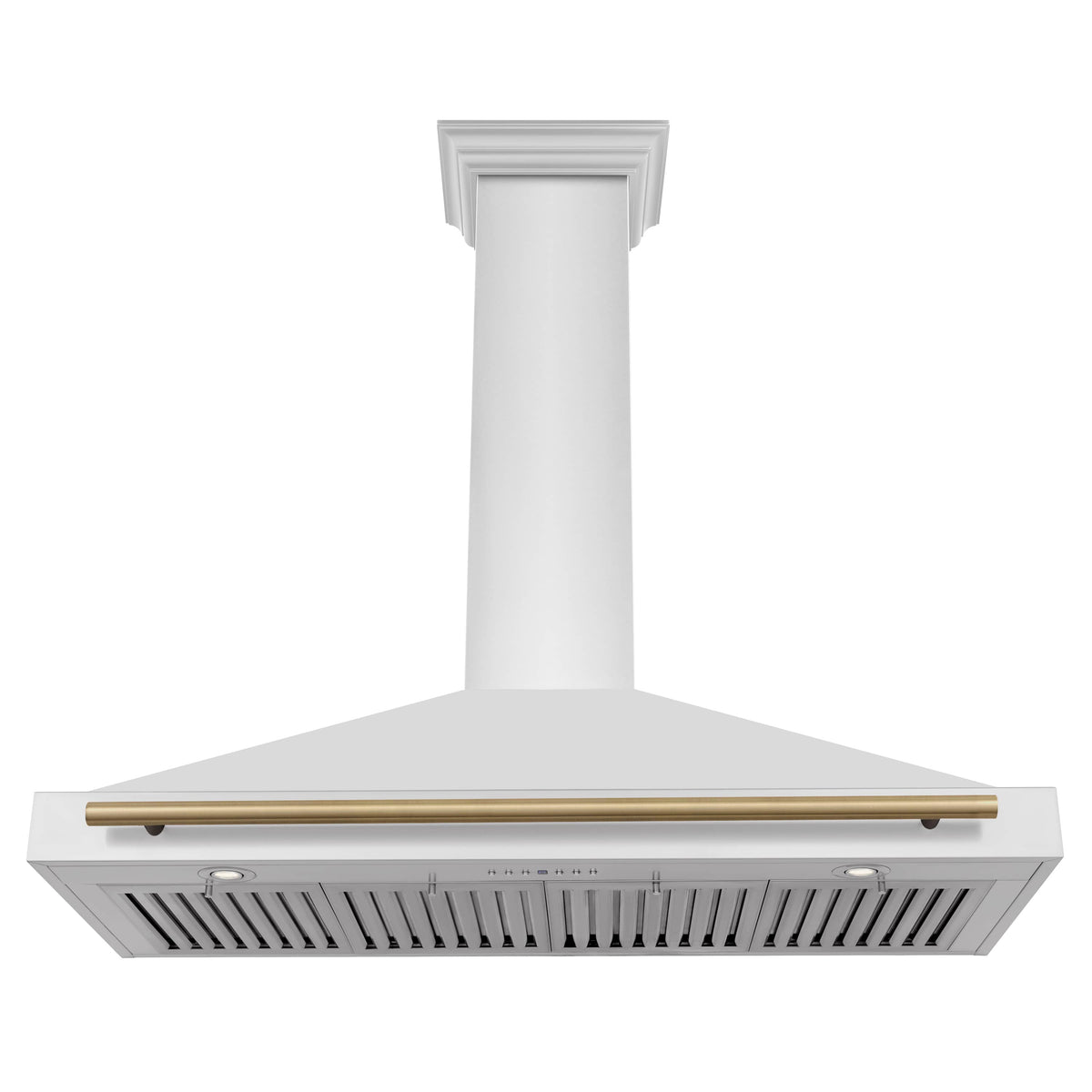

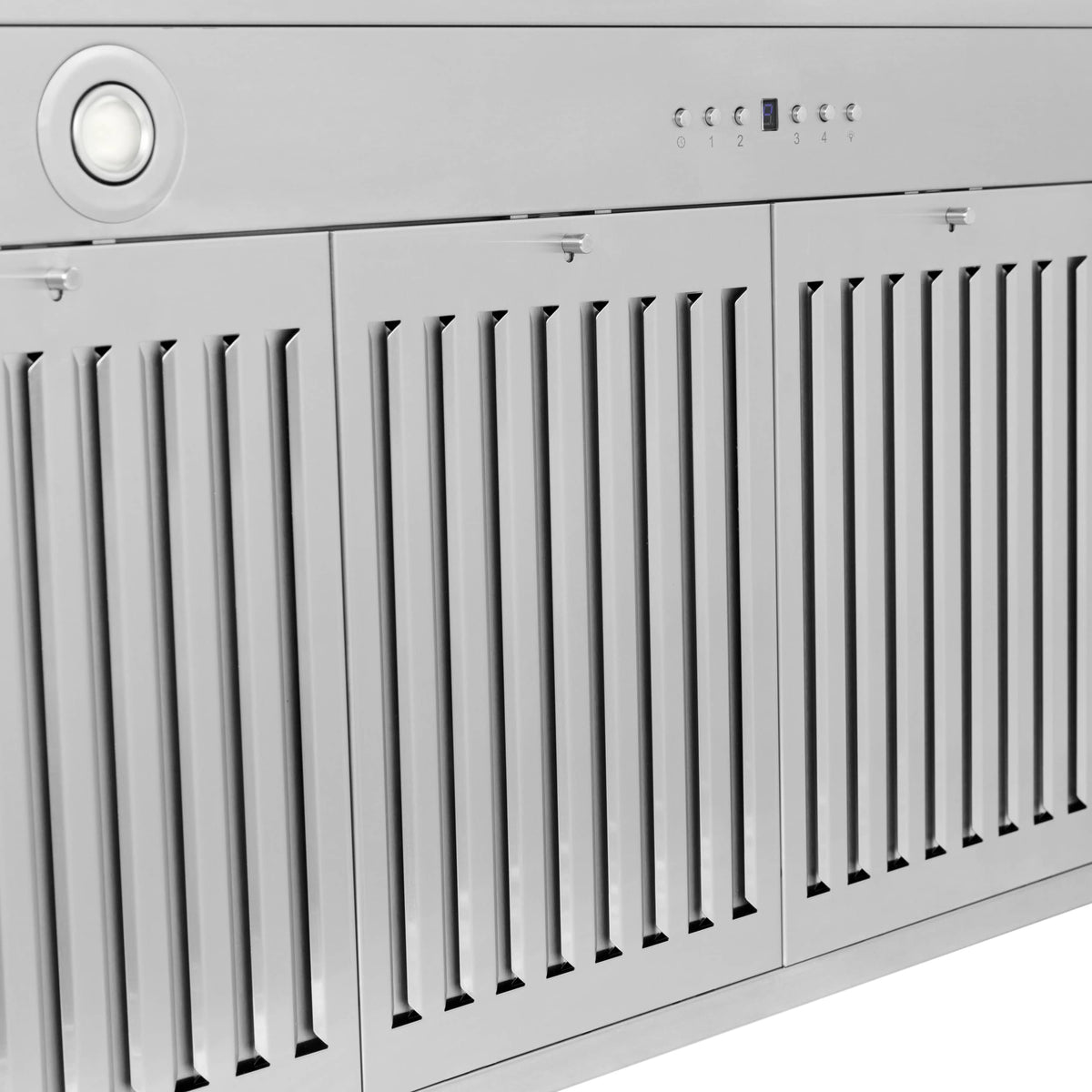

Experience Attainable Luxury with the ZLINE Autograph Edition Wall Mount Range Hood. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience.
Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes. Combining the professional power and functionality of a ZLINE range hood with stunning champagne bronze accents, this sophisticated line of professional appliances brings a new meaning of elegance.
Create an unforgettable kitchen unique to your style with a champagne bronze handle. Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze, Matte Black and Gold.
The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes. From our home to yours, enjoy a luxurious experience with every Autograph Edition Range Hood assembled to order in the US.

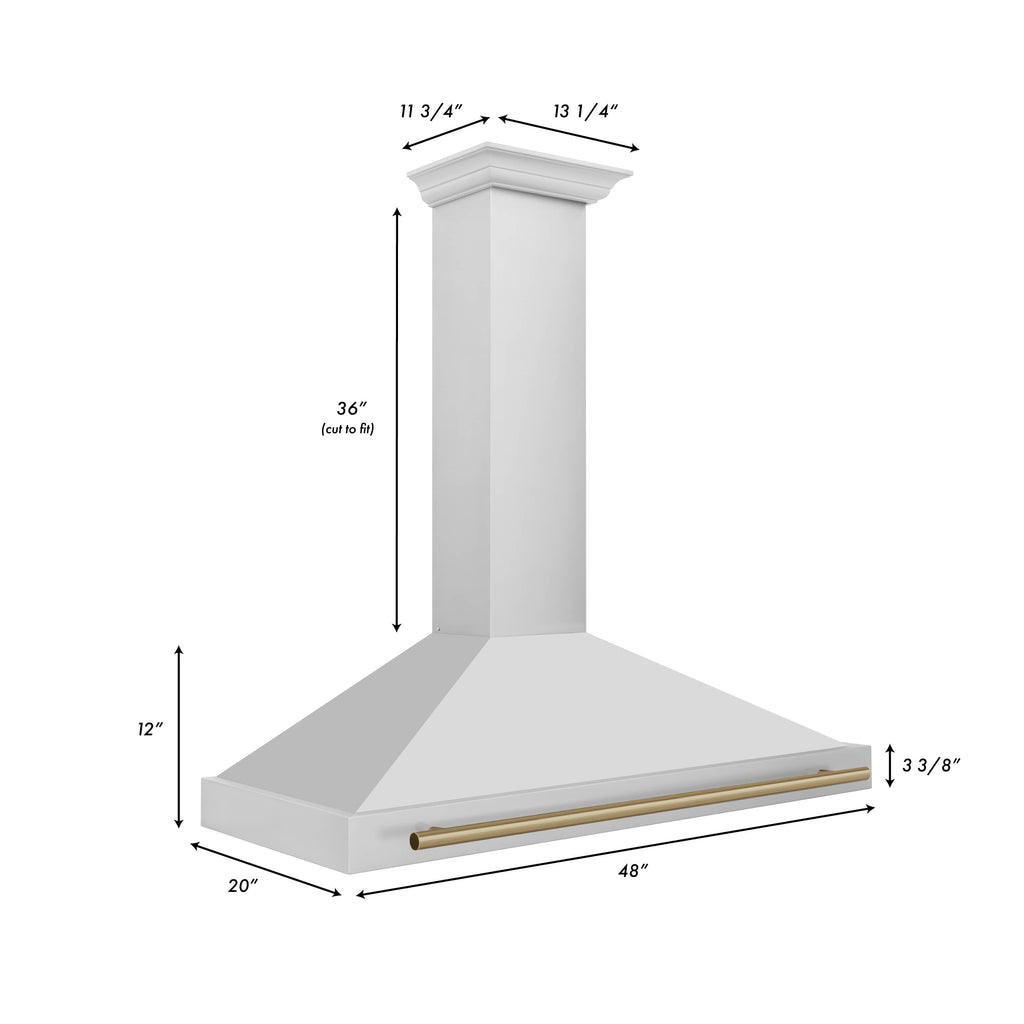

Dimensions |
48 in. W x 23.75 in. D x 16 in. H
|
Chimney Dimensions |
13.25" W x 11.75" D x 35.5" H
|
Ducting Size | 6"
|
Min. Ceiling Height |
7.7 ft.
|
Max Ceiling Height |
9.5 ft.
|
Handle Dimensions |
40.8" W x 0.8" D x 2.4" H
|
Watts |
550
|
Voltage |
110
|
Amps |
5
|
Weight |
90
|
Motor |
High Performance 400 CFM/4-Speed Motor
|
Button Panel |
Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
|
# of Speeds |
4
|
# of Speeds |
120/240/320/400
|
Max CFM | 400 |
Decibels |
30/41/49/52
|
Sones | 0.6/1.1/1.5/2.5 |
Remote Blower |
No |
Recirculating / Ductless | No |
Range Hood Material | Stainless Steel |
Handle Finish | Champagne Bronze |
Outdoor Use | Yes |
# of lights | 2 |
Filters | Stainless Steel Baffle Filters (Dishwasher-safe) |

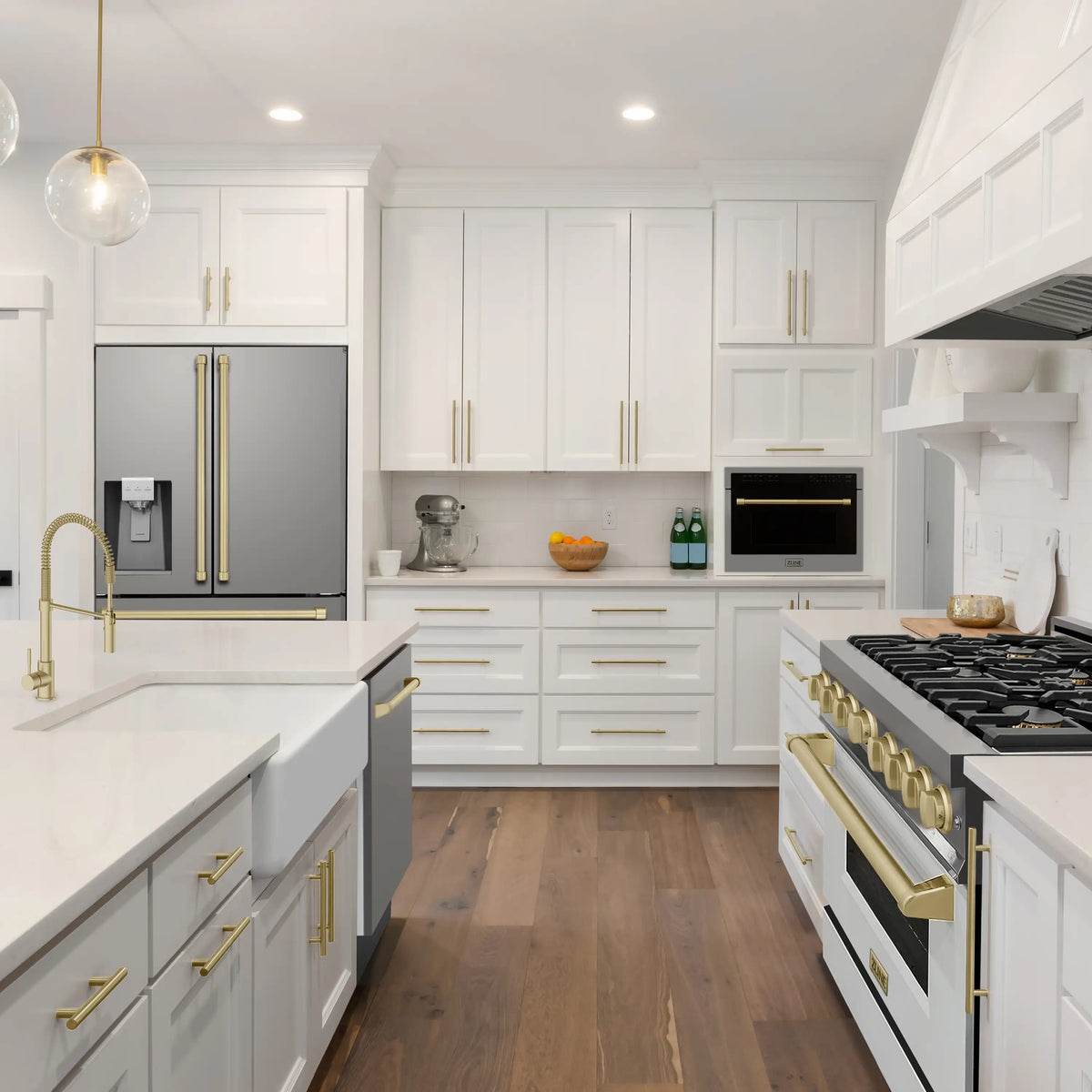

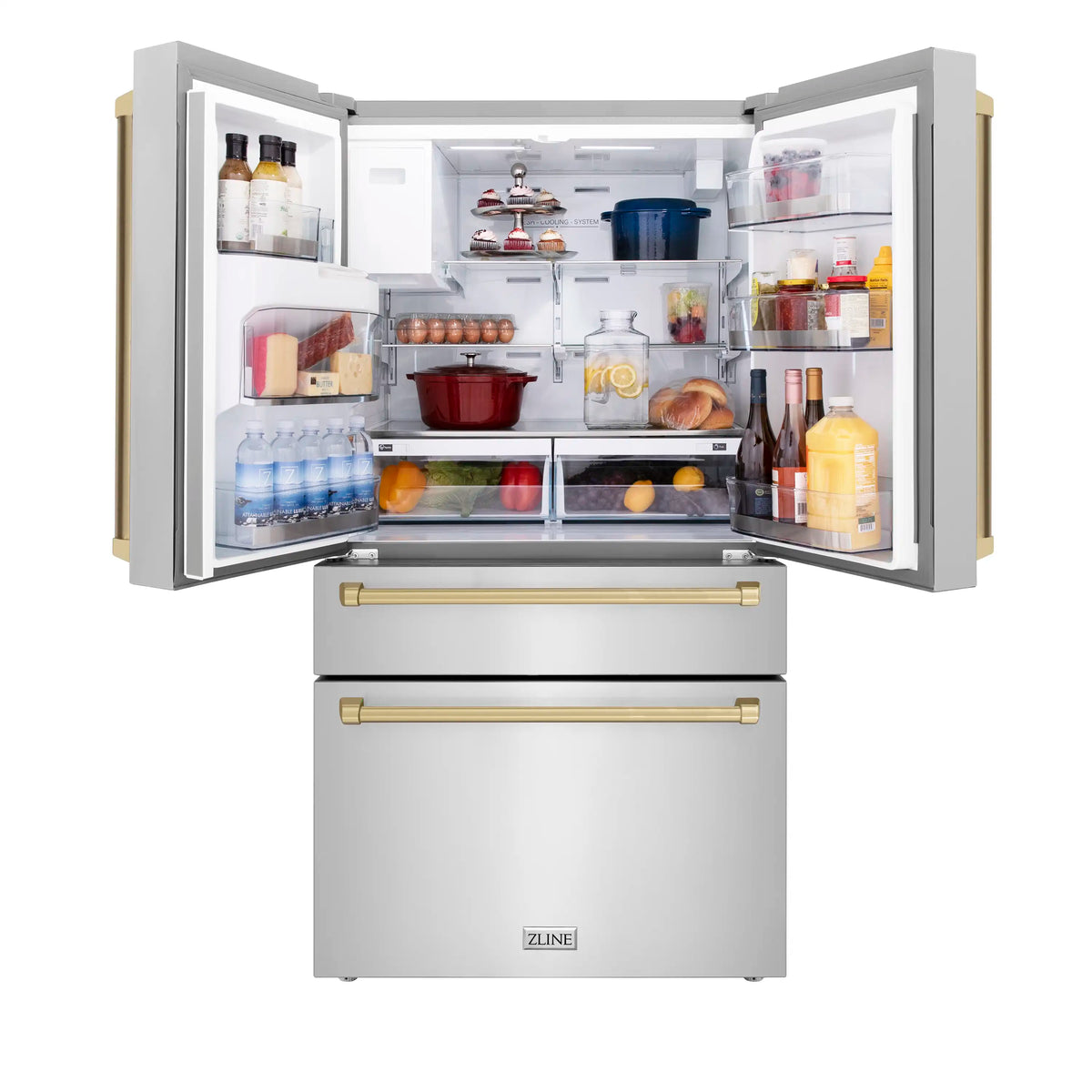

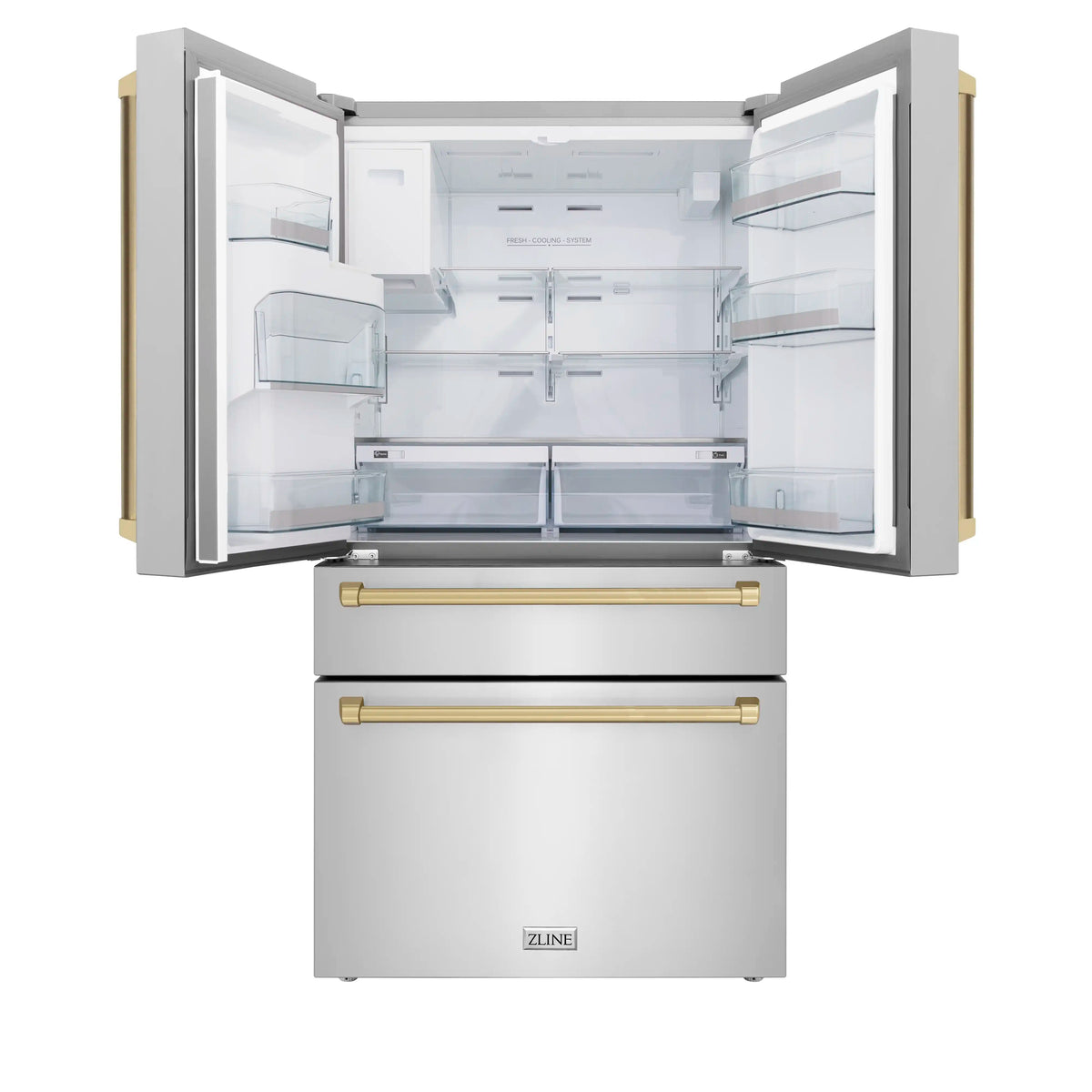

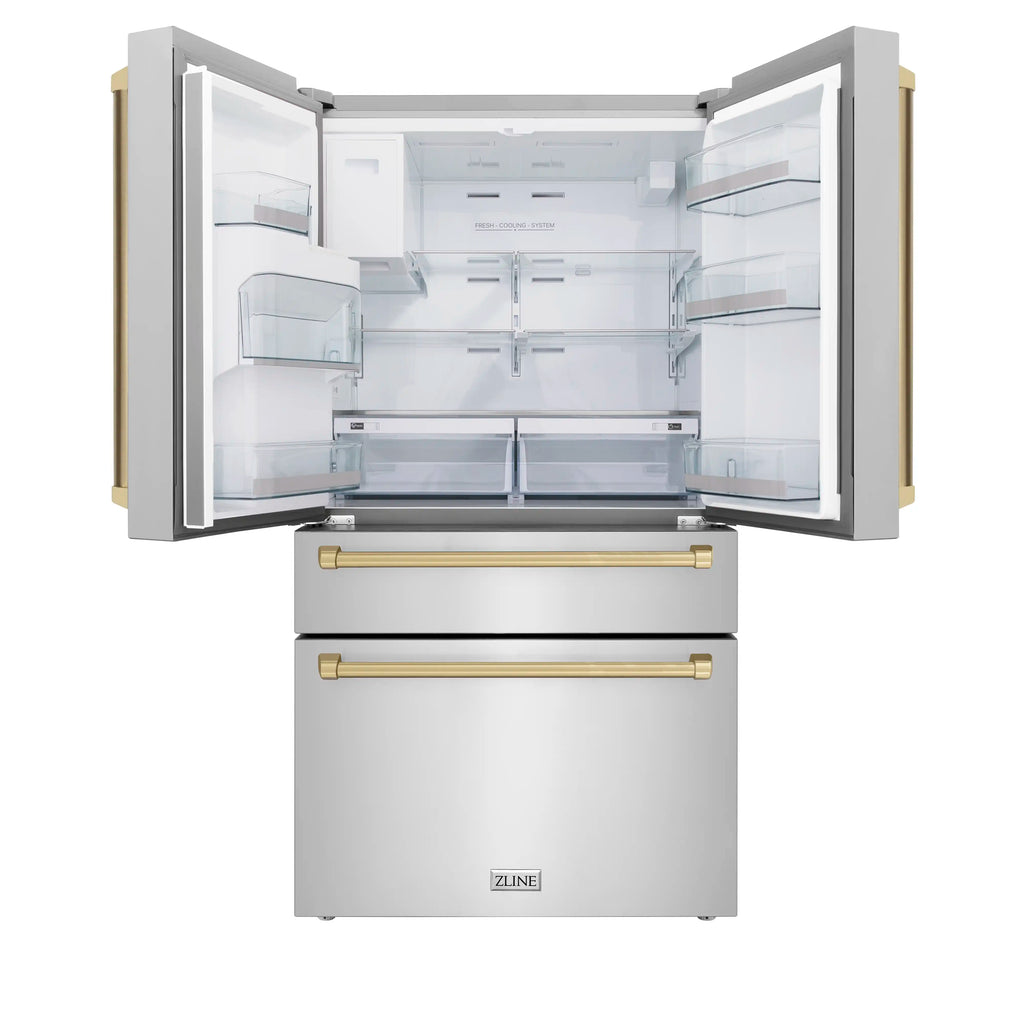

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 36 in. 21.6 cu. ft. Counter-Depth French Door Refrigerator with Water and Ice Dispenser in Fingerprint-Resistant Stainless Steel with Champagne Bronze Traditional Handles (RFMZ-W-36-CB) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and an external water dispenser and ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
Dimensions: | 35.75 in. W x 28.81 in. D x 69.69 in. H |
Total Capacity: | 21.6 cu. ft |
Fridge Capacity: | 15 cu. ft |
Freezer Capacity: | 6.6 cu. ft |
Flex Drawer Capacity: | 2.6 |
Flex Drawer Temp Controls: | Meat (30 degrees), Beverage (34 degrees), Deli (37 degrees), and Wine (41 degrees) |
Installation Depth: | 29 in. D |
Depth with Door Open: | 43 in. |
Ice Maker: | Yes |
Ice Maker Types: | Single Ice Maker |
Ice Amount Per Day: | 4.85 lbs |
Ice Tray Storage: | N/A |
Water Dispenser: | Yes |
Flowrate for Water Dispenser: | .5 GPM |
Fridge Lights: | 4 |
Energy Star: | Yes |
Energy Consumption (kWh/year) | 658 |
Voltage: | 120V/60Hz |
Amps: | 3 |
Noise Level: | 43 Decibels |
Humidity-Controlled Crispers: | 2 |
Freezer Drawer Bins: | 2- Pull Out Drawers |
Door Shelves: | 4 |
Number of Fridge Shelves: | 4 |
Mount Type: | Freestanding |
Certifications: | ETL Listed, ENERGY STAR certified |
Material: | Stainless Steel with Champagne Bronze Accents |
Warranty | 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System |
Weight | 284.4 lbs |
Warranty | 1-year parts and service |
Certifications | ETL Listed, ENERGY STAR certified |
Luxury isn’t meant to be desired - it’s meant to be attainable.

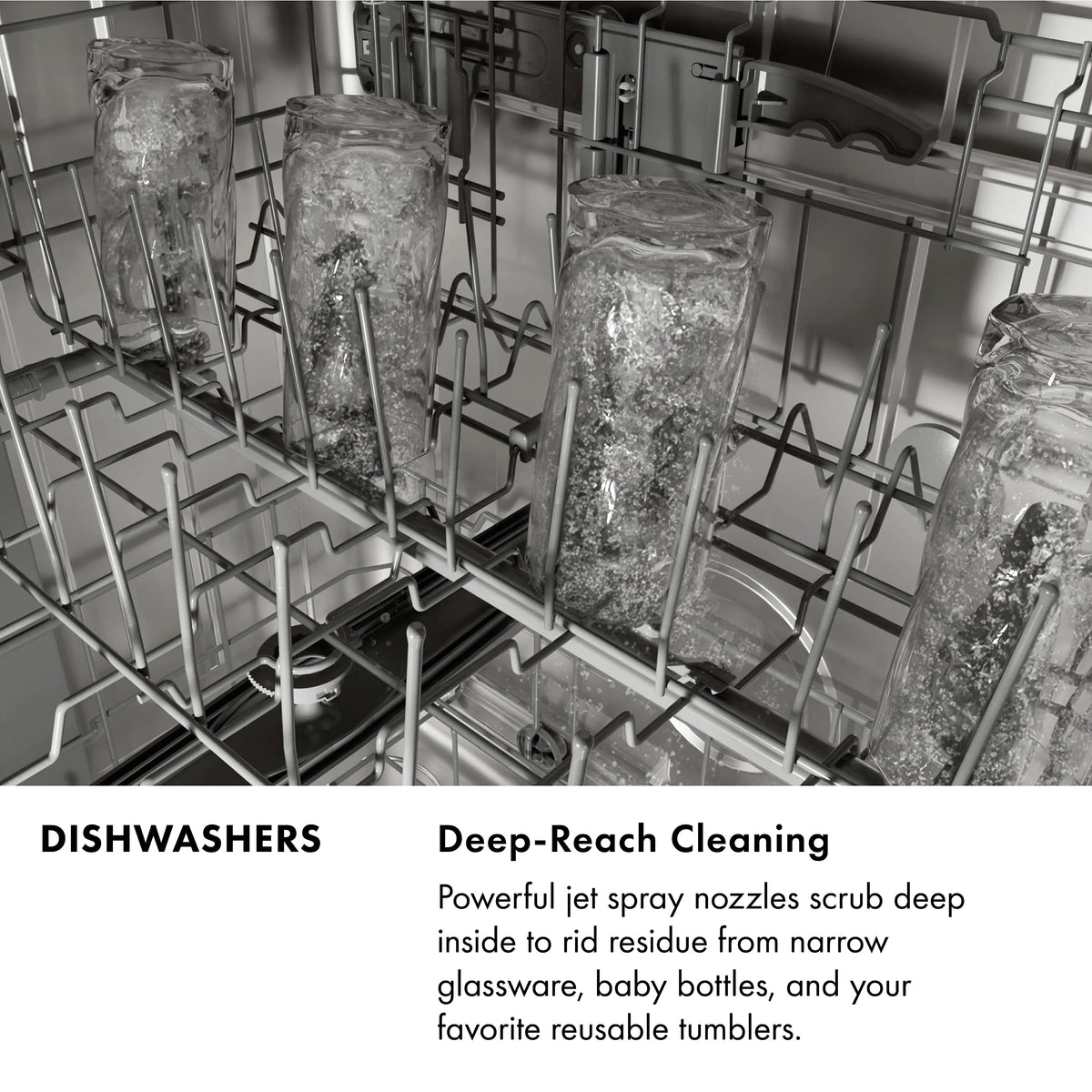

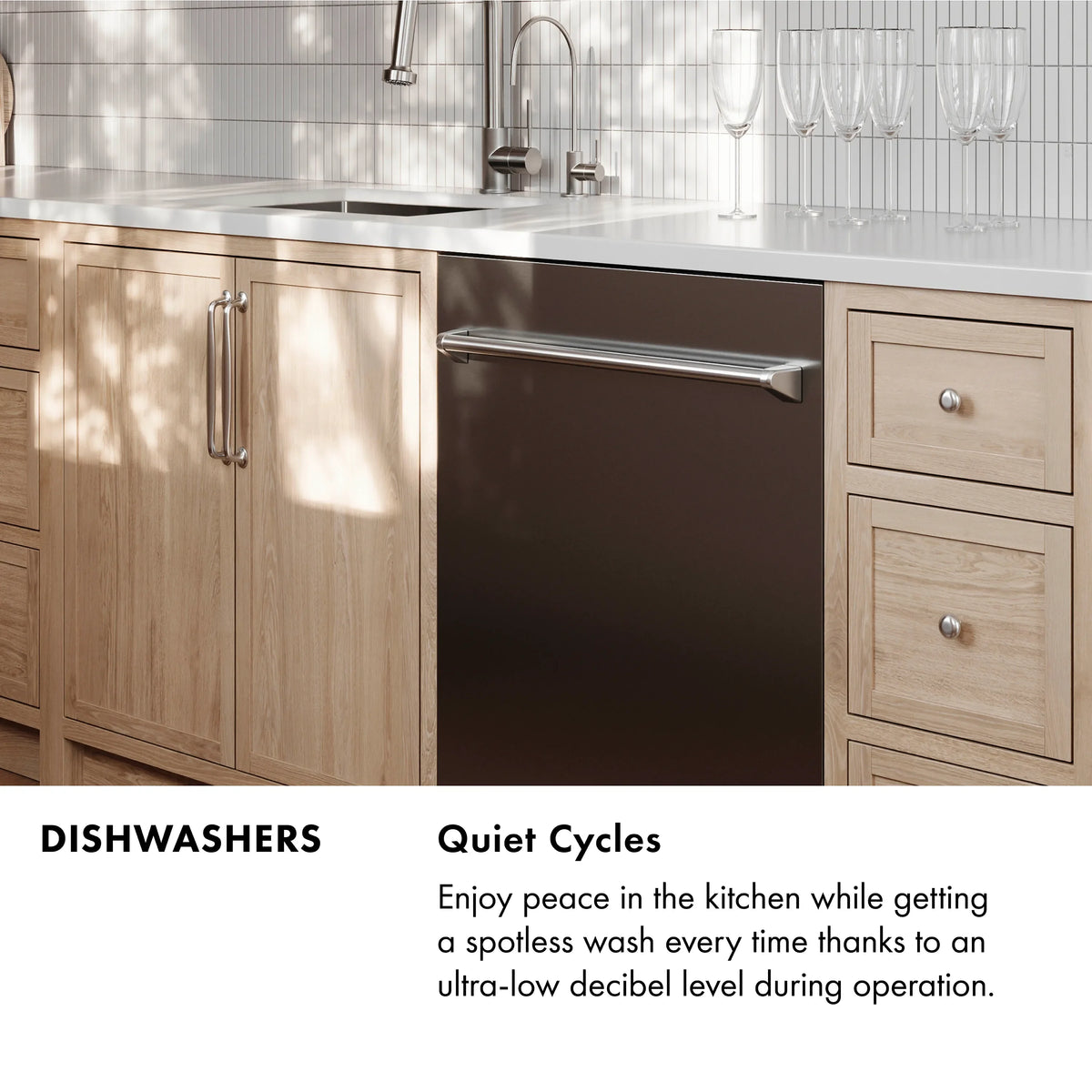

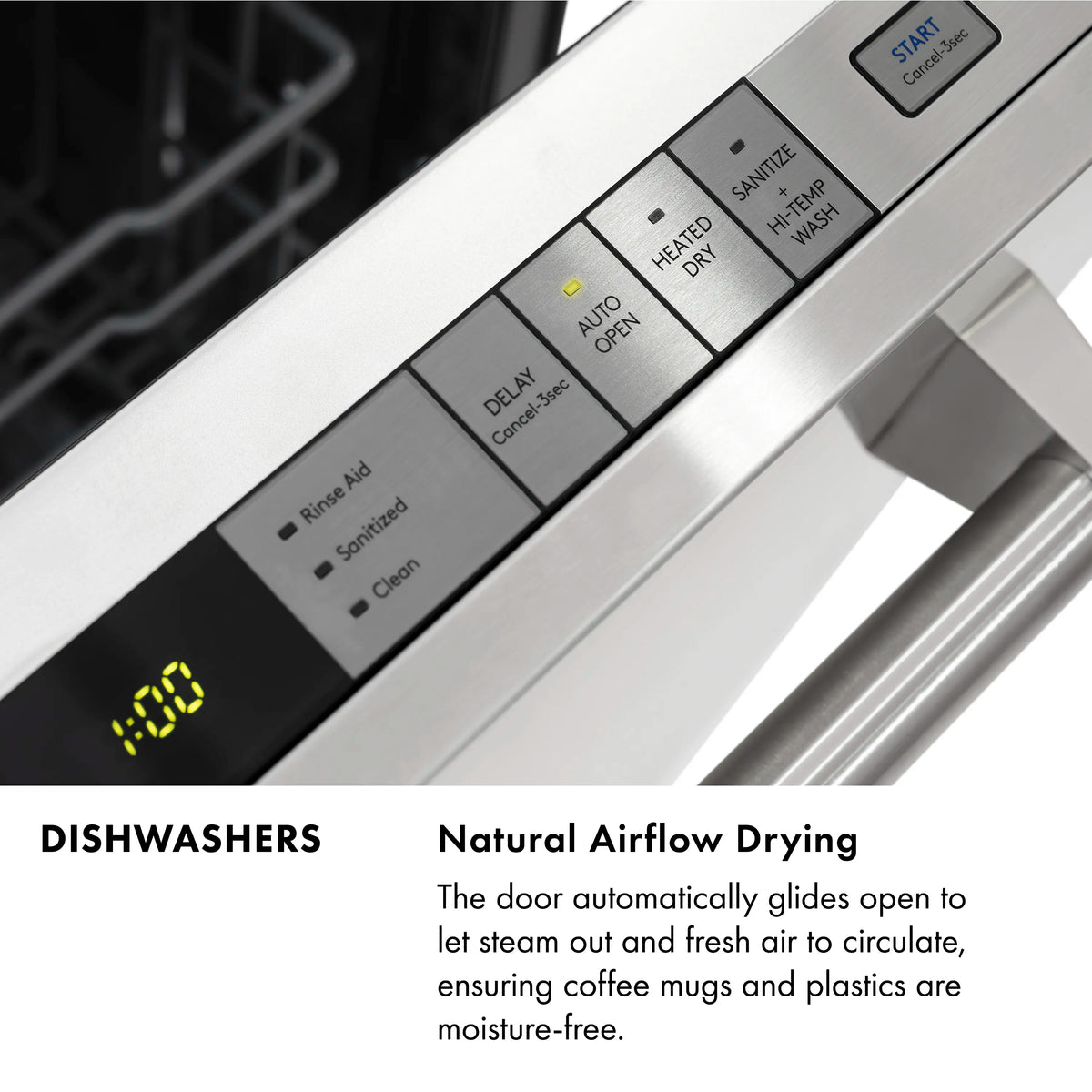

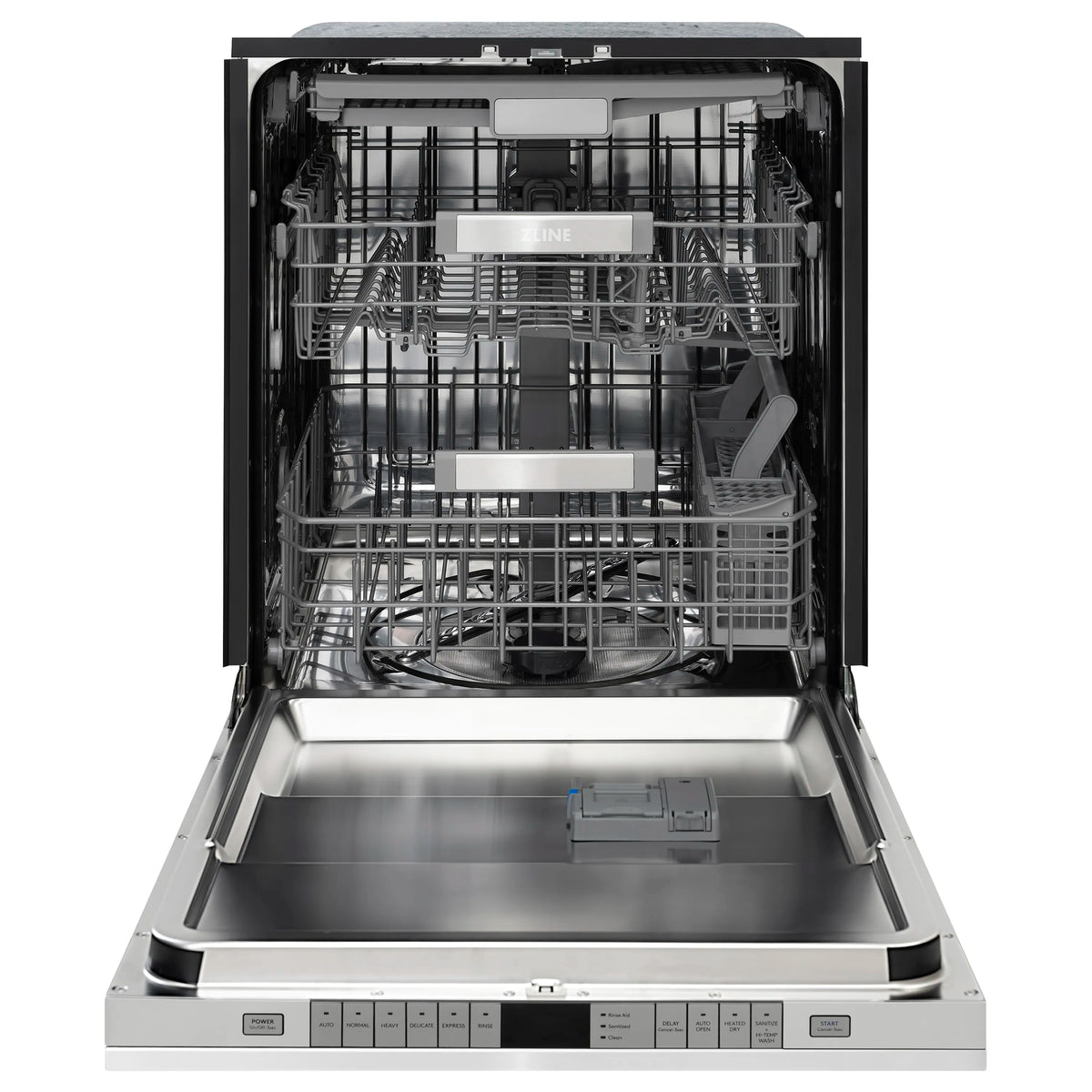

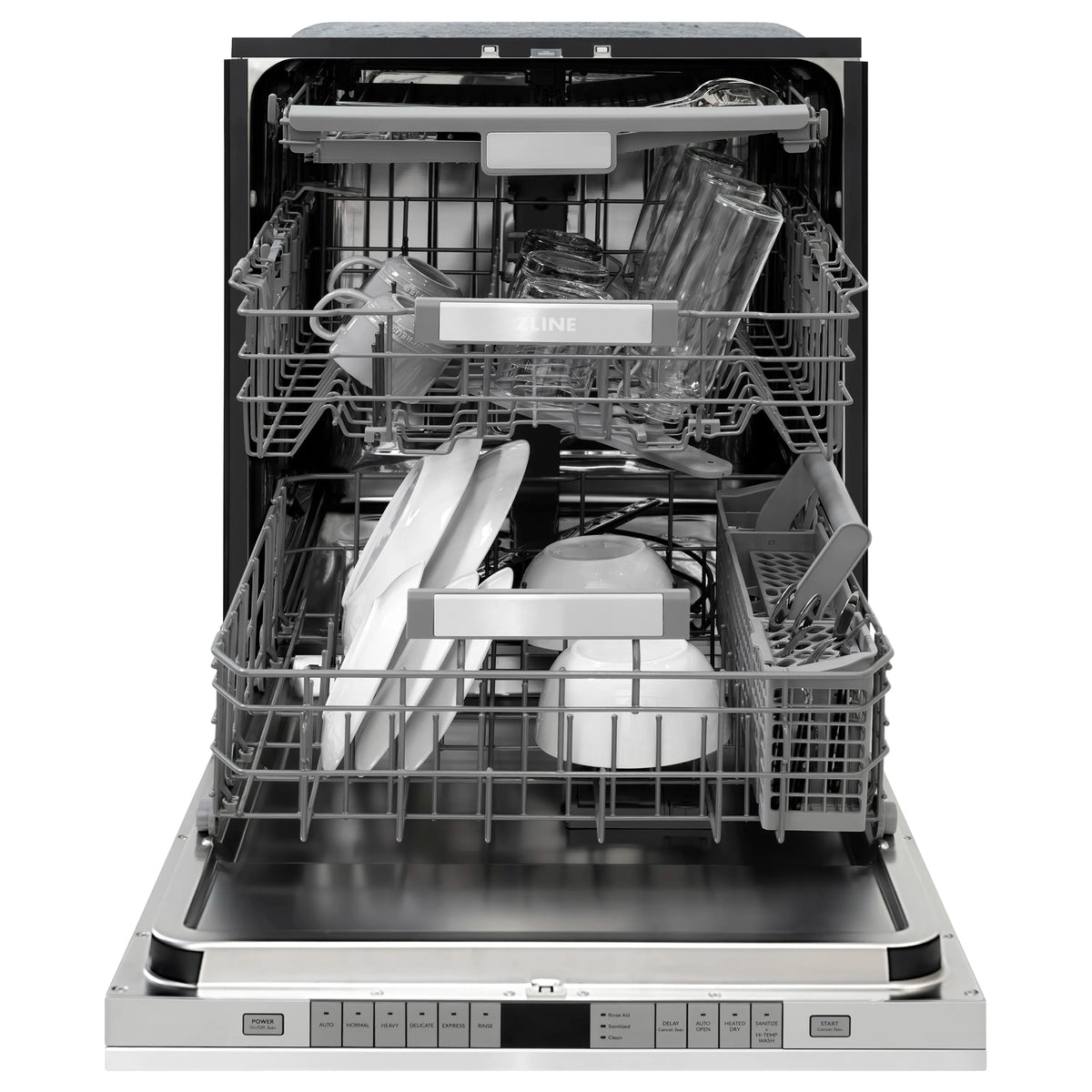

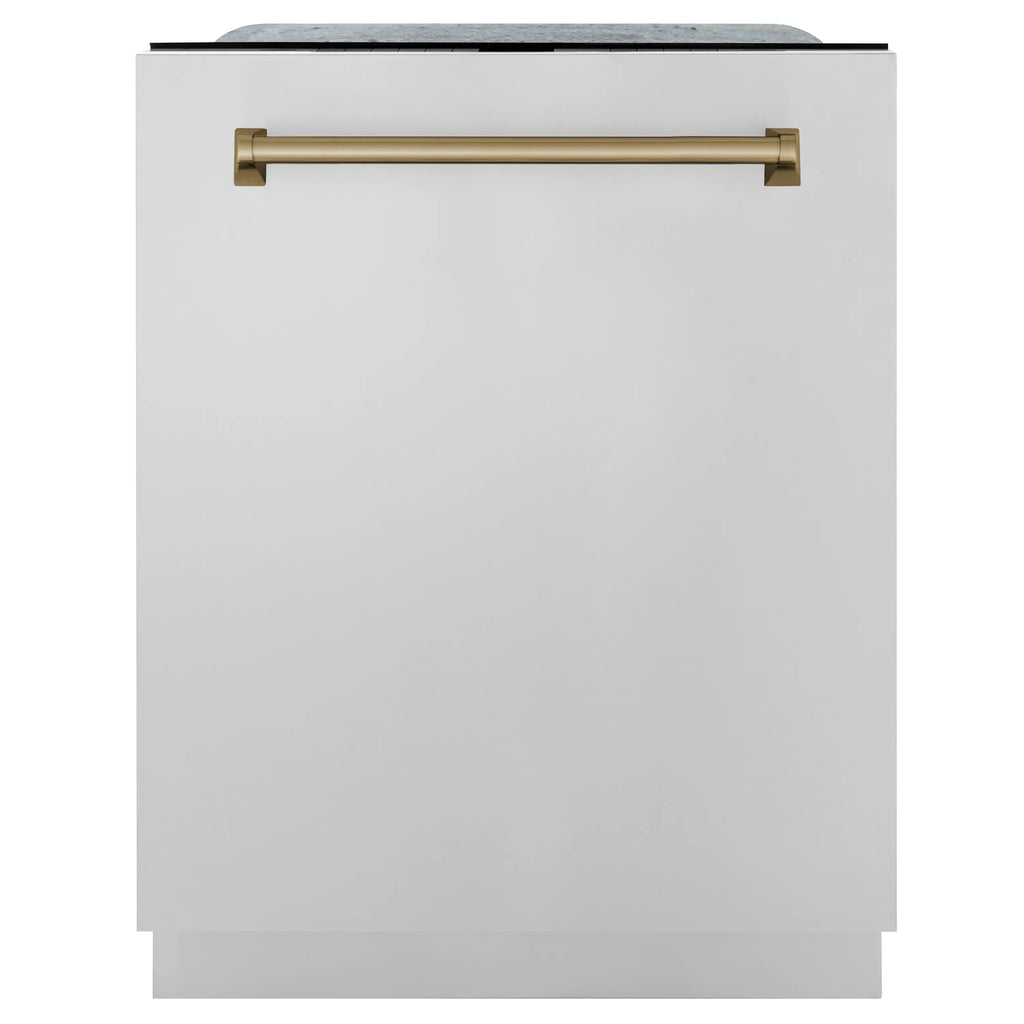

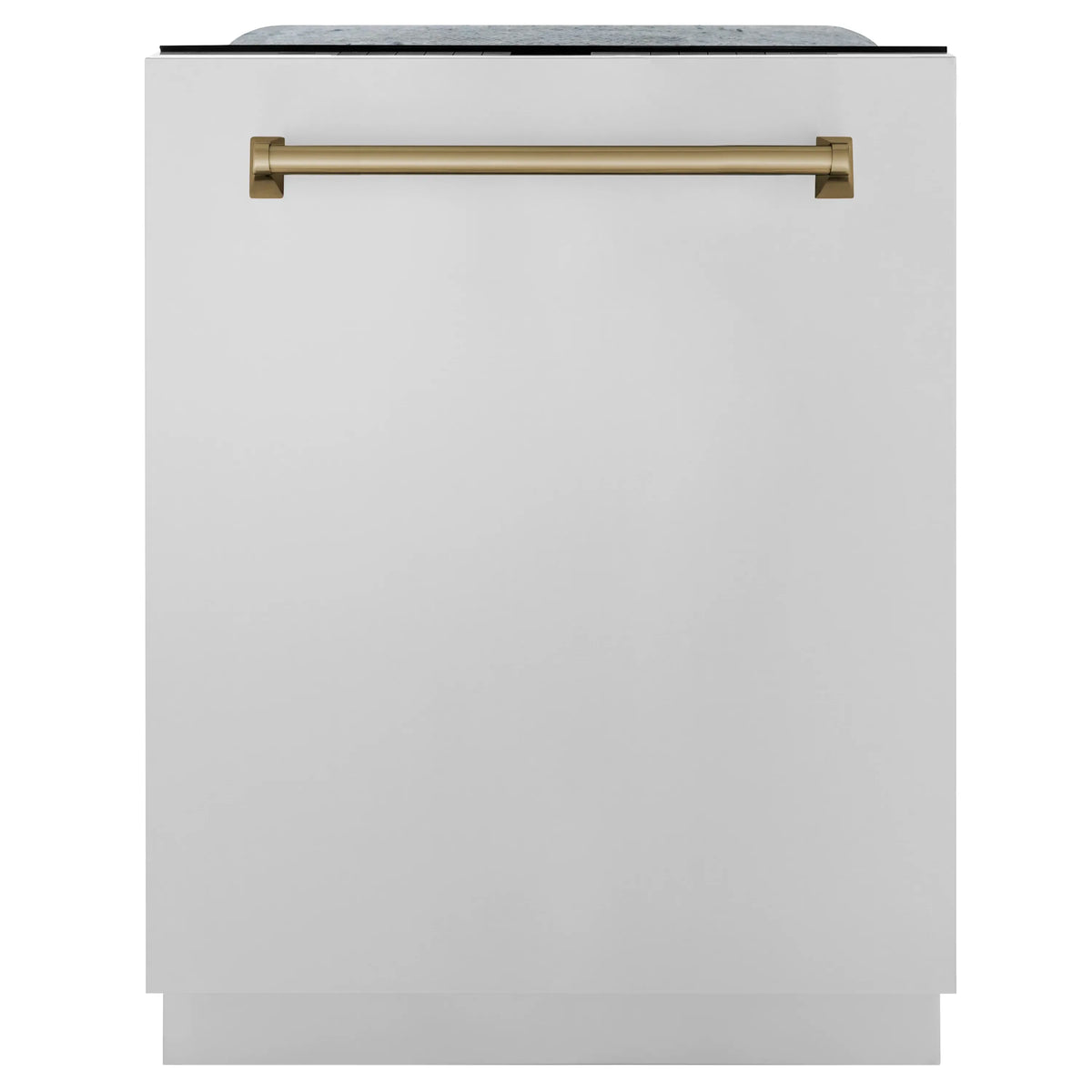

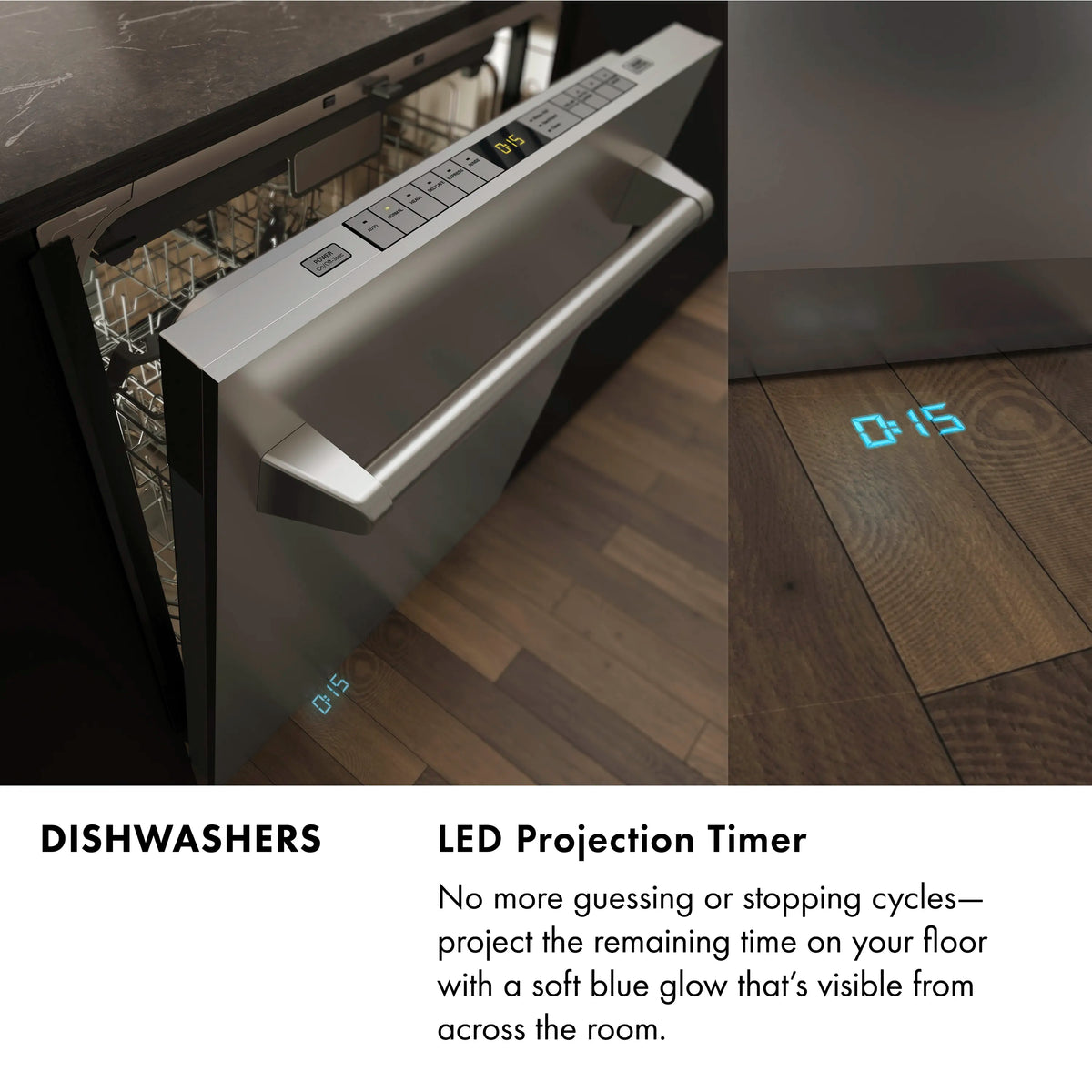

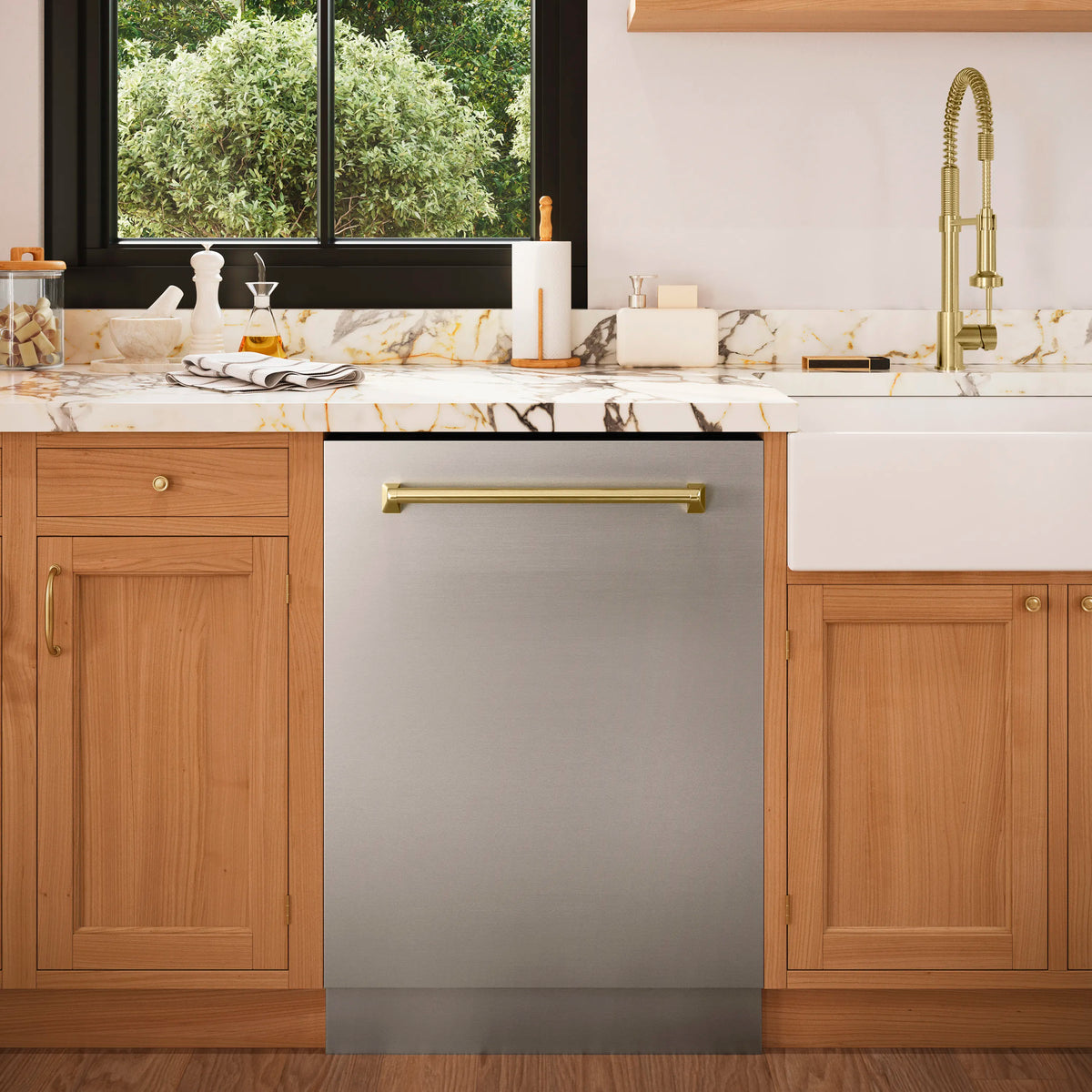

Designed in Lake Tahoe, USA, the ZLINE Autograph Edition 24" 3rd Rack Top Touch Control Tall Tub Dishwasher in Stainless Steel with Champagne Bronze Handle, 45dBa (DWMTZ-304-24-CB) provides a professional culinary experience by pairing unmatched performance with personalized touches.
Encompassing limitless beauty, precision, and quality, the Autograph Edition Series creates a luxury look that will transform your space.
Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability.
Please Note:
Brand |
ZLINE Kitchen and Bath
|
Product Dimensions Minimum Height |
23.875 in. W x27 in. D x 33.75 in. H |
Product Dimensions Maximum Height
|
23.875 in. W x27 in. D x 35 in. H |
Cut Out Dimensions
|
24 in. W x 25 in. D x 34 in. H
|
Weight | 109.6 lbs |
Voltage
|
120vac
|
Frequency (Hz) | 60Hz |
Dedicated Circuit |
15A |
Rated Current (Amps) | 8.4A |
Motor Wattage
|
120
|
Heater Wattage
|
888
|
Motor Amperage |
1.0A
|
Heater Amperage |
7.4A
|
Energy Consumption Per Year (kWh) |
249
|
Water Consumption Per Cycle (Liters/Cycle) |
11.7
|
Water Consumption Per Cycle (Gallons) |
3.1
|
Hose Length (in.) |
56
|
Panel Ready? Y/N | N |
Panel Finish | 304 Grade Stainless Steel |
Handle Finish | Champagne Bronze |
Drying System | Residual Heat Dry |
Control Location | Top Control |
Control Type | Touch Control |
Decibels | 45 |
Power Cord | Hardwired - Junction Box Included |
Installation Type | Direct Wired |
Handle Type | Bar Handle- Traditional Style |
Number of Cycles | 6 |
Number of Place Settings | 14 |
Max Plate Height (in.) | 13 |
Rack Material | Polypropelyne (PP) |
Silverware Basket Location | Bottom Rack Left |
Steam Function | Without Steam |
Tub Material | Stainless Steel Tub |
Certifications | Energy Star, CEC, UL |
