What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

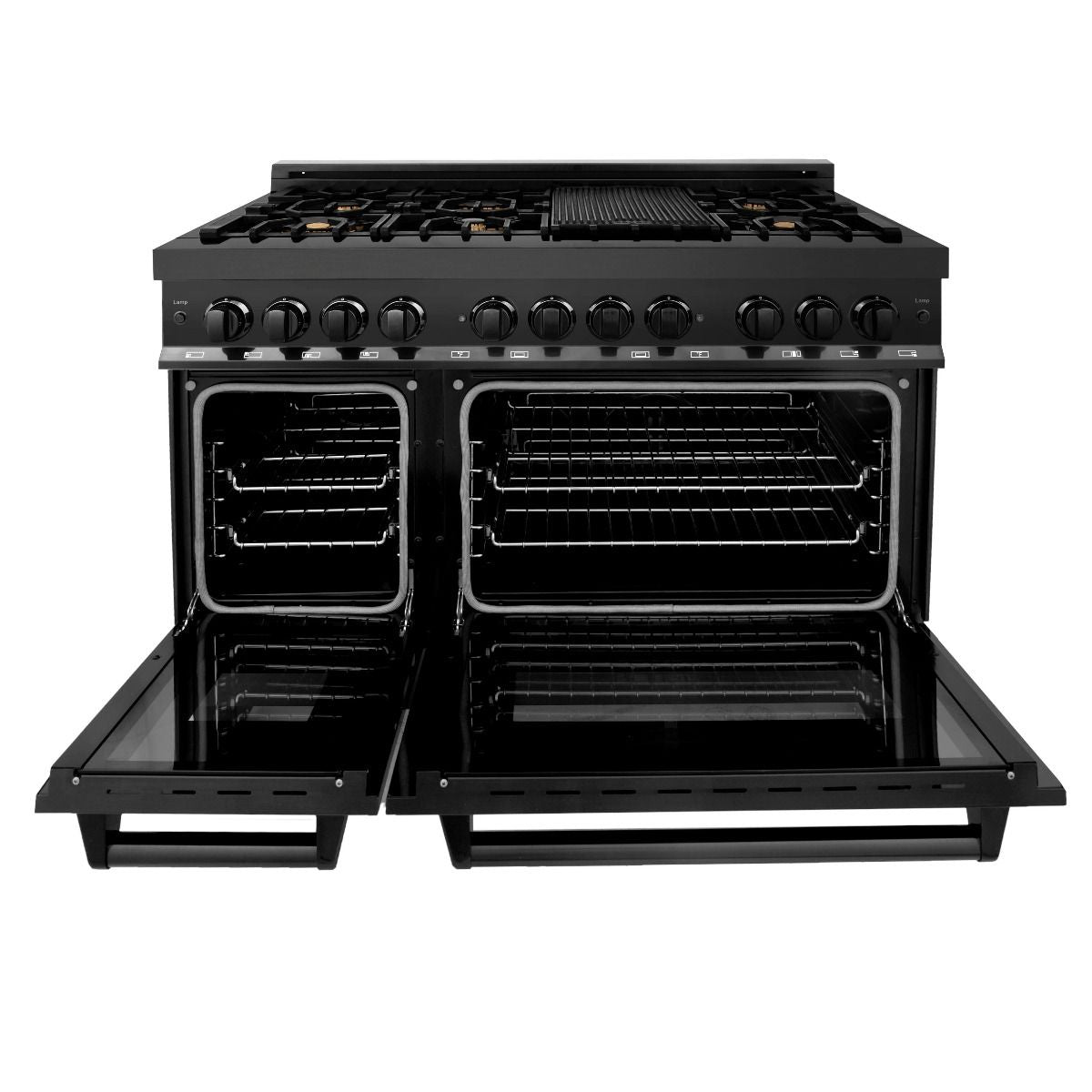

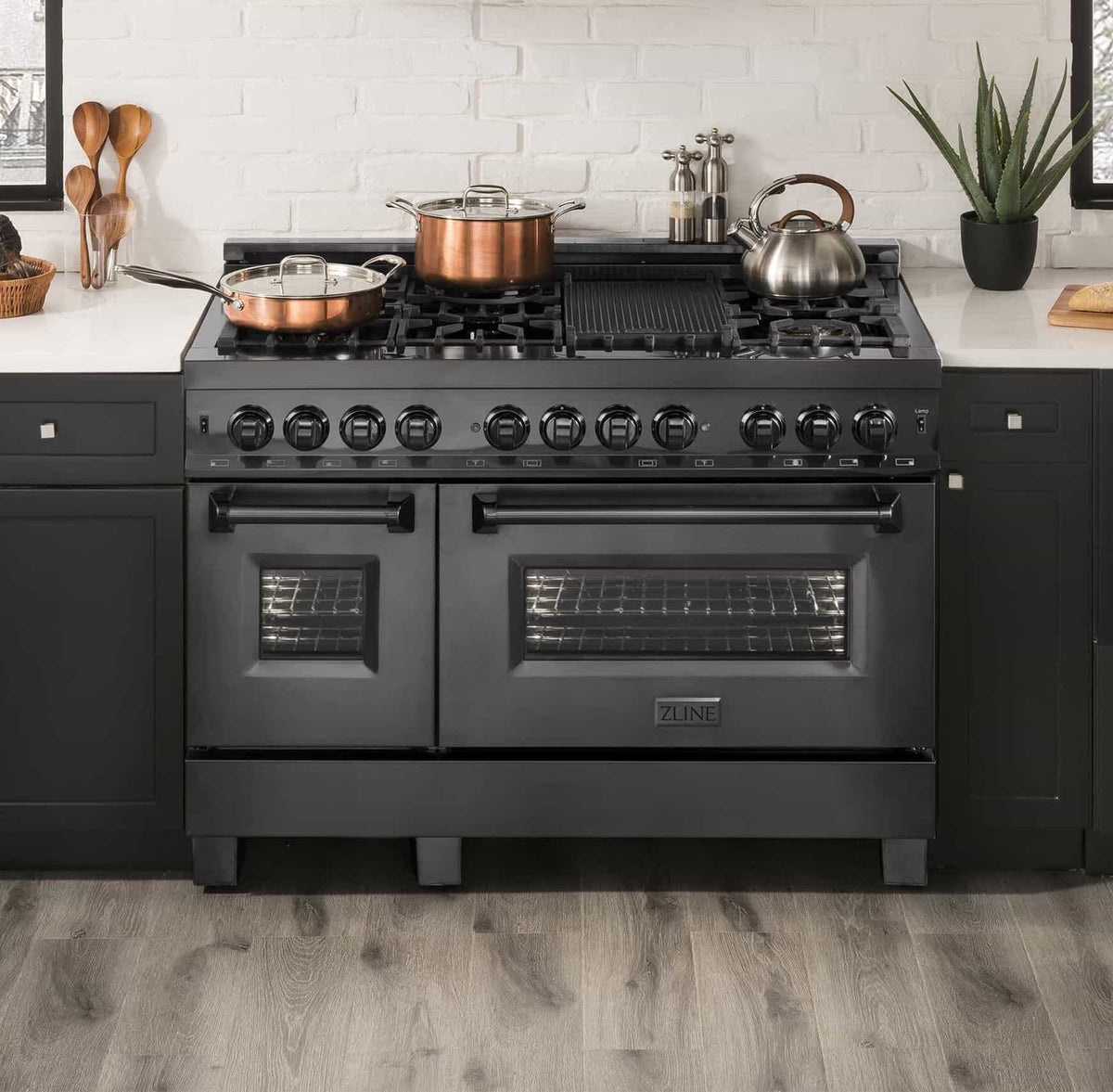

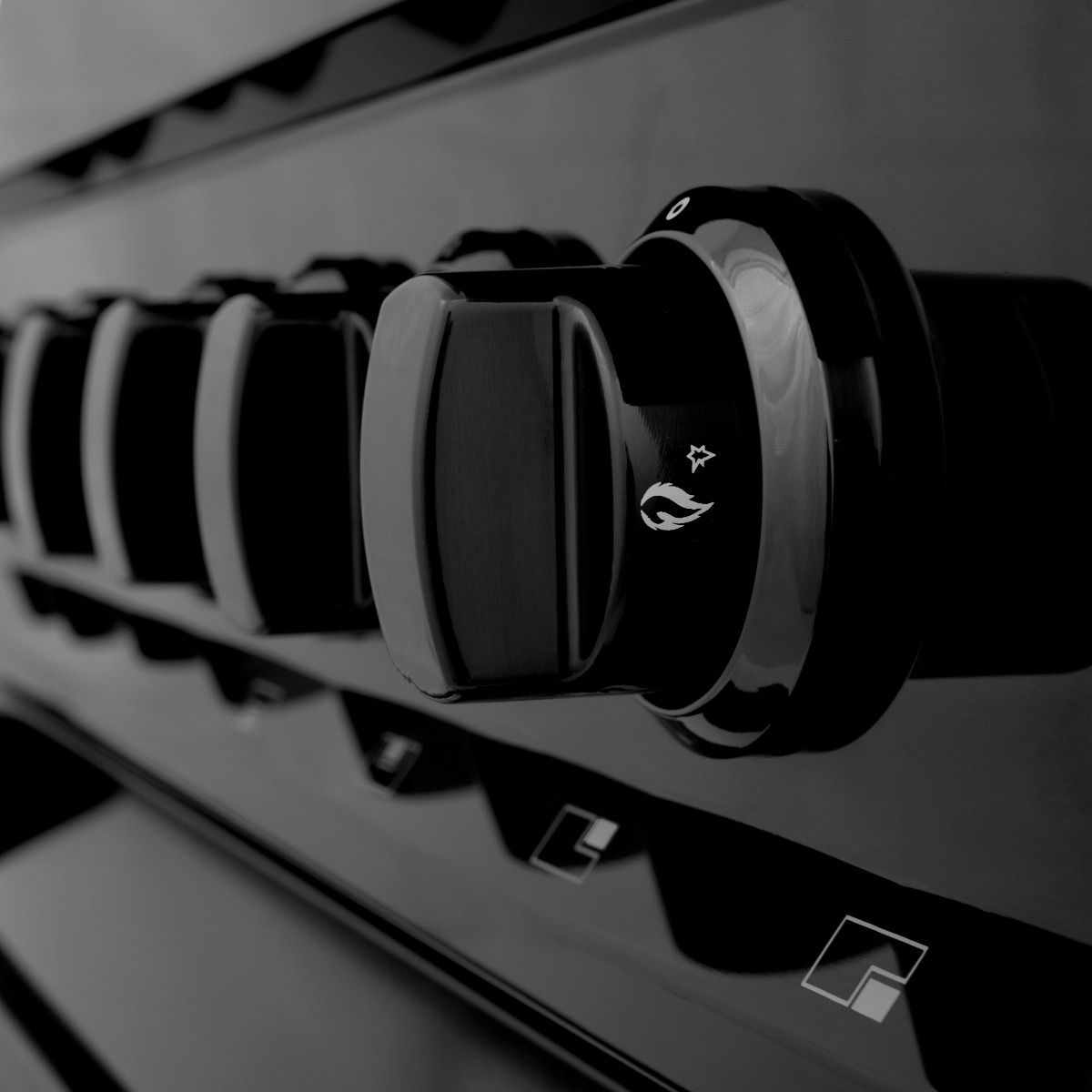

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 48" 6.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Black Stainless Steel (RAB-48) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability.
- Professional Dual Fuel Cooking - Blends high-performance technology of a gas cooktop and an electric convection oven

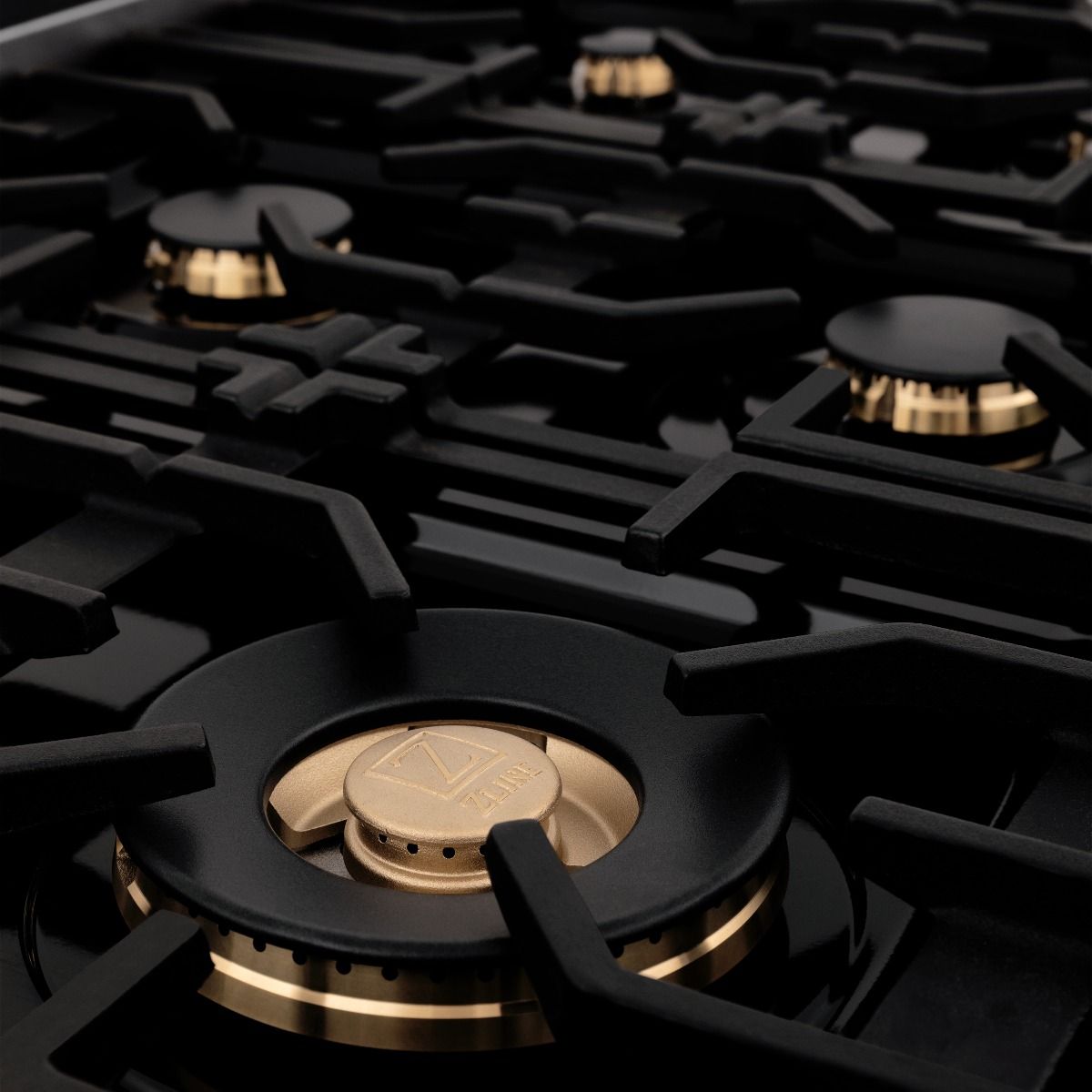

- Italian-Made Sealed Burners - Industry-leading gas cooktop includes 4 Hand-cast burners with cooking power ranging from 1,000 - 18,000 BTUs to optimize every meal with a powerful and even heat distribution
- Minimal Cleaning - Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance of gas cooktop
- Large Oven Capacity - 6.0 cu. ft oven capacity that fits up pans up to 23 in. or 9 in. wide for maximum space and convenience with everyday cooking
- Premium Oven Insulation - 3 layered glass and aluminum mesh seal offers superior heat retention and a consistent temperature, creating perfect dishes every time
- Smooth Glide Ball-Bearing Oven Racks - Durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
- StayPut Oven Door Hinges - Designed to support the full weight of the oven door, offering additional convenience and safety
- Dual Oven Lights - Illuminate your oven space with dual lighting, controlled by a switch located on the front control panel
- Premium Grade Black Stainless Steel - created by an atom-bonded technique called PVD ensuring built to last quality
- LP Conversion Kit - Comes equipped with an LP conversion kit to convert from natural gas to liquid propane (must be done by a professional); offering versatility with your cooking preference
- Professional Look and Feel - Featuring high grade 304 grade stainless steel with durable cast iron grates
- Adjustable Oven Height - Easy adjustable legs allow you to adjust the total range height anywhere from 36 inches to 38.5 inches
- Industry First Lifetime Burner Warranty - Limited lifetime warranty on ZLINE Italian burners, includes part replacements for burners and burner caps and parts and labor for the spark tip if parts prove to be defective in materials or workmanship
- Manufacturer Warranty - 1 year parts and service warranty


- Dimension
- 47.75" W x 27.5" D x 36.13" H
- Dimensions with Handle
- 47.75" W x 29.63 " D x 36.13" H
- Open Door Depth
- 41.8"
- Interior Dimensions
- 24.875" W x 17.75" D x 16" H
- Product Weight
- 270 lbs.
- Brand
- ZLINE Kitchen and Bath
- Features
- Model No. RA48
- Color
- Black
- Finish
- Black Stainless Steel
- Lighting
- Dual Lighting, controlled by light switch on front control panel
- Control Type
- Front Control
- Material
- Stainless Steel frame with 1 Piece Porcelain Top
- Italian-made burners-Manual Clean
- Voltage
- Requires a minimum of 220V-240V/60HZ/50A
- Mount Type
- Free Standing
- Gas Type
- Natural Gas or Liquid Propane via conversion kit
- Liquid Propane
- LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional
- Fuel
- All ZLINE Ranges come set to work with natural gas by default. All Ranges can also work with propane. A propane adapter is included in the box and will require an extra step to convert.
- Fuel Type
- Convection Oven - Gas Cooktop
- Cooktop

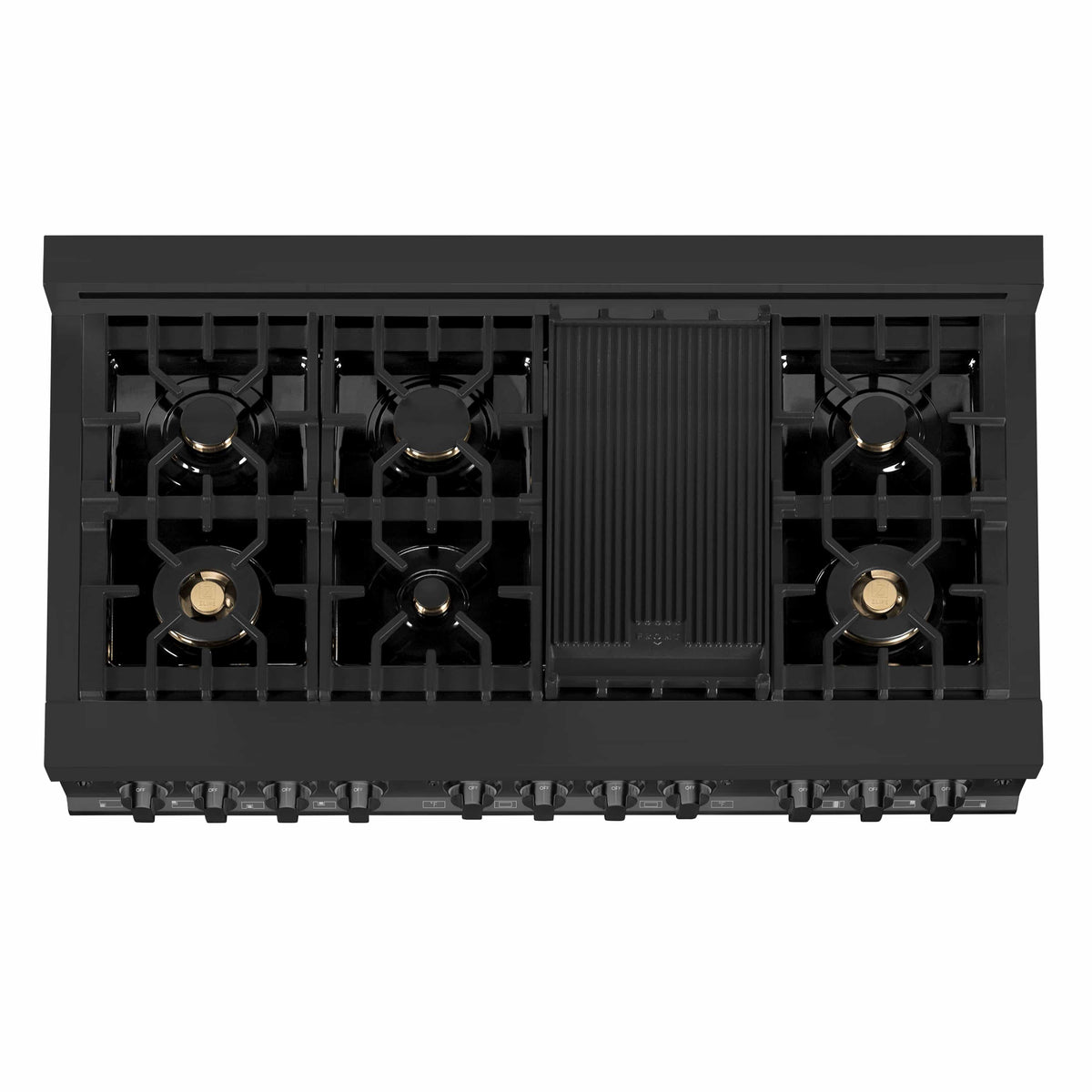

- (7) Burners with Porcelain Cook Top with electronic spark ignition for all burners
- BTU Rating
- Dual Burner(x2) - 18,000 BTU Griddle Burner - 13,000 Rapid Burner - 13,000 BTU Semi-Rapid Burner (x2) - 8,500 BTU Auxiliary Burner - 4,200 BTU
- Oven
- Manual Clean
- Convection Electric
- 4.6 cu.ft. deep oven
- Triple Glass Window
- Dual Lighting
- Professional Aluminum Mesh Seal Blue indicator light shuts off to let you know when oven has reached set temperature
- Warranty
- 1 Year Warranty
- Certifications
- ETL Certified

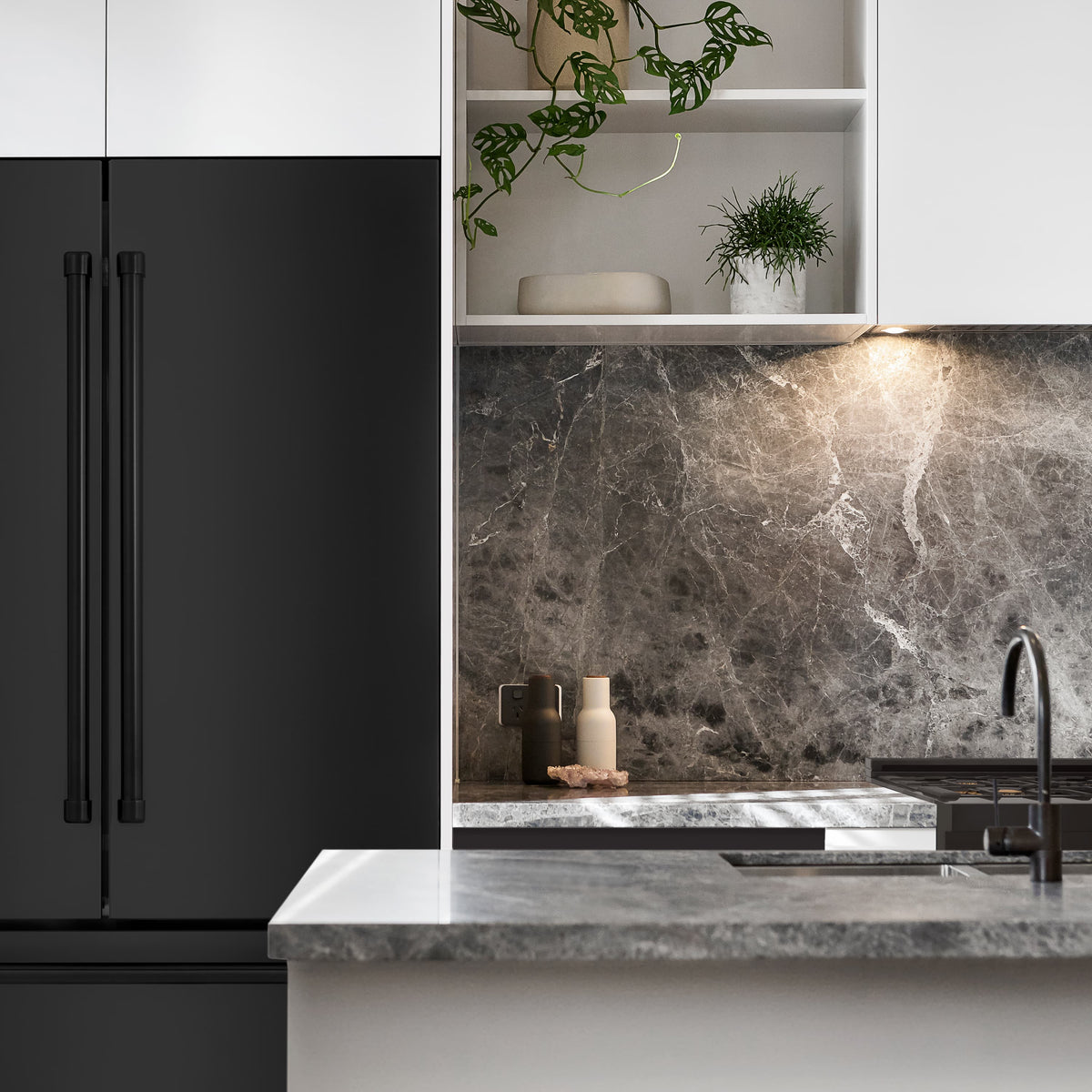

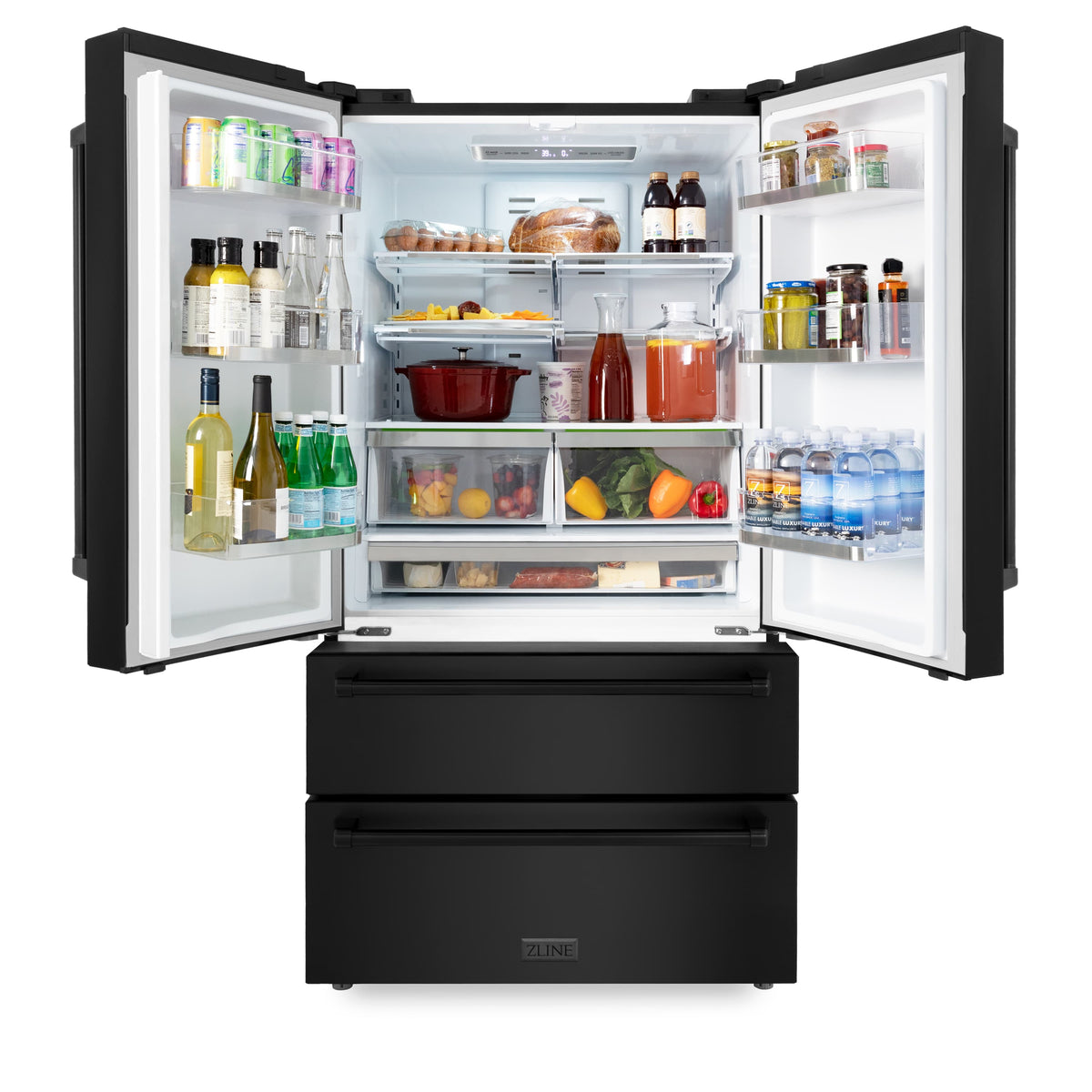

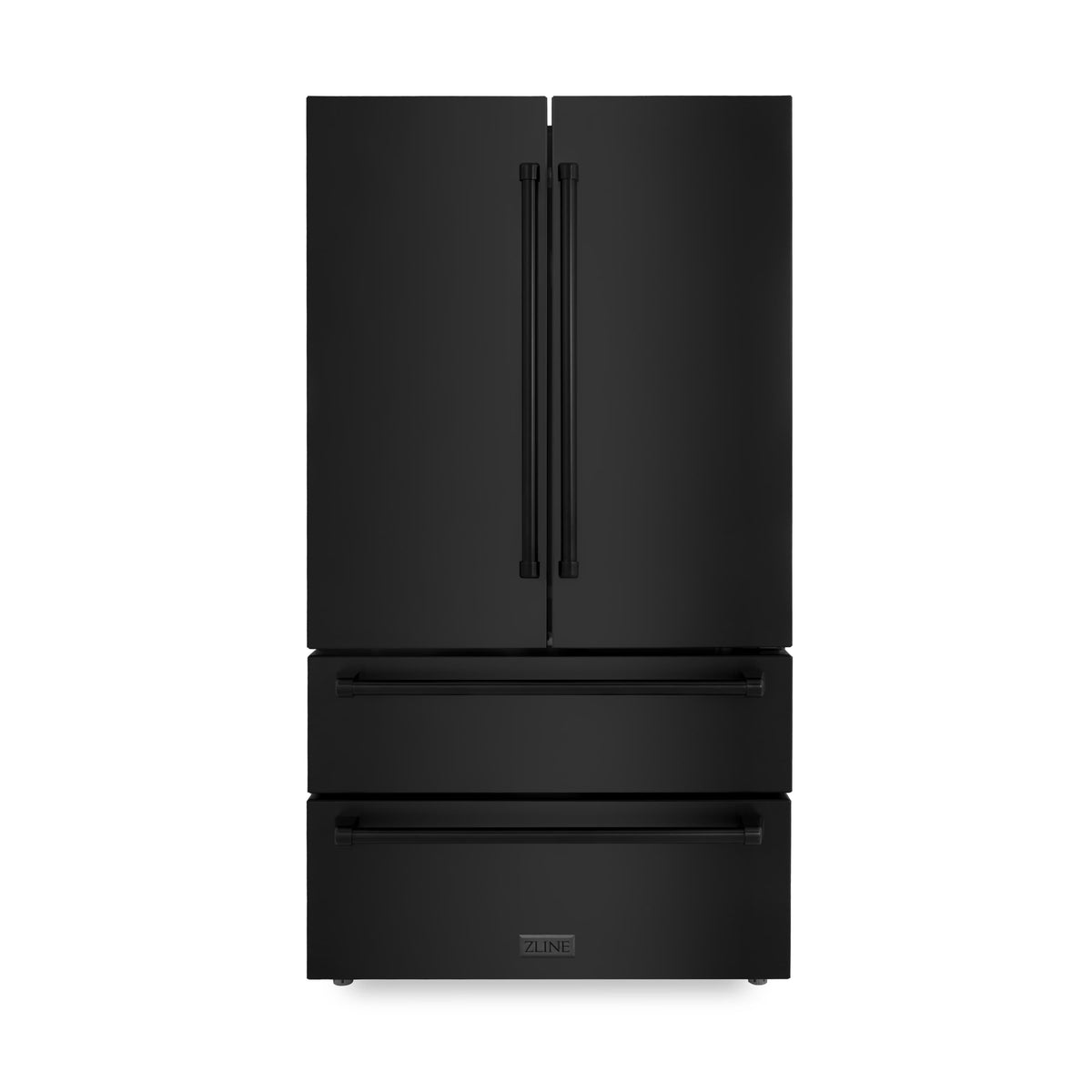

The ZLINE 36 in. 22.5 cu. ft. Counter-Depth French Door Refrigerator with Ice Maker in Fingerprint-Resistant Black Stainless Steel (RFM-36-BS) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and a high-capacity built-in ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
Features
- Counter-Depth Design - Create a modern look in your kitchen with a professional counter-depth refrigerator designed to be flush with your countertops
- Large Capacity - Easily organize items with a 15.9 cu. ft. refrigeration compartment and 6.6 cu. ft. freezer compartment—totaling 22.5 cu. ft. of storage capability
- Adjustable Temperatures - Create the perfect cooling environment with fridge temperatures ranging from 34°F to 44°F and freezer temperatures ranging from -7°F to 7°F
- Super Cool and Super Freeze Modes - Save time and quickly chill food with unique functions that automatically set the fridge temperature to 34°F and freezer to -7°F
- Bright White Interior - Achieve ZLINE Attainable Luxury® excellence by pairing best-in-class freshness with Bright White interior counter-depth units
- Dual Freezer Compartments - Store frozen items of multiple sizes and shapes inside two separate freezer compartments, each with full-extension drawers

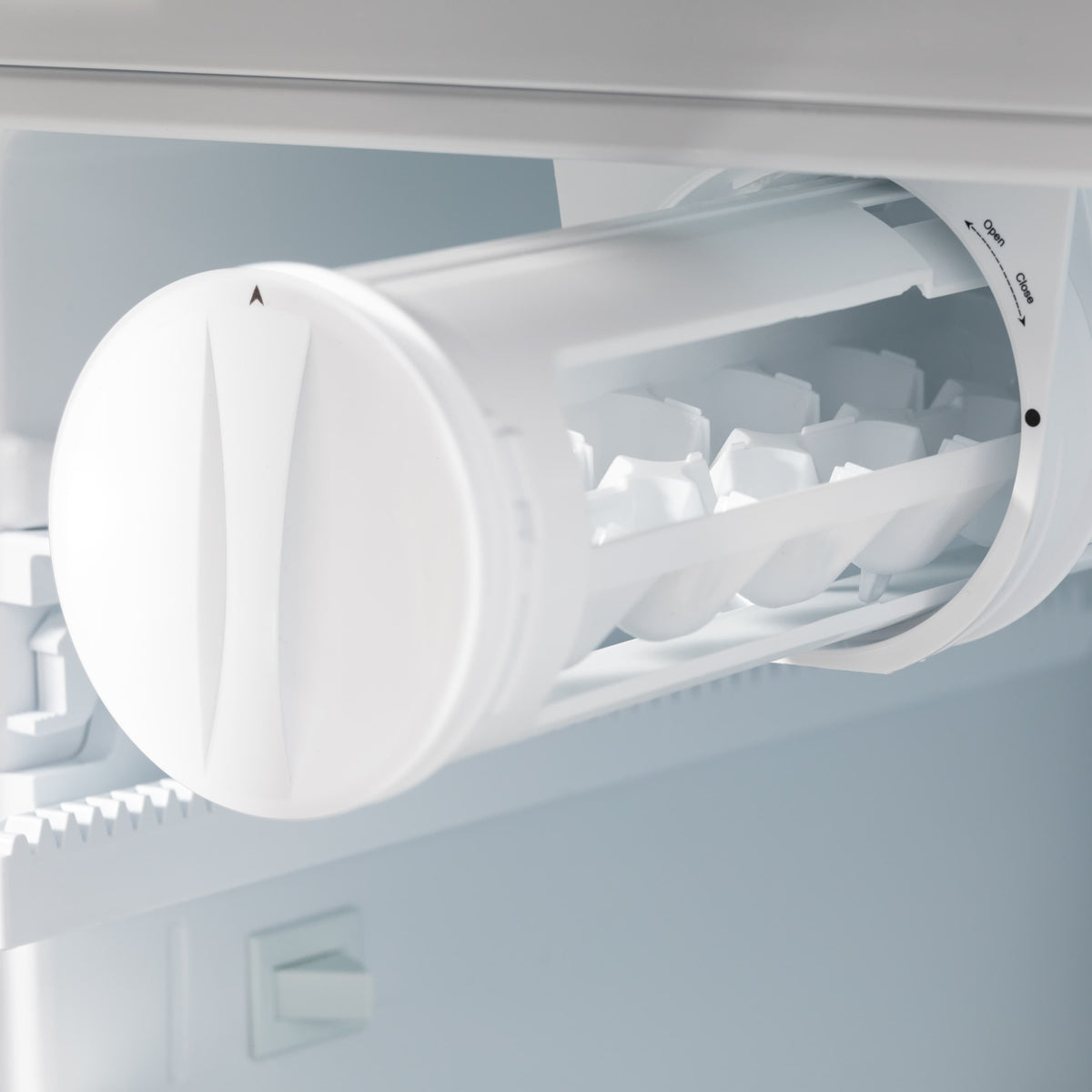

- Built-in Ice Maker - Easily access the automatic ice maker in the freezer, which stores up to 1.75 pounds of ice and creates up to 4.85 pounds of ice daily

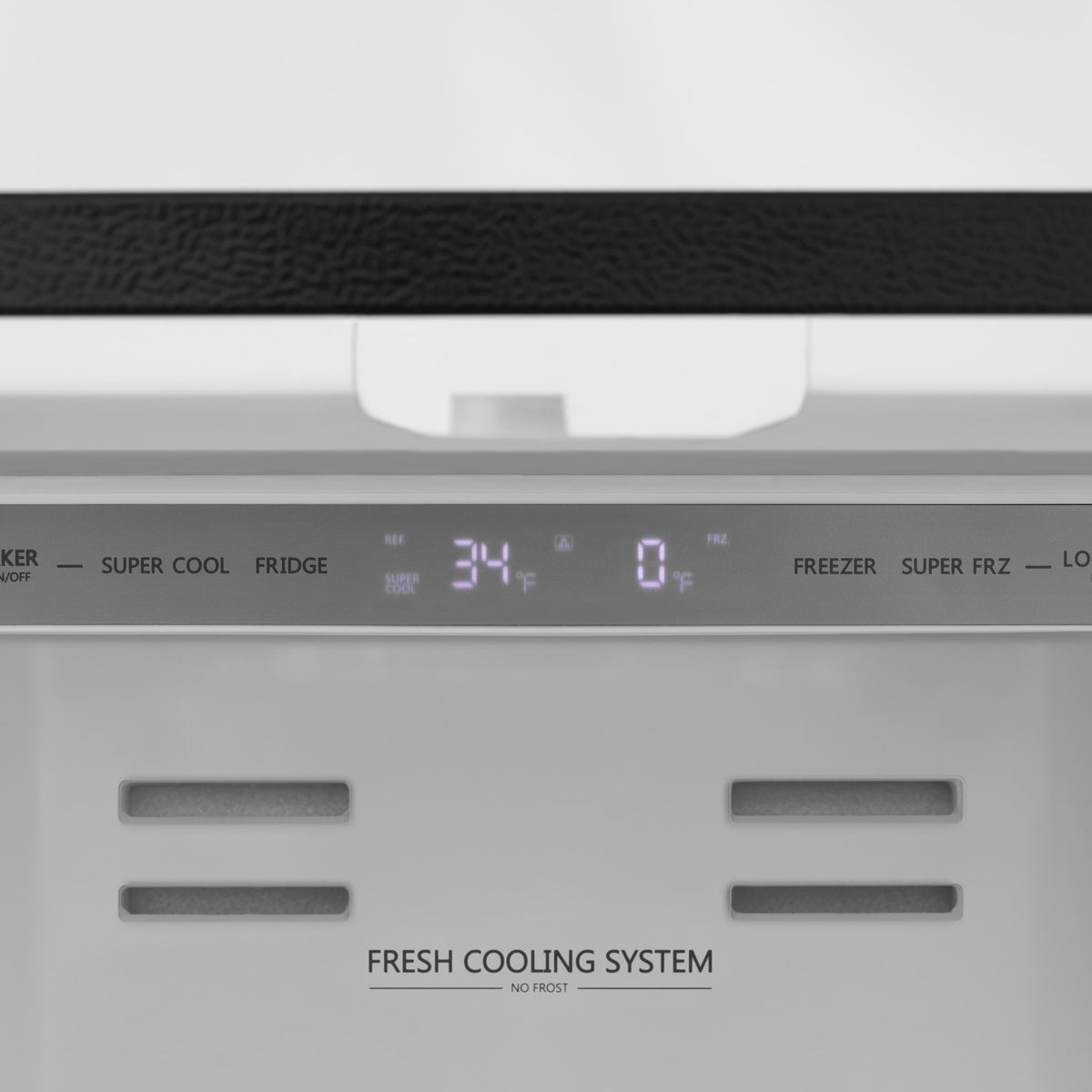

- Digital ChillControl - An ergonomic LED display allows you to quickly set temperatures, change from Fahrenheit to Celsius, and navigate menu options
- Fingerprint-Resistant Black Stainless Steel - Minimize cleaning with ZLINE’s smudge-proof and fingerprint-resistant black stainless steel finish
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Dual Crisper Drawers - Enjoy best-in-class freshness for fruits and vegetables with a pair of half-width humidity-controlled crisper drawers
- Full-Width Pantry Drawer - A full-width pantry drawer provides additional space for deli meats, cheeses, and other food items for optimal storage
- Spacious Door Bins - Store condiments, beverages, and other taller items inside 6 durable plastic bins, with 3 on each door
- Dual Cooling - Separate refrigerator and freezer cooling systems ensure air and odors are not mixed between compartments and provide fast and efficient cooling
- 4 LED Lights - Fully illuminate your appliance with 3 bright built-in LED lights in the fridge compartment and 1 in the freezer
- Spill-Resistant Glass Shelves - Comfortably organize items in the fridge on 4 spill-resistant adjustable glass shelves, 1 of which is foldable for more flexibility
- Quiet Noise Level - Enjoy peace of mind day or night with an ultra-low average noise rating of 45 decibels
- ENERGY STAR® Rated - Enjoy energy savings while maintaining professional power with superior insulation and an energy-reducing cooling system
- Manufacturer Warranty - 1-year parts and labor, and a 5-year parts-only warranty on the sealed cooling system, including compressor, evaporator coil, condenser coil, and filter drier
- Additional Assembly Required - This refrigerator and its door handles will ship in multiple boxes, requiring assembly upon installation

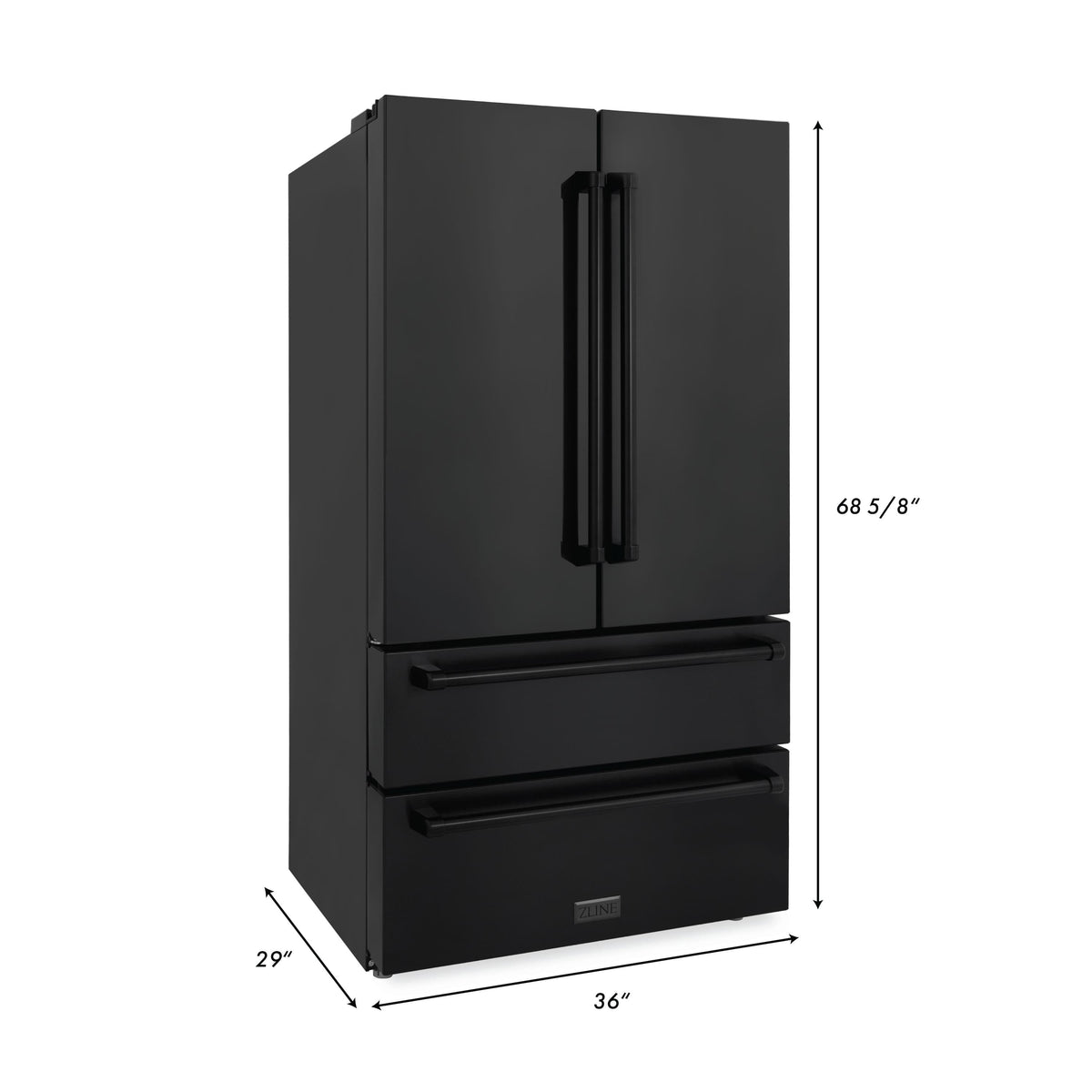

- Dimensions
- 35.75 in. W x 29.125 in. D x 69.6875 in. H
- Total Capacity
- 22.5 cu. ft
- Installation Depth
- 29 in. D
- Depth with Door Open
- 43.5 in.
- Weight
- 284.4 lbs
- Mount Type
- Freestanding
- Material
- Black Stainless Steel
- Energy Consumption (kWh/year)
- 588
- Voltage
- 120V/60Hz
- Amps
- 3
- Noise Level
- 45 Decibels
- Fridge Capacity
- 15.9 cu. ft
- Flex Drawer Capacity
- N/A
- Flex Drawer Temp Controls
- N/A
- Ice Maker
- Yes
- Ice Maker Types
- Single Ice Maker
- Ice Amount Per Day
- 4.85 lbs
- Ice Tray Storage
- 1.75 lbs
- Water Dispenser
- No
- Flowrate for Water Dispenser
- N/A
- Fridge Lights
- 3
- Humidity-Controlled Crispers
- 2
- Door Shelves
- 6
- Number of Fridge Shelves
- 4
- Freezer Capacity
- 6.61 cu. ft
- Freezer Drawer Bins
- 2- Pull Out Drawers
- Energy Star
- Yes
- Certifications
- ETL Listed, ENERGY STAR certified
- Warranty
- 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System

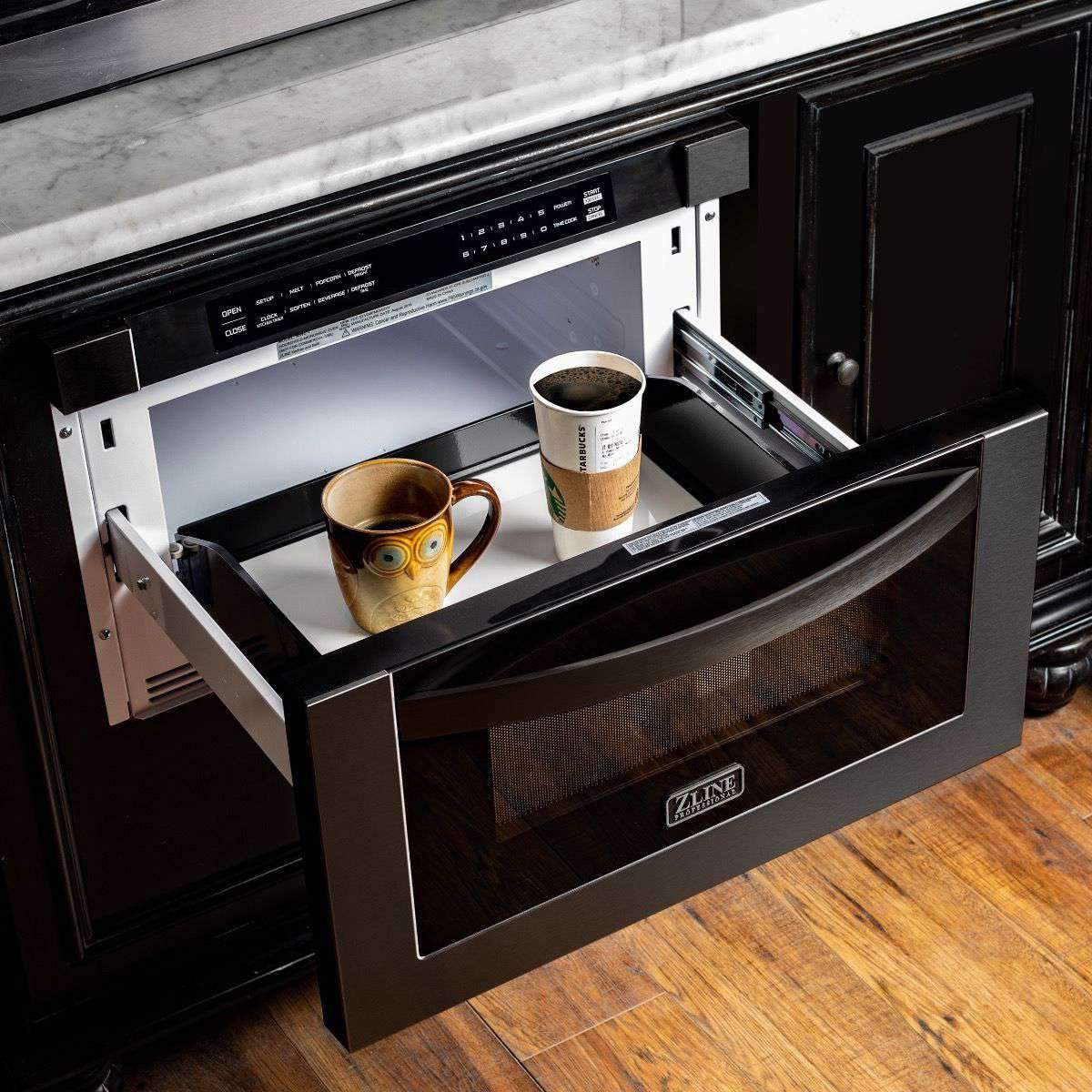

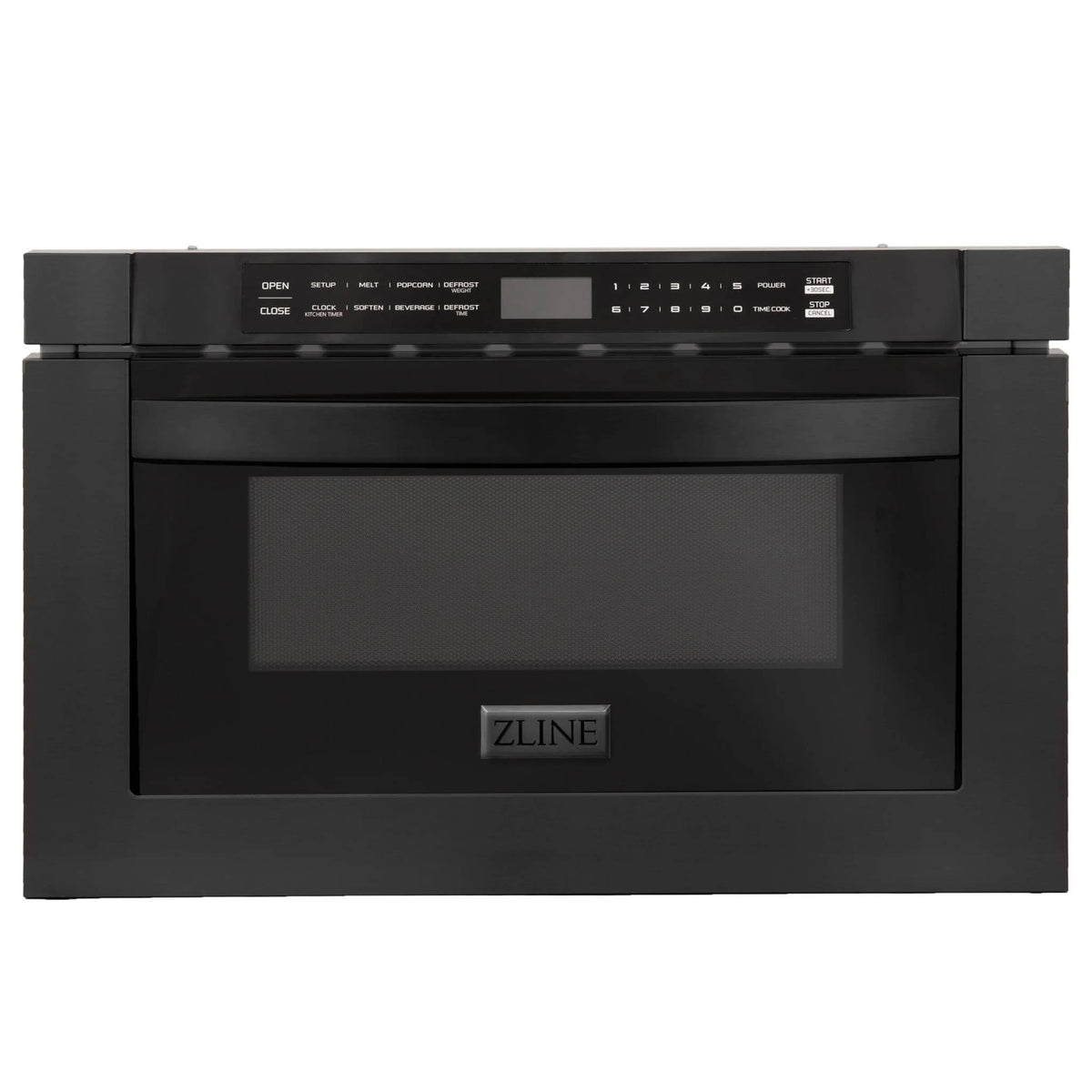

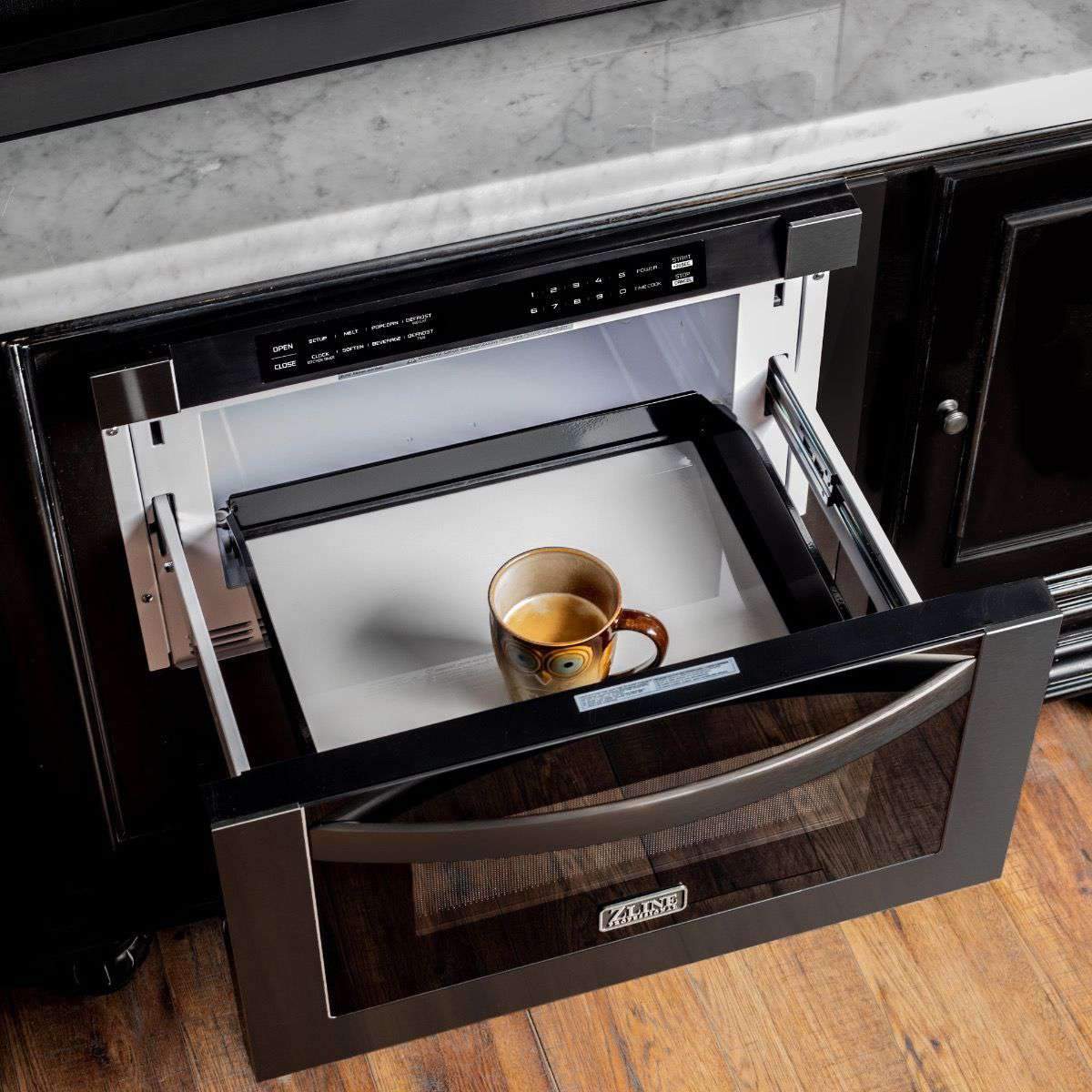

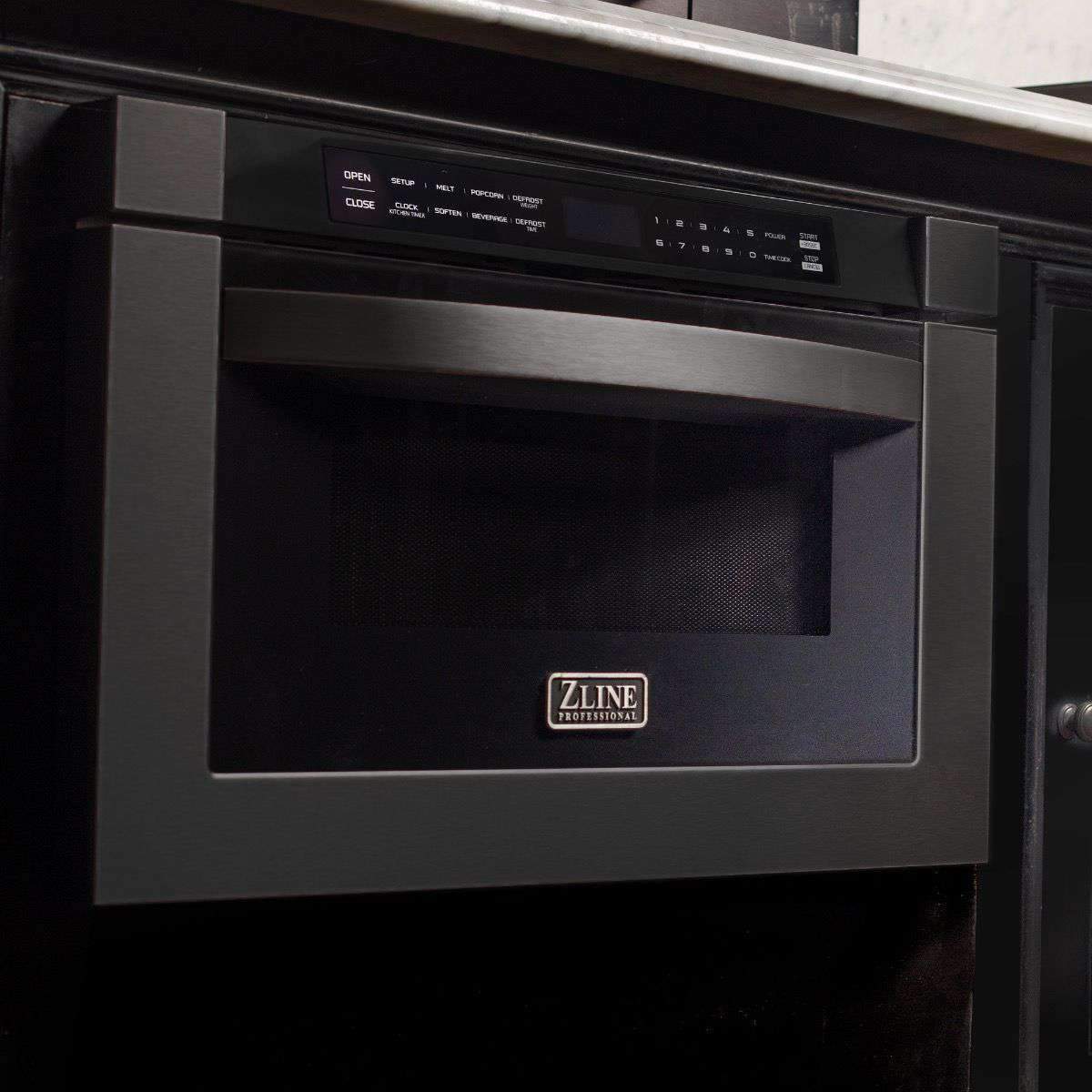

Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 24" 1.2 cu. ft. Built-in Microwave Drawer in Black Stainless Steel (MWD-1-BS) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen's capability.
Features
- Space-Saving - Free up your countertop space with an undercounter modern design with installation location flexibility to best fit your lifestyle
- Top Access Design - Easily transport hot dishes and prevent spills with an accessible top-loading design
- Convenient Microwave Modes - Achieve optimal results for every dish with sensor cooking, defrost, popcorn, and beverage settings
- Auto-touch Open and Close - Effortlessly open and close the microwave drawer with just the touch of a button

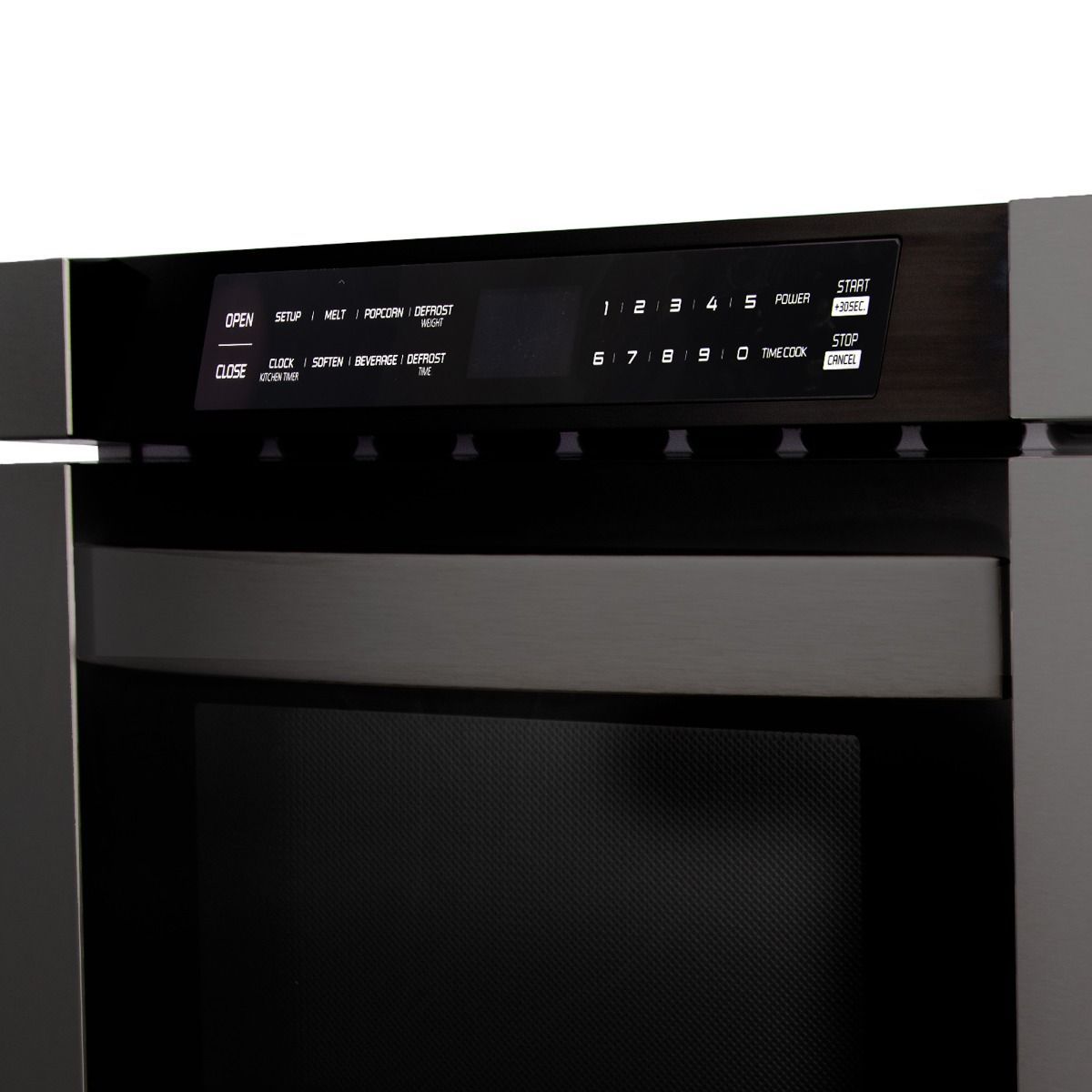

- Intuitive Control Panel - Enjoy an easy-to-use control panel that provides maximum convenience with a 45 degree angled design
- High-Powered Performance - Get the results you need with 11 different power levels and a powerful 1000 watt cooking power
- 1.2 cu. ft. Capacity - A large cooking area will easily fit your items, such as coffee mugs up to 7 in. tall and dishes up to 16 x 16 in.
- Reheat and Defrost - Minimize cooking time with convenient reheat and defrost functions
- Stainless Steel Finish - Brushed 430 grade stainless steel exterior provides an easy clean up and a timeless look in your kitchen
- Manufacturer Warranty - 2 year parts warranty
- ADA Compliant - Easy-to-use front touch controls with a 45 degree angle design provides ADA compliance

- Dimensions
- 23.5 in W x 23.31 in D x 14.88 in H

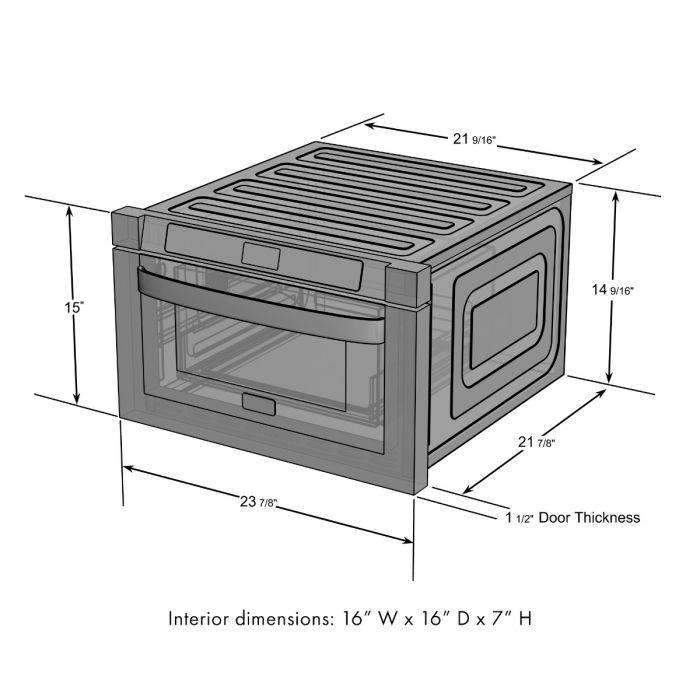

- Cut Out Dimensions
- 22.13 in W x 23.5 in D x 15 in H
- Nominal Width
- 25
- Product weight
- 69.9 lbs
- Total capacity
- 1.20
- Mount Type
- Drawer
- Control Type
- Touch Screen
- Voltage
- 120V/ 60HZ/15A
- Power Specs
- Amperage 13 / Frequency 60 / Voltage 120 Watts
- Exhaust fan speed
- 1
- Motor
- 1,000 Watts
- Auto Shut Off
- No
- Noise Level
- 45 dB Max
- Number of racks
- 1
- Temperature settings
- 11
- Certification
- ADA / Not Approved for Commercial use / UL Listed: yes
- Warranty
- 2 Year Parts

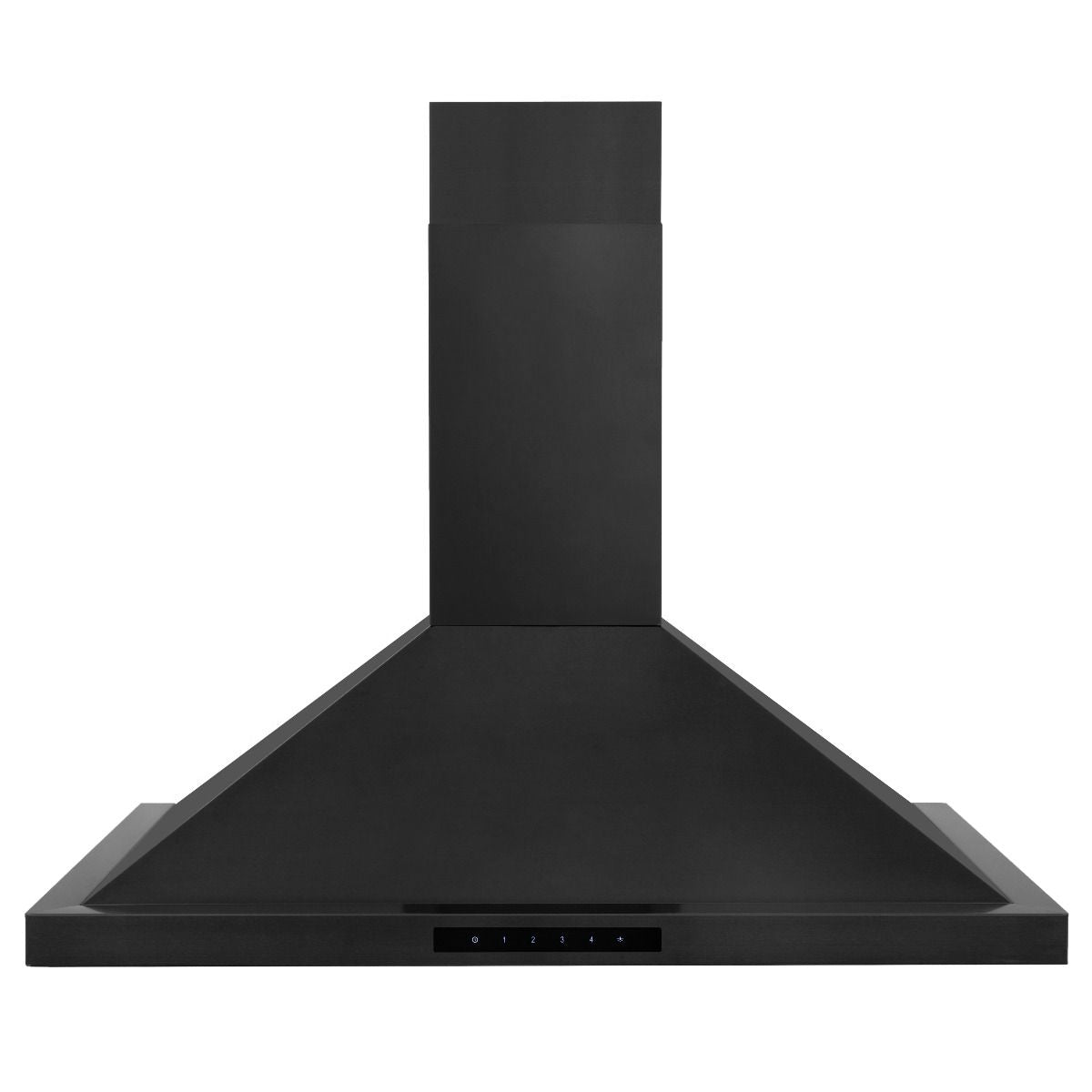

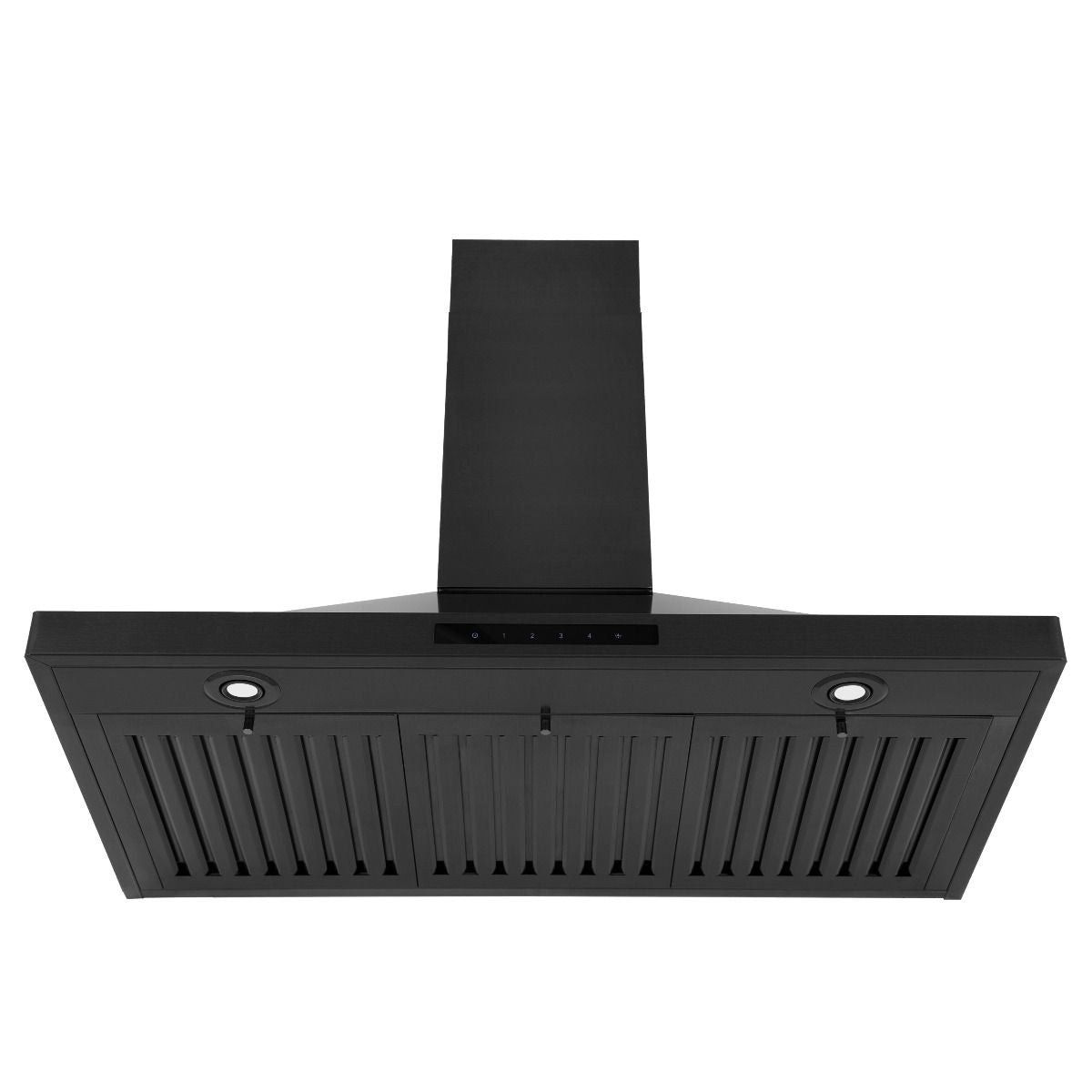

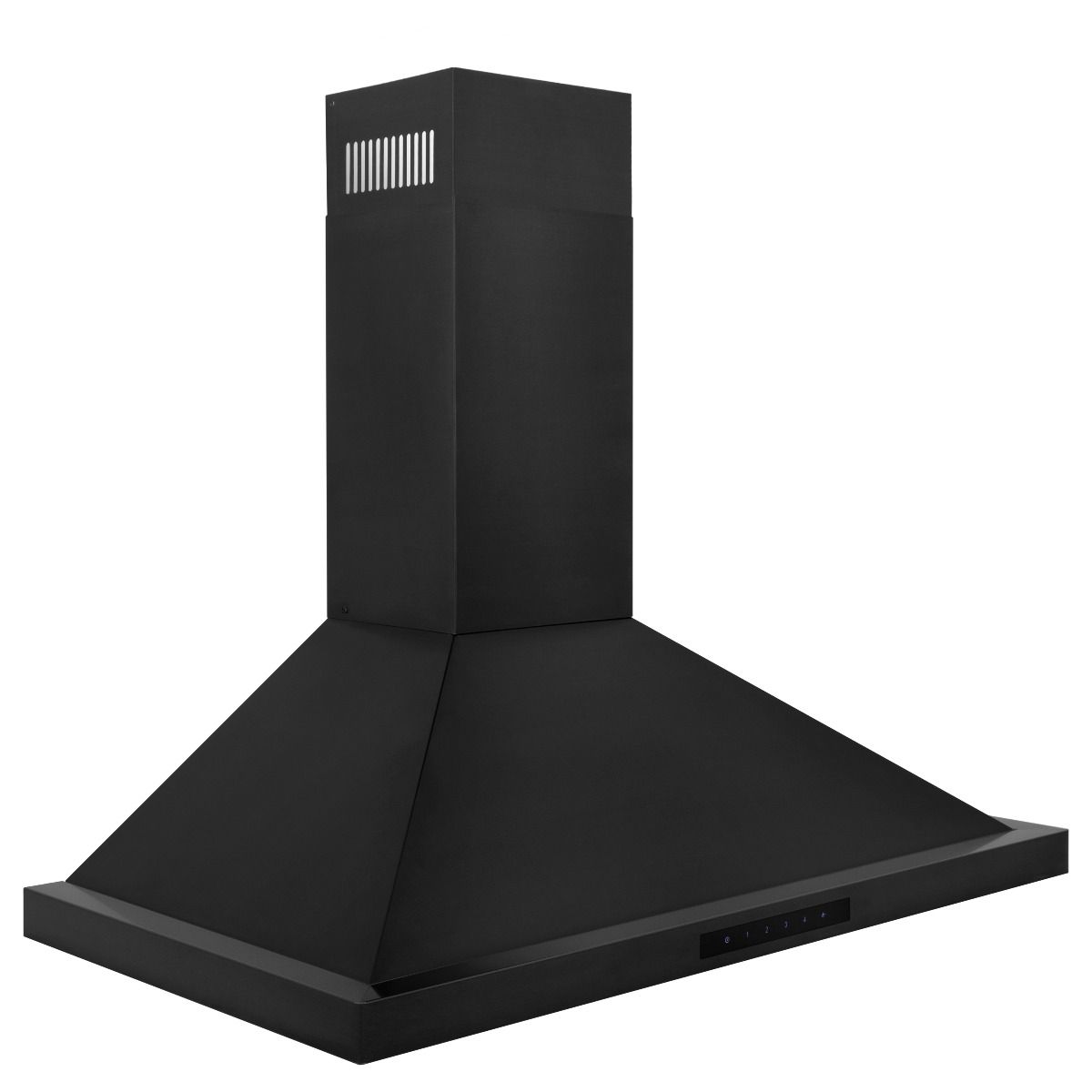

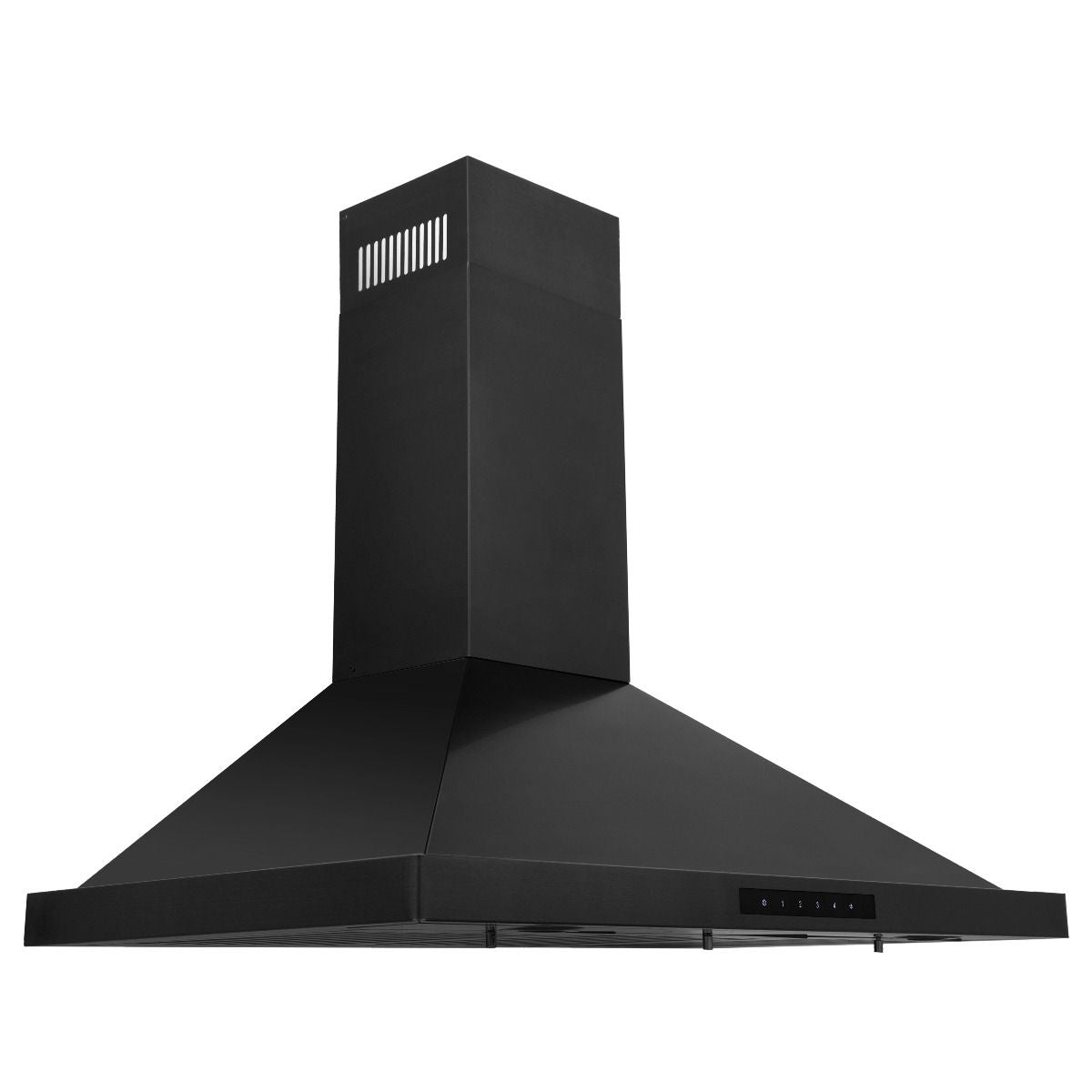

The ZLINE BSKBN-48 is a 48 in. professional wall mount stainless steel range hood with a modern design and built-to-last quality, making it a great addition to any kitchen. This hood's high-performance, 400 CFM 4-speed motor will provide all the power you need to quietly and efficiently ventilate your stove while cooking.
With its classic 430 grade black stainless steel, this range hood contains rust, temperature, and corrosion-resistant properties to ensure a durable vent hood that will last for years to come. Enjoy modern features, including built-in LED lighting for an illuminated culinary experience and dishwasher-safe stainless steel baffle filters for easy clean-up.
This wall mount range hood has a convertible vent, so you can have a luxury range hood whether you need a ducted or ductless option. Enjoy easy installation and an easy recirculating conversion process. ZLINE Kitchen and Bath stands by all products with its manufacturer parts warranty. The BSKBN-48 ships next business day when in stock.
Features
- Convertible range hood - this unit can be externally vented or recirculated (ductless) with charcoal filters (not included, model number CF1) to reduce harmful odors

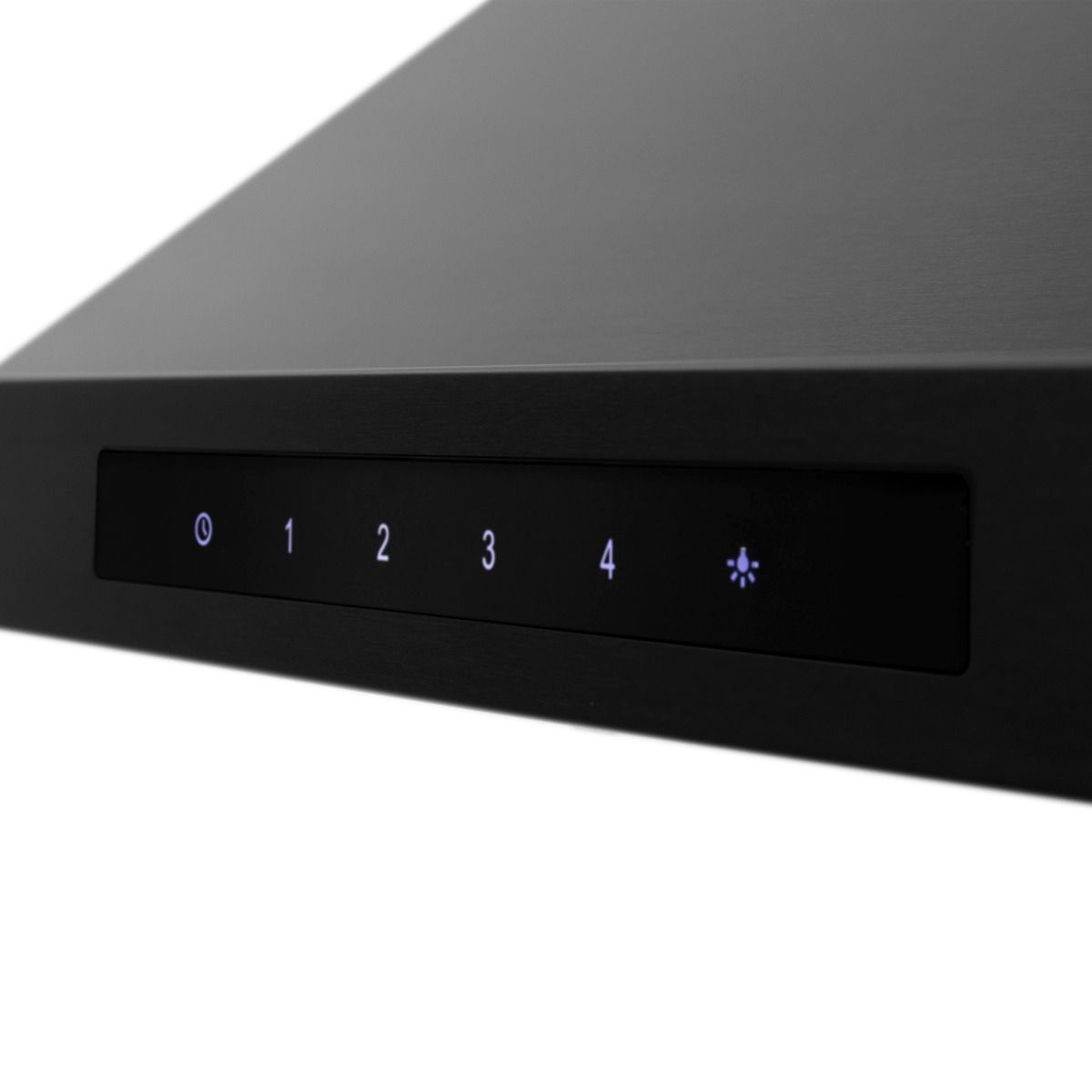

- Easy-to-use push button controls let you easily control fan speed and lighting
- 4-Speed Fan Control (120/240/320/400 CFM) lets you choose the appropriate air flow for your cooking situation
- 400 CFM Air Flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
- ZLINE's black stainless steel is achieved through a technique called PVD (Physical Vapor Deposition) Coating which utilizes a vaporization process to create an atom-bonded, strong ceramic layer in order to achieve its stunning black stainless shine and built-to-last quality
- Ductwork easily connects to the top of the range hood for external venting
- Dishwasher-safe stainless steel baffle filters

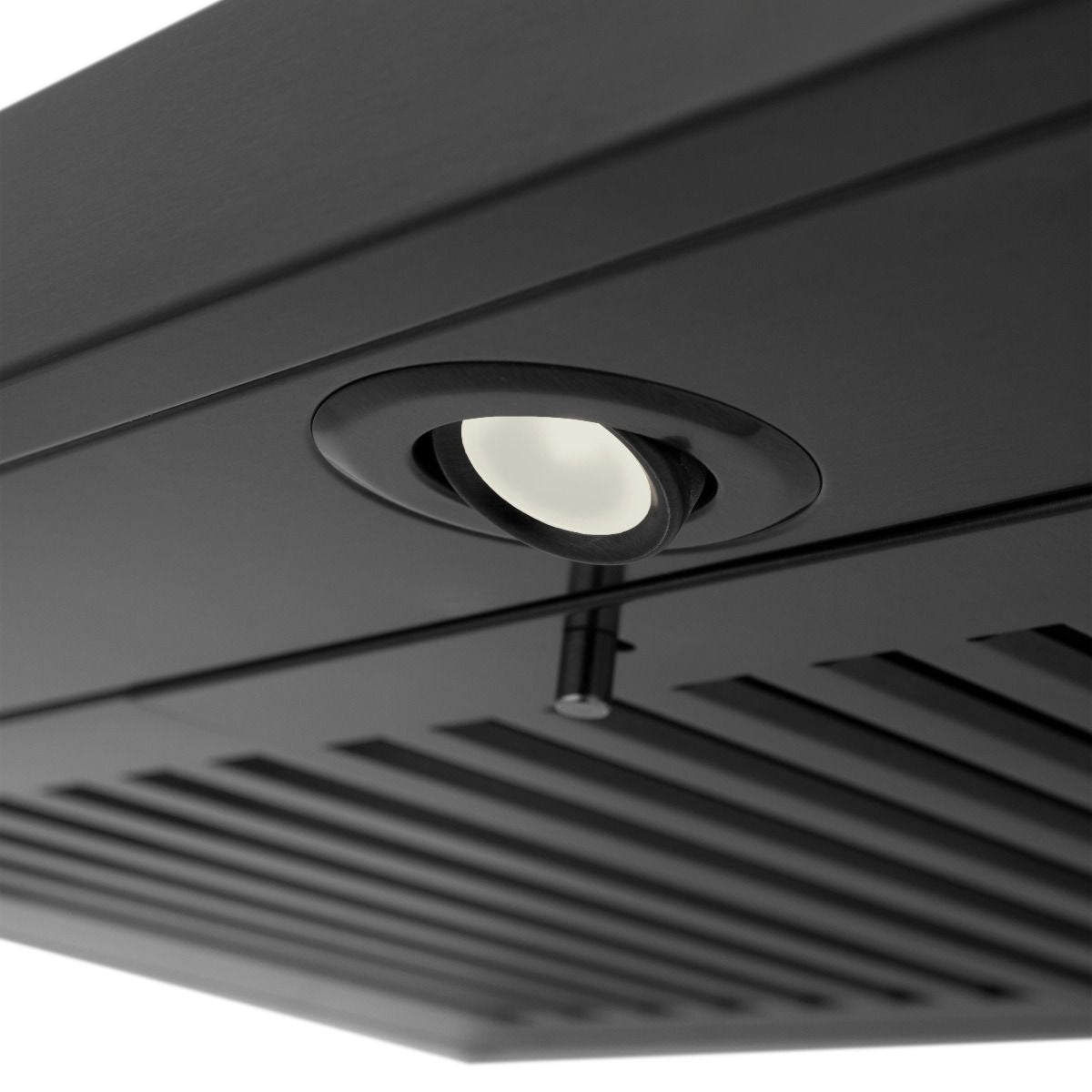

- LED lighting illuminates the cooktop beneath the hood
- Designed to fit standard (circular) ductwork for simple installation
- 3 year parts warranty, life-time motor warranty

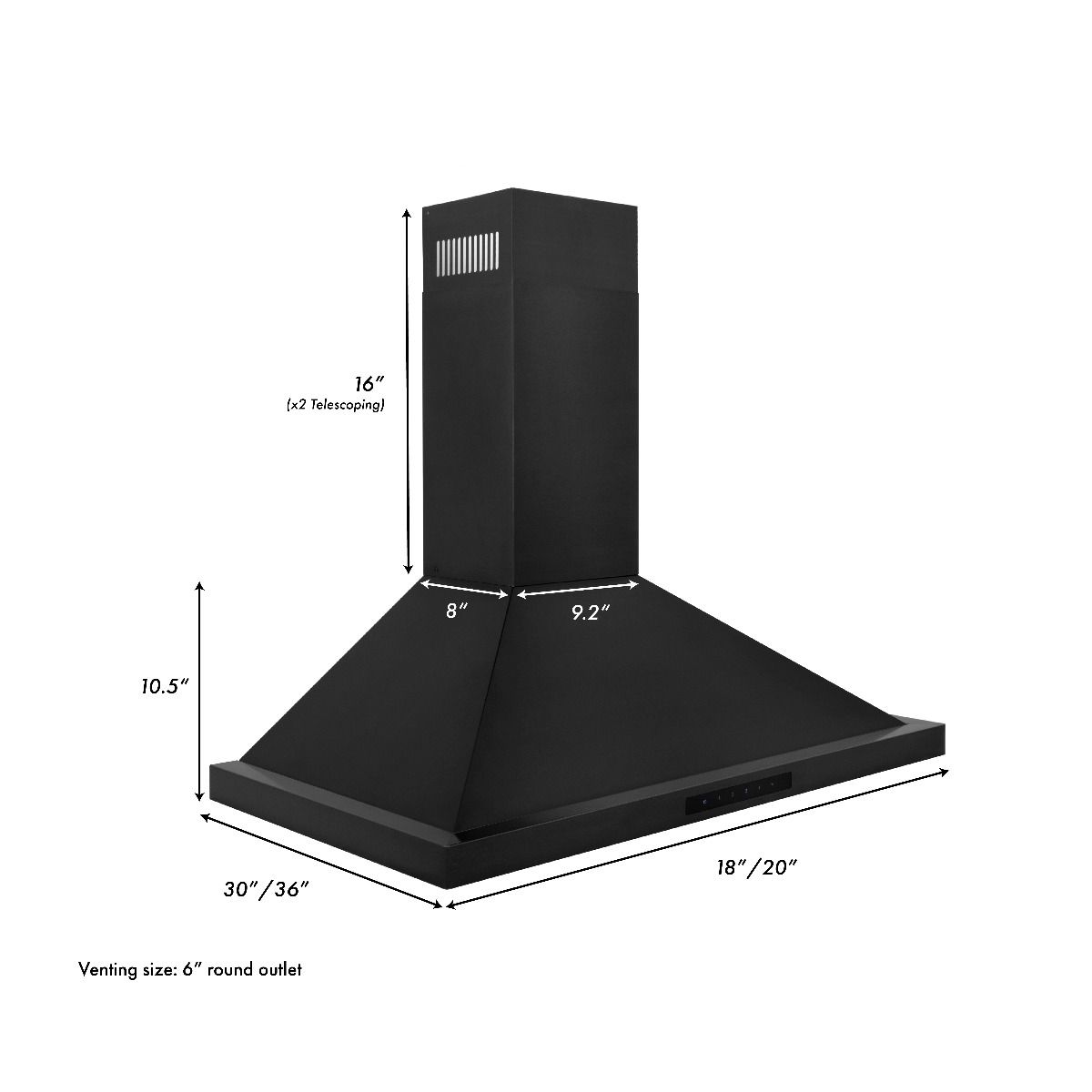

- Dimensions
- 48 in. W x 20 in. D x 10.5 in. H
- Chimney
- 9.2 in. W x 8 in. D x 16 H (x2) (Telescoping); Chimney Short Kit and Extension(s) Available:; Short Kit (2-12") ~8 ft. Ceilings; 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings; 2 PC Extension (2-36") ~10-12 ft. Ceilings
- Brand
- ZLINE Kitchen and Bath
- Mount Type
- Wall Mounted
- Lighting
- 2 Directional LED Lights (3-Watt)
- Material
- Black Stainless Steel
- Venting Size
- 6-inch Outlet; Charcoal Filters (not included) are available for a ductless/recirculating option.
- Airflow (Q/L/M/H)
- 120/240/320/400
- Motor
- High Performance 400 CFM/4-Speed Motor
- Voltage
- 110V/60HZ
- Control Type
- Speed/Timer Panel with LCD (3-minute AutoTimer with Delayed Shutoff)
- Filters
- Stainless Steel Baffle Filters (Dishwasher Safe)
- Features
- Model No. BSKBN
- Warranty
- 3 Year Parts Warranty
- Certifications
- ETL Listed
