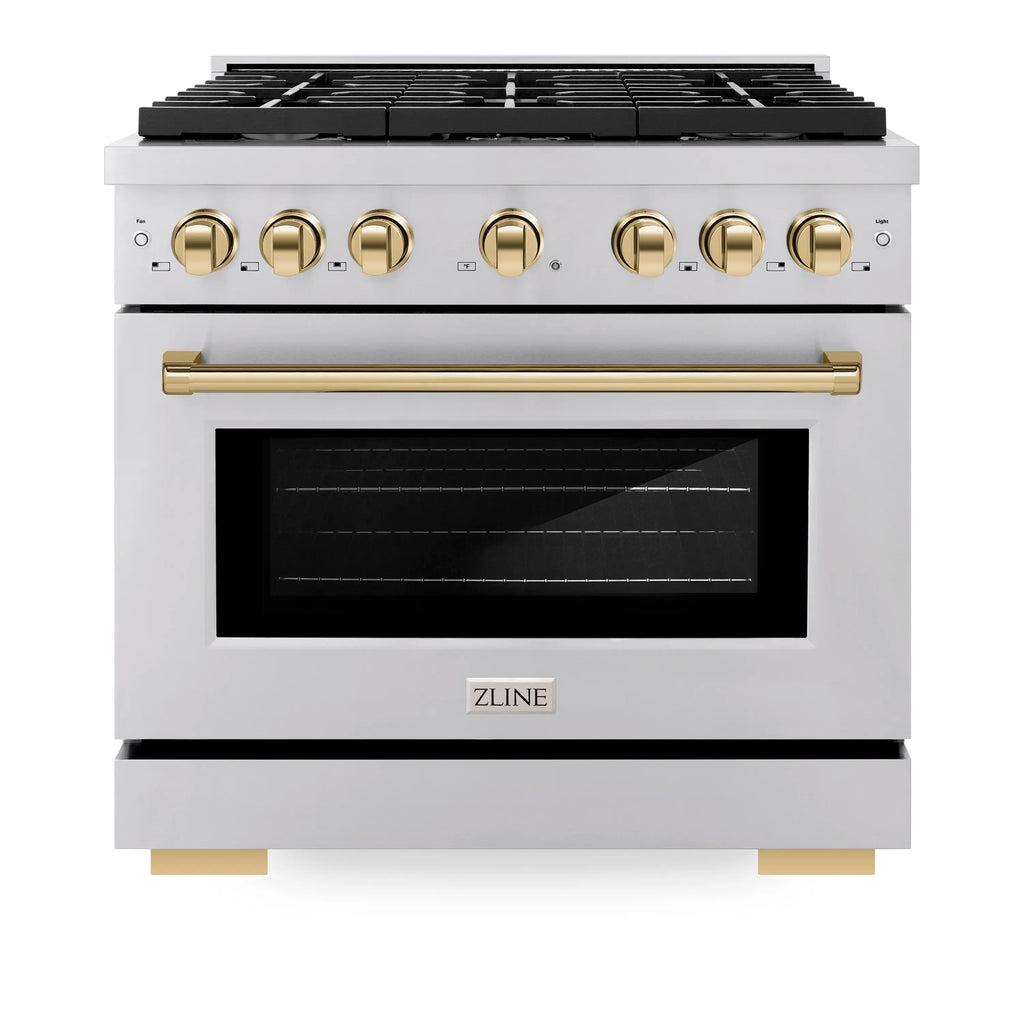

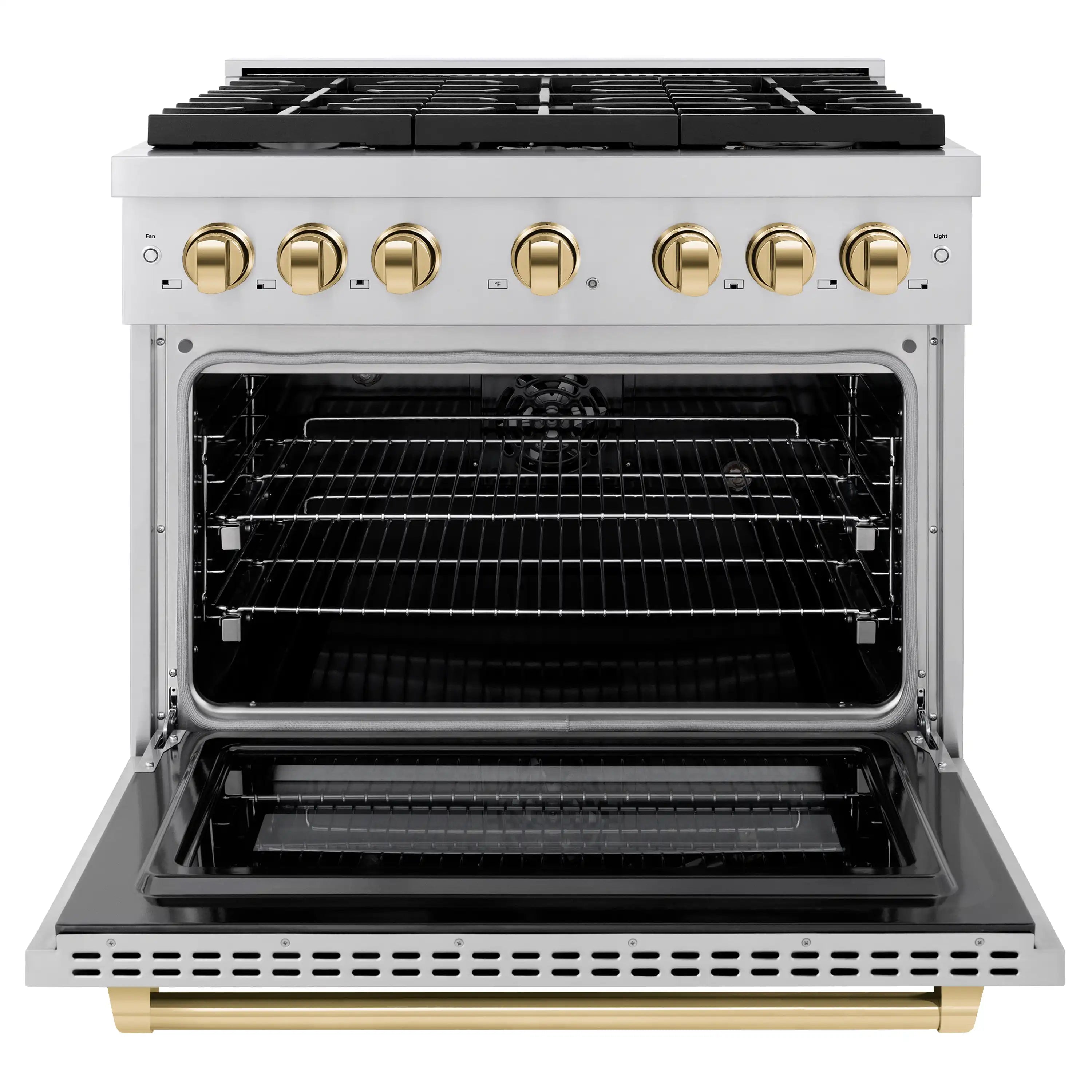

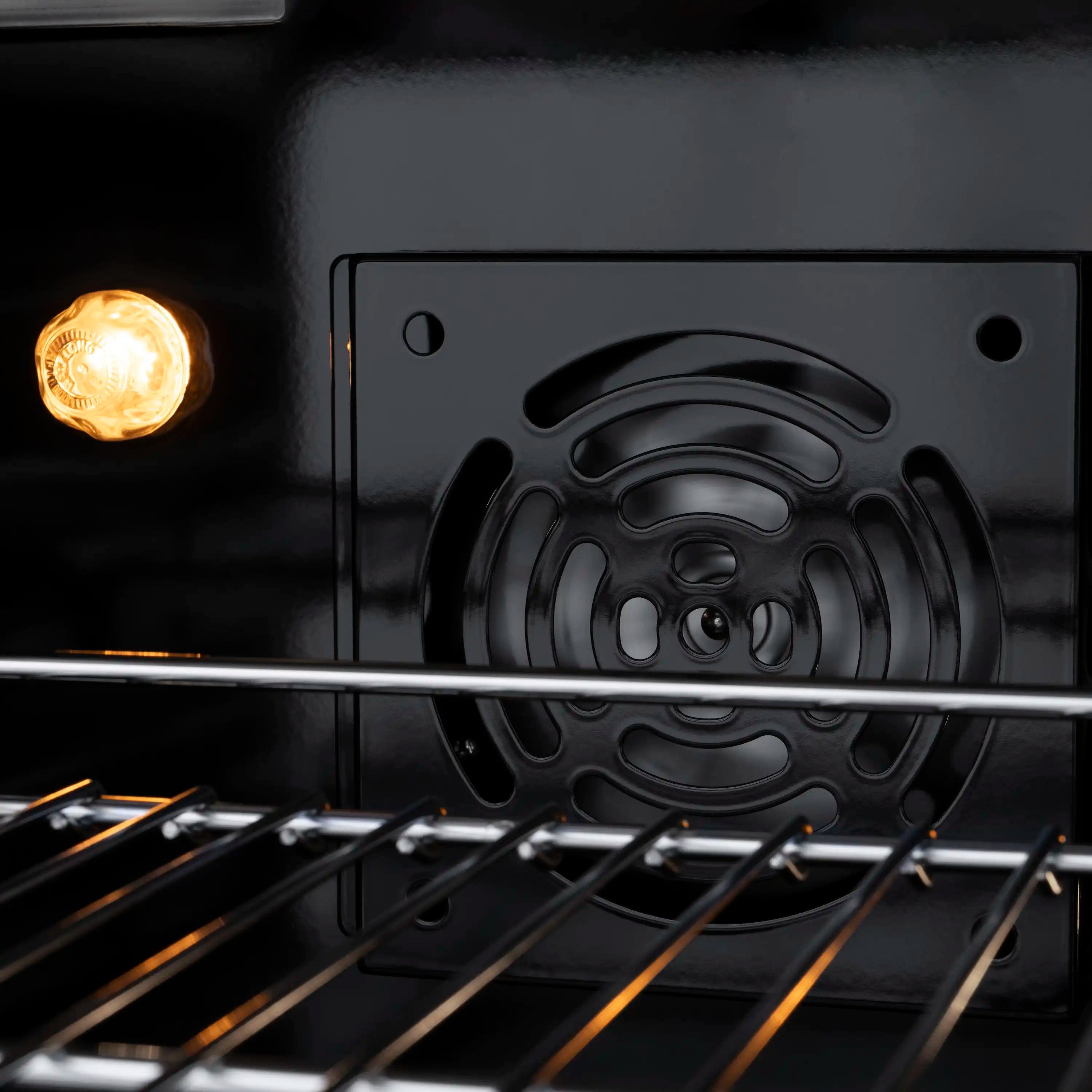

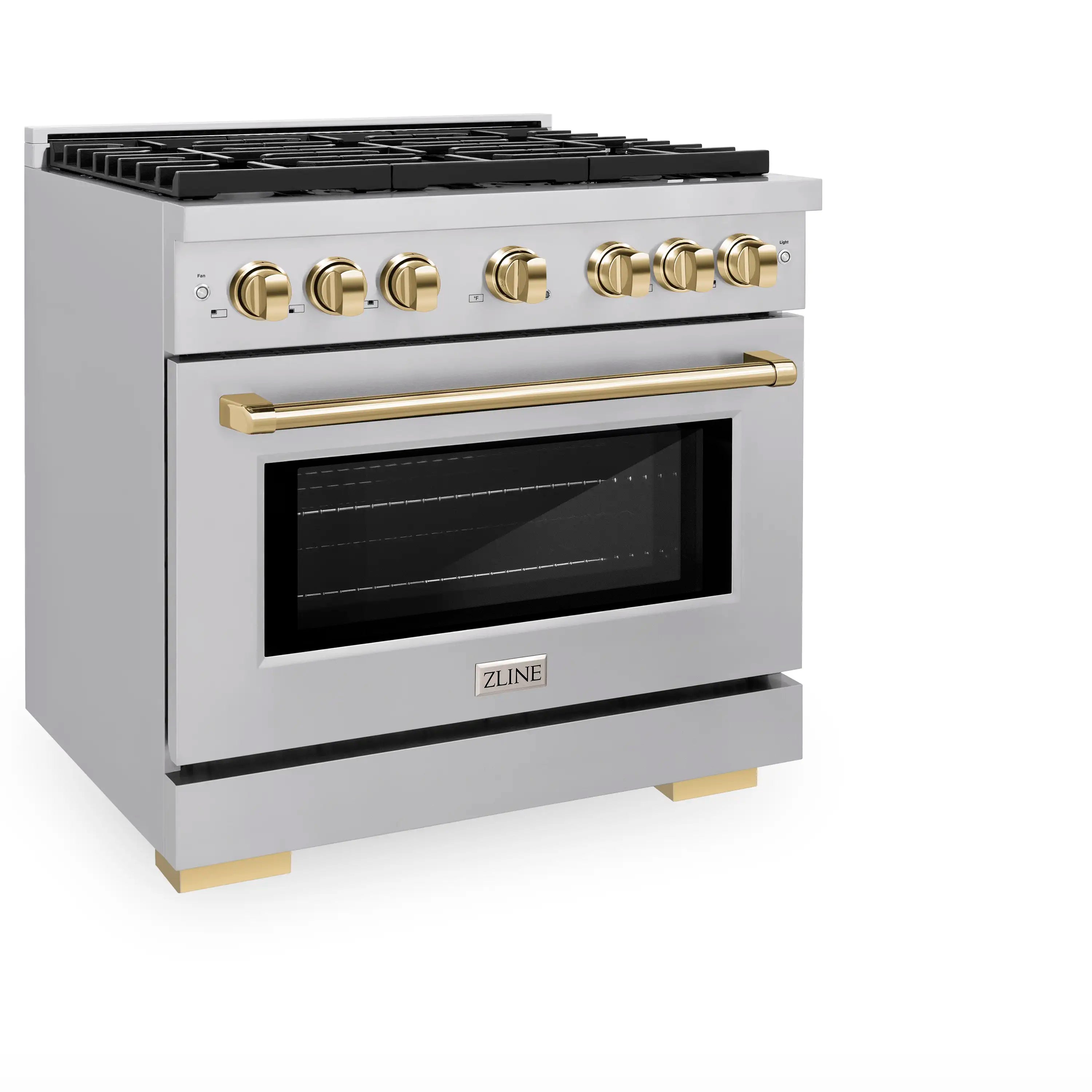

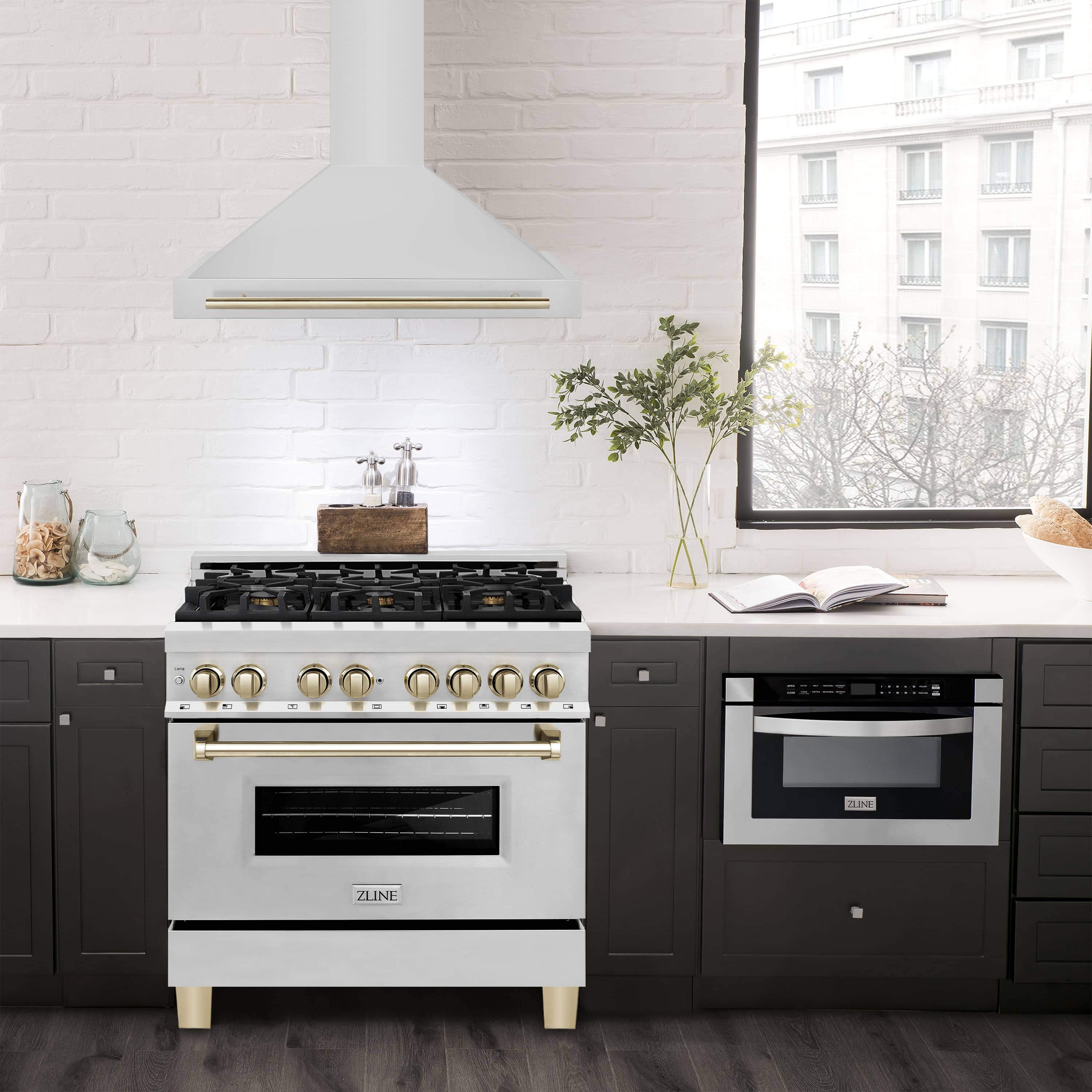

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 36 in. 5.2 cu. ft. Paramount Dual Fuel Range with 6 Burner Gas Cooktop and Electric Convection Oven in Stainless Steel with Polished Gold Accents (SDRZ-36-G) combines combines the versatility of a gas cooktop with 6 Italian-made auto-reignition burners, an electric convection oven with digital thermostat technology, enhanced cast iron grates, a Horizon oven door window design, and elegant polished gold knobs and handle allowing you to master every meal. With a modern, timeless style and refined functionality, ZLINE Paramount Dual Fuel Ranges are masterfully crafted to deliver an elevated culinary experience.

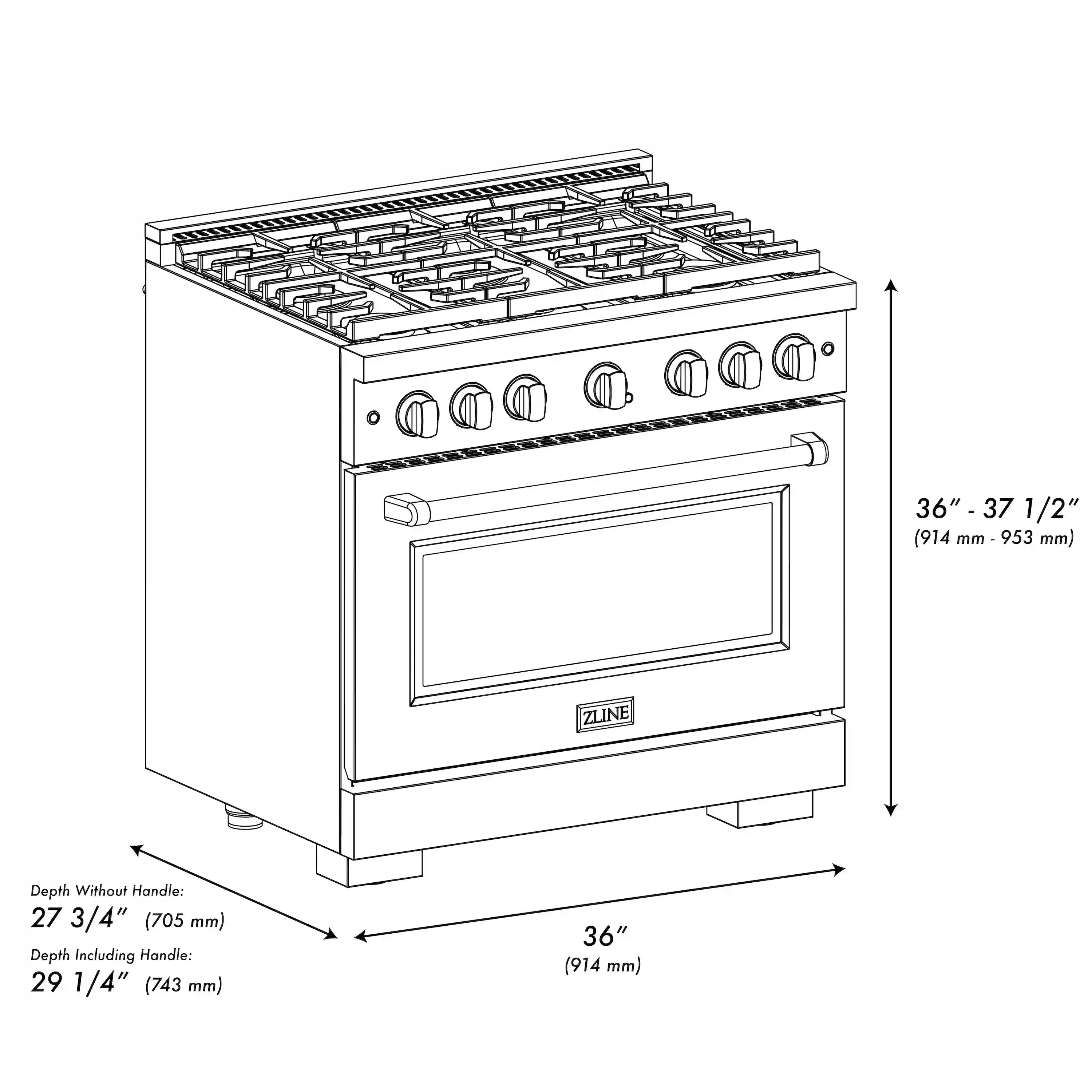

| DIMENSIONS | |
|---|---|
| Dimensions | 36 in. W x 27.75 in. D x 36 in. H |
| Cutout Dimensions | 36.25 in. W x 24.75 in. D x 36 in. H |
| Open Door Depth | 45.1 in. |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Material | Stainless Steel with Polished Gold Accents |
| TECHNICAL DETAILS | |
| Installation Type | Freestanding |
| Electrical Requirement | 240V/60 Hz/25A |

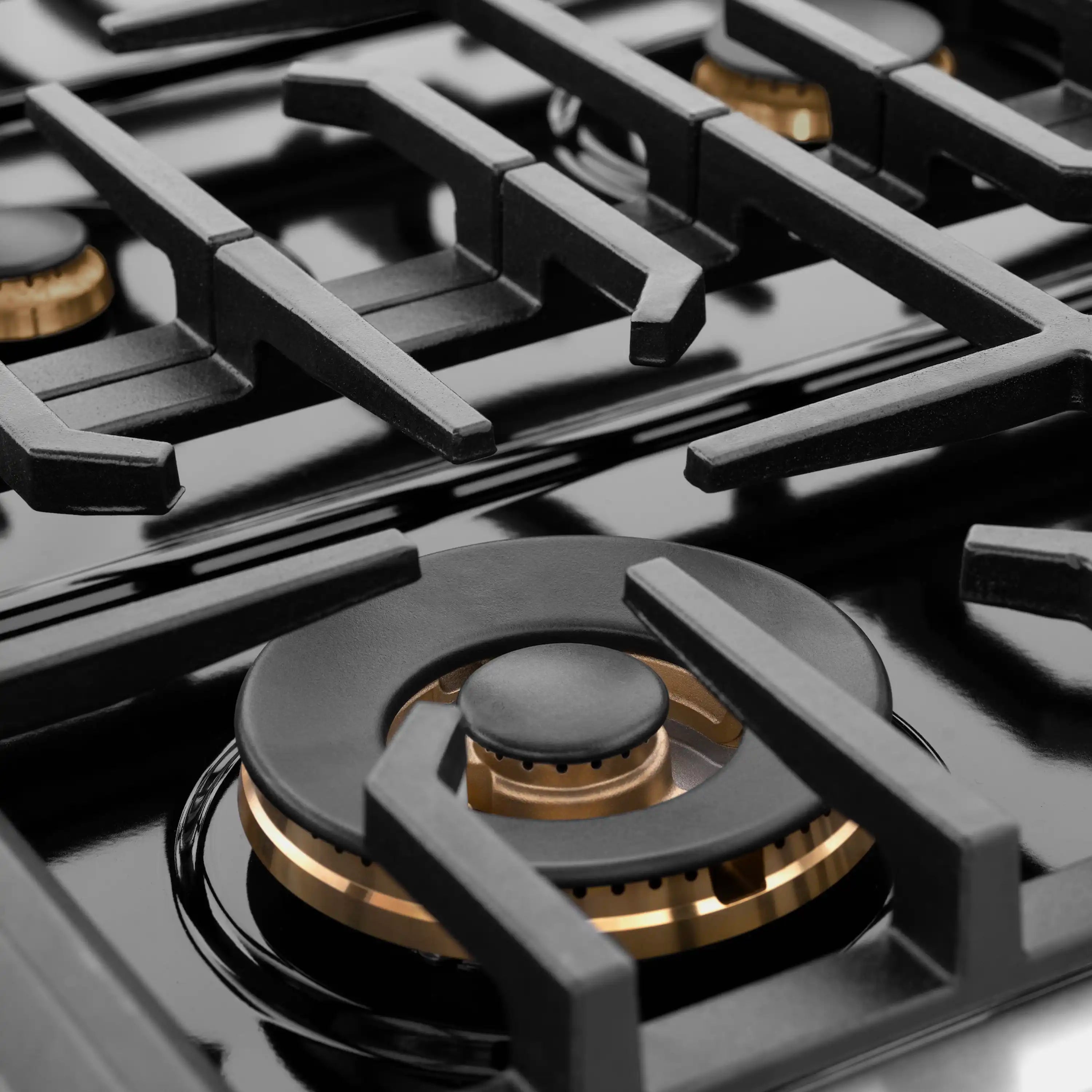

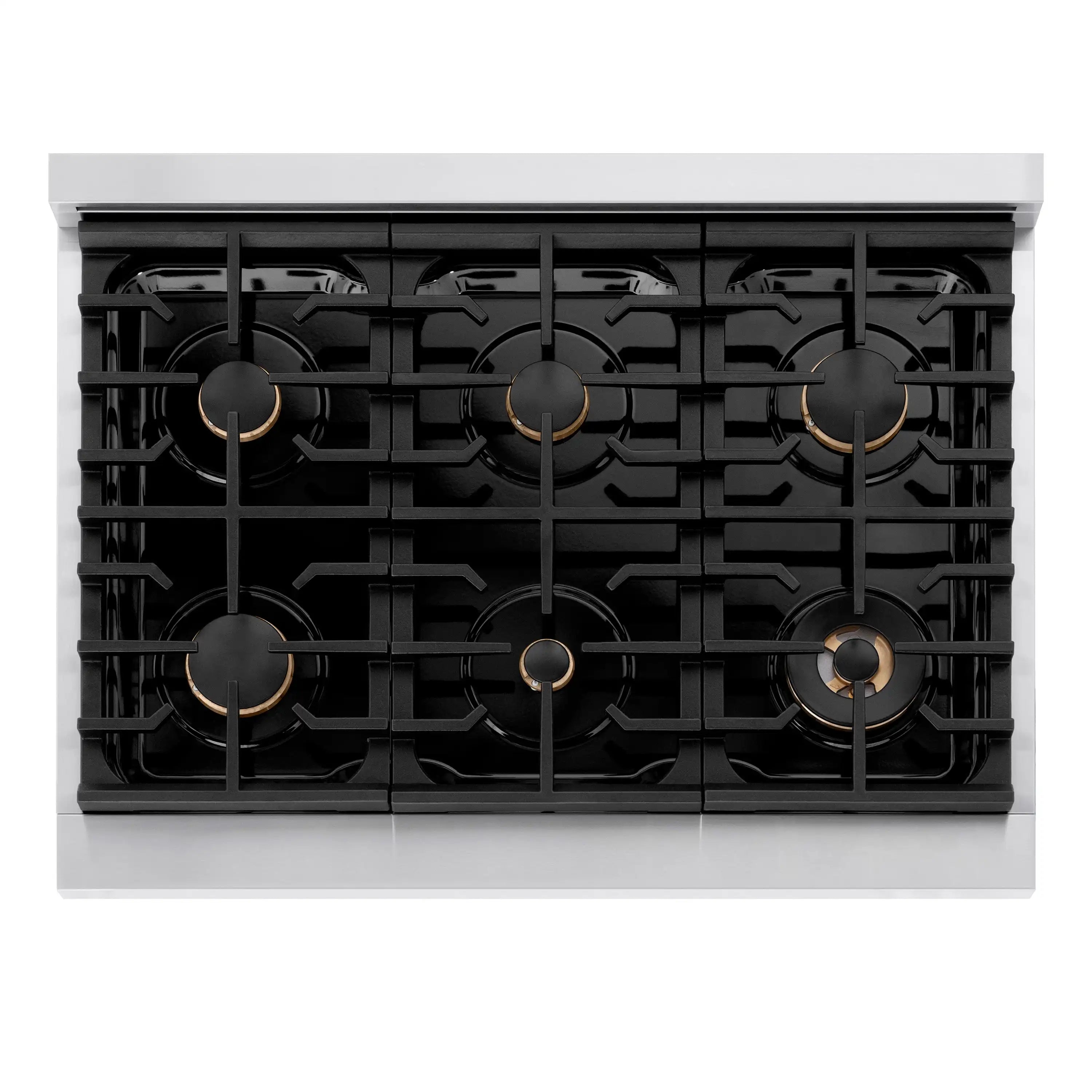

| COOKTOP FEATURES | |
| Burner Fuel | Natural Gas |
| Number of Burners | 6 |
| OVEN FEATURES | |
| Oven Capacity | 5.2 cu. ft. |
| Timer (Y/N) | No |
| Self Cleaning (Y/N) | No |
| Sabbath Mode (Y/N) | No |
| Broil (Y/N) | Yes |
| Oven Fuel | Electric |
| Convection Fan | Yes |
| WARRANTY & CERTIFICATIONS | |
| Outdoor Approved (Y/N) | No |
| Warranty | 1 Year Parts and Service |

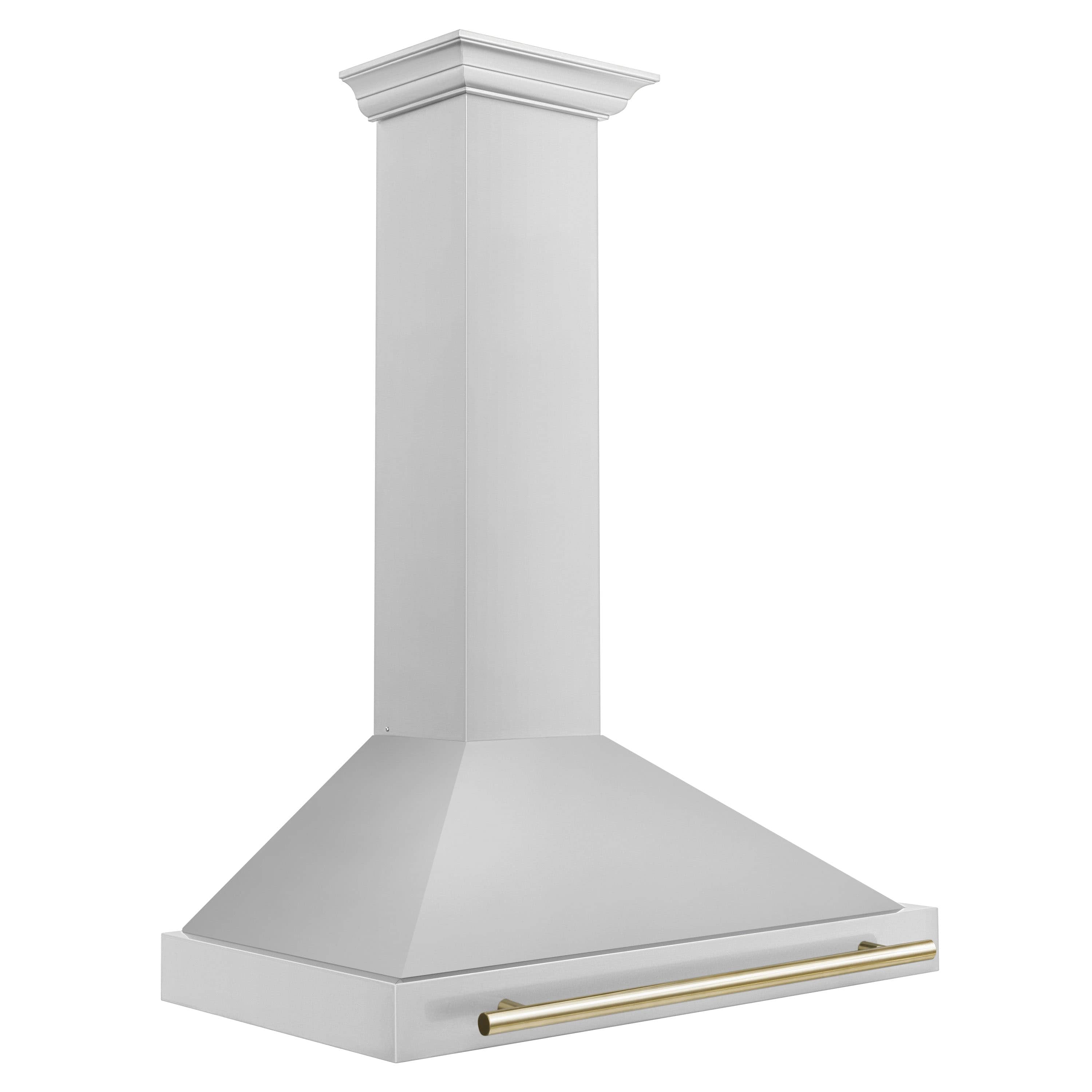

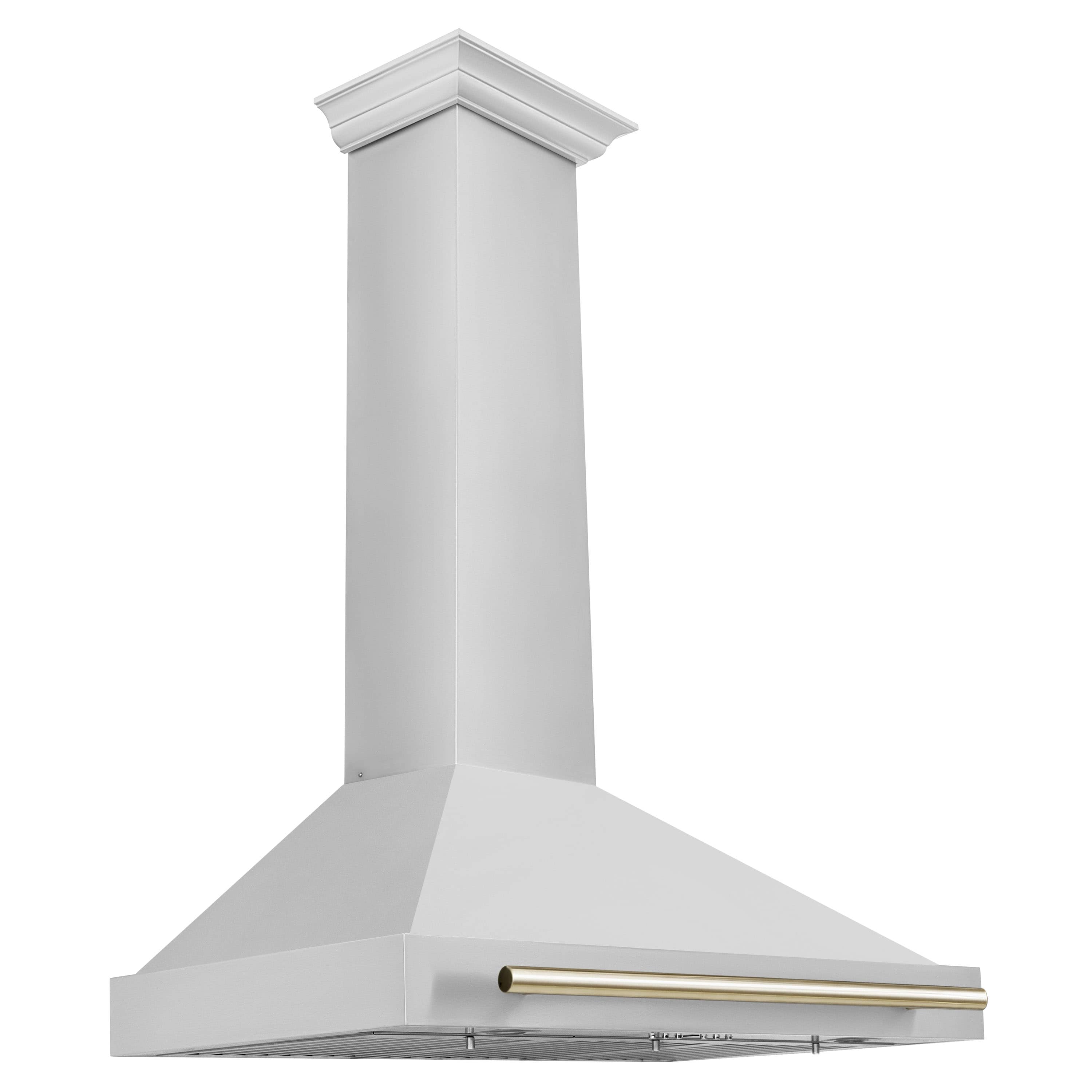

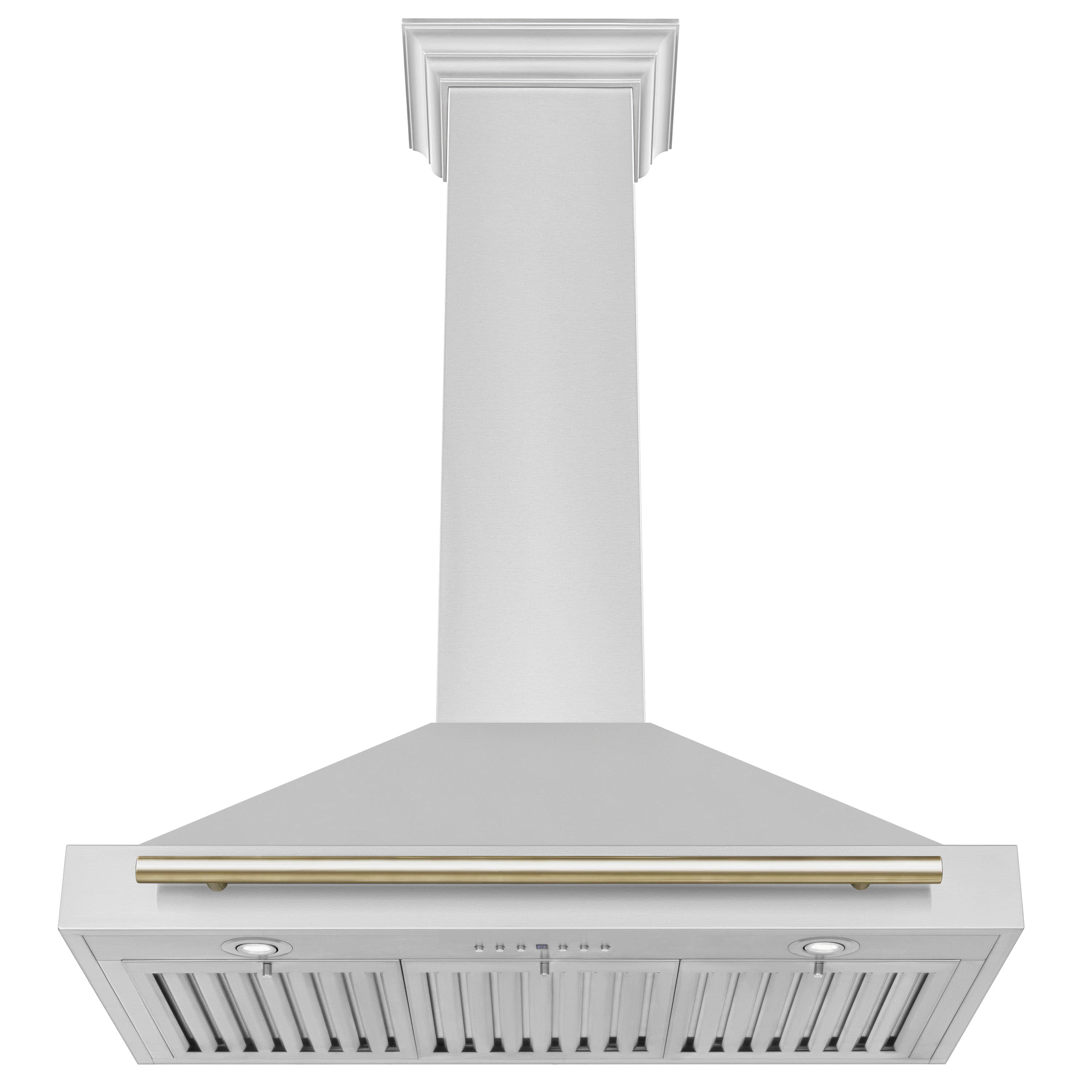

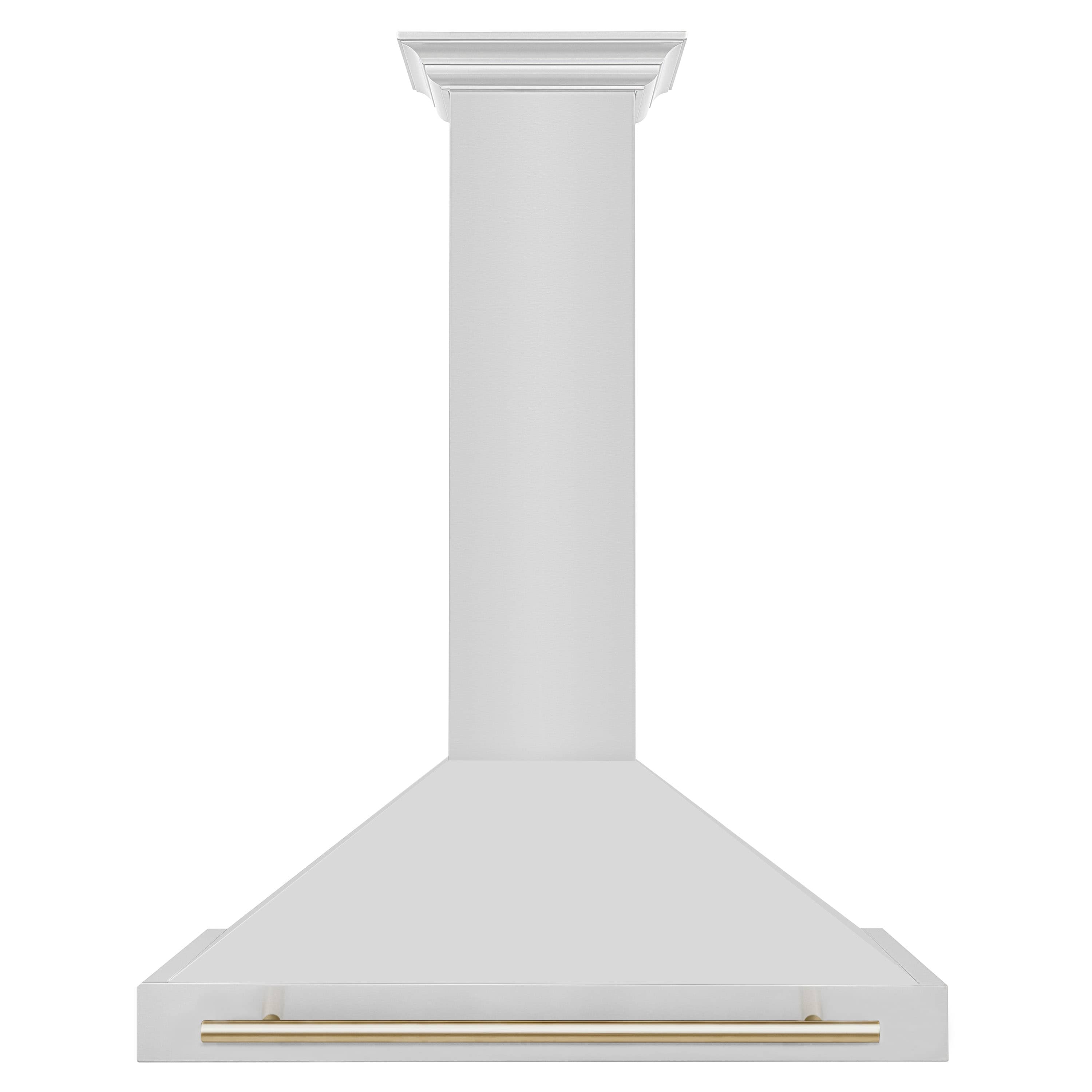

Experience Attainable Luxury with the ZLINE Autograph Edition Wall Mount Range Hood. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience.
Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes. Combining the professional power and functionality of a ZLINE range hood with gold accents, this sophisticated line of professional appliances brings a new meaning of elegance.

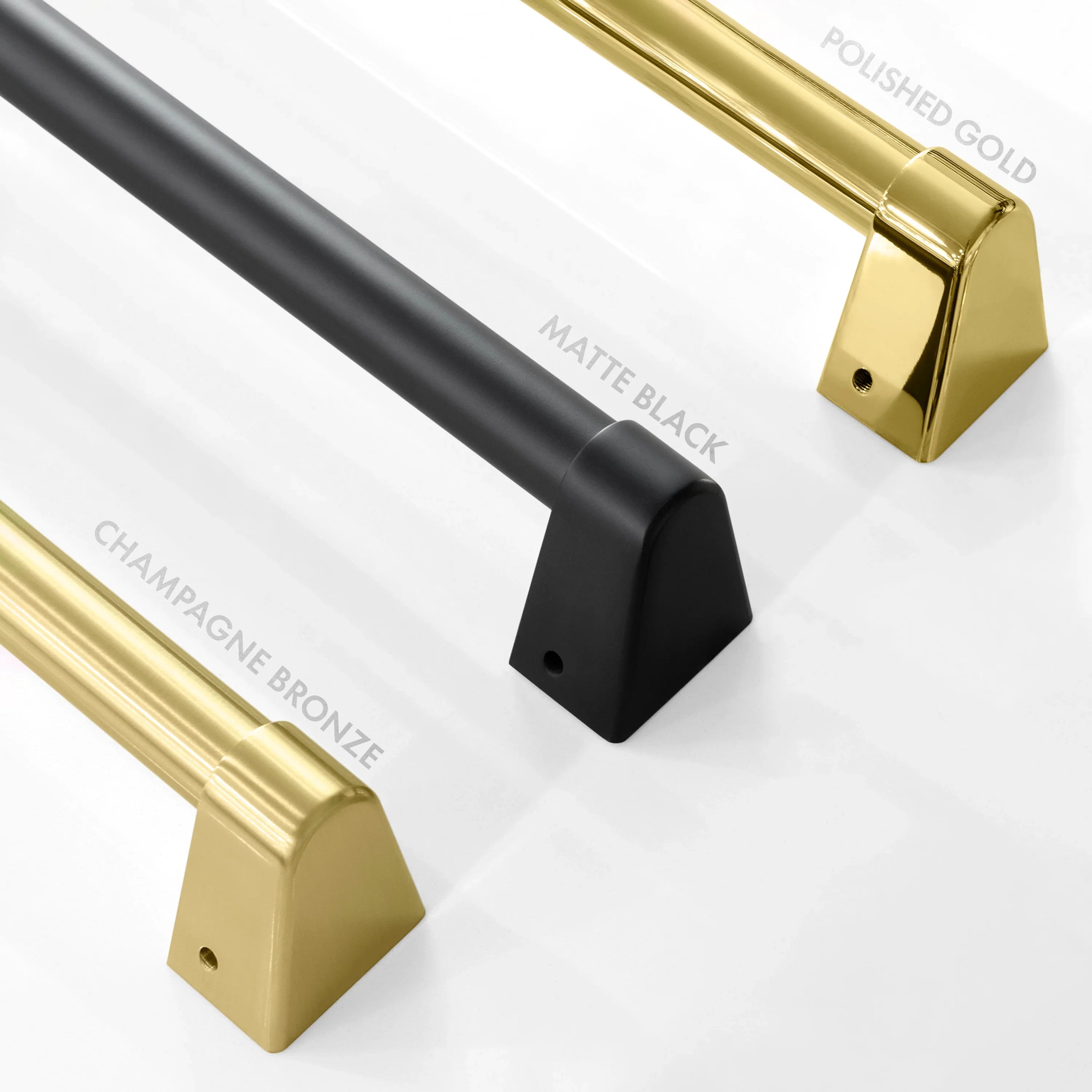

Create an unforgettable kitchen unique to your style with a gold handle. Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze, Matte Black and Gold.
The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes. From our home to yours, enjoy a luxurious experience with every Autograph Edition Range Hood assembled to order in the US.

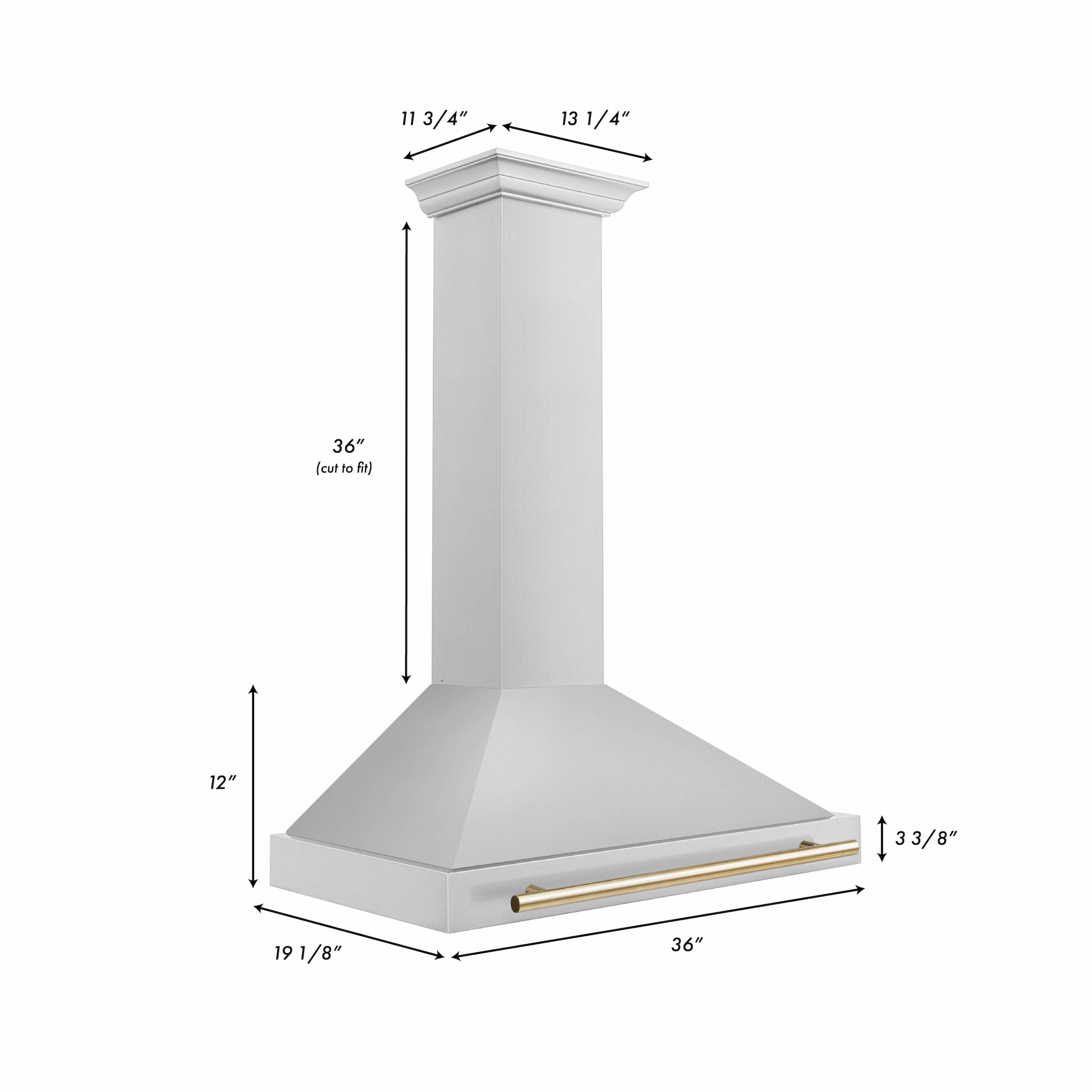

| DIMENSIONS | |
|---|---|
| Dimensions | 36 in. W x 23.75 in. D x 16 in. H |
| Chimney Dimensions | 13.25" W x 11.75" D x 35.5" H |
| Min. Ceiling Height | 7.7 ft. |
| Max Ceiling Height | 9.5 ft. |
| Handle Dimensions | 28.9" W x 0.8" D x 2.4" H |
| Weight | 80 |
| GENERAL INFORMATION | |
| Outdoor Use | Yes |
| DESIGN & FINISH | |
| Button Panel | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Range Hood Material | Stainless Steel |
| Handle Finish | Gold |
| TECHNICAL DETAILS | |
| Ducting Size | 6" |
| Watts | 550 |
| Voltage | 110 |
| Amps | 5 |
| Motor | High Performance 400 CFM/4-Speed Motor |
| # of Speeds | 120/240/320/400 |
| Max CFM | 400 |
| Decibels | 30/41/49/52 |
| Sones | 0.6/1.1/1.5/2.5 |
| Remote Blower | No |
| Recirculating / Ductless | No |
| FEATURES | |
| # of lights | 2 |
| Filters | Stainless Steel Baffle Filters (Dishwasher-safe) |

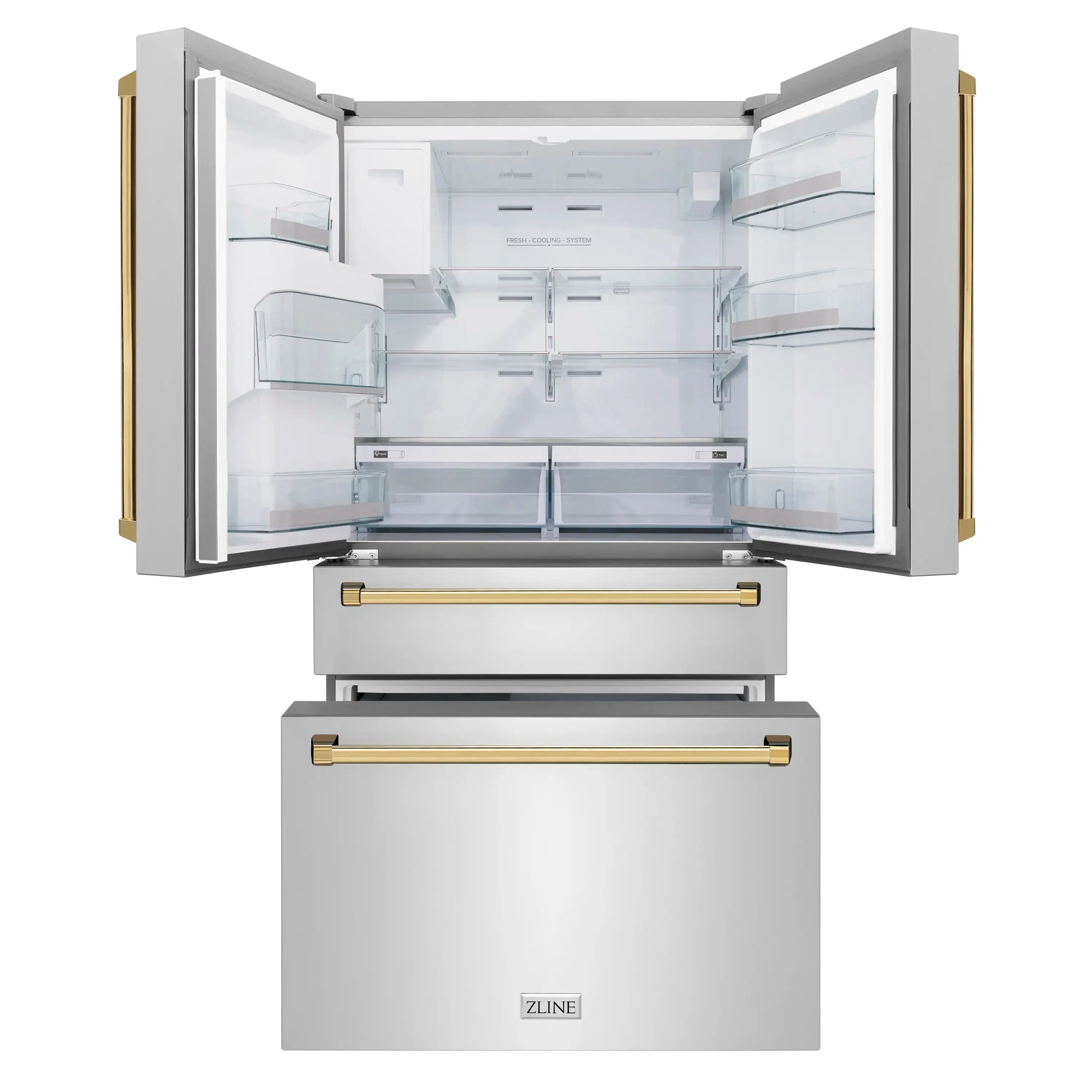

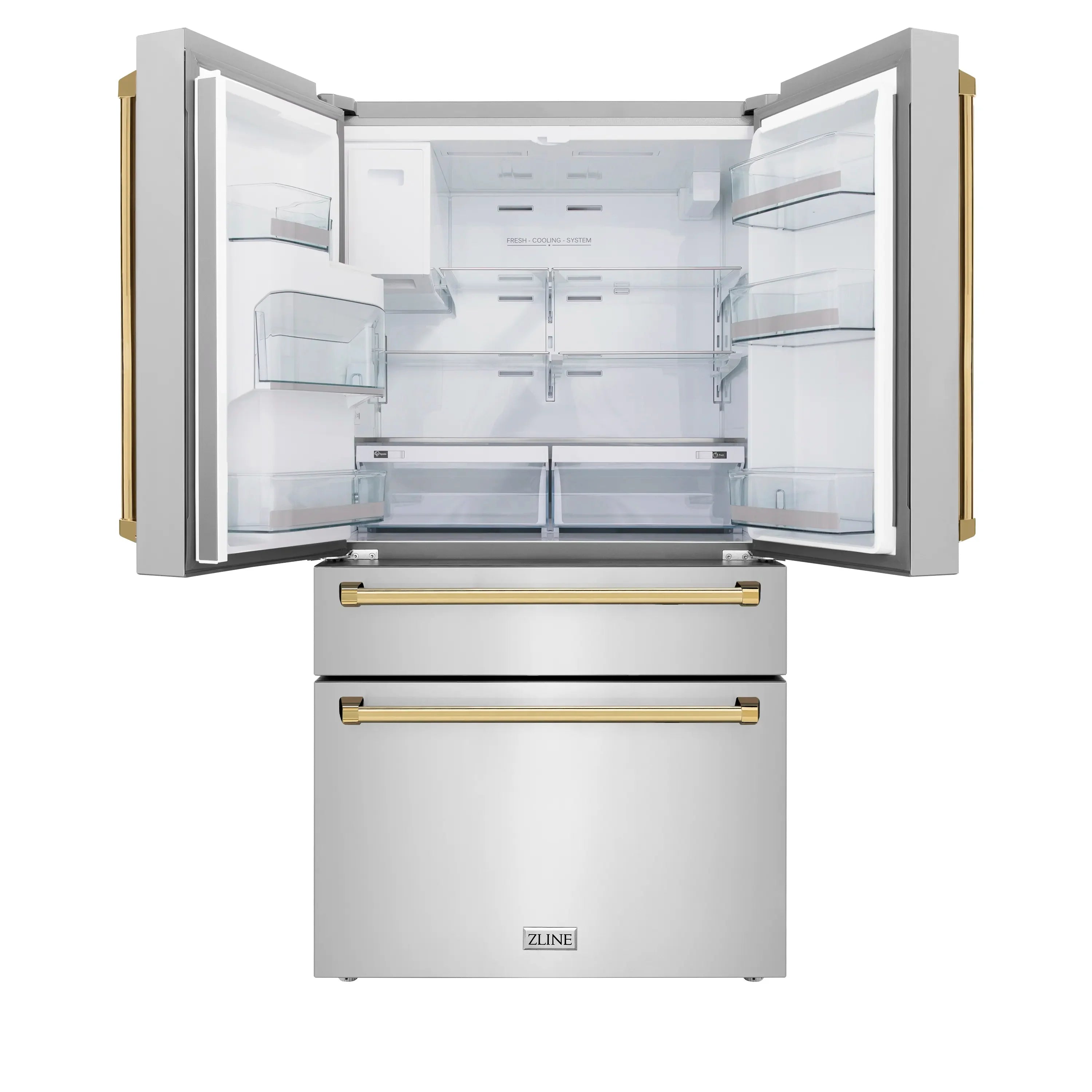

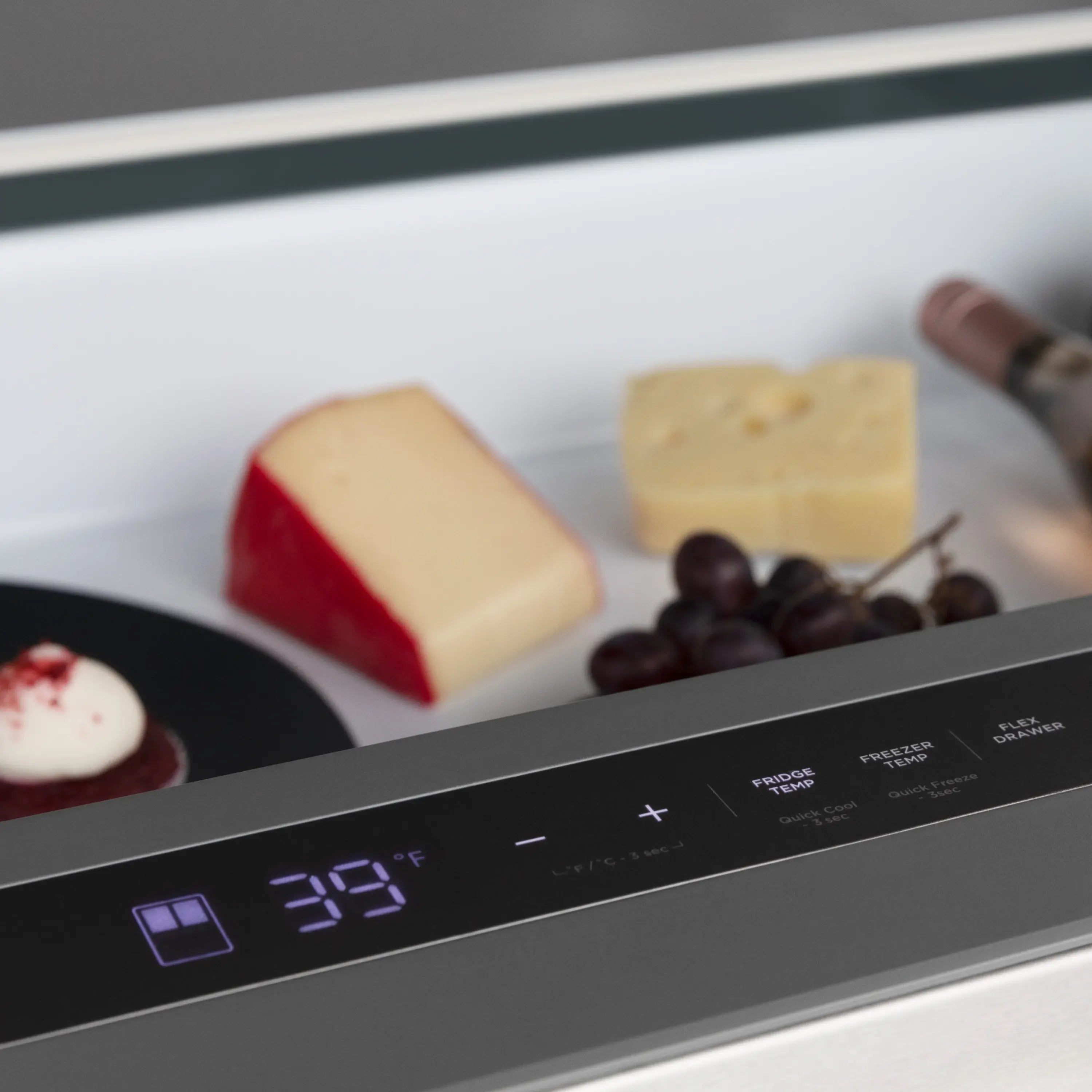

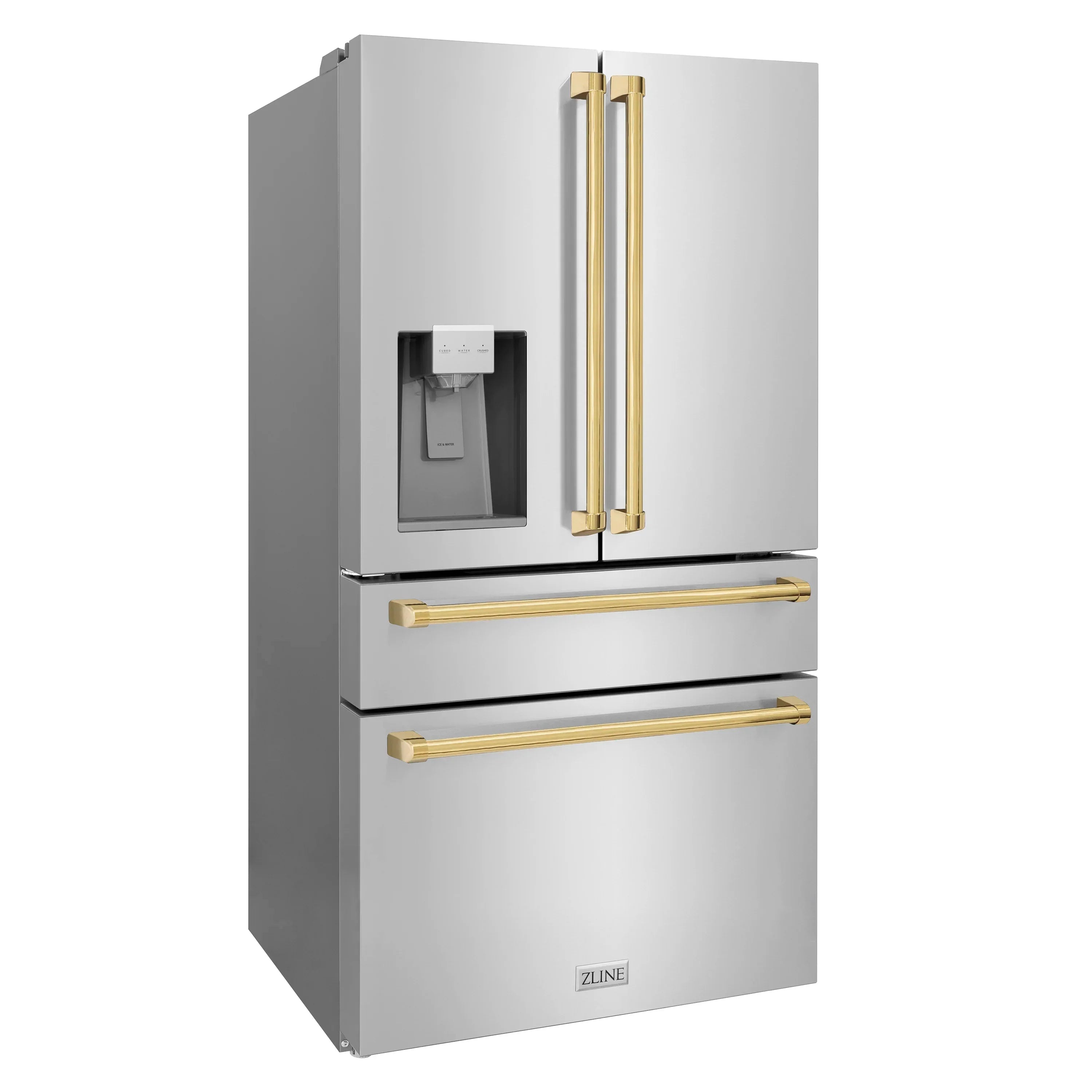

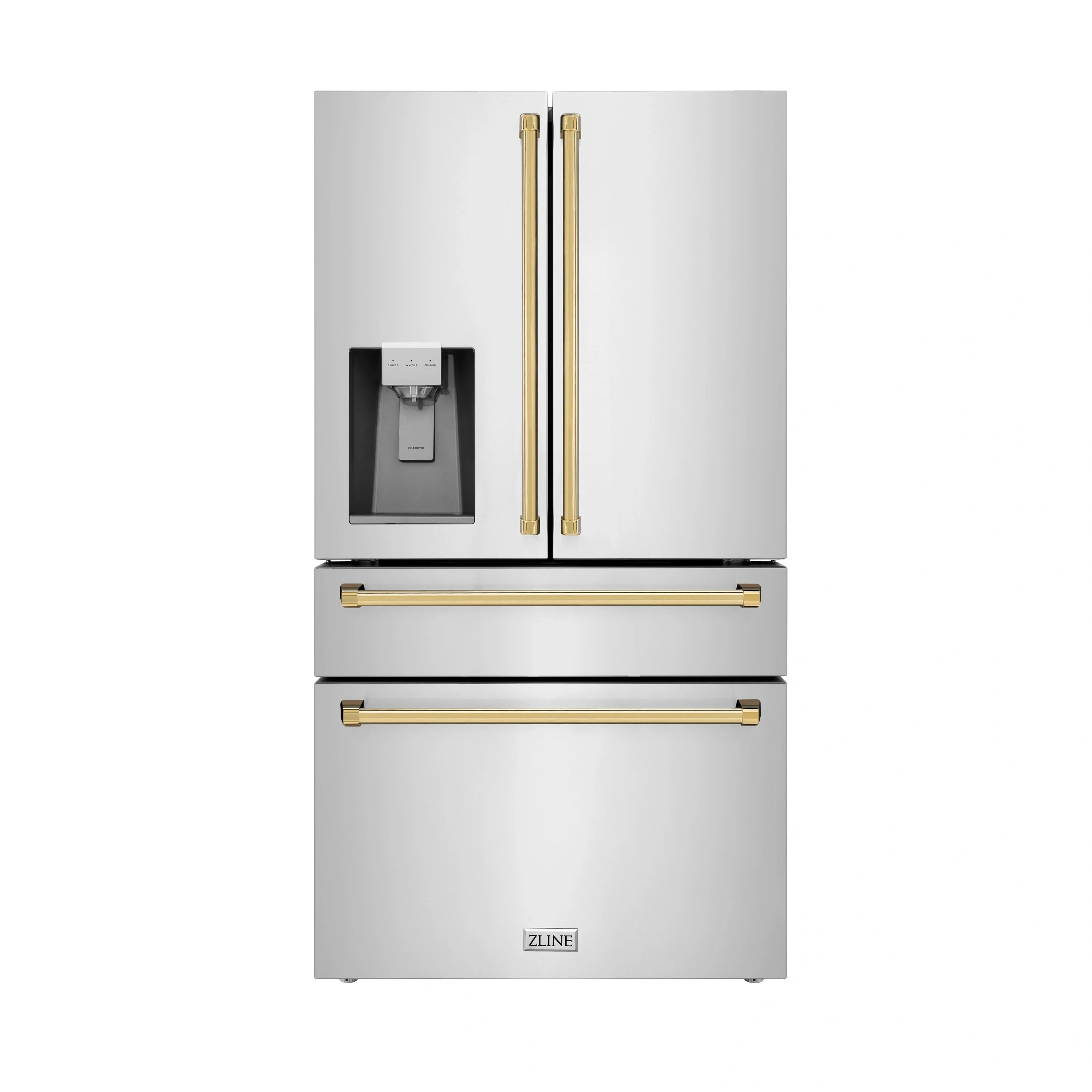

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 36 in. 21.6 cu. ft. Counter-Depth French Door Refrigerator with Water and Ice Dispenser in Fingerprint-Resistant Stainless Steel with Polished Gold Traditional Handles (RFMZ-W-36-G) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and an external water dispenser and ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.

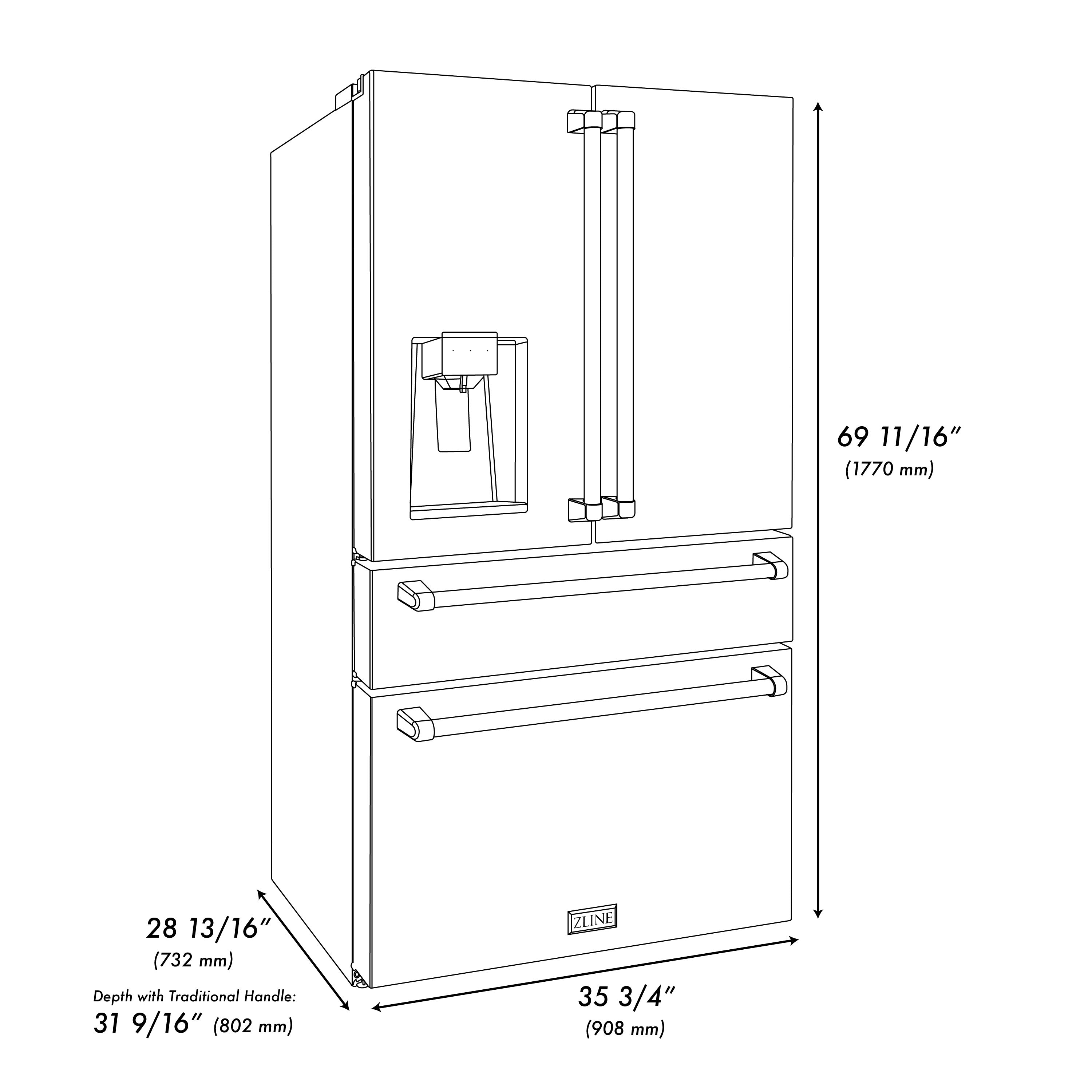

| DIMENSIONS | |
|---|---|
| Dimensions | 35.75 in. W x 28.81 in. D x 69.69 in. H |
| Total Capacity | 21.6 cu. ft |
| Installation Depth | 29 in. D |
| Depth with Door Open | 43 in. |
| Weight | 284.4 lbs |
| GENERAL INFORMATION | |
| Mount Type | Freestanding |
| DESIGN & FINISH | |
| Material | Stainless Steel with Gold Accents |
| TECHNICAL DETAILS | |

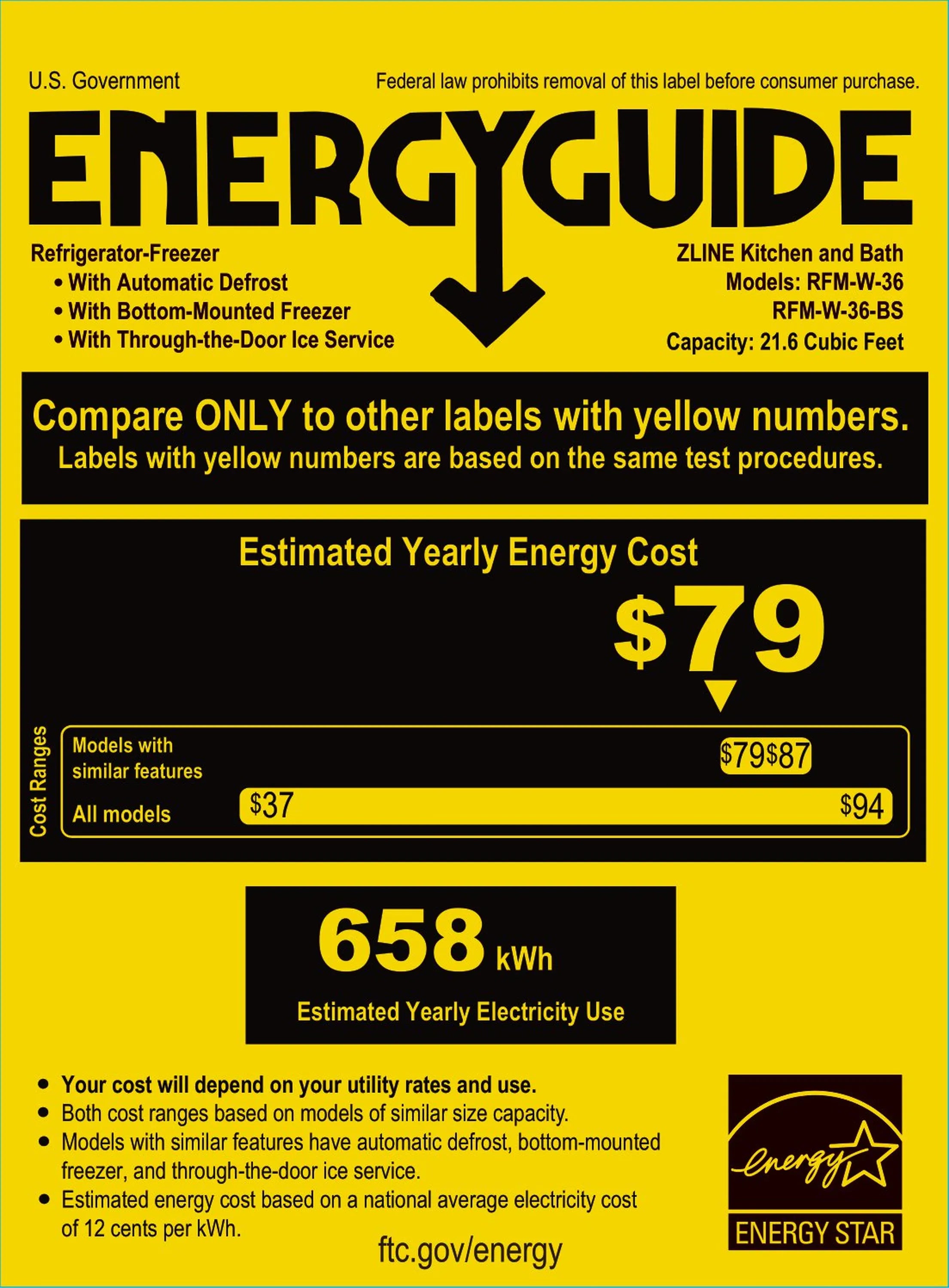

| Energy Consumption (kWh/year) | 658 |
| Voltage | 120V/60Hz |
| Amps | 3 |
| Noise Level | 43 Decibels |

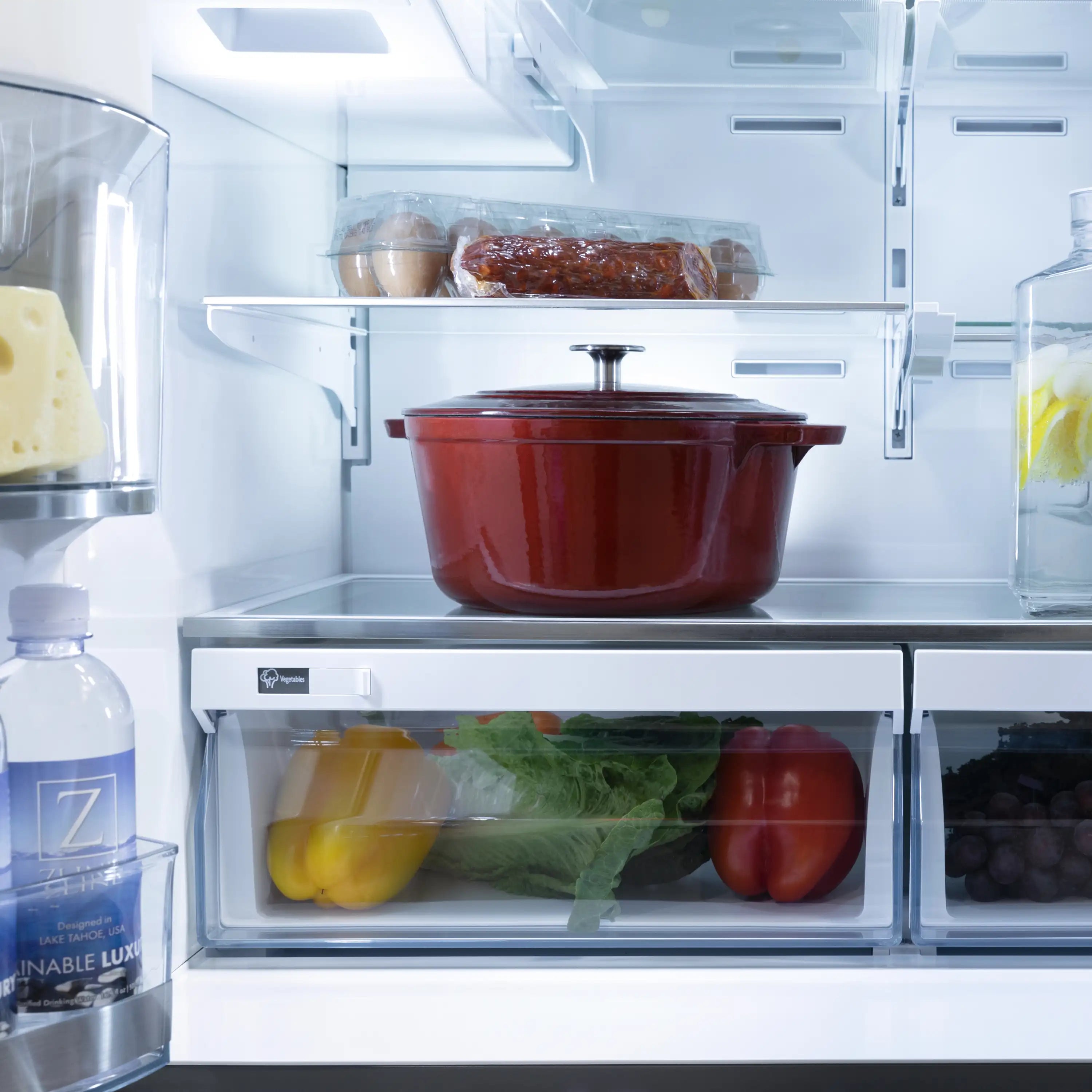

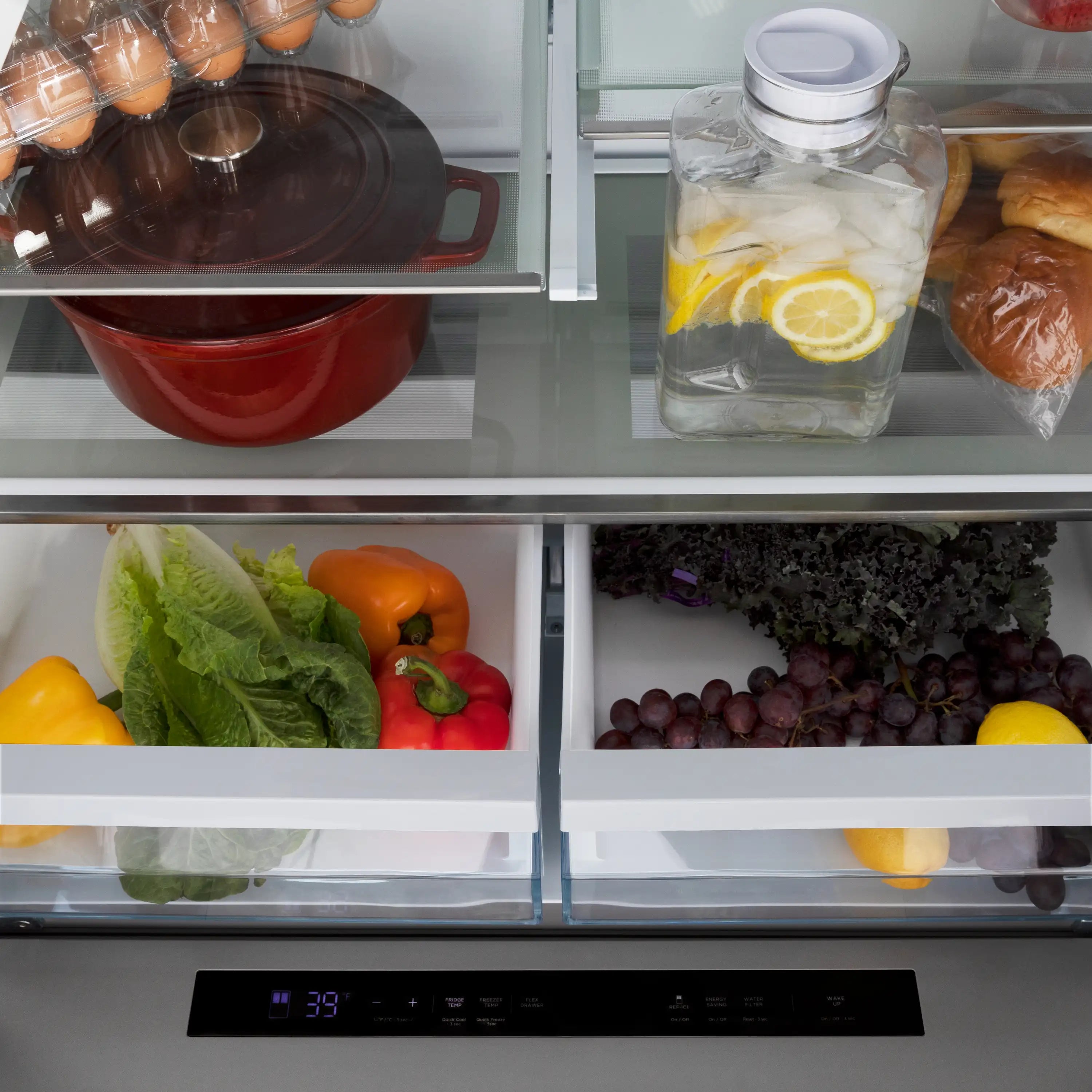

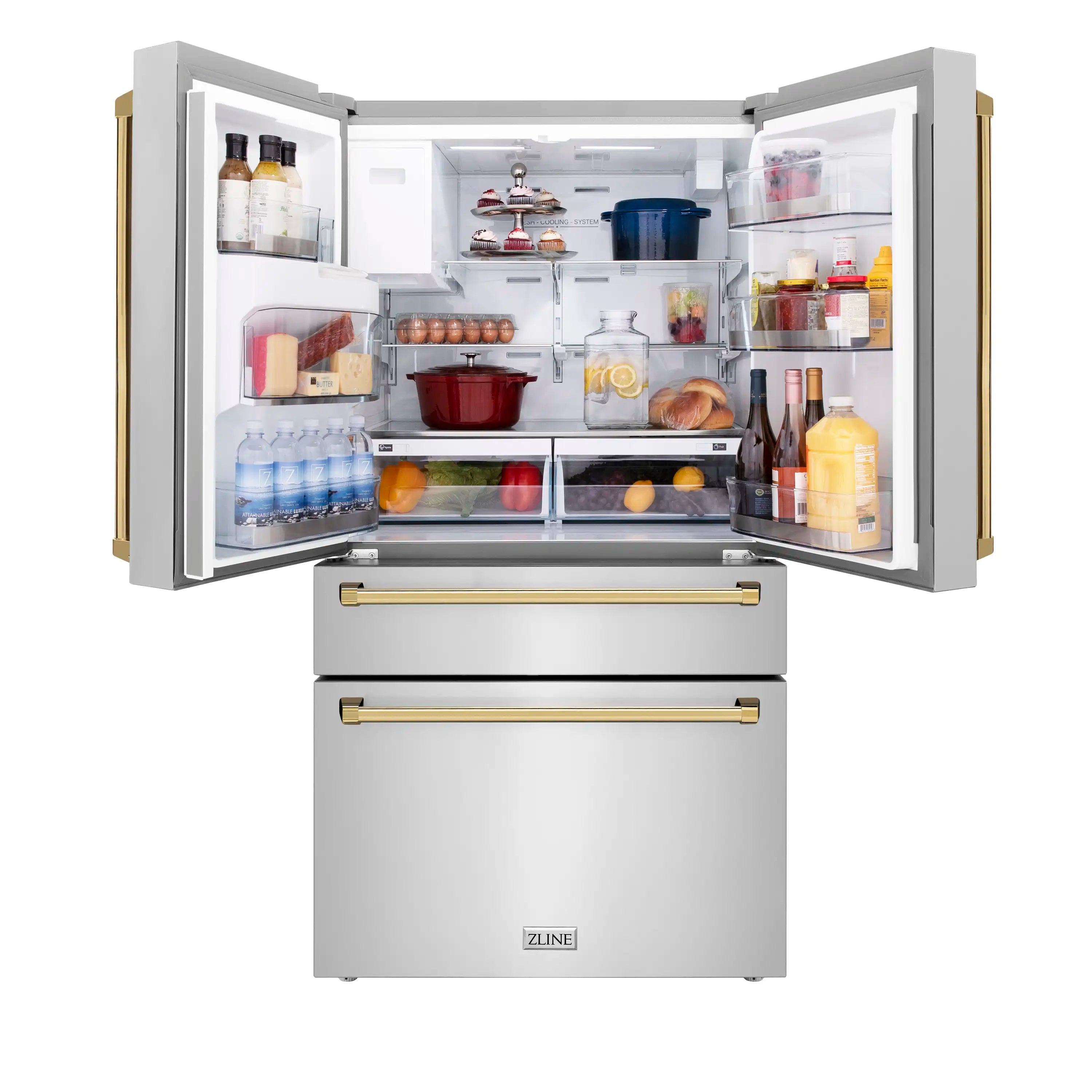

| REFRIGERATOR FEATURES | |
| Fridge Capacity | 15 cu. ft |
| Flex Drawer Capacity | 2.6 |
| Flex Drawer Temp Controls | Meat (30 degrees), Beverage (34 degrees), Deli (37 degrees), and Wine (41 degrees) |
| Ice Maker | Yes |
| Ice Maker Types | Single Ice Maker |
| Ice Amount Per Day | 4.85 lbs |
| Ice Tray Storage | N/A |

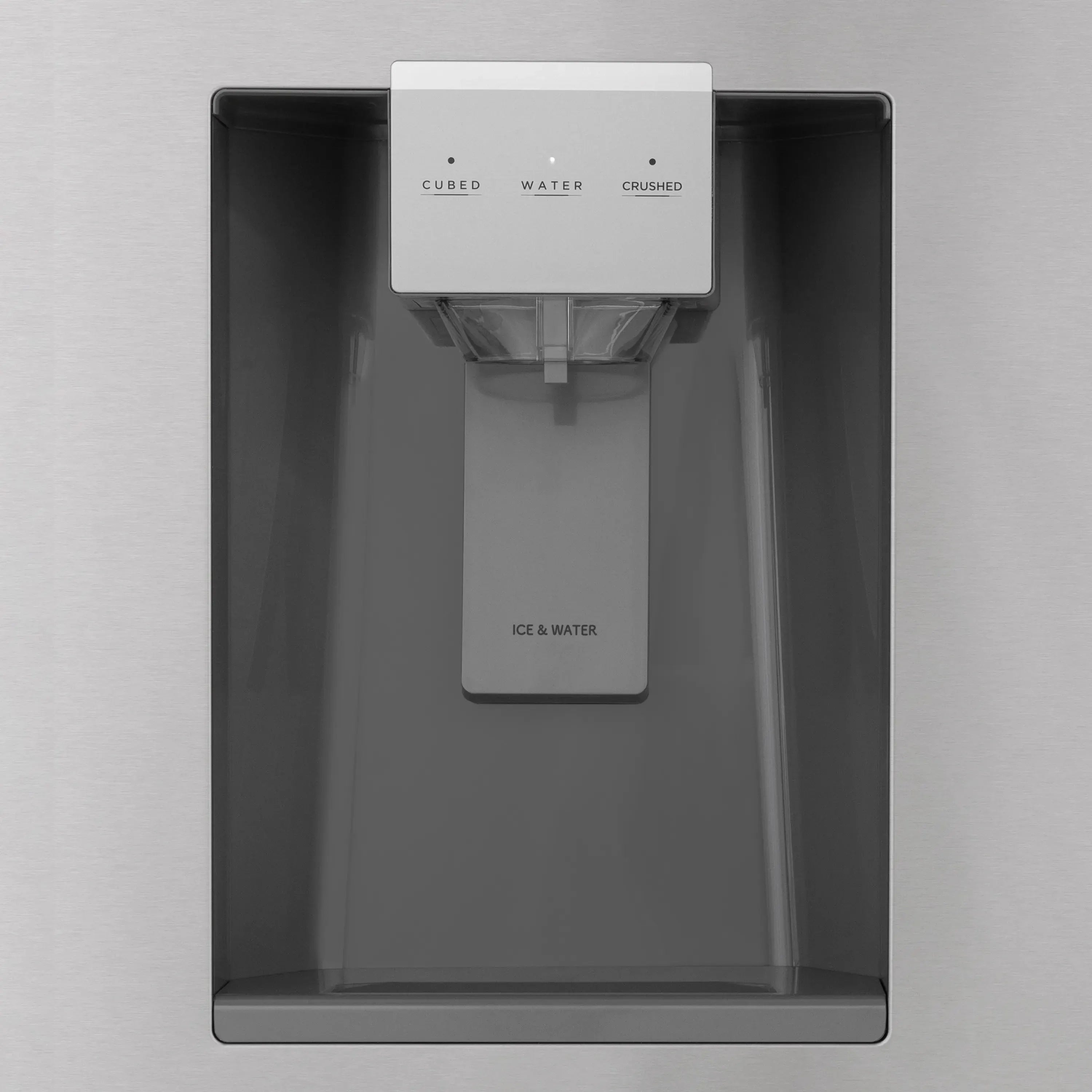

| Water Dispenser | Yes |
| Flowrate for Water Dispenser | .5 GPM |
| Fridge Lights | 4 |
| Humidity-Controlled Crispers | 2 |
| Door Shelves | 4 |
| Number of Fridge Shelves | 4 |
| FREEZER FEATURES | |
| Freezer Capacity | 6.6 cu. ft |
| Freezer Drawer Bins | 2- Pull Out Drawers |
| WARRANTY & CERTIFICATIONS | |
| Energy Star | Yes |
| Certifications | ETL Listed, ENERGY STAR certified |
| Warranty | 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System |

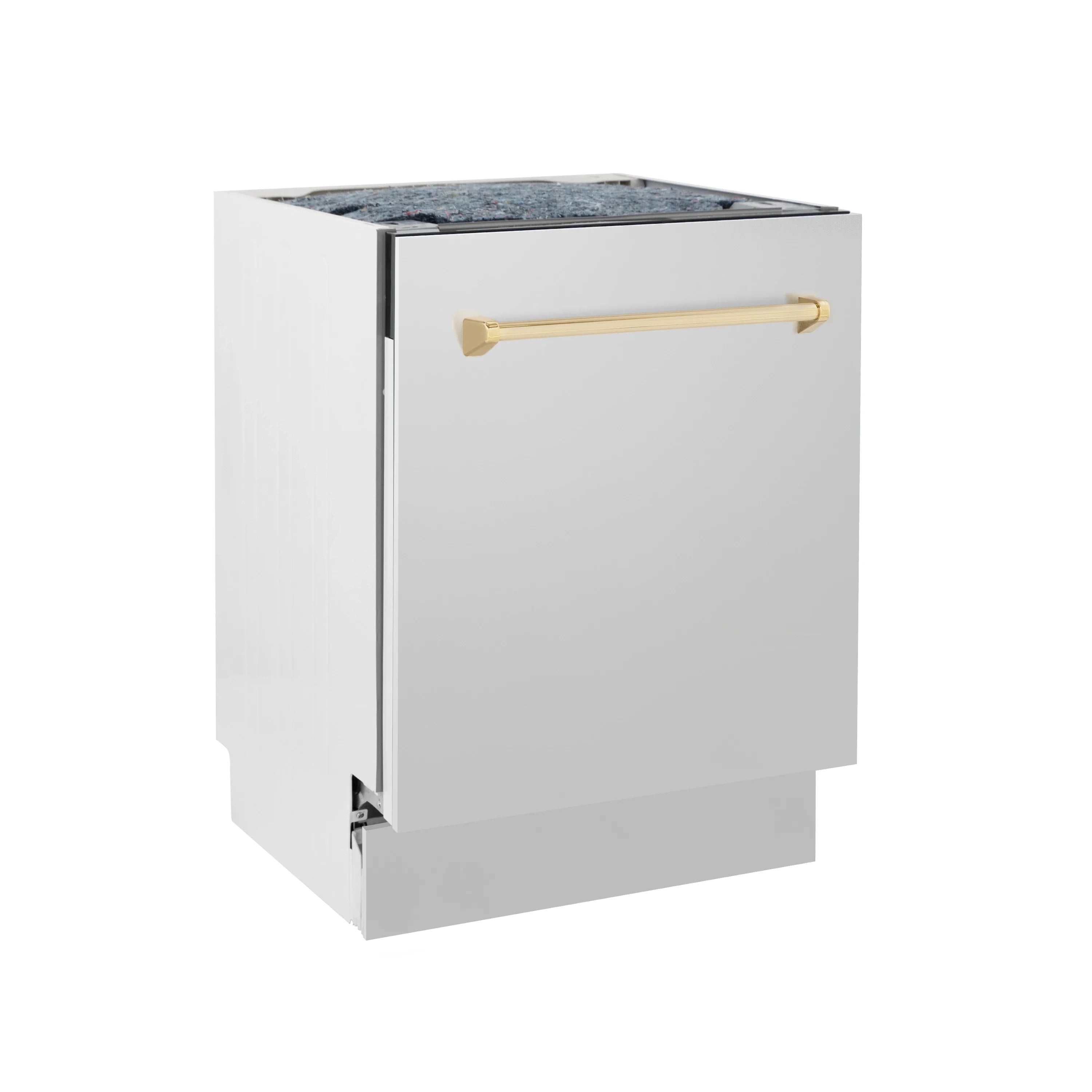

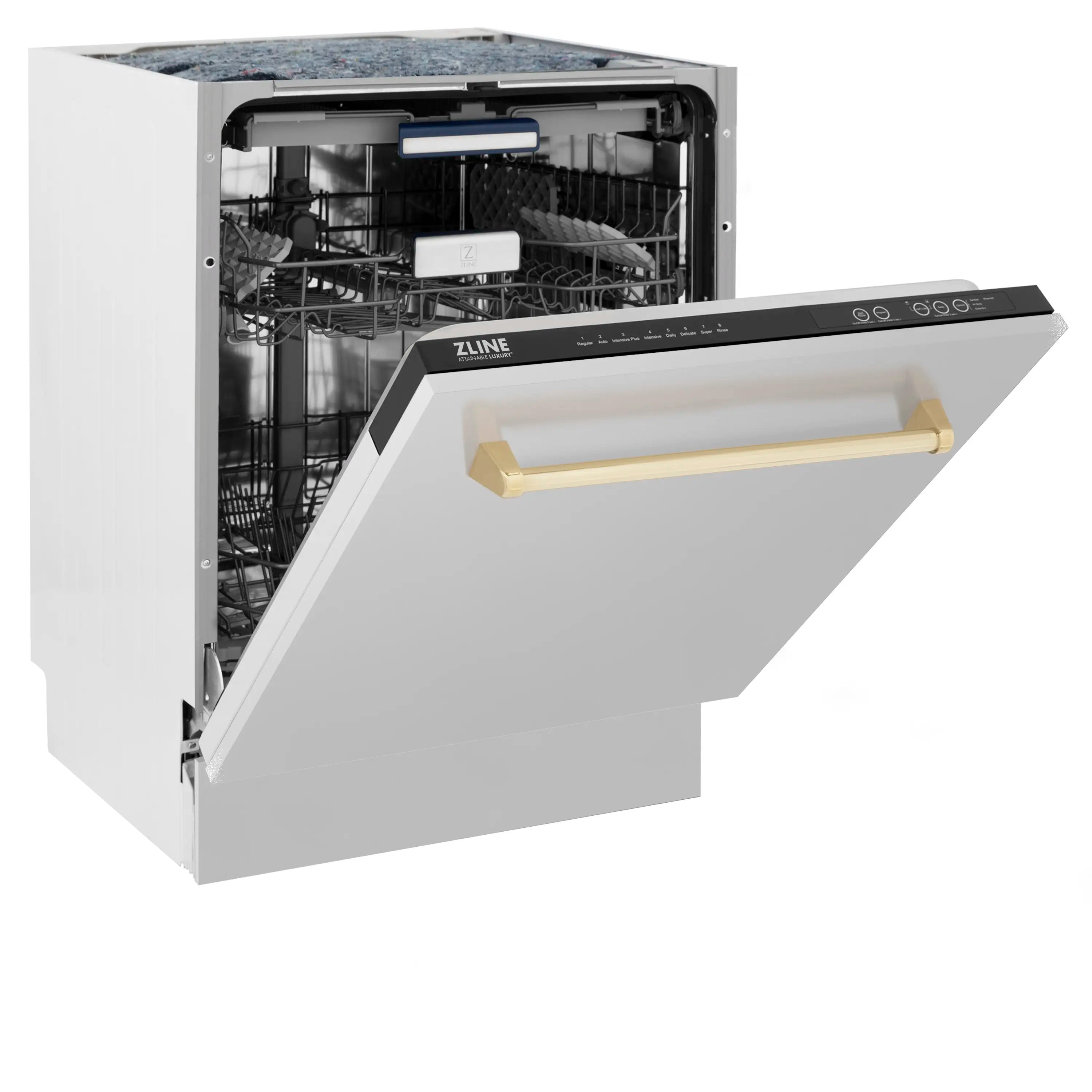

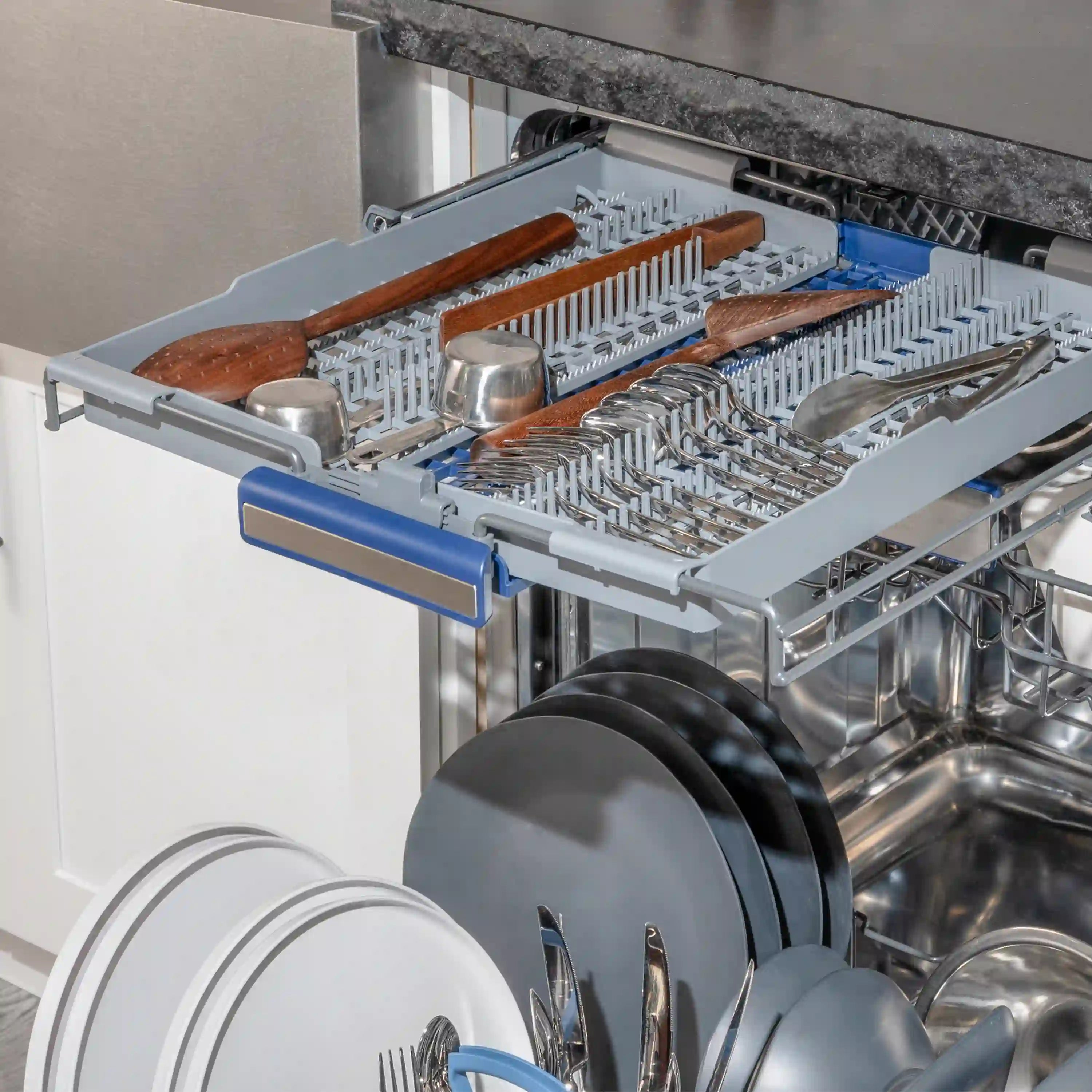

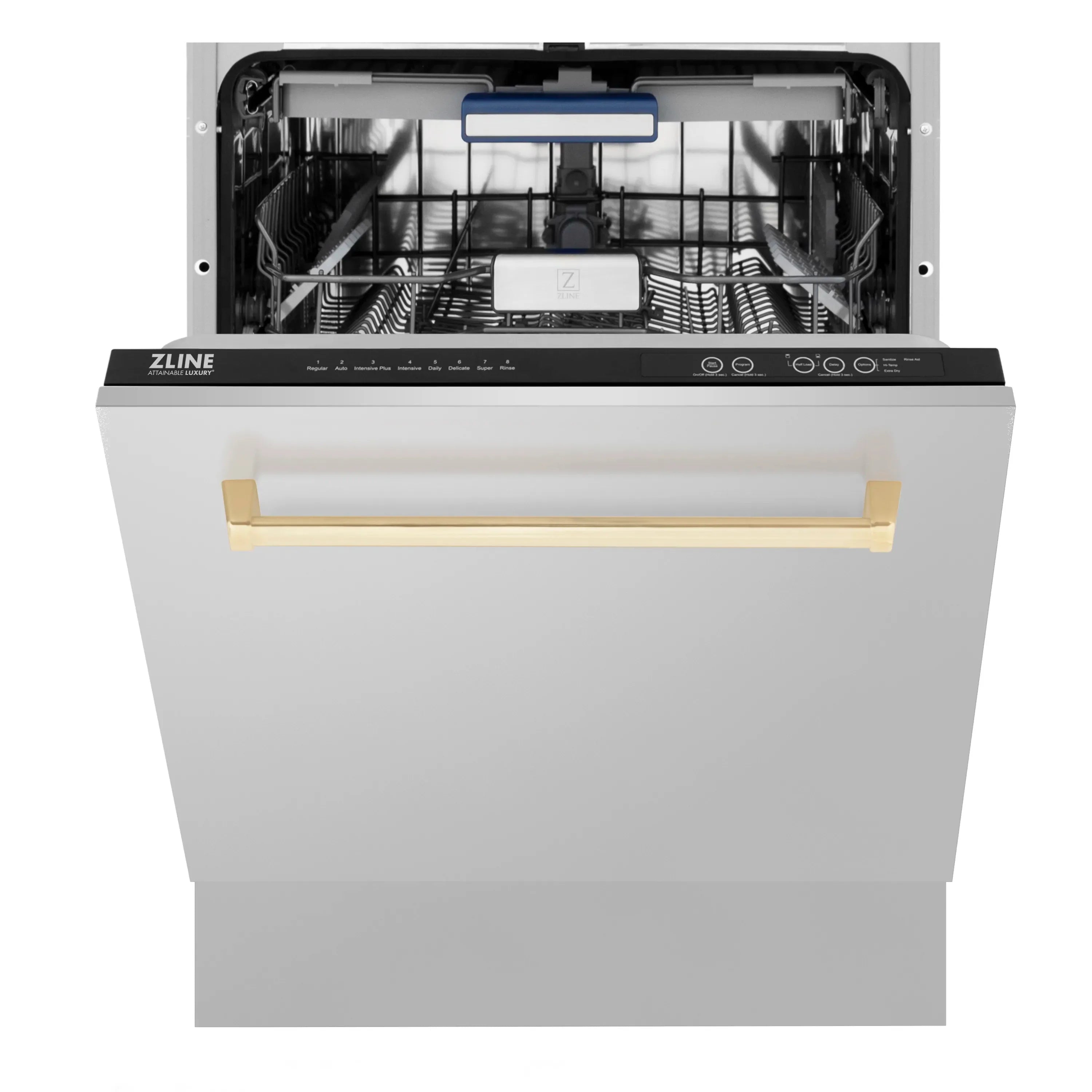

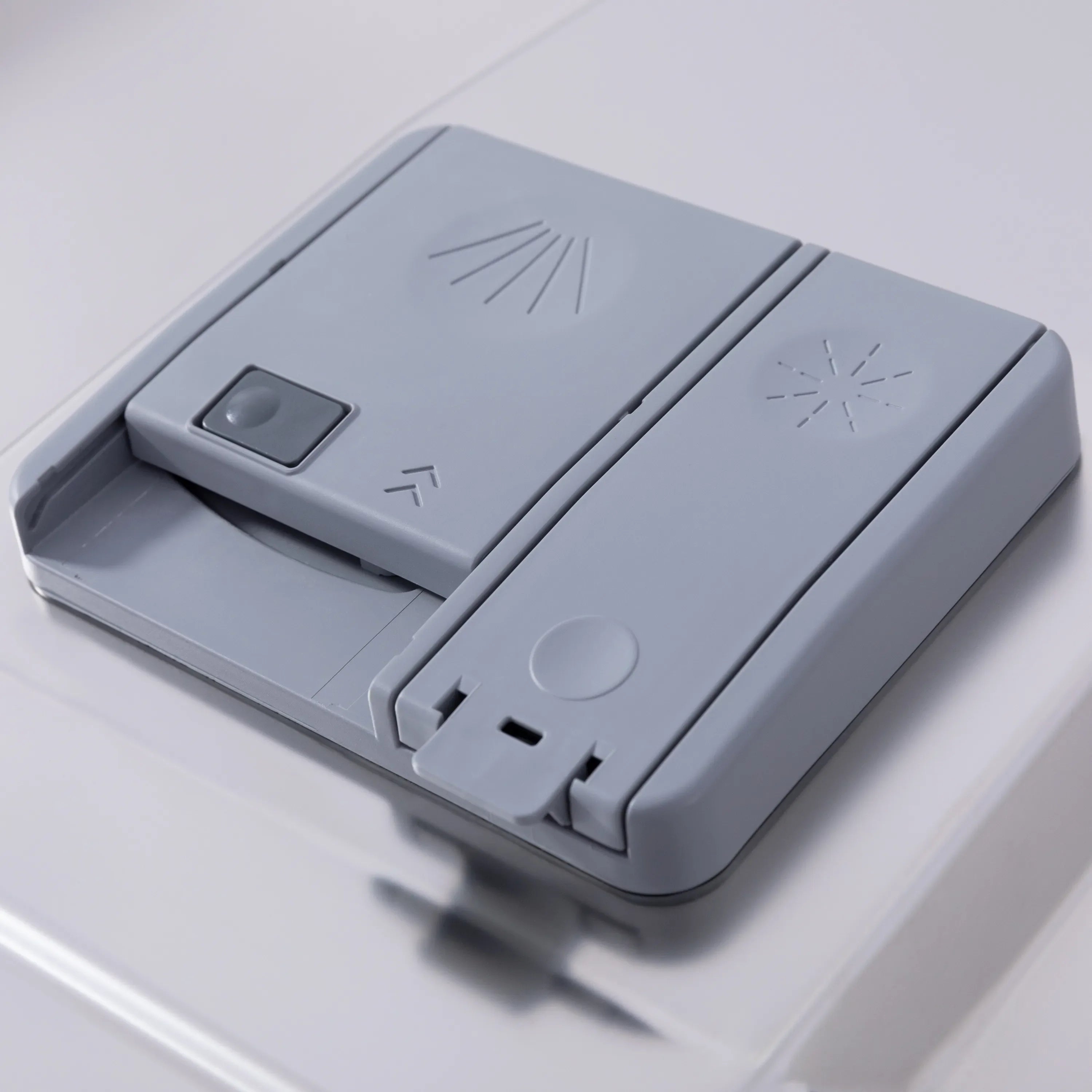

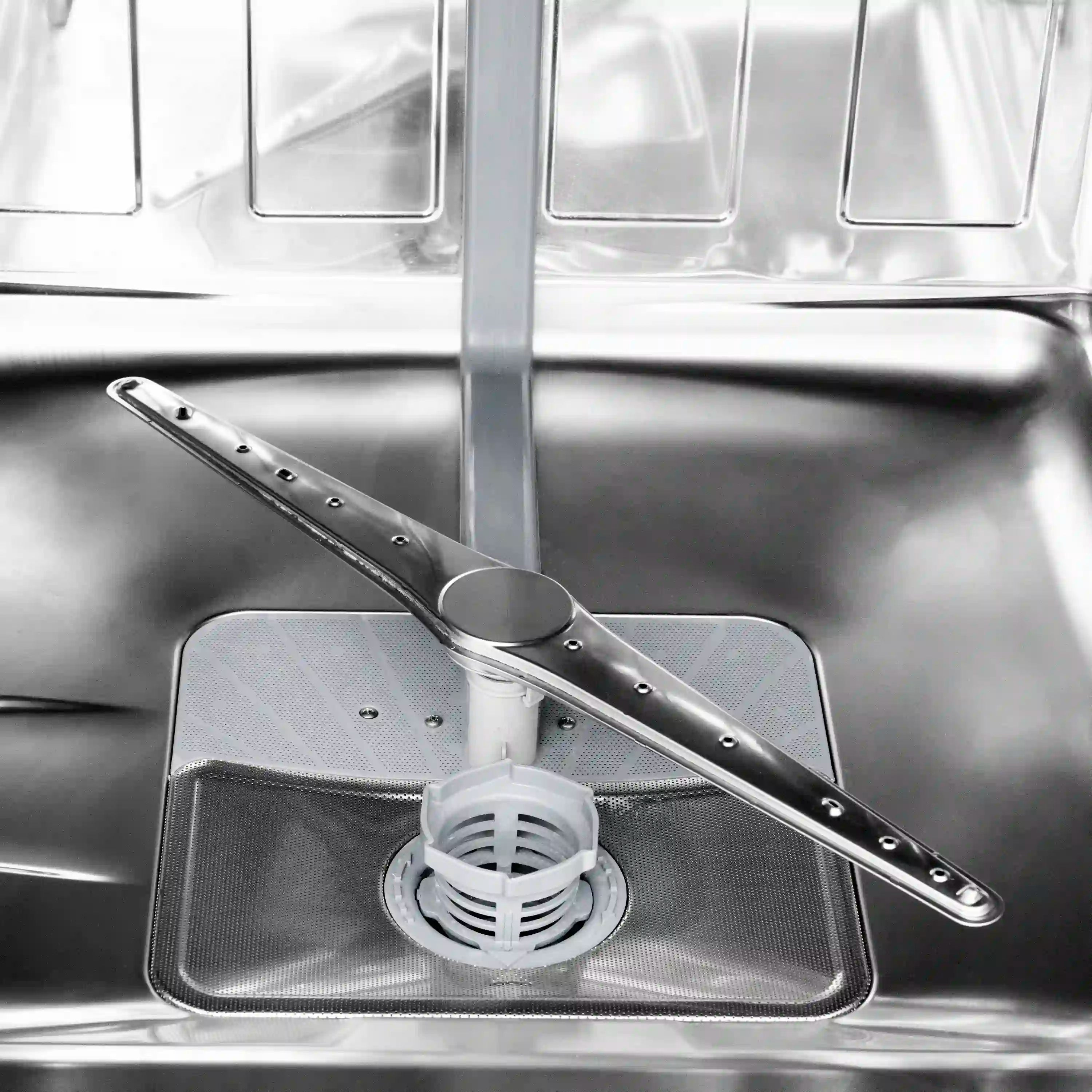

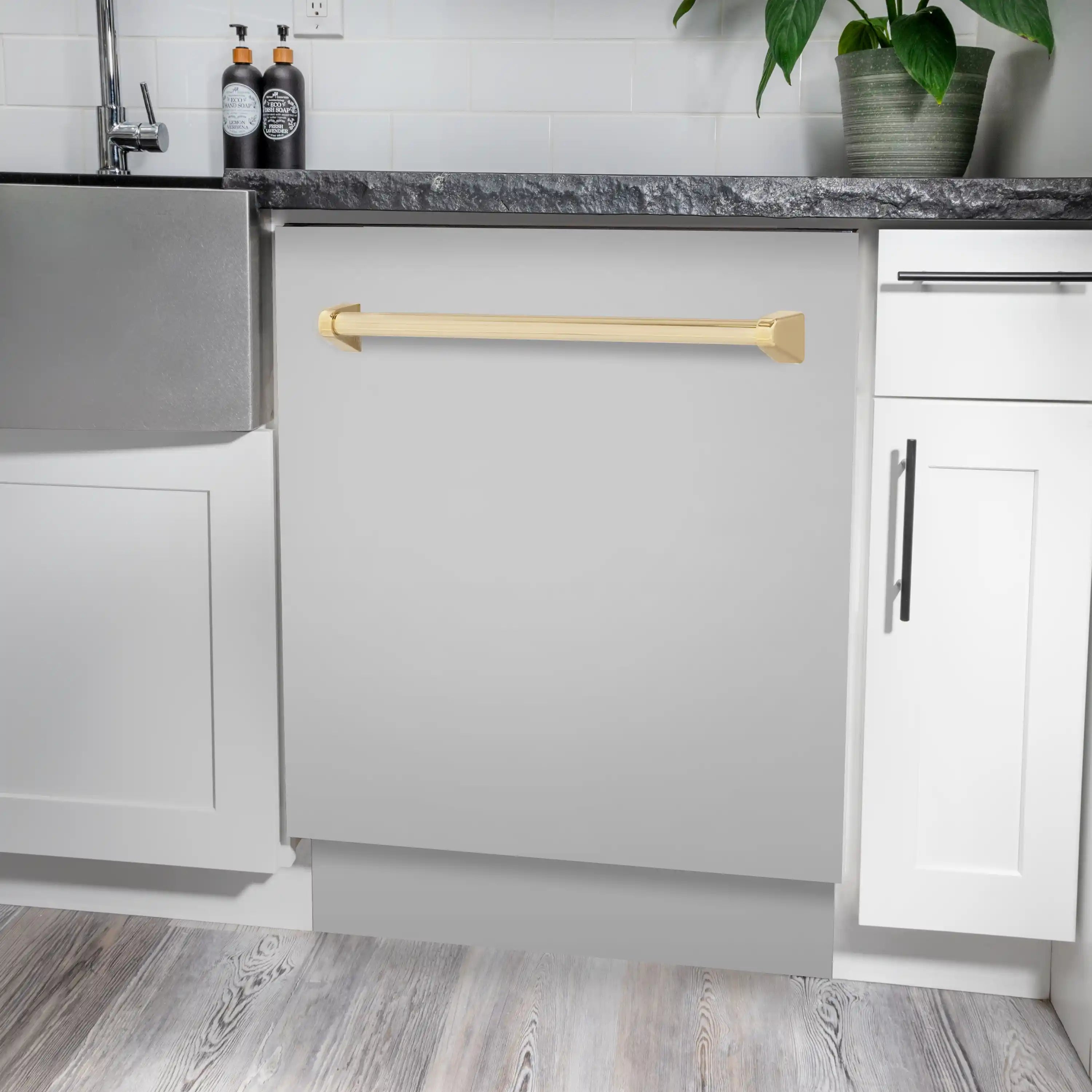

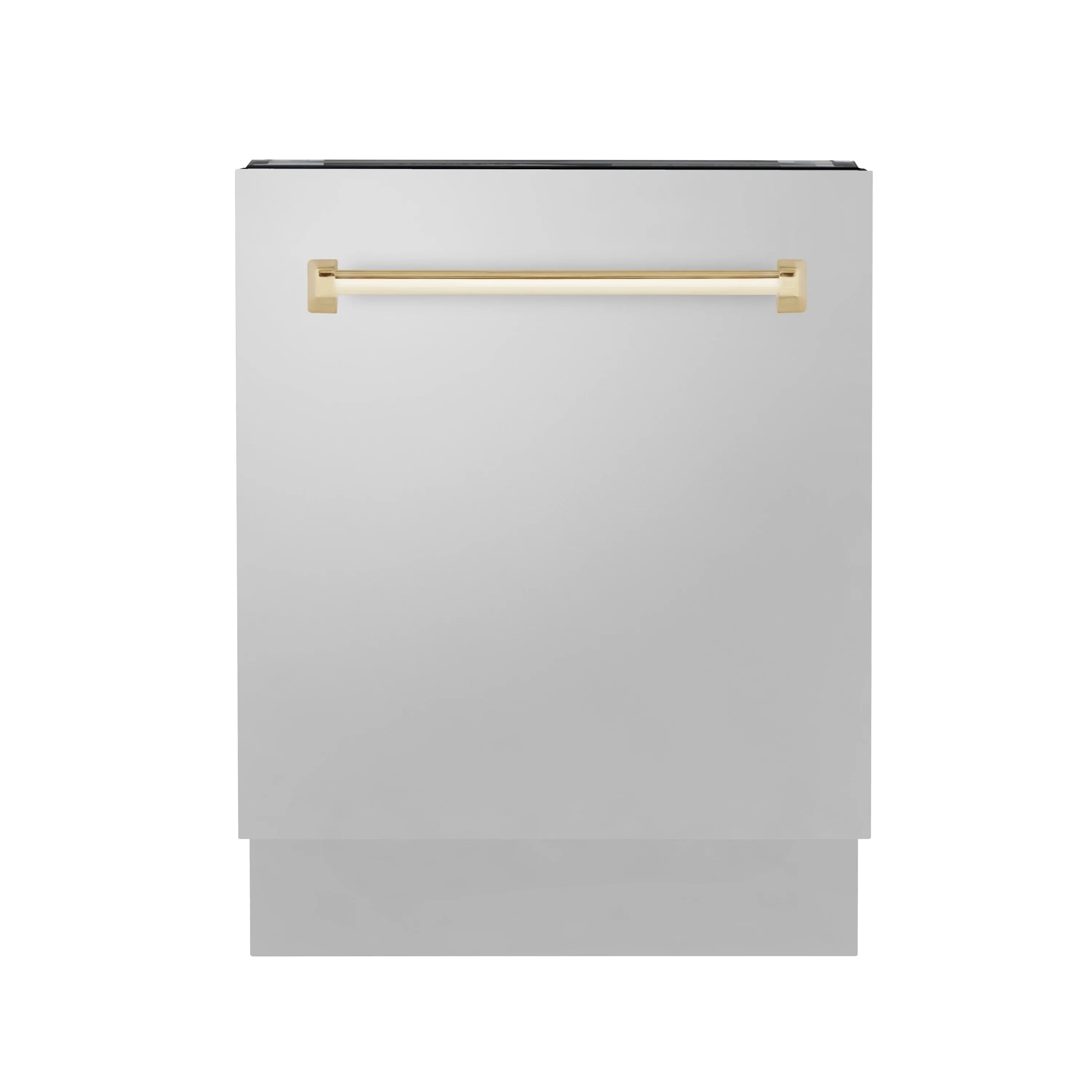

The ZLINE Autograph Edition 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Stainless Steel Panel with Polished Gold Handle (DWVZ-304-24-G) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.

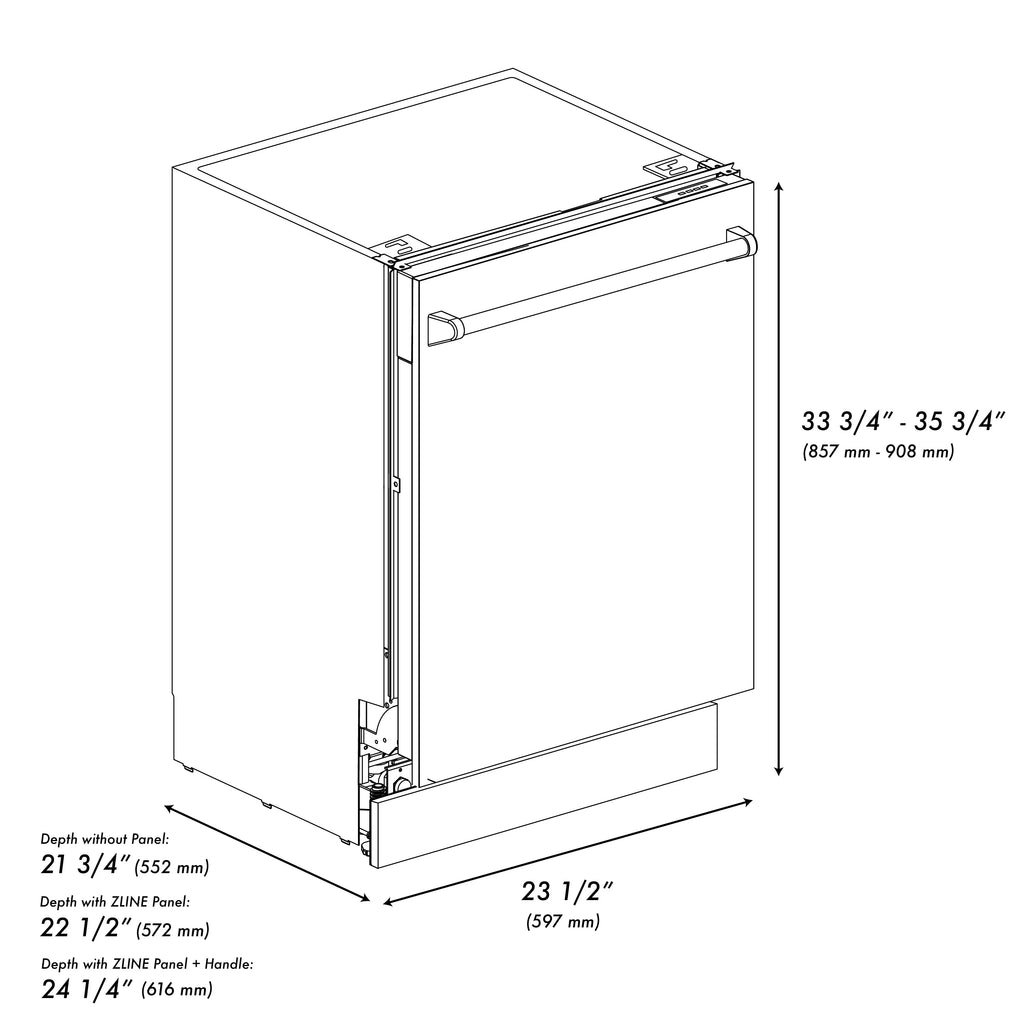

| DIMENSIONS | |
|---|---|
| Size | 24 in. |

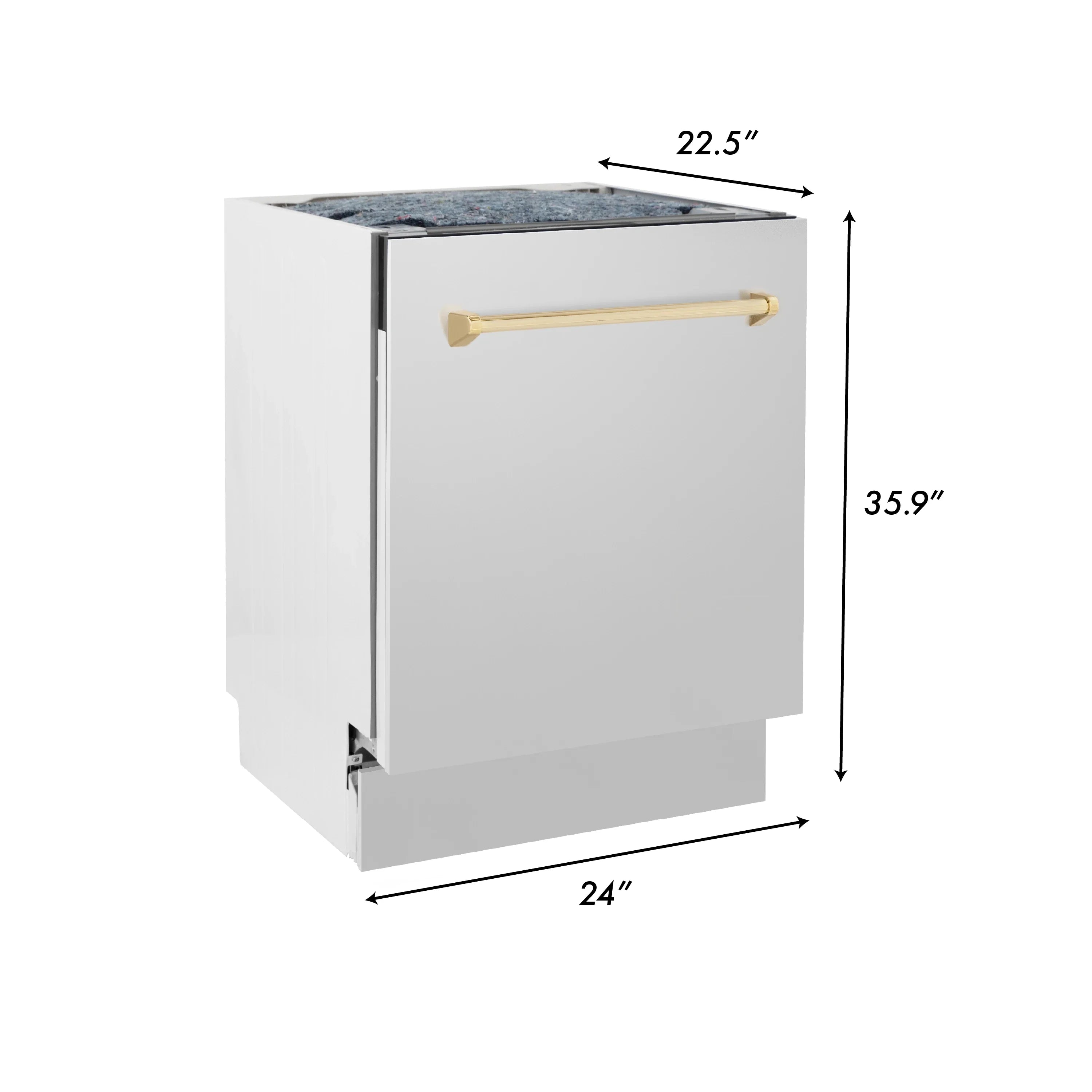

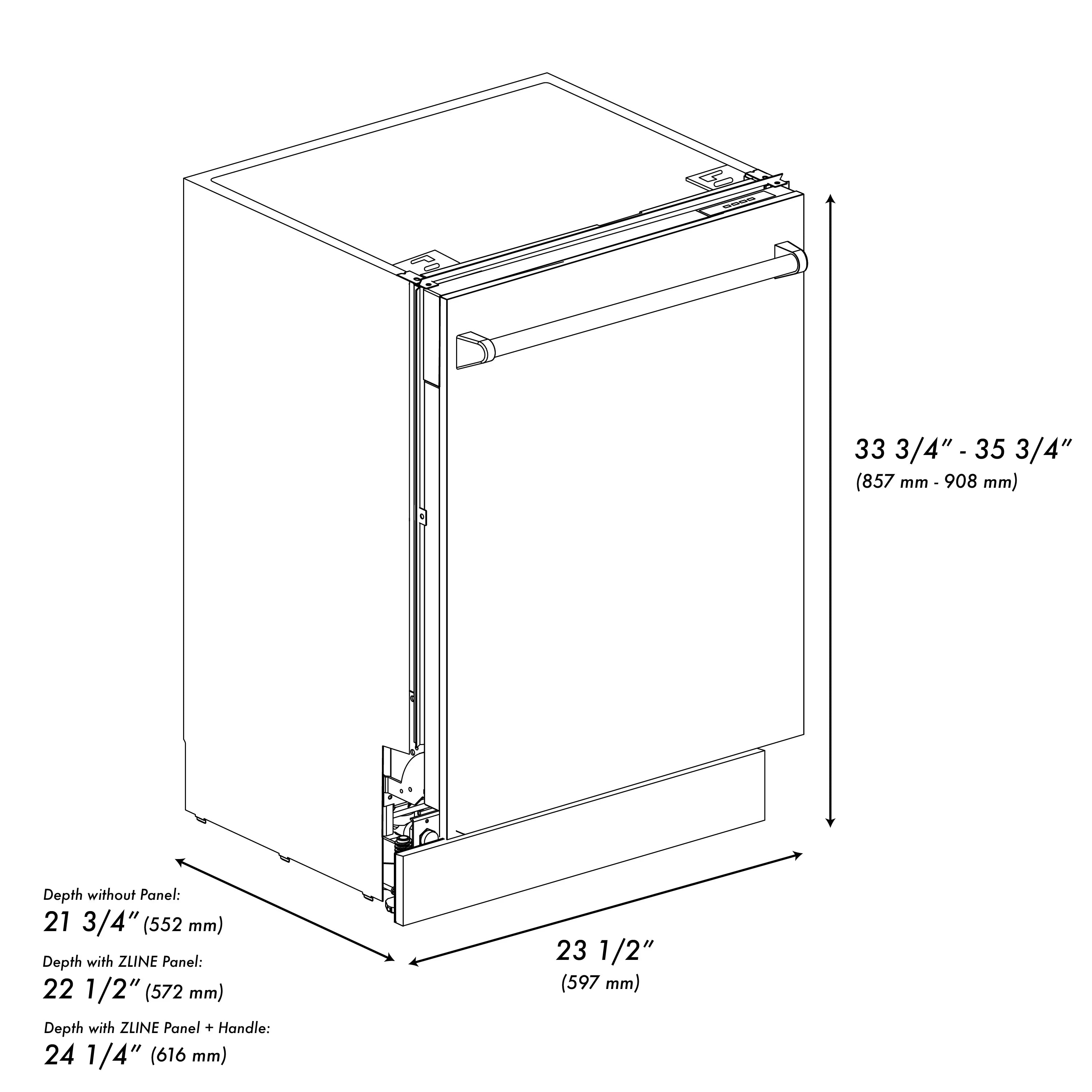

| Dimensions | 23.6" W x 22.4" D x 33.9" H |
| Product Weight | 106.8 lbs |
| Cut-Out Height | 34.13 in. |
| Cut-Out Width | 24 in. |
| Interior Dimensions | 20.95" W x 20.5" D x 24.17"H |
| Max Plate Height | 13 in. |
| GENERAL INFORMATION | |
| Installation Type | Plug In - Nema 5-15 |
| Panel Ready | N |
| DESIGN & FINISH | |
| Panel Finish | 304 Grade Stainless Steel |

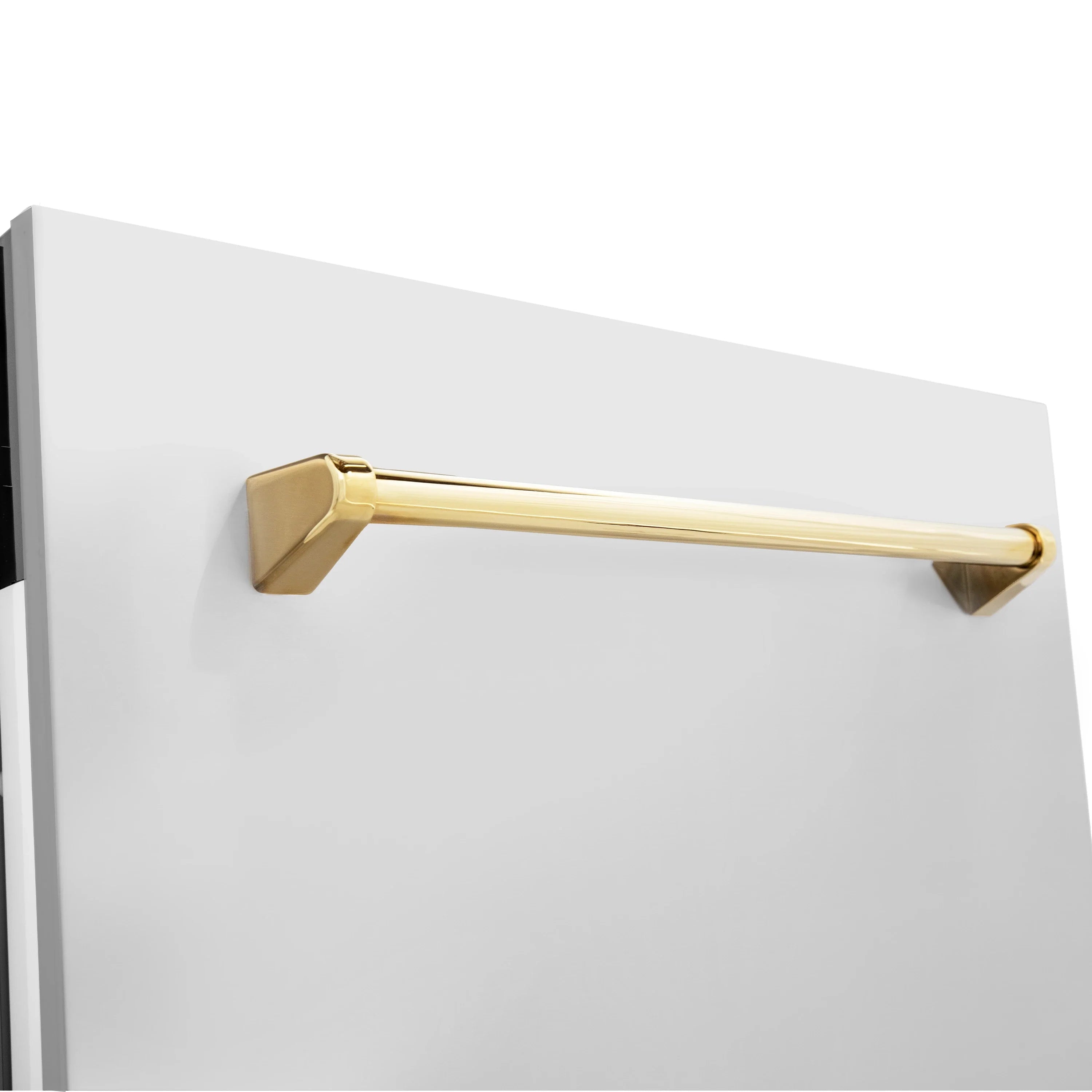

| Handle Finish | Polished Gold |
| Handle Type | Traditional Style |
| Control Location | Top Control |
| Control Type | Button Control |

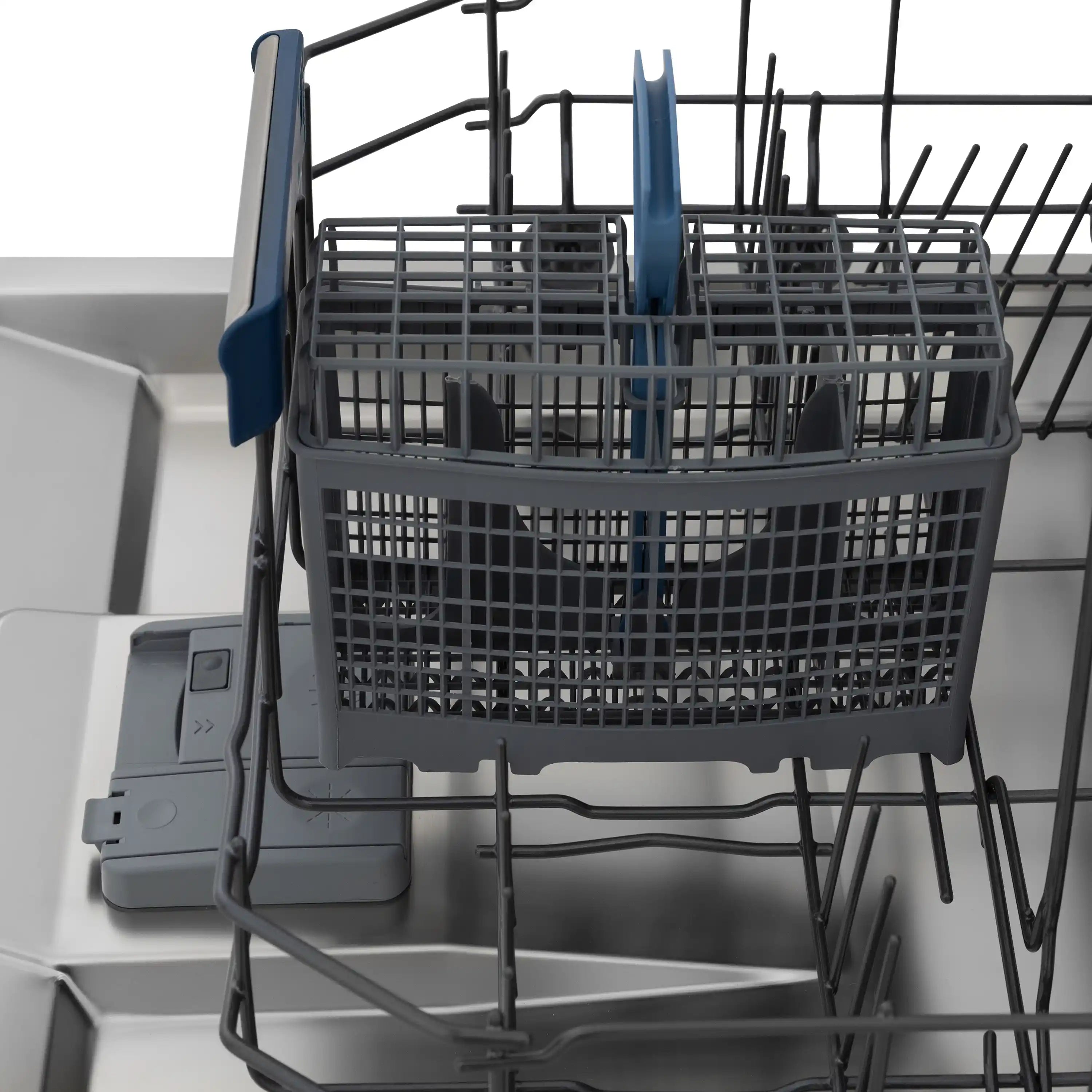

| Silverware Basket Location | Bottom Rack Center |
| TECHNICAL DETAILS | |
| Voltage | 120vac |
| Frequency | 60Hz |
| Dedicated Circuit | 15A |
| Rated Current | 12A |
| Motor Wattage | 100W |
| Heater Wattage | 1100W |
| Motor Amperage | 0.84A |
| Heater Amperage | 10A |

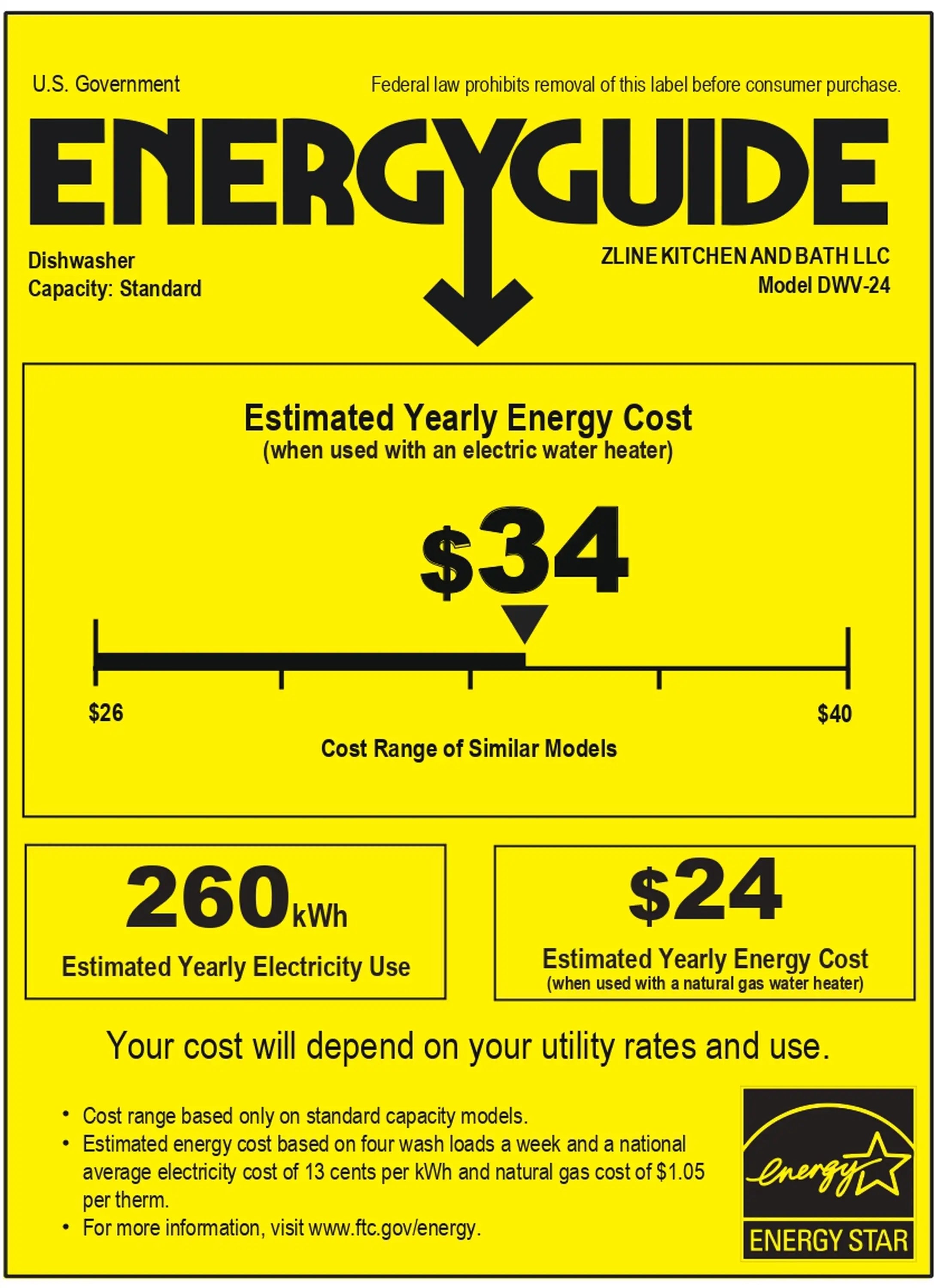

| Energy Consumption Per Year | 239 kWh |
| Water Consumption Per Cycle (Liters) | 11.73 L |
| Water Consumption Per Cycle (Gallons) | 3.1 gal |
| Decibels | 51 dBa |
| Extended Hose Length | 56 in. |
| FEATURES | |
| Drying System | Turbo Fan Drying + Auto Door |
| Steam Function | Without Steam |
| Features |
|
| WARRANTY & CERTIFICATIONS | |
| Certifications | Energy Star, CEC, UL |
