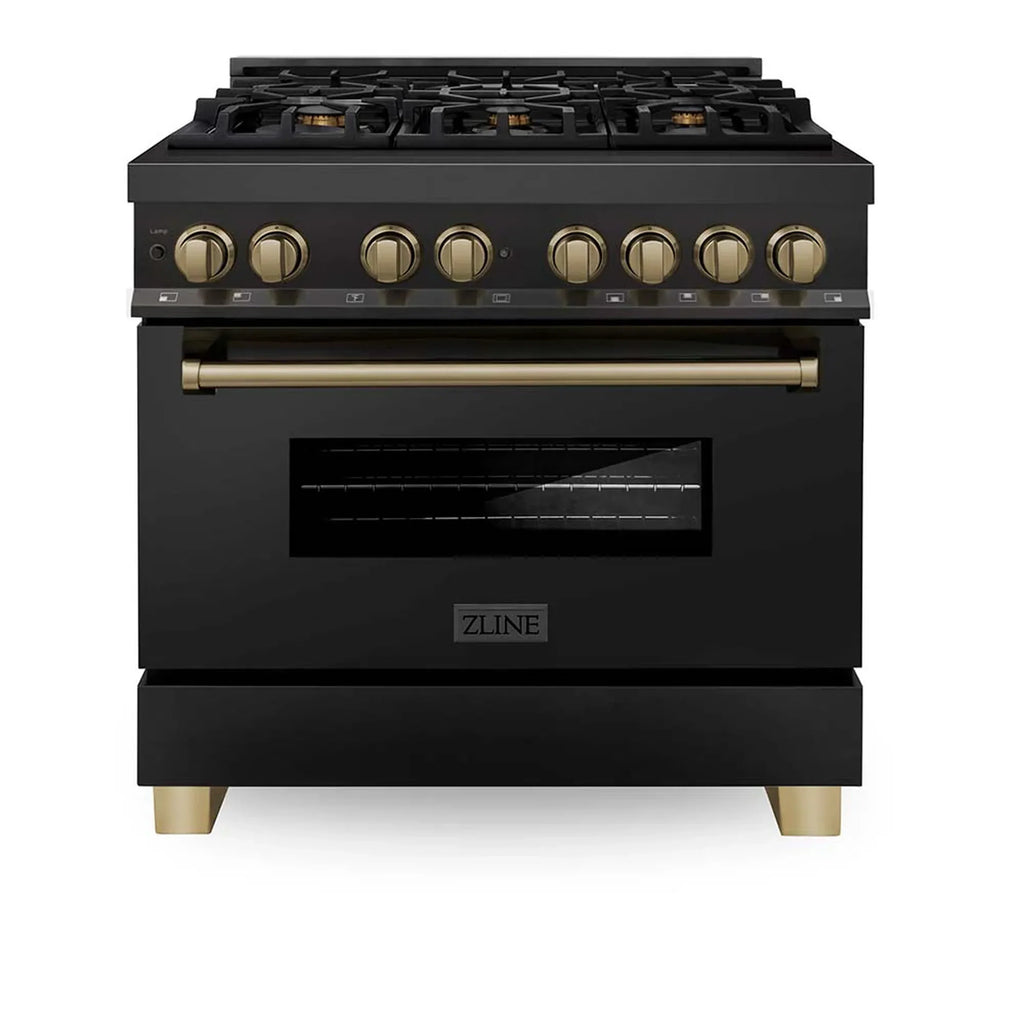

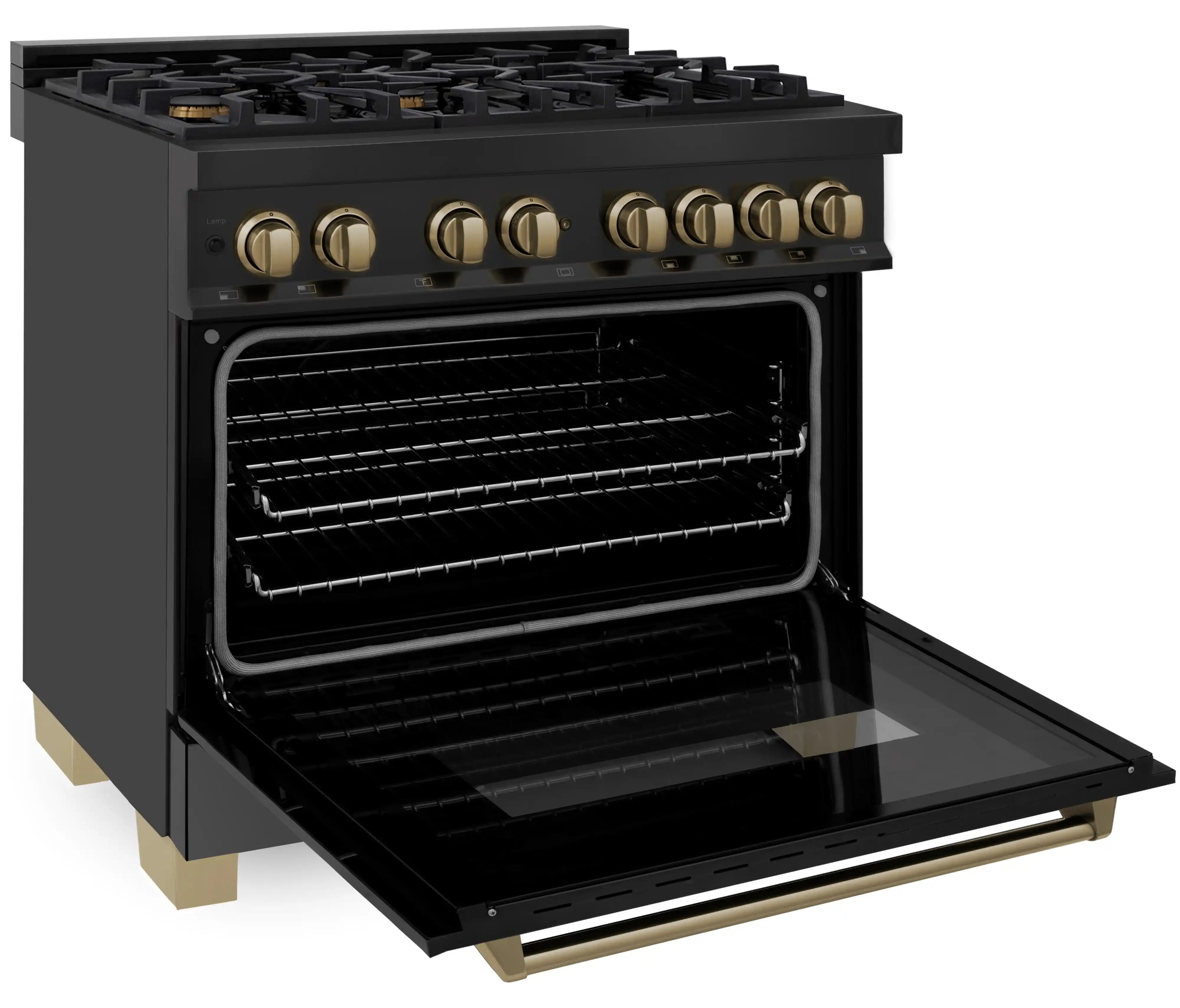

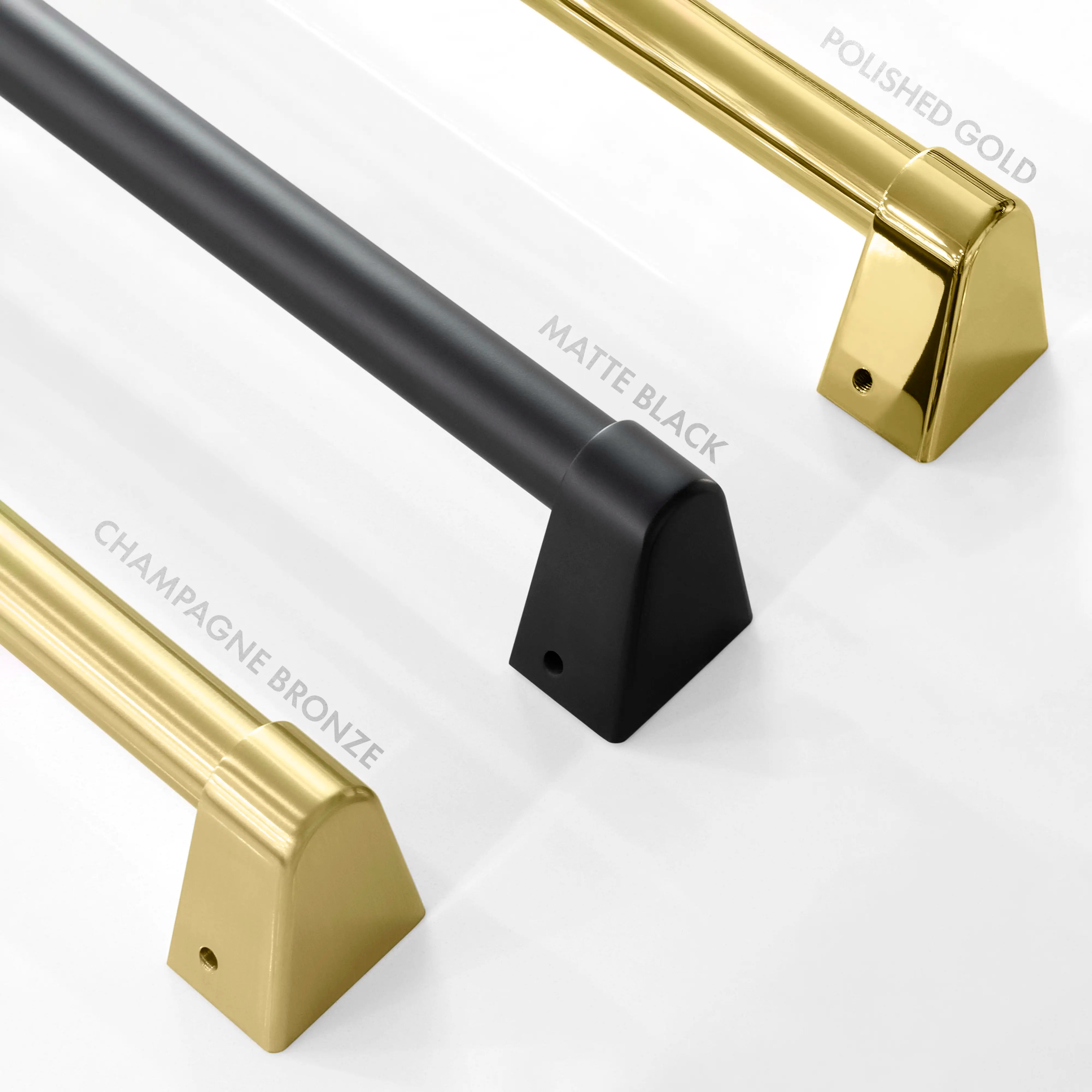

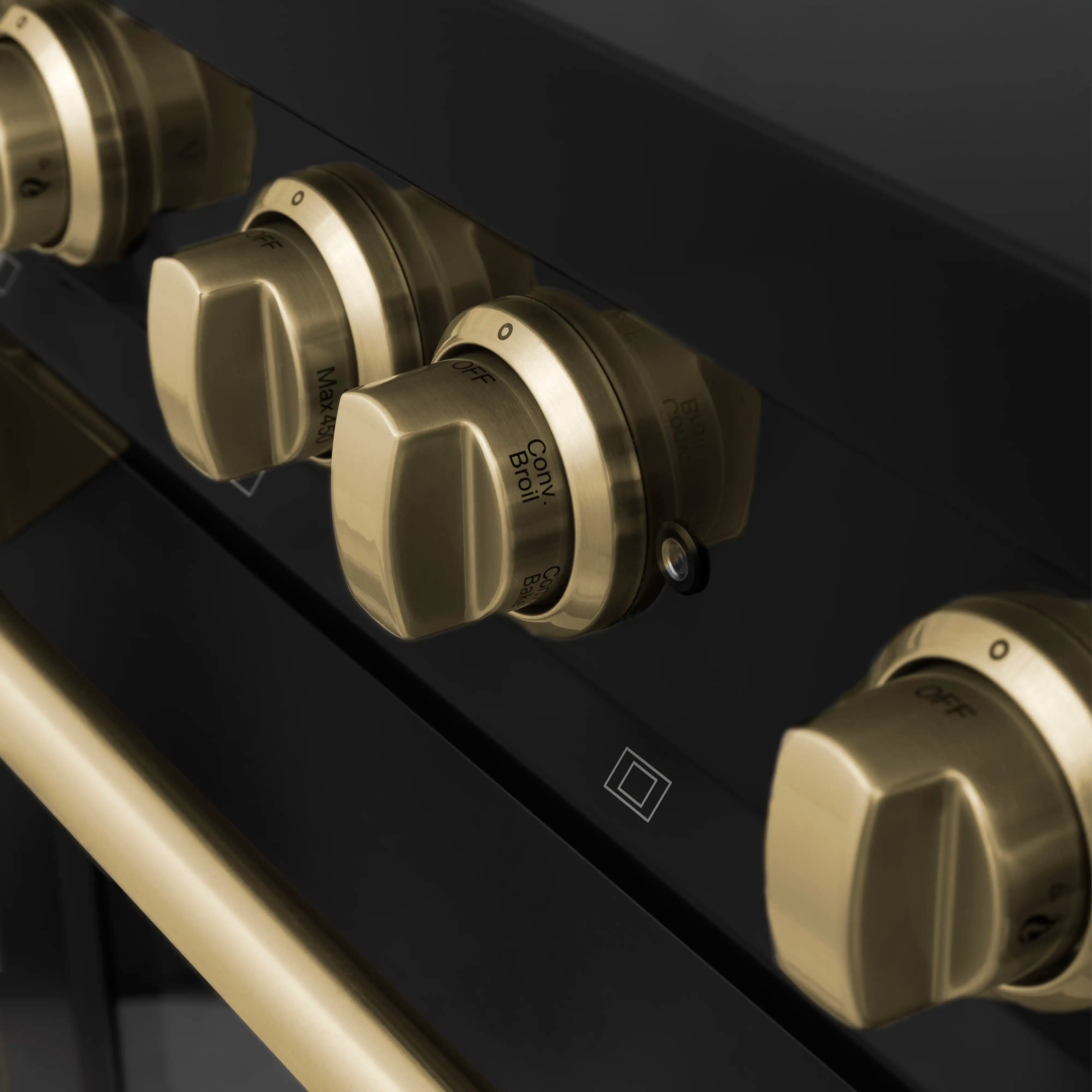

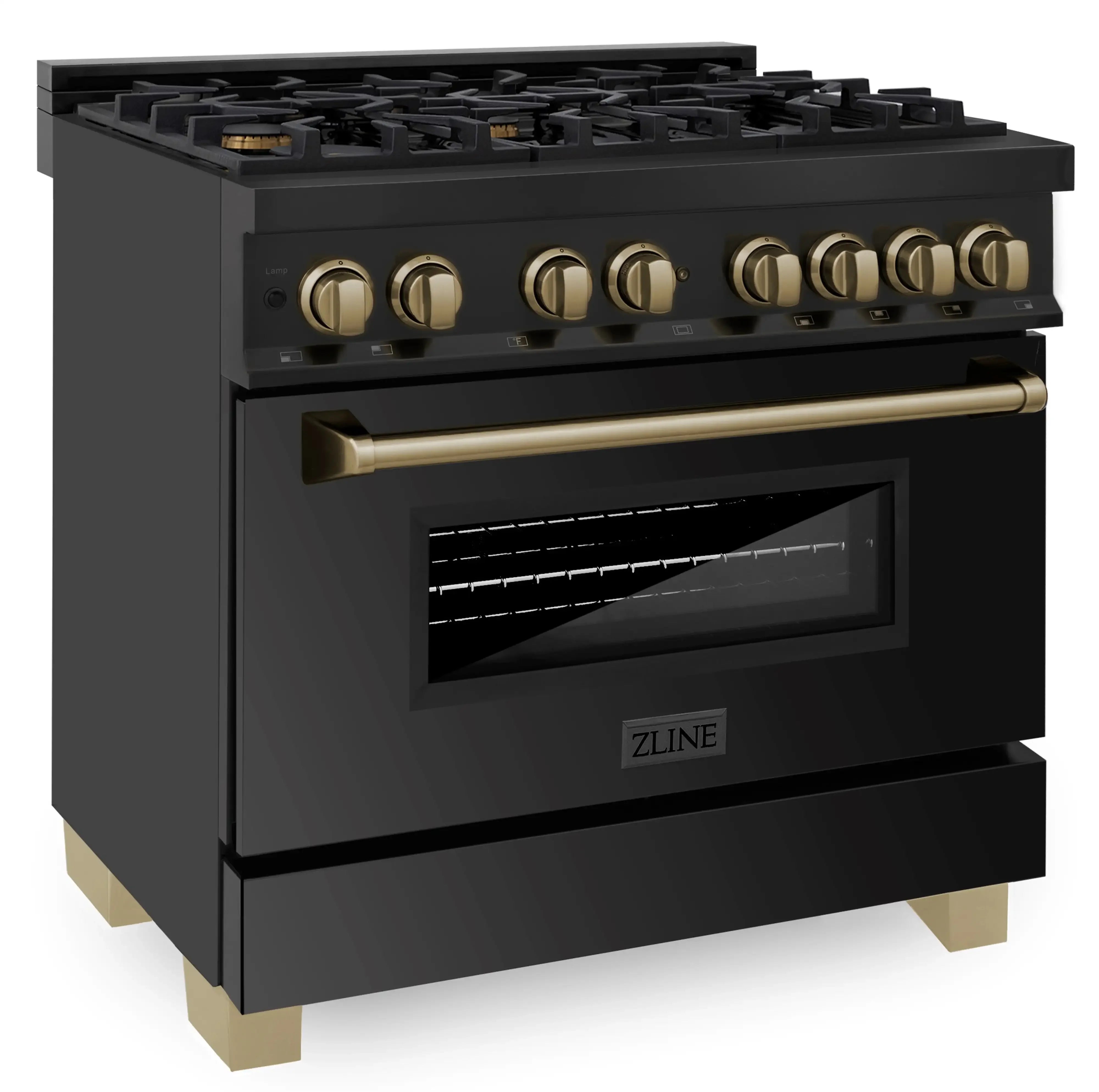

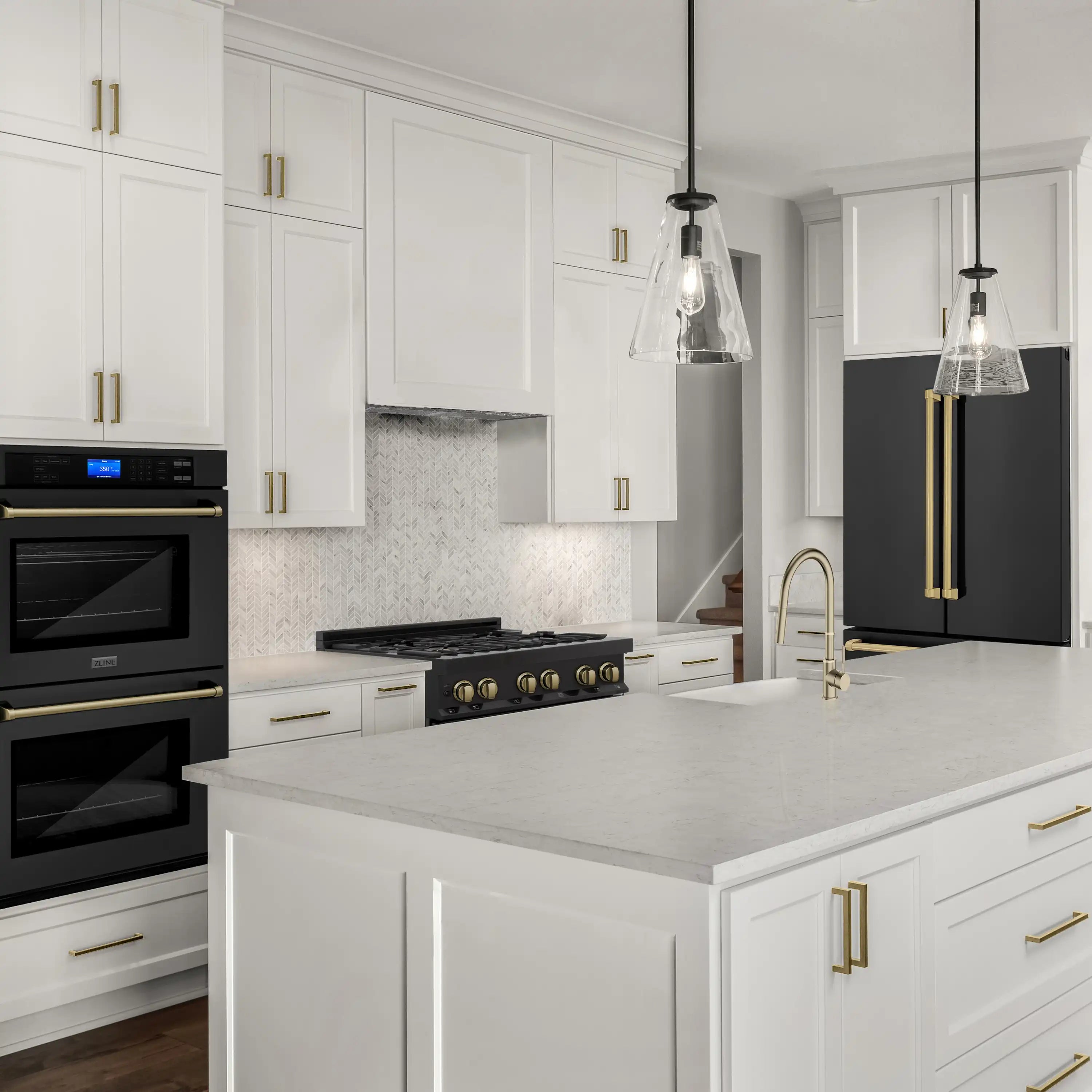

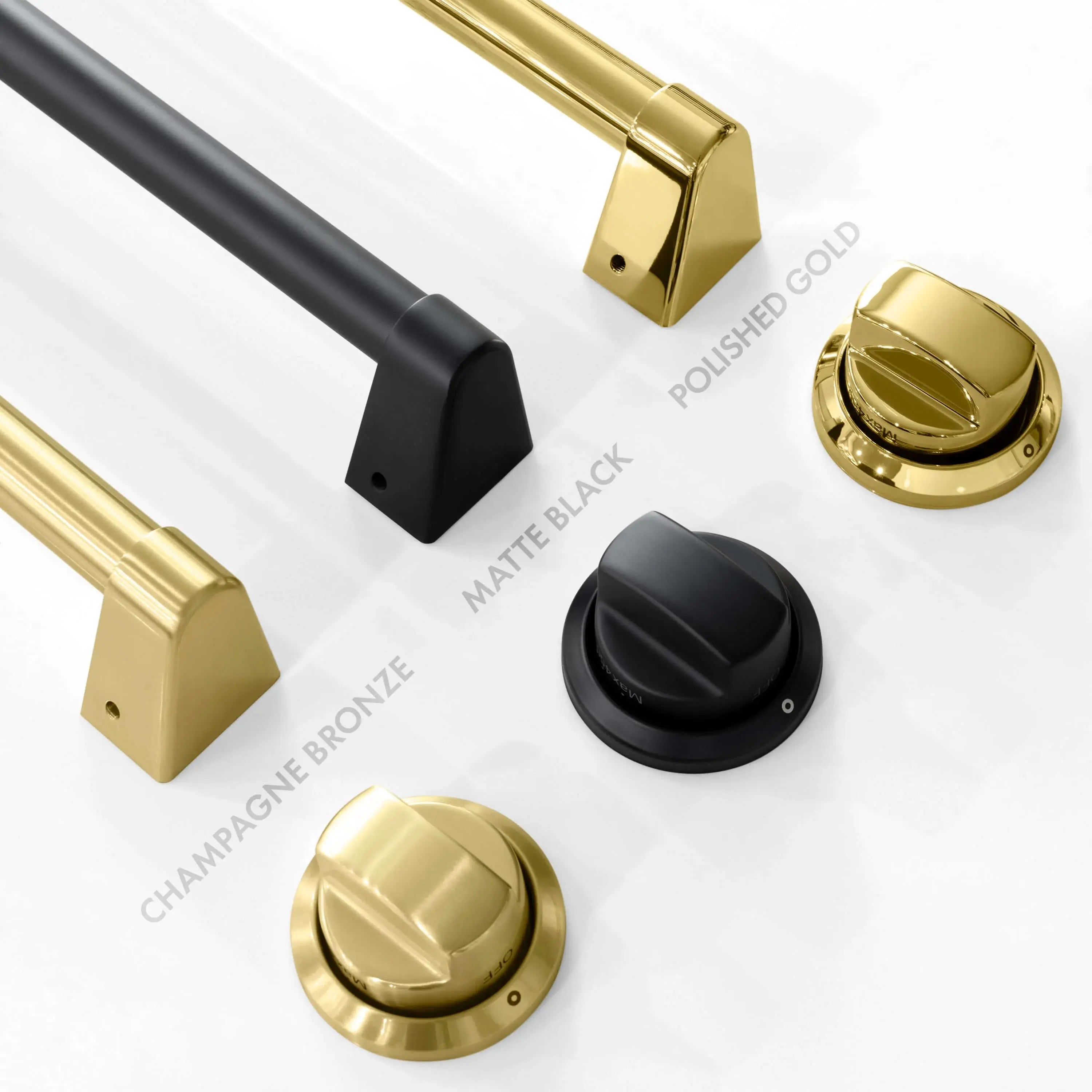

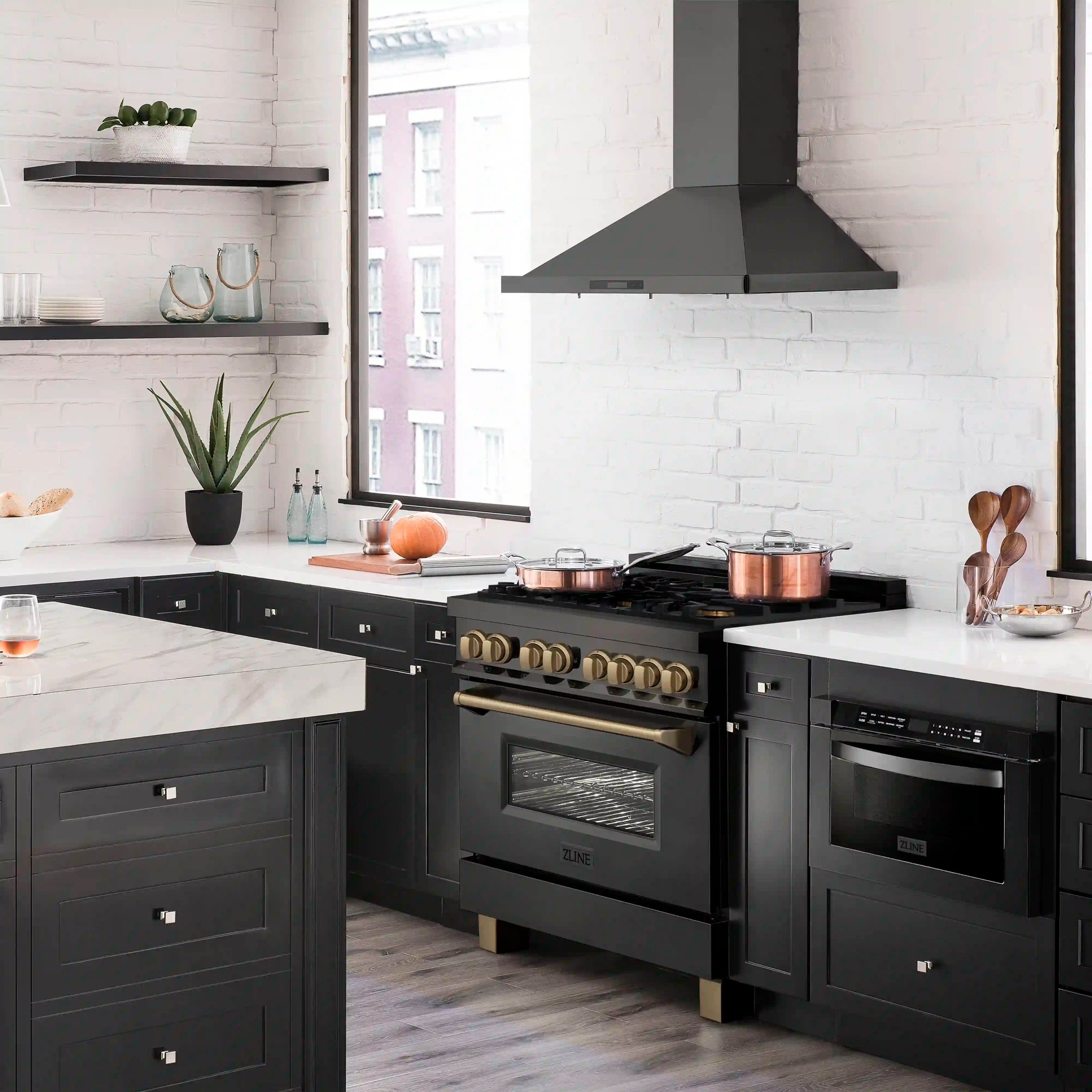

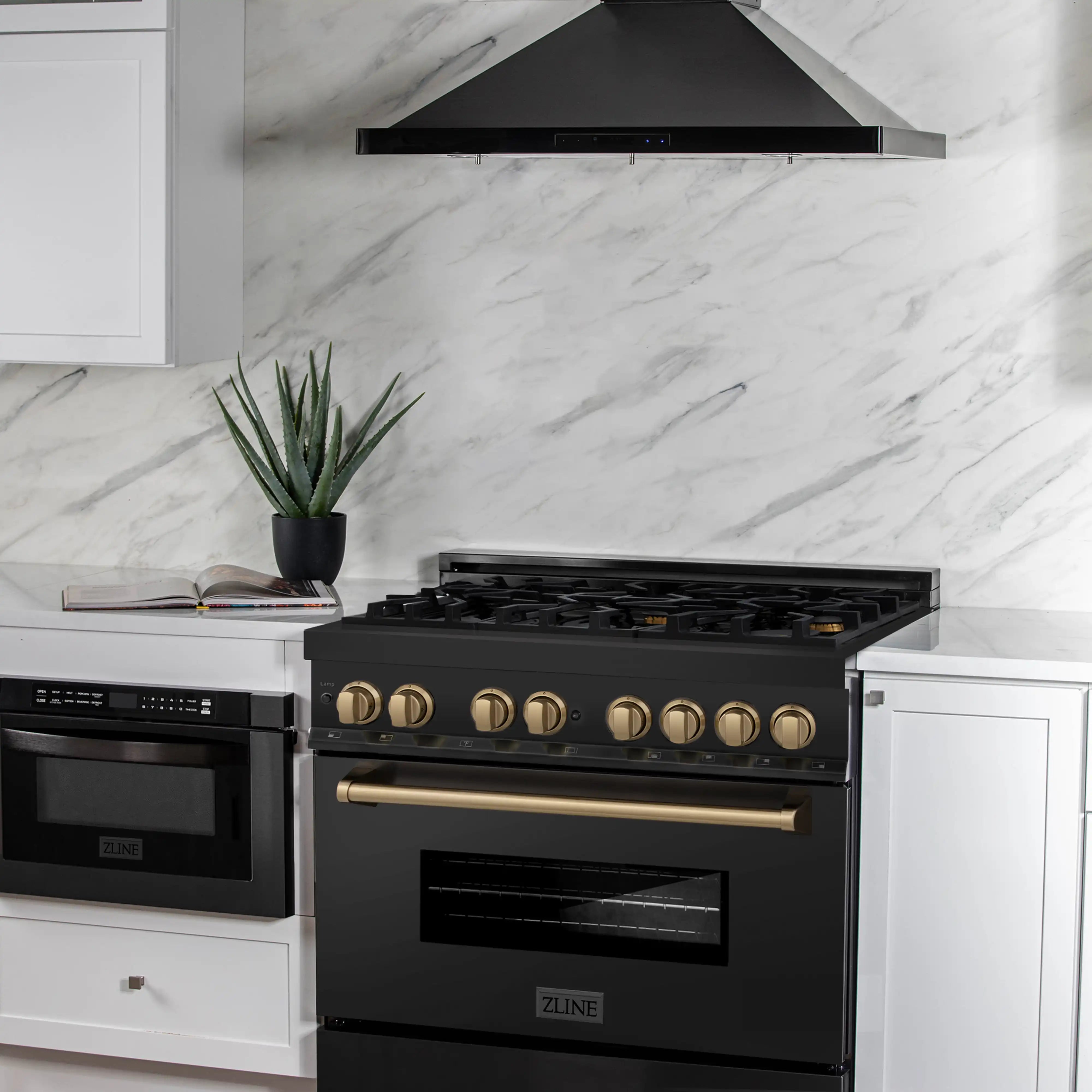

Experience Attainable Luxury with the ZLINE Autograph Edition Dual Fuel Range in Black Stainless Steel. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience. Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes. Combining the professional power and functionality of a ZLINE Range with stunning gold accents, this sophisticated line of professional ranges brings a new meaning of elegance. Create an unforgettable kitchen unique to your style with gold knobs, handles, legs, and brass burners. Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze, Matte Black and Gold. The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes. From our home to yours, enjoy a luxurious experience with the Autograph Edition Dual Fuel Range.
| DIMENSIONS | |
|---|---|

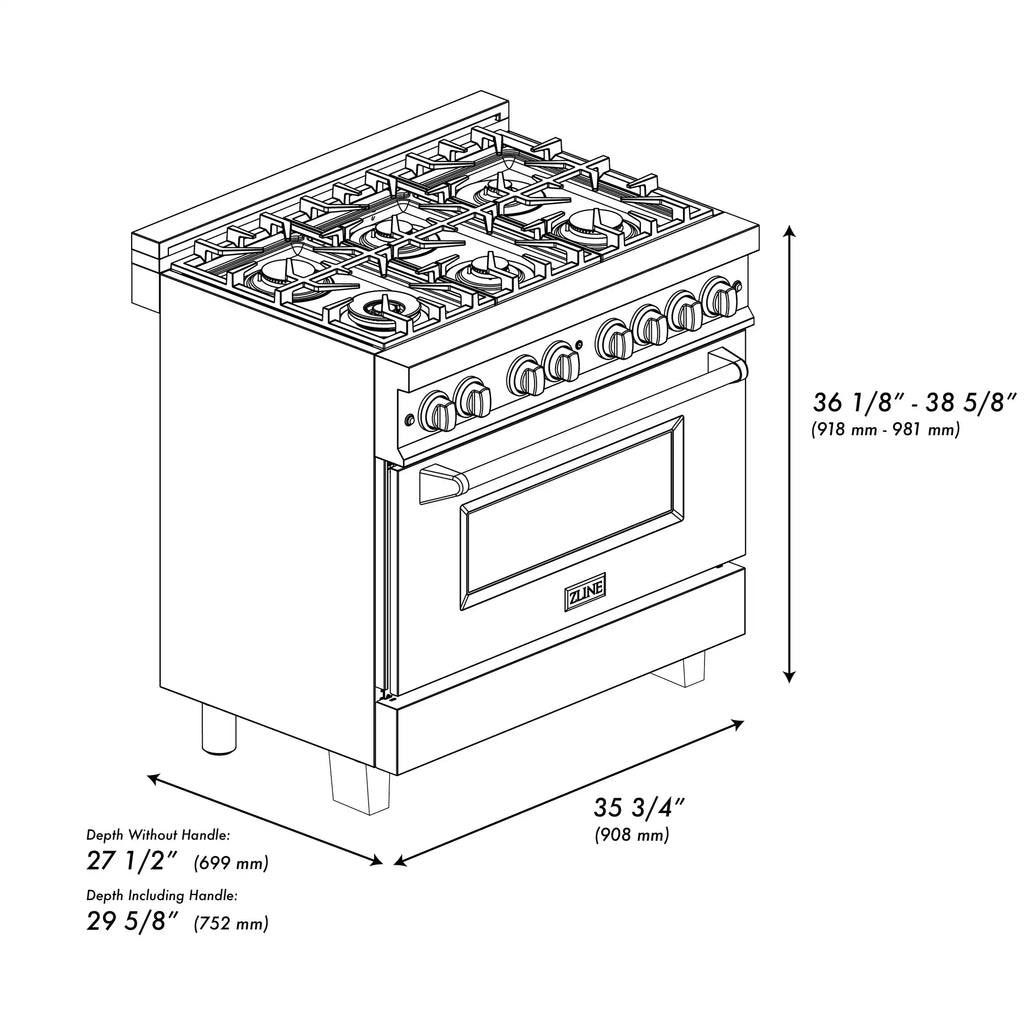

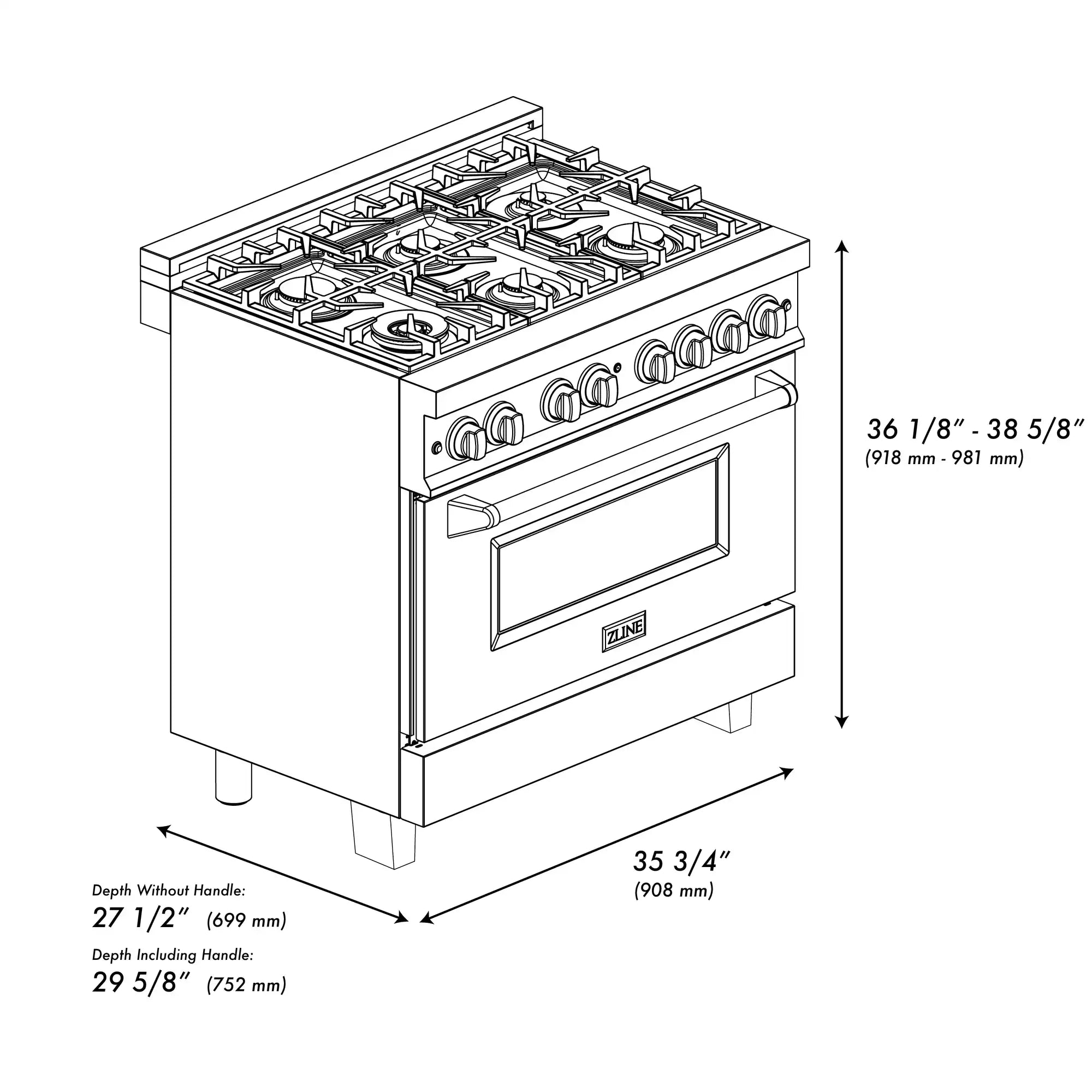

| Dimension | 35.75" W x 27.5" D x 36.13" H |
| Dimensions with Handle | 35.75" W x 29.63 " D x 36.13" H |
| Open Door Depth | 41.8" |

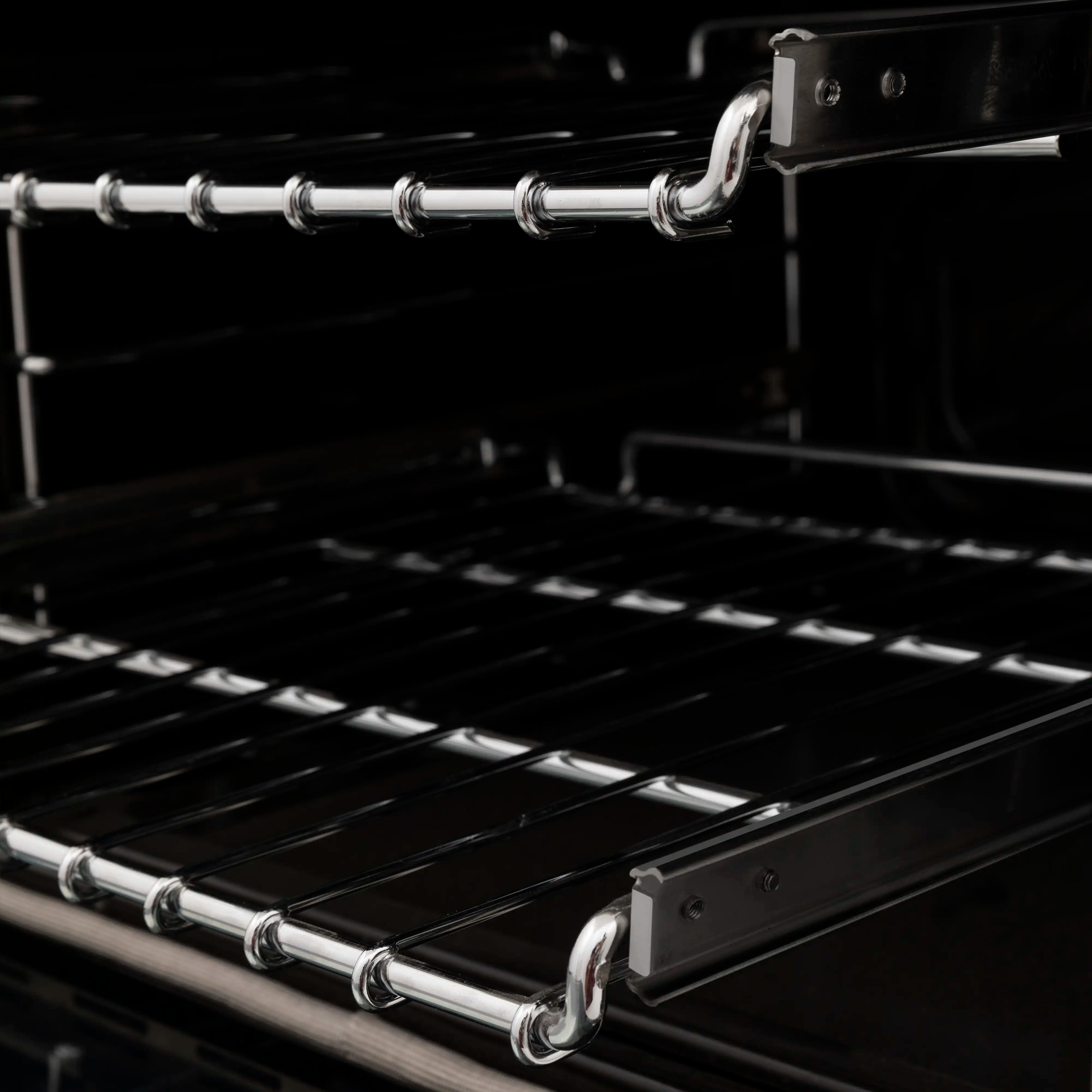

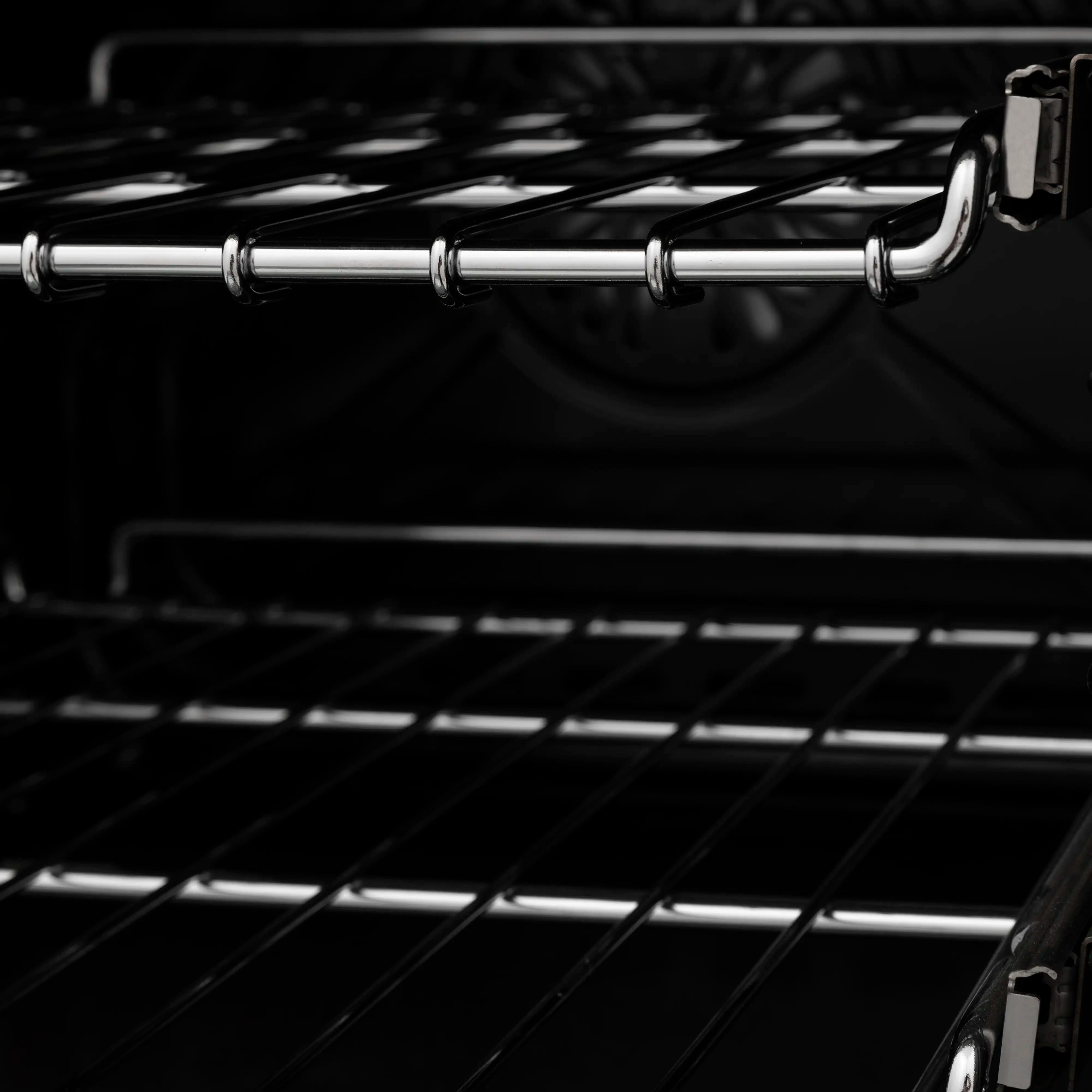

| Interior Oven Dimensions | 24.875" W x 17.75" D x 16" H |
| Weight | 253 lbs |
| GENERAL INFORMATION | |
| Brand | ZLINE Kitchen and Bath |
| DESIGN & FINISH | |
| Color | Black |
| Finish | Black Stainless Steel |
| Lighting | Dual Lighting, controlled by light switch on front control panel |
| Material |
|
| TECHNICAL DETAILS | |
| Voltage | 220V-240V/60HZ/50A |
| Gas Type | Natural Gas or Liquid Propane via conversion kit |
| Liquid Propane | LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional |
| Fuel Type |
|
| COOKTOP FEATURES | |

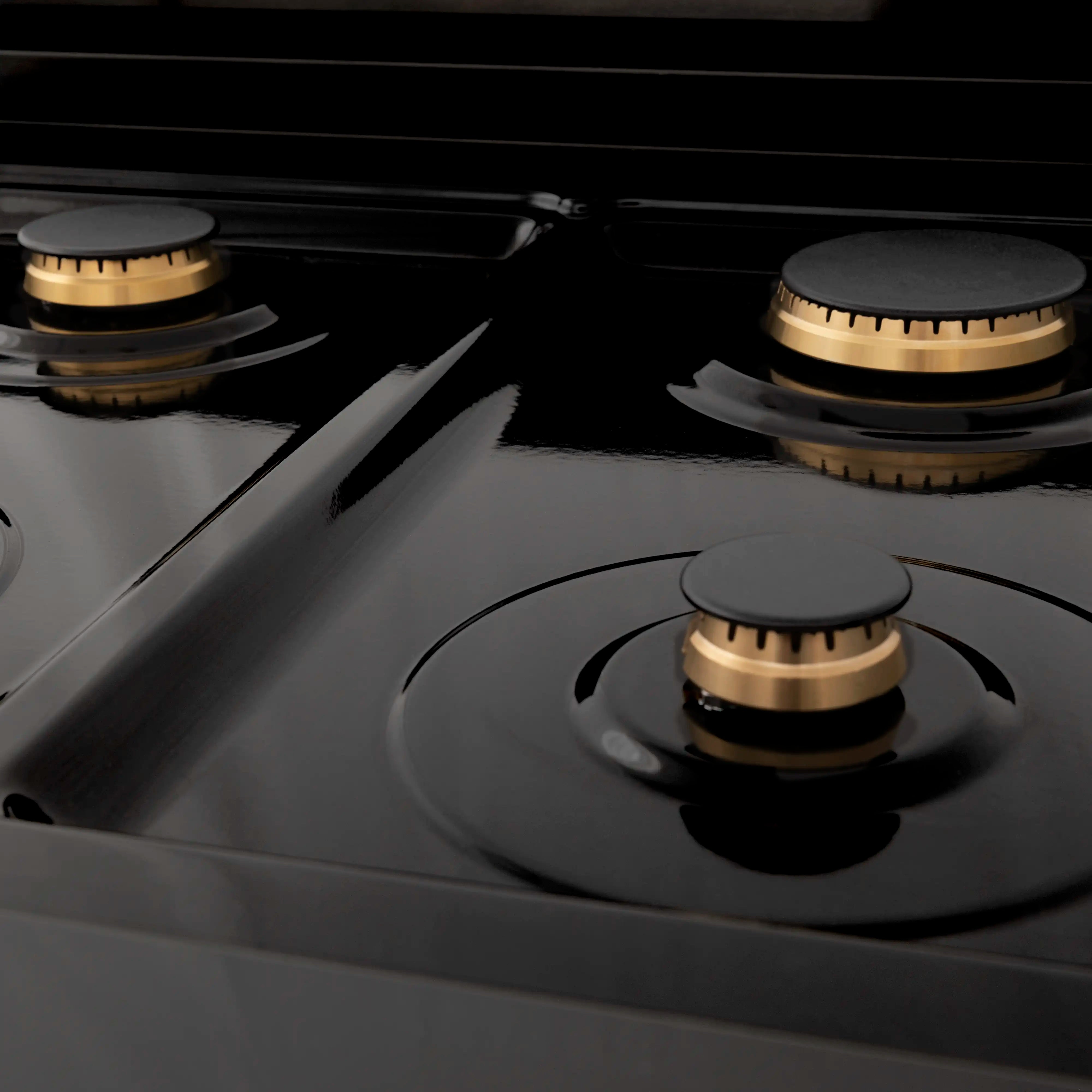

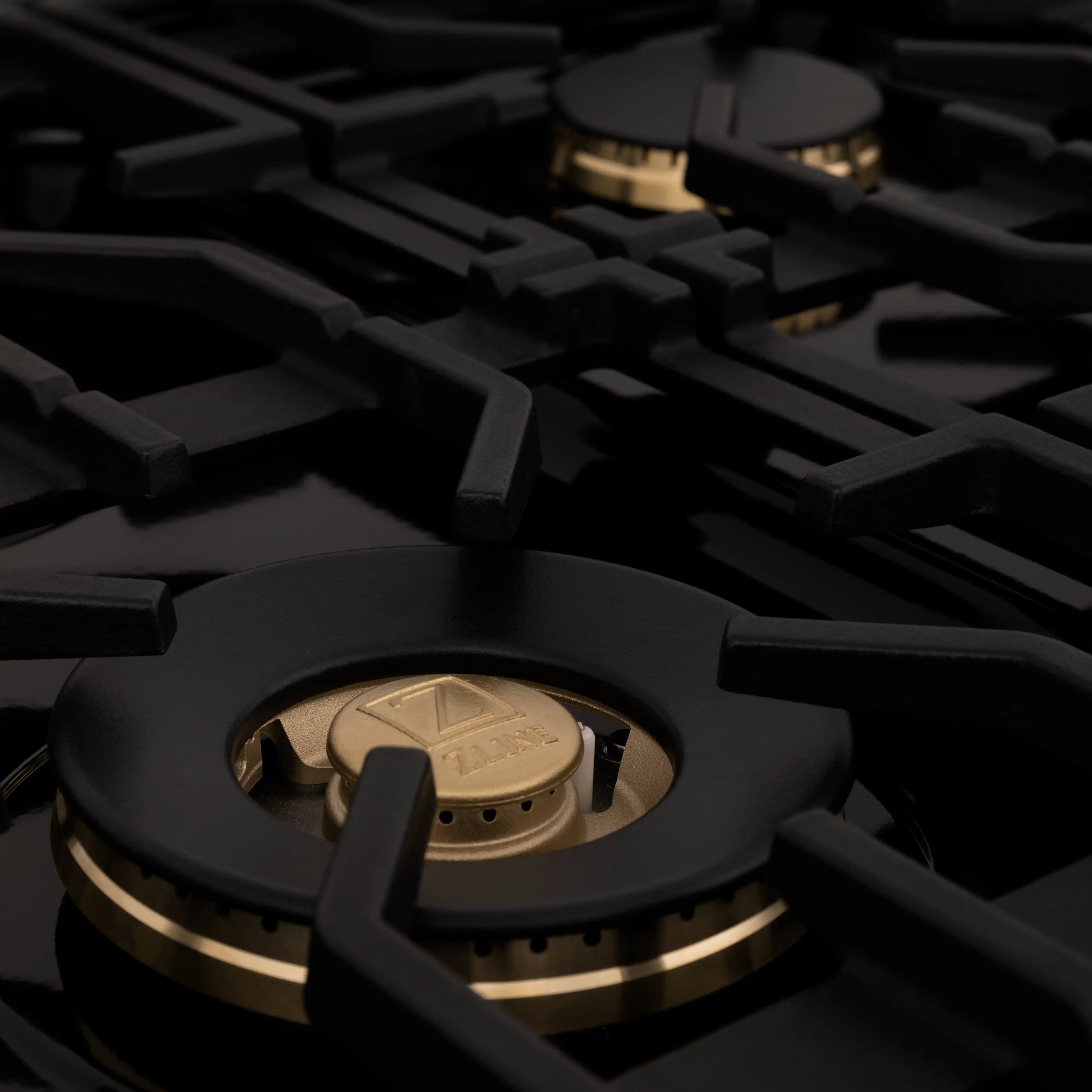

| Cooktop | (6) Burners with Porcelain Cook Top with electronic spark ignition for all burners |

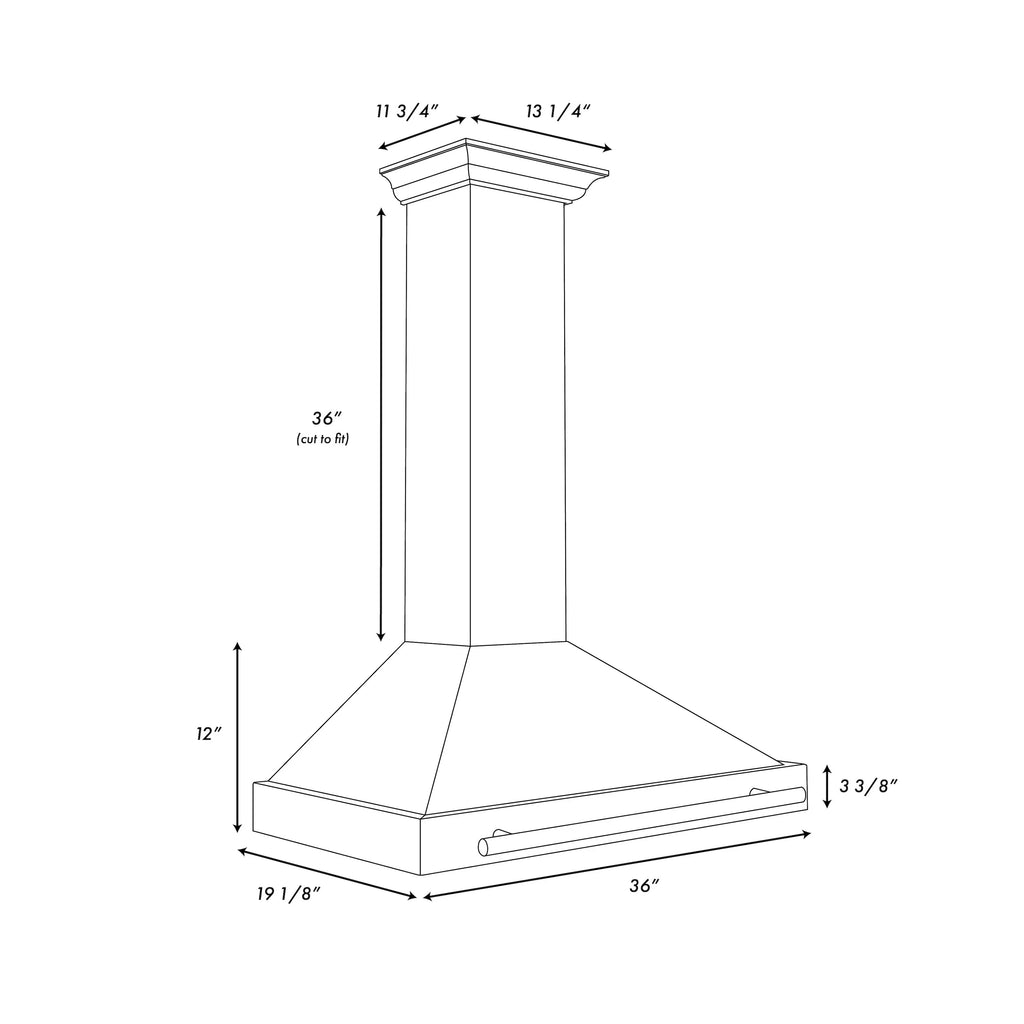

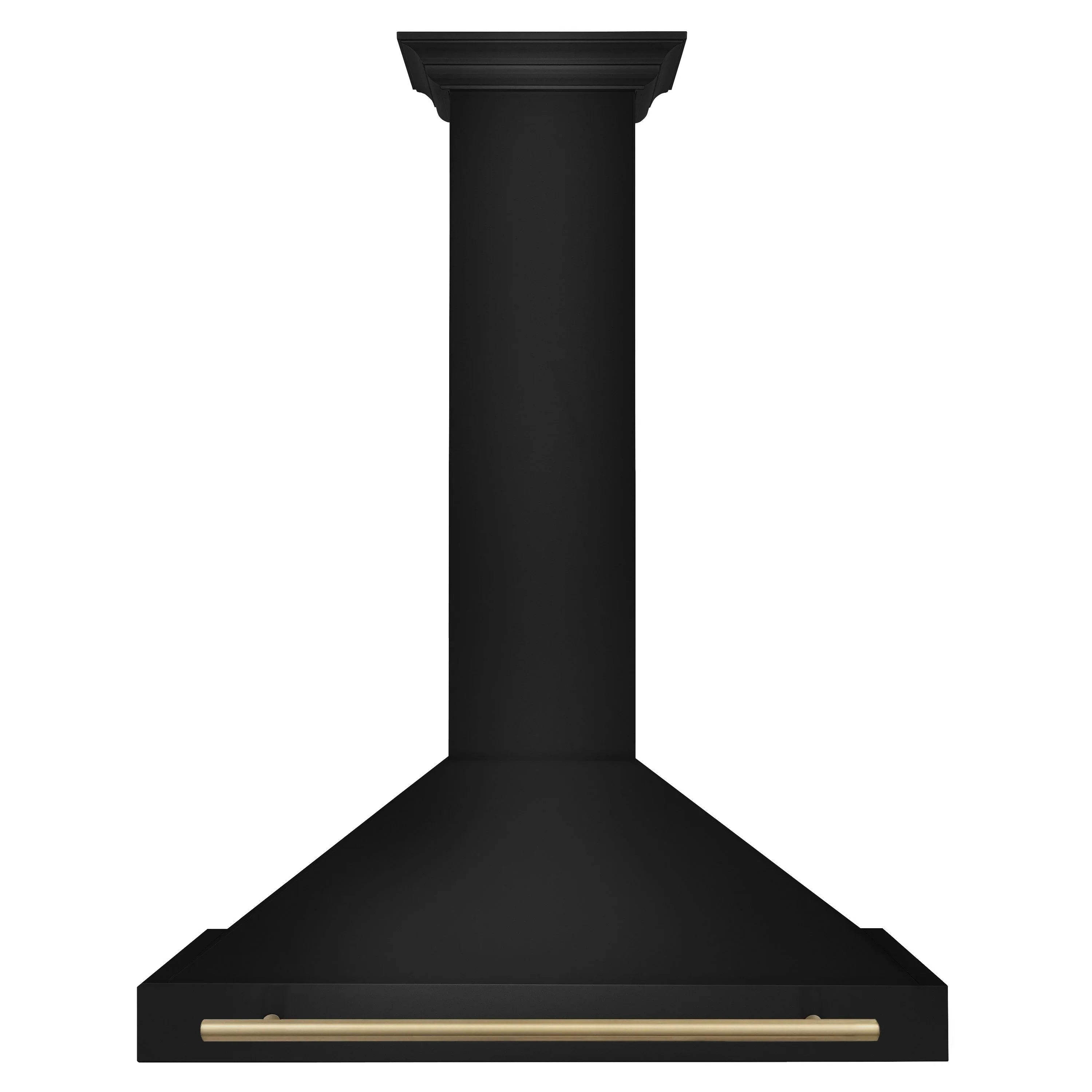

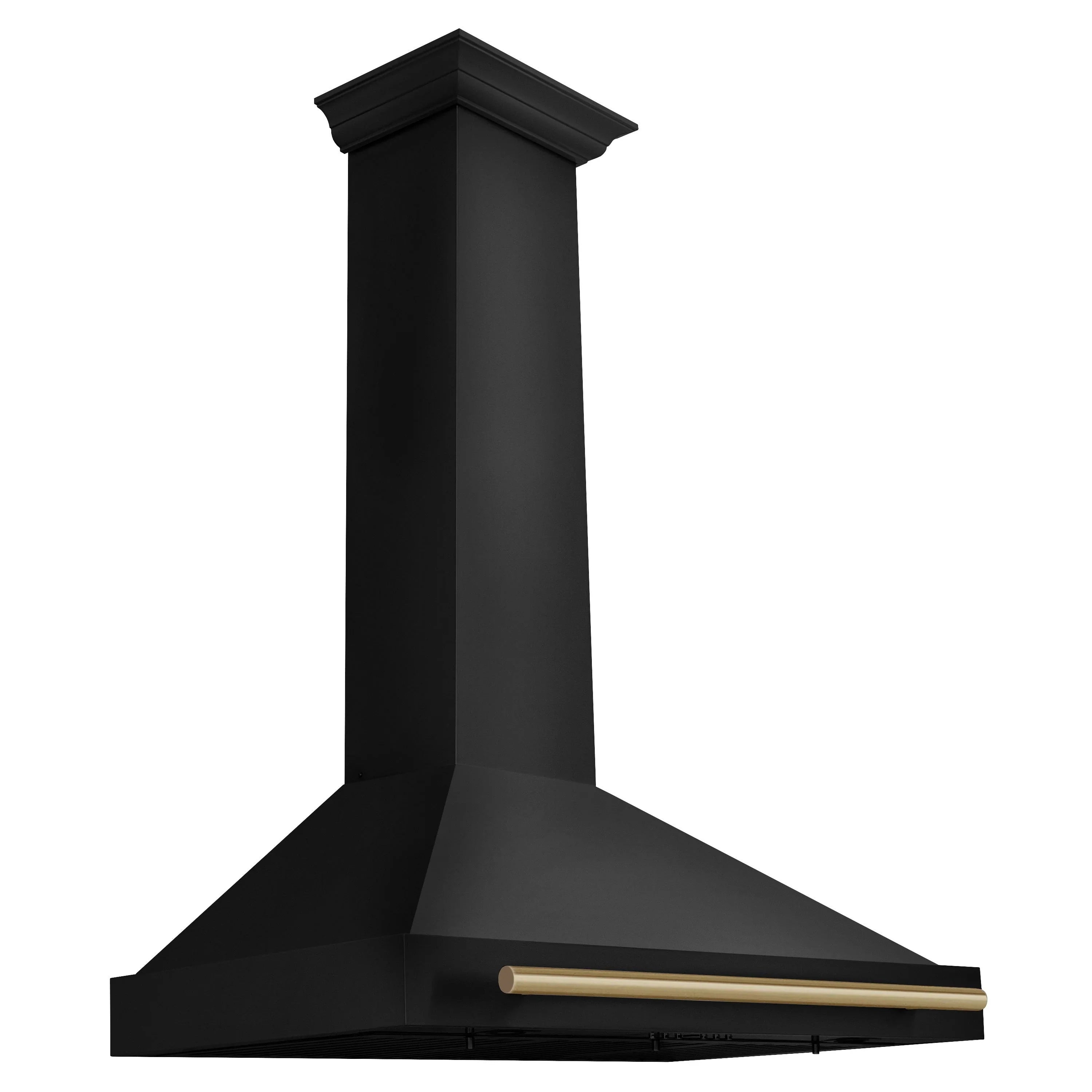

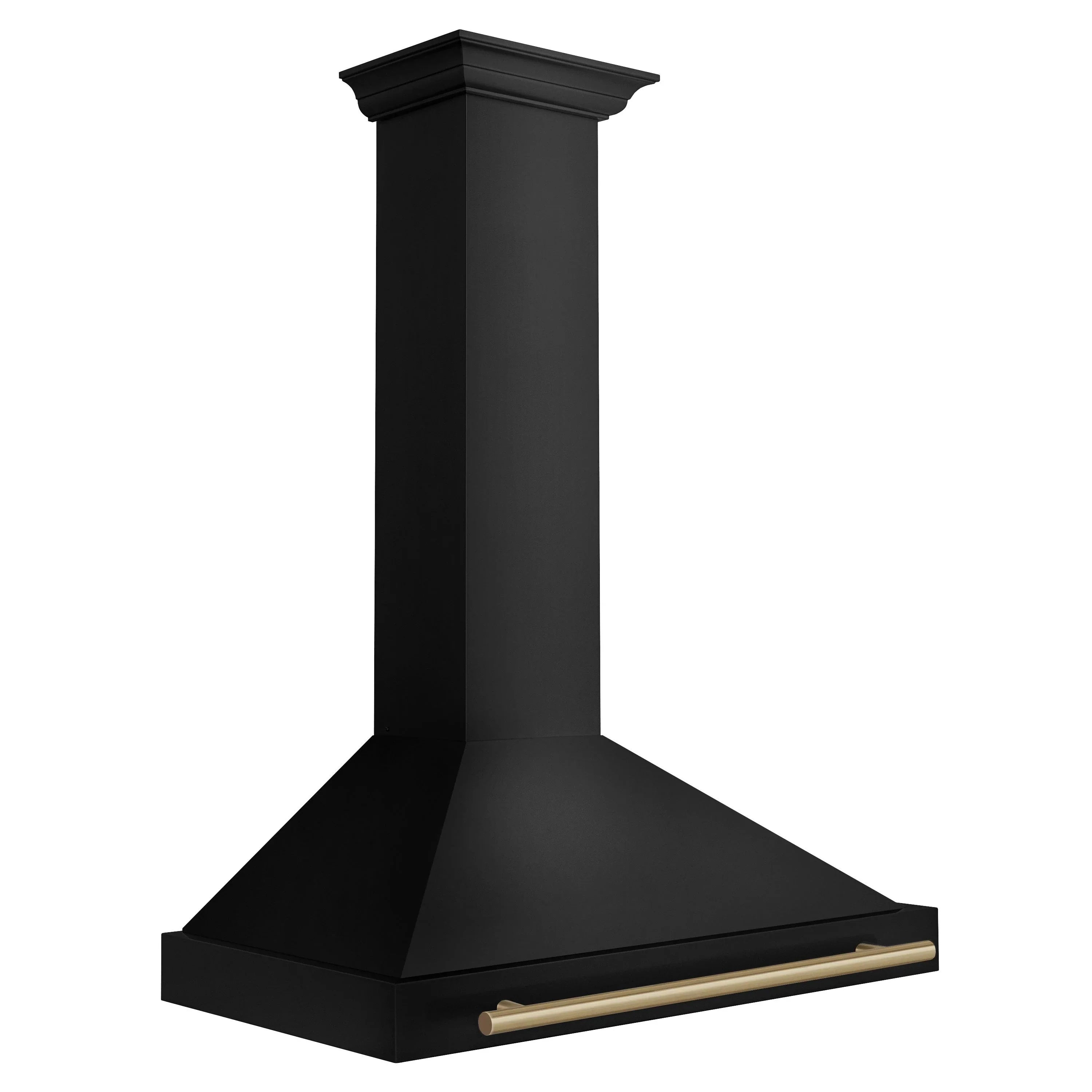

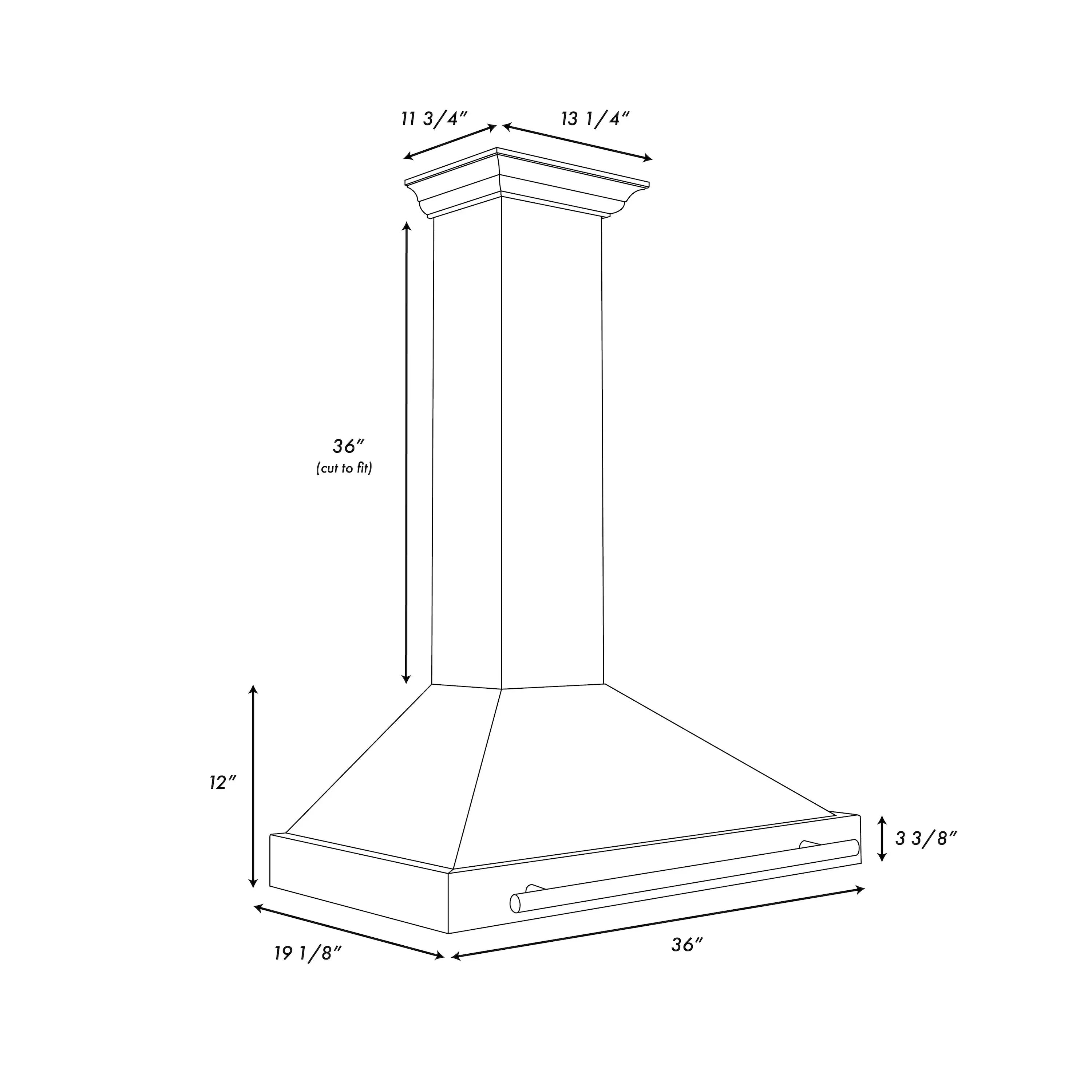

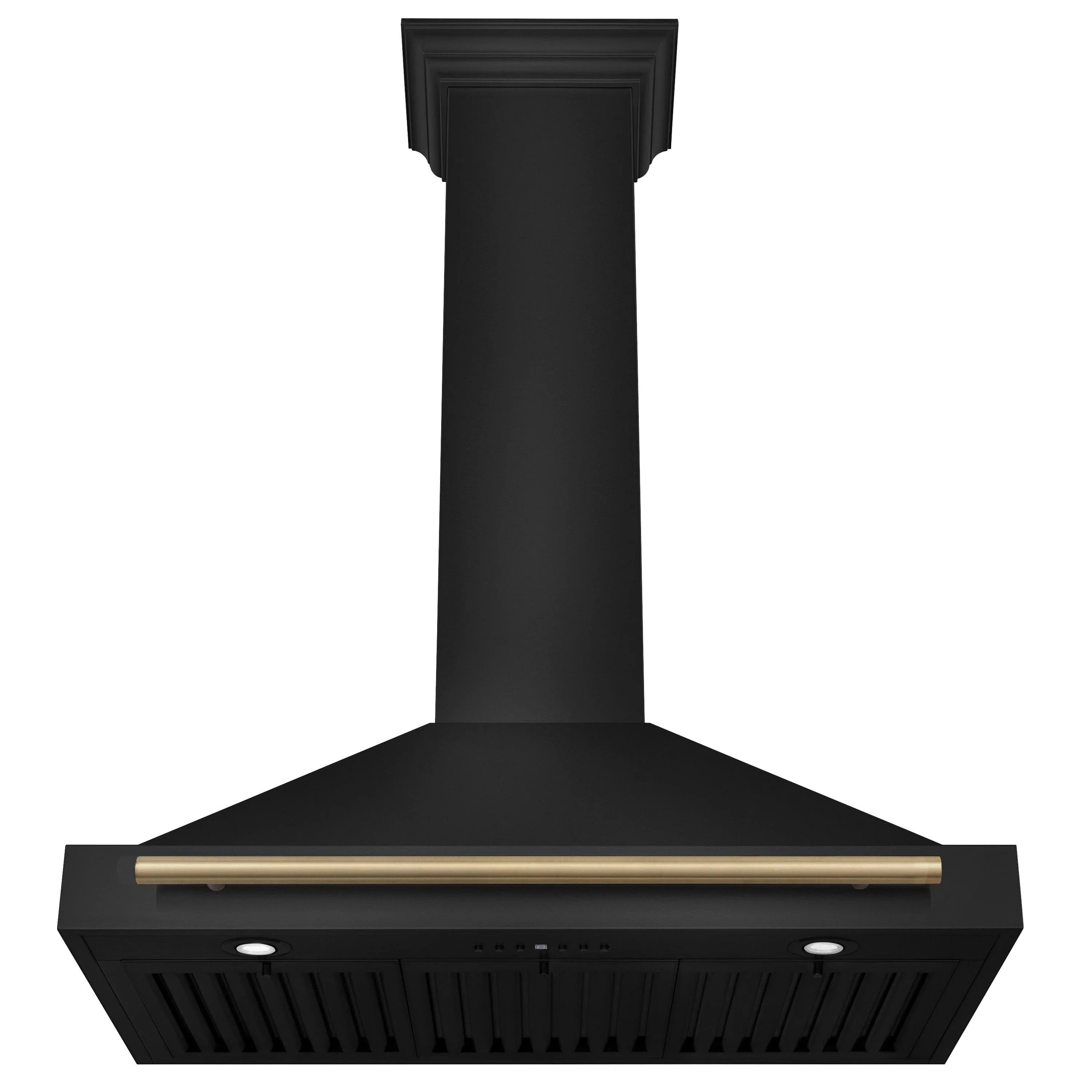

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 36 in. Autograph Edition Black Stainless Steel Wall Mount Range Hood With Accent Handle (BSKB4Z-36) provides a professional culinary experience by pairing unmatched performance with personalized touches. Encompassing limitless beauty, precision, and quality, the Autograph Edition Series creates a luxury look that will transform your space. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability.
| DIMENSIONS | |
|---|---|
| Dimensions | 36 in. W x 17.75 in. D x 12 in. H |
| Chimney Dimensions | 9.2 in. W x 8 in. D x 16 in. H (x2) (Telescoping) |
| Min/Max Chimney Height | 16 in. - 32 in. H |
| GENERAL INFORMATION | |
| Outdoor Approved (Y/N) | No |
| Mount Type | Wall Mount |
| DESIGN & FINISH | |
| Material | Black Stainless Steel with Accent Handle |
| Accent Finishes | Champagne Bronze Polished Gold |
| Control Type | Push Button Panel |
| TECHNICAL DETAILS | |
| Max CFM | 400 CFM |
| Duct Size | 6 in. Round Duct |
| Airflow (Q/L/M/H) | 120/240/320/400 |
| Convertible from Ducted to Recirculating (Y/N) | Yes (with charcoal filters) |
| Remote Blower (Y/N) | No |
| Electrical Requirements (Voltage, Amps, Watts) | 110V/5a/550W |
| Decibels/Sones | 30/41/49/52 dB |
| Motor | High Performance 400 CFM/4-Speed Motor |
| Speeds | 4 |
| FEATURES | |
| Compatible Accessories | CF1 (charcoal filters) |
| Lighting (# of Lights) | 2 |
| Filters | Baffle Filters |
| WARRANTY & CERTIFICATIONS | |
| Warranty | 3 Year Parts Warranty Lifetime Motor Warranty |
| Certifications | ETL Listed |

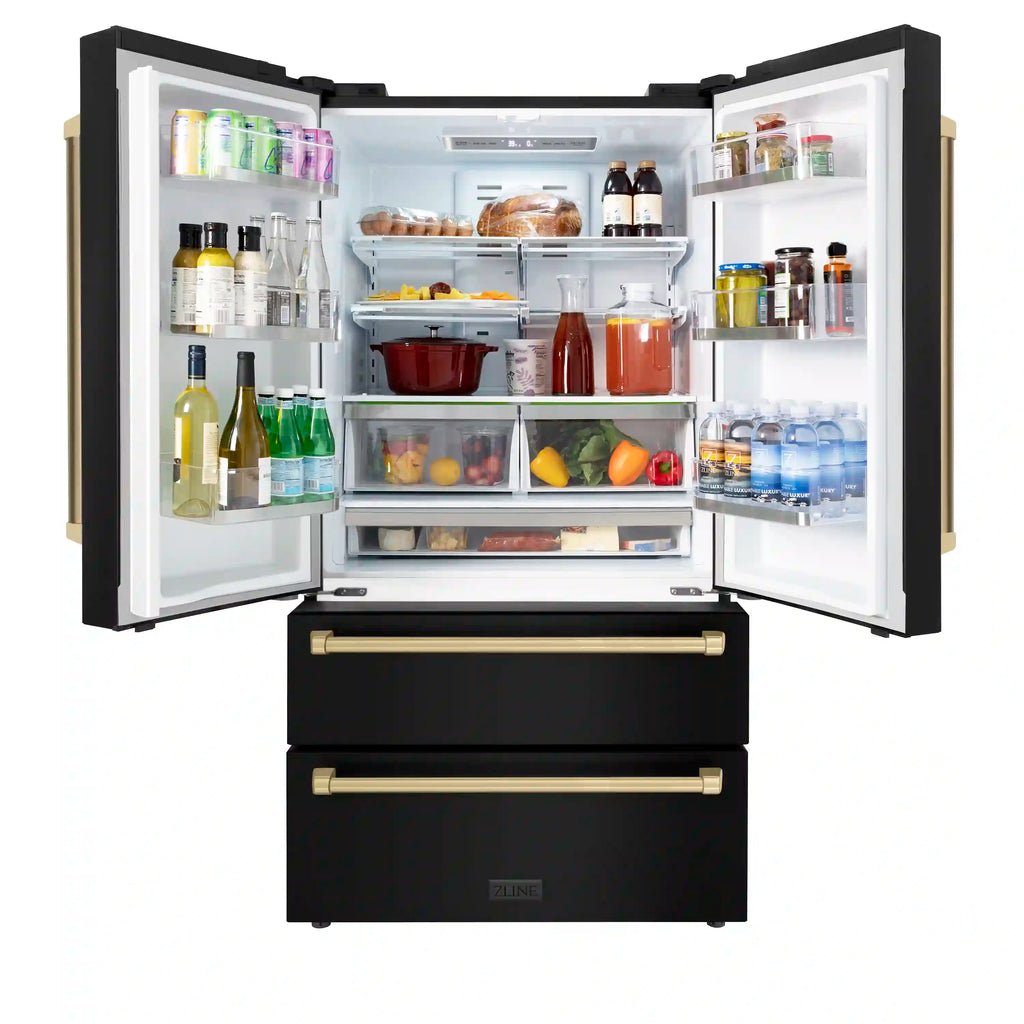

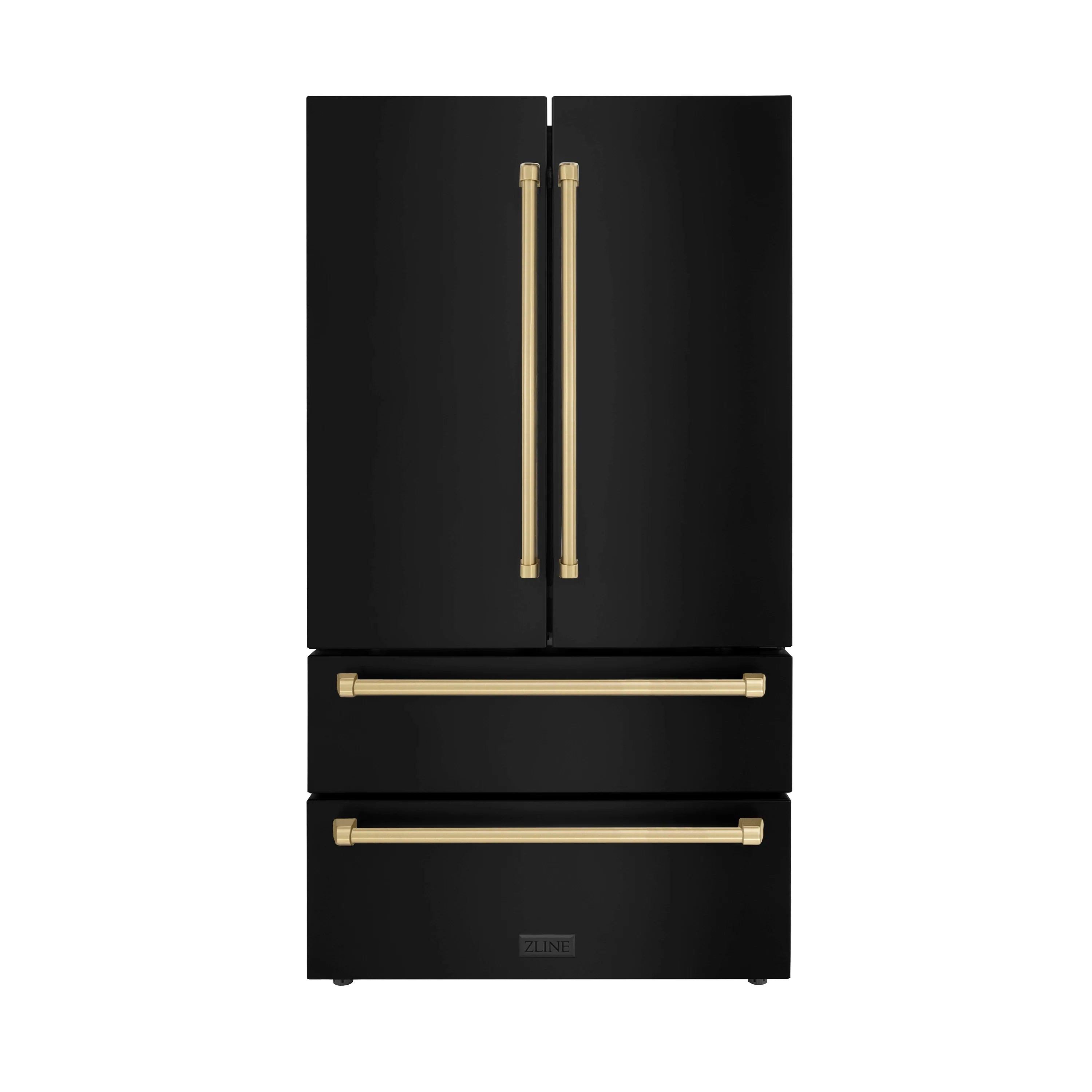

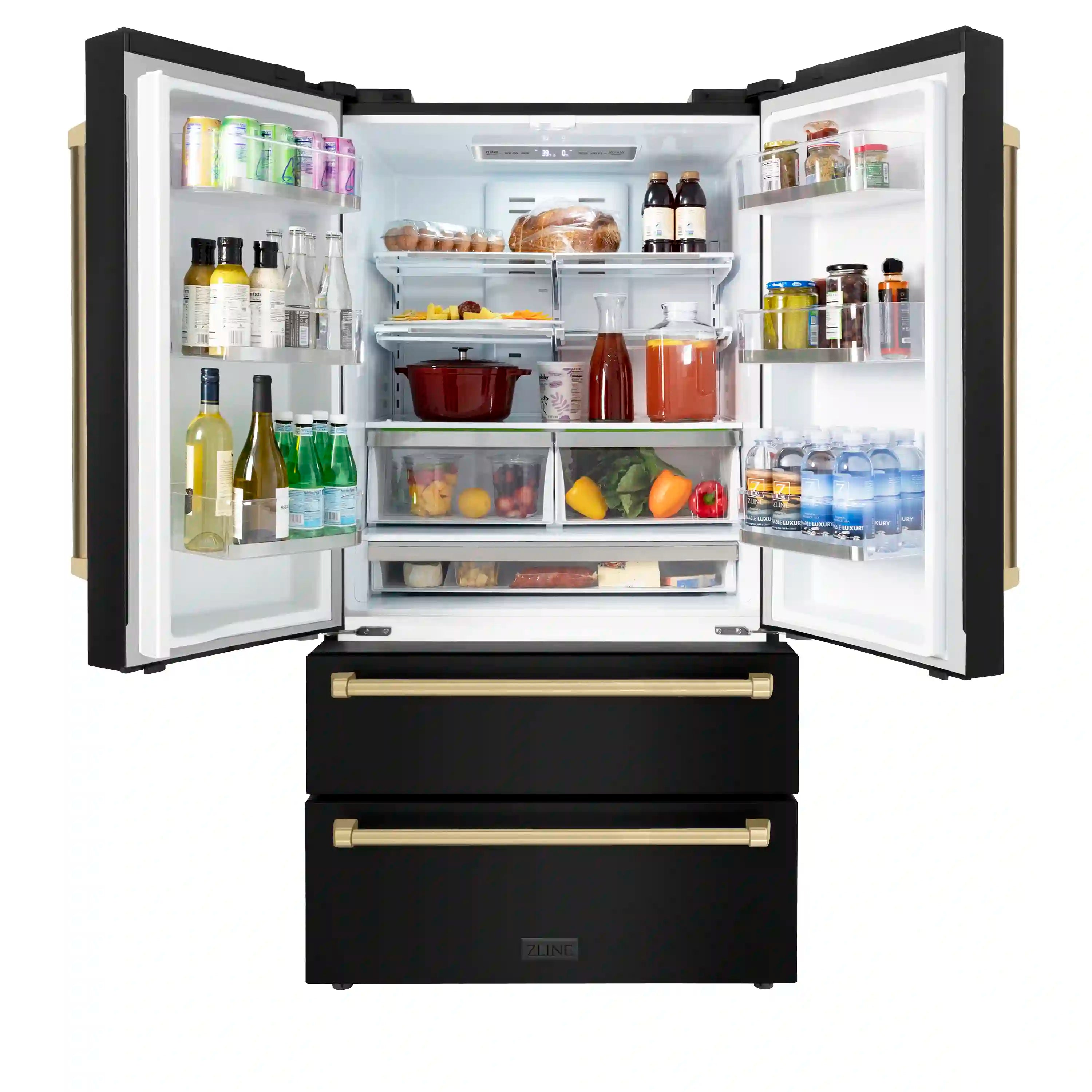

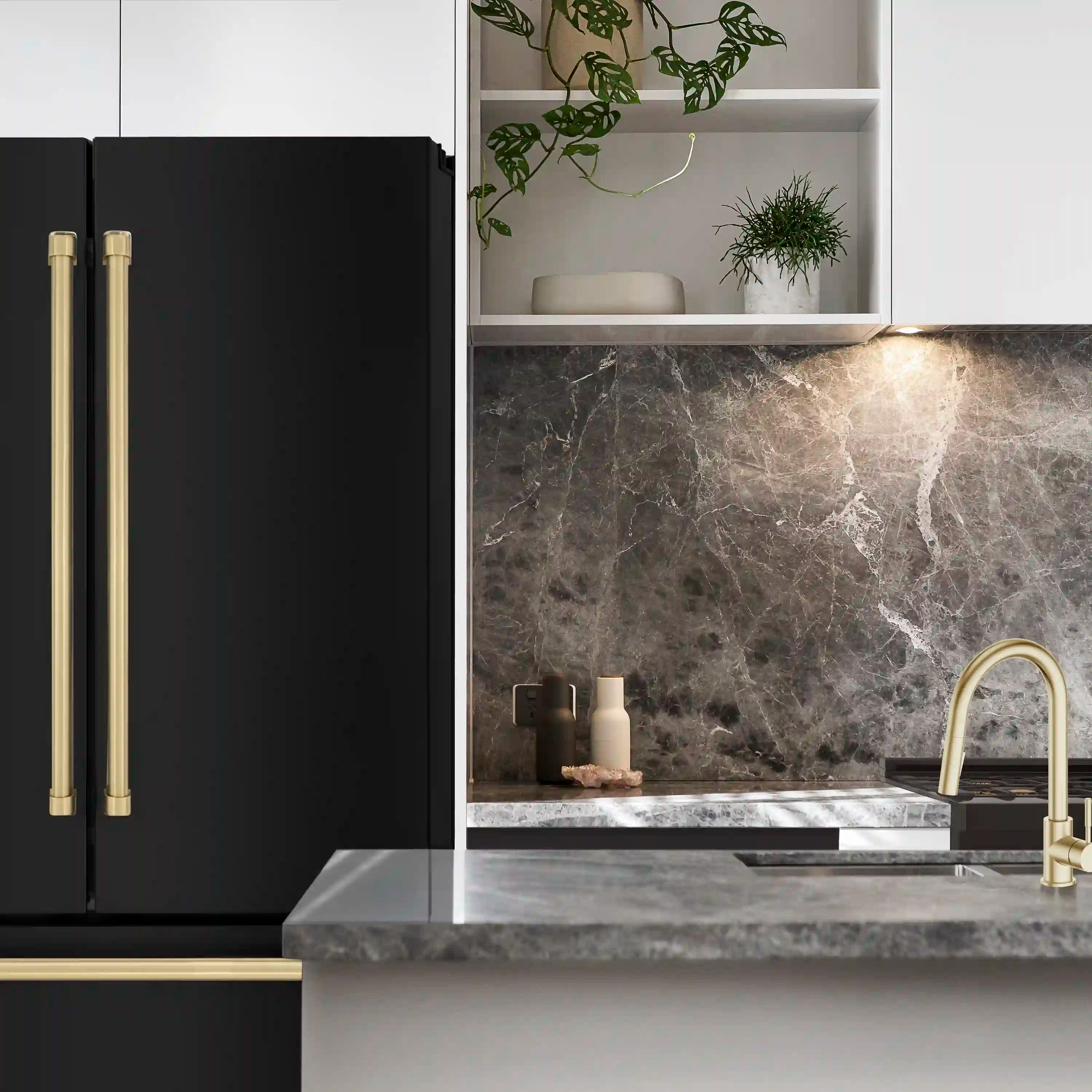

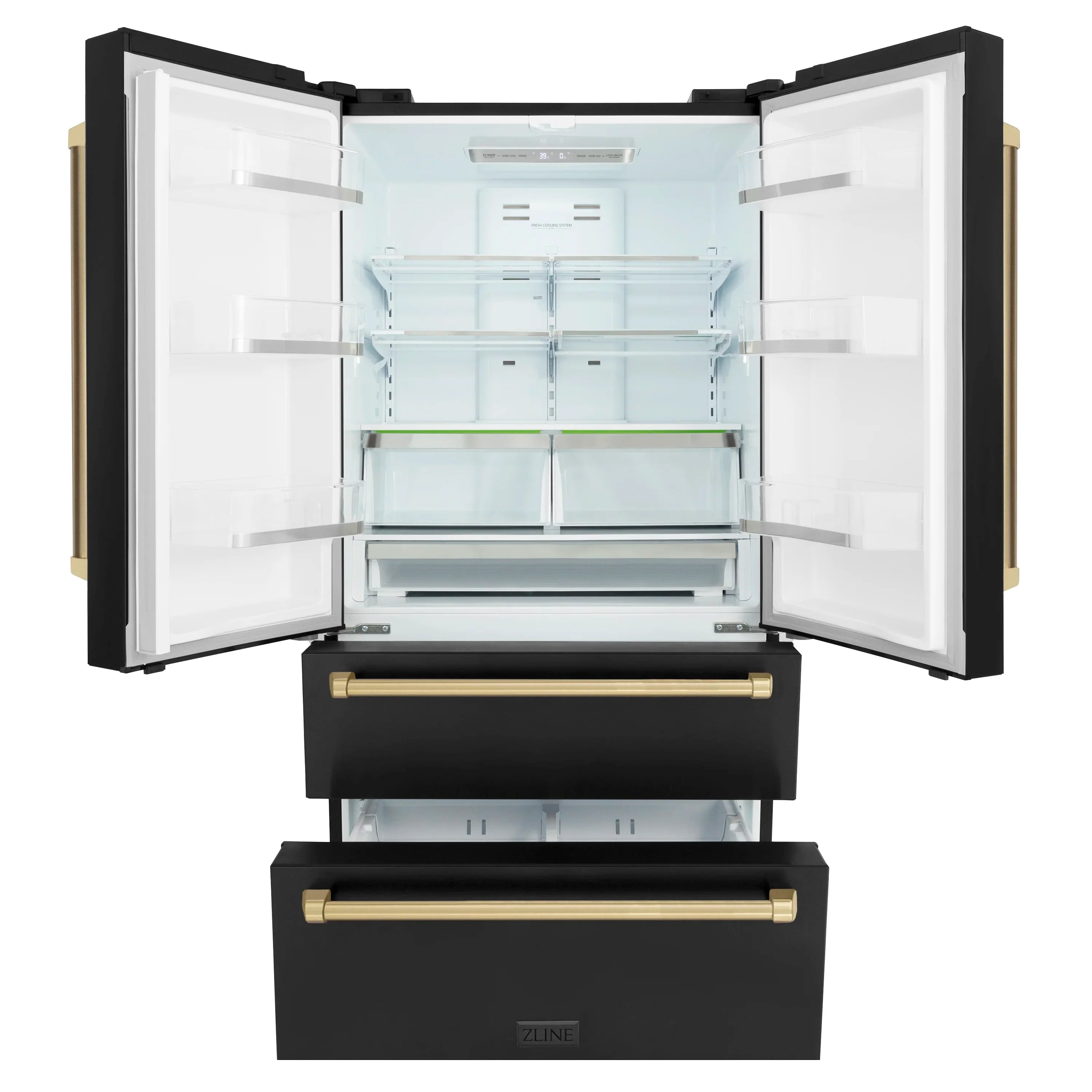

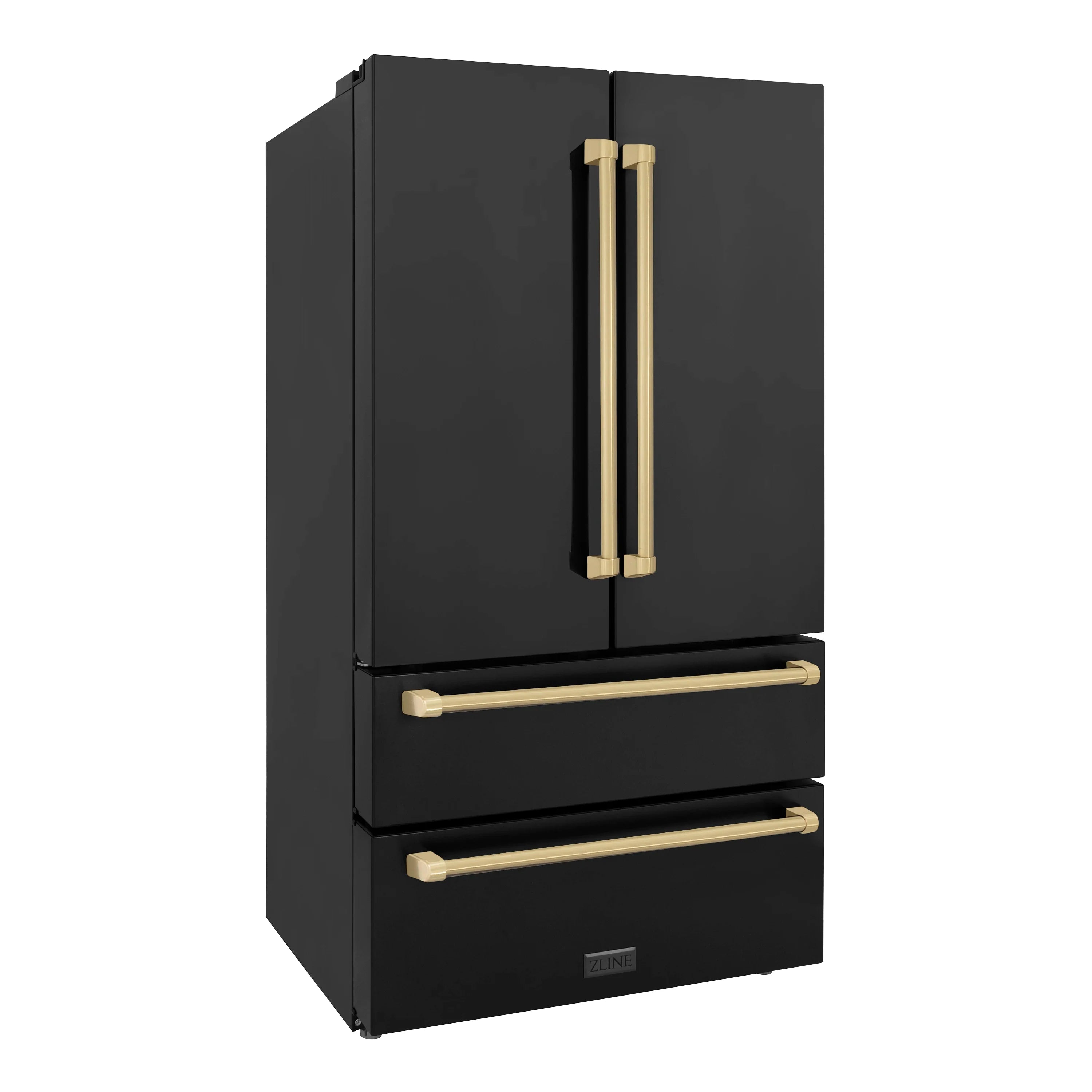

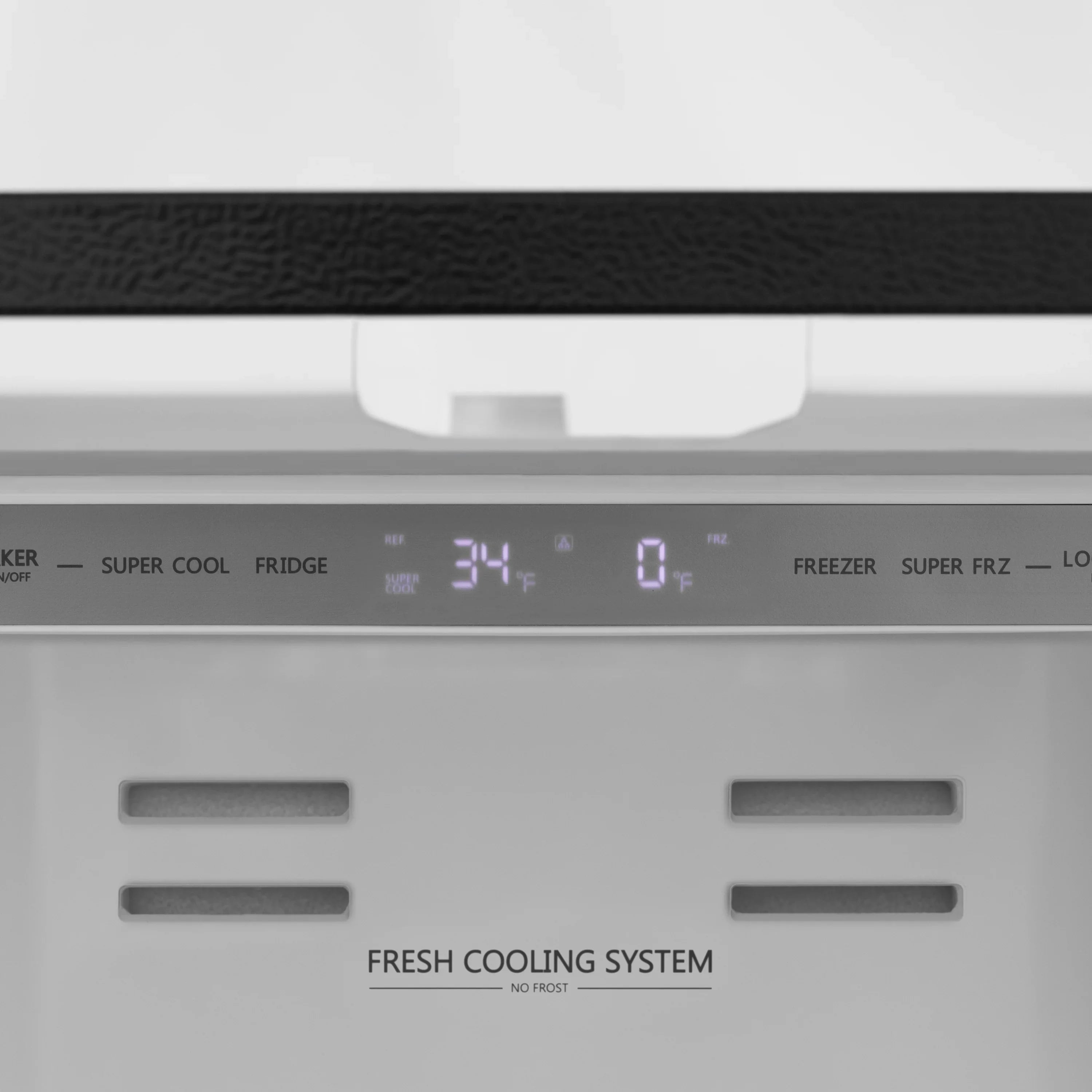

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 36 in. 22.5 cu. ft. Counter-Depth French Door Refrigerator with Ice Maker in Fingerprint-Resistant Black Stainless Steel and Champagne Bronze Traditional Handles (RFMZ-36-BS-CB) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and a high-capacity built-in ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
This refrigerator and its door handles will ship in multiple boxes and requires assembly upon installation.
| DIMENSIONS | |
|---|---|

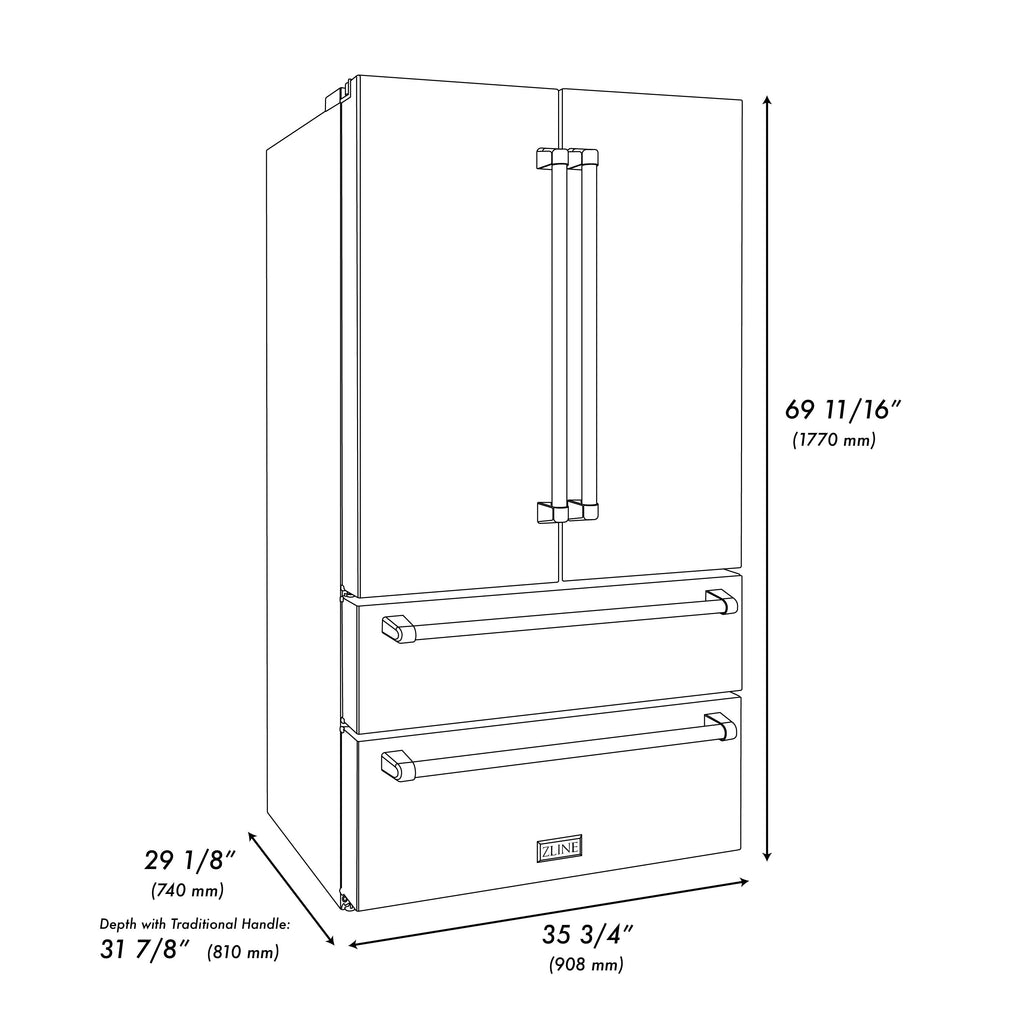

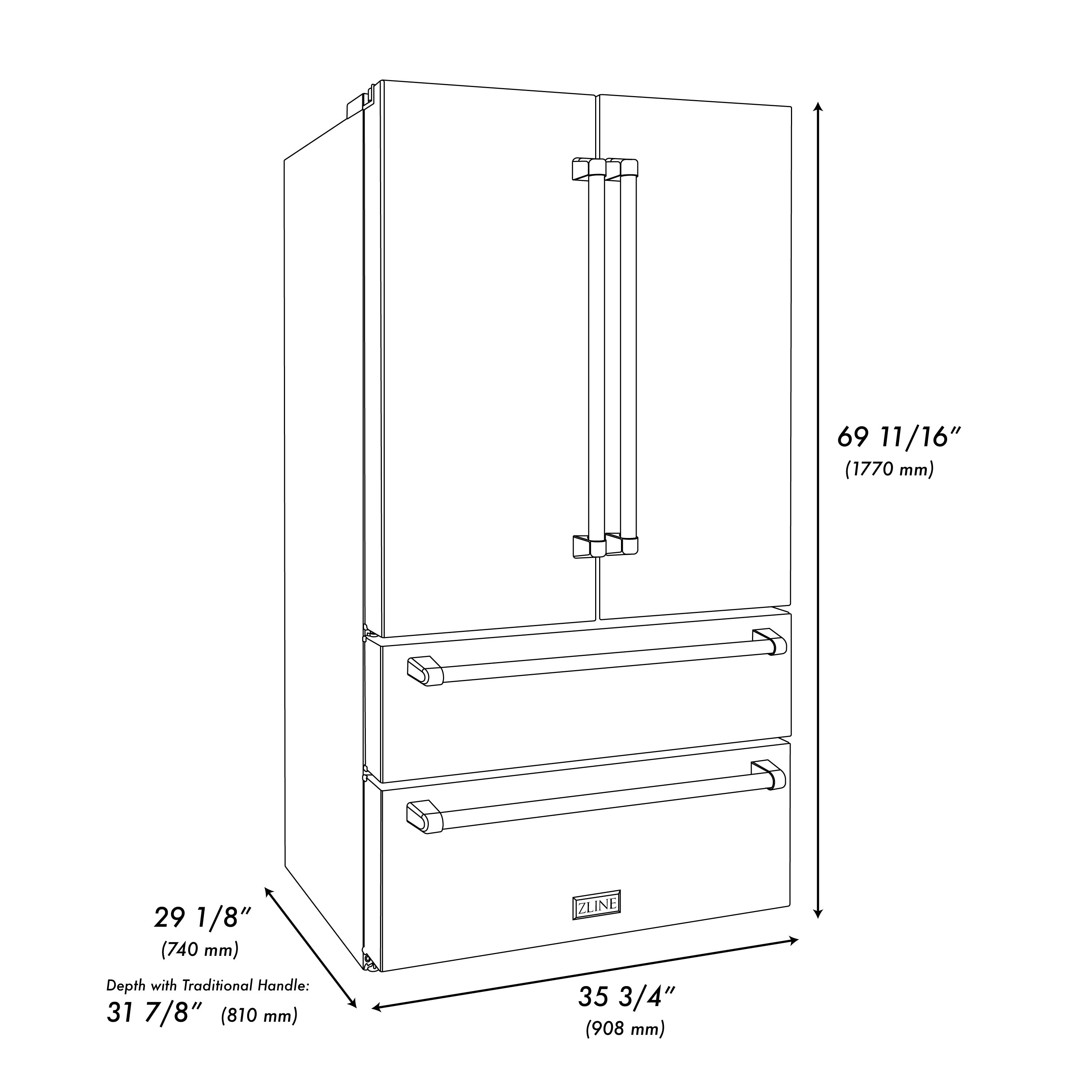

| Dimensions | 35.75 in. W x 29.125 in. D x 69.6875 in. H |
| Total Capacity | 22.5 cu. ft |
| Installation Depth | 29 in. D |
| Depth with Door Open | 43.5 in. |
| Weight | 284.4 lbs |
| GENERAL INFORMATION | |
| Mount Type | Freestanding |
| DESIGN & FINISH | |
| Material | Black Stainless Steel with Champagne Bronze Accents |
| TECHNICAL DETAILS | |
| Energy Consumption (kWh/year) | 588 |
| Voltage | 120V/60Hz |
| Amps | 3 |
| Noise Level | 45 Decibels |

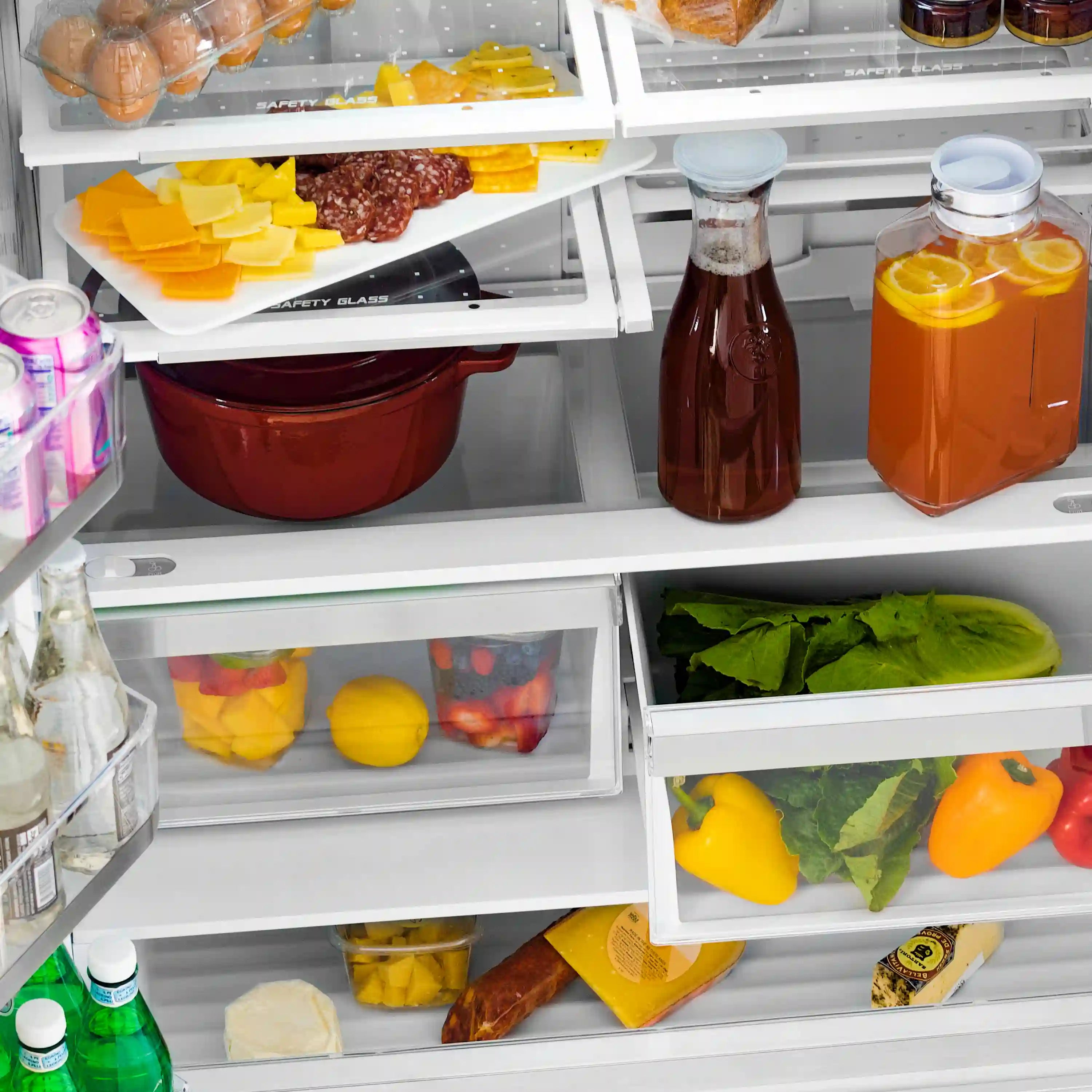

| REFRIGERATOR FEATURES | |
| Fridge Capacity | 15.9 cu. ft |
| Flex Drawer Capacity | N/A |
| Flex Drawer Temp Controls | N/A |

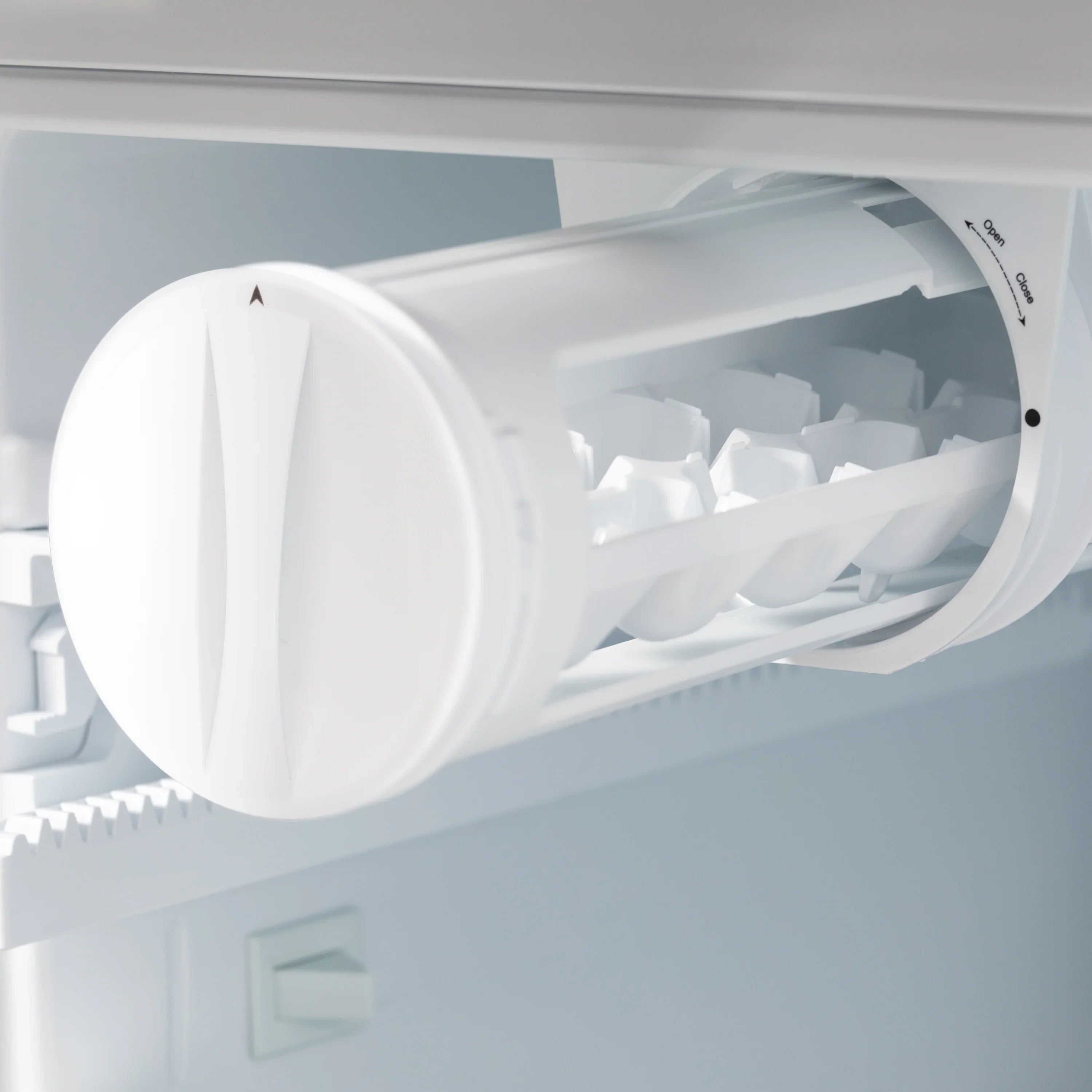

| Ice Maker | Yes |
| Ice Maker Types | Single Ice Maker |
| Ice Amount Per Day | 4.85 lbs |
| Ice Tray Storage | 1.75 lbs |
| Water Dispenser | No |
| Flowrate for Water Dispenser | N/A |
| Fridge Lights | 3 |

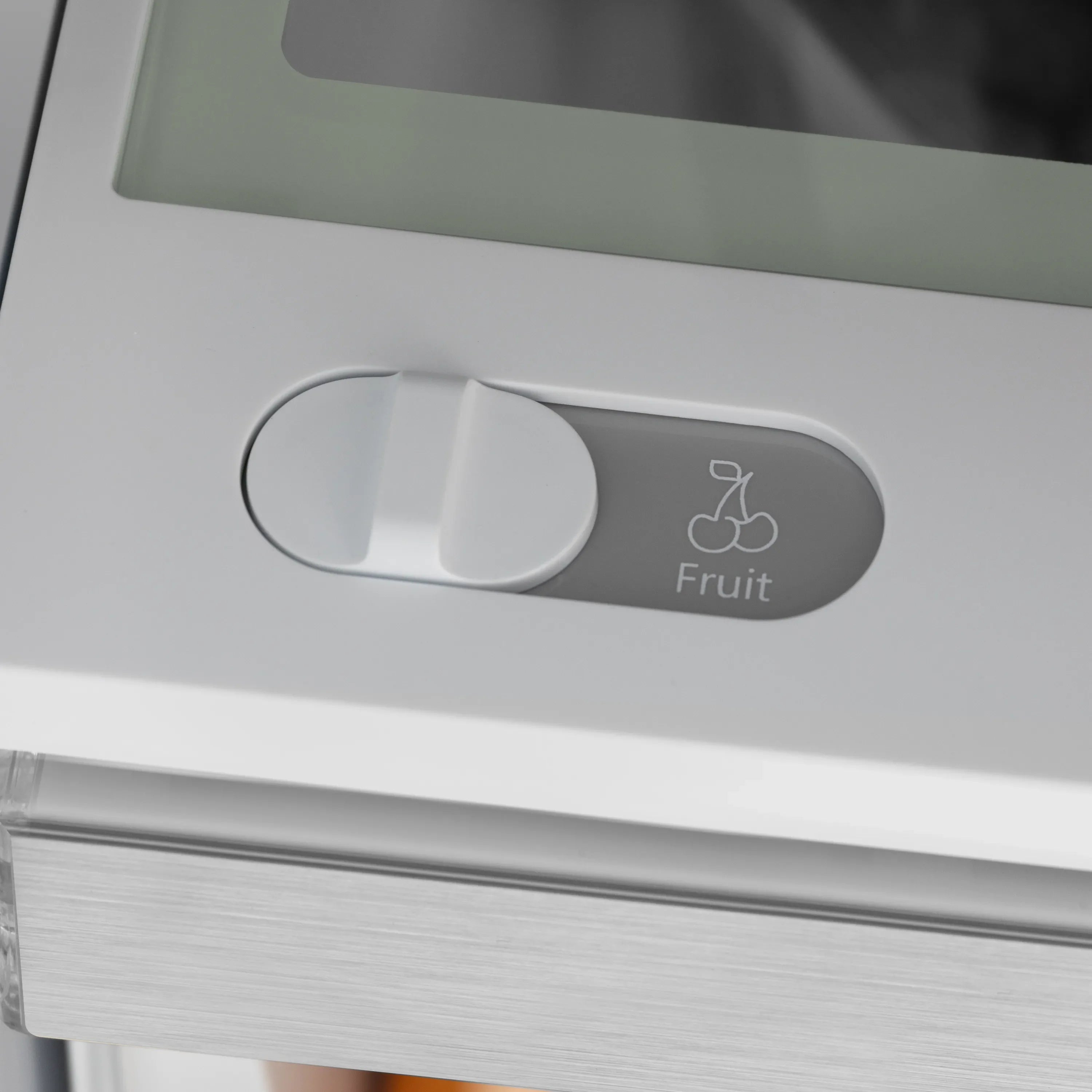

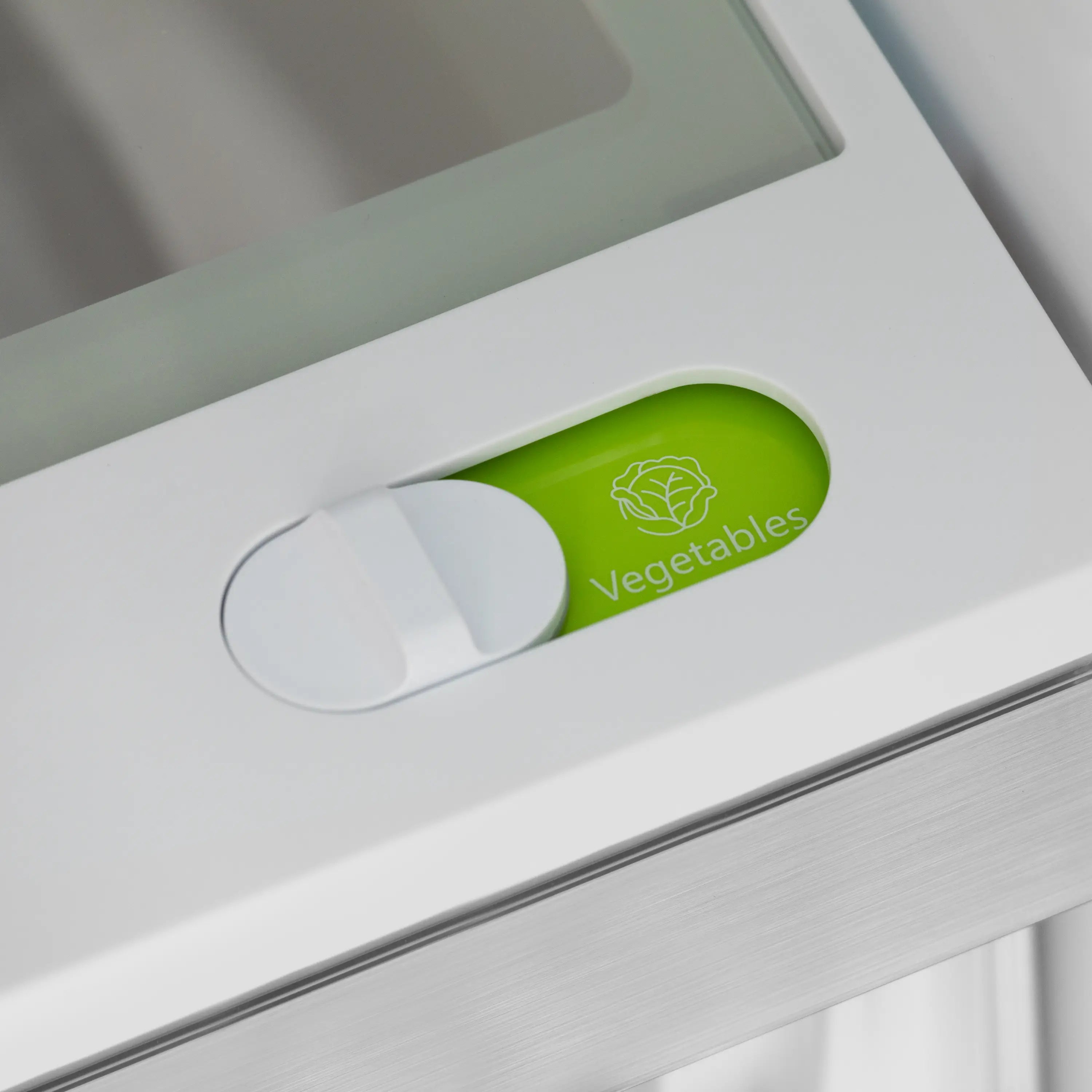

| Humidity-Controlled Crispers | 2 |
| Door Shelves | 6 |
| Number of Fridge Shelves | 4 |
| FREEZER FEATURES | |
| Freezer Capacity | 6.61 cu. ft |
| Freezer Drawer Bins | 2- Pull Out Drawers |
| WARRANTY & CERTIFICATIONS | |
| Energy Star | Yes |
| Certifications | ETL Listed, ENERGY STAR certified |
| Warranty | 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System |

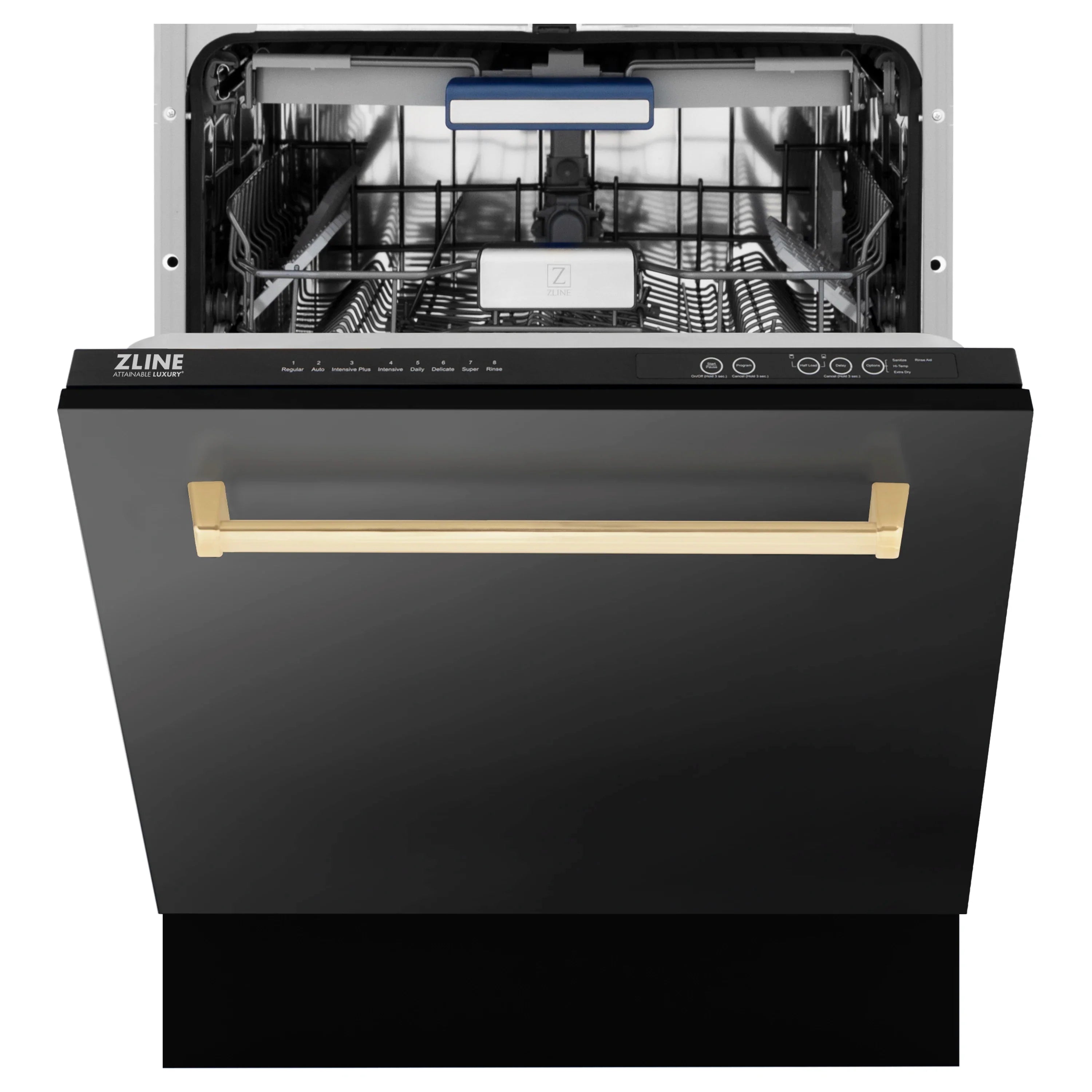

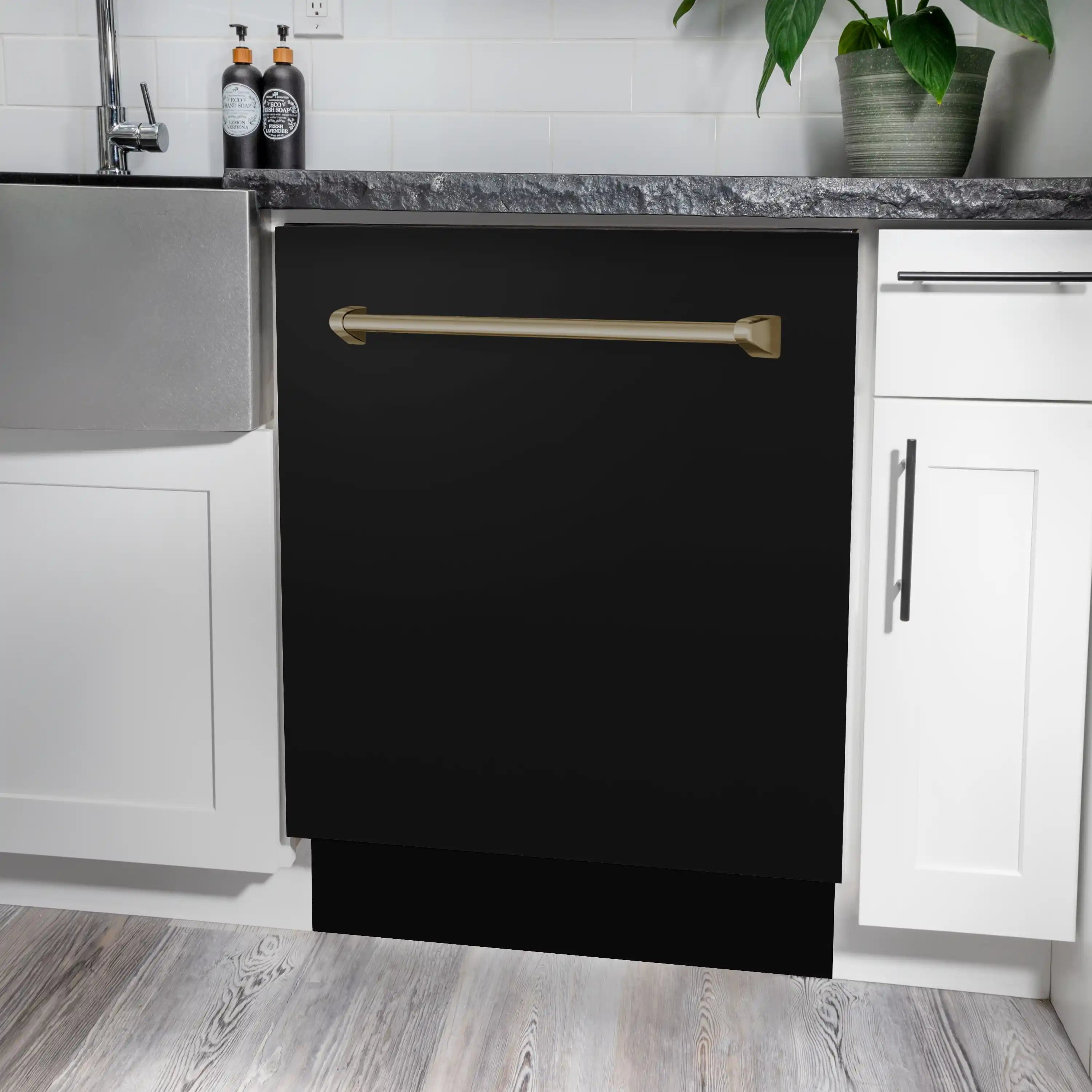

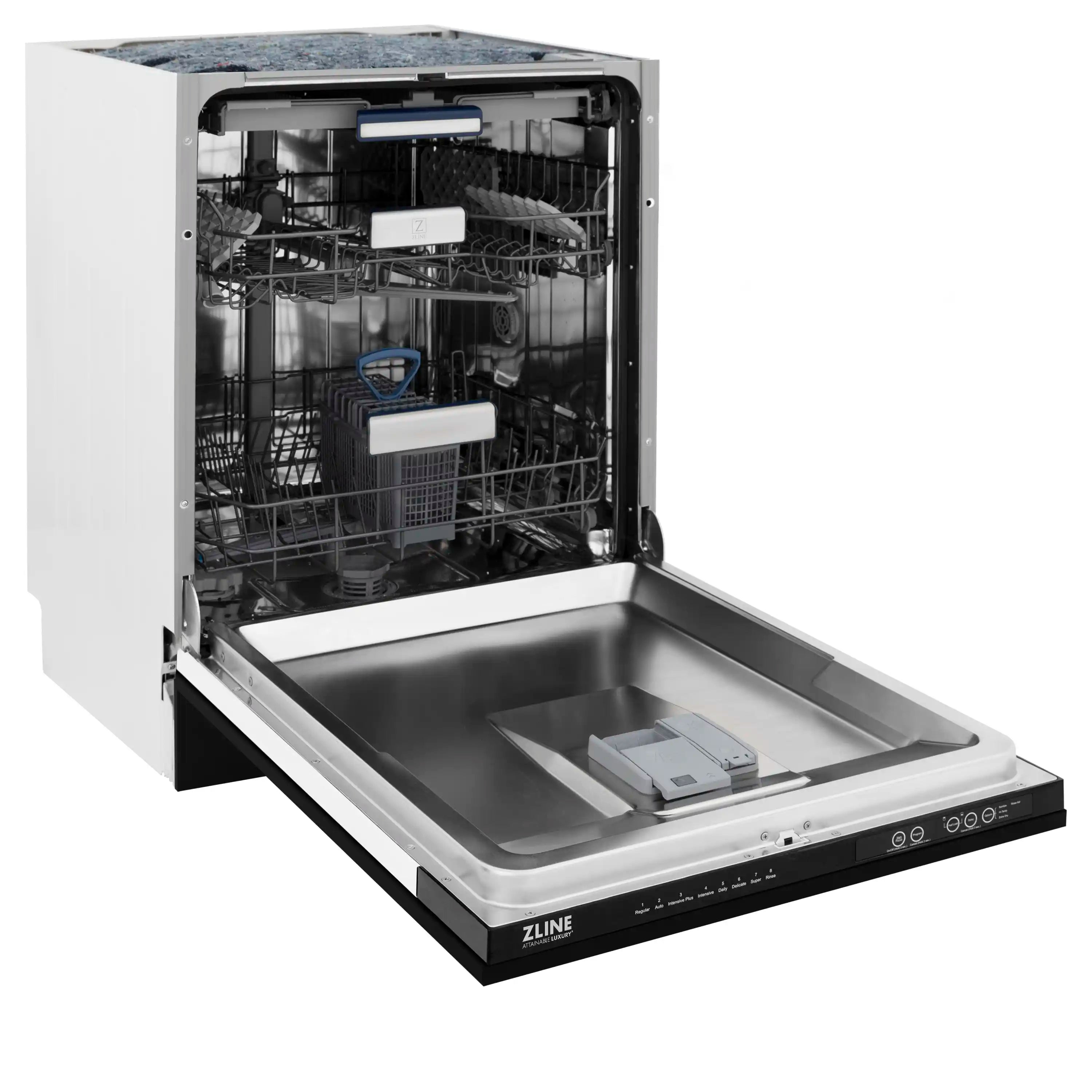

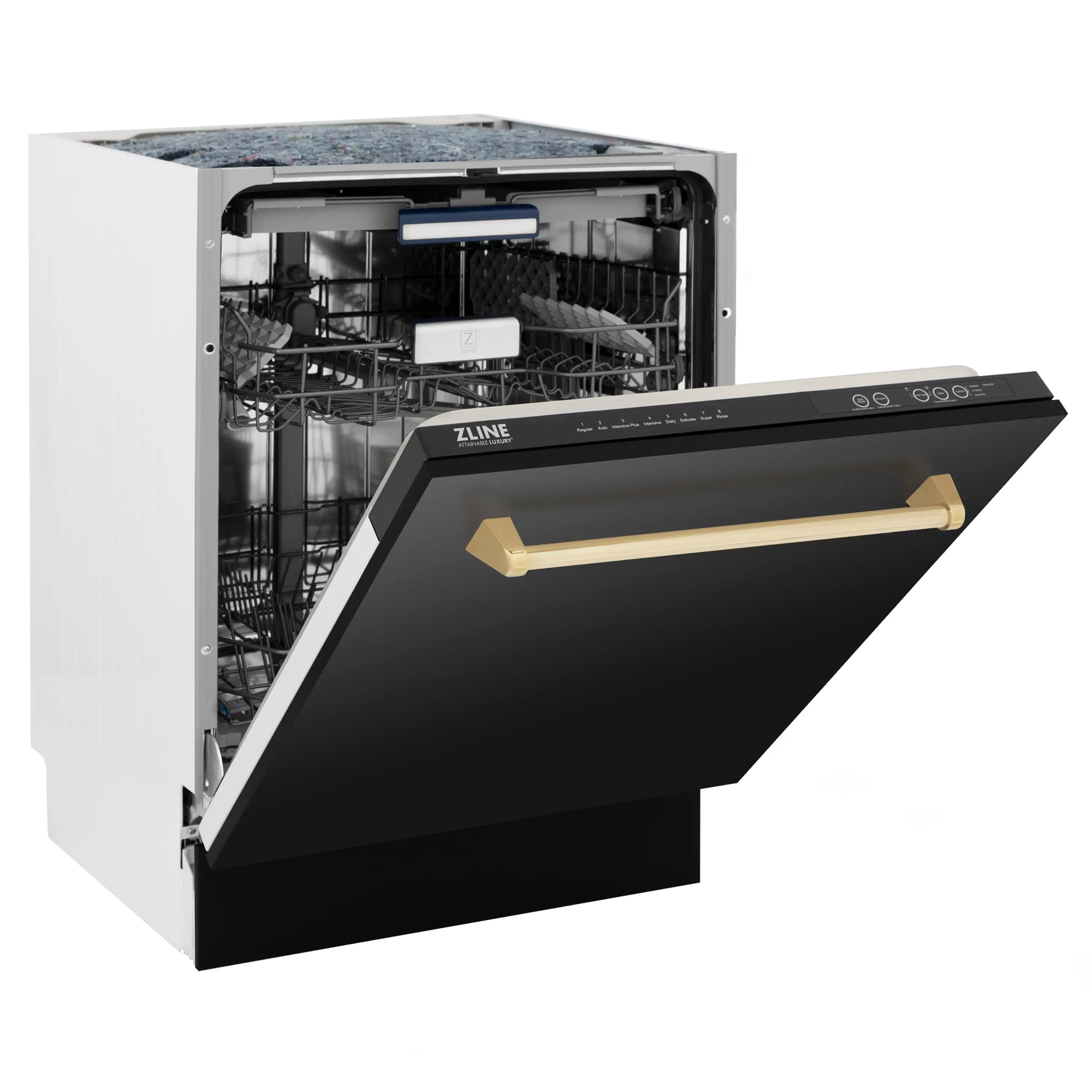

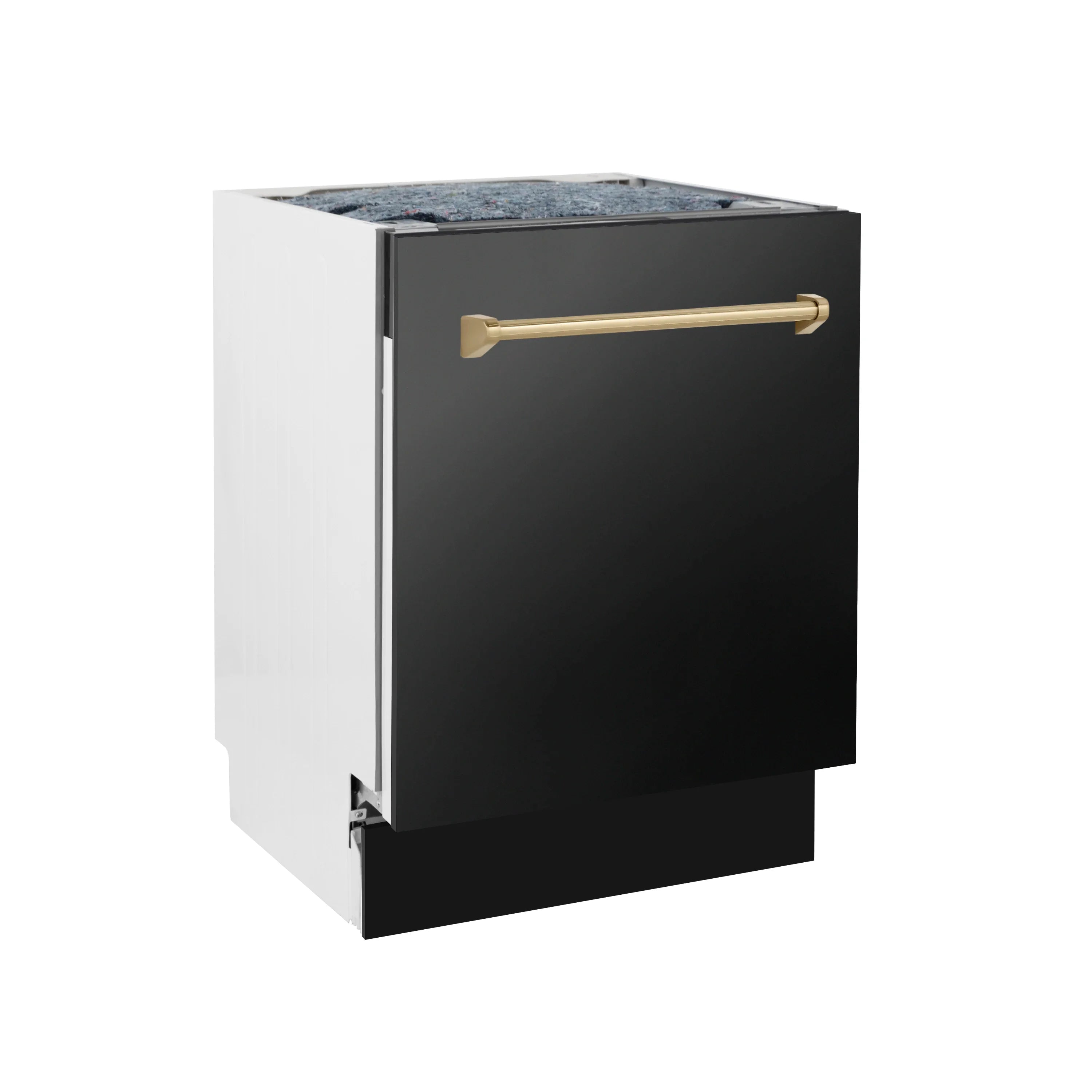

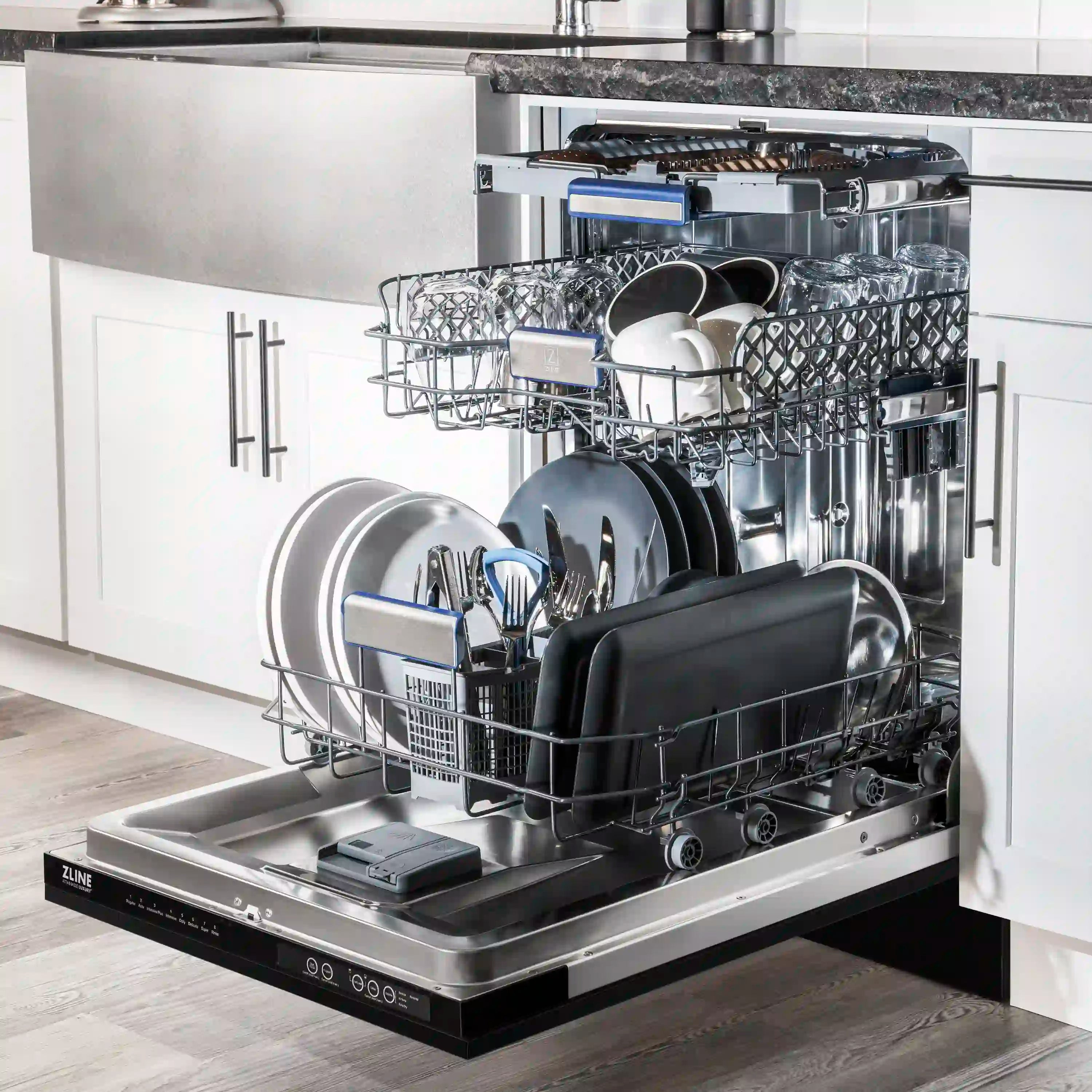

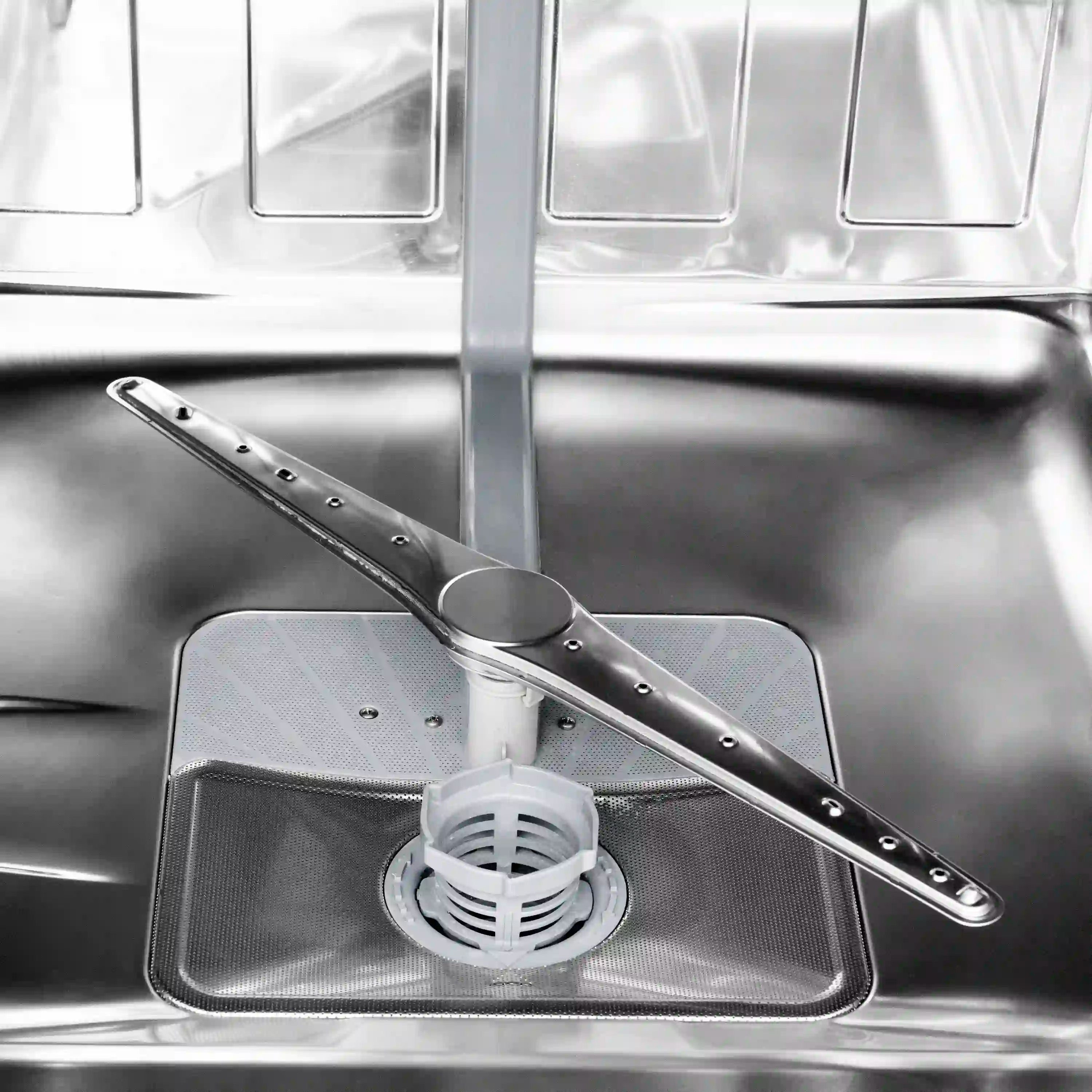

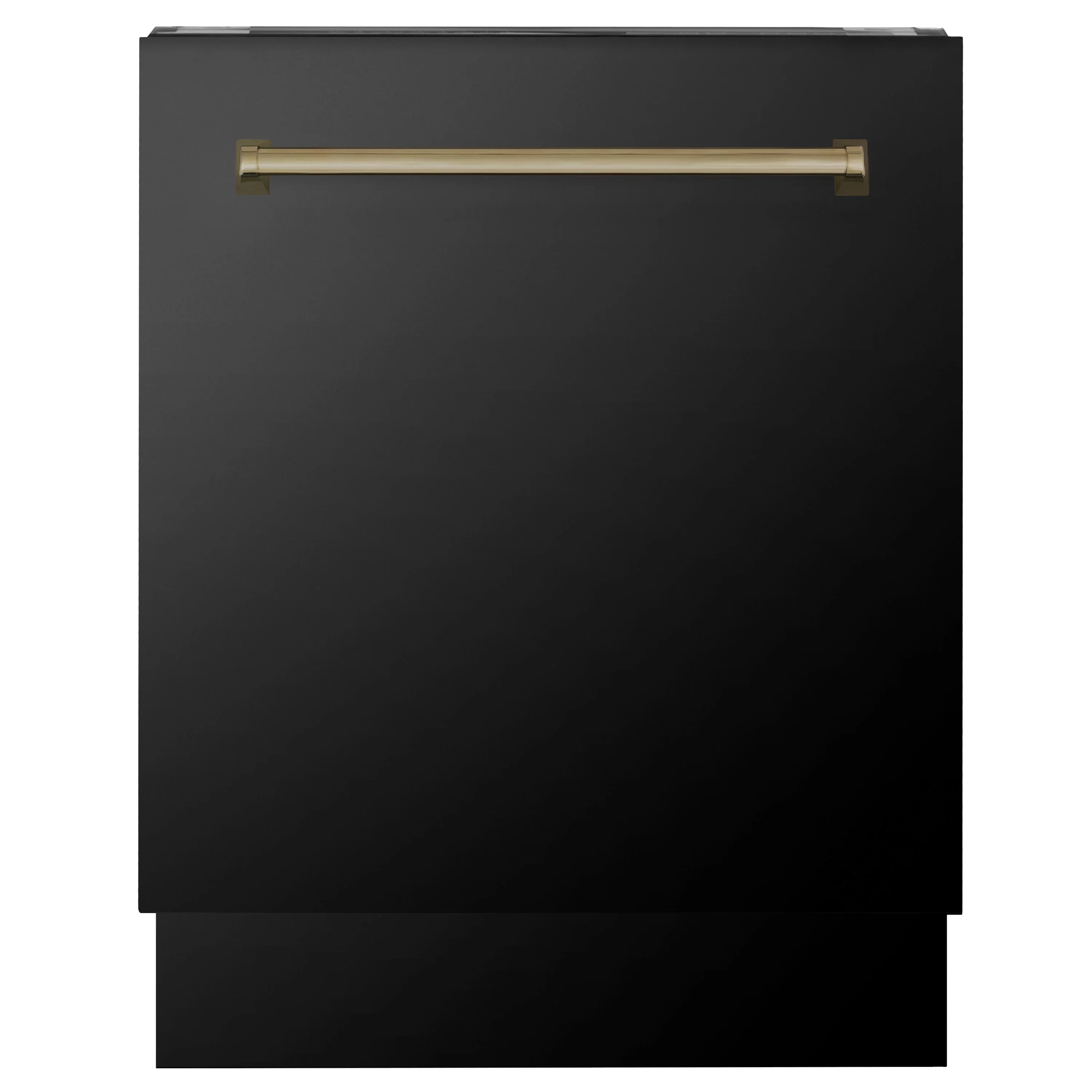

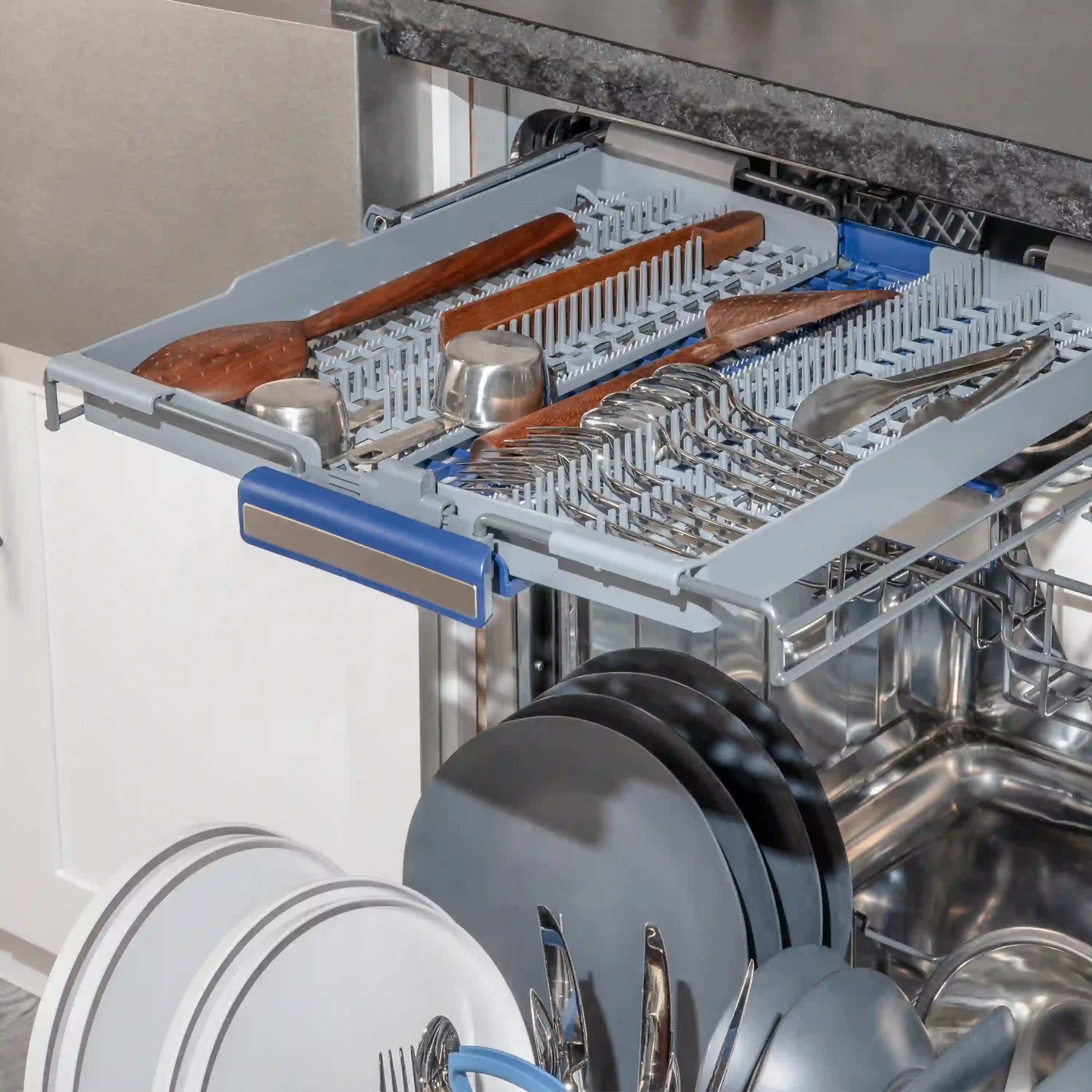

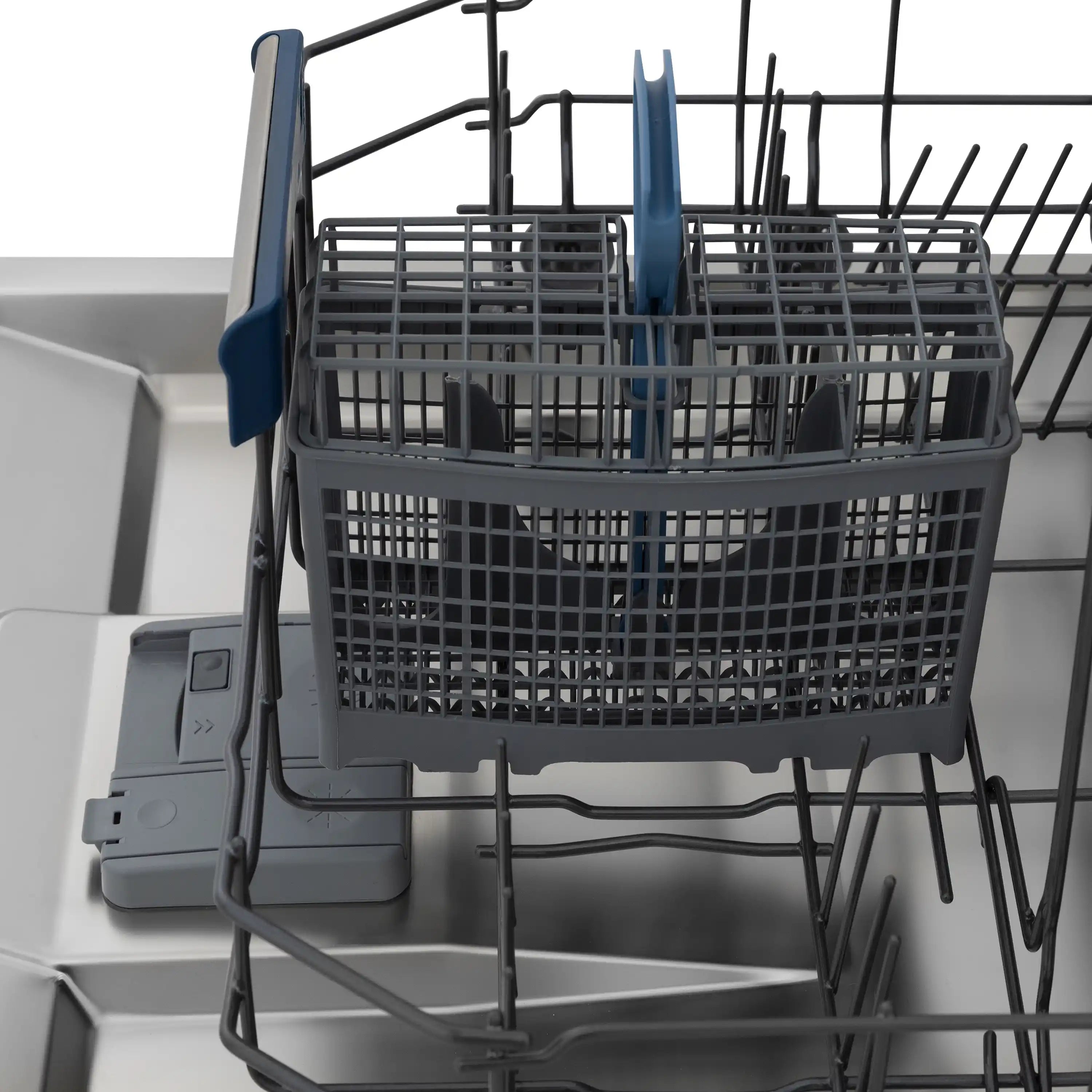

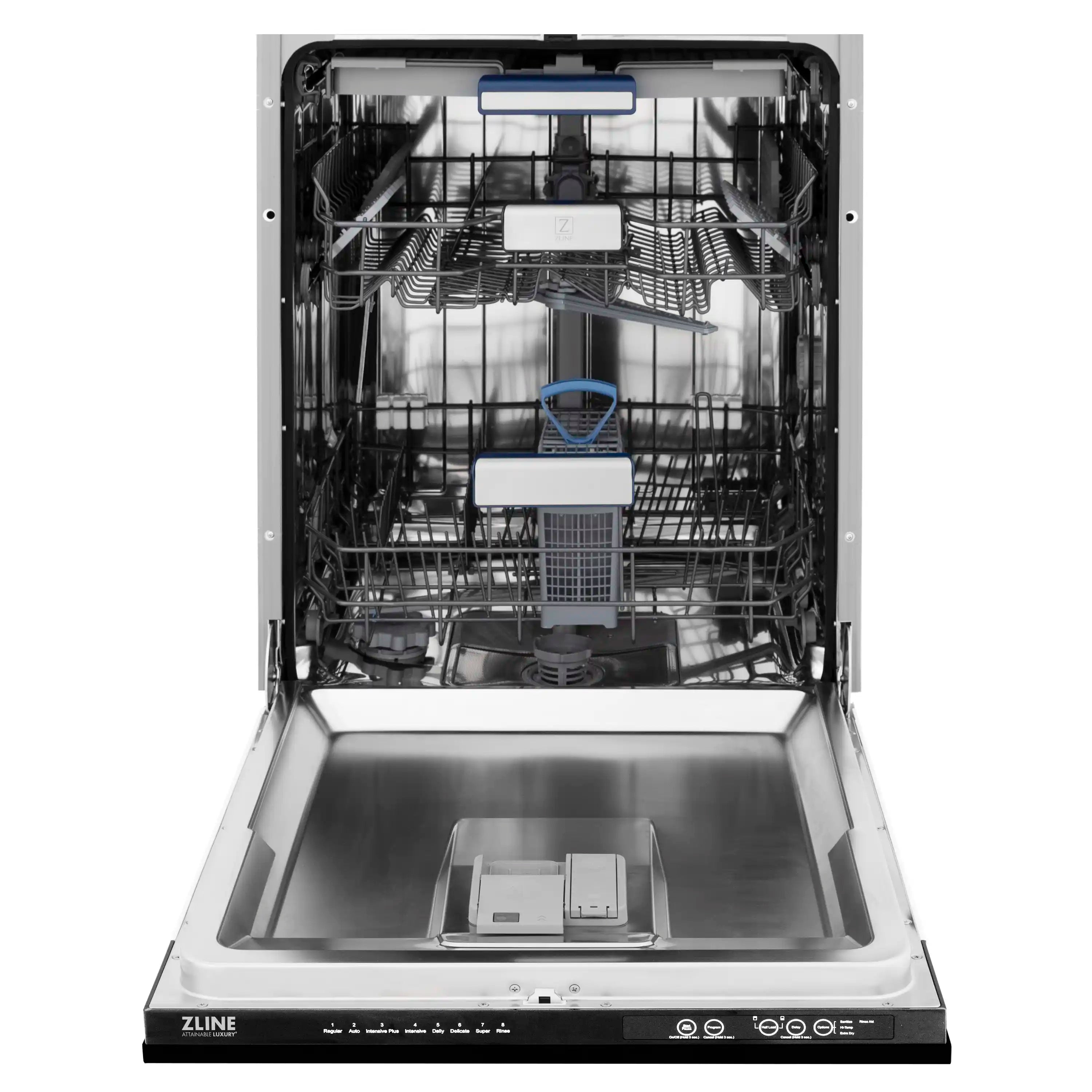

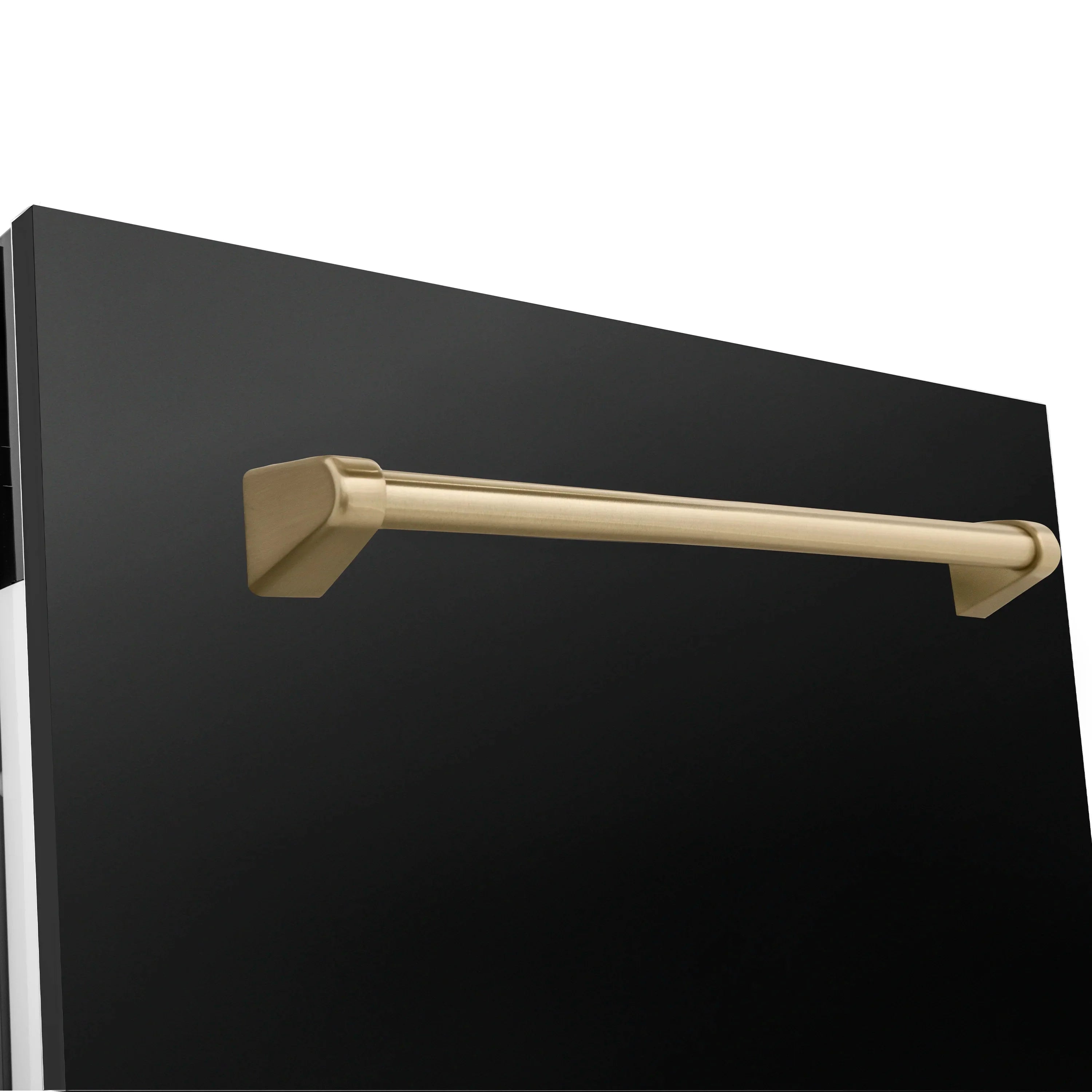

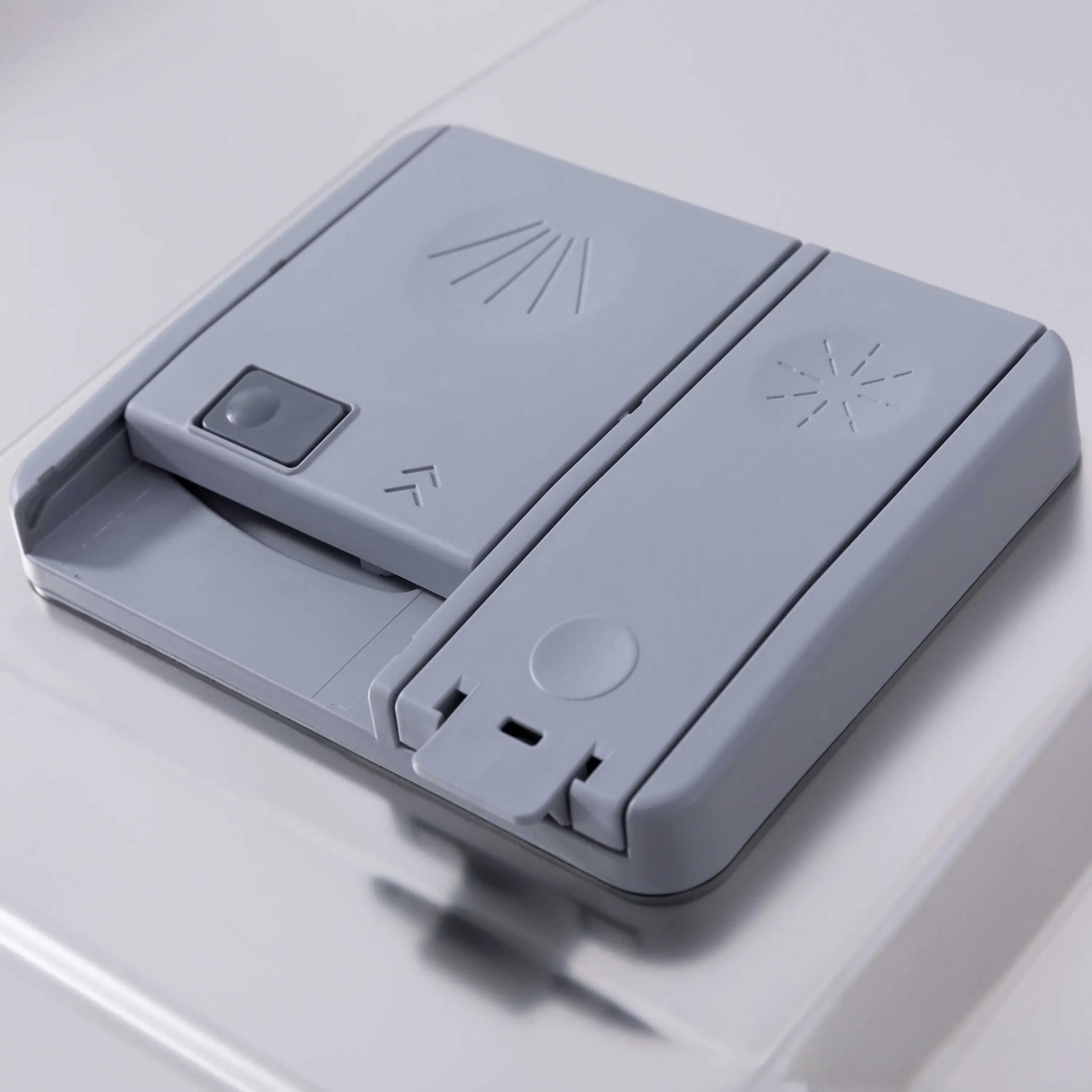

The ZLINE Autograph Edition 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Black Stainless Steel Panel with Champagne Bronze Handle (DWVZ-BS-24-CB) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.

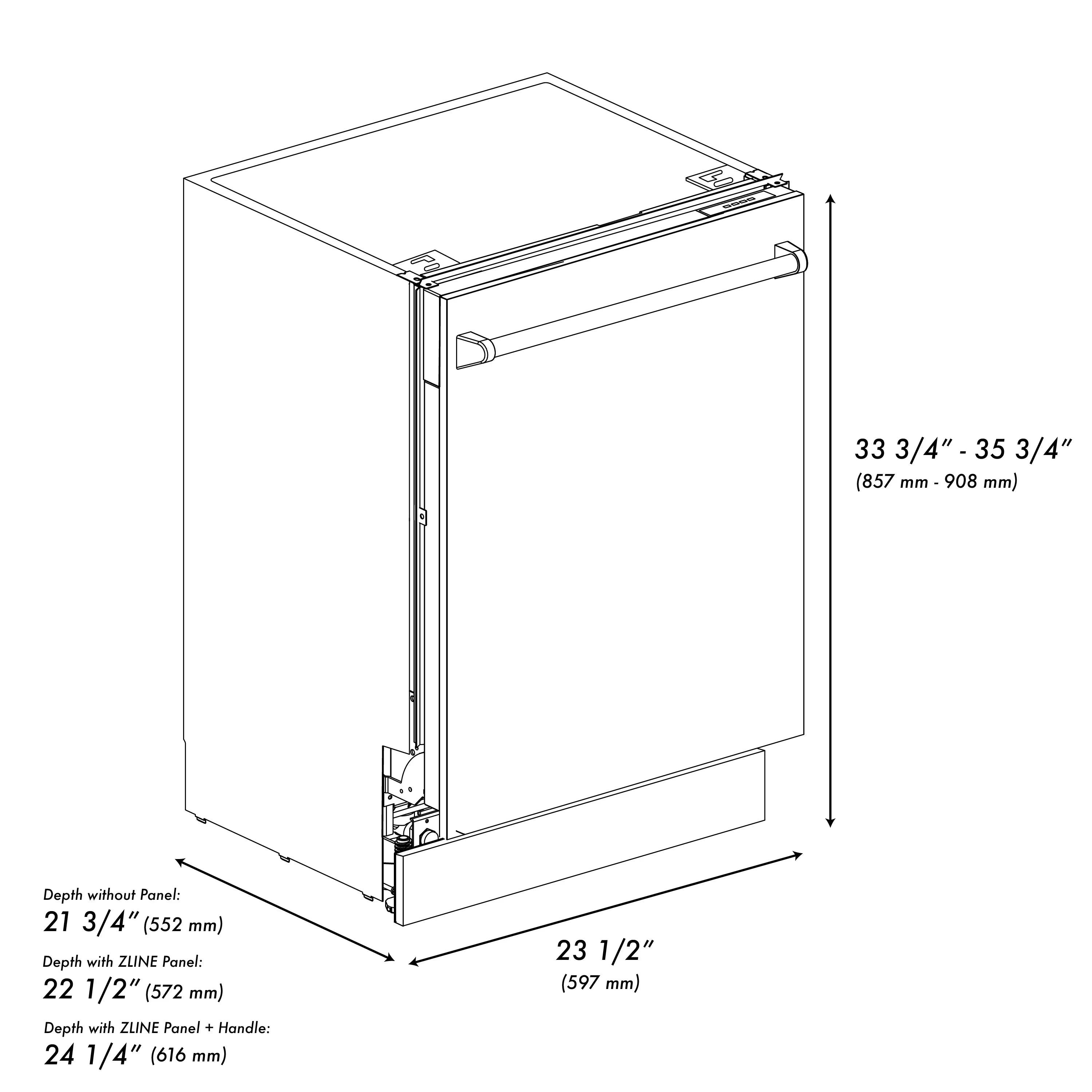

| DIMENSIONS | |
|---|---|
| Size | 24 in. |

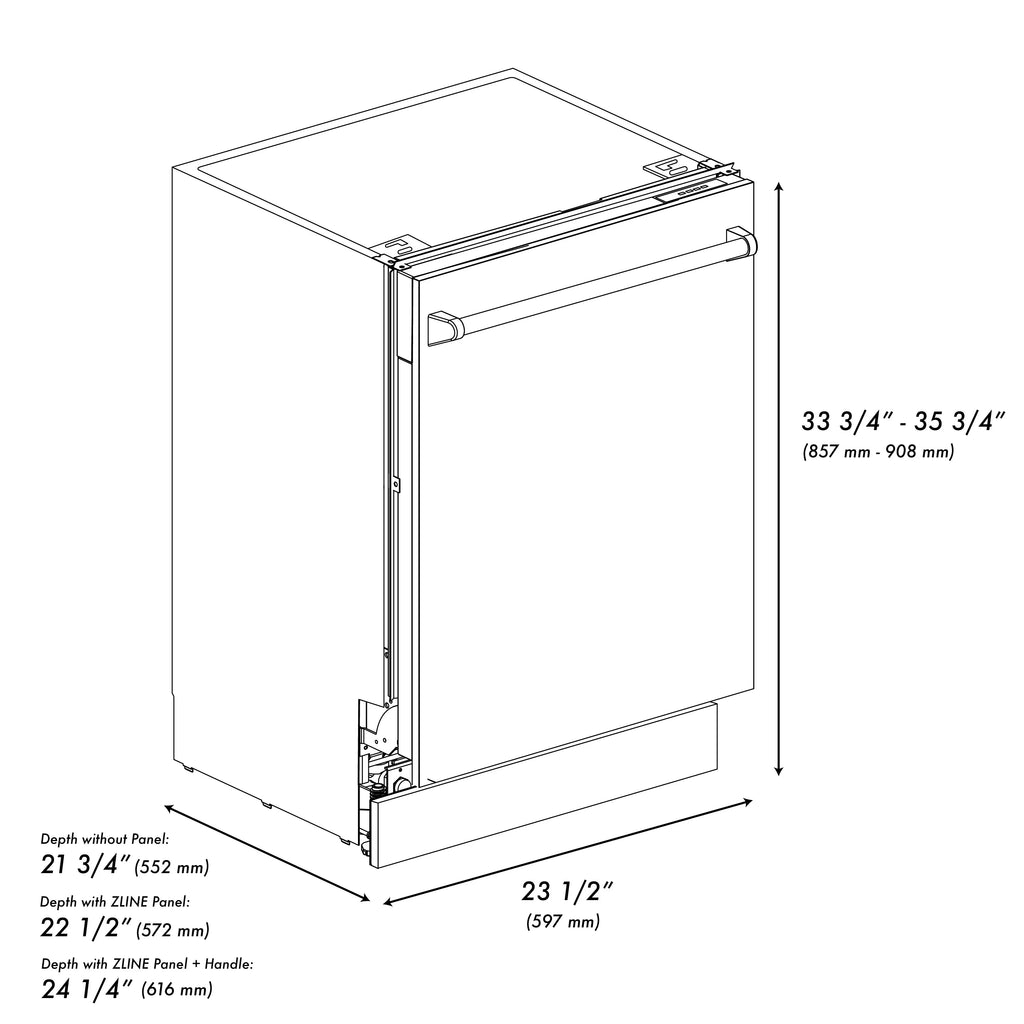

| Dimensions | 23.6" W x 22.4" D x 33.9" H |
| Product Weight | 106.8 lbs |
| Cut-Out Height | 34.13 in. |
| Cut-Out Width | 24 in. |
| Interior Dimensions | 20.95" W x 20.5" D x 24.17"H |
| Max Plate Height | 13 in. |
| GENERAL INFORMATION | |
| Installation Type | Plug In - Nema 5-15 |
| Panel Ready | N |
| DESIGN & FINISH | |
| Panel Finish | Black Stainless Steel |
| Handle Finish | Champagne Bronze |
| Handle Type | Traditional Style |
| Control Location | Top Control |
| Control Type | Button Control |
| Silverware Basket Location | Bottom Rack Center |
| TECHNICAL DETAILS | |
| Voltage | 120vac |
| Frequency | 60Hz |
| Dedicated Circuit | 15A |
| Rated Current | 12A |
| Motor Wattage | 100W |
| Heater Wattage | 1100W |
| Motor Amperage | 0.84A |
| Heater Amperage | 10A |

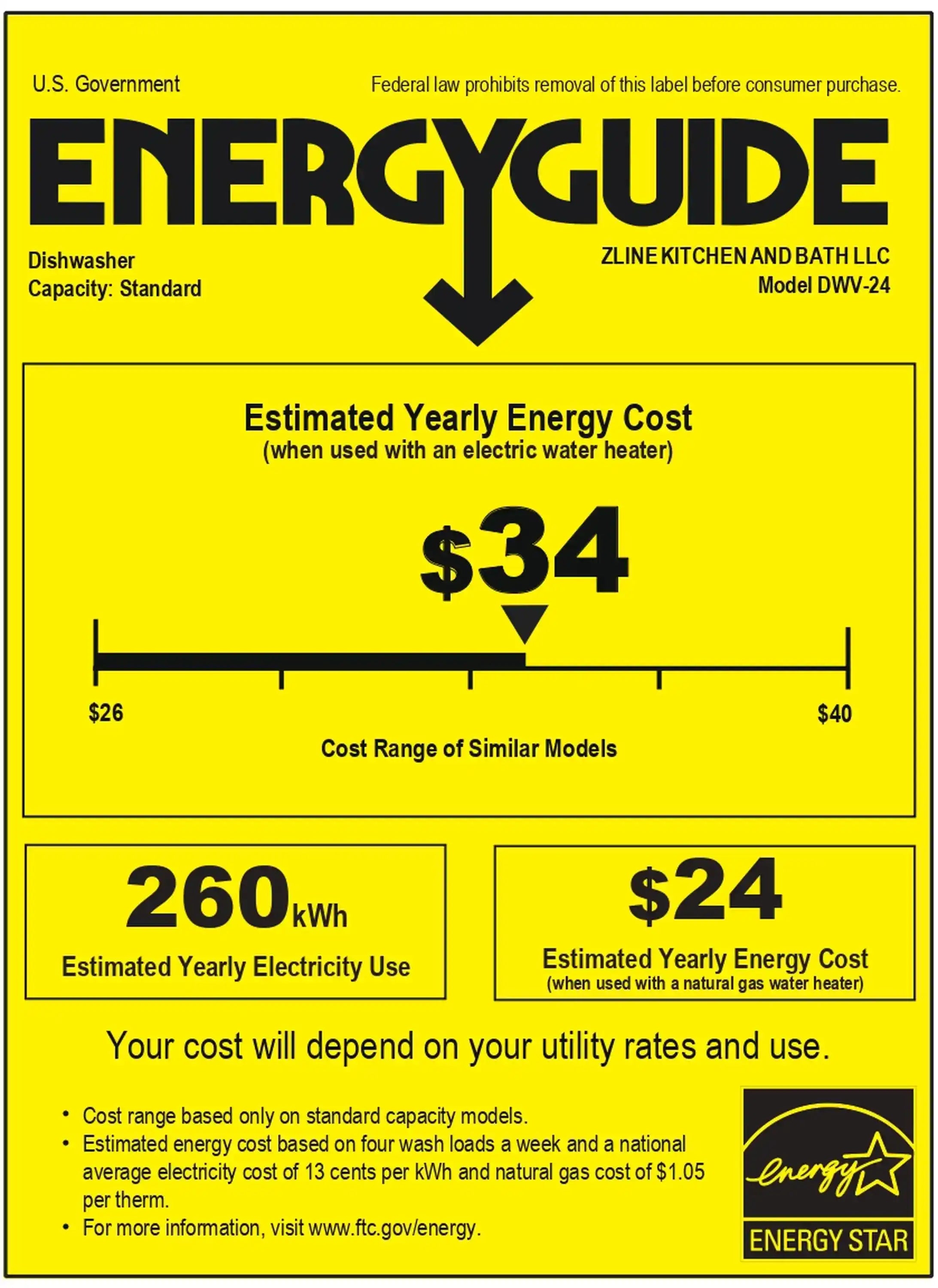

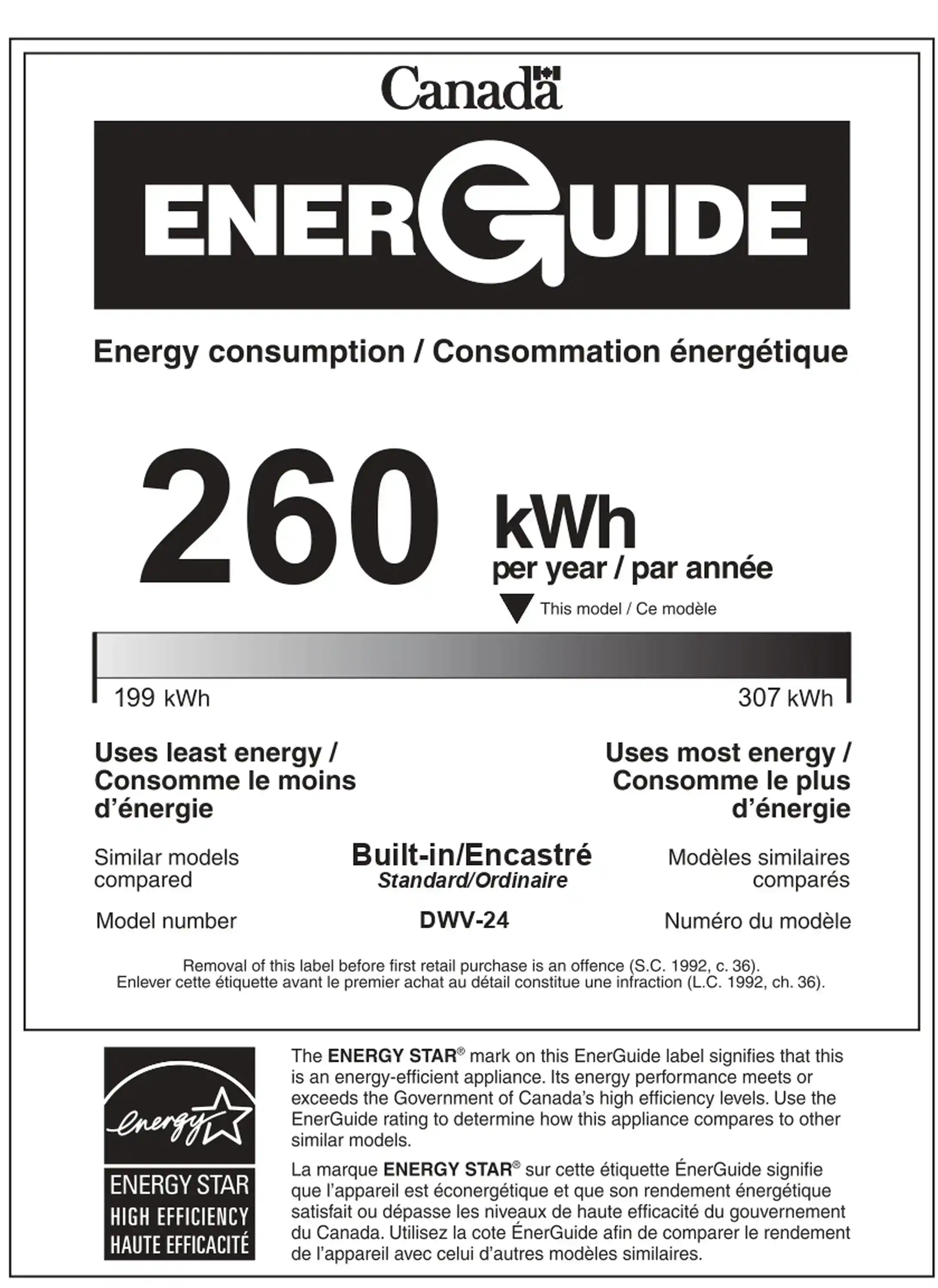

| Energy Consumption Per Year | 239 kWh |
| Water Consumption Per Cycle (Liters) | 11.73 L |
| Water Consumption Per Cycle (Gallons) | 3.1 gal |
| Decibels | 51 dBa |
| Extended Hose Length | 56 in. |
| FEATURES | |
| Drying System | Turbo Fan Drying + Auto Door |
| Steam Function | Without Steam |
| Features |
|
| WARRANTY & CERTIFICATIONS | |
| Certifications | Energy Star, CEC, UL |
