Description

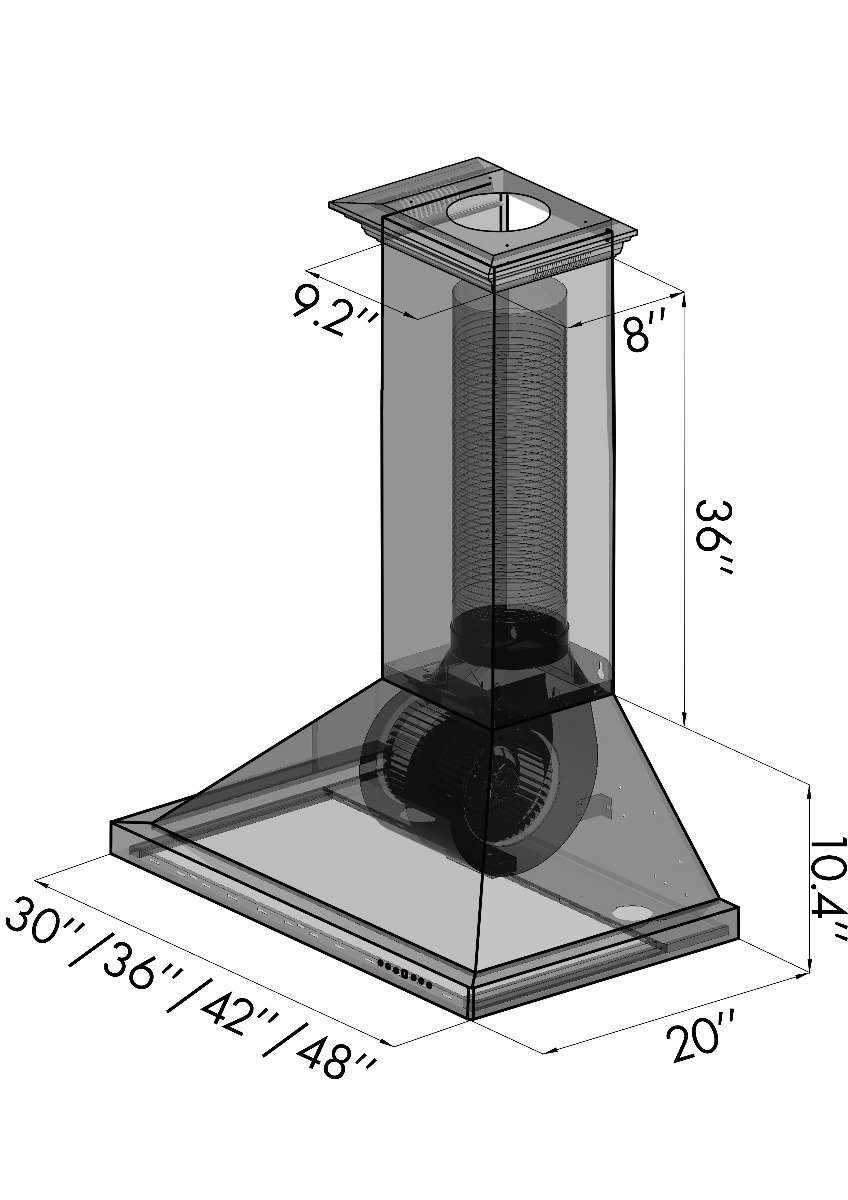

DIMENSIONS
- Dimensions
- 36" W x 19.7" D x 10.5" H
- Chimney
- 9.2" W x 8.0" D x 36" H - Fits ceilings up to 9.5 ft. Must custom cut.; Includes Crown Molding. Vented Crown Molding available for Ductless solution.; 6 ft. Chimney Extension available for ceilings up to 12.5 ft.
GENERAL INFORMATION
- Brand
- ZLINE Kitchen and Bath
- Mount Type
- Wall Mounted
- UPC
- 814118022058
DESIGN & FINISH
- Lighting
- 2 Directional LED Lights (3-Watt)
- Material
- Oil-Rubbed Bronze Finish
TECHNICAL DETAILS
- Venting Size
- 6" Round Outlet
- Airflow (Q/L/M/H)
- 120/240/320/400
- Voltage
- 110V/60HZ
- Motor
- High Performance 400 CFM/4-Speed Motor
- Speeds
- 4 Speeds
- Control Type
- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
- Filters
- Stainless Steel Baffle Filters (Dishwasher Safe)
FEATURES
- Features
- Model No. 8KBB-30,8KBB-36, 8KBB-42, 8KBB-48
WARRANTY & CERTIFICATIONS
- Warranty
- 3 Year Parts Warranty
- Certifications
- ETL Listed
