Description

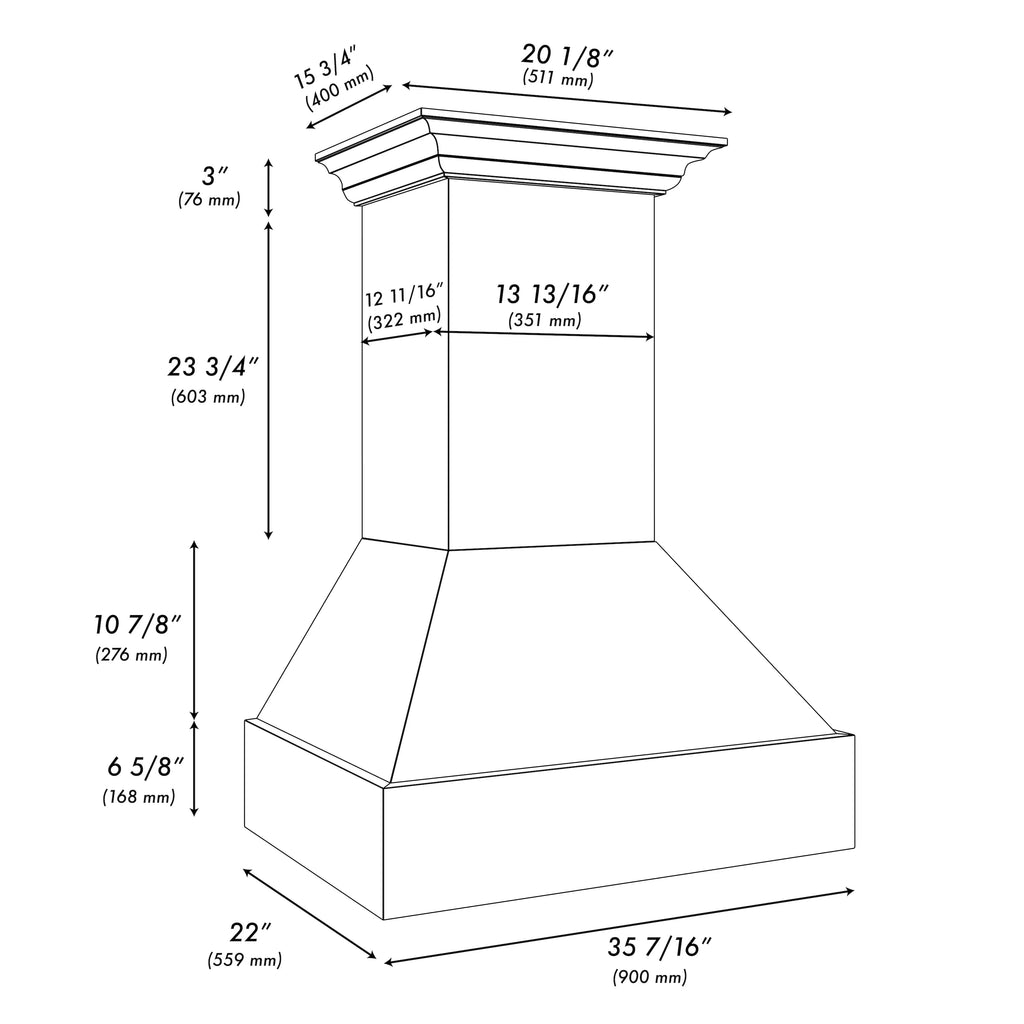

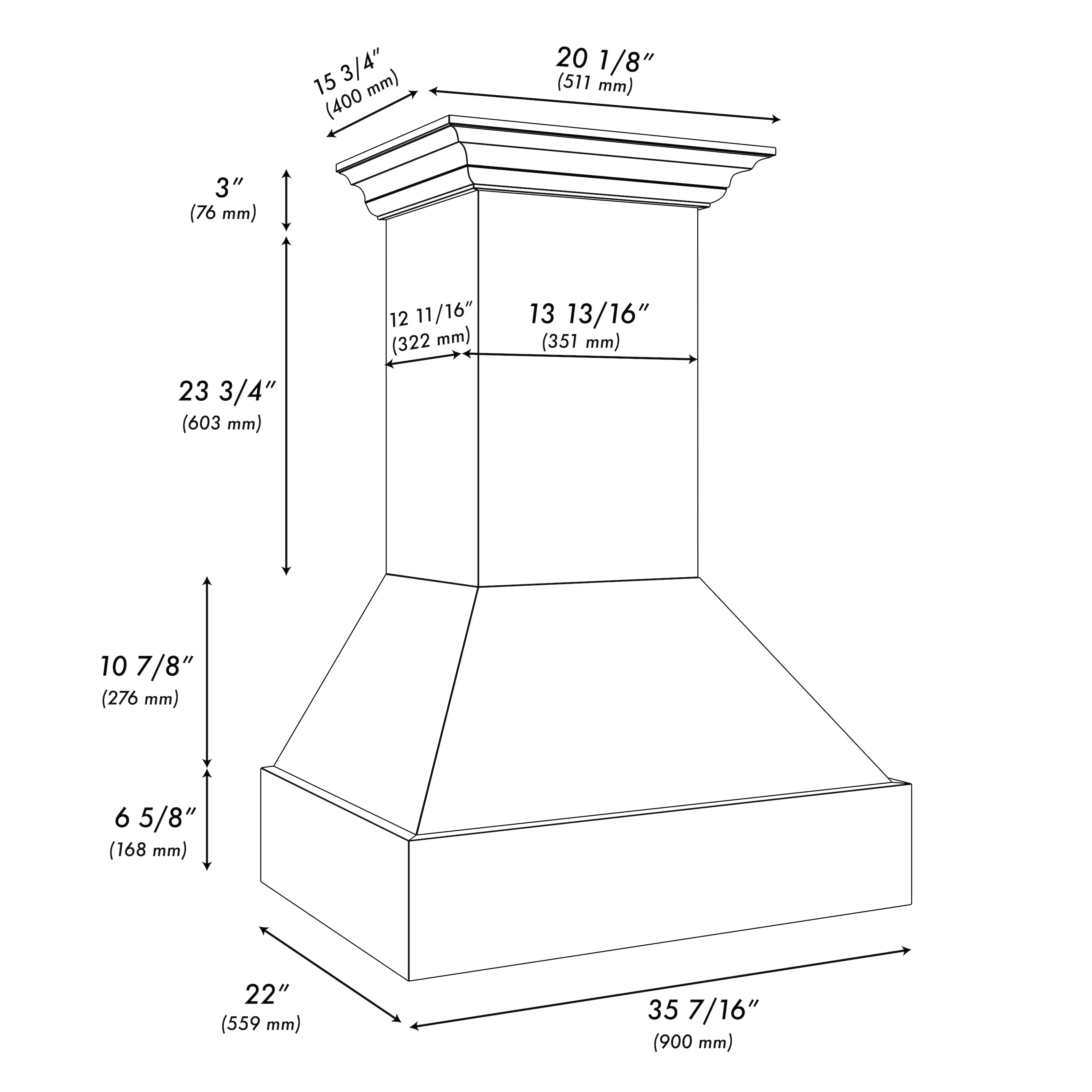

DIMENSIONS
- Dimensions
- 35.44 in. W x 22 in. D x 17.5 in. H
- Chimney Dimensions
- 14 in. W x 13 in. D x 23.5 in. H
- Min/Max Chimney Height
- 7.46 ft. / 9.46 ft.
- Duct Size (Round Duct)
- 6 in. (30 Inch), 8 in. (36 Inch)
GENERAL INFORMATION
- Brand
- ZLINE Kitchen and Bath
- Outdoor Approved (Y/N)
- No
- Mount Type
- Wall Mount
DESIGN & FINISH

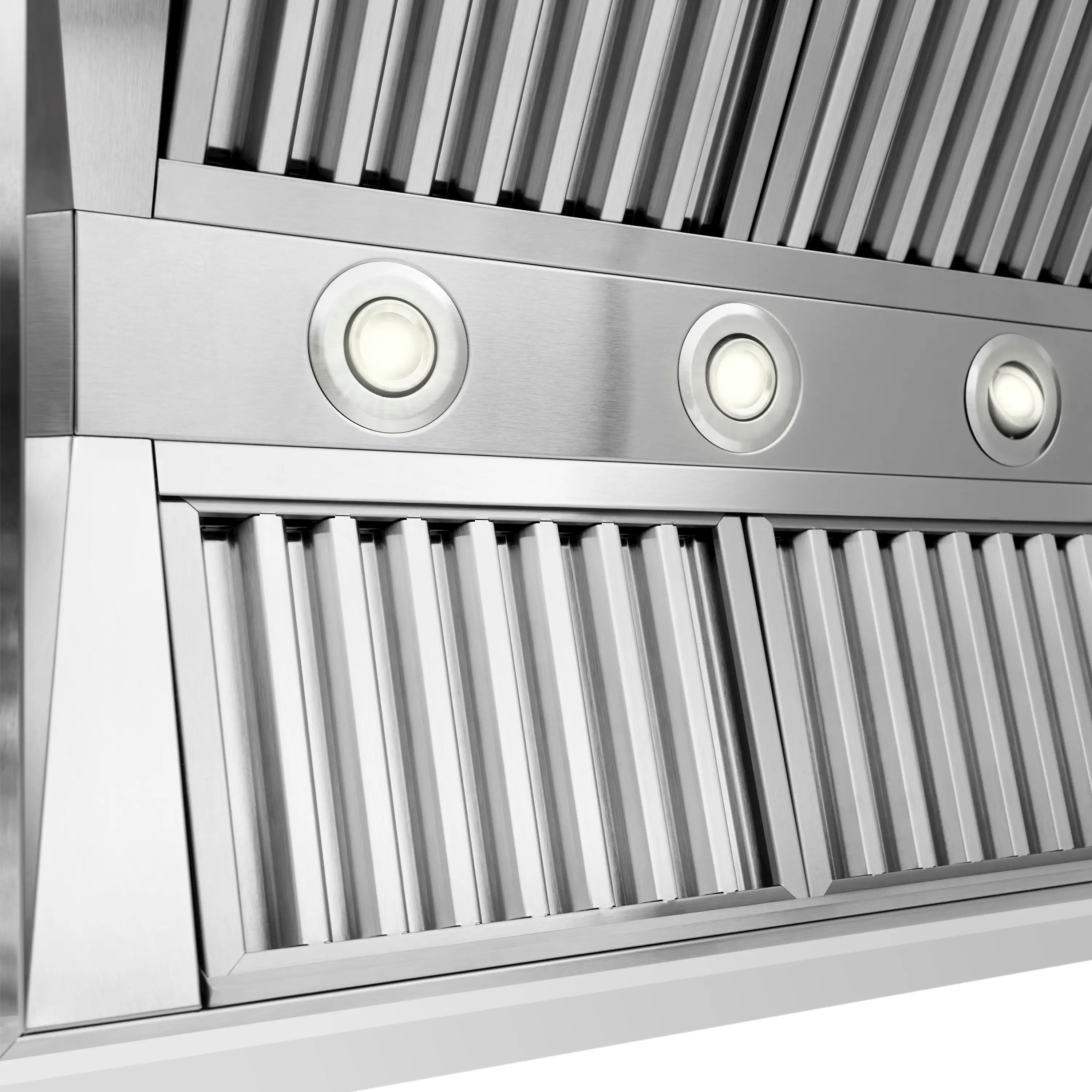

- Lighting (# of Lights)
- 3
- Material
- Solid Birch Wood Exterior with Distressed Finish in. Bright White
TECHNICAL DETAILS
- Max CFM
- 400 CFM (30 Inch), 700 CFM (36 Inch)
- Airflow (Q/L/M/H)
- 120/240/320/400 CFM (30 Inch), 280/420/560/700 CFM (36 Inch)
- Convertible from Ducted to Recirculating (Y/N)
- No
- Electrical Requirements (Voltage, Amps, Watts)
- 110V/5a/550W
- Motor
- High Performance 4 Speed Motor
- Speeds
- 4
- Filters
- Stainless Steel Baffle Filters (Dishwasher-safe)

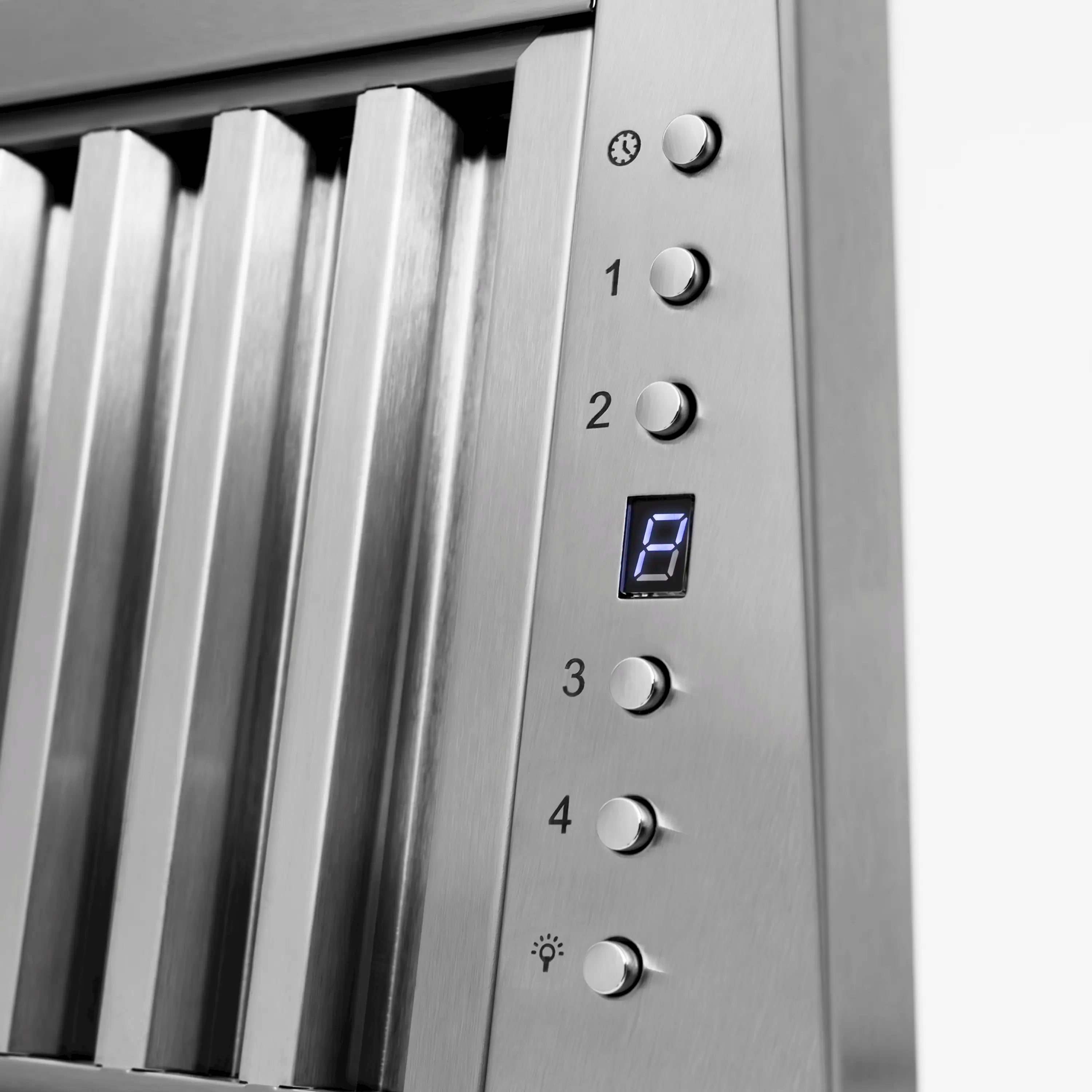

- Control Type
- Push Button Control Panel
FEATURES
- Compatible Accessories
- 355WW-E
- Remote Blower (Y/N)
- No
- Decibels
- 30/41/49/52 (30 Inch), 51/55/58/61 (36 Inch)
WARRANTY & CERTIFICATIONS
- Certifications
- ETL Listed and CEC Listed
- Warranty
- 3 Year Parts Only Lifetime Motor Warranty
