Description

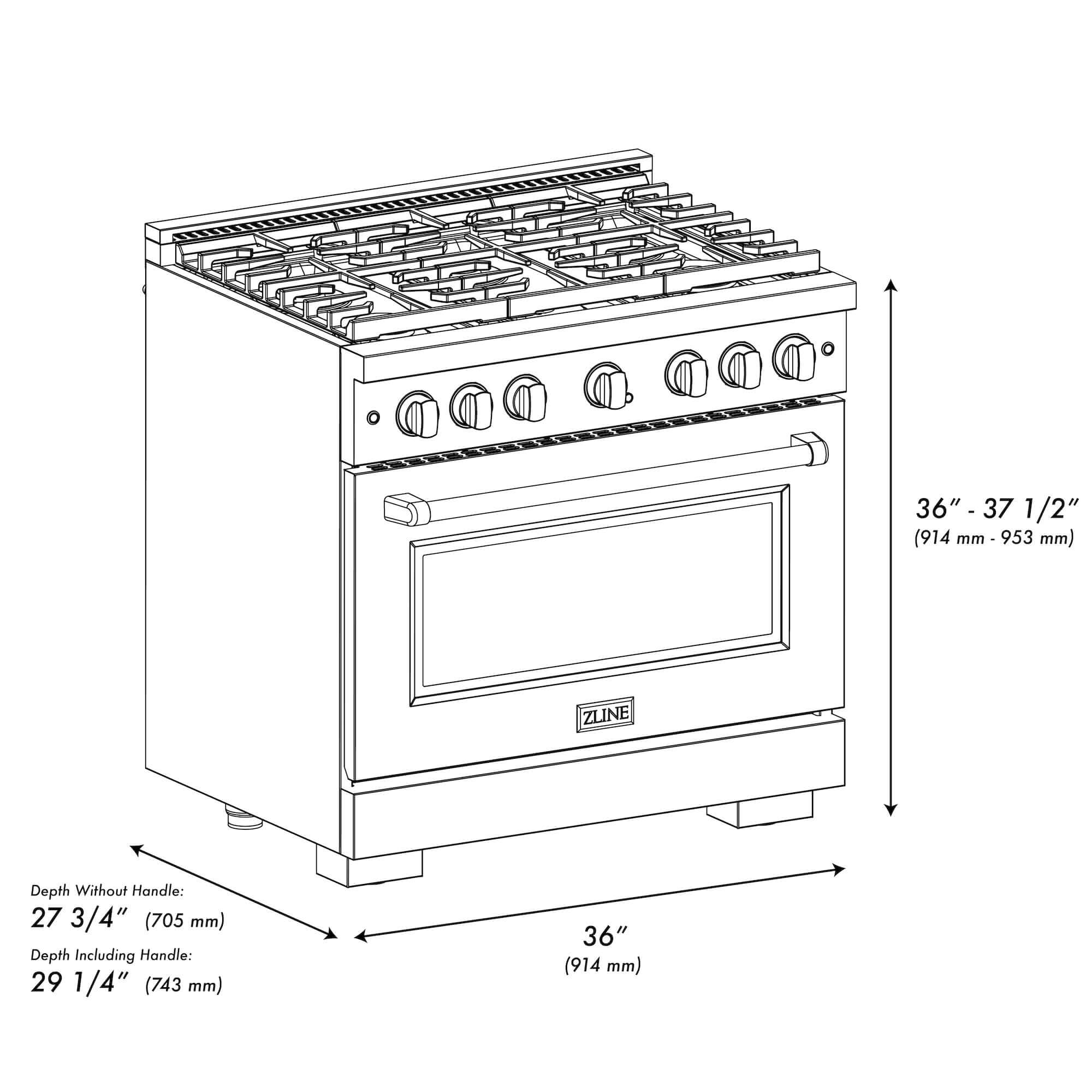

DIMENSIONS
- Dimensions
- 36 in. W x 27.75 in. D (29.25 with handle) x 36 in. H
- Cut-Out Dimensions
- 36.25 in. W x 24.75 in. D x 36 in. H
- Adjustable Height
- 36 - 37.5 in. H
- Product Depth with Handle
- 29.25 in. D
- Open Door Depth
- 45.1 in. D
- Interior Oven Dimensions
- 31.375 in. W x 17.75 in. D x 16.375 in. H
- Weight
- 256 lbs
- Range Size (Width)
- 36 in.
GENERAL INFORMATION
- Appliance Category
- Range
- Additional Features

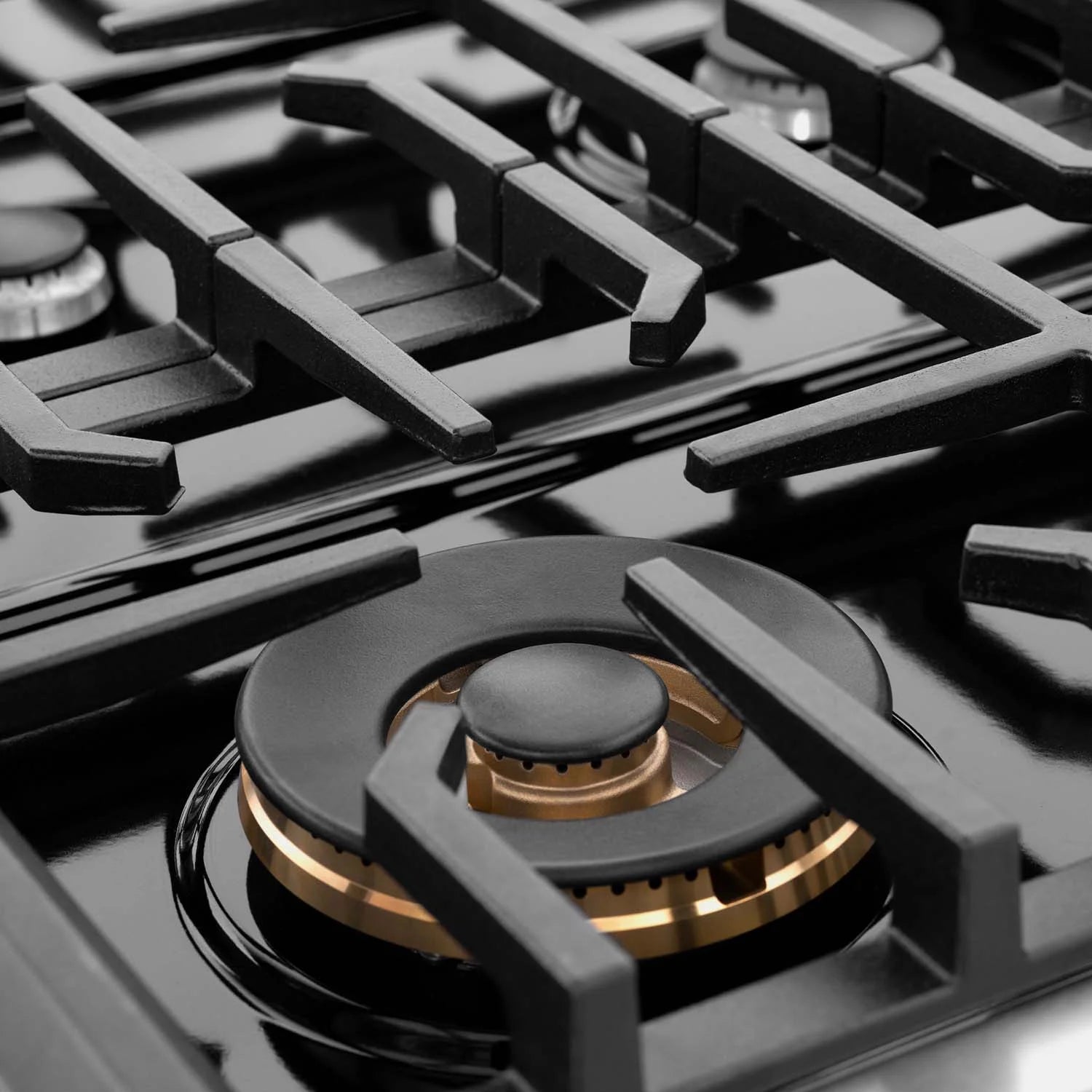

- Italian Burners (Lifetime Burner Warranty)
- Electronic Ignition and Auto-Reignition

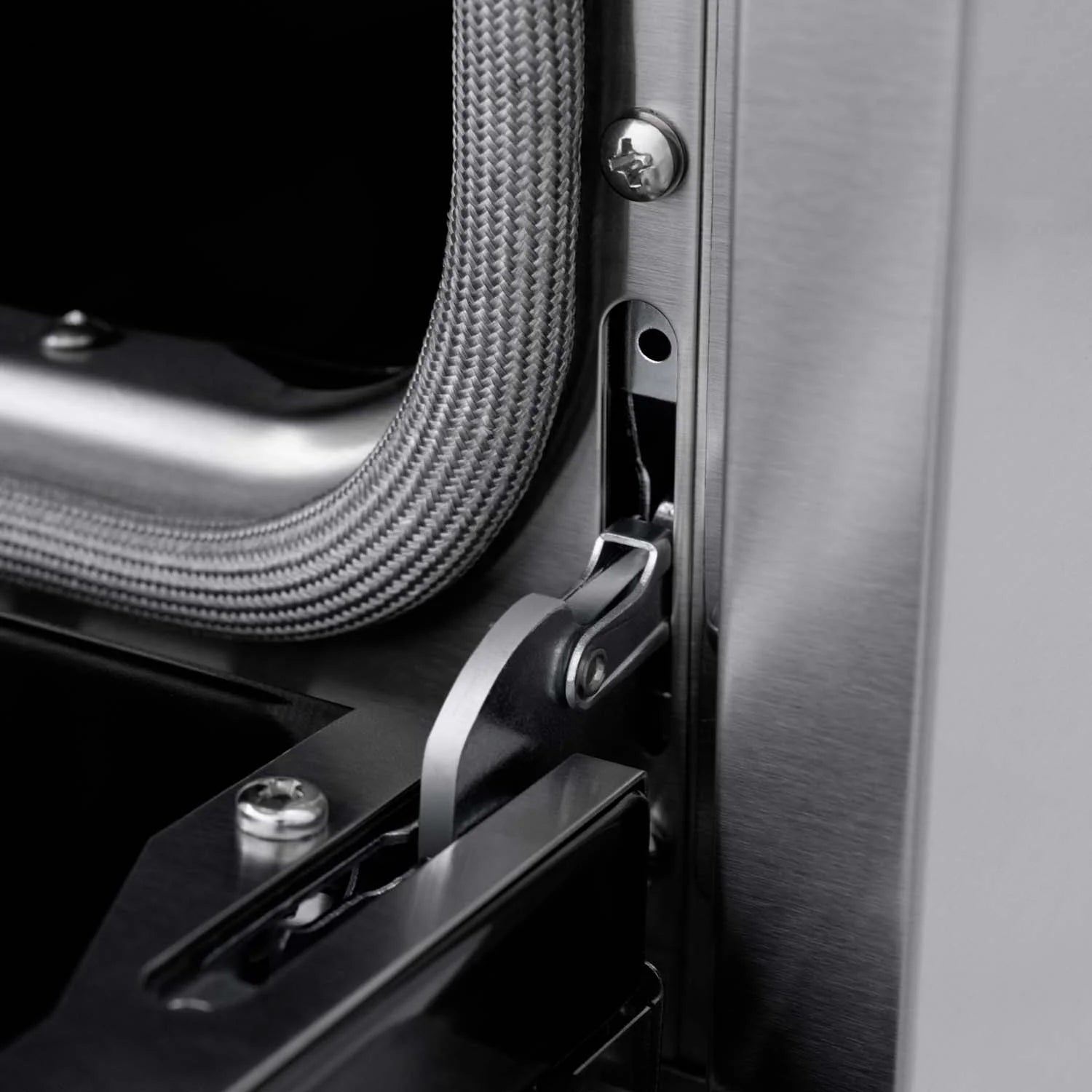

- Stay-Put Hinges

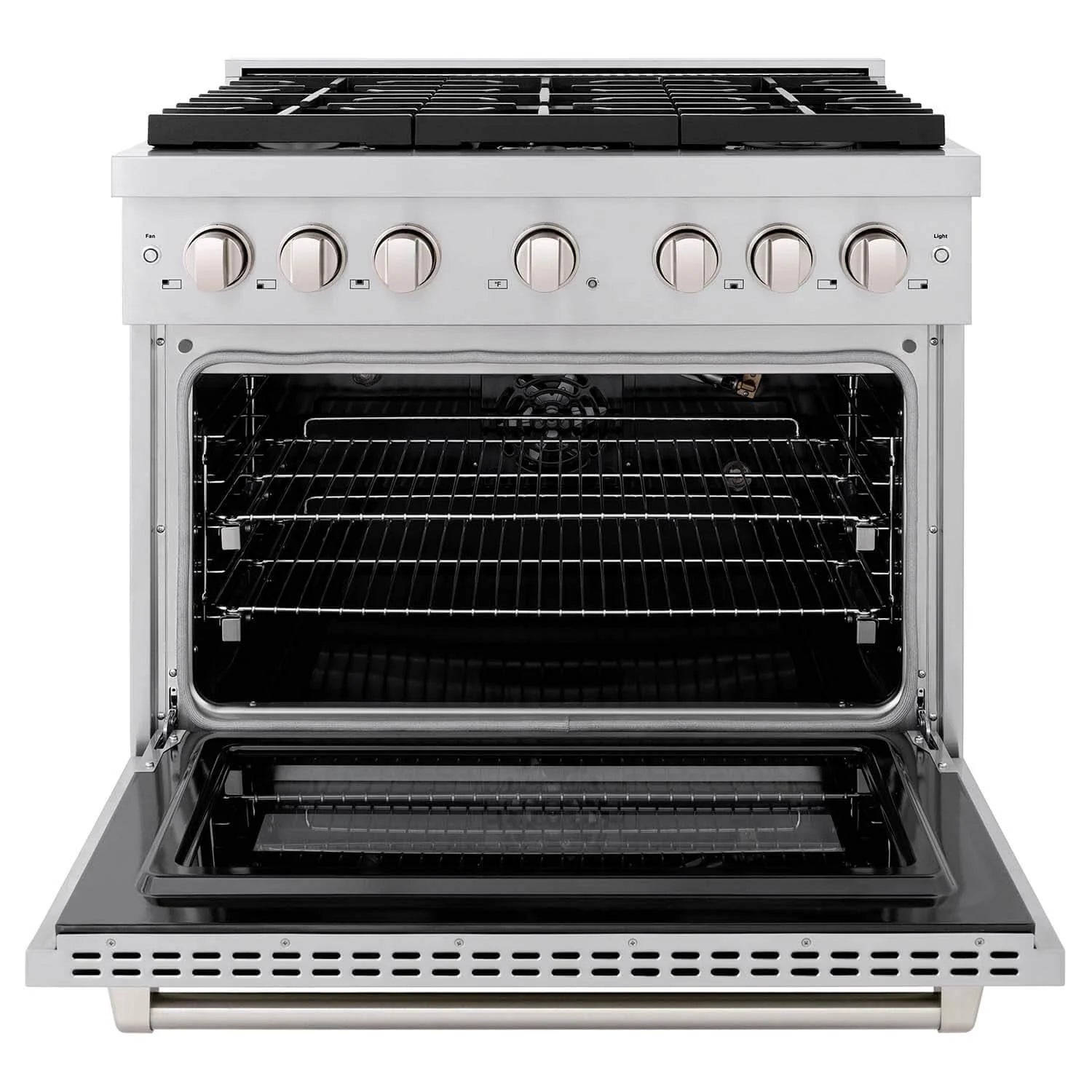

- Full Extension Telescoping Glide Racks
- LED Accent Lighting
- 3-Layered Glass on Oven Door
DESIGN & FINISH
- Material
- Stainless Steel

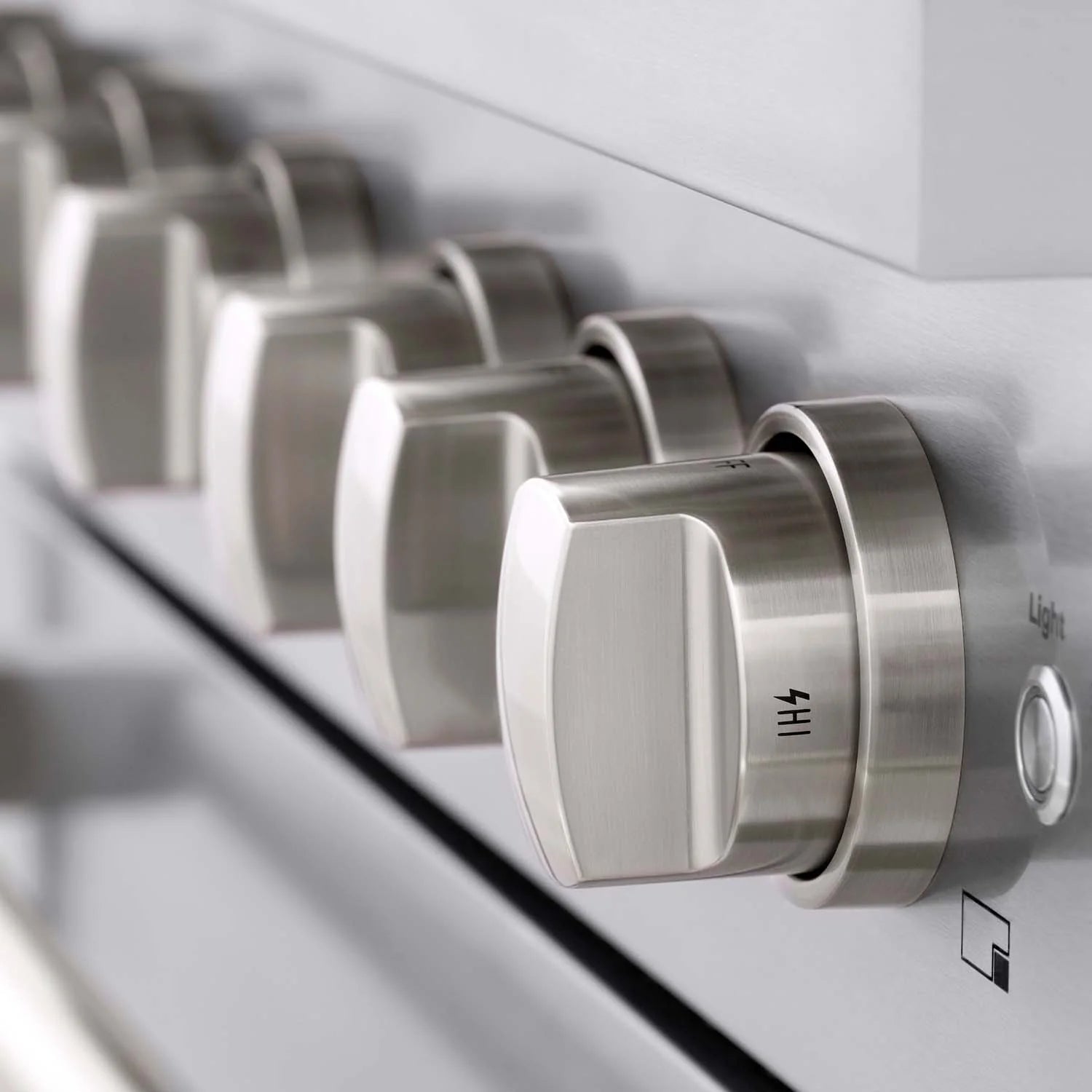

- Control Type
- Manual Front Control
- Lighting
- 2 Halogen Lights
TECHNICAL DETAILS
- Electrical Requirements
- 120V/60 Hz/15A Dedicated Circuit

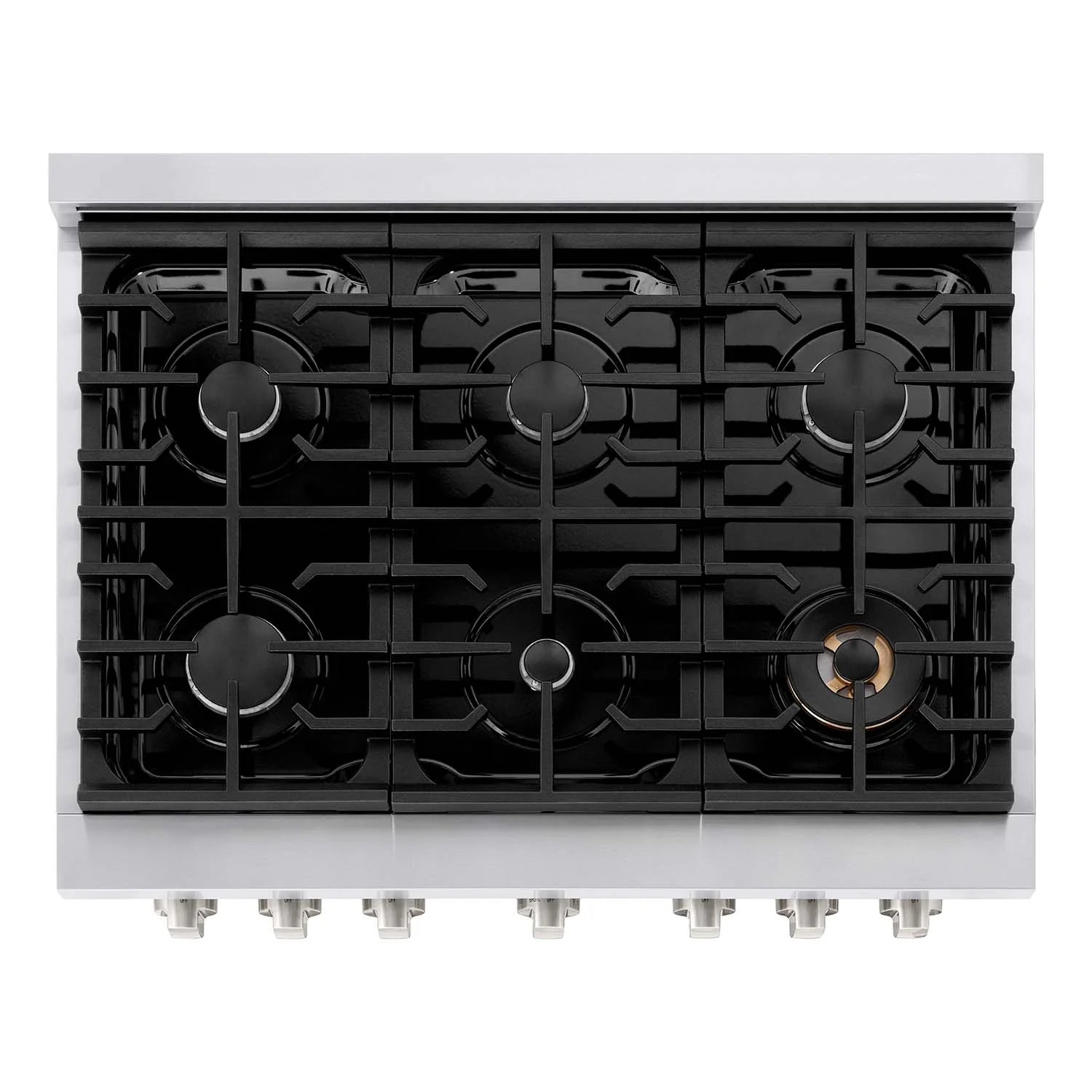

COOKTOP FEATURES
- Burner Fuel
- Natural Gas and Liquid Propane Convertible
- Number of Burners
- 6
- Ignition
- Electronic Ignition and Auto-Reignition
- Back Left Burner
- Semi-Rapid 9,000 BTU
- Front Left Burner
- Rapid 15,000 BTU
- Back Right Burner
- Rapid 12,000 BTU
- Front Right Burner
- Dual 20,000 BTU
- Back Middle Burner
- Semi-Rapid 9,000 BTU
- Front Middle Burner
- Auxiliary 6,000 BTU

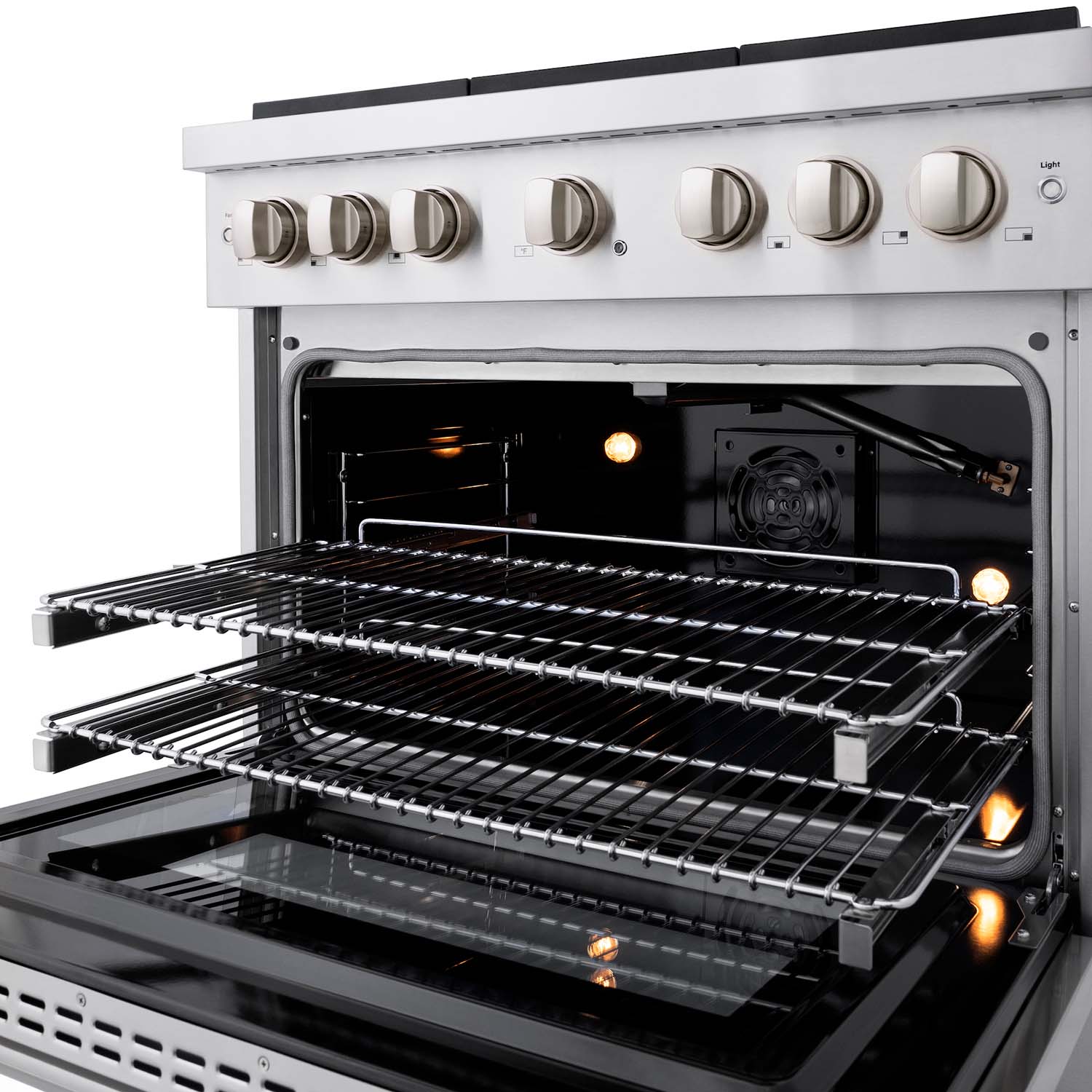

OVEN FEATURES
- Oven Capacity (cu. ft.)
- 5.2
- Oven Fuel
- Natural Gas and Liquid Propane Convertible
- Bake BTU Output
- 22,000 BTU
- Broil BTU Output
- 10,000 BTU
- Oven Features
- Bake
- Broil
- Convection Bake

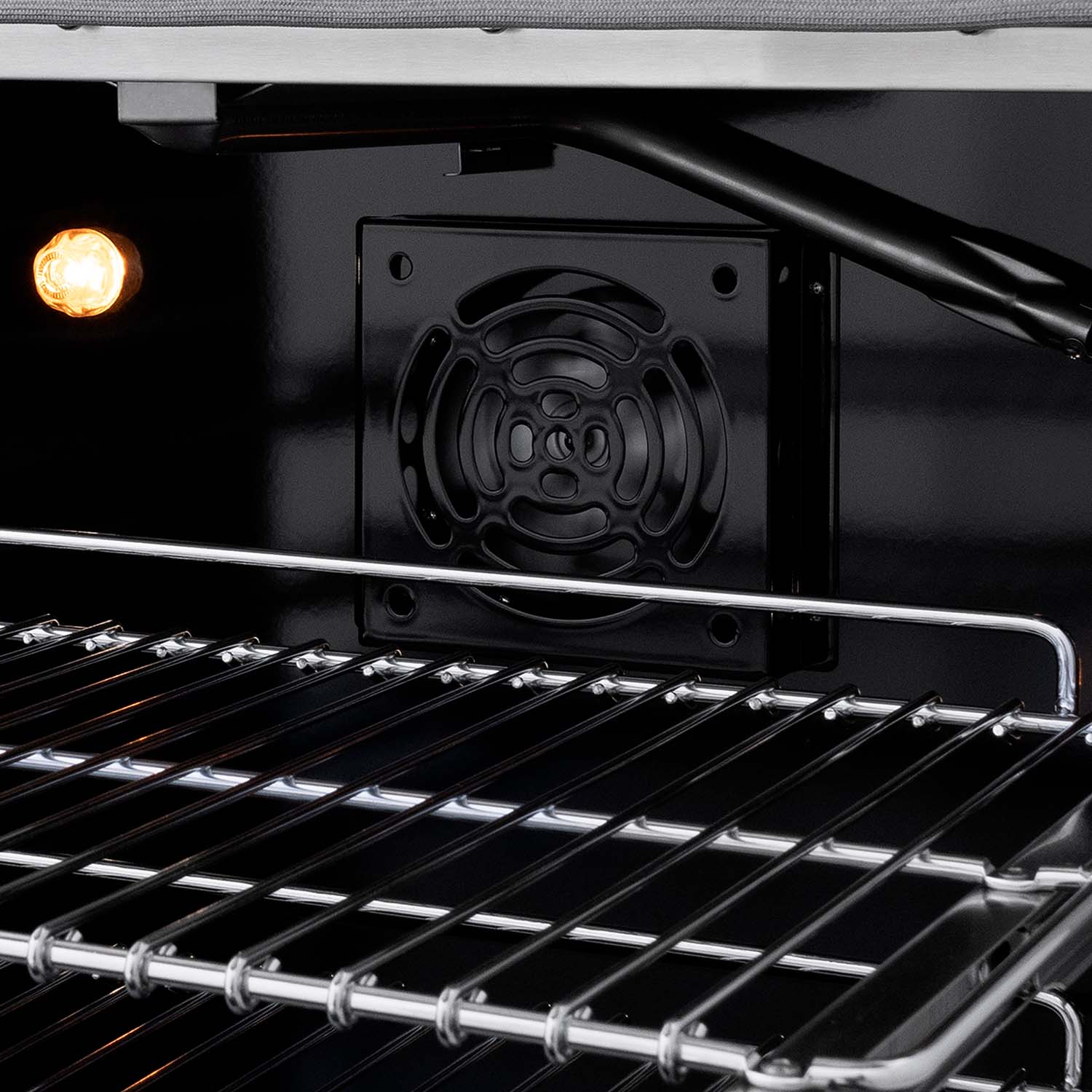

- Convection Fan
- Yes
- Self Clean
- No
- Timer
- No
- Number of Racks
- 2
WARRANTY & CERTIFICATIONS
- Certifications
- ETL Listed
- Warranty
- 1-Year Parts and Service, Lifetime Burner Warranty
