Description

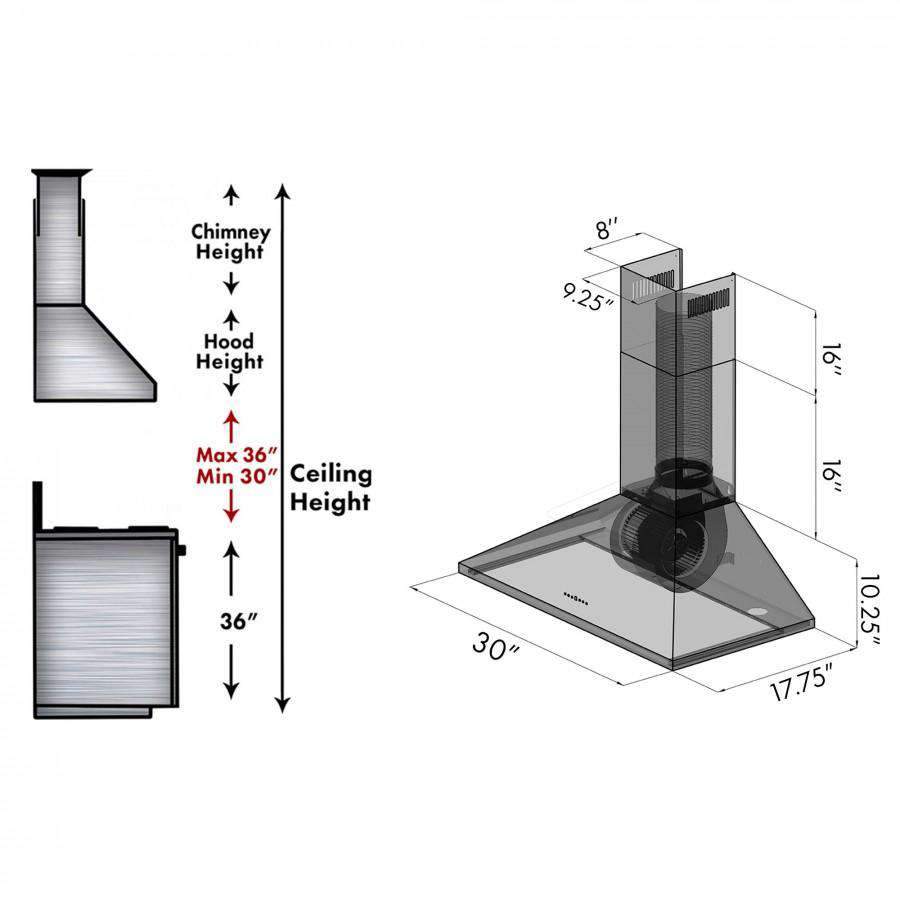

DIMENSIONS
- Dimension
- 30" W x 17.7" D x 10"H
- Chimney (Dimension)
- 9.2" W x 8" D x 16"H (x2) (Telescoping) Chimney Short Kit and Extension(s) Available: Short Kit (2-12") ~8 ft. Ceilings 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings 2 PC Extension (2-36") ~10-12 ft. Ceilings
GENERAL INFORMATION
- Mount Type
- Wall Mounted
DESIGN & FINISH
- Control Type
- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
- Material
- 21g #430 Stainless Steel
TECHNICAL DETAILS
- Venting Size
- 6" Outlet (Transition piece with backdraft damper to round ducting included) Charcoal Filters (not included) available for ductless/recirculating option.
- Airflow (Q/L/M/H)
- 120/240/320/400
- Noise Level
- 20/29/34/41
- Voltage
- 110V/60HZ
- Motor
- High Performance 400 CFM/4-Speed Motor
- Speeds
- 4 Speeds
FEATURES
- Lighting
- 2 Directional LED Lights (3-Watt)

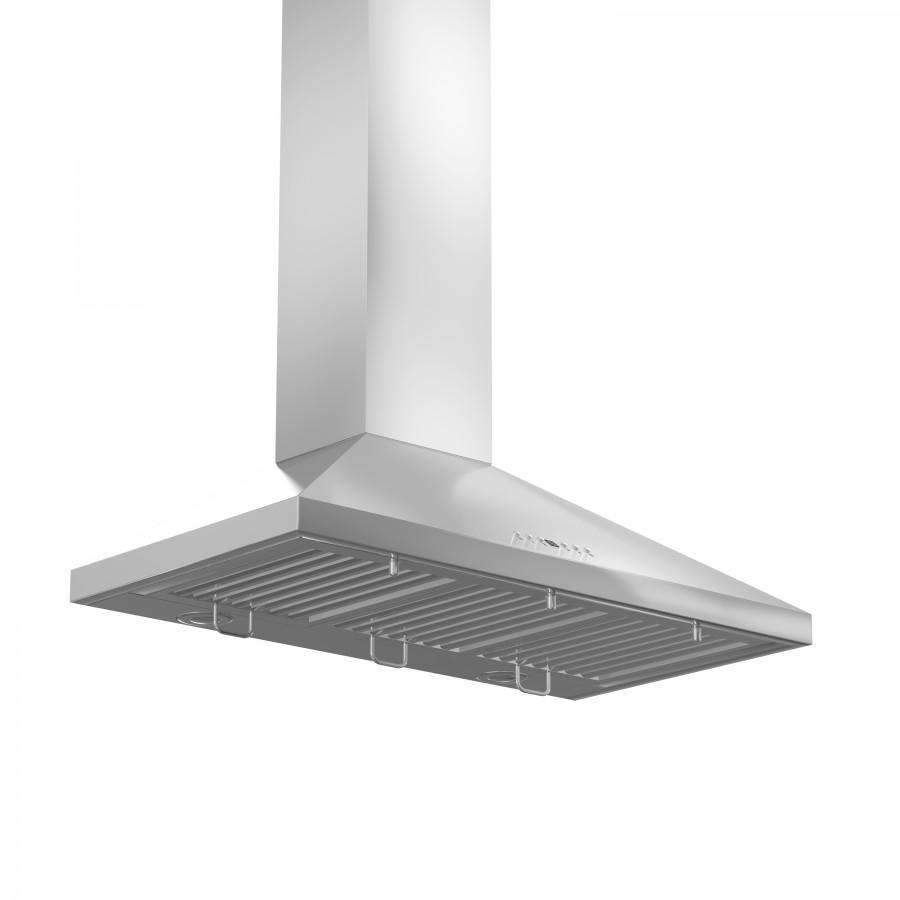

- Filters
- Stainless Steel Baffle Filters (Dishwasher Safe)
- Features
- Model No. KL2-30 (ETL Listed) **CROWN MOLDING AVAILABLE FOR THIS MODEL**
WARRANTY & CERTIFICATIONS
- Warranty
- 3 Year Parts Warranty
- Certifications
- ETL Certified
