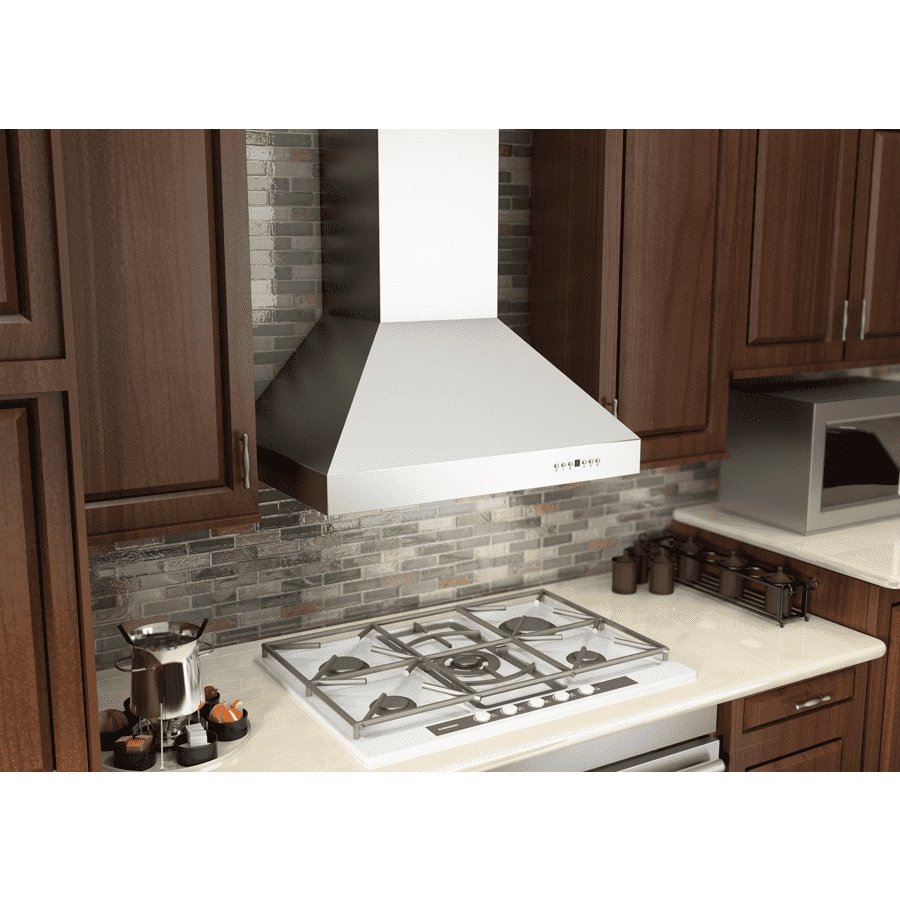

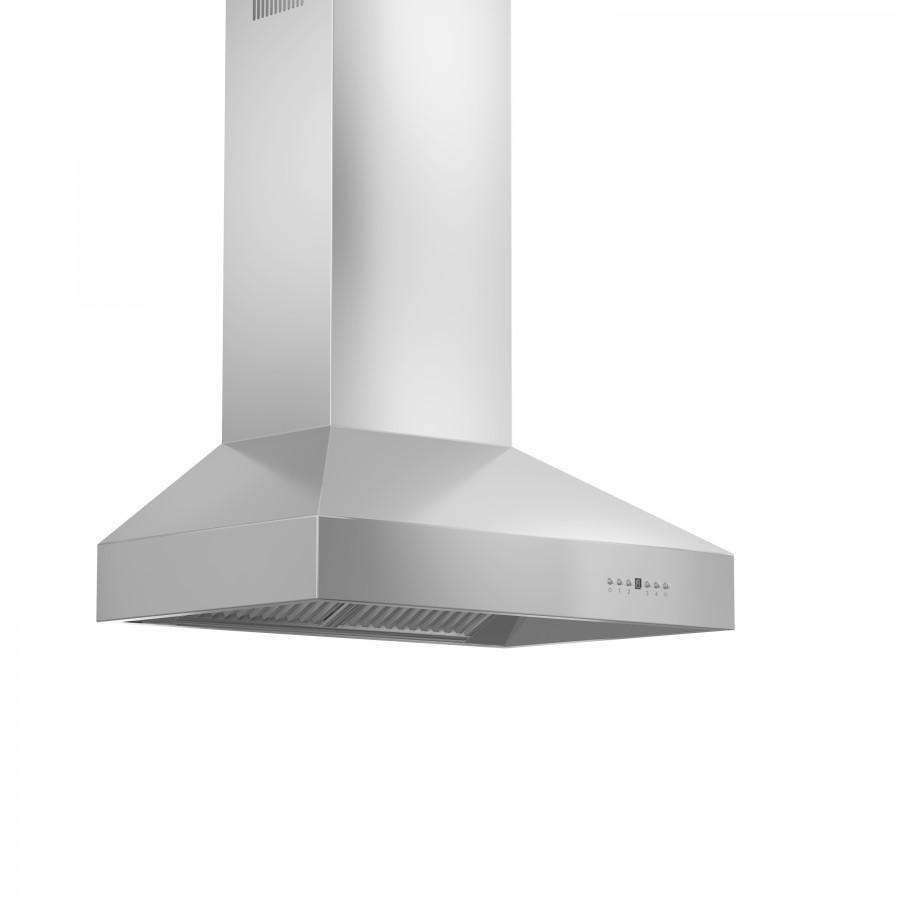

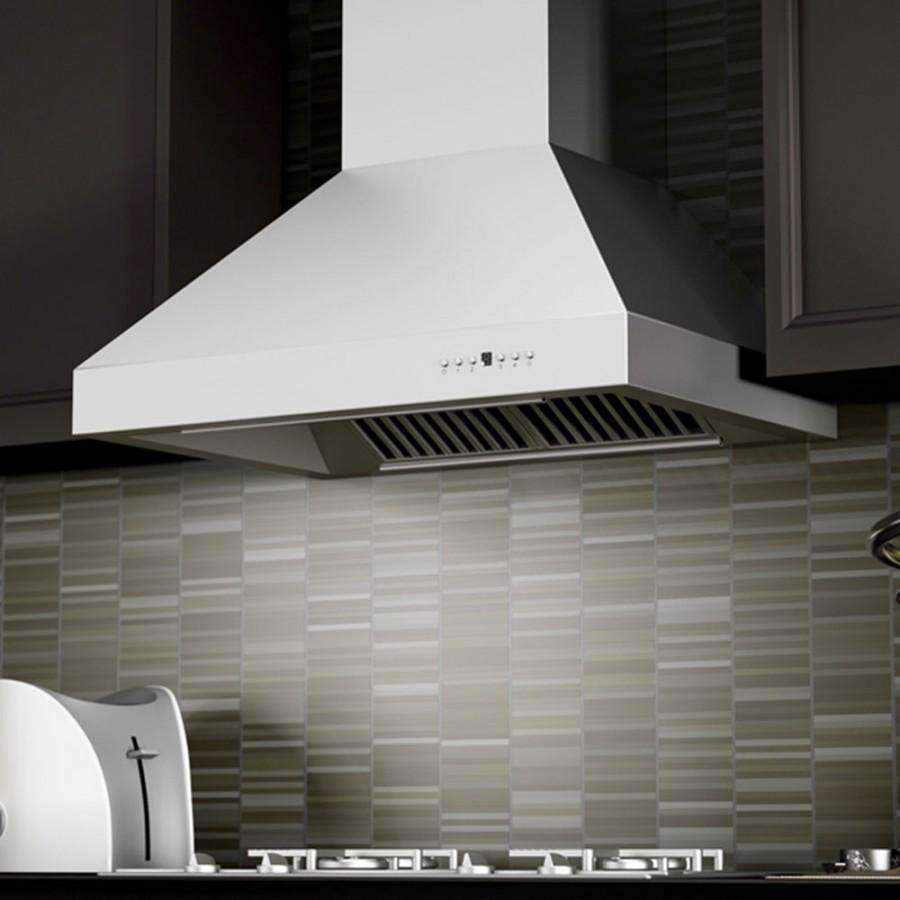

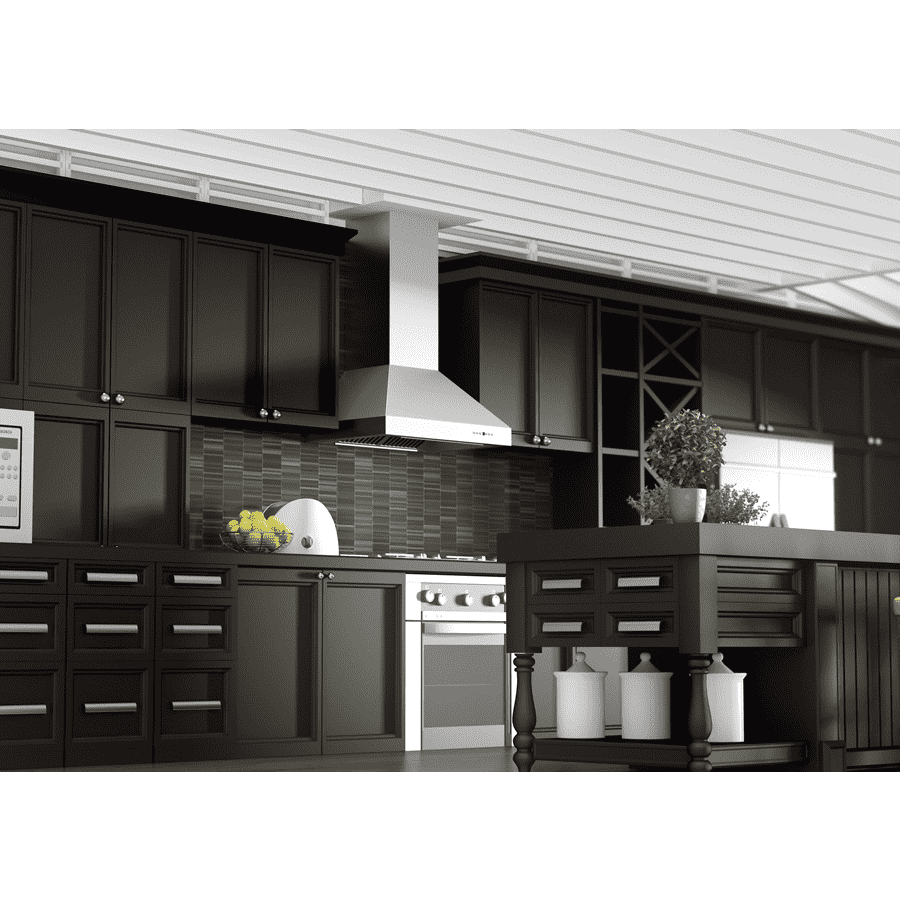

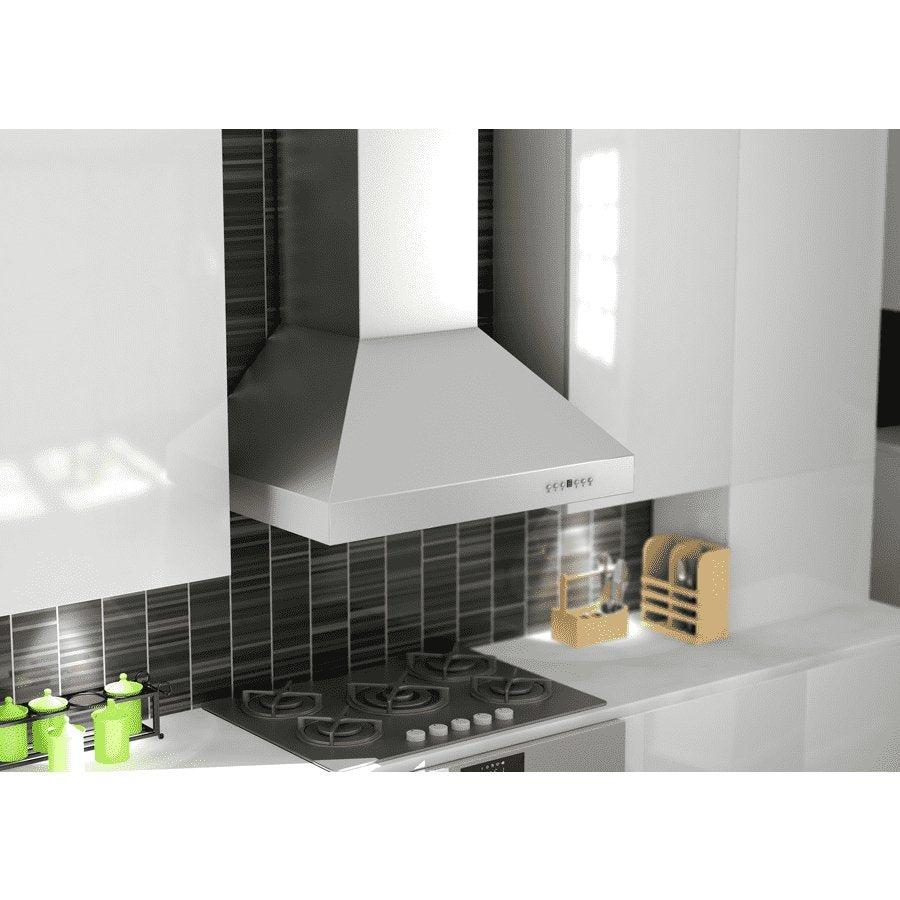

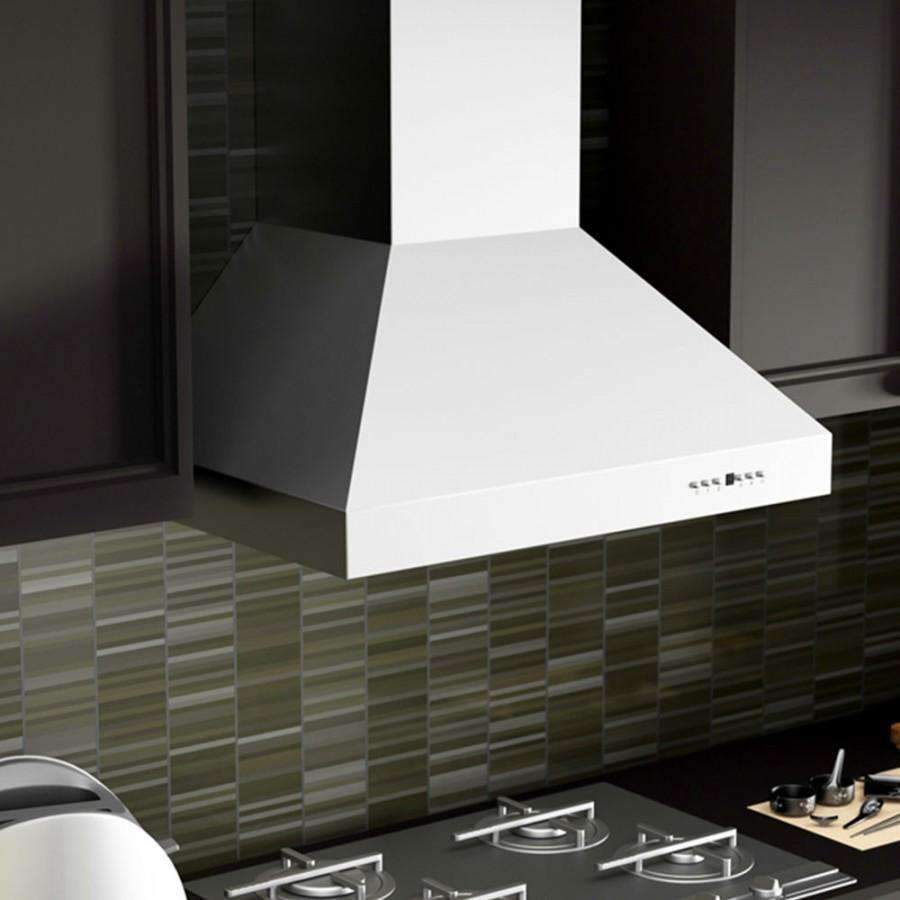

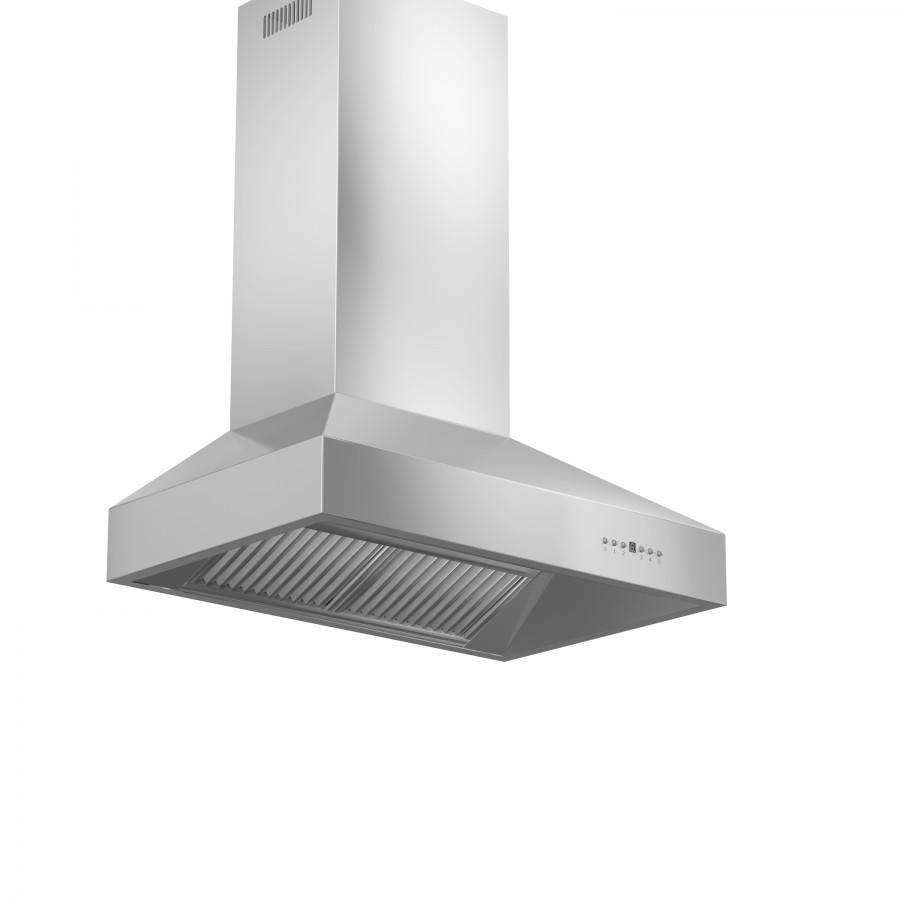

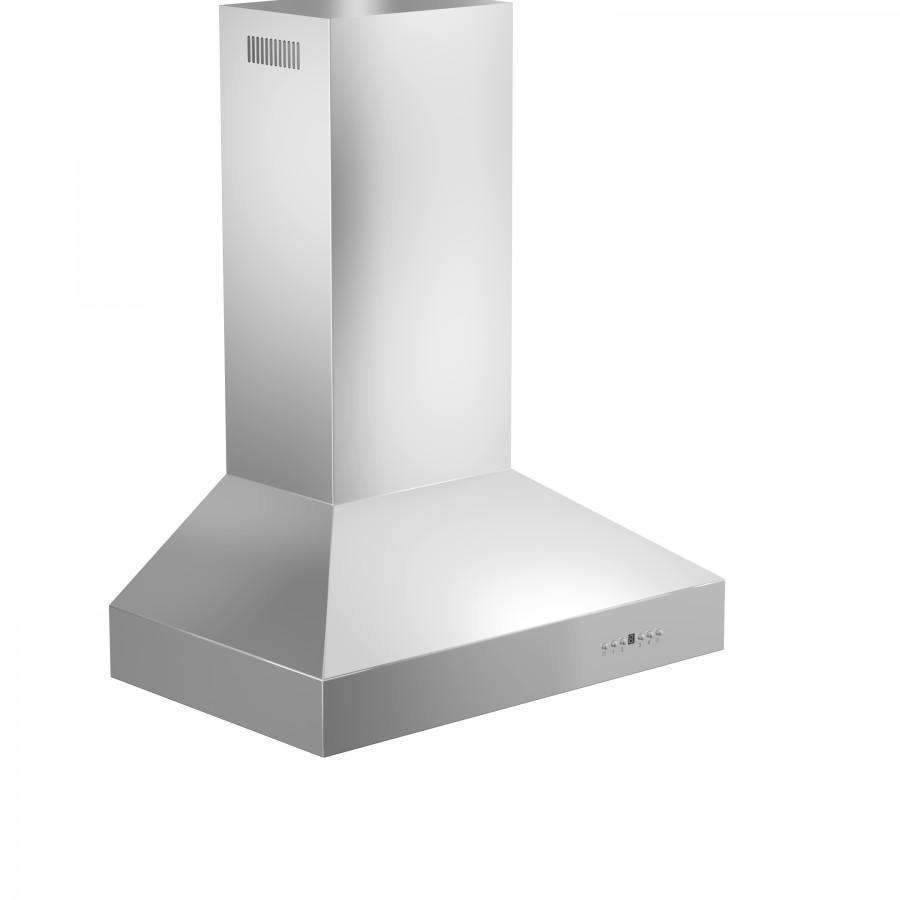

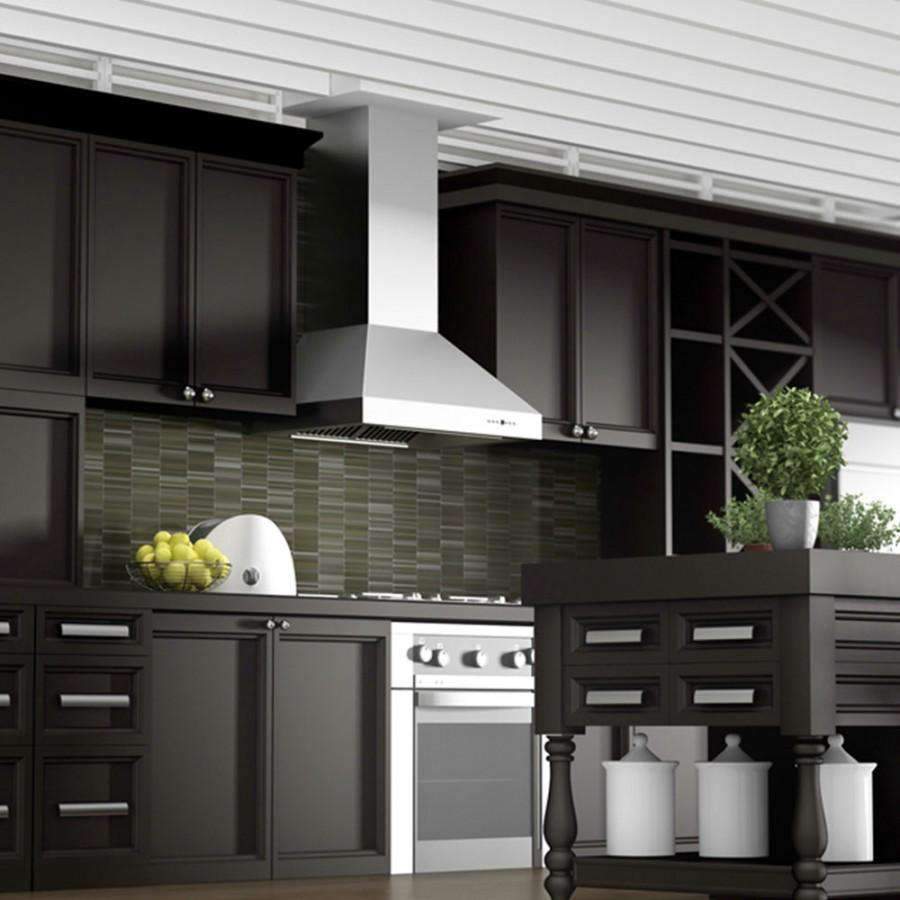

ZLINE 30" Stainless Steel Wall Range Hood, 697-30
The ZLINE 697-30 is a 30-inch professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
This hood contains many unique features, such as:
- Convertible range hood - this unit can be externally vented or recirculated (ductless) with charcoal filters (not included, model number CF1) to reduce harmful odors
- Easy-to-use push button controls let's you easily control fan speed and lighting
- 4-Speed fan control (120/240/320/400 CFM) to choose the appropriate air flow for your cooking situation
- Ductwork easily connects to the top of the range hood for external venting
- Dishwasher-safe stainless steel baffle filters
- LED lighting illuminates the cooktop beneath the hood
- Designed to fit standard (circular) ductwork for simple installation
- 3 year parts warranty, life-time motor warranty
All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimneypieces, allowing a fit for most ceilings between 8 and 9 feet. For ceilings shorter than 8 feet, or taller than 9 feet, see table below for detailed options.
ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The 697-30 ships next business day when in stock.
OPTIONS & ACCESSORIES
- Ductless/Recirculate Option - Yes requires CF1 Filters (sold separately)
- Ceiling Heights Options:
- Less 8’ - Require Short Kit SK-455/476/477/667/697
- 8’ to 9' - No Ext or Short Kit required
- 9' to 10’ - Require Ext 1PCEXT-455/476/477/667/697
- 10' to 12’ - Require Ext 2PCEXT-455/476/477/667/697
- Crown Molding(s) - Available for purchase (sold separately):
- Certified Outdoor Use - No
- Also available in - 36" (697-36), 42" (697-42), 48" (697-48), 54" (697-54) and 60" (697-60)
ZLINE Kitchen and Bath
30" W x 27.5" D x 16.5" H
13.5" W x 11.75" D x 16" H (x2) (Telescoping)
6" Outlet (Transition piece with backdraft damper to round ducting included)
Charcoal Filters (not included) available for ductless/recirculating option.
2 Directional LED Lights (3-Watt)
High Performance 400 CFM/4-Speed Motor
Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Stainless Steel Baffle Filters (Dishwasher Safe)
21g #430 Stainless Steel
3 Year Parts Warranty
Model No. 697-30 (ETL Listed)
Range Hood Decibel Levels
ZLINE Range Hoods are supposed to be seen, not heard. That's why even at the highest speed our range hoods only reach 56 decibels, which is quieter than your average conversation. Rest assured that your new range hood will not be interrupting your dinner party or when you're helping with homework.

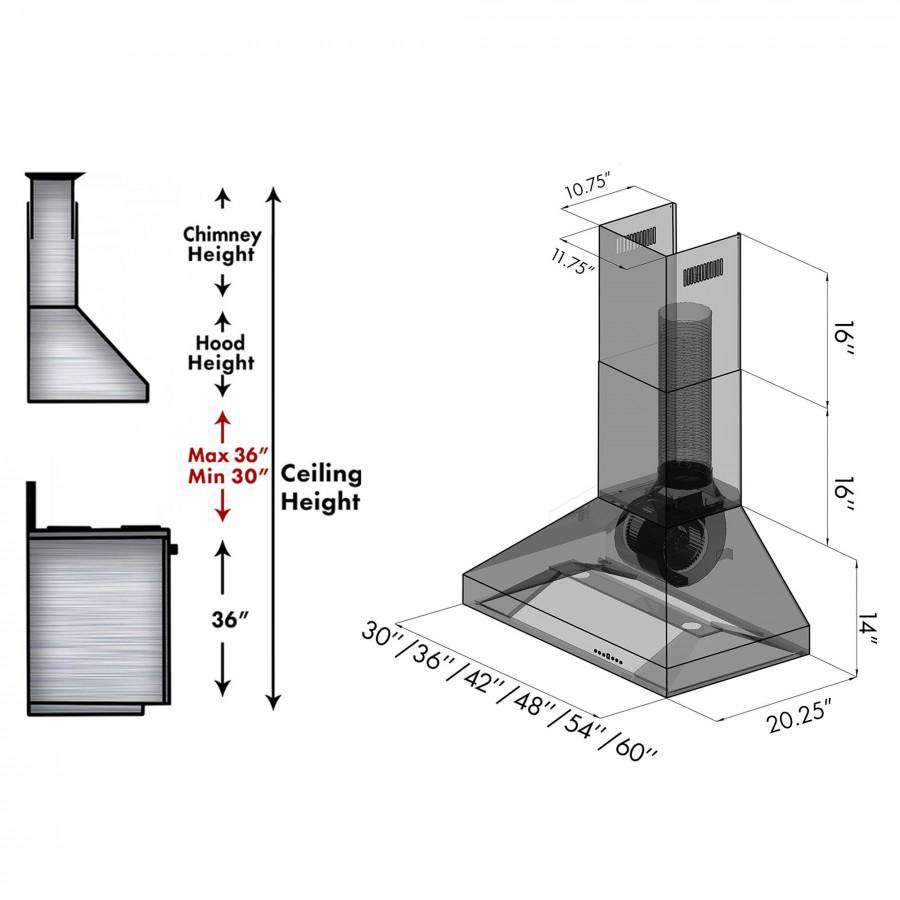

ZLINE Range Hoods are designed to fit the majority of kitchens right out of the box. Some kitchens with shorter ceilings do need a shortening kit or an extension kit depending on ceiling height. All our stainless steel hoods come with two telescoping chimneys to ensure the perfect fit. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size. Watch the video to learn more about sizing your chimney.
Shipping & Returns
- Shipping is FREE
- Large appliances ship via FedEx Freight or similar courier. Delivery is curbside, meaning the carrier will drop off your item on your property not inside your home. The courier company will call ahead of time to schedule a drop off date
- For more details, visit our Shipping Page
- 30-Day Return Policy.
- If your order arrives damaged, we will exchange you for a new one
- Extensions, Short Kits, Charcoal Filters, and Crown Moldings are non-returnable items.
- For more details, visit our Return Policy Page
Price Match Guarantee:
- Find another online store that offers a lower price? We will match it!
- For more information, visit our Price Match Guarantee Page
Customer ReviewsWrite a review
Installed this hood and I love how stylish it is. It's so quiet and pulls a lot of air. Great buy!
Service has been outstanding from this company - every single question was answered and the everything was covered making sure it would look great and fit fmy 10 ft. ceiling in our new home. they called me back and was treating me like it was going into their own home. Thank U
Spoke with Home Outlet Direct before I bought. They were very helpful and made the process a breeze. Love the range hood!
I am a contractor and have put in two of these in the past month. Everything is good about it. Noise, installation, quality, shipping. The optional chimney sizes and the crown put it over the top. The only thing i did not like about it is that the lights are on the back. We did a full granite backsplash which is about 1 1/4" deep. The lights touch the backsplash and cannot be moved. The light also highlights the seam in the granite that we had to put in this case. I am sure that if it were a tile backsplash it would do the same by highlighting any imperfections in the tile by shining a light straight down. I will be reccomending this to another client soon, but will give a warning about the light situation.
