Description

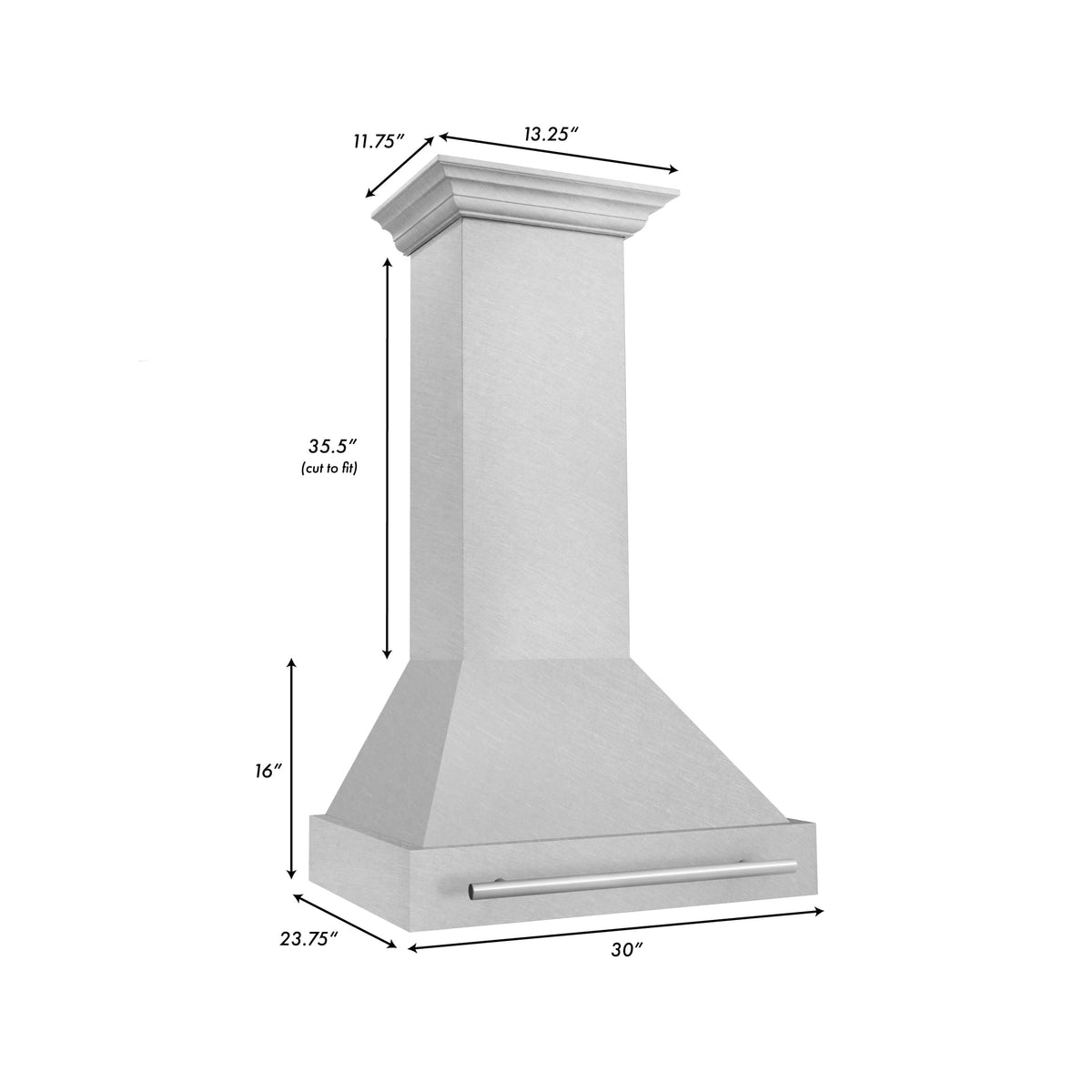

DIMENSIONS
- Dimension
- 30 in. W x 23.75 in. D x 16 in. H
- Max Ceiling
- 9.5 feet
GENERAL INFORMATION
- Brand
- ZLINE Kitchen and Bath
- Mount Type
- Wall Mounted
DESIGN & FINISH
- Control Type
- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
- Material
- Satin Stainless Steel
TECHNICAL DETAILS
- Venting Size
- 8" Outlet (Transition piece to round ducting included)
- Airflow (Q/L/M/H)
- 120/240/320/400 (CFM)
- Noise Level
- 51/55/58/61 (decibels)
- Voltage
- 110V / 60HZ / 5 Amps
- Watts
- 550
- Motor
- High Performance 400 CFM/4-Speed Motor
- Speeds
- 4 Speeds
FEATURES
- Chimney
- 13.25" W x 11.75" D x 35.5" H

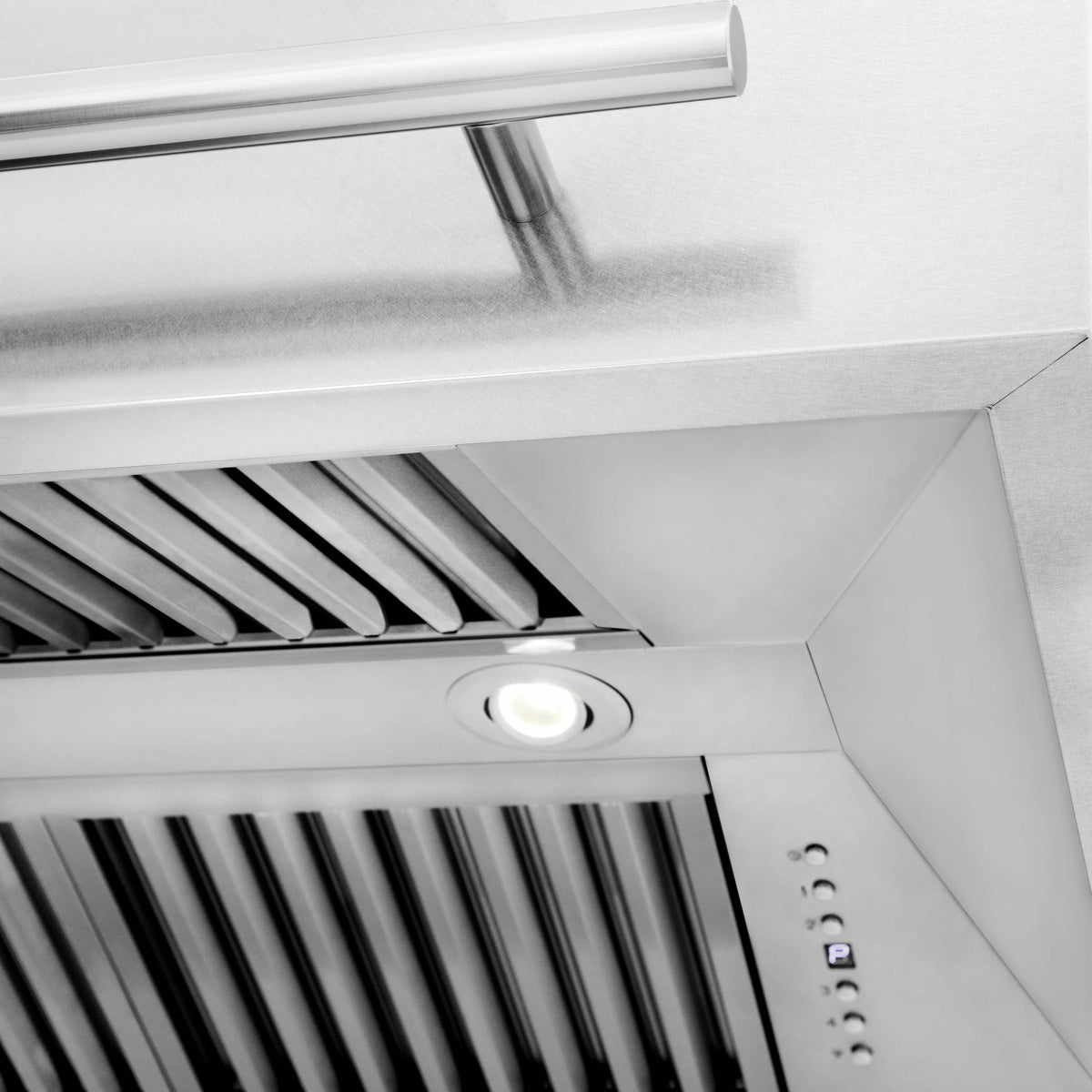

- Lighting
- 2 Directional LED Lights (3-Watt)
- Filters
- Stainless Steel Baffle Filters (Dishwasher Safe)
WARRANTY & CERTIFICATIONS
- Warranty
- 3 year parts warranty, life-time motor warranty
- Certifications
- ETL Certified
